Product Type	Soundbar with virtual surround sound
Power Supply	100–240 V, 50/60 Hz
Power Consumption (Max)	150 W
Power Consumption (ECO Standby)	0.39 W
Power Consumption (AUT Standby)	Approx. 4.8 W
Decoder	Dolby Digital, PCM (32 kHz–96 kHz/8–24 Bit)
Virtualizer	DTS TruSurround
Bluetooth Version	Standard 3.0 (A2DP)
Bluetooth Codec	Qualcomm aptX
Bluetooth Range	Up to 10 m
Inputs	Optical (TV), Coaxial (DVD), Analog (AUX)
Output	Subwoofer Out (SUB OUT)
Remote Control Battery	CR 2032
Sound Modes	Stereo, Movie Surround, Music Surround
Equalizer	Bass (±6 dB), Mid (±6 dB), Treble (±6 dB)
Extended Sound Functions	LipSync, SUB OUT, EQ presets (E01/EQ1/EQT), Dynamic Range Compression, Max Volume, Voice Enhancement
Setup Functions	Sleep Timer, Auto ON/STBY, ECO Standby, Auto BT Input, Auto BT Playback, Factory Reset, Input Configuration
IR Learning	Yes (learn TV remote codes)
Max Load Capacity (on top)	40 kg
Ambient Temperature	5 °C to 35 °C

Frequently Asked Questions - DM 101 CANTON

How do I pair my smartphone via Bluetooth?

Select the BT input on the soundbar, then press the Bluetooth® Pairing button on the remote. BTP appears on the display. Within 30 seconds, search for 'DM 101' on your device and select it. If a PIN is required, enter 0000.

Why is there no sound from the soundbar?

Check if the sound format of your source is set correctly (the DM 101 does not support DTS). Ensure the source is outputting audio and the cable is properly connected. Also verify that the optical cable's protective caps are removed.

Can I control the soundbar with my TV remote?

Yes, use the IR learning function. Press and hold the ON/Standby button on the soundbar remote for 5 seconds until IRL flashes. Then press the desired function on the soundbar remote (e.g., Volume +) and within 20 seconds press the corresponding key on your TV remote. Repeat for other functions.

How do I activate an external subwoofer?

Enter the Extended sound functions menu by pressing and holding the Sound button for 3 seconds until LIP appears. Press Sound again to cycle to SUB, then use Volume + to turn it ON. Note: when activated, the soundbar's bass is limited to 80 Hz.

What is the ECO standby function?

When enabled (ON), the soundbar automatically switches to standby after 1 hour if no signal is detected on the selected input. It can be adjusted in the setup menu (press and hold Play Mode for 3 seconds, then navigate to ECO).

How do I reset the soundbar to factory settings?

Press and hold Play Mode for 3 seconds until SLP appears, then press Play Mode repeatedly until RES shows. Press Volume + to see NO, then again to confirm YES. Wait 10 seconds for reset. Warning: all personalized settings, learned IR codes, and paired devices will be deleted.

Why does the soundbar turn off by itself?

This is likely due to the ECO standby (after 1 hour) or AUT function (after 1 minute of no signal). You can disable these in the setup menu: press and hold Play Mode for 3 seconds, then navigate to ECO or AUT and set them to OFF.

How can I improve speech clarity on the soundbar?

Use the Voice function in the Extended sound functions menu. Press and hold Sound for 3 seconds, then press Sound repeatedly until VOI appears. Use Volume + to activate it (ON). This enhances dialog intelligibility in both stereo and surround modes.

What inputs does the DM 101 support?

The DM 101 has three inputs: TV (optical/Toslink), DVD (coaxial digital), and AUX (analog RCA). There is also a SUB OUT for an external subwoofer. Bluetooth is available as a fourth input.

How do I set the sleep timer?

Press and hold Play Mode for 3 seconds until SLP appears. Then press Volume + to cycle through options: OFF, 15, 30, 45, or 60 minutes. The timer deactivates after the soundbar is turned off and must be set again each time.

USER MANUAL DM 101 CANTON

German loudspeaker tradition

Deutsch

Line drawing of a flat-screen monitor mounted on a base with a circular top and rectangular base (no text or symbols)

Simple black-and-white icon of a calculator with a circular button and ten arranged circles (no text or symbols)

TV-Fernbedienung

Simple black-and-white icon of a mobile phone with a circular button and ten circular buttons (no text or symbols)

TV-Fernbedienung

German loudspeaker tradition

Datum: 05. November 2018

Name: Günther Seitz

English

Welcome to the world of pure music

We are delighted that you have chosen a Canton loudspeaker. Our products combine high quality components with many years of development experience and meticulous production methods. In order to get the best out of your loudspeaker you need to observe a few points, as detailed in the Operating Instructions.

We hope you enjoy listening to pure music!

Contents

Safety advice....Page 37

Unpacking....Page 42

Installation....Page 42

Breaking in .... Page 42

Setting up the remote control....Page 43

Connection Terminal.... Page 43

Connection....Page 44

Operation....Page 45

Display indications....Page 46

Extended sound functions.... .Page 48

Playback via Bluetooth® Technology .....Page 51

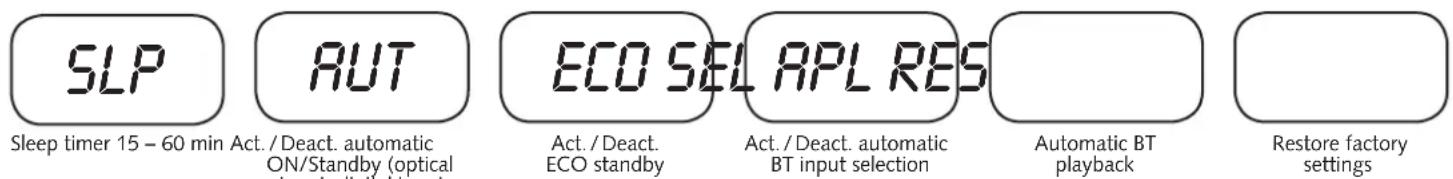

Set-up functions....Page 52

-Sleep timer Page 52

-Automatic on/off function (AUT)......Page 53

-Eco Standby (ECO)....Page 54

-Automatic selection of BT input (SEL) ...... .Page 55

-Automatic playback via BT (APL) Page 56

-Restore factory settings/Reset (RES) ...... .Page 57

Configuration of inputs (INP) Page 58

IR learning function...... Page 59

IR delete function ...... Page 61

Troubleshooting...... Page 62

Technical Specifications...... Page 66

Declaration of conformity.... Page 67

Further Information Page 68

FCC / IC advice Page 69

Guarantee Page 70

License information Page 70

The user is responsible for ensuring that the loudspeaker is correctly positioned and connected. Canton cannot accept any responsibility for damages or accidents caused by inappropriate positioning or connection.

Safety advice

Please follow the safety advice when positioning and maintaining your DM system.

Choose a level surface

Avoid moisture Avoid vibrations Never touch the power

cable with wet hands

Do not discard in household rubbish

Avoid direct sunlight Protect against extreme cold

Do not open housing Ensure correct polarity for battery and remote operation

Keep access to socket clear

Keep away from heat sources

Do not use aggressive, alcohol-based or abrasive cleaning agents

Do not reach inside the speaker

Unplug the device during thunderstorms

In case of overload turn the volume down

English

Important Safety Instructions

Notices

Read and follow all instructions.

Keep these instructions.

Heed all warnings.

Use this apparatus only in moderate climates (not in tropical climates).

Do not operate this apparatus at altitudes in excess of 2000 m above sea level.

Indoor use only. Do not use outdoors or in humid rooms.

To reduce the risk of fire and electric shock, do not expose this apparatus to rain or moisture.

Do not use this apparatus near water.

The apparatus shall not be exposed to dripping or splashing.

Strong fluctuations in temperature lead to condensation (water droplets) forming inside the apparatus. Wait until the moisture has evaporated before starting up the apparatus (min. 3 hours).

English

Objects filled with liquids (such as vases) shall not be placed on the apparatus.

No naked flame source, such as lighted candles, should be placed on or beside the apparatus.

Do not install the apparatus near any heat sources such as radiators, heat registers, stoves, or other apparatus (incl. amplifiers) that produce heat.

Prevent exposure to direct sunlight.

Observe a free space of at least 5 cm around the apparatus.

Do never defeat the safety purpose of a polarized or ground plug: A polarized plug has two blades with one wider than the other. The wide blade is provided for your safety. When the provided plug doesn't fit into your outlet, consult an electrician for replacement of the obsolete outlet.

To prevent electric shock, do not use the plug with an extension cord, receptacle, or other outlet unless the blades can be fully inserted to prevent blade exposure.

Never touch signal- and power cords with wet hands.

Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles, and the point where they exit from the apparatus.

Where the mains plug or an appliance coupler is used as the disconnect device, the mains plug of the power cord or appliance coupler shall be remain readily operable.

Unplug this apparatus during lightning storms or when unused for long periods of time.

To completely disconnect this apparatus from the mains, disconnect the supply cord plug from the receptacle.

Power down the apparatus before connecting or disconnecting any cable.

Always pull the plugs and not the cables.

Install this apparatus in accordance with the manufacturer's instructions.

Always choose a level surface. The apparatus has to be in perfect vertical alignment.

English

Important Safety Instructions

Notices

Do not use force on operating elements, connections and cables.

The apparatus may only be operated with the voltage and frequency specified on the apparatus or the name plate.

Do not insert any objects or body parts into the apparatus openings. Live components inside the enclosure could get touched and/or damaged. This could lead to short circuiting, electric shock and fire.

Only use attachments and accessories specified by the manufacturer and / or provided with the apparatus.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Clean the apparatus only with a clean, dry cloth.

Do not use aggressive, alcohol-based or abrasive cleaning agents.

To reduce the risk of electric shock, do not open the housing! There are no serviceable parts inside.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Do not make any modification to the apparatus or the accessory. Unauthorized alterations may affect the safety, regulatory compliance, or the system performance. In this case, the operating licence/warranty can expire.

Turn down the volume level immediately if sound distortions, such as unnatural knocking, beating or high-frequency clicking can be heard.

To prevent possible hearing damage, do not listen at high volume levels for long periods. Stop playback if you can hear ringing or whistling sounds in your ear or if you have the impression (even for short times) that you can no longer hear high tones.

English

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.
The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death!
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
Batteries must be inserted correctly, as shown on the polarity imprint. Incorrectly replaced batteries might cause damage.
Please keep the environmental aspects of battery disposal in mind. Batteries must be disposed of at a battery collection point.
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
Only use batteries or rechargeable batteries specified for this apparatus.
The batteries supplied are not rechargeable batteries and may therefore not be recharged.
The apparatus contains permanent magnets. Do not place objects on or right beside the apparatus that could be sensitive to magnetic fields (e.g. tube televisions, ext. hard disk drives, magnetic cards, video cassettes, etc.).
The apparatus and/or the accessory bag may contain small parts that may be a choking hazard. Therefore not suitable for children under age 3.
This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute risk of fire and electric shock.
This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying this product.
This symbol denotes equipment with Class II Protection Rating. These devices are deemed to be fully protected against the risk of electric shock during normal use by means of double or reinforced insulation, and therefore require no earth conductor.

English

Unpacking

Unpack the box carefully and check that all the following parts are present:

• 1x Canton DM Soundbar
• 1x Remote control inc. battery
- 1x Mains cable
• 1x optical digital audio cable
- 1x stereo RCA cable
- 1x digital RCA cable

Installation

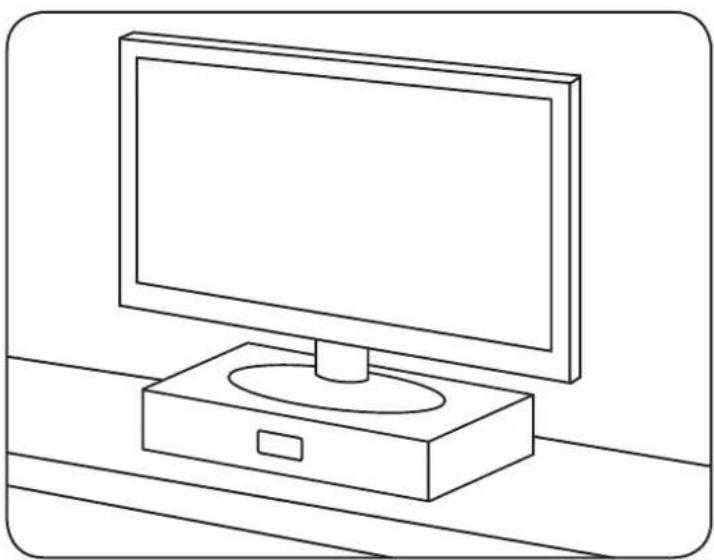

The Canton Digital Movie should be positioned underneath the screen on a flat surface. Capacity up to 40 kg

Breaking in

Maximum sound quality requires a breaking-in time of 15 – 20 operating hours.

• During this time operate the loudspeaker at normal volume
• Avoid high volume levels
• Listen to a variety of music

Line drawing of a flat-screen monitor mounted on a base with a circular button (no text or symbols)

Setting up the remote control

The remote control comes with a battery already installed. Simply remove the protective film to activate. When replacing the battery ensure that it is correctly inserted according to the polarity markings (+/-). Only use the battery specified for this system (CR 2032).

Note

The battery provided is intended for test use and may therefore have a shorter lifespan.

Remote control

English

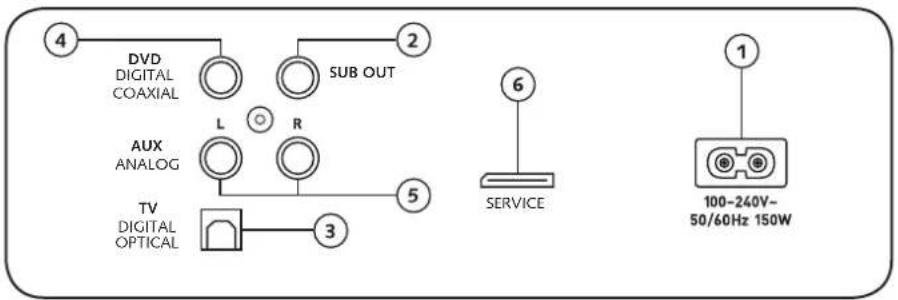

Connection Terminal

DM 101

Connections DM

1 Power Inlet
2 Output - Ext. Subwoofer
3 Input - TV (optical)
4 Input - DVD (coaxial)
5 Input - AUX (analogue)
6 Jack service (Canton)

English

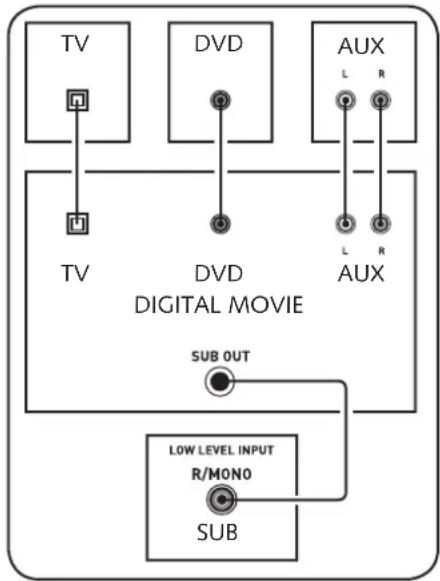

Connection

Please ensure that all electrical components are switched off before connecting. Your Digital Movie System has three optional inputs. In principle it is enough to connect one of these inputs to your TV and all further devices to your TV. To achieve the best possible sound we recommend that you connect your satellite receiver, Blu-Ray or DVD player directly to the DM system. The following options are possible, depending on the type and fittings of the source used:

Digital input (optical)

Modern TV devices have an optical audio output (Toslink). Connect this with the input marked "TV" on the DM system. This connection guarantees optimal signal transmission and best sound quality.

Important: Remove protective caps from optical cable.

Digital input (coaxial)

To transmit the DVD sound signal connect the digital coaxial output of your Blu-Ray or DVD player with the jack marked "DVD" on the DM system. To transmit the picture signal your DVD player must also be connected to the TV. The input marked "DVD" on the DM system can be selected if your TV does not have an optical output.

Analog input

If your TV only has an audio output marked "Pre-Out" then connect it using the shielded stereo RCA cable plugged into the analogue input on the DM system marked "AUX". Otherwise this input can be used to connect video recorders or game consoles.

Analog output

Use this output when you want to connect an external active subwoofer. SUB OUT is not active in the basic setting and needs to be activated using the remote control. See page 44 "Extended sound functions".

English

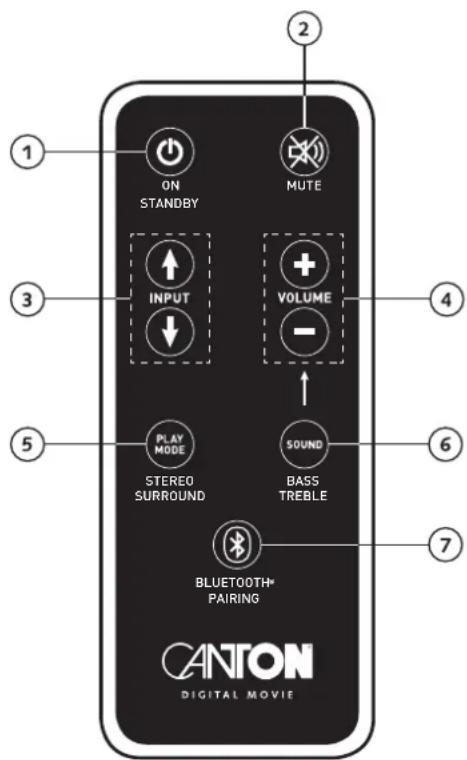

Operation

1 Power

ON – LED shines green

Standby – LED shines red

DM disconnected from the mains – LED not illuminated (OFF)

2 Mute (muting)

3 Input (signal source selection)

4 Volume (volume control up/down)

5 Play Mode

Stereo (ST) – for music

Movie (MOV) – virtual surround sound for home cinema.

Music (MUS) – virtual surround sound for music playback

6 Sound

Bass (BAS) - Adjustment via Volume control (+6... - 6 dB)

Mid-Range (MID) - Mid-range adjustment via Volume (+6 ... -6 dB)

Treble (TRE) – Adjustment via Volume control (+6... -6 dB)

7 Bluetooth® Pairing

Connection with a Bluetooth ^® Wireless Technology enabled source

Memory Function

After the DM system has been temporarily disconnected from the mains it automatically returns to the last mode selected. All settings (e.g. ON/OFF, volume) remain in place.

Remote control

Note: After selecting a function the current value will be displayed first. The value is only changed when the button is pressed a second time. E.g.: Press the "Sound" button briefly – the display will show BAS. Now press the "Volume +" button or the "Volume –" button. The display shows the current value. Press the "Volume +" or the "Volume –" button again to change the value.

English

Display indications

The DM system has a multifunctional display that lights up blue for approx. 5 seconds in response to a remote control command. The most important readouts and their meanings are shown below. The standby mode of the DM system is indicated by a red LE D light. When your DM system is in operation this LE D is green.

Input

TV

DVD

RUX

BT

TV Input (optical) DVD Input (coaxial) AUX input (analogue) Bluetooth

⑦

Soundmode

1/30

-

8+6

17+6

T+6

Volume (0–99) Mute Bass level (+/-6) Treble level (+/-6)

Playmode

STMOVUS

Stereo Movie Surround Music Surround

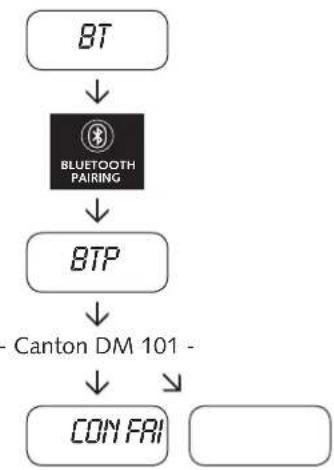

Bluetooth®

BTP CON DIS

FAI

Pairing Mode Connection established Disconnected Error message

English

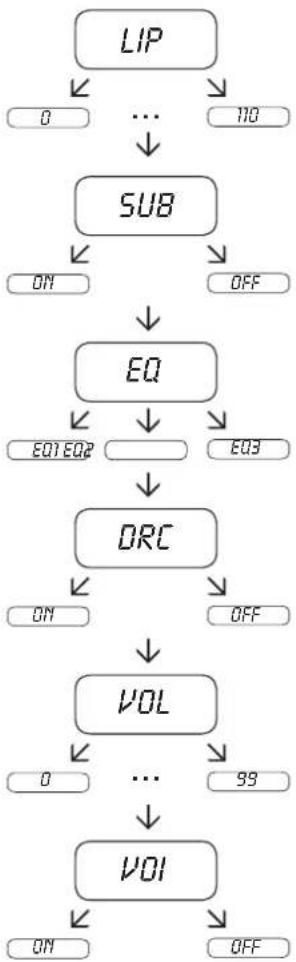

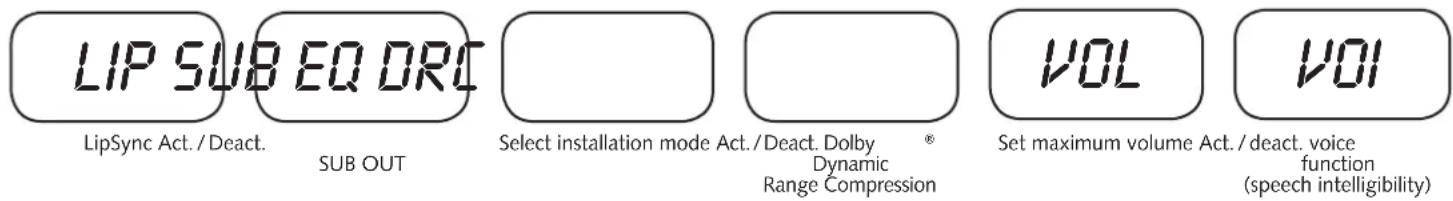

Extended sound functions

LipSync Act. / Deact.
SUB OUT
Select installation mode Act./Deact. Dolby Dynamic Range Compression
Set maximum volume Act./deact. voice function (speech intelligibility)

Setup functions

Sleep timer 15 - 60 min Act
/Deact. automatic ON/Standby (optical input, digital input and BT)
Act. / Deact. ECO standby
Act. / Deact. automatic BT input selection
Automatic BT playback
Restore factory settings

IR learn function

Learn infrared codes Delete learned infrared comands

Quit the infrared learn menu

Learn Standby function in IR learn menu

Format of the incoming audio signal (bitstream) at optical and coaxial input

Dolby® Digital 5.1 multichannel bitstream

Dolby ^® Digital 2.0 bitstream

Digital audio signal

English

Extended sound functions

The menu for extended sound functions offers you

– the chance to correct out-of-synch playback
- to activate the output for a wired external subwoofer
– to adjust the playback to suit the location
- to switch the Dolby function "Dynamic Range Compression" on or off
– to limit the maximum settable playback volume
– to improve the speech intelligibility

If you press and hold the key marked "Sound" on the remote control for longer than 3 seconds you will enter the "Extended sound functions" menu and the display LIP will appear on the Soundbar.

You can now use the "Volume +/-" keys to delay the playback in 10 ms steps to synchronise the sound with the "delayed" image.

Press the "Sound" key briefly once more and the display 5u8 will appear.

The "Volume +/-" keys can also be used to switch the output for an external subwoofer on or off. Please note: when the SUB OUT is activated the playback of the Soundbar will be limited to 80 Hz. Frequencies below 80 Hz are sent to the external subwoofer.

Press the "Sound" key again briefly one more time and the display EQ will appear.

Now use the "Volume +/-" keys to choose between three pre-set equalizer settings to adjust the playback to suit the location.

English

E01 for a free-standing DM system e.g. on a sideboard with a flat-screen TV on the wall (factory setting).

EQ1 for a set-up where a flat-screen TV is positioned on top of the DM system.

EQT for a set-up where the DM system is in a rack or on a shelf.

When the "Sound" key is pressed again the display changes to ORC.

"Dynamic Range Compression" is a setting option created by Dolby Laboratories. When activated, the dynamic range of Dolby encoded data streams can be automatically reduced, which also reduces differences in volume. This makes it possible to enhance quiet tones and suppress loud ones.

The "Volume +/-" keys can be used to switch the ORC function on or off.

After pressing the "Sound" key again, the display switches to VOL.

You can limit the maximum settable volume with the (protective) function "Volume" in such a way that the sound level (shown in the display) cannot be turned up above the set value.

You can then use the "Volume +/-" keys to set the desired volume (0 - 99 with 99 representing the maximum).

English

If you briefly press the "Sound" key again, the display switches to ☐☐☐.

Use the "Voice" function to increase the speech intelligibility in the stereo as well as the surround mode. By doing so, you can better understand dialogs (speech) in films with loud effects, for example.

With the "Volume +/-" keys you can activate resp. deactivate the "Voice" function (ON or OFF).

Press the "Sound" key again to return to the top of the menu LIP.

Exit menu

Press and hold the "Sound" key again for longer than 3 seconds to exit the "Extended sound functions" menu.

If the Soundbar does not receive any input instruction from the remote control within a period of 30 seconds the menu navigation returns automatically to normal mode.

Playback via Bluetooth® Technology

Registration requirements

• The Bluetooth function must be activated on the mobile end device.
• The mobile end device must support Bluetooth® standard 2.0 at least.
• The mobile end device must be within range of the DM system (max. 10 m).

Registration process

• Select BT input.
• Press the "Bluetooth® Pairing" button.
• BTP appears on the display.
• Now you have 30 seconds to register your mobile end device.
• Start the search run on your mobile end device.
• Select "DM 101" as the playback device.
• Once confirmed, the connection will be made automatically and will appear as CON in the display.
• If the connection fails the message FRI will appear.
• If the mobile device requires an access code enter 0000.
  -If DIS appears in the display, your mobile end device is out of range or logged out.

Qualcomm aptX™

Operating a mobile end device

• The device most recently connected to the DM system connects automatically when the Bluetooth® function is activated and the input for Bluetooth® playback has been selected. In this case the message COM will appear.
• Start the playback of a medium on your mobile end device and the sound will automatically be played back by the DM system.

Note: The DM system can manage up to three Bluetooth ^® devices. See also chapter "Automatic selection of BT input (SEL)" on page 55.

English

Setup functions Sleep Timer (SLP)

By activating this function the device will switch to Standby after a defined period. Periods of 15, 30, 45 and 60 minutes can be selected as switch-off times. OFF deactivates the function. To set a switch-off time follow the steps below:

1 With the device switched on, press and hold the "Play Mode" button for more than 3 seconds until SLP appears in the display.
2 Press the "Volume +" button and OFF will now appear in the display.
3 Press the "Volume +" button as often as required until the display shows the desired switch-off time.

Comment: The Sleep timer is automatically deactivated once the device has been switched off so Sleep timer needs to be set every time the device is switched back on.

Automatic ON/OFF function (AUT)

If this function is activated (ON), the device identifies the presence of a signal in the optical input, digital coaxial input or a previously connected BT auxiliary device. When a signal is detected (e.g. by switching on the source device) the DM system turns itself on. If no such signal is detected on the selected input (e.g. when the source device has been switched off) after one minute the DM System automatically switches to AUT Standby. When the function is deactivated (OFF) the DM system needs to be switched on and off manually.

The device is supplied with the function deactivated (OFF).

To activate/deactivate this function proceed with the following steps:

1 With the device switched on, press and hold the "Play Mode" key for more than 3 seconds, until SLP appears on the display.
2 Press the "Play Mode" button again briefly until RUT appears in the display..
3 Press the "Volume +" key to activate the function (ON).
4 Press the "Volume -" key to deactivate the function (OFF).
5 Exit the menu by again pressing and holding the "Play Mode" key for more than 3 seconds. If no input has appeared within 10 seconds the device will automatically exit the configuration menu.

Simple black-and-white icon of a mobile phone with a circular button and ten circular buttons arranged in a grid (no text or symbols)

TV remote control

Comment: The automatic switching on/off function only works for optical and coaxial digital input or via Bluetooth® wireless technology. If the device is set to standby mode using the "ON/Standby" key on the remote control it is not possible for the device to switch on automatically.

The device only identifies a signal at the selected digital input or Bluetooth ^® input. A signal that appears at the other than the selected input cannot be detected.

If the SEL function is also activated, the device can be switched on independently from the selected input by starting the playback on the mobile device.

English

ECO Standby (ECO)

When this function is activated (ON), the device automatically goes into standby mode if no signal is detected on the selected input for one hour. When this function is deactivated (OFF), the DM system has to be switched off manually.

The device is supplied with this function activated (ON).

To activate/deactivate this function proceed with the following steps:

1 With the device switched on, press and hold the "Play Mode" key for more than 3 seconds, until SLP appears on the display.
2 Press the "Play Mode" key again briefly, until ECO appears on the display.
3 Press the "Volume +" key to activate the function (ON).
4 Press the "Volume -" key to deactivate the function (OFF).
5 Exit the menu by again pressing and holding the "Play Mode" key for more than 3 seconds. If no input has appeared within 10 seconds the device will automatically exit the configuration menu.

Comment: This function is automatically deactivated for the input TV (optical), DVD (coaxial) and BT when the AUT function (Page 53) is activated.

Automatic selection of BT input (SEL)

When this function is activated (AUT), the DM system automatically switches to the BT input when it detects an audio signal from a mobile device. When this function is deactivated (MAN) the input must be selected manually.

The device is supplied with this function deactivated (MAN).

To activate/deactivate this function proceed with the following steps:

1 With the device switched on, press and hold the "Play Mode" key for more than 3 seconds, until SLP appears on the display.
2 Press the "Play Mode" key again briefly, until SEL appears on the display.
3 Press the "Volume +" key to activate the function (AUT).
4 Press the "Volume -" key to deactivate the function (MAN).
5 Exit the menu by again pressing and holding the "Play Mode" key for more than 3 seconds. If no input has appeared within 10 seconds the device will automatically exit the configuration menu..

Comment: Depending on the used mobile device the DM system can also be switched to the BT input by typing a message or by sound of other system tones, if the SEL function is activated (AUT). To avoid constant switching (e.g. when a message arrives) a time delay of 5 seconds is programmed in.

When the SEL function is activated (AUT) the BT input can no longer be selected using the "Input" key. In this mode the DM system can be paired to the mobile device regardless of the selected signal input.

English

Automatic playback via BT (APL)

If this function is activated, when the DM 101 is switched on via the “Power” button it automatically starts playback on a previously connected auxiliary device with Bluetooth® wireless technology. This starts the playback of the last app opened in the mobile device.

1 With the device switched on, press and hold the "Play Mode" button for more than 3 seconds until SLP appears in the display.
2 Press the "Play Mode" button again briefly until RPL appears in the display.
3 After pressing the "Volume +" button, OFF appears in the display.
4 Press the "Volume +" button again. The confirmation message ON appears.

Comment: Depending on the operating system of the mobile device and the app, the app must be running in the foreground or at least in the background. If no app is running, or one that does not support background operation, playback will not start.

Restore factory settings/Reset (RES)

With this function (RES) you can restore the DM System to its delivery state (factory settings). To carry out the Reset follow the steps below:

Warning: ALL your personalised settings, learned IR codes and coupled mobile devices will be deleted.

1 With the device switched on, press and hold the "Play Mode" button for more than 3 seconds until SLP appears in the display.
2 Press the "Play Mode" button again briefly until RES appears in the display.
3 After pressing the "Volume +" button, "NO" appears in the display.
4 Press the "Volume +" button again and the confirmation message YES will appear.
5 To complete the deletion process you must now wait 10 seconds. After that time all settings will be restored and the DM System will go to Standby mode.

To cancel the process, press the "Volume –" button within 10 seconds after pressing the "Volume +" button. The cancellation message NO will appear in the display. 10 seconds after pressing the "Volume –" button the DM System will return to its previous operating state without deleting any settings. In order to leave the menu without taking any action, press and hold the "Play Mode" button again for more than 3 seconds. If there is no input within 10 seconds the device will automatically leave the Reset menu.

English

Configuration of inputs (INP)

In the delivery state all physically available inputs are supplied with a source designation. These are as follows: Optical (OPT) = TV, Coaxial (COA) = DVD, Analog (ANA) = AUX, Bluetooth ^® = BT. You can change the name allocated to a particular input to suit your source device. To change the description follow the steps below:

1 With the device switched on, press and hold one of the two "Input" buttons for more than 3 seconds until INP appears in the display.
2 Now press briefly on one of the two "Input" buttons to select the desired physical input (OPT, COA, ANA).
3 Press one of the "Volume" buttons briefly to choose the desired description. You can choose from the following pre-defined descriptions: "---" (Input deactivated), TV, BDB, SAT, CD, DVD, CAM, REC, PAD, POD, TAB, TUN, DAB, PS, VCR, ATV, PC, AUX.

To give another input a new designation, repeat steps 2 and 3. Press and hold one of the two "Input" buttons for more than 3 seconds again to leave the menu. If there is no input within 10 seconds the device will automatically leave the Configuration menu.

Note: Inputs that are deactivated “---”, will no longer be shown when switching through the inputs (Input button). This makes it easier for you to select the desired input.

Comment: The designation for the BT input cannot be changed. if you have deactivated all inputs, BT (Bluetooth®) will be the fixed input.

IR learning function

The DM system can learn the infrared code of your TV remote control and therefore allows you to control the functions of the Soundbar and TV device via one remote control. You can allocate any key of the TV remote control to the soundbar. When choosing a key make sure that the instructions for the Soundbar do not conflict with the TV device. We recommend that you deactivate the internal loudspeaker of the TV device once the Soundbar is connected.

1 Hold the TV remote control in position.
2 Switch the Soundbar on.
3 Press and hold the "On/Standby" key of the Soundbar remote control for approx. 5 seconds.
4 The display shows a flashing IRL.
5 Press the wanted function on the Canton remote control e.g. "Volume +".
6 Now the display shows the chosen function, e.g. . +
7 Within 20 seconds press the key you wish to allocate to this function on the TV remote control.
8 Once this has been successfully allocated the display will show OK and you can continue with the programming of the next key function, e.g. "Volume –"
9 If the display shows FAI this means the allocation has failed and you need to repeat steps 5 to 8.

Simple black-and-white icon of a mobile phone with a circular button and ten circular buttons arranged in a grid (no text or symbols)

TV remote control

Note: The red "On/Standby" key on the DM remote control has a dual function. Press it once and the display will show ON which allows the switching on function to be programmed. If the red "On/Standby" key on the DM remote control is pressed twice in quick succession the display will show SIB and the Standby resp. switching off function can be programmed. If your TV remote control has only one key for the "On" and "Off" functions both the "On" and "Standby" functions must still be allocated with this command.

English

Exit menu

Press and hold the "ON/Standby" key again for longer than 5 seconds to exit the "IR learning function" menu. If the Soundbar does not receive any input instructions from the remote control within a period of 60 seconds the menu navigation returns to normal mode automatically.

Direct selection of the signal inputs

In addition to the INPUT ↑ and INPUT ↓ function, you can directly select the signal inputs TV, DVD, AUX and Bluetooth® when using your TV or universal remote control. That means you can allocate the desired input to a key on your remote control.

1 While you are still in the IR learning menu, press one of the Input keys on the Canton remote control for 3 seconds to access the direct selection menu. DVD flashes in the display.
2 You can now allocate the "DVD" input to a key on your TV remote control. Note: If you press this key on the remote control while the speaker is in normal mode, the DM system switches directly to the DVD input.
3 Press the desired key on the remote control. If the infrared (IR) code has been successfully stored by the DM system, OK appears briefly in the display followed by the next input TP.

4 If the code has not been stored or if you do not press any key on your remote control within 10 seconds, FRI appears briefly in the display to indicate that no code has been stored. DVD then flashes again in the display and you can store the code for the DVD input, once again.
5 If you do not want to allocate a key to the DVD input, briefly press the INPUT ↑ key to manually access the TV input.
6 To allocate the TV, AUX and/or Bluetooth inputs to a key on your remote control, repeat steps 2 to 5.

7 To exit the direct selection menu, press one of the two input keys again for 3 seconds to access the higher level IR learning menu IRL. If you press the "ON/Standby" key for 3 seconds while still in the direct selection menu, the system switches from this menu to the normal mode. FIN appears briefly in the display to indicate that the IR learning mode has ended.

Note: Due to the variety of infrared codes it is not possible to guarantee that every IR remote control signal can be learned by the DM system. Signals from radio frequency (RF) remote controls cannot be learned!

IR delete function

To delete the TV remote control commands learned by the DM system you need to follow these steps:

1 Switch the Soundbar on.
2 Press the "On/Standby" key on the Soundbar remote control for approx. 5 seconds.
3 The display will flash IRL.
4 Press the "Mute" key of the Soundbar remote control for approx. 5 seconds.
5 The display will show CLR. for approx. 5 seconds. The Soundbar will then switch automatically back to normal operation.

English

Troubleshooting

Here is an overview of the most common problems. If you have any further questions please contact your Canton dealer, call our Service Hotline on [phone] or send us an e-mail at [e-mail].

Problem Possible cause	Solution
DM system does not respond to remote control.	1. The battery is empty. 1. Replace battery, observe correct polarity at insertion.
	2. Protective foil has not been removed. 2. Remove the protective foil from remote control.
No sound reproduction.	1. Sound format of the source device wrongly selected (Digital input “TV” and “DVD”)	1. Please check the correct setting of your source device. “DTS” encoded output formats cannot be reproduced.
	2. Source device doesn’t output an audiosignal. 2.	Activate the digital output at the source. Increase output volume of the source.
	3. Cable not correctly connected / faulty cable. 3.1	Check the connection of the source device to the DM system and change the cable where necessary.
		3.2. Please check if you have removed the protective caps from the provided optical cable.
Sound reproduction too soft.	1. Volume of DM system or source device is set too low.	Increase the volume using the “Volume” button. Increase the volume of the source device.
	2. The maximum possible volume has been limited by means of the “Volume” function.	Increase the max. possible volume in line with instructions (page 49).

English

Problem Possible cause	Solution
DM system does not turn on.	Power cable not connected to the power outlet and / or DM system	Prepare connection.
The device does not switch on automatically via the optical, coaxial or Bluetooth® inputs.	1. The preset (factory setting) for the AUT function is OFF (disabled).	1. Activate the AUT function (ON) (Page 53).
	2. The DM system was switched off via the "ON/Standby" key of the soundbar remote control or the "Power" key of the TV remote control (using the IR learning function).	2.1. Switch on the DM system via the "ON / Standby" key on the remote control and wait in future until it switches automatically to the standby mode.
		2.2. Delete the "Power" key of your TV remote control from the DM system so that you do not turn it off along with your TV.
	3. The DM system was switched to the other digital input which receives no signal and has switched itself off automatically.	3. Switch the DM system on using the "Power" key on the remote control and select the digital input that is connected to the desired source device.
The DM system switches into standby autonomous.	1. The ECO function is activated (ON). 1. Deactivate the ECO function (Page 54).
	2. The AUT function is activated (ON). 2. Deactivate the AUT function (Page 53).
	3. The infrared command for standby (STB) has been learned incorrectly.	3. Learn the command for standby (STB) correctly (Page 59).
The DM system doesn't enter standby mode automatically.	1. The ECO function has been deactivated. 1. Activate the ECO function (Page 54).
	2. The AUT function is still deactivated. 2. Activate the AUT function (Page 53).
	3. The AUT function has been activated but the source sends a carrier even in standby mode.	3. Disconnect the source from the mains resp. set the DM system into standby mode manually.

English

Problem Possible cause	Solution
DM system hums. 1. Signal cable from source device to DM system too long (AUX).		1. Use shorter signal cable.
		2. Signal cable is not shielded or shielding has been damaged (defective).
		3. Ground loop (ripple pickup) generated. 3. A ground loop can be generated when two or more devices connected via a signal line (cinch) are plugged into separate sockets (e.g. amplifier and computer). Plug all safety class I devices (with a safety plug) connected to the DM system into one multiple outlet stripe.
		4. Another piece of equipment on the same circuit has no interference suppression (e.g. fridge).
The DM system switches to the BT input inadvertently.	This can happen when your mobile device produces system tones e.g. typing on the keyboard.	1. Deactivate the SEL function (MAN).
		2. Deactivate the system tones on your mobile end device.
The DM system switches on inadvertently.	This can happen when your mobile device produces system tones while e.g. typing on the keyboard.	Deactivate the AUT function (OFF).
The BT input cannot be selected using the “Input” keys.	The SEL function is activated (AUT).	In this case the switching process happens automatically as soon as the DM system detects an audio signal from the mobile end device.
The optical, coaxial or analog input cannot be selected using the input button.	The input has been deactivated. Activate the input as shown in the chapter Configuration of Inputs (see page 58).
The DM system does not switch automatically to the BT input.	1. The SEL function is deactivated (MAN). 1. Activate the SEL function (AUT).
	2. Bluetooth ^® has been deactivated on your mobile end device.	2. Activate Bluetooth ^® on your mobile end device.
	3. The DM system is connected to a different mobile end device.	3. Deactivate Bluetooth ^® on the other mobile end device.
	4. The mobile end device is not connected to the DM system.	4. Connect your mobile end device to the DM system (Page 51).
No playback via Bluetooth ^® wireless technology.	1. There is no connection between the DM system and the mobile end device.	1. Connect your mobile end device as described.
	2. The mobile end device is paired but no playback takes place.	2.1. The mobile end device must be connected again.
		2.2. Set the volume on the mobile end device to maximum.
		2.3. Increase the volume of the DM system.
		2.4. Ensure that interference sources like a WLAN router or laptop are not set up in direct proximity of the DM system.
		2.5. Concurrent operation of WLAN and Bluetooth ^® connection from a mobile end device is not possible without interferences in most cases: Disable WLAN (WiFi) at your mobile device.
	3. You are out of range (the max. distance is 10 m).	3. Reduce the distance between the Soundbar and your mobile end device.

English

Technical Specifications

Power supply

• Operating voltage 100–240 V
  – Operating frequency 50/60 Hz
• Power consumption ECO Standby = 0.39 W (factory setting)
  – Power consumption AUT Standby approx. 4.8 W
  – Power consumption in idle mode (no output signal) ca. 8.4 W
  – Power consumption maximal ca. 150 W

In-/Outputlevel analogue

• AUX = max. 2.0 V (effective)
• SUB OUT = max. 2.0 V (effective)

Decoder

• Dolby Digital
• PCM (32 kHz...96 kHz/8 Bit...24 Bit)

Virtualizer

- DTS TruSurround

Bluetooth®

• Bluetooth® Standard 3.0 (A2DP)
  – Supports Qualcomm aptX ^® decoding
• Range up to 10 m
  – Frequency range 2400–2483.5 MHz (2.4 GHz ISM Band)
• Max. emitted radiated power 10 mW (+10 dBm)

Ambient temperature

• Minimum 5 °C (41 °F)
• Maximum 35 °C (95 °F)

EU – Declaration of Conformity

CE marking

We, Manufacturer / Importer

German loudspeaker tradition

confirm and declare under our sole responsibility that the product

DM 101

(Virtual-Surroundsound System with 3 Signal Inputs, one Output, and Bluetooth® functionality, internal Universal Mains Power Supply and Infrared Remote Control)

is in conformity with the directives of the European Parliament and of the Council

Directive 2014/53/EU (Radio Equipment)

Directive 2014/35/EU (Low Voltage Directive)

Directive 2011/65/EU (Restriction of the use of certain Hazardous Substances)

Directive 2012/19/EU (Waste of Electric and Electronic Equipment)

Directive 2009/125/EG (Ecodesign requirements for Energy-related Products)

Operation is permitted within all countries of the European Union.

A complete Declaration of Conformity is placed at: www.canton.de/en/doc.htm

Authorized Signature:

Date: November 5 ^th 2018

Guin Xien

Name: Günther Seitz

Function: CEO

Deutsch

Further Information

Information for "normal use"

All Digital Movie Systems are designed for indoor use and must not be used outdoors or in wet conditions. The devices must not be modified or altered in any way. Connect the Digital Movie System up as described in the instructions and pay attention to the warning notices. Only operate the device with the mains voltage and frequency specified on the rating plate.

Information about environmentally friendly operation (Use the standby function to minimise electricity usage and operating costs)

To reduce the electricity consumption of the device when not in use press the "On/Standby" button. This saves electricity.

Information about CE labelling

All electrical and electronic equipment sold in the European Union must carry a CE mark to show that the device in question complies with the legal requirements (e.g. electromagnetic compatibility or safety requirements).

Disposal instructions

In accordance with the regulations governing the disposal of old electrical and electronic equipment, all devices that carry this symbol may not be disposed of in general household waste. If required, please contact your local recycling centre or the local authorities to find out about free disposal. This serves to protect the environment and public health as well as saving (scarce) resources through recycling.

Batteries should not be disposed of in general household waste. They should be collected separately and taken to a battery collection point. You can dispose of empty batteries free of charge in collection containers at e.g. retail outlets. Batteries that are not properly disposed of can be harmful to humans and animals and/or the environment.

Caution

This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

MPE Reminding

To satisfy FCC/IC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended.

English

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

Bluetooth™

Bluetooth®:

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth ^® SIG, Inc. and any use of such marks by Canton is under license. Other trademarks and trade names are those of their respective owners.

For DTS patents, see http://patents.dts.com.

Manufactured under license from

DTS Licensing Limited.

DTS, the Symbol,

& DTS and the Symbol together are registered trademarks, and DTS

TruSurround is a trademark of DTS, Inc.

© DTS, Inc. All Rights Reserved.

Qualcomm aptX™

DEU GARANTIE

Above and beyond the legally prescribed warranty period Canton offers a guarantee of 5 years on all its passive loudspeakers. A 2-year guarantee is offered for DM systems and partially active boxes. The guarantee period begins at the time of purchase and only applies to the purchaser. Guarantee claims will only be accepted if accompanied by the original packaging. The guarantee does not cover damages incurred in transit or damages caused by improper use. The guarantee is not extended if parts are exchanged within the period covered by the guarantee. This applies to all loudspeakers purchased from an authorised Canton dealer. In the event of damage please contact your dealer or the Canton Service department direct.

Qualcomm aptX®:

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission.
