Smart SUB 12 - Subwoofer CANTON - Free user manual and instructions

Product Type	Active Subwoofer
Model	Smart SUB 12
Brand	Canton
Dimensions (W x H x D)	38 cm x 45.5 cm x 38 cm
Weight	22.2 kg
Power Supply	100-120V~ / 220-240V~, 50/60Hz
Max Power Consumption	200 W
Standby Power Consumption	< 0.5 W
Wireless Frequency	5.8 GHz
Audio Input	RCA (Cinch), Wireless
Input Selector Modes	WIRELESS [POWER AUTO], WIRED [POWER ON], WIRED [POWER AUTO]
Operating Temperature Range	5 °C to 35 °C (41 °F to 95 °F)
Max Signal Level (Analog)	2.0 V (effective)
LED Indicator	Green (operation), Red (standby)
Wireless Pairing	With Canton Smart Soundbars, Sounddecks, floorstanding/compact speakers, Soundbox
Cleaning	Dry cloth, no aggressive or abrasive agents
Safety Features	Class II device, no protective earth required
Guarantee	2 years for active devices
Disposal	Do not dispose with household waste; separate collection for WEEE
Certifications	CE, RoHS, WEEE

Frequently Asked Questions - Smart SUB 12 CANTON

How do I connect the Smart SUB 12 wirelessly to my Canton smart speaker?

Ensure the subwoofer is not connected to power. On your smart speaker, navigate to Wireless Setup -> Wireless Pairing, select SUB (Subwoofer), then plug in the subwoofer. Wait 10-20 seconds for connection. The LED will turn green.

What does the input selector switch on the subwoofer do?

The switch has three positions: WIRELESS [POWER AUTO] for wireless operation with auto standby, WIRED [POWER ON] for wired operation always on, and WIRED [POWER AUTO] for wired operation with auto standby.

Can I use the subwoofer with a wired connection only?

Yes. Set the input selector to either WIRED [POWER ON] or WIRED [POWER AUTO] and connect an RCA cable from your source to the SUB IN jack.

What are the dimensions and weight of the Smart SUB 12?

Dimensions: 38 cm (W) x 45.5 cm (H) x 38 cm (D). Weight: 22.2 kg (49 lbs).

How do I clean the subwoofer?

Use a clean, dry cloth. Do not use any aggressive, alcoholic, or abrasive cleaning agents. Avoid liquids near the device.

What is the power consumption in standby?

Standby power consumption is less than 0.5 W.

Why is the subwoofer LED red?

A red LED indicates the subwoofer is in standby mode (no audio signal) or wireless connection is lost. Green LED means normal operation.

How do I pair the subwoofer with a Canton Smart Soundbox?

On the Soundbox, press and hold input select for 3 seconds, go to Speaker Setup -> Wireless Setup -> Wireless Pairing, select SUB, then plug in the subwoofer. Connection completes in 10-20 seconds.

What is the warranty period for the Smart SUB 12?

Canton offers a 2-year guarantee for active devices like the Smart SUB 12, starting from the date of purchase. Requires original packaging for claims.

Can I use the subwoofer outdoors?

No, the subwoofer is designed for indoor use only. Do not expose to rain, moisture, or extreme temperatures (operating range 5°C to 35°C).

USER MANUAL Smart SUB 12 CANTON

Simple line drawing of a rectangular container with two side legs and a central label 'ANTON' (no other text or symbols)

Danke!

1 SUB IN

$$ M F R = \text { Master Front Rechts } \quad M S R = \text { Master Surround Rechts } $$

$$ M S L = M a s t e r \text { Surround Links } $$

German loudspeaker tradition

Simple line drawing of a rectangular box with two side legs and a 'ANTON' logo on the front face (no other text or symbols)

CANTON®

German loudspeaker tradition

Thanks!

Thank you very much for choosing the Canton product. You can now look forward to countless hours filled with excellent sound.

Just a few steps and the music can start:

CONTENT:

SAFETY INSTRUCTIONS.... 16

UNPACKING 17

CONNECTION 17

CONNECTION-TERMINAL.... 18

CONNECTION WITH A (SMART) SPEAKER 19

TECHNICAL DATA 23

FURTHER IMPORTANT INFORMATION 24

DECLARATION OF CONFORMITY 25

GUARANTEE 26

English

Safety Instructions

Read and follow all instructions. Keep these instructions. Observe all warnings and safety instructions. Operate this device only in a moderate climate (not in a tropical climate). Do not operate this device at altitudes above 2000 m above sea level. To avoid the risk of fire or electric shock, the device must not be exposed to rain or moisture. Do not operate this device near water. Do not expose this device to dripping or splashing water. Strong temperature fluctuations lead to condensation (water droplets) in the device. Wait until the moisture has evaporated (at least three hours). Do not place objects filled with liquids (such as vases) on the device. Do not place an open fire, such as lit candles, on or near the device. Do not place the device near heat sources such as radiators, heat accumulators, stoves or other devices (including amplifiers) that generate heat. Avoid direct sunlight. Keep a clearance of at least 5 cm around the device. Never prevent the protective function of polarised or grounded plugs: A polarised plug has two pins, one wider than the other. An earthed plug has a third earthing pin. The wide or third pin is for your safety. If the plug does not fit into your outlet, contact a qualified electrician to replace the obsolete outlet. To avoid electric shock, connect the mains plug only to sockets or extensions where the contact pins can be fully inserted to prevent exposed contact pins. Never touch the signal and mains cable with wet hands. Do not step on or pinch the mains cable, especially not in the area of the plugs, sockets or where the cable is led out of the device. For devices without a mains switch, in which the mains plug or the device mains socket serves as an isolating device, the plug of the mains cable or the device mains socket must be freely accessible at all times. Disconnect the device from the mains during thunderstorms or prolonged periods of non-use. To completely disconnect the device from the power supply, unplug the mains cable from the wall outlet. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. Always switch off the device before connecting or disconnecting connection cables. Always switch off the device before connecting or disconnecting connection cables. Always pull the plugs and not the cables. Install the device according to the manufacturer's instructions. Always choose a level surface. The device must be in a vertical position. Do not exert force on operating elements, connections and lines. The device may only be operated with the voltage and frequency specified on the device or the type plate. Do not insert any objects or body parts into the openings of the device. Live parts inside the housing could be touched and/or damaged. This can lead to short circuits, electric shocks and fire. Only use fixing materials and accessories that are approved by the manufacturer and/or supplied with the device. Only use trolleys, stands, tripods, holders or tables specified by the manufacturer or sold with the device.

When using a trolley, be careful when moving the trolley/device assembly to prevent damage and injury from tipping over.

Only clean this device with a clean, dry cloth. Do not use any aggressive, alcoholic or abrasive agents for cleaning. To avoid electric shock, do not open the housing! There are no user-serviceable parts in the device. Consult qualified personnel for all repair and maintenance work. This is required when the device has been damaged in any way, such as mains cable or plug damage, liquid or objects have been spilled, exposed to rain or moisture, does not operate normally, or has been dropped. Do not make any changes to the device or accessories. Unauthorised modifications can compromise safety, regulatory compliance or system performance. In this case, the type approval/guarantee may expire.

If sound distortions such as unnatural knocking, throbbing or high-frequency clicking occur during playback, the volume level must be reduced immediately.

To avoid possible hearing damage, do not listen at high levels for long periods of time. Interrupt the playback if you hear ringing or whistling noises in your ears or if you have the impression that you can no longer hear high sounds (even for a short time).

Do not place or lay objects that are sensitive to magnetic fields (e.g. tube TVs, external hard drives, magnetic cards, video cassettes, etc.) on or directly next to the device.

The device and/or the accessory may contain small parts that can be swallowed. Therefore not suitable for children under three years.

This symbol indicates uninsulated dangerous voltages inside the case that are sufficiently strong (amplitude) to cause a fire or electric shock.

This symbol warns you of important operating and maintenance instructions in the accompanying documentation (manual) supplied.

This symbol indicates Class II devices, where protection against electric shock is provided by double or reinforced insulation during specified use and therefore no protective earth connection is required.

UNPACKING

Carefully unpack the Smart Sub 12 and check that the delivery content is complete and undamaged. In case of damage, do not put the article into operation and contact our service department (see reverse side).

Please keep the packaging during the warranty period.

Delivery contents:

1x Smart Sub 12

1x Power cord

1x Short manual

CONNECTION

Place the Smart Sub 12 in the desired location. The distance between the Smart Sub 12 and the device to be connected must not exceed 10 m. Please install the Smart Sub 12 in such a way that it cannot be damaged or cause damage.

Note:

- Please make sure that the Smart Sub 12 is not raised (e.g. on a table) or placed on a ledge (e.g. stairs).

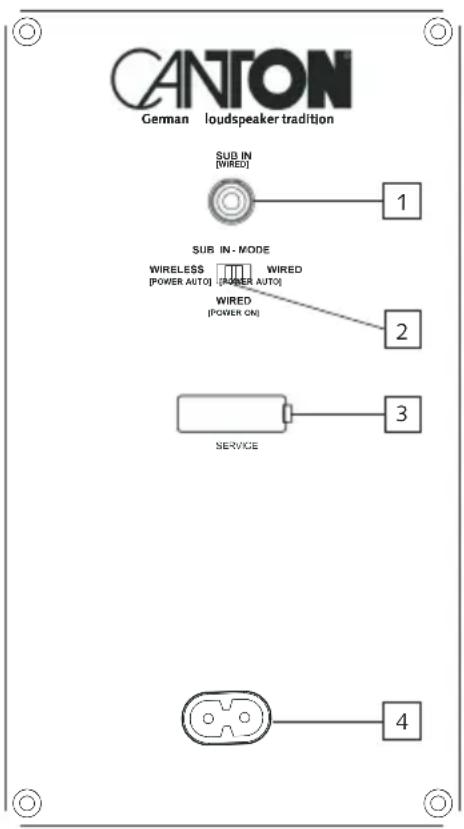

CONNECTION-TERMINAL

1 SUB IN

For connecting the subwoofer via cable.

2 SUB IN - MODE (INPUT SELECTOR SWITCH): WIRELESS [POWER AUTO]

= Automatic wireless connection
WIRED [POWER ON]
= Operation via cinch (RCA) cable, Smart Sub 12 remains permanently switched on.
WIRED [POWER AUTO]
= Operation via cinch (RCA) cable, Smart Sub 12 automatically switches on resp. into standby mode.

3 SERVICE PORT

Used only for Canton customer service.

4 POWER INPUT

For connection to the mains supply.

CONNECTION WITH A (SMART) SPEAKER

WIRELESS

In wireless mode, wireless smart loudspeakers and Smart Sub 12 are connected via a high-end radio link. A frequency of 5.8 GHz guarantees robust and loss-free data transmission. Once the Smart Sub 12 has been successfully connected to the wireless loudspeaker, the Smart Sub 12 is activated and the wireless connection is established automatically. The input selector switch at the Smart Sub 12 must be set to WIRELESS [POWER AUTO] (factory setting). If the wireless loudspeaker is switched off, the Smart Sub 12 also switches off automatically and the LED on the baffle of the Smart Sub 12 lights up red. During operation (wireless as well as wired) the LED shines green.

SMART WIRED

When using a Smart Soundbar or a Smart Sounddeck, you have the option of controlling the Smart Sub 12 wirelessly (on/standby, volume, etc.) but still supplying the audio signal via signal cable. To do this, you must connect the Smart Sub 12 to the Soundbar / Sounddeck as described below, then set the connection type there from wireless to wired and finally set the input selector switch on the Smart Sub 12 from WIRELESS [POWER AUTO] to WIRED [POWER AUTO].

WIRED

The input SUB IN is used if the Smart Sub 12 is connected via cable. The input selector switch of the subwoofer must now be set to „WIRED [POWER ON]“ if the Smart Sub 12 is always to remain switched on, or to „WIRED [POWER AUTO]“ if it is to switch on resp. (delayed) off with the loudspeaker.

English

Pairing your subwoofer

To control a new wireless subwoofer with a smart loudspeaker, it must be paired with the smart speaker. The pairing procedure for the corresponding smart speaker is described below:

Wireless connection with Smart Soundbars / Sounddecks:

Note:

- Before connecting the Smart Sub 12 to the Smart Soundbar resp. Smart Sounddeck, please make sure that the (new) Smart Sub 12 to be paired is not connected to the power supply.

1 Turn on the Smart Soundbar / Smart Sounddeck using the „Power“ button. Press the menu button „M“ on the Smart remote control to access the main menu of the Soundbar / Sounddeck.
2 Use the ↑ " or ↓" arrow button to navigate to the Wireless Setup [WIS] menu and press the "OK" button to confirm.
3 Select the function Wireless Pairing [WSP] and confirm with the „OK“ button.
4 Use the ↑ " or ↓ " arrow button to select the speaker you want to pair. In this case, please select Subwoofer [SUB] to pair the Smart Sub 12.
5 Press the „OK“ button. The status indication will change to Pairing [PIR].
6 Now, plug the power cord of the Subwoofer into the wall socket.
7 Approximately 10 - 20 seconds after the subwoofer is connected to the mains the status changes to „Connected“ [CON]. Soundbar resp. Sounddeck and subwoofer are connected, now. Press the menu button „M“ repeatedly or wait 30 seconds to exit the menu.

Wireless connection with Smart floorstanding- / compact speakers:

Note:

- Before connecting the Smart Sub 12 to the Smart speaker, please make sure that the (new) Smart Sub 12 to be paired is not connected to the power supply.

1 Turn on the (Master) Smart speaker using the „Power“ button. Press the menu button „M“ on the Smart remote control to access the main menu of the speaker. Select [WIS] Wireless Setup and press „OK“.
2 Now, select [WSP] Wireless Pairing and press „OK“.
3 Use the arrow keys (↑, ↓) to select and confirm the master speaker:

MFL = Master Front Left MCE = Master Center

MFR = Master Front Right MSR = Master Surround Right

MSL = Master Surround Left

4 To connect another speaker, press „OK“.
5 Use the arrow keys (↑, ↓) to select the speaker you want to pair. The following channels are available:

FL = Front Left | FR = Front Right | CE = Center

SL = Surround Left | SR = Surround Right | SUB = Subwoofer In this case, select [SUB] „Subwoofer“.

6 Press the „OK“ button. The display shows [PIR] „Pairing Sub“.
7 Now, plug the power cord of the Smart Sub 12 into the wall socket.
8 Approximately 10 - 20 seconds after the subwoofer is connected to the mains, the status changes to [CON] „connected“. Smart speaker and subwoofer are connected, now. Press the menu button „M“ repeatedly or wait 30 seconds to exit the menu.

English

Wireless connection with Smart Soundbox:

Note:

- Before connecting the Smart Sub 12 to the Smart Soundbox, please make sure that the (new) Smart Sub 12 to be paired is not connected to the power supply.

1 Turn on the Smart Soundbox using the „Power“ button. Press and hold the input select button, “for at least 3 seconds, until [SPS] „Speaker Setup“ is indicated.
2 Use the „+“ or „-“ button to navigate to the menu [WIS] Wireless Setup and press the „▶” Play/Pause button to confirm.
3 Select the item [WSP] „Wireless Pairing“ using the „+“ or „-“ button and confirm with the Play/Pause button „
4 The menu [WSP] „Wireless Pairing“ is entered and [MFL] „Master Front Left“ appears on the display.
5 Press the Play/Pause button ▶It.
6 Use the „+“ or „-“ button to select the item [SUB] „Sub“ for subwoofer.
7 Press the Play/Pause button ▶. The status indication changes to [PIR] "Pairing".
8 Now, connect the Smart Sub 12 you want to pair to the mains.
9 Approximately 10 - 20 seconds after the subwoofer is connected to the mains the status changes to [CON]„connected“. Now, the pairing process is completed and Soundbox and Smart Sub 12 are connected. Press the input select button „” repeatedly or wait 30 seconds to exit the menu.

TECHNICAL DATA

Power supply

• Operating voltage 100-120V\~ or 220-240V\~
• Operating frequency 50 / 60Hz
  – Power consumption Standby <0.5W
  – Power consumption maximal 200 W

Ambient temperature:

• Minimum 5 °C (41 °F)
• Maximum 35 °C (95 °F)

Signal level:

- Analog Line = max. 2.0 V (effective)

Dimensions:

W: 38 cm

H: 45.5 cm

D: 38 cm

Weight:

22.2 kg

English

Information on "Intended Use"

The speaker system is designed for indoor use and must not be used outdoors or in a wet environment. Do not make any conversions or modifications to the device. Connect the speaker system as described in the instructions and observe the safety instructions. Only operate the device with the mains voltage and frequency specified on the rating plate.

Information about an environmentally friendly operation

To reduce the power consumption, switch the speaker system to standby mode by pressing the Power „” button when not in use. This “saves power” and lowers your electricity bill.

Information about the CE marking

Electrical and electronic devices placed on the market within the European Union must be given a CE mark to indicate that the equipment complies with the applicable requirements (e.g. electromagnetic compatibility or equipment safety).

Disposal instructions

According to the EU Directive on Waste Electrical and Electronic Equipment, devices marked with this symbol must not be disposed of together with municipal waste (household waste). Please inform yourself, if necessary, contact your local disposal company or the municipal / city administration about the free disposal for you. It serves the environmental and health protection as well as the saving of (rare) raw materials by recycling.

Batteries must also not be disposed of together with general household waste. They must be collected separately and returned to a battery collection point. Throw empty batteries into the collection container free of charge, for example, those situated at the trade. Improperly disposed of batteries can harm human and animal health and / or the environment.

EU – Declaration of Conformity

CE labelling

We, the manufacturer / importer

Canton Elektronik GmbH + Co. KG • Neugasse 21–23 • 61276 Weilrod • Germany

German loudspeaker tradition

confirm and declare in sole responsibility that the product

Smart Sub 12

(Closed powered subwoofer with wireless signalling (5.8GHz) and analogue input, together with a multi-range switching power supply.)

is in accordance with the Directives of the European Parliament and of the Council

Directive 2014/53/EU (Radio Equipment)

Directive 2014/35/EU (Low Voltage Directive)

Directive 2011/65/EU (Restriction of the Use of Certain Hazardous Substances)

Directive 2012/19/EU (Waste Electrical and Electronic Equipment)

Directive 2009/125/EG (Ecodesign requirements for Energy-related Products)

Operation is permitted in all countries of the European Union.

A complete Declaration of Conformity can be found at: www.canton.de/en/doc

Legally binding signature:

Guin Kei

Date: 01 ^st September 2020 • Name: Günther Seitz • Function: Managing Director

DEU GARANTIE

Above and beyond the legally prescribed warranty period Canton offers a guarantee of 5 years on all its passive loudspeakers. A 2-year guarantee is offered for active and semi-active devices. The guarantee period begins at the time of purchase and only applies to the purchaser. Guarantee claims will only be accepted if accompanied by the original packaging. The guarantee does not cover damages incurred in transit or damages caused by improper use. The guarantee is not extended if parts are exchanged within the period covered by the guarantee. This applies to all loudspeakers / devices purchased from an authorised Canton dealer. In the event of damage please contact your dealer or the Canton Service department direct.

CANTON®

German loudspeaker tradition

All Statements without guarantee.

Technical changes, typing errors and other errors reserved.
