PetCare Water Fountain - Pet water fountain eufy - Free user manual and instructions

Product Type	Pet Water Fountain
Brand	Eufy
Model	T7220 (PetCare Water Fountain)
Dimensions (W x D x H)	200 x 200 x 207 mm (7.9 x 7.9 x 8.1 in)
Weight	750 g (26.5 oz)
Water Capacity	1.5 L (0.4 gal)
Power Input	5V 1A (USB-powered)
Included Adapter	5V 1A adapter
Material	ABS plastic
Filtration System	Dual filtration (purification filter + sterilization filter)
Purification Filter	Included (2 pieces); replace every 1.5 months
Sterilization Filter	Included; replace every 1.5 months
Water Pump	Submersible; replace if damaged
Charging Cable Length	1.5 m (5 ft), bite-proof
Transparent Cover	Detachable
Water Level Indicator	MIN and MAX lines inside main body
Auto Shut-off	Pump stops when water level below MIN; resumes when refilled
Cleaning Frequency	Weekly (filters and pump)
Safety Certifications	FCC compliant, low voltage
Warranty	12-month limited warranty
Customer Support	Email: [e-mail]; Phone: US [phone], UK [phone], Germany [phone]

Frequently Asked Questions - PetCare Water Fountain eufy

How often should I replace the filters?

Replace the purification filter and sterilization filter every 1.5 months for optimal performance. Clean them weekly.

What should I do if the pump stops working?

First, check if the water level is below the MIN line. If so, refill to between MIN and MAX. The pump will resume automatically. If not, clean the pump and check for blockages. Replace the pump if damaged.

Can I use the fountain without the filters?

It is not recommended. The filters remove impurities and bacteria, ensuring clean water for your pet. Operating without filters may reduce water quality.

How do I clean the fountain?

Turn off and unplug the fountain. Disassemble the parts (cover, drinking tray, filters, pump). Clean all parts weekly with mild soap and water. Rinse thoroughly and let dry before reassembly.

What type of water should I use?

Use tap water or filtered water. Avoid distilled water as it may affect the pump's performance. Ensure the water level stays between the MIN and MAX lines.

Is the fountain safe for kittens and puppies?

Yes, the fountain is designed for all pets. The low voltage (5V) and bite-proof cable ensure safety. However, supervise young pets during initial use.

How long is the power cord?

The included charging cable is 1.5 meters (5 feet) long and is bite-proof for durability.

What is the water capacity?

The fountain holds up to 1.5 liters (0.4 gallons) of water. The water level should be maintained between the MIN and MAX lines.

Does the fountain operate silently?

The fountain is designed to be quiet, but a gentle water flow sound is normal. Regular cleaning helps maintain low noise levels.

Where can I get replacement filters?

Replacement filters can be purchased from eufy's official website or authorized retailers. Search for 'Eufy PetCare Water Fountain filters'.

USER MANUAL PetCare Water Fountain eufy

PetCare Water Fountain

Line drawing of a cupcake labeled 'cufy' with no visible text or symbols on the body itself

Anker Innovations Limited. All rights reserved, eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.

Model:T7220 51005002492 V01

TABLE OF

CONTENTS

01 IMPORTANT SAFETY INSTRUCTIONS
01 WHAT'S IN THE BOX
02 AT A GLANCE
04 GETTING STARTED
06 USING SMART PET FOUNTAIN
06 MAINTENANCE
07 SPECIFICATIONS
07 NOTICE

1 / IMPORTANT SAFETY INSTRUCTIONS

1. When the device is not in use, the power should be turned off.
2. The power should be turned off while cleaning the base. Ensure that it is fully dry before use.
3. Make sure the water level in the tank is between the "MIN" and "MAX" water line which is marked inside the main body.
4. The transparent cover is detachable. DO NOT lift the device by the cover when moving it.
5. Replace the Purification Filter and Sterilization Filter every 1.5 months.
6. Excess impurities on the filter will reduce water quality and lower the water penetration speed. We recommend cleaning the filters each time you clean the device.

2/ WHAT'S IN THE BOX

Water Fountain

Bite-proof
Charging
Cable (1.5m)

Sterilization
Filter

Purification
Filter x 2

User Manual

5V1A
Adapter

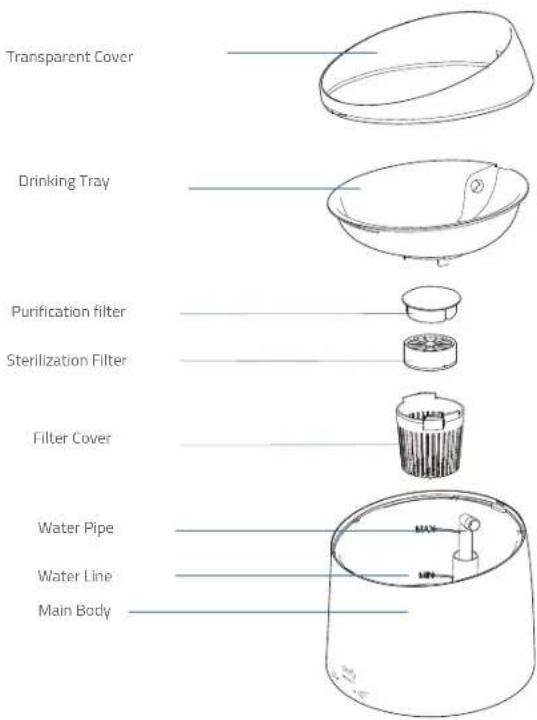

3/AT A GLANCE

Inside View

Water Pump

Pure technical diagram of a circular mechanical component with no text, numbers, or symbols

Sterilization Filter

What it does:

Kills Escherichia coli, Salmonella, and Candida albicans to protect pets from getting acute gastroenteritis and feline dermatophytosis.

03 EN EN 04

4/

GETTING STARTED

1. Place the sterilization filter in the filter cover and press down it until it sits at the bottom. Place the filter in the purification filter cover.
2. Align the filter cover with the groove under the drinking tray and turn it counter-clockwise until it locks in place.

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

1. Insert the head of the water pipe into the side outlet of the drinking tray. Make sure the water pipe is inserted correctly.

Technical line drawing of a mechanical component with arrows indicating directional movement (no text or symbols)

1. Pour water into the main body. Make sure the water level is between the "Min" and "Max" water lines that are marked on the inside.
2. Align the drinking tray with the main body as illustrated until it clicks into place.

Line drawing of a cylindrical device with internal components and directional arrows (no text or symbols)

1. Attach the transparent cover onto the main body by pressing it down until it is fixed into place.

Diagram of a cylindrical container with arrows indicating rotation and movement, no text or symbols present

05 EN EN 06

5/ USING PETCARE WATER FOUNTAIN

1. Connect your PetCare Water Fountain to a power outlet using the provided USB charging cable and adapter (5V/1A).
2. After it is powered on, the PetCare Water Fountain will continuously dispense water.

Note: When the water level is lower than the MIN water line, the pump will stop working. It will resume normal operation after the water is filled.

6/ MAINTENANCE

For optimal performance, follow the instructions below to clean and maintain your PetCare Water Fountain regularly. Cleaning or replacement frequency will depend on your usage habits.

PetCare Water Fountain Part Cleaning Frequency Replacement Frequency
Sterilization filter Once every week Every two months
Purification filter Once every week Every two months
Water pump Once every week Replace after it is damaged

7/ SPECIFICATIONS

Dimension: 200 mm (Width) × 200 mm (Depth) × 207 mm (Height)

Net Weight: 750 g / 50 oz

Material: ABS

Capacity: 1.5L

Input: 5V=1A

8 / NOTICE

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/ TV technician for help.

07 EN EN 08

FCC Radio Frequency Exposure Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure conditions. The min separation distance is 20cm.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

The following importer is the responsible party.

Company Name: POWER MOBILE LIFE LLC

Address: 400 108th Ave. NE Ste 400, Bellevue, WA 98004-5541

Telephone:[phone]

Customer Service

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

Warranty

12-month limited warranty

United States [phone] Mon-Fri 9AM-5PM (PT)

United Kingdom [phone] Mon-Fri 6AM-11AM (GMT)

Germany [phone] Mon-Fri 6:00-11:00

Customer Support: [e-mail]

@EufyOfficial @EufyOfficial @EufyOfficial
