Product Type	Infant Car Seat with Base
Weight Range	4 - 30 lb (1.8 - 14 kg)
Height Limit	30 inches (76 cm) or less
Orientation	Rear-Facing Only
Installation Methods (Base)	Vehicle Seat Belt or LATCH System (do not use both)
Installation Methods (Carrier)	Vehicle Seat Belt only (no LATCH)
Carry Handle Positions	4 locked positions (must be upright when carrying)

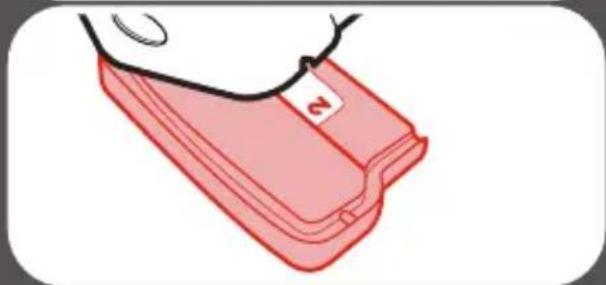

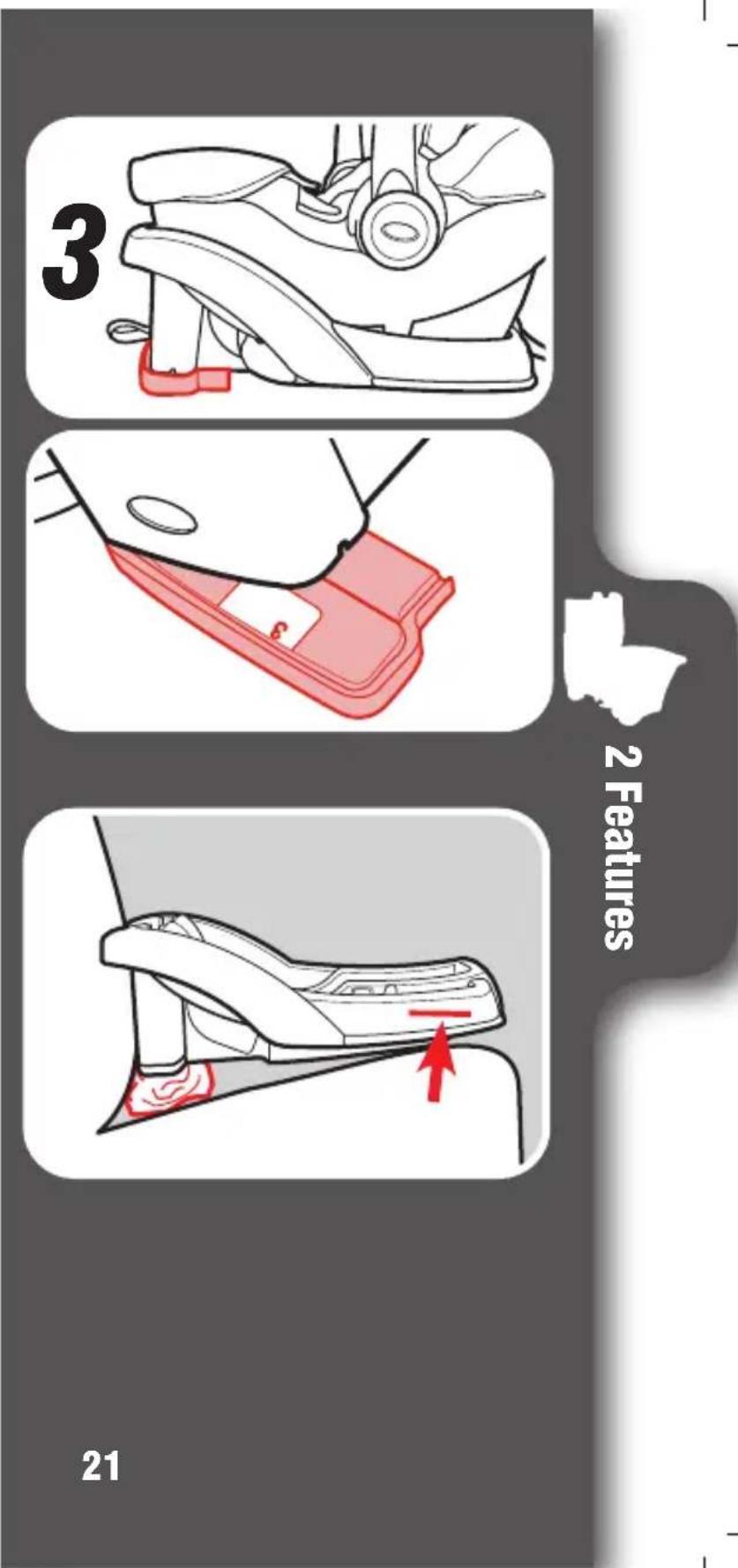

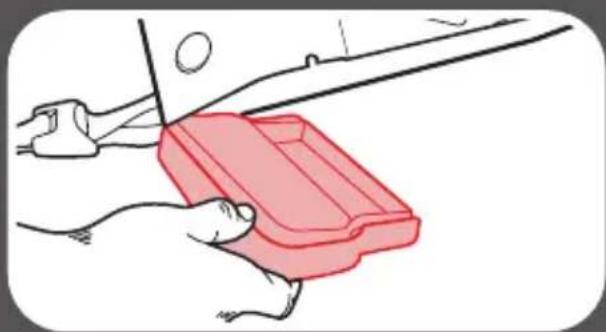

Base Recline Positions	3 positions (adjustable with wedge)
Harness Type	5-point harness with chest clip
Harness Adjustment	Multiple shoulder strap positions (2 slots per side, 2 loops on splitter plate)
Buckle Position	Adjustable to closest slot without being under child
LATCH Compatible	Yes (for base installation)
Level Indicator	Red level line on side of seat and base
Certification	FMVSS 213 compliant; certified for aircraft use (without base)
Useful Life	7 years from date of manufacture
Accessories Included	Canopy (select models), head support (select models), harness covers (select models), body support
Cleaning Instructions	Seat pad and canopy: machine wash cold, delicate cycle, drip dry; Buckle: hand clean with warm water only; Harness and LATCH: surface wash only
Safety Warnings	Never use rear-facing in front of active air bag; Replace after any crash; No accessories not provided by Graco
Registration	Required for recall notifications; online at www.gracobaby.com/carseatregistration or mail
Weight of Base	Approximately 6 lb (2.7 kg)
Weight of Carrier	Approximately 9 lb (4.1 kg)

Frequently Asked Questions - Trax GRACO

What is the weight and height limit for the Graco Trax car seat?

The Graco Trax is designed for children weighing between 4 and 30 lb (1.8–14 kg) and up to 30 inches (76 cm) tall. It must only be used rear-facing.

Can I use the LATCH system and the vehicle seat belt together?

No, you must use either the vehicle seat belt or the LATCH system to install the base, but never both simultaneously. Both methods are equally safe.

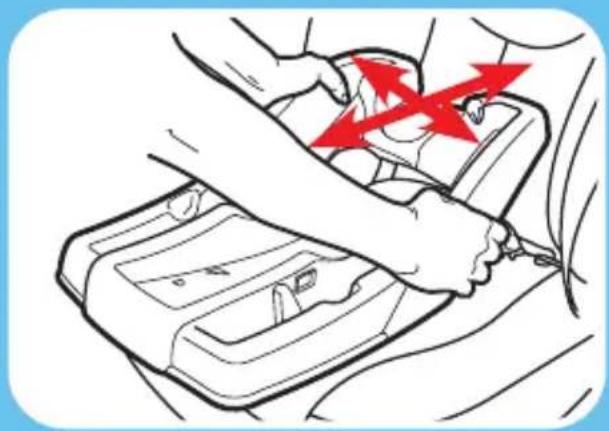

How do I know if the car seat is installed tightly enough?

After installation, grab the base or carrier at the belt path and push/pull side to side and front to back. It should not move more than 1 inch (2.5 cm) in any direction.

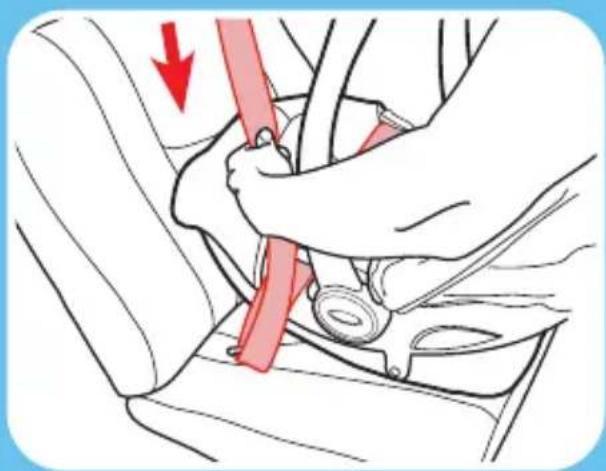

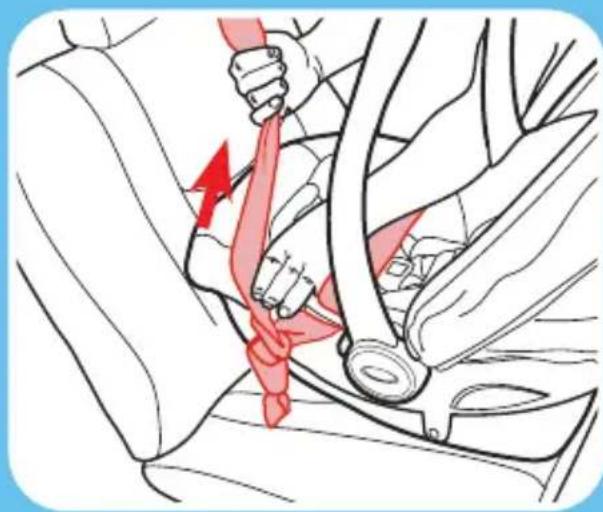

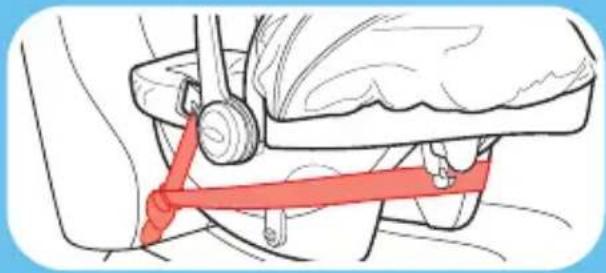

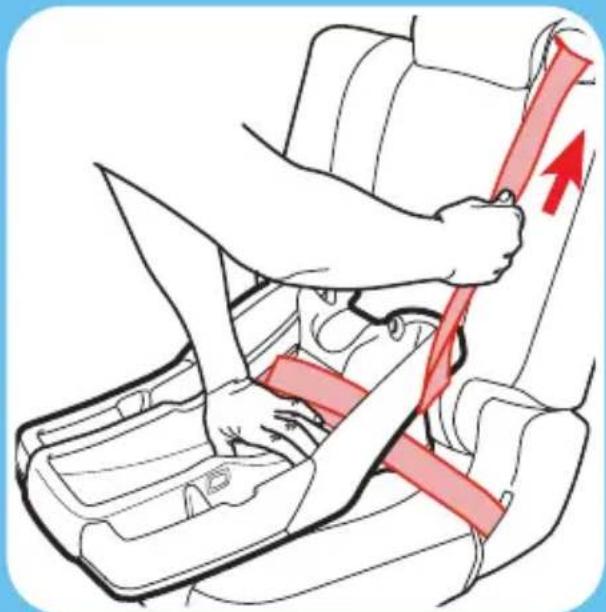

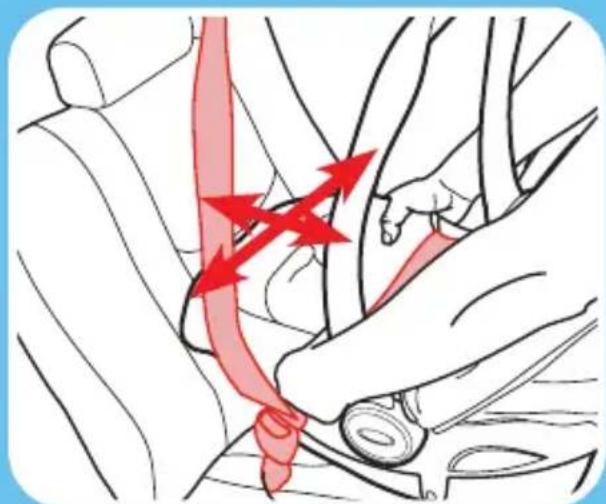

How do I lock the vehicle seat belt for installation?

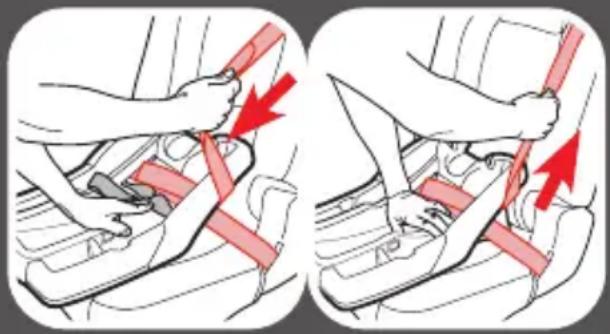

Most modern vehicles have a switchable retractor: slowly pull the shoulder belt all the way out, then let it retract. You will hear a clicking sound; the belt should then be locked and not pull out further. Refer to your vehicle owner's manual for specific instructions.

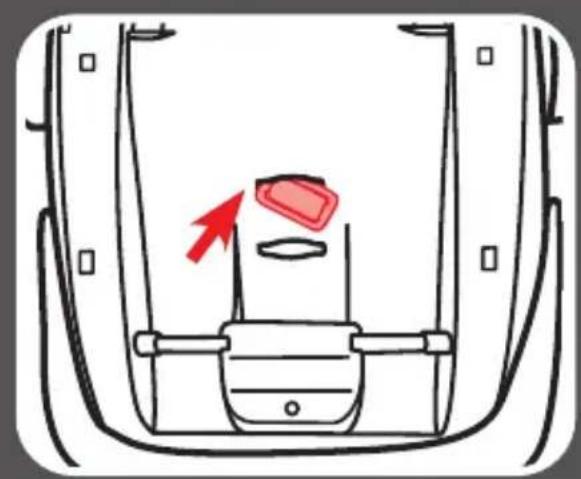

How do I clean the car seat harness and buckle?

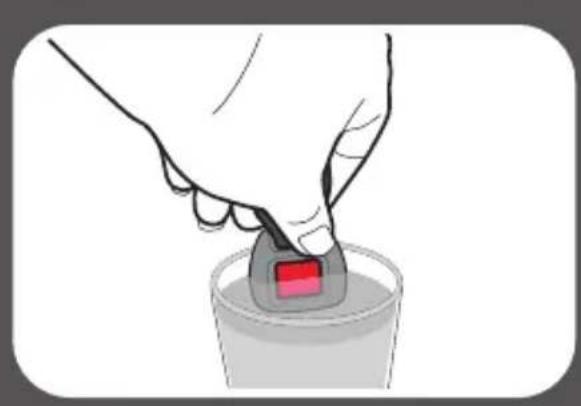

For the buckle, remove it and place it in a cup of warm water, agitate gently and press the red button several times. Do not submerge the buckle strap or use soaps or lubricants. For harness straps and LATCH strap, surface wash only with mild soap and a damp cloth. Do not immerse in water.

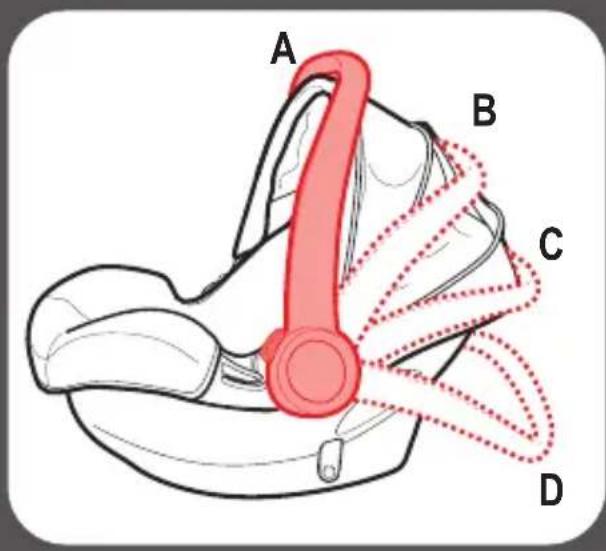

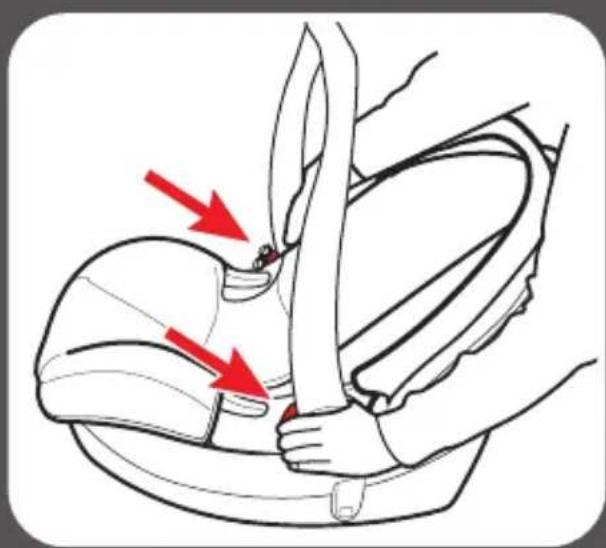

How do I adjust the carry handle?

Press the handle adjustment buttons on both sides and rotate to one of 4 locked positions. Always ensure the handle is in the upright position (position A) when carrying the infant carrier. Any position is allowed when in the vehicle.

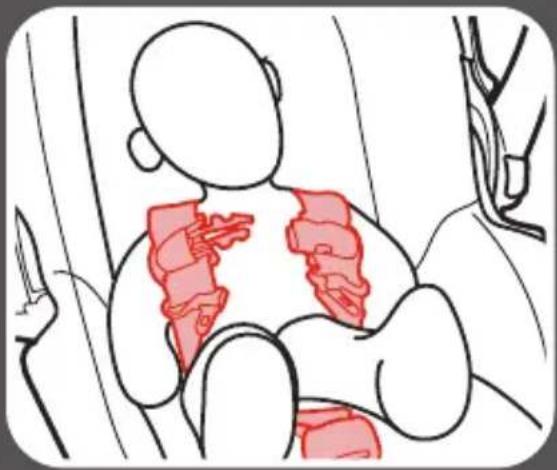

What is the correct harness height for my child?

The harness straps must be at or just below the child's shoulders. For a smaller baby, use the upper loops on the splitter plate; for a larger baby, use the lower loops. The top of the child's head must be at least 1 inch (2.5 cm) below the top of the car seat.

How long can I use the Graco Trax car seat?

The car seat has a useful life of 7 years from the date of manufacture, which is printed on the label on the back of the seat. Stop using and discard the seat after that date.

Can I use the infant carrier without the base?

Yes, you can install the carrier without the base using the vehicle seat belt. Route the belt through the rear-facing belt path (marked with a blue label) and lock it. The carrier cannot be installed using LATCH when used without the base.

Where can I find replacement parts or customer support?

Contact Graco customer service at 1-800-345-4109 or visit www.gracobaby.com for replacement parts, accessories, or additional help. Have the model number and date of manufacture ready.

USER MANUAL Trax GRACO

Read This Instruction Manual

Do not install or use this child restraint until you read and understand the instructions in this manual.

FAILURE TO PROPERLY USE THIS

CHILD RESTRAINT

INCREASES THE

RISK OF SERIOUS

INJURY OR DEATH IN

A SUDDEN STOP OR CRASH.

KEEP INSTRUCTIONS FOR FUTURE USE.

www.gracobaby.com

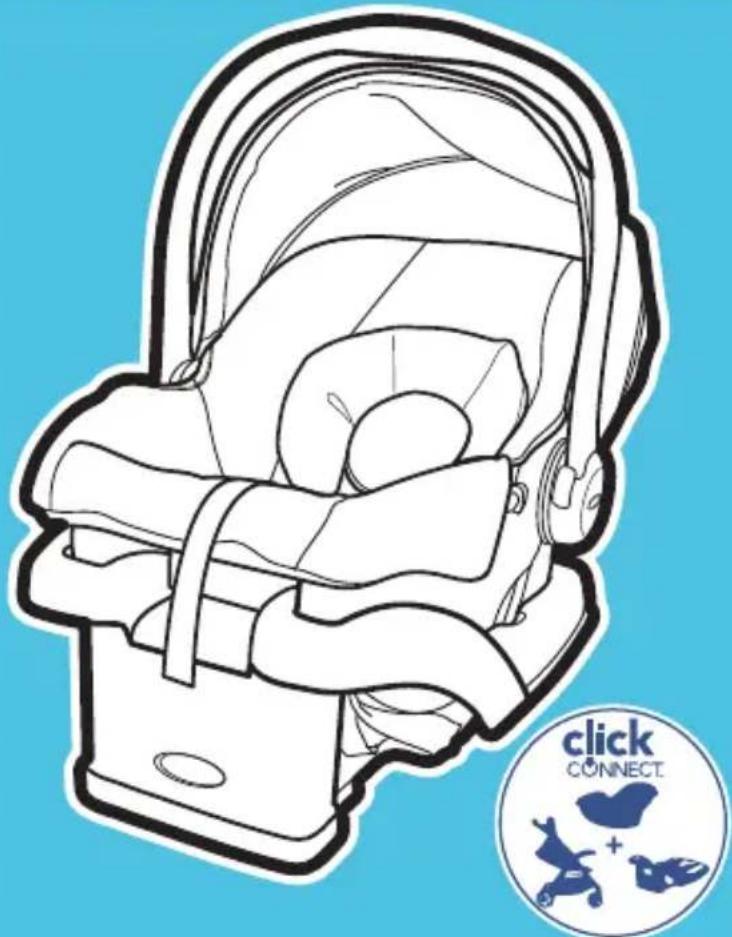

Line drawing of a baby car seat with a circular icon labeled 'click CONNECT' (no text or symbols on the car itself)

PD284962H 4/20

Important Pages 4-13

1-A Quick Guide to Your Manual
1-B Before You Begin
1-C Safety Warnings

Features Pages 14-23

2-A Car Seat Features
2-B Remove Car Seat from Base
2-C Attach Car Seat to Base
2-D Adjusting Carry Handle

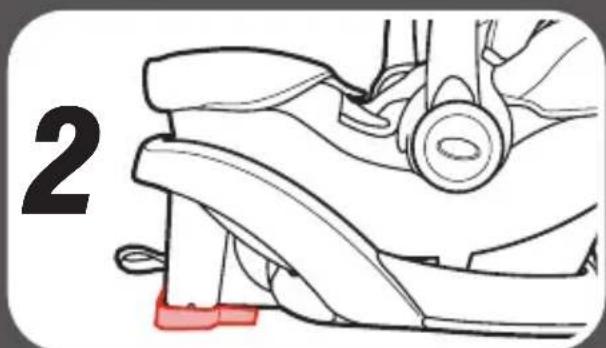

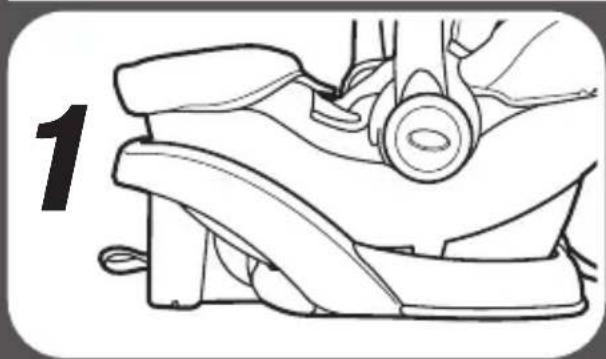

2-E Recline the Base
2-F Choosing Vehicle Seat Location
2-G Choosing LATCH or Seat Belt
2-H What Is LATCH

Rear-Facing Use Pages 24-42

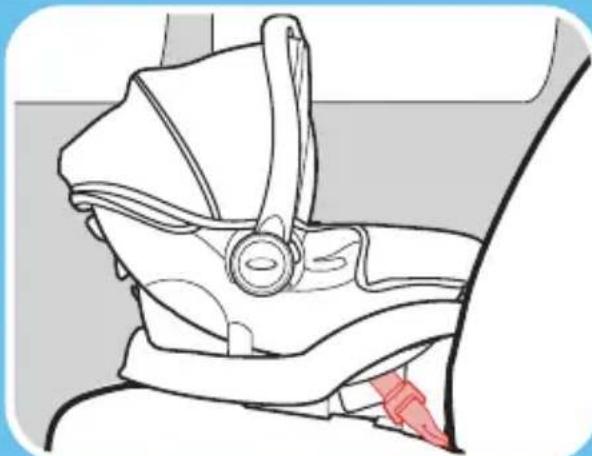

3-A Rear-Facing Checklist

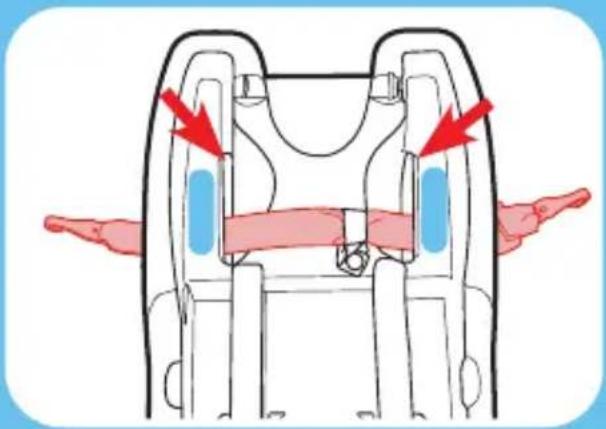

3-B Install With Base With LATCH Strap

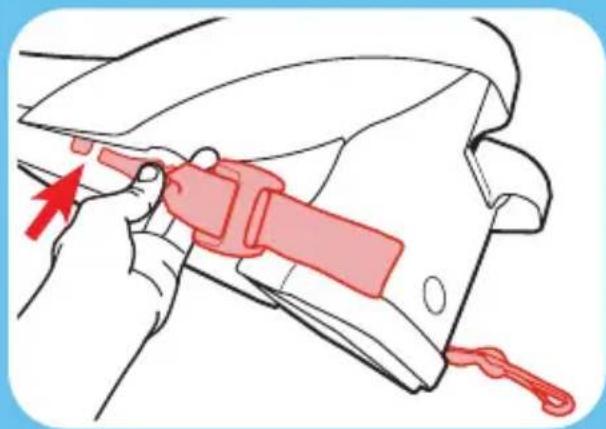

3-C Install With Base With Vehicle Seat Belt

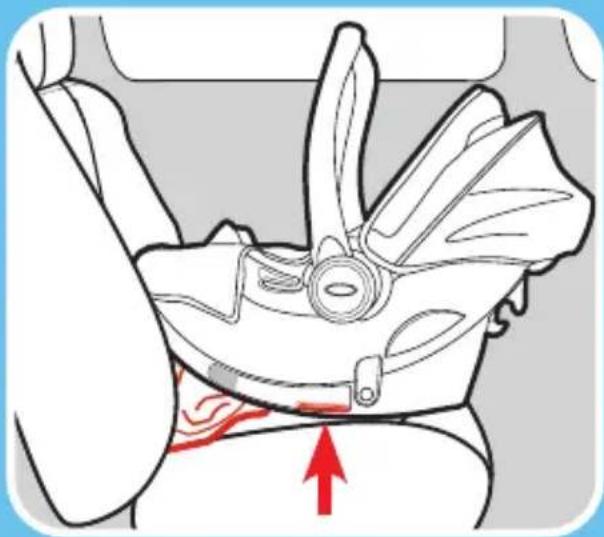

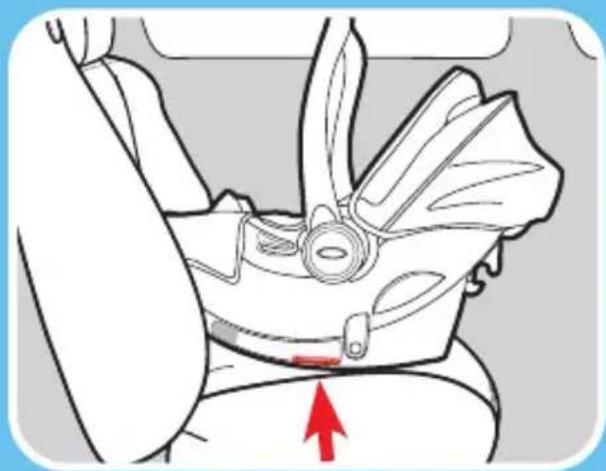

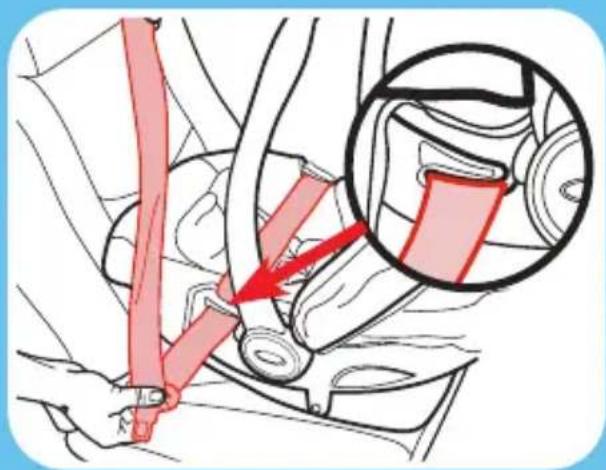

3-D Install Without Base With Vehicle Seat Belt

Securing Child Pages 43-54

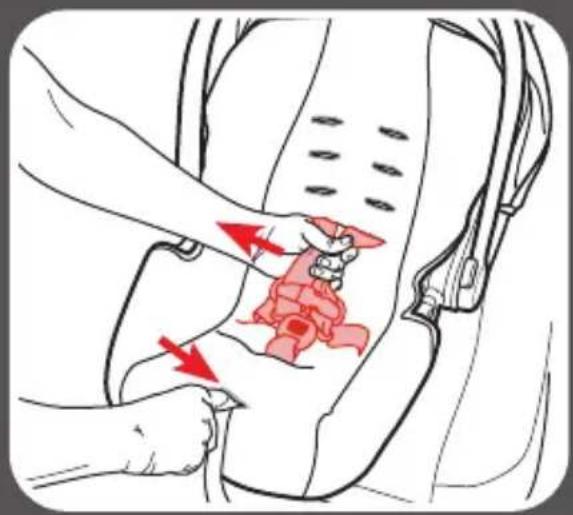

4-A Adjust Harness to Fit Child
4-B Adjust Buckle to Fit Child

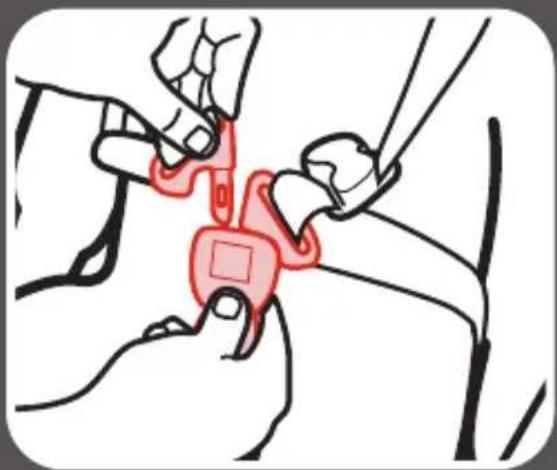

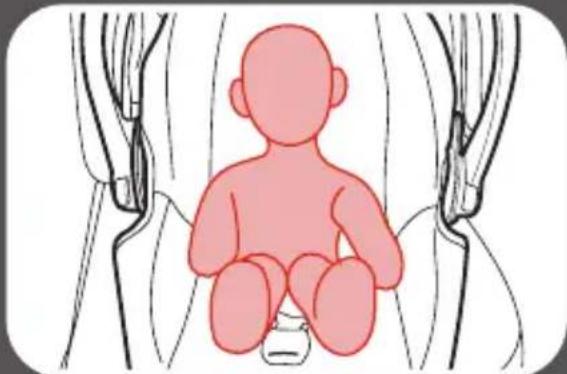

4-C Securing Child in Car Seat

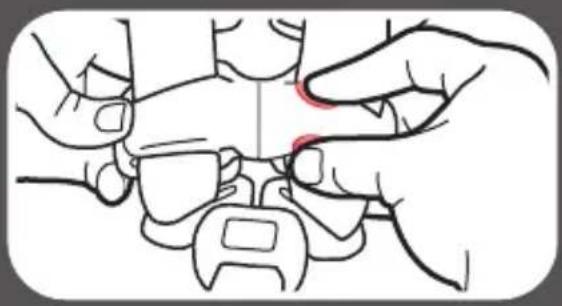

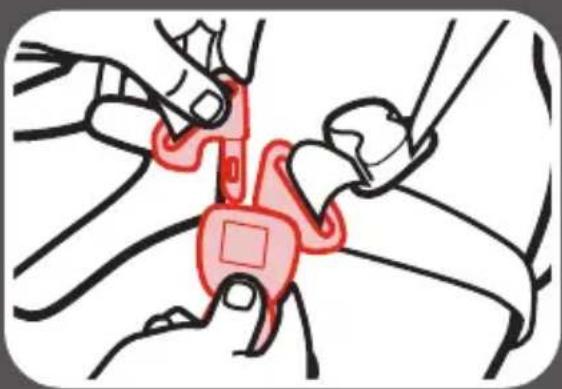

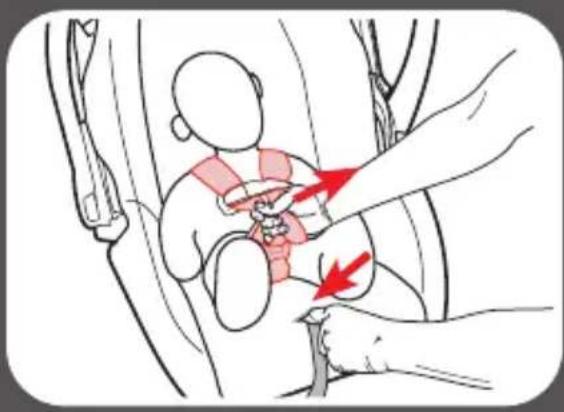

4-D Removing Child

Carrier Use Pages 55-56

Vehicle Information Pages 57-67

6-A Additional LATCH Information

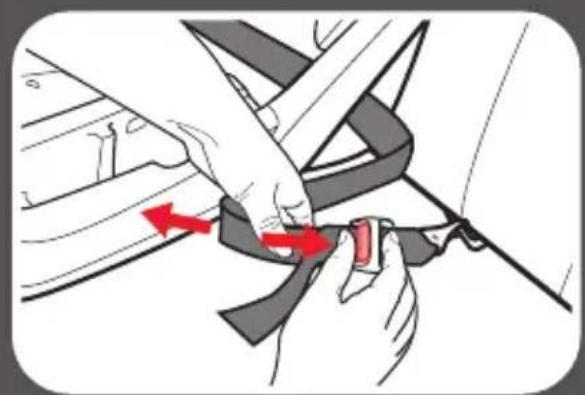

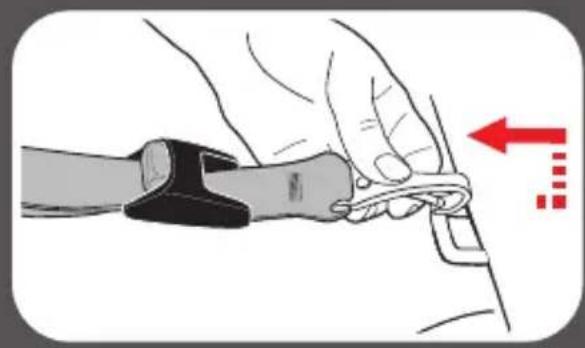

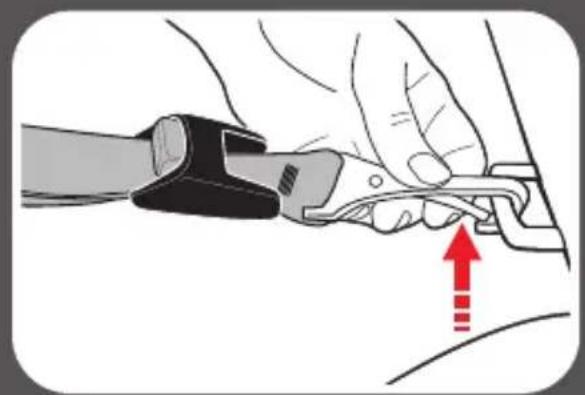

6-B How to Remove LATCH
6-C Unsafe Vehicle Seats

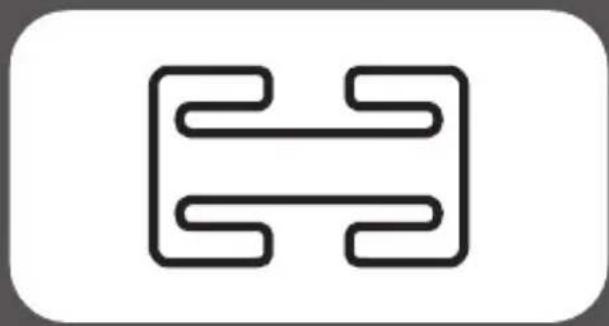

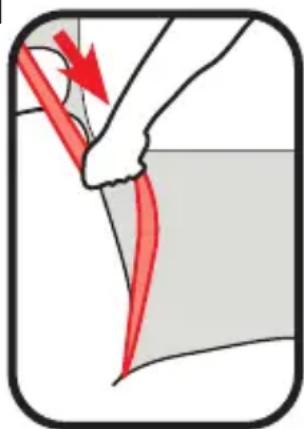

6-D Vehicle Seat Belts

Accessories Page 68

Care & Cleaning Pages 69-75

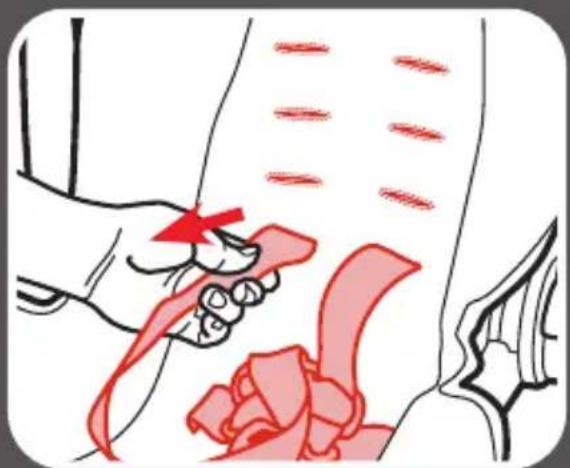

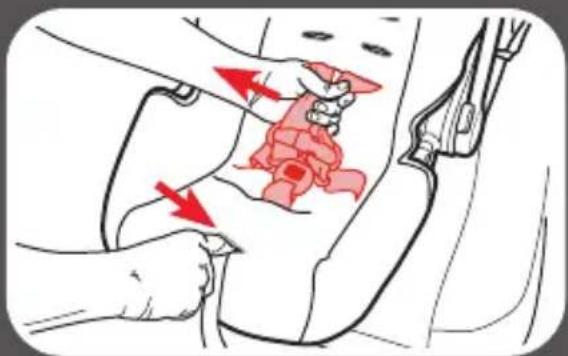

8-A Cleaning Seat Pad

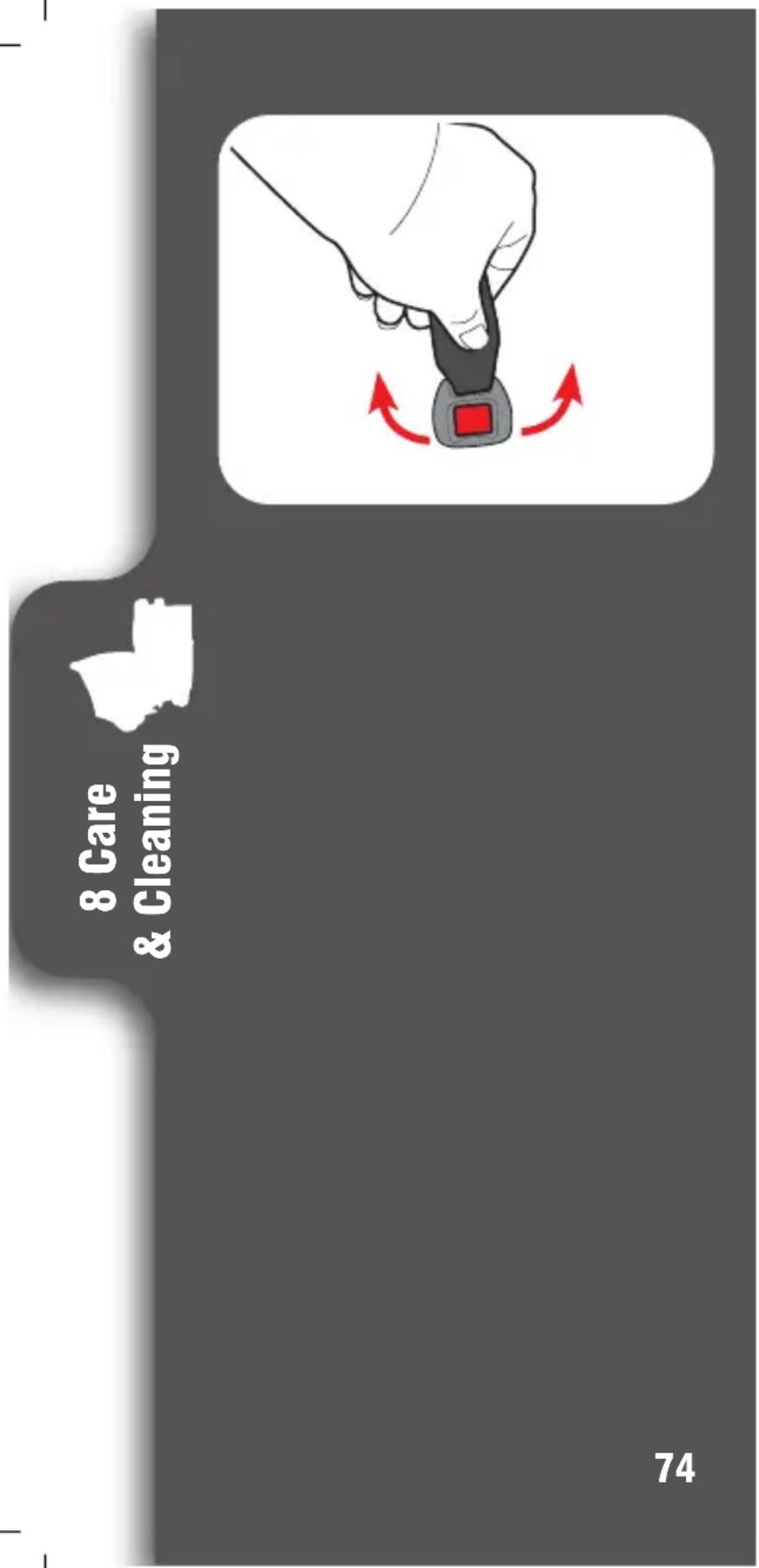

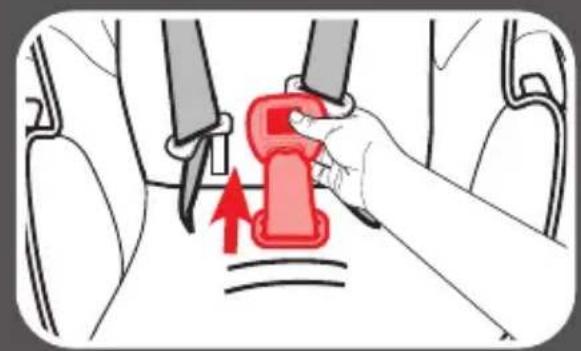

8-B Cleaning Buckle
8-C Cleaning LATCH

1-A Quick Guide to Your Manual

This car seat is for children 4-30 lb (1.8-14 kg) and 30" (76 cm) or less.

Get to Know Your Car Seat

Review section 2-A to see all of the features of this infant car seat.

What Seating Location Should I Use?

The best seating location for this infant car seat is one that:

• Is recommended by your vehicle owner's manual, and
  • Results in a secure installation of this car seat.

Never place a child rear-facing in a seating position with an active front air bag.

Review section 6 of this manual AND your vehicle owner's manual.

Which Installation Method Should I Use?

This infant car seat base can be installed in your vehicle using either the vehicle seat belt OR the LATCH system. Both are equally safe to use. DO NOT USE BOTH AT THE SAME TIME.

This infant car seat carrier can be installed in your vehicle using only the vehicle seat belt. LATCH is not available to install the carrier.

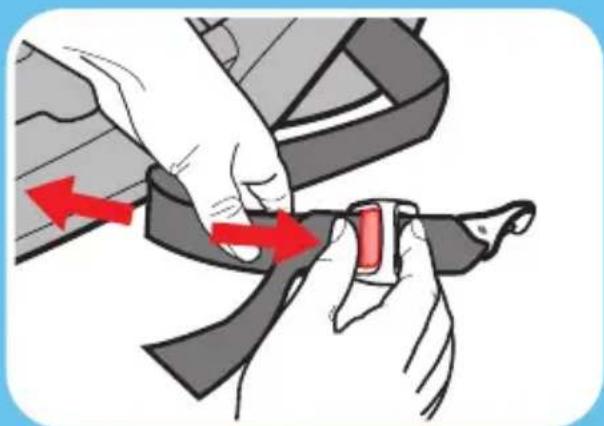

When Installing Base

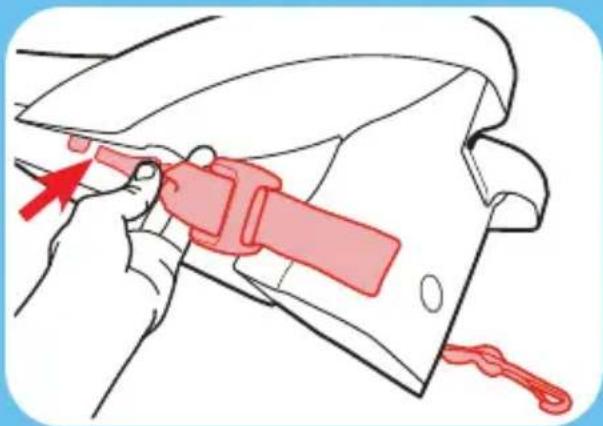

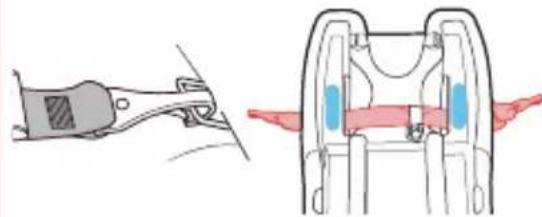

LATCH System

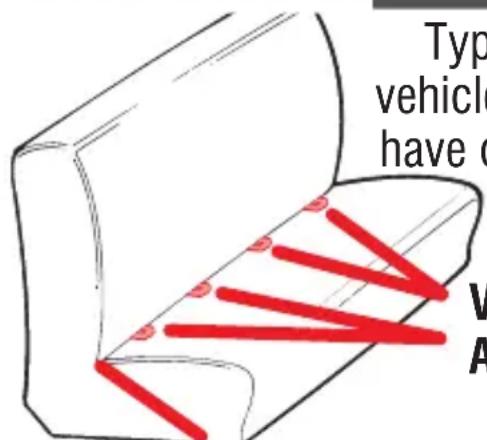

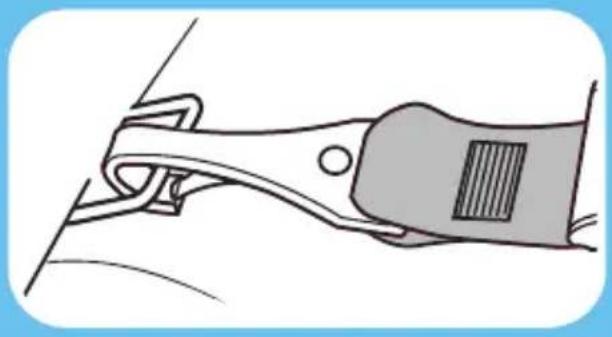

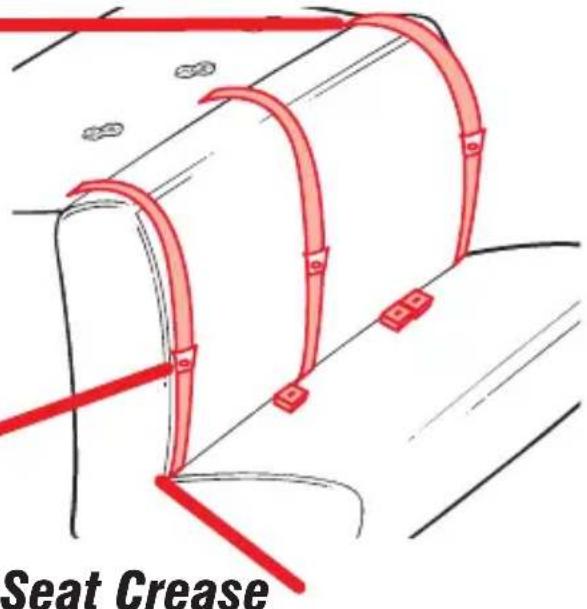

LATCH consists of lower anchors, which are built-in to your vehicle, and connecting hooks that are built-in your car seat.

Diagram showing a tool interacting with a mechanical component, before and after assembly (no text or symbols)

Review section 3-B of this manual AND your vehicle owner's manual.

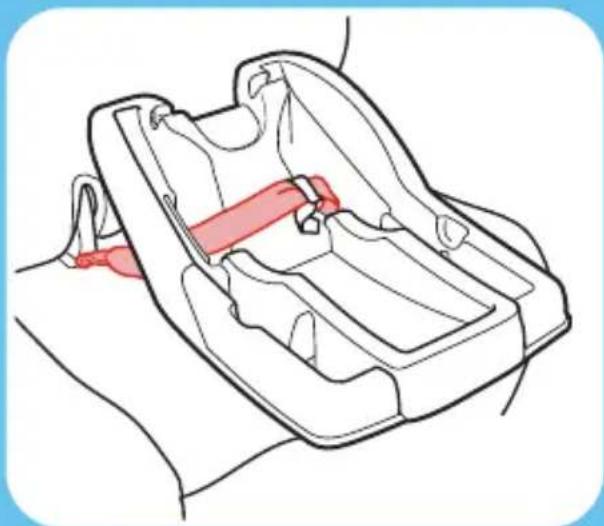

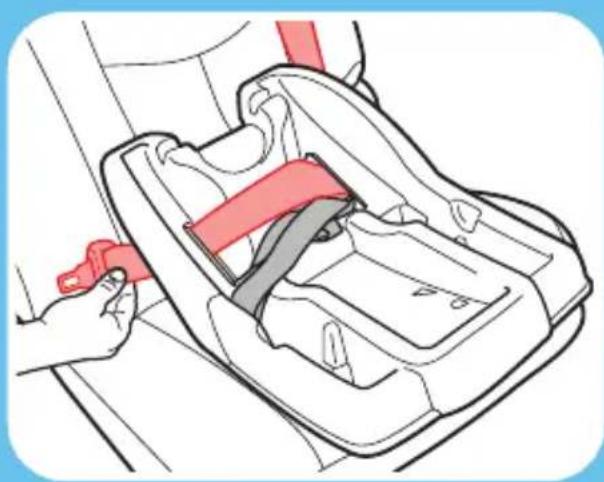

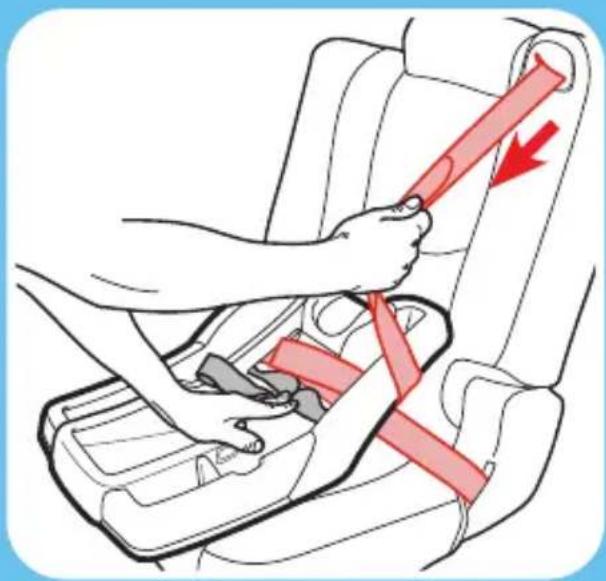

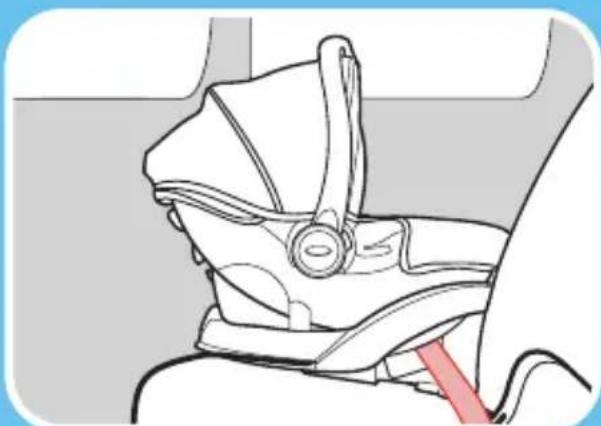

Vehicle Seat Belt

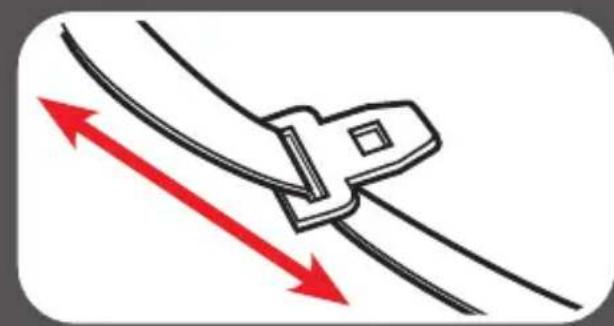

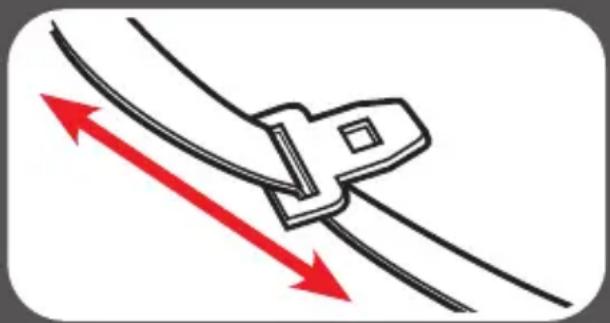

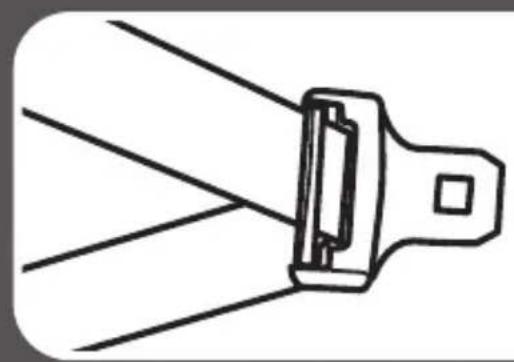

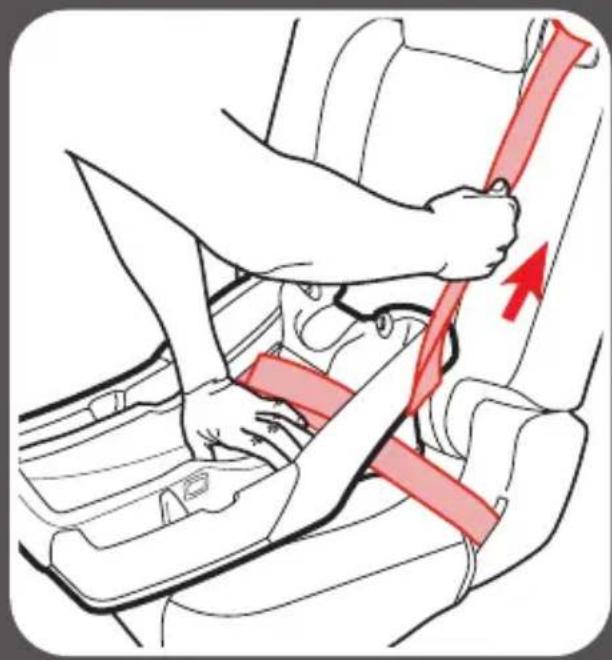

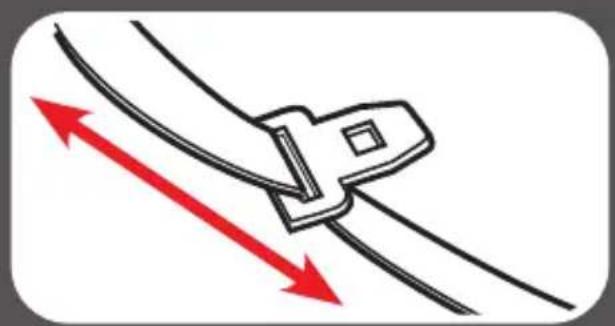

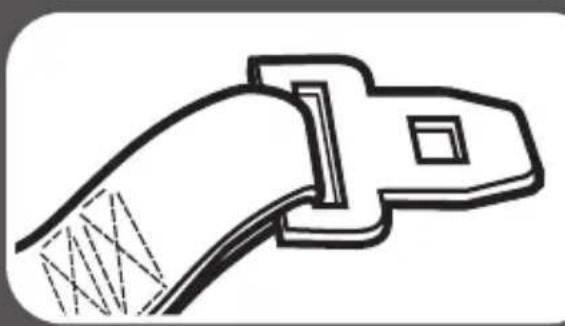

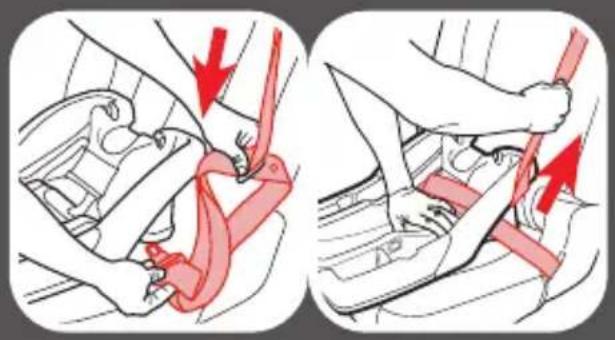

There are two types of vehicle seat belts that can be used. Lap/Shoulder Seat Belt or Lap Only Seat Belt.

Line drawing of a car seat with red cable connectors (no text or symbols)

Review section 3-C of this manual AND your vehicle owner's manual.

When Installing Carrier

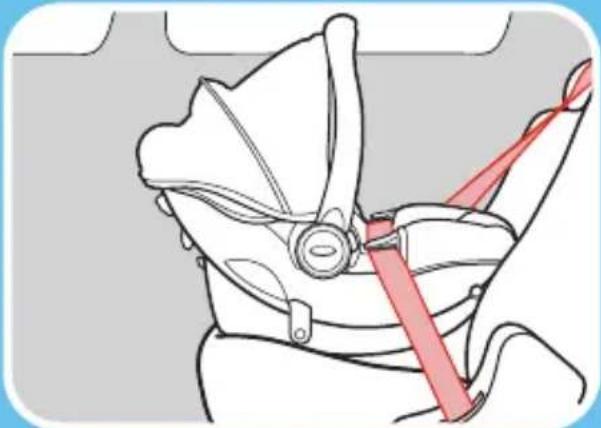

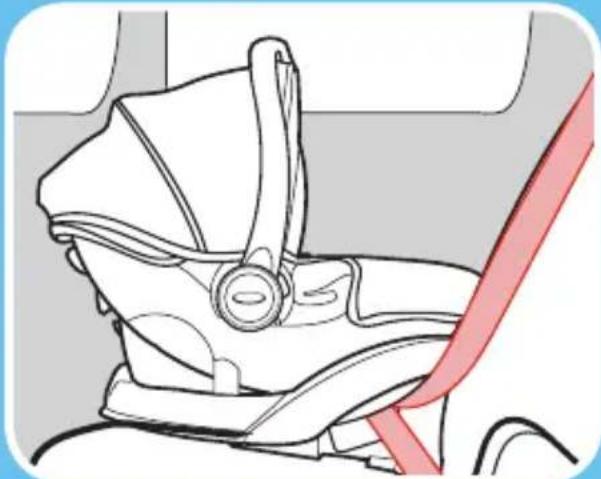

Vehicle Seat Belt

There are two types of vehicle seat belts that can be used. Lap/Shoulder Seat Belt or Lap Only Seat Belt.

Line drawing of a car seat with red cable connectors (no text or symbols)

Review section 3-D of this manual AND your vehicle owner's manual.

Does Your Seat Fit Your Child Correctly?

To make sure your child is secured properly, review section 4 to understand all of the actions you need to take to properly adjust the car seat to fit your child.

You Need To Adjust:

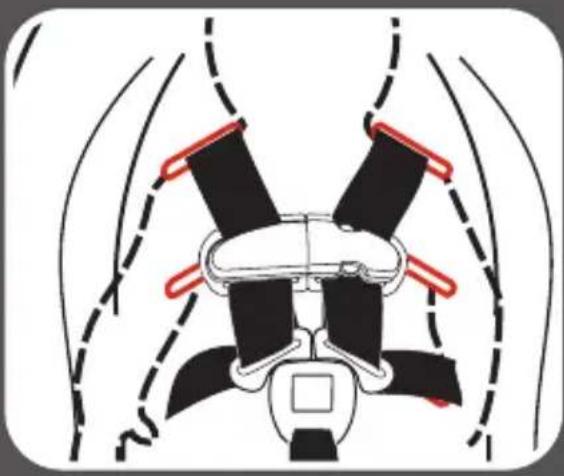

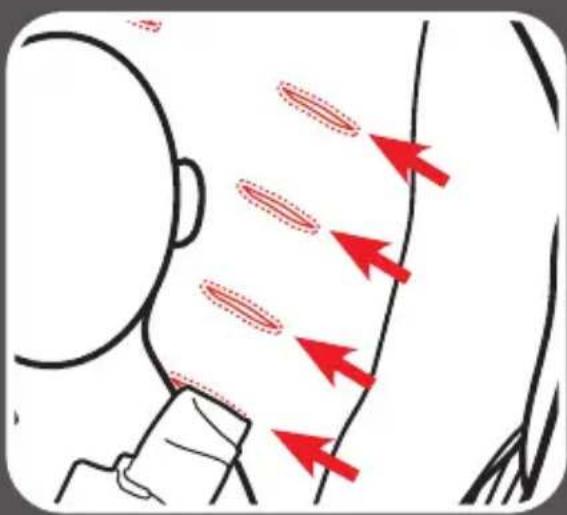

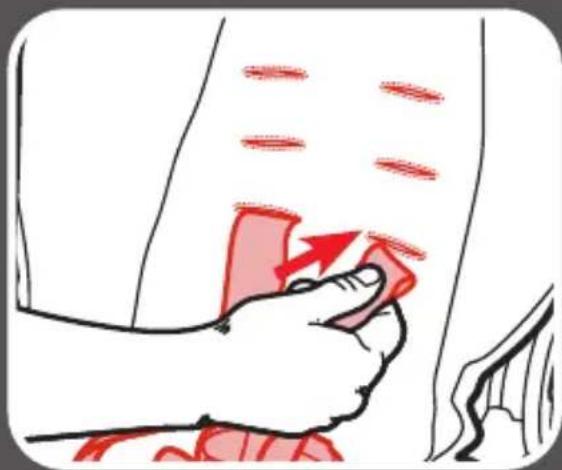

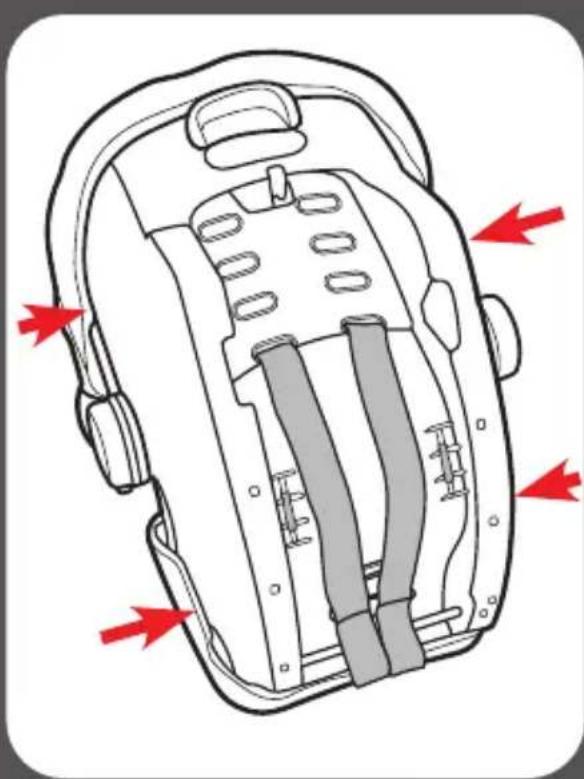

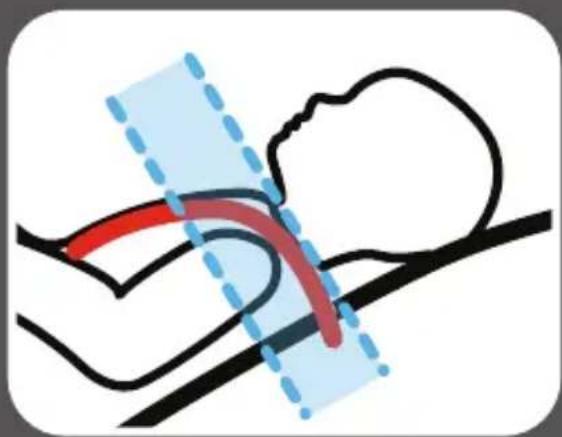

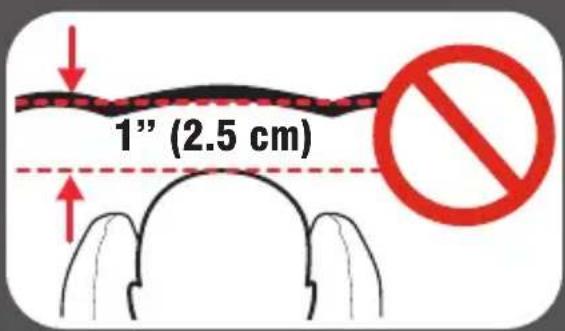

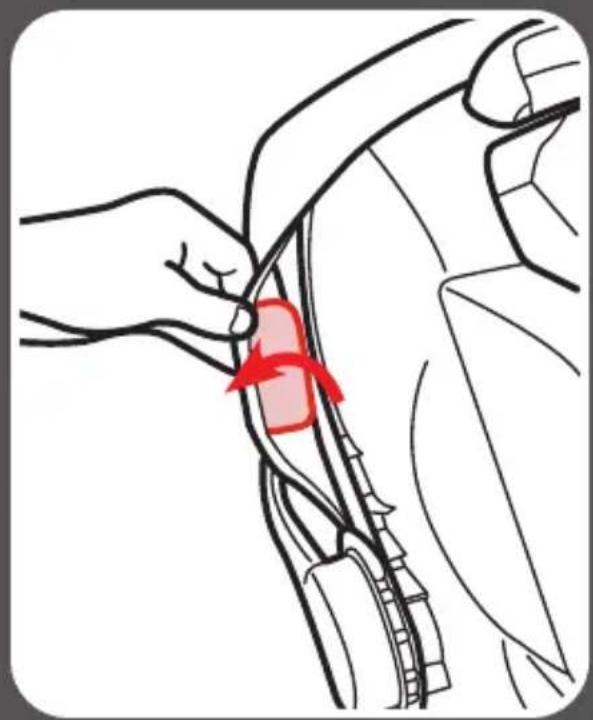

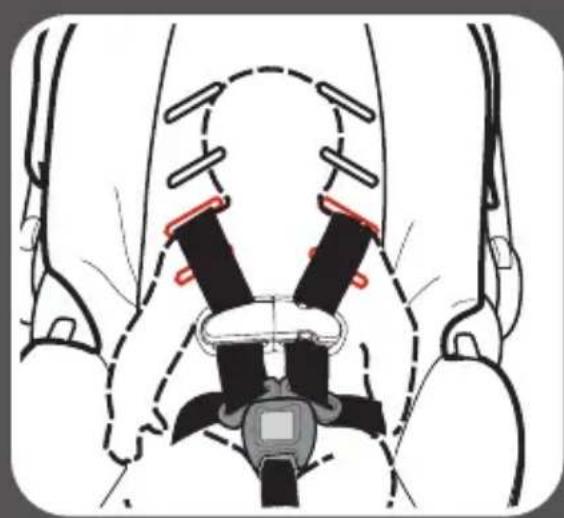

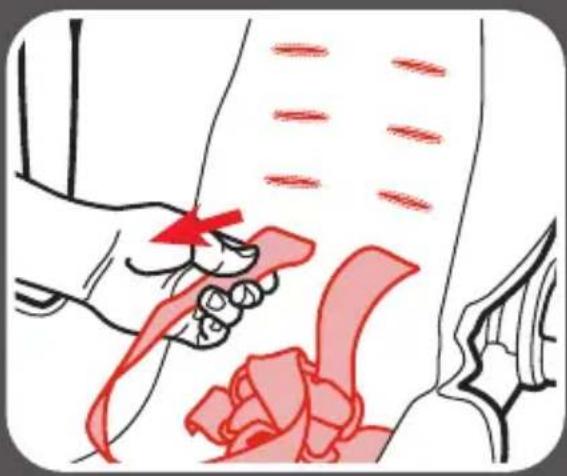

Harness Height

Harness straps at or just below the child's shoulders. Review section 4-A.

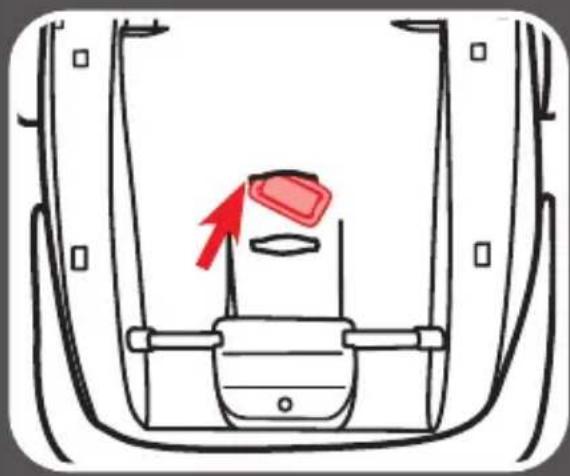

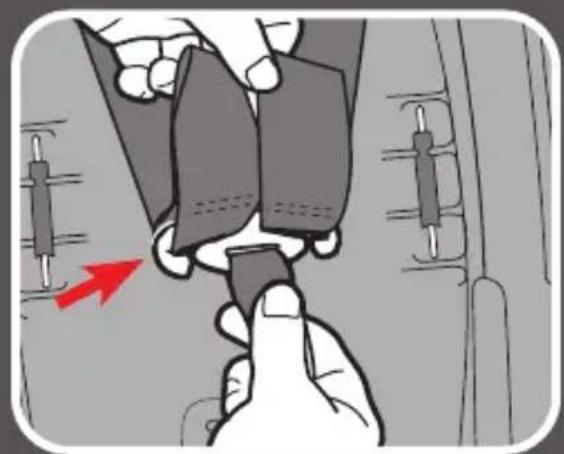

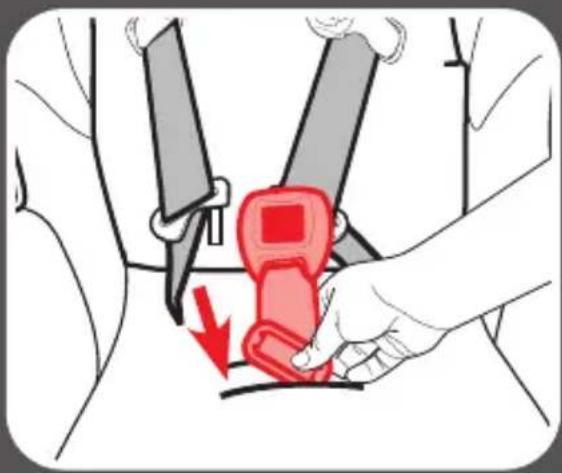

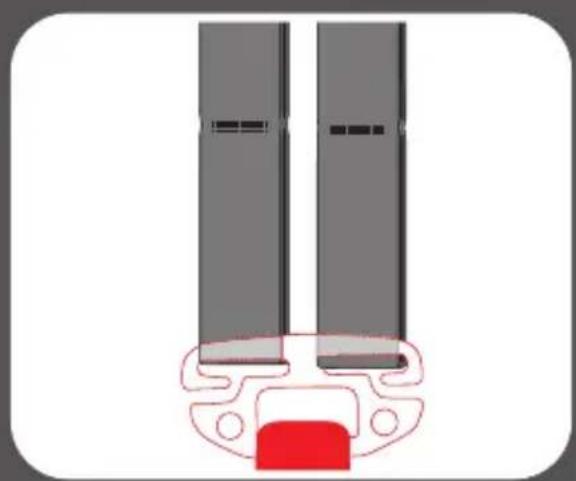

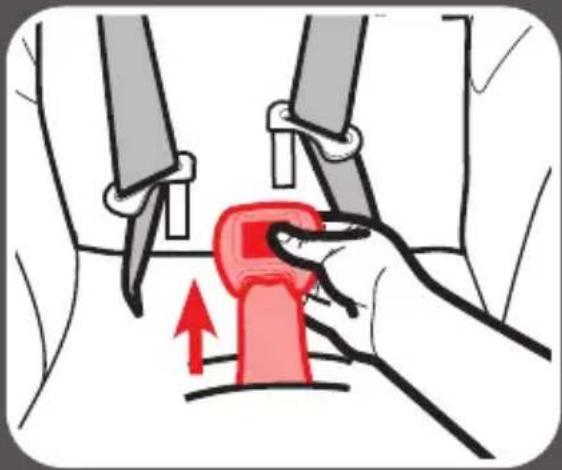

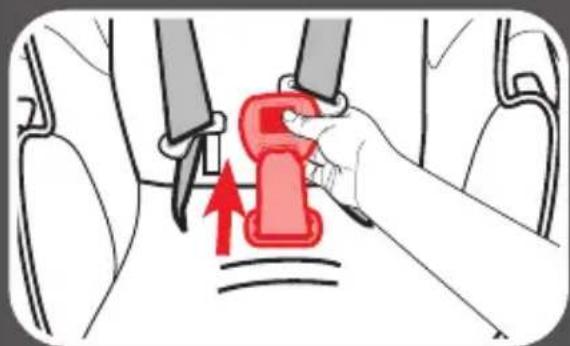

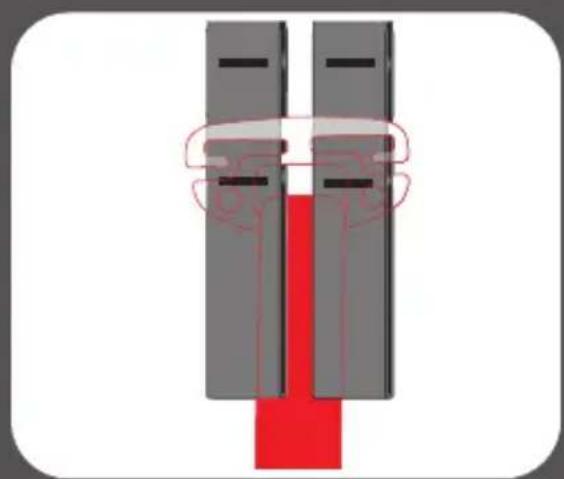

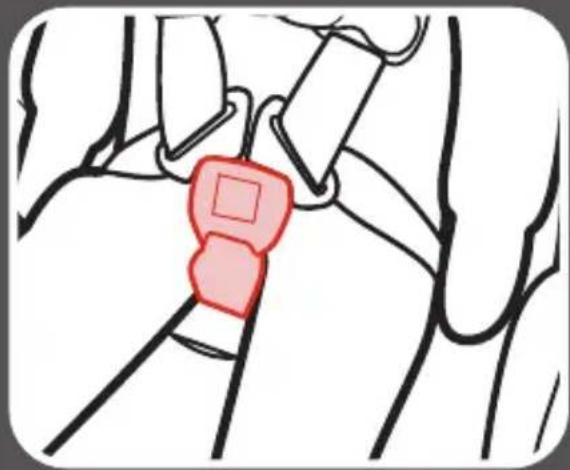

Buckle Position

The correct slot is the one that is closest to your child without being underneath them. Review section 4-B.

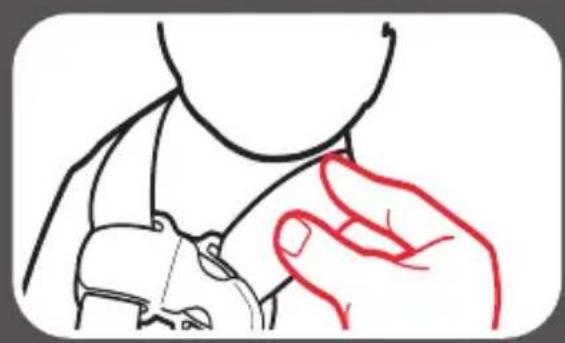

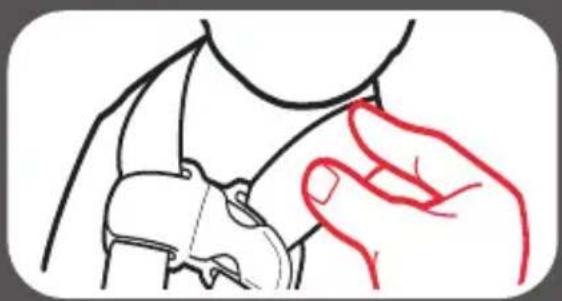

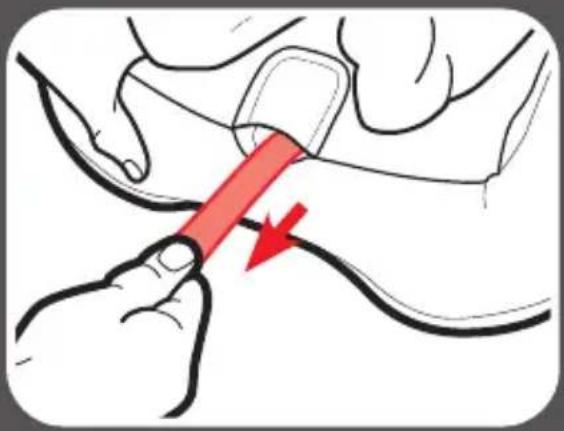

Harness Tightness

If your fingers slide off the harness straps without pinching the straps, it is tight enough. Review section 4-C.

Diagram of a human head with a red curved line and blue dashed rectangle, no text or symbols present

Simple line drawing of a mechanical component with a red highlighted section (no text or symbols)

Illustration of a hand holding a small object, no text or symbols present

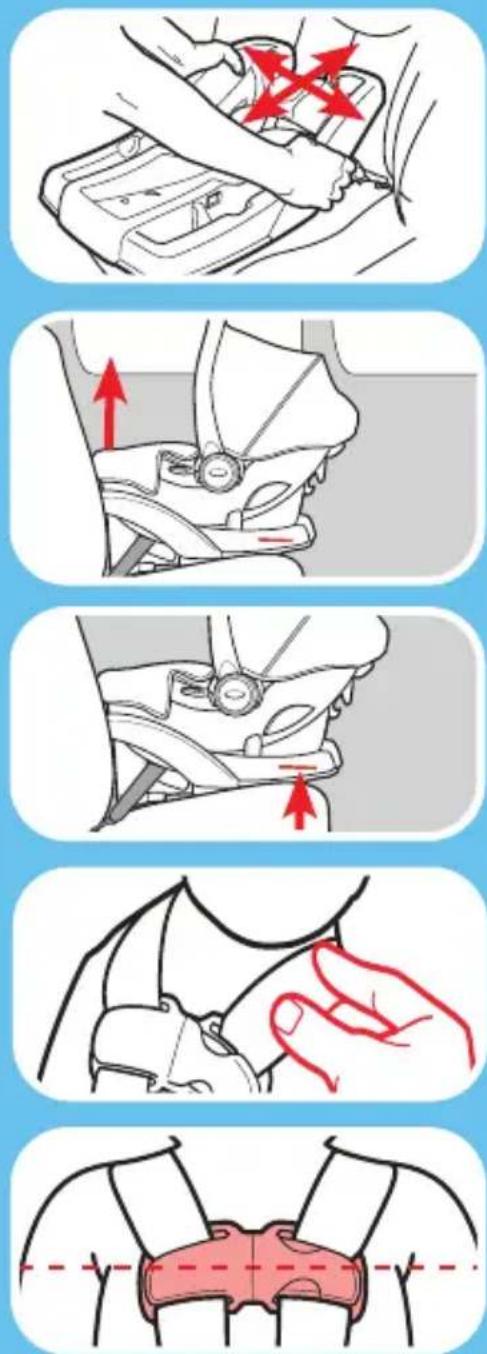

Did You Do Everything Correctly?

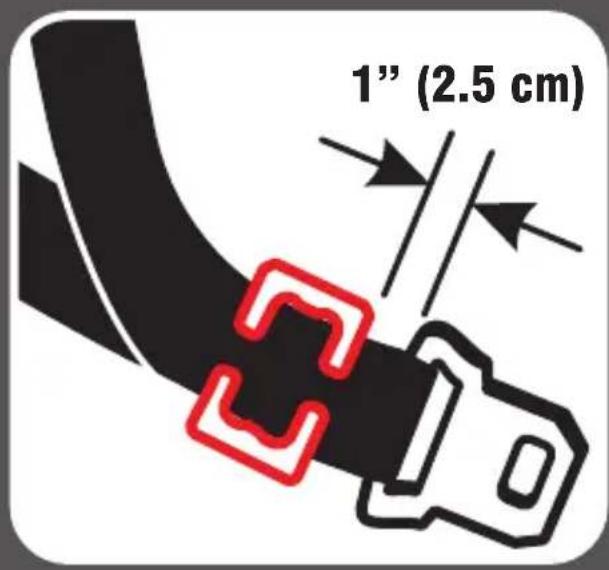

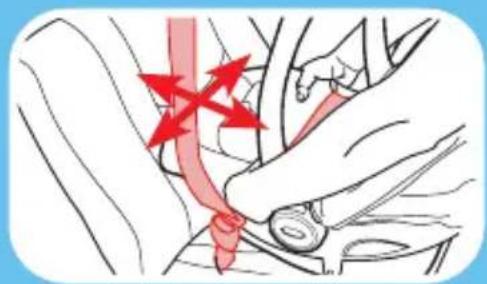

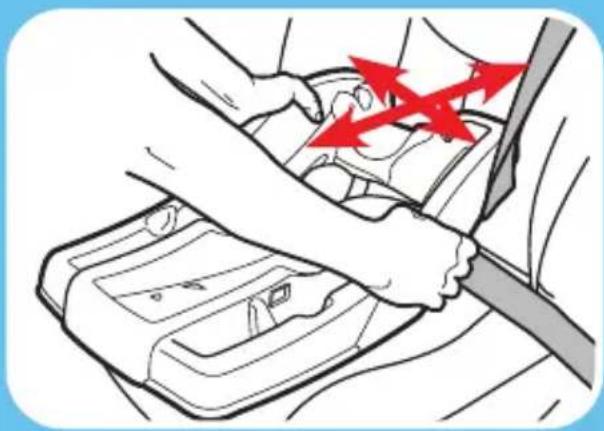

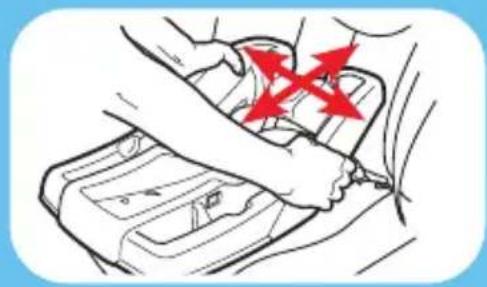

Base or Car Seat Does Not Move More Than 1" (2.5 cm) At The Belt Path

Review section 3.

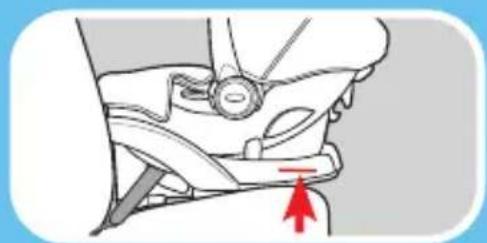

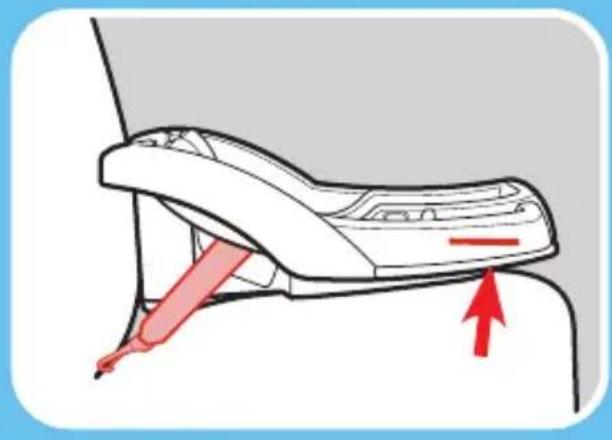

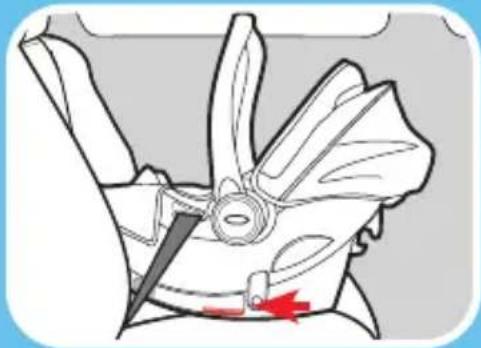

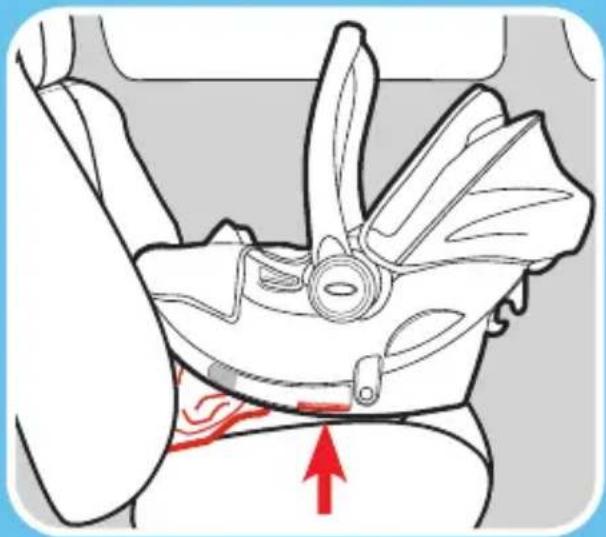

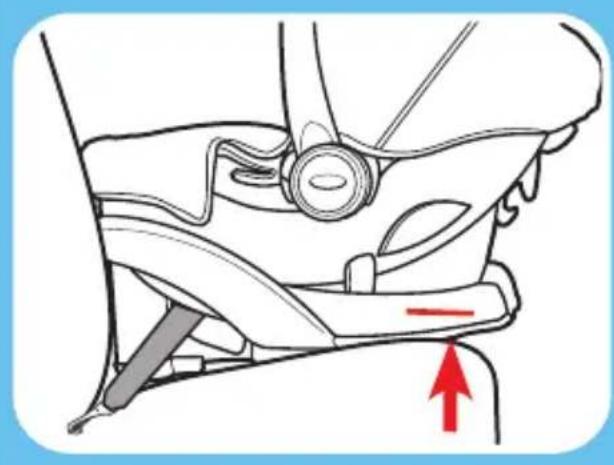

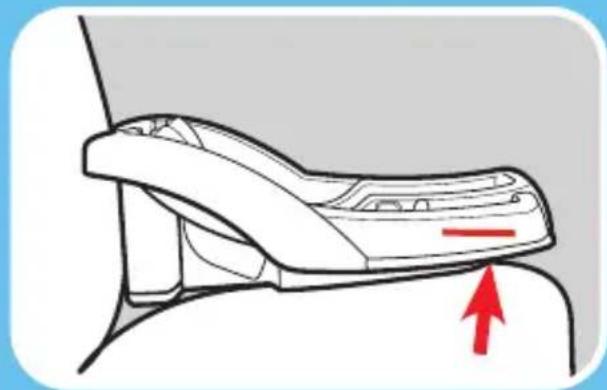

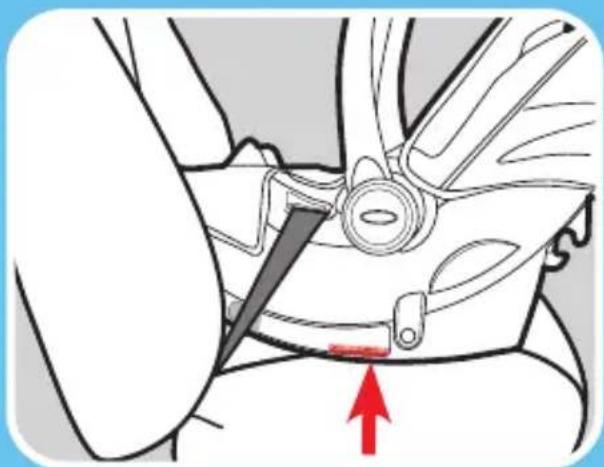

Car Seat Level to Ground

Review sections 2-E and 3.

Illustration of a hand using a tool to adjust or install a vehicle component, with red arrows indicating the process (no text or symbols present)

Illustration of a medical procedure with red arrows indicating force or pressure points (no text or symbols)

Diagram of a car interior showing steering wheel and dashboard (no text or symbols)

Illustration of a person performing a medical or ergonomic procedure on a patient's abdomen, with a red arrow indicating direction (no text or symbols present)

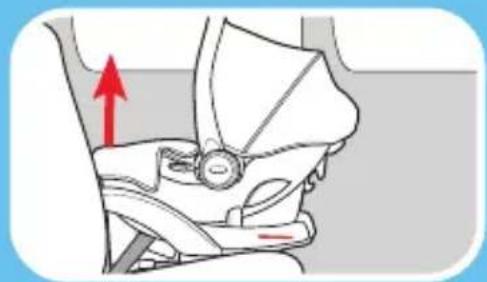

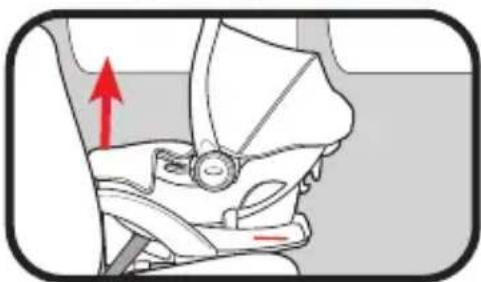

Car Seat Is Properly Attached To Base

Review section 2-C.

Diagram of a car seatbelt with a red arrow indicating upward motion (no text or symbols)

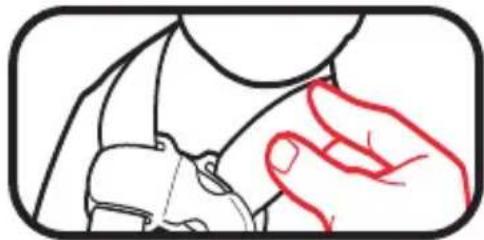

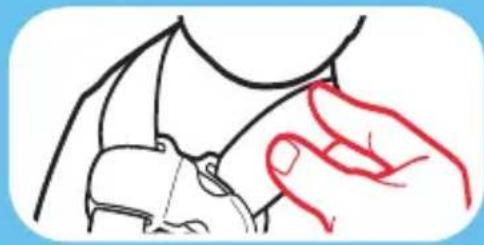

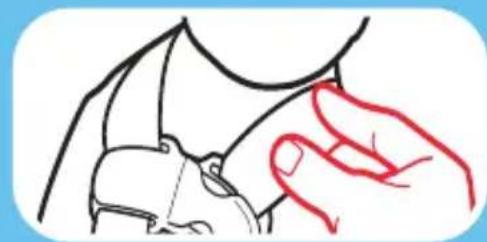

Cannot Pinch Harness

Harness straps at or just below the child's shoulders.

Review section 4-C.

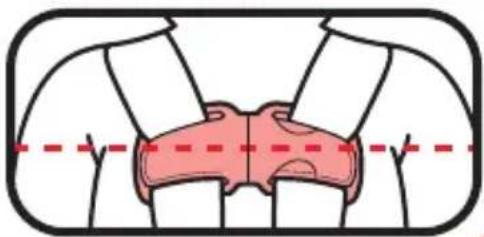

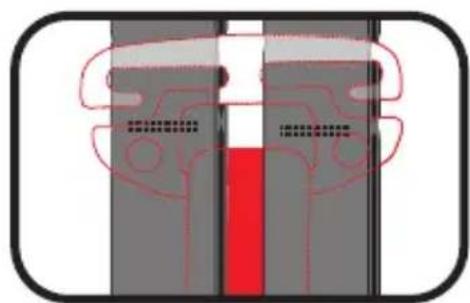

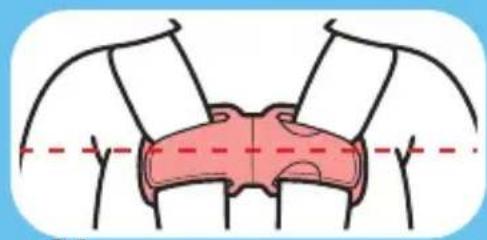

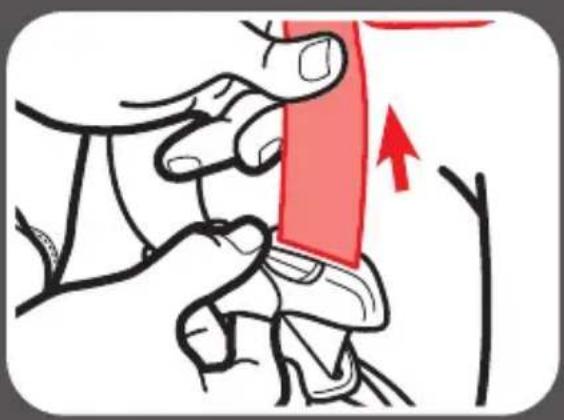

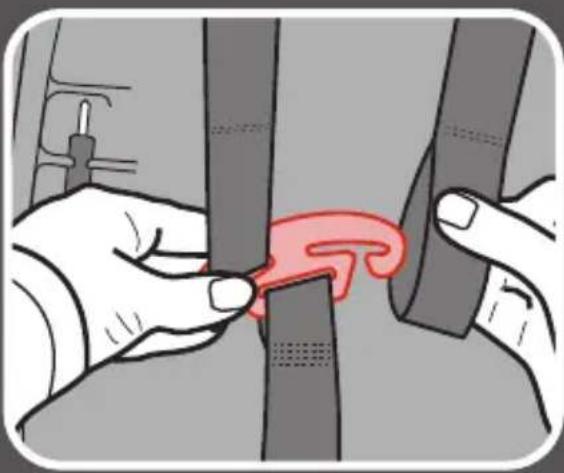

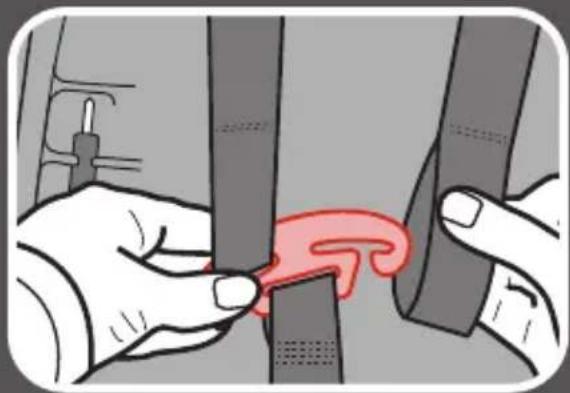

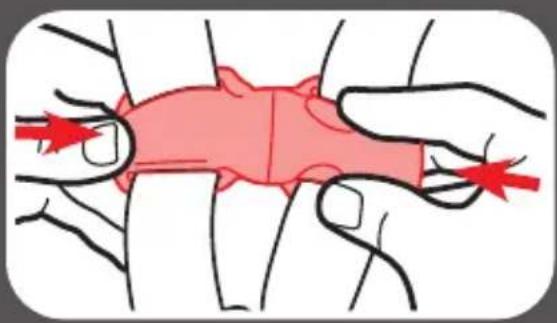

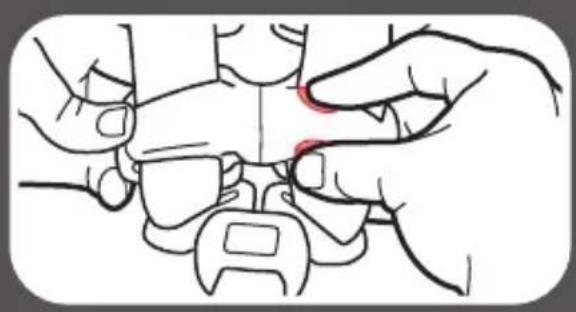

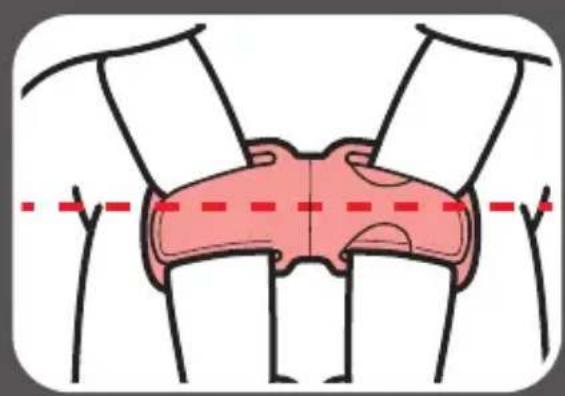

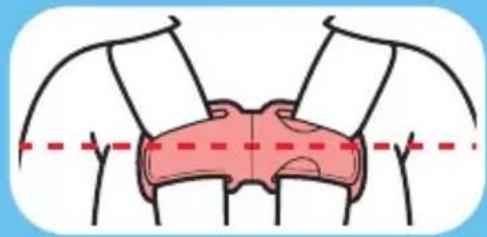

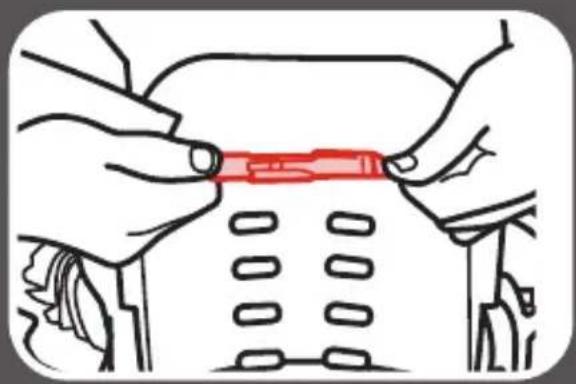

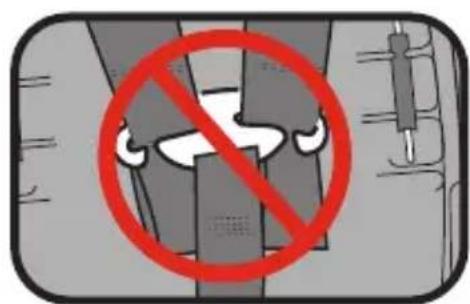

Chest Clip Even With Armpits

Review section 4-C.

Line drawing of a hand holding a small object, no text or symbols present

Diagram of a human head with a red shaded region and dashed line indicating a measurement or alignment (no text or symbols present)

1-B Before You Begin

Your child's safety depends on you. No car seat can guarantee protection from injury in every situation, but proper use helps reduce the risk of serious injury or death.

Even if this car seat seems easy to figure out on your own, you must follow the detailed instructions in this instruction manual to ensure the steps below are performed correctly.

Register This Child Restraint

Please fill out the prepaid registration postcard attached to the harness and mail it in today or register online at www.gracobaby.com/carseatregistration.

Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, and the restraint's model number and manufacturing date to:

Graco Children's Products, Inc.

Attn: Customer Service

P.O. Box 169, Elverson, PA 19520-9901

or call 1-800-345-4109

or register online at

www.gracobaby.com/carseatregistration

For recall information, call the U.S. Government's Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1–800–424–9153), or go to http://www.NHTSA.gov.

For future reference or if you change addresses, record the model name, model number, date of manufacture, and purchase date of this car seat below. You can find this information either on the registration card if you still have it or on the date label located on the back of the car seat.

Model Name

Model Number ____

Date of Manufacture ____

Date of Purchase ____

If You Need Help

In the U.S.A, please contact our Customer Service Department with any questions you may have concerning parts, use, or maintenance. When you contact us, please have your product's model number and date of manufacture ready so that we may help you efficiently. These numbers can be found on a sticker on the back side of your car seat.

For additional resources or to get your car seat checked by a child passenger safety technician, please visit the following web sites:

www.nhtsa.gov • www.seatcheck.org • www.safekids.org

Certification

This child restraint meets or exceeds all applicable requirements of Federal Motor Vehicle Safety Standard 213 for use in motor vehicles.

This child restraint is certified for use in aircraft when used without the base. Use only on forward-facing aircraft seats. Follow the instructions for vehicle installation. See sections 3-D and 6-D Lap Belt Installation. Contact the airline for their specific polices.

Car Seat's Useful Life

STOP using this car seat and throw it away 7 years after the date of manufacture. Look for date of manufacture label on back of the car seat.

Graco Children's Products Inc. advises against loaning or passing along a car seat unless you know the complete history of the product. We also advise against purchasing a car seat second hand.

Vehicle Seat Protection

Protect vehicle seat. Use a car seat mat, towel, or thin blanket under and behind car seat.

Warm Weather Use

Car seat parts can get very hot in the sun or warm weather. To avoid burns, always check before putting child in car seat.

1-C Safety Warnings

No car seat can guarantee protection from injury in every situation, but proper use helps reduce the risk of serious injury or death. READ THIS MANUAL CAREFULLY.

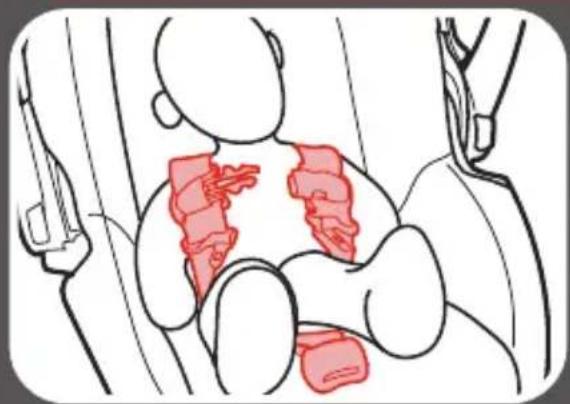

! WARNING!

Failure to follow these instructions and child restraint's labels can result in child striking the vehicle's interior during a sudden stop or crash.

! NEVER PLACE THIS CHILD RESTRAINT REAR-FACING IN A VEHICLE SEATING LOCATION THAT HAS AN ACTIVE FRONT AIR BAG.

If an air bag inflates, it can hit the child and car seat with great force and cause serious injury or death to your child.

! Review your vehicle owner's manual for more information about air bags and car seat use.

Note: Preterm or low birth weight infants may be at special risk in a vehicle or aircraft. According to the AAP, these infants may suffer breathing issues if improperly reclined in a car seat. Use the corrected age for preemies. Graco advises that you have your physician or hospital staff evaluate your infant and recommend the proper car seat or car bed before you and your infant leave the hospital.

! If your vehicle does not have a back seat, review your vehicle owner's manual.
! Children are safer riding rear-facing and should ride rear-facing as long as possible, until they reach the maximum rear-facing height or weight rating for their car seat. Graco convertible and all-in-one car seats have higher rear-facing limits that will allow children to ride rear-facing longer after outgrowing their infant car seat. Be sure to check your local and state laws, as well as AAP and NHTSA recommendations, for car seat usage.*
! This child restraint must only be used with children weighing between 4-30 lb (1.8-14 kg).
! Select a suitable location for the car seat in your vehicle.
! Secure car seat with a vehicle seat belt or LATCH that is properly routed as shown in this manual.
! Vehicle seat belt system MUST hold car seat securely. Not all vehicle seat belts can be used with a car seat.
! If vehicle seat belt does not hold car seat securely, read “Vehicle Seat Belts” section 6 and your vehicle owner’s manual.

! Always secure car seat with LATCH or a vehicle seat belt, even when unoccupied. In a crash, an unsecured car seat can injure passengers.

! DO NOT use car seat if it is damaged or missing parts.

! If car seat is in a crash, it must be replaced. DO NOT use it again! A crash can cause unseen damage and using it again could result in serious injury or death.

! DO NOT use accessories or parts other than those provided by Graco except for a thin towel or mat to protect your vehicle seat or rolled towels or pool noodles to help get your car seat level. Their use could alter the performance of the car seat.

! DO NOT remove LATCH system from car seat. If using vehicle seat belt to secure car seat, LATCH connectors must be stored.

! Never leave child unattended, even when sleeping. Child may become tangled in harness straps and suffocate or strangle.

! Rear-facing car seat must be properly leveled:

• Too reclined can result in injury or ejection.
• Too upright can result in breathing difficulties.

! Never attach two LATCH connectors to one vehicle lower anchor point unless specifically allowed by the vehicle manufacturer.

! Do not use both the vehicle seat belt and LATCH strap at the same time when using the car seat rear-facing.

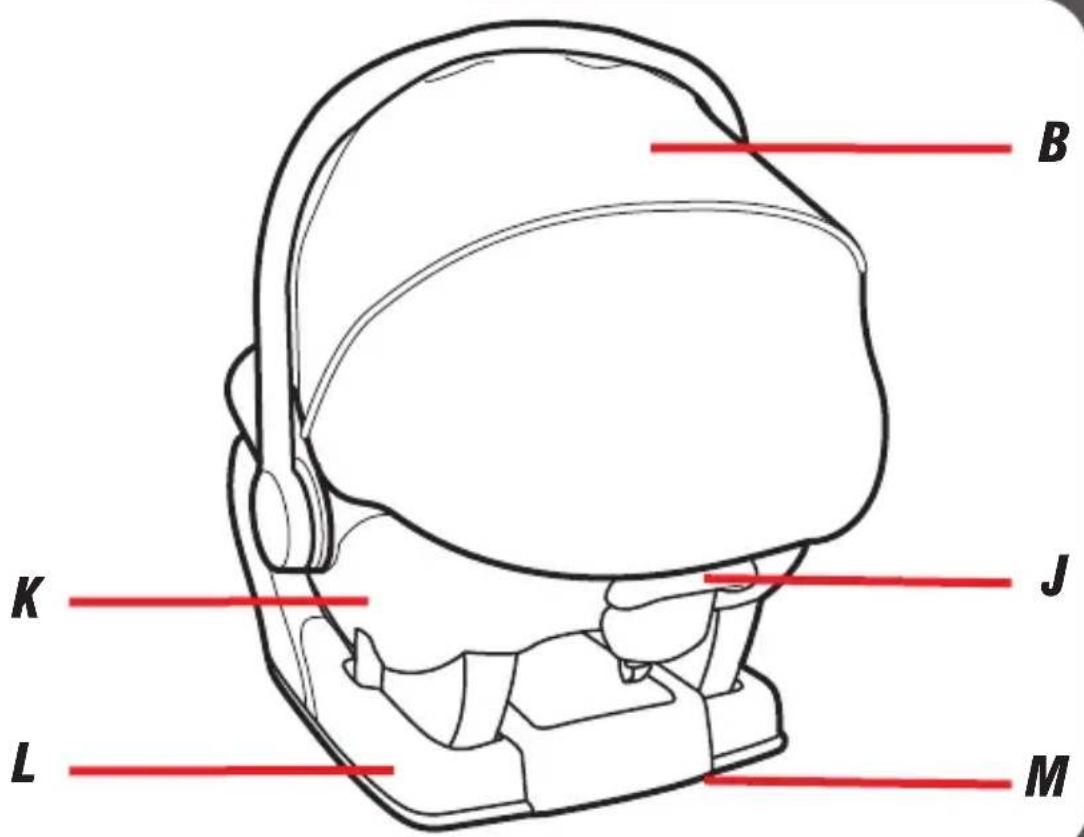

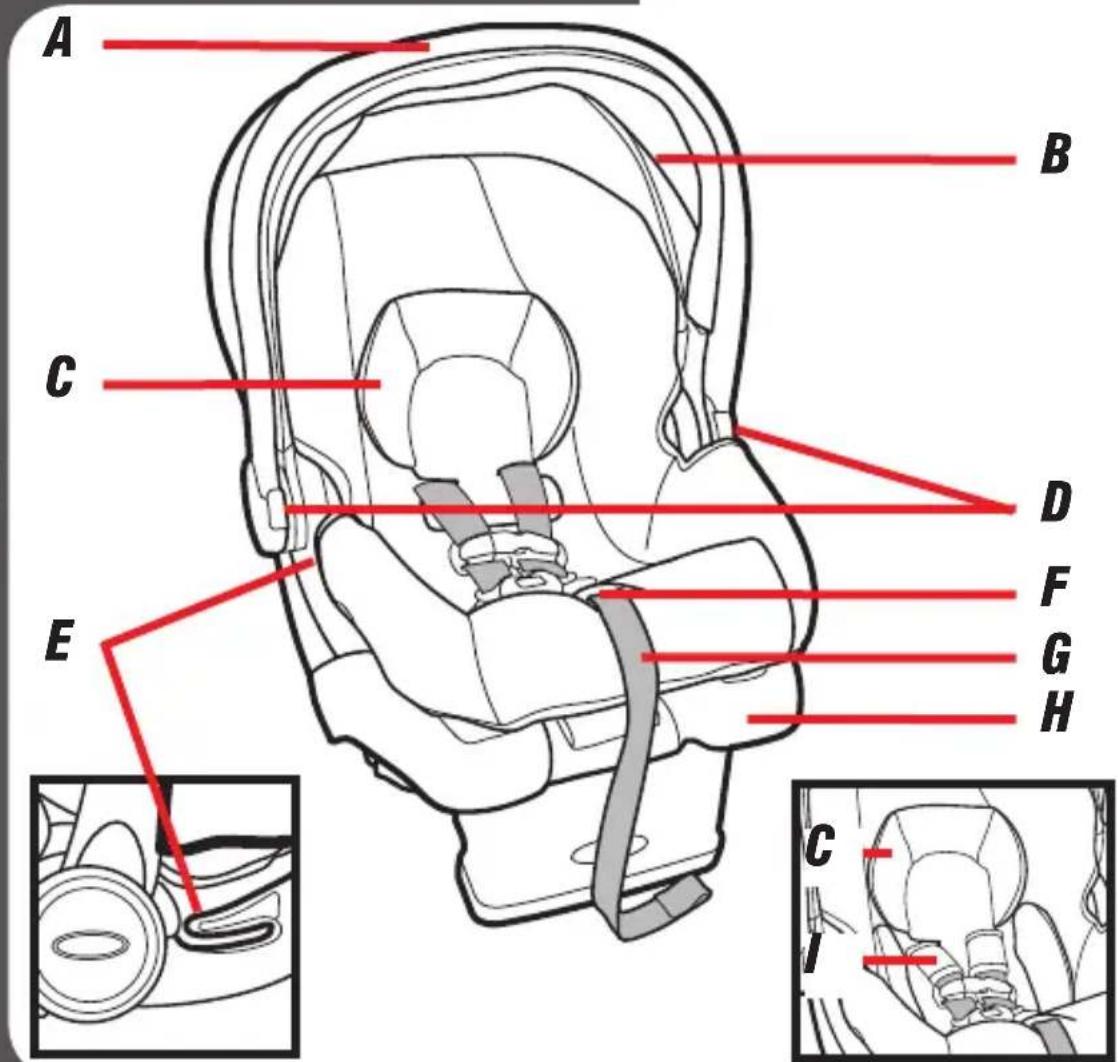

2-A Car Seat Features

A Carry Handle

B Canopy (Select models)

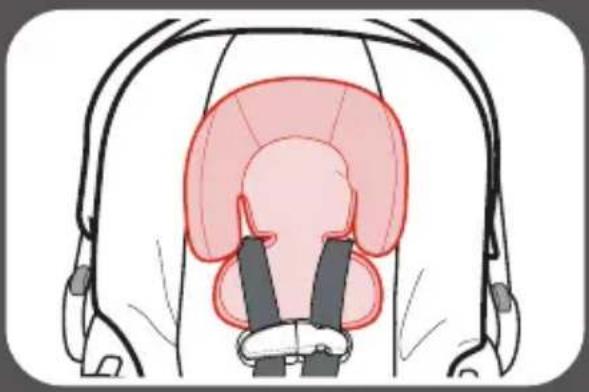

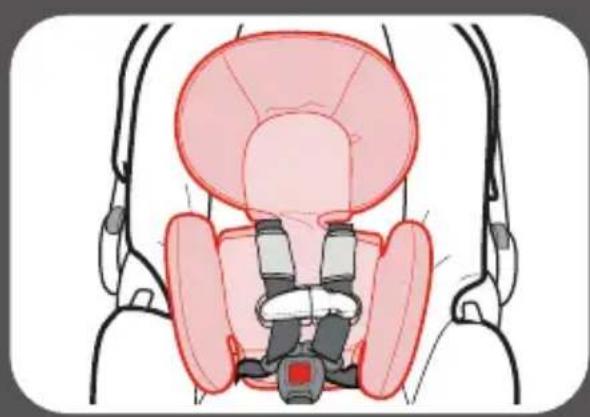

C Head Support (Select models)

D Handle Adjustment Buttons

E Rear-Facing Belt Path

(When Used Without Base)

F Harness Release

Lever (Under Pad)

G Harness Adjustment

Strap

H Removable Base

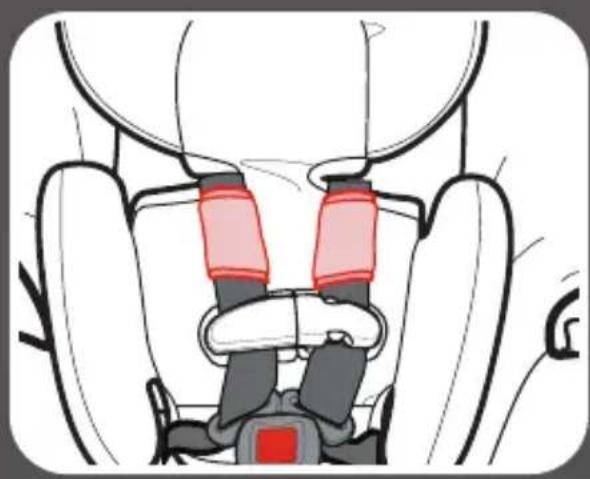

I Harness Covers

(Select Models)

2 Features

J Base Release Lever

K Car Seat

L Level to Ground Line

M Instruction Manual Storage

(Under Base)

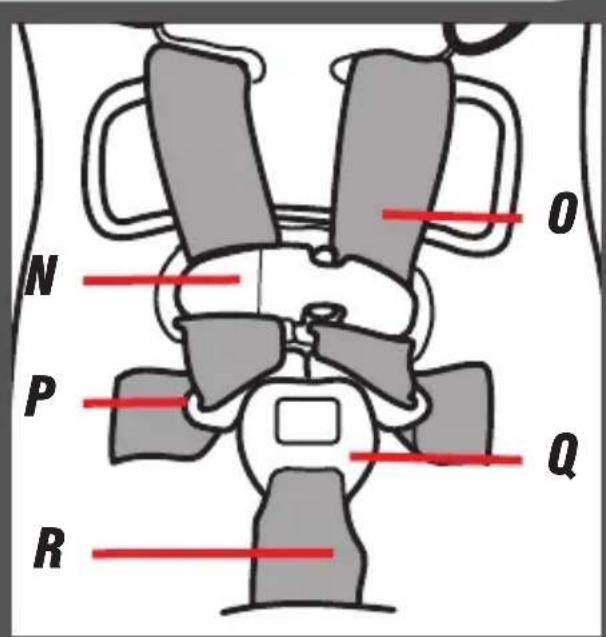

N Chest Clip

0 Harness Straps

P Buckle Tongues

Q Buckle

R Buckle Strap

15

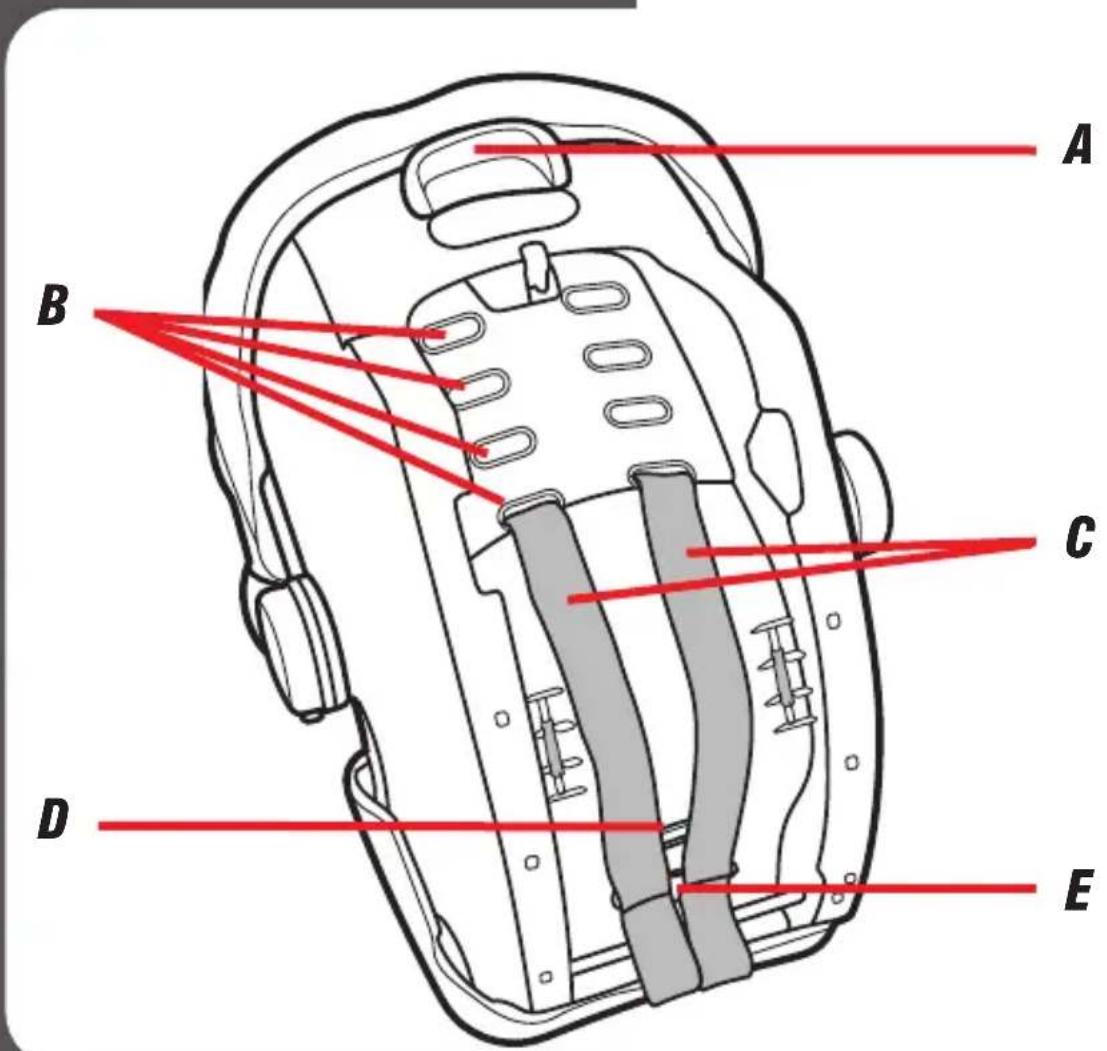

2 Features

A Base Release Lever
B Harness Strap Slots
C Harness Straps
D Buckle Metal Clip
E Splitter Plate

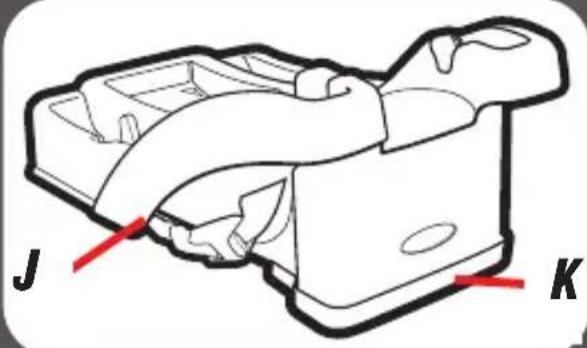

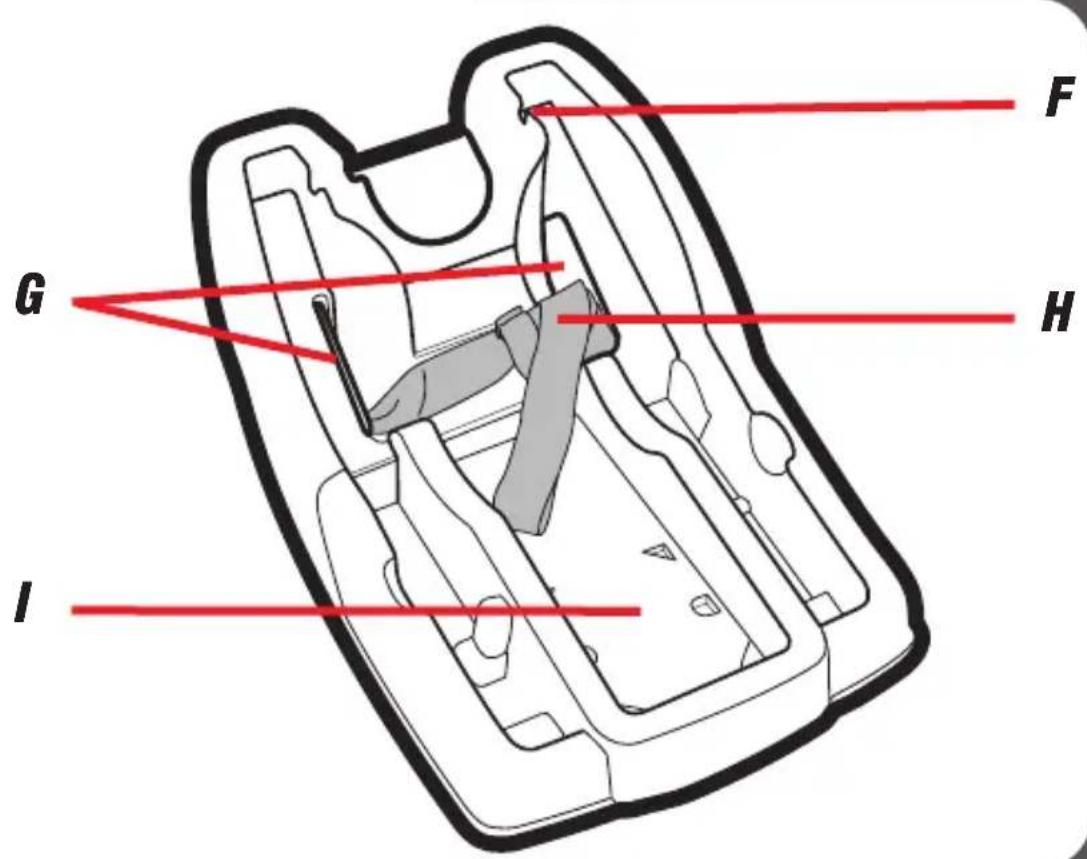

2 Features

F Car Seat Base Lock

G Base Rear-Facing Belt Path

H LATCH Strap

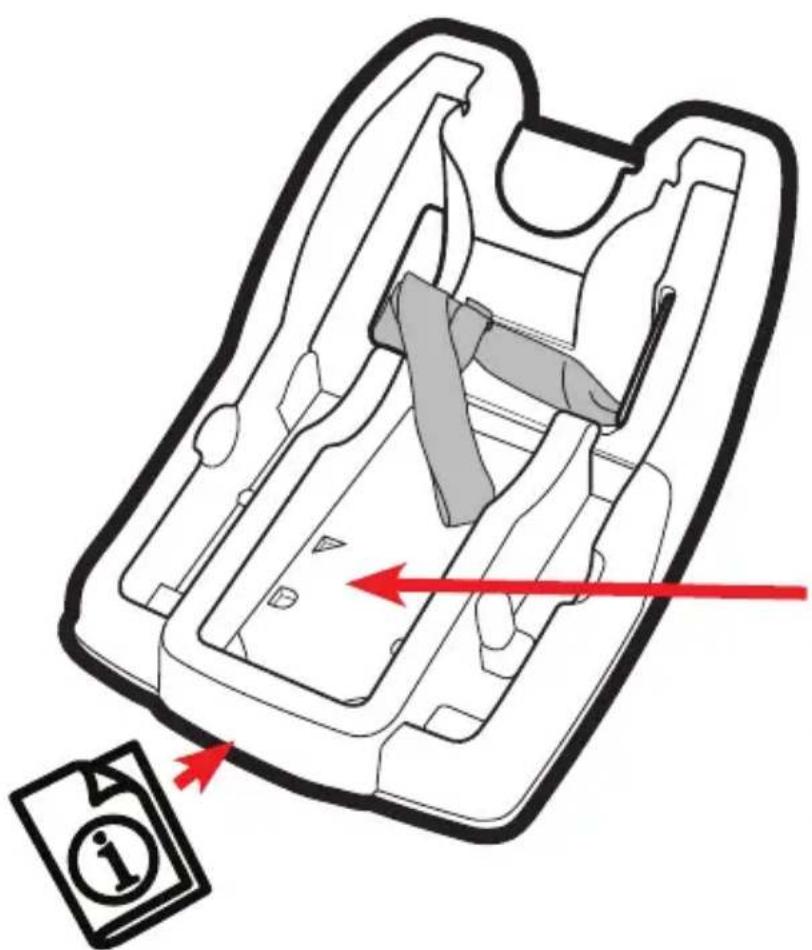

I Instruction Manual Storage (Under Base)

J LATCH Storage

K Base Recline Wedge

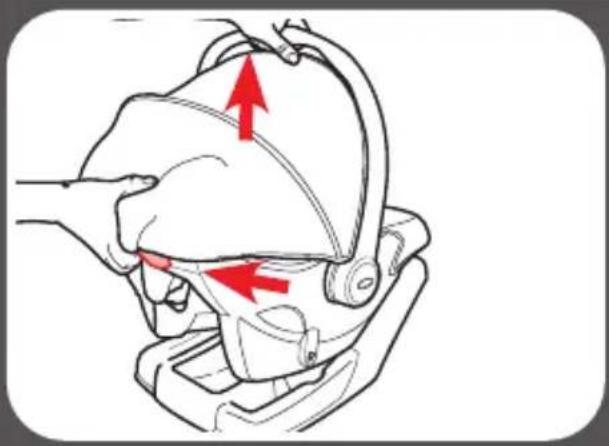

2-B Remove Car Seat from Base

Illustration of a hand holding a helmet with red arrows indicating force or movement (no text or symbols)

To Remove Car Seat from Base

From the back of the car seat, squeeze the base release handle and lift the car seat out of the base.

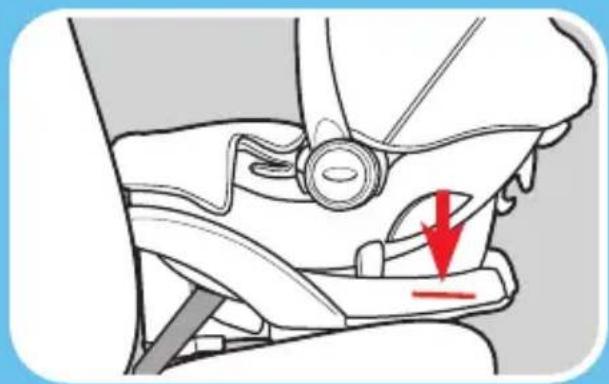

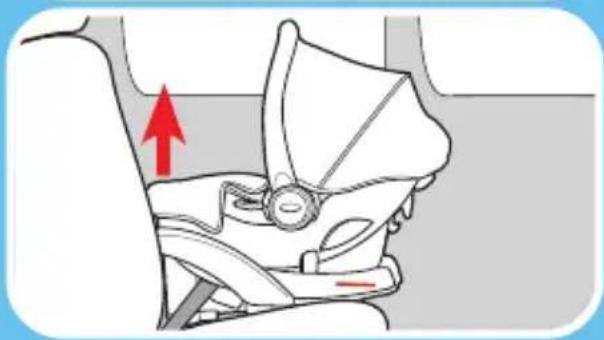

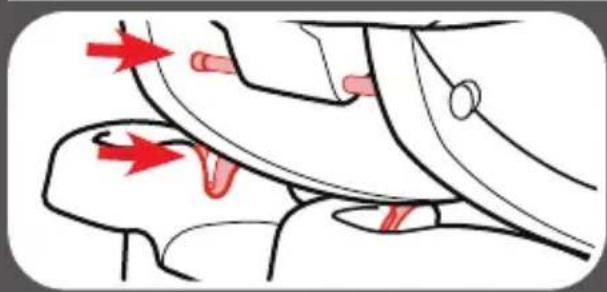

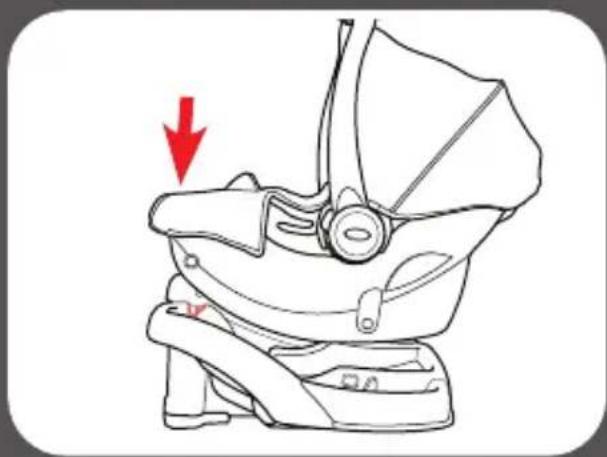

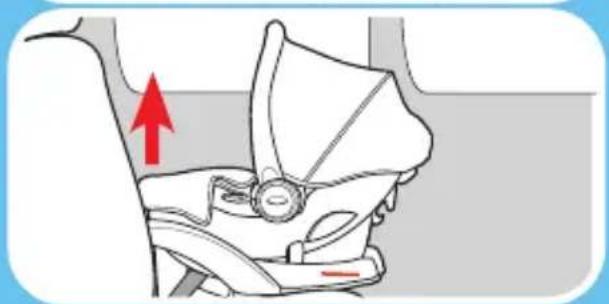

2-C Attach Car Seat to Base

Illustration of a medical procedure showing airflow direction and anatomical positioning (no text or symbols)

Line drawing of a car seatbelt with a red arrow indicating the seatbelt area (no text or symbols present)

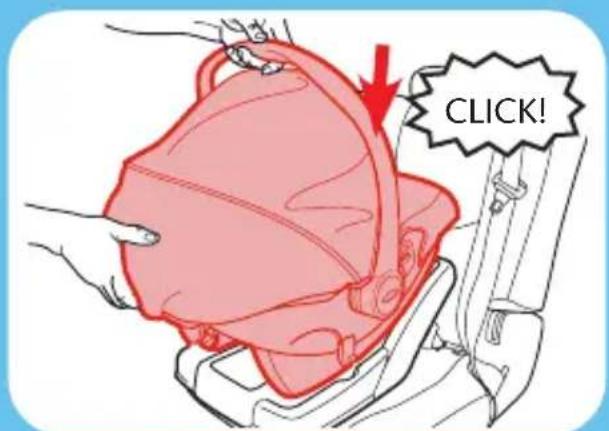

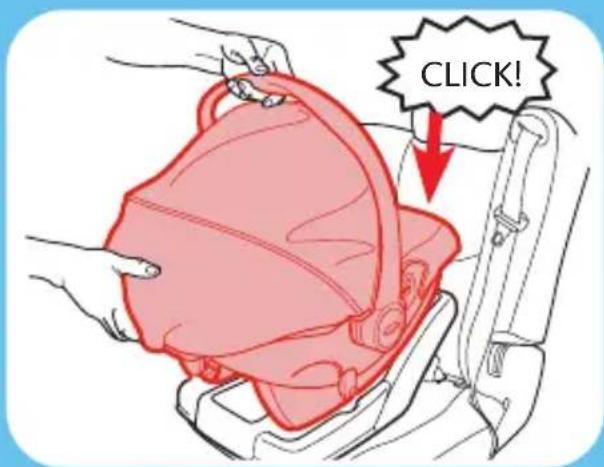

Attaching Car Seat To Base

Align the locking bar at the front of the car seat with the locks in the base. Set car seat in the base. Push down on the front of the car seat. You will hear a “click” when it is locked.

Pull up on the front corners of the seat to make sure it is locked.

2-D Adjusting Carry Handle

1. To Rotate Handle

Press the handle adjustment buttons on both sides of handle.

MAKE SURE handle locks into position before lifting the carrier.

2. Handle Has 4 Positions

Rotate handle to any of the 4 locked positions. Push and pull the handle to make sure handle is in a lock position.

Carry handle MUST be upright in position A when carrying.

Handle can be in any position when used in the vehicle.

Illustration of a person using a belt drive a seatbelt, with red arrows indicating the motion (no text or symbols present)

2 Features

2-E Recline the Base

Line drawing of a mechanical component with a numbered label '1' (no text or symbols on the diagram itself)

1. Base Has 3 Recline Positions

Position 1 is the least reclined position. Remove the base wedge.

2 Features

Illustration of hands using a red tool to cut a red plastic container (no text or symbols)

Line drawing of a mechanical assembly with a red component, no text or symbols present

Illustration of a red plastic object with a black cable and a small label '2' on its side (no text or symbols beyond the label)

20

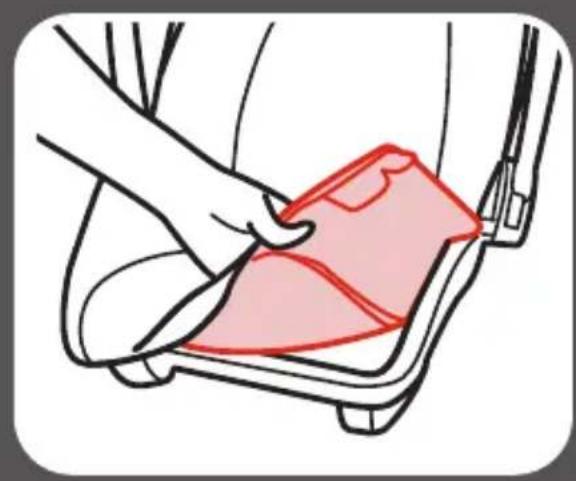

For position 2, attach the base wedge with the label marked 2 facing up.

For position 3, attach the base wedge with the label marked 3 facing up.

If needed, rolled towels may be placed under the base, at the vehicle seat crease, until the level line is level with the ground.

2-F Choosing Vehicle Seat Location

Review your vehicle owner's manual for seating locations. Review section 6 for additional information.

Some vehicles have specific requirements for where the car seat can be installed. Be sure to check your vehicle owner's manual for all available seating positions.

According to accident statistics, children are safer when properly restrained in the rear seating positions

Diagram of a car showing seat and seat positions with a red arrow indicating direction (no text or symbols)

than in the front seating positions. The center of the back seat can be the safest during a possible side impact.

▲WARNING!

NEVER place this child restraint rear-facing in a vehicle seating location that has an active front air bag.

In the event there is no back seat, review your vehicle owner's manual to see how to use your infant child restraint.

2-G Choosing LATCH or Seat Belts

This car seat can be installed in your vehicle using either the vehicle seat belt OR the LATCH system. Both systems are equally safe to use. DO NOT USE BOTH AT THE SAME TIME. Review section 6 for additional information.

2-H What is LATCH?

LATCH consists of lower anchors, which are built-in to your vehicle, and connecting hooks that are built-in to your car seat. Lower anchors are used INSTEAD of the vehicle's seat belt to secure the child seat to the vehicle.

Review your vehicle's owner manual for exact location and use. Review section 6 for additional information.

Vehicle Seat Crease

Typical seat in a passenger vehicle. Other vehicle types may have different LATCH locations.

Vehicle Lower Anchor Points

3-A Rear-Facing Safe Use Checklist

Line drawing of a car interior showing seatbelt and dashboard (no text or symbols)

LATCH Strap

Line drawing of a car seatbelt with a red belt (no text or symbols)

Vehicle Lap/Shoulder Seat Belt

Rear-Facing: 4-30 lb (1.8-14 kg) 30" (76 cm) or less

• Car seat MUST be rear-facing in the vehicle back
seat.
- Make sure LATCH strap or vehicle seat belt is routed through the rear-facing belt path, marked with a blue label.
- Install this car seat tightly in your vehicle. Car seat should not move at the belt path more than 1" (2.5 cm) from side to side and front to back.
- Check the level line to make sure the line is level with the ground.
- Harness straps must be at or just below the top of child's shoulders and chest clip must be at armpit level.

3 Rear Facing

• Make sure base is a minimum of 80% on vehicle seat.

Children are safer riding rear-facing and should ride rear-facing as long as possible, until they reach the maximum rear-facing heigh or weight rating for their car seat. Graco convertible and all-in-one car seats have higher rear-facing longer after outgrowing their infant car seat. Be sure to check your local and state laws, as well as AAP and NHTSA recommendations, for car seat usage.

!WARNING!

NEVER place this child restraint

rear-facing in a vehicle seating location that has an active front air bag.

Line drawing of a car seatbelt with a red belt inserted (no text or symbols)

Vehicle Lap Only Seat Belt

Line drawing of a mechanical component with a red belt and clasp (no text or symbols)

Vehicle Lap/Shoulder Seat Belt Without Base

Line drawing of a car seatbelt with a red belt (no text or symbols)

Vehicle Lap Only Seat Belt Without Base

3 Rear Facing

3-B Install With Base Rear-Facing With LATCH Strap

Review your vehicle's owner manual for LATCH location and use.

Illustration of a hand using a red belt switch to adjust a device (no text or symbols present)

1. Remove LATCH Hooks from Storage Location

Slide each LATCH hook out of the storage location.

Diagram of a mechanical device with red arrows indicating force or movement, showing internal components and directional arrows (no text or symbols)

1. Make Sure LATCH Strap is in the Rear-Facing Belt Path, Marked With a Blue Label

3 Rear Facing

3. Extend the LATCH Strap

Extend the LATCH strap to its maximum length by pressing the gray button and pulling on the strap.

4. Place Base in Back Seat of the Vehicle

Place the base flat on the vehicle seat. Push it back until the front of the base touches the vehicle seat back. Center the base between the lower LATCH anchors.

Illustration of hands adjusting a seatbelt with red arrows indicating fastening (no text or symbols)

Line drawing of a baby seat with a red bandage on the backrest (no text or symbols)

3 Rear Facing

Diagram of a car seatbelt with a red arrow indicating the grip and seat (no text or symbols present)

Illustration of a mechanical clamp or bracket with a textured grip and mounting bracket (no text or symbols)

Illustration of a hand pressing down a car seatbelt with a red arrow indicating the grip (no text or symbols present)

5. Check the Rear Facing Level Line

The red level line on the side of the seat MUST BE LEVEL with the ground.

To recline, review section 2-E.

6. Connect LATCH Hooks to Vehicle's Lower LATCH Anchors

LATCH strap should lay as flat as possible and not be twisted.

7. Tighten the LATCH Strap

Press down firmly in the center of the base while tightening the LATCH strap.

3 Rear Facing

8. Test For Tightness

Grab the sides of the base where the LATCH strap is and push and pull the base from side to side and front to back.

If the base moves less than 1" (2.5 cm), it is tight enough.

9. Attach Car Seat to Base

Place car seat into the base. Push down on the front of the car seat and handle until you hear a "click".

Test to make sure the car seat is attached by pulling up on the front corners of car seat.

Line drawing of a car interior with hands using a tool to adjust or install a vehicle (no text or symbols present)

Diagram of a car seatbelt with a red arrow indicating upward motion (no text or symbols)

29

3 Rear Facing

Diagram of a car seatbelt mechanism showing keyway and seat alignment (no text or symbols)

10. Check the Rear Facing Level Line

The red level line on the side of the seat MUST BE LEVEL with the ground.

Check the level line with child in the child restraint when making sure the line is level with the ground.

See section 4-C to secure your child.

3 Rear Facing

Is Everything Correct?

Base Does Not Move More Than 1" (2.5 cm) At The Belt Path

Car Seat Is Properly Attached To Base

Car Seat Level to Ground

Cannot Pinch Harness

Chest Clip Even With Armpits

Illustration of a hand using a tool to adjust or install a vehicle component, with red arrows indicating motion direction (no text or symbols present)

Mechanical diagram showing a belt buckle assembly with a red arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a red arrow indicating a specific point (no text or symbols present)

Simple line drawing of a hand holding a small object, no text or symbols present

Anatomical diagram of a human torso showing internal organs and a highlighted mass (no text or labels)

31

3 Rear Facing

3-C Install With Base Rear-Facing With Vehicle Seat Belt

Illustration of a hand using a red plastic buckle to adjust a car seatbelt (no text or symbols present)

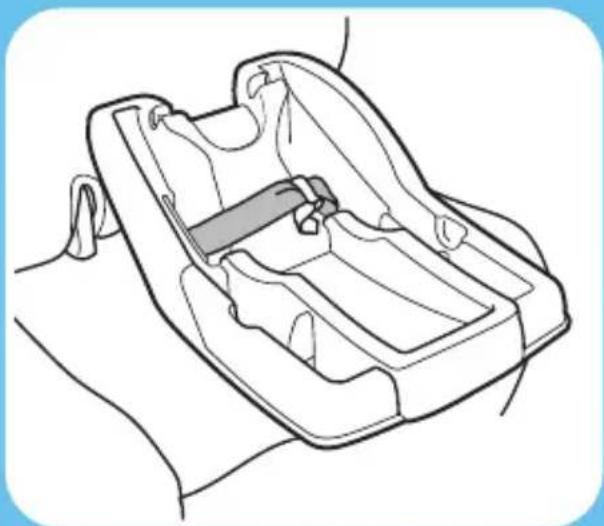

1. Store LATCH Straps

Hook the LATCH hooks into the holes on side of base as shown. Remove the slack.

Line drawing of a car seat assembly (no text or symbols)

2. Place Base in Back Seat of the Vehicle

Place the base flat on the vehicle seat. Push it back until the front of the base touches the vehicle seat back.

3 Rear Facing

3. Check the Rear Facing Level Line

The red level line on the side of the seat MUST BE LEVEL with the ground.

To recline, review section 2-E.

Line drawing of a car seatbelt with a red arrow pointing to the lower side (no text or symbols present)

Review your vehicle's owner manual for vehicle seat belt use

4. Route the Vehicle Seat Belt

Thread vehicle seat belt through the rear-facing belt path (marked with a blue label) and buckle it. The seat belt should lay as flat as possible and not be twisted.

Illustration of a car seatbelt buckle being adjusted for a person's seatbelt (no text or symbols present)

33

3 Rear Facing

Illustration of a person using a red belt switch inside a car seat (no text or symbols)

5. Lock the Vehicle Seat Belt

In most vehicles today, slowly pull the shoulder belt all the way out and then let it go back in. You will hear a “clicking” sound. Slowly pull out on the belt and it should be locked. If not, review your car’s owner manual and section 6-D.

Illustration of a person using a red belt to lift a seatbelt, with no text or symbols present.

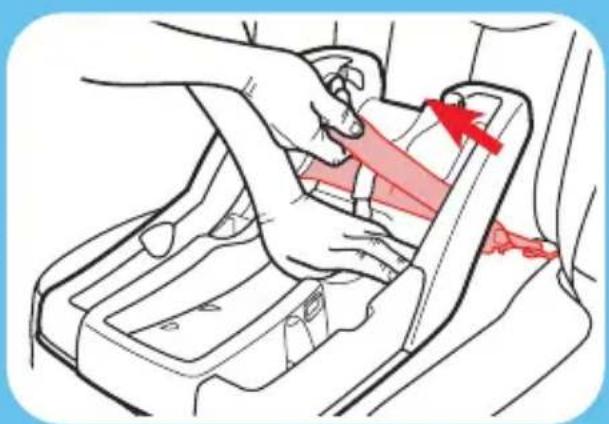

6. Tighten the Vehicle Seat Belt

Press down firmly in the center of the base. Pull on the shoulder belt to tighten while feeding the slack back in the retractor.

3 Rear Facing

7. Test For Tightness

Grab the sides of the base where the seat belt is and push and pull the base from side to side and front to back.

If the base moves less than 1" (2.5 cm), it is tight enough.

8. Attach Car Seat to Base

Place car seat into the base. Push down on the front of the car seat and handle until you hear a "click".

Test to make sure the car seat is attached by pulling up on the front corners of car seat.

Illustration of a car gear shift lever with red arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with a red arrow indicating the seatbelt direction (no text or symbols present)

35

3 Rear Facing

Diagram of a car seatbelt buckle with a red arrow indicating a specific seatbelt buckle (no text or symbols present)

9. Check the Rear Facing Level Line

The red level line on the side of the seat MUST BE LEVEL with the ground.

Check the level line with child in the child restraint when making sure the line is level with the ground.

See section 4-C to secure your child.

3 Rear Facing

Is Everything Correct?

Base Does Not Move More Than 1" (2.5 cm) At The Belt Path

Car Seat Is Properly Attached To Base

Car Seat Level to Ground

Cannot Pinch Harness

Chest Clip Even With Armpits

37

3 Rear Facing

3-D Install Without Base Rear-Facing With Vehicle Seat Belt

Illustration of a person's seatbelt with a red arrow pointing to the lower back (no text or symbols present)

Medical illustration showing a surgical procedure on a patient's neck with a red arrow indicating the location (no text or symbols present)

1. Place Car Seat in Back Seat of the Vehicle

Place the car seat on the vehicle seat. Push it back until the front of the car seat touches the vehicle seat back.

Check the rear-facing level line. The red level line on the side of the seat MUST BE LEVEL with the ground.

If needed, rolled towels may be placed under the base, at the vehicle seat crease, until the level line is level with the ground.

3 Rear Facing

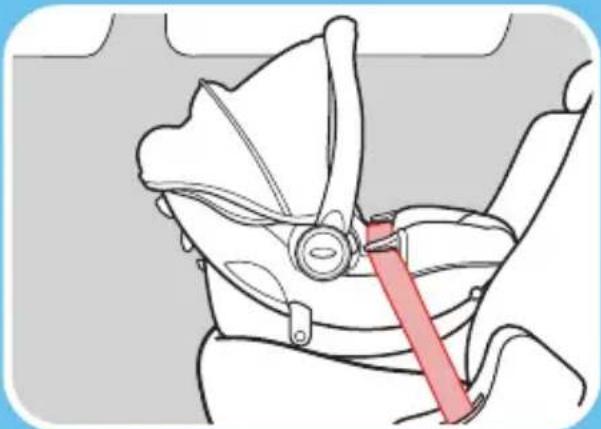

2. Route the Vehicle Seat Belt

Thread vehicle seat belt through the rear-facing belt path (marked with a blue label) and buckle it. The seat belt should not be twisted.

If your shoulder belt is long enough, you may route the shoulder belt behind the seat as shown.

3. Lock the Vehicle Seat Belt

In most vehicles today, slowly pull the shoulder belt all the way out and then let it go back in. You will hear a “clicking” sound. Slowly pull out on the belt and it should be locked. If not, review your car’s owner manual and section 6-D.

Line drawing of a car seatbelt buckle with a red belt (no text or symbols)

Illustration of a hand using a red belt to lift a car seatbelt, with a red arrow indicating the direction (no text or symbols present)

3 Rear Facing

Illustration of a car seatbelt buckle being adjusted, showing red belt and blue gait (no text or symbols)

Illustration of a hand using a tool to lift a car's neck, with red arrows indicating motion direction (no text or symbols)

3 Rear Facing

4. Tighten the Vehicle Seat Belt

Lay your forearm across the car seat at the belt path and push down. Pull on the shoulder belt to tighten while feeding the slack back in the retractor.

5. Test For Tightness

Grab the sides of the car seat where the seat belt is and push and pull the car seat from side to side and front to back.

If the car seat moves less than 1" (2.5 cm), it is tight enough.

6. Check the Rear Facing Level Line

The red level line on the side of the seat MUST BE LEVEL with the ground.

Check the level line with child in the child restraint when making sure the line is level with the ground.

If needed, rolled towels may be placed under the car seat, at the vehicle seat crease, until the level line is level with the ground.

Diagram of a car seatbelt with a red arrow pointing to the seat area (no text or symbols present)

Medical illustration of a surgical procedure on a patient's shoulder, showing anatomical positioning and a red arrow indicating pressure point (no text or labels)

3 Rear Facing

Is Everything Correct?

Illustration of a hand performing a medical procedure with red arrows indicating pressure or force (no text or symbols present)

Car Seat Does Not Move More Than 1" (2.5 cm) At The Belt Path

Technical line drawing of a mechanical component with a red arrow indicating a specific part (no text or symbols present)

Car Seat Level to Ground

Hand holding a small object, possibly a tool or device, with no visible text or symbols

Cannot Pinch Harness

Anatomical illustration of a human head with surgical hardware, showing no text or labels.

Chest Clip Even With Armpits

3 Rear Facing

4-A Adjust Harness to Fit Child

Child

4 Securing

1. Loosen Harness Straps

Push down on the harness release lever while pulling out on the harness straps at the chest clip.

Medical illustration showing a hand performing abdominal pressure on a patient's abdomen, with red arrows indicating pressure direction (no text or labels)

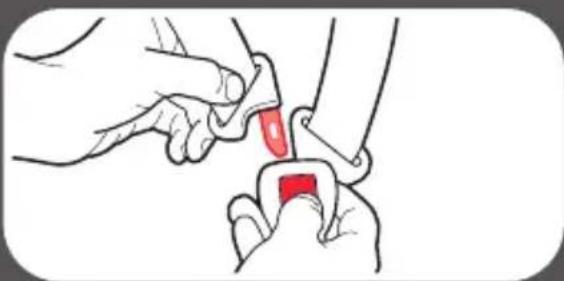

2. Release the Chest Clip

Squeeze the chest clip release buttons and pull apart.

Line drawing of a person using a computer mouse to interact with hands (no text or symbols)

Securing Child

Illustration of hands performing a medical procedure with a red tool inserted into a device (no text or symbols present)

Illustration of a baby sitting in the pelvic region with no text or symbols present

3. Unbuckle the Buckle

Press the red button and pull buckle tongues out. Place harness straps off to the sides.

4. Place Your Child in the Seat

Make sure their back is flat against the car seat back.

!WARNING!

WARNING! In cold weather, do not put snowsuits or bulky garments on your child when placing them in the car seat. Bulky clothing can prevent the harness straps from being tightened properly. To keep child warm, buckle your child in the car seat and place a blanket around the child or place the child's coat on backwards after buckling in.

Anatomical illustration of a human body with highlighted internal organs (no text or labels)

1. Place Harness Straps Over Child's Shoulders

6. Check Harness Height

Illustration of a person's head and neck with red arrows pointing to specific anatomical features (no text or symbols)

Child
4 Securing

Harness Straps MUST BE AT OR JUST BELOW the Child's Shoulders

Abstract diagram with curved lines and shaded regions, no text or symbols present

1. Top of Head MUST BE AT LEAST 1" (2.5 cm) BELOW the Top of the Car Seat

45

4 Securing

Child

Illustration of hands adjusting a seatbelt with a red ribbon (no text or symbols)

Illustration of a hand holding a red ribbon with a white object, no text or symbols present

Illustration of a hand pressing down on a surface with red arrows indicating pressure or force (no text or symbols)

8. To Change Harness Height Positions

With harness straps loose, from the back of the car seat, remove the harness straps loops from the splitter plate.

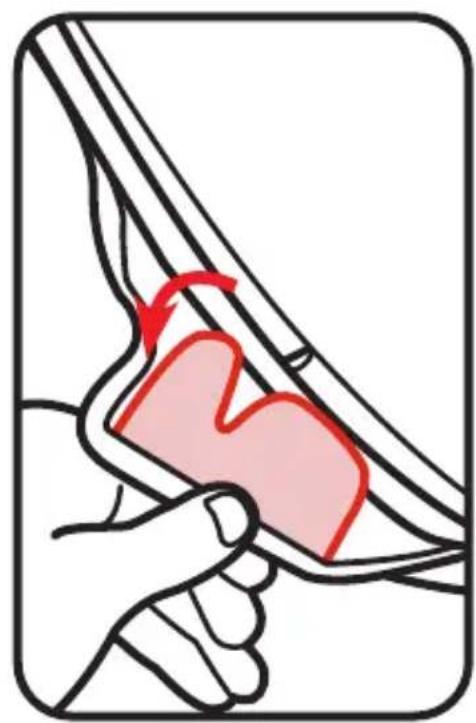

9. Pull Harness Straps Out From the Front of Car Seat

10. Insert Harness Strap Into the New Location

Make sure harness straps are not twisted and are at the same height.

11. For Smaller Baby

If the child's shoulders are even with or just above the lowest 2 slots, use the upper loops on the harness straps.

Thread the upper harness straps loops onto the splitter plate. Make sure the straps are on top of the splitter plate and are completely on.

Pure diagram of a mechanical component with no text, numbers, or symbols visible

Diagram of a car seatbelt with red safety clips and a central seatbelt (no text or labels)

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Illustration of hands adjusting a belt buckle with a red arrow indicating motion (no text or symbols)

47

Child
4 Securing

securing Child

Diagram of a car seatbelt with red belt bands and black seats, no text or symbols present

Diagram of a mechanical assembly with two vertical bars and a red component at the base (no text or symbols)

12. For Larger Baby

If the child's shoulders are even with or just above the upper 2 slots, use the lower loops on the harness straps.

Thread the lower harness straps loops onto the splitter plate. Make sure the straps are completely on the splitter plate.

4-B Adjust Buckle to Fit Child

Child
4 Securing

1. Check the Buckle Position

The correct slot is the one that is closest to your child without being underneath them.

2. To Change Buckle Position

Remove child from the seat. From the bottom of car seat, insert the buckle's metal clip up through shell and pad.

From the front, pull buckle out of the pad an shell.

Anatomical illustration of a joint with a highlighted red area, likely indicating a specific region or area of interest (no text or labels present)

Diagram of a car seatbelt with a red arrow pointing to the seat area (no text or symbols)

Illustration of a hand adjusting a red keybell inside a car seatbelt (no text or symbols)

49

4 Securing

Child

Illustration of a hand using a red belt buckle to tighten the seat area (no text or symbols present)

Illustration of a hand securing a red object with arrows indicating motion (no text or symbols)

3. Insert Metal Clip Into New Location

Push metal clip down through the pad and shell. Make sure the buckle's red button is facing out.

4. Pull Up On Buckle To Check It Is Secured

Make sure buckle's metal clip is completely through pad and shell.

4-C Securing Child in Car Seat

Child
4 Securing

1. Place Harness Straps Over Child's Shoulders

Illustration of a human figure with red highlighted chest regions, no text or symbols present

1. Buckle

You will hear a "click" when buckle tongues are securely attached. Pull up on each buckle tongue to make sure it is securely attached.

Illustration of a medical procedure with forceps and a highlighted anatomical structure (no text or symbols)

1. Buckle the Chest Clip

You will hear a "click" when the chest clip is securely buckled attached.

Illustration of a medical procedure with hands and a central anatomical structure (no text or symbols)

51

4 Securing

Child

Illustration of a hand holding a red object with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a red bandage near a curved line, with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

4. Pull All the Slack Out From Around the Waist

Pull up on the harness strap while pushing the chest clip down. Do this to both sides.

5. Tighten the Harness by Pulling the Harness Adjustment Strap

When you are not able to pinch any of the harness webbing at your child's shoulder, the harness is tight enough.

A snug harness should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child's flesh or push the child's body into an unnatural position.

1. Raise the Chest Clip to Child's Armpit Level

2. Check Tightness

Tighten more if needed.

Diagram of a human pelvic region with a red dashed line indicating a measurement or alignment (no text or symbols present)

Child
4 Securing

Line drawing of a hand holding a small object, no text or symbols present

4 Securing Child

4-D Removing Child

Medical illustration showing a patient undergoing a medical procedure with red arrows indicating pressure points (no text or symbols present)

Illustration of hands performing a medical procedure on a patient's head (no text or symbols present)

Illustration of a red mechanical clamp or bracket being held by hands, no text or symbols present

1. Loosen Harness Straps

Push down on the harness release lever while pulling out on the harness straps at the chest clip.

2. Release the Chest Clip

Squeeze the chest clip release buttons and pull apart.

3. Unbuckle Your Child

Press in on the red button and remove the buckle tongues. Remove Child from the seat.

5-A Carrier Use

!WARNING!

Read all instructions before use of the infant carrier. Keep instructions for future use. Do not use the infant carrier if it is damaged or broken.

NEVER leave child unattended. Always stay within arms reach of carrier.

SUFFOCATION HAZARD: Infant carrier can roll over on soft surfaces and suffocate child. NEVER place carrier on beds, sofas, or other soft surfaces.

STRANGULATION HAZARD: Children have STRANGLED in loose or partially buckled harness straps. Fully restrain the child even when carrier is used outside the vehicle.

FALL HAZARD: Child's movements can move carrier. NEVER place carrier on counter tops, tables or any other elevated surfaces.

KEEP STRINGS AND CORDS AWAY FROM CHILD. Strings and cords can cause strangulation. DO NOT place carrier near windows where cords from blinds or drapes can strangle a child. DO NOT hang strings on or over the carrier. DO NOT attach strings to toys.

!WARNING!

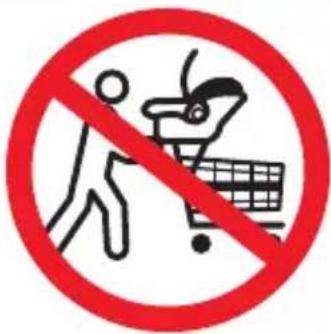

Fall Hazard: The carrier can fall from a shopping cart. Do not use on a shopping cart.

5 Carrier Use

USE ONLY WITH STROLLERS THAT ARE PART OF THE GRACO CLICK CONNECT TRAVEL SYSTEM. Refer to the stroller owner's manual for details on how to attach the infant carrier to your stroller. If you do not have an owner's manual, please visit our website at www. gracobaby.com to download the manual or call toll-free at 1-800-345-4109.

NEVER use a Graco infant carrier with any other manufacturer's strollers. This can result in serious injury or death.

6-A Additional LATCH Information

This car seat can be installed in your vehicle using either the vehicle seat belt OR the LATCH system. Both systems are equally safe to use. DO NOT USE BOTH AT THE SAME TIME.

The LATCH system allows you to securely attach your car seat in your car without using the vehicle seat belt and possibly to get a better fit. All 2003 and newer model year vehicles are required to have a LATCH system, although some manufacturers began including LATCH earlier. Some vehicle owner manuals use the term ISOFIX to identify the LATCH system.

Only use LATCH in seating positions recommended by your vehicle manufacturer. Review your vehicle owner's manual for more information.

information

6-B How to Remove LATCH

Illustration of a car seatbelt buckle being adjusted, showing red arrows indicating adjustment (no text or symbols present)

1. Push Gray Button In While Pulling on LATCH Strap to Loosen

Illustration of a hand using a belt switch to interact with a car (no text or symbols present)

1. Press and Hold LATCH Release Hinge

Illustration of a hand holding a car seatbelt with a red arrow indicating direction (no text or symbols)

1. Push Hook In, Lift Hook Up and Pull Out Away From Anchor Point

6 Vehicle Information

6-C Unsafe Vehicle Seats

Never install this car seat in side-facing or rear-facing vehicle seats.

6-D Vehicle Seat Belts

Review your vehicle owner's manual for vehicle seat belt use

This car seat can be installed using a vehicle seat belt. To do this, you will need to change the seat belt to a locked mode for use with car seats. With some vehicle seat belts, this is done with the latch plate; with other vehicle seat belts, this is done with the retractor.

Information

Vehicle Seat Belt Terms

Retractor

A device that winds up the unused vehicle seat belt. It is often hidden inside the panels on the walls of the vehicle or in the vehicle seat back.

Latch Plate

The male end of the seat belt with the silver tongue.

Seat Crease

The crease where the vehicle seat back and seat bottom meet.

Identify Your Seat Belt Type

There are two different types of vehicle seat belts that can be used with this car seat:

Line drawing of a car seat with red cable connectors (no text or symbols)

Lap/Shoulder Belt

3 connection points. Can be used in all car seats modes of use

Line drawing of a car seat with red curved arrows indicating seat direction (no text or symbols)

Lap Belt Only

2 connection points. Can ONLY be used in harness mode.

The following types of vehicle seat belts CANNOT be used safely with this car seat:

Illustration of a car seat with a red diagonal line indicating seatbelt, enclosed in a pink circle (no text or symbols)

Lap Belt with Motorized Shoulder Belt

Lap Belt or Shoulder Belt Mounted on Door

Belts Forward of the Seat Bight

Some vehicles you may not get a secure fit. Read both your vehicle and car seat manuals.

information

Lap/Shoulder Seat Belt Installation

Always review your vehicle owner's manual for specific information about your vehicle seat belts.

There are three types of retractors: ELR (Emergency Locking Retractor), ALR (Automatic Locking Retractor), and Switchable (ELR switch to ALR). To determine your type of retractor, follow these steps:

1. Slowly pull the belt out about halfway and stop.
2. Let the belt retract back several inches.
3. Try to slowly pull the belt out more. If the belt cannot be pulled any further, it is ALR, ready to install your car seat. If it can be pulled further, go to the next step.
4. Slowly pull the belt all the way out, and then allow it to retract several inches. You may hear some clicking sounds.
5. Try to pull the belt all the way out again. If it cannot be pulled out, it is Switchable, ready to install your car seat. If it can still be pulled out freely, it is ELR. Review the following pages to properly install your infant car seat.

Note: Most vehicles manufactured after 1996 will have Switchable retractors in the back seat. If you have any questions about your retractor type, consult your vehicle owner's manual or call Graco for assistance.

Illustration of a hand holding a red tool with a curved blade, no text or symbols present

How to Lock Your Lap/Shoulder Vehicle Seat Belt

Sliding Latch Plate and Switchable Retractor

A latch plate that slides freely on the belt webbing and cannot, by itself, hold the belt snug around a car seat.

When installing the car seat, route the vehicle seat belt through the proper belt path and buckle it in.

Slowly pull the shoulder belt all the way out to switch it to locking mode. Then, as you pull the vehicle seat belt tight, feed all the slack back into the retractor.

Grab the sides of the base or seat at the belt path and slide side to side and front to back. The base or seat should not move more than 1" (2.5 cm).

Diagram showing a car with red directional arrows indicating motion or force (no text or symbols)

Illustration of a car seatbelt switch mechanism showing two scenarios with red arrows indicating force or movement (no text or symbols present)

Note: With the vehicle seat belt in this locking mode, all the tension is upwards in the shoulder belt. This may start to tilt your car seat sideways. If this happens, use a locking clip instead of switching the retractor. See Sliding Latch Plate and ELR Retractor.

Information

Line drawing of a buckle buckle with three blades (no text or symbols)

Illustration of a person's seatbelt being lifted, showing red banding and a red arrow indicating direction (no text or symbols)

Locking Latch Plate and ELR Retractor

A latch plate that holds the lap belt snug after it has been adjusted; contains a metal bar on the underside of the hardware that “locks” the belt in position.

When installing the car seat, route the vehicle seat belt through the proper belt path and buckle it in. Then, pull upwards on the shoulder belt so that the lap belt gets tight around the base or car seat.

Grab the sides of the base or seat at the belt path and slide side to side and front to back. The base or seat should not move more than 1" (2.5 cm).

Sliding Latch Plate and ALR Retractor

A latch plate that slides freely on the belt webbing and cannot, by itself, hold the belt snug around a car seat.

Slowly pull the shoulder belt all the way out. Route the vehicle seat belt through the proper belt path and buckle it in. Then, as you pull the vehicle seat belt tight, feed all the slack back into the retractor.

Grab the sides of the base or seat at the belt path and slide side-to-side and front-to-back. The base or seat should not move more than 1" (2.5 cm).

Diagram showing a curved object with two opposing red arrows indicating direction (no text or symbols)

Illustration of a car seatbelt buckle being lifted, showing two different states of lifting (no text or symbols present)

information

Diagram showing two curved lines with opposing red arrows indicating opposing motion or direction (no text or symbols)

Abstract geometric line pattern with interlocking loops (no text or symbols)

Sliding Latch Plate and ELR Retractor

A latch plate that slides freely on the belt webbing and cannot, by itself, hold the belt snug around a car seat.

With this retractor, you will need to use the locking clip to lock the vehicle seat belt.

To obtain a locking clip call 1-800-345-4109.

Route the vehicle seat belt through the proper belt path and buckle it in. Pull the vehicle seat belt tight. While pushing down on seat, pinch the two straps together behind the buckle tongue. Unbuckle the belt without allowing it to slip.

Attach locking clip to lap and shoulder belts as shown.

Buckle belt. Check that lap belt does not move by pulling hard. If belt loosens or lengthens, repeat procedure.

Lap Belt Installation

Always review your vehicle owner's manual for specific information about your vehicle seat belts.

Locking Latch Plate and No Retractor

When installing the car seat, route the lap seat belt through the proper path and buckle it in. Then, pull upwards on the tail of the belt so that the lap belt gets tight around the car seat.

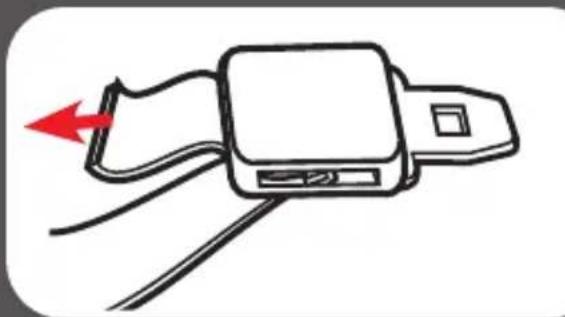

Sewn On Latch Plate and ALR Retractor

Slowly pull the lap belt all the way out. Route the vehicle seat lap belt through the proper belt path and buckle it in. Then, pull the lap belt tight while feeding all the slack back into the retractor.

Illustration of a wristwatch with a red arrow indicating motion (no text or symbols)

Grab the sides of the seat at the belt path and slide side to side and front to back. The base or seat should not move more than 1" (2.5 cm).

Line drawing of a handheld device with a handle and cable (no text or symbols)

Grab the sides of the seat at the belt path and slide side to side and front to back. The base or seat should not move more than 1" (2.5 cm).

Information

Accessories

7-A Accessories (on select models)

!WARNING!

To prevent ejection in sudden stop or crash: Use body support with bottom 2 sets of harness slots only.

Anatomical illustration of a human pelvic region with shaded areas and black bands (no text or labels)

Illustration of a car seatbelt seat assembly (no text or symbols)

Headrest Support

To remove, pull the headrest support out from behind the harness straps.

Body Support

To remove, pull the body support out from behind the harness straps.

Harness Covers

Make sure that harness covers do not interfere with the placement of the chest clip at armpit level. To remove, review section 4-A to unthread the harness system.

Diagram of a car seatbelt with two red belt bands (no text or symbols)

& Cleaning

8 Care

8-A Cleaning Seat Pad

Medical illustration showing abdominal anatomy with red arrows indicating movement or pressure points (no text or labels)

Illustration of hands adjusting a mechanical component with a red arrow indicating a specific part (no text or symbols present)

Illustration of a hand holding a red ribbon over a seated leg, with no visible text or symbols

1. Loosen Harness Straps

Push down on the harness release lever while pulling out on the harness straps at the chest clip.

2. Remove Harness Straps from Splitter Plate

3. Pull Harness Straps Out From the Front of Car Seat

1. Pull Out the 4 Plastic Flaps from Sides of Seat


Illustration of a hand holding a small object with a red arrow indicating motion or force (no text or symbols)

Diagram of a car seatbelt device with red arrows indicating directional flow or movement (no text or symbols present)

Illustration of a hand adjusting a red arrow on a car's seatbelt (no text or symbols)

& Cleaning
8 Care
71

Illustration of a hand pressing a red shaded area on a vehicle's seat (no text or symbols)

Illustration of hands holding a red object over a grid-patterned surface (no text or symbols)

5. Pull Pad Off Shell

6. Remove Canopy from Canopy Hoop

(Select models)

Slide the canopy to one side of the canopy hoop. From the center, pull the canopy hoop apart and remove canopy.

Machine wash pad and canopy in cold water on delicate cycle and drip-dry. DO NOT USE BLEACH.

Reverse the steps to reattach the pad to the shell. Make sure harness straps are not twisted.

8-B Cleaning Buckle

Remove Buckle to Clean

From the bottom of car seat, insert the buckle's metal clip up through shell and pad. From the front, pull buckle out of the pad and shell.

To clean, place in a cup of warm water and gently agitate the buckle. Press the red button several times while in the water.

DO NOT SUBMERGE THE BUCKLE

STRAP. DO NOT USE SOAPS, HOUSEHOLD DETERGENTS or LUBRICANTS.

Diagram of a car seatbelt with a red arrow pointing to the seat area (no text or symbols)

Illustration of a hand adjusting a red car seatbelt buckle (no text or symbols present)

Illustration of a hand pressing a red square object into a glass (no text or symbols)

& Cleaning
8 Care

Shake out excess water and allow to air dry. Repeat steps as needed until it fastens with a click. Re-insert the buckle into the same slot it was removed. Pull up on crotch buckle to make sure it is secured.

WARNING! Inspect and clean buckle from time to time to remove any objects or debris that could prevent latching.

8-C Cleaning Harness and LATCH

Surface wash only with mild soap and damp cloth. DO NOT IMMERSE THE HARNESS STRAPS or LATCH STRAP IN WATER. Doing so may weaken the straps.

If harness straps or LATCH belt are frayed or heavily soiled, contact Customer Service at www.gracobaby.com or 1-800-345-4109.

& Cleaning

8 Care

NOTES

Replacement Parts

To purchase parts or accessories in the United States, please contact us at the following:

www.gracobaby.com

or 1-800-345-4109

Store instruction manual in the slots on the bottom of the base where the instruction book icon is shown.
