WK1704 - Kettle VOX - Free user manual and instructions

Product Type	Electric Kettle
Brand	VOX
Model	WK1704
Capacity	1.7 L
Material	Glass body, plastic handle and base
Power	2200 W (estimated for 220-240V)
Voltage	220-240 V ~ 50/60 Hz (typical)
Dimensions (approx.)	23 x 18 x 22 cm
Weight (approx.)	1 kg
Control Type	Manual On/Off switch with automatic shut-off
Safety Features	Boil-dry protection, auto shut-off, lid lock, overfill protection
Base Type	360° cordless with power base
Cord Length	Approx. 70 cm (storable under base)
Filter	Removable mesh filter for scale
Water Level Indicator	Yes, with MIN/MAX marks
Cleaning	Wipe exterior with damp cloth; descale with vinegar periodically
Accessories Included	Power base, removable filter
Intended Use	Household and similar indoor use
Certification	CE (typical for European market)

Frequently Asked Questions - WK1704 VOX

What is the capacity of the VOX WK1704 kettle?

The VOX WK1704 kettle has a capacity of 1.7 liters, suitable for up to 7 cups of water.

How do I clean the kettle?

Clean the exterior with a damp cloth. Descale periodically by boiling a mixture of 3 cups white vinegar and water, let it sit overnight, then rinse and boil fresh water several times.

Does the kettle have boil-dry protection?

Yes, the WK1704 features boil-dry protection that automatically switches off the kettle if it is operated without water. Allow it to cool before refilling.

Can I use the kettle outdoors?

No, the appliance is for household indoor use only. Do not use outdoors or in damp areas.

How do I prevent limescale build-up?

Regularly descaling with a commercial descaler or vinegar solution helps prevent limescale. Follow the instructions in the manual.

What should I do if the kettle doesn't turn off after boiling?

Ensure the On/Off switch is not obstructed and the lid is firmly closed. If the problem persists, contact customer service.

Is the kettle cordless?

Yes, the kettle is cordless and sits on a 360° power base for convenient pouring and storage.

Can I open the lid while water is boiling?

No, do not open the lid during operation to avoid scalding. Always allow the kettle to cool before opening.

How do I store the power cord?

The power cord can be wound under the bottom of the kettle for tidy storage when not in use.

Is the kettle safe for children to use?

Children aged 8 years and above can use the kettle under supervision. Keep the kettle and cord out of reach of children under 8.

USER MANUAL WK1704 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

WK - 1704

OPERATING INSTRUCTIONS WATER KETTLE

MANUALE DELL'UTENTE BOLLITORE D'ACQUA

UPUTE ZA UPORABU KUHALO ZA VODU

UPUTSTVO ZA UPOTREBU KUVALO ZA VODU

УПАТСТВА ЗА РАКУВАНЬЕ КОТЕЛ ЗА ВОДА

MANUALI I PERDORUESIT IBRIK PËR UJE

INSTRUCTION MANUAL

WATER KETTLE

WK-1704

IMPORTANT SAFEGUARDS

1. Read all instructions before use.
2. Before plugging the kettle to the power supply, check if the voltage indicated on the appliance (underside the kettle & base) corresponds to the voltage in your home. If this is not the case, contact your dealer and stop using the kettle.
3. Do not let the cord hang over the edge of a table or counter or touch a hot surface.
4. Do not place on or near a hot gas or electric burner or in a heated oven.
5. Do not operate the appliance without anything in it as to avoid damaging the heat elements.
6. Ensure that the kettle is used on a firm and flat surface out of reach of children to prevent the kettle from overturning and avoid damage or injury.
7. To protect against fire, electric shock or personal injury, do not immerse the cord, electric plugs or the kettle in water or other liquids.
8. While water is boiling, or just after the water has been boiled, avoid contacting with steam from the spout.
9. Always take care to pour boiling water slowly and carefully without tipping the kettle too fast.
10. Be careful if refilling when the kettle is hot.
11. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
12. Children should be supervised to ensure that they do not play with the appliance.
13. Do not touch the hot surface. Use the handle or the button.
14. The attached base cannot be used for other than intended use.
15. Extreme caution must be paid when moving the appliance containing hot water.
16. The appliance is not a toy. Do not let children play with the appliance.
17. The appliance is for household use only. Do not use outdoors.
18. The use of accessories, not recommended by the appliance manufacturer, may result in fire, electric shock or personal injury.
19. Unplug the appliance from the outlet when not in use and before cleaning. Allow the kettle to cool before putting on or taking off parts, and before cleaning the appliance.

20. To switch off, turn the control to "off" and then unplug from the wall outlet.

21. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

22. Do not use the appliance for other than its intended use.
23. The kettle can only be used with the stand provided.
24. If the kettle is overfilled, boiling water may spill out.
25. Always ensure the lid is closed and do not lift it while the water is boiling. Scalding may occur if the lid is removed during the brewing cycles.
26. This appliance is intended to be used in household and similar applications such as:

– Staff kitchen areas in shops, offices and other working environments;
– Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments.

1. Save these instructions.

2. The appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

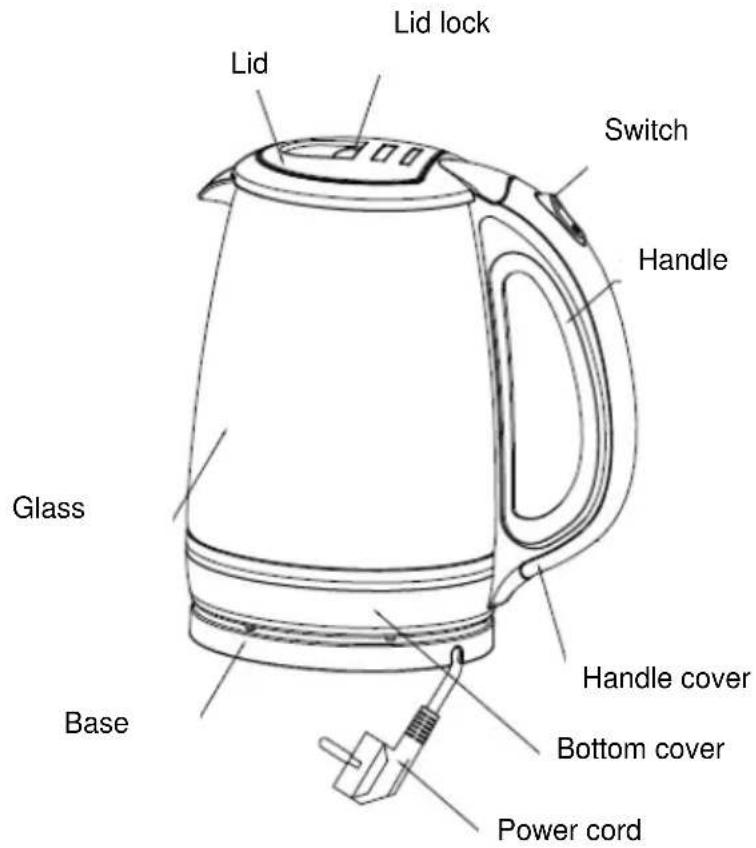

KNOW YOUR WATER KETTLE

BEFORE USING YOUR KETTLE

The kettle should be cleaned before first use by boiling the Max capacity of water once and then discarding the water. Wipe the surface with damp cloth.

NOTE: The max capacity of kettle is 1.7L

WATER KETTLE USE

1. Place the appliance on the level surface.
2. To fill the kettle, remove it from the power base and open the lid by pressing the lid release button, fill with the desired amount of water and then close the lid. Alternatively, the kettle may be filled through the spout. The water level should not exceed MAX marks or be below MIN level. Too little water will cause the kettle to switch off before the water has boiled.

NOTE: Do not fill the water over the maximum level, as water may spill out of the spout when boiling. Ensure that the lid is firmly in place before plugging the power outlet.

1. Place the kettle on the power base.

2. Plug the appliance into the power outlet. Press down the On/Off switch, the indicator will light up. The kettle will start boiling water and when the water has been boiled the On/Off switch will switch off the appliance automatically. You can turn off the power

by lifting the On/Off switch at any moment while boiling water. If you want to boil water again, just press down the On/Off switch directly to restart the kettle.

NOTE: Ensure that the On/Off switch is free of obstructions and the lid is firmly closed, the kettle will not turn off if the switch is constrained or if the lid is opening.

1. Lift the kettle from the power base and then pour the water.

NOTE: Operate carefully when pouring water from your kettle as boiling water may result in scald, besides, do not open the lid while the water in the kettle is hot.

1. The kettle will not re-boil until the On/Off switch is pressed down again. The kettle may be stored on the power base when not in use.

NOTE: Always disconnect the power supply when not use.

BOIL-DRY PROTECTION

Should you accidentally let the kettle operate without water, the boil-dry protection will automatically switch off the power. If this occurs, allow the kettle to cool before filling with cold water to reboil.

CLEANING AND MAINTENANCE

Always disconnect the appliance from the power outlet and cool it down completely before cleaning.

1. Never immerse the kettle, the power cord or power base in water, or allow moisture to contact with these parts.
2. Wipe the surface of body with a damp cloth or cleaner and do not use poisonous substances.
3. Remember to clean the filter at intervals. For easier cleaning, detach the filter and then replace it after cleaning.

CAUTION: Do not use chemical, steel, wooden or abrasive cleaners to clean the outside of the kettle to prevent the gloss loss.

1. When not in use, the power cord can be stored at the bottom of the appliance.

2. When not in use or stored, the power cord may be wound under the bottom of kettle.

REMOVAL OF MINERAL DEPOSITS

Your kettle should be periodically descaled as the mineral deposits in tap water may form scale at the bottom of kettle interior so as to cause the operation less efficiency. You can use the commercially available descaler and follow the instructions on the package of

descaler. Alternatively, you may follow the below instructions to use the white vinegar.

1. Fill the kettle with 3 cups of white vinegar and then add water to the amount so as to cover the bottom of kettle completely. Leave the mixture remain in the kettle overnight.
2. Pour out the mixture from the kettle, then fill the kettle with clean water, boil and then discard the water. Repeat several times until the odor of vinegar disappears. Stains which remain inside the spout can be removed by rubbing with a damp cloth.

ENVIRONMENT FRIENDLY DISPOSAL

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal center.

Symbol of a trash bin with no text or numbers present

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

BEZBEDNOSNA UPUTSTVA

1. Pročitajte pažljivo ovo uputstvo pre prve upotrebe.
2. Pre uključivanja kuvala, proverite da li napon uređaja, koji je naveden na natpisnoj tablici na dnu uređaja, odgovara naponu strujne utičnice. Ukoliko napon ne odgovara, obratite se vašem prodavcu i nemojte koristiti uređaj.
3. Paziti da kabl za napajanje tokom upotrebe ne visi sa ivice stola, radne površine ili blizu bilo kakvog grejnog tela
4. Ne koristite uređaj i ne postavljajte ga na ili u blizini grejnih tela kao što su plinski i električni šporeti ili zagrejane rerne.
5. Nemojte koristiti uređaj ukoliko u njemu nema vode, kako biste izbegli oštećenje grejnih elemenata.
6. Koristite uređaj na čvrstoj i ravnoj površini van domašaja dece; time sprečavate prevrtanje uređaja i izbegavate oštećenja ili povreda.
7. Da biste se zaštitili od požara, električnog udara ili povreda, ne uranjajte kabl ili uređaj u vodu ili bilo koju drugu tečnost.
8. Izbegavajte kontakt sa parom iz uređaja dok voda ključa, ili odmah nakon ključanja.
9. Pažljivo rukujte uređajem prilikom isipanja ključale vode iz njega.
10. Pažljivo rukujte uređajem ukoliko ga ponovo dopunjavate dok je još uvek vruć.
11. Ovaj uređaj nije namenjen za upotrebu od strane osoba (uključujući i decu) sa smanjenim fizičkim, senzornim i mentalnim sposobnostima ili nedostatkom iskustva i znanja, osim ako nisu pod nadzorom osobe odgovorne za njihovu bezbednost.
12. Deca moraju biti pod nadzorom ukoliko su pored uređaja.
13. Nikad ne dodirujte vruće delove uređaja. Koristite ručku ili dugme.
14. Postolje uređaja ne sme se koristiti u druge svrhe osim predviđene.
15. Obratite posebnu pažnju kada pomerate uređaj u kome se nalazi vrela voda.
16. Uređaj nije igračka. Deca se ne smeju igrati sa uređajem.
17. Uređaj je samo za kućnu upotrebu. Ne koristite uređaj napolju.
18. Upotreba dodataka koji nisu preporučeni od strane proizvođača može dovesti do požara, strujnog udara i povreda.
19. Isključite uređaj iz utičnice kada nije u upotrebi i pre čišćenja. Ostavite uređaj da se ohladi pre nego što stavljate i skidate delove, ili pre čišćenja uređaja.
20. Pre isključivanja, podesite uređaj na “Off” / isključeno, a zatim isključite iz utičnice.

21. Ako se kabl za napajanje ošteti mora ga zameniti ovlašćeni serviser ili neka druga ovlašćena osoba kako biste izbegli trajno oštećenje uređaja.

22. Uređaj se ne sme koristiti ni u jednu drugu svrhu osim one propisane ovim uputstvom.

23. Uređaj se može koristiti samo sa predviđenim postoljem.
24. Ukoliko je uređaj prepunjen, može doći do prolivanja ključale vode.
25. Poklopac mora biti zatvoren i ne smete ga podizati dok voda ključa. Sklanjanje poklopca tokom rada uređaja može dovesti do opekotina.
26. Uređaj je namenjen za kućnu upotrebu i sličnim okruženjima kao što su:

– Kuhinjske prostorije poslovnih zgrada i tržnih centara;
- Farme;
– Hoteli, moteli i slična stambena okruženja;
– Pansioni i turistički smeštaj.

Simple line drawing of a tower structure with diagonal lines (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Symbol of a waste bin with no text or numbers present

Zaštitimo životnu sredinu!

Molimo da se pridržavate lokalnih propisa: predajte električne uređaje koji više nisu u funkciji odgovarajućem centru za odlaganje otpada.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

BIH

MNE

UPUTSTVO ZA UPOTREBU

KUVALO ZA VODU

WK-1704

BEZBJEDNOSNA UPUTSTVA

1. Pročitajte pažljivo ovo uputstvo prije prve upotrebe.
2. Prije uključivanja kuvala, provjerite da li napon uređaja, koji je naveden na natpisnoj tabli na dnu uređaja, odgovara naponu strujne utičnice. Ukoliko napon ne odgovara, obratite se vašem prodavcu i nemojte koristiti uređaj.
3. Paziti da kabl za napajanje tokom upotrebe ne visi sa ivice stola, radne površine ili blizu bilo kakvog grijnog tijela
4. Ne koristite uređaj i ne postavljajte ga na ili u blizini grijnih tijela kao što su plinski i električni šporeti ili zagrijane rerne.
5. Nemojte koristiti uređaj ukoliko u njemu nema vode, kako biste izbjegli oštećenje grijnih elemenata.
6. Koristite uređaj na čvrstoj i ravnoj površini van domašaja djece; time spriječavate prevrtanje uređaja i izbjegavate oštećenja ili povrede.
7. Da biste se zaštitili od požara, električnog udara ili povreda, ne uranjajte kabl ili uređaj u vodu ili bilo koju drugu tečnost.
8. Izbjegavajte kontakt sa parom iz uređaja dok voda ključa, ili odmah nakon ključanja.
9. Pažljivo rukujte uređajem prilikom isipanja ključale vode iz njega.
10. Pažljivo rukujte uređajem ukoliko ga ponovo dopunjavate dok je još uvek vruć.
11. Ovaj uređaj nije namijenjen za upotrebu od strane osoba (uključujući i djecu) sa smanjenim fizičkim, senzornim i mentalnim sposobnostima ili nedostatkom iskustva i znanja, osim ako nisu pod nadzorom osobe odgovorne za njihovu bezbjednost.
12. Djeca moraju biti pod nadzorom ukoliko su pored uređaja.
13. Nikad ne dodirujte vruće dijelove uređaja. Koristite ručku ili dugme.
14. Postolje uređaja ne smije se koristiti u druge svrhe osim predviđene.
15. Obratite posebnu pažnju kada pomjerate uređaj u kome se nalazi vrela voda.
16. Uređaj nije igračka. Djeca se ne smiju igrati sa uređajem.
17. Uređaj je samo za kućnu upotrebu. Ne koristite uređaj napolju.
18. Upotreba dodataka koji nisu preporučeni od strane proizvođača može dovesti do požara, strujnog udara i povreda.
19. Isključite uređaj iz utičnice kada nije u upotrebi i prije čišćenja. Ostavite uređaj da se ohladi prije nego što stavljate i skidate dijelove, ili prije čišćenja uređaja.
20. Prije isključivanja, podesite uređaj na “Off” / isključeno, a zatim isključite iz utičnice.
21. Ako se kabl za napajanje ošteti mora ga zamijeniti ovlašćeni serviser ili neka druga

Symbol of a trash bin with no text or numbers present

Zaštitimo životnu sredinu!

Molimo da se pridržavate lokalnih propisa: predajte električne uređaje koji više nisu u funkciji odgovarajućem centru za odlaganje otpada.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
