Introduction

Maintenance and Service ....3

Before use 4

Front Panel/Rear Panel ....5

Remote Control 6

Installation and Setup

TV Connections 7

Optional Equipment Connections .....8

Aerial Connections .....8

Speaker System Connection .....9

Setting a channel or ID of transmitter and

wireless speaker 10

Assembling and Connecting to the Speakers 11

HDMI Connection 12

Displaying Disc Information on-screen .....13

Initial Settings 13

General Operation ....13

Language 13

Display 14

Audio 15

5.1 Speaker Setup ..... 15

Lock (Parental Control) 16

Others 16

Operation

General features .....17

Additional features .....18

Controlling the TV ....18

Playing an Audio CD or MP3/WMA file .....19

Programmed Playback 19

Viewing a JPEG file .....20

Playing a DivX Movie file .....21

DVD Audio Discs 22

Presetting the Radio Stations .....23

Listening to the Radio .....23

Sleep Timer Setting .....24

Dimmer .....24

Mute 24

Using Headphone Jack 24

Selecting input source .....24

XTS/XTS pro ....24

VIRTUAL sound .....24

Sound Mode 24

REFERENCE

Language Codes 25

Area Codes 25

Troubleshooting .....26-27

Specifications

Maintenance and Service

Refer to the information in this chapter before contacting a service technician.

HANDLING THE UNIT

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

- Do not use volatile liquids such as insecticide spray near the unit.

- Do not leave rubber or plastic products in contact with the unit for a long period of time. since they leave marks on the surface.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution.

Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The DVD/CD Receiver is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished.

Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use.

For details, please contact your nearest authorized service center.

Introduction

Before use

To ensure proper use of this product, please read this owner's manual carefully and retain for future reference.

This manual provides information on the operation and maintenance of your DVD/CD Receiver. Should the unit require service, contact an authorized service location.

About the 🔊 Symbol Display

“ 🔊 ” may appear on your TV display during operation and indicates that the function explained in this owner's manual is not available on that specific DVD video disc.

Symbol Used in this Manual

Note:

Indicates special notes and operating features.

Tip:

Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols is applicable only to the disc represented by the symbol.

DVD-V DVD and finalized DVD±R/RW

DVD-A DVD Audio discs

VCD Video CDs

CD Audio CDs

MP3 MP3 Discs

WMA WMA Discs

JPEG JPEG Discs

DivX DivX Discs

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.

Manufactured under license from Digital Theater Systems, Inc. U.S. Pat. No.'s. 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 and other U.S. and worldwide patents issued and pending. "DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc. Copyright 1996, 2003 Digital Theater Systems, Inc. All Rights Reserved."

Types of Playable Discs

	DVD(8 cm / 12 cm disc)
	Video CD (VCD)(8 cm / 12 cm disc)
	Audio CD(8 cm / 12 cm disc)

In addition, this unit can play a DVD-RW, DVD+RW, SVCD and CD-R or CD-RW that contains audio titles, MP3, WMA, JPEG or DivX files.

Notes:

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD-RW, DVD+RW) disc itself, some CD-R/RW (or DVD-RW, DVD+RW) discs cannot be played on the unit.
• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
• Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). It may result in malfunctions.

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labelled same as the rear of the unit or "ALL".

Notes on Regional Codes

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your DVD player's regional code or the disc cannot play.
• If you try to play a DVD with a different regional code from your player, the message "Check Regional Code" appears on the TV screen.

Front Panel/Rear Panel

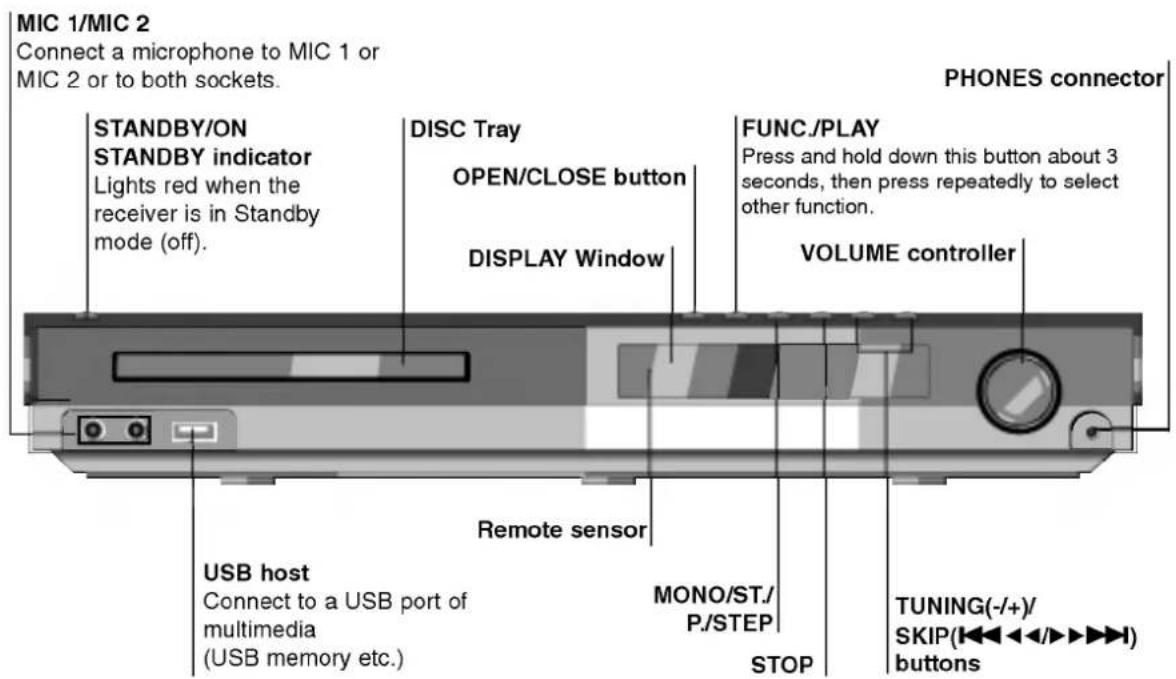

MIC 1/MIC 2 Connect a microphone to MIC 1 or MIC 2 or to both sockets. STANDBY/ON STANDBY indicator Lights red when the receiver is in Standby mode (off). DISC Tray OPEN/CLOSE button DISPLAY Window FUNC./PLAY Press and hold down this button about 3 seconds, then press repeatedly to select other function. VOLUME controller Remote sensor USB host Connect to a USB port of multimedia (USB memory etc.) MONO/ST./ P./STEP STOP TUNING(-/+)/ SKIP(◀◀◀◀◀◀▶▶▶▶) buttons

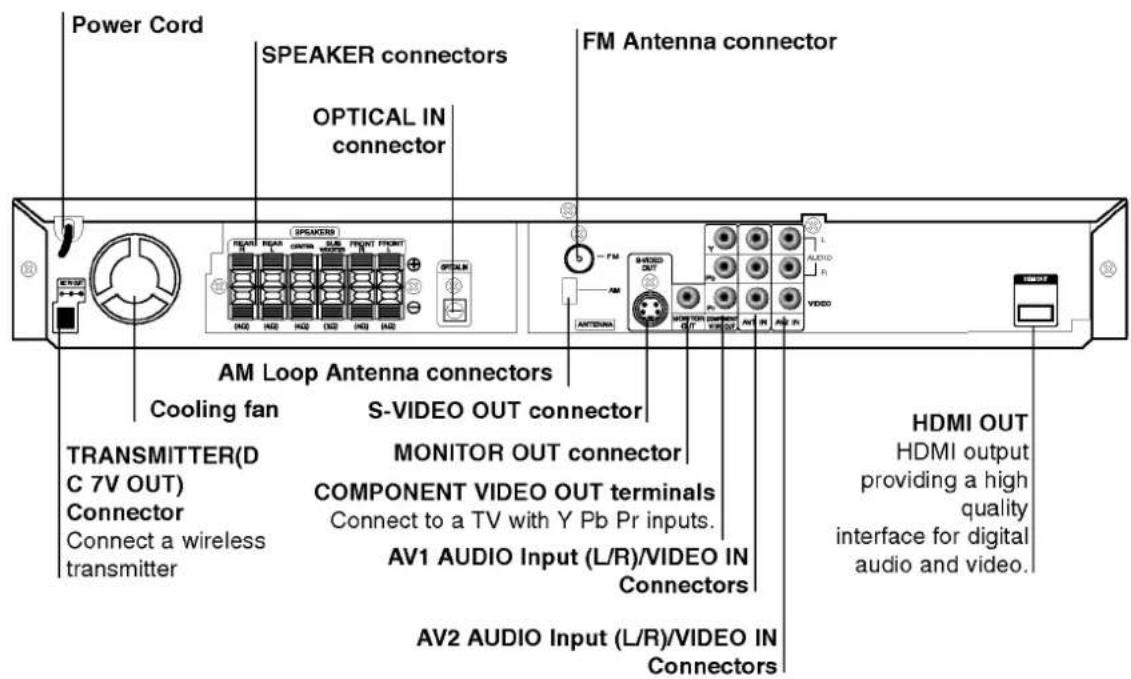

Power Cord SPEAKER connectors OPTICAL IN connector FM Antenna connector AM Loop Antenna connectors Cooling fan S-VIDEO OUT connector TRANSMITTER(D C 7V OUT) Connector Connect a wireless transmitter MONITOR OUT connector COMPONENT VIDEO OUT terminals Connect to a TV with Y Pb Pr inputs. AV1 AUDIO Input (L/R)/VIDEO IN Connectors AV2 AUDIO Input (L/R)/VIDEO IN Connectors HDMI OUT HDMI output providing a high quality interface for digital audio and video.

Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

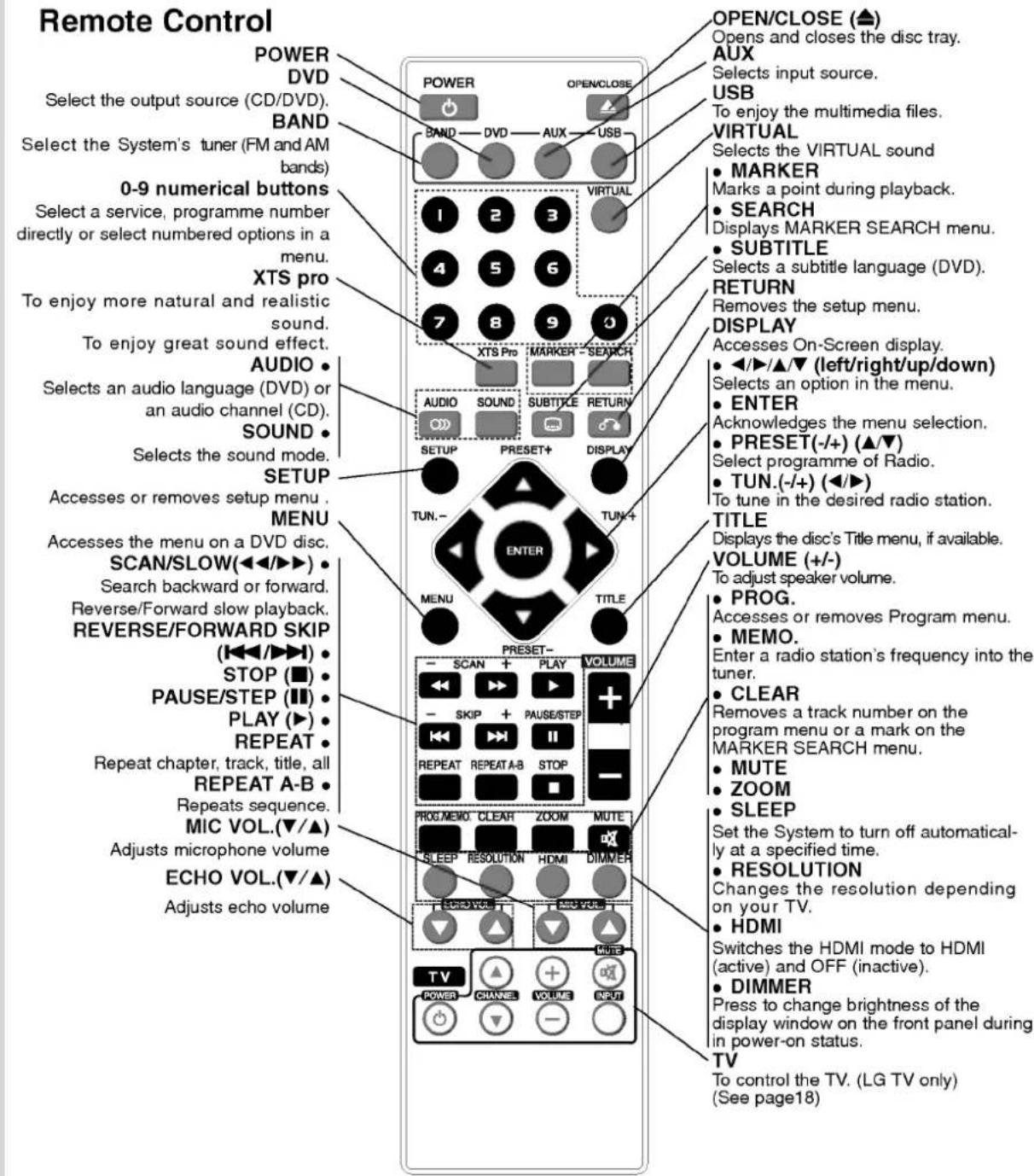

Remote Control POWER DVD Select the output source (CD/DVD). BAND Select the System's tuner (FM and AM bands) 0-9 numerical buttons Select a service, programme number directly or select numbered options in a menu. XTS pro To enjoy more natural and realistic sound. To enjoy great sound effect. AUDIO Selects an audio language (DVD) or an audio channel (CD). SOUND Selects the sound mode. SETUP Accesses or removes setup menu . MENU Accesses the menu on a DVD disc. SCAN/SLOW(◀◀/▶▶) Search backward or forward. Reverse/Forward slow playback. REVERSE/FORWARD SKIP (◀◀/▶▶) STOP (■) PAUSE/STEP (■) PLAY (▶) REPEAT Repeat chapter, track, title, all REPEAT A-B Repeats sequence. MIC VOL.(▼/▲) Adjusts microphone volume ECHO VOL.(▼/▲) Adjusts echo volume POWER OPEN/CLOSE BAND — DVD — AUX — USB 1 2 3 VIRTUAL 1 2 3 4 5 6 7 8 9 0 XTS Pro MARKER — SEARCH AUDIO SOUND SUBTITLE RETURN TUN.- PRESET+ DISPLAY TUN.- ENTER MENU TITLE PRESET- SCAN + PLAY VOLUME - SKIP + PAUSE/STEP + REPEAT REPEAT A-B STOP - PROG/MEMO CLEAR ZOOM MUTE SLEEP RESOLUTION HDMI DIMMER ECHO VOL. T - MUE POWER CHANGE VOLUME N207 OPEN/CLOSE (▲) Opens and closes the disc tray. AUX Selects input source. USB To enjoy the multimedia files. VIRTUAL Selects the VIRTUAL sound • MARKER Marks a point during playback. • SEARCH Displays MARKER SEARCH menu. • SUBTITLE Selects a subtitle language (DVD). RETURN Removes the setup menu. DISPLAY Accesses On-Screen display. ◀/▶/▲/▼ (left/right/up/down) Selects an option in the menu. • ENTER Acknowledges the menu selection. • PRESET(-/+)(▲/▼) Select programme of Radio. • TUN.(-/+)(◀/▶) To tune in the desired radio station. TITLE Displays the disc's Title menu, if available. VOLUME (+/-) To adjust speaker volume. • PROG. Accesses or removes Program menu. • MEMO. Enter a radio station's frequency into the tuner. • CLEAR Removes a track number on the program menu or a mark on the MARKER SEARCH menu. • MUTE • ZOOM • SLEEP Set the System to turn off automatically at a specified time. • RESOLUTION Changes the resolution depending on your TV. • HDMI Switches the HDMI mode to HDMI (active) and OFF (inactive). • DIMMER Press to change brightness of the display window on the front panel during in power-on status. TV To control the TV. (LG TV only) (See page18)

Remote Control Operation Range

Point the remote control at the remote sensor and press the buttons.

● Distance: About 23 ft (7 m) from the front of the remote sensor
- Angle: About 30° in each direction in front of the remote sensor

Caution

Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

Remote control battery installation

Remove the battery cover on the rear of the remote control, and insert two R03 (size AAA) batteries with + and - aligned correctly.

Installation and Setup

TV Connections

Make one of the following connections, depending on the capabilities of your existing equipment.

Tips:

• Depending on your TV and other equipment you wish to connect, there are various ways you could connect the DVD/CD Receiver. Use one of the connections described below.
• Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary to make the best connections.

Caution:

• Make sure the DVD/CD Receiver is connected directly to the TV. Select the correct AV input on your TV.
• Do not connect your DVD/CD Receiver to TV via your VCR. The DVD image could be distorted by the copy protection system.

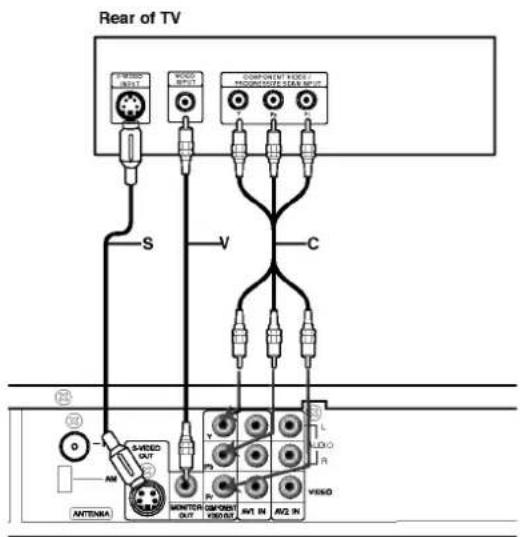

Rear of TV F WIND OUT WIND SPLIT COMPONENTS MODE 1 PRODUCED IN 14A4-5P 10 S V C SWED OUT ANTENIA MONTER OUT AVI IN AVIO IN L ALDO R

Rear of DVD/CD Receiver

S-Video connection

Connect the S-VIDEO OUT jack on the DVD/CD Receiver to the S-VIDEO IN jack on the TV using the S-Video cable (S).

Video connection

Connect the MONITOR OUT jack from the DVD/CD Receiver to the VIDEO IN jack on the TV using the video cable supplied (V).

Component Video (Color Stream®) connection

Connect the COMPONENT VIDEO OUT jacks from the DVD/CD Receiver to the corresponding in jacks on the TV using an Y Pb Pr cable (C).

Optional Equipment Connections

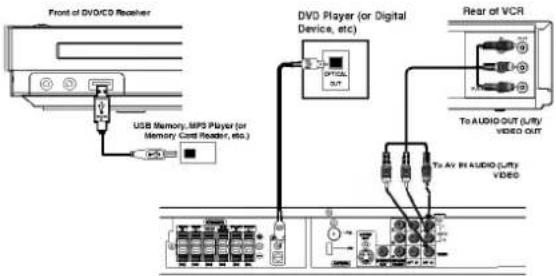

1. Connect a VCR to the AV IN connectors.
2. Connect an optical output of DVD Player (or Digital Device etc) to the OPTICAL IN connector.
3. Connect the USB port of a USB Memory (or MP3 player, etc.) to the USB port on the front of the unit.

Note:

If the audio format of the digital output does not match the capabilities of your DVD/CD Receiver, the receiver will produce a strong, distorted sound or no sound at all.

To Remove the USB from the unit

1. Choose a different function mode or press the STOP (■) twice in a row.
2. Remove the USB from the unit.

Notes:

• Don't extract the USB device in operating.
• Music files (MP3/WMA), image files (JPEG) and DivX files can be played.
  • This unit can not use USB HUB.

- Recommended Memory Card Compact Flash Card (CFC), Micro Drive (MD), Smart Media Card (SMC), Memory Stick (MS), Secure Digital Card (SD), Multi Media Card (MMC), Memory Stick Pro (MS-Pro)

• Compatible with : FAT16,32
• Only use the memory cards recommended.

- Devices which require additional program installation when you have connected the unit to a computer are not supported.

- In case of a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for porper operation. A primary partition of drive is supported up to four. If there is an extension partition it is not supported.

- If the drive of USB device is two or more, a drive folder is displayed on the screen. If you want to move to the previous menu after you select a folder, press RETURN.

- Digital camera and mobile phone are not supported.

Antenna Connections

Connect the supplied FM/AM antenna for listening to the radio.

• Connect the AM Loop antenna to the AM antenna connector.
• Connect the FM Wire antenna to the FM antenna connector.

Notes:

• To prevent noise pickup, keep the AM Loop antenna away from the DVD/CD Receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM Wire antenna, keep it as horizontal as possible.

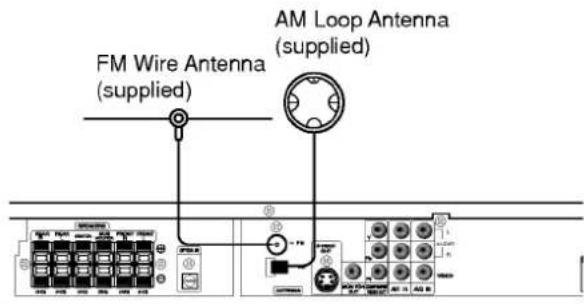

FM Wire Antenna (supplied) AM Loop Antenna (supplied)

Speaker System Connection Speaker Connections

• Connect the speakers to the front (right, left) or center speaker connectors.
• Connect the subwoofer to the woofer connector.
• Connect the power cord of the wireless speakers to the outlet.
• Connect the SOUND SIGNAL connector of transmitter and the rear (right, left) speaker terminals of main unit with the SOUND SIGNAL cable.
• Connect the DC IN connector of transmitter and the transmitter connector of main unit with the DC power cable.
• Set the distance between the transmitter and wireless speakers (right, left) within 10m.

Notes:

• Optimum performance can be implemented only when the transmitter and the wireless speakers within distance of 2m through 10m is used since communication failure may occur if closely approaching distance between them.
• Be sure to match the speaker cable to the appropriate terminal on the components: + to + and - to -. If the cables are reversed, the sound will be distorted and will lack base.
• Do not remove the front cover of supplied speaker.
• It takes a few seconds (and may take longer) for the transmitter and wireless speaker (left, right) to communicate with each other.
• When the main set is turned off, the transmitter is also turned off automatically and the wireless speaker is in standby mode (red LED indicator).
• If the wireless speaker is turned off, the wireless speaker will not function.

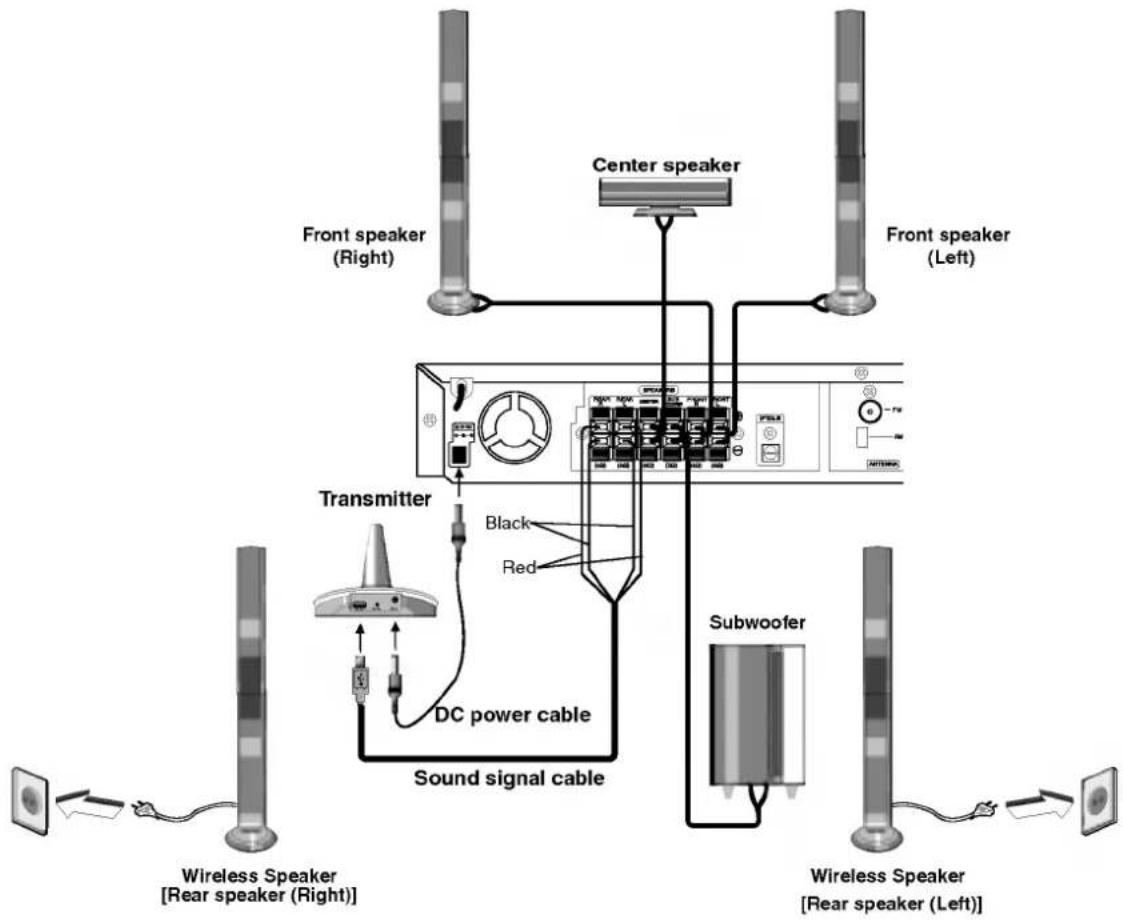

Front speaker (Right) Center speaker Front speaker (Left) Transmitter Black Red DC power cable Sound signal cable Subwoofer Wireless Speaker [Rear speaker (Right)] Wireless Speaker [Rear speaker (Left)]

Setting a channel or ID of transmitter and wireless speaker

Note:

If there is a strong electromagnetic wave product nearby, an interference may be occurred. Put the unit (wireless speaker and main unit) away from there.

(Ex : Micro wave oven)

Transmitter

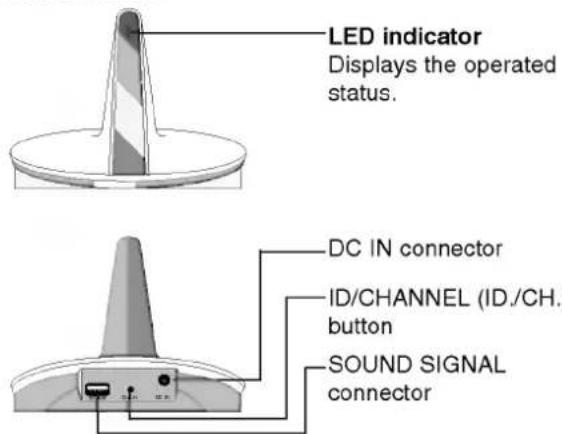

LED indicator Displays the operated status. DC IN connector ID/CHANNEL (ID./CH.) button SOUND SIGNAL connector

Setting a channel of Transmitter

If there is a similar wireless product nearby, interference may occur. In this case, change to other channel using ID/CHANNEL (ID./CH.) button of transmitter.

Press the ID/CHANNEL (ID./CH.) button for less than about 3 seconds.

If the wireless TX and wireless speakers signals do not match after operating as above, operate it again about three times.

Note:

The wireless speakers may not receive the changed channel of transmitter (The blue LED of Wireless TX will flicker. The LED of Wireless speakers will turn red or the blue LED of Wireless speakers will flicker). In this case set the ID as next paragraph.

Initial setting an ID of Transmitter

1. Connect the SOUND SIGNAL connector of transmitter and the rear (right, left) speaker terminals of main unit with the SOUND SIGNAL cable.
2. Connect the DC IN connector of transmitter and the transmitter connector of main unit with the DC power cable.
3. Connect power cord of each wireless speakers to the wall power outlet.
4. Turn the main unit ON.

Blue LEDs of transmitter will flicker and Blue and Red LEDs of wireless speakers will flicker in turn, then the Blue LEDs of both transmitter and wireless speakers will stay on when the wireless system works normally.

Setting an ID of Transmitter

If an interference is occurred or you use a new wireless speaker, set the ID.

1. Disconnect power cord of wireless speakers.
2. Press the ID/CHANNEL (ID./CH.) button for more than about 3 seconds.

The blue LED indicator will quickly flicker.

1. Connect power cord of wireless speakers.

Note:

If there is no audio signal for longer than 10 minutes, the wireless speakers and transmitter will be automatically switched to power saving mode. At power saving mode, both LEDs will turn red. LEDs will turn blue when there is any audio signal back.

If you operate main unit then wireless speakers (rear speakers) sound within a few seconds in standby mode.

Assembling and Connecting to the Speakers

The front and rear speakers are detached from the speaker stands. Connect the speaker cords and assemble the front and rear speakers from speaker stands as illustrated.

1. Connect the speaker cords to the appropriate terminals on the bottom of each front and rear speaker.
2. Attach the front and rear speakers to the speaker stands by rotating the screw.

Diagram illustrating a procedure for liquid level measurement, showing step-by-step transformation from graduated cylinder to test tube with tool insertion.

CAUTION

Rear speaker (wireless speakers) is no sound.

• The DC power cable is not connected the Wireless TX and main unit. Connect the Wireless TX and main unit with the DC power cable.
• Power cord of wireless RX (or wireless speakers) is not connected. Connect the Power cord of wireless RX (or wireless speakers).

• LED indicator of Wireless TX is RED.

• Turn on the main unit.
• Set to sound mode by PL II MOVIE, PL II MUSIC or PL II MTRX. (page 24)
• Set to XTS-ON. (page 24)
• Insert a 5.1 ch sound compatible disc.

Sound is cut off.

Change a channel of Wireless TX. (Follow steps "Setting a channel of Transmitter")

* If rear speaker (wireless speakers) is no sound after operating as above, disconnect and connect the power cord of Wireless RX (or wireless speakers) or set up an ID of wireless TX and wireless RX (or wireless speakers).

HDMI Connection

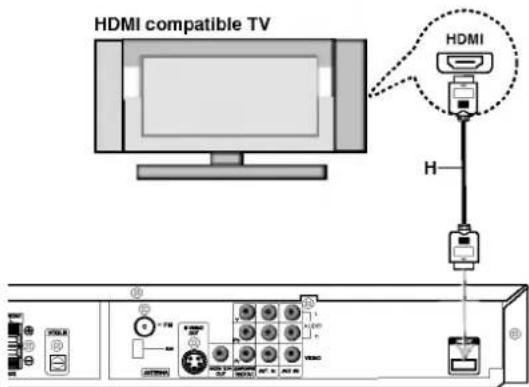

If you have a HDMI TV or monitor, you can connect it to this DVD/CD Receiver using a HDMI cable.

1. Connect the HDMI OUT jack on the DVD/CD Receiver to the HDMI jack on a HDMI compatible TV or monitor (H).
2. Set the TV's source to HDMI (refer to TV's Owner's manual).
3. In stop mode, select HDMI mode by pressing HDMI. Press RESOLUTION repeatedly to select the resolution you wish to change.

Notes:

- The arrow on the cable connector body should face up for correct alignment with the connector on the DVD/CD Receiver.

- If HDMI cable is not connected, the HDMI button is not operated.

• If there is noise or lines on the screen, please check the HDMI cable.
• Not all HDCP-compatible DVI devices will work with this DVD/CD Receiver.
• If TV does not support HDCP, snow noise appears on the screen, or picture may be vibrated.

Tip :

When you use HDMI connection, you can change the resolution (480p, 720p, 1080i) for the HDMI output by pressing RESOLUTION on the remote control.

About HDMI

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for an easy all- digital output to an HDMI or DVI-equipped TV.

Connection to an HDMI TV requires an HDMI cable while connection to a DVI-equipped TV requires an HDMI to DVI adaptor.

HDMI has the capability to support standard, enhanced, or high-definition video plus standard to multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of up to 5 gigabytes per second, one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVs.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

HDMI compatible TV HDMI H 1200 1201 1202 1203 1204 1205 1206 1207 1208 1209 1210 1211 1212 1213 1214 1215 1216 1217 1218 1219 1220

Resolution setting

You can change the resolution for the COMPONENT VIDEO OUT by pressing RESOLUTION on the remote control. Available resolution settings are as shown below.

OUTPUT CONNECTION	Available Resolution
	NTSC
HDMIVIDEO OUT	1920 x 1080i1280 x 720p720 x 480p
COMPONENTVIDEO OUT	1920 x 1080i1280 x 720p720 x 480p720 x 480i
MONITOR OUT	720 x 480p720 x 480i
S-VIDEO	720 x 480p720 x 480i

Notes:

• If the picture does not appear on the screen with the analog video connections, change the resolution to 480i (or 576i).
• For 720p and 1080i resolution on the component video out, only non-copy protected discs can be played back. If the disc is copy protected, it will be displayed at the 480p(NTSC) resolution.
• 1080i, 720p, 480p does not work with the analog video connections (MONITOR OUT & S-VIDEO OUT).
• If you change the resolution, the display MENU (MP3/JPEG/DivX) size is changed.
• If your TV does not accept your resolution setting, abnormal picture appears on the screen. Please read TV's owner's manual then set the resolution that your TV can accept.

Caution:

Changing the resolution when the recorder is connected with HDMI connector may result in malfunctions. To solve the problem, turn off the recorder and then turn it on again.

Displaying Disc Information on-screen

You can display various information about the disc loaded on-screen.

1. Press DISPLAY to show various playback information. The items displayed differ depending on the disc type or playing status.

2. You can select an item by pressing ▲ / ▼ and change or select the setting by pressing ◀ / ▶.

3. Title (Track) – Current title (or track). number/total number of titles (or tracks).

4. Chapter – Current chapter number/total number of chapters.
   • Time – Elapsed playing time.
   • Audio – Selected audio language or channel.
5. Subtitle – Selected subtitle.
6. Angle – Selected angle/total number of angles.
7. Sound – Selected sound mode.

Note:

If no button is pressed for a few seconds, the on-screen display disappears.

Initial Settings

By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 13 to 16

To display and exit the Menu:

Press SETUP to display the menu. A second press of SETUP will take you back to initial screen.

To go to the next level:

Press ▶ on the remote control.

To go back to the previous level:

Press ◀ on the remote control.

GENERAL OPERATION

1. Press SETUP. The Setup menu appears.
2. Use ▲ / ▼ to select the desired option then press ▶ to move to the second level. The screen shows the current setting for the selected item, as well as alternate setting(s).
3. Use ▲ / ▼ to select the second desired option then press ▶ to move to the third level.
4. Use ▲ / ▼ to select the desired setting then press ENTER to confirm your selection. Some items require additional steps.
5. Press SETUP or PLAY to exit the Setup menu.

LANGUAGE

LANGUAGE Disk0 Diss Audio Diss Audio Diss Menu English Original Off Original Move Select

OSD

Select a language for the Setup menu and on-screen display.

Disc Audio / Subtitle / Menu

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

Original – Refers to the original language in which the disc was recorded.

Other – To select another language, press number buttons then ENTER to enter the corresponding 4-digit number according to the language code list on page 25. If you enter the wrong language code, press CLEAR.

DISPLAY

DISPLAY TV Asset 16 : 9 Display Mode Widescreen Move Select

TV Aspect

4:3 – Select when a standard 4:3 TV is connected.

16:9 - Select when a 16:9 wide TV is connected.

Display Mode

Display Mode setting works only when the TV Aspect mode is set to "4:3".

Letterbox – Displays a wide picture with bands on the upper and lower portions of the screen.

Panscan – Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.

AUDIO

Each DVD disc has a variety of audio output options. Set the receiver's AUDIO options according to the type of audio system you use.

AUDIO 5.1 Expeller Setup LRC Voxel HD AV (Sync) Select On On 008 ms Show Select

Dynamic Range Control (DRC)

With the DVD*1 format, you can hear a program's soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). Then, you may listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect.

*1: Dolby Digital only

Vocal

Set Vocal to On only when a multi-channel karaoke DVD is playing. The karaoke channels on the disc will mix into normal stereo sound.

HD AV Sync

When using Digital TV. Sometimes AV signal could not be transmitted simultaneously because of later transmission of video signal compared to audio signal. Because it takes some time to convert analog video signal to digital one in the Digital TV. And it means that you may not enjoy picture on the screen and sound from speaker at the same time even though it is one scene.

In the HD AV Sync menu, you could adjust delay time to audio signal for simultaneous AV signal transmission.

• Delay time could be set up with 10msec unit. (0 \~ 300msec)
• Delay time is different with each TV Brand. So you need to adjust optimal delay time complying with your TV.

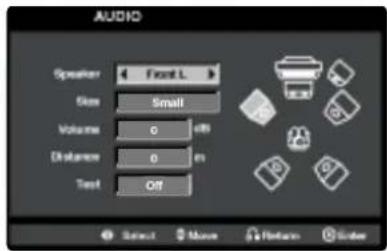

5.1 Speaker Setup

Make the following settings for the built-in 5.1 channel surround decoder.

1. Press ENTER and 5.1 Speaker Setup menu appears.

AUDIO Speaker Front L Size Small Volume 0 mf Distance 0 mm Text Off Select Move Return Gobbe

1. Use ◀ / ▶ to select the desired speaker.
2. Adjust options using ▲ / ▼ / ◀ / ▶ buttons.
3. Press ENTER to confirm your selection. Returns to the previous menu.

Speaker selection

Select a speaker that you want to adjust. (Front speakers (Left), Center Speaker, Front speakers (Right), Rear speakers (Right), Rear speakers (Left), or SubWoofer)

Note:

Certain speaker settings are prohibited by the Dolby Digital licensing agreement.

Size

Since the speaker settings are fixed, you cannot change the settings.

Volume

Press ◀ / ▶ to adjust the output level of the selected speaker. (-5dB \~ 5dB)

Distance

If you connected speakers to your DVD/CD Receiver, setting the Distance lets the speakers know how far the sound has to travel to reach your set listening point. This allows the sound from each speaker to reach the listener at the same time.

Press ◀ / ▶ to adjust the Distance of the selected speaker. (You can't adjust front / Woofer speakers)

Test

Press ◀ / ▶ to test the signals of each speaker. Adjust the volume to match the volume of test signals memorized in the system.

Front Left (L) → Center → Front Right (R) → Rear Right (R) → Rear Left (L) → SubWoofer

LOCK (Parental Control)

LOCK Rating ▶ Unlock Password ▶ ***** Address Code ▶ US More ▶ Select

Rating

Blocks playback of rated DVDs based on their content. Not all discs are rated.

1. Select "Rating" on the LOCK menu then press ▶.
2. To access the LOCK options, you must input the password you have created. If you have not yet entered password, you are prompted to do so. Input a password and press ENTER. Enter it again and press ENTER to verify. If you make a mistake before pressing ENTER, press CLEAR.
3. Select a rating from 1 to 8 using the ▲ / ▼ buttons.

Rating 1-8: Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

Unlock: If you select unlock, parental control is not active and the disc plays in full.

1. Press ENTER to confirm your rating selection, then press SETUP to exit the menu.

Password

You can enter or change password.

1. Select Password on the LOCK menu then press ▶.
2. Follow step 2 as shown above (Rating).

To change the password, press ENTER when the "Change" option is highlighted. Input a password and press ENTER. Enter it again and press ENTER to verify.

1. Press SETUP to exit the menu.

If you forget your password

If you forget your password, you can clear it using the following steps:

1. Press SETUP to display the Setup menu.
2. Input the 6-digit number "210499" and press ENTER. The password is cleared.

Area Code

Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 25.

1. Select "Area Code" on the LOCK menu then press ▶.
2. Follow step 2 as shown previous paragraph (Rating).
3. Select the first character using ▲ / ▼ buttons.
4. Press ▶ and select the second character using ▲ / ▼ buttons.
5. Press ENTER to confirm your Area code selection.

OTHERS

OTHERS FBC On Div30/F5 Registration Select Home Select

PBC

Set Playback Control (PBC) to On or Off.

On: Video CDs with PBC are played according to the PBC.

Off: Video CDs with PBC are played the same way as Audio CDs.

DivX(R) Registration

We provide you the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX® VOD service. For more information, visit www.divx.com/vod.

1. Select "DivX(R) Registration" option then press ▶.

2. Press ENTER while "Select" is selected and the registration code will appear. Use the registration code to purchase or rent the videos from DivX® VOD service at www.divx.com/vod. Follow the instructions and download the video onto a disc for playback on this unit.

3. Press ENTER to exit.

Note:

All the downloaded videos from DivX® VOD can only be played back on this unit.

Operation

General features

Buttons	Operations	Discs
▲ (OPEN / CLOSE)	Opens or closes the disc tray.	ALL
II (PAUSE)	During playback, press II to pause playback.	ALL
	Press II repeatedly to play Frame-by-Frame.	DVD VCD DivX
SKIP (I◄◄ / ►►I)	During playback, press SKIP (I◄◄ or ►►I) to go to the next chapter/track or to return to the beginning of the current chapter/track.	ALL
	Press SKIP I◄◄ twice briefly to step back to the previous chapter/track.
SCAN (◄◄ / ►►)	During playback, press SCAN (◄◄ or ►►) repeatedly to select the required scan speed. DVD: 5 steps (X2, X4, X8, X16, X100)DivX disc, Video CD: 4 steps (X2, X4, X8, X16)WMA/MP3, Audio CD: 3 steps (X2, X4, X8)	DVD VCD DivXACD MP3 WMA
REPEAT	During playback, press REPEAT repeatedly to select a desired repeat mode. DVD Video discs: Chapter/Title/OffVideo CD, Audio CD, DivX/MP3/WMA discs: Track/All/Off	ALL
A-B	During playback, each press of A-B button to select point A and point B and repeats a sequence from point A (Starting point) to point B (End point).Press REPEAT A-B to exit.	DVD VCD
ZOOM	During playback or pause mode, press ZOOM to enlarge the video image (3 steps).You can move through the zoomed picture using ◀►▲▼ buttons.	DVD VCD
TITLE	If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may appears.	DVD
DVD MENU	The disc menu appears on the screen.	DVD
(SUBTITLE)	During playback, press SUBTITLE repeatedly to select a desired subtitle language.	DVD DivX
(AUDIO language)	During playback, press AUDIO repeatedly to hear a different audio language or audio track.	DVD DivX
(AUDIO channel)	Press AUDIO repeatedly during playback to hear a different audio channel (STER., LEFT or RIGHT).	VCD
SLOW	Pause mode, press SLOW (◄◄ or ►►) to select the required speed.DVD: ◀ (1/2, 1/4, 1/8, 1/16) or ► (1/2, 1/4, 1/8, 1/16)Video CD: ► (1/2, 1/4, 1/8, 1/16)	DVD VCD

Notes on general features:

• If you press SKIP (▶▶▶) once during Repeat Chapter (Track) playback, the repeat playback cancels.
• Zoom may not work on some DVDs.
• The A-B repeat function is available only in the current title.

Additional features

Time Search DVD VCD DivX

To start playing at any chosen time on the disc:

1. Press DISPLAY during playback.
2. Press ▲ / ▼ to select the time clock icon and "--;--;--" appears.
3. Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers.
4. Press ENTER to confirm. Playback starts from the selected time.

Marker Search DVD VCD DivX

To enter a Marker

You can start playback from up to nine memorized points. To enter a marker, press MARKER at the desired point on the disc. The Marker icon appears on the TV screen briefly. Repeat to enter up to nine markers.

To Recall or Clear a Marked Scene

1. During disc playback, press SEARCH. The marker search menu appears on the screen.
2. Within 10 seconds, press ◀ / ▶ to select a marker number that you want to recall or clear.
3. Press ENTER and playback starts from the marked scene. Or, Press CLEAR and the marker number is erased from the list.
4. You can play any marker by inputting its number on the marker search menu.

Screen Saver

The screen saver appears when you leave the unit in Stop mode for about five minutes.

Last Scene Memory DVD

This receiver memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the receiver or switch off the receiver. If you load a disc that has the scene memorized, the scene is automatically recalled.

Note:

This receiver does not memorize the scene of a disc if you switch off the receiver before commencing to play the disc.

Controlling the TV

Your remote control is capable of operating your DVD/CD Receiver as well as limited functions of LG TV. Follow the instructions below to operate for your LG TV.

1. Before using the remote control, press the TV to select the device to be operated.
   To switch the remote control mode (to operate a different device), be sure to press the TV first.
2. The POWER (TV), CHANNEL(▼/▲), VOLUME (+/-), and INPUT buttons on remote control are used to operate the LG TV.

Setting Remote Control Codes for LG TV

- Hold POWER (TV) and press CHANNEL(▼/▲) button repeatedly until the TV on or off.

Note:

If the remote control does not operate your particular TV, try the other code or use the remote control originally supplied with the LG TV. (LG and Gold Star)

Due to the variety of codes used by manufacturers, OUR COMPANY cannot guarantee that the remote control will operate every model of LG TV.

Playing an Audio CD or MP3/WMA file

This unit can play Audio CDs or MP3/WMA files recorded media.

MP3/ WMA/ Audio CD

Once you insert an MP3/WMA files recorded media or Audio CD, a menu appears on the TV screen.

Press ▲ / ▼ to select a track/file then press PLAY or ENTER and playback starts. You can use variable playback functions. Refer to page 17.

Auto CS OK OK OK OK OK OK OK OK OK OK OK

Tips:

• Press MENU to move to the next page.
• On a CD with MP3/WMA and JPEG you can switch MP3/WMA and JPEG. Press TITLE and MUSIC or PHOTO word on top of the menu is highlighted.

MP3 / WMA disc compatibility with this player is limited as follows:

• Sampling frequency: within 32 - 48 kHz (MP3), within 24 - 48kHz (WMA)
• Bit rate: within 32 - 320kbps (MP3), 40 - 192kbps (WMA)
• The DVD/CD Receiver cannot read an MP3/WMA file that has a file extension other than ".mp3" / ".wma".
  • CD-R physical format should be ISO 9660
• If you record MP3 / WMA files using software that cannot create a file system (eg. Direct-CD) it is impossible to playback MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.
• File names should have a maximum of 8 letters and must incorporate an .mp3 or .wma extension.
• They should not contain special letters such as /? * : "< > | etc.
• The total number of files on the disc should be less than 999.

This DVD/CD Receiver requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Programmed Playback

The program function enables you to store your favorite tracks from any disc in the receiver memory. A program can contain 300 tracks.

1. Insert a disc.
   Audio CD and MP3/WMA Discs:
2. Select a track on the "List", then press PROG. or select "1→(Add)" icon then press ENTER to place the selected track on the "Program" list. Repeat to place additional tracks on the list.

Note:

You can add all tracks in the disc. Select "pn→(Add All)" icon then press ENTER.

1. Select the track you want to start playing on the "Program" list. Press MENU to move to the next page.
2. Press PLAY or ENTER to start. Playback begins in the order in which you programmed the tracks. Playback stops after all of the tracks on the "Program" list have played once.
3. To resume normal playback from programmed playback, select a track of AUDIO CD (or MP3/WMA) list and then press PLAY.

Repeat Programmed Tracks

1. Press REPEAT when playing a disc. The repeat icon appears.
2. Press REPEAT to select a desired repeat mode.

- TRACK: repeats the current track

- ALL: repeats all the tracks on programmed list.

- Off(No display): does not play repeatedly.

Erasing a Track from "Program" List

1. Use ▲▼ to select the track that you wish to erase from the Program list.
2. Press CLEAR. Alternatively, select "Delete" icon then press ENTER to place the selected track on the Program list. Repeat to erase additional tracks on the list.

Erasing the Complete Program List

Use ▲ / ▼ to select “ ^a (Del all)”, then press ENTER.

Note:

The programs are also cleared when the disc is removed.

Viewing a JPEG file JPEG

This unit can play discs with JPEG files. Before playing JPEG recordings, read the notes on JPEG Recordings on right.

1. Insert a disc and close the tray. The PHOTO menu appears on the TV screen.

1. Press ▲ / ▼ to select a folder, and press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the previous Folder list, use the ▲ / ▼ buttons on the remote to highlight 🔒 and press ENTER.
2. If you want to view a particular file, press ▲ / ▼ to highlight a file and press ENTER or PLAY. While viewing a file, you can press STOP to move to the previous menu (JPEG menu).

Note:

When viewing a JPEG file, the resolution is changed 480p if the resolution set to 1080i. You can change the resolution for 720p or 480p.

Tips:

• There are four Slide Speed options : > (Slow), >> (Normal), >>> (Fast) and II (off). Use ▲ /▼ /◄ /► to highlight the Speed. Then, use ◀ / ► to select the option you want to use then press ENTER.
• If you set Speed option to Off, Slide is not active.

Slide Show

Use ▲▼◀▶ to highlight the ■ (Slide Show) then press ENTER.(You can not change resolution)

Still Picture

1. Press PAUSE/STEP during slide show. The DVD/CD Receiver will now go into PAUSE mode.
2. To return to the slide show, press PLAY or press PAUSE/STEP again.

Moving to another File

Press SKIP (I◄◄ or ►►) once while viewing a picture to advance to the next or previous file.

To rotate picture

Press ◀ / ▶ during showing a picture to rotate the picture clockwise or counter-clockwise.

JPEG disc compatibility with this player is limited as follows:

• Depending upon the size and number of JPEG files, it could take a long time for the DVD/CD Receiver to read the disc's contents. If you don't see an on-screen display after several minutes, some of the files may be too large — reduce the resolution of the JPEG files to less than 2M pixels as 2760 x 2048 pixels and burn another disc.
• The total number of files and folders on the disc should be less than 999.
• Some discs may be incompatible due to a different recording format or the condition of disc.
• Ensure that all the selected files have the ".jpg" extensions when copying into the CD layout.
• If the files have ".jpe" or ".jpeg" extensions, please rename them as ".jpg" file.
• File names without ".jpg" extension will not be able to be read by this DVD/CD Receiver. Even though the files are shown as JPEG image files in Windows Explorer.

Playing a DivX Movie file

Using this DVD/CD Receiver you can play DivX disc.

1. Insert a disc and close the tray. The MOVIE menu appears on the TV screen.

BNT Next Frame 1 Next Frame 2 Next Frame 3 Next Frame 4 Next Frame 5 Next Frame 6 Next Frame 7 Next Frame 8

1. Press ▲ / ▼ to select a folder, and press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the Folder list, use the ▲ / ▼ buttons on the remote to highlight 📄 and press ENTER.
2. If you want to view a particular file, press ▲ / ▼ to highlight a file and press ENTER or PLAY.
3. Press STOP to exit.

Tips:

• Press MENU to move to the next page.
• On a CD with MP3/WMA, JPEG and MOVIE file, you can switch MUSIC, PHOTO and MOVIE menu. Press TITLE and MUSIC, PHOTO and MOVIE word on top of the menu is highlighted.

Notes:

• Be sure to select "SUBTITLE ON" mode by pressing the subtitle file every time before playing a DivX file.
• When the subtile has more than two languages in the file, original subtile is only available.
• The DivX files in your memory card can not be played.
• The microphone does not work during playing a DivX file.
• You can not adjust sound mode and VIRTUAL sound during the DivX file playing.

Notice for displaying the Divx subtitle

If the subtitle does not display properly during playback, press and hold S-TITLE about 3 seconds then press S-TITLE to select another language code until the subtitle is displayed properlyp

DivX disc compatibility with this player is limited as follows:

• Available resolution size of the DivX file is under 800x600 (W x H) pixel.
- The file name of the DivX subtitle is available by 45 characters.
- If there is impossible code to express in the DivX file, it may be displayed as "_" mark on the display.
- If the number of the screen frame is over 30 per 1 second, this unit may not operate normally.
- If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.

playable DivX file

- ".avi", ".mpg", ".mpeg", ".divx"

playable Subtitle format

• SubRip(*.srt/*.txt) SAMI(*.smi) SubStation Alpha(*.ssa/*.txt) MicroDVD(*.sub/*.txt) SubViewer 2.0(*.sub/*.txt) VobSub(*.sub)

playable Codec format

- "DIVX3.xx", "DIVX4.xx", "DIVX5.xx", "XVID", "MP43", "3IVX".

playable Audio format

"AC3", "DTS", "PCM", "MP3", "WMA".
- Sampling frequency: within 32 - 48 kHz (MP3), within 24 - 48kHz (WMA)
- Bit rate: within 32 - 320kbps (MP3), 40 - 192kbps (WMA)

DVD Audio Discs

DVD Audio is a new disc format building on the success of DVD to provide high quality, uncompressed, multi-channel audio for a new experience in audio quality. A DVD Audio disc can be identified by the DVD audio logo on the disc jacket or on the disc itself.

DVD Audio can provide higher quality stereo than Audio CDs with a sampling rate of up to 192kHz (compared to 44.1kHz for CDs). DVD Audio digital sound can be delivered with up to 24 bits of data (compared to 16 bits for a standard CD).

A typical DVD Audio disc contains up to seven times the data capacity of a CD. This additional space is used for music, either Advanced Resolution multi-channel sound quality that is closer to the artist's master recording or for longer recordings. Many DVD Audio discs contain on-screen text, such as artist biographies, playlists, or lyrics. Some DVD Audio discs contain photo galleries or video clips.

Note:

To enjoy maximum sound quality and surround effect of DVD Audio, you must use 5.1 channel analog audio output (5.1CH AUDIO OUT jacks on the DVD/CD Receiver).

Moving to another GROUP

Some DVD Audio discs divide content into different groups. Your player enables you to quickly access different groups during playback via the on-screen display.

1. Press DISPLAY during playback on in stop mode.
2. Press ▲▼ to select Group icon.
3. Press ◀▶ or the numbered buttons (0-9) to select a group number.

Note:

Sometimes the author of the disc creates hidden content that can only be accessed by entering a password. If the lock icon appears on the TV screen, enter the password (sometimes you'll find it on the disc's jacket cover or on a web site). This password control isn't dictated by your DVD/CD Receiver — it is a function of the disc.

Since the authoring of DVD Audio Discs varies, some of the on-screen display choices might not be available for the disc you're playing.

Viewing another PAGE 1/21

Since DVD Audio discs can hold a lot of content, there are various ways to see what's available on the disc.

1. Press DISPLAY during playback.
2. Press ▲▼ to select Page icon.
3. Press ◀ to select a page number.

What appears on the screen will vary from disc to disc because the information available depends upon the way the disc was created.

Note:

Since the authoring of DVD Audio Discs varies, some of the on-screen display choices might not be available for the disc you're playing.

Presetting the Radio Stations

You can preset 50 stations for FM and AM (MW). Before tuning, make sure that you have turned down the volume.

1. Press BAND on the remote control until FM or AM (MW) appears in the display window.
2. And then every time you press BAND, FM and AM (MW) changes alternately.
3. Press and hold TUN.(-/+) for about two seconds until the frequency indication starts to change, then release. Scanning stops when the DVD/CD Receiver tunes in a station.
4. Press PROG/MEMO on the remote control. A preset number will flash in the display window.
5. Press PRESET +/- on the remote control to select the preset number you want.
6. Press PROG/MEMO on the remote control again. The station is stored.
7. Repeat steps 3 to 6 to store other stations.

To tune in a station with a weak signal

Press TUN.(-/+) repeatedly in step 3 to tune in the station manually.

To clear all the stored stations

Press and hold PROG/MEMO for about two seconds and "ERASE ALL" is appeared in the display window and then press PROG/MEMO again, the stations are cleared.

- If you have accidentally entered into the "ERASE ALL" mode and you do not wish to clear the memory, do not press any key. After a few seconds, the "ERASE ALL" display will go off by itself and change to normal mode.

Note:

If all stations have already been entered, the FULL message will appear in the display window for a moment and then a preset number will flash. To change the preset number, follow the steps 5-6 as above.

Listening to the Radio

Preset radio stations in the DVD/CD Receiver's memory first (see "Presetting radio stations" on the left).

1. Press BAND until FM or AM (MW) appears in the display window. The last received station is tuned in.
2. Press PRESET +/- repeatedly on the remote control to select the preset station you want. Each time you press the button, the DVD/CD Receiver tunes in one preset station at a time.
3. Adjust the volume by rotating VOLUME on the front panel or by pressing VOLUME + or - on the remote control repeatedly.

To turn off the radio

Press POWER to turn the DVD/CD Receiver off or select another function mode (DVD/CD, AUX, USB).

To listen to non-preset radio stations

• Use manual or automatic tuning in step 2.
• For manual tuning, press TUN.(-/+) repeatedly.
• For automatic tuning, press and hold TUN.(-/+) for about two seconds on the front panel.

To select a preset radio station directly

You can use the number buttons on the remote control to select a preset radio station directly. For example, to listen to preset station 4, press 4 on the remote control. To listen to preset station 19, press 1 then 9 (within 3 seconds).

For your reference

- If an FM program is noisy

Press MONO/ST. on the front panel so that "ST." disappears in the display window. There will be no stereo effect, but the reception will improve. Press the button again to restore the stereo effect.

• To improve reception

Reorient the supplied antennas.

Sleep Timer Setting

You can set the DVD/CD Receiver to turn off automatically at a specified time.

1. Press SLEEP to set the desired sleep time. The SLEEP indicator and sleep time appears in the display window.

2. Each time you press SLEEP the setting changes in the following order.

$$ \begin{array}{l}\text { SLEEP 180\rightarrow150\rightarrow120\rightarrow90\rightarrow80\rightarrow70\rightarrow60\rightarrow50\rightarrow40\rightarrow}\\text { 30\rightarrow20\rightarrow10\rightarrowOFF }\end{array} $$

Note:

You can check the time remaining before the DVD/CD Receiver turns off.

Press SLEEP. The remaining time appears in the display window.

Dimmer

This function will change the brightness of the display window on the front panel during in power-on status.

Press the DIMMER repeatedly.

Mute

Press MUTE to mute your unit.

You can mute your unit in order, for example, to answer the telephone, "MUTE" indicator flashes in the display window.

Using Headphone Jack

Connect a stereo headphone plug ( 3.5mm) into the PHONES connector.

The speakers are automatically disconnected when you plug in a headphone (not supplied).

Selecting input source

You can use VCRs or other units connected to the AV IN, EURO AV connector or Optical connector. Refer to the owner's manual supplied with the unit for further information on the operation.

Press AUX repeatedly on the remote control to select the desired input source.

Each time you press this button, the mode of the function changes in the following sequence:

• AV1/2 : for selecting the analog signal from AV1/2 AUDIO IN (L/R) & VIDEO IN Connectors.
• AV2 OPT: for selecting the optical digital signal from AV2 VIDEO IN & OPTICAL IN Connector.

Notes:

• The Optical input function is available only when the other unit's Sampling Frequency is 32 \~ 96kHz.
• You can also select the input source by pressing FUNC. button on the front panel.
  Press and hold down this button about 3 seconds, then press repeatedly to select input source.

XTS/XTS pro

Each time you press XTS pro the setting changes in the following order.

$$ X T S O N \rightarrow N O R M A L \rightarrow X T S - P O N \dots $$

- XTS-P ON

The unique sound quality of the LG Technology creates the optimum sound for you to play the perfect playback of the original sound and to feel the living sound source.

• XTS ON

When playing the movie with the weak bass sound relatively to the general music, it enforces the sense of sound at woofer for you to satisfy with. In the mode of 2 CH BYPASS, It creates the high display effect by playing the sound source via the rear speakers same as the front speakers.

Note:

The XTS mode is temporarily disabled when changing from 2.1 CH to 5.1 CH and it is enabled when changing it to 2.1 CH.

• NORMAL

XTS-P and XTS mode tune off

VIRTUAL sound

press VIRTUAL the setting VIRTUAL sound.

Source	Display	Effect
2.1 ch.	VIRTUAL	3D STEREO
5.1 ch	VIRTUAL	Multichannel sound

• 3D STEREO

Realtime 3D positioned sound rendering technology with stereo sources, optimized for stereo speakers. Listeners may experience amazing virtual surround effects with their own multimedia players.

- Multichannel sound

The Multichannel sound makes a 5.1 ch feel 10.1 ch sound therefore this mode provides a emotion which you are involved with sound and you can feel detailed sound.

Sound Mode

You can enjoy surround sound simply by selecting one of the pre-programmed sound fields according to the program you want to listen to. (2 ch. sound only)

BYPASS → ON STAGE → STUDIO → CLUB → HALL → THEATER 1 → CHURCH → PL II MOVIE → PL II MUSIC → PL II MTRX → BYPASS...

Note:

Initial sound mode is BYPASS.

Language Codes

Use this list to input your desired language for the following initial settings:

Disc Audio, Disc Subtitle, Disc Menu.

Language	Code	Language	Code	Language	Code	Language	Code
Abkhazian	6566	Fiji	7074	Lingala	7678	Singhalese	8373
Afar	6565	Finnish	7073	Lithuanian	7684	Slovak	8375
Afrikaans	6570	French	7082	Macedonian	7775	Slovenian	8376
Albanian	8381	Frisian	7089	Malagasy	7771	Somali	8379
Ameharic	6577	Galician	7176	Malay	7783	Spanish	6983
Arabic	6582	Georgian	7565	Malayalam	7776	Sudanese	8385
Armenian	7289	German	6869	Maltese	7784	Swahili	8387
Assamese	6583	Greek	6976	Maori	7773	Swedish	8386
Aymara	6588	Greenlandic	7576	Marathi	7782	Tagalog	8476
Azerbaijani	6590	Guarani	7178	Moldavian	7779	Tajik	8471
Bashkir	6665	Gujarati	7185	Mongolian	7778	Tamil	8465
Basque	6985	Hausa	7265	Nauru	7865	Tatar	8484
Bengali; Bangla	6678	Hebrew	7387	Nepali	7869	Telugu	8469
Bhutani	6890	Hindi	7273	Norwegian	7879	Thai	8472
Bihari	6672	Hungarian	7285	Oriya	7982	Tibetan	6679
Breton	6682	Icelandic	7383	Panjabi	8065	Tigrinya	8473
Bulgarian	6671	Indonesian	7378	Pashto, Pushto	8083	Tonga	8479
Burmese	7789	Interlingua	7365	Persian	7065	Turkish	8482
Byelorussian	6669	Irish	7165	Polish	8076	Turkmen	8475
Cambodian	7577	Italian	7384	Portuguese	8084	Twi	8487
Catalan	6765	Japanese	7465	Quechua	8185	Ukrainian	8575
Chinese	9072	Javanese	7487	Rhaeto-Romance	8277	Urdu	8582
Corsican	6779	Kannada	7578	Rumanian	8279	Uzbek	8590
Croatian	7282	Kashmiri	7583	Russian	8285	Vietnamese	8673
Czech	6783	Kazakh	7575	Samoan	8377	Volapük	8679
Danish	6865	Kirghiz	7589	Sanskrit	8365	Welsh	6789
Dutch	7876	Korean	7579	Scots Gaelic	7168	Wolof	8779
English	6978	Kurdish	7585	Serbian	8382	Xhosa	8872
Esperanto	6979	Laothian	7679	Serbo-Croatian	8372	Yiddish	7473
Estonian	6984	Latin	7665	Shona	8378	Yoruba	8979
Faroese	7079	Latvian, Lettish	7686	Sindhi	8368	Zulu	9085

Area Codes

Choose a area code from this list.

Area	Code	Area	Code	Area	Code	Area	Code
Afghanistan	AF	Ethiopia	ET	Malaysia	MY	Saudi Arabia	SA
Argentina	AR	Fiji	FJ	Maldives	MV	Senegal	SN
Australia	AU	Finland	FI	Mexico	MX	Singapore	SG
Austria	AT	France	FR	Monaco	MC	Slovak Republic	SK
Belgium	BE	Germany	DE	Mongolia	MN	Slovenia	SI
Bhutan	BT	Great Britain	GB	Morocco	MA	South Africa	ZA
Bolivia	BO	Greece	GR	Nepal	NP	South Korea	KR
Brazil	BR	Greenland	GL	Netherlands	NL	Spain	ES
Cambodia	KH	Heard and McDonald Islands	HM	Netherlands Antilles	AN	Sri Lanka	LK
Canada	CA	Hong Kong	HK	New Zealand	NZ	Sweden	SE
Chile	CL	Hungary	HU	Nigeria	NG	Switzerland	CH
China	CN	India	IN	Norway	NO	Taiwan	TW
Colombia	CO	Indonesia	ID	Oman	OM	Thailand	TH
Congo	CG	Israel	IL	Pakistan	PK	Turkey	TR
Costa Rica	CR	Italy	IT	Panama	PA	Uganda	UG
Croatia	HR	Jamaica	JM	Paraguay	PY	Ukraine	UA
Czech Republic	CZ	Japan	JP	Philippines	PH	United States	US
Denmark	DK	Kenya	KE	Poland	PL	Uruguay	UY
Ecuador	EC	Kuwait	KW	Portugal	PT	Uzbekistan	UZ
Egypt	EG	Libya	LY	Romania	RO	Vietnam	VN
El Salvador	SV	Luxembourg	LU	Russian Federation	RU	Zimbabwe	ZW

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom	Cause	Correction
No power.	The power cord is disconnected.	Plug the power cord securely into the wall outlet.
The power is on, but the DVD/CD Receiver does not work.	No disc is inserted.	Insert a disc. (Check that the DVD or, audio CD indicator in the DVD display is lit.)
No picture.	The TV is not set to receive DVD signal output.	Select the appropriate video input mode on the TV so the picture from the DVD/CD Receiver appears on the TV screen.
	The video cable is not connected securely.	Connect the video cable into the jacks securely.
	The connected TV power is turned off.	Turn on the TV.
There is no sound or only a very low-level sound is heard.	The equipment connected with the audio cable is not set to receive DVD signal output.	Select the correct input mode of the audio receiver so you can hear the sound from the DVD/CD Receiver.
	The audio cables are not connected securely.	Connect the audio cable into the jacks securely.
	The power of the equipment connected with the audio cable is turned off.	Turn on the equipment connected with the audio cable.
	The audio connecting cable is damaged.	Replace it with new one.
The playback picture is poor.	The disc is dirty.	Clean the disc.
The DVD/CD Receiver does not start playback.	No disc is inserted.	Insert a disc. (Check that the DVD, or audio CD indicator in the DVD display is lit.)
	An unplayable disc is inserted.	Insert a playable disc. (Check the disc type, colour system and Regional code.)
	The disc is placed upside down.	Place the disc with the playback side down.
	The disc is not placed within the guide.	Place the disc on the disc tray correctly inside the guide.
	The disc is dirty.	Clean the disc.
	A menu is on the TV screen.	Press the SETUP button to turn off the menu screen.
	The Rating level is set.	Cancel the Rating function or change the rating level.
Loud hum or noise is heard.	The disc is dirty.	Clean the disc.
	The speakers and components are connected poorly.	Connect the speakers and components securely.
	The DVD/CD Receiver is located too close to the TV.	Move your TV away from the audio components.
Radio stations cannot be tuned in.	The antenna is positioned or connected poorly.	Connect the antenna securely.
		Adjust the antennas and connect an external antenna if necessary.
	The signal strength of the stations is too weak (when tuning in with automatic tuning).	Tune in the station manually.
	No stations have been preset or preset stations have been cleared (when tuning by scanning preset stations).	Preset the stations (page 23).
The remote control does not work properly.	The remote control is not pointed at the remote sensor of the DVD/CD Receiver.	Point the remote control at the remote sensor of the DVD/CD Receiver.
	The remote control is too far from the DVD/CD Receiver.	Use the remote control within about 23 ft (7 m).
	There is an obstacle in the path of the remote control and the DVD/CD Receiver.	Remove the obstacle.
	The batteries in the remote control are flat.	Replace the batteries with new ones.
The front panel display is too dim.	Nothing is displayed on the front panel display.	Press DIMMER on the remote control.

Specifications

General		Power supply	Refer to main label
		Power consumption	Refer to main label
		Net Weight	3.9 kg
		External dimensions (W x H x D)	430 x 57 x 295 mm
		Operating conditions	Temperature: 5°C to 35°C, Operation status: Horizontal
		Operating humidity	5% to 85%
CD/DVD		Laser	Semiconductor laser, wavelength 650 nm
		Signal system	NTSC 525/60
		Frequency response (audio)	150 Hz to 18 kHz
		Signal-to-noise ratio (audio)	More than 75 dB (1 kHz, NOP -6 dB, 20 kHz LPF/A-Filter)
		Dynamic range (audio)	More than 70 dB
		Harmonic distortion (audio)	0.5 % (1 kHz, at 1W position) (20 kHz LPF)
Video		Video input	1.0 V (p-p), 75 Ω, negative sync., RCA jack x 2
		Video output	1.0 V (p-p), 75 Ω, negative sync., RCA jack x 1
		S-video output	(Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin x 1(C) 0.3 V (p-p), 75 Ω
		COMPONENT VIDEO OUT	(Y) 1.0 V (p-p), 75 ohms, negative sync, RCA jack x 1(Pb)/(Pr) 0.7 V (p-p), 75 ohms, RCA jack x 1
Tuner	FM	Tuning Range	87.5 - 108.0 MHz or 65.0 - 74.0 MHz, 87.5 - 108.0 MHz
		Intermediate Frequency	10.7 MHz
		Signal-to Noise Ratio	60 dB (Mono)
		Frequency Response	140 - 8,000 Hz
	AM [MW]	Tuning Range	522 - 1,620 kHz or 520 - 1,720 kHz
		Intermediate Frequency	450 kHz
Amplifier		Stereo mode	155W + 155W (Rated Output Power 130W, 4Ω at 1 kHz, THD 10%)
		Surround mode(* Depending on the sound mode settings and the source, there may be no sound output.)	Front: 155W + 155W (Rated Output Power 130W, THD 10%)Centre*: 155WSurround*: 125W + 125W (Rated Output Power 130W, 4Ω at 1 kHz, THD 10%)Subwoofer*: 225W (Rated Output Power 180W, 3Ω at 30 Hz, THD 10%)
		Inputs	AV IN, MIC (OPTIONAL)
		Outputs	S-VIDEO, MONITOR, PHONES: (32 Ω, 1.0 V)
Transmitter			Transmission Output: 2.4GHz, Power Supply: DC 7VReception Output: 2.4GHz
Speakers			Front Speaker(LHS-W96IAF)	Wireless Speaker(LHS-W96IAL/R)	Center speaker(LHS-W96IAC)	Passive Subwoofer(LHS-W96IAW)
		Type	2 Way 3 Speaker	2 Way 3 Speaker	2 Way 3 Speaker	1 Way 1 Speaker
		Impedance	4 Ω	4 Ω	4 Ω	3 Ω
		Frequency Response	90 - 18,000 Hz	90 - 18,000 Hz	80 - 18,000 Hz	40 - 1,500 Hz
		Sound Pressure Level	83 dB/W (1m)	83 dB/W (1m)	83 dB/W (1m)	82 dB/W (1m)
		Rated Input Power	155 W	125 W	155 W	225 W
		Max. Input Power	310 W	250 W	310 W	450 W
		Net Dimensions (W x H x D)	300 x 1350 x 300 mm	300 x 1350 x 300 mm	500 x 160 x 155 mm	240 x 450 x 390 mm
		Net Weight	5.35kg	6.5kg	1.73kg	10.5kg

* Designs and specifications are subject to change without notice.
