Powered Lift-Away NV620UKT - Vacuum Cleaner SHARK - Free user manual and instructions

Product Type	Upright Vacuum Cleaner with Powered Lift-Away Technology
Model	NV620UKT
Brand	Shark
Voltage	220-240V ~, 50-60Hz
Body Motor Power	750W
Nozzle Motor Power	80W
Weight (approx.)	6.5 kg
Dimensions (L x W x H, approx.)	30 x 28 x 110 cm
Dust Cup Capacity	1.0 L
Filtration Type	Foam and felt pre-motor filter plus post-motor filter
Brush-roll Indicator Light	Solid green (normal), solid red (jam), flashing red (overheat)
Surface Selector	Carpet / Hard Floor with suction control slide
Cleaning Modes	Upright, Lift-Away (pod detachable), Above-Floor with handle or wand
Included Accessories	Crevice tool, Upholstery tool, Duster Crevice tool, Multi Surface tool, Pet Power Brush, Anti-Allergen Dust Brush, Home & Car Detail Kit
Cord Length	Approx. 9 meters
Noise Level	Approx. 80 dB
Filter Cleaning Interval	Pre-motor filters monthly; post-motor filter yearly
Overheat Protection	Automatic thermostat shut-off, cool-down period of 45-60 minutes
Warranty	5 years (1 year + 4 extended upon registration at sharkclean.co.uk)
Safety Certifications	CE marked, for household use only

Frequently Asked Questions - Powered Lift-Away NV620UKT SHARK

How do I clean the filters?

Rinse both pre-motor (foam and felt) and post-motor filters with cold water only. Do not use soap. Allow all filters to air-dry completely for at least 24 hours before reinstalling. Tap loose dirt off filters between washes if needed.

What does the brush-roll indicator light mean?

Solid green means the brush-roll is spinning normally. Solid red indicates a jam; turn off and remove blockages. Flashing red means the nozzle is overheating; turn off and let cool for 60 minutes.

How do I empty the dust cup?

Press the dust cup release latch on the handle and lift the cup off. Hold over a bin and press the bottom empty-release latch. For deeper cleaning, press the top empty release latch to access the lint screen.

Can I wash the filters with soap?

No. Only use cold water to rinse the filters. Soap or cleaning chemicals can damage the filters and affect vacuum performance.

Why is my vacuum not picking up debris?

Check if filters need cleaning, dust cup is full, or there are blockages in the hose, nozzle, or wand. Also check for hair or string wrapped around the brush-roll.

How do I use the Lift-Away mode?

Press the Lift-Away button on the pod to detach the pod from the floor nozzle. You can then carry the pod to clean above floors or attach accessories directly.

What accessories are included with this model?

The NV620UKT comes with a crevice tool, upholstery tool, duster crevice tool, multi surface tool, pet power brush, anti-allergen dust brush, and home & car detail kit. Check the inside flap of the box for exact items.

How do I check for blockages?

Unplug the vacuum. Inspect the floor nozzle (unlock with a coin to access brush-roll area), remove wand and check both ends, detach hose from pod, and check pod opening. Also check dust cup and lint screen.

What should I do if the vacuum turns off by itself?

The vacuum has a motor protective thermostat. Turn off and unplug. Empty dust cup, clean filters, check for blockages, and let the unit cool for at least 45 minutes. Then plug in and restart.

How do I register my extended warranty?

Register online at sharkclean.co.uk/registerguarantee within 28 days of purchase. You'll need the model number, serial number, and proof of purchase. Products bought directly from Shark are automatically registered.

USER MANUAL Powered Lift-Away NV620UKT SHARK

Powered Lift-Away® Upright Vacuum

NV620UKT

INSTRUCTIONS

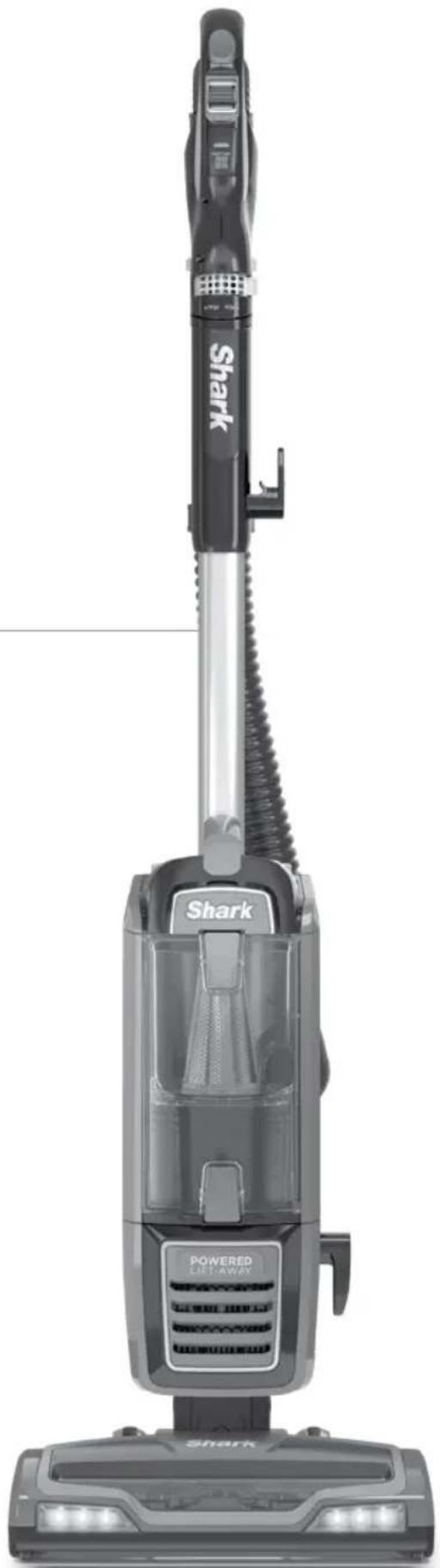

Front view of a Shark vacuum cleaner with attached power strip (no visible text or symbols)

THANK YOU

for purchasing the Shark® Powered Lift-Away® Upright Vacuum.

TIP: You can find the model and serial numbers on the QR code label located on the back of your unit.

REGISTER YOUR PURCHASE

TO BENEFIT FROM YOUR PRODUCT'S EXTENDED GUARANTEE, SIMPLY REGISTER YOUR PURCHASE AT:

sharkclean.co.uk/registerguarantee

1 (0)800 862 0453

an QR code using mobile device

Please note, products purchased directly from Shark are automatically registered.

Benefits of registering your product and creating an account:

• Get easier, faster product support and access to guarantee information
- Access troubleshooting and product care instructions
- Be among the first to know about exclusive product promotions

RECORD THIS INFORMATION

Model Number: ____

Serial Number

Date Code:

Date of Purchase (Keep receipt):

Store of Purchase:

TECHNICAL SPECIFICATIONS

Voltage: 220-240V-, 50-60Hz

Body Motor Watts: 750W

Nozzle Watts: 80W

PLEASE READ CAREFULLY

AND KEEP FOR FUTURE REFERENCE.

This instruction manual is designed to help you get a complete understanding of your new Shark Powered Lift-Away® Upright Vacuum.

If you have any questions, please call the customer service line on 0800 862 0453.

sharkclean.co.uk

CONTENTS

Important Safety Instructions....4

Getting to Know Your Shark'Powered Lift-Away' 6

Assembly....8

Settings 10

Brush-Roll Indicator Light 10

Cleaning Modes.... 11

Emptying the Dust Cup....12

Cleaning the Filters....13

Checking for Blockages 14

Available Accessories....16

Troubleshooting Guide....17

Guarantee Terms and Conditions....18

This marking indicates that this product should not be disposed with other household wastes throughout the UK. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.

sharkclean.co.uk

IMPORTANT SAFETY INSTRUCTIONS

FOR HOUSEHOLD USE ONLY • PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM.

IF YOU HAVE DELICATE OR WOOL CARPETS, PARTICULARLY LOOP PILE, PLEASE TRY THE VACUUM ON A HIDDEN AREA FIRST TO ENSURE THE SPINNING BRUSH-ROLLS DO NOT DAMAGE OR UNPICK CARPET FIBRES.

⚠ WARNING

REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, INJURY, OR PROPERTY DAMAGE:

GENERAL WARNINGS

1 Your vacuum cleaner consists of a motorised nozzle, wand, hose, and/or vacuum pod. This device contains electrical connections, electrical wiring, and moving parts that potentially present risk to the user.
2 Use only identical replacement parts.
3 Carefully observe and follow the instructions provided below to avoid improper use of the appliance. DO NOT use the vacuum for any purpose other than those described in this manual.
4 Before use, carefully inspect all parts for any damage. DO NOT use if any parts are damaged.
5 The use of an extension cord is NOT recommended.
6 CAUTION: This vacuum cleaner contains electrical connections. This vacuum contains no serviceable parts.

USE WARNINGS

7 This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
8 DO NOT allow the appliance to be used by children. Keep the appliance and its cord out of reach of children. Do not allow to be used as a toy. Close supervision is necessary when used near children. Cleaning and user maintenance should not be done by children.
9 Always turn off the vacuum cleaner before connecting or disconnecting any motorised nozzles or other accessories.
10 DONOT handle plug or vacuum cleaner with wet hands.
4 sharkclean.co.uk

11 DO NOT use without filters in place.
12 Only use Shark branded filters and accessories. Damage caused by use of non-Shark parts may not be covered by your guarantee.
13 DO NOT damage the power cord:

a) DO NOT pull or carry vacuum cleaner by the cord or use the cord as a handle.

b) DO NOT unplug by pulling on cord. Grasp the plug, not the cord.

c) DO NOT run the vacuum cleaner over the power cord, close a door on the cord, pull the cord around sharp corners, or leave the cord near heated surfaces.

14 DO NOT out any objects into nozzle or accessory openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
15 DO NOT use if nozzle or accessory airflow is restricted. If the air paths or the motorised floor nozzle become blocked, turn the vacuum cleaner off and unplug from electrical outlet. Remove all obstructions before you plug in and turn on the unit again.
16 Keep nozzle and all vacuum openings away from hair, face, fingers, uncovered feet, or loose clothing.
17 DO NOT use if vacuum cleaner is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water.
18 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
19 Use extra care when cleaning on stairs.

SAVE THESE INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

20 DO NOT leave the vacuum cleaner unattended while plugged in.
21 When powered on, keep the vacuum cleaner moving over the carpet surface at all times to avoid damaging the carpet fibres.
22 DO NOT place vacuum cleaner on unstable surfaces such as chairs or tables.
23 DONOT use to pick up:

a)Liquids
b)Large objects
c) Hard or sharp objects (glass, nails, screws, or coins)
d) Large quantities of dust (drywall dust, fireplace ash, or embers). DO NOT use as an attachment to power tools for dust collection.
e) Smoking or burning objects (hot coals, cigarette butts, or matches)
f) Flammable or combustible materials (lighter fluid, petrol, or kerosene)
g) Toxic materials (chlorine bleach, ammonia, or drain cleaner)

24 DO NOT use in the following areas:

a) Poorly lit areas
b) Wet or damp surfaces

c) Outdoor areas

d) Spaces that are enclosed and may contain explosive or toxic fumes or vapours (tighter fluid, petrol, kerosene, paint, paint thinners, mothproofing substances, or flammable dust). Turn off all controls before plugging in or unplugging the vacuum.

25 Unplug from electrical outlet when not in use and before any maintenance or cleaning.
26 Hand wash with water only. Washing with cleaning chemicals could damage the unit.

27 During cleaning or routine maintenance, DO NOT cut anything other than hair, fibres, or string wrapped around the brush-roll.
28 Allow all filters to air-dry completely before replacing in the vacuum to prevent liquid from being drawn into electric parts.
29 Make sure the dust cup and all filters are in place after routine maintenance.
30 If provided, secure the power cord around the two cord hooks during storage.

SAVE THESE INSTRUCTIONS

sharkclean.co.uk

Congratulations on your purchase. Use this instruction manual to learn about your new vacuum's great features. From assembly to use to maintenance, you will find it all in here.

MAIN UNIT

ASurfaceSelector

B Handle Release Button
C Suction Control Slide
D Power Switch
E Hose Clip
F Hose
G Upper Cord Hook
H Lift-Away® Button
1 Wand Release Button
J Dust-Cup Release Latch
K Lift-Away ^® Pod
L Wand
M Dust-Cup Empty Buttons
N Lower Cord Hook
- Motorised Floor Nozzle
P Brush-roll Indicator Light
Headlights
R Brush-Roll

Labeled diagram of a vacuum cleaner with component annotations in English and Chinese

ASSEMBLY ASSEMBLY

1 (Click) 2 (Click) 3 (Click)

4 (Click)

5 (Click)

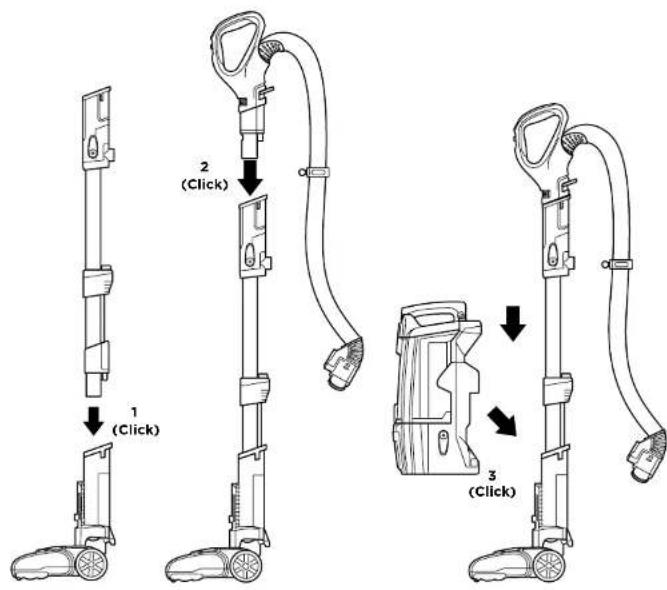

1. Insert Wand into Floor Nozzle.
2. Insert Handle into wand.
3. Place Pod onto wand and slide down to connect.

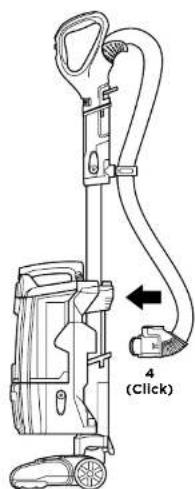

4. Connect Hose into back of pod, until it clicks into place.
5. Attach Hose Clip to wand.
   For proper operation, ensure all parts are firmly clicked into place.

Press power button to turn the vacuum on or off. Please note the brush-roll will not spin unless the wand is reclined.

NOTE: Brushbar will continue to spin in all modes

Carpet Max Hard Floor Max Min SURFACE SETTINGS

Slide the selector switch to the appropriate surface setting:
Thick Carpet & Area Rug Cleaning: Set Floor Selector to Carpet and slide Suction Control toward Min to reduce suction.
Carpet & Low Pile Cleaning: Set Floor Selector to Carpet and slide Suction Control toward Max to increase suction.
Hard Floor Cleaning: Set Floor Selector to Hard Floor and slide Suction Control toward Max to increase suction.

INDICATOR LIGHT

WHAT DOES THE BRUSH-ROLL INDICATOR LIGHT MEAN?
Solid Green: The brush-roll is spinning and working as it should.
Solid Red: There is a jam in the brush-roll area. Turn your vacuum off and remove any blockages in the nozzle. Flashing Red*: The motorised floor nozzle is overheating. Turn your vacuum off and wait a minimum of 60 minutes for it to cool down.
* See Troubleshooting section for further instructions.

CLEANING MODES

Line drawing of a hand holding a mechanical device labeled 'UPRIGHT' (no other text or symbols)

To engage brush-roll, turn on power, then step on the floor nozzle and tilt the handle back.

Lift Away POWERED LIFT-AWAY*

Press the Lift-Away® button to detach the pod from the floor nozzle.

ABOVE-FLOOR-HANDLE LL

Press the Handle button to detach the handle from the wand.

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

With pod removed, press the Handle button to detach the handle from the wand.

MelBox ABOVE-FLOOR-WAND

Press the Wand Release button to detach the wand from the pod.

Mol'see LIFT-AWAY'-WAND

With pod removed, press the Wand Release button to detach the wand from the floor nozzle.

NOTE: All accessories are compatible with both the wand and the handle.

IMPORTANT: Unplug the power cord before performing any maintenance.

Technical line drawing of a car seatbelt mechanism with an inset showing the side view of the seat (no text or symbols present)

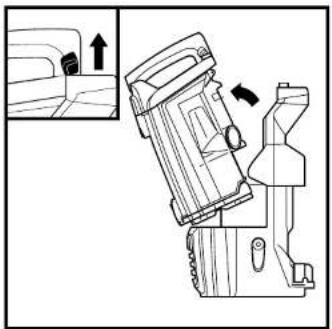

Pull up on Dust Cup Release Latch on the handle and lift dust cup off pod.

Technical line drawing of a mechanical device with internal components and fluid flow, showing no text or symbols

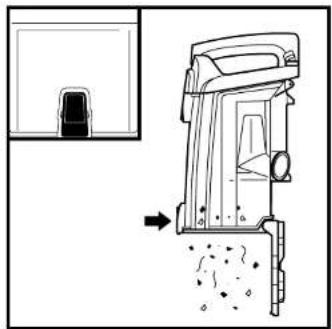

Hold dust cup over a bin and press the empty-release latch on the bottom to empty dust and debris into bin.

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

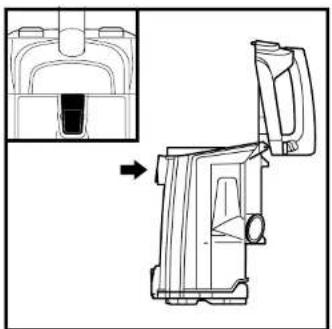

Press Top Empty Release Latch to access dust screen and remove built-up debris as necessary.

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

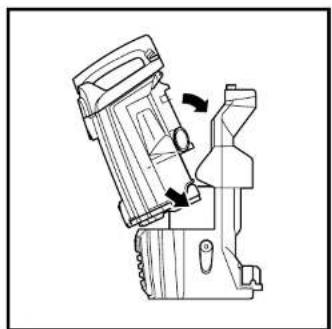

To reinstall, place bottom of dust cup into pod and then till until it clicks into place.

CLEANING AND REPLACING THE FILTERS

CLEANING FILTERS

Regularly rinse the filters to maintain your vacuum's suction power.

To prevent damage from cleaning chemicals, rinse filters with cold water only. Allow all filters to air-dry for at least 24 hours before reinstalling them to prevent liquid from being drawn into electronic parts.

IMPORTANT: DO NOT use soap when cleaning the filters.

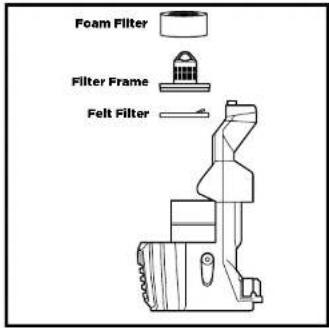

Foam Filter Filter Frame Felt Filter

Pre-Motor (foam and felt):

With the dust cup removed, take out the foam and felt filters and rinse them with water only. Allow filter to air-dry completely before reinstalling. Tap loose dirt off filters between washes as needed.

CLEAN PRE-MOTOR FILTERS EVERY MONTH

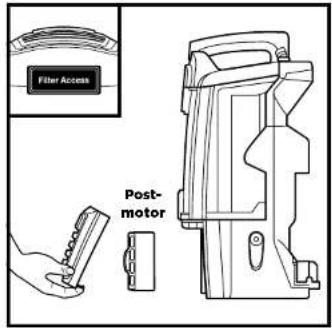

Filter Access Post- motor

Post-Motor:

To access the Post-Motor Filter, pull the latch under the filter cover and take off the cover. Remove the filter and rinse it with water only. Allow filter to air-dry completely before reinstalling.

CLEAN POST-MOTOR FILTER EVERY YEAR

NOTE: To order replacement parts and filters, visit sharkclean.co.uk.

To keep your vacuum's suction power optimal, follow these instructions. Make sure unit is off and cord unplugged.

CHECK FOR BLOCKAGES
STEP 1

Diagram of a mechanical or electrical component with directional arrows indicating movement or force (no text or symbols present)

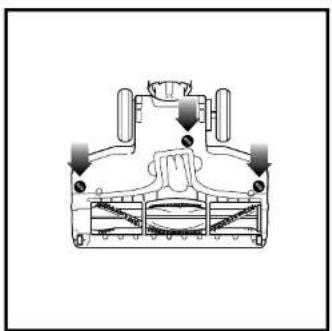

1 Use a coin to unlock the 3 locks on the bottom of the floor nozzle.

STEP 2

Line drawing of a car with wheels and a spray bottle, no text or symbols present

2 A portion of the base is removable to allow for better access to the brush-roll and exposure to the airway. Shine a torch from the bottom to check for possible blockage in the airway.

STEP 4
STEP 3

Technical line drawing of a mechanical clamp device with clamps and a grid base (no text or symbols)

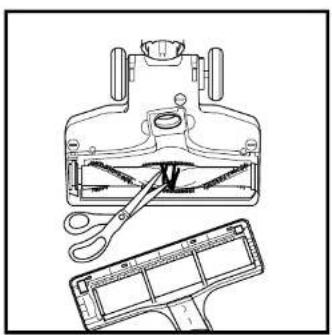

3 Remove any string, carpet fibres or hair that may be wrapped around the brush-roll.

4 To reassemble, replace base by lining it up along the front of the nozzle. Push down to snap into place. Lock the 3 locks.

CHECKING FOR BLOCKAGESMAINTENANCE

Technical line drawing of a mechanical device with a cable and connector (no text or symbols)

POD BLOCKAGES WAND
Detach hose from vacuum pod, and check opening on back of pod for blockages.

Pure mechanical component diagram without any text, numbers, or symbols

Detach wand from floor nozzle and handle, and check both ends for blockages.

Line drawing of a handheld electronic device with a handle and connector (no text or symbols)

NOZZLE BLOCKAGES HAN
Detach wand from floor nozzle, tilt nozzle neck back, and check opening for blockages.

Line drawing of a medical or laboratory device with tubing and connectors (no text or symbols)

Detach handle from wand and hose from the vacuum pod, and check openings for blockages.

Technical line drawing of a mechanical device with a flashlight and lever (no text or symbols)

DUST CUP BLOCKAGES
Detach dust cup from vacuum pod. Empty dust cup, remove debris from lint screen, and check for blockages.

NOTE: Scissors and torch not included

AVAILABLE ACCESSORIES TROUBLESHOOTING GUIDE

A Crevice Tool

This slim crevice tool is great for cleaning tight spaces, between sofa cushions, and in hard-to-reach areas.

B Upholstery Tool

Picks up pet hair dust, and large debris from mattresses, sofas, curtains, and other delicate upholstered fabrics.

© Duster Crevice Tool

Two cleaning tools in one. The crevice tool gives you extended reach to clean in tight spaces, while the soft brush is ideal for dusting delicate surfaces.

D Multi Surface Tool

A single convertible tool for cleaning tough messes two ways: use the stiff bristle brush to clean stuck-on debris, or take off the bristles to reveal an upholstery tool perfect for removing stubborn pet hair and large piles of debris.

E Pet Power Brush

Picks up pet hair, loose debris and powerfully deep cleans dander out of upholstery and other surfaces.

Anti-Allergen Dust Brush

This brush features nylon fibre bristles specifically designed for removing fine dust and allergen particles from the most delicate surfaces.

© Home & Car Detail Kit

Deep-clean your car or hard-to-reach areas in your home. Micro-sized tools let you clean around delicate objects and access the tightest spaces like car vents and computer keyboards.

A

B

C

D

E

F

G

WARNING: To reduce the risk of shock and unintended operation, turn power off and unplug unit before servicing.

Vacuum is not picking up debris. No suction or light suction.

(Refer to Maintenance section for more information.)

- Check filters to see if they need cleaning. Follow instructions for rinsing and drying the filters before re-inserting back into the vacuum

• Dust cup may be full; empty dust cup.

- Check hose, hose connections, nozzles, and accessories for blockages; clear blockages if required.

- Remove any string, carpet fibres or hair that may be wrapped around the brush-roll.

Vacuum lifts area rugs.

- Turn off the unit to disengage the brush-roll and restart with the POWER button for suction only cleaning.

- Suction is powerful. Take care when vacuuming area rugs with delicately sewn edges.

- Turn off the unit and disengage the area rug from the brush-roll and restart the unit.

Brush-roll does not spin.

- If the brush-roll indicator light on the floor nozzle turns red, the brush-roll has stopped spinning. Immediately turn off and unplug vacuum, disconnect the nozzle and remove blockage before reconnecting and turning vacuum back on.

- Pull the handle toward you and release the floor nozzle to disengage the auto-off feature.

- Immediately turn off and unplug vacuum, disconnect the nozzle and remove blockage before reconnecting and turning vacuum back on.

Vacuum turns off on its own or brush-roll indicator Light flashes red.

This vacuum cleaner is equipped with a motor protective thermostat. If for some reason your vacuum overheats, the thermostat will automatically turn the suction motor off. Should this occur, perform the following steps to restart the thermostat:

1. Turn the unit off.

2. Unplug the vacuum.

3. Empty the dust cup and clean filters (see pages 12 and 13)

4. Check for blockages in hose, accessories and in et openings.

5. Allow the unit to cool for a minimum of 45 minutes.

6. Plug in the vacuum.

7. Restart the unit by turning the power on.

Note: If vacuum still does not start, visit sharkclean.co.uk/customer-care or contact customer service on: 0800 862 0453.

NOTE: Not all accessories come with all units. For a list of accessories included with this model, see the top inside flap of the box. To order additional accessories, visit sharkclean.co.uk

sharkclean.co.uk

sharkclean.co.uk

Shark NINJA GUARANTEE TERMS AND CONDITIONS

When a consumer buys a product in the UK, they get the benefit of legal rights relating to the quality of the product (your 'statutory rights'). You can enforce these rights against your retailer. However, at Shark? we are so confident about the quality of our products that we give you an additional manufacturer's warranty of up to five years upon registration with Shark. Offer valid only in United Kingdom and Republic of Ireland. These terms and conditions relate to our manufacture's guarantee only - your statutory rights are unaffected. The conditions below describe the prerequisites and scope of our guarantee.

Shark® guarantees

A household appliance like a vacuum cleaner constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects now much confidence the manufacturer has in its product and manufacturing quality. Every Shark machine comes with a free parts and labour guarantee. Our customer service helpline (08:00 862 0453) is open from 9:00am to 6:00pm - Friday. It's free to call, and you'll be put straight through to a Shark representative. You'll also find online support at sharklean.co.uk

How do I register my extended Shark ^a guarantee?

If you have purchased your vacuum directly from sharkclean.co.uk your extended guarantee is registered automatically. You can also register your guarantee online with in 28 days of purchase. To save time, you'll need the following information about your machine:

- Date you purchased the machine (receipt or delivery note)

- Model Number

IMPORTANT

- Both the 1 year and the extended 4 years guarantee will only cover your product from the date of purchase. - Please keep your receipt at all times. Should you need to use your extended guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your ability to claim against your guarantee.

What are the benefits of registering my free Shark® guarantee?

When you register your guarantee we I have your vote is to hand. I we ever need to get in touch. You can also receive tips and advice on how to get the best out of your Shark vacuum and hear the latest news about new Shark® technology and launches.

If you register your guarantee or ine, you'll get instant confirmation that we've received your details.

How long are new Shark® machines guaranteed for?

Our confidence in our design and quality control means that your new Shark vacuum cleaner is guaranteed for a total of five years (1 year plus an extended guarantee of 4 years).

What is covered by the free Shark® guarantee?

At Shark's discretion repair or replacement of your Shark machine, including all parts and labour. A Shark guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark guarantee?

- Blockages - for details of how to unlock your vacuum cleaner, please refer to the Operating Manual.

- Normal wear and tear such as brush bar, fuse, belt etc.

- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is no, in accordance with the Shark Operating Manual supplied with your machine.

- Use of the vacuum cleaner for anything other than normal domestic household purposes.

- Use of parts not assembled or installed in accordance with the operating instructions

- Use of parts and accessories which are not Shark Genuine Components.

• Faulty installation (except where installed by Shark).

- Repairs or alterations carried out by parties other than Shark or its agents.

What happens when my guarantee runs out?

Shark does not design products to last, for a limited time. We do appreciate that there may be a desire for our customers to want to repair their vacuum cleaners after the guarantee has lapsed. In this case please contact our Freephone customer service help line and ask about our out of guarantee program, on 0300.862.0455.

Where can I buy genuine Shark ^ spares and accessories?

Shark spores and accessories are developed by the same engineers who developed your Shark vacuum. You'll find a full range of accessories, spores and replacement parts for all Shark machines at sharkcoen.co.uk. Only use Shark branded filters and accessories. Demiego caused by use of non-Shark parts may not be covered by your guarantee.

NOTES

SharkNinja Europe Limited, 3150 Century Way, Thorpe Park, Leeds, LS15 8ZB, UK [phone] www.sharkclean.co.uk

SharkNinja Germany GmbH c/o Regus Management GmbH, Excellent Business Center 10 +11/Stock, Westhafenplatz 1, 60327 Frankfurt am Main, Germany www.sharkclean.eu

Illustrations may differ from actual product. We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice.

LIFT-AWAY, POWERED LIFT-AWAY and SHARK are registered trademarks of SharkNinja Operating LLC.

© 2021 SharkNinja Operating LLC NV620UKT_IB_MP_210303_Mv1 PRINTED IN CHINA

@sharkcleaninguk

@sharkcleanuk

@sharkcleanuk
