Brand	Whirlpool
Model	FWDG86148W UK N
Product Type	Washer Dryer (washing machine with drying function)
Wash Capacity	8 kg
Maximum Drying Load	6 kg
Maximum Spin Speed	1400 rpm
Programmes	Mixed, White, Cotton, Eco 40-60, Delicates, Synthetics, Steam Refresh, Spin & Drain, Rinse & Spin, Rapid 30', 20°C, Wool, Wash & Dry 45', Wash & Dry 90', Eco Cotton
Energy Efficient Programme	Eco 40-60 (standard cotton programme for normally soiled laundry)
Power Consumption in Off Mode	0.5 W
Power Consumption in Left-on Mode	8 W
FreshCare+ Function	Yes – steam treatment to block odour proliferation and slow drum rotations after cycle
Start Delay	Yes – up to 24 hours (adjustable via button)
Child Lock	Yes – press and hold Dry Only button for 3 seconds to lock/unlock control panel
Detergent Dispenser Compartments	3 – prewash, main wash, softener (with liquid detergent partition)
Water Filter	Yes – located behind kick panel, clean regularly
Drying Modes	Automatic (Wardrobe, Hanger, Iron levels) and Timer (30–210 minutes)
Door Lock	Electronic – locks during cycle, opens when unlit symbol appears
Transit Bolts	Must be removed before first use – refer to installation guide
Control Panel Features	On/Off, Programme Selector, Start/Pause, Temperature, Spin Speed, FreshCare+, Dry Only, Drying Settings, Display, Start Delay
Recommended Cleaning Frequency	At least 4 times per year – water filter, detergent dispenser, and exterior

Frequently Asked Questions - FWDG86148W UK N WHIRLPOOL

How do I remove the transit bolts?

Before using the appliance, remove the transit bolts. Refer to the Health & Safety and Installation Guides for detailed instructions. Typically, the bolts are located at the back and must be unscrewed and removed.

How do I clean the water filter?

First, switch off and unplug the appliance. Remove the kick panel using a screwdriver. Place a container under the filter, slowly turn it counterclockwise to drain water, then remove and clean it under running water. Reinsert and test with about 1 liter of water.

What is the FreshCare+ function and how does it work?

FreshCare+ generates steam to block odour-causing bacteria. It activates at the end of a wash or dry cycle and continues for up to 6 hours with slow drum rotations. It can be interrupted by pressing any button.

Can I wash and dry in one continuous cycle?

Yes, select a wash programme and press the Drying settings button to add automatic or timer drying. Ensure the load does not exceed the maximum drying load for that programme. The machine will wash and dry without interruption.

What is the maximum load for drying?

The maximum drying load is 6 kg, but it varies by programme. Refer to the Programme Chart for specific limits. For example, Eco 40-60 drying max load is 6 kg for full load.

How do I set a delayed start?

After selecting a programme, press the Start Delay button repeatedly to set the desired delay time (up to 24 hours). The symbol will illuminate. Press again to cancel (set to '0'). Then press Start/Pause to confirm.

How do I lock the control panel to prevent child interference?

Press and hold the Dry Only button for about 3 seconds until the lock symbol appears on the display. To unlock, press and hold the same button again for 3 seconds.

What detergent should I use for high-temperature programmes (above 50°C)?

For wash programmes with temperatures above 50°C, it is recommended to use powder detergent rather than liquid. Follow the dosage instructions on the detergent package.

How do I clean the detergent dispenser?

Press the release button and pull out the dispenser. Remove the inserts and clean all parts under running water. Wipe dry and reinsert. For liquid detergent, use the partition included in the instruction bag.

What is the Eco 40-60 programme?

Eco 40-60 is the standard programme for washing normally soiled cotton laundry. It is the most efficient in terms of energy and water consumption. The programme automatically adjusts to wash at 40°C or 60°C based on the load.

USER MANUAL FWDG86148W UK N WHIRLPOOL

DAILY REFERENCE GUIDE

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

Please read the content of the Health & Safety and Installation Guides thoroughly before you use this appliance.

The transit bolts must be removed before the appliance is used.

See the Health & Safety and Installation Guides for detailed instructions on how to remove the transit bolts

PRODUCT DESCRIPTION

APPLIANCE

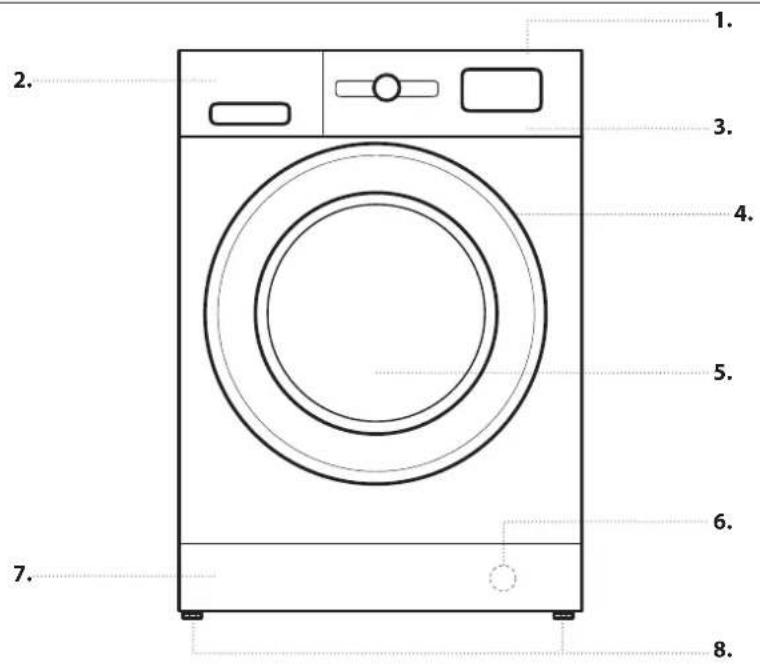

1. 2. 3. 4. 5. 6. 7. 8.

1. Top

1. Detergent dispenser
2. Control Panel
3. Lid handle
4. Door
5. Water filter - behind kick panel
6. Removable kick panel
7. Adjustable feet (2)

CONTROL PANEL

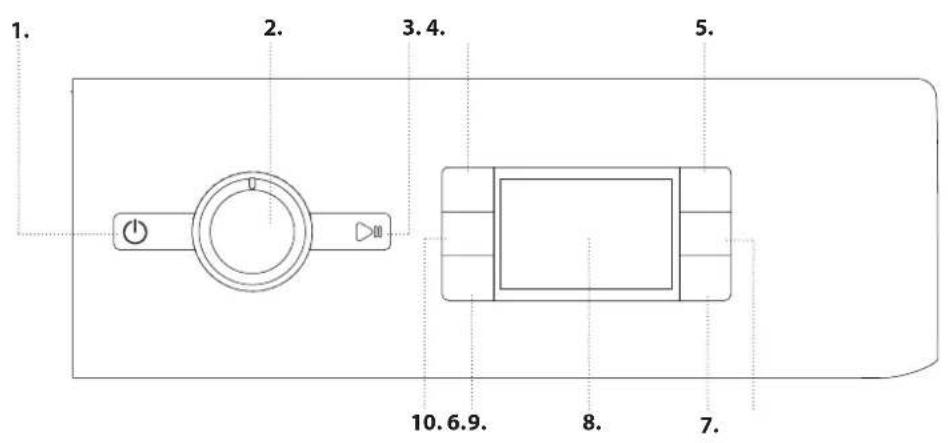

1. 2. 3.4. 5. 10.6.9. 8. 7.

1. On/Off button

1. Programme selector
2. Start/Pause button
3. Temperature button
4. FreshCare+ button
5. Dry Only button / Lock button
6. Drying settings button
7. Display
8. Start delay button
9. Spin speed button

DETERGENT DISPENSER

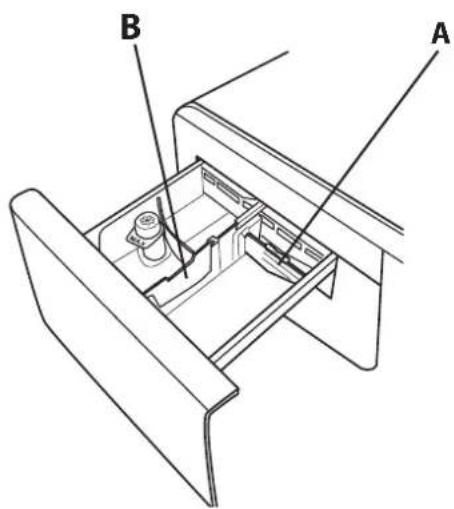

Technical diagram showing a device interior with labeled components and a magnified view of the internal structure.

B A

Prewash Compartment

• Detergent for prewash

Main Wash Compartment

• Detergent for the main wash
- Stain remover
- Water softener

Softener compartment

• Softener
• Liquid starch

Pour softener or starch solution into the compartment without exceeding the "max" level.

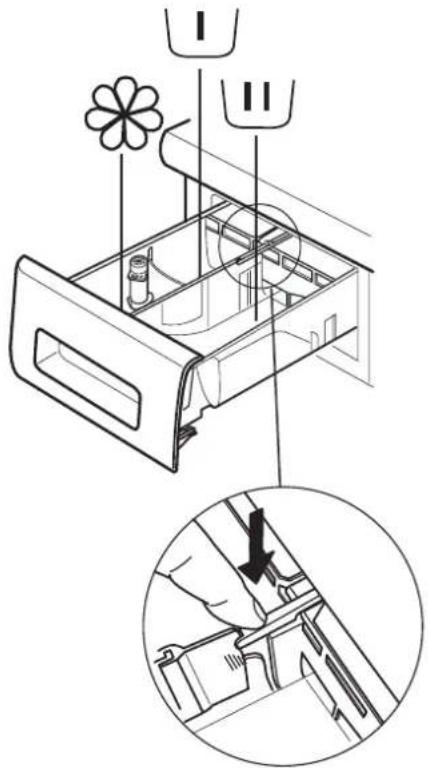

Release button

(press to remove tray for cleaning).

Preferably use the partition A when washing with a liquid detergent for washing, to ensure that the correct quantity of detergent is used (the partition is included in the bag containing the instructions). Move the partition into slot B when using detergent powder.

FIRST TIME USE

See the section DAILY USE for instructions on selecting and starting a programme.

FIRST CYCLE OPERATION

Remove any manufacturing debris:

1. Select the "Cotton" programme with a temperature setting of 60 °C.
2. Pour a small quantity of detergent powder into the main wash compartment of the detergent dispenser (maximum 1/3 of the quantity the detergent manufacturer recommends for lightly soiled laundry).
3. Start the programme without loading the washer dryer machine (with empty drum).

1. LOADING LAUNDRY.

- Prepare the laundry, following the recommendations given in the section "HINTS AND TIPS". - Open the door and load the laundry into the drum, without exceeding the maximum load capacities indicated in the Programme Chart.

- Close the door, pressing until the latch audibly locks, and check that there is no laundry trapped between the door glass and the rubber seal.

2. OPEN THE WATER TAP

Check that the washer dryer is connected correctly to the water mains. Open the water tap.

3. SWITCHING ON THE WASHER DRYER MACHINE.

Press button: the lamp flashes slowly.

4. SELECTING A PROGRAMME AND CUSTOMISING A CYCLE.

The following functions are possible with this appliance:

• Wash only
• Wash and dry
• Dry only

Wash only

Select the required programme with the PROGRAMME selector dial. The duration of the wash cycle is shown on the display. The washer dryer machine automatically displays the maximum temperature and spin speed settings possible for the selected programme. Adjust the temperature and/or spin speed settings if needed with the relative buttons.

• Press button "Temp" to cycle through progressively lower temperature settings until cold wash is set ("--") shown on display.
• Press button "Spin speed" to cycle through progressively lower spin speed settings until the spin cycle is turned off ("0" shown on display).

Pressing the button again sets the highest possible setting. Select the required options (if necessary).

• Press the button to select the option; the respective button lamp illuminates.
• Press the button again to cancel the option; the lamp extinguishes.

! If the selected option is not compatible with the programme set, an error warning tone sounds and the indicator lamp flashes three times. The option is not selected.

Wash and dry

To wash and dry a load with no interruption between the wash and dry cycles, make sure that the load does not exceed the maximum permissible drying load for the selected programme (see the column "Max. load for drying cycle" in the Programme chart).

1. Follow the instructions given in the paragraph "Wash Only" to select and, if necessary, customise the required programme.
2. Press "Drying settings" to select the required drying mode. Two drying modes are available: automatic or timer.

- Automatic drying with selectable levels: In automatic drying mode, the washer dryer machine dries the laundry until the set level of dryness is reached. Pressing button "Drying settings" once automatically selects the highest drying level available for the selected programme. Press the button again to reduce the drying level.

The following levels are available:

Wardrobe : laundry is completely dry and ready to be put away in the wardrobe without ironing.

Hanger laundry is left slightly damp to minimise creasing. Garments must be hung to air dry completely. Iron garments are left reasonably damp to make ironing easier.

- Timer drying mode:

Press button "Drying settings" repeatedly to set timer drying mode. After cycling through all the automatic drying levels, continue pressing button "Drying settings" until the desired time is displayed. Values from 210 to 30 minutes are settable.

To wash a load of laundry larger than the maximum permissible load for drying (see the column "Max. load for drying cycle" in the Programme chart), remove a few garments once the washing cycle has finished before starting the drying cycle. Proceed as follows:

1. Follow the instructions given in the paragraph "Wash Only" to select and, if necessary, customise the required programme.
2. Do not include a drying cycle.
3. Once the washing cycle is finished, open the door and remove a few garments to reduce the load. Now follow the instructions for "Dry only".

N.B.: always allow a cooling down period after drying before opening the door.

When using the two preset cycles "Wash & Dry 45" and "Wash & Dry 90", it is not necessary to select and start a drying cycle.

Dry only

This function is used to simply dry a wet load washed previously in the washer dryer or by hand.

1. Select a suitable programme for the laundry you want to dry (e.g. select cotton to dry wet cotton laundry).
2. Press button "Dry only" to dry without a wash cycle.
3. Press "Drying settings" to select the required drying mode. Two drying modes are available: automatic or timer.

- Automatic drying with selectable levels:

In automatic drying mode, the washer dryer machine dries the laundry until the set level of dryness is reached. Pressing button "Drying settings" once automatically selects the highest drying level available for the selected programme. Press the button again to reduce the drying level.

The following levels are available:

Wardrobe : laundry is completely dry and ready to be put away in the wardrobe without ironing.

Hanger laundry is left slightly damp to minimise creasing. Garments must be hung to air dry completely. Iron garments are left reasonably damp to make ironing easier.

- Timer drying mode:

Press button "Drying settings" repeatedly to set timer drying mode. After cycling through all the automatic drying levels, continue pressing button "Drying settings" until the desired time is displayed.

Values from 210 to 30 minutes are settable.

N.B.: always allow a cooling down period after drying before opening the door.

1. USING THE CORRECT AMOUNT OF DETERGENT. Pull out the tray and pour detergent into the relative compartments as described in "Detergent dispenser". This is only necessary when using a wash only or a wash + dry programme.

2. DELAYING THE START OF A PROGRAMME. To set a programme to start at a later time, see the section "Options and Functions".

3. STARTING A PROGRAMME.

Press the START/PAUSE button. The relative indicator lamp illuminates, the door locks and the door open symbol extinguishes. To change a programme while a cycle is in progress, press START/PAUSE to pause the washer dryer (the START/ PAUSE lamp flashes amber slowly); then select the required cycle and press START/PAUSE again. To open the door while a cycle is in progress, press START/PAUSE; the door may be opened if the symbol lights. Press the START/ PAUSE button again to resume the programme from where it was paused.

1. CANCELLING A RUNNING PROGRAMME (IF NECESSARY)

Press and hold the button until the washer dryer stops. If the water level and temperature are low enough, the door unlocks and may be opened.

The door remains locked if there is water in the drum. To unlock the door, switch the washer dryer on, select the SPIN & DRAIN programme and turn the spin function off by setting the spin speed to 0. The water is emptied and the door unlocks at the end of the programme.

1. SWITCHING THE WASHER DRYER OFF AT THE END OF A PROGRAMME.

At the end of the cycle, the message "END" is shown on the display. The door can only be opened when the symbol lights. Check that the door unlocked symbol is lit, then open the door and take out the laundry.

Press (b) switch the washer dryer off. To save energy, if the washer dryer is not switched off manually with the ⏻ button, it turns off automatically approximately 10 minutes after the end of the programme.

Leave the door ajar to let the interior of the washer dryer dry.

Sort your laundry according to

Type of fabric/care label (cotton, mixed fibres, synthetics, wool, handwash items). Colour (separate coloured and white items, wash new coloured items separately). Delicates (wash small items – like nylon stockings – and items with hooks – like bras – in a cloth bag or pillow case with zip).

Empty all pockets

Objects like coins or lighters can damage your laundry as well as the drum.

Follow the dosage recommendation / additives

It optimizes the cleaning result, it avoids irritating residues of surplus detergent in your laundry and it saves money by avoiding waste of surplus detergent

Use low temperature and longer duration

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Observe the load sizes

Load your washing machine up to the capacity indicated in the "PROGRAMME CHART" table to save water and energy.

Noise and remaining moisture content

They are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

WASH SYMBOLS

ON GARMENT LABELS

The value given in the tub symbol is the maximum temperature possible for washing the garment.

Normal mechanical action

Reduced mechanical action

Much reduced mechanical action

Hand wash only

Do not wash

CLEANING & MAINTENANCE

For any cleaning and maintenance, switch off and unplug the washing machine. Do not use flammable fluids to clean the washing machine.

Clean and maintain your washing machine periodically (at least 4 times per year).

Cleaning the outside of the washing machine

Use a soft damp cloth to clean the outer parts of the washing machine. Do not use glass or general purpose cleaners, scouring powder or similar to clean the control panel – these substances might damage the printing.

Checking the water supply hose

Check the inlet hose regularly for brittleness and cracks. If damaged, replace it by a new hose available through our After-Sales Service or your specialist dealer. Depending on the hose type: If the inlet hose has a transparent coating, periodically check if the colour intensifies locally. If yes, the hose may have a leak and should be replaced.

Cleaning the water filter / draining residual water

If you used a hot wash programme, wait until the water has cooled down before draining any water. Clean the water filter regularly, to avoid that the water cannot drain after the wash due to obstruction of the filter.

Remove the plinth by using the screwdriver: push downwards one side of the plinth with your hand, then push the screwdriver into the gap between plinth and front panel and pry open the plinth.

Place a broad, flat container beneath the water filter, to collect the drain water. Slowly turn the filter counterclockwise until water flows out. Let the water flow out, without removing the filter. When the container is full, close the water filter by turning it in clockwise. Empty the container. Repeat this procedure until all the water has drained. Lay a cotton cloth beneath the water filter, which can absorb a small amount of rest water. Then remove the water filter by turning it out anti clockwise. Clean the water filter: remove residues in the filter and clean it under running water. Insert the water filter and reinstall the plinth: Reinsert the water filter again by turning it in clockwise direction. Make sure to turn it in as far as it goes; the filter handle must be in vertical position. To test water tightness of the water filter, you can pour about 1 liter of water into the detergent dispenser. Then reinstall the plinth.

Cleaning the detergent dispenser

Remove the detergent dispenser by pressing on the release button and at the same time pulling out the detergent dispenser. Remove the insert from the detergent dispenser, as well as the insert of the softener compartment. Clean all parts under running water, removing all detergent or softener residues. Wipe the parts dry with a soft cloth. Reinstall the detergent dispenser and push it back into the detergent compartment.

SAVING ENERGY AND PROTECTING THE ENVIRONMENT

• Keeping within the load limits indicated in the programme chart will optimise energy, water and detergent consumption and reduce washing times.
• Do not exceed the detergent quantities recommended by the detergent manufacturer.
• Save energy by using a 60°C instead of a 90°C wash programme, or by using a 40°C instead of a 60°C wash programme. We recommend using the Eco 40-60 programme for cotton garments, which is longer but uses less energy.
• To save energy and time when washing and drying, select highest spin speed available for the programme to reduce the residual water remaining in the garments at the end of the wash cycle.

PROGRAMME CHART

Maximum load 8 kgPower input in off mode 0.5 W / in left-on mode 8 W								Detergents and Additives			Recommended detergent		Residual dampness (% (***))	Energy consumption kWh	Total water lt	Laundry temperature °C
Wash cycle		Temperature		Drying	Max. load for washing (kg)	Max. load for drying (kg)	Duration (h : m)	Prewash	Wash	Fabric softener	Powder	Liquid
		Setting Range
								I	II	※
MIXED 40°C		※ - 40°C	1000	✓	8,0 6,0	** - ----	-		●	○		✓
WHITE 60°C		※ - 90°C	1400	✓	8,0	6,0	2:45	● (90°)	●	○	✓	-	49	0,90	90	55
COTTON (2)	40°C	※ - 60°C	1400	✓	8,0 6,0	3:55	-		●	○	✓	✓	49	1,40	105	45
ECO 40-60 (1)	40°C	40°C	1351	✓	8,0	6,0 -	3:30	-	●	○	✓	✓	53	0,77	54	33
			1351	✓	4,0 2:4				●	○	✓	✓	53	0,65	52	36
			1351	✓	2,0 2:10				●	○	✓	✓	53	0,45	37	33
DELICATES	30°C	※ - 30°C	-	✓	1,0 1,0	** -		-	●	○	----	✓
SYNTHETICS (3)	40°C	※ - 60°C	1200	✓	4,0	4,0	2:55	-	●	○	✓	✓	35	0,80	55	43
STEAM REFRESH	-	-	-	-	2,0	-	**	-	-	-	-	-	-	-	-	-
SPIN & DRAIN *	-	-	1400	✓	8,0	6,0	**	-	-	-	-	-	-	-	-	-
RINSE & SPIN	-	-	1400	✓	8,0	6,0	**	-	-	○	-	-	-	-	-	-
RAPID 30'	30°C	※ - 30°C	800 -	4,5		- 0:30	-		●	○	-	✓	71	0,20	45	27
20°C	20°C	※ - 20°C	1400	✓	8,0 6,0	1:50	-		●	○		✓	49	0,16	90	22
WOOL	40°C	※ - 40°C	800	✓	2,0 2,0	** -		-	●	○	----	✓
WASH & DRY 45'	30°C	30°C 1400		✓	1,0 1,0	** -		-	●	○	----	✓
WASH & DRY 90'	30°C	30°C 1200		✓	1,0 1,0	** -		-	●	○	----	✓
ECO COTTON (4)	60°C	60°C	1400	✓	8,0 6,0	3:45	-		●	○	✓	✓	53	1,04	60 -

Selectable/optional

- Not selectable/applicable

- Required quantity

○ Optional quantity

The cycle duration indicated on the display or instruction manual is an estimate based on standard conditions. The actual duration may vary in relation to several factors, such as the temperature and pressure of the incoming water, ambient temperature, amount of detergent, load quantity and type, load balancing and any additional options selected. The values given for programmes other than the Eco 40-60 programme are indicative only.

1) Eco 40-60 (Wash) - Test wash cycle in compliance with EU Ecodesign regulation 2019/2014. The most efficient programme in terms of energy and water consumption for washing normally soiled cotton laundry.

Note: spin speed values shown on the display can slightly differs from the values stated in the table.

Eco 40-60 (Drying)- Test drying cycle in compliance with EU Ecodesign regulation 2019/2014. To access "wash and dry" cycle select "Eco 40-60" wash programme and set "Drying" option level to "☐". The most efficient programme in terms of energy and water consumption for washing and drying normally soiled cotton laundry. (Cycle duration: full load 9h:20'/half load 5h:10').

For all testing institutes:

2) Long cotton cycle: set programme COTTON at temperature 40°C.

3) Long synthetics cycle: set cycle SYNTHETICS at a temperature of 40°C.

4) Eco Cotton - Test wash cycle in compliance with regulations 1061/2010. Set COTTON wash cycle at a temperature of 60°C to access this cycles.

* By selecting the SPIN & DRAIN cycle and excluding the spin cycle, the washer-dryer will drain only.

** The duration of the wash cycles can be checked on the display.

*** After programme end and spinning with maximum selectable spin speed, in default programme setting.

! For wash programmes with temperatures above 50°C, we recommend using powder detergent rather than liquid, and following the directions given on the detergent package.

6th Sense - the sensor technology adapts water, energy and programme duration to your wash load.

PROGRAMMES

Follow the directions indicated in the garment wash symbols.

MIXED

For washing lightly to normally soiled resilient garments in cotton, linen, synthetic fibres and mixed fibres.

WHITE

For washing normally to heavily soiled towels, underwear, table and bed linen, etc in resilient cotton and linen. Only when the temperature is selected at 90°C the cycle is provided with a prewash phase before main washing phase. In this case it is recommended to add detergent both, in the prewash and main wash section.

COTTON

for washing normally to heavily soiled towels, underwear, table and bed linen etc. in resilient cotton and linen.

ECO 40-60

For washing normally soiled cotton garments declared to be washable at 40^ or 60^ , together in the same cycle. This is the standard cotton programme and the most efficient in terms of water and energy consumption.

DELICATES

for washing particularly delicate garments. Preferably turn garments inside out before washing.

SYNTHETICS

for washing normally soiled garments made from synthetic fibres (such as polyester, polyacrylic, viscose etc.) or cotton/synthetic blends.

STEAM REFRESH

for refreshing garments, neutralised unpleasant odours and relaxing the fibres by delivering steam into the drum. The garments will be damp at the end of the cycle.

SPIN & DRAIN

spins the load then empties the water. For resilient garments.

RINSE & SPIN

rinses and then spins. For resilient garments.

RAPID 30'

for washing lightly soiled garments quickly: this cycle lasts only 30 minutes, saving time and energy. Maximum load 4,5 Kg.

20°C

For washing lightly soiled cotton garments, at a temperature of 20^ C.

WOOL

All wool garments can be washed using programme, "Wool" even those carrying the "hand-wash only" label. For best results, use special detergents and do not exceed max kg declaration of laundry.

WASH & DRY 45'

for washing and drying lightly soiled cotton and synthetic fibre garments quickly. This cycle washes and dries a laundry load of up to 1 Kg in just 45 minutes.

WASH & DRY 90'

for washing and drying cotton and synthetic fibre garments quickly. This cycle washes and dries a laundry load of up to 1 Kg in just 90 minutes.

ECO COTTON

For washing normally soiled cotton garments at 60°C.

OPTIONS AND FUNCTIONS

OPTIONS selectable directly by pressing the relative button

! If the selected option is not compatible with the programme set, an error warning tone sounds and the indicator lamp flashes three times. The option is not selected.

FRESHCARE+

If associated with wash cycles, this option increases their performances by generating steam to block proliferation of the main sources of unpleasant odours inside the appliance (exclusively for the wash). After the steam phase, the machine runs a delicate cycle with slow drum rotations. When the FRESHCARE+ option is associated with drying cycles, it prevents stubborn creases from stabilising on garments, thanks to slow drum rotations. The FreshCare+ cycle starts at the end of the wash or drying cycle and continues for maximum 6 hours; it can be interrupted at any time by pressing any button on the control panel, or by turning the knob. Wait roughly 5 minutes before opening the door.

START DELAY

To set the selected programme to start at a later time, press the button to set the desired delay time. The symbol lights on the display when this function is enabled. To cancel the delayed start, press the button again until the value "0" is shown on the display.

LOCK BUTTON

to lock the control panel, press and hold the button "Dry only" for approximately 3 seconds. the symbol lights on the display to indicate that the control panel is locked (with the exception of the button). This prevents unintentional changes to programmes, especially with children near the machine.

If any attempt is made to use the control panel, the symbol —○ flashes on the display.

To unlock the control panel, press and hold the button "Dry only" for approximately 3 seconds.

You can download the H&S INSTRUCTIONS, PRODUCT FICHE and ENERGY DATA by:

• Visiting our website - http://docs.whirlpool.eu
• Using QR code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate. For User's Repair & Maintenance Information visit www.whirlpool.eu

The model information can be retrieved using the QR-Code reported in the energy label. The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu
