USER MANUAL GM UNI-CAM NTV-KIT629 NAV-TV

RVC controller interface &/or programmer for select GM vehicles equipped with MyLink IOH Radio

IOH = IO4 (4" screen) & IO5/IO6 (8" screen)

NTV-KIT629: Controller ONLY (for vehicles with OEM RVC)

NTV-KIT630: Controller & Programmer (for vehicles without OEM RVC)

Interior view of a car dashboard with steering wheel, dashboard display, and digital audio equipment (no readable text or symbols)

Red Chevrolet pickup truck with silver grille and alloy wheels (no visible text or symbols)

BHM

09/26/17

NTV-DOC239

Overview

The GM UNI-CAM adds an additional video input on select GM vehicles equipped with the MyLink (model IOH) 4" and 8" color media screens. Forcing (aermarket) AUX Video or front camera to display at any me is acvated with wire triggers. Note: NTV-KIT629 is a controller only, it will NOT program the MyLink radio system for rear camera. If adding a reverse camera to a vehicle without OEM RVC and forced cam/AUX video input is desired as well, you must purchase NTV-KIT630 (UNI-CAM with built-in programmer).

Kit Content

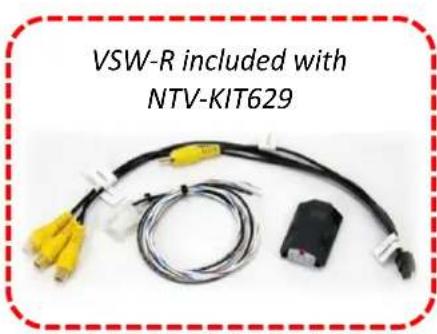

VSW-R included with NTV-KIT629

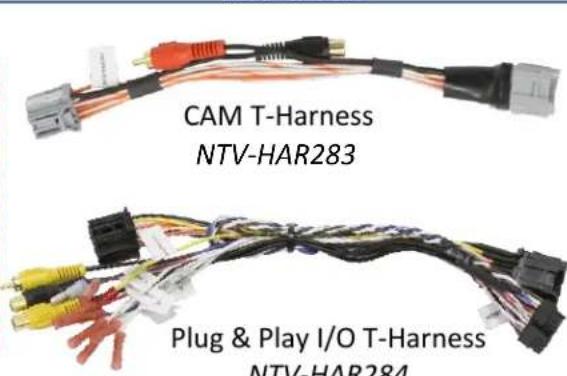

CAM T-Harness NTV-HAR283 Plug & Play I/O T-Harness NTV-HAR284

Black rectangular electronic device with a small connector and mounting bracket (no visible text or symbols)

GM UNI-CAM Module

KIT629: NTV-ASY166

KIT630: NTV-ASY245

USB Cable (updates)

NTV-CAB009

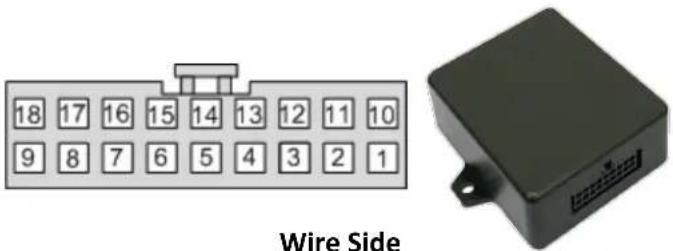

GM UNI-CAM Pinout

Pin #	Descripon	Color
1	12v Constant Power (+)	Yellow
2	Input 1 (Force Rear Cam)*	Red
3	Input 2 (Force Front Cam)	Blue
4	Input 3 (4” Programming Wire)**	Pink
5	--NOT USED--	Brown
6	RCA Signal (+) (Out to radio)	Yellow
7	RCA Shield (common)	Gray
8	CAN HI (HMI side)	White/Blue
9	CAN LO (vehicle side)	White/Brown
10	Ground (-)	Black
11	Output 1 (ACC 12v +)	White/Red
12	Output 2 (REV 12v + & FRVC)	White/Blue
13	Output 3 (12v + out when FFVC)	White/Purple
14	--Not Used--	White/Brown
15	RCA Signal (+) Input (front cam)	White
16	RCA Signal (+) Input (rear cam)	Red
17	CAN HI (HMI side)	Blue
18	CAN LO (vehicle side)	Brown

18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 Wire Side

Any wires not menoned here are not used for this installaon.

*Forcing rear camera is only available for aermarket cameras (unless OEM rear camera is powered with an ACC source or OUTPUT 2 manually – OEM RVC normally only powered in reverse)

**Used for (IO4) 4" screens ONLY.

PIN 12 FRVC: 'Forced Rear View Camera' PIN 13 FFVC: 'Forced Front View Camera'

GM UNI-CAM Installaon

The UNI-CAM kit connects at the OEM HMI Module. The locaon of this module varies by vehicle.

Known HMI Locaons:

Vehicle	HMI Locaon
Cadillac ATS/CTS	Directly below glove box
Cadillac SRX	Below/behind glove box
Corvee	Driver's kick panel
Silverado/Sierra	Behind glove box - high
Colorado/Canyon	Behind Screen - low

Close-up of a black electronic device's internal components with four colored connectors (no text or symbols visible)

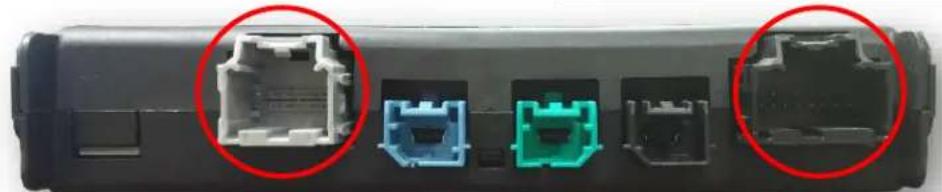

Factory GM HMI (Human Machine Interface)

1. Aer ga ining access to the HMI module, Disconnect the gray, 12-pin plug from the OEM HM circled above.
2. Disconnect the black, 16-pin plug from the OEM HMI circled above.
3. Connect the provided UNI-CAM 12-pin & 16-pin (male end) connectors into the HMI plug locaons from steps 1 & 2.
4. Connect the factory 12-pin & 16-pin plugs (previously connected to the HMI) into the provided Plug & Play T-Harness (female end).
5. NTV-KIT629 Installaon (with exisng OEM reverse camera):

a. When connecng a front camera (or AUX video source) to a vehicle with an exisng OEM reverse camera, the internal relay on the UNI-CAM board is not used (RCA I/Os from module). Complete all connecns on page 5 (FIG 2) using the included VSW-R (included with KIT629) to prevent 'bleed-over' image (when in front camera mode). This includes the following:
b. Black wire of VSW to chassis ground
c. OUTPUT 3 (from module) to White/Red of VSW
d. RCA connecons as shown in diagram (FIG 2)
e. Connue with installaon on page 4, step 7.

1. NTV-KIT630 Installaon (without exisng OEM reverse camera):

a. Adding a single rear camera: power your camera with an ACC source or OUTPUT 1 (especially if using the forced feature), and connect your camera signal directly to the female RCA (into the HMI) from the 12-pin gray plug.
b. Adding 2 aermarket cameras: Instead of connecng camera signal directly to the HMI, connect the RVC signal to the RCA labeled 'BACKUP CAM' at the UNI-CAM module. Connect the front cam/AUX video to the RCA labeled 'FRONT CAM'. Connect the (male) 'VIDEO OUT' RCA to the female RCA from the CAM T-Harness (at the HMI). Leave the male RCA on the CAM T-Harness disconnected.
c. If this vehicle is equipped with a 4" screen, connect INPUT 3 (pink) to a CONSTANT 12v source.

NOTE: If this wire is not connected, the UNI-CAM PRG will program for 8" screen (image will appear zoomed in).

d. Connue with installaon on step 7 (next page).

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.

1. Oponal: Connect INPUT 1 &/or INPUT 2 to an ACC 12v (+) source through toggles for displaying rear view camera and front view camera (or AUX video) at any me.

NOTE: the factory GM screen may generate parking guidelines (while in reverse), which can be turned o in the OEM sengs (through radio). This is usually required when using the UNI-CAM for an additional AUX video input (DVD player, etc).

1. Connect the UNI-CAM module to the 18-pin plug located on the Plug & Play T-Harness.
2. KIT630 ONLY: Proceed to UNI-CAM Programming. Note: If vehicle already possesses a rear camera, this programming step is not needed!

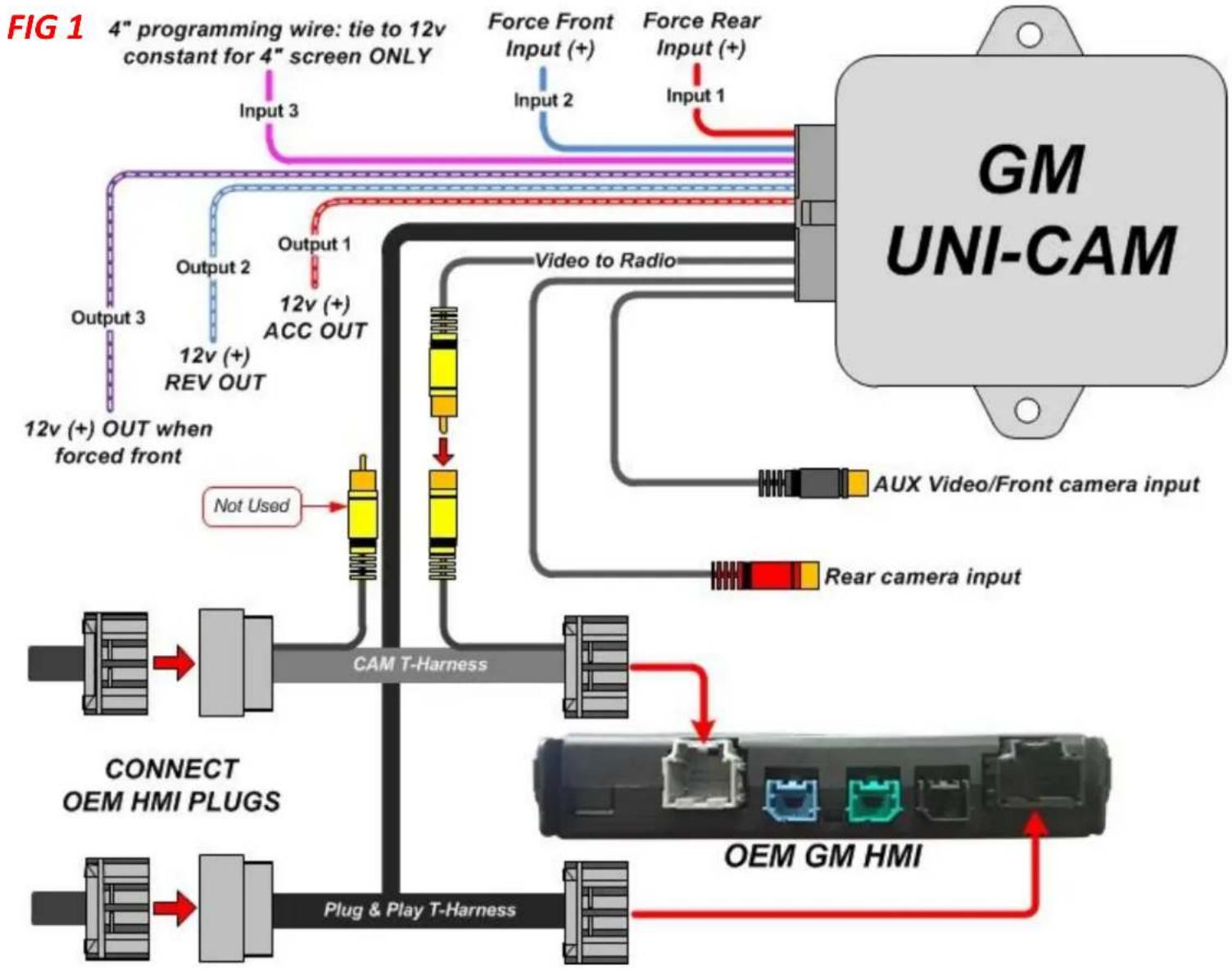

GM UNI-CAM Diagram (adding aermarket cameras)

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.

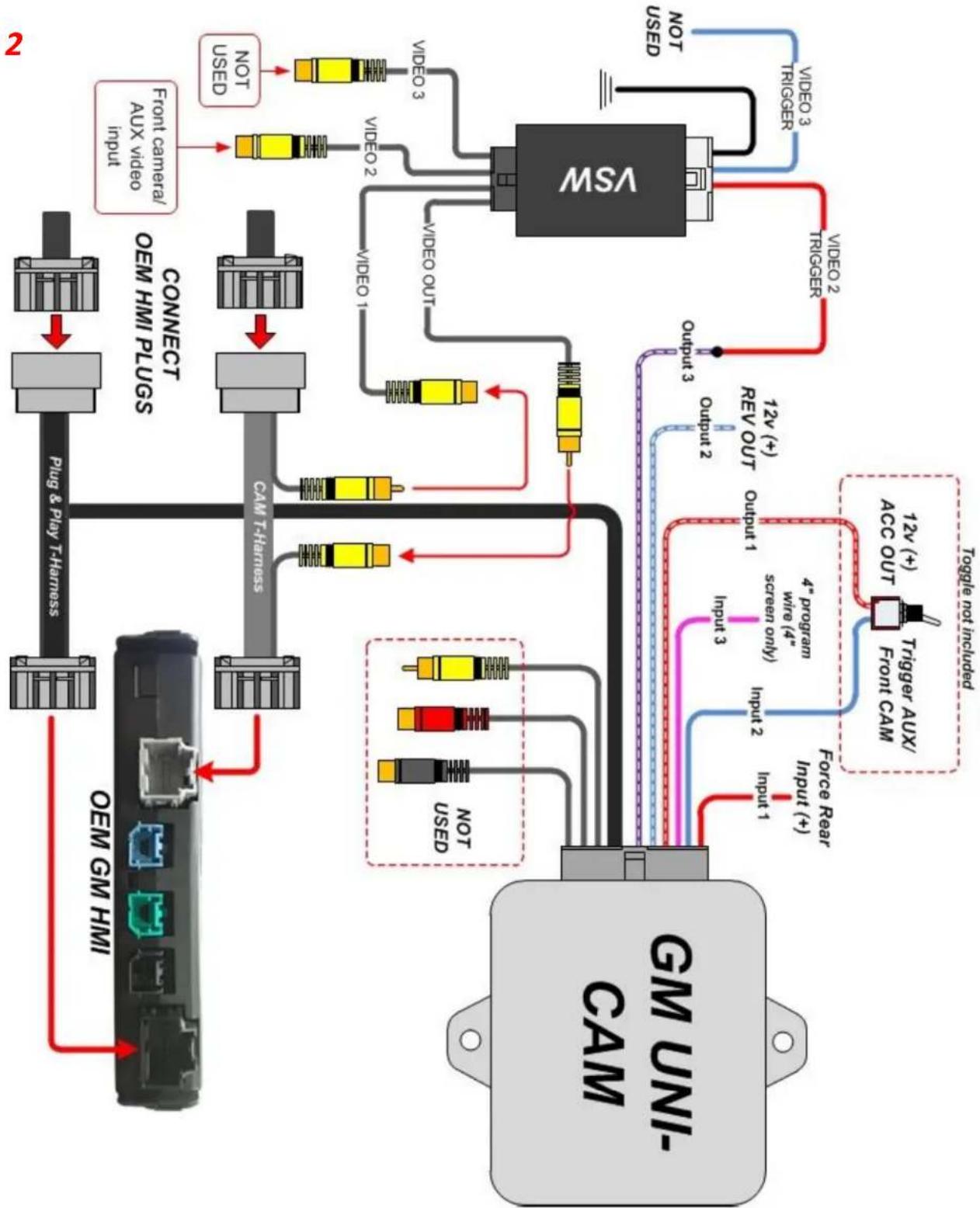

GM UNI-CAM Installaon (adding AUX video with exisng OEM RVC)
FIG 2

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.

GM UNI-CAM Installaon: Force OEM rear camera (up to 2016 vehicles)

NOTE: pages 6 & 7 illustrate wiring modicaon for forcing OEM cameras for up to 2016 vehicles. In 2017+ vehicles, for determining whether or not this vehicle has an HMI Bypass Module, see page 8. Then, for forcing OEM rear camera on 2017+ vehicles with an OEM HMI Bypass Module, see page 10.
NOTE: If adding an aermarket rear camera to any year vehicle, these steps are not required.

1. Oponal (up to 2016 pickup trucks): If the user wishes to force the OEM Reverse camera at any me, you must power the OEM camera power wire manually. Complete the conncon shown in the diagram below.

From BCM

Cut wire in half Send 12v (+) ACC or connect to OUTPUT 2 (white/blue) Locaon: driver's sill or kick panel,

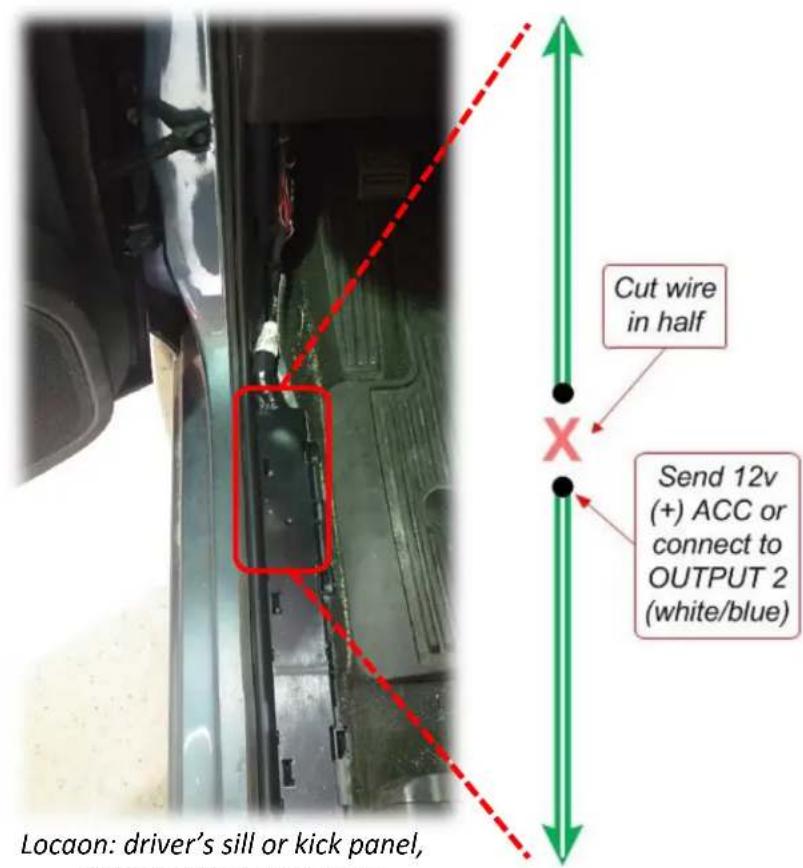

Locaon: driver's sill or kick panel, harness that runs to rear

To OEM Reverse Camera

Installaon Procedure:

1. Locate, test green/white OEM RVC power wire and cut in HALF. Wire will show 12v (+) when in reverse (engine must be running)
2. Extend a 12v (+) ACC wire (or OUTPUT 2) and connect to camera side as shown.
3. Isolate BCM side of cut wire.

NOTE: This example diagram is for 2016 GM truck. Other vehicles may have a dierent color wire. Always test wire before modifying.

1. Oponal (up to 2016 SUVs): If the user wishes to force the OEM Reverse camera at any me, you must power the OEM camera power wire manually. Complete the conncon shown in the diagram below.

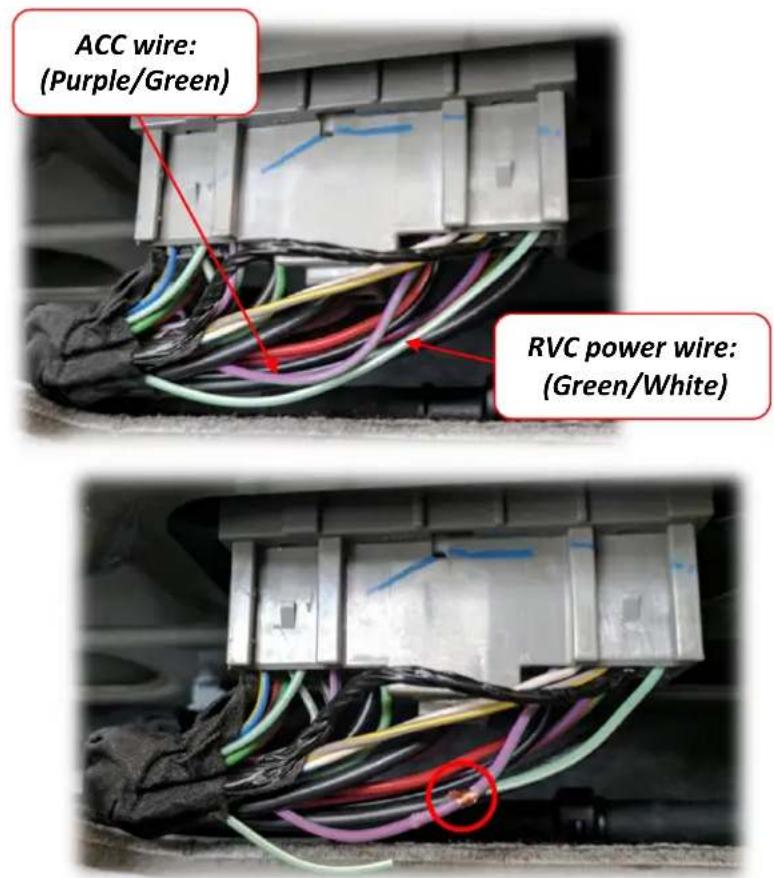

ACC wire: (Purple/Green) RVC power wire: (Green/White)

Locaon: Back of truck, li gate open, top center connector from vehicle to li gate (in headliner)

Modicaon Procedure:

1. Locate, test green/white OEM RVC power wire at the tail-gate harness connector and cut in HALF. Wire will show 12v (+) when in reverse (engine must be running)
2. Connect the camera side (li gate side) of the cut wire to the purple/green ACC wire.
3. Isolate BCM side (front of vehicle side) of cut wire.

NOTE: This example diagram is for GM SUV. Other vehicles may have a dierent color wire. Always test wires before modifying.

GM UNI-CAM Installaon (2017+ with OEM HMI Bypass Module ONLY)

The following page only applies to 2017+ vehicles equipped with an OEM rear camera.

• In some compatible 2017+ vehicles, the system is equipped with an additional module called the 'HMI Bypass Module' which routes LVDS and camera images to the screen from the HMI. If equipped, the module is normally located directly beneath the BCM (driver's side under dash).
  • A quick easy way to test for the presence of the HMI Bypass Module:

• Access the OEM HMI unit (see chart on page 3)

• Connect the provided CAM T-Harness in between the 12-pin plug at the HMI and the vehicle's 12-pin connector, connect RCAs together
  ○ Start vehicle. Place vehicle into reverse gear.
  With OEM reverse image on the screen, disconnect the RCAs in the CAM T-Harness.
  If the reverse image remains on screen with the RCA disconnected, this vehicle is equipped with the HMI Bypass Module. This means that in the following scenarios, the wiring must be completed dierently:

Scenario 1: If introducing AUX video (or front camera) is desired while in reverse gear, the secondary camera must be connected at the HMI Bypass Module, instead of at the HMI itself (See FIG 3, next page). If AUX video is only necessary outside of reverse gear, then you may connect it normally (FIG 1. NOTE: for these special vehicles, the VSW-R is not necessary – plug signal directly into the CAM T-Harness).

Scenario 2: If the user wishes to be able to force the OEM tailgate camera at any me, then a reverse wire must be cut and powered dierently at the vehicle's BCM. See FIG 4.

Coiled electrical connector with black, orange, and red wires (no visible text or symbols)

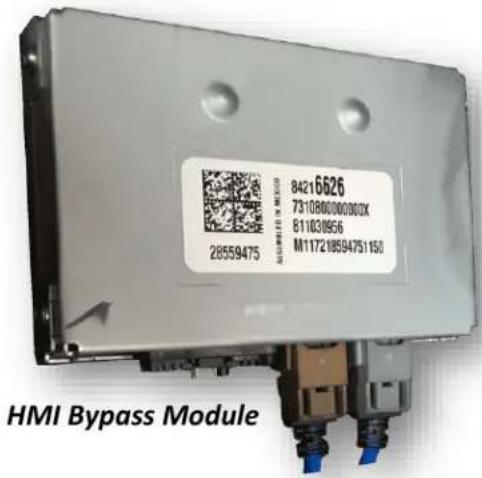

84216626 731080000000X 811030956 M117218594751150 28559475 HMI Bypass Module

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.

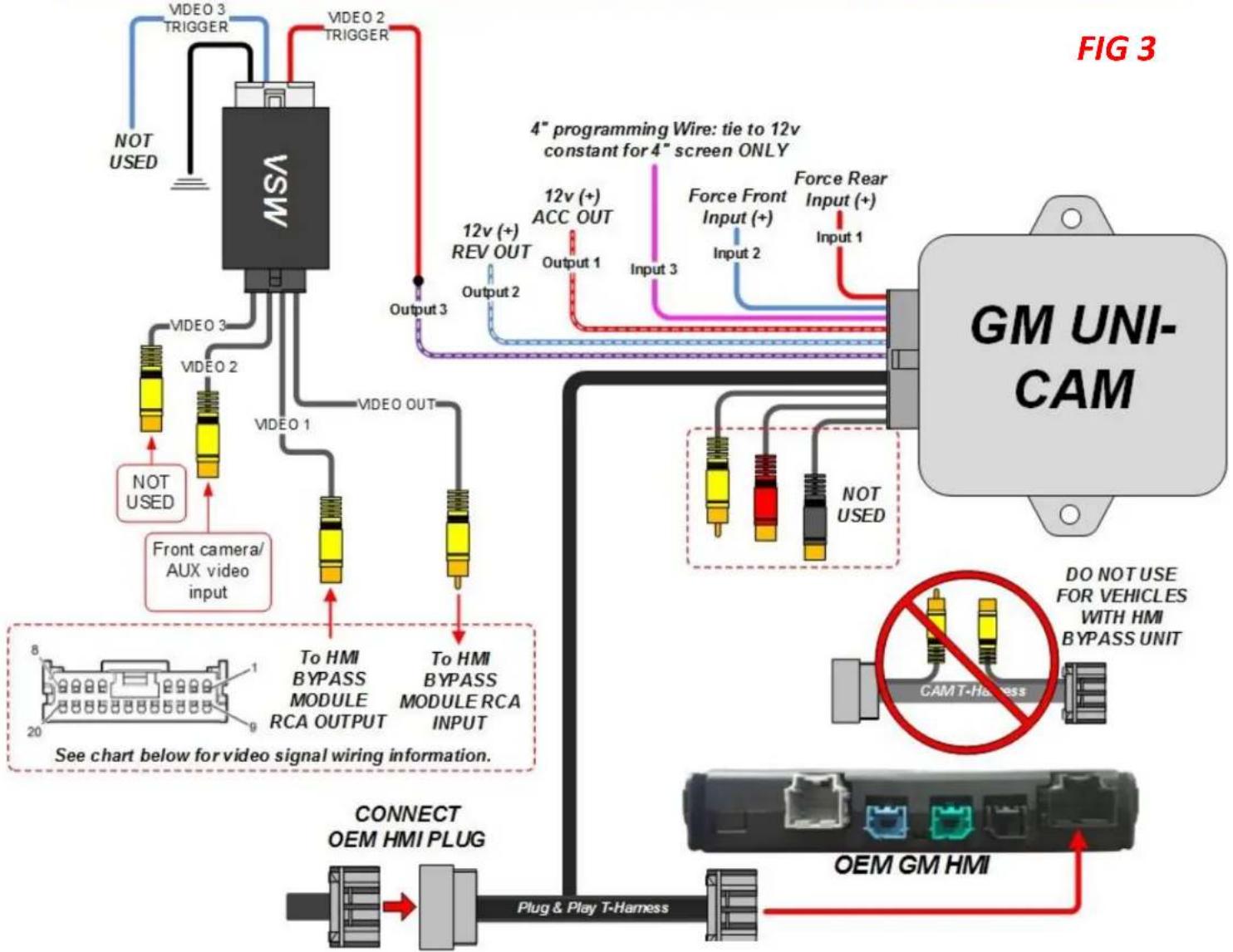

GM UNI-CAM Installaon (HMI Bypass Module only)

HMI Bypass PIN #	Descripon	Typical Wire Color
6	RVC (+) signal	Gray/Yellow
18	RVC (-) shield	White/Blue

• Locate pins 6 & 18, cut these wires in half.
• Connect an RCA cable (male) to the harness side of the cut wires (according to chart above).
• Connect an RCA (female) to the module side of the cut wires (according to chart above).

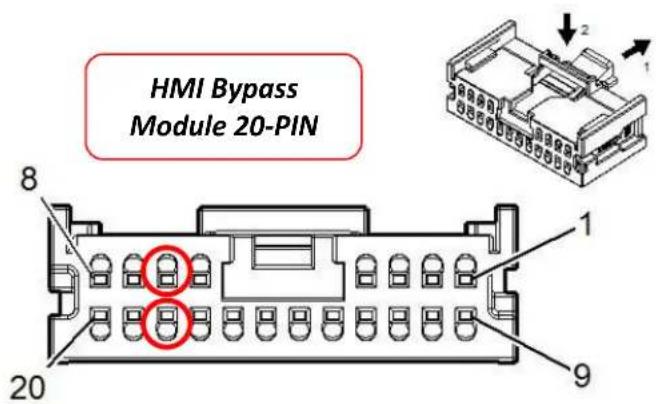

HMI Bypass Module 20-PIN 8 1 2 9 20

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.

GM UNI-CAM Installaon: Forcing OEM camera (2017+ vehicles only)

- For 2017+ vehicles only, those equipped with the HMI Bypass (as discussed on page 8), a reverse power wire must be cut and supplied with ACC 12v (+) power at the BCM instead in order for forced OEM rear camera to funcon properly. NOTE: if adding an aermarket rear camera, this step is not needed.

1. Locate the vehicle BCM. For most vehicles, this is underneath the driver's dashboard, beneath the steering wheel.
2. On the BCM there are mulple 20-30 pin plugs. Locate the brown, 26-pin plug.
3. In the brown plug, pin 26 (blue/brown) is 'Backup Lamp Relay Control'. Cut this wire in half.
4. Extend an ACC 12v (+) source (or use Output 1 from the UNI-CAM module) and connect it to the vehicle side (not BCM side) of the cut wire.
5. Isolate the other end of the cut blue/brown wire.
6. Now, when Input 1 receives 12v (through a toggle), the rear camera will show regardless of gear or speed.

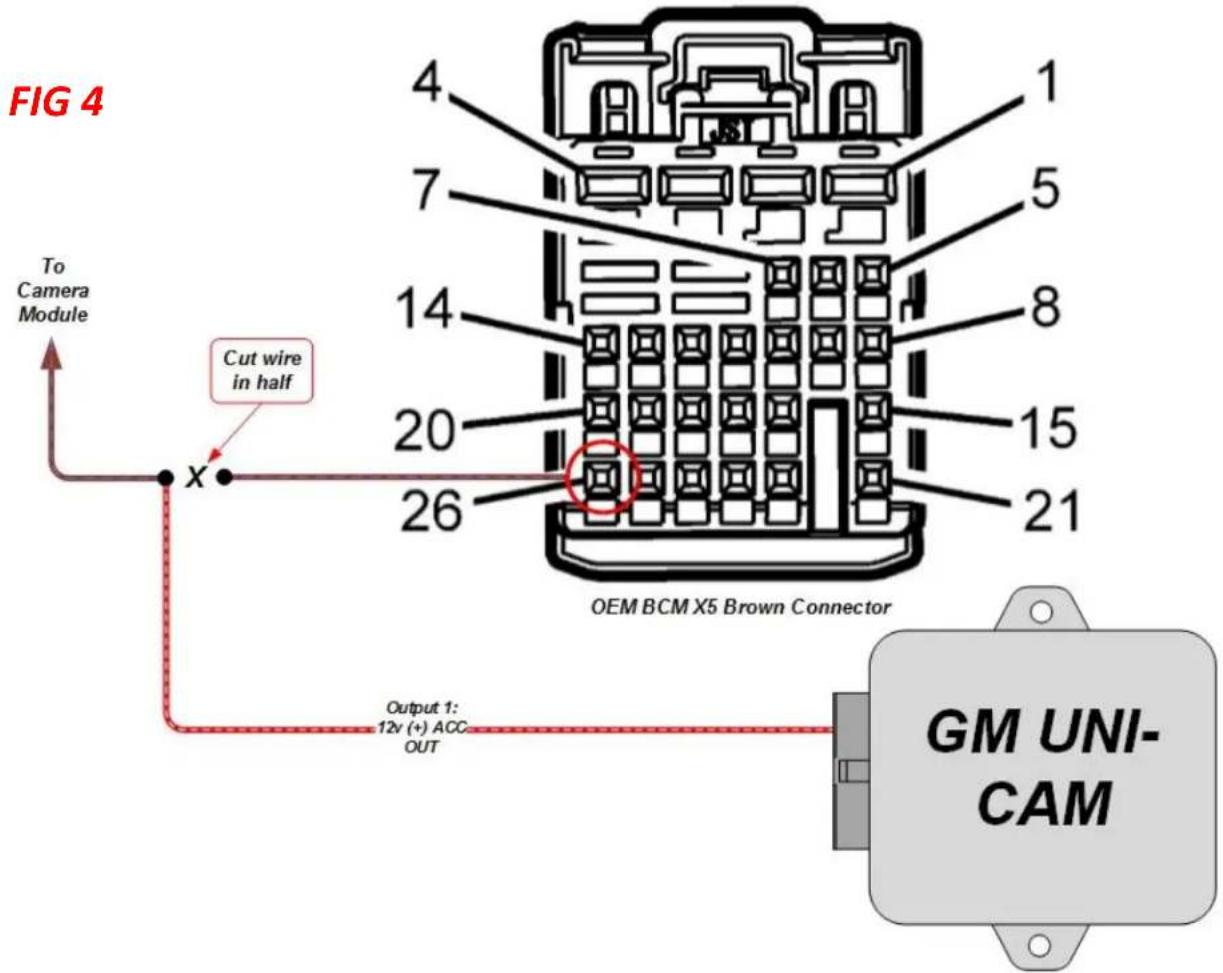

FIG 4 To Camera Module Cut wire in half X 20 26 14 7 1 5 8 15 21 OEM BCM X5 Brown Connector Output 1: 12v (+) ACC OUT GM UNI- CAM

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.

GM UNI-CAM Programming (KIT630 ONLY)

DISCLAIMER: DO NOT disconnect the programmer during programming – this may result in complete radio brick (factory limitaon). NAV-TV is not responsible for failure to comply with this rule.

1. Once all connexons are made, turn the key to the IGNITION ON posion. Watch the LED on the UNICAM Module and verify ash codes below.
2. Wait for radio to reboot fully. The radio may reboot more than once – wait a few minutes.

Programming is complete when the LED ashes 5 mes.

LED Response	Descripon
1 ash	Waing for Ignion... (Turn ignition to ON)
2 ashes	Waing for Vehicle VIN...
3 ashes	Query Vehicle (Reading/decoding the VIN and vehicle components)
4 ashes	Programming...
5 ashes	Programming Complete
6 ashes	No Programming Needed (Already programmed)
7 ashes	Radio Not Supported (Verify this vehicle is equipped with IOH Radio Code)
8 ashes	Out of Licenses (Contact NAV-TV to purchase more licenses)

1. Cycle the vehicle key once (turn o, wait 5 seconds, turn back to IGNITION ON)
2. Verify 6 FLASHES from LED on module.
3. Verify that the radio accepted the program properly by placing the vehicle in reverse. The reverse screen should appear (or black screen if no camera connected yet) when in reverse only. NOTE: the vehicle may have to be running (engine) for the reverse camera to show (factory limitaon)
4. UPDATE: if nothing happens in reverse aer programming, disconnect the 20-pin power plug (black) at the OEM HMI module, then reconnect to reset the system manually. Once the radio has reset and booted fully, test for rear camera acvaon again.

Close-up of a black electronic device rear panel showing four ports with colored plastic connectors and a red circle highlighting a specific port (no text or symbols visible)

Factory GM HMI (Human Machine Interface)

IMPORTANT NOTE: There is NO De-Programming opon with the GM UNI-CAM. Once programmed, this system modicaon will remain forever.

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.

GM UNI-CAM Operaon

• Aer installaon/programming is complete, placing the vehicle in reverse (with engine running) will show the connected camera automacally.
• Sending 12v to INPUT 1 through a toggle will force the rear camera on at any me, in any gear.*
• Sending 12v to INPUT 2 through a toggle will force the front camera (or aux video) on at any me.
• If Front Camera is acve and the vehicle is placed in reverse, the reverse image will show (priority). Once placed back into Drive or Park, the Front Camera will show again if sll acvated.

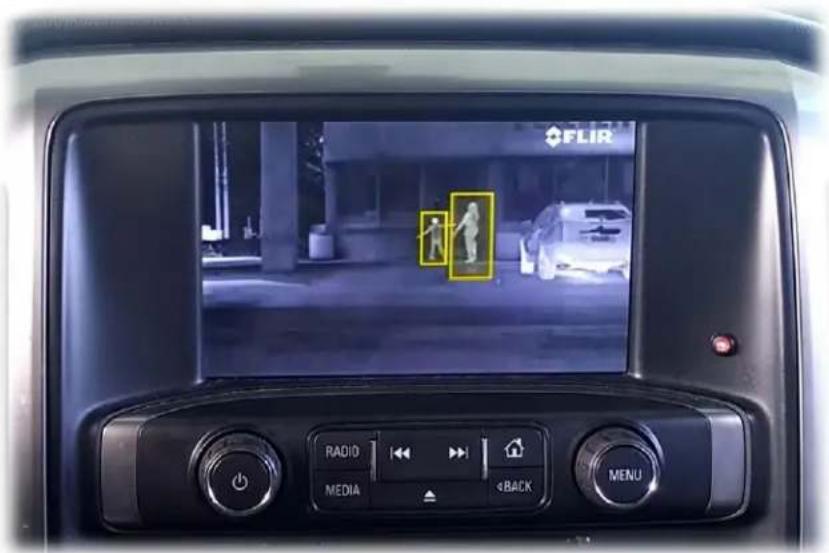

FLIR RADIO MEDIA Note: Once the transmission leaves reverse gear, there may be a \~5 second delay on transioning back to the radio screen. This is normal OE operaon. \*For aermarket cameras only. If OEM rear camera forced acon is wanted, the camera must be powered separately (OEM GM rear cameras are normally powered while in reverse only). See page 6 or 7 for (up to) 2016 vehicles, and page 10 for 2017+ vehicles.

Service Rear Vaxim System RADIO

NAV-TV INTERFACING THE FUTURE

REGISTERED COMPANY ISO 9001 SGS

Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
