HDA601 - Hair Dryer BLAUPUNKT - Free user manual and instructions

Product Type	Hair Dryer
Brand	Blaupunkt
Model	HDA601
Power Consumption	2200 W
Power Supply	220-240 V ~ 50/60 Hz
Airflow Speeds	2 (Low, High)
Temperature Settings	3 (Cool, Low, High) plus Cool Shot button
Cool Shot Function	Yes, instant cool air
Included Accessories	Concentrator nozzle, Diffuser
Inlet Filter	Removable for easy cleaning
Cord Length	Approx. 1.8 m
Weight	Approx. 0.6 kg
Dimensions (approx)	25 x 8 x 8 cm
Material	Plastic
Color	Black and beige
Safety Features	Thermal cut-off protection, do not use near water
Certifications	CE, LVD, EMC
Application	Domestic use only
Maintenance	Clean inlet filter regularly; wipe housing with damp cloth
Control Type	Slide switches for power and temperature

Frequently Asked Questions - HDA601 BLAUPUNKT

How do I use the cool shot button?

Press the Cool Shot button (6) to release cool air instantly, regardless of the temperature setting. This helps set the hairstyle.

Can I use this hair dryer in the bathroom?

No, do not use the hair dryer near baths, showers, sinks, or swimming pools to avoid water contact. Use in a dry area only.

How do I clean the inlet filter?

Unplug the dryer. Gently turn the inlet filter according to the symbols and pull it out. Remove dust with a soft brush or cloth, then reattach.

What is the power of this hair dryer?

The Blaupunkt HDA601 has a power rating of 2200 W, suitable for fast drying.

Can I use a diffuser with this model?

Yes, a diffuser is included as an accessory. Attach it to the nozzle for gentle drying of curly or wavy hair.

How do I adjust the temperature and airflow?

Use the Power switch (4) to select airflow level (0, 1, 2) and the Temperature control (5) to choose heat level (0 cool, 1 low, 2 high).

Is the hair dryer safe for daily use?

Yes, when used according to the manual. Do not block airflow, keep away from water, and supervise children aged 8+.

What should I do if the hair dryer stops working?

Check if the power cord is plugged in and the switch is on. If still not working, contact professional service; do not repair yourself.

Can I wrap the cord around the dryer?

No, do not wrap the cord around the appliance, as it may damage the cord and create a hazard. Store loosely.

Is the hair dryer suitable for travel?

The dryer operates at 220-240V. For use in countries with different voltages, a voltage converter may be needed. Check local voltage.

USER MANUAL HDA601 BLAUPUNKT

Black and beige Blaupunkt hair dryer with no visible text or symbols on its body

Enjoy it.

Hair dryer Haartrockner Suszarka Fén Sušič Hajszárító Sušilec za lase Sušilo Σεσουάρ Cεωοαρ Uscător de păr Džiovintuvas Föön

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards. Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by

yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it. All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
  Warning! Do not use this equipment close to baths, showers, sinks, swimming pools and similar water sources.
• In order to provide additional protection, it is recommended to install residue current device (RCD) in the power circuit, with residual current rating no more than 30 mA. Contact professional electrician in this matter.
• Do not immerse the unit in water and do not allow device to get wet. In case of falling down into water unplug immediately. Do not put hands into water if device is plugged in. Before next use, the appliance should be checked by qualified electrician.
• Do not touch the appliance with wet hands.
• Do not wrap the cord around the appliance.
• Do not direct hot air toward the eyes or other sensitive areas.
• Regularly remove dirt from the inlet filter.
• Do not place or insert any metal objects into the exhaust grille or the inlet filter.
• Do not block the airflow by covering the inlet filter or blower grille.

Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL DATA

Power: 2200W

Power supply: 220-240V\~50/60Hz

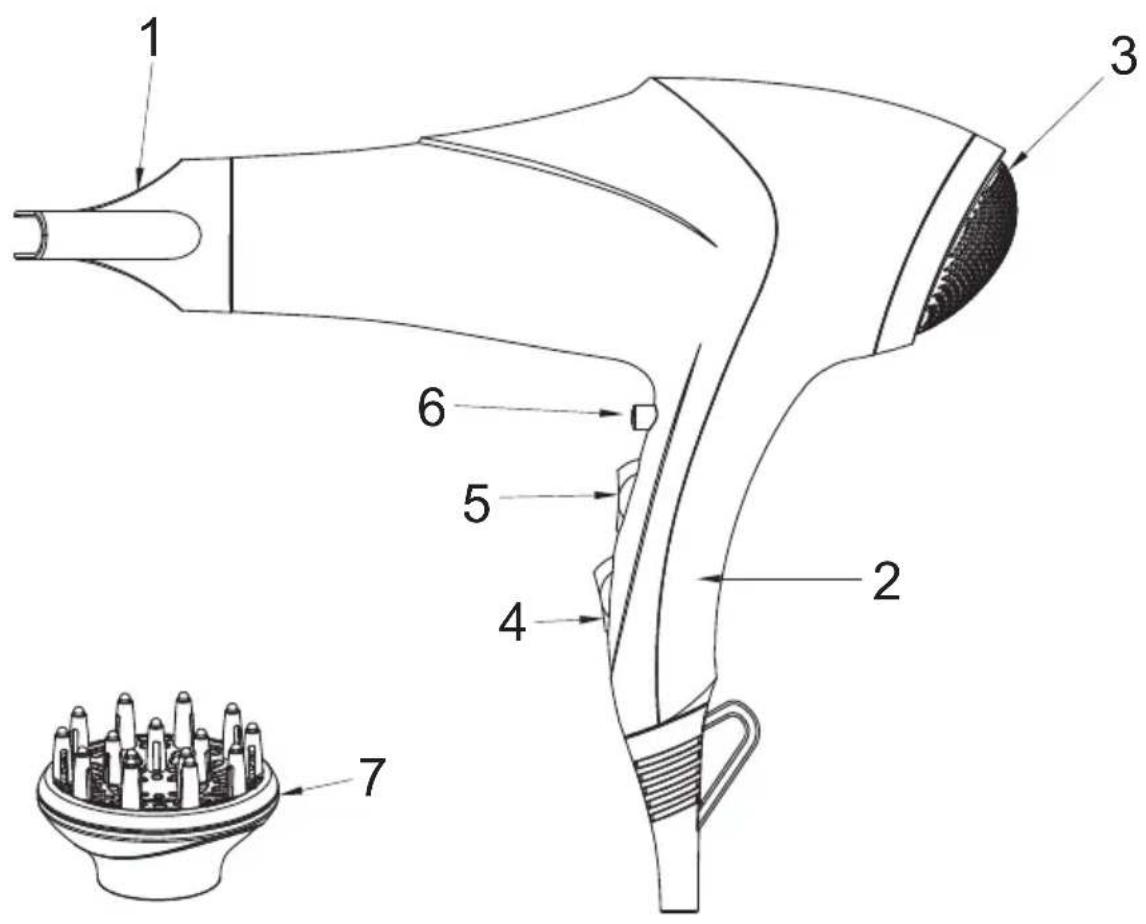

1. Concentrator nozzle
2. Handle
3. Inlet filter

4. Power switch

5. Temperature control

6. Cool shot button
7. Diffuser

OPERATION

Connect the power cord to the the power supply.

Set the desired blowing level using the switch (4)

0 - Off

1 - Lower airflow level

2 - Higher airflow level

Set the desired blowing temperature using the temperature control (5)

0 - Cool shot

1 - Lower temperature

2 - Higher temperature

NOTE: If the cool shot button (6) is turned on, the cool shot mode is active regardless of the temperature set with the temperature control (5)

After the completion of drying hair, disconnect the device from the power by removing the plug from the socket.

CLEANING AND MAINTENANCE

Before cleaning, make sure that the dryer has been disconnected from the power supply.

The hair dryer housing may be wiped with a slightly damp cloth, then it should be immediately wiped dry. Do not allow water to enter into the hair dryer.

It is recommended that dirt be removed from the inlet filter regularly as it can restrict the airflow.

You can remove the inlet filter by gently turning it according to the symbols printed on the hair dryer housing and pulling it out.

WICHTIGE INFORMATIONEN

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
