USER MANUAL TGM-50RS Turbo air

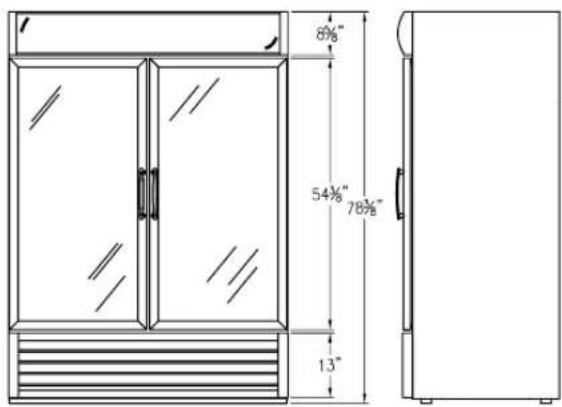

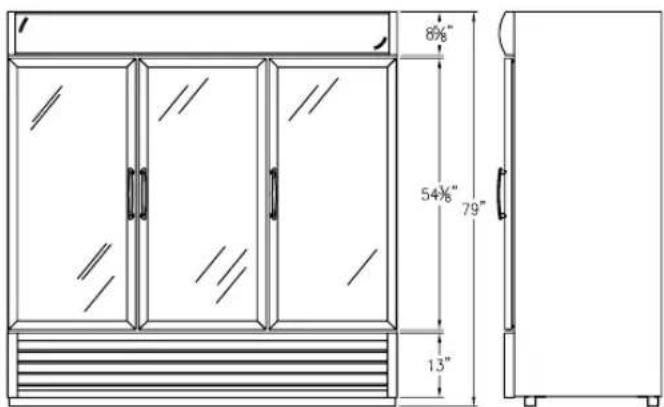

55% 29% 31%

TGM-72RS

78" 29½" 32"

8% 54% 78% 13°

8% 54% 79" 13"

HOW TO INSTALL

■ In good ventilation.

- Place the refrigerator in well ventilated area for better cooling.

Cartoon illustration of a smiling refrigerator with a fist and a thumbs-up gesture, next to an empty window (no text or symbols)

■ Place the refrigerator on hard and level floor.

- Unlevel floor may cause the refrigerator to make noise.

Cartoon illustration of a hand reaching toward a door with a smiling face (no text or symbols)

■ Put away heat source from the refrigerator.

• High ambient temperature will make cooling efficiency lower.

Cartoon illustration of a refrigerator with steam rising from the window, showing hands stopping and reacting to a wall-mounted screen (no text or symbols)

■ Install the refrigerator indoor do not get unit wet.

• This unit is designed for indoor usage only.

Cartoon illustration of a distressed refrigerator with steam rising (no text or symbols)

■ Avoid places that are exposed to smoke.

• The discoloring can occur to the refrigerator.

Cartoon illustration of a distressed refrigerator with a hand reaching toward the door (no text or symbols)

■ Place the refrigerator in an area with low moisture.

- Splashing water or a high moisture area may cause short circuit and make rusting easier.

Cartoon illustration of a distressed refrigerator with steam rising from the window, next to a bowl and a bucket (no text or symbols)

■ Ambient temperature should be below 85°F. Warmer temperature will cause problems with cooling efficiency.

Install at the degree of 41~95jF

■ Set the front of the refrigerator a little bit higher than back-side by using adjustable feet to drain the water away with easily.

Set the front side higher than back side.

■ Adjust the temperature in the refrigerator.

• Controller is attached to the right to the upper.
• Set the temperature control at normal position.

COOL OFF NORMAL COLD COLDEST

TGM-50RS

NORMAL COLD COOL OFF COLDEST TG

TGM-72RS

CLEANING

Caution

• Unplug the power cord before cleaning.
• Clean the refrigerator periodically.
• Do not use the abrasive cleaners, solvents or polishing agents on plastic parts. These cleansers may cause cracking or discoloring.

Illustration of a woman washing clothes near a showerhouse with a hand pulling it (no text or symbols)

■ Cleaning the interior and exterior

• Wash it with warm and soapy water and rinse, and dry it.
• Wash the shelf with water.
• Dewdrops in rainy-season, wipe it with a dry cloth.

Illustration of a woman washing clothes inside a washing machine with a smiling face, no text or symbols present

■ Check points after cleaning

• Check again the refrigerator for safety.
• Do not plug the power cord with wet hands.
• Check the noise or overheating.

Illustration of a woman talking on a phone while holding a ringing phone, with a steam rising from above (no text or symbols)

■ Compressor

• Condenser should be cleaned every 3 months or as needed, unit will not cool properly if dirty.
• Especially, be sure to clean the condenser before reoperating, after a long period of non-operation.

Illustration of a woman cleaning a kitchen appliance with a smiley face (no text or symbols)

CAUTION

■ Ventilation

- Place the refrigerator under proper ventilation - Keep the cabinet 4" from rear wall.

Cartoon illustration of a smiling refrigerator with two hands and musical notes, next to an open door (no text or symbols)

■ Warning

• It is the responsibility of the purchaser in case of followings.
• Compressor under low voltage
• Compressor more than 7 feet from plug-in connection.
• Compressor under unstable voltage
  • Compressor not under 115V/60Hz

■ Start-up

• Plug the power cord into the wall outlet.
• The outlet should be only for the refrigerator.
• The temperature controller should be on normal position.
• If disconnected, shut down, wait 5 minutes before re-starting it.

Pure mechanical diagram showing a clamp or bracket with a black X mark, no text or symbols present

■ Temperature control

• To keep the temperature down : Turn the dial CW.
• To keep the temperature up : Turn the dial CCW.

BEFORE REQUESTING SERVICE

SYMPTOMS CAUSES SOLUTIONS
When product freezes.	·Because of the differences between ambient temperature and a quantity of food stored, when the temp. dial is on the cold position.	·Turn the temp. dial to the cool position.
	·Food would freeze in ambient temperature of below 41°F and the temp. dial on the cold position.	·Turn the temp. dial to the cool position.
When the refrigerator does not refrigerate at all.	·When there is a power connection or failure problem.	·Check the power cord and plug it.
When the refrigerator does not refrigerate well.	·When the refrigerator is in sunlight or near a heating device.·When the refrigerator contains hot food or too much food.·When the refrigerator door is opened too frequently or left open long.·When the temp. dial is not on the correct position.·When the condenser is dirty.	·Check the installation place.·Check the condition of stored food.·Check the position of the temp. control dial.·Clean with brush or vacuum.
When there is a severe noise.	·When the installation floor is weak or the adjustable feet is set incorrectly.·When the back-side of the refrigerator is close to the wall.·When the tray is not on the correct position.	·Check the installation and insert the tray correctly.
When there are dewdrops on the refrigerator exterior.	·High-moisture air can produce dewdrops during the rainy season.	·Wipe with a dry cloth.
When there are dewdrops in the refrigerator interior.	·When the refrigerator door is opened too frequently or left open long.·When damp food is stored.	·Keep the door closed to remove dewdrops.
When the door does not close tightly.	·When the door has a slant.·When the place is not level.	·Regulate adjustable feet.·Install on level floor.

The following points are not malfunctions:

• Water-flowing sound can be heard when the compressor stops.

This is a sound of REFRIGERANT flowing.

REFRIGERATOR MANUFACTURER Turbo air MANUFACTURING COMPANY

ONE YEAR WARRANTY

Turbo air warrants to the original purchaser of every new Turbo air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of one(1) year from the date of original installation or 15 months after shipment date from Turbo air, whichever occurs first.

Any parts covered by this warranty that are examined and determined by Turbo air to have been defective within one (1) year of original installation or fifteen (15) months after shipment date from manufacturer, whichever occurs first, shall be repaired or replaced as stated below. Turbo air shall be deemed to have fully complied with its obligation under the foregoing warranties by electing either one of the following procedures, at the sole discretion of Turbo air.

1. Furnishing a replacement part, freight collect, in even exchange for the returned part, freight collect.
2. Receiving the defective part, freight collect; repairing it; and returning it, freight collect.

ADDITIONAL FOUR YEAR COMPRESSOR WARRANTY

In addition to the (1) one year warranty stated above, Turbo air warrants its hermetically and semi-hermetically sealed compressor to be free from defects in both material and workmanship under normal use and service for a period of four (4) additional years from the date of original installation but not to exceed five (5) years and three (3) months after shipment from manufacturer.

Compressors determined by Turbo air have been defective within this extended time period will, at Turbo air's option, be either repaired or replaced with a compressor or compressor parts of similar design and capacity.

The for (4) year extended compressor warranty applies only to hermetically and semi-hermetically sealed parts of the compressor and does not apply to any other parts or components, including, but not limited to, cabinet, paint finish, temperature control, refrigerant, metering device, driers, motor starting equipment, fan assembly any other electrical component, etcetera.

134A COMPRESSOR WARRANTY

The four year compressor warranty detailed above will be voided if the following procedure is not carefully adhered to:

1. This system contains R134A refrigerant and polyol ester lubricant. The Polyol ester lubricant has rapid moisture absorbing qualities. If long exposure to the ambient conditions occur, the lubricant must be removed and replaced with new. Listed below are the approved lubricants for the Tecumseh compressors.

1 ICI-Emkarate RL 184
2 Emery-2927-A
3 Mobile Artic 22A

Failure to comply with recommended lubricant specification will void the compressor warranty.

1. Dryer replacement is very important and must be changed when a system is opened for servicing. dryer must be used with XH-9 desiccant.
2. Micron level vacuums must be achieved to insure low moisture levels in the system. 500 microns or lower must obtained.

Turbo air's sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than expressly covered by this warranty.

1. WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original purchaser/user to whom delivered. ANY SUCH ASSIGNMENT OR TRANSFER SHALL VOID THE WARRANTIES HEREIN MADE AND SHALL VOID ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
2. NO CONSEQUENTIAL DAMAGES. TURBO AIR IS NOT RESPONSIBLE FOR ECONOMIC LOSS; PROFIT LOSS OR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOSSES OR DAMAGES ARISING FROM FOOD OR PRODUCT SPOILAGE CLAIMS WHETHER OR NOT ON ACCOUNT OF REFRIGERATION FAILURE.
3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. TURBO AIR is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or an Act of God.
4. NO IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THERE ARE NO OTHER WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, EXCEPT THE ONE(1) YEAR WARRANTY AND THE ADDITIONAL FOUR (4) YEAR COMPRESSOR WARRANTY AS DESCRIBED ABOVE. THESE WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, INCLUDING IMPLIED WARRANTY AND MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF.
5. TRANSPORTATION COSTS. Turbo Air will accept parts covered under this warranty freight collect, provided that shipment has received prior approval. Turbo Air is not responsible for any other transportation costs, but will ship freight collect parts either repaired or replaced under these warranties.
6. WARRANTY CLAIMS. All claims should include: model number of the cooler, the serial number of the cabinet, proof of purchase, date of installation, and all pertinent information supporting the existence of the alleged defect. Any action or breach of these warranty provisions must be commenced within one (1) year after that cause of action has accrued.

REFRIGERATOR MANUFACTURER

lurbo air

1250 Victoria street

Carson, CA 90746

U.S.A. & Canada Toll Free 1-800-627-0032

For Service 1-800-381-7770

TEL: [phone]

FAX: [phone]

www.turboairinc.com
