USER MANUAL AS-4124GO-NART Supermicro

FAN 1 FAN 2 FAN 3 FAN 4

USER'S MANUAL

Revision 1.0b

The information in this User's Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A or Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in industrial environment for Class A device or in residential environment for Class B device. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate".

WARNING: This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0b

Release Date: June 18, 2021

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2021 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

Preface

About this Manual

This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the A+ Server AS-4124GO-NART/AS-4124GO-NART+. Installation and maintenance should be performed by experienced technicians only.

Please refer to the server specifications page on our website for updates on supported memory, processors and operating systems (http://www.supermicro.com).

Notes

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/
- Product drivers and utilities: https://www.supermicro.com/wdl
- Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm

If you have any questions, please contact our support team at:

[e-mail]

This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

Secure Data Deletion

A secure data deletion tool designed to fully erase all data from storage devices can be found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/Lot9_Secure_Data_Deletion_Utility/

Warnings

Special attention should be given to the following symbols used in this manual.

Warning! Indicates important information given to prevent equipment/property damage or personal injury.

Warning! Indicates high voltage may be encountered when performing a procedure.

Contents

Chapter 1 Introduction

1.1 Overview....8
1.2 Unpacking the System 8
1.3 System Features 9
1.4 Server Chassis Features....10

Control Panel 10

Front Features....11

Rear Features....12

1.5 System Architecture ....13

Block Diagrams....13

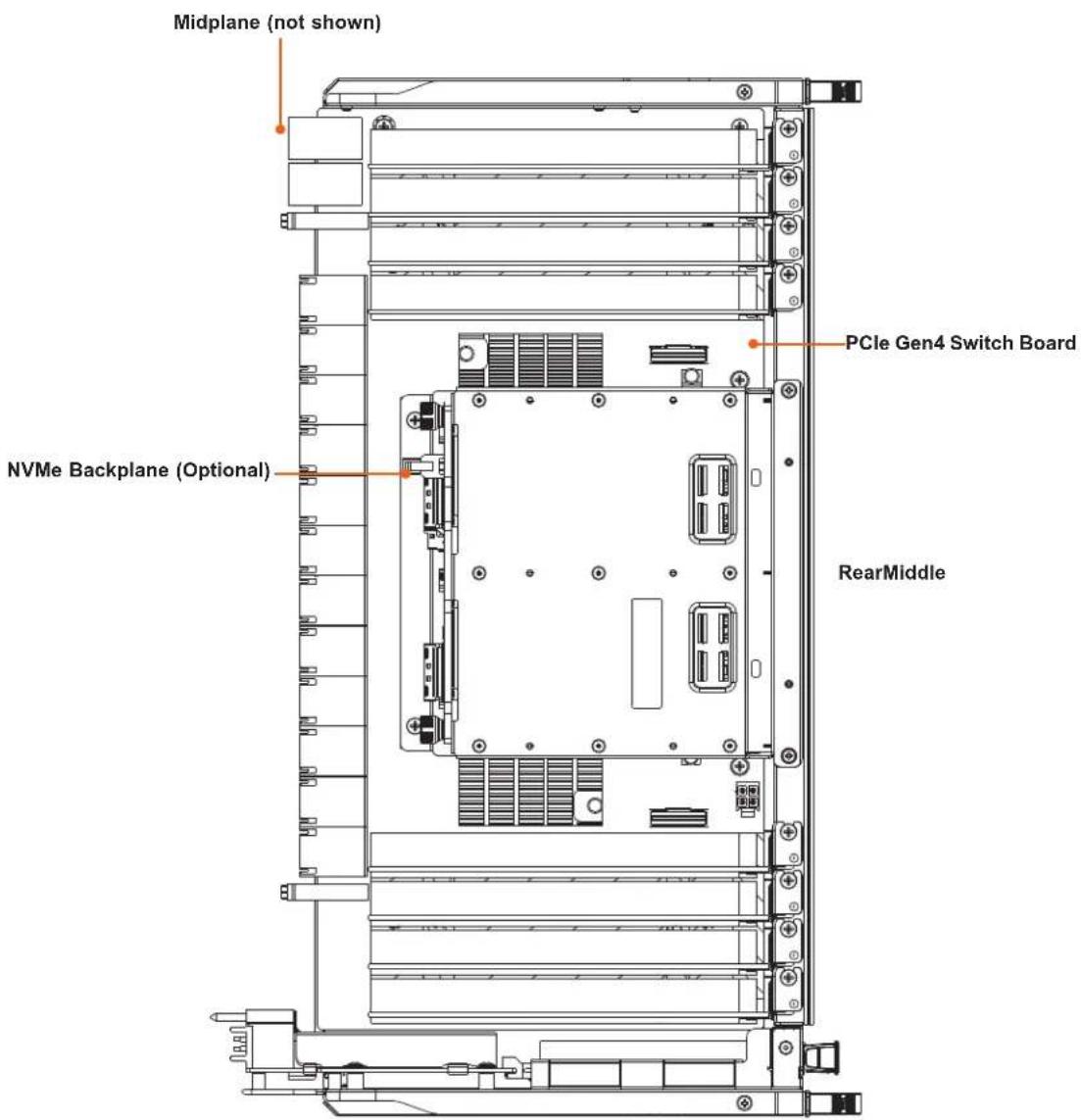

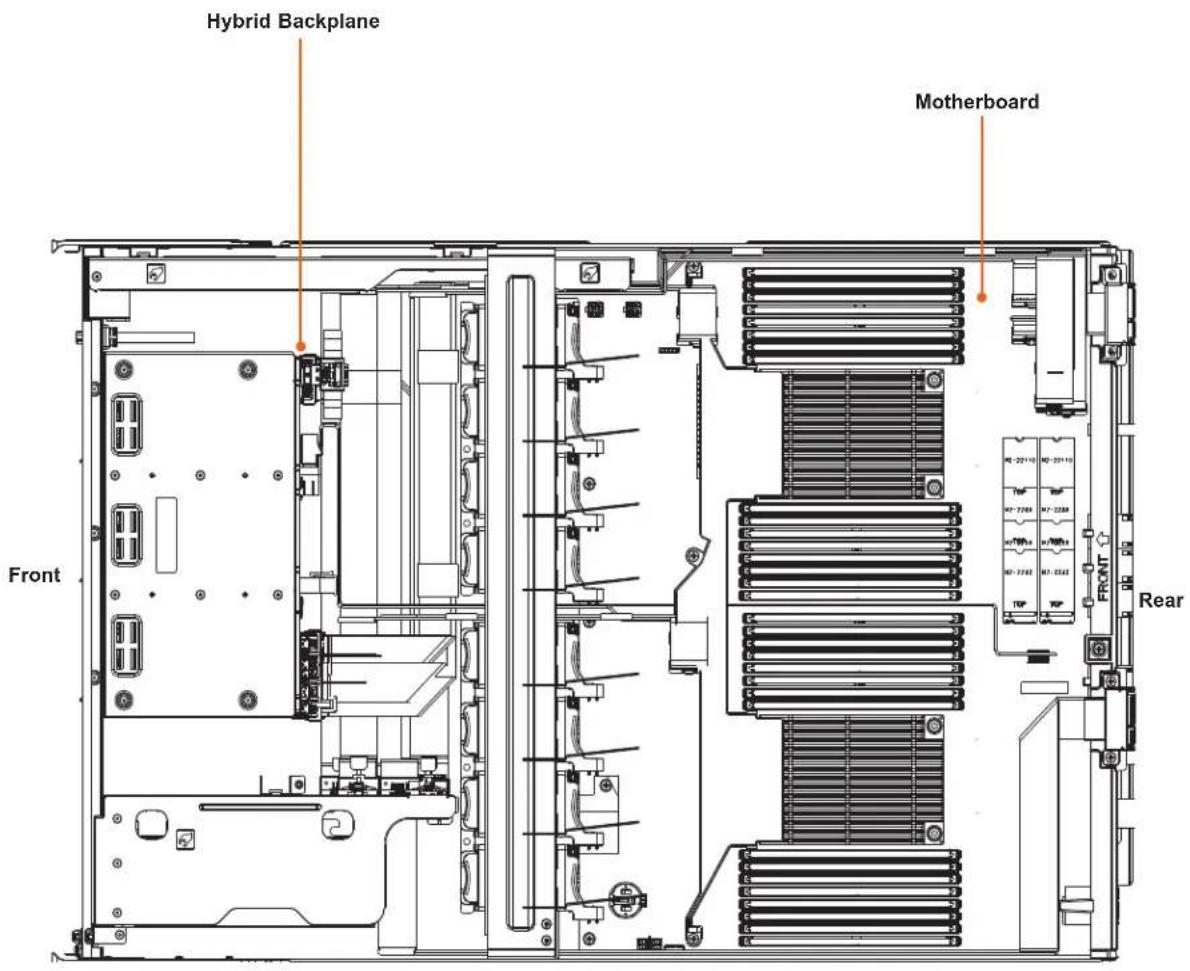

Board Locations....15

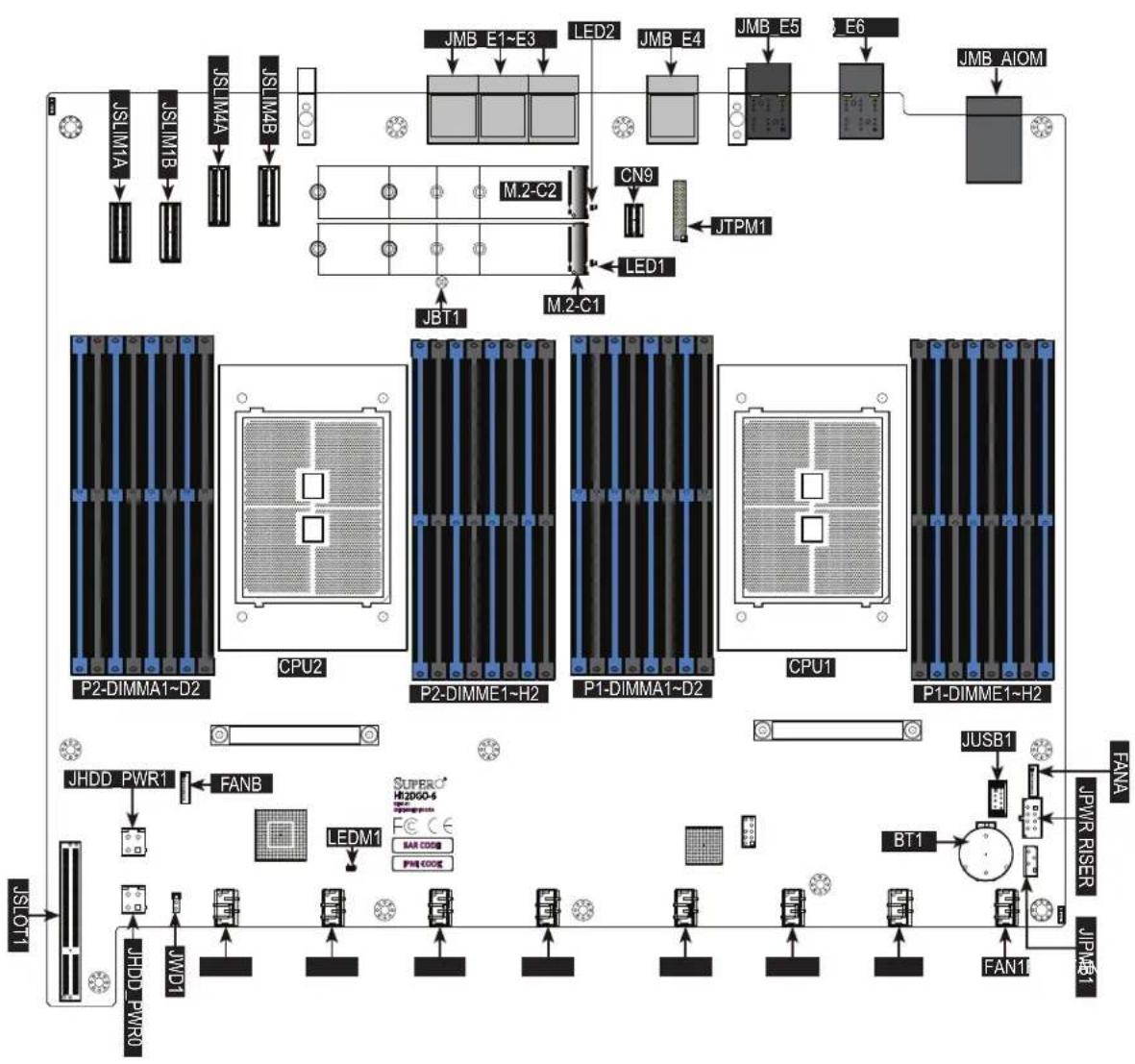

1.6 Motherboard Layout....18
Quick Reference Table....19
1.7 Where to Get Replacement Components....20
1.8 Returning Merchandise for Service....20

Chapter 2 Server Installation

2.1 Overview....21
2.2 Preparing for Setup....21

Choosing a Setup Location....21
Rack Precautions....21
Server Precautions....22
Rack Mounting Considerations....22

Ambient Operating Temperature....22
Airflow 22
Mechanical Loading....23
Circuit Overloading....23
Reliable Ground....23

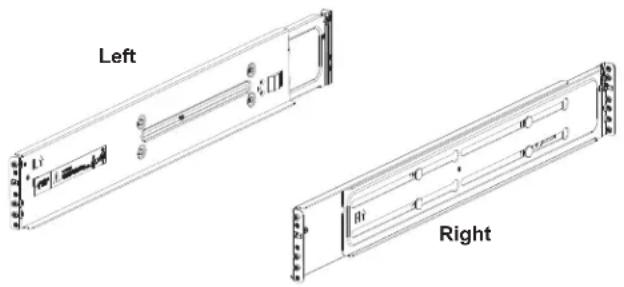

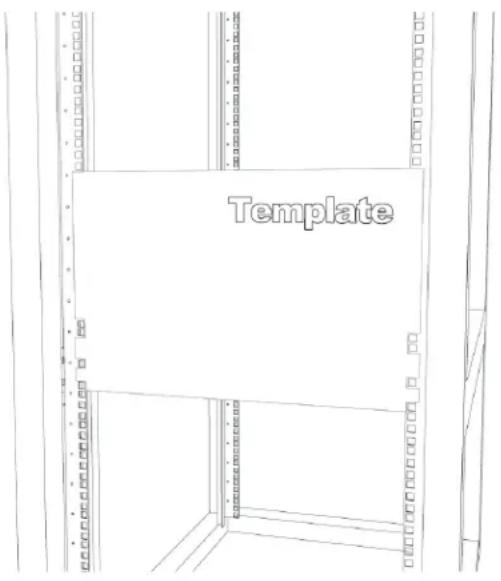

2.3 Installing the Rails....24
2.4 Installing the Server ....26

Chapter 3 Maintenance and Component Installation

3.1 Removing Power ....27
3.2 Accessing the System....28
3.3 Motherboard Components....31

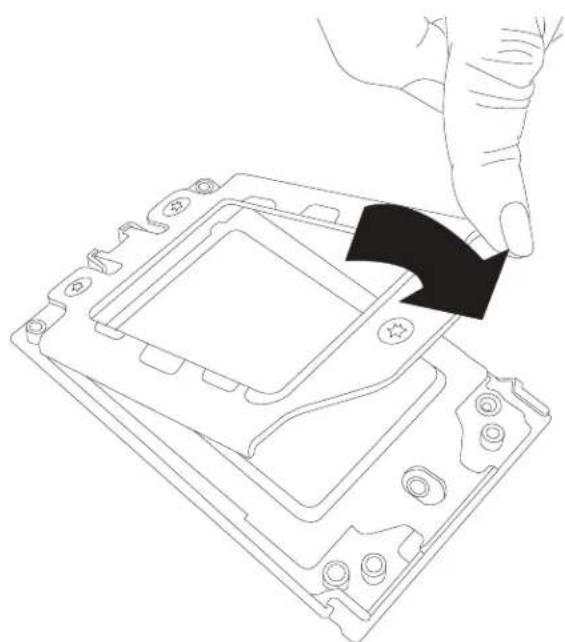

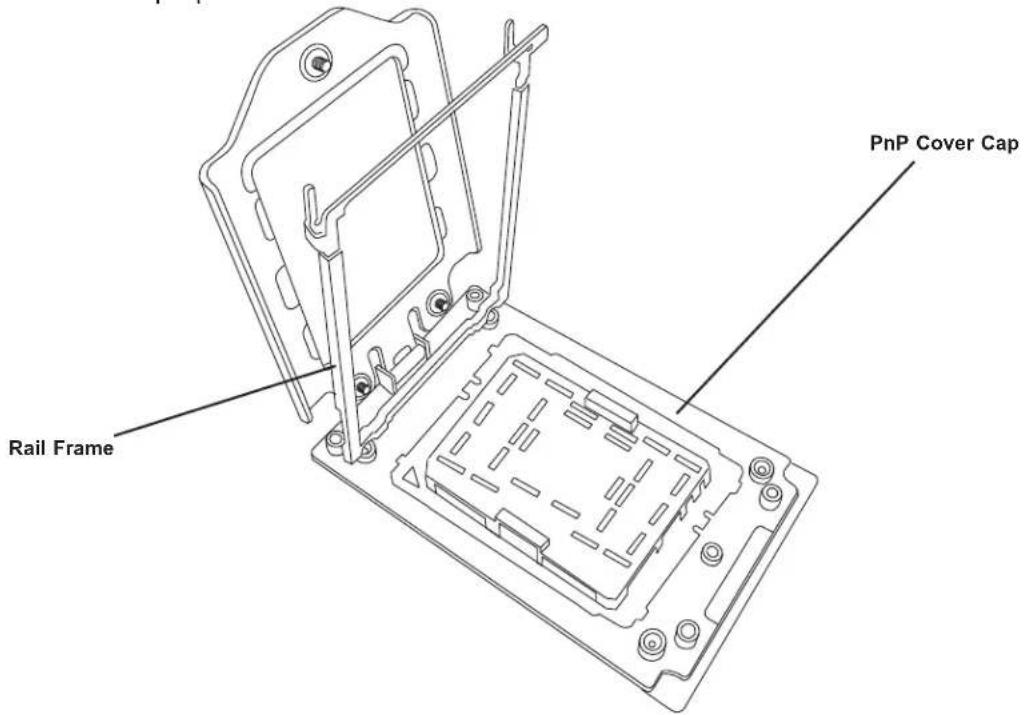

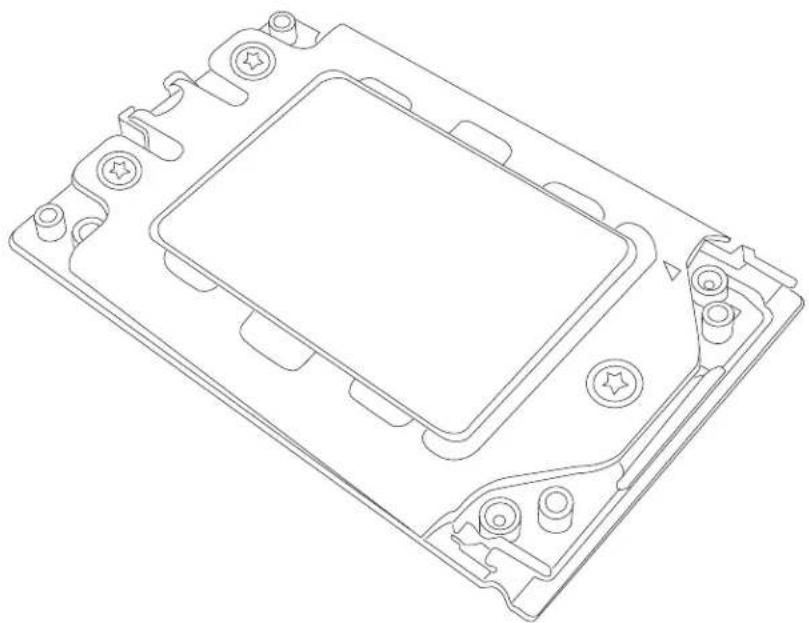

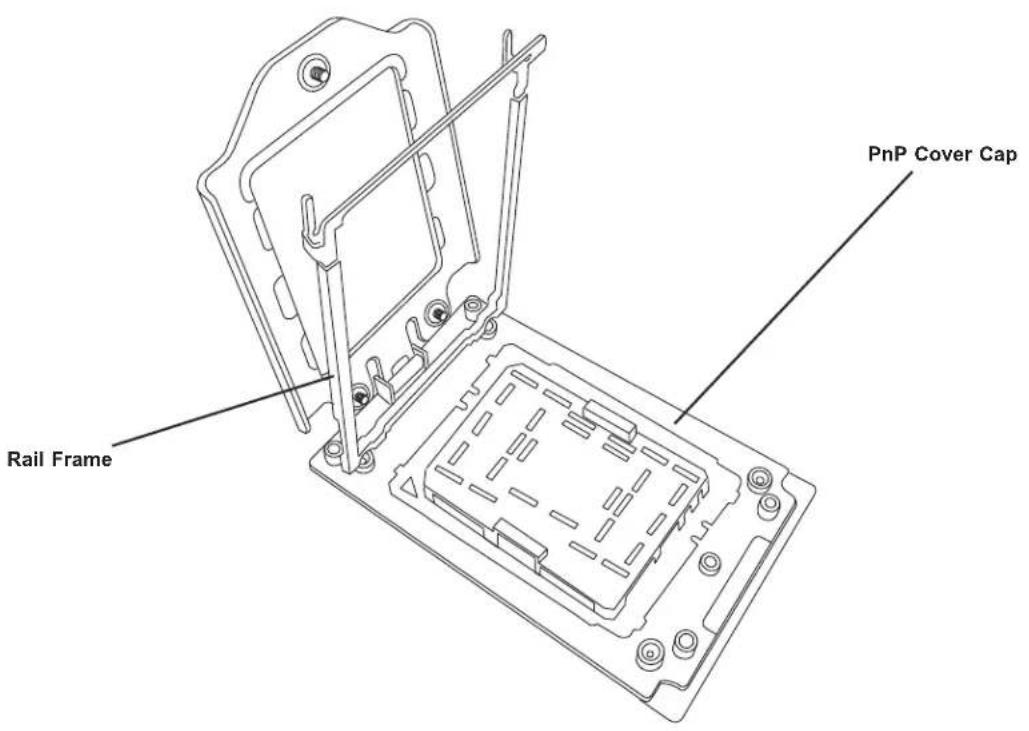

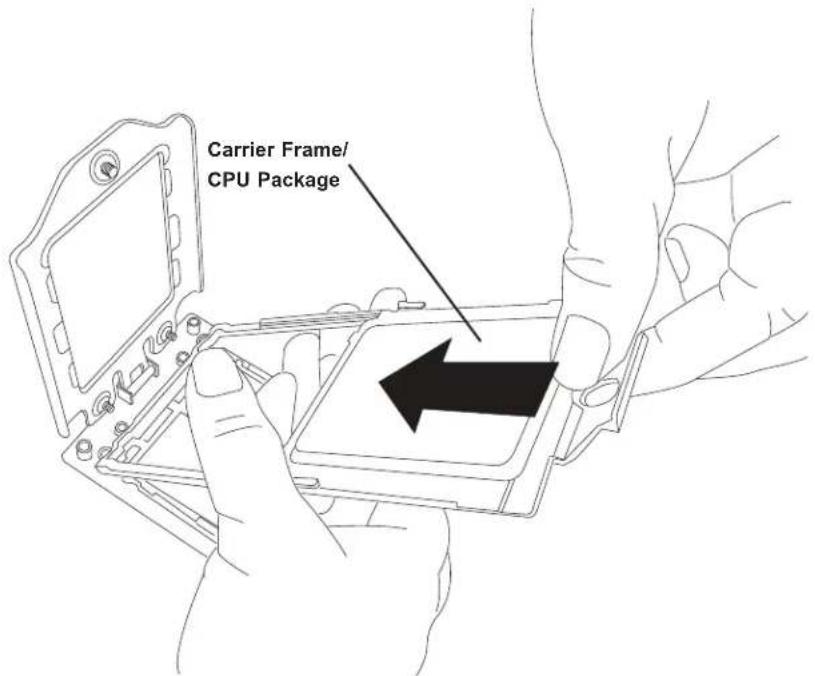

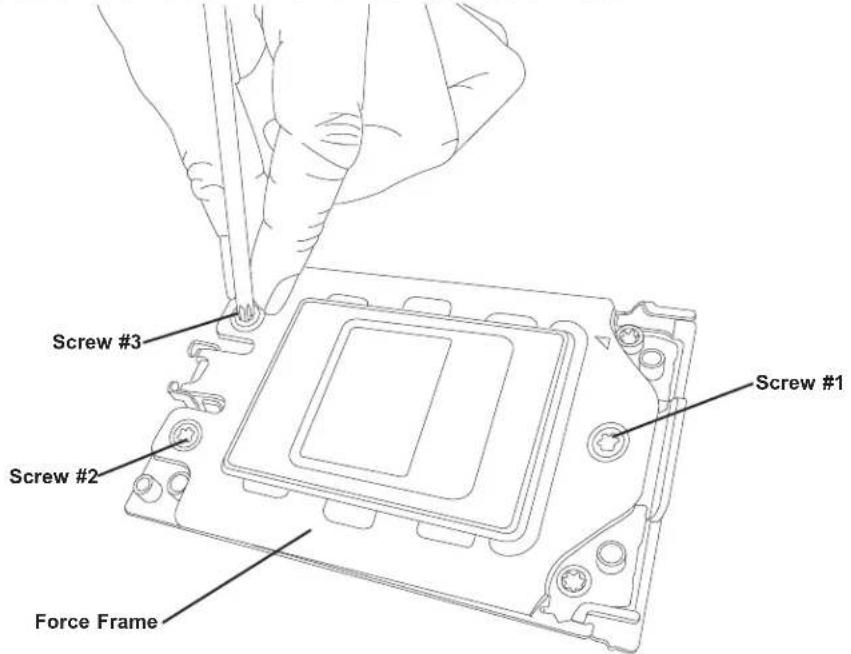

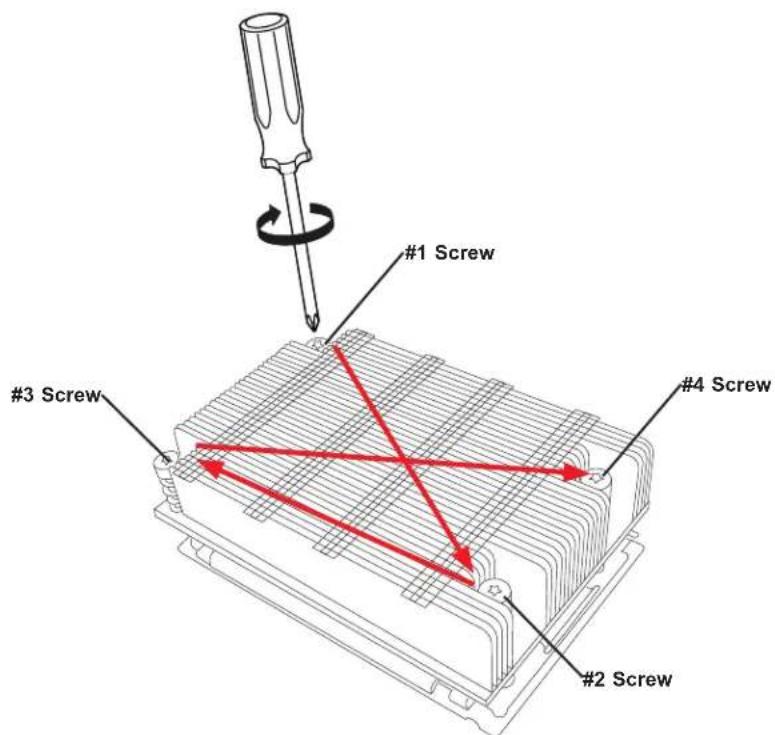

Processor and Heatsink Installation....31

Refer to the Supermicro website for updates on CPU support. 31

Memory Installation....39

Memory Support....39

DIMM Module Population Sequence 40

DIMM Installation 41

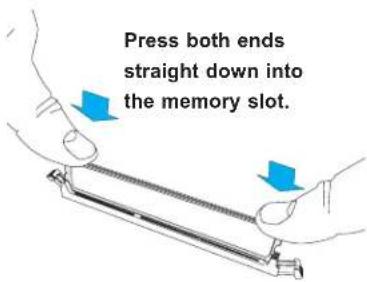

DIMM Removal 41

Motherboard Battery 42

3.4 Chassis Components 43

GPU Tray 43

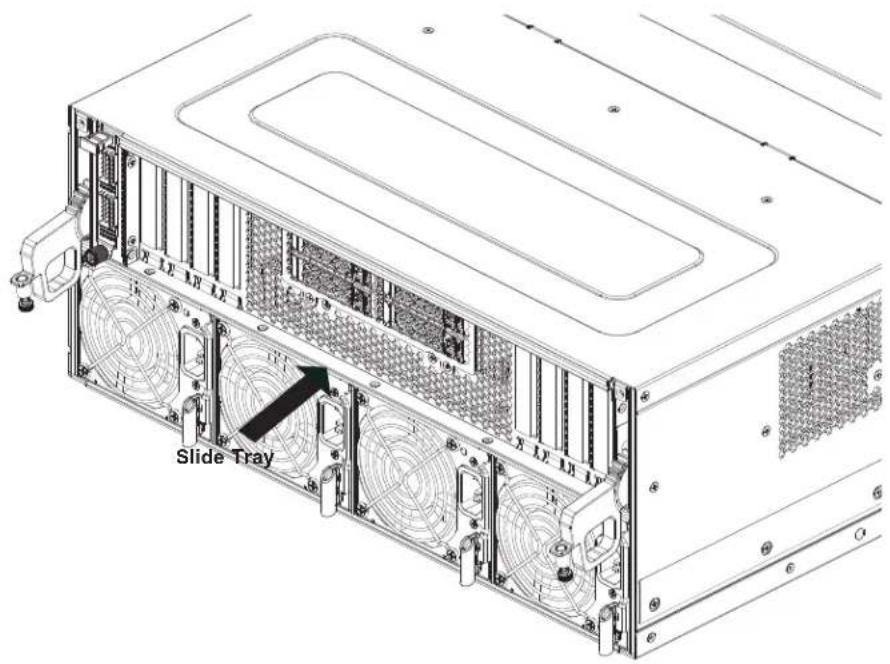

Switch Tray....44

Storage Drives 45

Drive Carrier Indicators 45

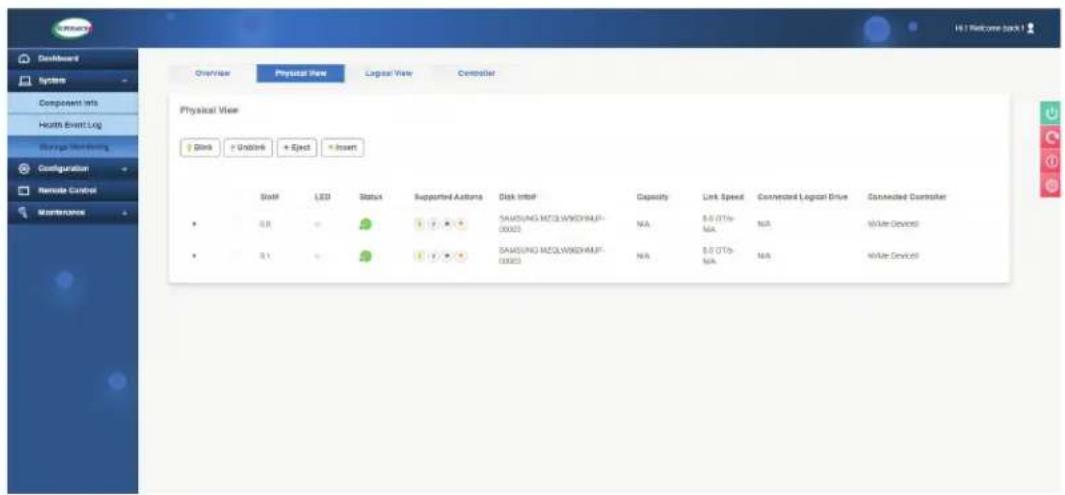

Removing/Installing Drives 46

Hot-Swap for NVMe Drives....49

Checking the Temperature of an NVMe Drive 50

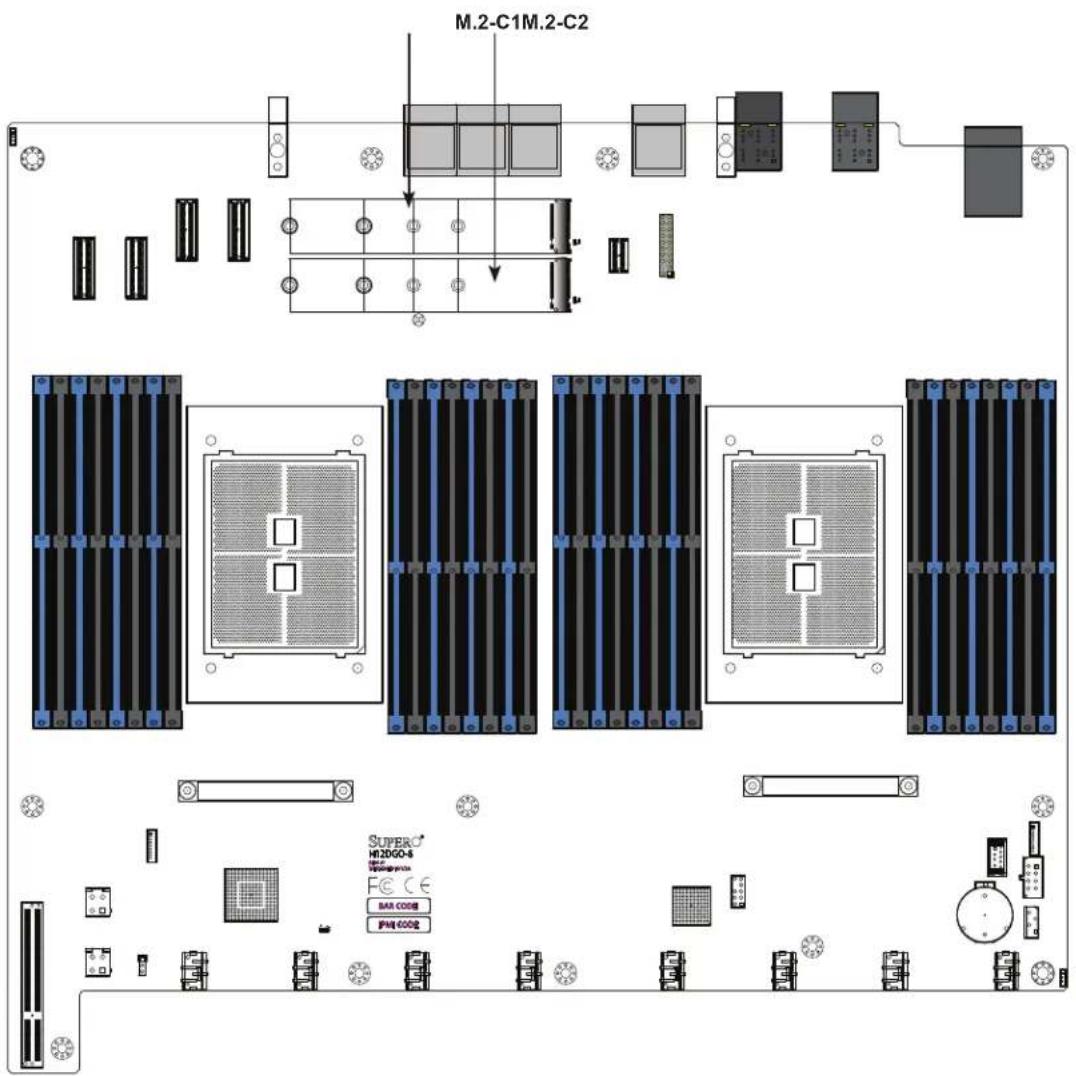

Installing an M.2 Solid State Drive....51

Replacing GPUs....53

Installing Expansion Cards....55

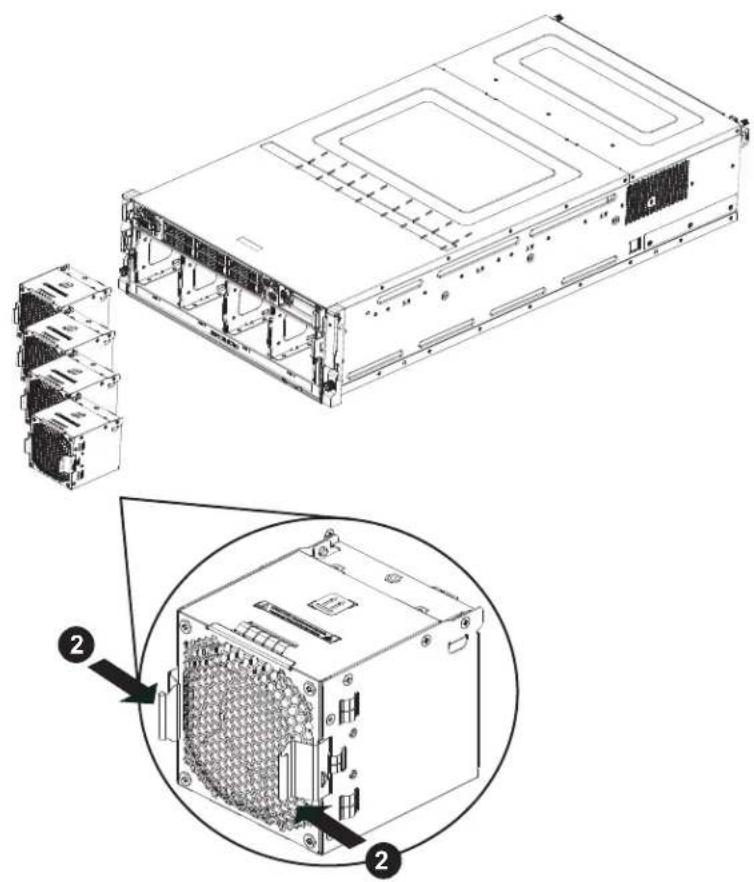

System Fans ....57

Overheating ....58

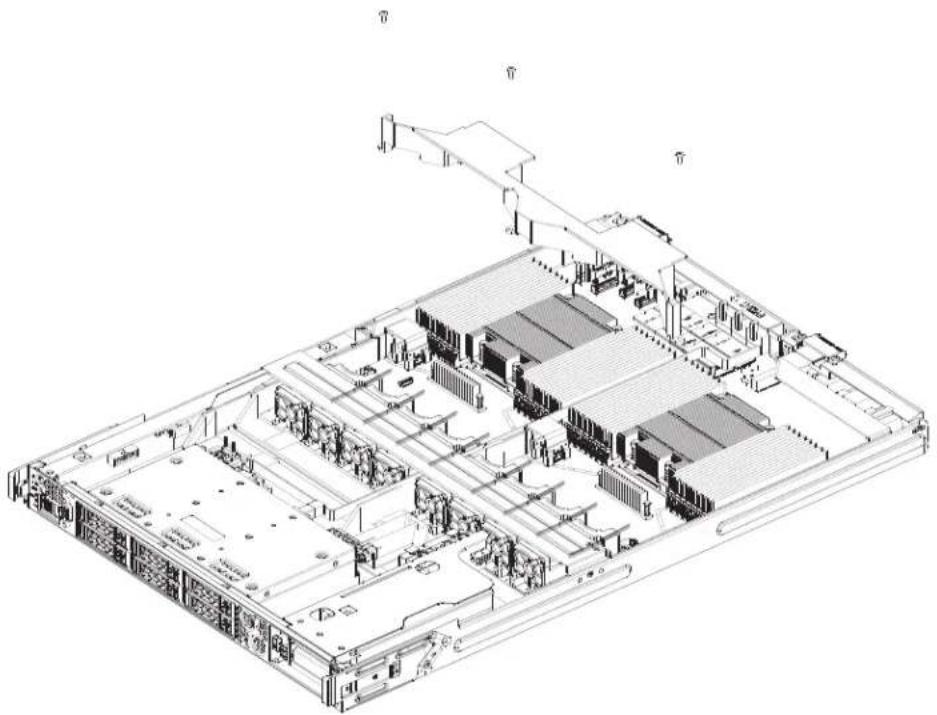

Air Shroud 60

Power Supply 61

Chapter 4 Motherboard Connections

4.1 Headers and Connectors ....62

4.3 Jumpers....64

4.4 LED Indicators....66

Chapter 5 Software

5.1 OS Installation....67

Installing the Windows OS for a RAID System ....67

Installing Windows to a Non-RAID System ....67

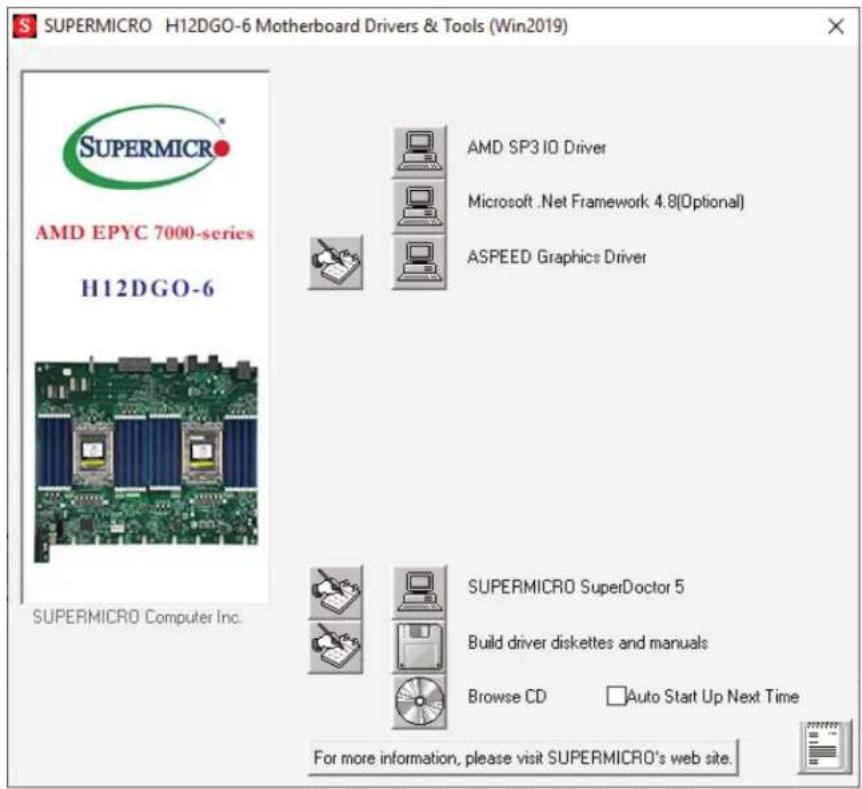

5.2 Driver Installation....68

5.3 SuperDoctor ^® 5....69

5.4 IPMI 70

BMC ADMIN User Password ....70

Chapter 6 UEFI BIOS

6.1 Introduction....71
Starting the Setup Utility 71
6.2 Main Setup....72

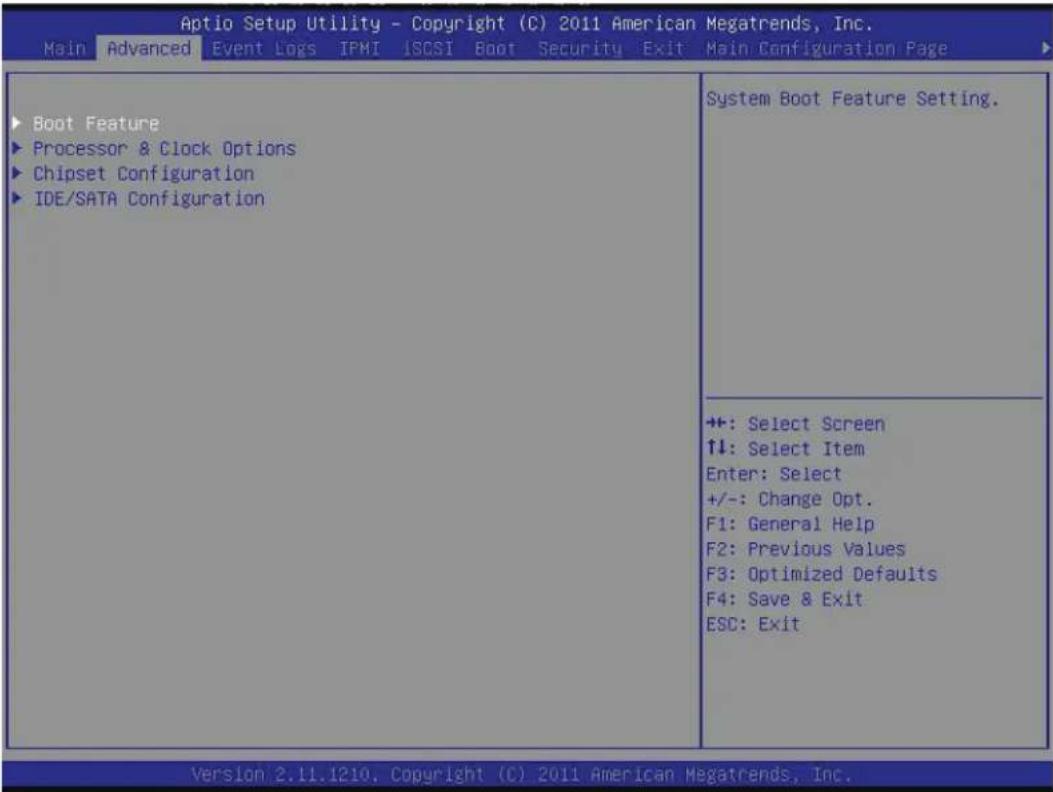

6.3 Advanced....74
6.4 IPMI 96

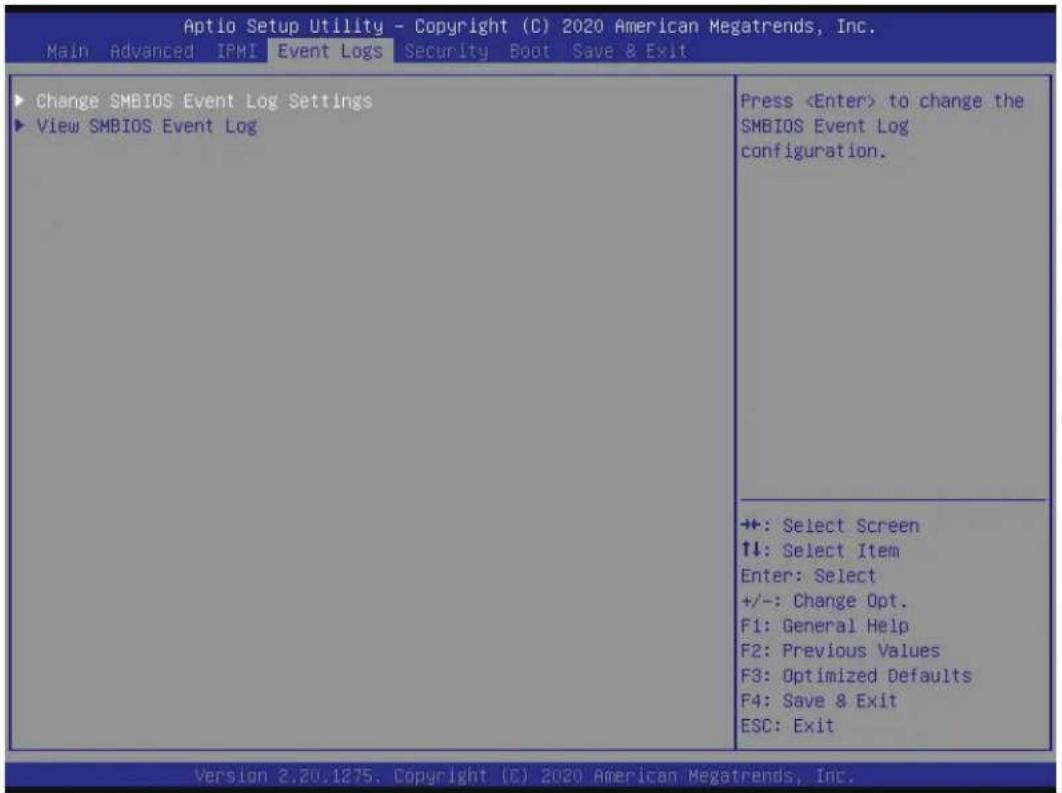

6.5 Event Logs 98

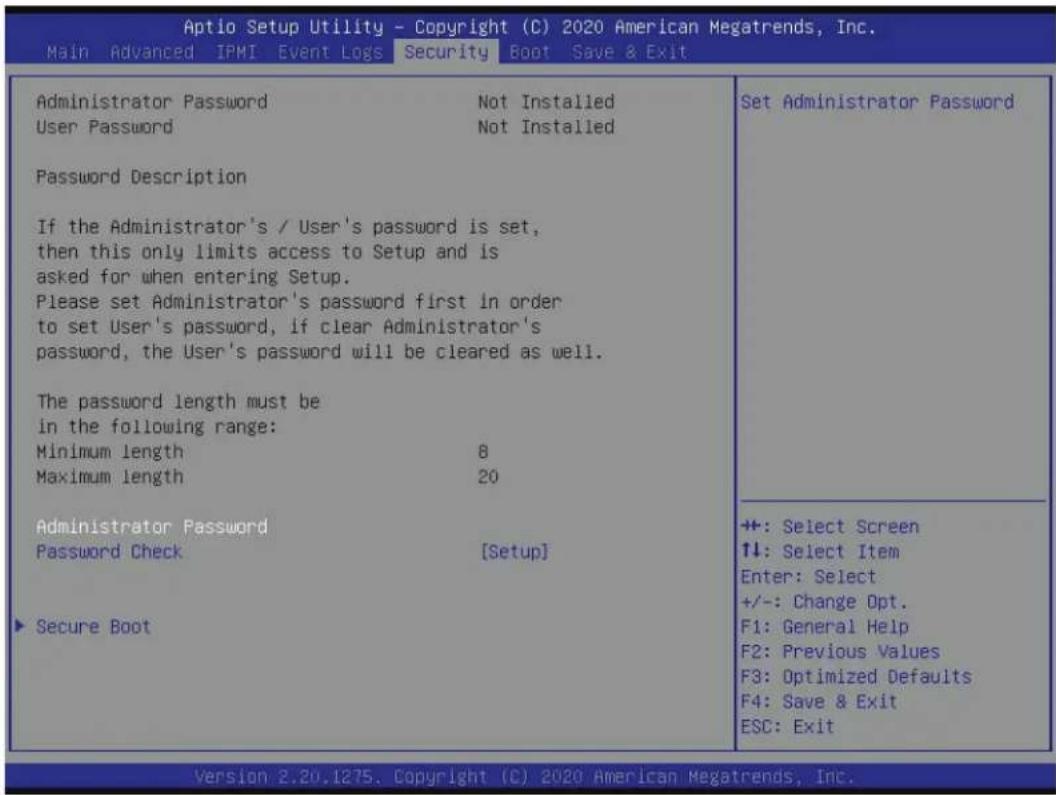

6.6 Security Settings ....100
6.7 Boot Settings....104
6.8 Save & Exit....106

Appendix A Standardized Warning Statements for AC Systems Appendix B System Specifications

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.supermicro.com.tw

Chapter 1

Introduction

1.1 Overview

This chapter provides a brief outline of the functions and features of the A+ Server AS -4124GO-NART/AS -4124GO-NART+. In addition to the H12DGO-6 motherboard and CSE-438G chassis, parts included with the system are listed below.

Main Parts List
Description Part Number Quantity
Nvidia A100 HGX-2 40G/80G 8-GPU Baseboard	GPU-NVTHGX-A100-SXM4-8 or GPU-NVTHGX-A100-SXM4-88	1
GPU Midplane BPN-GPU-438G 1
SAS3/SATA3/NVMe4 Backplane BPN-NVME4-F418-B6S6 1
Fan Board AOM-438G-FAN-P 1
AIOM Adapter AOM-438G-AIOM-P 1
GPU Riser Card AOM-DGO-IO-P 1
Switch Board AOM-SXM4-IO-P 1
CPU Riser Card	RSC-G-66G4	1
Four Hot-swappable Heavy-duty Fans	FAN-0196L4-1	4
2200W Platinum Level or 3000W Titanium Level (96%+) Redundant Power Supply Modules	PWS-2K21G-2R or PWS-3K02G-2R	4
Rackmount Rails	MCP-290-00057-0N 1 set

Note: The following safety models associated with the AS-4124GO-NART/AS-4124GO-NART+ have been certified as compliant with CSA or UL models: 438G-Q22H12, 438G-Q30H12 and 438G-GPU.

1.2 Unpacking the System

Inspect the box in which the server was shipped and note if it was damaged in any way. If any equipment appears damaged, file a damage claim with the carrier who delivered it. Refer to Section 1.8 for Returned Merchandise Authorization (RMA) instructions.

Decide on a suitable location for the rack unit that will hold the server. It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated. It will also require a grounded AC power outlet nearby. Be sure to read the precautions and considerations noted in Appendix A.

1.3 System Features

The following table provides you with an overview of the main features of the A+ Server AS -4124GO-NART/AS -4124GO-NART+.

System Features

Motherboard

H12DGO-6

Chassis

CSE-438G

CPU

Dual AMD EPYC 7002/7003 processor in SP3 sockets(Note: AMD EPYC 7003 series processor support requires BIOS version 2.0 or newer.)

Management Chipset

ASPEED A2600 BMC/IPMI management controller with enhanced security

Memory

Up to 8TB 3DS ECC DDR4-3200 SDRAM memory in 32 slots

Storage Drives

Six hot-swap front NVMe drives (four SATA/NVMe drives, two NVMe only drives)Optional four rear NVMe drives (Note: See Chapter 3 page 48 for recommendations)Two onboard NVMe M.2

Expansion Slots

Eight PCIe 4.0 x16 slots on the switch trayOne PCIe 4.0 x16 LP and one PCIe 4.0 x8 LP on the motherboard tray

Power

AS -4124GO-NART: four 2200W 80Plus Platinum modules with PMBus with Smart Power throttlingAS -4124GO-NART+: four 3000W 80Plus Platinum modules with PMBus with Smart Power throttling

Cooling

GPU node: four system cooling fansCPU node: eight 80-mm, counter-rotating PWM fans; one air shroud, two CPU heatsinks, eight GPU heatsinks

Input/Output

One VGATwo USBOne dedicated IPMI LAN

Security

One TPM 2.0 header

Form Factor

4U rackmount; (WxHxD) 17.6 x 6.9 x 35.4 in. (446 x 174 x 900 mm)

1.4 Server Chassis Features

Control Panel

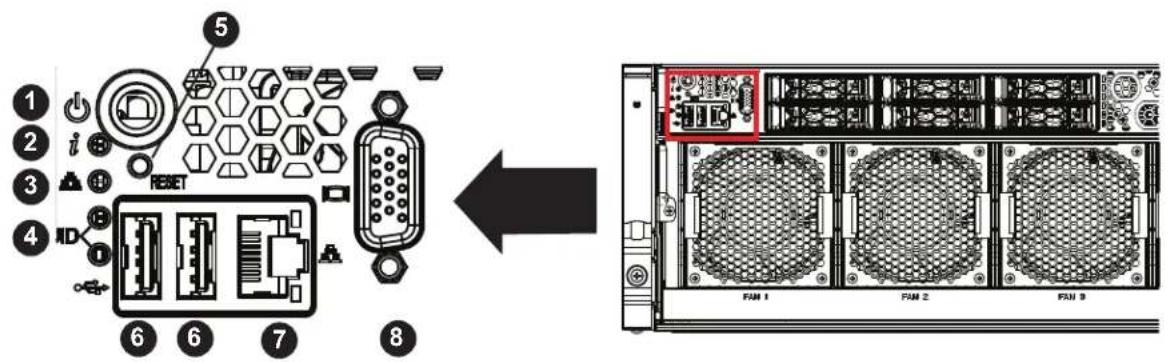

The control panel includes three buttons and three indicator LEDs. Next to the buttons and LEDs are I/O ports including two USB ports, one dedicated IPMI LAN port, and a VGA port.

Diagram showing device rear panel layout and internal circuit board with labeled components

Figure 1-1. Control Panel

Control Panel Features
Item Feature Description
1 Power button		The main power switch applies or removes primary power from the power supply to the node but maintains standby power.
2 Information	LED Alerts operator to several states, as noted in the table below.
3 NIC LED Indicates network activity on the LAN when flashing.
4 UID button/LED		The unit identification (UID) button turns on or off the blue light function of the Information LED and a blue LED on the rear of the chassis. These are used to locate the server in large racks and server banks.
5 Reset Button		Press the button with an object (such as a paper clip) to reset the system.
6 USB USB 3.0 ports
7 LAN Port Dedicated IPMI LAN port
8 VGA VGA port

Information LED
Status Description
Continuously on and red An overheat condition has occurred. (This may be caused by cable congestion.)
Blinking red (1Hz) Fan failure, check for an inoperative fan.
Blinking red (0.25Hz) Power failure, check for a non-operational power supply.
Solid blue	Local UID has been activated. Use this function to locate the server in a rack mount environment.
Blinking blue Remote UID	is on. Use this function to identify the server from a remote location.

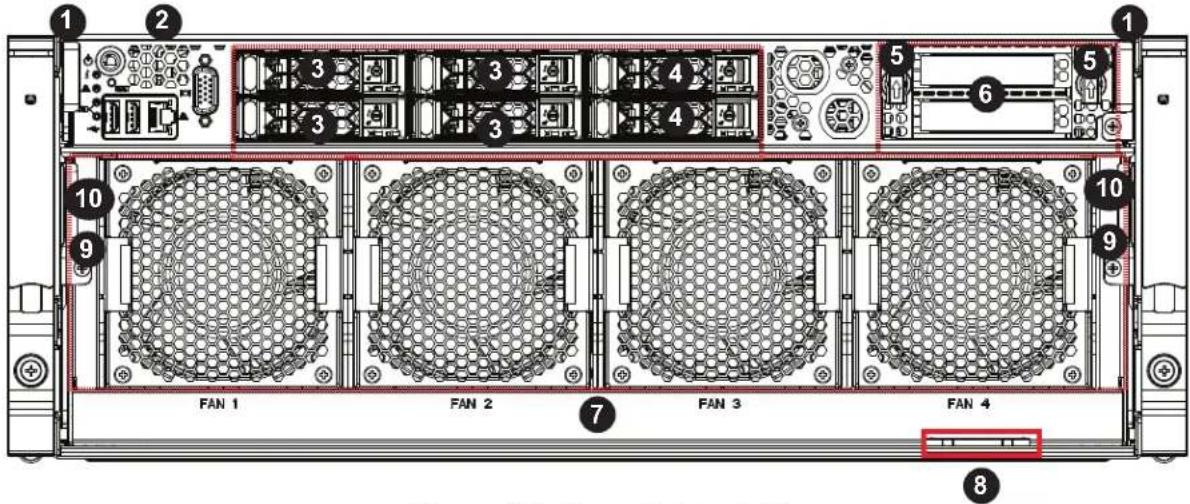

Front Features

In addition to the control panel, the chassis front offers access to the NVMe U.2 drives, riser slots, fans, a pull-out service tag, and handles to remove the CPU and GPU tray.

1 2 3 4 5 6 7 8 9 10 FAN 1 FAN 2 FAN 3 FAN 4

Figure 1-2. Chassis Front View

Front System Features
Item Feature Description
1	CPU Tray Release Handle Handles to support CPU tray removal
2	Control Panel Described in previous section
3	Hybrid NVMe Drives Four hot-swappable SAS3/SATA3/NVMe4 drives
4	NVMe Only Drives Two hot-swappable NVMe U.2 drives
5	Riser Release Handle Handles to support riser bracket removal
6	Riser Slot Slots to house riser card's external connectors
7	GPU Node Fans Front grille with hot-swappable GPU heavy-duty fans
8	Service Tag Pull-out service tag with BMC password label
9	GPU Tray Release Screw Screws to secure the GPU tray
10	GPU Tray Release Handle Handles to support GPU tray removal

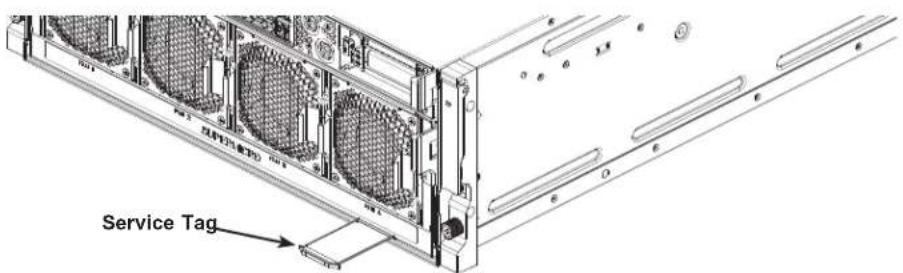

Service Tag

Figure 1-3. Service Tag Location

Rear Features

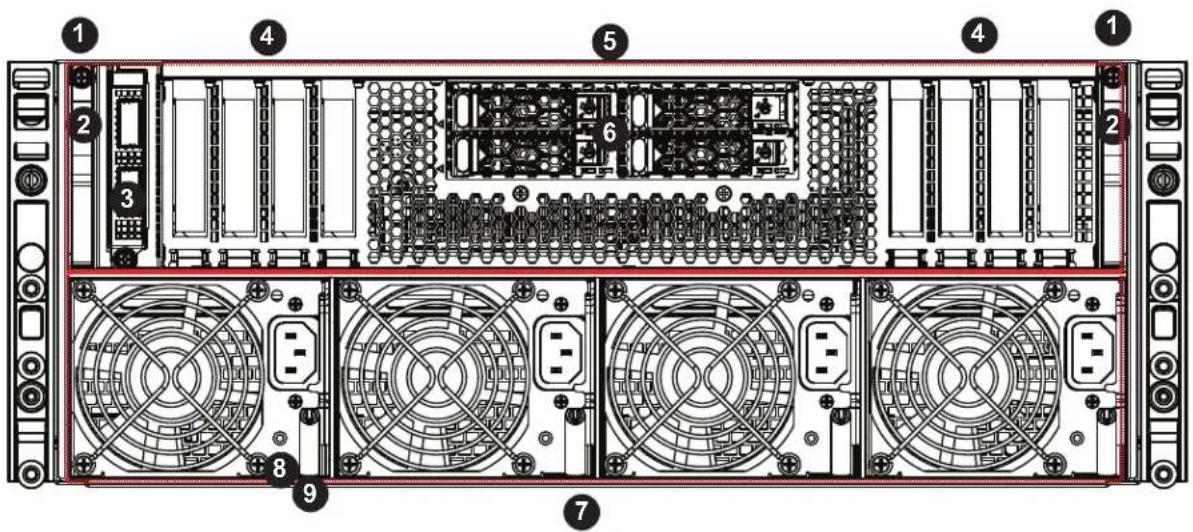

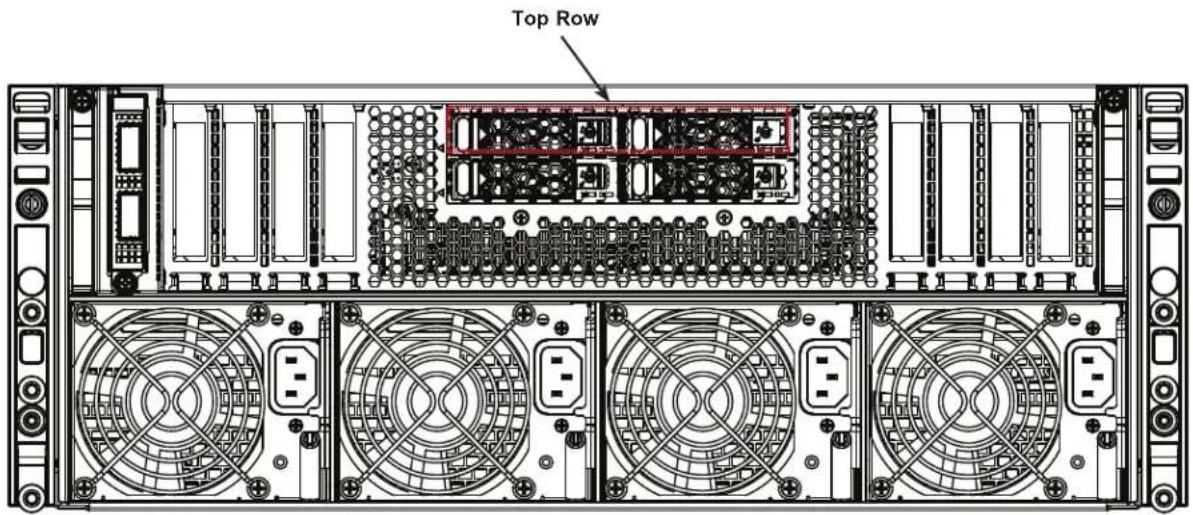

The illustration below shows the features included on the rear of the chassis.

Technical diagram of a server rack with numbered components and fan layout

Figure 1-4. Chassis Rear View

Rear System Features
Item	Feature Description
1	Switch Tray Release Screw Screws securing the switch tray.
2	Switch Tray Release Handle Handles to support switch tray removal.
3	AIOM Slot Slot for AIOM
4	Expansion Slots Eight expansion slots.
5	Switch Tray Contains switch board.
6	NVMe U.2 Drives Optional four hot-swappable NVMe U.2 drives
7	Power Supply Modules	Four 2200W Platinum Level or 3000W Titanium Level (96%+) redundant power supply modules.
8	PSU LED Indicator Power supply	LED. Amber indicates off and green indicates on.
9	PSU Release Handle Power supply	handle to unlock and remove power supply.

1.5 System Architecture

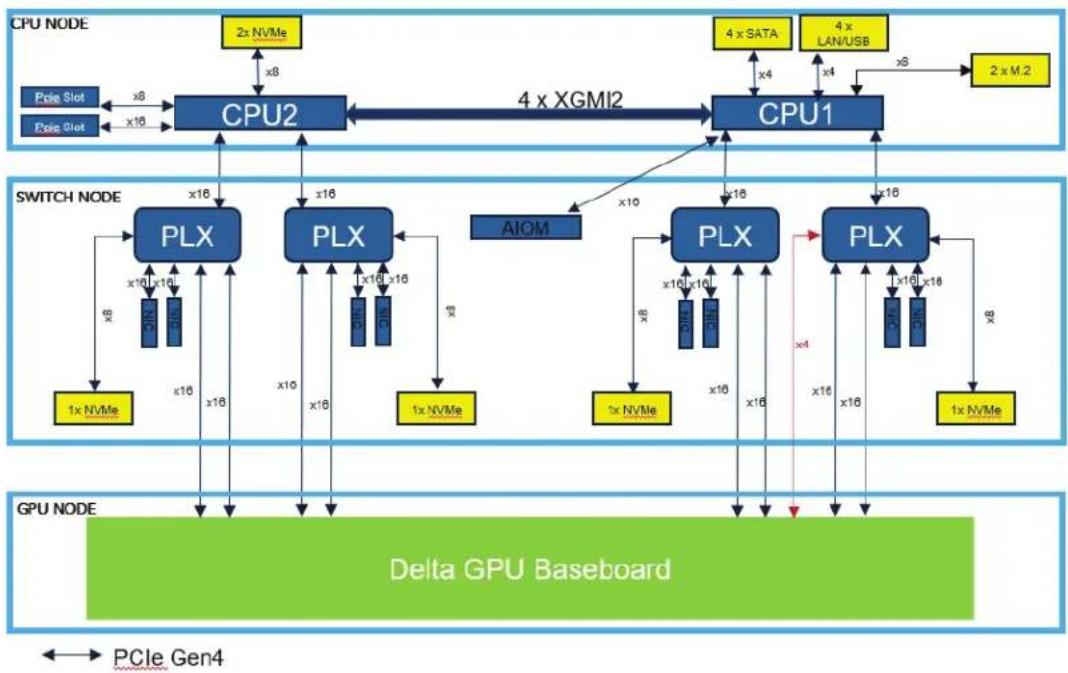

Block Diagrams

H12 System Block Diagram
Figure 1-5. System Block Diagram
        ATOM["/OCF3.0 Adaptor"]

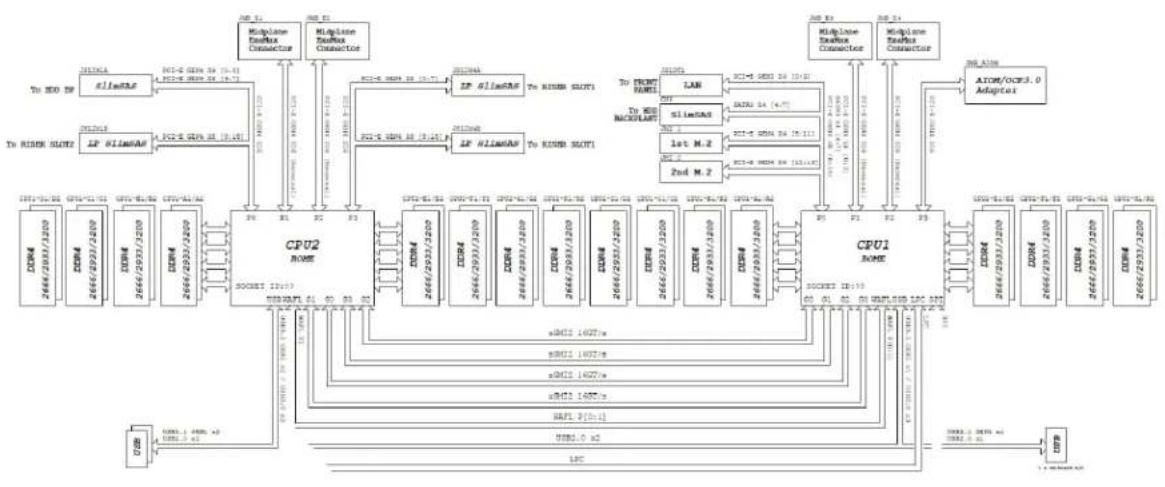

Figure 1-6. Motherboard Block Diagram

Board Locations

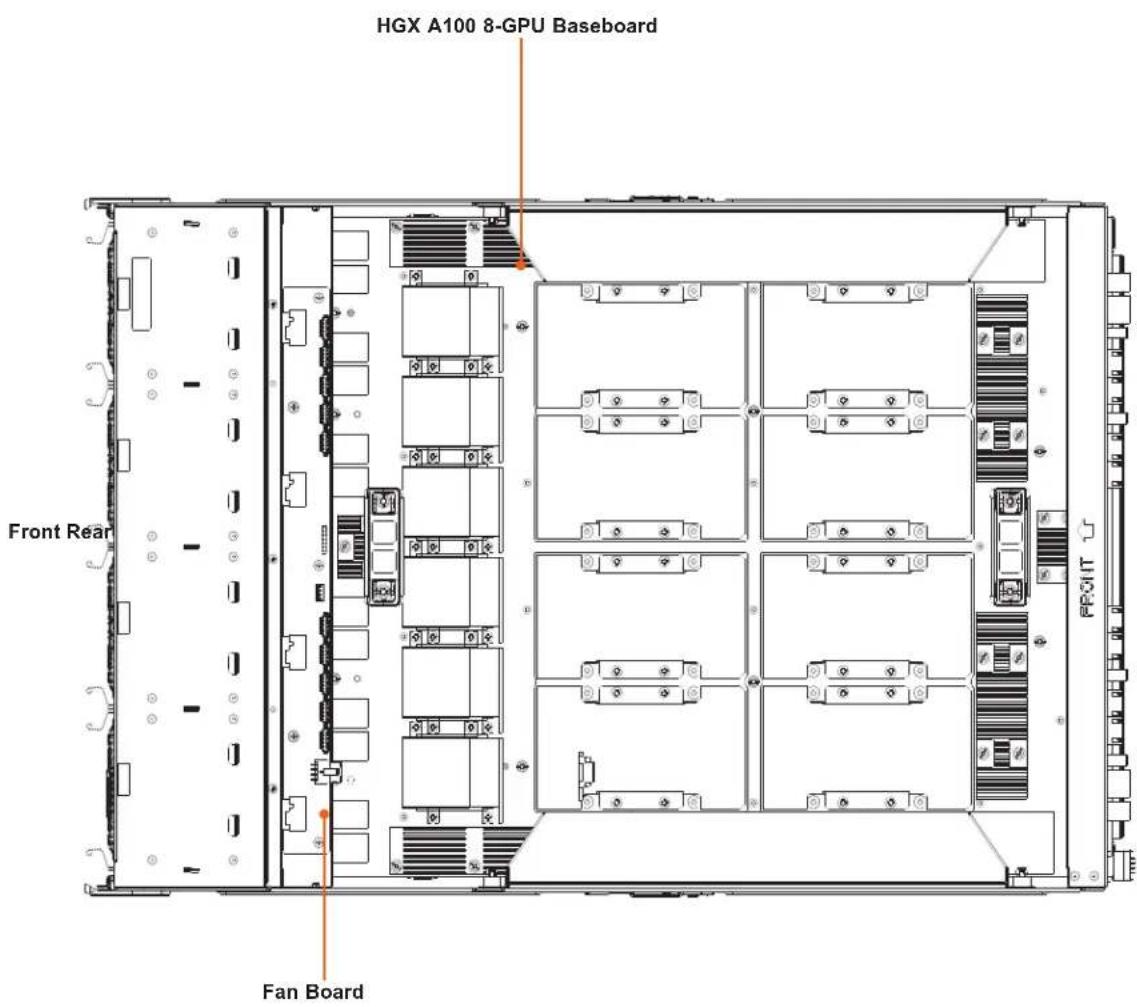

HGX A100 8-GPU Baseboard Front Rear Fan Board

Figure 1-7. GPU Node Board Locations

Hybrid Backplane Motherboard Front Rear

Figure 1-8. CPU Node Board Locations

Midplane (not shown) PCIe Gen4 Switch Board NVMe Backplane (Optional) RearMiddle

Figure 1-9. Switch Node Board Location

1.6 Motherboard Layout

Below is a layout of the H12DGO-6 with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4.
    subgraph_Memory_Units["CPU"]
        P2-DIMMA1-D2["P2-DIMMA1~D2"]
        CPU2["P2-DIMME1-H2"]
        P1-DIMMA1-D2["P1-DIMMA1~D2"]
        CPU1["P1-DIMME1-H2"]
    end

    subgraph_Memory_D_Bahrain["Memory D Bahrain"]
        JSLIM1A["JSLIM1A"]
        JSLIM1B["JSLIM1B"]
        JSLIM4A["JSLIM4A"]
        JSLIM4B["JSLIM4B"]
        JSLIM4B --> JSLIM4B
        JSLIM4B --> JSLIM4B
    end

    subgraph Digital_Circuit
        M2-C2["M.2-C2"]
        CN9["CN9"]
        LED1["LED1"]
        M2-C1["M.2-C1"]
        JBT1["JBT1"]
    end

    subgraph Control_Circuit
        JUSB1["JUSB1"]
        BT1["BT1"]
    end

    subgraph External_Circuit
        JPM1["JPM1"]
        FAN1["FAN1"]
    end

    M2-C2 --> JMB_E3["JMB_E3"]
    M2-C2 --> JMB_E4["JMB_E4"]
    M2-C2 --> JMB_E5["JMB_E5"]
    M2-C2 --> E6["E6"]
    M2-C2 --> JPM1
    M2-C2 --> JPM1
    M2-C2 --> JPM1
    M2-C2 --> JPM1
    M2-C2 --> JPM1
    M2-C2 --> JPM1
    M2-C2 --> JPM1
    M2-C2 --> JPM1
    M2-C2 --> JPM1
    M2-C2 --> JPM1
    M2-C2 --> JPM1

    subgraph Control_Switch
        CPU_PWR1["JHDD PWR1"]
        CPU_PWR0["JHDD PWR0"]
        CPU_PWR1 --> FANB["FANB"]
        CPU_PWR0 --> LEDM1["LEDM1"]
        CPU_PWR1 --> SuperC_H2p00-4["H2p00-4"]
        CPU_PWR0 --> BARCODE["SAR CODE"]
        CPU_PWR1 --> FANB
        CPU_PWR0 --> FANB
        CPU_PWR1 --> FANB
        CPU_PWR0 --> FANB
        CPU_PWR1 --> FANB
        CPU_PWR0 --> FANB
        CPU_PWR1 --> FANB
        CPU_PWR0 --> FANB
        CPU_PWR1 --> FANB
        CPU_PWR0 --> FANB
        CPU_PWR1 --> FANB
        CPU_PWR0 --> FANB

    end

    subgraph_External_Riser["External_Riser"]
        JPM1_RISER["JPMR RISER"]
        FANA["JFNA"]
        FANB["RJPMR RISER"]
        FANB_RJPMR["RJPMR RISER"]
        FANB_RJPMR["RJPMR RISER"]
    end

    subgraph_Control_Layer["Control_Layer"]
        JMSLIMIA["JMSLIMIA"]
        JSLIMIB["JSLIMIB"]
        JSLIM4A["JSLIM4A"]
        JSLIM4B["JSLIM4B"]
        JSLIM4AB["JSLIM4AB"]
        JMSLIM4AB --> JMSLIM4A
        JSLIM4AB --> JSLIM4A
        JMSLIM4AB --> JSLIM4B
    end

    subgraph_External_Riser_Rise["External_Rise"]
        JMSLIMIA_RSLSI
        JSLIMIB_RSLSI
        JSLIM4A_RSLSI
        JSLIM4B_RSLSI
        JMSLIM4AB_RSLSI
        JMSLIM4AB_RSLSI
        JMSLIM4AB_RSLSI
        JMSLIM4AB_RSLSI
        JMSLIM4AB_RSLSI
    end

    subgraph_External_Rise_Rise_Rise["External_Rise"]
        JMSLIMIA_RSLSI_RSLSI
        JMSLIMIB_RSLSI_RSLSI
        JSLIM4A_RSLSI_RSLSI
        JSLIM4A_RSLSI_RSLSI
        JMSLIM4AB_RSLSI_RSLSI
        JMSLIM4AB_RSLSI_RSLSI
    end

    subgraph_External_Rise_Rise_Rise["External_Rise"]
        JMSLIMIA_RSLSI_RSLSI_RSLSI
        JMSLIMIB_RSLSI_RSLSI_RSLSI
        JSLIM4A_RSLSI_RSLSI_RSLSI
        JSLIM4AB_RSLSI_RSLSI_RSLSI
    end

    subgraph_External_Rise_Rise_Rise["External_Rise"]
        JMSLIMIA_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSI_RSLSII_BJMSLIMIA_RSLSI_BJMSLIMIB_RSLSI_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSMIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMRIR_JPMN_FJMSLIMIA_RSLSI_FJMSLIMIB_RSLSI_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_AJMSLIMIA_RSLSI_AJMSLIMIB_RSLSI_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_BJMSLIM4_CN9["JNMB_E5"]_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jmsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsm_jtsn_fJMSLIMIA_RSLSI_AJS_LTOL-IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LtOR_FJMSLIMIA_RSLSI_AJS_LTOL-IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IKKND_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTSO_FJMSLIMIA_RSLSI_AJS_LTOL-IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL IJKMD_LTOL_IJKMD_LTOL_IJKMD_LtOR_FJMSLIMIA_RSLSI_AJS_LTOL-IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL IJKMD_LTOL_IJKMD_LTOL IJKMD_LtOR_FJMSLIMIA_RSLSI_AJS_LTOL-IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL_IJKMD_LTOL IJKMD_LtOR_FJMSLIMIA_RSLSI_AJS_LTOL-IJKMD_LTOL_IJKMD_LTOL IJKMD_LtOR_FJMSLIMIA_RSLSI_AJS_LTOL-IJKMD_LtOR_LKND LtOR_FJMSLIMIA_RSLSI_AJS_LTOL-IJKMD_LtOR_FJMSLIMIA_Rsrsd_VBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLEDVBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED VBDVLED I jpmrmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlmlrlrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrllrrlssvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvddvDDFF_80000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Figure 1-10. Motherboard Layout

Quick Reference Table

Jumper Description Default Setting

JBT1 CMOS Clear Open (Normal)

JWD1 Watch Dog Timer Enable Pins 1-2 (Reset to System)

LED Description Status

LEDM1 BMC Heartbeat LED	Green: Blinking (BMC Normal)Green: Fast blinking (BMC Initializing)
LED1 M.2-C1 Active LED On: M.2-C1 Active
LED2 M.2-C2 Active LED On: M.2-C2 Active

Connector Description

JIPMB1	4-pin External I2C Header (for an IPMI Card)
BT1	Onboard CMOS Battery Socket
JSLOT1	Supermicro I/O Riser Slot (AOM-DGO-IO)
JMB_AIOM	Supermicro Advanced I/O Module (AIOM) Slot via AOM-438G-AIOM
JMB_E1~JMB_E4	PCIe Connectors (Connect to Middle Plate BPN-GPU-438G)
JMB_E5~JMB_E6	Power Connectors (Connect to Middle Plate BPN-GPU-438G)
M.2-C1, M.2-C2	PCIe M.2 Slots
FANA, FANB	CPU Waterpump Header
FAN1~FAN8	System Fan Headers
JSLIM1A	Processor 2 NVME 4.0 x8
JSLIM1B
JSLIM4A	Processor 2 PCIe 4.0 x8
JSLIM4B
JUSB1	Type A USB 3.0 Socket
JPWR_RISER	Power for Riser Cards RSC-G-66G4
CN9	SlimSAS (PCIe 4.0 x4) interface for 4 SATA 3.0 ports
JHDD_PWR0, JHDD_PWR1	Power for SATA/NVMe Backplane BPN-NVMe4-228N-S4
JTPM1	LPC Trusted Platform Module/Port 80 Connector

Note: Jumpers in the table not described are for manufacturing testing purposes only and are not covered in this manual.

1.7 Where to Get Replacement Components

If you need replacement parts for your system, to ensure the highest level of professional service and technical support, purchase exclusively from our Supermicro Authorized Distributors/System Integrators/Resellers. A list can be found at: http://www.supermicro.com. Click the "Where to Buy" link.

1.8 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online (http://www.supermicro.com/support/rma/).

Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product problems.

Chapter 2

Server Installation

2.1 Overview

This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory etc., refer to Chapter 3 for details on installing those specific components.

Caution: Electrostatic Discharge (ESD) can damage electronic components. To prevent such damage to PCBs (printed circuit boards), it is important to use a grounded wrist strap, handle all PCBs by their edges and keep them in anti-static bags when not in use.

2.2 Preparing for Setup

The box in which the system was shipped should include the rackmount hardware needed to install it into the rack. Please read this section in its entirety before you begin the installation.

Choosing a Setup Location

• The system should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated.
• Leave enough clearance in front of the rack so that you can open the front door completely (\~25 inches) and approximately 30 inches of clearance in the back of the rack to allow sufficient space for airflow and access when servicing.
• This product should be installed only in a Restricted Access Location (dedicated equipment rooms, service closets, etc.).
• This product is not suitable for use with visual display workplace devices according to §2 of the German Ordinance for Work with Visual Display Units.

Rack Precautions

- Ensure that the leveling jacks on the bottom of the rack are extended to the floor so that the full weight of the rack rests on them.

• In single rack installations, stabilizers should be attached to the rack. In multiple rack installations, the racks should be coupled together.
• Always make sure the rack is stable before extending a server or other component from the rack.
• You should extend only one server or component at a time - extending two or more simultaneously may cause the rack to become unstable.

Server Precautions

• Caution: The assembled system may weigh over 200 lbs. When moving it, remove the GPU tray to reduce weight, and use a lift and multiple people.
• Review the electrical and general safety precautions in Appendix A.
• Determine the placement of each component in the rack before you install the rails.
• Install the heaviest server components at the bottom of the rack first and then work your way up.
• Use a regulating uninterruptible power supply (UPS) to protect the server from power surges and voltage spikes and to keep your system operating in case of a power failure.
• Allow any drives and power supply modules to cool before touching them.
• When not servicing, always keep the front door of the rack and all covers/panels on the servers closed to maintain proper cooling.

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the room's ambient temperature. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (TMRA).

Airflow

Equipment should be mounted into a rack so that the amount of airflow required for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.).

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.
• Slide rail mounted equipment is not to be used as a shelf or a work space.

2.3 Installing the Rails

There are a variety of rack units on the market, which may require a slightly different assembly procedure. This rail set fits a rack between 28" and 33.5" deep. Do not use a two post "telco" type rack.

The following is a basic guideline for installing the system into a rack with the rack mounting hardware provided. You should also refer to the installation instructions that came with the specific rack you are using.

Installing the Rails onto a Rack

1. Identify the left rail and right rail, as they are different.

Left Right

Figure 2-1. Identifying the Left and Right Rail

1. Position the template at the front of the rack to determine the locations of the screws for the rails.

Template

Figure 2-2. Placing Template in Rack

1. In each rail set, the two sections are screwed together to keep them immobile during shipping. Release these screws just enough to allow the rail sections to slide apart. Note the arrow on the rail, which indicates the end that attaches to the front of the rack.

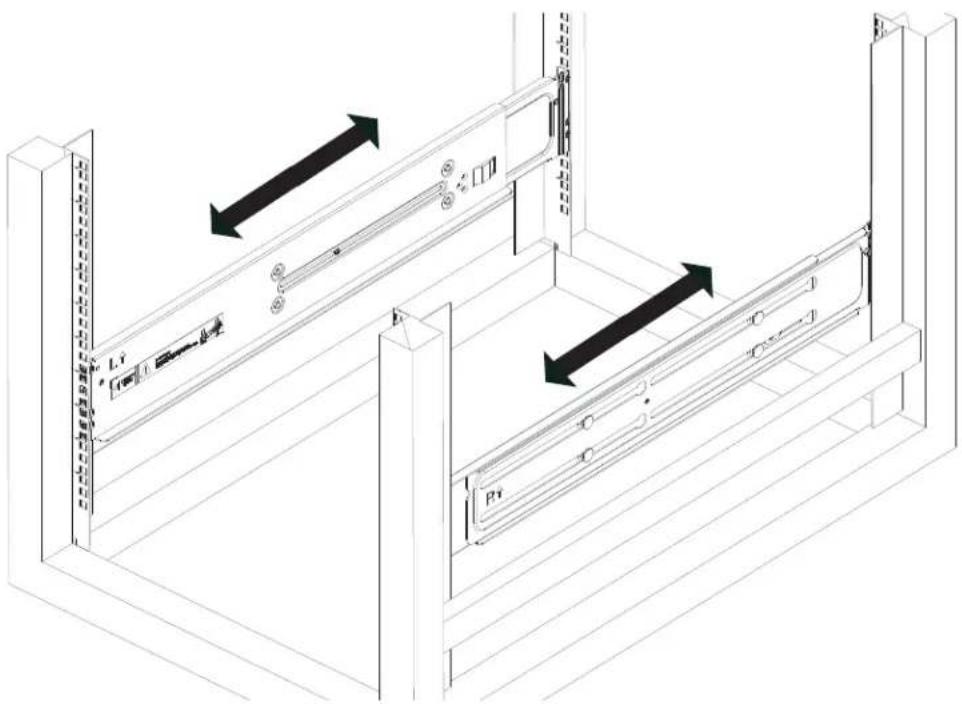

2. Slide the rails sections apart to match the depth of the rack. Position the rails with the template and secure the front of each to the front of the rack with two flathead screws, then secure the back of each rail to the rear of the rack with two flathead screws (see Figure 2-3).

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Figure 2-3. Sliding the Rail to the Depth of the Rack

2.4 Installing the Server

Once rails are attached to the chassis and the rack, you can install the server.

Installing the Chassis into a Rack

Caution: The assembled system may weigh over 200 lbs. Use a lift and multiple people to move it. Remove the GPU tray before installing into the rack to reduce the weight of the system.

1. If you want to install the optional chassis handles, use screws including a thumbscrew, through the bottom hole of each handle. Note: These handles need only be installed when mounting the system into a short rack. When mounting into a deep rack, they are unnecessary and regular screws should be used instead of thumbscrews.

2. Using a lift and as many people as necessary, lift the system and slide it onto the installed rails.

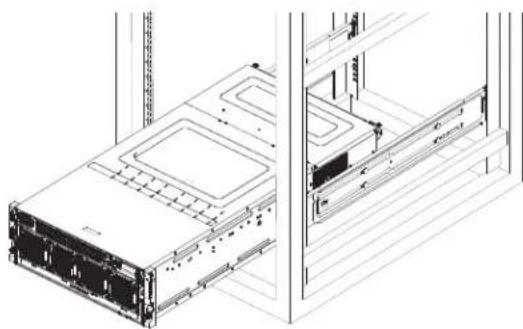

Technical line drawing of a server rack unit with mounting holes and internal components (no text or symbols)

Figure 2-4. Sliding the Server into the Rack

Note: The figure is for illustrative purposes only. Some chassis components such as the GPU tray may be removed from the chassis enclosure before installing the system to the rack.

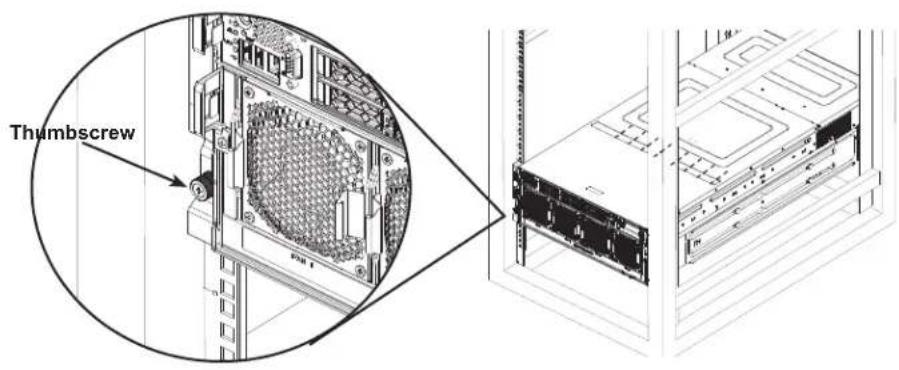

1. After pushing the enclosure all the way into the rack, use the thumbscrew on each side of the server to lock it into place.

Thumbscrew

Figure 2-5. Locking the Server to the Rack

Chapter 3

Maintenance and Component Installation

This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given.

Installation or replacement of most components require that power first be removed from the system. Please follow the procedures given in each section.

3.1 Removing Power

Before performing some setup or maintenance tasks, use the following procedure to ensure that power has been removed from the system.

Removing Power from the System

1. Use the operating system to power down the system.
2. Grasp the head of each power cord and gently pull it out of the back of the power supply.
3. Disconnect the cords from the power strip or wall outlet.

3.2 Accessing the System

The system is comprised of three trays. Each tray can be removed from the chassis using release levers. Before removing the trays, power down, as described in Section 3.1.

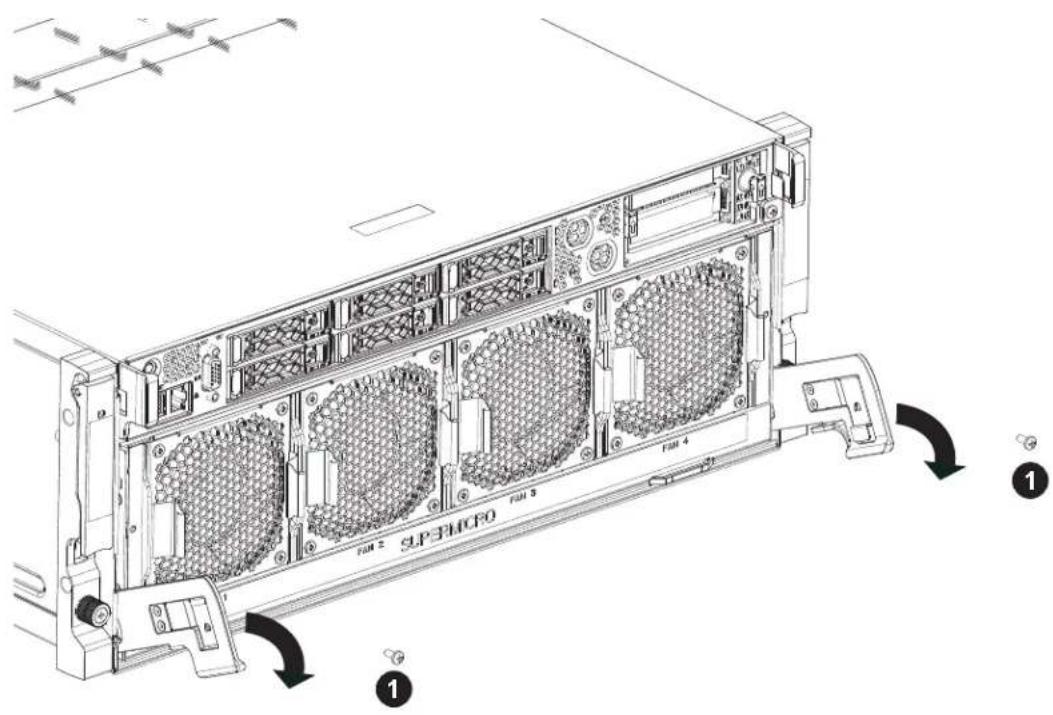

Removing the Motherboard Tray

1. Remove the locking screw holding the release lever and set aside. The locking screw is next to the riser slot.
2. Pull both release levers out.
3. Press outwards slightly and pull out the tray.

Technical diagram of a server rack with labeled components and numbered parts

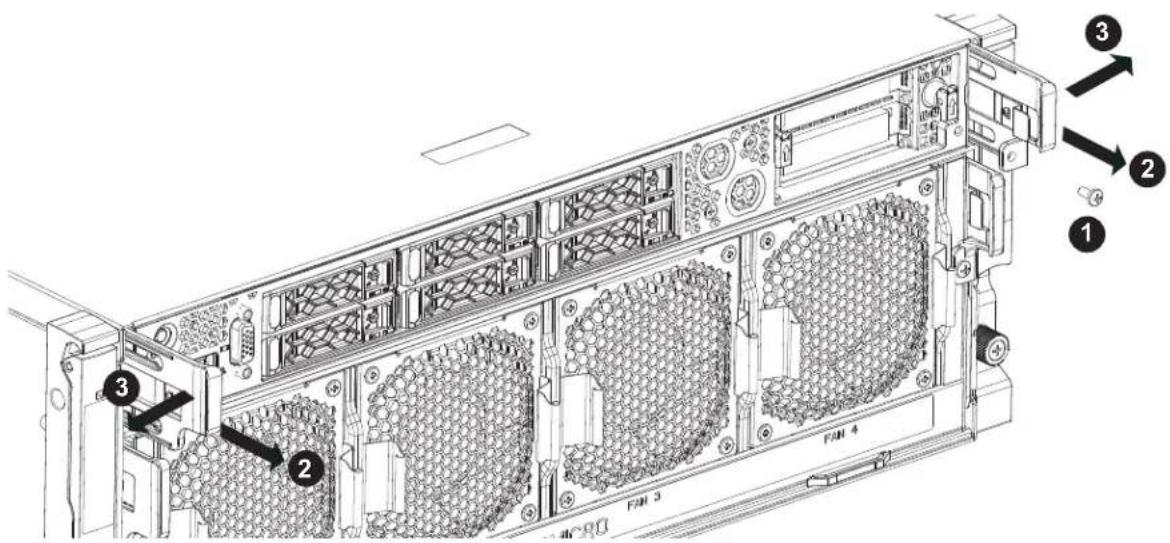

Figure 3-1. Motherboard Tray Handles

1. Service the motherboard as needed.
2. With both release levers in fully pulled-out positions, carefully and slowly reinsert the motherboard tray back into the chassis enclosure until both tray handles are retracted into the chassis.
3. Insert and tighten the tray handle locking screw.

FAM 1 FAM 2 SUP-EMCFO FAM 3 FAM 4 ① ①

Figure 3-2. GPU Tray Handle and Locking Screw

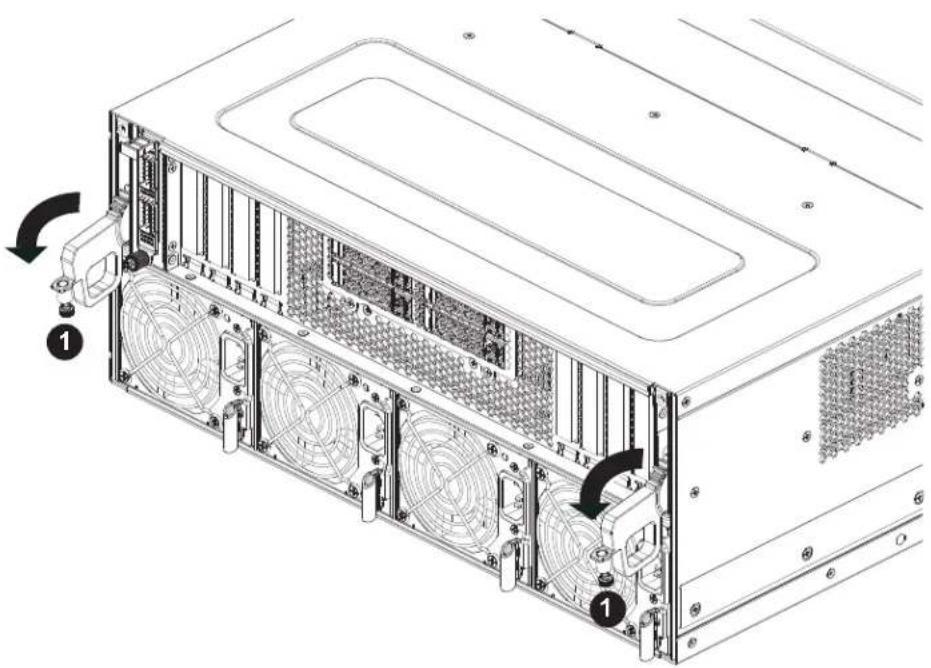

Removing the GPU Tray

Caution: The GPU tray may weigh up to 45 lbs. When moving the tray, exercise caution and use multiple people.

1. Remove the tray handle locking screws, one on each side.
2. Rotate both tray handles downward.
3. Carefully and slowly pull the GPU tray outward until the safety lock is engaged.
4. Release the safety locks on both side of the GPU tray.
5. Continue to carefully and slowly pull and remove the GPU tray from the chassis enclosure.
6. Place the GPU tray on a safe surface.
7. Service the GPU board as needed.
8. With both tray handles in fully pulled-down positions, carefully and slowly reinsert the switch tray back into the chassis enclosure until both tray handles are rotated back into the chassis enclosure and locked.
9. Insert and tighten both tray handle locking screws.

Technical diagram of a server rack with labeled components and directional arrows indicating assembly or movement.

Figure 3-3. Unlocking the Switch Handles

Removing the Switch Tray

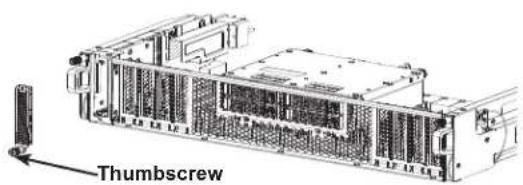

1. Loosen the thumbscrew on both handles.
2. Rotate both tray handles downward.
3. Carefully and slowly pull the switch tray outward from the chassis enclosure.
4. Service the switch tray as needed.
5. With both tray handles in fully pulled-down positions, carefully and slowly reinsert the switch tray back into the chassis until both tray handles are rotated back into the chassis enclosure and locked.
6. Tighten both thumbscrews.

3.3 Motherboard Components

Processor and Heatsink Installation

Warning: When handling the processor package, avoid placing direct pressure on the label area of the fan.

Important:

• For the Processor/Heatsink installation you need to use a T20 screwdriver when opening/closing the CPU socket.
• Always connect the power cord last, and always remove it before adding, removing or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink.
• If you buy a CPU separately, make sure that you use an AMD-certified multi-directional heatsink only.
• Make sure to install the motherboard into the chassis before you install the CPU heatsink.
• When receiving a motherboard without a processor pre-installed, make sure that the plastic CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately.

Refer to the Supermicro website for updates on CPU support.

Installing the Processor and Heatsink

1. Unscrew the screws holding down Force Frame in the sequence of 3-2-1. The screws are numbered on the Force Frame next to each screw hole.

Screw #3 Screw #2 Force Frame Screw #1

1. Lift the Rail Frame up by gripping the lift tabs near the front end of the rail frame. While keeping a secure grip of the Rail Frame, lift it to a position so you can do the next step of removing the External Cap.

2. Note: The Rail Frame is spring loaded, so keep a secure grip on it as you lift it so it does not snap up.

PnP Cover Cap Rail Frame

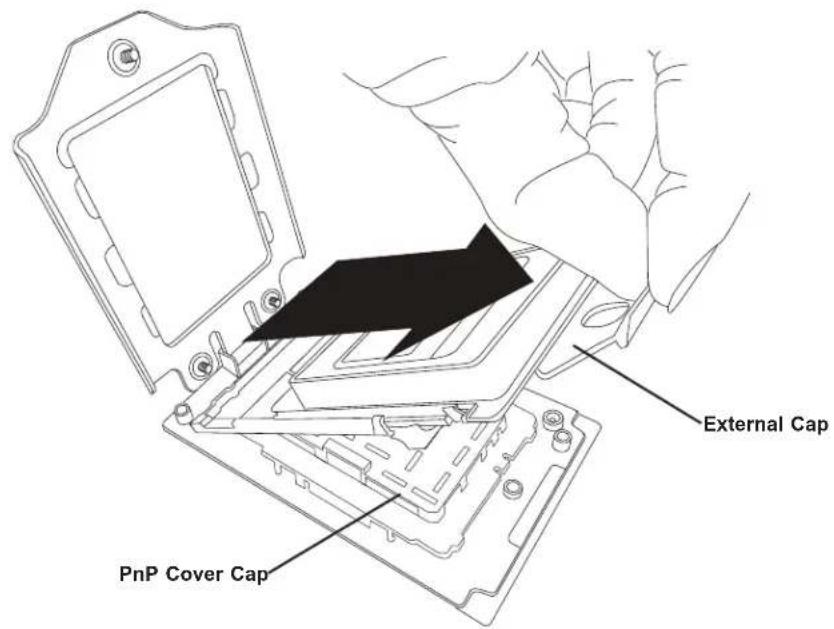

1. Remove the External Cap from the Rail Frame by pulling it upwards through the rail guides on the Rail Frame.

External Cap PnP Cover Cap

1. The CPU Package is shipped from the factory with the Carrier Frame pre-assembled. Grip the handle of the Carrier Frame/CPU Package assembly from its shipping tray, and while gripping the handle, align the flanges of the Carrier Frame onto the rails of the Rail Frame so its pins will be at the bottom when the Rail Frame is lowered later.

2. Slide the Carrier Frame/CPU Package downwards to the bottom of the Rail Frame. Ensure the flanges are secure on the rails as you lower it downwards.

Carrier Frame/ CPU Package

Note: You can only install the CPU inside the socket in one direction with the handle at the top. Make sure that it is properly inserted into the CPU socket before closing the Rail Frame plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the Rail Frame plate again, and double-check that the CPU is aligned properly.

1. Lift up the Rail Frame till it securely rests in upright position. Then remove the PnP Cover Cap from the CPU socket below. Grip the two lift tabs marked "Remove" at the middle of the cap and pull vertically upwards to remove the PnP Cover Cap.

PnP Cover Cap Rail Frame

Warning! The exposed socket contacts are extremely vulnerable and can be damaged easily. Do not touch or drop objects onto the contacts and be careful removing the PnP Cover Cap and when placing the Rail Frame over the socket.

1. Gently lower the Rail Frame down onto the socket until the latches on the Rail Frame engage with the Socket housing. and it rests in place. DO NOT force it into place!

Line drawing of a hand inserting a component into a computer processor (no text or symbols)

1. Gently lower the Force Frame down onto the Rail Frame and hold it in place until it is seated in the Socket housing. Note that the Force Frame is spring loaded and has to be held in place before it is secured. Important: Use a torque screwdriver, set it at 16.1 kgf-cm (14.0 lbf-in) with a Torx T20 screw head bit, to prevent damage to the CPU.

Line drawing of hands connecting a component to a base plate (no text or symbols)

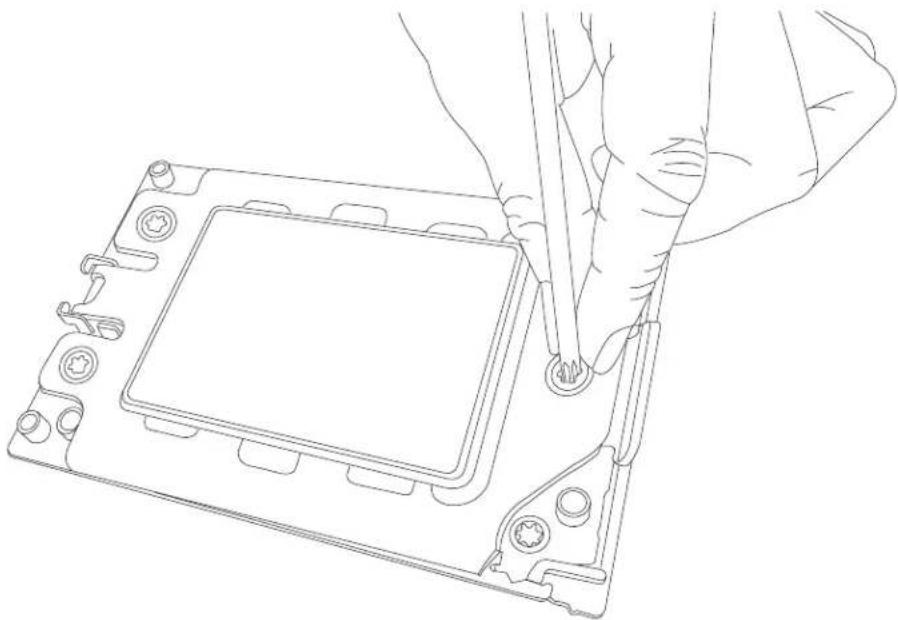

1. Place and re-screw the screws in the reverse order to the way you removed them (holes 1-2-3 in order). When finished, the Force Frame will be secure over both the Rail Frame and CPU Package.

Technical line drawing of a mechanical component with mounting holes and a central square feature (no text or symbols)

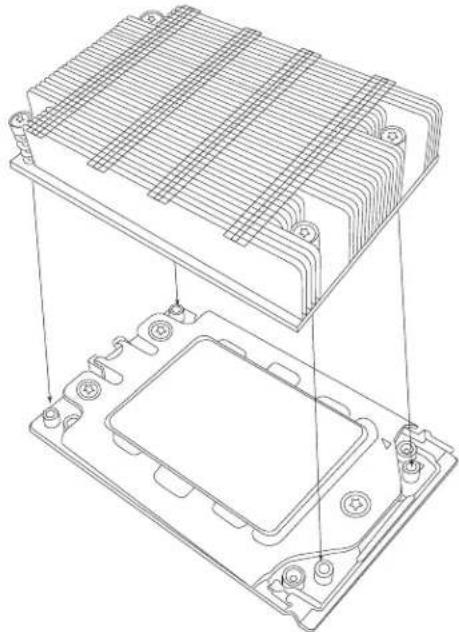

1. After the Force Frame is secured and the CPU package is in place, now you must install the heatsink to the frame. Lower the heatsink down till it rests securely over the four screw holes on CPU Package on the socket frame.

Technical line drawing of an electronic component with cooling fins and mounting base (no text or symbols)

1. Using a diagonal pattern, tighten the four screws down on the heatsink in a clockwise fashion till it is secure. The heatsink will now be secured and you have finished installing the processor and heatsink onto the motherboard. Repeat this procedure for any remaining CPU sockets on the Motherboard.

#1 Screw #3 Screw #4 Screw #2 Screw

Un-installing the Processor and Heatsink

1. Remove the heatsink attached to the top of the CPU Package by reversing the installation procedure.
2. Clean the Thermal grease left by the heatsink on the CPU package lid to limit the risk of it contaminating the CPU package land pads or contacts in the socket housing.
3. Reverse the procedure for installing the Force Frame onto the socket, unscrewing the plate in the 3-2-1 screw order and lift the Force Frame to the vertical position.
4. Lift the Rail Frame using the lift tabs near the front end of the Rail Frame. Note that the Rail Frame is spring loaded, so be careful lifting it up into a vertical position.
5. Grip the handle of the Carrier Frame and pull upwards to extract it from the Rail Frame. Return the Carrier Frame/CPU Package to its original shipping container.
6. Grip the handle on the External Cap and return it to the Rail Frame sliding it downwards till it rests in the frame.
7. Gripping the Rail Frame, rotate it downwards till it rests above and locks over the socket housing in its horizontal position.
8. Push and rotate down the Force Frame till it is over the External Cap and Rail Frame into a horizontal position.
9. While holding down the Force Frame, secure it back to the socket frame by securing screw 1 in place. Note that without a CPU Package in place, it is not necessary to tighten down screws 2 and 3 at this time.

Memory Installation

Note: Check the Supermicro website for recommended memory modules.

Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.

Memory Support

The H12DGO-6 supports up to 8TB of ECC DDR4 3200 MHz speed, RDIMM/LRDIMM/3DS/NVDIMM memory in thirty-two slots. Refer to the table below for additional memory information.

Processors and their Corresponding Memory Modules

CPU#

Channel 1

Channel 2

Channel 3

Channel 4

Channel 5

Channel 6

Channel 7

Channel 8

8 DIMMS

CPU1

A2 B2

C2 D2

E2 F2

G2 H2

16 DIMMS

CPU1

A1 A2

B1 B2

C1 C2

D1 D2

E1 E2 F

F1 F2 G

G2 H1

H2

16 DIMMS

CPU1

A2 B2

C2 D2

E2 F2

G2 H2

CPU2

A2 B2

C2 D2

E2 F2

G2 H2

32 DIMMS

CPU1

A1 A2

B1 B2

C1 C2

D1 D2

E1 E2 F

F1 F2 G

G2 H1

H2

CPU2

A1 A2

B1 B2

C1 C2

D1 D2

E1 E2 F

F1 F2 G

G2 H1

H2

Populating RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS DDR4 Memory Modules with 7002/7003 Processors(Note: AMD EPYC 7003 series processor support requires BIOS version 2.0 or newer.)
Type	DIMM Population		Maximum DIMM Capacity (GB)		Maximum Frequency (MHz)
	DIMM1 DIMM2 1 Channel 8 Channel
RDIMM		1R 32GB	256GB 3200
	1R 1R 64GB	512GB 2933
		2R or 2DR 64GB	512GB 3200
	1R 2R or 2DR	96GB 76GB	2933
	2R or 2DR	2R or 2DR	128GB	1TB	2933
LRDIMM dual die package		4DR	128GB	1TB	3200
	4DR	4DR	256GB	2TB	2933
LRDIMM 3DS		2S2R 128GB	1TB		3200
		2S4R 256GB	2TB		3200
	2S2R	2S2R 256GB	2TB		2933
	2S2R	2S4R 384GB	3TB		2933
	2S4R	2S4R 512GB	4TB		2933
3DS RDIMM		2S2R 128GB	1TB		2933
	2S2R	2S2R 256GB	2TB		2666
		2S4R 256GB	2TB		2933
	2S2R	2S4R 384GB	3TB		2666
	2S4R	2S4R 512GB	4TB		2666

DIMM Module Population Sequence

When installing memory modules, the DIMM slots should be populated in the following order: DIMMA2, DIMMB2, DIMMC2, DIMMD2, DIMME2, DIMMF2, DIMMG2, DIMMH2, then DIMMA1, DIMMB1, DIMMC1, DIMMD1, DIMME1, DIMMF1, DIMMG1, DIMMH1.

• The blue slots must be populated first.

• Always use DDR4 DIMM modules of the same type, size and speed.

- Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.

- The motherboard will support odd-numbered modules (1 or 3 modules installed). However, to achieve the best memory performance, fully populate the motherboard with validated memory modules.

A CONTIN A CONTIN P2-DIMMA1 P2-DIMMB1 P2-DIMMC2 P2-DIMMA2 P2-DIMMFA1 P2-DIMMH1 P2-DIMMH2 P2-DIMMG1 P2-DIMMFA1 P1-DIMMA1 P1-DIMMB1 P1-DIMMFA1 P1-DIMMA2 P1-DIMMH1 P1-DIMMH2 P1-DIMMG1 P1-DIMMFA1 P1-DIMMH1 P1-DIMMFA1

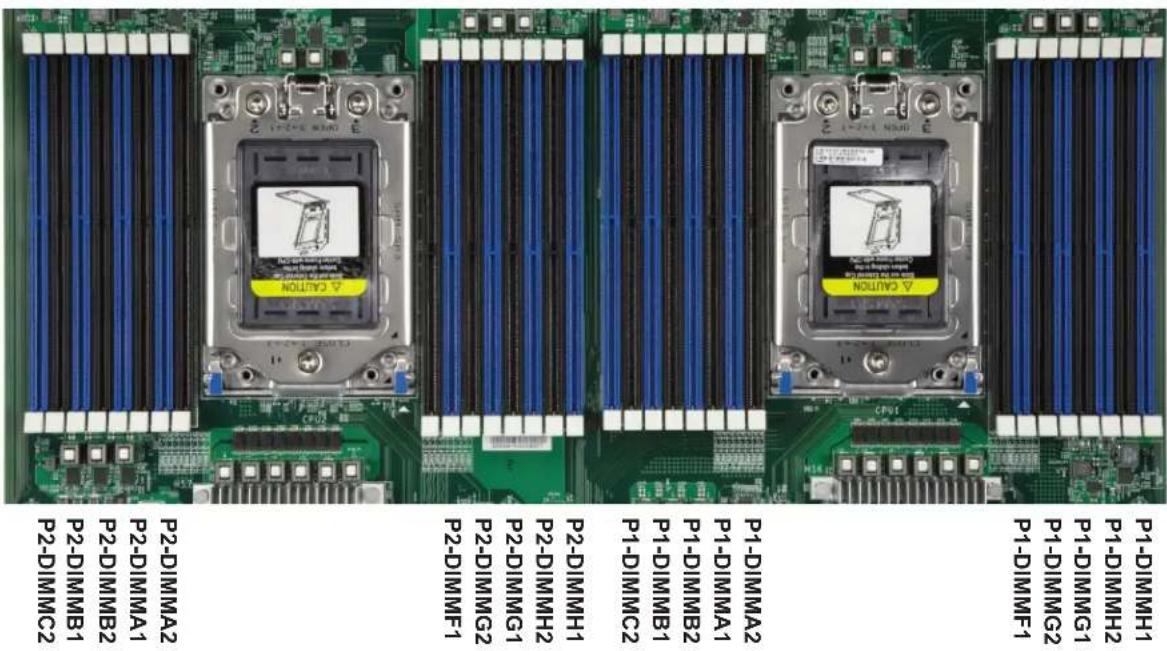

Figure 3-4. DIMM Numbering

DIMM Installation

1. Insert the desired number of DIMMs into the memory slots, starting with DIMMA2, DIMMB2, DIMMC2, DIMMD2, DIMME2, DIMMF2, DIMMG2, DIMMH2, then DIMMA1, DIMMB1, DIMMC1, DIMMD1, DIMME1, DIMMF1, DIMMG1, DIMMH1. For best performance, please use the memory modules of the same type and speed.
2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.
3. Align the key of the DIMM module with the receptive point on the memory slot.
4. Align the notches on both ends of the module against the receptive points on the ends of the slot.
5. Press both ends of the module straight down into the slot until the module snaps into place.
6. Press the release tabs to the lock positions to secure the DIMM module into the slot.

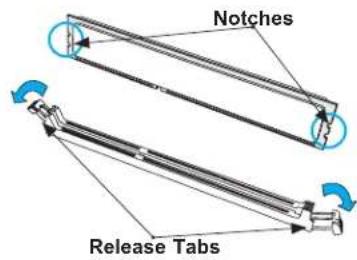

DIMM Removal

Press both release tabs on the ends of the DIMM module to unlock it. Once the DIMM module is loosened, remove it from the memory slot.

Technical illustration of a mechanical component with a blue circular arrow indicating a specific feature (no text or symbols present)

Notches Release Tabs

Press both ends straight down into the memory slot.

Motherboard Battery

The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard.

Replacing the Battery

Begin by removing power from the system as described in section 3.1.

1. Push aside the small clamp that covers the edge of the battery. When the battery is released, lift it out of the holder.
2. To insert a new battery, slide one edge under the lip of the holder with the positive (+) side facing up. Then push the other side down until the clamp snaps over it.

Note: Handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

LITHIUM BATTERY BATTERY HOLDER

Figure 3-5. Installing the Onboard Battery

Warning: There is a danger of explosion if the onboard battery is installed upside down (which reverses its polarities). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (BR2032).

3.4 Chassis Components

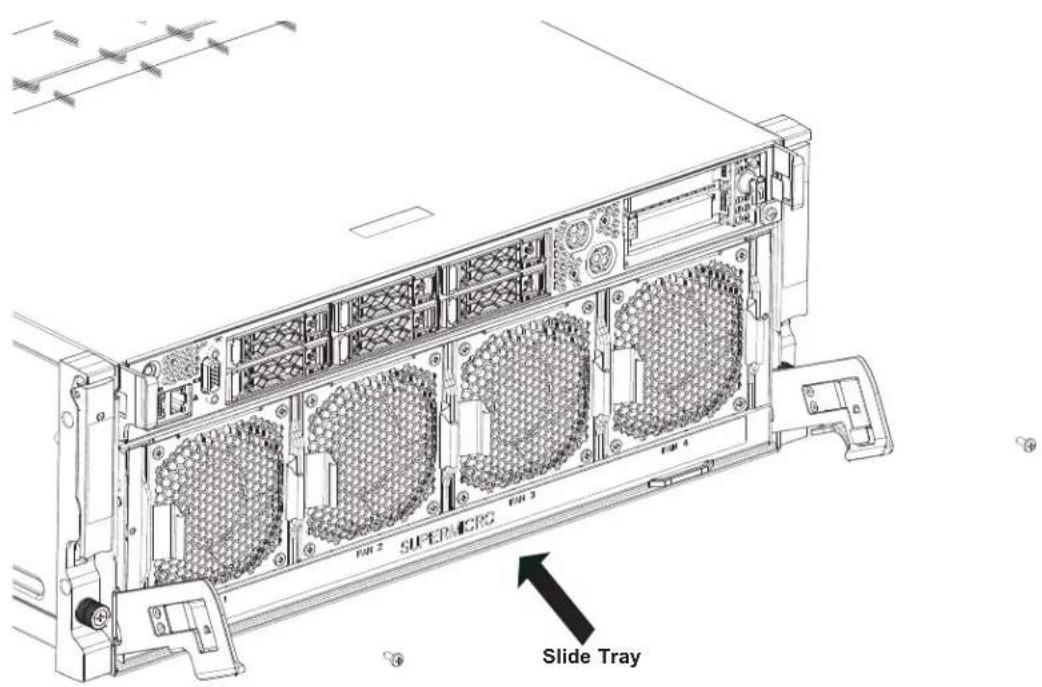

GPU Tray

The GPU tray contains the Nvidia HGX A100 baseboard. Note the handles must be in the unlocked and extended position to install the GPU tray.

Caution: The GPU tray may weigh up to 45 lbs. When moving the tray, exercise caution and use multiple people.

SUPER/IPS FR 2 FR 3 FR 4 Slide Tray

Figure 3-6. Installing GPU Tray

Installing the GPU Tray

1. The release lever on both side must be in the fully opened position.
2. Slide the tray into the chassis.
3. Lift the two handles until they are upright and snap into place.
4. Secure each handle with a screw.

Switch Tray

The switch tray contains the PCIe 4.0 switch board and Network Interface Cards. Note the handles must be in the unlocked and extended position to install the switch tray.

Slide Tray

Figure 3-7. Installing Switch Tray

Installing the Switch Tray

1. The handle on each side must be in the fully pulled-down position.
2. Slide the tray into the chassis.
3. Lift the two handles until they are fully in the upright position.
4. Tighten both thumbscrews.

Storage Drives

Your server may or may not have come with NVMe U.2 drives installed. Up to six 2.5" drives are supported by the chassis. Four drives are SATA/NVMe and two drives are SATA only. An additional four NVMe drives can be supported with an optional backplane.

The drives are mounted in drive carriers to simplify their installation and removal from the chassis. (Both procedures may be done without removing power from the system.)

Drive Carrier Indicators

Each drive carrier has two LED indicators: an activity indicator and a status indicator. In RAID configurations, the status indicator lights to indicate the status of the drive. In non-RAID configurations, the status indicator remains off. See the table below for details.

Hard Drive Carrier LED Indicators
	LED Color	State Status
Activity LED	Blue Solid On	SAS/NVMe drive installed
	Blue Blinking	I/O activity
Status LED	Red Solid On	Failed drive for SAS/SATA/NVMe
	Red Blinking at 1 Hz	Rebuild drive for SAS/SATA/NVMe
	Red	Blinking with two blinks and one stop at 1 Hz	Hot spare for SAS/SATA/NVMe
	Red	On for five seconds, then off	Power on SAS/SATA/NVMe
	Red Blinking at 4 Hz	Identity drive for SAS/SATA/NVMe
	Red Solid On	Safe to remove NVMe device
	Green Blinking	at 1 Hz Attention state- do not remove NVMe device

Note: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, see the Supermicro website, http://www.supermicro.com/products/nfo/files/storage/SBB-HDDCompList.pdf.

Removing/Installing Drives

Removing Drive Carriers from the Chassis

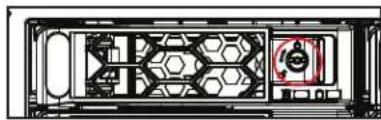

1. Push the release button on the drive carrier. This releases and extends the drive carrier handle. If the release button does not release it, the handle may be locked: using a flat-head screwdriver, rotate the screw counterclockwise 45 degrees to unlock the handle.

Technical line drawing of a mechanical or electronic component with hexagonal patterns and a central control panel (no text or symbols)

Figure 3-8. Unlocking Handle

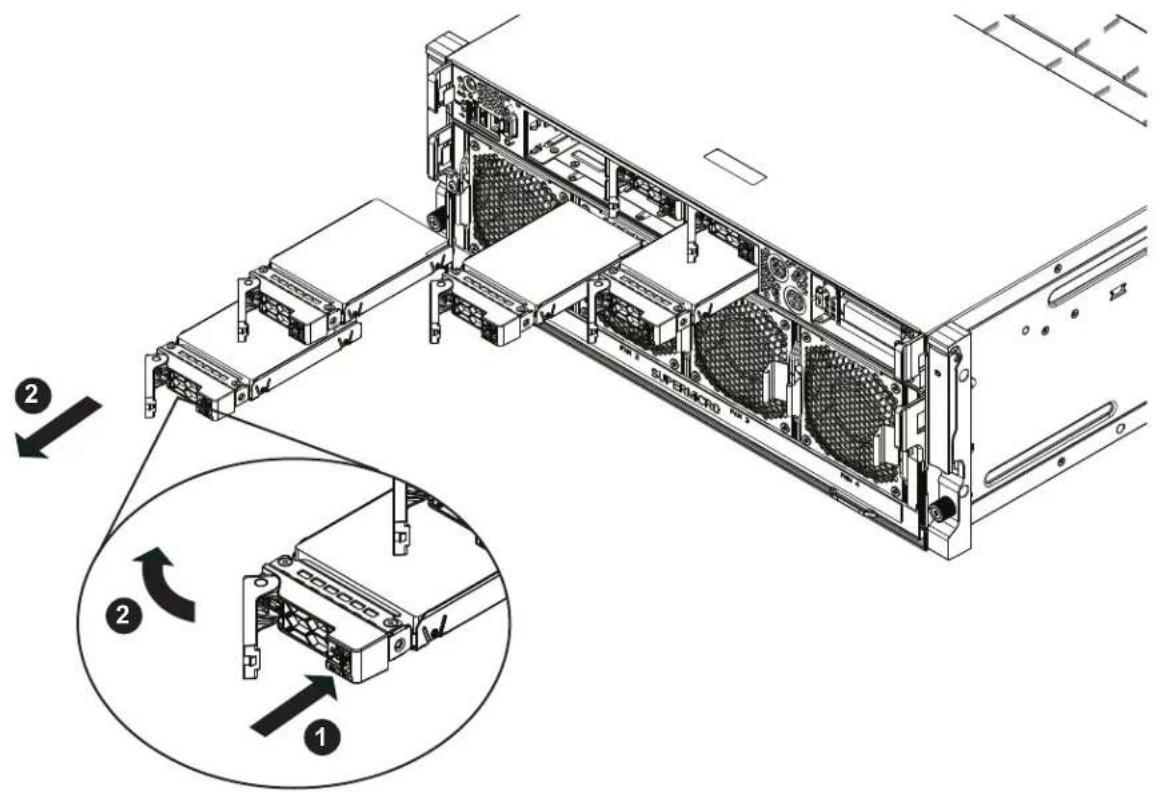

1. Use the handle to pull the carrier out of the chassis as shown below.

Caution: Except for short periods of time (swapping drives), do not operate the server with the drive carriers removed from the bays, regardless of how many drives are installed, for proper airflow.

Technical diagram of a server rack with labeled components and directional arrows indicating assembly steps

Figure 3-9. Removing a Drive Carrier

Installing a 2.5" NVMe Drive

1. Place the NVMe drive carrier on a flat surface.

2. Orient the drive with the connector facing the bottom rear of the carrier. The drive can be inserted from above the carrier and into the clips until a "click" is heard.

3. Use the open handle of the drive carrier to insert the carrier into the open drive bay.

4. Secure the drive carrier into the drive bay by closing the drive carrier handle.

5. Lock the handle with a flat-head screwdriver.

Push down until click

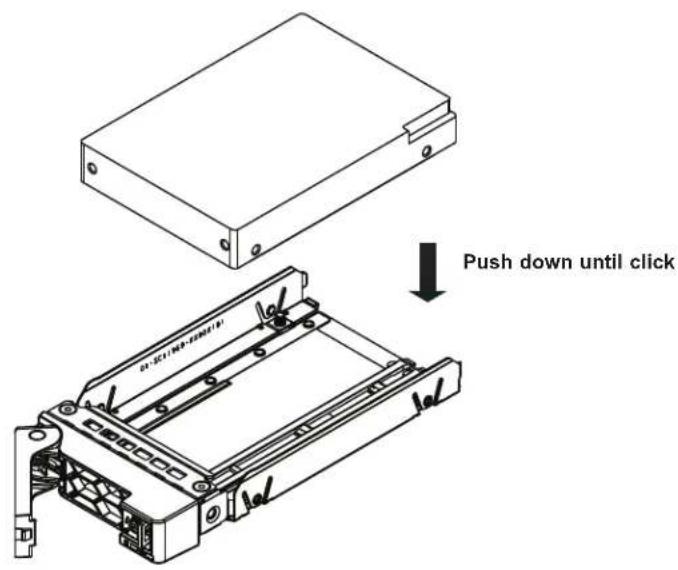

Figure 3-10. Installing Drive to Drive Carrier

Removing a 2.5" NVMe Drive

1. After removing the carrier from the system, push up from the bottom of the drive to remove it from the carrier.
2. Replace with a new drive and insert the carrier back into the open drive bay.

Optional Rear 2.5" NVMe Drive

Up to four rear 2.5" NVMe drives can be supported with an optional backplane. If installing rear NVMe drives, follow the recommended configuration below.

• Four SSDs of 7mm height.
- Two SSDs of 15mm height in the top row only.

Top Row

Figure 3-11. Optional Rear NVMe Drives

Hot-Swap for NVMe Drives

Supermicro servers support NVMe surprise hot-swap. For even better data security, NVMe orderly hot-swap is recommended. NVMe drives can be ejected and replaced remotely using IPMI.

Ejecting a Drive

1. IPMI > System > Storage Monitoring > Physical View
2. Select Device, Group and Slot, and click Eject. After ejecting, the drive Status LED indicator turns green.
3. Remove the drive.

Note that Device and Group are categorized by the CPLD design architecture. The AS -4124GO-NART/AS -4124GO-NART+ server has one Device and one Group.

Slot is the slot number on which the NVMe drives are mounted.

Overview Physical View Logical View Controller Physical View ✓ Block ✓ Unblock ✓ Eject ✓ Insert Staff LED Status Supported Assets Disk Infor Capacity Link Speed Connected Logical Drive Connected Controller • 0.8 • 0.1 • 0.7 • 0.9 • 0.6 • 0.5 • 0.4 • 0.3 • 0.2 • 0.1 • 0.0 • 0.0 • 0.0 • 0.0 • 0.0 • 0.0 • 0.0 • 0.0 • 0.0 • 0.0 • 0.0 • 0.0 • 0.0 • 0.0 • 0.0 • 0.0 • 0.0 • 1.1 • 1.2 • 1.3 • 1.4 • 1.5 • 1.6 • 1.7 • 1.8 • 1.9 • 2.0 • 2.1 • 2.2 • 2.3 • 2.4 • 2.5 • 2.6 • 2.7 • 2.8 • 2.9 • 3.0 • 3.1 • 3.2 • 3.3 • 3.4 • 3.5 • 3.6 • 3.7 • 3.8 • 3.9 • 4.0 • 4.1 • 4.2 • 4.3 • 4.4 • 4.5 • 4.6 • 4.7 • 4.8 • 4.9 • 5.0 • 5.1 • 5.2 • 5.3 • 5.4 • 5.5 • 5.6 • 5.7 • 5.8 • 5.9 • 6.0

Figure 3-12. IPMI Screenshot

Replacing the Drive

1. Insert the replacement drive.
2. IPMI > System > Storage Monitoring > Physical View
3. Select Device, Group and slot and click Insert. The drive Status LED indicator flashes red, then turns off. The Activity LED turns blue.

Checking the Temperature of an NVMe Drive

There are two ways to check using IPMI.

Checking a Drive

• IPMI > Server Health > NVMe SSD – Shows the temperatures of all NVMe drives, as in Figure 3-12.
• IPMI > Server Health > Sensor Reading > NVME_SSD – Shows the single highest temperature among all the NVMe drives.

Installing an M.2 Solid State Drive

The H12DGO-6 can accommodate two M.2 solid state drives (SSDs). Each M.2 socket supports NVMe PCIe 3.0 x2 (32 Gb/s) or SATA SSD cards in the 2280 or 22110 form factors. The 22110 form factor is recommended because the appropriate standoff comes pre-installed on the motherboard.

Caution: Use industry-standard anti-static equipment, such as gloves or wrist strap, and follow precautions to avoid damage caused by ESD.

M.2-C1M.2-C2 SUPER0 HI2DGO-4 FEC CE SAS CODE PNI CODE

Figure 3-13. M.2 Slot Locations

Installing an M.2 2280 Device

1. Power down the system and remove the CPU tray as described in Section 3.1 and 3.2.
2. Remove any component blocking the M.2 sockets.
3. To loosen the M.2 plastic standoff on the motherboard, lift up its top square latch, and use gentle force to pull it out of the hole.
4. Move and place the standoff plug in the proper hole.
5. Insert the M.2 2280 device at a slight angle in the M.2 slot, and ensure the notch on the other end of the device aligns the standoff top.
6. Pull the top square latch down and ensure the latch plug is pushed in standoff to secure the device in place.
7. Replace the CPU tray into the chassis.

Replacing GPUs

Individual GPU and GPU baseboards are recommended to be serviced by Supermicro due to the optimized density of the system.

Prior to submitting an RMA for GPUs, Nvidia requires that their Field Diagnostic tool is first run to isolate hardware failures and obtain a log file for review. Check with Supermicro Technical Services for more details. In addition, more details can be found in Nvidia reference document Baseboard Field Diagnostics Software Guide DU-09163-001.

Replacing GPU Baseboard Module

1. Run Nvidia's Field Diagnostic tool to isolate failures and obtain a log file for review.
2. Disconnect the GPU baseboard module's 54V power cable.
3. Remove the two GPU air shrouds. Each air shroud has two quick-release latches.
4. Remove four fan modules. Remove the cross-bar and the fan board holder. It is not necessary to remove the fan board from the fan board holder.
5. While holding the GPU module, remove the sixteen screws that secure the GPU baseboard to the mechanical tray. See Figure 3-15 for the screw locations.
6. Once all screws are loose, grasp both handles of the GPU module and lift it up and out. Be careful not to scratch the GPU baseboard or your hands on the chassis metal edges.

For installation reverse the above steps.

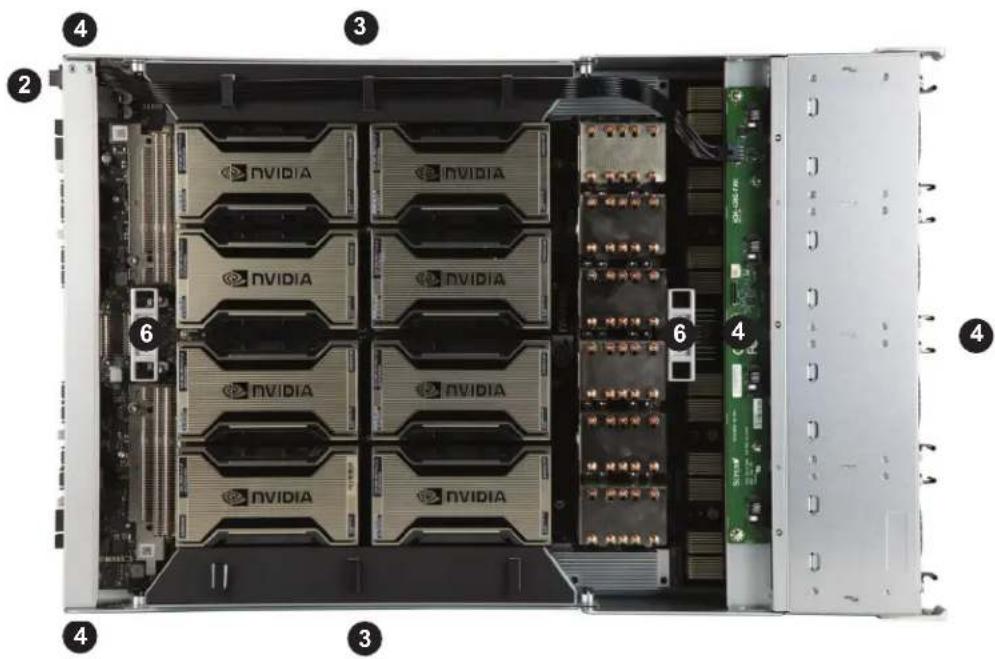

Internal view of a server rack with NVIDIA memory modules and labeled components (1-6)

Figure 3-14. GPU Baseboard

NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA NVIDIA O210000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

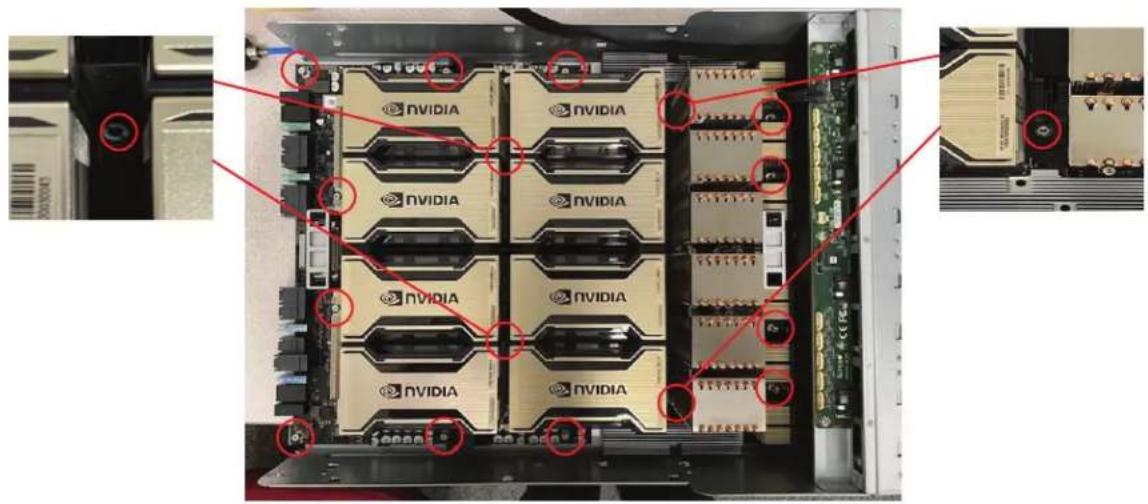

Figure 3-15. Screw Locations

Replacing Individual GPUs

Prior to submitting an RMA for GPUs, Nvidia requires that their Field Diagnostic tool is first run to isolate hardware failures and obtain a log file for review. Check with Supermicro Technical Services for more details. In addition, more details can be found in Nvidia reference document Baseboard Field Diagnostics Software Guide DU-09163-001. Use these tools to determine the failed GPU and locate using the Cable Mapping Guide Figure and GPU Mapping Table. Be sure to identify the failed GPU correctly and if any questions reach out to Supermicro Technical Service team to help.

Note: GPU heatsink and individual GPU SXM4 replacement is recommended to be done by a qualified Supermicro service technician.

Installing Expansion Cards

The system has one PCIe 4.0 x16 LP and one PCIe 4.0 x8 LP slots on the motherboard tray and eight PCIe 4.0 x16 slots on the switch tray.

Note: Expansion cards are recommended to be serviced by Supermicro due to the optimized density of the 4U form factor.

Installing an Expansion Card in the Motherboard Tray

1. Power down the system and remove the motherboard tray as described in Section 3.1 and 3.2.

Release Tab PAN 1 PAN 2 PAN 3 PAN 4

Figure 3-16. Expansion Bracket Release Tab

1. Rotate open both release tabs until the arrows point downward and remove the bracket from the chassis.
2. Insert the expansion card(s) into the riser card slot(s) while aligning the rear PCI shield.
3. Replace the riser card into the motherboard expansion slot while aligning the bracket into the chassis.
4. Rotate the release tab until the arrows point upward and clicks.
5. Replace the motherboard tray into the chassis.

Installing an Expansion Card in the Switch Tray

1. Power down the system and remove the switch tray as described in Section 3.1 and 3.2.
2. Remove the shield and screw where the expansion card will be installed.
3. Install the expansion card and re-install the screw.

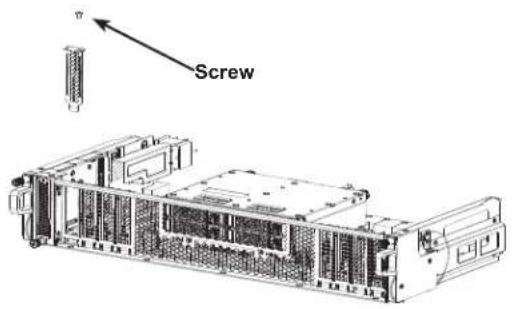

Screw

Figure 3-17. Remove Shield and Screw

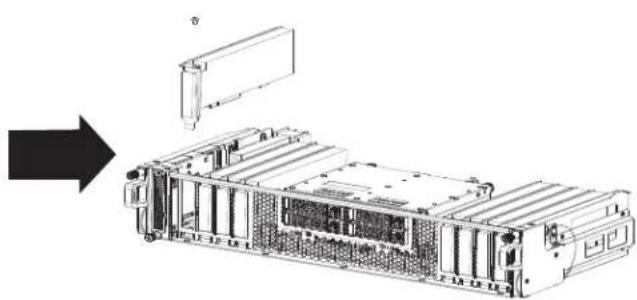

Technical line drawing of an industrial rack system with a component and directional arrow (no text or symbols)

Figure 3-18. Install Card and Screw

Installing AIOM in the Switch Tray

1. Power down the system and remove the switch tray as described in Section 3.1 and 3.2.
2. Loosen the thumbscrew on the AIOM shield and remove it from the chassis.
3. Push the AIOM card into the chassis until the release lever retracts.
4. Tighten the thumbscrew to secure the AIOM card in the chassis.

Thumbscrew

Figure 3-19. Remove Shield

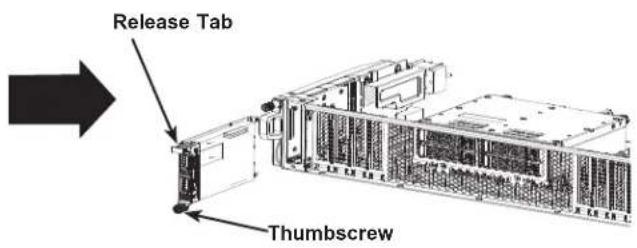

Release Tab Thumbscrew

Figure 3-20. Install AIOM

System Fans

The GPU node contains four hot-swappable heavy-duty fans. The fan modules are powered from the fan board mounted within the GPU tray. These fans are powered by 8-pin power connectors. The CPU node contains six counter-rotating fans. Fan speed is controlled by a system temperature setting in IPMI. If a fan fails, the remaining fans will ramp up to full speed. The system can continue to run with a failed fan in the GPU node or CPU node. Replace any failed fan at your earliest convenience with the same type and model.

Technical line drawing of a server rack with internal components and an inset view showing internal structure (no text or symbols)

Figure 3-21. GPU Fan Replacement

Changing a System Fan

1. Determine which fan is failing. If possible, use IPMI. If not, while the power is on, examine the fans to determine which one has failed.
2. Squeeze both tabs at the side of the fan module and pull the fan out of the chassis.
3. Replace the fan with a new one, making sure it is within specifications.

4. Push the fan into the housing until it is secure and running.

5. Confirm that the fan is working properly checking the server air flow:

6. Make sure there are no objects to obstruct air flow in and out of the server.

7. If you are using a front bezel, make sure the bezel filter is replaced periodically.

- Do not operate the server without drives or drive trays in the drive bays.

- Use only recommended server parts.

- Make sure no wires or foreign objects obstruct air flow through the chassis. Pull all excess cabling out of the airflow path or use shorter cables.

The control panel LEDs display system heat status. See “Control Panel” in Chapter 1 for details.

Overheating

There are several possible responses if the system overheats.

Overheat Temperature Setting

Some backplanes allow the overheat temperature to be set at 45, 50, or 55 by changing a jumper setting. For more information, consult the backplane user manual at www.supermicro.com. (Click Support, then the Manuals link.)

Responses

If the server overheats:

1. Use the LEDs to determine the nature of the overheating condition.
2. Confirm that the chassis covers are installed properly.
3. Make sure all fans are present and operating normally.

4. Check the routing of the cables.

5. Verify that the heatsinks are installed properly. Push the replacement fan module straight inward into the GPU tray until the left and right fan module finger tabs are locked into the GPU tray.

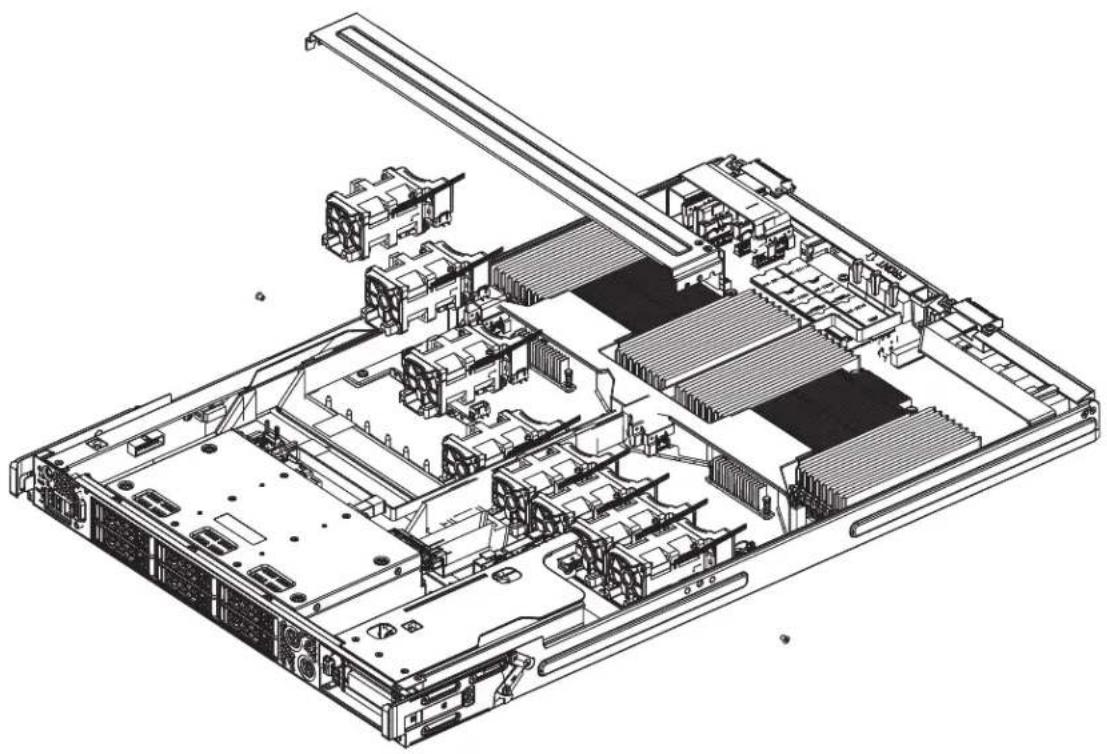

Technical line drawing of a server rack with internal components and ventilation ducts (no text or labels)

Figure 3-22. CPU Fan Replacement

Changing a CPU Fan

1. Identify the failed fan using IPMI.
2. Power down the system and remove the motherboard tray as described in Section 3.1 and 3.2.
3. Remove the two screws holding the crossbar to the CPU tray and remove the crossbar.
4. Remove the failed fan's wiring from the motherboard.
5. Remove the four pin securing the fan to the fan tray.
6. Lift the fan from the fan tray and out of the chassis.
7. Place a new fan in the open position in the fan tray. Make sure the arrow indicating the air flow direction points in the same direction as the other fans.
8. Reconnect the fan's wiring.
9. Replace the motherboard tray into the chassis.

Air Shroud

Air shrouds help to funnel the airflow provided by the fans over the system components that generate the most heat.

Installing the Air Shroud

1. Remove the CPU node from the chassis.

2. Ensure the CPU, CPU heatsinks, and configured DIMMs are installed.

3. Gently place the air shroud over the CPU heatsinks with the front snap locations lining up with metal chassis middle crossbar. Be careful that the airshroud legs at either end do not interfere with any motherboard components such as DIMMs. Guide the air shroud around cable bundles as necessary.

Isometric technical line drawing of a server rack or industrial platform with multiple internal components and no visible text or labels.

Figure 3-23. Installing Air Shrouds

1. Install three screws to hold the air shroud to the chassis floor.

Power Supply

The AS -4124GO-NART features 2200W (3+1) redundant Platinum Level power supplies while the AS -4124GO-NART+ features 3000W (2+2) redundant Titanium Level (96%+) power supplies. The power modules can be changed without powering down the system. New units can be ordered directly from Supermicro or authorized distributors.

These power supplies are auto-switching capable. This feature enables them to automatically sense the input voltage and operate at a 100-120v or 180-240v. An amber light will be illuminated on the power supply when the power is off. An illuminated green light indicates that the power supply is operating.

Replacing the Power Supply

1. Fully rotate the power supply locking handle upward.
2. Carefully and slowly pull the power supply from the rear structure.

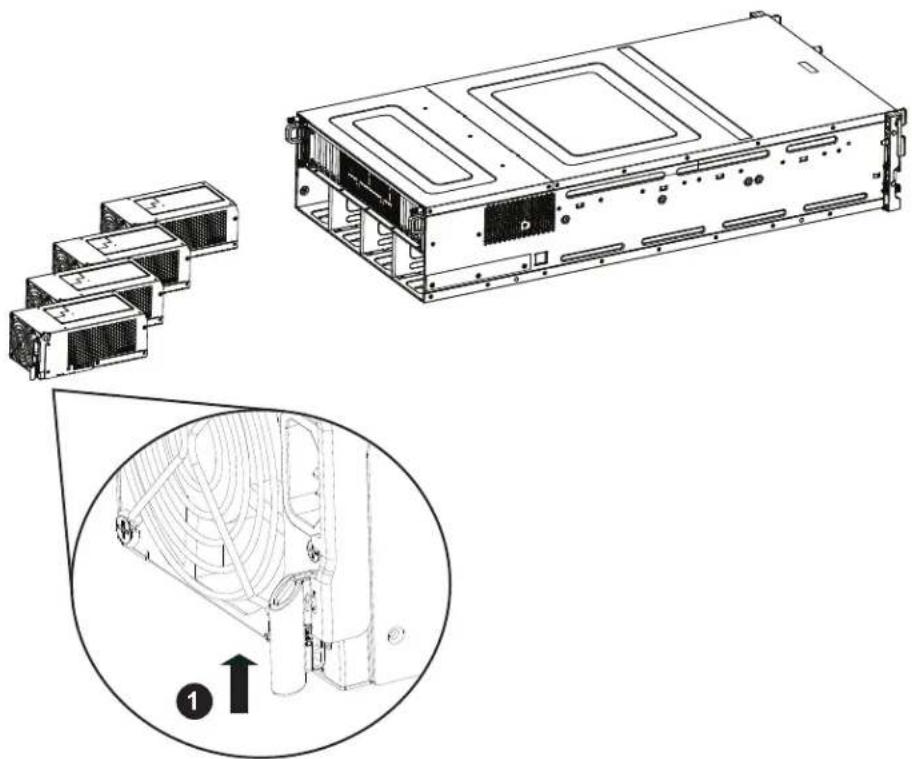

Technical line drawing of a server rack with internal components and an inset magnified view showing internal structure (no text or symbols)

Figure 3-24. Push Handle Upwards

1. Insert replacement power supply (with lock handle on fully upward position) into the rear structure until the power supply locking handle engages with the rear structures locking pin.
2. Fully push power supply locking handle downward until it is locked into the rear structure.

Chapter 4

Motherboard Connections

This section describes the connections on the motherboard and provides pinout definitions.

Note that depending on how the system is configured, not all connections are required.

The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter 1.

Please review the Safety Precautions in Chapter 3 before installing or removing components.

4.1 Headers and Connectors

Fan Headers

There are eight fan headers on the motherboard. These are 4-pin fan headers; pins 1-3 are backward compatible with traditional 3-pin fans. The onboard fan speeds are controlled by Fan Mode in the BMC. When using Fan Mode setting, please use all 4-pin fans.

Fan HeaderPin Definitions

Pin# Definition

1 Ground (Black)

2 +12V (Red)

3 Tachometer (Yellow)

4 PWM control (Blue)

IPMB System Management Bus Header

A System Management Bus header for IPMI 2.0 is located at JIPMB1. Connect the appropriate cable here to use the IPMB I ^2 C connection on your system.

IPMB HeaderPin Definitions
Pin# Definition
1 Data
2 Ground
3 Clock
4 No Connection

Backplane 12V and 5V 8-pin Power Connectors

JHDD_PWR0 and JHDD_PWR1 are 4-pin 12V and 5V DC power inputs for the system's backplane. Refer to the table below for pin definitions.

Backplane 8-pin Power Pin Definitions
Pin# Definition	Pin# Definition
1 Ground	3 +5V
2 Ground	4 +12V

TPM Header/Port 80 Connector

The JTPM1 header is used to connect a Trusted Platform Module (TPM), which is available from a third-party vendor. A TPM is a security device that supports encryption and authentication in hard drives. It enables the motherboard to deny access if the TPM associated with the hard drive is not installed in the system.

Please go to the following link for more information on TPM: http://www.supermicro.com/manuals/other/TPM.pdf.

Trusted Platform Module Header Pin Definitions
Pin# Definition Pin# Definition
1 LCLK 2 GND
3 LFRAME# 4
5 LRESET# 6 NC
7 LAD3 8 LAD2
9 3.3V 10 LAD1
11 LAD0 12 GND
13 NC 14 NC
15 3.3V_STBY 16 SERIRQ
17 GND 18 NC
19 NC 20 NC

SATA Ports

The H12DGO-6 supports four SATA 3.0 ports through CN9 port and HDD backplane board BPN-NVMe4-F418-B6S6 with a specific cable.

NVM Express Connections

Two NVM Express ports are located on the serverboard (from CPU2). These ports provide high-speed, low-latency PCIe 4.0 x4 connections directly from the CPU to NVMe Solid State Drives (SSD). This greatly increases SSD data-throughput performance and significantly reduces PCIe latency by simplifying driver/software requirements resulted from direct PCIe interface from the CPU to the NVMe SSD drives.

4.3 Jumpers

To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.

Note: On a two-pin jumper, "Closed" means the jumper is on both pins and "Open" indicates the jumper is either on only one pin or has been completely removed.

Connector Pins Jumper Setting 3 2 1 ● ● ■ 3 2 1

CMOS Clear

JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS.

To Clear CMOS

1. First power down the system and unplug the power cord(s).
2. Remove the cover of the chassis to access the motherboard.
3. Remove the onboard battery from the motherboard.
4. Short the CMOS pads with a metal object such as a small screwdriver for at least four seconds.
5. Remove the screwdriver (or shorting device).
6. Re-install the motherboard battery.
7. Replace the cover, reconnect the power cord(s) and power on the system.

Notes: Clearing CMOS will also clear all passwords.

Do not use the PW_ON connector to clear CMOS.

JBT1 contact pads

Watch Dog

JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt (NMI) signal for the application that hangs. Watch Dog must also be enabled in BIOS. The default setting is Reset.

Note: When Watch Dog is enabled, the user needs to write their own application software to disable it.

Watch DogJumper Settings
Jumper Setting	Definition
Pins 1-2 Reset (Default)
Pins 2-3 NMI
Open Disabled

4.4 LED Indicators

LAN Port LEDs

The IPMI Ethernet port has two LED indicators. The Activity LED is yellow and indicates connection and activity. The Link LED may be green, amber, or off to indicate the speed of the connection. Refer to the tables below for more information.

LAN1/2 LED(Connection Speed Indicator)
LED Color Definition
Off 10 Mb/s
Green 100 Mb/s
Amber 1 Gb/s

Activity Indicator
Color Status Definition
Off No Connection
Yellow Flashing Active

Front Power LED

When this LED is lit, it means system is in power-on state, and the onboard power status is ok. Turn off the system and unplug the power cord before removing or installing components.

Front Power LED Indicator
LED Color Definition
Off System Off (power cable not connected)
Green System	On, Power OK

BMC Heartbeat LED

A BMC Heartbeat LED is located at LED2 on the serverboard. When LED2 is blinking, BMC functions normally. See the table below for more information.

BMC Heartbeat LED States
Color State Definition
Green Solid	On BMC is not ready.
Green Blinking	BMC	Normal
Green Fast	Blinking	BMC: Initializing

Unit Identified LED

The front UID LED is located next to the UID switch. The UID indicators provide easy identification of a system unit that may be in need of service.

UID LED Status
LED State	Status
Solid On	Local Unit Identified
Blinking Remote	Unit Identified

Chapter 5

Software

After the hardware has been installed, you should install the Operating System (OS), configure RAID settings and install the drivers. Necessary drivers and utilities may be found at ftp://ftp.supermicro.com/driver.

5.1 OS Installation

You must first configure RAID settings (if using RAID) before you install the Windows OS and the software drivers. To configure RAID settings, please refer to the RAID Configuration User Guides posted on our website at www.supermicro.com/support/manuals.

Installing the Windows OS for a RAID System

1. Insert Microsoft's Windows Setup DVD in the DVD drive and the system will start booting up from the DVD.
2. Insert the USB stick containing Windows drivers to a USB port on the system. Note: for older legacy OS's, please use a method to slipstream the drivers.
3. Select the partition on the drive in which to install Windows.
4. Browse the USB folder for the proper driver files.
5. Choose the RAID driver indicated in the Windows OS Setup screen, then choose the hard drive in which you want to install it.
6. Once all devices are specified, continue with the installation.
7. After the Windows OS installation is completed, the system will automatically reboot.

Installing Windows to a Non-RAID System

1. Insert Microsoft's Windows OS Setup DVD in the DVD-ROM drive and the system will start booting up from the DVD.
2. Continue with the installation. The Windows OS Setup screen will display.
3. From the Windows OS Setup screen, press the key. The OS Setup will automatically load all device files and then continue with the Windows installation.
4. After the installation has completed, the system will automatically reboot.

5.2 Driver Installation

The Supermicro website contains drivers and utilities for your system at https://www.supermicro.com/wdl/driver. Some of these must be installed, such as the chipset driver.

After accessing the FTP site, go into the CDR_Images directory and locate the ISO file for your motherboard. Download this file to create a DVD of the drivers and utilities it contains. (You may also use a utility to extract the ISO file if preferred.)

After creating a DVD with the ISO files, insert the disk into the DVD drive on your system and the display shown in Figure 5-1 should appear.

Another option is to go to the Supermicro website at http://www.supermicro.com/products/. Find the product page for your motherboard here, where you may download individual drivers and utilities to your hard drive or a USB flash drive and install from there.

Note: To install the Windows OS, please refer to the instructions posted on our website at http://www.supermicro.com/support/manuals/.

SUPERMICRO H12DGO-6 Motherboard Drivers & Tools (Win2019) AMD EPYC 7000-series H12DGO-6 SUPERMICRO Computer Inc. AMD SP3 IO Driver Microsoft .Net Framework 4.8(Optional) ASPEED Graphics Driver SUPERMICRO SuperDoctor 5 Build driver diskettes and manuals Browse CD Auto Start Up Next Time For more information, please visit SUPERMICRO's web site.

Figure 5-1. Driver & Tool Installation Screen

Note: Click the icons showing a hand writing on paper to view the readme files for each item. Click the computer icons to the right of these items to install each item (from top to the bottom) one at a time. After installing each item, you must re-boot the system before moving on to the next item on the list. The bottom icon with a CD on it allows you to view the entire contents.

5.3 SuperDoctor® 5

The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or IPMI. SuperDoctor 5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

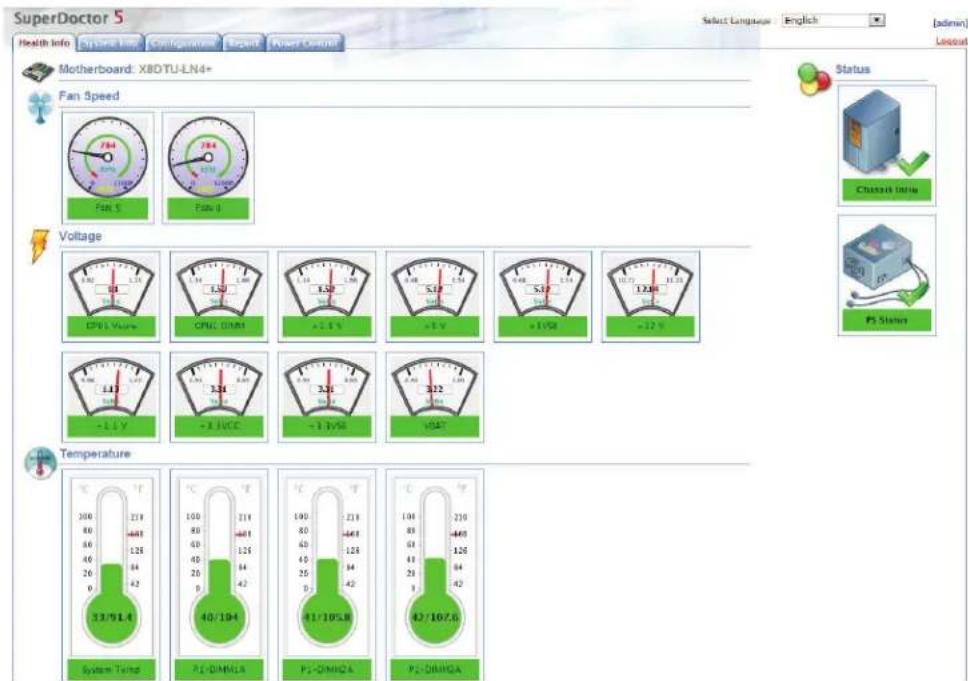

SuperDoctor 5 Health Info System Test SystemControl Expert Power Control Select Language English [admin] Layout Motherboard: XBDTU-LN4+ Fan Speed Fan 5 Fan 0 Voltage EPS V Value CPUL DIMA1 +2.5 % =3 V =1 VGA =22 % -1.5 V =3 JUCC =1.3V/50 VGA* Temperature System Temp P1 QMMCA P2 QMMCA P3 QMMCA 40/194 40/105.8 42/107.6 Status Chassis Drive P3 Stain

Figure 5-2. SuperDoctor 5 Interface Display Screen (Health Information)

5.4 IPMI

The H12DGO-6 supports the Intelligent Platform Management Interface (IPMI). IPMI provides remote access, monitoring and management through the baseboard management controller (BMC) and other management controllers distributed among different system modules. There are several BIOS settings that are related to IPMI. For general documentation and information on IPMI, visit our website at: http://www.supermicro.com/products/nfo/IPMI.cfm.

BMC ADMIN User Password

For security, each system is assigned a unique default BMC password for the ADMIN user. This can be found on a sticker on the chassis and a sticker on the motherboard. The sticker also displays the BMC MAC address. See the system features for the location of the BMC password label.

For more information regarding BMC passwords, please visit our website at http://www.supermicro.com/bmcpassword.

Chapter 6

UEFI BIOS

6.1 Introduction

This chapter describes the AMIBIOS ^™ setup utility for the H12DGO-6 motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual Download area of our website for any changes to the BIOS that may not be reflected in this manual.

Starting the Setup Utility

To enter the BIOS setup utility, press the key while the system is booting-up. (In most cases, the key is used to invoke the BIOS setup screen. There are a few cases when other keys are used, such as , , etc.) Each main BIOS menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured. The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note that BIOS has default text messages built in. We retain the option to include, omit, or change any of these text messages.) Settings printed in Bold are the default values.

A "▶" indicates a submenu. Highlighting such an item and pressing the key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (, , , , , , keys, etc.) can be used at any time during the setup navigation process.

6.2 Main Setup

When you first enter the AMI BIOS setup utility, you will see the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below.

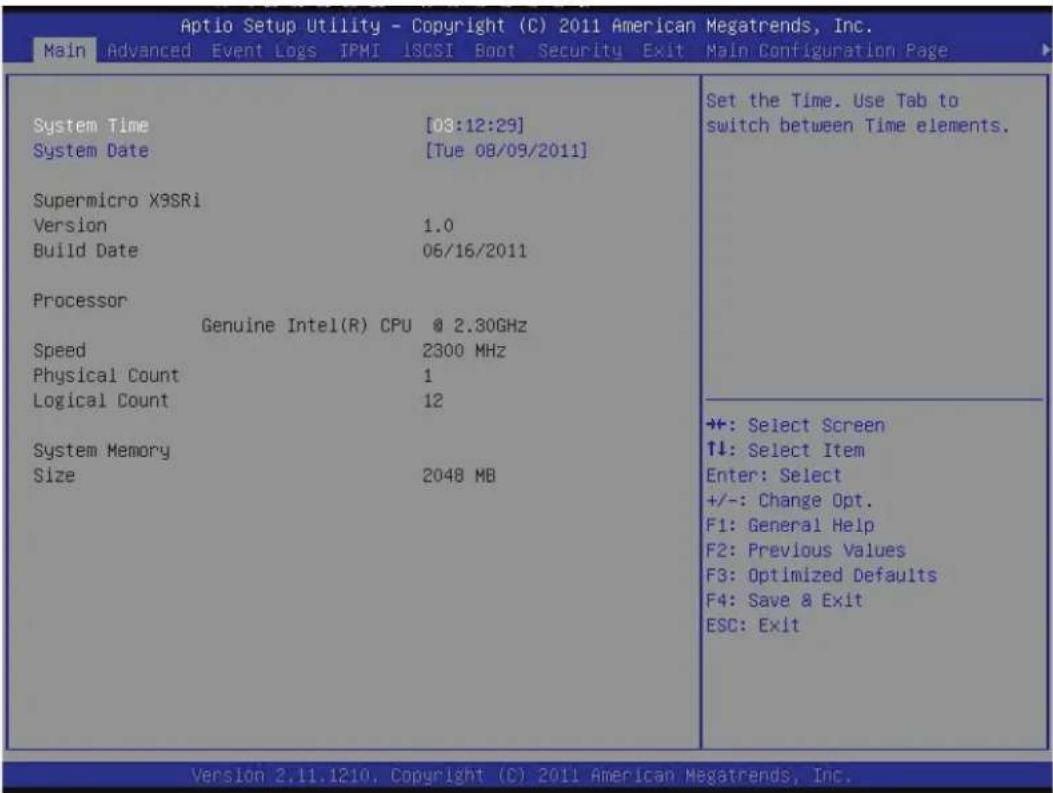

Optio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Event Logs IPMI ISCSI Boot Security Exit Main Configuration Page System Time [03:12:29] System Date [Tue 08/09/2011] Supermicro X9SRi Version 1.0 Build Date 06/16/2011 Processor Genuine Intel(R) CPU @ 2.30GHz Speed 2300 MHz Physical Count 1 Logical Count 12 System Memory Size 2048 MB Set the Time. Use Tab to switch between Time elements. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.11.1210, Copyright (C) 2011 American Megatrends, Inc.

System Date/System Time

Use this item to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields. The date must be entered in Day MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is the BIOS build date after the RTC (Real Time Clock) reset.

Supermicro H12DGO-6

BIOS Version

This feature displays the version of the BIOS ROM used in the system.

Build Date

This feature displays the date when the version of the BIOS ROM used in the system was built.

CPLD Version

This feature displays the version of the CPLD (Complex-Programmable Logical Device) used in the system.

Memory Information

Total Memory

This feature displays the total size of memory available in the system.

6.3 Advanced

Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Event Logs IPMI ISOSI Boot Security Exit Main Configuration Page ► Boot Feature ► Processor & Clock Options ► Chipset Configuration ► IDE/SATA Configuration System Boot Feature Setting. ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.11.1210, Copyright (C) 2011 American Megatrends, Inc.

Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. When this occurs, revert to the default to the manufacture default settings.

▶Boot Feature

Quiet Boot

Use this feature to select the screen display between the POST messages and the OEM logo upon bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Disabled and Enabled.

Option ROM Messages

Use this feature to set the display mode for the Option ROM. Select Keep Current to display the current AddOn ROM setting. Select Force BIOS to use the Option ROM display set by the system BIOS. The options are Force BIOS and Keep Current.

Bootup NumLock State

Use this feature to set the Power on state for the key. The options are On and Off.

Wait For "F1" If Error

Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.

INT19 (Interrupt 19) Trap Response

Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at bootup immediately and allow the drives that are attached to these host adaptors to function as bootable disks. If this item is set to Postponed, the ROM BIOS of the host adaptors will not capture Interrupt 19 immediately and allow the drives attached to these adaptors to function as bootable devices at bootup. The options are Immediate and Postponed.

Re-try Boot

If this item is enabled, the BIOS will automatically reboot the system from a specified boot device after its initial boot failure. The options are Disabled, Legacy Boot, and EFI Boot.

Power Configuration

Watch Dog Function

If enabled, the Watch Dog Timer will allow the system to reset or generate NMI based on jumper settings when it is expired for more than 5 minutes. The options are Disabled and Enabled.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Stay-Off for the system power to remain off after a power loss. Select Power-On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Stay Off, Power On, and Last State.

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button. The options are Instant Off and 4 Seconds Override.

▶Trusted Computing

Configuration

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM (Trusted Platform Module) support to enhance data integrity and network security. Please reboot the system for a change on this setting to take effect. The options are Disabled and Enabled.

▶PSP Firmware Versions

This section displays the Platform Security Processor (PSP) firmware versions.

PSP Directory Level 1 (Fixed)

• PSP Recovery BL Ver
- SMU FW Version
- ABL Version

PSP Directory Level 2 (Updateable)

• PSP Bootloader Version
- SMU FW Version
- ABL Version

▶ACPI Settings

PCI AER Support

The options are Disabled and Enabled.

High Precision Event Timer

The High Precision Event Timer (HPET) can produce periodic interrupts and is used to synchronize multimedia streams, providing smooth playback and reducing the need to use other timestamp calculations. The options are Disabled and Enabled.

NUMA Node Per Socket

This feature specifies the number of desired Non-Uniform Memory Access (NUMA) nodes per socket. Setting this to zero will attempt to interleave the two sockets together. The options are NPS0, NPS1, NPS2, NPS4 and Auto.

ACPI SRAT L3 Cache As NUMA Domain

Use this setting to enable/disable ACPI SRAT L3 Cache As NUMA Domain. The options are Disabled, Enabled and Auto.

▶Super IO Configuration

The following Super IO information will display:

Super IO Chip AST2600

▶ Serial Port 1 Configuration

Serial Port

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Device Settings

This item displays the status of a serial part specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, IO=3F8h; IRQ=4, IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12, IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12, IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12, and IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12.

▶SOL Configuraiton

Serial Port

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Device Settings

This item displays the status of a serial part specified by the user.

Change SOL Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, IO=2F8h; IRQ=3, IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12, IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12, IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12, and IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12.

Serial Port 2 Attribute

The options are SOL and COM.

▶Serial Port Console Redirection

COM1

Console Redirection

Select Enabled to enable console redirection support for a serial port specified by the user. The options are Disabled and Enabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶Console Redirection Settings

Terminal Type

This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Legacy OS Redirection Resolution

For Legacy OS systems, use this setting to specify the number of Rows and Columns supported for redirection. Options include 80x24 and 80x25.

Putty KeyPad

This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400.

Redirection After BIOS POST

For this setting, when the Bootloader is selected, then the Legacy Console Redirection is disabled before booting to the legacy OS. If you select Always Enable, then the Legacy Console Redirection is enabled for legacy OS systems. Default option for this system is Always Enable. The options are Always Enable and BootLoader.

SOL

Console Redirection

Select Enabled to enable SOL console redirection support for a serial port specified by the user. The options are Disabled and Enabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶Console Redirection Settings

Terminal Type

This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer

is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Legacy OS Redirection Resolution

For Legacy OS systems, use this setting to specify the number of Rows and Columns supported for redirection. Options include 80x24 and 80x25.

Putty KeyPad

This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400.

Redirection After BIOS POST

For this setting, when the Bootloader is selected, then the Legacy Console Redirection is disabled before booting to the legacy OS. If you select Always Enable, then the Legacy Console Redirection is enabled for legacy OS systems. Default option for this system is Always Enable. The options are Always Enable and BootLoader.

▶Legacy Console Redirection Settings

Legacy Serial Redirection Port

For this setting, select a COM port to display redirection of Legacy OS and Legacy OPROM messages. Options include COM1 and SOL.

Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS)

Console Redirection

Select Enabled to enable EMS console redirection support for a serial port specified by the user. The options are Enabled and Disabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶Console Redirection Settings

Out-of-Band Mgmt Port

The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 and SOL.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

This item sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer

is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

▶CPU Configuration

SMT Control

Use this setting to specify Simultaneous Multithreading. Options include Off for 1T single thread and Auto for 2T two-thread if your system is capable of it.

Core Performance Boost

This setting is used to configure for Core Performance Boost. Options include Disabled and Auto.

Global C-state Control

This setting is used to configure for Global C-state Control. Options include Disabled, Enabled and Auto.

Local APIC Mode

Use this setting to adjust local APIC mode. Options include xAPIC, x2APIC and Auto.

CCD Control

Use this setting to disable CCDs in the CPU. Options include Auto, 2 CCDs, 3 CCDs, 4 CCDs and 6 CCDs.

Core Control

This sets the number of cores to be used by your system. Once this option has been used to remove any cores, a power cycle is required in order for the future selections to take effect. Options include Auto, TWO (1+1), FOUR (2 + 2), and SIX (3 + 3). If unsure, leave this to Auto.

L1 Stream HW Prefetcher/L2 Stream HW Prefetcher

This setting is used to enable or disable the L1/L2 Stream Hardware Prefetcher. The options are Disabled, Enabled and Auto.

SVM Mode

This setting Enables or Disables CPU Virtualization.

SMEE

This setting Enables or Disables secure memory encryption.

▶CPU1/CPU2 Information

These sections are for informational purposes. They will display some details about the detected CPUs on the motherboard, such as:

• CPU Version
  • Number of Cores Running
• Processor Family
• Processor Model
• Microcode Patch Level
  • L1 Instruction Cache (Size/Method)
  • L1 Data Cache (Size/Method)
  • L2 Data Cache (Size/Method)
  • L3 Cache per Scoket (Size/Method)

▶NB Configuration

Determinism Control

Use this setting to configure the Determinism Control. Options include Manual and Auto.

cTDP Control

Use this setting to configure the cTDP Control. Options include Manual and Auto.

IOMMU

Use this setting to enable/disable IOMMU. Options include Disabled, Enabled, and Auto.

ACS Enable

Use this setting to enable/disable ACS. Options include Enabled, Disabled and Auto.

Package Power Limit Control

Use this setting for Package Power Limit Control. Options include Manual and Auto.

APBDIS

Use this setting to set APBDIS. Options include 0, 1 and Auto.

DF Cstates

Use this setting to enable/disable DF Cstates. Options include Disabled, Enabled, and Auto.

Preferred IO

Use this setting for Preferred IO. Options include Manual and Auto.

▶Memory Configuration

Memory Clock

This setting allows you to select different memory clock speed. The options include Auto and speed settings from 2666MHz, 2933MHz to 3200MHz.

Memory Interleaving

This setting controls fabric level memory interleaving. Note that the channel, die and socket have requirements on memory populations and it will be ignored if the memory doesn't support the selected option. The options are Disabled and Auto.

Memory Interleaving Size

This setting controls the memory interleaving size. This determines the starting address of the interleave (bit 8, 9, 10 or 11). The options are 256 Bytes, 512 Bytes, 1 KB, 2 KB and Auto.

Chipselect Interleaving

This setting controls interleave memory blocks across the DRAM chip for node 0. The options are Disabled and Auto.

BankGroupSwap

This setting controls the Bank Group Swap. The options are Enabled, Disabled and Auto.

DRAM Scrub Time

This setting provides a value that is the number of hours to scrub memory. The options are Disabled, 1 hour, 4 hours, 8 hours, 16 hours, 24 hours, 48 hours and Auto.

▶CPU1 Memory Configuration

These sections are for informational purposes. They will display some details about the detected memory according to each CPU on the motherboard, such as:

• Detected Size (per slot, in MB)
• Current Speed (MT/s)

▶CPU2 Memory Configuration

These sections are for informational purposes. They will display some details about the detected memory according to each CPU on the motherboard, such as:

• Detected Size (per slot, in MB)
• Current Speed (MT/s)

▶PCIe/PCI/PnP Configuration

This menu provides PCIe/PCI/PnP configuration settings and information.

PCI Bus Driver Version

PCI Devices Common Settings:

Above 4G Decoding

This setting Disables or Enables 64-bit capable devices ability to be decoded in above 4G address space (only if the system supports 64-bit PCI decoding).

SR-IOV Support

If the system has SR-IOV capable PCIe devices, this setting will Disables or Enable the Single Root IO Virtualization Support for the system.

BME DMA Mitigation

Re-enable Bus Master Attribute disabled during Pci enumeration for PCI Bridges after SMM Locked. The options are Disabled and Enabled.

PCIe ARI Support

Use this setting to Disable, Enable or Auto control the Alternative Routing-ID Interpretation.

PCIe Spread Spectrum

Use this setting to Disable or Enable PCIe Spread Spectrum for your system.

Relaxed Ordering

Select Enabled to allow certain PCI-E transactions to violate the strict ordering rules of PCI-E so that a transaction can be completed before other transactions that have already been queued in order to enhance PCI-E performance. The options are Disabled and Enabled.

VGA Priority

Use this setting to select between onboard or offboard VGA support. The options are Onboard and Offboard.

NVMe Firmware Source

Use this setting to select between the AMI Native firmware support or the device vendor-defined firmware support. The options are Vendor Defined Firmware and AMI Native Support.

SLOT1 PCI-E 4.0 x16 OPROM

This setting enables or disables the listed PCI/PCIX/PCIe Slot OPROM option. The options include Disabled, Legacy and EFI.

SLOT2 PCI-E 4.0 x16 OPROM

This setting enables or disables the listed PCI/PCIX/PCIe Slot OPROM option. The options include Disabled, Legacy and EFI.

SLOT3 PCI-E 4.0 x16 OPROM

This setting enables or disables the listed PCI/PCIX/PCIe Slot OPROM option. The options include Disabled, Legacy and EFI.

SLOT4 PCI-E 4.0 x16 OPROM

This setting enables or disables the listed PCI/PCIX/PCIe Slot OPROM option. The options include Disabled, Legacy and EFI.

SLOT5 PCI-E 4.0 x16 OPROM

This setting enables or disables the listed PCI/PCIX/PCIe Slot OPROM option. The options include Disabled, Legacy and EFI.

Onboard LAN1 Option ROM

Use this setting to select which firmware function is to be loaded for onboard LAN1 on the system. Options include Disabled, PXE, iSCSI and EFI.

Onboard LAN2 Option ROM

Use this setting to select which firmware function is to be loaded for onboard LAN1 on the system. Options include Disabled and PXE.

Onboard NVMe1 Option ROM

Select EFI to allow the user to boot the computer using an EFI (Extensible Firmware Interface) device installed on the NVME connector specified by the user. Select Legacy to allow the user to boot the computer using a legacy device installed on the NVME connector specified by the user. The options include Disabled, Legacy and EFI.

Onboard NVMe2 Option ROM

Select EFI to allow the user to boot the computer using an EFI (Extensible Firmware Interface) device installed on the NVME connector specified by the user. Select Legacy to allow the user to boot the computer using a legacy device installed on the NVME connector specified by the user. The options include Disabled, Legacy and EFI.

Onboard NVMe3 Option ROM

Select EFI to allow the user to boot the computer using an EFI (Extensible Firmware Interface) device installed on the NVME connector specified by the user. Select Legacy to allow the user to boot the computer using a legacy device installed on the NVME connector specified by the user. The options include Disabled, Legacy and EFI.

Onboard NVMe4 Option ROM

Select EFI to allow the user to boot the computer using an EFI (Extensible Firmware Interface) device installed on the NVME connector specified by the user. Select Legacy to allow the user to boot the computer using a legacy device installed on the NVME connector specified by the user. The options include Disabled, Legacy and EFI.

Onboard NVMe5 Option ROM

Select EFI to allow the user to boot the computer using an EFI (Extensible Firmware Interface) device installed on the NVME connector specified by the user. Select Legacy to allow the user to boot the computer using a legacy device installed on the NVME connector specified by the user. The options include Disabled, Legacy and EFI.

Onboard NVMe6 Option ROM

Select EFI to allow the user to boot the computer using an EFI (Extensible Firmware Interface) device installed on the NVME connector specified by the user. Select Legacy to allow the user to boot the computer using a legacy device installed on the NVME connector specified by the user. The options include Disabled, Legacy and EFI.

Onboard Video Option ROM

Use this setting to select which firmware function is to be loaded for onboard video option ROM on the system. The options include Disabled, Legacy and EFI.

▶Network Stack Configuration

Network Stack

This setting allows you to enable or disable the UEFI Network Stack. The options are Disabled and Enabled.

IPv4 PXE Support

This setting allows you to enable or disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be available. The options are Disabled and Enabled.

IPv4 HTTP Support

This setting allows you to enable or disable IPv4 HTTP boot support. If disabled, IPv4 HTTP boot support will not be available. The options are Disabled and Enabled.

IPv6 PXE Support

This setting allows you to enable or disable IPv6 PXE boot support. If disabled, IPv6 PXE boot support will not be available. The options are Disabled and Enabled.

IPv6 HTTP Support

This setting allows you to enable or disable IPv6 HTTP boot support. If disabled, IPv6 HTTP boot support will not be available. The options are Disabled and Enabled.

PXE boot wait time

This setting allows you to set in a number field the wait time to press to abort the PXE boot. The default value is 0.

Media detect count

This setting allows you set in a number field the number of times presence of media will be checked. The default value is 1.

▶USB Configuration

USB Configuration

USB Module Version

USB Controllers

USB Devices

Legacy USB Support

Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only. The options include Enabled, Disabled and Auto.

XHCI Hand-off

This is a work-around solution for operating systems that do not support XHCI (Extensible Host Controller Interface) hand-off. The XHCI ownership change should be claimed by the XHCI driver. The options include Enabled and Disabled.

Port 60/64 Emulation

Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. The options include Disabled and Enabled.

▶SATA Configuration

This section displays the detected SATA devices installed on the system.

SATA Enable

This setting enables or disables the on chip SATA controller. The options are Disabled, Enabled, and Auto.

SATA Hotplug

This setting enables or disables the on chip SATA hot plug feature. The options are Disabled, and Enabled.

▶SATA Information

This section displays information on the detected SATA devices:

- SATA0 \~ SATA3

▶KMIP Server Configuration

KMIP Server IP address

KMIP TCP Port number

TimeZone

Clinet UserName

Client Password

▶CA Certificate

The options include Update, Delete, and Export.

▶Client Certificate

The options include Update, Delete, and Export.

▶Client Private Key

The options include Update, Delete, and Export.

▶HTTP Boot Configuration

HTTP Boot One Time

The default setting is Disabled.

Input the description

Boot URI

A new Boot Option will be created according to this Boot URI. It is only supported on Dual or EFI Boot Mode.

▶Network Configuration

MAC: B03FAF2B6059F - IPv4 Network Configuration

Confiured

The opitons include Disabled and Enabled.

*If the item above is set to Enabled, the following item will become available for configuration:

Enable DHCP

This feature allows the user to select the source of the IP address for this computer. If Disabled is selected, you will need to know the local IP address of this computer and enter it to the system manually in the field. If Enabled is selected, the system will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that it is attached to and request the next available IP address for this computer. The options include Disabled and Enabled.

*If the item above is set to Disabled, the following items will become available for configuration:

Local IP Address

This item sets and displays the Local IP address for this computer. This should be in decimal and in dotted quad form.

Local NetMask

This item sets the sub-network that this computer belongs to. The value of each three-digit number separated by dots should not exceed 255.

Local Gateway

This item sets the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

Local DNS Servers

This item sets the address for the local DNS servers for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

Save Changes and Exit

Use this item to save the changes above and exit.

▶VLAN Configuration (MAC: ACIF6BBB6FB0)

Use this item to save the changes above and exit.

▶VLAN Configuration (MAC: ACIF6BBB6FB1)

▶Enter Configuration Menu

Create new VLAN

VLAN ID

This option is an input field used to enter a unique numeric VLAN ID. The valid range is from 0\~4096.

Priority

This option is an input field used to enter a unique numeric VLAN 802.1Q priority. The valid range is from 0\~7.

Add VLAN

Click this option to create the new VLAN.

Configuration VLAN List

VLAN ID: 0, Priority:0

The options include Disabled and Enabled.

Remove VLAN

Click this option to remove an existing VLAN.

▶MAC:AC1F6BBB6FB1-IPv4 Network Configuration

Confiured

The opitons include Disabled and Enabled.

*If the item above is set to Enabled, the following item will become available for configuration:

Enable DHCP

This feature allows the user to select the source of the IP address for this computer. If Disabled is selected, you will need to know the local IP address of this computer and enter it to the system manually in the field. If Enabled is selected, the system will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that it is attached to and request the next available IP address for this computer. The options include Disabled and Enabled.

*If the item above is set to Disabled, the following items will become available for configuration:

Local IP Address

This item sets and displays the Local IP address for this computer. This should be in decimal and in dotted quad form.

Local NetMask

This item sets the sub-network that this computer belongs to. The value of each three-digit number separated by dots should not exceed 255.

Local Gateway

This item sets the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

Local DNS Servers

This item sets the address for the local DNS servers for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

Save Changes and Exit

Use this item to save the changes above and exit.

▶MAC:AC1F6BBB6FB1-IPv6 Network Configuration

▶Enter Configuration Menu

Interface Name

Interface Type

MAC address

Host addresses

Route Table

Gateway addresses

DNS addresses

Interface ID

DAD Transmit Count

Policy

Options include automatic and manual.

Save Changes and Exit

Use this item to save the changes above and exit.

6.4 IPMI

Use this feature to configure Event Log settings.

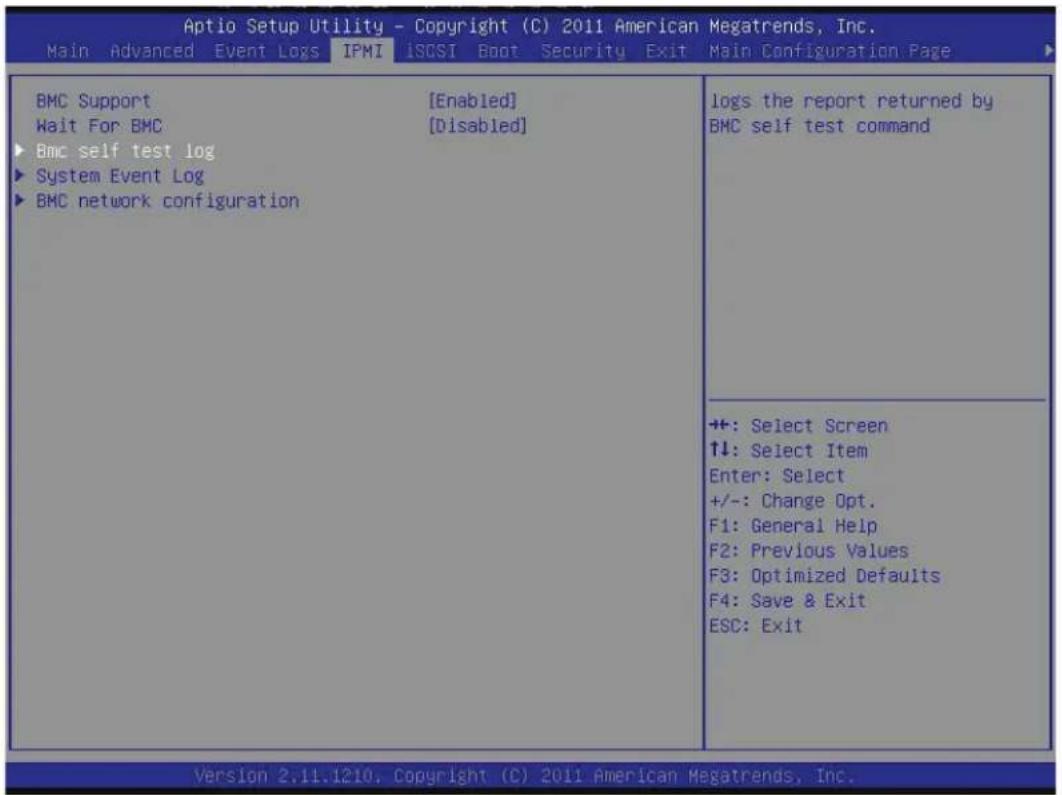

Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Event Logs IPMI ISOSI Boot Security Exit Main Configuration Page BMC Support [Enabled] Wait For BMC [Disabled] ► BMC self test log ► System Event Log ► BMC network configuration logs the report returned by BMC self test command +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.11.1210, Copyright (C) 2011 American Megatrends, Inc.

▶System Event Log

SEL Components

Select Enabled for all system event logging at bootup. The options include Disabled and Enabled.

Erashing Settings

Erase SEL

Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options include No, Yes, On next reset, and Yes, On every reset.

When SEL is Full

This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options include Do Nothing and Erase Immediately.

▶BMC Network Configuration

Update IPMI LAN Configuration

Select Yes for the BIOS to implement all IP/MAC address changes at the next system boot. The options include No and Yes.

*If the item above set to Yes, the following item will become available for user's configuration:

Configuration Address Source

This feature allows the user to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, the BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that is attached to and request the next available IP address for this computer. The options include Static and DHCP.

VLAN

This item configures the virtual LAN settings. The options include Disabled and Enabled.

IPv6 Support

Use this feature to enable IPv6 support. The options include Enabled and Disabled.

6.5 Event Logs

Use this feature to configure Event Log settings.

Note: After you've made a change on a setting below, please be sure to reboot the system for the change to take effect.

Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced IPMI Event Logs Security Boot Save & Exit Change SMBIOS Event Log Settings View SMBIOS Event Log Press to change the SMBIOS Event Log configuration. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1275. Copyright (C) 2020 American Megatrends, Inc.

▶Change SMBIOS Event Log Settings

Enabling/Disabling Options

SMBIOS Event Log

Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot. The options are Disabled and Enabled.

Erasing Settings

Erase Event Log

Select No to keep the event log without erasing it upon next system bootup. Select Yes, Next Reset to erase the event log upon next system reboot. The options are No, Yes, Next reset, and Yes, Every eset.

When Log is Full

Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately.

SMBIOS Event Log Standard Settings

Log System Boot Event

Select Enabled to log system boot events. The options are Enabled and Disabled.

MECI (Multiple Event Count Increment)

Enter the increment value for the multiple event counter. Enter a number between 1 to 255. The default setting is 1.

METW (Multiple Event Count Time Window)

This feature is used to determine how long (in minutes) should the multiple event counter wait before generating a new event log. Enter a number between 0 to 99. The default setting is 60.

6.6 Security Settings

This menu allows the user to configure the following security settings for the system.

Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced IPMI Event Logs Security Boot Save & Exit Administrator Password Not Installed User Password Not Installed Password Description If the Administrator's / User's password is set, then this only limits access to Setup and is asked for when entering Setup. Please set Administrator's password first in order to set User's password, if clear Administrator's password, the User's password will be cleared as well. The password length must be in the following range: Minimum length 8 Maximum length 20 Administrator Password Password Check [Setup] Secure Boot Set Administrator Password +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1275. Copyright (C) 2020 American Megatrends, Inc.

Administrator Password

Use this feature to set the administrator password which is required to enter the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long.

Password Check

Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at system boot and upon entering the BIOS Setup utility. The options are Setup and Always.

▶Secure Boot

When you select this submenu and press the key, the following items will display:

• System Mode
• Vendor Keys

- Sucre Boot

Secure Boot

Select Enabled to use Secure Boot settings. The options are Disabled and Enabled.

Secure Boot Mode

Use this feature to select the desired secure boot mode for the system. The options are Standard and Custom.

CMS Support

If this feature is set to Enabled, legacy devices will be supported by the system. The options are Disabled and Enabled.

▶Key Management

Provision Factory Defaults

The options are Disabled and Enabled.

Select Yes to restore manufacturer default keys used to ensure system security. The options are Yes and No.

▶Reset To Setup Mode

Select Yes to reset the system to the Setup Mode. The options are Yes and No.

▶Export Secure Boot Variables

This feature is used to copy the NVRAM content of Secure Boot variables to a storage device.

▶Enroll Efi Image

Select this feature and press to specify an EFI (Extensible Firmware Interface) image for the system to use when it operates in the Secure Boot mode.

Device Guard Ready

▶Remove 'UEFI CA' from DB

Select Yes to remove UEFI CA from the database. The options are Yes and No.

Select Yes to restore database variables to the manufacturer default settings. The options are Yes and No.

Secure Boot Variable/Size/Keys/Key Source

▶ Platform Key (PK)

This feature allows the user to enter and configure a set of values to be used as platform firmware keys for the system. The sizes, keys numbers, and key sources of the platform keys will be indicated as well. Select Update to update the platform key.

▶Key Exchange Keys

This feature allows the user to enter and configure a set of values to be used as KeyExchange-Keys for the system. The sizes, keys numbers, and key sources of the KeyExchange-Keys will be indicated as well. Select Update to update your "Key Exchange Keys". Select Append to append your "Key Exchange Keys".

▶ Authorized Signatures

This feature allows the user to enter and configure a set of values to be used as Authorized Signatures for the system. These values also indicate the sizes, keys numbers, and the sources of the authorized signatures. Select Update to update your "Authorized Signatures". Select Append to append your "Authorized Signatures". The settings are Update, and Append.

▶Forbidden Signatures

This feature allows the user to enter and configure a set of values to be used as Forbidden Signatures for the system. These values also indicate sizes, keys numbers, and key sources

of the forbidden signatures. Select Update to update your "Forbidden Signatures". Select Append to append your "Forbidden Signatures". The settings are Update, and Append.

▶ Authorized TimeStamps

This feature allows the user to set and save the timestamps for the authorized signatures which will indicate the time when these signatures are entered into the system. Select Update to update your "Authorized TimeStamps". Select Append to append your "Authorized TimeStamps". The settings are Update, and Append.

▶Os Recovery Signatures

This feature allows the user to set and save the authorized signatures used for OS recovery. Select Update to update your "OS Recovery Signatures". Select Append to append your "OS Recovery Signatures". The settings are Update, and Append.

6.7 Boot Settings

Use this feature to configure Boot Settings:

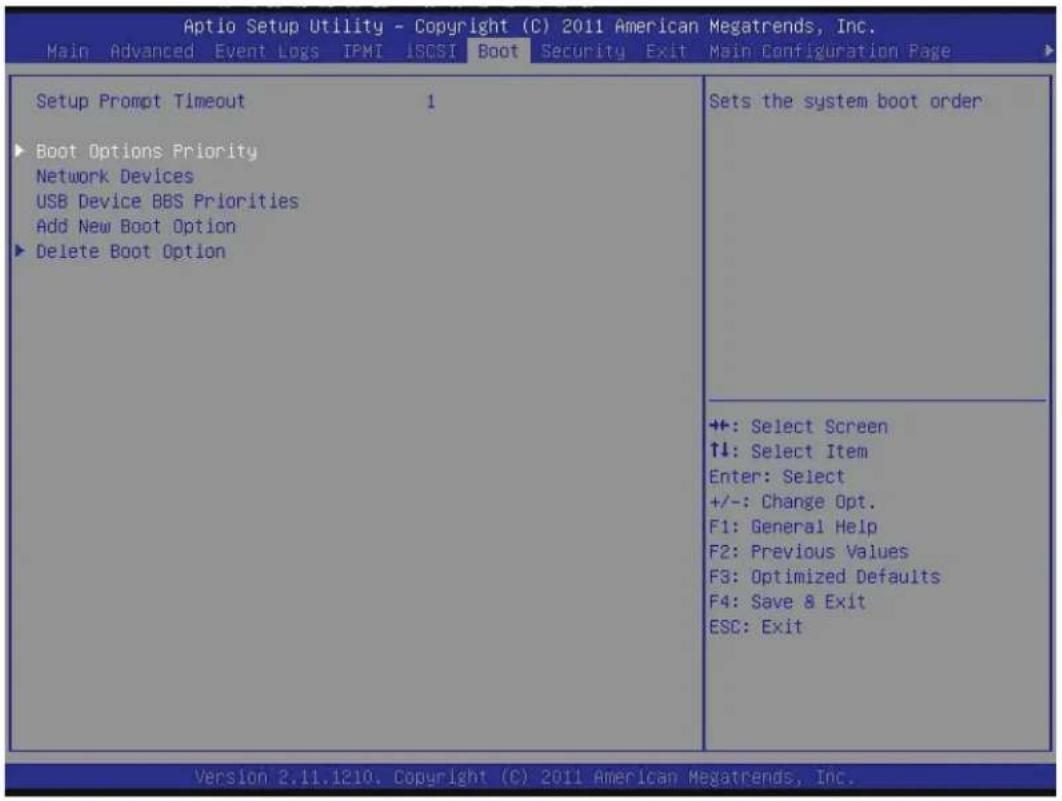

Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Event Logs IPMI ISCSI Boot Security Exit Main Configuration Page Setup Prompt Timeout 1 Sets the system boot order ► Boot Options Priority Network Devices USB Device BBS Priorities Add New Boot Option ► Delete Boot Option +#: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.11.1210, Copyright (C) 2011 American Megatrends, Inc.

Boot Mode Select

Use this feature to select the type of devices from which the system will boot. The options are Legacy, UEFI (Unified Extensible Firmware Interface), and Dual.

LEGACY to EFI Support

Select Enabled for the system to boot from an EFI OS when the Legacy OS fails. The options are Disabled and Enabled.

FIXED BOOT ORDER Priorities

This feature prioritizes the order of a bootable device from which the system will boot. Press on each item sequentially to select devices.

When the item above - "Boot Mode Select" is set to Dual (default), the following items will be displayed for user's configuration:

Boot Option #1 - Boot Option #17

When the item above -"Boot Mode Select" is set to Legacy, the following items will be displayed for configuration:

- Boot Option #1 - Boot Option #8

When the item above - "Boot Mode Select" is set to UEFI, the following items will be displayed for configuration:

• Boot Option #1 - Boot Option #9

▶ Delete Boot Option

Use this feature to select a boot device to delete from the boot priority list.

Delete Boot Option

Use this feature to remove an EFI boot option from the boot priority list.

▶UEFI Application Boot Priorities

Use this feature to specify the boot device Priority sequence from available UEFI application.

▶UEFI NETWORK Drive BBS Priorities

Use this feature to specify the boot device priority sequence from available UEFI NETWORK drives.

▶NETWORK Drive BBS Priorities

Use this feature to specify the boot device priority sequence from available NETWORK drives.

6.8 Save & Exit

Select the Save & Exit menu from the BIOS setup screen to configure the settings below.

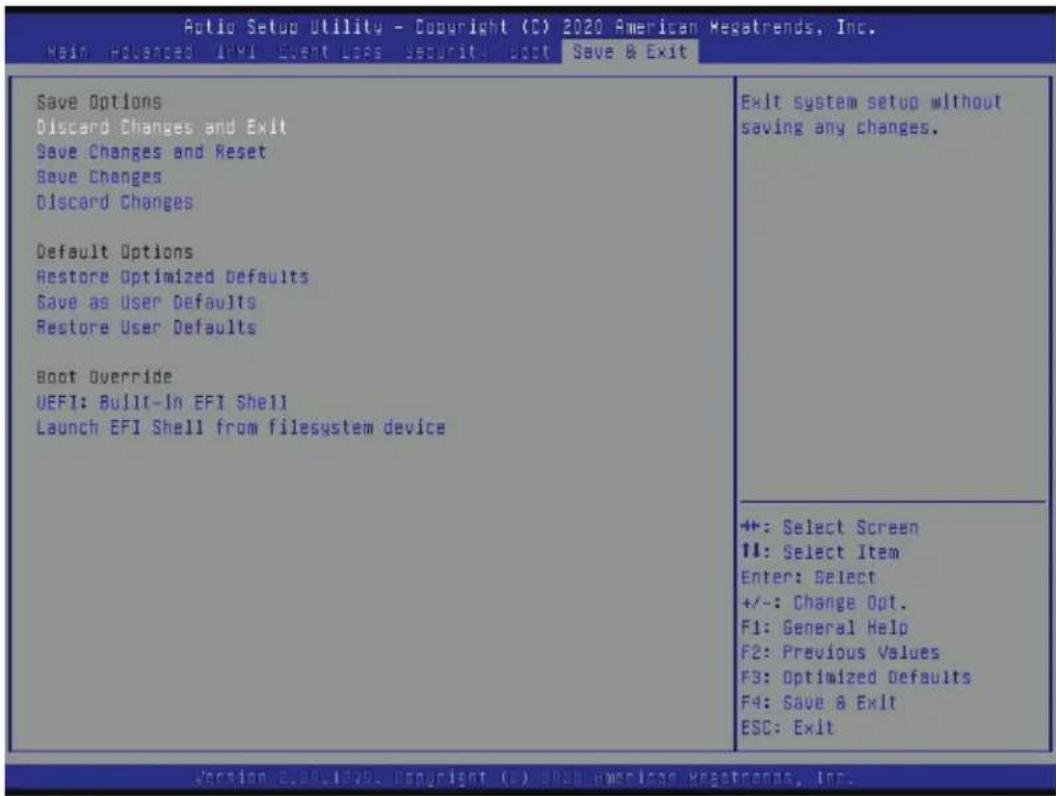

Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced IPM1 Event Uses security Boot Save & Exit Save Options Discard Changes and Exit Save Changes and Reset Save Changes Discard Changes Default Options Restore Optimized Defaults Save as User Defaults Restore User Defaults Boot Override UEFI: Built-In EFI Shell Launch EFI Shell from filesystem device Exit system setup without saving any changes. ++: Select Screen ↑: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version: 2020.1975. (Document C) 2020 American Megatrends, Inc.

Save Options

Discard Changes and Exit

Select this option to exit from the BIOS setup utility without making any permanent changes to the system configuration and reboot the computer.

Save Changes and Reset

When you have completed the system configuration changes, select this option to leave the BIOS setup utility and reboot the computer for the new system configuration parameters to become effective.

Save Changes

When you have completed the system configuration changes, select this option to save all changes made. This will not reset (reboot) the system.

Discard Changes

Select this option and press to discard all the changes you've made and return to the AMI BIOS setup utility.

Default Options

Restore Optimized Defaults

To set this feature, select Restore Defaults from the Exit menu and press to load manufacturer default settings which are intended for maximum system performance but not for maximum stability.

Save as User Defaults

To set this feature, select Save as User Defaults from the Exit menu and press . This enables the user to save all changes to the BIOS setup for future use.

To set this feature, select Restore User Defaults from the Exit menu and press . Use this feature to retrieve user-defined default settings that were saved previously.

Boot Override

This feature allows the user to override the Boot priorities sequence in the Boot menu, and immediately boot the system with a device specified by the user instead of the one specified in the boot list. This is a one-time override.

UEFI: Built-in EFI Shell

Launch EFI Shell from filesystem device

Appendix A

Standardized Warning Statements for AC Systems

A.1 About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this appendix in its entirety before installing or configuring components in the Supermicro chassis.

These warnings may also be found on our website at http://www.supermicro.com/about/policies/safety_information.cfm.

Warning Definition

Warning! This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

警告の定義

この警告サインは危険を意味します。

Installation Instructions

Warning! Read the installation instructions before connecting the system to the power source.

設置手順書

Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.

サーキット・ブレーカー

Power Disconnection Warning

Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.

CAUTION: This unit has redundant power sources. Please disconnect all the power cords before servicing.

電源切断の警告

Equipment Installation

Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

機器の設置

Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. (This warning does not apply to workstations).

アクセス制限区域

Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Redundant Power Supplies

Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

冗長電源装置

Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing.

バックプレーンの電圧

Comply with Local and National Electrical Codes

Warning! Installation of the equipment must comply with local and national electrical codes.

地方および国の電気規格に準拠

Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

Warning! Hazardous moving parts. Keep away from moving fan blades. The fans might still be turning when you remove the fan assembly from the chassis. Keep fingers, screwdrivers, and other objects away from the openings in the fan assembly's housing.

ファン・ホットスワップの警告

Power Cable and AC Adapter

Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA-certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.

電源コードとACアダプター

System Specifications

Processors

Dual AMD EPYC 7002/7003 processor in SP3 sockets

Eight NVIDIA A100 (SXM4) GPUs

Four PLX switches

(Note: AMD EPYC 7003 series processor support requires BIOS version 2.0 or newer.)

BIOS

256Mb SPI AMI BIOS® SM Flash UEFI BIOS

Memory

Up to 8TB of ECC DDR4 3200 MHz speed, RDIMM/LRDIMM/3DS/NVDIMM memory in thirty-two slots

Storage Drives

Six front hot-swap NVMe (four hybrid and two NVMe only) 2.5" drive bays

Optional rear four hot-swap NVMe U.2 2.5" drive bays (Note: See Chapter 3 page 48 for recommendations)

Two onboard NVMe M.2 on the motherboard

PCI Expansion Slots

Eight PCIe 4.0 x16 slots on the switch tray

One PCIe 4.0 x16 LP and one PCIe 4.0 x8 LP on the motherboard tray

Input/Output

Networking AIOM

One dedicated IPMI LAN Port

Motherboard

H12DGO-6 16.86" (L) x 15.11" (W) (428.24 mm x 383.79 mm)

Chassis

CSE-438G (WxHxD) 17.6 x 6.9 x 35.4 in. (446 x 174 x 900 mm)

Weight

Net weight: 166.0 lbs (75.3 kg)

Gross weight: 225.0 lbs (102.1 kg)

System Cooling

GPU Node: four heavy-duty hot-swap fans

CPU Node: eight internal counter-rotating fans, two CPU heatsinks, one air shroud

Security

Trusted Platform Module (TPM) support

Power Supply

4124GO-NART: Model: PWS-2K21G-2R; 80Plus Titanium level

Total Output Power:

1000W with 100 - 127Vac input

1800W with 200 - 220Vac input

1980W with 200 - 230Vac input

2090W with 230 - 240Vac input

2200W with 220 - 240Vac input (for UL/cUL only)

2090W with 230 - 240Vdc input (for CQC only)Input:

100-127Vac / 12 - 9.5A

200-220Vac / 10 -- 9.5A

220-230Vac / 10 - 9.5A

230-240Vac / 10 -- 9.8A

220-240Vac / 11.8 -- 9.6A (UL/cUL only)

230-240Vdc / 10 -- 9.8A (CQC only)

4120GO-NART+: PWS-3K02G-2R; 80Plus Titanium level

Total Output Power:

2880W with 200 - 207Vac input

3000W with 207.1 - 240Vac input

3000W with 240Vdc inputInput:

200-207 Vac / 16 - 15.7A / 50-60 Hz

207.1-240 Vac / 16 - 14.5A / 50-60 Hz

Operating Environment

Operating Temperature: 10^ to 35^ C ( 50^ to 95^ F)

Non-operating Temperature: -40^ to 60^ C ( -40^ to 140^ F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Regulatory Compliance

FCC, ICES, CE, VCCI, RCM, UKCA, NRTL, CB

Applied Directives, Standards

EMC/EMI: 2014/30/EU (EMC Directive)

Electromagnetic Compatibility Regulations 2016

FCC Part 15 Subpart B

ICES-003

VCCI-CISPR 32

AS/NZS CISPR 32

BS/EN55032

BS/EN55035

BS/EN 61000-3-2

BS/EN 61000-3-3

BS/EN 61000-4-2

BS/EN 61000-4-3

BS/EN 61000-4-4

BS/EN 61000-4-5

BS/EN 61000-4-6

BS/EN 61000-4-8

BS/EN 61000-4-11

Green Environment:

2011/65/EU (RoHS Directive)

EC 1907/2006 (REACH)

2012/19/EU (WEEE Directive)

Product Safety: 2014/35/EU (LVD Directive)

Electrical Equipment (Safety) Regulations 2016

UL/CSA 62368-1 (USA and Canada)

BS/IEC/EN 62368-1

Perchlorate Warning

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”
