USER MANUAL AS-1024US-TRT Supermicro

Front view of a rack-mounted server chassis with multiple ports and connectors (no visible text or labels)

USER'S MANUAL

Revision 1.0a

The information in this User's Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A or Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in industrial environment for Class A device or in residential environment for Class B device. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate".

WARNING: This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0a

Release Date: May 05, 2021

mk

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2021 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

Preface

About this Manual

This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the A+ Server. Installation and maintenance should be performed by experienced technicians only.

Please refer to the AS -1024US-TRT server specifications page on our website for updates on supported memory, processors and operating systems (http://www.supermicro.com).

Notes

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/
- Product drivers and utilities: https://www.supermicro.com/wftp/driver/
- Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm

If you have any questions, please contact our support team at: [e-mail]

This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

Secure Data Deletion

A secure data deletion tool designed to fully erase all data from storage devices can be found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wftp/utility/Lot9_Secure_Data_Deletion_Utility/

Warnings

Special attention should be given to the following symbols used in this manual.

Warning! Indicates important information given to prevent equipment/property damage or personal injury.

Warning! Indicates high voltage may be encountered when performing a procedure.

Contents

Chapter 1 Introduction

1.1 Overview....8
1.2 Unpacking the System 8
1.3 System Features 9
1.4 Chassis Features ....10

Control Panel 10
Chassis Front....11
Chassis Rear....12

1.5 Motherboard Layout....13

Quick Reference 14

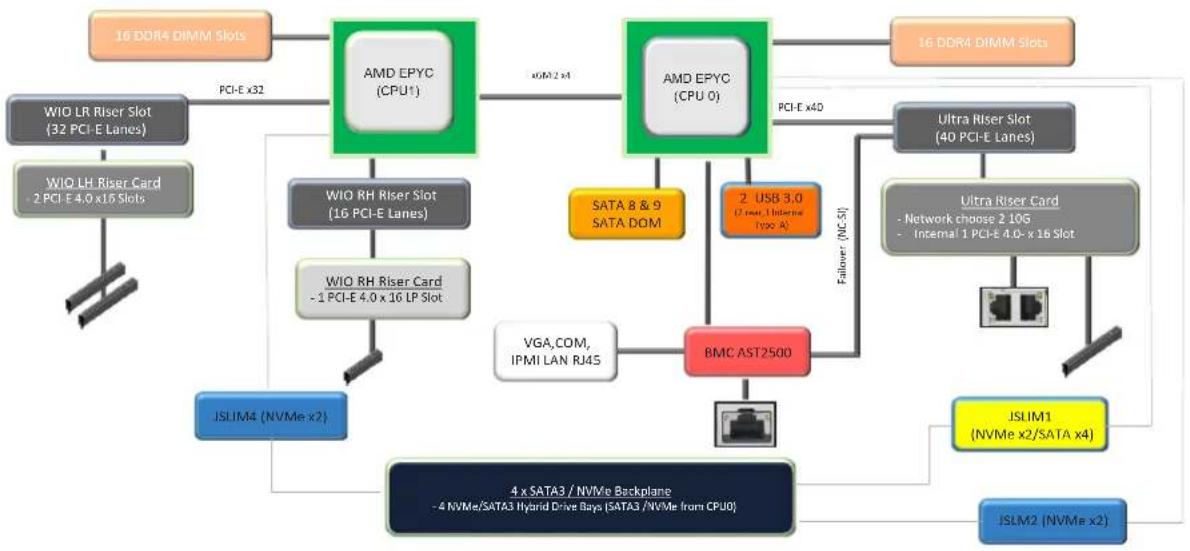

System Block Diagram....15

1.6 Where to Get Replacement Components....16
1.7 Returning Merchandise for Service....16

Chapter 2 Server Installation

2.1 Overview....17
2.2 Preparing for Setup....17

Choosing a Setup Location....17
Rack Precautions....17
Server Precautions....18
Rack Mounting Considerations....18

Ambient Operating Temperature....18
Airflow....18
Mechanical Loading....18
Circuit Overloading....19
Reliable Ground....19

2.3 Installing the Rails....20

Identifying the Rails....20
Installing the Outer Rails onto the Rack....21

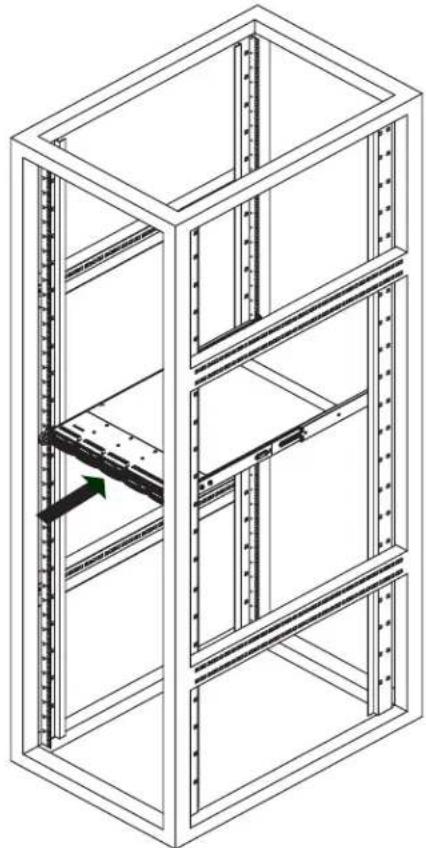

2.4 Installing the Chassis into a Rack 22

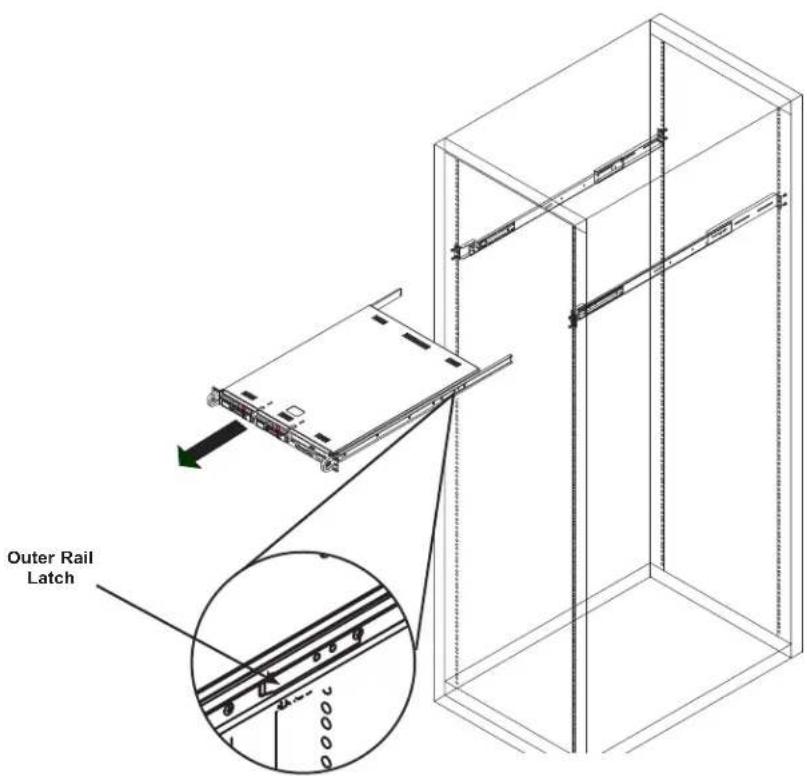

Removing the Chassis from the Rack....23

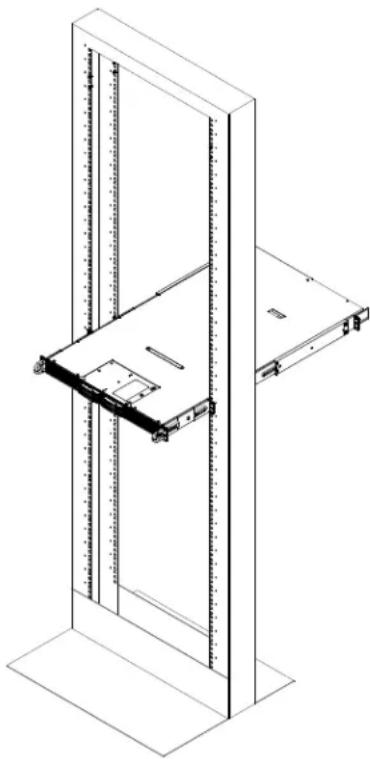

Installing the Server into a Telco Rack....24

Chapter 3 Maintenance and Component Installation

3.1 Removing Power....25

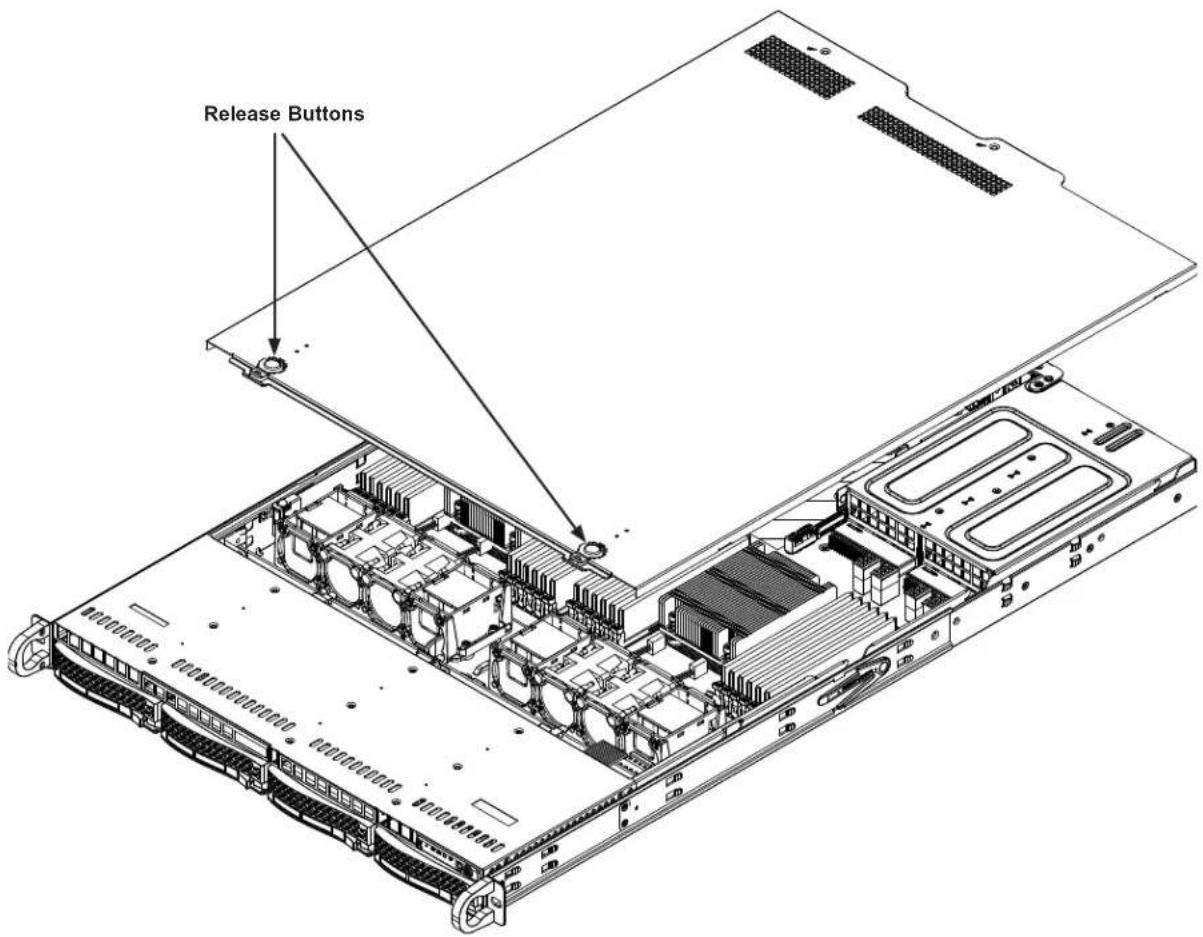

3.2 Accessing the System....25
3.3 Motherboard Components....26

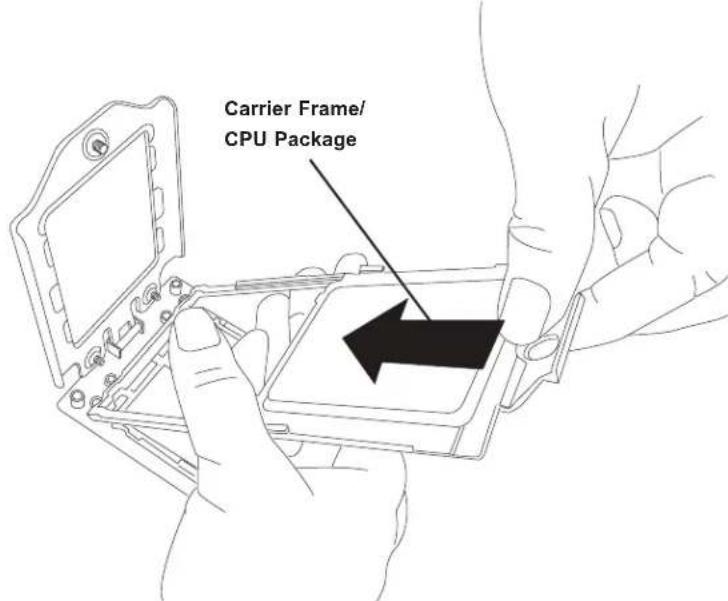

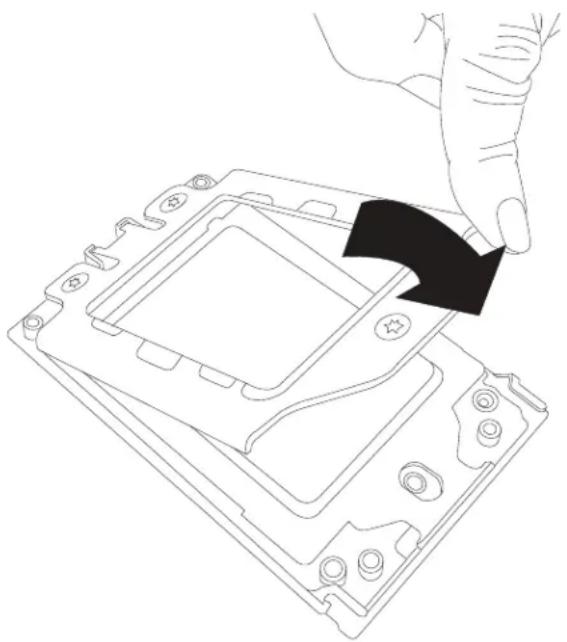

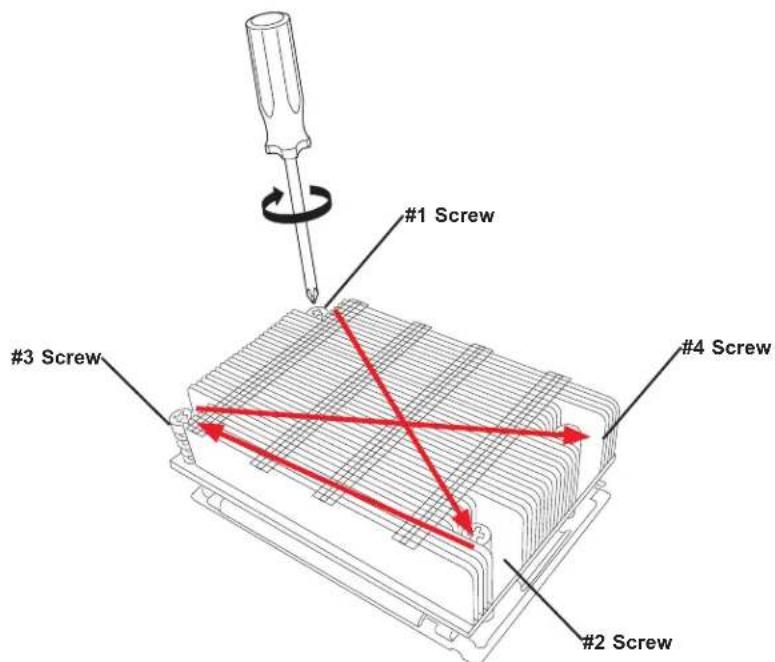

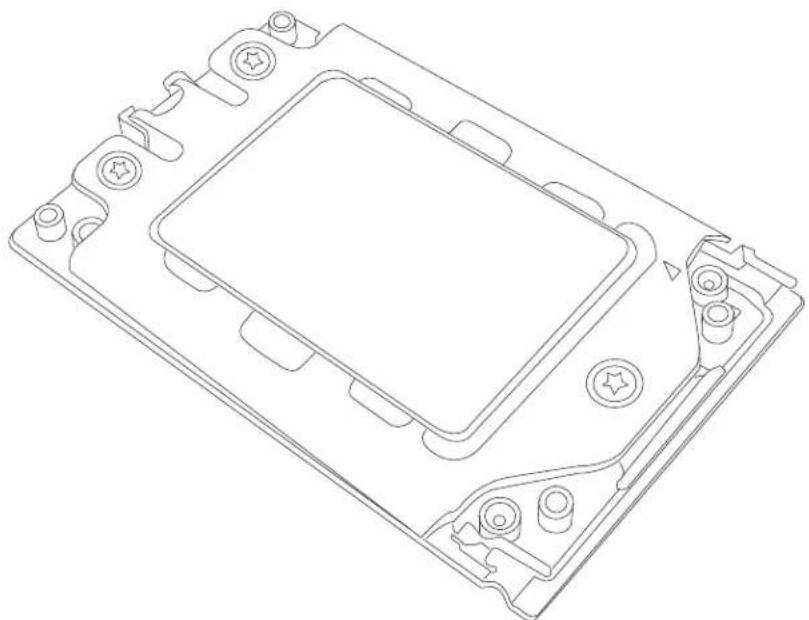

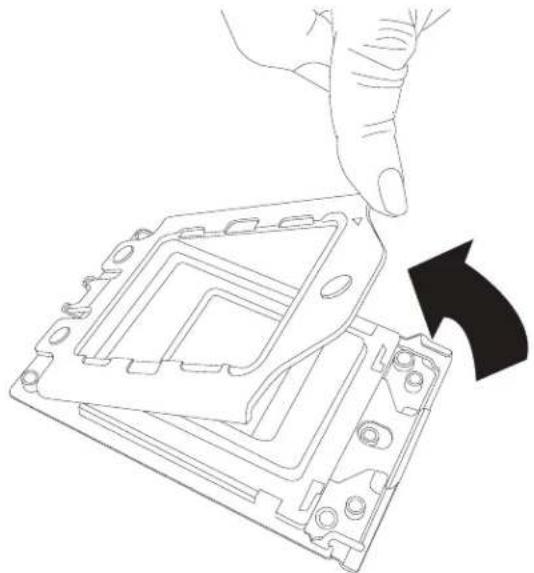

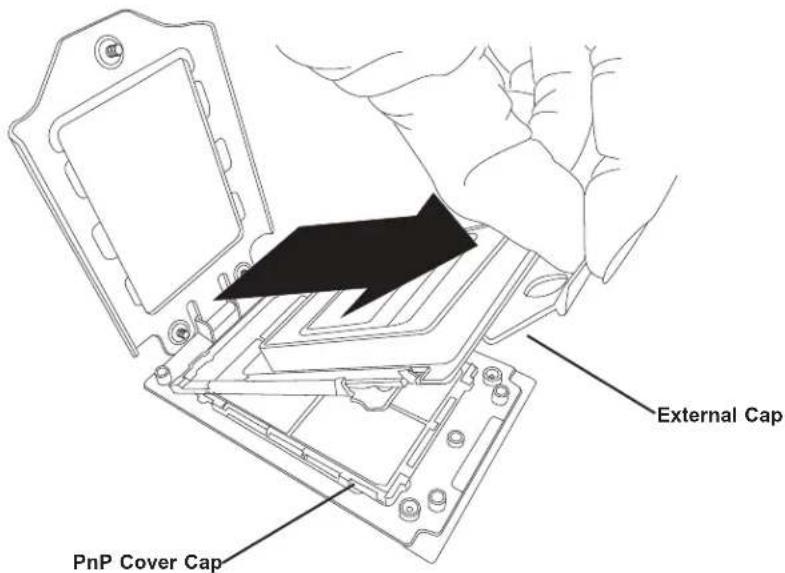

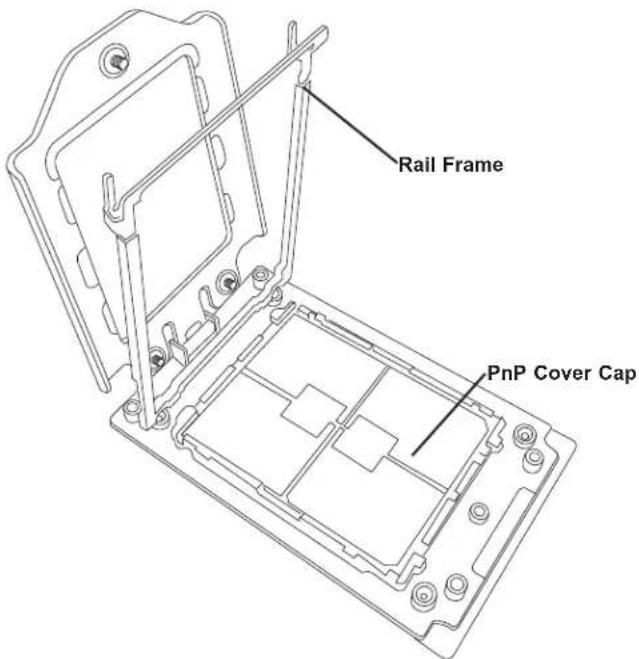

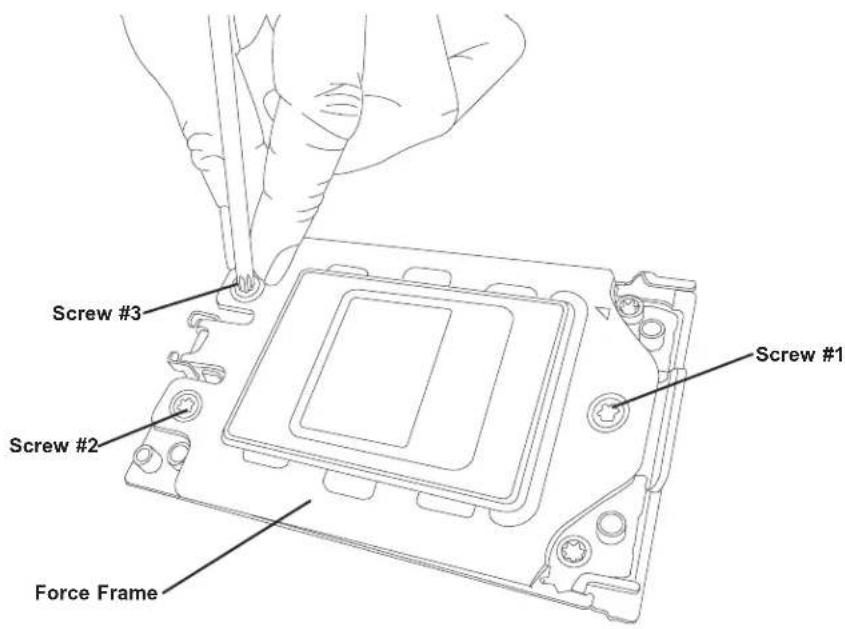

Processor and Heatsink Installation....26

Memory Installation....34

Memory Support ....34

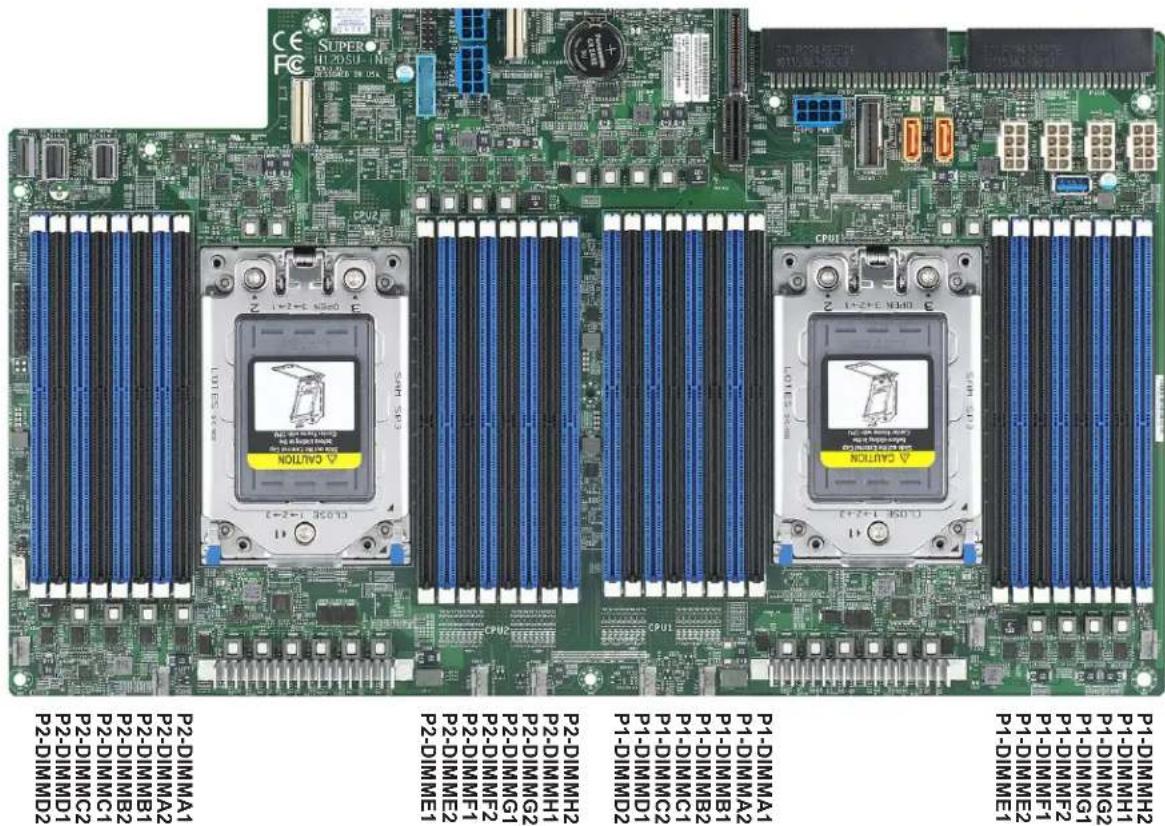

DIMM Module Population Sequence....34

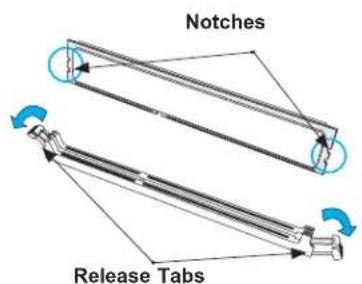

Installing Memory....36

Motherboard Battery ....37

3.4 Chassis Components ....38

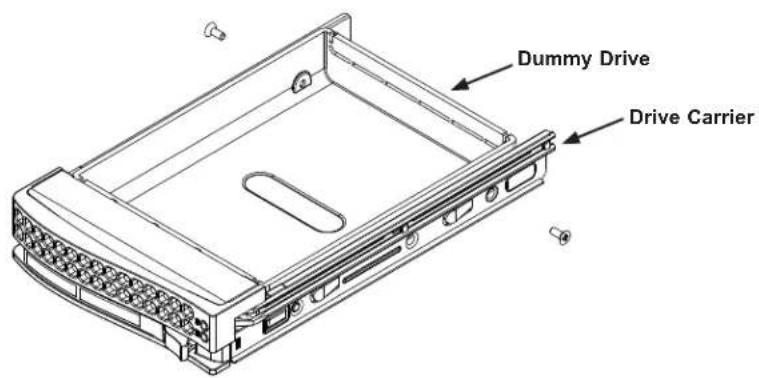

Storage Drives ....38

Cable Routing....40

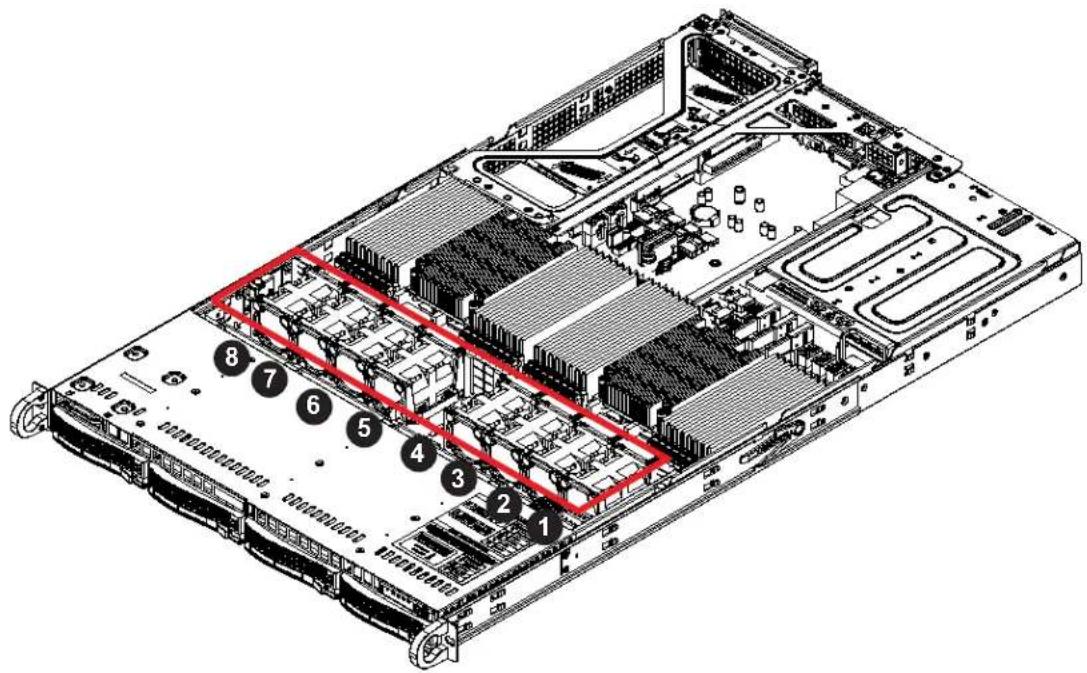

System Cooling 41

System Fan Replacement 42

Installing the Air Shroud ....43

Checking the Server Air Flow....44

Overheating 44

Power Supply 45

Power Supply LEDs....45

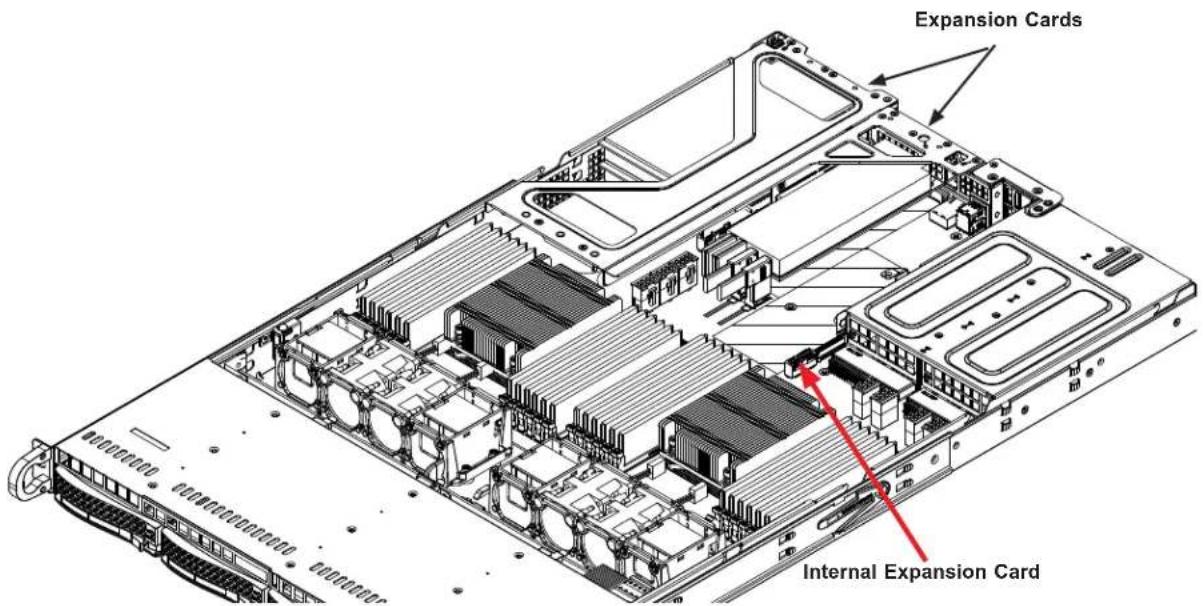

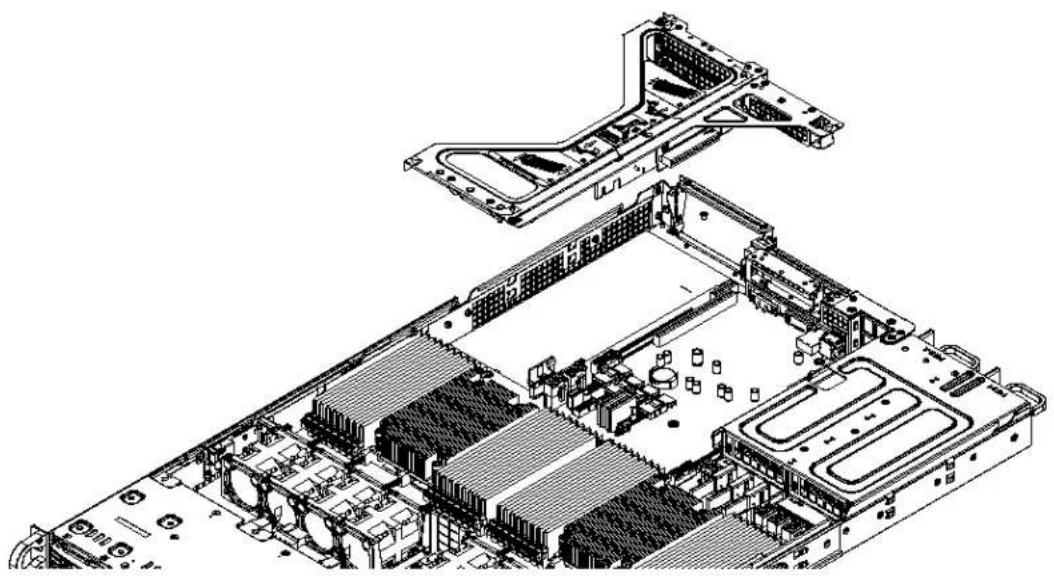

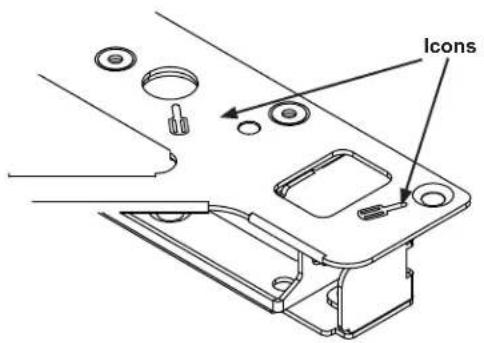

PCI Expansion Cards ....46

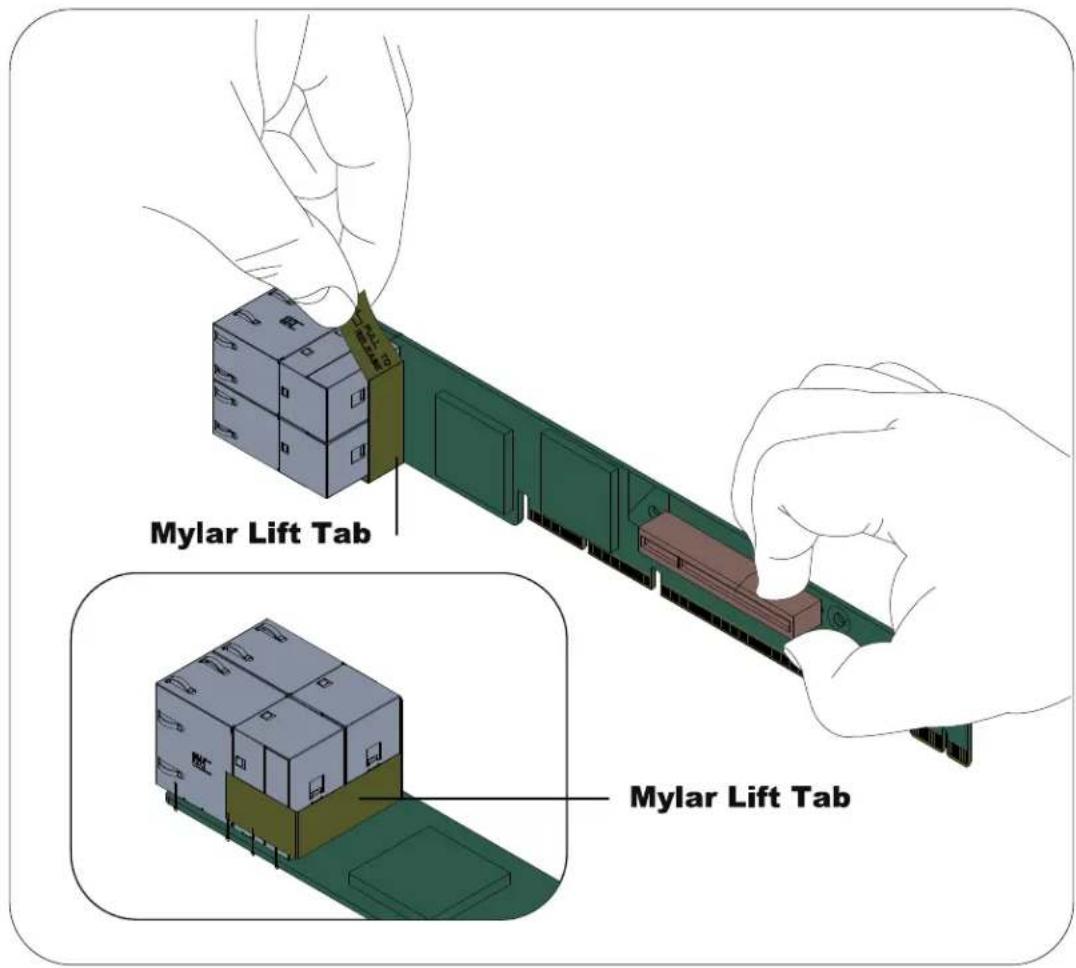

Removing the Ultra Riser Card ....49

Chapter 4 Motherboard Connections

4.1 Power Connections ....50
4.2 Headers and Connectors ....51

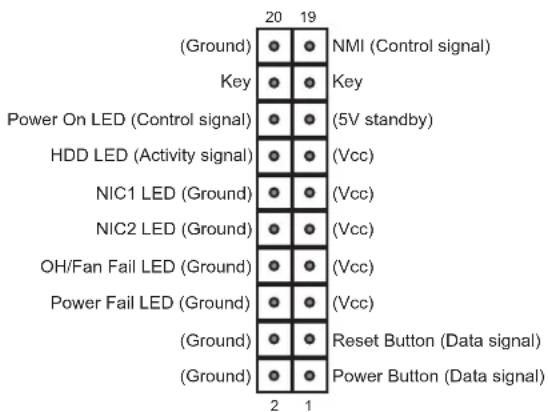

Control Panel....53

4.3 Ports....56
4.4 Jumpers....57

Explanation of Jumpers....57

4.5 LED Indicators ....59

Chapter 5 Software

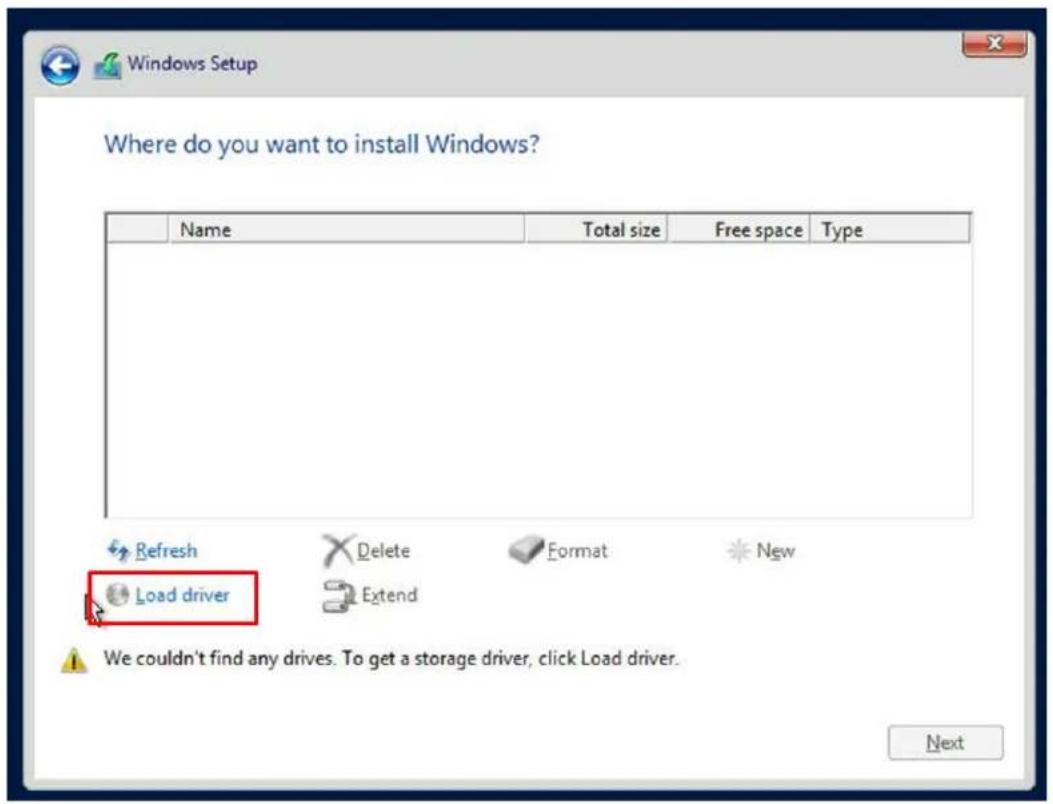

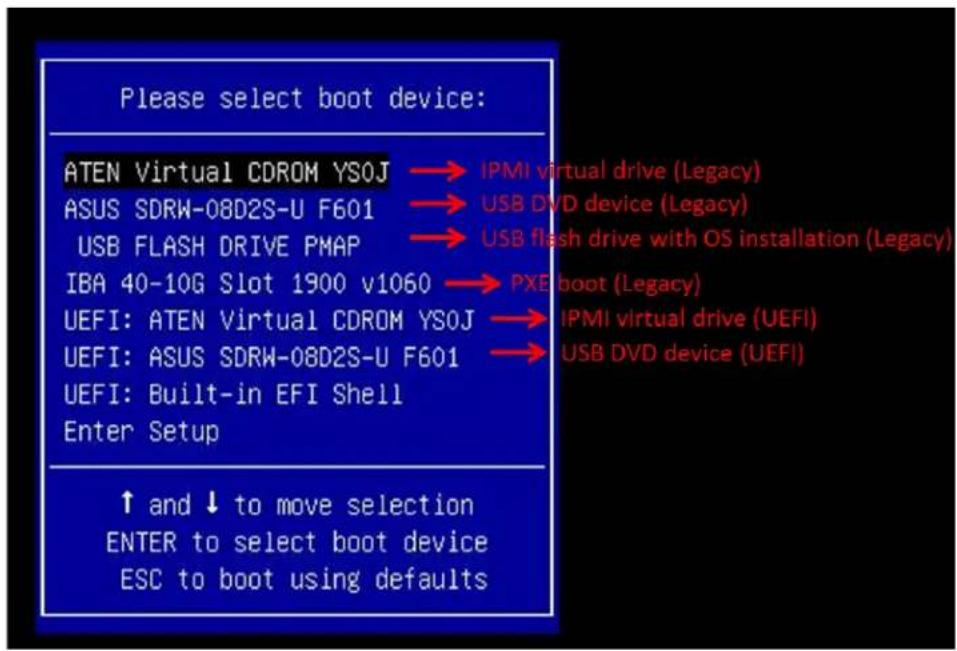

5.1 Microsoft Windows OS Installation....60

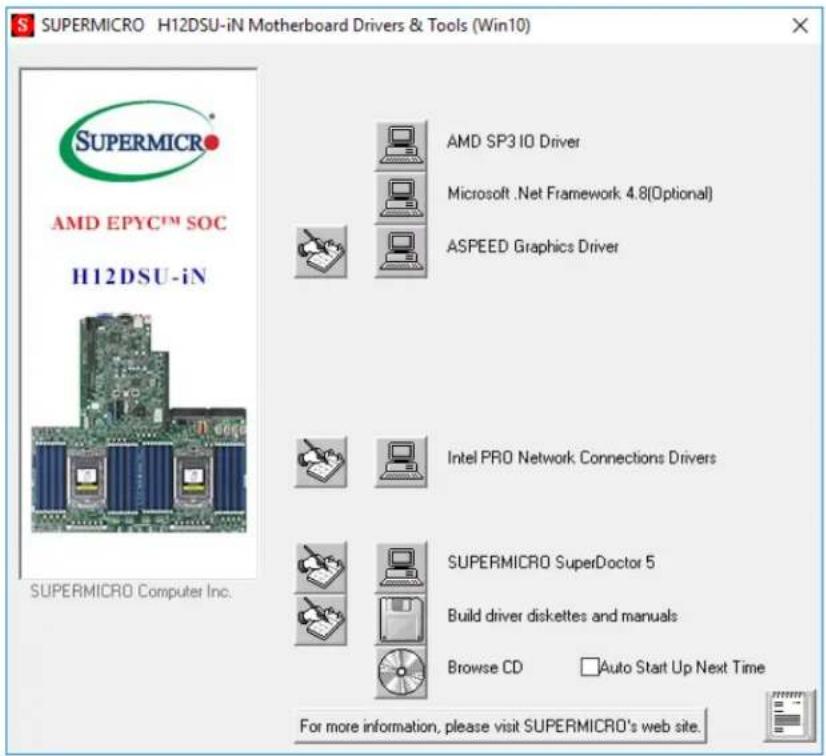

5.2 Driver Installation....62

5.3 SuperDoctor ^® 5....63
5.4 BMC....64

BMC ADMIN User Password....64

Chapter 6 UEFI BIOS

6.1 Introduction....65
Starting BIOS Setup Utility....65

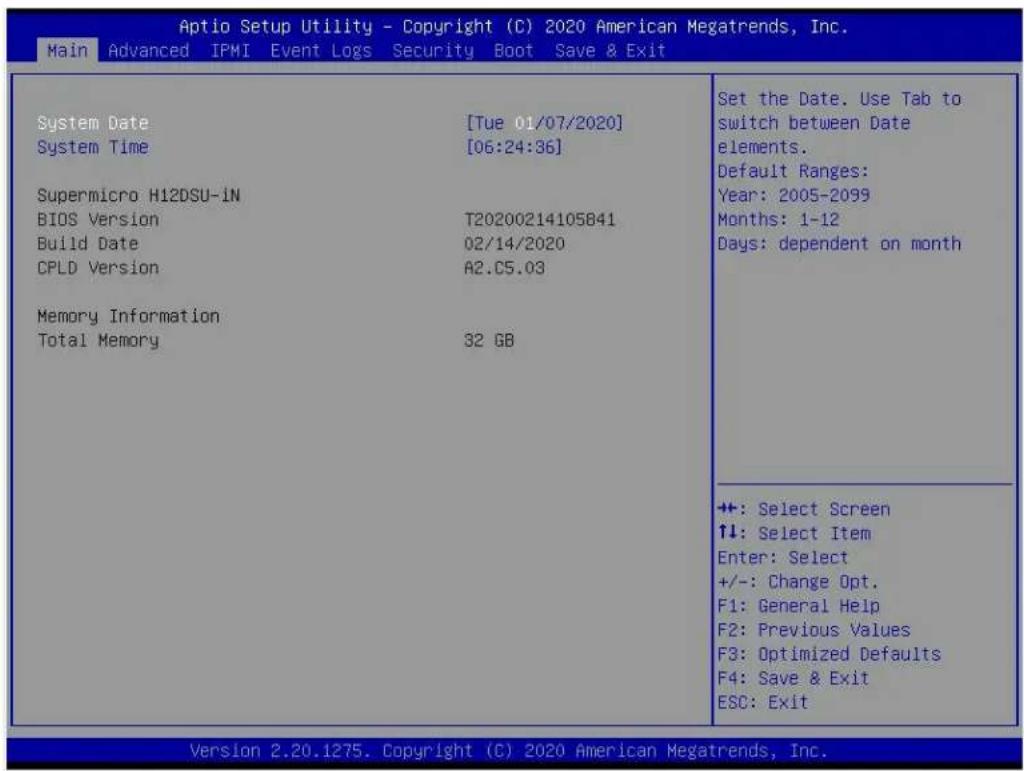

6.2 Main Setup....65
6.3 Advanced Setup Configurations....67
6.4 IPMI 83

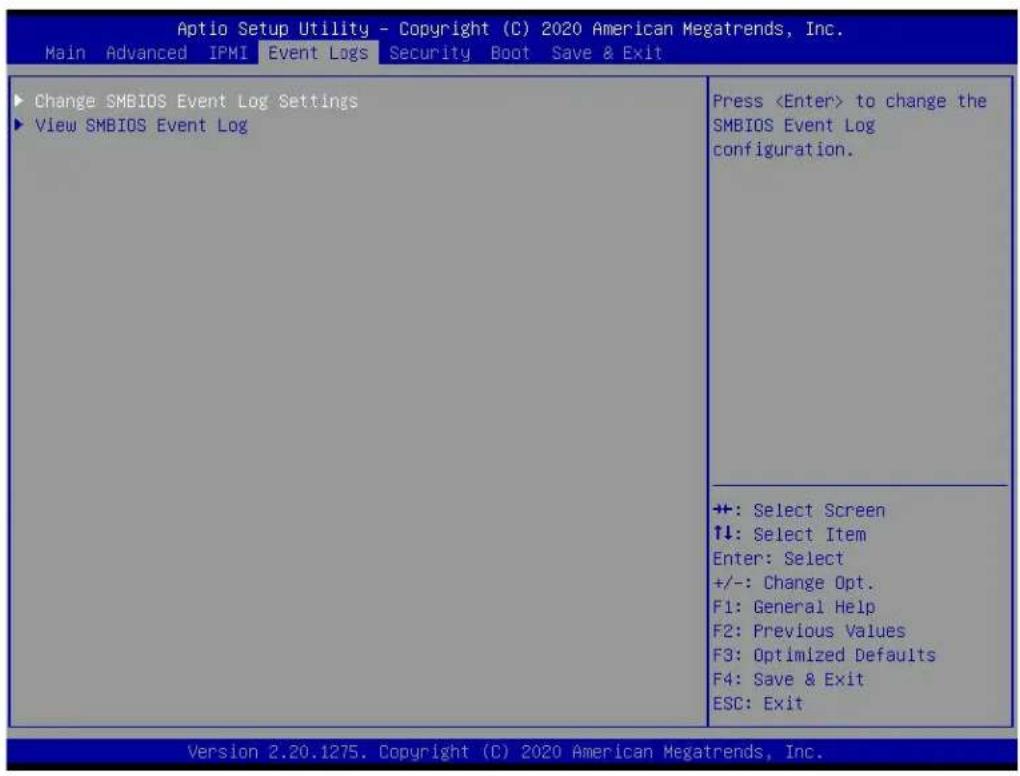

6.5 Event Logs 86
6.6 Security....88
6.7 Boot....93
6.8 Save & Exit....94

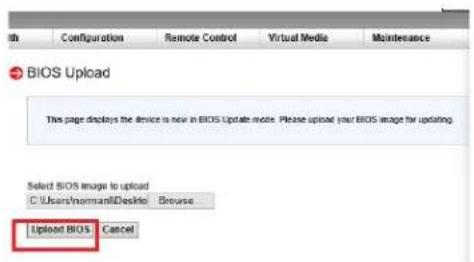

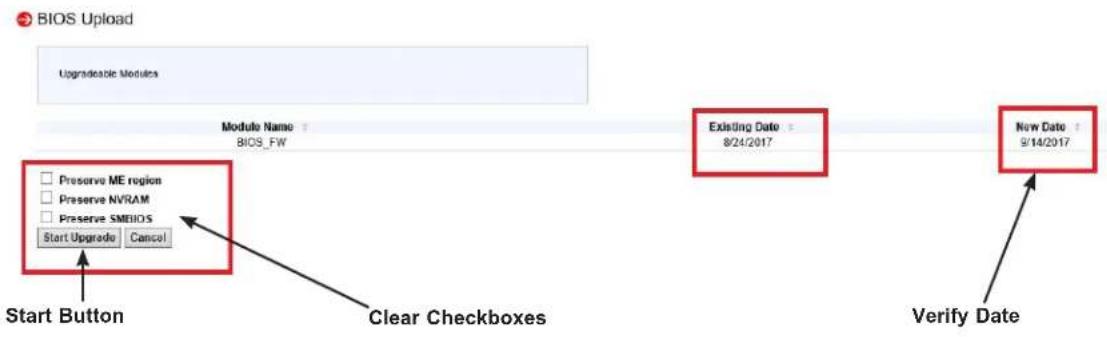

6.9 BIOS Update Using IPMI 96
6.10 UEFI BIOS Recovery....98

Overview 98

Recovering the UEFI BIOS Image....98

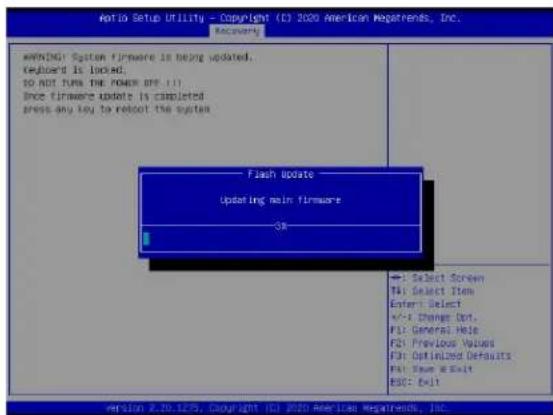

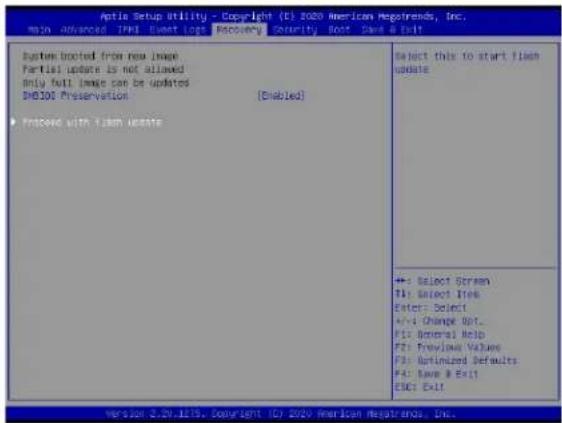

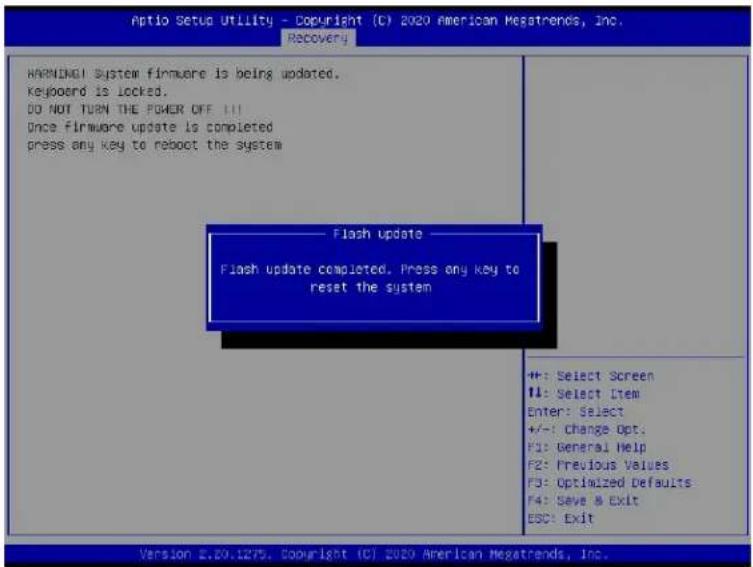

Recovering the BIOS Block with a USB Device....98

Appendix A Standardized Warning Statements for AC Systems

Appendix B System Specifications

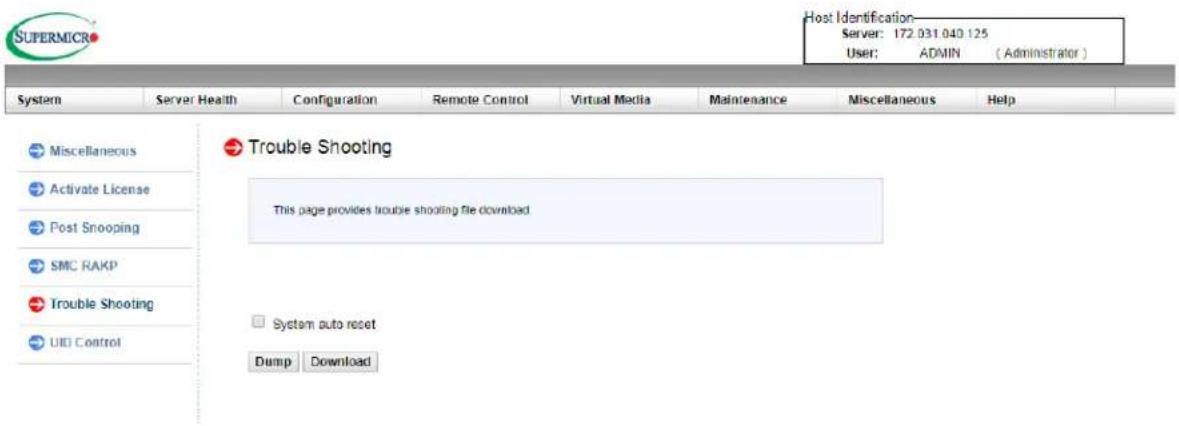

Appendix C IPMI Crash Dump

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.supermicro.com.tw

Chapter 1

Introduction

1.1 Overview

The Supermicro AS -1024US-TRT A+ is a high-end enterprise server well suited for Virtualization and Cloud Computing with flexible networking options. It is based on the H12DSU-iN motherboard and the 819UTS-R1K02P-A chassis. This chapter provides a brief outline of the functions and features.

In addition to the motherboard and chassis, several important parts are listed below.

Main Parts List
Description Part Number Quantity
Power supply modules PWS-1K02A-1R 2
Backplane BPN-SAS3-815TQ-N4 1
LAN add-on card AOC-URG4N4-I2XT-P 1
Fans FAN-0163L4 8
Air Shrouds MCP-310-81917-0B 1 set
Heatsinks SNK-P0062P 2
Riser cards: for 1 PCIe x 16 slot (LP)for 2 PCIe x16 slot (FH/9.5"L)	RSC-WR-6RSC-W-66G4	11
Rack mount rails	MCP-290-00062-0N	1 set
Software Out of Band License key included for OOB BIOS management	SFT-OOB-LIC	1

1.2 Unpacking the System

Inspect the box the system was shipped in and note if it was damaged in any way. If any equipment appears damaged, please file a damage claim with the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold the server. It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated. It will also require a grounded AC power outlet nearby.

Be sure to read the precautions and considerations noted in Appendix A.

1.3 System Features

The following is an overview of the main features.

System Features

Motherboard

H12DSU-iN

Chassis

819UTS-R1K02P-A

CPU

Dual AMD EPYC 7003/7002 series in SP3 sockets (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)

Chipset

System on Chip

Memory

Up to 8 TB of ECC DDR4 3200 MHz speed, RDIMM/LRDIMM/3DS/NVDIMM memory in 32 slots

Storage Drives

Four hot-swap 3.5" bays for choice of:SATA3 (default)NVMe (cable included; additional drive trays required)SAS3 (optional SAS card and kit required)M.2 NVMe (optional AOC required)

Expansion Slots

Two full height, 9.5"-length x16 PCIe 4.0One low profile x16 PCIe 4 .0One internal low-profile PCIe 4.0 x16 (proprietary design)

Cooling

Eight mid-chassis 4-cm counter-rotating fans; two air shrouds, two CPU heatsinks

Power

1000 W redundant 80 Plus Titanium level modules(Full redundancy based on configuration and application load)

Input/Output

LAN: Two 10 Gbps ports by means of the Ultra card; one dedicated IPMI portUSB 3.0:Two ports on the rear I/O panel (USB0/1)One type A header (Internal)Two SATA DOM (Device on Module) power connectorsOne COM portOne VGA port

Form Factor

1 U rackmount; (WxHxD) 17.2 x 1.7 x 29 in. (437 x 43 x 737 mm)

1.4 Chassis Features

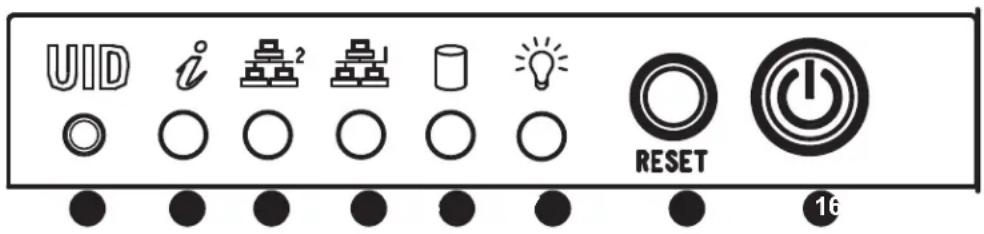

Control Panel

Power switches and status LEDs are located on the control panel on the front of the chassis.

Control Panel Features
Item Features Description
1 Power button		The main power switch applies or removes primary power from the power supply to the server but maintains standby power.
2 Reset button Reboots the system.
3 Power LED		Indicates power is being supplied to the system power supply units. This LED is illuminated when the system is operating normally.
4 HDD Indicates activity on the storage drive when flashing
5 NIC LED Indicates network activity on the LAN1 when flashing.
6 NIC LED Indicates network activity on the LAN2 when flashing.
7 Information LED Alerts operator to several states, as noted in the table below
8	UID Button	Unit identifier button illuminates the Information LED

Information LED
Status Description
Continuously on and red	An overheat condition has occurred. (This may be caused by cable congestion.)
Blinking red (1Hz) Fan failure, check for an inoperative fan.
Blinking red (0.25Hz)	Power failure, check for a non-operational power supply.
Solid blue	UID has been activated locally to locate the server in a rack environment.
Blinking blue	UID has been activated using IPMI to locate the server in a rack environment.

Chassis Front

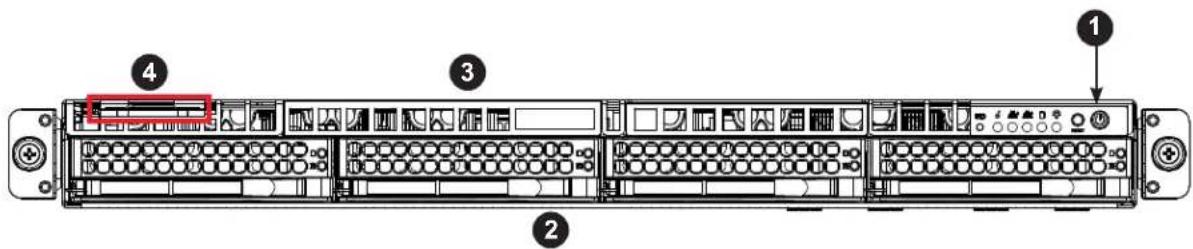

The illustration below shows the features included on the front of the chassis. Storage drive carriers display status lights.

Diagram of a server rack with labeled ports and indicators, showing internal layout and status indicators.

Figure 1-2. Front View

Chassis Front Features
Item Features Description
1 Control	Panel see previous page
2	Storage Drives	Four 3.5" drive bays; see the "Storage Drive" section in Section 3.4 for details
3 DVD drive Bay for optional Slim DVD drive

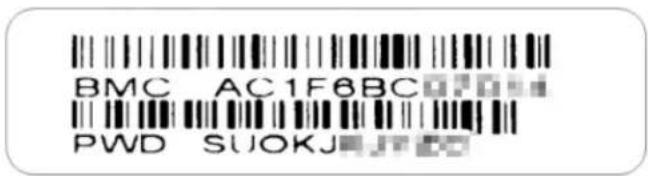

4	Service/Asset Tag	Pull-out identifier (with BMC ADMIN default password underneath; see figure below)

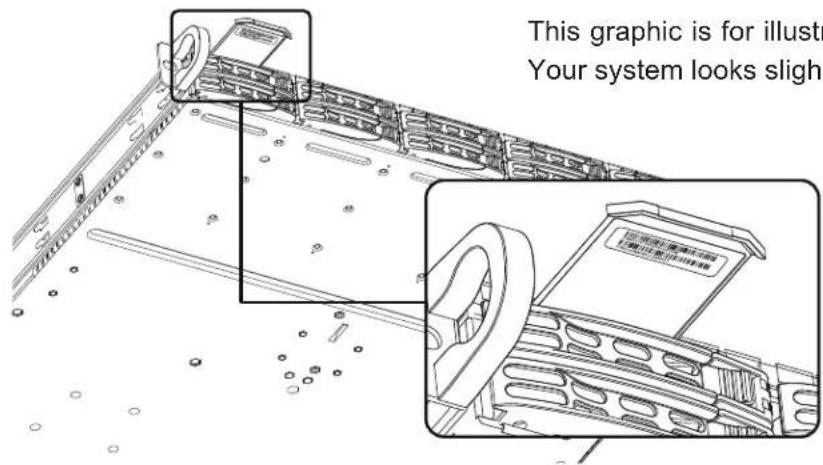

This graphic is for illustr Your system looks slight

Figure 1-3. Location of the BMC Password Label

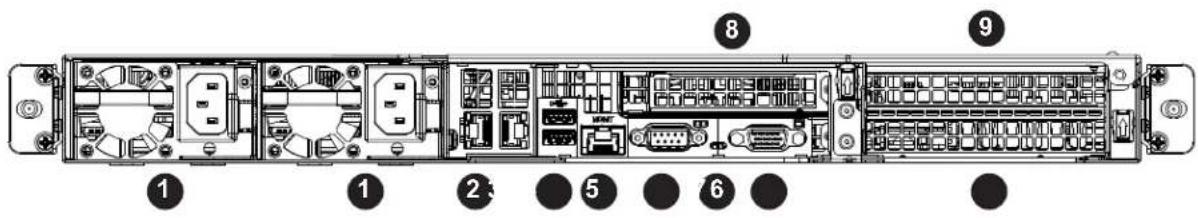

Chassis Rear

The illustration below shows the features included on the rear of the chassis. Power supply modules display status lights.

Diagram of a server rack with labeled components including ports, connectors, and ventilation slots

Figure 1-4. Rear View

Chassis Rear Features
Item Features Description

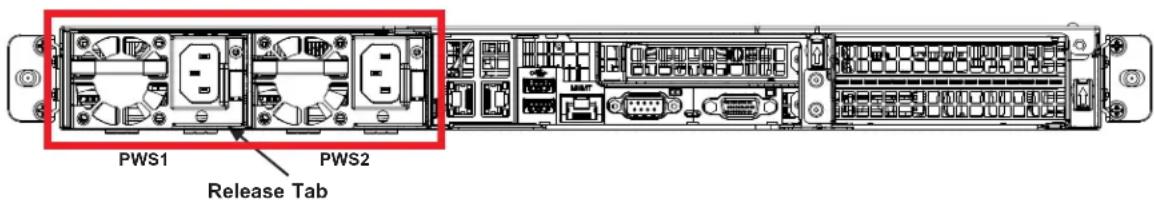

1 Power Supply Two power	supply modules, PWS1 on the left, PWS2 on the right
2 LAN Two 10GBase-T ports
3 USB Two USB 3.0 ports
4 IPMI LAN Dedicated LAN	port for IPMI
5 COM Serial port
6 UID UID indicator and button to toggle the UID indicators
7 VGA Video port
8 PCI One PCIe low profile slot
9 PCI Two PCIe full height,	9.5" length slots

Technical diagram of a multi-chamber electrical enclosure with labeled components and highlighted section 1

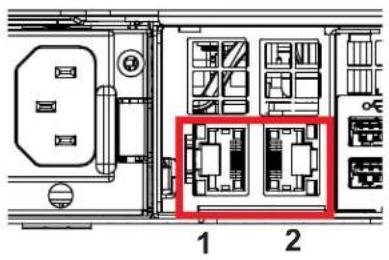

Figure 1-5. LAN Numbering

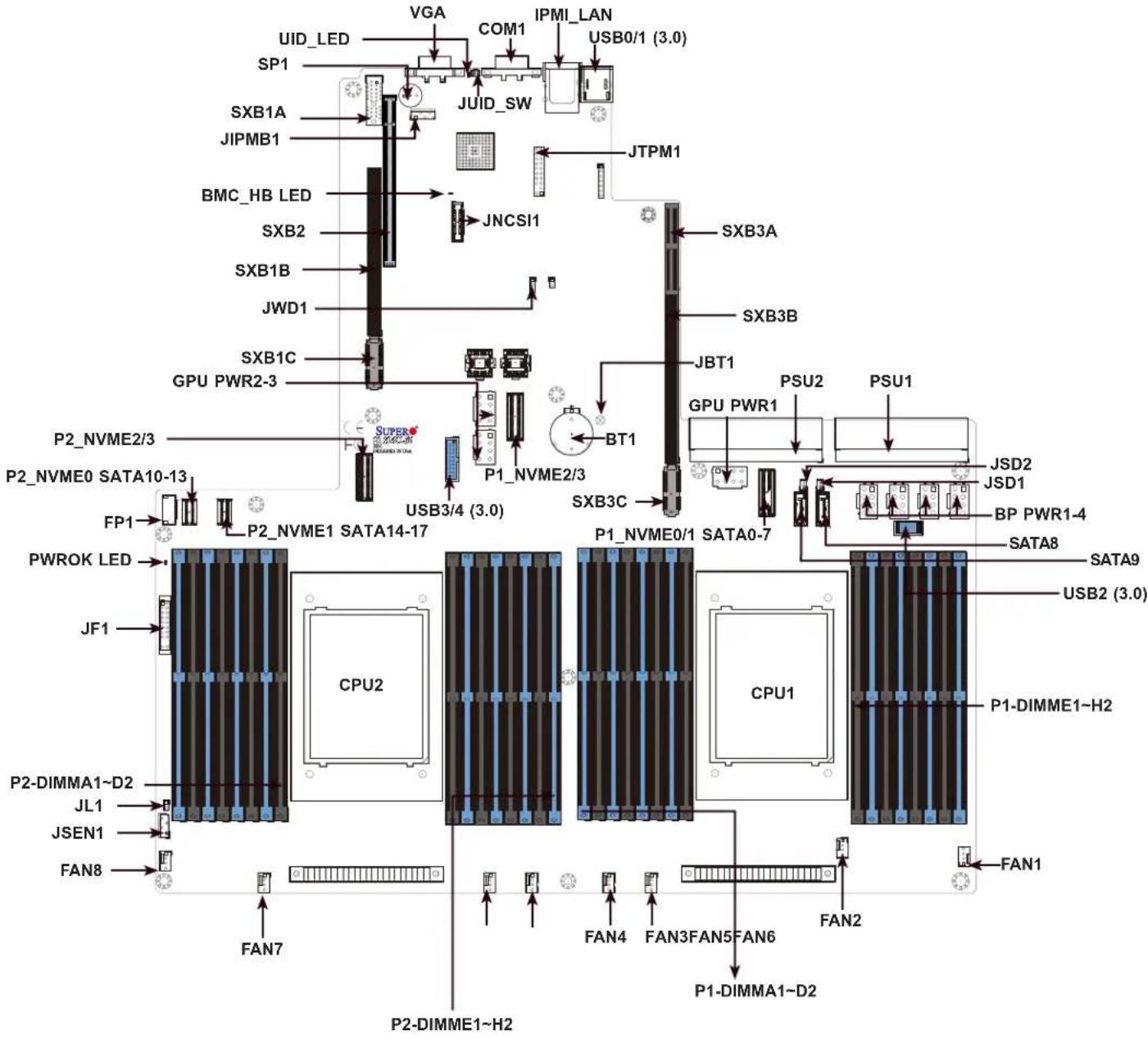

1.5 Motherboard Layout

Below is a layout of the H12DSU-iN with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4.

Figure 1-4. Motherboard Layout

Quick Reference

Jumper Description Default Setting

JBT1 CMOS Clear Open (Normal)

JWD1 Watch Dog Pins 1-2 (Reset)

Connector Description

JIPMB1 4-pin External I	^2C Header (for an IPMI card)
BT1 Onboard Battery
VGA VGA Port
UID_SW UID Switch
COM1 COM Port
IPMI_LAN IPMI LAN
USB0/1 (3.0) USB0/1 (3.0) Rear Side Connector
USB3/4 (3.0)	USB3/4 (3.0) Front Side Pin Header
USB2 (3.0)	USB2 (3.0) Type A Connector
FAN1~FAN8	4-pin System/CPU Fan Headers
JCPLD1	Complex-Programmable Logical Device (CPLD) header
FP1 Front Panel Connector
JF1	Front Control Panel Header 1
P1_NVME0/1 SATA0-7	Processor 1 NVMe Ports 0/1 / SATA 0~7
P1_NVME2/3	Processor 1 NVMe Ports 2/3
P2_NVME0/1 SATA10-17	Processor 2 NVMe Ports 0/1 / SATA 10~17
P2_NVME2/3	Processor 2 NVMe Ports 2/3
SATA8~9	SATA 3.0 Ports
JSD1-2	Disk-On-Module Power Connector
JNCSI1	NCSI
JL1	Chassis Intrusion Header
JSEN1	Inlet Sensor Header
GPU PWR1-3	12V 8-pin Power Connector for Riser Card GPU
BP PWR1-4	12V and 5V 8-pin Power Connector for Backplane
JTPM1	Trusted Platform Module/Port 80 Connector
PSU1/PSU2	Motherboard Main Power Supply Connector
SXB1A/1B/1C	WIO-L Riser Card Support (CPU2 PCIe 4.0 x32)
SXB2	WIO-R Riser Card Support (CPU2 PCIe 4.0 x16)
SXB3A/3B/3C	Ultra I/O Riser Card Support (CPU1 PCIe 4.0 x40)

LED	Description	State: Status
UID_LED	UID LED	Solid Blue: UID Switch On
BMC_HB LED	BMC Heartbeat LED	Green: Blinking (BMC normal)Green: Fast blinking (BMC initializing)
PWROK LED	Power LED	Solid Green: Power On

System Block Diagram

Figure 1-5. System Block Diagram

Note: This is a general block diagram and may not exactly represent the features on your motherboard. See the System Specifications appendix for the actual specifications of your motherboard.

1.6 Where to Get Replacement Components

If you need replacement parts for your system, to ensure the highest level of professional service and technical support, purchase exclusively from our Supermicro Authorized Distributors/System Integrators/Resellers. A list can be found at: http://www.supermicro.com. Click the "Where to Buy" link.

1.7 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online (http://www.supermicro.com/support/rma/).

Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product problems.

Chapter 2

Server Installation

2.1 Overview

This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory etc., refer to Chapter 4 for details on installing those specific components.

Caution: Electrostatic Discharge (ESD) can damage electronic components. To prevent such damage to PCBs (printed circuit boards), it is important to use a grounded wrist strap, handle all PCBs by their edges and keep them in anti-static bags when not in use.

2.2 Preparing for Setup

The box in which the system was shipped should include the rackmount hardware needed to install it into the rack. Please read this section in its entirety before you begin the installation.

Choosing a Setup Location

• The system should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated.
• Leave enough clearance in front of the rack so that you can open the front door completely (\~25 inches) and approximately 30 inches of clearance in the back of the rack to allow sufficient space for airflow and access when servicing.
• This product should be installed only in a Restricted Access Location (dedicated equipment rooms, service closets, etc.).
• This product is not suitable for use with visual display workplace devices according to §2 of the German Ordinance for Work with Visual Display Units.

Rack Precautions

- Ensure that the leveling jacks on the bottom of the rack are extended to the floor so that the full weight of the rack rests on them.

• In single rack installations, stabilizers should be attached to the rack. In multiple rack installations, the racks should be coupled together.
• Always make sure the rack is stable before extending a server or other component from the rack.
• You should extend only one server or component at a time - extending two or more simultaneously may cause the rack to become unstable.

Server Precautions

• Review the electrical and general safety precautions in Appendix B.
• Determine the placement of each component in the rack before you install the rails.
• Install the heaviest server components at the bottom of the rack first and then work your way up.
• Use a regulating uninterruptible power supply (UPS) to protect the server from power surges and voltage spikes and to keep your system operating in case of a power failure.
• Allow any drives and power supply modules to cool before touching them.
• When not servicing, always keep the front door of the rack and all covers/panels on the servers closed to maintain proper cooling.

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the room's ambient temperature. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (TMRA).

Airflow

Equipment should be mounted into a rack so that the amount of airflow required for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.).

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.
• Slide rail mounted equipment is not to be used as a shelf or a work space.

2.3 Installing the Rails

There are a variety of rack units on the market, which may require a slightly different assembly procedure. This rail set fits a rack between 25.6" and 33" deep.

The following is a basic guideline for installing the system into a rack with the rack mounting hardware provided. You should also refer to the installation instructions that came with the specific rack you are using.

If you are installing into a two-post "telco" rack, skip to that section later in this chapter.

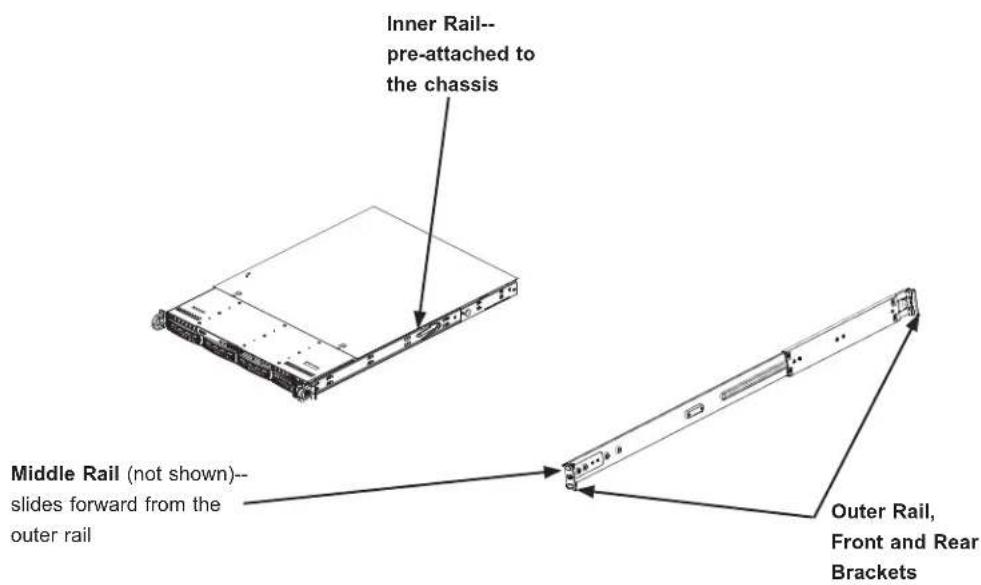

Identifying the Rails

The chassis comes with two sets of rack rails, one set for the right side of the chassis and one for the left. Each set consists of an inner rail that is pre-attached to the chassis, an outer rail that attaches to the rack, and a middle rail that slides forward in the outer rail.

Inner Rail-- pre-attached to the chassis Middle Rail (not shown)-- slides forward from the outer rail Outer Rail, Front and Rear Brackets

Figure 2-1. Identifying the Sections of the Rack Rails

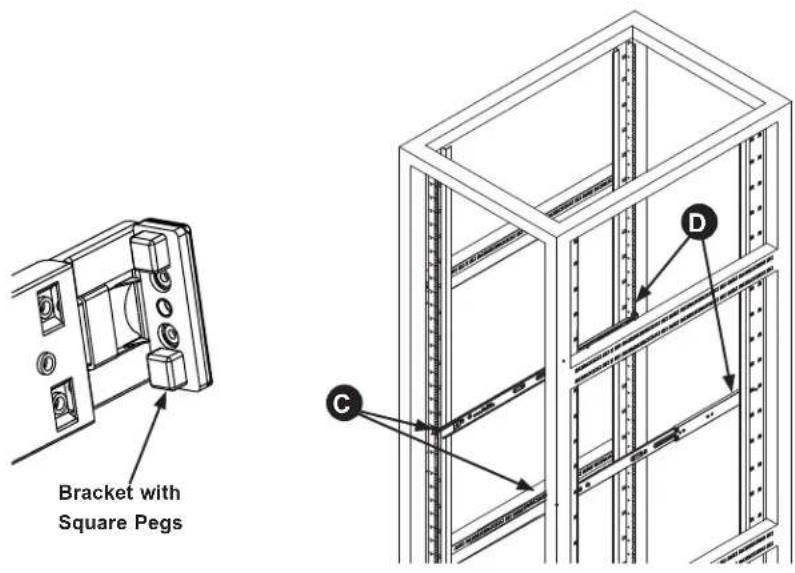

Installing the Outer Rails onto the Rack

Each end of the assembled outer rail includes a bracket with square pegs to fit into your rack holes. If you have an older rack with round holes, these brackets must be removed, and you must use screws to secure the rail to the rack.

Outer Rail Installation

1. Align the square pegs on the front end of the rail with the square holes on the front of the rack (C). Push the rail into the rack until the quick release bracket snaps into place, securing the rail to the rack. Keep the rail horizontal.
2. Adjust the rail to reach just past the full depth of your rack.
3. Align the square pegs on the rear end of the rail to the holes on the rack (D) and push the rail into the rack until the quick release bracket snaps into place, securing the rail to the rack.

Bracket with Square Pegs C D

Figure 2-2. Installing the Outer Rails to the Rack

Note: The figure above is for illustrative purposes only. Always install servers at the bottom of the rack first.

Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over.

2.4 Installing the Chassis into a Rack

Once rails are attached to the chassis and the rack, you can install the server.

1. Pull the middle rail out of the front of the outer rail and make sure that the ball bearing shuttle is locked at the front of the middle rail.

2. Align the rear of the chassis rails with the middle rails and then push evenly on both sides of the chassis until it clicks into the fully extended position.

3. Depress the locking tabs on both sides of the chassis and push the it fully into the rack. The locking tabs should "click".

4. Thumb screws may be used to secure the front of the chassis to the rack.

Isometric line drawing of a multi-level server rack cabinet with visible internal components and mounting holes (no text or labels)

Figure 2-3. Installing the Server into the Rack

Note: Keep the ball bearing shuttle locked at the front of the middle rail during installation.

Note: Figure is for illustrative purposes only. Always install servers to the bottom of a rack first.

Removing the Chassis from the Rack

Caution! It is dangerous for a single person to off-load the heavy chassis from the rack without assistance. Be sure to have sufficient assistance supporting the chassis when removing it from the rack. Use a lift.

1. If necessary, loosen the thumb screws on the front of the chassis that hold it in the rack

2. Pull the chassis forward out the front of the rack until it stops.

3. Press the release latches on each of the inner rails downward simultaneously and continue to pull the chassis forward and out of the rack.

Outer Rail Latch

Figure 2-4. Removing the Chassis From the Rack

Note: Figure is for illustrative purposes only. Always install servers to the bottom of a rack first.

Installing the Server into a Telco Rack

To install the server into a Telco (or "open") type rack, use L-shaped brackets (p/n MCP-290-00016-0N) on either side of the chassis (four total). Note that this is only recommended for 1U systems.

1. Determine how far the server will extend out from the front of the rack. The chassis should be positioned so that the weight is balanced between front and back.
2. Attach the two front brackets to each side of the chassis, then the two rear brackets positioned with just enough space to accommodate the width of the rack.
3. Finish by sliding the chassis into the rack and tightening the brackets to the rack.

Isometric line drawing of a vertical shelf or rack unit with metal plates and a central support (no text or symbols)

Figure 2-5. Installing the Server into a Telco Rack

Note: The figure above is for illustrative purposes only. Always install servers at the bottom of the rack first.

Chapter 3

Maintenance and Component Installation

This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given.

Installation or replacement of most components require that power first be removed from the system. Please follow the procedures given in each section.

3.1 Removing Power

Use the following procedure to ensure that power has been removed from the system. This step is necessary when removing or installing non hot-swap components or when replacing a non-redundant power supply.

1. Use the operating system to power down the system.
2. After the system has completely shut-down, disconnect the AC power cord(s) from the power strip or outlet. (If your system has more than one power supply, remove the AC power cords from all power supply modules.)
3. Disconnect the power cord(s) from the power supply module(s).

3.2 Accessing the System

Removing System from the Rack

1. Pull the chassis forward out the front of the rack until it stops.
2. Disengage the locking tabs in the chassis rails (push the right-side tab down and the left-side tab up) while pulling the system out past the locked position.

Removing the Top Cover

The 819U chassis features a removable top cover.

- Push both release buttons toward the chassis rear and slide the cover toward the rear. (See following drawing)

Caution: Except for short periods of time, do not operate the server without the cover in place. The chassis cover must be in place to allow for proper airflow and to prevent overheating.

Release Buttons

Figure 3-1. Removing the Chassis Cover

3.3 Motherboard Components

Processor and Heatsink Installation

Cautions:

• When handling the processor (CPU) package, avoid placing direct pressure on the label area of the CPU or CPU socket.
• Improper CPU installation or socket misalignment can cause serious damage to the CPU or motherboard which may result in RMA repairs.
  • Take all standard precautions to avoid electrostatic discharge (ESD) which can damage components.
• Read thoroughly and follow all instructions.

Assemble the processor (CPU) and heatsink together first then install that assembly onto the CPU socket.

Notes:

• The motherboard should be installed into the chassis first and the processor should be installed into the CPU socket before you install a CPU heatsink.
• If you bought a CPU separately, make sure that you use a certified multi-directional heatsink only.
• When receiving a motherboard without a processor pre-installed, make sure that the plastic CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately.
  • Refer to the Supermicro website for updates on CPU support.

Installing the Processor and Heatsink

Begin by removing power from the system as described in Section 3.1.

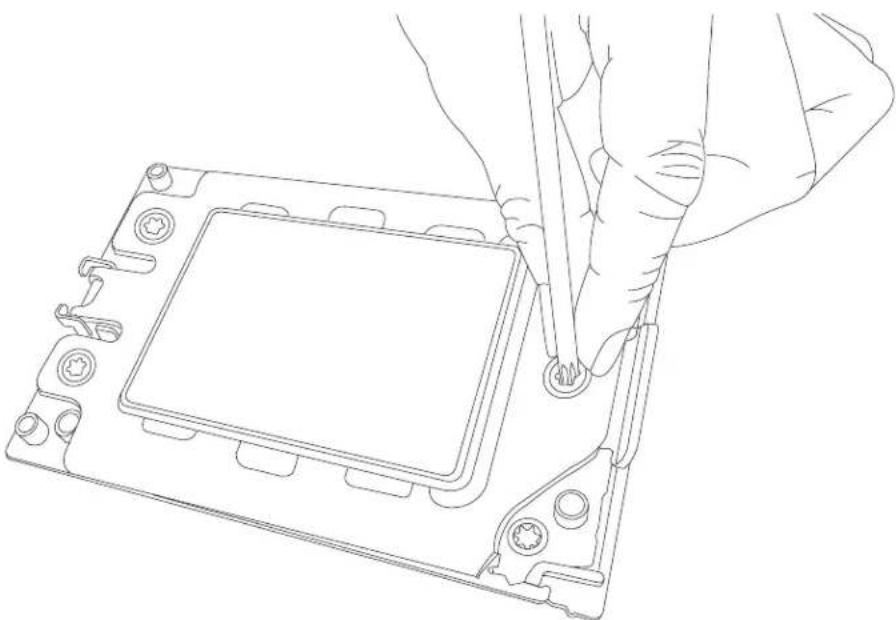

1. Use a Torx T20 driver to loosen the screws holding down Force Frame in the sequence of 3-2-1. The screws are numbered on the Force Frame next to each screw hole. Tighten to 16.1 kgf-cm (14 lbf-in) of torque.

Screw #3 Screw #2 Force Frame Screw #1

Figure 3-2. Removing the Processor Force Frame

1. The spring-loaded Force Frame will raise up after the last screw (#1) is removed. Gently allow it to lift up to its stopping position.

Line drawing of a hand pressing down on a computer processor casing with an arrow indicating the process (no text or symbols present)

Figure 3-3. Raising the Force Frame

1. Lift the Rail Frame up by gripping the lift tabs near the front end of the rail frame. While keeping a secure grip of the Rail Frame, lift it to a position so you can do the next step of removing the External Cap.

Note: The Rail Frame is spring loaded, so keep a secure grip on it as you lift it so it does not snap up.

Rail Frame PnP Cover Cap

Figure 3-4. Lifting the Rail Frame

1. Remove the External Cap from the Rail Frame by pulling it upwards through the rail guides on the Rail Frame.

External Cap PnP Cover Cap

Figure 3-5. Removing the External Cap

1. The CPU Package is shipped from the factory with the blue Carrier Frame pre-assembled. Grip the handle of the Carrier Frame/CPU Package assembly from its shipping tray, and while gripping the handle, align the flanges of the Carrier Frame onto the rails of the Rail Frame so its pins will be at the bottom when the Rail Frame is lowered later.

2. Slide the Carrier Frame/CPU Package downwards to the bottom of the Rail Frame. Ensure the flanges are secure on the rails as you lower it downwards.

Carrier Frame/ CPU Package

Figure 3-6. Inserting the Carrier Frame/CPU Package

Note: You can only install the CPU inside the socket in one direction with the handle at the top. Make sure that it is properly inserted into the CPU socket before closing the Rail Frame plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the Rail Frame plate again, and double-check that the CPU is aligned properly.

1. Lift up the Rail Frame till it securely rests in upright position. Then remove the PnP Cover Cap from the CPU socket below. Grip the two lift tabs marked "Remove" at the middle of the cap and pull vertically upwards to remove the PnP Cover Cap.
   Caution: The exposed socket contacts are extremely vulnerable and can be damaged easily. Do not touch or drop objects onto the contacts and be careful removing the PnP Cover Cap and when placing the Rail Frame over the socket.
2. Gently lower the Rail Frame down onto the socket until the latches on the Rail Frame engage with the Socket housing. and it rests in place. Do not force it into place!
3. Gently lower the Force Frame down onto the Rail Frame and hold it in place until it is seated in the Socket housing. Note that the Force Frame is spring loaded and has to be held in place before it is secured.

Line drawing of a hand pressing down on a computer processor's internal components (no text or symbols)

Figure 3-7. Lowering the Force Frame

Line drawing of hands connecting a component to a base plate (no text or symbols)

Figure 3-8. Securing the Force Frame

1. Replace the screws in the order 1-2-3, tightening to 16.1 kgf-cm (14 lbf-in) of torque. The Force Frame secures both the Rail Frame and CPU Package.

Caution: Tightening must be executed in proper 1-2-3 sequence to avoid causing catastrophic damage to the socket or CPU Package.

Technical line drawing of a mechanical component with mounting holes and a central square feature (no text or symbols)

Figure 3-9. The Force Frame Secured

1. Lower the heatsink down till it rests securely on CPU Package over the four screw holes on the socket frame.

Technical line drawing of a heat exchanger or cooling unit with internal components and mounting holes (no text or symbols)

Figure 3-10. Mounting the Heatsink

1. Using a diagonal pattern and a Torx T20 driver, tighten the four heatsink screws evenly to 16.1 kgf-cm (14.0 lbf-in) of torque.

#1 Screw #3 Screw #4 Screw #2 Screw

Figure 3-11. Securing the Heatsink

The processor and heatsink installation is complete. Repeat this procedure for any remaining CPU sockets on the motherboard.

Removing a Heatsink

We do not recommend removing the heatsink. If necessary, please follow the instructions below to prevent damage to the CPU or the CPU socket.

Note: Wait for the heatsink to cool down before removing it.

1. Unscrew and remove the heatsink screws from the motherboard in the sequence as show in the figure above.
2. Hold and gently pivot the heatsink back and forth to loosen it from the CPU. (Do not use excessive force when dislodging the heatsink!)
3. Once the heatsink is loose, remove it from the CPU.
4. Clean the surface of the CPU and the heatsink to get rid of the old thermal grease. Reapply the proper amount of thermal grease to the surface before you re-install the heatsink.

Memory Installation

Memory Support

The H12DSU-iN supports Up to 8 TB of ECC DDR4 3200 MHz speed, RDIMM/LRDIMM/3DS/NVDIMM memory in thirty-two slots. Check the Supermicro website for possible updates to memory support.

Processors and their Corresponding Memory Modules

CPU#

Channel 1

Channel 2

Channel 3

Channel 4

Channel 5

Channel 6

Channel 7

Channel 8

2 DIMMS (not recommended)

CPU1 C2

CPU2 C2

4 DIMMS (not recommended)

CPU1 C2 D2

CPU2 C2 D2

8 DIMMS (not recommended)

CPU1 C2 D2 G2 H2

CPU2 C2 D2 G2 H2

12 DIMMS (for 7003 CPU only)

CPU1 A2 C2 D2 E2 G2 H2

CPU2 A2 C2 D2 E2 G2 H2

16 DIMMS

CPU1 A2 B2 C2 D2 E2 F2 G2 H2

CPU2 A2 B2 C2 D2 E2 F2 G2 H2

24 DIMMS (for 7003 CPU only)

CPU1

A1

A2

C1

C2

D1

D2

E1

E2

G1

G2

H1

H2

CPU2

A1

A2

C1

C2

D1

D2

E1

E2

G1

G2

H1

H2

32 DIMMS

CPU1

A1

A2

B1

B2

C1

C2

D1

D2

E1

E2

F1

F2

G1

G2

H1

H2

CPU2

A1

A2

B1

B2

C1

C2

D1

D2

E1

E2

F1

F2

G1

G2

H1

H2

DIMM Module Population Sequence

• Populate the blue slots first.
  • Always use DDR4 DIMM modules of the same type, size and speed.
• Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.
• The motherboard supports an odd number of modules (1, 3, etc.). However, to achieve the best memory performance, a balanced memory population is recommended.
• In single-CPU configurations, memory must be installed in the DIMM slots associated with the installed CPU.

Populating RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS DDR4 Memory Modules
Type	DIMM Population		Maximum DIMM Capacity (GB)	Maximum Frequency (MHz)
	DIMM1 DIMM2 1 Channel 8 Channel
RDIMM		1R 32GB 256GB 3200
	1R 1R 64GB 512GB 2933
		2R or 2DR 64GB 512GB 3200
	1R 2R or 2DR 96GB 76GB 2933
	2R or 2DR 2R or 2DR 128GB 1TB 2933
LRDIMM dual die package		4DR 128GB 1TB 3200
	4DR 4DR 256GB 2TB 2933
LRDIMM 3DS		2S2R 128GB 1TB 3200
		2S4R 256GB 2TB 3200
	2S2R 2S2R 256GB 2TB 2933
	2S2R 2S4R 384GB 3TB 2933
	2R4H 2R4H 256GB 2TB 1866
3DS RDIMM		2S2R 128GB 1TB 2933
	2S2R 2S2R 256GB 2TB 2666
		2S4R 256GB 2TB 2933
	2S2R 2S4R 384GB 3TB 2666
	2S4R 2S4R 512GB 4TB 2666

SUPER HI-DSU-THE S&P50 CPU2 P2-DIMMA1 P2-DIMMA2 P2-DIMMD1 P2-DIMMD2 P2-DIMMC1 P2-DIMMB1 P2-DIMMB2 P2-DIMMC2 P2-DIMME1 P2-DIMME2 P2-DIMMF1 P2-DIMME2 P2-DIMMH1 P2-DIMMH2 P1-DIMMD1 P1-DIMMD2 P1-DIMME1 P1-DIMME2 P1-DIMMF1 P1-DIMMF2 P1-DIMMH1 P1-DIMMH2 P1-DIMME1 P1-DIMME2 P1-DIMMF1 P1-DIMMF2 P1-DIMMH1 P1-DIMMH2 P1-DIMME1 P1-DIMME2 P1-DIMMF1 P1-DIMMF2 P1-DIMMH1 P1-DIMMH2 P1-DIMME1 P1-DIMME2

Figure 3-12. DIMM Numbering

Installing Memory

ESD Precautions

Electrostatic Discharge (ESD) can damage electronic components including memory modules. To avoid damaging DIMM modules, it is important to handle them carefully. The following measures are generally sufficient.

• Use a grounded wrist strap designed to prevent static discharge.
• Handle the memory module by its edges only.
• Put the memory modules into the antistatic bags when not in use.

Installing Memory

Begin by removing power from the system as described in Section 3.1, and remove the node from the chassis. Follow the memory population sequence in the table above.

1. Push the release tabs outwards on both ends of the DIMM slot to unlock it.

Notches Release Tabs

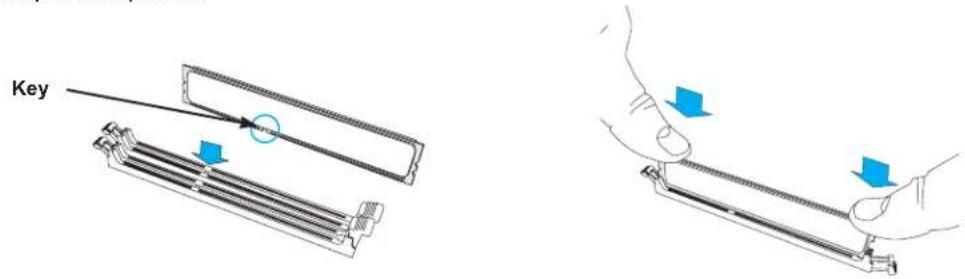

1. Align the key of the DIMM with the receptive point on the memory slot and with your thumbs on both ends of the module, press it straight down into the slot until the module snaps into place.

Key

1. Press the release tabs to the locked position to secure the DIMM module into the slot.

Caution: Exercise caution when installing or removing memory modules to prevent damage to the DIMMs or slots.

Removing Memory

To remove a DIMM, unlock the release tabs then pull the DIMM from the memory slot.

Motherboard Battery

The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard.

Replacing the Battery

Begin by removing power from the system as described in section 3.1.

1. Push aside the small clamp that covers the edge of the battery. When the battery is released, lift it out of the holder.
2. To insert a new battery, slide one edge under the lip of the holder with the positive (+) side facing up. Then push the other side down until the clamp snaps over it.

Note: Handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

LITHIUM BATTERY BATTERY HOLDER

Figure 3-13. Installing the Onboard Battery

Warning: There is a danger of explosion if the onboard battery is installed upside down (which reverses its polarities). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).

3.4 Chassis Components

This section provides instructions on installing and replacing system components. To assure compatibility, only use components that match the specifications or part numbers given.

Installation or replacement of most components require that power first be removed from the system.

Storage Drives

The system supports four 3.5" storage drives. Standard drives are SATA but can support NVMe or SAS with the appropriate optional kits.

The drives are mounted in drive carriers that simplify their removal from the chassis. These carriers also help promote proper airflow.

Drive Carrier Indicators

Each drive carrier has two LED indicators: an activity indicator and a status indicator. In RAID configurations, the status indicator lights to indicate the status of the drive. In non-RAID configurations, the status indicator remains off. See the table below for details.

Drive Carrier LED Indicators
	Color Blinking Pattern Behavior for Device
Activity LED	Blue Solid On SAS/NVMe drive installed
	Blue Blinking I/O activity
Status LED	Red Solid On Failure of drive with RSTe support
	Red Blinking at 1 Hz Rebuild drive with RSTe support
	Red Blinking with two blinks and one stop at 1 Hz		Hot spare for drive with RSTe support
	Red On for five seconds, then off		Power on for drive with RSTe support
	Red Blinking at 4 Hz Identify drive with RSTe support
	Green Solid On Safe to remove NVMe device
	Amber Blinking at 1 Hz Attention state—do not remove NVMe device

Note: Enterprise level drives are recommended. For information, visit https://www.supermicro.com/en/Aplus/system/1U/1024/AS-1024US-TRT.cfm.

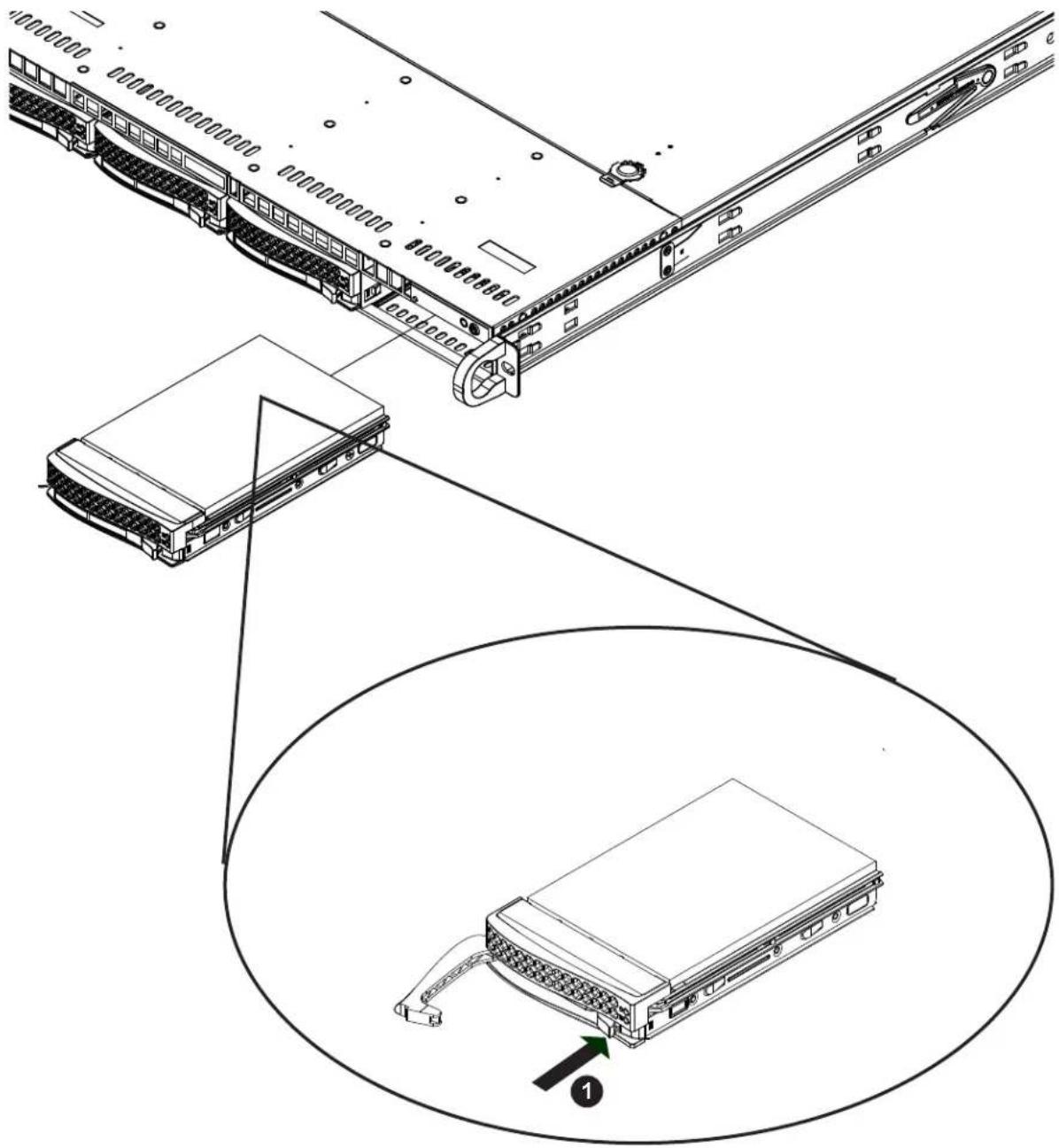

Removing a Hot-Swap Drive Carrier from the Chassis

1. Press the release button on the drive carrier, which will extend the drive carrier handle.
2. Use the drive carrier handle to pull the drive out of the chassis.

Technical diagram showing server rack connection with labeled components and a zoomed-in view of the internal structure.

Figure 3-14. Removing a Drive Carrier

Installing a Drive

1. Remove the dummy drive, which comes pre-installed in the drive carrier, by removing the screws securing the dummy drive to the carrier. These screws are not used to mount the actual hard drive.

Dummy Drive Drive Carrier

Figure 3-15. Removing the Dummy Drive from a Carrier

1. Insert a drive into the carrier with the PCB side facing down and the connector end toward the rear of the carrier. Align the drive in the carrier so that the screw holes line up. Note that there are holes in the carrier marked "SATA" to aid in correct installation.

2. Secure the drive to the carrier with four M3 screws as illustrated below. These screws are included in the chassis accessory box.

3. Insert the drive carrier with the disk drive into its bay, keeping the carrier oriented so that the hard drive is on the top of the carrier and the release button is on the right side. When the carrier reaches the rear of the bay, the release handle will retract.

4. Push the handle in until it clicks into its locked position

Cable Routing

Default Cable Routing
Connector on MB or Add-on Card	Connection on Backplane	Drive Bay	Cable Part Number
JSLIM1 (MB-H12DSU-iN) SAS#0/1/2/3 0-4	CBL-SAST-1277-100
JSLIM2 (MB-H12DSU-iN) NVMe 0/1 0-1	CBL-SAST-1255-85
JSLIM4 (MB-H12DSU-iN) NVMe 2/3 2-3	CBL-SAST-1252-85

System Cooling

Eight 4-cm counter-rotating fans provide the cooling for the system. Each fan unit is actually made up of two fans joined back-to-back, which rotate in opposite directions. This counter-rotating action generates exceptional airflow and works to dampen vibration levels.

Make sure the chassis top cover makes a good seal so the cooling air circulates properly through the chassis.

Technical diagram of a server rack with numbered components, highlighting internal hardware layout and mounting areas.

Figure 3-16. Fan Positions

System Fan Replacement

Fan speed is controlled by IPMI depending on the system temperature. If a fan fails, the remaining fans will ramp up to full speed. The system can continue to run with a failed fan. Replace any failed fan at your earliest convenience with the same model. Failed fans can be identified through the BIOS. The fan numbers are printed on the floor of the chassis.

Changing a System Fan

1. If necessary, open the chassis while the system is running to determine which fan has failed. Never run the server for an extended period of time with the chassis cover open.
2. Remove power from the system as described in Section 3.2
3. Unplug the fan cable from the motherboard and remove the failed fan from the chassis.
4. Replace the failed fan with an identical 4cm fan, available from Supermicro.
5. Push the new fan into the vacant space in the housing while making sure the arrows on the top of the fan (indicating air direction) point in the same direction as the arrows on the other fans.
6. Reposition the fan housing back over the two mounting posts in the system, then reconnect the fan wires to the same fan headers on the motherboard.
7. Power up the system and check that the fan is working properly and that the LED on the control panel has turned off. Finish by replacing the chassis cover.

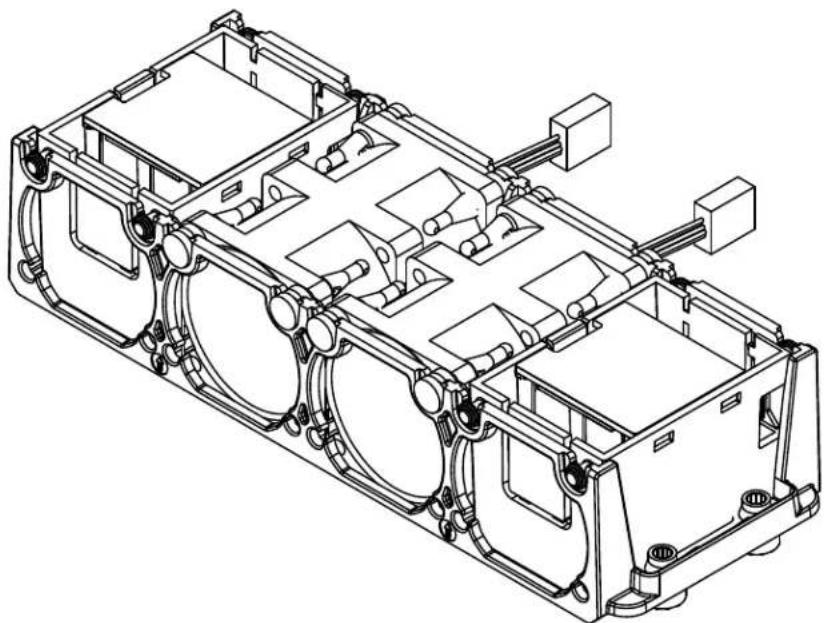

Technical line drawing of a mechanical assembly with housing, gears, and mounting brackets (no text or symbols)

3-17. Fans in Housing

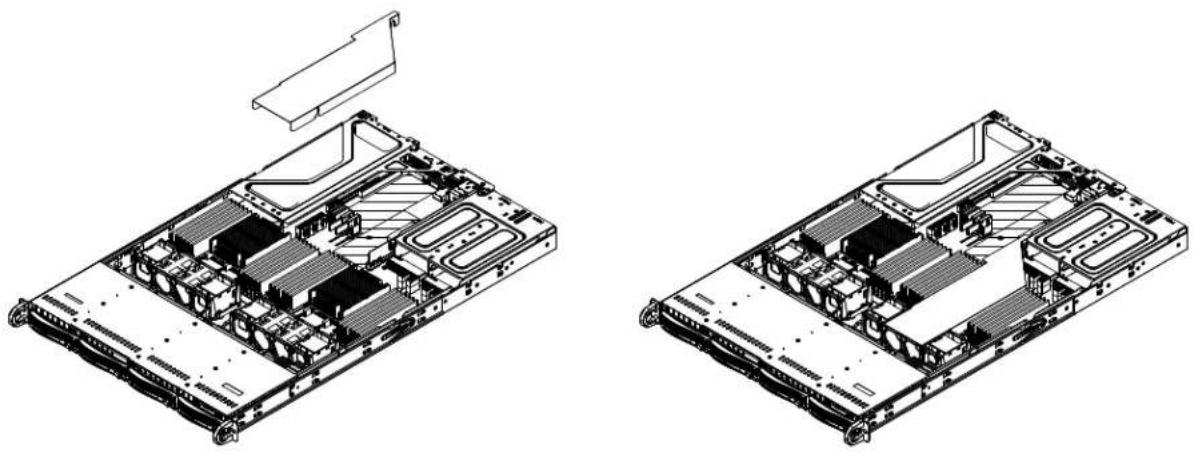

Installing the Air Shroud

Air shrouds concentrate airflow to maximize fan efficiency. The motherboard air shroud does not require screws to install.

Installing the Air Shroud

- Lower the air shroud in place, hooking the front tabs over the fan housings.

Technical line drawings of a server rack with internal components and mounting bracket (no text or symbols)

Figure 3-18. Installing the Air Shroud

Note: Drawings are for illustration only. Your components might look slightly different.

Checking the Server Air Flow

• Make sure there are no objects to obstruct airflow in and out of the server.
• Do not operate the server without drives or drive carriers in the drive bays.
• Use only recommended server parts.
• Make sure no wires or foreign objects obstruct air flow through the chassis. Pull all excess cabling out of the airflow path or use shorter cables.

The control panel LEDs display system heat status. See “Control Panel” in Chapter 1 for details.

Overheating

There are several possible responses if the system overheats.

• Use the LEDs to determine the nature of the overheating condition.
• Confirm that the chassis covers are installed properly.
  • Make sure all fans are present and operating normally.
• Check the routing of the cables.
• Verify that the heatsinks are installed properly.

Power Supply

The chassis features redundant power supplies. The system will continue to operate if one module fails. It should be replaced as soon as convenient. The power supply modules are hot-swappable, meaning they can be changed without powering down the system. New units can be ordered directly from Supermicro or authorized distributors.

These power supplies are auto-switching capable. This feature enables them to automatically sense the input voltage and operate at a 100-120v or 180-240v.

Power Supply LEDs

On the rear of the power supply module, an LED displays the status.

• Solid Green: When illuminated, indicates that the power supply is on.
• Blinking Green: When blinking, indicates that the power supply is plugged in and turned off by the system.
• Blinking Amber: When blinking, indicates that the power supply has a warning condition and continues to operate.
• Solid Amber: When illuminated, indicates that the power supply is plugged in, and is in an abnormal state. The system might need service. Please contact Supermicro technical support.

Changing the Power Supply Module:

1. Unplug the AC cord from the module to be replaced.
2. On the back of the module, push the release tab sideways, as illustrated.

PWS1 PWS2 Release Tab

Figure 3-19. Replacing the Power Supply

1. Pull the module out using the handle.
2. Push the new power supply module into the power bay until it clicks. Replace with the same model.
3. Plug the AC power cord back into the module.

PCI Expansion Cards

The system accepts two full-height full-length expansion cards or one double-width GPU, and one low-profile card, mounted on a riser card and riser bracket. There is also an internal expansion slot in the center of the chassis.

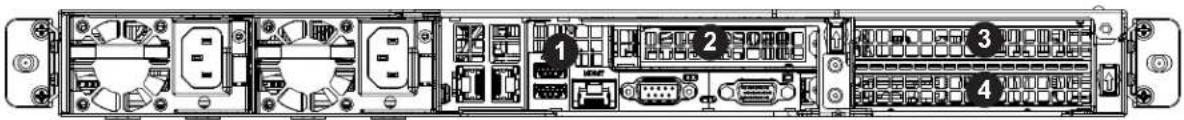

Diagram of a computer rack with labeled ports and connectors, showing internal components like USB drive, I/O ports, and memory drive.

Figure 3-20. PCI Expansion Card Chassis Slots

Expansion Card Configurations
Slot	Mechanical Electrical
1* Internal low-profile, half-length x16 (CPU1)
2 Low-profile, half-length x16 (CPU2)
3 Full-height, full-length x16 (CPU2)
4 Full-height, full-length x16 (CPU2)

Full-height = 4.2", Low-profile = 2.5",
Full-length = 10.5", Half-length = 6.6"

* This is a proprietary slot and supports certain Supermicro devices. Contact your Supermicro sales rep or Technical Support for more details.

Installing an Expansion Card

1. Power down the system as described in section 3.1 and remove the cover.

2. Remove the bracket and sections of the chassis in the rear. Small screwdriver icons are etched into the chassis pieces to help identify which screws must be removed.

Technical line drawing of an electronic device chassis showing internal components and casing (no text or labels)

Figure 3-21. Riser Card Bracket and Expansion Slots

Icons

Figure 3-22. Example of Screwdriver Icons

1. If necessary, attach the riser card to the riser card bracket using screws.

2. Insert the expansion card into a slot on the riser card while aligning the expansion card backplate with the open slot in the bracket.

3. Insert the riser card into the motherboard expansion slot while aligning the riser card bracket with the rear of the chassis. Secure the bracket with screws.

Expansion Cards Internal Expansion Card

Figure 3-23. Expansion cards Installed

Installing the Internal Expansion Card

1. Remove the cover.
2. Locate the mounting bracket in the accessories box. Mount the bracket to hold the SAS expansion card onto the Ultra riser card.
3. Insert the SAS card into the expansion slot on the Ultra riser card and secure it to the bracket.

Mounting Bracket

Figure 3-24. Bracket for Mounting an Internal Expansion Card on the Ultra Riser Card (four port Ultra card shown in this example)

Removing the Ultra Riser Card

To remove the Ultra riser card, use two hands. One hand lifts the mylar release tab and the other hand lifts at the PCIe x8 slot at the same time. Caution: Lifting at only one of these points may cause damage to connectors on the motherboard.

Mylar Lift Tab Mylar Lift Tab

Figure 3-25. Removing the Ultra Riser Card

Chapter 4

Motherboard Connections

This section describes the connections, jumpers and LED indicators on the motherboard and provides pinout definitions. Not all connections are required. A motherboard layout indicating component locations may be found in Chapter 1.

Please review the Safety Precautions in appendix B before installing or removing components.

4.1 Power Connections

Two power connections on the H12DSU-iN must be connected to the power supply. The wiring is included with the power supply.

• Two 25-pin primary proprietary power (PSU1/PSU2)
  • Four 8-pin backplane power (JPW1 – JPW4)
• Three 8-pin GPU power (GPU JPWR1, GPU JPWR2, GPU JPWR3)

Main Power Connector

Two proprietary main power headers are located at PSU1 and PSU2. Connect appropriate power supply units to these two headers to provide adequate power to your system.

Important: To provide adequate power to the motherboard, connect the both main power connectors to the power supply. Failure to do so may void the manufacturer's warranty on your power supply and motherboard.

Backplane 12V and 5V 8-pin Power Connectors

BP PWR1-4/BP are 8-pin 12V and 5V DC power inputs for the system backplane.

Backplane 8-pin Power Pin Definitions
Pin#	Definition
1 - 4	Ground
5 - 6	+12V
7 - 8	+5V

GPU 12V 8-pin Power Connectors

PWR1-3/GPU are 8-pin 12V DC power inputs for GPUs that are installed in the PCIe slots.

GPU 8-pin Power Pin Definitions
Pin#	Definition
1 - 4	Ground
5 - 8	+12V

4.2 Headers and Connectors

The data cables in the system have been carefully routed to maintain airflow efficiency. If you disconnect any of these cables, take care to re-route them as they were originally.

Important! Make sure the the cables do not come into contact with the fans.

Fan Headers

There are eight fan headers on the motherboard. These are 4-pin fan headers; pins 1-3 are backward compatible with traditional 3-pin fans. The onboard fan speeds are controlled using IPMI. When using the Fan Mode setting, use only 4-pin fans.

Fan HeaderPin Definitions
Pin#	Definition
1	Ground (Black)
2	+12V (Red)
3	Tachometer
4	PWM Control

Chassis Intrusion

A chassis intrusion header is located at JL1 on the motherboard. Attach the appropriate cable from the chassis to the header to inform you when the chassis is opened.

Chassis Intrusion Pin Definitions
Pins Definition
1	Intrusion Input
2	Ground

Disk-On-Module Power Connector

The Disk-On-Module (DOM) power connectors at JSD1 and JSD2 provide 5V power to a solid-state DOM storage device connected to one of the SATA ports.

DOM Power Pin Definitions
Pin# Definition
1 5V
2 Ground
3 Ground

TPM Header/Port 80 Connector

The JTPM1 header is used to connect a Trusted Platform Module (TPM), which is available from Supermicro. A TPM is a security device that supports encryption and authentication in hard drives. It enables the motherboard to deny access if the TPM associated with the hard drive is not installed in the system.

For more information on TPM: http://www.supermicro.com/manuals/other/TPM.pdf.

Trusted Platform Module HeaderPin Definitions
Pin# Definition Pin# Definition
1 LCLK 2 GND
3 LFRAME# 4 No Pin
5 LRESET# 6 NC
7 LAD3 8 LAD2
9 3.3V 10 LAD1
11 LAD0 12 GND
13 SMB_CLK4 (X) 14 SMB_DAT4 (X)
15 P3V3_STBY 16 SERIRQ
17 GND 18 LP_CLKRUN_L
19 P3V3_STBY 20 LDRQ0_L

IPMB System Management Bus Header

A System Management Bus header for IPMI 2.0 is located at JIPMB1. Connect the appropriate cable here to use the IPMB I ^2 C connection on your system.

IPMB HeaderPin Definitions
Pin#	Definition
1	Data
2	Ground
3	Clock
4	No Connection

System Thermal Sensor Header

A System Thermal Sensor header for IPMI 2.0 is located at JSEN1. Connect the appropriate cable here to use the thermal sensor I ^2 C connection on your system.

JSEN1 HeaderPin Definitions
Pin# Definition
1 Data
2 Ground
3 Clock
4 3.3V Standby

UltraO Riser Card LAN LED Header

JF2 is a header for the UltraO Riser Card LAN LED header.

SATA Ports

The H12DSU-iN has eighteen SATA 3.0 ports (SATA0-17) that are supported by the chipset.

NVMe Connections

Four NVM Express (NVMe) ports are located on the motherboard (two for each processor). These ports provide high-speed, low-latency PCIep. 3.0 x4 connections directly from the CPU to NVMe Solid State (SSD) drives. This greatly increases SSD data-throughput performance and significantly reduces PCIe latency by simplifying driver/software requirements resulted from direct PCIe interface from the CPU to the NVMe SSD drives.

Control Panel

JF1 contains header pins for various control panel connections designed specifically for use with Supermicro chassis. See the figure below for the pin locations and definitions of the control panel buttons and LED indicators.

All JF1 wires have been bundled into a single cable to simplify this connection. Make sure the red wire plugs into pin 1 as marked on the motherboard. The other end connects to the control panel PCB board.

(Ground) Key Power On LED (Control signal) HDD LED (Activity signal) NIC1 LED (Ground) NIC2 LED (Ground) OH/Fan Fail LED (Ground) Power Fail LED (Ground) (Ground) (Ground) NMI (Control signal) Key (5V standby) (Vcc) (Vcc) (Vcc) Reset Button (Data signal) Power Button (Data signal)

Figure 4-1. JF1: Control Panel Pins

Power Button

The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button with a setting in the BIOS. To turn off the power when the system is in suspend mode, press the button for 4 seconds or longer.

Power ButtonPin Definitions (JF1)

Pin# Definition

1 Signal

2 Ground

Reset Button

The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset switch on the computer case.

Reset ButtonPin Definitions (JF1)

Pin# Definition

3 Reset

4 Ground

Power Fail LED

The Power Fail LED connection is located on pins 5 and 6 of JF1.

Reset ButtonPin Definitions (JF1)

Pin# Definition

3 Reset

4 Ground

Overheat (OH)/Fan Fail

Connect an LED cable to pins 7 and 8 of JF1 to use the Overheat/Fan Fail LED connections. The LED on pin 8 provides warnings of overheat or fan failure.

OH/Fan Fail Indicator Status

Status Definition

Off Normal

On Overheat

Flashing Fan Fail

OH/Fan Fail LEDPin Definitions (JF1)
Pin# Definition
7 Blue	LED
8 OH/Fan Fail LED

The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins 11 and 12 of JF1, and the LED connection for LAN Port 2 is on Pins 9 and 10. Attach the NIC LED cables here to display network activity.

LAN1/LAN2 LEDPin Definitions (JF1)
Pin#	Definition
9	NIC2 Activity LED
10	NIC2 Link LED
11	NIC1 Activity LED
12	NIC1 Link LED

HDD LED/UID Switch

The HDD LED/UID Switch connection is located on pins 13 and 14 of JF1. Attach a cable to Pin 14 to show hard drive activity status. Attach a cable to Pin 13 to use UID switch.

HDD LEDPin Definitions (JF1)

Pin# Definition

13 3.3V Standby/UID Switch

14 HDD Active

Power LED

The Power LED connection is located on pins 15 and 16 of JF1.

Power LEDPin Definitions (JF1)

Pin# Definition

15 3.3V

16 Power LED

NMI Button

The non-maskable interrupt button header is located on pins 19 and 20 of JF1.

NMI ButtonPin Definitions (JF1)

Pin# Definition

19 Control

20 Ground

4.3 Ports

See the figure below for the locations and descriptions of the various I/O ports on the rear of the motherboard.

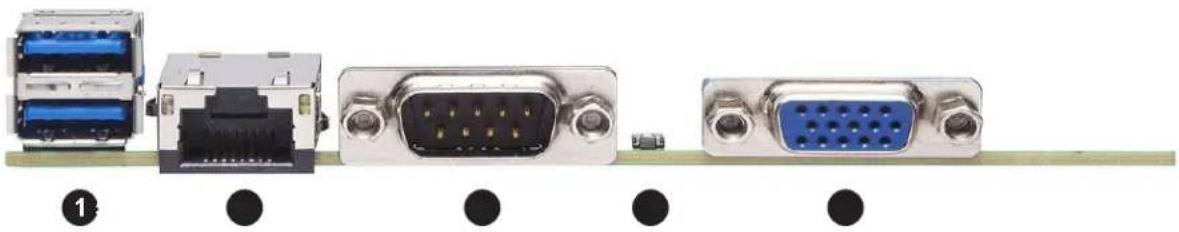

Close-up of four electronic connectors (TCP, Ethernet, VGA, and BGA) on a green surface, no text or symbols visible.

Figure 4-2. Rear I/O Ports

Rear I/O Ports
# Description # Description
1. USB 0/1 Ports 4. UID button and LED
2. IPMI LAN Port 5. VGA Port
3 COM1 Port

Universal Serial Bus (USB) Ports

There are two Universal Serial Bus ports located on the rear I/O panel and an additional two USB headers and a USB Type A header on the motherboard. These can be used to provide front USB access (cables not included).

Unit Identifier Switch/UID LED Indicator

A rear Unit Identifier (UID) switch and LED indicator are located on the rear side of the system. When you press the UID switch, both front and rear UID LED indicators are illuminated. Press the UID switch again to turn off the LEDs. The UID indicators provide easy identification of a system among a rack of many.

Note: UID can also be triggered using IPMI.

LAN Ports

There are two LAN ports on the chassis rear provided by the Ultra add-on card. There is also a dedicated IPMI LAN port on the I/O back panel. For more information on IPMI, see Section 5.4 in this manual.

4.4 Jumpers

Explanation of Jumpers

To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.

Note: On a two-pin jumper, "Closed" means the jumper is on both pins and "Open" indicates the jumper is either on only one pin or has been completely removed.

Connector Pins Jumper Setting 3 2 1 ● ● ■ 3 2 1

CMOS Clear

JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS.

To Clear CMOS

1. First power down the system and unplug the power cord(s).
2. Remove the cover of the chassis to access the motherboard.
3. Remove the onboard battery from the motherboard.
4. Short the CMOS pads with a metal object such as a small screwdriver for at least four seconds.
5. Remove the screwdriver (or shorting device).
6. Replace the cover, reconnect the power cord(s) and power on the system.

Notes: Clearing CMOS will also clear all passwords.

Do not use the PW_ON connector to clear CMOS.

JBT1 contact pads

Watch Dog

JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs. Watch Dog must also be enabled in BIOS.

The default setting is Reset.

Note: When Watch Dog is enabled, the user must to write their own application software to disable it.

Watch DogJumper Settings
Jumper Setting Definition
Pins 1-2 Reset
Pins 2-3 NMI
Open Disabled

4.5 LED Indicators

LAN LEDs

The LAN ports are located on the I/O back panel on the motherboard. Each Ethernet LAN port has two LEDs. The yellow LED indicates activity. Link LED, located on the left side of the LAN port, may be green, amber or off indicating the speed of the connection.

LAN Link IndicatorLED Settings
LED Color	Definition
Off No connection or 100 Mbps
Green 10 Gbps
Amber Less than 10 Gbps

IPMI LAN LED

The yellow LED indicates activity, while the Link LED indicates the speed of the connection.

IPMI LAN Link LED Activity LED

IPMI LAN LEDLink LED (left)
LED Color Definition
Off 10 Mb/s
Green 100 Mb/s
Amber 1 Gb/s

Onboard Power LED

PWROK is an Onboard Power LED. When this LED is illuminated, it means power is present on the motherboard. In suspend mode this LED will blink on and off.

BMC Heartbeat LED

A BMC Heartbeat LED (BMC_HB LED) blinks to indicate BMC is functioning normally.

BMC Heartbeat LED States
Color State Definition
Green Solid	On BMC is not ready.
Green Blinking	BMC Normal
Green Fast	Blinking BMC: Initializing

Chapter 5

Software

After the hardware has been installed, you can install the Operating System (OS), configure RAID settings and install the drivers.

5.1 Microsoft Windows OS Installation

If you will be using RAID, you must configure RAID settings before installing the Windows OS and the RAID driver. Refer to the RAID Configuration User Guides posted on our website at www.supermicro.com/support/manuals.

Installing the OS

1. Create a method to access the MS Windows installation ISO file. That might be a DVD, perhaps using an external USB/SATA DVD drive, or a USB flash drive, or the IPMI KVM console.
2. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
3. Boot from a bootable device with Windows OS installation. You can see a bootable device list by pressing F11 during the system startup.

Please select boot device: ATEN Virtual CDROM YSOJ → IPMI virtual drive (Legacy) ASUS SDRW-08D2S-U F601 → USB DVD device (Legacy) USB FLASH DRIVE PMAP → USB flash drive with OS installation (Legacy) IBA 40-10G Slot 1900 v1060 → PXE boot (Legacy) UEFI: ATEN Virtual CDROM YSOJ → IPMI virtual drive (UEFI) UEFI: ASUS SDRW-08D2S-U F601 → USB DVD device (UEFI) UEFI: Built-in EFI Shell Enter Setup ↑ and ↓ to move selection ENTER to select boot device ESC to boot using defaults

Figure 5-1. Select Boot Device

1. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on "Load driver" link at the bottom left corner.

Where do you want to install Windows? Name Total size Free space Type Refresh Delete Format New Load driver Extend We couldn't find any drives. To get a storage driver, click Load driver. Next

Figure 5-2. Load Driver Link

To load the driver, browse the USB flash drive for the proper driver files.

• For RAID, choose the SATA/sSATA RAID driver indicated then choose the storage drive on which you want to install it.

• For non-RAID, choose the SATA/sSATA AHCI driver indicated then choose the storage drive on which you want to install it.

• Once all devices are specified, continue with the installation.

• After the Windows OS installation has completed, the system will automatically reboot multiple times.

5.2 Driver Installation

The Supermicro website contains drivers and utilities for your system at www.supermicro.com/wdl/driver/AMD/SP3. Some of these must be installed, such as the chipset driver.

After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash drive or a DVD. (You may also use a utility to extract the ISO file if preferred.)

Another option is to go to the Supermicro website at http://www.supermicro.com/products/. Find the product page for your motherboard, and "Download the Latest Drivers and Utilities". Insert the flash drive or disk and the screenshot shown below should appear.

SUPERMICRO H12DSU-iN Motherboard Drivers & Tools (Win10) AMD EPYCTM SOC H12DSU-iN SUPERMICRO Computer Inc. AMD SP3 IO Driver Microsoft .Net Framework 4.8(Optional) ASPEED Graphics Driver Intel PRO Network Connections Drivers SUPERMICRO SuperDoctor 5 Build driver diskettes and manuals Browse CD Auto Start Up Next Time For more information, please visit SUPERMICRO's web site.

Figure 5-3. Driver & Tool Installation Screen

Note: Click the icons showing a hand writing on paper to view the readme files for each item. Click the computer icons to the right of these items to install each item (from top to the bottom) one at a time. After installing each item, you must re-boot the system before moving on to the next item on the list. The bottom icon with a CD on it allows you to view the entire contents.

5.3 SuperDoctor® 5

The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or IPMI. SuperDoctor 5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

SuperDoctor 5 Hold to: http://www.superdoctor.com Certificate error: localhost:1444/SuperDoctor Loading... Select Language: English (A0000) Layout Motherboard: C78368-CG-ML Voltage DCPU voltage DCP voltage DCOSA voltage DCDC voltage DCMn voltage DCPU-20 voltage DCPU-25 voltage DCMn-2.5 voltage DCM-3.5 voltage DCM-7.5 voltage Status Chassis Impulse Temperature 47/15kV 300 V 100 V 80 V 60 V 40 V 20 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 0 V 12/15kV 12/85kV 29/84.2 CPU Time Button Time Phosphat Time Hard Disk and Supertherms. S.PHYSICALDRIVERS (2530EGRD) Memory Ask me anything

Figure 5-4. SuperDoctor 5 Interface Display Screen (Health Information)

5.4 BMC

The motherboard provides remote access, monitoring and management through the baseboard management controller (BMC) and other management controllers distributed among different system modules. There are several BIOS settings that are related to BMC. For general documentation and information on BMC, visit our website at:

www.supermicro.com/en/solutions/management-software/bmc-resources

BMC ADMIN User Password

For security, each system is assigned a unique default BMC password for the ADMIN user. This can be found on a sticker on the chassis and a sticker on the motherboard. The sticker also displays the BMC MAC address.

BMC AC1F6BC PWD SUOKJ

Figure 5-5. BMC Password Label

See Chapter 1, section 1.4 for the location of the label.

Chapter 6

UEFI BIOS

6.1 Introduction

This chapter describes the AMI BIOS setup utility for the H12DSU-iN and provides the instructions on navigating the setup screens. The BIOS is stored in a Flash EEPROM and can be updated.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted since this manual was published.

Starting BIOS Setup Utility

To enter the AMI BIOS setup utility screens, press the key while the system is booting up. (There are a few cases when other keys are used, such as , , etc.)

The BIOS screens have three main frames. The large left frame displays options can be configured by the user. These are blue. When an option is selected, it is highlighted in white. Settings printed in Bold are the default values.

In the left frame, a "▶" indicates a submenu. Highlighting such an item and pressing the key opens the list of settings in that submenu.

The upper right frame displays helpful information for the user. The AMI BIOS has default informational messages built in. The manufacturer retains the option to include, omit, or change any of these informational messages.

The lower right frame lists navigational methods. The AMI BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys can be used at any time during setup navigation. These keys include , , , , arrow keys, etc.

Some system parameters may be changed.

6.2 Main Setup

When running the AMI BIOS setup utility, it starts with the Main screen. You can always return to it by selecting the Main tab on the top of the screen.

Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced IPMI Event Logs Security Boot Save & Exit System Date [Tue 01/07/2020] System Time [06:24:36] Supermicro H12DSU-IN BIOS Version T20200214105841 Build Date 02/14/2020 CPLD Version A2.C5.03 Memory Information Total Memory 32 GB Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 2005-2099 Months: 1-12 Days: dependent on month +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1275. Copyright (C) 2020 American Megatrends, Inc.

The Main tab page allows you to set the date and time, and it displays system information.

System Date/System Time

Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields. The date must be entered in MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is 01/01/2016 after RTC reset.

Supermicro H12DSU-iN (Motherboard model)

BIOS Version

Build Date (of the BIOS)

CPLD (Complex Programmable Logic Device) Version: This item displays the CPLD version used in the system.

Memory Information

Total Memory (for the system)

6.3 Advanced Setup Configurations

Use the arrow keys to select the Advanced tab and press to access the submenu items.

Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced IPMI Event Logs Security Boot Save & Exit
Boot Feature Trusted Computing PSP Firmware Versions ACPI Settings Super IO Configuration Serial Port Console Redirection CPU Configuration NB Configuration PCIe/PCI/PnP Configuration USB Configuration SATA Configuration HTTP BOOT Configuration Network Configuration iSCSI Configuration TLS Authenticate Configuration RAM Disk Configuration	Boot Feature Configuration Page
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.20.1275. Copyright (C) 2020 American Megatrends, Inc.

Caution: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. If this occurs, revert to the manufacture default settings.

▶Boot Feature

Quiet Boot

Use this feature to select the screen display between the POST messages and the OEM logo upon bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Enabled and Disabled.

Option ROM Messages

Use this feature to set the display mode for the Option ROM. Select Keep Current to display the current AddOn ROM setting. Select Force BIOS to use the Option ROM display set by the system BIOS. The options are Force BIOS and Keep Current.

Bootup NumLock State

Use this feature to set the Power on state for the key. The options are On and Off.

Wait For "F1" If Error

Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.

INT19 (Interrupt 19) Trap Response

Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at bootup immediately and allow the drives that are attached to these host adaptors to function as bootable disks. If this item is set to Postponed, the ROM BIOS of the host adaptors will not capture Interrupt 19 immediately and allow the drives attached to these adaptors to function as bootable devices at bootup. The options are Immediate and Postponed.

Re-try Boot

If this item is enabled, the BIOS will automatically reboot the system from a specified boot device after its initial boot failure. The options are Disabled, Legacy Boot, and EFI Boot.

Power Configuration

Watch Dog Function

If enabled, the Watch Dog Timer will allow the system to reset or generate NMI based on jumper settings when it is expired for more than 5 minutes. The options are Disabled and Enabled.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Stay-Off for the system power to remain off after a power loss. Select Power-On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Stay Off, Power On, and Last State.

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button. The options are Instant Off and 4 Seconds Override.

▶Trusted Computing

Configuration

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM (Trusted Platform Module) support to enhance data integrity and network security. Please reboot the system for a change on this setting to take effect. The options are Disable and Enable.

▶PSP Firmware Versions

This section displays the Platform Security Processor (PSP) firmware versions.

PSP Directory Level 1 (Fixed)

• PSP Recovery BL Ver
• SMU FW Version
• ABL Version

PSP Directory Level 2 (Updateable)

• PSP Bootloader Version
• SMU FW Version
• ABL Version

▶ ACPI Settings

PCI AER Support

The options are Disabled and Enabled.

High Precision Event Timer

The High Precision Event Timer (HPET) can produce periodic interrupts and is used to synchronize multimedia streams, providing smooth playback and reducing the need to use other timestamp calculations. The options are Enabled and Disabled.

NUMA Node Per Socket

The options are NPS0, NPS1, NPS2, NPS4 and Auto.

ACPI SRAT L3 Cache As NUMA Domain

The options are Disabled, Enabled and Auto.

▶Super IO Configuration

The following Super IO information will display:

• Super IO Chip AST2500

▶ Serial Port 1 Configuration

Serial Port

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Device Settings

This item displays the status of a serial part specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, (IO=3F8h; IRQ=4;); (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;); (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;); (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;); and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;).

▶SOL Configuration

Serial Port

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Change SOL Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, (IO=2F8h; IRQ=3); (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

▶Serial Port Console Redirection

COM1

Console Redirection

Select Enabled to enable console redirection support for a serial port specified by the user. The options are Enabled and Disabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶Console Redirection Settings

Terminal Type

This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Legacy OS Redirection Resolution

For Legacy OS systems, use this setting to specify the number of Rows and Columns supported for redirection. Options include 80x24 and 80x25.

Putty KeyPad

This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400.

Redirection After BIOS POST

For this setting, when the Bootloader is selected, then the Legacy Console Redirection is disabled before booting to the legacy OS. If you select Always Enable, then the Legacy Console Redirection is enabled for legacy OS systems. Default option for this system is Always Enable.

The options are Always Enable and BootLoader.

SOL

Console Redirection

Select Enabled to enable SOL console redirection support for a serial port specified by the user. The options are Enabled and Disabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶Console Redirection Settings

Terminal Type

This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark

as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Legacy OS Redirection Resolution

For Legacy OS systems, use this setting to specify the number of Rows and Columns supported for redirection. Options include 80x24 and 80x25.

Putty KeyPad

This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400.

Redirection After BIOS POST

For this setting, when the Bootloader is selected, then the Legacy Console Redirection is disabled before booting to the legacy OS. If you select Always Enable, then the Legacy Console Redirection is enabled for legacy OS systems. Default option for this system is Always Enable. The options are Always Enable and BootLoader.

▶Legacy Console Redirection Settings

Legacy Serial Redirection Port

For this setting, select a COM port to display redirection of Legacy OS and Legacy OPROM messages. Options include COM1 and SOL.

Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS)

Console Redirection

Select Enabled to enable EMS console redirection support for a serial port specified by the user. The options are Enabled and Disabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶ Console Redirection Settings

Out-of-Band Mgmt Port

The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 and SOL.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per Second

This item sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark

as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

▶CPU Configuration

SMT Control

Use this setting to specify Simultaneous Multithreading. Options include Off for 1T single thread and Auto for 2T two-thread if your system is capable of it.

Core Performance Boost

This setting is used to configure for Core Performance Boost. Options include Disabled and Auto.

Global C-state Control

This setting is used to configure for Global C-state Control. Options include Disabled, Enabled and Auto.

Local APIC Mode

Use this setting to adjust local APIC mode. Options include xAPIC, x2APIC and Auto.

CCD Control

Use this setting to disable CCDs in the CPU. Options include Auto, 2 CCDs, 3 CCDs, 4 CCDs and 6 CCDs.

Core Control

This sets the number of cores to be used by your system. Once this option has been used to remove any cores, a power cycle is required in order for the future selections to take effect.

Options include Auto, TWO (1+1), FOUR (2 + 2), and SIX (3 + 3). If unsure, leave this to Auto.

L1 Stream HW Prefetcher / L2 Stream HW Prefetcher

This setting is used to enable or disable the L1/L2 Stream Hardware Prefetcher. The options are Disabled, Enabled and Auto.

SVM Mode

This setting Enables or Disables CPU Virtualization.

SMEE

This setting Enables or Disables secure memory encryption.

▶CPU1/CPU2 Information

These sections are for informational purposes. They will display some details about the detected CPUs on the motherboard, such as:

• CPU Version
  • Number of Cores Running
• Processor Family
• Processor Model
• Microcode Patch Level
  • L1 Instruction Cache (Size/Method)
  • L1 Data Cache (Size/Method)
  • L2 Data Cache (Size/Method)
  • L3 Cache per Scoket (Size/Method)

▶NB Configuration

Determinism Control

Use this setting to configure the Determinism Control. Options include Auto and Manual.

cTDP Control

Use this setting to configure the cTDP Control. Options include Manual and Auto.

IOMMU

Use this setting to enable/disable IOMMU. Options include Disabled, Enabled, and Auto.

ACS Enable

Use this setting to enable/disable ACS. Options include Enabled, Disabled and Auto.

Package Power Limit Control

Use this setting for Package Power Limit Control. Options include Manual and Auto.

APBDIS

Use this setting to set APBDIS. Options include 0, 1 and Auto.

DF Cstates

Use this setting to enable/disable DF Cstates. Options include Disabled, Enabled, and Auto.

4-link xGMI max speed

Use this setting to adjust 4-link xGMI max speed. Options include 10.667Gbps, 13Gbps, 16Gbps, 18Gbps and Auto.

Preferred IO

Use this setting for Preferred IO. Options include Manual and Auto.

▶Memory Configuration

Memory Clock

This setting allows you to select different memory clock speed. Options include Auto and speed settings from 2666Mhz, 2933MHz to 3200MHz.

Memory Interleaving

This setting controls fabric level memory interleaving. Note that the channel, die and socket have requirements on memory populations and it will be ignored if the memory doesn't support the selected option. Options include Disabled and Auto.

Memory Interleaving Size

This setting controls the memory interleaving size. This determines the starting address of the interleave (bit 8, 9, 10 or 11). Options include 256 Bytes, 512 Bytes, 1 KB, 2 KB or Auto.

Chipset Interleaving

This setting controls interleave memory blocks across the DRAM chip for node 0. The options are Disabled and Auto.

BankGroupSwap

This setting controls the Bank Group Swap. The options are Enabled, Disabled and Auto.

DRAM Scrub Time

The options are Disabled, 1 hour, 4 hours, 8 hours, 16 hours, 24 hours, 48 hours and Auto.

▶CPU1/CPU2 Memory Information

These sections are for informational purposes. They will display some details about the detected memory according to each CPU on the motherboard, such as:

• Detected Size (per slot, in MB)
- Current Speed (MT/s)

▶PCIe/PCI/PnP Configuration

This menu provides PCIe/PCI/PnP configuration settings and information.

PCI Bus Driver Version

Above 4G Decoding

This setting Enables or Disables 64-bit capable devices ability to be decoded in above 4G address space (only if the system supports 64-bit PCI decoding).

SR-IOV Support

If the system has SR-IOV capable PCI-E devices, this setting will Enable or Disable the Single Root IO Virtualization Support for the system.

BME DMA Mitigation

Re-enable Bus Master Attribute disabled during Pci enumeration for PCI Bridges after SMM Locked. The options are Disabled and Enabled.

PCIe ARI Support

Use this setting to Enable, Disable or Auto control the Alternative Routing-ID Interpretation.

PCIe Spread Spectrum

Use this setting to Enable or Disable PCI-E Spread Spectrum for your system.

VGA Priority

Use this setting to select between onboard or offboard VGA support The options are Onboard and Offboard

NVMe Firmware Source

Use this setting to select between the AMI Native firmware support or the device vendor-defined firmware support. The options are Vendor Defined Firmware and AMI Native Support.

M.2 (AHCI) Firmware Source

Use this setting to select between the AMI Native firmware support or the device vendor-defined firmware support. The options are Vendor Defined Firmware and AMI Native Support.

P1\_NVME0/1 SATA0-7

Select PCIe NVMe or SATA engine for the hybrid port. Options include Auto, NVME and SATA.

P2\_NVME0 SATA10-13

Select PCIe NVMe or SATA engine for the hybrid port. Options include Auto, NVME and SATA.

P2\_NVME1 SATA14-17

Select PCIe NVMe or SATA engine for the hybrid port. Options include Auto, NVME and SATA.

Onboard LAN1 Option ROM

Use this setting to select which firmware function is to be loaded for onboard LAN1 on the system. Options include Disabled, Legacy, and EFI.

Onboard Video Option ROM

This setting selects which onboard video firmware type to be selected. Options include Disabled, Legacy and EFI.

▶Network Stack Configuration

Network Stack

This setting allows you to Enable or Disable the UEFI Network Stack.

IPv4 PXE Support

This setting allows you to Enable or Disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be available.

IPv4 HTTP Support

This setting allows you to Enable or Disable IPv4 HTTP boot support. If disabled, IPv4 HTTP boot support will not be available.

IPv6 PXE Support

This setting allows you to Enable or Disable IPv6 PXE boot support. If disabled, IPv6 PXE boot support will not be available.

PXE boot wait time

Use either +/- or numeric keys to set the value of wait time in seconds and press to abort the PXE boot.

Media detect count

Use either +/- or numeric keys to set the value of number of times the presence of media will be checked.

▶USB Configuration

USB Module Version

USB Controllers

USB Devices

Legacy Support

Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only. The options include Enabled, Disabled and Auto.

XHCI Hand-off

This is a work-around solution for operating systems that do not support XHCI (Extensible Host Controller Interface) hand-off. The XHCI ownership change should be claimed by the XHCI driver. The options include Enabled and Disabled.

Port 60/64 Emulation

Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. The options include Disabled and Enabled.

▶SATA Configuration

This section displays the detected SATA devices installed on the system.

SATA Enable

This setting enables or disables the on chip SATA controller. The options are Enabled, Disabled and Auto.

SATA Hot Plug

This setting enables or disables the on chip SATA hot plug feature. The options are Disabled, and Enabled.

▶SATA Information

This section displays information on the detected SATA devices:

- SATA0 \~ SATA17

▶HTTP Boot Configuration

HTTP Boot One Time

The default setting is Disabled.

Input the description

Boot URI

A new Boot Option will be created according to this Boot URI. It is only supported on Dual or EFI Boot Mode.

▶Network Configuration

▶iSCSI Configuration

iSCSI Initiator Name

This feature allows the user to enter the unique name of the iSCSI Initiator in IQN format. Once the name of the iSCSI Initiator is entered into the system, configure the proper settings for the following items.

▶ Add an Attempt

Use this setting to add an attempt.

▶ Delete Attempts

Use this setting to delete one or more attempts.

▶Change Attempt Order

Use this setting to change the order of attempts.

▶TLS Authentication Configuration

This submenu allows the user to configure Transport Layer Security (TLS) settings.

▶Server CA Configuration

This feature allows the user to configure the client certificate that is to be used by the server.

▶Enroll Certification

This feature allows the user to enroll the certificate in the system.

▶Enroll Certification Using File

Use this feature to enroll certification from a file.

Certification GUID

Use this feature to enroll to input the certification GUID.

▶Commit Changes and Exit

Use this feature to save all changes and exit TLS settings.

▶Discard Changes and Exit

Use this feature to enroll to discard all changes and exit TLS settings.

▶ Delete Certification

Use this feature to delete certification.

▶RAM Disk Configuration

Press to add/remove RAM disks.

Disk Memory Type

Specificifies type of memory to use from available memory pool in system to create a disk.

▶Create raw

The valid RAM disk size should be multiples of the RAM disk block size.

▶Create from file

Use this setting to create a RAM disk from a given file.

Remove selected RAM disk(s).

Use this setting to remove the selected RAM disk(s).

6.4 IPMI

Use this tab page to configure Intelligent Platform Management Interface (IPMI) settings.

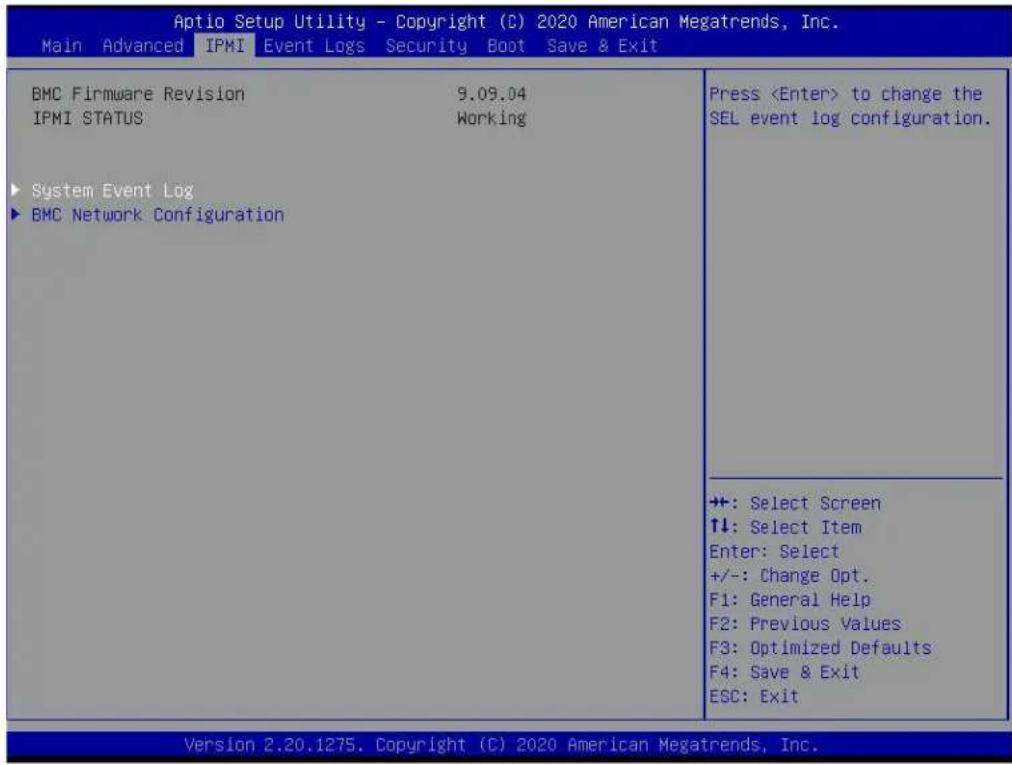

Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced IPMI Event Logs Security Boot Save & Exit BMC Firmware Revision 9.09.04 IPMI STATUS Working ► System Event Log ► BMC Network Configuration Press to change the SEL event log configuration. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1275. Copyright (C) 2020 American Megatrends, Inc.

BMC Firmware Revision

This item indicates the IPMI firmware revision used in your system.

IPMI Status (Baseboard Management Controller)

This item indicates the status of the IPMI firmware installed in your system.

▶System Event Log

Enabling/Disabling Options

SEL Components

Select Enabled for all system event logging at bootup. The options are Disabled and Enabled.

Erasing Settings

Erase SEL

Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No

to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.

When SEL is Full

This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.

Note: After making changes on a setting, be sure to reboot the system for the changes to take effect.

▶BMC Network Configuration

BMC Network Configuration

Configure IPV4 Support

This section displays static configuration features for IPV4 support.

IPMI LAN Selection

This item displays the IPMI LAN setting. The default setting is Failover.

IPMI Network Link Status

This item displays the IPMI Network Link status. The default setting is Dedicated LAN.

Configuration Address Source

This feature allows the user to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, the BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that is attached to and request the next available IP address for this computer. The options are DHCP and Static.

*If the item above is set to Static, the following items will become available for configuration:

Station IP Address

This item displays the Station IP address for this computer. This should be in decimal and in dotted quad form.

Subnet Mask

This item displays the sub-network that this computer belongs to. The value of each three-digit number separated by dots should not exceed 255.

Station MAC Address

This item displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.

Gateway IP Address

This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

VLAN

This item displays the virtual LAN settings. The options are Disable and Enable.

Configure IPv6 Support

This section displays configuration features for IPv6 support.

IPv6 Support

Use this feature to enable IPv6 support. The options are Disabled and Enabled.

6.5 Event Logs

Use this tab page to configure Event Log settings.

Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced IPMI Event Logs Security Boot Save & Exit Change SMBIOS Event Log Settings View SMBIOS Event Log Press to change the SMBIOS Event Log configuration. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1275. Copyright (C) 2020 American Megatrends, Inc.

▶Change SMBIOS Event Log Settings

This feature allows the user to configure SMBIOS Event settings.

Enabling/Disabling Options

SMBIOS Event Log

Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot. The options are Disabled and Enabled.

Erasing Settings

Erase Event Log

Select Yes to erase all error events in the SMBIOS (System Management BIOS) log before an event logging is initialized at bootup. The options are No, Yes, Next reset, and Yes, Every reset.

When Log is Full

Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately.

SMBIOS Event Log Standard Settings

Log System Boot Event

Select Enabled to log system boot events. The options are Enabled and Disabled.

MECI (Multiple Event Count Increment)

Enter the increment value for the multiple event counter. Enter a number between 1 to 255. The default setting is 1.

METW (Multiple Event Count Time Window)

This item is used to determine how long (in minutes) the multiple event counter should wait before generating a new event log. Enter a number between 0 to 99. The default setting is 60.

Note: Please reboot the system for these changes to take effect.

▶View SMBIOS Event Log

When Event Logging is on, this item allows the user to view the entries in the SMBIOS event log. The following categories are displayed:

Date/Time/Error Code/Severity

6.6 Security

Use this tab page to configure Security settings.

Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced IPMI Event Logs Security Boot Save & Exit
Administrator Password Not Installed User Password Not Installed	Set Administrator Password
Password Description
If the Administrator's / User's password is set, then this only limits access to Setup and is asked for when entering Setup. Please set Administrator's password first in order to set User's password, if clear Administrator's password, the User's password will be cleared as well.
The password length must be in the following range: Minimum length 8 Maximum length 20
Administrator Password Password Check [Setup]	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Secure Boot
Version 2.20.1275. Copyright (C) 2020 American Megatrends, Inc.

Administrator Password

Press to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well.

User Password

Press Enter to create a new, or change an existing User password.

Password Check

Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility. The options are Setup and Always.

▶Secure Boot

This section contains options and menus for securing your boot mode and for key management.

Secure Boot

This option allows you specify when the Platform Key (PK) is enrolled. When enabled, the System Mode is user deployed, and the CSM function is disabled. Options include Disabled and Enabled.

Secure Boot Mode

Use this item to select the secure boot mode. The options are Standard and Custom.

CSM Support

Select Enabled to support the EFI Compatibility Support Module (CSM), which provides compatibility support for traditional legacy BIOS for system boot. The options are Disabled and Enabled.

▶Key Management

This submenu allows the user to configure the following Key Management settings.

▶Vendor Keys

Provision Factory Defaults

Install factory default Secure Boot keys after the patform reset and while the System is in Setup mode. The default setting is Disabled.

Select Yes to restore all factory keys to default settings. The options are Yes and No.

▶Reset To Setup Mode

Select Yes to delete all Secure Boot key databases and force the system to Setup Mode. The options are Yes and No.

▶Export Secure Boot variables

Use this feature to copy the NVRAM contents of the secure boot variables to a file.

▶Export Efi Image

This feature allows the image to run in Secure Boot mode. Enroll SHA256 Hash Certificate of a PE image into Authroized Signature Database (db).

Device Guard Ready

▶Remove 'UEFI CA' from DB

Use this feature to remove the Microsoft UEFI CA certificate from the database. The options are Yes and No.

Select Yes to restore all DBs to the default settings. The options are Yes and No.

▶Platform Key (PK)

Details

Select this feature to view the details of the Platform Key.

Export

Select Yes to export a PK from a file on an external media.

Update

Select Yes to load a factory default PK or No to load from a file on an external media.

Delete

Select Ok to remove the PK and then the system will reset to Setup/Audit Mode.

▶Key Exchange Keys

Details

Select this feature to view the details of the Key Exchange Key.

Export

Select Yes to export a KEK from a file on an external media.

Update

Select Yes to load a factory default KEK or No to load from a file on an external media.

Append

Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No.

Delete

Select Ok to remove the KEK and then the system will reset to Setup/Audit Mode.

▶ Authorized Signatures

Details

Select this feature to view the details of the db.

Export

Select Yes to export a db from a file on an external media.

Update

Select Yes to load a factory default db or No to load from a file on an external media.

Append

Select Yes to add the db from the manufacturer's defaults list to the existing db. Select No to load the db from a file. The options are Yes and No.

Delete

Select Ok to remove the db and then the system will reset to Setup/Audit Mode.

▶Forbidden Signatures

Details

Select this feature to view the details of the dbx.

Export

Select Yes to export a dbx from a file on an external media.

Update

Select Yes to load a factory default dbx or No to load from a file on an external media.

Append

Select Yes to add the dbx from the manufacturer's defaults list to the existing dbx. Select No to load the dbx from a file. The options are Yes and No.

Delete

Select Ok to remove the dbx and then the system will reset to Setup/Audit Mode.

▶ Authorized TimeStamps

Details

Select this feature to view the details of the dbt.

Export

Select Yes to export a dbt from a file on an external media.

Update

Select Yes to load a factory default dbt or No to load from a file on an external media.

Append

Select Yes to add the dbt from the manufacturer's defaults list to the existing dbt. Select No to load the dbt from a file. The options are Yes and No.

Delete

Select Ok to remove the dbt and then the system will reset to Setup/Audit Mode.

Set New Key

Select Yes to load the DBT from the manufacturer's defaults. Select No to load the DBT from a file. The options are Yes and No.

Append Key

Select Yes to add the DBT from the manufacturer's defaults list to the existing DBT. Select No to load the DBT from a file. The options are Yes and No.

▶OsRecovery Signature

The options are Update and Append.

This item uploads and installs an OSRecovery Signature. You may select options for Set New for a factory default key, or select Append to get it from a file. The file formats accepted are:

1) Public Key Certificate

a. EFI Signature List

b. EFI CERT X509 (DER Encoded)

c. EFI CERT RSA2048 (bin)

d. EFI SERT SHA256 (bin)

2) EFI Time Based Authenticated Variable

When prompted, select "Yes" to load Factory Defaults or "No" to load from a file.

6.7 Boot

Use this tab page to configure Boot Settings.

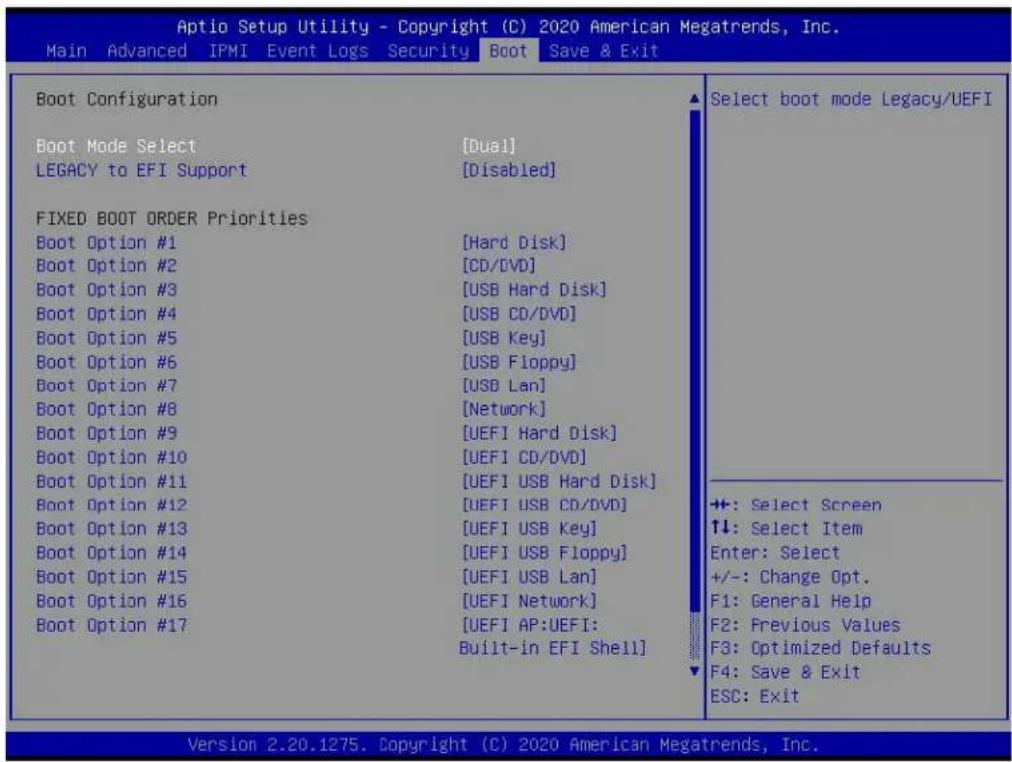

Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced IPMI Event Logs Security Boot Save & Exit Boot Configuration Boot Mode Select [Dual] LEGACY to EFI Support [Disabled] FIXED BOOT ORDER Priorities Boot Option #1 [Hard Disk] Boot Option #2 [CD/DVD] Boot Option #3 [USB Hard Disk] Boot Option #4 [USB CD/DVD] Boot Option #5 [USB Key] Boot Option #6 [USB Floppy] Boot Option #7 [USB Lan] Boot Option #8 [Network] Boot Option #9 [UEFI Hard Disk] Boot Option #10 [UEFI CD/DVD] Boot Option #11 [UEFI USB Hard Disk] Boot Option #12 [UEFI USB CD/DVD] Boot Option #13 [UEFI USB Key] Boot Option #14 [UEFI USB Floppy] Boot Option #15 [UEFI USB Lan] Boot Option #16 [UEFI Network] Boot Option #17 [UEFI AP:UEFI: Built-in EFI Shell] Select boot mode Legacy/UEFI +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1275. Copyright (C) 2020 American Megatrends, Inc.

Boot Mode Select

Use this item to select the type of device that the system is going to boot from. The options are Legacy, UEFI, and DUAL. The default setting is DUAL.

Legacy to EFI Support

This option Disables or Enables the system to boot to an EFI OS after the boot failed from the legacy boot order.

FIXED BOOT ORDER Priorities Section

This option prioritizes the order of bootable devices that the system to boot from. Press on each entry from top to bottom to select devices.

▶ Delete Boot Option

Use this feature to remove a pre-defined boot device from which the system will boot during startup. The settings are [any pre-defined boot device].

▶UEFI Application Boot Priorities

This feature allows the user to specify which UEFI devices are boot devices.

- Boot Option #1

6.8 Save & Exit

Use this tab page to configure Save & Exit settings.

Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced IPMI Event Logs Security Boot Save & Exit
Save Options Discard Changes and Exit Save Changes and Reset Save Changes Discard Changes Default Options Restore Optimized Defaults Save as User Defaults Restore User Defaults Boot Override UEFI: Built-in EFI Shell Launch EFI Shell from filesystem device	Exit system setup without saving any changes.
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.20.1275. Copyright (C) 2020 American Megatrends, Inc.

Discard Changes and Exit

Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit from the Exit menu and press .

Save Changes and Reset

Select this option to reset the system after saving the changes.

Save Changes

After completing the system configuration changes, select this option to save the changes you have made. This will not reset (reboot) the system.

Discard Changes

Select this option and press to discard all the changes and return to the AMI BIOS utility Program.

Default Options

Restore Defaults

To set this feature, select Restore Defaults from the Save & Exit menu and press . These are factory settings designed for maximum system stability, but not for maximum performance.

Save as User Defaults

To set this feature, select Save as User Defaults from the Exit menu and press . This enables the user to save any changes to the BIOS setup for future use.

To set this feature, select Restore User Defaults from the Exit menu and press . Use this feature to retrieve user-defined settings that were saved previously.

Boot Override Section

Listed un this section are other boot options for the system (i.e., UEFI: Built-in EFI Shell). Select an option and press . Your system will boot to the selected boot option.

6.9 BIOS Update Using IPMI

If necessary, the system BIOS can be updated using IPMI. Documentation on IPMI is available at http://www.supermicro.com/products/nfo/IPMI.cfm.

1. Download the BIOS file using the link on the server web page. Unzip and save it.
2. Access the IPMI web interface. Enter the IP address and log in. The default username and password are ADMIN/ADMIN. (For details on IPMI, use the link above.)
3. Click the Maintenance tab, then BIOS Update.

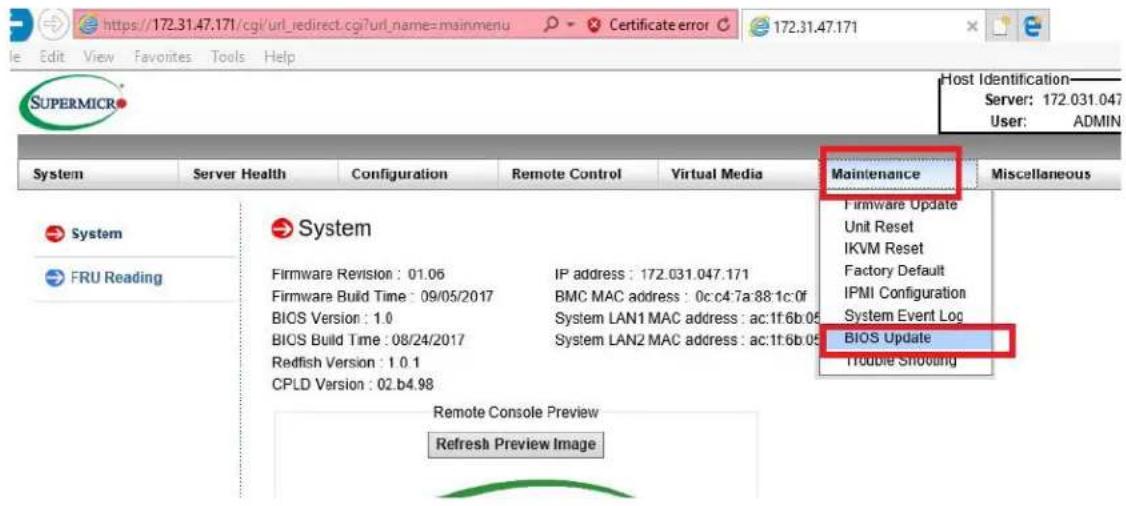

http://172.31.47.171/cgi/url_redirect.cgi?url_name=mainmenu Certificate error 172.31.47.171 Edit View Favorites Tools Help SUPERMICR Host Identification Server: 172.031.047 User: ADMIN System Server Health Configuration Remote Control Virtual Media Maintenance Miscellaneous System FRU Reading System Firmware Revision : 01.06 IP address : 172.031.047.171 Firmware Build Time : 09/05/2017 BMC MAC address : 0c:c4:7a:88:1c:0f BIOS Version : 1.0 System LAN1 MAC address : ac:1f:6b:05 BIOS Build Time : 08/24/2017 System LAN2 MAC address : ac:1f:6b:05 Redfish Version : 1.0.1 CPLD Version : 02.b4.98 Remote Console Preview Refresh Preview Image Maintenance Firmware Update Unit Reset IKVM Reset Factory Default IPMI Configuration System Event Log BIOS Update Trouble Shooting

Figure 6-1. IPMI Maintenance Tab

1. Browse to select the saved BIOS file and click Open.

BIO5 Upload This page displays the device is now in BIOS Update mode. Please upload your BIOS image for updating. Select BIOS image to upload C:\Users\Normami\Desktop\Browse... Upload BIOS Cancel

Figure 6-2. Browse and Upload Dialog

1. Click the Upload BIOS button. The message appears, "Uploading image & checking BIOS information... Please wait. This may take a while."

Figure 6-3. Start Upgrade Dialog

1. In the Start Upgrade dialog, make sure the three checkboxes are not checked, and verify the date of the BIOS file you uploaded before proceeding.
2. Click the Start Upgrade button.

6.10 UEFI BIOS Recovery

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you do update the BIOS, do not shut down or reset the system while the BIOS is updating. Doing so may cause a boot failure.

Overview

The Unified Extensible Firmware Interface (UEFI) provides a software-based interface between the operating system and the platform firmware in the pre-boot environment. The UEFI specification supports an architecture-independent mechanism that will allow the UEFI OS loader stored in an add-on card to boot the system. The UEFI offers clean, hands-off management to a computer during system boot.

Recovering the UEFI BIOS Image

A UEFI BIOS flash chip consists of a recovery BIOS block and a main BIOS block (a main BIOS image). The boot block contains critical BIOS codes, including memory detection and recovery codes for the user to flash a new BIOS image if the original main BIOS image is corrupted. When the system power is on, the boot block codes execute first. Once it is completed, the main BIOS code will continue with system initialization and bootup.

Recovering the BIOS Block with a USB Device

If the BIOS file is corrupted and the system is not able to boot up, you can recover the BIOS image using a USB-attached device. A USB flash drive or a USB CD/DVD ROM drive may be used for this purpose. Note that a USB hard disk drive is not supported.

Recovering the BIOS Block

1. Using a different system, from your driver disk, copy the standard BIOS binary image file into the root directory of a USB flash drive with FAT16 or FAT32 format and rename the file to SUPER.ROM.

Note: If you cannot locate the SUPER.ROM file in your driver disk, visit our website at www.supermicro.com to download the correct BIOS image into a USB flash device and rename it SUPER.ROM.

1. While the system is turned off, open the chassis and locate the internal USB 3.0 Type-A port on the motherboard. Insert the USB device that contains the new BIOS binary image, SUPER.ROM..
2. Power on the system.

PS-ONE Phase Start... PSI-System Enter Recovery Node...

1. After the system is turned on, the system will enter the BIOS Recovery menu. Select "Proceed with flash update" to start the BIOS recovery process. Caution: Do not interrupt this process before it finishes.

Aptia Setup Utility - Copyright (C:) 2020 American Registrends, Inc. Main Advanced IPKB Event logs Recovery Security Boot Save dift System booted from new Image Partial update is not allowed Only full image can be updated DBIOG Preservation [Disabled] Proposed with 1.86M updates Select this to start flash update +: Select Screen F1: Select IBox Enter: Deont +/-4 Change Out. F1: General Help F2: Previous Value F3: Optimized Defaults F4: Save & Exit EIC: Exit version 2.29.1215, Copyright (C:) 2020 American Registrends, Inc.

Aptio Setup Utility - Copyright (C) 2020 American Negotrends, Inc. Recovery WARNING: System firmware is being updated. Lockboard is locked. DO NOT TURN THE POWER OFF IT! Once firmware update is completed press any key to reboot the system. Flash Update Updating main firmware 3x ←: Select Screen T4: Select Item Enter: Select +/-: Change Out. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Belt version 8.00.125, Copyright 10. 2020 American Negotrends, Inc.

1. After the Boot Sector Recovery Process is complete, press any key to reboot the system.

Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Recovery WARNING System firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF III Once firmware update is completed press any key to reboot the system Flash update Flash update completed. Press any key to reset the system +#: Select Screen 11: Select Item Enter: Select +/-: Change Opt. F3: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 5.89.1275, Copyright (C) 2020 American Megatrends, Inc.

Notes:

• The BIOS recovery (SUPER.ROM) will not work if BIOS has a multi-block crash.
• If you have purchased an OOB license, you can do a BIOS flash again through BMC WebGUI or SUM. Refer to these Supermicro software-related videos:

Activate OOB license: https://www.youtube.com/watch?v=V4spX_DOV7I

SUPERMICRO BIOS Update: https://www.youtube.com/watch?v=S8z6iOEHGwY

- If the BIOS flash recovery fails, contact our RMA Department to have the BIOS chip reprogrammed. This will require shipping the board to Supermicro for repair.

Submit your RMA request at https://www.supermicro.com/support/rma. Please follow all instructions when returning the motherboard.

Appendix A

Standardized Warning Statements for AC Systems

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this appendix in its entirety before installing or configuring components in the Supermicro chassis.

These warnings may also be found on our website at http://www.supermicro.com/about/policies/safety_information.cfm.

Warning Definition

Warning! This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

警告の定義

この警告サインは危険を意味します。

Installation Instructions

Warning! Read the installation instructions before connecting the system to the power source.

設置手順書

Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.

サーキット・ブレーカー

Power Disconnection Warning

Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.

CAUTION: This unit has redundant power sources. Please disconnect all the power cords before servicing.

電源切断の警告

Equipment Installation

Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

機器の設置

Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. (This warning does not apply to workstations).

アクセス制限区域

Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Redundant Power Supplies

Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

冗長電源装置

Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing.

バックプレーンの電圧

Comply with Local and National Electrical Codes

Warning! Installation of the equipment must comply with local and national electrical codes.

地方および国の電気規格に準拠

Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

Warning! Hazardous moving parts. Keep away from moving fan blades. The fans might still be turning when you remove the fan assembly from the chassis. Keep fingers, screwdrivers, and other objects away from the openings in the fan assembly's housing.

ファン・ホットスワップの警告

Power Cable and AC Adapter

Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA-certified cables (that have UL/CSA shown on the cord) for any other electrical devices than products designated by Supermicro only.

電源コードとACアダプター

System Specifications

Processors

Dual AMD EPYC 7003/7002 series in SP3 type sockets; System on Chip (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)

BIOS

AMI 256 Mb SPI Flash EEPROM

Memory

Up to 8 TB of ECC DDR4 3200 MHz speed, RDIMM/LRDIMM/3DS/NVDIMM memory in 32 slots

SATA Controller

On-chip

Drive Bays

Four hot-swap 3.5" bays for choice of: NVMe (cable included, additional drive tray required) SAS3 (optional SAS card and kit required) M.2 NVMe (optional AOC required)

PCI Expansion Slots

PCIe 4.0 x16: two full-height 9.5" length slots, one low profile slot, one internal low profile proprietary slot

Motherboard

H12DSU-iN; 17" x 17" (432 mm x 432 mm)

Chassis

819UTS-R1K02P-A; 1U rackmount, (WxHxD) 17.2 x 1.7 x 29 in. (437 x 43 x 737 mm)

Weight

Net Weight: 26 lbs (11.8 kg) Gross Weight: 41 lbs (18.6 g)

System Cooling

Eight 4-cm counter-rotating heavy duty PWM fans; two air shrouds; two CPU heatsinks

Power Supply

Model: PWS-1K02A-1R, 1000 W redundant 80Plus Titanium level modules with PMBus (Full redundancy based on configuration and application load)

Total Output Power: 800W/1000W

Input:

100-127Vac / 9.8 - 7A / 50-60Hz 200-240Vac / 7 - 5A / 50-60Hz 200-240Vdc / 7 - 5A (for CCC only)

+12V Output:

Max: 66.7A / Min: 0A (100-127Vac) Max: 83A / Min: 0A (200-240Vac) Max: 83A / Min: 0A (200-240Vdc)

12Vsb · Max: 2.1A / Min: 0A

Output Type: 25 Pairs Gold Finger Connector

Input/Output

LAN: Two 10 Gbps ports by means of the Ultra card; one dedicated IPMI port USB 3.0: Two ports on the rear I/O panel (USB0/1), one type A header (Internal) Two SATA DOM (Device on Module) power connectors One COM port, One VGA port

Operating Environment

Operating Temperature: 0° to 35° C (50° to 95° F)

Non-operating Temperature: -40° to 70° C (-40° to 158° F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Regulatory Compliance

FCC, ICES, CE, VCCI, RCM, UKCA, NRTL, CB

Applied Directives, Standards

EMC/EMI: 2014/30/EU (EMC Directive)

Electromagnetic Compatibility Regulations 2016

FCC Part 15 Subpart B

ICES-003

VCCI-CISPR 32

AS/NZS CISPR 32

BS/EN55032

BS/EN55035

CISPR 32

CISPR 24/CISPR 35

BS/EN 61000-3-2

BS/EN 61000-3-3

BS/EN 61000-4-2

BS/EN 61000-4-3

BS/EN 61000-4-4

BS/EN 61000-4-5

BS/EN 61000-4-6

BS/EN 61000-4-8

BS/EN 61000-4-11

Environment:

2011/65/EU (RoHS Directive)

EC 1907/2006 (REACH)

2012/19/EU (WEEE Directive)

California Proposition 65

Product Safety: 2014/35/EU (LVD Directive)

UL/CSA 62368-1 (USA and Canada)

Electrical Equipment (Safety) Regulations 2016

IEC/BS/EN 62368-1

Perchlorate Warning

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate"

Appendix C

IPMI Crash Dump

In the event of a processor internal error (IERR) that crashes your system, you may want to provide information to support staff. You can download a crash dump of status information using IPMI. The IPMI manual is available at https://www.supermicro.com/solutions/IPMI.cfm.

Check IPMI Error Log

1. Access the IPMI web interface.
2. Click the Server Health tab, then Event Log to verify an IERR error.

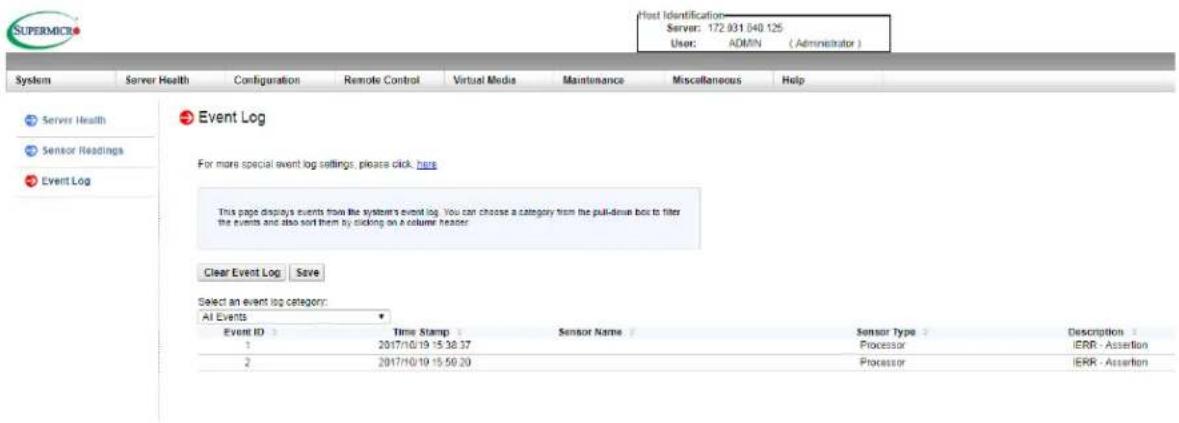

Host Identification Server: 172 031 040 125 User: ADMIN (Administrator) System Server Health Configuration Remote Control Virtual Media Maintenance Miscellaneous Help Server Health Sensor Readings Event Log Event Log For more special event log settings, please click here. This page displays events from the system's event log. You can choose a category from the pull-down box to filter the events and also sort them by clicking on a column header. Clear Event Log Save Select an event log category: All Events Event ID Time Stamp Sensor Name Sensor Type Description 1 2017/10/19 15:38:37 Processor IERR - Assertion 2 2017/10/19 15:50:20 Processor IERR - Assertion

Figure C-1. IPMI Event Log

In the event of an IERR, the BMC executes a crash dump. You must download the crash dump and save it.

Downloading the Crash Dump File

1. In the IPMI interface, click the Miscellaneous tab, then the Trouble Shooting option.
2. Click the Dump button and wait five minutes for the file to be created. (No confirmation message will appear.)
3. Click the Download button and a Save As dialog appears.
4. Save the zipped dump file, noting the name and location.

SUPERMICRO Host Identification Server: 172.031.040.125 User: ADMIN (Administrator) System Server Health Configuration Remote Control Virtual Media Maintenance Miscellaneous Help Miscellaneous Activate License Post Snooping SMC RAKP Trouble Shooting UID Control Trouble Shooting This page provides trouble shooting file download System auto reset Dump Download

Figure C-2. IPMI Crash Dump Download

Note: The System auto reset check box dictates behavior after an IERR. If checked, the system will restart automatically, and the dump file will be erased. If not, the system remains in a failed state. Do not check this box until after the dump file has been sent to Support.
