USER MANUAL Action-512 DAS Audio

SAFETY PRECAUTIONS 3

WARRANTY 4

DECLARATION OF CONFORMITY 5

INTRODUCTION 6 - 7

CONFIGURATIONS 8 - 13

2x ACTION-508

2x ACTION-508 + 1x ACTION-S18

2x ACTION-512 + 2x ACTION-S18

2x ACTION-515) + 2x ACTION-S18

2x ACTION-525 + 2x ACTION-S218

2x ACTION-M512

RIGGING SYSTEM 14 - 16

LINE DRAWINGS 17 - 18

SPECIFICATIONS 18

Keep these instructions.

Heed all warnings. Follow all instructions.

The exclamation point inside an equilateral triangle indicates the existence of internal components whose substitution may affect safety.

The specifications can be found on the rear label of the product.

The appliance should be flown only from the rigging points and by qualified personnel. Do not suspend the box from the handles.

Do not expose this device to rain or moisture. Do not place any objects containing liquids, such as bottles or glasses, on the top of the unit. Do not splash liquids on the unit. IP-20 equipment.

This symbol on the product indicates that this product should not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Working temperature ranges from 15°C to 35°C with a relative humidity of 75%.

The outer wiring connected to the device requires installation by an instructed person or the use of a flexible cable already prepared.

Note that the two Speakon input connectors are wired in parallel to provide easy parallel connection of several enclosures.

Do not place loudspeakers in proximity to devices sensitive to magnetic fields such as television monitors or data storage magnetic material.

ACTION-508---->125 cm

ACTION-512---->115 cm

ACTION-515---->105 cm

For enclosures with tripod socket, the maximum safety height from floor to bottom of enclosure when mounting on a TRD-2 tripod, with legs spread 55cm from the central pole, is:

ACTION-508---->125 cm

ACTION-512---->115 cm

ACTION-515---->105 cm

No user serviceable parts inside. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.

Clean only with a dry cloth. Do not use any solvent based cleaners.

GARANTÍA

All our products are warranted against any manufacturing defect for a period of 2 years from date of purchase.

The warranty excludes damage from incorrect use of the product.

All warranty repairs must be exclusively undertaken by the factory or any of its authorised service centers.

To claim a warranty repair, do not open or intend to repair the product.

Return the damaged unit, at shippers risk and freight prepaid, to the nearest service center with a copy of the purchase invoice.

DAS Audio Group, S.L.

• EN 60065:2014.- Audio, video and similar electronic apparatus. Safety requirements.
• EN 50581:2012.- Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances.

INTRODUCTION

The action 500 series inherits the exceptional sound quality and rugged build that have made DAS professional systems an internacional sound reinforcement standard. Designed from “real-world” experience, they offer users outstanding performance, absolute reliability, and unparalleled convenience. Whether it is in a high-profile venue or on the stage of a major event, the action series will provide the power and definition needed to make your performance a success.

Features

Technical line drawing of a rectangular electronic device with two speakers and a central speaker (no text or symbols)

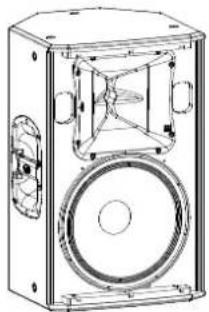

ACTION-508

• 2-way, full-range system
• 8" bass loudspeaker, 8GV (1,5" VCD)
• Compression driver with titanium diaphragm, M-34 (1,4" VCD)
• Asymmetric enclosure design for stage monitor use
• Built-in rigging points
• Stand mountable

The ACTION-508 is a compact 2-way passive full-range loudspeaker that utilizes a 8" low frequency transducer and a full compression driver. The multi-angle cabinet is constructed of Birch plywood protected by an environmentally friendly ISO-flex black paint finish. A rear located handle and a robust steel grille are provided. A 35 mm tripod socket allows for stand mounting.

Technical line drawing of a rectangular electronic device with a speaker and antenna (no text or symbols)

ACTION-512

• Two-way full-range system
• 12" bass loudspeaker, 12MI (2,5" VCD)
• Compression driver, M-34 (1,4" VCD) with titanium diaphragm
• Asymmetric enclosure design for stage monitor use
• Built-in rigging points (eyebolt based)
• Stand mountable

The ACTION-512 is a 2-way passive full-range loudspeaker that utilizes a 12" low frequency transducer and a 1" exit compression driver. The multi-angle cabinet is constructed of Birch plywood protected by an environmentally friendly black paint finish. Two bar handles and a steel grille are provided. A 35mm tripod socket with angle double (0° and -10°) allows for stand mounting.

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

ACTION-M512

• Dedicated stage monitor
• 12" bass loudspeaker, 12MI (2,5" VCD)
• Compression driver, M-34 (1,4" VCD) with titanium diaphragm
• Low profile enclosure design for minimum visual impact
• Black paint finish
• Stand mountable

The ACTION-M512 is a dedicated stage monitor designed for use with external amplification. The enclosure is constructed from Birch plywood and is protected with a black paint finish. Two side located handles facilitate handling and a steel grille protects the components. A pole mount socket adds versatility to the ACTION-M512.

Technical line drawing of a speaker with a circular head and antenna (no text or symbols)

Technical line drawing of a multi-tiered speaker or amplifier unit with dual speakers and control panel (no text or symbols)

Technical line drawing of a rectangular electronic device with circular speaker and mounting holes (no text or symbols)

Technical line drawing of a two-tiered speaker enclosure with no text or symbols

ACTION-515

• Two-way, full-range system
• 15" bass loudspeaker, 15MI (2,5" VCD)
• Compression driver with titanium diaphragm, M-34 (1,4" VCD
• Asymmetric enclosure design for stage monitor use
• Built-in rigging points (eyebolt based)
• Stand mountable with angle double (0° and -10°)

This 2-way passive full-range loudspeaker utilizes a 15" low frequency transducer and a 1" exit compression driver with titanium diaphragm. The cabinet is constructed of Birch plywood and finished with an environmentally friendly black paint finish. Two bar handles are provided and a steel grille protects components. A 35mm tripod socket with angle double (0° and -10°) allows for stand mounting. Rigging points provide a safe and simple solution for suspending the ACTION-515.

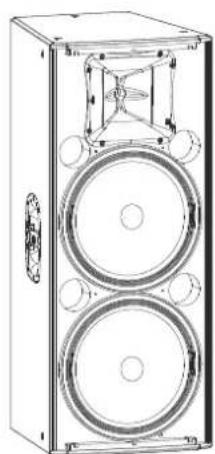

ACTION-525

• 2-way, full-range system
• 2 x 15" bass loudspeaker, 15MI (2,5" VCD)
• Compression driver with titanium diaphragm, M-44 (1,75" VCD)
• Two steel-reinforced handles

The ACTION-525 is a 2-way passive full range loudspeaker utilizes two 15" bass loudspeakers for extra low frequency punch and higher SPL. High frequencies are handled by a 1" compression driver with titanium diaphragm. The trapezoidal cabinet is constructed using Birch plywood and protected with a hard-wearing black paint finish. Two bar handles and a steel grille sealed against corrosion using a polyamide powder coat finish are provided. Rigging points provide a safe and simple way to fly the ACTION-525 cabinets.

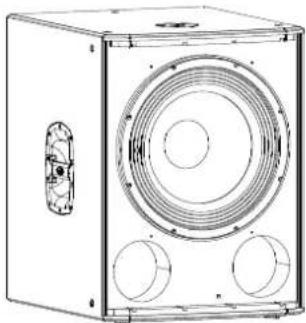

ACTION-S18

• Bass-reflex subwoofer system
• 18" low frequency transducer, 18FW (3" VCD)
• Precise and powerful bass reproduction
• Top located pole mount socket

The ACTION-S18 bass system incorporates a 18" low frequency transducer with a 3" voice coil mounted as a direct radiator into a bass-reflex cabinet. The loudspeaker is protected by a perforated steel grille, sealed against corrosion using a powder coat finish. The ACTION-S18 is designed for use in biamped systems. A top located pole-mount socket permits mounting full-range systems above the ACTION-S18 and two bar handles makes moving easy.

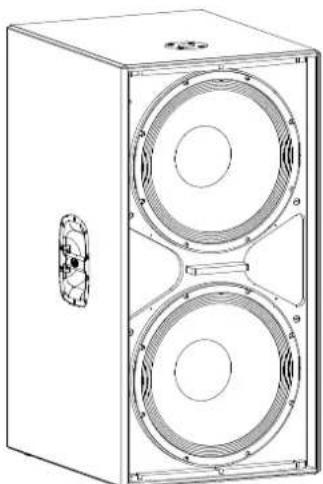

ACTION-S218

• High output bass-reflex subwoofer system
• Twin 18" loudspeakers, 18FW (3" VCD)
• Durable black paint finish
• Side located bar handles

This high power bass-reflex subwoofer system uses dual 18" bass loudspeakers equipped with 3" voice coils. The exceptional power handling capacity and efficiency provide high sound pressure levels of powerful bass. Two hand locations facilitate handling. The cabinet is designed to be stacked in the vertical position in order to reduce the units "on-stage" footprint.

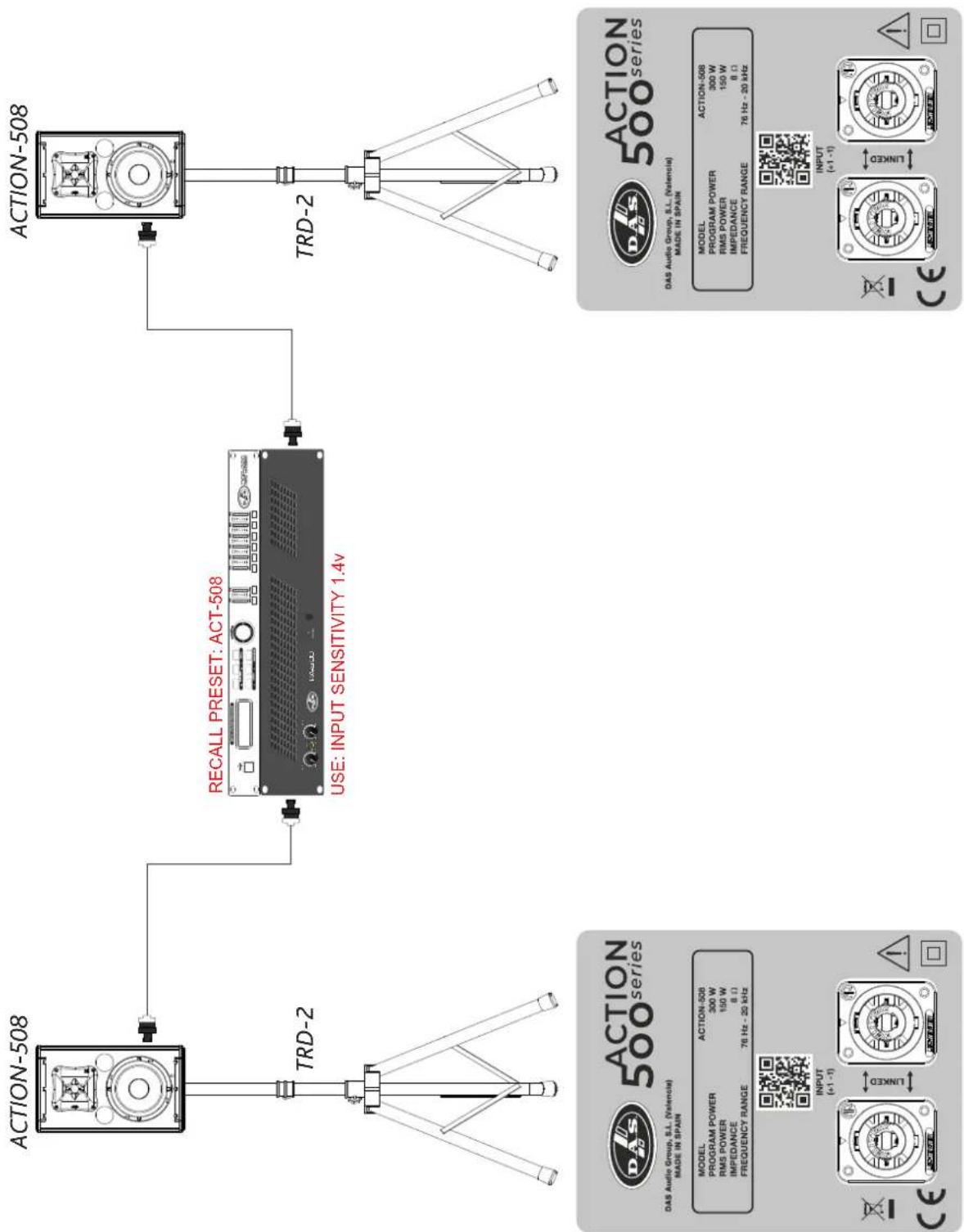

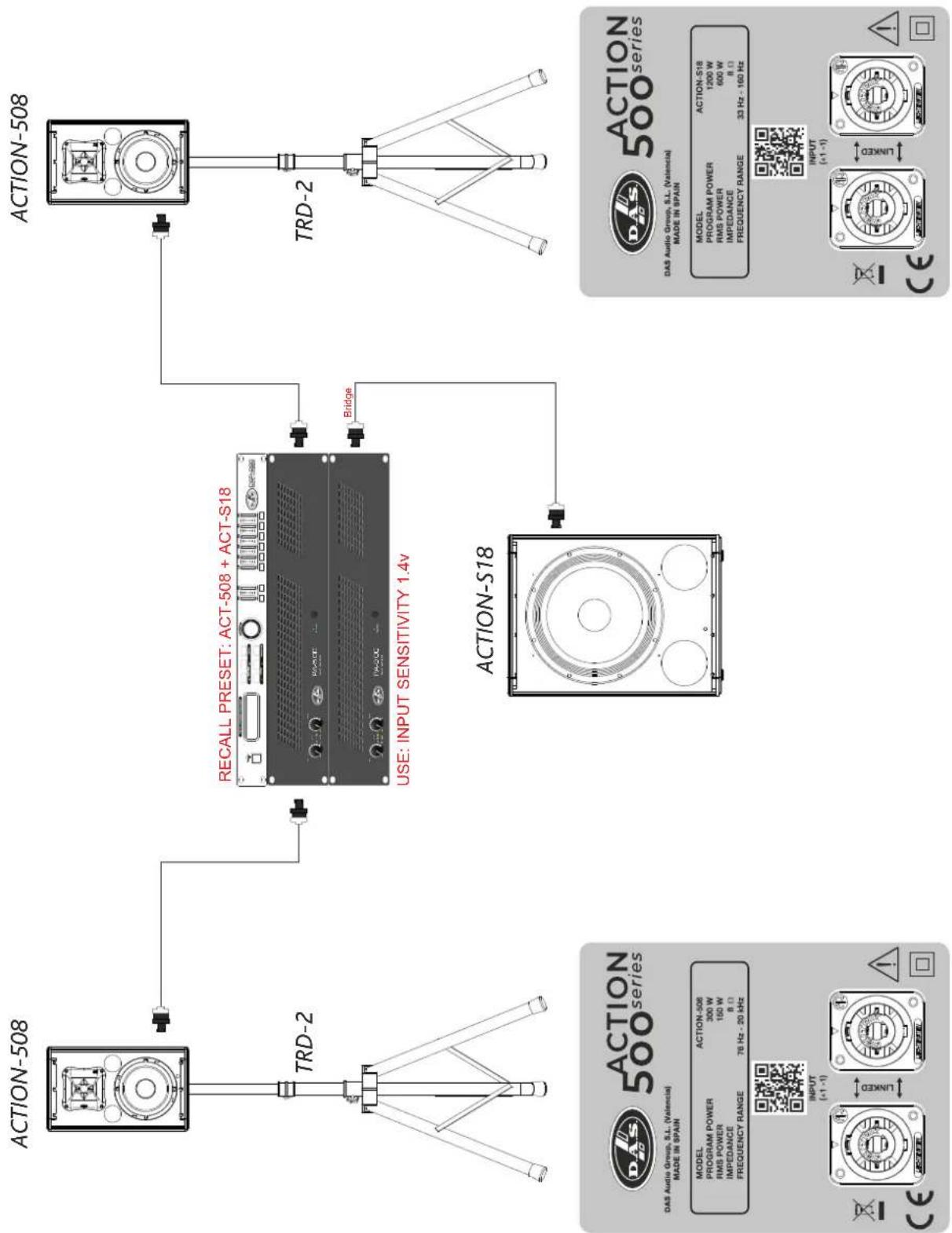

ACTION-508 TRD-2 RECALL PRESET: ACT-508 USE: INPUT SENSITIVITY 1.4v ACTION-508 TRD-2 DAS ACTION 500 series DAS Audio Group, S.L. (Valencia) MADE IN SPAIN MODEL ACTION-508 PROGRAM POWER 300 W RMS POWER 150 W IMPEDANCE 8 Ω FREQUENCY RANGE 76 Hz - 20 kHz INPUT (+1 -1) LINKED CE ACTION-508 DAS Audio Group, S.L. (Valencia) MADE IN SPAIN MODEL ACTION-508 PROGRAM POWER 300 W RMS POWER 150 W IMPEDANCE 8 Ω FREQUENCY RANGE 76 Hz - 20 kHz INPUT (+1 -1) LINKED CE


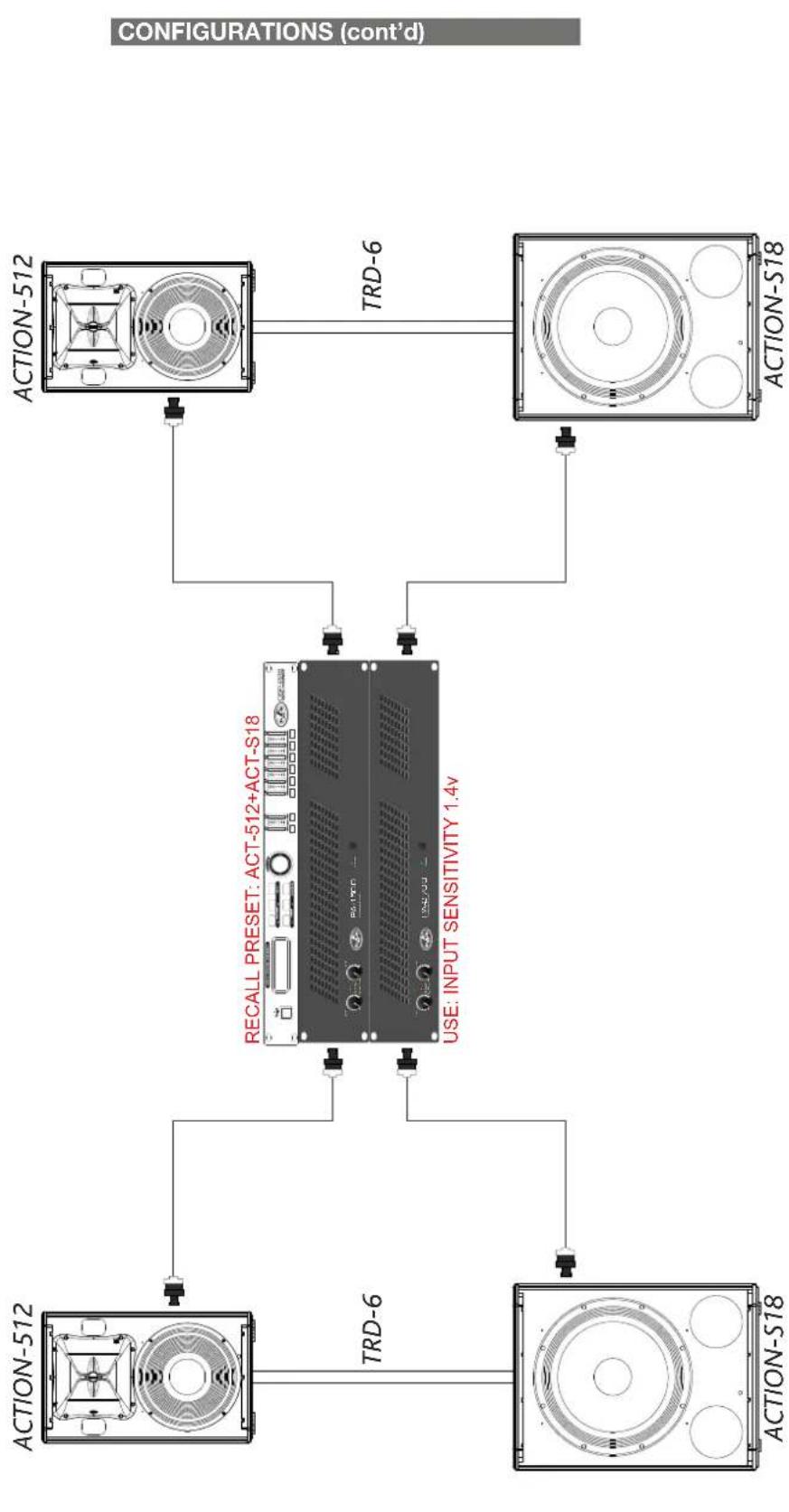

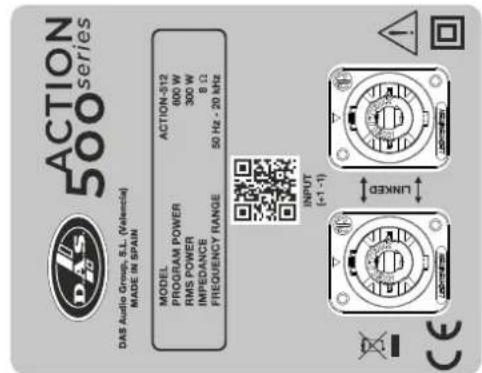

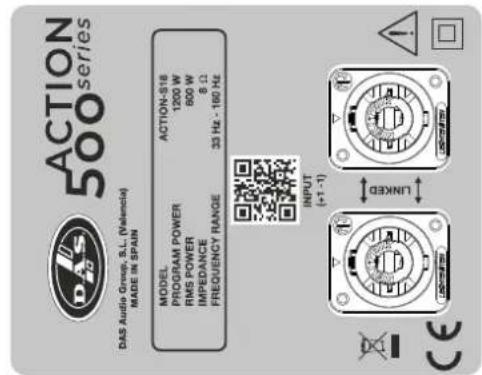

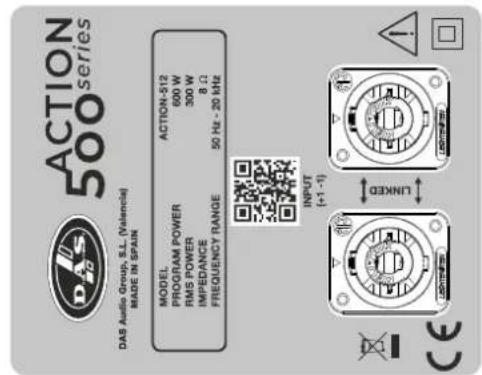

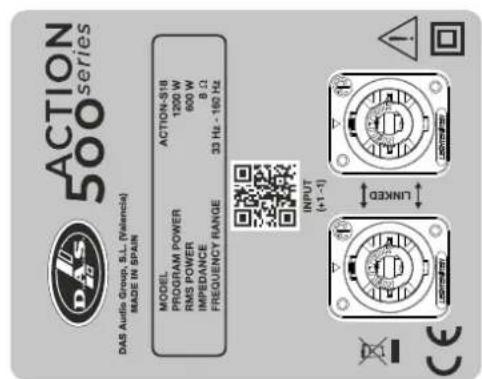

DAS ACTION 500 series DAS Audio Group, S.L. (Valencia) MADE IN SPAIN MODEL ACTION-S18 PROGRAM POWER 1200 W RMS POWER 600 W IMPEDANCE 8 Ω FREQUENCY RANGE 33 Hz - 160 Hz INPUT (=1 - 1) LINKED CE

DAS ACTION 500 series DAS Audio Group, S.L. (Valencia) MADE IN SPAIN MODEL ACTION-512 PROGRAM POWER 600 W RMS POWER 300 W IMPEDANCE 8 Ω FREQUENCY RANGE 50 Hz - 20 kHz INPUT (+1 -1) LINKED CE

DAS ACTION 500 series DAS Audio Group, S.L. (Valencia) MADE IN SPAIN MODEL ACTION-S18 PROGRAM POWER 1200 W RMS POWER 600 W IMPEDANCE 8.12 FREQUENCY RANGE 33 Hz - 160 Hz INPUT (+1 -1) LINKED CE

DAS ACTION 500 series DAS Audio Group, S.L. (Valencia) MADE IN SPAIN MODEL ACTION-512 PROGRAM POWER 600 W RMS POWER 300 W IMPEDANCE 8 Ω FREQUENCY RANGE 50 Hz - 20 kHz INPUT (+1 -1) LINKED CE

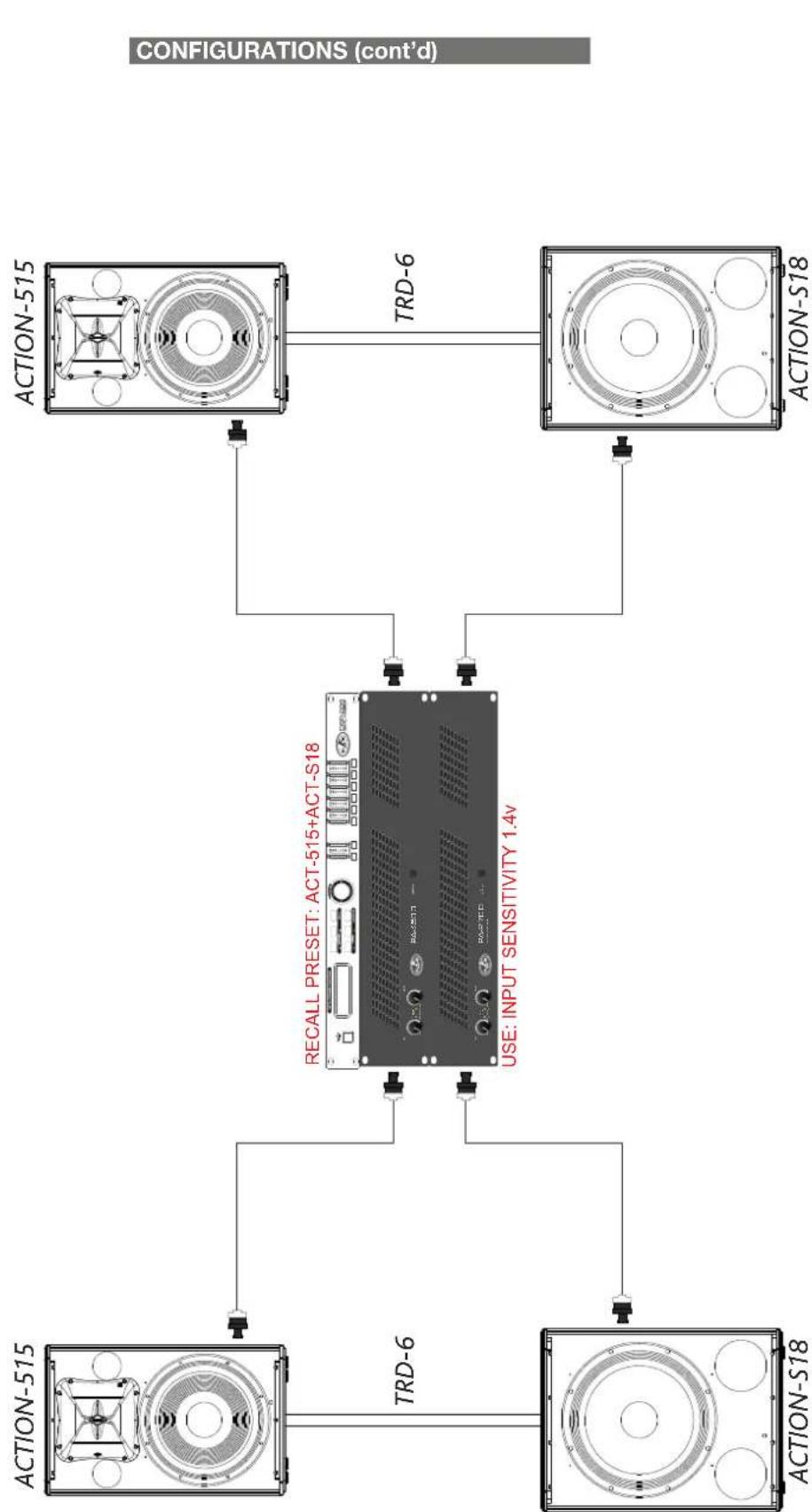

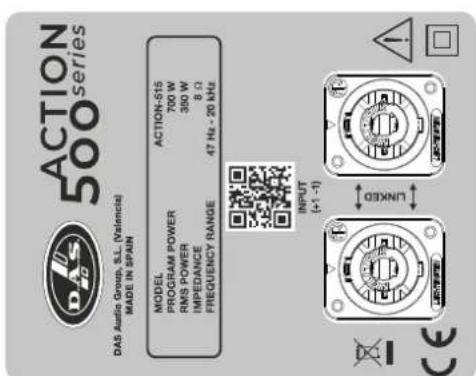

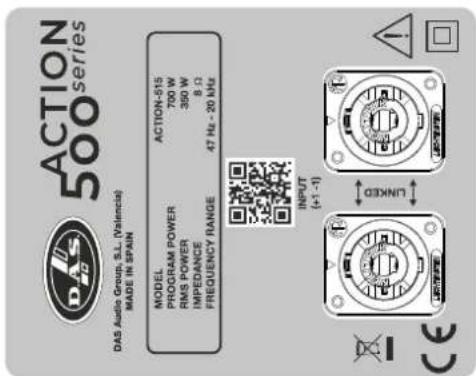

DAS 500 series DAS Audio Group, S.L. (Valencia) MADE IN SPAIN MODEL ACTION-S18 PROGRAM POWER 1200 W RMS POWER 600 W IMPEDANCE 8 Ω FREQUENCY RANGE 33 Hz - 160 Hz INPUT (÷1 -1) LINKED CE

DAS DAS 500 series DAS Audio Group, S.L. (Valencia) MADE IN SPAIN MODEL ACTION-515 PROGRAM POWER 700 W RMS POWER 350 W IMPEDANCE 8 Ω FREQUENCY RANGE 47 Hz - 20 kHz INPUT (+1 -1) LINKED

DAS 500 series DAS Audio Group, S.L. (Valencia) MADE IN SPAIN MODEL ACTION-S18 PROGRAM POWER 1200 W RMS POWER 600 W IMPEDANCE 8 Ω FREQUENCY RANGE 33 Hz - 160 Hz INPUT (÷1 -1) LINKED

DAS 500 series DAS Audio Group, S.L. (Valencia) MADE IN SPAIN MODEL ACTION-515 PROGRAM POWER 700 W RMS POWER 350 W IMPEDANCE 8 Ω FREQUENCY RANGE 47 Hz - 20 kHz INPUT (+1 -1) LINKED

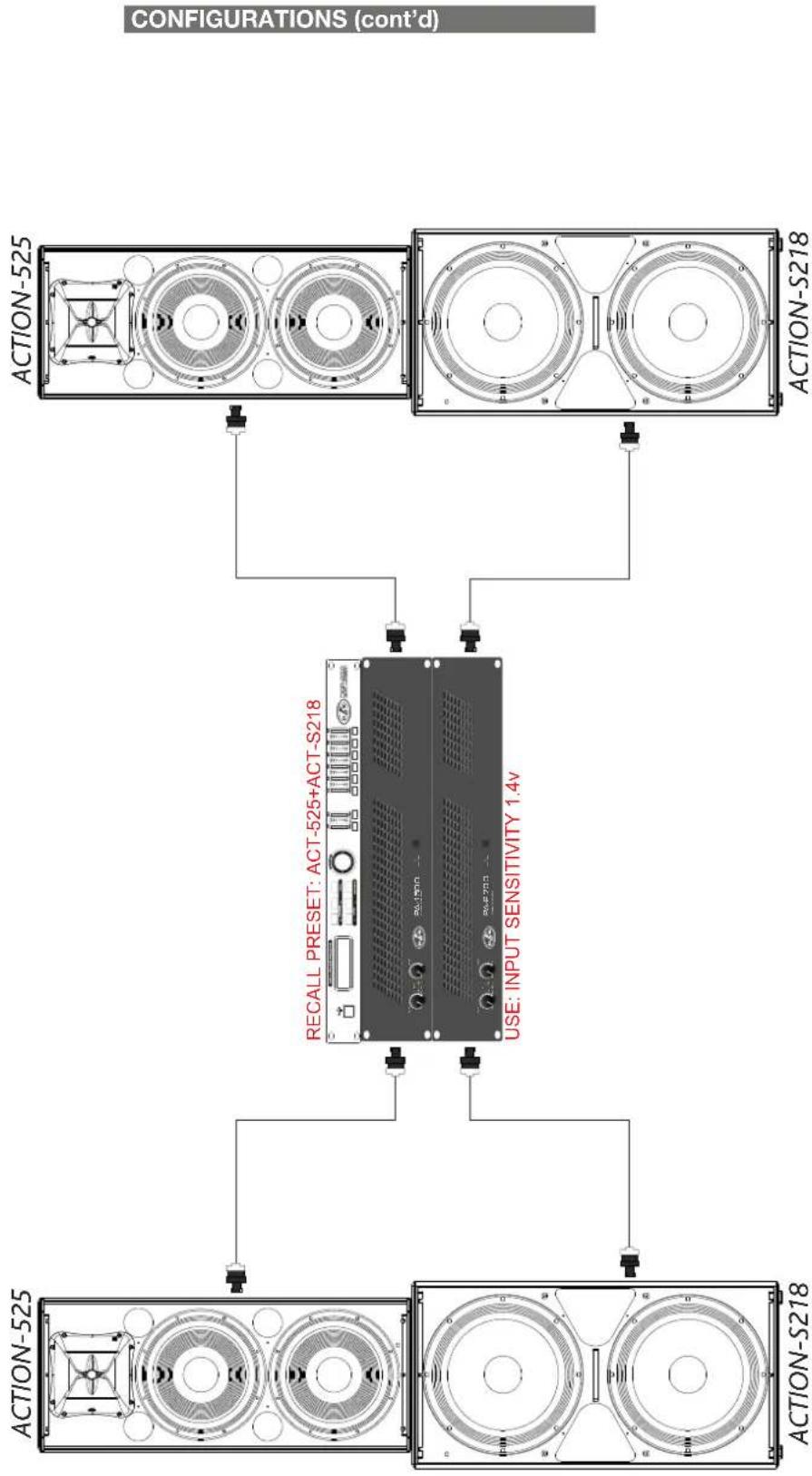


ACTION 500 series DAS Audio Group, S.L. (Valencia) MADE IN SPAIN MODEL ACTION-825 PROGRAM POWER 1400 W RMS POWER 700 W IMPEDANCE 4 Ω FREQUENCY RANGE 47 Hz - 20 kHz INPUT (+1 -1) LINKED OUTPUT (+1 -1) LINKED OUTPUT (+1 -1) LINKED ACTION 500 series DAS Audio Group, S.L. (Valencia) MADE IN SPAIN MODEL ACTION-825 PROGRAM POWER 1400 W RMS POWER 700 W IMPEDANCE 4 Ω FREQUENCY RANGE 47 Hz - 20 kHz INPUT (+1 -1) LINKED OUTPUT (+1 -1) LINKED ACTION 500 series DAS Audio Group, S.L. (Valencia) MADE IN SPAIN MODEL ACTION-825 PROGRAM POWER 2400 W RMS POWER 1200 W IMPEDANCE 4 Ω FREQUENCY RANGE 29 Hz - 160 Hz

RIGGING

Warnings

This manual contains needed information for flying DAS Audio line array systems, description of the elements and safety precautions. To perform any operations related to flying the system, read the present document first, and act on the warnings and advice given. The goal is to allow the user to become familiar with the mechanical elements required to fly the acoustic system, as well as the safety measures to be taken during set-up and teardown.

Only experienced installers with adequate knowledge of the equipment and local safety regulations should fly speaker boxes. It is the user's responsibility to ensure that the systems to be flown (including flying accessories) comply with state and local regulations.

The working load limits in this manual are the results of tests by independent laboratories. It is the user's responsibility to stay within safe limits. It is the user's responsibility to follow and comply with safety factors, resistance values, periodical supervisions and warnings given in this manual. Product improvement by means of research and development is on going at D.A.S. Specifications are subject to change without notice.

It is common practice to apply 5:1 safety factors for enclosures and static elements. For slings and elements exposed to material fatigue due to friction and load variation the following ratios must be met; 5:1 for steel cable slings, 4:1 for steel chain slings and 7:1 polyester slings. Thus, an element with a breaking load limit of 1000 kg may be statically loaded with 200 kg (5:1 safety factor) and dynamically loaded with 142 kg (7:1 safety factor).

When flying a system, the working load must be lower than the resistance of each individual flying point in the enclosure, as well as each box. Hanging hardware should be regularly inspected and suspect units replaced if in doubt. This is important to avoid injury and absolutely no risks should be taken in this respect. It is highly recommended that you implement an inspection and maintenance program on flying elements, including reports to be filled out by the personnel that will carry out the inspections. Local regulations may exist that, in case of accident, may require you to present evidence of inspection reports and corrective actions after defects were found.

Absolutely no risks should be taken with regards to public safety. When flying enclosures from ceiling support structures, extreme care should be taken to assure the load bearing capabilities of the structures so that the installation is absolutely safe. Do not fly enclosures from unsafe structures. Consult a certified professional if needed. All flying accessories that are not supplied by DAS Audio are the user's responsibility. Use at your own risk.

Introduction

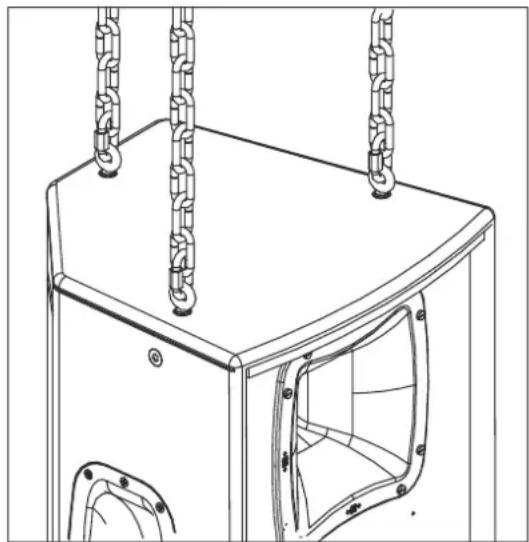

Flyable action 500 series models feature 6 internal steel angles, with 2 mounting threads each, so that 12 flying points are available (2 on each side, 3 on the top panel and 3 on the bottom panel and 2 on the rear panel). Eyebolt flying points are factory sealed with M10 screws, which are replaced with eyebolts on the flying points as required. Flying with eyebolts is very economical and safe, and is specially recommended for fixed installations where the boxes are permanently fixed.

The illustration shows the internal metal hardware of an enclosure with eyebolt flying.

Technical line drawing of a mechanical enclosure with hanging chains and internal compartments (no text or symbols)

Flying with eyebolts

The Allen-head screws must be removed and replaced by M10 eyebolts on one side of the enclosure. Each rigging point has 200 kg (440 lb) working load limit. Then choose the slings or chains of required load resistance and length, bearing in mind that the length difference between the front and back slings or chains will determine the vertical orientation. Alternatively, the back bottom eyebolt points can be used to provide vertical orientation.

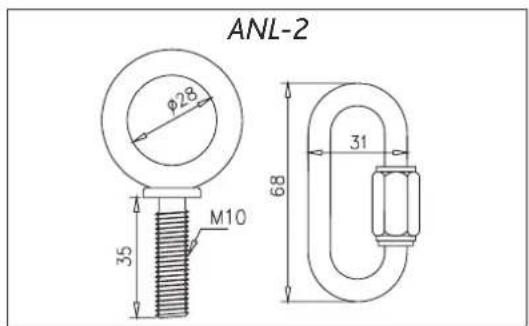

The ANL-2 set is an optional set of three eyebolts and three carabiners. (Dimensions are in milimetres).

DO NOT USE FOR SUSPENSION NO USE PARA EL COLGADO

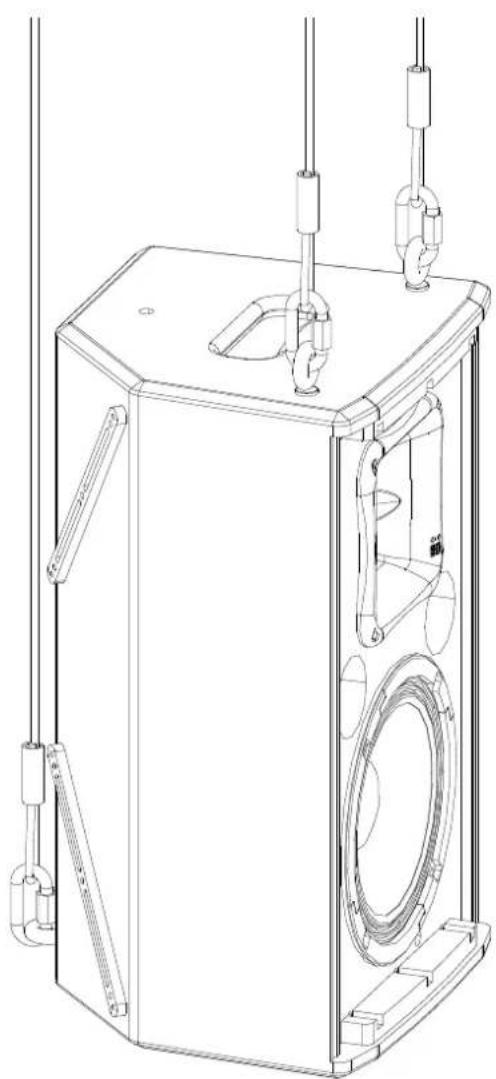

The following illustrations show different views on eyebolt flying for a single box. The length of the back cables or chains determines the vertical angle of the box.

ANL-2 φ28 M10 35 68 31

Each ANL-2 eyebolt has a rated working load of 200 kg. (440 lb). Each ANL-2 carabiner has a working load of 330 kg (726 lb). If using other hardware, make sure it is rated to handle the required load.

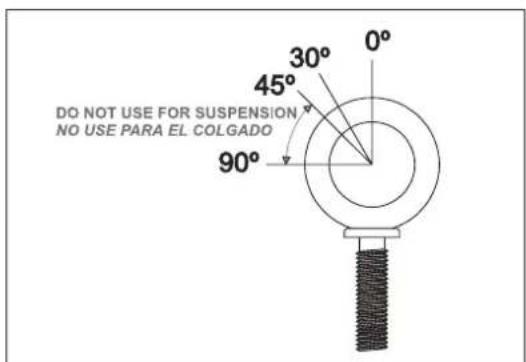

When using eyebolts it is important to bear in mind that the rated working load is only true for a load applied in the plane of the eye, and is significantly reduced for other angles. The drawing illustrates the concept. The table shows the variation of the working load as a function of the load angle. In the case of the ANL-2 eyebolt, this means that the 200 kg working load becomes 60 kg at 45 degrees. Do not use eyebolt flying if the load angle is higher than 45 degrees.

	0 Degrees	30 Degrees 45	Degrees	More than 45 Degrees
% Working load	100% 65%	30% 25%

Technical line drawing of a mechanical device with internal components and mounting feet (no text or symbols)

Instructions for AXU (only ACTION-508 and ACTION-512 enclosures)

Introduction

The AXU-ACT8 are designed for ACTION-508 and ACTION-508A enclosures.

The AXU-ACT12 are designed for ACTION-512 and ACTION-512A enclosures.

Safety Precautions

Wall plugs provided are to be used in brick walls only. For other wall materials, source the suitable wall plug before use.

DAS Audio is not responsible for use other than the recommended or whether it be the result of insufficient strength of the support structure. Use only the screws and wall plugs supplied on surfaces that will provide sufficient support. Do not use on surfaces such as plaster, and gypsum. It is highly recommended and in most parts of the world mandatory, that a safety cable be used to secure the enclosure to the structure.

To ensure optimum safety, the installation should be checked thoroughly at regular intervals replacing all deteriorated elements.

Loosen the screws before reorienting the speaker. Never force the rigging elements.

Contact a licensed rigger if there is any doubt.

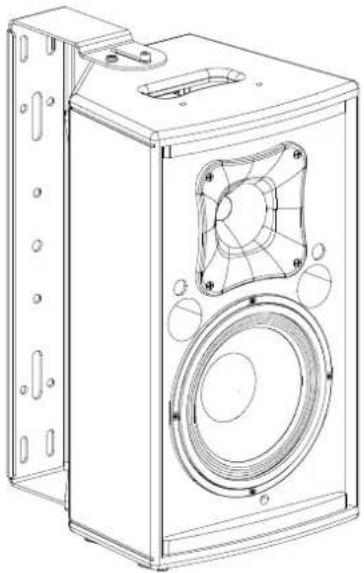

Technical line drawing of a mechanical device with a speaker and fan assembly (no text or symbols)

Mounting instructions

You can consult the AXU-ACT8 mounting instructions for ACTION-508 enclosures on the web: www.dasaudio.com

You can consult the AXU-ACT12 mounting instructions for ACTION-512 enclosures on the web: www.dasaudio.com

TRD-6 / TRD-7 accessories

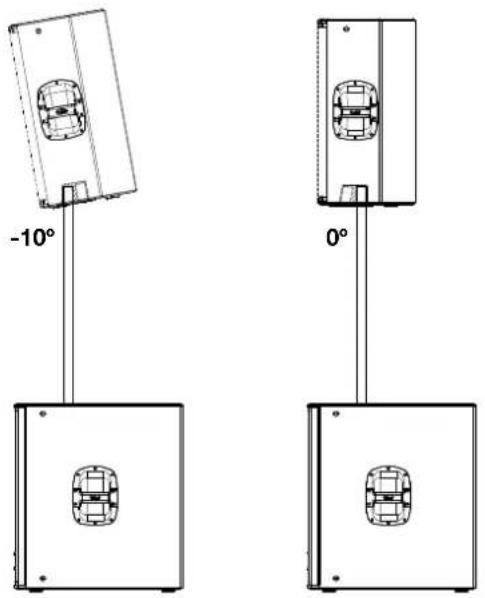

The models ACTION-512 and ACTION-515 dispose the 35mm tripod socket with angle double (0° and -10°) for stand mounting.

Diagram showing two car-mounted sensors with 10° and 0° angles, no text or symbols present

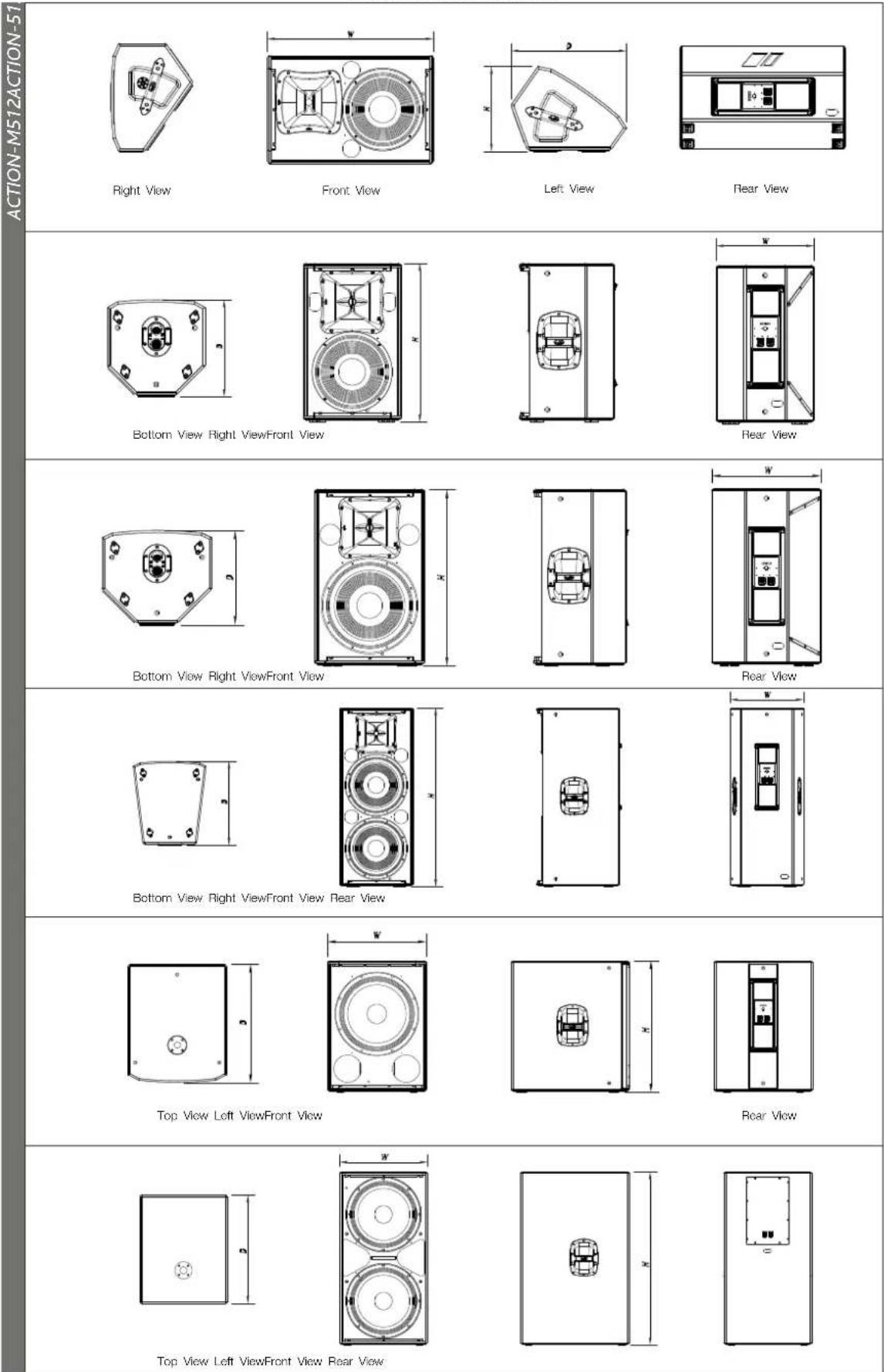

ALL DIMENSIONS IN MILLIMETERS

ACTION-M512ACTION-51 Right View Front View Left View Rear View Bottom View Right ViewFront View Rear View Bottom View Right ViewFront View Rear View Bottom View Right ViewFront View Rear View Top View Left ViewFront View Rear View Top View Left ViewFront View Rear View

Technical diagram of a dual-chamber HVAC fan assembly with no visible text or symbols

Technical diagram of a circular mechanical component with internal structure and dimension label (no text or symbols)

Pure technical diagram of a door or cabinet with no text, numbers, or symbols

Simple line drawing of a car inside a rectangular frame with a vertical dimension labeled 'x' (no text or symbols on the car itself)

ALL DIMENSIONS IN MILLIMETERS
ACTION-508

Top View

Front View

Left View

Rear View

SPECIFICATIONS

Model	ACTION-508	ACTION-M512	ACTION-512
Peak Power Handling (-10 dB)	600 W	1200 W	1200 W
RMS Power Handling (1)	150 W	300 W	300 W
Frequency Range (-10 dB)	60 Hz - 20kHz	63 Hz - 20kHz	50 Hz - 20kHz
HF Horn Coverage Angles(-6dB)	90° x 60° (Rotatable)	80° x 50° (Rotatable)	90° x 60° (Rotatable)
On-axis Sensitivity 1 W / 1m	94 dB SPL	95 dB SPL	96 dB SPL
Rated Maximum Peak SPL (2)	124 dB	130 dB	131 dB
Nominal Impedance	8 ohms	8 ohms	8 ohms
Transducers/Replacement Parts	LF: 8GV / 8GV	LF: 12MI / GM-12MI	LF: 12MI / GM-12MI
	HF: M-34 / GM-M34	HF: M-34 / GM-M34	HF: M-34 / GM-M34
Enclosure Material	Birch Plywood	Birch Plywood	Birch Plywood
Color/Finish	Black Paint	Black Paint	Black Paint
Connectors	2 x NL4 Speakon	2 x NL4 Speakon	2 x NL4 Speakon
Dimensions (H x W x D)	47.5 x 28.0 x 25.5 cm	42 x 64.5 x 31.8 cm	61.8 x 38.0 x 37.8 cm
	18.7 x 11 x 10 in	16.5 x 25.4 x 12.5 in	24.3 x 15.0 x 14.9 in
Weight	8.4 kg (18.5 lb)	17.5 kg (38.5 lb)	19 kg (41.8 lb)
Accessories	AXU-ACT-8, TRD-2, TRD-6, TRD-7	TRD-2, TRD-6, TRD-7	ANL-2, AXU-ACT512, TRD-2, TRD-6, TRD-7

Model	ACTION-515	ACTION-525	ACTION-S18	ACTION-S218
Peak Power Handling (-10 dB)	1400 W	2800 W	2400 W	4800 W
RMS Power Handling (1)	350 W	700 W	600 W	1200 W
Frequency Range (-10 dB)	47 Hz - 20kHz	47 Hz - 20kHz	33 Hz - 160 Hz	29 Hz - 160 Hz
HF Horn Coverage Angles(-6dB)	90^ × 60^ (Rotatable)	90^ × 60^ (Rotatable)
On-axis Sensitivity 1 W / 1m	96 dB SPL	99 dB SPL	96 dB SPL	99 dB SPL
Rated Maximum Peak SPL (2)	131 dB	134 dB	133 dB	139 dB
Nominal Impedance	8 ohms	4 ohms	8 ohms	4 ohms
Transducers/Replacement Parts	LF: 2 x 15MI / GM-15MI	LF: 2 x 15MI / GM-15MI	LF: 18FW / GM-18FW	LF: 2 x 18FW / GM-18FW
Enclosure Material	HF: M-34 / GM-M34	HF: M-44 / GM-M44
Color/Finish	Birch Plywood	Birch Plywood	Birch Plywood	Birch Plywood
	Black Paint	Black Paint	Black Paint	Black Paint
Connectors	2 x NL4 Speakon	2 x NL4 Speakon	2 x NL4 Speakon	2 x NL4 Speakon
Dimensions (H x W x D)	71.8 x 44.4 x 37.5 cm	108.7 x 50.2 x 50.2 cm	71.8 x 54.0 x 67.0 cm	106.7 x 54 x 67 cm
	30.5 x 17.6 x 17.2 in	42.8 x 19.8 x 19.8 in	28.3 x 21.3 x 26.4 in	42 x 21.3 x 26.4 in
Weight	22.8 kg (50.2 lb)	40 kg (88 lb)	40.5 kg (89.1 lb)	61 kg (134.2 lb)
Accessories	ANL-2, TRD-2, TRD-6, TRD-7	ANL-2	TRD-6, TRD-7	TRD-6, TRD-7

(1) Based on a 2 hour test continuously applying 6 dB crest factor pink noise (IEC shaped).

D.A.S.

www.dasaudio.com
