USER MANUAL 2036S AOC

LCD Monitor User Manual 2036S

Line drawing of a flat-screen computer monitor with a stand and wooden base (no text or symbols)

Safety 4

National Conventions....4

Power 5

Installation....6

Cleaning....8

Other....9

Setup 10

Contents in Box 10

Setup Stand & Base....11

Adjusting Viewing Angle....12

Connecting the Monitor....13

Wall Mounting....14

Adjusting 15

Setting Optimal Resolution 15

Windows Vista 15

Windows XP 17

Windows ME/2000....18

Hotkeys....19

OSD Setting....20

Eco mode 21

Color Boost....23

Luminance 25

Image Setup 27

Color Temperature 29

Picture Boost ....31

Extra Setting 33

Exit....35

LED Indicator 36

Driver 37

Monitor Driver 37

Windows 2000....37

Windows ME....37

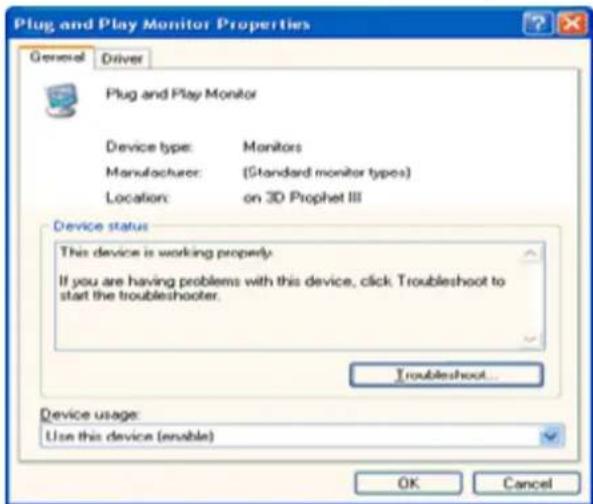

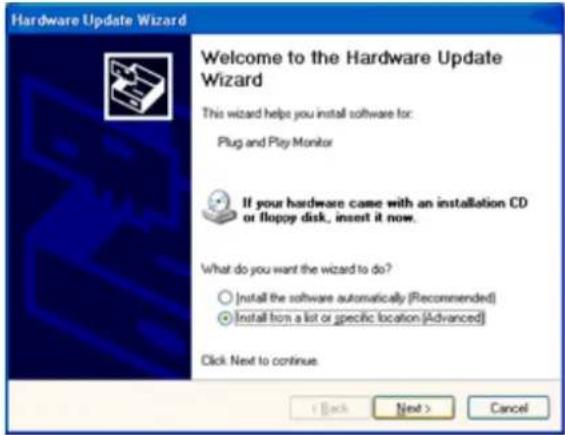

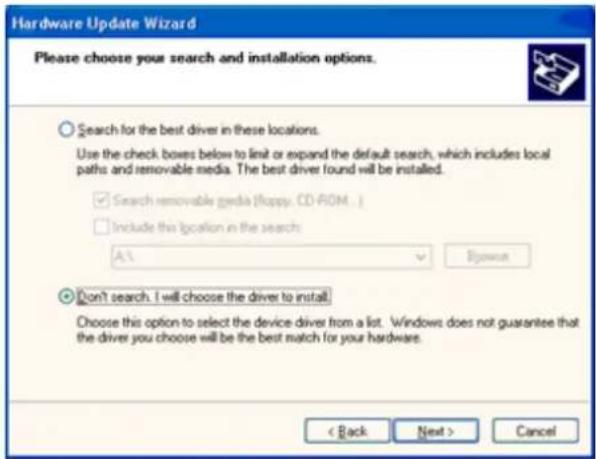

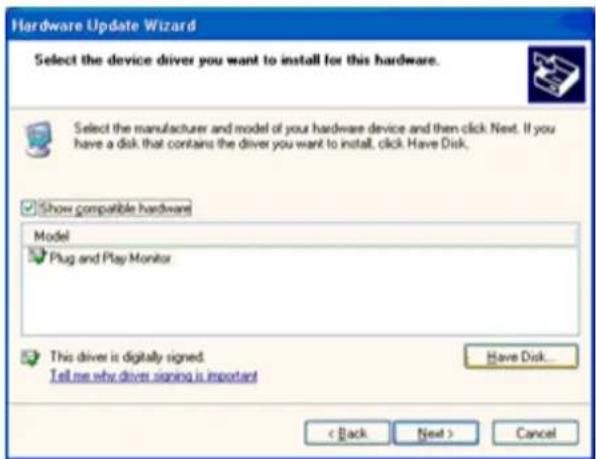

Windows XP 38

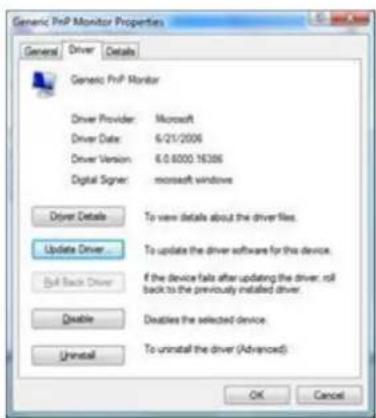

Windows Vista....41

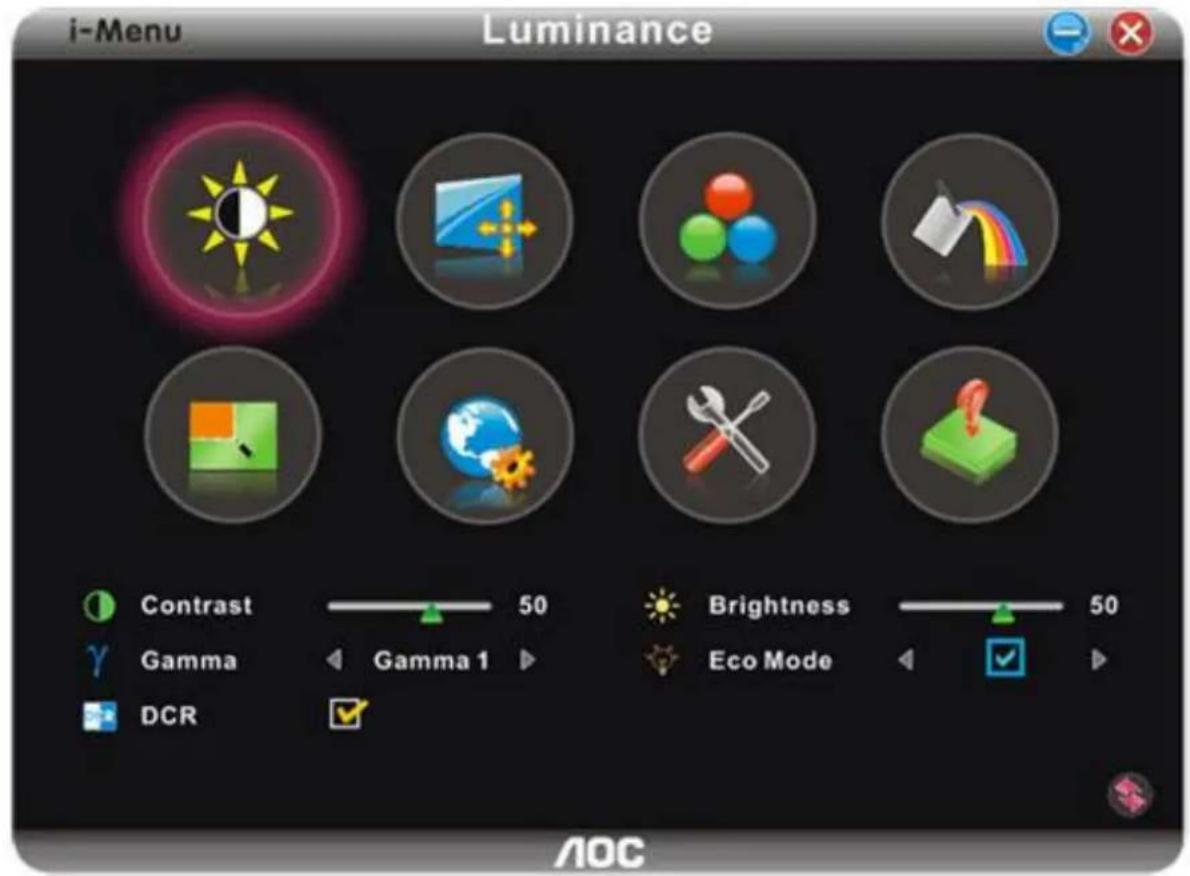

i-Menu 43

Troubleshoot 44

Specification....46

General Specification....46

Preset Display Modes....47

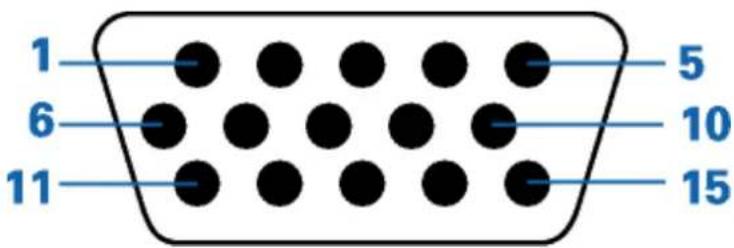

Pin Assignments 48

Plug and Play....49

Regulation....50

FCC Notice 50

WEEE Declaration....51

EPEAT Declaration....52

Service....53

Warranty Statement for Europe....53

Warranty Statement for North & South America (excluding Brazil) 55

Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V AC, Min. 5A

The wall socket shall be installed near the equipment and shall be easily accessible.

For use only with the attached power adapter (Output 12Vdc) which have UL,CSA listed license (Only for monitors with power adapter).

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

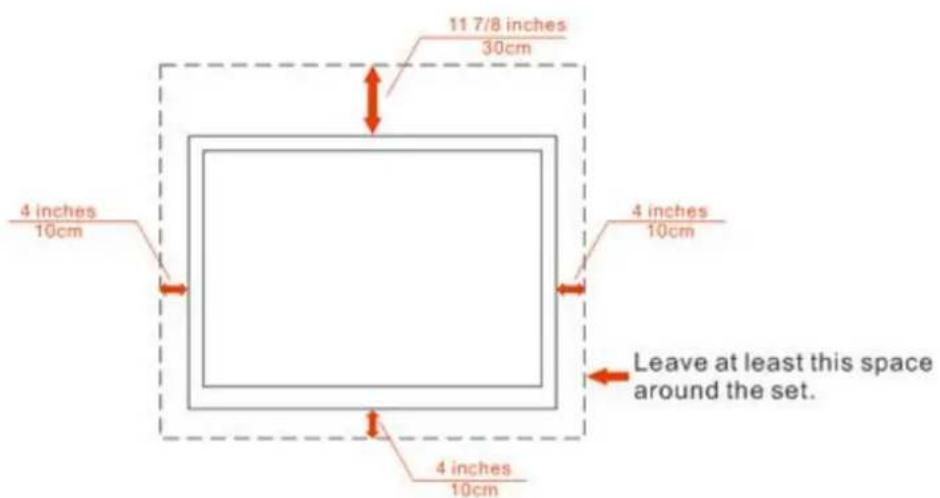

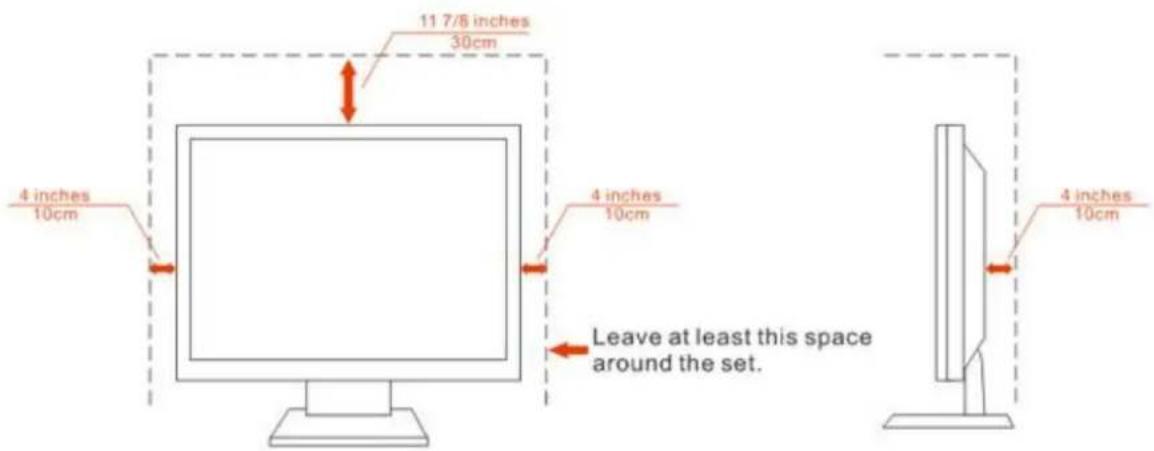

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the stand:

Installed on the wall

11 7/8 inches 30cm 4 inches 10cm 4 inches 10cm Leave at least this space around the set. 4 inches 10cm

Installed with stand

11 7/8 inches 30cm 4 inches 10cm 4 inches 10cm Leave at least this space around the set. 4 inches 10cm

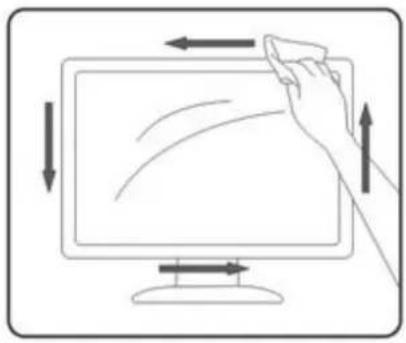

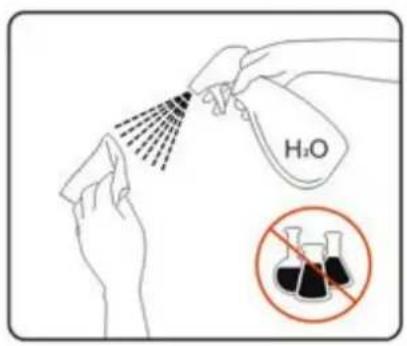

Cleaning

Clean the cabinet regularly with the cloth provided. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.
Please disconnect the power cord before cleaning the product.

H₂O No Smoking Test

Simple line drawing of a computer monitor with a cable and a switch, no text or symbols present.

Illustration of a hand interacting with a computer monitor, showing curved arrows indicating motion (no text or symbols)

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.

Setup

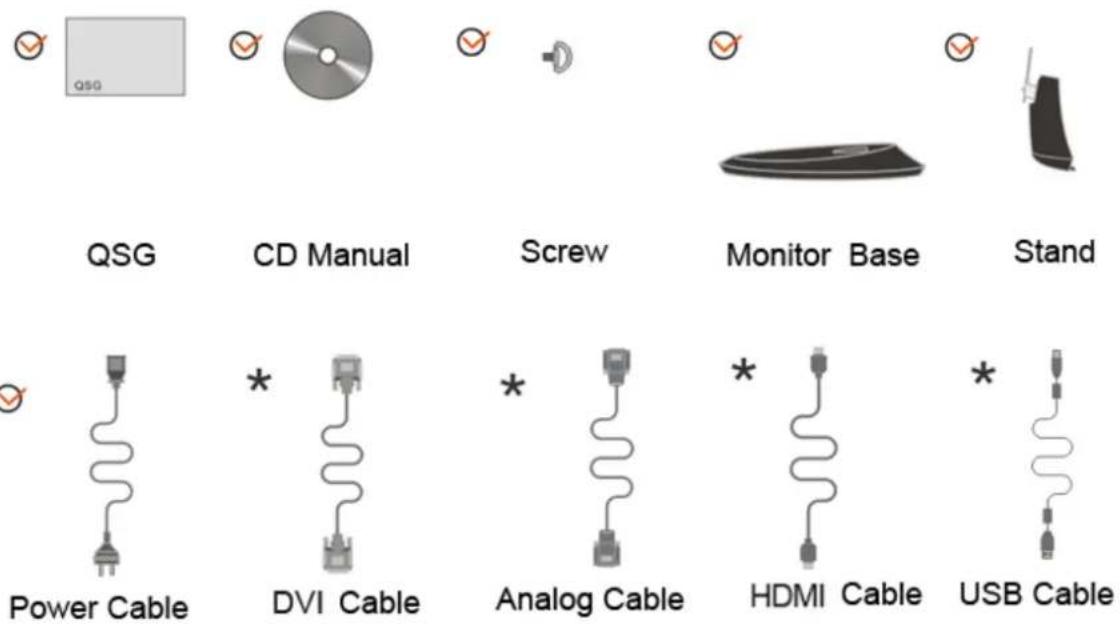

Contents in Box

Front view of a black rectangular electronic device labeled 'ADC' with a checkmark icon above (no readable text or symbols on the screen)

Monitor

QSG CD Manual Screw Monitor Base Stand Power Cable DVI Cable Analog Cable HDMI Cable USB Cable

* Not all signal cables (Analog,, USB, Audio, and HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

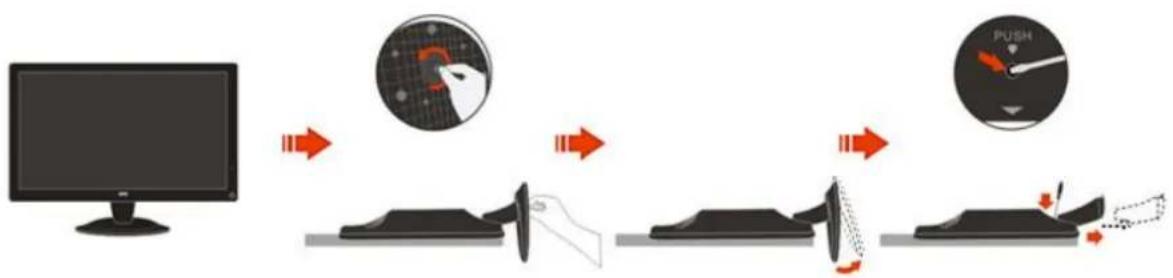

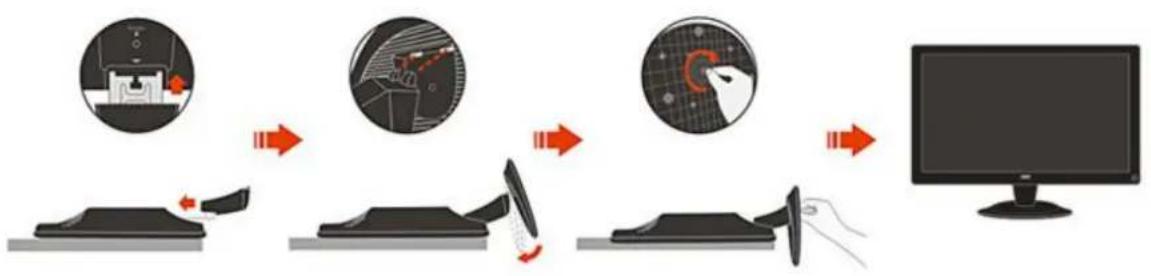

Setup Stand & Base

Please setup or remove the base following the steps as below.

Setup:

Remove:

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.

Hold the stand so you will not topple the monitor when you change the monitor's angle.

You are able to adjust the monitor's angle from -5^ to 20^ .

-5° 20°

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Connecting the Monitor

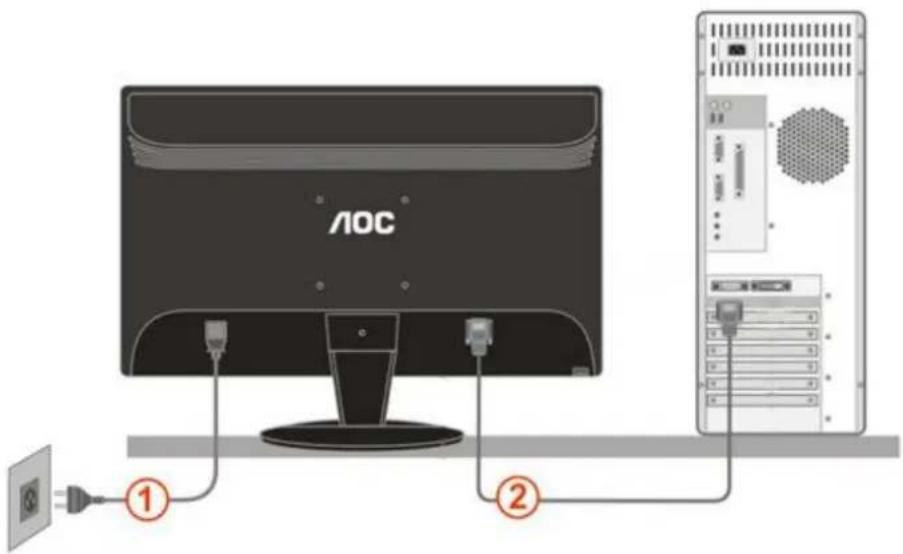

Cable Connections On Back of Monitor and Computer:

AOC ① ②

1. Power
2. Analog (DB-15 VGA cable)

To protect equipment, always turn off the PC and LCD monitor before connecting.

1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.
3 Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.

Wall Mounting

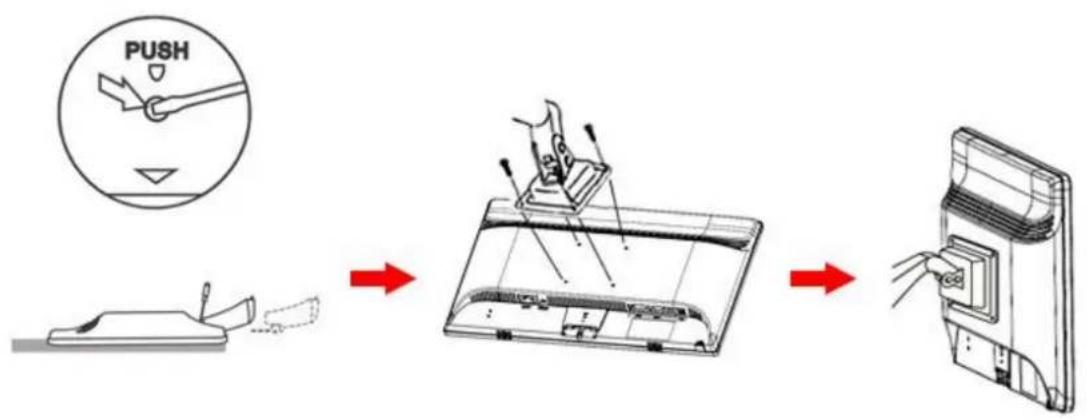

Preparing to Install An Optional Wall Mounting Arm.

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure. Follow these steps:

1 Remove the base.
2 Follow the manufacturer's instructions to assemble the wall mounting arm.
3 Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor.
4 Insert the 4 screws into the holes and tighten.
5 Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall.

Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC.

Distance between the wall-mount holes : 100 x 100 mm

Screw specification for wall-mount : M4 x 10

Adjusting

Setting Optimal Resolution

Windows Vista

For Windows Vista:

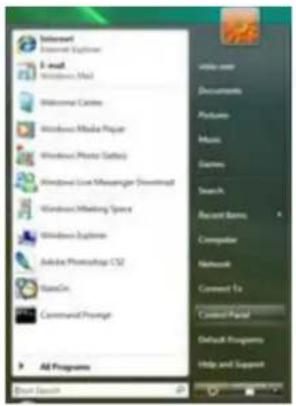

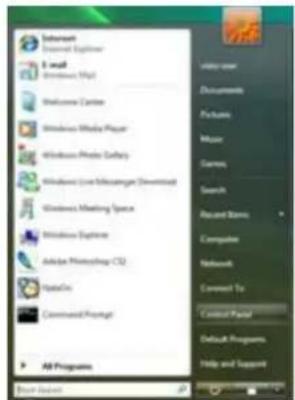

1 Click START.

2 Click CONTROL PANEL.

Internet Internet Explorer E-mail Windows (Mail) Welcome to: Windows Outlook Player Windows Outlook Camera Windows Outlook Masterman Windows Outlook Server Windows Outlook Space Windows Outlook Adobe Photoshop CS2 SystemTo Commanded FrontPage All Programs Enter User Documents Pictures Music Actions Search Recent Items Computer Network Event To: Control Panel Default Programs Help and Support

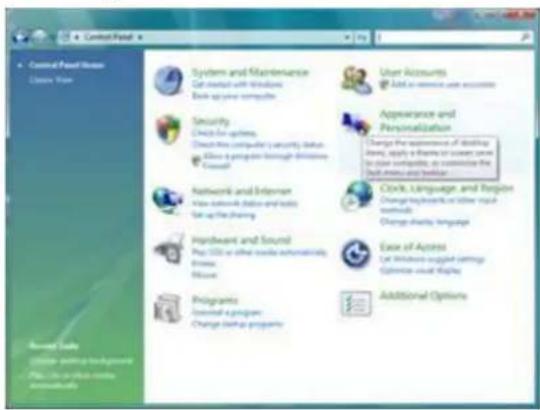

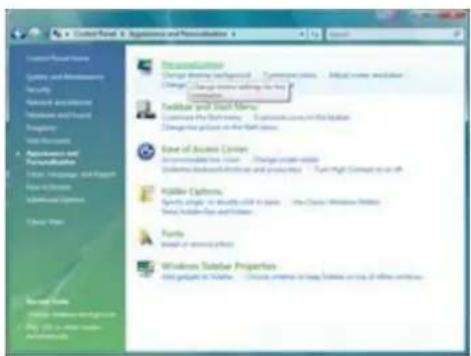

3 Click Appearance and Personalization.

Control Panel Options Class: User System and Maintenance Get user with drivers Back up your computer Security Check for options Check the computer's security default Allow a program through distinctive Tools Network and Internet View network status and tools Set up the drive Hardware and Sound Pop iOS or other audio automatically Remove Browse Programs Download programs Change below programs User Accounts Add to service user accounts Appearance and Personalization Change the session of desktop Windows, apply to features or server server to save virtual, as customize the data area and folder. Clock, Language, and Format Change icons or other audio methods Change audio language Ease of Access Get Windows support settings Optimize visual display Additional Options

4 Click Personalization

Control Panel 3: Expansion and Configuration 4 Configuration Change starting background - Customize this - Adjust user modification Change - Change from existing for the Computer Customize and Shift More Customize the Shift More - Customize the Shift More Designing Active in the Shift More Ease of Access Center Recommendation to switch - Change the main device Update the following key up and save help - Learn might complete your off Public Options Specify language - at the start of a program - New Computer Provider How to locate Web and Internet Family Send or send a link Windows Substar Properties With further access to the Web... Allow whether to keep Substar on any other network

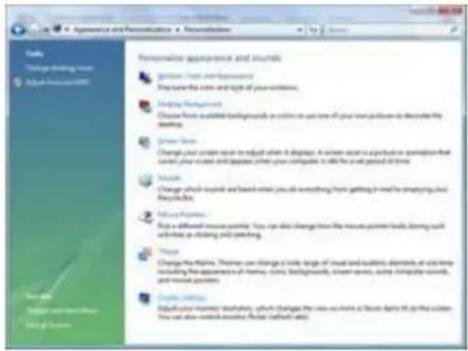

5 Click Display Settings.

Agreement and Personalization - Personalization Personalization appellation and storylist glasses: I am an opportunity Enter the color and light of your visitors. Display Management Choose from available background on colors on your own position to decide the viewing. Green Tom Change your screen use to adjust when it displays. In screen use is important or expensive that screen your screen does better, where your computer is able to get out part of time. Music Change which sounds are hard what you do everything from getting in mind to play any kind. Mouse Photos Make a different mouse picture. You can also change from the mouse picture body using social media as a shifting and pasting. Music Change the phone. You can change a table range of visual and audio details at all being including the appearance of home, class, background, screen screen, audio types, audio buttons, and video frames. Video content Adjust your memory features, which change the user as here at these labels in the context. You can also create a new file (which also)

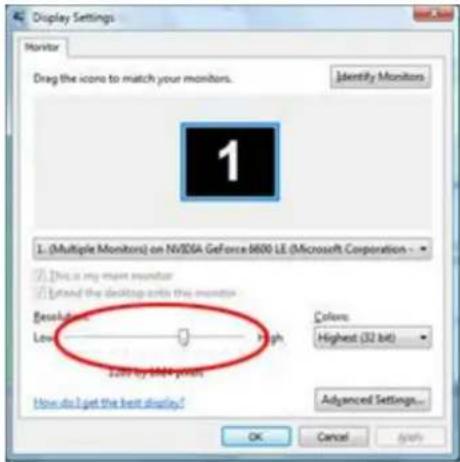

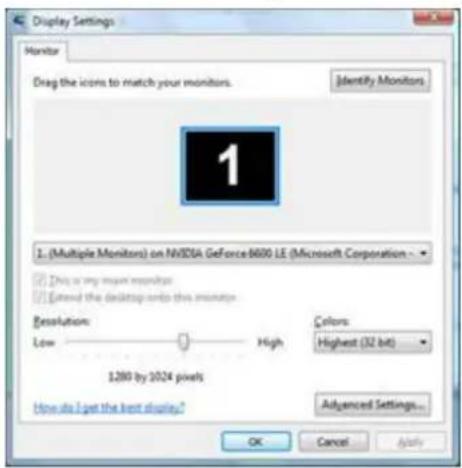

6 Set the resolution SLIDE-BAR to 1600 by 900.

Display Settings Monitor Drag the score to match your monitors. Identify Monitors 1 (Multiple Monitors) on NVIDIA GeForce 8600 LE (Microsoft Corporation) This is my main monitor Extend the desktop with this monitor Resolution: Low High Color: Highest (32 bit) Show by 544 points How do I get the best display? Advanced Settings... OK Cancel Apply

Windows XP

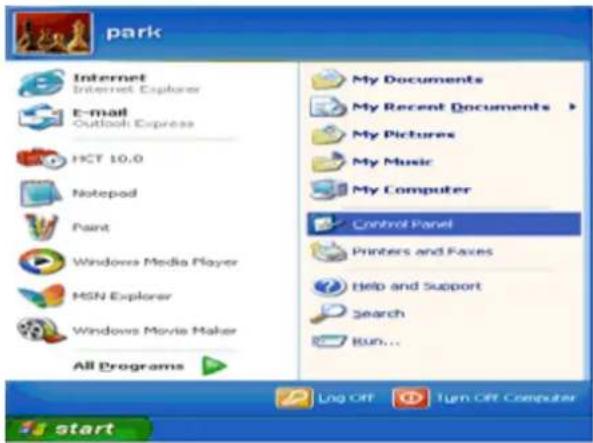

For Windows XP:

1 Click START.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Files Help and Support Search Run... Log Off Turn Off Computer start

2 Click SETTINGS.

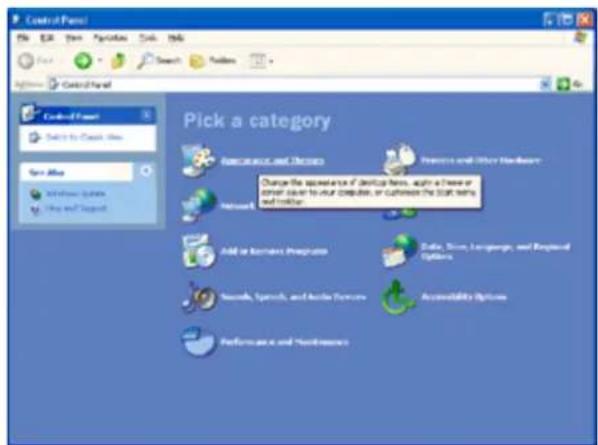

3 Click CONTROL PANEL.

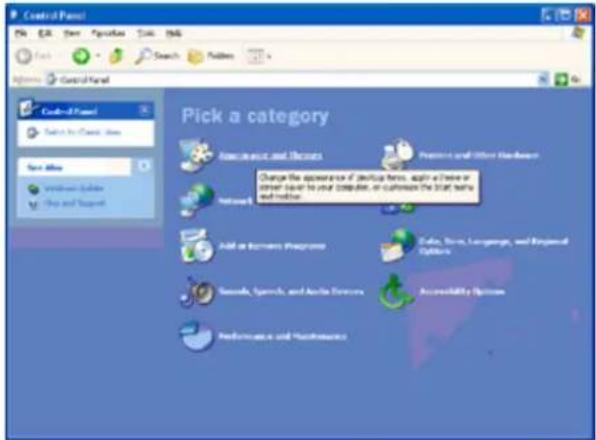

4 Click Appearance and Themes.

Control Panel File Edit View Options Edit Help Search Favorites Options Control Panel Control Panel Select to Create New Save As Add or Remove Programs Details for the appearance of desktop tools, access a type of user code to your computer, or access the Start Tools and folder. Connect to Windows Server Networks Add or Remove Programs Details, Drive, Language, and Environmental Options Seconds, Updates, and Audio Services Accessible Options Performance and Maintenance

5 Double click DISPLAY.

App Store and Thems Save All Help Make Previous Only Details Get Account Provider Search Options Engine Services App Store and Thems Pick a task... Change the Computer's Task Change the Display Background Change the Service Area Change the User Availability or pick a Control Panel icon Update Cancel Options Change the Software for your Device, such as the Description, Service Area, Office, Web Area, and Services Parameters.

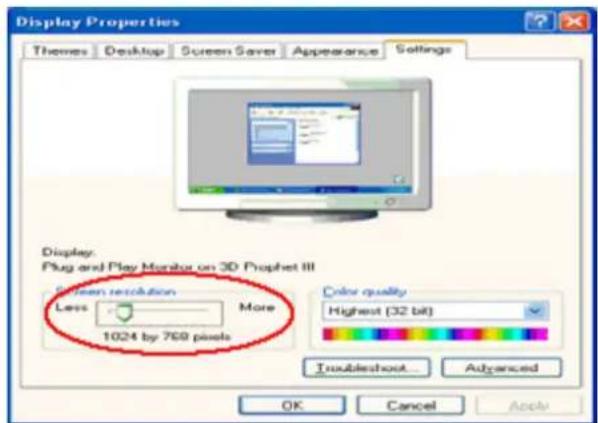

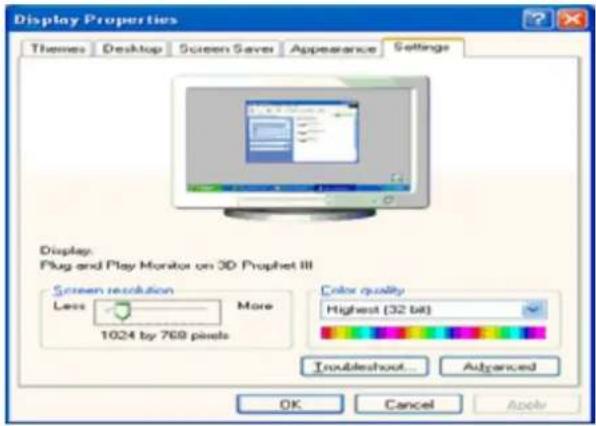

6 Click SETTINGS.

7 Set the resolution SLIDE-BAR to 1600 by 900.

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 769 pixels Color quality Highest (32 bit) Troubleshoot Advanced OK Cancel Apply

Windows ME/2000

For Windows ME/2000:

1 Click START.
2 Click SETTINGS.
3 Click CONTROL PANEL.
4 Double click DISPLAY.
5 Click SETTINGS.
6 Set the resolution SLIDE-BAR to 1600 by 900.

Hotkeys

Menu/Enter 4 : 3 or wide / up Auto / Down Power

Power

Press to turn on or turn off the monitor.

Source (4 : 3 or wide)/ Up

Press Key to change the screen aspect ratio between standard 4:3 format or Wide format. When the input resolution is wide format, the aspect ratio hotkey is disabled. When the main menu or sub-menu is active, the key functions as to select up or increase value.

Source hot key : When the OSD is closed, press button will be Source hot key function (Only for the models with dual or more inputs). Press Source button continuously to select the input source showed in the message bar, press Menu/Enter button to change to the source selected.

Menu / Enter

Press to activate OSD, then press Up or Down to navigate through the functions. Once the desired function is highlighted, press the Menu button to activate the submenu. In sub-menu, Press Up or Down to navigate through the functions. Once the desired function is highlighted, press Up or Down button to change the setting. Select Exit icon then press Menu button to return to superior menu.

(Auto) / Down

Auto configure hot key: When the OSD is closed, press Auto button to do auto configure

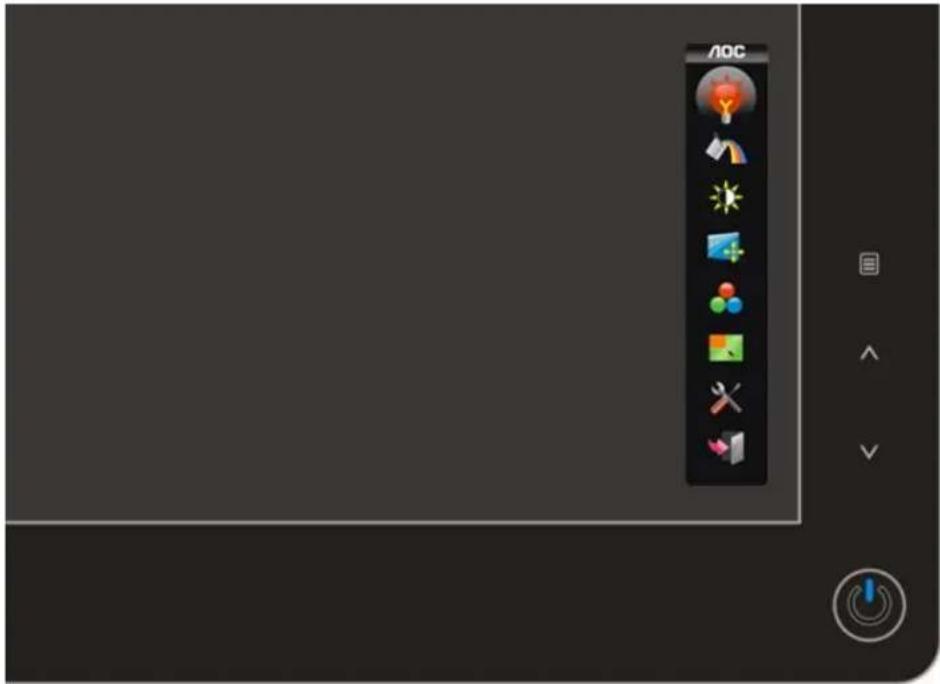

OSD Setting

Basic and simple instruction on the control keys.

AOC

When you press the MENU button on the front control of your monitor, the On DOWN Screen Display (OSD) Main Controls window will pop up and you can then start making adjustments to your monitor's various features. Use the UP or DOWN keys to make your adjustments. Follow the steps below to activate the adjustment.

1) Press the MENU key to activate the OSD window.
2) Press UP or DOWN to navigate through the functions. Once the desired function is highlighted, press the MENU key to activate it. If the function selected has a sub-menu, press UP or DOWN again to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU key to activate it.
3) Press UP or DOWN to change the settings of the selected function. Press MENU key to exit and save, select the exit function. If you want to adjust any other function, repeat steps 2-3.
4) OSD Lock Function: To lock the OSD, press and hold the MENU key while the monitor is off and then press power button to turn the monitor on. To unlock the OSD, press and hold the MENU key while the monitor is off and then press power button to turn the monitor on.

Eco mode

1

Digital tablet interface with a hand cursor hovering over it, showing navigation icons and control buttons (no readable text)

Touch ☐ (Menu) to call out MENU.

2

Close-up of a black electronic device with a control panel and navigation icons (no readable text or symbols)

Touch ∧ ∨ to select 🎯 (Eco Mode).

3

Digital tablet interface with control panel and navigation icons (no readable text or symbols)

Touch ☐ to enter 🎨 Eco Mode submenu.

4

Digital tablet interface with navigation icons and a finger pointing at it (no readable text or symbols)

Touch ∧ ∨ to select desired mode:

5

Close-up of a black electronic device with a screen and control buttons (no visible text or symbols)

Touch ☐ twice to exit.

	Item	Icon	Function	Adjust Range	Description
	Eco mode		DCR	Select to active	Dynamic contrast ratio
			Standard	Select to active	Standard Mode
			Text	Select to active	Text Mode
			Internet	Select to active	Internet Mode
			Game	Select to active	Game Mode
			Movie	Select to active	Movie Mode
			Sports	Select to active	Sports Mode

Notes :

When Eco mode is not set as "Standard", Contrast and Brightness can not be adjusted; When DCR is set as "On", Contrast, Brightness, Eco mode and Gamma can not be adjusted.

Color Boost

1

Close-up of a black electronic device with a control panel and mouse pointer (no visible text or symbols)

Touch ☐ (Menu) to call out MENU.

2

Screenshot of a desktop computer interface showing a toolbar with icons and a hand cursor pointing to it.

Touch ∧ ∨ to select 📁 (Color Boost).

3

Computer mouse cursor hovering over a desktop screen with icons (no readable text or symbols)

Touch ∧ ∨ to select desired mode:

AUTO

OFF

5

大车动态~~~ 5000 大车动态~~~ 5000

Touch ☐ twice to exit.

	Item	Icon	Function	Adjust Range	Description
	Color Boost		Full Enhance	on or off	Disable or Enable Full Enhance Mode
			Nature Skin	on or off	Disable or Enable Nature Skin Mode
			Sky-blue	on or off	Disable or Enable Sky-blue Mode
			Green Field	on or off	Disable or Enable Green Field Mode
		AUTO	Auto Detect	on or off	Disable or Enable AutoDetect Mode
			Demo	on or off	Disable or Enable Demo
		OFF	Off		Disable Color Boost
			Exit		Exit to main menu

Notes :

Full Enhance: Total color saturation is enhanced, suitable for vivid pictures.

Natural Skin: Suitable for human portrait.

Green Field: Suitable for large area of green.

Sky Blue: Suitable for sky or ocean scene.

Auto Detect: Suitable for outdoor or garden.

Demo: Screen divided into two for comparison purpose.

Luminance

1

Digital tablet interface with a stylus hovering over the screen (no visible text or symbols)

Touch ☐ (Menu) to call out MENU.

2

Close-up of a tablet device with a finger pointing at it, showing no visible text or symbols on the screen.

Touch ∧ ∨ to select ⚙ (Luminance).

3

Close-up of a desktop computer mouse with a finger pointing at the screen (no visible text or symbols)

Touch ☐ to enter ⚙ Luminance submenu.

4

Computer mouse interface with control panel and finger pointing at action button (no readable text or symbols)

Touch ∧ ∨ to select submenu:

5

Close-up of a desktop computer interface with a hand pointing to the right (no visible text or symbols)

Touch ☐ to enter, then touch ∧ ∨ to adjust.

6

Close-up of a desktop computer mouse with a finger pointing to the screen (no visible text or symbols)

Touch ☐ twice to exit.

	Item	Icon	Function	Adjust Range	Description
	Luminance		Brightness	00-100
			Contrast	00-100
			Gamma	Gamma1, 2, 3	Adjust to Gamma1, Gamma2, Gamma3
			Exit		Exit to main menu

Notes :

When Eco mode is not set as "Standard", Contrast and Brightness can not be adjusted; When DCR is set as "On", Contrast, Brightness, Eco mode and Gamma can not be adjusted.

Image Setup

1

Digital tablet device with a control panel and navigation buttons (no visible text or symbols)

Touch ☐ (Menu) to call out MENU.

2

Close-up of a desktop computer mouse with a hand hovering nearby (no visible text or symbols)

Touch ∧ ∨ to select 🚪 (Image Setup).

3

User interface toolbar with icons and a hand pointing to it (no readable text or symbols)

Touch to enter Image Setup submenu.

4

Computer mouse interface with control panel and navigation icons (no readable text or symbols)

Touch ∧ ∨ to select submenu:

5

Computer interface showing a toolbar with icons and a hand hovering over it (no readable text or symbols)

Touch ☐ to enter, then touch ∧ ∨ to adjust.

6

Close-up of a handheld electronic device with a screen and control buttons (no visible text or symbols)

Touch ☐ twice to exit.

	Item	Icon	Function	Adjust Range	Description
	Image Setup		Clock	00-100	Adjust picture Clock to reduce Vertical-Line noise.
			Phase	00-100	Adjust Picture Phase to reduce Horizontal-Line noise
			H.Position	00-100	Adjust the vertical position of the picture.
			V.Position	00-100	Adjust the horizontal position of the picture.
			Exit		Exit to main menu

Notes :
When the input source is digital signal like DVI or HDMI, Image Setup can not be adjusted.

Color Temperature

1

Computer screen with a stylus and navigation icons, no visible text or symbols on the device surface.

Touch ☐ (Menu) to call out MENU.

2

Computer mouse interface with control panel and navigation icons (no readable text or symbols)

Touch ∧ ∨ to select

(Color Temperature).

3

Computer monitor with a scroll bar and navigation icons on the right (no visible text or symbols)

Touch ☐ to enter submenu.

Color Temperature

4

Computer screen showing a toolbar with icons and a hand pointing at it (no readable text or symbols)

Touch ∧ ∨ to select submenu:

sRGB

5

Computer screen with tool icons and a hand pointing at it (no readable text or symbols)

Touch ☐ to enter, then touch ∧ ∨ to adjust.

6

Close-up of a tablet device with a vertical control panel and a hand pointing at it (no visible text or symbols)

Touch ☐ twice to exit.

	Item	Icon	Function	Adjust Range	Description
	Color Temperature		User Red	00-100	Red Gain from Digital-register
			User Green	00-100	Green Gain Digital-register.
			User Blue	00-100	Blue Gain from Digital-register
			Normal	7300K	Recall Normal Color Temperature from EEPROM.
			Warm	6500K	Recall Warm Color Temperature from EEPROM.
			Cool	9300K	Recall Cool Color Temperature from EEPROM.
		B	sRGB		Recall SRGB Color Temperature from EEPROM.
			Exit		Exit to main menu

Picture Boost

1

Digital tablet device with a screen and control buttons (no visible text or symbols)

Touch ☐ (Menu) to call out MENU.

2

Computer monitor with a keyboard and navigation icons, no visible text or symbols on the screen or keyboard.

Touch ∧ ∨ to select □ (Picture Boost).

3

Computer mouse cursor hovering over a desktop keyboard with icons (no readable text or symbols)

Touch ☐ to enter 📁 Picture Boost submenu. Then touch ∧ ∨ , select ✅ to activate Picture Boost.

4

Screenshot of a device interface showing a toolbar with icons and a hand pointing to it, likely from an older application or tool.

Touch ∧ ∨ to select submenu:

5

Computer screen with a toolbar and control panel (no visible text or symbols)

Touch ☐ to enter, then touch ∧ ∨ to adjust.

6

Digital tablet device with a control panel and navigation icons (no visible text or symbols)

Touch ☐ twice to exit.

	Item	Icon	Function	Adjust Range	Description
	Picture Boost		Horizontal Position	00-100	Adjust Frame horizontal Position
			Vertical Position	00-100	Adjust Frame vertical Position
			Contrast	00-100	Adjust Frame Contrast
			Brightness	00-100	Adjust Frame Brightness
			Frame Size	14-100	Adjust Frame Size
			Bright Frame	on or off	Disable or Enable Bright Frame
			Exit		Exit to main menu

Notes :

One of DCR, Color Boost, and Picture Boost functions is active, the other two function is turned off accordingly.

Extra Setting

Digital tablet interface with control panel and navigation icons (no readable text or symbols)

Touch ☐ (Menu) to call out MENU.

Computer mouse interface showing a desktop with icons and a scroll (no readable text or symbols)

Touch ∧ ∨ to select ✗ (Extra Setting).

Computer screen with a toolbar and icons, no visible text or symbols on the device itself

Touch ☐ to enter ✗ Extra Setting submenu.

User interface toolbar with icons and a mouse pointer (no readable text or symbols)

Touch ∧ ∨ to select submenu:

Computer desktop with a hand pointing at the left (no visible text or symbols)

Touch ☐ to enter, then touch ∧ ∨ to adjust.

Digital tablet interface with a hand pointing at it (no visible text or symbols)

Touch ☐ twice to exit.

	Item	Icon	Function	Adjust Range	Description
	Extra Setting		Language		Select the OSD language
			Reset	yes or no	Reset the menu to default
			DDC-CI	yes or no	Turn ON/OFF DDC-CI Support
			Timeout	05-120	Adjust the OSD Timeout
			Transparence	00-100	Adjust the transparence of OSD
			H. Position	00-100	Adjust the vertical position of OSD
			V. Position	00-100	Adjust the horizontal position of OSD
			Off Timer	00-24	Adjust the DC off time
			Exit		Exit to main menu

Exit

1

Digital drawing tablet with a stylus hovering over it, showing no visible text or symbols on the device screen.

Touch ☐ (Menu) to call out MENU.

2

Digital tablet device with a control panel and navigation icons (no visible text or symbols)

Touch ☐ twice to exit.

LED Indicator

Status

LED Color

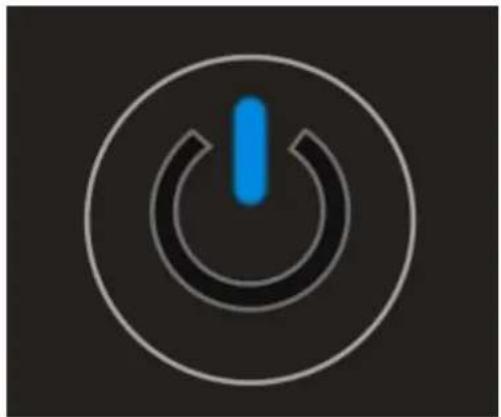

Full Power Mode

Blue

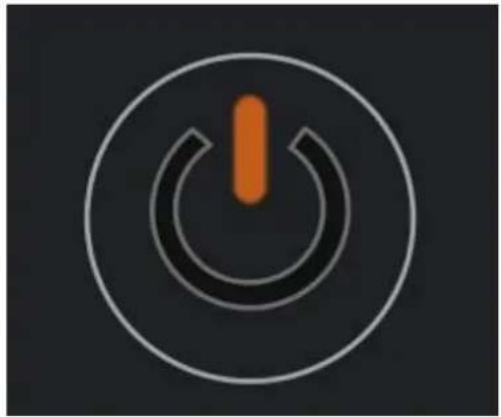

Active-off Mode

Orange

Power button icon with blue vertical bar, no text or symbols present

Power button icon with orange center and white circular outline (no text or symbols)

Driver

Monitor Driver

Windows 2000

1. Start Windows® 2000
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select 'Monitor'
6. If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
7. If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.
8. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.
9. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on 'Next' and then click on 'Have disk...'.
10. Click on the 'Browse...' button then select the appropriate drive F: (CD-ROM Drive).
11. Click on the 'Open' button, then click on the 'OK' button.
12. Select your monitor model and click on the 'Next' button.
13. Click on the 'Finish' button then the 'Close' button.
    If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.

Windows ME

1. Start Windows® Me
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, then click on 'Change...' button.
6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.
7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on 'Next' and then click on 'Have Disk...'.
8. Click on the 'Browse...' button, select the appropriate drive F: (CD-ROM Drive) then click on the 'OK' button.
9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.
10. Click on 'Finish' button then the 'Close' button.

Windows XP

1. Start Windows® XP
2. Click on the 'Start' button and then click on 'Control Panel'.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents > My Pictures My Music My Computer Control Panel Printers and Faxes Help and Support Search Run... Log Off Turn Off Computer start

1. Select and click on the category 'Appearance and Themes'

Control Panel Edit View Insert Options Tools Help Search Favorites Options Control Panel Control Panel Switch to Control Panel New Info Settings Updates Help and Support Pick a category Select Event and Records Positions and Other Handbouts Change the appearance of virtual forces, upgrade a free in user level to your computer, or customizing the start, turning and help. Add or Increase Programs Delete, Save, Language, and Environmental Options Smooth, Speech, and Audio Services Accessibility Options Performance and Performance

1. Click on the 'Display' Item.

App Store and Themes Save All Help Share Preferences Share Preferences Get About Preferences Search Options Engine Current App Store and Themes Pick a task... Change the computer's Theme Change the desktop background Change the video space Change the image resolutions or pick a Control Panel icon Enable Take options Change the application of your desktop, such as the 应用程序, screen server, icons, hot apps, and screen monitors.

1. Select the 'Settings' tab then click on the 'Advanced' button.

Display Properties Themes Desktop Screen Save Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 769 pixels Color quality Highest (32 bit) Troubleshoot Advanced OK Cancel Apply

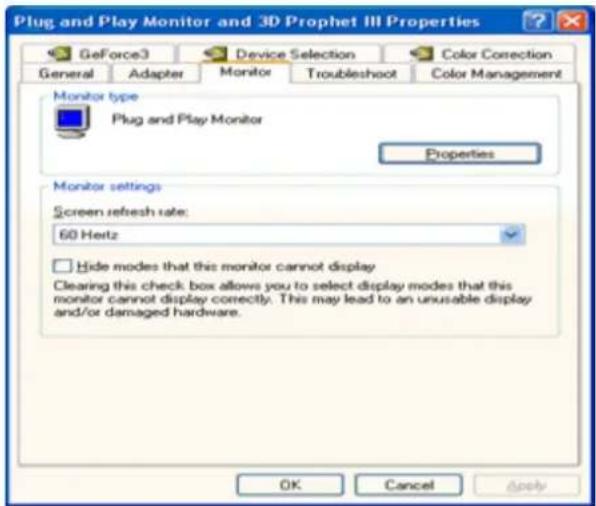

1. Select 'Monitor' tab

2. If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

3. If the 'Properties' button is active, click on 'Properties' button.

Please follow the steps below.

Plug and Play Monitor and 3D Prophet III Properties GeForce3 Device Selection Color Correction General Adapter Monitor Troubleshoot Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

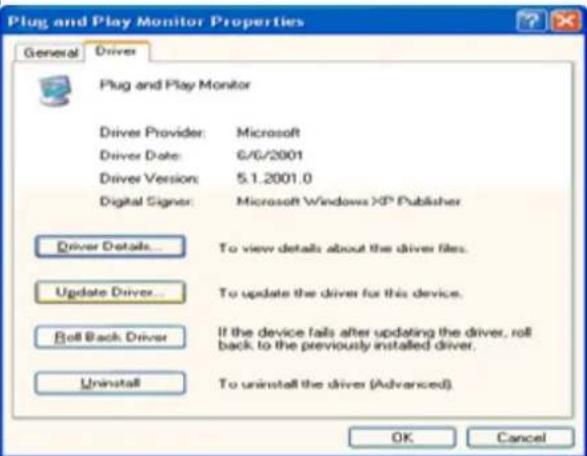

1. Click on the 'Driver' tab and then click on 'Update Driver...' button.

Plug and Play Monitor Properties General Driver Plug and Play Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location: on 3D Prophet III Device status This device is working properly. If you are having problems with this device, click Troubleshoot to start the troubleshooter. Troubleshoot... Device usage: Use this device (enable) OK Cancel

Plug and Play Monitor Properties General Driver Plug and Play Monitor Driver Provider: Microsoft Driver Date: 6/6/2001 Driver Version: 5.1.2001.0 Digital Signor: Microsoft Windows XP Publisher Driver Details... To view details about the driver files. Update Driver... To update the driver for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Uninstall To uninstall the driver (Advanced). OK Cancel

1. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

Hardware Update Wizard Welcome to the Hardware Update Wizard This wizard helps you install software for: Plug and Play Monitor If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? ○ Install the software automatically (Recommended) ● Install from a list or specific location (Advanced) Click Next to continue. i Back Next > Cancel

1. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

Hardware Update Wizard Please choose your search and installation options. ○ Search for the best driver in these locations. Use the check boxes below to limit or expand the default search, which includes local paths and removable media. The best driver found will be installed. ✓ Search removable media (Happy, CD-ROM...) ☐ Include this location in the search A:\ Eboot ● Don't search. I will choose the driver to install. Choose this option to select the device driver from a list. Windows does not guarantee that the driver you choose will be the best match for your hardware. < Back Next > Cancel

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).

Hardware Update Wizard Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install, click Have Disk. Show compatible hardware Model Plug and Play Monitor This driver is digitally signed. Tell me why driver signing is important Have Disk... < Back Next > Cancel

1. Click on the 'Open' button, then click the 'OK' button.
2. Select your monitor model and click on the 'Next' button.
3. If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message, please click on the 'Continue Anyway' button.
4. Click on the 'Finish' button then the 'Close' button.
5. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

Windows Vista

1. Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization".

Microsoft Internet Explorer E-mail Windows Mail Welcome Cards Windows Active Player Windows Photo Camera Windows Live Messenger Download Windows Offloading Space Windows Explorer Adobe Photoshop CS2 NameOn Commandal Provider All Programs Start Search Video content Documents Packages Music Games Search Recent Items Computer Networks Connect To Control Panel Default Prognets Help and Support

Control Panel X System and Maintenance Set started with Windows Eye up your computer Security Check for options Check this computer's security else Close a program through Windows New! Network and Internet How network, debug and skills Set up the mining Hardware and Sound Play CDs on other media automatically Finish Mouse Programs Show a program Change herbal programs User Accounts Add or remove all account Appearance and Personalization Change the appearance of binding sites, apply a theme to screen user for your complete, as containing the dark mode and audio. Crack, Language, and Problem Change background or other map methods Change typing language Fear of Access Let it more suggest settings Options more options Additional Options

1. Click "Personalization" and then "Display Settings".

C:\Control Panel 1\Applications and Personalization Applications Change following background... Change to the following: Change: Change from existing data Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Guidelines Settings and Designs Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Patterns Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Specifications Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Settings Settings and Setting

Appearance and Recommendation & Recommendation Personal appearance and acoustic Visual (Text and Question) View the color and light of your existence. Logical Background Choose from available backgrounds or colors on your own image to deliver the meeting. Power Tools Change your sound use as object when it displays. In a case where a particular or approximation that prevents your speaker and appara, where your computer is able to file a key point of time. Solutions Change which sounds are heard what you do anything else getting in real or implying what sounds like. Visual Appearance Find a different visual picture. You can also change how the visual picture feels during, such activities as clicking and speaking. Focus Change the rhythm. Promote can change a subtle range of visual and auditory elements at using including the appearance of motion, noise, background noise, screen noise, write computer sounds, post-measured sounds. Details setting Default your audience settings, which change the view as much as their heart will get the sound. You can also switch more feedback methods.

1. Click "Advanced Settings...".

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 2. (Multiple Monitors) on NVIDIA GeForce 6000 LE (Microsoft Corporation) This is my import monitor Extend the desktop-only this monitor Resolution: Low High 1,280 by 1024 pixels Colors: Highest (32 bit) Advanced Settings... How do I get the best display? OK Cancel Apply

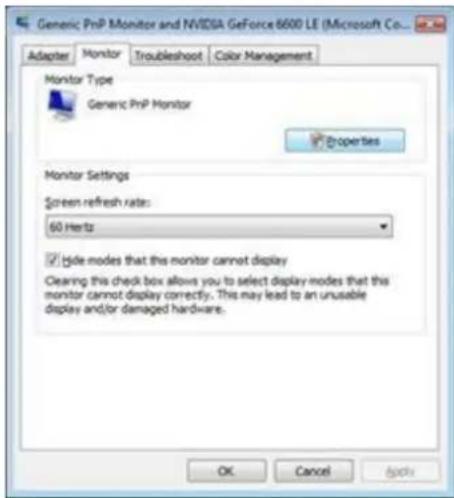

1. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is.

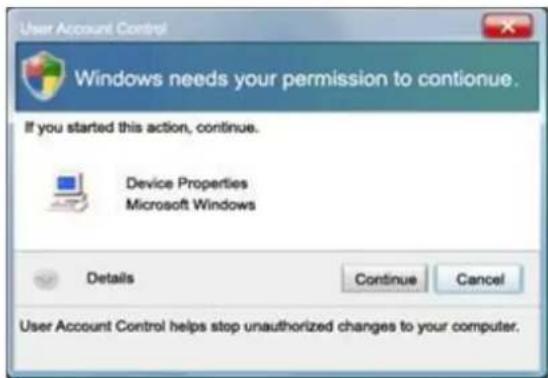

If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".

Generic PrnP Monitor and NVIDIA GeForce 6600 LE (Microsoft Co... Adapter Monitor Troubleshoot Color Management Monitor Type Generic PrnP Monitor Properties Monitor Settings $creen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

User Account Control Windows needs your permission to continue. If you started this action, continue. Device Properties Microsoft Windows Details Continue Cancel User Account Control helps stop unauthorized changes to your computer.

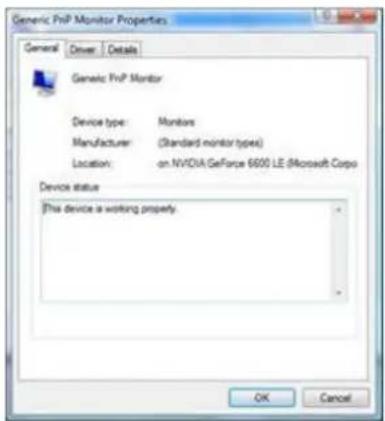

1. Click "Update Driver..." in the "Driver" tab.

Generic PrNP Monitor Properties General Driver Details Generic PrNP Monitor Device type Monitors Manufacturer (Standard monitor types) Location:on NVIDIA GeForce 6600 LE (Microsoft Corp) Device status This device is working property. OK Cancel

Generic PrGP Monitor Properties General Driver Details Driver Provider: Microsoft Driver Date: 6/21/2006 Driver Version: 6.0.6000.16386 Digital Signar: microsoft windows Driver Details To view details about the driver files. Update Driver... To update the driver software for this device. Back Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Disable Disables the selected device Uninstall To uninstall the driver (Advanced) OK Cancel

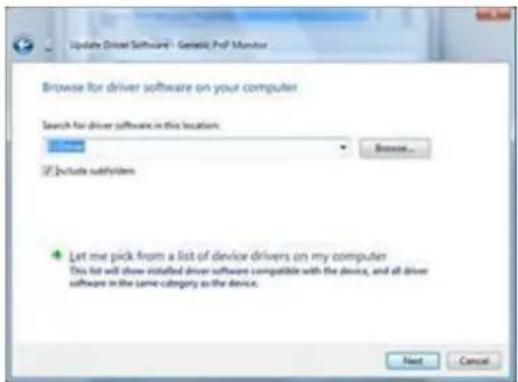

1. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".

Update Drise Software - Origin Prof Monitor Browse for driver software on your computer Search for driver software in this location Browse... ✓ Include subholders Let me pick from a list of device drivers on my computer This list will show installed driver software compatible with the device, and all driver software in the same category to the device. Next Cancel

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:\Driver (CD-ROM Drive).
2. Select your monitor model and click on the 'Next' button.
3. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

i-Menu

Welcome to "i-Menu" software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide.

i-Menu Luminance Contrast 50 Brightness 50 Gamma Gamma 1 Eco Mode DCR

Troubleshoot

Problem & Question	Possible Solutions
Power LED Is Not ON	Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.
No images on the screen	• Is the power cord connected properly?Check the power cord connection and power supply.• Is the cable connected correctly?(Connected using the D-sub cable)Check the DB-15 cable connection.(Connected using the DVI cable)Check the DVI cable connection.* DVI input is not available on every model.• If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen.If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card.(Refer to the Setting the Optimal Resolution)If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.• Can you see "Input Not Supported" on the screen?You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.Adjust the maximum resolution and frequency that the monitor can handle properly.• Make sure the AOC Monitor Drivers are installed.
Picture Is Fuzzy & HasGhosting Shadowing Problem	Adjust the Contrast and Brightness Controls.Press to auto adjust.Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back .
Picture Bounces, Flickers Or Wave Pattern Appears In The Picture	Move electrical devices that may cause electrical interference as far away from the monitor as possible.Use the maximum refresh rate your monitor is capable of at the resolution your are using.
Monitor Is Stuck In Active Off-Mode"	The Computer Power Switch should be in the ON position.The Computer Video Card should be snugly fitted in its slot.Make sure the monitor's video cable is properly connected to the computer.Inspect the monitor's video cable and make sure no pin is bent.Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary colors (RED, GREEN, or BLUE)	Inspect the monitor's video cable and make sure that no pin is damaged.Make sure the monitor's video cable is properly connected to the computer.
Screen image is not centered or sized properly	Adjust H-Position and V-Position or press hot-key (AUTO).
Picture has color defects (white does not look white)	Adjust RGB color or select desired color temperature.
Horizontal or vertical disturbances on the screen	Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and FOCUS.Press to auto-adjust.

Specification

General Specification

LCD Panel	model name	2036S
	Driving system	TFT Color LCD
	Viewable Image Size	50.8cm diagonal
	Pixel pitch	0.2768mm(H) x 0.2768mm(V)
	Video	R, G, B Analog Interface & Digital Interface
	Separate Sync.	H/V TTL
	Display Color	16.7M Colors
	Dot Clock	140MHz
Resolution	Horizontal scan range	30 kHz - 80 kHz
	Horizontal scan Size(Maximum)	442.8mm
	Vertical scan range	55 Hz - 75 Hz
	Vertical scan Size(Maximum)	249.075mm
	Optimal preset resolution	1600 x 900 (60 Hz)
	Highest preset resolution	1600 x 900 (60 Hz)
	Plug & Play	VESA DDC2B/CI
	Input Connector	D-Sub 15pin & DVI-D
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, TMDS
	Power Source	100-240V~, 50/60Hz
	Power Consumption	Typical < 25 W
		Standby < 1 W
Physical Characteristics	Connector Type	15-pin Mini D-Sub& DVI-D
	Signal Cable Type	Detachable
	Dimensions & Weight:	Height (with base)	378 mm
		Width	493.8 mm
		Depth	186mm
		Weight (monitor only)	4..2 kg
		Weight (with packaging)	5.5 kg
Environmental	Temperature:	Operating	0° to 40°
		Non-Operating	-20° to 60°
	Humidity:	Operating	10% to 85% (non-condensing)
		Non-Operating	5% to 80% (non-condensing)
	Altitude:	Operating	0~3000m (0~10000 ft)
		Non-Operating	0~5000m (0~15000 ft)

Preset Display Modes

STAND	RESOLUTION	HORIZONTAL FREQUENCY(kHZ)	VERTICAL FREQUENCY(Hz)
VGA	640×480 @60Hz	31.469	59.940
VGA	640×480 @67Hz	35.000	66.667
VGA	640×480 @72Hz	37.861	72.809
VGA	640×480 @75Hz	37.500	75.000
Dos-mode	720×400 @70Hz	31.469	70.087
SVGA	800×600 @56Hz	35.156	56.250
SVGA	800×600 @60Hz	37.879	60.317
SVGA	800×600 @72Hz	48.077	72.188
SVGA	800×600 @75Hz	46.875	75.000
SVGA	832×624 @75Hz	49.725	74.550
XGA	1024×768 @60Hz	48.363	60.004
XGA	1024×768 @70Hz	56.476	70.069
XGA	1024×768 @75Hz	60.023	75.029
WSXGA	1600X900 @60Hz	60.000	60.000

Pin Assignments

1 6 11 5 10 15

Pin Number	15-Pin Side of the Signal Cable
1	Video-Red
2	Video-Green
3	Video-Blue
4	N.C.
5	Detect Cable
6	GND-R
7	GND-G
8	GND-B
9	+5V
10	Ground
11	N.C.
12	DDC-Serial data
13	H-sync
14	V-sync
15	DDC-Serial clock

Plug and Play

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

Regulation

FCC Notice

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

NOTICE :

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference. It is the responsibility of the user to correct such interference.

WEEE Declaration

Disposal of Waste Equipment by Users in Private Household in the European Union.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

EPEAT Declaration

SILVER

EPEAT is a system to help purchasers in the public and private sectors evaluate, compare and select desktop computers, notebooks and monitors based on their environmental attributes. EPEAT also provides a clear and consistent set of performance criteria for the design of products, and provides an opportunity for manufacturers to secure market recognition for efforts to reduce the environmental impact of its products.

AOC believes in protecting the environment.

With a key concern for the conservation of natural resources, as well as landfill protection, AOC announces the launch of AOC monitor's packaging recycling program. This program is designed to help you discard of your monitor carton and filler materials properly. If a local recycling center is not available, AOC will recycle the packaging material for you, including foam filler and carton. AOC Display solution will only recycle AOC monitor packaging. Please refer to the following website address:

Only for North and South American, excluding Brazil:

http://us.aoc.com/about/environmental_impact

For Germany:

http://www.aoc-europe.com/en/service/tco.php

For Brazil:

http://www.aoc.com.br/2007/php/index.php?req=pagina&pgn_id=134

Service

Warranty Statement for Europe

LIMITED THREE-YEAR WARRANTY*

AOC Color Monitors sold within Europe

AOC International (Europe) GmbH warrants this product to be free from defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) GmbH will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The defective products that are replaced become the property of AOC International (Europe) GmbH.

If the product appears to be defective, please contact your local dealer or refer to the warranty card when attached to the product.

Deliver the product freight pre-paid, along with the dated proof of purchase, to the AOC Authorized Service Center. If you cannot deliver the product in person:

• Pack it in its original shipping container (or equivalent)
• Put the RMA number on the address label
• Put the RMA number on the shipping carton
  • Insure it (or assume the risk of loss/damage during shipment)
  • Pay all shipping charges

AOC International (Europe) GmbH is responsible neither for any damage or loss during inbound transport damage nor to inbound product that was not properly packaged.

AOC International (Europe) GmbH will pay the return shipping charges within one of the countries specified within this warranty statement. AOC International (Europe) GmbH is not responsible for any costs associated with the transportation of product across international borders. This includes the international border within the European Union.

* This limited warranty does not cover any losses or damages that occur as a result of
• Shipping or improper installation or maintenance
- Misuse
- Neglect
• Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
• Repair, modification, or installation of options or parts by anyone other than an AOC Authorized Service Center
- Improper environment
• Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other irregularities

This limited warranty does not cover any of the product firmware or hardware that you or any third party have

modified or altered; you bear the sole responsibility and liability for any such modification or alteration.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD.

AOC INTERNATIONAL (EUROPE) GMBH OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) GMBH LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) GMBH BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Information in this document is subject to change without notice.

For more details, please visit: http://www.aoc-europe.com/en/service/index.php

Warranty Statement for North & South America (excluding Brazil)

WARRANTY STATEMENT

for AOC Color Monitors

Including those Sold within North America as Specified

Envision Peripherals, Inc. warrants this product to be free from defects in material and workmanship for a period of three (3) years for parts & labor and one (1) year for CRT Tube or LCD Panel after the original date of consumer purchase. During this period, EPI (EPI is the abbreviation of Envision Peripherals, Inc.) will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The parts or product that are replaced become the property of EPI.

In the USA to obtain service under this limited warranty, call EPI for the name of the Authorized Service Center closest to your area. Deliver the product freight pre-paid, along with the dated proof of purchase, to the EPI Authorized Service Center. If you cannot deliver the product in person:

• Pack it in its original shipping container (or equivalent)
• Put the RMA number on the address label
• Put the RMA number on the shipping carton
  • Insure it (or assume the risk of loss/damage during shipment)
  • Pay all shipping charges

EPI is not responsible for damage to inbound product that was not properly packaged.

EPI will pay the return shipment charges within one of the countries specified within this warranty statement. EPI is not responsible for any costs associated with the transportation of product across international borders. This includes the international borders of the countries within this warranty statements.

In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number [phone]. Or you can request an RMA Number online at www.aoc.com/na-warranty.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Shipping or improper installation or maintenance
• Misuse
• Neglect
  • Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
  • Repair, modification, or installation of options or parts by anyone other than an EPI Authorized Service Center
• Improper environment
  • Excessive or inadequate heating or air conditioning or electrical power failures, surges, or other irregularities

This three-year limited warranty does not cover any of the product's firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR AND ONE (1) YEAR FOR CRT TUBE OR LCD PANEL FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

EPI OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HERE. EPI' LIABILITY, WHETHER BASED ON CONTRACT, TORT. WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL ENVISION PERIPHERALS, INC. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

In the United States of America, this limited warranty is only valid for Products purchased in the Continental United States, Alaska, and Hawaii.

Outside the United States of America, this limited warranty is only valid for Products purchased in Canada.

Information in this document is subject to change without notice.

For more details, please visit:

USA: http://us.aoc.com/support/find_service_center

ARGENTINA: http://ar.aoc.com/support/find_service_center

BOLIVIA: http://bo.aoc.com/support/find_service_center

CHILE: http://cl.aoc.com/support/find_service_center

COLOMBIA: http://co.aoc.com/support/find_service_center

COSTA RICA: http://cr.aoc.com/support/find_service_center

DOMINICAN REPUBLIC: http://do.aoc.com/support/find_service_center

ECUADOR: http://ec.aoc.com/support/find_service_center

EL SALVADOR: http://sv.aoc.com/support/find_service_center

GUATEMALA: http://gt.aoc.com/support/find_service_center

HONDURAS: http://hn.aoc.com/support/find_service_center

NICARAGUA: http://ni.aoc.com/support/find_service_center

PANAMA: http://pa.aoc.com/support/find_service_center

PARAGUAY: http://py.aoc.com/support/find_service_center

PERU: http://pe.aoc.com/support/find_service_center

URUGUAY: http://pe.aoc.com/support/find_service_center

VENEZUELA: http://ve.aoc.com/support/find_service_center

IF COUNTRY NOT LISTED: http://latin.aoc.com/support/find_service_center
