USER MANUAL G750JS ASUS

Line drawing of a laptop with visible keyboard, mouse, and screen (no text or symbols)

E7780

January 2013

COPYRIGHT INFORMATION

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2013 ASUSTeK COMPUTER INC. All Rights Reserved.

LIMITATION OF LIABILITY

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

SERVICE AND SUPPORT

Visit our multi-language web site at http://support.asus.com

Table of Contents

About this manual 7

Conventions used in this manual 8

Icons 8

Typography 8

Safety precautions 9

Using your Notebook PC....9

Caring for your Notebook PC 10

Proper disposal ....11

Chapter 1: Hardware Setup

Getting to know your Notebook PC ....14

Top View 14

Bottom 18

Right Side 20

Left Side 22

Rear View 24

Chapter 2: Using your Notebook PC

Getting started 26

Install the battery pack (on selected models). 26

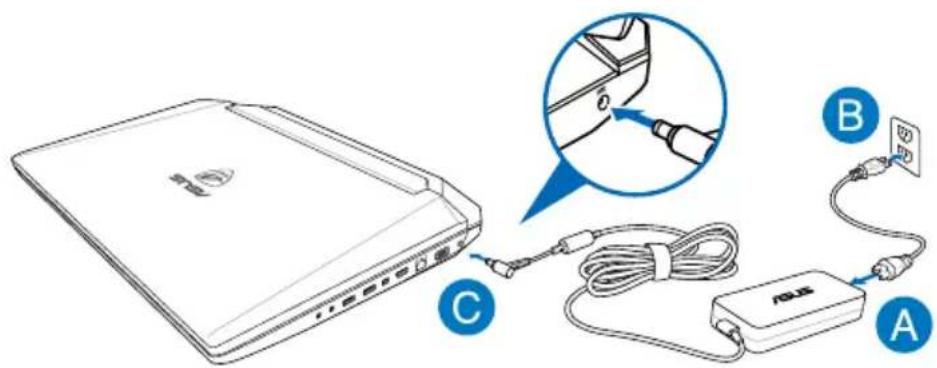

Charge your Notebook PC. 27

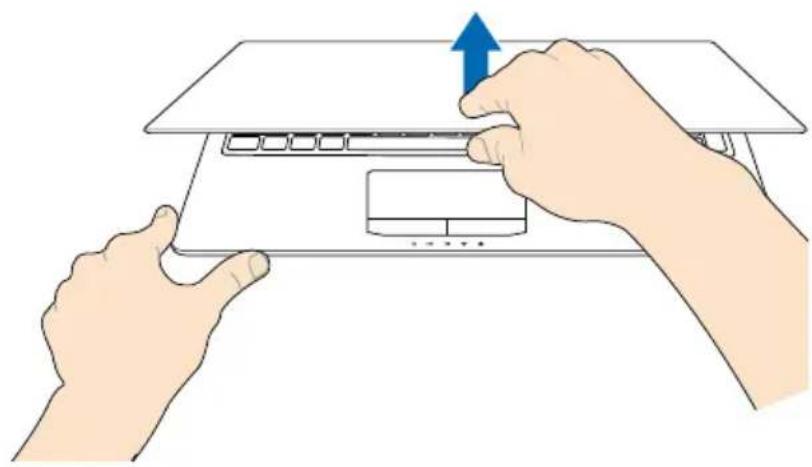

Lift to open the display panel. 28

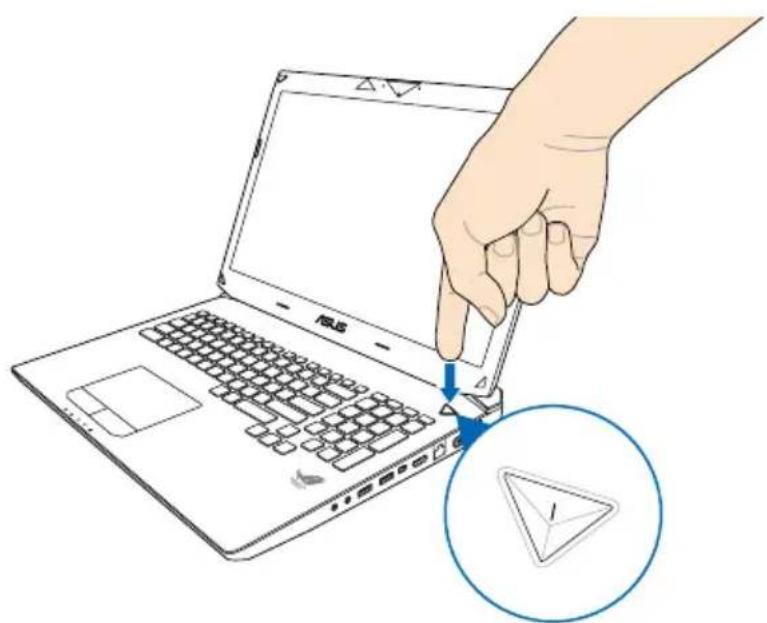

Press the power button. 28

Gestures for the touchpad 29

Moving the pointer 29

One-finger gestures 30

Two-finger gestures 32

Three-finger gestures 33

Using the keyboard 34

Function keys ....34

Function keys for ASUS Apps ....35

Windows®8 keys 35

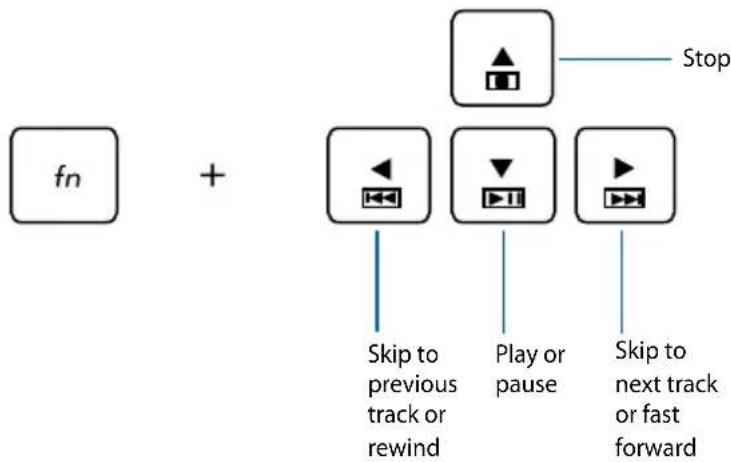

Multimedia control keys ....36

Numeric keypad 36

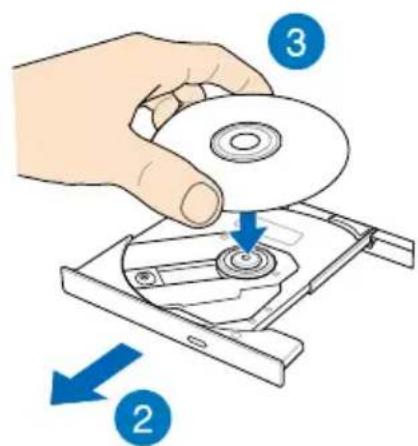

Using the optical drive ....37

Chapter 3: Working with Windows® 8

Starting for the first time ....40

Windows ^® 8 lock screen ....40

Windows ^® UI 41

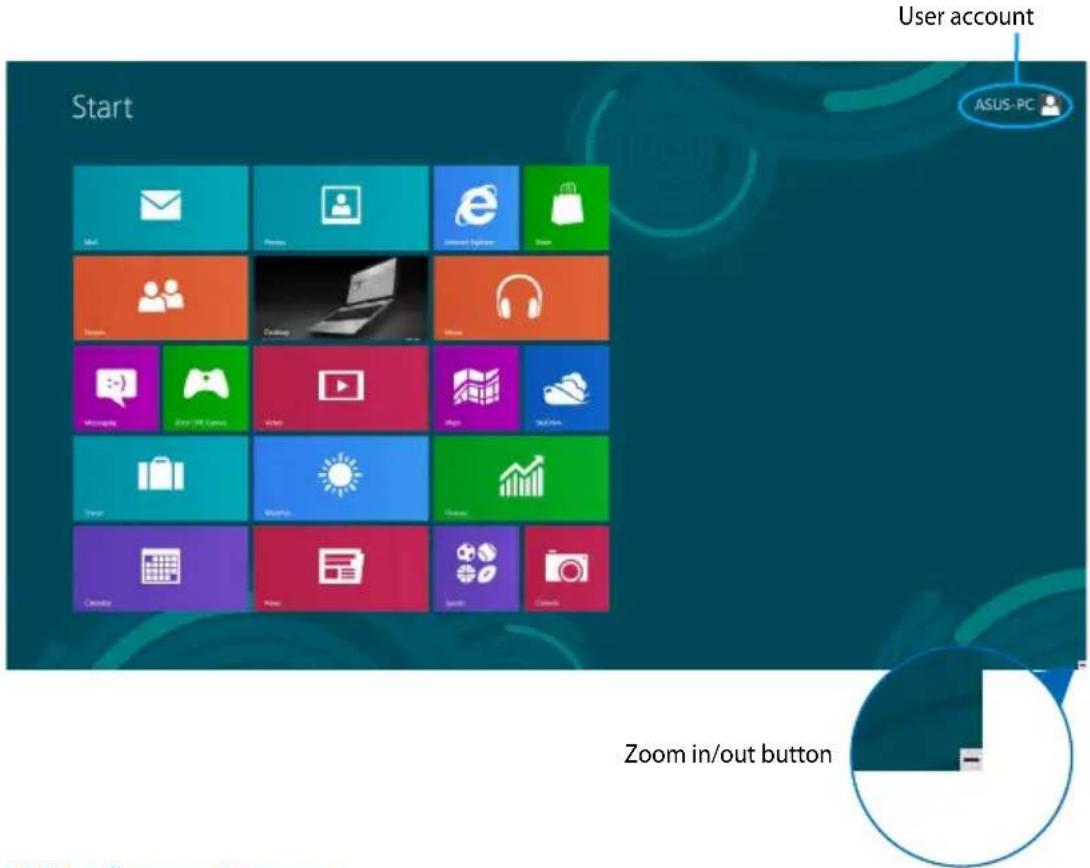

Start screen 41

Windows® apps ....41

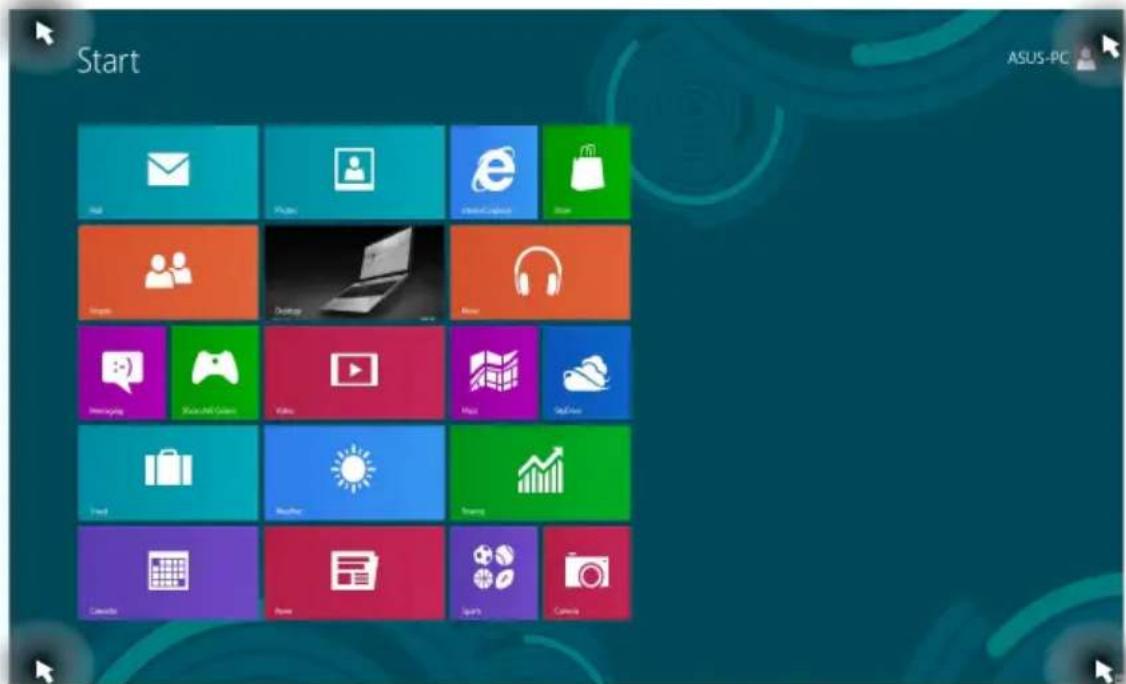

Hotspots....42

Working with Windows ^® apps ....44

Launching apps ....44

Customizing apps ....44

Closing apps ....45

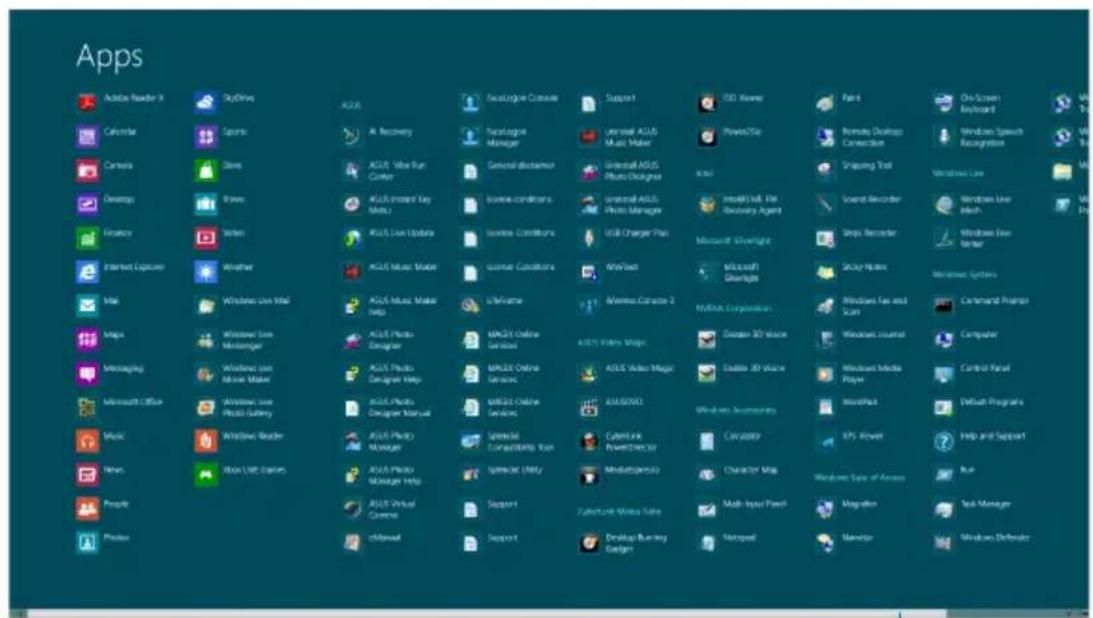

Accessing the Apps screen 46

Charms bar 48

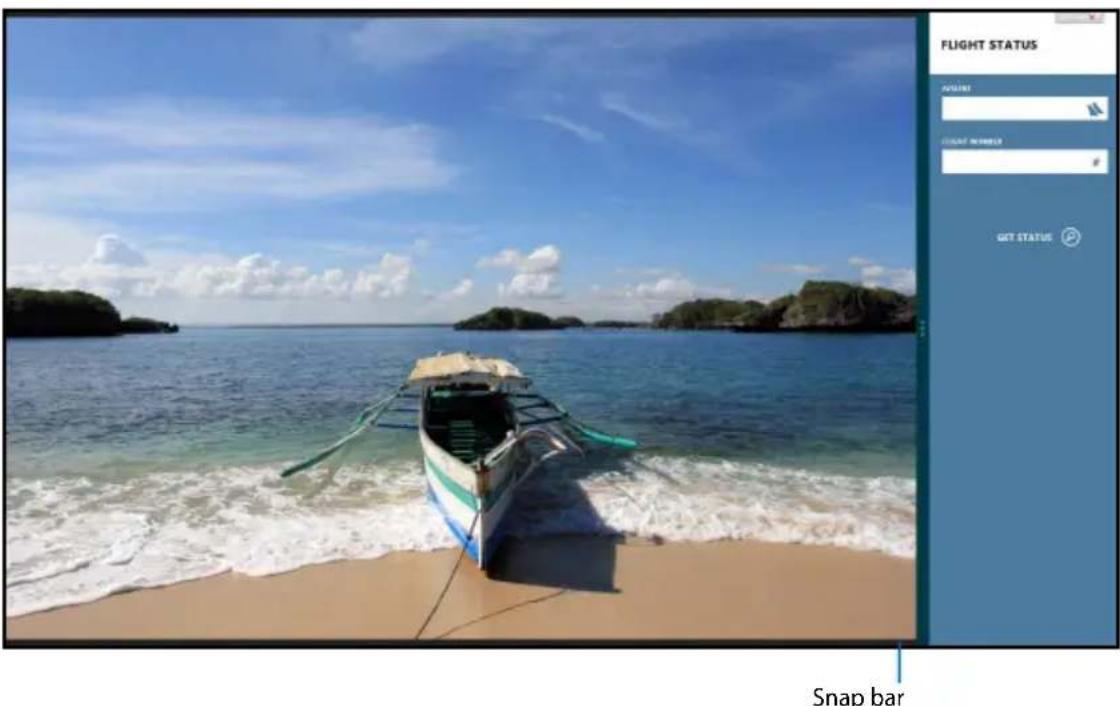

Snap feature ....50

Other keyboard shortcuts ....52

Connecting to wireless networks ....54

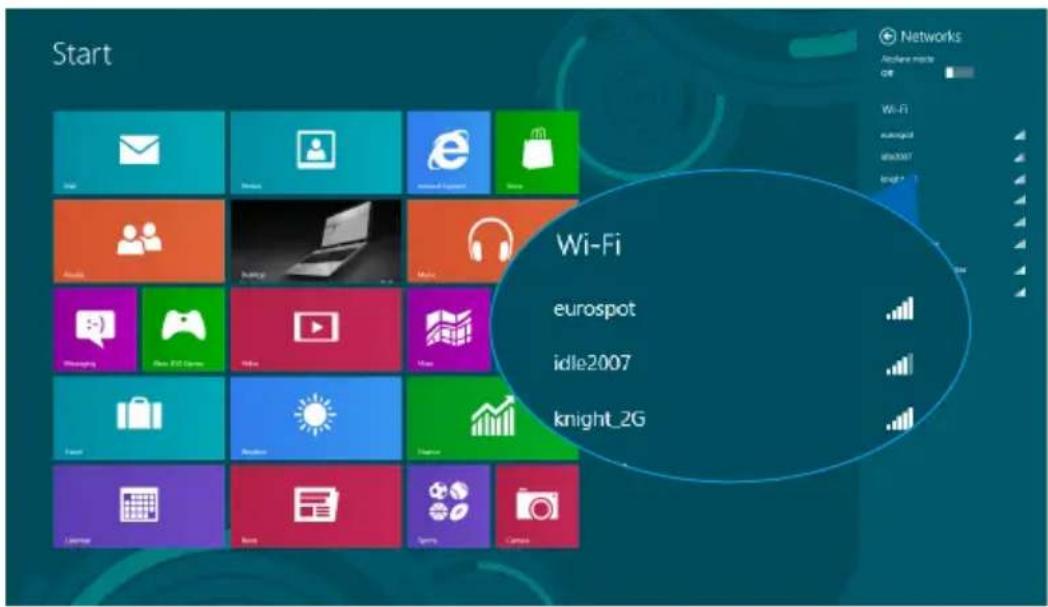

Wi-Fi 54

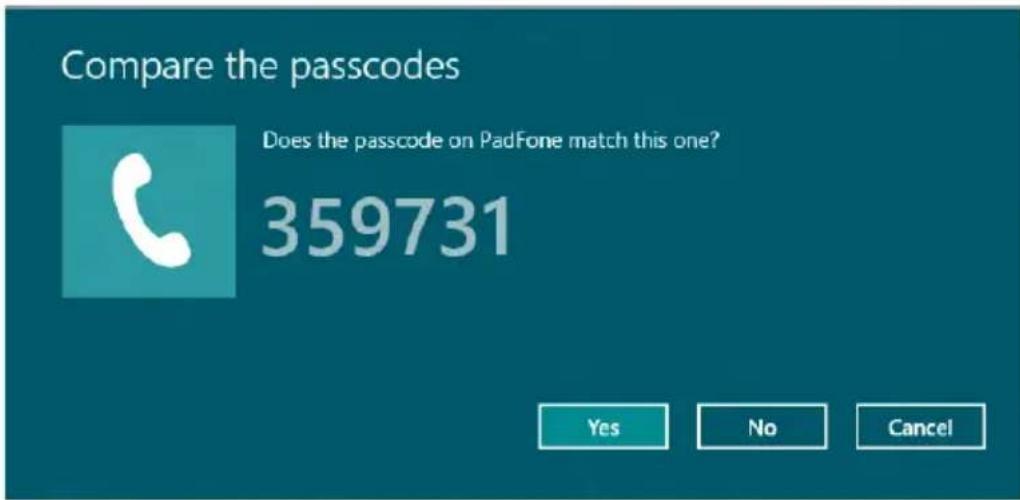

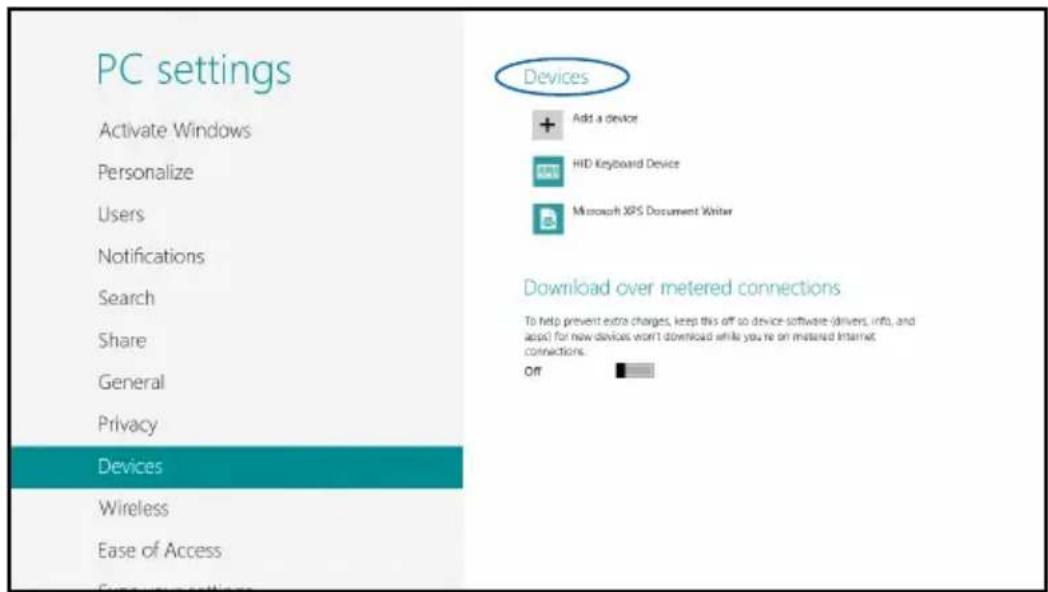

Bluetooth 56

Airplane mode ....58

Connecting to wired networks....59

Configuring a dynamic IP/PPPoE network connection ....59

Configuring a static IP network connection ....63

Turning your Notebook PC off 64

Putting your Notebook PC to sleep 64

Chapter 4: ASUS apps

Featured ASUS Apps 66

LifeFrame 66

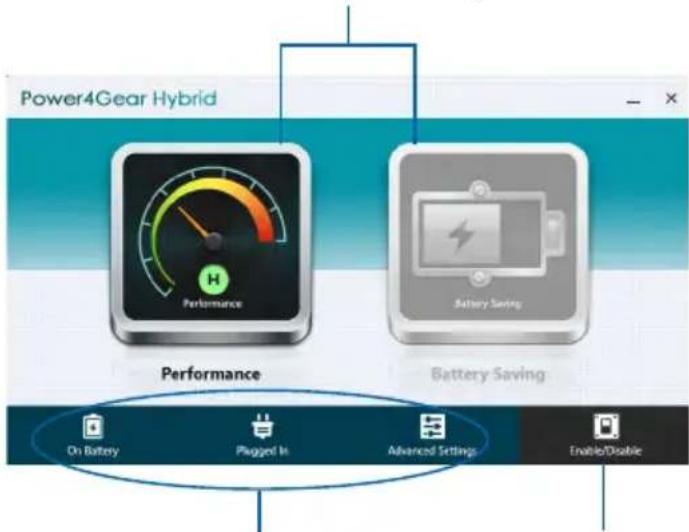

Power4Gear Hybrid....68

USB Charger+ 69

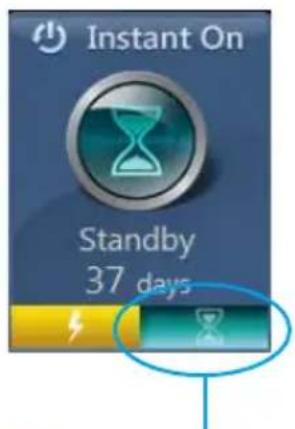

Instant On 71

Chapter 5: Power-on Self-test (POST)

The Power-on Self-test (POST) 74

Using POST to access BIOS and Troubleshoot ....74

BIOS 74

Accessing BIOS ....74

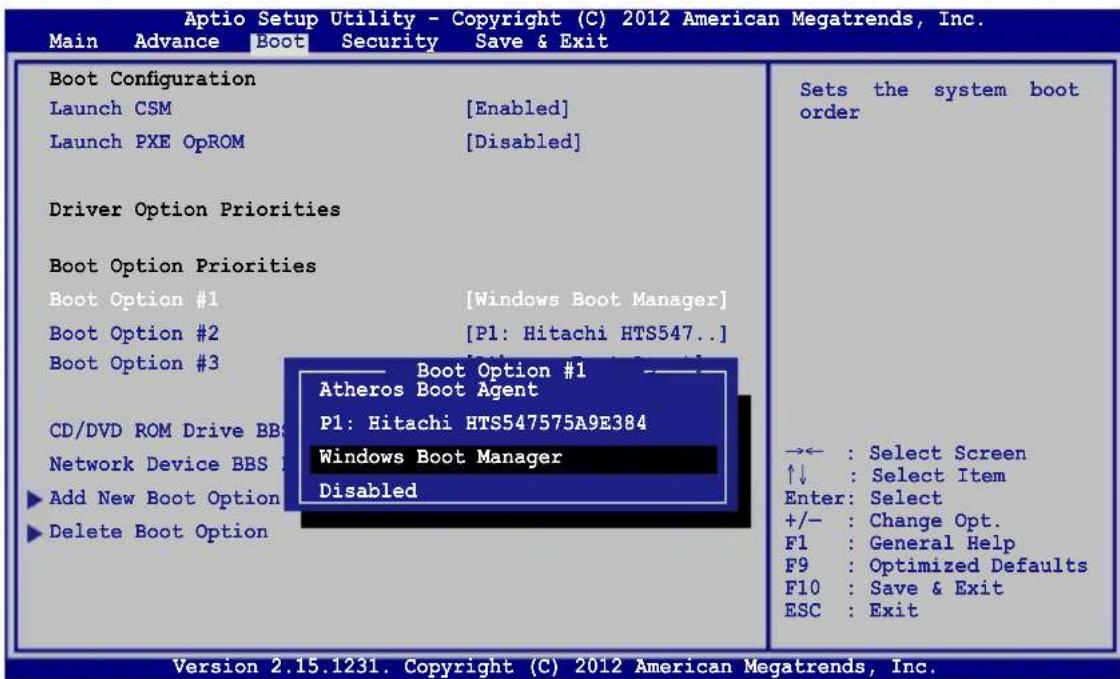

BIOS Settings 75

Troubleshoot....83

Refresh your PC 83

Reset your PC 84

Advanced options 85

Chapter 6: Upgrading your Notebook PC

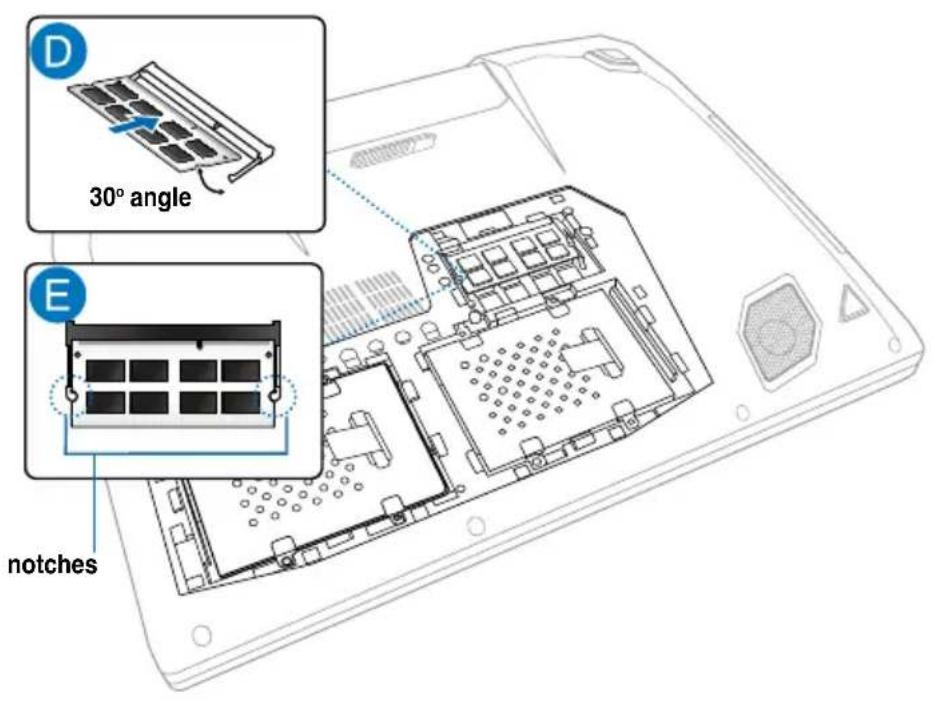

Installing a Random Access Memory (RAM) module ....88

Replacing the Hard Disk Drive (HDD) 92

Installing a new battery pack 98

Appendices

DVD-ROM Drive Information (on selected models) 102

Blu-ray ROM Drive Information (on selected models) 104

Internal Modem Compliancy 105

Overview.... 105

Network Compatibility Declaration 105

Network Compatibility Declaration 106

Non-Voice Equipment 106

Federal Communications Commission Statement 108

FCC Radio Frequency (RF) Exposure Caution Statement 110

Declaration of Conformity (R&TTE directive 1999/5/EC) ...... 110

CE Marking 111

IC Radiation Exposure Statement for Canada 111

Wireless Operation Channel for Different Domains 113

France Restricted Wireless Frequency Bands 113

UL Safety Notices 115

Power Safety Requirement.... 116

TV Tuner Notices 116

REACH 116

Nordic Lithium Cautions (for lithium-ion batteries) 116

Optical Drive Safety Information 118

Macrovision Corporation Product Notice 118

CTR 21 Approval (for Notebook PC with built-in Modem) ...... 119

ENERGY STAR complied product 120

European Union Eco-label 121

Prevention of Hearing Loss 121

Coating Notice 121

Global Environmental Regulation Compliance and Declaration 122

ASUS Recycling/Takeback Services 122

Regional notice for Singapore 122

About this manual

This manual provides information about the hardware and software features of your Notebook PC, organized through the following chapters:

Chapter 1: Hardware Setup

This chapter details the hardware components of your Notebook PC.

Chapter 2: Using your Notebook PC

This chapter shows you how to use the different parts of your Notebook PC.

Chapter 3: Working with Windows® 8

This chapter provides an overview of using Windows ^® 8 in your Notebook PC.

Chapter 4: ASUS Apps

This chapter features the ASUS apps included with your Notebook PC.

Chapter 5: Power-on Self-test (POST)

This chapter shows you how to use POST to change the settings of your Notebook PC.

Chapter 6: Upgrading your Notebook PC

This chapter guides you through the process of replacing and upgrading parts of your Notebook PC.

Appendices

This section includes notices and safety statements for your Notebook PC.

Conventions used in this manual

To highlight key information in this manual, some text are presented as follows:

IMPORTANT! This message contains vital information that must be followed to complete a task.

NOTE: This message contains additional information and tips that can help complete tasks.

WARNING! This message contains important information that must be followed to keep you safe while performing tasks and prevent damage to your Notebook PC's data and components.

Icons

The icons below indicate the devices you can use for completing a series of tasks or procedures on your Notebook PC.

= Use the touchpad.

= Use the keyboard.

Typography

Bold = This indicates a menu or an item that must be selected.

Italic = This indicates sections that you can refer to in this manual.

Safety precautions

Using your Notebook PC

This Notebook PC should only be used in environments with ambient temperatures between 5^ C ( 41^ F) and 35^ C ( 95^ F).

Refer to the rating label on the bottom of your Notebook PC and ensure that your power adapter complies with this rating.

Do not leave your Notebook PC on your lap or near any part of your body to prevent discomfort or injury from heat exposure.

Do not use damaged power cords, accessories, and other peripherals with your Notebook PC.

While powered on, ensure that you do not carry or cover your Notebook PC with any materials that can reduce air circulation.

Do not place your Notebook PC on uneven or unstable work surfaces.

You can send your Notebook PC through x-ray machines (used on items placed on conveyor belts), but do not expose them to magnetic detectors and wands.

Contact your airline provider to learn about related inflight services that can be used and restrictions that must be followed when using your Notebook PC in-flight.

Caring for your Notebook PC

Disconnect the AC power and remove the battery pack (if applicable) before cleaning your Notebook PC. Use a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few drops of warm water. Remove any extra moisture from your Notebook PC using a dry cloth.

Do not use strong solvents such as thinners, benzene, or other chemicals on or near your Notebook PC.

Do not place objects on top of your Notebook PC.

Do not expose your Notebook PC to strong magnetic or electrical fields.

Do not use or expose your Notebook PC near liquids, rain, or moisture.

Do not expose your Notebook PC to dusty environments.

Do not use your Notebook PC near gas leaks.

Proper disposal

Do not throw your Notebook PC in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Do not throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

Chapter 1: Hardware Setup

Getting to know your Notebook PC

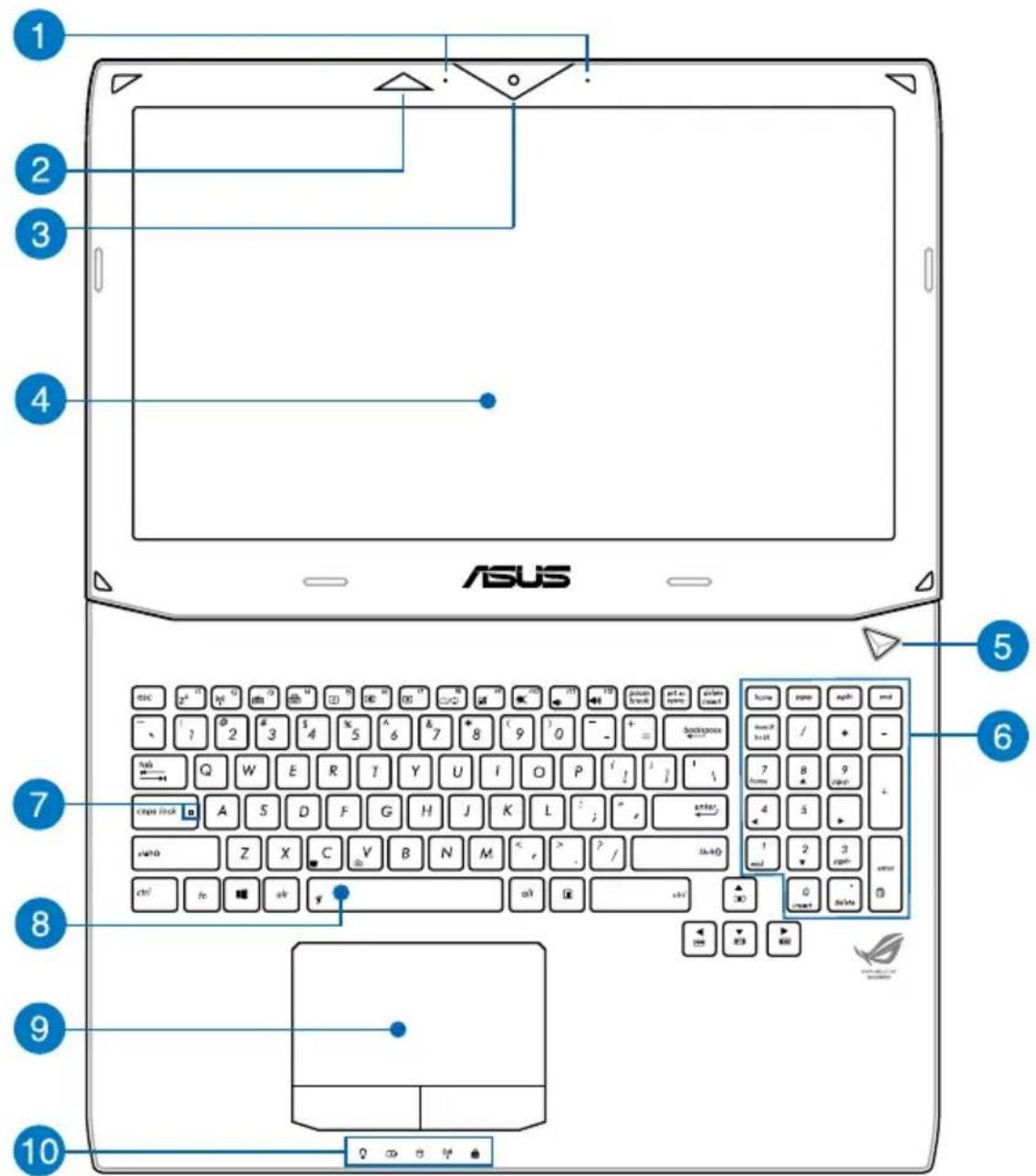

Top View

NOTE: The keyboard's layout may vary per region or country. The top view may also vary in appearance depending on the Notebook PC model.

1 2 3 4 ASUS 5 6 7 8 9 10 ac 2 3 4 5 6 7 8 9 0 + - backspace boxy lock A S D F G H J K L i " enter z X C V B N M c / +/-/- chl lo ok y all +/-/- boxy lock boxy lock boxy lock

1 Microphone

The built-in microphone can be used for video conferencing, voice narrations, or simple audio recording.

2 3D Vision IR port (on selected models)

The 3D Vision IR port transmits 3D Vision signals to your 3D glasses while playing 3D video games or watching 3D movies.

3 Camera

The built-in camera allows you to take pictures or record videos using your Notebook PC.

4 Display panel

This display panel provides excellent viewing features for photos, videos, and other multimedia files on your Notebook PC.

NOTE: The display resolution may vary depending on Notebook PC model.

5 Power button

Press the power button to turn your Notebook PC on or off. You can also use the power button to put your Notebook PC to sleep or hibernate mode and wake it up from sleep or hibernate mode.

In the event that your Notebook PC becomes unresponsive, press and hold the power button for about four (4) seconds until your Notebook PC shuts down.

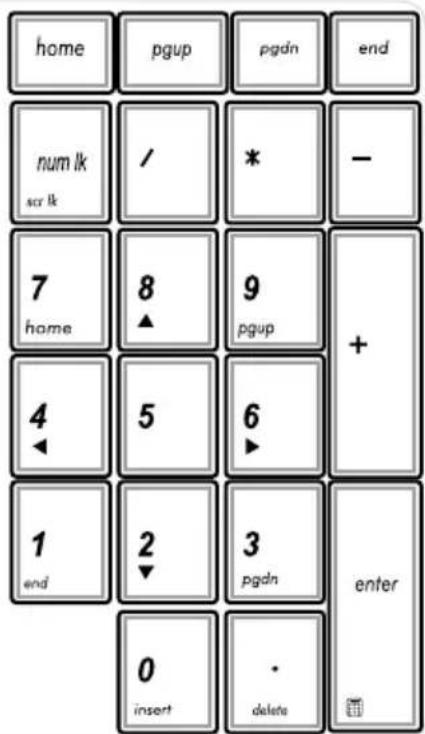

6 Numeric keypad

The numeric keypad toggles between these two functions: for numeric input and as pointer direction keys.

NOTE: For more details, refer to the Numeric keypad section in this manual.

7 Capital lock indicator

This indicator lights up when the capital lock function is activated. Using capital lock allows you to type capitalized letters (such as A, B, C) using your Notebook PC's keyboard.

8 Keyboard

The keyboard provides full-sized QWERTY keys with a comfortable travel depth for typing. It also enables you to use the function keys, allows quick access to Windows ^® , and controls other multimedia functions.

NOTE:

• The keyboard layout differs by model or territory.
• Some selected models come with a backlit keyboard.

9 Touchpad

The touchpad allows the use of multi-gestures to navigate onscreen, providing an intuitive user experience. It also simulates the functions of a regular mouse.

10 Status indicators

The status indicators help identify the current hardware status of your Notebook PC.

Power indicator

The power indicator lights up when the Notebook PC is turned on and blinks slowly when the Notebook PC is in sleep mode

Two-color battery charge indicator

The two-color LED provides a visual indication of the battery's charge status. Refer to the following table for details:

Color Status

Solid Green The Notebook PC is plugged to a power source, charging its battery, and the battery power is between 95% and 100%.

Solid Orange The Notebook PC is plugged to a power source, charging its battery, and the battery power is less than 95%.

Blinking Orange The Notebook PC is running on battery mode and the battery power is less than 10%.

Lights off The Notebook PC is running on battery mode and the battery power is between 10% to 100%.

Drive activity indicator

This indicator lights up when your Notebook PC is accessing the internal storage drives.

Bluetooth / Wireless indicator

This indicator lights up when your Notebook PC's wireless function (Bluetooth or Wi-Fi) is enabled.

1 Number lock indicator

This indicator lights up when the number lock function is activated. This allows you to use some of the keys on your keyboard for numeric input.

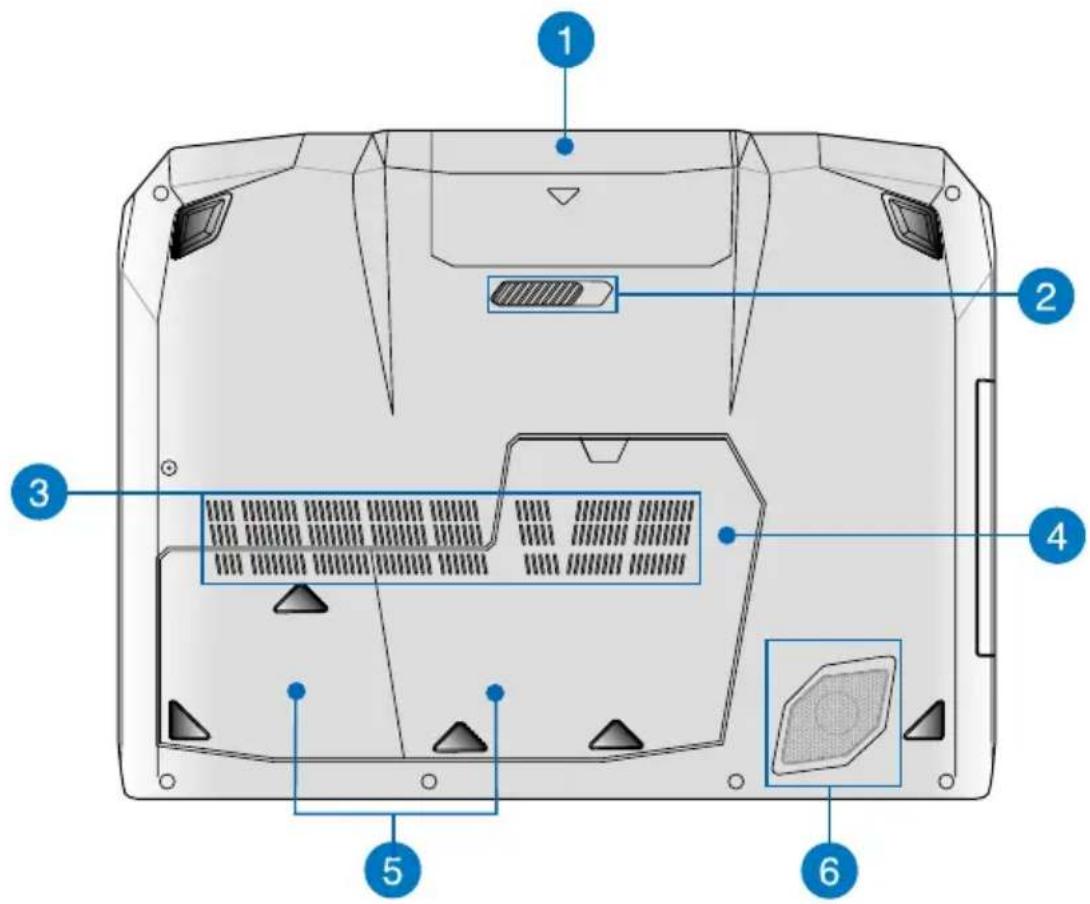

Bottom

NOTE: The bottom side may vary in appearance depending on model.

WARNING! The bottom of the Notebook PC can get warm to hot while in use or while charging the battery pack. When working on your Notebook PC, do not place it on surfaces that can block the vents.

IMPORTANT! Battery time varies by usage and by the specifications for this Notebook PC. The battery pack cannot be disassembled.

Laptop rear panel diagram with numbered component labels pointing to different areas of the lid.

1 Battery pack

The battery pack is automatically charged when your Notebook PC is connected to a power source. When charged, the battery pack supplies power to your Notebook PC.

2 Spring battery lock

The spring battery lock automatically locks the battery pack in place once it is inserted into the battery slot.

IMPORTANT! This lock should be held in an unlocked position when removing the battery pack.

3 Air vents

The air vents allow cool air to enter and warm air to exit the Notebook PC.

WARNING! Ensure that paper, books, clothing, cables, or other objects do not block any of the air vents or else overheating may occur.

4 Random-access memory module (RAM) compartment

The RAM compartment allows you to add RAM memory modules to increase the memory capacity of your Notebook PC.

5 Hard disk drive compartments

These compartments are reserved spaces for the hard disk drives of your Notebook PC.

6 Subwoofer

The subwoofer speaker produces low-pitched audio frequencies for fuller and richer bass sounds suited for playing PC games or watching movies on your Notebook PC.

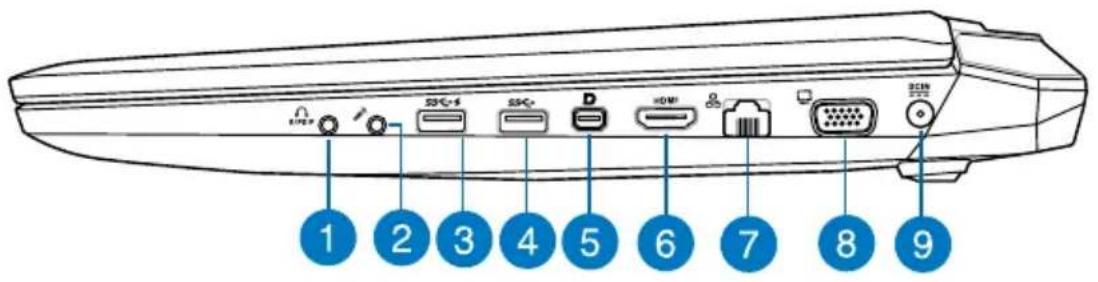

Right Side

1 2 3 4 5 6 7 8 9

1 Headphone output and S/PDIF output combo jack port

This port allows you to connect your Notebook PC to amplified speakers or headphones. You can also use this port to connect your Notebook PC to Sony/Philips Digital Interconnect Format (S/PDIF) compliant devices.

2 Microphone input jack port

The microphone input jack port is used to connect your Notebook PC to an external microphone.

3 USB 3.0 port with USB Charger+

This USB 3.0 port with the icon comes with the USB Charger+ feature. USB Charger+ allows you to quick charge mobile devices and can be used even while your Notebook PC is on sleep, hibernate, or shutdown mode (on selected models).

4 USB 3.0 port

This Universal Serial Bus 3.0 (USB 3.0) port provides a transfer rate of up to 5 Gbit/s and is backward compatible to USB 2.0.

5 Mini DisplayPort/Thunderbolt port (varies by model)

Use a Thunderbolt adapter to connect your Notebook PC to a DisplayPort, VGA, DVI, or HDMI external display and experience high-resolution display features via Intel® Thunderbolt™ technology.

6 HDMI port

This port is for a High-Definition Multimedia Interface (HDMI) connector and is HDCP compliant for HD DVD, Blu-ray, and other protected content playback.

7 LAN port

Insert the network cable into this port to connect to a local area network (LAN).

8 VGA port

This port allows you to connect your Notebook PC to a standard VGA-compatible device, such as monitors or projectors.

9 Power (DC) input port

Insert the bundled power adapter into this port to charge the battery pack and supply power to your Notebook PC.

WARNING! The adapter may become warm to hot while in use. Ensure not to cover the adapter and keep it away from your body while it is connected to a power source.

IMPORTANT! Use only the bundled power adapter to charge the battery pack and supply power to your Notebook PC.

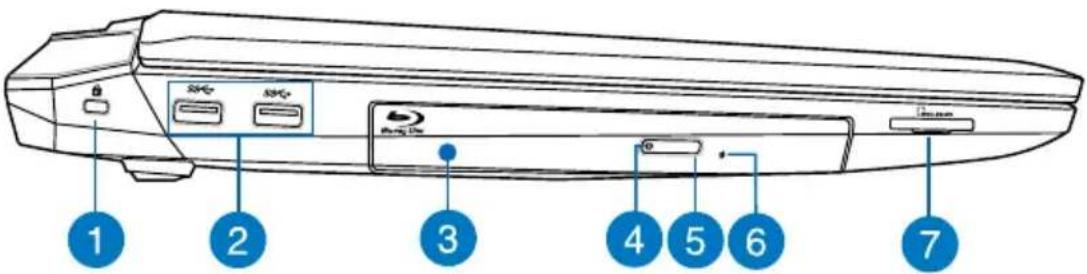

Left Side

1 2 3 4 5 6 7

1 Kensington® security slot

The Kensington ^® security slot allows you to secure your Notebook PC using Kensington ^® compatible Notebook PC security products.

2 USB 3.0 ports

These Universal Serial Bus 3.0 (USB 3.0) ports provide a transfer rate of up to 5 Gbit/s and are backward compatible to USB 2.0.

3 Optical drive

Your Notebook PC's optical drive may support several disc formats such as CDs, DVDs, recordable discs, or rewritable discs.

4 Optical drive indicator

This indicator lights up when the optical drive electronic eject button is pressed while the Notebook PC is powered on. This indicator also lights up when the optical drive is currently reading data from or writing data to a disc.

5 Optical disc drive eject button

Press this button to eject the optical drive tray.

Manual eject hole

The manual eject hole is used to eject the drive tray in case the electronic eject button does not work.

WARNING! Use the manual eject hole only when the electronic eject button does not work.

NOTE: For more details, refer to the Using the optical drive section in this manual.

Memory card reader

This Notebook PC has a single built-in memory card reader slot that supports MMC and SD card formats.

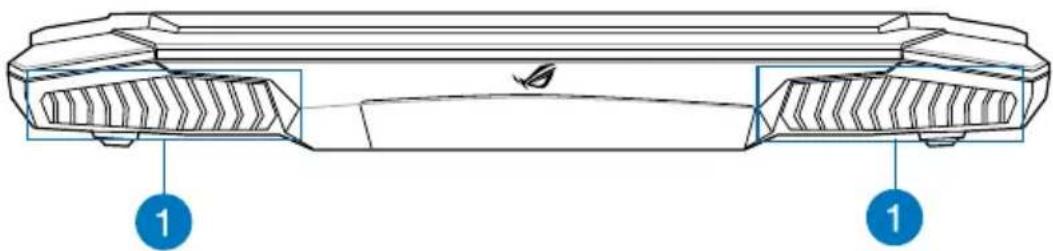

Rear View

Technical line drawing of a mechanical component with two labeled parts (1), no text or symbols present.

1 Air vents

The air vents allow cool air to enter and warm air to exit from your Notebook PC.

IMPORTANT! Ensure that paper, books, clothing, cables, or other objects do not block any of the air vents to prevent overheating.

Chapter 2:

Using your Notebook PC

Getting started

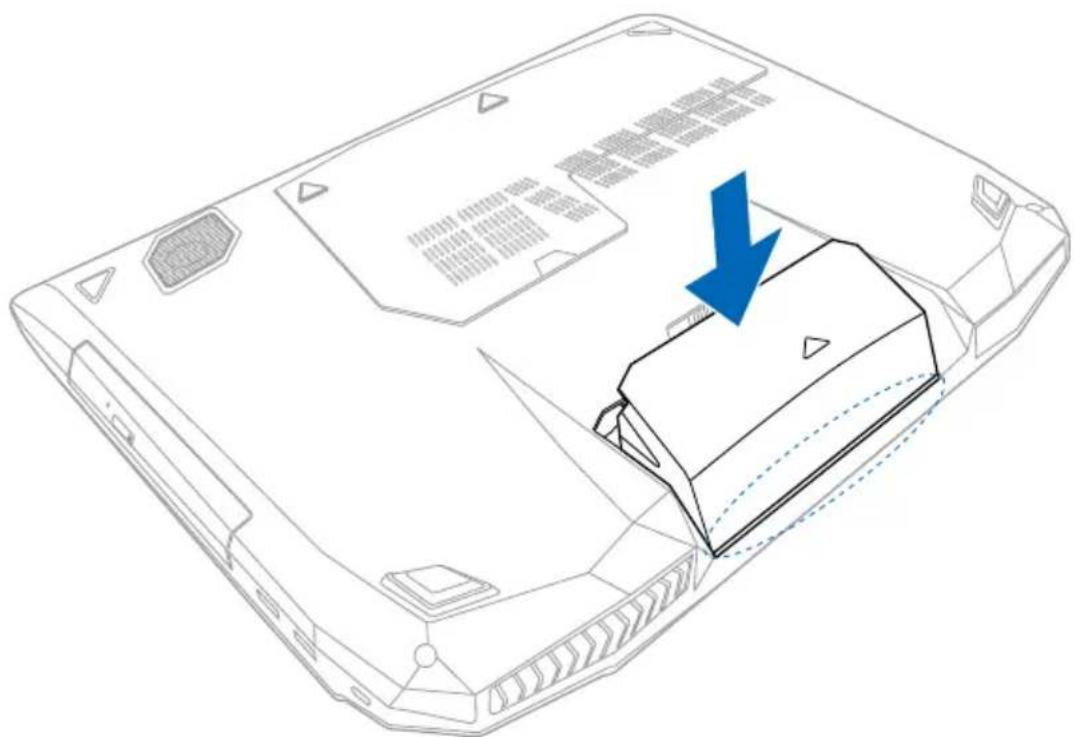

Install the battery pack (on selected models).

IMPORTANT! If your Notebook PC does not have its battery pack installed, use the following procedures for installation.

Align and insert the battery pack into the Notebook PC's battery slot.

Line drawing of a laptop interior showing the lid and front panel with a blue arrow indicating a location (no text or symbols present)

Charge your Notebook PC.

A. Connect the AC power cord to the AC/DC adapter.

B. Plug the AC power cord into a 100V\~240V power source.

C. Connect the DC power connector into your Notebook PC's power (DC) input port.

Diagram showing a device connected to a USB drive via cable, with labeled components A, B, and C indicating connection points.

IMPORTANT!

- Ensure that your Notebook PC is connected to the power adapter before turning it on for the first time.

- Locate the input/output rating label on your Notebook PC and ensure that it matches the input/output rating information on your power adapter.

- When using your Notebook PC on power adapter mode, the socket outlet must be near to the unit and easily accessible.

• Power adapter information:

- Input voltage: 100-240Vac

- Input frequency: 50-60Hz

- Rating output current: 180W (19.5V, 9.23A)

- Rating output voltage: 19V

Lift to open the display panel.

Illustration of two hands pressing a component on a device (no text or symbols visible)

Press the power button.

Illustration of a hand inserting a device into a laptop keyboard, with a triangular symbol below (no text or symbols present)

Gestures for the touchpad

Gestures allow you to launch programs and access the settings of your Notebook PC. Refer to the following illustrations when using hand gestures on your touchpad.

Moving the pointer

You can tap or click anywhere on the touchpad to activate its pointer, then slide your finger on the touchpad to move the pointer onscreen.

Slide horizontally

Hand pressing a card into a grid (no text or symbols visible)

Slide vertically

Hand pointing at a card with arrows indicating movement (no text or symbols)

Slide diagonally

Hand pointing at a card with arrows indicating movement (no text or symbols)

One-finger gestures

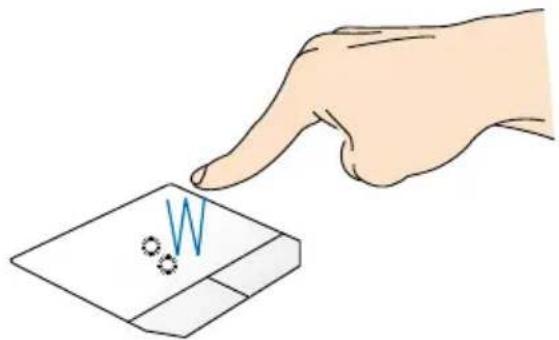

Tap/Double tap

Illustration of a hand pointing at a small electronic device with 'W' and 'O' symbols (no text or labels)

• In the Start screen, tap on an app to launch it.
- In Desktop mode, double-tap an application to launch it.

Left-click Right-click

Illustration of a hand pointing at a small electronic component with a small circular symbol (no text or labels)

• In the Start screen, click on an app to launch it.
- In Desktop mode, double-click an application to launch it.

Illustration of a hand pointing at a small object with a blue arrow and label (no text or symbols present)

• In the Start screen, click on an app to select it and launch the settings bar. You can also press this button to launch the All Apps bar.
- In Desktop mode, use this button to open the right-click menu.

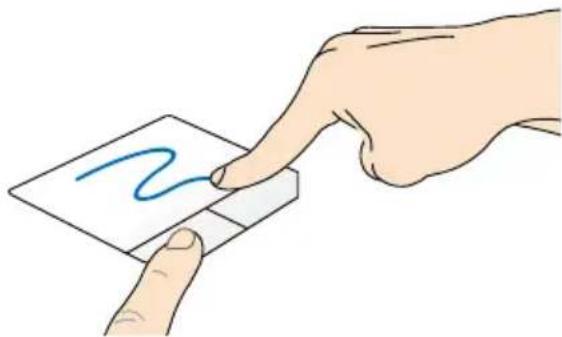

Drag and drop

Hand pointing at a blue wavy line drawing on a paper (no text or symbols)

Double-tap an item, then slide the same finger without lifting it off the touchpad. To drop the item to its new location, lift your finger from the touchpad.

Top edge swipe

Illustration of a hand pressing a button on a card (no text or symbols visible)

• In the Start screen, swipe from the top edge to launch the All Apps bar.
  • In a running app, swipe from the top edge to view its menu.

Left edge swipe Right edge swipe

Illustration of a hand pressing a button on a white surface (no text or symbols)

Illustration of a hand pressing a button on a rectangular object (no text or symbols)

Swipe from the left edge to shuffle your running apps.

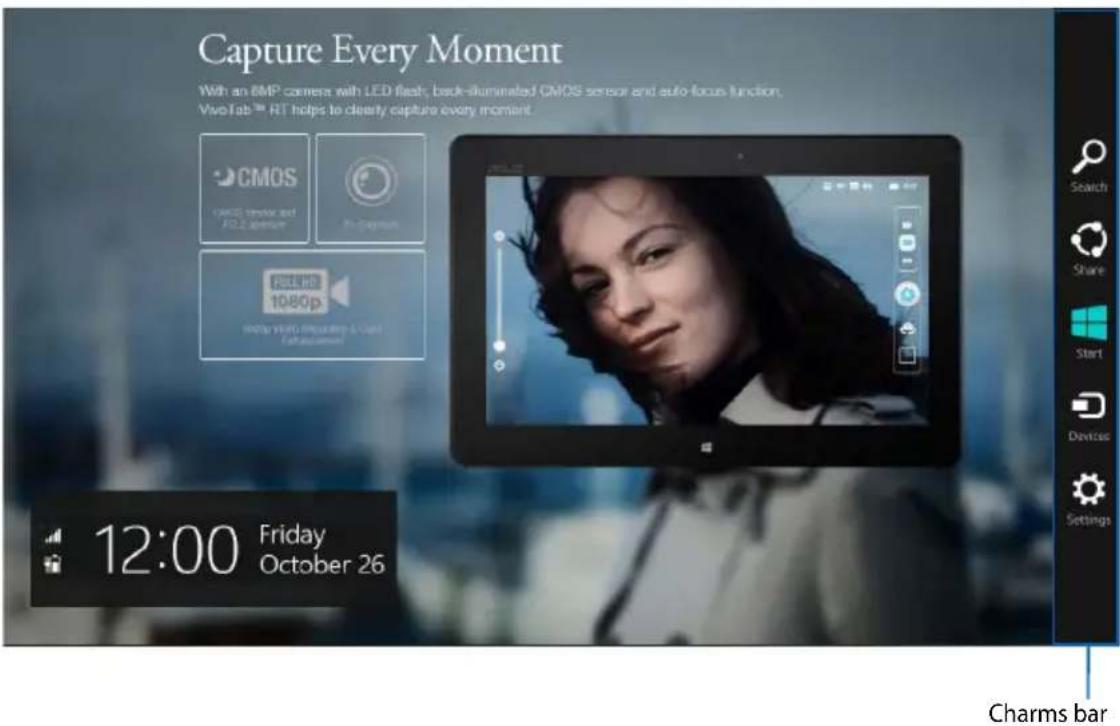

Swipe the right edge to launch the Charms bar.

Two-finger gestures

Tap Rotate

Hand holding a small object with a blue arrow pointing downward, placed on a flat surface (no text or symbols visible)

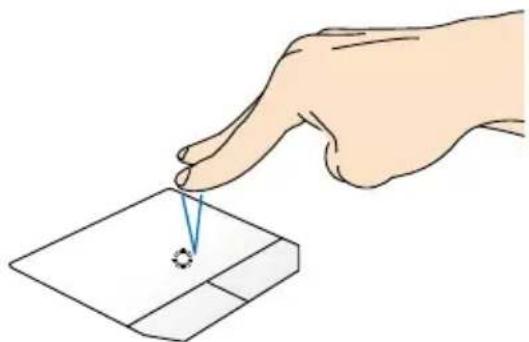

Tap two fingers on the touchpad to simulate the right-click function.

Hand pressing a curved arrow on a flat surface, no text or symbols present

To rotate an image, place two fingers on the touchpad then turn one finger clockwise or counterclockwise while the other stays still.

Two-finger scroll (up/down) Two-finger scroll (left/right)

Illustration of a hand pressing down on a card (no text or symbols visible)

Slide two fingers to scroll up or down.

Hand pressing down on a card with two arrows indicating left and right motion (no text or symbols)

Slide two fingers to scroll left or right.

Zoom out Zoom in

Hand holding a card with two arrows indicating movement or change (no text or symbols)

Bring together your two fingers on the touchpad.

Hand holding a card with two arrows indicating movement (no text or symbols)

Spread apart your two fingers on the touchpad.

Drag and drop

Illustration of a hand pressing down on a small electronic device with a blue wavy line (no text or symbols)

Select an item then press and hold the left button. Using your other finger, slide down the touchpad to drag and drop the item to a new location.

Three-finger gestures

Swipe up Swipe down

Hand pressing a button on a flat surface with a black arrow indicating the left side (no text or symbols present)

Swipe three fingers upward to show all running applications.

Illustration of a hand pressing a button on a computer mouse (no text or symbols)

Swipe three fingers downward to show the Desktop mode.

Using the keyboard

Function keys

The function keys on your Notebook PC's keyboard can trigger the following commands:

Puts the Notebook PC into Sleep mode

Turns Airplane mode on or off

NOTE: When enabled, the Airplane mode disables all wireless connectivity.

Decreases keyboard brightness for Notebook PC models with a backlit keyboard

Increases keyboard brightness for Notebook PC models with a backlit keyboard

Decreases display brightness

Increases display brightness

Turns the display panel off

Toggles the display mode

NOTE: Ensure that the second display is connected to your Notebook PC.

Enables or disables the touchpad

Turns the speaker on or off

Turns the speaker volume down

Turns the speaker volume up

Function keys for ASUS Apps

Your Notebook PC also comes with a special set of function keys that can be used to launch ASUS apps.

Toggles the ASUS Splendid Video Enhancement

Technology app to switch between these display color enhancement modes: Gamma Correction, Vivid Mode, Theater Mode, Soft Mode, My Profile, and Normal.

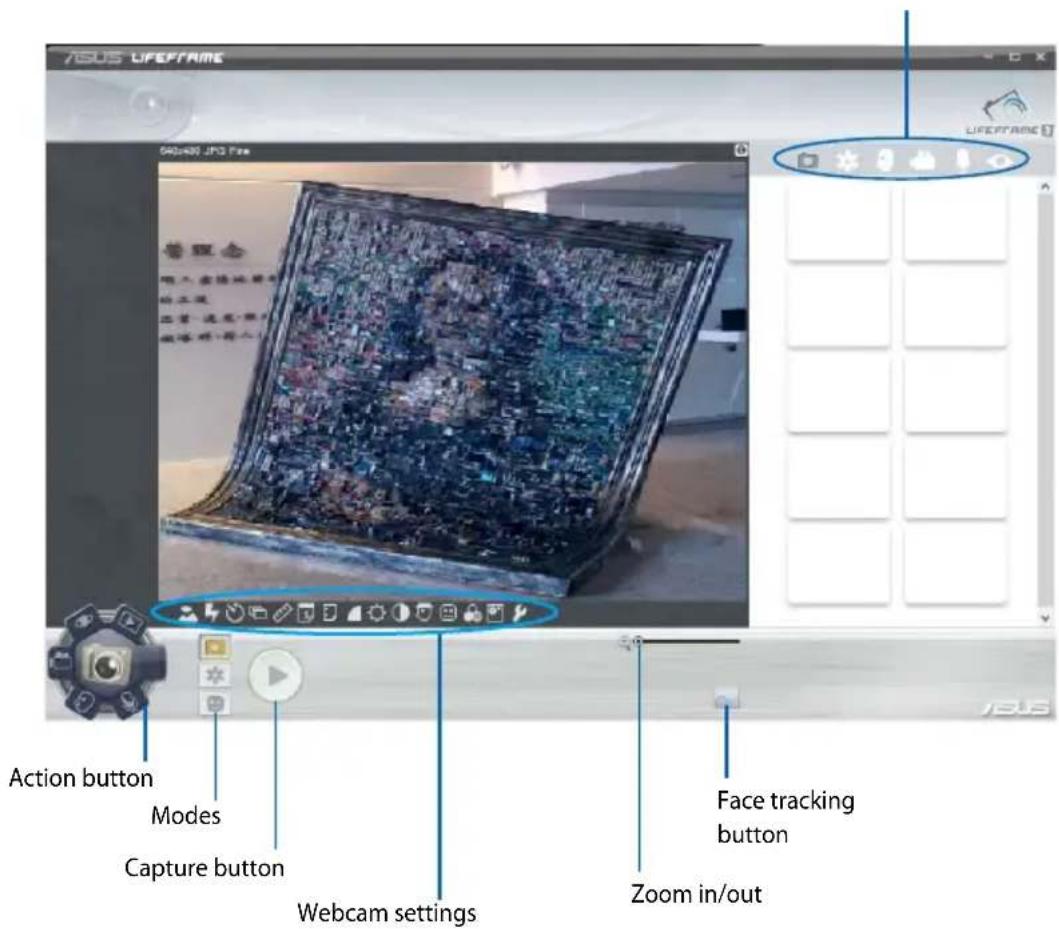

Launches the ASUS LifeFrame app

Launches the ASUS Power4Gear Hybrid app

Windows®8 keys

There are two special Windows® keys on your Notebook PC's keyboard used as below:

Press this key to go back to the Start screen. If you are already in the Start screen, press this key to go back to the last app you opened.

Press this key to simulate the right-click functions.

Multimedia control keys

The multimedia control keys allow you to control multimedia files, such as audios and videos, when played in your Notebook PC.

Press in combination with the arrow keys on your Notebook PC, illustrated as below:

Numeric keypad

home pgup pgdn end num lk scr lk / * - 7 home 8 ▲ 9 pgup + 4 ◀ 5 6 ► 1 end 2 ▼ 3 pgdn enter 0 insert · delete

A numeric keypad is available on selected Notebook PC models. You can use this keypad for numeric input or as pointer direction keys.

To use the numeric keypad as pointer direction keys, press shift0 + pgup x=1.

To use the numeric keypad for numeric input only, press shift合 + home

Using the optical drive

NOTE: The actual location of the electronic eject button may vary depending on your Notebook PC model.

Inserting an optical disc

1. While the Notebook PC is on, press the electronic eject button to partially eject the optical drive tray.

Illustration of a hand pointing at a panel with a blue arrow indicating a detail (no text or symbols present)

1. Gently pull out the drive tray.

IMPORTANT! Be careful not to touch the optical drive lens. Ensure that there are no objects that may get jammed under the drive tray.

Diagram showing a hand holding a CD to press a physical component, with numbered arrows indicating process steps.

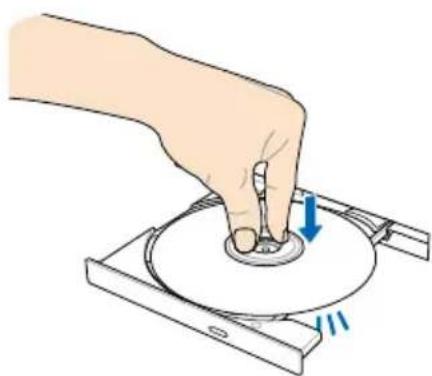

1. Hold the disc by the edge, with its printed side up, then gently place it inside the hub.

2. Push down the disc's plastic hub until it snaps onto the optical drive hub.

Hand pressing a CD into a slot with a blue arrow indicating direction (no text or symbols)

1. Push the drive tray gently to close the optical drive.

NOTE: While data is being read, it is normal to hear some spinning and vibrating in the optical drive.

Hand pointing at a component on a metal bracket (no text or symbols visible)

Manual eject hole

The manual eject hole is located on the optical drive door and is used to eject the optical drive tray in case the electronic eject button does not work.

To manually eject the optical drive tray, insert a straightened paper clip into the manual eject hole until the drive tray opens.

WARNING! Use the manual eject hole only when the electronic eject button does not work.

Chapter 3:

Working with Windows® 8

Starting for the first time

When you start your computer for the first time, a series of screens appear to guide you in configuring the basic settings of your Windows® 8 operating system.

To start your Notebook PC for the first time:

1. Press the power button on your Notebook PC. Wait for a few minutes until the setup screen appears.
2. From the setup screen, pick a language to use on your Notebook PC.

3. Carefully read the License Terms. Tick I accept the terms for using Windows then click Accept.

4. Follow the onscreen instructions to configure the following basic items:

5. Keep your PC secure

6. Personalize
7. Wireless
8. Settings

9. Sign in to your PC

10. After configuring the basic items, the Windows®8 tutorial appears. Watch this to learn more about Windows®8 functionalities.

Windows® 8 lock screen

The Windows®8 lock screen may appear when your Notebook PC enters the Windows®8 operating system. To proceed, tap on the lock screen or press any key on your Notebook PC's keyboard.

Windows® UI

Windows® 8 comes with a tile-based user interface (UI) which allows you to organize and easily access Windows® apps from the Start screen. It also includes the following features that you can use while working on your Notebook PC.

Start screen

The Start screen appears after successfully signing in to your user account. It helps organize all the applications you need in just one place.

User account ASUS-PC Start Zoom in/out button

Windows® apps

These are apps pinned on the Start screen and displayed on tiled-format for easy access.

NOTE: Some apps require signing in to your Microsoft account before they are fully launched.

Hotspots

Onscreen hotspots allow you to launch programs and access the settings of your Notebook PC. The functions in these hotspots can be activated using the touchpad.

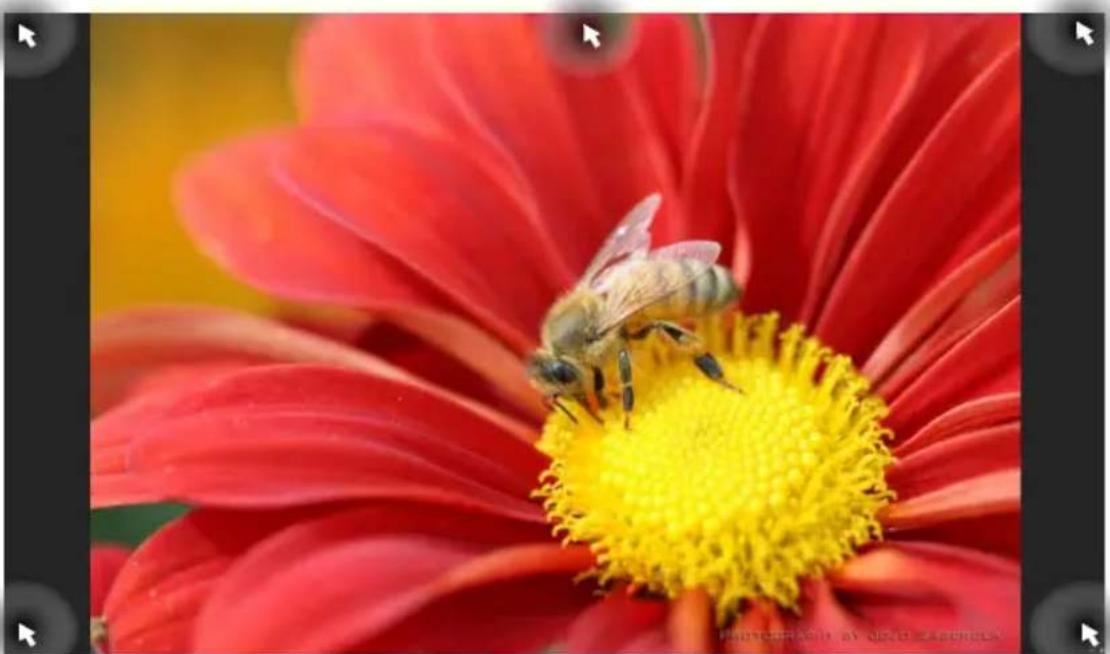

Hotspots on a running app

Close-up of a bee pollinating a vibrant red flower with yellow center (no text or symbols visible)

Hotspots on the Start screen

Start ASUS-PC

Hotspot Action

upper left corner Hover your mouse pointer on the upper left corner then tap on the recent app's thumbnail to revert back to that running app.

If you launched more than one app, slide down to show all running apps.

lower left corner From a running app's screen:

Hover your mouse pointer on the lower left corner then tap on the Start screen thumbnail to go back to the Start screen.

NOTE: You can also press the Windows key

on your keyboard to go back to the

Start screen.

From the Start screen:

Hover your mouse pointer on the lower left corner then tap on the running app's thumbnail to go back to that app.

top side Hover your mouse pointer on the top side until it changes to a hand icon. Drag then drop the app to a new location.

NOTE: This hotspot function only works on a running app or when you want to use the Snap feature. For more details, refer to the Snap feature under Working with Windows® apps.

upper or lower right corner Hover your mouse pointer on the upper or lower right corner to launch the Charms bar.

Working with Windows® apps

Use your Notebook PC's touchpad or keyboard to launch and customize your apps.

Launching apps

Position your mouse pointer over the app then left-click or tap once to launch it.

Press twice then use the arrow keys to browse

through the apps. Press to launch an app.

Customizing apps

You can move, resize, or unpin apps from the Start screen using the following steps:

Moving apps

Double-tap on the app then drag and drop the app to a new location.

Resizing apps

Right-click on the app to activate its settings bar then tap

Unpinning apps

To unpin an app from the Start screen, right-click on the

app to activate its settings then tap

Closing apps

1. Move your mouse pointer on the top side of the launched app then wait for the pointer to change to a hand icon.

2. Drag then drop the app to the bottom of the screen to close it.

From the running app's screen, press .alt + 4

Accessing the Apps screen

Aside from the apps already pinned on your Start screen, you can also open other applications through the Apps screen.

Apps Adobe Reader X AirDrive Calendar Camera Geography Finance Internet Explorer Mail Maps Messaging Microsoft Office Music News Phone Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline Browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline browser Airline publisher

Horizontal scroll bar

Launching the Apps screen

Launch the Apps screen using your Notebook PC's touchpad or keyboard.

Swipe from the top edge to launch the All Apps bar.

From the Start screen, press to select the All

Apps icon then press .

Pinning more apps on the Start screen

You can pin more apps on the Start screen using your touchpad.

1. Position the mouse pointer over the app you want to pin on the Start screen.

2. Right-click on the app to activate its settings.

3. Tap on the icon

Charms bar

The Charms bar is a toolbar that can be triggered on the right side of your screen. It consists of several tools that allow you to share applications and provide quick access for customizing the settings of your Notebook PC.

Capture Every Moment With an 6MP camera with LED flash, back-illuminated CMOS sensor and auto-focus function. VivoTab™ RT helps to clearly capture every moment. CMOS CMOS sensor and FCL2 sensor Pre-screen 1080p How to monitor the image & Light Default screen 12:00 Friday October 26 Charms bar

Launching the Charms bar

NOTE: When called out, the Charms bar initially appears as a set of white icons. The image above shows how the Charms bar looks like once activated.

Use your Notebook PC's touchpad or keyboard to launch the Charms bar.

Move your mouse pointer on the upper or lower right corner of the screen.

Press

Inside the Charms bar

Search

This tool allows you to look for files, applications, or programs in your Notebook PC.

Share

This tool allows you to share applications via social networking sites or email.

Start

This tool reverts the display back to the Start screen. From the Start screen, you can also use this to revert back to a recently opened app.

Devices

This tool allows you to access and share files with the devices attached to your Notebook PC such as an external display or printer.

Settings

This tool allows you to access the PC settings of your Notebook PC.

Snap feature

The Snap feature displays two apps side-by-side, allowing you to work or switch between apps.

IMPORTANT! Ensure that your Notebook PC's screen resolution is set to 1366 x 768 pixels or higher before using the Snap feature.

FLIGHT STATUS AVGINS LIGHT NUMBER GET STATUS Snap bar

Using Snap

Use your Notebook PC's touchpad or keyboard to activate and use Snap.

1. Launch the app you wish to snap.

2. Hover the mouse point on the top side of your screen.

3. Once the pointer changes to a hand icon, drag then drop the app to the left or right side of the display panel.

4. Launch another app.

1. Launch the app you wish to snap.

2. Press . [icon] + [icon]

3. Launch another app.

4. To switch between apps, press . + J

Other keyboard shortcuts

Using the keyboard, you can also use the following shortcuts to help you launch applications and navigate Windows®8.

Switches between the Start screen and the last running app

Launches the desktop

Launches the Computer window on Desktop mode

Opens the File search pane

Opens the Share pane

Opens the Settings pane

Opens the Devices pane

Activates the Lock screen

Minimizes the Internet Explorer window

Opens the Second screen pane Opens the Apps search pane Opens the Run window Opens Ease of Access Center Opens the Settings search pane Opens a menu box of Windows® tools Launches the magnifier icon and zooms in your screen Zooms out your screen Opens the Narrator Settings Enables the print screen function

Connecting to wireless networks

Wi-Fi

Access emails, surf the Internet, and share applications via social networking sites using your Notebook PC's Wi-Fi connection.

IMPORTANT! The Airplane mode disables this feature. Ensure that Airplane mode is turned off before enabling the Wi-Fi connection of your Notebook PC.

Enabling Wi-Fi

Activate Wi-Fi in your Notebook PC using the following steps:

1. Launch the Charms bar.

2. Tap and tap .

1. Select an access point from the list of available Wi-Fi connections.

Start Wi-Fi eurospot idle2007 knight_2G

1. Tap Connect to start the network connection.

NOTE: You may be prompted to enter a security key to activate the Wi-Fi connection.

1. If you want to enable sharing between your Notebook PC and other wireless-enabled systems, tap Yes, turn on sharing and connect to devices. Tap No, don't turn on sharing or connect to devices if you do not want to enable the sharing function.

Bluetooth

Use Bluetooth to facilitate wireless data transfers with other Bluetooth-enabled devices.

IMPORTANT! The Airplane mode disables this feature. Ensure that Airplane mode is turned off before enabling Bluetooth on your Notebook PC.

Pairing with other Bluetooth-enabled devices

You need to pair your Notebook PC with other Bluetooth-enabled devices to enable data transfers. To do this, use your touchpad as follows:

1. Launch the Charms bar.

2. Tap the tap Change PC Settings.

3. Under PC Settings, select Devices then tap Add a Device to search for Bluetooth-enabled devices.

PC settings Activate Windows Personalize Users Notifications Search Share General Privacy Devices Wireless Ease of Access Devices Add a device HID Keyboard Device Microsoft XPS Document Writer Download over metered connections To help prevent extra charges, keep this off so device software (drivers, info, and apps) for new devices won't download while you're on metered Internet connections. Off

1. Select a device from the list. Compare the passcode on your Notebook PC with the passcode sent to your chosen device. If they are the same, tap Yes to successfully pair your Notebook PC with the device.

NOTE: For some bluetooth-enabled devices, you may be prompted to key in the passcode of your Notebook PC.

Compare the passcodes Does the passcode on PadFone match this one? 359731 Yes No Cancel

Airplane mode

The Airplane mode disables wireless communication, allowing you to use your Notebook PC safely while in-flight.

Turning Airplane mode on

1. Launch the Charms bar.
2. Tap and tap .
3. Move the slider to the right to turn the Airplane mode on.

Press. fn + i2

Turning Airplane mode off

1. Launch the Charms bar.
2. Tap and tap .
3. Move the slider to the left to turn the Airplane mode off.

Press .fn+_i^f2

NOTE: Contact your airline provider to learn about related inflight services that can be used and restrictions that must be followed when using your Notebook PC in-flight.

Connecting to wired networks

You can also connect to wired networks, such as local area networks and broadband Internet connection, using your Notebook PC's LAN port.

NOTE: Contact your Internet Service Provider (ISP) for details or your network administrator for assistance in setting up your Internet connection.

To configure your settings, refer to the following procedures.

IMPORTANT! Ensure that a network cable is connected between your Notebook PC's LAN port and a local area network before performing the following actions.

Configuring a dynamic IP/PPPoE network connection

1. LaunchLaunch Desktop.
2. From the Windows * taskbar, right-click the network icon then tap Open Network and Sharing Center.
3. In the Network and Sharing Center window, tap Change adapter settings.
4. Right-click on your LAN then select Properties.

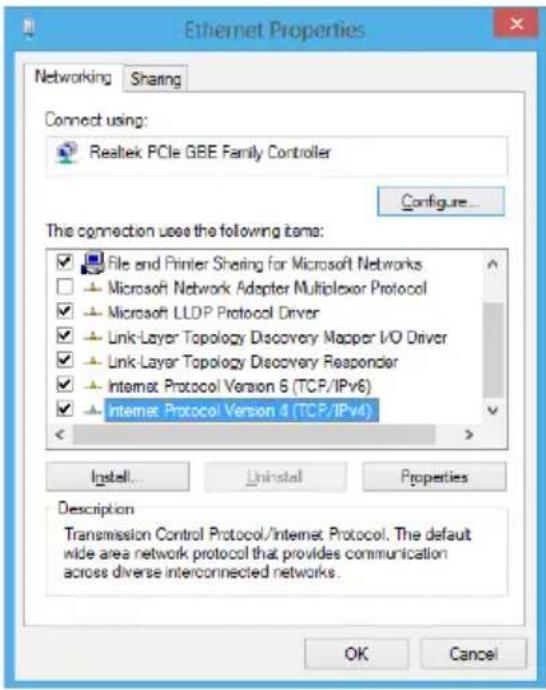

1. Tap Internet Protocol Version 4(TCP/IPv4) then tap Properties.

Ethernet Properties Networking Sharing Connect using: Realtek PCIe GBE Family Controller Configure... The connection uses the following items: File and Printer Sharing for Microsoft Networks Microsoft Network Adapter Multiplexor Protocol Microsoft LLDP Protocol Driver Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Internet Protocol Version 6 (TCP/IPv6) Internet Protocol Version 4 (TCP/IPv4) Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

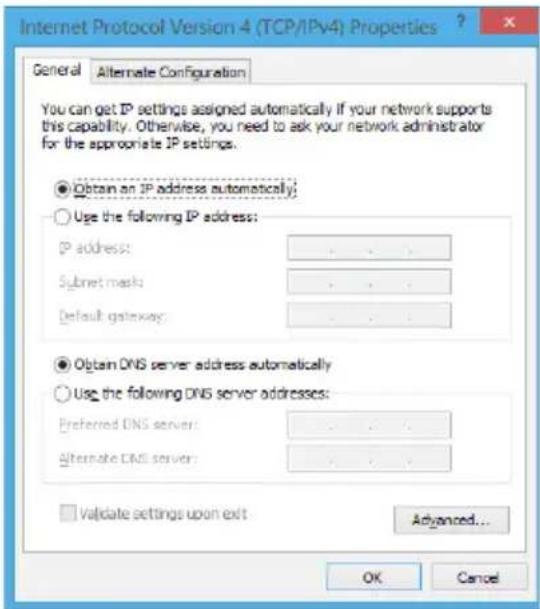

1. Tap Obtain an IP address automatically then tap OK.

Internet Protocol Version 4 (TCP/IPv4) Properties ? General Alternate Configuration You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the approximate IP settings. ● Obtain an IP address automatically; ○ Use the following IP address: IP address: ... Subnet mask: ... default gateway: ... ● Obtain DNS server address automatically ○ Use the following DNS server addresses: Preferred DNS server: ... Alternate DNS server: ... □ Validate settings upon exit Advanced... OK Cancel

NOTE: Proceed to the next steps if you are using PPPoE connection.

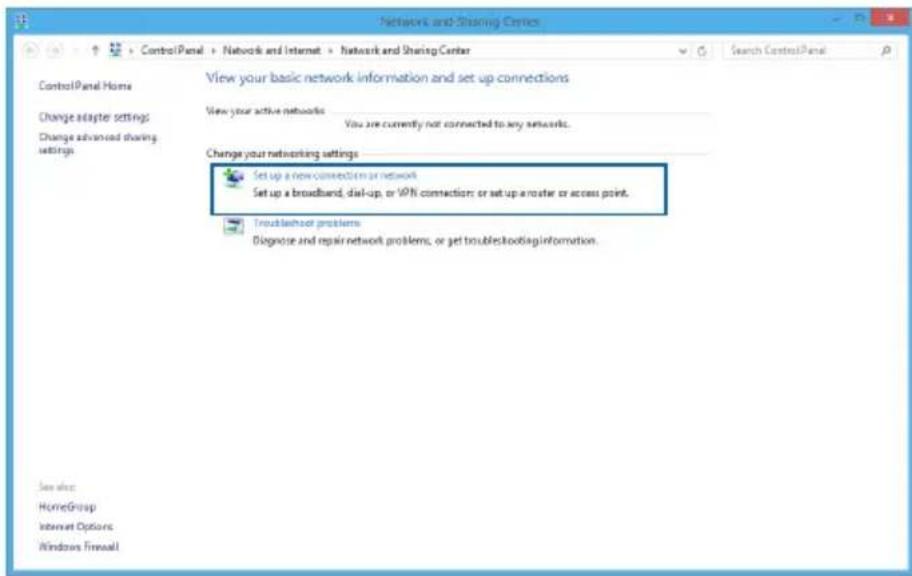

7. Return to the Network and Sharing Center window then tap Set up a new connection or network.

Network and Sharing Center Control Panel Home Change adapter settings Change advanced sharing settings View your basic network information and set up connections View your active networks You are currently not connected to any networks. Change your networking settings Set up a new connection or network Set up a broadband, dial-up, or VPN connection; or set up a router or access point. Troubleshoot problems Diagnose and repair network problems; or get troublebooting information. See also: HomeGroup Internet Options Windows Firewall

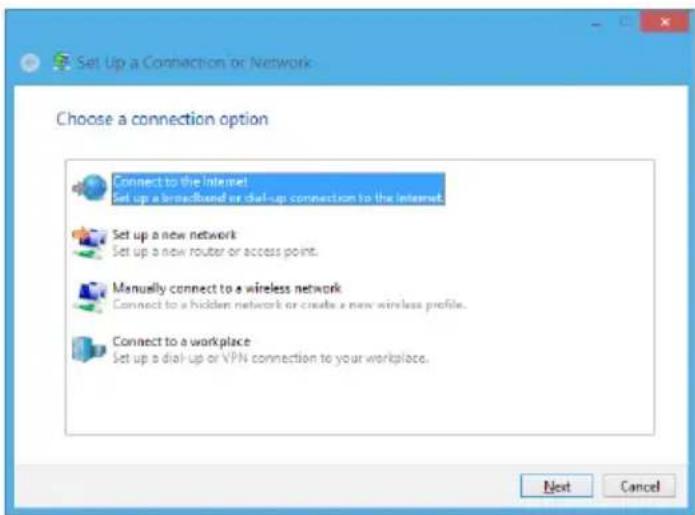

8. Select Connect to the Internet then tap Next.

Set Up a Connection or Network Choose a connection option Connect to the Internet Set up a broadband or dial-up connection to the Internet Set up a new network Set up a new router or access point. Manually connect to a wireless network Connect to a hidden network or create a new wireless profile. Connect to a workplace Set up a dial-up or VPN connection to your workplace. Next Cancel

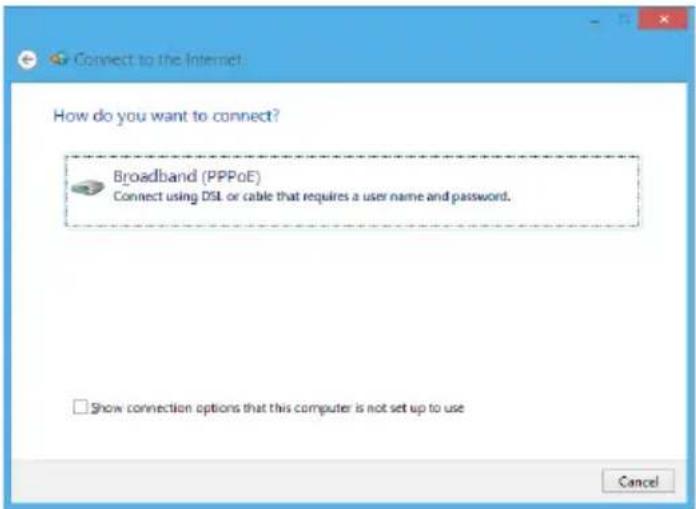

9. Tap Broadband (PPPoE).

Connect to the Internet! How do you want to connect? Broadband (PPPoE) Connect using DSL or cable that requires a user name and password. □ Show connection options that this computer is not set up to use Cancel

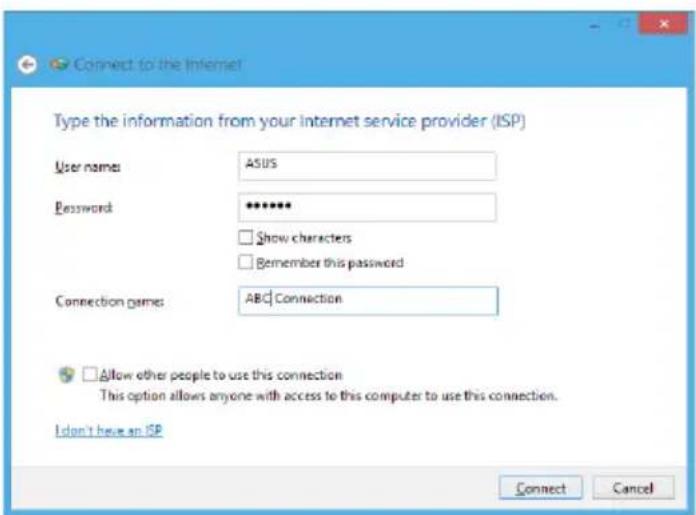

1. Type your User name, Password, and Connection name then tap Connect.

2. Tap Close to finish the configuration.

3. Tap on the taskbar then tap the connection you just created.

4. Type your user name and password then tap Connect to start connecting to the Internet.

Connect to the Internet Type the information from your internet service provider (ISP) User names: ASUS Password: ****** □ Show characters □ Remember this password Connection games: ABC Connection □ Allow other people to use this connection This option allows anyone with access to this computer to use this connection. I don't have an ISP Connect Cancel

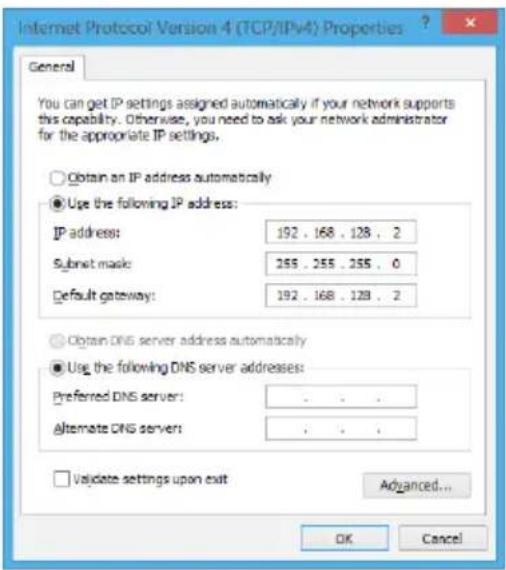

Configuring a static IP network connection

1. Repeat steps 1 to 5 under Configuring a dynamic IP/ PPPoE network connection.
   2 Tap Use the following IP address.
2. Type the IP address, Subnet mask and Default gateway from your service provider.
3. If needed, you can also type the preferred DNS server address and alternate DNS server address then tap OK.

Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 128 . 2 Subnet mask: 255 . 255 . 255 . 0 Default gateway: 192 . 168 . 128 . 2 Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced... OK Cancel

Turning your Notebook PC off

You can turn off your Notebook PC by doing either of the following procedures:

e Charms bar then tap >

Shut down to do a normal shutdown.

- From the log-in screen, tap > Shut down.

- You can also shut down your Notebook PC using Desktop mode. To do this, launch the desktop then press alt + f4 to launch the Shut Down window. Select Shut Down from the drop-down list then select OK.

- If your Notebook PC is unresponsive, press and hold the power button for at least four (4) seconds until your Notebook PC turns off.

Putting your Notebook PC to sleep

To put your Notebook PC on Sleep mode, press the power button once.

You can also put your Notebook PC to sleep mode using Desktop mode. To do this, launch the desktop then press alt + f4 to launch the Shut Down window. Select Sleep from the drop-down list then select OK.

Chapter 4:

ASUS apps

Featured ASUS Apps

LifeFrame

Enhance your webcam functions through the LifeFrame app. Create snapshots, edit photos, record videos, record audio files, use your webcam as a security monitoring device, and play games using this app.

To launch LifeFrame

Press . fn + V

The archive toolbar displays a function's saved files in thumbnail view.

76US LIFEFRAME 540x490.JPG Free Action button Modes Capture button Webcam settings Face tracking button Zoom in/out

LifeFrame functions

Camera

Use this function to take pictures using your webcam.

Camcorder

Use this function to take videos through your webcam.

Monitor

This function lets you use your webcam as a security video monitor as it automatically detects movement then captures it on photo.

Voice Recorder

Use this function to record audio files in your Notebook PC.

Game

This function lets you play games using the webcam.

Power4Gear Hybrid

Optimize the performance of your Notebook PC using the power saving modes in Power4Gear.

NOTE: Unplugging the Notebook PC from its power adapter automatically switches Power4Gear Hybrid to Battery Saving mode.

To launch Power4Gear Hybrid

Press

Select from these power saving modes.

Power4Gear Hybrid Performance Battery Saving On Battery Plugged In Advanced Settings Enable/Disable

Use these options to customize your power saving mode.

Allows you to hide the desktop icons onscreen and turns the presentation mode on or off.

Performance mode

Use this mode when doing high-performance activities like playing games or conducting business presentations using your Notebook PC.

Battery Saving mode

This mode extends your Notebook PC's battery life while plugged in to the power adapter or while running on battery power only.

USB Charger+

USB Charger+ allows you to quick-charge mobile devices via your ASUS Notebook PC's USB charge port.

This feature can also be used even while your Notebook PC is on sleep, hibernate, or shutdown mode (available on selected models only).

NOTE: USB Charger+ is available in your USB 3.0 charge port with the icon.

WARNING: If your connected device overheats, remove it immediately.

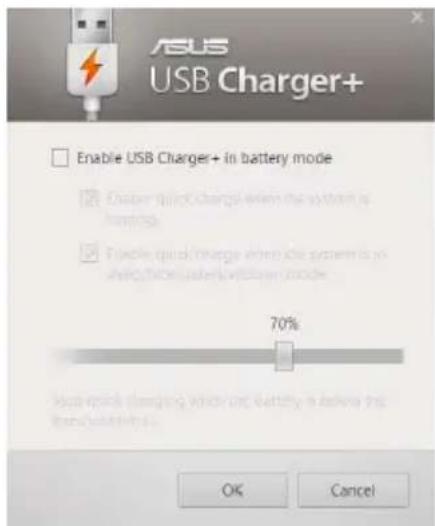

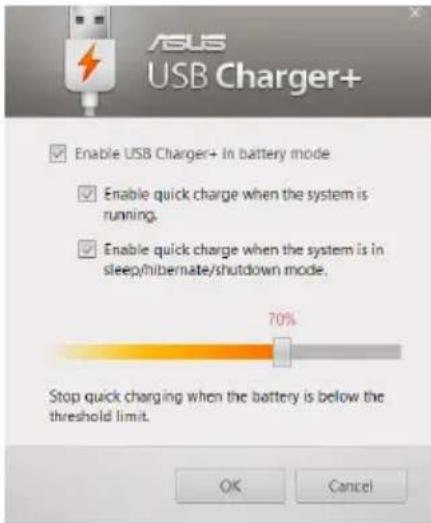

Using the USB Charger+ Settings

The USB Charger+ Settings lets you set the charge limit when your ASUS Notebook PC is running on battery power and allows you to charge devices while your Notebook PC is on sleep, hibernate, or shutdown mode.

1. Right-click on the USB Charger+ icon on the desktop tray, then click Settings.

2. Tick Enable USB Charger+ in battery mode.

ASUS USB Charger+ Enable USB Charger+ in battery mode Enable quick charging when the system is minutes Enable quick charging when the system is in which the system will be done 70% OK Cancel

1. Select one or both of these charging options: Enable quick charge when the system is running or Enable quick charge when the system is in sleep/hibernate/shutdown mode.

NOTE: On some models, the USB Charger+ automatically selects both options. You can deselect these two options, if necessary.

1. Move the percentage slider to the left or to the right to set the limit for charging devices.
2. Tap OK to save the settings made. Otherwise, tap Cancel.

ASUS USB Charger+ Enable USB Charger+ in battery mode Enable quick charge when the system is running. Enable quick charge when the system is in sleep/hibernate/shutdown mode. 70% Stop quick charging when the battery is below the threshold limit. OK Cancel

Instant On

Save battery power while your Notebook PC is on deep sleep mode (Deep S3) using Instant On.

NOTE: Deep S3 is a technology that lets you save more battery power while your ASUS Notebook PC is on sleep mode.

IMPORTANT! The standby time varies according to your Notebook PC's remaining battery capacity, computer model, configuration, and operating conditions.

Performance mode

This mode is default-enabled in your Notebook PC. It allows the system to return to its last working state in two seconds, even after your Notebook PC has entered into deep sleep mode.

Instant On Standby 8 days

Battery saving mode

This mode enables longer standby times allowing the battery to last for up to thirty (30) days or more. When enabled, the Notebook PC returns to its last working state in as fast as seven seconds, four hours after entering into deep sleep mode.

Instant On Standby 37 days

Tap this to activate the battery saving mode.

Chapter 5:

Power-on Self-test (POST)

The Power-on Self-test (POST)

The Power-on Self-test (POST) is a series of software-controlled diagnostic tests that run when you turn on or restart your Notebook PC. The software that controls the POST is installed as a permanent part of the Notebook PC's architecture.

Using POST to access BIOS and Troubleshoot

During POST, you can access the BIOS settings or run troubleshooting options using the function keys of your Notebook PC. You may refer to the following information for more details.

BIOS

The Basic Input and Output System (BIOS) stores system hardware settings that are needed for system startup in the Notebook PC.

The default BIOS settings apply to most conditions of your Notebook PC. Do not change the default BIOS settings except in the following circumstances:

• An error message appears onscreen during system bootup and requests you to run the BIOS Setup.
• You have installed a new system component that requires further BIOS settings or updates.

WARNING: Using inappropriate BIOS settings may result to system instability or boot failure. We strongly recommend that you change the BIOS settings only with the help of a trained service personnel.

Accessing BIOS

Restart your Notebook PC then press during POST.

BIOS Settings

NOTE: The BIOS screens in this section are for reference only. The actual screens may differ by model and territory.

Boot

This menu allows you to set your boot option priorities. You may refer to the following procedures when setting your boot priority.

1. On the Boot screen, select Boot Option #1.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Main Advance Boot Security Save & Exit
Boot Configuration Launch CSM [Enabled] Launch PXE OpROM [Disabled]
Driver Option Priorities
Boot Option Priorities Boot Option #1 [Windows Boot Manager] Boot Option #2 [P1: Hitachi HTS547..] Boot Option #3 [Atheros Boot Agent]
CD/DVD ROM Drive BBS Priorities Network Device BBS Priorities ► Add New Boot Option ► Delete Boot Option	Sets the system boot order →← : Select Screen ↑↓ : Select Item Enter: Select +/- : Change Opt. F1 : General Help F9 : Optimized Defaults F10 : Save & Exit ESC : Exit

Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.

2. Press and select a device as the Boot Option #1.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advance Boot Security Save & Exit Boot Configuration Launch CSM [Enabled] Launch PXE OpROM [Disabled] Driver Option Priorities Boot Option Priorities Boot Option #1 [Windows Boot Manager] Boot Option #2 [P1: Hitachi HTS547..] Boot Option #3 CD/DVD ROM Drive BB Network Device BBS Add New Boot Option Delete Boot Option Boot Option #1 Atheros Boot Agent P1: Hitachi HTS547575A9E384 Windows Boot Manager Disabled Sets the system boot order →← : Select Screen ↑↓ : Select Item Enter: Select +/- : Change Opt. F1 : General Help F9 : Optimized Defaults F10 : Save & Exit ESC : Exit Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.

Security

This menu allows you to set up the administrator and user password of your Notebook PC. It also allows you to control the access to your Notebook PC's hard disk drive, input/output (I/O) interface, and USB interface.

NOTE:

• If you install a User Password, you will be prompted to input this before entering your Notebook PC's operating system.
• If you install an Administrator Password, you will be prompted to input this before entering BIOS.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Password Description If ONLY the Administrator's password is set,then this only limits access to Setup and is only asked for when entering Setup. If ONLY the user's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup, the User will have Administrator rights. Administrator Password Status NOT INSTALLED User Password Status NOT INSTALLED Administrator Password User Password HDD User Password Status: NOT INSTALLED Set Master Password Set User Password ► I/O Interface Security ► Secure Boot Control [Enabled]	Set Administrator Password. The password length must be in the following range: Minimum length 3 Maximum length 20 Must type with character: a-z, 0-9 →← : Select Screen ↑↓ : Select Item Enter: Select +/- : Change Opt. F1 : General Help F9 : Optimized Defaults F10 : Save & Exit ESC : Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.

To set the password:

1. On the Security screen, select Administrator Password or User Password.
2. Type in a password then press . enter
3. Re-type to confirm the password then press . enter

To clear the password:

1. On the Security screen, select Administrator Password or User Password.
2. Type in the current password then press . enter
3. Leave the Create New Password field blank then press

1. Select Yes in the confirmation box then press . enter

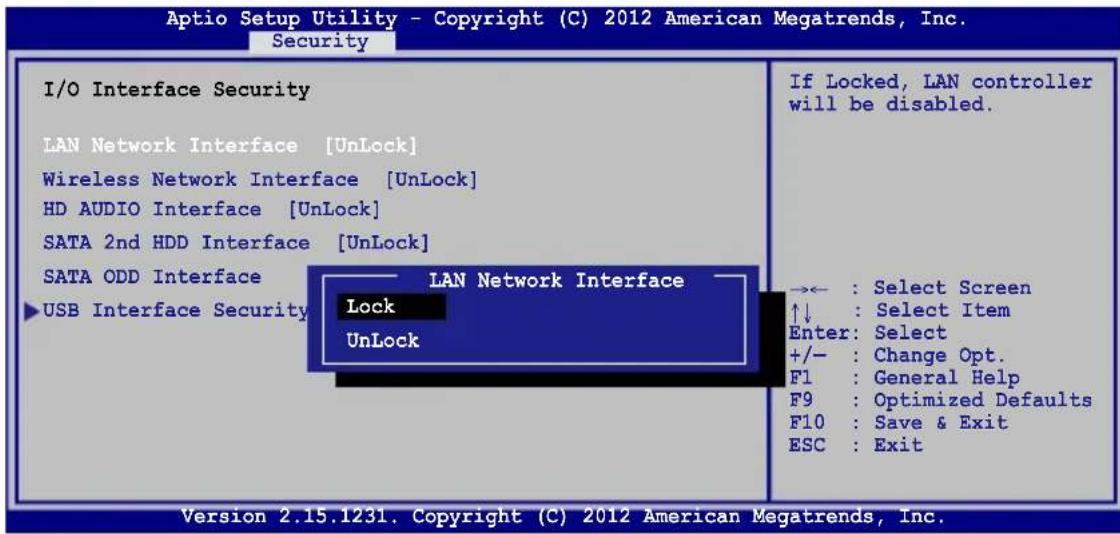

I/O Interface Security

In the Security menu, you can access I/O Interface Security to lock or unlock some interface functions of your Notebook PC.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Security I/O Interface Security LAN Network Interface [UnLock] Wireless Network Interface [UnLock] HD AUDIO Interface [UnLock] SATA 2nd HDD Interface [UnLock] SATA ODD Interface USB Interface Security LAN Network Interface Lock UnLock If Locked, LAN controller will be disabled. →← : Select Screen ↑↓ : Select Item Enter: Select +/- : Change Opt. F1 : General Help F9 : Optimized Defaults F10 : Save & Exit ESC : Exit Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.

To lock an interface:

1. On the Security screen, select I/O Interface Security.
2. Select an interface you would like to lock then press

1. Select Lock.

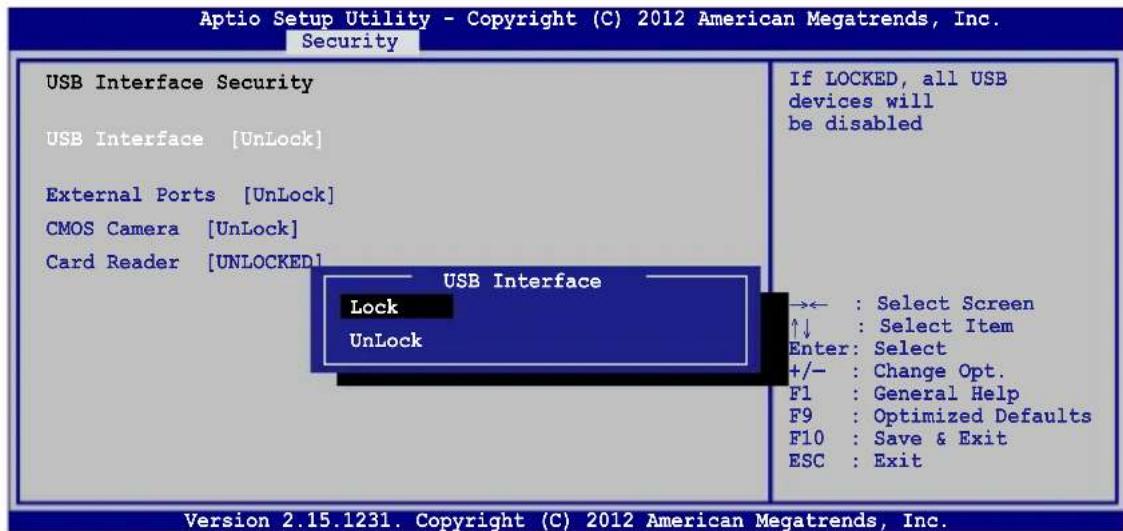

USB Interface Security

Through the I/O Interface Security menu, you can also access USB Interface Security to lock or unlock ports and devices.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Security USB Interface Security USB Interface [UnLock] External Ports [UnLock] CMOS Camera [UnLock] Card Reader [UNLOCKED] USB Interface Lock UnLock If LOCKED, all USB devices will be disabled →← : Select Screen ↑↓ : Select Item Enter: Select +/- : Change Opt. F1 : General Help F9 : Optimized Defaults F10 : Save & Exit ESC : Exit Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.

To lock the USB interface:

1. On the Security screen, select I/O Interface Security > USB Interface Security.
2. Select an interface that you would like to lock then select Lock.

NOTE: Setting the USB Interface to Lock also locks and hides the External Ports and other devices included under USB Interface Security.

Set Master Password

In the Security menu, you can use Set Master Password to set up a password-enabled access to your hard disk drive.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Main Advance Boot Security Save & Exit
Password Description If ONLY the Administrator's password is set,then this only limits access to Setup and is only asked for when entering Setup. If ONLY the user's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup, the User will have Administrator rights. Administrator Password Status NOT INSTALLED User Password Status NOT INSTALLED Administrator Password User Password HDD User Pwd Status : NOT INSTALLED Set Master Password Set User Password ► I/O Interface Security ► Secure Boot Control [Disabled]	Set HDD Master Password. ***Advisable to Power Cycle System after Setting Hard Disk Passwords*** →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F9: Optimized Defaults F10: Save & Exit ESC: Exit

Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.

To set the HDD password:

1. On the Security screen, select Set Master Password.

2. Type in a password then press .

1. Re-type to confirm the password then press .

1. Select Set User Password then repeat the previous steps to set up the user password.

Save & Exit

To keep your configuration settings, select Save Changes and Exit before exiting the BIOS.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Main Advance Boot Security Save & Exit
Save Changes and Exit Discard Changes and Exit Save Options Save Changes Discard Changes Restore Defaults Boot Override Atheros Boot Agent P1: Hitachi HTS547575A9E384 Windows Boot Manager Launch EFI Shell from filesystem device	Exit system setup after saving the changes. →← : Select Screen ↑↓ : Select Item Enter: Select +/- : Change Opt. F1 : General Help F9 : Optimized Defaults F10 : Save & Exit ESC : Exit

Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.

To update the BIOS:

1. Verify the Notebook PC's exact model then download the latest BIOS file for your model from the ASUS website.
2. Save a copy of the downloaded BIOS file to a flash disk drive.
3. Connect your flash disk drive to your Notebook PC.
4. Restart your Notebook PC then press during POST.
5. From the BIOS menu, Select Advanced > Start Easy Flash, then

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advance Boot Security Save & Exit
Start Easy Flash Internal Pointing Device [Enabled] Wake on Lid Open [Enabled] Power Off Energy Saving [Enabled] ASUS USB Charger+ in battery mode [Disabled] Intel Virtualization Technology [Enabled] Intel AES-NI [Enabled] CPU C states [Disabled] VT-d [Enabled] ►SATA Configuration ►Graphics Configuration ►Intel (R) Thunderbolt ►USB Configuration ►Intel (R) Anti-Theft Technology Corporation ►Network Stack	Press Enter to run the utility to select and update BIOS. →← : Select Screen ↑↓ : Select Item Enter: Select +/- : Change Opt. F1 : General Help F9 : Optimized Defaults F10 : Save & Exit ESC : Exit
Version 2.15.1231. Copyright (C) 2012 American Megatrends, Inc.

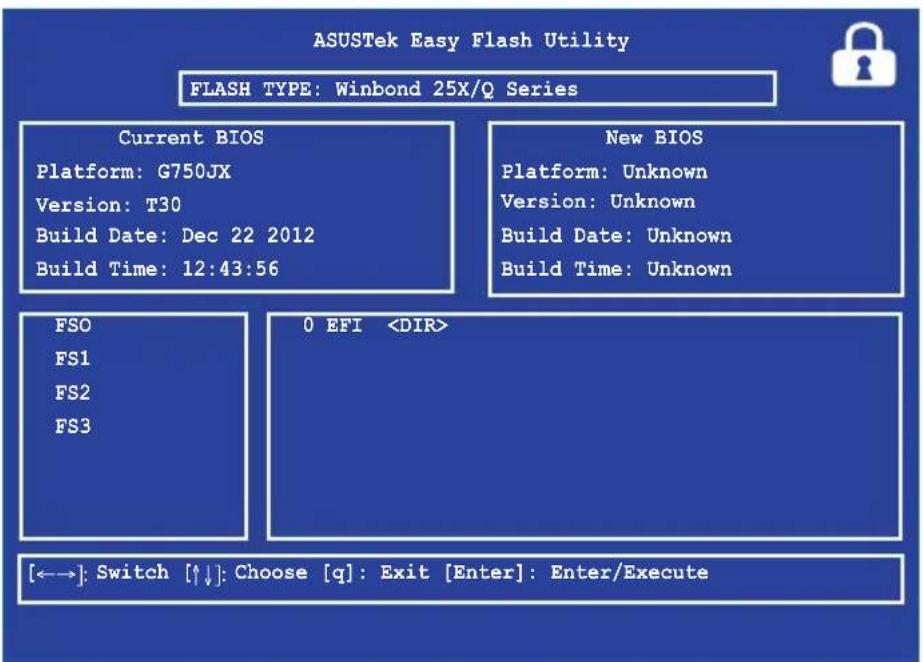

1. Locate your downloaded BIOS file in the flash disk drive then

ASUSTek Easy Flash Utility FLASH TYPE: Winbond 25X/Q Series Current BIOS Platform: G750JX Version: T30 Build Date: Dec 22 2012 Build Time: 12:43:56 New BIOS Platform: Unknown Version: Unknown Build Date: Unknown Build Time: Unknown FSO FS1 FS2 FS3 0 EFI [←→]: Switch [↑↓]: Choose [q]: Exit [Enter]: Enter/Execute

1. After the BIOS update process, select Exit >Restore Defaults to restore the system to its default settings.

Troubleshoot

By pressing during POST, you can access Windows® 8 troubleshoot options which includes the following:

• Refresh your PC
• Reset your PC
• Advanced options

Refresh your PC

Use Refresh your PC if you want to refresh your system without losing your current files and applications.

To access this during POST:

1. Restart your Notebook PC then press during POST.
2. Wait for Windows ^® to load the Choose an option screen then tap Troubleshoot.
3. Tap Refresh your PC.
4. In the Refresh your PC screen, read the bullet points to learn more about using this option then tap Next.
5. Tap the account you would like to refresh.
6. Type your account password then tap Continue.
7. Tap Refresh.

IMPORTANT! Ensure that your Notebook PC is plugged in to a power source before refreshing your system.

Reset your PC

IMPORTANT! Back up all your data before performing this option.

Use Reset your PC to restore your Notebook PC to its default settings.

To access this during POST:

1. Restart your Notebook PC then press during POST.
2. Wait for Windows ^® to load the Choose an option screen then tap Troubleshoot.
3. Tap Reset your PC.
4. In the Reset your PC screen, read the bullet points to learn more about using this option then tap Next.
5. Tap your preferred reset option: Just remove my files or Fully clean the drive.
6. Tap Reset.

IMPORTANT! Ensure that your Notebook PC is plugged in to a power source before resetting your system.

Advanced options

Use Advanced options to perform additional troubleshooting options in your Notebook PC.

To access this during POST:

1. Restart your Notebook PC then press during POST.
2. Wait for Windows ^® to load the Choose an option screen then tap Troubleshoot.
3. Tap Advanced options.
4. In the Advanced options screen, select the troubleshooting option you wish to perform.
5. Follow the succeeding steps to complete the process.

Using System Image Recovery

Under Advanced options, you can use System Image Recovery to recover your system using your Notebook PC's original image file.

To access this during POST:

1. Restart your Notebook PC then press during POST.

1. Wait for Windows ^® to load the Choose an option screen then tap Troubleshoot.

2. Tap Advanced options.

3. In the Advanced options screen, select System Image Recovery.

4. Choose an account you would like to recover using a system image file.

5. Type your account password then tap Continue.

6. Select Use the latest available system image (recommended), then tap Next. You can also choose Select a system image if your system image is in an external device or DVD.

7. Follow the succeeding steps to complete the system image recovery procedure.

NOTE: We strongly recommend that you regularly backup your system to prevent data loss in case your Notebook PC stops working.

Chapter 6:

Upgrading your Notebook PC

Installing a Random Access Memory (RAM) module

Upgrade the memory capacity of your Notebook PC by installing a RAM module in the memory module compartment. The following steps show you how to install a RAM module into your Notebook PC:

WARNING! Disconnect all the connected peripherals, any telephone or telecommunication lines and power connector (such as external power supply, battery pack, etc.) before removing the compartment cover.

IMPORTANT! Visit an authorized service center or retailer for information on RAM module upgrades for your Notebook PC. Purchase RAM modules from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.

NOTE: The appearance of your Notebook PC's bottom side and RAM module may vary per model but the RAM module installation remains the same.

A. Pull out the rubber cover on the bottom side of your Notebook PC.
B. Loosen the screw of the Notebook PC's compartment cover.
C. Pull out the compartment cover and remove it completely from your Notebook PC.

B A C

D. Align and insert the RAM module into the RAM module slot.
E. Push down the RAM module until it clicks in place

D 30° angle E notches

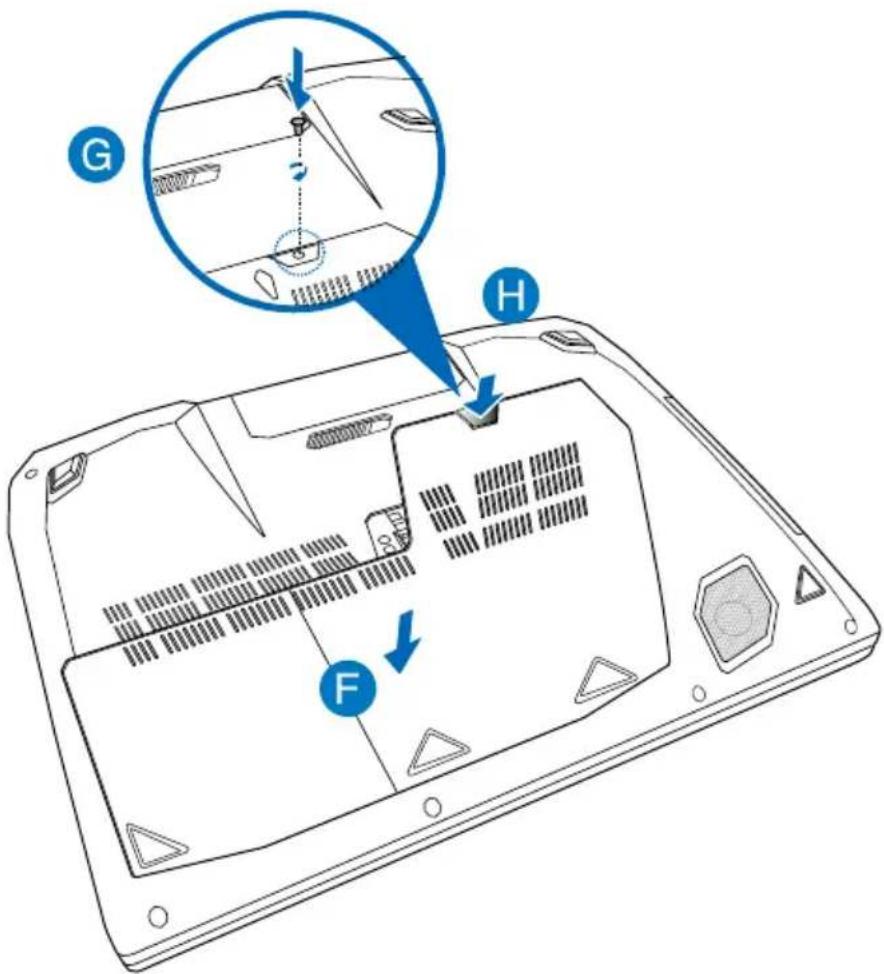

F. Align then push down the compartment cover back into place.
G. Reattach and tighten the screw that you removed earlier.
H. Reattach the rubber cover on the compartment cover.

G H F

Replacing the Hard Disk Drive (HDD)

Refer to the following steps if you need to replace the hard disk drive of your Notebook PC.

IMPORTANT! Purchase an HDD from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability. It is recommended that you replace the HDD under professional supervision. You may also visit an authorized service center for further assistance.

WARNING! Disconnect all the connected peripherals, any telephone or telecommunication lines and power connector (such as external power supply, battery pack, etc.) before removing the compartment cover.

NOTE: The appearance of your Notebook PC's bottom side and HDD may vary per model but the HDD installation remains the same.

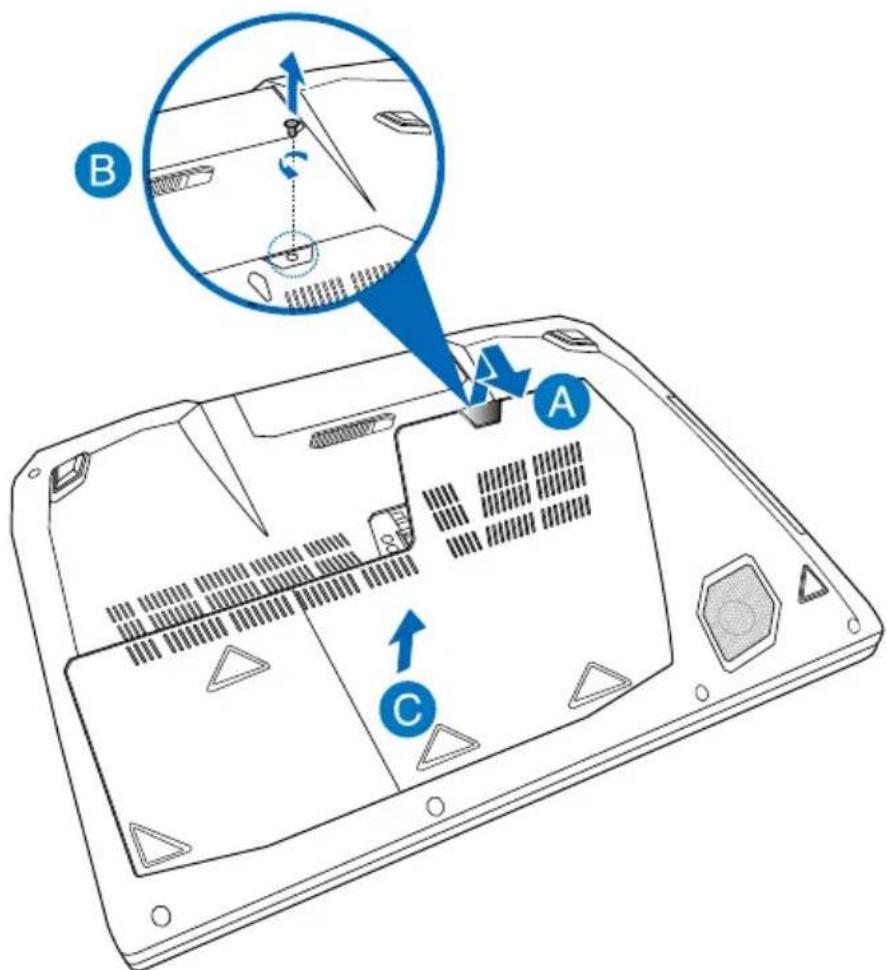

A. Pull out the rubber cover on the bottom side of your Notebook PC.
B. Loosen the screw of the Notebook PC's compartment cover.
C. Pull out the compartment cover and remove it completely from your Notebook PC.

B A C

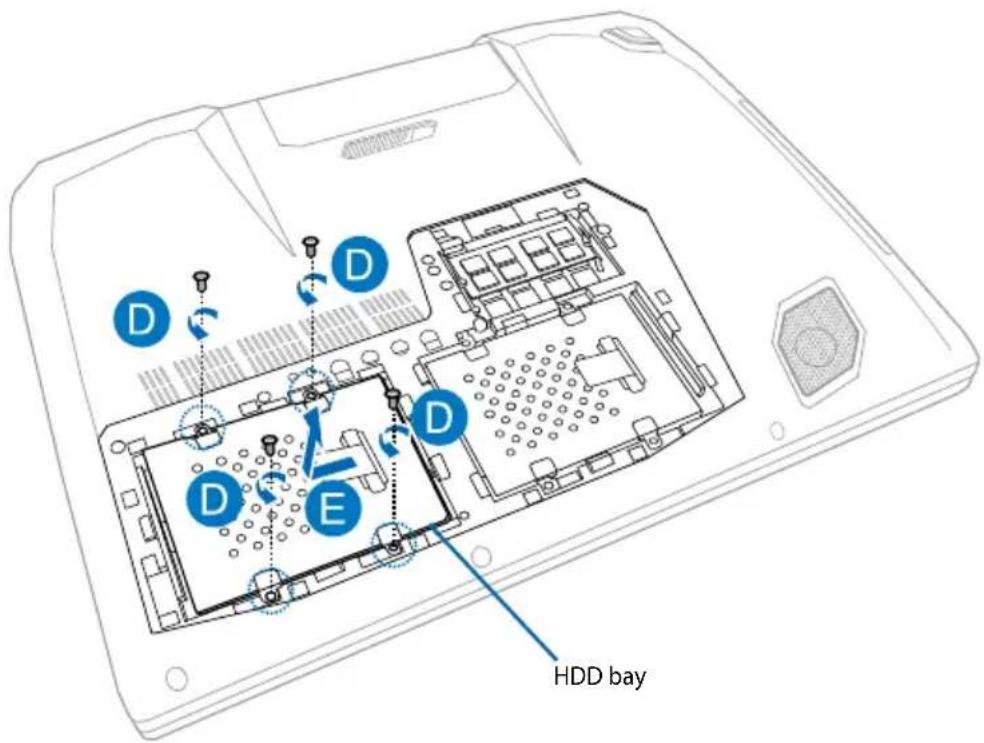

D. Remove the screws securing the HDD bay to the compartment.

E. Disconnect the HDD bay from the HDD port then remove the HDD bay from the compartment.

D D D E HDD bay

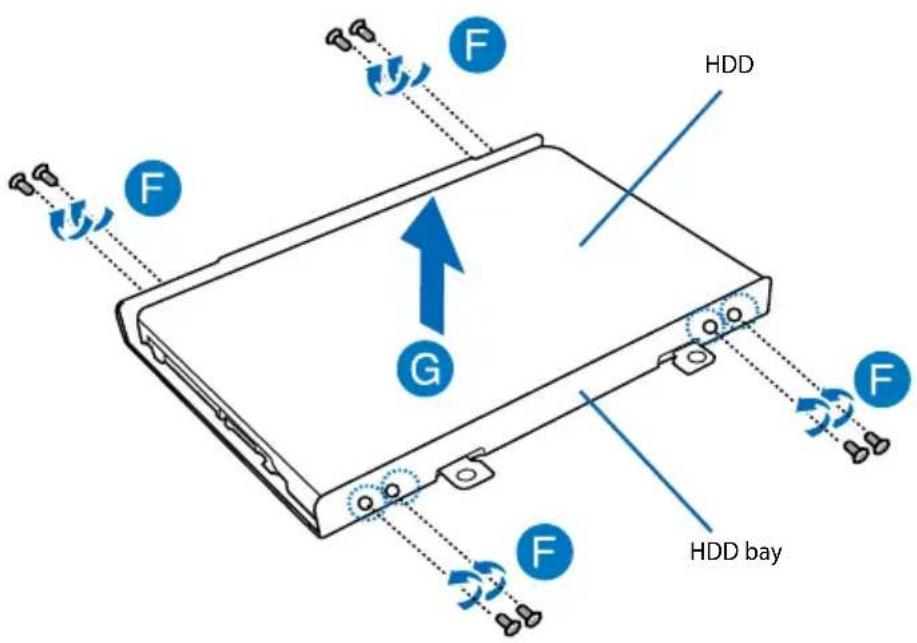

F. Turn the HDD bay upside down then remove the screws.

G. Remove the old HDD from the HDD bay.

F G HDD F F F HDD bay

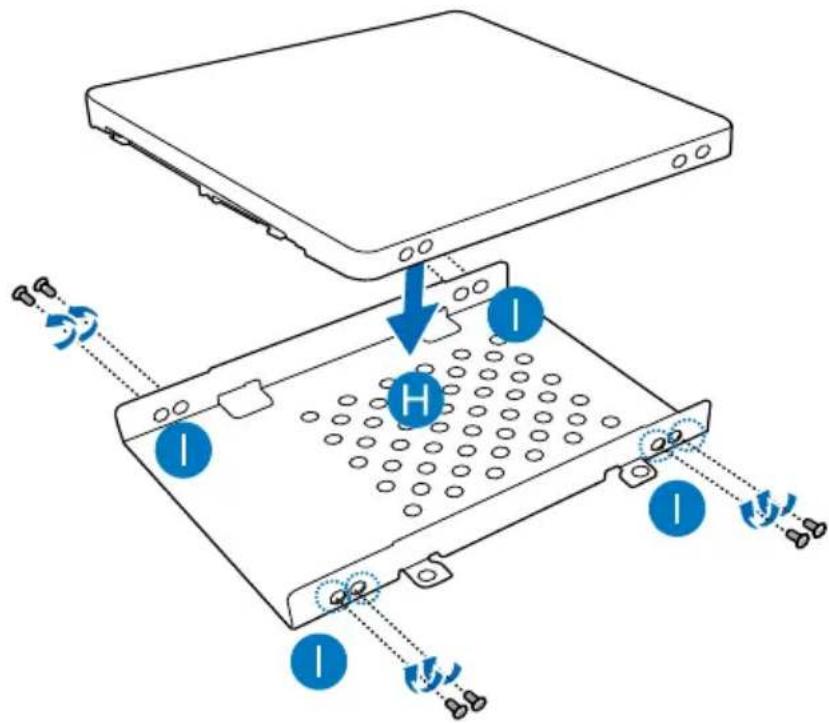

H. Place the new HDD with its PCB (printed circuit board) facing the HDD bay. Ensure that the port connectors of your HDD are not obstructed by any part of the HDD bay.

I. Reattach and secure the HDD with the screws you removed earlier.

Diagram showing device rear panel with labeled ports and connection arrows, including 'I' and 'H' labels

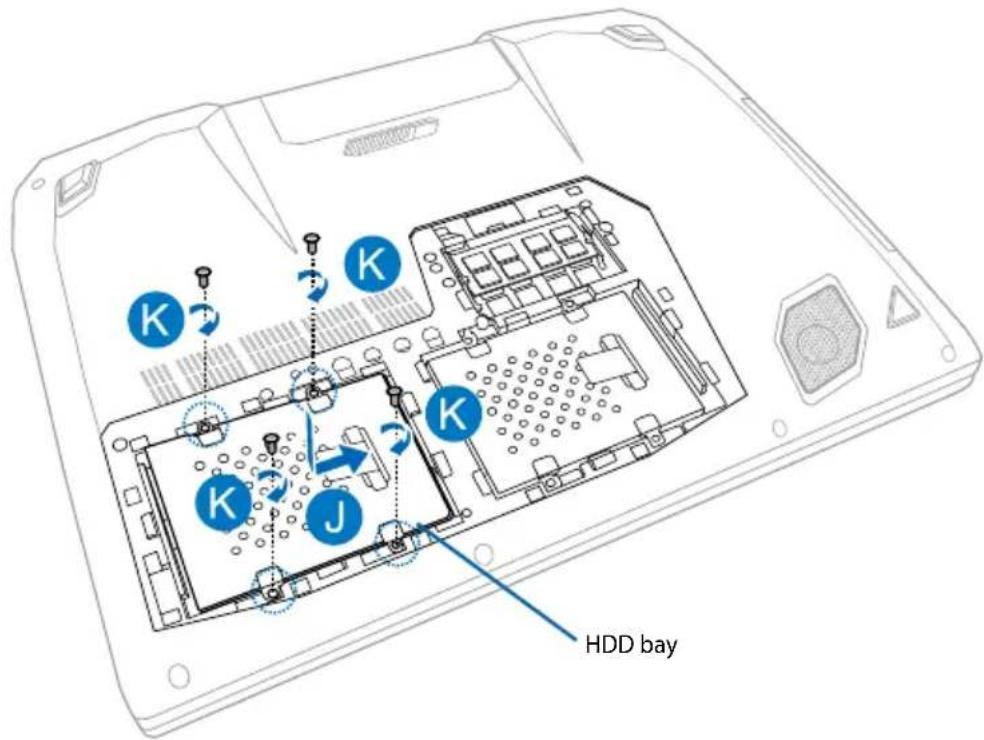

J. Replace the HDD bay back in the compartment, with the HDD connector aligned with the Notebook PC's HDD port. Push the HDD bay until it connects with the Notebook PC.

K. Secure the HDD bay with the screws you removed earlier.

K K K J K HDD bay

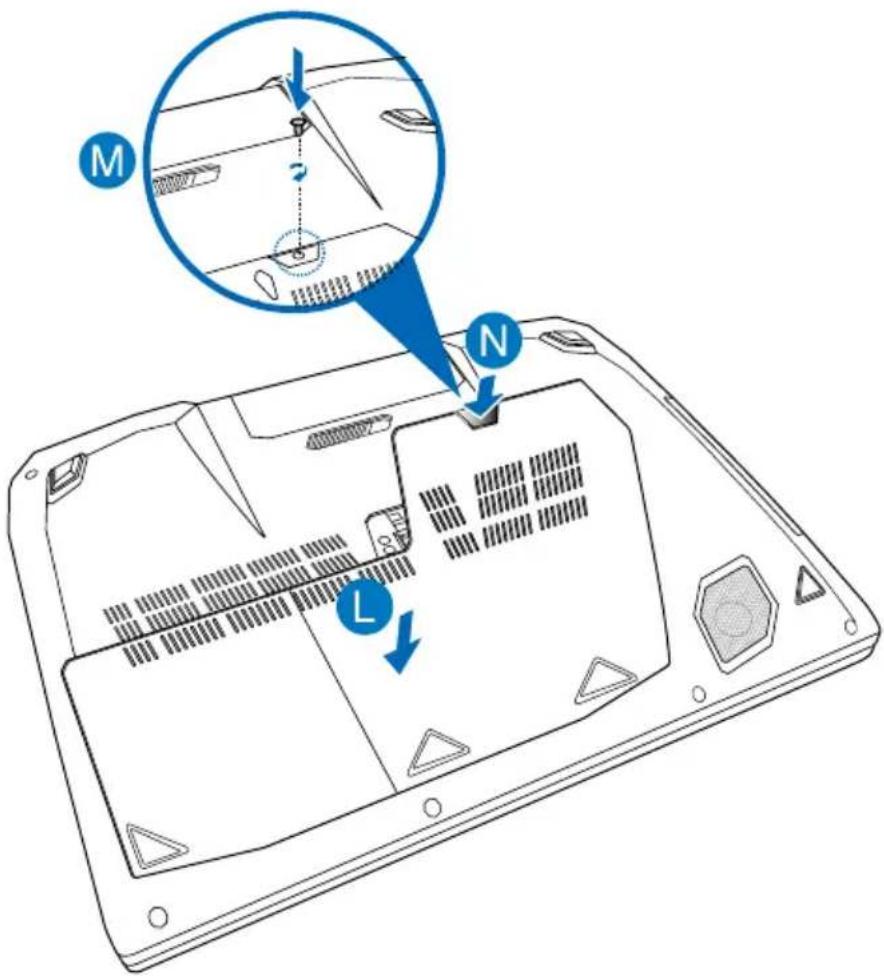

L. Align then push down the compartment cover back into place.
M. Reattach and tighten the screw that you removed earlier.
N. Reattach the rubber cover on the compartment cover.

M N L

Installing a new battery pack

WARNING! Turn off your Notebook PC and disconnect all connected peripherals, any telephone or telecommunication lines and power connector, before removing the battery pack.

IMPORTANT! Purchase battery packs from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.

NOTE: The following steps are also applicable for removing and replacing the battery pack of your Notebook PC.

Refer to the following steps when installing a new battery pack for your Notebook PC.

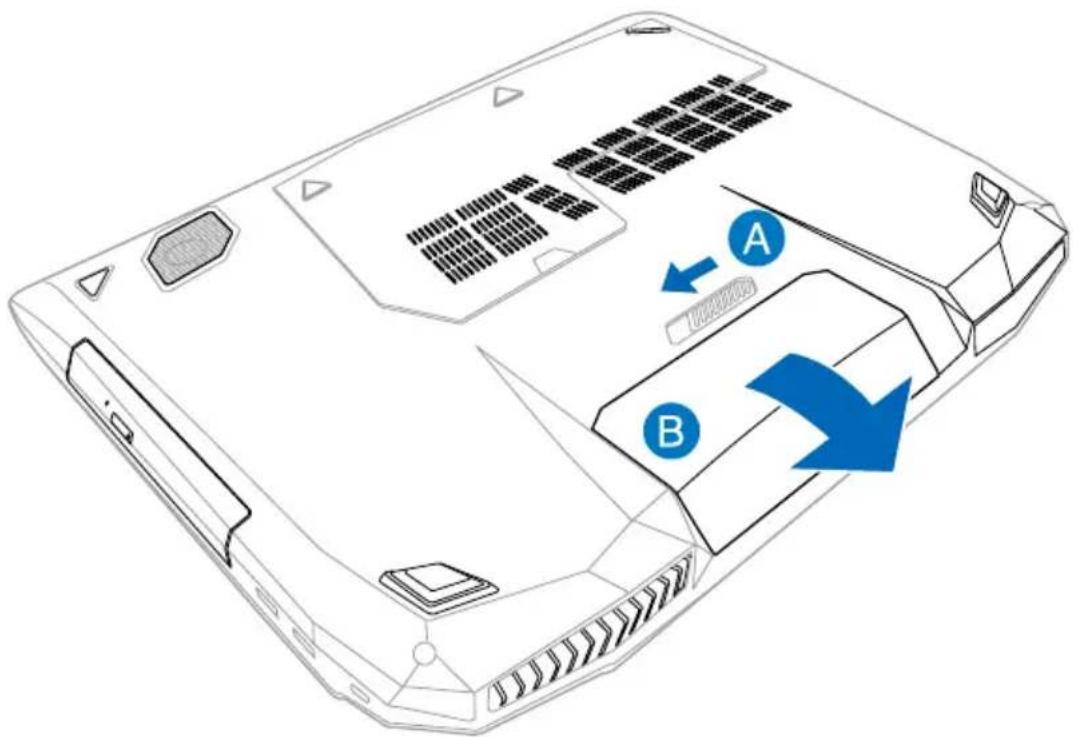

A. Move and hold the spring battery lock to an unlocked position.
B. Pull out the old battery pack from the battery slot then release your hold on the spring battery lock.

Diagram of a laptop back panel with labeled components A and B, showing internal layout and blue directional arrows indicating movement or flow.

C. Align and insert the new battery pack into the Notebook PC's battery slot.

Line drawing of a laptop's front panel with a blue arrow pointing to the interior panel (no text or symbols)

Appendices

DVD-ROM Drive Information (on selected models)

The DVD-ROM drive allows you to view and create your own CDs and DVDs. You can purchase an optional DVD viewer software to view DVD titles.

Regional Playback Information

Playback of DVD movie titles involves decoding MPEG2 video, digital AC3 audio and decryption of CSS protected content. CSS (sometimes called copy guard) is the name given to the content protection scheme adopted by the motion picture industry to satisfy a need to protect against unlawful content duplication.

Although the design rules imposed on CSS licensors are many, one rule that is most relevant is playback restrictions on regionalized content. In order to facilitate geographically staggered movie releases, DVD video titles are released for specific geographic regions as defined in “Region Definitions” below. Copyright laws require that all DVD movies be limited to a particular region (usually coded to the region at which it is sold). While DVD movie content may be released for multiple regions, CSS design rules require that any system capable of playing CSS encrypted content must only be capable of playing one region.

IMPORTANT! The region setting may be changed up to five times using the viewer software, then it can only play DVD movies for the last region setting. Changing the region code after that will require factory resetting which is not covered by warranty. If resetting is desired, shipping and resetting costs will be at the expense of the user.

Region Definitions

Region 1

Canada, US, US Territories

Region 2

Czech, Egypt, Finland, France, Germany, Gulf States, Hungary, Iceland, Iran, Iraq, Ireland, Italy, Japan, Netherlands, Norway, Poland, Portugal, Saudi Arabia, Scotland, South Africa, Spain, Sweden, Switzerland, Syria, Turkey, UK, Greece, Former Yugoslav Republics, Slovakia

Region 3

Burma, Indonesia, South Korea, Malaysia, Philippines, Singapore, Taiwan, Thailand, Vietnam

Region 4

Australia, Caribbean (Except US Territories), Central America, New Zealand, Pacific Islands, South America

Region 5

CIS, India, Pakistan, Rest of Africa, Russia, North Korea

Region 6

China

Blu-ray ROM Drive Information (on selected models)

The Blu-ray ROM Drive allows you to view high definition (HD) videos and other disc file formats such as DVDs and CDs.

Region Definitions

Region A

North, Central and South American countries, and their territories; Taiwan, Hong Kong, Macao, Japan, Korea (South and North), South East Asian countries and their territories.

Region B

European, African, and South West Asian countries and their territories; Australia and New Zealand.

Region C

Central, South Asian, Eastern European countries and their territories; China and Mongolia.

NOTE: Refer to Blu-ray Disc website at www.blu-raydisc.com/en/Technical/FAQs/Blu-rayDiscforVideo.aspx for more details.

Internal Modem Compliancy

The Notebook PC with internal modem model complies with JATE (Japan), FCC (US, Canada, Korea, Taiwan), and CTR21. The internal modem has been approved in accordance with Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone network (PSTN). However due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point. In the event of problems you should contact your equipment supplier in the first instance.

Overview

On 4th August 1998 the European Council Decision regarding the CTR 21 has been published in the Official Journal of the EC. The CTR 21 applies to all non voice terminal equipment with DTMF-dialling which is intended to be connected to the analogue PSTN (Public Switched Telephone Network).

CTR 21 (Common Technical Regulation) for the attachment requirements for connection to the analogue public switched telephone networks of terminal equipment (excluding terminal equipment supporting the voice telephony justified case service) in which network addressing, if provided, is by means of dual tone multifrequency signalling.

Network Compatibility Declaration

Statement to be made by the manufacturer to the Notified Body and the vendor: "This declaration will indicate the networks with which the equipment is designed to work and any notified networks with which the equipment may have inter-working difficulties"

Network Compatibility Declaration

Statement to be made by the manufacturer to the user: "This declaration will indicate the networks with which the equipment is designed to work and any notified networks with which the equipment may have inter-working difficulties. The manufacturer shall also associate a statement to make it clear where network compatibility is dependent on physical and software switch settings. It will also advise the user to contact the vendor if it is desired to use the equipment on another network."

Up to now the Notified Body of CETECOM issued several pan-European approvals using CTR 21. The results are Europe's first modems which do not require regulatory approvals in each individual European country.

Non-Voice Equipment

Answering machines and loud-speaking telephones can be eligible as well as modems, fax machines, auto-dialers and alarm systems. Equipment in which the end-to-end quality of speech is controlled by regulations (e.g. handset telephones and in some countries also cordless telephones) is excluded.

This table shows the countries currently under the CTR21 standard.

Country Applied More Testing

Austria ^1

Yes No

Belgium Yes No

Czech Republic No Not Applicable

Denmark ^1

Yes Yes

Finland Yes No

France Yes No

Germany Yes No

Greece Yes No

Hungary No Not Applicable

Iceland Yes No

Ireland Yes No

Italy Still Pending Still Pending

Israel

No No

Lichtenstein

Yes No

Luxemburg

Yes

No

The Netherlands ^1

Yes Yes

Norway

Yes No

Poland

No Not Applicable

Portugal No

Not Applicable

Spain

No Not Applicable

Sweden

Yes No

Switzerland

Yes No

United Kingdom

Yes No

This information was copied from CETECOM and is supplied without liability. For updates to this table, you may visit http://www.cetecom.de/technologies/ctr_21.html

1 National requirements will apply only if the equipment may use pulse dialling (manufacturers may state in the user guide that the equipment is only intended to support DTMF signalling, which would make any additional testing superfluous).

In The Netherlands additional testing is required for series connection and caller ID facilities.

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING! The use of a shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office.)

FCC Radio Frequency (RF) Exposure Caution Statement

WARNING! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. "The manufacture declares that this device is limited to Channels 1 through 11 in the 2.4GHz frequency by specified firmware controlled in the USA."

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

Declaration of Conformity (R&TTE directive 1999/5/EC)

The following items were completed and are considered relevant and sufficient:

• Essential requirements as in [Article 3]
- Protection requirements for health and safety as in [Article 3.1a]
- Testing for electric safety according to [EN 60950]
- Protection requirements for electromagnetic compatibility in [Article 3.1b]
- Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301 489-17]
• Effective use of the radio spectrum as in [Article 3.2]
• Radio test suites according to [EN 300 328-2]

CE Marking

CE

CE marking for devices without wireless LAN/Bluetooth

The shipped version of this device complies with the requirements of the EEC directives 2004/108/EC "Electromagnetic compatibility" and 2006/95/EC "Low voltage directive".

CE①

CE marking for devices with wireless LAN/ Bluetooth

This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity.

IC Radiation Exposure Statement for Canada

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with IC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

Operation is subject to the following two conditions:

• This device may not cause interference and
- This device must accept any interference, including interference that may cause undesired operation of the device.

To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite systems) this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

This device complies with Industry Canada licence-exempt RSS standard(s).

CAN ICES-3(B)/NMB-3(B)

Wireless Operation Channel for Different Domains

N. America 2.412-2.462 GHz Ch01 through CH11

Japan 2.412-2.484 GHz Ch01 through Ch14

Europe ETSI 2.412-2.472 GHz Ch01 through Ch13

France Restricted Wireless Frequency Bands

Some areas of France have a restricted frequency band. The worst case maximum authorized power indoors are:

• 10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz)
  • 100mW for frequencies between 2446.5 MHz and 2483.5 MHz

NOTE: Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5 MHz.

There are few possibilities for outdoor use: on private property or on the private property of public persons, use is subject to a preliminary authorization procedure by the Ministry of Defense, with maximum authorized power of 100mW in the 2446.5–2483.5 MHz band. Use outdoors on public property is not permitted.

In the departments listed below, for the entire 2.4 GHz band:

• Maximum authorized power indoors is 100mW
• Maximum authorized power outdoors is 10mW

Departments in which the use of the 2400–2483.5 MHz band is permitted with an EIRP of less than 100mW indoors and less than 10mW outdoors:

01 Ain 02 Aisne 03 Allier
05 Hautes Alpes 08 Ardennes 09 Ariège
11 Aude 12 Aveyron 16 Charente
24 Dordogne 25 Doubs 26 Drôme
32 Gers 36 Indre 37 Indre et Loire
41 Loir et Cher 45 Loiret 50 Manche
55 Meuse 58 Nièvre 59 Nord
60 Oise 61 Orne 63 Puy du Dôme
64 Pyrénées Atlantique 66 Pyrénées Orientales 67 Bas Rhin
68 Haut Rhin 70 Haute Saône 71 Saône et Loire
75 Paris 82 Tarn et Garonne 84 Vaucluse
88 Vosges 89 Yonne 90 Territoire de Belfort
94 Val de Marne

This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France. Please check with ART for the latest information (www.arcep.fr)

NOTE: Your WLAN Card transmits less than 100mW, but more than 10mW.

UL Safety Notices

Required for UL 1459 covering telecommunications (telephone) equipment intended to be electrically connected to a telecommunication network that has an operating voltage to ground that does not exceed 200V peak, 300V peak-to-peak, and 105V rms, and installed or used in accordance with the National Electrical Code (NFPA 70).

When using the Notebook PC modem, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• DO NOT use the Notebook PC near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
• DO NOT use the Notebook PC during an electrical storm. There may be a remote risk of electric shock from lightning.
• DO NOT use the Notebook PC in the vicinity of a gas leak.
  Required for UL 1642 covering primary (nonrechargeable) and secondary (rechargeable) lithium batteries for use as power sources in products. These batteries contain metallic lithium, or a lithium alloy, or a lithium ion, and may consist of a single electrochemical cell or two or more cells connected in series, parallel, or both, that convert chemical energy into electrical energy by an irreversible or reversible chemical reaction.
• Do not dispose the Notebook PC battery pack in a fire, as they may explode. Check with local codes for possible special disposal instructions to reduce the risk of injury to persons due to fire or explosion.
• Do not use power adapters or batteries from other devices to reduce the risk of injury to persons due to fire or explosion. Use only UL certified power adapters or batteries supplied by the manufacturer or authorized retailers.

Power Safety Requirement

Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm ^2 or H05VV-F, 2G, 0.75mm ^2 .

TV Tuner Notices

Note to CATV System Installer—Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable – installation should include bonding the screen of the coaxial cable to the earth at the building entrance.

REACH

Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

Nordic Lithium Cautions (for lithium-ion batteries)

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. (English)

Optical Drive Safety Information

Laser Safety Information

CD-ROM Drive Safety Warning

CLASS 1 LASER PRODUCT

WARNING! To prevent exposure to the optical drive's laser, do not attempt to disassemble or repair the optical drive by yourself. For your safety, contact a professional technician for assistance.

Service warning label

WARNING! INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

CDRH Regulations

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976. These regulations apply to laser products manufactured from August 1, 1976. Compliance is mandatory for products marketed in the United States.

WARNING! Use of controls or adjustments or performance of procedures other than those specified herein or in the laser product installation guide may result in hazardous radiation exposure.

Macrovision Corporation Product Notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S.A. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

CTR 21 Approval (for Notebook PC with built-in Modem)

Danish

The equipment has been approved in accordance with Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.

In the event of problems, you should contact your equipment supplier in the first instance.

Finnish

ENERGY STAR complied product

energy

ENERGY STAR

ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.

All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 15 and 30 minutes of user inactivity. To wake your computer, click the mouse or press any key on the keyboard. Please visit http://www.energy.gov/powermanagement for detail information on power management and its benefits to the environment. In addition, please visit http://www.energystar.gov for detail information on the ENERGY STAR joint program.

NOTE: Energy Star is not supported on FreeDOS and Linux-based operating systems.

European Union Eco-label

This Notebook PC has been awarded the EU Flower label, which means that this product has the following characteristics:

1. Decreased energy consumption during use and stand-by modes.
2. Limited use of toxic heavy metals.
3. Limited use of substances harmful to the environment and health.
4. Reduction of the use of natural resources by encouraging recycling.

5. Designed for easy upgrades and longer lifetime through providing compatible spare parts such as batteries, power supplies, the keyboard, the memory, and if available the CD drive or DVD drive.

6. Reduced solid waste through takeback policy.

For more information on the EU Flower label, please visit the European Union Eco-label website at http://www.ecolabel.eu.

Prevention of Hearing Loss

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Warning symbol for hearing with a sine wave inside a triangle

Coating Notice

IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.

Global Environmental Regulation Compliance and Declaration

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to http://csr.asus.com/english/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:

Japan JIS-C-0950 Material Declarations

EU REACH SVHC

Korea RoHS

Swiss Energy Laws

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Regional notice for Singapore

Complies with IDA Standards DB103778

This ASUS product complies with IDA Standards.

EC Declaration of Conformity

Inspiring Innovation • Persistent Perfection

We, the undersigned,

Manufacturer:	ASUSTeK COMPUTER INC.
Address, City:	4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Country:	TAIWAN
Authorized representative in Europe:	ASUS COMPUTER GmbH
Address, City:	HARKORT STR. 21-23, 40880 RATINGEN
Country:	GERMANY

declare the following apparatus:

Product name : Notebook P.C.
Model name : G750J

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2010EN 61000-3-2:2006+A2:2009EN 55013:2001+A1:2003+A2:2006

EN 55024:2010EN 61000-3-3:2008EN 55020:2007+A11:2011

1999/5/EC-R &TTE Directive

EN 300 328 V1.7.1(2006-10)EN 300 440-1 V1.6.1(2010-08)EN 300 440-2 V1.4.1(2010-08)EN 301 511 V9.0.2(2003-03)EN 301 908-1 V5.2.1(2011-05)EN 301 908-2 V5.2.1(2011-07)EN 301 893 V1.6.1(2011-11)EN 302 544-2 V1.1.1(2009-01)EN 302 623 V1.1.1(2009-01)EN 50360:2001EN 62479:2010EN 50385:2002EN 62311:2008

EN 301 489-1 V1.9.2(2011-09)EN 301 489-3 V1.4.1(2002-08)EN 301 489-4 V1.4.1(2009-05)EN 301 489-7 V1.3.1(2005-11)EN 301 489-9 V1.4.1(2007-11)EN 301 489-17 V2.1.1(2009-05)EN 301 489-24 V1.5.1(2010-09)EN 302 326-2 V1.2.2(2007-06)EN 302 326-3 V1.3.1(2007-09)EN 301 357-2 V1.4.1(2008-11)EN 302 291-1 V1.1.1(2005-07)EN 302 291-2 V1.1.1(2005-07)

2006/95/EC-LVD Directive

☒ EN 60950-1 / A12:2011

☐ EN 60065:2002 / A12:2011

2009/125/EC-ErP Directive

☒ Regulation (EC) No. 1275/2008☐ Regulation (EC) No. 642/2009

☒ Regulation (EC) No. 278/2009

2011/65/EU-RoHS Directive

Ver. 130208

CE marking

(EC conformity marking)

Position : CEO

Name: Jerry Shen

Declaration Date: 29/03/2013

Year to begin affixing CE marking:2013

Signature :
