USER MANUAL WDA1255W ZANUSSI

Yellow line drawing of a front-loading washing machine with control knobs and a circular vent (no text or symbols)

Important Safety Information

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.

These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance.

Inst allation

• This appliance is heavy. Care should be taken when moving it.
• It is dangerous to alter the specifications or attempt to modify this product in any way.
• All packing and transit bolts must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in instructions.
• Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely.

Child Safety

• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
• Pets and children have been known to climb into washer-dryers. Please check your drum before use.
• The glass door becomes very hot during the washing and drying cycle. Keep children away from the vicinity of the appliance whilst it is in operation.
• Keep all packaging well away from children.
• Keep all detergents in a safe place out of children's reach.

Use

• Always unplug the appliance and turn off the water supply after use.
• Do not overload the appliance. See relevant section in the instruction book.
• Only wash and dry fabrics which are designed to be machine washed and dried. If in doubt, consult the care label on the clothes.
• Before washing, ensure that all pockets are empty and buttons and zips are fastened. Avoid washing

frayed or torn articles and treat stains such as paint, ink, rust, and grass before washing. Underwired bras must NOT be machine washed.

• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.
• Garments which have been in contact with volatile petroleum products should not be machine washed. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.
• Wash small items such as socks, laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum.
• Only use the advised quantities of fabric softener. Damage to the fabric can ensue if you over-fill. Refer to the manufacturer's recommendations of quantities.
• As some duvets and eiderdowns should be washed/dried in large commercial machines because of their bulk, please check with the manufacturer of the item before washing in a domestic machine.
• The users should always check that they have not left their gas lighters (disposable or otherwise) in their clothing.
• Never tumble dry items that have had contact with chemicals such as dry cleaning fluid. These are of a volatile nature and could cause an explosion. Only tumble dry items which have been washed in water or require airing.
• Plastic detergent dispensers should not remain in the drum during the drying cycle, as the plastic used is not designed to withstand the heat. If you wish to wash-through-to-dry you should use the conventional detergent dispenser drawer.
• Leave the porthole door slightly ajar between washes to preserve the door seal.
• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Zanussi Service Force Centre. Always insist on genuine Zanussi spare parts.

Contents

For the User

Your New Washer-Dryer 4

Important Safety Information 2

Description of the Appliance 5

Detergent dispenser drawer 5

The Control Panel 6

Operating sequence 7-10

Washing 5 kg of white cotton at 95°C 7

Load the laundry 7

Measure out the detergent 7

Measure out the fabric softener 7

Select the spin speed or option ☐ or 7 ☒

Select the required programme 7

Start the machine 8

At the end of the programme 8

Washing 2 kg of mixed fabrics at 50°C 9

Load the laundry 9

Measure out the detergent 9

Measure out the fabric softener 9

Select the spin speed or option ☐ or 9 ☒

Select the programme 9

Start the machine 9

At the end of the programme 10

Drying 2.5 kg of cotton 11

Load the laundry 11

Select the programme 11

Select the required time 11

Start the machine 11

At the end of the programme 11

Autodrying 1 kg of mixed fabrics 12

Load the laundry 12

Add the washing powder and additive 12

Select the programme 12

Select the required time 12

Start the machine 12

At the end of the programme 12

Washing and Drying Hints 13

Which detergent to use?.... 14

And in which form? 14

Fabric Conditioners 14

Wash Care Symbols 15

Washing Programmes 16-17

Drying Programmes 18

Maintenance and Cleaning 19-20

Descaling 19

After each wash 19

External cleaning 19

Cleaning the dispenser drawer 19

Cleaning the drawer recess 19

Cleaning the filter 19

The dangers of freezing 20

Maintenance wash 20

Something Not Working 21-22

Service and Spare Parts 22

Guarantee Conditions 23

Zanussi Service Force 24-25

For the Installer

Installation Instructions 26

Technical Specifications 26

Unpacking 27

Positioning 27

Water inlet 28

Water drainage 28

Levelling 29

Special conditions 29

In the interest of the environment 29

Electrical connection 30

Guide to use the Instruction Book

The following symbols will be found in the text to guide you throughout the instructions:

⚠️ Safety instructions

i Hints and tips

Environmental information

i Your New Washer-Dryer

Your new washer-dryer meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption.

It is gentle with your laundry, simple to use and easy to care for.

• The special wool programme with its new delicate wash system treats your woollens with extreme care.
• The anti-unbalance device ensures that the machine remains stable when spinning.
• Automatic cooling of the wash water to 60^ C before draining, with the 90^ C programme. This reduces thermal shock to fabrics, helping to prevent creasing.
• The two drying programmes will give your wash that soft, relaxed feel whatever the weather.

Ecological hints

To save water and energy and help protect the environment, we recommend that you follow these hints:

• Adjust the quantity of detergent according to the hardness of your water supply, the amount of laundry and the degree of soiling.
• A programme without prewash is sufficient for normally soiled laundry.
• Try to load the maximum drying capacity of the machine as small loads are uneconomical.
• Always load well spun laundry. The higher the spin speed, the lower the electricity consumption and the shorter the drying times.

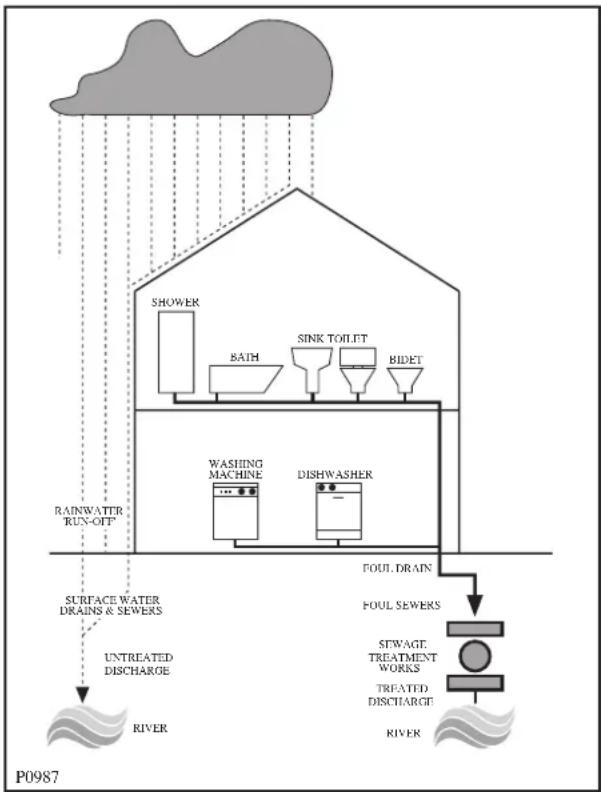

In the interest of the environment

• Materials marked with the symbol recyclable.
• Check with your local Council or Environmental Health Office to see if there are facilities in your area for re-cycling this appliance.
• When the appliance is to be scrapped, cut off the power supply cable and make the door lock device unusable to prevent young children from being trapped inside.
• Help to keep your country tidy - use authorised disposal sites for your old appliance.

How do we help to protect the environment? We use recycled paper!

Important

Your machine is fitted with a balance control device, which ensures the machine is stable during the spin.

If the wash load appears not to have been spun sufficiently at the end of the wash cycle, because it is not evenly distributed in the drum, the balance control device may have operated. It will therefore be necessary to redistribute the wash load manually and select a spin programme. For more detailed information see the section headed "Something Not Working".

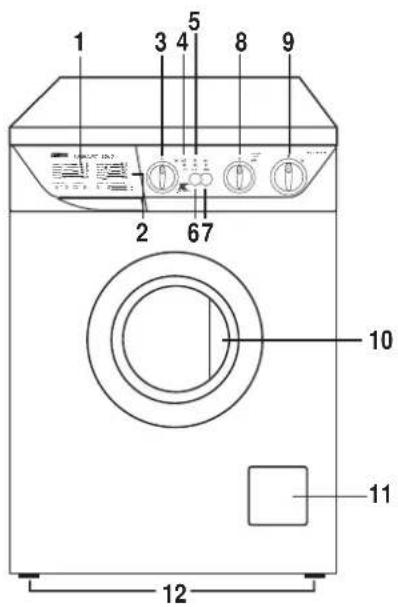

Description of the Appliance

1 Detergent dispenser drawer
2 Programme guide
3 Drying time selector dial
4 Drying indicator light
5 "Mains-on" light
6 ON/OFF button
7 Half load button
8 Spin Speed selector dial
9 Programme selector dial
10 Door opening handle
11 Filter
12 Adjustable feet

1 3 4 5 8 9 2 67 10 11 12

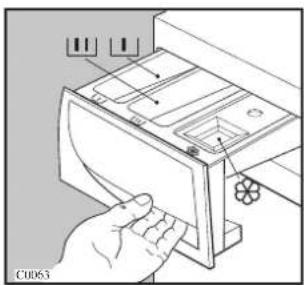

Detergent dispenser drawer

Prewash

Main wash

Fabric softener

Illustration of a hand inserting a device into a drawer with arrows indicating direction (no text or symbols)

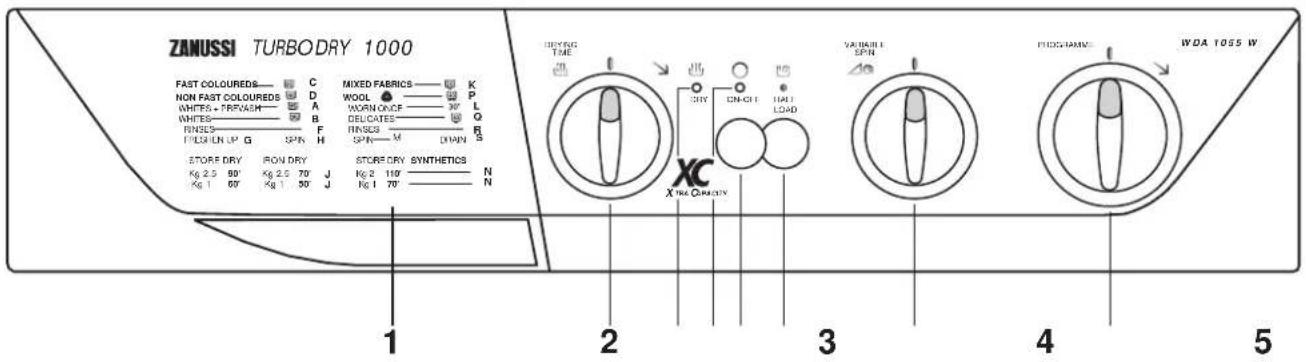

The Control Panel

ZANUSSI TURBODRY 1000 FAST COLOURED— C MIXED FABRICS— K NON FAST COLOURED— D WOOL — P WHITES + TREVASH— A WORN ONCE — 30° L WHITES— B DELICATES— Q RINSDS— F RINSDS FLEX LN LP G SPN H SPN— M DIAM N S STORE DRY IRON DRY STORE CRY SYNTHETICS Kg 2.5 60' Kg 2.5 70' J Kg 2 110' N Kg 1 60' Kg 1 50' J Kg 1 70' N 1 2 3 4 5 VARIABLE SPIN PROGRAMME WDA TOSS W

1 Programme guide

2 Drying time selector dial

Graduated up to 120 mins for cottons (black section) and synthetics, (grey section) this dial allows you to select the desired drying time according to the type and quantity of laundry and the required degree of dryness. Turn the dial clockwise only.

Cooling phase

To allow the laundry to cool down, a cooling phase starts automatically 10 minutes before the end of drying and this phase must in no circumstances be reduced or interrupted.

3 Drying indicator light 📊

This light illuminates when the machine is drying.

4 Mains-on light

This light illuminates when the machine starts working and goes out when the ON/OFF button is released.

5 On/Off button ⓘ

By depressing this button the machine starts operating. When depressed again, the machine stops.

6 HALF LOAD button 1/2

Select this button to reduce water consumption on the rinse cycle when washing a smaller load of cottons or linens (maximum load size = 2.5 kg).

7 Spin speed selector dial ∆

This dial allows you to select the desired spin speed or the following options:

■ No spin. All the spinning phases are excluded. To be used for items that tend to wrinkle. If position is selected for cotton items (programmes 95°, 60° and 40°), the machine will perform an extra rinse (4 instead of 3).
■Rinse Hold. The water of the last rinse is not emptied out to prevent any creasing in the clothes if they are left damp in the drum.

If you select the Rinse Hold option in an automatic washing & drying programme the machine will not dry.

The spin speeds on the dial refer to cotton programmes. For mixed fabrics and wool, position 1000 or 1200 corresponds to 850, for delicates 650 rpm. Position 450 corresponds to 350 rpm for delicates.

8 Programme selector dial

Turn the dial clockwise to select the required wash and drying programme.

Before setting the dial to any position the machine must be switched off by depressing the ON/OFF button again.

Operating Sequence

Before the first wash, we recommend that you run a cotton cycle at 60^ C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub.

Pour 1/2 a measure of detergent into the main wash compartment & the dispenser drawer and start the machine.

WASHING 5 KG OF WHITE COTTON AT 95°C

Suppose you have 5 kg of normally soiled laundry to wash. It is white cotton and is suitable for high temperature washing.

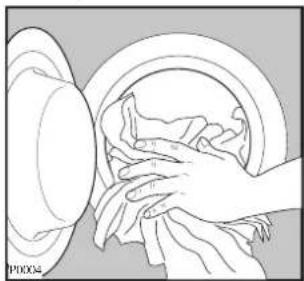

1. Load the laundry

Open the door by pulling the door handle outwards. Place the laundry in the drum, one item at a time, shaking them out as much as possible. Close the door.

Illustration of hands washing clothes from a circular basin (no text or symbols)

2. Measure out the detergent

Pull out the dispenser drawer until it stops.

Measure out the amount of detergent required and pour it into the main wash compartment [III]

If you wish to carry out the prewash, pour detergent into the compartment marked [↓]

Illustration of a hand inserting a component into a drawer (no text or symbols visible)

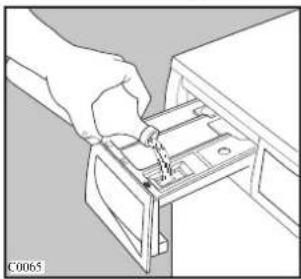

3. Measure out the fabric softener

If required, pour fabric softener into the compartment marked (the amount used must not exceed the "MAX" mark in the drawer).

Close the drawer gently.

Illustration of a hand inserting a card into a drawer (no text or symbols visible)

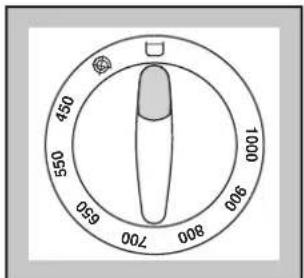

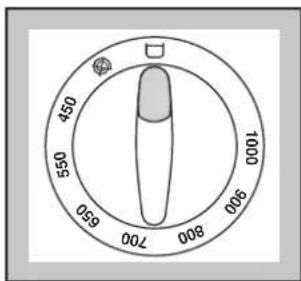

4. Select the spin speed or option

Turn the dial to the required position.

450 550 650 700 800 900 1000

5. Select the required programme

Turn the programme selector dial clockwise to the programme B or A (if you wish to perform a prewash).

B P1006S

6. Start the machine

Before starting up the machine check that:

■ the appliance is plugged in
■ the water supply taps are turned on
■ the drain hose is correctly and securely positioned
■ the door and the detergent dispenser drawer are closed.

Depress the ON/OFF button: the mains-on light will illuminate and the machine starts operating.

ON OFF T0001S

7. At the end of the programme

The machine stops automatically.

If you have selected the RINSE HOLD option, the machine will stop with the water left in the tub, to prevent the fabric from creasing. To drain only, select position ⑥ the drain programme “S”.

To drain and spin, select programme “H” or turn the spin speed selector dial to the maximum speed position: the machine will spin at the max. speed provided for the performed programme.

The door is controlled by a safety device which releases 2 minutes after the end of the programme.

Switch the machine off by depressing the ON/OFF button again. The mains-on light goes out.

When the programme has finished you are advised to unplug the appliance and turn off the water taps.

WASHING 2 KG OF MIXED FABRICS AT 50°C

Suppose you have 2 kg of Mixed fabrics to wash. They are rather delicate fabrics and should not be washed at a high temperature.

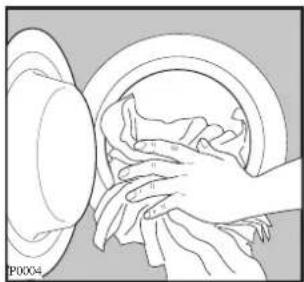

1. Load the laundry

Open the door by pulling the door handle outwards. Place the laundry in the drum, one item at a time, shaking them out as much as possible. Close the door.

Illustration of hands washing clothes with a cloth, no text or symbols present

2. Measure out the detergent

Pull out the dispenser drawer until it stops. Measure out the amount of detergent required and pour it into the main wash compartment [III]

Illustration of a hand inserting a folder into a drawer (no text or symbols visible)

3. Measure out the fabric softener

If required, pour fabric softener into the compartment marked ⚙he amount used must not exceed the “MAX” mark in the drawer).

Close the drawer gently.

Illustration of a hand inserting a component into a drawer (no text or symbols visible)

4. Select the spin speed or option

Turn the dial to the required position.

450 550 650 700 800 900 1000

5. Select the programme

Turn the programme selector dial clockwise to the programme K.

K M0017a

6. Start the machine

Before starting up the machine check that:

■ the appliance is plugged in
■ the water supply taps are turned on
■ the drain hose is correctly and securely positioned
■ the door and the detergent dispenser drawer are closed.

Depress the ON/OFF button: the mains-on light will illuminate and the machine starts operating.

ON OFF T0001S

7. At the end of the programme

The machine stops automatically.

If you have selected the RINSE HOLD option, the machine will stop with the water left in the tub, to prevent the fabric from creasing. To drain only, select position on the drain programme "S".

To drain and spin, select programme “M” or turn the spin speed selector dial to the maximum speed position: the machine will spin at the max. speed provided for the performed programme.

The door is controlled by a safety device which releases 2 minutes after the end of the programme.

Switch the machine off by depressing the ON/OFF button again. The mains-on light goes out.

When the programme has finished you are advised to unplug the appliance and turn off the water taps.

DRYING 2.5 KG OF COTTON

You have for example just machine-washed and spun at 1000 rpm 5 kg (11 lb) of laundry.

They are cotton fabrics of medium weight which you want to iron as soon as they are dry.

Switch off the machine.

Then remove the laundry from the appliance and divide the items to obtain two loads of approx. 2.5 kg (5.5 lb) each.

1. Load the laundry

Open the door by pulling the catch outward.

Load the items one at a time and close the door.

2. Select the programme

Turn the programme selector dial clockwise to programme J.

J M0017b

3. Select the required time

Following indications given in the programme chart on page 18, turn the time selector dial clockwise to the 70 mins setting (black section).

60° 50° M0019b

4. Start the machine

Depress the ON/OFF button, the mains-on light and drying light will illuminate and the machine starts operating.

ON OFF T0001S

5. At the end of the programme

The machine stops automatically and the drying light goes out.

The door is controlled by a safety device which releases 2 minutes after the end of the programme.

Switch the machine off by depressing the ON/OFF button again, the mains-on light goes out.

If the laundry is still too damp, select a further brief drying time, bearing in mind that during the last 10 minutes the appliance carries out a cooling and anticrease phase.

When the programme has finished you are advised to unplug the appliance and turn off the water taps.

AUTODRYING 1 KG OF MIXED FABRICS

You intend to wash and dry automatically 1 kg (2.2 lb) of mixed fabrics which do not need ironing.

Proceed as follows:

1. Load the laundry.
2. Add the washing powder and additive.

3. Select the programme

Turn the programme selector dial clockwise to programme K.

K M0017a

4. Select the required time

Following indications given in the programme chart on page 18, turn the time selector dial clockwise to the 60 mins setting (grey section).

60 M0019a

5. Start the machine

Depress the ON/OFF button: the mains-on light comes on and the machine starts operating.

ON OFF T0001S

6. At the end of the programme

The machine stops automatically and the drying light goes out.

The door is controlled by a safety device which releases 2 minutes after the end of the programme.

Switch the machine off by depressing the ON/OFF button again, the mains-on light goes out.

If the laundry is still too damp, select a further brief drying time, bearing in mind that during the last 10 minutes the appliance carries out a cooling and anticrease phase.

When the programme has finished you are advised to unplug the appliance and turn off the water taps.

i Washing and Drying Hints

Do NOT overload the machine. Weigh the laundry the first few times you use the appliance.

The average weights of the most common items are listed below as a guide:

1000g = 1 kg

Sheet	700-1000
Pillow case 100-200 g
Tablecloth	400-500
Serviette	50-100
Tea towel 70-120 g
Linen hand towel 100-150 g
Towelling hand towel 150-250 g
Towelling bath towel 700-1000 g
Bath robe 1000-1500 g
Man's shirt 200-300 g
Apron	150-200

• Load the laundry loosely alternating large items with small ones.
• Sort the laundry according to the type of fabric, colour-fastness and how dirty it is.
• Avoid washing unhemmed or torn items as they may unravel.
  ■ Before washing, empty all pockets of small objects which may have been left inside (coins, keys, screws etc). as these could damage the drain pump.
  ■ When washing curtains, remove the hooks.
  ■ Close poppers and zips and fasten loose buttons.
• It is essential to wash new coloured items separately when washing for the first time.
• When washing fabrics requiring different wash temperatures together, always select the lowest temperature.
• White items should not be washed with coloured items.
  ■ Very small items (handkerchiefs, ribbons, socks etc) should be washed in a washing bag or a pillow case.
• Use a good quality detergent suitable for automatic washing machines.
  ■ Use the correct quantities of detergent.
• For wool, use gentle detergent only in small quantities.
• Bleach is very corrosive; it should be used with care and kept out of reach of children.

■ Some stains such as fruit, wine, grass, rust etc. are difficult to remove and should be treated before washing with specific products, which can be found in most household shops. In some cases it may help to soak the stain before washing with a special pre-soak product or biological detergent.
- If you have used the machine to wash, rinse or spin only non-colour fast garments, there may be dye left in the sump. To ensure any subsequent wash is not contaminated with the dye, select and carry out a rinse and spin programme, without any garments, to ensure that any dye is removed from the sump.

- Do not leave the damp laundry load in a heap too long before drying.

- Avoid drying dark clothes with light coloured fluffy items such as towels as these can attract the fluff.

- If you overdry the laundry, besides wasting energy, any subsequent ironing may become more difficult because the fabric could be heavily crumpled.

■ Remove the laundry when the appliance has finished drying. g

- To avoid a static charge when drying is completed, use either a fabric softener when you are washing the laundry or a fabric conditioner specifically for tumble dryers.

■ Particularly delicate items such as synthetic curtains, woollen and silk, garments with metal inserts, nylon stockings, bulky garments such as amoraks, bedcovers, quilts, sleeping bags and duvets must not be machine dried.

- Garments padded with foam-rubber or materials similar to foam-rubber must not be machine dried; they represent a fire hazard.

- Also, fabrics containing residues of setting lotions or hair sprays, nail solvents or similar solutions must not be machine dried in order to avoid the formation of harmful vapours.

- For drying, follow the indications given on the manufacturer's labels.

Drying at high temperature
Drying at reduced temperature
Do not tumble dry

Important:

As a dryer, the machine works on the condensation principle.

Therefore, the water taps must be open and the drain hose must drain water into a sink or into the drain pipe, even during the drying cycle.

Which detergent?....

To ensure you obtain the best wash results from your appliance, it is important to use the right detergent in your everyday wash, and only detergents recommended for use in automatic machines.

To maintain the appearance of your clothes and household textiles and to make them last longer you should use different types of detergent for different washes, whether for whites, colours or delicates.

WHITES

We recommend the Ariel product range which is biological and designed to provide excellent cleaning and stain removal even at low temperatures.

NON BIOLOGICAL

If you prefer to use a non biological detergent, which does not contain enzymes we recommend Fairy. Fairy provides good cleaning and stain removal.

COLOUREDS

For coloured items you should use a detergent which is designed to clean while maintaining the original colour. Ariel Color does not contain bleach and therefore helps to preserve colours.

DELICATE ITEMS

When washing delicates such as woollens, you should use a product which is specially designed to care for fine fabrics.

Dreft Automatic is suitable for woollens and other delicates.

LAUNDRY BLEACH

For additional stain removal you may wish to use a product such as Ace Gentle Bleach which is used in addition to your chosen detergent. Ace is suitable for all washable fabrics including silks, woollens and coloureds.

And in which form?

Not only are there different types of detergent, but they are also available in different forms. Whether you chose a powder or liquid in traditional or compact form is your own personal choice.

TRADITIONAL POWDERS

Pour the powder directly into the dispenser drawer. Do not sprinkle powder onto clothes in the machine drum.

TRADITIONAL LIQUIDS

Liquid can be placed in the main wash compartment of the detergent drawer marked with the symbol L, start the machine immediately upon placing the detergent in the dispenser drawer.

Alternatively the detergent is measured into the specially designed dosing device* which should be placed on top of the laundry, and at the back of the machine drum.

COMPACT POWDERS AND LIQUIDS

Compact detergents (or concentrates as they are also known) are available in liquid or powder form, and generally require a smaller dosage. Follow the manufacturer's instructions to ensure the most economical usage. Pour the detergent directly into the dispenser drawer, or alternatively measure the detergent into the specially designed dosing device* which should be placed on top of the laundry, and at the back of the machine drum.

* If you use a dosing device in a washer dryer, please ensure the dosing device/ball is removed before carrying out a drying programme.

FABRIC CONDITIONERS

These are ideal for improving ‘softness’, and also reduce static cling on synthetics and make ironing easier. They are available in two types:

For example Lenor liquid fabric softener, for use in the washing machine/washer dryer. The liquid fabric softener should be poured into the compartment marked with the symbol 🌿 Follow the manufacturer's dosage instructions and never exceed the MAX level.

Bounce conditioning sheets for use in a tumble dryer. We recommend the conditioning sheets are pinned (using a safety pin) to an article of laundry and placed in the tumble dryer.

Wash Care Symbols

Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine.

WASHING SYMBOL
WASH ACTION FABRIC

	Normal (Maximum)	White Cotton or Linen without Special Finishes
	Normal (Maximum)	Cotton, Linen or Viscose without Special Finishes Colourfast at 60°C.
	Reduced (Medium)	Nylon, Polyester/Cotton, Viscose with Special Finishes, Cotton/Acrylic Mix.
	Normal (Maximum)	Cotton, Linen or Viscose Colourfast at 40°C but not 60°C.
	Reduced (Medium)	Acrylics, Acetate, Triacetate, Wool mixes, Polyester/wool blends.
	Much Reduced (Minimum)	Wool, wool mixtures, Silks
	Hand wash only	Do not machine wash
BLEACHING
	Chlorine bleach may be used
IRONING
	Hot iron	Cotton, Linen, Viscose
	Warm iron	Polyester mixtures, Wool
	Cool iron	Acrylic, Nylon, Polyester
DRY CLEANING
	May be dry cleaned. Other letters and/or a bar beneath the circle will indicate the required process to the dry cleaner.
TUMBLE DRYING
	with high heat setting
	with low heat setting
	May be tumble dried
	A cross through any symbol means «DO NOT»

BLEACHING

Important Notes

For best results, always use the dispenser drawer for dispensing detergents and liquid additives.

Once the dispenser has been filled, close it by pushing it in gently. This is particularly important if you are using

fabric conditioner to avoid the conditioner entering the machine prematurely.

When using liquid detergent and a prewash programme, place the detergent into the correct compartment in the dispenser drawer, after the prewash has finished.

Washing Programmes

Programmes for cotton and linen

Wash programme/Washing symbol		Degree of soil and type of laundry	Programme dial position	Description	Possible options	Max. load
	WHITES+PREWASH	For heavy soiled cotton items.	A	Prewash at 40 °CWash at 95°C3 rinsesLong spin		5 kg
	WHITES	White cotton, for example normally soiled work garments, sheets, household linen, underwear, towels.	B	Wash at 95 °C3 rinsesLong spin		5 kg
	FAST COLOUREDS	Fast coloured cotton or linen fabrics, shirts, underwear, towels.	C(*)	Wash at 60 °C3 rinsesLong spin		5 kg
	NON- FAST COLOUREDS	Non fast coloured cotton or linen fabrics, shirts, blouses, underwear.	D	Wash at 40 °C3 rinsesLong spin		5 kg
RINSES		Separate rinse cycle for hand washed cotton and linen items	F	4 rinsesLong spin		5 kg
FRESHEN UP		For softening hand washed items	G	1 rinseLong spin		5 kg
LONG SPIN		Separate spin for cotton and linen items	H	Long spin		5 kg

(*) This programme at 60°C with cold water filling is the reference programme for the Energy label according to EEC Directive 92/75.
Water filling: 30^-40^ programmes: cold water filling 50^-60^ programmes: hot and cold filling 95^ programmes: hot water filling

Washing Programmes

Programmes for synthetics, mixed fabrics, delicates and wool

Wash programme/Washing symbol		Degree of soil and type of laundry	Programme dial position	Description	Possible options	Max. load
	MIXED FABRICS	Synthetic or mixed fabrics, underwear, coloured garments, non-shrink shirts, blouses.	K	Wash at 50 °C3 rinsesShort spin		2.5 kg
	WORN ONCE	Lightly soiled synthetic or mixed fabrics	L	Wash at 30 °C3 rinsesShort spin		2.5 kg
SHORT SPIN		Separate spin for hand washed delicate items	M	Draining of water and short spin		2.5 kg
	WOOL	Specially tested programme for wool garments bearing the “Pure new wool, non-shrink, machine washable” label.	P	Wash at 40 °C3 rinsesShort spin		2 kg
	DELICATES	Delicate fabrics, for example curtains	Q	Wash at 40 °C3 rinsesShort spin		2.5 kg
RINSES		This programme can be used for softening hand washed garments.	R	3 rinses, with fabric softener, if required Short spin		2.5 kg
DRAIN		For emptying out the last rinse water in programmes with the Rinse Hold option	S	Draining of water		-

Drying Programmes

Degree of drying	Type of fabric	Max. load	Spin speed	Drying time mins
Store dry (*)Suitable for itemsto put awaywithout ironing	Cotton and linen(towels, T-shirts,bathrobes)Programme J	2.5 kg	1000	Black section90
			1200 80
		1.0 kg	1000	60
			1200 50
	Synthetics and mixedfabrics (jumpers,blouses, underwear,household linen)Programme N	2 kg 850		Grey section110
		1 kg 850 70
Iron drySuitable forironing	Cotton and linen(sheets, tablecloths,shirts, etc.)Programme J	2.5 kg	1000	Black section70
			1200 60
		1.0 kg	1000	50
			1200 40

(*) The STORE DRY drying programme for cotton is the reference programme for the Energy Label data, in compliance with EC directive 92/75.

Maintenance and Cleaning

Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply.

Descaling

The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. Do this separately from any laundry washing, and according to the softening powder manufacturer's instructions. This will help to prevent the formation of lime deposits.

After each wash

Leave the door open for a while. This helps to prevent mould and stagnant smells forming inside the appliance. Keeping the door open after a wash will also help to preserve the door seal.

External cleaning

Clean the exterior cabinet of the appliance with soap and water only, and then dry thoroughly.

Cleaning the dispenser drawer

The washing powder and additive dispenser drawer should be cleaned regularly.

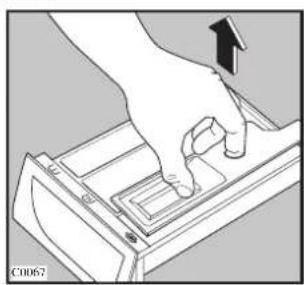

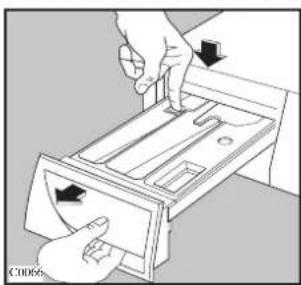

Remove the drawer by pressing the catch downwards and by pulling it out. Flush it out under a tap, to remove any traces of accumulated powder.

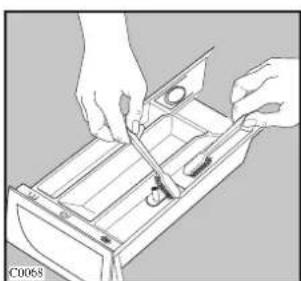

To aid cleaning, the top part of the additive compartment should be removed.

Illustration of hands inserting a device into a drawer with arrows indicating direction (no text or symbols)

Hand pressing down on a mechanical device component (no text or symbols visible)

Illustration of hands using a tool to cut or adjust a mechanical component (no text or symbols visible)

Illustration of a hand using a faucet to remove water from a drain, with another hand holding a container (no text or symbols)

Cleaning the drawer recess

Having removed the drawer, use a small brush to clean the recess, ensuring that all washing powder residue is removed from the upper and lower part of the recess. Replace the drawer and run the rinse programme without any clothes in the drum.

Illustration of a hand inserting a device into a device (no text or symbols visible)

Cleaning the filter

The water drain filter

A clean filter is important for the correct operating of the machine, and should therefore be cleaned after every washing programme.

Open the filter door and place a container underneath to catch any spillage. If the filter is blocked and the machine is unable to drain you will need to drain the water manually from the machine at this stage. To do this, unhook the drain hose from the standpipe or sink and hold the end of the hose over a bowl on the floor. The water should drain by gravity into the bowl. When the bowl is full, hook the hose back up and empty the bowl. Repeat the procedure until water stops flowing out.

Hand holding a small rectangular object with an arrow pointing to it, against a plain background (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols)

Unscrew and remove the filter.

Clean carefully under a fast running tap.

Illustration of a hand cleaning a kitchen appliance with a bag, no text or symbols present

Illustration of a hand washing a baby swab from a faucet (no text or symbols)

Warning

When the appliance is in use and depending on the programme selected there can be hot water in the filter. Never remove the filter during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the filter, ensure it is securely retightened so as to stop leaks and young children being able to remove it.

The water inlet filters

If your water is very hard or contains traces of lime deposit, the water inlet filters may become clogged.

It is therefore a good idea to clean them from time to time.

Turn off the water taps. Unscrew the water inlet hoses. Clean the filters using a hard bristle brush.

Tighten up the inlet hoses.

Illustration of hands using a screwdriver to adjust a wall fixture (no text or symbols present)

The dangers of freezing

If the machine is exposed to temperatures below 0^ C, certain precautions should be taken.

■ Turn off the water taps.
■ Unscrew the inlet hoses.
- Unhook the drain hose from the rear support and position the end of this hose and that of the inlet hoses in a bowl. Run the draining programme.
■ Disconnect the appliance.
■ Screw the inlet hoses and reposition the drain hose.
- When you intend to start the machine up again, make sure that the room temperature is above 0°C.

Maintenance Wash

With the use of low temperature washes it is possible to get a build up of residues inside the drum.

We recommend that a maintenance wash be performed on a regular basis.

To run a maintenance wash:

• The drum should be empty of laundry.
- Select the hottest cotton wash programme.
- Use a normal measure of detergent, must be a powder (such as Ariel Futur).

Something Not Working

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Zanussi Service Force Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.

Symptom	Possible causes
The machine does not start	The door has not been closed.The plug is not properly inserted in the power socket.There is no supply at the socketThe main fuse or the fuse in the plug has blown.The selector dial is not correctly positioned.The ON/OFF button has not been depressed.
The machine does not fill	Ensure the water taps are open.The filters in the inlet hoses are blocked.The inlet hoses may be squashed or kinked.The door has not been closed.
The machine fills then empties immediately	The end of the drain hose is too low.The end of the drain hose is submerged in water.There is no vent in the end of the drain hose.
The machine does not empty and/or does not spin	The drain hose may be squashed or kinked.The RINSE HOLD or NO SPIN option has been selected.The drain filter may be blocked.The drain hose extension, if fitted, is not correct. Follow the instructions for connecting to the waste.The drainage system pipes are blocked.The wash load is unbalanced: redistribute the clothes inside the drum to allow the machine to spin.
There is water on the floor	Too much detergent or unsuitable detergent has been used (creates too much foam).Check whether there are any leaks from one of the inlet hose(s) fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.The drain hose may be damaged or not securely positioned.The detergent dispenser drawer or recess is clogged.The drainage system pipes are blocked.
Unsatisfactory washing results	Too little detergent or unsuitable detergent has been used. An insufficient amount of detergent leaves the laundry looking grey and causes lime scale to form.Stubborn stains have not been treated prior to washingThe correct wash programme has not been selected.Too much laundry has been placed in the drum.
The machine vibrates when spinning	The internal packing has not been removed.The machine is in contact with the wall or furniture.The machine is not stable and level (check diagonally).The washing load is badly distributed in the drum.Maybe there is very little laundry in the drum.
The door will not open	The programme is still running.The door lock has not yet released.Water in the tub: the door cannot be opened if water is present in the tub.
Spinning starts late or the machine does not spin	The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and reselect the spin programme.
The machine makes an unusual noise	The machine is fitted with a type of motor which makes an unusual noise compared with other traditional motors. This new motor ensures a softer start and more even distribution of the laundry in the drum when spinning, as well as increased stability of the machine.
No water is visible in the drum	Machines based on modern technology operate very economically using very little water without affecting performance.
The machine does not dry or does not dry properly	The drying time has not been selectedThe water taps are not turned onThe drain filter is cloggedThe machine is overloadedThe selected drying time/section is not suitable for the laundry

Service & Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Zanussi Service Force Centre by telephoning:

0870 5 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

The addresses are listed on the following pages.

Before calling out an engineer, please ensure you have read the details under the heading “Something Not Working”.

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The model and serial number of the appliance (found on the rating plate - see picture).
5. The purchase date

Mod. Prod. No. Ser. No. P0042

Customer Care

For general enquiries concerning your Zanussi appliance or for further information on Zanussi products, please contact our Customer Care Department by letter or telephone as follows:

Customer Care Department

Zanussi

55-77 High Street

Slough

Berkshire

SL1 1DZ

Tel [phone]*

or visit our website at www.zanussi.co.uk

* calls to this number may be recorded for training purposes.

Guarantee Conditions

Standard guarantee conditions

We, Zanussi undertake that if, within 12 months of the date of the purchase, this Zanussi appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with, by any person not authorised by us.

All service work under this guarantee must be undertaken by a Zanussi Service Force Centre.

Any appliance or defective part replaced shall become the Company's property.

This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.
• Products of Zanussi manufacture which are NOT marketed by Zanussi.

European guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.
• The guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care Centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis [phone]

Germany Nurnberg [phone]

Italy Pordenone [phone]

Sweden Stockholm [phone]

UK Slough [phone]

To contact your local Zanussi Service Force Centre telephone [phone]

CHANNEL ISLANDS		ORKNEY Corsie Domestics(M65) 7 King Street KirkwallOrkney KW15		NORTH EAST
GUERNSEY Guernsey ElectricityPO Box 4Vale, GuernseyChannel Islands				GATESHEAD Unit 356a(M39) Dukesway CourtDukeswayTeam ValleyGateshead NE11 0BH
		PERTH	Hydro Electrical Inveralmond HouseRuthervenfield RoadPerth PH1 3AQ
JERSEY Jersey Electricity CompanyPO Box 45Queens RoadSt HelierJerseyChannel Islands JE4 8NY		PERTH	Graham BeggUnit 4Airport Ind Estate(OWN SALES) Wick KW1 4QS	GRIMSBY (M42) Grimsby	15 Hainton AvenueSouth HumbersideDN32 9AS
				HULL (M41) Boulevard Industrial EstateHullHU3 4AY
SCOTLAND		SHETLAND	Tait Electronic Systems LtdHolmsgarth RoadLerwickShetland ZE1 0PW	LEEDS (M37) Leeds	64-66 Cross Gates RoadLS15 7NN
ABERDEEN 54 Claremont Street(M05) Aberdeen AB10 6RA		SHETLAND	Bolts Shetland Ltd.26 North RoadLerwickShetland ZE1 0PE
AUCHTERMUCHY 33a Burnside(M03) AuchtermuchyFife KY14 7AJ		(OWN SALES)		NEWTON AYCLIFFE (M45) Gurney Way	Unit 16Aycliffe Industrial EstateNewton AycliffeDL5 6UJ
BLANTYRE Unit 5(M07) Block 2Auchenraith Ind. EstateRosendale WayBlantyre G72 0NJ		WHALSAY	Leask Electrical HarisdaleSymbister, WhalsayShetland ZE2 9AA
		(OWN SALES)		SHEFFIELD Pennine House(M38) Roman Ridge Ind.Roman Ridge RoadSheffield S9 1GB
DUMFRIES 93 Irish Street(M01) DumfriesScotland DG1 2 PQ		NORTHERN IRELAND		NORTH WEST
DUNOON Brair Hill(M67) 7 Hill StreetDunoonArgyll PA23 7AL		BELFAST (M27)	Owenmore House Kilwee Business ParkUpper Dunmury Lane BelfastBT17 0HD	BIRKENHEAD (M11) Dock Road	1 Kelvin ParkBirkenheadL41 1LT
GLASGOW 20 Cunningham Road(M04) Clyde EstateRutherglenGlasgow G73 1PP		WALESCARDIFF (M28)	Guardian Industrial Estate Clydesmuir RoadTremorfaCardiffCF2 2QS	CARLISLE (M10) James Street WorkshopsJames StreetCarlisleCumbria CA2 5AH
INVERNESS Unit 3B(M06) Smithton Ind. EstateSmithtonInverness IV1 AJ				ISLE OF MAN (M64) Douglas	South Quay Ind. EstateIsle of ManIM1 5AT
ISLE OF ARRAN Arran DomesticsUnit 4 The Douglas CentreBrodick(OWN SALES) Isle of Arran KA27 8AJ		CLYWD (M14)	Unit 6-7 Coed – ParcAbergele RoadRhuddlanClwydWalesLL18 5UG	LIVERPOOL (M15) Honeys Green PrecinctHoneys Green LaneLiverpoolL12 9JH
ISLE OF BARRA J Zerfah244 BruernishIsle of Barra(OWN SALES) Western Islands HS9 5QY		DYFED (M77)	Maes Y CoedHigh MeadLlanybydderCarmarthenshireSA40 9UL	MANCHESTER (M09) Central Industrial EstateSt Marks StreetBoltonBL3 6NR
ISLES OF BUTE Walker EngineeringGlenmhorUpper Serpentine RoadRothesayIsle of Bute PA20 9EH		HAVERFORDWEST (M75)	Cromlech LodgeAmblestonHaverfordwestPembrokeshireSA62 5DS	PRESTON (M13) Dawson Place	Unit 250Walton SummitBamber BridgePrestonLancashire PR5 8AL
ISLE OF LEWIS	ND Macleod16 James StreetStornowayIsle of Lewis PA87 2QW	OSWESTRY (M17)	Plas FwynnonWarehouseMiddleton RoadOswestrySY11 2PP	STOCKPORT (M16) Haigh AvenueStockportSK4 1QR
KELSO (M08) Kelso	2-8 Wood MarketBorders TD5 7AX

To contact your local Zanussi Service Force Centre telephone [phone]

MIDLANDSBIRMINGHAM 66 Birch Road East(M18) Wyrley Road Ind. EstateWittonBirminghamB6 6DB	LONDON & EAST ANGLIABECKENHAM 11a (M79)	Gardener Ind. EstateKent House LaneBeckenhamKent BR3 1QZ	SUNBURY (M63)	Unit 1aThe SummitHanworth RoadHanworth Ind. EstateSunbury on ThamesTW16 5D
BOURNE Manning Road Ind. Estate(M44) Pinfold RoadBournePE10 9HT	CHELMSFORD (M47)	Hanbury RoadWidford Ind. EstateChelmsfordEssexCM12 3AE	SOUTH EASTASHFORD (M58)	Unit 2Bridge Road Business Est.Bridge RoadAshfordKent TN2 1BB
BRIDGNORTH 68 St. Mary's Street(M72) BridgnorthShropshireWV16 4DR	COLINDALE (M53)	Unit 14Capitol ParkCapitol WayColindaleLondon NW9 0EQ
GLOUCESTER 101 Rycroft Street(M23) GloucesterGL1 4NB	ELTHAM (M78)	194 Court RoadMottinghamElthamLondon SE9 4EW	FLEET Unit 1 (M59)	Redsfield Ind. EstateChurch CrookhamFleetHampshire GU13 0RD
HEREFORD Unit 3(M31) Bank BuildingsCattle marketHarefordHE4 9HX	ENFIELD (M49)	284 Alma RoadEnfieldLondonEN3 7BB	HAYWARDS HEATH (M55)	21-25 Bridge RoadHaywards HeathSussex RH16 1UA
HIGHAM FERRERS 30 High Street(M51) Higham FerrersNorthantsNN10 8BB	GRAVESEND (M57)	Unit B4Imperial Business EstateGravesendKentDA11 0DL	SOUTH WESTBARNSTAPLE (M30)	Main RoadFremingtonBarnstapleNorth Devon EX31 2NT
ILKESTON Unit 2(M43) Furnace RoadIlkeston DE7 5EP	HARPENDEN (M46)	Unit 4Riverside EstateColdharbour LaneHarpendenAL5 4UN	BOURNEMOUTH (M26)	63-65 Curzon RoadBournemouthDorsetBH1 4PW
LEICESTER Unit 7(M22) Oaks Ind. EstateCoventry RoadNarboroughLeicestershireLE0 5GF	LETCWHORTH (M50)	16-17 Woodside Ind. EstateWorks RoadLetchworthHertsSG6 1LA	BRIDGEWATER (M35)	6 Hamp Ind. EstateBridgewaterSomerset TA6 3NT
LINCOLN Unit 8(M40) Stonefield ParkClifton StreetLincolnLN5 8AA	LONDON (M76)	2/4 Royal LaneYiewsleyWest DraytonMiddlesexUB7 8DL	BRISTOL (M25)	11 Eldon WayEldonwall TradingBristolAvon BS4 3QQ
NEWCASTLE 18-21 Croft RoadUNDER LYME Brampton Ind. Estate(M12) Newcastle under LymeStaffordshireST5 0TW	MAIDENHEAD (M60)	Reform RoadMaidenheadBerkshireSL6 8BY	EMSWORTH (M33)	266 Main RoadSouthbourneEmsworthPO10 8JL
REDDITCH 13 Thornhill Road(M20) North Moons MoatRedditchWorcestershireB98 9ND	MOLESEY (M61)	10 Island Farm AvenueWest MoleseySurreyKT8 2UZ	ISLE OF WIGHT (M34)	Unit 8Enterprise CourtRyde Business ParkRydeIsle of Wight PO33 1DB
TAMWORTH Unit 3(M19) Sterling ParkClaymoreTamworthB77 5DO	NEWBURY 9 Pipers Court(M24)	Berkshire DriveThatchamBerkshireRG19 4ER	NEWTON ABBOT (M29)	Unit 2Zealley Ind. EstateKingsteigntonNewton AbbotS. DevonTQ12 3TD
WORCESTER Units 1 & 2(M73) Northbrook CloseGregorys Mill Ind. EstateWorcesterWR3 8BP	IPSWICH (M48)	Unit 6CElton Park Business CentreHadleigh RoadIpswichIP2 0DD	REDRUTH (M36)	Unit 7DPool Ind. EstateWilson WayRedruthCornwall TR15 3QW
	NORWICH (M52)	2b Trafalgar StreetNorwichNR1 3HN

Installation Instructions

It is dangerous to alter the specifications or attempt to modify this product in any way.
⚠️ Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
⚠️ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
⚠️ Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.
Should the appliance power supply cable need to be replaced, this should be carried out by our Service Force Centre.

Technical Specifications

DIMENSIONS	HeightWidthDepth	6058
POWER SUPPLY VOLTAGE 230-240 V/50 TOTAL POWER ABSORBED 2050 W (10A)	Hz
WATER PRESSURE Maximum 800 kPa	Minimum 50 kPa
LOAD CAPACITY Cotton, linen 5 kg	WashingSynthetics 2.5 kgDelicate fabrics 2.5 kgWool 2 kgDryingCotton, linen 2.5 kgSynthetics 2 kg
SPIN SPEED	Maximum	1000 rpm (WDA 1055 W)1200 rpm (WDA 1255 W)
CONSUMPTION DATA FOR WASHING5 KG NORMALLY SOILED COTTONITEMS AT 60°C WITH COLD WATERFILLING	EnergyWater	WDA 1055 W 1.15 kWh 63 litres 135 mins WDA 1255 W 1.15 kWh 63 litres 135 mins

This appliance complies with the following E.E.C. Directives:

• 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
• 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Unpacking

All transit bolts and packing must be removed before using the appliance.

You are advised to keep all the packaging for re-use in case the machine is to be transported again.

Using a spanner unscrew and remove the rear right bolt. Lay the machine gently on its back, making sure that the hoses are not squashed.

Hand using a tool to adjust or install a component on a cabinet (no text or symbols visible)

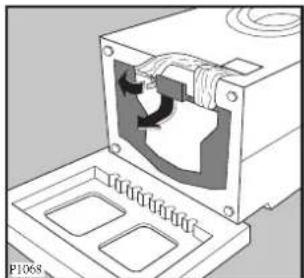

Remove the polystyrene block from the bottom of the machine.

Carefully slide out the right polythene bag (1).

Repeat the operation for the left polythene bag (2).

Technical illustration of a mechanical device with internal components and a base plate (no text or symbols)

2 1 P106

Remove the polystyrene base.

Set the machine upright and remove the two remaining bolts from the back.

Pull out the three plastic spacers from the holes into which the bolts were fitted.

Plug all the holes with the plugs which you can find in the envelope containing the instruction booklet.

Illustration of a hand using a screwdriver to adjust or install a component on a switch (no text or symbols visible)

P0020

Positioning

Install the machine on a flat hard floor.

Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units.

Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor.

Your new washing machine has been designed to be permanently plumbed in to your home's water supply and drainage system. However, if this is not possible, it may be connected to suitable existing taps with the drain hose discharging into a sink.

The appliance has two inlet hoses, hot and cold, with female 3/4” BSP thread connectors. If this connection is not compatible with the plumbing of the existing installation, a variety of connectors are available from good hardware stores and plumbers merchants to suit most domestic plumbing. Any alteration to your existing plumbing must be carried out by a competent person, or qualified plumber.

Installation on a Suspended Floor

Suspended wooden floors are particularly susceptible to vibration. To help prevent vibration we recommend you place a waterproof wood panel, at least 15 mm thick under the appliance, secured to at least 2 floor beams with screws. If possible install the appliance in one of the corners of the room, where the floor is more stable.

Water inlet

The inlets on the back of the appliance are colour coded, blue for cold and red for hot.

Connect the hoses to a tap with a 3/4" thread.

Illustration of a hand holding a pipe valve against a faucet, with no text or symbols present.

If only a cold water supply is available, connect the two hoses to a cold water outlet by means of a «Y» connection piece.

Installation should comply with local water authority and building regulations' requirements.

The appliance must be given a separate cold water supply and not be connected to a mixer tap, a single outlet water heater or a booster pump. A minimum water pressure of 0.48 bar is required for safe operation of the appliance.

If you cannot make the cold water connection direct from the rising mains, you may be able to operate the appliance from your cold water storage system.

There should be a minimum distance of 5.02m (16.5 ft) between the appliance's inlet and the bottom of the water storage tank.

There will be sufficient pressure for the hot water supply, providing there is a minimum height of 2.74 metres (9 ft) between the bottom of the cold water storage tank and the bottom of the hot water cylinder.

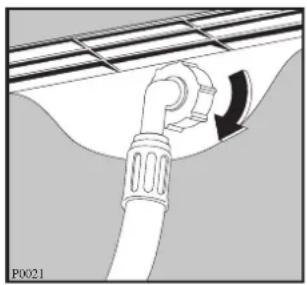

Set the hoses correctly by loosening the ring nuts. After positioning the inlet hoses, be sure to tighten the ring nuts again to prevent leaks.

Diagram of a pipe connection with a curved arrow indicating direction (no text or symbols)

Water drainage

This appliance is designed to be permanently plumbed into your home's water supply and drainage system.

The appliance drain hose should hook into a standpipe, the hook in the drain hose is formed using the plastic "U-Piece" supplied.

The standpipe should have an internal diameter of approximately 38mm (see diagram) thus ensuring there is an air break between the drain hose and standpipe.

38 mm.(1/2") diameter standpipe Min. 30 cm.(1/2") P1040

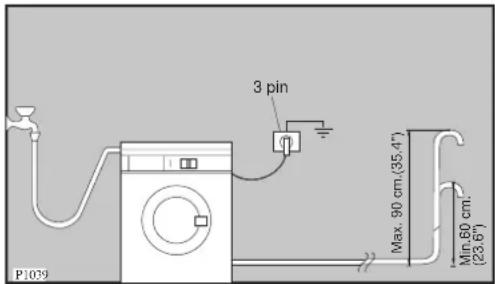

When discharging into a standpipe ensure that the top of the curve in the hose end is no more than 90cm (35.4") and no less than 60cm (23.6") above floor level. The upright standpipe should have a minimum length of 30cm (12") from the bottom of the elbow to the top of the pipe (see diagram).

Make sure that it is designed in such a way, that the end of the drain hose cannot be covered with water.

3 pin Max. 90 cm.(35.4") Min.60 cm. (23.6") P1039

The drain hose may be extended to a maximum of 4 metres. An additional drain hose and joining piece is available from your local Service Force Centre.

The joining piece must have an internal diameter of 18mm.

If you intend the drain hose to empty into a sink, make sure that the sink is empty and the plug hole is not blocked. Use the plastic “U-Piece” supplied.

Diagram of a faucet with tubing and a valve, no text or symbols present

Important

Before connecting up the machine to new pipework or to pipework that has not been used for some time, run off a reasonable amount of water to flush out any debris that may have collected in the pipes.

Levelling

Level the washing machine by raising or lowering the feet. The feet may be tight to adjust as they incorporate a self locking nut, but the machine MUST be level and stable.

Diagram of a mechanical assembly with rotating arrows indicating motion (no text or symbols)

Any necessary adjustment can be made with a spanner. Accurate levelling prevents vibration, noise and displacement of the machine during operation.

Some vibration is inevitable, especially if mounted on a wooden floor.

Sprung wooden floors are particularly susceptible to vibration. For advice, consult a builder. If possible, always place the machine on a solid floor.

Special conditions

If the floor is carpeted or covered with crumbly or soft material, insert a rigid support base under the feet to prevent noise, vibration or displacement. The base should protrude a few centimetres beyond the edges of the machine.

Warning

The machine should NOT be placed on deep pile carpeting.

Note

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

In the interest of the environment

Washing machines and dishwashers should be connected to the FOUL drainage system, the water will then be taken to a sewage works for treatment before being discharged safely into a river.

It is essential that these appliances are not connected to the surface water drainage system as this water is discharged directly into a river or stream and may cause pollution.

If you require any further advice please contact your local authority drainage department.

Electrical connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

WARNING: THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance's rating plate. The rating plate is located at the top of the rim of the open door.

Mod. ...... Prod. No. ...... Ser. No. ...... P00-12

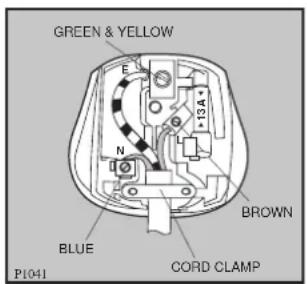

The appliance is supplied with a 13amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13amp ASTA approved (BS1363A) fuse must be used.

Should the plug need to be replaced for any reason, proceed as described below.

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

GREEN & YELLOW E N L BROWN BLUE P1041 CORD CLAMP

The wire coloured green and yellow must be connected to the terminal marked with the letter «E» or by the earth symbol ♣ coloured green and yellow.

The wire coloured blue must be connected to the terminal marked «N» or coloured black.

The wire coloured brown must be connected to the terminal marked «L» or coloured red.

Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.

WARNING:

A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard.

Ensure that the cut off plug is disposed of safely.

Note

When the appliance is installed the power supply cable must be accessible.

Permanent connection

In the case of permanent connection it is necessary that you install a double pole switch between the appliance and the electricity supply (mains), with a minimum gap of 3mm between the switch contacts and of a type suitable for the required load in compliance with the current electrical regulations.

The switch must not break the yellow and green earth cable at any point.
