USER MANUAL ZWDD110 ZANUSSI

Line drawing of a front view and back view of a washing machine (no text or symbols)

Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Transport damages

When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the environment: we use recycled paper.

Contents

Warnings 23

Disposal 24

Tips for environmental protection 24

Technical specifications 24

Installation 25

Unpacking 25

Positioning 25

Water inlet 25-26

Water drainage 26

Electrical connection 26

Door reversal 27

Your new washer-dryer 28

Description of the appliance 28

Use 29

Control panel 29

Controls 29

Washing hints 30

Sorting the laundry 30

Temperatures 30

Before loading the laundry 30

Maximum loads 30

Laundry weights 30

Removing stains 30-31

Detergents and additives 31

Drying hints 32

Load 32

Garments not suitable for drying 32

Drying symbols on garment labels 32

Duration of the drying cycle 32

Modification of the drying time 32

Fibre residue 32

Additional drying 32

International wash code symbols 33

Operating sequence - Washing only 34

Washing programmes 35-36

Drying programmes 37

Operating sequence - Drying 37

Maintenance 38

Bodywork 38

Detergent dispenser drawer 38

Drain filter 38

Water inlet filter 38

Emergency emptying out 39

Frost precautions 39

Something not working? 40-41

The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance.

Installation

• All internal packing must be removed before using the appliance. Serious damage may be caused to the machine or adjacent furniture if the protective transit devices are not removed or are not completely removed. Refer to the relevant paragraph in the instruction book.
• Any electrical work required to install this appliance must be carried out by a qualified electrician.
• Any plumbing work required to install this appliance must be carried out by a qualified plumber.
• After having installed the machine, check that it is not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor, ensure that air can circulate freely between the feet and the floor.

Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.
• Only wash and dry fabrics which are designed to be machine washed and dried. Follow the instructions on each garment label.
• Do not overload the appliance. Follow the instructions in the instruction book.
• Make sure that all pockets are empty. Objects such as coins, safety pins, pins and screws can cause extensive damage.
• Do not machine wash garments saturated with petroleum, methylated spirits, trichlorethylene, etc. If such fluids have been used to remove stains prior to washing, wait until they have completely evaporated from the fabric before placing garments in the appliance.
• Place small items such as socks, belts, etc. in a cloth bag or pillowcase to prevent them getting trapped between the drum and the tub.
• Use only the recommended quantities of fabric softener. An excessive amount could damage the laundry.

• If you use a liquid detergent with a dispenser which has to be placed directly in the drum, remember to remove this dispenser before drying.

• Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door seal and prevents the formation of musty smells.

• Always check that water has emptied out before opening the door. If not, drain the water following the instructions in the instruction book.
• Always unplug the appliance and shut the water tap after use.

General safety

• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause serious danger. Contact your local Service Centre.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
• During high temperature wash programmes and during the drying cycle the door glass may get hot. Do not touch it!

Child safety

• Children are often not aware of how dangerous electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children's reach.
• Keep all detergents in a safe place out of children's reach.
• Make sure that children or pets do not climb into the drum.
• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug with the remaining cable. Disable the door catch in order to prevent children from becoming trapped inside while playing.

Packaging materials

The materials marked with the symbol are recyclable.

PE<=polyethylene

PS<=polystyrene

PP<=polypropylene

This means that they can be recycled by disposing of them properly in appropriate collection containers.

Machine

Use authorised disposal sites for your old appliance. Help to keep your country tidy!

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Tips for environmental protection

To save water, energy and to help protect the environment, we recommend that you follow these tips:

• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).

• The machine works more economically if it is fully loaded (for both washing and drying cycles).

• The machine will consume less energy if the laundry is adequately spun before being dried.

• With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.
• Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.

Technical specifications

DIMENSIONS Height 85 cm

Width 60 cm

Depth 60 cm

WASHING DRYING

MAXIMUM LOAD Cotton 5 kg 2.5 kg

Synthetics 2.5 kg 2 kg

Delicates 2.5 kg

Woollens 2 kg

SPIN SPEED 1000 rpm max.

POWER SUPPLY VOLTAGE/FREQUENCY

TOTAL POWER ABSORBED

MINIMUM FUSE PROTECTION

WATER PRESSURE

Minimum 0.05 MPa

Maximum

220-230 V/50 Hz

2200 W

10 A

0.8 MPa

This appliance complies with the following EEC Directives:

73/23/EEC of 19/02/73 relating to low voltage

89/336/EEC of 03/05/89 relating to electromagnetic compatibility.

Installation

Unpacking

All transit bolts and packing must be removed before using the appliance.

You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.

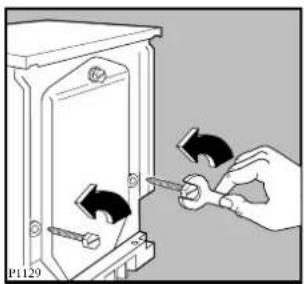

1. Using a spanner, unscrew and remove the two rear bottom screws. Slide out the two plastic pins. Lay the machine on its back, taking care not to squash the hoses. This can be avoided by placing one of the corner packing pieces between the machine and the floor.

Hand using a screwdriver to adjust or install a mechanical component (no text or symbols visible)

Hand holding a cylindrical object with an arrow indicating direction (no text or symbols)

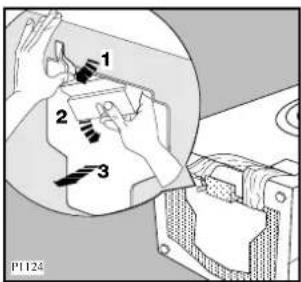

1. Remove the polystyrene block from the bottom of the machine and release the two plastic bags.

1 2 3 P1124

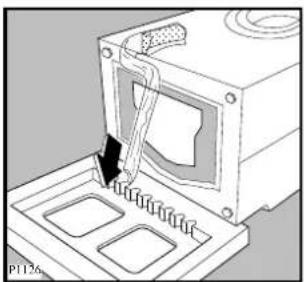

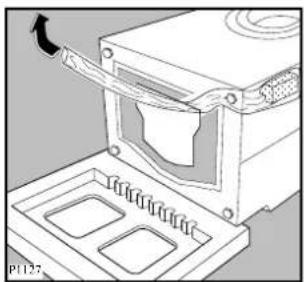

1. Very carefully slide out the left polythene bag, removing it towards the right and then downwards.

2. Very carefully slide out the right polythene bag, removing it towards the left and then upwards.

Diagram of a sewing machine needle inserted into a base tray, showing mechanical components and wiring (no text or symbols)

Diagram of a device with a handle and internal compartments, no visible text or symbols

1. Set the machine upright and remove the remaining rear screw. Slide out the relevant pin.

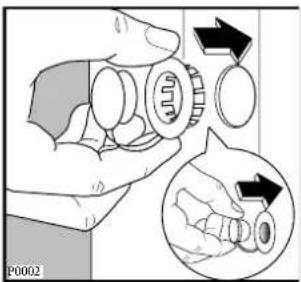

2. Plug all the holes with the plugs which you will find in the envelope containing the instruction booklet.

Illustration of a hand using a screwdriver to adjust or install a component on a cabinet (no text or symbols visible)

P0002

Positioning

Install the machine on a flat hard floor.

Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units.

Carefully level by screwing the adjustable feet in or out. Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor.

Diagram of a mechanical assembly with rotating arrows indicating motion (no text or symbols)

Water inlet

Connect the water inlet hose supplied with the machine to a tap with a 3/4" thread.

Do not use already employed hoses.

The other end of the inlet hose which connects to the machine can be turned in any direction. Simply loosen the fitting, rotate the hose and retighten the fitting, making sure there are no water leaks.

PIONS

Diagram of a pipe valve with a curved arrow indicating direction, no text or symbols present

The inlet hose must not be lengthened. If it is too short and you do not wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use.

Important!

Before connecting up the machine to new pipework or to pipework that has not been used for some time, run off a reasonable amount of water to flush out any debris that may have collected in the pipes.

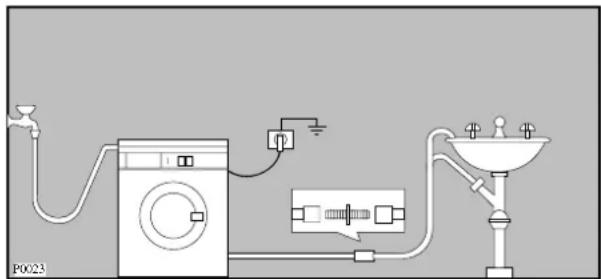

Water drainage

The end of the drain hose can be positioned in three ways:

Hooked over the edge of a sink using the plastic hose guide supplied with the machine. In this case, make sure the end cannot come unhooked when the machine is emptying.

This could be done by tying it to the tap with a piece of string or attaching it to the wall.

Diagram of a pipe fitting with a valve inserted, showing pipe routing and a close-up view (no text or symbols)

In a sink drain pipe branch. This branch must be above the trap so that the bend is at least 60 cm above the ground.

Directly into a drain pipe at a height of not less than 60 cm and not more than 90 cm. The end of the drain hose must always be ventilated, i.e. the inside diameter of the drain pipe must be larger than the outside diameter of the drain hose.

The drain hose must not be kinked. Run it along the floor; only the part near the drainage point must be raised.

Simple line drawing of a washing machine connected to a dish via tubing and a valve (no text or symbols)

Electrical connection

This machine is designed to operate on a 220-230 V, single-phase, 50 Hz supply.

Check that your domestic electrical installation can take the maximum load required (2.2 kW), also taking into account any other appliances in use.

Connect the machine to an earthed socket.

The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precaution.

Should the appliance power supply cable need to be replaced, this should be carried out by our Service Centre.

Important!

When the appliance is installed the power supply cable must be easily accessible.

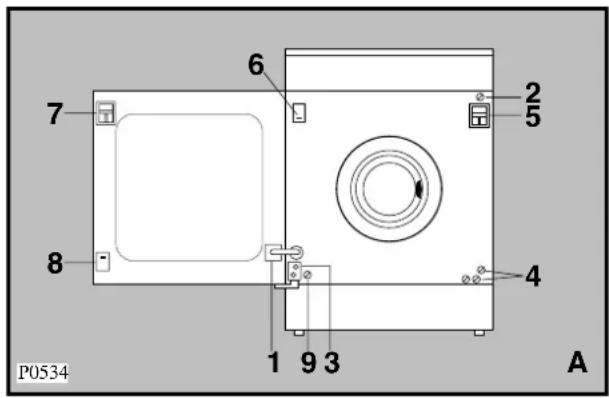

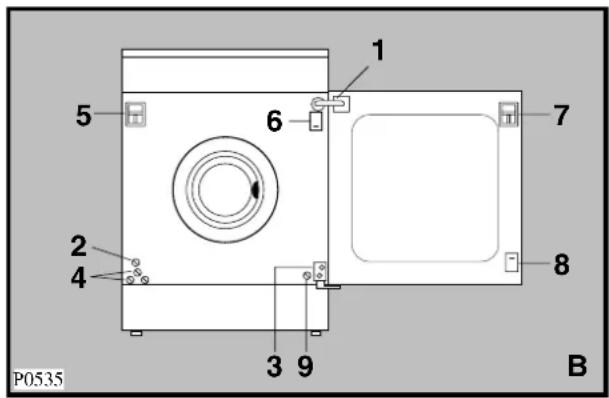

The opening direction of the outer door on this machine can be reversed. To carry out this operation, proceed as follows:

1) Disengage the end of the opening stop (1) from the door and turn it through 90° to remove it from its seat (Fig. A).
2) Using a screwdriver, turn plastic plug (2) through 90° to remove it from its seat (Fig. A).
3) Fit plug (2) in the hole left free by opening stop (1) and turn it through 90° to lock it into place (Fig. B).
4) Fit opening stop (1) into the hole from which plug (2) was removed and turn it through 90°, making sure that the latching tooth is facing towards the right (Fig. B).
5) Remove the door by unscrewing the screws securing it to the bottom hinge (3 - Fig. A).
6) Unscrew the two plastic screws (4 - Fig. A) and fit them on the opposite side (4 - Fig. B).
7) Remove the catch hook (5 - Fig. A) by inserting a screwdriver into the upper hole and pushing downwards.
8) Remove plate (6) by inserting a screwdriver into the bottom hole and pushing upwards (Fig. A).
9) Refit the catch hook (5) and plate (6) on the opposite sides.(Fig. B).
10) Remove the door catch (7) and plate (8) as explained in paragraph 7.
11) Turn the door through 180^ .
12) Refit the door catch (7) and plate (8), reversing their position and pressing firmly to engage the hook (Fig. B).
13) Fit the door onto the washing machine. Insert the top pin first, then the bottom pin into the hinge (3 - Fig. B); finally screw the hinge onto the washing machine.
14) Check that the door is aligned with the appliance. To do this, loosen screw (9 - Fig. B) by a couple of turns and re-tighten when alignment is correct.
15) Fit the flexible end of the door opening stop into the location provided in the door (1 - Fig. B).

7 6 2 5 8 4 1 9 3 P0534 A

1 2 3 9 4 5 6 7 8 P0535 B

Fitting a door panel

The door of this machine has mouldings to allow fitting of a decorative panel (stainless steel sheet, laminated plastic, wood, etc.) to match with the existing kitchen units.

The dimensions of the panel must be as follows:

Width 588 mm

Height 588 mm

Maximum thickness 4 mm

To fit the panel, remove the moulding by unscrewing its fixing screws. Position the panel, then refit the moulding, making sure that it comes into contact with and firmly clamps the panel.

Your new washer-dryer

This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption.

• The temperature selector dial will allow you to choose the most suitable temperature for your laundry.
• The automatic cooling of the washing water from 90° to 60°C before draining will prevent old drain pipes from being deformed.
• The balance control device ensures the machine is stable during the spin.
• The two drying programmes will give your wash that soft, relaxed feel whatever the weather.

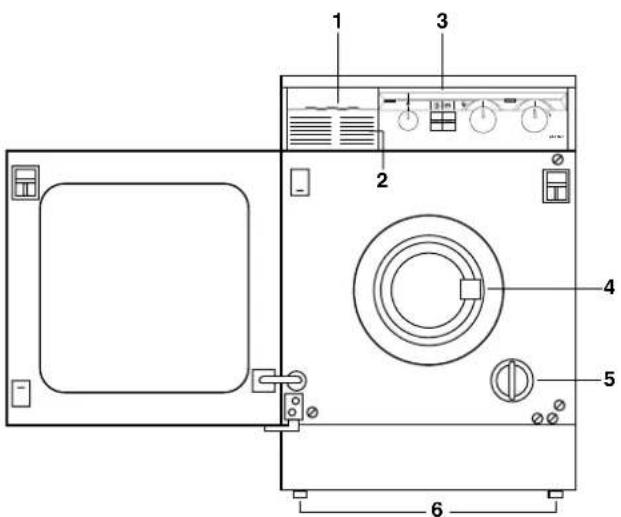

Description of the appliance

1 Detergent dispenser drawer
2 Programme chart
3 Control panel
4 Door handle
5 Drain filter
6 Adjustable feet

Technical diagram of a front view of a washing machine with numbered components and labeled parts

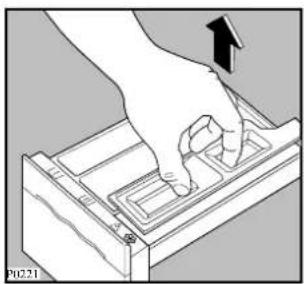

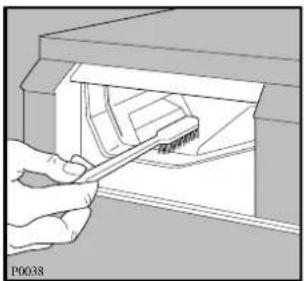

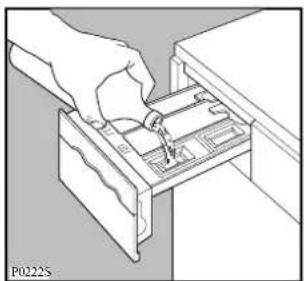

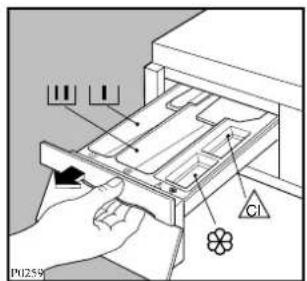

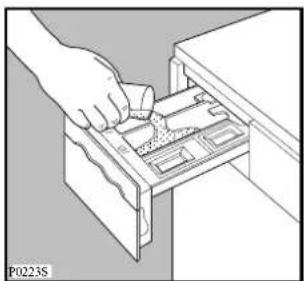

Detergent dispenser drawer

Prewash

Main wash

Fabric softener, starch

Bleaching agent

PI259 CI

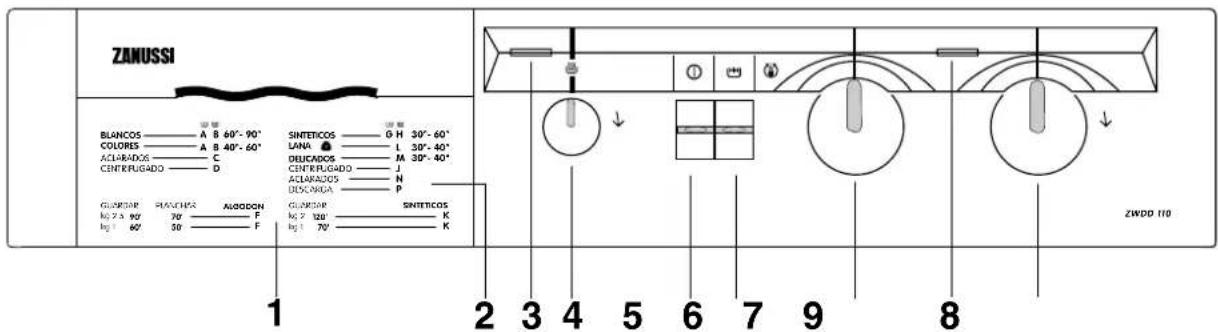

Control panel

ZANUSSI BLANCOS A B 60°-90° SINTETICOS G H 30°-60° COLORES A B 40°-60° LANA L 30°-40° ACU-RADOS C DEUCADOS M 30°-40° CENTERUGADO D CENTERUGADO J ACU-RADOS N LEDOSORA P GUROSAR BLACHAS ALGODON GUROSAR SINTETICOS kg 2,5 90 F kg 1 60 30 F kg 7 120' K kg 1 70' K 1 2 3 4 5 6 7 9 8 ZWDD IIO

1 Detergent dispenser drawer

2 Programme chart

It will help you to choose the most suitable washing and drying programme for your laundry.

3 Drying pilot light

It illuminates when drying starts.

4 Drying time selector dial

Graduated up to 120 minutes for cotton and synthetics, allows drying time to be selected according to the type and amount of laundry and the required degree of dryness:

- black sector for cotton

- grey sector for synthetics

Turn the dial clockwise only.

Cooling phase

To allow the laundry to cool down, a cooling phase starts automatically 10 minutes before the end of drying and this phase must in no circumstances be reduced or interrupted.

5 On/Off button ①

Press this button to start the machine. The same button is used to switch the machine off.

Before selecting a programme or changing an ongoing programme the machine must be switched off by depressing the On/Off button.

6 Quick wash button

By depressing this button on programmes A and B for cotton and G and H for synthetics the washing time will be reduced.

Max. recommended temperature 60°C.

To be used for lightly soiled laundry.

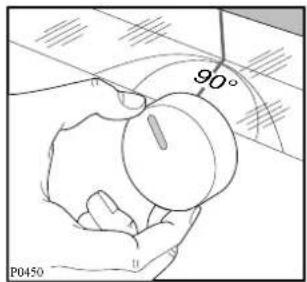

7 Temperature selector dial (thermostat) 🔍

To select the washing temperature turn the dial to the required value. Depress the dial to pop it out. When your laundry is only lightly soiled, a cold wash can be used (dial to position ✕)

8 Mains-on light

It comes on when the machine starts operating and goes out by depressing ON/OFF button ⓣ switch the machine off.

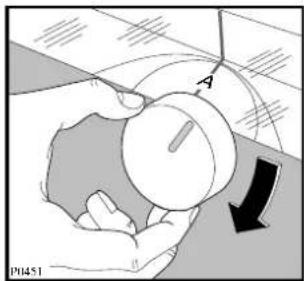

9 Programme selector dial

To select the required programme turn the dial clockwise. Depress the dial to pop it out.

i Washing hints

Sorting the laundry

Follow the wash code symbols on each garment label and the manufacturer's washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens.

Temperatures

90° for normally soiled white cottons and linen (e.g. tea cloths, towels, tablecloths, sheets...)

60° for normally soiled, colour fast garments (e.g. shirts, night dresses, pyjamas....) in linen, cotton or synthetic fibres and for lightly soiled white cotton (e.g. underwear).

^* (cold) for delicate items (e.g. net curtains), mixed 30^-40^ laundry including synthetic fibres and woollens.

The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable Woolmark products provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M9604.

Before loading the laundry

Never wash whites and coloureds together. Whites may lose their “whiteness” in the wash.

New coloured items may run in the first wash; they should therefore be washed separately the first time.

Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins).

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

Remove persistent stains before washing. Rub particularly soiled areas with a special detergent or detergent paste.

Treat curtains with special care. Remove hooks or tie them up in a bag or net.

Maximum loads

Recommended loads are indicated in the programme charts.

General rules:

Cotton, linen: drum full but not too tightly packed;

Synthetics: drum no more than half full;

Delicate fabrics and woollens: drum no more than one third full.

Washing a maximum load makes the most efficient use of water and energy.

For heavily soiled laundry, reduce the load size.

Laundry weights

The following weights are indicative:

bathrobe 1200 g

napkin 100 g

quilt cover 700 g

sheet 500 g

pillow case 200 g

tablecloth 250 g

towelling towel 200 g

tea cloth 100 g

night dress 200 g

ladies' briefs 100 g

man's work shirt 600 g

man's shirt 200 g

man's pyjamas 500 g

blouse 100 g

men's underpants 100 g

Removing stains

Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth.

Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

Grass: soap lightly and treat with bleach (whites and fast coloureds only).

Ball point pen and glue: moisten with acetone (*), I

Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach.

Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach.

Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste.

(*) do not use acetone on artificial silk.

Detergents and additives

Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment. Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature.

The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling.

All commonly available washing machine detergents may be used in this appliance:

– powder detergents for all types of fabric,

- powder detergents for delicate fabrics (60°C max) and woollens,

– liquid detergents, preferably for low temperature wash programmes (60°C max) for all types of fabric, or special for woollens only.

The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme.

If using concentrated powder or liquid detergents, a programme without prewash must be selected.

The washer dryer incorporates a recirculation system which allows an optimal use of the concentrated detergent.

Pour liquid detergent into the dispenser drawer compartment marked just before starting the programme.

Any fabric softener or starching additives must be poured into the compartment marked before starting the wash programme.

The bleaching agent (chlorine) can be used only for white or fast coloured cotton and linen items.

Pour it into the compartment marked

Follow the product manufacturer's recommendations on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer.

Quantity of detergent to be used

The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used.

Water hardness is classified in so-called “degrees” of hardness. Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority.

Follow the product manufacturers' instructions on quantities to use.

Use less detergent if:

- you are washing a small load,

– the laundry is lightly soiled,

– large amounts of foam form during washing.

Degrees of water hardness

Level	Characteristic	Degrees
		German °dH	French °T.H.
1	soft	0-7	0-15
2	medium	8-14	16-25
3	hard	15-21	26-37
4	very hard	more than 21	more than 37

Drying hints

As a dryer, the machine works on the condensation principle.

Therefore, the water tap must be open and the drain hose must drain water into a sink or into the drain pipe, even during the drying cycle.

Load

Sort of laundry	max. load (dry weight)
Linen and cottons	2.5 kg
Synthetics	2 kg

Warning:

Loads of washed laundry exceeding these values must be divided before being dried, otherwise poor results will be obtained.

Garments not suitable for drying

• Particularly delicate items such as synthetic curtains, woollen and silk, garments with metal inserts, nylon stockings, bulky garments such as anoraks, bedcovers, quilts, sleeping bags and duvets must not be machine dried.
• Garments padded with foam-rubber or materials similar to foam-rubber must not be machine dried; they represent a fire hazard.
• Also, fabrics containing residues of setting lotions or hair sprays, nail solvents or similar solutions must not be machine dried in order to avoid the formation of harmful vapours.

Drying symbols on garment labels

Always look at the garment label to check whether garments can be machine dried.

The following symbols refer to drying:

Machine drying is usually possible

Normal drying (normal temperature)

Gentle drying (reduced temperature)

Do not machine dry

Duration of the drying cycle

The drying time can vary according to

• the final spin speed;
• the required degree of drying (store dry or iron dry);
• the type of laundry;
• the size of load.

The usual drying times are indicated in the programme chart. As you become more familiar with the appliance, you will discover the drying times that best suit your needs according to the various type of fabric. It is a good idea to make a note of these times.

Modification of the drying time

If you wish to modify the drying time when a washing programme is running (NON-STOP programme), turn the time selector dial clockwise to the required time.

Fibre residue

After drying fluffy fabrics, such as new towels, it is advisable to perform a gentle rinse (progr. N) to be sure that any residue that may remain in the tub is completely removed and does not stick to garments dried afterwards.

After each drying cycle the filter should be checked and cleaned.

Additional drying

Should the laundry still be too wet at the end of the programme, set another short drying cycle.

Warning! To prevent the formation of creases or shrinking of fabrics, avoid excessive drying.

i International wash code symbols

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic washDelicate wash	Max. wash temperature 95°C	Max. wash temperature 60°C	Max. wash temperature 40°C	Max. wash temperature 30°C	Hand wash Do not wash at all

high temperature

low temperature

Drying Flat On the line On clothes

hanger

Tumble dry

Do not tumble dry

Operating sequence

Before washing your first load of laundry, we recommend that you run a cotton cycle at 60^ C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half a measure of detergent into the main wash compartment and start up the machine.

Washing only

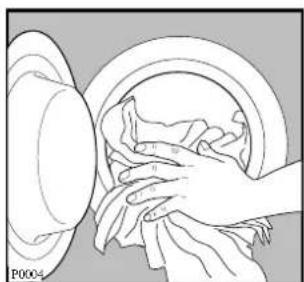

1. Place the laundry in the drum

Open the door.

Place the laundry in the drum, one item at a time, shaking them out as much as possible.

Close the door.

Diagram of a kitchen appliance with a door and control panel (no text or symbols)

Illustration of hands washing a baby's face with a circular object nearby (no text or symbols)

2. Measure out the detergent

Pull out the dispenser drawer until it stops. Measure out the amount of detergent recommended by the manufacturer in a graduated cup and pour it into the main wash compartment 🌐

If you wish to carry out a programme with prewash, pour detergent into the appropriate compartment marked Ⓗ.

3. Measure out the additives

If required, pour fabric softener into the compartment marked and bleach into the compartment marked without exceeding the «MAX» mark.

Illustration of a hand inserting into a drawer into a drawer (no text or symbols visible)

Illustration of a hand inserting a component into a drawer (no text or symbols visible)

4. Select the temperature and the desired option

Turn the dial to the required setting and depress button ↗ if required.

90° P0450

Simple diagram with a vertical arrow and a rectangular box containing a horizontal line, no text or symbols present.

5. Select the programme and start the machine

Turn the programme selector dial clockwise to the required programme and press the ON/OFF button ①: the mains on light comes on and the machine starts to operate.

A P0451

I P04145

6. At the end of the programme

The machine stops automatically.

If you have selected a programme which ends with the water of the last rinse left in the tub, drain the water before opening the door. Select programme "P" (drain) or "J" (short spin).

Wait one or two minutes before opening the door to give the electric locking mechanism time to release it. Depress the ON/OFF button again to switch the machine off. The mains on light goes out.

Remove the laundry.

Turn the drum by hand to make sure it is completely empty, so as to avoid any forgotten items being damaged in a subsequent wash (e.g. shrinking) or their colour running into a load of whites.

Release button 📋It has been pressed.

Turn the water tap off and unplug the machine.

Leave the door ajar to air the machine.

Programme table

Washing programmes for cotton and linen

Max. load: 5 kg

Programme	Temp. Fabrics		Additional function	Consumptions*
				Energy kWh	Water lt	Duration min.
A	60°-90°	WHITES WITH PREWASH, for example work garments, sheets, household linen, underwear, towels		2.5	80	170
A	40°-60°	COLOUREDS WITH PREWASH, sheets, underwear, towels, shirts,blouses		1.5	77	165
B	60°-90°	WHITES WITHOUT PREWASH, for example household linen, sheets, shirts, underwear		2.25	66	150
B	40°-60°	COLOUREDS WITHOUT PREWASH, for example shirts, blouses, terry cloths, underwear		1.15	63	135
C RINSES	COLD	This programme can be used for rinsing hand washed garments		-	20	16
D Long spin		Separate spin for cotton and linen		-	-	12

In compliance with EC directive 92/75, the consumption figures indicated on the energy label refer to the 60^ C wash programme for cotton (programme “B”).

* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It refers to the highest temperature for each wash programme.

Important!

• Programme B begins with a short drain, then the programme selector dial advances automatically to the water filling position.
• We suggest you not to switch the appliance off and on during its operation. This would modify the memorised programme in progress with unsatisfactory washing results.

Programme table

Washing programmes for synthetics, mixed fabrics, delicates and wool

Max. load: 2.5 kg, wool 2 kg

Programme	Temp. Fabrics		Additional function	Consumptions*
				Energy kWh	Water It	Duration min.
G	30°-60°	SYNTHETICS WITH PREWASH, for example underwear, coloured items, shirts, blouses		1.25	63	95
H	30°-60°	SYNTHETICS WITHOUT PRE-WASH, for example shirts, blouses, mixed fabrics		0.8	49	80
J Short spin		Separate spin for synthetics, delicates and wool		-	-	6
L	30°-40°	WOOL WOOLMARK Special programme for garments bearing the “Pure new wool, non-shrink, machine washable” label		0.40	45	55
M	30°-40°	DELICATES, for example curtains		0.55	48	55
N Rinses	COLD	This programme can be used for rinsing hand washed garments		0.02	33	15
P Drain		For emptying out the last rinse water of these programmes		-	-	1

* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature.

At the end of these programmes the machine stops with the water of the last rinse left in the tub to prevent the fabrics from creasing. To drain the water select programme "J" or "P".

When the automatic NON-STOP washing plus drying programme is used, the water is emptied out automatically and there is a short spin at 850 rpm before drying starts.

Important!

• Programme H for synthetics and L for wool begin with a short drain, then the programme selector dial advances automatically to the water filling position.
• We suggest you not to switch the appliance off and on during its operation. This would modify the memorised programme in progress with unsatisfactory washing results.

Drying times

Degree of drying	Type of fabric Max. load Spin speed			Drying time mins
Store dry (*)Suitable for items to put away without ironing	Cotton and linen(towels, T-shirts,bathrobes)	2.5 kg	1000	90black sector
		1 kg	1000	60black sector
	Synthetics and mixed fabrics(jumpers, blouses,underwear,household linen)	2 kg	850	120grey sector
		1 kg	850	70grey sector
Iron drySuitable for ironing	Cotton and linen(sheets, tablecloths,shirts, etc.)	2.5 kg	1000	70black sector
		1 kg	1000	50black sector

(*) The STORE DRY drying programme for cotton is the reference programme for the Energy Label data, in compliance with EC directive 92/75.

Drying only

Warning! Do not exceed the maximum laundry loads:

• 2.5 kg for linen and cottons
• 2 kg for synthetics.

The water tap must be open and the drain hose must be positioned in the sink or connected to the drain pipe.

1. Select the drying programme "F" for cotton or "K" for synthetics.
2. Select the drying time in the appropriate sector.

80° 100° 180° P0864S

1. Press the ON/OFF button to start the programme.
2. At the end of the cycle, press the ON/OFF button again to switch the appliance off.
3. Remove the laundry.

Automatic washing and drying (NON-STOP programme)

Warning! For NON-STOP programmes, it is also essential not to exceed the maximum load sizes of 2.5 kg for cotton and 2 kg for synthetics.

Do not use a dosing device when carrying out a NON-STOP programme.

1. Load the laundry.
2. Add detergent and additives.
3. Select the wash programme and the temperature.
4. Select eventually option by means of the relevant button.
5. Select the drying time.
6. Start the programme by depressing the ON/OFF button.
7. At the end of the programme, press the ON/OFF button again to switch the machine off.
8. Remove the laundry.

Maintenance

1. Bodywork

Clean the outside of the machine with warm water and a neutral, non-abrasive household detergent. Rinse with clean water and dry with a soft cloth.

Important: do not use methylated spirits, solvents or similar products to clean the bodywork.

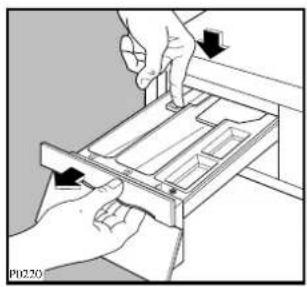

2. Detergent dispenser drawer

After a while, detergents and fabric softeners leave deposits in the drawer.

Clean the drawer from time to time by rinsing it under a running tap. To remove the drawer from the machine, press the button in the rear left-hand corner.

To facilitate cleaning, the top part of the additive compartments can be removed.

Illustration of hands installing or adjusting a mechanical component with arrows indicating assembly (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the drawer after cleaning.

Illustration of a hand using a tool to clean or remove a component inside a container (no text or symbols visible)

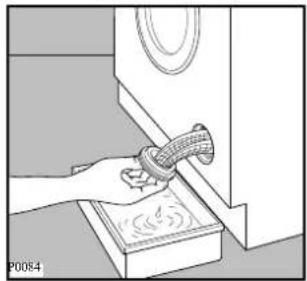

3. Drain filter

The drain filter collects threads and small objects inadvertently left in the laundry. Check regularly that the filter is clean.

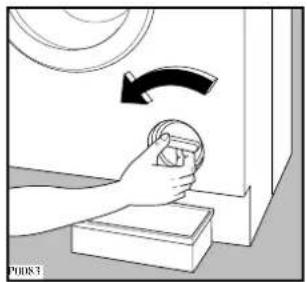

Place a container under the filter and unscrew it.

Illustration of a hand holding a circular object next to a rectangular block, with an arrow indicating rotation (no text or symbols)

Pull out the filter.

Clean the filter under a running tap, then refit it, screwing it fully in.

Illustration of a hand cleaning a kitchen appliance with a tool (no text or symbols)

Illustration of a hand washing a faucet with water flowing from it (no text or symbols)

4. Water inlet filter

If you notice that the machine is taking longer to fill, check that the filter in the water inlet hose is not blocked.

Turn off the water tap.

Unscrew the hose from the tap.

Clean the filter with a stiff brush.

Screw the hose back onto the tap.

Illustration of hands using a tool to adjust or install a wall-mounted device, with no visible text or symbols.

5. Emergency emptying out

If the water is not discharged (outlet pump is blocked, filter or drain hose are clogged), proceed as follows to empty out the machine:

• pull out the plug from the power socket;
• close the water tap;
• if necessary, wait until the water has cooled down;
• place a bowl on the floor;
• put the drain hose end into the bowl and let the water come out.

Should it not be possible to have access to the outlet hose because, for example, the appliance is built in the kitchen furniture, slightly loosen the outlet filter after placing a bowl on the floor, to let the water come out slowly.

At the end screw the filter again.

6. Frost precautions

If the machine is installed in a place where the temperature could drop below 0^ C, proceed as follows:

• Close the water tap and unscrew the water inlet hose from the tap.
• Place the end of the drain hose and that of the inlet hose in a bowl placed on the floor.
• Select programme "P" and run it until the machine stops.
• Remove the plug from the socket.
• Screw the water inlet hose back on and put the drain hose back in its place.

By doing this, any water remaining in the machine is removed, avoiding the formation of ice and, consequently, breakage of the affected parts.

When you use the machine again, make sure that the ambient temperature is above 0^ C.

Something not working?

Problems which you can resolve yourself.

Problem Possible cause
The machine does not start up:	The door is not firmly closed.The machine is not plugged in or there is no power at the socket.The main fuse has blown.The programme selector dial is not positioned correctly and the ON/OFF button has not been depressed.
The machine does not fill:	The water tap is closed.The inlet hose is squashed or kinked.The filter in the inlet hose is blocked.The door is not properly closed.
The machine fills then empties immediately:	The end of the drain hose is too low. Refer to relevant paragraph in “water drainage” section.
The machine does not empty and/or does not spin:	The drain hose is squashed or kinked.A programme which stops with water in drum has been selected.The laundry is not evenly distributed in the drum.The drain filter is clogged.
There is water on the floor:	Too much detergent or unsuitable detergent (creates too much foam) has been used.Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.The drain hose is damaged.
Unsatisfactory washing results:	Too little detergent or unsuitable detergent has been used.Stubborn stains have not been treated prior to washing.The correct temperature was not selected.Excessive laundry load.
The machine vibrates or is noisy:	The transit bolts and packing have not been removed.The support feet have not been adjusted.The laundry is not evenly distributed in the drum.Maybe there is very little laundry in the drum.
The door will not open:	The programme is still running.The door lock has not been released.There is water in the drum.
Problem	Possible cause
• Spinning starts late or the machine does not spin:	• The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and select the spin programme.
• The machine does not dry:	• The drying time has not been selected.• The tap is closed.• The drain filter is blocked.• A suitable drying time in the correct sector has not been selected.• The drum is overloaded.

Water is not visible in the machine. The machine, which is the result of modern technology, runs in a very economical way with low water consumption. Performance is nevertheless excellent. P1035UK

The machine makes an unusual noise. The machine is fitted with a commutator motor which improves machine performance. P1034UK

If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

Mod. ...... Prod. No. ...... Ser. No. ...... P0047

From the Electrolux Group. The world's No. 1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
