Product Type	Network Attached Storage (NAS)
Model	WD My Cloud Mirror WDBWVZ0060JWT (6 TB)
Dimensions (H x W x D)	6.75 x 3.90 x 6.10 in (171.45 x 99.06 x 154.94 mm)
Weight	4.6 lbs (2.1 kg)
Power Supply	AC input 100-240V, 50-60Hz; DC output 12V, 3A; 36W adapter
Internal Drives	2 x WD Red 3.5-inch SATA hard drives (pre-installed)
RAID Modes Supported	RAID 1 (default), RAID 0, Spanning, JBOD (1-2 disks)
Network Interface	Gigabit Ethernet (RJ-45)
USB Ports	2 x USB 3.0 (back panel)
Processor	1.2 GHz
Supported Protocols	CIFS/SMB, NFS, FTP, AFP, WebDAV
Compatible Operating Systems	Windows 8.1/7/Vista/XP (32-bit), Mac OS X 10.6-10.9, iOS, Android
Main Functions	Personal cloud storage, mirrored data protection, remote access, automatic backup (PC/Mac), DLNA/iTunes media streaming, USB expansion, mobile app support
Care Instructions	Keep upright in well-ventilated area; unplug before cleaning; use damp cloth; do not block ventilation slots
Safety Precautions	Use only provided AC adapter; avoid liquids; do not drop; do not remove both drives simultaneously
Spare Parts and Reparability	Hard drives are user-replaceable; no other spare parts available; warranty service via WD support
Warranty	2 years limited (varies by region; check manual)
Package Contents	NAS unit, Ethernet cable, AC power adapter, Quick Install Guide

Frequently Asked Questions - My Cloud Mirror WDBWVZ0060JWT WESTERN DIGITAL

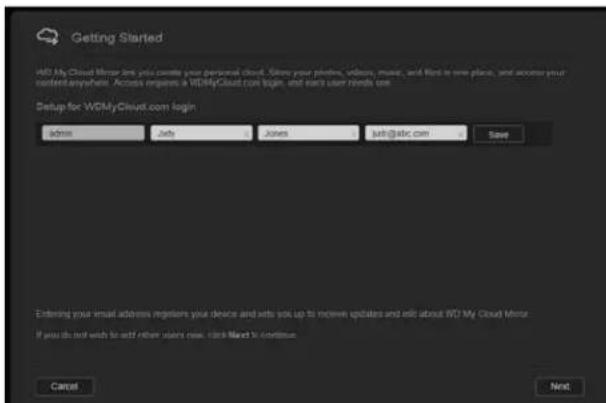

How do I set up the WD My Cloud Mirror for the first time?

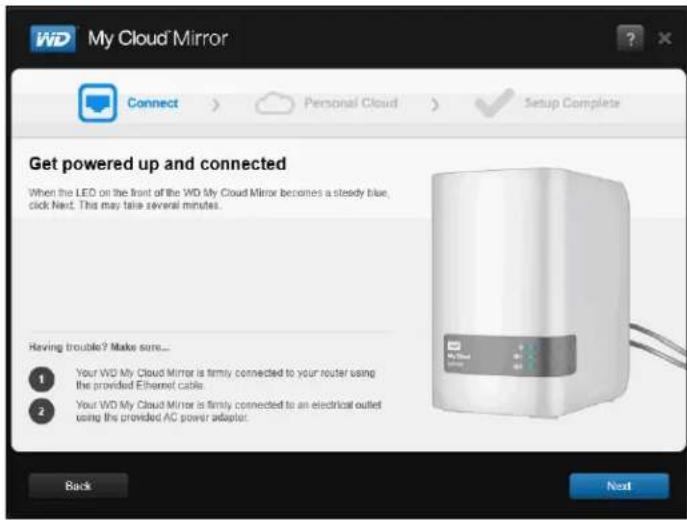

Connect the device to your router via Ethernet and power it on. Wait for the power LED to turn solid blue. Then, visit http://wd.com/setup/wdmycloudmirror to download and run the setup software, or open a browser and go to http://wdmycloudmirror (Windows) or http://wdmycloudmirror.local (Mac) to configure manually.

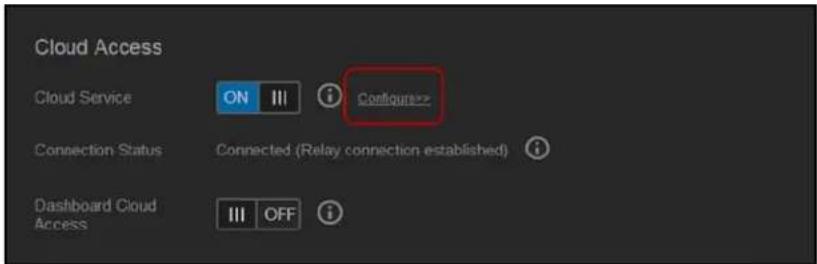

How can I access my files from outside my home network?

Enable cloud access by creating a WDMyCloud.com account. On the dashboard, go to Cloud Access, enter an email address for each user, and generate activation codes. Use these codes with the WD My Cloud mobile or desktop app to connect remotely.

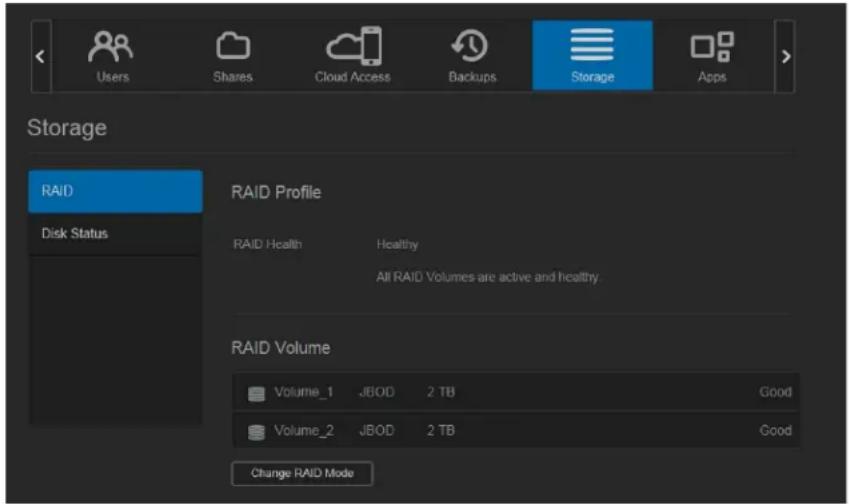

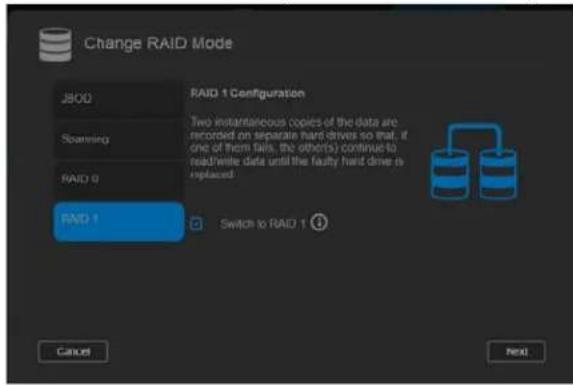

What RAID mode is pre-configured and can I change it?

The default is RAID 1 (mirrored), which duplicates your data for protection. You can change to RAID 0, Spanning, or JBOD via the Storage settings in the dashboard. Note: changing RAID mode erases all data on the device.

How do I back up my PC or Mac to the My Cloud Mirror?

For Windows, install WD SmartWare Pro from the WD Learning Center. For Mac, enable Time Machine backups in the dashboard under Settings > General > Mac Backup. Both allow you to schedule automatic backups.

Can I expand the storage capacity?

Yes, by connecting a USB 3.0 hard drive to one of the rear USB ports, or by replacing the internal hard drives with larger WD Red drives. The device supports up to 2 drives internally.

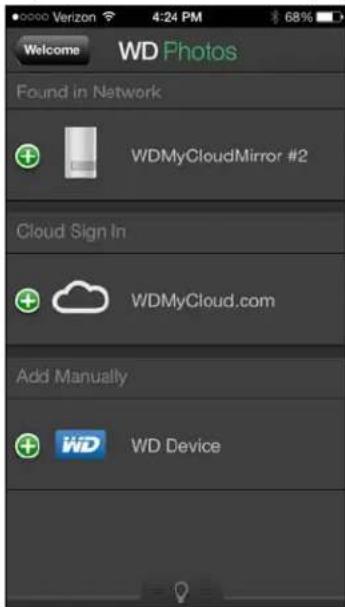

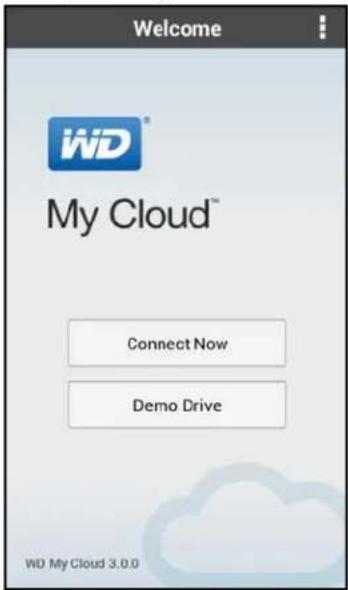

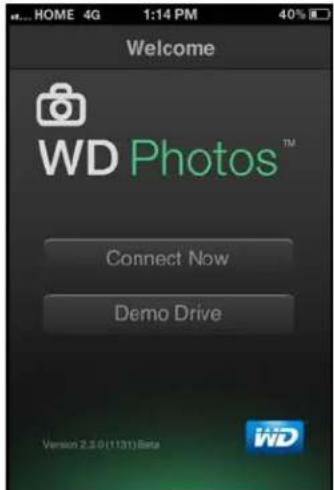

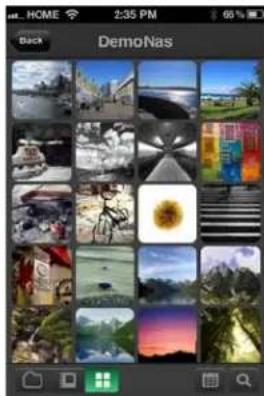

How do I access my files from a smartphone or tablet?

Download the WD My Cloud app (iOS/Android) or WD Photos app. Launch the app, tap Connect Now, and follow the prompts to discover the device on your local network or enter an activation code for remote access.

What should I do if a hard drive fails?

In RAID 1 mode, the device continues operating. The front panel LED for that drive will flash red. Replace the faulty drive with a new WD Red drive (3.5-inch SATA). The device will automatically rebuild the mirror. See Chapter 12 in the manual for detailed steps.

How do I reset the administrator password?

Press and hold the Reset button on the back of the device for about 10 seconds until the power LED blinks yellow. This restores the admin username to 'admin' and clears the password. You can then log in without a password and set a new one.

Can I stream media to my TV or game console?

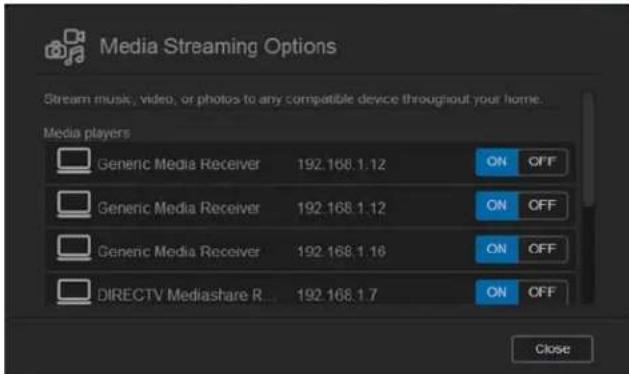

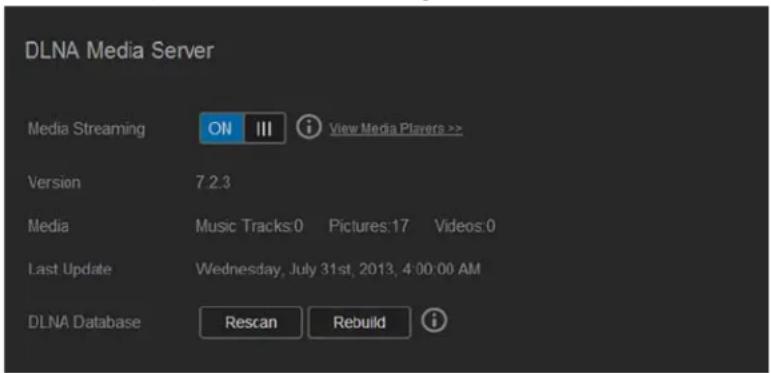

Yes. Enable DLNA media server in the dashboard under Media > Media Server. Your device will appear as a media source on DLNA-compatible TVs, game consoles, and media players. You can also enable iTunes server to stream music to iTunes clients.

What is the warranty period and how do I get support?

The My Cloud Mirror comes with a 2-year limited warranty (varies by region). For support, visit http://support.wd.com for knowledge base articles, email support, or phone assistance (30-day free phone support from first call).

USER MANUAL My Cloud Mirror WDBWVZ0060JWT WESTERN DIGITAL

Personal Cloud Storage

User Manual

HiD My Cloud Mirror 0 - 1 - 2 -

WD Service and Support

Should you encounter any problem, please give us an opportunity to address it before returning this product. Most technical support questions can be answered through our knowledge base or email support service at http://support.wd.com. If the answer is not available or if you prefer, please contact WD at the best telephone number shown below.

Your product includes 30 days of free telephone support during the warranty period. This 30-day period starts on the date of your first telephone contact with WD Technical Support. Email support is free for the entire warranty period and our extensive knowledge base is available 24/7. To help us keep you informed of new features and services, remember to register your product online at http://register.wd.com.

Accessing Online Support

Visit our product support website at http://support.wd.com and choose from these topics:

■ Downloads—Download drivers, software, and updates for your WD product.
■ Registration—Register your WD product to get the latest updates and special offers.
- Warranty & RMA Services—Get warranty, product replacement (RMA), RMA status, and data recovery information.
■ Knowledge Base—Search by keyword, phrase, or answer ID.
■ Installation—Get online installation help for your WD product or software.
■ WD Community—Share your thoughts and connect with other WD users.
■ Online Learning Center — Start here to get the most out of your personal cloud storage device (http://www.wd.com/setup).

Contacting WD Technical Support

When contacting WD for support have your WD product serial number, system hardware, and system software versions available.

North America Asia Pacific

English	800.ASK.4wd	Australia	1 800 42 9861
	855 556-5117	China	800 820 6682 / [phone]
Spanish	800.832.4778	Hong Kong	[phone]
		India	1 800 11 9393 (MNTL) / 1 800 200 5789 (Reliance) 011 26384700 (Pilot Line)
Europe (toll free)*	00800 ASK4 WDEU (00800 27549338)	Indonesia	[phone]
		Japan	0120-994-120 / 00531-65-0442
		Korea	02 703 6550
Europe [phone]		Malaysia	[phone] / 1 800 88 1908/[phone]
Middle East [phone]		Philippines	1 800 1441 0159
Africa [phone]		Singapore	[phone] / [phone]/[phone]
		Taiwan	[phone]/[phone]

* Toll free number is available in the following countries: Austria, Belgium, Denmark, France, Germany, Ireland, Italy, Netherlands, Norway, Spain, Sweden, Switzerland, United Kingdom.

Registering Your WD Product

Register your WD product to get the latest updates and special offers. You can easily register your drive online at http://register.wd.com or by using WD My Cloud Mirror personal cloud storage software.

Table of Contents

WD Service and Support .... ii

Registering Your WD Product .... ii

1 Important User Information .... 1

Important Safety Instructions....1

Recording Your WD Product Information....2

2 Product Overview .... 3

About the System .... 3

Features 3

About the Online Learning Center 4

Package Contents 4

Requirements 5

Product Components 6

Pre-installation Instructions 9

Handling Precautions 9

3 Getting Started ....10

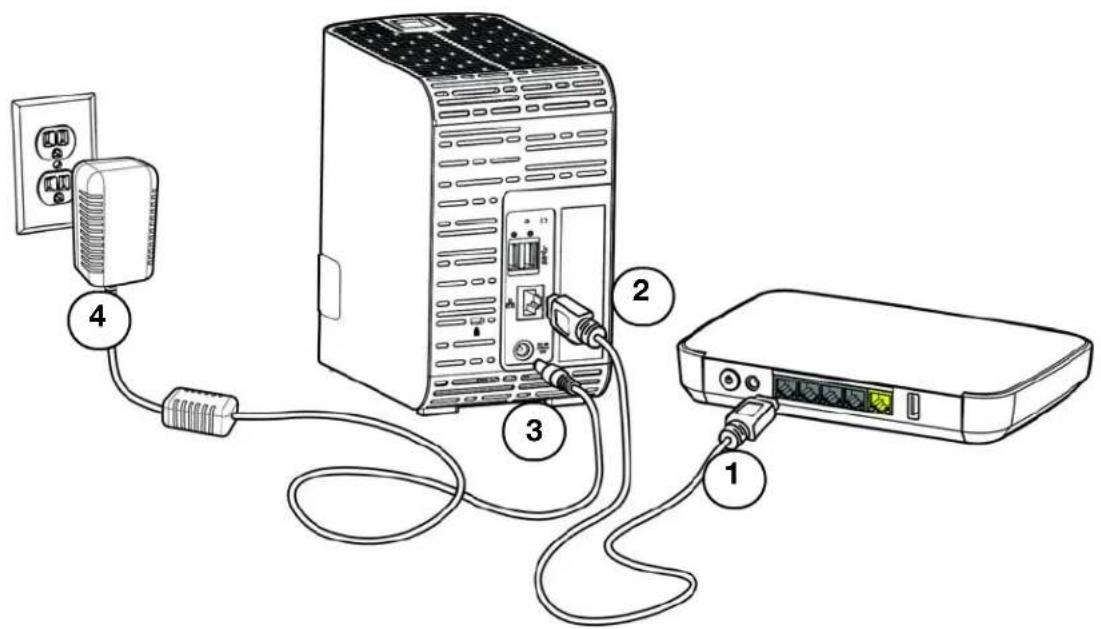

Physically Connecting the Device 10

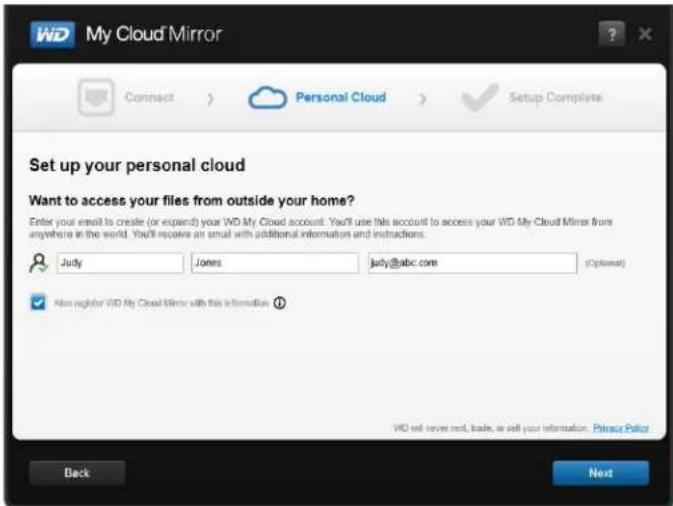

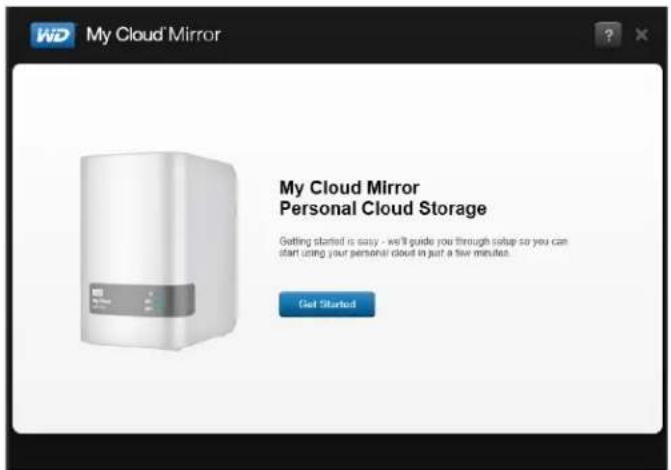

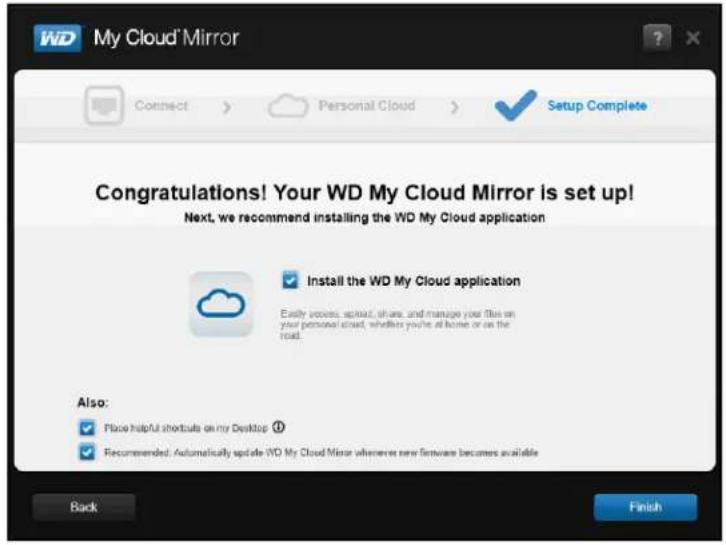

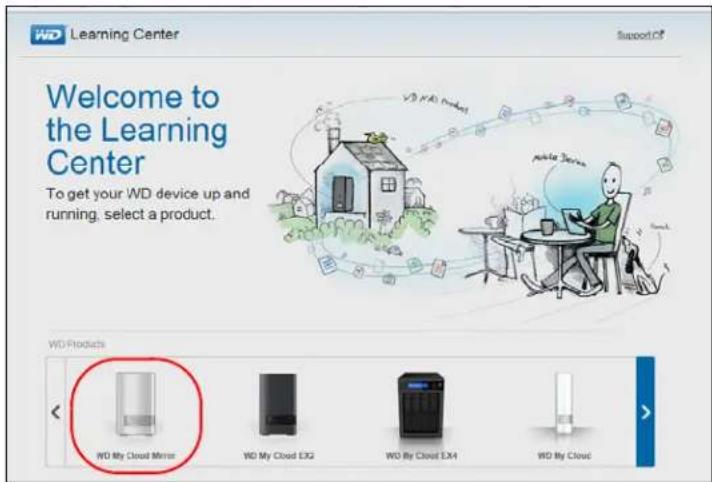

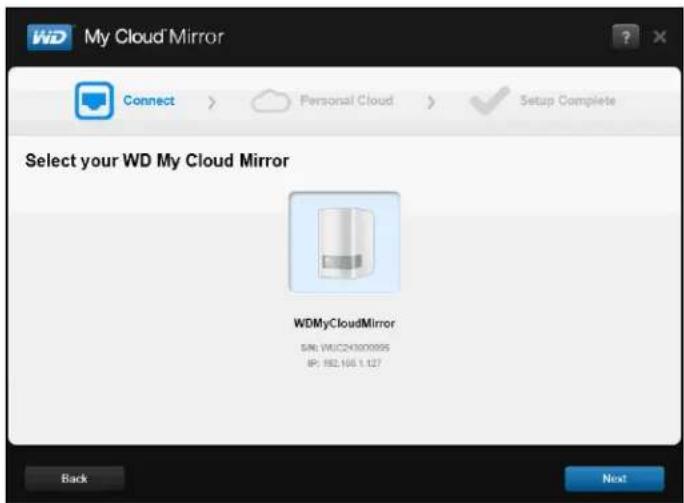

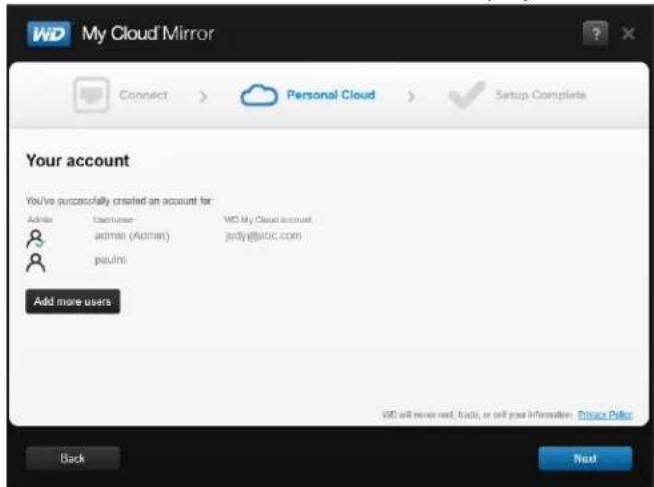

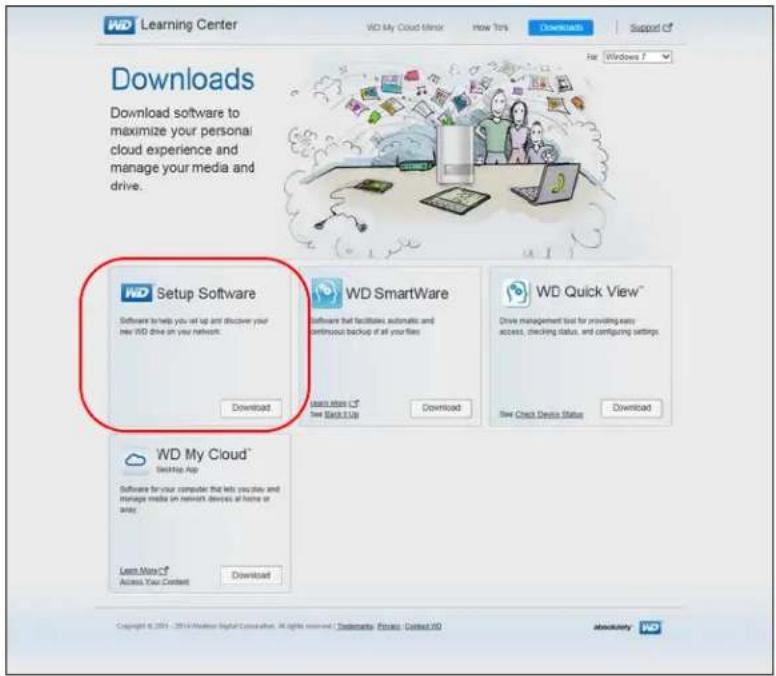

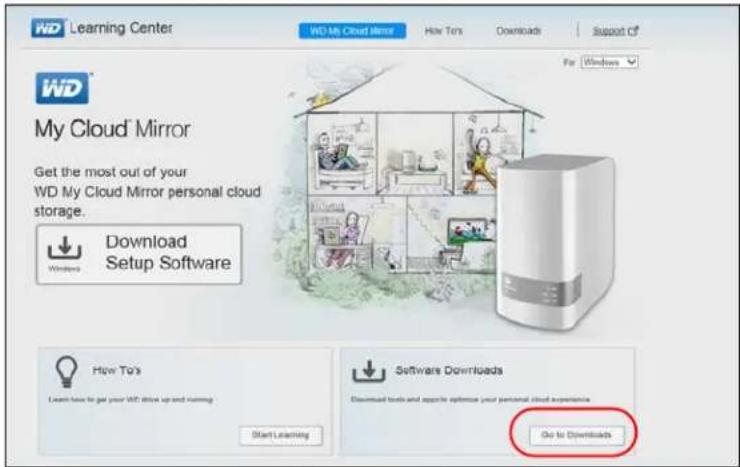

Getting Started Using Online Setup Software .... 11

Getting Started Without Online Setup Software....17

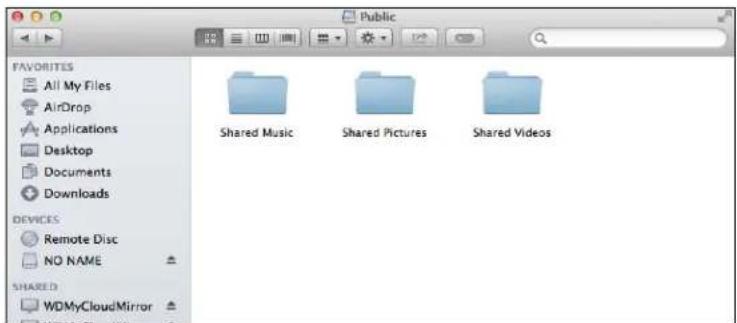

Accessing Content 20

4 Accessing Your Cloud Remotely 22

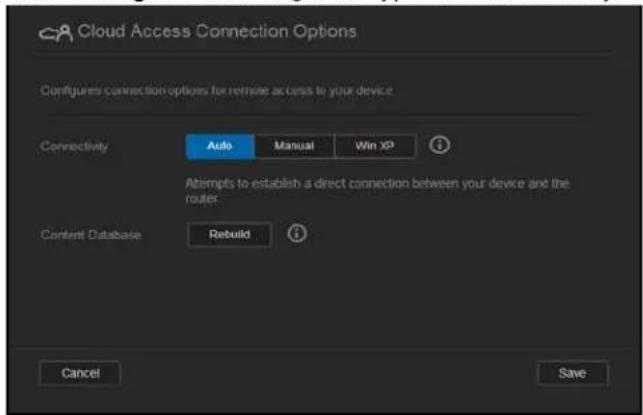

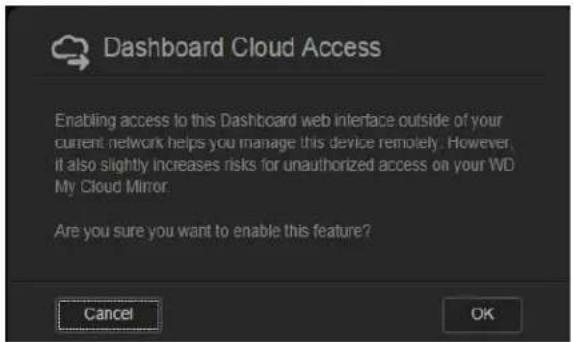

Enabling Cloud Access for the WD My Cloud Mirror Device . . . 22

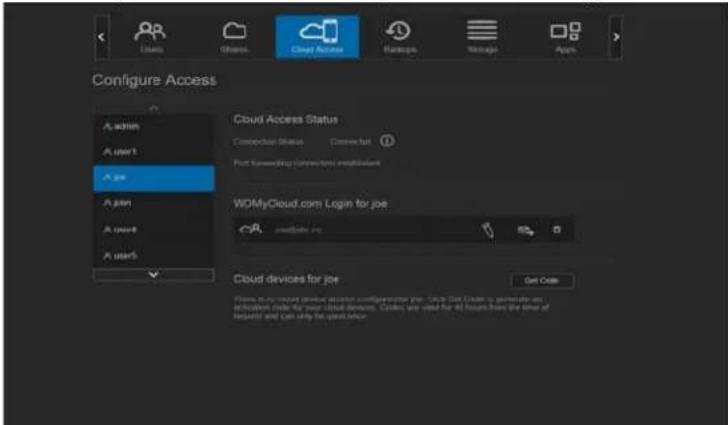

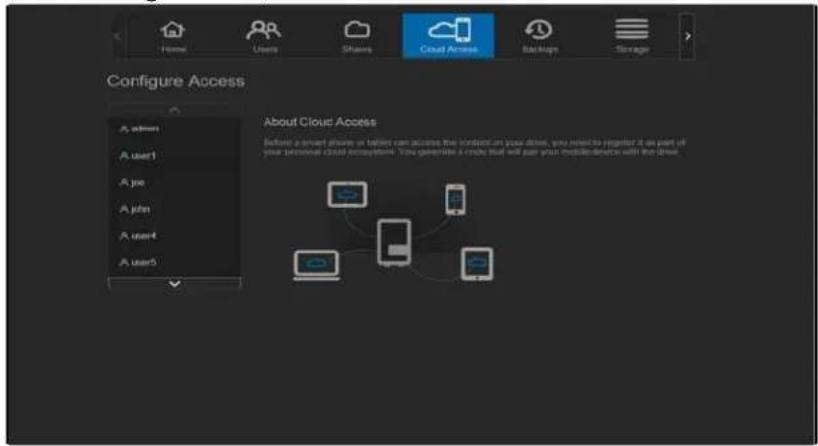

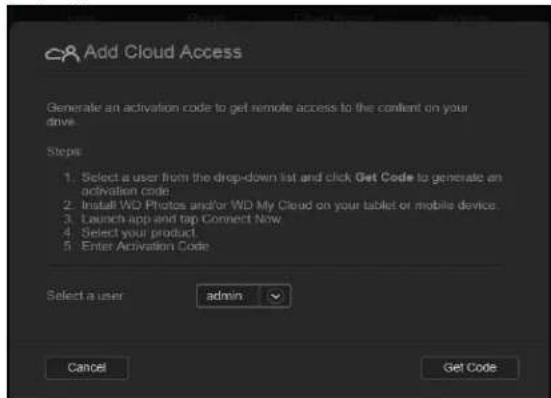

Configuring Cloud Access for a User 22

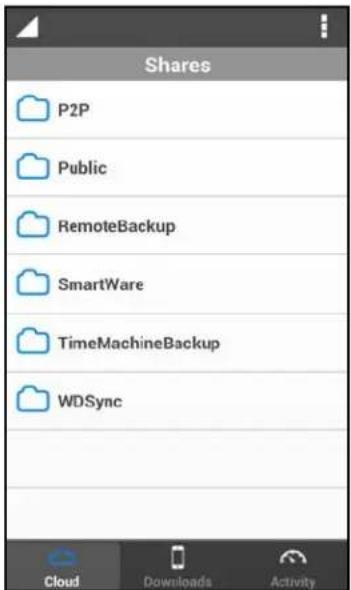

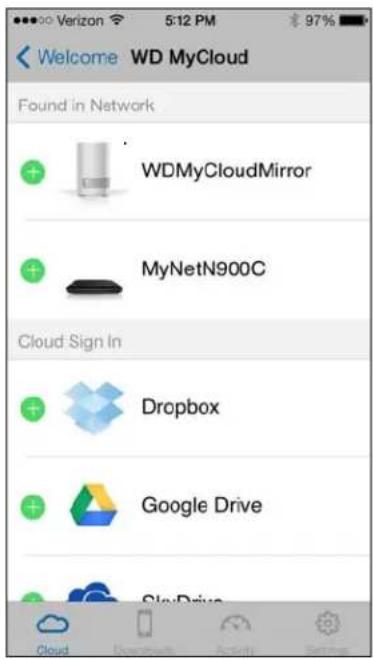

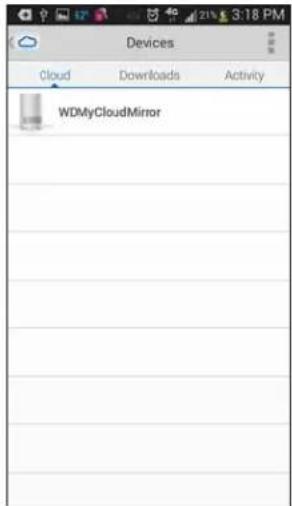

Mobilizing Your Files with iOS and Android Mobile Apps. ..... 24

5 Managing Users, Groups, and Shares .....39

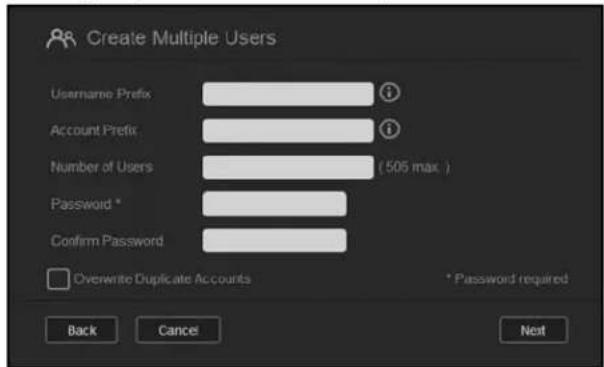

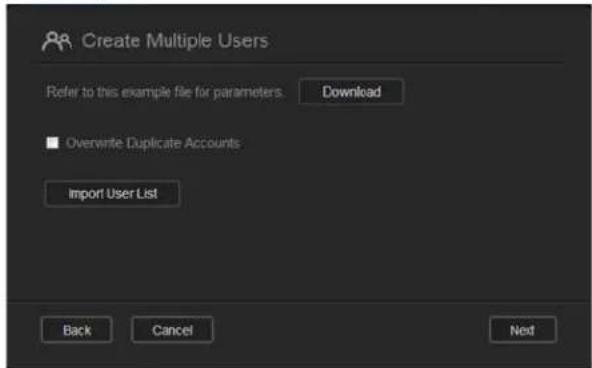

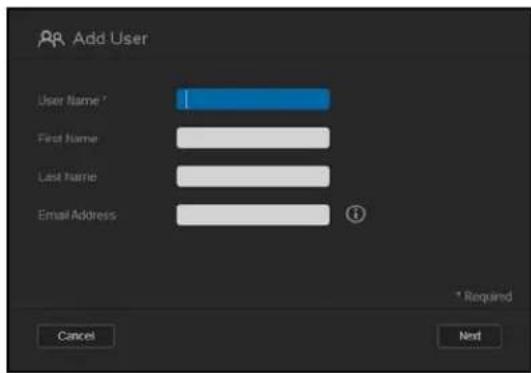

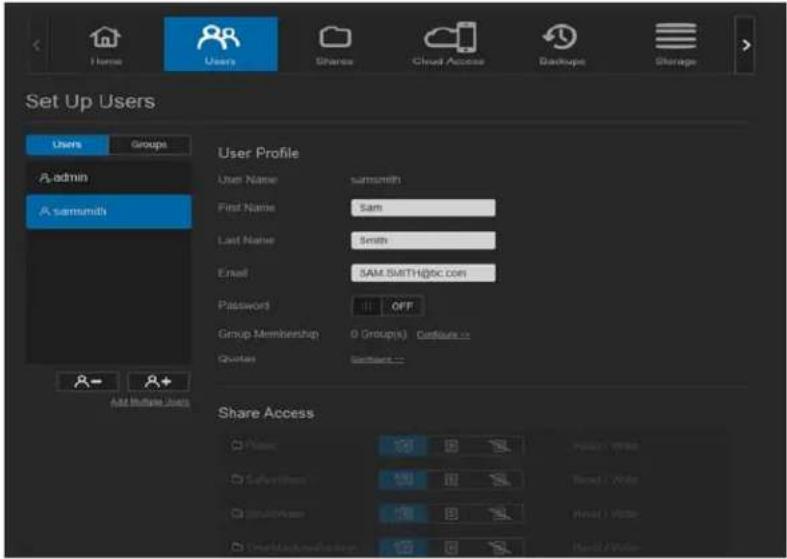

About Users 39

About Groups 46

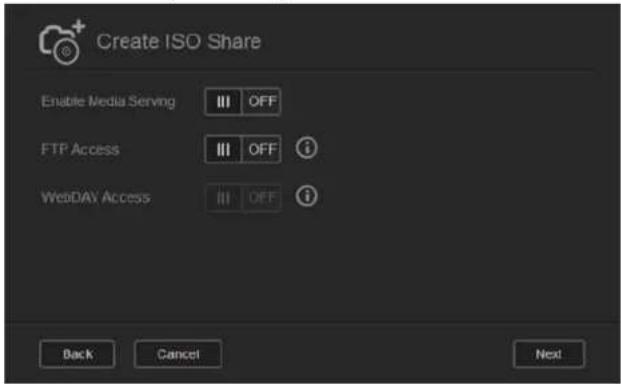

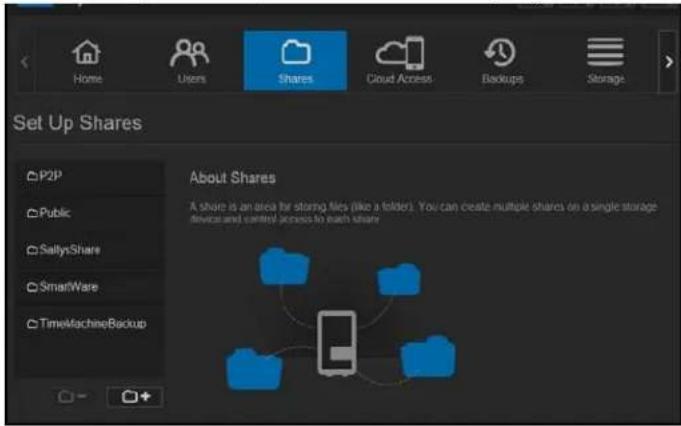

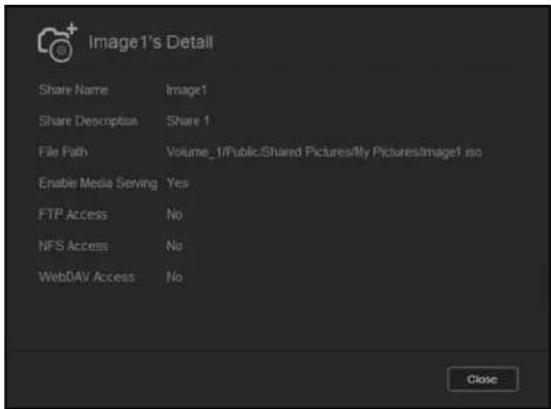

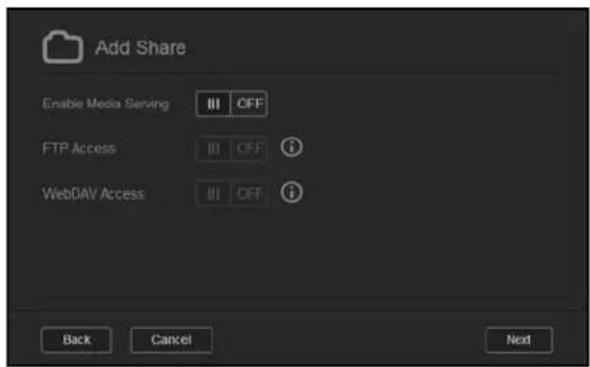

About Shares 49

6 The Dashboard at a Glance .....55

Launching the Dashboard 55

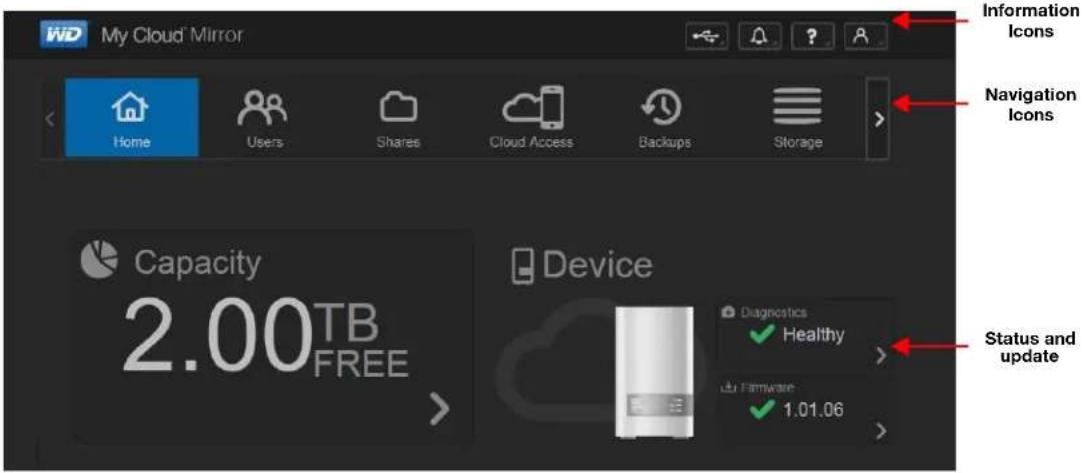

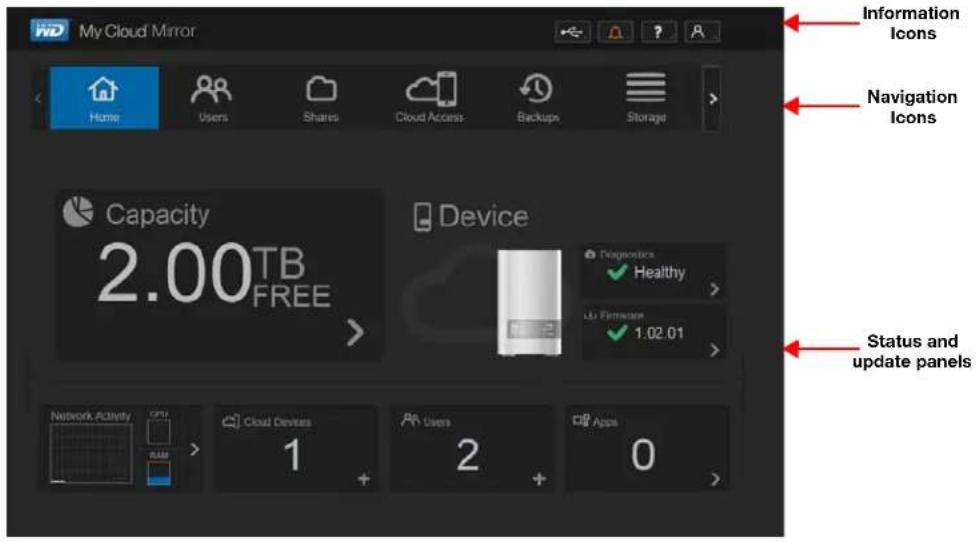

The Dashboard Home Page 57

Obtaining Customer Support 67

Common Tasks. 68

7 Backing Up and Retrieving Files 69

About Backups....69

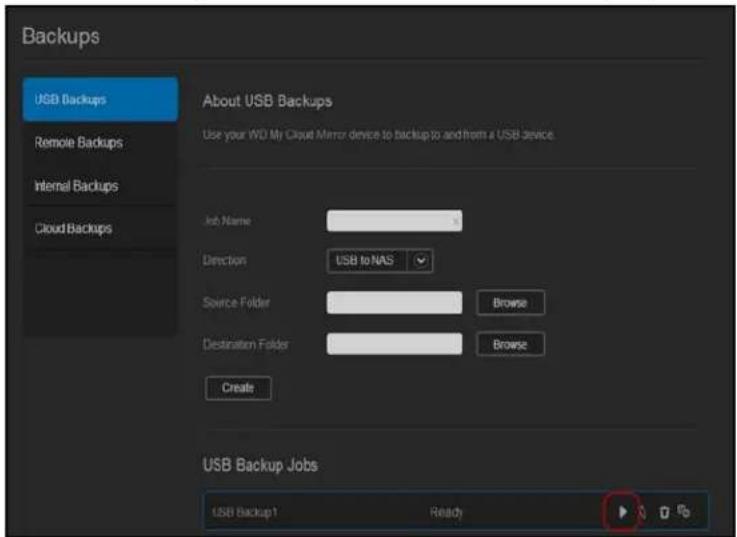

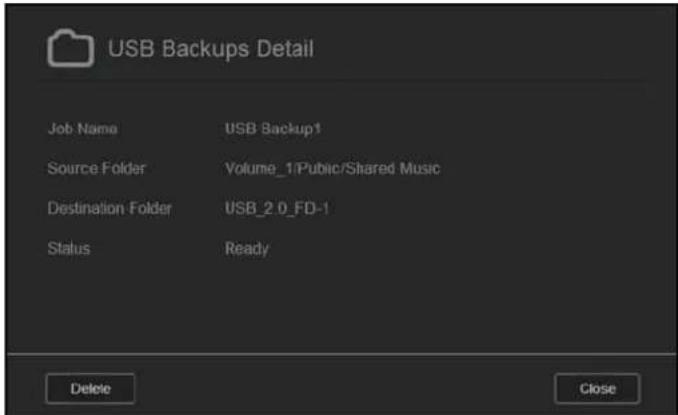

Managing a USB Device and USB Backups 69

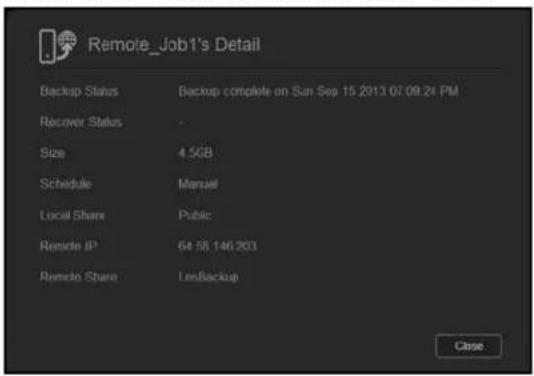

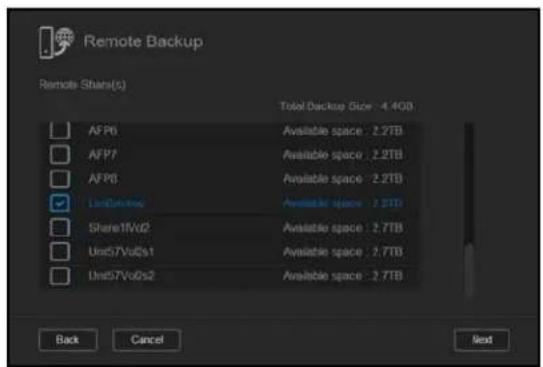

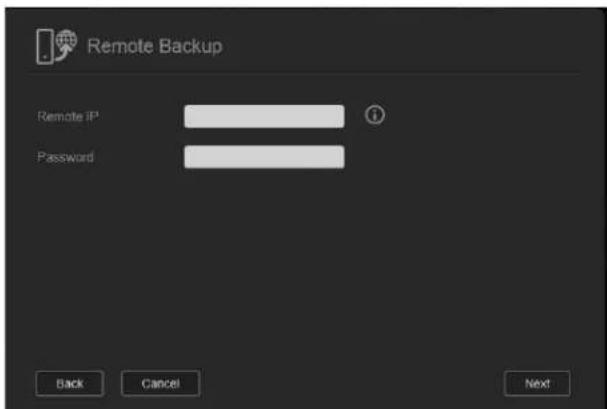

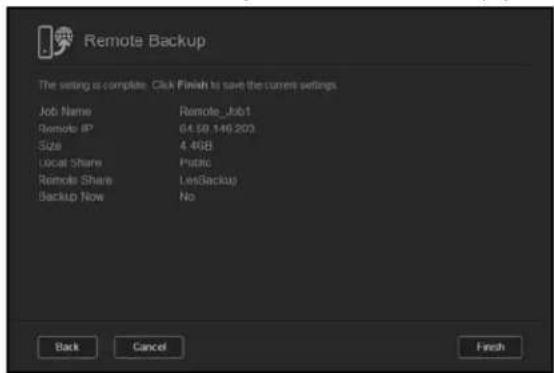

Remote Backups 72

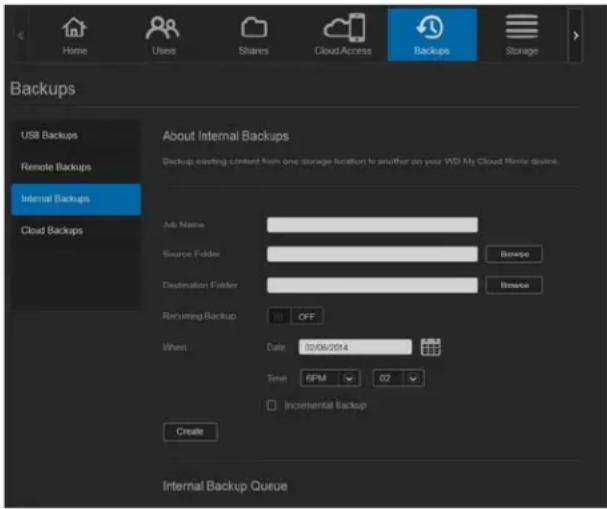

Internal Backups....76

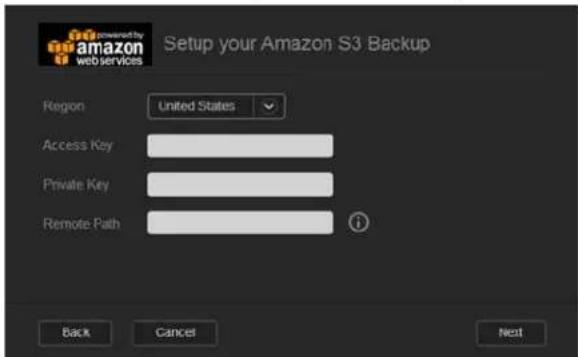

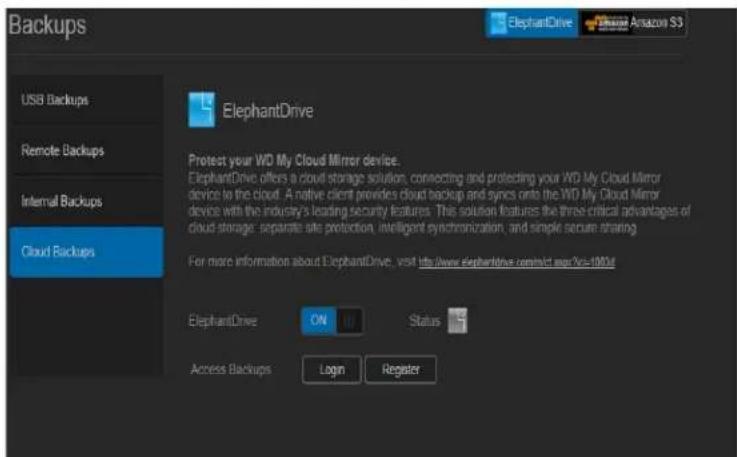

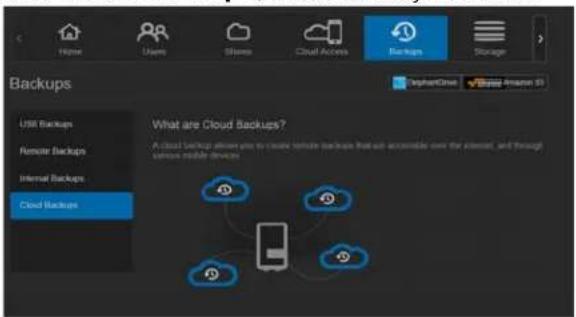

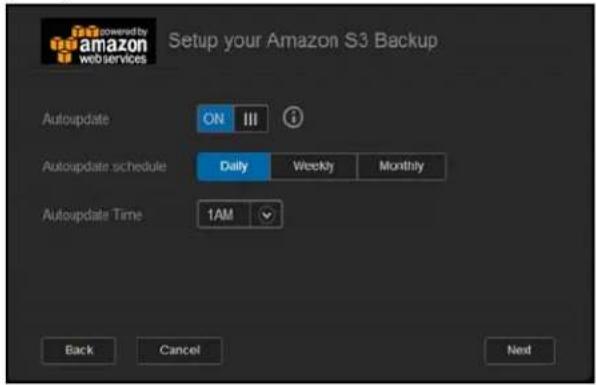

Cloud Backups....78

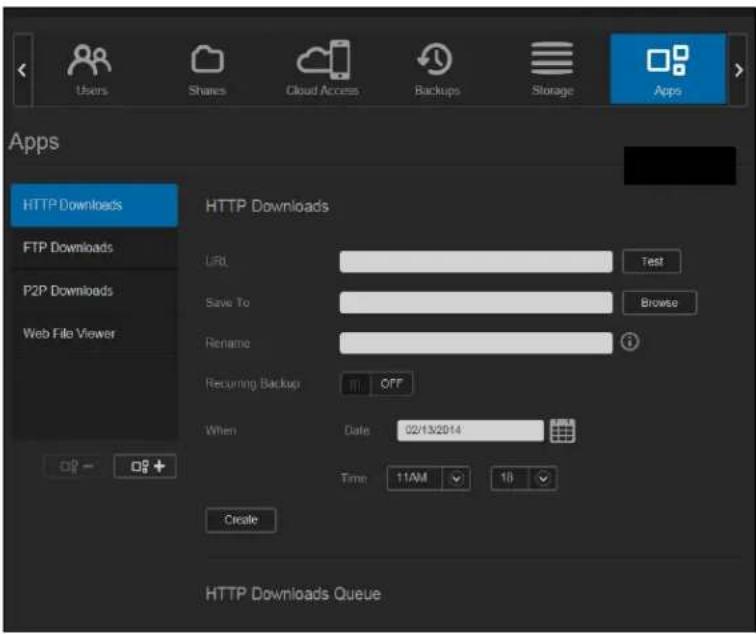

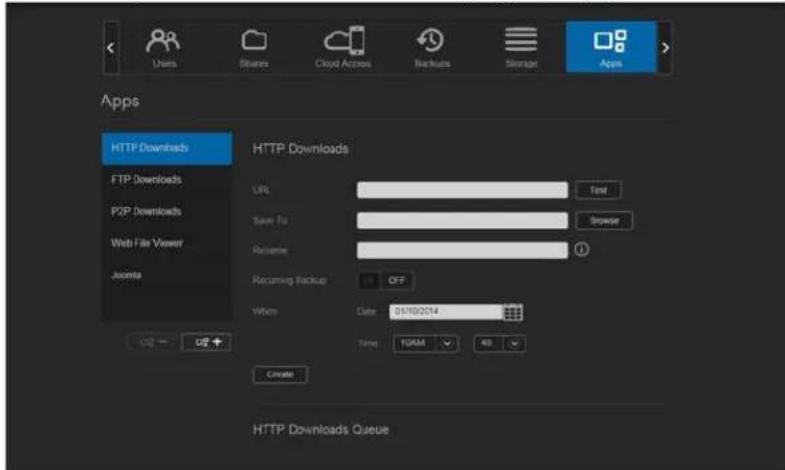

8 Managing Apps on WD My Cloud Mirror ..... 83

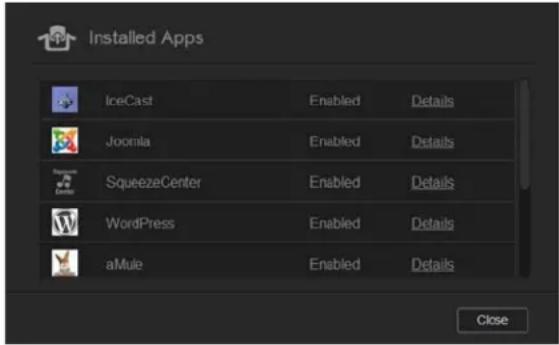

About Apps 83

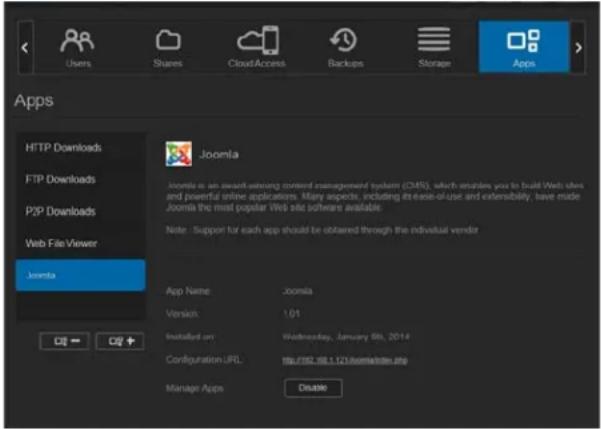

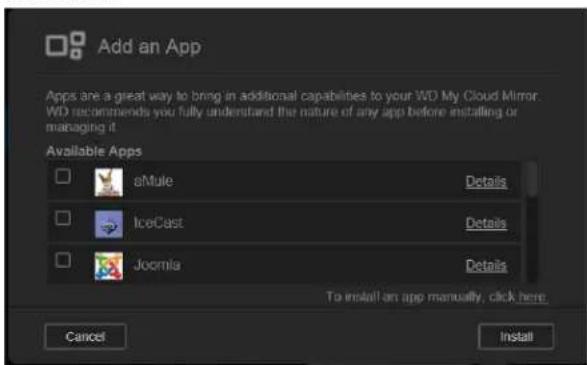

Managing Apps. 83

9 Managing Storage on WD My Cloud Mirror ..... 87

About Storage 87

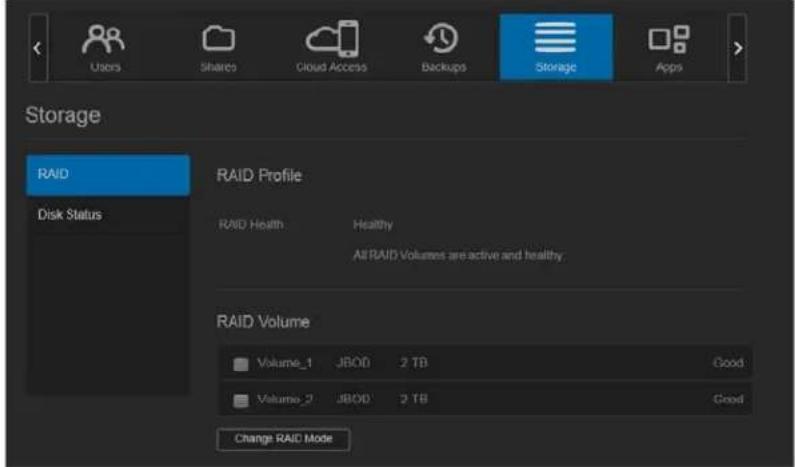

RAID Storage 87

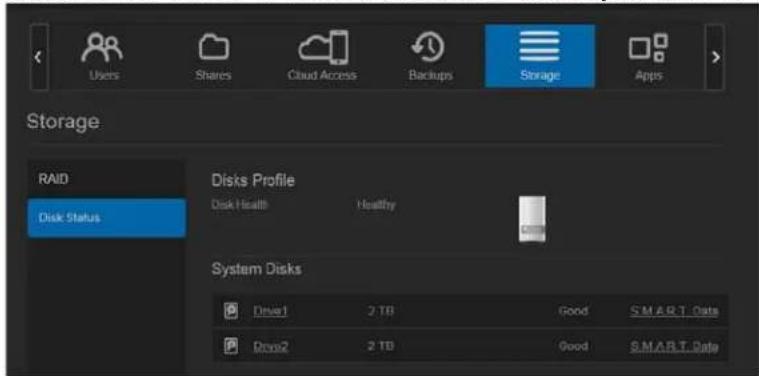

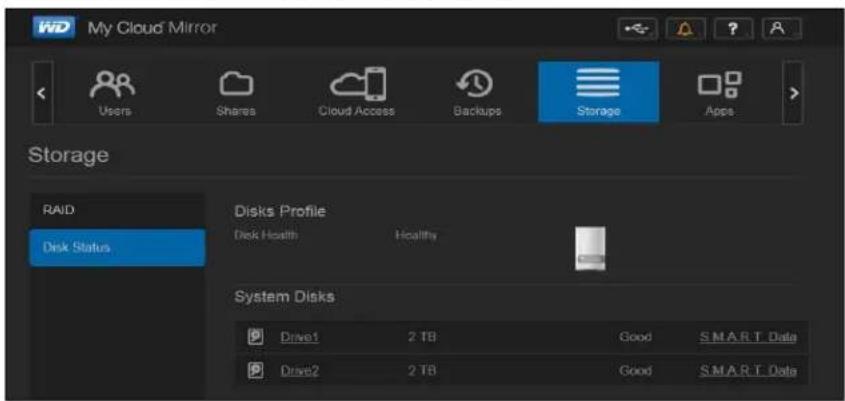

Disk Status 92

10 Playing/Streaming Videos, Photos, & Music 94

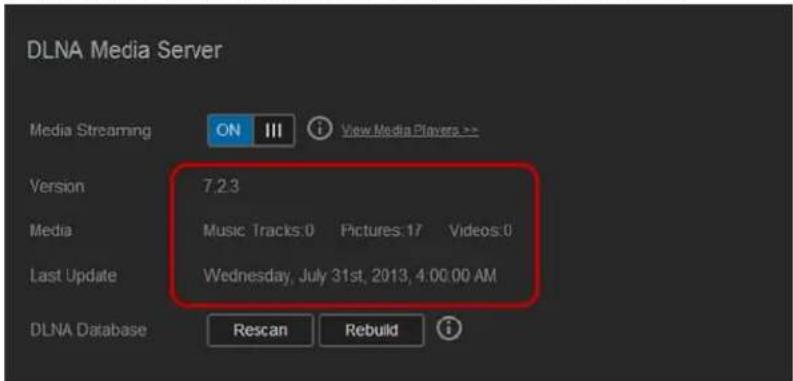

Media Servers....94

Media Storage 96

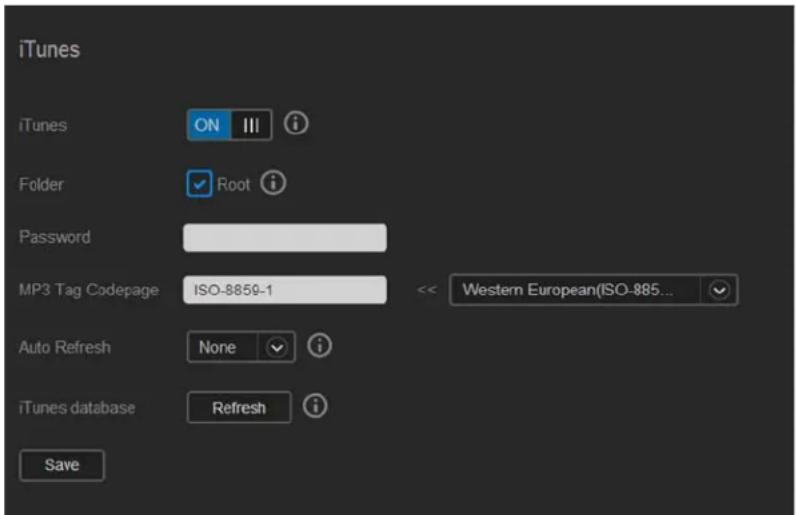

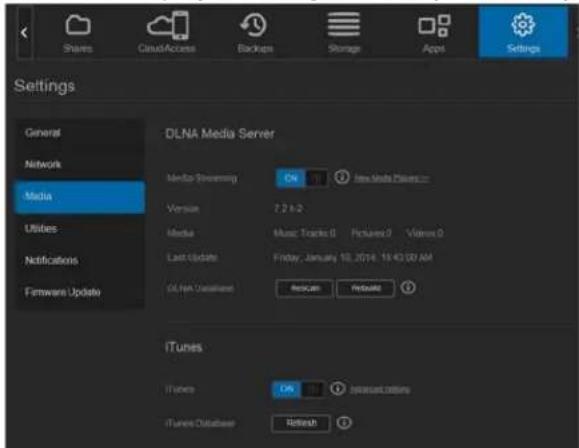

Enabling DLNA and iTunes 96

Accessing Your Personal Cloud Using Media Players ..... 100

Accessing Your Personal Cloud Using iTunes ..... 101

11 Configuring Settings 102

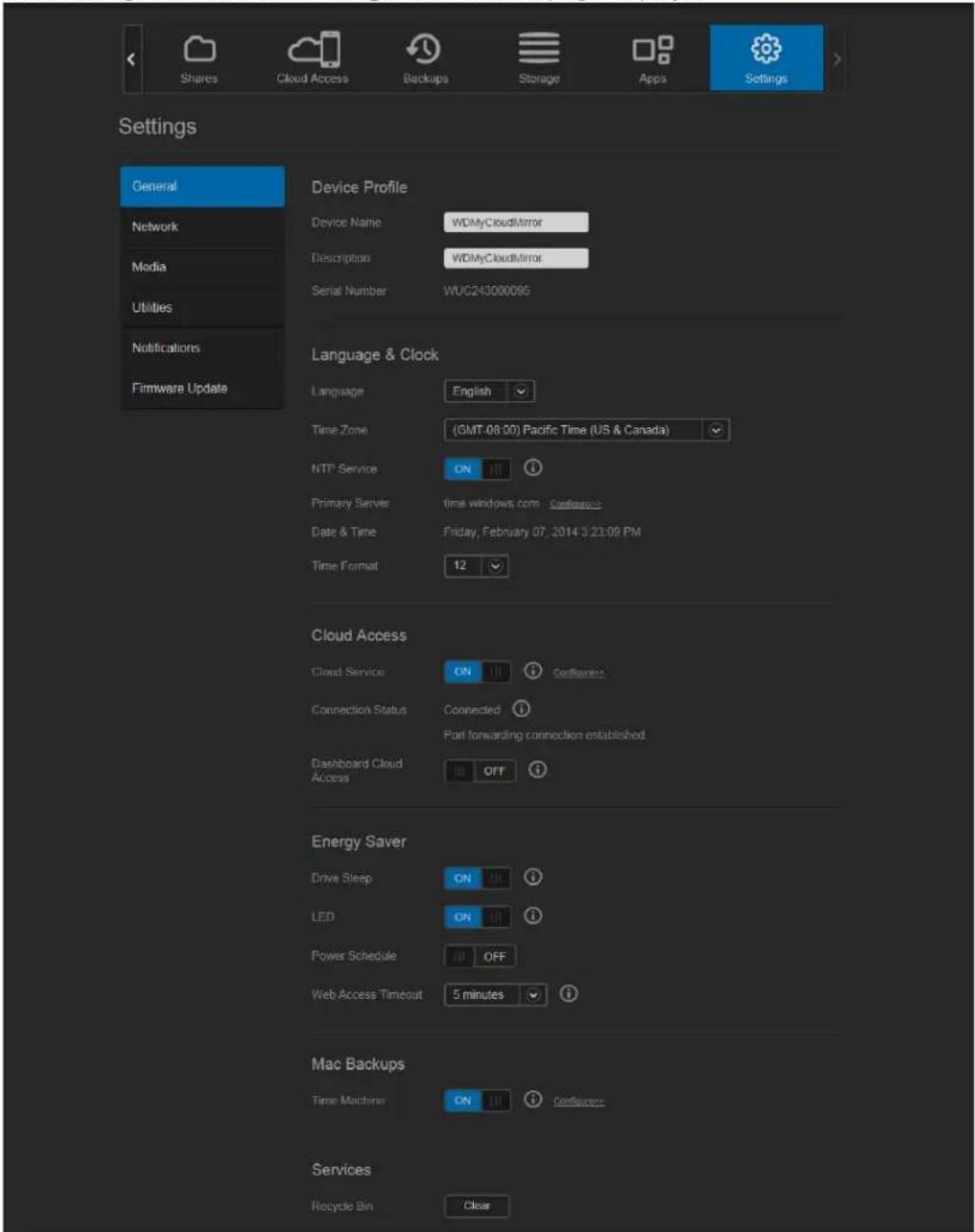

General 102

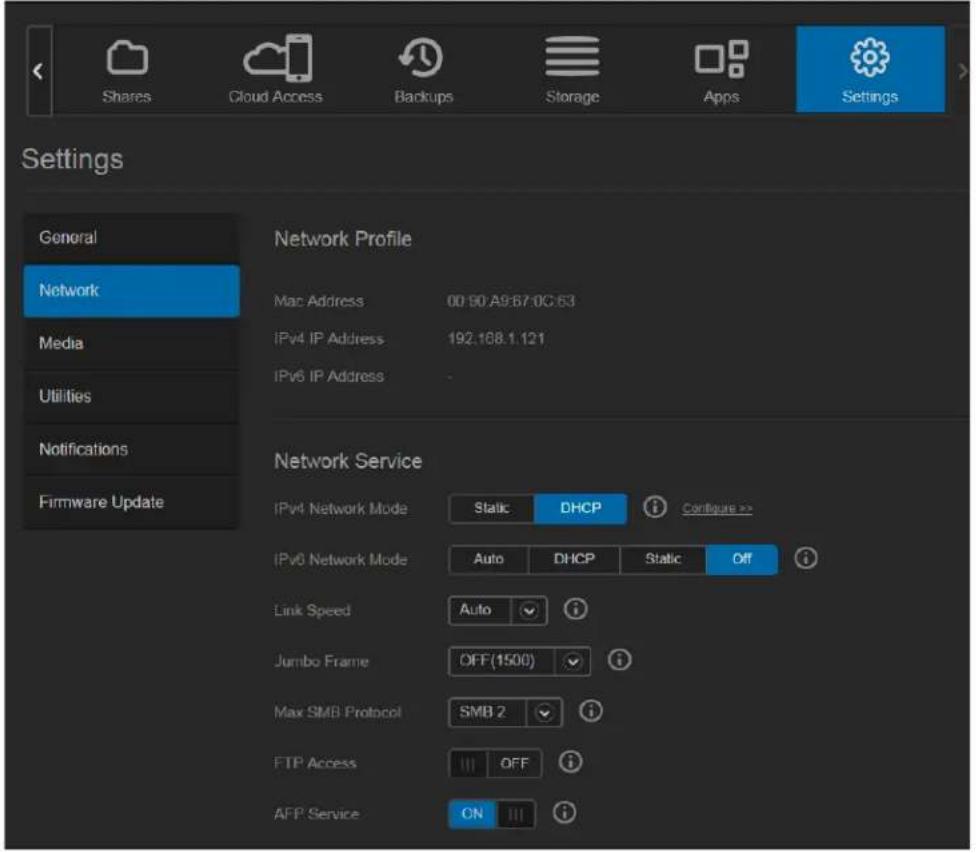

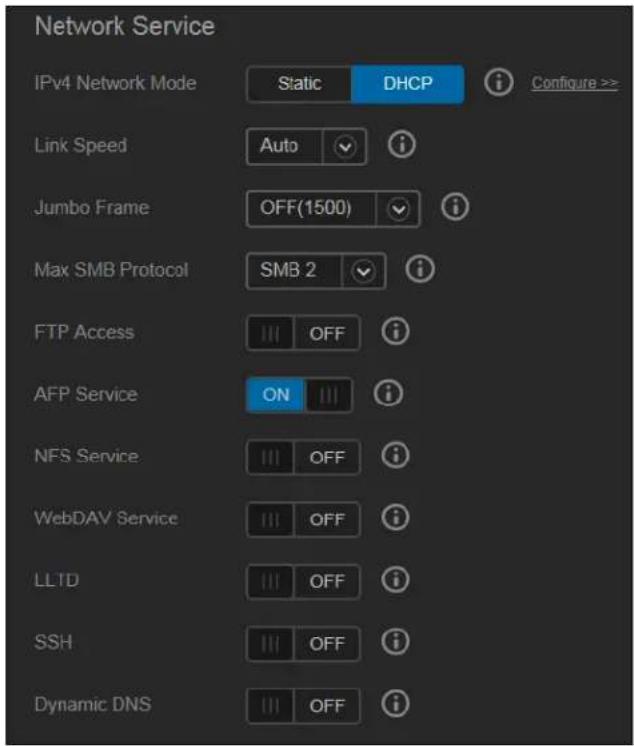

Network 110

Media 118

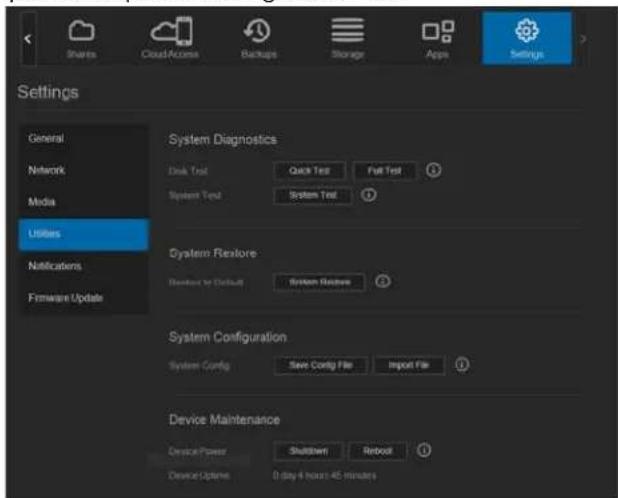

Utilities 118

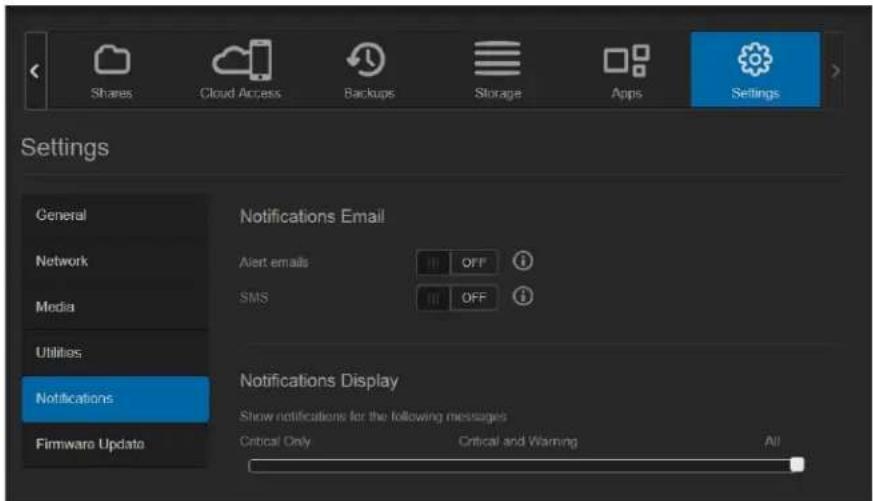

Notifications 125

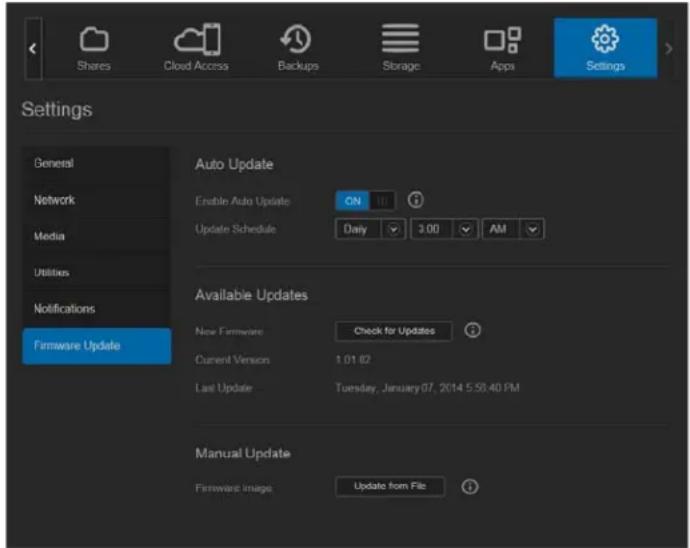

Firmware Update 128

12 Replacing a Drive 130

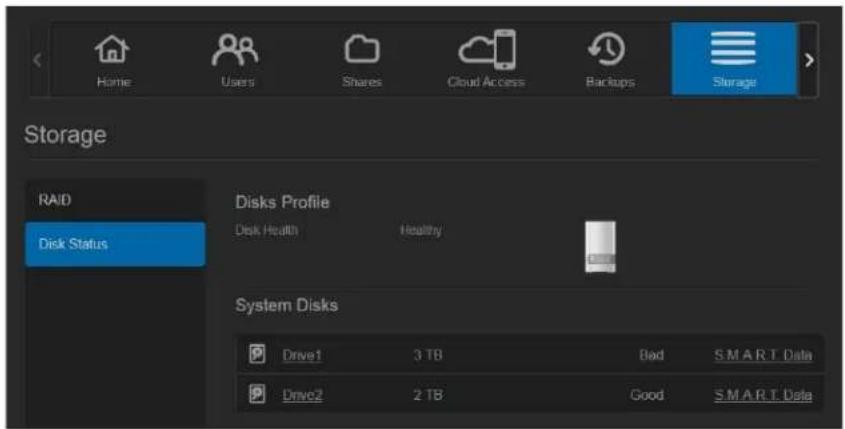

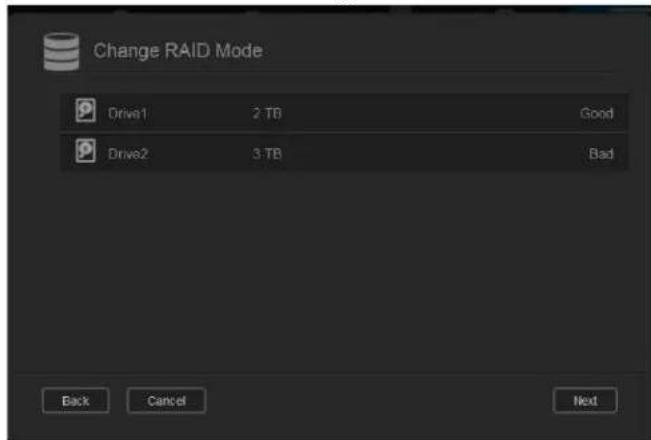

Identifying a Faulty Hard Drive 130

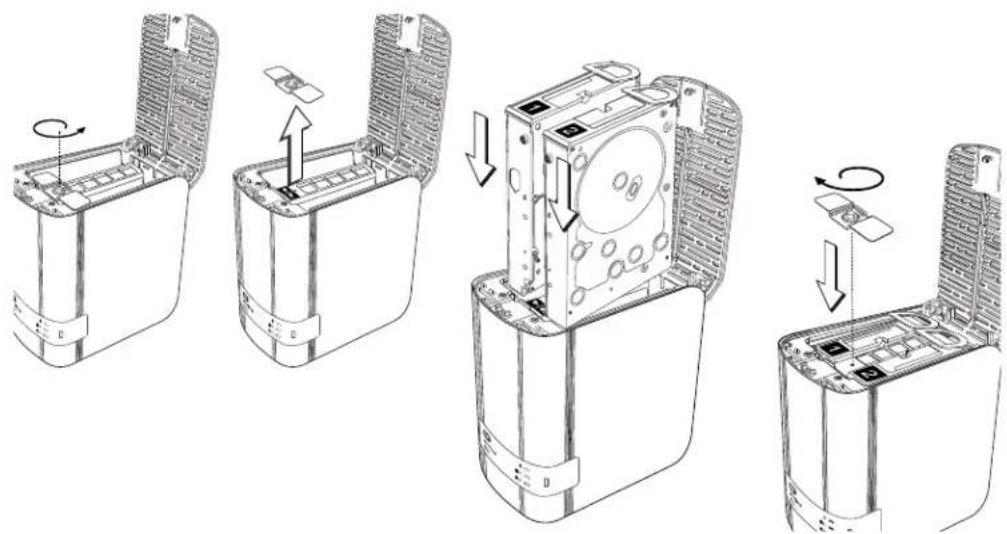

Replacing a Drive 131

Rebuilding the Drive 133

Returning a WD Drive 133

13 Regulatory and Warranty Information ..... 134

Regulatory Compliance 134

Warranty Information (All Regions Except Australia/New Zealand)135

Warranty Information (Australia/New Zealand only) ..... 136

Appendices 138

Appendix A: WD My Cloud Mirror Quick User Guide. . . . . . . . 138

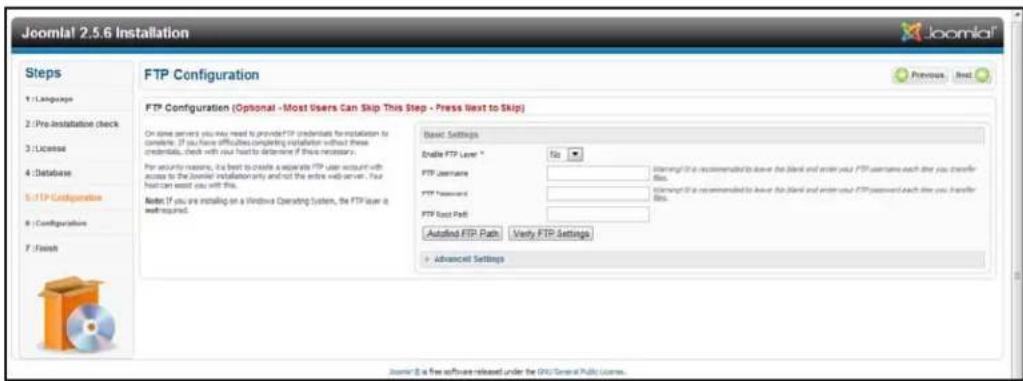

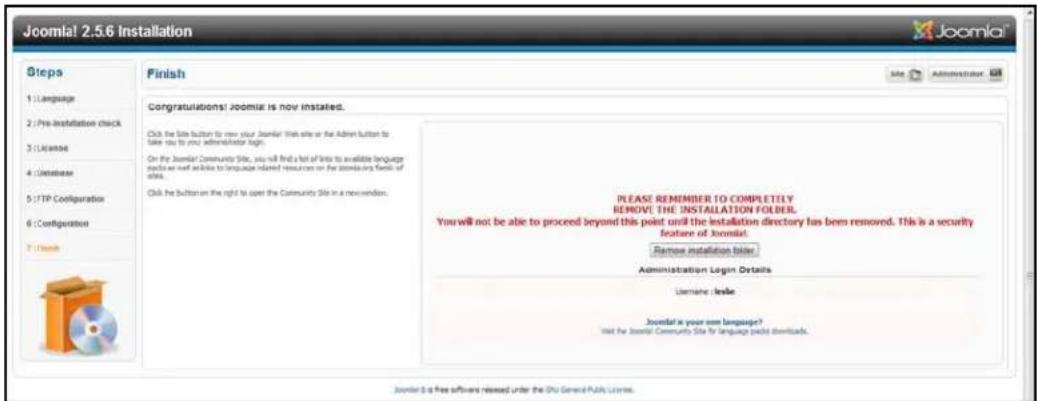

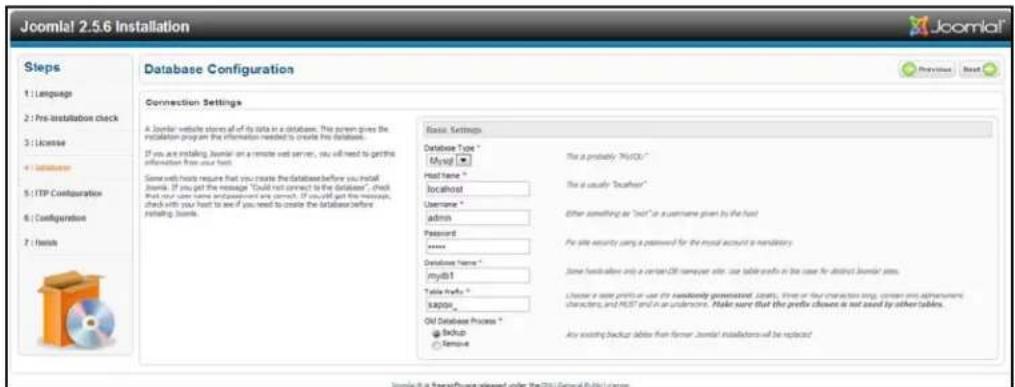

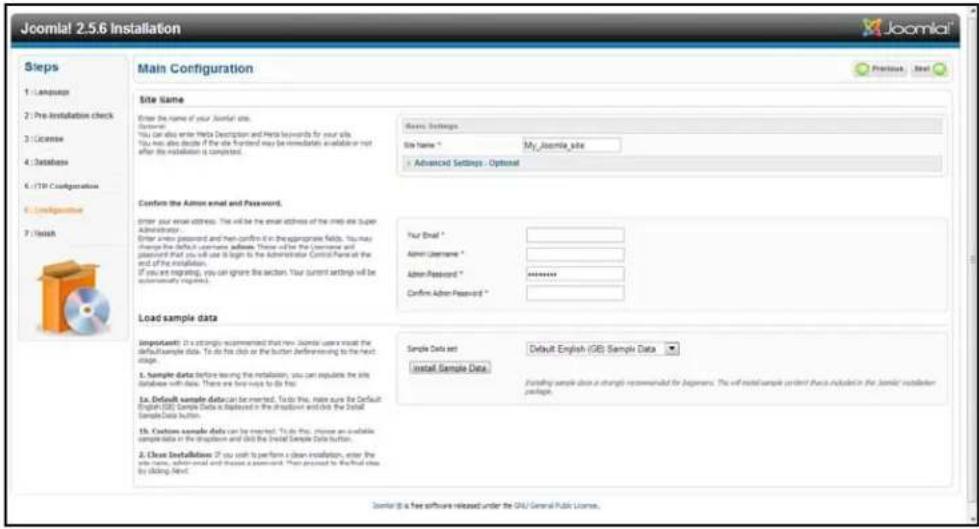

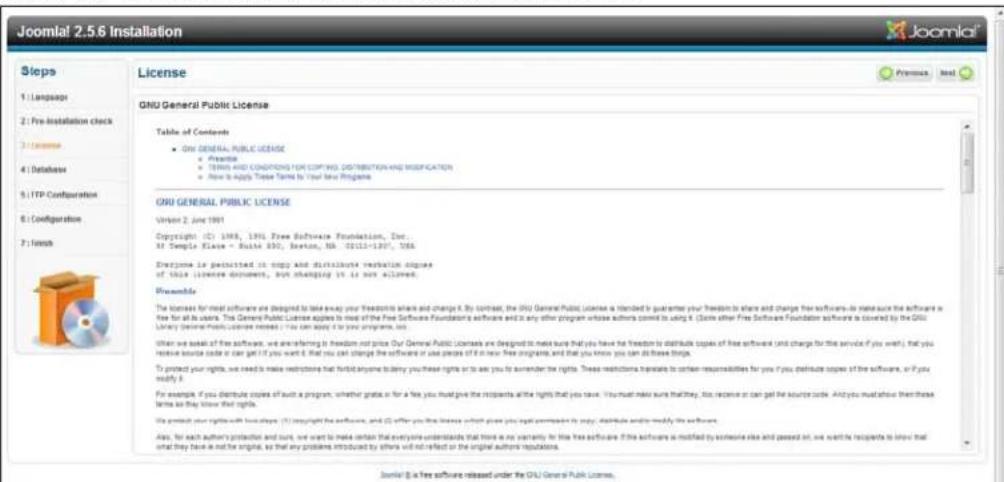

Appendix B: Joomla!® Setup Guide 142

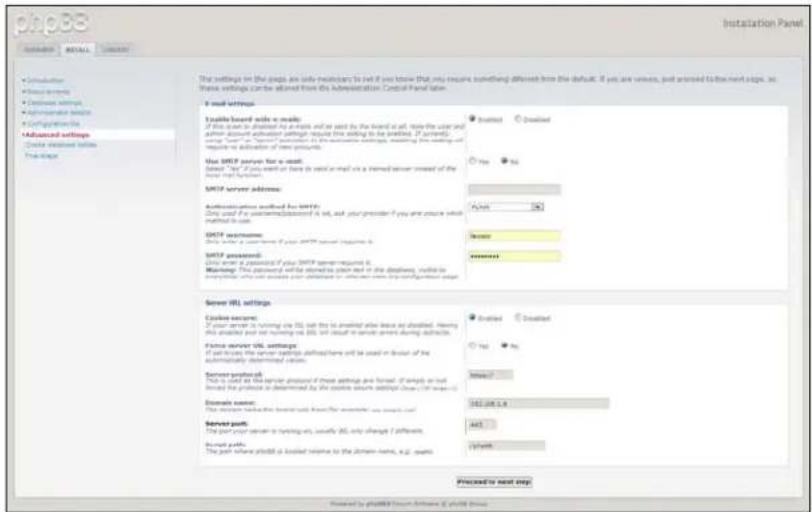

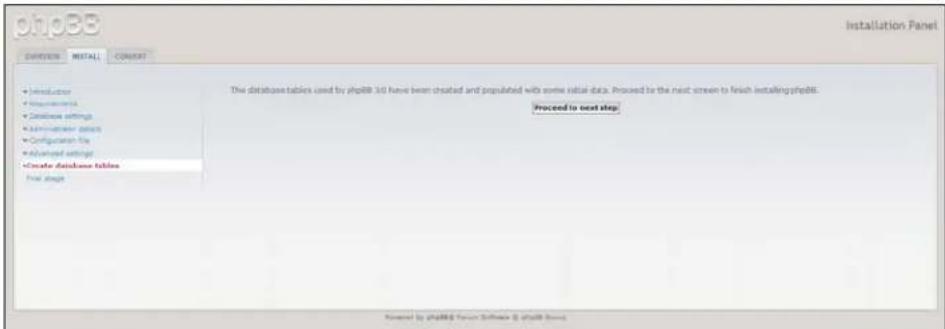

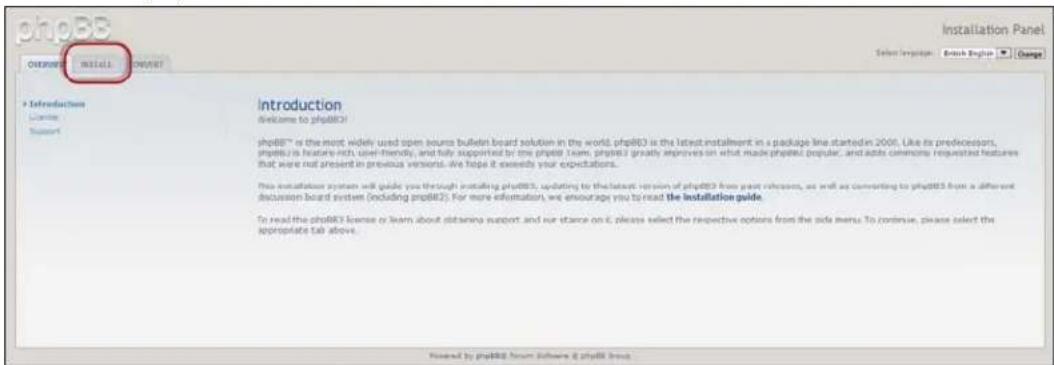

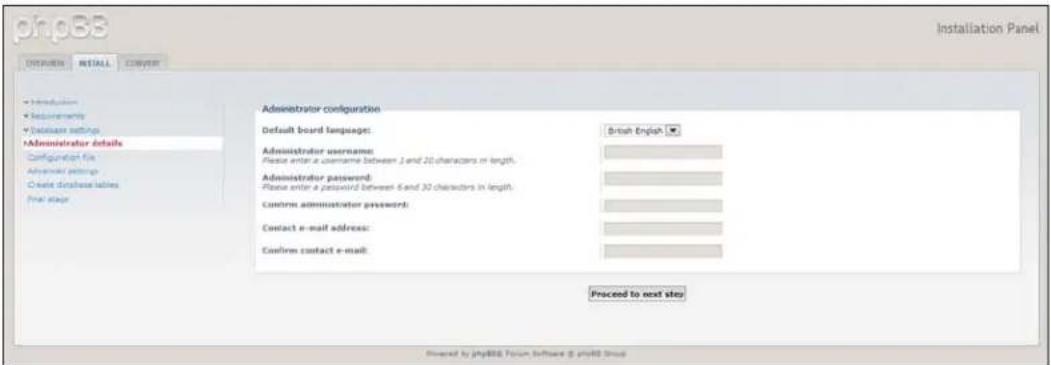

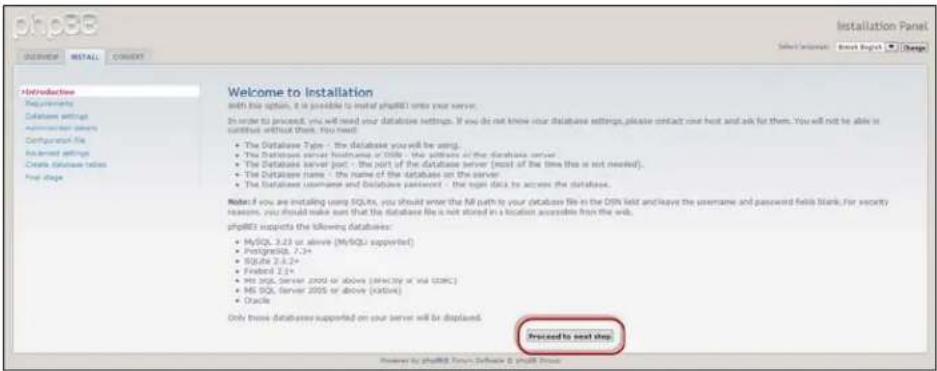

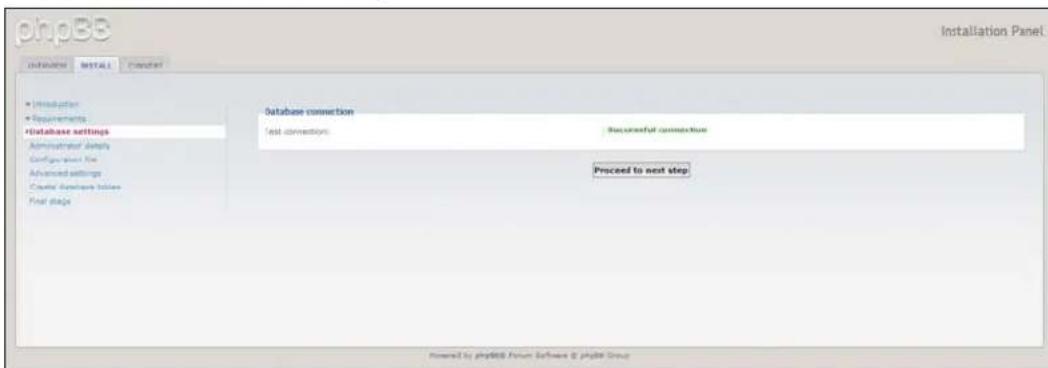

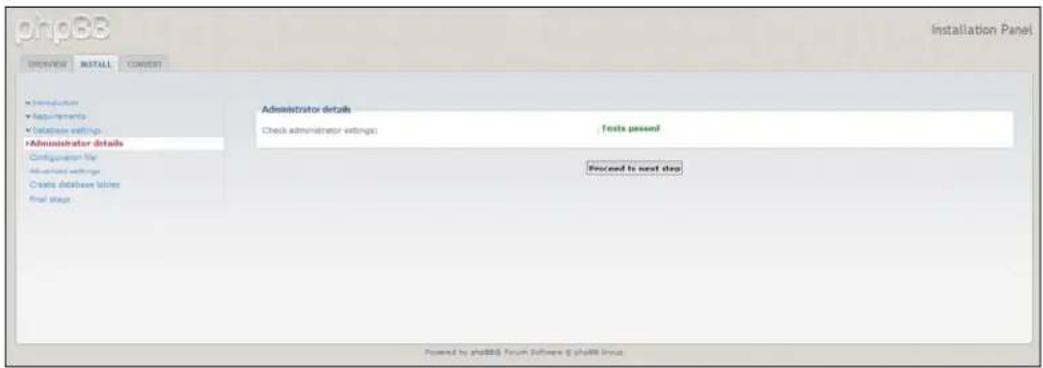

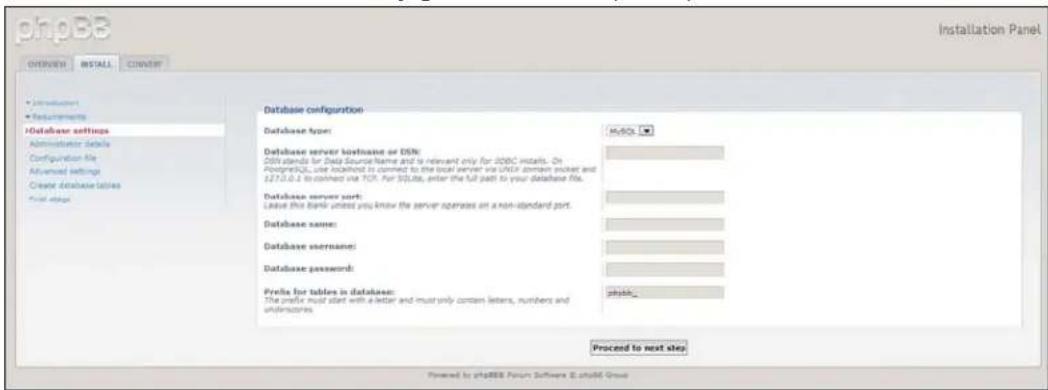

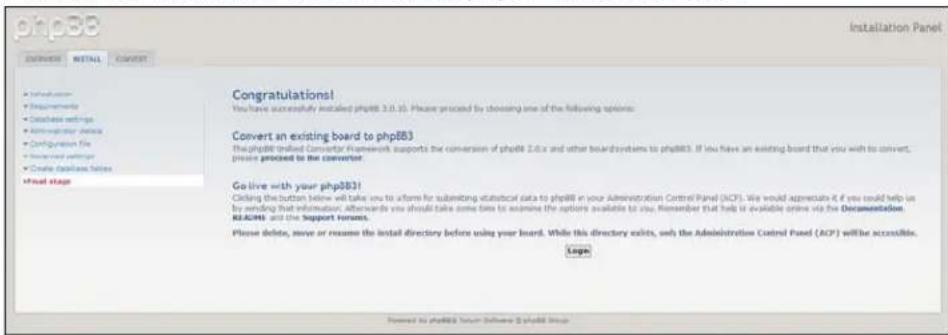

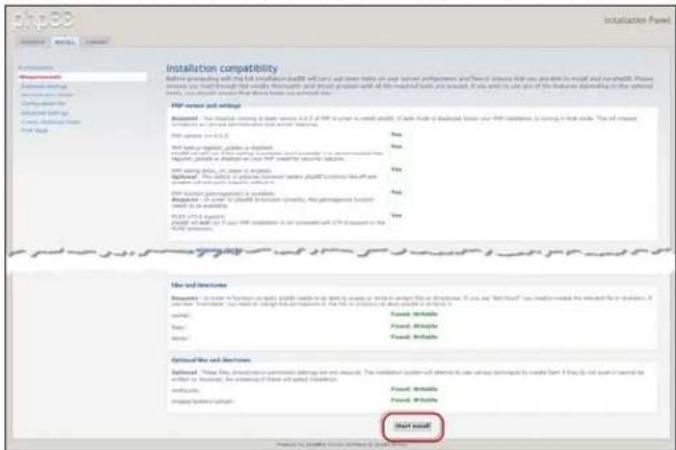

Appendix C: phpBB Setup Guide.... 145

Appendix D: Supported RAID Modes. 150

Appendix E: RAID Migrations ..... 150

Appendix F: Safe Mode Firmware Update Procedures ..... 150

Appendix G: Technical Specifications ..... 151

Index 153

1

Important User Information

Important Safety Instructions

Recording Your WD Product Information

Important Safety Instructions

This device is designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated into this unit will protect you if you observe the following procedures for installation, use, and servicing.

■ Follow all warnings and instructions marked on the product.
- Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
- Do not use this product near any liquids.
- Do not place this product on an unstable surface. The product may fall, causing serious damage to the product.

■ Do not drop the product.

- Do not block the slots and openings on the top and bottom of the chassis; to ensure proper ventilation and reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. Making sure the drive is standing upright also helps prevent overheating.

- Operate this product only from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.

- Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.

If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

- Never push objects of any kind into this product through the chassis slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.

- Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

- When the power cord or plug is damaged or frayed.

- If liquid has been spilled on the product.

- If the product has been exposed to rain or water.

- If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions since improper adjustment may result in damage and require extensive work by a qualified technician to the product to normal condition.

- If the product has been dropped or the chassis has been damaged.

- If the product exhibits a distinct change in performance, contact WD Customer Support at http://support.wd.com.

Recording Your WD Product Information

Remember to write down the following WD product information, which is used for setup and technical support. Your WD product information is found on the label on the back of the device.

• Serial Number
• Model Number
• Purchase Date
• System and Software Notes

Product Overview

About the System

Features

About the Online Learning Center

Package Contents

Product Components

Requirements

Product Components

Handling Precautions

About the System

Finally, a cloud of your own. Save everything in one place with twice the data protection and access it anywhere from computers, tablets and smartphones. My Cloud™ Mirror™ personal cloud storage works concurrently with multiple operating systems such as Mac OS, Win 8, iOS and Android with mobile apps.

Features

Your media and files on your own personal cloud – Unlike a public cloud, My Cloud Mirror allows you to keep all your content in one safe place on your home network instead of a remote server. No mysterious location of your data. No monthly fees. No limits. Just blazing-fast, dual-drive performance for your high-speed digital life.

Centralized, dual-drive storage of your family's media collection – Store and organize all your family's photos, videos, music, and important documents in one secure place on your home network.

Access from anywhere – Enjoy your photos, videos, music, and more from anywhere on your PC, Mac ^® , tablet, or smartphone. With WD’s free apps, your personal cloud is always with you.

Mirrored data protection - With Mirror Mode (RAID 1) as the default setting, one drive is used to store your data and the other is used for a duplicate copy. Your data is twice as safe, giving you twice the peace of mind.

Automatic file backup for all your computers – Easily back up the files from all the PC and Mac computers in your home. PC users, WD SmartWare™ Pro offers options for how, when, and where you back up your files. Mac users, utilize all the features of Apple® Time Machine® backup software to protect your data.

Remote backup – Protect your data with remote backup to another My Cloud Mirror, integrated cloud backup or local LAN/WAN backup.

Expand your tablet and phone storage – Upload photos and videos directly to your personal cloud from anywhere.

Connect to Dropbox™ and more – Easily transfer files between your personal cloud, Dropbox, and other public cloud accounts using WD's free My Cloud apps.

Increase your personal cloud capacity -- Simply attach a compatible USB 3.0 hard drive directly to one of the two USB expansion ports on the My Cloud Mirror drive and instantly expand your storage capacity.

Transfer and stream faster – Gigabit Ethernet and 1.2 GHz processor deliver faster file transfers and high-speed streaming.

Unleash your media – Seamlessly stream your videos, photos, and music to your connected TVs, media players, gaming consoles, and other DLNA® – certified devices. With My Cloud Mirror's iTunes® server, you can easily stream your music collection to any PC or Mac computer with iTunes.

Password protection for privacy – Your data is always safe and completely under your control. Protect your personal cloud from unauthorized access with password protection available for every user.

Set up in minutes – Get up and running in minutes with WD's rich web-based user interface for seamless web-guided setup. WD's software will auto-detect your drive to make it easy. Need extra help? Visit wd.com/setup/wdmycloudmirror for help with the installation of My Cloud Mirror and WD's free apps for your computers and mobile devices.

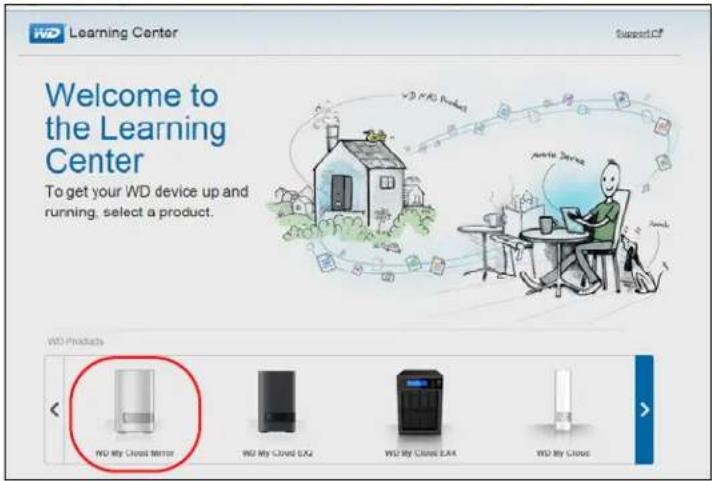

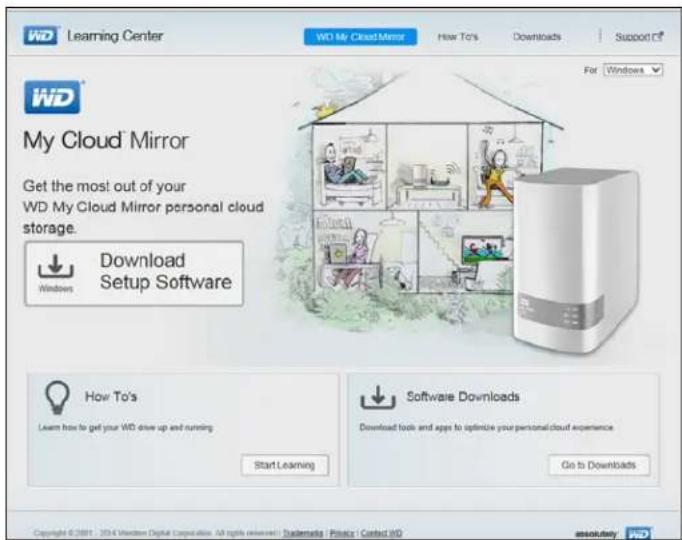

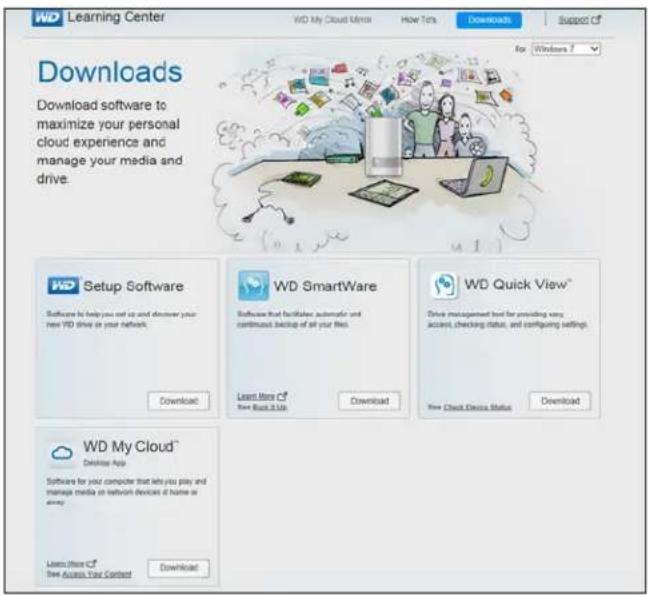

About the Online Learning Center

WD's online Learning Center provides the latest information, instructions, and software to help users get the most out of their personal cloud storage. This web-based guide offers step-by-step help with setting up remote access, backing up data, monitoring device status and more. It's an interactive resource to walk users through installing and using their WD My Cloud Mirror device. The online Learning Center allows you to:

• Learn about your new personal cloud storage product.
  ■ Download the latest software for your product.
  Find in-depth, interactive information on how to explore each of your product's features.
• Update your product whenever new features become available.
• Access an always-available resource online, without a manual or CD.

Package Contents

■ WD My Cloud Mirror Personal Cloud Storage device
- Ethernet cable
■ AC power adapter
■ Quick Install Guide

WD My Cloud Mirror Personal Cloud Storage Device

AC adapter*

Ethernet cable

Quick Install Guide

For information on additional accessories for this product, visit:

US	www.shopwd.com or www.wdstore.com
Canada	www.shopwd.ca or www.wdstore.ca
Europe	www.shopwd.eu or www.wdstore.eu
All others	Contact WD Technical Support in your region. For a list of Technical Support contacts, visit http://support.wd.com and see Knowledge Base Answer ID 1048.

Requirements

Operating System

Windows®

Windows 8.1 or earlier
Windows 7
Windows Vista®
■ Windows XP (32 bit) SP3 or later

Mac OS X®

■ Mavericks (Mac OS 10.9)
■ Mountain Lion (Mac OS 10.8)
■ Lion (Mac OS 10.7)
■ Snow Leopard (Mac OS 10.6)

Note: Compatibility may vary depending on your computer's hardware configuration and operating system.

Web Browsers

■ Internet Explorer 8.0 and later on supported Windows computers
■ Safari 6.0 and later on supported Mac computers
■ Firefox 21 and later on supported Windows and Mac computers
■ Google Chrome 27 and later on supported Windows and Mac computers

Local Network

- Router/switch (Gigabit recommended to maximize performance.)

Internet

- Broadband Internet connection is required for initial setup and software downloads, as well as for remote access and mobile apps.

Product Components

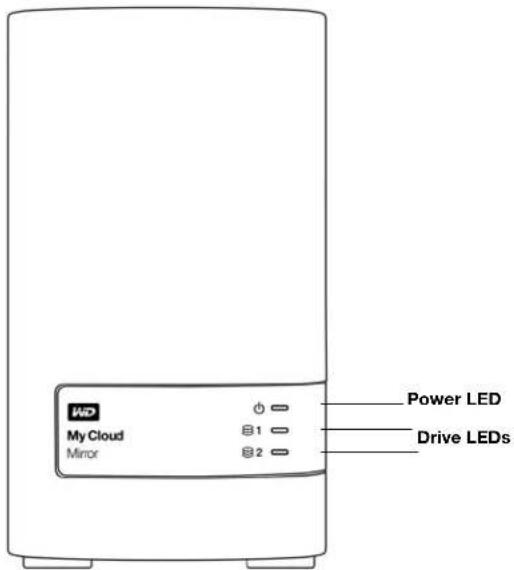

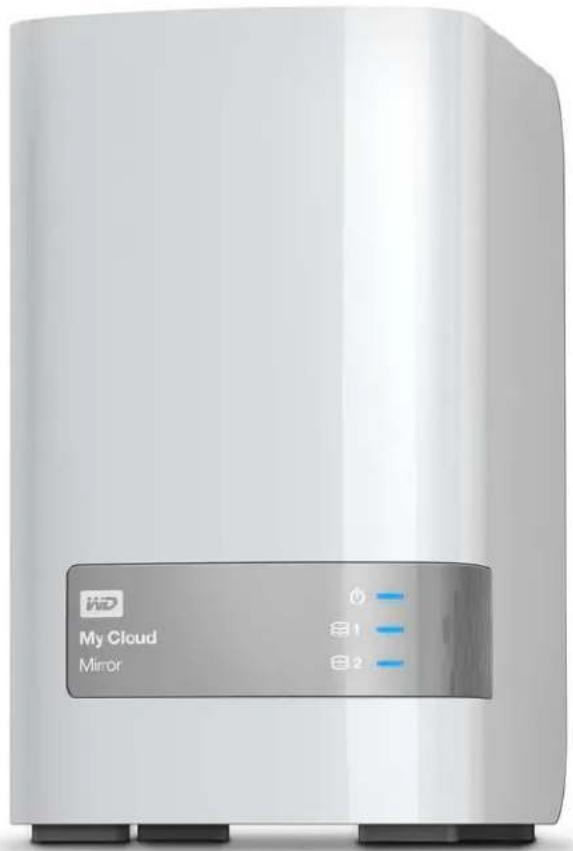

Front View

WiD My Cloud Mirror Power LED Drive LEDs 1 2

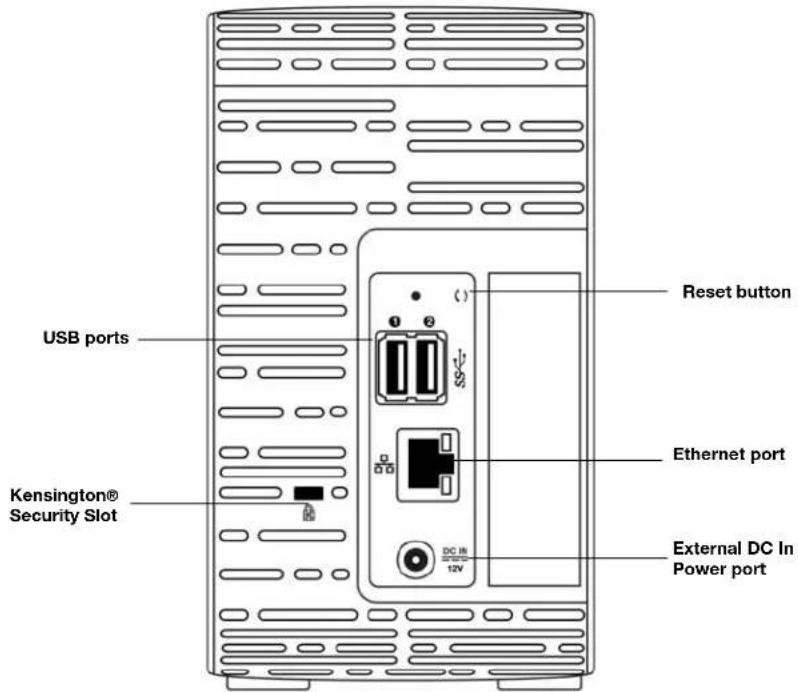

Back View

USB ports KENSINGTON® Security Slot Reset button Ethernet port External DC In Power port

Component Icon Description
Ethernet port Connects the device to a local network.
USB 3.0 port Connects to		a USB hard drive for additional storage.
Reset button ()		Restores settings such as the administrator user name and password for the device.
Power port Connects the device to an AC adapter and the power outlet.
Kensington security slot	[Y242]	For device security, the device is equipped with a security slot that supports a standard Kensington security cable.Visit http://www.kensington.com/ for more information.

LEDs

Front Panel Power LED

The following table describes the front panel power LED behavior.

State Color Appearance State Description
Power Down	Not lit	N/A	Drive is off.
Standby	Blue	Pulsing	Drive is in standby mode.
Powering Up	Yellow	Flashing	Device is powering on or in the process of updating the firmware.
Power Up	Blue	Solid	Device is in a powered up state.
Power Up (degraded)	Red	Flashing	Device is powered up but the storage is degraded. See Knowledge Base Answer ID 87607.
Action required	Yellow	Flashing	A condition, such as a network cable having become unplugged, which requires you to act.

Note: For non-compatible drives, the power LED blinks yellow during power up.

Front Panel Hard Drive (HDD) LEDs

The following table describes the front panel hard drive LED behavior.

Function	Color	Appearance	Function Description
No drive	Not lit	N/A	Drive is not present.
Drive present, no activity	Blue	Solid	Drive is present but there is no activity.
Active drive	Blue	Flashing	Drive is present and showing drive activity.
Hard drive error	Red	Flashing	Drive is present but has a hard drive error or failure.
Hard drive in standby	Not lit	N/A	Drive is inactive.

Note: For incompatible drives, the hard drive LEDs blink red rapidly as the unit powers up.

Back Panel Ethernet (Network) LEDs

The following table describes the network and activity LEDs:

Note: Looking at the Ethernet port, the LED on the top right is the Activity LED, and the one on the bottom right is the Link LED.

State	LED	Appearance	State Description
Link down	Link	Off	Cable or device is not plugged in, or other end of link is not operational.
Link up – 100 Mb connection	Link Yellow Cable is plugged in, and both ends of the link have successfully established communications. 100 Mb network connection.
Link up – 1000 Mb connection	Link Green Cable is plugged in, and both ends of the link have successfully established communications. 1000 network connection.
Link idle	Activity	Solid	Active communication is not in progress.
Link busy	Activity	Green - Blinks	Active communication is in progress.

Pre-installation Instructions

Before beginning installation, select a suitable location for your device to obtain maximum efficiency. Place it in a location that is:

■ Near a grounded power outlet
- Clean and dust free
■ On a stable surface free from vibration
- Well ventilated, with nothing blocking or covering the slots and openings on the top and bottom of the device, and in fields from electrical devices such as air conditioners, radio and television receivers.

Handling Precautions

WD products are precision instruments and must be handled with care during unpacking and installation. Rough handling, shock, or vibration can damage the device drives. Observe the following precautions when unpacking and installing your external storage product:

■ Do not drop or jolt the device.
- Do not move the device while it is powered on.
- Do not use this product as a portable device.
- Do not remove both data drives at the same time. This will cause your device to become unresponsive.

Getting Started

Physically Connecting the Device

Getting Started Using Online Setup Software

Getting Started Without Online Setup Software

Accessing Content

It's easy to set up the WD My Cloud Mirror Personal Cloud Storage device -- all you have to do is unpack your device, connect it, and wait for the Power LED on the front of your device to turn a solid blue. Then, download and run the quick setup software, available at http://www.wd.com/setup.

Note: For information about safely shutting down and disconnecting the device, see "Utilities" on page 120

Physically Connecting the Device

Diagram showing connections of a power outlet, network switch, and router with labeled components

Follow the steps below to connect the WD My Cloud Mirror Personal Cloud Storage device to a home or small office network.

Important: To avoid overheating, make sure the device is upright as shown in the illustration above and nothing is blocking or covering the slots and openings on the top and bottom of the device. In the event of overheating, the device will perform a safe shutdown, interrupting all processes currently being performed. If this occurs, data may be lost.

Important: We recommend that you use the enclosed Ethernet cable for optimal performance.

1. Using the provided Ethernet cable, connect one end of the Ethernet cable to the Ethernet port located on the back of the device.
2. Connect the other end of the Ethernet cable directly into a router or network switch port.
3. Connect one end of the power adapter into the power supply socket on the back of the device.
4. Plug the other end of the power adapter into a power outlet. The unit powers up automatically.

Important: Wait for the WD My Cloud Mirror device to finish powering up (approximately three minutes) before configuring it. You will know it is ready when the power LED stops flashing and turns blue.

1. When the power LED on your device turns a solid blue, continue to "Getting Started Using Online Setup Software" on page 11.

Getting Started Using Online Setup Software

The online setup software walks you through the steps to easily connect your device to your home or small office network. Use the following steps to download and run the online setup software, discover the device, and get started using it. The online setup software is available from WD's Online Learning Center at http://wd.com/setup/wdmycloudmirror

Downloading and Installing the Online Setup Software

After connecting your device:

1. Open a web browser. (For browser requirements, see "Web Browsers" on page 6.)
2. In the address field, type http://wd.com/setup/wdmycloudmirror to display the Welcome to the Learning Center page:

WD Learning Center Support Of Welcome to the Learning Center To get your WD device up and running, select a product. WD Products WD My Cloud Mirror WD My Cloud EX2 WD By Cloud EX4 WD By Cloud

1. Click WD My Cloud Mirror to display the Download Setup Software page:

WD Learning Center WO My Cloud Mirror How To's Downloads Support Of For Windows WD My Cloud Mirror Get the most out of your WD My Cloud Mirror personal cloud storage. Download Setup Software Windows How To's Learn how to get your WD drive up and running. Start Learning Software Downloads Download tools and apps to optimize your personal cloud experience Go to Downloads

Note: The online Learning Center automatically detects your operating system (OS). If you'd like to download setup software for a different operating system, select your OS from the drop-down menu at the top of the page before clicking the Download Setup Software button.

1. Click the Download Setup Software button. The Downloads page displays.

WD Learning Center WD My Cloud Minor How Toys Downloads Support Of For Windows ? Downloads Download software to maximize your personal cloud experience and manage your media and drive. WD Setup Software Software to help you set up and discover your new WD drive on your network: Download WD SmartWare Software that facilitates automatic and contiguous backup if all your files Installation Of See BackUp Download WD Quick View™ Drive management tool for providing easy access, checking status, and configuring settings. See Check Device Status Download WD My Cloud™ Desktop App Software for your computer that lets you buy and manage media on network devices at home or away. Learn More Of Access Your Content Download Copyright © 2014 Microsoft Digital Consensus, All rights reserved | Downloads Forms: Closed VD Microsoft VD

1. Click the Setup Software Download button.

2. Access the downloaded files and double-click Setup.exe (Windows) or WD My Cloud Mirror Personal Cloud Storage Setup.dmg (Mac) to open the setup software. The Getting Started window displays.

My Cloud Mirror Personal Cloud Storage Getting started is easy - we'll guide you through setup so you can start using your personal cloud in just a five minutes. Get Started

1. Continue to "Connecting to the Network and Creating a Personal Cloud," below.

Connecting to the Network and Creating a Personal Cloud

1. On the Getting Started window (above), click Get Started to display the Western Digital End User License Agreement:

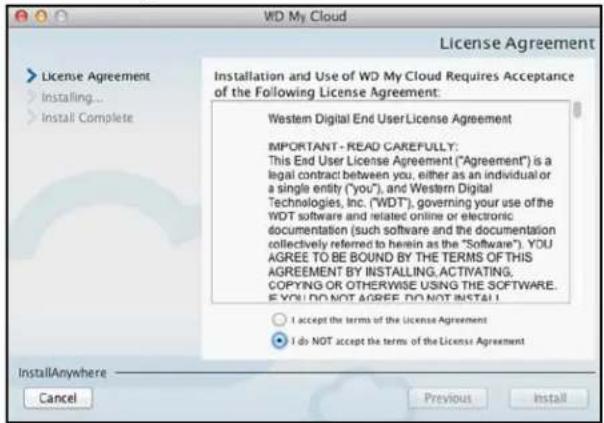

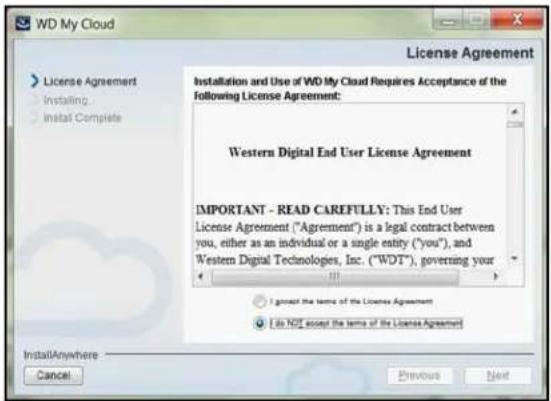

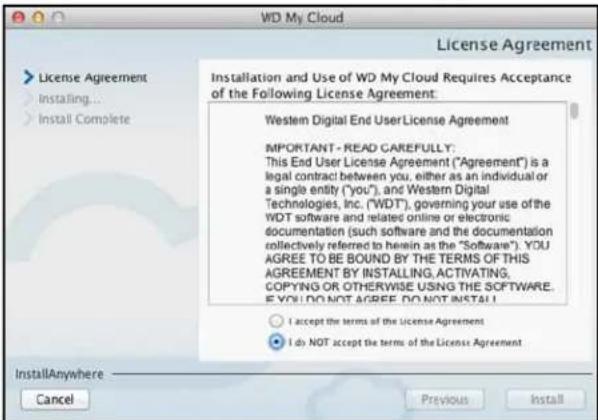

Let's take care of some business first Western Digital End User License Agreement IMPORTANT - READ CAREFULLY. SECTION 5 OF THIS DOCUMENT CONTAINS A BINDING ARBITRATION PROVISION THAT REQUIRES THE RESOLUTION OF DISPUTES ON AN INDIVIDUAL BASIS, LIMITS YOUR ABILITY TO SEEK RELIEF IN A COURT OF LAW, AND WAIVES YOUR RIGHT TO PARTICIPATE IN CLASS ACTIONS, CLASS ARBITRATIONS, OR A JURY TRIAL FOR CERTAIN DISPUTES. This End User License Agreement (this "Agreement") is a legal contract between you, either as an individual or a single entry ("you"), and Western Digital Technologies, Inc., its subsidiaries and affiliates (collectively, "WDT"), governing your use of the WDT software and associated online or electronic documentation (such software and documentation, collectively, the "Software"), and if applicable, your use of Software designed for application with WDT hardware devices and products ("WDT Devices"); BY INSTALLING, ACTIVATING, COPYING OR OTHERWISE USING THE SOFTWARE, YOU AGREE TO BE BOUND BY THE TERMS OF THIS AGREEMENT, WHICH ARE CONDITIONS TO WDT'S LICENSE GRANT TO YOU HEREIN, AND THE WDT PRIVACY POLICY, AS INCORPORATED BY REFERENCE IN SECTION 4. IF YOU DO NOT AGREE TO THE TERMS I accept the terms of the License Agreement

1. Read the agreement and select the "I accept the terms of the License Agreement" check box.

2. Click Next to display the Getting powered up and connected screen.

My Cloud Mirror Connect > Personal Cloud > Setup Complete Get powered up and connected When the LED on the front of the WD My Cloud Mirror becomes a steady blue, click Next. This may take several minutes. Having trouble? Make sure... 1 Your WD My Cloud Mirror is firmly connected to your router using the provided Ethernet cable. 2 Your WD My Cloud Mirror is firmly connected to an electrical outlet using the provided AC power adapter. Back Next

1. Review the information on the screen, and when the power LED on your WD My Cloud Mirror device is solid blue, click Next. The software discovers your device and displays it on the Select your WD My Cloud Mirror screen.

Note: If your device is not detected, follow the on-screen directions.

My Cloud Mirror Connect > Personal Cloud > Setup Complete Select your WD My Cloud Mirror WDMyCloudMirror SN: WJC243000955 IP: 182.168.1.127 Back Next

1. Select your WD My Cloud Mirror device and click Next. The Set up your personal cloud screen displays.

My Cloud Mirror Connect > Personal Cloud > Setup Complete Set up your personal cloud Want to access your files from outside your home? Enter your email to create (or expand) your WD My Cloud account. You'll use this account to access your WD My Cloud Mirror from anywhere in the world. You'll receive an email with additional information and instructions. Judy Jones [e-mail] (Optional) Also register WD My Cloud Mirror with this information Back Next

Note: WD My Cloud Mirror provides fee-free remote access to your personal cloud device. Once you create your account, you can access your device using your mobile devices with Internet access and from the WD My Cloud desktop app.

1. Enter your first and last name and, optionally, your email address. The email address is needed if you want to create an account with remote access capability. Make sure the check box for Also register WD My Cloud Mirror with this information is selected.

2. Click Next. The Your account screen displays.

My Cloud Mirror Connect > Personal Cloud > Setup Complete Your account You've successfully created an account for: Adobe Username WD My Cloud account admin (Autumn) [e-mail] paulmi Add more users Back Next

1. If you'd like to add users, click Add more users, enter the user information and click the plus sign (+).

If you'd like to skip the add an account step, click Next. You'll have the opportunity to create a personal cloud when you create a user account (see "Adding a Single User" on page 42.)

Note: It may take a few minutes for your email inbox to receive instructions on accessing the WD My Cloud Mirror device remotely.

1. Check your email to confirm your new account and click Next to display the Setup Complete screen.

Note: You may need to check your email spam folder if your spam filter does not allow email from WD. The Congratulations! screen displays. You've successfully set up your WD My Cloud Mirror device. Now you can select the options provided on the screen.

My Cloud Mirror Connect > Personal Cloud > Setup Complete Congratulations! Your WD My Cloud Mirror is set up! Next, we recommend installing the WD My Cloud application Install the WD My Cloud application Easily provides, split, share, and manage your files on your personal cloud, whether you're at home or on the road. Also: ✓ Place helpful shortcuts on my Desktop ① ✓ Recommended: Automatically update WD My Cloud Mirror wherever new firmware becomes available Back Finish

Selecting Options

All options on the Congratulations! screen (above) are enabled by default. The table below explains what happens when the options are enabled or disabled.

1. Select your desired options, clearing the check box for any option you want to disable:

Option Result
Install the WD My Cloud app	If the option is enabled:An installation wizard launches automatically.S e e “Launching the WD M Cloud Desktop App” on page 37 for instructions.WD My Cloud app icon displays on the Desktop.
	If the option is disabled:The online Learning Center Welcome page displays.The Public share displays in Explorer (Windows) or Finder (Mac).
Place helpful shortcuts on my Desktop (Setup software required)	The online Learning CenterWelcome page.The Public share in Explorer(Windows) or Finder (Mac).The WD My Cloud dashboard forconfiguring your WD My CloudMirror device.
Recommended: Automatically update WDMy Cloud whenever new firmware becomes available	The online Learning CenterWelcome page displays.The Public share displays inExplorer (Windows) or Finder(Mac).If the option is enabled, thefirmware turns on automaticupdates at 3:00 AM daily. Tochange settings for automaticupdates, see “Firmware Update”on page 130.

2. Click Finish to close the setup wizard.

Getting Started Without Online Setup Software

If you don't want to use the setup software to get started, you can use a browser instead. If you don't want to use either, you can still:

• Use your WD My Cloud Mirror personal cloud storage device as an external hard drive, dragging and dropping files to and from it.
• Configure the device using the WD My Cloud Mirror device's dashboard. (See "The Dashboard at a Glance" on page 57.)

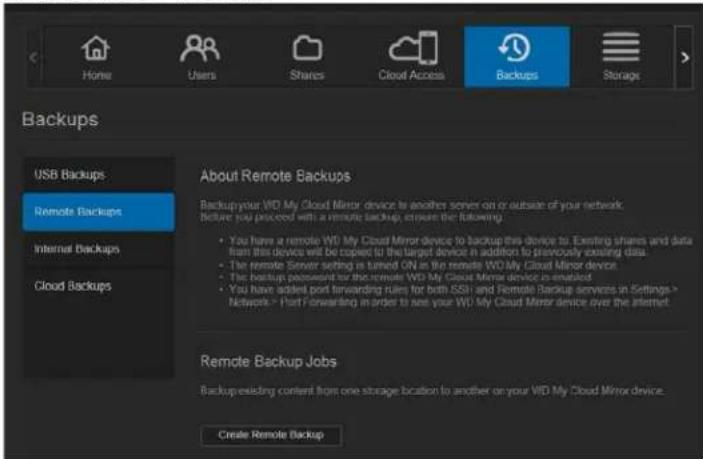

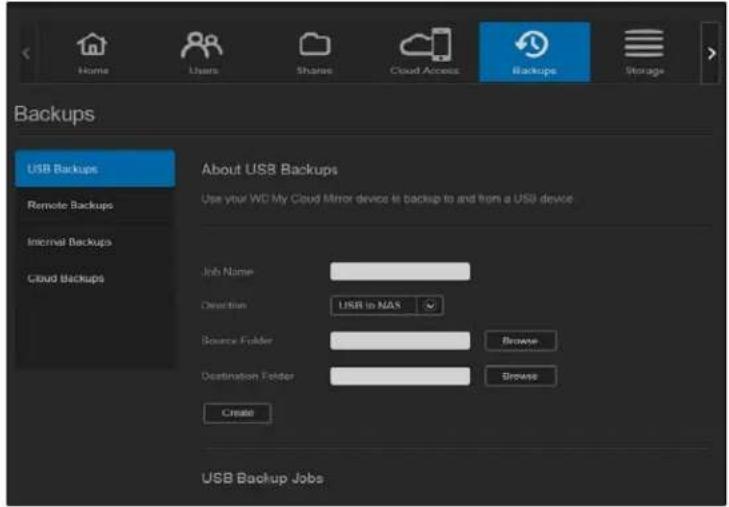

• Back up files using USB, Remote, Internal, and Cloud backup (see "Backing Up and Retrieving Files" on page 71).

Setting up the Device Using a Browser

To set up the WD My Cloud Mirror device:

1. Open a browser and enter http://wdmycloudmirror for Windows or http://wdmycloudmirror.local for a Mac and press Enter. The login page appears:

WiD My Cloud Mirror User admin Password Remember Me Login

1. Click Login. You do not need to enter a password because you haven't set one up yet. The Choose your language screen appears:

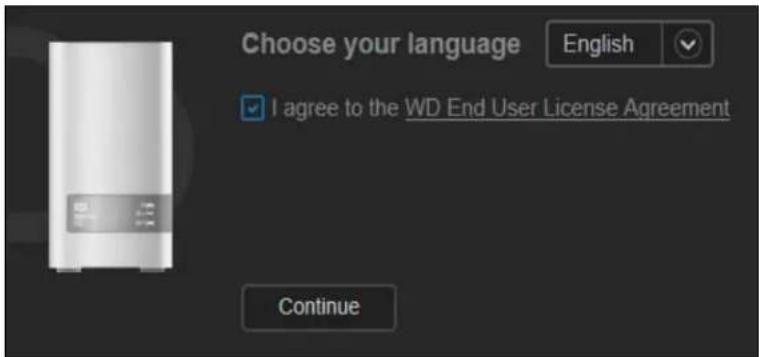

Choose your language English I agree to the WD End User License Agreement Continue

1. From the drop-down list, select the language of the user interface.
2. Click the link to read the Western Digital End User License Agreement. if you agree, click I accept or return to the previous page and click the I agree check box.

Western Digital Technologies, Inc. License Agreement Read the license agreement carefully Western Digital End User License Agreement IMPORTANT - READ CAREFULLY. SECTION 8 OF THIS DOCUMENT CONTAINS A BINDING ARBITRATION PROVISION THAT REQUIRES THE RESOLUTION OF DISPUTES ON AN INDIVIDUAL BASIS, LIMITS YOUR ABILITY TO SEEK RELIEF IN A COURT OF LAW, AND WAIVES YOUR RIGHT TO PARTICIPATE IN CLASS ACTIONS, CLASS ARBITRATIONS, OR A JURY TRIAL FOR CERTAIN DISPUTES. This End User License Agreement (this "Agreement") is a legal contract between you, either as an individual or a single entity ("you"), and Western Digital Technologies. Print Cancel accept

1. Click Continue. The Getting Started Setup for WDMyCloud.com login screen appears.

Getting Started WDO My Cloud Mirror lets you create your personal cloud. Sits your photos, videos, music, and files to new places, and access your contact anywhere. Access requests a WDMyCloud.com login, and starts user emails on. Setup for WDMyCloud.com login Address Jobs Jones [e-mail] Save Entering your virtual address registers your device and sets sick up to receive updates and ends about WDO My Cloud Mirror. If you do not wish to add either users now. Click Next to continue. Cancel Next

1. Enter your first and last name and optionally, your email address. The email address is needed if you want to create an account with remote access capability. Make sure the check box for Also register WD My Cloud Mirror with this information is selected.

Note: WD My Cloud Mirror provides fee-free remote access to your personal cloud device. Once you create your account, you can access your device using your mobile devices with Internet access and from the WD My Cloud desktop app.

1. Click Save.

2. If you want to add users here, just repeat steps 6 and 7 for each user.

3. Click Next. The next Getting Started screen appears:

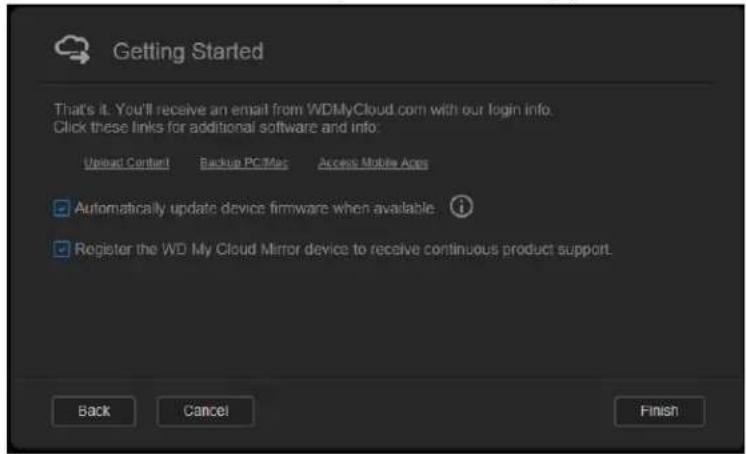

Getting Started That's it: You'll receive an email from WDMyCloud com with our login info. Click these links for additional software and info: Upload Content Backup PC/Mac Access Mobile Apps ✓ Automatically update device firmware when available ✓ Register the WD My Cloud Mirror device to receive continuous product support. Back Cancel Finish

The screen provides three links to important processes, which are discussed in later chapters:

- Upload Content: See "Accessing Content" on page 20.

- Backup PC/Mac: See "Backing Up and Retrieving Files" on page 71.

"Access Mobile App: See "Mobilizing Your Files with iOS and Android Mobile Apps" on page 24.

1. Do the following (optional):

- To have your device's firmware up dated automatically, click the Automatically update device firmware when available check box.

■To register your device, click the Register the WD My Cloud Mirror device to receive continuous product support check box.

1. Click Finish to display the WD My Cloud Mirror dashboard. For instructions on using the dashboard, see "The Dashboard Home Page" on page 59.

Accessing Content

Note: This manual uses the term shares and folders interchangeably.

The WD My Cloud Mirror device's Public folder contains Shared Music, Shared Pictures, and Shared Videos subfolders. The existing content of the subfolders are files that you dragged and dropped or files that have been backed up from your computer or an attached USB drive.

Note: Any of the folders can hold any type file.

Once you've physically connected your WD My Cloud Mirror device (see "Physically Connecting the Device" on page 10), use the following steps to access the contents of your device.

If your operating systems is... Then...
Windows 8 or 8.1	1. On the Start page, typeComputer2. ClickComputer.3. In the left pane, clickNetwork.4. Double-clickWDMYCloudMirrorand locate the device's Public folder.5. Double-click the Public folder to display the Shared Music, Shared Pictures, and Shared Videos subfolders. You can now drag and drop files into (and from) the shared media folders using Windows Explorer.
Windows XP/Vista/Windows 7	1. ClickorStart > Computer > Network > WDMYCloudMirrorand, if required, enter your network (router) credentials. The device's Public and private folders (shares) display.2. Double-click the Public folder to display the Shared Music, Shared Pictures, and Shared Videos subfolders. You can now drag and drop files into (and from) the shared media folders using Windows Explorer.
Mac OS X(Snow Leopard, Lion, Mountain Lion,Mavericks)	1. In a Finder window, clickWDMyCloudMirrorunder the shared items in the side bar.2. If presented with an authorization page, selectGuestand clickConnectto display the Public share:3. Double-click the Public folder to display the subfolders: Shared Music, Shared Pictures, and Shared Videos. You can now drag and drop files into the shared folders using Finder.4. If you want to create a shared drive icon permanently on your desktop, create an alias. Following are two ways to do this:Note: Before creating an alias, clickFinder > Preferences > General and make sureConnected Serversis checked.- Click the item you wish to alias (e.g., Shared Music), hold down the mouse button, hold down theCmdandOptionkeys simultaneously, and drag the item to where you want the alias to appear. Instead of moving the original item, this action creates an alias at the new location.-OR -Right-click the item you want to alias (e.g., Shared Music) and clickFile > Make Alias.

Mapping the Public Folder (Windows)

To map the WD My Cloud Mirror Public folder for quick access in the future:

1. In Windows Explorer, under Network, click WDMYCLOUDMIRROR.
2. Right-click the Public folder and select Map Network Drive from the menu.
3. Select an available letter from the Drive drop-down list.
4. Select the Reconnect at login check box.
5. Click Finish. Your Public drive is now mapped.

Accessing Your Cloud Remotely

Enabling Cloud Access for the WD My Cloud Mirror Device Configuring Cloud Access for a User Mobilizing Your Files with iOS and Android Mobile Apps

A personal cloud is your content, at home, secure and under your control. Unlike public clouds, a personal cloud allows you to keep all of your content in one safe place on your home network. Share files, stream media, and access your content anywhere, from your PC or Mac computer and from mobile devices. No monthly fees. No mysterious location for your data. Keep your videos, music, photos, and files safe at home and always with you.

This chapter explains how to set up the WD My Cloud Mirror device for remote access and describes some of the ways you can take advantage of its many capabilities.

Enabling Cloud Access for the WD My Cloud Mirror Device

Before you can use your WD My Cloud Mirror device remotely, it must be enabled for cloud access (enabled is the default). To verify that the WD My Cloud device is enabled for remote access and to check the status of its remote connection(s), see "Cloud Access" on page 108.

Configuring Cloud Access for a User

Once you've enabled cloud access on the WD My Cloud Mirror device, use the following steps to give remote access capability to your device users.

1. On the navigation bar, click the Cloud Access icon.

Configure Access About Cloud Access Before a smart phone or better can access the location on your drive, you need to register it as part of your personal cloud interactions. You generate a code that will put your mobile device with the drive.

1. In the left pane, select the user you'd like to configure for cloud access.

Configure Access A admin A user1 A job A jpm A work A users Cloud Access Status Connector Status Connector Post-forwarding Connection establishment WOMyCloud.com Login for job connectors in Cloud devices for job Get Code

1. In the WDMyCloud.com Login for area, click the Add/Change Email Address icon 📋. Click this icon if you have not previously added an email address to the user account or if you need to update/change the user's email address.
2. Enter the user's email address. This email address is used to send the user confirmation information and instructions on setting up and activating a password for cloud access.
3. Click Save.
4. If you have entered an email address, this icon is greyed out. Add an email address and return to this link to send cloud access information.

To generate an activation code for a user's mobile device(s) and My Cloud Desktop app:

Important: Codes are valid for 48 hours from the time of the request and can be used only once.

1. On the bottom of the screen, click Get Code. You'll need to generate one code for each mobile device and app you want to activate. You also need a code to activate WD My Cloud for desktop app. A dialog box displays the user's activation code and its expiration date and time.

Note: Make sure to write down the access codes you generate.

1. Click OK. Once you use the code(s), the Configure Access page displays the cloud devices to which the user now has access along with the activation code used.

Mobilizing Your Files with iOS and Android Mobile Apps

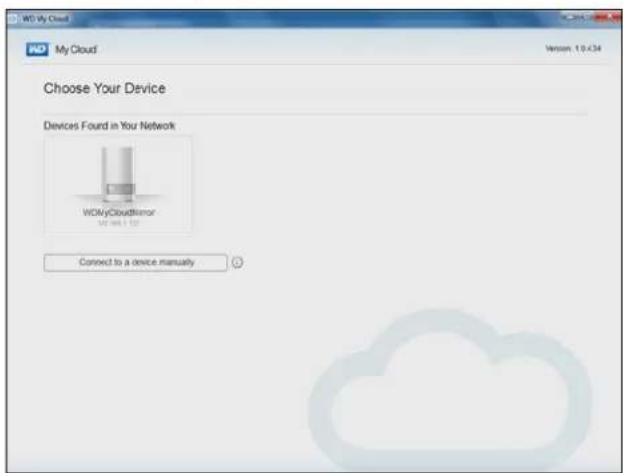

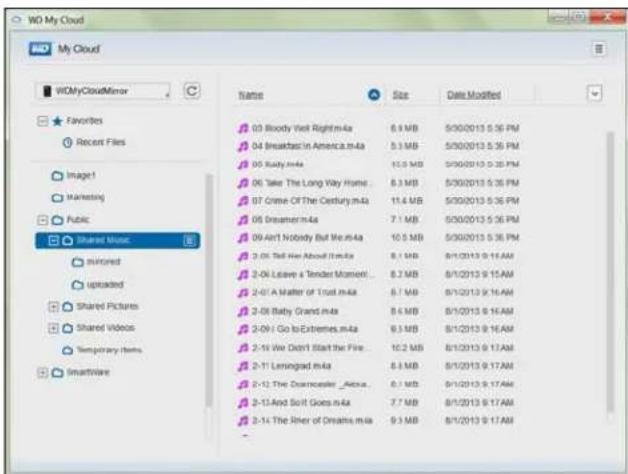

The WD My Cloud and WD Photos mobile apps and WD My Cloud desktop app allow you to access all the content on your personal cloud from any device.

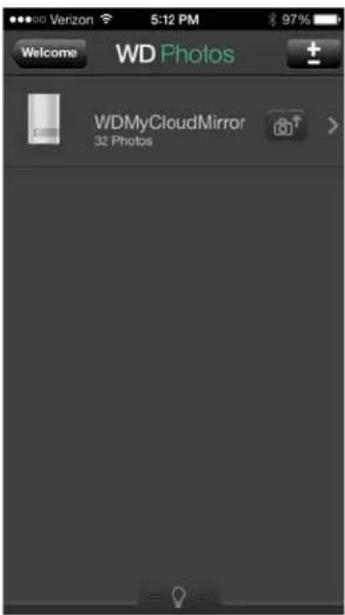

WD Photos Mobile App

Important: WD Photos enables you to view photos in .jpg format only.

Turn your mobile device into the ultimate photo album. View all the photos stored on your personal cloud with your smartphone or tablet. Or, take a photo or video clip and instantly upload it from your gallery directly to your WD My Cloud Mirror device with ease.WD Photos is compatible with leading Apple mobile devices and many popular Android devices. Photos are automatically optimized for viewing on your mobile device.

Note: Thumbnail images are not available for an attached USB device.

With WD Photos, you can:

■ Instantly post photos to Facebook.
■ Play a slide show with transitions to create digital art.
■ Access previously viewed photos even when you are off line.
■ View your photos all at once or filter them by folder or album.
- Search by file name, folder name, or date using the built-in search options.
- Email a photo to a friend.
- Assign a photo to a contact.
- Download a photo from your personal cloud storage to the camera roll on your mobile device.
- Upload photos and videos from the camera roll on your mobile device directly to your personal cloud storage, no matter where you are.

Note: WD Photos automatically creates a subfolder with the mobile device name in the Public directory on the WD My Cloud Mirror device for uploaded photos. Similarly, the app creates a subfolder with the mobile device name in the Public/Shared Videos directory for uploaded videos.

For more features and instructions for using WD Photos, see its online Guide Me page and Quick Tips, and go to http://wdphotos.wd.com.

Installing WD Photos Mobile App on Your Mobile Device

Important: Make sure the photos you want to view on the mobile device are stored in the Shared Pictures subfolder in the Public share of your WD My Cloud Mirror device. WD Photos lets you view photos in .jpg format only.

Requirements

■ WD My Cloud Mirror personal cloud storage with the most recent firmware, connected to the Internet.
An iPhone ^® , iPad ^® , or iPod ^® touch with iOS 4.3 or higher
- Android smartphone or tablet running versions 2.3 or higher

To install WD Photos on your mobile device:

1. Download WD Photos from the Apple App or Google Play store and install it on your mobile device.

2. Launch WD Photos on your mobile device to display the WD Photos page:

Welcome WD Photos™ Connect Now Demo Drive Version 2.50(1131) Beta

1. Tap Connect Now to display a page offering several connection options:

Welcome WD Photos Found in Network + WDMyCloudMirror #2 Cloud Sign In + WDMyCloud.com Add Manually + WD Device

The WD Welcome page contains the following sections:

- Found in Network: If the mobile device is on the same Local Area Network or Wi-Fi Network as the WD My Cloud Mirror device, the activation code is automatically provided behind the scenes and does not need to be entered.

a. In the Found in Network section, tap to the left of WDMyCloudMirror.

b. Select your user name from the Select User Account list.

c. Enter your user password.

Cloud Sign in: Tap and sign in to your personal cloud using your WDMyCloud.com (cloud access) login account email address and password.

- Add Manually: If the mobile device is not on the same LAN or Wi-Fi network as the WD My Cloud device:

a. In the Add Manually section, tap to the left of WD device.
b. Enter the activation code generated on the WD My Cloud Mirror's dashboard and tap Activate:

Add Device Enter Activation Code Activate

Note: You must generate one code for each app you want to activate. Codes are valid for 48 hours from the time of request and can be used one time only.

A page displaying your WD My Cloud device appears:

Welcome WD Photos WDMyCloudMirror 32 Photos

1. Tap your WD My Cloud Mirror device to view your album(s) and tap an album to display the photos contained within it:

Grid of 20 grayscale photo thumbnails including landscapes, nature, and urban scenes (no text or symbols)

Note: If you have problems installing WD Photos, visit http://wd.com/setup/wdphotos. For more features and instructions, see the app's online Guide Me page and tips and go to http://wdphotos.wd.com.

WD My Cloud Mobile App

You are always connected to your personal cloud. Save valuable space on your mobile devices with easy photo and video uploads directly to your personal cloud, then securely access and share your memories.

The WD My Cloud mobile app also allows you to easily transfer files between your personal cloud, Dropbox™, and other public cloud accounts.

With WD My Cloud mobile app, you can:

• Open and view the important files stored on your WD My Cloud Mirror device from anywhere without copying them to your mobile device.
  ■ Show off the photos stored on your WD My Cloud Mirror device.
  ■ Connect to other cloud sites such as Dropbox from your tablet or smartphone.
  Stream and enjoy music and video files stored on your WD My Cloud Mirror device.

Note: Video streaming performance is best over your LAN and when your mobile device is connected using Wi-Fi wireless connections. WAN streaming performance may be limited by upload speeds on your home Internet connection.

■ Share your presentations on your Apple or Android tablets.

Your WD My Cloud app supports most major file types, such as Microsoft Word documents, Microsoft Excel spreadsheets, and PowerPoint presentations.

For more features and instructions, see the Help, Guide Me page, and Quick Tips within the WD My Cloud mobile app, or go to http://wdmycloud.wd.com.

Note: WD My Cloud app brings your data from your personal cloud to your tablet, handset, or other portable devices using Google Android or Apple iOS. WD My Cloud provides a convenient file list of the WD My Cloud Mirror device contents and then launches your favorite player or viewer for any files you want to open. For file types your mobile device supports, see the device's manual.

Requirements

■ WD My Cloud Mirror personal cloud storage with the most recent firmware, connected to the Internet.
- Access to cloud services requires the WD My Cloud app and an active Dropbox, Google Drive, or OneDrive™ account.
- iOS iPhone or iPad running versions 5.0 or later software.
- Android smartphone or tablet running versions 2.3 or later software.

Installing the WD My Cloud Mobile App

1. Download the WD My Cloud mobile app from the Apple App or Google Play store and install it on your mobile device.
2. Launch the app. The End User License Agreement displays.
3. Accept the agreement. The Welcome page displays:

Welcome iWD My Cloud™ Connect Now Demo Drive WD My Cloud 3.0.0

1. Tap Connect Now to display a page offering several connection options:

Welcome WD MyCloud Found in Network + WDMyCloudMirror + MyNetN900C Cloud Sign In + Dropbox + Google Drive + SkyDrive

1. You have the following options for connecting to the WD My Cloud device:

- From Your Local Network: If the mobile device is connected by Wi-Fi to the same Local Area Network as the WD My Cloud device, the app is automatically activated.

Cloud Sign in: Tap and sign into your personal cloud using your WDMyCloud.com (cloud access) login account email address and password.

- Connect Manually: If the mobile device is not on the same LAN or Wi-Fi network as the WD My Cloud device:

- In the Add Manually section, tap the WD My Cloud Mirror device.

- Enter the activation code generated on the WD My Cloud's dashboard and tap Activate. (See "Configuring Cloud Access for a User" on page 22.)

Cancel Add Device Guide Me Enter Activation Code Activate

Note: You must generate one code for each app you want to activate. Codes are valid for 48 hours from the time of request and can be used one time only.

A page displaying your WD My Cloud Mirror device displays:

Devices Cloud Downloads Activity WDMyCloudMirror

1. Tap your device to display its share(s):

Shares P2P Public RemoteBackup SmartWare TimeMachineBackup WDSync Cloud Downloads Activity

1. Tap a share to display its subfolders.
2. Tap a subfolder to display a list of files.
3. Tap a file to access it.

Note: For more features and instructions, see the app's online Guide Me page, Help, FAQs, and tips, or go to http://wd.setup/wd.mycloudapps.

If you have problems installing the app, go to http://wd.com/setup/wmycloudmobileapps.

WD My Cloud for Desktop App

This app keeps your PC or Mac connected to your personal cloud, no matter where you are. From the application, you can easily drag and drop to transfer, manage your files, and share links to specific files or folders via email.

With WD My Cloud desktop app, you can:

■ View the files to which you have access.
- Assign favorites for quick access to your favorite folders, files and recently accessed information.
- Add and remove device content by dragging and dropping files and folders from your computer.

WD My Cloud WOMyCloudMinor Favorites Recent Files Image1 Marketing Public Shared Music mirrored uploaded Shared Pictures Shared Videos Temporary Items SmartWare Name Size Size Date Modified 03 Bloody Visit Rightm4a 8.9 MB 5/30/2013 5:36 PM 04 Breakfast in America.m4a 5.3 MB 5/30/2013 5:36 PM 05 Rudy m4a 10.5 MB 5/30/2013 5:36 PM 06 Take The Long Way Home... 8.3 MB 5/30/2013 5:36 PM 07 Crime Of The Century m4a 11.4 MB 5/30/2013 5:36 PM 08 Dreamer.m4a 7.1 MB 5/30/2013 5:36 PM 09 Ain't Nobody But Me.m4a 10.5 MB 5/30/2013 5:36 PM 10-01 Tell You About It.m4a 9.1 MB 8/1/2013 9:16 AM 12-01 Leave a Tender Moment... 8.3 MB 8/1/2013 9:16 AM 12-07 A Matter of Trust.m4a 8.7 MB 8/1/2013 9:16 AM 12-08 Baby Grand.m4a 8.6 MB 8/1/2013 9:16 AM 12-09 i Go to Extremes.m4a 9.3 MB 8/1/2013 9:16 AM 12-16 We Didn't Start the Fire... 10.2 MB 8/1/2013 9:17 AM 12-17 Leningrad m4a 8.4 MB 8/1/2013 9:17 AM 12-12 The Creamcoaster_Alexa... 8.7 MB 8/1/2013 9:17 AM 12-13 And Soft Goes.m4a 7.7 MB 8/1/2013 9:17 AM 12-14 The Riser of Dreams.m4a 9.3 MB 8/1/2013 9:17 AM

Requirements

• WD My Cloud Mirror personal cloud storage with the most recent firmware, connected to the Internet.
  ■ A PC or a Mac computer.

Installing WD My Cloud Desktop

Windows

1. Open a web browser. For browser requirements, see "Web Browsers" on page 6.
2. In the address field, type http://wd.com/setup/wdmycloudmirror to display the Welcome to the Learning Center page:

WD Learning Center Support.Cf Welcome to the Learning Center To get your WD device up and running, select a product. WD Products WD My Cloud Mirror WD My Cloud EX2 WD My Cloud EX4 WD My Cloud

1. Click WD My Cloud Mirror to display the download page:

WD Learning Center WD My Cloud Mirror How To's Downloads Support For Windows WD My Cloud Mirror Get the most out of your WD My Cloud Mirror personal cloud storage. Windows Download Setup Software How To's Learn how to get your WD drive up and running Start Learning Software Downloads Download tools and apps to optimize your personal cloud experience Go to Downloads Copyright © 2001, 2014 Windows Digital Corporation. All rights reserved! Systems: Privacy: Called WD ansolutely: WD

1. In the Software Downloads area, click Go to Downloads.

2. In the WD My Cloud for desktop area, click Download. The setup software downloads to your computer.

WD Learning Center WD My Cloud MYD How To's Downloads Support Of For Windows ? Downloads Download software to maximize your personal cloud experience and manage your media and drive. Setup Software Software is help you not sit and discover your new VD drive or your network. Download WD SmartWare Software that facilitates automatic and continued backup of all your files. Learn More Of Free Back Us Download WD Quick View® Drive management tool for providing very access, checking status, and configuring settings. New Check Device Status Download WD My Cloud™ Desktop App Software for your computer that lets you play and manage media on network devices at home or away. Learn More Of See Access Your Content Download

1. Access your downloaded files and double-click wdmycloud.exe (Windows) or wdmycloud.dmg (Mac).
2. Select a language from the drop-down menu and click OK.

WD My Cloud™ English OK

1. Read the WD License Agreement and select I accept the terms of the License Agreement:

WD My Cloud License Agreement Installation and Use of WD My Cloud Requires Acceptance of the following License Agreement: Western Digital End User License Agreement IMPORTANT - READ CAREFULLY: This End User License Agreement ("Agreement") is a legal contract between you, either as an individual or a single entity ("you"), and Western Digital Technologies, Inc. ("WDT"), governing your I grant the terms of the License Agreement I do NOT accept the terms of the License Agreement InstallAnywhere Cancel Previous Next

1. Click Next.

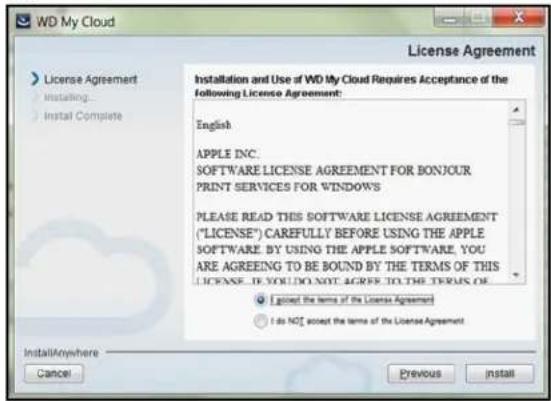

2. Read the Apple License Agreement and select I accept the terms of the License Agreement:

WD My Cloud License Agreement Installation and Use of WD My Cloud Requires Acceptance of the following License Agreement: English APPLE INC. SOFTWARE LICENSE AGREEMENT FOR BONJOUR PRINT SERVICES FOR WINDOWS PLEASE READ THIS SOFTWARE LICENSE AGREEMENT ("LICENSE") CAREFULLY BEFORE USING THE APPLE SOFTWARE. BY USING THE APPLE SOFTWARE. YOU ARE AGREEING TO BE BOUND BY THE TERMS OF THIS LICENSE. IF YOU DO NOT AGREE TO THE TERMS OF I accept the terms of the License Agreement I do NOT accept the terms of the License Agreement InstallAnywhere Cancel Previous Install

1. Click Install. Installation begins.

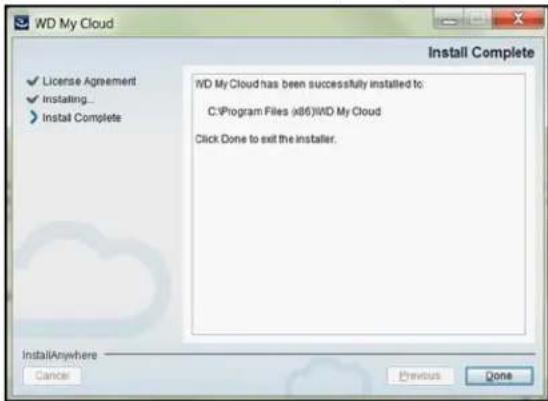

2. Once the installation is complete, click Done to close the WD My Cloud installer.

WD My Cloud Install Complete ✓ License Agreement ✓ Installing... > Install Complete WD My Cloud has been successfully installed to: C:\Program Files (x86)WD My Cloud Click Done to exit the installer. InstallAnywhere Cancel Previous Done

Mac

1. Complete Steps 1 - 4 above.
2. Click Downloads and select WD My Cloud Installer.

Note: Depending on your software configuration, a request to install a Java runtime may appear. Click Install.

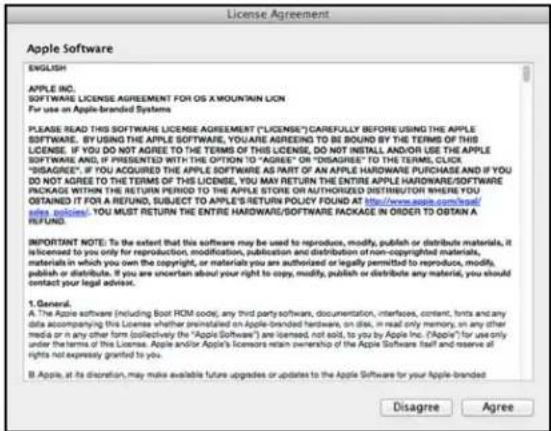

1. Read the Apple Software License Agreement and click Agree.

License Agreement Apple Software ENGLISH APPLE INC. SOFTWARE LICENSE AGREEMENT FOR OS X MOUNTAIN LION For use on Apple-branded Systems PLEASE READ THIS SOFTWARE LICENSE AGREEMENT ("LICENSE") CAREFULLY BEFORE USING THE APPLE SOFTWARE. BY USING THE APPLE SOFTWARE, YOU ARE AGREED TO BE BOUND BY THE TERMS OF THIS LICENSE. IF YOU DO NOT AGREE TO THE TERMS OF THIS LICENSE, DO NOT INSTALL AND/OR USE THE APPLE SOFTWARE AND, IF PRESENTED WITH THE OPTION "TO 'AGREE' OR "DISAGREE" TO THIS TERMS, CLICK "DISAGREE", IF YOU ACQUIRED THE APPLE SOFTWARE AS "PART OF AN APPLE HARDWARE PURCHASE AND IF YOU DO NOT AGREE TO THE TERMS OF THIS LICENSE, YOU MAY RETURN THE ENTIRE APPLE HARDWARE/SOFTWARE PACKAGE WITHIN THE RETURN PERIOD TO THE APPLE STORE OR AUTHORIZED DISTRIBUTOR WHERE YOU OSTAINED IT FOR A REFUND, SUBJECT TO APPLE'S RETURN POLICY FOUND AT http://www.apple.com/real/ adma.policies/. YOU MUST RETURN THE ENTRE HARDWARE/SOFTWARE PACKAGE IN ORDER TO OBTAIN A REFUND. IMPORTANT NOTE: To the extent that this software may be used to reproduce, modify, publish or distribute materials, it is licensed to you only for reproduction, modification, publication and distribution of non-copyrighted materials, materials in which you own the copyright, or materials you are authorized or legally permitted to reproduce, modify, publish or distribute. If you are uncertain about your right to copy, modify, publish or distribute any material, you should contact your legal advisor. 1. General. A. The Apple software (including Boot ROM code), any third-party software, documentation, interfaces, content, fonts and any data accompanying this License whether animated on Apple-branded hardware, on ideas, in read only memory, on any other media or in any other form (collectively the "Apple Software") are licensed, not sold, to you by Apple Inc. ("Apple" for use only under different terms of this License. Apple and/or Apple's licenses remain ownership of the Apple Software itself and reserve all rights not expressly granted to you. B. Apple, at this discretion, may make available future upgrades or updates to the Apple Software for your Apple-branded Disagree Agree

1. Select a language from the drop-down menu

WD My Cloud English OK

1. Read the WD Software License Agreement and click I accept the terms of the License Agreement.

WD My Cloud License Agreement > License Agreement > Installing... > Install Complete Installation and Use of WD My Cloud Requires Acceptance of the Following License Agreement: Western Digital End User License Agreement IMPORTANT - READ CAREFULLY: This End User License Agreement ("Agreement") is a legal contract between you, either as an individual or a single entity ("you"), and Western Digital Technologies, Inc. ("WDT"), governing your use of the WDT software and related online or electronic documentation (such software and the documentation collectively referred to herein as the "Software"). YOU AGREE TO BE BOUND BY THE TERMS OF THIS AGREEMENT BY INSTALLING, ACTIVATING, COPYING OR OTHERWISE USING THE SOFTWARE. IF YOU DO NOT ACCEPT DO NOT INSTALL I accept the terms of the License Agreement I do NOT accept the terms of the License Agreement InstallAnywhere Cancel Previous Install

1. Click Install. The installation begins.

2. Once the installation is complete, click Done to close the WD My Cloud installer.

WD My Cloud Install Complete ✓ License Agreement ✓ Installing... > Install Complete WD My Cloud has been successfully installed to: /Applications/WD My Cloud Click Done to exit the installer. InstallAnywhere Cancel Previous Done

Mac

1. Complete Steps 1 - 4 above.
2. Click Downloads and select WD My Cloud Installer.

If asked to install a Java runtime, click Install.
■ If a warning screen displays, click Open.

1. Read the Apple Software License Agreement and click Agree.

License Agreement Apple Software ENGLISH APPLE INC. SOFTWARE LICENSE AGREEMENT FOR OS X MOUNTAIN LION For use on Apple-branded Systems PLEASE READ THIS SOFTWARE LICENSE AGREEMENT ("LICENSE") CAREFULLY BEFORE USING THE APPLE SOFTWARE. BY USING THE APPLE SOFTWARE, YOU ARE AGREED TO BE BOUND BY THE TERMS OF THIS LICENSE. IF YOU DO NOT AGREE TO THE TERMS OF THIS LICENSE, DO NOT INSTALL AND/OR USE THE APPLE SOFTWARE AND/IF PRESENTED WITH THE OPTION TO "AGREE" OR "DISAGREE" TO THE TERM, CLICK "ISUSSUE" IS URGED. The APPLE SOFTWARE AS WHAT OR AN APPLE HARDWARE PURCHASE AND/IF YOU DO NOT AGREE TO THE TERMS OF THIS LICENSE, YOU MAY RETURN THE ENTIRE APPLE HARDWARE/SOFTWARE PACKAGE WITHIN THE RETURN PERIOD TO THE APPLE STORE OR AUTHORIZED DISTRIBUTOR WHERE YOU OBTAINED IT FOR A REFUND, SUBJECT TO APPLE'S RETURN POLICY FOUND AT https://www.southern/bio/ index_policies/You MUST RETURN THE ENTRE HARDWARE/SOFTWARE PACKAGE IN ORDER TO OBTAIN A REFUND. IMPORTANT NOTE: To the extent that this software may be used to reproduce, modify, publish or distribute materials, it licensed to you only for reproduction, modification, publication and distribution of non-certified materials, materials in which you own the copyright, or materials you are authorized or legally permitted to reproduce, modify, publish or distribute. If you are uncertain about your right to copy, modify, publish or distribute any material, you should contact your legal advice. 1. General. A. The Apple software (including Boot ROM code), any third-party software, documentation, interfaces, content, fonts and any data accompanying this License whether preinstalled on Apple-branded hardware, on dies, in read only memory, on any other media or in any other form (collectively the "Apple Software") are licensed, not sold, to you by Apple Inc. ("Apple") for use only under the terms of this License. Apple and/or Apple's licenses retain ownership of the Apple Software itself and reserve all rights not expressly granted to you. B. Apple, at its discretion, may make available future upgrades or updates to the Apple Software for your Apple-branded Disagree Agree

1. Select a language from the drop-down menu

WD My Cloud English OK

1. Read the WD Software License Agreement and click I accept the terms of the License Agreement.

WD My Cloud License Agreement > License Agreement Installing... Install Complete Installation and Use of WD My Cloud Requires Acceptance of the Following License Agreement: Western Digital End UserLicense Agreement IMPORTANT - READ CAREFULLY: This End User License Agreement ("Agreement") is a legal contract between you, either as an individual or a single entity ("you"), and Western Digital Technologies, Inc. ("WDT"), governing your use of the WDT software and related online or electronic documentation (such software and the documentation collectively referred to herein as the "Software"). YOU AGREE TO BE BOUND BY THE TERMS OF THIS AGREEMENT BY INSTALLING, ACTIVATING, COPYING OR OTHERWISE USING THE SOFTWARE. E YOU DO NOT ACCEPT, DO NOT INSTALL I accept the terms of the License Agreement I do NOT accept the terms of the License Agreement InstallAnywhere Cancel Previous Install

1. Click Install. The installation begins.
2. Once the installation is complete, click Done to close the WD My Cloud installer.

WD My Cloud Install Complete ✓ License Agreement ✓ Installing... > Install Complete WD My Cloud has been successfully installed to: /Applications/WD My Cloud Click Done to exit the installer. InstallAnywhere Cancel Previous Done

Launching the WD My Cloud Desktop App

Once you've installed the WD My Cloud Desktop app, use the following steps to access the files on your personal cloud:

IF you want to launch from . . . THEN . . .
Desktop Icon	Double-click the WD My Cloud Desktop icon.
Windows 8 or 8.1	1. On the Start page, type WD My Cloud.2. Click WD My Cloud.
Windows 7/Vista/XP	1. Click [icon] or Start > (All) Programs.2. In the left panel, select WD My Cloud > WD My Cloud.
Mac OS X 1. Click Finder > Applications2. Select WD My Cloud > WD My Cloud.

Using the WD My Cloud for Desktop App

1. Launch the WD My Cloud Desktop app as described above.

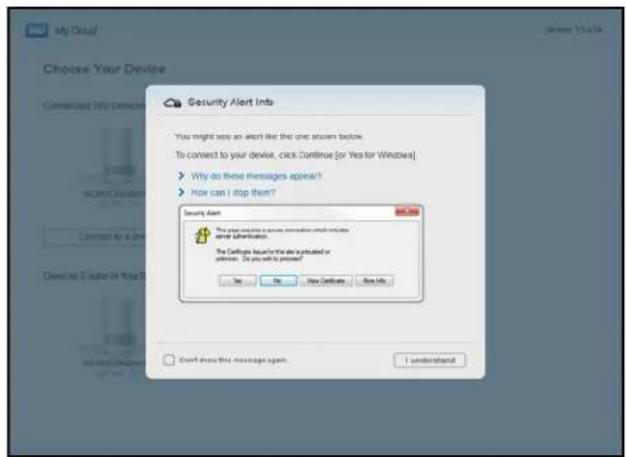

2. If a Security Alert Info screen displays, click I understand.

My Cloud Choose Your Device Security Alert Info You might see an alert like the one shown before. To connect to your device, click Continue [or Yes for Windows] Why do these messages appear? How can I stop them? Security Alert The user needs a secure connection which indicates serve authentication. The Configles secure the site https://a/1234508/1234508/1234508/1234508/1234508/1234508/1234508/1234508/1234508/1234508/1234508/1234508/1234508/12 Use Certificate Save Info Don't show this message again I understand

The Choose Your Device screen displays.

1. If your device displays on the screen, select it.

WDO My Cloud My Cloud Choose Your Device Devices Found in Your Network WDOMyCloudMirror Connect to a device manually

The Getting Started screen displays. Continue to step 6.

My Cloud HKEY/CLOUD/SMR Save Size Data modified Favorites FPT Paste Smartbox Tobacco/Scatchback Getting Started Add to Favorites Get quick access to your favorite folders and recent items. Add shortcuts to folders on your WD My Cloud device here. Add Content View and manage your content here. Add content to your WD my Cloud device by dragging files from your computer to these folders. WD Learning Center. Learn about things you can do with your device at the WD Learning Center. Start

1. If your device does not display on the Choose your device screen, click Connect to a device manually to display the WD My Cloud Manual Connect screen.

My Cloud Choose Your Device WDM My Cloud Manual Connect Please enter your login information. © WOM/Cloud.com Login ○ Activation Code Email Address 1 Password Cancel Enter

1. You have two options:

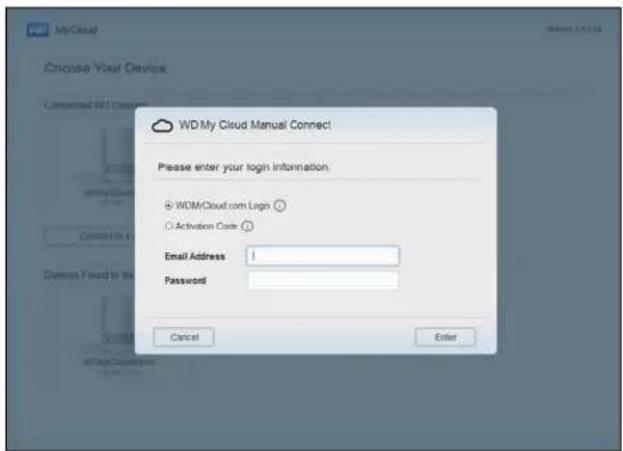

- Select WDMyCloud.com Login, enter your email address and password and click Enter.

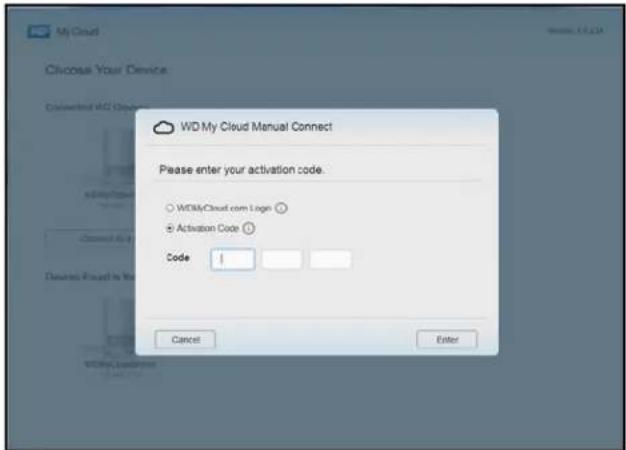

- Click Activation Code and click Enter. Enter the activation code generated by the WD My Cloud Mirror device and click Enter.

My Cloud Choose Your Device WD My Cloud Manual Connect Please enter your activation code. ○ WDMCloud.com Logn ○ ● Activation Code ○ Code 1 Cancel Enter

Note: Codes are valid for 48 hours from the time of request and can be used one time only. For details on how to generate an activation code, see "Configuring Cloud Access for a User" on page 22.

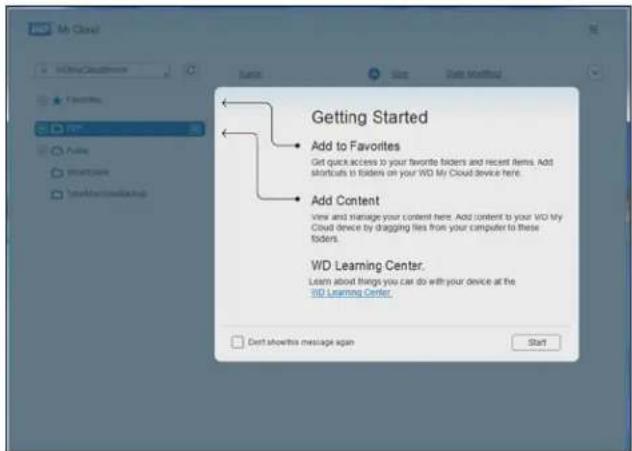

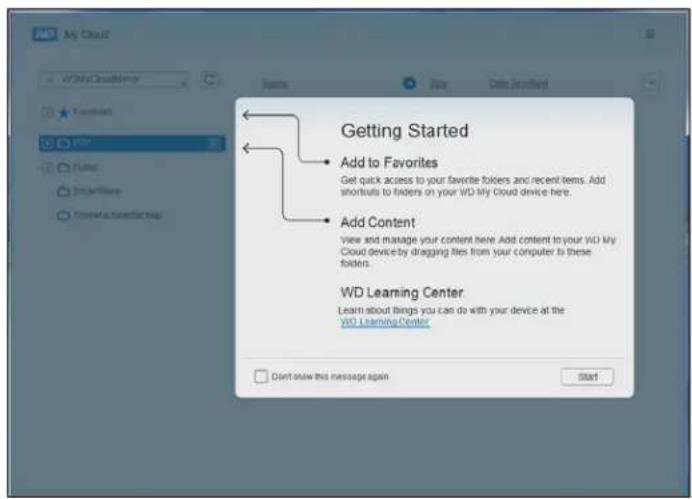

The WD My Cloud for Desktop app opens to the Getting Started screen.

My Cloud WDO CloudButton Home File Import Browse Browse Active Settings Getting Started Add to Favorites Get quick access to your favorite folders and recent items. Add shortcuts to folders on your WD My Cloud device here. Add Content View and manage your content here. Add content to your WD My Cloud device by dragging files from your computer to these folders. WD Learning Center Learn about things you can do with your device at the WD Learning Center Don't show this message again Start

1. Click Start. Refer to the application's online help if you have questions.

Managing Users, Groups, and Shares

About Users

About Groups

About Shares

About Users

The Administrator, normally the device owner, is the person in charge of setting up the device. As the WD My Cloud Mirror device owner, you have a special user account (admin) that provides you with administrator privileges. With these privileges, you can set up and configure the device to your specific needs and add other users to your personal cloud. You also have the power to determine exactly what users can access on the device.

As a default, the administrator (admin) user name does not have a password. You can create one at anytime (see "Updating a User Password" on page 47).

Note: Only one individual at a time can use the Administrator logon ID to log into the web browser app. Because of this, ensure that you log out of the WD My Cloud Mirror device web browser app when you're not using it. This allows other users authorized to use the Administrator logon ID to access the web browser app.

See Energy Saver - Web Access Timeout on "Energy Saver" on page 109 to automatically log out of the app after a set amount of time.

The Users screen displays a list of the current users and allows the Administrator to view user details, create new users, create groups, and grant a user access to existing shares and groups.

Viewing Users

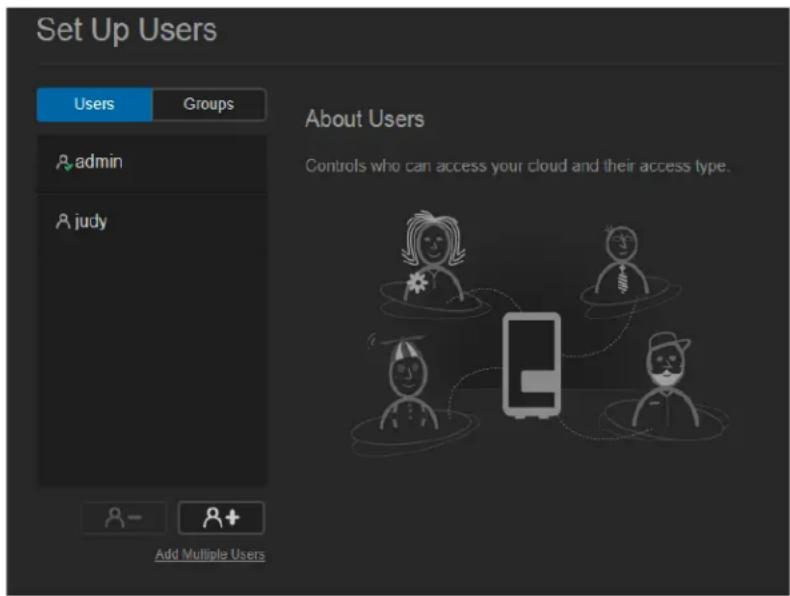

1. On the navigation bar, click Users to display the Set Up Users screen.

Set Up Users Users Groups admin judy About Users Controls who can access your cloud and their access type. Add Multiple Users

1. To view user details, click a user name on the left pane. The user's profile and share access information display. A user can have read only, read/write, or no access to a share.

Set Up Users Users Groups A admin A sammith User Profile User Name sammith First Name Sam Last Name Smith Email [e-mail] Password OFF Group Membership 0 Group(s) Certificates Quotes Certificates Add Multiple Users Share Access Users SendTo: SendTo: Hide SendTo: Hide SendTo: Hide

Note: The shares in the Share Access section that don't require access permission are grayed out. Once you make a share private, the share displays in the list and you can edit it. (See "Making a Share Private" on page 54.)

Adding a Single User

The Administrator adds user accounts and sets the parameters of the shares that a user can access. Use the following steps to add a single user account.

1. To add a user, click ⬤+ in the lower left side of the screen.
2. Enter the User Name, First Name, Last Name and Email address (optional) of the user you'd like to add and click Next.

Add User User Name * First Name Last Name Email Address * Required Cancel Next

1. To assign a password, click the toggle button to ON, enter a password and confirm the user's password. Click Next.

Add User Password ON Password * Confirm password * Password required Back Cancel Next

1. To assign a group to the new user, click the check box next to a group and click Next.

Add User Join To Group Engineering Back Cancel Next

1. Enter the Quota Amount, or leave the values blank for unlimited space and click Save. (See "Quota Rules" on page 47.) Your new user account displays on the left pane of the Set Up Users screen.

Add User Volume_1 Quota Amount 1 GB Leave fields blank if you do not wish to set any user quotas. Back Cancel Save

Adding Multiple Users

Use the following steps to add multiple user accounts:

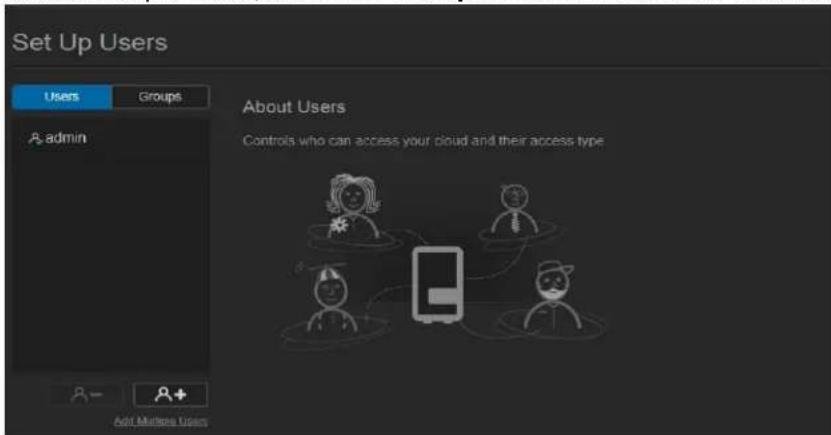

1. To add multiple users, click Add Multiple Users in the lower left side of the screen.

Set Up Users Users Groups A admin About Users Controls who can access your cloud and their access type Add Markets Users

1. Select how you'd like to enter your users into the device and click Next:

- Create Multiple Users: Allows you to enter users manually. See “Creating Multiple Users” on page 44.

- Import Users: Allows you to import a list of users into the device. Continue to "Import Multiple Users" on page 46.

Create Multiple Users Create Multiple Users Import Users Cancel Nest

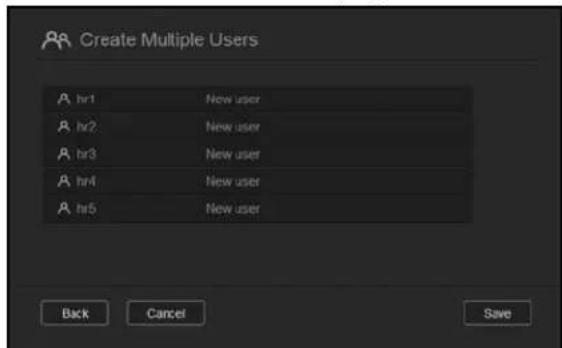

Creating Multiple Users

1. Enter the following information on the Create Multiple Users screen and click Next:

- Username Prefix: Enter a prefix for your user name. This will be added to the Account Prefix to create the User Name. (Example: HR)

- Account Prefix: Enter a numeric account prefix. This will be added to the Username Prefix to create the User Name (Example: 143)

- Number of Users: Enter the number of user accounts you'd like to create. The maximum number you can add displays to the right.

- Password: Enter a password for the user accounts.

- Confirm Password: Confirm the password for the user accounts.

- Overwrite Duplicate Accounts (optional): Select this check box to overwrite any existing duplicate accounts on your device.

Create Multiple Users Username Prefix Account Prefix Number of Users (505 max.) Password * Confirm Password Overwrite Duplicate Accounts * Password required Back Cancel Next

1. To assign the new users to a group, click the check box next to a group and click Next.

Create Multiple Users Human_Resource Marketing Back Cancel Next

1. Enter the Quota Amount or leave the values blank for unlimited space and click Next. (See "Quota Rules" on page 47.)

Create Multiple Users Volume_1 Quota Amount GB Leave fields blank if you do not wish to set any user quotas. Back Cancel Next

1. Your new user accounts display on screen. Click Save to save them to your device.

Create Multiple Users A hr1 New user A hr2 New user A hr3 New user A hr4 New user A hr5 New user Back Cancel Save

Import Multiple Users

1. Click Download to download a .txt file identifying the format you'll need to set up your user import file.

Create Multiple Users Refer to this example file for parameters. Download ■ Overwrite Duplicate Accounts Import User List Back Cancel Next

1. Create and save your import file. Your import file should be formatted as follows:

2. User import file format: #user name/user password/user groups/ shared folder(rw)/ shared folder(ro)/ shared folder(deny)/user quota
   Example: #user/pw/g1:g2/folder1:folder2/folder3:folder4/folder5:folder6/0:0:0:0

3. Click Import User List and select the import file you created.

4. Click Next.
5. Select the apps you'd like the new user accounts to have access to and click Next.

Create Multiple Users Allow the user to access following applications CIFS AFP FTP Access Back Cancel Next

1. Click Save. Your new user accounts save to your personal cloud.

Editing User Settings

1. On the Set Up Users screen, select the user whose information you want to edit. The User Profile and Share Access panels display.
2. Modify the required and optional settings as desired.
3. If a private share has been created on the Share screen, it displays in the Share Access area of the Set Up Users screen. You can assign an access level to it for each user. (See "Making a Share Private" on page 54 for information on creating a private share.)

Updating a User Password

When viewing details about a user, the Administrator can add or change the user's password (no password is the default setting).

Use the following steps to update a user password:

1. On the Set Up Users screen, select a user from the list on the left.
2. Click the toggle button ■■ if no password has been previously created.
3. Click Configure to the right of the toggle button ■■■ to display the Edit Password screen:

Edit Password New Password * Confirm password * Password required Cancel Save

1. Enter the new password in both the Password and Confirm Password fields.

2. Click Save.

Assigning a User to a Group

Use the following steps to assign a user account to a user group:

1. On the Set Up Users screen, select the user from the left pane.

2. In the Group Membership field, click Configure.

3. Select the check box next to the group you'd like the user to join and click Save.

Quota Rules

Assigning user quotas allows you to better control the disk space allocated to a user or a group. There are various rules dictating which quota takes precedent over another.

• User quota must be ≤ the group quota (e.g., if your group has a 20 GB quota and you try to set the user quota to 30 GB quota, you will be prompted to reduce your user quota to be equal to or less then the group quota).
  If the user quota is not set, the group quota is assigned to the user.
• When a user quota is set prior to the user joining a group and a group is assigned:
• If the user quota > group quota, the individual user's quota is automatically reduced to the group quota amount.
• If the user quota is ≤ group quota, the individual user quota remains unchanged.

Assigning Quotas to a User

A quota determines the amount of disk space allocated to the user on the WD My Cloud Mirror device.

Use the following steps to assign a quota to a user account:

1. On the Set Up Users screen, select the user from the left pane.

2. In the Quotas field, click Configure.

Modify Quota Volume_1 Quota Amount GB Leave fields blank if you do not wish to set any user quotas Cancel Save

1. Enter the amount of space to assign to the user on the WD My Cloud Mirror device.

- To assign unlimited space, leave the Quota Amount field(s) blank.

1. Click Save.

Removing a User

Use the following steps to delete users from the WD My Cloud Mirror device.

Note: The Administrator account cannot be deleted.

1. On the Set Up Users screen, in the left pane, select the user you'd like to delete.

2. Click the Remove User icon 🔊-

3. In response to the confirmation message, click OK. The user account is removed from the device and no longer displays in the user account list.

About Groups

A group allows easier management of multiple users. The permissions and privileges you assign to group accounts determine the actions that can be taken by that group.

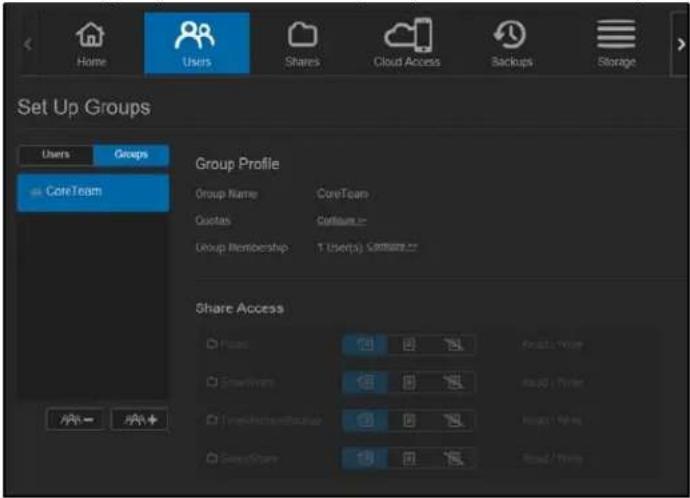

Viewing Groups

1. On the navigation bar, click Users to display the Set up User screen.

2. Click the Group tab below Set Up Users.

3. To view group details, click a group name on the left pane. The group profile displays.

Set Up Groups Users Groups CoreTeam Group Profile Group Name CoreTeam Quotes Corions Group Membership 1 User(s) Correlation Share Access Pass Read/Write SendTo Read/Write SendInStore Read/Write SendTo Read/Write

Adding a Group

1. To add a group, click 🎨 on the lower left of the Set Up Groups screen.
2. Enter a Group Name.

Add a Group Group Name: Select users to add to the group anne donald nome lou leslie Cancel Next

1. Click the check box next to the users you'd like to add to your new group and click Next.

Add a Group Volume_1 Quota Amount GB Leave fields blank if you do not wish to set any user quotas. Back Cancel Save

1. Enter the Quota Amount, or leave the values blank for unlimited space, and click Save. Your new group account displays on the left pane of the Set Up Groups screen.

Editing Group Settings

1. On the Set Up Groups screen, select the group whose information you'd like to edit. The Group Profile and Share Access panel displays.
2. Modify the required and optional settings as desired. To update the group's access to shares, see "Assigning Share Access to Groups" on page 50

Assigning Share Access to Groups

Once a group account is created, you can assign access to the various shares on your WD My Cloud Mirror device using the following steps:

1. On the Set Up Groups screen, select the group for which you'd like to assign a share.

My Cloud Mirror Home Users Shares Cloud Access Backups Storage Set Up Groups Users Groups Corotoam Group Profile Group Name Corotoam Quotes Confosms Group Membership 1 User(s) Confosms Share Access Fulls Reset / Write SmartWare Reset / Write Timer/Map/Name/Racklist Reset / Write share1 No Access Cronetlab/Resource Reset / Write

Note: A share must first be made private on the Shares screen. All public shares are grayed out.

1. In the Share Access area, click one of the following icons to indicate the type of access to the share:

2. Read/Write Access: Select this option to provide the group account with read/write access to the selected share. The group members can view and update the share.

3. Read Only Access: Select this option to provide the group account with read only access to the selected share. The group member can view the share but can't update it.
   ■ Deny Access: The group has no access to this share.

The group is updated with your share access selection.

Assigning Quotas to a Group

Use the following steps to assign a quota to a Group. A quota determines the amount of space assigned to the user on the WD My Cloud Mirror device. (See “Quota Rules” on page 47 for information on quotas.)

1. On the Set Up Groups screen, select the group from the left pane.
2. In the Quotas field, click Configure.
3. Enter the amount of space you'd like to assign to the group on the WD My Cloud Mirror device. To assign unlimited space, leave the Quota Amount field(s) blank.
4. Click Save.

Removing a Group

Use the following steps to delete a group from the WD My Cloud Mirror device.

1. On the Set Up Group screen, select the group you'd like to delete in the left pane.
2. Click the Remove Group icon 🎯-
3. In response to the confirmation message, click OK. The Group account is removed from the device and no longer displays in the Group account list.

About Shares

A share is an area on the WD My Cloud Mirror device for storing files (similar to a folder or directory).

Note: In this manual, we use the terms share and folder interchangeably.

A share can be public so that all users can access the contents, or private to limit access to selected users. The Shares icon on the navigation bar displays a list of shares on the WD My Cloud Mirror device and enables the Administrator to manage shares and user access.

Viewing a List of Shares

Click the Shares icon on the navigation bar to display a list of shares on the WD My Cloud Mirror device. For each share name, the description, media serving, and public access status display.

Use the following steps to view a list of shares.

1. On the navigation bar, click Shares to display the About Shares page.

Home Users Shares Cloud Access Backups Storage Set Up Shares P2P Public SallysShare SmartWare TimeMachineBackup About Shares A share is an area for storing files (like a folder). You can create multiple shares on a single storage device and center access to each share

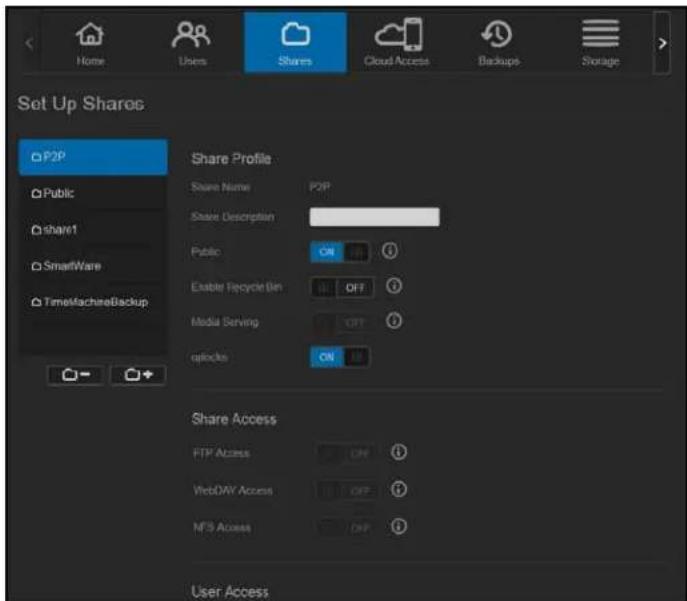

1. Click a share to display its profile and share access information.

Home Users Shares Cloud Access Backups Storage Set Up Shares P2P Public share1 SmartWare TimeMachineBackup Share Profile Share Name POP Share Description Public ON Enable Recycle Bin OFF Modal Serving OFF queries ON Share Access FTP Access OFF WebDAV Access OFF NF3 Access OFF User Access

Note: You can only configure permissions if a share is private. Public shares always have read/write access and are grayed out.

Creating a New Share

You can create a share and designate it as public or private. For example, if the share contains financial information, you might want to make the share private. Or, if there are photos you would like a friend to see, you can make the share pubGrouplic to that friend.

1. Click the Shares icon 📋 on the navigation bar to display the About Shares screen.
2. Click the Add a Share icon 📄+.

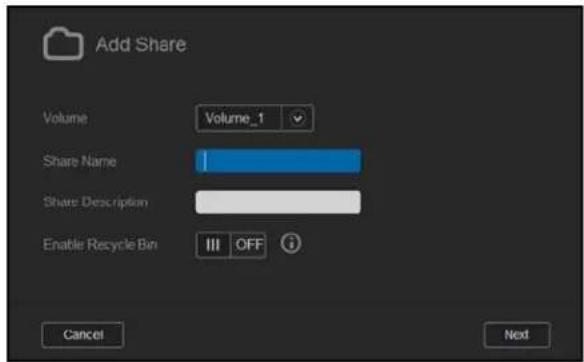

Add Share Volume Volume_1 Share Name Share Description Enable Recycle Bin OFF Cancel Next

1. Enter the following settings:

Volume Select the volume from the drop-down menu.
Share Name	Assign a name to the share. (Names must be case sensitive and contain 1-32 alphanumeric characters but no spaces.)
Share Description (optional)	Enter a brief description of the share to remind yourself of what it contains. Note that share descriptions must begin with an alphanumeric value and can contain up to 256 characters.
Enable Recycle Bin (optional)	The Recycle Bin contains any files deleted from the WD My Cloud Mirror device. If you'd like to use the Recycle Bin, click the toggle button III to ON. (Default is OFF.)Note: The Recycle Bin is only available for Windows SMB files.

1. Click Next.

Add Share Enable Media Serving III CFF FTP Access III CFF i WebDAV Access III OFF i Back Cancel Next

1. Complete the following settings:

Enable Media Serving (optional)	This option allows you to stream media stored in this share to other devices. If you'd like to Enable Media Serving, click the toggle button III to ON. The default is OFF.Note: The media server must be enabled for the device before you can provide media serving for a share.See“Enabling DLNA” on page 98 for instructions on enabling media serving for the device.
oplocks This option allows you to turn oplocks (Optimistic concurrency control) off and on. To turn it off, click the toggle button III to OFF.The default is ON.oplocks, also referred to as OCC, is a tool to improve data management and performance for systems with low data contention.
FTP Access (optional)	This option allows FTP access on this share. If you'd like to use FTP Access, click the toggle button III to ON.Note: FTP access must be enabled before you can provide FTP access for a share. See “Network Service” on page 113 for instructions on how to enable FTP access.
WebDAV Access (Optional)	This option allows WebDAV access on this share. If you'd like to use WebDAV Access, click the toggle button III to ON.Note: WebDAV access must be enabled before you can provide WebDAV access for a share. See “Network Service” on page 113 for instructions on how to enable WebDAV access.

Editing Share Settings

1. On the Set Up Shares screen, select the share you'd like to edit. The Share Profile panel displays.
2. Modify the required and optional settings as desired.

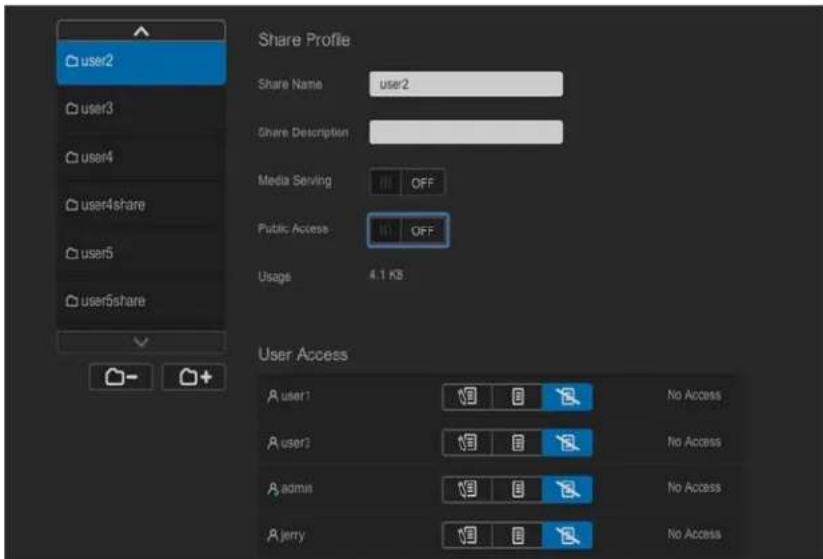

Making a Share Private

If you decide there is a reason to limit access to a public share, convert it to a private share:

1. On the Set Up Shares screen, select the share:

user2 user3 user4 user4share user5 user5share Share Profile Share Name user2 Share Description Media Serving OFF Public Access OFF Usage 4.1 KB User Access A user1 No Access A user2 No Access A admin No Access A jerry No Access

1. Switch the Public Access button to OFF.

2. For each user listed in the User Access section, select the level of access by clicking the appropriate icon for the share (read/write , read only , or no access ).

Deleting a Share

WARNING! Deleting a share erases all files and folders on the share.

1. Select the share in the list of shares on the About Shares page.
2. Click the Delete Share icon
3. In response to the confirmation message, click OK.

Accessing the Contents of a Share Locally

Note: For information on accessing the contents of a share remotely, see "Accessing Your Cloud Remotely" on page 22.

Several options are available for opening a WD My Cloud Mirror share. For a private share, the user must have:

A user name and password assigned to the share name
- Read-only or full access to the share

Note: The table below refers to WD Quick View, an application that helps you perform important functions quickly. You can download WD Quick View and its help from the online Learning Center.

IF you want to open a share using . . .	THEN . . .
WD Quick View icon in the system tray (Windows)	1. Left- or right-click the WD Quick View icon to display the main menu.2. Click the WD My Cloud device name and click Open. The shares display in Windows Explorer.3. For a private share, if prompted for a user name and password, enter those associated with your user account.4. For a private share, if the user's name and password are the same as for logging into the computer, a user name and password are not required. If they are not the same, visit http://support.wd.com and see Knowledge Base Answer ID 5681.
WD Quick View in the menu bar (Mac OS X)	1. Click the WD Quick View icon in the menu bar and move the cursor over the name of your WD My Cloud device to display the submenu.2. Select Open on the WD Quick View submenu. The shares display in a second submenu.3. Select the desired share.4. For a private share, if prompted for a user name and password, enter those associated with the user account (see “Adding a Single User” on page 42).5. For a Public share, if prompted for a user name and password, select Guest.
Windows 8 or 8.1	1. In the task bar, click the File Explorer icon.2. In the left panel, select Network and double-click WDMyCloudMirror.3. Double-click a Public or private share on your device.
Windows Vista/Windows 7/Windows XP	1. Click or Start > Computer.2. In the left panel, select Network3. Click WDMyCloudMirror.4. Double-click the Public or private shares on your device.
Mac OS X 1. Open a Finder window	low and locate your WD My Cloud device under the Shared heading in the side bar. If presented with an authorization page, select Guest and click Connect.2. Click the device to display the Public share and any private shares to which you have access.

The Dashboard at a Glance

Launching the Dashboard

The Dashboard Home Page

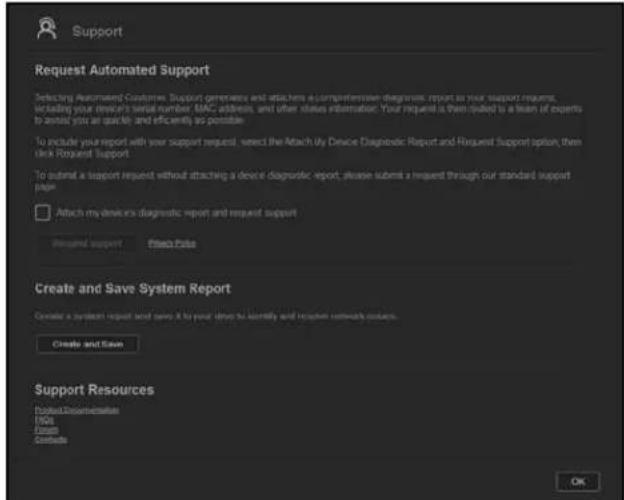

Obtaining Customer Support

Common Tasks

Use the WD My Cloud Mirror dashboard to configure settings and to manage the device as you prefer. For example, you can set up user accounts and restrict access to the files on your WD My Cloud Mirror device, set up folders for storing files, enable remote access, and customize the device to suit your needs.

Note: If this is the first time you are opening the dashboard, see “Getting Started Without Online Setup Software” on page 17.

Launching the Dashboard

Use one of the following methods to launch the dashboard.

Note: WD Quick View and WD SmartWare are helpful WD apps that you can download from the online Learning Center Downloads page at wd.com/setup/mycloudmirrorapps.

IF you want to launch from... THEN...

Desktop Icon (You must use the setup software for the icon to be)		Double-click the dashboard icon to launch the WD My Cloud Mirror dashboard.
A browser or Windows Explorer	Using Device Name:1. Enter the name of your WD My Cloud Mirror device (default name: wdmycloudmirror) in the browser's address field:- http://.local (Mac)(Example: http://wdmycloudmirror.local)2. Click Go.Using IP Address:1. Enter the IP address of your WD My Cloud Mirror device in the browser's address field: http://. You can find the IP address from your router's user interface.2. Click Go.
WD SmartWare 1. On the WD SmartWare Home page, select your WD My Cloud device.2. Click the Settings tab to display the Main Settings page.3. Click Setup Drive.
Windows 8 or 8.1 1. On the Start page, type Computer.
	2. Click Computer.
	3. In the left pane, click Network.
	4. In the right panel, locate your WD My Cloud Mirror device under Storage.
	5. Double-click the device, or right-click and selectView device webpagefrom the resulting menu.
Windows 7/Vista	1. Click >Computer.
	2. In the left panel, select Network
	3. In the right panel, locate your WD My Cloud Mirror device under Storage.
	4. Double-click the device, or right-click and selectView device webpagefrom the resulting menu.
Windows XP	1. Click Start >My Network Places.
	2. Locate your WD My Cloud device.
	3. Double-click the device or right-click and selectInvoke.
Mac OS X	1. Click the Safari icon >bookmark icon >Bonjour.
	2. Double-click the WD My Cloud Mirror device on the network.
Mobile Devices iOS Devices:
	1. Open a browser.
	2. In the Address bar, enter http://.local.
	Android Devices:
	1. Open a browser.
	2. In the Address bar, enter http://.
WD Quick View icon 1. Left- or right-click the WD Quick View icon.
	2. Select your WD My Cloud device and then Dashboard.

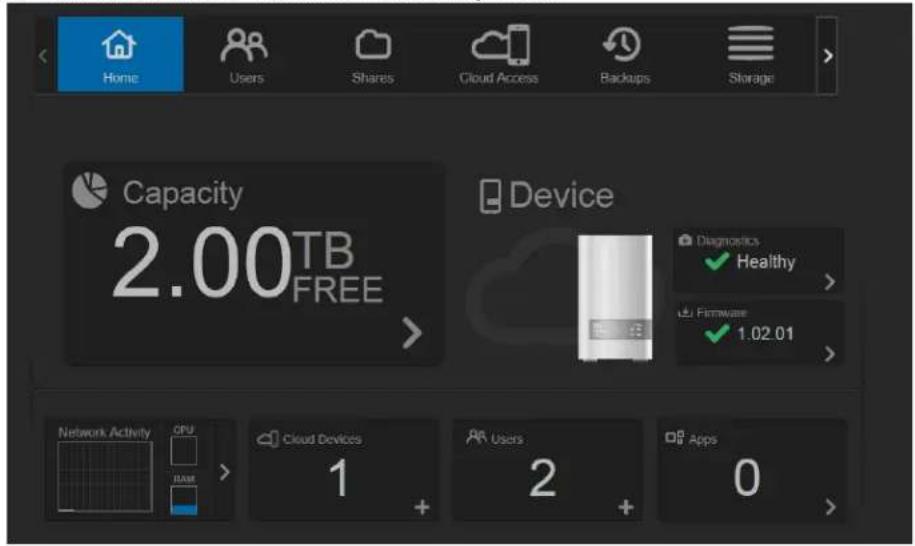

The Dashboard Home Page

The WD My Cloud Mirror Home page has an information bar at the top right, an navigation icon bar across the page, and an instant overview of the status of the device's main functions with links for updating settings.

My Cloud Mirror Home Users Shares Cloud Access Backups Storage Information Icons Navigation Icons Capacity 2.00TB FREE Device Diagnostics Healthy 1.02.01 Status and update panels Network Activity CPU 1 Cloud Devices Users 2 Apps 0

Information Icons

Icon Name Actions

USB device on the WD My Cloud Mirror device

Click to display the number of USB devices connected (a hub with multiple devices can be connected to the USB port). Icon is dim if no USB is attached.

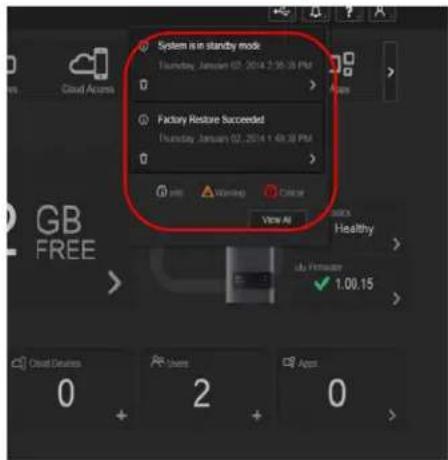

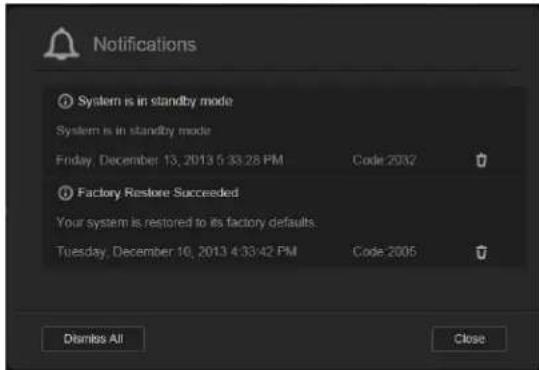

Alerts Click to display recent alerts about new firmware and network issues.

Critical alerts Click to display a severe warning: such as over temperature, under temperature, drive SMART failure, or failure of the data volume to mount.

Navigation Icons

Icon Name Actions
	Home Page	The dashboard displays an instant overview of the status of the device's main functions and links for updating settings.
	Users	Create, change, and delete users and grant them full or limited access to particular shares.
	Shares	Create, change, and delete shares (folders) and grant specific users full, limited, or no access to particular shares.
	Cloud Access	Set up, change, and remove remote cloud access to particular shares. Monitor remote access status.
	Backups	Create backups to:• A U S B d r i v e• Another WD My Cloud Mirror on your local network or on a remote network• Another location on your WD My Cloud Mirror device• A Cloud backup site
	Storage	Select and specify how you want the WD My Cloud Mirror device to store your data.
	Apps	Add or remove various apps that allow you to use your device more productively.
	Settings	Configure advanced settings for your WD My Cloud Mirror device, including:• General device settings• Network configurations• ISO mount options• Media options• Device utility tasks• Notification settings• Firmware update setting

Viewing Device Status and Making Updates on the Home Page

The main body of the Home page shows the status of the device and its functions and provides shortcuts to the most necessary tasks.

Screenshot of a network device interface showing capacity display, device status indicators, and operational metrics like CPU, cloud devices, and apps.

Capacity

The Capacity panel displays the amount of free storage left on your WD My Cloud Mirror device.

Capacity 1.96TB FREE

1. To see detailed information, click the arrow on the lower right to display the current usage of the drive's capacity:

1. To return to the Home page, click Close.

Device

The Device section identifies the overall health of the system, indicates the current version of your firmware, and informs you if firmware updates are available.

Device Diagnostics ✓ Healthy > ✓ Firmware 1.02.01 >

Diagnostics

The Diagnostics section displays a snapshot of the system's components and identifies the overall health of the WD My Cloud Mirror device.

Device Diagnostics ✓ Healthy Firmware ✓ 1.02.01

1. To see details about the status of system components, click the arrow on the right.
2. To return to the Home page, click Close.

Firmware

The Firmware section displays the current version of firmware loaded on your WD My Cloud Mirror device. A green check mark indicates that your firmware is up-to-date.

1. To view whether an updated version of the firmware is available, click the arrow to the right of Firmware to display firmware availability:

Update Firmware Your firmware is up to date. OK

New firmware available Firmware Update version found: 1.00 49 Cancel Install and Reboot

1. If an update is available, click Install and Reboot to update your device.
2. To return to the Home page, click OK or Cancel.

Note: If new firmware is available, see "Firmware Update" on page 130 for information on updating your WD My Cloud Mirror device.

Network Activity

The Network Activity panel displays the system activities and processes that are running on your WD My Cloud Mirror device. At a glance, you can see the network, CPU, and RAM activity.

Network Activity CPU RAM

1. To view a list of all the system activities and processes that are running on your WD My Cloud Mirror device, click the arrow on the right of the panel to display the device activity panel.

Device Activity The bid below indicates all the system activities and processes that are running on your VD My Cloud Mirror device. CPU 0% > Memory 23.60% Network 0.00MB Tx 0.00MB Rx Process 45 Close

- CPU: Click the right arrow to view the CPU activity. Click Back to return to the Device Activity pane. Click Close to return to the Home page.

■ Memory: Click the right arrow to view the Memory activity. Click Back to return to the Device Activity pane. Click Close to return to the Home page.

■ Network: Click the right arrow to view the network activity. Click Back to return to the Device Activity pane. Click Close to return to the Home page.

Device Activity The bit below indicates all the system activities and processes that are running on your WD My Cloud Mini devices. Device activity at between Pi Tx Back Close

- Process: Click the right arrow to view the process information, including the list of active processes and the amount of CPU and Memory usage for each process. Click Back to return to the Device Activity pane. Click Close to return to the Home page.

Device Activity This will provide the following details of this system activities and projects that are running on your AMD Web Cloud Monitor device. General Activities - Traders Process CPU% Memory Usage php-firm 0.0 11.4 php-firm 0.0 11.4 php-firm 0.0 11.0 wdr/dr/wd/mrgm 0.0 8.0 wdr/ncserver 0.0 6.1 Inramount 0.0 6.0 Back Close

Cloud Devices

The Cloud Devices panel displays the number of cloud devices currently accessing the WD My Cloud Mirror device remotely. In this example, one cloud device is accessing it remotely.

Cloud Devices 1 +

1. To add cloud access for a user, click the plus sign (+) in the lower right of the panel to display:

Add Cloud Access Generate an activation code to get remote access to the content on your drive. Steps: 1. Select a user from the drop-down list and click Get Code to generate an activation code 2. Install WD Photos and/or WD My Cloud on your tablet or mobile devices 3. Launch app and tap Connect Now 4. Select your product 5. Enter Activation Code Select a user admin Cancel Get Code

1. To generate an activation code, click Get Code.

2. Follow the page instructions to connect your tablet or mobile device to the WD My Cloud Mirror device.

Users

The Users panel displays the number of users currently set up to use the WD My Cloud Mirror device.

RR Users 1 +

1. To add a user, click the plus (+) sign in the lower right of the panel:

RR Add User User Name * First Name Last Name Email Address * Required Cancel Next

Note: When you enter the email address on the Add User screen, a new account is created for cloud access. The user receives an email with instructions on how to set up and activate a password for cloud access.

1. Enter the required information and click Next to display a user password screen.

Add User Password ON Password * Confirm password * Password required Back Cancel Next

1. To assign a password, click the toggle button III, enter a password and confirm your password. Click Next to display the user group screen.

Add User Join To Group Engineering Back Cancel Next

1. To assign a group to the new user, click the check box next to a group and click Next to display the Add User screen.

RR Add User Volume_1 Quota Amount 1 GB Allow fields blank if you do not wish to set any user quotas Back Cancel Save

1. Enter the Quota Amount or leave the values blank for unlimited space and click Save. You've added a new user.

Apps

The Apps panel displays the apps currently installed on your WD My Cloud Mirror device.

Apps 9

1. To view the installed apps, click the arrow in the lower right of the panel to display:

Installed Apps IceCast Enabled Details Joomla Enabled Details SqueezeCenter Enabled Details WordPress Enabled Details aMule Enabled Details Close

Note: To install an app, see "Managing Apps on WD My Cloud Mirror" on page 85.

1. To return to the Home page, click Close.

Managing Alerts

Alerts display system messages containing pertinent information about the status of your WD My Cloud Mirror device. Three three types of alerts appear on the upper right of the dashboard.

Alert Icon Type of Alert Description
	Informational	Informational alerts keep you updated on non-vital system information. Example: Reboot Required
	Warning	Warnings present a condition that might cause a problem in the future. Example: Network Disconnected.
	Critical This alert presents an error or problem that has occurred, usually a system failure. Example: Fan Not Working

Viewing Alert Details

1. On the dashboard, click the Alert icon in the upper right corner.

2. From the Alert list, click the arrow ➤ next to the alert you'd like to view, or click View All to review details for all of your alerts.

System is in standby mode Thursday, January 02, 2014 2:30:30 PM Factory Restore Succeeded Thursday, January 02, 2014 1:48:30 PM View All Healthy Ju Perman 1.00.15 GB FREE Cloud Devices Users Apps 0 + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

When an alert occurs, the alert message displays the Alert icon 📄 and window within the dashboard. To close the alert message, click Close.

Notifications Factory Restore Succeeded Your system is restored to its factory defaults Monday, September 16, 2013 5:53:05 PM Code:2005 Close

Dismissing an Alert

1. On the dashboard, click the Alert icon 🔒 in the upper right corner.
2. Select the delete icon 📋 next to the alert you'd like to dismiss.

To dismiss all alerts, click View All and Dismiss All.

Notifications System is in standby mode System is in standby mode Friday, December 13, 2013 5:33:28 PM Code: 2032 Factory Restore Succeeded Your system is restored to its factory defaults. Tuesday, December 10, 2013 4:33:42 PM Code: 2005 Dismiss All Close

Obtaining Customer Support

To open the Support page:

1. Click the Help icon ? on any page to display the Help menu.

2. Click Support to display the following page:

Support Request Automated Support Selecting Automated Customers. Support generation and attaching a comprehensive diagnostic report to your support requests, including your device's serial number (MAC), address, and other status information. Your request is then updated to a learn of experts to submit your as quick file and efficiently so possible. To include your report with your support request, select the Attach my Device Diagnostic Report and Request support option, then click Forward Support. To submit a support request without attaching a device diagnostic report, please submit a request through our standard support page. Attach my devices diagnostic report and request support Request support Preview Help Create and Save System Report Create a system request and save it to your device to identify and update network resources. Create and Save Support Resources Completed Disseverables 1/6x Created Created OK

If a problem occurs with the WD My Cloud Mirror device, WD Technical Support will need information about your device to troubleshoot and determine the best solution. There are two ways to get your device info and request support:

• Run a system report and send it to WD automatically,
  ■ Create a system report manually and send it to WD.

Requesting Automatic Support

In the Request Automated Customer Support section:

1. Click the Privacy Policy link to review WD's privacy policy.
2. Click the Attach my device's diagnostic report and request support check box.
3. Click the Request Support button.

Creating and Saving a System Report

In the Create and Save System Report section:

1. Click Create and Save. This saves the file to your computer.
2. If desired, email the report to WD Technical Support.

Obtaining Other Support

The Support Resources section contains links to additional resources:

• To obtain the most recently updated user manual, click the Product Documentation link.
• To see answers to frequently asked questions and instructions, click the FAQs link.
• To discuss your WD My Cloud Mirror device with other users, click the Forum link.
• To see WD phone numbers and other contact information, click the Contacts link.

Common Tasks

The next few chapters step you through the procedures for configuring and using the WD My Cloud Mirror device. The following table provides shortcuts to instructions for some common tasks.

How do I ... See ...

Set up the device on my network page 10
Use media servers page 96
Enable DLNA and iTunes page 98
Shut down or reboot the WD My Cloud Mirror device page 122
Update firmware page 130
Access content from the device (public and private shares)	page 20
Add users page 41
Create shares page 51
Upload and back up content to the device page 71
Back up the device page 71
Enable or disable remote access for you and people you want to share with)	page 22
Download WD mobile apps	page 24

7

Backing Up and Retrieving Files

About Backups

Managing a USB Device and USB Backups

Remote Backups

Internal Backups

Cloud Backups

About Backups

There are various ways to back up your data on the WD My Cloud Mirror device. These include:

• USB Backup—Allows you to back up WD My Cloud Mirror device data to and from your a USB device.
• Remote Backup—Allows you to back up WD My Cloud Mirror device data to and from another WD My Cloud Mirror or WD My Cloud EX4 device.
• Internal Backup—Allows you to back up data from one storage location to another on your WD My Cloud Mirror or WD My Cloud EX4 device.
• Cloud Backup—Allows you to backup WD My Cloud Mirror device data to an external cloud backup service.

Managing a USB Device and USB Backups

When you attach a USB drive to the WD My Cloud Mirror device, you turn it into a network drive. Once connected, the USB drive has the following capabilities:

• When you connect an external USB drive such as a WD Passport, a memory stick, or a camera to the WD My Cloud Mirror device, you can access it with Windows Explorer or Mac Finder.
  ■ The USB drive can serve as a target for backups.
• You now have the option of mapping the drive as a user share drive.
  If a WD external drive has been locked, when it is attached to the WD My Cloud Mirror device, it maintains that security. Using the Dashboard, you can unlock or re-lock it as desired.

Connecting A USB Drive

Connect a USB hard drive to the USB port on the rear of your WD My Cloud Mirror device for additional storage and backup capabilities. The USB drive appears as a share on the WD My Cloud Mirror dashboard. (See "About Shares" on page 51.)

The WD My Cloud Mirror device supports the following formats for externally attached USB drives:

FAT/FAT32
■ NTFS (read and write capability)
■ HFS+J
Linux Ext2, Ext3/Ext4
XFS

WARNING! Mounting or ejecting a USB drive while performing an NFS or AFP file transfer will interrupt the file transfer process.

Creating a USB Backup

Use the following steps to back up your data on your WD My Cloud Mirror to or from a USB device.

1. On the navigation bar, click Backups to display the Backups screen.

Home Users Shares Cloud Access Backups Storage Backups USB Backups Remote Backups Internal Backups Cloud Backups About USB Backups Use your WD My Cloud Mirror device in backup to and from a USB device Job Name: Destination: USB to NAS Source Folder: Destination Folder: Browse Browse Create USB Backup Jobs

1. Click USB Backups, if not already selected.
2. Enter the following information to create a USB backup job:

Job Name Enter a Job Name for your backup.
Direction Indicate the direction of your backup from the drop-down menu. Options include:• USB to NAS: Backs up the data on your USB device to the WD My Cloud Mirror device.• NAS to USB: Backs up the data on your WD My Cloud Mirror device to a USB device.
Source Folder	ClickBrowseand select the folder you'd like to back up.
Destination Folder	ClickBrowseand select the destination folder for your backup.

1. Click Create.

2. In the USB Backup Jobs area, click the arrow to begin your backup.

Backups USB Backups Remote Backups Internal Backups Cloud Backups About USB Backups Use your WD My Cloud Mirror device to backup to and from a USB device. Job Name: Direction USB to NAS Source Folder Browse Destination Folder Browse Create USB Backup Jobs USB Backup1 Ready

The progress of the backup displays in the USB Backup Jobs area.

USB Backup Jobs USB Backup1 Backup Complete Details

Viewing the Details of a USB Backup Job

1. On the USB Backups screen, under USB Backup Jobs, select the job you'd like to modify and click the Edit Job button .

USB Backup Jobs USB Backup1 Ready

1. Review the USB Details screen and click Close to close the screen.

USB Backups Detail Job Name USB Backup1 Source Folder Volume_1/Public/Shared Music Destination Folder USB_2.0_FD-1 Status Ready Delete Close

Editing a USB Backup Job

1. On the USB Backups screen, under USB Backup Jobs, select the job you'd like to modify and click the Edit Job icon.

USB Backup Jobs USB Backup1

1. In the USB Backup area, make the necessary changes to your job and click Save.

Deleting a USB Backup Job

1. On the USB Backups screen, under USB Backup Jobs, click the Delete Job icon next to the job you'd like to delete.

USB Backup Jobs USB Backup1

1. In response to the confirmation message, click OK. The selected USB Backup job is now deleted and removed from the USB Backup Jobs list.

Remote Backups

Back up your WD My Cloud Mirror device to another WD My Cloud Mirror or a WD My Cloud EX4 device.

Before you proceed with a remote backup, ensure the following:

• You have a remote WD My Cloud Mirror or WD My Cloud EX4 device to back up this device to. Existing shares and data from this device will be copied to the target device in addition to previously existing data.
• The remote Server setting is turned ON in the remote WD My Cloud Mirror or WD My Cloud EX4 device.
• The backup password for the remote WD My Cloud Mirror or WD M Cloud EX4 device is enabled.
• You have enabled port forwarding to see the remote WD My Cloud Mirror or WD My Cloud EX4 device over the Internet.

For additional information on remote backups, see Knowledge Base Answer ID 10637.

Creating a Remote Backup

Use the following steps to back up your WD My Cloud Mirror to a remote device.

1. On the navigation bar, click Backups to display the Backups screen.

2. Click Remote Backup.

Home Users Shares Cloud Access Backups Storage Backups USB Backups Remote Backups Internal Backups Cloud Backups About Remote Backups Backup your WD My Cloud Mirror device to another server on or outside of your network. Before you proceed with a remote backup, ensure the following: • You have a remote WD My Cloud Mirror device to backup this device to. Existing shares and data from this device will be copied to the target device in addition to previously existing data. • The remote Server setting is turned ON in the remote WD My Cloud Minor device. • The backup password or the remote WD My Cloud Mirror device is enabled • You have added port forwarding rules for both SS3 and Remote Backup services in Settings > Network-> StartForwarding in order to now your WD My Cloud Mirror device over the Internet Remote Backup Jobs Backup existing content from one storage location to another on your WD My Cloud Mirror device. Create Remote Backup

1. Click Create Remote Backup.

Remote Backup You can choose to protect your content on your WD My Cloud Mirror device. Specify the share you want to protect and select Next to continue P2P Public SmartWare TimeMachineBackup SatycShare Cancel Next

1. Place a check mark in the box next to the share you'd like to back up and then click Next.

Remote Backup Remote IP Password Back Cancel Next

1. In the Remote IP field, enter the IP address of the remote backup server. (Example: 192.168.1.16)

2. In the Password field, enter the password for the remote backup server and click Next.

3. Select the check box next to the share where you'd like to back up your data and click Next.

Remote Backup Remote Share(s) Total Backup Size: 4.400 AFP6 Available space: 2.2TB AFP7 Available space: 2.2TB AFP8 Available space: 2.2TB SendDrive Available space: 2.2TB Share1/Vo2 Available space: 2.7TB Uni57Vo2s1 Available space: 2.7TB Uni57Vo2s2 Available space: 2.7TB Back Cancel Next

1. Enter the following information to create a Remote backup job and click Next:

Remote Backup Job Name Auto-date III OFF Backup Now Yes No Back Cancel Next

Job Name Enter a Job Name for your backup.

Auto Update	Click the toggle button in enable the Autoupdate feature.
Backup Now	Click Yes to begin your remote backup now. Click No to create a remote backup job for future backup.

1. Review the details of your Remote Backup job and click Finish.

Remote Backup The setting is complete. Click Finish to save the current settings. Job Name Remote_Jub1 Remote IP 64.59.149.203 Size 4.4GB Local Share Public Remote Share LessBackup Backup Now No Back Cancel Finish

Viewing the Details of a Remote Backup Job

1. On the Remote Backup screen, under Remote Backup Jobs, click the Details icon next to the job you'd like to view.

Remote Backup Jobs Backup existing content from one storage location to another on your WD My Cloud Mirror device. Remote_Job1 64.58.146 203 Completed

1. Review the Details screen and click Close.

Remote_Job1's Detail Backup Status Backup complete on Sun Sep 15 2013 07.09.24 PM Recover Status Size 4.5GB Schedule Manual Local Share Public Remote IP 64 58.146 203 Remote Share LesBackup Close

Recovering a Remote Backup

Use the following steps to recover the data you saved on your remote server. This process recovers the data you saved on the remote server to your local server.

1. On the Remote Backup screen, under Remote Backup Jobs, click the Recover button next to the job you'd like to view.

Remote Backup Jobs Backup existing content from one storage location to another on your WD My Cloud Mirror device. Remote_Job1 64.58.146.203 Completed

1. On the Recover screen, click OK. Your data recovery begins.

Recover Are you sure you want to recover your data? This process will recover data from the remote server to your local WD My Cloud Mirror device. Cancel OK

Deleting a Remote Backup

1. On the Remote Backup screen, under Remote Backup Jobs, click the Delete icon next to the job you'd like to delete.

Remote Backup Jobs Backup existing content from one storage location to another on your WD My Cloud Mirror device. Remote_job1 64.58.146.203 Completed

1. In response to the confirmation message, click OK. The selected Remote Backup job is now deleted and removed from the Remote Backup Jobs list.

Internal Backups

Internal backups allow you to make backups of the existing content from one storage location to another on your WD My Cloud Mirror device.

Creating an Internal Backup

Use the following steps to back up your WD My Cloud Mirror internally.

1. On the navigation bar, click Backups to display the Backups screen.
2. Click Internal Backups, if not already selected.

Home Uses Shares Cloud Access Backup Storage Backups USB Backups Remote Backups Internal Backups Cloud Backups About Internal Backups Backup existing content from one storage location to another on your WD My Cloud Mirror devices. Job Name: Source Folder: Destination Folder: Reverse Backup OFF When Date: 02/06/2014 Time: 6PM 02 Incremental Backup Create Internal Backup Queue

1. Enter the following information to create a USB backup job:

Job Name Enter a Job Name for your internal backup.
Source Folder	ClickBrowseand select the folder you'd like to back up.
Destination Folder	ClickBrowseand select the destination folder for your backup.

Recurring Backup If you'd like to use the Recurring Backup feature:

1. Click the toggle button to enable the Recurring Backup feature.
2. Select the frequency of the backup: Daily, Weekly, Monthly.
3. Select a time (hour and minutes) from the drop-down menu.
4. If you did not enable the Recurring backup field:
5. Click the Date field and select the date you'd like the backup to occur.
6. Select a time of day (hour and minutes) from the drop-down menu.

Incremental Backup

Click the check box if you'd like this job to be an incremental backup.

1. Click Create. Your job displays in the Internal Backup Queue area and will begin backing up at the indicated time.

Internal Backup Queue Internal_backup Ready

Initiating an Immediate Internal Backup

- On the Internal Backups screen, under Internal Backup Queue, select the job you'd like to modify and click the Begin Now button.

Internal Backup Queue Internal_backup Ready

The internal backup begins.

Modifying an Internal Backup Job

1. On the Internal Backups screen, under Internal Backup Queue, select the job you'd like to modify and click the Edit button.

Internal Backup Queue Internal_backup Ready

1. In the Internal Backup area, make the necessary changes to your job and click Save.

Viewing Internal Backup Details

1. On the Internal Backups screen, under Internal Backup Queue, select the job you'd like to modify and click the Details icon.

Internal Backup Queue Internal_backup Ready

1. Review the details of your Internal Backup job and click Close.

Deleting an Internal Backup Job

1. On the Internal Backups screen, under Internal Backup Queue, click the Delete button.

Internal Backup Queue Internal_backup Ready

1. In response to the confirmation message, click OK. The selected Internal Backup job is now deleted and removed from the Internal Backup Jobs list.

Cloud Backups

A cloud backup allows you to create remote backups that are accessible over the Internet and through various mobile devices. WD My Cloud Mirror device uses the following cloud services to create remote backups:

• ElephantDrive: ElephantDrive is a cloud backup service that provides secure and automatic backups to your files remotely.
• Amazon S3: Amazon Simple Storage Service (S3) is an online file storage web service that can be used to store and retrieve any amount of data, at any time, from anywhere on the web.

Enabling ElephantDrive Cloud Backup

ElephantDrive is a cloud backup service that provides secure and automatic backups to your files remotely. Once enabled, ElephantDrive automatically syncs with your device. For additional information see http://home.elephantdrive.com/welcome/wdc/.

Use the following steps to enable a cloud backup using ElephantDrive.

1. On the navigation bar, click Backups to display the Backups screen.
2. Click Cloud Backups, if not already selected.

Home Users Shares Cloud Access Backups Storage Backups USB Backups Remote Backups Internal Backups Cloud Backups What are Cloud Backups? A cloud backup allows you to create remote backups that can accessible over the internet, and through various mobile devices.

1. Click ElephantDrive at the top of the screen.

USB Backups Remote Backups Internal Backups Cloud Backups ElephantDrive Protect your WD My Cloud Mirror device. ElephantDrive offers a cloud storage solution, connecting and projecting your WD My Cloud Mirror device to the cloud. A native client provides cloud backup and syncy only the WD My Cloud Mirror device with the industry's leading security features. This solution features the three critical advantages of cloud storage, separate file protection, intelligent synchronization and simple secure sharing For more information about ElephantDrive, visit http://www.elephantdrive.com/2016-1004/ ElephantDrive ON Status: Access Backups Login Register

1. In the ElephantDrive field, click the toggle button to turn on your ElephantDrive cloud backup.

2. Click Register. The Register screen displays.

Register E-Mail Password Verify password Cancel Register

1. Enter the following information and click Register:

- Email address: Enter the email address you'll use to receive information from ElephantDrive.

- Password: Enter a password for your new account

- Verify Password: Reenter your password.

1. You've now enabled your ElephantDrive cloud backup.

Backing Up with ElephantDrive

Once you've enabled ElephantDrive, use the following steps to create a cloud backup.

1. On the navigation bar, click Backups to display the Backups screen.

2. Click Cloud Backups, if not already selected.

3. Click Elephant Drive at the top right of the screen.

Backups USB Backups Remote Backups Internal Backups Cloud Backups ElephantDrive Protest your WD My Cloud Mirror device. ElephantDrive offers a cloud storage solution, connecting and protecting your WD My Cloud Mirror device to the cloud. A native client provides cloud backup and syncs onto the WD My Cloud Mirror device with the industry's leading security features. This solution features the three critical advantages of cloud storage: separate site protection, intelligent synchronization, and simple secure sharing. For more information about ElephantDrive, visit http://www.elephantdrive.com/act.asp?xs-1000#.t ElephantDrive ON Status Access Backups Login Register

1. In the Access Backups field, click Login.
2. Enter the email and password you used when you registered with ElephantDrive in Step 6 on page 81. Click Login.
3. In the Elephant Drive field, click the New device backup wizard link.
4. Follow the steps outlined in the ElephantDrive backup wizard to create your cloud backup.

Enabling an Amazon S3 Cloud Backup

Note: Before creating your Cloud backup, sign up for the Amazon S3 service at http://aws.amazon.com/s3.

Once your Amazon S3 account is set up, use the following steps to create a cloud backup.

1. On the navigation bar, click Backups to display the Backups screen.
2. Click Cloud Backups, if not already selected.
3. Click the Amazon S3 button at the top of the screen.

Home Users Shares Cloud Access Backups Storage Backups USB Backups Remote Backups Internal Backups Cloud Backups About Amazon S3 Amazon S3 (Simple Storage Service) is an online file storage web service offered by Amazon Web Services. It provides storage through web services interfaces to backup data or your device to the Cloud Create Amazon S3 Queue

1. Click Create.

Setup your Amazon S3 Backup Enter a 18 character string that identifies either the upload to cloud or download from cloud job to be created. The string cannot contain spaces. The following characters are allowed: a-z, A-Z, 0-9. Job Name: Cancel Next

1. Enter a Job Name for your cloud backup and click Next.

Set up your Amazon S3 Backup Amazon web services Region United States Access Key Private Key Remote Path Back Cancel Next

1. Enter the following information supplied by Amazon S3:

■ Region: Select the region used for your cloud from the drop-down menu.
- Access Key: Enter the access key supplied to you by Amazon S3.
- Private Key: Enter the private key supplied to you by Amazon S3.
- Remote Path: Enter the remote path for your cloud. This is normally your bucket name.

7. Click Next.

Set up your Amazon S3 Backup Type Upload Backup Type Overwrite existing file(s) Back Cancel Next

8. Enter the following information and click Next:

TypeSelect one of the following options:

• Upload: Backs up your WD My Cloud Mirror data to your Amazon S3 bucket.
• Download: Backs up your Amazon S3 bucket to your WD My Cloud Mirror device.

Backup Type From the drop-down menu, select the type of backup you'd like to perform. Options include:

• Overwriting existing file(s): Overwrites files in the target folder that have the identical name as your source file.
- Full Backup: Creates a separate folder containing all of the backup data each time the backup is performed.
- Incremental Backup: Overwrites files with source files that are newer then the target files.

9. In the Local Path field, enter a path for your backup on your WD My Cloud Mirror server.

- Click Browse to browse to a location for your backup on the device. (Example Volume_1/backup)

Setup your Amazon S3 Backup Local Path Browse Back Cancel Next

10. Click the toggle button III to activate the Autoupdate feature. This automatically updates your backup based on a schedule you create.

■ If you activate the Autoupdate feature:

• Select the Autoupdate schedule: Daily, Weekly, or Monthly
• Select the Autoupdate Time from the drop-down menu (Daily option).

- Select Autoupdate Date and Time from the drop-down menus (Weekly or Monthly option).

Setup your Amazon S3 Backup powered by amazon w0services Autoupdate ON III Autoupdate schedule Daily Weekly Monthly Autoupdate Time 1AM Back Cancel Next

1. If you don't select Autoupdate, in the Backup Now field, indicate whether you want to begin the backup now.

■ Select Yes to begin your backup now.

Setup your Amazon S3 Backup Autopurchase III OFF Backup Now Yes No Back Cancel Next

1. Click Next.

Setup your Amazon S3 Backup The setting is complete. Click Finish to save your current settings Job Name backupex2162013 Remote Path lesliecloud Region United States Type Upload Backup Type Overwrite existing file(s) Local Path Volume_1/Human_Resources Backup Now Yes

1. Review your settings and click Finish. Your Amazon S3 Cloud backup is created. The new job displays in the Amazon S3 Queue section of the Amazon S3 Backup page.

Amazon S3 Queue backupex2152013 1st 01:00 M... Ready Backup now Details backupex2162013 1st 01:00 M... Ready Backup now Details

1. Access your Amazon S3 Cloud backup bucket to view your device backups.

Managing Apps on WD My Cloud Mirror

About Apps

Managing Apps

About Apps

Apps is short for Applications. Apps are little self-contained programs used to enhance the existing functions of your device or service. The WD My Cloud Mirror device provides various apps that allow you to use your device more productively.

Note: WD recommends that you fully understand the nature of any app before you install it on your device.

Note: Obtain support for each app through the individual vendor.

WD My Cloud Mirror comes with various apps installed. There is also a list of available apps for you to choose from on the Add an App screen.

Managing Apps

The Apps screen displays a list of the currently installed apps. From this screen, you can use your installed apps, add new apps, or remove apps you no longer want to use.

Viewing Apps

1. On the navigation bar, click Apps to display the Apps screen:

Users Shares Cloud Access Backups Storage Apps Apps HTTP Downloads FTP Downloads P2P Downloads Web File Viewer Jocenta HTTP Downloads URL Test Save To Browse Rename Recurring Backup OFF When Date: 31/10/2014 Time: 10AM 48 Create HTTP Downloads Queue

1. To select an app, click the name of the app in the left pane. The app displays in the right pane.

Adding an App

Use the following steps to add an app to your WD My Cloud Mirror device:

1. On the navigation bar, click Apps to display the Apps screen.
2. Click the Add an App icon 📄 in the lower left side of the screen.
   The first time you add an app, the Terms of Service screen displays. Read and accept the agreement.

Terms of Service Please review and accept these terms and conditions before you continue. WD MY CLOUD APP CENTER TERMS OF SERVICE AGREEMENT IMPORTANT - READ CAREFULLY, SECTION $ OF THIS DOCUMENT CONTAINS A BINDING ARBITRATION PROVISION THAT REQUIRES THE RESOLUTION OF DISPUTES ON AN INDIVIDUAL BASIS, LIMITS YOUR ABILITY TO SEEK RELIEF IN A COURT OF LAW, AND WAIVES YOUR RIGHT TO PARTICIPATE IN CLASS ACTIONS, CLASS ARBITRATIONS, OR A JURY TRIAL FOR CONTAIN RESOLUTION. Decline I accept

1. On the Add an App screen, place a check next to the app you'd like to add to the device.

Add an App Apps are a great way to bring in additional capabilities to your WD My Cloud Mirror. WD recommends you fully understand the nature of any app before installing or managing it. Available Apps aMule Details IceCast Details Joomla Details To install an app manually, click here. Cancel Install

1. For details about the app, click Details. Close the Details screen.
2. Place a check next to the app(s) you'd like to add to your device and click Install. The selected apps are added to your device.

Manually Adding an App

If you have an app you'd like to add that is not listed on the Add an App screen, use the following steps to manually add that app to your WD My Cloud Mirror device.

Note: WD recommends that you fully understand the nature of any app before you install it on your device.

1. On the navigation bar, click Apps to display the Apps screen.

Users Shares Cloud Access Backups Storage Apps Apps HTTP Downloads FTP Downloads P2P Downloads Web File Viewer Joomla HTTP Downloads URL Test Save To Browse Rename: Returning Backup OFF When Date: 05/10/2014 Time: T6AM ADD Create HTTP Downloads Queue

1. Click the Add an App icon 📄 in the lower left side of the screen.

2. Scroll to the bottom of the Add an App screen and click the To install manually, click here link.

Add an App Apps are a great way to bring in additional capabilities to your VIO My Cloud Mirror. WD recommends you fully understand the nature of any app before installing or managing it Available Apps sMule Details IceCast Details Joomla Details To install an app manually, click here. Cancel Install

1. Navigate to the app you'd like to install on your device.
2. Select the app and click Open.
3. The selected app is added to your device.

Deleting an App

Use the following steps to delete an app from your WD My Cloud Mirror device.

1. On the navigation bar, click Apps to display the Apps screen.

Users Shares CloudAccess Backups Storage Apps HFTP Downloads FTP Downloads P2P Downloads Web File Viewer Joomla Joomla is an award-winning content management system (CMS), which enables you to build Web sites and powerful online applications. Many aspects, including its edge-of-use and extensibility, have made Joomla the most popular Web site software available. Note: Support for each app should be obtained through the individual vendor App Name: Joomla Versich: 1.01 Installed on: Wednesday, January 8th, 2014 Configuration URL: http://192-88.123/joomla/index.php Manage Apps Disable

1. From the Apps list in the left pane, select the app that you'd like to delete from the device.
2. Click the Remove an App icon ☐ in the lower left of the screen.
3. In response to the confirmation message, click OK. The app is removed from the device and no longer displays in the user account list.

Updating an App

Use the following steps to update an app that you've added to your WD My Cloud Mirror device.

1. On the navigation bar, click Apps to display the Apps screen.
2. If there is an update for one of the apps you've added to your device, an Updates available link displays at the top right of the screen.
3. Click the Updates Available link to display the Updates Available screen.

1 Updates Available An update is available for the following apps. SqueezeCenter Details Cancel Update

1. Select the app you'd like to update from the list and click Update.

If you'd like to view the details of the update, click Details.
- Click Back to return to the Update screen.

Managing Storage on WD My Cloud Mirror

About Storage

RAID Storage

Disk Status

About Storage ≡

The Storage page allows you to configure the storage within your device and view the status and capacity of its disks. This chapter provides details on managing the storage on your WD My Cloud Mirror device.

Users Shares Cloud Access Backups Storage Apps Storage RAID Disk Status RAID Profile RAID Health Healthy All RAID Volumes are active and healthy. RAID Volume Volume_1 JBOD 2 TB Good Volume_2 JBOD 2 TB Good Change RAID Mode

RAID Storage

RAID (Redundant Array of Independent Disks) allows you to store the same data in different places on multiple hard drives, providing necessary redundancy, greater performance, and data integrity. There are several different levels of RAID, each one providing a different method of sharing or distributing data among the drives. Your WD My Cloud Mirror device allows you to select from the following storage modes:

Note: The difference between a drive and a volume is that a volume can be a single drive or multiple drives.

RAID Mode Description
JBOD	The use of one or more drives not in a RAID configuration but managed as separate logical volumes.
Spanning	Combination of drives in a linear fashion to create one large logical volume.
RAID 0	RAID 0 mode provides disk striping across all drives in the RAID drive group. RAID 0 does not provide data redundancy but does provide the best performance of any RAID level. RAID 0 breaks up data into smaller segments and stripes the data segments across each drive in the drive group.
RAID 1(default)	In RAID 1 mode, the RAID controller duplicates all data from one drive to a second drive in the drive group. RAID 1 provides complete data redundancy but cuts the required storage capacity in half.

Viewing the Current RAID Mode

Use the following steps to view the RAID mode currently used on your device.

1. On the navigation bar, click Storage to display the Storage screen.
2. Click RAID, if not already selected.

3. In the RAID Profile, the following information displays:

4. RAID Health
   ■ Auto-Rebuild status (whether or not Auto Rebuild is turned on)

5. RAID Volume shows how many volumes the RAID or JBOD is configured for.

Users Shares Cloud Access Backups Storage Apps Storage RAID Disk Status RAID Profile RAID Health Healthy All RAID Volumes are active and healthy. RAID Volume Volume_1 JBOD 2 TB Good Volume_2 JBOD 2 TB Good Change RAID Mode

Changing the RAID Mode

Use the following steps to change the current RAID mode on your WD My Cloud Mirror device.

WARNING! Changes made to your RAID mode will delete all of your data and your user settings. See "Saving a Configuration File" on page 122 for information on saving your user settings.

1. On the navigation bar, click Storage to display the Storage screen.
2. Click RAID, if not already selected.

Users Shares Cloud Access Backups Storage Apps Storage RAID Disk Status RAID Profile RAID Health Healthy All RAID Volumes are active and healthy RAID Volume Volume_1 JBOO 2 TB Good Volume_2 JBOO 2 TB Good Change RAID Mode

1. Click Change RAID Mode at the bottom of the screen.
2. Review the Warning message and click OK.

Warning Please note that this will interrupt active file transfer services for the duration of this operation. Do you wish to continue? Cancel OK

1. Select the RAID mode you'd like to use for your WD My Cloud Mirror device.

Change RAID Mode JBOD RAID 1 Configuration Spanning Two instantaneous copies of the data are recorded on separate hard drives so that; if one of them fails, the other(s) continue to read/write data until the faulty hard driver is replaced. RAID 0 RAID 1 Switch to RAID 1 Cancel Next

Options include:

JBOD	The use of one or more drives not in a RAID configuration but managed as separate logical volumes.
Spanning Combination of drives in a linear fashion to create one large logical volume.
RAID 0	Data is striped across multiple hard drives, enabling accelerated reading and recording of data by combining the work of two or more drives to increase performance.
RAID 1 (default)	Two instantaneous copies of the data are recorded on separate hard drives so if one of them fails, other(s) continue to read/write data until the faulty hard drive is replaced.

1. Select the Switch to check box and click Next.
2. Review the status of your hard drives and click Next.

Change RAID Mode Drive1 2 TB Good Drive2 2 TB Good Back Cancel Next

1. Review the status of your volumes and click Next.

Change RAID Mode This section provides a summary of the configuration you just created. It will show the volume name, file format, disk size and disk array number Volume_1 RAID 1 EXT 4 1996 GB Drive1.2 Back Cancel Next

1. If the Volume slider displays, select the amount of space you'd like to dedicate to the selected RAID mode. The Volume slider displays for RAID1 (default).

Change RAID Mode You can specify RAID size settings through the slider below. If you are not using the total volume capacity, you may choose to configure the remaining space as Spanning. Volume(s) for RAID 1 Volume 1 (Drive 2) 1900 GB Remaining space: 0 GB Back Cancel Next

- If you choose not to use the entire volume for your RAID selection, you can configure the remaining disk space as Spanning by selecting the Configure the remaining disk space as Spanning check box.

1. Click Next.

Change RAID Mode This section provides a summary of the configuration you just created. It will show the volume name, file format, disk size and disk array number. Volume_1 RAID 1 EXT 4 1990 Q0 Drive1.2 Back Cancel Next

1. Review the summary of your selections and click Next.

Change RAID Mode Switch to RAID 1 You are about to re-format the hard drive(s). All data will be erased. Do you want to continue? Back Cancel Finish

1. Review the warning screen and click Finish.

2. The requested hard drive changes begin. Do not turn off your WD My Cloud Mirror device while these changes are in progress.

Change RAID Mode Do patient while the IWO My Cloud Mirror device partnership your driver. Do not turn off this RAID at this stage. Faridomag

1. When the process is complete, click Finish again.

Change RAID Mode Setup is complete. This section provides information on the volume name, file system, RAID mode (type) and the disk array Volume 1 EXT4 RAID 1 Drive1 2 Finish

Auto-Rebuilding RAID

The Auto-Rebuilding option allows you to automatically rebuild the RAID for your WD My Cloud Mirror device in case of drive corruption. Use the following steps to enable the auto-rebuild option.

1. On the navigation bar, click Storage to display the Storage screen.

2. Click RAID, if not already selected.

3. Review the Auto-Rebuild field to determine whether your WD My Cloud Mirror device is currently set up for auto-rebuild.

Storage RAID Disk Status iSCB Volume Virtualization RAID Profile RAID Health Healthy All RAID Volumes are active and healthy Auto-Robuild ON RAID Volume Volume_1 RAID 1 196 TB Good Change RAID Mode

- If Auto-Rebuild is OFF (default), click the toggle button to enable Auto-Rebuild.

Disk Status

The Disk Status screen identifies the health of the disk drives as well as the status and information on each drive used in your WD My Cloud Mirror device. The Disk Status screen consists of the following areas:

• Disks Profile: This area displays the general status of all of the disk drives on your device.
• System Disks: This area identifies the drives on your device, the status of each drive, and the amount of space on that drive.

My Cloud Mirror Users Shares Cloud Access Backups Storage Apps Storage RAID Disk Status Disks Profile Disk Health Healthy System Disks Drive1 2 TB Good SMART Data Drive2 2 TB Good SMART Data

Note: If a drive is not supported, the status is not compatible.

Viewing Hard Drive Information

Use the following steps to view status of the disks on your WD My Cloud Mirror device.

1. On the Storage page, click Disk Status, if not already selected.
2. Select Drive next to the disk for which you'd like to view information.

Users Shares Cloud Access Backups Storage Apps Storage RAID Disk Status Disks Profile Disk Health Healthy System Disks Drive1 2 TB Good SMART Date Drive2 2 TB Good SMART Date

1. Review the hard drive information and click Close. The Hard Drive Information screen displays the following data:

Hard Drive Information Vendor WDC Model WDC WD20EFRX-68AX0N0 Serial Number WD-WMC301430164 Capacity 2 TB Firmware Version 80.00A80 Close

Vendor The vendor from whom the hard drive was obtained.

Model The model number of the hard drive selected.

Serial Number The serial number of the hard drive selected.

Capacity The capacity of the hard drive selected.

Firmware Version

The current firmware version used on the drive selected.

Playing/Streaming Videos, Photos, & Music

Media Servers

Media Storage

Enabling DLNA and iTunes

Accessing Your Personal Cloud Using Media Players

Accessing Your Personal Cloud Using iTunes

Media Servers

WD My Cloud Mirror is designed to serve as your home's media server. It enables you to stream photos, music, and videos to your DLNA-compatible devices and music to your iTunes-compatible devices.

Both DLNA-compatible and iTunes-compatible devices search for media stored in any Public share that has media serving enabled. By default, DLNA Media is disabled. Once you enable it on the Settings > Media Server page, the media serving for the Public share is also automatically enabled. For all other shares, the media serving remains off.

If you do not want DLNA to display specific media files, place them in a private share that is set to disable media sharing. (See “Making a Share Private” on page 54.)

Media Server Overview

The WD My Cloud Mirror device uses TwonkyMedia as its DLNA media server. It streams your music, photos and videos to compatible devices in your home. Playing media on a compatible device is easy.

The media server searches for all the media stored in the Public share on the WD My Cloud Mirror device connected to your home network. After enabling media serving for the device (see "Enabling DLNA and iTunes" on page 98), you can just transfer your multimedia content to the Public share on your WD My Cloud Mirror device, and you are ready to stream and view content on your home entertainment center, game consoles (for example, Xbox 360 ^ or PlayStation ^ 3), WD TV Live ^ media player, or DLNA ^ 1.5 digital media adapters), and other PC computers on your home or office network. Visit http://www.dlna.org for further information on DLNA.

iTunes Overview

You or anyone connected to the WD My Cloud Mirror device can use iTunes to play stored music files. iTunes creates a virtual music library on the device and treats it as an iTunes repository, making it possible to stream music files from the WD My Cloud Mirror device to Windows or Mac computers running iTunes.

iTunes scans any shares that have the Media Serving setting enabled, including the Public share by default.

Media Types Supported

Audio files Video files Image Files
3GP	3GP	BMP
AAC	ASF	JPEG
AC3	AVI	PNG
AIF	DivX	TIF
ASF	DV
FLAC	DVR-MS
LPCM	FLV
M4A	M1V
M4B	M2TS
MP1	M4P
MP2	M4V
MP3	MKV
MP4	MOV
MPA	MP1
OGG	MP4
WAV	MPE
WMA	MPEG1
	MPEG2
	MPEG4
	MPG
	MTS
	QT
	QTI
	QTIF
	RM
	SPTS
	TS
	VDR
	VOB
	WMV
	Xvid

Note: Some devices may not support playback of all these files. Please refer to your device's user manual to see which formats are supported.

Media Types Supported by iTunes

Note: iTunes 10.4 or later only supports music files. See Knowledge Base Answer ID 8412 for additional information on iTunes-supported versions.

The iTunes Media Server supports the following file extensions: FLAC, M4A, MP3, MP4A and WAV.

Note: Some devices may not support playback of all these files. Please refer to your device's user manual to see which formats are supported.

Media Storage

You can access and store media content on the WD My Cloud Mirror device by means of network shares. Shares, similar to folders or directories, are areas set up to organize media and access them from your network. Shares can be shared with everyone (public) or with selected users on your network (private).

The device comes pre-configured with the Public network share, which contains the following folders for media storage:

• Shared Music—Stores music files you want to share with other users.
• Shared Pictures—Stores image files you want to share with other users.
• Shared Videos—Stores video files you want to share with other users.

Note: You will notice that the Public share's Shared Music and Shared Pictures shares contain mirrored and uploaded subfolders. These folders are needed by Twonky 7.2. You can now upload all media types to the uploaded subfolder from a DLNA client with "upload" capability.

Go to the Twonky configuration site (NAS_IP:9000) to aggregate content from all NAS devices with DLNA capability on your network to the mirrored folder. Uploading and mirroring are best left to expert users, as these features are not supported by WD customer support.

Enabling DLNA and iTunes

The Media page of the Settings Screen allows you to enable or disable the DLNA and iTunes media servers. Media server utilities for re-scanning the NAS or fully rebuilding the DLNA database are also on the Media page.

Enabling DLNA

1. On the Navigation bar, click Settings and in the left panel click Media.

DLNA Media Server Media Streaming ON III View Media Players >> Version 7.2.3 Media Music Tracks:0 Pictures:17 Videos:0 Last Update Wednesday, July 31st, 2013, 4:00:00 AM DLNA Database Rescan Rebuild i

1. In the DLNA Media Server area, toggle III the Media Streaming toggle to ON.

Note: Media Streaming is OFF by default. The media server must be enabled before you can provide media serving for a share. (See "Creating a New Share" on page 53 for instructions on how to enable media serving on a share.)

1. Click View Media Players to display a list of the media players/receivers on your home network.

Note: If Media Streaming is OFF, this field does not display on your screen.

1. On the Media Streaming Options screen, select the media device you'd like to receive streaming music, video, or photos.

Media Streaming Options Stream music, video, or photos to any compatible device throughout your home. Media players Generic Media Receiver 192.168.1.12 ON OFF Generic Media Receiver 192.168.1.12 ON OFF Generic Media Receiver 192.168.1.16 ON OFF DIRECTV Mediashare R... 192.168.1.7 ON OFF Close

• ON: Select this option to allow DLNA media streaming to the device.

• OFF: Select this option to disable DLNA media streaming to the device.

• Once your selections are made, click Close.

Viewing DLNA Media Server Information

The DLNA area displays the current version, the number of music, video, and pictures available on your device, and when the last update occurred.

DLNA Media Server Media Streaming ON III View Media Players >> Version 7.2.3 Media Music Tracks:0 Pictures:17 Videos:0 Last Update Wednesday, July 31st, 2013, 4:00:00 AM DLNA Database Rescan Rebuild

- To view DLNA media server information, on the Settings screen, click Media in the left panel.

Rescanning/Rebuilding the DLNA Database

The WD My Cloud Mirror device automatically rescans and rebuilds the DLNA database; however, if you suspect that your database is corrupted, use the following steps to either rescan or rebuild your DLNA database:

Important: Use caution when completing this procedure. Rebuilding the DLNA server database could take a considerable amount of time, depending on the number and size of the files involved.

1. On the Navigation bar, click Settings and then click Media in the left panel.
2. In the DLNA Database field, click one of the following.

- Rescan: The WD My Cloud Mirror device searches for changes made to your media libraries. Try this option first.

■ Rebuild: The WD My Cloud Mirror device rebuilds the DLNA database from scratch.

Enabling iTunes

1. On the Navigation bar, click Settings and then click Media in the left panel.

iTunes iTunes ON III Folder Root Password MP3 Tag Codepage ISO-8850-1 << Western European(ISO-885... Auto Refresh None iTunes database Refresh Save

1. In the iTunes area iTunes field, click the toggle button to enable iTunes (if not already enabled).

Note: iTunes is ON by default. To disable it, click the toggle button to OFF.

1. In the Folder field, select Root, if not previously selected. This field points iTunes to the root directory on your WD My Cloud Mirror device.

If your want to specify a directory on your device where iTunes can access your media:

a. Deselect the Root check box.
b. Click Browse and then navigate to the folder where iTunes can access your media.
c. Click Save at the bottom of the iTunes area.

1. In the Password field, enter a password to be used when accessing your WD My Cloud Mirror device on iTunes.

Note: Leave the Password field blank if you don't want to use a password to access your device media in iTunes.

1. If you'd like to change the default MP3 Tag Code page, select the page from the dropdown menu.
2. For Auto Refresh, select the frequency of the media refresh for iTunes from the dropdown menu.
3. Click Save to save your settings.

Refreshing iTunes

Use the following steps to refresh the iTunes directory. This allows iTunes to pick up any new media.

1. On the Navigation bar, click Settings and then click Media in the left panel.
2. In the iTunes database field, click Refresh.

Adding Media Content to the Folders

1. Open Windows Explorer or Mac Finder.

Organize NewLibrary Favorites Desktop Downloads Recent Places Libraries Documents Music Pictures Videos Computer Local Disk (C:) Removable Disk (E:) Network WEDM/CLOUD/MIRKACH Libraries Open a library to see your files and arrange them by folder, date, and other properties. Documents Library Music Library Pictures Library Videos Library Select a file to preview

Windows Explorer

FAVORITES All My Files AirDrop Applications Desktop Documents Downloads DEVICES Remote Disc NO NAME SHARED WDMyCloudMirror Shared Music Shared Pictures Shared Videos

Mac Finder

1. Copy your music files to the Shared Music folder.
2. Follow the same process to place your videos and pictures into their respective Pictures and Video folders.

Note: You can also access your media files using WD My Cloud Desktop app (see "WD My Cloud for Desktop App" on page 31).

Accessing Your Personal Cloud Using Media Players

Now that you have copied your files to one of the Shared folders, you can use a variety of media players to stream media. The following types are supported:

■ WD TV Live Media Players
■ Windows Media Player 11 (comes with Windows Vista)
■ Windows Media Player 12 (comes with Windows 7 and Windows 8)

- Xbox 360

PlayStation 3

■ Other media players:

• BluRay Players
• Network Connected TVs
• Digital Picture Frames
• Network Music Player
  DLNA Devices

Note: For specific information on using and updating the media player, go to the appropriate support site.

WD Media Players

You can connect the various WD TV and WD Media Players to your home network for access to media content stored in a network drive such as the WD My Cloud Mirror device. For details on using a WD Media Player to access files on your device, see Knowledge Base Answer ID 2676 or refer to your WD Media Player User Guide.

Other Media Players

Following are general steps for setting up devices such as digital picture frames, Blu Ray players, network-connected TVs, and digital media adapters:

1. Make sure that your WD My Cloud Mirror device is connected to your home's local network and is powered on.
2. Follow the user instructions provided with your media player to proceed through any initial setup or installation of drivers.
3. Using the navigation feature on your player, scan and detect your WD My Cloud Mirror device on your network.
4. Depending on the player you have, you may need to access a Settings/Network Setup page in the user interface to establish connection so that your player can link to your WD My Cloud Mirror device. Please refer to your player's user guide for specific instructions.

DLNA Devices

See specific DLNA media device user manuals for instructions on connecting a DLNA device to your local area network so you can access content on the WD My Cloud Mirror device. Go to http://www.dlna.org for a list of DLNA-certified devices and for further information.

Accessing Your Personal Cloud Using iTunes

You or anyone connected to the WD My Cloud Mirror device can use iTunes to play stored music files. This service creates a virtual music library on the device and treats it as an iTunes repository, making it possible to stream music files from the WD My Cloud Mirror device to Windows or Mac computers running iTunes. For a list of supported media types, see “Media Types Supported” on page 97.

Note: iTunes 10.4 or later only supports music files. See Knowledge Base Answer ID 8412 for additional information on iTunes supported versions.

Note: iTunes scans any shares that have the Media Serving setting enabled, including the Public share by default.

You can drag and drop media files into the corresponding folders in the Public share (e.g., music files into the WDMyCloudMirror/Public/Shared Music default share).

Streaming Media in iTunes

iTunes is enabled by default in the dashboard. See "Enabling iTunes" on page 100 for more information on configuring iTunes.

1. Launch iTunes on your computer.
2. Click WDMyCloudMirror under the Shared section of the left pane. If you have copied music to the /Public/Shared Music folder or a video to/Public/Shared Videos, and it is in a format supported by iTunes, it is listed in the right pane.
3. Double-click a media file you'd like to play.

11

Configuring Settings

General

Network

Media

Utilities

Notifications

Firmware Update

The Settings option on the navigation bar allows the Administrator to view and customize the WD My Cloud Mirror device's system, network, media, utilities, notifications, and firmware settings. This chapter explains how to configure the various settings for your WD My Cloud Mirror device.

General

On the General page you can:

■ View and modify the device name and description
- Select the language in which the web pages should display
■ Set the date, time, and time zone for the device
■ Enable cloud access for your device
■ Set energy saving options
■ Enable and configure Time Machine backups for your Mac
■ Enable various services for your device

WARNING! Renaming the WD My Cloud Mirror device forces all the network computers to remap their shared network resources. Change the device name only when necessary.

Accessing the General Screen

On the Navigation bar, click Settings. The General page displays:

Settings General Network Media Utilities Notifications Firmware Update Device Profile Device Name WDMyCloudMirror Description WDMyCloudMirror Serial Number WUC243000095 Language & Clock Language English Time Zone (GMT 08:00) Pacific Time (US & Canada) NTP Service ON Primary Server time windows.com Confuses Date & Time Friday, February 07, 2014 3:23:09 PM Time Format 12 Cloud Access Cloud Service ON Confuses Connection Status Connected Port forwarding connection established. Dashboard Cloud Access OFF Energy Saver Drive Sleep ON LED ON Power Schedule OFF Web Access Timeout 5 minutes Mac Backups Time Machine ON Confuses Services Recycle Bin Clear

Device Profile

Device Profile Device Name WDMyCloudMirror Description WDMyCloudMirror Serial Number WUC243000095

1. In the Device Profile section of the General page, view or modify the following settings:

Device Name Enter a unique name for your device to identify it on the network. The device name can be up to 15 characters long and can not include special characters (e.g., @, #, etc.).

Device Description The default description is WDMyCloudMirror. If desired, enter a different description for your device. The device description can be up to 32 characters long and can not include special characters (e.g., @, #, etc.).

Serial Number Displays the WD-assigned number that identifies the specific unit. This field can not be updated.

1. If you made any changes, click Save (appears next to the updated field once a change is made).

Note: Throughout the WD My Cloud Mirror dashboard, the Save and Cancel buttons display only if you make changes.

Language and Clock

In this section of the General screen, you can change the language that displays in the WD My Cloud Mirror device's interface and set the date and time. The date and time are synchronized to the NTP (Network Time Protocol) server by default. You have the option of setting the date and time manually or allowing the NTP to access the Internet and automatically set the time. If you are not connected to the Internet, you must enter the date and time manually.

Language & Clock Language English Time Zone (GMT-08:00) Pacific Time (US & Canada) NTP Service ON Primary Serverhrs time.windows.com Configure>> Date & Time Friday, February 07, 2014 4:31:43 PM Time Format 12

1. In the Language & Clock section, view or modify the following settings:

Language From the drop-down list, select the language you'd like to display on your WD My Cloud Mirror Personal Cloud Storage web pages. The default language is English.
Time Zone From the drop-down list, select the time zone where your device is located.
NTP Service Enable or disable NTP service, which automatically synchronizes your device to update the time and date. A dialog box displays current NTP servers. You can add another NTP server if you choose.
Primary Server Change the primary server used for your NTP service.To change the primary server used for your NTP service, click Configure,Click Add User NTP and enter the URL address of the new primary server.Click Save.
Date & Time Displays the device date and time. This information is synchronized to the NTP (network time protocol) server by default.
Time Format	From the drop-down list, select 12 (12-hour clock) or 24 (24-hour clock).

1. Click Save for each change you make.

Cloud Access

Use the following steps to turn cloud access on or off for all users (i.e., control whether computers and mobile devices can access the content on the WD My Cloud Mirror device).

Note: This action turns on cloud access for the entire device. To turn on access for an individual user, see "Configuring Cloud Access for a User" on page 22

1. Scroll down to the Cloud Access area of the General screen.

Cloud Access Cloud Service ON III Configure>> Connection Status Connected (Relay connection established) Dashboard Cloud Access OFF

1. In the Cloud Service field, ensure that the toggle button to set to ON (default). The Connection Status changes to Connected (Relay connection established).

2. Click Configure to change the type of connection you use for your cloud access.

Cloud Access Connection Options Configures connection options for remote access to your device Connectivity Auto Manual Win XP Attempts to establish a direct connection between your device and the router Content Database Rebuild Cancel Save

On the Cloud Access Connection Options screen, there are three access options:

- Auto: Auto uses uPnP to attempt to open ports on your router. If successful, a direct connection is established between your device and your apps.

- Manual: Establishes a connection through the two selected ports. If either port is unavailable, a relay connection is established. A manual router configuration is required for this option. See Knowledge Base Answer ID 8526 for information on how to set up your router for manual setup.

- Win XP: Establishes a connection through ports 80 and 443. If these ports are unavailable, a relay connection is established. This option is required if you're using Windows XP.

Note: By default, the WD My Cloud Mirror device automatically establishes a direct connection between your mobile devices and router.

1. Select a connection type:

■ Auto: Click Auto.
- Manual: Click Manual and enter the External Port 1 (HTTP) and External Port 2 (HTTPS) numbers.
- Win XP: Click Win XP.

1. Click Save.
2. In the Dashboard Cloud Access field, click the toggle button to turn on remote access to the dashboard.

Note: Selecting this option allows you to perform administrator functions remotely.

1. Review the information on the screen and then enter and reenter a password for your administrator account. Click Save.

Dashboard Cloud Access Enabling access to this Dashboard web interface outside of your current network helps you manage this device remotely. However, it also slightly increases risks for unauthorized access on your WD My Cloud Mirror. Are you sure you want to enable this feature? Cancel OK

If your administrator account already has a password associated with it, review the Dashboard Cloud Access screen and click Save.

Note: If you set your Cloud Setting to Manual, you will have to access your device remotely using the ports you selected during the manual cloud setup. Example: If you set up your manual HTTP port as 5040, you'd use the following address to access your device: http://:5040.

Energy Saver

The Energy Saver fields allow you to reduce the energy required to run your WD My Cloud Mirror device. Use the following information to configure the energy saving options on your WD My Cloud Mirror device.

Energy Saver Drive Sleep ON LED ON Power Schedule OFF Web Access Timeout 5 minutes

View or change the following settings:

Drive Sleep Enabling this function allows the hard drives to go intostandby mode to save power after a designated period ofinactivity. Drive Sleep is enabled to sleep afterapproximately 10 minutes by default.To enable/disable Drive Sleep, click the toggle buttonIII.
LED Enabling this function allows the device LEDs to go intostandby mode to save power. LED is enabled by default.To enable/disable LED, click the toggle button . III
Power Recovery Automatically restarts your device from a previouslyunexpected shutdown due to power failure. PowerRecovery is enabled by default.Note: If you disable this feature, your device will not automaticallypower on after an unexpected shutdown.To enable/disable Power Recovery, click the togglebutton III.
Power Schedule The Power Schedule allows you to schedule shutdownsfor your WD My Cloud Mirror device.To enable Power Schedule, click the toggle button . III2. Click Configure.Use the slider bar to configure the start and stop times foryour device.Click tshut down the device for 24-hours.Click Save.Note: You can use WD Quick View to wake up the system. Forinformation and to download this app go to WD’s onlineLearning Center.
Web AccessTimeout	Automatically logs you out of the system after adesignated amount of time.From the Web Access Timeout drop-down menu,select an amount of time you’d like to use for yoursystem timeout. The system updates automatically.

Mac Backups

This section of the General screen enables or disables Time Machine backups of Mac computers.

Important: You must set a password for your Administrator account in order to restore your Time Machine backups.

To configure backup settings:

1. In the Mac Backups area, click the toggle button to enable Time Machine backups if not previously enabled.

Mac Backups Time Machine ON III Configure>>

1. Click the Configure link to display the Time Machine Settings dialog.
2. From the Select a Share drop-down list, select a share you'd like to use to back up your Mac data.

Time Machine Configure settings for your Time Machine backups for your Mac. Select a share TimeMachineBackup Cancel Save

1. Click Save.

Important: Once Time Machine begins to back up your files to a selected share, we recommend that you continue to back up to that share. Switching shares generates a new backup file which will not contain your previously saved information.

Service

This section of the General screen enables or disables the Recycle service available on your WD My Cloud Mirror device.

Services Recycle Bin Clear

Network

The Network screen displays the device's MAC and IP addresses and allows you to set network options such as FTP access, remote servers, and workgroups.

Settings General Network Media Utilities Notifications Firmware Update Network Profile Mac Address 00:90 A9:67:0C:63 IPv4 IP Address 192.168.1.121 IPv6 IP Address - Network Service IPv4 Network Mode Static DHCP Configure >> IPv6 Network Mode Auto DHCP Static Off ? Link Speed Auto ✓ ✓ ✓ Jumbo Frame OFF(1500) ✓ ✓ ✓ Max SMB Protocol SMB 2 ✓ ✓ ✓ FTP Access OFF ✓ ✓ AFP Service ON ✓ ✓ ✓ ✓

Network Profile

The Network Profile section of the Network screen displays network information for the WD My Cloud Mirror device.

Network Profile Mac Address 00:90:A9:62:EA:DE IPv4 IP Address 192.168.1.6 IPv6 IP Address -

The Network Profile section displays the following information:

MAC Address The Media Access Control (MAC) address for this device.

IPv4 IP Address The IP version 4 address for this device.

Network Service

The Network Services section of the Network screen allows you to enable or disable the services available on your WD My Cloud Mirror device.

Network Service IPv4 Network Mode Static DHCP Configure >> Link Speed Auto i Jumbo Frame OFF(1500) i Max SMB Protocol SMB 2 i FTP Access OFF i AFP Service ON i NFS Service OFF i WebDAV Service OFF i LLTD OFF i SSH OFF i Dynamic DNS OFF i

1. Review or update the following:

IPv4 Network Mode

By default, the network mode is set to DHCP, which means the WD My Cloud Mirror device automatically gets the IP address and other settings from your network. Select the method of assigning the device's unique IPv4 address:

• Static: Static IP lets you set an IP address manually. You will be prompted for IP Address, Subnet mask, Gateway IP address, and DNS Server. (If you don't know this information, please check your router settings.)
• DHCP: DHCP Client causes the WD My Cloud Mirror device to obtain an IP address and associated settings automatically from the local DHCP server.

Note: When configuring Static or DHCP, record your Subnet mask, Gateway IP address, and DNS Server in a safe location for future reference. This information will not be displayed once it is entered into the WD My Cloud Mirror server.

Link Speed Select the link speed for your network from the drop-down menu and click Save. Options Include:

• Auto
  • 100
  • 1 0 0 0

Jumbo Frame Jumbo frames are large IP frames used to increase performance over supported networks. Select the Jumbo Frame for your network from the drop-down menu and click Save.

Note: All devices on your network (e.g., router, computer) must support and be configured for this option in order to maximize performance.

Max SMB Protocol Server Message Block, version 2. Select this option to support Windows File History in Windows 8.

• To enable/disable SMB2, click the toggle button

Note: If you enable SMB2, read/write performance will be impacted.

FTP Access File Transfer Protocol enables the transfer of data from one computer to another through a network. FTP is disabled by default.

1. To enable FTP Access, click the toggle button to on.
2. Click Configure.

3. On the FTP Settings screen, enter the following information:

4. Maximum Users: From the drop-down menu, select the maximum number of users you'd like to have FTP access.

5. Idle Time: Enter the amount of time, in minutes, you'd like the FTP to be idle before it times out.
6. Port: Enter the port to be used for FTP access.

7. Flow Control: Select either Unlimited or Customize. If you select Customize, enter a Flow Control value.

8. Click Next.

9. In the Passive Mode field, select either Default or Customize. If you select Customize, enter Passive Mode values.

10. Select the check box if you'd like to report external IP in PASV mode and click Next.

11. Enter the following information:

12. Client Language: Select the client language from the drop-down menu.

13. SSL/TLS: Select this check box if you'd like to allow only SSL/TLS connections.

14. FXP: To enable FXP, click the toggle button ON.

15. Click Next.

16. Enter all IP addresses that you'd like to block from FTP access and select either Permanent or Temporary from the drop-down menu. Click Save to save your entries.
17. Click Finish.

AFP Service Apple File Protocol. AFP Service is automatically enabled if you are set up for Time Machine backups.

• To enable/disable AFP Service, click the toggle button .

WARNING! Mounting or ejecting a USB drive while performing an NFS or AFP file transfer will interrupt the file transfer process.

NFS Service Network File System. Select this option to enable NFS Service for your network.

• To enable/disable NFS Service, click the toggle button .

WARNING! Mounting or ejecting a USB drive while performing an NFS or AFP file transfer will interrupt the file transfer process.

WebDAV Service Web Distributed Authoring and Versioning (WebDAV). Select this option to enable WebDAV service for your network.

- To enable/disable WebDAV Service, click the toggle button

Note: In order to connect to the WebDAV service, use the following IP address: http://:8080/Public

LLTD Link Layer Topology Discovery protocol. Select this option to enable LLTD on your network for enhanced network discovery and diagnostics on Microsoft Windows machines.

- To enable/disable LLTD, click the toggle button .

SSH Secured Shell protocol. Select this option to securely access your personal cloud and perform command-line operations via the Secured Shell (SSH) protocol. SSH is disabled by default.

- To enable/disable SSH, click the toggle button .

WARNING! Please note that modifying or attempting to modify this device outside the normal operation of the product voids your WD warranty.

Note: The SSH login User Name is sshd.

Dynamic DNS Select this option to host a server (Web, FTP, Game server, etc.) using a domain name.

1. To enable/disable Dynamic DNS, click the toggle button III.
2. Click Configure.

3. On the DDNS Settings screen, enter the following information:

4. Server Address: Select a server address from the drop-down menu.

5. Host Name: Enter a Host Name for the server.
6. User Name or Key: Enter a User Name or Key for the server.
7. Password or Key: Enter a password or key for the server.

8. Verify Password or Key: Re-enter the password or key for the server.

9. Click Save.

Network UPS

An Uninterruptible Power Supply (UPS) is a device that works off of a battery and keeps devices that are connected to the UPS port running for at least a short time if the main power source goes out. When a WD My Cloud Mirror device is connected via USB to the network drive the drive will automatically shut down when the UPS is drained to a specified percentage.

Communication with the WD My Cloud Mirror device is done using a master/slave protocol in which the master device controls the slave devices.

When the UPS is connected to the WD My Cloud Mirror device by the USB, the device automatically becomes a UPS Network Master. Other WD My Cloud devices that are connected to that UPS can be pointed to the IP address of the UPS Master. If the UPS is discharged to the specified percentage, all of the WD My Cloud Mirror slave drives will automatically shut down properly.

To set up network UPS:

Network UPS Slave OFF

1. Click the Slave toggle button to ON. The Network UPS Slave mode screen displays.

Network UPS Slave mode Enter the IP address of the networked UPS master. IP Cancel Next

1. Enter the IP address of the UPS master. An "in progress" screen displays and when the setting is updated, the Network screen displays with Network UPS Slave set to OFF.

Network Workgroup (Windows)

The Network Workgroup section of the Network screen allows you to enable or disable the workgroup options available on your WD My Cloud Mirror device.

Network Workgroup Workgroup workgroup Local Master Browser III OFF i

Workgroup

The Workgroup feature allows devices in the same workgroup to access one another. This option is only available for Windows operating systems. Each time you add a device to your network, assign it the same workgroup name to enable access.

1. In the Workgroup file, enter the name of the workgroup for your network.
2. Click Save.

Local Master Browser

The Local Master Browser feature allows you to collect and record resource and/or service information across multiple locations.

- To enable/disable the Local Master Browser, click the toggle button .

Remote Server

The Remote Server section of the Network screen allows you to enable your WD My Cloud Mirror device to act as a remote server, allowing you to back up shares from another WD My Cloud Mirror on the local LAN or WAN.

Remote Server Remote Server ON Configure >>

Note: To see your WD My Cloud Mirror device over the Internet, ensure that you've added port forwarding rules for both SSH and Remote Backup services ("Port Forwarding" on page 119).

To enable Remote Server:

1. Click the toggle button ■ to ON.
2. Click Configure. The Remote Server screen displays:

Remote Server Setup a backup password to enable remote backups for this device to a remote server. Please make sure you have added port forwarding rules for both SSH and Remote Backup services in Settings > Network > Port Forwarding in order to see your WD My Cloud Mirror device over the internet. Password Cancel Save

1. In the Password field, enter a password to be used to access remote backups for this device to a remote server.
2. Click Save.

SSH Enabling your VWD My Cloud Mirror to act as a remote server will enable SSH1. Please note that modifying or attempting to modify this device outside the normal operation of the product exists your VWD warranty I accept Password * Confirm password Cancel OK

1. Review the SSH information and click the I accept check box.
2. Create a password for SSH login and then click OK.

Port Forwarding

The Port Forwarding section of the Network screen allows you to manage your connections to particular services by assigning default or custom port numbers.

For additional information on Port Forwarding, see Knowledge Base Answer ID 10649.

Adding Port Forwarding Services

Port Forwarding No port forwarding service(s) has been added to your WD My Cloud EX4 device. Add i

1. Click Add to add port forwarding service(s) to your WD My Cloud Mirror device. On the

Port Forwarding Settings Select the default service scan Customize a port forwarding service Cancel Next

Port Forwarding Settings screen, click either Select the default service scan or the Customize a port forwarding service and click Next.

- If you selected Select the default service scan: Select the default service scan you'd like to use for port forwarding and click Save. - If you selected Customize a port forwarding service, complete the following fields:

Service: Enter a service for your port forwarding.

Protocol: Select a protocol from the drop-down menu.

External Port: Enter an external port number for your port forwarding.

Internal Port: Enter the internal port number for your port forwarding

1. Click Finish.

Modifying Port Forwarding Services

1. Click Details next to the port forwarding service you'd like to modify.
2. Make all necessary changes and click Finish.

Deleting Port Forwarding Services

1. Click Details next to the port forwarding service you'd like to delete.
2. Click Delete. Your Port Forwarding service is deleted and removed from the Port Forwarding list.

Media

On the Media screen, you can enter DLNA (Digital Living Network Alliance) media server and iTunes media player settings so that you can enjoy media in every room in your house.

Settings General Network Media Utilities Notifications Firmware Update DLNA Media Server Media Streaming ON New Media Files... Version 2.2 x 2 Media Music Tracks 0 Pictures 0 Videos 0 Last Update: Friday, January 10, 2014, 19:43:00 AM DLNA Database Rescale Refresh iTunes iTunes OK NewMedia Online iTunes Database Refresh

1. On the Navigation bar, click the Settings icon and then click Media in the left panel.

Note: DLNA and iTunes only work on your local network.

1. For instructions on entering media settings on this page and then displaying or streaming media, see "Playing/Streaming Videos, Photos, & Music" on page 96.

Utilities

On the Utilities page, you can test the WD My Cloud Mirror device and get diagnostic information, restore the device to factory defaults, reboot or shut down the device, and import or export a configuration file.

Shares CloudAccess Backups Storage Apps Settings General Network Media Utilities Notifications Firmware Update System Diagnostics Disk Test Quick Test Full Test System Test System Test System Restore Backup for Default System Restore System Configuration System Config Save Config File Import File Device Maintenance Device Power Shutdown Reboot Device Update 0 day 4 hours 45 minutes

To access the Utilities screen, click the Settings icon and then click Utilities in the left pane.

System Diagnostics

Run diagnostic tests if you are having problems with your device. There are three types of diagnostic tests:

- Quick Test: The quick test checks the hard drives for major performance problems. The result of a quick test is a pass or fail evaluation of the hard drive's condition. The quick test can take several minutes to complete.

Full Test: The full test is a more comprehensive drive diagnostic. It methodically tests each and every sector of the hard drives. You will be informed of the condition of the hard drive once the test is performed. The full test may take hours to complete, depending on the size and data configuration of the hard drives.

- System Test: The system test reviews the health of your device hardware (hard drives, fan, system clock, and device temperature).

System Diagnostics Disk Test Quick Test Full Test System Test System Test

Running a Diagnostic Test

1. On the Utilities page, click Quick Test, Full Test, or System Test. A progress bar displays, indicating test progress and whether the device passed or failed the test.

2. Review the test results and click Close.

If the device fails the test, click ? and then click Support to get assistance.

System Restore

The system restore allows the Administrator to perform a full factory restore on the WD My Cloud Mirror device. This option restores your device to factory default settings with no data loss.

Important: Before doing a factory restore or a system update, you may choose to save your device's current configuration. At a later time, you can import a previously saved configuration. Keep in mind that importing a configuration after restoring factory defaults does not restore shares or users. See "System Configuration," to create or restore a configuration file.

Note: To erase all of the data on your device, see "Format Disk" on page 123.

System Restore

Restore to Default

System Restore

1. In the System Restore area, click System Restore.
2. Review the confirmation message and click OK.

The device reboots. Don't unplug the device during this rebooting process. Once the reboot is complete, launch the dashboard.

System Configuration

The system configuration area allows you to save a configuration file or import an existing configuration file. This is useful if you perform a system restore and want to maintain your current configurations.

System Configuration

System Config

Save Config File

Import File

Saving a Configuration File

Use the following steps to save a configuration file.

1. In the System Configuration area, click Save Config File.
2. The configuration file saves to your desktop.

Importing a Configuration File

Use the following steps to save a configuration file.

1. In the System Configuration area, click Import File.
2. Navigate to the location of your saved configuration file and select it. The configuration file is loaded. The device reboots. Don't unplug the device during this rebooting process. Once the reboot is complete, launch the dashboard.

Device Maintenance

The Device Maintenance area allows you to shut down and reboot your WD My Cloud Mirror device. This area also displays the amount of time the device has been up and running.

Device Maintenance Device Power Shutdown Reboot Device Uptime 0 day 0 hour 10 minutes

Shutting down the Device

Use the following steps to safely shut down your WD My Cloud Mirror device.

1. In the Device Maintenance area, click Shutdown.
2. Review the confirmation message and then click OK. Your WD My Cloud Mirror safely shuts down.

Rebooting the Device

1. In the Device Maintenance area, click Reboot.
2. Review the confirmation message and then click OK. Your WD My Cloud Mirror safely reboots.

Scan Disk

The Scan Disk area allows you to scan your device's hard disks for any errors.

Scan Disk Volume All Volume(s) Scan Disk

Scanning Your Disk

Use the following steps to run a disk scan on your WD My Cloud Mirror device.

1. In the Scan Disk area, select the volume you'd like to scan from the drop-down menu.
2. Click Scan Disk.
3. Review the confirmation message and click OK. Your WD My Cloud Mirror is scanned for disk errors.

Format Disk

The Format Disk area allows you to format your device's hard disks.

Format Disk Volume All Volume(s) Format Disk

Formatting Your Disk

WARNING! The Format Disk option erases all of the user data and shares permanently, retaining default shares. Data recovery programs cannot be used to restore data; all user data and shares are permanently deleted.

Formatting your disk will take several hours to complete.

Use the following steps to format the disks on your WD My Cloud Mirror device.

1. In the Format Disk area, select the volume you'd like to format from the drop-down menu.
2. Click Format Disk.
3. Review the confirmation message, select the check box, and click OK. Your WD My Cloud Mirror is formatted.

Creating an ISO Image

An ISO image is a file that is an exact copy of an existing file system. Use the following steps to create an ISO image.

1. On the Navigation bar, click Settings and then click ISO Mount.
2. Click Create ISO Image.

Create ISO Image Image Size CDROM(650MB/74MIN) Image Path Browse Image Name Cancel Next

1. In the Image Size field, select the image size you'd like to use for your ISO image.
2. In the Image Path field, enter the path for the data you'd like to image or click Browse, select the folder you'd like to image and then click OK.
3. In the Image Name field, enter a name for your ISO image.
4. Click Next.

Create ISO Image Select the content(s) you wish to add to the ISO file from the volume(s) Select Overwrite Skip Total Space 650M Used Space 856.0k Public N2BGet Shared Music Shared Pictures Shared Videos nugart DS_Store New SmartWare TimeMachineBackup Human_Resource Marketing Add>> < 7. In the Select field, click one of the following: - Overwrite: When overwrite is selected, files with the same name will be overwritten. - Skip: When skip is selected, files with the same name will not be skipped. 8. Select the folders and files you'd like to add to your image file in the left column and then click Add>>. 9. Select the folders and files that you'd like to remove from the ISO image and then click < Create ISO Image Creating ISO image. Do not turn off the WD My Cloud Mirror device during this process. Creating ISO image. 100% Finish

1. Click Finish.

Creating an ISO Share

Use the following steps to create an ISO share.

1. On the Navigation bar, click Settings and then click ISO Mount.
2. Click Create ISO Share.

Create ISO Share Public SmartWare TimeMachineBackup Human_Resource Marketing Technical Support Cancel Next

1. Browse to the ISO file you'd like to include in your ISO share and place a check next to the file.
2. Click Next.

Create ISO Share Share Name Image1 Share Description Back Cancel Next

1. Enter a description for your ISO share and click Next.

Create ISO Share Enable Media Serving III OFF FTP Access III OFF ⓘ WebDAY Access III OFF ⓘ Back Cancel Next

1. Complete the following fields:

- Enable Media Serving: To enable Media server for the ISO Share, click the toggle button .

- FTP Access: To enable FTP Access for the ISO Share, click the toggle button .

WebDAV Access: To enable WebDAV Access for the ISO Share, click the toggle button III.

Note: If FTP Access or WebDAV access are disabled for the device, the FTP Access and WebDAV Access fields will be grayed out.

1. Click Next.

Create ISO Share NFS Access III OFF i Back Cancel Save

1. Click the toggle button to enable NFS Access for the ISO Share.

Note: If NFS Access is disabled for the device, the NFS Access fields will be grayed out.

1. Click Save. Your ISO Share is created.

Viewing the Details of an ISO Share

Use the following steps to modify an ISO share.

1. On the ISO Mount screen, select Details next to the ISO Share that you'd like to view.

ISO Share List Image1 Details Create ISO Image Create ISO Share

1. Review the ISO Share details and click Close.

Image1's Detail Share Name Image1 Share Description Share 1 File Path Volume_1/Public/Shared Pictures/My Pictures/Image1.so Enable Media Serving Yes FTP Access No NFS Access No WebDAV Access No Close

Modifying an ISO Share

Use the following steps to modify an ISO share.

1. On the ISO Mount screen, select 📋 next to the ISO Share that you'd like to modify.
2. Make any necessary changes and click Save.

Delete an ISO Share

Use the following steps to delete an ISO share.

1. On the ISO Mount screen, select 📋 next to the ISO Share that you'd like to delete.
2. Review the confirmation message and click OK. The ISO Share is deleted and removed from the ISO Share List.

Notifications

The WD My Cloud Mirror device provides notifications about various events, such as firmware updates, the success of firmware installations, and system shutdowns.

Notifications display in the Alert area at the top of the screen and are also available by email, depending on how your device is configured (for additional information on Alerts, see "Managing Alerts" on page 67).

The Notification page allows you to set up email addresses for up to five users who will receive notifications, set up SMS alert messages for mobile devices, and set the level of alert for which you will be notified

Shares Cloud Access Backups Storage Apps Settings Settings General Network Media Utilities Notifications Firmware Update Notifications Email Alert emails OFF SMS OFF Notifications Display Show notifications for the following messages Critical Only Critical and Warning All

Notifications Email

The Notification Email area allows you to set up email alerts and SMS notifications for specified users.

Notifications Email Alert emails ON III Configure>> SMS ON III Configure...

Enabling Email Alerts

1. On the Navigation bar, click the Settings icon and click Notifications on the left pane.
2. To enable Alert emails, click the toggle button to on.
3. Click Configure.
4. On the Alert Notification screen, use the slider bar to select the level of alerts you'd like to receive by email:

Critical Only: Send only critical alerts to the specified email address.
- Critical and Warning: Send both critical and warning alerts to the specified email address.
All: Send all alerts (Informational, Critical, Warning) to the specified email address.

1. Click New Email.

2. Enter the email address where you'd like to receive alert emails and click Save.

3. Repeat steps 5 - 6 to enter up to 5 email addresses.
4. Click Send Test Email to validate the email addresses you entered.
5. Click OK and then check your email for a validation email.

Enabling SMS Notifications

Note: Check with your SMS service provider to obtain their requirements for sending SMS messages. Certain carriers may require you to send SMS/text messages by email.

1. On the Navigation bar, click the Settings icon and click Notifications from the left pane.
2. To enable SMS, click the toggle button .
3. Click Configure.
4. On the SMS Settings screen, enter the name of your SMS provider.
5. Enter the SMS URL with the message content set to be "Hello world"

Note: This SMS URL is used only for setup. No SMS message will be sent after setup is completed. Obtain the URL format requirements from your SMS service provider. They should contain the following parameters: username, password, destination phone, and message content.

1. Click Next.
2. Select the corresponding category for each SMS parameter from the drop-down menu.
3. Click Finish. Your SMS notification is now set up.

Notification Display

The Notification Display allows you to select the type of notifications that are sent to you.

Notifications Display Show notifications for the following messages Critical Only Critical and Warning All

1. On the Notification Display screen, using the slider bar, select the level of notifications you'd like to view:

■ Critical Only: Send only critical alerts.
■ Critical and Warning: Send both critical and warning alerts.
■ All: Send all alerts (Informational, Critical, Warning).

The system automatically updates with your selection.

Firmware Update

The Firmware Update page allows you to set up the device to update the My Cloud Mirror firmware automatically or to manually check for an update file. The current version number and the date of last update of the firmware also display on this screen.

Shares Cloud Access Backups Storage Apps Settings General Network Media Utilities Notifications Firmware Update Auto Update Enable Auto Update ON Update Schedule Daily 3:00 AM Available Updates New Firmware Check for Updates Current Version 1.01.02 Last Update Tuesday, January 07, 2014 5:50:40 PM Manual Update Firmware Image Update from File

Auto Update

Auto Update allows you to schedule your WD My Cloud Mirror device to conveniently check for available software updates and install them automatically. This is the easiest way of ensuring the WD My Cloud Mirror firmware is current.

Note: After a firmware update installs, the WD My Cloud Mirror device reboots. Since a reboot affects users' ability to access the cloud, schedule the updates to occur at times when the likelihood of users accessing the cloud are minimal.

Note: If you enable Auto Update, you are asked to manually reboot your system when the update is completed.

Auto Update Enable Auto Update ON III Update Schedule SUN 12:00 PM

Updating Firmware Automatically

1. To enable Auto Update, click the toggle button ■ to ON.

2. In the Update Schedule field, from the drop-down lists, specify the frequency (e.g., daily) and the time at which the device should look for an update on the WD website.

3. Click Save.

Once saved, your device will check for firmware updates at the specified time and day. If an update is available, it will automatically install and prompt you for a reboot.

Available Updates

You can check for available updates at any time in the Available Updates area. This area also displays the current version of the firmware and indicates when the last firmware update was made.

Available Updates New Firmware Check for Update Current Version 1.00.44 Last Update N/A

Checking for Updates

1. In the New Firmware field, click Check for Updates.
2. Review the Update Firmware screen and click OK.
   If an update is available, click Install and Reboot.

New firmware available Firmware Update version found: 1.00.65 Firmware Release Notes Cancel Install and Reboot

Manual Update

Follow this procedure to perform a manual update.

Note: Ensure that you've downloaded the firmware file you need to install on your device from the WD Tech Support Downloads page at http://support.wd.com/product/download.asp.

Manual Update Firmware Image Update from File

Manually Installing an Update

1. In the Manual Update section, click Update from File.
2. Navigate to the firmware update file and click Open.
3. Review the confirmation message and click OK. The update installs on your device. When the update is complete, your WD My Cloud Mirror device reboots.

12

Replacing a Drive

Identifying a Faulty Hard Drive Replacing a Drive Rebuilding the Drive Returning a WD Drive

The My Cloud Mirror device is a limited user-serviceable product that allows you to replace the hard drives in the enclosure. You can use WD hard drives or another brand's hard drive.

Note: For a complete list of compatible "Returning a WD Drive" on page 135drives, visit wd.com/mycloudmirror

Important: For best performance, WD recommends inserting WD Red™ hard drive assemblies into the unit's enclosure. Visit support.wdc.com and search the knowledge base for Knowledge Base Answer ID 8 to get detailed instructions on obtaining a replacement drive for this product.

Following are instructions for replacing a faulty drive or, if your WD My Cloud Mirror model did not come with drives, for inserting drives.

Identifying a Faulty Hard Drive

If the LEDs on the unit are flashing or you have received an alert, a hard drive may be faulty. To determine which drive is faulty, do the following:

1. On the dashboard's navigation panel, click Storage and then Disk Status.

Home Users Shares Cloud Access Backups Storage Storage RAID Disk Status Disks Profile Disk Health Healthy System Disks Drive1 3 TB Bed SMART Data Drive2 2 TB Good SMART Data

1. If one of the drives is Bad or has Failed, select it and view detailed information on the Hard Drive Information dialog box:

Change RAID Mode Drive1 2 TB Good Drive2 3 TB Bad Back Cancel Next

Note: The drive number corresponds to the 1 or 2 decal on the drive.

In the event a fault occurs, and you would like to service the device yourself, visit WD Technical Support at support.wdc.com and search for Knowledge Base Answer ID 8 to obtain detailed instructions on obtaining a replacement drive. When contacting Technical Support, have the following information ready: the WD My Cloud Mirror device's serial number, date of purchase, and the serial number of the internal hard drive(s) requiring replacement.

Replacing a Drive

When replacing an existing drive, you may use a drive made by another company. For a list of compatible drives, go to wd.com/mycloudmirror.

Removing a Drive

Important: Before getting started, power off the unit and disconnect all of its cables. Place the unit on a clean and stable surface.

If the WD My Cloud Mirror still contains the faulty (drive), you must first remove it before you can insert the new one.

1. Reveal the hard drives by pressing the indented button on the top of the device and pulling up the door.
2. Remove the bracket used for holding drives in.
3. Pull the plastic tab at the back of the drive and with your other hand, guide the drive up and out of the enclosure.

Inserting a Drive

Important: To avoid electrostatic discharge (ESD) problems, ground yourself by touching metal before handling the device.

Preparing a Drive

For WD replacement drives, reuse the screws and tabs attached to the faulty drive.

Note: A standard phillips-head screwdriver is all you need.

Technical diagram showing exploded view of a computer case with labeled components and assembly steps

1. Using the parts from the faulty drive, attach a plastic tab to the top hole in the drive's side (on the right if the green board is facing you).
2. Attach a screw to the corresponding hole on the other side of the drive.
3. Attach label 1 or 2 to the top of the drive. Label 1 is on the left and label 2 is on the right, when looking down on the top of the unit. There are corresponding numbers on the cross brace label.

Inserting One or Both Drives

Technical line drawings of a device's internal components and assembly, showing four sequential steps with no text or symbols.

1. Press the indent on the top of the unit to open the door and remove the bracket that holds the drives in.
2. When looking down on the top of the unit with the front panel towards you, If you are inserting two drives, arrange them so that the connectors at the bottom face in. (The green boards should face each other.) If inserting one drive, the green board faces the middle of the unit.
3. Gently slip a drive into the slot. Make sure the plastic tab is sticking up at the back of the unit. Repeat with the other drive, if applicable.
4. Screw the bracket over the tops of the drives. Close the door and firmly push down until it locks into place.
5. Reconnect the network and power cables to the device.

Rebuilding the Drive

Depending on the RAID settings, the replacement drive may rebuild automatically, or you may need to rebuild it manually.

If any type of RAID and Auto-Rebuild have been set on the Storage Screen, the drive rebuilds automatically. If Auto-Rebuild has not been set, the rebuild results are as follows:

If RAID is... Then...
RAID 0	The data on the volume will no longer be accessible and must be recreated.1. Rebuild the drive. See “RAID Storage” on page 89.2. Reload data from a backup or the original source.
RAID 1	Data is mirrored to the second drive in the volume and is still accessible.Data is recoverable from the working good drive.1. Rebuild the drive. See “RAID Storage” on page 89
Spanning Data on	the volume is no longer accessible. Data on the other drive may be recoverable but will no longer be accessible from the WD My Cloud Mirror device.1. Rebuild the drive. See “RAID Storage” on page 89.2. Reload data from a backup or the original source.
JBOD	Data on the volume is no longer accessible. Data on other volumes is still accessible.1. Rebuild the drive. See “RAID Storage” on page 892. Reload data from a backup or the original source.

For more information about rebuilding a replacement drive, search the WD Knowledge Base for Knowledge Base Answer ID 11107.

Returning a WD Drive

Important: Do not disassemble the internal drive and attached assembly components. Return the entire internal drive assembly intact to WD.

Return the faulty drive following the instructions provided in WD Knowledge Base Answer ID 8.

Regulatory and Warranty Information

Regulatory Compliance

Warranty Information (All Regions Except Australia/New Zealand)

Warranty Information (Australia/New Zealand only)

Regulatory Compliance

Federal Communications Commission (FCC) Class B Information

Operation of this device is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC Requirements, Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and the receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the retailer or an experienced radio/television technician for help.

Any changes or modifications not expressly approved by WD could void the user's authority to operate the equipment.

ICES/NMB-003 Compliance

This device complies with Canadian ICES-003 Class B.

Safety Compliance

Approved for US and Canada. CAN/CSA-C22.2 No. 60950-1, UL 60950-1: Safety of Information Technology Equipment.

Approver pour els Etas-Units et el Canada. CAN/CSA-C22.2 No. 60950-1: Secret equipment DE technologie de l'information.

This product is intended to be supplied by a listed limited power source, double insulated, or direct plug-in power unit marked "Class 2."

CE Compliance for Europe

Verified to comply with EN55022 for RF emission; EN-55024 for Generic Immunity, as applicable; and EN-60950 for Safety.

GS Mark (Germany only)

KC Notice (Republic of Korea only)

Class B Device Please note that this device has been approved for non-business purposes and may be used in any environment, including residential areas.

Korean KCC certification ID: MSIP-REM-WDT-D8C

VCCI Statement

Environmental Compliance (China)

Warranty Information (All Regions Except Australia/New Zealand)

Obtaining Service

WD values your business and always attempts to provide you the very best of service. If this Product requires maintenance, either contact the dealer from whom you originally purchased the Product or visit our product support Web site at http://support.wd.com for information on how to obtain service or a Return Material Authorization (RMA). If it is determined that the Product may be defective, you will be given an RMA number and instructions for Product return. An unauthorized return (i.e., one for which an RMA number has not been issued) will be returned to you at your expense. Authorized returns must be shipped in an approved shipping container, prepaid and insured, to the address provided on your return paperwork. Your original box and packaging materials should be kept for storing or shipping your WD product. To conclusively establish the period of warranty, check the warranty expiration (serial number required) via http://support.wd.com. WD shall have no liability for lost data regardless of the cause, recovery of lost data, or data contained in any Product placed in its possession.

Limited Warranty

WD warrants that the Product, in the course of its normal use, will for the term defined below, be free from defects in material and workmanship and will conform to WD's specification therefor. The term of your limited warranty depends on the country in which your Product was purchased. The term of your limited warranty is for 2 years in the North, South and Central America region, 2 years in the Europe, the Middle East and Africa region, and 2 years in the Asia Pacific region, unless otherwise required by law. The term of your limited warranty period

shall commence on the purchase date appearing on your purchase receipt. WD may at its discretion make extended warranties available for purchase. WD shall have no liability for any Product returned if WD determines that the Product was stolen from WD or that the asserted defect a) is not present, b) cannot reasonably be rectified because of damage occurring before WD receives the Product, or c) is attributable to misuse, improper installation, alteration (including removing or obliterating labels and opening or removing external enclosures, unless the product is on the list of limited user-serviceable products and the specific alteration is within the scope of the applicable instructions, as found at http://support.wd.com, accident or mishandling while in the possession of someone other then WD. Subject to the limitations specified above, your sole and exclusive warranty shall be, during the period of warranty specified above and at WD's option, the repair or replacement of the Product with an equivalent or better Product. The foregoing warranty of WD shall extend to repaired or replaced Products for the balance of the applicable period of the original warranty or ninety (90) days from the date of shipment of a repaired or replaced Product, whichever is longer.

The foregoing limited warranty is WD's sole warranty and is applicable only to products sold as new. The remedies provided herein are in lieu of a) any and all other remedies and warranties, whether expressed, implied or statutory, including but not limited to, any implied warranty of merchantability or fitness for a particular purpose, and b) any and all obligations and liabilities of WD for damages including, but not limited to accidental, consequential, or special damages, or any financial loss, lost profits or expenses, or lost data arising out of or in connection with the purchase, use, or performance of the Product, even if WD has been advised of the possibility of such damages. In the United States, some states do not allow exclusion or limitations of incidental or consequential damages, so the limitations above may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Warranty Information (Australia/New Zealand only)

For consumers purchasing products in Australia and New Zealand, please refer to this warranty information.

Nothing in this warranty modifies or excludes your legal rights under the Australian Competition and Consumer Act or the New Zealand Consumer Guarantees Act. This warranty identifies WD's preferred approach to resolving warranty claims which is likely to be quick and simple for all parties.

No other warranties either express or implied by law, including but not limited to those contained in the Sale of Goods Act, are made with respect to the Product. If you purchased your Product in New Zealand for the purposes of a business, you acknowledge and agree that the New Zealand Consumer Guarantees Act does not apply.

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if goods fail to be of acceptable quality and the failure does not amount to a major failure. What constitutes a major failure is set out in the Australian Consumer Law.

Warranty

WD warrants that the Product, in the course of its normal use, will for the term defined below, be free from defects in material and workmanship and will conform to WD's specifications. The term of your warranty is 2 years in Australia and New Zealand, unless otherwise required by law. The term of your warranty period shall commence on the purchase date appearing on your purchase receipt from an authorized distributor or authorized reseller. Proof of purchase shall be required to be eligible for this warranty and to establish the commencement date of this warranty. Warranty service will not be provided unless the Product is returned to an authorized distributor, authorized reseller or regional WD return center where the Product was first shipped by WD. WD may at its discretion make extended warranties available for purchase. WD shall have no liability for any Product returned if WD determines that the Product was (i) not purchased from an authorized distributor or authorized reseller, (ii) not used in accordance with WD specifications and instructions, (iii) not used for its intended function, or (iv) stolen from WD, or that the asserted defect a) is not present, b) cannot reasonably be rectified because of damage occurring before WD receives the Product, or c) is attributable to misuse, improper installation, alteration (including removing or obliterating labels and opening or removing external enclosures, including the mounting frame, unless the product is on the list of limited user-serviceable products and the specific alteration is within the scope of the applicable instructions, as found at http://support.wd.com, accident or mishandling while in the possession of someone other then WD.

PRODUCTS ARE COMPLEX AND FRAGILE ITEMS THAT MAY OCCASSIONALY FAIL DUE TO (A) EXTERNAL CAUSES, INCLUDING WITHOUT LIMITATION, MISHANDLING, EXPOSURE TO HEAT, COLD, AND HUMIDITY, AND POWER FAILURES, OR (B) INTERNAL FAULTS. SUCH FAILURES CAN RESULT IN THE LOSS, CORRUPTION, DELETION OR ALTERATION OF DATA. NOTE THAT YOU SHALL BE RESPONSIBLE FOR THE LOSS, CORRUPTION, DELETION OR ALTER A HOWSOEVER CAUSED, AND FOR BACKING UP AND PROTECTING DATA AGAINST LOSS, CORRUPTION, DELETION OR ALTERATION. YOU AGREE TO CONTINUALLY BACK UP ALL DATA ON THE PRODUCT, AND TO COMPLETE A BACKUP PRIOR TO SEEKING ANY GENERAL SERVICE AND TECHNICAL SUPPORT FROM WD.

In Australia, if the Product is not of a kind ordinarily acquired for personal, domestic or household use or consumption, provided it is fair and reasonable to do so, WD limits its liability to replacement of the Product or supply of equivalent or better Product.

This warranty shall extend to repaired or replaced Products for the balance of the applicable period of the original warranty or ninety (90) days from the date of shipment of a repaired or replaced Product, whichever is longer. This warranty is WD's sole manufacturer's warranty and is applicable only to Products sold as new.

Obtaining Service

WD values your business and always attempts to provide you the very best of service. Should you encounter any problem, please give us an opportunity to address it before returning this Product. Most technical support questions can be answered through our knowledge base or email support service at http://support.wd.com. If the answer is not available or, if you prefer, please contact WD at the applicable telephone number shown in the front of this document.

If you wish to make a claim, you should initially contact the dealer from whom you originally purchased the Product. If you are unable to contact the dealer from whom you originally purchased the Product, please visit our product support Web site at http://support.wd.com for information on how to obtain service or a Return Material Authorization (RMA). If it is determined that the Product may be defective, you will be given an RMA number and instructions for Product return. An unauthorized return (i.e., one for which an RMA number has not been issued) will be returned to you at your expense. Authorized returns must be shipped in an approved shipping container, prepaid and insured, to the address provided with your RMA number. If following receipt of a qualifying claim under this warranty, WD or the dealer from whom you originally purchased the Product determines that your claim is valid, WD or such dealer shall, at its discretion, either repair or replace the Product with an equivalent or better Product or refund the cost of the Product to you. You are responsible for any expenses associated with a claim under this warranty. The benefits provided to you under this warranty are in addition to other rights and remedies available to you under the Australian Competition and Consumer Act or the New Zealand Consumer Guarantees Act.

Your original box and packaging materials should be kept for storing or shipping your WD product. To conclusively establish the period of warranty, check the warranty expiration (serial number required) via http://support.wd.com.

Western Digital Technologies, Inc.

3355 Michelson Drive, Suite 100

Irvine, California 92612

Phone: [phone]

Email: [e-mail]

Appendices

Appendix A: WD My Cloud Mirror Quick User Guide
Appendix B: Joomla!® Setup Guide
Appendix C: phpBB Setup Guide
Appendix D: Supported RAID Modes
Appendix E: RAID Migrations
Appendix F: Safe Mode Firmware Update Procedures
Appendix G: Technical Specifications

Appendix A: WD My Cloud Mirror Quick User Guide

This guide is primarily for WD My Cloud Mirror users, rather than the administrator.

Logging into WD My Cloud Mirror

1. Enter the name of your WD My Cloud Mirror device (default name: wdmycloudmirror) in the browser's address field:

2. http:// (Windows) (Example: http://wdmycloudmirror)

3. http://.local (Mac) (Example: http://wdmycloudmirror.local)

4. Click Go.

My Cloud Mirror User admin Password Remember Me Login

1. On the WD My Cloud Mirror Login page, enter your User name and Password (the default is no password).
2. Click Login. The WD My Cloud Mirror dashboard home page displays.

The Dashboard Home Page

The WD My Cloud Mirror Home page has an information bar at the top right, a navigation icon bar across the page, an instant overview of the status of the device's main functions and links for updating settings.

WD My Cloud Mirror Home Users Shares Cloud Access Backups Storage Information Icons Navigation Icons Capacity 2.00TB FREE Device Diagnostics Healthy Hardware 1.01.06 Status and update

Navigation Icons

Icon Name Actions
	Home	The dashboard displays an instant overview of the status of the device's main functions and links for updating settings.
	Users	Create, change, and delete users and grant them full or limited access to particular shares.
	Shares	Create, change, and delete shares (folders) and grant specific users full, limited, or no access to particular shares.
	Cloud Access	Set up, change, and remove remote cloud access to particular shares. Monitor remote access status.
	Backups	Create backups to:• A U S B d r i v e• Another WD My Cloud Mirror or a WD My Cloud EX4 on your local network or on a remote network• A Cloud backup site
	Storage	Select the way your WD My Cloud Mirror device stores your data.
	Apps	Add or remove various apps that allow you to use your device more productively.
	Backups	Create backups to:• A U S B d r i v e .• Another WD My Cloud Mirror or other WD My Cloud device on your local or a remote network.• A Cloud backup site.

Viewing the Home Page

The Home page is your gateway to the WD My Cloud Mirror device. From this page you can find:

■ The capacity of the device
■ Quick status and links to download information
■ Links to desktop and mobile apps
■ Built-in apps to make your device more productive

Capacity 5.93TB FREE Quick Status Total FTP Downloads 0 Total HTTP Downloads 0 Total P2P Downloads WO My Cloud Desktop WOMyCloud and WDphotos FTP Downloads 0 HTTP Downloads 0 P2P Downloads 0 Applications 9

Capacity

The Capacity panel displays the amount of free storage left on your WD My Cloud Mirror device.

Capacity 5.93TB FREE

1. To see detailed information, click the arrow in the lower right to display the current usage of the drive's capacity:

1. To return to the Home page, click Close.

Quick Status

Note: Displays for users not the administrator.

The Quick Status area displays the total number of FTP, HTTP, and P2P downloads performed.

Quick Status Total FTP Downloads 0 Total HTTP Downloads 0 Total P2P Downloads

Cloud Access Links

Note: Displays for users not the administrator.

The Cloud Access Links allow you to access the software necessary to gain access to the WD My Cloud Mirror device from your desktop and mobile apps.

WD My Cloud Desktop WDMyCloud and WDphotos

Downloads and Apps Information

Note: Displays for users not the administrator.

The Downloads and Applications area displays information on the number of downloads and apps available on your device.

FTP Downloads 0 HTTP Downloads 0 E2P Downloads 0 Applications 8

1. To access the page associated with each download or applications, click the plus sign + or arrow >.
2. In the left pane, click a download method.
3. To download files to your location, enter the information required for each download method.

Apps □□

The Apps page provides access to the various apps available for your use on the WD My Cloud Mirror device. Available apps vary depending on what your administrator has implemented.

Users Shares Cloud Access Backups Storage Apps Apps HTTP Downloads FTP Downloads P2P Downloads Web File Viewer HTTP Downloads URL: Test Save To: Browse Rename: Recurring Backup OFF When: Date: 02/13/2014 Time: 11AM 10 Create HTTP Downloads Queue

Appendix B: Joomla!® Setup Guide

Joomla! is an award-winning content management system (CMS) that allows you to build Web sites and powerful online apps. For additional information on Joomla!, visit http://www.joomla.org//

Joomla! is one of the many apps available for use from your WD My Cloud Mirror device. Provided in this section are the steps you'll need to set up Joomla!.

Requirements

• Database (e.g., MySQL, FireBird, MS SQL server, Oracle, PostgreSQL, SQLite)
  If you're using phpMyAdmin as your SQL database, ensure that you've added the phpMyAdmin app to you My WD Cloud Mirror.

Setting Up Joomla!

1. Add the Joomla! app to your WD My Cloud Mirror device (see "Adding an App" on page 86 for information on adding an app to your device).
2. On the App screen, click Joomla! in the left pane.

3. In the Configuration URL field, click the configuration URL link. The Joomla! Installation page displays.

4. Select a language from the scrolling window. This is the language that will be used during Joomla! installation.

Joomla! 2.5.6 Installation Choose language Select Language Please select the language to use during the Joomla' installation choice. Africa (South Africa) Arabic Unibagi (Budan) Azarkayama (Azerbaijan) Benayacran (Benayacn) Bulganan (Burgaron) Dengsh (Bangladesh) Bosinski (Bosai) Catalin Kurdish Sorali (Ludan) Czech (Czech republic) Danish (Dak) German (DE-OHAT) Greek English (Australia) English (United Kingdom) English (United Kingdom) Experanto Spanish (Esperanto) Estoman Eustare (Basque) Joomla! is free software released under the GNU ServerPublic License.

1. Click Next.
2. Review the Joomla! Pre-installation check to ensure that all items passed and click Next.

Joomla! 2.5.6 Installation Pre-Installation Check Pre-installation check for Joomla 2.5.6 Stable [ Ember ] 19 June-2012 14:00 GMT: If any of these items is not supported (started as Web) then please take actions to correct them. Failure to do so could lead to your .Joomla installation not maintaining continuity. PHP Version 1 >> 3.2.4 Zio Compression Support VIA Support Debugless Support (Shrak) HS Language is Default HS String Overload Off INS Filler Support JSOUI Support configuration.php?wbleable Recommended settings: These settings are recommended for PHP in order to ensure full compatibility with Joomla. Assistant, Joomla will still operate if your settings do not quite match the recommended. Directive Safe Note Display Strains File Uploads Magic Guide Kurline Magic Guide IPC Register Guide Outdoor Running Session Auto Start Native DP support Recommended off off On Off Off Off Off Off Off Off Off Actual on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on on On On On

1. Read the Joomla! license declaration and click Next.

Joomla! 2.5.6 Installation Steps 1: Language 2: Pre-installation check 3: license 4: Database 5: ITP Configuration 6: Configuration 7: link License GNU GENERAL PUBLIC LICENSE Table of Contents • One GENERAL PUBLIC LICENSE • Practice • Terms AND CONSTRUCTION FOR COPYING, DISTRIBUTION AND SPECIFICATION • How to Apply These Terms in Your New Programa GNU GENERAL PUBLIC LICENSE Version 2 June 1991 Copyright (C) LXXX, 1991 Free Software Foundation, Dec... At Simple Flase = Build 800, Norton, MO - 0010-1207, USA Everyone is permitted in copy and distributed replication copies of this license document, but changing it is not allowed. Spreadable The licenses for most software are designed to take away your freedom share and change it. By context, the GNU General Public License is intended to guarantee your freedom to share and change free software to make such the software in free for all users. This General Public License applies to the use of the Free Software Foundation's software and it is any other program whose author comit is using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License needed). You can apply to your programs, etc. Other we speak of free software, we are referring to freedom not price. Our General Public Licensee are designed to make sure that you have the freedom to distribute copies of free software (and change for this service if you want), that you receive source code or can get if you want it. What you can change the software or use process of it in new free programs, and that you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you for surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether rights or for a fee you must give the recipients all the rights that you have. You must make sure that they, this reserve or can get the source code. And you must show them these terms so they know their rights. We protect your rights with low steps (1) copyright the software, and (2) offer you the license which gives you legal permission to buy, distribute and/or modify the software. Also, for each authority protection and sure, we want to make sure that everyone understands that there is no warranty for the free software. If the software is modified by someone else and passed on, we want to receive a note that what they have is not the original, so that any problems introduced by others will not reflect or the original authors' regulations. <|vision_start|> Zimbabwe & Free software released under the GNU General Public License.

1. Complete the Database Configuration screen with the following information and click Next.

2. Database Type: Select MySQL if not already selected.

3. Host Name: Enter localhost.

- Username: Enter your MySQL account user name.

- If you're using the phpMyAdmin app, enter admin.

- Password: Enter your MySQL password.

- If you're using the phpMyAdmin app, enter admin.

- Database Name: Enter a name for your database to be used for Joomla!.

- Table Prefix: Enter a table prefix. The prefix should be three - four characters long, contain only alphanumeric characters, and MUST end in an underscore. Make sure that the prefix chosen is not used by other tables.

- You can also use the randomly generated table prefix pre-loaded into this field.

- Old Database Process: Select one of the following options:

- Backup: Backs up the old database.

- Remove: Removes the old database

Jcomial 2.5.6 Installation Steps 1: Language 2: Pre-installation check 3: License 4: Software 5: ITP Configuration 6: Configuration 7: Hosts Database Configuration Connection Settings A Junctional vehicle shares of all its data in a database. This screen gives the installation program that information is needed to create this database. If you are installing Junctional on a remote web server, you will need to get this information from your host. Some with hosts require that you create the databases before you install Junction. If you get the message "Could not connect to the database", check that your user name and password are correct. If you will get this username, check with your host to see if you need to create the database before installing Junctions. Basic Settings Database Type * MySql Host Name * localhost Username * admin Password ****** Database Name * mydb1 Table Tools * 8x2000 Old Database Process * Backup Remove This is probably "MySQL" The 6 usually "Deather" Either something as "just" or a username given by the host Pre site security using a password for the email account is mandatory Some localities only a certain DB query site, use table profile in the case for distinct Junctional sites. Choose a note profile or use the randomly generated, static, time or fact characters, common and complement characters, and POST and in an umbrella. Make sure that the prefix chosen is not used by other tables. Any existing backup tables from former Junctional installators will be replaced

1. Keep the FTP Configuration screen default settings as they are and click Next.

Joomla1 2.5.6 Installation Steps 1: Language 2: Pre-installation check 3: License 4: Database 5: FTP-Configuration 6: Configuration 7: Finish FTP Configuration (Optional - Most Users Can Skip This Step - Press Next to Skip) FTP Configuration (Optional - Most Users Can Skip This Step - Press Next to Skip) Basic Settings Enable FTP Layer FTP Username: FTP Password: FTP Lost Path: Automated FTP Path Verify FTP Settings Advanced Settings Joomla1 2.5 free software released under the FTP General Public License.

1. Complete the Database Configuration screen with the following information:.

Site Name: Enter a name for your Joomla! site.
- Your Email: Enter the email address of the individual that will act as the administrator for the Joomla! site.
- Admin Username: Enter the user name you'll use to log into your Joomla! site.
- Admin Password: Enter the password you'll use to log into your Joomla! site.

- Confirm Admin Password: Reenter the password you entered in the Admin Password field.

Joomla! 2.5.6 Installation Steps 1: Language 2: Pre-installation check 3: License 4: Database 5: HTTP Configuration 6: Interactive 7: Textish Main Configuration Site Name Enter the name of your Joomla site. Content: You can also enter Meta Description and Meta keywords for your site. You have also decide if the site is front-end may be immediately available or not after this installation is complete. Name: Settings Site Name * My Joomla site * Advanced Settings - Optional Confirm the Admin email and Password. Enter your email address. This will be the email address of the site are hyper Administrator. Enter areas prepared and then confirm it in the appropriate fields. You may change the default version of software. There will be the Interactive and placement that you will use it to login to the Administrator Control Panel at the end of the installation. If you are migrating, you can ignore this section. Your current settings will be automatically required. Your Email * Admin Username * Admin Password * Confirm Admin Password * Load sample data Important: It's strongly recommended that new Joomla users install the default sample data. To do this click or the button before removing to the next stage. 1. Sample data before leaving the installation, you can regulate the site database with data. There are few ways to do this. 1a. Default sample data can be corrected. To do this, please ensure the Default English (UI) Sample Data is displayed in the installed and did the Default Sample Data button. 1b. Custom sample data can be corrected. To do this, choose an available sample data in the installed and did the Initial Sample Data button. 2. Clean Installation: If you call to perform a clean installation, enter the site name, admin-natal and throw a password. Then proceed to the final site by clicking Next. Sample Data set Default English (GB) Sample Data Install Sample Data Existing sample data is strongly recommended for beginners. The will install sample content thus included in the Joomla installation package. Similar to a free software released under the GNU General Public License.

1. Click Install Sample Data.
2. Click Next.
3. Review the information on the screen and click Remove installation folder.

Joomla! 2.5.6 Installation Steps 1: Language 2: Pre-installation check 3: License 4: Database 5: FTP Configuration 6: Configuration 7: License Finish site ADMINISTRATION Congratulations! Joomla is now installed. Click the Site button to view your Joomla Web site or the Admin Button to take us to your administrator log. On the Joomla Community Site, you will find a lot of links to available language cards or web articles to language related resources on the Joomla.org families of sites. Click the button on the right to open the Community Site in a new window. PLEASE REMEMBER TO COMPLETELY REMOVE THE INSTALLATION FOLDER. You will not be able to proceed beyond this point until the installation directory has been removed. This is a security feature of Joomla. Remove installation folder Administration Login Details Username : Delke Joomla is your own language? Not for Joomla Community Site for language packd downloads. Joomla is a free software released under the DPU General Public License.

1. At the top of this page, click Site. Your Joomla! site has been created and installed on your WD My Cloud Mirror device.

Joomla! Site Administrator

Appendix C: phpBB Setup Guide

phpBB™ is a popular Internet forum package written in the PHP scripting language. You can use phpBB to create your own customized forum that can be accessed and commented on from any Internet connection.

phpBB is one of the many apps available for use from your WD My Cloud Mirror device. Provided in this section are the steps you'll need to set up phpBB.

Requirements

- MySQL database

Setting Up phpBB

1. Add the phpBB app to your WD My Cloud Mirror device (see "Adding an App" on page 86).
2. On the App screen, click phpBB in the left pane.
3. In the Configuration URL field, click the configuration URL link. The phpBB Installation page displays.
4. Review the phpBB introduction and click the Install tab.

php83 Introduction Welcome to php83 php83™ is the most widely used open source bulletin board solution in the world. php83 is the latest installment in a package line started in 2006. Like its predecessors, php83 is features-rich, user-friendly, and fully supported by the php83 team. php83 grows improves on what made php83 popular, and adds clemons requested features that were not present in previous versions. We hope it exceeds your expectations. This installation system will guide you through installing php83, updating to the latest version of php83 from past revisions, as well as converting to php83 from a different discussion board system (including php83). For more information, we encourage you to read the installation guide. To read the php83 license or learn about obtaining support and our stance on it, please select the respective options from the side menu. To continue, please select the appropriate tab above.

1. Review the Welcome to Installation information on your screen and click Proceed to next step.

php36 DESIGN INSTALL CONTACT Installation Panel Select Options Next Digital ▼ Change Introduction Requirements Database settings Administrator settings Configuration file Automated settings Create database tables Free steps Welcome to Installation with this option, it is possible to install php36 into your server. In order to proceed, you will need your database settings. If you do not know your database settings, please contact next host and ask for them. You will not be able to confirm without them. You need: • The Database Type - the database you will be song... • The Database server Hostname or IDN - the ports of the database server... • The Database server port - the port of the database server (most of the time this is not needed). • The Database name - the name of the database on the server... • The Database username and Database password - the log clock to access the database. Note: If you are installing using SQL's, you should enter the MS path to your database file in the OSN field and leave the username and password fields blank. For security reasons, you should make sure that the database file is not stored in a location accessible from the web. php36 supports the following databases: • MySQL 3.23 or above (MySQL) supported • PostgreSQL 7.3+ • SQLite 2.4.2+ • Finished 2.1+ • MS SQL Server 2001 or above (Microsoft or via USB) • MS SQL Server 2005 or above (Java) • Oracle Only those databases supported on your server will be displayed. Proceed to next step Preview to php36 Forum Software & admin Store

1. Review the Installation compatibility information and click Start Install.

Installation Panel Installation compatibility Before proceeding with the full installation profile will carry out their hands on our server performance and then return that you are able to install and install. Please continue to start through the website https://www.pvlp.com/ or your system, if you want to use one of the features depending on the optional details, you should always show that there is more than 50% of users available. PVP version and settings Recommended: The PVP version is a very small size (0.2) of PVP in order to build a model, if each file is displayed, however your PVP version is working in the order. The or more important features are available in the PVP version. PVP version is 0.2.2 PVP version version, designed as a device. PVP version is designed as a software version, which is recommended by the PVP version. It is also available in the PVP version. This is also available in the PVP version. The PVP version is available in the PVP version. The PVP version is available in the PVP version. The PVP version is available in the PVP version. The PVP version is available in the PVP version. The PVP version is available in the PVP version. The PVP version is available in the PVP version. The PVP version is available in the PVP version. The PVP version is available in the PVP version. The PVP version is available in the Q3P version. PVP version 0.2.2 PVP version 0.2.1 PVP version 0.2.0 PVP version 0.1.9 PVP version 0.1.8 PVP version 0.1.7 PVP version 0.1.6 PVP version 0.1.5 PVP version 0.1.4 PVP version 0.1.3 PVP version 0.1.2 PVP version 0.1.1 PVP version 0.1.0 PVP version 0.09 PVP version 0.08 PVP version 0.07 PVP version 0.06 PVP version 0.05 PVP version 0.04 PVP version 0.03 PVP version 0.02 PVP version 0.01 PVP version 0.00 Next need

1. On the Database configuration screen, enter the following information and click Proceed to Next Step.

- Database Type: Select MySQL if not already selected.

- Database server hostname or DSN: Enter localhost.

- Database server post: Leave this field blank.

- Database name: Enter a name for your database to be used for phpBB.

- Database username: Enter your MvSQL account user name.

- If you're using the phpMyAdmin app, enter admin.

- Database password: Enter your MySQL password.

- If you're using the phpMyAdmin app, enter admin.

- Table Prefix: Enter a table prefix. The prefix must start with a letter and must only contain letters, numbers and underscores. Make sure that the prefix chosen is not used by other tables.

You can also use the randomly generated table prefix pre-loaded into this field.

phpBB Installation Panel OVERVIEW INSTALL INSERT • Installment • Requirements Database settings Administrator details Configuration file Advanced settings Create database tables Total steps Database configuration Database type: MySQL Database server hostname or OSN: OSN stands for Data Source Name and is relevant only for 200C installs. On PostgreSQL, use localhost to connect to the local server via UCS domain socket and 1273.0.0.1 to connect via TCS. For SQLabs, enter the full path to your database file. Database server port: Leave this bank unless you know the server operates on a non-standard port. Database name: Database username: Database password: Prefix for tables in database: The prefix must start with a letter and must only contain letters, numbers and understores. pbbb_ Proceed to next step Powered by phpBB Project Software & pbbBB Group

1. Review the Database connection screen to ensure that it was performed successfully and click Proceed to next step.

phpBB INSTALL INSTALL ORDER • Introduction • Requirements •Database settings Administrator Supply Configuration file Advanced settings Create database tables Final stage Database connection Test connections Successful connection Proceed to next step Powered by phpBB Forum software © phpBB Group

1. Complete the Administrator Configuration screen with the following information and click Proceed to next step.

- Default board language: Select the language for your bulletin board from the drop-down menu.

- Administrator username: Enter the user name you'll use to log into your bulletin board.

- Administrator password: Enter the password you'll use to log into your bulletin board

- Confirm administrator password: Reenter the password you entered in the Administrator password field.

• Contact e-mail address: Enter the email address of the individual administering the board.
• Confirm contact e-mail: Reenter the email address you entered in the Contact e-mail address field.

php88 Installation Panel CONTENTS INSTALL COMPUTER Introduction Requirements Database settings Administrator details Configuration file Administrator setup Create database labels Final stage Administrator configuration Default board language: British English ▼ Administrator username: Please enter a username between 1 and 20 characters in length. Administrator password: Please enter a password between 6 and 30 characters in length. Customs administrator password: Contact e-mail address: Customs contact e-mail: Proceed to next step Powered by php888 Forum software @ php88 Group

1. Review the Administrator details screen to ensure that the administrator configuration was successful and click Proceed to next step.

phpGB OPRIVER INSTALL INSERT Installation Panel Configuration Requirements Database settings Administrator details Configuration for Advanced settings Create database tables Final steps Administrator details Check administrator settings Texts passed Proceed to next step Powered by phpGB Forum Software & phaite Linux

1. Review the screen and click Proceed to next step.

phpRB INSTALL INSTALL Configuration File Preced to next step Preced by phpRB Forum Software 2 phpRB Group Installation Panel #VALUE INSTALL CONVEI • Introduction • Requirements • Database settings • Administrator details +Configuration file Download settings Create databases keys Post steps

1. Review the information on the screen and click Proceed to next step.

Note: Keep the default settings on this screen for now. If you find that you need to update this information in the future, you can do so on the Administration Control Panel after phpBB is installed.

Installation Panel SUPPORT RETAIL CUSTOM • Initialization • Security updates • Default settings • Advanced settings • Advanced settings • Default settings below Pre-Stage The settings on the pages are only necessary to set if you know that any requires something different from the default. If you are versions, just approved to form next steps. As these settings can be allowed from the Administration Control Panel label. F-End settings 1) Please board order in terms. 2) This user is planning your profile and will not be sent by the friend at all. Note the user and admin account activation settings request (this setting to be requested). If currently, using "new" or "new" as a version, allowing this version call to request no activation of new versions. 3) Use SMS server for a week. 4) Select "Yes" if you start or end to test an email via a themed server instead of the local server function. 5) SMS server address: Authentication: Method for SMS: Only used if your password(please it will, ask your provider if you are previous which method to use) DNS service: Only uses a custom if your SMS server requests it. SMTP packets: Only uses a permission of your SMS server requests it. Message: This password will also install to other next of the displayed, available to completely when we can access your password or another user via configuration packet. Server URL settings Custom secure: If your server is running via SSL, then it is enabled after leave as disabled. Having this enabled but not running out SSL, then difficult to serve content during defaults. Forma server URL settings If you should have your settings defined here will be used in favor of the automatically determined versions. Server protocols: This is used as the server protocol if these settings are forced. If simply or not limited the protocol is determined by the creative security protocol (the 100% type) Domain name: This version enables the server name from the website as well as your own Server ports: This pair your server is running only, usually SSL, only changes if different. Report ports: This pair where printf is locked within the Windows system, e.g. some. Proceeds to next step Powered by phltp887 System software (e.pfpl887.com)

1. Review the information on the screen and click Proceed to next step.

phpBB INSIGHT METAL CONSTANT Installation Panel + Introduction + Requirements + Database settings + Administrator data + Configuration file + Advanced settings + Create database tables + Final steps The database tables used by phpBB 3.0 have been created and populated with some initial data. Proceed to the next screen to finish installingphpBB. Proceed to next step Powered by phpBB Forum Software (2 phpBB Forum)

1. Review the information on the screen. phpBB is now installed.

php88 INSTALLATION Panel OWNER INSTALL INSERT Congratulations! You have successfully installed php88 3.0.10. Please proceed by choosing one of the following options: Convert an existing board to php883 the.php88 threaded Converter Framework supports the conversion of php88 2.0.x and other board systems to php883. If you have an existing board that you wish to convert, please proceed to the converter. Go live with your php883! Clicking the button before will take you to inform for submitting statistical data to php88 in your Administration Control Panel (ACP). We would appreciate it if you could help us by sending that information afterwards you should take some time to assume the options available to you. Remember that help is available online via the Documentation. README and the Support Forums. Please delete, move or resume the install directory before using your Board. While this directory exists, only the Administration Control Panel (ACP) will be accessible. Login Powered by php883 Server Software & PhoR4 Group

Appendix D: Supported RAID Modes

The chart below identifies those modes that are supported for RAID storage.

Supported RAID Modes 1 Disk 2 Disks
Spanning No Yes
RAID 0 No Yes
RAID 1 No Yes
JBOD Yes Yes

Appendix E: RAID Migrations

The chart below identifies the RAID migration path allowed on your WD My Cloud Mirror device.

From To
JBOD (1 disk) RAID 1 (2 disks)

Appendix F: Safe Mode Firmware Update Procedures

If you see the following screen, use the steps outlined below to recover your server from safe mode.

Note: Before performing these steps, download WD My Cloud Mirror firmware from the WD support website (http://support.wd.com) and save it to a location to which you can browse from your computer. Make sure to unzip the firmware file.

1. Log on to your router's DHCP LAN/Device Client Table to obtain the IP address for your device.

Advanced Settings LAN / Device and Client Tables Host and LAN Settings DHCP Server Settings Device and Client Tables DHCP Client Table Wired/Wireless Devices

IP Address MAC Address Device Name Lease Time

1 192.168.6.111 70.73.cb:c1:d4 8b server 6 Day(s) 13 Hr(s) 48 Min(s) 12 Sec(s) 2 192.168.6.101 00 90:a9:37 dc:1f WDMyCloud 2 Day(s) 7 Hr(s) 58 Min(s) 11 Sec(s) 3 192.168.6.146 a4 1f:72:6e 15:fa test-PC 5 Day(s) 14 Hr(s) 17 Min(s) 10 Sec(s) 4 192.168.6.128 00 90:a9:66:57:9c WDMyCloudMirror 6 Day(s) 23 Hr(s) 59 Min(s) 52 Sec(s) 5 192.168.6.116 00 90:a9:66:57:9o WDMyCloudMirror 4 Day(s) 1 Hr(s) 23 Min(s) 47 Sec(s) 6 192.168.6.112 40.6c:8f:0c:16:23 server 3 Day(s) 18 Hr(s) 33 Min(s) 54 Sec(s) 7 192.168.6.132 00 90:a9:66:57:0a WDMyCloudMirror 3 Day(s) 22 Hr(s) 24 Min(s) 47 Sec(s) 8 192.168.6.120 00 90:a9:66:57:30 WDMyCloudMirror 5 Day(s) 18 Hr(s) 59 Min(s) 38 Sec(s)

1. Type device IP address in a browser window. The Safe Mode UI appears.

2. Browse to the location where you saved the downloaded firmware.

3. Click Apply to load the firmware.

4. On the dialog box, click OK. The device reboots.

5. Once your reboot is completed, ensure that you clear your browser's cache. Check your browser's help to determine the best way to clear the cache.

6. Once your device has completed the reboot, we recommend that you do a system restore ("System Restore" on page 121).

Appendix G: Technical Specifications

Ethernet High performance (100/1000) Gigabit Ethernet connection
Internal hard drives 2 WD Red 3.5-inch SATA hard drives
Supported protocols CIFS/SMB, NFS, FTP, AFP
I/O portsData transfer rate	Gigabit Ethernet (RJ-45) portUSB 3.0 up to 5 Gb/s*A USB 3.0 host and USB 3.0 certified cable are required to obtain USB 3.0 performance.
CompatibilityNote: Compatibility may vary depending on user's hardware configuration and operating system.	Operating systems:Windows 8.1 or earlierWindows 7Windows VistaWindows XP (32 bit) SP3Mac OS X MavericksMac OS X Mountain LionMac OS X LionMac OS X Snow LeopardBrowsers:Internet Explorer 8.0 or higher on supported Windows computersSafari 6.0 or higher on supported Mac computersFirefox 21 or higher on supported Windows and Mac computersGoogle Chrome 27 or higher on supported Windows and Mac computers
Physical dimensions
Width 3.90 in (99.06 mm)
Length 6.10 in (154.94 mm)
Height 6.75 in (171.45 mm)
Weight0 TB 1.8 lbs (0.8 kg)4 TB 3.4 lbs (1.6 kg)6 TB 4.6 lbs (2.1 kg)8 TB 5.0 lbs (2.3 kg)
Power supplyAC input voltage(AC adapter)AC input frequencyDC output	Input voltage: 100V to 240V ACInput frequency: 50 to 60 HzOutput voltage: 12 VDC, 3APower supply: 36W
Temperature	Operating temperature: 5°C to 35°C (41°F to 95 °F)Non-operating temperature: -20°C to 65°C (-4°F to 149 °F)
RoHs compliant Yes

Index

A

about

apps 83

backups 69

disk status 92

DLNA 101

internal backups 76

media servers 94

shares 49

WD Media Players 100

WD My Cloud 26

WD Photos 24

accessing

general settings 103

online support ii

personal cloud using media players 100

personal cloud with iTunes 101

WD My Cloud Desktop 36

Accessories 5

adding

a single user 40

groups 47

media content to a folder 99

multiple users 42

Port Forwarding Services 117

AFP Services 113

alert details 65

alerts icons 65

apps

about 83

deleting 86

managing 83

manually adding 85

updating 86

viewing 83

Apps Panel 64

assigning

a group to a user 45

quotas to a group 49

quotas to users 46

share access to groups 48

automatic support

requesting 67

auto-rebuilding 91

B

backups 72

about 69

Amazon S3 Cloud 80

ElephantDrive 79

USB 69

box contents 4

C

changing the RAID mode 88

China RoHS 135

cloud access settings 106

cloud backups

about 78

ElephantDrive 78

Cloud Devices Panel 62

common tasks 68

compliance

Europe 134

regulatory 134

safety 134

connecting

a USB drive 69

WD My Cloud Mirror 10

contacting WD Technical Support ii

creating

a USB backup 70

an ISO Share 123

internal backups 76

multiple users 42

new shares 51

remote backups 73

customer support 67

Customs Union 135

D

Dashboard

end user 139

Home Page 57

launching 55

navigation icons 58

deep sleep 108

deleting

an app 86

an ISO Share 125

internal backups 78

Port Forwarding Services 117

remote backups 76

USB backups 72

device

health 60

rebooting 120

status 59

Diagnostic Tests

running 119

Diagnostics Panel 60

disabling

DLNA 96

iTunes 98

Disk Status

about 92

dismissing a system alert 66

DLNA

about 101

devices 101

disabling 96

enabling 96

rebuilding the database 98

rescanning the database 98

viewing media server information 97

drive

replacement 130

Dynamic DNS 114

E

editing

group settings 48

shares 52

USB backups 72

user settings 44

ElephantDrive

backing up to 79

enabling a backup 78

enabling

cloud access for a user 22

DLNA 96

ElephantDrive backup 78

iTunes 98

End User Guide 138

Energy Saver 107

deep sleep option 108

LED option 108

Power Recovery option 108

Power Schedule option 108

Web Access Timeout option 108

Environmental compliance (China) 135

F

Faulty hard drive

identifying 130

replacing 131

Features 3

Firmware Panel 60

firmware updates 60

FTP Access 113

G

general settings 102

accessing 103

cloud access 106

Energy Saver 107

language and clock settings 104

Local Master Browser 115

Mac.backup option 108

Network Profile settings 111

Network Services settings 111

Network settings 110

Network Workgroup (Windows) 114

port forwarding 117

services settings 109

workgroup 115

Getting Started

with Online Setup Software 11

without Online Setup Software 17

groups 45

about 46

adding 47

assigning a user 45

assigning quotas to 49

assigning share access 48

editing settings 48

quota rules 45

removing 49

viewing 46

GS Mark 134

H

hard disk

viewing information 93

How do I? 68

|

ICES/NMB-003 compliance 134

icons

navigation (end user) 139

Important

use enclosed Ethernet cable provided 10

importing multiple users 44

initiating an internal backup 77

installing

mobile apps 27

WD My Cloud mobile app 27

WD Photos 24

installing WD My Cloud Desktop

Mac 33

Windows 30

internal backups

about 76

creating 76

deleting 78

initiating 77

modifying 77

viewing 77

IPv4 Network Mode 112

ISO Shares

creating 123

deleting 125

modifying 125

viewing 124

iTunes

accessing personal cloud with 101

disabling 98

enabling 98

overview 94, 96

refreshing 99

streaming media 101

J

Joomla

setup guide 142

Jumbo Frames 112

K

KC Notice 135

L

LAN

configuration 110

requirements 6

language and clock settings 104

launching WD My Cloud Desktop 35

LED

description 8

stability mode 108

LLTD 113

Local Master Browser 115

M

Mac

software folder 20

managing

alerts 65

apps 83

USB backups 69

users 39

manually adding an app 85

media

adding 99

media players

accessing WD My Cloud Mirror 100

accessing your personal cloud using 100

media types 95

other 100

WD 100

media servers

about 94

overview 94

settings 96

media settings

about 118

media storage

about 96

media streaming in iTunes 101

media types supported 95

iTunes 96

mobile apps

installing 27

installing WD Photos mobile app 24

WD My Cloud 26

WD My Cloud Mirror 24

WD Photos 24

modifying

an ISO Share 125

internal backups 77

port forwarding services 117

multiple users 42

creating 42

importing 44

N

navigation icons

end user 139

Network Activity panel 61

Network Profile settings 111

Network Services

IPv4 Network Mode 112

Network Services settings 111

Network settings 110

Network UPS 114

Network Workgroup (Windows) 114

NFS Service 113

0

Online Learning Center

about 4

Online Setup Software

downloading and installing 11

overview

DLNA 94

iTunes 96

P

Package contents 4

password

updating 45

phpBB Setup Guide 145

Port Forwarding 117

adding 117

deleting 117

modifying 117

Power Recovery 108

Power Schedule 108

Precautions 9

Pre-installation requirements 6

product

obtaining service 135

product components 6

product registration ii

public folders

mapping 21

Public share

opening on Mac operating systems 20

opening on Windows Vista/Windows 7, Windows 8 20

Q

quota rules 45

quotas

assigning to a group 49

assigning users to 46

R

RAID 91

auto-rebuilding 91

supported modes 150

RAID Migrations 150

RAID mode 88

RAID Storage

about 87

rebooting the device 120

rebuilding a replacement drive 133

recording WD product information 2

recovering 75

recovering remote backups 75

refreshing iTunes 99

registration

online ii

regulatory compliance 134

remote 72

remote backups 72, 75

creating 73

deleting 76

viewing 75

remote cloud access

about 22

remote server 116

removing a group 49

removing users 46

replacement drive

rebuilding 133

replacing a drive 130

rescanning/rebuilding the DLNA Database 98

RoHS 135

Running a Diagnostic Test 119

S

safe mode

recovering from 150

Safe Mode Firmware Update Procedures 150

Safety

instructions 1

Safety Compliance 134

services settings 109

settings

general 102

setup guide

Joomla 142

phpBB 145

shares

about 49

accessing contents locally 53

assigning group access 48

creating new 51

deleting 53

editing 52

viewing a list of 50

single user

adding 40

SMB2 112

software version 60

SSH

password 114

storage types

about 87

Streaming

media in iTunes 101

videos, photos, and music 94

Supported RAID Modes 150

system activity 61

system alerts

dismissing 66

icons 65

System Configuration about 120

System Diagnostics about 60, 119

system health 60

system report 67 sending to Customer Support 67

System Restore about 119

U

updates making on the Home Page 59

updating apps 86 UPS 114

USB backups creating 70 deleting 72 editing 72 managing 69 viewing details 71

USB drive connecting 69

User settings 39 viewing list of 39

user password updating 45

user settings editing 44

users about 39 adding a single 40 adding multiple 42 assigning a group to 45 assigning quotas to 46 creating multiple 42 editing settings 44 enabling cloud access 22 group quota rules 45 importing multiple 44 removing 46 updating password 45 viewing 39

Users Panel 63 Using Mac OS X Leopard/Snow Leopard/ Lion/Mountain Lion/Mavericks 20, 133 Utilities about 118

V

viewing a list of shares 50 alert details 65 apps 83 details of an ISO Share 124 DLNA Information 97 groups 46 hard disk information 93 internal backups 77 remote backups 75 the RAID mode 88 USB backup details 71

W

WAN 6

Warning changing RAID mode 88 deleting a share 53, 88 modifying the device 114 mounting a USB drive 69, 113 renaming the device 102 renaming the drive 102

warranty information all regions except Australia/New Zealand 135 Australia/New Zealand 136

WD Media Players about 100

WD My Cloud about 26 accessing contents of shares locally 53 deleting a share 53 installing mobile app 27

WD My Cloud Desktop about 29 accessing 36 launching 35 Mac installation 33 Windows installation 30

WD My Cloud Mirror Dashboard (end user) 139 logging in (end user) 138 managing users 39 media server settings 96 mobile apps 24 quick user guide 138 system report 67 user settings 39

WD My Cloud Mirror Home page (end us-

er) 140

WD Photos

about 24

installing 24

WD service and support ii

WD Technical Support

contacting ii

WD's Online Learning Center 11

Web Access Timeout 108

Web browser compatibility 6

WebDAV Service 113

Windows

mapping a public folder 21

Windows Vista/Windows 7/Windows 8

public share 20

workgroups 111, 115

Information furnished by WD is believed to be accurate and reliable; however, no responsibility is assumed by WD for its use nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of WD. WD reserves the right to change specifications at any time without notice.

Western Digital, WD, the WD logo, My Book, My Passport, and WD TV are registered trademarks of Western Digital Technologies, Inc. in the U.S. and other countries, and WD My Cloud, My Cloud Mirror, WD Red, WD SmartWare, WD GreenPower, WD Photos, and WD TV Live are trademarks of Western Digital Technologies, Inc. in the U.S. and other countries. Other marks may be mentioned herein that belong to other companies.

© 2014 Western Digital Technologies, Inc. All rights reserved.

Western Digital

3355 Michelson Drive, Suite 100

Irvine, California 92612 U.S.A.
