Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Transport damages

When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the environment: we use recycled paper.

Contents

Warnings 28-29

Disposal 29

Tips for environmental protection 29

Technical specifications 30

Installation 31

Unpacking 31

Positioning 31

Water inlet 31

Water drainage 32

Electrical connection 32

Your new washing machine 33

Description of the appliance 33

Door locked pilot light 33

Detergent dispenser drawer 33

Use 34

Control panel 34

Controls 34-37

Washing hints 38

Sorting the laundry 38

Temperatures 38

Before loading the laundry 38

Maximum loads 38

Laundry weights 38

Removing stains 38

Detergents and additives 39

International wash code symbols 40

Operating sequence 41-43

Washing programmes 44

Maintenance 45

Door seal 45

Bodywork 45

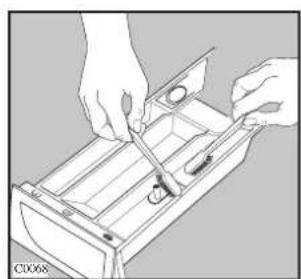

Detergent dispenser drawer 45

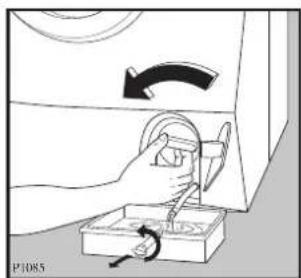

Drain filter 45

Water inlet filter 46

Emergency emptying out 46

The dangers of freezing 46

Something not working? 47-48

Warnings

The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance.

Installation

• All internal packing must be removed before using the appliance. Serious damage may be caused to the machine or adjacent furniture if the protective transit devices are not removed or are not completely removed. Refer to the relevant paragraph in the instruction book.
• Any electrical work required to install this appliance must be carried out by a qualified electrician.
• Any plumbing work required to install this appliance must be carried out by a qualified plumber.
  • After having installed the machine, check that it is not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor, ensure that air can circulate freely between the feet and the floor.

Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.
• Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label.
• Do not overload the appliance. Follow the instructions in the instruction book.
• Make sure that all pockets are empty. Objects such as coins, safety pins, pins and screws can cause extensive damage.
• Do not machine wash garments saturated with petroleum, methylated spirits, trichlorethylene, etc. If such fluids have been used to remove stains prior to washing, wait until they have completely evaporated from the fabric before placing garments in the appliance.
• Place small items such as socks, belts, etc. in a cloth bag or pillowcase to prevent them getting trapped between the drum and the tub.

• Use only the recommended quantities of fabric softener. An excessive amount could damage the laundry.

• Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door seal and prevents the formation of musty smells.
  • Always check that water has emptied out before opening the door. If not, drain the water following the instructions in the instruction book.

• Always unplug the appliance and shut the water tap after use.

General safety

• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause serious danger. Contact your local Service Centre.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
• During high temperature wash programmes the door glass may get hot. Do not touch it!

Child safety

• Children are often not aware of how dangerous electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children's reach.
• Keep all detergents in a safe place out of children's reach.
• Make sure that children or pets do not climb into the drum. To avoid this the machine incorporates a special feature. To activate this device, rotate the button (without pressing it) inside the door clockwise until the groove is horizontal. If necessary use a coin.

Disposal

Packaging materials

The materials marked with the symbol are recyclable.

PE<=polyethylene
PS<=polystyrene
PP<=polypropylene

This means that they can be recycled by disposing of them properly in appropriate collection containers.

To disable this device and restore the possibility of closing the door, rotate the button anti-clockwise until the groove is vertical.

Diagram of a mechanical component with labeled parts and an arrow indicating rotation (no readable text or symbols)

- When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug with the remaining cable. Disable the door catch in order to prevent children from becoming trapped inside while playing.

Machine

Use authorised disposal sites for your old appliance. Help to keep your country tidy!

Tips for environmental protection

To save water, energy and to help protect the environment, we recommend that you follow these tips:

• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).

• The machine works more economically if it is fully loaded, but do not overload it (see maximum moad on page 30).

• With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature, so saving energy.

• Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.

Technical specifications

DIMENSIONS Height 85 cm
	Width 60 cmDepth 60 cm
MAXIMUM LOAD Cotton 6 kg
	Synthetics 3 kgDelicates 3 kgWoollens 2 kg
SPIN SPEED 1000 rpm max. (IZ 1000)
	1600 rpm max. (IZ 1600 S)
POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz
TOTAL POWER ABSORBED 2200 WMINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 50 kPa
	Maximum 800 kPa

This appliance complies with the following EEC Directives:

73/23/EEC of 19/02/73 relating to low voltage

89/336/EEC of 03/05/89 relating to electromagnetic compatibility.

Installation

Unpacking

All transit bolts and packing must be removed before using the appliance.

You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.

1. Using a spanner, unscrew and remove the rear right-hand bolt and lay the machine on its back, taking care not to squash the hoses. This can be avoided by placing one of the corner packing pieces between the machine and the floor.

Illustration of a hand using a screwdriver to adjust or install an open electrical cabinet (no text or symbols visible)

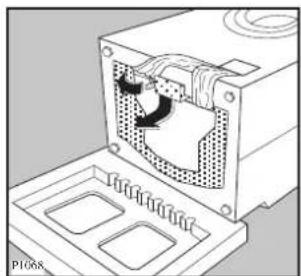

1. Remove the polystyrene block from the bottom of the machine and release the two plastic bags.

2. Carefully remove the right-hand bag (1) then the left-hand bag (2) by pulling them towards the centre of the machine.

Technical illustration of a computer case with internal components and a base tray (no text or symbols)

2 1 PICo6

1. Set the machine upright and remove the two remaining bolts from the back.

2. Pull out the three plastic spacers from the holes into which the bolts were fitted.

3. Plug the open holes with the plugs which you will find at the back of the appliance.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

P020

Positioning

Install the machine on a flat hard floor.

Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units.

Carefully level by screwing the adjustable feet in or out. Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor.

Diagram of a mechanical assembly with rotating arrows indicating motion (no text or symbols)

Water inlet

Connect the water inlet hose to a tap with a 3/4" thread.

The other end of the inlet hose which connects to the machine can be turned in any direction. Simply loosen the fitting, rotate the hose and retighten the fitting, making sure there are no water leaks.

Illustration of a hand holding a pipe valve above a faucet, with a valve icon and a circular arrow indicating rotation (no text or symbols)

Diagram of a pipe fitting with a curved arrow indicating direction (no text or symbols)

The inlet hose must not be lengthened. If it is too short and you do not wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use.

Water drainage

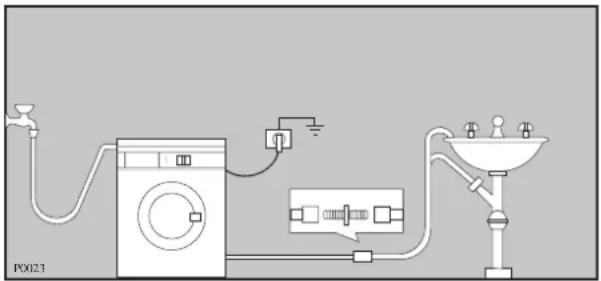

The end of the drain hose can be positioned in three ways:

Hooked over the edge of a sink using the plastic hose guide supplied with the machine. In this case, make sure the end cannot come unhooked when the machine is emptying.

This could be done by tying it to the tap with a piece of string or attaching it to the wall.

Diagram of a pipe fitting with a faucet, showing pipe connection and component placement (no text or symbols)

In a sink drain pipe branch. This branch must be above the trap so that the bend is at least 60 cm above the ground.

Directly into a drain pipe at a height of not less than 60 cm and not more than 90 cm.

The end of the drain hose must always be ventilated, i.e. the inside diameter of the drain pipe must be larger than the outside diameter of the drain hose.

The drain hose must not be kinked. Run it along the floor; only the part near the drainage point must be raised.

Simple line drawing of a washing machine connected to a dish via tubing, with no text or symbols present.

Electrical connection

This machine is designed to operate on a 220-230 V, single-phase, 50 Hz supply.

Check that your domestic electrical installation can take the maximum load required (2.2 kW), also taking into account any other appliances in use.

Connect the machine to an earthed socket.

The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precaution. Should the appliance power supply cable need to be replaced, this should be carried out by our Service Centre.

Please ensure that when the appliance is installed the power supply cable is easily accessible.

Your new washing machine

This new washing machine, which is fitted with the Jet system, patented Zanussi, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption.

Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed.

• The possibility of selecting the temperature, spin speed and all the options offered by this washing machine gives you truly “customised” washing.
• The DELAY START option allows you to delay starting of the wash programme to any time of day, so allowing you for instance to make use of overnight economy electricity tariffs.
• The programme progress display shows the programme steps selected and the programme phase which is running.
• The special wool programme with its new delicate wash system treats your woollens with extreme care.
• The balance control device ensures the machine is stable during the spin.

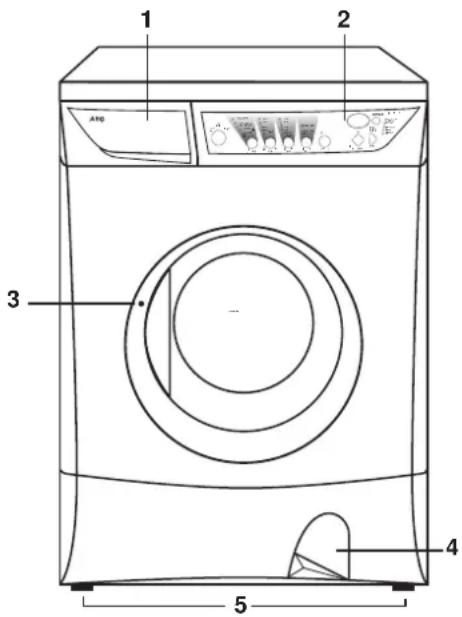

Description of the appliance

1 Detergent dispenser drawer
2 Control panel
3 Door locked pilot light
4 Drain filter
5 Adjustable feet

Door locked pilot light

It stays on during the whole programme indicating that the door is locked.

When the light goes out, the door can be opened (see page 43).

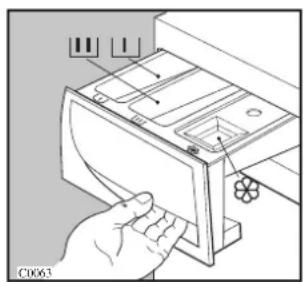

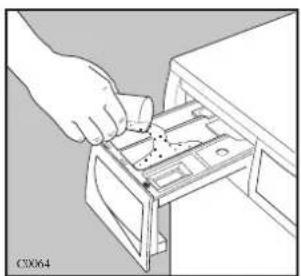

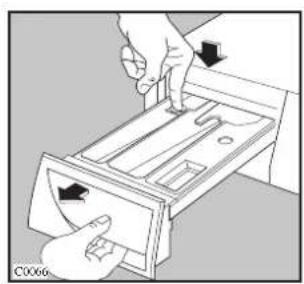

Detergent dispenser drawer

Prewash

Main wash

Fabric softener, starch

1 2 3 4 5

Illustration of a hand inserting a device into a rack, showing internal components and a flower (no text or symbols)

Control panel

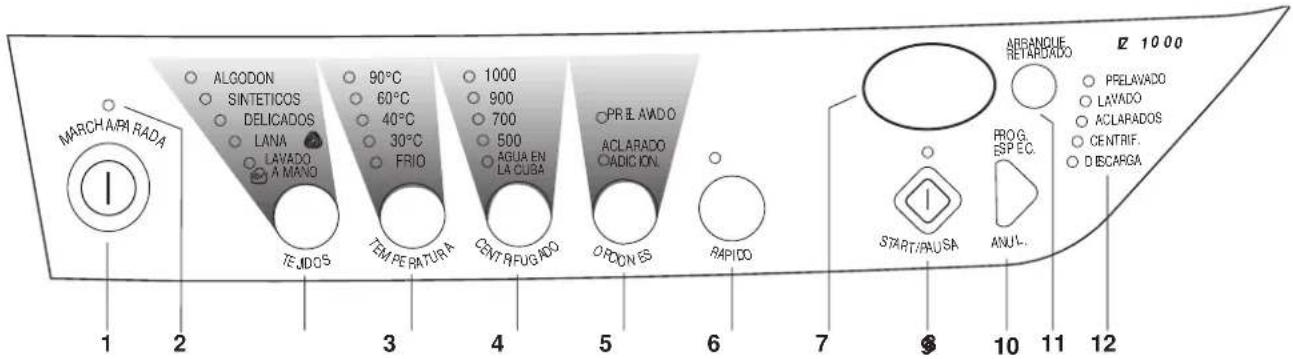

MARCHA/PI RADA 1 2 3 4 5 6 7 8 9 10 11 12 ALGODON SINTETICOS DELICADOS LANA LAVADO A MANO TEMPOS TEMPERATURA CENT. REFGADO ORION ES RAPIDO 90°C 60°C 40°C 30°C FRIO 1000 900 700 500 AGUA EN LA CUBA PREL AWDQ ACLARADO CADICION. ABRANQUE RETAPADO PRELAWADO LAVADO ACLARADOS CENTRIF. DISCARGA START/PAUSA PROG. ESP EC. ANUL.

1 ON/OFF button (MARCHA PARADA)

Press this button to switch the washing machine on. The display (8) will show three blinking dashes or a blinking zero. You will find more detailed explanations on page 35 (see "DISPLAY"). Press the ON/OFF button again to switch the machine off.

2 MAINS-ON light

This light is connected to the ON/OFF button. It lights up when you press the button, and goes out when you press it again.

3 FABRIC button (TEIJDOS)

Press this button repeatedly to select the programme on the basis of the type of laundry to be washed. The light relevant to the selected programme will light up. The washing machine will propose a temperature and automatically select the maximum spin value provided for the programme you have chosen. You can change these values by operating buttons 4 and 5.

When you select this programme, you obtain a particularly delicate washing, suitable for articles of clothing whose label indicates that they must be hand-washed 📂.

4 TEMPERATURE button

Press this button repeatedly to increase or decrease the temperature, if you want your laundry to be washed at a temperature different from the one proposed by the washing machine. The relevant light will light up. Maximum temperatures are 90°C for cotton, 60°C for

synthetic fabrics, 40°C for delicate fabrics, wool and fabrics to be hand-washed (HAND WASH programme).

By selecting position FRIO the machine will wash with cold water. To be used for extremely delicate items, such as curtains.

Important!

By depressing TEMPERATURE and SPIN SPEED (CENTRIFUGADO) buttons simultaneously, the acoustic signal at the end of the cycle is suppressed.

Press this button repeatedly to change the spin speed, if you want your laundry to be spun at a speed different from the one proposed by the washing machine. The relevant light will light up.

Maximum speeds are:

• for cotton: 1,600 or 1,000 rpm depending on the model;
- for synthetic fabrics, wool, and fabrics to be hand-washed: 900 rpm;
• for delicate fabrics: 700 rpm.

RINSE HOLD (AGUA EN LA CUBA) position :

when you choose this option, the machine will not drain the water of the last rinse, so as not to wrinkle the laundry.

At the end of the cycle, the START/PAUSE button light will flash, to indicate that the water must be drained.

To complete the cycle, choose one of the following options:

- Draining and spin:

- Press the START/PAUSE button. The machine will drain the water, then spin the laundry at the maximum speed provided for the selected programme.

- Select spin speed by means of button 5, and press the START/PAUSE button.

- Drain only

- Press the RESET (ANUL.) button once, so as to cause the DRAIN (DESCARGA) light to light up, then press the START/PAUSE button.

Important! If you accidentally press the RESET (ANUL.) button more than once, the display will show three blinking dashes. To cause the washing machine to drain the water, select any washing programme by means of the FABRIC (TEJIDOS) button, then press RESET (ANUL.) three times in order to select the DRAIN (DESCARGA) position (only the DRAIN (DESCARGA) light will remain lit).

6 OPTIONS button (OPCIONES)

Press this button to select the following options:

- PREWASH (PRELAVADO): select this option if you wish your laundry to be prewashed before the main wash (not available for wool and hand-wash cycle).

The prewash ends with a short spin at 650 rpm in programmes for cotton and synthetic fabrics, whereas in the programme for delicate fabrics the water is only drained.

- SUPER RINSE (ACLARADO ADICIONAL): this option can be selected with all programmes except the wool programme and hand wash.

The machine performs 4 rinses instead of 3. This option is recommended for people who are allergic to detergents, and in areas where the water is very soft.

7 QUICK WASH button (RAPIDO)

This button allows you to select the QUICK WASH function, for laundry that is only slightly soiled (not for wool and HAND WASH programme).

The washing time will be reduced according to the type of fabric and the selected temperature.

8 Display

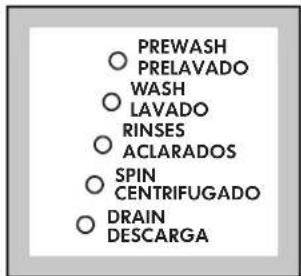

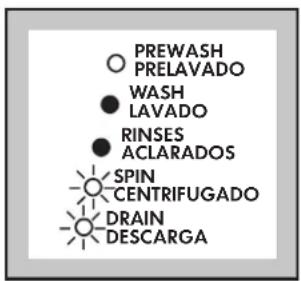

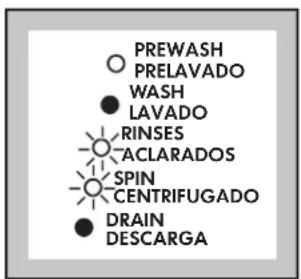

The following pieces of information are shown on the display:

- Three blinking dashes, when a programme is cancelled by means of the RESET (ANUL.) button.

The three blinking dashes will also appear when you press the ON/OFF button to switch the machine on, if the previously selected cycle has been erased.

Simple gray oval shape with three small dashed lines inside, enclosed in a light gray border (no text or symbols)

• Duration of washing programme in hours and minutes, after you have selected a programme.

2.05

While the programme is running (after you have pressed the START/PAUSE button), the displayed time value decreases by one unit every minute.

- The washing machine has stopped with water in the tub, at the end of a programme with the RINSE HOLD (AGUA EN LA CUBA) option: this is indicated by a static zero.

- The washing machine has completed the programme: this is indicated by a blinking zero. At the same time, the door locked light goes out. The zero will reappear when you switch the washing machine on, unless the previous programme has been erased by means of the RESET (ANUL.) button.

0

Important!

The first time you use the washing machine,

when you switch it on, it may display a blinking zero and give an audible warning signal. This is due to the fact that the washing machine has performed a washing cycle during the manufacturer's inspection tests, and this cycle has not been erased after its completion.

- Delay start (Arranque retardado), a time value indicated in hours and selected by means of the relevant button.

15h

The delay time is displayed for 5 seconds, then the duration of the selected programme reappears.

After you have pressed the START/PAUSE button, the countdown begins, and the delay time value decreases by one unit every hour.

You can delay the start of the selected programme by up to 24 hours in one hour intervals.

- An incorrect option selection has been made:

this is indicated by the message Err when a function incompatible with the current programme is selected.

Err

The incorrect selection is also indicated by an audible warning signal.

- An alarm code indicates a fault in the machine operation (see the relevant chapter on page 47).

E20

9 START/PAUSE button

This button has three functions:

- Start: after you have selected the desired programme and options, press this button to start the washing machine. The light above the button will stop flashing and remain lit.

If you have selected a delay time by means of button 11, the countdown will begin and will be shown on the display.

- Pause: when you press this button again, the programme in progress is interrupted. The light above the button will start flashing. To restart the programme, press the button again.

When you PAUSE the cycle, the DOOR LOCKED light goes out, and it becomes possible to open the door, provided

• the washing machine is not in the heating phase;
  • the level of the water is not high;
  • the drum is not turning.

Important! You must set the washing machine to PAUSE before you make any change in the programme in progress.

- Draining of water and spinning after the execution of programmes with the RINSE HOLD (AGUA EN LA CUBA) option.

10 RESET (ANUL.) button

At the end of a programme, you must press this button once or repeatedly, in order to clear the contents of the memory (the display will show three blinking dashes); otherwise, the next time you switch the washing machine on, the blinking zero will reappear and the audible warning signals relevant to the end of the previous cycle will be given.

You can also press the RESET (ANUL.) button to exclude one or several phases of the programme which is running, as indicated below.

• set the washing machine to PAUSE by pressing the START/PAUSE button (the relevant light will flash);
• press the RESET (ANUL.) button once or several times, until the required phase(s) is(are) cancelled (the light next to the name of the phase(s) will go out).

Example:

PREWASH PRELAVADO WASH LAVADO RINSES ACLARADOS SPIN CENTRIFUGADO DRAIN DESCARGA

In this case, both the drain and the spin (at the speed provided for the selected type of fabric) will be performed.

This button allows you also to select special programmes, such as RINSES, SPIN and DRAIN.

• If the machine is already switched on because it has just performed a washing programme, proceed as follows:
• depress RESET (ANUL.) once or repeatedly to cancel the previously performed programme (three blinking dashes will appear on the display);
• select the type of fabric by means of button TEJIDOS;
• select the special programme:

• RINSES

Depress RESET (ANUL.) once, the pilot light WASH goes out.

• SPIN

Depress RESET (ANUL.) twice, the pilot lights WASH and RINSES go out.

• DRAIN

Depress RESET (ANUL.) three times, the pilot lights WASH, RINSES and SPIN go out.

Example:

PREWASH PRELAVADO WASH LAVADO RINSES ACLARADOS SPIN CENTRIFUGADO DRAIN DESCARGA

In this case the macine will perform the rinses and spin.

• If the machine is switched off:
• depress ON/OFF button to switch it on;
• select the type of fabric by means of button TEJIDOS:
• select the special programme as previously described.

11 DELAY (ARRANQUE RETARDADO) button

This button makes it possible to delay the starting of the programme by up to 24 hours. The delay you have selected is shown on the display for about 5 seconds; afterwards, the duration of the programme reappears.

You must select this option after you have set the programme and before you press the START/PAUSE button.

The time value shown on the display will decrease by one unit every hour.

You can change the delay time at any moment, before you press the START/PAUSE button.

If you have already pressed the START/PAUSE button, and you wish to change or cancel the delay time, proceed as follows:

• set the washing machine to PAUSE by pressing the START/PAUSE button;
• press the DELAY button until the display shows the desired delay time or
• press the DELAY button once, to erase the delay time. The display will indicate "0h".
• press the START/PAUSE button again.

Important!

The door will be locked throughout the delay time (DOOR LOCKED light lit).

If you need to open the door, you must first set the washing machine to PAUSE by pressing the START/PAUSE button. After you have closed the door, press the START/PAUSE button again.

12 Programme phase indicator lights

When you select a programme, the lights relevant to the phases that form the programme light up.

PREWASH PRELAVADO WASH LAVADO RINSES ACLARADOS SPIN CENTRIFUGADO DRAIN DESCARGA

After you have started the programme, only the light relevant to the phase that is currently being carried out will remain lit.

i Washing hints

Sorting the laundry

Follow the wash code symbols on each garment label and the manufacturer's washing instructions.

Sort the laundry as follows:

whites, coloureds, synthetics, delicates, woollens.

Temperatures

90° for normally soiled white cottons and linen (e.g. tea cloths, towels, tablecloths, sheets...)

60° for normally soiled, colour fast garments (e.g. shirts, night dresses, pyjamas....) in linen, cotton or synthetic fibres and for lightly soiled white cotton (e.g. underwear).

Frio (cold) for delicate items (e.g. net curtains),

30^-40^ mixed laundry including synthetic fibres and woollens.

Before loading the laundry

Never wash whites and coloureds together. Whites may lose their “whiteness” in the wash.

New coloured items may run in the first wash; they should therefore be washed separately the first time.

Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins).

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

Remove persistent stains before washing. Rub particularly soiled areas with a special detergent or detergent paste.

Treat curtains with special care. Remove hooks or tie them up in a bag or net.

Maximum loads

Recommended loads are indicated in the programme charts.

General rules:

Cotton, linen: drum full but not too tightly packed;

Synthetics: drum no more than half full;

Delicate fabrics and woollens: drum no more than one third full.

Washing a maximum load makes the most efficient use of water and energy.

For heavily soiled laundry, reduce the load size.

Laundry weights

The following weights are indicative:

bathrobe 1200 g

napkin 100 g

quilt cover 700 g

sheet 500 g

pillow case 200 g

tablecloth 250 g

towelling towel 200 g

tea cloth 100 g

night dress 200 g

ladies' briefs 100 g

man's work shirt 600 g

man's shirt 200 g

man's pyjamas 500 g

blouse 100 g

men's underpants 100 g

Removing stains

Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth.

Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

Grass: soap lightly and treat with bleach (whites and fast coloureds only).

Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain.

Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach.

Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach.

Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste.

(*) do not use acetone on artificial silk.

Detergents and additives

Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment. Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature.

The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling.

All commonly available washing machine detergents may be used in this appliance:

– powder detergents for all types of fabric,
- powder detergents for delicate fabrics (60°C max) and woollens,
– liquid detergents, preferably for low temperature wash programmes (60°C max) for all types of fabric, or special for woollens only.

The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme.

If using concentrated powder or liquid detergents, a programme without prewash must be selected.

The washing machine incorporates a recirculation system which allows an optimal use of the concentrated detergent.

Pour liquid detergent into the dispenser drawer compartment marked just before starting the programme.

Any fabric softener or starching additives must be poured into the compartment marked before starting the wash programme.

Follow the product manufacturer's recommendations on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer.

Quantity of detergent to be used

The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used.

Water hardness is classified in so-called “degrees” of hardness. Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority.

Follow the product manufacturers' instructions on quantities to use.

Use less detergent if:

– you are washing a small load,
– the laundry is lightly soiled,
– large amounts of foam form during washing.

Degrees of water hardness

Level Characteristic		Degrees
		German °dH	French °T.H.
1	soft	0-7	0-15
2	medium	8-14	16-25
3	hard	15-21	26-37
4	very hard	more than 21	more than 37

i International wash code symbols

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic washDelicate wash
	Max. wash temperature 95°C	Max. wash temperature 60°C	Max. wash temperature 40°C	Max. wash temperature 30°C	Hand wash Do not wash at all

Bleaching Bleach in cold water Do not bleach

____

____

Ironing Hot iron	max 200°C	Warm iron max 150°C	Lukewarm iron max 110°C	Do not iron

Dry cleaning Dry cleaningin all solvents

Dry cleaning in perchlorethylene,petrol, pure alcohol,R 111 & R 113

Dry cleaning in petrol,pure alcoholand R 113

Do not dry clean

					high temperature
					low temperature
Drying Flat On the line On clothes			hanger	[76BW]	Tumble dry

Operating sequence

Before washing your first load of laundry, we recommend that you run a cotton cycle at 60^ C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half a measure of detergent into the main wash compartment and start up the machine.

1. Place the laundry in the drum

Open the door.

Place the laundry in the drum, one item at a time, shaking them out as much as possible.

Close the door.

Illustration of hands cleaning a circular object with a cloth (no text or symbols)

2. Measure out the detergent

Pull out the dispenser drawer until it stops. Measure out the amount of detergent recommended by the manufacturer in a graduated cup and pour it into the main wash compartment Ⓗ

If you wish to carry out the prewash, pour detergent into the appropriate compartment marked Ⓗ

3. Measure out the additive

If required, pour fabric softener into the compartment marked ⚙, without exceeding the «MAX» mark.

Illustration of a hand inserting into a device into a drawer (no text or symbols visible)

Line drawing of a hand inserting a component into a drawer (no text or symbols)

4. Switch the machine on

To switch the machine on, press the ON/OFF button ①: the mains-on light comes on.

The display will show three blinking dashes or a blinking zero.

M.RCH.A.P.M.RADA

0 ...

5. Select the desired programme/fabric

Press the FABRIC (TEIJDOS) button repeatedly, in order to select the desired programme/fabric. The relevant light will light up.

The lights relevant to the phases that form the programme will light up.

The display will show the duration of the selected programme, calculated on the basis of the maximum load for each type of fabric. The START/PAUSE button light will start flashing.

If the load of laundry to be washed is small, at the beginning of the cycle the display will still indicate the duration relevant to the maximum load. The duration value will be gradually adjusted during the execution of the cycle.

ALGODON SINTETICOS DELICADOS LANA LAVADO A MANO

PREWASH PRELAVADO WASH LAVADO RINSES ACLARADOS SPIN CENTRIFUGADO DRAIN DESCARGA

6. Select the temperature

Press the TEMPERATURE button if you wish to select a temperature value different from the one proposed by the washing machine. The relevant light will light up.

90°C 60°C 40°C 30°C FRIO TEMP R A U F A

7. Select the spin speed or the RINSE HOLD (AGUA EN LA CUBA) option

Press the SPIN SPEED (CENTRIFUGADO) button repeatedly, in order to select the desired spin speed or the RINSE HOLD (AGUA EN LA CUBA) option. The relevant light will light up.

If you select the RINSE HOLD option, the machine will stop at the end of the programme with the water still in the tub.

8. Select the desired options

If your laundry is very dirty, it may be advisable to select the PREWASH (PRELAVADO) option.

If you wish the laundry to undergo an extra rinse, select the SUPER RINSE (ACLARADO ADICIONAL) option.

Press the OPTIONS (OPCIONES) button so as to cause one or both of the lights to light up.

Depress LAVADO RAPIDO button to select the QUICK WASH option, if your laundry is only slightly soiled. The relevant light illuminates.

反PDO

10. Select the DELAY TIME (ARRANQUE RETARDADO)

Before you start the programme, if you wish the starting to be delayed, press the DELAY button repeatedly, or keep it pressed, to select the desired delay. The selected delay time value (up to 24 hours) will appear on the display for 5 seconds, then the duration of the programme will appear again.

ARRANQUE RETAREDADO

11. Start the programme

Press the START/PAUSE button. The relevant light will stop flashing, the DOOR LOCKED light will light up, and only the light relevant to the phase that is in progress will remain lit.

If you have chosen a delayed start, the washing machine will begin the countdown.

The display will show the duration of the programme or the selected delay.

START/PAUSA

12. How to change a programme during its cycle

Before you make any change, you must pause the washing machine by pressing the START/PAUSE button.

It is possible to change any phase before the programme carries it out.

Changing the type of fabric or temperature is possible, obviously, only during the washing phase. When you make a change in these two parameters, the washing machine will resume the cycle from the beginning.

If it is necessary to drain the water in order to change the programme in progress, proceed as follows:

• PAUSE the machine by pressing the START/PAUSE button;
• press the RESET (ANUL.) button repeatedly, until only the DRAIN (DESCARGA) light remains lit;

- press the START/PAUSE button again.

When the water has been drained, the display shows a blinking zero. You may now select a new programme and press the START/PAUSE button to start it.

13. How to cancel a programme during its cycle

To cancel a programme that is being carried out, first pause the washing machine by pressing the START/PAUSE button, then press the RESET (ANUL.) button repeatedly, until the display shows three blinking dashes.

14. How to open the door during the cycle of a programme

You can open the door, after having set the washing machine to PAUSE, provided the following conditions exist:

• the washing machine is not in the heating phase beyond 40^ ;
  • the level of the water is not high;
  • the drum is not turning.

If these requirements are met, when you pause the washing machine, the DOOR LOCKED light goes out and the door can be opened.

Should it not be possible to open the door, and should it be absolutely necessary to do so, switch the machine off by pressing the ON/OFF button.

After approximately 2 minutes, you can open the door.

Pay attention to the level and temperature of the water in the washing machine!

When you close the door and press the ON/OFF button again, the washing machine will resume the programme from the point where it had been interrupted.

15. End of programme

At the end of the programme, the washing machine stops automatically, gives an audible signal, and displays a blinking zero.

If you had selected the RINSE HOLD (AGUA EN LA CUBA) option, the START/PAUSE button light flashes to indicate that the water must be drained. The display shows a steadily lit zero.

When the programme has been completed, a blinking zero appears on the display and the audible signal is given.

The DOOR LOCKED light goes out at once.

Press the SKIP/RESET button repeatedly to erase the programme that has just been carried out. If you omit to do this, the next time you switch the washing machine on, the blinking zero will appear on the display and you will hear the audible signal.

Note: when you switch the machine on, if you must erase the previously performed programme, it is also sufficient to press the FABRIC (TEJIDOS) button and select a new programme.

Press the ON/OFF button to switch the machine off. The relevant light will go out.

Remove the laundry from the washing machine.

Check whether the drum is completely empty, by rotating it with your hand. The purpose of this is to prevent any items of laundry from remaining accidentally in the drum, where they might get damaged in a subsequent wash (e.g. by shrinking) or bleed colour into another load of laundry.

We advise you to close the water supply tap and disconnect the plug from the socket.

Leave the door ajar in order to air the washing machine.

Programme chart

Washing programmes

Type of laundry and symbols on labels	Load	Programme/temperature	Description of programme	Available options	Consumption*
					Energy kWh	Water litres	Time h/min.
60 55 White cotton: e.g. sheets, tablecloths, household linen	6 kg	Cottons Algodón 60°-90°C	Wash at 60°-90°C3 rinsesLong spin	CENTRIFUGADO AGUA EN LA CUBA PRELAVADO ACLARADO ADICIONAL RAPIDO	1.8	45(52 for IZ 1000)	2.29
60 50 50 ** Coloured cotton: e.g. shirts, blouses, underwear, towels, house-hold linen	6 kg	Cottons Algodón 60°-40°-30°C FRIO (COLD)	Wash at 60°-40°-30°C or cold3 rinsesLong spin	CENTRIFUGADO AGUA EN LA CUBA PRELAVADO ACLARADO ADICIONAL RAPIDO	0.95	42(49 for IZ 1000)	2.10
60 50 50 Synthetic fabrics and blends: e.g. shirts, blouses, underwear	3 kg	Synthetics Sintéticos 60°-40°-30°C FRIO (COLD)	Wash at 60°-40°-30°C or cold3 rinsesShort spin	CENTRIFUGADO AGUA EN LA CUBA PRELAVADO ACLARADO ADICIONAL RAPIDO	0.9	56	1.27
60 50 Delicate fabrics: e.g. acrylic fabrics, viscose, poly-ester, synthetic blends	3 kg	Delicates Delicados 40°-30°C FRIO (COLD)	Wash at 40°-30°C or cold3 rinsesShort spin	CENTRIFUGADO AGUA EN LA CUBA PRELAVADO ACLARADO ADICIONAL RAPIDO	0.7	53	1.04
60 50 Wool	2 kg	Wool Lana 40°-30°C FRIO (COLD)	Wash at 40°-30°C or cold3 rinsesShort spin	CENTRIFUGADO AGUA EN LA CUBA	0.3	48	57
	2 kg	Hand wash Lavado a mano 40°-30°C FRIO (COLD)	Wash at 40°-30°C or cold3 rinsesShort spin	CENTRIFUGADO AGUA EN LA CUBA	0.25	46	55

**The “coloured cotton programme” at 60°C is the reference programme for the data entered in the energy label, in compliance with EEC 92/75 standards. This data refers to a wash Iload of 5 kg of cotton items.
* This data is given purely as an indication: the consumption values may vary in relation to the quantity and type of laundry, the temperature of the water supply and the ambient temperature. The data refers to the highest temperature provided for each programme and to a wash load of 5 kg of cotton items, 2.5 kg of synthetics and delicates and 2 kg for wool.

Maintenance

1. Door seal

Check from time to time the door seal and eliminate eventual possible objects that could be trapped in the fold.

Illustration of a hand pressing a circular component with a gradient fill, labeled P1050 (no text or symbols on the diagram itself)

2. Bodywork

Clean the outside of the machine with warm water and a neutral, non-abrasive household detergent. Rinse with clean water and dry with a soft cloth.

Important: do not use methylated spirits, solvents or similar products to clean the bodywork.

3. Detergent dispenser drawer

After a while, detergents and fabric softeners leave deposits in the drawer.

Clean the drawer from time to time by rinsing it under a running tap. To remove the drawer from the machine, press the button in the rear left-hand corner.

To facilitate cleaning, the top part of the additive compartment can be removed.

Illustration of hands inserting a device into a drawer with arrows indicating direction (no text or symbols)

Hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

Illustration of hands using a tool to adjust or install a tray with a small object (no text or symbols visible)

Illustration of a hand using a faucet to clean water from a drain, with no text or symbols present.

Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the drawer after cleaning.

Illustration of a hand using a tool to cut or remove a component inside a device (no text or symbols visible)

4. Drain filter

The drain filter collects threads and small objects inadvertently left in the laundry. Check regularly that the filter is clean.

Open the filter door by pulling it towards the right.

Place a container under the filter to catch any spillage.

Release the emergency emptying hose, place it in the container, and remove its cap by unscrewing it.

Hand pressing a button on a surface with concentric circles and an arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

When no more water comes out, unscrew the filter and remove it.

Illustration of a hand placing a component into a device (no text or symbols visible)

Illustration of a hand washing a pipe from a faucet, showing water flowing out (no text or symbols)

Clean the filter under a running tap, then refit it, screwing it fully in.

Put the cap back on the emergency emptying hose, place the latter back in its seat. Close the filter door.

5. Water inlet filter

If you notice that the machine is taking longer to fill, check that the filter in the water inlet hose is not blocked.

Turn off the water tap.

Unscrew the hose from the tap.

Clean the filter with a stiff brush.

Screw the hose back onto the tap.

6. Emergency emptying out

If the machine is unable to drain, proceed as follows to empty out the machine:

• Pull out the plug from the power socket.
• Close the water tap.
• If necessary, wait until the water has cooled down.
• Place a bowl on the floor under the filter and place the end of the emergency emptying hose into the bowl. The water should drain by gravity into the bowl. When the bowl is full, screw the cap on again. Empty the bowl. Repeat the procedure until water stops flowing out.

- Clean the filter if necessary.

- At the end screw the filter again.

7. The dangers of freezing

If the machine is exposed to temperatures below 0^ C, certain precautions should be taken.

• Turn off the water tap.
• Unscrew the inlet hose.
• Place the end of the inlet hose and that of the emergency emptying hose in a bowl placed on the floor and let the water drain out.
• Screw the water inlet hose back on and put the emergency emptying hose back in its place after having screwed the cap on again.

When you intend to start the machine up again, make sure that the room temperature is above 0^ C.

Something not working?

Problems which you can resolve yourself.

During machine operation it is possible that one of the following alarm codes appears on the display:

• E10: problem with the water supply
• E20: problem with water draining
• E40: door open

Once the problem has been eliminated, press the START/PAUSE button to restart the programme. If after all checks, the problem persists, contact your local Service Centre.

Problem Possible cause
The machine does not start up:	The door is not firmly closed. (E40)The machine is not plugged in or there is no power at the socket.The main fuse has blown.The START/PAUSE button has not been depressed.The DELAY START (ARRANQUE RETARDADO) option has been selected.
The machine does not fill:	The water tap is closed. (E10)The inlet hose is squashed or kinked. (E10)The filter in the inlet hose is blocked. (E10)The door is not properly closed. (E40)
The machine fills then empties immediately:	The end of the drain hose is too low. Refer to relevant paragraph in “water drainage” section.
The machine does not empty and/or does not spin:	The drain hose is squashed or kinked. (E20)The option AGUA EN LA CUBA has been selected.The drain filter is clogged. (E20)
There is water on the floor:	Too much detergent or unsuitable detergent (creates too much foam) has been used.Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.The drain hose is damaged.
Unsatisfactory washing results:	Too little detergent or unsuitable detergent has been used.Stubborn stains have not been treated prior to washing.The correct temperature was not selected.Excessive laundry load.
The machine vibrates or is noisy:	The transit bolts and packing have not been removed.The support feet have not been adjusted.The laundry is not evenly distributed in the drum.Maybe there is very little laundry in the drum.
The door will not open:	The programme is still running, the drum is turning.The door lock has not yet released.The water level is above the bottom edge of the door.The machine is heating the water.
• Spinning starts late or the laundry is not spun enough:	• The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after few minutes, the laundry is still not evenly distributed in the drum, the machine will spin at a lower speed or will not spin. If at the end of the programme the laundry is not spun enough, redistribute the load manually and select the spin programme.

Water is not visible in the machine. The machine, which is the result of modern technology, runs in a very economical way with low water consumption. Performance is nevertheless excellent. P1035UK

The machine makes an unusual noise. The machine is fitted with a commutator motor which improves machine performance. P1034UK

If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

Mod. ...... Prod. No. ...... Ser. No. ...... P0042-N
