USER MANUAL FA 1055 E ZANUSSI

Yellow washing machine illustration with control knobs and front panel (no text or symbols)

Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Transport damages

When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the environment: we use recycled paper.

Contents

Warnings 28-29

Disposal 29

Tips for environmental protection 29

Technical specifications 30

Installation 31-32

Unpacking 31

Hydraulic connection 31

Levelling 32

Electrical connection 32

Your new washing machine 33

Description of the appliance 33

Detergent dispenser drawer 33

Use 34

Control panel 34

Controls 34-36

Washing hints 37

Sorting the laundry 37

Temperatures 37

Before loading the laundry 37

Maximum loads 37

Laundry weights 37

Removing stains 37

Detergents and additives 38

Quantity of detergent to be used 38

International wash code symbols 39

Operating sequence 40-41

Washing programmes 42-44

Maintenance 45

Bodywork 45

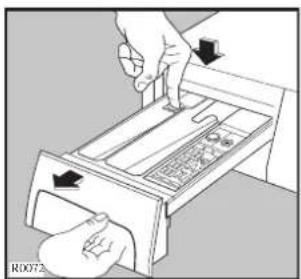

Detergent dispenser drawer 45

Cleaning of the drainage area 45

Water inlet filter 46

Emergency emptying out 46

Frost precautions 46

Something not working? 47-49

Warnings

The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance.

Installation

• All internal packing must be removed before using the appliance. Serious damage may be caused to the machine or adjacent furniture if the protective transit devices are not removed or are not completely removed. Refer to the relevant paragraph in the instruction book.
• Any electrical work required to install this appliance must be carried out by a qualified electrician.
• Any plumbing work required to install this appliance must be carried out by a qualified plumber.
  • After having installed the machine, check that it is not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor, ensure that air can circulate freely between the feet and the floor.
• The power supply cable only can be replaced by a person of the Technical Service.

Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.
• Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label.
• Do not overload the appliance. Follow the instructions in the instruction book.
• Make sure that all pockets are empty. Objects such as coins, safety pins, pins and screws can cause extensive damage.
• Do not machine wash garments saturated with petroleum, methylated spirits, trichlorethylene, etc. If such fluids have been used to remove stains prior to washing, wait until they have completely evaporated from the fabric before placing garments in the appliance.
• Place small items such as socks, belts, etc. in a cloth bag or pillowcase to prevent them getting trapped between the drum and the tub.

• Use only the recommended quantities of fabric softener. An excessive amount could damage the laundry.

• Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door seal and prevents the formation of musty smells.
  • Always check that water has emptied out before opening the door. If not, drain the water following the instructions in the instruction book.

• Always unplug the appliance and shut the water tap after use.

General safety

• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause serious danger. Contact your local Service Centre.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
• During high temperature wash programmes the door glass may get hot. Do not touch it!

Child safety

• Children are often not aware of how dangerous electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children's reach.

• Keep all detergents in a safe place out of children's reach.

• Make sure that children or pets do not climb into the drum.
• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug with the remaining cable. Disable the door catch in order to prevent children from becoming trapped inside while playing.

Disposal

Packaging materials

The materials marked with the symbol are recyclable.

PE<=polyethylene
PS<=polystyrene
PP<=polypropylene

This means that they can be recycled by disposing of them properly in appropriate collection containers.

Machine

Use authorised disposal sites for your old appliance. Help to keep your country tidy!

Tips for environmental protection

To save water, energy and to help protect the environment, we recommend that you follow these tips:

• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).

• The machine works more economically if it is fully loaded.

• With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.

• Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.

Installation instructions

It is dangerous to alter the specifications or attempt to modify this product in any way.

⚠️ Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

⚠️ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

⚠️ Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.

The power supply cable only can be replaced by a person of our Service Force Centre.

Technical specifications

DIMENSIONS Height 85 cm

Width 60 cm

Depth 60 cm

MAXIMUM RECOMMEND LOAD Cotton, linen 4,5 kg

Synthetics 2 kg

Delicates 2 kg

Woollens 1 kg

SPIN SPEED 1000 rpm máx.

POWER SUPPLY VOLTAGE/FREQUENCY 230 V/50 Hz

TOTAL POWER ABSORBED 2100 W

MINIMUM FUSE PROTECTION 10 A

WATER PRESSURE Minimum 50 kPa

Maximum 800 kPa

CE

This appliance complies with the following EEC Directives:

73/23/EEC of 19/02/73 relating to low voltage

89/336/EEC of 03/05/89 relating to electromagnetic compatibility.

Installation

Transit security bars

Before starting the machine up, the transport security bars must be removed as follows:

You are advised to keep all the transport security bars. In case the appliance has to be transported again.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

1. Unscrew and remove the three rear screws by means of a key.

Person using a tool to adjust or install a wooden plank, with no visible text or symbols

1. Lean the appliance back on the rear and fit one of the polystyrene angles between the appliance and the floor.

Make sure the hoses are not squashed.

1 2 AL09

1. Carefully remove the plastic bags on the left and the right, pulling them to the centre of the appliance

Hand holding a cylindrical mechanical component with an arrow indicating rotation (no text or symbols)

P0002

1. Place the machine in an upright position and remove the three plastic bolts.

2. Plug the 3 holes with the plastic plugs which you can find in the envelope containing the instruction booklet.

Hydraulic connection

There should be a COLD WATER tap near the washing machine with a screwing on connection pipe of 3/4 gas for the water supply, a sink, a wash basin or a drainage system in the wall.

Previously check if:

— it is not a hot water tap.
— the running water is clean. If not, run off a reasonable amount of water to flush out any debris that may have collected in the pipes.

Have the permanent drainage system in the wall checked by a plumber.

Illustration of a hand holding a small pipe with a valve, no text or symbols present

1. Carefully screw the pipe to the tap taking care not to damage the screwdrive and fix the nut well on to the end in order to avoid leaking.

Diagram of a pipe fitting with a curved arrow indicating direction (no text or symbols)

1. If necessary turn the hose adequately by unscrewing the nut at the rear of the appliance. Now tighten the nut anew to avoid leaks. (Open the tap and assure that it does not leak and close it again.)

Diagram of a pipe fitting with a valve and a labeled component (no text or symbols present)

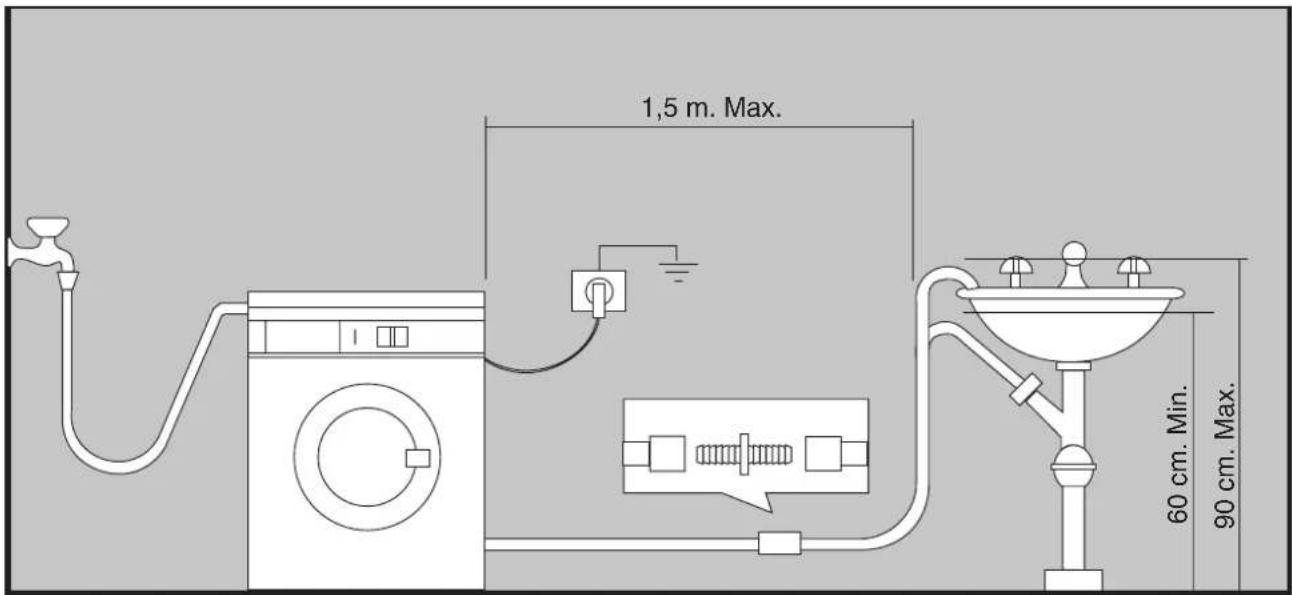

1. Place the discharging hose in a washbasin or sink with the aid of the bent piece delivered separately. The bent piece has to be entered into the tube's mouth in order to assure the support. Aforesaid piece allows the hose to be

fixed to the wall by means of an opening on the upper part and that way the hose does not move and its falling is avoided.

1,5 m. Max. 60 cm. Min. 90 cm. Max.

IMPORTANT: The distance from the floor to the highest part of the hose should be between 60 to 90 cm. (It is advised to be between 60 and 70 cm). The hose must not be bent nor twisted to avoid clogging. Should a prolongation of the discharging hose be unavoidable this must never surpass 1.5 m and must be of the same diameter as the original hose.

Make sure the hoses are not too tense.

Levelling

Level the appliance by loosening or tightening the feet. Once in the right position fix the feet by pushing the nuts (A) (see graphic P0254) against the base of the case. Accurate levelling will prevent vibration, noise and displacement of the appliance during operation.

Some vibration is inevitable, especially if placed on a wooden floor. Wooden floors are particularly susceptible to vibrations. If possible always place the appliance on a solid floor.

A P0254

Electrical connections

Before plugging the appliance make sure that:

1°. the mains of your installation is the same as on the rating plate of your appliance (the plate is sticked to the rear of the appliance).
2°. The meter, the fuses, the wiring and the socket outlet can support the max. power absorbed stated on the rating plate.
3°. The socket base and the plug must fit in adequately without any reducing interposition, multiple outlets or adapters. If necessary replace the socket outlet by an adequate one.

The applicable rules for electrical security require an adequate earthing. The plug of the appliance is provided with such a device.

Make sure your socket outlet is provided with an adequate earthing too.

The manufacturer declines any liability in case of accidents or incidents should these safety measures not be observed.

The power supply cable only can be replaced by a person of our Service Force Centre.

Your new washing machine

This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption.

- The balance control device reduces the risk of instability in machine movement and it guarantees a quieter operation.

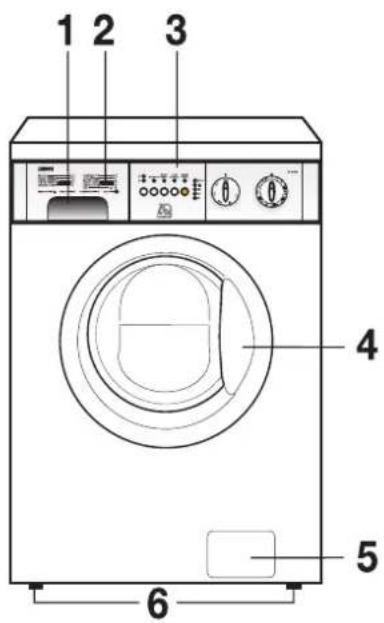

Description of the appliance

1 Detergent dispenser drawer
2 Programme chart
3 Control panel
4 Door handle
5 Drainage area door
6 Adjustable feet

1 2 3 4 5 6

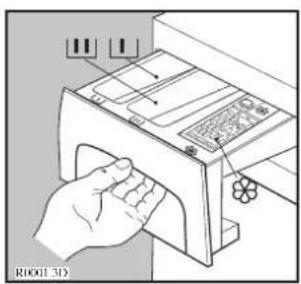

Detergent dispenser drawer

Prewash

Main wash

Fabric softener, starch

Illustration of a hand inserting a device into a printer (no text or symbols visible)

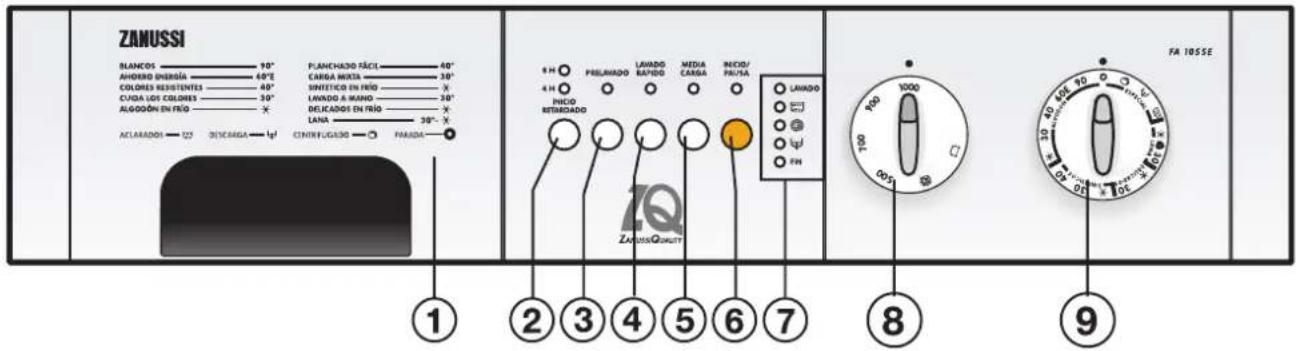

Control panel

ZAMUSSI BLANCOS 90° PLANCHADO FÉCIL 40° AHORSO DVERGIA 40° E CARGA MIXTA 30° COLORES RESISTENTES 40° SINTETICO EN FRIO X CUOJA LOS COLORES 30° LAVADO A MANDO 30° ALGOODEN EN FRIO X DELICADOS EN FRIO X LANA 30° X ACLARADO 125 DECRAGA 14 CENTREGADO PARADA 8 H PRELAMADO LAVADO MEDIA INClO/ FA 105SE 4 H INClO RETIMADO LATRADO CAMBA LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO LATRADO FAT RUSATO ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ZAUMISSQUALITY

1. Detergent dispenser drawer

Programme option buttons

Depending on the programme, different option buttons can be combined.

When these buttons are pressed, the corresponding lights come on. When they are pressed again, the lights go off.

If an incompatible option with the selected programme has been chosen, the corresponding light flashes for about 2 seconds.

The option buttons: 8H/4H INICIO RETARDADO; PRELAVADO; LAVADO RÁPIDO and MEDIA

CARGA must be selected after the required programme has been chosen, by turning the programme selector (see section 9) and before starting the machine, by pressing INICIO / PAUSA button.

2. "8H/4H INICIO RETARDADO" button

This button allows the delay of starting of the washing programme by 8 H and 4 H hours.

The delay which has been selected is indicated when the corresponding light comes on.

To use this option proceed as follows:

1. Select the required programme by the programme selector (see section 9).
2. Press the required option buttons.
3. Push "8H/4H INICIO RETARDADO" button, as many times as necessary to get the required delay until the corresponding light comes on.
4. Press INICIO / PAUSA button. The machine will begin the countdown.

IMPORTANT!

- If you would want to cancel"8H/4H INICIO

RETARDADO" option or to change the selected delay, proceed as follows:

1. Turn the dial programme selector to position "O".
2. Start the normal process to select a programme again.

3. If you need to stop the machine to put in more laundry (having selected "8H/4H INICIO RETARDADO" option first), proceed as follows:

4. Depress INICIO / PAUSA button.

5. Wait two or three minutes before opening the door to give the electric locking mechanism time to release.
6. Place the laundry in the drum.
7. Press again the INICIO / PAUSA button.

The "8H/4H INICIO RETARDADO" option can't be selected with programmes (DRAIN) or (SPIN).

3. PRELAVADO button

Adds a pre-wash phase at the start of the cycle with water heating to 30^ C.

In COTTON and SYNTHETIC cycles, performs a short spin before passing to the washing phase. This option cannot be selected for LANA and LAVADO A MANO cycles.

4. LAVADO RÁPIDO button

Using this option, you can get good washing results in a short period of time, since with option, the COTTON, SYNTHETICS, and DELICATES programmes are modified in order to obtain short washing times (recommended for small or lightly-soiled loads).

This modification consists of reducing the number of rinse cycles (one less) and also increases the water level used in the remaining two rinse cycles.

5. MEDIA CARGA button

Select this button to reduce water consumption on the rinse cycle when washing a smaller load of cottons or linens (maximum load size = 2.25 kg). The machine will perform 2 rinses instead of 3.

6. INICIO / PAUSA button

After selecting the required programme, by the programme selector (see section 9), press this button to start the machine; the corresponding light stops flashing and will keep lighting until the programme finishes.

To interrupt the running programme, depress INICIO / PAUSA button: the corresponding light starts to flash.

To restart the programme from the point at which it was interrupted, press INICIO / PAUSA button again.

7. Programme progress display

During programme development, the light corresponding to the cycle phase which the machine is in will illuminate. In other words, if the machine is in the pre-wash or wash phases the light LAVADO will come on; if it is in the rinses phase the light will come on; if it is in the spin phase the light will come on; and finally, if it is in the drain phase the light will come on.

The light FIN will illuminate to indicate that the selected programme has finished.

LAVADO GND GND T FIN AL 065

The light FIN flashes in the event of operating problems:

• 4 flashes: door open.
• 2 flashes: problem with water draining.
  • 1 flash: problem with water supply.
  For more information see paragraph "Something not working?" at the end of this booklet.

8. Spin speed selector dial or ☒ no spin / ☒ rinse hold options

1000 900 700 500 AL 057

This dial allows the reduction of the final and the intermediate spin speed or to select N∅ SPIN or □ RINSE HOLD options.

The speeds on the dials refer to cotton programmes. The position 1000 r.p.m. corresponds to 900 r.p.m. for synthetics and wool and 700 for delicates.

Position 500 r.p.m. is common for all fabrics.

• SPIN: by selecting this option all the spinning phases are turned off. To be used for extremely delicate items. The washing machine will add 3 rinses in the cotton programmes and 1 rinse in the synthetics programmes.
• RINSE HOLD: by selecting this option, the water of the last rinse is not drained, in order to prevent the fabrics from wrinkling. When the programme has finished, FIN light will illuminate.

To drain the water follow these three steps: A) Turn the programme selector dial to "O". B) Select DRAIN or SPIN programme. C) Press INICIO / PAUSA button.

9. Programme selector dial

AL 066 30 40 50E 90 0 SINCENTR 30 31 32 33 34 35 36 37 38 39 40 LPG SAPICAL

The selector dial can be turned either clockwise or counter-clockwise.

Use this selector dial to select the required programme.

At the end of each programme the selector dial must be turned to position "O", to switch off the machine.

ATTENTION!

If the programme selector dial is turned to another position (programme) when the machine is working, the lights of the programme progress display start to flash. The machine will not perform the new selected programme, but it will continue running on the same cycle.

REMEMBER!

In the event a wrong programme has been selected and the machine is already working, proceed as follows:

1. Turn the programme selector dial to position "O".

2. Select the new required programme.

- If the machine has not already gone through the rinse cycle, when you decide to change the running programme, in the new programme the water and the detergent from the previous cycle will be re-used, making it an energy-saving tool. On the other hand, if it is already in the rinse phase; detergent, bleach,... must be re-measured.

1. Press INICIO / PAUSA button, to start the new cycle.

i Washing hints

Sorting the laundry

Follow the wash code symbols on each garment label and the manufacturer's washing instructions.

Sort the laundry as follows:

whites, coloureds, synthetics, delicates, woollens.

Temperatures

90° for normally soiled white cottons and linen (e.g. tea cloths, towels, tablecloths, sheets...)

60° for normally soiled, colour fast garments (e.g. shirts, night dresses, pyjamas....) in linen, cotton or synthetic fibres and for lightly soiled white cotton (e.g. underwear).

* (cold)for delicate items (e.g. net curtains), mixed

30^-40^ laundry including synthetic fibres and woollens.

Before loading the laundry

Never wash whites and coloureds together. Whites may lose their “whiteness” in the wash.

New coloured items may run in the first wash; they should therefore be washed separately the first time.

Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins).

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

Remove difficult stains before washing. Rub particularly soiled areas with a special detergent or detergent paste.

Treat curtains with special care. Remove hooks or tie them up in a bag or net.

Maximum loads

Recommended loads are indicated in the programme charts.

General rules:

Cotton, linen: drum full but not too tightly packed;

Synthetics: drum no more than half full;

Delicate fabrics and woollens: drum no more than one third full.

Washing a maximum load makes the most efficient use of water and energy.

For heavily soiled laundry, reduce the load size.

Laundry weights

The following weights are indicative:

bathrobe 1200 g

napkin 100 g

quilt cover 700 g

sheet 500 g

pillow case 200 g

tablecloth 250 g

towelling towel 200 g

tea cloth 100 g

night dress 200 g

ladies' briefs 100 g

man's work shirt 600 g

man's shirt 200 g

man's pyjamas 500 g

blouse 100 g

men's underpants 100 g

Removing stains

Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth.

Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

Grass: soap lightly and treat with bleach (whites and fast coloureds only).

Glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain.

Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach.

Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach.

Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste.

(*) do not use acetone on artificial silk.

Detergents and additives

Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment. Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature.

The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling.

All commonly available washing machine detergents may be used in this appliance:

– powder detergents for all types of fabric,
- powder detergents for delicate fabrics (60°C max) and woollens,
– liquid detergents, preferably for low temperature wash programmes (60°C max) for all types of fabric, or special for woollens only.

The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme.

If using concentrated powder or liquid detergents, a programme without prewash must be selected.

The washing machine incorporates a recirculation system which allows an optimal use of the concentrated detergent.

Pour liquid detergent into the dispenser drawer compartment marked just before starting the programme.

Any fabric softener or starching additives must be poured into the compartment marked before starting the wash programme.

Follow the product manufacturer's recommendations on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer.

Quantity of detergent to be used

The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used.

Water hardness is classified in so-called “degrees” of hardness. Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority.

Follow the product manufacturer's instructions on quantities to use.

Use less detergent if:

– you are washing a small load,
– the laundry is lightly soiled,
– large amounts of foam form during washing.

Degrees of water hardness

Level Characteristic		Degrees
		German °dH	French °T.H.
1	soft	0-7	0-15
2	medium	8-14	16-25
3	hard	15-21	26-37
4	very hard	more than 21	more than 37

i International wash code symbols

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic washDelicate wash	95Max. wash temperature 95°C	60Max. wash temperature 60°C	40Max. wash temperature 40°C	30Max. wash temperature 30°C	Hand wash Do not wash at all
		60	40	30

Bleaching Bleach in cold water Do not bleach

Ironing Hot iron	max 200°C	Warm iron max 150°C	Lukewarm iron max 110°C	Do not iron

Dry cleaning Dry cleaning in all solvents

Dry cleaning in petrol, pure alcohol and R 113

Do not dry clean

Drying Flat On the line On clothes

hanger

high temperature low temperature Tumble dry

Do not tumble dry

Operating sequence

Before washing your first load of laundry, we recommend that you run a cotton cycle at 60^ C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half of the normal amount of detergent into the main wash compartment and start up the machine.

1. Place the laundry in the drum

Open the door by pulling the handle outwards. Place the laundry in the drum, one item at a time, shaking them out as much as possible. Close the door.

Line drawing of hands washing clothes from a circular basin (no text or symbols)

2. Measure the detergent

Pull out the dispenser drawer until it stops.

Measure the required amount of detergent, pour it into the main wash compartment and into the compartment marked (in PREWASH option has been chosen).

Illustration of a hand inserting a device into a drawer (no text or symbols visible)

3. Measure the fabric softener

If required, pour fabric softener into the compartment marked the amount used must not exceed the

"MAX" mark in the drawer).

Close the drawer gently.

Illustration of a hand inserting a component into a drawer (no text or symbols visible)

4. Select the required programme

Turn the programme selector to the required programme.

40 AL 066 60E 90 30 20 * 30 * 20 * 10 * 50 * 30 * 20 * 10 * 50 AL 066

5. Select the spin speed or ☒ no spin / ☑ inse hold options

Turn the spin selector to the required position.

1000 900 700 000 AL 057

6. Select the required option push button/s

8 H ○ PRELAVADO LAVADO MEDIA 4 H ○ RAPIDO CARGA INICIO RETARDADO

7. OPTIONAL! Select, if required, "8H/4H INICIO RETARDADO" option button

Push "8H/4H INICIO RETARDADO" button as many times as necessary until the corresponding light to the required delay (8 H, 4 H) comes on.

8 H 4 H INICIO RETARDADO AL 067B

8. Start the machine

Before starting the machine check that:

• the appliance is plugged in.
• the water supply tap is turned on.
- the drain hose is correctly and securely positioned.
- the door and the detergent dispenser drawer are closed.

To start the selected programme, push

INICIO / PAUSA button; the corresponding light will stop flashing and will remain lit until the end of the programme.

INICIO/ PAUSA AL 068

If "8H/4H INICIO RETARDADO" option has been chosen, the machine will begin the countdown.

9. Modification of a running washing programme

Once the programme has started, it only can be modified by turning the programme selector dial to "O" and afterwards the new programme can be chosen.

The washing water remains in the tub, provided that the machine does not reach the rinse phase, since, in this case, the machine drains it automatically.

Start the new programme by pressing INICIO / PAUSA button.

10. Interrupting a programme

Depress INICIO / PAUSA button to interrupt a running programme, the corresponding light will begin flashing. Press this button again to re-start the programme.

11. Opening the door after the programme has started

Firstly, stop the machine by pressing INICIO / PAUSA button.

After about two or three minutes the door can be opened.

If the door does not open, this means that the temperature of the water is too high, that the water level exceeds the lower limit of the door (which could cause overflowing) or that the drum is spinning.

If the door cannot be opened but you need to open it, switch the machine off by turning the selector dial to "O". After approximately two or three minutes the door can be opened. (PAY ATTENTION TO THE WATER LEVEL AND TEMPERATURE!)

12. At the end of the programme

The machine stops automatically.

Release of the lock is indicated when FIN light comes on.

Turn the programme selector dial to position “O” to switch the machine off.

Remove the laundry from the drum and carefully check that the drum is empty.

If you do not intend to put in another wash, turn off the water tap. Leave the door open to prevent from forming mildew and unpleasant smells.

ATTENTION!

If the ☐ RINSE HOLD option has been selected, the last rinse water does not drain. To drain the water, carry out the following steps:

1. Turn the programme selector dial to "O".
2. Select 📋 DRAIN or 🌐 SPIN programme.
   If programme (SPIN) has been selected: Use the spin speed selector dial to choose the required speed. If the dial is kept in the same position as at the beginning, in other words ☐ RINSE HOLD (no-wrinkle) position, the machine will spin at 400 r.p.m.
3. Press INICIO / PAUSA button

Programme table

Washing programmes for cotton and linen

Programme selector dial position	Washing programme	Stains and type of fabric Description	Description	Possible option	Load
90 ALGODÓN	BLANCOS	For heavily soiled cotton items.	Wash at 90°C 3 rinses Spin	PrelavadoInicio retardadoMedia carga☐ Rinse hold (*)Lavado rápido	4,5 kg
60E ALGODÓN	AHORRO ENERGÍA (**)	White cotton, for example moderately soiled work garments, sheets, household linen, underwear, towels.	Wash at 60°C 3 rinses Spin	PrelavadoInicio retardadoMedia carga☐ Rinse hold (*)	4,5 kg
40 ALGODÓN	COLORES RESISTENTES	Fast coloured cotton or linen fabrics, moderately soiled, shirts, blouses, underwear.	Wash at 40°C 3 rinses Spin	PrelavadoInicio retardadoMedia carga☐ Rinse hold (*)Lavado rápido	4,5 kg
30 ALGODÓN	CUIDA LOS COLORES	Non fast coloured cotton or linen fabrics, moderately soiled, shirts, blouses, underwear.	Wash at 30°C 3 rinses Spin	PrelavadoInicio retardadoMedia carga☐ Rinse hold (*)Lavado rápido	4,5 kg
* ALGODÓN	ALGODÓN EN FRÍO	For slightly soiled cotton fabrics.	Cold wash 3 rinses Spin	PrelavadoInicio retardadoMedia carga☐ Rinse hold (*)Lavado rápido	4,5 kg
O	PARADA	To cancel the running wash programme and to switch the machine off.			—

(*) When this option is selected, the last rinse water does not drain to avoid wrinkling in the fabrics. To drain the water select SPIN or DRAIN programme.
(**) In compliance with EC directive 92/75, the consumption figures indicated on the energy label refer to the 60° C wash programme for cotton (programme 60E) with a wash load of 4.5 Kg.

Programme table

Washing programmes for synthetics, mixed fabrics, delicates and wool

Programme selector dial position	Washing programme	Stains and type of fabric Description		Possible option	Load
40 SINTÉTICOS	PLANCHADO FÁCIL	Special programme for synthetic fabrics, which makes ironing easier.	Wash at 40°C 4 rinses Spin impulse	Prelavado Inicio retardado ☐ Rinse hold (*) Lavado rápido	2 kg
30 SINTÉTICOS	CARGA MIXTA	Synthetic or mixed fabrics, underwear, coloured garments, perma-press shirts, blouses.	Wash at 30°C 3 rinses Short spin	Prelavado Inicio retardado ☐ Rinse hold (*) Lavado rápido	2 kg
* SINTÉTICOS	SINTÉTICO EN FRÍO	Slightly soiled delicate synthetic fabrics.	Cold wash 3 rinses Short spin	Prelavado Inicio retardado ☐ Rinse hold (*) Lavado rápido	2 kg
30 DELICADOS	LAVADO A MANO	Especially delicate fabrics.	Wash at 30°C 3 rinses Short spin	Inicio retardado ☐ Rinse hold (*)	2 kg
* DELICADOS	DELICADOS EN FRÍO	Delicate fabrics, such as curtains.	Cold wash 3 rinses Short spin	Prelavado Inicio retardado ☐ Rinse hold (*) Lavado rápido	2 kg
* -30 LANALANA	LANA	Use this wash cycle to wash Woolmark garments according to the instructions on the garments label and following the instructions booklet provided by the manufacturer of this machine (M9604).	Cold wash or wash at 30°C (depending on the selected position) 3 rinses Short spin	Inicio retardado ☐ Rinse hold (*)	1 kg
O	PARADA	To cancel the running wash programme and to switch the machine off.			—

(*) When this option is selected, the last rinse water does not drain to avoid wrinkling in the fabrics. To drain the water select SPIN or DRAIN programme.

Programme table

Special washing programmes

Programme selector dial position	Washing programme	Stains and type of fabric Description	Description	Possible option	Load
	ACLARADOS	With this programme it is possible to rinse and spin garments which have been washed by hand.The machine performs 3 rinses, and it finishes with a short spin.	3 rinsesShort spin	Inicio retardado ☐ Rinse hold (*)	4,5 kg
	CENTRIFUGADO	This programme can be used to perform a short spin: for garments washed by hand, for example: to wring them out, before hanging them up.This programme can be used to drain and spin, too, when ☐ RINSE HOLD option has been selected.	Short spin		4,5 kg
	DESCARGA	To drain the water from the last rinse in programmes with ☐ RINSE HOLD option selected.	Water drain		4,5 kg
	PARADA	To cancel the running wash programme and to switch the machine off.			—

(*) When this option is selected, the last rinse water does not drain to avoid wrinkling in the fabrics. To drain the water select SPIN or DRAIN programme.

Maintenance

1. Bodywork

Clean the outside of the machine with warm water and a neutral, non-abrasive household detergent. Rinse with clean water and dry with a soft cloth.

Important: do not use methylated spirits, solvents or similar products to clean the bodywork.

2. Detergent dispenser drawer

After a while, detergents and fabric softeners leave deposits in the drawer.

Clean the drawer from time to time by rinsing it under a running tap. To remove the drawer from the machine, press the button in the rear left-hand corner.

To facilitate cleaning, the top part of the additive compartments can be removed.

Illustration of a hand pressing down on a mechanical device with arrows indicating motion (no text or symbols)

C3075

Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the drawer after cleaning.

Illustration of a hand using a tool to cut or remove a component inside a container (no text or symbols visible)

3. Cleaning of the drainage area

The drainage area must be cleaned if the pump has been blocked with objects such as buttons, safety pins, coins, etc., or if lint has built up because clothes that generate lint have been washed at high temperatures.

• Pull out the plug from the power socket.
• If necessary, wait until the water has cooled down.
• Open the drainage area door.
• Place a bowl to collect the water.
• Release the emergency emptying hose, place it in the bowl and remove its cap, when the bowl is full put the cap back on the emergency emptying hose.
• Empty the bowl. Repeat the procedure until you have completely emptied the washing machine.

Hand inserting a small object into a rectangular device (no text or symbols visible)

Diagram of a device with a circular component and a base, labeled P1115 (no text or symbols on the diagram itself)

• To continue, unscrew the lid of the diaphragm by turning it counter clockwise and pull it out.
• Always keep a rag nearby to dry up spillage of water when removing the cover.
- Remove the objects such as buttons, coins and the lint that has been accumulated in the area of the pump impeller by rotating it.
- Screw the lid of the diaphragm clockwise, be sure is completely tighten.
- Replace the emergency emptying hose in its initial position and close the drainage area door.

P1116

Diagram of a washing machine with a door and lid, showing internal components (no text or symbols)

4. The water inlet hose filter

If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is therefore a good idea to clean it from time to time.

Turn off the water tap. Unscrew the water inlet hose.

Clean the filter using a hard bristle brush.

Tighten up the inlet hose.

P1090

5. Emergency emptying out

If the water is not discharged (outlet pump is blocked, filter or drain hose are clogged), proceed as follows to empty out the machine:

• pull out the plug from the power socket;
• close the water tap;
• if necessary, wait until the water has cooled down;
• open the drainage area door;
• place a bowl to collect the water;
• release the emergency emptying hose, place it in the bowl and remove its cap, when the bowl is full put the cap back on the emergency emptying hose;
• empty the bowl, repeat the procedure until you have completely emptied the washing machine;
• replace the emergency emptying hose in its initial position and close the drainage area door.

6. Frost precautions

If the machine is installed in a place where the temperature could drop below 0^ C, proceed as follows:

• disconnect the appliance;
• close the water tap;
• if necessary, wait until the water has cooled down;
• open the drainage area door;
• place a bowl to collect the water that will flow out;
• release the emergency emptying hose, place it in the bowl and remove its cap;
• when the water stops flowing out, put the cap back on the emergency emptying hose, replace the emergency emptying hose in its initial position and close the drainage area door.

By doing this, any water remaining in the machine is removed, avoiding the formation of ice and, consequently, breakage of the affected parts.

When you use the machine again, make sure that the ambient temperature is above 0^ C.

Something not working?

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling technical service. Before contacting your local Service Force Centre, please check the following possible problems listed below.

During machine operation it is possible that FIN light flashes to indicate that something is not working correctly.

• 4 flashes = door open.
• 2 flashes = the water is not drained.
• 1 flash = there is no water filling.

Once the problem has been eliminated, press INICIO / PAUSA button to restart the programme. If after all checks, the problem persists, contact your local Service Centre.

Problems which can be resolved without a technician's help.

Problems Possible cause
- The machine does not start up:	The door has not been closed.The plug is not properly inserted in the power socket.There is no power in the socket.The main fuse or the fuse in the plug has blown.The programme selector dial is not correctly positioned and INICIO / PAUSA button has not been pressed.
- The machine does not fill:	The water tap is off.The filter in the inlet hose is blocked.The inlet hose may be squashed or kinked.The door has not been closed.
- The machine fills then empties immediately:	The end of the drain hose is lower than the machine.The end of the drain hose is submerged in water.There is no air circulation in the installation, between the machine drain hose and the one in the house.
- The machine does not drain and / or does not spin:	The drain hose may be squashed or kinked.RINSE HOLDoption has been selected.The drain pump may be blocked.The drain hose extension is not correct. Follow the instructions to connect it to the drain.The drainage system pipes are blocked.The laundry load is off balance: redistribute the garments in the drum to allow the machine to spin.option has been selected.
- There is water on the floor:	There is too much detergent or an inappropriate detergent has been used (it makes too much foam).Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.The drain hose may be damaged or is not securely positioned to prevent leaks.The detergent dispenser drawer is clogged.The drainage system pipes are blocked.
- Unsatisfactory washing results:	· Little detergent or an inappropriate one has been used. An insufficient amount of detergent leaves the laundry looking grey.· Stubborn stains have not been treated prior to washing.· The correct wash programme has not been selected.· Too much laundry has been placed in the drum.
- The machine vibrates when spinning:	· The transit bolts and packaging have not been removed.· The machine is in contact with the wall or furniture.· The machine is not level and stable (check diagonally).· The laundry is not well distributed in the drum.· There may not be enough laundry in the drum.
- The door does not open::	· The programme is still running.· The door lock has not released yet.· Water in the tub: if there is water in the tub, the door cannot be opened (☐ RINSE HOLD option selected).
- Spinning starts late or the machine does not spin:	· The electronic off balance detection device has interrupted the spin because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the off balance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and re-select the spin programme.
- The machine makes an unusual noise:	· The machine is fitted with a type of motor which makes an unusual noise compared to other traditional motors. This new motor ensures a smoother starting and an even distribution of the laundry in the drum when the machine is spinning. At the same time it increases the appliance stability.
- No water is visible in the drum:	· Appliances using modern technology are energy efficient. They use very little water without affecting washing results.

If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

MOD. ...... Prod. No. ...... Ser. No. ......

Water is not visible in the machine. The machine, which is the result of modern technology, runs in a very economical way with low water consumption. Performance is nevertheless excellent. P1035UK

The machine makes an unusual noise. The machine is fitted with a commutator motor which improves machine performance. P1034UK
