USER MANUAL FA 5022 ZANUSSI

Yellow washing machine illustration with control panel and door (no text or symbols)

Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Transport damages

When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the environment: we use recycled paper.

Contents

Warnings 24-25

Disposal 25

Tips for environmental protection 25

Technical specifications 26

Installation 27-28

Unpacking 27

Hydraulic connection 27

Levelling 28

Electrical connection 28

Your new washing machine 29

Description of the appliance 29

Detergent dispenser drawer 29

Use 30

Control panel 30

Controls 30

Washing hints 31

Sorting the laundry 31

Temperatures 31

Before loading the laundry 31

Maximum loads 31

Laundry weights 31

Removing stains 31

Detergents and additives 32

International wash code symbols 33

Operating sequence 34-35

Washing programmes 36-37

Maintenance 38

Bodywork 38

Detergent dispenser drawer 38

Cleaning of the drainage area 38

Water inlet filter 39

Frost precautions 39

Emergency emptying out 39

Something not working? 40-41

Warnings

The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance.

Installation

• All internal packing must be removed before using the appliance. Serious damage may be caused to the machine or adjacent furniture if the protective transit devices are not removed or are not completely removed. Refer to the relevant paragraph in the instruction book.
• Any electrical work required to install this appliance must be carried out by a qualified electrician.
• Any plumbing work required to install this appliance must be carried out by a qualified plumber.
  • After having installed the machine, check that it is not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor, ensure that air can circulate freely between the feet and the floor.

Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.
• Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label.
• Do not overload the appliance. Follow the instructions in the instruction book.
• Make sure that all pockets are empty. Objects such as coins, safety pins, pins and screws can cause extensive damage.
• Do not machine wash garments saturated with petroleum, methylated spirits, trichlorethylene, etc. If such fluids have been used to remove stains prior to washing, wait until they have completely evaporated from the fabric before placing garments in the appliance.
• Place small items such as socks, belts, etc. in a cloth bag or pillowcase to prevent them getting trapped between the drum and the tub.

• Use only the recommended quantities of fabric softener. An excessive amount could damage the laundry.

• Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door seal and prevents the formation of musty smells.

• Always check that water has emptied out before opening the door. If not, drain the water following the instructions in the instruction book.
• Always unplug the appliance and shut the water tap after use.

General safety

• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause serious danger. Contact your local Service Centre.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
• During high temperature wash programmes the door glass may get hot. Do not touch it!

Child safety

• Children are often not aware of how dangerous electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children's reach.

• Keep all detergents in a safe place out of children's reach.

• Make sure that children or pets do not climb into the drum.
• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug with the remaining cable. Disable the door catch in order to prevent children from becoming trapped inside while playing.

Disposal

Packaging materials

The materials marked with the symbol are recyclable.

PE<=polyethylene
PS<=polystyrene
PP<=polypropylene

This means that they can be recycled by disposing of them properly in appropriate collection containers.

Machine

Use authorised disposal sites for your old appliance. Help to keep your country tidy!

Tips for environmental protection

To save water, energy and to help protect the environment, we recommend that you follow these tips:

• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).

• The machine works more economically if it is fully loaded.

• With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.

• Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.

Technical specifications

DIMENSIONS Height 85 cm
	Width 60 cmDepth 60 cm
MAXIMUM LOAD Cotton 4,5 kg
	Synthetics 2 kgDelicates 2 kgWoollens 1 kg
SPIN SPEED 500 rpm max.
POWER SUPPLY VOLTAGE/FREQUENCY 230 V/50 Hz
TOTAL POWER ABSORBED 2100 W MINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 5 N/cm	^2 Maximum 80 N/cm ^2

C ∈

This appliance complies with the following EEC Directives:

73/23/EEC of 19/02/73 relating to low voltage

89/336/EEC of 03/05/89 relating to electromagnetic compatibility.

Installation

Transit security bars

Before starting the machine up, the transport security bars must be removed as follows:

You are advised to keep all the transport security bars in case the appliance has to be transported again.

Illustration of a hand using a wrench to adjust or install a mechanical component (no text or symbols visible)

1. Unscrew and remove the three rear screws by means of a key.

Illustration of a person using a tool to adjust or install a wooden shelf, with no visible text or symbols.

1. Lean the appliance back on the rear and fit one of the polystyrene angles between the appliance and the floor.

Make sure the hoses are not squashed.

1 2 AL09

1. Carefully remove the plastic bags on the right and the left, pulling them to the centre of the appliance

Hand holding a cylindrical mechanical component with an arrow indicating rotation (no text or symbols)

P0002

1. Place the machine in an upright position and remove the three plastic bolts.

2. Plug the 3 holes with the plastic plugs which you can find in the envelope containing the instruction booklet.

Hydraulic connection

There should be a COLD WATER tap near the washing machine with a screwing on connection pipe of 3/4 gas for the water supply, a sink, a wash basin or a drainage system in the wall.

Previously check if:

— it is not a hot water tap.
— the running water is clean. If not, run off a reasonable amount of water to flush out any debris that may have collected in the pipes.

Have the permanent drainage system in the wall checked by a plumber.

P1085

A) Carefully screw the pipe to the tap taking care not to damage the screwdrive and fix the nut well on to the end in order to avoid leaking.

Diagram of a pipe fitting with a curved arrow indicating direction (no text or symbols)

B) If necessary turn the hose adequately by unscrewing the nut at the rear of the appliance.

C) Now tighten the nut anew to avoid leaks. (Open the tap and assure that it does not leak and close it again.)

Diagram of a faucet connecting tubing to a sink, with no visible text or symbols

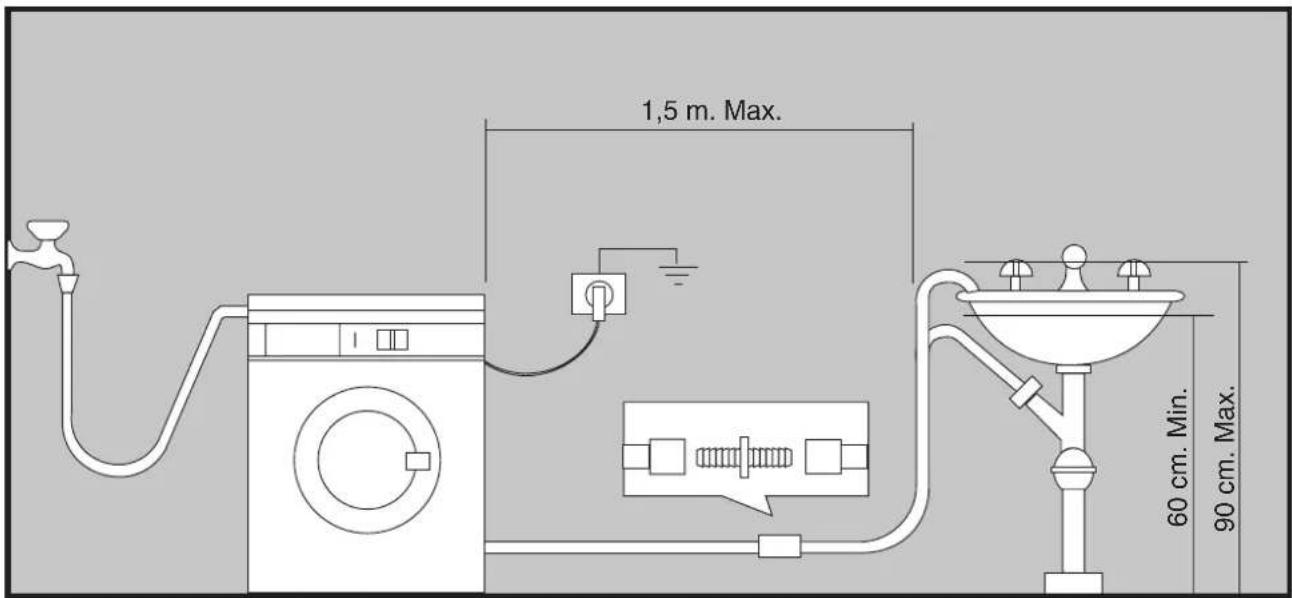

D) Place the discharging hose in a washbasin or sink with the aid of the bent piece delivered separately. The bent piece has to be entered into the tube's mouth in order to assure the support. Aforesaid piece allows the hose to be fixed to the wall by means of an opening on the upper part and that way the hose does not move and its falling is avoided.

1,5 m. Max. 60 cm. Min. 90 cm. Max.

IMPORTANT: The distance from the floor to the highest part of the hose should be between 60 to 90 cm. (It is advised to be between 60 and 70 cm). The hose must not be bent nor twisted to avoid clogging. Should a prolongation of the discharging hose be unavoidable this must never surpass 1.5 m and must be of the same diameter as the original hose.

Make sure the hoses are not too tense.

Levelling

Level the appliance by loosening or tightening the feet. Once in the right position fix the feet by pushing the nuts against the base of the case. Accurate levelling will prevent vibration, noise and displacement of the appliance during operation.

Some vibration is inevitable, especially if placed on a wooden floor. Wooden floors are particularly susceptible to vibrations. For advice, consult a builder. If possible always place the appliance on a solid floor.

Illustration of hands holding a gear with directional arrows indicating rotation (no text or symbols)

Electrical connections

Before plugging the appliance make sure that:

1°. the mains of your installation is the same as on the rating plate of your appliance (the plate is sticked to the rear of the appliance).
2°. The meter, the fuses, the wiring and the socket outlet can support the max. power absorbed stated on the rating plate.
3°. The socket base and the plug must fit in adequately without any reducing interposition, multiple outlets or adapters. If necessary replace the socket outlet by an adequate one.

The applicable rules for electrical security require an adequate earthing. The plug of the appliance is provided with such a device.

Make sure your socket outlet is provided with an adequate earthing too.

The manufacturer declines any liability in case of accidents or incidents should these safety measures not be observed.

Your new washing machine

This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption.

- The temperature selector dial will allow you to choose the most suitable temperature for your laundry.

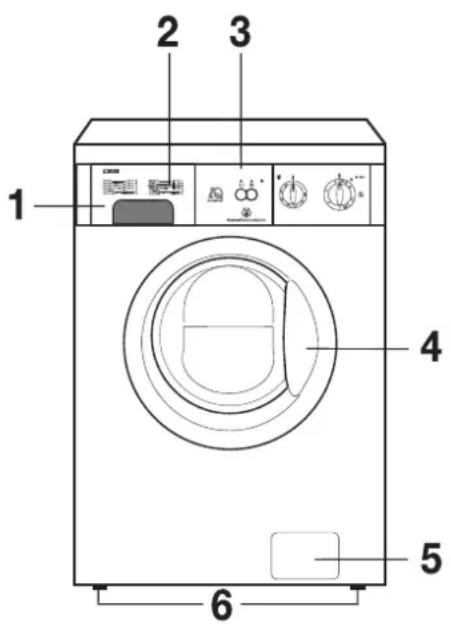

Description of the appliance

1 Detergent dispenser drawer
2 Programme chart
3 Control panel
4 Door handle
5 Drainage area door
6 Adjustable feet

1 2 3 4 5 6

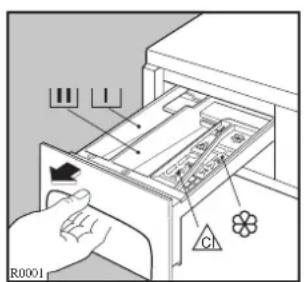

Detergent dispenser drawer

Prewash

Main wash

Fabric softener, starch

Bleaching agent

R0001

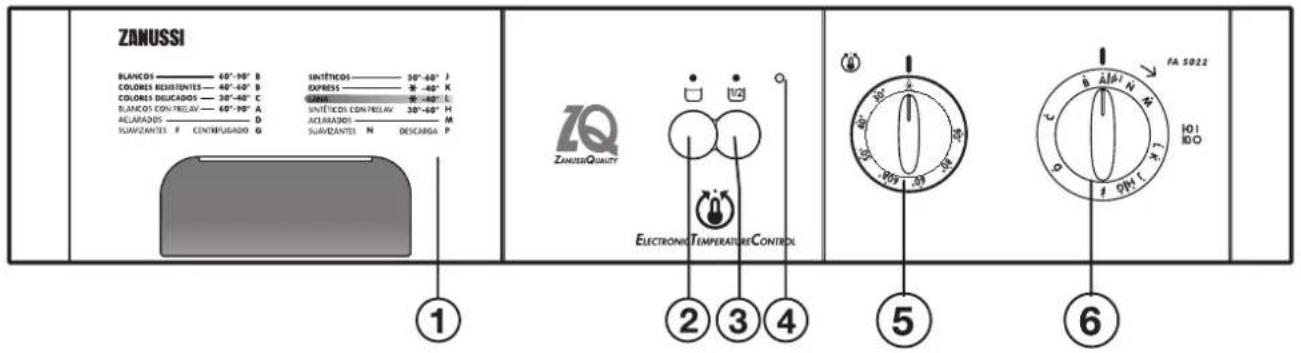

Control panel

ZANUSSI BLANCOS — 60°-90° B SINTÉTICOS — 30°-60° J COLORES RESISTENTES — 40°-60° B EXPRESS — -40° K COLORES DEDUCADOS — 30°-60° C GNDI — -40° L BLANCOS CON TRELAV — 60°-90° A SINTÉTICOS CONTROL 30°-60° H ACLRADOS A ACLRADOS M SURVIZANTES F CENTRIFICADO G SURVIZANTES N DESCARGA P 1 2 3 4 5 6 ZAUNUSSI QUALITY ELECTRONIC TEMPERATURE CONTROL FA 5022 101 IDO ① ② ③ ④ ⑤ ⑥

1 Programme chart

It will help you to choose the most suitable washing programme for your laundry.

2. RINSE HOLD button ☐

(Easy iron. If you use this button it will be easier to iron the fabrics later).

Pressing this button together with the programs for delicate fabrics, the water will hold up in the wash tub at the end of the cycle. Press again to drain the water and take out the clothes.

3 ECONOMY button 1/2

Pressing this button before starting the intense program there will be one rinse less which leads to energy and water saving.

4 On/off lamp

It lights when the appliance is operating.

5 Temperature selector

This control allows you to select the temperature of the washing cycle in accordance with the kind of clothes to be washed.

Turn the control until the required temperature coincides with the marker.

On the program table you will find the most appropriate temperature for each kind of washing. Selecting ✕ any program can be run through with cold water. This will ensure a saving in electricity consumption.

6. Program selector

To select the required program turn the control clockwise until the marker on the top coincides with the letter of the required program (reference mark on the control panel). If at any chance you pass by the required letter NEVER TURN THE CONTROL ANTICLOCKWISE just continue clockwise until the required letter is reached again.

i Washing hints

Sorting the laundry

Follow the wash code symbols on each garment label and the manufacturer's washing instructions.

Sort the laundry as follows:

whites, coloureds, synthetics, delicates, woollens.

Temperatures

90° for normally soiled white cottons and linen (e.g. tea cloths, towels, tablecloths, sheets...)

60° for normally soiled, colour fast garments (e.g. shirts, night dresses, pyjamas....) in linen, cotton or synthetic fibres and for lightly soiled white cotton (e.g. underwear).

* (cold)for delicate items (e.g. net curtains), mixed

30^-40^ laundry including synthetic fibres and woollens.

Before loading the laundry

Never wash whites and coloureds together. Whites may lose their “whiteness” in the wash.

New coloured items may run in the first wash; they should therefore be washed separately the first time.

Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins).

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

Remove persistent stains before washing. Rub particularly soiled areas with a special detergent or detergent paste.

Treat curtains with special care. Remove hooks or tie them up in a bag or net.

Maximum loads

Recommended loads are indicated in the programme charts.

General rules:

Cotton, linen: drum full but not too tightly packed;

Synthetics: drum no more than half full;

Delicate fabrics and woollens: drum no more than one third full.

Washing a maximum load makes the most efficient use of water and energy.

For heavily soiled laundry, reduce the load size.

Laundry weights

The following weights are indicative:

bathrobe 1200 g

napkin 100 g

quilt cover 700 g

sheet 500 g

pillow case 200 g

tablecloth 250 g

towelling towel 200 g

tea cloth 100 g

night dress 200 g

ladies' briefs 100 g

man's work shirt 600 g

man's shirt 200 g

man's pyjamas 500 g

blouse 100 g

men's underpants 100 g

Removing stains

Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth.

Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

Grass: soap lightly and treat with bleach (whites and fast coloureds only).

Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain.

Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach.

Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach.

Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste.

(*) do not use acetone on artificial silk.

Detergents and additives

Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment. Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature.

The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling.

All commonly available washing machine detergents may be used in this appliance:

– powder detergents for all types of fabric,
- powder detergents for delicate fabrics (60°C max) and woollens,
– liquid detergents, preferably for low temperature wash programmes (60°C max) for all types of fabric, or special for woollens only.

The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme.

If using concentrated powder or liquid detergents, a programme without prewash must be selected.

The washing machine incorporates a recirculation system which allows an optimal use of the concentrated detergent.

Pour liquid detergent into the dispenser drawer compartment marked just before starting the programme.

Any fabric softener or starching additives must be poured into the compartment marked before starting the wash programme.

The bleaching agent (chlorine) can be used only for white or fast coloured cotton and linen items.

Pour it into the compartment marked ⚠

Follow the product manufacturer's recommendations on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer.

Quantity of detergent to be used

The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used.

Water hardness is classified in so-called “degrees” of hardness. Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority.

Follow the product manufacturers' instructions on quantities to use.

Use less detergent if:

– you are washing a small load,
– the laundry is lightly soiled,
– large amounts of foam form during washing.

Degrees of water hardness

Level Characteristic		Degrees
		German °dH	French °T.H.
1	soft	0-7	0-15
2	medium	8-14	16-25
3	hard	15-21	26-37
4	very hard	more than 21	more than 37

i International wash code symbols

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic washDelicate wash	95Max. wash temperature 95°C	Max. wash temperature 60°C	Max. wash temperature 40°C	Max. wash temperature 30°C	Hand wash Do not wash at all

high temperature

low temperature

Drying Flat On the line On clothes

hanger

Tumble dry

Do not tumble dry

Operating sequence

Before washing your first load of laundry, we recommend that you run a cotton cycle at 60^ C, with the machine empty, in order to remove any manufacturing residue from the drum and tub.

Pour half a measure of detergent into the main wash compartment and start up the machine.

1. Place the laundry in the drum

Open the door.

Place the laundry in the drum, one item at a time, shaking them out as much as possible.

Close the door.

Illustration of hands cleaning a circular object with a cloth (no text or symbols)

2. Measure out the detergent

Pull out the dispenser drawer until it stops. Measure out the amount of detergent recommended by the manufacturer in a graduated cup and pour it into the main wash compartment Ⓗ

If you wish to carry out the prewash, pour detergent into the appropriate compartment marked ⬆

3. Measure out the additives

If required, pour fabric softener into the compartment marked and bleach into the compartment marked without exceeding the «MAX» mark.

Illustration of a hand inserting a drawer into a file (no text or symbols visible)

Illustration of a hand inserting a component into a drawer (no text or symbols visible)

4. Select the temperature

Turn the dial to the required setting.

80 R0032S

5. Select the option push button/s.

6. Select the programme and start the machine

Turn the programme selector dial clockwise to the required programme.

Before pulling the On/off programme selector check if:

• The door is properly closed.
• The appliance is plugged in.
• The water supply tap is turned on.
- The diaphragm lid is correctly screwed into place.
- The drain hose is adequately positioned.

Pull the program dial up to you till it clicks.

The pilot light comes on and the program will begin.

I B R0033

I B R0033 B

7. At the end of the programme

The machine stops automatically. The mains on light goes out.

If you have selected a programme which ends with the water of the last rinse left in the tub, drain the water before opening the door. Select programme "P" (drain) or "G" (spin).

Wait two or three minutes before opening the door to give the electric locking mechanism time to release it.

Remove the laundry.

Turn the drum by hand to make sure it is completely empty, so as to avoid any forgotten items being damaged in a subsequent wash (e.g. shrinking) or their colour running into a load of whites.

Release any buttons which have been pressed.

Turn the water tap off and unplug the machine.

Leave the door ajar to air the machine.

Programme table

Washing programmes for cotton and linen

Load: 4,5 kg

Programme	Temp. Fabrics		Additional functions	DESCRIPTION
A	60°-90°	WHITES WITH PREWASH, for example work garments, sheets, household linen, underwear, towels	1/2	PrewashWash at 60°-90°C4 rinsesSpin
B	60°-90°	WHITES WITHOUT PREWASH, for example household linen, sheets, shirts, underwear	1/2	Wash at 60°-90°C4 rinsesSpin
B	40°-60°	FAST COLOUREDS, for example shirts, blouses, terry cloths, underwear	1/2	Wash at 40°-60°C4 rinsesSpin
C	30°-40°	NON FAST COLOUREDS slightly soiled laundry	1/2	Wash at 30°-40°C4 rinsesSpin
D Rinses	*(COLD)	This programme can be used for rinsing hand washed garments	1/2	4 rinsesSpin
F Softeners	*(COLD)	For hand washed items to be softened		Load additif1 rinseSpin
G Long spin		Separate spin for cotton and linen		Spin

In compliance with EC directive 92/75, the consumption figures indicated on the energy label refer to the wash programme "B" for cotton with the temperature selector in the position 60A and with a wash load of 4.5 kg.

Programme table

Washing programmes for synthetics, mixed fabrics, delicates and wool

Load: 2 kg, wool 1 kg

Programme	Temp. Fabrics		Additional functions	DESCRIPTION
H	30°-60°	SYNTHETICS WITH PREWASH, for example underwear, coloured items, shirts, blouses	☐ (*)	Prewash at 30°CWash at 30°-60°C3 rinsesWater drain
J	30°-60°	SYNTHETICS WITHOUT PRE-WASH, for example shirts, blouses, mixed fabrics	☐ (*)	Wash at 30°-60°C3 rinsesWater drain
K	* -40°	EXPRESSslightly soiled laundry	☐ (*)	Wash at *40°C3 rinsesWater drain
L	* -40°	WOOL	☐ (*)	Wash at *40°C3 rinsesWater drain
M Rinses	* (COLD)	This programme can be used for rinsing hand washed garments	☐ (*)	3 rinsesWater drain
N Softeners		For hand washed items to be softened	☐ (*)	Load additif1 rinseWater drain
P Drain		For emptying out the water		Drain water drum stands still

(*) When this button is pressed, the last rinse water of these programmes is not emptied out, so as to avoid creasing if the laundry is not removed from the machine immediately after washing. To drain the water select programme "G" (spin) or "P" (drain).

Maintenance

1. Bodywork

Clean the outside of the machine with warm water and a neutral, non-abrasive household detergent. Rinse with clean water and dry with a soft cloth.

Important: do not use methylated spirits, solvents or similar products to clean the bodywork.

2. Detergent dispenser drawer

After a while, detergents and fabric softeners leave deposits in the drawer.

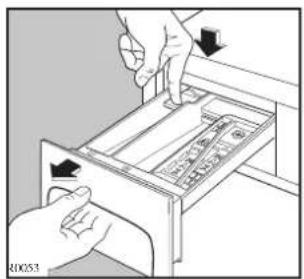

Clean the drawer from time to time by rinsing it under a running tap. To remove the drawer from the machine, press the button in the rear left-hand corner.

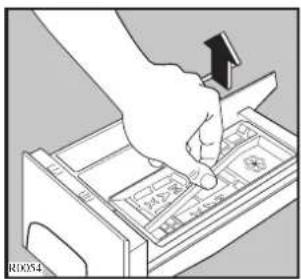

To facilitate cleaning, the top part of the additive compartments can be removed.

Illustration of hands inserting a device into a drawer with arrows indicating direction (no text or symbols)

Hand inserting a component into a machine (no text or symbols visible)

Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the drawer after cleaning.

Illustration of a hand using a tool to clean or store items inside a container (no text or symbols visible)

3. Cleaning of the drainage area

The drainage area must be cleaned if the pump has been blocked with objects such as buttons, safety pins, coins, etc., or if lint has built up because clothes that generate lint have been washed at high temperatures.

• Pull out the plug from the power socket.
• If necessary, wait until the water has cooled down.
• Open the drainage area door.
• Place a bowl to collect the water.
• Release the emergency emptying hose, place it in the bowl and remove its cap, when the bowl is full put the cap back on the emergency emptying hose.
• Empty the bowl. Repeat the procedure until you have completely emptied the washing machine.

Hand inserting a small object into a card (no text or symbols visible)

Diagram of a device with a screen and cable, labeled P1115 (no text or symbols on the diagram itself)

• To continue, unscrew the lid of the diaphragm by turning it counter clockwise and pull it out.
- Remove the objects such as buttons, coins and the lint that has been accumulated in the area of the pump impeller by rotating it.
- Screw the lid of the diaphragm clockwise, be sure is completely tighten.
- Replace the emergency emptying hose in its initial position and close the drainage area door.

P1116

Line drawing of a washing machine with a door and lid, no text or symbols present

4. The water inlet hose filter

If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is therefore a good idea to clean it from time to time.

Turn off the water tap. Unscrew the water inlet hose.

Clean the filter using a hard bristle brush.

Tighten up the inlet hose.

Illustration of hands using a screwdriver to adjust a pipe valve (no text or symbols present)

5. Emergency emptying out

If the water is not discharged (outlet pump is blocked, filter or drain hose are clogged), proceed as follows to empty out the machine:

• pull out the plug from the power socket;
• close the water tap;
• if necessary, wait until the water has cooled down;
• open the drainage area door;
• place a bowl to collect the water;
• release the emergency emptying hose, place it in the bowl and remove its cap, when the bowl is full put the cap back on the emergency emptying hose;
• empty the bowl, repeat the procedure until you have completely emptied the washing machine;
• replace the emergency emptying hose in its initial position and close the drainage area door.

6. Frost precautions

If the machine is installed in a place where the temperature could drop below 0^ C, proceed as follows:

• disconnect the appliance;
• close the water tap;
• if necessary, wait until the water has cooled down;
• open the drainage area door;
• place a bowl to collect the water that will flow out;
• release the emergency emptying hose, place it in the bowl and remove its cap;
• when the water stops flowing out, put the cap back on the emergency emptying hose, replace the emergency emptying hose in its initial position and close the drainage area door.

By doing this, any water remaining in the machine is removed, avoiding the formation of ice and, consequently, breakage of the affected parts.

When you use the machine again, make sure that the ambient temperature is above 0^ C.

Something not working?

Problems which you can resolve yourself.

Problem Possible cause
The machine does not start up:	The door is not firmly closed.The machine is not plugged in or there is no power at the socket.The main fuse has blown.The programme selector is not positioned correctly or the programme selector knob has not been pulled out.
The machine does not fill:	The water tap is closed.The inlet hose is squashed or kinked.The filter in the inlet hose is blocked.The door is not properly closed.
The machine fills then empties immediately:	The end of the drain hose is too low. Refer to relevant paragraph in “water drainage” section.
The machine does not empty and/or does not spin:	The drain hose is squashed or kinked.The option has been selected.The laundry is not evenly distributed in the drum.The drainage area is blocked. Clean it.
There is water on the floor:	Too much detergent or unsuitable detergent (creates too much foam) has been used.Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.The drain hose is damaged.Check that the diaphragm lid is correctly screwed into place.
Unsatisfactory washing results:	Too little detergent or unsuitable detergent has been used.Stubborn stains have not been treated prior to washing.The correct temperature was not selected.Excessive laundry load.
The machine vibrates or is noisy:	The transit bolts and packing have not been removed.The support feet have not been adjusted.The laundry is not evenly distributed in the drum.Maybe there is very little laundry in the drum.
The door will not open:	The programme is still running.The door lock has not been released.There is water in the drum.

If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

Mod. ...... Prod. No. ...... Ser. No. ......

Water is not visible in the machine. The machine, which is the result of modern technology, runs in a very economical way with low water consumption. Performance is nevertheless excellent. P1035UK
