USER MANUAL FLI 1003 ZANUSSI

Installation. Page 32

Transit devices. Page 32

Positioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 32

Water inlet. Page 32

Water drainage. Page 33

Electrical connection. Page 33

Building-in. Page 34

Use. Page 35

Control panel. Page 35

Detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 35

Controls. Page 35

Washing hints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 36

Detergents and additives. Page 37

Washing programmes. Page 38-39

International wash code symbols. Page 40

Operating sequence. Page 41

Maintenance. Page 42

Bodywork. Page 42

Detergent dispenser drawer. Page 42

Drain filter. Page 42

Water inlet filter. Page 42

Something not working? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 43

TECHNICAL SPECIFICATIONS

DIMENSIONS	Height	82 cm
	Width	60 cm
	Depth	54 cm
POWER SUPPLY VOLTAGE/FREQUENCY		220-230V/50 Hz
TOTAL POWER ABSORBED		2200 W
MINIMUM FUSE PROTECTION		10 A
WATER PRESSURE	Minimum	5 N/cm ^2
	Maximum	80 N/cm ^2
MAXIMUM LOAD	Cotton	5 kg
	Synthetics, delicate fabrics	2 kg
	Woollens	1 kg
SPIN SPEED		1000 rpm

This appliance complies with the following EEC Directives:

73/23/EEC of 19/02/73 relating to low voltage

89/336/EEC of 03/05/89 relating to electromagnetic compatibility

It is important that this instruction book be kept with the appliance for future reference. If you sell or give the appliance away, make sure that the book is passed to the new owners so that they can familiarise themselves with its operation and relevant warnings.

The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance.

- When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

INSTALLATION

• All internal packing must be removed before using the appliance. Serious damage may be caused to the machine or adjacent furniture if the protective transit devices are not removed or are not completely removed. Refer to the relevant paragraph in the instruction book.
• Any electrical work required to install this appliance must be carried out by a qualified electrician.
• Any plumbing work required to install this appliance must be carried out by a qualified plumber.
• After having installed the machine, check that it is not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor, ensure that air can circulate freely between the adjustable feet and the floor.

USE

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.
• Do not overload the appliance. Follow the instructions in the instruction book.
• Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label.
• Make sure that all pockets are empty. Objects such as coins, safety pins, pins and screws can cause extensive damage.
• Do not machine wash garments saturated with petroleum, methylated spirits, trichlorethylene, etc. If such fluids have been used to remove stains prior to washing, wait until they have completely evaporated from the fabric before placing garments in the appliance.
• Place small items such as socks, belts, etc. in a cloth bag or pillowcase to prevent them getting trapped between the drum and the tub.
• Use only the recommended quantities of fabric softener. An excessive amount could damage the laundry.

• Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door seal and prevents the formation of musty smells.

• Always check that water has emptied out before opening the door. If not, drain the water following the instructions in the instruction book.

• Always unplug the appliance and shut the water tap after use.

SERVICE/REPAIR

• In the event of a fault, do not attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause damage.
• If repairs are needed, contact an authorised service centre and ask for genuine spare parts.

SAFETY

• This appliance is designed to be used by adults. Children must not be allowed to touch the controls or play with the product.
• During high temperature wash cycles the glass door becomes very hot. Do not touch it.
• Pets sometimes climb into washing machines. Check the drum before each use.

PROTECTION OF THE ENVIRONMENT

- Materials marked with the symbol are recyclable. To enable them to be recycled, they must be placed in the appropriate collection areas (or containers). Check with your local authorities.

$$ \begin{array}{l} > \mathbf {P E} < = \text { polyethylene } \ > \mathbf {P S} < = \text { polystyrene } \ > \mathbf {P P} < = \text { polypropylene } \ \end{array} $$

- When the appliance is to be scrapped, cut off the power supply cable and make the door closing device inoperative to avoid it becoming a death trap for a child.

Transit devices

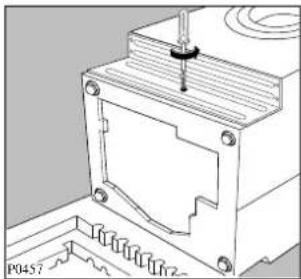

All transit bolts and packing must be removed before using the appliance.

Proceed as follows:

Hand using a screwdriver to adjust or install an open electrical cabinet (no text or symbols visible)

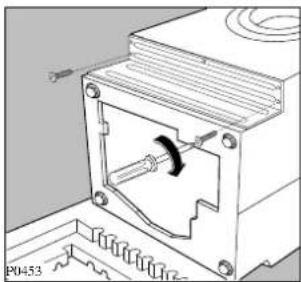

Using a spanner, unscrew and remove the rear right-hand bolt and lay the machine on its back, taking care not to squash the hoses. This can be avoided by placing one of the corner packing pieces between the machine and the floor.

Technical line drawing of a mechanical assembly with mounting holes and a central rod (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal components and a directional arrow (no text or symbols)

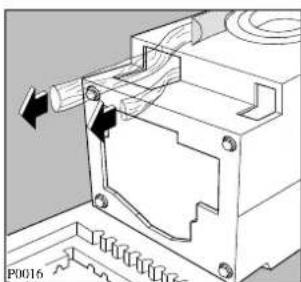

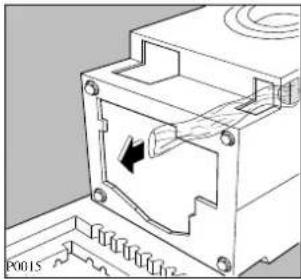

Remove the polystyrene base and take off the bottom panel by unscrewing the central screw. Carefully slide out the right polythene bag.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

Repeat the operation for the left and central polythene bags.

Re-fit the bottom panel using the 4 screws supplied with the door hinges (in the plastic bag) and the previously removed screw.

PH256

P0020

Set the machine upright and remove the two remaining bolts from the back.

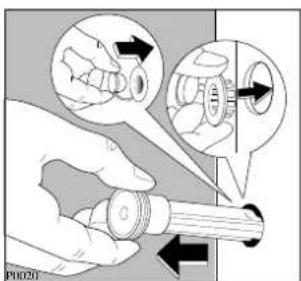

Pull out the three plastic pegs from the holes into which the bolts were fitted.

Plug the open holes with the plugs you can find on the back of the appliance.

Note: You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.

Positioning

Install the machine on a flat hard floor.

Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units.

Carefully level by screwing the adjustable feet in or out. Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor.

After having levelled the machine, tighten the lock nuts.

Illustration of hands performing a mechanical press or clamping operation with arrows indicating rotational direction (no text or symbols)

Mechanical assembly diagram showing a lever and base with directional arrows indicating motion (no text or symbols)

Water inlet

Connect the water inlet hose to a tap with a 3/4" thread after having inserted the small filter "A" supplied with the machine.

The inlet hose must not be lengthened. If it is too short and you do not wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use.

A PPOO3

Diagram of a pipe fitting with a curved arrow indicating direction (no text or symbols)

The other end of the inlet hose which connects to the machine can be turned in any direction. Simply loosen the fitting, rotate the hose and retighten the fitting, making sure there are no water leaks.

Water drainage

The end of the drain hose can be positioned in three ways:

Diagram of a pipe fitting with a valve and tubing, no text or symbols present

Hooked over the edge of a sink using the plastic hose guide supplied with the machine.

In this case, make sure the end cannot come unhooked when the machine is emptying.

This could be done by tying it to the tap with a

piece of string or attaching it to the wall.

In a sink drain pipe branch. This branch must be above the trap so that the bend is at least 60 cm above the ground.

Directly into a drain pipe at a height of not less than 60 cm and not more than 90 cm.

The end of the drain hose must always be ventilated, i.e. the inside diameter of the drain pipe must be larger than the outside diameter of the drain hose.

The drain hose must not be kinked. Run it along the floor; only the part near the drainage point must be raised.

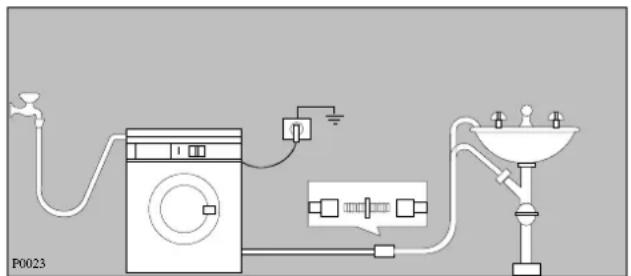

P0023

Electrical connection

This machine is designed to operate on a 220-230 V, single-phase, 50 Hz supply.

Check that your domestic electrical installation can take the maximum load required (2.2 kW), also taking into account any other appliances in use.

Connect the machine to an earthed socket, in accordance with current wiring regulations.

The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precaution.

Building-in

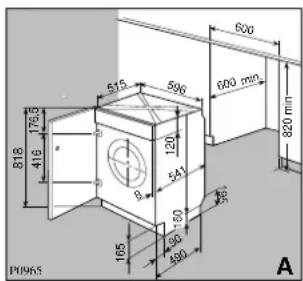

600 600 mm 820 mm 596 515 416 175.5 818 120 541 9 160 360 450 105 P0965 A

This appliance has been designed to be built into the kitchen furniture.

The recess should have the dimensions shown in picture A.

Preparation and assembly of the door

The machine is originally pre-arranged for the assembly of a door opening from right to left.

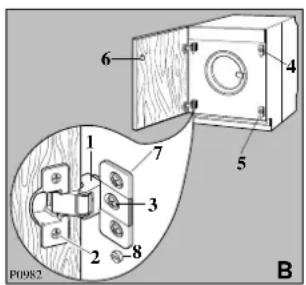

P0982 1 2 3 4 5 6 7 8 B

In this case it is sufficient to screw in the hinges (1) and the counter-magnet (6) provided with the appliance, at the right level (Fig. B).

a) Door

The dimensions of the door should be:

- width 595-598 mm

- thickness 16-22 mm

The height (C-Fig. C) depends on the height of the adjacent furniture's base.

b) Hinges

35 Ø 14 depth 16-20 B 416 C 595-598 22±1.5 P0422 C

To mount the hinges it is necessary to drill two holes (dia. 35 mm, depth 14 mm) on the inner side of the door. The distance between the holes must be 416 mm.

The distance (B) from upper edge of the door to

the centre of the hole depends on the adjacent furniture's dimensions.

The required dimensions are given in the picture C.

The hinges will be fixed to the door by means of screws for wood (2-Fig. B).

c) Mounting the door

Fix the hinges to the machine by means of the M5x8 screws (3-Fig. B). The hinges can be adjusted to compensate for possible uneven thickness of the door.

To align the door perfectly it is necessary to loosen the screw (3-Fig. B), adjust the door and tighten the screw again.

d) Counter-magnet (6)

6 4 8 P0084 D

The appliance is prearranged for a magnetic closure of the door. To enable a correct operation of this device, it is necessary to screw the counter-magnet (6) (steel disk + rubber ring) into the inner side of the door. Its position must corre-

spond to the magnet (4) on the appliance (see picture D).

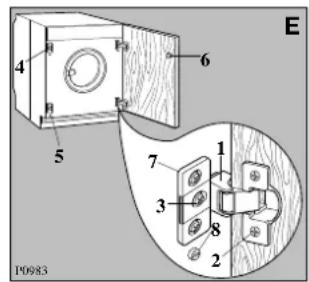

E P0983

If the door has to be opened from left to right, invert the position of the plates (7), the magnet (4) and the rubber cap (5) (Fig. B and E). Mount the countermagnet (6) and the hinges (1) as previously described.

Important: the plastic screw (8) should never be loosened (Fig. B and E).

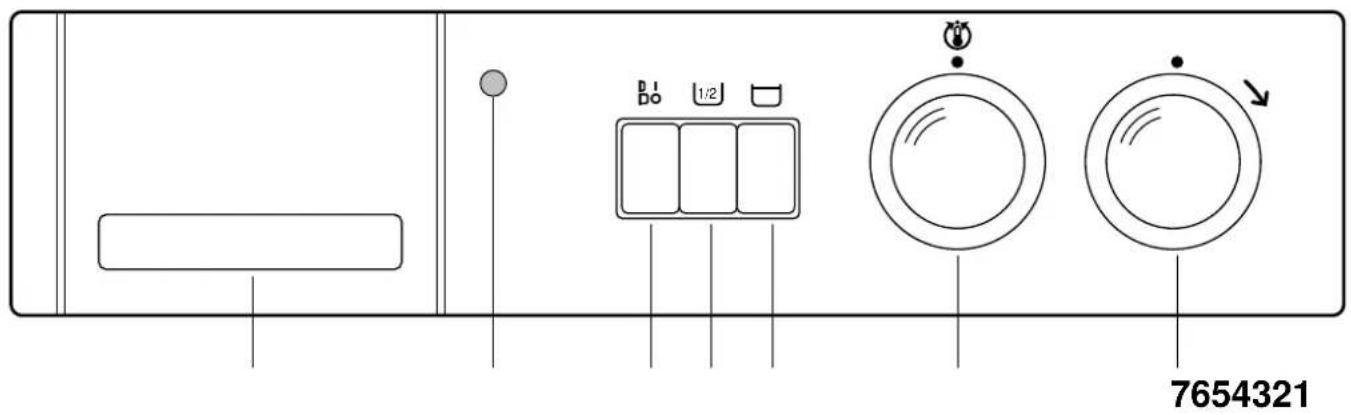

Control panel

7654321

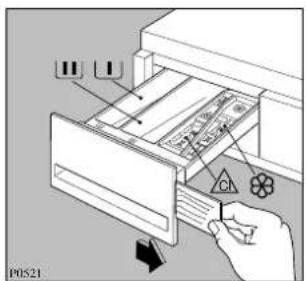

1 Detergent dispenser drawer and programme card

P0521

Symbols

U Prewash
Main wash
Fabric softener
△ Bleach

A programme card in Spanish is inserted in the front of the dispenser drawer.

2 Operating pilot light

This light is on while the machine is operating and goes out at the end of the programme.

3 On/Off button D1 Do

Press this button to start the machine. The same button is used to switch the machine off.

4 Half load button 1/2

Select this button to reduce water consumption on the rinse cycle when washing a smaller load of cottons or linens. (Maximum load size = 2.5 kg). The machine will carry out 3 rinses instead of 4.

5 Rinse hold (anti-crease) button

Use only with "gentle" programmes.

The last rinse water is not emptied out, so as to avoid creasing if the laundry is not removed from the machine immediately after washing.

The water can be emptied out by pressing the button again (the laundry will be gently spun) or by selecting the drain programme "M".

If the button is not pressed, the programmes end with a short spin.

6 Temperature selector dial (thermostat)

To select the washing temperature press the dial in to pop it out and then turn it to the required value.

When your laundry is only lightly soiled, a cold wash can be used (dial to position)

7 Programme selector dial

To select the required washing programme press the dial in to pop it out and then turn it clockwise.

Washing hints

Sorting the laundry

Follow the wash code symbols on each garment label and the manufacturer's washing instructions.

Sort the laundry as follows:

whites, coloureds, synthetics, delicates, woollens.

Temperatures

90° for normally soiled white cottons and linen (e.g. tea cloths, towels, tablecloths, sheets...)

60° for normally soiled, colour fast garments (e.g. shirts, night dresses, pyjamas....) in linen, cotton or synthetic fibres and for lightly soiled white cotton (e.g. underwear).

(cold) for delicate items (e.g. net curtains), 30°-40° mixed laundry including synthetic fibres and weollars bearing the label pure

Before loading the laundry

Never wash whites and coloureds together. Whites may lose their "whiteness" in the wash.

New coloured items may run in the first wash; they should therefore be washed separately the first time.

Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins).

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

Remove persistent stains before washing. Rub particularly soiled areas with a special detergent or detergent paste.

Treat curtains with special care. Remove hooks or tie them up in a bag or net.

Maximum loads

Recommended loads are indicated in the programme charts.

General rules:

cotton, linen: drum full but not too tightly packed;

synthetics: drum no more than half full;

delicate fabrics and woollens: drum no more than one third full.

Washing a maximum load makes the most efficient use of water and energy.

For heavily soiled laundry, reduce the load size.

Removing stains

Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth.

Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

Grass: soap lightly and treat with bleach (whites and fast coloureds only).

Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain.

Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach.

Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach.

Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste.

(\*) do not use acetone on artificial silk

Laundry weights

The following weights are indicative:

bathrobe 1200 g

napkin 100 g

quilt cover 700 g

sheet 500 g

pillow case 200 g

tablecloth 250 g

towelling towel 200 g

tea cloth 100 g

night dress 200 g

ladies' briefs 100 g

man's work shirt 600 g

man's shirt 200 g

man's pyjamas 500 g

blouse 100 g

men's underpants 100 g

Detergents and additives

Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment. Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature.

The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling.

All commonly available washing machine detergents may be used in this appliance:

– powder detergents for all types of fabric,
- powder detergents for delicate fabrics (60°C max) and woollens,
- liquid detergents, preferably for low temperature wash programmes (60°C max) for all types of fabric, or special for woollens only,
– multi-part detergents for separate dispensing of detergent, water softener and bleach.

The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme.

If using concentrated powder or liquid detergents, a programme without prewash must be selected.

Pour liquid detergent into the dispenser drawer compartment marked just before starting the programme.

Any fabric softener or starching additives must be poured into the compartment marked before starting the wash programme.

Follow the product manufacturer's recommendations on quantities to use.

Quantity of detergent to be used

The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used.

Water hardness is classified in so-called “degrees” of hardness. Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority.

Follow the product manufacturers' instructions on quantities to use.

Use less detergent if:

• you are washing a small load
  – the laundry is lightly soiled
  – large amounts of foam form during washing.

Degrees of water hardness

Level	Characteristic	Degrees
		German °dH	French °T.H.
1	soft	0-7	0-15
2	medium	8-14	16-25
3	hard	15-21	26-37
4	very hard	more than 21	more than 37

Hints on how to save energy and protect the environment

By following these hints, you will obtain economical washing without damaging the environment:

• whenever possible, wash the maximum load for the selected programme;
• measure out detergent according to the water hardness, degree of soiling and quantity of laundry being washed;
• use a programme without prewash when washing lightly soiled laundry.

ENERGETIC PROGRAMMES FOR COTTON AND LINEN

Maximum load: 5 kg

Progr.	Temp. Type of laundry Cycle description			Possible options
A	60°-90°	Whites with prewash heavy soiled	PrewashWash at 60°-90°CRinsesSpin	1/2
B(°)	60°-90°	Whites without prewash normally soiled	Wash at 60°-90°CRinsesSpin	1/2
B	30°-60°	Coloureds without prewash normally soiled	Wash at 30°-60°CRinsesSpin	1/2
C	30°-40°	Short cycle (lightly soiled laundry)	Wash at 30°-40°CRinsesSpin	1/2
D		Rinses	RinsesSpin	1/2
F		Spin Drain and long spin

The temperatures indicated are the optimum temperatures for each programme and depend on the type of laundry and degree of soiling.

(*) This 60° programme is the reference programme for the Energy label according to the article 2, paragraph 1 of the EEC Directive 92/75.

GENTLE PROGRAMMES FOR SYNTHETICS, MIXED FIBRES, DELICATES AND WOOLLENS

Maximum load: 2 kg, woollens: 1 kg

Progr.	Temp. Type	of laundry Cycle description		Possible options
G	30°-60°	Synthetics without prewash normally soiled	Wash at 30°-60°CRinsesShort spin
H	30°-40°	Delicates	Wash at 30°-40°CRinsesShort spin
J	30°-40°	Woollens	Wash at 30°-40°CRinsesShort spin
K		Rinses	RinsesShort spin
L		Spin Short spin
M		Drain Empty out water

The temperatures indicated are the optimum temperatures for each programme and depend on the type of laundry and degree of soiling.

Wash code symbols

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic washDelicate wash

95Max. wash temperature 95°C

Max. wash temperature 60°C

40Max. wash temperature 40°C4040

Max. wash temperature 30°C

Hand wash Do notwash at all

Bleaching Bleach in cold water Do not bleach

[CL]

Ironing Hot iron

max 200°C

Warm iron max 150°C

Lukewarm iron max 110°C

Do not iron

Dry cleaning Dry cleaningin all solvents

Dry cleaning in perchlorethylene, petrol, pure alcohol, R 111 & R 113

Dry cleaning in petrol, pure alcohol and R 113

Do not dry clean

Drying Flat On the line On clothes

hanger

Tumble dry

high temperature low temperature

Do not tumble dry

Operating sequence

Important:

Before washing your first load of laundry, we recommend that you run a cotton cycle at 60^ C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half a measure of detergent into the main wash compartment and start up the machine.

1 Place the laundry in the drum

Illustration of hands cleaning a circular object with a cloth (no text or symbols)

Open the door and place the laundry in the drum, one item at a time, shaking them out as much as possible. Close the door.

2 Measure out the detergent

Illustration of a hand using a tool to clean or adjust internal components in a drawer (no text or symbols visible)

Pull out the dispenser drawer until it stops. Measure out the amount of detergent recommended by the manufacturer in a graduated cup and pour it into the main wash compartment ⑪ If you wish to carry out the prewash, pour detergent into the appropriate

compartment marked Ⓗ

3 Measure out the additives

Illustration of a hand inserting a small object into a drawer (no text or symbols visible)

If required, pour fabric softener into the compartment marked and bleach into the compartment marked without exceeding the «MAX» mark.

4 Select the required option

5 Select the temperature

90° P0599

Press the temperature selector dial in to pop it out and turn it to the required value.

6 Select the programme and start the machine

B P0129

Press the programme selector dial in to pop it out and then turn it clockwise until the programme coincides with the marker.

D D0 P0413

Depress the ON/OFF button: the operating pilot light will come on and the machine starts operating.

7 At the end of the programme

The machine stops automatically, the operating light goes out.

After a programme which stops with water in the drum (button pressed), the water must be emptied out before opening the door.

Wait one or two minutes before opening the door to give the electric locking mechanism time to release it.

Turn the drum by hand to make sure it is completely empty, so as to avoid any forgotten items being damaged in a subsequent wash (e.g. shrinking) or their colour running into a load of whites.

Release any buttons which have been pressed.

Turn the water tap off and unplug the machine.

Leave the door ajar to air the machine.

MAINTENANCE

Bodywork

Clean the outside of the machine with warm water and a neutral, non-abrasive household detergent. Rinse with clean water and dry with a soft cloth.

Important: do not use methylated spirits, solvents or similar products to clean the bodywork.

Detergent dispenser drawer

After a while, detergents and fabric softeners leave deposits in the drawer.

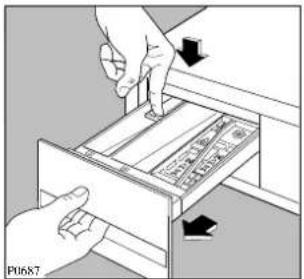

Clean the drawer from time to time by rinsing it under a running tap. To remove the drawer from the machine, press the button in the rear left-hand corner.

To facilitate cleaning, the top part of the additive compartments can be removed.

Illustration of hands inserting a device into a drawer with arrows indicating direction (no text or symbols)

P0516

Line drawing of a hand using a tool to clean or inspect internal components (no text or symbols)

Detergent can also eventually accumulate inside the drawer recess: clean it with an old toothbrush. Refit the drawer after cleaning.

Drain filter

The drain filter collects threads and small objects inadvertently left in the laundry. Check regularly that the filter is clean.

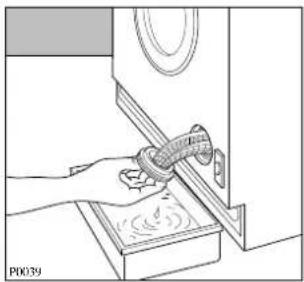

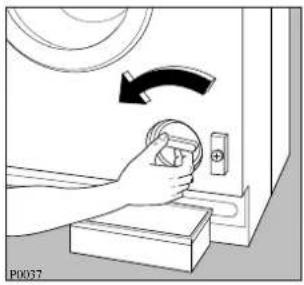

Place a container under the filter and unscrew it. Pull out the filter.

Illustration of a hand holding a circular component next to a door, with an arrow indicating rotation (no text or symbols)

Line drawing of a hand using a tool to clean or wash material inside a washing machine (no text or symbols)

Illustration of a hand washing a faucet with water dripping (no text or symbols)

Clean the filter under a running tap, then refit it, screwing it fully in.

Water inlet filter

P0041

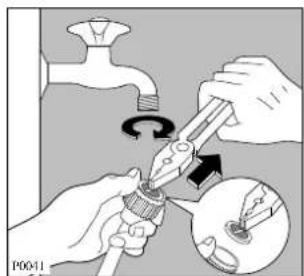

If you notice that the machine is taking longer to fill, check that the filter in the water inlet hose is not blocked.

Turn off the water tap. Unscrew the hose from the tap and remove the filter. Clean it with a stiff brush. Refit the filter and screw the hose back onto the tap.

Problems which you can resolve yourself

The machine does not start up:

• Check that the door is firmly closed.
• Check that the machine is plugged in and that there is power at the socket.
• Check that the main fuse has not blown.
• Check that the programme selector dial is positioned correctly and the ON/OFF button depressed.

The machine does not fill:

• Check that the water tap is open.
• Check that water is coming out of the tap.
• Check that the inlet hose is not squashed or kinked.
• Check that the filter in the inlet hose is not blocked.
• Check that the door is closed.

The machine fills then empties immediately:

- The end of the drain hose is too low. Refer to relevant paragraph in "water drainage" section.

The machine does not empty and/or does not spin:

• Check that the drain hose is not squashed or kinked.
• The drain filter is blocked. Clean it.
• A programme with the "Rinse hold" option has been selected.
• Check that the laundry is evenly distributed in the drum.

There is water on the floor:

• Too much detergent or unsuitable detergent (creates too much foam) has been used.
• Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.
• Check that the drain hose is not damaged.
• Check that the drain filter has been refitted correctly after cleaning.

Unsatisfactory washing results:

• Too little detergent or unsuitable detergent has been used.
• Stubborn stains have not been treated prior to washing.
• The correct temperature was not selected.

The machine vibrates or is noisy:

• Check that all the transit bolts and packing have been removed.
• Check that the machine is not resting against anything.
• Check that the support feet are resting firmly on the ground and that the lock nuts are securely tightened.
• Check that the laundry is evenly distributed in the drum.
• Maybe there is very little laundry in the drum.

If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

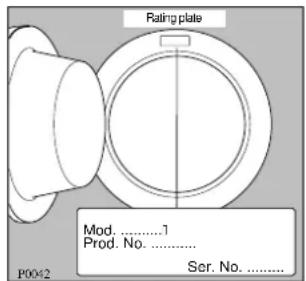

Rating plate Mod. ....1 Prod. No. ...... Ser. No. ...... P0042
