USER MANUAL SuperServer 1019D-14C-FRN5TP Supermicro

Technical line drawing of a multi-chamber rack or storage unit with internal compartments and ports (no text or symbols)

USER'S MANUAL

Revision 1.0b

The information in this User's Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate".

WARNING: This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0b

Release Date: November 21, 2019

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2019 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

Preface

About this Manual

This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the server. Installation and maintenance should be performed by experienced technicians only.

Please refer to the 1019D-FRN5TP, 1019D-12C-FRN5TP, 1019D-14C-FRN5TP, or 1019D-16C-FRN5TP server specifications page on our website for updates on supported memory, processors, and operating systems (http://www.supermicro.com).

Notes

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/
- Product drivers and utilities: https://www.supermicro.com/wftp
- Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm

If you have any questions, please contact our support team at:

[e-mail]

This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

Warnings

Special attention should be given to the following symbols used in this manual.

Warning! Indicates important information given to prevent equipment/property damage or personal injury.

Warning! Indicates high voltage may be encountered when performing a procedure.

Contents

Chapter 1 Introduction

1.1 Overview....8
1.2 Unpacking the System ....10
1.3 System Features....11
1.4 Chassis Features ....13

Control Panel 13

Front Features....15

1.5 Motherboard Layout....16

Quick Reference Table for X11SDS-8C/12C/14C/16C 17

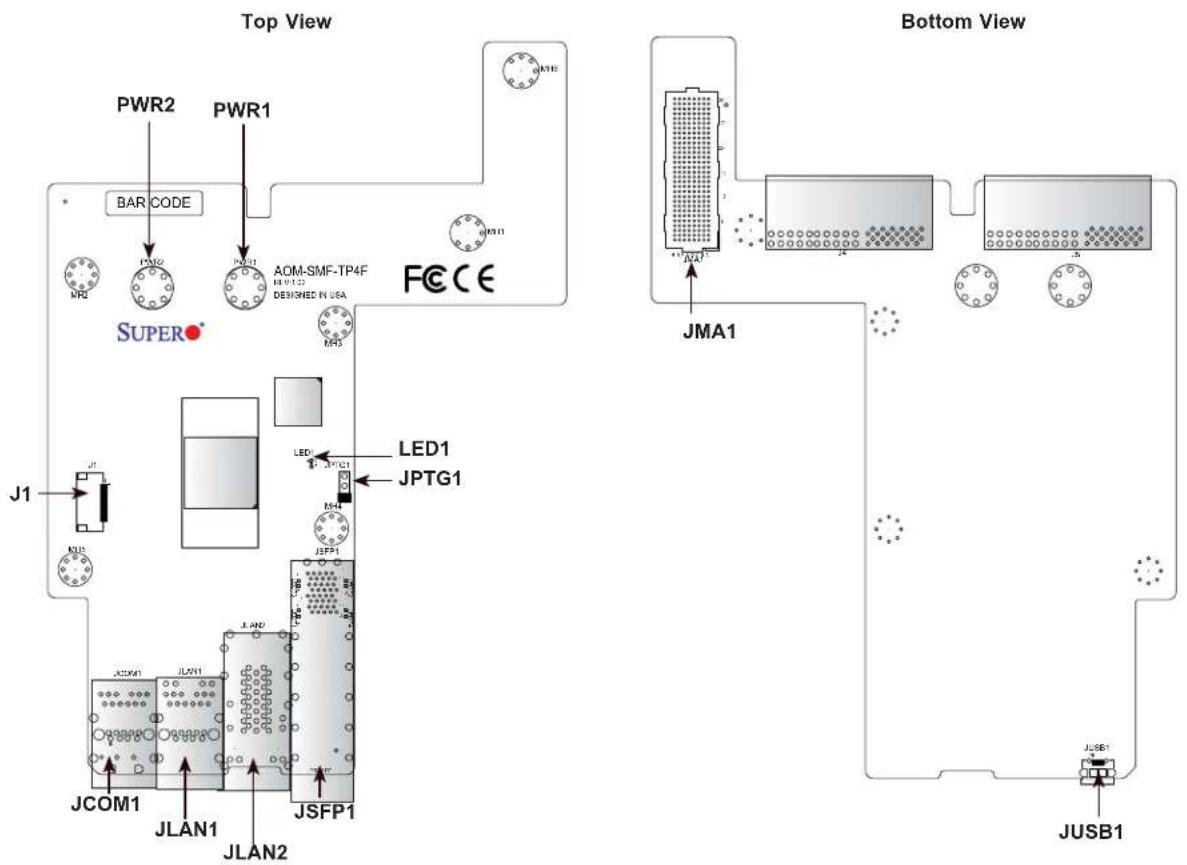

Quick Reference Table for AOM-SMF-TP4F....18

Chapter 2 Installation in a Rack

2.1 Overview....20
2.2 Preparing for Setup....20

Choosing a Setup Location....20

Rack Precautions....20

Server Precautions....21

Rack Mounting Considerations....21

Ambient Operating Temperature....21

Reduced Airflow....21
Mechanical Loading....21
Circuit Overloading 22
Reliable Ground....22

2.3 Installing the Rails....23

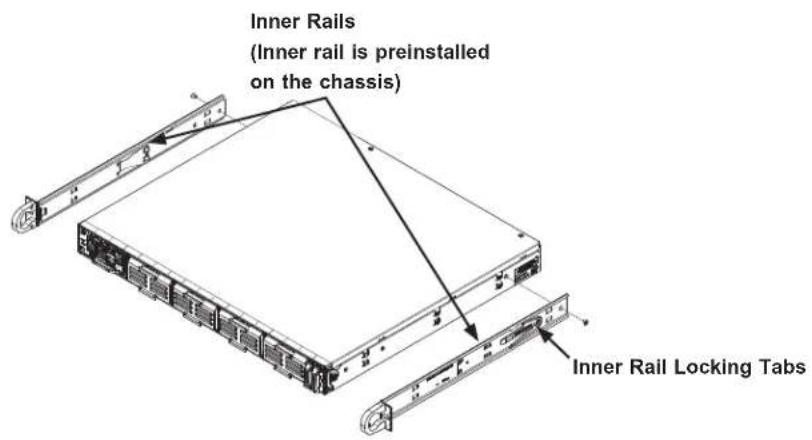

Identifying the Sections of the Rack Rails....23
Locking Tabs 23

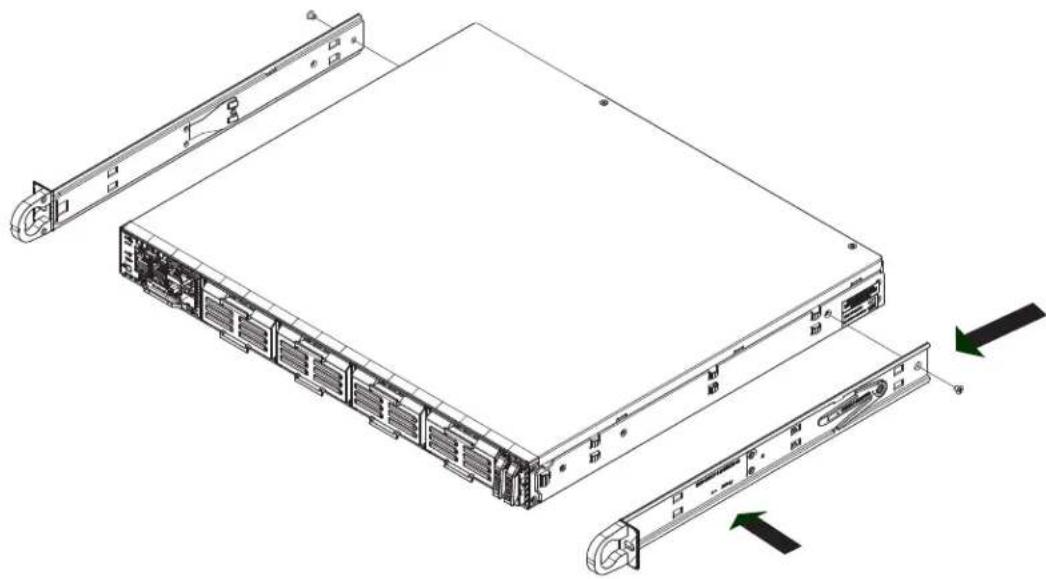

Installing the Inner Rails ....24

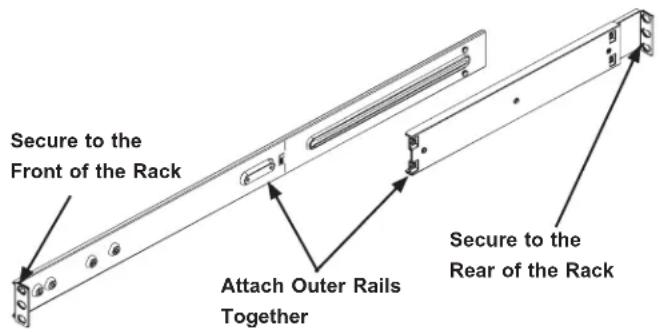

Installing the Outer Rack Rails 25

2.4 Installing the Chassis into a Rack....26

Chapter 3 Maintenance and Component Installation

3.1 Removing Power....27
3.2 Accessing the System....28

Removing the Chassis Cover ....28

3.3 Motherboard Components....29

Memory Installation ....29

Memory Support....29

DIMM Module Population Configuration....29

DIMM Module Population Sequence....30

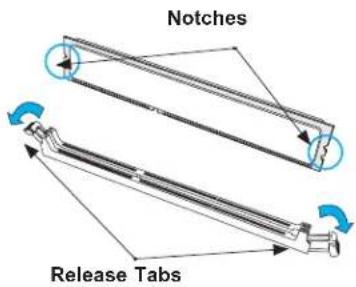

Install Procedure....31

Removal Procedure....31

Motherboard Battery ....32

3.4 Chassis Components ....33

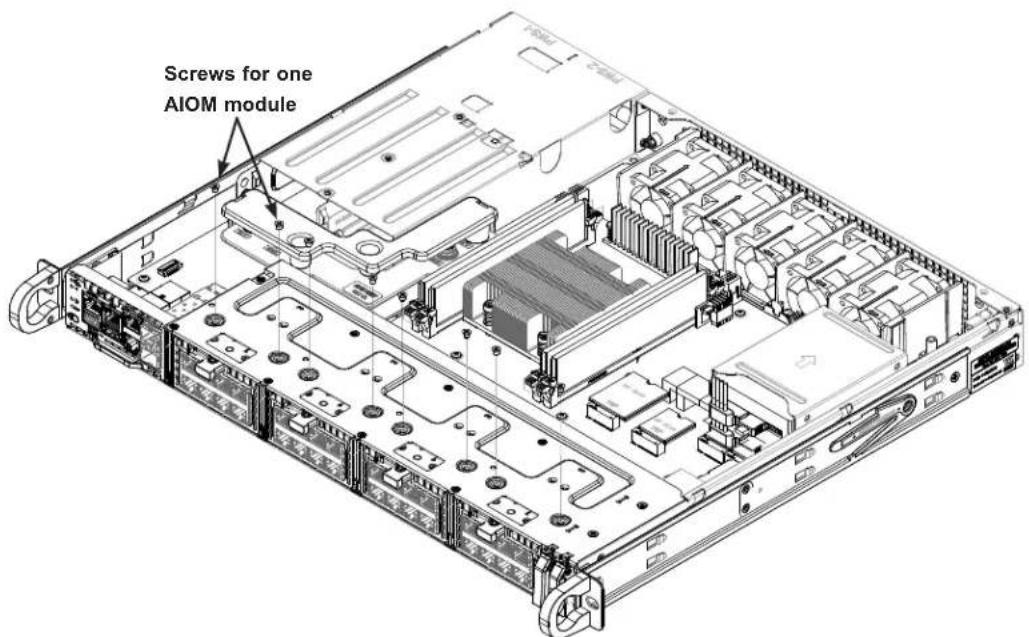

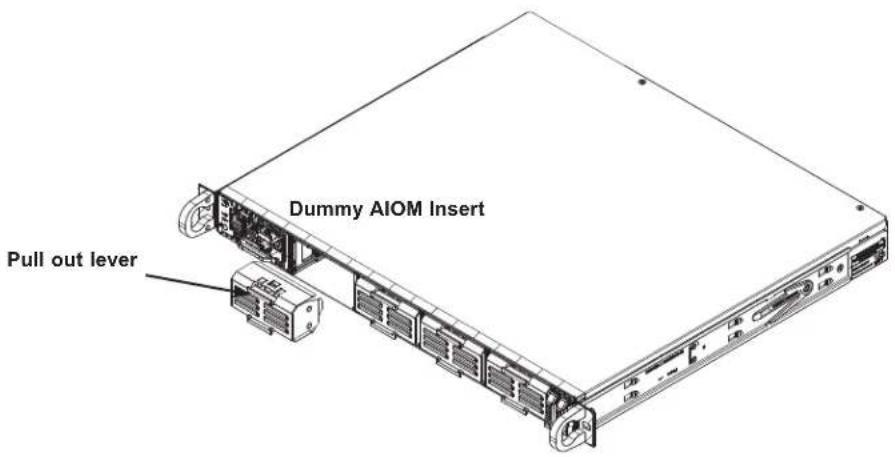

AIOM and EDSFF "Ruler" Device Bays 33

Replacing Fans....37

Checking the Airflow ....38

Checking the Server's Airflow....38

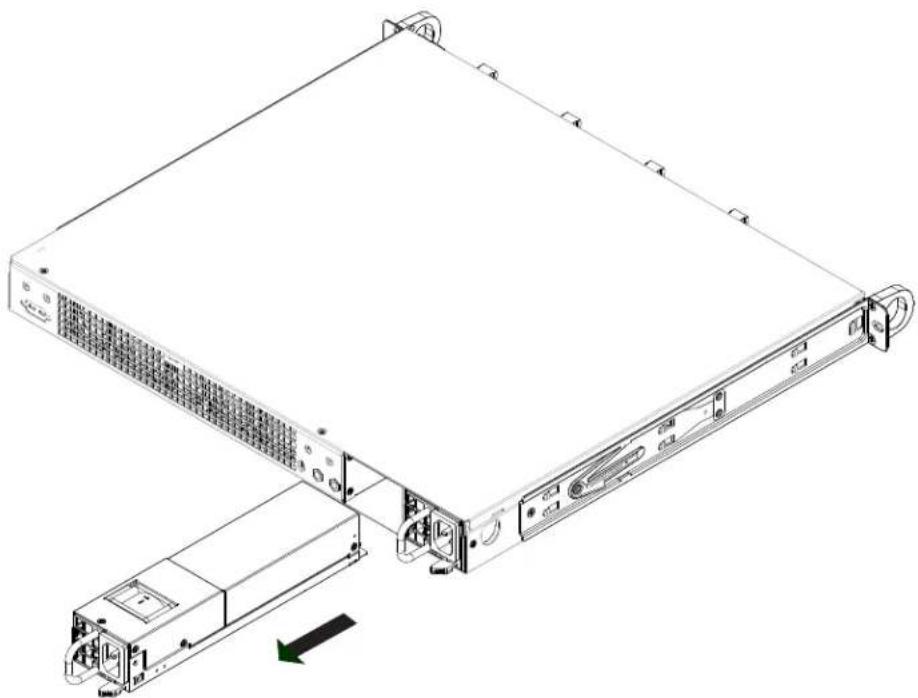

Power Supply 39

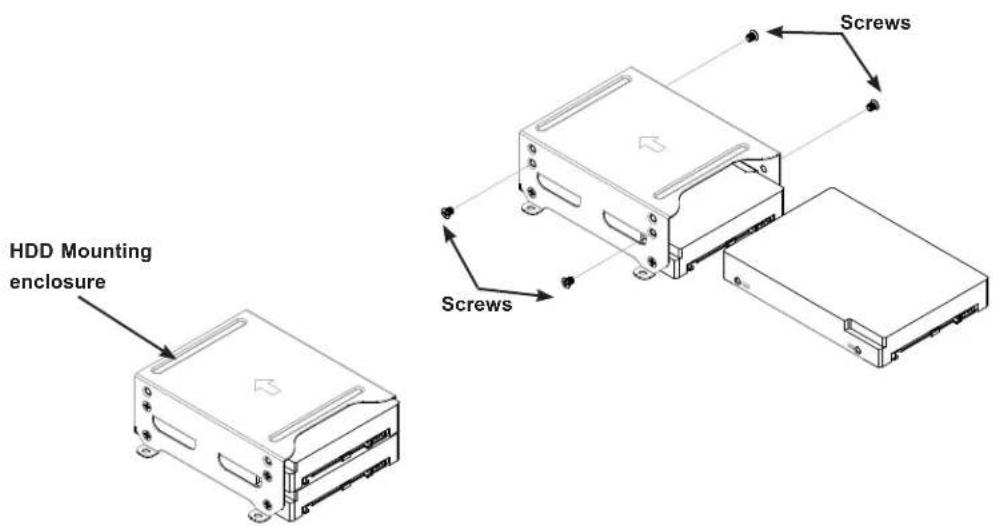

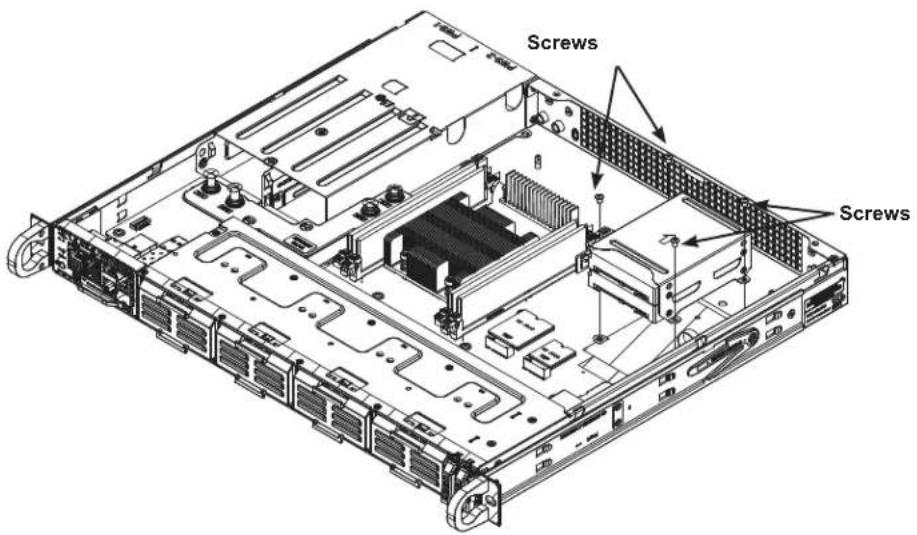

Installing an Optional Hard Drive....40

Chapter 4 Motherboard Connections

4.1 Power Connections 42

4.2 Headers and Connectors....43

4.3 Jumpers....47

Explanation of Jumpers....47

4.4 LED Indicators....50

Chapter 5 Software

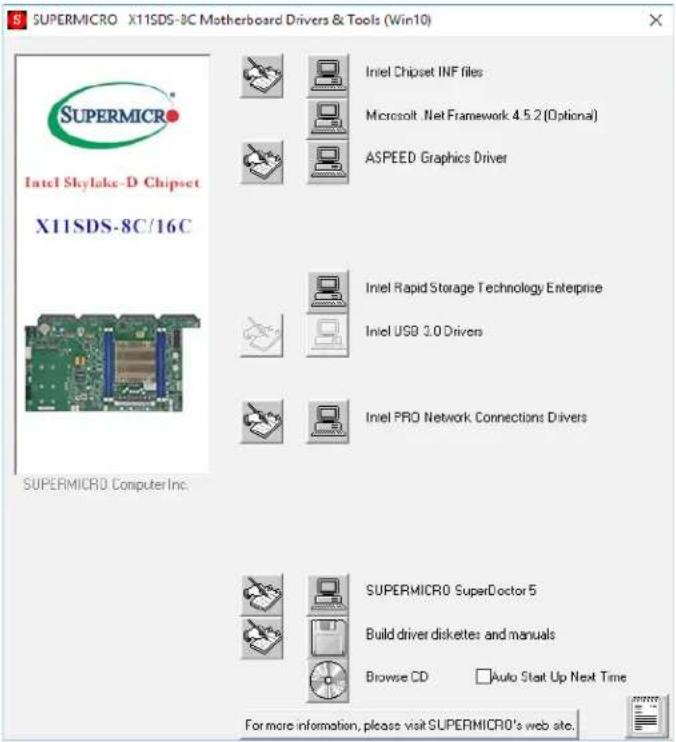

5.1 Driver Installation....51

5.2 SuperDoctor ^® 5....53

5.3 IPMI....54

Chapter 6 UEFI BIOS

6.1 Introduction....55

Starting the Setup Utility ....55

6.2 Main Menu....56

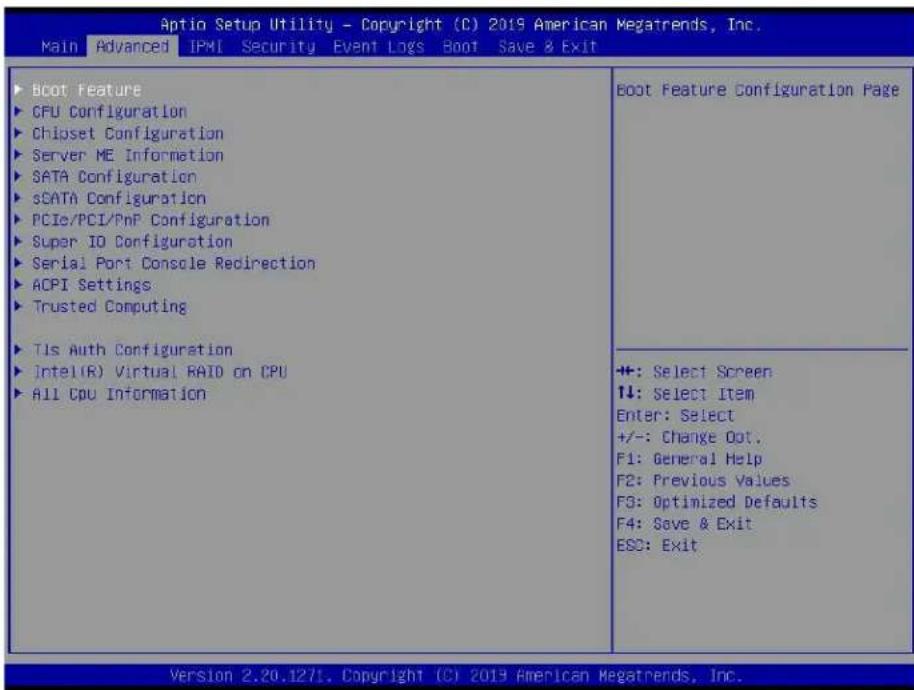

6.3 Advanced....58

6.4 IPMI 86

6.5 Security....90

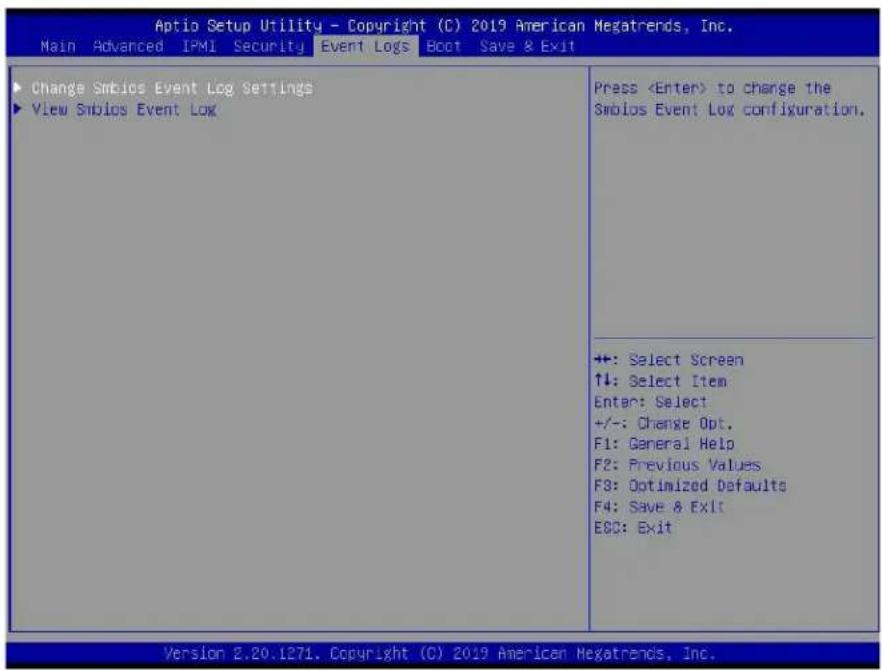

6.6 Event Logs 94

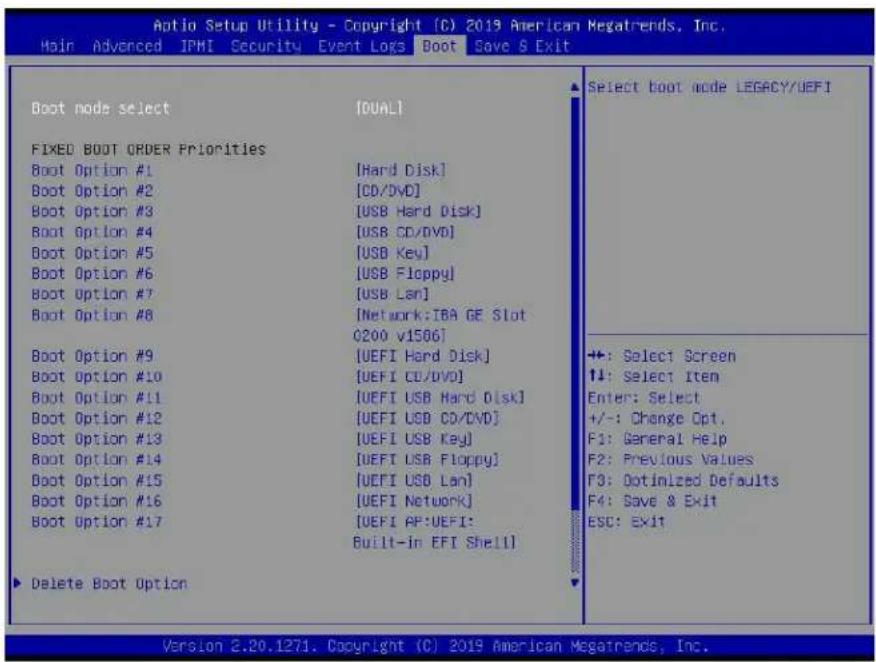

6.7 Boot....96

6.8 Save & Exit....98

Appendix A BIOS Error Codes

Appendix B Standardized Warning Statements for AC Systems

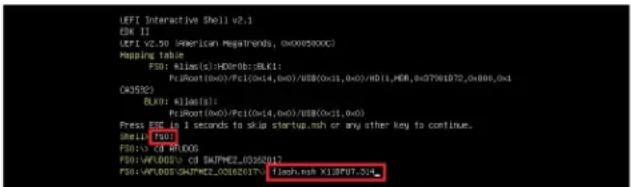

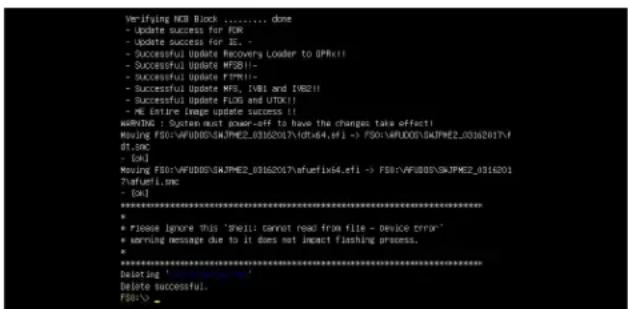

Appendix C UEFI BIOS Recovery Instructions

Appendix D System Specifications

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.supermicro.com.tw

Chapter 1

Introduction

1.1 Overview

The 1019D-(12C/14C/16C-)FRN5TP is a SuperServer system in the SC103-R407B chassis, containing an X11SDS-8C, X11SDS-12C, X11SDS-14C, or X11SDS-16C motherboard.

Main Parts List
Description Part Number Quantity
Power supply PWS-407-1R 2
Fans FAN-0157L4 5
CPU Passive Heatsink SNK-C0111PL 1
I/O Slots	AOM-SMF-TP4F	1
	AIOM Modules	4 (sold separately)
Rail Kits	MCP-290-00102-0N	2 sets
	MCP-290-00108-0B

SuperServer Model Variation Table
SuperServer Model Motherboard	Model Processor Name
1019D-FRN5TP X11SDS-8C D-2146NT
1019D-12C-FRN5TP X11SDS-12C D-2163IT
1019D-14C-FRN5TP X11SDS-14C D-2173IT
1019D-16C-FRN5TP X11SDS-16C D-2183IT

Motherboard Model Variation Table
Motherboard Model Name	X11SDS-8C X11SDS-12C X11SDS-14C X11SDS-16C
Processor Name	Intel XeonD-2146NT	Intel XeonD-2163IT	Intel XeonD-2173IT	Intel XeonD-2183IT
Number of Cores	8 12 14 16
Number of Threads	16 24 24 32
Cache	11MB 17MB 19MB 22MB
Processor Base Frequency	2.3GHz 2.1GHz 1.7GHz 2.2GHz
Max Turbo Frequency	3.0GHz 3.0GHz 3.0GHz 3.0GHz
Intel Turbo Boost Technology	Yes Yes Yes Yes
SoC Max TDP	80W 75W 70W 100W
Maximum Memory Speed	2133MHz 2133MHz 2133MHz 2400MHz
Embedded Options Available	Yes Yes Yes Yes
Intel Hyper-Threading Technology	Yes Yes Yes Yes
Intel Virtualization Technology (VT-x)	Yes Yes Yes Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes Yes Yes Yes
Intel TSX-NI with Extended Page Table	Yes Yes Yes Yes
Instruction Set	64-bit 64-bit 64-bit 64-bit
Instruction Set Extensions	Intel® AVX2, Intel AVX-512	Intel® AVX2, Intel AVX-512	Intel® AVX2, Intel AVX-512	Intel® AVX2, Intel AVX-512
Number of AVX-512 FMA Units	1 1 1 1
Integrated Intel QuickAssist Technology	Yes No No No
Intel AES New Instructions	Yes Yes Yes Yes
Intel Trusted Execution Technology	Yes Yes Yes Yes

1.2 Unpacking the System

Inspect the box in which the server was shipped and note if it was damaged in any way. If any equipment appears damaged, file a damage claim with the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold the server. It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise, and electromagnetic fields are generated. It will also require a grounded AC power outlet nearby.

Be sure to read the precautions and considerations noted in Appendix B.

1.3 System Features

The table below provides you with an overview of the main features of the 1019D-(12C/14C/16C-)FRN5TP. Refer to Appendix D for additional specifications.

System Features

Motherboard

X11SDS-8C for 1019D-FRN5TP

X11SDS-12C for 1019D-12C-FRN5TP

X11SDS-14C for 1019D-14C-FRN5TP

X11SDS-16C for 1019D-16C-FRN5TP

Chassis

SC103-R407B

CPU

Intel Xeon D-2146NT up to 80W for 1019D-FRN5TP

Intel Xeon D-2163IT up to 75W for 1019D-12C-FRN5TP

Intel Xeon D-2173IT up to 70W for 1019D-14C-FRN5TP

Intel Xeon D-2183IT up to 100W for 1019D-16C-FRN5TP

Socket Type

FCBGA2518

Memory

Supports up to 256GB of ECC RDIMM or 512GB of ECC LRDIMM DDR4 memory

Speed of up to 2133MHz for 1019D-FRN5TP, 1019D-12C-FRN5TP, and 1019D-14C-FRN5TP

Speed of up to 2400MHz for 1019D-16C-FRN5TP

Chipset

System on Chip

Expansion Slots

Two M.2 M-Key 2280/22110 (one 2.5" drive bay space shared with M.2)

One M.2 E-Key 2230

One M.2 B-Key 2242/3042

Four PCI-E 3.0 x8 for Advanced I/O Module (AIOM) (AIOM is sold separately)

Hard Drives

Two EDSFF and two internal 2.5" drives

OR two M.2 and one internal 2.5" drive

Note: The System Features table continues on the next page.

System Features

Power

400W AC-DC, 80+ Platinum level

Cooling

Five 40 x 40 x 56 mm 13K-11K RPM counter-rotating fans

Form Factor

1U rackmount

Dimensions

(WxHxD) 17.2 x 1.7 x 15 in. (437 x 43 x 381 mm)

1.4 Chassis Features

Note: The following parts are not included as part of the chassis, but are required as part of the system to function:

• up to four AIOM modules (chassis comes with four dummy covers)
• up to two EDSFF modules (chassis comes with two dummy trays)

Control Panel

Power switches and status LEDs are located on the control panel on the front of the chassis. It is connected to the I/O board (AOM-SMF-TP4F) through the included ribbon cable. See Chapter 4 for details on the control panel connections.

7 8 UID 9 RESET 10 11 CONSOLE MGMT IPM/10GbE 1▽ △2 SFP+ 1▽ △2 4 CONSOLE

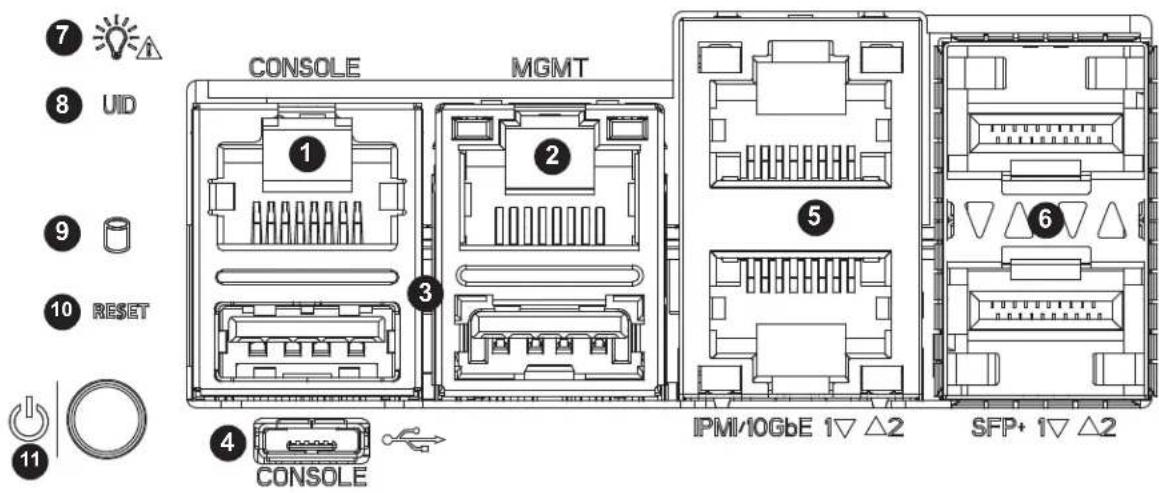

Figure 1-1. Control Panel and Front Ports

Control Panel and Front Ports Features
Item	Feature Description
1 Console		Used to connect to text-based terminal or a terminal application such as PuTTY to manage the system via a shell (e.g., bash). The system must be on for this feature to work.
2 MGMT		Used to manage the system remotely using an Ethernet Management Port. The system must be on for this feature to work.
3 USB3.0	Ports Two USB3.0	ports for I/O applications.
4 Micro	USB Console One micro USB port for console interface.
5	10G GbE Ports 1 and 2	One 10G GbE ports that can function as IPMI ports to access the system. The system does not need to be turned on for this feature.
6	SFP+ Ports 1 and 2 (Small Form-factor Pluggable)	The SFP+ port connects to Fiber Channel and Gigabit Ethernet (GbE) optical fiber cables using a transceiver.
7 Informational LED		Indicates one of multiple conditions, see the Informational Table on the following page.
8 UID	LED Use IPMI to switch/turn on/turn off UID LED.
9 HDD	LED Hard Drive indicator
10 Reset	LED Reset indicator
11	Power Button with LED	Solid green: Power on Blinking amber: Standby mode

Caution: If the operating temperature exceeds 30^ C and the system fans are not active, a LAN component may become overheated.

Informational LED
LED Appearance Description
Solid Green The node is powered on and	operating normally.
Blinking Green The node is in the process	of shutting down.
Solid Red The node is detecting an overheated condition.
1Hz Blinking Red The node is detecting a fan failure.
.25Hz Blinking Red The node is detecting a power failure.
Solid Blue The node local UID is on.
1Hz Blinking Blue The node remote UID is on.
No Illumination The node is powered down.

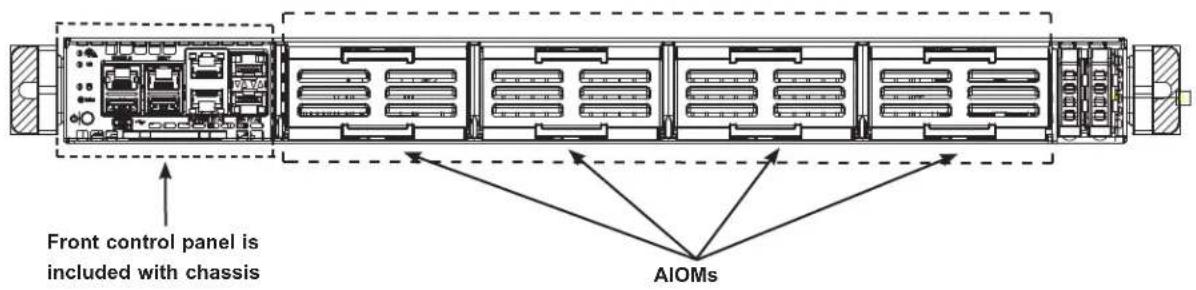

Front Features

The SC103-R407B is a 1U chassis containing four AIOMs to provide highest density of networking interface.

Front control panel is included with chassis AIOMs

Figure 1-2. Chassis Front View

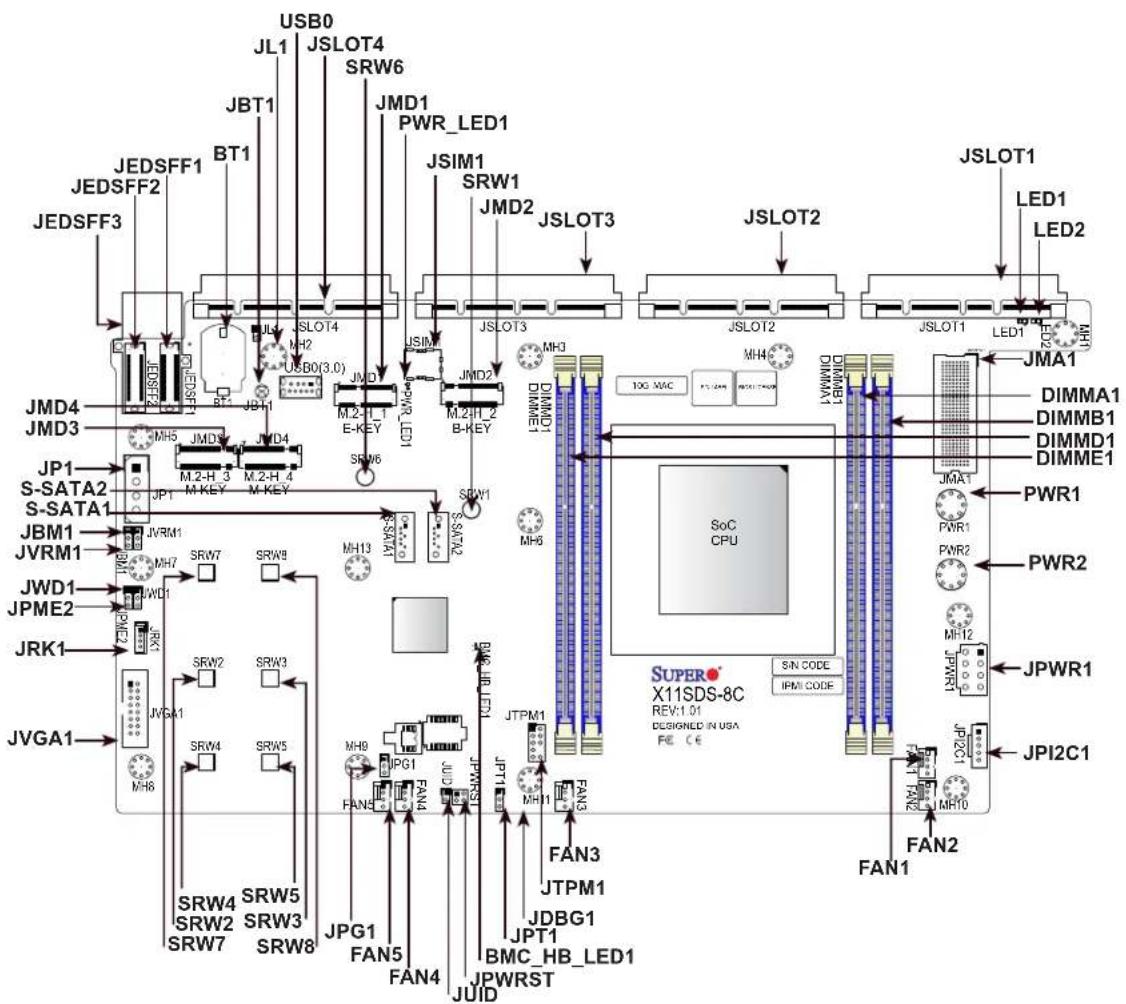

1.5 Motherboard Layout

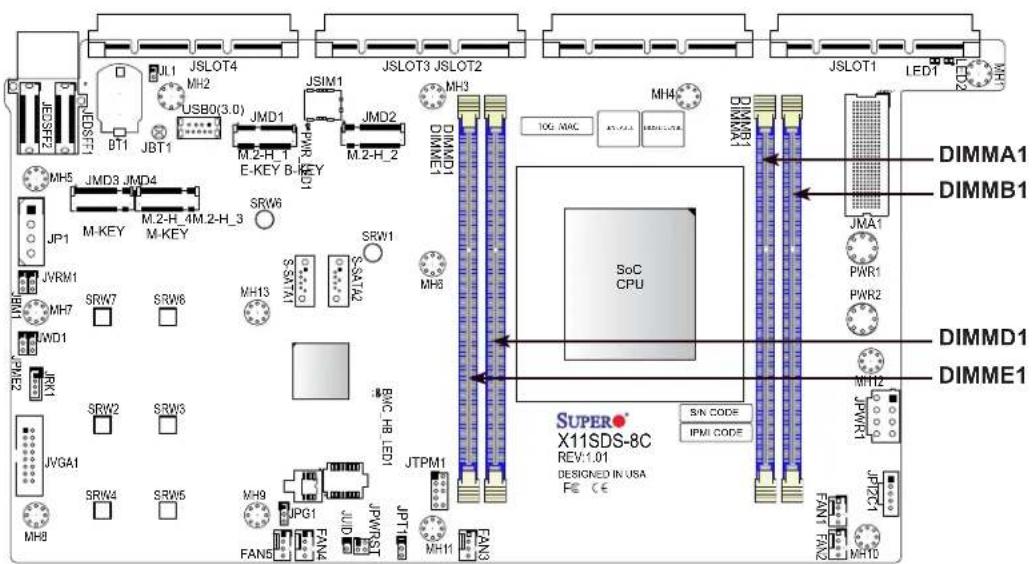

Below is a layout of the X11SDS-8C with the jumper, connector, and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information, and jumper settings, refer to Chapter 4.

JEDSFF1 JEDSFF2 JEDSFF3 JEDSFF4 JEDSFF1 JEDSFF2 JEDSFF3 JEDSFF4 JEDSFF3 JEDSFF4 JEDSFF3 JEDSFF4 JEDSFF3 JEDSFF4 JEDSFF3 JEDSFF4 JEDSFF3 JEDSFF4 JEDSFF3 JEDSFF4 JEDSFF3 JEDSFF4 JEDSFF3 JEDSFF4 JEDSF1 JEDSF2 JEDSF3 JEDSF4 JEDSF3 JEDSF4 JEDSF3 JEDSF4 JEDSF3 JEDSF4 JEDSF3 JEDSF4 JEDSF3 JEDSF4 JEDSF3 JEDSF4 JEDSF3 JEDSF4 JEDSF3 JEDSF4 JEDSF3 JEDSF4 JEDSF3 JEDSF5 JEDSF3 JEDSF4 JEDSF3 JEDSF5 JEDSF3 JEDSF4 JEDSF3 JEDSF5 JEDSF3 JEDSF4 JEDSF3 JEDSF5 JEDSF3 JEDSF4 JEDSF3 JEDSF5 JEDSF3 JEDSF4 JEDSF3 JEDSF6 JEDSF3 JEDSF4 JEDSF3 JEDSF6 JEDSF3 JEDSF4 JEDSF3 JEDSF6 JEDSF3 JEDSF4 JEDSF3 JEDSF6 JEDSF3 JEDSF4 JEDSF3 JEDSF6 JEDSF3 JEDSF4 JEDSF3 JEDSF5 JEDSF3 JEDSF4 JEDSF3 JEDSF5 JEDSF3 JEDSF4 JEDSF3 JEDSF5 JEDSF3 JEDSF4 JEDSF3 JEDSF5 JEDSF3 JEDSF4 JEDSF3 JEDSF4 JEDSF3 JEDSF5 JEDSF3 JEDSF4 JEDSF3 JEDSF5 JEDSF3 JEDSF4 JEDSF3 JEDSF5 JEDSF3 JEN00(3.0) JSLOT4 JSLOT1/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/19990000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000199999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999998888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17

Figure 1-3. Motherboard Layout

Notes:

• "■" indicates the location of pin 1.
• Jumpers/LED indicators not indicated are used for testing only.
• Use only the correct type of onboard CMOS battery as specified by the manufacturer. Do not install the onboard battery upside down to avoid possible explosion.

Quick Reference Table for X11SDS-8C/12C/14C/16C

Jumper Description Default Setting

JBM1 IPMI Shared LAN Enable/Disable Pins 1-2 (Enabled)
JBT1 CMOS Clear Open: Normal
JPG1 Onboard VGA Enable/Disable Pins 1-2 (Enabled)
JPT1 Onboard TPM 2.0 Enable/Disable Pins 2-3 (Disabled)
JPME2 Manufacturing Mode Select Pins 1-2 (Normal)
JVRM1 VRM SMB Data (to BMC or PCH) Pins 1-2 (Normal)
JWD1	Watch Dog Timer	Pins 1-2 (Reset)
LED	Description	Status
BMC_HB_LED1	BMC Heartbeat	Blinking Green: BMC Normal
PWR_LED1	Power LED	Solid Green: Power On
LED1	UID LED	Solid Blue: Unit Identified
LED2 Overheat/PWR Fail/Fan Fail		Solid Red: OverheatBlinking Red: PWR Fail or Fan Fail

Connector	Description
BT1 Onboard Battery
FAN1 - FAN5	CPU/System Fan Headers
JEDSFF1, JEDSFF2	EDSFF Short Header (Shared with M.2 M-Keys)
JL1	Chassis Intrusion Header
JMA1	Receptacle for AOM-SMF-TP4F
JMD1 M.2 Slot E-Key 2230 (PCI-E 3.0 x2/USB2.0)
JMD2 M.2 Slot B-Key 2242/3042 (PCI-E 3.0 x2/SATA3.0/USB3.0)
JMD3 M.2 Slot M-Key 2242/80/110 (PCI-E 3.0 x4/SATA3.0) Shared with JEDSFF1
JMD4 M.2 Slot M-Key 2242/80/110 (PCI-E 3.0 x4/SATA3.0) Shared with JEDSFF2
JP1	4-pin Power Connector for HDD use
JPI2C1 Power I	^2C System Management Bus (Power SMB) Header
JPWR1 8-pin +12V DC Power Connector
JPWRST	Power and Reset Button
JRK1 Intel RAID Key Header (supporting AIOM Slots)
JSIM1	Nano SIM Card Socket
JSLOT1 - JSLOT4	Supermicro Advanced I/O Module (AIOM)*Please unplug power before removing/installing module cards
JTPM1	Trusted Platform Module (TPM)/Port 80 Connector
JUID	UID Switch Header
JVGA1	VGA Header
PWR1 - PWR2	Bus Bar Connector (to AOM-SMF-TP4F)
S-SATA1 - S-SATA2	SATA 3.0 Ports
SRW1 - SRW8	M.2 Holding Screws
USB0 USB3.0 Gen 1 Type A Header

Quick Reference Table for AOM-SMF-TP4F

Jumper Description Default Setting

JPTG1 10G LAN Enable/Disable Pins 1-2 (Enabled)

LED Description Status

LED1 Power LED Solid Green: Power On

Connector Description

J1 Front Control Panel Cable Header

JCOM1 Serial Console Port and USB 3.0 Port

JLAN1 1G RJ45 Port and USB 3.0 Port

JLAN2 Dual 10G RJ45 Ports

JMA1 Receptacle for X11SDS-8C/16C

JSFP1 Dual 10G SFP+ Ports

JUSB1 Micro USB Serial Console Port (Shared with Serial Console Port)

PWR1 - PWR2

Bus Bar Connector

Figure 1-4. AOM-SMF-TP4F Add-on Card Layout
(not drawn to scale)

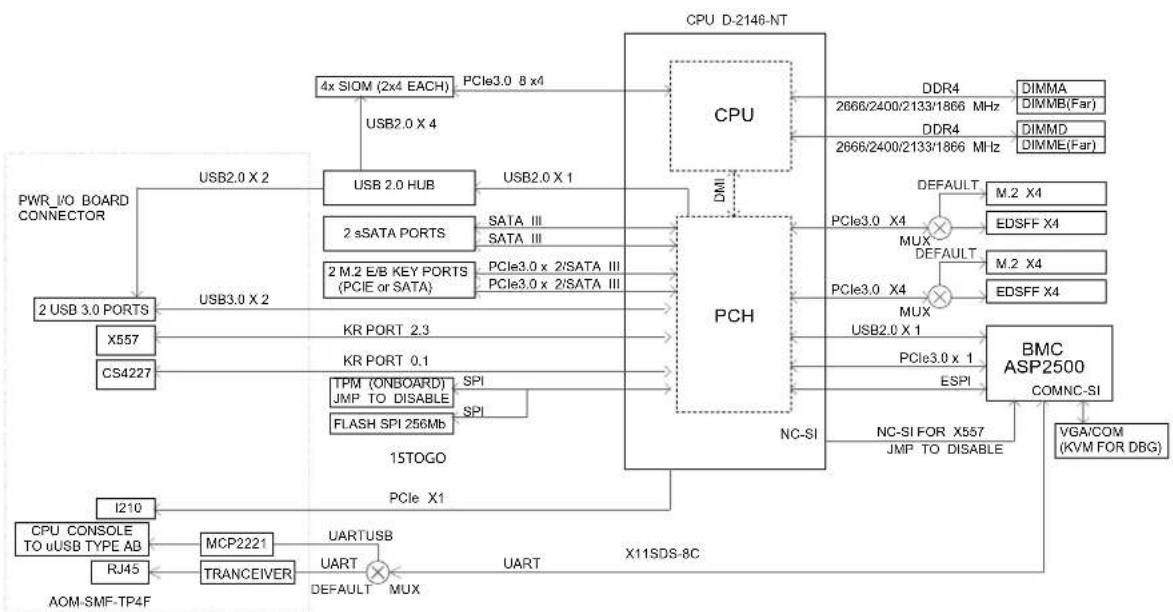


Figure 1-5. System on Chip Chipset: System Block Diagram

Note: This is a general block diagram and may not exactly represent the features on your motherboard. See the System Specifications appendix for the actual specifications of your motherboard.

Chapter 2

Installation in a Rack

2.1 Overview

This chapter provides advice and instructions for mounting your system in a rack.

Caution: Electrostatic Discharge (ESD) can damage electronic components. To prevent such damage to PCBs (printed circuit boards), it is important to use a grounded wrist strap, handle all PCBs by their edges, and keep them in anti-static bags when not in use.

2.2 Preparing for Setup

The box in which the system was shipped should include the hardware needed to install it into the rack. Please note the precautions in this chapter and Appendix B.

Choosing a Setup Location

• The system should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise, and electromagnetic fields are generated. It will also require a grounded AC power outlet nearby.
• Leave enough clearance in front of the rack so that you can open the front door completely (\~25 inches) and approximately 30 inches of clearance in the back of the rack to allow sufficient space for airflow and access when servicing.
• This product should be installed only in a Restricted Access Location (dedicated equipment rooms, service closets, etc.).
• This product is not suitable for use with visual display workplace devices according to §2 of the German Ordinance for Work with Visual Display Units.

Rack Precautions

• Ensure that the leveling jacks on the bottom of the rack are extended to the floor so that the full weight of the rack rests on them.

• In single rack installations, stabilizers should be attached to the rack.

• In multiple rack installations, the racks should be coupled together. Always make sure the rack is stable before extending a server or other component from the rack.

• Extend only one server or component at a time - extending two or more simultaneously may cause the rack to become unstable.

Server Precautions

• Review the electrical and general safety precautions in Appendix B.
• Determine the placement of each component in the rack before you install the rails.
• Install the heaviest server components at the bottom of the rack first and then work your way up.
• Use a regulating uninterruptible power supply (UPS) to protect the server from power surges and voltage spikes and to keep your system operating in case of a power failure.
• Allow any drives and power supplies to cool before touching them.
• When not servicing, always keep the front door of the rack and all covers/panels on the servers closed to maintain proper cooling.

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the room's ambient temperature. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (Tmra).

Reduced Airflow

Equipment should be mounted into a rack so that the amount of airflow required for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (e.g., the use of power strips, etc.).

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.
• Slide rail mounted equipment is not to be used as a shelf or a work space.

2.3 Installing the Rails

There are a variety of rack units on the market, which may require a slightly different assembly procedure. Also refer to the installation instructions that came with the rack.

This rail set fits a rack between 26" and 33.5" deep.

Identifying the Sections of the Rack Rails

The chassis package includes two rack rail assemblies in the rack mounting kit. Each assembly consists of two sections: an inner fixed chassis rail that secures directly to the server chassis and an outer fixed rack rail that secures directly to the rack itself.

Inner Rails (Inner rail is preinstalled on the chassis) Inner Rail Locking Tabs

Figure 2-1. Identifying the Sections of the Inner Rails

Locking Tabs

Both chassis rails have a locking tab. The tabs lock the server into place when installed and pushed fully into the rack. These tabs also lock the server in place when fully extended from the rack. This prevents the server from coming completely out of the rack when you pull it out for servicing.

Installing the Inner Rails

The inner rails are pre-attached to the chassis, but should the need arise to remove them reinstallation of the rails is simple and can be accomplished with a standard head screwdriver.

Installing the Inner Rails

1. Place the inner rail on the side of the chassis aligning the hooks of the chassis with the inner rail holes.
2. Slide the extension toward the front of the chassis.
3. Secure the chassis with one screw as illustrated. Repeat steps 1-3 for the other inner rail.

Warning: Do not pick up the server by the front handles. They are designed to pull the system from a rack only.

Technical line drawing of a server rack with multiple ports and drive bays, showing internal components and directional arrows (no text or labels)

Figure 2-2. Installing the Inner Rails (Right side inner rail shown)

Installing the Outer Rack Rails

Outer rails attach to the server rack and hold the server in place. The outer rails for the SC103-R407B chassis extend between 30 inches and 33 inches.

Installing the Outer Rails to the Rack

1. Attach the short bracket to the outside of the long bracket. Align the pins of the rail with the slides. The ends of each bracket must angle in the same direction.
2. Adjust both the short and long brackets to the proper distance so that the rail fits snuggly into the rack.
3. Secure the long bracket to the front side of the outer rail with two M5 screws and the short bracket to the rear side of the outer rail with three M5 screws.
4. Repeat steps 1-3 for the remaining outer rail.

Secure to the Front of the Rack Attach Outer Rails Together Secure to the Rear of the Rack

Figure 2-3. Assembling the Outer Rails

2.4 Installing the Chassis into a Rack

Once rails are attached to the chassis and the rack, you can install the server.

Warning: Mounting the system into the rack requires at least two people to support the chassis during installation. Please follow safety recommendations printed on the rails.

Installing the Chassis into a Rack

1. Confirm that the chassis includes the inner rails and rail extensions. Also, confirm that the outer rails are installed on the rack.
2. Align the chassis rails with the front of the rack rails.
3. Slide the chassis rails into the rack rails, keeping the pressure even on both sides. (It may be necessary to depress the locking tabs when inserting.) When the server has been pushed completely into the rack, the locking tabs will "click" into the locked position.
4. (Optional) Insert and tighten the thumbscrews that hold the front of the server to the rack.

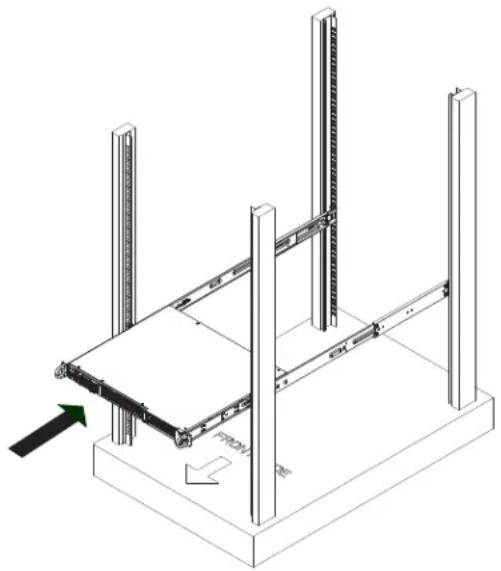

Isometric technical diagram of a mechanical assembly with vertical supports and a base platform (no text or symbols)

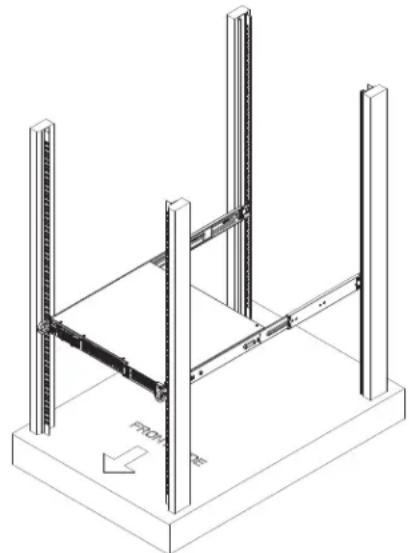

Isometric technical diagram of a structural support frame with vertical supports and a central horizontal beam (no text or symbols)

Figure 2-4. Installing the Server into a Rack

Note: The figures above are for illustrative purposes only and may differ from your actual unit. Always install servers into racks from the bottom up.

Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over.

Chapter 3

Maintenance and Component Installation

This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given.

Installation or replacement of most components require that power first be removed from the system. Please follow the procedures given in each section.

3.1 Removing Power

Use the following procedure to ensure that power has been removed from the system. This step is necessary when removing or installing non hot-swap components.

1. Use the operating system to power down the system.
2. After the system has completely shut-down, disconnect the AC power cord(s) from the power strip or outlet. (If your system has more than one power supply, remove the AC power cords from all power supplies.)
3. Disconnect the power cord(s) from the power supply/supplies.

3.2 Accessing the System

Removing the Chassis Cover

You can access some chassis components, such as fans, by removing the cover.

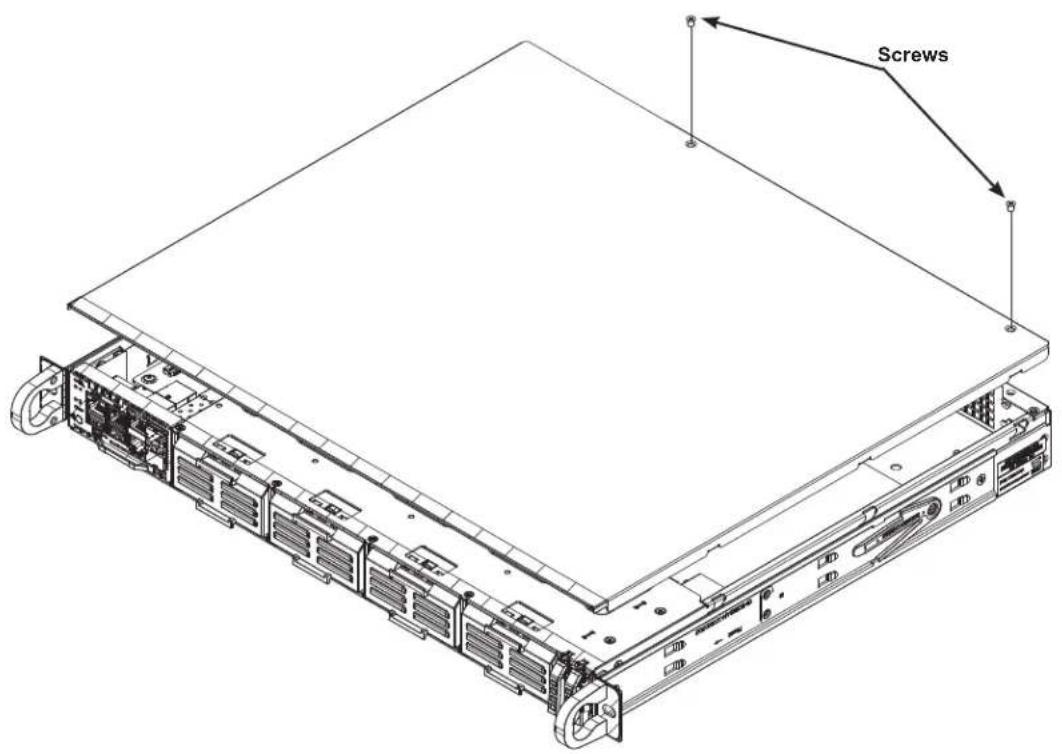

Removing the Top Cover

1. Remove the power from the system as described in Section 3.1.
2. Remove the two screws securing the cover to the chassis. See Figure 3-1.
3. Slide the cover back toward the rear of the chassis.
4. Lift the cover from the chassis.

Caution: Except for short periods of time, do not operate the server without the cover in place. The chassis cover must be in place to allow for proper airflow and to prevent overheating.

Screws

Figure 3-1. Removing the Chassis Cover

3.3 Motherboard Components

Memory Installation

Memory Support

The X11SDS-8C/12C/14C/16C motherboard supports up to 512GB of ECC LRDIMM or 256GB ECC RDIMM (with DDR4 speeds up to 2133MHz for X11SDS-8C, X11SDS-12C, and X11SDS-14C and up to 2400MHz for X11SDS-16C) in four memory slots. Populating these DIMM slots with memory modules of the same type and size will result in interleaved memory, which will improve memory performance.

Check the Supermicro website for possible updates to memory support.

DIMM Module Population Configuration

For optimal memory performance, follow the table below when populating memory.

Memory Population (Balanced)
DIMMA1 DIMMB1 DIMMD1 DIMME1				Total System Memory
4GB 4GB 8GB
8GB 8GB
8GB 8GB 16GB
4GB 4GB 4GB 4GB 16GB
8GB 8GB 8GB 24GB
8GB 8GB 8GB 8GB 32GB
16GB 16GB 32GB
16GB 16GB 16GB 48GB
16GB 16GB 16GB 16GB 64GB
32GB 32GB 64GB
32GB 32GB 32GB 96GB
32GB 32GB 32GB 32GB 128GB
64GB 64GB 128GB
64GB 64GB 64GB			192GB
64GB 64GB 64GB 64GB 256GB
126GB	128GB			256GB
128GB	128GB	128GB	128GB	512GB

DIMM Module Population Sequence

When installing memory modules, the DIMM slots should be populated in the following order: DIMMA1, DIMMB1, DIMMD1, DIMME1.

• Always use DDR4 DIMM modules of the same type and speed.
- Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.
- The motherboard will support odd-numbered modules (one or three modules installed). However, for best memory performance, install DIMM modules in pairs to activate memory interleaving.

JESF2 JDSF1 BT1 JBT1 JSLOT4 JMSI1 JSB0(3.0) JMD1 M.2-H 1 E-KEY B-KEY JMD3 JMD4 M.2-H 4M.2-H 3 M-KEY SRW8 JP1 JVRM1 JB1 JWD1 SRW7 SRW6 MH13 JWD2 SRW2 SRW5 JVGA1 SRW4 SRW5 MH9 FAN5 FAN4 FAN3 JPMRST JPMI JPTM1 JTPM1 MH11 FAN3 JSDLOT3 JSLOT2 JMD2 M.2-H 2 SRW1 SATA1 SATA2 DHMD1 DIMME1 MH3 DHMD2 DIMME1 MH4 TOG AMC ATG-AAC DIMMA1 DIMMB1 PWR1 PWR2 MMH CPU SIN CODE IPMI CODE JMA1 PWR1 PWR2 MMH2 JPMRST JPMI CODE JPMI C# JPMI D# JPMI E# JPMI F# JPMI G# JPMI H# JPMI I# JPMI J# JPMI K# JPMI L# JPMI M# JPMI N# JPMI O# JPMI P# JPMI Q# JPMI R# JPMI S# JPMI T# JPMI U# JPMI V# JPMI W# JPMI X11SDS-8C REV:1.01 DESIGNED IN USA FE CE DIMMA1 DIMMB1 DIMMD1 DIMME1 SUPERO X11SDS-8C REV:1.01

Install Procedure Installing Memory

1. Remove the power from the system as described in Section 3.1.

2. Insert the desired number of DIMMs into the memory slots, starting with DIMMA1, DIMMB1, then DIMMD1, DIMME1. For best performance, please use the memory modules of the same type and speed. Push the release tabs outwards on both ends of the DIMM slot to unlock it.

3. Align the key of the DIMM with the receptive point on the memory slot and with your thumbs on both ends of the module, press it straight down into the slot until the module snaps into place.

Notches Release Tabs

Diagram of a heat exchanger or cooling unit with cooling fins and a circular component, no text or symbols present

Press both ends straight down into the memory slot.

1. Push the release tabs to the locked position to secure the DIMM module into the slot.

2. Repeat the procedure for the remaining DIMM modules in the order detailed in the previous section.

Caution: Exercise extreme caution when installing or removing memory modules to prevent damage to the DIMMs or slots.

Note: Visit the product page on the Supermicro website for possible updates to memory support (www.supermicro.com).

Removal Procedure

To remove a DIMM module, unlock the release tabs then pull the module from the slot.

Motherboard Battery

The motherboard uses CMOS memory to retain BIOS settings when system power is removed. This memory is powered by a lithium battery residing on the motherboard.

Replacing the Battery

1. Remove power from the system as described in section 3.1 and remove the node from the chassis.
2. Push aside the small clamp that covers the edge of the battery. When the battery is released, lift it out of the holder.
3. To insert a new battery, slide one edge under the lip of the holder with the positive (+) side facing up. Then push the other side down until the clamp snaps over it.

Note: Handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

LITHIUM BATTERY BATTERY HOLDER

Figure 3-2. Installing the Onboard Battery

Warning: There is a danger of explosion if the onboard battery is installed upside down (which reverses its polarities). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).

3.4 Chassis Components

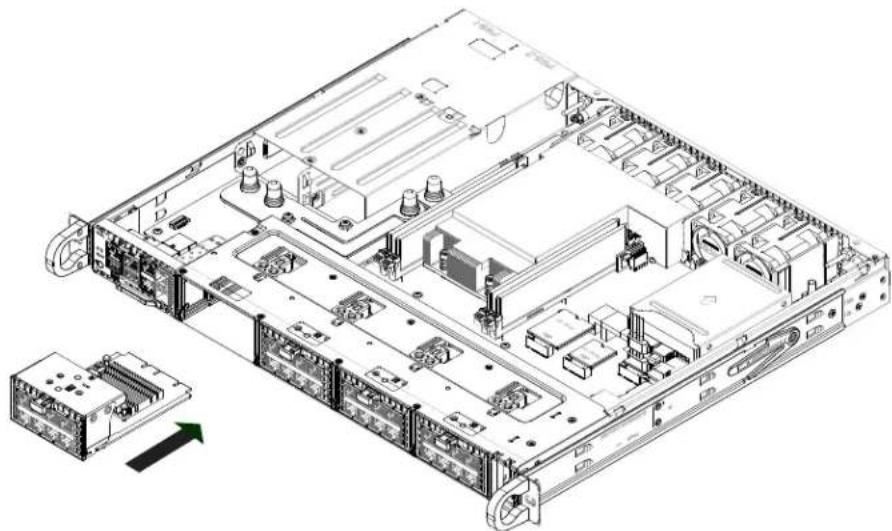

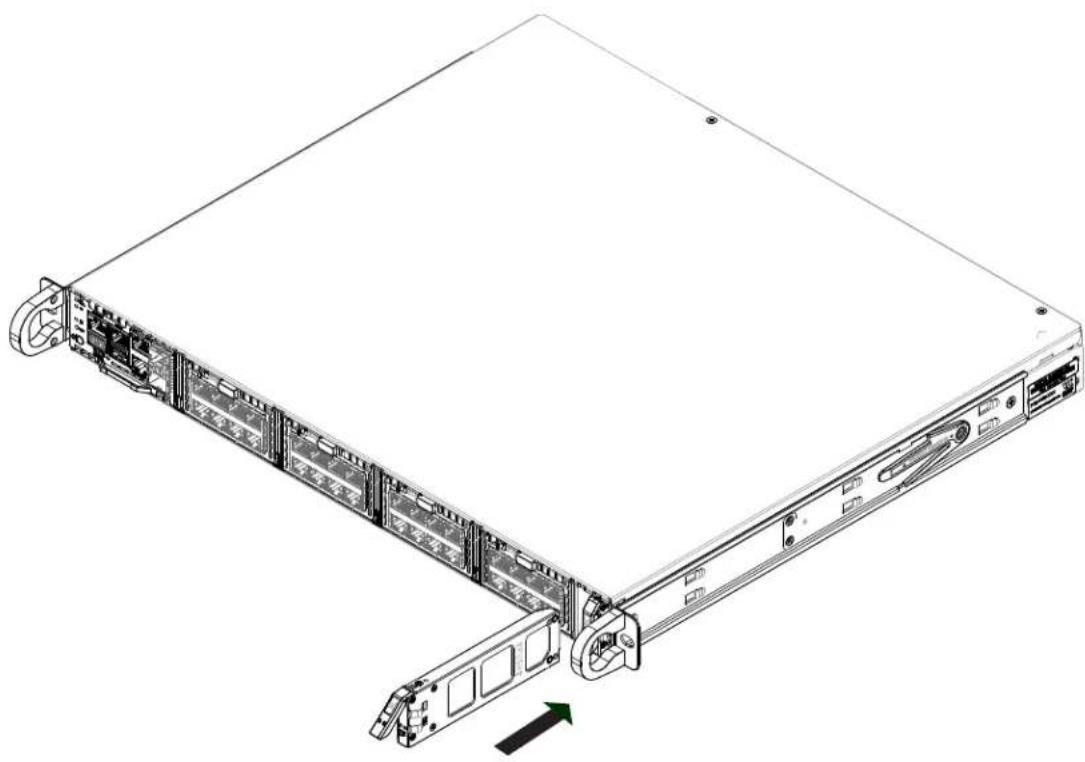

AIOM and EDSFF "Ruler" Device Bays

The SC103 supports four AIOM modules (Advanced I/O Module) and two EDSFF (Enterprise and Datacenter SSD Form Factor) drives, also referred to as a "ruler". These devices may be purchased separately from the chassis. This section explains how to insert the AIOM and EDSFF in the chassis.

Removing the Dummy Device from the Chassis

1. Remove the dummy AIOM insert from the front side of the chassis by holding the lever and gently pulling the insert out from the chassis.
2. A Supermicro AIOM network module (such as AOC-AG-i8, sold separately) may now be installed into the slot.

Caution: The AIOM slot and device are NOT hot-swappable. Please disconnect the power from the system before attempting to install or remove any AIOM network adapter.

Dummy AIOM Insert Pull out lever

Figure 3-3. Removing the Dummy AIOM Insert

Inserting the AIOM Module

1. Power down the system as described in section 3-1. Once the dummy AIOM insert is removed, the Supermicro AIOM network module may be installed.
2. Gently slide the AIOM module into the slot by aligning the PCB edge into the chassis rail.
3. Once the AIOM module is inserted, gently push the module by the metal bracket, until the module is fully engaged into the chassis.

Isometric technical diagram of a server rack with internal components and an external connector (no text or labels)

Figure 3-4. Inserting the AIOM Module

1. The module has a spring loaded push pin. Push the pin inward to engage with the chassis.
2. Slide the lock on the metal bracket to the right. This prevents the push pin from accidental release.
3. Optional: Secure the AIOM module with screws. Note: There are two screws per AIOM module.

Screws for one AIOM module

Figure 3-5. Securing the AIOM Module with Screws

Inserting the EDSFF Module

1. Power down the system as described in section 3-1. Once the dummy EDSFF insert is removed, the Supermicro EDSFF network module may be installed.
2. Gently slide the EDSFF module into the slot.
3. Once the EDSFF module is inserted, gently push the module into the slot for connector engagement, then rotate/press down on the latch to lock it in place.

Technical line drawing of a server rack with attached cable ports and drive slots (no text or symbols)

Figure 3-6. Inserting the EDSFF Module

Replacing Fans

Five counter-rotating fans circulate air through the chassis to lower the internal temperature. These fans are designed to be easily changed, with no tools required and no need to remove any other parts inside the chassis.

Replacing a System Fan

1. If necessary, open the chassis cover as described in section 3.2 while the power is running to determine which fan requires changing. (Never run the server for an extended period of time with the chassis open.)
2. Power down the system as described in section 3.1.
3. Remove the failed fan's cable from the connector on the motherboard.
4. Place the new fan into the housing. Make sure that the arrows on the sides of the fan (indicating air direction) point in the same direction as the arrows on the other fans.

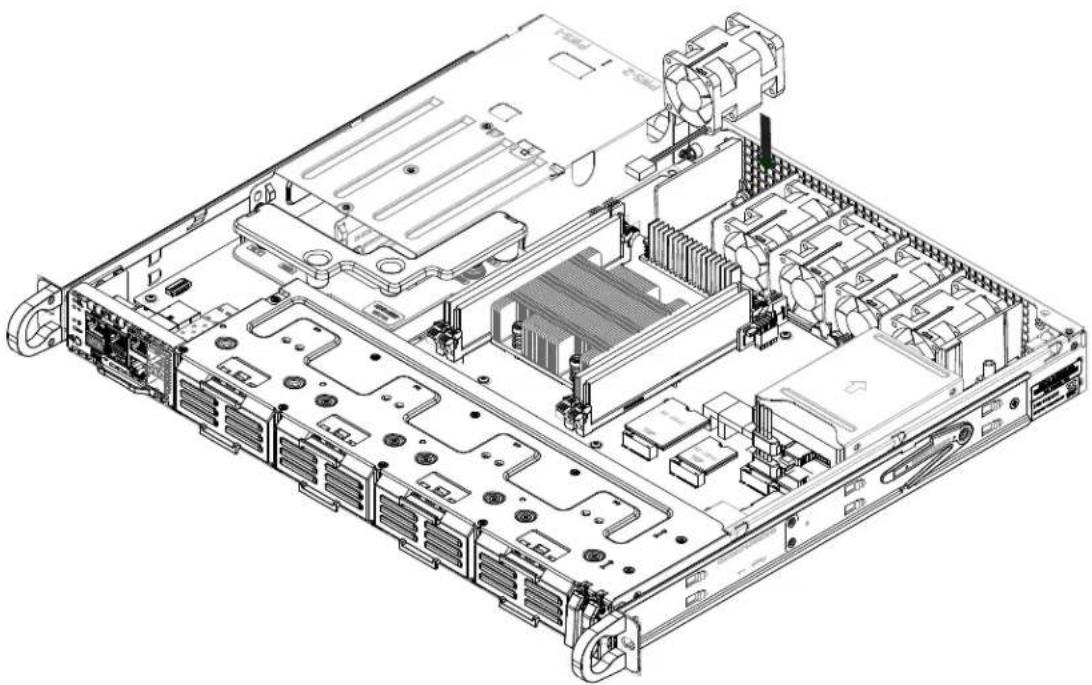

Technical line drawing of a server rack with internal components and ports (no text or labels)

Figure 3-7. Replacing System Fans

1. Plug the fans' cables into the connectors on the motherboard.

2. Plug the power cord into the rear of the power supply, power up the system, and check that the fan is working properly. Then, power off the system before replacing the top cover.

Checking the Airflow

Checking the Server's Airflow

• Make sure there are no objects to obstruct airflow in and out of the server.
• Do not operate the server without the AIOM module or AIOM dummy insert, and EDSFF drives or EDSFF dummy insert. Use only recommended parts.
• Make sure no wires or foreign objects obstruct airflow through the chassis. Pull all excess cabling out of the airflow path or use shorter cables.

Caution: If the operating temperature exceeds 30^ C and the system fans are not active, a LAN component may become overheated.

Power Supply

The chassis features two high-efficiency redundant AC power supplies rate at 400W. They are hot-swappable, meaning they can be changed without powering down the system. They are also auto-switching capable. This feature enables them to automatically sense the input voltage and operate at a 100-240v input voltage. An amber light will be illuminated on the power supply when the power is off. An illuminated green light indicates that the power supply is operating. New units can be ordered directly from Supermicro or authorized distributors.

Changing One of the Two Redundant Power Supplies

1. Identify the power supply to be removed, then remove the power cord from the strip and power supply.

2. Remove the power supply by pressing on the latch to unlock, then gently slide it out.

3. Insert the replacement power supply into the empty bay, then gently slide and push in to engage.

Technical line drawing of a server rack with an attached unit and a green arrow indicating motion (no text or symbols)

Figure 3-8. Removing One of the Two Redundant Power Supplies

Installing an Optional Hard Drive

Installing an Optional 2.5" Hard Disk Drive with a Fixed Enclosure

1. Obtain the mounting enclosure and secure the drive(s) to the enclosure with four screws.
2. Secure the HDD enclosure to the top side of the motherboard.
3. Connect HDD cabling.

HDD Mounting enclosure Screws Screws

Figure 3-9. Inserting a 2.5" Hard Drive to the Mounting Enclosure

Note: In lieu of the bottom hard drive, up to two M.2 devices may be installed on the motherboard. The M.2 devices will take up the space of the bottom hard drive.

Screws Screws

Figure 3-10. Securing the Mounting Enclosure with Hard Drive to the top side of the Motherboard

Caution: Do not unplug or pull the cables around the drive bay when the enclosure screws are not secured to the system. Unplugging or pulling the cables may cause the motherboard to shift or be lifted up.

Chapter 4

Motherboard Connections

This section describes the connections on the motherboard and provides pinout definitions.

Note that depending on how the system is configured, not all connections are required.

The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter 1.

Please review the safety precautions in Appendix B before installing or removing components.

4.1 Power Connections

12V Power Connector

JPWR1 is the 12V DC power connector that provides power to the motherboard if used individually. Alternatively, if X11SDS series is used in conjunction with PN: AOM-SMF-TP4F, power will be provided from the AOM via the bus bar connectors (PWR1/PWR2).

8-pin 12V Power Pin Definitions

Pins Definition

1 - 4 Ground

5 - 8 +12V

4-pin HDD Power Connector

JP1 is a 4-pin HDD power connector that provides power to onboard hard disk drives.

4-pin HDD Power Pin Definitions
Pins Definition
1 12V
2-3 Ground
4 5V

4.2 Headers and Connectors

Fan Headers

The X11SDS series has five 4-pin fan headers (FAN1 - FAN5). These headers are backwards-compatible with the traditional 3-pin fans. However, fan speed control is available for 4-pin fans only by Thermal Management via the IPMI 2.0 interface. Refer to the table below for pin definitions.

Fan HeaderPin Definitions

Pin# Definition

1 Ground (Black)

2 2.5A/+12V (Red)

3 Tachometer

4 PWM_Control

Chassis Intrusion

A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable from the chassis to inform you of a chassis intrusion when the chassis is opened. Refer to the table below for pin definitions.

Chassis Intrusion Pin Definitions

Pin# Definition

1 Intrusion Input

2 Ground

SATA 3.0 Ports

The X11SDS series motherboard has two S-SATA 3.0 ports. Refer to the table below for pin definitions.

SATA 3.0 PortPin Definitions

Pin# Signal

1 Ground

2 SATA_TXP

3 SATA_TXN

4 Ground

5 SATA_RXN

6 SATA_RXP

7 Ground

M.2 Slot

The X11SDS series motherboard has four M.2 slots. M.2 was formerly known as Next Generation Form Factor (NGFF) and serves to replace mini PCI-E. M.2 allows for a variety of card sizes, increased functionality, and spatial efficiency. The M.2 slot at JMD1 is an E-Key that supports PCI-E3.0 x2 and USB 2.0 interfaces in a 2230 form factor, whereas the M.2 slot at JMD2 is a B-Key that supports PCI-E3.0 x2, SATA3.0, and USB3.0 interfaces in a 2242/3042 form factor. The other two M.2 slots at JMD3 and JMD4 are M-Keys that support PCI-E3.0 x4 and SATA3.0 interfaces in a 2242/2280/22110 form factor. Please note JMD3/JMD4 are shared with JEDSFF1/JEDSFF2 and usages are restricted to one device at a time.

Universal Serial Bus (USB) Ports

The motherboard has one front access USB 3.0 Gen 1 Type A header (USB0). Two additional USB3.0 ports are available on PN: AOM-SMF-TP4F.

USB0 (USB 3.0 Gen 1 Type A) Pin Definitions
Pin# Definition Pin# Definition
1 VBUS 5 SSRX-
2 USB_N 6 SSRX+
3 USB_P 7 GND
4 GND 8 SSTX-
	9 SSTX+

Power SMB (I²C) Header

The Power System Management Bus (I²C) connector (JPI²C1) monitors the power supply, fan, and system temperatures. Refer to the table below for pin definitions.

Power SMB HeaderPin Definitions
Pin#	Definition
1 Clock
2 Data
3 PMBUS_Alert
4 Ground
5 NC

TPM/Port 80 Header

A Trusted Platform Module (TPM)/Port 80 header is located at JTPM1 to provide TPM support and a Port 80 connection. Use this header to enhance system performance and data security. Refer to the table below for pin definitions.

Trusted Platform Module Header Pin Definitions
Pin# Definition Pin# Definition
1 +3.3V 2 SPI_CS#
3 RESET# 4 SPI_MISO
5 SPI_CLK 6 GND
7 SPI_MOSI 8
9 +3.3V Stby 10	SPI_IRQ#

Receptacle for AOM Card

Use the JMA1 connector to connect the AOM-SMF-TP4F add-on module. The module provides four 10G LAN ports (two 10G RJ45/two SFP+), one 1G LAN port, two USB 3.0 ports, IPMI shared access via 10G LAN3, and a serial connection via the serial console or micro-USB port. It will also provide power to the motherboard via bus bar on PWR1/PWR2.

VGA Header

Connect an IDC 16-pin VGA extension cable to JVGA1 for a VGA connection (PN: CBL-CDAT-0850).

EDSFF Short Header

EDSFF Short is a new form factor designed to overcome thermal and capacity shortcomings of previous PCI-E storage technologies. When used with a right-angle connector, the EDSFF Short device allows better airflow in a 1U server set-up. JEDSFF1/JEDSFF2 each offers PCI-E3.0 x4 lanes for the latest low latency NVMe storage module. Please note that JEDSFF1/JEDSFF2 are not hot pluggable and are shared with JMD3/JMD4 (M.2 M-Keys), so usage are restricted to one device at a time.

JSIM1

The JSIM1 slot supports a Nano SIM card.

JSLOT1 - JSLOT4

Supermicro introduces the Advanced I/O Module (AIOM), the latest expansion card feature offering PCI-E3.0 x8 lanes in each slot which can be utilized to offer additional LAN ports, VPU, storage devices, etc. on the motherboard. Please visit the Supermicro website for all available module options. Please also keep in mind that it is mandatory that power be unplugged prior to removing or installing an AIOM module card to any of these four expansion slots.

Unit Identifier Switch/UID LED Indicator

A Unit Identifier (UID) LED indicator is located on the control panel and motherboard, and the switch is only located on the motherboard

Note: UID can also be triggered via IPMI on the control panel. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com/support/manuals/.

UID SwitchPin Definitions
Pin#	Definition
1	UID LED
2	Ground

UID LEDPin Definitions

Color Status

Blue: On Unit Identified

Intel RAID Key Header

Use the JRK1 header to enable RAID support for devices plugged to the AIOM slots (JSlot1/2/3/4). Refer to the table below for pin definitions.

Intel RAID KeyPin Definitions
Pin# Definition
1 GND
2 PU 3.3V Stdby
3 GND
4 PCH RAID KEY

Power and Reset

JPWRST is the power and reset button. Refer to the table below for pin definitions.

Power and Reset Pin Definitions

Pins Definition

1 Ground

2 Power Signal

3 Ground

4 Reset Signal

Bus Bar Connectors

Use the connectors at PWR1 and PWR2 to connect the AOM-SMF-TP4F module to provide power to the motherboard.

4.3 Jumpers

Explanation of Jumpers

To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2. Refer to the motherboard layout page for jumper locations.

Note: On two-pin jumpers, Closed means the jumper is on the pins and Open means the jumper is off.

Connector Pins Jumper Setting 3 2 1 3 2 1

CMOS Clear

JBT1 is used to clear the CMOS, which will also clear any passwords.. Instead of pins, this jumper consists of contact pads to prevent accidental clearing of the CMOS.

Note: Shut down the system and then short JBT1 to clear the CMOS.

To Clear CMOS

1. First power down the system and unplug the power cord(s).
2. Remove the cover of the chassis to access the motherboard.
3. Remove the onboard battery from the motherboard.
4. Short the CMOS pads with a metal object such as a small screwdriver for at least four seconds.
5. Remove the screwdriver (or shorting device).
6. Replace the cover, reconnect the power cord(s), and power on the system.

Note: Clearing CMOS will also clear all passwords.

Do not use the PW ON connector to clear CMOS.

JBT1 contact pads

VGA Enable/Disable

JPG1 allows you to enable or disable the VGA port using the onboard graphics controller. The default setting is Enabled.

VGA Enable/DisableJumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

Manufacturing Mode Select

Close pins 2-3 of jumper JPME2 to bypass SPI flash security and force the system to operate in the manufacturing mode, which will allow the user to flash the system firmware from a host server for system setting modifications. Refer to the table below for jumper settings.

Manufacturing ModeJumper Settings
Jumper Setting Definition
Pins 1-2 Normal	(Default)
Pins 2-3 Manufacturing Mode

I²C Bus for VRM

Jumper JVRM1 allows the BMC or the PCH to access CPU and memory VRM controllers. Refer to the table below for jumper settings. This is reserved for manufacturing use only.

JVRM1Jumper Settings
Jumper Setting Definition
Pins 1-2 BMC (Normal)
Pins 2-3 PCH

Watch Dog

JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs. Watch Dog must also be enabled in BIOS.

Note: When Watch Dog is enabled, users need to write their own application software to disable it.

Watch DogJumper Settings
Jumper Setting Definition
Pins 1-2 Reset (Default)
Pins 2-3 NMI
Open Disabled

IPMI LAN Port Enable/Disable

Use the JBM1 jumper to enable or disable the IPMI Shared LAN port on LAN3.

IPMI LAN Enable/Disable Jumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

TPM Enable/Disable

Use JPT1 to enable or disable support for the TPM module. Refer to the table below for jumper settings.

TPM Enable/DisableJumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

4.4 LED Indicators

BMC Heartbeat LED

BMC_HB_LED1 is the BMC Heartbeat LED. When the LED is blinking green, the BMC is functioning normally. Refer to the table below for more information.

BMC HeartbeatLED Indicator
LED Color Definition
Green:Blinking	BMC: Normal

Power LED

PWR_LED1 is the Power LED. When this LED is lit, it means power is present on the motherboard. In suspend mode, this LED will blink on and off. Be sure to turn off the system and unplug the power cord(s) before removing or installing components.

PowerLED Indicator
LED Color Definition
Off	System Off(power cable not connected)
Green System	On

Overheat/PWR Fail/Fan Fail LED

An Overheat/PWR/Fail Fan Fail LED is located at LED2. Refer to the table below for the LED status.

Overheat/PWR Fail/Fan FailLED Indicator
LED Color Definition
Solid Red Overheat
Blinking Red PWR	Fail or Fan Fail

Chapter 5

Software

After the hardware has been installed, you should install the Operating System (OS), configure the RAID settings, and install the drivers. Necessary drivers and utilities may be found at https://www.supermicro.com/wftp/driver.

5.1 Driver Installation

The Supermicro website contains drivers and utilities for your system at https://www.supermicro.com/wftp/driver. Some of these must be installed, such as the chipset driver.

After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to create a DVD of the drivers and utilities it contains. (You may also use a utility to extract the ISO file if preferred.)

After creating a DVD with the ISO files, insert the disk into the DVD drive on your system and the display shown in Figure 5-1 should appear.

Another option is to go to the Supermicro website at http://www.supermicro.com/products/. Find the product page for your motherboard, and "Download the Latest Drivers and Utilities" or a USB flash drive and install from there.

SUPERMICRO X11SDS-8C Motherboard Drivers & Tools (Win10) Intel Skylake-D Chipset X11SDS-8C/16C SUPERMICRO Computer Inc. Inel Chipset INF files Microsoft .Net Framework 4.5.2 (Optional) ASPEED Graphics Driver Inel Rapid Storage Technology Enterprise Inel USB 2.0 Drivers Inel PRO Network Connections Drivers SUPERMICRO SuperDoctor 5 Build driver diskettes and manuals Browse CD Auto Start Up Next Time For more information, please visit SUPERMICRO's web site.

Figure 5-1. Driver & Tool Installation Screen

Note: Click the icons showing a hand writing on paper to view the readme files for each item. Click the computer icons to the right of these items to install each item (from top to the bottom) one at a time. After installing each item, you must re-boot the system before moving on to the next item on the list. The bottom icon with a CD on it allows you to view the entire contents.

When making a storage diskette by booting into a driver DVD, please set the SATA Configuration to "Compatible Mode" and configure SATA as IDE in the BIOS Setup. After making the driver diskette, be sure to change the SATA settings back to your original settings.

5.2 SuperDoctor® 5

The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or IPMI. SuperDoctor 5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

Note: The default User Name and Password for SuperDoctor 5 is ADMIN/ADMIN.

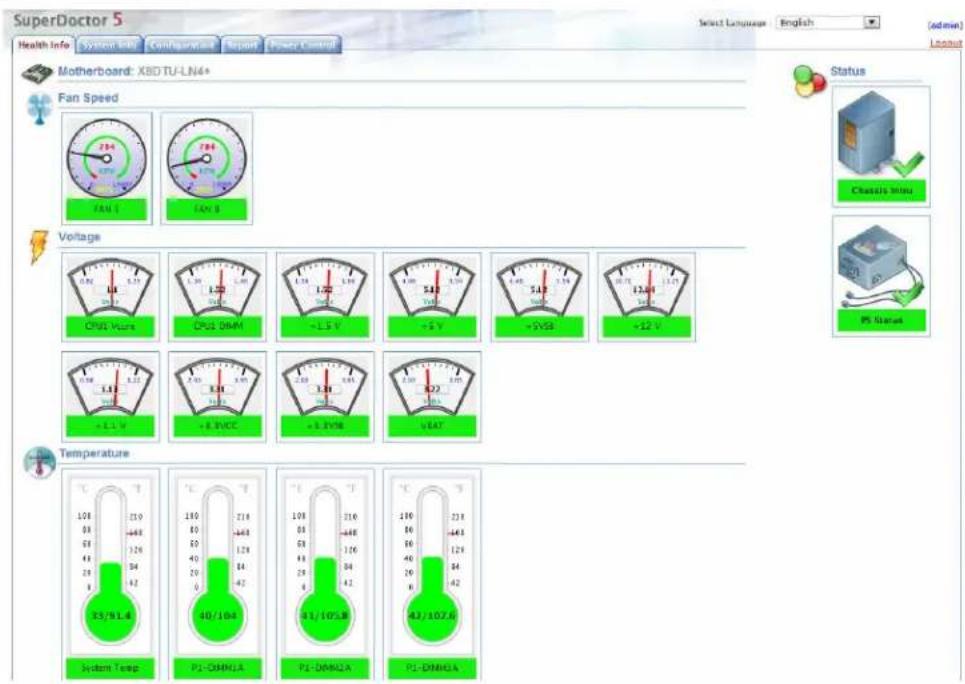

SuperDoctor 5 Health Info System info Configuration Report Primary Control Select Language English (admin) Login Motherboard: XBDTU-LN4* Fan Speed TAN 1 TAN 2 Voltage CPU Plus CPU DRMM +1.5 V +5 V +2VSS +12 V Temperature 35/91.6 C 108 230 05 448 03 326 48 20 04 42 190 218 05 448 03 128 48 20 04 42 190 216 05 448 03 126 48 20 04 42 190 238 05 448 03 128 48 20 04 42 190 238 05 448 03 126 48 20 04 42 190 238 05 448 03 128 48 20 04 42 190 238 05 448 03 126 48 20 04 42

Figure 5-2. SuperDoctor 5 Interface Display Screen (Health Information)

Note: The SuperDoctor 5 program and user's manual can be downloaded from the Supermicro website at http://www.supermicro.com/products/nfo/sms_sd5.cfm.

5.3 IPMI

The X11SDS-8C/12C/14C/16C supports the Intelligent Platform Interface (IPMI). IPMI is used to provide remote access, monitoring, and management. There are several BIOS settings that are related to IPMI.

IPMI management is supported when the lower 10G LAN port is connected (Figure 1-1).

For general documentation and information on IPMI, please visit our website at: http://www.supermicro.com/products/nfo/IPMI.cfm.

Chapter 6

UEFI BIOS

6.1 Introduction

This chapter describes the AMIBIOS Setup utility for the X11SDS series motherboard. The BIOS is stored in a flash chip and can be easily upgraded using a flash program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual Download area of our website for any changes to BIOS that may not be reflected in this manual.

Starting the Setup Utility

To enter the BIOS Setup Utility, hit the key while the system is booting-up. (In most cases, the key is used to invoke the BIOS setup screen. There are a few cases when other keys are used, such as , , etc.) Each main BIOS menu option is described in this manual.

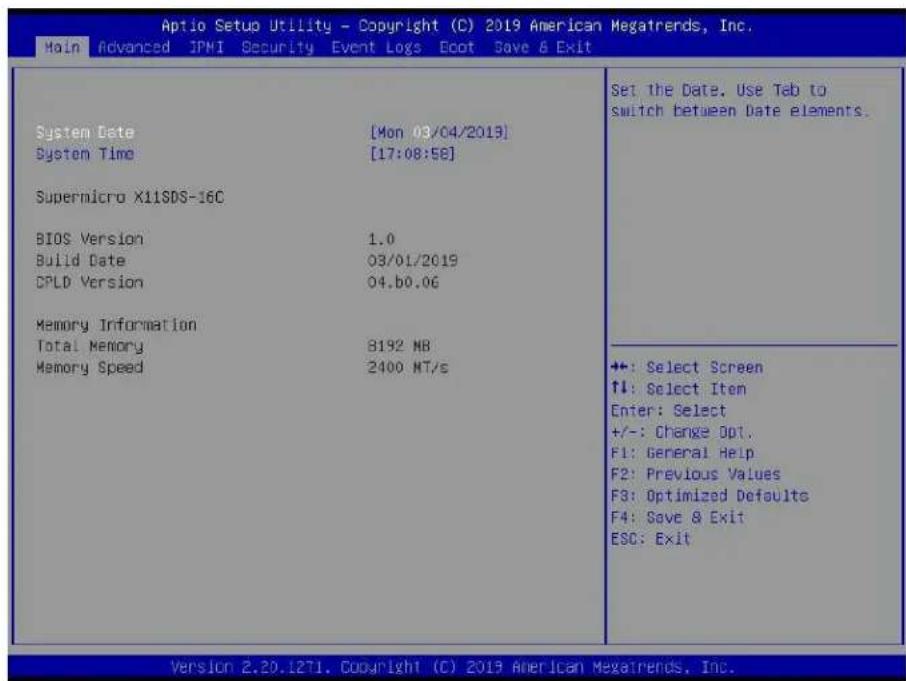

The Main BIOS screen has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured. The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note that BIOS has default text messages built in. We retain the option to include, omit, or change any of these text messages.) Settings printed in Bold are the default values.

A "▶" indicates a submenu. Highlighting such an item and pressing the key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (, , , , keys, etc.) can be used at any time during the setup navigation process.

6.2 Main Menu

When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below and the following features will be displayed:

Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced JPMI Security Event Logs Ecot Save & Exit System Date [Mon 03/04/2019] System Time [17:08:58] Supermicro X11SDS-16C BIOS Version 1.0 Build Date 03/01/2019 CPLD Version 04.b0.06 Memory Information Total Memory B192 MB Memory Speed 2400 NT/s Set the Date. Use Tab to switch between Date elements. ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.

System Date/System Time

Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields. The date must be entered in MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is the BIOS build date after RTC reset.

Supermicro X11SDS series

BIOS Version

This feature displays the version of the BIOS ROM used in the system.

Build Date

This feature displays the date when the version of the BIOS ROM used in the system was built.

CPLD Version

This feature displays the CPLD version.

Memory Information

Total Memory

This feature displays the total size of memory available in the system.

Memory Speed

This feature displays the speed of the memory detected by the system.

6.3 Advanced

Use this menu to configure advanced settings.

Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced IPMI Security Event Logs Boot Save & Exit ▶ Boot Feature ▶ CPU Configuration ▶ Chipset Configuration ▶ Server ME Information ▶ SATA Configuration ▶ sCATA Configuration ▶ PCIe/PCI/PnP Configuration ▶ Super IO Configuration ▶ Serial Port Console Redirection ▶ ACPI Settings ▶ Trusted Computing ▶ Tls Auth Configuration ▶ Intel(R) Virtual RAID on CPU ▶ All CPU Information Boot Feature Configuration Page +: Select Screen 1: Select Item Enter: Select +/-: Change Dot. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.

Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction. When this occurs, restore to default manufacturer settings.

▶Boot Feature

Quiet Boot

Use this feature to select the screen display between POST messages or the OEM logo at bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Disabled and Enabled.

Option ROM Messages

Use this feature to set the display mode for the Option ROM. The options are Force BIOS and Keep Current.

Bootup NumLock State

Use this feature to set the Power-on state for the Numlock key. The options are Off and On.

Wait For "F1" If Error

This feature forces the system to wait until the F1 key is pressed if an error occurs. The options are Disabled and Enabled.

Interrupt 19 Capture

Interrupt 19 is the software interrupt that handles the boot disk function. When this feature is set to Immediate, the ROM BIOS of the host adapters will "capture" Interrupt 19 at bootup immediately and allow the drives that are attached to these host adapters to function as bootable disks. If this feature is set to Postponed, the ROM BIOS of the host adapters will not capture Interrupt 19 immediately and allow the drives attached to these adapters to function as bootable devices at bootup. The options are Immediate and Postponed.

Re-try Boot

If this feature is enabled, the BIOS will automatically reboot the system from a specified boot device after its initial boot failure. The options are Disabled and EFI Boot.

Port 61h bit-4 Emulation

Select Enabled to enable the emulation of Port 61h bit-4 toggling in SMM (System Management Mode). The options are Disabled and Enabled.

▶Power Configuration

Watch Dog Function

If enabled, the Watch Dog timer will allow the system to reboot when it is inactive for more than five minutes. The options are Disabled and Enabled.

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for four seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button. The options are Instant Off and 4 Seconds Override.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Power Off for the system power to remain off after a power loss. Select Power On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Stay Off, Power On, and Last State.

Throttle on Power Fail

Use this feature to decrease system power by throttling CPU frequency when one power supply has failed. The options are Disabled and Enabled.

▶CPU Configuration

The following CPU information will display:

- Processor BSP Revision

• Processor Socket
• Processor ID
• Processor Frequency
• Processor Max Ratio
• Processor Min Ratio
• Microcode Revision
• L1 Cache RAM
• L2 Cache RAM
• L3 Cache RAM
• Processor 0 Version

Hyper-Threading (ALL)

Select Enabled to support Intel Hyper-threading Technology to enhance CPU performance. The options are Disable and Enable.

Cores Enabled

Set a numeric value to enable the number of cores. Refer to Intel's website for more information. Enter 0 to enable all cores.

Execute Disable Bit (Available if supported by the OS & the CPU)

Set to Enable for Execute Disable Bit support, which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor or damage the system during a virus attack. The options are Disable and Enable.

Intel Virtualization Technology

Use this feature to enable the Vanderpool Technology. This technology allows the system to run several operating systems simultaneously. The options are Disable and Enable.

PPIN Control

Select Unlock/Enable to use the Protected Processor Inventory Number (PPIN) in the system. The options are Unlock/Disable and Unlock/Enable.

Hardware Prefetcher (Available when supported by the CPU)

If set to Enable, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L2 cache to improve CPU performance. The options are Enable and Disable.

Adjacent Cache Prefetch (Available when supported by the CPU)

The CPU prefetches the cache line for 64 bytes if this feature is set to Disabled. The CPU prefetches both cache lines for 128 bytes as comprised if this feature is set to Enable. The options are Enable and Disable.

DCU Streamer Prefetcher (Available when supported by the CPU)

Select Enable to enable the DCU (Data Cache Unit) Streamer Prefetcher which will stream and prefetch data and send it to the Level 1 data cache to improve data processing and system performance. The options are Enable and Disable.

DCU IP Prefetcher (Available when supported by the CPU)

Select Enable for DCU (Data Cache Unit) IP Prefetcher support, which will prefetch IP addresses to improve network connectivity and system performance. The options are Enable and Disable.

LLC Prefetch

If set to Enable, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L3 cache to improve CPU performance. The options are Disable and Enable.

Extended APIC

Select Enable to activate APIC (Advanced Programmable Interrupt Controller) support. The options are Disable and Enable.

*If the feature above is set to Enable, the next feature will be available for configuration:

Force x2APIC IDs

Select Enable to force the system to use 8-bit APIC IDs. The options are Disable and Enable.

AES-NI

Select Enable to use the Intel Advanced Encryption Standard (AES) New Instructions (NI) to ensure data security. The options are Disable and Enable.

▶Advanced Power Management Configuration

Power Technology

This feature allows you to configure CPU power management settings. The options are Disable, Energy Efficient, and Custom.

*If the feature above is set to Custom, the following features will be available for configuration:

Power Performance Tuning

This feature allows you to set whether the operating system or the BIOS controls the Energy Performance BIAS (EPB). The options are OS Controls EPB and BIOS Controls EPB.

*If the feature above is set to BIOS Controls EPB, the following features will be available for configuration:

ENERGY\_PERF\_BIAS\_CFG Mode

The Energy Performance BIAS (EPB) feature allows you to configure CPU power and performance settings. Select Maximum Performance to set the highest performance. Select Performance to optimize performance over energy efficiency. Select Balanced Performance to prioritize performance optimization while conserving energy. Select Balanced Power to prioritize energy conservation while maintaining good performance. Select Power to optimize energy efficiency over performance. The options are Maximum Performance, Performance, Balanced Performance, Balanced Power, and Power.

▶CPU P State Control

Use this submenu to configure the following CPU power settings:

SpeedStep (Pstates)

Intel SpeedStep Technology allows the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation. The options are Disable and Enable. This feature must be set to Enable to be able to configure the next two features.

EIST PSD Function

This feature allows you to choose between Hardware and Software to control the processor's frequency and performance (P-state). In HW_ALL mode, the processor hardware is responsible for coordinating the P-state, and the OS is responsible for keeping the P-state request up to date on all Logical Processors. In SW_ALL mode, the OS Power Manager is responsible for coordinating the P-state, and must initiate the transition on all Logical Processors. In SW_ANY mode, the OS Power Manager is responsible for coordinating the P-state and may initiate the transition on any Logical Processors. The options are HW_ALL, SW_ALL, and SW_ANY.

Turbo Mode

This feature will enable dynamic control of the processor, allowing it to run above stock frequency. The options are Disable and Enable.

▶Hardware PM State Control

Hardware P-States

This setting allows you to select between OS and hardware-controlled P-states. Selecting Native Mode allows the OS to choose a P-state. Selecting Out of Band Mode allows the hardware to autonomously choose a P-state without OS guidance. Selecting Native Mode with No Legacy Support functions as Native Mode with no support for older hardware. The options are Disable, Native Mode, Out of Band Mode, and Native Mode with No Legacy Support.

▶CPU C State Control

Autonomous Core C-State

Enabling this setting allows the hardware to autonomously choose to enter a C-state based on power consumption and clock speed. The options are Disable and Enable. This feature must be set to Disable to be able to configure the next two features.

CPU C6 report

Select Enable to allow the BIOS to report the CPU C6 State (ACPI C3) to the operating system. During the CPU C6 State, the power to all cache is turned off. The options are Disable, Enable, and Auto.

Enhanced Halt State (C1E)

Select Enable to use Enhanced Halt State technology, which will significantly reduce the CPU's power consumption by reducing its clock cycle and voltage during a Halt state. The options are Disable and Enable.

▶Package C State Control

Package C State

This feature allows you to set the limit on the C State package register. The options are C0/C1 State, C2 State, C6 (Non Retention) State, C6 (Retention) State, No Limit, and Auto.

▶CPU T State Control

Software Controlled T-States

Use this feature to enable Software Controlled T-States. The options are Disable and Enable.

▶Chipset Configuration

Warning: Setting the wrong values in the sections below may cause the system to malfunction.

▶North Bridge Configuration

▶ Memory Configuration

Enforce POR

Select POR (Plan of Record) to enforce POR restrictions on DDR4 frequency and voltage programming. The options are POR and Disable.

Memory Frequency

Use this feature to set the maximum memory frequency for onboard memory modules. The options are Auto, 2133, 2400, and 2666.

Data Scrambling for DDR4

Use this feature to enable or disable data scrambling for DDR4 memory. The options are Auto, Disable, and Enable.

tCCD\_L Relaxation

Select Auto to get TCDD settings from SPD (Serial Presence Detect) into memory RC code to improve system reliability. Select Disable for TCCD to follow Intel POR. The options are Disable and Auto.

2X REFRESH

Use this feature to select the memory controller refresh rate to 2x refresh mode. The options are Auto and Enable.

▶ Memory Topology

This feature displays the information of memory modules detected by the BIOS.

▶ Memory RAS Configuration

Static Virtual Lockstep Mode

Select Enable to run the system's memory channels in lockstep mode to minimize memory access latency. The options are Disable and Enable.

Mirror Mode

This feature allows memory to be mirrored between two channels, providing 100% redundancy. The options are Disable and Enable Mirror Mode (1LM).

*If the feature above is set to Enable Mirror Mode, Multi Rank Sparing ADDDC Sparing will not be available for configuration:

Memory Rank Sparing

Select Enable to enable memory-sparing support for memory ranks to improve memory performance. The options are Disable and Enable.

*If the feature above is set to Enable, Multi Rank Sparing will be available for configuration:

Multi Rank Sparing

Use this feature to indicate how many memory ranks to reserve in case of memory failure. The options are One Rank and Two Rank.

Correctable Error Threshold

Use this feature to specify the threshold value for correctable memory error logging, which sets a limit on the maximum number of events that can be logged in the memory error log at a given time. The default setting is 100.

SDDC

Single device data correction +1 (SDDC Plus One) organizes data in a single bundle (x4/x8 DRAM). If any or all of the bits become corrupted, corrections occur. The x4 condition is corrected on all cases. The x8 condition is corrected only if the system is in Lockstep Mode. The options are Disable and Enable.

ADDDC Sparing

Adaptive Double Device Data Correction (ADDDC) Sparing detects when the predetermined threshold for correctable errors is reached, copying the contents of the failing DIMM to spare memory. The failing DIMM or memory rank will then be disabled. The options are Disable and Enable.

Patrol Scrub

Patrol Scrub is a process that allows the CPU to correct correctable memory errors detected on a memory module and send the correction to the requestor (the original source). When this feature is set to Enable, the IO hub will read and write back one cache line every 16K cycles if there is no delay caused by internal processing. By using this method, roughly 64 GB of memory behind the IO hub will be scrubbed every day. The options are Disable and Enable.

*If the feature above is set to Enable, Patrol Scrub Interval will be available for configuration:

Patrol Scrub Interval

This feature allows you to decide how many hours the system should wait before the next complete patrol scrub is performed. Use the keyboard to enter a value from 0-24. The default setting is 24.

▶IIO Configuration

EV DFX Features

When this feature is set to Enable, the EV_DFX Lock Bits that are located on a processor will always remain clear during electric tuning. The options are Disable and Enable.

▶CPU Configuration

IOU0 (II0 PCIe Br1)

Use this feature to configure the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

IOU1 (II0 PCIe Br2)

Use this feature to configure the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

▶Socket0 PcieBr0D00F0 - Port 0/DMI

Link Speed

Use this feature to select the link speed for this port. The options are Auto, Gen 1 (2.5 GT/s), Gen 2 (5GT/s), and Gen 3 (GT/s).

PCI-E Port Link Status

This feature shows the status of the device plugged into this slot.

PCI-E Port Link Max

This feature shows the status of the device plugged into this slot.

PCI-E Port Link Speed

This feature shows the status of the device plugged into this slot.

PCI-E Port Max Payload Size

Use this feature to select the maximum payload size for this port. The options are 128B, 256B, and Auto.

ECRC

Use this feature to enable or disable Error Capabilities and Control Register (ECRC). The options are Disable and Enable.

▶IOAT Configuration

Disable TPH

Transparent Huge Pages (TPH) is a Linux memory management system that enables communication in larger blocks (pages). Enabling this feature will increase performance. The options are No and Yes.

*If the feature above is set to No, Relax Ordering will be available for configuration:

Prioritize TPH

Select Yes to prioritize TPL requests that will allow the hints to be sent to help facilitate and optimize the processing of certain transactions in the system memory. The options are Enable and Disable.

Relaxed Ordering

Select Enable to enable Relaxed Ordering support, which will allow certain transactions to violate the strict-ordering rules of PCI bus for a transaction to be completed prior to other transactions that have already been enqueued. The options are Disable and Enable.

▶Intel® VT for Directed I/O (VT-d)

Intel® VT for Directed I/O (VT-d)

Select Enable to use Intel Virtualization Technology for Direct I/O VT-d support by reporting the I/O device assignments to the VMM (Virtual Machine Monitor) through the DMAR ACPI tables. This feature offers fully-protected I/O resource sharing across Intel platforms, providing greater reliability, security, and availability in networking and data-sharing. The options are Enable and Disable.

*If the feature above is set to Enable, the five features below will be available for configuration:

Interrupt Remapping

Use this feature to enable Interrupt Remapping support, which detects and controls external interrupt requests. The options are Enable and Disable.

PassThrough DMA

Use this feature to allow devices such as network cards to access the system memory without using a processor. Select Enable to use the Non-Isoch VT-d Engine Pass Through Direct Memory Access (DMA) support. The options are Enable and Disable.

ATS

Use this feature to enable Non-Isoch VT-d Engine Address Translation Services (ATS) support. ATS translates virtual addresses to physical addresses. The options are Enable and Disable.

Posted Interrupt

Use this feature to enable VT-d Posted Interrupt. The options are Enable and Disable.

Coherency Support (Non-Isoch)

Use this feature to maintain setting coherency between processors or other devices. Select Enable for the Non-Isoch VT-d engine to pass through DMA to enhance system performance. The options are Enable and Disable.

Intel® VMD Technology

Note: After you've enabled VMD on a PCI-E slot of your choice, this PCI-E slot will be dedicated for NVMe storage devices use only, and it will no longer support PCI-E devices of other functionalities. To re-activate this slot for PCI-E use, please disable VMD.

Intel® VMD for Volume Management Device on CPU

VMD Config for PStack0

Intel® VMD for Volume Management Device

Select Enable to use the Intel Volume Management Device Technology for this stack. The options are Disable and Enable.

*If the feature above is set to Enable, the following features will be available for configuration:

VMD port 1A - 1D (Available when detected by the system)

Select Enable to use the Intel Volume Management Device Technology for this specific root port. The options are Disable and Enable.

Hot Plug Capable

Use this feature to enable hot plug support for PCIe root ports 1A\~1D. The options are Disable and Enable.

CfgBar size

Use this feature to set up the VMD configuration BAR size. The default is 25.

CfgBar attribute

Use this feature set up the VMD configuration BAR attribute. The default option is 64-bit prefetchable.

MemBar1 size

Use this feature to set up the VMD memory BAR1 size. The default is 25.

MemBar1 attribute

Use this feature set up the VMD configuration BAR attribute. The options are 32-bit prefetchable, 64-bit non-prefetchable, and 64-bit prefetchable.

MemBar2 size

Use this feature to set up the VMD memory BAR2 size. The default is 20.

MemBar2 attribute

Use this feature set up the VMD configuration BAR attribute. The options are 32-bit prefetchable, 64-bit non-prefetchable, and 64-bit prefetchable.

VMD Config for PStack1

Intel® VMD for Volume Management Device

Select Enable to use the Intel Volume Management Device Technology for this stack. The options are Disable and Enable.

*If the feature above is set to Enable, the following features will be available for configuration:

VMD port 2A - 2D (Available when detected by the system)

Select Enable to use the Intel Volume Management Device Technology for this specific root port. The options are Disable and Enable.

Hot Plug Capable

Use this feature to enable hot plug support for PCIe root ports 2A\~2D. The options are Disable and Enable.

CfgBar size

Use this feature to set up the VMD configuration BAR size. The default is 25.

CfgBar attribute

Use this feature set up the VMD configuration BAR attribute. The default option is 64-bit prefetchable.

MemBar1 size

Use this feature to set up the VMD memory BAR1 size. The default is 25.

MemBar1 attribute

Use this feature set up the VMD configuration BAR attribute. The options are 32-bit prefetchable, 64-bit non-prefetchable, and 64-bit prefetchable.

MemBar2 size

Use this feature to set up the VMD memory BAR2 size. The default is 20.

MemBar2 attribute

Use this feature set up the VMD configuration BAR attribute. The options are 32-bit prefetchable, 64-bit non-prefetchable, and 64-bit prefetchable.

VMD Config for PStack2

Intel® VMD for Volume Management Device

Select Enable to use the Intel Volume Management Device Technology for this stack. The options are Disable and Enable.

\*If the feature above is set to Enable, the following features will be available for configuration:

VMD port 3A - 3D (Available when detected by the system)

Select Enable to use the Intel Volume Management Device Technology for this specific root port. The options are Disable and Enable.

Hot Plug Capable

Use this feature to enable hot plug support for PCIe root ports 3A\~3D. The options are Disable and Enable.

CfgBar size

Use this feature to set up the VMD configuration BAR size. The default is 25.

CfgBar attribute

Use this feature set up the VMD configuration BAR attribute. The options are 32-bit prefetchable, 64-bit non-prefetchable, and 64-bit prefetchable.

MemBar1 size

Use this feature to set up the VMD memory BAR1 size. The default is 25.

MemBar1 attribute

Use this feature set up the VMD configuration BAR attribute. The options are 32-bit prefetchable, 64-bit non-prefetchable, and 64-bit prefetchable.

MemBar2 size

Use this feature to set up the VMD memory BAR2 size. The default is 20.

MemBar2 attribute

Use this feature set up the VMD configuration BAR attribute. The options are 64-bit non-prefetchable, and 64-bit prefetchable.

PCI-E Completion Timeout Disable

Use this feature to enable PCI-E Completion Timeout support for electric tuning. The options are Yes, No, and Per-Port.

▶ South Bridge Configuration

The following South Bridge information will display:

• USB Module Version
• USB Devices

Legacy USB Support

Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only. The options are Enabled, Disabled, and Auto.

XHCI Hand-off

This is a workaround solution for operating systems that do not support XHCI (Extensible Host Controller Interface) hand-off. The XHCI ownership change should be claimed by the XHCI driver. The settings are Enabled and Disabled.

Port 60/64 Emulation

Select Enabled for I/O port 60h/64h emulation support, which in turn will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. The options are Disabled and Enabled.

▶Server ME Configuration

• Oper. Firmware Version
• Backup Firmware Version
• Recovery Firmware Version
• ME Firmware Status #1
• ME Firmware Status #2
- Current State
- Error Code

▶SATA Configuration

When this submenu is selected, the AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the following features:

SATA Controller

Use this feature to enable or disable the onboard SATA controller supported by the Intel PCH chip. The options are Disable and Enable.

*If the feature above is set to Enable, SATA HDD Unlock is available for configuration:

Configure sSATA as

Select AHCI to configure an sSATA drive specified by the user as an AHCI drive. Select RAID to configure an sSATA drive specified by the user as a RAID drive. The options are AHCI and RAID.

*If the feature above is set to RAID, SATA RSTe Boot Into and SATA RAID Option ROM/UEFI Driver are available for configuration:

SATA HDD Unlock

This feature allows you to remove any password-protected SATA disk drives. The options are Enable and Disable.

SATA RSTe Boot Info

Select Enable to provide full int13h support for the devices attached to the SATA controller. The options are Disable and Enable.

Aggressive Link Power Management

When this feature is set to Enable, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link in a low power mode during extended periods of I/O inactivity, and will return the link to an active state when I/O activity resumes. The options are Disable and Enable.

sSATA RAID Option ROM/UEFI Driver

Select UEFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot. The options are Disable, EFI, and Legacy.

SATA Port 0/4

This feature displays the information detected on the installed SATA drive on the particular SATA port.

• Model number of drive and capacity
- Software Preserve Support

SATA Port 0/4 Hot Plug

Set this feature to Enable for hot plug support, which will allow the user to replace a SATA drive without shutting down the system. The options are Disable and Enable.

SATA Port 0/4 Spin Up Device

Set this feature to enable or disable the PCH to initialize the device. The options are Disable and Enable.

SATA Port 0/4 SATA Device Type

Use this feature to specify if the SATA port specified by the user should be connected to a Solid State Drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

▶sSATA Configuration

When this submenu is selected, the AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the following features:

sSATA Controller

This feature enables or disables the onboard sSATA controller supported by the Intel PCH chip. The options are Enable and Disable.

Configure sSATA as

Select AHCI to configure an sSATA drive specified by the user as an AHCI drive. Select RAID to configure an sSATA drive specified by the user as a RAID drive. The options are AHCI and RAID.

SATA HDD Unlock

This feature allows you to remove any password-protected SATA disk drives. The options are Disable and Enable.

*If the feature "Configure sSATA as" above is set to RAID, sSATA RSTe Boot Into and sSATA RAID Option ROM/UEFI Driver are available for configuration:

sSATA RSTe Boot Info

Select Enable to provide full int13h support for the devices attached to the sSATA controller. The options are Disable and Enable.

Aggressive Link Power Management

When this feature is set to Enable, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link in a low power mode during extended periods of I/O inactivity and will return the link to an active state when I/O activity resumes. The options are Disable and Enable.

sSATA RAID Option ROM/UEFI Driver

Select UEFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot. The options are Disable, EFI, and Legacy.

sSATA Port 2/4/5

This feature displays the information detected on the installed sSATA drive on the particular sSATA port.

• Model number of drive and capacity
- Software Preserve Support

Port 2/4/5 Hot Plug

Set this feature to Enable for hot plug support, which will allow the user to replace a SATA drive without shutting down the system. The options are Disable and Enable.

Port 2/4/5 Spin Up Device

Set this feature to enable or disable the PCH to initialize the device. The options are Disable and Enable.

Port 2/4/5 sSATA Device Type

Use this feature to specify if the SATA port specified by the user should be connected to a Solid State Drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

▶PCIe/PCI/PnP Configuration

The following information will display:

• PCI Bus Driver Version
  • PCI Devices Common Settings:

Above 4G Decoding (Available if the system supports 64-bit PCI decoding)

Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Disabled and Enabled.

SR-IOV Support

Use this feature to enable or disable Single Root IO Virtualization Support. The options are Disabled and Enabled.

MMIO High Base

Use this feature to select the base memory size according to memory-address mapping for the IO hub. The options are 56T, 40T, 24T, 16T, 4T, and 1T.

MMIO High Granularity Size

Use this feature to select the high memory size according to memory-address mapping for the IO hub. The options are 1G, 4G, 16G, 64G, 256G, and 1024G.

PCI PERR/SERR Support

Use this feature to enable or disable the runtime event for PCI errors. The options are Disabled and Enabled.

Maximum Read Request

Use this feature to select the Maximum Read Request size of the PCI-Express device, or select Auto to allow the System BIOS to determine the value. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes.

MMCFG Base

Use this feature to select the low base address for PCI-E adapters to increase base memory. The options are 1G, 1.5G, 1.75G, 2G, 2.25G, and 3G.

VGA Priority

Use this feature to select VGA priority when multiple VGA devices are detected. Select On-board to give priority to your onboard video device. Select Offboard to give priority to your graphics card. The options are Onboard and Offboard.

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled, Legacy PXE, EFI, and Legacy iSCSI.

Onboard Video Option ROM

Use this feature to select the onboard Video Option ROM type. The options are Disabled, Legacy, and EFI.

Onboard 1G LAN OPROM

Use this feature to select which firmware type to be loaded for onboard 1G LAN devices. The options Legacy and EFI.

Onboard 10G LAN OPROM

Use this feature to select which firmware type to be loaded for onboard 1G LAN devices. The options Legacy and EFI.

Onboard LAN1 OPROM

Use this feature to select which firmware function to be loaded for the specified LAN port used for system boot. The options are Disabled, Legacy, and EFI.

Onboard LAN2 OPROM

Use this feature to select which firmware function to be loaded for the specified LAN port used for system boot. The options are Disabled, Legacy, and EFI.

Onboard LAN3 OPROM

Use this feature to select which firmware function to be loaded for the specified LAN port used for system boot. The options are Disabled, Legacy, and EFI.

Onboard LAN4 OPROM

Use this feature to select which firmware function to be loaded for the specified LAN port used for system boot. The options are Disabled, Legacy, and EFI.

▶Network Stack Configuration

Network Stack

Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support. The options are Enabled and Disabled.

*If the feature above is set to Enabled, the next six features will be available for configuration:

Ipv4 PXE Support

Select Enabled to enable IPv4 PXE boot support. The options are Disabled and Enabled.

Ipv4 HTTP Support

Select Enabled to enable IPv4 HTTP boot support. The options are Disabled and Enabled.

Ipv6 PXE Support

Select Enabled to enable IPv6 PXE boot support. The options are Disabled and Enabled.

Ipv6 HTTP Support

Select Enabled to enable IPv6 HTTP boot support. The options are Disabled and Enabled.

PXE boot wait time

Use this feature to specify the wait time to press the ESC key to abort the PXE boot. Press "+" or "-" on the keyboard to change the value. The default setting is 0.

Media detect count

Use this feature to specify the number of times media will be checked. Press "+" or "-" on the keyboard to change the value. The default setting is 1.

▶ Super IO Configuration

Super IO Chip AST2500

▶ Serial Port 1 Configuration

Serial Port 1

Select Enabled to enable the onboard serial port specified by the user. The options are Disabled and Enabled. Enable this feature for the next two features to display and only the Change Settings feature is available for configuration.

Device Settings

This feature displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified. The options are Auto, (IO=3F8h; IRQ=4); (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

▶ Serial Port 2 Configuration

Serial Port 2

Select Enabled to enable the onboard serial port specified by the user. The options are Disabled and Enabled. Enable this feature for the next two features to display and only the Change Settings feature is available for configuration.

Device Settings

This feature displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified. The options are Auto, (IO=2F8h; IRQ=3); (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

Serial Port 2 Attribute

Select SOL to use COM Port 2 as a Serial Over LAN (SOL) port for console redirection. The options are SOL and COM.

▶ Serial Port Console Redirection

COM1

Console Redirection

Select Enabled to enable COM Port 1 for Console Redirection, which will allow a client machine to be connected to a host machine at a remote site for networking. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the following features will become available for configuration:

▶Console Redirection Settings

Terminal Type

This feature allows you to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200.

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

COM2/SOL

Console Redirection

Select Enabled to use the SOL port for Console Redirection. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the following features are available for configuration:

▶Console Redirection Settings

Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

COM2/SOL

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200.

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

Legacy Console Redirection

Redirection COM Port

Use this feature to select a COM port to display redirection of Legacy OS and Legacy OPROM messages. The options are COM1 and COM2/SOL.

Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

Redirection After BIOS POST

Use this feature to enable or disable legacy console redirection after BIOS POST. When set to BootLoader, legacy console redirection is disabled before booting the OS. When set to Always Enable, legacy console redirection remains enabled when booting the OS. The options are Always Enable and BootLoader.

Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS)

This submenu allows you to configure Console Redirection settings to support Out-of-Band Serial Port management.

Console Redirection

Select Enabled to use a COM port selected by the user for EMS Console Redirection. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the following features are available for configuration:

▶Console Redirection Settings

This feature allows you to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

Out-of-Band Mgmt Port

The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 and SOL/COM2.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

This feature sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

Data Bits

Parity

Stop Bits

▶ACPI Settings

WHEA Support

Select Enabled to support the Windows Hardware Error Architecture (WHEA) platform and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment in order to reduce system crashes and enhance system recovery and health monitoring. The options are Disabled and Enabled.

High Precision Event Timer

Select Enabled to activate the High Precision Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback and reducing the dependency on other timestamp calculation devices, such as an x86 RDTSC Instruction embedded in the CPU. The High Performance Event Timer is used to replace the 8254 Programmable Interval Timer. The options are Disabled and Enabled.

▶Trusted Computing

The X11SDS Series supports TPM 1.2 and 2.0. The following Trusted Platform Module (TPM) information will display if a TPM 2.0 module is detected:

TPM20 Device Found

Vendor:

Frimware Version:

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM support to enhance data integrity and network security. Reboot the system for a change on this setting to take effect. The options are Disable and Enable.

• Active PCR banks
• Available PCR banks

Pending operation

Use this feature to schedule a TPM-related operation to be performed by a security device for system data integrity. The options are None and TPM Clear.

Note: Your system will reboot to carry out a pending TPM operation.

Platform Hierarchy

Use this feature to disable or enable platform hierarchy for platform protection. The options are Disabled and Enabled.

Storage Hierarchy

Use this feature to disable or enable storage hierarchy for cryptographic protection. The options are Disabled and Enabled.

Endorsement Hierarchy

Use this feature to disable or enable endorsement hierarchy for privacy control. The options are Disabled and Enabled.

PH Randomization

Use this feature to disable or enable Platform Hierarchy (PH) Randomization. The options are Disabled and Enabled.

TXT Support

Intel TXT (Trusted Execution Technology) helps protect against software-based attacks and ensures protection, confidentiality and integrity of data stored or created on the system. Use this feature to enable or disable TXT Support. The options are Disabled and Enabled.

▶Tls Auth Configuration

This submenu allows the user to configure Transport Layer Security (TLS) settings.

▶Server CA Configuration

▶Enroll Cert

Enroll Cert Using File

Use this feature to enroll certification from a file.

Cert GUID

Use this feature to input the certification GUID.

▶Commit Changes and Exit

Use this feature to save all changes and exit TLS settings.

▶Discard Changes and Exit

Use this feature to discard all changes and exit TLS settings.

▶ Delete Cert

Use this feature to delete certification.

▶Intel(R) Virtual RAID on CPU

Intel(R) VROC with VMD Technology 5.4.0.1039

RAID volume and Intel VMD Controller information will be displayed if they are detected by the system.

Note: After you've enabled VMD on a PCI-E slot of your choice, this PCI-E slot will be dedicated for NVMe storage devices use only, and it will no longer support PCI-E devices of other functionalities. To reactivate this slot for PCI-E use, please disable VMD.

▶All Cpu Information

The total number of CPUs for this motherboard is 32. The information shown below is for to CPU0 through CPU31.

• Total CPU Number:
- CPU0
- CPUID:
- Stepping:
- MicroCodeRev:
- PlatformID:
- CpuCoreFreq (MHz):
• ActualCpuFreq (MHz):

6.4 IPMI

Use this menu to configure Intelligent Platform Management Interface (IPMI) settings.

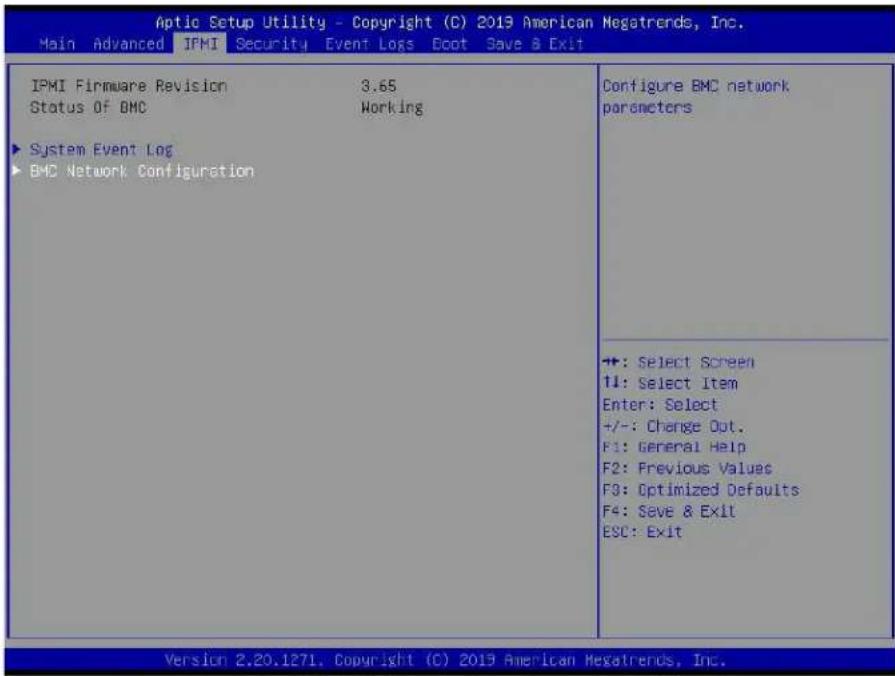

Aptic Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced IPMT Security Event Logs Eoot Save & Exit IPMI Firmware Revision 3.65 Status Of BMC Working ► System Event Log ► BMC Network Configuration Configure BMC network parameters +: Select Screen +/-: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.

This feature displays the IPMI firmware revision in your system.

Status of BMC

This feature displays the status of the IPMI firmware installed in your system.

▶System Event Log

Enabling/Disabling Options

SEL Components

Select Enabled for all system event logging at boot up. The options are Disabled and Enabled.

Erasing Settings

Erase SEL

Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, "Yes, On next reset," and "Yes, On every reset."

When SEL is Full

This feature allows you to determine what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.

Note: Reboot the system for the changes to take effect.

▶BMC Network Configuration

• IPMI LAN Selection
• IPMI Network Link Status
• Station MAC address
- VLAN
• IPv4 Address Source
- Station IP Address
- Subnet mask
- Gateway IP address
• IPV6 address status
• Station IPV6 address
• IPV6 Router IP Address
- Prefix Length
• IPV6 Router IP Address

Update IPMI LAN Configuration

Select Yes for the BIOS to implement all IP/MAC address changes at the next system boot. The options are No and Yes.

*If the feature above is set to Yes, the features below are available for configuration:

IPMI LAN Selection

Use this feature to select the IPMI LAN mode. The options are Dedicated LAN, Share LAN, and Failover.

VLAN

This feature is configurable if the Update IPMI LAN Configuration feature is set to Yes. Use this feature to enable or disable the IPMI VLAN function. The options are Disable and Enable.

*If the feature above is set to Enable, the VLAN ID feature below is available for configuration:

VLAN ID

Use this feature to select a value for VLAN ID.

Configuration Address Source

Use this feature to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, the BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that is attached to and request the next available IP address for this computer. The options are Static and DHCP.

*If the feature above is set to Static, the Station IP Address/Subnet Mask/Gateway IP Address features are available for configuration:

Station IP Address

This feature displays the Station IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

Subnet Mask

This feature displays the sub-network that this computer belongs to. The value of each three-digit number separated by dots should not exceed 255.

Gateway IP Address

This feature displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

Configure IPV6 support

IPV6 Support

Use this feature to enable IPV6 support. The options are Enabled and Disabled.

*If the feature above is set to Enable, the features below are available for configuration:

Configuration Address Source

Use this feature to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, the BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that is attached to and request the next available IP address for this computer. The options are Unspecified, Static, and DHCP.

*If the feature above is set to Static, the Station IP Address/Prefix Length/IPV6 Router1 IP Address features are available for configuration:

Station IPV6 Address

Use this feature to enter the IPV6 address.

Prefix Length

Use this feature to change the prefix length.

IPV6 Router1 IP Address

Use this feature to change the IPV6 Router1 IP address.

6.5 Security

Use this menu to configure the security settings.

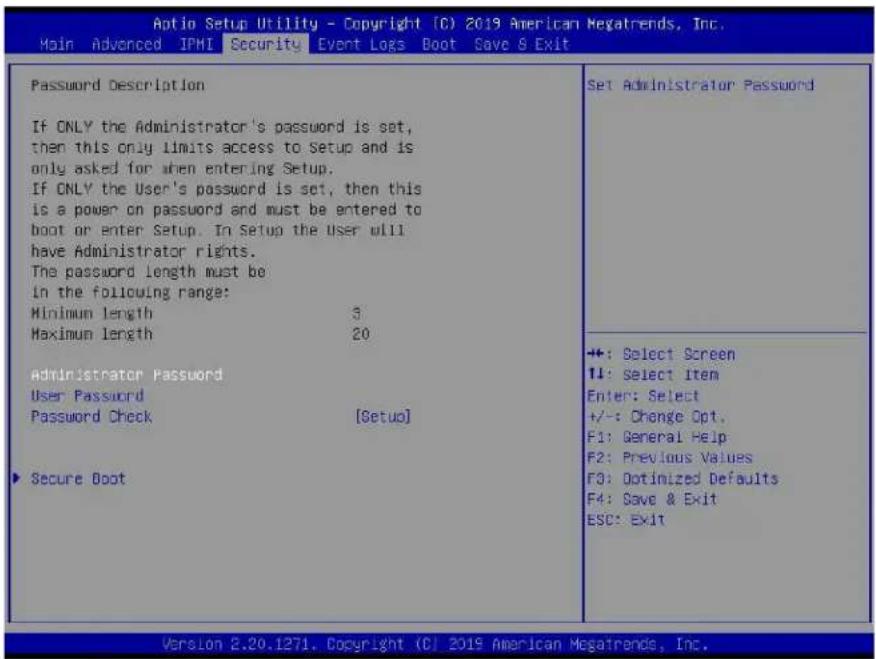

Auto Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced IPMI Security Event Logs Boot Save & Exit Password Description If ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20 Administrator Password User Password Password Check [Setup] Secure Boot Set Administrator Password +: Select Screen 1: Select item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.

Administrator Password

Use this feature to set the administrator password which is required to enter the BIOS setup utility. The length of the password should be from three to 20 characters long.

User Password

Use this feature to set the user password to enter the BIOS setup utility.

Password Check

Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility. The options are Setup and Always.

▶ Secure Boot

System Mode

Secure Boot

Select Enable for secure boot support to ensure system security at bootup. The options are Disabled and Enabled.

Secure Boot Mode

This feature allows you to select the desired secure boot mode for the system. The options are Standard and Custom.

*If Secure Boot Mode is set to Custom, Key Management features are available for configuration:

CSM Support

This feature is for manufacturing debugging purposes.

Select Yes to restore all factory keys to the default settings. The options are Yes and No.

▶ Reset to Setup Mode

Select Yes to delete all Secure Boot key databases and force the system to Setup Mode. The options are Yes and No.

▶Key Management

This submenu allows you to configure the following Key Management settings.

Factory Key Provision

Select Enabled to install the default Secure Boot keys set by the manufacturer. The options are Disabled and Enabled.

*If the feature above is set to Enabled, all features below are available for configuration:

Select Yes to restore all factory keys to the default settings. The options are Yes and No.

▶ Reset to Setup Mode

Select Yes to delete all Secure Boot key databases and force the system to Setup Mode. The options are Yes and No.

▶ Export Secure Boot variables

Use this feature to copy the NVRAM contents of the secure boot variables to a file.

▶Enroll Efi Image

This feature allows the image to run in Secure Boot mode.

Device Guard Ready

▶Remove 'UEFI CA' from DB

Use this feature to remove the Microsoft UEFI CA certificate from the database. The options are Yes and No.

Select Yes to restore the DB defaults.

▶ Platform Key (PK)

Update

Select Yes to load a factory default PK or No to load from a file on an external media.

▶Key Exchange Keys (KEK)

Update

Select Yes to load a factory default KEK or No to load from a file on an external media.

Append

Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No.

▶ Authorized Signatures

Update

Select Yes to load a factory default db or No to load from a file on an external media.

Append

Select Yes to add the db from the manufacturer's defaults list to the existing db. Select No to load the db from a file. The options are Yes and No.

▶Forbidden Signatures

Update

Select Yes to load a factory default dbx or No to load from a file on an external media.

Append

Select Yes to add the dbx from the manufacturer's defaults list to the existing dbx. Select No to load the dbx from a file. The options are Yes and No.

▶ Authorized TimeStamps

Update

Select Yes to load a factory default dbt or No to load from a file on an external media.

Append

Select Yes to add the dbt from the manufacturer's defaults list to the existing dbt. Select No to load the dbt from a file. The options are Yes and No.

▶OsRecovery Signatures

Update

Select Yes to load a factory default dbr or No to load from a file on an external media.

Append

Select Yes to add the dbr from the manufacturer's defaults list to the existing dbr. Select No to load the dbr from a file. The options are Yes and No.

6.6 Event Logs

Use this feature to configure Event Log settings.

Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced IPMI Security Event Logs Boot Save & Exit Change Smbios Event Log Settings View Smbios Event Log Press to change the Smbios Event Log configuration. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit E9C: Exit Version 2.20.1271, Copyright (C) 2019 American Megatrends, Inc.

▶Change SMBIOS Event Log Settings

Enabling/Disabling Options

Smbios Event Log

Change this feature to enable or disable all features of the SMBIOS Event Logging during system boot. The options are Disabled and Enabled.

Erasing Settings

Erase Event Log

Select Enabled to erase all error events in the SMBIOS (System Management BIOS) log before an event logging is initialized at bootup. The options are No, "Yes, Next reset," and "Yes, Every reset."

When Log is Full

Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately.

Smbios Event Log Standard Settings

Log System Boot Event

Select Enabled to log system boot events. The options are Enabled and Disabled.

MECI (Multiple Event Count Increment)

Enter the increment value for the multiple event counter. Enter a number between 1 to 255. The default setting is 1.

METW (Multiple Event Count Time Window)

This feature is used to determine how long (in minutes) the multiple event counter should wait before generating a new event log. Enter a number between 0 to 99. The default setting is 60.

Note: Reboot the system for the changes to take effect.

▶View Smbios Event Log

This feature allows you to view the event in the SMBIOS event log. The following categories are displayed:

DATE/TIME/ERROR CODE/SEVERITY

6.7 Boot

Use this menu to configure boot settings:

Antio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced IPMI Security Event Logs Boot Save & Exit Boot mode select [DUAL] FIXED BOOT ORDER Priorities Boot Option #1 [Hard Disk] Boot Option #2 [CD/DVD] Boot Option #3 [USB Hard Disk] Boot Option #4 [USB CD/DVD] Boot Option #5 [USB Key] Boot Option #6 [USB Floppy] Boot Option #7 [USB Lan] Boot Option #8 [Network:IBA GE Slot Q200 v1506] Boot Option #9 [UEFI Hard Disk] Boot Option #10 [UEFI CD/DVD] Boot Option #11 [UEFI USB Hard Disk] Boot Option #12 [UEFI USB CD/DVD] Boot Option #13 [UEFI USB Key] Boot Option #14 [UEFI USB Floppy] Boot Option #15 [UEFI USB Lan] Boot Option #16 [UEFI Network] Boot Option #17 [UEFI AP:UEFI: Built-in EFI Shell] ► Delete Boot Option Select boot mode LEGACY/UEFI +: Select Screen ↑: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.

Boot mode select

Use this feature to select the boot mode. The options are LEGACY, UEFI, and DUAL.

LEGACY to EFI Support

Select Enabled to boot EFI OS support after Legacy boot order has failed. The options are Disabled and Enabled.

Fixed BOOT ORDER Priorities

This option prioritizes the order of bootable devices that the system to boot from. Press on each entry from top to bottom to select devices.

• Boot Option #1
• Boot Option #2
• Boot Option #3
• Boot Option #4
• Boot Option #5
• Boot Option #6

• Boot Option #7

• Boot Option #8

• Boot Option #9
• Boot Option #10
• Boot Option #11
• Boot Option #12
• Boot Option #13
• Boot Option #14
• Boot Option #15
• Boot Option #16
• Boot Option #17

▶ Delete Boot Option

Use this feature to select a boot device to delete from the boot priority list.

▶ Delete Driver Option

Use this feature to remove an EFI driver option from the driver order.

▶UEFI Application Boot Priorities

- Boot Option # - This feature sets the system boot order of detected devices. The options are [the list of detected boot device(s)] and Disabled.

▶ NETWORK Drive BBS Priorities

- Boot Option # - This feature sets the system boot order of detected devices. The options are [the list of detected boot device(s)] and Disabled.

6.8 Save & Exit

Use this menu to configure save and exit settings.

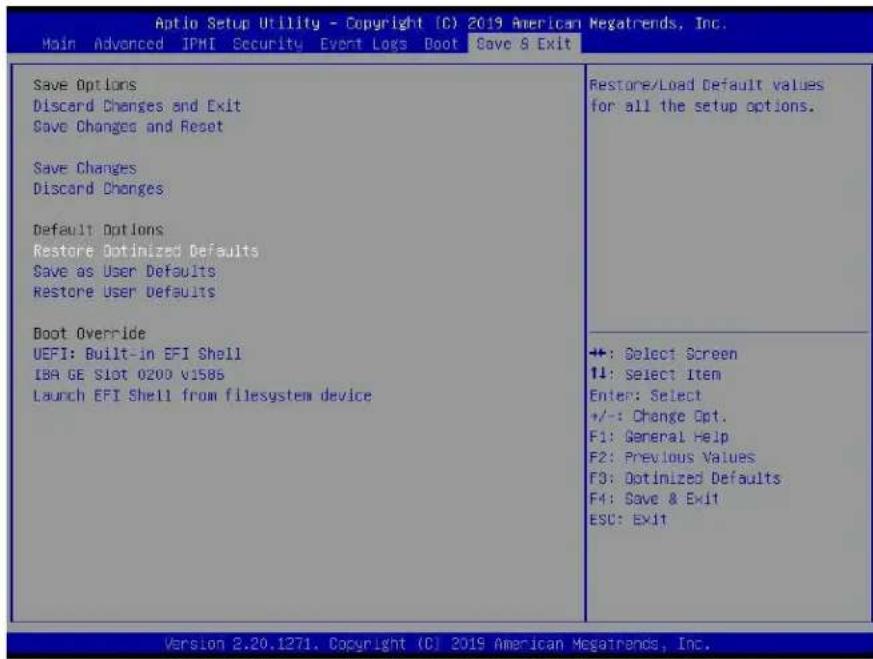

Antio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced IPMI Security Event Logs Boot Save & Exit Save Options Discard Changes and Exit Save Changes and Reset Save Changes Discard Changes Default Options Restore Optimized Defaults Save as User Defaults Restore User Defaults Boot Override UEFI: Built-in EFI Shell IBA GE Slot 0200 v1586 Launch EFI Shell from filesystem device Restore/Load Default values for all the setup options. +: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.

Save Options

Discard Changes and Exit

Select this feature to quit the BIOS Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Exit from the Exit menu and press .

Save Changes and Reset

When you have completed the system configuration changes, select this option to save all changes made and reset the system.

Save Changes

When you have completed the system configuration changes, select this option to save all changes made. This will not reset (reboot) the system.

Discard Changes

Select this feature and press to discard all the changes and return to the AMI BIOS Utility Program.

Default Options

Restore Optimized Defaults

To set this feature, select Restore Optimized Defaults and press . These are factory settings designed for maximum system performance but not for maximum stability.

Save as User Defaults

To set this feature, select Save as User Defaults from the Exit menu and press . This enables the user to save any changes to the BIOS setup for future use.

To set this feature, select Restore User Defaults from the Exit menu and press . Use this feature to retrieve user-defined settings that were saved previously.

Boot Override

Other boot options are listed in this section. The system will boot to the selected boot option.

UEFI: Built-in EFI Shell

IBA GE Slot 0200 v1586

Launch EFI Shell from filesystem device

Appendix A

BIOS Error Codes

A.1 BIOS Error Beep (POST) Codes

During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process. The error messages normally appear on the screen.

Fatal errors are those which will not allow the system to continue the boot-up procedure. If a fatal error occurs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps. The table below lists some common errors and their corresponding beep codes encountered by users.

BIOS Error Beep (POST) Codes
Beep Code Error	Message Description
1 short Refresh Circuits have been reset (Ready to power up)
5 short, 1 long Memory error No memory detected in system
5 long, 2 short Display memory read/write error Video adapter missing or with faulty memory
1 long continuous System OH System overheat condition

A.2 Additional BIOS POST Codes

The AMI BIOS supplies additional checkpoint codes, which are documented online at http://www.supermicro.com/support/manuals/ ("AMI BIOS POST Codes User's Guide").

When BIOS performs the Power-On Self-Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20).

For information on AMI updates, please refer to http://www.ami.com/products/.

Appendix B

Standardized Warning Statements for AC Systems

About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this appendix in its entirety before installing or configuring components in the Supermicro chassis.

These warnings may also be found on our website at http://www.supermicro.com/about/policies/safety_information.cfm.

Warning Definition

Warning! This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

警告の定義

この警告サインは危険を意味します。

Installation Instructions

Warning! Read the installation instructions before connecting the system to the power source.

設置手順書

Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.

サーキット・ブレーカー

Power Disconnection Warning

Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.

電源切断の警告

Equipment Installation

Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

機器の設置

Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. (This warning does not apply to workstations).

アクセス制限区域

Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Redundant Power Supplies

Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

冗長電源装置

Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing.

バックプレーンの電圧

Comply with Local and National Electrical Codes

Warning! Installation of the equipment must comply with local and national electrical codes.

地方および国の電気規格に準拠

Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

Warning! Hazardous moving parts. Keep away from moving fan blades. The fans might still be turning when you remove the fan assembly from the chassis. Keep fingers, screwdrivers, and other objects away from the openings in the fan assembly's housing.

ファン・ホットスワップの警告

Power Cable and AC Adapter

Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA-certified cables (that have UL/CSA shown on the cord) for any other electrical devices than products designated by Supermicro only.

電源コードとACアダプター

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.

C.1 An Overview to the UEFI BIOS

The Unified Extensible Firmware Interface (UEFI) provides a software-based interface between the operating system and the platform firmware in the pre-boot environment. The UEFI specification supports an architecture-independent mechanism for add-on card initialization to allow the UEFI OS loader, which is stored in the add-on card, to boot the system. The UEFI offers a clean, hands-off control to a computer system at bootup.

C.2 Recovering the UEFI BIOS Image

A UEFI BIOS flash chip consists of a recovery BIOS block and a main BIOS block (a main BIOS image). The recovery block contains critical BIOS codes, including memory detection and recovery codes for the user to flash a healthy BIOS image if the original main BIOS image is corrupted. When the system power is turned on, the recovery block codes execute first. Once this process is complete, the main BIOS code will continue with system initialization and the remaining POST (Power-On Self-Test) routines.

Note 1: Follow the BIOS recovery instructions below for BIOS recovery when the main BIOS block crashes.

Note 2: When the BIOS recovery block crashes, you will need to follow the procedures to make a Returned Merchandise Authorization (RMA) request. (For a RMA request, please see section 3.5 for more information). Also, you may use the Supermicro Update Manager (SUM) Out-of-Band (OOB) (https://www.supermicro.com.tw/products/nfo/SMS_SUM.cfm) to reflash the BIOS.

C.3 To Recover the Main BIOS Block Using a USB-Attached Device

This feature allows the user to recover the main BIOS image using a USB-attached device without additional utilities used. A USB flash device such as a USB Flash Drive, or a USB CD/DVD ROM device can be used for this purpose. However, a USB Hard Disk drive cannot be used for BIOS recovery at this time.

The file system supported by UEFI is FAT (including FAT12, FAT16, and FAT32) installed on a bootable or non-bootable USB-attached device. However, the BIOS might need several minutes to locate the SUPER.ROM file if the media size becomes too large because it contains too many folders and files.

To perform UEFI BIOS recovery using a USB-attached device, follow the instructions below.

1. Using a different machine, copy the "Super.ROM" binary image file into the disc Root "\" Directory of a USB device or a writeable CD/DVD.

Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website at www.supermicro.com to download the BIOS image into a USB flash device and rename it "Super.ROM" for BIOS recovery use.

Note: Before recovering the main BIOS image, confirm that the "Super.ROM" binary image file you download is the same version or a close version meant for your motherboard.

1. Insert the USB device that contains the new BIOS image ("Super.ROM") into your USB drive and power on the system

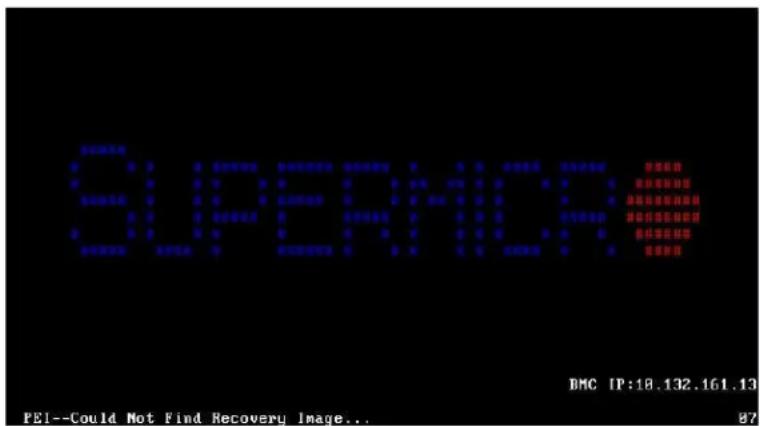

SUPERC BMC IP:18.132.161.13 PEI--Could Not Find Recovery Image... 87

1. After locating the healthy BIOS binary image, the system will enter the BIOS Recovery menu as shown below.

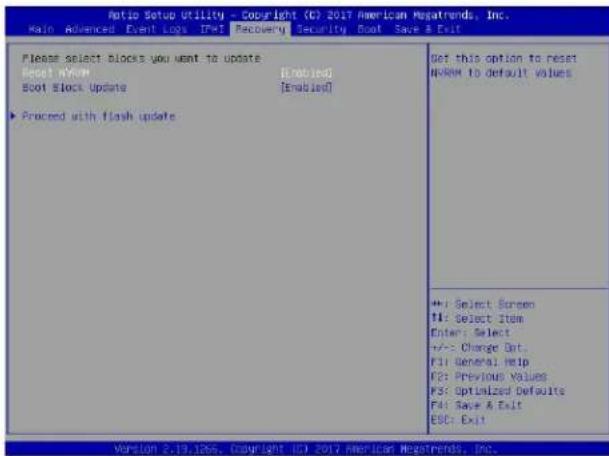

Ratio Setup Utility - Copyright (C) 2017 American NewsTrends, Inc. Main Advanced Event Logs IFR Recovery Security Boot Save & Exit Please select blocks you want to update Boot: Yes/No Boot Block Update [Enabled] ▶ Proceed with flash update Get this option to reset #NRM to Default Values ++: Select Screen #1: Select Item Enter: Select +/-: Change Out. F3: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266, Copyright 101-2017 American News Trend, Inc.

Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.

1. When the screen as shown above displays, use the arrow keys to select the item "Proceed with flash update" and press the key. You will see the BIOS recovery progress as shown in the screen below.

Note: Do not interrupt the BIOS flashing process until it has completed.

Notis Setup Utility - Copyright (C) 2017 American Mapsrends, Inc. Recovery WARNING System firmware is being updated. keyboard is locked. DO NOT TURN THE POWER OFF!!! Once firmware update is completed press any key to reboot the system Program new data Write new boot block... 172 4: Select Screen 14: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save a Exit E5: Exit Version 2.19.1266. Copyright (C) 2017 American Mapsrends, Inc.

1. After the BIOS recovery process is complete, press any key to reboot the system.

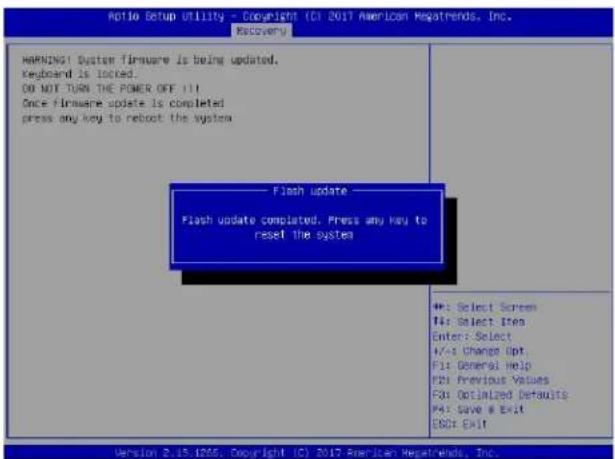

Ratio Setup Utility - Copyright (CI 2017 American Regatrends, Inc. Recovery) WARNING! Duster Firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF !!! Once Firmware update is completed press any key to reboot the system Flash update Flash update completed. Press any key to reset the system #: Select Screen T4: Select Item Enter: Select I/√: Change Opt. F1: General help F2: Previous Values F3: Optimized Defaults F4: Save @ Exit ESC: Exit Version 2.15.1256, Copyright (C) 2017 American Regatrends, Inc.

1. Using a different system, extract the BIOS package into a USB flash drive.

2. Press continuously during system boot to enter the BIOS Setup utility. From the top of the tool bar, select Boot to enter the submenu. From the submenu list, select Boot Option #1 as shown below. Then, set Boot Option #1 to [UEFI AP:UEFI: Built-in EFI Shell]. Press to save the settings and exit the BIOS Setup utility.

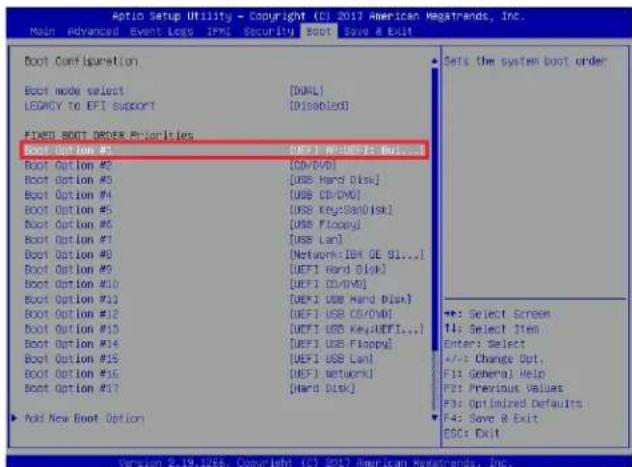

Auto Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Loss IPM Security BOOT Save a Exit Boot Configuration Boot mode select [DUAL] LEGACY to EFI Support [DISBOLD] FIXED BOOT ORDER Priorities Boot Option #1 [DEFI AP/DEFI: Max... Boot Option #2 [CD/DVD] Boot Option #3 [USB Hard Disk] Boot Option #4 [USB CD/DVD] Boot Option #5 [USB Key/SB/Disk] Boot Option #6 [USB Floppy] Boot Option #7 [USB Lan] Boot Option #8 [Network: IBM GE SI...] Boot Option #9 [DEFI Hard Disk] Boot Option #10 [DEFI CD/DVD] Boot Option #11 [DEFI USB Hard Disk] Boot Option #12 [DEFI USB CD/DVD] Boot Option #13 [DEFI USB Key/DEFI...] Boot Option #14 [DEFI USB Floppy] Boot Option #15 [DEFI USB Lan] Boot Option #16 [DEFI Network] Boot Option #17 [Hard Disk] Add New Boot Option Set the system boot order <<: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General) Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 8.19.1266. Copyright (C) 2017 American Megatrends, Inc.

1. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 6. Enter flash.nsh BIOSname.### at the prompt to start the BIOS update process.

UIFI Interactive Shell v2.1 OK II UIFI v2.50 (American MegaTrends, 0x00e5000) Mapping table FSD: Ailio(s):HD0r0b::BLK1; PcI:Root(oxv):Pci(ox14,oxv)/USB(ox11,oxv):HDII Herm,8x07961072,ox806,oxi (3x532) BLK0: Ailio(s): PcI:Root(oxv):Pci(ox14,oxv)/USB(ox11,oxv) Press FSG is 1 seconds to skip startup.nsh or any other key to continue. Shell: FSG1 FSG1: VAPR006 FSG1:VAPR005: cd SAPMIE2_00162012 FSG1:VAPR005: SAPMIE2_00262017: flash.nsh X13P07.54

Note: Do not interrupt this process until the BIOS flashing is complete.

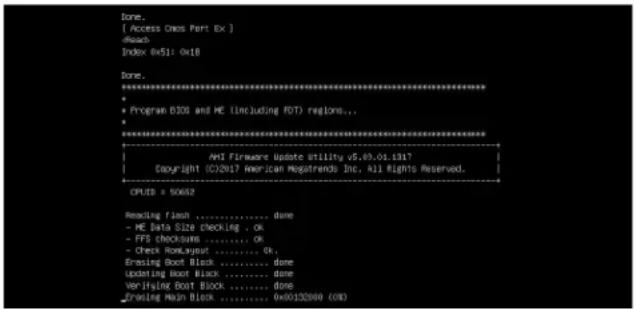

None. [ Access DOS Part Ex ] 4Reach Index 6x51: 0x18 None. ********************************************************************** * Program BIOS and ME (including FDT) regions... ********************************************************************** AMI Firmware Update utility v5.49.01.1317 Copyright (C:\2017 American Registrantb Inc. All Rights Reserved. CPUBS = 50692 Reading Flash ......... done - ME Data Size checking . OK - PFS checksums ......... Ok - Check RowLayout ......... Ok Erasing Boot Block ......... done updating Boot Block ......... done Drilling Main Block ......... 0x00132049 (OK)

1. The screen above indicates that the BIOS update process is complete. When you see the screen above, unplug the AC power cable from the power supply, clear CMOS, and plug the AC power cable in the power supply again to power on the system.

Verifying NCR Block ....... done - Update success for FDR - Update success for IE. - Successful Update Recovery Loader to 0PRx!! - Successful Update MFSB11- - Successful Update RTM11- - Successful Update MFS, V861 and V8621! - Successful Update FLOD and UTOX!! - ME entire image update success!! WRVING : System must power-off to have the changes take effect! Moving FSO:AFUDOS\SAFME2_03162017\dtx64,efi -> FSO:AFUDOS\SAFME2_03162017\v dt.snc - [ok] Moving FSO:AFUDOS\SAFME2_03162017\taufexiv64.efi -> FSO:AFUDOS\SAFME2_0316201 7iaufexi.snc - [ok] ********************************************************************** * • Please ignore this 'shell cannot read from file - device error' • Warning message due to it does not impact flashing process. * ********************************************************************** Delating ' Delete successful. FSO:O

1. Press continuously to enter the BIOS Setup utility.
2. Press to load the default settings.
3. After loading the default settings, press to save the settings and exit the BIOS Setup utility.

Appendix D

System Specifications

Processors

Single Intel Xeon D-2146NT with speeds of up to 80W for 1019D-FRN5TP in an H4 LGA1151 type socket Single Intel Xeon D-2163IT with speeds of up to 75W for 1019D-12C-FRN5TP in an H4 LGA1151 type socket Single Intel Xeon D-2173IT with speeds of up to 70W for 1019D-14C-FRN5TP in an H4 LGA1151 type socket Single Intel Xeon D-2183IT with speeds of up to 100W for 1019D-16C-FRN5TP in an H4 LGA1151 type socket Note: Please refer to the motherboard specifications pages on our website for updates to supported processors.

Chipset

System on Chip

BIOS

256Mb AMI BIOS SPI Flash BIOS Plug and Play (PNP), ACPI 6.2, UEFI 2.7, BIOS rescue hot-key, SMBIOS 2.8 and 3.2, PCI F/W 3.1, RTC Wakeup

Memory

Supports up to 256GB of ECC RDIMM or 512GB of ECC LRDIMM DDR4 memory Operating speed up to 2133MHz for 1019D-FRN5TP, 1019D-12C-FRN5TP, and 1019D-14C-FRN5TP Operating speed up to 2400MHz for 1019D-16C-FRN5TP

SATA Controller

On-chip (System on Chip) controller

Hard Drives

Two EDSFF and two internal 2.5" drives OR two M.2 and one internal 2.5" drive

PCI Expansion Slots

Two M.2 M-Key 2280/22110 (one 2.5" drive bay space shared with M.2) One M.2 E-Key 2230 One M.2 B-Key 2242/3042 Four PCI-E 3.0 x8 for Advanced I/O Module (AIOM) (AIOM is sold separately)

Motherboard

X11SDS-8C for 1019D-FRN5TP
X11SDS-12C for 1019D-12C-FRN5TP
X11SDS-14C for 1019D-14C-FRN5TP
X11SDS-16C for 1019D-16C-FRN5TP
Dimensions: 7.24'' × 13.75'' (183.90 x 349.25 mm)

Chassis

SC103-R407B; 1U rackmount, Dimensions: (WxHxD) 17.2 x 1.7 x 15 in. (437 x 43 x 382 mm)

Weight

Net: 26.9 lbs (12.2 kg) Gross: 15.9 lbs (7.21 kg)

System Cooling

Five 40x40x56 mm 13K-11K RPM counter-rotating fans

Power Supply

Model: PWS-407P-1R (x2), 80 Plus level Platinum

Total Output Power: 400W

AC Input Voltages: 100-240V, 200-240V

Rated Input Frequency: 50-60Hz

Max: 33A & Min: 0.5A

5V SB:

Max: 3A / Min: 0A

Output Type:

Gold Finger Connector Mating with Molex 45984-4343

Operating Environment

Operating Temperature: 0° to 45° C (32° to 113° F)

Non-operating Temperature: -40^ to 70^ C ( -40^ to 158^ F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Regulatory Compliance

Electromagnetic Emissions: FCC Class A, EN 55032 Class A, EN 61000-3-2/3-3, CISPR 32 Class A

Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11)

Other: VCCI-CISPR 32 and AS/NZS CISPR 32

Environmental: Directive 2011/65/EU, Deligated Directive (EU) 2015/863, and Directive 2012/19/EU

Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe)

Perchlorate Warning

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate"
