USER MANUAL DVDR3350H PHILIPS

Hard Disk/ DVD Recorder

DVDR3350H

User Manual 6

Thank you for choosing Philips.

Need help fast?

Read your Quick Use/Start Guide and/or User Manual first for quick tips that make using your Philips product more enjoyable.

If you have read your instructions and still need assistance, you may access our online help at www.philips.com/support

ONION ON ONION ON PHILIPS DVD RECORDER HAND DISE PHILIPS

Media

DVD+R/+RW

DVD - R/- RW

PHILIPS

México

This unit employs a laser. Due to possible eye injury, only a qualified service person should remove the cover or attempt to service this device.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

NOTE: PICTURES SHOWN MAYBE DIFFERENT BETWEEN COUNTRIES.

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on apparatus.

LASER

Type Semiconductor laser InGaAlP (DVD) AlGaAs (CD)

Wave length 658 nm (DVD) 790 nm (CD)

Output Power 30 mW(DVD±RW write) 1.0 mW (DVD read) 1.0 mW (CD read)

Beam divergence 84 degrees (DVD) 61 degrees (CD)

For Customer Use: Read carefully the information located at the bottom or rear of your DVD Recorder and enter below the Serial No. Retain this information for future reference.

Model No. Hard Disk/ DVD Recorder DVDR3350H

Serial No.

Due to the inconsistency of disc formats provided by various disc manufacturers, your DVD system/ player/recorder may require a playability enhancement or upgrade. As DVD technology advances, these enhancement will become common and will be easy to complete. Go to www.philips.com/support for software upgrade.

'CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.'

Copyright notice

"The making of unauthorized copies of copy-protected material, including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes."

Index

This product incorporates copyright protection technology that is protected by US patents. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

U.S. Patent Number 4,631,603; 4,819,098; 4,907,093; 5,315,448; and 6,516,132

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

English 6

Español 76

B. Português 146

VCR Plus+® and PlusCode are registered trademarks of Gemstar Development Corporation. The VCR Plus+® system is manufactured under license from Gemstar Development Corporation.

US patent Nr.: 6,466,734; 6,430,359; 6,091,882; 6,049,652; 5,335,079; 5,307,173; 4,908,713; 4,751,578, 4,706,121.

Table of Contents

General

Special Features 8

Frequently Asked Questions 9

Care and Safety Information 10

Setup....10

Cleaning discs....10

HDD (Hard Disk Drive) handling care....10

General Information...... II

Introduction ...... 11

Accessories supplied....11

Region codes....11

Copyright notice....II

Product Overview

Remote Control 12\~14

Inserting Batteries 14

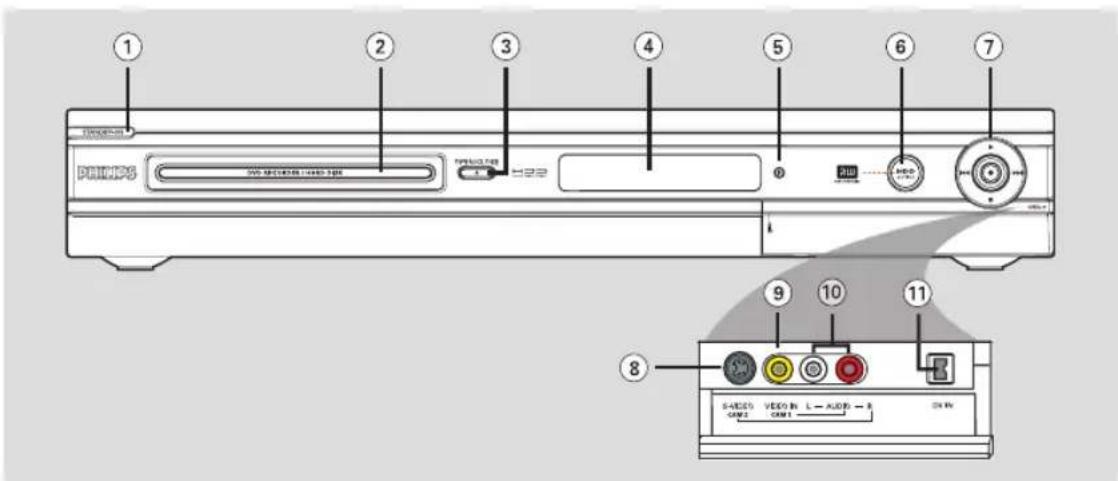

Main Unit....15

Connections

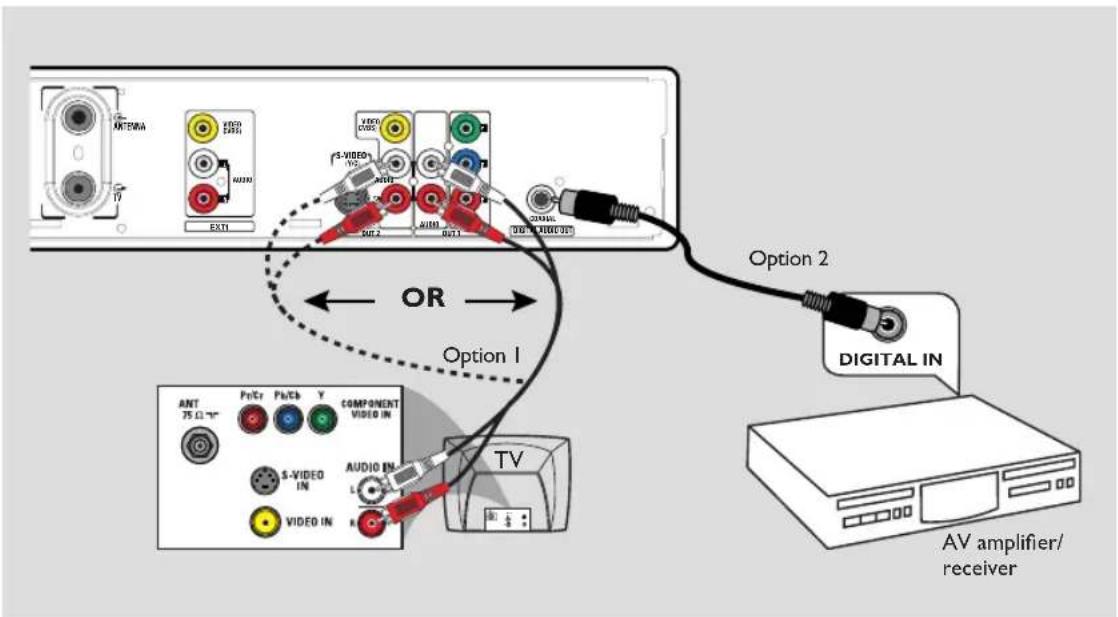

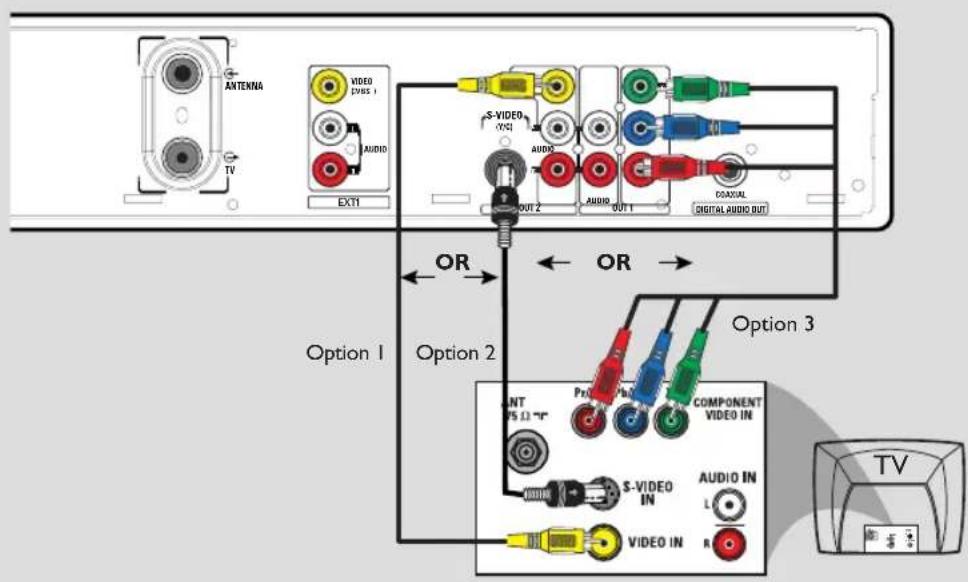

Step 1: Basic Recorder Connections ....16\~18

Connecting the antenna cables....16

Connecting the video cable 17

Connecting the audio cables....18

Step 2 : Optional Connections ....19\~23

TV has only an antenna input jack....19

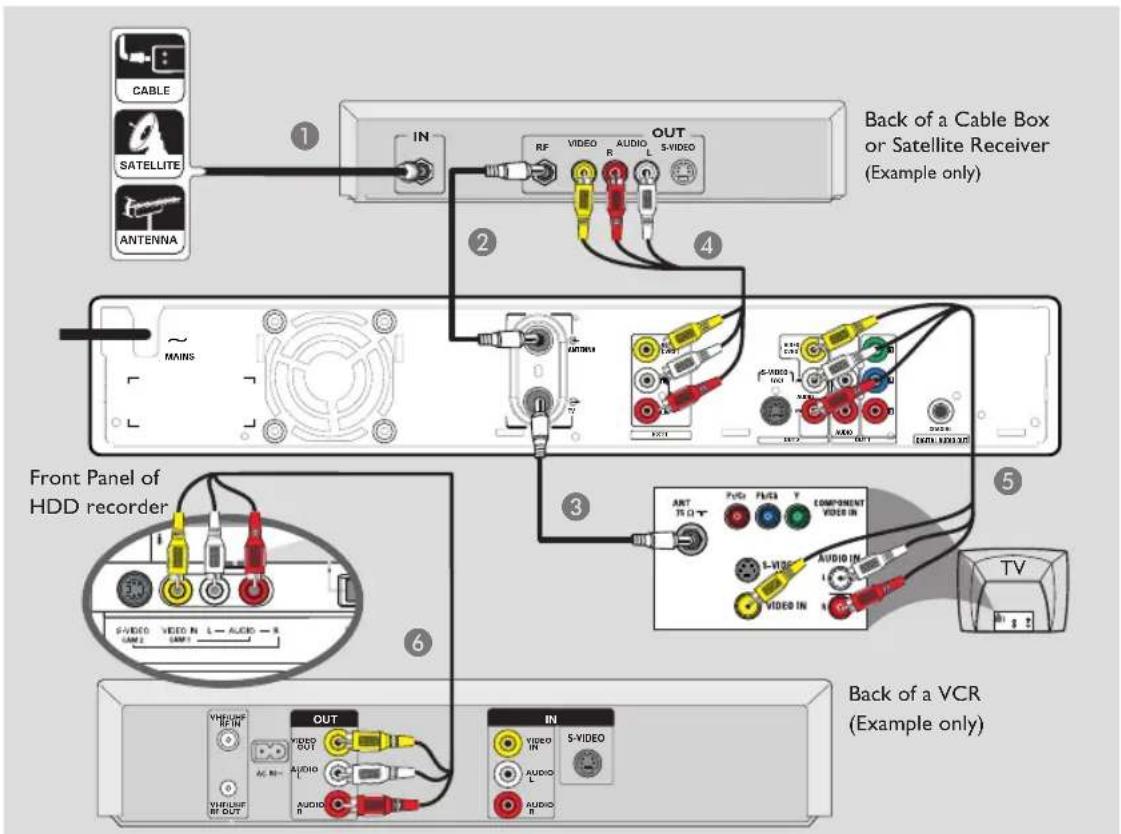

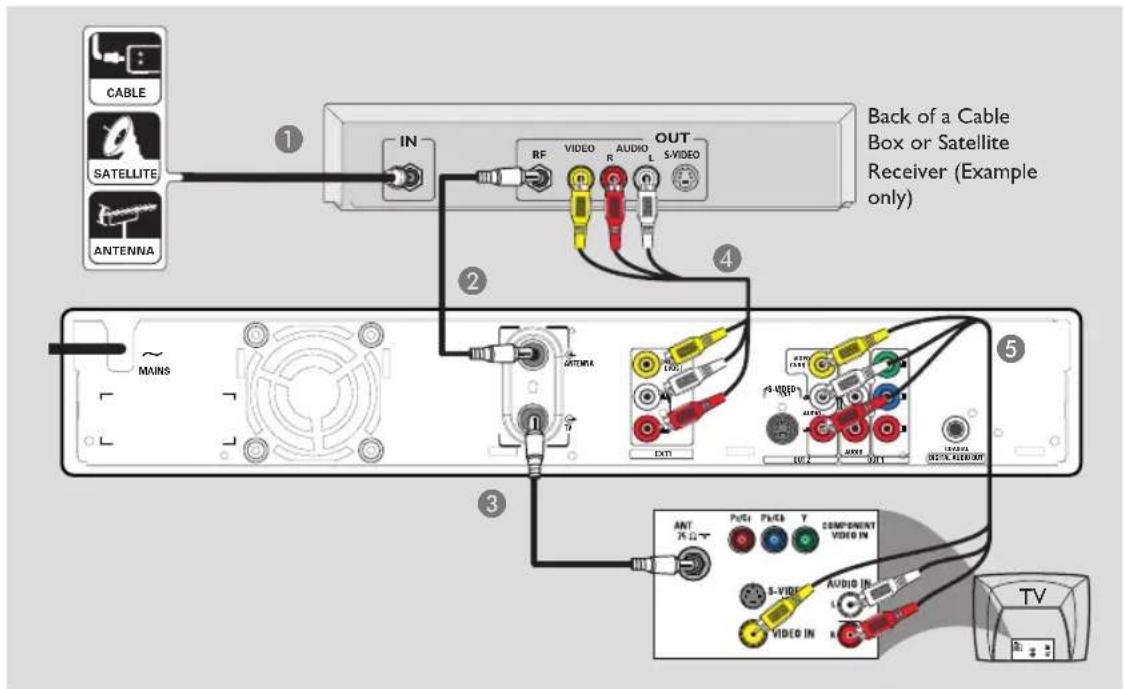

Connecting to a Cable Box or Satellite Receiver....20

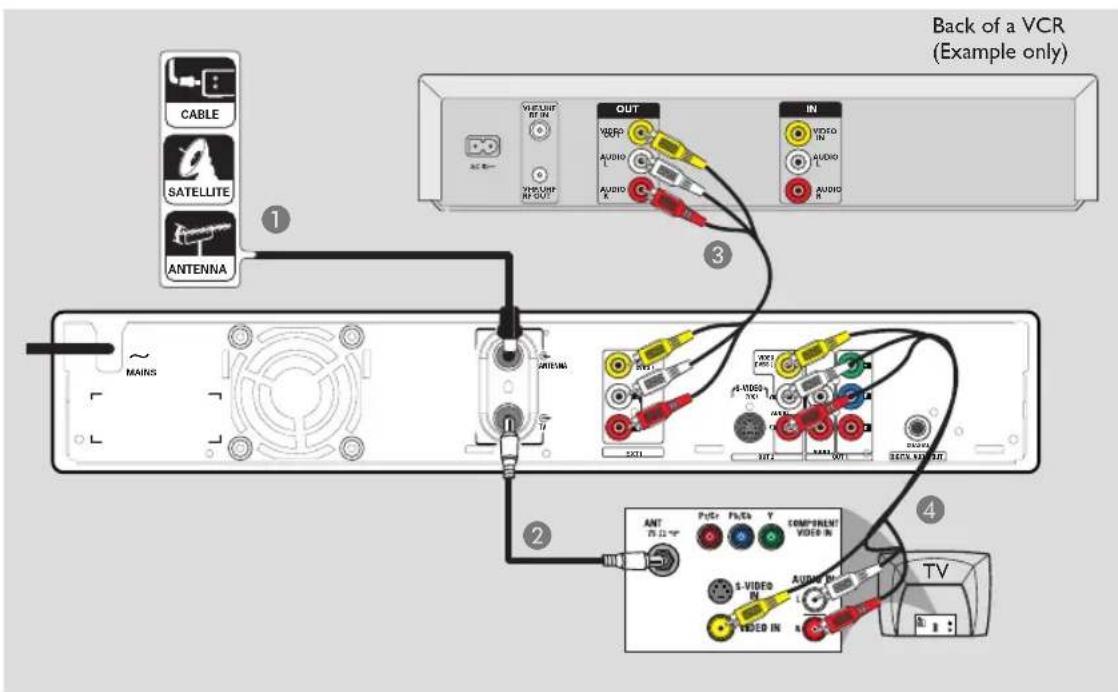

Connecting to a VCR or other similar device....21

Connecting to a VCR and Cable Box/Satellite Receiver....22

Connecting a camcorder to the front jacks 23

Step 3: Installation and Setup ....24\~27

Finding the viewing channel....24

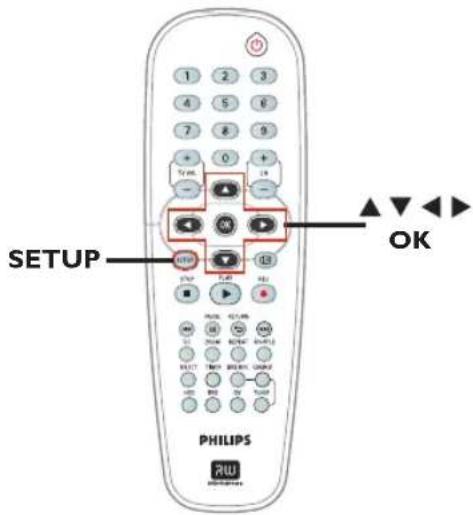

Setting your TV channel programs....24

GENERAL settings....25

Setting the language....26

Setting the time & date....26

LANGUAGE settings....27

DATE/ TIME settings....27

Watching TV

Control TV programs 28

Switching on to TV program 28

Pause live TV function 28

Instant Replay function....28

FlexTime function 28

Recording

Before Recording....29\~33

About temporary HDD storage (Time Shift Buffer)....29

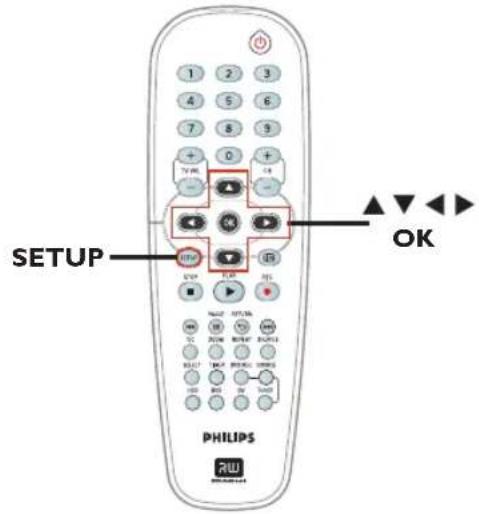

Accessing the HDD (Hard Disk Storage) Setup Menu....30

HDD settings....31

Default Recording settings 32

GENERAL settings....33

Table of Contents

Record on Hard Disk ....34\~36

Recording TV programs....34

Recording from a DV camcorder 34

Recording from an external device (Camcorder/VCR/ DVD player) 35

Record on DVD Recordable Disc 37\~39

Copying from HDD to a recordable DVD 37

Discs for recording....37

Recording from various sources....38

Timer Recording 40\~43

About timer recording 40

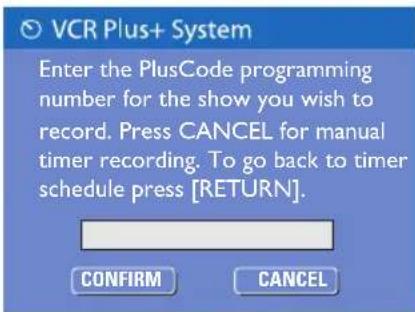

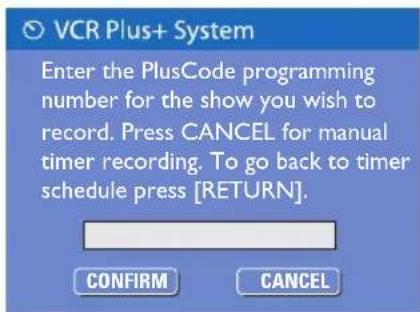

Timer recording (VCR Plus+ ^® System) 40

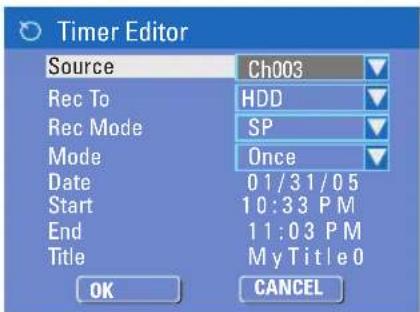

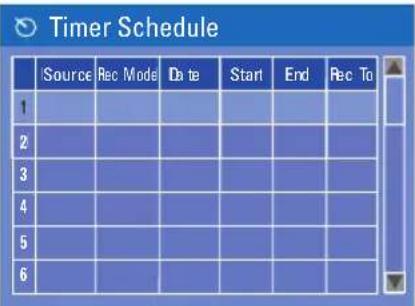

Timer recording (manually) 42

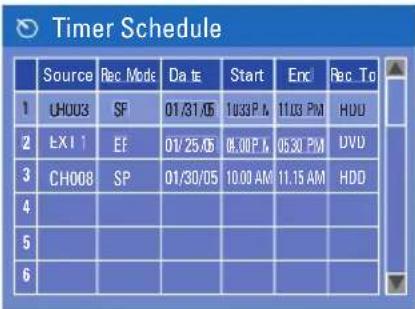

Changing/ Deleting a timer recording....43

Playback

Playback from Hard Disk 44

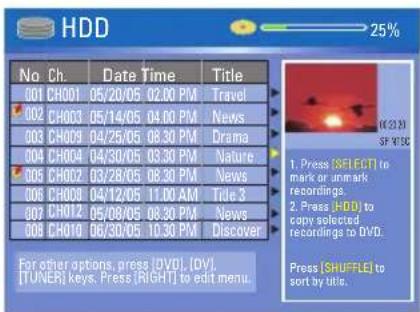

Playback your HDD recordings....44

Playback from Disc 45\~48

Playable discs....45

Inserting a disc 45

Starting disc playback....46

Additional Playback Features 49\~52

Changing to another title/chapter/track....49

Pausing playback and step play 49

Searching forward/backward....49

Zooming in....49

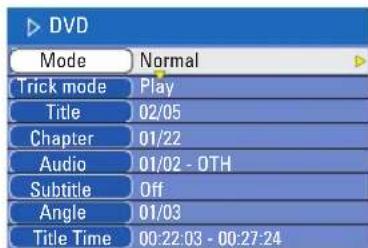

Using i+(INFO) options....50

Edit Recordings

Edit Recordings - HDD 53\~55

About HDD title edit menu....53

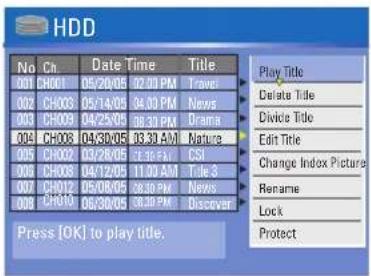

Accessing the HDD title edit menu....53

Edit Recordings - Recordable DVD.... 56\~62

About disc edit menu....56

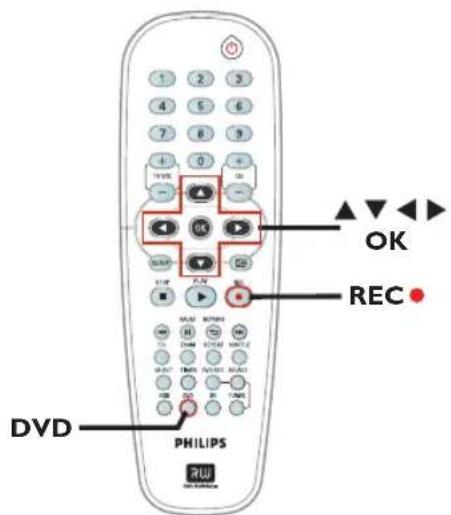

Accessing disc editing menu....56

Playing your recordings (DVD±R, DVD-RW) on other DVD players ....58

Preparing your DVD-RW disc for more recordings....58

About DVD title editing....59

Accessing DVD title edit menu....59

About video editing....61

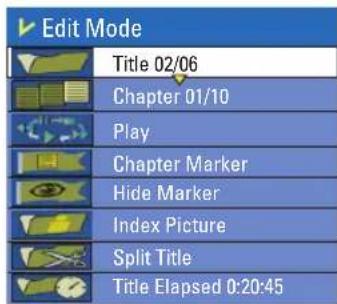

Accessing video editing menu....61

Other Information

Setup Menu Options.... 64\~67

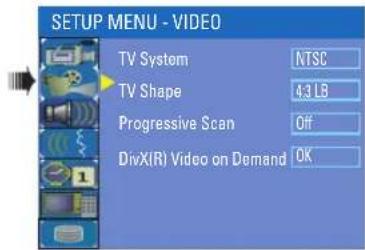

Accessing the Setup Menu....64

VIDEO settings 65

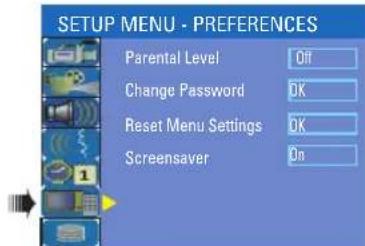

PREFERENCES settings 66

AUDIO settings 67

Firmware Upgrade 68

Installing the latest firmware....68

Troubleshooting 69\~71

Specifications....72

Glossary 73

Display panel symbols/ messages 74

Special Features

'Time Shift Buffer'

As soon as you turn on this recorder, the program shown on the TV will be stored into the 'Time Shift Buffer'. It functions as a temporary HDD storage of your recordings. The contents will be automatically deleted after a time period of 3 hours, when you turn off this recorder or when you switch it to standby mode. To store the contents on the hard disk, you have to mark the segment in the 'Time Shift Buffer' for recording to prevent them from being deleted.

'FlexTime'

You can watch or rewind a TV program while it is still being recorded. You do not have to wait until the end of the recording before starting playback. You can also watch a different program from the hard disk while it is recording something else.

'Instant Replay'

You can repeat a scene of a live TV program by pressing ◀ button on the remote control, as often as you like.

To return to the live TV program, press and hold ▶.

'Pause Live TV'

A live TV program is now under your control. You can pause the program by pressing PAUSE button and resume playback at the scene it was interrupted by pressing PLAY ▶ button.

To return to the live TV program, press and hold ▶.

'Direct Recording to DVD'

This feature enables you to record content directly on to a recordable DVD disc.

Press DVD REC button on the remote control to activate direct recording to the recordable DVD disc.

This is a simple programming system for recorders. To use it, enter the programming number associated with your television program. You can find this number in your favourite listings magazine.

DivX®, DivX Certifi ed, and associated logos are trademarks of DivX Networks, Inc and are used under license.

i.Link is also known as 'FireWire' and 'IEEE1394'. This connection is used for the transfer of high bandwidth digital signals as used by digital video (DV) camcorders. It carries all audio and video signals via a single cable.

Frequently Asked Questions

What kind of disc should I use for recording?

You can only record on both DVD±R and DVD±RW discs. DVD±R/±RW is the most compatible recordable DVD format on the market today. They are fully compatible to most of the existing DVD-Video players and DVD-ROM drives in computers.

What is the capacity of a DVD recordable disc?

4.7GB, or equivalent to 6 CDs. You can store only one hour of recordings on a single disc at the highest quality (DVD standard) and about 6 hours recordings at the lowest quality (VHS standard.)

The mode of record quality indicates the number of hours that will fit on a single disc.

What is the difference between DVD±R and DVD±RW?

DVD±Rs are “recordable” discs and DVD±RWs are “rewritable” discs. With a DVD±R disc, you can record multiple sessions on the same disc, but when the disc is full, you cannot record any more content on the disc. The DVD±RW disc allows you to record over the same disc repeatedly.

What is DV?

Using DV, also known as i.LINK, you can connect a DV-equipped camcorder to this recorder using a single DV cable for input and output of audio, video, data and control signals.

- This recorder is only compatible with DV-format (DVC-SD) camcorders. Digital satellite tuners and Digital VHS video recorders are not compatible.

- You cannot connect more than one DV camcorder at any one time to this recorder.

- You cannot control this recorder from external equipment connected via the DV IN jack.

Can I copy a VHS tape or DVD from an external player?

Yes, but only if the VHS tape or DVD is not copy-protected.

What are Titles and Chapters?

A DVD disc contains Titles and Chapters, which are similar to the Titles and Chapters of a book. A Title is often a complete movie and is broken down into Chapters, or individual scenes from the movies.

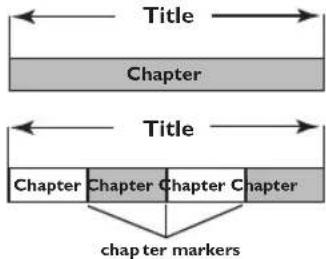

Title Chapter Title Chapter Chapter Chapter Chapter chapter markers

A program is recorded as a single title, it may consist of one chapter or a few chapters within a title, depending on the recording settings.

How do I set up Titles and Chapters?

The recorder will automatically create a new Title each time you start a new recording.

- For DVD recordings, you can add chapters manually.

- For HDD recordings, you can preset chapters to be automatically inserted at 5-minutes intervals.

What does "fi nalizing" a disc do?

Finalizing a disc locks the disc so it can no longer be recorded, only required for DVD±Rs. It will then be compatible with virtually any DVD player. To close a disc without finalizing it, simply stop recording and eject the disc. You will still be able to record on the disc if there is room for more recordings.

How good is the quality of the recording?

There are six modes of record quality levels to choose from, ranging from "HQ" (1 hour recording at high quality) to "SLP" (6 hours recording at VHS quality) on a recordable DVD. Choose the quality level that best suits your purpose and the length of material.

Record Quality	Hours of Recording that can be stored
	HDD	DVD ± R/ ± RW4.7GB recordable disc
HQ High Quality	17	1
SP Standard Play	34	2
SP+ Standard Play Plus	42.5	2.5
LP Long Play	51	3
EP Extended Play	68	4
SLP Super Long Play	102	6

Values are estimates only. Parts of the HDD storage capacity will be reserved for the operations of this recorder and time shifting.

Care and Safety Information

CAUTION!

High voltage! Do not open the device. You run the risk of getting an electric shock.

The machine does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.

Setup precautions

Finding a suitable location

• Place the set on a flat, hard and stable surface. Do not place the set on a carpet.
• Do not position the set on top of other equipment that might heat it up (e.g., receiver or amplifi er.)
• Do not put anything under the set (e.g., CDs, magazines.)
• Install this unit near the AC outlet and where the AC power plug can be reached easily.

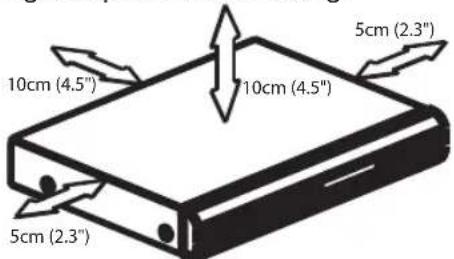

Space for ventilation

- Place the apparatus in a location with adequate ventilation to prevent internal heat build up. Allow at least 10 cm (4.5") clearance from the rear and the top of the set and 5 cm (2.3") from the left and right to prevent overheating.

10cm (4.5") 10cm (4.5") 5cm (2.3") 5cm (2.3")

Avoid high temperatures, moisture, water and dust

• Apparatus shall not be exposed to dripping or splashing.
• Do not place any sources of danger on the apparatus (e.g., liquid filled objects, lighted candles.)

Cleaning discs

Some problems occur because the disc inside the recorder is dirty (frozen picture, sound disruptions, picture distortions.) To avoid these problems, discs should be cleaned on a regular basis.

To clean a disc, use a micro fi bre cleaning cloth and wipe the disc from the center to the edge in a straight line.

Illustration of a hand pressing down on a circular object on a base (no text or symbols)

Illustration of a hand holding a CD or DVD disc, no text or symbols present

CAUTION!

Do not use solvents such as benzene, thinner, commercially available cleaners, or anti-static sprays intended for discs.

HDD (Hard Disk Drive) handling care

The HDD is a fragile piece of device that is easily prone to damage due to its long recording capacity and high speed operation.

• Do not move the unit while it is turned on.
• Do not remove the AC power plug from the power outlet during operation.
• Do not use the unit in excessively hot or humid places. It may cause condensation to form inside the unit.

If the HDD fails, playback and recording will not be possible. In this case, it will be necessary to replace the HDD unit.

WARNING!

The HDD is not a device for storing recorded content permanently. We recommend that you copy the important video content to a recordable DVD as backup.

General Information

Introduction

This recorder has a built-in hard disk drive (HDD), you can record up to 102 hours of video in SLP (Super Long Play) record quality mode.

With both recordable DVD and high capacity HDD in the same recorder, you have the fl exibility to keep recordings on the HDD or copy to a recordable DVD for safekeeping or later viewing.

Furthermore, you can take advantage of features like 'FlexTime', 'Instant Replay', or 'Pause Live TV', see page 28 for more information.

Before you can start using this recorder, complete the basic connections and set-up in three easy steps.

Step I: Basic recorder connections (pages 16\~18)

Step 2: Optional connections for other devices (pages 19\~23)

Step 3: Do the basic installation and set-up (pages 24\~27)

Please take time to read this user manual before using your recorder. It contains important information and notes regarding operations of the recorder.

Helpful Hints:

• If you have any questions or if problems occur during operation, see the chapter 'Troubleshooting'.
• If you need further assistance, please call the customer support service for your country. The corresponding telephone numbers and e-mail addresses are given in the guarantee booklet.
• Refer to the type plate on the rear or bottom of the product for identification and supply ratings.

Accessories supplied

– Remote control and batteries
- Audio/Video (AV) cables
- RF coaxial cable
- Quick Start Guide

Region codes

DVD fi lms are usually not released at the same time in all regions of the world, thus all DVD players are keyed to a specific region code.

This device will only play Region 4 DVDs or DVDs manufactured to be played in all regions 'ALL'. DVDs from other regions cannot be played on this recorder.

Copyright notice

The making of unauthorized copies of copy-protected material, including computer programs, fi les, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

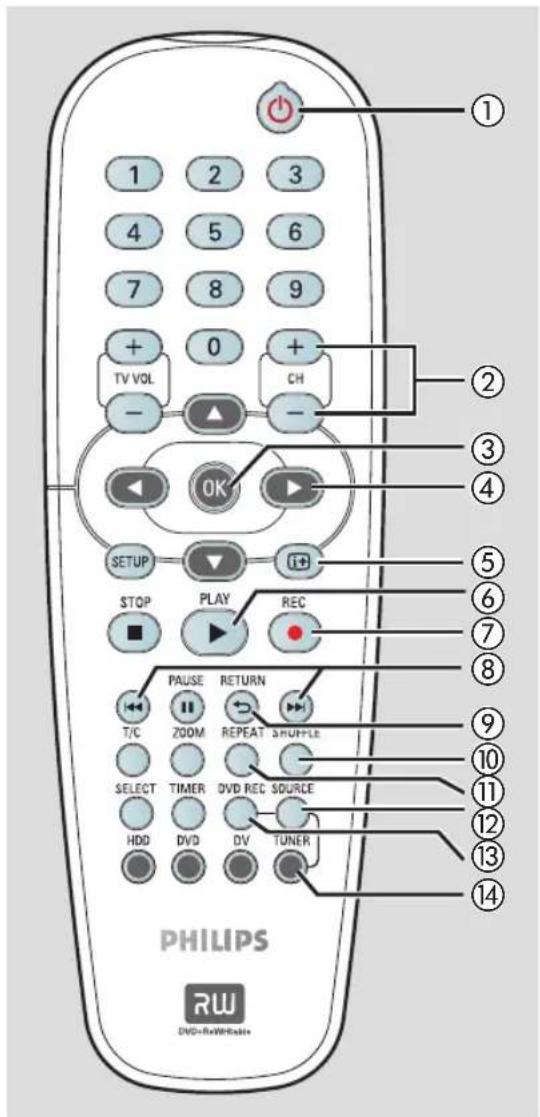

Remote Control

English

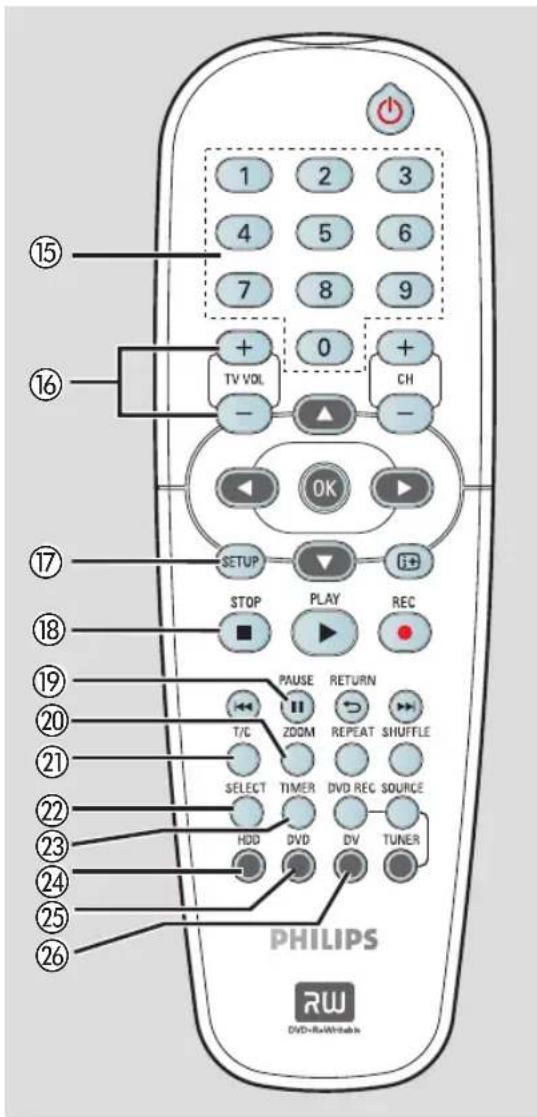

① 1 2 3 4 5 6 7 8 9 + 0 + TV VOL CH - OK SETUP STOP PLAY REC T/C ZOOM REPEAT SHuffle SELECT TIMER DVD REC SOURCE HDD DVD DV TUNER PHILIPS RW DVD-RxWriRable

① STANDBY-ON ⏻

- Turns on the recorder or switch to standby mode.

② CH + / -

- While in tuner mode, selects the next/previous TV channel.

③ OK

- Stores/confirms an entry.

- Confirms a selection.

④ ◀ ▶

- Cursor buttons for moving to the left/right or making a forward/reverse search.

- In time shift mode, use ▶ button to jump forward 30 seconds and ◀ button to jump backward by 10 seconds.

▲▼ : Cursor buttons for moving up/down.

⑤ i+ (INFO)

- Displays the Time Shift video bar. It shows the timing of the TV programs stored in the temporary HDD storage.

– Displays the on-screen help text.

⑥ PLAY▶

- Plays a disc.

⑦ REC ●

- Starts recording the current TV channel or the current video input source.

⑧

- Skips to previous or next Chapter/Track.

⑨ RETURN

- Returns to the previous menu of a video CD (VCD) or some DVDs.

⑩ SHUFFLE

- Switches to random playback of an audio CD, Video CD (VCD), picture CD or DVD disc.

- In HDD title menu, select to sort the titles.

- In tuner mode, toggles between stereo, mono and the Secondary Audio Program modes.

⑪ REPEAT

- Select to repeat title playback in HDD mode.

- Select to repeat playback of title, chapter, track or disc in DVD mode.

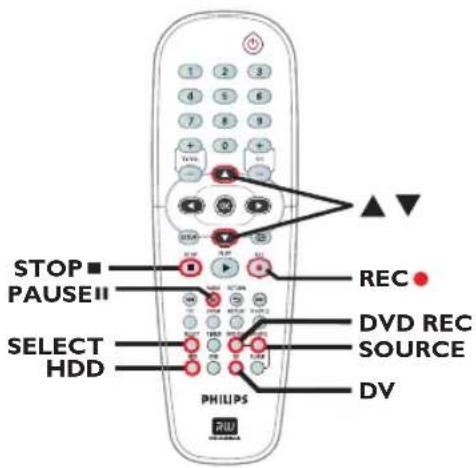

⑫ SOURCE

- In tuner or DVD REC mode, selects the recorder's video input source from the TV channel or external sources.

(EXTI, CAM1, CAM2.)

⑬ DVD REC

- Activates the 'direct recording to DVD' mode.

⑭ TUNER

- Switches to the recorder's tuner mode (TV channel.)

Remote Control (continued)

⑮ Numeric keypad

• Selects a chapter/track number to play.
• Selects the recorder's preset TV tuner channel.

⑯ TV VOL +/ -

- Adjust the volume of the TV set (Philips TV only.)

⑰ SETUP

- Enters/exits the system setup menu.

⑱ STOP ■

• Stops playback/recording.
• Hold down the button to open and close the disc tray.

⑲ PAUSE II

• Pauses the playback or recording.
  — Pauses 'Live TV' viewing.

⑳ ZOOM

- Enlarges a picture on the TV screen.

②1 T/C

– Displays title/chapter information.

⑳ SELECT

• Selects a track/chapter/fi le in the program menu.

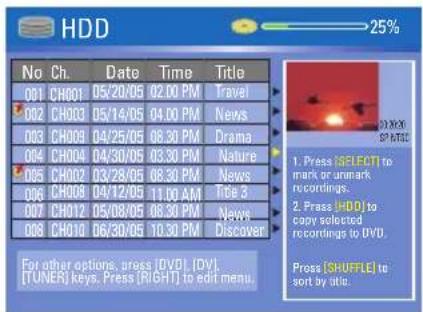

• In HDD title menu, marks titles for copying to a DVD recordable disc.

②3 TIMER

- Enters/exits the timer recording menu.

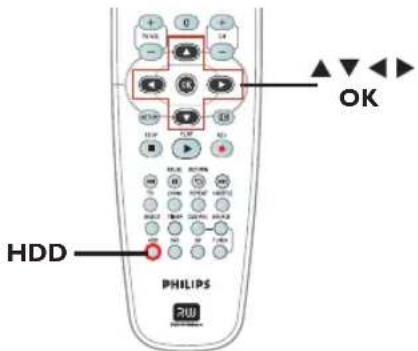

⑳ HDD

- Enters the HDD content menu.

⑳ DVD

- Switches to disc mode or displays the disc content menu.

②6 DV

- Switches to 'camera mode' for camcorder connecting to DV IN jack. Recording can be made directly onto the HDD/DVD.

15 16 TV VOL + 0 + CH - OK SETUP STOP PLAY REC 17 18 19 20 21 22 23 24 25 26 PHILIPS RW DVD+ReWhitlab 1 2 3 4 5 6 7 8 9 TAU ZOOM REPEAT SHUFFLE SELECT TIMER DVD REC SOURCE HDD DVD DV TUNER

Remote Control (continued)

Inserting Batteries

Diagram showing a folding or folding process with numbered steps and directional arrows indicating movement.

1 Open the battery compartment.
② Insert two batteries type R06 or AA, following the indications (+ -) inside the compartment.
3 Close the cover.

CAUTION!

• Remove batteries if they are exhausted or if the remote control is not to be used for a long time.
• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Batteries contain chemical substances, so they should be disposed of properly.

Using the remote control to operate the system

Diagram showing a remote control with signal waves and a labeled screen, likely illustrating the connection or data transfer process.

1 Aim the remote control directly at the remote sensor (IR) on the front panel.
② Select the source you want to control by pressing the TUNER, HDD or DVD button on the remote control.
3 Select the desired function (for example I◀◀, ▶▶▶I.)

Main Unit

1 2 3 4 5 6 7 PHILIPS SAMSUNG KON 10 11 8 SAMSUNG KON VIDEO IN L-AUDIO-R ON IN COM2 COM1

① STANDBY-ON ⏻

- Turns on the recorder or switch to standby mode.

② Disc tray

③ OPEN CLOSE ▲

- Opens/closes the disc tray.

④ Display panel

— Show information about the current status of the recorder.

⑤ IR

- Point the remote control towards this sensor

⑥ HDD Active indicator

- Blue ring lights up while temporary recording to the time shift buffer is in progress.

⑦

- Starts recording the current TV channel or the current video input source.

- Red ring lights up while recording to the HDD or DVD recordable disc is in progress.

- Starts playback the select title/track.

- Skips to the previous or next chapter/track, or hold down the button to make a reverse/forward search.

- Stops playback/recording.

Jacks behind the fl ap

Flip down the door as indicated by the OPEN ▶ label at the right hand corner.

⑧ S-VIDEO

- S-video input for SVHS/Hi8 camcorders or SVHS/Hi8 video recorders. In tuner mode, press SOURCE on the remote control repeatedly to select 'CAM2' when using this input source.

⑨ VIDEO

– Video input for camcorders or video recorders.

In tuner mode, press SOURCE on the remote control repeatedly to select 'CAMI' when using this input source.

⑩ L/R AUDIO

- Audio input for camcorder or the audio/video device which is connected to the S-VIDEO or VIDEO jack.

⑪ DV IN

- Input for digital camcorders or other suitable devices using this connector.

Press DV on the remote control when using this input source.

Step I: Basic Recorder Connections

CABLE SATELLITE ANTENNA 1 MAINS ANTENNA EXT1 VIDEO HOURS OUT 2 AUDIO OUT 3 CONTROL EV/THA AUDIO OUT 2 ANT PS 52.70° PoCr Pb/Cb Y COMPONENT VIDEO IN 3-VIDEO IN AUDIO IN L VIDEO IN R TV

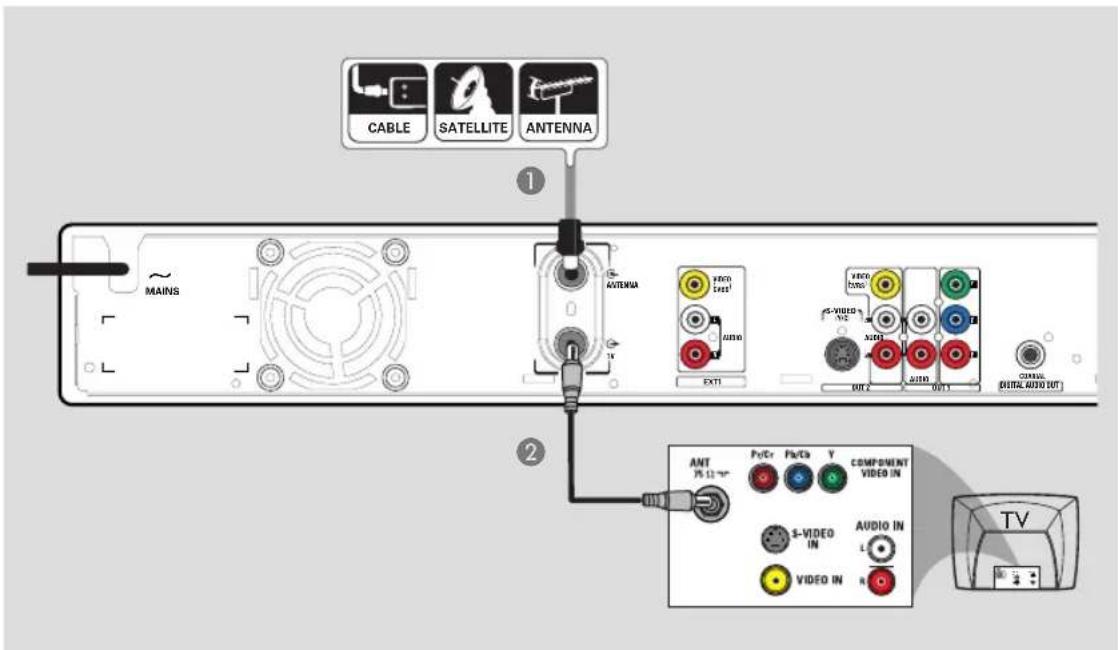

Connecting the antenna cables

These connections enable you to watch and record TV programs using this recorder. If the antenna signal is connected via a VCR, Cable Box or Satellite Receiver, ensure that these devices are turned on in order to watch or record the cable programs.

• If your TV is equipped with an Antenna In (RF IN) jack only, see page 19 for the complete connection to your TV.
• If you want to connect to a VCR and/or Cable Box/Satellite Receiver, see page 20\~22 for the complete connection to your TV.

1 Connect the existing Antenna/Cable TV signal (or from the Cable Box/Satellite Receiver {RF OUT or TO TV}) to the ANTENNA Rack on the recorder.
② Use the supplied RF coaxial cable to connect the TV Gack on the recorder to the antenna input jack on your TV (VHF/UHF RF IN.)

Helpful Hint:

- Depending on how you have currently connected your TV channel (directly from an off-air antenna or Cable box or VCR), you will have to disconnect some of the cables before you make the above connection.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

Step I: Basic Recorder Connections (continued)

ANTENNA TV EXT1 VIDEO (DVS 1) AUDIO S-VIDEO (DVS 1) AUDIO OUT 2 AUDIO OUT 1 COAXIAL DIGITAL AUDIO BUT OR Option 1 Option 2 OR Option 3 INT PS ±2 °F Prol COMPONENT VIDEO IN S-VIDEO IN AUDIO IN L VIDEO IN R TV

Connecting the video cable

This connection enables you to view the disc playback from the recorder. You only need to choose one of the options below to make your video connection.

Option I: Using Video (CVBS) jack (good picture quality)

- Use the supplied audio/video cables (yellow end) to connect the VIDEO (CVBS)-OUT2 jack on the recorder to the video input jack (or labeled as A/V In, Video In or Composite) on the TV.

Option 2: Using S-Video jack (excellent picture quality)

- Use an S-video cable (not supplied) to connect the S-VIDEO (Y/C) - OUT2 jack on the recorder to the S-Video input jack (or labeled as Y/C or S-VHS) on the TV.

Option 3 : Using Component Video jack (best picture quality)

1 Use the component video cables (red/blue/green - not supplied) to connect the Y PB PR -OUTI jacks on the recorder to the corresponding component video input jacks (or labeled as Y Pb/Cb Pr/Cr or YUV) on the TV.
② If your TV accepts Progressive Scan signal, see page 65 for detailed Progressive Scan set up.

IMPORTANT!

The progressive scan video quality is only available through a Y P B P R connection and a progressive TV is required. It is strongly advised to complete the recorder installation fi rst, before enabling the progressive scan feature.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

Step I: Basic Recorder Connections (continued)

ANTenna EVD 2400 AUX10 EXIT S-VIDEO 1V OUT 2 OUT 1 OUT 1 OUT 1 OR Option 1 ANT 75 Ω Pn/Cr Pn/Cb Y COMPONENT VIDEO IN S-VIDEO IN AUDIO EN VIDEO IN TV Option 2 DIGITAL IN AV amplifier/ receiver

Connecting the audio cables

This connection enables you to listen to the sound.

Option I: Using an audio cable

You can connect the recorder to a two channel stereo system or receiver in order to enjoy the stereo sound system.

- Use the supplied audio cable (red/white ends) to connect the AUDIO L/R OUT1 or -OUT2 jacks to these devices with the same input jacks.

Option 2: Using a coaxial cable

You can connect the recorder to an AV amplifi er/receiver in order to enjoy multichannel surround sound.

- Use a coaxial cable (not supplied) to connect the COAXIAL jack to the digital input on an AV amplifier/receiver with a digital multichannel sound decoder.

Before you start operating, set the audio settings accordingly (see page 67.) If the AUDIO settings do not match your amplifi er's capabilities, the amplifi er may produce a strong, distorted sound or no sound at all.

Helpful Hint:

- Do not connect your TV's audio output jacks to the AUDIO L/R (IN-EXT) jacks on this recorder, this may cause unwanted noise.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

Step 2 : Optional Connections

CABLE SATELLITE ANTENNA Back of an RF Modulator (Example only) ANTENNA VIDEO LIFE AUTO OUTPUT OUTPUT ANT TO TV R L CH3 CH4 ANT OUT AUDIO IN ANT TV

TV has only an antenna input jack

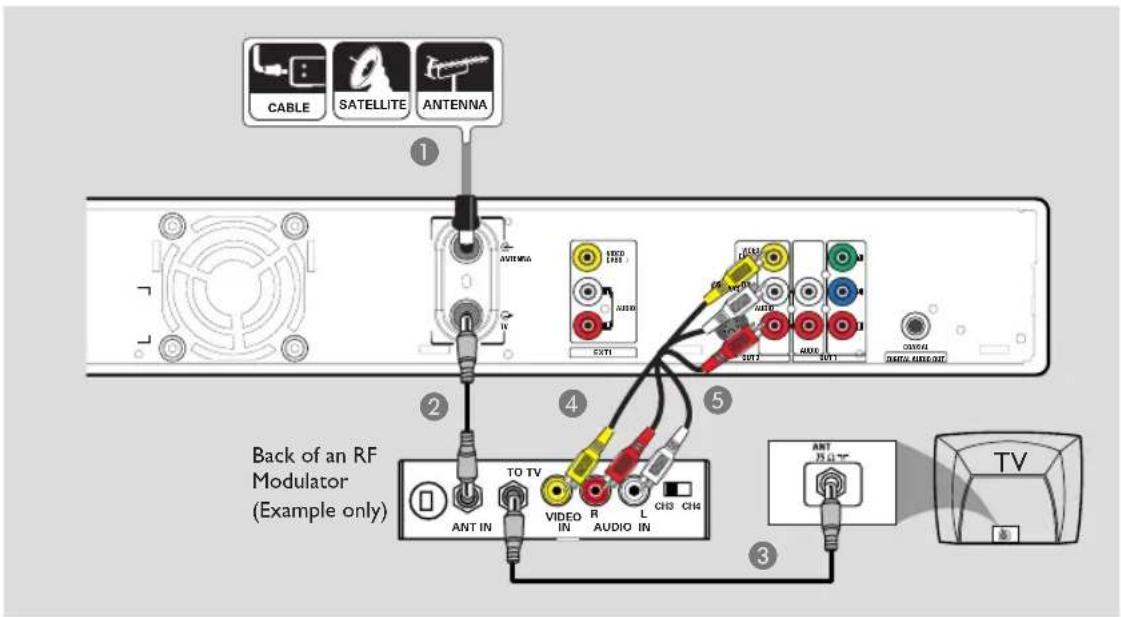

Use this connection if your TV has only a single Antenna In jack (or labeled as 75 ohm or RF IN) and does not have any audio/video jacks.

For this connection, you need a RF modulator in order to view the disc playback.

You may have an Antenna/Cable TV signal (or from the Cable Box/Satellite Receiver/VCR) connected to your TV's antenna input jack (VHF/UHF RF IN.) Remove it from the TV and connect it to the ANTENNA 6 Jack on the recorder.
② Use the supplied RF coaxial cable to connect the TV jack on the recorder to the antenna input jack on the RF modulator.

③ Use an RF coaxial cable (not supplied) to connect the TO TV jack on the RF modulator to the antenna input jack on your TV.

4 Use the supplied AV cables (yellow ends) to connect the VIDEO (CVBS) - OUT2 jack on the recorder to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the RF modulator.

5 Use the supplied AV cables (red/white ends) to connect the AUDIO L/R - OUT2 jacks on the recorder to the audio input jack (or labeled as AUDIO IN or LINE IN) on the RF modulator.

Helpful Hints: - If you have used the TV jack to connect your recorder to TV, set your TV to channel 3 or 4. If you have used AUDIO/VIDEO OUT2 connections, set the TV to the appropriate video input channel. - See your electronics retailer for details on RF modulator availability and operations.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

Step 2: Optional Connections (continued)

CABLE SATELLITE ANTENNA ① IN RF VIDEO AUDIO L S-VIDEO OUT Back of a Cable Box or Satellite Receiver (Example only) ② MAINS ③ DXT ④ ANT 苏吉宁 P/PG PA/GB Y COMPONENT VIDEO IN S-VIDEO AUDIO IN VIVED IN TV

Connecting to a Cable Box or Satellite Receiver

Option 1

If your Cable Box/Satellite Receiver has only an antenna output jack (RF OUT or TO TV),

refer to "Connecting the antenna cables" on page 16 for the complete connection to your TV.

Option 2

If your Cable Box/Satellite Receiver has video/audio output jacks,

1 Keep the existing antenna connection from the Cable Box/Satellite Receiver to your TV.
② Use the supplied RF coaxial cable to connect the ANTENNA jack on the recorder to the RF OUT jack on the Cable Box/Satellite Receiver.
③ Use a RF coaxial cable to connect the TV Gack on the recorder to the antenna input jack on your TV (VHF/UHF RF IN.)
4 Use the audio/video cables to connect the VIDEO/AUDIO -EXTI on the recorder to the matching VIDEO/AUDIO output jacks on the Cable Box/Satellite Receiver.
5 Use the audio/video cables to connect the VIDEO/AUDIO -OUT2 on the recorder to the matching VIDEO/AUDIO input jacks on the TV.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

Step 2: Optional Connections (continued)

Back of a VCR (Example only) CABLE SATELLITE ANTENNA OUT IN VCC/LIP REF IN AUDIO L AUDIO K VIDEO IN AUDIO L AUDIO K MAIN EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL EXTIL

Connecting to a VCR or other similar device

This connection enables you to record from a video tape to the HDD or a DVD recordable disc and allows the VCR to be used for playback if the recorder is turned off.

IMPORTANT!

Your new recorder can replace the VCR for all your recording needs. Just unplug all the connections to your VCR.

1 Connect the Antenna/Cable TV signal to the ANTENNA Gack on the recorder.
② Use a RF coaxial cable to connect the TV Gack on the recorder to the antenna input jack on your TV (VHF/UHF RF IN.)

③ Use the audio/video cables to connect the VIDEO/AUDIO -EXTI on the recorder to the matching VIDEO/AUDIO output jacks on the VCR.
4 Use the audio/video cables to connect the VIDEO/AUDIO -OUT2 on the recorder to the matching VIDEO/AUDIO input jacks on the TV.

Helpful Hints:

• Most commercial video cassettes and DVDs are copy-protected and therefore cannot be recorded.
• Connect the recorder directly to the TV. If there is a VCR or an additional device in between, the picture quality may be poor because of the copy protection system built into the recorder.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

Step 2: Optional Connections (continued)

CABLE SATELLITE ANTENNA ① IN RF VIDEO AUDIO L S-VIDEO OUT ② Back of a Cable Box or Satellite Receiver (Example only) MAINS ③ Front Panel of HDD recorder S+VIDEO VIDEO L-AUDIO-R GAM 2 S+INT ④ ⑤ ANT R10 T- F20 F35 T COMPONENT VIDEO IN L-VI2 AUDIO IN VICO IN Back of a VCR (Example only) TV VIRUONE OUT VIRUONE RF OUT AVIC IN AUDIO L AUDIO R IN VIDEO IN AUDIO L AUDIO R S-VIDEO

Connecting to a VCR and Cable Box/Satellite Receiver

1 Connect the Antenna/Cable TV signal to the antenna input (RF IN) jack on the Cable Box/Satellite Receiver.
② Use the supplied RF coaxial cable to connect the ANTENNA Jack on the recorder to the RF OUT jack on the Cable Box/ Satellite Receiver.
③ Use a RF coaxial cable to connect the TV Gack on the recorder to the antenna input jack on your TV (VHF/UHF RF IN.)

4 Use the supplied audio/video cables to connect the VIDEO/AUDIO -EXTI jacks on the recorder to the matching VIDEO/AUDIO output jacks on the Cable Box/ Satellite Receiver.
5 Use the audio/video cables to connect the VIDEO/AUDIO OUT2 on the recorder to the matching VIDEO/AUDIO input jacks on the TV.
6 Use another set of audio/video cables to connect the VIDEO IN/L-AUDIO-R jacks on the front panel of the recorder to the matching VIDEO/AUDIO output jacks on the VCR.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

22

Step 2: Optional Connections (continued)

DV OUT S-AVIDO VIDEO IN L-AUDIO-R DV IN GAIN1 GAIN1

Connecting a camcorder to the front jacks

You can use the front jacks to copy camcorder recordings. These jacks are located behind the flap on the right hand side and provides convenient connections for a camcorder.

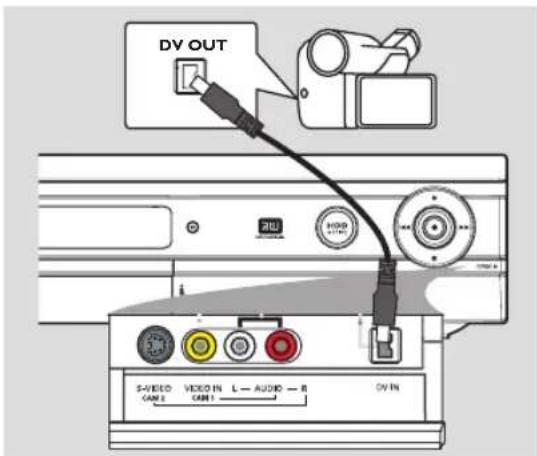

Option I: Using the DV IN jack

Use this connection if you have a Digital Video or Digital 8 camcorder. The DV jack conforms to the i.LINK standard. It provides the best picture quality.

- Use an i.LINK 4-pin cable (not supplied) to connect the DV IN jack on the recorder to the appropriate DV OUT jack on the camcorder.

Before you start operating, press DV on the remote control to select 'DV' as the input channel. For recording, see pages 29\~39.

Helpful Hints:

- The DV IN jack does not support a connection to a Personal Computer. - It is not possible to record from the recorder to your camcorder via the DV IN jack on your recorder.

S-VIDEO OUT VIDEO OUT AUDIO OUT ① ② OR R 200 VIDEO MAIN S-VIDEO CMM 2 VIDEO IN L — AUDIO — R CMM 1 30V IN

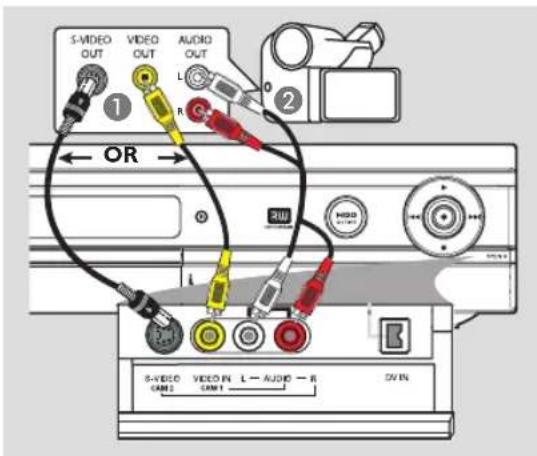

Option 2: Using the S-VIDEO In or VIDEO In jack

Use the S-VIDEO connection if you have a Hi8 or S-VHS(C) camcorder. It provides good picture quality.

Alternatively, you can use the VIDEO connection if your camcorder has only a single video output (Composite Video, CVBS.)

1 Connect the S-VIDEO or VIDEO jack on the front panel of the recorder to the corresponding S-VHS or Video output jack on the camcorder.

② Use an audio cable (red/white ends) to connect the AUDIO L/R jacks on the front panel of the recorder to the audio output jacks on the camcorder.

Before you start operating, press SOURCE on the remote control repeatedly to select 'CAM1' or 'CAM2' as the input channel, depending on your connections. For recording, see pages 29\~39.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

Step 3: Installation and Setup

IMPORTANT!

When you complete the connections and turn on the recorder for the first time, it is advisable that you make several basic settings.

Please see the following pages on using the Setup Menu features to program TV channels, menu language and system clock settings. This will improve the performance of this recorder considerably.

Finding the viewing channel

1 Press STANDBY-ON ⏻ on the recorder to turn it on.
② Turn on the TV and set it to the correct video-in channel. You should see the blue DVD background screen.

→ Usually this channel is between the lowest and highest channels and may be called FRONT, A/V IN, VIDEO. See your TV's manual for more details.
→ Or, you may go to channel I on your TV, then press the Channel down button repeatedly until you see the Video In channel.
→ Or, the TV remote control may have a button or switch that chooses different video modes.
→ Or, set the TV to channel 3 or 4 if you are using a RF modulator.

Setting your TV channel programs

Before the recorder can start recording any TV channel programs, you need to search for the available TV channels and store them in this recorder.

Note: Ensure that you have successfully made all the required connections to the recorder, TV and Satellite Receiver/Cable Box (if any) and have switched them on.

Tuner settings can only be changed when the recorder is not playing or recording.

SETUP OK PHILIPS

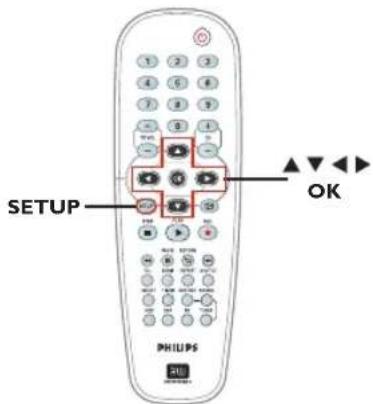

1 Press SETUP on the remote control. → The setup menu appears on the TV.

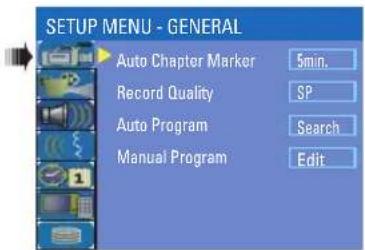

② Use ▲▼ keys to highlight { SETUP MENU - GENERAL } and press ▶.

TIPS: Press ▶ to go access the options of an item in the menu. Press SETUP to exit the menu.

Step 3: Installation and Setup (continued)

GENERAL settings (underlined options are the factory default settings)

Auto Program

SETUP MENU - GENERAL

Auto Chapter Marker	5min.
Record Quality	SP
Auto Program	Search
Manual Program	Edit

Select to make automatic TV channel programming.

1 Use ▲▼ keys to highlight{ Auto Program - Search } and press ▶.

→ A warning message will appear. Select OK and press OK on the remote control.

② Use ▲▼ keys to highlight { Tuner Input Source } and press ▶ to access the options:

{ Cable } - Select this if the recorder is connected via a cable box/satellite receiver.

{Air} – Select this if the recorder is connected directly to the antenna wall outlet.

③ Use ▲▼ keys to highlight CONTINUE and press OK.

The automatic TV channel search will start. This process may take several minutes. Once complete, the total number of channels found will appear on the TV.

Manual Program

Select to modify your preset TV channels.

Use ▲▼ keys to highlight { Manual Program - Edit } and press ▶.

→ The modify channel options will be displayed.

Manual Program

Program Number	P001
Name	Ch001
Frequency	058.93Mhz
Fine Tuning
Skip	No

② Use ▲▼ keys to one of the options and press ▶.

{ Program Number } - Use CH+/CH- to select by the program number for modifying.

{ Name } – Use CH+/CH- keys to select by the channel name for modifying.

{ Frequency } – Select this to adjust the frequency of the channel. – Use ◀▶ keys to adjust the frequency. Press OK on the remote control to confirm the setting.

{ Fine tuning } – Select this to fine-tune the TV channel manually if the reception is poor.

- Use ◀▶ keys to fine-tune the frequency.

{ Skip } – Select this to set the channel to be skipped. The skipped channels can only be accessed by pressing the corresponding number button on the remote control.

- Use ◀▶ keys to select { Yes } if you wish to skip this channel.

3 To confirm all the changes, select OK and press OK on the remote control exit to the previous screen.

TIPS:

Press ▶ to go access the options of an item in the menu.

Press SETUP to exit the menu.

Step 3: Installation and Setup (continued)

Setting the language

You can select the language for subtitles and audio for DVD playback. For some DVDs, the subtitle/audio language can only be changed via the DVD disc menu. If the selected language is not available on the disc, the disc's default language will be used instead.

The menu language (on-screen display) for the system will remain as you set it.

Language settings can only be changed when the recorder is not playing.

① Press SETUP.

→ The setup menu appears.

② Use ▲▼ keys to highlight

{ SETUP MENU - LANGUAGE } and press ▶ to access the menu.

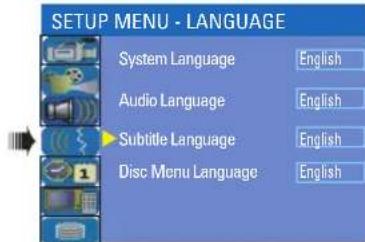

SETUP MENU - LANGUAGE

System Language

English

Audio Language

English

Subtitle Language

English

Disc Menu Language

English

③ Use ▲▼ keys to highlight one of the options and press ▶. See next page for details.
4 Use ▲▼ keys to highlight the desired setting and press OK to confirm.

Setting the time & date

If the recorder has not set the time and date correctly, set the clock manually by following the steps below.

1 Press SETUP.

→ The setup menu appears.

② Use ▲▼ keys to highlight

{ SETUP MENU - DATE / TIME} and press ▶ to access the menu.

SETUP MENU - DATE / TIME

Date(mm/dd/yyyy)

Time(hh:mm)

TIME} and

[Non-Text]

③ Use ▲▼ keys to highlight one of the options and press ▶ to access the options.
- If the recorder has not set the time and date correctly, you can further adjust the clock settings, see next page for details.
4 Once complete, press ◀ to return to the previous menu.
5 Press SETUP to exit.

TIPS:

Press

to go

acce

ss th

e op

tions

of an

item

in the menu.

Press

SETUP

to e

xit the menu.

Step 3: Installation and Setup (continued)

LANGUAGE settings

System Language Selects the menu language for this recorder on-screen display.

Audio Language Selects the preferred audio language for DVD playback.

Subtitle Language Selects the preferred subtitle language for DVD playback.

Disc Menu Language Selects the preferred disc menu language for DVD playback

Helpful Hints:

- If the selected audio/subtitle language is not available on the disc, the disc's default setting language will be used instead.

- For some DVDs, the subtitle/audio language can only be changed via the DVD disc menu.

DATE/TIME settings (underlined options are the factory default settings)

Date (mm/dd/yyyy)

Use ▲▼ keys to change the number and use ◀▶ keys to select different entry fi elds, then press OK to confi rm.

Time (hh/mm)

Use ▲▼ keys to change the number and use ◀▶ keys to select different entry fi elds, then press OK to confi rm.

The basic installation is now complete. This recorder is ready for use!

TIPS:

Press ▶ to go access the options of an item in the menu.

Press SETUP to exit the menu.

Control TV programs

Switching on to TV program

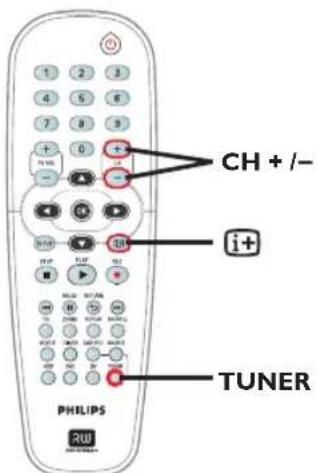

CH + /- i+ TUNER PHILIPS RW

① Turn on the TV to the correct program number for the recorder (e.g. 'EXT', '0', 'AV').
2 Press STANDBY-ON ⏻ to turn on the recorder.

→ If no TV program appears on the screen, press TUNER on the remote control.

3 Press CH +/- to select a TV channel.

→ The selected TV channel will appear on the status window.
→ The active TV programs will be stored automatically to the temporary HDD storage in this recorder. This information is shown on the Time Shift video bar.

- To display or remove the Time Shift video bar, press the i+ key repeatedly.

For more information about the temporary HDD storage (Time Shift Buffer,) see next page.

Pause live TV function

You may be interrupted whilst watching your favourite TV program. You can pause the show by pressing PAUSE II and pressing PLAY ▶ to resume playback of the program at the scene it was interrupted. You can 'pause' the live TV broadcast up to a maximum period of 3 hours. It behaves exactly as if you were in control of the live broadcast.

If you want to return to the live TV program, press and hold ▶.

Instant Replay function

Whilst watching a live TV program, you can press ◀ on the remote control to jump back 10 seconds upon every single press for instant replay.

If you want to return to the live TV program, press and hold ▶.

FlexTime function

You do not need to wait until the recording is complete before starting playback.

While recording is in progress, press I repeatedly on the remote control to start playback from the beginning of the recording.

TIPS:

Press i+ to display the time shift video bar or help text.

Before Recording

About temporary HDD storage (Time Shift Buffer)

As soon as you switch on this recorder, the currently selected TV program will be stored in a temporary hard disk storage called 'TSB' (Time Shift Buffer), (up to 3 hours of programs.)

In tuner mode, the Time Shift video bar will appear on the screen, it indicates the status and timing of the TV programs stored in the temporary HDD storage. You can choose to display or remove the video bar by pressing the i+ key on the remote control.

0:15:36 AM 10:15:36 AM LBP

The Time Shift video bar consists of the following information :

① Content temporarily saved in the time shift buffer.
② The TV program start time. Once it has exceeded 3 hours, the content stored at the beginning will be deleted and the start time will be updated accordingly.
③ Status of source of video input. "LIVE" or the time of current playback being viewed "HH:MM:SS".
④ Icon which shows the status of the time shift buffer.

• playback of content stored in the time shift buffer.
• marks the beginning of content recording.
• marks the current recording in progress.
  II – the current screen has been paused from playback. (This will not pause recording.)

TIPS: Press ⓘ+ to display the time shift video bar or help text.

WARNING!

The TV programs stored in the temporary HDD storage will be deleted once it has exceeded the storage buffer or when you press STANDBY-ON ⏻ to turn off the recorder.

In addition, executing the following actions will also clear the contents in the temporary HDD storage:

- Press DV or SOURCE on the remote control.

OR

- Use the option { Delete HDD } to erase all contents of your hard disk storage. See “Before Recording – HDD Settings” for details.

Before Recording (continued)

Accessing the HDD (Hard Disk Storage) Setup Menu

You can preset the behavior of your hard disk storage of the recorder. This recorder offers various options for easy management of your hard disk recording.

SETUP OK PHILIPS

1 Press SETUP.

→ The system setup menu appears.

② Use ▲▼ keys to highlight

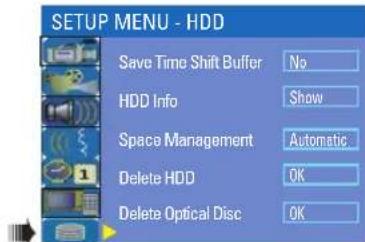

{ SETUP MENU - HDD } and press ▶ to access the menu.

SETUP MENU - HDD

Save Time Shift Buffer

HDD Info

Space Management

Delete HDD

Delete Optical Disc

No

Show

Automatic

OK

OK

③ Use ▲▼ keys to highlight the option and press ▶ to access its options.
4 To exit, press ◀.

TIPS:

Press ◀ to go back to previous menu item.

Press

SETUP to exit the menu.

Before Recording (continued)

HDD settings (underlined options are the factory default settings)
Save Time Shift Buffer	This option allows you to control the behavior of the Time Shift Buffer.{Yes} - Select to retain the contents in the temporary HDD storage when you switch the tuner's TV channel or external video input source.{No} - Select to clear the contents in the temporary HDD storage.
HDD Info	Press OK to display information on:- Hard disk size in MB (Megabytes).- Used space in MB (Megabytes).- Remaining space in MB (Megabytes).- Number of titles stored on the HDD.
Space Management	This option determines how the recorder will respond when the HDD is full of recordings.{Automatic}-During recording, when the HDD is full, the recorder will proceed to overwrite any unprotected recordings in the HDD. The oldest unprotected recordings will be deleted fi rst.{Manual} - During recording, when the HDD is full, recording will be stopped. A warning message {The hard disk is full. Please erase some programs to allow further recording.} will appear on the screen.
Delete HDD	This option will erase all marked/ unmarked recordings on the HDD. This option is not available when recording to HDD is in progress.Press ▶ to highlight OK.A warning message will appear. Select OK to proceed or CANDelto abort. Once complete, the recorder will switch to standby mode.
Delete Optical Disc	This option will erase all content on a DVD±RW disc, including those that were not recorded on this recorder. This option is only available in tuner mode.Press ▶ to highlight OK.A warning message will appear. Select OK to proceed or CANDelto abort.

TIPS: Press ◀ to go back to previous menu item. Press SETUP to exit the menu.

Before Recording (continued)

Default Recording settings

The default recording settings will allow you to preset auto chapter markers and the preferred mode of recording quality for HDD recording.

1 Press SETUP on the remote control. → The setup menu appears on the TV.
② Use ▲▼ keys to highlight { SETUP MENU - GENERAL } and press ▶ to confi rm.

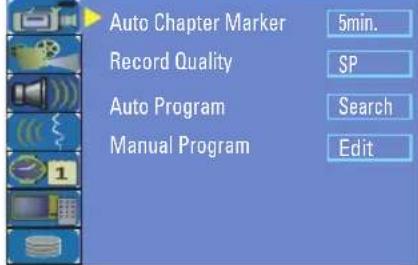

SETUP MENU - GENERAL

Auto Chapter Marker Record Quality Auto Program Manual Program 5min. SP Search Edit

③ Use ▲▼ keys to select the setting you wish to change and press OK to confirm. → Instructions and explanation of the options are provided in the following pages.
4 To exit, press SETUP.

Auto Chapter Markers

You can insert chapter markers within a title during recording. This allows you to access specific points on the recording.

1 Use ▲▼ keys to highlight { Auto Chapter Marker } and press ▶ to access its options.
② Use ▲▼ keys to select your preferred setting.
3 Press OK to confirm.

Default Recording Quality

The setting defines the picture quality of recordings and the maximum recording time on the HDD.

Important! When copying from the HDD to a DVD recordable disc, the mode of record quality for the selected recording in the HDD will automatically be transferred, selecting another mode of record quality is not possible.

① Use ▲▼ keys to highlight { Record Quality } and press ▶ to access its options.
2 Use ▲▼ keys to select your preferred mode of record quality.
③ Press OK to confirm.

TIPS: Press ◀ to go back to previous menu item.

Press

SETUP to exit the menu.

Before Recording (continued)

GENERAL settings (underlined options are the factory default settings)

Auto Chapter Markers

You can insert chapter markers within a title during recording. This lets you access to specific points on the recording.

• Press ▶ to access the menu and use ▲▼ keys to select one of the options.
  {5 mins} – Chapter markers are inserted during recording at every 5 minutes interval.
  { 10 mins } – Chapter markers are inserted during recording at every 10 minutes interval.
  { 20 mins } – Chapter markers are inserted during recording at every 20 minutes interval.
  { 30 mins } – Chapter markers are inserted during recording at every 30 minutes interval.
  {Off} – The feature is disabled.

Record Quality

Select this option to preset your preferred mode of record quality.

- Press ▶ to access the menu and use ▲▼ keys to select one of the options.

Record Quality	Hours of Recording that can be stored
	HDD	DVD±R/±RW4.7GB recordable disc
HQ High Quality	17	1
SP Standard Play	34	2
SP+ Standard Play Plus	42.5	2.5
LP Long Play	51	3
EP Extended Play	68	4
SLP Super Long Play	102	6

Values are estimates only. Parts of the HDD storage capacity will be reserved for the operations of this recorder and time shifting.

Auto Program

Select to make automatic TV channel programming.

See section "Step 3: Installation and Setup – Setting your TV channel programs".

Manual Program

Select to modify your preset TV channels.

See section "Step 3: Installation and Setup – Setting your TV channel programs".

TIPS: Press ◀ to go back to previous menu item.

Press

SETUP to exit the menu.

Record on Hard Disk

IMPORTANT!

Unrecordable pictures

Television programs, fi lms, video tapes, discs, and other materials may be copy-protected and therefore cannot be recorded on this recorder.

Recording TV programs

Follow the instructions below to record TV programs onto the HDD, where you can store for future viewing or copy to a DVD recordable disc if required.

In tuner mode, press the i+ key on the remote control to display the time shift video bar.
② Use ◀◀ / ▶▶▶I keys to search for the beginning of the scene in the temporary HDD storage where you want to start recording.
3 Press REC● on the remote control to start recording.

→ To cancel, press and hold SELECT.

- To save all current programs stored in the time shift buffer, press and hold REC●.

4 To stop recording, press STOP ■ on the remote control.

To record directly to a DVD recordable disc, see page 37.

Recording from a DV camcorder

You can record video directly from a connected DV camcorder onto the HDD, where you can edit it easily and copy to a recordable DVD if required.

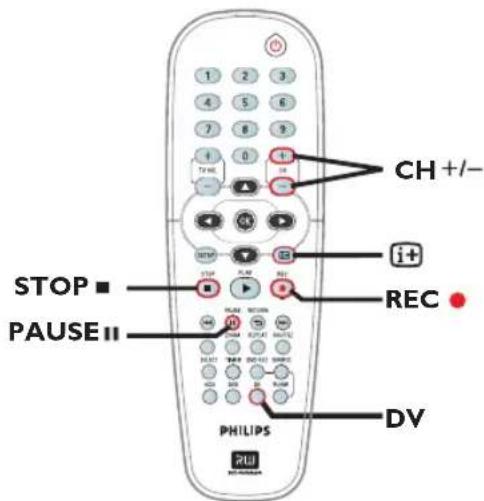

CH+/- STOP ■ PAUSE II PHILIPS DV REC ●

IMPORTANT!

- If you press DV on the remote control, the unmarked contents in the TSB will be removed.

TIPS: Set the appropriate mode of record quality for HDD recording, the same record quality will be transferred from HDD to a recordable DVD, see page 32\~33.

Record on Hard Disk (continued)

1 Connect the DV camcorder to the DV IN jack on the front panel of this recorder.
② Find the footage on the DV camcorder that you want to start recording from and set the camcorder to pause mode.
3 Turn on the TV to the correct program number for the recorder (e.g. 'EXT', '0', 'AV'.)
4 Turn on the recorder and press DV on the remote control.

→ An information box will be displayed.

System State: Stop DV State: Stop Record to Hard Disc As Standard Play Elapsed Time: 00:00:00 Remaining Time: 00:00:00

• Press SELECT repeatedly to change the mode of record quality.
  5 Press REC● to start recording and press the PLAY button on the DV camcorder to start playback.
• To pause the recording, press PAUSE II. To resume recording, press REC● again.

→ A new chapter marker is created after recording restarts.

6 To stop recording, press STOP ■.

→ A new title will be created when you begin another recording.

To record directly to a DVD recordable disc, see page 37.

Recording from an external device (Camcorder/VCR/DVD player)

A copy protection system has been built into this recorder to prevent the transfer of data from pre-recorded DVDs or other copy protected material onto the recordable DVD. You can only store the contents in the temporary HDD storage of this recorder.

Note: Set the preferred mode of record quality before proceeding, see "Before Recording - Default Recording Settings."

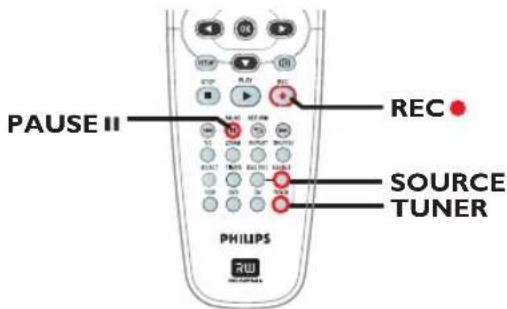

PAUSE II REC SOURCE TUNER PHILIPS

1 Connect the external device to this recorder (see pages 20 \~ 23).
② Turn on the TV to the correct program number for the recorder (e.g. 'EXT', '0', 'AV').
3 Press STANDBY-ON ⏻ to turn on the recorder.

→ If no TV program appears on the screen, press TUNER on the remote control.

4 Press SOURCE repeatedly to select the correct input channel that matches the connected jack of the device.

• { EXT I } :EXT I jack at the back.
• { CAM I } : VIDEO jack on the front.
• { CAM 2 } : S-VIDEO jack on the front.

TIPS: Set the appropriate mode of record quality for HDD recording, the same record quality will be transferred from HDD to a recordable DVD, see page 32\~33.

Record on Hard Disk (continued)

5 Press REC ● to start recording.

→ You can also press REC● repeatedly to increase the recording time in 30-minute increments.

6 Start playback on the connected device.

To pause the playback on the device, press PAUSE II.

To continue, press PLAY ▶ again.

→ You can use this function to avoid any unwanted recording.

⑦ To stop the recording before the

scheduled ending, press STOP ■.

To record directly to a recordable DVD disc, see page 37.

TIPS: Set the appropriate mode of record quality for HDD recording, the same record quality will be transferred from HDD to a recordable DVD, see page 32\~33.

Record on DVD Recordable Disc

IMPORTANT!

Unrecordable pictures

Television programs, fi lms, video tapes, discs, and other materials may be copy-protected and therefore cannot be recorded on this recorder.

Copying from HDD to a recordable DVD

You can copy a recorded title(s) from the HDD (hard disk drive) to a recordable DVD disc.

The time taken to copy content from the HDD to a recordable DVD depends on the record quality of the HDD recordings.

It is not possible to change the mode of record quality during the copying process. As such, it is important that you choose the appropriate record quality when you first set up the recording to the HDD.

The copying process is done at a higher speed than the recording.

HDD Record Quality	Hours of Recording that can be stored in a 4.7GB DVD+R/+RW
HQ (High Quality)	1
SP (Standard Play)	2
SP+ (Standard Play Plus)	2.5
LP (Long Play)	3
EP (Extended Play)	4
SLP (Super Long Play)	6

The following information will be stored on the disc :

– Title/name of recording
- Date of recording
– Time of recording
– Record quality mode/ length of recording
- Index picture of title

Discs for recording

There are several formats of DVD recordable discs which can be used with this recorder:

DVD±RW (DVD ReWritable discs)

– Discs that are rewritable can be used for multiple recordings once the existing data has been erased.

DVD±R (DVD Recordable discs)

- Discs that can only be used for a single recording. Each new recording is always added at the end of all previous recordings as existing recordings cannot be overwritten. - Editing can be made on DVD±R discs as long as they have not been fi nalized. - To play a DVD±R disc on another DVD player, it must be fi nalized (see page 58.) After this is done, no more content can be added to the disc.

TIPS: Ensure that there is sufficient space available on the DVD±R before recording. You have to finalize the DVD±R before it can be played on other players, see page 58.

Record on DVD Recordable Disc (continued)

Recording from various sources

You can choose to copy your recordings from the HDD or an external device to a DVD recordable disc. The storage capacities of the disc depends on the record quality that was selected for the recording in the recorder or device, see page 32.

STOP PAUSEII SELECT HDD PHILIPS REC DVD REC SOURCE DV

Recording from the HDD

1 Turn on the TV to the correct program number for the recorder (e.g. 'EXT', '0', 'AV').
② Insert a DVD recordable disc into the recorder.
③ Press HDD on the remote control. → The HDD content menu appears on the screen.

HDD 25% No Ch. Date Time Title 001 CH001 05/20/05 02:00 PM Travel 002 CH003 05/14/05 04:00 PM News 003 CH009 04/25/05 08:30 PM Drama 004 CH004 04/30/05 03:30 PM Nature 005 CH002 03/28/05 08:30 PM News 006 CH008 04/12/05 11:00 AM Title 3 007 CH012 05/08/05 06:30 PM News 008 CH010 06/30/05 10:30 PM Discover For other options, press [DVD], [DV], [TUNER] keys, Press [RIGHT] to edit menu. 1. Press [SELECT] to mark or unmark recordings. 2. Press [HDD] to copy selected recordings to DVD. Press [SHuffle] to sort by title.

4 Use ▲▼ keys to highlight the title/titles and press SELECT to mark the titles to copy to DVD.
- If you have many HDD title recordings, use I◀◀ (fast reverse) or ▶▶I (fast forward) to view the previous/ next page of HDD titles for selection.
5 Press HDD on the remote control.

→ Recording to the DVD recordable disc will begin. The dubbing icon will be displayed at the bottom right corner of the screen.
→ Once complete, the icon will not be shown.

6 To stop recording, press STOP ■ on the remote control.

Helpful Hint:

- During selection of recordings for copying, press SHUFFLE on the remote control to sort according to the titles of recording.

TIPS: Ensure that there is sufficient space available on the DVD±R before recording. You have to finalize the DVD±R before it can be played on other players, see page 58.

Record on DVD Recordable Disc (continued)

Recording from an external device/VCR/ DV Camcorder

1 Turn on the TV to the correct program number for the recorder (e.g. 'EXT', '0', 'AV').
2 Insert a DVD recordable disc into the recorder.
3 Press DVD REC to switch to direct recording mode.

→ An information box will be displayed on the screen.

System State: Stop Record to Optical Disc As Standard Play Elapsed Time: 00:00:00 Remaining Time: 02:25:25

4 Press SOURCE repeatedly to select from the various options:

{Tuner}

Input source from TV programs.

{ CAM I }

Input source from the device connected to the VIDEO and AUDIO L/R jacks on the front panel.

{ CAM 2 }

Input source from the device connected to the S-VIDEO and AUDIO L/R jacks on the front panel.

{EXT I}

Input source from the device connected to the VIDEO (CVBS)-IN-EXT and AUDIO L/R jacks on the back panel.

OR

- Press DV to record from the DV camcorder connected to the DV IN jack on the front panel.

5 Press SELECT to toggle between the different modes of record quality.

Record Quality	Hours of Recording that can be stored
	HDD	DVD ± R/ ± RW4.7GB recordable disc
HQ High Quality	17	1
SP Standard Play	34	2
SP+ Standard Play Plus	42.5	2.5
LP Long Play	51	3
EP Extended Play	68	4
SLP Super Long Play	102	6

Values are estimates only. Parts of the HDD storage capacity will be reserved for the operations of this recorder and time shifting.

6 Press REC ● on the remote control.

→ Recording to the DVD recordable disc will be begin.

⑦ To stop recording, press STOP ■ on the remote control.

Helpful Hint:

- All title selections and settings will be lost once you replace or remove the recordable DVD.

To edit your recordings on the DVD recordable disc, see pages 56\~63.

TIPS: Ensure that there is sufficient space available on the DVD±R before recording. You have to finalize the DVD±R before it can be played on other players, see page 58.

Timer Recording

About timer recording

Use 'Timer Recording' to automatically start and stop a recording at a later date/ time. The recorder will tune to the right program channel and begin recording at the specified time.

With this recorder, you can pre-program up to 20 recordings.

To make a timer recording, your recorder needs to know:

• The date you want to make the recording.
• The recording input source.
• The start and stop time of the recording.
• The mode of record quality, see page 33.

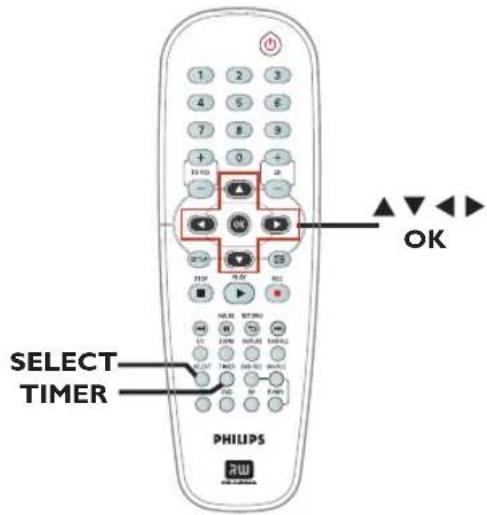

SELECT TIMER PHILIPS OK

Timer recording (VCR Plus+® System)

This is a simple programming system for recorders. To use it, enter the PlusCode programming number associated with your television program. You can find this number in your TV listings magazine.

All the information needed by the recorder for programming is contained in the programming number.

1 Turn on the TV power. Select the correct Video In channel at the TV.
- If you are recording directly to a DVD disc, insert the DVD recordable disc before proceeding to step ②.
2 Press TIMER on the remote control. → The timer schedule list appears.

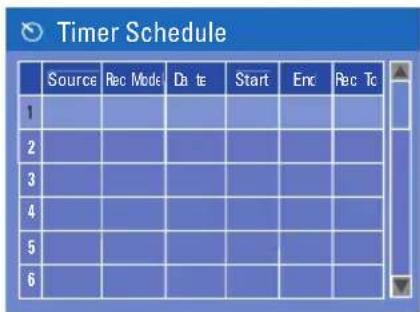

Timer Schedule Source Rec Mode Date Start Enc Rec Tc 1 2 3 4 5 6

③ Use ▲▼ keys to highlight the next available empty slot and press OK. → The VCR Plus+®. System setup menu appears.

VCR Plus+ System Enter the PlusCode programming number for the show you wish to record. Press CANCEL for manual timer recording. To go back to timer schedule press [RETURN]. CONFIRM CANCEL

TIPS: Set the appropriate mode of record quality for HDD recording, the same record quality will be transferred from HDD to a recordable DVD.

Timer Recording (continued)

4 Use the numeric keypad 0-9 to enter the PlusCode programming number for the show you wish to record and press OK. (e.g.: 5-312-4 or 5,312 4, key in '53124'.)

- To cancel the VCR Plus+® programming, use ▲▼ keys to select CANCEL in the menu and press OK.

5 To confirm your entry, select CONFIRM in the menu and press OK.

→ The timer editor menu appears.

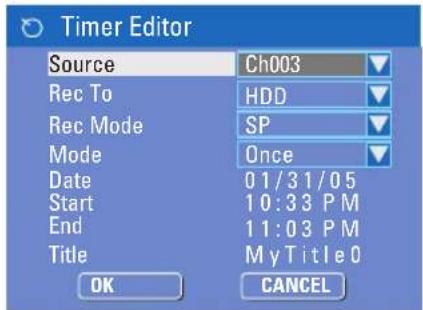

Timer Editor Source Ch003 Rec To HDD Rec Mode SP Mode Once Date 0 1/3 1/05 Start 1 0:33 PM End 11:03 PM Title MyTitle 0 OK CANCEL

6 Use ▲▼ keys to select an entry in the menu and press ▶ to enter its options.

{ Source }

- Use ▲▼ keys to select the recording input source.

{ Rec To }

- Use ▲▼ keys to select {HDD} or {DVD} to enter the recording destination.

{ Rec Mode }

- Use ▲▼ keys to select your option.

{ Mode }

- Use ▲▼ keys to select { Once }, { Daily } or { Weekly } recordings.

{ Date }

- Use ▲▼ keys or the numeric keypad 0-9 to enter the date for recording.

{ Start }

- Use ▲▼ keys or the numeric keypad 0-9 to enter the start time of recording.

{End}

- Use ▲▼ keys or the numeric keypad 0-9 to enter the end time of recording.

{ Title }

- Use ▲▼◀▶ keys to select the alphanumeric options to enter the title of your recording.

7 Select OK in the menu and press OK.

→ The system will store the timer entry and return to the timer schedule list.

8 Press TIMER to exit the menu.

9 Press STANDBY-ON ⏻ to turn off the recorder.

→ If the recorder is not in standby mode, a warning message will appear three minutes before the recording starts.

→ The 'TIMER' icon will light up on the display panel if a timer recording is set.

TIPS: Set the appropriate mode of record quality for HDD recording, the same record quality will be transferred from HDD to a recordable DVD.

Timer Recording (continued)

Timer recording (manually)

1 Turn on the TV power. Select the correct Video In channel at the TV.
- If you are recording directly to a DVD disc, insert the DVD recordable disc before proceeding to step 2.
2 Press TIMER on the remote control. → The timer schedule list appears.

Timer Schedule Source Rec Mode Date Start End Rec To 1 2 3 4 5 6

③ Use ▲▼ keys to highlight the next available empty slot and press OK. → The VCR Plus+®. System setup menu appears.

VCR Plus+ System Enter the PlusCode programming number for the show you wish to record. Press CANCEL for manual timer recording. To go back to timer schedule press [RETURN]. CONFIRM CANCEL

4 Select CANCEL in the menu and press OK. → The timer editor menu appears.

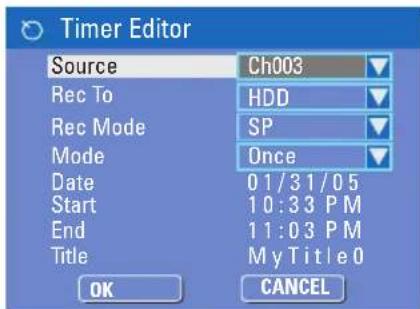

Timer Editor Source Ch003 Rec To HDD Rec Mode SP Mode Once Date 01/31/05 Start 10:33 PM End 11:03 PM Title MyTitle 0 OK CANCEL

⑤ Use ▲▼ keys to select an entry in the menu and press ▶ to enter its options.

{ Source } - Use ▲▼ keys to select the recording input source.

{ Rec To } - Use ▲▼ keys to select { HDD } or { DVD } to enter the recording destination.

{ Rec Mode } - Use ▲▼ keys to select your option.

{ Mode } - Use ▲▼ keys to select { Once }, { Daily } or { Weekly } recordings.

{ Date } - Use ▲▼ keys or the numeric keypad 0-9 to enter the date for recording.

{ Start } - Use ▲▼ keys or the numeric keypad 0-9 to enter the start time of recording.

{ End } - Use ▲▼ keys or the numeric keypad 0-9 to enter the end time of recording.

{ Title } - Use ▲▼◀▶ keys to select the alphanumeric options to enter the title of your recording.

6 Select OK in the menu and press OK.

→ The system will store the timer entry and return to the timer schedule list.

TIPS: Set the appropriate mode of record quality for HDD recording, the same record quality will be transferred from HDD to a recordable DVD.

Timer Recording (continued)

• To cancel the above timer setting, press SELECT on the remote control.
  7 Press TIMER to exit the menu.
  8 Press STANDBY-ON ⏻ to turn off the recorder.

→ If the recorder is not in standby mode, a warning message will appear three minutes before the recording starts.
→ The 'TIMER' icon will light up on the display panel if a timer recording is set.

Helpful Hint:

- Set the timer recording one minute ahead of the program's start time. This helps ensure the entire program is recorded as the disc requires about 30 seconds to prepare for recording.

Setting a timer recording from an external Cable Box/ Satellite Receiver

If you have a Satellite Receiver/Cable Box connected to this recorder via the VIDEO (CVBS) (see page 20,) follow the steps described below to program the recordings.

1 Select the channel you want to record at the Satellite Receiver/Cable Box.
② Program the recording with the required information. Follow the steps ①\~④ of "Timer Recording (manually)" on the previous page.
- When selecting options for { Source } choose { EXT I } as the input channel and press OK to confirm.
3 Keep the Satellite Receiver/Cable Box switched on for the recording.
4 Press STANDBY-ON ⏻ to turn off the recorder.

Changing/Deleting a timer recording

1 Turn on the TV power. Select the correct Video In channel at the TV.
2 Press TIMER on the remote control. → The timer schedule list appears.

Timer Schedule Source Rec Mode Date Start End Rec To 1 UH003 SF 01/31/05 10:33 PM 11:03 PM HDU 2 EX1 1 EF 01/25/05 06:00 PM 05:30 PM DVD 3 CH008 SP 01/30/05 10:00 AM 11:15 AM HDD 4 5 6

③ Use ▲▼ keys to select a timer program which you want to change/ delete.
4 To delete the timer entry, press SELECT on the remote control.
5 To change the timer schedule, press OK to enter the timer editor menu of the selected timer program.

Timer Editor Source Ch003 Rec To HDD Rec Mode SP Mode Once Date 01/31/05 Start 10:33 PM End 11:03 PM Title My Title 0 OK CANCEL

6 Select the entry fi eld and make the necessary changes.
7 Once complete, select OK in the menu and press OK to save the changes.
8 Press TIMER to exit the menu.

TIPS: Set the appropriate mode of record quality for HDD recording, the same record quality will be transferred from HDD to a recordable DVD.

Playback from Hard Disk

Playback your HDD recordings

Each recording stored on the HDD is displayed in the HDD content menu with an index picture.

1 Press HDD on the remote control. → The HDD content menu appears
② Use ▲▼ keys to highlight a title and press OK on the remote control to start playback.
- If you have many HDD title recordings, use ◀◀◀ (fast reverse) or ▶▶▶I (fast forward) to view the previous/ next page of HDD titles for selection.

HDD 25% No Ch. Date Time Title 001 CH001 05/20/05 02:00 PM Travel 002 CH003 05/14/05 04:00 PM News 003 CH009 04/25/05 08:30 PM Drama 004 CH004 04/30/05 03:30 PM Nature 005 CH002 03/28/05 08:30 PM News 006 CH008 04/12/05 11:00 AM Title 3 007 CH012 05/08/05 08:30 PM News 008 CH010 06/30/05 10:30 PM Discover For other options, press [DVD], [DV], [TUNER] keys. Press [RIGHT] to edit menu. 1. Press [SELECT] to mark or unmark recordings. 2. Press [HOD] to copy selected recordings to DVD. Press [SHuffle] to sort by title.

③ During playback, you can use the following keys on the remote control to access additional playback features.

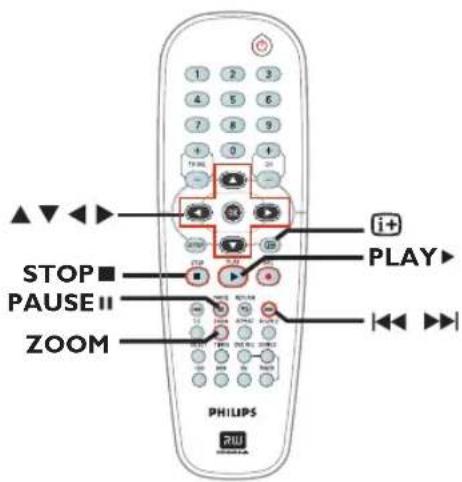

STOP PAUSE II ZOOM PHILIPS i+ PLAY i<

F0:34:00 01:55:00 0:34:00

◀◀▶▶▶

• move to the beginning or previous/ next chapter.
• hold down this button to start fast backward/ forward search, press the button again to increase the search speed.

- jump forward by 30 seconds.

- jump backward by 10 seconds.

PLAY ▶

- start playback.

PAUSE II

- view a still picture.

- displays the Time Shift video bar. Press repeatedly to remove the video bar display. - displays the help text for the selected function.

STOP

- stop playback.

ZOOM

- zoom in and out of a still/paused picture.

TIPS: Press HDD to exit the menu.

Playback from Disc

playable discs

Using this recorder, you can play and record on the following discs:

Recording and Playback

DVD±RW

(DVD ReWritable); can be recorded on and overwritten rep

DVD±R

(DVD Recordable); can be recorded on only once.

Playback only:

DVD Video

(Digital Versatile Disc)

CD-RW (CD-ReWritable)

Audio/ MP3/ JPEG contents

CD-R (CD-Recordable)

Audio/ MP3/ JPEG contents

Audio CD (Compact Disc Digital Audio)

MP3-Disc

Video CD

(Formats 1.0, 1.1, 2.0)

Super Video CD

DivX Disc

(DivX 3.11, 4.x, 5.x)

IMPORTANT!

- If the inhibit icon ( Ⓧ Error ) appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time.

- DVD discs and players are designed with regional restrictions. Before playing a disc, make sure the disc is for the same region as your player.

- Do not push on the disc tray or put any objects other than discs on the disc tray. It may cause the disc player to malfunction.

Inserting a disc

1 Press STANDBY-ON ⏻ to turn on the recorder.

2 Press OPEN CLOSE ▲ on the front of the recorder.

→ The disc tray opens.

③ Carefully place the disc onto the tray with the label facing up, then press OPEN CLOSE ▲.

→ Make sure the disc label is facing up. For double-sided discs, load the disc as indicated on the label.

4 Turn on the TV power. Select the correct Video In channel at the TV (see page 24.)

5 Playback will start automatically or a dialog will appear on the TV (see next page.)

TIPS: Some discs cannot be played on this recorder due to the configuration and characteristics of the disc, or due to the condition of recording and authoring software.

Playback from Disc (continued)

Starting disc playback

• Playback will begin automatically. If the disc has its own menu this will be loaded, otherwise the recorder will launch an index screen.
• If the pin code entry dialog appears on the TV, this means that the parental control was activated for the inserted disc (see page 66.)
  → Use the numeric keypad 0-9 on the remote control to enter your pin code (password.)
  For more playback features, see pages 49\~52 "Additional Playback Features".

Playing a DVD video disc

The DVD disc is usually formatted with a disc menu. You may have to make your selection (e.g., subtitle or audio language) within the disc menu.

1 Insert a DVD disc.

If the disc menu appears on the TV

- Use the numeric keypad 0-9 to input your selection or use ◀▶▲▼ keys to select a play option and press OK to start playback.

To select a specifi c chapter/title marker

- During playback, press T/C on the remote control repeatedly to toggle between { Title }, { Chapter } or { Time }. Use the numeric keypad 0-9 to input your selection of title/chapter number or specific time during playback.

② To stop playback, press STOP ■.

Playing a (Super) Video CD

(Super) Video CDs may feature 'PBC' (Play Back Control.) This allows you to play the video CDs interactively, following the menu on the display.

1 Insert a (Super) Video CD.

If the 'PBC' is on, the disc index menu will appear on the TV

② Use numeric keypad 0-9 to input your selection or to select a play option.

- Press RETURN on the remote control to return to the previous menu.

- To turn on/off the Playback Control mode, press ⓘ+ key on the remote control twice during playback to access the playback menu options.

→ Use ▲▼ keys to select { PBC } and press ▶ to select either { PBC On } or { PBC Off .}

3 To stop playback, press STOP ■.

Playing an audio CD

1 Insert an audio CD.

→ Playback starts automatically.

② To stop playback, press STOP ■.

TIPS: Some discs cannot be played on this recorder due to the configuration and characteristics of the disc, or due to the condition of recording and authoring software.

Playback from Disc (continued)

Playing a DVD±R/±RW disc

1 Insert a recorded DVD±R/±RW disc. → The Index Picture screen appears.

② Use ▲▼ keys to select a title and press PLAY ▶ to start playback.

3 To stop playback, press STOP ■.

Helpful Hint:

- If the message 'BLANK' appears on the display panel, this means that there are no recordings on this disc.

Playing a DivX disc

This recorder supports the playback of DivX movies which you can copy from your computer onto a CD-R/RW or recordable DVD disc.

① Insert a DivX disc.
→ The disc content menu appears.

- If the DivX movie contains external subtitles, you have to fi rst select the subtitle fi le from the fi le list. Use ▲▼ keys to select the fi les for playback and press SELECT to confi rm your selection.

② Press PLAY ▶ to start playback.

- During playback, you can press i+ on the remote control to display the disc content menu.

Helpful Hints:

- Subtitle fi les with the following fi lename extensions (.srt, .smi, .sub, .sami) are supported.

- It is normal to experience an occasional pixelation during MPEG-4/DivX playback due to poor encoding of the content.

Playing a MP3 disc

1 Insert a MP3 CD.
→ The disc content menu appears.

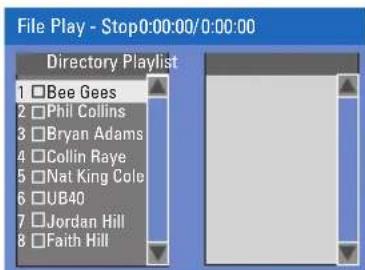

File Play - Stop0:00:00/0:00:00 Directory Playlist 1 Bee Gees 2 Phil Collins 3 Bryan Adams 4 Collin Raye 5 Nat King Cole 6 UB40 7 Jordan Hill 8 Faith Hill

Note: It may require a longer time for the recorder to display the disc content menu on the TV due to the large number of songs/pictures compiled into one disc.

② Use ▲▼ keys to navigate within the menu and press OK to access the folder/album.

③ Use ▲▼ keys to select the track/fi le to play.

- To go to the previous menu, press RETURN.

4 To create a playlist, highlight the track/fi le and press SELECT.

→ The selected tracks/fi les will appear on the right screen.
→ Use ◀▶ keys to toggle between the left and right screens.

5 Press PLAY ▶ to start playback.

6 During playback, you can press ◀◀ / ▶▶▶ to select the next/previous track.

7 To stop playback, press STOP ■.

Helpful Hints:

• Only the first session of a multi-session CD will play back.
• It is normal to experience an occasional "skip" while listening to your MP3 disc.
• Further album, track and artist information will also be displayed on the TV if included in the ID tag.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Playback from Disc (continued)

Playing a picture disc (or musical slide show)

You can display JPEG pictures in the selected roll automatically one after the other.

1 Insert a JPEG picture disc (CD, CD-R/RW, DVD.)
→ The disc content menu appears.
② Use ▲▼ keys to navigate within the menu and press OK to access the folder/album.
3 To create a playlist, highlight the track/fi le and press SELECT.

→ The selected tracks/fi les will appear on the right screen.

→ To remove the track/fi le from the playlist, press SELECT once.

4 You can select to playback from the original disc content or from the playlist, just use ◀▶ keys to move to the correct screen before selecting the track/fi le for playback.

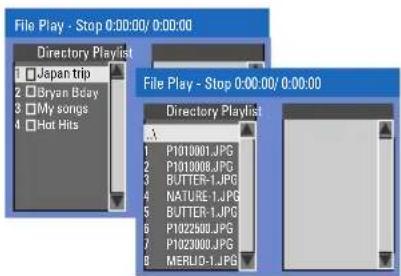

File Play - Stop 0:00:00/ 0:00:00 Directory Playlist 1 Japan trip 2 Bryan Bosy 3 DMy songs 4 Hot Hits File Play - Stop 0:00:00/ 0:00:00 Directory Playlist 1 P1010001.JPG 2 P1010008.JPG 3 BUTTER-1.JPG 4 NATURE-1.JPG 5 BUTTER-1.JPG 6 P1022500.JPG 7 P1023000.JPG 8 MERUO-1.JPG

If the disc contains MP3 music and JPEG picture fi les, you can start a musical slide show playback,

- Select an MP3 fi le and press OK to start playback, then select a picture fi le in the menu and press OK to start the musical slide show playback.

5 During playback, you can press i+ on the remote control to access various settings for the slide show playback.

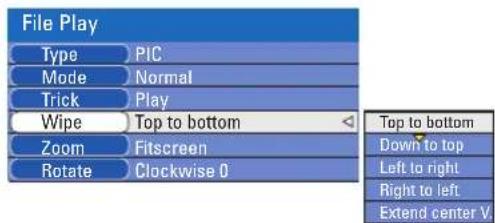

File Play Type PIC Mode Normal Trick Play Wipe Top to bottom Zoom Fitscreen Rotate Clockwise 0 Top to bottom Down to top Left to right Right to left Extend center V.

• Press ZOOM on the remote control to enlarge the picture.
  6 To stop playback, press STOP ■.

playable JPEG picture disc

This recorder can read JPEG pictures stored on a CD-ROM, Picture CD, or DVD.

File format:

• The file extension has to be '.JPG,' '.JPE' or '.JPEG.'
• It can only display DCF-standard still pictures or JPEG pictures e.g. TIFF. It cannot play back moving pictures, Motion JPEG, progressive JPEG and other formats, or pictures in formats other than JPEG, or pictures associated with sound.
• It may require a longer time for the recorder to display the disc content on the TV due to the large number of songs/pictures compiled onto one disc.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Additional Playback Features

Changing to another title/chapter/track

When a disc contains more than one track, title or chapter, you can change to a different track, title or chapter as follows.

During playback,

• Press ▶▶▶ I to go to the next title/chapter/track.
• Press ◀◀◀ to return to the start of the previous title/chapter/track. OR
• Press T/C repeatedly to toggle between {Title}, {Chapter} or {Time}. Then use the numeric keypad 0-9 to input the title/chapter/track number.

Pausing playback and step play

1 During playback, press PAUSE II to pause playback and display a still picture.
2 Press PAUSE II again to move one frame forward.
3 To resume normal playback, press PLAY ▶.

Searching forward/backward

You can fast forward or fast reverse a disc at two, four, sixteen or thirty two times the normal playback speed.

1 During playback, press and hold ◀◀◀ (fast reverse) or ▶▶◀ (fast forward) to switch to the search function.
② During disc playback, press ▶ (RIGHT) to access the playback menu.
→ Use ▲▼ keys to highlight { Trick Mode - Play } and press ▶(RIGHT) to access the search speed options:
- FFWD x2, FFWD x4, FFWD x16, FFWD x32, FREV x2, FREV x4, FREV x16, FREV x32, Slow FWD x1/2, Slow FWD x1/4, Slow FWD x1/8, Slow REV x1/2, Slow REV x1/4, Slow REV x1/8.
→ The sound will be muted.

3 To resume normal playback, press PLAY ▶.

Zooming in

This option allows you to enlarge the picture on the screen and pan through the enlarged picture.

1 Press ZOOM on your remote control to activate zoom.
2 Use ◀▶▲▼ keys to pan through the zoomed picture.
3 To exit, press ZOOM repeatedly until the picture returns to the normal size.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Additional Playback Features (continued)

Using i+(INFO) options

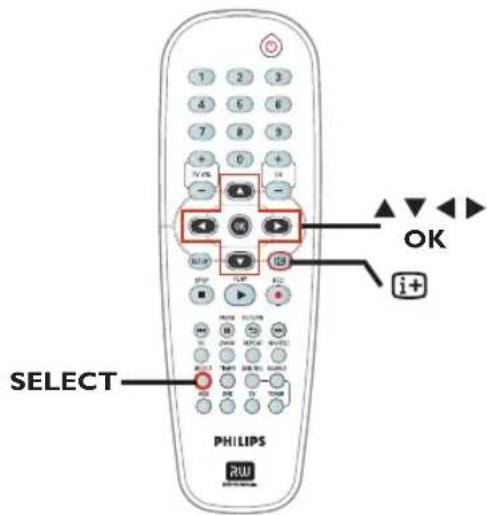

PHILIPS 2W SELECT OK i+

1 During playback, press ⓘ+ twice on the remote control.
→ The playback menu appears on the TV.

DVD Mode Normal Trick mode Play Title 02/05 Chapter 01/22 Audio 01/02 - OTH Subtitle Off Angle 01/03 Title Time 00:22:03 - 00:27:24

② Use ▲▼ keys to select the setting you want to adjust.

→ Instructions and explanation of the options are provided in the following pages.

③ To exit, press i+.

Selecting various repeat functions

You can select various repeat play or random play mode during playback.

This function can also be accessed via the REPEAT key on the remote control.

During disc playback, press i+ twice on the remote control.
→ The playback menu appears.
2 Use ▲▼ keys to select { Mode } and press OK.
③ Use ▲▼ keys to select one of the repeat options.

{ Normal }

Select this to cancel the repeat mode and return to normal playback.

{ Repeat A-B }

Select this to repeat the playback of a specific segment within a title/chapter/track. Press OK to mark the start and end of the segment you want to repeat.

{ Repeat Chapter }

Select this to repeat playback of the current chapter (DVD, recordable DVDs only.)

{ Repeat Track/Title }

Select this to repeat playback of the current track/title.

{ Repeat Directory }

Select this to repeat playback of the current folder/directory (MP3, JPEG, picture disc only.)

{ Repeat Disc }

Select this to repeat playback of the entire disc.

{ Shuffle }

Select this to randomly playback all the tracks/chapters.

4 To cancel repeat playback, press STOP■, then press PLAY ▶. Alternatively, repeat steps select ① to ③ and select
{ Normal } and press OK.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Additional Playback Features (continued)

Programming disc tracks

You can play the contents of the disc in the order you want by programming the tracks to be played.

1 Press i+ on the remote control.

→ The playback menu appears.

② Select { Mode } > { Program .}

→ The program menu appears.

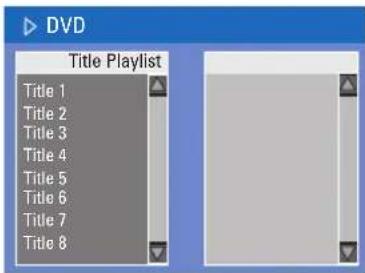

DVD Title Playlist Title 1 Title 2 Title 3 Title 4 Title 5 Title 6 Title 7 Title 8

3 If the disc is recorded with Titles/Folders/Albums, press OK to access the tracks/fi les/chapters.

- Pressing OK at the highlighted track/fi le/chapter will start playback.

- Use ◀▶ keys to toggle between the left and right screen.

To program your favourite track/fi le/chapter

4 Use ▲▼ keys to select the track/fi le/chapter to program and press SELECT on the remote control.

→ The selected track/fi le/title will appear at the right screen.

→ The order on the right screen will be the order of program playback.

To remove the programmed item from your selection

5 Press ▶ key to move to the right screen. Use ▲▼ keys to select the track/fi le/chapter to program and press SELECT on the remote control.

To start program play

6 Press ▶ key to move to the right screen and press OK.

→ Playback will start from the selected track/ fi le/ chapter according to the programmed sequence.

To exit program play

7 Press STOP ■ to exit program play.

Changing the audio soundtrack language

This operation works only on DVDs with multiple soundtrack language or VCDs with multiple audio channels.

1 Press i+ on the remote control.

→ The playback menu appears.

② Use ▲▼ keys to select { Audio } and press ▶ to access its options.

3 Use ▲▼ keys to select the audio language and press OK to confi rm.

→ The languages may be numbered or abbreviated, such as “En” for English.
→ If the language selected is not available on the disc, the disc's default setting for language will be used instead.

Helpful Hint:

- Some DVDs allow soundtrack language changes only via the DVD disc menu. To access the disc menu, press DVD on the remote control.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Additional Playback Features (continued)

Changing subtitle language

This operation works only on DVDs with multiple subtitle languages, you can change the language you want while playing the DVD.

1 Press i+ on the remote control.

→ The playback menu appears.

② Use ▲▼ keys to select { Subtitle } and press ▶ to enter the menu and find the different available options.

3 Use ▲▼ keys to select the language and press OK to confirm.

→ The languages may be numbered or abbreviated, such as “En” for English.
→ If the language selected is not available on the disc, the disc's default setting language will be used instead.

Helpful Hint:

- Some DVDs discs allow subtitle language changes only via the DVD disc menu. To access the disc menu, press DVD.

Time search

This option allows you to skip to a specific point on the current disc.

- Press T/C on the remote control repeatedly to display

{ Time : - : - - : - - } on the top left corner of the screen.

→ Use the numeric keypad (0-9) to enter the time required.
→ Playback skips to the selected time.

Switching camera angles

This option is only available with DVDs that contain sequences recorded from different camera angles. This allows you to view the picture from different angles.

1 Press i+ on the remote control.
→ The playback menu appears.
2 Use ▲▼ keys to select { Angle } and press OK to enter its options.
→ The camera angles available for selection appear.
③ Use the numeric keypad (0-9) to enter the camera angle you want to switch to, then press OK to confirm.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Edit Recordings - HDD

About HDD title edit menu

In the HDD title edit menu, you can change the title name, hide unwanted scenes, delete titles, split a title or change the title index picture.

The edit options in the HDD title edit menu are:

{ Play Title }

- Select a title (recording) to play.

{ Delete Title }

( For unprotected and unlocked titles only )

- Delete the title (recording).

{ Divide Title }

- Divide the recording into two separate titles.

{ Edit Title }

– Hide the unwanted scene in the recording

{ Change Index Picture }

( For unprotected and unlocked titles only )

- Select a scene in the recording to replace the existing index picture screen.

{Rename}

- Change the name of a title (recording).

{Lock/Unlock}

- Lock or unlock a title (recording) to prevent/allow playback.

{ Protect/ Unprotect }

- Protect or unprotect a title (recording) to prevent/allow erasure or changes being made.

Accessing the HDD title edit menu

PHILIPS HDD OK

1 Press HDD on the remote control.

→ The HDD content menu appears.

2 Use ▲▼ keys to highlight a title (recording) and press ▶.

→ The HDD title edit menu appears.

HDD No Cn Date_Time_Title 001 CH001 05/20/05 02:30 PM Travel 002 CH003 05/14/05 04:30 PM News 003 CH009 04/25/05 06:30 PM Drama 004 CH008 04/30/05 03:30 AM Nature 005 CH002 03/28/05 13:30 PM CSI 006 CH008 04/12/05 11:30 AM Tife 3 007 CH012 05/08/05 28:30 PM News 008 CHNO 06/30/05 38:30 PM Discover Play Title Delete Title Divide Title Edit Title Change Index Picture Rename Lock Protect Press [OK] to play title.

- If you have many HDD title recordings, use I◀◀ (fast reverse) or ▶▶I(fast forward) to view the previous/ next page of HDD titles for selection.

3 Use ▲▼ keys to access the different options and press OK.

→ Instructions and explanation of the options are provided in the following pages.

4 To exit, press ◀ to go back to the HDD title menu screen.

Note: Any title/ recording which has been edited will be marked with an edited icon

next to the selected title's index picture.

TIPS: Press ◀ to go back to the previous menu.

Edit Recordings - HDD (continued)

Dividing a Title

You can divide the current title into two new titles. Each of these titles is characterized by its own index picture.

Warning! Once a title is divided, the process cannot be reversed.

① In HDD title edit mode, use ▲▼ keys to highlight { Divide Title } and press OK. → The edit title playback screen appears.

② During playback, use ◀▶ keys to navigate through the title. Press OK to divide the title at the desired playback position. → A warning message will appear.

③ To confirm, select OK in the menu and press OK. → A new title will be shown in the HDD title menu.

4 To abort, select CANCEL and press OK.

Hiding/ Unhiding unwanted scenes

You can choose to hide certain scenes from playback (e.g. skipping a commercial scene) or make it visible again.

① In HDD title edit mode, use ▲▼ keys to highlight { Edit Title } and press OK. → The edit title playback screen appears.

② During playback, press PAUSE II and use I ◀ ◀ ◀ ◀ keys to navigate through the title. Press OK to mark the beginning of a segment to hide.

3 Press OK again to mark the end of segment to hide.

- To hide more segments, repeat steps ②\~③ for each segment you want to hide.

To unhide the scenes,

④ In HDD title edit mode, use ▲▼ keys to highlight { Edit Title } and press OK. → The edit title playback screen appears.

5 During playback, use ◀▶ keys to navigate through the title. Press OK at the beginning of the marked segment.

6 Press ▶ repeatedly until you reach the end of the marked segments and press OK.

Helpful Hints:

- All hidden scenes will be played back in HDD title edit mode. - The { Edit Title } option is only available if the title is unlocked or unprotected.

Change Index Picture

The index picture is the picture of the title you will see when the recorder loads up the Index menu. Normally, the first frame of a recording is shown as the title's index picture.

In HDD title edit mode, use ▲▼ keys to highlight { Change Index Picture } and press OK. → The edit title playback screen appears.

② During playback, use ◀▶ keys on the remote control to search for the scene to use. Press OK to confirm the current scene as the index picture for the title. → The new index picture will be shown in the HDD content menu.

TIPS: Press ◀ to go back to the previous menu.

Edit Recordings - HDD (continued)

Rename a title

The original title name is automatically generated by the recorder. You can change the disc name by following the steps below.

In HDD title edit mode, use ▲▼ keys to highlight { Rename } and press OK.

→ The keyboard screen appears.

② Use ◀▶▲▼ keys to highlight a character on the keyboard and press OK to select.

→ The maximum input is up to 12 characters.

- You can use the following keys on the keyboard screen to edit your input:

BkSp : to remove a character to the left of the cursor.

Space : to create a space between characters.

Caps : to toggle between upper and lower case characters.

Clear : to clear the entry fi eld completely.

Exit : to exit the keyboard screen.

3 To confirm your entry, select OK on the keyboard and press OK.

→ The info panel is now updated.

- To exit, select Exit on the keyboard and press OK.

Lock/ Unlock a title

You can choose to lock a title to prevent any unauthorized playback of the recording.

If a title has been locked, the user will be prompted to enter a 4-digit password preset in the system setup menu. For details, see "Parental Rating Level."

- In HDD title edit mode, use ▲▼ keys to highlight { Lock } and press OK.

→ The locked title will have a Lock icon next to its index picture.

→ When the title is locked, the option in the HDD title edit menu will change to {Unlock .}

Protect/ Unprotect a title

You can choose to protect the title in order to prevent accidental loss of recordings.

- In HDD title edit mode, use ▲▼ keys to highlight { Protect } and press OK.

→ The protected title will have a Safe Box icon next to its index picture.

→ When the title is protected, the option in the HDD title edit menu will change to { Unprotect .}

TIPS: Press ◀ to go back to the previous menu.

Edit Recordings - Recordable DVD

About disc edit menu

This recorder offers various disc edit options for various disc types. You can change the disc content and settings of a DVD recordable disc from the disc editing menu. The edited contents may not be available if you play the disc on another DVD player.

The displayed options in the disc editing menu may differ depending on the type of disc.

{Play}

Start playing from the beginning of the disc.

{Rename Disc}

Change the name of the disc.

{ Erase Disc } - DVD±RWs only

Erase all the recordings in the disc.

{ Record New Title }

Start recording from the last empty title in the disc.

{ Overwrite Disc } - DVD±RWs only Start a new recording from the beginning of the disc, all the recorded content will be overwritten.

{ Finalize Disc } - DVD±Rs only

Finalize the disc to enable playback on other DVD players. Further recording and editing to the disc are not allowed. It is not possible to unfi nalize the disc.

{Lock/Unlock Disc} - DVD±RWs only Lock or unlock a disc to prevent accidental erasure or changes being made.

{ Unfi nalize } - DVD-RWs only

Unfi nalize a DVD-RW disc to allow more recordings.

Accessing disc editing menu

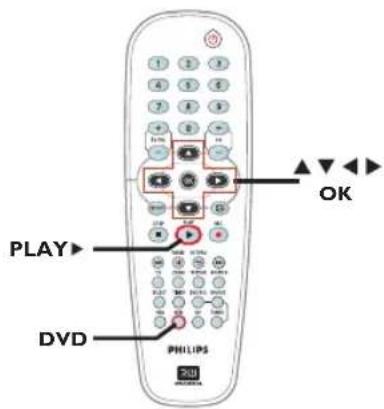

1 2 3 4 5 6 7 8 9 + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - DVD PHILIPS RJU OK REC

1 Insert a recorded DVD±R/±RW disc into the recorder.

→ The Index Picture screen appears on the TV.

② Select the first title on the disc, press and hold ▲ on the remote control.

→ The disc editing menu appears. Press

▶ to access the options. The available editing options may vary for DVD±R and DVD±RW discs.

NTSC	Play
	Rename Disc
	Erase Disc
	Record New Title
	Overwrite disc
	Finalize Disc
	Lock Disc
	Unfinalize

③ Use ▲▼ keys to access different options and OK to select.

→ Instructions and explanation of the options are provided in the following pages.

4 To exit, press DVD to go back to the disc Index Picture screen.

TIPS: No further recording and editing can be carried out on a finalized DVD±R.

Press

DVD to return to the index picture screen.

Edit Recordings - Recordable DVD (continued)

Rename disc

The original disc name is generated automatically by the recorder. You can change the disc name by following the steps below.

In disc editing menu, use ▲▼ keys to select { Rename Disc } and press OK.

→ The keyboard screen appears.

② Use ◀▶▲▼ keys to highlight a character on the keyboard and press OK to select.

→ The maximum input is up to 9 characters.

- You can use the following keys on the keyboard screen to edit your input:

BkSp : to remove a character to the left of the cursor.

Space : to create a space between characters.

Caps : to toggle between upper and lower case characters.

Clear : to clear the entry fi eld completely.

Exit : to exit the keyboard screen.

3 To confirm your entry, select OK on the keyboard and press OK.

→ The info panel is now updated.

- To exit, select Exit on the keyboard and press OK.

Erase disc (DVD±RWs only)

This erases the content of the DVD±RW disc including those that was not recorded on this recorder. Once the existing content is erased, it can be used for recording.

In disc editing menu, use ▲▼ keys to select { Erase Disc } and press OK.

→ A warning message will appear.

2 Select YES in the menu to proceed or NO, to abort, then press OK to confirm.

Helpful Hint:

- To erase content that cannot be played back on this recorder, please use the option {Delete Optical Disc .} under the setup menu.

Record a new title

This function allows you to start a new recording at the remaining empty space in the DVD recordable disc.

In disc editing menu, use ▲▼ keys to select { Record New Title } and press OK.

② Select the source you want to record from and press REC ● to start recording.

Overwrite disc (DVD±RWs only)

This function allows you to start a new recording from the beginning of a DVD±RW regardless of the contents of the disc.

In disc editing menu, use ▲▼ keys to select { Overwrite disc } and press OK.

② Select the source you want to record from and press REC ● to start recording.

TIPS: No further recording and editing can be carried out on a finalized DVD±R. Press DVD to return to the index picture screen.

Edit Recordings - Recordable DVD (continued)

Lock/ Unlock disc (DVD±RWs only)

You can choose to protect the recordings on the DVD±RW disc in order to prevent accidental loss of recordings.

In disc editing menu, use ▲▼ keys to select { Lock Disc } and press OK.
→ The disc is locked for this DVD recorder only.
→ When the disc is locked, the option in the disc editing menu will change to { Unlock Disc .}
2 If you want to overwrite or edit on the protected disc, select { Unlock Disc .}

Playing your recordings (DVD±R, DVD-RW) on other DVD players

It is necessary to finalize a DVD±R or DVD-RW disc before you can play it on any other DVD player. Otherwise, the disc will only playback on this recorder.

After a DVD±R disc has been finalized, no further recordings or editing can be made to it. Make sure you have completed all the recordings and editing before finalizing the disc.

In disc editing menu, use ▲▼ keys to select { Finalize Disc } and press OK.
→ A warning message will appear.

2 Select YES in the menu and press OK to start the process.

→ Finalization will take a few minutes. Do not try to open the disc tray or turn the power off as this may render the disc unusable.

3 Select NO to abort.

Preparing your DVD-RW disc for more recordings

You may have to unfi nalize the DVD-RW disc before recording new content it.

- In disc editing menu, use ▲▼ keys to select { Unfinalize }. Press OK to proceed.

→ A warning message will appear. Select YES and press OK to proceed.

→ The operation will take a few minutes. Do not disconnect the power during the process.

→ Once complete, the Index Picture screen will appear on the TV.

Your DVD-RW disc is now ready for more recordings.

TIPS: No further recording and editing can be carried out on a finalized DVD±R. Press DVD to return to the index picture screen.

Edit Recordings - Recordable DVD (continued)

About DVD title editing

You can change the individual title information or delete a title (recording) in a recorded DVD disc. If the recordable DVD disc has been finalized, it cannot be edited.

The displayed options in the title editing menu may differ depending on the type of disc.

{ Play Title }

Start playing a recording.

{ Edit Title }

Access video editing menu.

{Rename Title}

Change the name of the recording.

{ Erase Title } - DVD±RWs only

Delete the title (recording.)

{ Overwrite Title } - DVD±RWs only

Start a new recording and the existing title (recording) will be overwritten.

{ Overwrite Disc } - DVD±RWs only

Overwrite from existing selected title onwards to the end of the disc.

{ Append Title }

Insert a new recording to the last existing recording.

Accessing DVD title edit menu

1 Insert a recorded DVD±R/±RW disc into the recorder.

→ The Index Picture screen appears on the TV.

- During playback, press DVD to access the Index Picture screen.

② Use ▲▼ keys to highlight a title (recording), and press ▶.

→ The title editing menu appears.

Play Title

Edit Title

Rename Title

Erase Title

Overwrite Title

Overwrite Disc

Append Title

1. My movie

11/04/2004

12:31:53

HQ 00:05:59

③ Use ▲▼ keys to access different options and OK to select.

→ Instructions and explanation of the options are provided in the following pages.

4 To exit, press ◀.

Editing video

This feature allows access to the video editing menu. See "About video editing" on pages 61\~63 for more information.

- In title editing menu, use ▲▼ keys to select { Edit Title } and press OK.

→ The video editing menu appears.

→ The recorder will play the selected title.

TIPS: No further recording and editing can be carried out on a finalized DVD±R.

Press

◀ to go back to the previous menu.

Edit Recordings - Recordable DVD (continued)

Rename title

The original title name is generated automatically by the recorder. You can give a new name to the title by following the steps below.

In title editing menu, use ▲▼ keys to select { Rename Title } and press OK. → The keyboard screen appears.

② Use ◀▶ ▲▼ keys to highlight a character and press OK to select. → The maximum input is up to 9 characters.

- You can use the following keys on the keyboard screen to edit your input:

BkSp : to remove a character to the left of the cursor.
Space : to create a space between characters.
Caps : to toggle between upper and lower case characters.
Clear : to clear the entry fi eld completely.
Exit : to exit the keyboard screen.

③ To confirm your entry, select OK on the keyboard and press OK. → The info panel is now updated.

- To exit, select Exit on the keyboard and press OK.

Erase title

You can delete a specific title (recording) from the disc. However, for the DVD±R disc, the deleted space cannot be used for further recording.

In title editing menu, use ▲▼ keys to select { Erase Title } and press OK. → A warning message will appear.

2 Select YES in the menu to proceed or NO to abort, then press OK to confirm.

Overwrite title (DVD±RW only)

This function allows you to record a new title from the beginning of the current title in the DVD±RW disc.

In title editing menu, use ▲▼ keys to select { Overwrite Title } and press OK.
② Select the source you want to record from and press REC ● to start recording.

Overwrite from the selected title

You can select to overwrite only the recordings from the selected title to the end of the disc.

In title editing menu, use ▲▼ keys to select { Overwrite Disc } and press OK to delete.

Append recording

This function allows you to append recording to the last existing title.

Note: Under the { Append Title } option, it is not possible to select the mode of record quality when a recording is appended to an existing title on a DVD. The record quality will always be determined by the quality mode of the existing title.

In title editing menu, use ▲▼ keys to select { Append Title } and press OK.
2 Press SOURCE to select the input channel to append.
3 Press REC ● to start append recording.
4 To stop append recording, press STOP ■.

TIPS: No further recording and editing can be carried out on a finalized DVD±R. Press ◀ to go back to the previous menu.

Edit Recordings - Recordable DVD (continued)

About video editing

After a recording has been made, this recorder allows you to edit the video content. You can add/delete chapter marker, hide unwanted scenes, change the picture in the index picture screen and split a title (recording) into two.

When you playback a recording in video edit mode, the entire recording will be played back including hidden scenes.

The edit functions available in the disc editing menu are:

{ Title }

Select a specific title (recording) to play.

{Chapter}

Select a chapter within the selected title.

{ Chapter Marker }

Insert a chapter marker in the recording or erase a chapter marker to combine two chapters.

{ Hide Chapter }

Hide the unwanted scene in the recording.

{Index Picture}

Select a scene in the recording as the index picture screen.

{ Split Title } - DVD±RWs only

Divide the recording into two under separate titles.

Accessing video editing menu

PLAY DVD PHILIPS OK

1 Insert a recorded DVD±R/±RW disc into the recorder.

→ The Index Picture screen appears on the TV.

② Use ▲▼ keys to highlight a title (recording), and press ▶ to access the menu.

→ The title editing menu appears.

③ Use ▲▼ keys to select { Edit Title } and press OK.

→ The edit mode menu appears.

Edit Mode Title 02/06 Chapter 01/10 Play Chapter Marker Hide Marker Index Picture Split Title Title Elapsed 0:20:45

4 Use ▲▼ keys to access different options and press OK to select.

→ Instructions and explanation of the options are provided in the following pages.

5 To exit, press DVD.

TIPS: No further recording and editing can be carried out on a finalized DVD±R.

Press

◀ to go back to the previous menu.

Edit Recordings - Recordable DVD (continued)

English

Selecting a title

It shows the current title and the total number of titles in the disc. It also allows you to select another title.

1 In edit mode, use ▲▼ keys to select

{ Title } and press OK.

② Use the numeric keypad 0-9 to key in a title and press OK.

→ The recorder will play the selected title.

Selecting a chapter

It shows the current chapter and the total number of chapters in the title. It also allows you to select another chapter within the title.

1 In edit mode, use ▲▼ keys to select

{ Chapter } and press OK.

② Use the numeric keypad 0-9 to key in the chapter and press OK.

→ The recorder will play the selected chapter.

Creating chapter markers

You can create a chapter by inserting chapter marker at any point within a title during playback. This will allow you to access a specific point in the recording easily or set a chapter you wish to hide.

Title Chapter Chapter Chapter Chapter chapter markers

① In edit mode, use▲▼ keys to select

{ Chapter Marker } and press OK.

② Use ▲▼ keys to select one of the options and press OK to confi rm.

{Insert Marker}

Select this to insert a new chapter marker at the current point of playback.

{ Delete Marker }

Select this to delete the current chapter marker (it refers to the closest marker before the current point of playback.)

The current chapter will then combine with the chapter before it.

{ Delete All Markers }

Select this to delete all the chapter markers in the current title.

TIPS: No further recording and editing can be carried out on a finalized DVD±R.

Press

◀ to go back to the previous menu.

Edit Recordings - Recordable DVD (continued)

Hiding an unwanted chapter

You can choose to hide certain scenes from playback (e.g. skipping a commercial scene) or make it visible again.

1 Create a chapter marker at the scene you are going to hide. ( See previous page on "Creating chapter markers".)
② Select the chapter you want to hide and start playback. ( See previous page on "Selecting a chapter".)
3 In edit mode, use ▲▼ keys to select { Hide Chapter } and press OK. → The current chapter will be hidden.

To unhide a chapter

In edit mode, use ▲▼ keys to select { Unhide Chapter } and press OK.

→ The video editing menu appears.
→ While in editing mode, the hidden chapter/chapters will play.

② Wait for the chapter you want to unhide to occur or use ◀◀◀▶▶I keys on the remote control to make a fast search. → The current chapter will be visible during playback.

Helpful Hint:

- All the hidden chapters will be played back while in video editing mode.

Changing Index Picture

The index picture is the picture of the title you will see when the recorder loads up the Index menu. Normally, the first frame of a recording is shown as the title's index picture.

In edit mode, use ▲▼ keys to select { Index Picture } and press OK. → The display will be in playback mode.

② Use ◀▶ keys on the remote control to search for the scene to use, then press OK to confirm the current scene as the index picture for the title. → The new index picture will be shown in the title menu.

Splitting a title (DVD±RWs only)

You can divide the current title into two new titles. Each of these titles will be characterized by its own index picture.

Warning! Once a title is divided, the process cannot be reversed.

In edit mode, use ▲▼ keys to select { Split Title } and press OK to divide the title at the current playback position. → A new title will be shown at the Index Picture screen.

TIPS: No further recording and editing can be carried out on a finalized DVD±R.

Press

◀ to go back to the previous menu.

Setup Menu Options

Accessing the Setup Menu

The setup menu provides various options for you to adjust the recorder to suit your preferences.

SETUP OK PHILIPS

1 Press SETUP on the remote control. → The setup menu appears on TV.
② Use ▲▼ keys to highlight a setup option and press ▶ to access.
③ Use ▲▼ keys to highlight the setting you wish to change and press OK to confirm and go back to the previous menu item. → Instructions and explanation of the options are provided in the following pages.
4 To exit, press SETUP.

SETUP MENU - GENERAL Auto Chapter Marker 5min. Record Quality SP Auto Program Search Manual Program Edit

Pages 25, 33

SETUP MENU - VIDEO TV System NTSC TV Shape 43 LB Progressive Scan Off DivXIR) Video on Demand OK

Page 65

SETUP MENU - AUDIO SPDIF Output RAW LPCM Output LPCM 96Hz

Page 67

SETUP MENU - LANGUAGE System Language English Audio Language English Subtitle Language English Disc Menu Language English

Page 27

SETUP MENU - DATE / TIME Date(mm/dd/yyyy) 12:31 2006 Time(hh:mm) 10°33 AM

Page 27

SETUP MENU - PREFERENCES Parental Level Off Change Password OK Reset Menu Settings OK Screensaver On

Page 66

SETUP MENU - HDD Save Time Shift Buffer No HDD Info Show Space Management Automatic Delete HDD OK Delete Optical Disc OK

Page 31

Setup Menu Options (continued)

VIDEO settings (underlined options are the factory default settings)

TV System

The colour system of the DVD system, DVD and TV should match. Only then will it be possible to play a DVD on this system. Before changing the TV system, determine the colour system of your TV.

- Press ▶ to access this menu and use ▲▼ keys to select one of the options.

{NTSC} – Select this if the connected TV has the NTSC colour system. It will change the video signal of a PAL disc and output it to NTSC format.

{PAL} – Select this if the connected TV has the PAL colour system. It will change the video signal of an NTSC disc and output it to PAL format.

{ PAL N } – Select this if the connected TV has the PAL N colour system. It will change the video signal of an NTSC disc and output it to PAL N format.

TV Shape

The picture shape can be adjusted to fit your TV.

- Press ▶ to access this menu and use ▲▼ keys to select one of the options.

{4:3 LB} – For a 'wide screen' display with black bars on the top and bottom of the screen.

{4:3 PS} – For a full-height picture with sides trimmed.

{ 16:9 WS } – For wide screen TV (frame ratio 16:9.)

Progressive Scan

Progressive scan delivers a higher picture quality than the standard interlaced TV channel scan. It only works when you have connected the recorder's Y Pb Pr jacks to your TV that supports the progressive video input. Otherwise, the image may not appear or will be distorted. Please check your TV user manual for more information.

- Press ▶ to access this menu and use ▲▼ keys to select one of the options.

{Off} -Select this to disable progressive scan feature.

{ On } - Select this to enable progressive scan feature.

If a blank/distorted TV screen appears, wait for 10 seconds for the auto recovery.

DivX® Video on Demand

Philips provides you with the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX® VOD service. For more information, visit us at www.divx.com/vod.

I) Press ▶ to display the registration code.

2) Use the registration code to purchase or rent videos from DivX® VOD service at www.divx.com/vod. Follow the instructions and copy the video from your computer onto a CD-R/RW for playback on this recorder.

TIPS: Press ◀ to go back to previous menu item.

Press

SETUP to exit the menu.

Setup Menu Options (continued)

PREFERENCES settings (underlined options are the factory default settings)

Parental Level

Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level.

The rating levels range from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children, or have certain discs played with alternative scenes.

Rating explanations

- Press ▶ to access this menu and use ▲▼ keys to select one of the options.

{ I. Kid Safe } \~ { 2. G } – Childsafe; acceptable for viewers of all ages.

{3. PG} - Parental Guidance suggested.

{4. PGI3} - Unsuitable for children under age 13.

{5. PG R} \~ {6. R} – Restricted; recommended that parents restrict children under 17 from viewing or allow to view only when supervised by a parent or adult guardian.

{7. NC 17} – No children under age 17; not recommended viewing for children under age 17.

{8. Adult} - Mature material; should be viewed only by adults due to graphic sexual material, violence or language.

{Off} - Parental Control is not active.

DVDs that are rated higher than the level you have selected will not play unless you enter your four-digit pin code.

Change Password

This option allows you to change your password setting for parental control.

New Password

Enter password

Enter new password

Re-enter password

1 Use ▲▼ keys to highlight { Change Password } and press OK.

→ You will be prompted to enter your four-digit pin code.

2 Use the numeric keypad 0-9 to enter your four-digit pin code.

→ When doing this for the first time, enter the default password '3308'.

→ If you forget your four-digit pin code, the default password is 3308.

③ Enter your new password and press ▼.

4 Re-enter your new password and select OK, then press OK on the remote control to confirm.

TIPS: Press ◀ to go back to previous menu item. Press SETUP to exit the menu.

Setup Menu Options (continued)

PREFERENCES settings (underlined options are the factory default settings)

Reset Menu settings

- Press ▶ to reset the menu settings of this recorder. → A warning message will appear. Select OK in the menu to proceed or CANCEL to abort, then press OK to confirm.

Screensaver

The screen saver prevents damage to the TV screen by avoiding exposure to a static image for too long.

- Press ▶ to access this menu and use ▲▼ keys to select one of the options.

{On} – Select this if you wish to turn off the TV screen, after playback had been stopped or paused for more than 15 minutes.

{ Off } – Select this to disable the screen saver.

AUDIO settings (underlined options are the factory default settings)

SPDIF Output

- Press ▶ to access this menu and use ▲▼ keys to select one of the options.

{RAW} - Select this if you have used the recorder's COAXIAL OUT jack to connect to a multichannel receiver.

{ LPCM } – Select this if you have used the recorder's COAXIAL OUT jack to connect to a stereo or audio/video system.

LPCM Output

This setting allows you to select between two levels:

{LPCM 48 kHz} – Select this if the connected audio device is capable of processing digital signal input with sampling rates of 48 kHz. In addition, the disc you are playing back must be recorded in 48kHz LPCM format.

{ LPCM 96 kHz} – Select this if the connected audio device is capable of processing digital signal input with sampling rates of 96 kHz. In addition, the disc you are playing back must be recorded in 96kHz LPCM format.

TIPS: Press ◀ to go back to previous menu item. Press SETUP to exit the menu.

Firmware Upgrade

Installing the latest fi rmware

Periodically, Philips will issue upgrades for the fi rmware that was initially installed in your recorder as the fi rmware is continuously refined for greater stability and compatibility of the recorder.

Caution! Power supply must not be interrupted during upgrade!

- Visit Philips' website at 'www.philips.com/support' to check for the availability of the latest firmware upgrade.

Note: When checking for the latest fi rmware upgrade, please also check for any accompanying instructions on installing the fi rmware.

Troubleshooting

WARNING

Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs, fi rst check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.

Problem	Solution
No power.	- Press STANDBY-ON button on the front of the recorder to turn on the system.- Make sure the AC outlet has power.
The recorder does not respond.	- There is a technical problem. Disconnect the recorder from the power outlet for 30 seconds, then reconnect and switch on the recorder again..
Remote control does not work.	- Aim the remote control directly at the IR sensor on the front of the recorder (not towards TV).- Remove any obstacles between the recorder and remote control.- Batteries are weak, replace the batteries.
No picture.	- Turn on your TV and set to the correct Video In channel for the recorder. You may go to Channel I on your TV, then press the channel down button on your TV's remote control until you see the TV program.- Check the video connection between the recorder and the TV.
No sound.	- Check the recorder audio connections. Read chapter “Basic Recorder Connections - Connecting the audio cables” for details.- Set the option for Digital audio output correctly, based on the device you have connected to the recorder. Read chapter “Setup Menu Options - AUDIO settings” for details.
No TV signal received from the recorder.	- Have your antenna or cable TV signal checked.- Install the TV channel. Read chapter “Installation and Setup - Setting your TV channel programs” for details.
Disc will not play.	- Insert the disc with the label facing up.- Wrong region code. The DVD must be coded for ALL regions or Region 4 in order to play on this recorder.- There is no recording on the disc or it is not a supported type of disc. Read chapter “Playback from Disc - Playable discs” for details.- Make sure the disc is not scratched or warped. Clean the disc or replace a new one.- Check if the disc is defective by trying another disc.

Troubleshooting (continued)

English

Problem	Solution
The picture is distorted or black and white during playback.	- The disc does not match with the TV colour system standard (PAL/NTSC).- The disc is dirty, clean the disc.- Sometimes a small amount of picture distortion may appear. This is not a malfunction.
There is picture or sound interference with the TV reception.	- Have your antenna or cable TV signal checked.- Fine-tune your TV channel. Read chapter “Installation and Setup - Setting your TV channel programs” for details.
Distorted sound coming from a connected hi-fi system or amplifi er.	- Do not connect any cables from the recorder to the ‘Phono’ input of your amplifi er.- If you are playing a DTS CD, you have to connect the COAXIAL jack of this recorder to a Hi-Fi system or amplifi er.
Recordings are not occurring as scheduled. New recordings cannot be made.	- The TV channel you want to record is not stored or you selected the wrong program number. Check the TV channels stored.- You have to reset the timer recording after adjusting the clock setting.- You cannot use the recorder to duplicate copy-protected materials (DVDs or videotapes) onto a DVD recordable disc.- The hard disk could be full. Delete some titles to create space for new recordings.
The wrong TV channel was decoded (recorded) after you programmed a recording using the VCR Plus+® system.	1) Enter the VCR Plus+® programming number of the desired TV channel.2) Press OK to confi rm.3) Check the channel number in the {Program #} input fi eld. If this does not correspond to the desired TV channel, select this entry fi eld and change the channel number.4) Press OK to confi rm.
The recorded DVD cannot be played back on another DVD player.	- If a recording is too short, it is possible that a DVD player/ recorder cannot detect it. Please observe the following ‘minimum recording times’. Mode of record quality: {High Quality - HQ} – 5 minutes, {Standard Play - SP} – 10 minutes, {Standard Play Plus - SP+} – 13 minutes, {Long Play - LP} – 15 minutes, {Extended Play - EP} – 20 minutes, {Super Long Play - SLP} – 30 minutes.- You have to fi nalize the DVD±R, DVD-RW. Refer to chapter “Playing your recordings on other DVD players” for details.
The message ‘UNKNOWN DISC’ appears.	- This message may appear if you insert a disc that may have encountered one of the following:- Error during recording: The title may be missing.- Error while changing the title/index picture: The original title/ index picture may be visible.- Error while fi nalizing or the disc has not been fi nalized.

70

Troubleshooting (continued)

Problem	Solution
Picture is fuzzy and brightness varies when copying DVD Video discs or pre-recorded video cassettes.	- This happens if you try to copy DVDs or video cassettes that have been copy-protected. Even though the picture on the TV is fi ne, but the recording on the DVD recordable disc is faulty.This interference is unavoidable with copy-protected DVDs or video cassettes.- The DVD recordable disc has a limited recording lifetime, please change a new disc for recording.
The message ‘This will clear the time shift buffer’ appears.	- The requested action requires that the time shift buffer (temporary HDD storage) to be cleared. All contents that were not marked for recording will be deleted.
There is a power failure during the deleting of the recorder’s HDD contents.	- You have to reselect the { Delete HDD } option and delete the HDD contents again.
There is a power failure during the copying of fi les to a DVD±R disc.	- The titles that were previously recorded will be deleted and the space used for recording cannot be re-used. The disc can be used as a normal blank disc. You have to re-copy the fi les to the disc again.
During recording from the time shift buffer, it is not possible to start or stop a recording.	- Parts of the signal may be copy-protected by the broadcaster. This portion of the time shift video bar will be shown in a different color. You can only start or stop a recording if the selected portion does not contain any copyright content.- Use ◀▶ keys or ◀◀◀ ▶▶▶I keys to navigate to a non-protected portion and press REC to start a recording. To end a recording, press STOP.- Press SELECT to clear a recording at any time.

Specifications

Video Recording

• Recording System: NTSC/ PAL
• Compression formats: MPEG2
- Modes of Record Quality:

High Quality : HQ (MI)

Standard Play : SP (M2)

Standard Play Plus : SP+ (M2x)

Long Play : LP (M3)

Extended Play : EP (M4)

Super Long Play : SLP (M6)

• Recording enhancements: Auto Chapter Marker Insertion, Divide Title, Erase, Manual Chapter Marking, One Touch Record

• Audio compression: Dolby Digital

Video Playback

• Disc Playback Media: CD, CD-R/CD-RW, DVD, DVD-Video, DVD+R, DVD+RW, DVD-R, DVD-RW, MP3-CD, Video CD, SVCD
• Compression formats: MPEG2, MPEG1, MPEG4, DivX
  • Video disc playback system: NTSC, PAL

Audio Playback

• Disc Playback Media: MP3-CD, CD, CD-R/CD-RW
• Compression formats: Dolby Digital, DTS, MP3, PCM,
  • MP3 bit rates: 32 - 256 kbps

Still Picture Playback

• Disc Playback Media: Picture CD
• Picture compression format: JPEG
• Picture enhancement: Rotate, Zoom, Slideshow

TV systems

• Playback: NTSC/PAL
  • Recording: NTSC/PAL

Video Performance

• D/A Converter 10 bit, 54 MHz
• A/D Converter 10 bit, 27 MHz
• Picture Enhancement: Progressive Scan

Audio Performance

• DA Converter 24 bit, 192 kHz
• AD Converter 24 bit, 96 kHz
• Signal / Noise (1kHz) 100 dB
• Dynamic range (1kHz) 95 dB
• Crosstalk (1kHz) 105 dB

Tuner/Reception/ Transmission

• TV System: NTSC, PAL, PAL-N
• Aerial input: 75 ohm coaxial (IEC75)

Storage Media

• Recording :
• DVD+R, DVD+RW, DVD-R, DVD-RW,
  • Hard Disk Capacity: 80GB
  • HDD recording enhancements:
  — Instant Replay, Time Shift Buffer
  • Extra Hard Disk Technology:
  — Pause Live TV, Simultaneous Record and
  Playback, Direct Record to DVD
  • HDD to DVD archiving: high speed (direct copy)

Connectivity

• Rear Connections
• S-video out
• Component Video out
• Video (CVBS) out
• Analog audio left/right out
• Antenna in
• TV out
• Digital audio out (coaxial)

- Front Connections

- i.LINK DV in (IEEE 1394 4-pin)

- S-Video in

- Video (CVBS) in

- Analog audio left/right in

Timer Recording

• Programmable events: 20
- Repeat modes: Once, Daily, Weekly
- Enhancement: Manual Timer, VCR Plus+® programming

Convenience

• Direct Record to optical disc
  • Child Protection: Parental Control

Power

• Power Supply: 110V\~240V, 50\~60 Hz
• Power Consumption: 28 W
• Standby power consumption: < 3.0 W

Dimensions

• Set dimension (W x H x D) : 435 x 65 x 340 mm
• Set Weight : 4.3 kg

Glossary

Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right.

Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs is 4:3, and that of wide-screens is 16:9.

AUDIO OUT Jacks: Red and white jacks on the back of the system that send audio to another system (TV, Stereo, etc.)

Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

Component Video Out Jacks: Jacks on the back of the DVD System that send high-quality video to a TV that has Component Video In jacks (R/G/B, Y/Pb/Pr, etc.)

Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL. These jacks send audio through multiple channels, instead of just two channels as analog does.

Disc menu: A screen display prepared for allowing selection of images, sounds, subtitles, multi-angles, etc recorded on a DVD.

DivX 3.11/4.x/5.x: The DivX code is a patentpending, MPEG-4 based video compression technology, developed by DivXNetworks Inc., that can shrink digital video to sizes small enough to be transported over the internet, while maintaining high visual quality.

Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right, center and subwoofer.)

DTS: Digital Theatre Systems. This is a surround sound system, but it is different from Dolby Digital. The formats were developed by different companies.

Index Picture Screen: A screen that gives an overview of a DVD±RW or DVD±R. An Index Picture represents each recording.

JPEG: A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio.

MP3: A file format with a sound data compression system. "MP3" is the abbreviation of Motion Picture Experts Group I (or MPEG-I) Audio Layer 3. By using the MP3 format, one CD-R or CD-RW can contain about 10 times more data then a regular CD.

MPEG: Motion Picture Experts Group. A collection of compression systems for digital audio and video.

Multichannel: DVDs are formatted to have each sound track constitute one sound fi eld. Multichannel refers to a structure of sound tracks having three or more channels.

PBC: Playback Control. Refers to the signal recorded on video CDs or SVCDs for controlling playback. By using menu screens recorded on a Video CD or SVCD that supports PBC, you can enjoy interactive playback and searching.

PCM: Pulse Code Modulation. A digital audio encoding system.

Parental control: Limits disc play according to the age of the users or the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software's level is higher than the user-set level.

Region code: A system allowing discs to be played only in the region designated. This unit will only play discs that have compatible region codes. You can find the region code of your unit by looking on the product label. Some discs are compatible with more than one region (or ALL regions.)

S-Video: Produces a clear picture by sending separate signals for the luminance and the color. You can use S-Video only if your TV has an S-Video In jack.

Surround: A system for creating realistic threedimensional sound fi elds full of realism by arranging multiple speakers around the listener.

Title: The longest section of a movie or music feature on DVD. Each title is assigned a title number, enabling you to locate the title you want.

VIDEO OUT jack: Yellow jack on the back of the DVD system that sends the DVD picture video to a TV.

Display panel symbols/ messages

The following symbols/messages may appear on your recorder display:

00:00

Multifunction display/ text line

• Title/track number
  – Total/elapsed/remaining title/track time
• Disc/title name
  – Additional information regarding the disc
• TV channel number or source of video
• Clock (This is displayed in Standby mode).
• TV program title

TIMER

A timer recording has been programmed or is active.

BLANK

No recordings on the disc.

• CLOSING

Disc tray is closing.

• EMPTY

No recordings in the hard disk drive.

UPDATE

Please wait until the blinking message disappears. The disc is being formatted or data is being written to it.

MENU

The system setup menu, disc menu, title menu or timer menu display is on.

- HDDMENU

The hard disk menu display is on.

NO DISC

No disc has been inserted. If a disc has been inserted, then it is possible that the disc cannot be read.

OPEN

Disc tray is opened or opening.

• PRO SCAN

Lights up when progressive scan is activated.

READING

Disc is being recognized by the recorder.

PHILIPS

The recorder has been turned on.

SCANXXX

Please wait until this message disappears. The recorder is busy processing an operation. XXX indicates the number of found channels, and is constantly updated

• Y_CHXXX

In time shift mode, where XXX indicates the input video source or channel number of tuner input.
