USER MANUAL DVP3142KM PHILIPS

Thank you for choosing Philips.

Need help fast?

Read your Quick Start Guide and/or User Manual first for quick tips that make using your Philips product more enjoyable.

Register your product and get support at www.philips.com/welcome

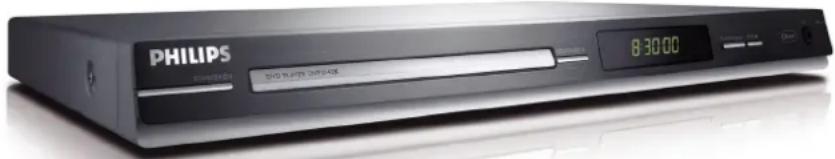

PHILIPS 8:30:00

PHILIPS

México

NOM·135

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

Due to the inconsistency of disc formats provided by various disc manufacturers, your DVD system may require a playability enhancement or upgrade. As DVD technology advances, these enhancements will become common and will be easy to complete. Go to www.philips.com/support for software upgrade.

'CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.'

English 6

Español 44

Português 82

Environmental Information

All unnecessary packaging has been omitted. The packaging has been made easy to separate into two materials; cardboard (box) and polyethylene (bags, protective foam sheet).

Your DVD player consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Manufactured under license from Dolby Laboratories, Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

DivX Certified products: DivX, DivX Certified and associated logos are trademarks of DivX, Inc. and are used under license.

For Customer Use:

Read carefully the information located at the bottom or rear of your DVD Video player and enter below the Serial No. Retain this information for future reference.

Model No. DVP 3142K & DVP 3144K Serial No.

Laser Safety

This unit employs a laser. Due to possible eye injury, only a qualified service person should remove the cover or attempt to service this device.

NOTE:

Pictures shown maybe different between countries.

CAUTION:

WARNING LOCATION: ON THE BACKPLATE OF THE SET

NEVER MAKE OR CHANGE CONNECTIONS WITH THE POWER SWITCHED ON.

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

LASER

Type Semiconductor laser

InGaAlP (DVD)

AlGaAs (CD)

Wave length 658 nm (DVD)

790 nm (CD)

Output Power 7.0 mW (DVD)

10.0 mW (VCD/CD)

Beam divergence 60 degrees

Language Code

Abkhazian	6566	Inupiaq	7375	Pushto	8083
Afar	6565	Irish	7165	Russian	8285
Afrikaans	6570	Islenska	7383	Quechua	8185
Amharic	6577	Italiano	7384	Raeto-Romance	8277
Arabic	6582	Ivrit	7269	Romanian	8279
Armenian	7289	Japanese	7465	Rundi	8278
Assamese	6583	Javanese	7486	Samoan	8377
Avestan	6569	Kalaallisut	7576	Sango	8371
Aymara	6589	Kannada	7578	Sanskrit	8365
Azerhaijani	6590	Kashmiri	7583	Sardinian	8367
Bahasa Melayu	7783	Kazakh	7575	Serbian	8382
Bashkir	6665	Kernewek	7587	Shona	8378
Belarusian	6669	Khmer	7577	Shqip	8381
Bengali	6678	Kinyarwanda	8287	Sindhi	8368
Bihari	6672	Kirghiz	7589	Sinhalese	8373
Bislama	6673	Komi	7586	Slovensky	8373
Bokmál, Norwegian	7866	Korean	7579	Slovenian	8376
Bosanski	6683	Kuanyama; Kwanyama	7574	Somali	8379
Brezhoneg	6682	Kurdish	7585	Sotho; Southern	8384
Bulgarian	6671	Lao	7679	South Ndebele	7882
Burmese	7789	Latina	7665	Sundanese	8385
Castellano, Español	6983	Latvian	7686	Suomi	7073
Catalán	6765	Letzeburgesch;	7666	Swahili	8387
Chamorro	6772	Limburgan; Limburger	7673	Swati	8383
Chechen	6769	Lingala	7678	Svenska	8386
Chewa; Chichewa; Nyanja	7889	Lithuanian	7684	Tagalog	8476
中文	9072	Luxembourgish;	7666	Tahitian	8489
Chuang; Zhuang	9065	Macedonian	7775	Tajik	8471
Church Slavic; Slavonic	6785	Malagasy	7771	Tamil	8465
Chuvash	6786	Magyar	7285	Tatar	8484
Corsican	6779	Malayalam	7776	Telugu	8469
Česky	6783	Maltese	7784	Thai	8472
Dansk	6865	Manx	7186	Tibetan	6679
Deutsch	6869	Maori	7773	Tigrinya	8473
Dzongkha	6890	Marathi	7782	Tonga (Tonga Islands)	8479
English	6978	Marshallese	7772	Tsonga	8483
Esperanto	6979	Moldavian	7779	Tswana	8478
Estonian	6984	Mongolian	7778	Türkçe	8482
Euskara	6985	Nauru	7865	Turkmen	8475
Ελληνικά	6976	Navaho; Navajo	7886	Twi	8487
Faroese	7079	Ndebele, North	7868	Uighur	8571
Français	7082	Ndebele, South	7882	Ukrainian	8575
Frysk	7089	Ndonga	7871	Urdu	8582
Fijian	7074	Nederlands	7876	Uzbek	8590
Gaelic; Scottish Gaelic	7168	Nepali	7869	Vietnamese	8673
Gallegan	7176	Norsk	7879	Volapuk	8679
Georgian	7565	Northern Sami	8369	Walloon	8765
Gikuyu; Kikuyu	7573	North Ndebele	7868	Welsh	6789
Guarani	7178	Norwegian Nynorsk;	7878	Wolof	8779
Gujarati	7185	Occitan; Provencal	7967	Xhosa	8872
Hausa	7265	Old Bulgarian; Old Slavonic	6785	Yiddish	8973
Herero	7290	Oriya	7982	Yoruba	8979
Hindi	7273	Oromo	7977	Zulu	9085
Hiri Motu	7279	Ossetian; Ossetic	7983
Hrwatski	6779	Pali	8073
Ido	7379	Panjabi	8065
Interlingua (International)	7365	Persian	7065
Interlingue	7365	Polski	8076
Inuktitut	7385	Português	8084

Contents

Care and Safety Information

Setup 8

Cleaning discs....8

General Information

Accessories supplied 9

Region codes....9

Connections

Connecting to television....10-11

Using Composite Video jacks (CVBS)....10

Using Component Video jacks (YPbPr)....10

Using an accessory RF modulator ....II

Connecting the power cord....12

Optional connections

Connecting to an stereo system ....13

Stereo system has Right/Left Audio In jacks 13

Connecting to a digital AV receiver ....13

Receiver has a PCM, Dolby Digital or MPEG decoder 13

Product Overview

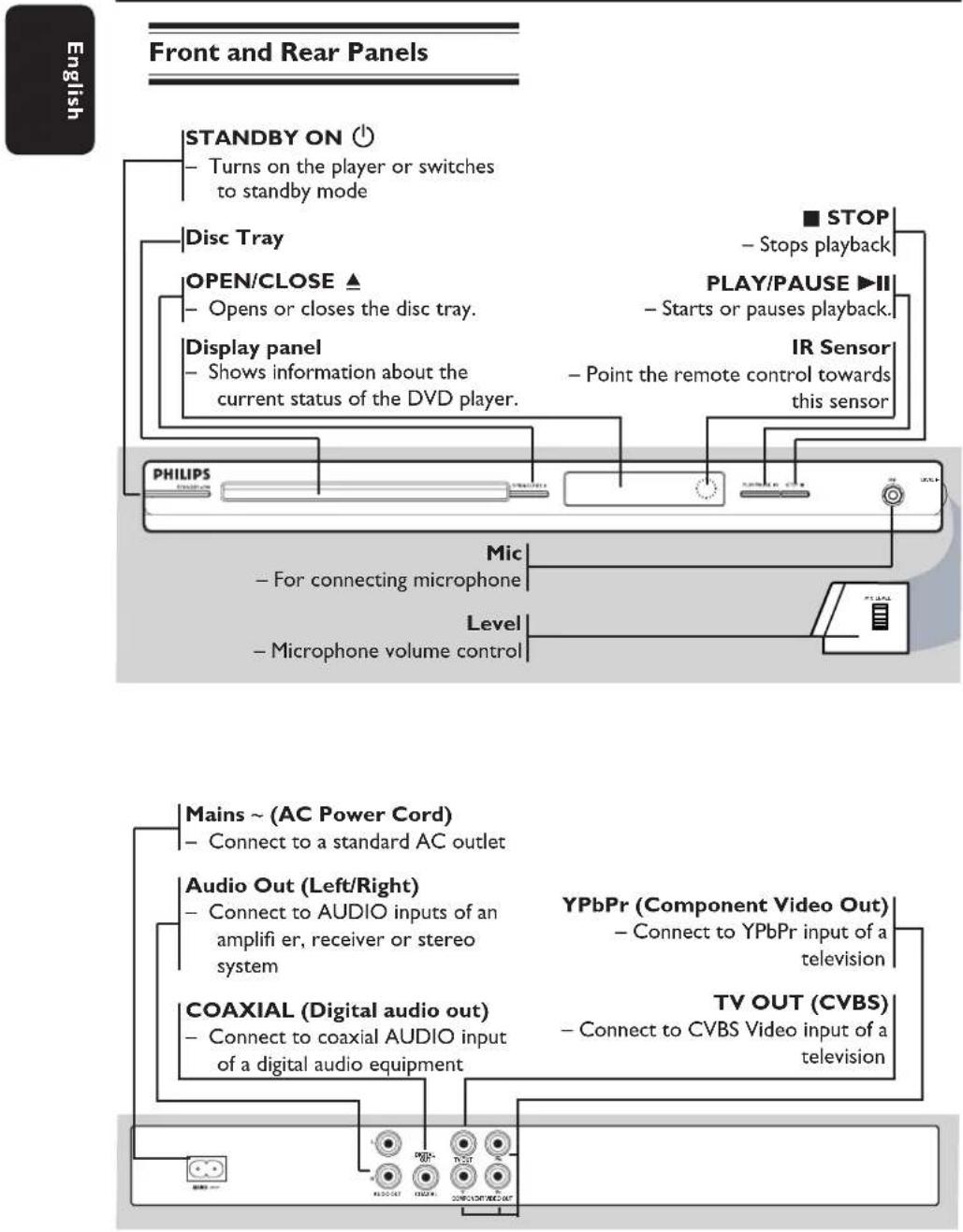

Front and Rear panels....14

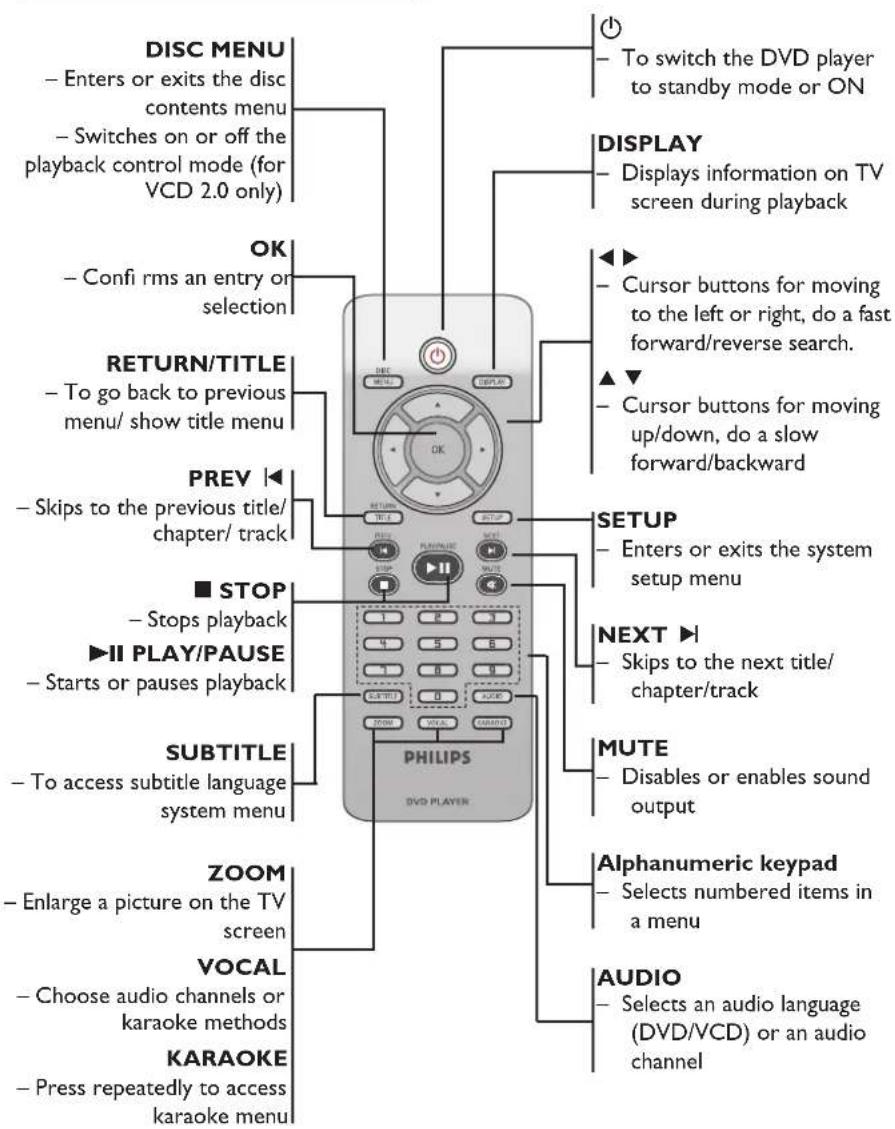

Remote Control....15

Getting Started

Step 1: Inserting Batteries....16

Using the remote control to operate the system....16

Step 2: Finding your viewing channel ....16

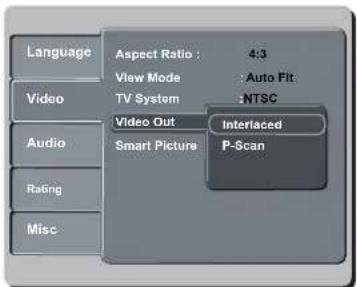

Step 3: Setting up Progressive Scan feature....17

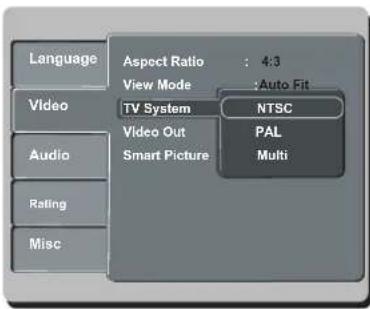

Step 4: Selecting the matching color system....18

Step 5: Setting the language ....19

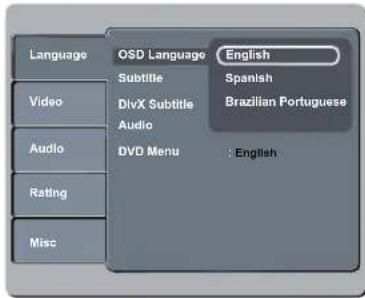

On-screen display (OSD) language....19

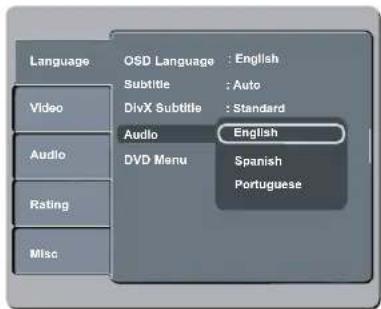

Audio, Subtitle and DVD menu languages.... 19

Playback from Disc

Playable discs....20

Supported formats....20

Playback Features

Starting disc playback 21

Basic playback control 21

Pausing playback....21

Selecting title/chapter/track 21

Stopping playback....21

Operations for video playback (DVD/VCD/SVCD).... 22

Using the Disc Menu 22

Zooming in 22

Resuming playback from the last stopped point....22

Slow Motion....22

Forward / Reverse Searching....22

Contents

Viewing the disc playback information 23-24

Title/Chapter/Track selection 23

Time Search 23

Angle 23

Repeat play mode....24

Repeating a section within a chapter/track....24

Special DVD Features 25

Playing a Title....25

Changing the Audio Language....25

Subtitle 25

Special VCD and SVCD Feature 25

Playback Control (PBC)....25

Playing a DivX® disc 26

Playing MP3/WMA/JPEG/Kodak/Fuji Picture CD 26-27

General Operation 26

Playback selection 27

Zoom picture (JPEG) 27

Playback with multi-angles (JPEG) 27

Karaoke Operations

Playing Karaoke disc....28

General Operation 28

Vocal....28

Karaoke 28

DVD Menu Options

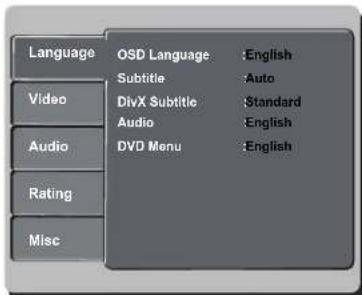

Using the Language setup menu 29

OSD Language....29

Subtitle / Audio / DVD Menu....29

Setting DivX® Subtitle font 29

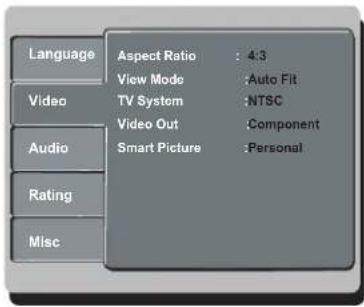

Using the Video setup menu 30-32

Setting the aspect ratio....30

View Mode 31

TV System 31

Video Out....31

Smart Picture....32

Using the Audio setup menu ....33-34

Digital Output 33

Night Mode 34

Down Sampling 34

Using the Rating setup menu 35-36

Rating level settings 35-36

Changing the Password....36

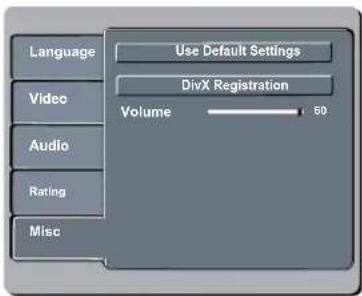

Using the Misc (Miscellaneous) setup menu 37-38

Restoring the original settings.... 37

Volume Control 38

DivX® Registration Code 38

Others

Software Upgrade 39

Troubleshooting....40\~41

Specifications 42

Glossary 43

Care and Safety Information

DANGER!

High voltage! Do not open the device. You run the risk of getting an electric shock.

The machine does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.

Setup

Finding a suitable location

• Place the set on a flat, hard and stable surface. Do not place the set on a carpet.
• Do not position the set on top of other equipment that might heat it up (such as receiver or amplifier).
• Do not put anything under the set (such as CDs, magazines).
• Install this unit near the AC outlet and where the AC power plug can be reached easily.

Space for ventilation

- Place the apparatus in a location with adequate ventilation to prevent internal heat build up. Allow at least 10 cm (4.0") clearance from the rear and the top of the set and 5cm (2.0") from the left and right to prevent overheating.

10cm (4.0') 5cm (2.0') 10cm (4.0') 5cm (2.0')

Avoid high temperatures, moisture, water and dust

• Apparatus shall not be exposed to dripping or splashing.
• Do not place any sources of danger on the apparatus (such as liquid filled objects, lighted candles).

Cleaning discs

Some problems occur because the disc inside the player is dirty (frozen picture, sound disruptions, picture distortions). To avoid these problems, discs should be cleaned on a regular basis.

To clean a disc, use a micro fi bre cleaning cloth and wipe the disc from the center to the edge in a straight line.

CAUTION!

Do not use solvents such as benzene, thinner, commercially available cleaners, or anti-static sprays intended for analog discs. Since the optical unit (laser) of the DVD player operates at a higher power than regular DVD or CD players, cleaning CDs intended for DVD or CD players may damage the optical unit (laser). Therefore, refrain from using a cleaning CD.

General Information

Accessories supplied

Composite video cable (yellow) and Audio cables (white, red)

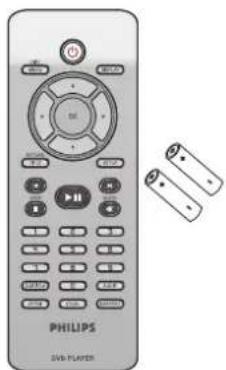

Remote control and two AAA batteries

Rear view of a Philips 25V player remote control with two batteries (no text or symbols visible)

AC Power Cable

Region codes

This DVD player is designed to support the Region Management System. Check the regional code number on the disc package. If the number does not match the player's region number (see table below), the player may be unable to playback the disc.

Tips:

• It may not be possible to play CD-R/RW or DVD-R/RW in all cases due to the type of disc or condition of the recording.
• If you are having trouble playing a certain disc, remove the disc and try a different one. Improper formatted disc will not play on this DVD player.

Region	Discs that can be played
U.S.A. and Canada regions
U.K and Europe regions
Asia Pacific, Taiwan, Korea
Australia, New Zealand, Latin America
Russia and India regions
China, Calcos Islands, Walls and Futuna Islands

English

Connections

Connecting to television

Diagram showing connections between a device panel, cables, and labeled components with Chinese labels

IMPORTANT!

- You only need to make one video connection from the following options, depending on the capabilities of your television. - Connect the DVD player directly to the television.

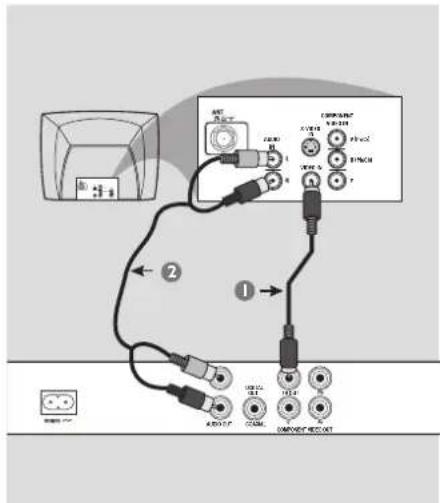

Using Composite Video jacks (CVBS)

Use the composite video cable (yellow) to connect the DVD player's TV OUT (CVBS) jack to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the television (cable supplied).
② To hear sound of this DVD player through your television, use the audio cables (white/red) to connect AUDIO OUT (L/R) jacks of the DVD player to the corresponding AUDIO IN jacks on the television (cable supplied).

Diagram showing connections between an audio device, a USB flash unit, and multiple audio jack cables with labeled components.

IMPORTANT!

- The progressive scan video quality is only possible when using YPbPr and a progressive scan television is required.

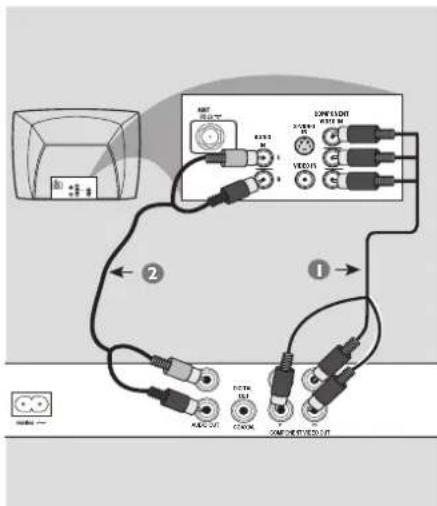

Using Component Video jacks (YPbPr)

Use the component video cables (red/blue/green) to connect the DVD player's YPbPr jacks to the component video input jacks (or labeled as YPbPr) on the television (cable not supplied).
To hear sound of this DVD player through your television, use the audio cables (white/red) to connect AUDIO OUT (L/R) jacks of the DVD player to the corresponding AUDIO IN jacks on the television (cable supplied).
③ Proceed to page 17 for detailed progressive scan setup.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

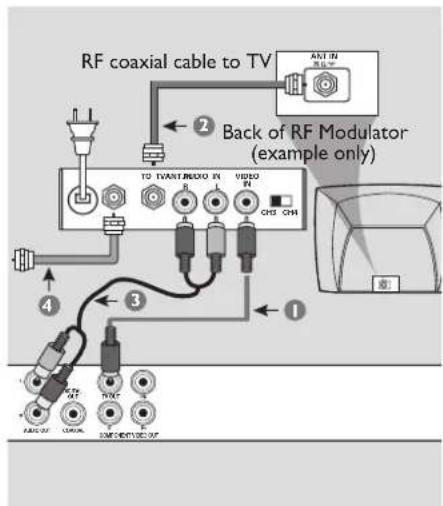

RF coaxial cable to TV Back of RF Modulator (example only) TO TVANT/MEXICO EN VIDEO CHS CHN 1 2 3 4

IMPORTANT!

- If your television only has a single Antenna In jack (or labeled as 75 ohm or RF In,) you will need an RF modulator in order to view the DVD playback on the television. See your electronics retailer or contact Philips for details on RF modulator availability and operations.

Using an accessory RF modulator

Use the composite video cable (yellow) to connect the DVD player's TV OUT (CVBS) jack to the video input jack on the RF modulator.
② Use the RF coaxial cable (not supplied) to connect ANTENNA OUT or TO TV jack on the RF modulator to the ANTENNA IN jack on the television.

3 To hear sound of this DVD player through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/R) jacks of the DVD player to the corresponding AUDIO IN jacks on the RF modulator (cable supplied).
4 Connect the Antenna or Cable TV service signal to the ANTENNA IN or RF IN jack on the RF modulator. (It may have been connected to your TV previously. Disconnect it from the TV).

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

Connections (continued)

English

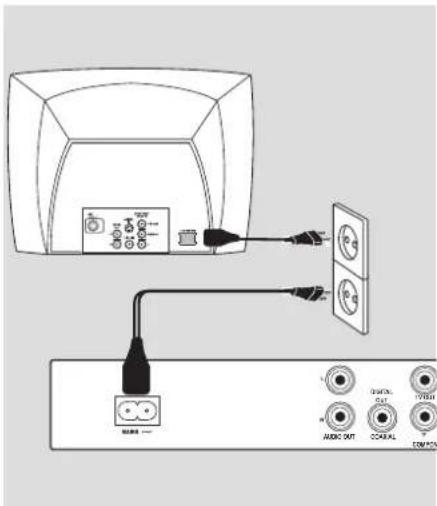

Connecting the power cord

Diagram showing connection between a device and audio output interface with labeled ports and connections

After everything is connected properly, plug in the AC power cord to the power outlet.

Never make or change any connections with the power switched on.

When no disc is loaded, press STANDBY ON on the DVD player front panel.

“--” may appear on the display panel.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

12

Optional connections

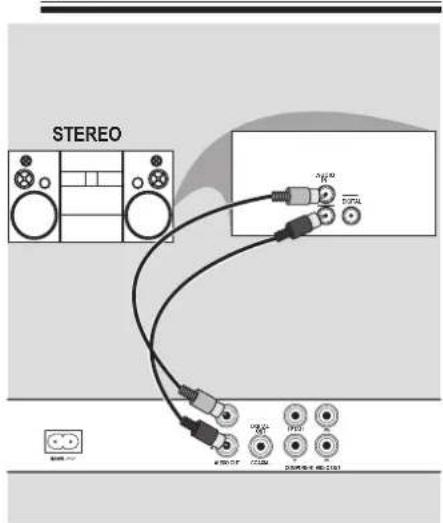

Connecting to an stereo system

STEREO 100V 200V 300V 400V 500V 600V 700V 800V 900V 1000V 1100V 1200V 1300V 1400V 1500V 1600V 1700V 1800V 1900V 2000V 2100V 2200V 2300V 2400V 2500V 2600V 2700V 2800V 2900V 3000V 3100V 3200V 3300V 3400V 3500V 3600V 3700V 3800V 3900V 4000V 4100V 4200V 4300V 4400V 4500V 4600V 4700V 4800V 4900V 5000V 5100V 5200V 5300V 5400V 5500V 5600V 5700V 5800V 5900V 6000V 6100V 6200V 6300V 6400V 6500V 6600V 6700V 6800V 6900V 7000V 7100V 7200V 7300V 7400V 7500V 7600V 7700V 7800V 7900V 8000V 8100V 8200V 8300V 8400V 8500V 8600V 8700V 8800V 8900V 9000V 9100V 9200V 9300V 9400V 9500V 9600V 9700V 9800V 9900V 100

Stereo system has right/ left Audio In jacks

1 Select one of the video connections (CVBS VIDEO IN or COMPONENT VIDEO IN) depending on the options available on your television.
② Use the audio cables (white/red) to connect AUDIO OUT (L/R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the stereo system (cable supplied).

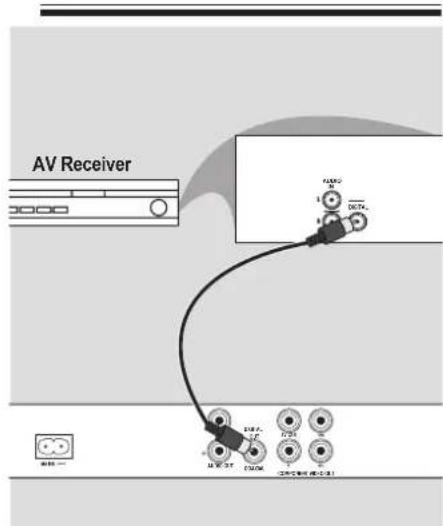

Connecting to a digital AV receiver

AV Receiver 30000 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Receiver has a PCM, Dolby Digital or MPEG decoder

1 Select one of the video connections (CVBS VIDEO IN or COMPONENT VIDEO IN) depending on the options available on your television.
② Connect the COAXIAL jack of the DVD player to the corresponding Digital Audio In jack on your receiver (cable not supplied).
3 Set the DVD player's digital output to PCM-Only or ALL depending on the capabilities of your receiver (see page 33 {Digital Output}).

Tip:

- If the audio format of the Digital Output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

Product Overview

Product Overview (continued)

Remote Control

DISC MENU - Enters or exits the disc contents menu - Switches on or off the playback control mode (for VCD 2.0 only) OK - Confi rms an entry or selection RETURN/TITLE - To go back to previous menu/ show title menu PREV - Skips to the previous title/chapter/ track ■ STOP - Stops playback ▶II PLAY/PAUSE - Starts or pauses playback SUBTITLE - To access subtitle language system menu ZOOM - Enlarge a picture on the TV screen VOCAL - Choose audio channels or karaoke methods KARAOKE - Press repeatedly to access karaoke menu DISPLAY - Displays information on TV screen during playback ◀▶ - Cursor buttons for moving to the left or right, do a fast forward/reverse search. ▲▼ - Cursor buttons for moving up/down, do a slow forward/backward SETUP - Enters or exits the system setup menu NEXT ▶ - Skips to the next title/chapter/track MUTE - Disables or enables sound output Alphanumeric keypad - Selects numbered items in a menu AUDIO - Selects an audio language (DVD/VCD) or an audio channel

English

Getting Started

Step I : Inserting Batteries

3D wireframe diagram of a mechanical component with arrows indicating direction (no text or symbols)

① Open the battery compartment.
② Insert two batteries type R03 or AAA, following the indications (+ -) inside the compartment.
③ Close the cover.

CAUTION!

• Remove batteries if they are exhausted or if the remote is not to be used for a long time.
• Do not use old and new or different types of batteries in combination.
• Batteries contain chemical substances, so they should be disposed of properly.

Using the remote control to operate the system

Diagram showing a control panel with labeled buttons and a central display unit, likely representing a system or device interface.

① Aim the remote control directly at the remote sensor (IR) on the front panel.
② Do not put any objects between the remote control and the DVD player while operating the DVD player.

Step 2: Finding your viewing channel

1 Press STANDBY-ON ⏻ on the DVD player to turn it on.
② Turn on the TV and set it to the correct video-in channel. You should see the blue DVD background screen.

→ Usually these channel are between the lowest and highest channels and may be called FRONT, A/V IN, VIDEO. See your TV's manual for more details.
→ Or, you may go to channel I on your TV, then press the Channel down button repeatedly until you see the Video In channel.
→ Or, the TV remote control may have a button or turn that chooses different video modes.
→ Or, set the TV to channel 3 or 4 if you are using an RF modulator.

③ If you are using external equipment, (such as audio system or receiver), turn it on and select the appropriate input source for the DVD player output. Refer to the equipment user's manual for detail.

Getting Started (continued)

Step 3 : Setting up Progressive Scan feature

(for Progressive Scan TV only)

The progressive scan displays twice the number of frames per seconds than interlaced scanning (ordinary normal TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality.

Before you start...

- Ensure that you have connected this DVD player to a progressive scan TV using the Y Pb Pr connection (see page 10).

- Ensure that you have completed the basic installation and set-up.

① Turn on your TV and set to interlace mode (refer to your TV user manual).
② Press STANDBY ON ⏻ on the remote control to turn on the DVD player.
③ Select the correct video-in channel. → The DVD background menu appears.
4 Press SETUP.
5 Press ▲ ▼ to select { Video }, then press ▶.

Language Aspect Ratio : 4:3 View Mode : Auto Fit Video TV System NTSC Video Out Interlaced Smart Picture P-Scan Audio Rating Misc

6 Press ▲▼ repeatedly to select { Video Out }, then press ▶.

7 Select { P-Scan }, then press OK to confirm.

→ The menu will appear on the TV.

8 Press ◀ to highlight { Yes } and press OK to confirm.
9 Turn on your TV progressive scan mode (refer to your TV user manual).

→ The menu will appear on the TV.

10 Press ◀ to highlight { Yes } and press OK to confirm.

→ The setup is now completed and you can start enjoy the high quality picture.

To deactivate Progressive Scan manually:

- Wait for 15 seconds for the auto recovery.

OR

1 Press OPEN/CLOSE ▲ on the DVD player to open the disc tray.
② Press numeric keypad 'I' on the remote control for few seconds.

→ The DVD background screen appears.

Tip:

- There are some progressive scan TVs and High-Definition TVs that are not fully compatible with this unit, resulting in the unnatural picture when playing back a DVD VIDEO disc in the progressive scan mode. In such a case, turn off the progressive scan feature on both the DVD player and your TV.

TIPS: The underlined option is the factory default setting.

Press ◀ to go back to previous menu item. Press SETUP to exit the menu item.

Getting Started (continued)

Step 4: Selecting the matching color system

The color system of the DVD player, disc and TV should match in order for the disc to play. Before changing the TV system, determine the color system of your TV.

Language Aspect Ratio : 4:3 View Mode :Auto Fit Video TV System NTSC Video Out PAL Audio Smart Picture Multi Rating Misc

① Press SETUP.

② Press ▲▼ to select { Video }, then press ►.

③ Press ▲▼ repeatedly to select { TV System }, then press ▶.

4 Use ▲ ▼ to select one of the options below:

{ PAL }

Select this if the connected TV has the PAL colour system. It will change the video signal of an NTSC disc and output it to PAL format.

{NTSC}

Select this if the connected TV has the NTSC colour system. It will change the video signal of a PAL disc and output it to NTSC format.

{ Multi }

Select this if the connected TV is compatible with both NTSC and PAL (multi-system). The output format will be in accordance with the video signal of the disc.

TIPS: The underlined option is the factory default setting. Press ◀ to go back to previous menu item. Press SETUP to exit the menu item.

5 Select a setting and press OK.

→ Follow the instructions show on the TV to confirm the selection (if any).

6 Press ◀ to highlight { Yes } and press OK to confirm.

To reset to default TV color system:

- Wait for 15 seconds for the auto recovery.

OR

1 Press OPEN/CLOSE ▲ on the DVD player to open the disc tray.

② Press numeric keypad '3' on the remote control for few seconds. → The DVD background menu appears.

Tips:

- Before changing the current TV colour setting, ensure that your TV supports the 'selected TV System'.

- If there is no proper picture on your TV, wait for 15 seconds for auto recovery.

Getting Started (continued)

Step 5 : Setting the language

The language options are different depending on your country or region. It may not correspond to the illustrations shown on the user manual.

On-screen display (OSD) language

Select this to change the language of this DVD player screen display menu. The menu language (on-screen display) for the system will remain as you set it.

Language Video Audio Rating Misc OSD Language English Subtitle Spanish DivX Subtitle Brazilian Portuguese Audio DVD Menu : English

1 Press SETUP.
② Press ▲ ▼ to select { Language }, then press ▶.
③ Press ▶ to select { OSD Language }, then press ▶.
4 Use ▲ ▼ to select a language and press OK to confirm.

Audio, Subtitle and DVD menu languages

You can choose your preferred language or sound track from audio, subtitles and DVD menu languages. If the selected language is not available on the disc, the disc's default language will be used instead.

Language Video Audio Rating Misc OSD Language : English Subtitle : Auto DivX Subtitle : Standard Audio English DVD Menu Spanish Portuguese

1 Press SETUP.
② Press ▲ ▼ to select { Language }, then press ▶.
③ Press ▲ ▼ to highlight one of the options below, then press ▶.

{ Audio }

Select this to change disc sound track language.

{ Subtitle }

Select this to change the subtitle language.

{ DVD Menu }

Select this to change the language of the disc menu.

④ Use ▲ ▼ to select a language and press OK to confirm.
⑤ Repeat steps ③ - ④ for other language settings.

TIPS: The underlined option is the factory default setting.

Press ◀ to go back to previous menu item. Press SETUP to exit the menu item.

Playback from Disc

IMPORTANT!

- If the INVALID KEY appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time.

- DVD discs and players are designed with regional restrictions. Before playing a disc, make sure the disc is for the same zone as your player.

playable discs

Using this DVD player, you can playback on the following discs:

DVD Video (Digital Versatile Disc)

DVD±RW (DVD Rewritable) Audio/Video format or MP3/WMA/JPEG/DivX® fi les.

DVD±R (DVD Recordable) Audio/Video format or MP3/WMA/JPEG/DivX® fi les.

CD-R (CD-Recordable) Audio/Video format or MP3/WMA/JPEG/DivX® files.

CD-RW (CD-Rewritable) Audio/Video format or MP3/WMA/JPEG/DivX® fi les.

Audio CD (Compact Disc Digital Audio)

Video CD (Formats 1.0, 1.1, 2.0)

Super Video CD

MP3-Disc

DivX® Disc

(DivX® 3.11, 4.x, 5.x and 6.0)

Supported formats

MP3/WMA tracks

• The file extensions has be to be '.mp3', '.wma'
• JPEG/ISO format
  – Maximum 30 characters display.
• Supported sampling frequencies and corresponding bit-rates; 32kHz 64 – 320 kbps 44.1kHz, 48kHz 80 – 320 kbps

JPEG pictures

• The file extensions has be to be '.JPG' and not '.JPEG.'
• JPEG/ISO format
• It can only display DCF-standard still pictures or JPEG pictures such as TIFF.

DivX® movies

• The file extensions has be to be '.AVI,' '.MPG,' or '.MPEG.'
• DivX® 3.11, 4.x, 5.x and 6.0
  – Q-pel accurate motion compensation
• Global Motion Compensation (GMC) playback.

Tips:

• Maximum 100 sessions for CD and 10 multi border for DVD are supported.
• For DVD-R and DVD-RW multi border, only fi nalized disc are supported.
• For DVD+R and DVD+RW multi border both fi nalized and unfi nalized disc are NOT supported.

TIPS: Some discs cannot be played on this DVD player due to the configuration and characteristics of the disc, or due to the condition of recording and authoring software that was used.

Playback Features

Starting disc playback

① Turn on the TV to the correct program number for the DVD player (e.g. 'EXT', '0', 'AV').
2 Press STANDBY-ON ⏻ to turn on the DVD player.
③ Press OPEN CLOSE ▲ on the front of the DVD player.
- You can also hold down the STOP button on the remote control to open and close the disc tray.
4 Place a disc into the disc tray with the label facing up, then press OPEN CLOSE ▲.

→ For double-sided discs, load the side which you want to play facing up.

5 Playback may start automatically. If not, press PLAY/PAUSE ▶II.
If a disc menu appears on the TV, see page 22 'Using the Disc Menu'.
- If the child lock was activated for the inserted disc, you have to enter your four-digit password (see page 36).
- For more playback features, see pages 21\~27.

Tips:

— Do not overturn the DVD player while disc loading, playing or ejecting.
— Do not close the disc tray manually even if the power switched off.

Basic playback controls

Unless otherwise stated, all operations described are based on Remote Control use.

Pausing playback

During playback, press PLAY/PAUSE ▶II to pause playback and display a still picture.
→ Sound will be muted.
② To resume normal playback, press PLAY/PAUSE ▶II again.

Selecting title/chapter/track

• Press PREV ◀ / NEXT ▶ to go to the previous or next title/chapter/track.
• Press DISPLAY to display the disc information text line for title/chapter/track (example - 00/08).
• Use alphanumeric keypad (0-9) to enter valid title/chapter/track number, then press OK.

→ The playback skips to the selected title/chapter/track.

Stopping playback

- Press STOP.

Tips:

• Screen saver will start automatically if the disc playback is stopped/paused for about 5 minutes.
• The player will automatically switch to Power Standby mode if you do not press any buttons for about 15 minutes after the disc has stopped playing.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Playback Features (continued)

Operations for video playback (DVD/VCD/SVCD)

Using the Disc Menu

Depending on the disc, a menu may appear on the TV screen once you load in the disc.

To select a playback feature or item

Use ▲ ▼ ◀▶ keys or numeric keypad (0-9) on the remote, then press OK to start playback.

To access or remove the menu

- Press DISC MENU on the remote.

Zooming in

This function allows you to enlarge the picture on the TV screen and to pan through the enlarged picture.

① During playback, press ZOOM repeatedly to display the picture with different scales.

→ Use ▲ ▼ ◀▶ keys to pan through the enlarged picture.
→ Playback will continue.

② Press ZOOM repeatedly to return to the original size.

Resuming playback from the last stopped point

Resume playback of the last 5 discs is possible, even if the disc was ejected (open) or standby. Auto resume is active for DVD, VCD, SVCD, CD types of discs.

- Load one of the last 5 discs.

→ 'Play from start, press [PREV]' appears during playback for first 10 seconds.

- During the message appears on the TV screen, press PREV to start playback from the beginning.

→ Playback restarts from the first title (DVD) or the beginning of the title/track (VCD/CDDA/SVCD).

To cancel resume mode

In stop mode, press STOP ■ again.

Tip:

- To remove the message from the TV screen, press DISPLAY.

Slow Motion

You can slow forward or slow reverse a disc during playback and select a different speed.

For Div DVD, VCD, SVCD

① Press ▲ ▼ during playback to select the required speed: 1/2, 1/4, 1/8 or 1/16 (forward or backward).
→ Sound will be muted.

② To return to normal speed, press PLAY/PAUSE ▶II.

Forward / Reverse Searching

You can fast forward or fast reverse a disc during playback and select a desired search speed.

For Div DVD, VCD, SVCD, CD

① Press ◀▶ directly or press ◀▶ for 2 seconds during playback to select the required speed: 2X, 4X, 8X, 16X or 32X (backward or forward).

→ Sound will be muted (DVD/VCD) or intermittent (CD).

② To return to normal speed, press PLAY/PAUSE ▶II.

Tip:

- For CD, fast forward or fast reverse is available only when pressing ◀ ▶ for few seconds or more.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Viewing the disc playback information

You can view the disc information (such as current title/chapter/track number, total playing time or remaining time on the disc) without interrupting the disc playback.

① During playback, press DISPLAY repeatedly on the remote control.

→ The available disc information appears on the TV screen with the following sequence.

Title/Chapter

Title /1 Chapter 6/161 (DVD)

Time

Time 00:03:36/01:22:34 (DVD)

Repeat/ Repeat A-B/ Angle

Off Rep Off 1/1 (DVD)

Track

Track 3/21 (VCD)

Time

Time 00:00:56/00:03:34 (VCD)

Repeat/ Repeat A-B

Off Rep Off (VCD)

Title/Chapter/Track selection

① Press ◀▶ to select {Title} / {Chapter} or {Track}, then press OK to access.
② Use the alphanumeric keypad 0-9 to input a valid number.
③ Press OK to confirm. → The playback skips to the chosen title/chapter/track.

Time Search

When {Time} information appears on the TV screen, press OK to access.
② Use the alphanumeric keypad 0-9 to input the valid time (such as 0:34:27).
③ Press OK to confirm. → The playback skips to the chosen time.

Angle

When {Angle} information appears on the TV screen, press ◀▶ to highlight {Angle}.
② Press OK repeatedly to switch between different angle.

→ Playback will go to the selected angle.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Playback Features (continued)

Repeat play mode

The repeat play options vary depending on the disc type.

① When 'Repeat' information appears on the TV screen, press ◀▶ to highlight {Off}, then press OK to access.
→ Repeat menu appears on the TV.

② Press OK repeatedly to select the following repeat modes.

For DVD

• Repeat Chapter (currently playing chapter)
  – Repeat Title (currently playing title)
• Off (cancel)

For Video CD, Audio CD

• Repeat Single (currently playing track)
• Repeat All (entire disc)
• Off (cancel)

For MP3

– Repeat Single (currently playing track)
- Repeat Folder (current folder)
- Off (cancel)

For JPEG, DivX

• Repeat Single (currently playing fi le)
• Repeat Folder (current folder)
• Off (cancel)

Tip:

- For VCD, repeat playback is not possible if the PBC mode is switched on.

Repeating a section within a chapter/track

You can repeat the playback of a specific segment within a title/chapter track. To do this, you must mark the start and end of the segment you want.

When 'Repeat' information appears on the TV screen, press ◀▶ to highlight {Rep Off}.

2 Press OK to choose your starting point 'A'.

③ Press OK again at your chosen end point 'B'.

→ The section from point 'A' to 'B' will now repeat continuously.

4 Press OK the third time to exit.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Playback Features (continued)

Special DVD Features

Playing a Title

1 Press DISC MENU.

→ The disc title menu appears on the TV screen.

② Use ▲▼◀▶ keys or alphanumeric keypad 0-9 to select a play option.

③ Press OK key to confirm.

Changing the Audio Language

For DVD

- Press AUDIO repeatedly to select different audio languages.

Changing the Audio Channel For VCD

- Press AUDIO to select the available audio channels provided by the disc (LEFT, RIGHT, MIX, STEREO).

Subtitles

- Press SUBTITLE repeatedly to select different subtitle languages.

Special VCD and SVCD Feature

Playback Control (PBC)

For VCD with Playback Control (PBC) feature (version 2.0 only)

- Press DISC MENU to toggle between 'PBC ON' and 'PBC OFF'.

→ If you select 'PBC ON', the disc menu (if available) will appear on the TV.

→ Use the PREV ◀ / NEXT ▶ or the alphanumeric keypad 0-9 to select a play option.

During playback,

→ pressing PREV ◀ after the first 5 seconds, playback will start from the beginning of the current track,

→ pressing PREV ◀ within the first 5 seconds, playback will go to the previous track.

- During playback, pressing RETURN/TITLE will return to the menu screen (if PBC is on).

If you want to skip the index menu and playback directly from the beginning,

- Press DISC MENU key on the remote control to turn to PBC off.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Playback Features (continued)

English

Playing a DivX® disc

This DVD player supports the DivX® movie playback that you download from your computer onto a CD-R/RW or DVD±R/RW (see page 38 for more information).

1 Load a DivX ^® disc.

→ The data disc menu appears on the TV screen.

② Press ▲▼ to select the folder and press OK to open the folder.

③ Press ▲ ▼ to select a track/file.

4 Press OK to confirm.

5 Press SUBTITLE on the remote control will turn on or off the subtitle.

If multilingual subtitles are embedded on the DivX® disc, pressing SUBTITLE will change the subtitle language during playback.

Tips:

- Subtitle fi les with the following fi lename extensions (.srt, .smi, .sub, .ssa, .txt) are supported but do not appear on the fi le navigation menu.

- The subtitle fi lename (.sub) have to be saved under the same fi lename as the movie (.avi) in the same folder. [For example, Folder A: abc.avi and abc.sub]

Playing MP3/WMA/JPEG/Kodak/Fuji Picture CD

IMPORTANT!

You have to turn on your TV and set to the correct Video In channel. (See page 16 'Finding your viewing channel').

General Operation

1 Load a disc.

→ The disc reading time may exceed 30 seconds due to the complexity of the directory/fi le configuration.
→ The data disc menu and ID3 (MP3) / Meta data (WMA) information (including at least title, singer and album) appears on the TV screen.

02/03 02/03-48 NFP 907....MP3 Go Up 87.... 98.... 2002.... TAKE ME TO YOUR ... ... ... ... Filter Repeat : Off Music Playing Title: .... Singer: .... Album Year: Comment:

② Press ▲ ▼ to select the folder and press OK to open the folder.
③ Press ▲ ▼ to select a track/file.
4 Press OK to confirm.

Tips:

• If the playing file is not selected, the ID3/ Meta information will disappear.
• If a jpeg file is selected, a preview will appear.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Playback Features (continued)

Playback selection

During playback, you can;

• Press PREV ◀ / NEXT ▶ to select the previous/next track/fi le in the current folder.
• Press ▲ ▼ ◀▶ on the remote to rotate/fl ip the picture fi les.
• Press PLAY/PAUSE ▶II repeatedly to pause/resume playback.

For MP3/WMA,

During playback,

→ pressing PREV ◀ after the first 5 seconds, playback will start from the beginning of the current track,
→ pressing PREV ◀ within the first 5 seconds, playback will go to the previous track.

During playback, press and hold PREV ◄ / NEXT ▶ for about few seconds to access fast forward or fast reverse with the required speed: 2X, 4X, 8X, 16X or 32X.

Tip:

- For MP3/WMA, fast forward or fast reverse is available only when pressing

▶ for few seconds or more.

Zoom picture (JPEG)

• During playback, press ZOOM repeatedly to display the picture with different scales.
• Use ▲ ▼ ◀▶ to view the zoomed picture.

Playback with multi-angles (JPEG)

During playback, press ▲▼◀▶ to rotate the picture on the TV screen.

▲ ▼: fl ip the picture vertically by 180°
◀: rotate the picture anti-clockwise by 90°
▶: rotate the picture clockwise by 90°

Tip:

- It may not be possible to play certain MP3/JPEG disc due to the configuration and characteristics of the disc or condition of the recording.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Karaoke Operations

Playing Karaoke discs

IMPORTANT!

You have to turn on your TV and set to the correct Video In channel. (See page 16 'Finding your viewing channel').

General Operation

Connect a microphone (not supplied) to MIC on the front panel of the DVD player.
2 Press KARAOKE repeatedly to access Karaoke menu.

→ 'Karaoke : Off' appears on the TV screen.
→ Press OK to turn 'On' or 'Off' the karaoke mode.

③ Load a karaoke disc and press PLAY/PAUSE ▶II.

4 Adjust the microphone volume using MIC LEVEL button on the side of the panel of the DVD player.

Tip:

— Before connecting the microphone, set the microphone volume to the minimum level to prevent howling.

Vocal

• You can fade out the original vocal from a karaoke disc.
• Press VOCAL repeatedly to choose different audio modes.

Tip:

- This function and on-screen display depends on the availability of the disc.

Karaoke

• Press KARAOKE repeatedly to access the karaoke menu.
• Press ▲ ▼ to select 'Karaoke', 'Key Shift', 'Echo' and 'Voice Cancel'.
  When 'Karaoke' is selected, press OK to set karaoke 'On' or 'Off'.
  ② When 'Key Shift' is selected, press ◀▶ to adjust the pitch value between 0 and 14. This function allows you to adjust the key tone level to match your vocal.
  ③ When 'Echo' is selected, press ◀▶ to adjust the echo level.
  4 When 'Voice Cancel' is selected, press OK to set voice cancel 'On' or 'Off'. When 'Off' is selected, press ▲▼ to enable karaoke scoring.
  ⑤ You can also press OK to select the scoring ranks.

→ The selection sequence are ‘Karaoke Scoring’ – ‘Off’ – ‘Basic’ – ‘Intermediate’ – ‘Advance’

Tips:

- The Karaoke score function is only available in DVD and VCD discs.

- Karaoke score will only appear on the TV screen when user scores 30 points and above at the end of each song.

DVD Menu Options

This DVD Player setup is carried out via the TV, enabling you to customize the DVD player to suit your particular requirement.

Using the Language setup menu

① Press SETUP on the remote control.

→ The system setup menu appears.

Language Video Audio Rating Misc OSD Language English Subtitle Auto DivX Subtitle Standard Audio English DVD Menu English

② Press ▲ ▼ to select { Language }, then press ▶.
③ Press ▲ ▼ to select an item, then press ▶ to access.

Example: { OSD Language }

→ The options for the selected item appears.
→ If the selection in the menu is greyed out, that means the feature is not available or not possible to change at the current state.

4 Use ▲▼ to select a setting and press OK to confirm.

Example: { English }

→ The setting is selected and setup is complete.

⑤ To exit, press SETUP.

OSD Language

This menu contains various language options for the language displayed on the screen. For details, see page 19.

Subtitle/Audio/DVD Menu

These menus contains various language options for audio, subtitle and disc menu which may be recorded on the DVD. For details, see page 19.

Setting the DivX ^® subtitle font

You can set the font type that supports the recorded DivX ^® subtitle.

In 'Language', press ▲▼ to select {DivX® Subtitle}, then press ▶.

{Standard}

Albanian, Danish, Dutch, English, Finnish, French, Gaelic, German, Italian, Kurdish (Latin), Norwegian, Portuguese, Spanish, Swedish and Turkish.

② Press OK to confirm.

TIPS: The underlined option is the factory default setting.

Press ◀ to go back to previous menu item. Press SETUP to exit the menu item.

DVD Menu Options (continued)

English

Using the Video setup menu

① Press SETUP on the remote control.

→ The system setup menu appears.

Language Aspect Ratio : 4:3 View Mode Auto Fit TV System NTSC Video Out Component Smart Picture Personal Audio Rating Misc

② Press ▲ ▼ to select { Video }, then press ▶.
③ Press ▲ ▼ to select an item, then press ▶ to access.

Example: { TV System }

→ The options for the selected item appears.
→ If the selection in the menu is greyed out, that means the feature is not available or not possible to change at the current state.

4 Use ▲▼ to select a setting and press OK to confirm.

Example: { Multi }

→ The setting is selected and setup is complete.

⑤ To exit, press SETUP.

Setting the Aspect Ratio

The picture shape can be adjusted to fit your TV and the format must be available on the playback disc. Otherwise, the TV display will not affect the picture during playback.

In 'Video', press ▲▼ to select { Aspect Ratio }, then press ▶.

{4:3}

Select this if you have a normal TV. A 'wide-screen' display with black bars on the top and bottom will be displayed on the TV scr

{16:9}

Select this for wide-screen TV (frame ratio 16:9).

② Use ▲ ▼ to select a setting and press OK to confirm.

TIPS: The underlined option is the factory default setting.

Press ◀ to go back to previous menu item. Press SETUP to exit the menu item.

DVD Menu Options (continued)

View Mode

Use view mode to scale an image that fits to the TV screens' width and height.

① In 'Video', press ▲ ▼ to select { View Mode }, then press ▶.

{Fill}

Select this to scale the image up or down in horizontal and vertical directions respectively to fill the screen height and width.

{Original}

Select this to fit the original screen size (only for DivX®/MPEG).

{ Height Fit }

Select this to scale the image up or down in vertical direction to fit the screen height.

{Width Fit}

Select this to scale the image up or down in horizontal direction to fit the screen width.

{Auto Fit}

Select this to take the minimum value of horizontal and vertical fi t scale ratio (like letter box).

{Pan Scan}

Select this to take the maximum value of horizontal and vertical fi t scale ratio.

② Use ▲ ▼ to select a setting and press OK to confirm.

TV System

This menu contains the options for selecting the color system that matches the connected TV. For details, see page 18.

Video Out

This setting allows you to toggle the output of the video signal between YPbPr and P-Scan (Progressive Scan).

In 'Video', press ▲ ▼ to select { Video Out }, then press ▶.

{ Interlace }

Select this for Interlace (YPbPr) connection.

{ P-Scan }

Select this when you want to make progressive scan (YPbPr) connection on your DVD player to a progressive scan TV.

② Use ▲ ▼ to select a setting and press OK to confirm.

TIPS: The underlined option is the factory default setting.

Press ◀ to go back to previous menu item. Press SETUP to exit the menu item.

DVD Menu Options (continued)

Smart Picture

This DVD player provides four predefined sets of picture color settings.

① In 'Video', press ▲▼ to select { Smart Picture }, then press ▶.

{Standard}

Select this for a preset standard picture setting.

{ Vivid }

Select this to make the picture brighter.

{Cool}

Select this to make the picture softer.

{ Personal }

Select this to personalize your picture color by adjusting the brightness, contrast, tint and color (saturation).

② Use ▲ ▼ to select a setting and press OK to confirm.

③ If you select {PERSONAL}, then proceed to steps ④\~⑦.

→ The setup menu appears.

Brightness Contrast Tint Color

4 Press ▲ ▼ to highlight one of the following options.

BRIGHTNESS

Increase the value to brighten the picture or vice versa. Choose zero (0) for average setting.

CONTRAST

Increase the value to sharpen the picture or vice versa. Choose zero (0) to balance the contrast.

TINT

Increase the value to darken the picture or vice versa. Choose zero (0) for average setting.

COLOR

Increase the value to enhance the color in your picture or vice versa. Choose zero (0) to balance the color.

5 Press ◀▶ to adjust the setting that best suits your personal preference.

6 Repeat steps 4\~5 for adjusting other color features.

⑦ Press OK to confirm.

TIPS: The underlined option is the factory default setting. Press ◀ to go back to previous menu item. Press SETUP to exit the menu item.

DVD Menu Options (continued)

Using the Audio setup menu

① Press SETUP on the remote control. → The system setup menu appears.

Language Video Audio Rating Misc Digital Output : All Night Mode : Off Down Sampling On

② Press ▲ ▼ to select { Audio }, then press ▶.
③ Press ▲ ▼ to select an item, then press ▶ to access.

Example: { Night Mode }

→ The options for the selected item appears.
→ If the selection in the menu is greyed out, that means the feature is not available or not possible to change at the current state.

4 Use ▲ ▼ to select a setting and press OK to confirm.

Example: { On }

→ The setting is selected and setup is complete.

⑤ To exit, press SETUP.

Digital Output

Select this if you connect to a multichannel decoder/receiver.

In 'Audio', press ▲▼ to select { Digital Output }, then press ▶.

{__All}

Select this if the connected device has a built-in multichannel decoder that supports one of the multichannel audio format (Dolby Digital, MPEG-2).

{ PCM }

Select this if the connected device is not capable of decoding multichannel audio. The DVD player will convert the Dolby Digital and MPEG-2 multichannel signals to PCM (Pulse Code Modulation).

{ Off }

To deactivate the digital audio output. For example, if you use the AUDIO OUT sockets to connect to a TV or stereo system.

② Use ▲ ▼ to select a setting and press OK to confirm.

Tips:

- If { Digital Output } is set to { All }, all audio settings except MUTE are invalid. - If { Digital Output } is set to { All } while playback MPEG, MP3/WMA fi les, the player will output PCM signals.

TIPS: The underlined option is the factory default setting.

Press ◀ to go back to previous menu item. Press SETUP to exit the menu item.

DVD Menu Options (continued)

Night Mode

This mode optimizes playback of sound at low volume. High volume outputs will be softened and low volume outputs are brought upward to an audible level.

① In 'Audio', press ▲ ▼ to select { Night Mode }, then press ▶.

{On}

Select this to set low volume output. This feature is only available for movie discs with Dolby Digital mode.

{Off}

Turns off night mode feature. Select this to enjoy the surround sound with its full dynamic range.

② Use ▲ ▼ to select a setting and press OK to confirm.

Down Sampling

You can enable and disable the digital signal for better sound output quality.

① In 'Audio', press ▲ ▼ to select { Down Sampling }, then press ▶.

{ Off }

Playback a disc recorded at the sampling rate of 48kHz.

{On}

Playback a disc recorded at the sampling rate of 96kHz. This rate can only be achieved in Stereo-Classic (Flat) mode.

② Use ▲ ▼ to select a setting and press OK to confirm.

TIPS: The underlined option is the factory default setting.

Press ◀ to go back to previous menu item. Press SETUP to exit the menu item.

Using the Rating setup menu

① Press SETUP on the remote control. → The system setup menu appears.

Language Video Audio Rating Misc Parental control : 8. Adult Set Password

② Press ▲ ▼ to select { Rating }, then press ▶.
③ Press ▲ ▼ to select an item, then press ▶ to access.

Example: { Parental Control }

→ The options for the selected item appears.
→ If the selection in the menu is greyed out, that means the feature is not available or not possible to change at the current state.

4 Use ▲ ▼ to select a setting and press OK to confirm.

Example: { 8 Adult }

→ The setting is selected and setup is complete.

⑤ To exit, press SETUP.

Rating level settings

Depending on the DVD, you may be asked to change the parental level while playing the disc. The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children, or have certain discs played with alternative scenes.

In 'Rating', press ▲ ▼ to select { Parental Control }, then press ▶.
② Use the alphanumeric keypad 0-9 to enter the four-digit password (see page 36 'Changing the Password', then press ▶.

{ I.Kid Safe }

Childsafe; acceptable for viewers of all ages.

{2.G}

General Audience; recommended as acceptable for viewers of all ages.

{3.PG}

Parental Guidance suggested.

{4. PG - 13}

Unsuitable for children under age 13.

{5. PG - R}

Parental Guidance; recommended that parents restrict children under 17 from viewing.

{6.R}

Restricted; recommended only when supervised by a parent or adult guardian.

{ 7.NC-17}

No Children under age 17; not recommended viewing for children under age 17.

{8. Adult}

Mature Material; should be viewed only by adults due to graphic sexual material, violence or language.

TIPS: The underlined option is the factory default setting.

Press ◀ to go back to previous menu item. Press SETUP to exit the menu item.

DVD Menu Options (continued)

③ Use ▲ ▼ to select a rating level and press OK to confirm.

→ Select { 8 Adult } to disable parental level and allow all discs to play.

- DVDs that are rated higher than the level you selected will not play unless you enter your four-digit password. (see page 36 'Changing the Password')

Tips:

- This feature will not limit viewing if the disc manufacturer did not code the disc.

- VCD, SVCD, CD have no level indication, so parental control has no effect on these type of discs. This also applies to most illegal DVDs.

- Some DVDs are not coded with a rating though the movie rating may be printed on the disc cover. The rating level feature does not prohibit play of such discs.

Changing the Password

You need to enter your four-digit password to play a prohibited disc or if prompted for a password.

① In 'Rating', press ▲ ▼ to select { Set Password }, then press OK.

→ You will be prompted to enter your four-digit password.

Enter Password

② Use the alphanumeric keypad 0-9 to enter the four-digit password.

→ When doing this for the first time, enter the default password '0000'.

- If you forget your old four-digit password, enter the default password '0000'.

③ Press OK again to enter the new four-digit password.

→ The new four-digit password will now take effect.

Enter New Password

4 Press OK to confirm.

TIPS: The underlined option is the factory default setting.

Press ◀ to go back to previous menu item. Press SETUP to exit the menu item.

DVD Menu Options (continued)

Using the Misc (Miscellaneous) setup menu

① Press SETUP on the remote control. → The system setup menu appears.

Language Use Default Settings Video DivX Registration Volume 60 Audio Rating Misc

② Press ▲ ▼ to select { Misc }, then press ▶.
③ Press ▲ ▼ to select an item, then press OK to access. Example: { Use Default Settings }

→ The options for the selected item appears.
→ If the selection in the menu is greyed out, that means the feature is not available or not possible to change at the current state.

4 Use ▲ ▼ to select a setting and press OK to confirm.

Example: { No }

→ The setting is selected and setup is complete.

⑤ To exit, press SETUP.

Restoring to original settings

Setting the { Default } function will reset all options and your personal settings to the factory defaults, except your password for rating level.

In 'Misc', press ▲ ▼ to select { Use Default Settings }, then press OK. → The menu will appear.

{Yes}

Select this to reset to factory default settings.

{No}

Select this to close the menu.

② Use ◀▶ to select a setting and press OK to confirm.

TIPS: The underlined option is the factory default setting. Press ◀ to go back to previous menu item. Press SETUP to exit the menu item.

DVD Menu Options (continued)

Volume Control

① In 'Misc', press ▲ ▼ to select { Volume 63 }.

② Use this selection to adjust the speaker's volume that best suits your personal preference.

→ The range from {0 - 63}

DivX® registration code

DivX® registration code allows you to rent and purchase movies using the DivX® service from the internet. For more information, visit website; http://vod.divx.com

In 'Misc', press ▲▼ to select {DivX® Registration}, then press OK.

→ The registration code will appear.

② Use the registration code to rent or purchase the movies from DivX® Registration service at http://vod.divx.com.

→ Follow the instructions and download the movie from your computer onto a CD-R/RW for playback on this DVD player.

Tip:

- All the downloaded movies from DivX® Registration can only be played back on this DVD player.

TIPS: The underlined option is the factory default setting.

Press ◀ to go back to previous menu item. Press SETUP to exit the menu item.

Software upgrade

Periodically Philips will issue software upgrade to enhance your user experience.

IMPORTANT!

- Power supply must not be interrupted during upgrade!

To check the current software version of this DVD player;

① Press OPEN/CLOSE ▲ on the DVD player to open the disc tray.

→ The disc tray will open.

② Press numeric keypad '966' on the remote control.

→ The software installed in the DVD player appears on the TV screen.

To download and install the latest software to the DVD player;

① Visit the Philips website 'www.philips.com/support' to check the availability of the latest software upgrade.

② Download the software to a CD-R.

③ Insert the CD-R to the disc slot. → The latest software will be downloaded in the DVD player.

Troubleshooting

WARNING

Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs, fi rst check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.

Problem	Solution
No power.	- Press STANDBY-ON button on the front of the DVD player to turn on the system.- Make sure the AC outlet has power.
Remote control does not work.	- Aim the remote control directly at the sensor on the front of the DVD player (not towards TV).- Remove any obstacles between DVD player and the remote control.- Batteries are weak, replace the batteries.- Check the polarities of the batteries are as indicated on the remote control ( ± signs).
No picture.	- Turn on your TV and set to the correct Video In channel for the DVD player. You may go to Channel I on your TV, then press the channel down button on your TV's remote control until you see the TV program.- Check the video connection between the DVD player and the TV.
The picture is distorted or black & white during playback.	- The disc does not match with the TV color system standard (PAL/NTSC).- The disc is dirty, clean the disc.- Sometimes a small amount of picture distortion may appear. This is not a malfunction.- To deactivate progressive scan function manually;1) Turn off your TV progressive scan mode (or set to interlace mode)2) Press OPEN/CLOSE to open the DVD player disc tray.3) Press the alphanumeric keypad ‘I’ for few seconds.
No sound.	- Check the audio connections, the red and white jacks are connected correctly.- Set the Digital output correctly, based on the equipment you connected to the DVD player.
Disc does not play.	- Insert the disc with the label facing up.- Wrong region code.- Wrong disc type. Read chapter “Playback - Playable discs” for details.- Make sure the disc is not scratched or warped. Clean the disc or replace a new one.- Check if the disc is defective by trying another disc.
The aspect ratio of the screen cannot be changed.	- The aspect ratio is fixed on the DVD disc.- Depending on the TV, it may not be possible to change the aspect ratio.
Not able to select some items in the setup/system menu.	- Press STOP button twice before selecting the setup/system menu.- Depending on the disc availability, some menu items cannot be selected.
The DVD player does not start playback.	- Insert a readable disc with the playback side facing down.- Check the disc type, color system (PAL/NTSC) and region code.- Check for any scratches or smudges on the disc.- Press SETUP to turn off the setup menu screen.- You may need to enter the password in order to change the parental rating level or to unlock the disc for playback.- Moisture may have condensed inside the system. Remove the disc and leave the system turned on for about an hour.- Disconnect the power cord from the power outlet for a few minutes. Reconnect the power cord and try to operate again as usual.
Picture freezes momentarily during playback.	- Check the disc for fi ingerprint/scratches and clean with a soft cloth wiping from center to edge.
Unable to select Progressive Scan on/off.	- Check that the output of the video signal is turn to { YPbPr }.
Unable to play DivX ^ movies.	- Check that the DivX ^ fi le is encoded in ‘Home Theatre’ mode with DivX ^ 5.x encoder.- Check that the DivX ^ movie downloaded is a complete fi le.
No sound during DivX ^ movies playback.	- The audio codec may not be supported by this DVD player.
An DivX ^ movies does not repeat.	- Check that fi le size of the movie does not exceed the fi le of the disc during downloading.
Certain DivX ^ files does not play or are skipped.	- Make sure the fi le name extension is correct. You can check this using a computer with CD-ROM.- The player is designed to playback DVD, VCD, CD audio, MP3 and DivX ^ discs only. Other digital audio formats such as liquid audio, RM (RealMedia), WAV or non-audio fi les like ‘.doc’, ‘.txt’, ‘.pdf’ are not supported.- Try to play the problem DivX ^ files, on a computer. If they do not work, the source file appears to be corrupt.- Try to download the file again from a different source, or if you have created the file yourself, create the file again and make sure the settings are correct.

English

Specifications

TV STANDARD (PAL/50Hz) (NTSC/60Hz)

Number of lines 625 525

Playback Multistandard (PAL/NTSC)

VIDEO PERFORMANCE

Video DAC 12 bit, 108 MHz

YPbPr 0.7 Vpp \~ 75 ohm

Video Output IVpp \~ 75 ohm

VIDEO FORMAT

Digital MPEG 2 for DVD, SVCD

Compression MPEG I for VCD

DivX

DVD

50Hz

60Hz

Horiz. resolution 720 pixels 720 pixels

Vertical resolution 576 lines 480 lines

VCD

50Hz

60Hz

Horiz. resolution 352 pixels 352 pixels

Vertical resolution 288 lines 240 lines

AUDIO FORMAT

Digital MPEG/ AC-3/ compressed

PCM Digital

16, 20, 24 bits

fs, 44.1, 48, 96 kHz

MP3(ISO 9660) 96,112,128,256

kbps & variable

bit rate fs, 32, 44.1,

Analog Sound Stereo

Dolby Surround compatible downmix from Dolby

Digital multi-channel sound

AUDIO PERFORMANCE

DA Converter 24 bit, 192 kHz

DVD fs 96 kHz 4Hz- 44kHz

fs 48 kHz 4Hz-22kHz

SVCD fs 48 kHz 4Hz-22kHz

fs 44.1kHz 4Hz-20kHz

CD/VCD fs 44.1kHz 4Hz-20kHz

Signal-Noise (1kHz) > 90 dB

Dynamic range(1kHz) > 80 dB

Crosstalk (1kHz) > 70 dB

Distortion/noise (1kHz) > 65 dB

MPEG MP3 MPEG Audio L3

CONNECTIONS

YPbPr Output Cinch 3x

Video Output Cinch (yellow)

Audio Output(L+R) Cinch (white/red)

Digital Output I coaxial

IEC60958 for CDDA / LPCM

IEC61937 for MPEG 1/2,

Dolby Digital

CABINET

Dimensions (w x h x d) 360 x 38 x 209 mm

Weight Approximately 2 kg

POWER CONSUMPTION

Power Supply Rating 110V - 240V;

50/60Hz

48 kHz Power consumption < 10 W

Power consumption in < I W

Standby mode

Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right.

Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. is 4:3, and that of wide-screens is 16:9.

AUDIO OUT Jacks: Jacks on the back of the DVD System that send audio to another system (TV, Stereo, etc.).

Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per seconds, or kbps. Or, the speed at which you record. Generally, the higher the bit rate, or the higher the recording speed, the better the sound quality. However, higher bit rates use more space on a Disc.

Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

Component Video Out Jacks: Jacks on the back of the DVD System that send high-quality video to a TV that has Component Video In jacks (R/G/B, Y/Pb/Pr, etc.).

Disc menu: A screen display prepared for allowing selection of images, sounds, subtitles, multi-angles, etc recorded on a DVD.

Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL or OPTICAL jacks. These jacks send audio through multiple channels, instead of just two channels as analog does.

DivX ^® 3.11/4.x/5.x/6.0: The DivX ^® codec is a patent-pending, MPEG-4 based video compression technology, developed by DivX ^® Networks, Inc., that can shrink digital video to sizes small enough to be transported over the internet, while maintaining high visual quality.

Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right, center and subwoofer).

DTS: Digital Theatre Systems. This is a surround sound system, but it is different from Dolby Digital. The formats were developed by different companies.

JPEG: A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio.

MP3: A file format with a sound data compression system. 'MP3' is the abbreviation of Motion Picture Experts Group I (or MPEG-1) Audio Layer 3. By using MP3 format, one CD-R or CD-RW can contain about 10 times as much data volume as a regular CD can.

Multichannel: DVD is specified to have each sound track constitute one sound fi eld. Multichannel refers to a structure of sound tracks having three or more channels.

Parental Control: A function of the DVD to limit playback of the disc by the age of the users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software's level is higher than the user-set level.

PCM (Pulse Code Modulation): A system for converting analog sound signal to digital signal for later processing, with no data compression used in conversion.

Playback control (PBC): Refers to the signal recorded on video CDs or SVCDs for controlling reproduction. By using menu screens recorded on a Video CD or SVCD that supports PBC, you can enjoy interactive-type software as well as software having a search function.

Progressive Scan: It displays all the horizontal lines of a picture at one time, as a signal frame. This system can convert the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution.

Region code: A system for allowing discs to be played back only in the region designated beforehand. This unit will only play discs that have compatible region codes. You can find the region code of your unit by looking on the product label. Some discs are compatible with more than one region (or ALL regions).

Title: The longest section of a picture or music feature on DVD, music, etc., in video software, or the entire album in audio software. Each title is assigned a title number enabling you to locate the title you want.

VIDEO OUT jack: Jack on the back of the DVD System that sends video to a TV.

WMA: Windows Media Audio. Refers to an audio compression technology developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 9 or Windows Media Player for Windows XP. Files are recognized by their file extension "WMA."
