Brand	Pearl Sports
Model	Decade Maple Studio
Category	Drum set (acoustic)
Shell Material	Maple
Bass Drum Size	Standard 22" (typical for studio)
Tom Sizes	10", 12" mounted toms; 16" floor tom (typical)
Snare Drum Size	14" (typical)
Hoop Type	Bass drum hoops with hoop protector; steel hoops on toms
Hardware	Tom holders with StopLocks; floor tom legs with wing bolts; cymbal/boom stands with reversible nut
Spurs	Bass drum spurs with spike tips and rubber feet
Number of Tension Rods per Drum	6 or 8 depending on drum
Tuning Method	Crisscross pattern; tap head near rim for pitch
Muffling	Use blanket inside bass drum or port front head
Safety Features	Sharp spike tips; use on thick carpet only
Maintenance	Keep all bolts tight; clean with a dry cloth
Spare Parts Available	Heads, tension rods, hoops, lugs, stands
Power Source	None (acoustic)
Included Accessories	Tuning key

Frequently Asked Questions - Decade Maple Studio Pearl Sports

How do I assemble the bass drum?

Place the shell on a clean surface. Attach the front head with the Pearl logo, then the hoop without hoop protector. Insert tension rods through hooks and finger-tighten into lugs. Use a tuning key to tighten. Repeat for the batter side with the hoop protector on the opposite side of the tom holder bracket. Adjust spurs so the front of the drum is about an inch off the floor.

How do I assemble the floor tom?

Place the shell with batter side up. Put the thicker head (for Decade Maple) on, then the steel hoop. Align hoop ears over lugs and insert tension rods. Finger-tighten then use tuning key. Flip and attach the bottom head. Attach floor tom legs to brackets and adjust height and angle, then tighten wing bolts.

How do I set up the tom toms?

Insert the long ends of tom holders into the tom holder bracket on the bass drum and tighten wing nuts. Loosen key bolts or wing nuts on the tom holder to adjust angle. Attach tom toms to the other end and tighten wing nuts on the mounts. Use StopLocks to prevent slipping and to remember position settings.

How do I assemble a cymbal or boom stand?

Open the legs to form a tripod and tighten wing bolt. Insert center tube into die-cast joint and tighten wing nut/wing bolt. Insert upper tube and tighten. For boom stands, loosen wing nut on boom gear to adjust angle and length of boom arm. Attach cymbal using reversible nut assembly: place lower felt washer, cymbal, upper felt washer, then reversible nut.

What is the reversible nut for cymbals?

The reversible nut can be set right-side up to allow cymbal freedom of motion, or upside-down to restrict motion for a tighter sound. Crash the cymbal with a glancing blow to minimize breakage, especially when tight.

How do I set up the snare drum?

Open stand legs and tighten wing bolt. Loosen wing nut on tilter to adjust basket angle. Insert basket into die-cast joint and tighten. Open basket, adjust butterfly nut to fit snare drum. Place drum with strainer on left side (for right-handed players) and tighten butterfly nut (do not overtighten).

How do I tune the drums?

Gradually tighten tension rods in a crisscross pattern. Tap the head about 20-30mm from the rim at each rod and listen to the pitch. Adjust to achieve uniform pitch. You can tune top and bottom heads to same pitch, or tighter/looser bottom for different sounds.

How can I reduce excessive ring?

Use after-market drum heads or muffling devices. A simple method for bass drum is to place a blanket inside. You can also port the front bass drum head for a more controlled sound.

What safety precautions should I take?

The bass drum spurs have sharp spike tips. Only use them on thick carpeted surfaces to prevent floor damage and injury. Ensure all wing bolts, nuts, and screws are tight before playing.

Where can I find pedal and hi-hat stand instructions?

Refer to the individual manuals included with the pedal and hi-hat stand. These are not covered in this drum set manual.

USER MANUAL Decade Maple Studio Pearl Sports

Congratulations on your purchase! To get optimum performance from your Pearl drum set, please read this Instruction Manual first before playing.

Bass Drum Assembly

The Bass Drum is packed with the Shell, Bass Drum Hoops, Heads and Parts unassembled. Please follow the instructions below to assemble the Bass Drum.

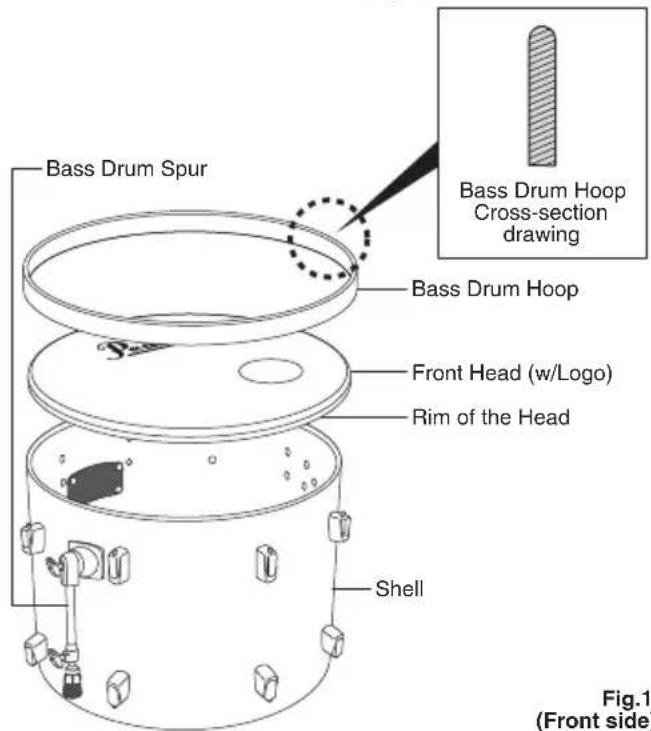

1. Place the Shell on a clean, solid surface with the front side (the side with the Bass Drum Spurs attached) facing upwards. Put the Front Head with Pearl Logo on the Shell then attach the Bass Drum Hoop with flat side down on the Rim of the Head (Fig.1).

Note The Bass Drum Hoop without the Hoop Protector (Fig.4) is used on the front side.

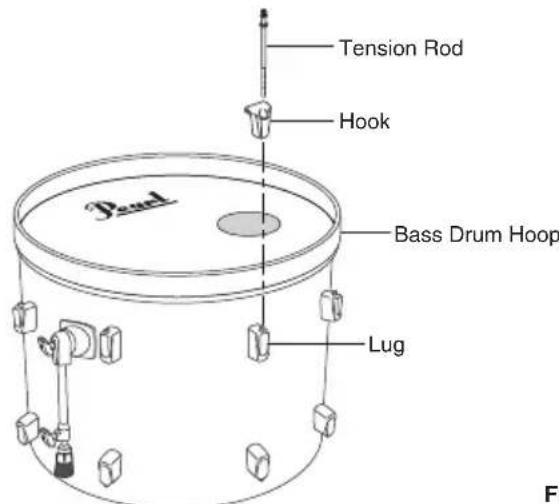

1. Pass a Tension Rod through a Hook, and hook it on the Bass Drum Hoop above a Lug. Finger tighten the Tension Rod into the Lug and do the same with the rest of the Tension Rods/Hooks on this side of the drum (Fig.2). Using a Tuning Key, tighten the Tension Rod until secure (Refer to the "Basic Tuning" section at the end of this manual).

Fig.2

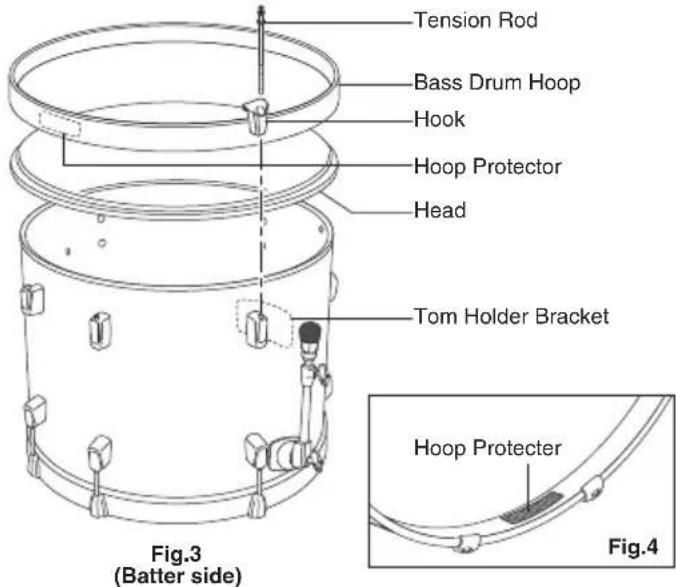

1. Turn the Shell over to the batter side and place the other Head and Bass Drum Hoop on the Shell. The batter side Bass Drum Hoop has a Hoop Protector (Fig.4) where the Pedal is to be attached. Position the Bass Drum Hoop so that the Hoop Protector is on the opposite side of the Tom Holder Bracket. Attach the Tension Rods/Hooks in the same way as the front side (Fig.3).

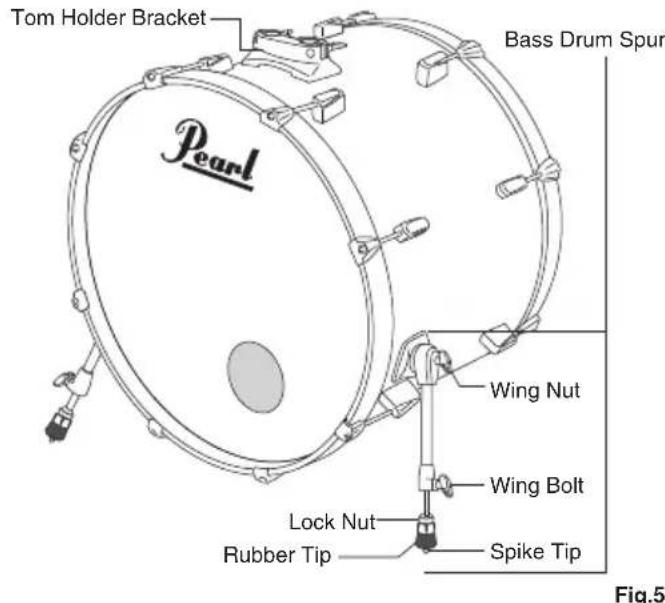

1. Position the Bass Drum with the Tom Holder Bracket facing upwards. Loosen the Wing Nut on the Bass Drum Spur and rotate it to the position shown. Tighten the Wing Nut to secure. Loosen the Wing Bolt and extend the Spurs so that the front of the Bass Drum is about an inch off the floor. Make sure that the Spurs on both sides are equal in length, and tighten the Wing Bolts. The Bass Drum Spurs have Spike Tips (for added slip resistance) that can be exposed by turning the Lock Nut and Rubber Tip clockwise (Fig.5).

CAUTION

The Spike Tips are sharp. Be careful not to hurt yourself or others when using them. Use the Spike Tips only on thick carpeted surfaces to prevent damage to the flooring underneath

Floor Tom Assembly

The Floor Tom is packed with the Shell, Steel Hoops, Heads and Floor Tom Legs unassembled. Please follow the assembly instructions below to assemble the Floor Tom.

* The EXPORT Floor Toms are packed with the Heads and Hoops assembled. Please proceed to step 4.

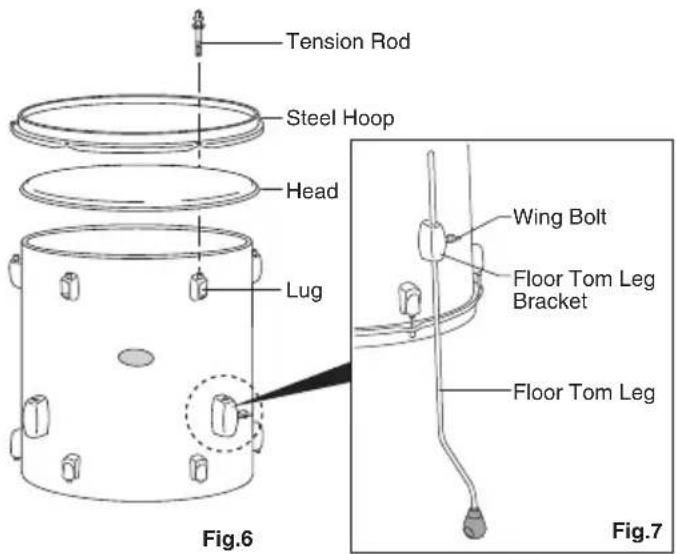

1. Place the Shell on a clean, solid surface with the batter side facing upwards as shown in Fig.6. Put the Head on the Shell followed by the Steel Hoop.

Note For Decade Maple, use the Thicker Head for the batter side.

1. Line up the ears of the Steel Hoop over the Lugs and insert the Tension Rods through the ears. Finger tighten them into all the Lugs on this side of the drum. Using a Tuning Key, tighten the Tension Rods until secure (Refer to the "Basic Tuning" section at the end of this manual) (Fig. 6).
2. Turn the drum over and attach the other Head and Steel Hoop with the remaining Tension Rods.
3. Attach the Floor Tom Legs to the Floor Tom Leg Brackets and set the height and angle to your preference. Tighten the Wing Bolt to secure position (Fig.6, 7).

Tom Tom Setting

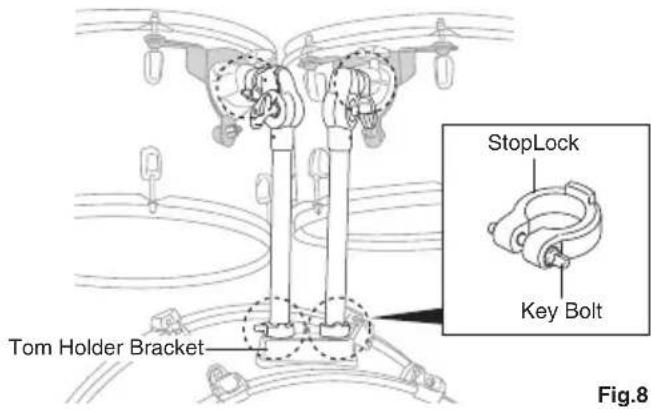

Insert the long ends of the Tom Holders into the Tom Holder Bracket on the Bass Drum as shown (Fig.8) and tighten the Wing Nuts on the Tom Holder Bracket. Next, loosen the Key Bolts on the TH-900l Tom Holders using a Tuning Key or loosen the Wing Nuts on the TH-70l Tom Holders. Adjust the angle of the Tom Holders so you can attach the Tom Toms easily then retighten the Key Bolts/Wing Nuts (Fig.9). Attach the Tom Toms to the other end of the Tom Holders and tighten the Wing Nuts on the mounts on the Tom Toms.

Fig.9

Note The Tom Holders are equipped with StopLocks that keep the drums from slipping or rotating and to memorize position settings for quick and repeatable set-ups. When the position of the Tom Toms are set, place each StopLock into the slots in the Tom Holder Bracket and the mounts on the Tom Toms to retain these settings (refer to the Set-Up Example illustration on the first page of this manual).

Cymbal / Boom Stand Assembly

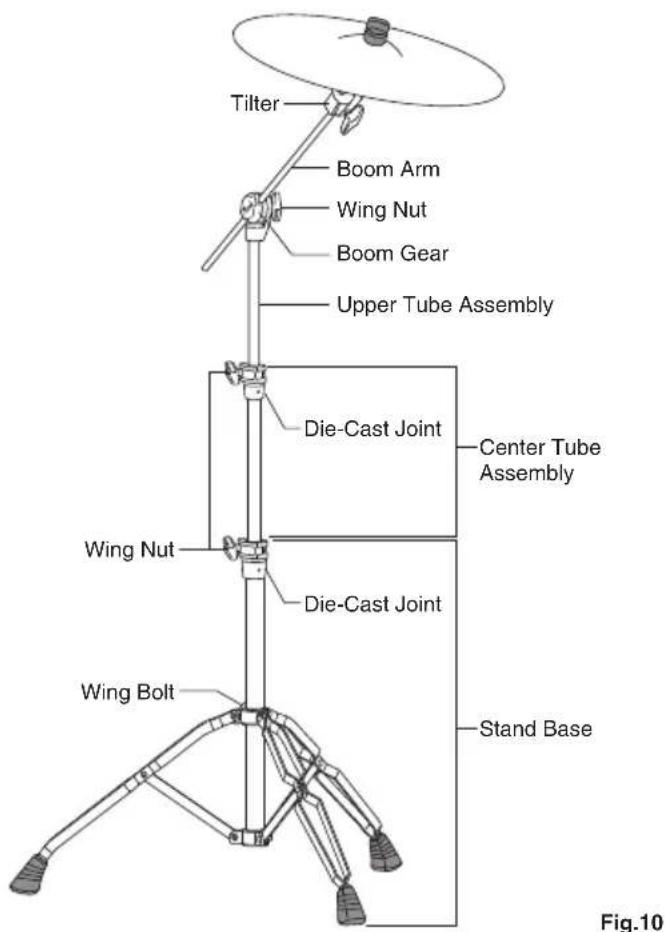

Open the legs of the Stand Base to form a stable tripod and tighten the Wing Bolt. Insert the Center Tube Assembly into the Die-Cast Joint of the Stand Base and tighten the Wing Nut/Wing Bolt*. Next, insert the Upper Tube Assembly into the Die-Cast Joint of the Center Tube Assembly and tighten the Wing Nut/Wing Bolt*. The Boom Arm of the Boom/Cymbal Stand is housed in the Upper Tube. Loosen the Wing Nut on the Boom Gear and adjust the angle and length of the Boom Arm to your preference (Fig. 10). Refer to the Reversible Nut Assembly (Fig.11) and attach the cymbal and adjust the angle of the Tilter to your liking. Secure all Wing Bolts and Wing Nuts before playing.

* The 930 series stands are equipped with Wing Nuts on the Die-Cast Joints, and the 830 series stands are equipped with Wing Bolts.

Setting the Cymbal / Boom Stand Reversible Nut Assembly

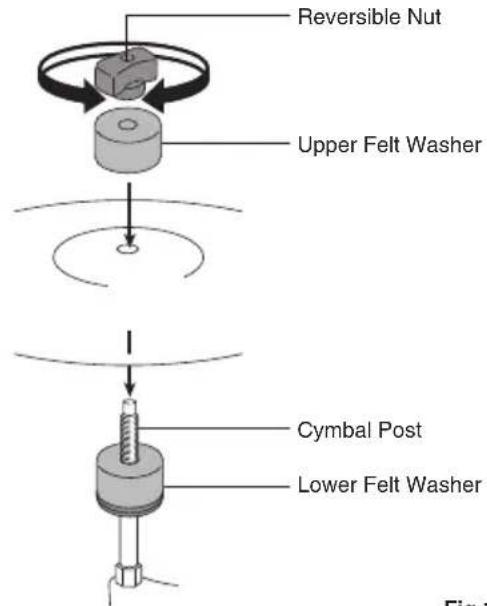

Unscrew the Reversible Nut from the Cymbal Post and remove it along with the Upper Felt Washer. Place the cymbal over the Cymbal Post and rest it on the Lower Felt Washer. Place the Upper Felt Washer on the Cymbal, followed by the Reversible Nut as shown (Fig. 11).

Fig.11

Tip

The Reversible Nut can be set right-side up to allow the cymbal freedom of motion (Fig.12-A), or upside-down to restrict the motion of the cymbal for a tighter sound (Fig.12-B). Crash the cymbal with a glancing blow to minimize breakage especially when the cymbal is tight.

Fig.12-A Fig.12-B

Setting the Snare Drum

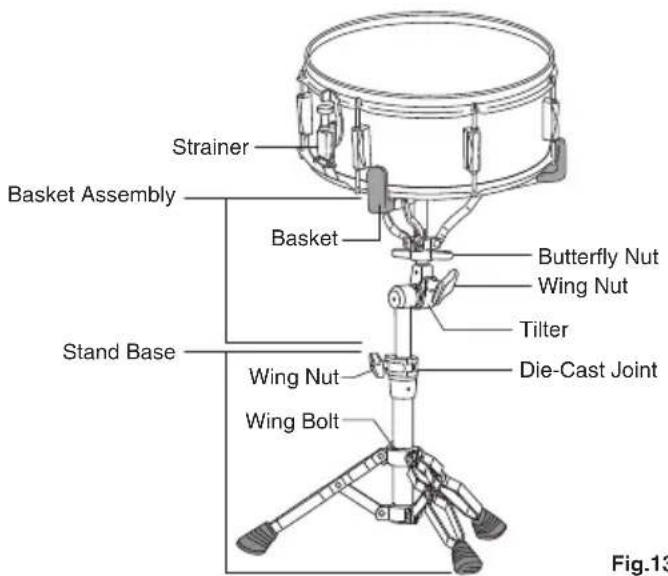

Open the legs of the Stand Base to form a stable tripod and tighten the Wing Bolt. Loosen the Wing Nut on the Tilter of the Basket Assembly and adjust the angle of the Basket as shown (Fig.13). Insert the Basket Assembly into the Die-Cast Joint of the Stand Base and tighten the Wing Nut/Wing Bolt*. Open the Basket and adjust the Butterfly Nut as needed to accommodate the Snare Drum. Place the Snare Drum into the Basket with the strainer positioned where it can be conveniently operated with your left hand, and tighten the Butterfly Nut to hold the Snare Drum securely (do not overtighten).

* The S-930 Snare Stand is equipped with a Wing Nut on the Die-Cast Joint, and the S-830 Snare Stand is equipped with a Wing Bolt.

Basic Tuning

Gradually tighten the Tension Bolts using a crisscross pattern as shown. Tap the Head at each Tension Rod in a zone between 20mm and 30mm from the rim as shown below and listen to the pitches. Adjust the tuning as needed to achieve uniform pitch all around the Head.

6 / Tension Rods

8 / Tension Rods

Note

There are three ways to tune the top and bottom heads: tune both heads to the same pitch, tune the bottom head tighter than the top, or tune the bottom head looser than the top. Experiment to find the tuning method that works best for you.

Tuning Points

You can control excessive "ring" with after-market drum heads or muffling devices. A simple and effective way to muffle your Bass Drum is to put a blanket inside. Additionally, many drummers like to port the front Bass Drum Head for a more controlled sound.

CAUTION

Make sure that all Wing Bolts, Wing Nuts, Bolts and Screws on the Stands and the Drums are tight before playing on your drum set.

For Pedal and Hi-Hat Stand assembly, refer to the individual manuals (included).

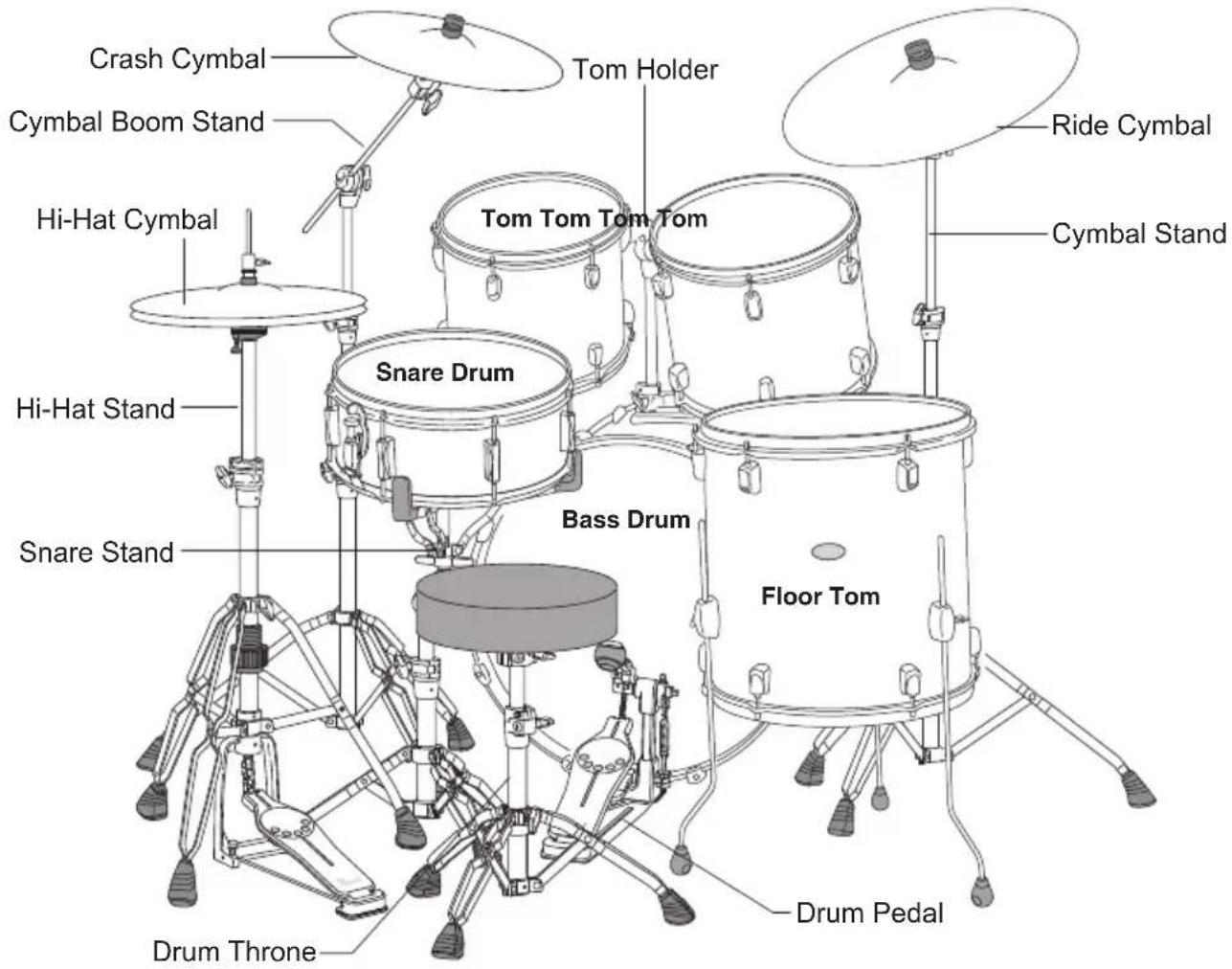

Please refer to the Set-Up Example on the cover page of this manual to see the completed kit.
