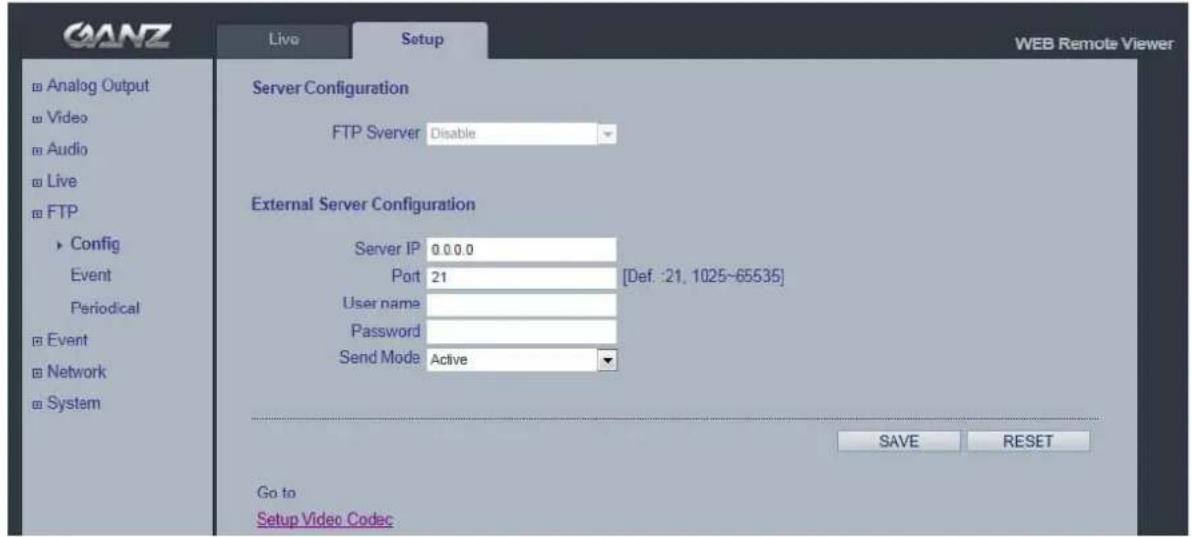

8.1 FTP > CONFIG 19

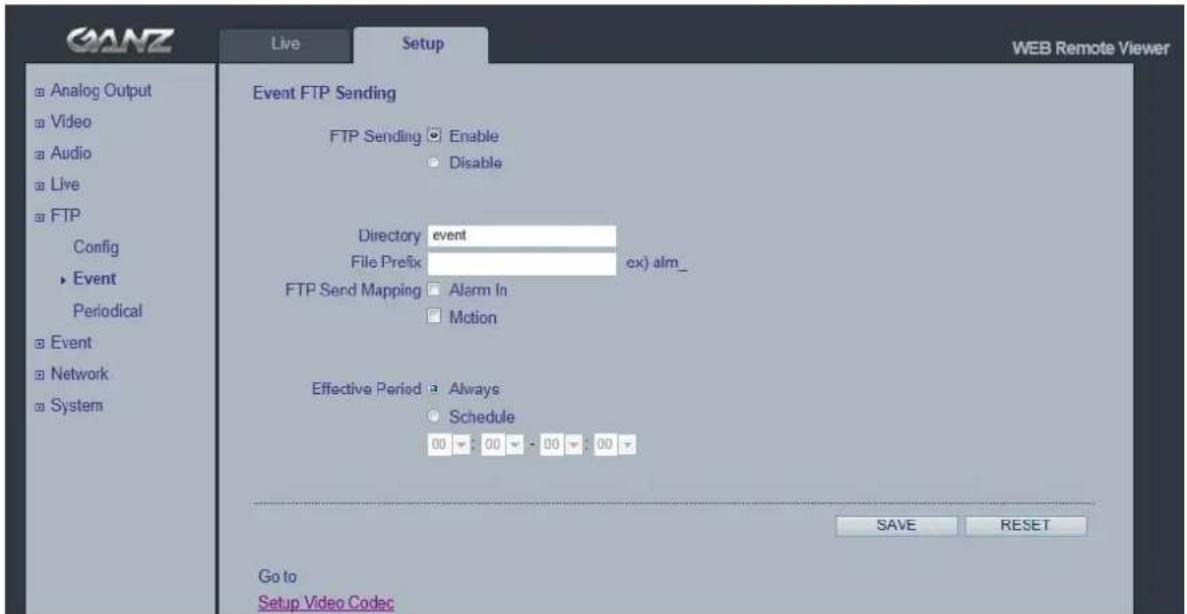

8.2 FTP > EVENT 19

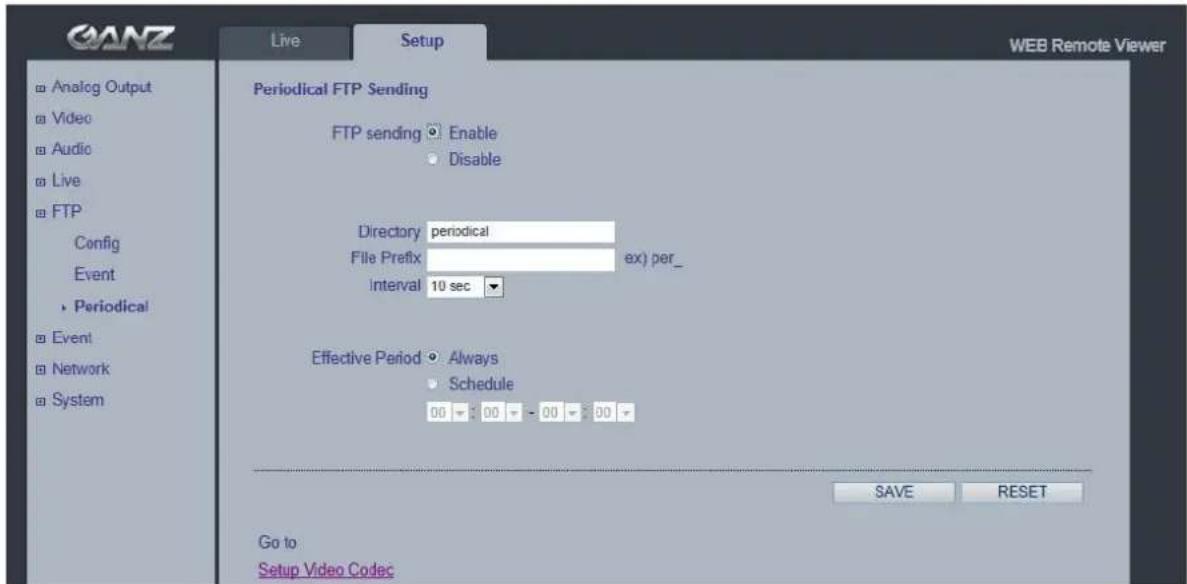

8.3 FTP > PERIODICAL 20

9. EVENT 21

9.1 EVENT > ALARM PORT 21

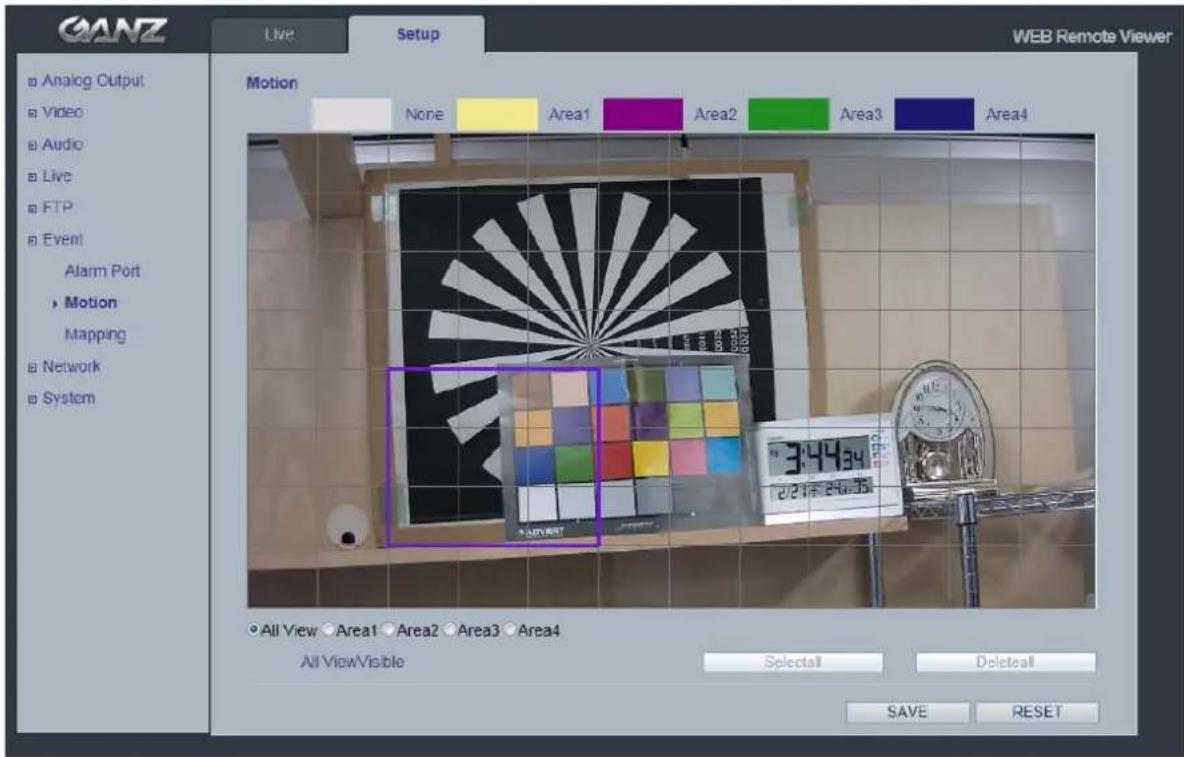

9.2 EVENT > MOTION 22

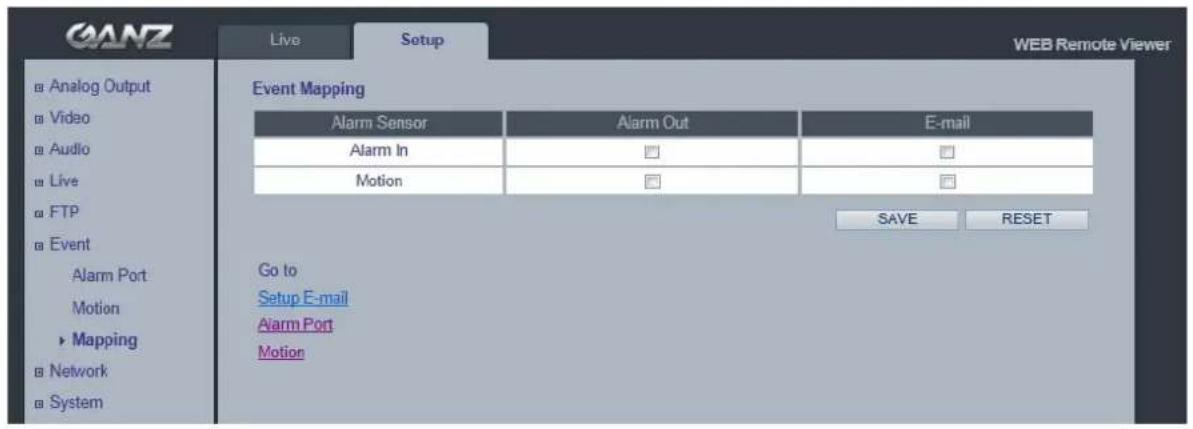

9.3 EVENT > MAPPING 23

10. NETWORK 24

10.1 NETWORK > IP SETUP 24
10.2 NETWORK > SERVICE PORT 26

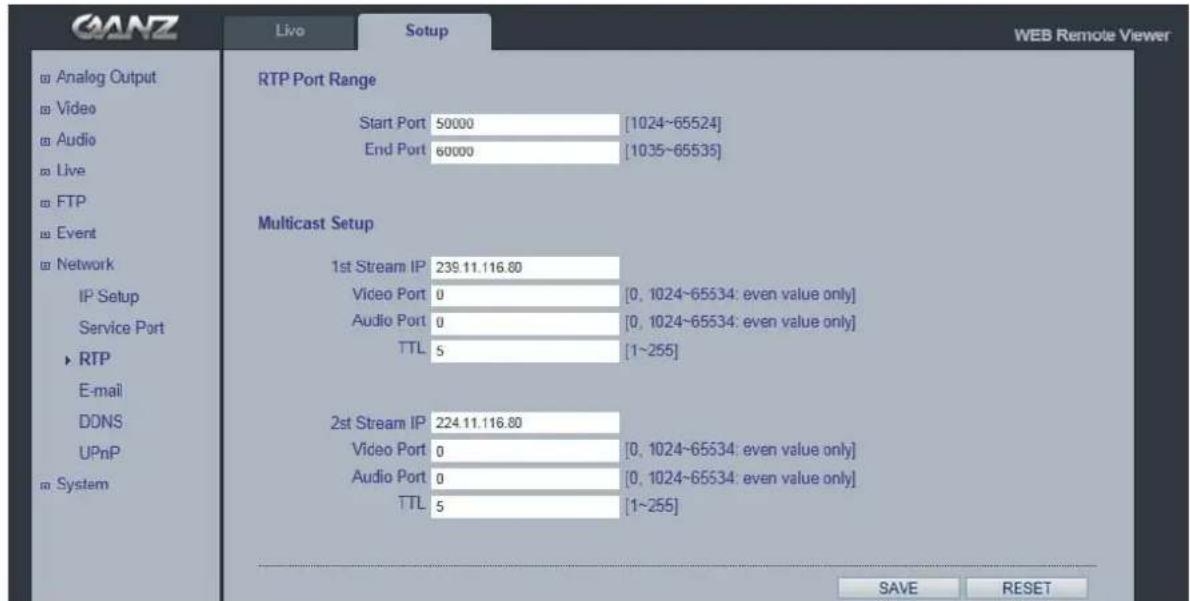

10.3 NETWORK > RTP 26
10.4 NETWORK > E-MAIL 27
10.5 NETWORK > DDNS 27
10.5 NETWORK > UPNP 28

11. SYSTEM....29

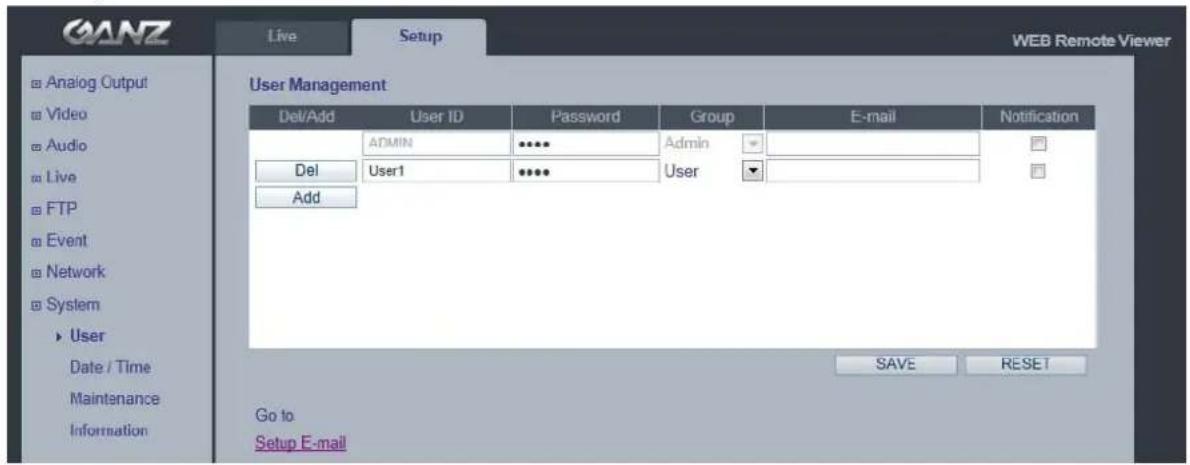

11.1 SYSTEM > USER 29
11.2 SYSTEM > DATE & TIME 30

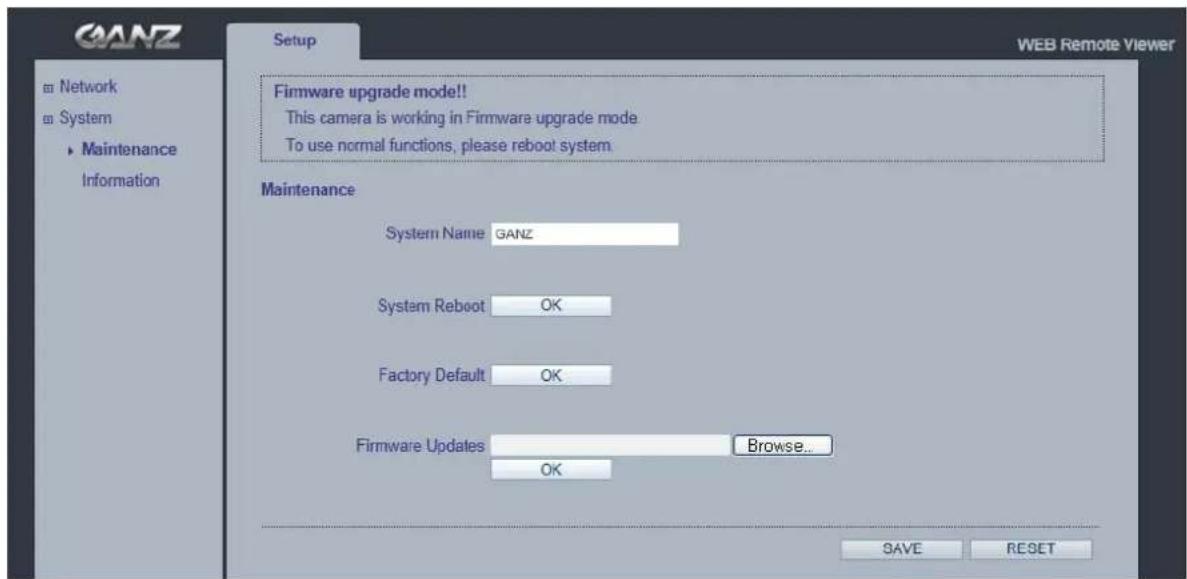

11.3 SYSTEM > MAINTENANCE 31

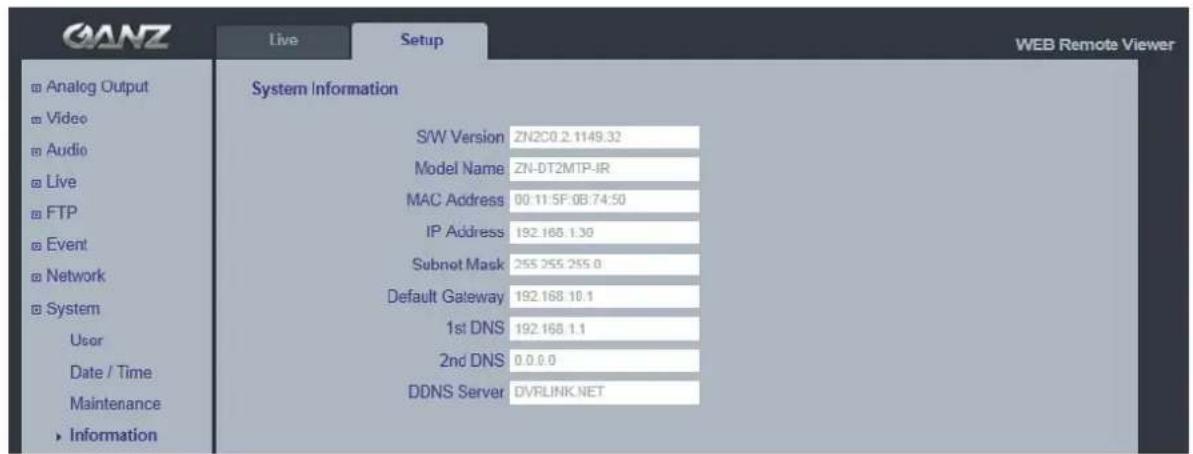

11.4 SYSTEM > INFORMATION 33

12.DIMENSION (MM) 34

13. SPECIFICATION....35

1. Product Features

The GANZ PixelPro is a high performance H.264 network camera, designed for demanding security installations. It delivers crisp, clear images, disclosing every detail, thanks to its top quality Megapixel progressive CMOS sensor and advanced image processing.

Supported by the industry's largest base of video management software, the GANZ PixelPro provides the perfect solution for securing bank offices, airports and other facilities, and for traffic surveillance, over IP based networks.

The optimal Power over Ethernet (IEEE 802.3af) support power to the camera to be delivered via the network, eliminating the need for a power outlet and reducing installation costs. Steady power could be guaranteed with a central Uninterruptible Power Supply (UPS).

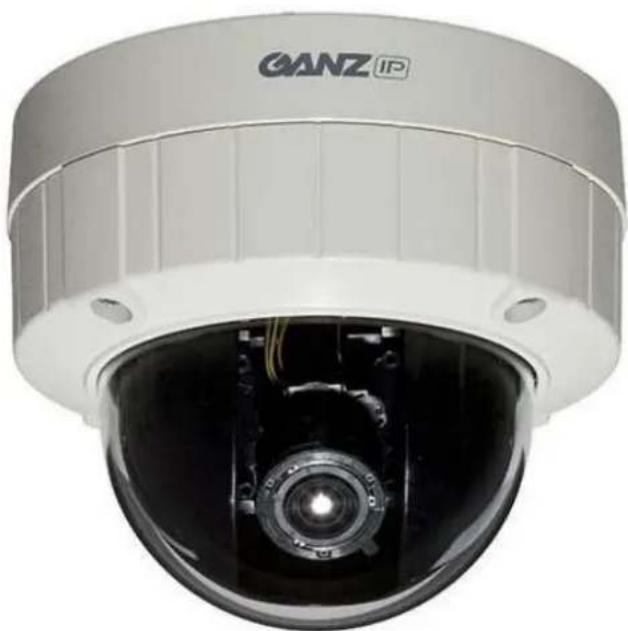

Close-up of a GANZ IP security camera with visible lens and camera frame (no text or symbols on body)

The GANZ PixelPro offers a comprehensive set of network security and management features.

This includes support for port based network control (IEEE802.1X), which allows the camera to be connected to a network secured with this control, and HTTPS encryption, which provides a secure channel between camera and application. It also enables authentication of the video source. Video products are efficiently managed with the powerful Management tool, which is provided on the Installation CD which comes with camera.

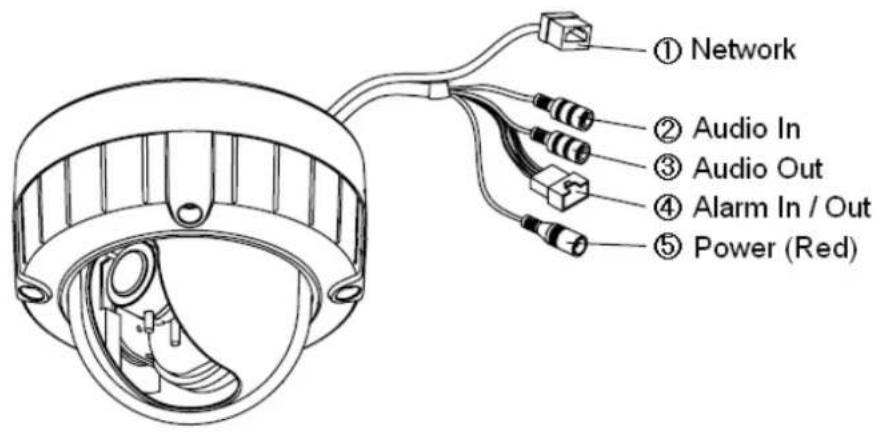

① Network ② Audio In ③ Audio Out ④ Alarm In / Out ⑤ Power (Red)

1. Network connector

The GANZ PixelPro connects to the network via a standard network cable, and automatically detects the speed of the local network segment (10BaseT/100BaseTX Ethernet). This socket could also be used to power the GANZ PixelPro via Power over Ethernet (PoE). The camera auto-senses the correct power level when using a PoE switch, router or injector.

2. Audio in

Audio in (line level), for line-in mono signal (only left channel is used from a stereo signal)

3. Audio out

The Audio output (line level), which could be connected to a line output of a microphone system or an active speaker with a built-in amplifier.

4. Alarm in / Alarm out

One analog (dry contact) alarm input

One relay output (0.5A 125VAC / 1A 30VDC)

Pin Assignment

COM (Alarm In) Alarm In COM (Alarm Out) Alarm Out

5. Power Connector

12VDC or 24VAC power connector

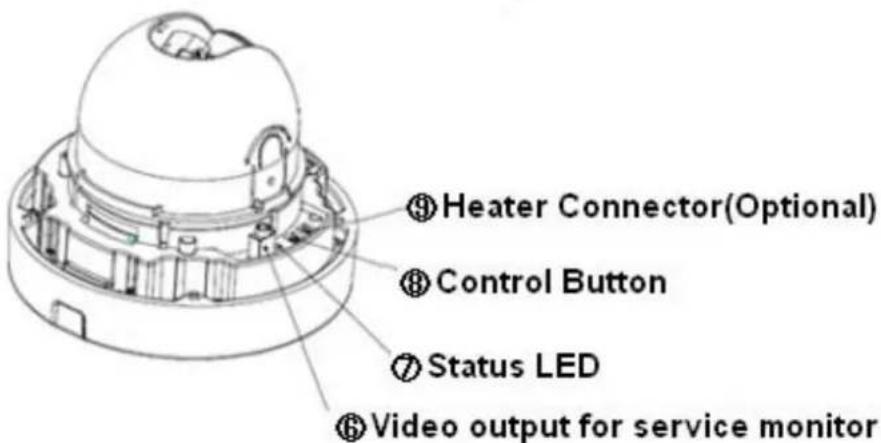

⑨ Heater Connector(Optional) ⑧ Control Button ⑦ Status LED ⑥ Video output for service monitor

1. Micro SD card (SDHC supported)

6. Video output for service monitor

This analog video output is available. Use accessory cable to video output.

7. Status LED

LED	Color	Description
Power/Status	Green	Steady for correct power and activity.
Amber Flashes for factory default activity.
Unlit It is when no or incorrect power is supplied.

8. Control Button

Press this button to reset or restore the camera configuration to its factory default settings.

Reset : keep pushing the button about 6 seconds.

Factory Defeult : keep polishing the button about 12 seconds.

1. Heater Connector (Optional)

Installation Preparation

1) Remove Dome Cover

Loosen four hexalobular screws by supplied L-key wrench and remove Dome cover.

2) Remove four screws

Remove four screws and o-lings from camera base.

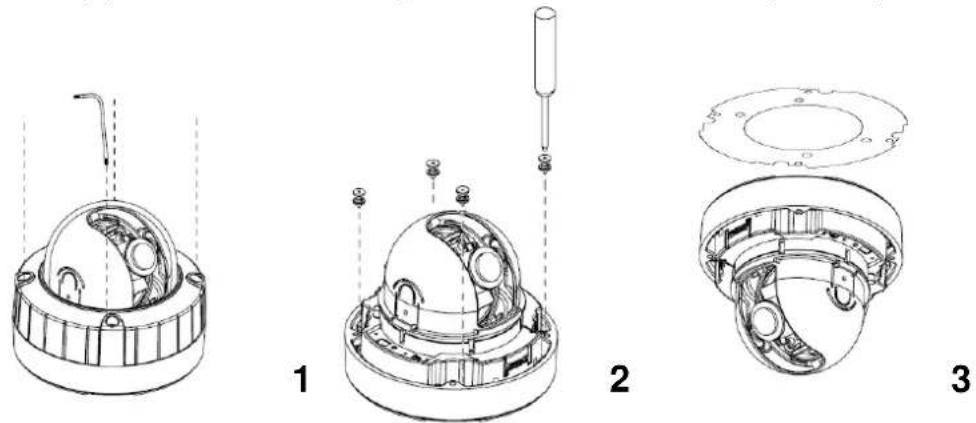

3) Attach the cushion plate.

Attach the supplied bottom cushion plate to the camera base by 3M tape.

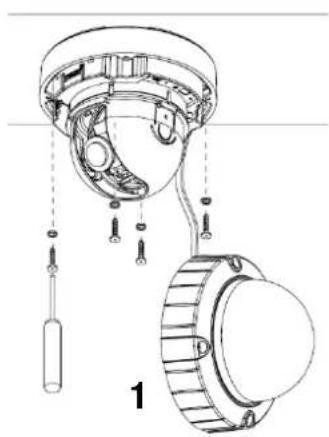

Mounting to a ceiling / wall

1) Secure the camera to ceiling or wall with four supplied tapping screws and o-ring.
2) Secure the Dome cover to camera base by supplied hexalobular L-key wrench.

Technical diagram of a mechanical assembly with labeled parts, showing internal components and connections (no text or symbols present)

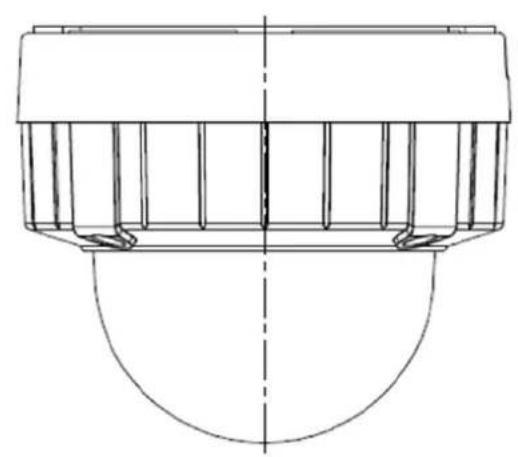

Technical line drawing of a mechanical component with internal parts and dashed alignment lines (no text or symbols)

2. Accessing the Camera

Follow the instructions in the GANZ PixelPro Installation Guide to install the camera.

The GANZ PixelPro could be accessed with most standard operating systems and browsers. The recommended browser is Internet Explorer for Windows with other operating systems.

2.1 Access from a browser

1. Start a browser (Internet Explorer)
2. Enter the IP address or host name of the camera in the Location/Address field of your browser. Press Enter.

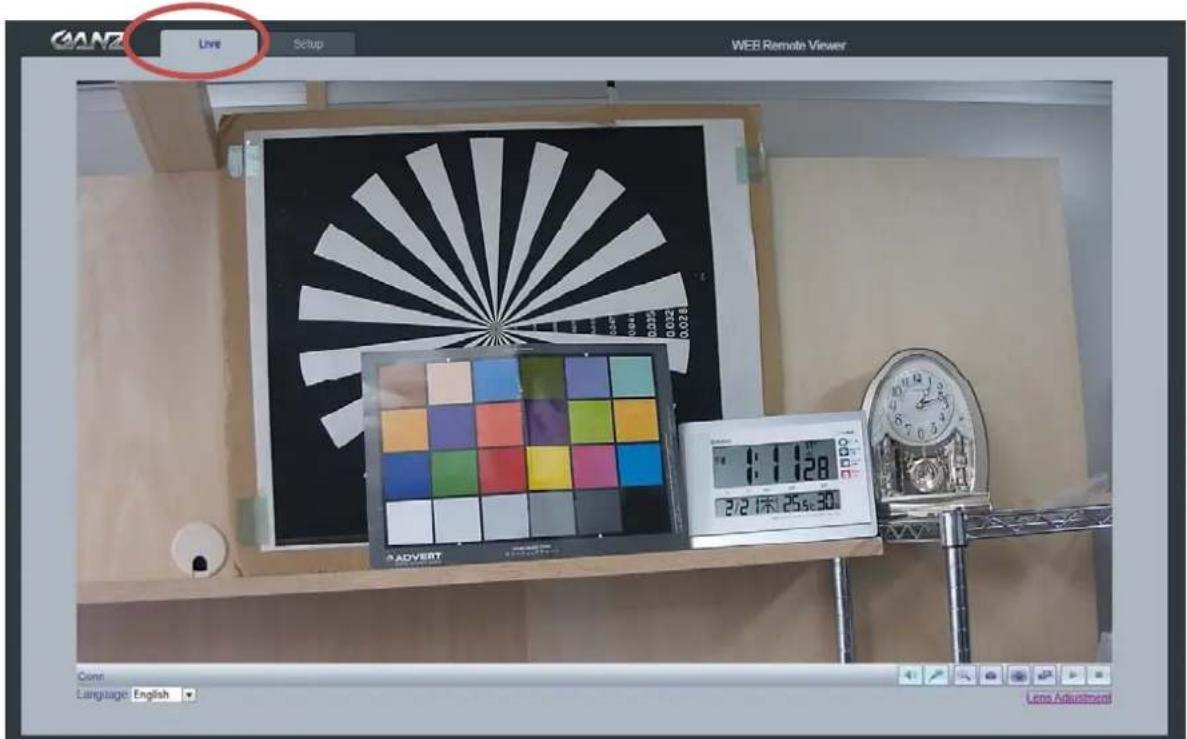

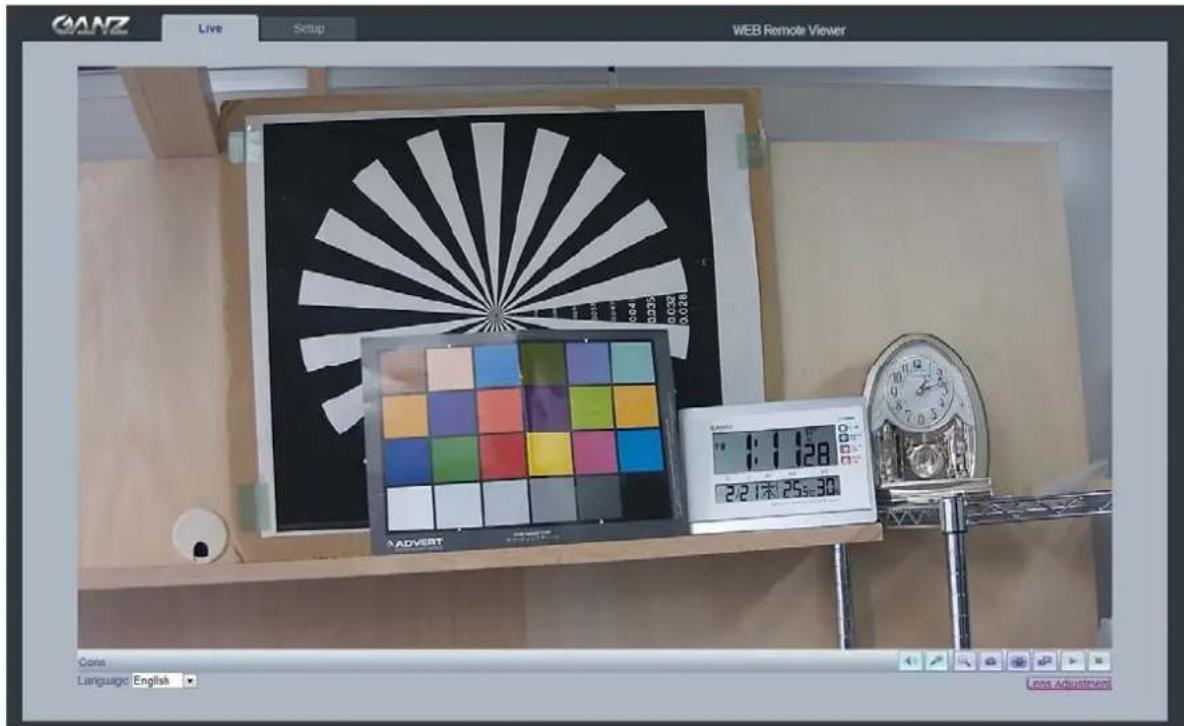

GANZ Live Setup WEB Remote Viewer 3:128 2/21:00 25:30 ADVERT Cons Language: English Lens Adjustment

1. Login dialog will appear when the camera is accessed for the first time.
2. The default user name is ADMIN, and password is 1234.
3. The camera's Live View page is now displayed in your browser.

Note: The layout of the live view page in the camera may have been customized to meet specific requirements. Consequently, some of the examples and functions featured here may differ from those displayed on your own Live View page.

2.2 Accessing the camera from the Internet

Once installed, the camera is accessible on the local network (LAN). Configure the router/firewall to allow incoming data traffic to access the camera from the Internet. For security reasons this is usually done on a specific port. Please refer to the documentation for router/firewall for further instructions.

2.3 Adjusting the Image and Focus

To adjust the position of the lens:

1. Open the Live View page in your web browser.
2. Select the Setup tab, and open the Installation page.
3. Select the 'Video Format'.
4. Connect analog monitor to the VIDEO OUT (BNC) on the cable.
5. Control the FOCUS with monitor's image.
6. Check the image from the Live View page on your web browser.
7. Set 'Installation Mode' to 'OFF' to resume normal camera operation.

2.4 The Live View page

Enable/Disable PC Speaker output

Enable/Disable PC Microphone input

Digital Zoom

Snap Shot

Full Screen

Video Stream change: First stream ⇔ Second stream

Play: Click this button by manually to start the stream

Stop: Click this button by manually to stop streaming

NOTE: It is possible that not all the buttons described below will be visible unless the Live View page has been customized to display them.

2.5 Video stream types

H.264 protocols and communication methods

• RTP (Real-time Transport Protocol) is a protocol that allows programs to manage the real-time transmission of multimedia data, via unicast or multicast.
• RTSP (Real Time Streaming Protocol) serves as a control protocol, to negotiate the type of transport protocol to use for the stream. RTSP is used by a viewing client to start a unicast session.
• UDP (User Datagram Protocol) is a communications protocol that offers limited service for exchanging data in a network which uses the Internet Protocol (IP). UDP is an alternative to the Transmission Control Protocol (TCP). The advantage of UDP is that, it is not required to deliver all data and may drop network packets when there is network congestion. This is suitable for live video, as there is no point in retransmitting old information that will not be displayed anyway.
• Unicasting is communication between a single sender and a single receiver over a network. This means that the video stream goes independently to each user, and each user gets own stream. A benefit of unicasting is, in case one stream fails, it only affects one user.
• Multicasting(Will be supported)is bandwidth-conserving technology that reduces bandwidth usage by simultaneously delivering a single stream of information to multiple network recipients. This technology is used primarily on delimited networks (intranets), as each user needs an uninterrupted data flow and should not rely on network routers.

2.6 How to stream H.264

Deciding on the combination of protocols and methods to use depends on your viewing requirements, and on the properties of your network. Setting the preferred method(s) is done in webpage.

RTP+RTSP

This method (actually RTP over UDP and RTSP over TCP) should be your first consideration for live video, especially when it is important to always have an up-to-date video stream, even if some images are lost due to network problems. This could be configured as multicast or unicast.

RTP/RTSP/Multicasting (Will be supported) provides the most efficient usage of bandwidth, especially when there are large numbers of clients viewing simultaneously. Note however, that a multicast broadcast could not pass a network router unless the router is configured to allow this. For example, It is impossible to multicast over the Internet.

RTP/RTSP/Unicasting should be used for video-on-demand broadcasting, so that there is no video traffic on the network until a client connects and requests the stream. However, as more and more unicast clients get connected, the traffic on the network will increase and may cause congestion. Although there is a maximum of 10 unicast viewers, note that all multicast users combined count as 1 unicast viewer.

RTP/RTSP

This unicast method is RTP tunneled over RTSP. This could be used to exploit the fact that it is relatively simple to configure firewalls to allow RTSP traffic.

3. The Setup

The GANZ PixelPro is configured from the Setup link, which is available on the top left hand side in the web interface. This configuration could be done by:

- Administrators, who have unrestricted access to all settings under the Setup tab.

Accessing the Setup link from a browser

1. Start your web browser and enter the IP address or host name of the camera into the address bar.

2. The Live View page is now displayed. Click on the Setup tap.

GANZ Live Setup WEB Remote Viewer ADVERT 2/2 1末 25s30 Count Language: English Lens Adjustment

4. Analog output

GANZ Live Setup WEB Remote Viewer Analog Output Setup Analog Video Format NTSC SAVE RESET Go to Setup Video Codec

4.1 Analog Output Setup

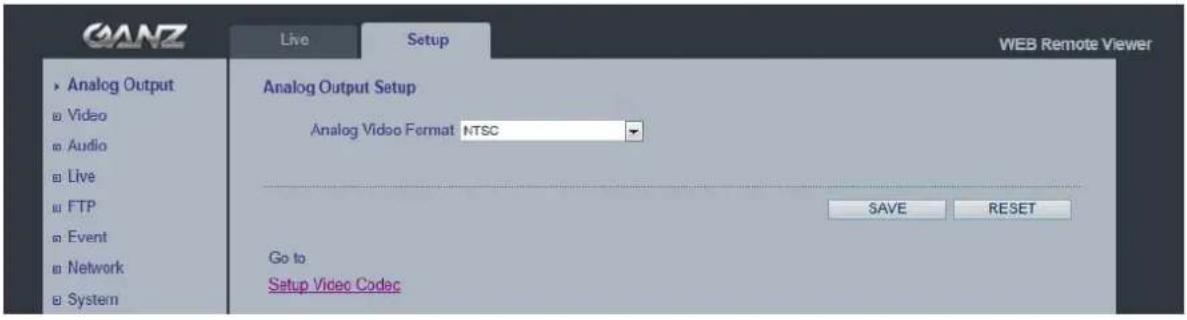

Analog output allows selection of output format of the analog BNC output from the camera. NTSC, PAL: Analog Output is selectable.

5. Video

The following descriptions show examples of some of the features available in the GANZ PixelPro.

5.1 Codec

These are the tools for adjusting the H.264 settings and controlling the video bit rate.

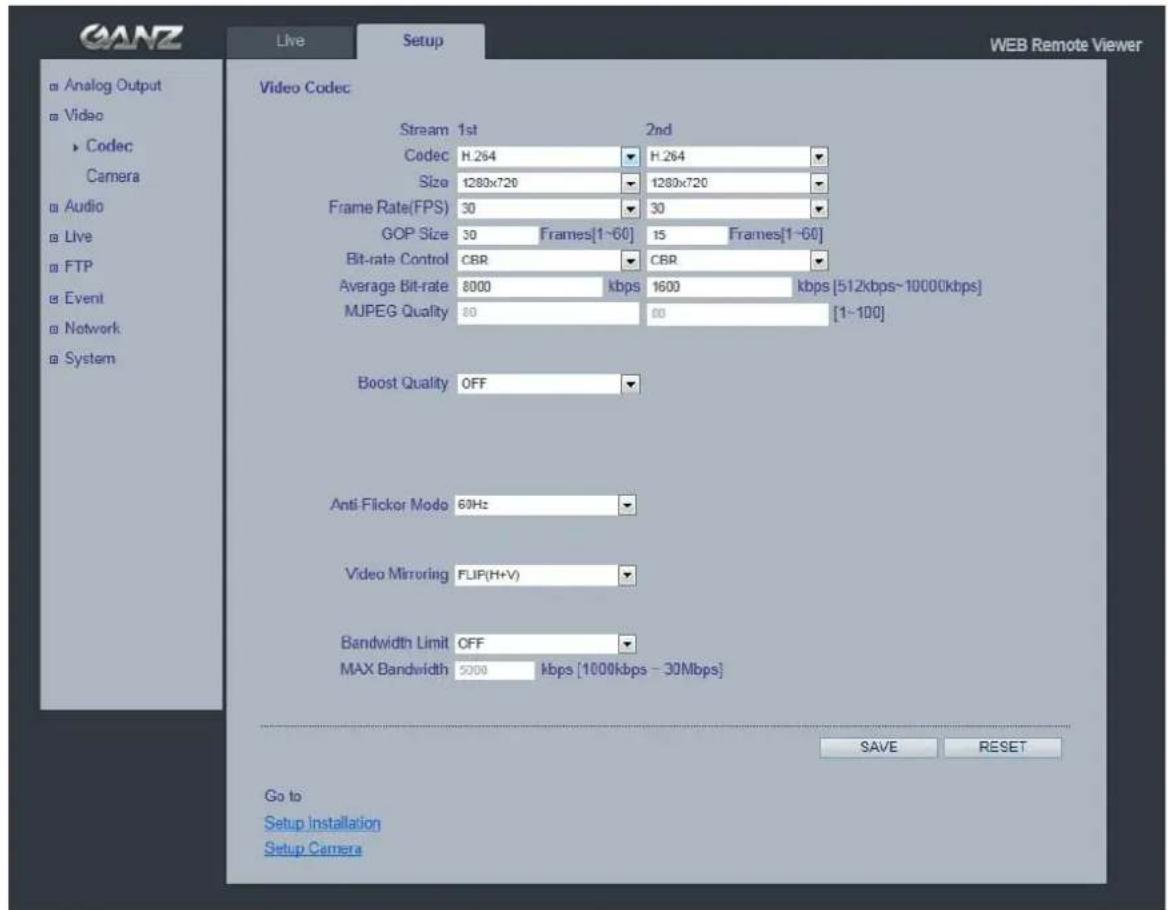

GANZ Live Setup WEB Remote Viewer Video Codec Stream 1st 2nd Codec H.264 H.264 Size 1280x720 1280x720 Frame Rate(FPS) 30 30 GOP Size 30 Frames[1~60] 15 Frames[1~60] Bit-rate Control CBR CBR Average Bit-rate 8000kbps 1600kbps [512kbps~10000kbps] MUPEG Quality 80 60 [1~100] Boost Quality OFF Anti-Flicker Modo 60Hz Video Mirroring FLIP(H+V) Bandwidth Limit OFF MAX Bandwidth 5200kbps [1000kbps ~ 30Mbps] GO to Setup Installation Setup Camera SAVE RESET

H.264

This is a video compression standard that makes good use of bandwidth and which could provide high-quality video streams at less than 1 Mbit/s.

The H.264 standard provides scope for a large range of different coding tools for use by various applications in different situations, and the GANZ PixelPro provides certain subsets of these tools.

Using H.264, it is also possible to control the bit rate, which in turn allows the amount of bandwidth usage to be controlled. CBR (Constant Bit Rate) is used to achieve a specific bit rate by varying the quality of the H.264 stream. While using VBR (Variable Bit Rate), the quality of the video stream is kept as constant as possible, at the cost of a varying bit rate.

Motion JPEG

This format uses standard JPEG still images in the video stream. These images then are displayed and updated at a rate sufficient to create a stream that shows constantly updated motion.

The Motion JPEG stream uses considerable amounts of bandwidth, but also provides excellent image quality and access to every individual image contained in the stream.

Multiple clients accessing Motion JPEG streams could use different image settings.

Codec

H.264 / MJPEG

Size

Video output resolution. See the next page for the output resolution table.

Frame rate

1\~30fps in normal mode (1\~15fps for slow shutter mode)

Note: If the slow shutter mode is turned on and the low light condition is met, the frame rate is automatically goes down. In this case, the frame is half of the normal mode.

GOP Size

1 \~ 60 frames

Bit-rate control (CBR or VBR)

When using H.264 compression, if there is only limited bandwidth available, a constant bit rate(CBR) is recommended, although this may compromise image quality. Use a variable bit rate(VBR) for the best possibly image quality.

Recommended bit rate for D1: 800Kbps \~ 1Mbps

Recommended bit rate for 1.3M(720p): 3Mbps \~ 4Mbps

Recommended bit rate for 2.0M(1080p): 6Mbps \~ 8Mbps

Anti-Flicker mode (Flicker less mode)

60Hz:NTSC

50Hz:PAL or flicker-free mode(to use the camera in locations lit by fluorescent lighting).

Video Mirroring

Select Video Mirroring mode NONE/ HORIZONTAL / VERTICAL / FLIP(H+V)

Bandwidth Limit

Limit the bandwidth that the GANZ PixelPro can use during a network connection.

Max Bandwidth

Specify the maximum bandwidth that the GANZ PixelPro can use during a network connection.

< Output resolution table for PixelPro>

First Stream	Second Stream
1920x1080	704x480	640	x480	640x3	60 640x352	352x288	352	x240 320x240 -
1280x1024	704x480	640	x480	640x3	60 352x288	352x240	320	x240 - -
1024x768	704x480	640	x480	640x360	352x288	352x240	320	x240 - -
1280x720	1280x720	704	x576	704x4	80 640x480	640x360	35	2x288 352x240	320x240
704x576	704x576	640x	480	640x360	352x288 -	-	- -
704x480	704x480	640x	480	640x360	352x240 -	-	- -
640x480	640x480		320x240		-	-	-	-	-
640x360	640x360		320x240		-	-	-	-	-
352x288	352x288		-		-	-	-	-	-
352x240	352x240		-		-	-	-	-	-
320x240	320x240		-		-	-	-	-	-

5.2 Camera

This section allows you to adjust various camera settings.

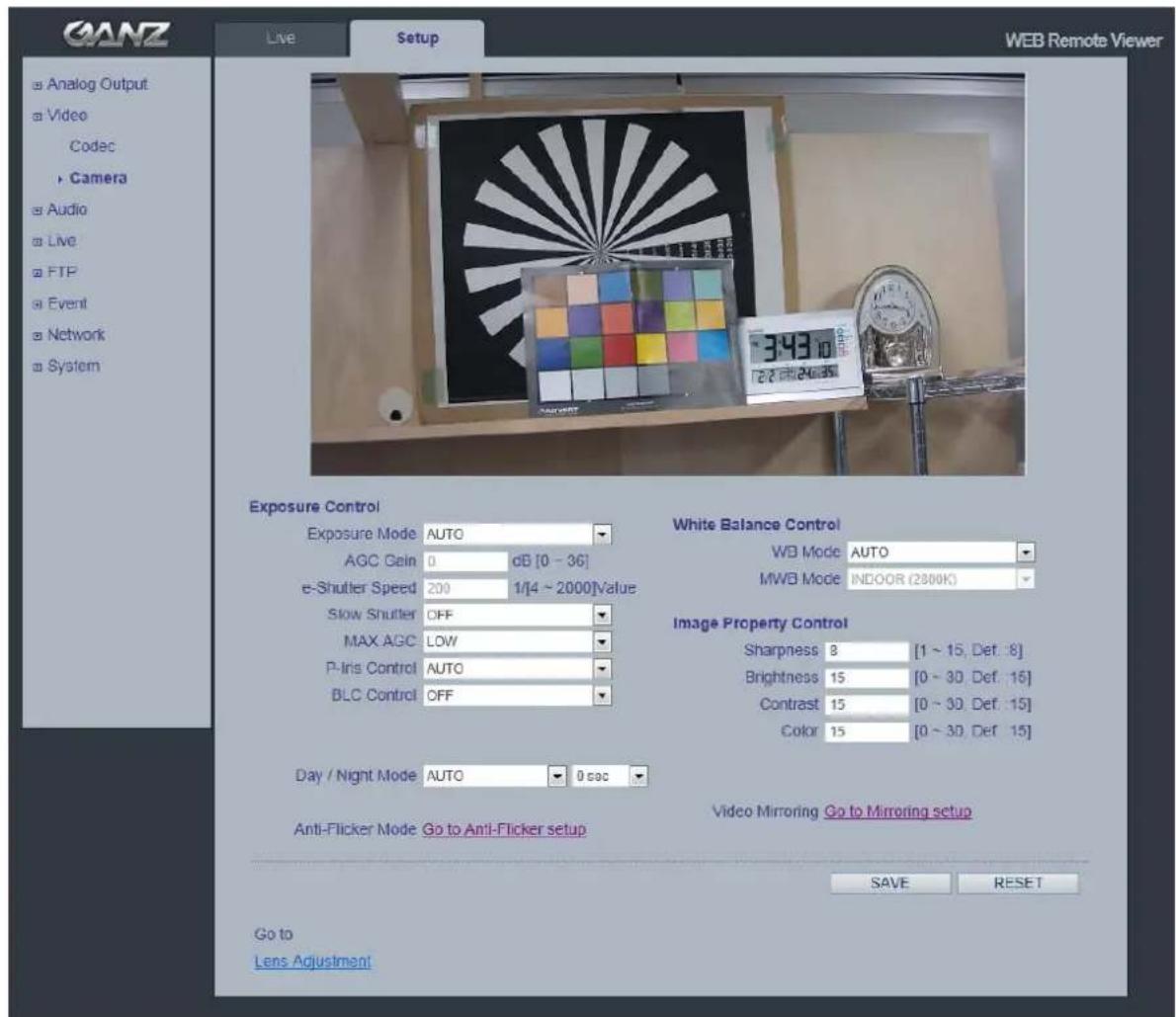

GANZ Live Setup WEB Remote Viewer Analog Output Video Codec Camera Audio Live FTP Event Network System Exposure Control Exposure Mode AUTO AGC Gain 0 dB [0 - 36] e-Shutter Speed 200 1/4 ~ 2000Value Slow Shutter OFF MAX AGC LOW P-Irs Control AUTO BLC Control OFF Day / Night Mode AUTO 0 sec Anti-Flicker Mode Go to Anti-Flicker setup White Balance Control WB Mode AUTO MWB Mode INDOOR (2800K) Image Property Control Sharpness 8 [1 ~ 15, Def. 8] Brightness 15 [0 - 30, Def. 16] Contrast 15 [0 - 30, Def. 15] Color 15 [0 - 30, Def. 15] Video Mirroring Go to Mirroring setup SAVE RESET Go to Lens Adjustment

5.2.1 Exposure Control

Enable AE (Auto Exposure)

ON: Use this setting for automatic exposure control.

OFF: Use these settings to control camera exposure manually.

To compensate for poor lighting conditions, you can adjust the Color level, Brightness, Sharpness, Contrast and Exposure control.

NOTE: When AE is enabled, some of the submenus (AGC Gain, e-Shutter Speed) will be disabled.

Slow shutter mode

For low light conditions, turn on slow shutter mode.

Max AGC Gain

For low light conditions, adjust to a higher value, such as 30dB.

BLC Control (Back Light Compensation)

The BLC adjusts the exposure of scenes with strong backlight in the center-bottom of the image. When the image background is too bright, or the subject too dark,

backlight compensation makes the subject appear clearer. The settings for low light behavior determine how the camera behaves sat low light levels. These settings affect video image quality and how much noise is in the images.

5.2.2 Day & Night Control

Day & Night Mode

Auto/Day/Night- If set to Auto, the camera will automatically switch according to the current lighting conditions.

5.2.3 White Balance Control

WB Mode

ON:ATW (Automatic White balance)

OFF: MWB (Manual White balance)

The White balance adjustment setting is used to make the colors in the image appear consistent, compensating for the different colors present in different light sources.

The GANZ PixelPro camera can be set to automatically identify the light source and compensate for its color temperature. If necessary, the type of light source could be set manually..

5.2.4 Image Property Control

Modify the video signal parameters, such as: Brightness, Sharpness, Contrast, and Color.

Sharpness (Default: 8, Range: 1\~15)

Brightness (Default: 15, Range: 0\~30)

Contrast (Default: 15, Range: 0\~30)

Color (Default: 15, Range: 0\~30)

5.2.5 Lens Adjustment

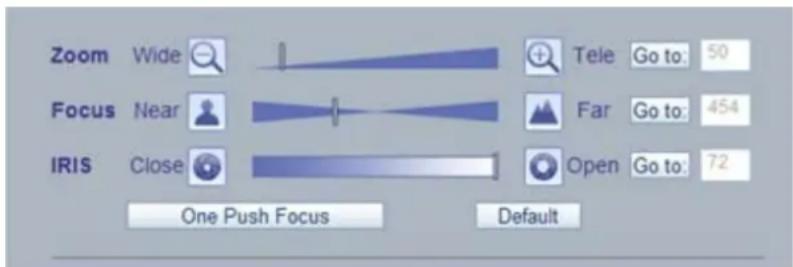

Adjust the lens (Zoom, Focus & Iris) from this window.

One Push Focus : Camera will automatically adjust the focus.

Default : Back to original factory default position.

Zoom Wide Focus Near IRIS Close One Push Focus Tele Go to: 50 Far Go to: 454 Open Go to: 72 Default

6. Audio

GANZ Live Setup WEB Remote Viewer Audio Setup Audio ENABLE Codec 0.711 u-law 8KHz MIC Volume 70 Speaker Volume 70 SAVE RESET

The GANZ PixelPro camera could transmit audio to other clients, using a connected external microphone and could play audio received from other clients via connected speakers. This section describes how to configure the basic audio settings for the GANZ PixelPro camera, such as setting the communication mode, adjusting the sound levels in the microphone and speakers connected to the camera.

Note: The speakers connected to the audio output must have a built-in amplifier, such as PC speakers.

Audio

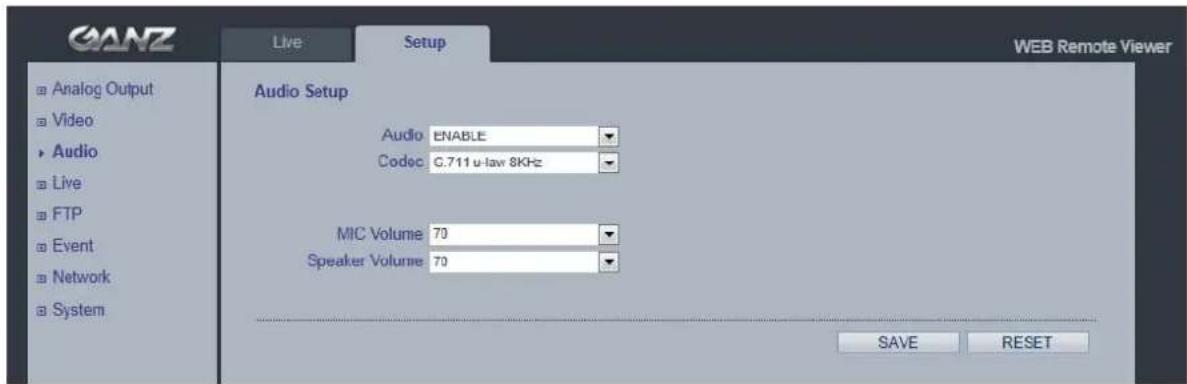

ON/OFF : Check this to enable audio in the PixelPro camera.

Codec

G.711 u-law

MIC Volume

Speaker Volume

Adjust the MIC and Speaker Volume .

Audio Input

Audio from a connected a line source could be connected to the Audio in connector of the GANZ PixelPro camera. If there are problems with the sound input being too low or high, adjust the input gain for the microphone connected to the GANZ PixelPro camera.

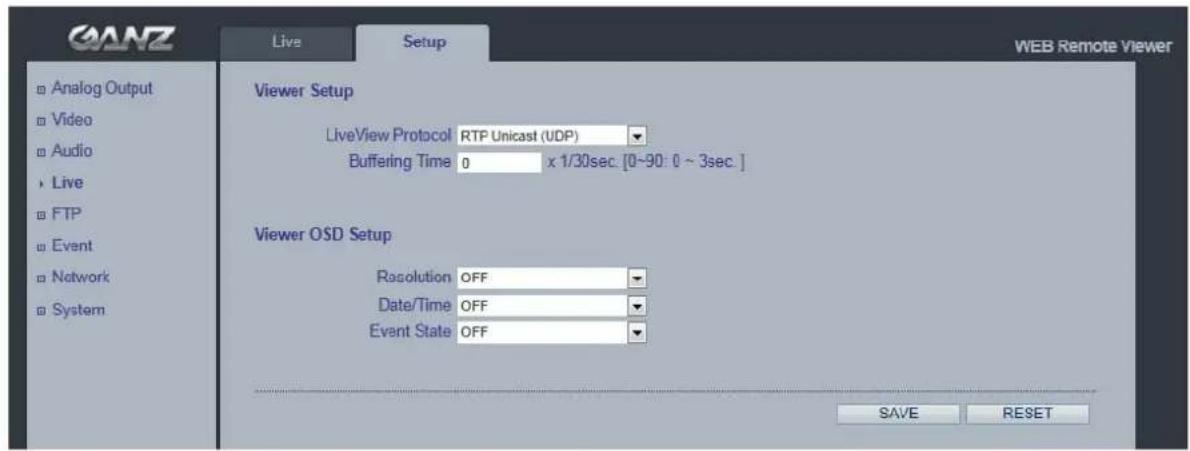

7. Live

GANZ Live Setup WEB Remote Viewer Analog Output Video Audio Live FTP Event Network System Viewer Setup LiveView Protocol RTP Unicast (UDP) Buffering Time 0 x 1/30sec. [0~90: 0 ~ 3sec. ] Viewer OSD Setup Resolution OFF Date/Time OFF Event State OFF SAVE RESET

GANZ PixelPro could support 10 simultaneous users. In case of multicast, GANZ PixelPro could support unlimited number of users. If supported on the network, consider using multicasting, as the bandwidth consumption will be much lower.

Viewer Setup

LiveView Protocol

RTP Unicast (UDP) / RTP Multicast (UDP) / RTP over RTSP (TCP)

Buffering Time (frame based)

Determines (0 \~ 90) x 1/30 sec (0 \~ 3sec)

Viewer OSD Setup

Date : Determines whether the date is displayed.

Resolution : Determines whether the camera title is displayed.

Event State : Determines whether the event state is shown on display window.

8. FTP

8.1 FTP > Config

GANZ Live Setup WEB Remote Viewer Server Configuration FTP Server Disable External Server Configuration Server IP 0.0.0.0 Port 21 [Def: 21, 1025~65535] User name Password Send Mode Active Go to Setup Video Codec SAVE RESET

Server Configuration (This function is N/A on this model)

External Server Configuration

It is setting page to transmit the still shot to remote sites, using the FTP server. Specify the external FTP server information such as IP address, port number, Username and password.

Note :

When the first stream is set to 1920x1080, please set the 2nd stream to MJPEG or H.264 with resolution less than 352x288. If 2nd stream is set to H.264 greater than 640x352, 30fps streaming is not guaranteed due to performance limitation.

8.2 FTP > Event

GANZ Live Setup WEB Remote Viewer Analog Output Video Audio Live FTP Config Event Periodical Event Network System Event FTP Sending FTP Sending Enable Disable Directory event File Prefix ex) alm_ FTP Send Mapping Alarm In Motion Effective Period Always Schedule 00 00 - 00 00 SAVE RESET Go to Setup Video Codec

Event FTP Sending

It enables FTP transmission triggered by event.

Directory : This folder will be created into external FTP server automatically.

File Prefix : The file name will start from this prefix.

Mapping : You can specify event mapping for Event FTP.

Effective Period : You can specify "Always" or "Schedule"

8.3 FTP > Periodical

GANZ Live Setup WEB Remote Viewer Periodical FTP Sending FTP sending ○ Enable ○ Disable Directory periodical File Prefix ex) per_ Interval 10 sec Effective Period ○ Always ○ Schedule 00 00 - 00 00 SAVE RESET Go to Setup Video Codec

Periodical FTP Sending

It enables FTP transmission periodically.

Directory : This folder will be created into external FTP server automatically.

File Prefix : The file name will start from this prefix.

Interval : You can specify interval time for uploading to FTP.

Effective Period : You can specify "Always" or "Schedule"

9. Event

9.1 Event > Alarm Port

GANZ Live Setup WEB Remote Viewer Analog Output Video Audio Live FTP Event ► Alarm Port Motion Mapping ■ Network ■ System Alarm Input Operation ENABLE Type N/O Text ALARM 1 Alarm Output Operation OFF Mode SYNC Duration 5 Sec SAVE RESET

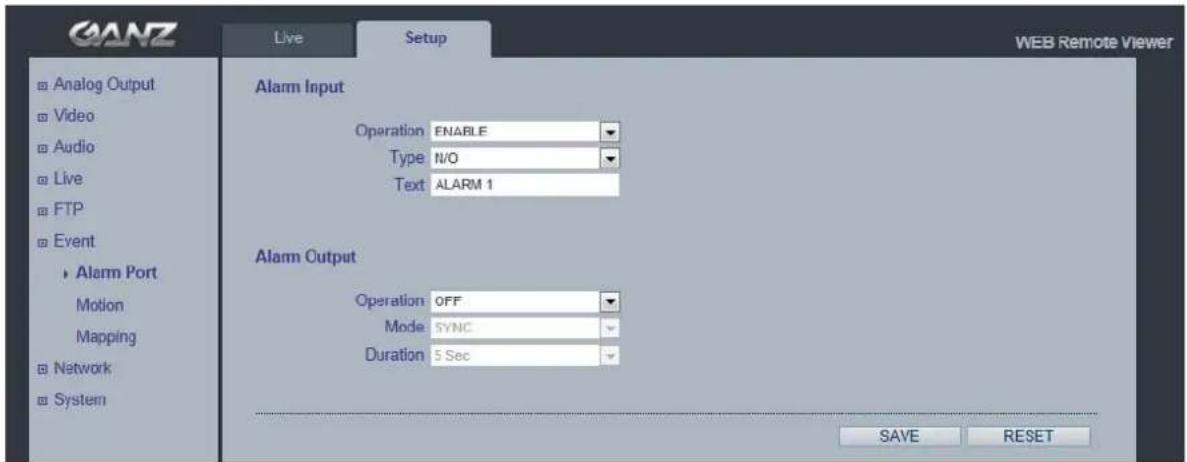

Alarm Input - Used for connecting external alarm devices and triggering images for specific alarm-based events. The input is typically connected to a motion detector or any other external security device, and images could be uploaded whenever the detector is activated. Maximum 5VDC is allowed on the input.

Output - This could drive a maximum load of 0.5A 125VAC / 1A 30VDC directly or heavier loads by connecting additional relay circuitry. If the output is used with an external relay, a diode must be connected in parallel with the load for protection against any voltage transients.

Duration - This parameter sets the minimum tampering period, that is, an alarm will not be triggered until this period has lapsed, even if the tampering conditions are otherwise met. This could help to prevent false alarms for known conditions that affect the image.

Caution! Connecting AC to the inputs/outputs will damage the unit.

9.2 Event > Motion

GANZ Live Setup WEB Remote Viewer Motion None Area1 Area2 Area3 Area4 All View Area1 Area2 Area3 Area4 All ViewVisible Select All Delete all SAVE RESET

Motion Detection

Motion detection is used to generate an alarm whenever movement either occurs or stops in the video image. A total of 10 windows could be configured.

Configuring Motion Detection

1. Click Motion Detection in the Event Config menu.
2. Click Add Window, and select if you want to add an Include or an Exclude window by checking the relevant box.
3. Enter a descriptive name for the window.
4. Adjust the size (drag the bottom right-hand corner) and position (click on the text at the top and drag to the desired position).
5. Adjust the Object size, History and Sensitivity profile sliders (see table below for details). Any detected motion within an active window is then indicated by red peaks in the Activity window (the active window has a red frame).
6. Click Save.

Note: Using the motion detection feature may decrease the camera's overall performance.

9.3 Event > Mapping

GANZ Live Setup WEB Remote Viewer Analog Output Video Audio Live FTP Event Alarm Port Motion Mapping Network System Event Mapping Alarm Sensor Alarm Out E-mail Alarm In □ □ Motion □ □ SAVE RESET Go to Setup E-mail Alarm Port Motion

It is possible to define conditions that would cause the camera to respond with certain actions. A triggered event happens as a result of a trigger, which could be motion detection or an external alarm input.

For example,

Alarm out events could be triggered by video motion detection or alarm in. E-mail could be sent by video motion detection or alarm in.

10. Network

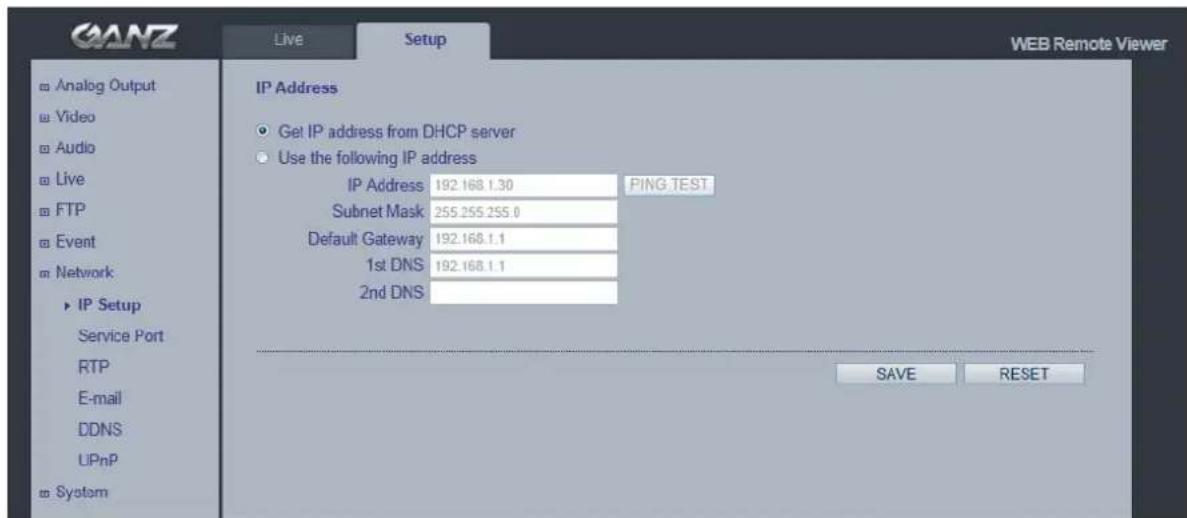

10.1 Network > IP Setup

GANZ Live Setup WEB Remote Viewer Analog Output Video Audio Live FTP Event Network IP Setup Service Port RTP E-mail DDNS UPnP System IP Address Get IP address from DHCP server Use the following IP address IP Address 192.168.1.30 PING TEST Subnet Mask 255.255.255.0 Default Gateway 192.168.1.1 1st DNS 192.168.1.1 2nd DNS SAVE RESET

Network Settings

Click the Setup > Network > IP Setup to see the current network settings.

IP Address Configuration -

The GANZ PixelPro supports both IP version 4 and IP version 6 (IPv6 will be supported in V3.00). Both versions may be enabled simultaneously, and at least one version should be always enabled.

When using IPv4, the IP address could be set automatically via DHCP, or a static IP address could be set manually. If IPv6 is enabled, your camera receives an IP address according to the configuration in the network router.

There are also options for setting up notification of changes in the IP address, and for using the Internet Dynamic DNS Service.

Notes: • To receive notification whenever the camera's IP address changes (via e.g. DHCP), configure the options for notification of IP address change. See Services below. • If your DHCP server could update a DNS server, you could access the GANZ PixelPro by a host name which is always the same, regardless of the IP address.

DNS Configuration

DNS (Domain Name Service) provides the translation of host names to IP addresses on your network.

- 1st DNS server

Enter the IP address of the primary DNS server for your network.

-2nd DNS server

Enter the IP of the Secondary DNS, which is used if the Primary DNS server is unavailable.

How to assign IP address

Default setting is set to "DHCP" and "UPnP" function is set to ON. If your network has DHCP server and UPnP function is enabled on your PC, you can find the network camera in "My network".

If DHCP server is not available in your network, please assign IP address as following process.

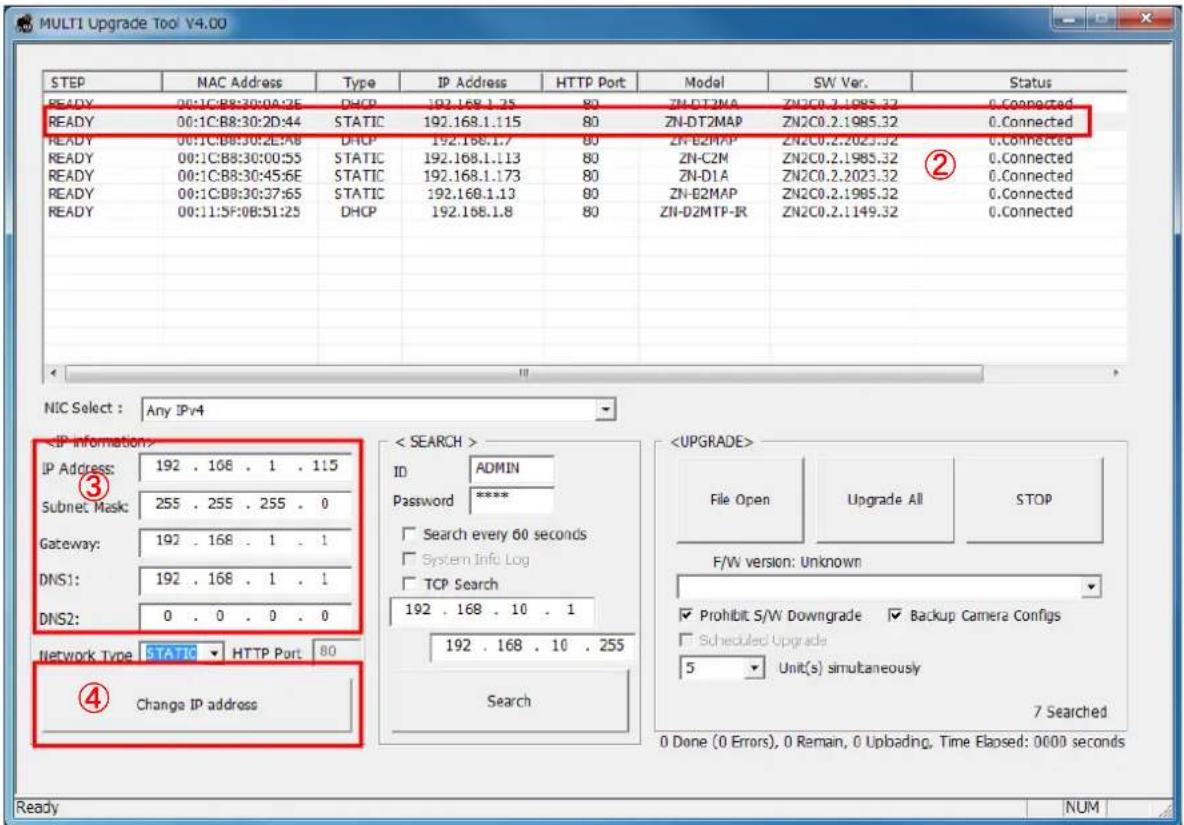

MULTI Upgrade Tool Y4.00 STEP NAC Address Type IP Address HTTP Port Model SW Ver. Status READY 00:1C:B8:30:0A:2E DHCP 192.168.1.25 80 ZN-DT2MA ZN2C0.2.1985.32 0-connected READY 00:1C:B8:30:2D:44 STATIC 192.168.1.115 80 ZN-DT2MAP ZN2C0.2.1985.32 0-connected READY 00:1C:B8:30:2E:A8 DHCP 192.168.1.7 80 ZN-B2MAP ZN2C0.2.2023.32 0-connected READY 00:1C:B8:30:00:55 STATIC 192.168.1.113 80 ZN-C2M ZN2C0.2.1985.32 0-connected READY 00:1C:B8:30:45:6E STATIC 192.168.1.173 80 ZN-D1A ZN2C0.2.2023.32 0-connected READY 00:1C:B8:30:37:65 STATIC 192.168.1.13 80 ZN-B2MAP ZN2C0.2.1985.32 0-connected READY 00:11:5F:0B:51:25 DHCP 192.168.1.8 80 ZN-DZMTP-R ZN2C0.2.1149.32 0-connected NIC Select : Any IPv4 IP Address: 192 . 168 . 1 . 115 ③ Subnet Mask: 255 . 255 . 255 . 0 Gateway: 192 . 168 . 1 . 1 DNS1: 192 . 168 . 1 . 1 DNS2: 0 . 0 . 0 . 0 Network Type STATIC HTTP Port 80 ④ Change IP address < SEARCH > ID ADMIN Password **** Search every 60 seconds System Info Log TCP Search 192 . 168 . 10 . 1 192 . 168 . 10 . 255 Search File Open Upgrade All STOP F/W version: Unknown Prohibit S/W Downgrade Backup Camera Configs Scheduled Upgrade 5 Unit(s) simultaneously 7 Searched 0 Done (0 Errors), 0 Remain, 0 Upbading, Time Elapsed: 0000 seconds Ready NUM

1) Execute "MultiUpgradeTool.exe", it will search the camera on the network.
2) After the camera is listed in camera list, select the camera.
3) Type in the all network information.
4) Click "Change IP address" button to set network settings to the camera.

When you double-click the camera within the list, the default web browser (Internet Explorer or compatible equivalent) will open and automatically connect to the camera.

10.2 Network > Service Port

GANZ Live Setup WEB Remote Viewer Analog Output Video Audio Live FTP Event Network IP Setup Service Port RTP E-mail DDNS UPnP System Service Port HTTP Port 80 [Def : 80, 1~65535] RTSP Port 554 [Def : 554, 1~65535] Port Forwarding Port Forwarding AUTO DEL External IP SAVE RESET

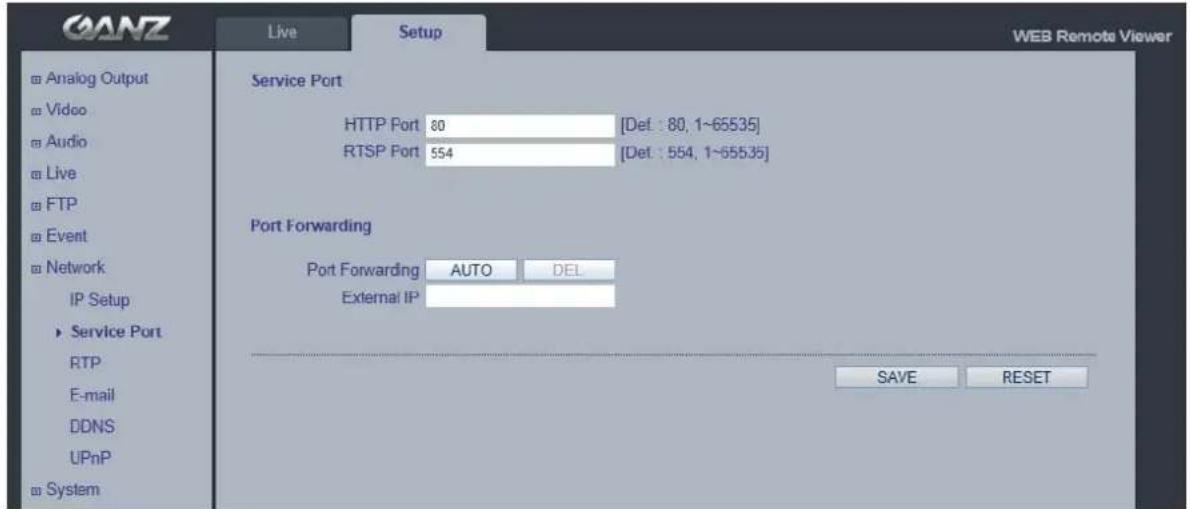

Service Port

HTTP port- The default HTTP port number (80) could be changed to any port within the range 1-65535. This is useful for simple port mapping.

RTSP port- The RTSP protocol allows a connecting client to start an H.264 stream. Enter the RTSP port number to use. The default setting is 554.

NOTE: After changing the default port numbers, the user can use the "MultiUpgradeTool.exe" to search and connect automatically.

10.3 Network > RTP

GANZ Live Setup WEB Remote Viewer Analog Output Video Audio Live FTP Event Network IP Setup Service Port ► RTP E-mail DDNS UPnP ■ System RTP Port Range Start Port 50000 [1024~65524] End Port 60000 [1035~65535] Multicast Setup 1st Stream IP 239.11.116.80 Video Port 0 [0, 1024~65534: even value only] Audio Port 0 [0, 1024~65534: even value only] TTL 5 [1~255] 2nd Stream IP 224.11.116.80 Video Port 0 [0, 1024~65534: even value only] Audio Port 0 [0, 1024~65534: even value only] TTL 5 [1~255] SAVE RESET

RTP port range, Multicast Setup

These settings are the IP address, port number, and Time-To-Live value to use for the video stream(s) in multicast H.264 format.

Only certain IP addresses and port numbers should be used for multicast streams.

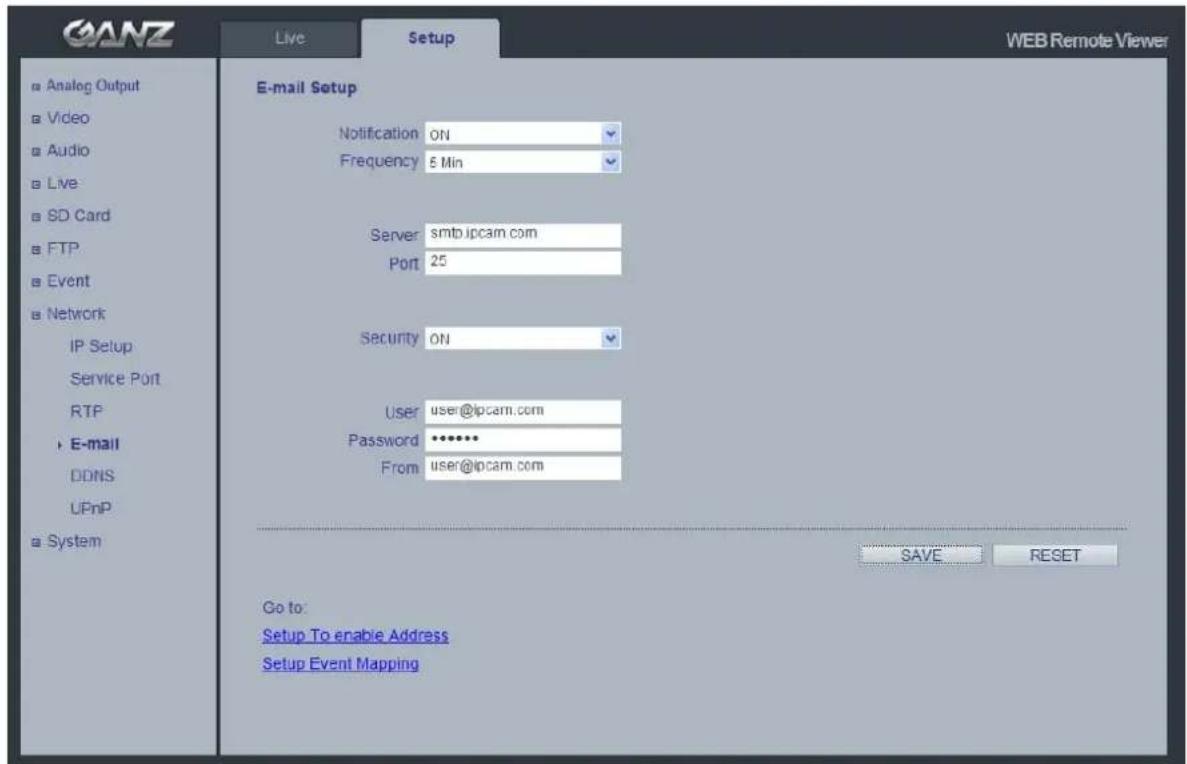

10.4 Network > E-mail

GANZ Live Setup WEB Remote Viewer Analog Output Video Audio Live SD Card FTP Event Network IP Setup Service Port RTP E-mail DDNS UPnP System E-mail Setup Notification ON Frequency 5 Min Server smtb.ipcam.com Port 25 Security ON User [e-mail] Password ***** From [e-mail] SAVE RESET Go to: Setup To enable Address Setup Event Mapping

You must turn Notification to 'On' and then enter the host names or addresses for your mail servers in the fields provided, to enable the sending of event and error email messages from the camera to predefined addresses via SMTP.

Note1)

Frequency : Mail server may register the sender to SPAM list when frequency is set to "1 Min". It may be better to set "5 Min" for safe side.

Note2)

From : Specify the name who sent e-mail notification. It may be better to use e-mail format like as [e-mail]. Some e-mail server will refuses it.

10.5 Network > DDNS

GANZ Live Setup WEB Remote Viewer Analog Output Video Audio Live FTP Event Network IP Setup Service Port RTP E-mail DDNS UPnP System DDNS Setup DDNS ON User Set URL http://dvrlink.net SAVE RESET

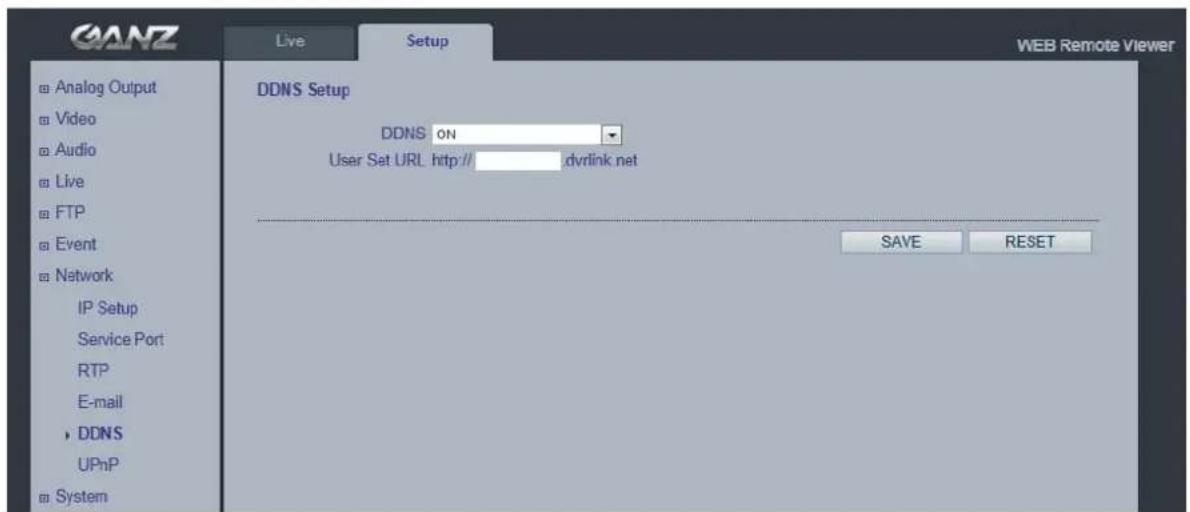

How to setup the DDNS:

1) DDNS set to ON.

"mac address.dvrlink.net" is registered to the DDNS server.

User can connect to the camera with: "http://mac address.dvrlink.net".

2) DDNS set to ON and user inputs "user-defined name".

"mac address.dvrlink.net" and "user-defined name.dvrlink.net" are both registered together.

User can connect to the camera using either:

"http://mac address.dvrlink.net" or "http://user-defined name.dvrlink.net".

If "user-defined name" is already registered, an error message is shown, try a different name.

10.5 Network > UPnP

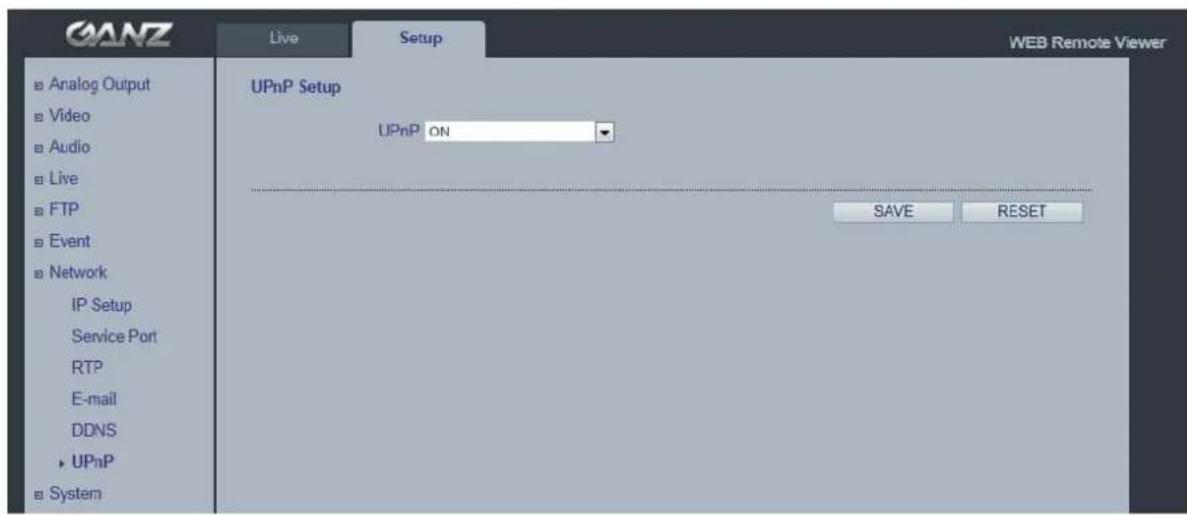

GANZ Live Setup WEB Remote Viewer ■ Analog Output ■ Video ■ Audio ■ Live ■ FTP ■ Event ■ Network IP Setup Service Port RTP E-mail DDNS ► UPnP ■ System UPnP Setup UPnP ON SAVE RESET

Universal Plug & Play (UPnP) allows you to find the IP camera automatically on your network.

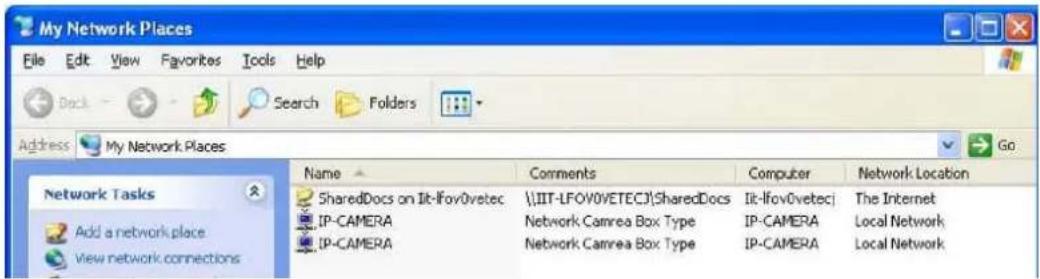

My Network Places File Edit View Favorites Tools Help Back Search Folders Address My Network Places Go Network Tasks Add a network place View network connections Name Comments Computer Network Location SharedDocs on It-Ifov0vetec \\IIT-LFOV0VETECJ\SharedDocs It-Ifov0vetecj The Internet IP-CAMERA Network Camrea Box Type IP-CAMERA Local Network IP-CAMERA Network Camrea Box Type IP-CAMERA Local Network

In order to be able to detect the camera automatically, you must enable the UPnP function on both the camera and on your PC.

Camera : Set UPnP to "ON"

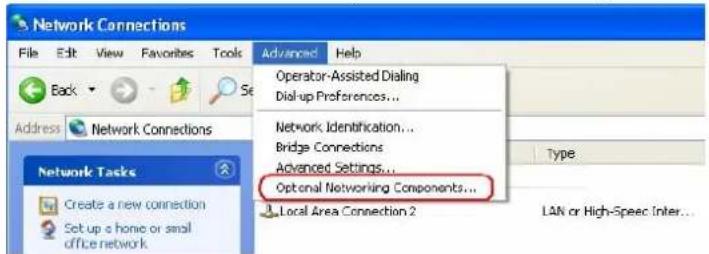

PC : Open "Control Panel" >"Network Connection" Select "Advanced" >"Optional Networking Components..."

Network Connections File Edit View Favorites Tools Back Address Network Connections Network Tasks Create a new connection Set up a home or small office network Advanced Help Operator-Assisted Dialing Dial-up Preferences... Network Identification... Bridge Connections Advanced Settings... Optional Networking Components... Local Area Connection 2 Type LAN or High-Spec Inter...

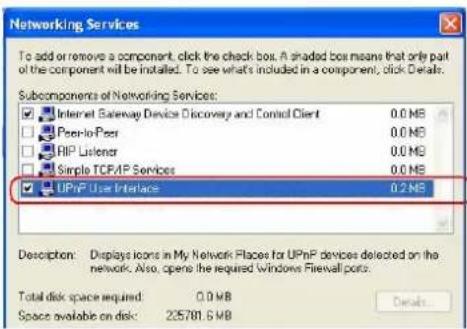

Select "Network Services" and click "Details". Then select "UPnP user Interface"

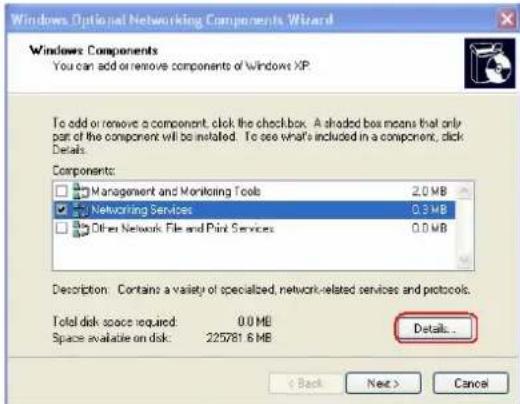

Windows Optional Networking Components Wizard Windows Components You can add or remove components of Windows XP To add or remove a component, click the checkbox. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Components: □ Management and Monitoring Tools 2.0 MB ☑ Networking Services 0.3 MB □ Other Network File and Print Services 0.0 MB Description: Contains a variety of specialized, network-related services and protocols. Total disk space required: 0.0 MB Space available on disk: 225781.6 MB Details...< Back Next > Cancel

Networking Services To add or remove a component, click the check box. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Subcomponents of Networking Services: Internet Gateway Device Discovery and Control Client 0.0 MB Peer-to-Peer 0.0 MB HIP Listener 0.0 MB Simple TCP/IP Services 0.0 MB UPnP User Interface 0.2 MB Description: Displays icons in My Network Places for UPnP devices detected on the network. Also, opens the required Windows Firewall ports. Total disk space required: 0.0 MB Space available on disk: 225781.6 MB

11. System

11.1 System > User

GANZ Live Setup WEB Remote Viewer User Management Del/Add User ID Password Group E-mail Notification ADMIN **** Admin Del User1 **** User Add Date / Time Maintenance Information Go to Setup E-mail SAVE RESET

Access the camera and the Configure Root Password dialog appears.

Enter the User name: ADMIN and password is 1234.

To changed password or add a user click SETUP > SYSTEM > USER. Fill the User ID, Password and E-mail server. Select Group. Then press ADD button and click SAVE.

Note: The default administrator user name ADMIN is permanent and could not be deleted or altered.

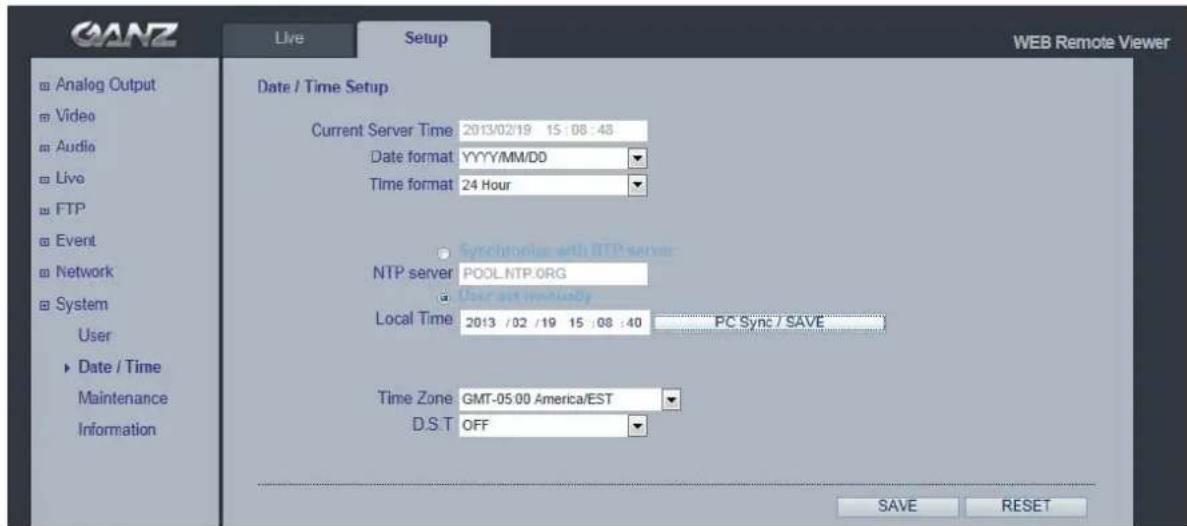

11.2 System > Date & Time

GANZ Live Setup WEB Remote Viewer Date / Time Setup Current Server Time 2013/02/19 15:08:48 Date format YYYY/MM/DD Time format 24 Hour NTP server POOL NTP.ORG Local Time 2013 /02 /19 15:08:40 PC Sync / SAVE Time Zone GMT-05:00 America/EST D.S.T OFF Date / Time Maintenance Information Analog Output Video Audio Live FTP Event Network System User ► Date / Time Maintenance Information SAVE RESET

Date & Time Format - specify the formats for the date and time (12h or 24h) displayed in the Live View video streams. Use the predefined formats or use your own custom date and time formats.

Network Time Server - the camera will obtain the time from an NTP server every 60 minutes. Specify the NTP server's IP address or host name.

Time zone setup – Select your time zone from the drop-down list.

D.S.T (Daylight Saving Time) - ON/OFF

11.3 System > Maintenance

GANZ Live Setup WEB Remote Viewer Maintenance System Name GANZ System Reboot OK Factory Default OK Enable Firmware Upgrade OK Firmware Updates OK SAVE RESET < Note > Before upgrading firmware, please press Enable Firmware Upgrade button.

System Name

Choose a system name to identify the camera when using e-mail notifications.

System Reboot

Reboot the camera.

Factory Default

To reset the camera back to the original factory default settings.

Enable Firmware Upgrade / Firmware Updates

To upgrade Firmware of the camera, follow the instruction below.

NOTE: Preconfigured and customized settings should be saved before the firmware is upgraded.

1) Enable Firmware Upgrade mode with clicking "OK" of Enable Firmware Upgrade menu.
2) The camera automatically switch to Firmware Upgrade mode.

Changing to Firmware Update Mode...

3) When Firmware upgrade menu is displayed, browse to the desired firmware file on your computer. Click OK.

GANZ Network System Maintenance Information Setup WEB Remote Viewer Firmware upgrade mode!! This camera is working in Firmware upgrade mode To use normal functions, please reboot system. Maintenance System Name GANZ System Reboot OK Factory Default OK Firmware Updates Browse... OK SAVE RESET

NOTE: Do not disconnect power to the unit during the upgrade. The unit will restart automatically after the upgrade has completed. (1\~5 minutes)

System Reset (Factory Default Reset)

There are two ways to reset the camera back to factory default. holding down about 10-20 sec the reset button on the Network cable

Using the web browser:

1. Go to SETUP > System > Maintenance.
2. Click Factory Default Button and wait 1 minute for camera to reboot.

Using the Reset Button:

1. Holding down 10-20 sec the reset button on the Network cable.
2. Release your finger on the reset button, waiting about 1 minute for camera reboot

NOTE: The unit will now have the default IP address from a DHCP server. Use the "MultiUpgradeTool.exe" to discover and connect to the camera.

11.4 System > Information

GANZ Live Setup WEB Remote Viewer Analog Output Video Audio Live FTP Event Network System User Date / Time Maintenance Information System Information S/W Version ZN2C0.2.1149.32 Model Name ZN-DT2MTP-IR MAC Address 00:11:5F:0B:74:50 IP Address 192.168.1.30 Subnet Mask 255.255.255.0 Default Gateway 192.168.10.1 1st DNS 192.168.1.1 2nd DNS 0.0.0.0 DDNS Server DVRLINK.NET

System Information

You can confirm the system information if the camera here.

12.DIMENSION (mm)

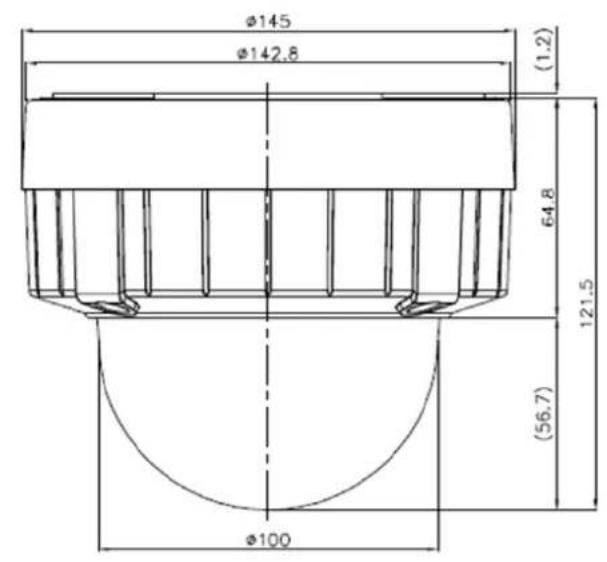

Ø145 Ø142.8 (1.2) 64.8 121.5 (56.7) Ø100

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a circular mechanical component with mounting holes and centerlines (no text or symbols)

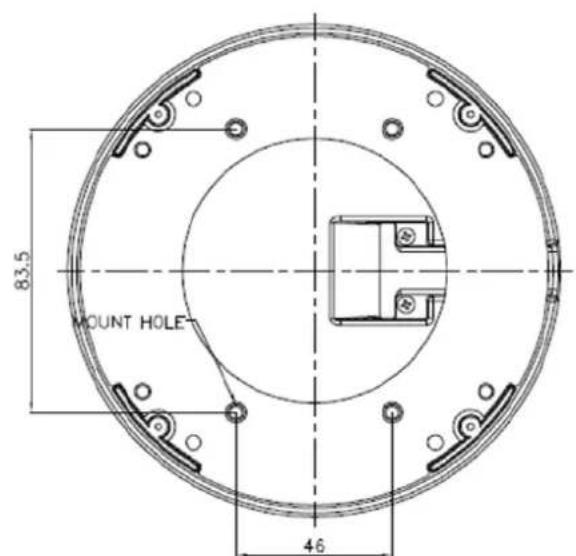

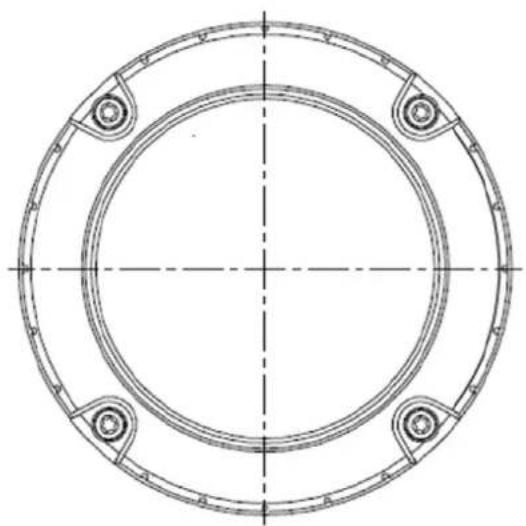

• TOP VIEW -

83.5 MOUNT HOLE 46

• BOTTOM VIEW -

• Specification

Product Features		H.264 / MJPEG Network Camera
		Dual Stream
		Motion Triggered Alarm/ External Alarm In
		Multi Language GUI support
		ONVIF Compliant
		Triple Power. DC12V, 24VAC, PoE(802.3af)
		SONY CMOS Sensor IMX-122
		On The Fly supported @ GOP/Bitrate/FPS stetting
		2D DNR. (Depends on CODEC configuration)- 3D TBD
		DPC(Defective Pixel Correction) on the fly
		IR LED 18ea
		Motorized Zoom, Focus and P-iris
		True Day & Night
		Analog Hybrid Output(Installation Only)
		Heater(option)
CAMERA	Image Sensor	1/2.8" Sony IMX-122 CMOS Sensor
	Max. Resolution	1920 x 1080
	Effective Pixels	1984(H) x 1225(V)
	Effective Image Size	5.56mm(H) x 3.43mm(V), 6.53mm(Diagonal)
	White Balance	ATW / MANUAL(PRESET)
	Electronic Zoom	2 ~ 10x(Client Software)
	AGC	Yes
	BLC	Yes
	Iris	Motorized Iris / MANUAL / AES
	Shutter Speed	1/4, 1/10, 1/12.5, 1/15, 1/20, 1/25, 1/30, 1/50, 1/60, 1/100, 1/120, 1/240, 1/480, 1/960, 1/1024, 1/2000s
	Slow Shutter	2x
	Lens	Motorized Zoom and Focus lens f=3~9mm, F1.2~2.1
	Day & Night	Removable IR Cut Filter
	S/N ratio	48.8 dB or more
	Min. illumination	0.21 lux(F1.2, 50IRE) with IR LED OFF0 lux with IR LED ON
ANALOG (Installation Only)	Video Signal	NTSC/PAL selectable
	Monitor Output	Composite Output(BNC), 75 ohm 1Vpp
	Scanning Frequency	NTSC: (H) 15.734 kHz, (V) 59.94 Hz
		PAL: (H) 15.625 kHz, (V) 50 Hz
AUDIO	In/Out	Line in, Line out
		External Amplifier is needed
	CODEC	G.711 / 8K sampling
NETWORK	Network	10BASE-T, 100BASE-TX, RJ45
	Image Compression	H.264 : High Profile
		MJPEG : Image quality: 100 Steps(Q value)
	Resolution	1920 x 1080(Full HD), 1280 x 1024(SXGA),
		1024x768(XGA), 1280 x 720(720p)
		640 x 480(VGA), 320 x 240(QVGA)
		704x480/576(4CIF), 352x240/288(CIF)
	Protocol	IPv4, HTTP, SMTP, UPnP, DNS,
		RTP, TCP, UDP, RTCP, DHCP, ARP, IGMP,
		IGMP, ICMP, NTP / IPv6(TBD)
	Frame Rate	1 fps ~ 25 fps / 1 fps ~ 30 fps
	Web Browser	Internet Explorer 7.0 or above
		Firefox
		Chrome
		PDA/Smart phone
	Security	Password Protection
	SDK(API)	HTTP based API ONVIF
	VMD	User set 4 ROI(Region Of Interest)
		10 Step Sensitivity
	Alarm Trigger	VMD, External Alarm Input
	Alarm Event	E-mail notification(Snapshot), FTP transfer(Snapshot), Video streaming with alarm status
POWER	Power Source	DC12V 1A
		24VAC(50Hz/60Hz) 800mA
		PoE(IEEE 802.3af compliant)
Power Consumption		640mA @ DC12V, Max 7.7W500mA @ AC24V, Max 7.5W140mA @ DC48V(PoE), Max 6.7W
Heater		3W
OTHER SPECIFICATIONS	Micro SD Card	-
	External I/O Terminals	Alarm In x1: NO/NC Dry contactAlarm Out x1: Relay output
		Audio In x1, Audio Out x1
	IR Number / Distance	18EA / 10M
	FAN Number
	Ambient Temperature	-10°C ~ 50°C(14°F~122°F)
		With Heater -20°C ~ 50°C(-4°F~122°F)
	Ambient Humidity	less than 90%, Non-condensing
	Materials	Aluminum Diecasting
	Weight	1.1kg
	Dimensions(W x H x D)	145(D) x 116.3(H) mm

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

English

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Français/French

CBC (POLAND) Sp.zo.o

Warszawa

http://www.cbcpoland.pl

CBC Co., Ltd. MOSCOW REP OFFICE

Moscow

http://www.cbc.ru

CHINA

CBC(Beijing) Trading CO.,LTD.

Beijing

http://www.cbo-china.cn/10/

CBC (SHANGHAI) TRADING CO., LTD.

Shanghai

http://www.cbc-china.cn/10/

CBC SHANGHAI CO., LTD. GUANGZHOU OFFICE

Guangzhou

http://www.cbc-china.cn/1D/

CBC (H.K.) CO., LTD.

Hong Kong

http://www.cbc-china.cn/10/

ASIA

CBC. S PTE LTD.

Singapore

CBC(THAILAND) CO., LTD.

Bangkok

CBC CO., LTD. MUMBAI REP OFFICE

Mumbai
