Visioneer Strobe XP 450 Scanner User's Guide

FOR WINDOWS

COPYRIGHT INFORMATION

Copyright © 2006 Visioneer, Inc.

Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.

The Visioneer brand name and logo are registered trademarks of Visioneer, Inc. The PaperPort brand name and logo is a registered trademarks of Nuance Communications, Inc. QuickScan is a trademark and ISIS is a registered trademark of Captiva Software Corporation. Adobe®, Adobe® Acrobat®, Acrobat® Reader®, and the Adobe® Acrobat® PDF® logo are registered trademarks of Adobe Systems Incorporated in the United States and/or other countries. The Adobe PDF logo will appear in this product's software, and full access to Adobe software features is only available if any Adobe product is installed on your computer.

This product is covered by one or more of the following patents: 6,480,304; 5,818,976; 5,499,108; 5,517,332.

Microsoft is a U.S. registered trademark of Microsoft Corporation. Windows is a trademark of Microsoft Corporation. ZyINDEX is a registered trademark of ZyLAB International, Inc. ZyINDEX toolkit portions, Copyright © 1990-1998, ZyLAB International, Inc. All Rights Reserved. All other products mentioned herein may be trademarks of their respective companies.

Information is subject to change without notice and does not represent a commitment on the part of Visioneer. The software described is furnished under a licensing agreement. The software may be used or copied only in accordance with the terms of such an agreement. It is against the law to copy the software on any medium except as specifically allowed in the licensing agreement. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, or translated to another language, for any purpose other than the licensee's personal use and as specifically allowed in the licensing agreement, without the express written permission of Visioneer.

Part Number: 05-0567-600

Restricted Rights Legend

Use, duplication, or disclosure is subject to restrictions as set forth in contract subdivision (c)(1)(ii) of the Rights in Technical Data and Computer Software Clause 52.227-FAR14. Material scanned by this product may be protected by governmental laws and other regulations, such as copyright laws. The customer is solely responsible for complying with all such laws and regulations.

Visioneer's Limited Product Warranty

IF YOU FIND PHYSICAL DEFECTS IN THE MATERIALS OR THE WORKMANSHIP USED IN MAKING THE PRODUCT DESCRIBED IN THIS DOCUMENT, VISIONEER WILL REPAIR, OR AT ITS OPTION, REPLACE THE PRODUCT AT NO CHARGE TO YOU, PROVIDED YOU RETURN IT (POSTAGE PREPAID, WITH PROOF OF YOUR PURCHASE FROM THE ORIGINAL RESELLER) DURING THE 90-DAY PERIOD AFTER THE DATE OF YOUR ORIGINAL PURCHASE OF THE PRODUCT. UPON RECEIPT DURING THE INITIAL 90-PERIOD BY VISIONEER OF A VALID REGISTRATION OF THE PRODUCT, THIS LIMITED PRODUCT WARRANTY PERIOD IS EXTENDED TO THE 12-MONTH PERIOD AFTER THE DATE OF YOUR ORIGINAL PURCHASE. IF A VALID REGISTRATION IS NOT RECEIVED DURING THE INITIAL 90-DAY PERIOD, THE 12-MONTH WARRANTY IS NO LONGER AVAILABLE AND YOUR PRODUCT WARRANTY WILL TERMINATE AFTER THE 90-DAY INITIAL PERIOD EXPIRES.

THIS IS VISIONEER'S ONLY WARRANTY AND YOUR EXCLUSIVE REMEDY CONCERNING THE PRODUCT, ALL OTHER REPRESENTATIONS, WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, WRITTEN OR ORAL, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT, ARE EXPRESSLY EXCLUDED. AS A RESULT, EXCEPT AS SET OUT ABOVE, THE PRODUCT IS SOLD "AS IS" AND YOU ARE ASSUMING THE ENTIRE RISK AS TO THE PRODUCT'S SUITABILITY TO YOUR NEEDS, ITS QUALITY AND ITS PERFORMANCE.

IN NO EVENT WILL VISIONEER BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY DEFECT IN THE PRODUCT OR FROM ITS USE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

All exclusions and limitations in this warranty are made only to the extent permitted by applicable law and shall be of no effect to the extent in conflict with the express requirements of applicable law.

RoHS and WEEE Compliance

This product is compliant with RoHS Regulations of the European Parliament and Council Directive on the Restrictions of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (2002/95/EC), and with the Waste Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC).

FCC Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for the class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed, and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

TABLE OF CONTENTS

Welcome 1

What's in the Box 1

The Visioneer Strobe XP 450 Scanner 2

What You Need 3

Documentation 3

Installation 4

Before You Begin 4

Step 1: Assemble the Scanner .... 5

Step 2: Install the Software 7

Step 3: Connect the Power Supply ..... 14

Step 4: Connect the USB Cable and Turn on the Power ..... 15

Additional Applications for Your Scanner 19

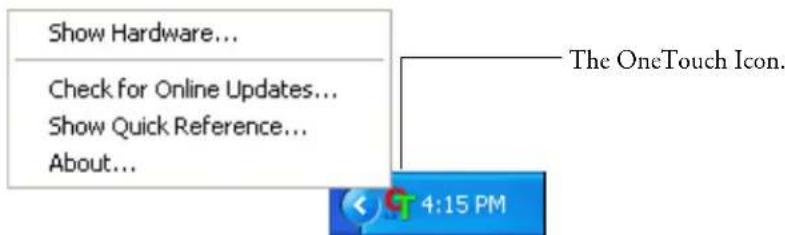

Register Your Scanner and Check for Updates 22

Scanning 23

Load and Scan Documents 24

Check the Scan Settings Before Scanning 26

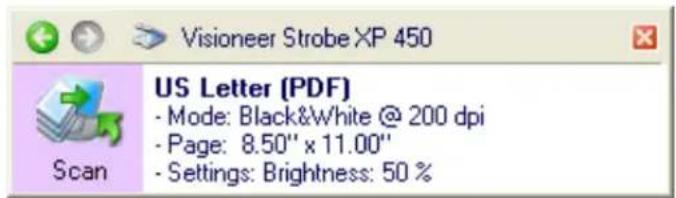

Scan from the OneTouch Panel 28

The OneTouch Properties Window 29

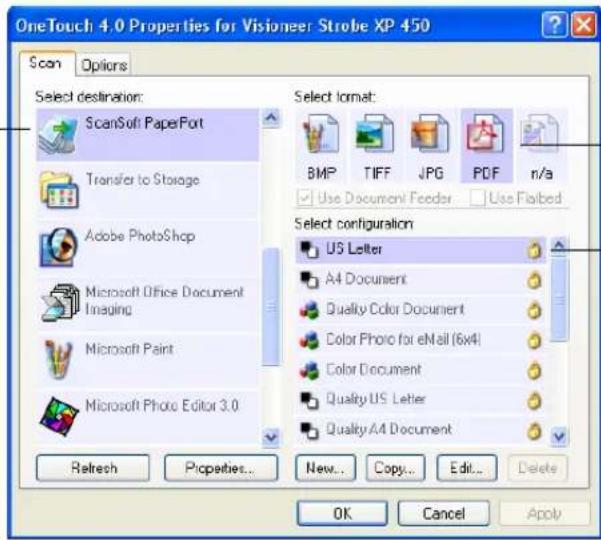

Selecting New Scan Settings for the Scan Button 33

Setting Destination Application Properties 35

Selecting Format Options 44

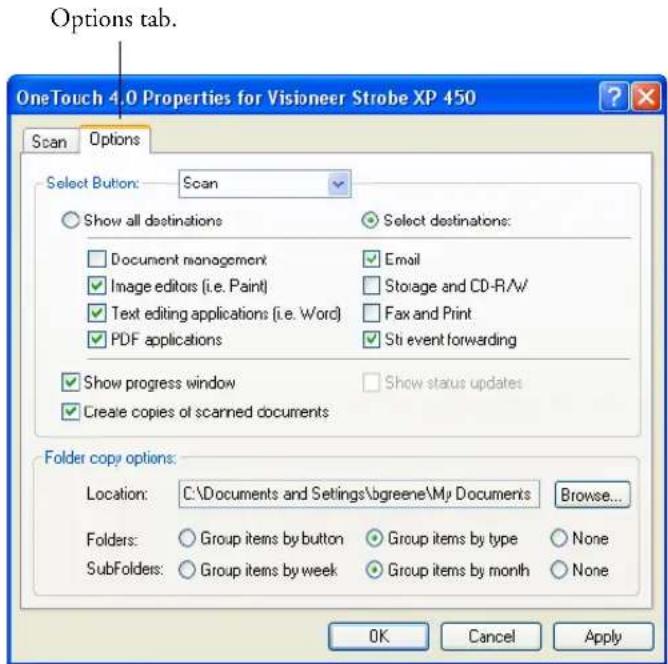

Selecting Options for the Scan Button 48

Creating a New Scan Configuration 52

Editing or Deleting Scan Configurations .... 66

Configuring Before Scanning 68

Scanning with Optical Character Recognition (OCR) .....70

Scan and Burn to a CD 72

Scanning with Event Forwarding 75

Creating an HTML Web Page from Your Scanned Documents 77

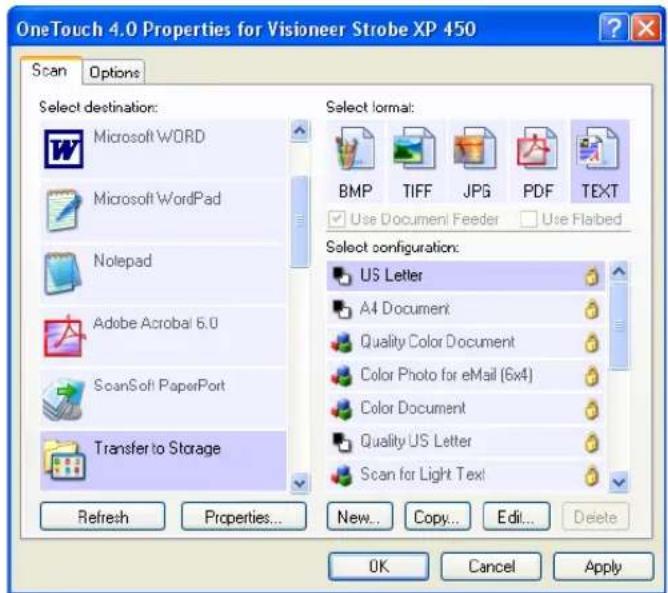

Transferring Scanned Documents to Storage ..... 79

Checking the Hardware and Setting the Lamp Power Save Mode 84

Scanning with the TWAIN Interface from PaperPort....87

Getting Help with the PaperPort Software 87

Accessing the TWAIN Interface from PaperPort ....88

Scanning with the TWAIN Interface 91

Display the Device Configuration 96

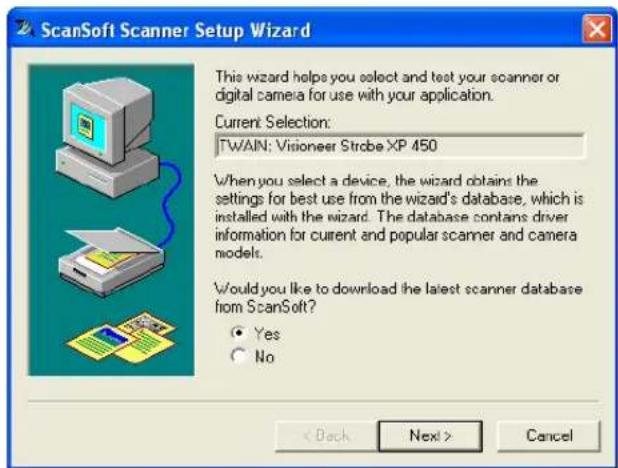

Setting Up PaperPort to Work With Your Scanner ..... 97

Scanning with the WIA Interface....102

Fine Tuning Your Scans 105

Scanning with the ISIS Interface 107

Adjusting the ISIS Scan Settings 109

Maintenance 113

Cleaning the Automatic Document Feeder 113

Clearing Paper Jams 114

Replacing the ADF Pad Assembly 115

Troubleshooting 116

Status Light Troubleshooting Codes .... 118

How to Uninstall Your Scanner .... 119

Step 1: Uninstalling the OneTouch 4.0 Scanner Software . . . . 119

Step 2: Uninstalling the PaperPort Software ..... 119

To Install Another Driver 120

Visioner Strobe XP 450 Scanner Specifications 121

Visioneer Strobe XP 450 Scanner Parts List ..... 122

Index 123

WELCOME

Congratulations on purchasing your Visioneer Strobe XP 450 scanner. With your scanner you can quickly scan stacks of color or black-and-white documents and place their images on your computer.

WHAT'S IN THE BOX

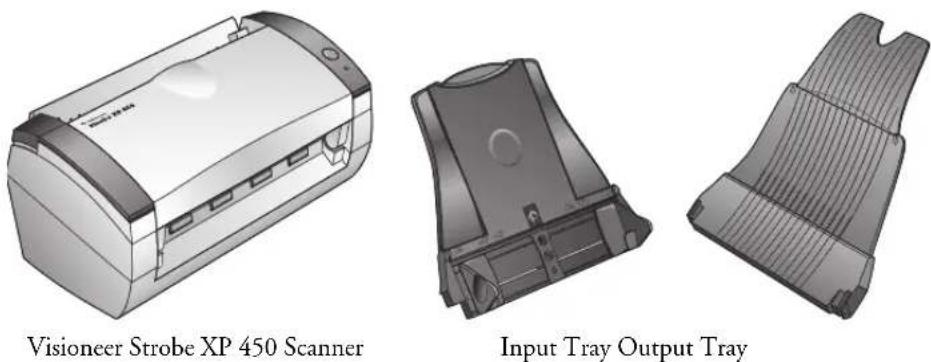

Before proceeding, check the contents of the box. If items are missing or damaged, contact the dealer where you purchased the scanner.

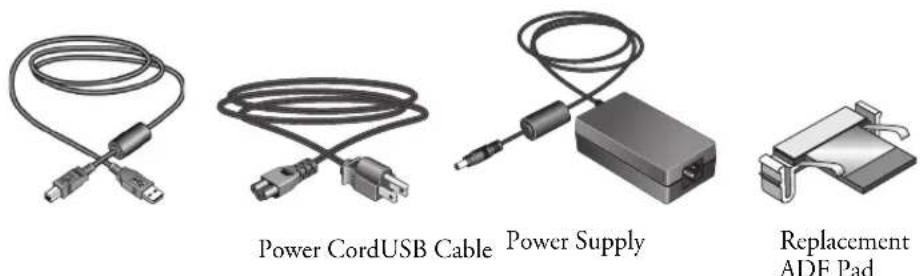

Installation CD Quick Install Guide Technical Support Card

THE VISIONEER STROBE XP 450 SCANNER

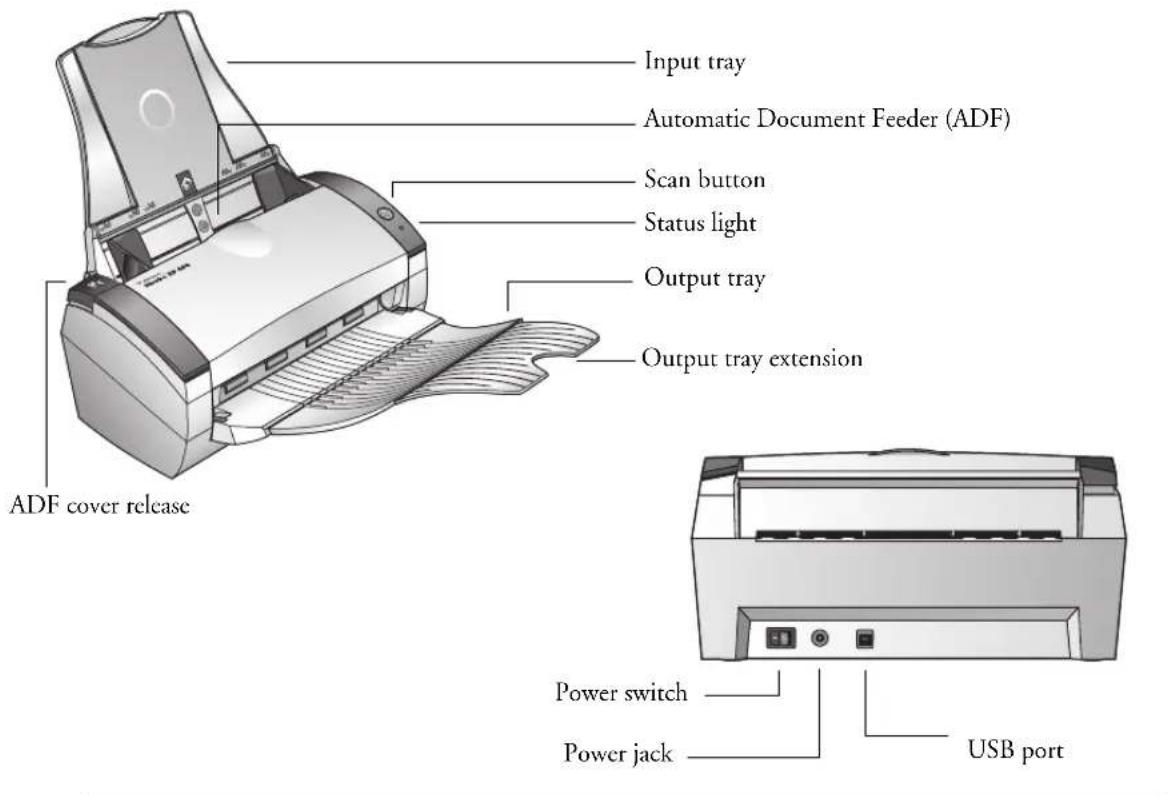

Input tray Automatic Document Feeder (ADF) Scan button Status light Output tray Output tray extension ADF cover release Power switch Power jack USB port

Input tray—Holds documents in place. The Paper Guides on the input tray adjusts to fit the document size.

Automatic Document Feeder (ADF)—Insert documents to be scanned, face down.

Scan button—Press to start scanning the documents in the Automatic Document Feeder.

Status light—Shows the scanner's status. A rapidly flashing green light indicates the scanner is preparing to scan. A steady green light indicates the scanner is available to scan. Refer to the Troubleshooting section for additional details.

Output tray—Holds documents after scanning through the ADF.

Output tray extension—Unfold when scanning legal-sized documents.

ADF cover release—Opens the cover on the Automatic Document Feeder.

Universal Serial Bus (USB) port—Connects the scanner to the computer.

Power jack—Connects the power cord to the scanner.

Power switch—Turns the scanner's power on and off.

WHAT YOU NEED

An IBM-compatible Pentium PC, or AMD equivalent with:

■A CD-ROM drive
■An available Universal Serial Bus (USB) port
■Microsoft ^® Windows ^® operating system: 2000 (Service Pack 4) or XP (Service Pack 1 and 2)
■ A minimum of 512 MB (megabytes) of internal memory (RAM)
■200 MB minimum of free hard disk space

A VGA or SVGA Monitor

The recommended settings for your monitor are:

■High Color (16-bit) or True Color (24-bit or 32-bit)
■Resolution set to at least 800 x 600 pixels

To set your monitor's colors and resolution:

■Open the Windows Control Panel
■ Double-click on Display then select the Settings tab

DOCUMENTATION

Your scanner is delivered with the following documentation:

■ Quick Install Guide—Abbreviated installation instructions.
■Visioneer Strobe XP 450 Scanner User's Guide—On the Installation CD; contains detailed installation, scanning, configuration, and maintenance information.
■PaperPort User's Guide—On the Installation CD; contains detailed feature and configuration information for the PaperPort software.
■ Online Help—For the scanner configuration, TWAIN and WIA interfaces, and PaperPort software application.

Installation

Installation is a quick, four-step process:

1. Assemble the scanner
2. Install the software
3. Connect and power on the scanner
4. Connect the USB cable to your computer

BEFORE YOU BEGIN

Please make sure of the following before you begin installation:

■The information in this guide may cover software not provided with the scanner you purchased. Disregard any information about the software not applicable to your chosen product. Please visit our web site at www.visioneer.com for the latest software updates for your Visioneer Strobe XP 450 scanner.

■ If your computer has AntiVirus or AntiSpyware software running, you may see messages during installation asking you to allow the installation to proceed. Although the messages will differ based on the software your computer is running, in each case you should allow the installation to proceed. Alternatively, you can turn off the AntiVirus or AntiSpyware software before installing your scanner, but if you do, make sure to turn it back on again when installation is finished.

If you already have a scanner connected to your computer, you need to remove its driver programs first before beginning the installation of your Visioneer Strobe XP 450 scanner. Please see “How to Uninstall Your Scanner” on page 119 for basic instructions, or see the User’s Guide that you received with your other scanner for specific instructions.

STEP 1: ASSEMBLE THE SCANNER

To assemble the scanner:

1. Remove all shipping tape from the top and bottom of the scanner.
2. Carefully remove the protective foam from the ADF cover release, then press the release button to open the Automatic Document Feeder cover.

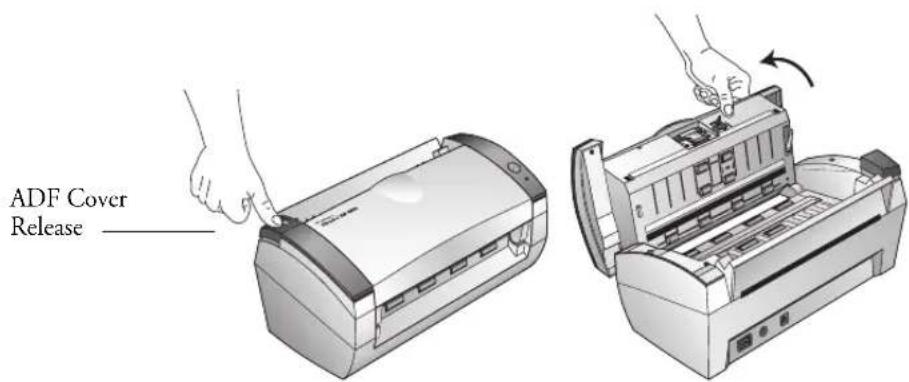

ADF Cover Release

1. Carefully remove any foam particles that may have gotten inside the document feeder, and close the cover.

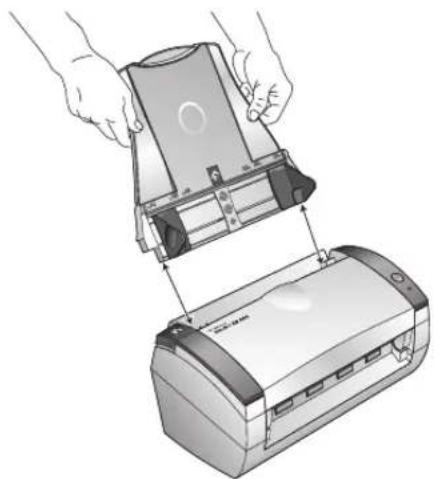

2. Align the slots on the input tray with the ridges on the scanner and slide the tray down until it snaps into place.

Illustration of hands installing or adjusting a printer onto a device (no text or symbols visible)

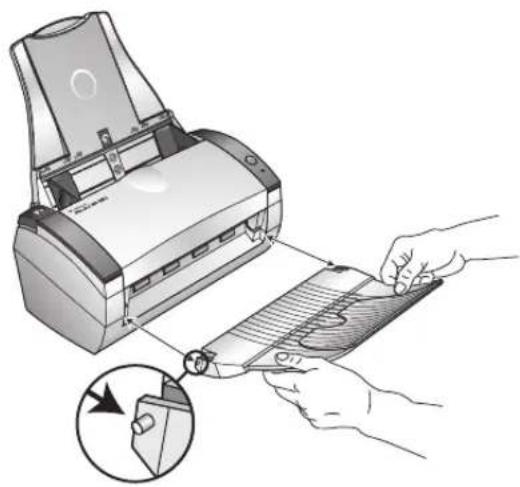

1. Insert the pins on each side of the output tray into the holes on the scanner.

Illustration of a printer being scanned into a sheet, showing the printer's handle and paper roll (no text or symbols present)

1. Proceed to "Step 2: Install the Software."

STEP 2: INSTALL THE SOFTWARE

Note: You must install the software before connecting the scanner to your computer. Otherwise, the correct driver software for your scanner will not be installed and it may not work properly.

To install the software:

1. Start Microsoft Windows and make sure no other applications are running.
2. Insert the Installation CD into your computer's CD-ROM drive.

Illustration of a desktop computer with an open disc and a hand holding a circular object (no text or symbols)

The Installation menu automatically opens.

Note: If the CD does not start, check the following:

■Make sure the CD drive's door is completely shut.
■Make sure the CD was inserted in the drive in the proper direction (label side up).

To launch the CD manually:

■Open the Windows option for My Computer. You can do this by double-clicking on the My Computer icon on your desktop.
■Double-click the icon for your CD-ROM drive.
■The Installation menu for the CD should now open.

If the menu does not open:

■From the list of files on the CD, double-click the file named START32.EXE.

1. On the Installation menu, select Install Products.

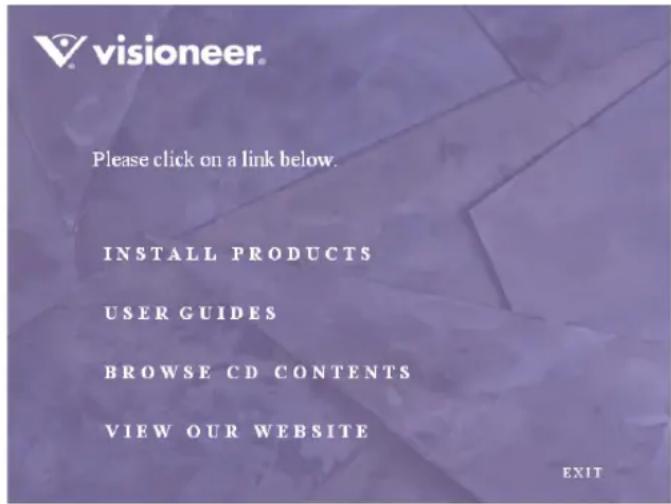

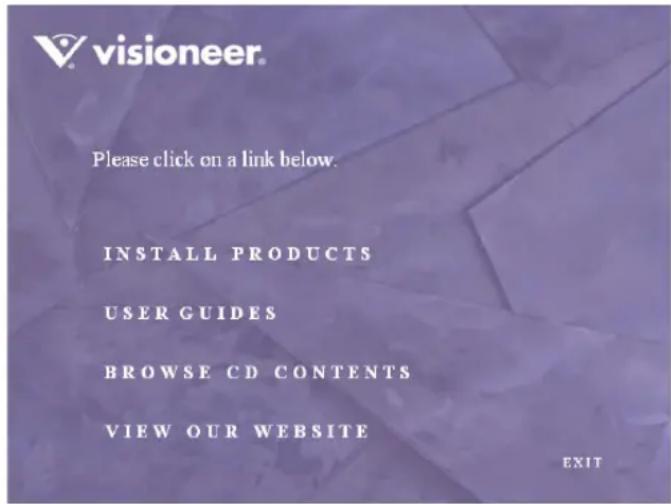

visioneer. Please click on a link below. INSTALL PRODUCTS USER GUIDES BROWSE CD CONTENTS VIEW OUR WEBSITE EXIT

1. Make sure the boxes for Nuance PaperPort® and Scanner Driver are checked.

visioneer Please choose applications to install. ✓ NUANCE PAPERPORT ✓ SCANNER DRIVER ■ QUICKSCAN INSTALL NOW MAIN MENU

Note: The software provided with your scanner may differ slightly from the list shown in the window.

1. Click Install Now.

2. The Select Language window opens. Click the drop-down menu arrow and select the language you want to use. Click OK.

The first PaperPort Installation window opens.

1. On the PaperPort Welcome window, click Next.

Installing PaperPort will uninstall any existing version of PaperPort and will install the newer version while retaining all of your previous PaperPort files.

1. Read the PaperPort license agreement and select I accept the terms in this agreement, then click on Next. If you choose not to accept the license agreement, the installation will terminate and the PaperPort software will not be installed.

2. On the Customer Information window, accept the current values or enter new information, then click Next.

3. On the Setup Type window, keep the default Setup Type and click Next.

4. Click Install to begin the installation.

Reminder: If your computer is running an AntiVirus or AntiSpyware application, you may see messages asking you to allow installation. Select the option to allow installation to proceed with the install.

1. On the Product Registration window, do one of the following:

■ Select Register online, click OK, then follow the registration instructions.

■ Select Print registration form, click OK, then follow the instructions to complete and print the registration form.

■ Select Remind me in 7 days and click OK.

1. At the InstallShield Wizard Completed window, click Finish.

If a message window opens instructing you to restart your computer, click Restart.

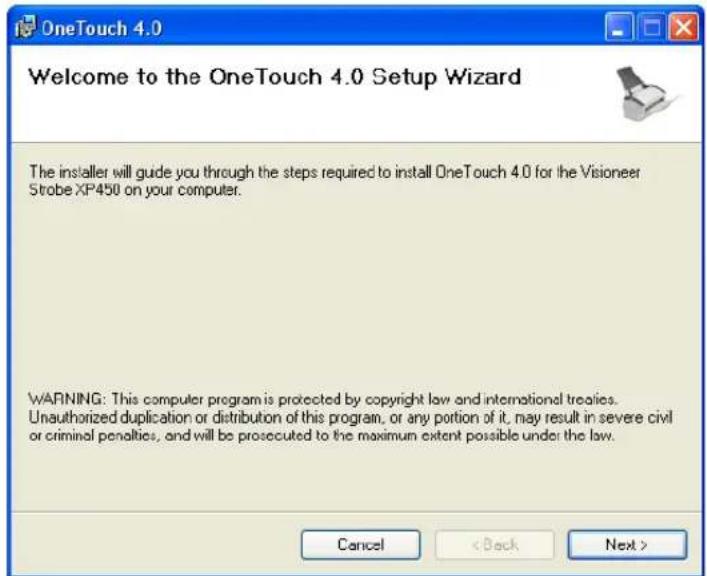

The Welcome to the OneTouch 4.0 Setup Wizard opens.

OneTouch 4.0 Welcome to the OneTouch 4.0 Setup Wizard The installer will guide you through the steps required to install OneTouch 4.0 for the Visioneer Strobe XP450 on your computer. WARNING: This computer program is protected by copyright law and international treaties. Unauthorized duplication or distribution of this program, or any portion of it, may result in severe civil or criminal penalties, and will be prosecuted to the maximum extent possible under the law. Cancel < Back Next >

1. Click Next.

2. On the Visioneer License Agreement window, read the license agreement. If you accept the terms, select I Agree.

If you choose not to accept the license agreement, the installation will terminate and the scanner driver will not be installed.

1. Click Next.

The next window lists the choices of the drivers that you can install for your scanner.

OneTouch 4.0 Scanner Software Options Recommend "Full Install", which includes OneTouch software to enhance scanner button functions. TWAIN and/or ISIS software may be required in some applications. ● Full Install (OneTouch, TWAIN, and ISIS) ○ TWAIN and ISIS ○ TWAIN Only ○ ISIS Only Cancel < Back Next >

1. Select the option you want.

Note: If your computer is running Windows XP, Microsoft's Windows Image Acquisition (WIA) interface for scanning is always available, regardless of your selection on this window.

■ Full Install (OneTouch, TWAIN, and ISIS)—This is the recommended installation. It installs the OneTouch 4.0 software which provides the necessary driver software for the scanner. It also installs scanning interfaces for TWAIN and the ISIS driver. Installing this option means that you can use several different methods to scan, as explained in this User Guide.
■ TWAIN and ISIS—The TWAIN and ISIS drivers are installed. The OneTouch 4.0 Monitor will not run and you cannot use the OneTouch features. You can use the Visioneer TWAIN driver to scan from TWAIN applications. You can also scan from applications that use the ISIS driver. You will not be able to use the Scan button on the scanner.

■ TWAIN only—The TWAIN driver is installed without the OneTouch 4.0 software or the ISIS driver. You can use the Visioneer TWAIN driver to scan from TWAIN applications. You will not be able to use the Scan button on the scanner.

- ISIS only—The ISIS driver is installed. You can use applications that use the ISIS driver, such as QuickScan. You will not be able to use the Scan button on the scanner. You will not be able to use the Visioneer TWAIN driver.

Note: If you decide to change the scanner's installed drivers later on, you must first uninstall the drivers the scanner is currently using. See the instructions on page 120.

18. Click Next.

During installation you will see this window asking you to select an image for your Color Space setting.

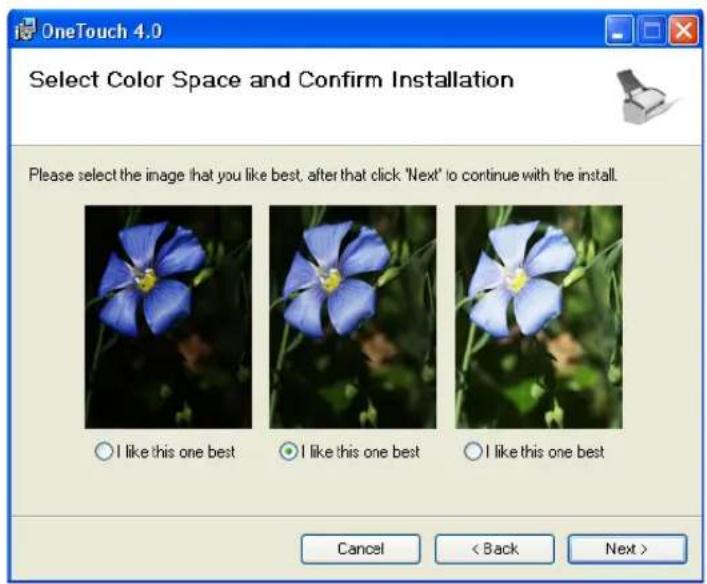

OneTouch 4.0 Select Color Space and Confirm Installation Please select the image that you like best, after that click "Next" to continue with the install. ○ I like this one best ● I like this one best ○ I like this one best Cancel < Back Next >

The Color Space setting sets the gamma value for the scanner so scanned items look good on your monitor. Gamma controls the brightness of the midtones of colors. That setting can be changed later on as you're scanning.

1. Select the option that looks best to you and click Next.

The driver installation will now begin.

1. STOP when you see the “Complete the installation by connecting your hardware” window. Do NOT click on OK yet. Leave the window open and proceed to “Step 3: Connect the Power Supply” on page 14.

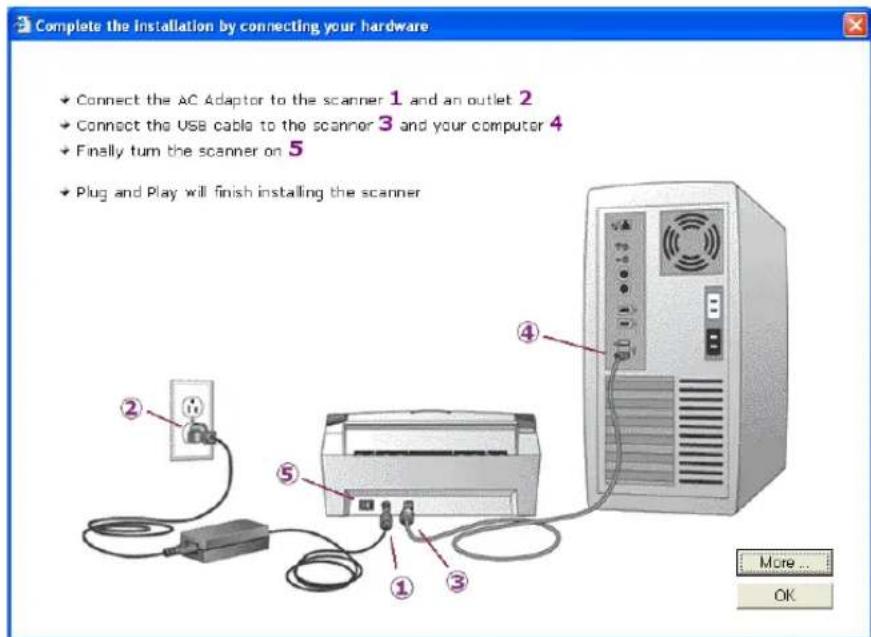

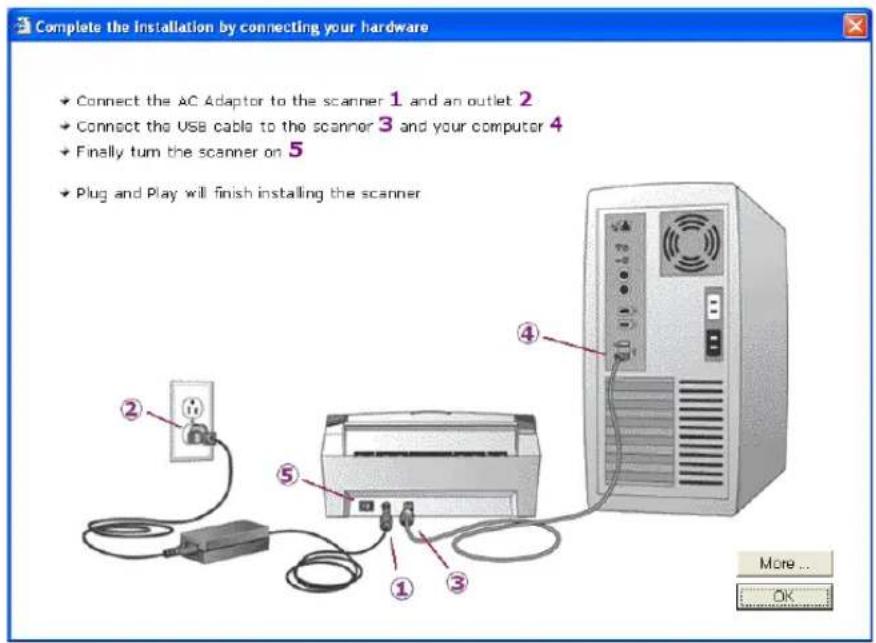

Complete the installation by connecting your hardware Connect the AC Adaptor to the scanner 1 and an outlet 2 Connect the USB cable to the scanner 3 and your computer 4 Finally turn the scanner on 5 Plug and Play will finish installing the scanner More... OK

Reminder: If your computer is running AntiVirus or AntiSpyware software, you may see messages asking you to allow installation. Select the option to allow installation to proceed.

Note: If you want to see more information about your scanner and a quick explanation of how to use the OneTouch features, click the More button on the window. When you're finished, return to the window above to continue with the installation process.

STEP 3: CONNECT THE POWER SUPPLY

Connect the power supply and power cord, and plug the power supply into an electrical outlet.

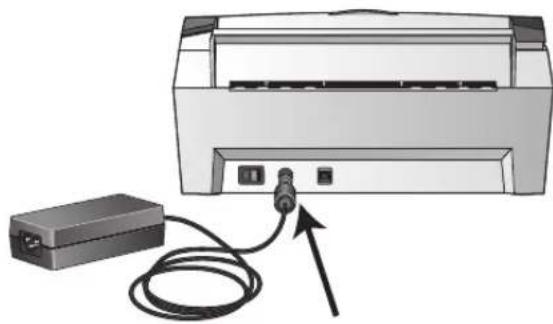

To connect your Visioner Strobe XP 450 scanner:

1. Plug the power supply into the power port on the scanner.

Illustration of a printer with cable and connector, no text or symbols present

Note: Only use the power supply (HEG42-240200-7L made by HiTron) included with your scanner. Connecting any other type of power supply may damage your scanner, and will void its warranty.

1. Plug the power cord into the power supply and into a wall outlet.

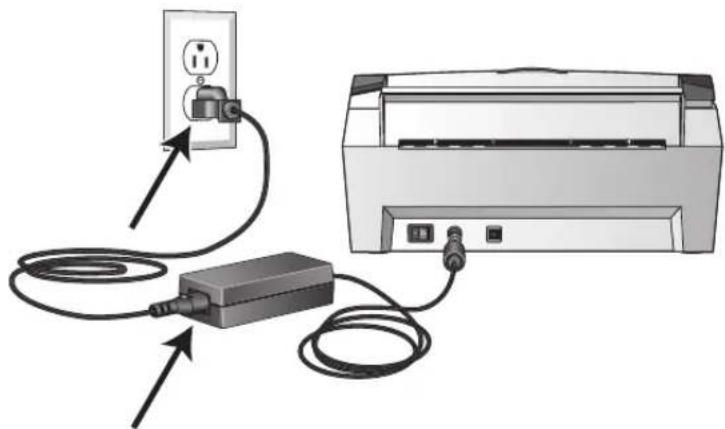

Diagram showing connections between a power outlet, a printer, and a cable with connectors (no text or symbols)

Now proceed to the next section, "Step 4: Connect the USB Cable and Turn on the Power."

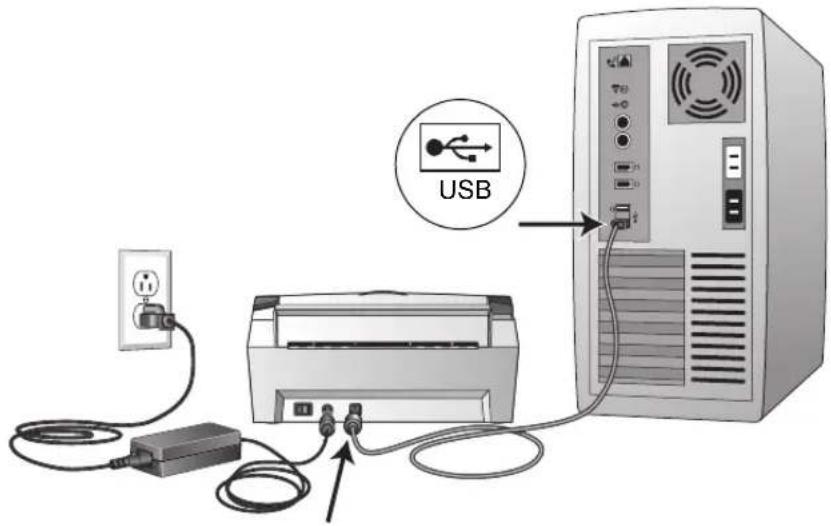

STEP 4: CONNECT THE USB CABLE AND TURN ON THE POWER

The Visioneer Strobe XP 450 scanner connects to any available USB port. Check your computer's manual for USB port locations.

Note: You can connect the scanner to your computer while the computer is running. You do not have to shut down your computer.

1. Remove any protective tape from the USB cable.
2. Plug the USB cable into the USB port on the scanner and then into a USB port on the computer. Connection to a USB 2.0 High Speed port provides optimum performance, however your scanner will also connect to a USB 1.1 port.

USB

The USB symbol identifies the location of the USB port on your computer. If the plug does not attach easily, make sure that you are plugging it in correctly. Do not force the plug into the connection.

You can also connect the scanner to a USB port on the computer's keyboard if it has one, or to a USB hub. If you use a USB hub, it must have its own power supply already plugged into an electrical outlet.

Note: If you have not installed the scanner driver, unplug the USB cable from the computer and install the software now. When the driver installation is complete, a message tells you when to connect the scanner.

1. Turn on the power switch, located on the back of the scanner to the left of the power port.

The status light comes on and flashes indicating that the scanner is receiving power.

If you are using Windows XP Service Pack 2, and have plugged the USB cable into a USB 1.1 port, an information bubble may open explaining that “A HI-SPEED USB device is plugged into a non-HI-SPEED USB hub”. Plug the USB cable into a USB 2.0 port (if available) or just disregard the message. If you leave it plugged into the USB 1.1 port, your scanner may scan a bit slower than the 20 pages per minute available with a USB 2.0 port.

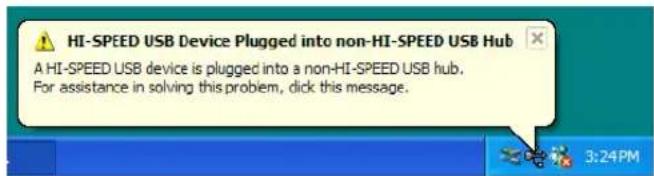

HI-SPEED USB Device Plugged into non-HI-SPEED USB Hub A HI-SPEED USB device is plugged into a non-HI-SPEED USB hub. For assistance in solving this problem, click this message.

Your computer then recognizes that a scanner has been plugged into the USB port and automatically loads the appropriate software to run the scanner.

Do not proceed until you receive a message that your computer has found the new hardware, or updated the driver database. If your computer is running Windows XP, you will see the following message.

Found New Hardware Your new hardware is installed and ready to use.

1. When you're certain that the software has completely loaded, return to the "Complete the installation by connecting your hardware" window.

Complete the installation by connecting your hardware Connect the AC Adaptor to the scanner 1 and an outlet 2 Connect the USB cable to the scanner 3 and your computer 4 Finally turn the scanner on 5 Plug and Play will finish installing the scanner More... OK

5. Click OK.

The scanner's status light is green when the scanner and computer are communicating properly.

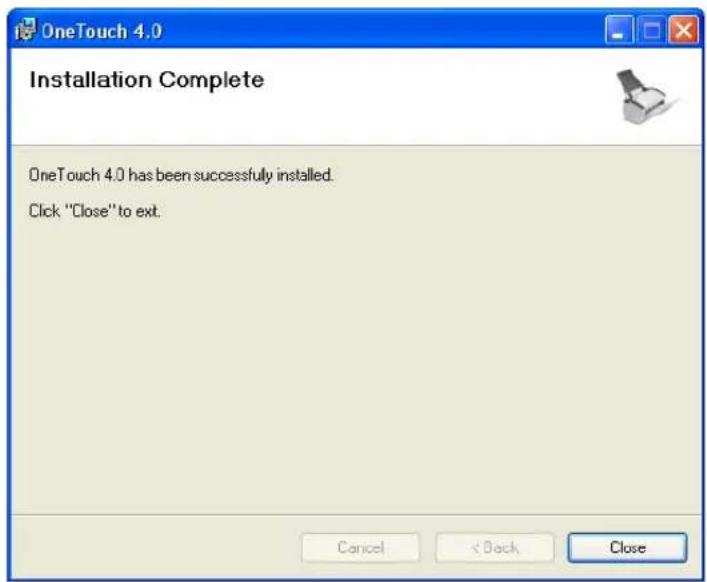

1. Click Close on the Installation Complete window to close and exit the software installer.

OneTouch 4.0 Installation Complete OneTouch 4.0 has been successfully installed. Click "Close" to exit. Cancel < Back Close

You can now install free, additional software that you received with your scanner.

ADDITIONAL APPLICATIONS FOR YOUR SCANNER

Your scanner includes free, additional applications on the installation CD.

To install the additional applications:

1. Return to the Installation window and select the additional application(s) you want to install on your computer.

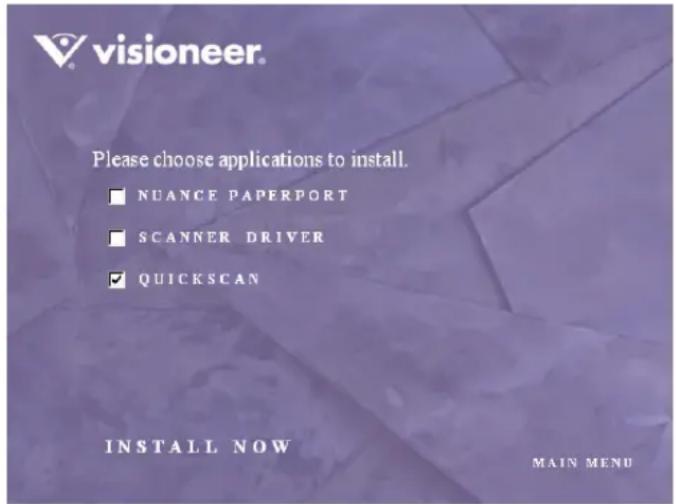

visioneer. Please choose applications to install. ■ NUANCE PAPERPORT ■ SCANNER DRIVER ✓ QUICKSCAN INSTALL NOW MAIN MENU

1. Click Install Now.

2. When installation is finished, return to the Installation window and click Main Menu.

3. On the Main Menu, click User Guides.

visioneer Please click on a link below. INSTALL PRODUCTS USER GUIDES BROWSE CD CONTENTS VIEW OUR WEBSITE EXIT

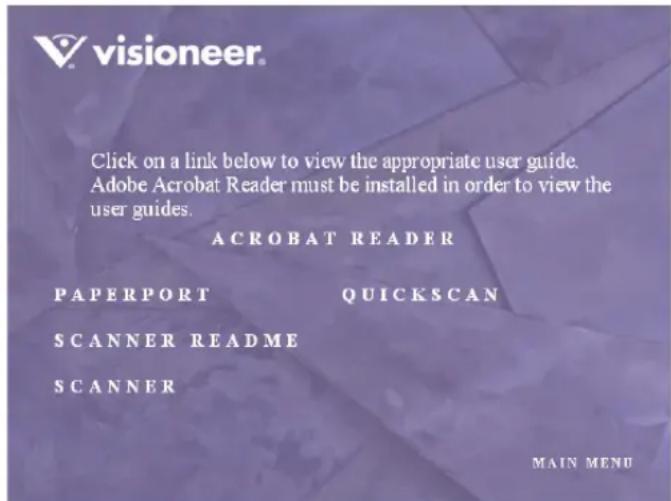

The Visioneer User Guides window opens. Use this window to view and save the User Guides you want.

visioneer. Click on a link below to view the appropriate user guide. Adobe Acrobat Reader must be installed in order to view the user guides. ACROBAT READER PAPERPORT QUICKSCAN SCANNER README SCANNER MAIN MENU

The User Guides are in Adobe ^® Acrobat ^® PDF format. The CD also includes a free copy of Acrobat ^® Reader ^® in case your computer does not have it already installed. The Scanner Readme file is in HTML format and will open in any standard browser.

If you need to, click Acrobat Reader to install it now. Follow the instructions on the installation windows.

If your computer already has Adobe Acrobat Reader installed, please do not select it unless the version provided on the installation CD is a newer version than the one currently installed on your computer.

To view and save the User Guides:

1. Click the name of a User Guide you want to view and it will open in Acrobat Reader. Use the Acrobat Reader Save command to save that User Guide on your computer.
2. Return to the Visioneer User Guides window and repeat the process to open, view, and save all the other User Guides you want. The Scanner Readme file has late-breaking news about your scanner.
3. When you're finished, click Main Menu to return to the main Visioneer Installation window and click Exit.
4. Remove the CD and it in a safe place.

That's it! Installation is finished and your Visioneer scanner is ready to scan.

REGISTER YOUR SCANNER AND CHECK FOR UPDATES

Registering your scanner is important as it provides you with access to our free telephone support service. Registration also gives you free access to software updates for your scanner.

To register your scanner:

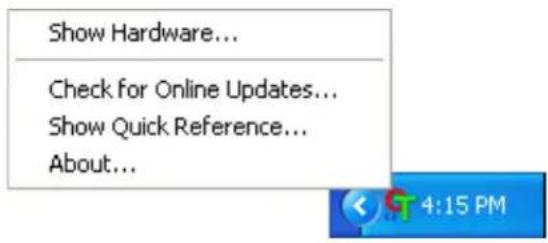

1. Right-click on the OneTouch icon in the Windows Notification Area (at the bottom right corner of the screen).

2. Choose Check for Online Updates from the pop-up menu.

Show Hardware... Check for Online Updates... Show Quick Reference... About... The OneTouch Icon. 4:15 PM

1. Follow the instructions on the screen and register your scanner by entering your scanner's serial number and your email address.

Note: A valid email address is required.

The serial number is located on the underside of the scanner.

The Serial Number.

After registration is complete you will receive an email message with your RegID.

Your RegID is important as you will need it when accessing free telephone support, or checking for online updates.

1. After receiving your RegID, write it down on a piece of paper and keep it with your scanner so you will be able to find it easily.

Scanning

If you selected the recommended Full Install choice for your scanner's driver (see page 11), you can use several different methods to scan with your scanner. Each method scans equally well, so use the one with appropriate options for the item you are scanning.

■ Scan Button—When you press the Scan button, documents are scanned using the current scan settings. The scanned images are then sent to a software application (known as the Destination Application) or to a storage folder on your computer. See “Load and Scan Documents” on page 24.
■ OneTouch—Use this option to scan from the computer screen. Open the OneTouch scan panel, put the document in the scanner, then click the icon on the OneTouch panel. See “Scan from the OneTouch Panel” on page 28.

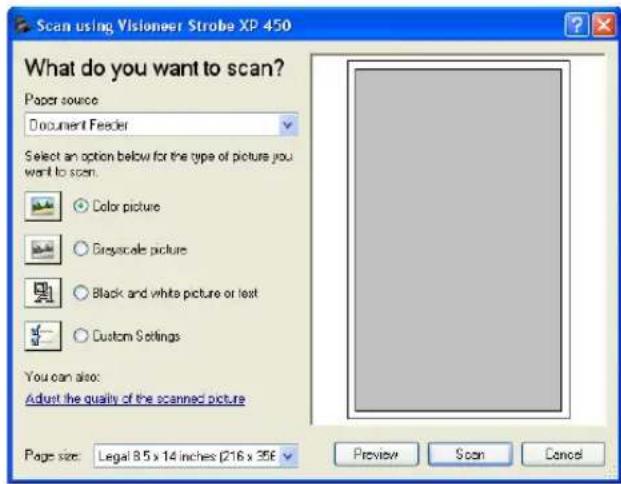

■ TWAIN Interface—This option uses your scanner's TWAIN interface to scan. Select the TWAIN scan settings, put the document in the scanner, then click a button on the TWAIN interface window. The PaperPort software that you installed for your scanner uses the TWAIN interface for scanning, but many other programs use it too so you can scan from them, as well as from PaperPort. See “Scanning with the TWAIN Interface from PaperPort” on page 87.

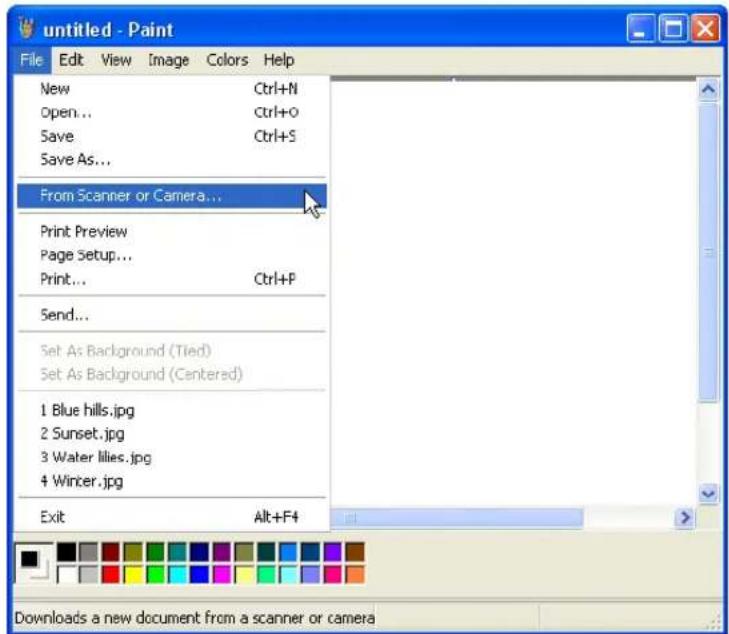

■ Windows Image Acquisition (WIA)—This option uses the Microsoft Windows set of choices for scanning. Select the WIA scan settings, put the document in the scanner, then click a button on the WIA window. Scanning with WIA is only available if your computer is running Windows XP. See “Scanning with the WIA Interface” on page 102.

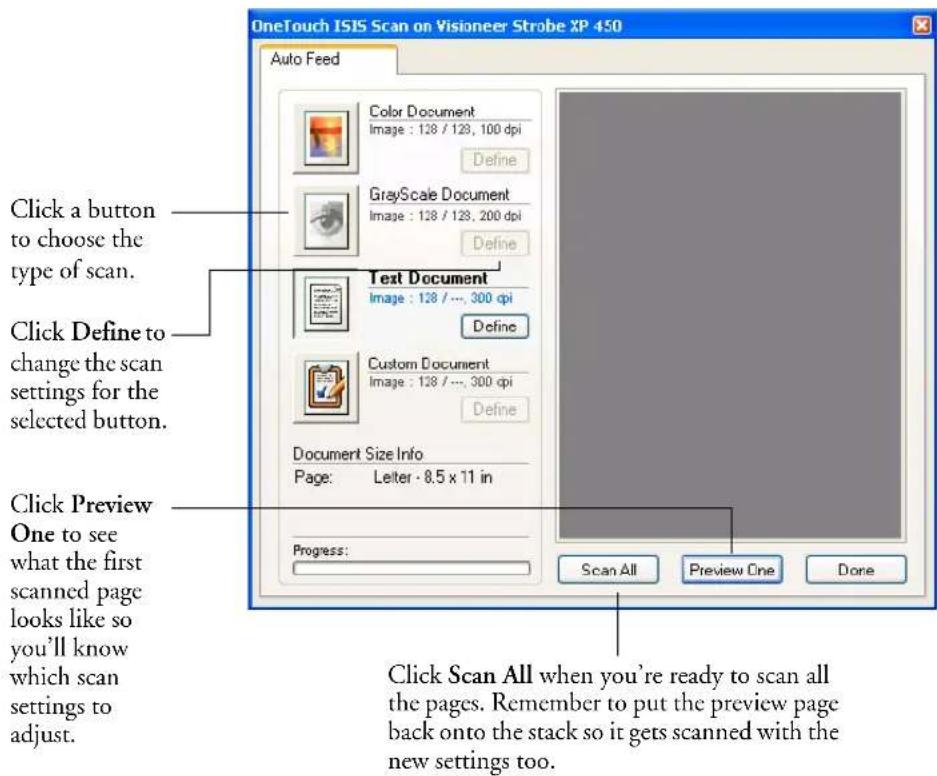

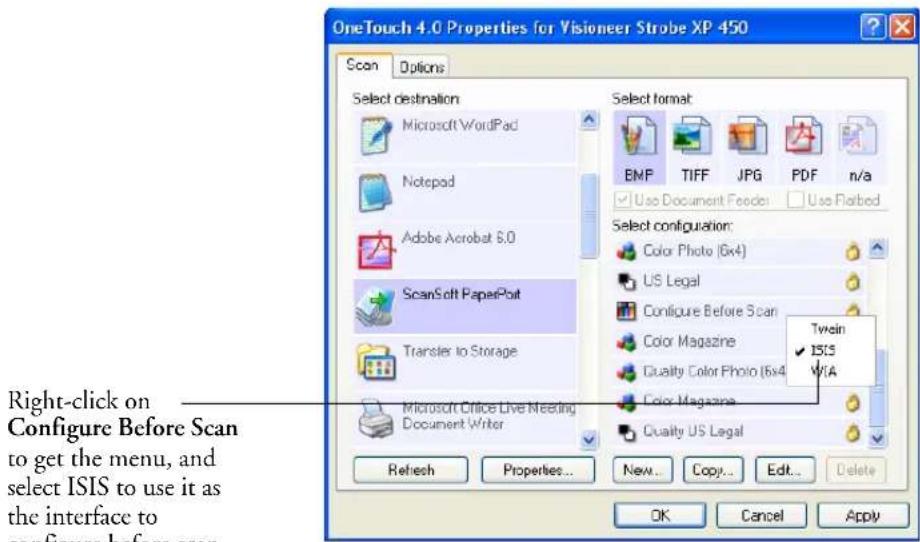

- ISIS Interface—This option uses ISIS driver to scan. Select the ISIS scan settings, put the document in the scanner, then use your ISIS application to scan using the ISIS Interface. See “Scanning with the ISIS Interface” on page 107.

LOAD AND SCAN DOCUMENTS

When you press the Scan button, documents are scanned using the current scan settings. The scanned images are then sent to a software application (known as the Destination Application) or to a storage folder on your computer.

Note: Always remove any staples or paper clips from documents before inserting them into the scanner. Staples and paper clips can jam the feed mechanism and scratch the internal components. Do not scan any document with labels, stickers or Post-It™ notes on the pages. If a label, sticker or Post-It note comes off during the scanning process, the item can get stuck in the scanner. Misuse as described here will void your scanner's warranty.

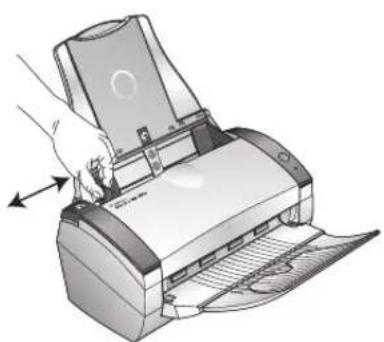

1. Adjust the paper guide for the width of paper.

If you are scanning legal-size documents, make sure the output tray is fully extended.

Illustration of a printer being inserted into a paper airplane, showing paper roll and paper feed (no text or symbols)

Illustration of a printer with paper feed being placed, showing paper roll and page transition (no text or symbols)

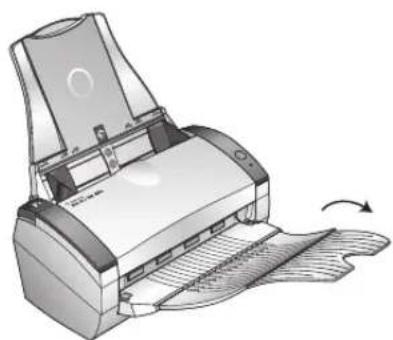

Open the output tray for legal-sized documents.

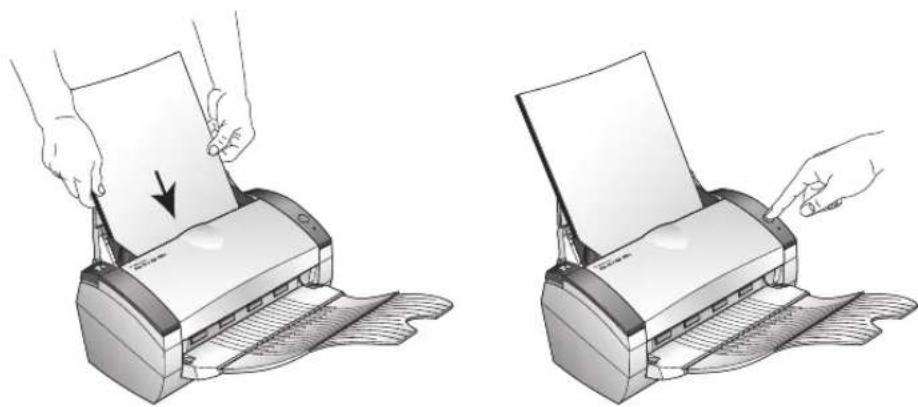

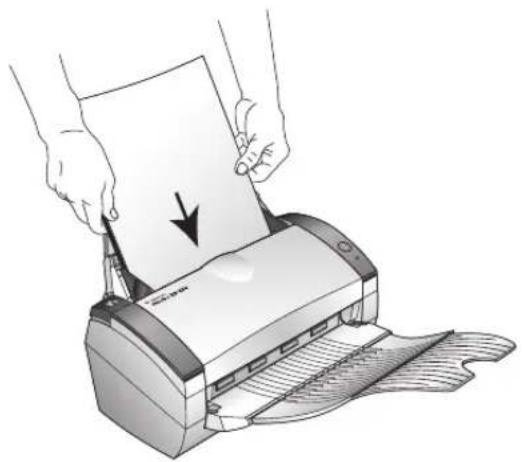

1. Load the documents face down with their tops into the automatic document feeder, then press the Scan button.

Illustration of two paper-cutting machines, one being folded with a paper and the other unrolled (no text or symbols present)

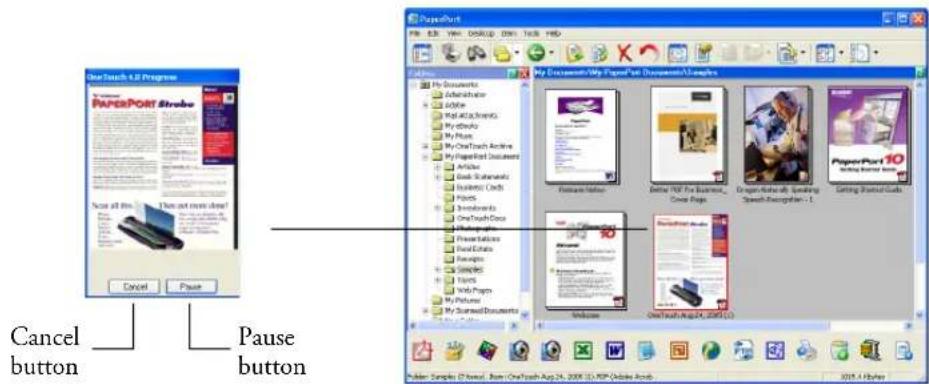

A scan progress window opens and the image is sent to the selected application from the OneTouch utility. In this example, the Destination Application is the PaperPort desktop.

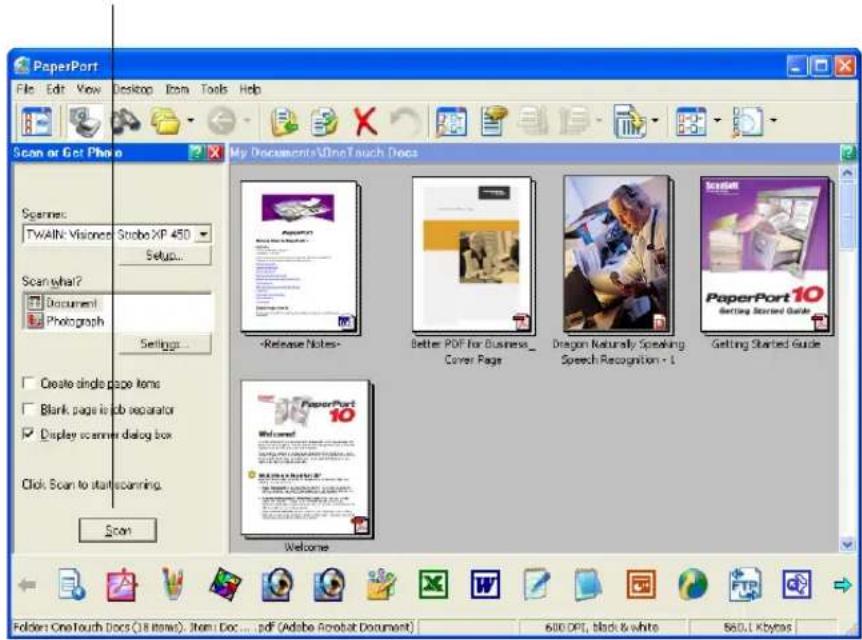

One Search 4.0 Programs PAPERPORT Stroke Score all the Then out more zoom! Cancel Pause PAPERPORT File Edit View Desktop Tools Help Help My Documents/My PaperUse Documents\Alaamples Adder History Better PDF for Business... Cover Pages Graphic Notes by Speaking Speech-Description - 1 Getting Printed Goods PAPERPORT 10 Adding Book Page PAPERPORT 20 PAPERPORT 30 PAPERPORT 40 PAPERPORT 50 PAPERPORT 60 PAPERPORT 70 PAPERPORT 80 PAPERPORT 90 PAPERPORT 100 PAPERPORT 110 PAPERPORT 120 PAPERPORT 130 PAPERPORT 140 PAPERPORT 150 PAPERPORT 160 PAPERPORT 170 PAPERPORT 180 PAPERPORT 190 PAPERPORT 200 PAPERPORT 210 PAPERPORT 220 PAPERPORT 230 PAPERPORT 240 PAPERPORT 250 PAPERPORT 260 PAPERPORT 270 PAPERPORT 280 PAPERPORT 290 PAPERPORT 300 PAPERPORT 310 PAPERPORT 320 PAPERPORT 330 PAPERPORT 340 PAPERPORT 350 PAPERPORT 360 PAPERPORT 370 PAPERPORT 380 PAPERPORT 390 PAPERPORT 400 PAPERPORT 410 PAPERPORT 420 PAPERPORT 430 PAPERPORT 440 PAPERPORT 450 PAPERPORT 460 PAPERPORT 470 PAPERPORT 480 PAPERPORT 490 PAPERPORT 500 PAPERPORT 510 PAPERPORT 520 PAPERPORT 530 PAPERPORT 540 PAPERPORT 550 PAPERPORT 560 PAPERPORT 570 PAPERPORT 580 PAPERPORT 590 PAPERPORT 600 PAPERPORT 610 PAPERPORT 620 PAPERPORT 630 PAPERPORT 640 PAPERPORT 650 PAPERPORT 660 PAPERPORT 670 PAPERPORT 680 PAPERPORT 690 PAPERPORT 700 PAPERPORT 710 PAPERPORT 720 PAPERPORT 730 PAPERPORT 740 PAPERPORT 750 PAPERPORT 760 PAPERPORT 770 PAPERPORT 780 PAPERPORT 790 PAPERPORT 800 PAPERPORT 810 PAPERPORT 820 PAPERPORT 830 PAPERPORT 840 PAPERPORT 850 PAPERPORT 860 PAPERPORT 870 PAPERPORT 880 PAPERPORT 890 PAPERPORT 900 PAPERPORT 910 PAPERPORT 920 PAPERPORT 930 PAPERPORT 940 PAPERPORT 950 PAPERPORT 960 PAPERPORT 970 PAPERPORT 980 PAPERPORT 990 PAPERPORT 1000

To Cancel scanning, click the Cancel button.

To pause the scanning, click the Pause button. It will change to a Continue button. Put the page back into the scanner and click Continue to resume scanning.

CHECK THE SCAN SETTINGS BEFORE SCANNING

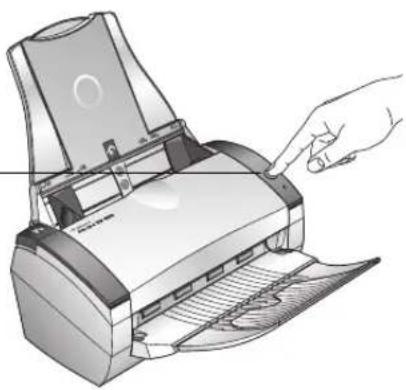

1. To check the scan settings before scanning, press, hold down, and then release, the Scan button.

Press, hold down, and then release the Scan button to see the current scan settings.

Illustration of a hand inserting a paper into a printer (no text or symbols visible)

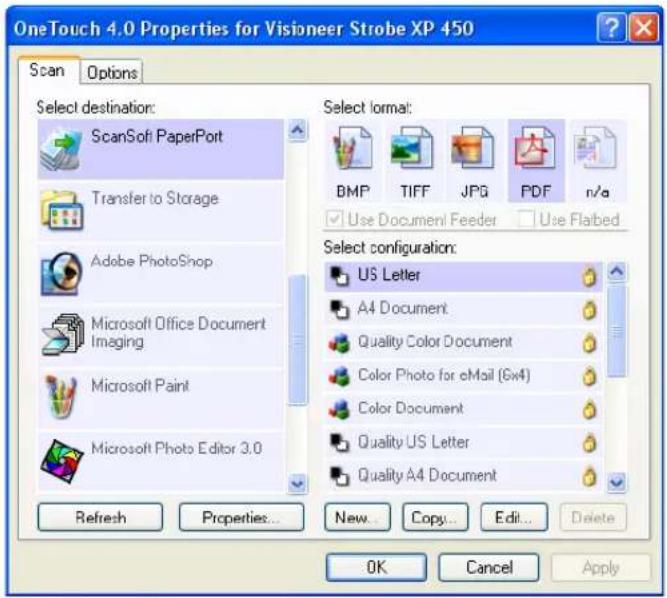

The OneTouch Properties window opens for you to view and change the configuration settings of the Scan button.

Note: The configurations shown on this example of the OneTouch Properties window are for illustration purposes only. The configurations you see on your OneTouch Properties window may be different.

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination: ScanSoft PaperPort Transfer to Storage Adobe PhotoShop Microsoft Office Document Imaging Microsoft Paint Microsoft Photo Editor 3.0 Refresh Properties... New Copy Edit Delete Select format: BMP TIFF JPG PDF n/a Use Document Feeder Use Flabed Select configuration: US Letter A4 Document Quality Color Document Color Photo for eMail (6x4) Color Document Quality US Letter Quality A4 Document OK Cancel Apply

This sample shows that the Scan button is currently set to scan in black and white using the US Letter configuration, save the scanned image in the PDF format, and send the image to PaperPort as the Destination Application.

The OneTouch Panel also opens at the bottom right of your computer screen.

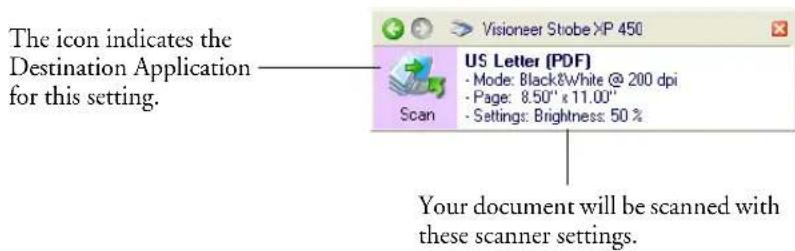

The icon indicates the Destination Application for this setting. US Letter (PDF) - Mode: Black&White @ 200 dpi - Page: 8.50" x 11.00" - Settings: Brightness: 50 % Scan Your document will be scanned with these scanner settings.

Note that the OneTouch panel also shows the current configuration for the button. When you make changes in the OneTouch Properties window, then click the Apply button, the information in the OneTouch panel will update to show the new configuration as well.

1. When you are ready to scan, press the Scan button on the scanner.

You can also scan by closing the OneTouch Properties window then clicking the icon on the OneTouch panel. See “Scan from the OneTouch Panel” on page 28 for more about the panel.

Note: If the OneTouch Properties window is not open, you can right-click on the icon on the panel in case you want to change the Scan button's settings. The OneTouch Properties window opens and you can change the settings.

SCAN FROM THE ONEOUCH PANEL

You can scan from the OneTouch Panel on the screen.

1. Adjust the paper guide for the width of paper and load the documents with their tops into the Automatic Document Feeder.
2. Now click on the OneTouch icon in the Windows Notification Area (at the bottom right corner of the screen).
3. Click the Destination Application icon in the Panel to start scanning. In this sample, it is the PaperPort icon.

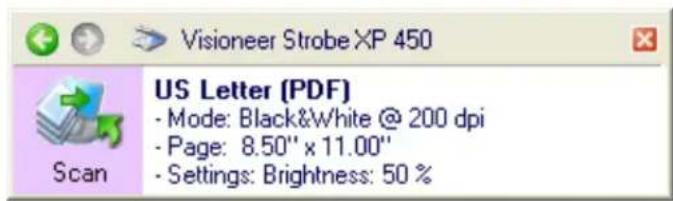

Visioneer Strobe XP 450 US Letter (PDF) - Mode: Black&White @ 200 dpi - Page: 8.50" x 11.00" - Settings: Brightness: 50 %

Click the icon to start scanning.

The scanner begins scanning. When the process finishes, the scanned images appear in the Destination Application or are stored in a folder, just as if you scanned with the Scan button.

Note: When scanning from the panel, the OneTouch Properties window cannot be open at the same time. If it is, close it first before scanning.

Notice the green arrows at the top of the panel. Click the arrow pointing to the left to see the scanners connected to your computer. Click the arrow pointing to the right to get back to previous panel.

Click the green arrows to toggle between the panels.

Visioneer Strobe XP 450 XP 450

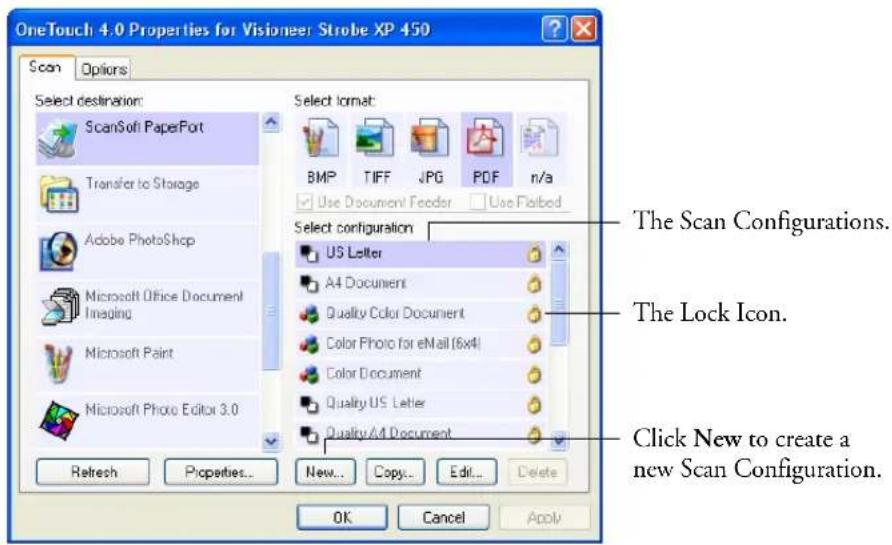

The OneTouch Properties window lists the available scan settings and is where you select new settings for the Scan button. The OneTouch Properties window also contains special scanning features such as scanning and burning to a CD, scanning and converting text directly into an HTML web page, and scanning with optical character recognition (OCR) that turns a scanned image into text that you can edit.

Note: Some of the options on the OneTouch Properties Window (and other OneTouch windows and dialog boxes) are “grayed out” and are not available. Grayed out options are not appropriate for your Visioneer Strobe XP 450 scanner.

To open the OneTouch Properties window, use either of the following methods:

- Click the OneTouch icon. It is located in the Windows Notification Area at the bottom right corner of the screen. Then, right-click on the Destination Application icon.

Visioneer Strobe XP 450 US Letter (PDF) - Mode: Black&White @ 200 dpi - Page: 8.50" x 11.00" - Settings: Brightness: 50 %

Right-click the icon to open the OneTouch Properties window.

Remember that left-clicking an icon on the OneTouch panel starts the scanner scanning. Right-clicking opens the OneTouch Properties window.

■Press and hold down the Scan button on the scanner.

The OneTouch Properties window opens and shows the current options selected for your scanner.

In the following example, the Scan button is set to scan with the configuration named US Letter and to display the scanned image in the Destination Application, PaperPort. The Select format option is set to scan in the PDF image format.

The Destination Application. This is the application that opens when you are finished scanning.

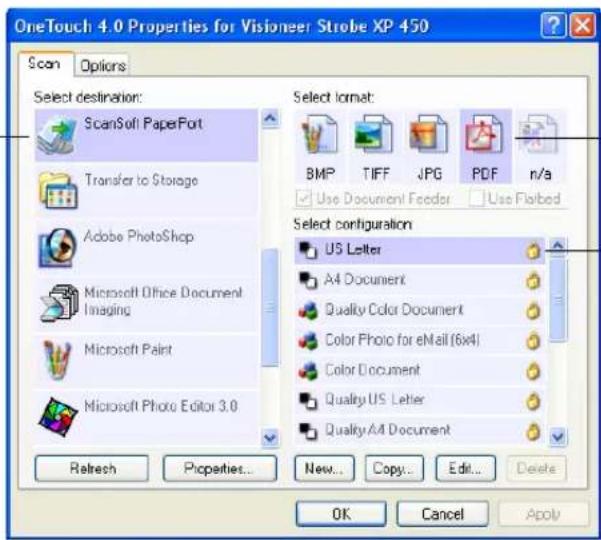

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination: ScanSoft PaperPort Transfer to Storage Adobe PhotoShop Microsoft Office Document Imaging Microsoft Paint Microsoft Photo Editor 3.0 Refresh Properties... New... Copy... Edit... Select format: BMP TIFF JPG PDF n/a Use Document Feeder Use Flabed Select configuration: US Letter A4 Document Quality Color Document Color Photo for eMail (6x4) Color Document Quality US Letter Quality A4 Document OK Cancel Apply

The file format of the images of the scanned item.

The configuration that the scanner uses when scanning.

Note: If you install new applications on your computer and they do not appear in the Select Destination list, click the Refresh button.

The settings on the Properties window are:

Select Destination—The list of applications that can open to display the scanned image for the Scan button. To configure the list of available applications, click the Options tab at the top of the dialog box and select the desired options. See “Selecting Options for the Scan Button” on page 48 for more information.

Select Configuration—The list of available scan configurations for the Scan button. The configuration's basic settings include: scanning mode, resolution (dpi), page size, brightness (Br), and contrast (Cr). To see the configuration's basic settings, click its icon. Click the icon again to close the detailed information.

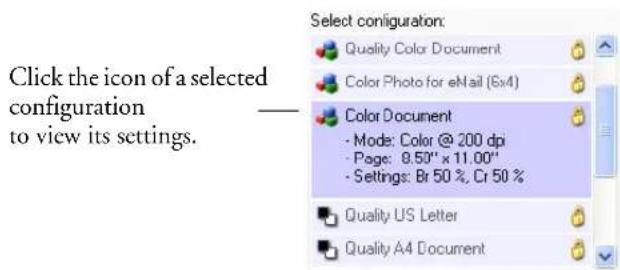

Click the icon of a selected configuration to view its settings. Select configuration: Quality Color Document Color Photo for eMail (Ex4) Color Document - Mode: Color @ 200 dpi - Page: 9.50" x 11.00" - Settings: Br 50 %, Cr 50 % Quality US Letter Quality A4 Document

A configuration also includes color saturation, hue, and gamma which you can set on the Scan Configuration Properties dialog box. See "Creating a New Scan Configuration" on page 52.

These icons next to each scan configuration indicate the scanning mode:

Color. Grayscale.Black and White. Configure Before Scan.

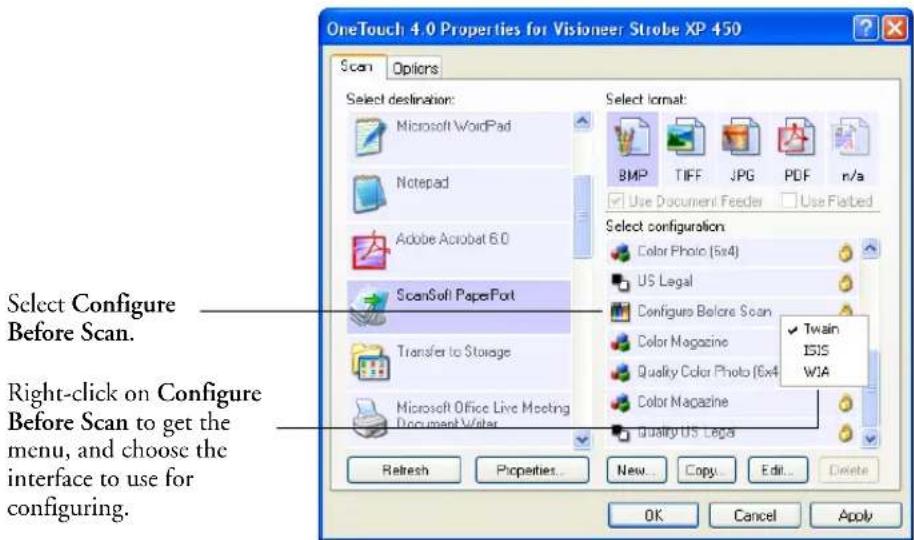

Note: Use Configure Before Scan if you want to set the scanning mode manually before scanning. See “Configuring Before Scanning” on page 68.

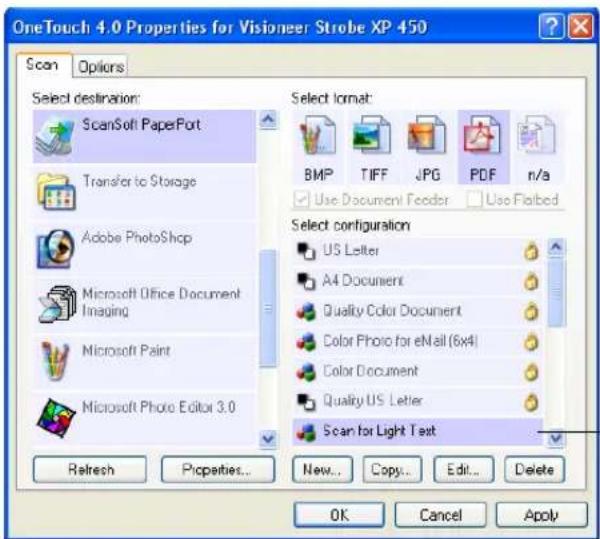

You can also click the Edit button or double-click the configuration to see more detailed information about the selected configuration.

Select Format—A set of file formats for the scanned image for the Scan button. The formats are based on the type of destination application you select. This example shows the formats that apply to the Microsoft Outlook application.

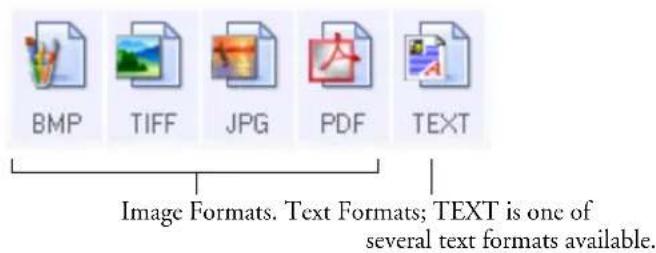

BMP TIFF JPG PDF TEXT

The names indicate their file types. See “Selecting Format Options” on page 44 for more information about the available formats.

Scan tab—Shows the current settings for the Scan button.

Options tab—Displays a window for selecting options related to the selected destination application for the scanned image.

SELECTING NEW SCAN SETTINGS FOR THE SCAN BUTTON

The scan settings for the Scan button consist of a Destination Application, a Scan Configuration, and a Document Format. The OneTouch Properties window is where you select these three elements for the Scan button.

To select new settings:

1. Open the OneTouch Properties window. See "The OneTouch Properties Window" on page 29 for the steps to open the window. The OneTouch Properties window shows the current settings, and is where you select new settings.

Select a software application from the list as the Destination Application to send scanned documents.

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination: ScanSoft PaperPort Transfer to Storage Adobe Photoshop Microsoft Office Document Imaging Microsoft Paint Microsoft Photo Editor 3.0 Refresh Properties... New... Copy... Edit... Select format: BMP TIFF JPG PDF n/a Use Document Feeder Use Flanked Select configuration: US Letter A4 Document Quality Color Document Color Photo for eMail (6x4) Color Document Quality US Letter Quality A4 Document OK Cancel Apply

Select a format for the scanned image.

Select a configuration for scanning the item.

1. From the Select Destination list, select the application where you want documents sent when scanning is finished.

See “Selecting Options for the Scan Button” on page 48 to display a full list of the Destination Applications that you can use with the scanner.

Note: If you select a word processing program such as Microsoft WordPad or Microsoft Word and a page format that can be used for OCR (such as TEXT and RTF), the text in scanned images is automatically converted to word processing text.

1. From the Select Configuration list, select a scan configuration.

To scan in color, select one of the configurations indicated by the small color icon, such as the Color Document configuration.

1. Select a Format option.

The available options apply to the Destination Application you select. For example, if you select Microsoft Word as the Destination Application, the available formats are for text, such as .txt and .rtf. However, if you select Microsoft Paint as the Destination Application, then the available formats are for graphics, such as .bmp, and .jpg.

1. Click OK, or if you want to keep the window open and work with other features, click Apply.

Note that while the OneTouch Properties window is open, you cannot scan yet by clicking the icon on the OneTouch Panel. You must click OK or close the OneTouch Properties window first. However, you can scan at any time by pressing the Scan button on the scanner.

When you are finished selecting new settings and you scan a document, it is scanned using the newly configured settings.

SETTING DESTINATION APPLICATION PROPERTIES

The different types of Destination Applications have various properties that you can select.

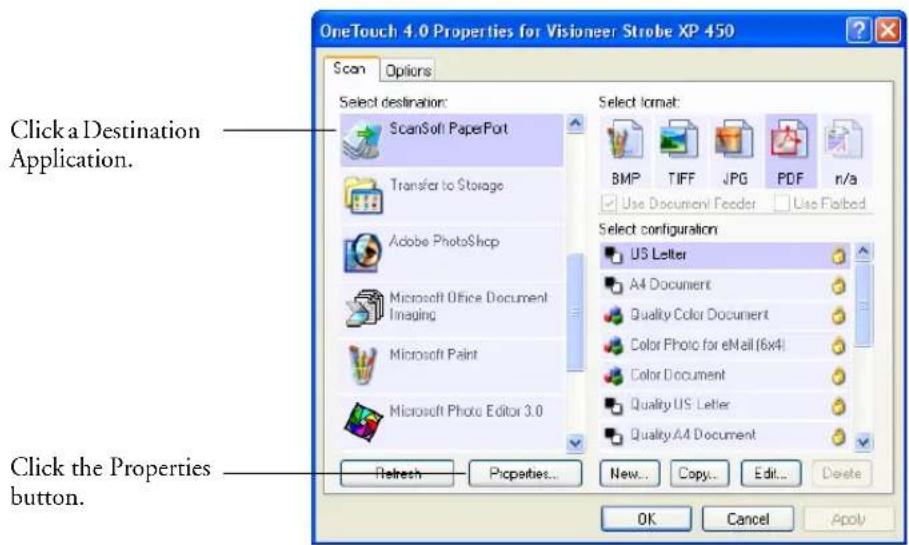

1. On the OneTouch Properties window, click a Destination Application.
2. Click the Properties button.

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination: ScanSoft PaperPort Transfer to Storage Adobe PhotoShop Microsoft Office Document Imaging Microsoft Paint Microsoft Photo Editor 3.0 Select format: BMP TIFF JPG PDF n/a Use Document Feeder Use Flitted Select configuration: US Letter A4 Document Quality Color Document Color Photo for eMail (6x4) Color Document Quality US Letter Quality A4 Document Click a Destination Application. Click the Properties button. Refresh Properties... New... Copy... Edit... Delete OK Cancel Apply

A OneTouch 4.0 Link Properties dialog box opens for the type of Destination Application you selected, and the available options are for that type of application.

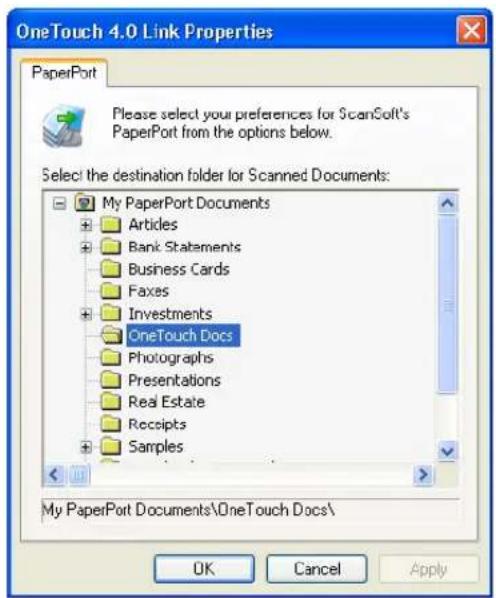

PaperPort Properties

These properties apply to PaperPort, and are for designating the folder to receive your scanned items.

OneTouch 4.0 Link Properties PaperPort Please select your preferences for ScanSoft's PaperPort from the options below. Select the destination folder for Scanned Documents: My PaperPort Documents + Artides + Bank Statements + Business Cards + Faxes + Investments OneTouch Docs Photographs Presentations Real Estate Receipts + Samples My PaperPort Documents\OneTouch Docs\ OK Cancel Apply

1. Select the PaperPort folder where you want the file of the scanned image to be located.

2. Click OK.

3. Click OK or Apply on the OneTouch Properties window.

When PaperPort opens after you finish scanning, the thumbnails of your scanned documents are on the PaperPort Desktop in that folder.

TEXT DOCUMENTS PROPERTIES

These properties apply to Microsoft Word, Microsoft Excel ^® , and the other applications indicated by their icons in the list. The properties apply to the OCR settings for the applications.

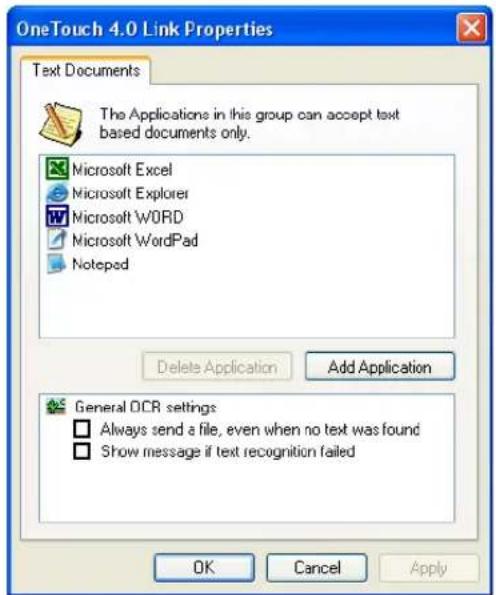

OneTouch 4.0 Link Properties Text Documents The Applications in this group can accept text based documents only. Microsoft Excel Microsoft Explorer Microsoft WORD Microsoft WordPad Notepad Delete Application Add Application General OCR settings Always send a file, even when no text was found Show message if text recognition failed OK Cancel Apply

1. Click in the OCR settings boxes for the options you want.

The options will apply to all the applications in the group.

Always send a file, even when no text was found—The scanned file is sent to the OCR reader even if the image does not appear to contain text. This could occur if you scanned a photograph with the format set as one of the text formats.

Show message if text recognition failed—A message will open on the screen if the OCR reader does not detect text in the image.

1. To add another application to the list, click the Add Application button. The Add Text Based Link dialog box opens.

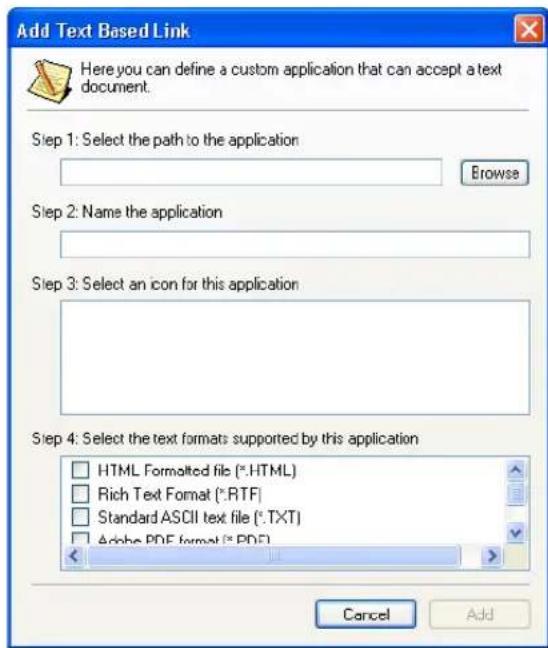

Add Text Based Link Here you can define a custom application that can accept a text document. Step 1: Select the path to the application Browse Step 2: Name the application Step 3: Select an icon for this application Step 4: Select the text formats supported by this application HTML Formalted file (*.HTML) Rich Text Format (*.RTF) Standard ASCII text file (*.TXT) Alpha PDF format (*.PDF) Cancel Add

1. Click Browse to find the application you want to add to the list. When you select the application using the Browse button, steps 1 and 2 on the dialog box are automatically filled in, and the application icon appears in step 3.

2. Select the icon in Step 3 of the dialog box. That is the icon that will appear in the OneTouch Destination List.

3. In step 4 of the dialog box, select the file formats that the application will accept.

Refer to the documentation that you received with the application to see which text formats the application accepts.

The options you select at step 4 determine the page format icons in the OneTouch Properties window for that group of applications.

1. Click the Add button.

2. Click OK or Apply on the Link Properties window.

3. Click Refresh on the OneTouch Properties window.

4. Click OK or Apply on the OneTouch Properties window.

IMAGE DOCUMENTS PROPERTIES

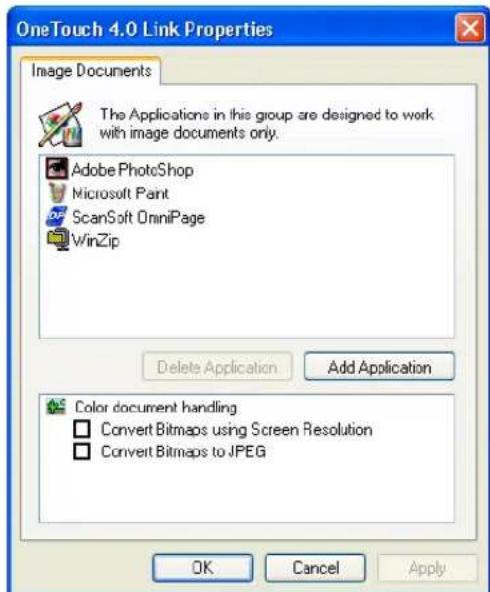

These properties apply to image processing applications such as Microsoft Paint.

OneTouch 4.0 Link Properties Image Documents The Applications in this group are designed to work with image documents only. Adobe PhotoShop Microsoft Paint ScanSoft OmniPage WinZip Delete Application Add Application Color document handling Convert Bitmaps using Screen Resolution Convert Bitmaps to JPEG OK Cancel Apply

1. Click in the Color document handling settings boxes for the options you want.

The options will apply to all the applications in the group.

Convert Bitmaps using Screen Resolution—Use this option to ensure that an image will fit on the computer's screen. When a computer screen is set to a lower resolution, bitmap images with a higher resolution may be too big to fit on the screen. Converting the bitmap image to match the screen resolution ensures that the image fits on the screen.

Convert Bitmaps to JPEG—JPEG files can be compressed to produce smaller file sizes and, therefore, shorter transmission times. Use this option to provide that compression capability to image files.

1. To add another application to the list, click the Add Application button.

See the steps on page 38 to add an application to the list.

1. Click OK.
2. Click Refresh on the OneTouch Properties window.
3. Click OK or Apply on the OneTouch Properties window.

STORAGE PROPERTIES

These properties apply to the Destination Application named Transfer to Storage. If a CD burner is attached to your computer, you can also use this dialog box to start the Burn to CD process. See the section "Scan and Burn to a CD" on page 72.

Note: The Burn to CD option is only available for Windows XP.

You can also set up multiple configurations to store scanned items in separate locations. See “The Storage Options Tab (Archive)” on page 60 and “Scanning to Multiple Folders” on page 61.

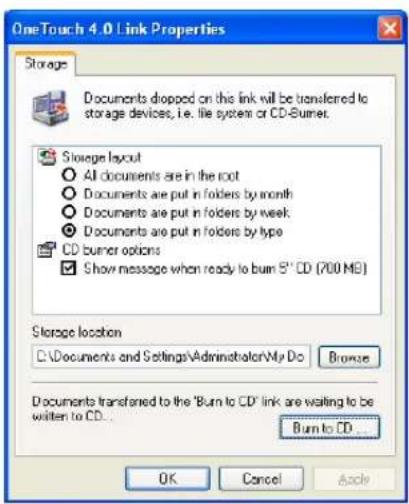

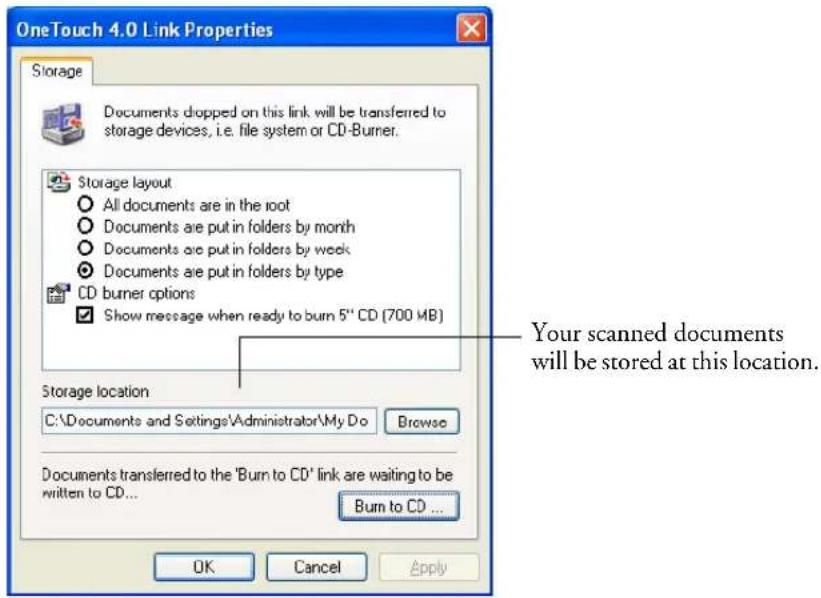

OneTouch 4.0 Link Properties Storage Documents dropped on this link will be transferred to storage devices, i.e. file system or CD-Burner. Storage layout All documents are in the root Documents are put in folders by month Documents are put in folders by week Documents are put in folders by type CD burner options Show message when ready to burn 5" CD (700 MB) Storage location C:\Documents and Settings\Administrator\My Do Browse Documents transferred to the 'Burn to CD' link are waiting to be written to CD... Burn to CD ... OK Cancel Apply

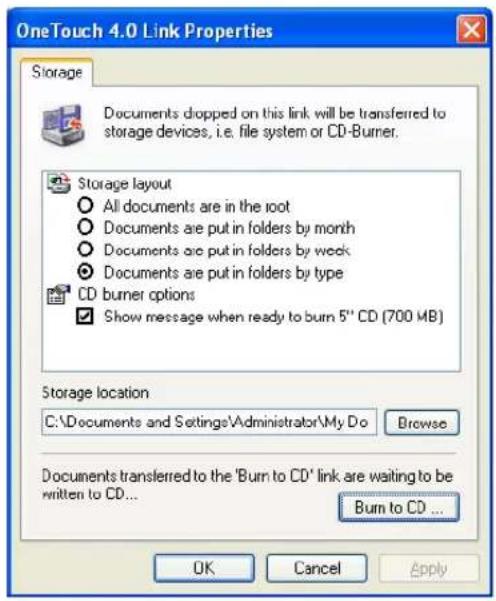

Note: If you do not have a CD burner attached to your computer, the CD options are not shown on the dialog box.

1. Click the Storage Layout options you want.

All documents are in the root—The scanned documents are saved in the root of the folder specified in the Storage Location.

Documents are put into folders by month, week, or type—

Folders are created based on your selection (month, week, or type) and the scanned documents are saved in those folders. New folders are created for each month and week so you can keep track of when you scanned the documents.

1. Click the Browse button to specify the location to store the scanned documents.

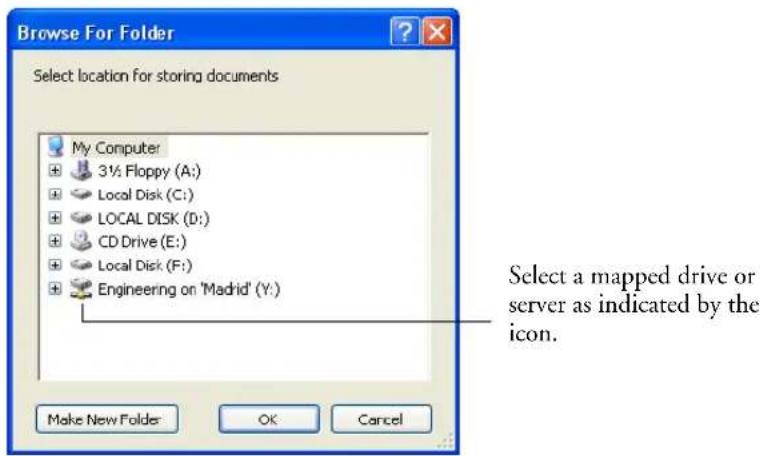

If you are scanning to a shared network drive, it must be a mapped drive. For more information about mapped drives, see your network administrator.

If you have a CD burner attached to your Windows XP computer, the option Show message when ready to burn 5" CD (700MB), should also be selected so you will see a message when it's time to click the Burn to CD button.

1. Click OK on the Link Properties window.

EMAIL PROPERTIES

These properties apply to email applications so you can specify the folder for documents that you will attach to an email message.

Microsoft Outlook® will accept direct attachment of documents to a blank email message as soon as scanning is finished, but other email applications may not. If you're using one of those applications, such as America Online® (AOL), you need to know which folder contains the scanned documents so you can manually attach them to your email messages.

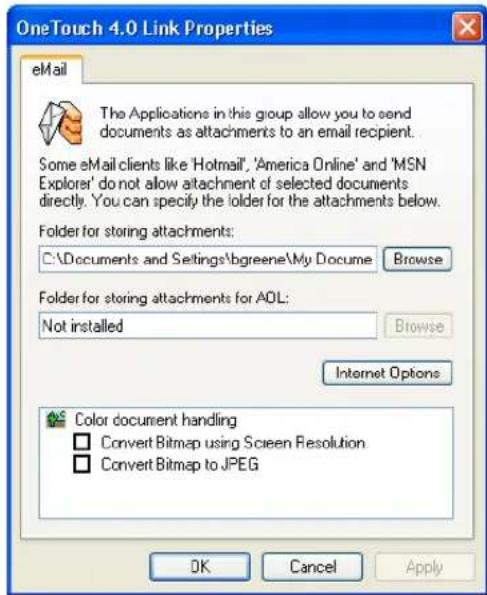

OneTouch 4.0 Link Properties eMail The Applications in this group allow you to send documents as attachments to an email recipient. Some eMail clients like 'Hotmail', 'America Online' and 'MSN Explorer' do not allow attachment of selected documents directly. You can specify the folder for the attachments below. Folder for storing attachments: C:\Documents and Settings\bgreene\My Docume Browse Folder for storing attachments for AOL: Not installed Browse Internet Options Color document handling □ Convert Bitmap using Screen Resolution □ Convert Bitmap to JPEG OK Cancel Apply

1. Click the Browse button for Folder for storing attachments and choose a folder for your eMail attachments.

2. If you are using AOL on your computer, and the folder name for AOL is incorrect, click the Browse button and find the correct AOL folder.

For scanned images to be auto-attached to a blank email address, you must have the specific folder location AOL uses to find the attachments. Please contact AOL for more information about the folder location in which AOL stores attachments.

1. If you need to change your email client, or any other internet options, click the Internet Options button.

The Windows Internet Options Control Panel opens. Click the Programs tab and choose a new email client from the Email list. These are the standard Windows Internet options. Please see your Windows documentation for more information about Internet options. If you are using AOL, please see the AOL user manual for making changes to the Internet options applicable to AOL.

1. Select the options for color document handling.

Convert Bitmaps using Screen Resolution—Use this option to ensure that an image will fit on the computer's screen. When a computer screen is set to a lower resolution, bitmap images with a higher resolution may be too big to fit on the screen. Converting the bitmap image to match the screen resolution ensures that the image fits on the screen.

Convert Bitmaps to JPEG—JPEG files can be compressed to produce smaller file sizes and, therefore, shorter transmission times. Use this option to provide that compression capability to image files.

1. Click OK.

2. Click OK or Apply on the OneTouch Properties window.

SELECTING FORMAT OPTIONS

The Format options that you select determines the file format of the scanned document. Appropriate format options and file types are available for the type of Destination Application selected for the Scan button.

The available options are for images and text.

BMP TIFF JPG PDF TEXT Image Formats. Text Formats; TEXT is one of several text formats available.

IMAGE FORMATS

Select an image file format for photos, artwork or other documents that you want to save as images. BMP and TIFF are standard image file formats generally used if you want to do additional image processing, such as photo touch-up or color correction. Both of those file formats tend to be larger than the JPEG format.

Because JPEG image files can be reduced in size, the JPEG format is often used for images on web pages, or if file size might be a problem when electronically sending the files. JPEG files are reduced in size by lowering their image quality, and you can select the degree of quality for your scanned images from the JPEG file format icon.

The PDF format is often used to create images of text pages. You may want to select PDF as the page format when scanning text pages that do not require OCR processing or other processing. The PDF format is also used to put multi-page documents on web sites as pdf-readable files. As with the JPEG option, the PDF format can be reduced in size or quality.

To select a JPEG or PDF file size:

1. Select JPG or PDF as the page format.

2. Right-click on the JPG or PDF icon.

A menu opens.

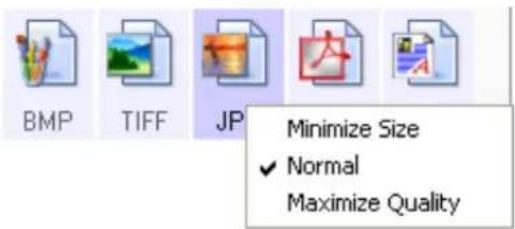

BMP TIFF JP Minimize Size ✓ Normal Maximize Quality

1. Choose the file size/image quality option for your scanned images.

Minimize Size—Smallest file size, lowest image quality.

Normal—Medium file size, some loss of image quality.

Maximum Quality—Largest file size, no loss of image quality.

1. Click OK or Apply on the OneTouch Properties window.

TEXT FORMATS

The Text Formats are for text file types. The names of the formats indicate their file types.

HTML RTF TEXT XLS

Selecting the text format option also selects OCR processing as an automatic step for scanning. Therefore, when you scan a document with the text format selected, the text portions of the document are automatically converted to editable text. See “Scanning with Optical Character Recognition (OCR)” on page 70.

Select a text format for documents with text or numbers, such as a business letter, report, or spreadsheet. The text format icon has several file formats available, depending on the Destination Application you select.

The specific file format is shown by the file name extension on the text format icon.

The specific text format; this example is for Rich Text Format (RTF) used with Microsoft Word, Wordpad, and other word processing applications.

As you select Destination Applications that are text applications, the text format icon changes to match the file type of the application. In some cases, the Destination Application supports several file types, and you can right-click on the icon to choose the particular file type for that application.

To select a file type for the text format:

1. Select the Destination Application.

2. Right-click on the text format icon.

A menu opens. The following figure shows an example for the TEXT format with Microsoft Outlook selected as the Destination Application.

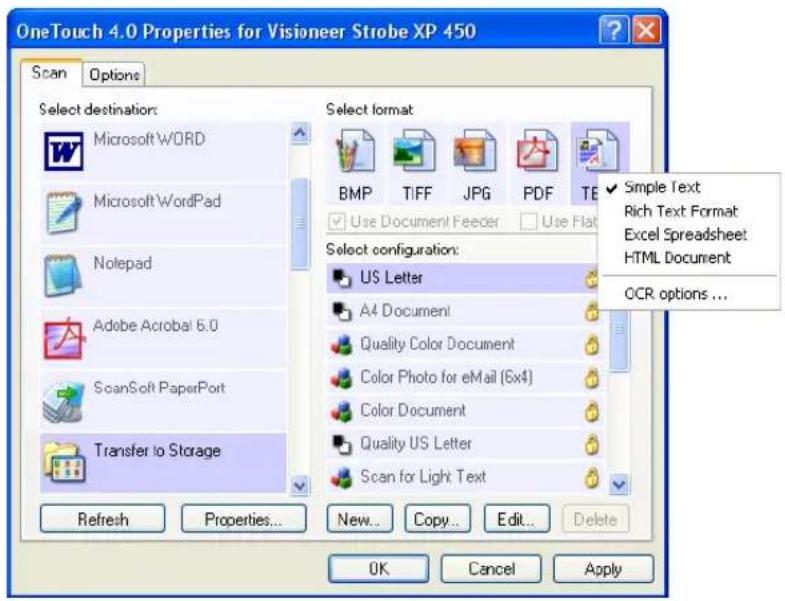

TE> ✓ Simple Text Rich Text Format Excel Spreadsheet HTML Document OCR options ...

1. Choose the file type that you want for the text format.

Simple Text—The .txt file format. Text with no formatting; used by the standard Microsoft Notepad application.

Rich Text Format—The .rtf file format. Text that retains formatting when converted. Available with Microsoft Wordpad and Word.

Excel Spreadsheet—The .xls file format used by Microsoft Excel.

HTML Document—The .htm file format used to create web pages.

1. To use the OCR Options from the menu, see "Scanning with Optical Character Recognition (OCR)" on page 70.

2. Click OK on the OneTouch Properties window.

SELECTING OPTIONS FOR THE SCAN BUTTON

The OneTouch Options determine the types of Destination Applications available for the Scan button, as well as the location of the files of your scanned items.

To select options:

1. Open the OneTouch Properties window and click the Options tab.

Options tab. OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select Button: Scan Show all destinations Document management Image editors (i.e. Paint) Text editing applications (i.e. Word) PDF applications Select destinations: Email Storage and CD-R/A/ Fax and Print Sti event forwarding Show progress window Create copies of scanned documents Folder copy options: Location: C:\Documents and Settings\bgreene\My Documents Browse... Folders: Group items by button Group items by type None SubFolders: Group items by week Group items by month None OK Cancel Apply

1. Select button options as described below:

Show All Destinations—This option selects all the Destination Application categories. The list of Destination Applications available for the Scan button will include all the applications on your computer that fall into these categories. The list also includes printers and other devices connected to your computer so, for example, you can scan an item and have it printed immediately.

Select Destinations—Select this option to individually choose the types of applications to include in the list of Destination Applications. Check the boxes for the type of application to include.

■ Document Management includes PaperPort and other applications for processing and keeping track of your scanned documents.
■ Image Editors include Microsoft Paint and other drawing and graphics applications.
■ Text Editors include Microsoft Word and WordPad, Microsoft Excel, and other word processing and spreadsheet applications. Select this option if you want OCR processing to convert your scanned documents to text that you can edit. See “Scanning with Optical Character Recognition (OCR)” on page 70 for more about OCR.
■ PDF applications are for documents scanned to PDF format.
- Email includes Microsoft Outlook and other email applications. See “eMail Properties” on page 42 for details about attaching scanned documents to your email messages.
■ Storage and CD-R/W is for either storing scanned documents in a folder, or sending them to a CD burner to create a CD containing the scanned documents. See “Transferring Scanned Documents to Storage” on page 79 and “Scan and Burn to a CD” on page 72 for details.
■ Fax and Print is for sending your scanned documents directly to your printer or fax software for faxing.

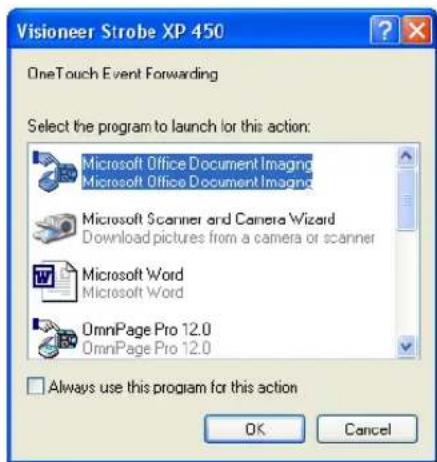

■ Sti event forwarding is for using another application's interface for scanning. The OneTouch Event Forwarding dialog box opens so you can select which application to use to continue scanning. See “Scanning with Event Forwarding” on page 75 for details.

After selecting a new category of Destination Applications, click the Scan tab to see which ones are added to the list.

Show Progress Window—Select this option to display the progress window of the document(s) during scanning.

Create copies of scanned documents—Sometimes the image of a scanned document is only saved as a temporary file until its Destination Application is finished using it. In those cases you may or may not want an additional, permanent copy saved on your hard drive.

For example, if you scan a picture to an email application, the scanned image is saved as a temporary file, then attached to the email, and the email is sent. Later, the temporary file of the scanned picture is deleted. The same situation may occur when you scan directly to a printer or scan to a fax application. After a scanned item is printed or faxed, its temporary file is deleted. However, by selecting this Create copies of scanned documents option, you can choose to save permanent copies of the scanned items on your hard drive.

The copies will be saved in the folder specified in the Folder Copy Options section (see the figure on page 48 and the description below).

This option is not available if Document Management or Storage and CD-R/W are selected because, by default, file copies for those types of Destination Applications are already automatically saved.

For that reason, this option is not available if the Destination Application is PaperPort because it is Document Management software.

Likewise, the option is also not available if the Destination Application is set to Transfer to Storage because it uses Storage and CD-R/W software.

Folder Copy Options—This section of the dialog box sets the location for copies of your scanned documents and how you want to group them.

Click the Browse button and find the folder for the copies. Select the grouping option for the documents. The Group by button option groups the documents under the name of the Scan button.

Group by type arranges the scanned documents by the type of file, such as .doc or .jpg. If you also want to group them by date you can choose the week and month options.

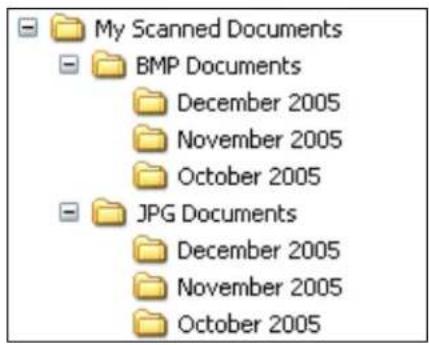

The following example shows the folders when the selections are Group items by type and Group items by month.

My Scanned Documents BMP Documents December 2005 November 2005 October 2005 JPG Documents December 2005 November 2005 October 2005

1. Click OK to save the options.

CREATING A NEW SCAN CONFIGURATION

The scan configurations are where you select the scanning resolution, brightness, mode (color, black&white, or grayscale), and a number of other settings.

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination: ScanSoft PaperPort Transfer to Storage Adobe PhotoShop Microsoft Office Document Imaging Microsoft Paint Microsoft Photo Editor 3.0 Refresh Properties... New... Copy... Edit... OK Cancel Apply Select format: BMP TIFF JPG PDF n/a Use Document Feeder Use Flabed The Scan Configurations. The Lock Icon. Click New to create a new Scan Configuration.

Note the lock icon on the preset configurations. Although you can unlock and edit the preset configurations, we recommend that you leave them locked, and only add new configurations. That way, you will always have the original factory-set configurations available.

To create a new configuration:

1. Open the OneTouch Properties window and make sure the Scan tab is selected.

2. Scroll through the applications in the Select Destination list and click the type of application for which you want to create a new scan configuration.

When you create a new scan configuration, it will appear for the same types of Destination Applications. For example, if you create a new configuration for image editor applications, that new configuration also appears for any other image editors, but not for

text editing applications. Thus, you can create specific sets of scan configurations for specific functions and they appear only when appropriate.

1. Click the New button.

If you want to start from the settings of another configuration, select the configuration, then click the Copy button.

If the Scan Settings tab is not selected, click it.

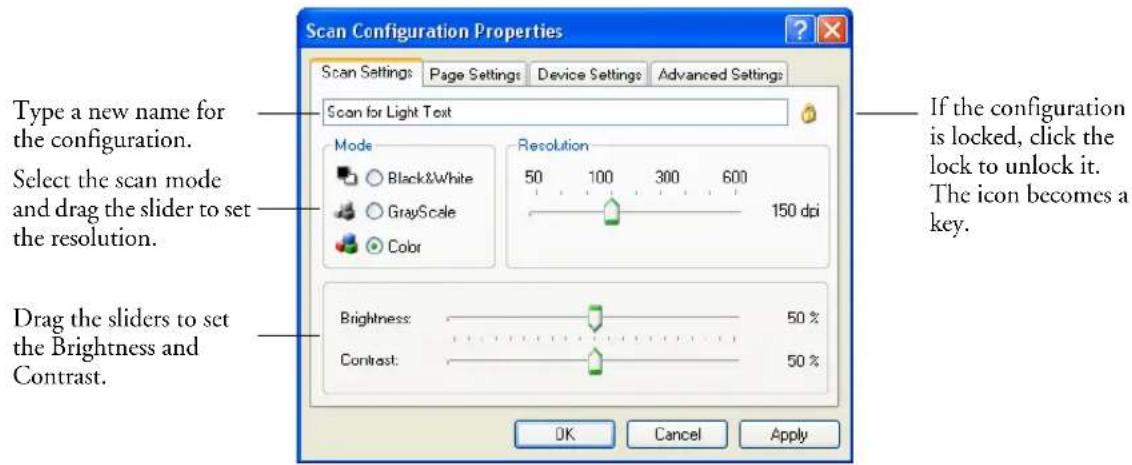

1. On the Scan Configuration Properties dialog box, type a name.

Scan Configuration Properties Scan Settings Page Settings Device Settings Advanced Settings Scan for Light Text Type a new name for the configuration. Select the scan mode and drag the slider to set the resolution. Drag the sliders to set the Brightness and Contrast. Mode Black&White GrayScale Color Resolution 50 100 300 600 150 dpi Brightness: 50 % Contrast: 50 % If the configuration is locked, click the lock to unlock it. The icon becomes a key. OK Cancel Apply

Note: If you select a printer or other device in the Select Destinations list, the dialog box will include the Device Settings tab for setting specific options for the particular device.

1. Select scan settings for the new scan configuration.

Mode—Select a scanning mode:

Black&White to scan in black and white. For example, letters and memos are usually scanned in black and white. This scan mode produces the smallest file size.

GrayScale to scan items such as documents containing drawings or black and white photographs. The scanning produces an image of up to 256 shades of gray.

Color to scan color photographs and other color items. Color scans have the largest file size.

Resolution—Drag the slider to the right or left to adjust the dots per inch (dpi) of the resolution. The maximum resolution is 600 dpi; the minimum is 50 dpi. The higher the dpi setting, the sharper and clearer the scanned image. However, higher dpi settings take longer to scan and produce larger files for the scanned images.

Brightness and Contrast—Sometimes an item is scanned with the brightness and contrast set too light or too dark. For example, a note written with a light pencil may need to be scanned darker to improve legibility.

Brightness refers to the lightness or darkness of the image. Contrast is the range between the darkest and lightest portions of the image. The greater the contrast, the more difference between the lighter and darker shades in the image.

Drag the sliders to the right or left to adjust the brightness and contrast of the scanned image. The Contrast setting does not apply to the Black&White mode.

1. If you want to lock the configuration, click the Key icon to change it from a Key to a Lock.

2. Click the Page Settings tab to select page settings.

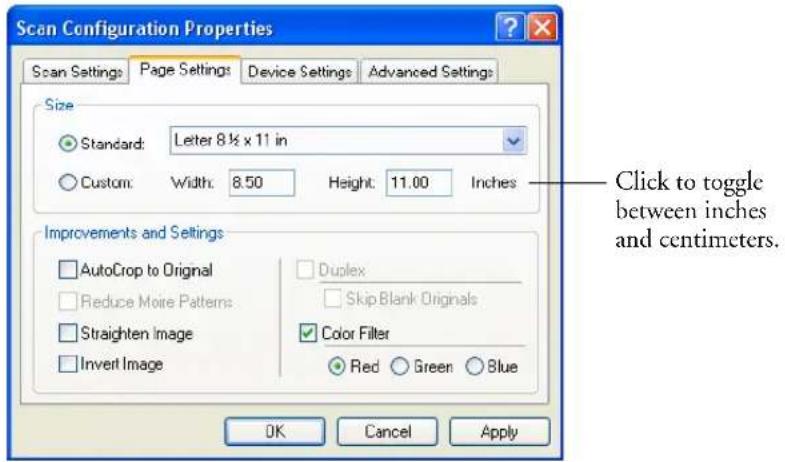

Scan Configuration Properties Scan Settings Page Settings Device Settings Advanced Settings Size Standard: Letter 8½ x 11 in Custom: Width: 8.50 Height: 11.00 Inches Improvements and Settings AutoCrop to Original Duplex Reduce More Patterns Skip Blank Originals Straighten Image Color Filter Invert Image Red Green Blue OK Cancel Apply Click to toggle between inches and centimeters.

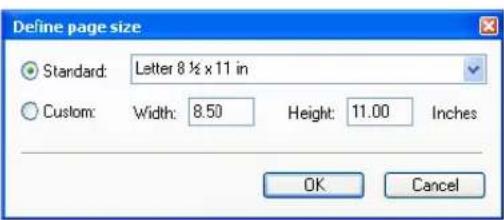

Size—Click Standard, click the menu arrow and choose a page size from the list, or click Custom and enter the horizontal and vertical page dimensions in the boxes. The maximum size is 8.5" x 14". The units of measurement can be inches or millimeters. Click the name of the units, inches or millimeters, to toggle between them.

Improvements and Settings—Only the options that apply to the selected Destination Application are available.

AutoCrop to Original—Select this option to let the scanner automatically determine the size of the item being scanned. For example, if you scan a 5 by 7 inch photo, the scanner will determine the size of the photo.

When using the AutoCrop to Original option, always use the paper guides on the scanner so the page is not skewed. Skewed pages may not crop properly.

Reduce Moire Patterns—Moire patterns are wavy, rippled lines that sometimes appear on the scanned images of photographs or illustrations, particularly newspaper and magazine illustrations. Selecting Reduce Moire Patterns will limit or eliminate moire patterns in the scanned image. This option is only available for the Grayscale or Color Mode at 300 dpi or less.

Straighten Image—Select this option to let the scanner automatically determine if a page is skewed, and then straighten its image. The scanner detects page edges and can sense when the page is fed through at an angle. However, if the page is fed through at too great an angle, the image may not straighten correctly. In that case, re-scan the page using the paper guides to feed the paper in straight.

Invert Image—Only available for Black&White Mode, this option reverses the black and whites of an image.

Original Image Inverted Image

Close-up black-and-white photo of a fluffy white cow's face, showing its open mouth and wide eyes (no text or symbols visible)

Black-and-white photo of a cow lying down with visible horns and legs (no text or symbols)

Color Filter—Color filter is the ability of your scanner to automatically remove a color from a scanned item. For example, if you are scanning a letter with a red watermark, you can choose to filter out the red so the scanned letter just shows the text and not the red watermark. Color filter applies to Black&White or Grayscale Mode.

The original with a red watermark over black text.

Marketing

ABC inc. distributes and sells its product worldwide through OEMODIMs, as well as distribution: As of June 1999, ABC has employed over 21 well-trained marketing, sales and customer personnel. To better senior customers, ABC has assigned an account manager for each of its OEMODM customers. These account managers are responsible for effectively coordinating the outstanding issues in sales, manufacturing, or development and assure the status of each customer's product is properly monitored. Our goals to achieve and maintain complete customer satisfaction.

The scanned item with the red filtered out.

Marketing

ABC Inc. distributes and sells product worldwide through OEMoOCMs, and distributors. As of June 1999, ABC was employed over 25 years trained in marketing, sales, and support personnel. To better serve its customers, ABC has assigned an account manager for each of its OEMoOCM customers. These accounts manager are responsible for effectively closing the outstanding issues in sales, manufacturing, or development and cause the status of each customer's product is properly mentioned. Our goal is to achieve and maintain complete customer satisfaction.

1. Click the Advanced Settings tab.

The options of the Advanced Settings tab are for the Color or Grayscale scanning mode.

Scan Configuration Properties Scan Settings Page Settings Device Settings Advanced Settings GrayScale/Color Settings Color Saturation: 50 % Color Hue: 0 ° Gamma: 1.85 Defaults OK Cancel Apply

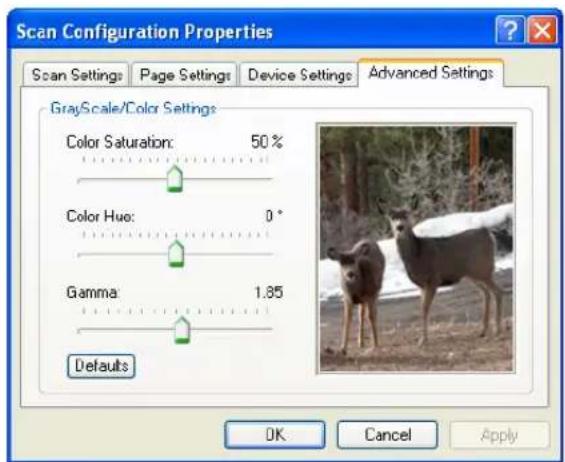

1. Drag the sliders to the left and right to change the color settings. As you do, the image changes to show the effects of the new settings.

Saturation is the strength or purity of a color, hue is the color your eyes see as reflected from the image, and gamma controls the brightness of the midtones of the color.

1. Click OK to save the new configuration.

It will now appear in the list of Scan Configurations on the OneTouch Properties window for the appropriate Destination Applications.

THE DEVICE SETTINGS TAB

A Device Settings tab is on the Scan Configurations dialog box when your selected Destination Application sends the scanned image to a printer, fax application, or other device. You use the options on the Device Settings tab to select settings for the device.

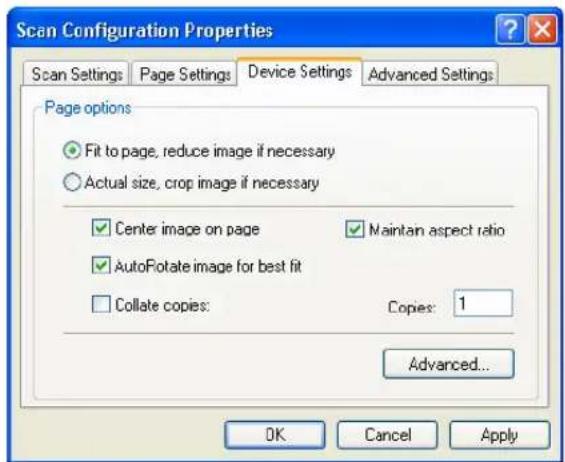

1. Click on the Device Settings tab.

Scan Configuration Properties Scan Settings Page Settings Device Settings Advanced Settings Page options ● Fit to page, reduce image if necessary ○ Actual size, crop image if necessary ✓ Center image on page ✓ Maintain aspect ratio ✓ AutoRotate image for best fit □ Collate copies: Copies: 1 Advanced... OK Cancel Apply

Fit to page, reduce image if necessary—If the scanned image is too big to be printed or faxed on a single page, the image will automatically be reduced to fit the page.

Actual size, crop image if necessary—If the scanned image is too big to be printed or faxed on a single page, the image will automatically be cropped around its edges to fit on the page.

Center image on page—The image will be printed in the center of the page instead of at the top right corner.

Maintain aspect ratio—The aspect ratio is the length-to-width relationship of the image's dimensions. Select this option so the image's relative proportions remain constant.

AutoRotate image for best fit—If the image is a Landscape format and the device is printing in the Portrait mode, or vice versa, rotate the image to fit on the page.

Collate copies—If you are printing more than one page, collate the copies. Enter the number of copies in the Copies box.

Advanced—Click to see additional settings for the device. The dialog that opens is specific to the device. For example, if the device is your printer, the dialog box is your printer's setup settings.

1. Click OK or Apply.

THE STORAGE OPTIONS TAB (ARCHIVE)

A Storage Options tab is on the Scan Configurations dialog box when the selected Destination Application is set as Transfer to Storage. You use the options on this tab to select where you want to save your scanned items for storage when scanning with that particular Scan Configuration.

Note: The selections you make using the Storage Options tab override the storage options that apply to the Storage Properties. This means that you can create separate Scan Configurations to store scanned items at various locations in addition to the main location set by the Storage Properties. See “Storage Properties” on page 40 and “Transferring Scanned Documents to Storage” on page 79 for more details.

1. Click on the Storage Options tab.

Scan Configuration Properties Scan Settings Page Settings Storage Options Advanced Settings Select folder and transfer options Storage layout All documents are in the root Documents are put in folders by month Documents are put in folders by week Documents are put in folders by type Storage location C:\Documents Browse OK Cancel Apply

1. Click the Storage Layout options you want.

All documents are in the root—The scanned documents are saved in the root of the folder specified in the Storage Location.

Documents are put into folders by month, week, or type— Folders are created based on your selection (month, week, or type) and the scanned documents are saved in those folders. New folders

are created for each month and week so you can keep track of when you scanned the documents. Type refers to the file type selected as the Page Format on the OneTouch Properties window.

By default, the location of the archived documents is at

C:\Documents and Settings\\My

Documents\My OneTouch Archive and then in a folder based on your selection for the Storage Layout. For example, if the file type is TIFF, and you select Documents are put into folders by type, the default location of scanned archive documents is at C:\Documents and Settings\\My Documents\My OneTouch Archive\TIFF Documents.

1. If you want to store your archive documents in some other location, click the Browse button to specify the new location.
2. Click OK or Apply.

SCANNING TO MULTIPLE FOLDERS

When archiving documents with the Transfer to Storage option, you can scan them to multiple folders. For example, one folder might be for “Business Receipts,” a second folder might be for “Personal Receipts,” and a third folder might be for “Annual Receipts.”

To scan to multiple folders, you create multiple scan configurations with Transfer to Storage as the Destination Application, then scan using a different configuration for each folder.

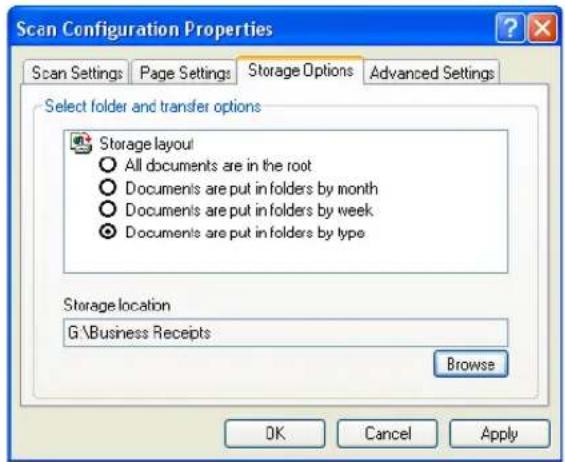

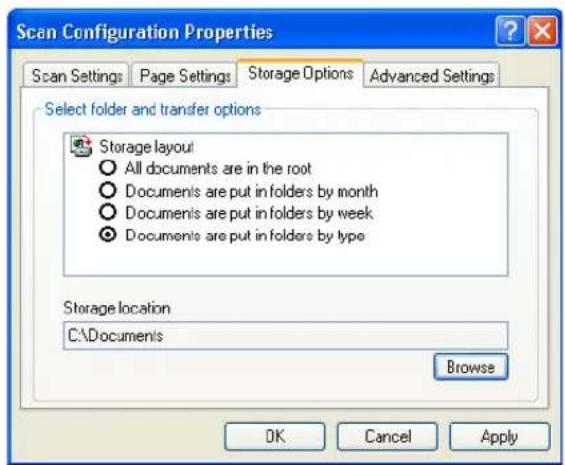

Setting up multiple folders for transfer to storage:

1. Using Microsoft Windows, create the folders that you want to use for storing scanned items. Note that you can also create the folders later while creating the new scan configurations.
2. Open the OneTouch Properties window.

3. Select Transfer to Storage as the Destination Application.

4. Click the New button.

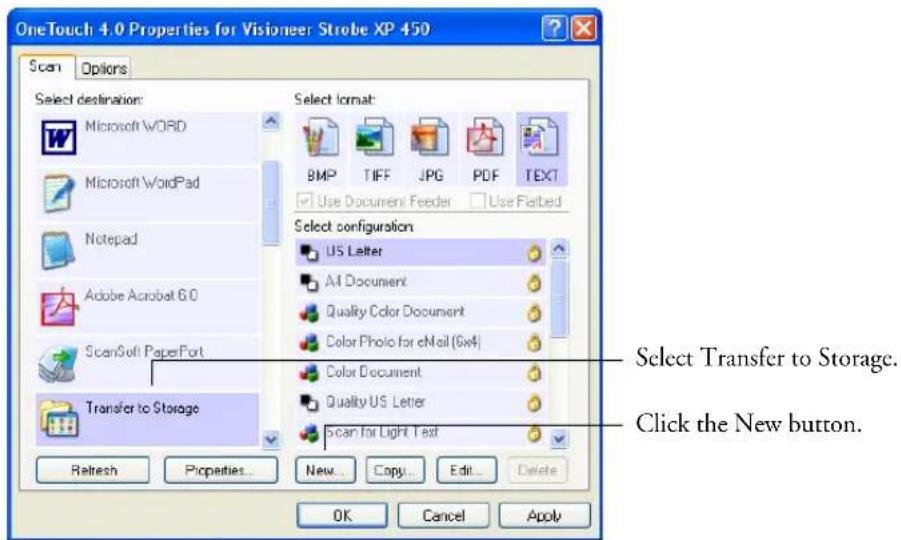

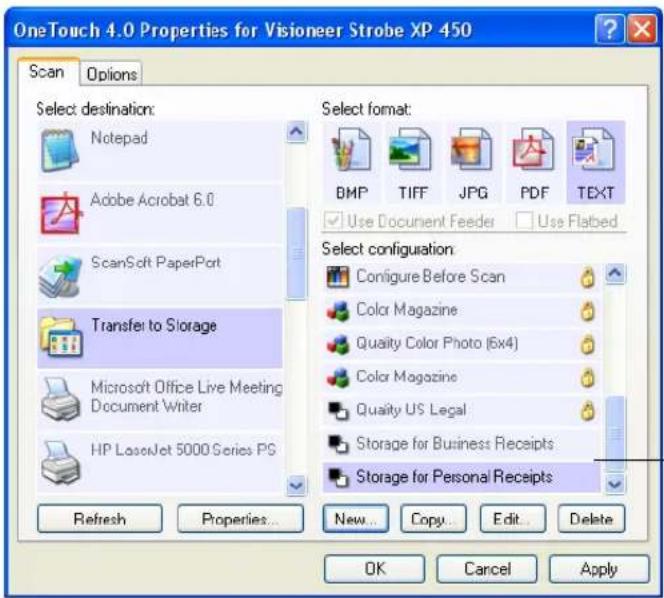

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination: Microsoft WORD Microsoft WordPad Notepad Adobe Acrobat 6.0 ScanSoft PaperPort Transfer to Storage Select format: BMP TIFF JPG PDF TEXT Use Document Feeder Use Flatted Select configuration: US Letter All Document Quality Color Document Color Photo for eMail (6x4) Color Document Quality US Letter Scan for Light Text Refresh Properties... New... Copy... Edit... Delete OK Cancel Apply Select Transfer to Storage. Click the New button.

The Scan Configuration Properties dialog box opens.

1. To help you remember which folder it is, give the new configuration a name that indicates the folder name, such as "Storage for Business Receipts."

2. Click the Scan Settings, Page Settings, and Advanced Settings tabs, and select the settings you want.

3. Click the Storage Options tab.

Scan Configuration Properties Scan Settings Page Settings Storage Options Advanced Settings Select folder and transfer options Storage layout All documents are in the root Documents are put in folders by month Documents are put in folders by week Documents are put in folders by type Storage location C:\Documents Browse OK Cancel Apply

1. Click the Browse button.

2. Select the folder you created for storing the scanned documents.

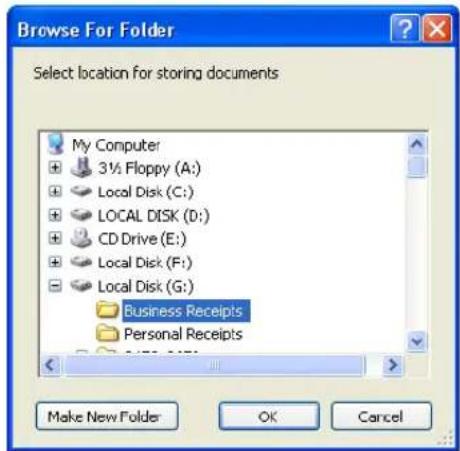

Browse For Folder Select location for storing documents My Computer 3½ Floppy (A:) Local Disk (C:) LOCAL DISK (D:) CD Drive (E:) Local Disk (F:) Local Disk (G:) Business Receipts Personal Receipts Make New Folder OK Cancel

If you haven't created the folder yet, you can click the Make New Folder button and type the name for the new folder.

1. Click OK. The selected folder will now be set as the Storage Location, such as "Business Receipts."

Scan Configuration Properties Scan Settings Page Settings Storage Options Advanced Settings Select folder and transfer options Storage layout All documents are in the root Documents are put in folders by month Documents are put in folders by week Documents are put in folders by type Storage location G:\Business Receipts Browse OK Cancel Apply

1. Click Apply. The new configuration is now listed as a Transfer to Storage configuration.

2. Repeat the process to create additional new configurations, such as one named "Storage for Personal Receipts."

3. Make sure to designate separate folders as the Storage Locations for the new configurations.

You will now have multiple configurations set up for the Transfer to Storage destination, and each configuration stores scanned documents in separate folders.

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination: Notepad Adobe Acrobat 6.0 ScanSoft PaperPort Transfer to Storage Microsoft Office Live Meeting Document Writer HP LaserJet 5000 Series PS Refresh Properties... New... Copy... Edit... Delete Select format: BMP TIFF JPG PDF TEXT Use Document Feeder Use Flatbed Select configuration: Configure Before Scan Color Magazine Quality Color Photo (6x4) Color Magazine Quality US Legal Storage for Business Receipts Storage for Personal Receipts OK Cancel Apply

The new configurations apply to the Transfer to Storage Destination Application.

Scan to multiple storage folders:

1. Open the OneTouch Properties window.

2. Select Transfer to Storage as the Destination Application.

3. Select one of the configurations you created for storage.

4. Click OK. The OneTouch Properties window closes.

The OneTouch panel will show the name of the configuration.

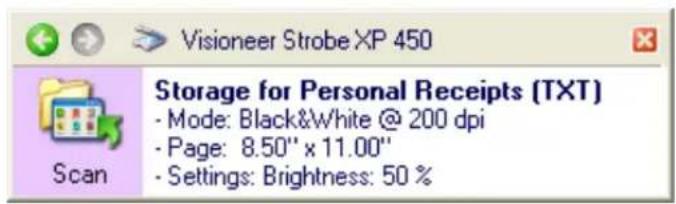

Visioneer Strobe XP 450 Storage for Personal Receipts (TXT) - Mode: Black&White @ 200 dpi - Page: 8.50" x 11.00" - Settings: Brightness: 50 %

1. Insert the first set of documents that you want to scan to storage.

2. Press the Scan button on the scanner or click the Scan icon on the panel.

The documents are scanned to the folder specified for the configuration.

1. When scanning is finished, open the OneTouch Properties window again and select the other configuration you created for storage.

2. Click OK or Apply.

The OneTouch panel will show the name of the other configuration.

Visioneer Strobe XP 450 Storage for Business Receipts (TXT) - Mode: Black&White @ 200 dpi - Page: 8.50" x 11.00" - Settings: Brightness: 50 %

1. Now, scan the next set of documents.

When scanning is finished, the two sets of documents are stored in the two separate folders.

EDITING OR DELETING SCAN CONFIGURATIONS

Note: Your scanner comes with a number of configurations pre-set at the factory. We recommend that you keep those configurations locked and do not edit or delete them. That way, you will always have the factory-settings available. If you do edit or delete them, and want to get the factory pre-sets back again, you will need to uninstall then re-install your scanner driver.

To edit or delete a scan configuration:

1. Open the OneTouch Properties window.
2. Select the scan configuration you want to edit or delete. The following example shows a new scan configuration that was created named "Scan for Light Text."

OneTouch 4.0 Properties for Visiener Strobe XP 450 Scan Options Select destination: ScanSoft PaperPort Transfer to Storage Adobe PhotoShop Microsoft Office Document Imaging Microsoft Paint Microsoft Photo Editor 3.0 Refresh Properties... New... Copy... Edit... Delete Select format: BMP TIFF JPG PDF n/a Use Document Feeder Use Flabed Select configuration: US Letter A4 Document Quality Color Document Color Photo for eMail (6x4) Color Document Quality US Letter Scan for Light Test OK Cancel Apply

Select the scan configuration to edit or delete. It must be unlocked, as indicated by not having a lock displayed here.

1. To delete the configuration, click the Delete button.

2. To edit the configuration, click the Edit button.

The Scan Configuration Properties dialog box opens for that configuration.

You can make changes to a configuration, but for the changes to be saved, the configuration must first be unlocked. Click the Lock icon to unlock the configuration. Clicking it toggles between locking and unlocking the configuration. The key icon indicates the configuration is unlocked.

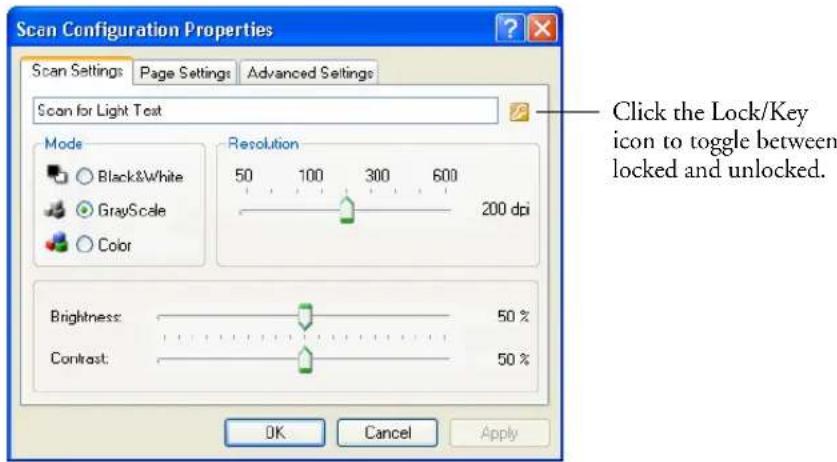

Scan Configuration Properties Scan Settings Page Settings Advanced Settings Scan for Light Test Mode Black&White GrayScale Color Resolution 50 100 300 600 200 dpi Brightness: 50 % Contrast: 50 % OK Cancel Apply Click the Lock/Key icon to toggle between locked and unlocked.

1. Edit the settings and click OK.
2. Click OK to close the dialog box.

CONFIGURING BEFORE SCANNING

Choosing Configure Before Scan simply opens a scanning interface when you press or click a scan button. You can then use the interface to change the Resolution, Scan Mode, and other settings. When you scan, the scanned image will still be sent as the file type and to the same Destination Application already selected in the OneTouch Properties window for that button.

To configure before scanning:

1. Open the OneTouch Properties window.
2. Select the scan configuration Configure Before Scan.

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination: Microsoft WordPad Notepad Adobe Acrobat 6.0 ScanSoft PaperPort Transfer to Storage Microsoft Office Live Meeting Document Writer Select format: BMP TIFF JPG PDF n/a Use Document Feeder Use Flated Select configuration: Color Photo (5x4) US Legal Configure Before Scan Color Magazine Quality Color Photo (6x4) Color Magazine Quality US Lega Twain ISIS WJA Refresh Properties... New... Copy... Edit... OK Cancel Apply

1. Right-click on Configure Before Scan and choose an interface to use for configuring before scanning.

TWAIN—The TWAIN interface opens for you to make changes prior to scanning. See “Scanning with the TWAIN Interface from PaperPort” on page 87.

ISIS—The ISIS Scan interface opens for you to make changes prior to scanning. See “Scanning with the ISIS Interface” on page 107.

WIA—The Windows Image Acquisition Interface (WIA) opens for you to make changes prior to scanning. The WIA option is only available if your computer is running Microsoft Windows XP. See “Scanning with the WIA Interface” on page 102.

1. Click OK or Apply on the OneTouch Properties window.

SCANNING WITH OPTICAL CHARACTER RECOGNITION (OCR)

Optical Character Recognition (OCR) converts text and numbers on a scanned page into editable text and numbers. You can then work with the text and numbers to edit, spellcheck, change font or type size, sort, calculate, and so forth.

To scan with OCR:

1. Select a Destination Application that has one of the Text formats (TEXT, RTF, XLS, or HTML).

2. Scan the document.

Your scanned pages appear in the Destination Application with their text ready for editing and other text processing.

Note: OCR scanning is also for spreadsheets so you can work in Microsoft Excel (or other spreadsheet applications) with the figures and text from the original spreadsheets.

To select OCR settings:

1. Select the Destination Application.

2. Right-click on a text format icon to see the drop-down menu.

TEXT Simple Text Rich Text Format ✓ OCR options ...

3. Choose OCR options.

A dialog box of OCR options opens.

OCR Settings ✓ Auto orient page ✓ Single column output OK Cancel

1. Select the option you want for the OCR conversion of your documents.

Auto orient page—Select this option to check the page orientation and automatically rotate an improperly oriented page image so the text is recognizable by the OCR process.

Single column output— Select this option to produce a single column of text in the Destination Application, even if the original image had multiple columns of text.

1. Click OK.

Note that the OCR options apply to all the Destination Applications for which OCR applies. If you change them for one Destination Application, those changes apply to the others as well.

SCAN AND BURN TO A CD

If you have a CD burner attached to your computer, you can scan directly from your Visioneer Strobe XP 450 scanner onto a CD.

Note: This feature is available only on computers running Windows XP.

To scan and burn to a CD:

1. Put a blank CD into your computer's CD Drive.
2. Open the OneTouch Properties window.
3. Select Burn to CD as the Destination Application.

The Burn to CD Destination Application is only available if you have a CD burner attached to your computer, but you do not need to have a CD in the burner to select the destination.

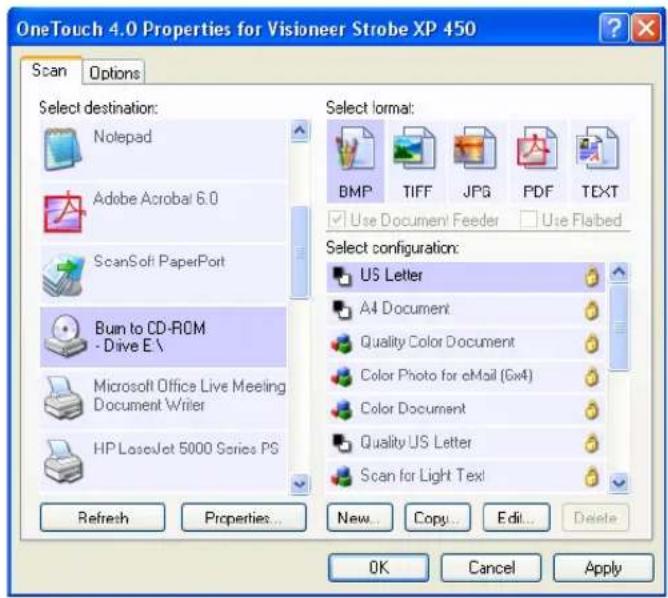

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination: Notepad Adobe Acrobat 6.0 ScanSoft PaperPort Bun to CD-ROM - Drive E\ Microsoft Office Live Meeting Document Writer HP LaserJet 5000 Series PS Refresh Properties... Select format: BMP TIFF JPG PDF TEXT Use Document Feeder Use Flabed Select configuration: US Letter All Document Quality Color Document Color Photo for eMail (Gx4) Color Document Quality US Letter Scan for Light Tex! New... Copy... Edit... Delete OK Cancel Apply

1. Choose a Page Format and a Scan Configuration.
2. Click OK.

The OneTouch Properties window closes.

1. Now click the Scan button to start scanning.

When scanning is finished, a bubble message on the screen tells you that files are waiting to be burned to the CD.

1. On the OneTouch window, make sure that the Burn to CD Destination Application is still selected and click the Properties button.

The OneTouch 4.0 Link Properties window opens.

OneTouch 4.0 Link Properties Storage Documents dropped on this link will be transferred to storage devices, i.e. file system or CD-Burner. Storage layout All documents are in the root Documents are put in folders by month Documents are put in folders by week Documents are put in folders by type CD burner options Show message when ready to burn 5" CD (700 MB) Storage location C:\Documents and Settings\Administrator\My Do Browse Documents transferred to the 'Burn to CD' link are waiting to be written to CD... Burn to CD ... OK Cancel Apply

1. Make sure a CD is in the CD burner.

2. Click the Burn to CD button.

The CD burner begins and your scanned documents are written to the CD.

Note: Until you click Burn to CD these files are stored in your computer at C:\Documents and Settings\\Local Settings\Application Data\Microsoft\CD Burning. This is where Windows XP stores all files waiting to be burned to a CD by the automatic CD writing wizard. If other files are also waiting in this location, they will get written with the OneTouch files on the CD.

Note: When scanning items to burn to a CD, you should always use one of the factory-set default configurations, or a custom configuration specifically set up for CD burning. The default configurations are already set up to send the scanned images to the proper storage location where the Windows XP CD writing wizard can find the files to burn to the CD. Likewise, when you create a custom configuration for CD burning, the OneTouch software will automatically make sure the storage location is correct.

To create a custom configuration for CD burning, select Burn to CD as the Destination Application, then click the New button and create the new configuration. You won't need to select a storage location because it will be correctly preset for you by the OneTouch software.

Note however, that if you have created other custom configurations with different storage locations (for example, see “Scanning to Multiple Folders” on page 61), do not use them for the Burn to CD Destination Application. Otherwise, the Windows XP CD writing wizard will not be able to find the images to burn onto the CD.

SCANNING WITH EVENT FORWARDING

If you want to specify an application to use for scanning at the start of the process, you can use event forwarding. The scanner will feed in the first page, but will then stop until you select the application to use. After you select the application, its interface will open and you can use it to continue with the scanning.

To scan with event forwarding:

1. Open the OneTouch Properties window.

2. Select Still Image Client as the Destination Application.

Note that you cannot choose a page format for this option because the actual destination application is not selected until after the scanner feeds in the first page of your document.

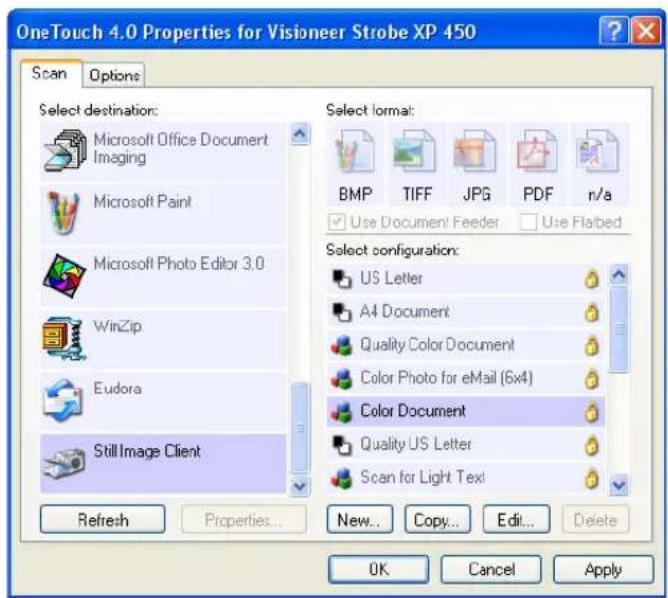

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination: Microsoft Office Document Imaging Microsoft Paint Microsoft Photo Editor 3.0 WinZip Eudora Still Image Client Refresh Properties... Select format: BMP TIFF JPG PDF n/a Use Document Feeder Use Flabed Select configuration: US Letter A4 Document Quality Color Document Color Photo for eMail (6x4) Color Document Quality US Letter Scan for Light Tex! New... Copy... Edit... Delete OK Cancel Apply

1. Choose a Scan Configuration.

2. Click OK.

The OneTouch Properties window closes.

1. Press the Scan button to start scanning.

A dialog box opens for you to select the application to use for scanning.

Visioneer Strobe XP 450 OneTouch Event Forwarding Select the program to launch for this action: Microsoft Office Document Imaging Microsoft Office Document Imaging Microsoft Scanner and Camera Wizard Download pictures from a camera or scanner Microsoft Word Microsoft Word OmniPage Pro 12.0 OmniPage Pro 12.0 Always use this program for this action OK Cancel

1. Select the application in the box and click OK.

Now the application you selected opens and you can continue the scanning from that application's TWAIN interface.

CREATING AN HTML WEB PAGE FROM YOUR SCANNED DOCUMENTS

If you scan a document, whether a single page or multiple pages, you can have the pages converted directly to HTML formatted pages for posting directly to your web site. Those pages are then viewable by visitors to your web site without the need for any internet plug-ins or other special processing. This is, essentially, from your scanner to a web-ready format in one automatic step.

To scan and create an HTML web page:

1. Open the OneTouch Properties window.
2. Select Microsoft Explorer as the Destination Application.
3. Choose HTML as the Page Format.

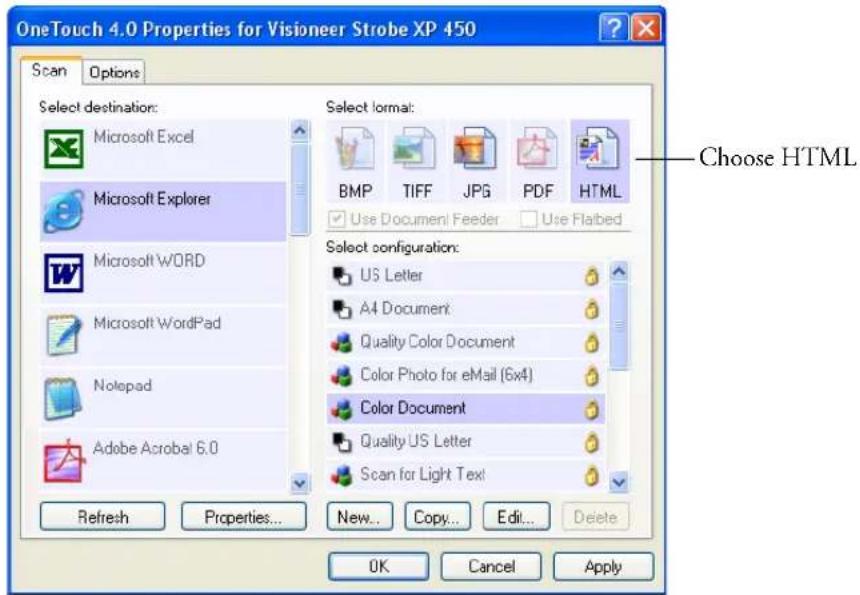

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination: Microsoft Excel Microsoft Explorer Microsoft WORD Microsoft WordPad Notepad Adobe Acrobat 6.0 Refresh Properties... Select format: BMP TIFF JPG PDF HTML Use Document Feeder Use Flatbed Choose HTML Select configuration: US Letter A4 Document Quality Color Document Color Photo for eMail (6x4) Color Document Quality US Letter Scan for Light Text New... Copy... Edit... Delete OK Cancel Apply

1. Choose a Scan Configuration that has the settings for the image on the HTML page.

For example, if you want the image to be in color on the HTML page, choose a color configuration.

1. Click OK.

The OneTouch Properties window closes.

1. Insert the document into the Automatic Document Feeder.

2. Press the Scan button.

When scanning is finished, the document is first converted to editable text using the OCR process, and then is converted into an HTML format. Microsoft Internet Explorer then opens showing your converted page.

Note: Depending on the complexity of the document, its conversion to the HTML format may take a few moments.

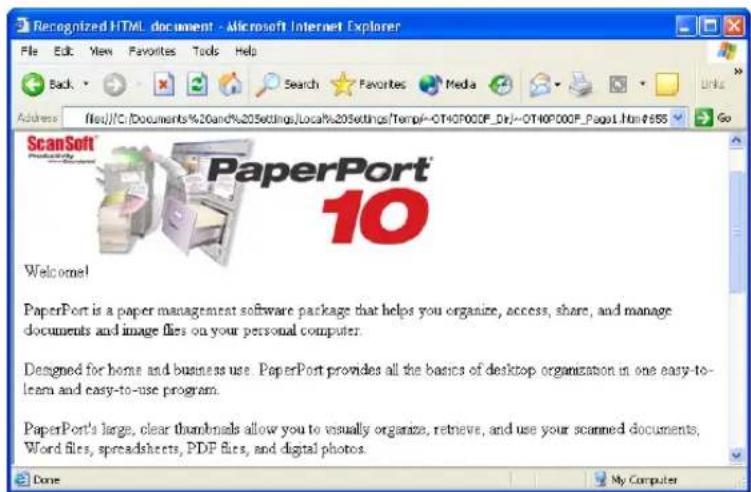

Recognized HTML document - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Media Links Address https://C:\Documents\%20and%\205settings\Local%\205settings\Temp/---OT40P000F_Dir/---OT40P000F_Pages1.htm/$655 Go ScanSoft PaperPort 10 Welcome! PaperPort is a paper management software package that helps you organize, access, share, and manage documents and image files on your personal computer. Designed for home and business use. PaperPort provides all the basics of desktop organization in one easy-to-learn and easy-to-use program. PaperPort's large, clear thumbnails allow you to visually organize, retrieve, and use your scanned documents, Word files, spreadsheets, PDF files, and digital photos. Done My Computer

1. Choose Save As from the Internet Explorer File menu, give the page a name, and save it in the location you use for your web page files.

You may also want to write down the address shown in the Address bar to make sure you'll know where to find your new HTML page later on.

1. You can now use Microsoft Internet Explorer or other application to post the document to your web page as you would any other HTML page.

TRANSFERRING SCANNED DOCUMENTS TO STORAGE

With the Transfer to Storage scanning process, you can scan documents and save them in a folder in one step. The process is ideal for archiving documents without having to manually save or process them in any other way. If you choose a text format for the file format, the documents are also automatically converted by the OCR process into editable text and numbers before being stored.

To transfer documents to storage:

1. Open the OneTouch Properties window.
2. Select Transfer to Storage as the Destination Application.
3. Select a Format and Configuration.

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination: Microsoft WORD Microsoft WordPad Nolepad Adobe Acrobat 6.0 ScanSoft PaperPort Transfer to Storage Refresh Properties... New... Copy... Edit... Delete Select format: BMP TIFF JPG PDF TEXT Use Document Feeder Use Flabed Select configuration: US Letter A4 Document Quality Color Document Color Photo for eMail (6x4) Color Document Quality US Letter Scan for Light Text OK Cancel Apply

1. If you want to have text documents or spreadsheets converted by the OCR process prior to being stored, choose a text format.

Right-click on the text format icon and from the drop-down menu choose a text format for the scanned images.

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination: Microsoft WORD Microsoft WordPad Notepad Adobe Acrobat 6.0 ScanSoft PaperPort Transfer to Storage Refresh Properties... New... Copy... Edit... Delete Select format BMP TIFF JPG PDF TE Use Document Feeder Use Flat Select configuration: US Letter A4 Document Quality Color Document Color Photo for eMail (6x4) Color Document Quality US Letter Scan for Light Text OK Cancel Apply Simple Text Rich Text Format Excel Spreadsheet HTML Document OCR options ...

1. Click OK.

The OneTouch Properties window closes.

1. Insert the documents into the Automatic Document Feeder.

7. Press the Scan button.

When scanning is finished, the documents are stored in the location that you specified on the OneTouch 4.0 Link Properties window.

If you selected a text format, the documents are first converted to editable text using the OCR process, and then stored.

OneTouch 4.0 Link Properties Storage Documents dropped on this link will be transferred to storage devices, i.e. file system or CD-Burner. Storage layout All documents are in the root Documents are put in folders by month Documents are put in folders by week Documents are put in folders by type CD burner options Show message when ready to burn 5" CD (700 MB) Your scanned documents will be stored at this location. Storage location C:\Documents and Settings\Administrator\My Do Browse Documents transferred to the 'Burn to CD' link are waiting to be written to CD... Burn to CD ... OK Cancel Apply

TO TRANSFER DOCUMENTS TO A SERVER OR MAPPED DRIVE

When selecting the storage location for scanned documents, you can select a local folder, or a folder on a server or mapped drive. You select a mapped drive using the Browse button. See “The Storage Options Tab (Archive)” on page 60 for the steps to select the Transfer to Storage options.

1. On either the OneTouch 4.0 Link Properties window, or from the Scan Configuration Properties window, click the Browse button.

OneTouch 4.0 Link Properties Storage Documents dropped on this link will be transferred to storage devices, i.e. file system or CD-Burner. Storage layout All documents are in the root Documents are put in folders by month Documents are put in folders by week Documents are put in folders by type CD burner options Show message when ready to burn B* CD (700 MB) Storage location D:\Documents and Settings\Administrator\My Do Browse Documents transferred to the "Burn to CD" link are waiting to be written to CD... Burn to CD... OK Cancel Apply

Scan Configuration Properties Scan Settings Page Settings Storage Options Advanced Settings Select folder and transfer options Storage layout All documents are in the root Documents are put in folders by month Documents are put in folders by week Documents are put in folders by type Storage location S:\Business Receipts Browse OK Cancel Apply

The Browse For Folder window opens.

1. Select a storage location on the mapped drive or server for the scanned documents.

Servers and mapped drives are represented by an icon that indicates its network connection.

Browse For Folder Select location for storing documents My Computer 3½ Floppy (A:) Local Disk (C:) LOCAL DISK (D:) CD Drive (E:) Local Disk (F:) Engineering on 'Madrid' (Y:) Make New Folder OK Cancel Select a mapped drive or server as indicated by the icon.

1. Click OK.

Now when you scan using Transfer to Storage as the Destination Application, the documents are stored on the server or mapped drive.

CHECKING THE HARDWARE AND SETTING THE LAMP POWER SAVE MODE

1. Right-click on the OneTouch icon and choose Show Hardware from the pop-up menu.

Show Hardware... Check for Online Updates... Show Quick Reference... About...

You can also click the scanner icon at the top of the OneTouch Button Panel.

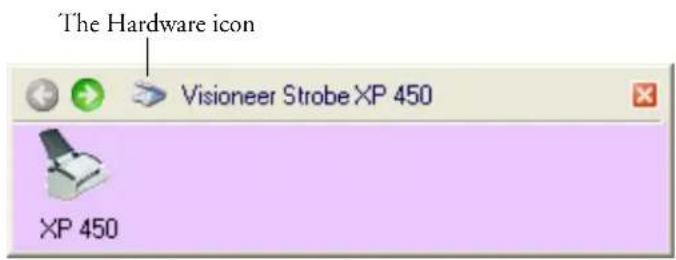

The Hardware icon Visioneer Strobe XP 450 XP 450

If the Hardware View of the panel is open you can also right-click on the Strobe XP 450 icon.

The Hardware Properties dialog box opens and shows information about your Visioneer Strobe XP 450 scanner.

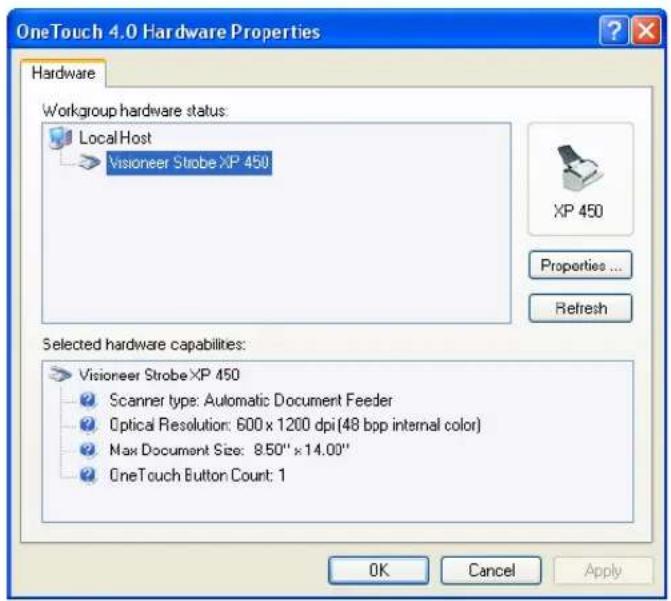

OneTouch 4.0 Hardware Properties Hardware Workgroup hardware status: Local Host Visioneer Strobe XP 450 XP 450 Properties ... Refresh Selected hardware capabilities: Visioneer Strobe XP 450 Scanner type: Automatic Document Feeder Optical Resolution: 600 x 1200 dpi(48 bpp internal color) Max Document Size: 9.50" x 14.00" OneTouch Button Count: 1 OK Cancel Apply

2. Click the Properties button.

Device Configuration Properties Device Settings Information Device name: Visioneer Strobe XP 450 Driver version: Firmware version: Interface: USB Documents Scanned*: 202 Pages *) To avoid document feeder problems, please replace the pad after 20,000 pages. The documentation and help system shows you how. Control Enable power save mode 15 Min Lamp On Lamp Off Reset Device OK Cancel Apply

Your scanner has a built-in power saving feature that is set to power down after 15 minutes of idle time. You can change the time before the scanner powers down, from 1 minute to a maximum of 10 hours.

1. Click the arrows for the Lamp timeout setting and choose a time setting.

To turn the lamp on and off manually without turning off power to the scanner, click the Lamp On or Lamp Off buttons.

To return the scanner to its factory settings, click Reset Device.

1. Click OK to save the changes and close the dialog box.

Scanning with the TWAIN Interface from PaperPort

In addition to using the Scan button or the OneTouch Panel to scan, you can scan from the TWAIN interface. The PaperPort application that you received with your scanner uses the TWAIN interface for scanning. This scanning method is particularly helpful when you're using PaperPort to file and save scanned items, or if you want to adjust scanning settings prior to scanning.

A Note About Your Scanner and the TWAIN standard: TWAIN is a widely recognized standard that computers use to receive images from scanners, digital cameras, and other digital devices. This guide shows how to scan with the TWAIN interface from PaperPort. But you can also open the TWAIN interface from many other graphics and imaging applications and scan from them as well. Because the TWAIN interface is the same regardless of the software you use to open it, you can still use the instructions in this User's Guide for scanning. To access the TWAIN interface from other software, please refer to their user's guides, then return to this User's Guide for the steps to scan.

Note: If the OneTouch configuration you are using to scan is set to Configure Before Scan, and the selected option is TWAIN, the TWAIN interface opens right away without opening PaperPort first.

GETTING HELP WITH THE PAPERPORT SOFTWARE

The PaperPort software includes a complete set of help topics that answer questions about each feature of the software. To open the Help Topics window, press the F1 key or choose PaperPort Help from the Help menu. You can also refer to the PaperPort User's Guide on the CD.

ACCESSING THE TWAIN INTERFACE FROM PAPERPORT

The instructions in this section are for accessing the TWAIN interface from the PaperPort application.

To access the TWAIN interface from PaperPort:

1. On the Windows taskbar, click Start, point to Programs, point to ScanSoft PaperPort, then click PaperPort.

The first time PaperPort is launched, it opens with the Folders pane displayed as shown here. Later on, PaperPort opens in the view you were last using.

Scan icon. Folders pane.

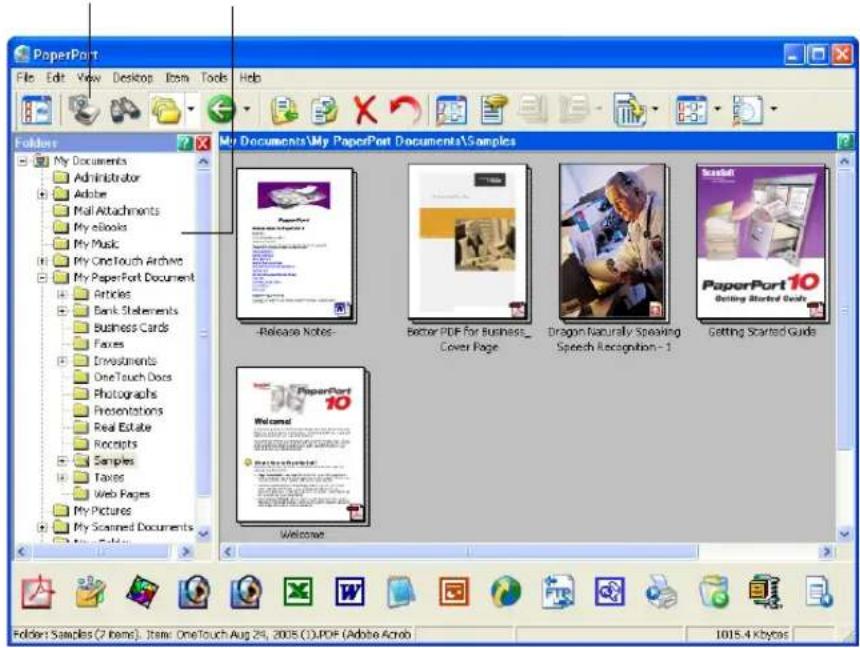

PaperPort File Edit View Desktop Item Tools Help Foddlers My Documents Administrator Adobe Mail Attachments My eBooks My Music My OneTouch Archive My PaperPort Document Articles Bank Statements Business Cards Faxes Investments OneTouch Docs Photographs Presentations Real Estate Receipts Samples Taxes Web Pages My Pictures My Scanned Documents My Office My Documents\My PaperPort Documents\Samples -Release Notes- Doctor PDF for Business_ Cover Page Dragon Naturally Speaking Speech Recognition - 1 Getting Started Guide Welcome Folder: Samples (2 items). Item: OneTouch Aug 24, 2005 (1).PDF (Adobe Acrobat) 1015.4 Kbytes

1. Click the Scan icon on the PaperPort command bar.

The Folders pane (which shows folders for organizing your scanned images) is replaced by the Scan pane.

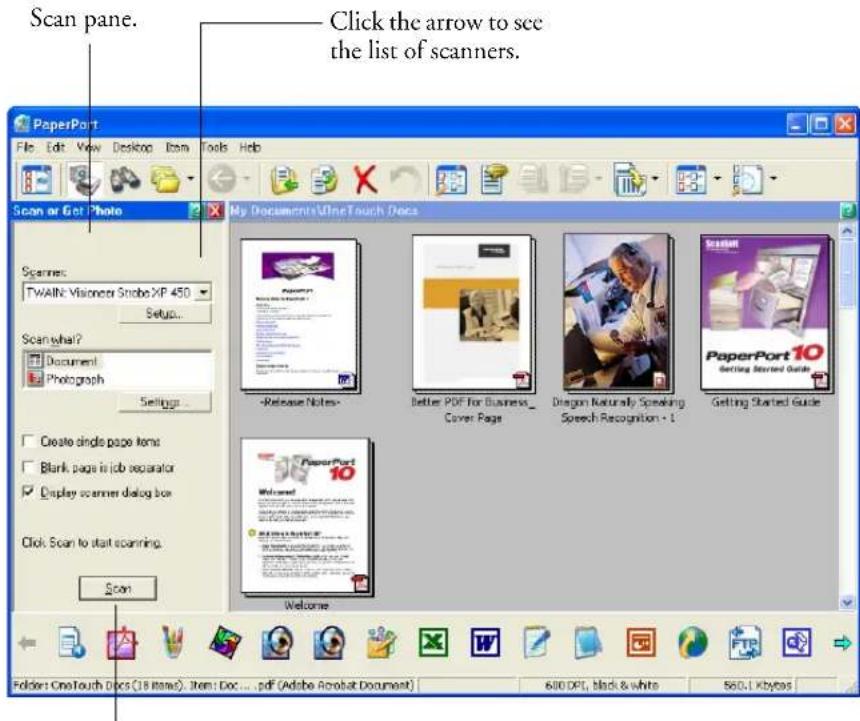

Scan pane. Click the arrow to see the list of scanners. My Documents\OneTouch Docs Scan or Get Photo Scanne: TWALN: Visioner Snobo XP 450 Setup... Scan what? Document Photograph Settings... Create dindi page items Blank pages in job separator Display scanner dialog box Click Scan to start scanning. Scan -Release Notes- Better PDF for Business_ Cover Page Dragon Naturally Speaking Speech Recognition - 1 Getting Started Guide PaperPort 10 Welcome Folder: OneTouch Docs (18 items)... Item: Doc ... .pdf (Adobe Acrobat Document) 600 DPT, black & white 560.1 Kbytes

If this Scan button is not active, see the section on page 97 to set up your scanner to work with PaperPort.

1. Click the Scanner drop-down arrow, and select TWAIN: Visioneer Strobe XP 450 from the drop-down list.

Note: Please wait a few moments for your selection from the drop-down list to become active. This delay only occurs the first time you select from the list while PaperPort initializes the scanner. Later on, selecting from the list activates immediately.

Note: If the Scan button at the bottom of the panel is not available when you make a selection from the Scanner drop-down list, then PaperPort needs to be setup to work with your scanner. See the section "Setting Up PaperPort to Work With Your Scanner" on page 97.

√ Create single page items

1. In the “Scan what?” section, choose to scan a Document or Photograph.

If you want to change the format of the scanned item's file name or file type before you start scanning, click Settings. The default file type for documents is .pdf and the default for photographs is .jpg.

1. When scanning documents, use the Create single page items check box as follows:

■When the option is selected, all pages in the Automatic Document Feeder are scanned, the TWAIN interface closes, and each page is placed on the PaperPort Desktop as a separate file.
■When the check box is not selected, the scanned pages are not placed on the PaperPort Desktop until you indicate the scanning job is finished by clicking Done on the TWAIN interface then clicking Done on the PaperPort-Scan window. Multiple pages are “stacked” on the PaperPort Desktop. Not all file types can be stacked on the desktop. Note that items scanned as .jpg files cannot be stacked on the desktop.

1. The option Blank page is job separator is for when you load several separate scanning jobs into the Automatic Document Feeder at the same time. Insert a blank page between them and each job will become a separate stack on the PaperPort Desktop when scanning is finished.

2. Make sure the option Display scanner dialog box is selected.

If this option is not selected, the TWAIN interface will not open when you click the Scan button. Instead, the items are scanned with the basic PaperPort settings. Documents are scanned in Black and White in the PDF file format, and Photographs are scanned in Color in the JPG file format.

1. Click the Scan button on the Scan pane.

The TWAIN interface opens. Use it to select scanning options and to start the scanner.

Scan

SCANNING WITH THE TWAIN INTERFACE

This TWAIN interface is lists the scanning options available with your scanner. Greyed out options are not available for your scanner.

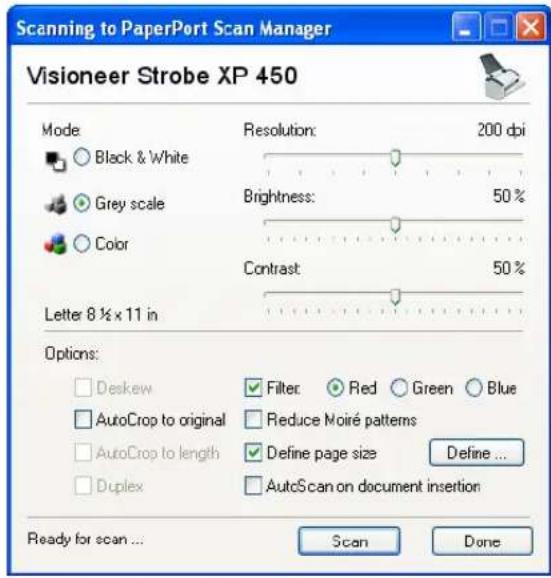

Scanning to PaperPort Scan Manager Visioneer Strobe XP 450 Mode Black & White Grey scale Color Letter 8 ½ x 11 in Resolution: 200 dpi Brightness: 50 % Contrast: 50 % Options: Deskew AutoCrop to original AutoCrop to length Duplex Filter: Red Green Blue Reduce Moiré patterns Define page size Define ... AutoScan on document insertion Ready for scan... Scan Done

The options on the TWAIN interface are:

Mode—Select a scanning mode:

Black&White to scan in black and white. The scanning pixels are all the same size and are either black or white. Use this setting for letters, memos, and other black and white material. This scan mode produces the smallest file size.

GreyScale to scan items such as documents containing drawings or black and white photographs. The scanning produces an image of up to 256 shades of gray. You can also scan a color document to turn its colors into gray shades. The file size is about one third that of a color scan.

Color to scan magazine articles, photographs, and other color images in full color. Color scans have the largest file size.

Resolution—Drag the slider to the right or left to adjust the dots per inch (dpi) of the resolution. The maximum resolution is 600 dpi; the minimum is 50 dpi. This option determines the amount of detail you can see in the scanned image. The higher the dpi setting, the sharper and clearer the scanned image. However, higher dpi settings take longer to scan and produce larger files for the scanned images. Usually the higher resolution settings are used for precision work, such as photographs or fine artwork.

Brightness and Contrast—Sometimes an image is scanned with the brightness and contrast set too light or too dark. For example, a note written with a light pencil may need to be scanned darker to improve legibility. Increasing or decreasing the brightness makes the scanned image lighter or darker. Contrast refers to the difference between the lighter and darker portions of the image. Increasing the contrast emphasizes the difference between the lighter and darker portions, decreasing the contrast de-emphasizes that difference. Contrast is used in conjunction with brightness.

AutoCrop to Original—Select this option to let the scanner automatically determine the size of the item being scanned. For example, if you scan a 5" x 7" photo, the scanner will determine the size of the photo, and the scan area is the size of that photo.

When using the AutoCrop to Original option, always use the paper guides on the scanner so the page is not skewed.

Filter—The Filter is the ability of your scanner to automatically remove a color from a scanned item. For example, if you are scanning a letter with a red watermark, you can choose to filter out the red so the scanned letter just shows the text and not the red watermark. The Filter option applies to the Black&White and GreyScale Modes.

The original with a red watermark over black text.

The scanned item with the red filtered out.

ABC inc. distributes and sells its product worldwide through OEMs/ODMs, and distribution As of June 1999, ABC has employed over 21 well trained marketing, sales and sales personnel. To better serve customers, ABC has assigned an account manager for each of its OEM/ODM customers. These account managers are responsible for effectively coordinate the outstanding issues in sales, manufacturing, or development and assure the status of each customer's product is properly maintained. Our goal is to achieve and maintain complete customer satisfaction.

Rackering ABC Inc. distributes and sells in product worldwide through OEMsOEMs, and distributors. As of June 1999, ABC has employed over 25 well trained markets, sales, and support personnel. To better serve its customers, ABC has assigned an occup manager for each of its OEMsOEM customers. These account manager are responsible for effectively accurate the outstanding issue in sales, manufacturing, or development and covers the status of each customer's product is properly maintained. Our guidance to achieve and maintain complete customer satisfaction.

Reduce Moire Patterns—Moire patterns are wavy, rippled lines that sometimes appear on the scanned images of photographs or illustrations, particularly newspaper and magazine illustrations. Selecting Reduce Moire Patterns will limit or eliminate moire patterns in the scanned image. This option is only available for the Greyscale or Color Mode at 300dpi or less.

Define page size—Click this option to activate the Define button. Then click the Define button to see the Define page size dialog box for selecting a specific page size.

Define page size Standard: Letter 8 ½ x 11 in Custom: Width: 8.50 Height: 11.00 Inches OK Cancel

1. Click Standard, click the menu arrow and choose a page size from the list, or click Custom and enter the horizontal and vertical page dimensions in the boxes. The maximum size is 8.5" x 14". The units of measurement can be inches or millimeters. Click the name of the units, inches or mm (millimeters), to toggle between them.

2. Click OK.

The currently selected page size appears in the middle of the TWAIN interface on the lefthand side.

The Define page size option cannot be used with AutoCrop to Length or AutoCrop to original options.

AutoScan on document insertion—Your Visioneer Strobe XP 450 scanner includes AutoLaunch technology that senses when an item is inserted into the automatic document feeder and starts scanning immediately. Select this option to turn on the AutoLaunch feature. The item is scanned with the current scan settings on the TWAIN interface. If this option is not selected, the scanner waits for you to click the Scan button.

To scan from the TWAIN interface:

1. When you're ready to scan, align the documents between the Paper Guides and load them with their tops into the automatic document feeder. Insert the pages face down.

Illustration of hands printing a paper airplane into a printer with a downward arrow indicating compression (no text or symbols present)

Scan

1. Click the Scan button (if the AutoScan feature is not turned on). The scanner starts scanning and a progress box opens.

If the Create single page items check box is selected, all pages in the Automatic Document Feeder are scanned, the TWAIN interface closes, and each page is placed on the PaperPort Desktop as an individual file.

If PaperPort's Create single page items check box is not selected, the scanned pages are not placed on the PaperPort desktop until you indicate the scanning job is finished by clicking Done on the TWAIN interface then clicking Done on the PaperPort-Scan window.

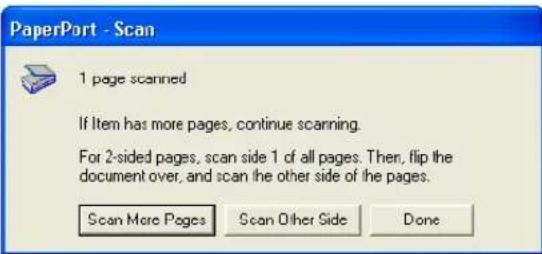

PaperPort - Scan 1 page scanned If Item has more pages, continue scanning. For 2-sided pages, scan side 1 of all pages. Then, flip the document over, and scan the other side of the pages. Scan More Pages Scan Other Side Done

If you are scanning a single page, the TWAIN interface closes automatically.

When scanning is complete, thumbnail images appear on the PaperPort Desktop.

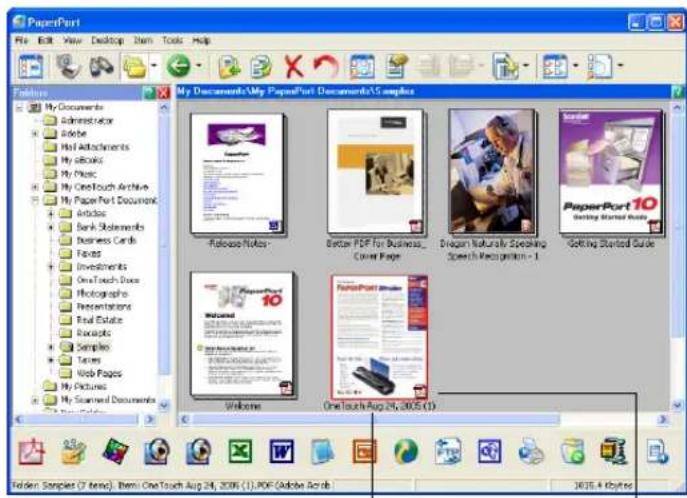

PaperPort File Edit View Desktop Item Tools Help My Documents\My PaperPort Documents\5 samples Fidgose Notes Better PDF for Business_ Cover Page Dragon Naturally Speaking Speech Recognition - 1 Goetting Started Guide Welcome One Touch Aug 24, 2005 (1) Folder: Samples (7 items). Items: One Touch Aug 24, 2005 (1).PDF (Adobe Acrobat) 2015.4 Numbers

A thumbnail image of the scanned item appears on the PaperPort desktop.
The small icon represents the file format, in this case the .pdf format.

DISPLAY THE DEVICE CONFIGURATION

1. Click the Visioneer Strobe XP 450 icon in the top right corner of the TWAIN interface.

The Device configuration window opens and shows the information about your scanner.

See the section "Checking the Hardware and Setting the Lamp Power Save Mode" on page 84 for more information about the device settings.

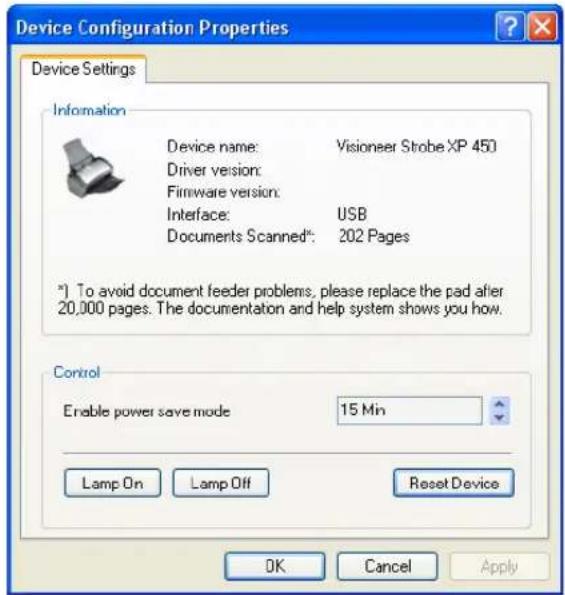

Device Configuration Properties Device Settings Information Device name: Visioneer Strobe XP 450 Driver version: Firmware version: Interface: USB Documents Scanned*: 202 Pages *) To avoid document feeder problems, please replace the pad after 20,000 pages. The documentation and help system shows you how. Control Enable power save mode 15 Min Lamp On Lamp Off Reset Device OK Cancel Apply

SETTING UP PAPERPORT TO WORK WITH YOUR SCANNER

When you selected a scanning option from the Scanner drop-down list, either TWAIN: Visioneer Strobe XP 450 or WIA: Visioneer Strobe XP 450 (Windows XP only), the Scan button at the bottom of the panel should become active. If it doesn't, you need to set up PaperPort to work with your scanner.

If this Scan button is not active, you need to set up PaperPort to work with your scanner.

PaperPort File Edit View Desktop Item Tools Help Scan or Get Phone My Documents\StudioTouch Docs Spanne: TWAIN: Visioner Strobe XP 450 Setup... Scan what? Document Photograph Settings... Create single page items Blank page in job separator Display scanner dialog box Click Scan to start scanning. Scan -Release Notes- Better PDF for Business_ Cover Page Dragon Naturally Speaking Speech Recognition - L Getting Started Guide PaperPort 10 Welcome Folder OneTouch Docs (8 Items). Item Doc....pdf (Adobe Acrobat Document) 600 DPI, black & white 560.1 Kbytes

Note: Setting up PaperPort is a one-time-only process for each option from the Scanner drop-down list. Therefore, you may have to set up PaperPort once each for TWAIN: Visioneer Strobe XP 450 and WIA: Strobe XP 450. The setup process, described below, is the same for each option. You will not have to set up PaperPort again for an option unless you uninstall the scanner and PaperPort software, then re-install them.

To setupPa perPort:

1. From the Scanner drop-down list, select one of the options, such as Twain: Visioneer Strobe XP 450.

2. Click the Setup button.

A window opens to begin the setup process.

ScanSoft Scanner Setup Wizard This wizard helps you select and test your scanner or digital camera for use with your application. Current Selection: TWAIN: Visionier Strobe XP 450 When you select a device, the wizard obtains the settings for best use from the wizard's database, which is installed with the wizard. The database contains driver information for current and popular scanner and camera models. Would you like to download the latest scanner database from ScanSoft? ● Yes ○ No < Back Next > Cancel

1. Click Yes then click Next.

The next window offers you the option to run hardware diagnostics.

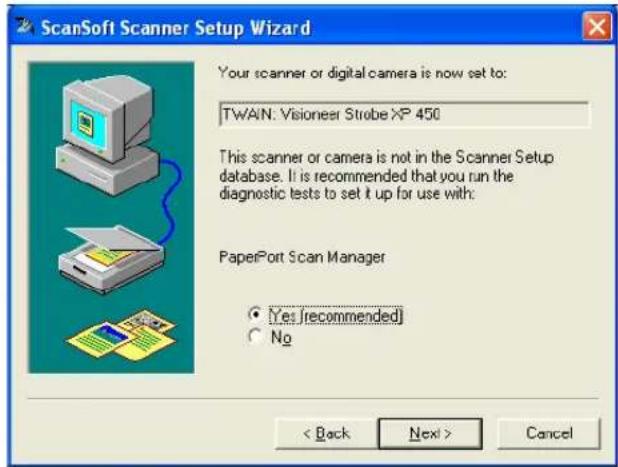

ScanSoft Scanner Setup Wizard Your scanner or digital camera is now set to: TWAIN: Visioner Strobe XP 450 This scanner or camera is not in the Scanner Setup database. It is recommended that you run the diagnostic tests to set it up for use with: PaperPort Scan Manager Yes [recommended] No < Back Next > Cancel

1. Click Yes (recommended) then click Next.

The next window is for checking the connection between your scanner and the computer.

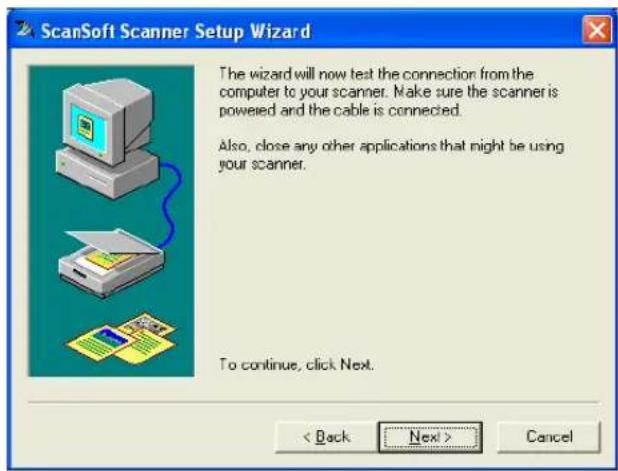

ScanSoft Scanner Setup Wizard The wizard will now test the connection from the computer to your scanner. Make sure the scanner is powered and the cable is connected. Also, close any other applications that might be using your scanner. To continue, click Next. < Back Next > Cancel

5. Click Next.

After the Setup Wizard checks the connections, the next window is displayed. It has a series of setup options, but only the Basic scan test is necessary because your scanner was already tested and calibrated when you installed the OneTouch 4.0 software

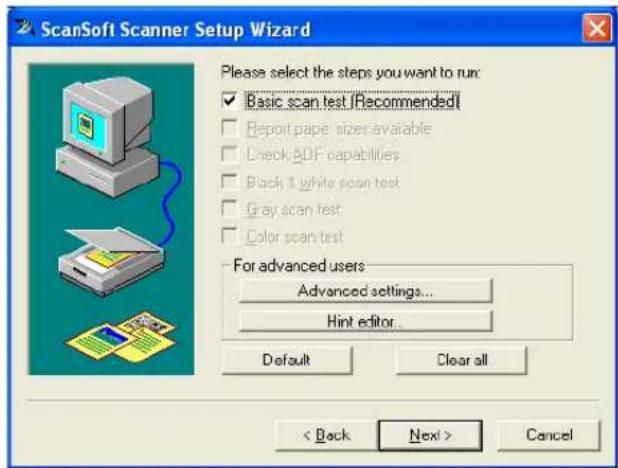

ScanSoft Scanner Setup Wizard Please select the steps you want to run: Basic scan test /Recommended Report paper sizes available Check ADF capabilities Black & white scan test Gray scan test Color scan test For advanced users Advanced settings... Hint editor... Default Clear all < Back Next > Cancel

6. Click Next.

The TWAIN Interface opens.

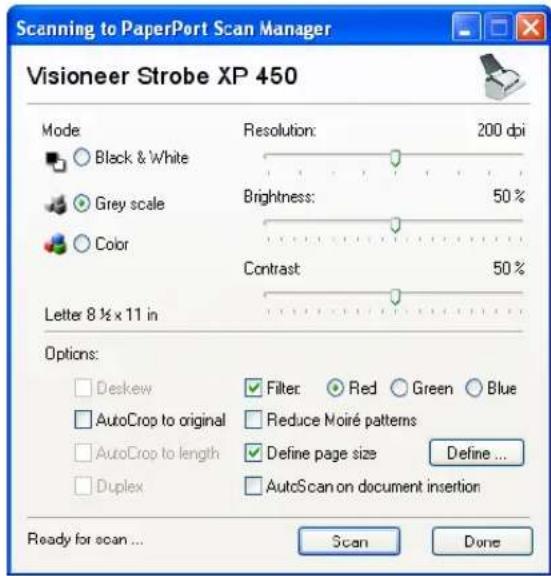

Scanning to PaperPort Scan Manager Visioneer Strobe XP 450 Mode Black & White Grey scale Color Resolution: 200 dpi Brightness: 50 % Contrast: 50 % Letter 8 ½ x 11 in Options: Deskew AutoCrop to original AutoCrop to length Duplex Filter Red Green Blue Reduce Moiré patterns Define page size Define ... AutoScan on document insertion Ready for scan... Scan Done

Note: If you are setting up PaperPort for WIA, the WIA interface opens instead.

1. Insert a page into the scanner, face-down, and the Scan button on the TWAIN Interface will become active.

Illustration of hands printing a document using a paper airplane (no text or symbols visible)

1. Click the Scan button on the TWAIN interface.

The Setup Wizard runs the scan test.

A message window opens that says "Basic scan test passed."

1. Click Next on the message window.

The final Setup window opens to let you know the setup process is finished.

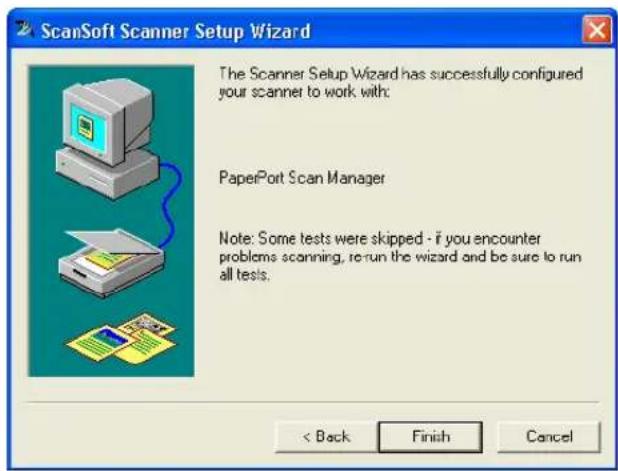

ScanSoft Scanner Setup Wizard The Scanner Setup Wizard has successfully configured your scanner to work with: PaperPort Scan Manager Note: Some tests were skipped - if you encounter problems scanning, return the wizard and be sure to run all tests. < Back Finish Cancel

1. Click Finish.

PaperPort is now setup for the scanning option you selected (in the example above, it's the TWAIN option) and the Scan button on the PaperPort window will now become active.

Scan

Scanning with the WIA Interface

Microsoft Windows includes its own set of options—known as Windows Image Acquisition (WIA)—for acquiring images from scanners, digital cameras, and other digital devices.

Note: Scanning with the Windows Image Acquisition (WIA) interface is only available if your computer is running Windows XP.

Many Windows XP applications have commands to access WIA, including PaperPort. To access WIA from PaperPort choose WIA: Visioneer Strobe XP 450 from the scanner drop-down list. See page 89.

This section shows how to use Microsoft Paint to scan using the WIA interface.

To scan using WIA from Microsoft Paint:

1. On the Windows taskbar, click Start, point to All Programs, point to Accessories, and then click Paint.

The Paint window opens.

2. From the File menu choose From Scanner or Camera.

untitled - Paint File Edit View Image Colors Help New Ctrl+N Open... Ctrl+O Save Ctrl+S Save As... From Scanner or Camera... Print Preview Page Setup... Print... Ctrl+F Send... Set As Background (Tied) Set As Background (Centered) 1 Blue hills.jpg 2 Sunset.jpg 3 Water lilies.jpg 4 Winter.jpg Exit Alt+F4 Downloads a new document from a scanner or camera

The scan window opens. Use this window to select scanning options and start the scan process.

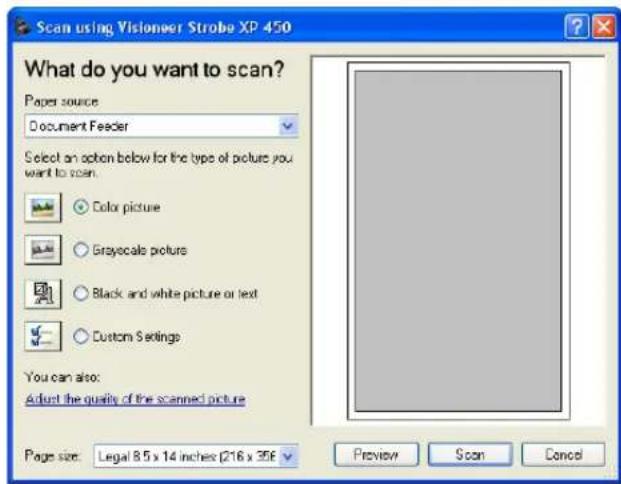

Scan using Visioner Strobe XP 450 What do you want to scan? Paper source: Document Feeder Select an option below for the type of picture you want to scan. Color picture Gray-scale picture Black and white picture or text Custom Settings You can also: Adjust the quality of the scanned picture Page size: Legal 8.5 x 14 inches (216 x 356) Preview Scan Cancel

1. Click the button most appropriate for the item you're scanning.

2. Select a paper size from the Page Size list.

3. Click Preview to preview the image before scanning. The image is displayed on the right side of the window.

Note: If you preview when scanning a stack of documents, the first page of the stack feeds through the ADF for the preview. After adjusting the scanner settings, replace that page on the stack so it is scanned with the rest of the pages.

1. If necessary, adjust settings of the previewed image as desired:

■Change the button selection for the type of image.
■Adjust the custom settings; refer to the next section, "Fine Tuning Your Scans".
- Click the Page size drop-down arrow and choose the size of the pages you're scanning.

1. Preview the image again. When you are satisfied with the image, click the Scan button.

2. The scanned images will appear in Microsoft Paint (or other TWAIN application you're using).

untitled - Paint File Edit View Image Colors Help For Help, click Help Topics on the Help Menu.

FINE TUNING YOUR SCANS

You can select new settings before you scan an item to fine tune exactly how you want to scan it.

To select the scanner settings before you scan:

Scan using Visioneer Strobe XP 450 What do you want to scan? Paper source Document Feeder Select an option below for the type of picture you want to scan. Color picture Brysscale picture Black and white picture or text Custom Settings You can also: Adjust the quality of the scanned picture Page size: Legal 8.5 x 14 inches (216 x 356) Preview Scan Cancel

1. On the scan window, click Adjust the quality of the scanned picture.

The Advanced Properties dialog box opens.

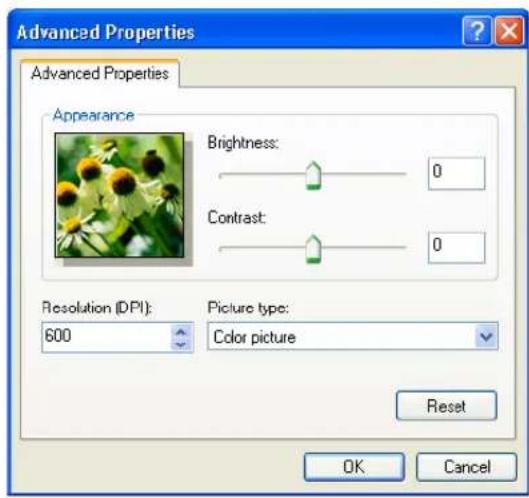

Advanced Properties Advanced Properties Appearance Brightness: 0 Contrast: 0 Resolution (DPI): 600 Picture type: Color picture Reset OK Cancel

1. Select the options for scanning.

Brightness and Contrast—Drag the sliders to the right or left to adjust the brightness and contrast of the scanned image. The Contrast setting does not apply to the setting Black and White picture or text.

Resolution (DPI)—Click the menu arrow and choose the dots per inch (dpi) of the resolution. The maximum resolution is 600 dpi; the minimum is 50 dpi. The higher the dpi setting, the sharper and clearer the scanned image. However, higher dpi settings take longer to scan and produce larger files for the scanned images.

Picture type—Click the menu arrow and choose the most appropriate type for the item you're scanning.

1. Click OK.

The Custom Settings button is now set to scan with the options you selected.

If you want to reset the settings and start over, click Reset.

Scanning with the ISIS Interface

The ISIS interface for scanning is available using the Scan button when the OneTouch software is set to Configure Before Scan and the ISIS driver has been selected.

The interface is also available from ISIS scanning applications, such as the QuickScan application that you may have received with your scanner. If you are using an ISIS application to scan, please see its User's Guide for the steps to open the interface.

To open the ISIS interface from the OneTouch application, click on the Configure Before Scan configuration and select ISIS from the menu.

OneTouch 4.0 Properties for Visioneer Strobe XP 450 Scan Options Select destination Microsoft WordPad Notepad Adobe Acrobat 6.0 ScanSoft PaperPort Transfer to Storage Microsoft Office Live Meeting Document Writer Select format EMF TIFF JPG PDF n/a Use Document Feeder Use Flanked Select configuration: Color Photo (6x4) US Legal Configure Before Scan Color Magazine Quality Color Photo (6x4) Color Magazine Quality US Legal Refresh Properties... New... Copy... Edit... Right-click on Configure Before Scan to get the menu, and select ISIS to use it as the interface to configure before scan. Twim ✓ ISIS WIA OK Cancel Apply

Right-click on ____ Configure Before Scan to get the menu, and select ISIS to use it as the interface to configure before scan.

When you press the button to scan, the ISIS Scan window opens. Use this window to select scanning options and start scanning.

OneTouch ISIS Scan on Visioneer Strobe XP 450 Auto Feed Color Document Image : 128 / 129, 100 dpi Define GrayScale Document Image : 128 / 128, 200 dpi Define Text Document Image : 128 / ..., 300 dpi Define Custom Document Image : 128 / ..., 300 dpi Define Document Size Info Page: Leiter · 8.5 x 11 in Progress: Scan All Preview One Done Click a button to choose the type of scan. Click Define to change the scan settings for the selected button. Click Preview One to see what the first scanned page looks like so you'll know which scan settings to adjust. Click Scan All when you're ready to scan all the pages. Remember to put the preview page back onto the stack so it gets scanned with the new settings too.

1. Click the button most appropriate for the item you're scanning.

2. Click Preview One to preview the image before scanning.

The image is displayed on the right side of the window.

Note: If you preview when scanning a stack of documents, the first page of the stack feeds through the ADF for the preview. After adjusting the scanner settings, replace that page on the stack so it is scanned with the rest of the pages.

1. Click the Define button and adjust the scan settings, if necessary.

You can also click one of the other scan type buttons if you would rather scan with it. For example, if Color Document is selected you can click GrayScale in case you decide to scan with it instead.

1. When you're ready to scan, replace the preview page in its original position in your document then press Scan All.

The document is scanned with the new scan settings.

ADJUSTING THE ISIS SCAN SETTINGS

You can adjust the scan settings for the selected type of scan.

Note: Some of the options for the ISIS scan settings are “grayed out” and are not available. Grayed out options are not appropriate for your Visioneer Strobe XP 450 scanner.

To adjust the Color Document, GrayScale, or Text Document settings:

1. On the OneTouch ISIS Scan window, click the Color Document button, the GrayScale button, or the Text Document button, then click the Define button.

The dialog box on the left opens for the Grey/Color Document Settings. The dialog box on the right opens for Text Document Settings. A Text Document scan is in Black and White.

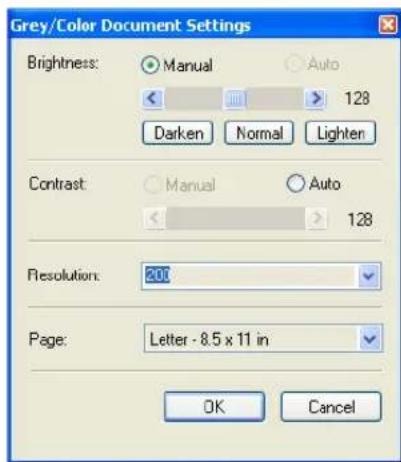

Grey/Color Document Settings Brightness: Manual Auto 128 Darken Normal Lighten Contrast: Manual Auto 128 Resolution: 200 Page: Letter - 8.5 x 11 in OK Cancel

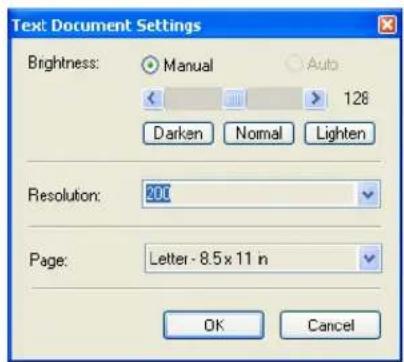

Text Document Settings Brightness: Manual Auto 128 Darken Normal Lighten Resolution: 200 Page: Letter - 8.5 x 11 in OK Cancel

Brightness—Drag the sliders or click the arrows to the right or left to adjust the brightness one unit at a time. Click the buttons Darken, Normal, or Lighten to move the slide in larger steps.

Contrast—Contrast is set automatically for Color Document or GrayScale Document. Because the Text Document option scans in Black and White, the contrast option does not apply.

Resolution—Click the menu arrow and choose a resolution (dpi). Your scanner can scan at up to 600 dpi.

Page—Click the menu arrow and choose a page size. Your scanner can scan a page up to 8.5" x 14".

2. Click OK.

To adjust the Custom Document settings:

1. On the OneTouch ISIS Scan window, click the Custom Document button and click the Define button.

The dialog box for Custom Settings opens.

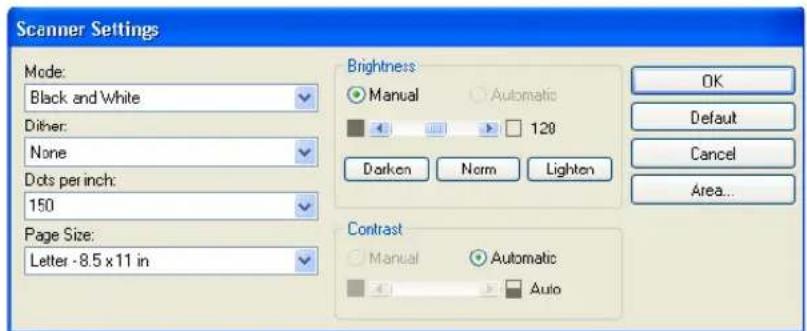

Scanner Settings Mode: Black and White Dither: None Dots per inch: 150 Page Size: Letter - 8.5 x 11 in Brightness Manual Automatic 120 Darken Norm Lighten Contrast Manual Automatic Auto OK Default Cancel Area...

Mode—Click the arrow and choose a scan mode.

■ Black and White—The scanning pixels are all the same size and are either black or white. Use this setting for letters, memos, pen and ink drawings, and other black and white material. This setting produces the smallest file size for scanned items.

■ 256-Level Gray—Scans the image using up to 256 true shades of gray. Use this setting to scan black and white photographs and other higher quality black and white images. You can also scan a color photo with this setting to turn its colors into gray shades. The file size is about one third the size of a color scan.

■ 24-Bit Color—Scans the image in full color. Use this setting to scan color photographs and other color images. The file size is the largest of the scan mode options.

Dither—Only available if the Mode is Black and White. Click the menu arrow and choose a Halftone option or Diffusion from the list.

■ Halftone—Converts the image so it appears to consist of gray tones. Halftones produce simulated gray tones by using black and white pixels of different sizes and is often used to produce newspaper and magazine images. Use this setting for lower resolution black and white images. The halftone settings also produce small file sizes.

■ Diffusion—Also converts the image to gray tones, but diffuses the grays to nearby pixels to give the image a grainy, film-like texture. Diffusion is useful for viewing images on a black-and-white screen. The preview image shows the effect of your Dither selection so you can see which one is best for scanning.

Dots per inch—Click the menu arrow and choose a resolution (dpi). Your scanner can scan at up to 600 dpi.

Page Size—Click the menu arrow and choose a page size. Your scanner can scan a page up to 8.5" x 14".

Brightness—Drag the sliders or click the arrows to the right or left to adjust the brightness in small increments. Click the buttons Darken, Normal, or Lighten to move the slide in larger steps.

Contrast—Drag the sliders or click the arrows to the right or left to adjust the contrast. Contrast is set automatically for Black and White scans.

1. To scan only a specific area of the image, click the Area button.

The Set Scanning Area dialog box opens.

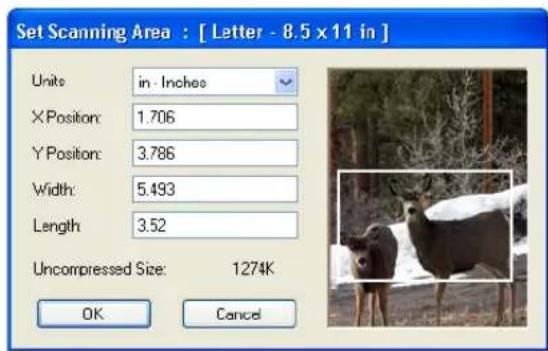

Set Scanning Area : [ Letter - 8.5 x 11 in ] Units in - Inches X Position: 1.706 Y Position: 3.786 Width: 5.493 Length: 3.52 Uncompressed Size: 1274K OK Cancel

1. Click in the image and drag a rectangle around the area you want to scan.

The boxes to the left show the relative position and size of the selected area.

You can now move and resize the rectangle to adjust the specific area to scan.

1. To move the rectangle, put the crosshairs cursor in it, hold down the Ctrl key and drag the mouse.

You can also type new numbers in the boxes on the left.

1. To resize the rectangle, click in the Width or Length boxes and type new measurements.

To set the units of measurements, click the menu arrow for the Units box and choose the measurement units.

1. To start over with a new rectangle, click on the image and drag a new rectangle.

2. When the area is exactly what you want, click OK.

Now when you scan with the ISIS interface, only the selected area appears as an image in the Destination Application.

Maintenance

This section contains information on maintenance, troubleshooting, uninstalling, scanner specifications, and spare parts.

CLEANING THE AUTOMATIC DOCUMENT FEEDER

You may need to clean the ADF feed mechanism if your documents do not feed easily into the ADF, or several feed in at the same time.

To clean the ADF:

1. Dampen a soft cloth with some Isopropyl rubbing alcohol (95%).
2. Press the ADF cover release on the top left of the scanner body to open the automatic document feeder cover.

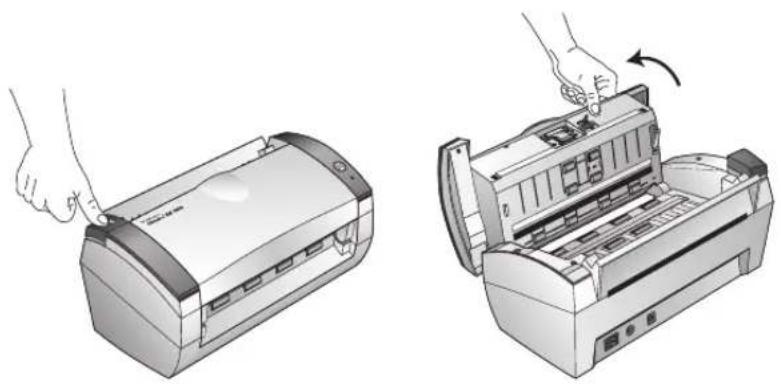

Illustration of two hands installing or adjusting a printer into a device, showing internal components and casing (no text or symbols)

1. Wipe the feed roller from side to side. Rotate the roller to clean its entire surface.

Note: Please be careful when cleaning the roller. The roller is designed to rotate in one direction only. As you're cleaning the roller, make sure it rotates easily, and continue rotating it in that direction while wiping it clean. Do NOT force the roller to rotate in the opposite direction. Forcing the roller to rotate will damage it, and may cause the scanner to feed pages incorrectly.

1. Wipe the pad from top to bottom. Be careful not to snag the cloth on the springs on either side of the pad.

2. Close the cover when you're finished.

CLEARING PAPER JAMS

If your scanner stops scanning due to a paper jam in the Automatic Document Feeder, a warning dialog box opens after a few moments.

To clear a paper jam:

1. Press the ADF cover release on the top-left of the scanner body to open the Automatic Document Feeder cover.

Illustration of two hands operating a printer to generate a new paper airplane (no text or symbols visible)

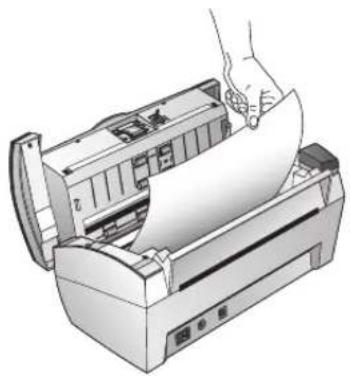

1. Remove the jammed paper and close the cover.

Illustration of a printer being inserted into a paper airplane, with a hand adjusting the paper (no text or symbols visible)

To reduce the number of paper jams, smooth and straighten the paper before scanning and adjust the guides to the paper size.

REPLACING THE ADF PAD ASSEMBLY

The ADF pad will wear out and is designed to be a user-replaceable part. Problems with documents feeding into the ADF is an indication that the pad is wearing thin.

See the “Visioneer Strobe XP 450 Scanner Parts List” on page 122 for ordering information.

To replace the ADF Pad assembly:

1. Press the ADF cover release on the top left of the scanner body to open the Automatic Document Feeder cover.

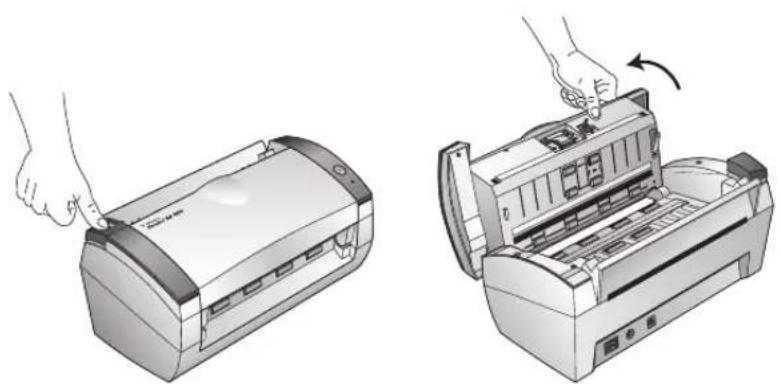

Illustration of two hands operating a printer to generate a closed-out image (no text or symbols visible)

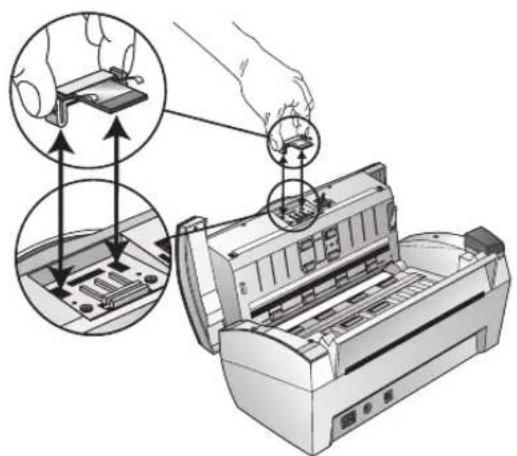

1. Squeeze the plastic clamps that hold the pad assembly in place and lift the pad up and out

Diagram illustrating the process of inserting a component into a printer, with magnified views showing the mechanism.

1. Reverse the procedure to replace the new pad into its slots.

TROUBLESHOOTING

In addition to the troubleshooting information contained in this section, please see the Readme file on your installation CD. The Readme file contains additional information that may help you diagnose problems with the scanner.

If you try the troubleshooting procedures described in this section and in the Readme file, and the scanner still has problems, you may have a malfunctioning scanner. Refer to the technical support card that you received with your scanner. Also visit our web site at www.visioneer.com for additional technical information.

Problem: The scanner won't scan. What's wrong?

Check for one of these possible problems:

■ Are the cables loose or not plugged in securely? Inspect the cable connections. Make sure the cables are plugged in securely.
- Is the scanner's status light on? Turn on the scanner's power. If the status light doesn't come on, plug the power supply into another electrical outlet.
- Did you restart the computer after installing the software? If you didn't restart the computer, it may not have loaded all of the software files. Try restarting your computer.
- Did you plug the scanner into a USB hub? If you're using a USB hub to connect the scanner, the hub must have its own power supply. If the hub does not have its own power supply, plug the scanner into a USB port on the computer.
Did you select another scanning source in the PaperPort Scan Pane? If you use multiple devices with your computer, you may have selected another source for images. Start the PaperPort software and click the Scan icon, then make sure Visioneer Strobe XP 450 is selected as the scanner.

Problem: During installation I got the error message: PaperPort Installation is not complete. What do I do?

The installation procedure was not successful. You need to reinstall the PaperPort software.

Problem: With AutoCrop to Original selected, sometimes I get blank pages, or pages with lines. What's wrong?

The pages were probably scanned in crooked, or skewed. To use AutoCrop to Original, the pages must be scanned in straight. Adjust the paper guides on the scanner so pages feed in straight.

Problem: I got the error message: PaperPort cannot allocate enough memory to perform internal critical operations. What do I do?

Close any other active applications so that additional memory is available. If you click Continue, PaperPort moves the file to the PaperPort data directory and renames the file with the prefix “bad”. This allows you to recover the file later.

To recover the file, you can import it into PaperPort by using the Import command in the File menu.

Problem: The installation will not complete successfully. If installation finishes, the scanner's OneTouch 4.0 options do not seem to work properly. What do I do?

A likely cause is that some driver programs are already installed on your computer for another scanner. They are interfering with the installation and OneTouch options, and you need to remove those other drivers and re-install your Visioneer Strobe XP 450 scanner. Please see the documentation that you received with the other scanner for the steps to remove its driver programs. You can also use the basic steps in the section “How to Uninstall Your Scanner” on page 119, but in Step 3, instead of uninstalling OneTouch 4.0, uninstall the other scanner’s driver programs. After uninstalling the other scanner’s driver programs, uninstall OneTouch 4.0 using the steps on page 119, then reinstall it using the steps on page 7.

STATUS LIGHT TROUBLESHOOTING CODES

A green status light indicates the normal state of the scanner.

NORMAL OPERATION

■ Blinking green: indicates the scanner is waking up from power saving and preparing to scan.
■ Steady green: indicates the scanner is ready to scan.

ERROR CODES

If your scanner experiences hardware problems, the status light will blink red. The number of times it blinks indicates the error code.

The table below describes the error codes.

Flashing Code	Problem Description Solution
6 The scanner's cover is open. Close the scanner cover and make sure it attaches completely.
9 Paper jam See “Clearing Paper Jams” on page 114.
All Other Codes	An internal part in the scanner may have malfunctioned.	Re-boot your computer. If the problem persists, contact Visioneer Technical Support.

HOW TO UNINSTALL YOUR SCANNER

To uninstall the Visioneer Strobe XP 450 scanner, remove the OneTouch 4.0 scanner software first, and then remove PaperPort, or other scanner software.

STEP 1: UNINSTALLING THE ONE TOUCH 4.0 SCANNER SOFTWARE

1. On the Windows taskbar, click Start, point to Settings, then click Control Panel.
2. Double-click the Add or Remove Programs icon.
   The Add or Remove Programs window opens. Make sure the Change or Remove option is selected.
3. Select OneTouch 4.0 then click the Remove button.
4. An "Add or Remove" message box opens and asks if you are sure you want to remove OneTouch 4.0 from your computer. Click Yes. The OneTouch 4.0 software is removed from your computer.
5. Unplug the scanner USB cable from the scanner.
6. Close all open windows and reboot (restart) your computer.

STEP 2: UNINSTALLING THE PAPERPORT SOFTWARE

1. On the Windows taskbar, click Start, point to Settings, then click Control Panel.
2. Double-click the Add or Remove Programs icon. The Add or Remove Programs window opens.
3. Select PaperPort and click Remove.
4. An "Add or Remove" message box opens and asks if you are sure you want to remove PaperPort from your computer. Click Yes. The PaperPort software is removed from your computer.
5. Close all open windows and reboot (restart) your computer.

TO INSTALL ANOTHER DRIVER

Before you can install another driver for your scanner, you must remove the currently installed driver first. Then the new driver can be installed.

1. Uninstall the OneTouch 4.0 driver.

a. Open the Windows Control Panel.
b. Double-click the Add or Remove Programs icon.
c. Select OneTouch 4.0 then click on the Remove button.
d. An "Add or Remove" message box opens and asks if you are sure you want to remove OneTouch 4.0 from your computer. Click Yes.

The OneTouch 4.0 software is removed from your computer.

1. Unplug the scanner USB cable.
2. Reboot (restart) your computer.
3. Follow the instructions in "Step 2: Install the Software" on page 7 of this User Guide and follow steps for installing one of the other driver options.

VISIONEER STROBE XP 450 SCANNER SPECIFICATIONS

Optical resolution 600 x 1200 dpi

Bit depth 48-bit color (internal)

Maximum item size 8.5" x 14"

Minimum item size 3.5" x 2" (automatic document feeder)

Scan method Automatic document feeder (ADF)

ADF specifications

Scanning Speed 20 pages per minute @ 200 dpi B&W

Capacity 50 sheets

Paper Thickness 16 - 28 lbs. (0.002" - 0.006")

Light source Cold cathode fluorescent lamp

Interface USB 2.0 High Speed

Scanner dimensions

Height 12.5 inches (31.75 cm)

Width 13.25 inches (33.66 cm)

Length 17 inches (43.18 cm)

Weight 8.6 pounds (3.91 kg)

Operating temperature 50^-104^ F ( 5^-35^ C without condensation)

Relative humidity 40%–70% (@35°C without condensation)

Power adaptor DC Jack, 24Vdc/2.0A (48W), 100-240Vac, Energy Star and RoHS compliant

Power consumption ≤ 30 Watts (during operation); ≤ 20 Watts (on standby);

≤ 6 Watts (power save after 15 minutes without scanning, can be adjusted by software);

≤ 1 Watt (power off)

Power cord AC, US, 3P, 10A/125V, 180 cm, 3C, 18AWG, RoHS compliant

USB cable 185 cm, 28AWG, with core, RoHS compliant

Safety and agency certifications UL, C-UL, FCC Class B, CE, TUV/GS, WEEE

VISIONEER STROBE XP 450 SCANNER PARTS LIST

Please use the following part names and numbers when ordering replacements for your scanner.

	Part Name Part Number
	Input Tray 57-0101-000
	Output Tray 57-0102-000
	ADF Pad 57-0103-000
	USB Cable 35-0107-000
	AC Power Cord 35-0103-000
	Power Supply 37-0076-000

INDEX

Numerics

24-Bit Color 111

256-Level Gray 110

A

ADF cleaning 113

ADF pad assembly replace 115

Advanced Properties 105

advanced settings 57

aspect ratio 58

Autocrop to Original 55, 92

AutoRotate image 58

B

bit depth 121

Black&White 54, 91, 110

BMP 44

Brightness 54, 92, 106, 109

Burn to CD 40, 72

Destination Application 73

button options 48

C

CD-ROM drive 3

Color 54, 91

color configuration 91

Color Document 34

Color Document button 109

color filter 56, 93

color space 12

components 2

computer specifications 3

Configure Before Scan 68, 107

Contrast 54, 92, 106, 110

create single page items check box 90

D

Destination Application 23, 24, 33

OCR 70

text file format 46

Device Settings 53, 58

Diffusion 111

Disc 17

Dither 111

Document Format 33

Document Management 49

documentation 3

dpi 106

E

eMail 49

eMail Properties 42

error codes 118

Excel Spreadsheet 47

F

Fax and Print 49

file format 47

file storage location 81

Format and Page(s) 34

full feature install 11

G

gamma 12, 57

grayed out options 29, 109

GrayScale 54, 91

GrayScale Document button 109

H

Halftone 111

help 3, 87

htm file format 47

HTML Document 47

HTML page 78

HTML Web Page 77

hue 57

|

Image Documents Properties 39

Image Editors 49

image file 44

image file format 44

improvements and settings 55

installation 4

invert image 56

ISIS 69

J

JPG 44

JPG file size 45

L

Lamp timeout setting 86

Link Properties 35

M

Microsoft Internet Explorer 78

Microsoft Outlook 42

Moire Patterns 55, 93

monitor 3

0

OCR 45

columns 71

optical character recognition 70

storage 80

OCR options 70

on/off switch 16

OneTouch icon 28, 29

OneTouch Properties window 27, 28, 29, 35

P

Page Format

HTML 77

page format options 44

page settings 55

page size 55, 93

paper jam 114, 118

PaperPort 87

help topics 87

Scan pane 89

PaperPort Properties 36, 37

PDF 44, 49

PDF file size 45

Picture type 106

power saving 85

Preview button 104

Preview One button 108

R

Resolution 54, 92, 106, 110

Rich Text Format 47

rtf file format 47

S

saturation 57

scan

from PaperPort 87

Scan Configuration 33

scan with event forwarding 75

scanner

components 2

connecting 14

troubleshooting 116

uninstall 119

Select Configuration 31, 34

Select Destination 30, 33, 49

Select Format and Page(s) 32

setup 4

Show All Destinations 48

Show Hardware 84

Simple Text 47

size 55, 93

skewed page 55, 92

spreadsheets

OCR 70

status light 16, 17, 116

troubleshooting codes 118

Sti event forwarding 49

Storage and CD-R/W 49

Storage Properties 40

Straighten Image 56

system requirements 3

T

Text Document button 109

Text Documents Properties 37

Text Editors 49

text file format 46

Text Formats 45

TIFF 44

Transfer to Storage 79

troubleshooting 116

TWAIN 69, 76

TWAIN standard 87

U

uninstall 119

USB port 15

W

watermark, remove 56, 93

WIA 69, 102

Windows Image Acquisition 102

X

xls file format 47

visioneer
