USER MANUAL VideoEdge ADCIPE3312 American Dynamics

VideoEdge IP Outdoor Mini-dome

Installation & Operation Guide

Version1.7

tyco

Part Number: 8200-2646-03 B0

Copyright

Under copyright laws, the contents of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine-readable form, in whole or in part, without prior written consent of Tyco International Ltd. © Copyright 2009 and its Respective Companies. All Rights Reserved,

American Dynamics

6600 Congress Avenue

Boca Raton, FL 33487, U.S.A.

Table Of Contents

SAFETY PRECAUTIONS......6

1. PRODUCT FEATURES....7

1.1 PRODUCT INSTRUCTIONS ....7
1.2 PRODUCT FEATURES ....8
1.3 TECHNICAL SPECIFICATIONS....9

2. Name of parts and functions ...... 11

2.1 NAME OF PARTS AND FUNCTIONS ...... 11
2.2 CONNECTING THE IR PORT 15
2.3 THE USB FUNCTION ....16
2.4 POE (POWER OVER ETHERNET)....17

3. INSTALLATION ....18

3.1 CONNECTING WITH AN NVR ...... 18

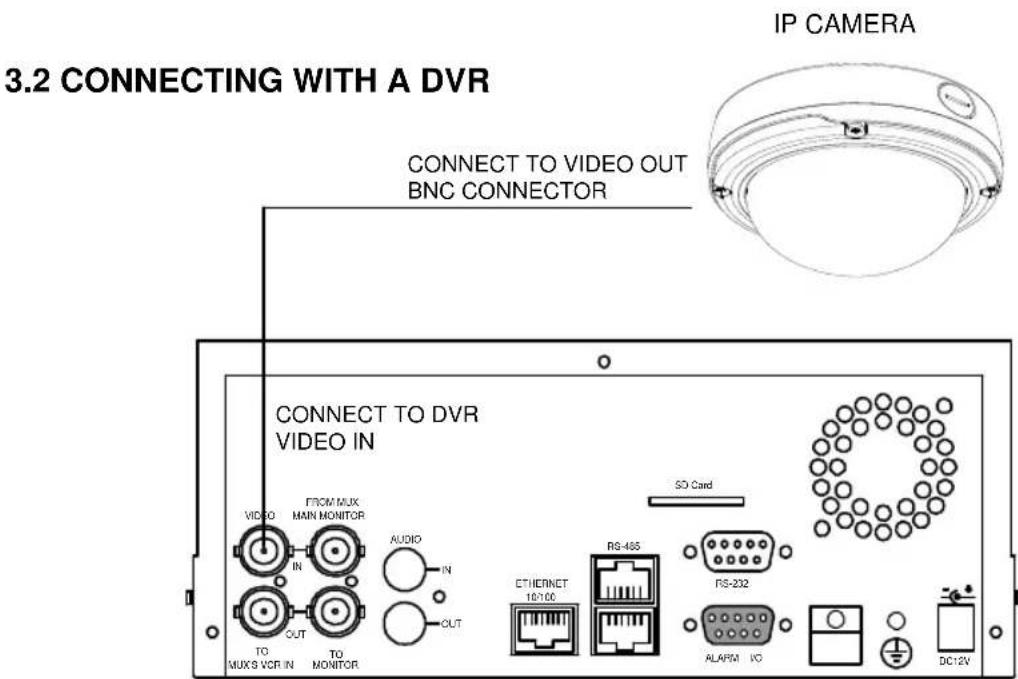

3.2 CONNECTING WITH A DVR 18

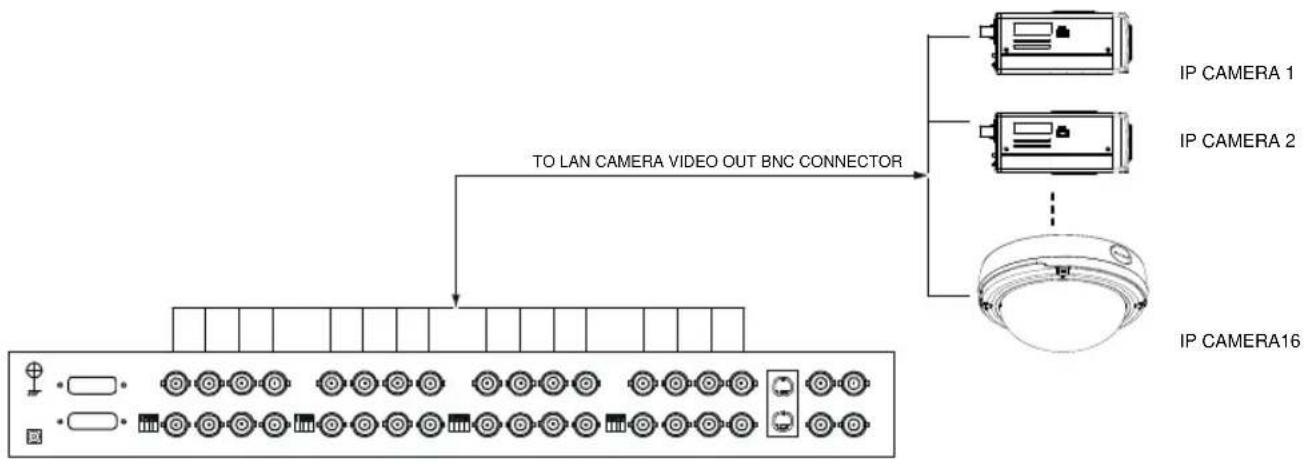

3.3 CONNECTING WITH A MULTIPLEXER....19
3.4 UPDATING SYSTEM SOFTWARE....19
3.5 IP CAMERA SD CARD TROUBLESHOOTING....21

4. Network Configuration ......22

4.1 CABLE CONNECTIONS....22
4.2 CONFIGURE YOUR IP CAMERA NETWORK SETTINGS ....22
4.2.1 Enable DHCP Function ......22
4.2.2 Set IP Address 23

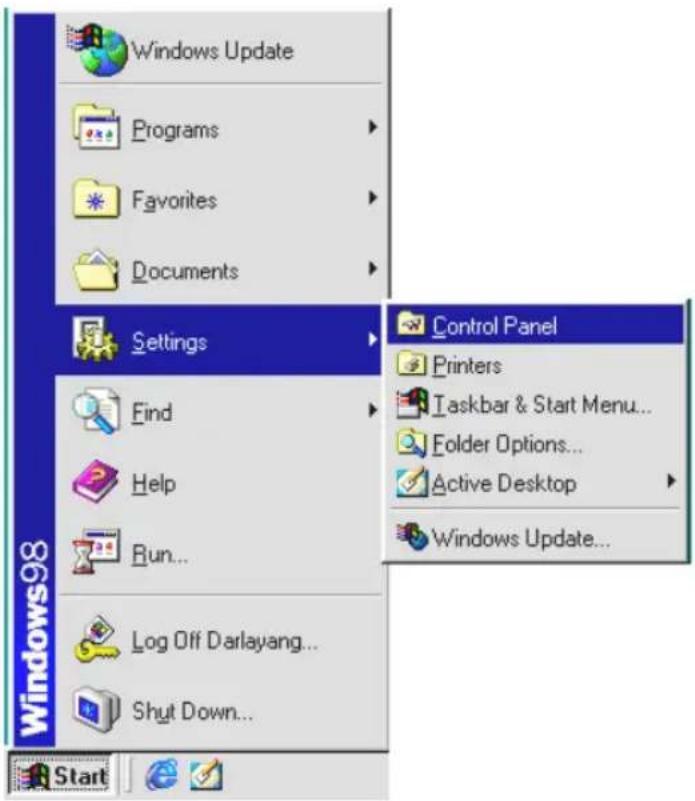

4.3 TCP/IP COMMUNICATION SOFTWARE....24

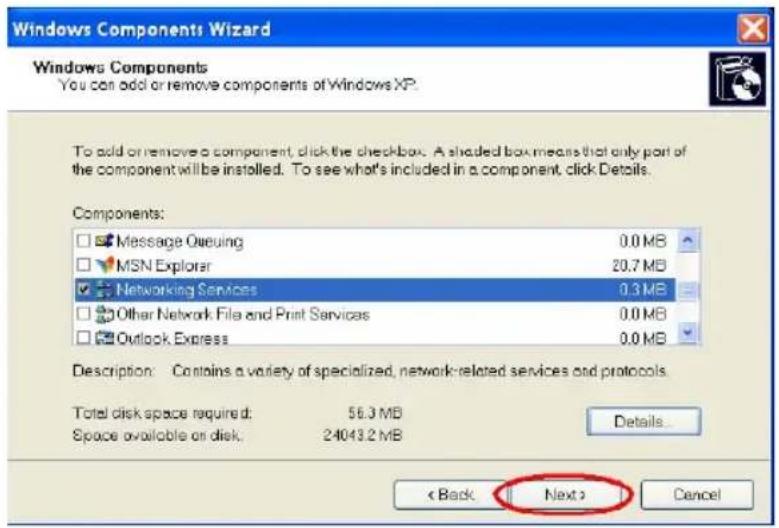

4.4 TCP/IP INSTALLATION ....25

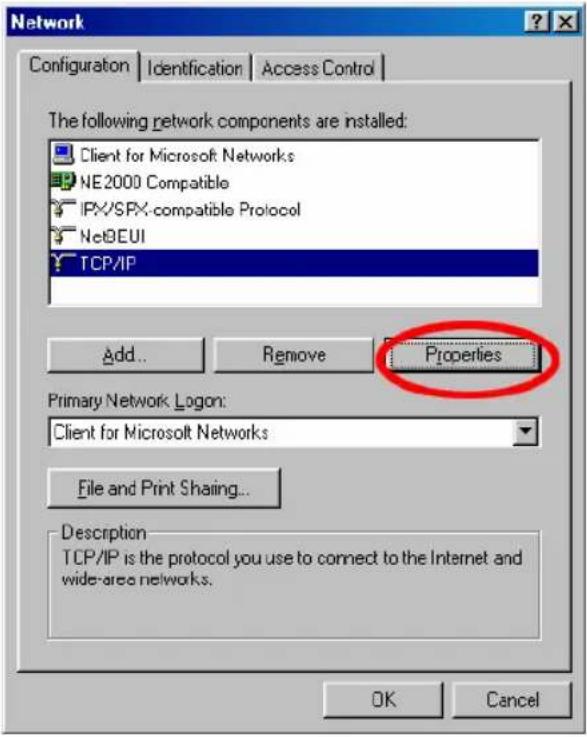

4.5 TCP/IP CONFIGURATION SETTING 26
4.6 CONNECTION TESTING 27

5. Operation Instructions for the Network ....29

5.1 MICROSOFT INTERNET EXPLORER....30

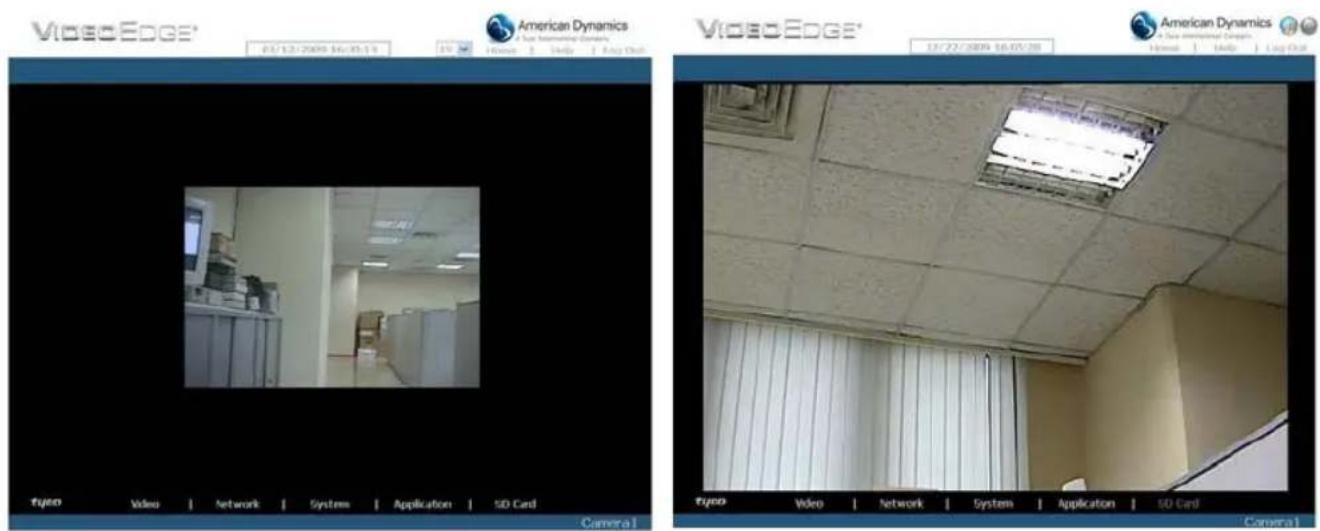

5.1.1 Connecting the IP CAMERA ....30
5.1.2 Change Video Setting 32

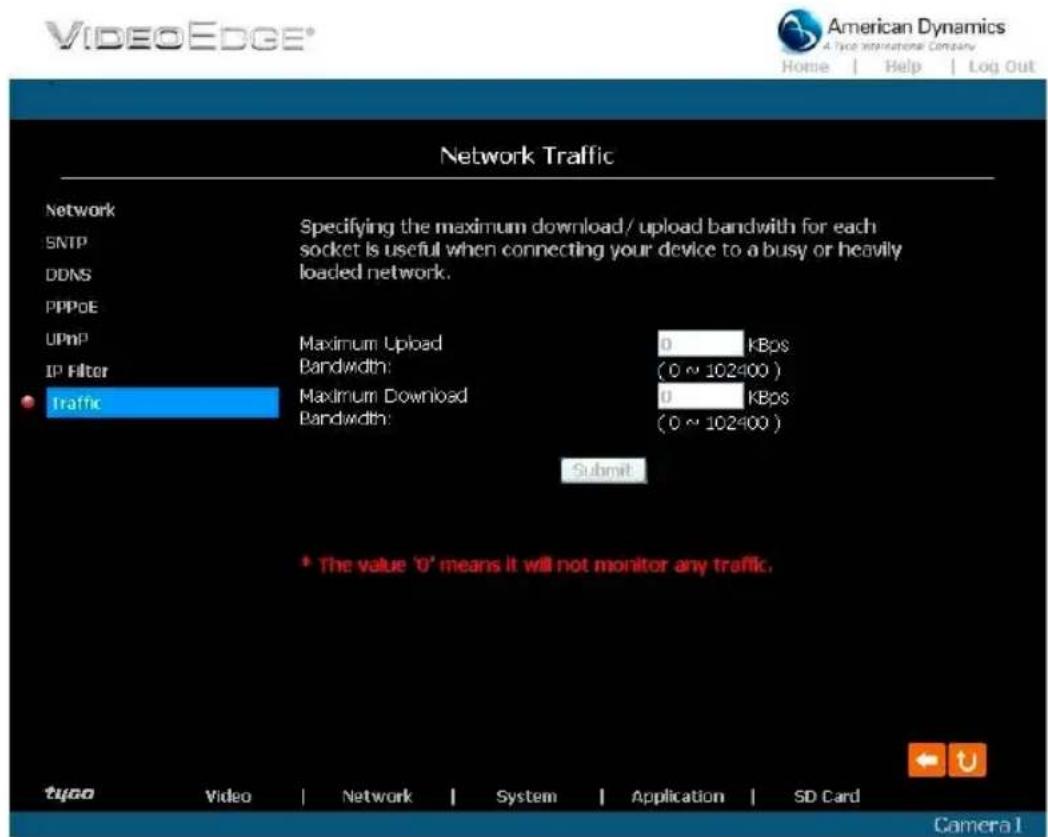

5.1.3 Change the Network Setting....35

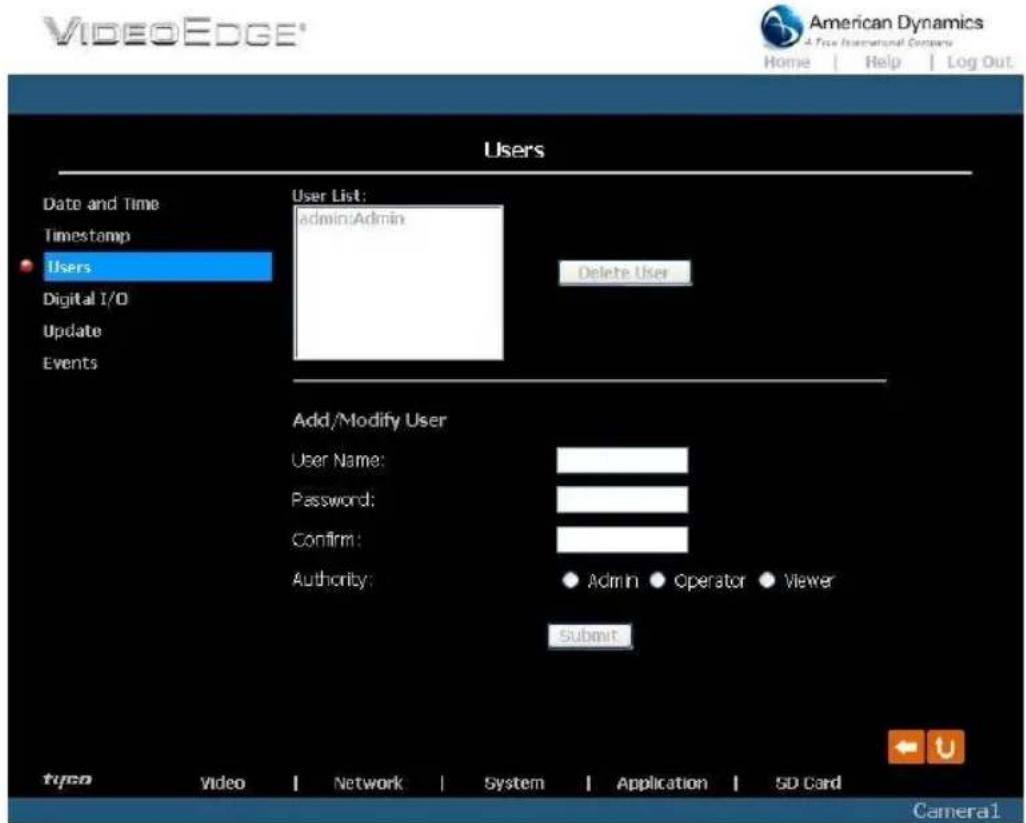

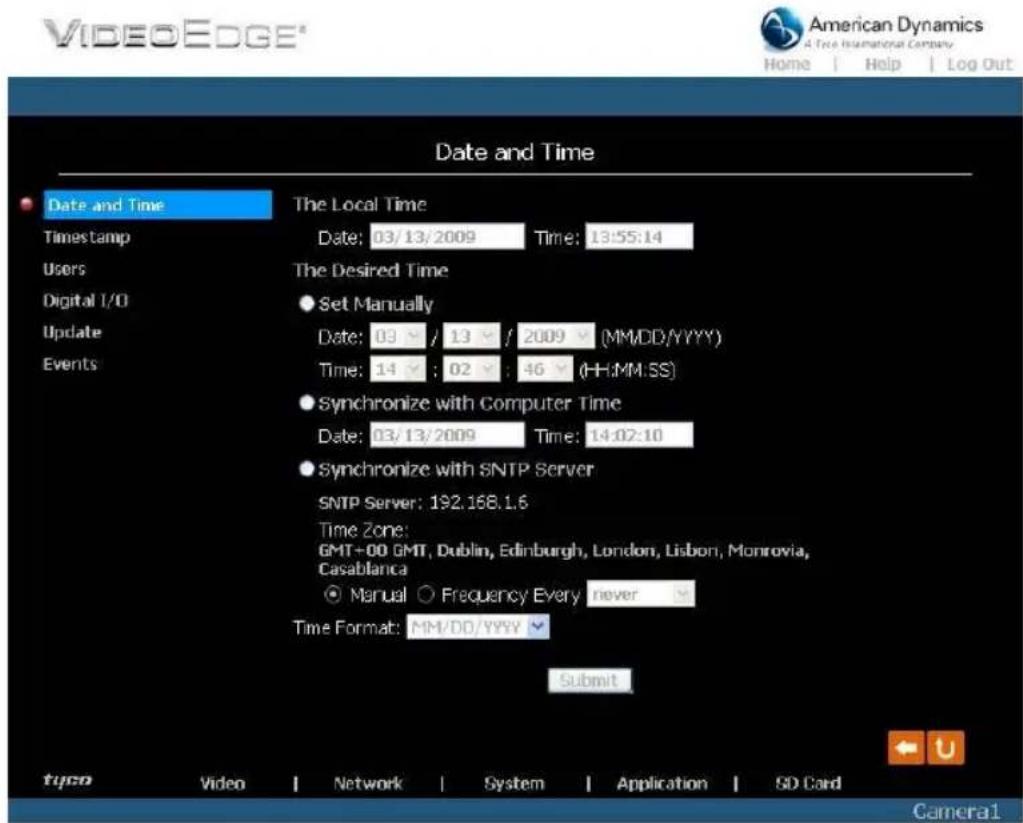

5.1.4 Change the System Setting....46

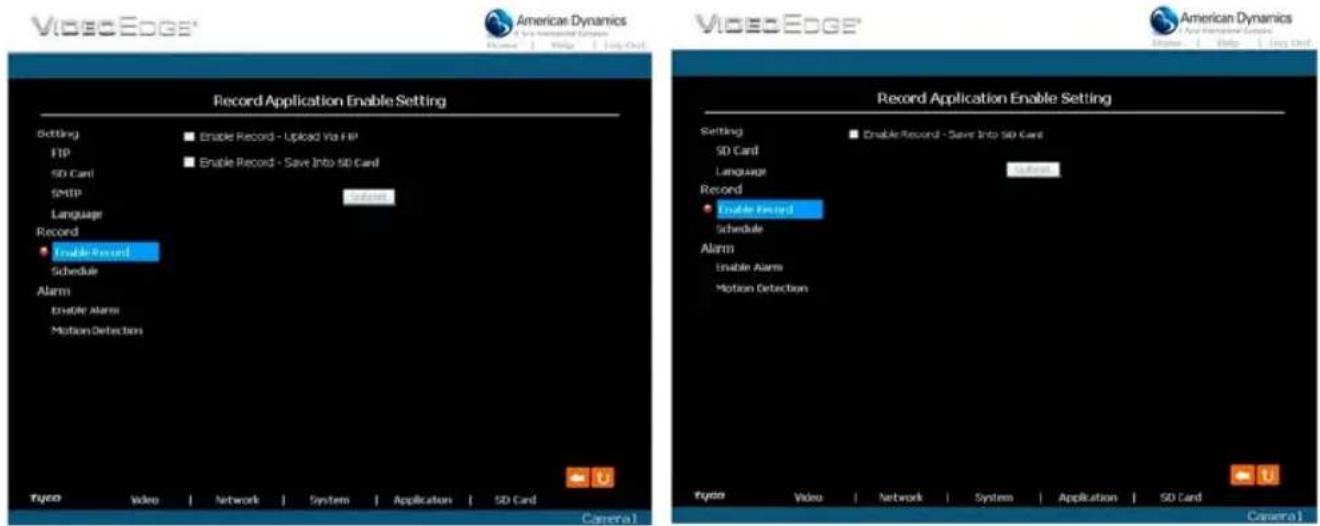

5.1.5 Change the Application Setting....52
5.1.6 Change the SD card Setting....60
5.1.7 The Bandwidth Calculator of the IP camera ....61

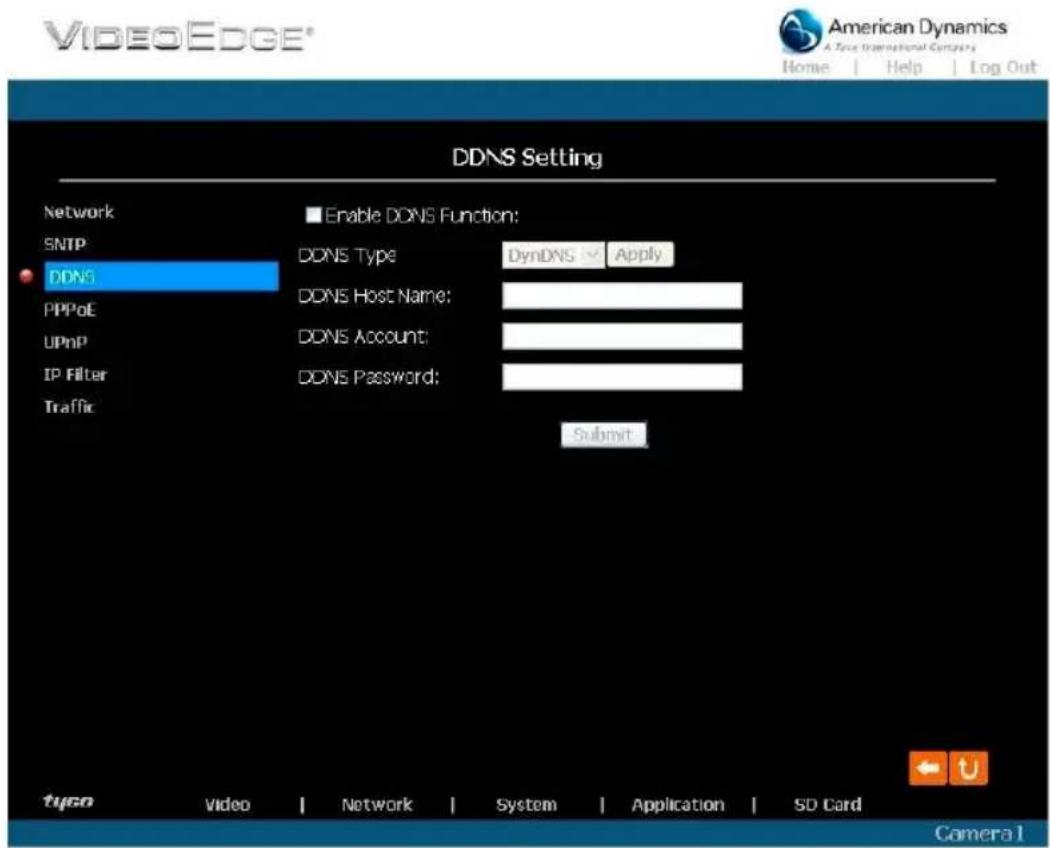

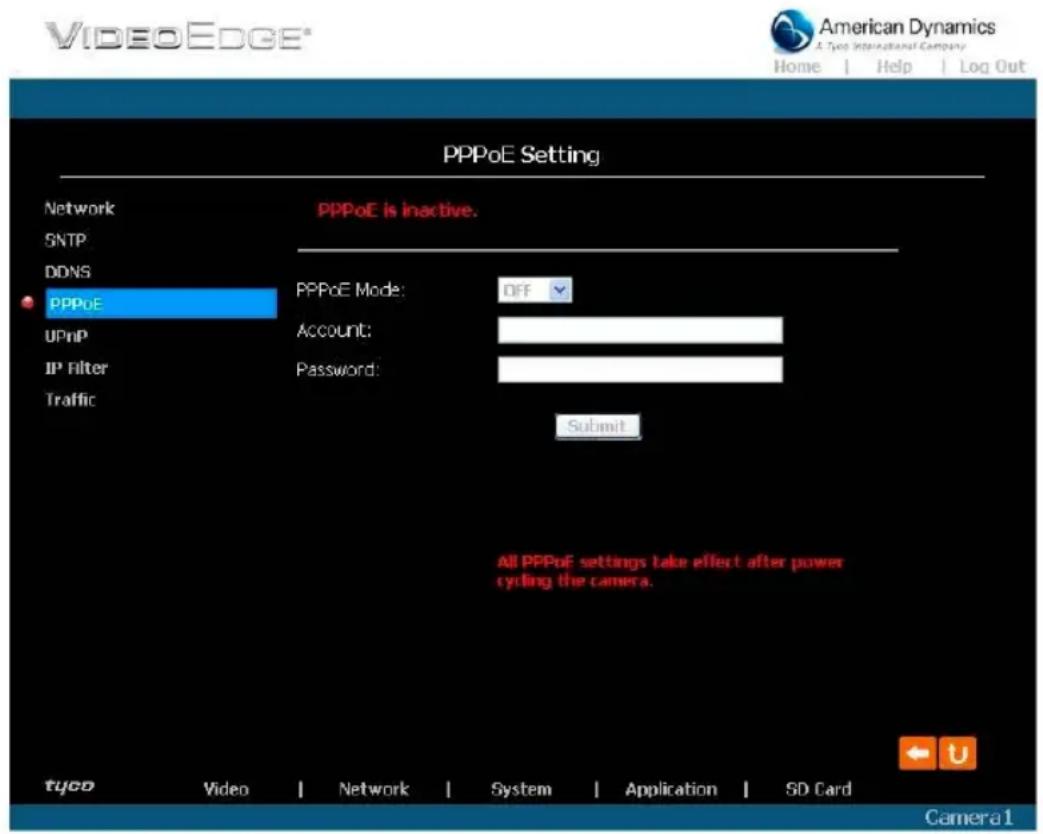

5.1.8 PPPoE & DDNS 62

8. Functions of client PC....69

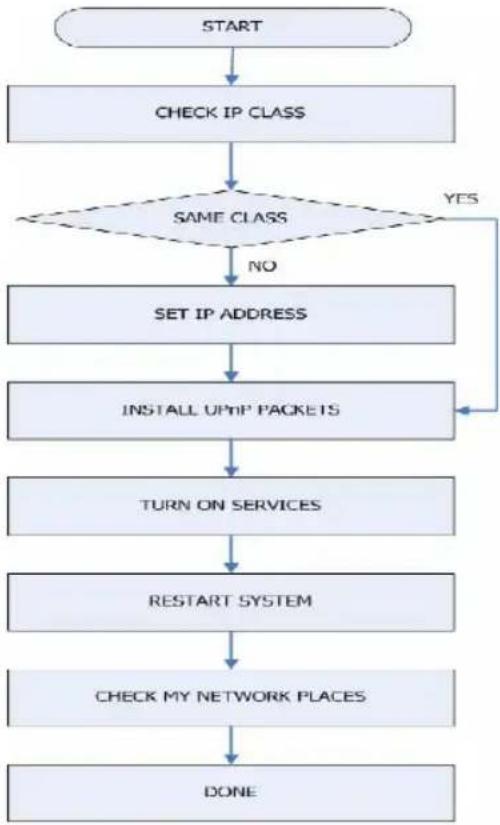

APPENDIX 1. -IP camera UPnP How To ....70

APPENDIX 2. –The ARP function....81

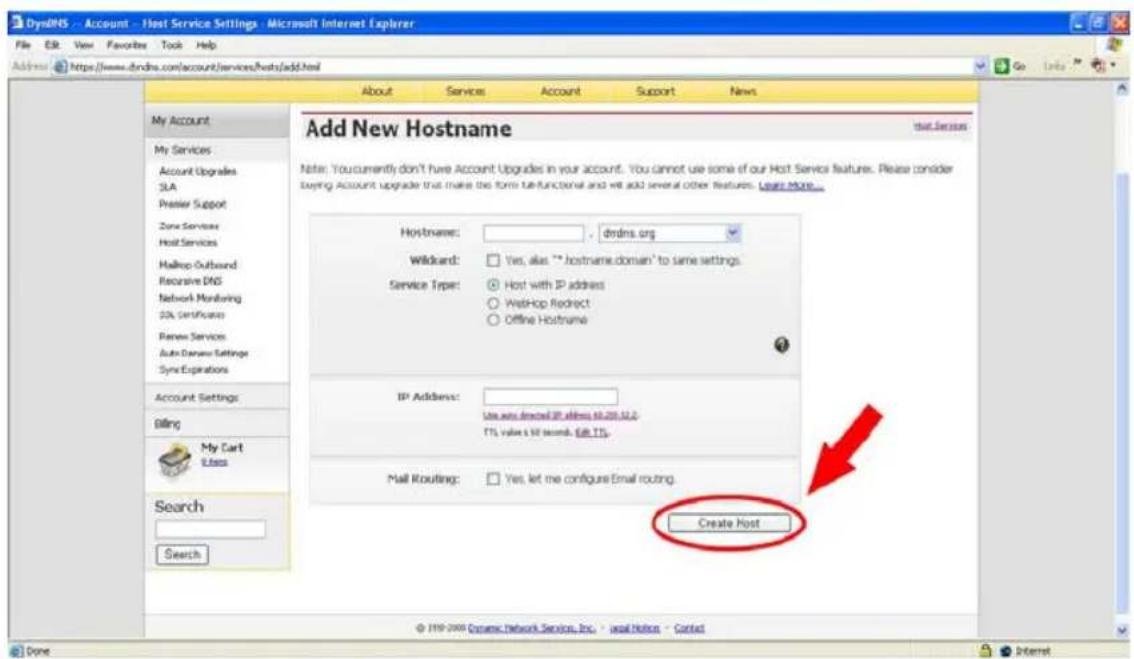

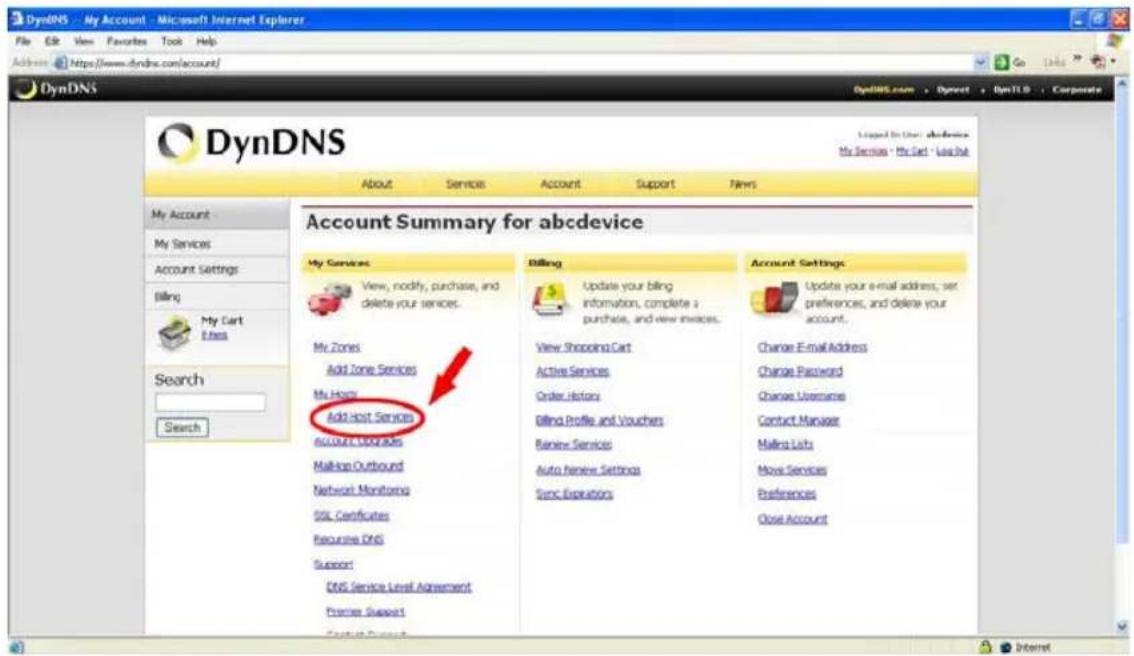

APPENDIX 3. –Register as a DDNS member ....83

APPENDIX 4. -MPEG4 Bit Rate Lookup Table of IP camera .....87

APPENDIX 5. –PoE Installation Method....88

APPENDIX 6. -FAQ....91

WARNING

At close range, infrared light can seriously damage a person's vision. Install this illuminator with a minimum safety zone of 1.22m (4 ft.) between the illuminator and the closest possible human contact.

NOTE: 1.22m (4 ft.) is the actual measurement of the strength of the IR Illuminators that are being used.

NOTE: Class 1M invisible LED product.

NOTE: The power adaptor model is HORIZON-794me (Elementech Inc.).

SERVICE WARNING

DO NOT LOOK DIRECTLY INTO AN OPERATIONAL IR ILLUMINATOR.

Since IR light is invisible to the human eye, the only method of verifying a malfunctioning IR illuminator is to observe the picture at the video output location.

SAFETY PRECAUTIONS

All the following safety and operational instructions to prevent harm or injury to the operator(s) or other persons should be read carefully before the unit is activated.

WARNING

● To prevent fire or shock hazard, avoid exposing this unit to rain or moisture.
- Do not block ventilation openings.
- Do not place anything on top of the unit that might spill or fall into it.
- Do not attempt to service this unit yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Please refer all servicing to your distributor / retailer.

- Do not use liquid cleaners or aerosols for cleaning.

- To prevent fire or electric shock, do not overload wall outlets or extension cord.

● This unit must be grounded to reduce the risk of electric shocks.

● The installation should be made by a qualified service person.

- PoE considered a Network Environment 0 per IEC TR62101, and thus the interconnected ITE circuits may be considered SELV.

CAUTION

● RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Installation & Operation Guide

1. PRODUCT FEATURES

1.1 Product Instructions

The VideoEdge IP Outdoor Mini-dome is a user-friendly device which combines cutting-edge sophistication with practical reliability and convenience, and high performance with smooth remote communication. Just plug in the network cable and you'll get live streaming video anytime, any place. You'll have security you can rely on! The especially high resolution has 530 TV lines, D/N function, a built-in web server and a Network interface to connect you with the Internet securely and fast.

Other special features include the masking of personal private images with flexible mask-area positioning and size, the self-downloading automatic video codec and other components, and the whole unit is very easy to set up. You can access the network to get smooth images through the real-time visual stream provided by the device, because it supports two compression modes, the MJPEG and the MPEG4 -- you can change from one to the other as you wish. The MPEG4 file format is a very small size file, so it can save more images over a longer time and can be set extremely fast. The device also has a built-in website server providing many Internet functions and protocols, including the MDIX protocol which recognizes both the normal and the crossover cables, either of which can connect up with an IP camera.

We hope this device makes it easier for you to get your IP address information. This unit supports the USB interface which helps you to very easily get an IP address to open the IE browser: just type in your IP address to the browser and you can access your IP camera.

The VideoEdge IP Outdoor Mini-dome can hopefully provide the advanced motion detection function to improve your network surveillance with both the powerful and enhanced multi-zone and multi-sensitivity modes of detection. We believe this unit is the right answer to all your network surveillance problems. Try it and you'll see.

1.2 Product Features

◆ 1/3" Sony Super HAD CCD sensor.
◆ 3.7\~12mm vari-focal auto iris lens built-in
◆ 530 TV lines.
Day/Night: Accept IR illumination for dark surveillance. The range of Infrared wavelength is from 700nm to 1100nm.
◆ Built-in web server.
◆ Our comprehensive Plug & Play features-

* PnP video codec—installation of automatic video codec or any component.
* PnP IP address—supports UPnP protocol.
* PnP recording—built-in SD card for recording.

◆ Auto white balance (AWB) & auto tracing white balance for color temperatures from 2500°k to 9500°k.
◆ Advanced motion detection—multi-zone & multi-sensitivity.
◆ Privacy image masking with free position and size.
◆ CIF up to Full D1 resolution.
◆ Low Lux: By employing high sensitivity image sensor and low noise circuit design produces 0.5 lux.
◆ Auto Iris Control (AIC), Auto Gain Control (AGC), Auto Back Light Compensation (ABLC), and Flicker less (FL)
◆ Fixed shutter speed: 1/1000 sec.
◆ Dual codec---MPEG4/MJPEG for various applications.
◆ Real-time and synchronized A/V stream.
◆ No latency. Synchronized Analogy / Digital signal.
◆ Position a camera any place you want—No PC required for operation.
◆ Supports post-alarm function.
◆ Supports the MDIX protocol. Recognizes both the normal and the crossover cables, either of which can connect up with an IP camera.
◆ Power: POE / 802.3af, DC 12V.

1.3 Technical Specifications

General:	• Built-in Web Server and network interface. You don't need a PC to operate.
Installation:	• Fast and simple installation – connect to your network and assign an IP address within a minute. The null modem cable enclosed helps you to set up without a network.
Camera: • Digital, 24-bit color.
Image sensor:	• 1/3 inch Sony Super HAD CCD sensor.• MPEG4 resolution (pixels): 640x480, 320x240
Exposure:	• Automatic AGC.• White Balance: Indoor installation.• Exposure times: 1/60(1/50)-1/100,000 sec.
Sensitivity:	• Minimum Illumination: 0.5 lux. @F1.6, 0 lux IR On
Image:	• Image frame rate: up to 30 (25) frames/second.• Supports two compression modes, the Motion-JPEG and the MPEG4.• 5 levels of compression provided. The file size of an M-JPEG compressed image depends on the image's actual content. Images with a lot of detail will generate bigger files. The level of compression determines the image quality. High compression requires smaller files while low compression gives you finer image quality along with bigger files. The table below contains the average file size in Kbytes, derived from real life tests.
	NTSC	Highest	High	Medium	Low	Lowest
	352 * 240 31 KByte	22 KByte	18 KByte 12	KByte 9 KByte
	720 * 480 (Frame)	62 KByte 48	KByte 36 KByte	25 KByte	19 KByte
	720 * 240 40 KByte	30 KByte	23 KByte 18	KByte 15 KByte
	720 * 480 (Field)	62 KByte	48 KByte 34	KByte 25 KByte	19 KByte
	176 * 112	9 KByte	8 KByte	6 KByte	5 KByte	4 KByte
	PAL	Highest	High	Medium	Low	Lowest
	352 * 288	27 KByte	22 KByte 18	KByte 12 KByte	9 KByte
	720 * 576 (Frame)	58 KByte 43	KByte 32 KByte	27 KByte	23 KByte
	720 * 288	40 KByte	30 KByte 20	KByte 17 KByte	14 KByte
	720 * 576 (Field)	58 KByte	48 KByte 32	KByte 24 KByte	20 KByte
	176 * 112	8 KByte	7 KByte	6 KByte	5 KByte	4 KByte
General I/O:	• Input/Output connector to trigger the camera vis-a-vis external events, for instance a door sensor with a solenoid.
System Requirements:	• Compatible with operating systems such as Windows 2000 and Windows XP.• Internet Explorer 6.x.• Non-network modem installation needs Windows PC.
Supported Protocols:	·TCP/IP, DHCP, HTTP, UDP, SNTP, ICMP, DDNS, DNS, UPnP, RTP, RTSP, FTP**, SMTP** (**) FTP and SMTP functions are for PAL version only.)
Security:	·Password protection available, unless exposure is preferred.
Connections:	·RJ 45 twisted pair cable, 10/100 Mbit Ethernet network connection.·Input/Output connector to trigger the camera vis-a-vis external events.
Operating Environment:	·Operation temperature: 32-122° F (0-50°C).·Humidity: 20-80% RHG, non-condensing.WARNING: Avoid aiming the camera at the sun or other extremely bright lights.Irrespective of whether the camera is used or unused, the CCD image sensor may be damaged if exposed to very bright objects.
Dimensions / Weight:	Dimensions and weight are as follows.High: · 110 (mm)·Diagram: 142 (mm)Weight: · 1400 g
Accessories Included:	·CD-R x 1·Power supply: 12V DC/2A.·Instruction manual.

Installation & Operation Guide

2. Name of parts and functions

2.1 Name of parts and functions

A I H G B C D E F

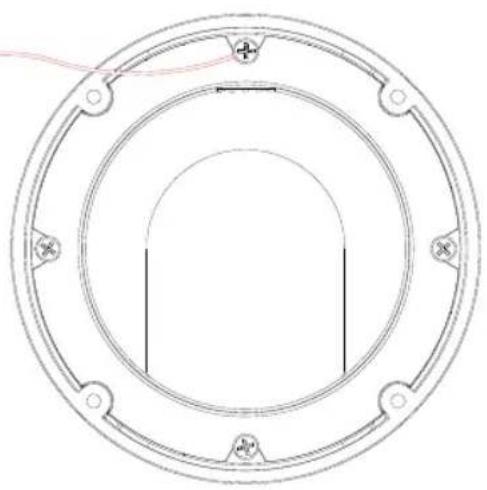

Technical line drawing of a circular mechanical component with mounting holes and a central arch (no text or symbols)

58.5 110.0 G

φ142.0 F E

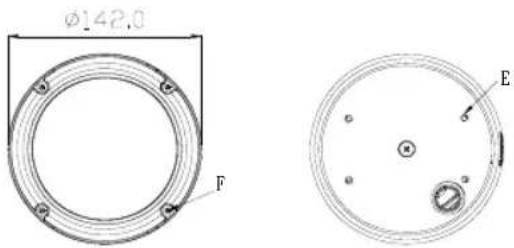

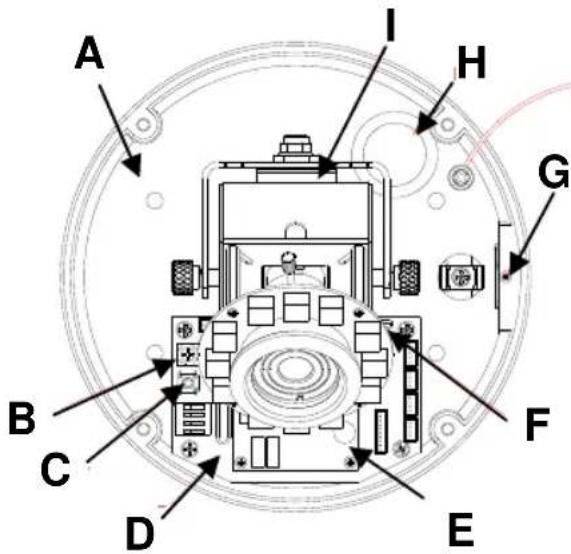

A. Inner plate mounting holes
B. DC level
C. Reset
D. PC assembly
E. IP module
F. USB plug
G. Side conduct entry
H. Back conduct entry

I. SD card slot

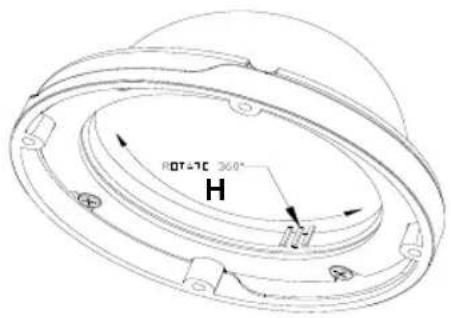

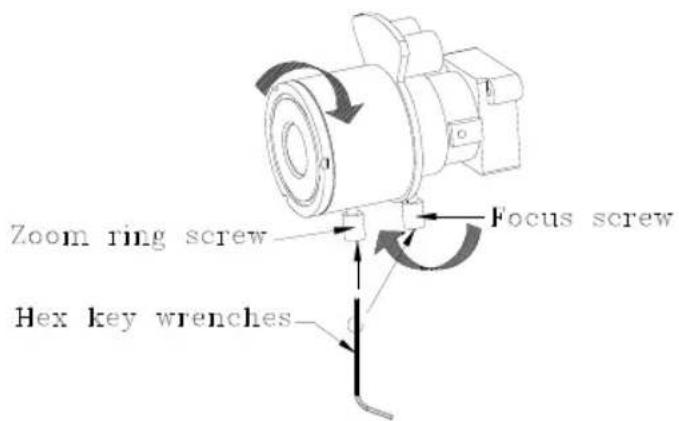

ADJUSTING THE CAMERA ZOOM AND FOCUS

1. Loosen the zoom ring thumbscrew.
2. Turn the zoom ring to set the desired zoom.
3. Tighten the zoom ring thumbscrew.
4. Loosen the focus ring thumbscrew.
5. Turn the focus ring to set the desired focus.
6. Tighten the focus ring thumbscrew with the tool to adjust the focus.

HOT=1°C 300° H

Zoom ring screw Hex key wrenches Focus screw

CAMERA ADJUSTMENT

1. Horizontal angle adjustment: by turning the platform to adjust the horizontal angle B(90 degrees) and C(180 degrees).
2. Vertical angle adjustment: by turning the platform to adjust the vertical angle A(90 degrees)

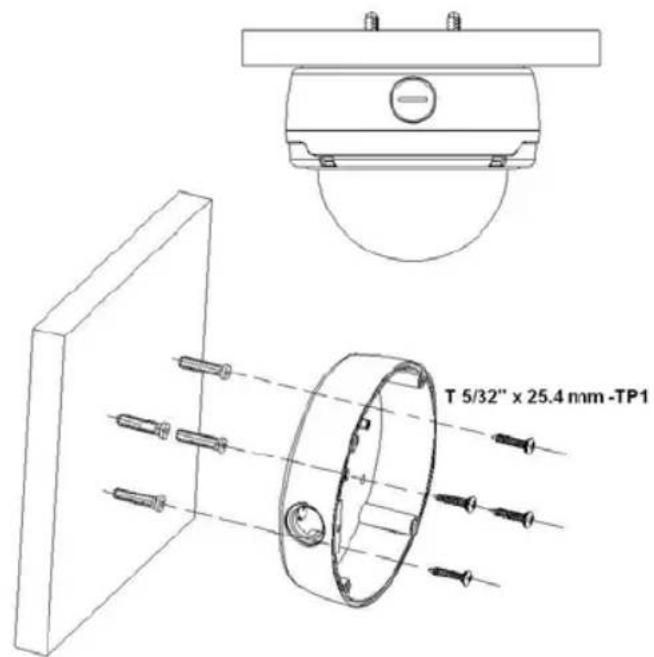

MOUNTING THE HOUSING

T 5/32" x 25.4 mm -TP1

Installation & Operation Guide

DELAY TIME SET UP

DELAY TIME	1sec	5sec	10sec	20sec	30sec	40sec	50sec	1min
1	←	←	←	←	←	←	←	←
2	→	←	→	←	→	←	→	←
3	→	→	←	←	→	→	←	←
4	→	→	→	→	←	←	←	←

DELAY TIME	1.5min	2min	2.5min	3min	3.5min	4min	4.5min	5min
1	→	→	→	→	→	→	→	→
2	→	←	→	←	→	←	→	←
3	→	→	←	←	→	→	←	←
4	→	→	→	→	←	←	←	←

ALARM :

ALARM IN (INPUT) : This is an alarm input which can be programmed in the menu system to

Normally Open or Normally Closed. ( 5V 0V(Active) )

ALARM RESET (INPUT) : This pin connects to an alarm-clear device for clearing an alarm.

( 5V 0V(Active) )

ALARM OUT (OUTPUT) : This is an alarm-output trigger. Connect this to external devices such

as buzzers or lights. ( 5V 0V(Active) )

GND : Ground Contact.

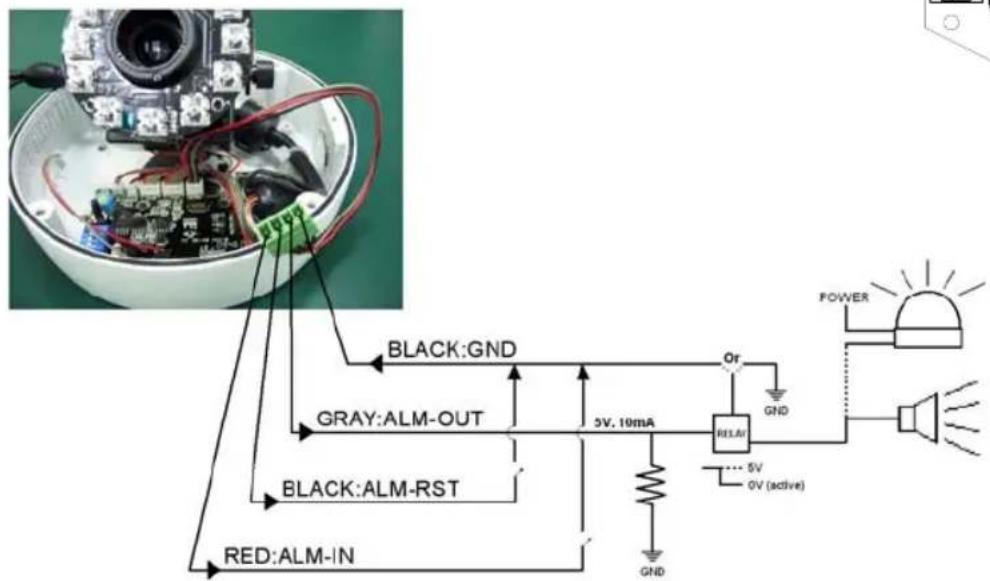

Alarm wiring diagram:

BLACK:GND GRAY:ALM-OUT BLACK:ALM-RST RED:ALM-IN 5V, 10mA OR RELAY GND 6V 0V (active) POWER GND

RESET IN OUT GND ALARM

Video output terminal (BNC) :

This connector is used to connect with the VIDEO IN connector of monitor.

RESET :

Recover to factory default.

DC 12V :

A DC 12V inlet that connects to an external power supply.

ETHERNET (PoE):

This is a standard RJ-45 connector for 10/100 Mbps Ethernet networks. PoE (Power over Ethernet) function: Provides power to the device via the same cable as used for the network connection.

NOTE: Please refer to the APPENDIX 6 –PoE Installation Method for more details.

SD CARD Slot:

This is used for system software updating and archiving / accessing critical images

Installation & Operation Guide

2.2 Connecting the IR port

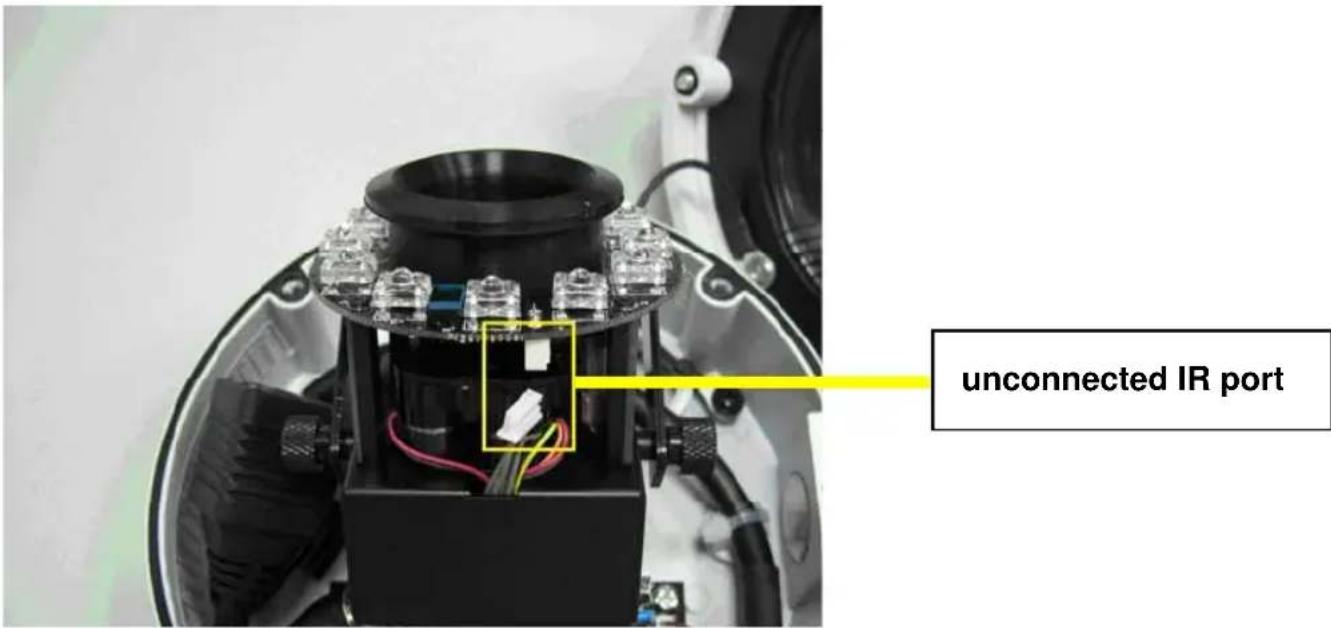

NOTE: CAMERA STARTS UP IN BLACK & WHITE BECAUSE THE IR ILLUMINATOR IS DISCONNECTED.

For safety reasons, the IR Illuminator is disconnected at the factory. If the IR Illuminator were to accidentally trigger during install, it may pose a hazard to those within 4 feet. Once the camera is installed, reconnect the power lead (see manual). Ensure that you do not cover the photo cell (see manual) after power is reconnected as that may trigger the IR illuminator.

Below is the unconnected IR port. Pick up the connecting wires and insert them carefully into the IR port.

unconnected IR port

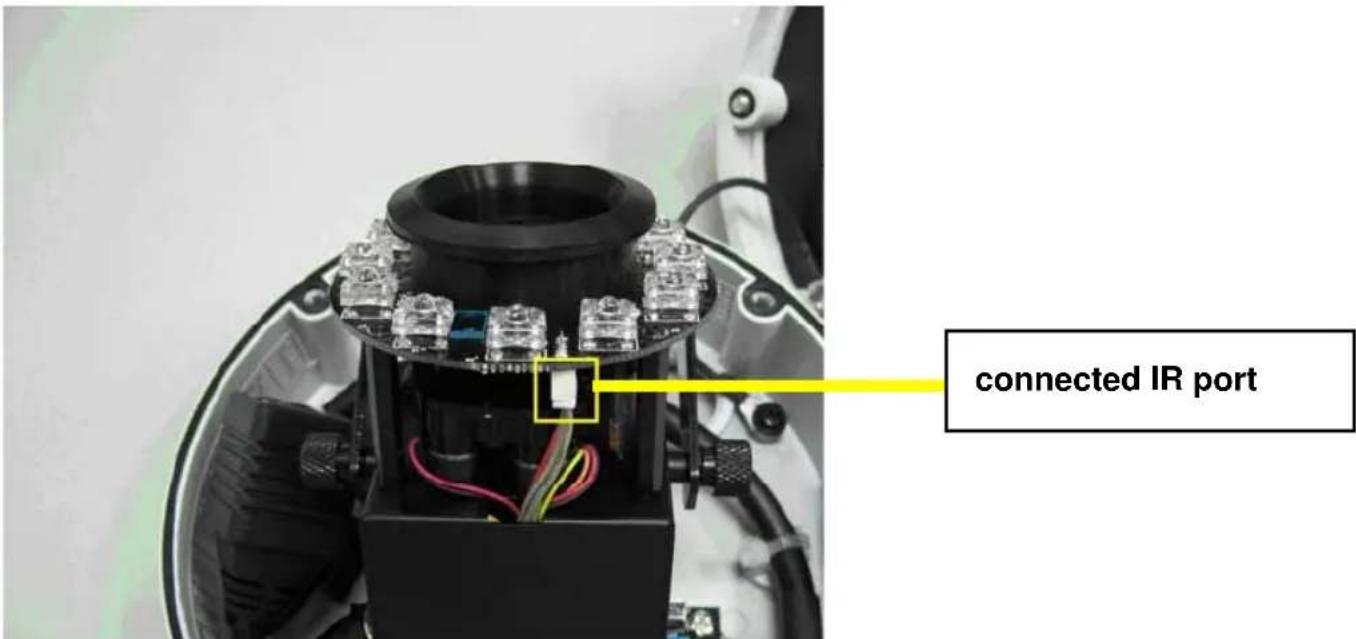

Below is the connected IR port. After the connection the IR light will come on if the environment is dim.

connected IR port

2.3 The USB function

By connecting the IP camera with a PC via the USB connector, the IP camera can provide two different functions.

1. Insert an SD card: As a card reader.

Insert an SD card into the IP CAMERA, then connect to the PC. You might transfer files between the SD card and the PC. Once you've connected your IP CAMERA to your computer, the Windows system will detect the connection and ask you what you want to do with your SD card.

In other words, if the user connects the IP CAMERA with an SD card and the PC via the USB connector, the IP CAMERA can be used as a normal card reader.

1. Remove an SD card: As a configuring tool.

Before using the USB configuration setting page, please remember to remove the SD card or your PC will read the SD card and won't show this window.

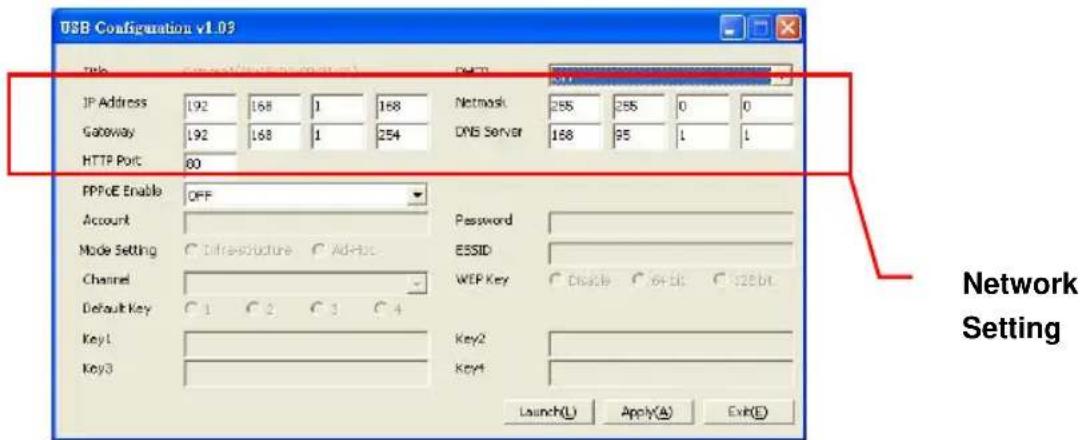

DHCP ON

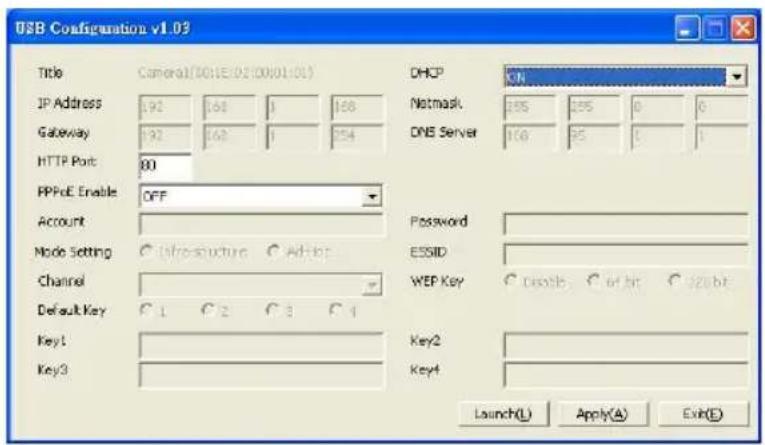

USB Configuration v1.03 Title Cameral(001E:02:00:01:01) DHCP ON IP Address 192 168 1 128 Netmask 255 255 0 0 Gateway 192 168 1 254 DNE Server 108 25 1 1 HTTP Port 80 PPFeE Enable OFF Account Mode Setting Infrastructure Adoption Password Channel Default Key C1 C2 C3 C4 ESSID Key1 Key2 Key3 WEP Key C Double C Shift C Size/Bit Key4 Launch(L) Apply(A) Exh(E)

DHCP OFF (default)

USB Configuration v1.03 File Edit View Help IP Address 192 168 1 168 Network 255 255 0 0 Gateway 192 168 1 254 DNS Server 168 95 1 1 HTTP Port 80 PPPoE Enable OFF Account Password Mode Setting Infrastructure Ad-hoc ESSID Channel WEP Key Disable Add-on Add-on Default Key C 1 C 2 C 3 C 4 Key1 Key2 Key3 Key4 Launch(L) Apply(A) Exit(E) Network Setting

NOTE: After changing the settings, please click the "Apply" button. All of the options will be effective after removing the USB connector.

Installation & Operation Guide

2.4 PoE (Power over Ethernet)

These technologies will enable the development of new networked appliances, by providing power as well as data over existing Ethernet cables.

The Summary Comparison of PoE Standards (Table 1) is listed as follows.

Table 1. Summary Comparison of PoE Standards

STANDARD

SOURCE

LOAD

REMARKS

Source Voltage

Ethernet RJ-45 connector pin number *

1

2

3

4

5

6

7

Load Voltage

DC Load Connector

IEEE 802.3af using data pairs

48 V DC, protected

RX, DC+

RX, DC+

TX, DC-

spare

spare

TX, DC-

spare

spare

(embedded)

Industry Standard for embedded PoE

IEEE 802.3af using spare pairs

48 V DC, protected

RX

RX

TX

DC+

DC+

TX

DC-

DC-

(embedded)

Industry Standard for embedded PoE

The compatible PoE Hubs (Table 2), which can be used with the unit, are shown in the tables below.

Table 2. Compatible PoE HUB
Manufacturer	Model	Port	Note
PLANET	FSP-804P	4 Port	PoE HUB
	POE-151	1 Port	PoE HUB
D-Link	DWL-P200	1 Port	PoE HUB

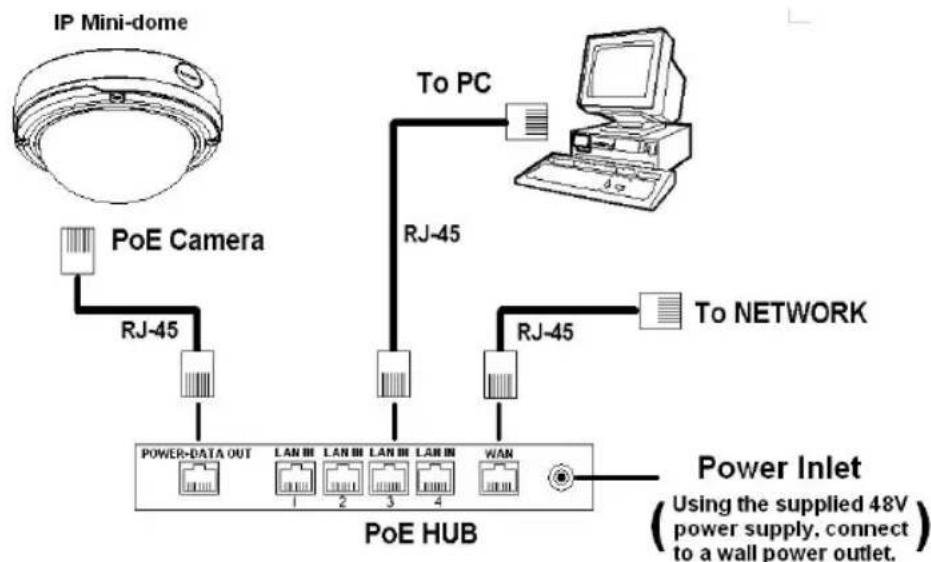

Connect to a PoE HUB

The Standard RJ-45 PIN configuration for connecting with a PoE HUB is shown below.

3. INSTALLATION

Please follow the instructions and the diagram below to set up the system.

NOTE: The IP CAMERA is linked by its Video Out connection via a BNC connector to a monitor's Video In connection. If this connection is there, you can see some information on the monitor screen, such as the IP CAMERA factory default Static IP address (192.168.1.168).

3.1 CONNECTING WITH AN NVR

Use a straight LAN cable to connect directly to an NVR

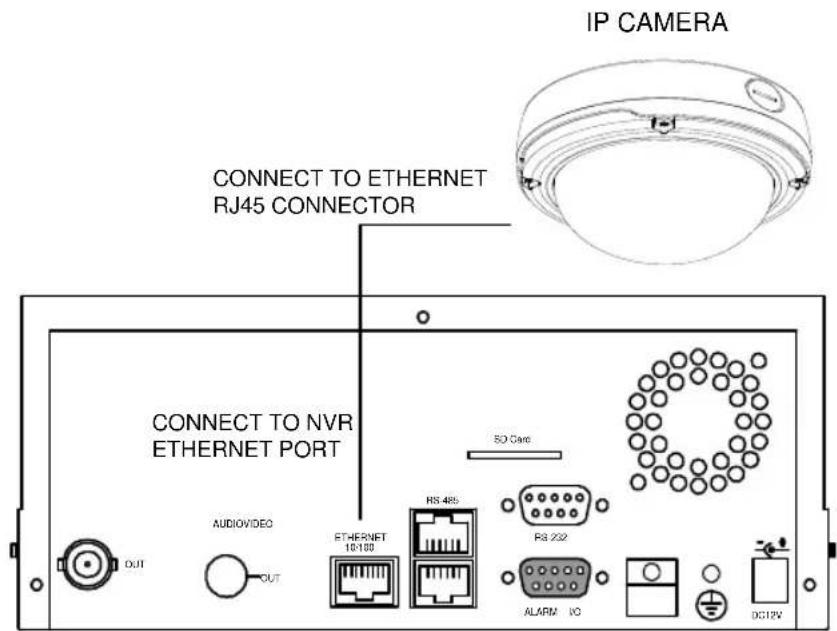

IP CAMERA CONNECT TO ETHERNET RJ45 CONNECTOR CONNECT TO NVR ETHERNET PORT AUDIOVIDEO OUT ETHERNET 10/100 RS 485 RS 232 ALARM I/O DC12V

3.2 CONNECTING WITH A DVR CONNECT TO VIDEO OUT BNC CONNECTOR CONNECT TO DVR VIDEO IN VIDEO FROM MUX MAIN MONITOR IN AUDIO IN OUT TO MUX'S VCR IN TO MONITOR OUT SO Card ETHERNET 10:100 RG-465 RS-202 ALARM I/O DC12V

Installation & Operation Guide

3.3 CONNECTING WITH A MULTIPLEXER

3.4 UPDATING SYSTEM SOFTWARE

If the system software of the IP CAMERA needs to be upgraded, please take the following steps to safely process it.

NOTE: Before carrying out the following procedures, please ensure the SD card is working and the file of the system firmware is intact

1. Format an SD card using the FAT format.
2. Create a directory named LANCAM in the SD card if it does not exist.
3. Copy the file of UPDATE.BIN to the LANCAM-directory.
4. If the IP camera is running, please power it off first.
5. Insert the SD CARD into the IP camera.
6. Remove the Ethernet cable from the RJ-45 port and then power on the IP camera.
7. In 5 to 10 seconds, a message reading "UPDATE PROCESSING" will show up on the screen on a blue background; if not, please check out steps 1 to 6 carefully or else inform your technical support while ignoring the following steps.
8. DO NOT power off the IP camera while this update process is running until the message "UPDATE OK RESET PLEASE" appears on the screen; it might take 15 to 30 seconds to appear.
9. If the message "UPDATE NG RESET PLEASE" appears rather than "UPDATE OK RESET

PLEASE", please write down the error messages shown on the screen and inform your technical support, while ignoring the following steps.

1. Power off the IP camera when this update process is finished, then remove the SD card from the IP camera.
2. Reconnect the Ethernet cable to the RJ-45 port as necessary.
3. Power ON the IP camera and it will work normally if the entire update procedure goes correctly.
4. Verify the version of the system software.

WARNING:

1. Don't use the NTFS format in step 1.
2. Steps 1 to 3 have to be done on a PC.
3. Make sure the file of UPDATE.BIN is a correct one in step 3, or the IP camera will not work normally after being updated.
4. If the power of the IP camera is suddenly lost in step 8, please remove the SD card first and turn on the IP camera next to test its operation. If the IP camera remains working normally, please go back to step 4; otherwise, please inform your technical support.
5. In step 10, if the SD card is not removed and the IP camera does not get online as well, the updating process must be repeated again after rebooting the IP camera.
6. Make sure that the SD card is inserted in a correct position in step 5, or the IP camera will suffer permanent physical damage.
7. If the message "CSUM ERROR" appears in step 8, it implies a problem in the file of UPDATE.BIN.
8. Don't interrupt the process while the unit is updating itself; proceed with an SD card not including any system software of the unit, or else the unit will crash.

Installation & Operation Guide

3.5 IP CAMERA SD card Troubleshooting

1. Check if the SD card position is correct or not. Please refer to the manual for the related information.

2. Correctly insert the SD card after powering the IP CAMERA on. The "SD" icon displays in the upper-right corner of the monitor screen. If not, it means the device detection has failed. Please contact your technical support and ignore the following steps.

3. If a checkmark appears, please check the following:

a. Is it really an SD "Memory" Card?

b. Is this SD card formatted in the FAT16 format?

c. Connect the SD card with a PC and test to see whether the PC can read the data or not.

d. Does this SD card still have the capacity for storing data?

e. Is the SD card set to write?

If there is no checkmark appearing beside the "SD" icon, please go on to the next step. If all the answers are "yes" but the checkmark still persists, please contact your technical support and ignore the following steps.

1. Ensure the "SD CARD ENABLE" function is activated in the ALARM and SCHEDULE pages if there is no checkmark appearing beside the "SD" icon on the screen.

2. Read the data on the web page of "sdget.htm" after recording. If the data cannot be read through the network, please read it instead in a PC, check the data stored in the "LANCAM" directory and contact your technical support regardless of whether there is data or not.

WARNING:

1. Performing this troubleshooting process may need a monitor, a PC, a card reader and some cables.

2. If the SD card is removed while storing or accessing data, the data will be lost.

3. If there is a checkmark beside the "SD" icon, it means the SD card has been inserted into the IP CAMERA but cannot perform its writing function. Possible reasons are:

a. It is not an SD memory card.

b. The SD card is unformatted or formatted in a non-FAT16 or non-FAT12 format.

c. The file system is damaged.

d. The capacity of the SD card is full.

e. The SD card is set to be read only.

1. Turn off the power before inserting the SD card. Otherwise the unit may shut down.

4. Network Configuration

4.1 Cable Connections

Please follow the instructions below to connect your IP CAMERA to a computer or a network and to choose a proper RJ-45 cable configuration for connections.

Physical specifications of the RJ-45 cable for Ethernet

Wire Type	Cat. 5
Connector Type	RJ-45
Max. Cable Length	100 m
Hub Wiring Configuration	Straight Through
PC Wiring Configuration	Straight

4.2 Configure Your IP Camera Network Settings

Upon connecting with the network hardware, you need to activate the network function and configure the proper network settings of the IP CAMERA.

4.2.1 Enable DHCP Function

This function can only work if the LAN, which the unit is connected to, has a DHCP server. If the DHCP server is working, please turn on to use the DHCP protocol; now the IP CAMERA will obtain an IP address automatically from the DHCP server. In this instance, please skip section

4.2.2 (Set IP address) and follow section 4.3 (TCP/IP Communication Software).

NOTE: The CAMERA default setting is DHCP OFF. Users can build the CAMERA working environment with a static IP address. The default static IP is 192.168.1.168. You can set an IP address for the CAMERA if the LAN unit isn't connected to a DHCP server. Or turn on to use the DHCP protocol if the DHCP server is working in the LAN, The CAMERA will obtain an IP address automatically from the DHCP server. The CAMERA is linked by its Video Out connection via a BNC connector to a monitor's Video In connection. If this connection is there, you can see some information on the monitor screen, such as the CAMERA factory default Static IP address.

Installation & Operation Guide

4.2.2 Set IP Address

You need to set an IP address for the unit if the LAN unit isn't connected to a DHCP server.

Otherwise, please follow the instructions given below:

Set the IP, MASK and GATEWAY. The following is a sample setting.

IP: 192.168.1.X

MASK: 255.255.255.0

GATEWAY: 0.0.0.0

NOTE: When only one unit of the IP CAMERA is connected to a computer or LAN, you can freely assign an IP address for the IP CAMERA. For example, there is a range of IP CAMERA IP addresses from 192.168.1.1 to 192.168.1.255. You can pick one for use from the range of the IP. It's not necessary to set MASK and GATEWAY; leave the settings as default.

When a IP CAMERA is connected to a WAN, you must acquire a unique, permanent IP address and correctly configure the MASK and GATEWAY settings according to your network architecture. If you have any questions regarding those settings, please consult a qualified MIS professional or your ISP.

NOTE: When connecting to a network, each connected IP CAMERA must be assigned a unique IP, which must be in the same class type as your network address. IP addresses are written as four sets of numbers separated by periods; for example, 192.168.1.1 Therefore, if the connected network is identified as Class C, for example, the first three sets of numbers of the IP CAMERA IP address must be the same as the network address. If the connected network is identified as Class B, the first two sets of numbers of the IP CAMERA IP address must be the same as the network address. If you have any questions regarding these settings, please consult a qualified MIS professional or your ISP.

4.3 TCP/IP Communication Software

Follow the procedure below to install the TCP/IP communication program in your computer.

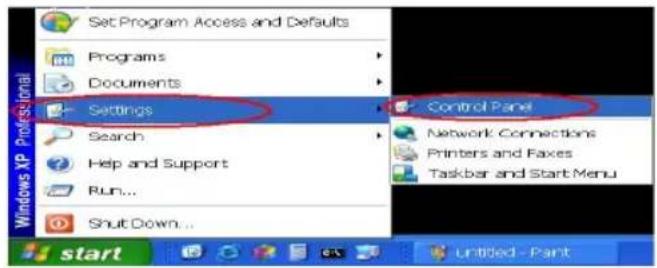

1. Open the Start menu from your computer, and select the Settings/Control Panel option.

Windows Update Programs Favorites Documents Settings Find Help Run... Log Off Darlayang... Shut Down... Control Panel Printers Taskbar & Start Menu... Folder Options... Active Desktop Windows Update... Start

1. Double click the Network icon to enter the windows.

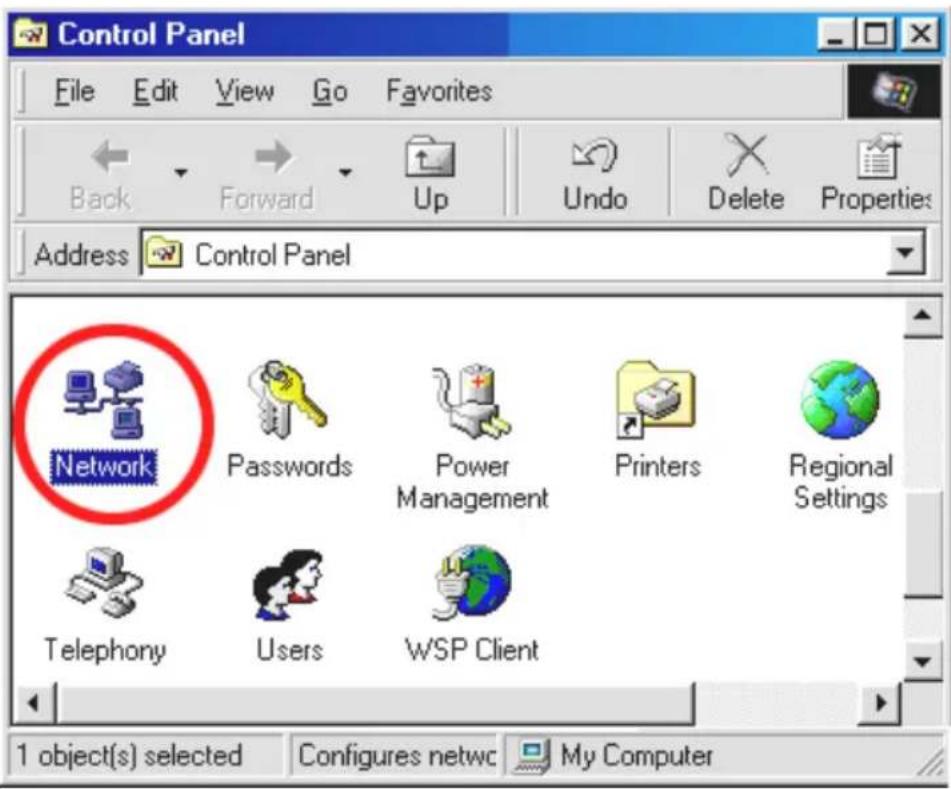

Control Panel File Edit View Go Favorites Back Forward Up Undo Delete Properties Address Control Panel Network Passwords Power Management Printers Regional Settings Telephony Users WSP Client 1 object(s) selected Configures netwc My Computer

Installation & Operation Guide

1. Click on the Configuration tag, and check if the TCP/IP is included among the network components list. If the TCP/IP is included, please process section 4.5. If it is not included, please follow section 4.4 to install the TCP/IP.

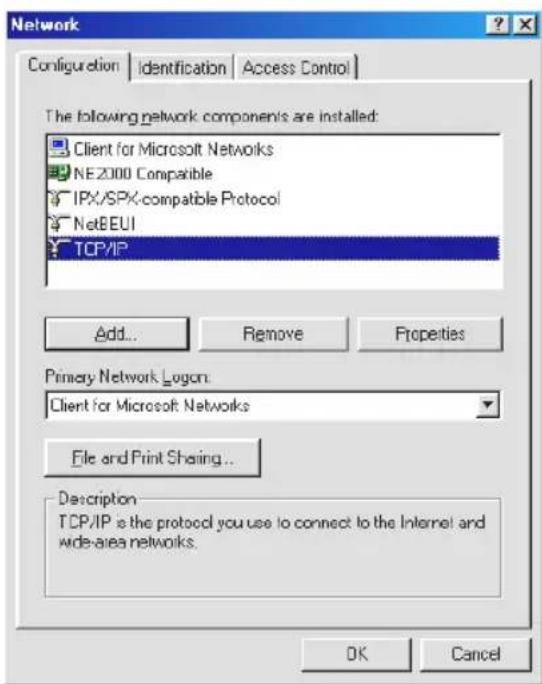

Network Configuration | Identification | Access Control | The following network components are installed: Client for Microsoft Networks NE2000 Compatible IPX/SPX-compatible Protocol NetBEUI TCP/IP Add... Remove Properties Primary Network Logon: Client for Microsoft Networks File and Print Sharing... Description TCP/IP is the protocol you use to connect to the Internet and wide-area networks. OK Cancel

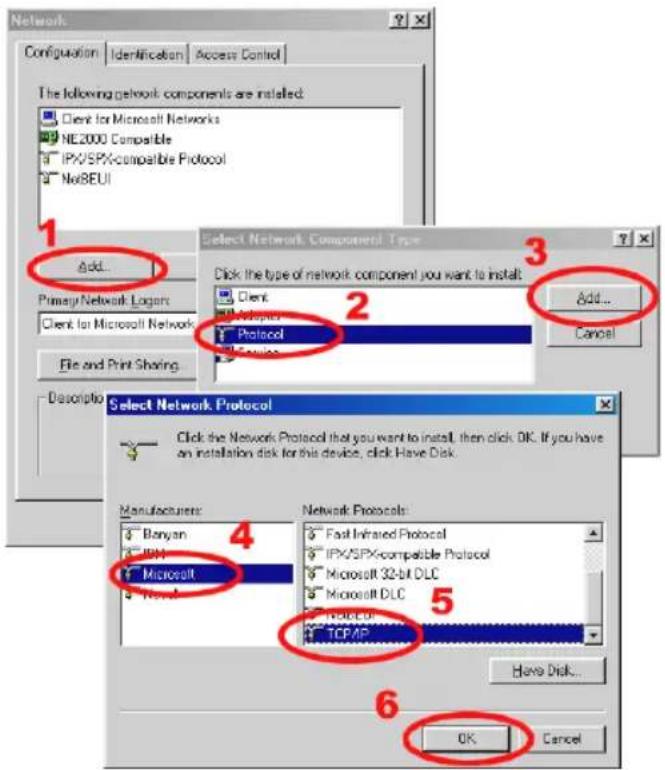

4.4 TCP/IP Installation

Network Configuration | Identification | Access Control The following network components are installed: Client for Microsoft Networks NE2000 Compatible IPX/SPX-compatible Protocol NetBEUI Add... Primary Network Logars Client for Microsoft Network File and Print Sharing Edit... Select Network Component Type Click the type of network component you want to install: Client Adapter Protocol Service Add... Cancel Description Select Network Protocol Click the Network Protocol that you want to install, then click OK. If you have an installation disk for this device, click Have Disk. Manufacturers: Banyan IPX Microsoft Word Network Protocols: Fast Infrared Protocol IPX/SPX-compatible Protocol Microsoft 32-bit DLC Microsoft DLC TCP/IP TCP/IP Have Disk... OK Cancel

During the installation, you will be requested to insert the Windows CD-ROM. After installation, the PC may be restarted.

4.5 TCP/IP configuration setting

1. Click Start → Settings → Control Panel → Network.
2. Select TCP/IP, and then click Properties.

NOTE: Before processing the IP camera installation in a WAN, please make sure the Internet connection works properly. If not, please contact your ISP provider.

Network Configuration | Identification | Access Control | The following network components are installed: Client for Microsoft Networks NE2000 Compatible IPX/SPX-compatible Protocol NetBEUI TCP/IP Add... Remove Properties Primary Network Logon: Client for Microsoft Networks File and Print Sharing... Description TCP/IP is the protocol you use to connect to the Internet and wide-area networks. OK Cancel

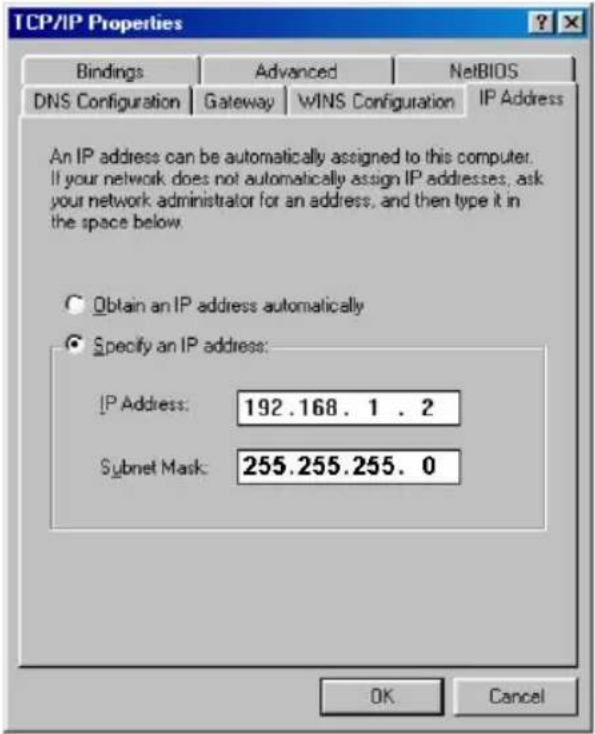

TCP/IP Properties Bindings Advanced NetsBIOS DNS Configuration Gateway WINS Configuration IP Address An IP address can be automatically assigned to this computer. If your network does not automatically assign IP addresses, ask your network administrator for an address, and then type it in the space below. Obtain an IP address automatically Specify an IP address: IP Address: 192.168.1.2 Subnet Mask: 255.255.255.0 OK Cancel

If you are using a DHCP server, please select Obtain an IP address automatically. Any assigned IP address for the connected IP Cameras must be in the same class type as the server. If there is no DHCP server, please select specify an IP address and type in the IP address of your PC. This IP address must be different from other network IP devices but in the same class type.

NOTE: The IP address of an IP camera in a network must be unique to itself as opposed to those of the other chosen PCs, but in the same class type.

Installation & Operation Guide

4.6 Connection Testing

With the previous settings, follow the instructions below to ensure whether you have established the connection successfully.

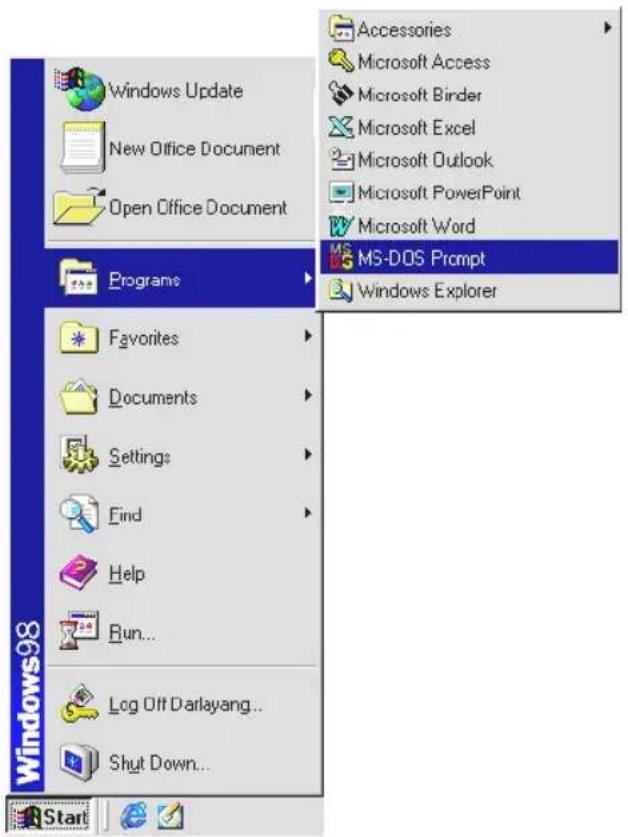

1. Click Start → Programs → MS-DOS Prompt

Windows98 Start Programs Favorites Documents Settings Find Help Run... Log Off Darlayang... Shut Down... Accessories Microsoft Access Microsoft Binder Microsoft Excel Microsoft Outlook Microsoft PowerPoint Microsoft Word MS-DOS Prompt Windows Explorer

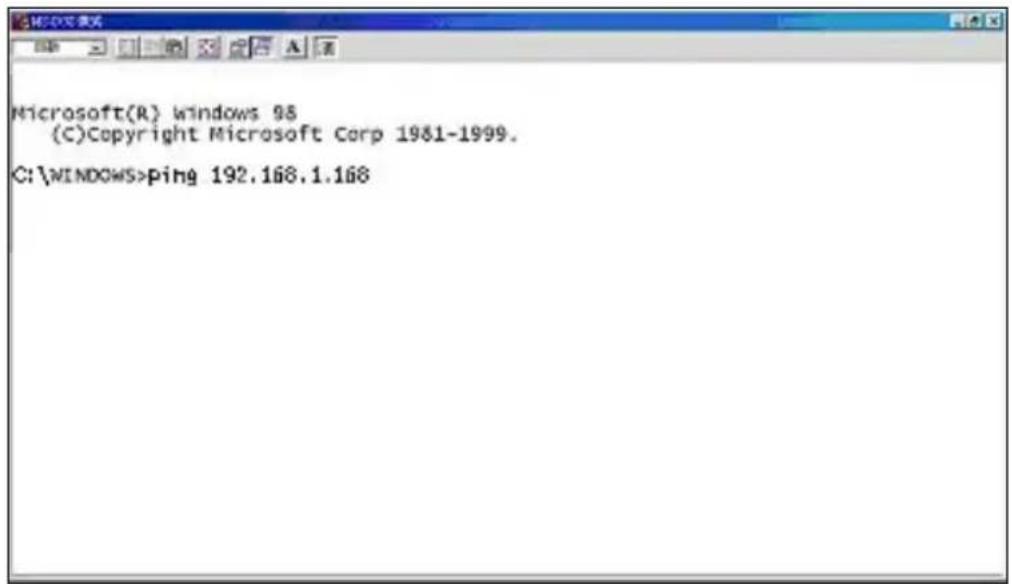

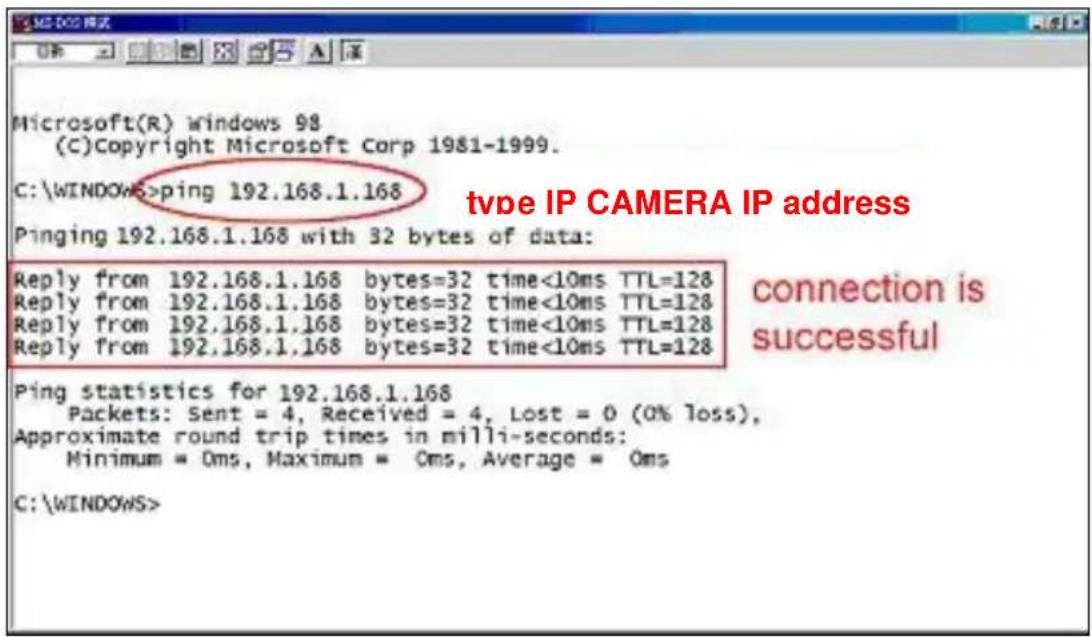

2. Enter ping 192.168.1.168, then enter. (See the sample screen below).

** This is the IP address of IP camera that is assigned for the connected IP camera in step2.

Microsoft(R) windows 98 (C)Copyright Microsoft Corp 1981-1999. C:\WINDOWS>ping 192.168.1.168

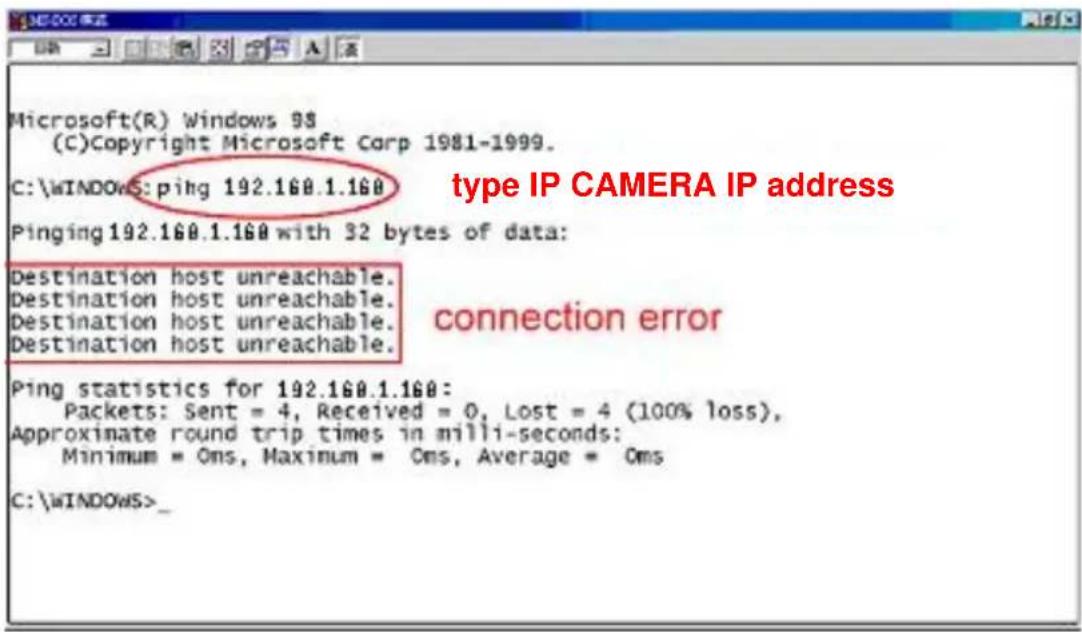

If you receive a response as in the sample screen below, the connection hasn't been successfully established. Please re-check all the hardware and software installations by repeating section 4.4 to 4.5. If you still can't establish the connection after rechecking, please contact your dealer.

Microsoft(R) Windows 9$ (C)Copyright Microsoft Corp 1981-1999. C:\WINDOWS:ping 192.160.1.160 type IP CAMERA IP address Pinging 192.160.1.160 with 32 bytes of data: Destination host unreachable. Destination host unreachable. Destination host unreachable. Destination host unreachable. connection error Ping statistics for 192.160.1.160: Packets: Sent = 4, Received = 0, Lost = 4 (100% loss), Approximate round trip times in milli-seconds: Minimum = Oms, Maximum = Oms, Average = Oms C:\WINDOWS>

If you receive a response as in the sample screen below, you have successfully made the connection.

Microsoft(R) windows 98 (C)Copyright Microsoft Corp 1981-1999. C:\WINDOWS>ping 192.168.1.168 Pinging 192.168.1.168 with 32 bytes of data: Reply from 192.168.1.168 bytes=32 time<10ms TTL=128 Reply from 192.168.1.168 bytes=32 time<10ms TTL=128 Reply from 192.168.1.168 bytes=32 time<10ms TTL=128 Reply from 192.168.1.168 bytes=32 time<10ms TTL=128 connection is successful Ping statistics for 192.168.1.168 Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = Oms, Maximum = Oms, Average = Oms C:\WINDOWS>

Installation & Operation Guide

5. Operation Instructions for the Network

The Microsoft Internet Explorer in a PC provides the functions of monitoring remote zones or watching recorded data through the TCP/IP protocol. The details are listed as follows.

RJ-45 PIN configuration for Ethernet

PIN NO.	PIN Assignment
1.	TX +
2.	TX -
3.	RX +
4.	Not Connected
5.	Not Connected
6.	RX -
7.	Not Connected
8.	Not Connected

RJ-45 socket

1 2 3 4 5 6 7 8

Physical specification for Ethernet

Wire type	Cat. 5
Connector type	RJ-45
Max. cable length	100 m
Hub wiring configuration	Straight Through or Cross Over
PC wiring configuration	Straight Through or Cross Over

5.1 Microsoft Internet Explorer

5.1.1 Connecting the IP CAMERA

1. Start up Microsoft Internet Explorer, and then follow the steps below to connect the IP CAMERA.
2. Click on the URL block at the top of the window.
3. Enter the URL address of the IP CAMERA into the URL block and press the "Enter" button to enter the home page.
4. Scroll to the bottom of the page, with its five icons, "Video", "Network", "System", "Application" and "SD card". Whichever you click, the page headlined "Enter Network Password" will appear.
5. Enter the "User Name" and "Password" in the appropriate spaces.
6. Click on the "OK" button to set your entries, and automatically exit the page.

NOTE: The default "User Name" and "Password" are admin and 9999 respectively.

NOTE: The page headlined "Enter Network Password" is shown below. Please enter the user name and password of the IP camera when you see it. If either the user name or the password is incorrect, please check the input data and rectify it as necessary.

NOTE: Once authorized successfully, it will not appear again until you close the window and reconnect it.

NOTE: The initial sequence of proceeding is to type in your IP address and click the "Enter" button to access the home page. If and when you revise or change data in the "SYSTEM USERS" page, the sequence will alter to initially show the "Enter Network Password" page.

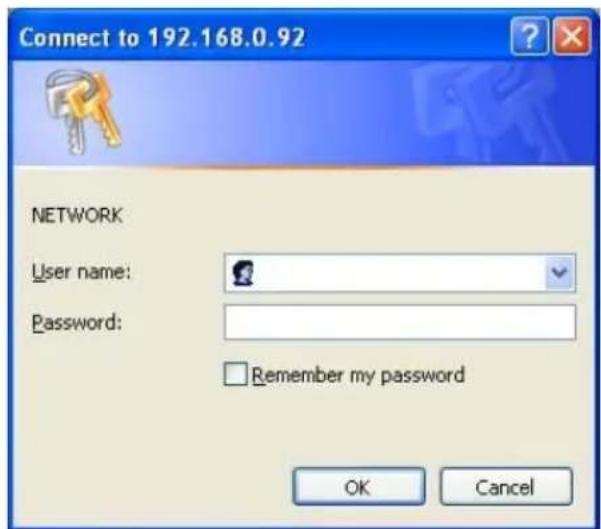

Connect to 192.168.0.92 NETWORK User name: Password: Remember my password OK Cancel

Installation & Operation Guide

Browsing images from the IP CAMERA

The images from the IP camera are displayed on the home page when online with the IP camera.

There are also additional settings provided on the home page. MJPEG mode or MPEG4 mode display different display formats on their home page.

VideoEdge 03/12/2009 16:05:14 American Dynamics A Set Networking Domain Video Audio Audio Chat VideoEdge 27/22/2009 16:05:28 American Dynamics A Set Networking Domain Audio | Audio | Log Out Video Network | System | Application | SD Card Camera typo Video | Network | Systems | Application | SD Card Camera

• Click on the Video button to enter the image-setting page.
• Click on the Network button to enter the network-setting page.
• Click on the System button to enter the system-setting page.
• Click on the Application button to enter the application-setting page.

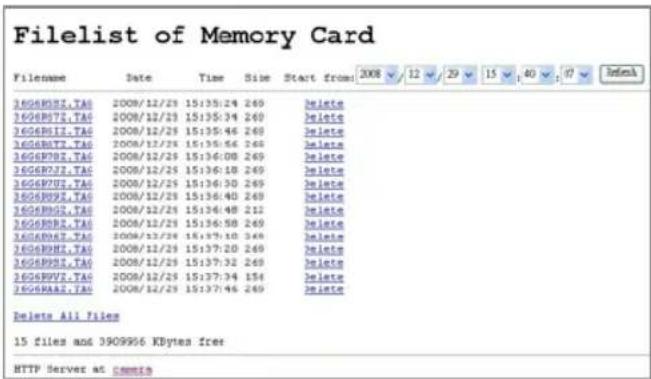

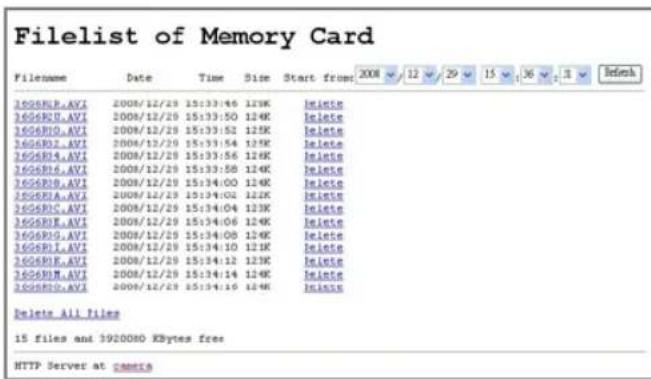

• Click on the SD card button to open the SD card- FILELIST of the MEMORY CARD window, if the SD card is inserted.

- Click on the Pan/Tilt button to change the Pan/Tilt/Zoom settings.

- Click on the button to change the time/date display mode.

- Click on button to switch high/low speed network.

- Click on button to archive AVI videos into your PC. Click once again to deactivate. In the recording mode, there will appear a red blinking icon in the upper-right hand corner of the image. The AVI file will be saved in the path of c:.

- Digital zoom function: Click on the video display area, and it will show the zoom-in images. Double click to see the maximum size. Click the right mouse button on the video display area, and it will show the zoom-out images. Double click the right mouse button to come back to the normal size.

5.1.2 Change Video Setting

Please follow the steps below to change the image setting through the network as necessary.

1. Click on the Video button on the home page to enter the image-setting page.

Video American Dynamics (See International Camera) Name | Help | Eng Out Video Fine Tune Primary Mask Device Title: Camera1 Resolution: 0.2 MHz Quality: Highest Format: MPEG MPEG4 Viewer Types: ActivX ASAX MPES ON Dentrlace: OFF Video Video Fine Tune Privacy Mask Device Title: Camera1 Resolution: 0.0 MHz Quality: RMS M2024 Mbps Frame Rate: 400% Format: MPEG MPEG4 Video Network | System | Application | SD Card Camera1 Typeo Video | Network | System | Application | SD Card American Dynamics (See International Camera) Name | Help | Eng Out Video Fine Tune Privacy Mask Device Title: Camera1 Resolution: 0.0 MHz Quality: RMS M2024 Mbps Frame Rate: 400% Format: MPEG MPEG4

Video setting page of MJPEG mode
Video setting page of MPEG4 mode

1. Adjust the image setting including "Device Title", "Resolution", "Quality", "Frame rate" (MPEG4 mode only), "Format", and "Viewer Type" (MJPEG mode only), and "MJPEG Deinterlace" (MJPEG mode only) as necessary.
2. Click on the Submit button to submit the new image setting.
3. Click on the Fine Tune button to enter the Video Fine Tune page to set the details of the device including: "Brightness", "Saturation" and "Sense Up". Click on the Default button to reset all the settings.

NOTE: The revised image will appear immediately after any change is made.

Installation & Operation Guide

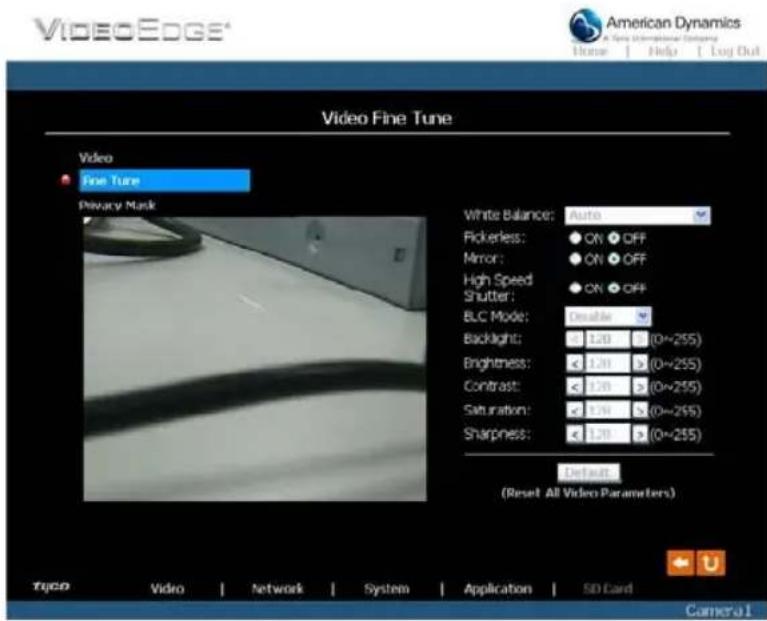

Video Fine Tune Video Fine Tune Privacy Mask White Balance: Active Pickerless: ON OFF Mirror: ON OFF High Speed Shutter: ON OFF BLC Mode: Double Backlight: 1.20 (0~255) Brightness: < 1.20 > (0~255) Contrast: < 1.20 > (0~255) Saturation: < 1.20 > (0~255) Sharpness: < 1.20 > (0~255) Default: (Reset All Video Parameters) Tujco Vidro Network System Application SD Card American Dynamics A Top International Shipping Home Help Log Out Camera1

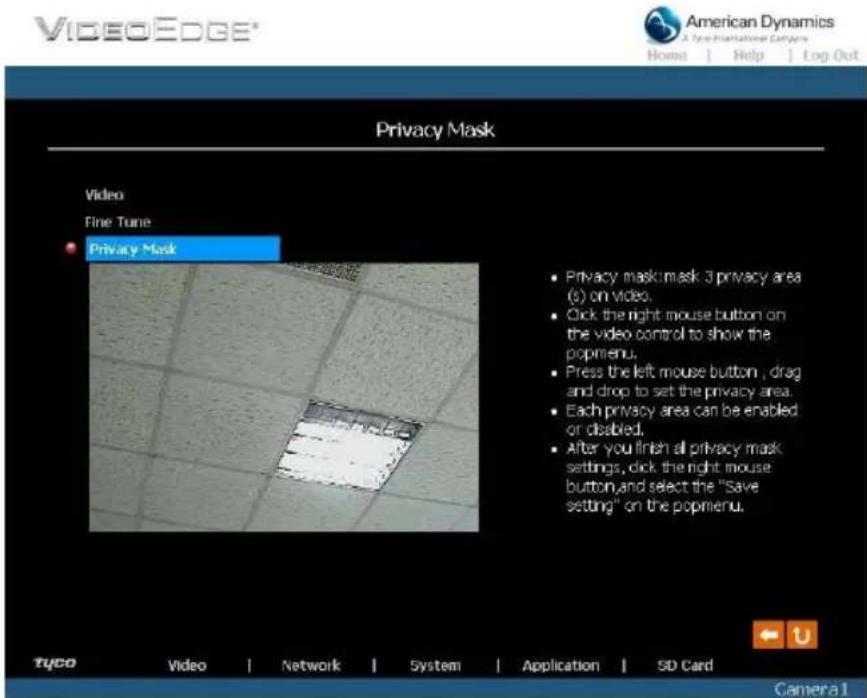

1. Click on the Privacy Mask button to enter the Privacy Mask page.

VideoEdge® American Dynamics A New International Company Home | Help | Log Out Privacy Mask Video Fine Tune Privacy Mask • Privacy mask mask 3 privacy area (s) on video. • Click the right mouse button on the video control to show the popmenu. • Press the left mouse button, drag and drop to set the privacy area. • Each privacy area can be enabled or disabled. • After you finish all privacy mask settings, click the right mouse button, and select the "Save setting" on the popmenu. TYCO Video Network System Application SD Card Camera1

1. Click on the Home button to return to the home page while the new image setting acts on the images to effect the desired changes instantly. (If the setting has not been changed by the above steps, any (re)entry onto the home page will find images in their earlier or original setting.)

Exchange the image format

1. Select one of the formats then press the Submit button.
2. The IP camera will restart automatically after several seconds.

Description of function keys:

MPEG4 mode:

Device Title:	Enter the camera title in the given space.
Resolution:	Scroll to choose the image resolution from “Full D1”, “VGA”, “2 CIF”, “Half VGA”, “CIF” or “QVGA”.
Quality:	Scroll to choose the image quality out of a spectrum of qualities ranging from “highest”, “high”, “medium”, and “low” to “lowest”. In MPEG4 mode, you can also set the quality by typing in the value. The custom quality value must be in the range between 64 Kbps to 8192 Kbps.
Frame rate:	Click on the drop-down list to choose the frame rates of “5FPS”, “10FPS”, “15FPS”, “24FPS” or “(25) 30FPS”.
Format: Click	to choose the “MJPEG” or the “MPEG4” mode.

Fine Tune mode:

White Balance:	Scroll to choose the mode from “Auto”, “Fluorescent (3200K)”, “Indoor (4200K)”, “Outdoor (6500K)”, “Push Hold”.
Flickerless: Mark the	“Flickerless” “ON” or “OFF”. Click your choices to enable.
Mirror: Mark the “Mirror” “ON” or “OFF”. Click your choices to enable.
High Speed Shutter:	Mark the “High Speed Shutter” “ON” or “OFF”. Click your choices to enable.
BLC Mode: Scroll to choose from “Disable”, “Weighted” or “Fixed Gain”.
Backlight:	Select in the backlight level in the blank (0 to 255).
Brightness:	Select your desired quality of image brightness from a spectrum of 0 to 255.
Contrast:	Select the contrast level in the blank (0 to 255).
Saturation:	Select the saturation level in the blank (0 to 255).
Sharpness:	Select the sharpness level in the blank (0 to 255).

MJPEG mode:

Viewer type: Click to choose the viewer type of the “ActiveX” or “AJAX” mode.
MJPEG Deinterlace: Click to choose the MJPEG Deinterlace of the “ON” or “OFF” mode.
Submit: Click to submit the new image setting to the IP camera.
Default:	Click this button to install the default settings in all the entries for image parameters on this page.

Installation & Operation Guide

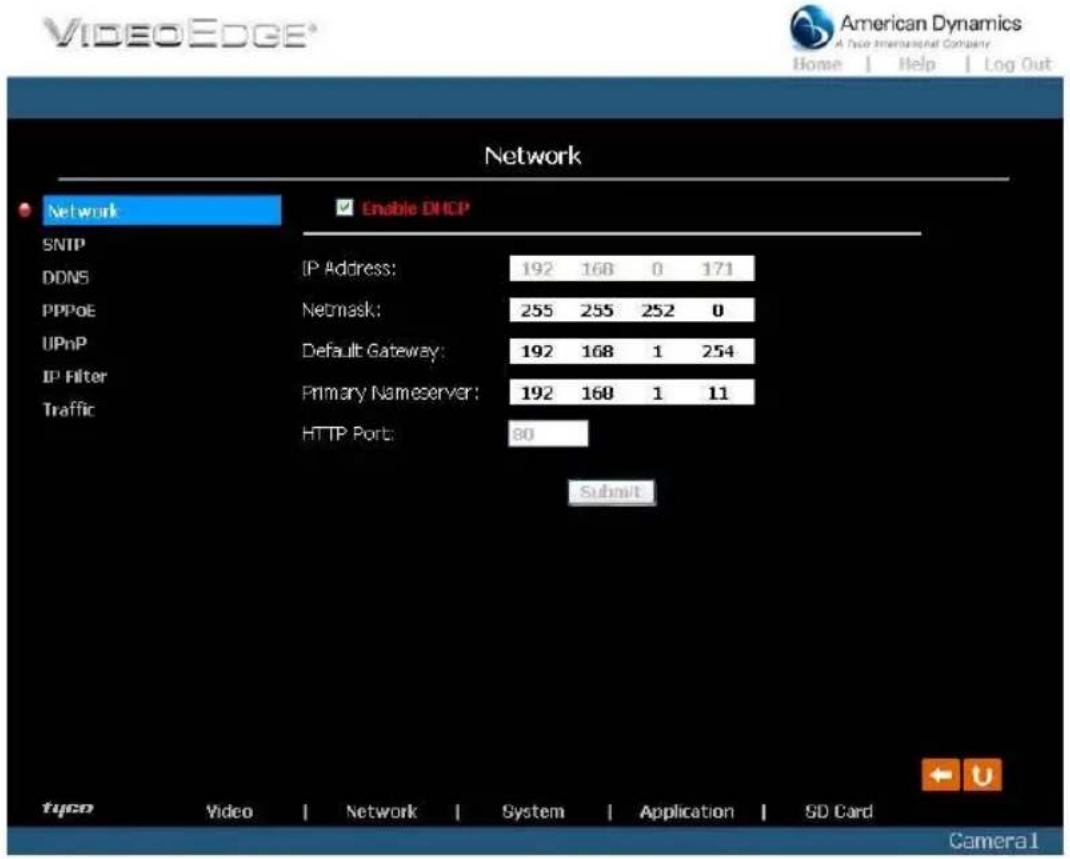

5.1.3 Change the Network Setting

Please follow the steps below to change the network settings through the network as necessary.

- Set the network options and IP address.

1. Click on the Network button in the home page to enter the Network page.

Network Network Enable DHCP SNIP DDNS PPPoE UPnP IP Filter Traffic IP Address: 192 168 0 171 Netmask: 255 255 252 0 Default Gateway: 192 168 1 254 Primary Nameserver: 192 168 1 11 HTTP Port: 80 Submit tyco Video | Network | System | Application | SD Card American Dynamics A Two International Company Home | Help | Log Out Camera1

The accessible networks here are the "FTP" (for PAL only), "SMTP" (for PAL only), "SNTP", "DDNS", "PPPoE", "UPnP" and the "Traffic".

1. When setting the Enable DHCP have not been checkmarked, enter the "IP Address", "Netmask", "Default gateway", "Primary Nameserver", and "HTTP Port" as necessary.
2. Click on the Submit button to submit the new network setting.
3. Click on the Home button to return to the home page.

Description of function keys:

Enable DHCP:	Click “Enable DHCP” to checkmark the attached box and activate the DHCP communication function. If provided with a DHCP server, the IP camera can get an IP address automatically.
IP Address:	Enter the 4-byte IP Address in the appropriate blank space (the value in each box may be anywhere between 0 and 255). Every IP camera has to own an IP address to be identified on the network.
Netmask:	Enter the 4-byte Subnet Mask in the required blank spaces (usually any numbers between 0 and 255). It is used to identify the subnet where the IP camera is sited.
Default Gateway:	Enter the 4-byte Gateway in the relevant blank spaces (each unit value must be between 0 and 255).
Primary Nameserver:	Enter the 4-byte DNS Server Address in the blank spaces provided (each value unit must be between 0 and 255). The DNS Server is in charge of translating the Domain Name into the IP Address.
HTTP Port:	Indicates the specific HTTP Port Number. The default is 80.
Submit:	Click to submit the new network setting to the IP camera.

Installation & Operation Guide

● Change the Network Setting — FTP (MJPEG mode and PAL system only).

Please follow the steps below to change the FTP setting via the network as necessary, to upload recording data live.

1. Click on the FTP button on the top left menu to enter the "FTP Server Setting" page.

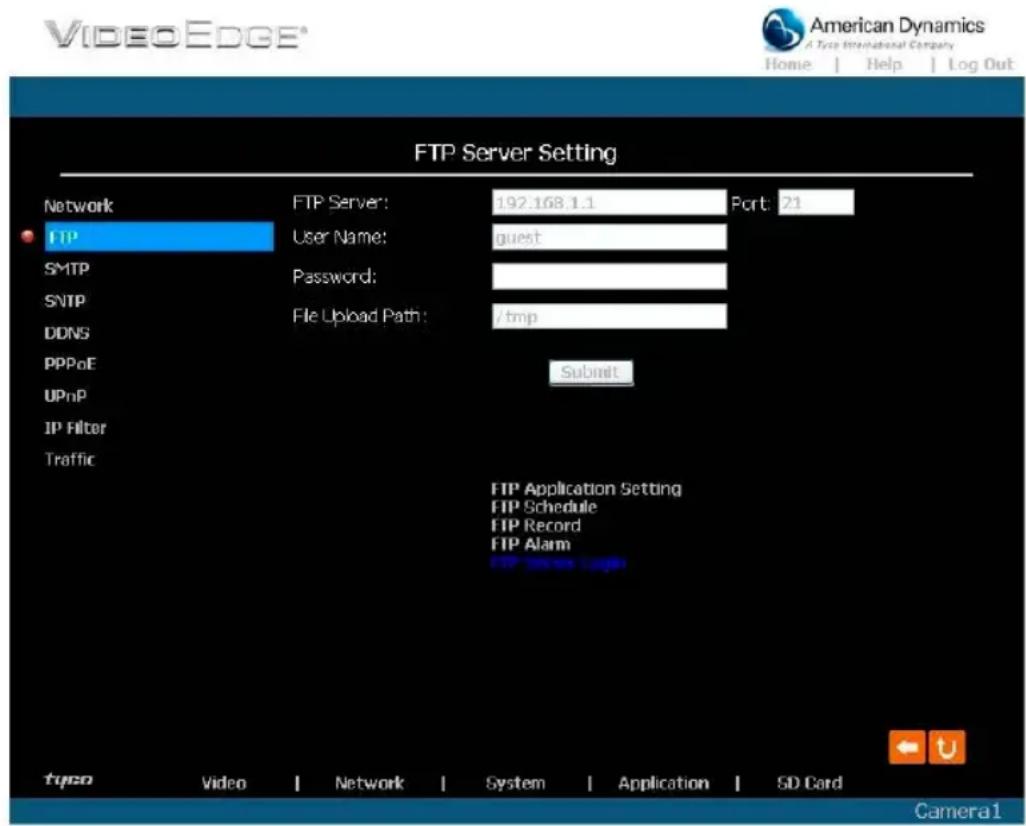

VIDEOEDGE® American Dynamics A Type International Company Home | Help | Log Out FTP Server Setting Network FTP Server: 192.168.1.1 Port: 21 FTP User Name: guest SMTP Password: SNTP File Upload Path: /tmp DDNS PPPoE Submit UPnP IP Filter Traffic FTP Application Setting FTP Schedule FTP Record FTP Alarm FTP Server Logis typeo Video Network System Application SD Card Camera1

1. Enter the "FTP Server" address, the "User Name", and the "Password" of the FTP Server; and set the "File Upload Path" of the image files when necessary.
2. Click on the Submit button to submit the new FTP setting of the recording.
3. Click on the Home button to return to the home page.

Description of function keys:

FTP IP Address:	Enter the FTP server DOMAIN NAME in the appropriate blank space.
User Name:	Enter the FTP login user name in the attached blank space (if the data is not provided, warning messages will show up).
Password: Enter	the FTP login password in the attached blank space (if the space is blank, warning messages will show up).
File Upload Path:	Enter the file upload path while setting the FTP.
Submit: Click to s	submit the new FTP setting to the IP camera.

● Change the Network Setting — SMTP (MJPEG mode and PAL system only).

Please follow the steps below to change the SMTP setting through the network as necessary.

1. Click on the SMTP button on the upper left menu above to enter the "SMTP Server Setting" page.

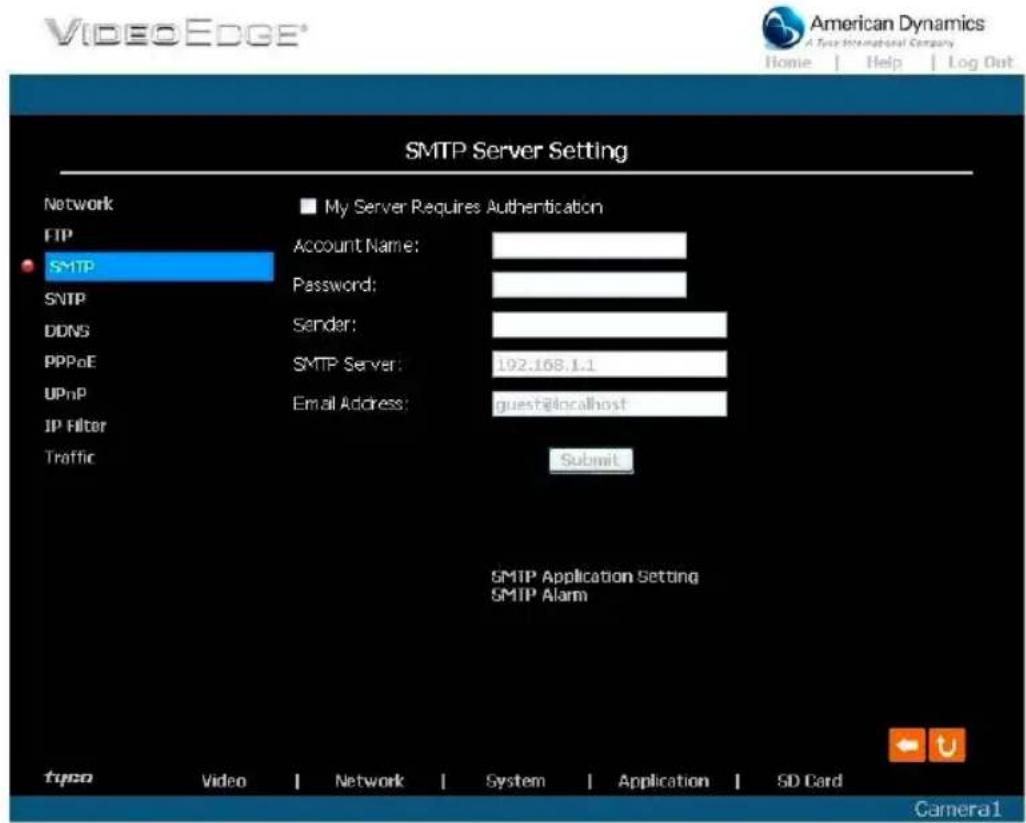

SMTP Server Setting Network FTP SMTP SNTP DDNS PPPoE UPnP IP Filter Traffic My Server Requires Authentication Account Name: Password: Sender: SMTP Server: 192.168.1.1 Email Address: guest@localhost Submit SMTP Application Setting SMTP Alarm typeo Video | Network | System | Application | SD Card American Dynamics A Two International Company Home | Help | Log Out Camera1

1. Click "My Server Requires Authentication" to checkmark the attached box and activate the function.
2. Enter the Sender name, DOMAIN NAME of the SMTP server, and set the recipient's e-mail address if necessary.
3. Click on the Submit button to submit the new SMTP setting.
4. Click on the Home button to return to the home page.

Description of function keys:

Account Name & Password:	Enter the account name and password if you check marked the “My Server Requires Authentication” function.
SMTP Server:	Enter the SMTP server DOMAIN NAME in the given blank space.
Email Address:	The recipient's e-mail address.
Submit:	Click to submit the new SMTP setting to the IP camera.

Installation & Operation Guide

● Change the Network Setting — SNTP.

Please follow the steps below to change the SNTP setting through the network as necessary.

1. Click on the SNTP button on the upper left menu to enter the "SNTP Server Setting" page.

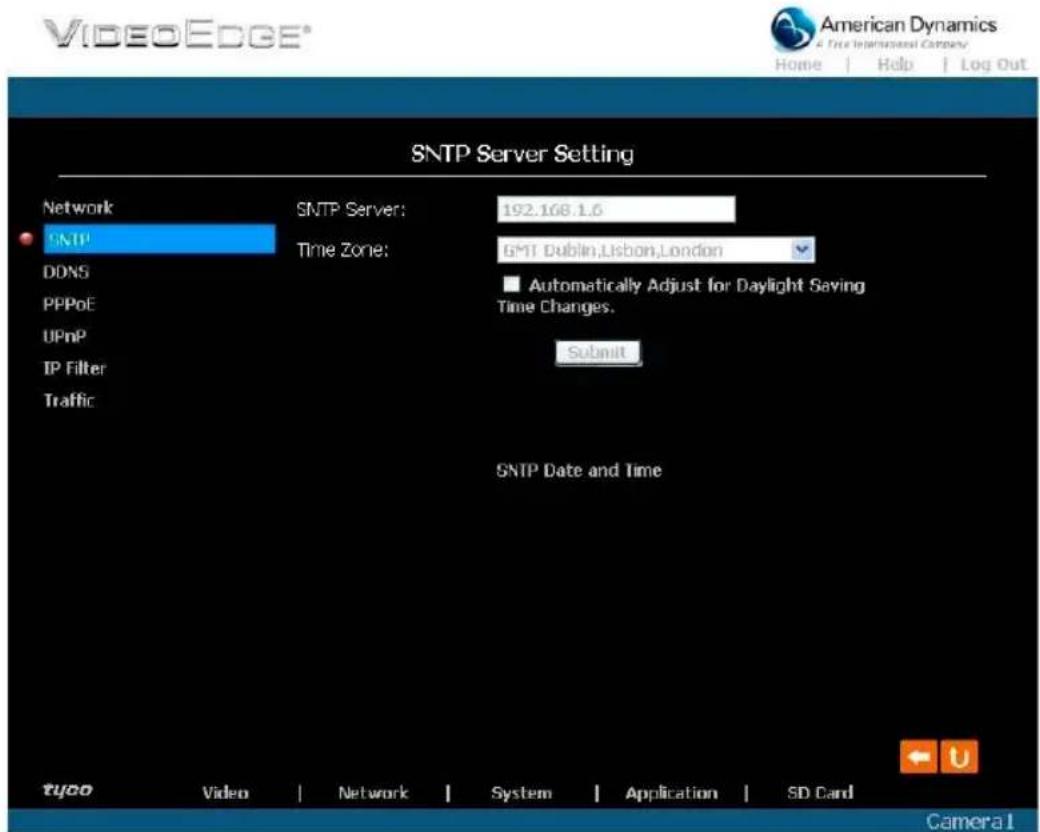

SNTP Server Setting Network SNTP Server: 192.168.1.6 SNTP Time Zone: GMT Dublin,Lisbon,London DDNS PPPoE UPnP IP Filter Traffic Automatically Adjust for Daylight Saving Time Changes. Submit SNTP Date and Time tyco Video Network System Application SD Card American Dynamics The International Company Home Help Log Out Camera 1

1. Enter the IP Address of the SNTP server, and choose one of the time zones as and when necessary.
2. Click "Automatically Adjust for Daylight Saving Time Changes" to checkmark the box and activate the function.
3. Click on the Submit button to submit the new SNTP setting.
4. Click on the Home button to return to the home page.

Description of function keys:

SNTP Server:	Enter the SNTP server DOMAIN NAME in the blank space provided.
Time Zone:	As we know, the globe is divided into various time zones. The user must enter his/her time zone. If this is not done, the time given by the unit may be incorrect.
Submit:	Click to submit the new SNTP setting to the IP camera.

● Change the Network Setting — DDNS.

The "Network" page has, on its upper left, the "DDNS" icon. Please follow the steps below to change the DDNS setting through the network as necessary.

1. Click on the DDNS button on the upper left menu to enter the "DDNS Setting" page.

VIBEOEDGE® American Dynamics A True International Company Home | Help | Log Out DDNS Setting Network ■ Enable DDNS Function: SNTP DDNS PPPoE DDNS Type DynDNS ▼ Apply DDNS Host Name: PPnP DDNS Account: IP Filter DDNS Password: Traffic Submit type Video Network System Application SD Card Camera1

1. Click "Enable DDNS Function" to checkmark the box and activate the function.
2. Click "DDNS Type" to open the list of three DDNS modes to choose from: "DynDNS", "hn", and "adsldns". Click the "Apply" button and connect their website automatically and visit it. Type in your dynamic IP Address and Email Address. If they are accepted by the website, you will get an Email containing your DDNS Account and DDNS Password in your Email box.
3. Enter the "DDNS Host Name", the "DDNS Account" and the "DDNS Password".
4. Click on the Submit button to submit the new setting.
5. Click on the Home button to return to the home page.

NOTE: Please refer to section 5.1.8 (PPPoE & DDNS) for more details.

Installation & Operation Guide

Description of function keys:

Enable DDNS Function:	Checkmark to activate the function.
DDNS Type:	Click to open the list of two DDNS modes to choose from: “DynDNS” and “hn”. Click on the “Apply” button and connect this website automatically and enter it. Enter your dynamic IP Address and Email Address. If they are accepted by the website, you will get an Email containing your DDNS Account and DDNS Password in your Email box.
DDNS Host Name:	Enter your host name in the attached space.
DDNS Account:	Enter it in the given space.
DDNS Password:	Enter it in the required space.
Submit:	Click to set.

The “Network” page has, on its upper left, the “PPPoE” icon. Please follow the steps below to change the PPPoE setting through the network as necessary.

1. Click on the PPPoE button on the upper left menu to enter the "PPPoE Setting" page.

VIDEOEDGE® American Dynamics A Type International Company Home | Help | Log Out PPPoE Setting Network SNTP DDNS PPPoE UPnP IP Filter Traffic PPPoE is inactive. PPPoE Mode: OFF Account: Password: Submit All PPPoE settings take effect after power cycling the camera. tyoD Video | Network | System | Application | SD Card Camera1

1. Please read the "PPPoE Troubleshooting" document first, then press "Close' button.
2. Click on the "PPPoE Mode" to activate the function.
3. Enter the PPPoE "Account" and the PPPoE "Password".
4. Click on the Submit button to submit the new setting.
5. Click on the Home button to return to the home page.

NOTE: Please refer to section 5.1.8 (PPPoE & DDNS) for more details.

Description of function keys:

PPPoE mode:	Click your choices to enable the PPPoE function.
Account:	Enter it in the given space.
Password:	Enter it in the required space.
Submit:	Click to set.

Installation & Operation Guide

● Change the Network Setting —UPnP.

The “Network” page has, on its upper left, the “UPnP” icon. Please follow the steps below to change the UPnP setting through the network as necessary.

1. Click on the UPnP button on the upper left menu to enter the "Universal Plug and Play" page.

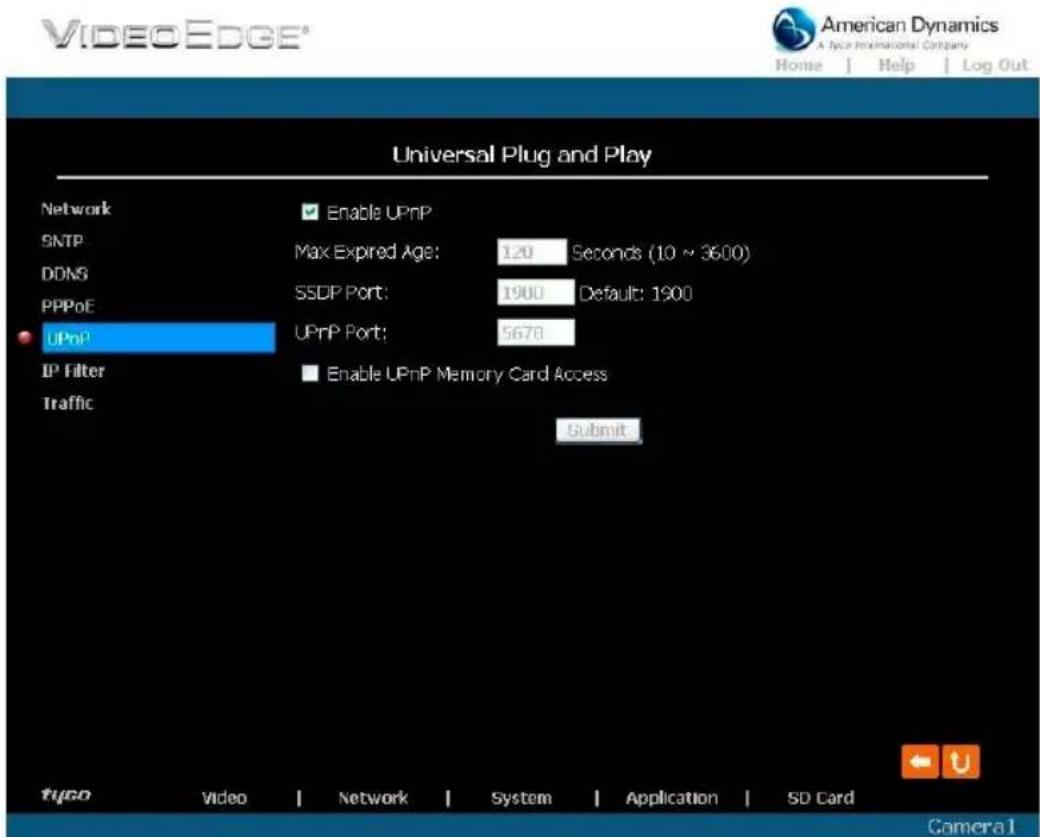

VIDEOEDGE® American Dynamics A New International Company Home | Help | Log Out Universal Plug and Play Network SNTP DDNS PPPoE UPnP IP Filter Traffic Enable UPnP Max Expired Age: 120 Seconds (10 ~ 3600) SSDP Port: 1900 Default: 1900 UPnP Port: 5678 Enable UPnP Memory Card Access Submit tygo Video Network System Application SD Card Camera1

1. Click "Enable UPnP" to checkmark the attached box and activate the function.
2. Enter the UPnP "Max Expired Age", the "SSDP Port" and the "UPnP Port".
3. Click "Enable UPnP Memory Card Access" to checkmark the box and activate the function.
4. Click on the Submit button to submit the new setting.
5. Click on the Home button to return to the home page.

Description of function keys:

Max Expired Age:	Enter it in the given space from a range of 10~3600.
SSDP Port:	SSDP stands for Simple Service Discovery Protocol. SSDP searches for upstream Internet gateways using UDP port 1900.
UPnP Port:	Enter the UPnP Port in the attached space.
Submit:	Click to set.

The “Network” page has, on its upper left, the “IP Filter” icon. Please follow the steps below to change the IP Filter setting through the network as necessary.

1. Click on the IP Filter button on the upper left menu to enter the "Network Setting" page.

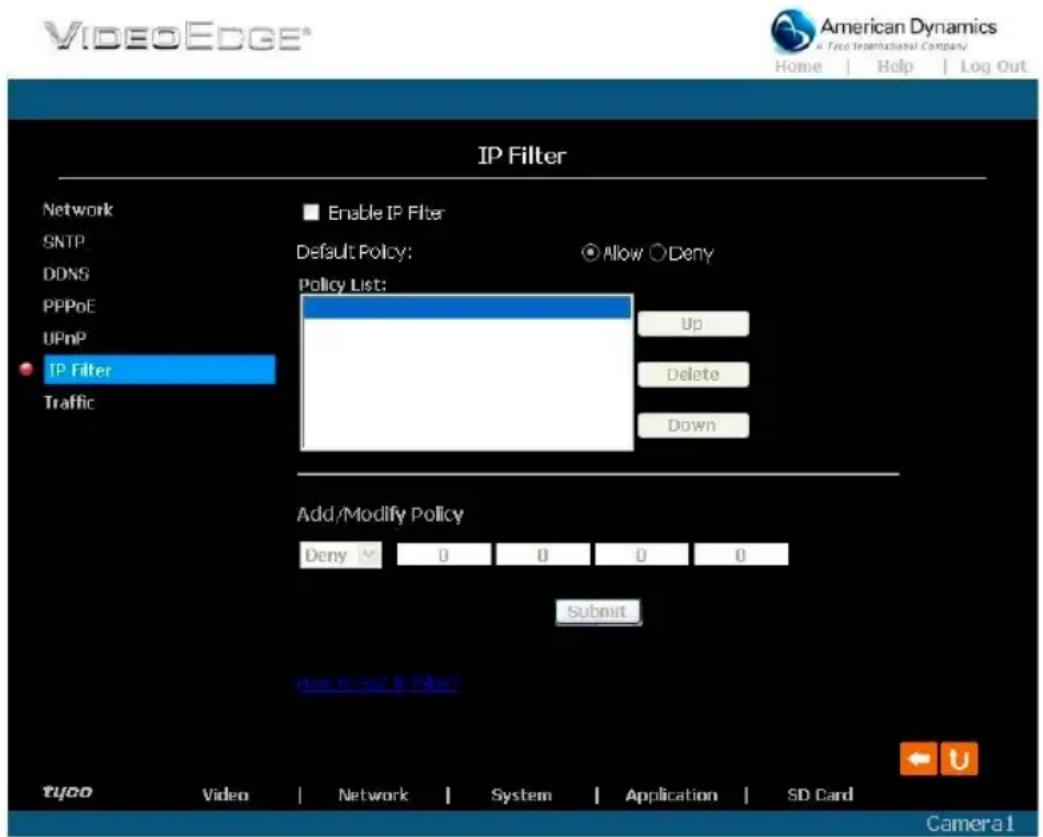

VIDEOEDGE® Home | Help | Log Out IP Filter Network SNTP DDNS PPPoE UPnP IP Filter Traffic Enable IP Filter Default Policy: Allow O Deny Policy List: Up Delete Down Add/Modify Policy Deny 0 0 0 0 Submit How to Set IP Files? tyco Video | Network | System | Application | SD Card American Dynamics A Free International Company Camera1

1. Click "Enable IP Filter" to checkmark the attached box and activate the function.
2. Select the Default policy.
3. Set the Allow/Deny IP Filter policy and enter its IP address.

After setting the policies, they will be shown on the Policy List. The user can use the "Up" or "Down" to select a policy and use the "Delete" button to erase it.

1. Click on the Submit button to submit the new setting.

2. Click on the Home button to return to the home page.

NOTE: The settings of the IP Filter must be correct or you may not able to operate the device regularly. If the IP Filter has been incorrectly set up and you can't access the device normally, please press the "Default" button on the rear panel of the camera to return to the factory default setting.

Installation & Operation Guide

● Change the Network Setting —Network Traffic.

The “Network” page has, on its upper left, the “Traffic” icon. Please follow the steps below to change the UPnP setting through the network as necessary.

1. Click on the Traffic button on the upper left menu to enter the "Network Traffic" page.

Network Traffic Network SNTP DDNS PPPoE UPnP IP Filter Traffic Specifying the maximum download/ upload bandwidth for each socket is useful when connecting your device to a busy or heavily loaded network. Maximum Upload Bandwidth: Maximum Download Bandwidth: 0 KBps (0 ~ 102400 ) 0 KBps (0 ~ 102400 ) Submit * The value '0' means it will not monitor any traffic. type Video Network System Application SD Card American Dynamics 4 Tyco International Company Home | Help | Log Out Camera1

1. Enter in the "Maximum Upload Bandwidth" and the "Maximum Download Bandwidth".

2. Click on the Submit button to submit the new setting.

3. Click on the Home button to return to the home page.

Description of function keys:

Maximum Upload Bandwidth:	Enter it in the given space from a range of 0 to 102400.
Maximum Download Bandwidth:	Enter it in the required space from a range of 0 to 102400.
Submit:	Click to set.

5.1.4 Change the System Setting

Please follow the steps below to change the date and time of the system setting through the network as necessary.

- Set the Date and Time of the system

1. Click on the System button in the home page to enter the "Date and Time" page (default).

Date and Time Date and Time The Local Time Timestamp Date: 03/13/2009 Time: 13:55:14 Users The Desired Time Digital I/O Update Date: 03 / 13 / 2009 (MM/DD/YYYY) Events Time: 14 : 02 : 46 (HH:MM:SS) Synchronize with Computer Time Date: 03/13/2009 Time: 14:02:10 Synchronize with SNTP Server SNTP Server: 192.168.1.6 Time Zone: GMT+00 GMT, Dublin, Edinburgh, London, Lisbon, Monrovia, Casablanca Manual Frequency Every never Time Format: MM/DD/YYYY Submit typeo Video | Network | System | Application | SD Card American Dynamics A Tree International Company Home | Help | Log Out Camera1

1. Choose one of the three modes shown on the page to set the Date and Time of the system. The three modes are "Set Manually", "Synchronize With Computer Time", and "Synchronize With SNTP Server".

2. Click on the Submit button to submit the new Date and Time settings.

3. Click on the Home button to return to the home page.

Description of function keys:

The Local Time:	Shows the current date and time of the IP camera.
Set Manually:	Manually sets the date and time of the IP camera.
Synchronize With Computer Time:	Synchronizes with the linking computer.
Synchronize With SNTP Server:	Synchronizes with the SNTP server. In this mode, two choices of adjusting are provided: doing it manually or setting the frequency to enable the system to do it automatically.
Submit:	Click to submit the new setting to the IP camera.

Installation & Operation Guide

● Change the System Setting — Timestamp.

Please follow the steps below to change/add the timestamp through the network as necessary.

1. Click on the Timestamp button on the left side of the "System - Date and Time" page to enter the "System - Timestamp" page.

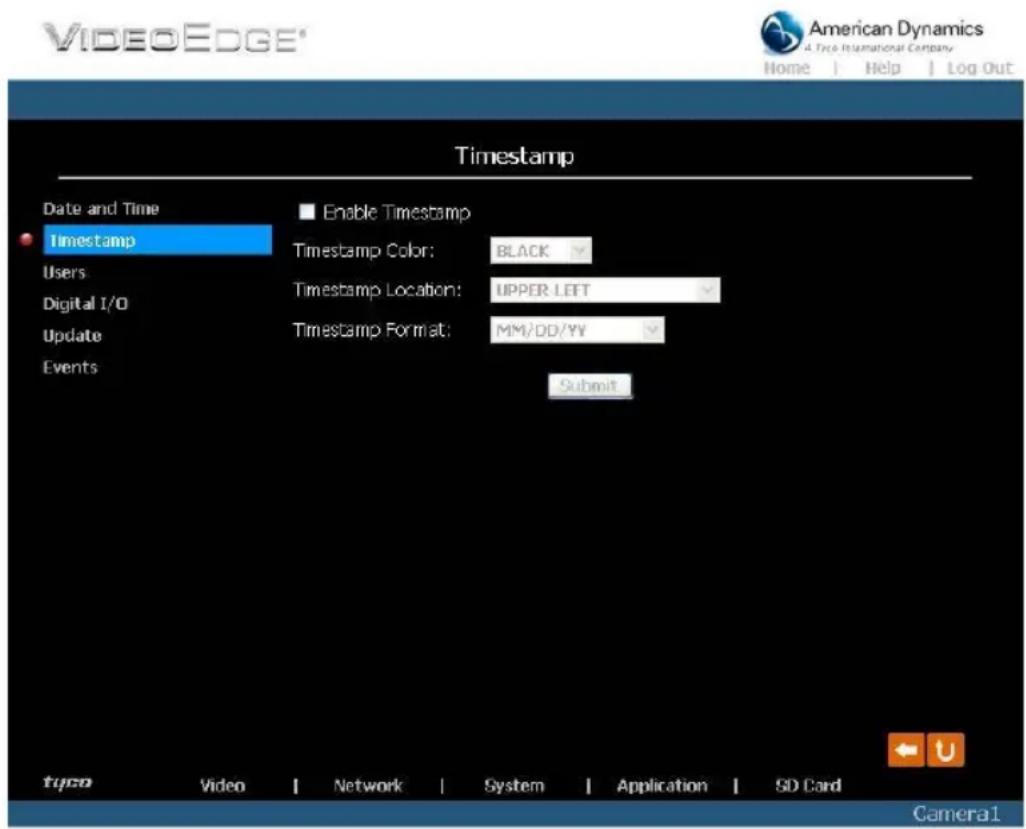

American Dynamics 4.2.1a International Company Home | Help | Log Out Timestamp Date and Time ■ Enable Timestamp Timestamp Users Digital I/O Update Events Timestamp Color: BLACK Timestamp Location: UPPER LEFT Timestamp Format: MM/DD/YY Submit type Video Network System Application SD Card Camera1

1. Click "Enable Timestamp" to checkmark the attached box and activate the function
2. Add or modify any timestamp's data as necessary.
3. Enter the "Timestamp Color" you have chosen.
4. Enter the "Timestamp Location" you have chosen.
5. Enter the "Timestamp Format" you have chosen.
6. Click on the Submit button to submit the new user's setting.
7. Click on the Home button to return to the home page.

Description of function keys:

Enable Timestamp:	Checkmark to activate the function.
Timestamp Color:	Click to open the list of eight color modes to choose from: “BLACK”, “WHITE”, “RED”, “ORANGE”, “YELLOW”, “GREEN”, “BLUE”, and “PURPLE”.
Timestamp Location:	Click to open the list of four location modes to choose from: “UPPER LEFT”, “UPPER RIGHT”, “BOTTOM LEFT”, and “BOTTOM RIGHT”.
Timestamp Format:	Click to open the list of six format modes to choose from: “YY/MM/DD”, “MM/DD/YY”, “DD/MM/YY”, “YY/MM/DD TITLE”, “MM/DD/YY TITLE”, and “DD/MM/YY TITLE”.
Submit:	Click to set.

● Change the System Setting — Users.

Please follow the steps below to change/add the users' authority through the network as necessary.

1. Click on the Users button on the left side of the "Date and Time" page to enter the "Users" page.

VIDEOEDGE® American Dynamics A Free International Company Home | Help | Log Out Users Date and Time Timestamp Users Digital I/O Update Events User List: admin:Admin Delete User Add/Modify User User Name: Password: Confirm: Authority: • Admin • Operator • Viewer Submit typeo Video | Network | System | Application | SD Card Camera1

1. Add, modify or delete any user's data as necessary.
2. Click on the Submit button to submit the new user's settings.
3. Click on the Home button to return to the home page.

Description of function keys:

User List: The list shows the registered user(s) and the corresponding authority.
Delete: Deletes a selected user.
Name:	Enter the user's name, which will be added or modified.
Password:	Enter the new password of the user's name above.
Confirm: Enter the password again for verification.
Authority:	Choose an authority option of the user's name from: Admin, Operator, and Viewer.
Submit: Click to submit the new setting to the IP camera.

Installation & Operation Guide

● Change the System Setting — Digital I/O.

Please follow the steps below to change the Digital I/O through the network as necessary.

1. Click on the Digital I/O button on the left side of the "Date and Time" page to enter the "Digital I/O Setting" page.

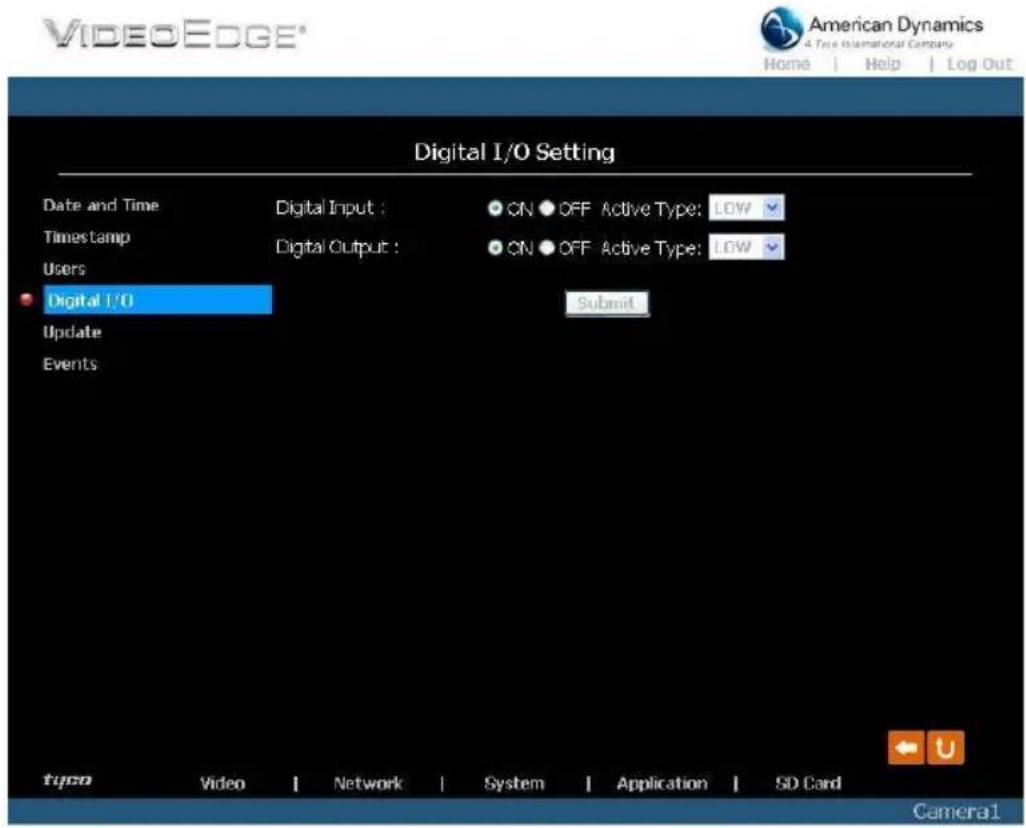

VIDEOEDGE® Home | Help | Log Out Digital I/O Setting Date and Time Digital Input : ON OFF Active Type: LOW Timestamp Digital Output : ON OFF Active Type: LOW Users Digital I/O Submit Update Events typeo Video | Network | System | Application | SD Card American Dynamics 4 Two International Company Camera1

1. Mark the "Digital Input" "ON" or "OFF" and the "Digital Output" "ON" or "OFF". Click your choices to enable.
2. Click on the Submit button to submit the new user's settings.
3. Click on the Home button to return to the home page.

Description of function keys:

Digital Input:	Select “ON” or “OFF” to use the GPIO connector or shut it down.
Digital Output:	Select “ON” or “OFF” to use the GPIO connector or deactivate it.

- Change the System Setting — Update Firmware.

Please follow the steps below to update the firmware through the network as necessary.

1. Click on the Update Firmware button on the left side of the "Date and Time" page to enter the "Update Firmware" page.

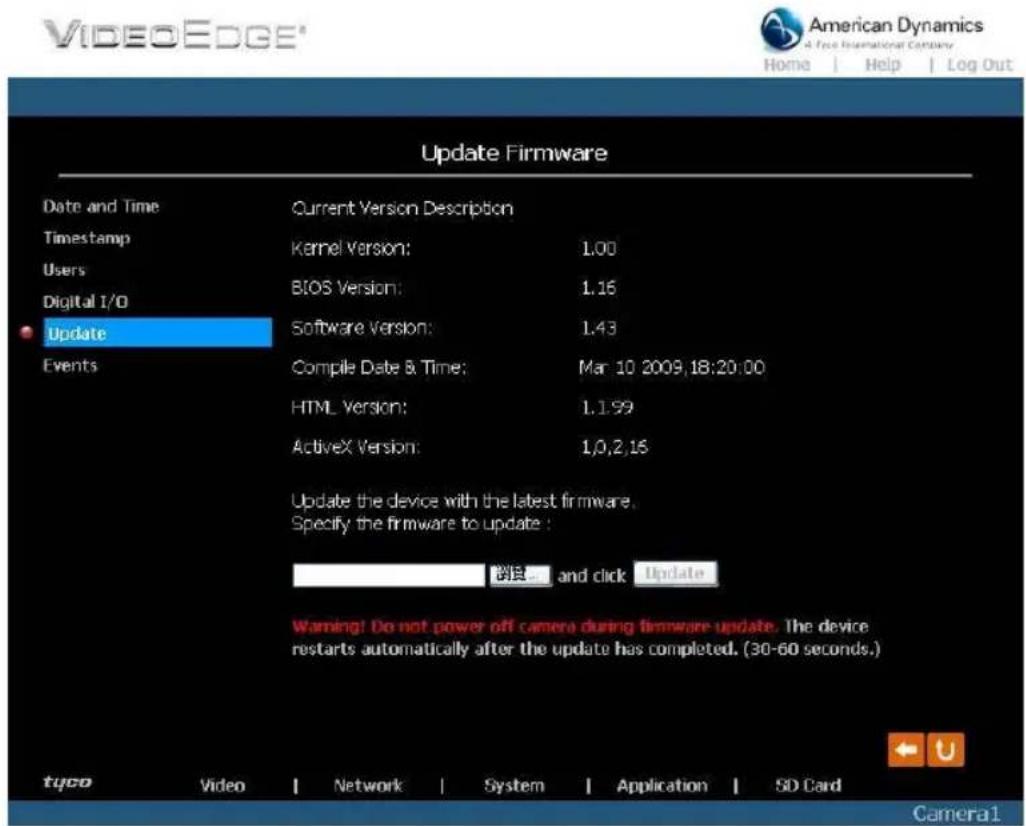

Update Firmware Date and Time Current Version Description Timestamp Kernel Version: 1.00 Users BIOS Version: 1.16 Digital I/O Update Software Version: 1.43 Events Compile Date & Time: Mar 10 2009,18:20:00 HTML Version: 1.199 ActiveX Version: 1,0,2,16 Update the device with the latest firmware. Specify the firmware to update : 浏览...and click Update Warning! Do not power off camera during firmware update. The device restarts automatically after the update has completed. (30-60 seconds.) typeo Video Network System Application SD Card American Dynamics 4 Free International Company Home Help Log Out Camera1

1. Click on the "Browse..." button to select the UPDATE.BIN file which was copied into your computer.
2. Click on the "Update" button.

NOTE: DO NOT power off the IP camera during firmware update.

NOTE: Don't interrupt the process while the unit is updating itself.

NOTE: Please make sure that the UPDATE.BIN file is appropriate to the model of the unit.

Updating with the wrong UPDATE.BIN file may cause physical damage to the device.

NOTE: The Temporary Internet Files (or cache) folder contains Web page content that is stored on your hard disk for quick viewing. We suggest deleting the Temporary Internet Files immediately after updating the firmware. To delete the files in the Temporary Internet Files folder, follow these steps:

1. Quit Internet Explorer and quit any instances of Windows Explorer.
2. Click Start, click Control Panel, and then double-click Internet Options.
3. On the General tab, click Delete Files under Temporary Internet Files.
4. Select the Delete all offline content check box in the Delete Files dialog box, and then click OK.
5. Click OK.

Installation & Operation Guide

• View the Event Logs.

Please follow the steps below to view events through the network as necessary.

1. Click on the Events button on the upper left menu to enter the "Event Log" page.

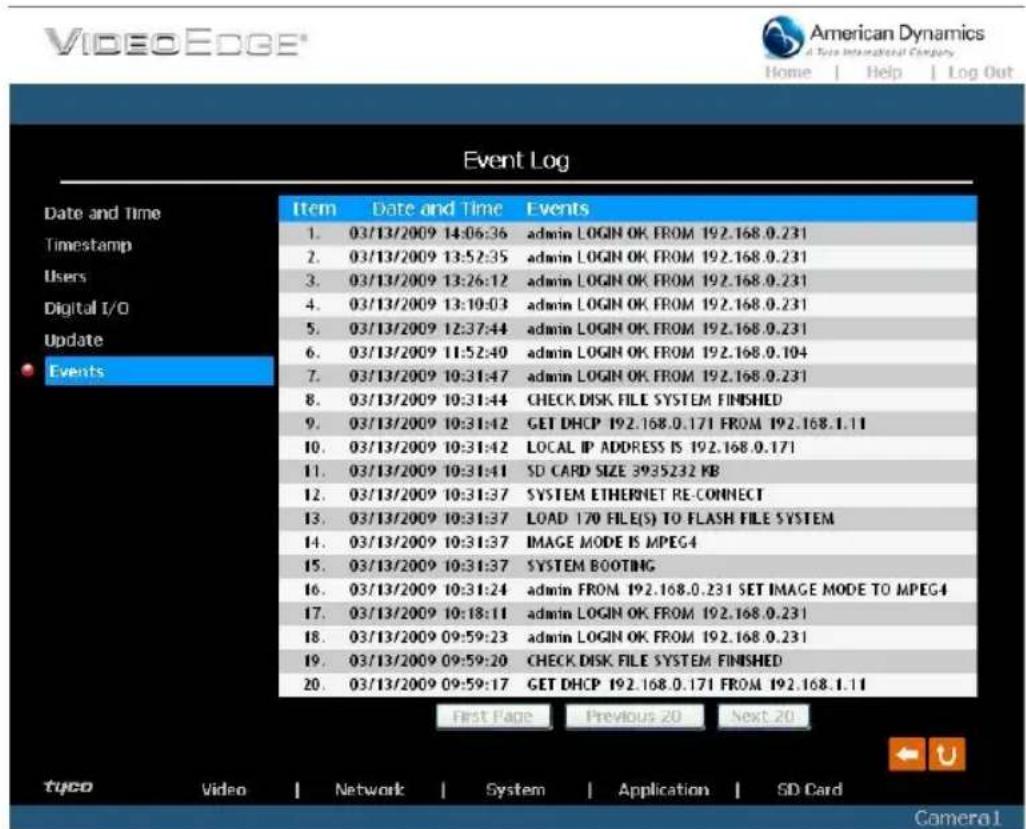

American Dynamics a Tui International Company Home | Help | Log Out Event Log Date and Time Timestamp Users Digital I/O Update Events Item Date and Time Events 1. 03/13/2009 14:06:36 admin LOGIN OK FROM 192.168.0.231 2. 03/13/2009 13:52:35 admin LOGIN OK FROM 192.168.0.231 3. 03/13/2009 13:26:12 admin LOGIN OK FROM 192.168.0.231 4. 03/13/2009 13:10:03 admin LOGIN OK FROM 192.168.0.231 5. 03/13/2009 12:37:44 admin LOGIN OK FROM 192.168.0.231 6. 03/13/2009 11:52:40 admin LOGIN OK FROM 192.168.0.104 7. 03/13/2009 10:31:47 admin LOGIN OK FROM 192.168.0.231 8. 03/13/2009 10:31:44 CHECK DISK FILE SYSTEM FINISHED 9. 03/13/2009 10:31:42 GET DHCP 192.168.0.171 FROM 192.168.1.11 10. 03/13/2009 10:31:42 LOCAL IP ADDRESS IS 192.168.0.171 11. 03/13/2009 10:31:41 SD CARD SIZE 3935232 KB 12. 03/13/2009 10:31:37 SYSTEM ETHERNET RE-CONNECT 13. 03/13/2009 10:31:37 LOAD 170 FILE(S) TO FLASH FILE SYSTEM 14. 03/13/2009 10:31:37 IMAGE MODE IS MPEG4 15. 03/13/2009 10:31:37 SYSTEM BOOTING 16. 03/13/2009 10:31:24 admin FROM 192.168.0.231 SET IMAGE MODE TO MPEG4 17. 03/13/2009 10:18:11 admin LOGIN OK FROM 192.168.0.231 18. 03/13/2009 09:59:23 admin LOGIN OK FROM 192.168.0.231 19. 03/13/2009 09:59:20 CHECK DISK FILE SYSTEM FINISHED 20. 03/13/2009 09:59:17 GET DHCP 192.168.0.171 FROM 192.168.1.11 First Page Previous 20 Next 20 tyco Video Network System Application SD Card Camera

1. Choose one of the three buttons shown on the page to view an event when necessary. The three buttons are titled "First Page", "Previous 20", and "Next 20".

Description of function keys:

First Page:	Displays the first page.
Previous 20:	Displays the previous 20 pages.
Next 20:	Displays the next 20 pages.

5.1.5 Change the Application Setting

Please follow the steps below to change the application setting through the network as necessary.

● Change the Application Setting — FTP Application Setting (MJPEG mode only).

Please follow the steps below to change the FTP setting via the network, as necessary, to upload recording data live. (*FTP function is for PAL version only.)

1. Click on the Application button on the home page to enter the "FTP Application Setting" page (default).

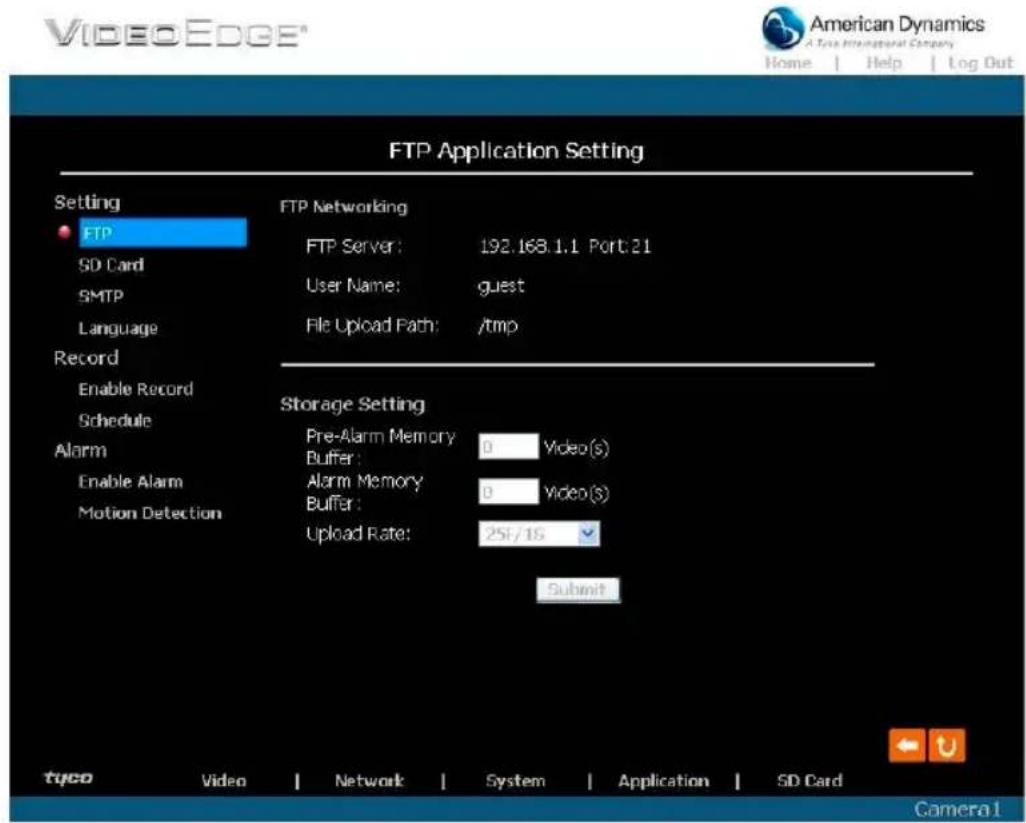

FTP Application Setting Setting FTP SD Card SMTP Language Record Enable Record Schedule Alarm Enable Alarm Motion Detection FTP Networking FTP Server: 192.168.1.1 Port:21 User Name: guest File Upload Path: /tmp Storage Setting Pre-Alarm Memory Buffer: 0 Video(s) Alarm Memory Buffer: 0 Video(s) Upload Rate: 25F/18 Submit tyco Video | Network | System | Application | SD Card American Dynamics A Tota International Company Home | Help | Log Out Camera1

1. Enter the required number of images you wish to set in "Pre - Alarm Memory Buffer" and "Alarm Memory Buffer respectively" in their corresponding blank spaces, within the storage setting.

2. Enter the "Upload Rate" you have chosen.

3. Click "Submit" after each of the above entries for their settings.

4. Click on the "Home" button to return to the home page.

Description of function keys:

Pre – Alarm Memory Buffer:	Fixes the desired number of images to prelude an alarm.
Alarm Memory Buffer:	Determines the selected length of the image buffer after an alarm.
Upload Rates:	Sets the upload speed rate.

Installation & Operation Guide

● Change the Application Setting — SD Card Application Setting.

Please follow the steps below to change the SD CARD setting via the network, as necessary, to upload recording data live.

1. Click on the SD card button on the top left to enter the "SD Card Application Setting" page.

VideoEdge® American Dynamics Agrarot | Help | Log Out VideoEdge® American Dynamics Agrarot | Help | Log Out SD Card Application Setting Setting SD Card Language Record Enable Record Schedule Alarm Enable Alarm Motion Detection SD Card Storage Format Selection MIPEG Format Max MIPEG Numbers: 10 (Each JPEG Per Second) AVI Format Recording Rate: 2.967 GB AVI Duration: 1 Second(s) Enable SD Card Rewrite SD Card Capacity: 3.75 GB SD Card Usage: 2 GB Storage Disk Format: SD format Video | Network | System | Application | SD Card Camera1 SD Card Application Setting Setting SD Card Language Record Enable Record Schedule Alarm Enable Alarm Motion Detection SD Card Storage Format Selection AVI Format Recording Rate: AVI Rate AVI Duration: Second(s) Enable SD Card Rewrite SD Card Capacity: 3.75 GB SD Card Usage: 2 GB Storage Disk Format: SD format Video | Network | System | Application | SD Card Camera1

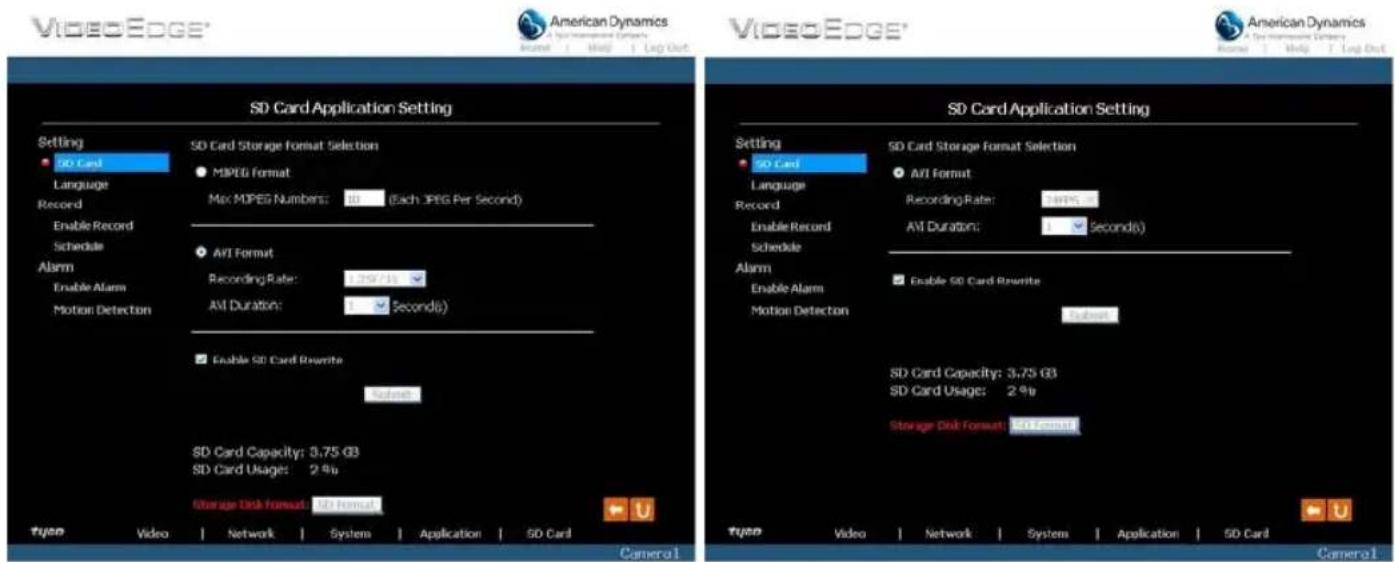

SD Card setting page of MJPEG mode SD Card setting page of MPEG4 mode

You can choose which SD card storage format to use, MJPEG (MJPEG mode only) or AVI.

1. Click on your selected format and "Submit" to set it.
2. Enter "Max MJPEG Numbers" entry if it's MJPEG format.
3. Enter its recording rate and duration in seconds, and click "Submit" for their setting if AVI is your choice.

Description of function keys:

MJPEG Format:	One image per file.
Max MJPEG Numbers:	Sets the number of file sequences you can save per second.
AVI Format:	Unlike a single image file, this option offers a selected section of a video record.
Recording Rate:	Sets your chosen frame rate of frames per second.
AVI Duration:	Predetermines the length of each video file in terms of seconds.
Enable SD Card Rewrite:	Tick to activate the SD card rewrite function.
SD Card Capacity:	The free capacity of the SD card.
SD Card Usage:	The percentage of the recorded file on the SD card.
SD Format:	Click and press the Yes button to format the SD card.

- Change the Application Setting —SMTP Application Setting (MJPEG mode and PAL system only).

Please follow the steps below to change the SMTP setting via the network as necessary.

1. Click on the SMTP button on the left side to enter the "SMTP Application Setting" page.

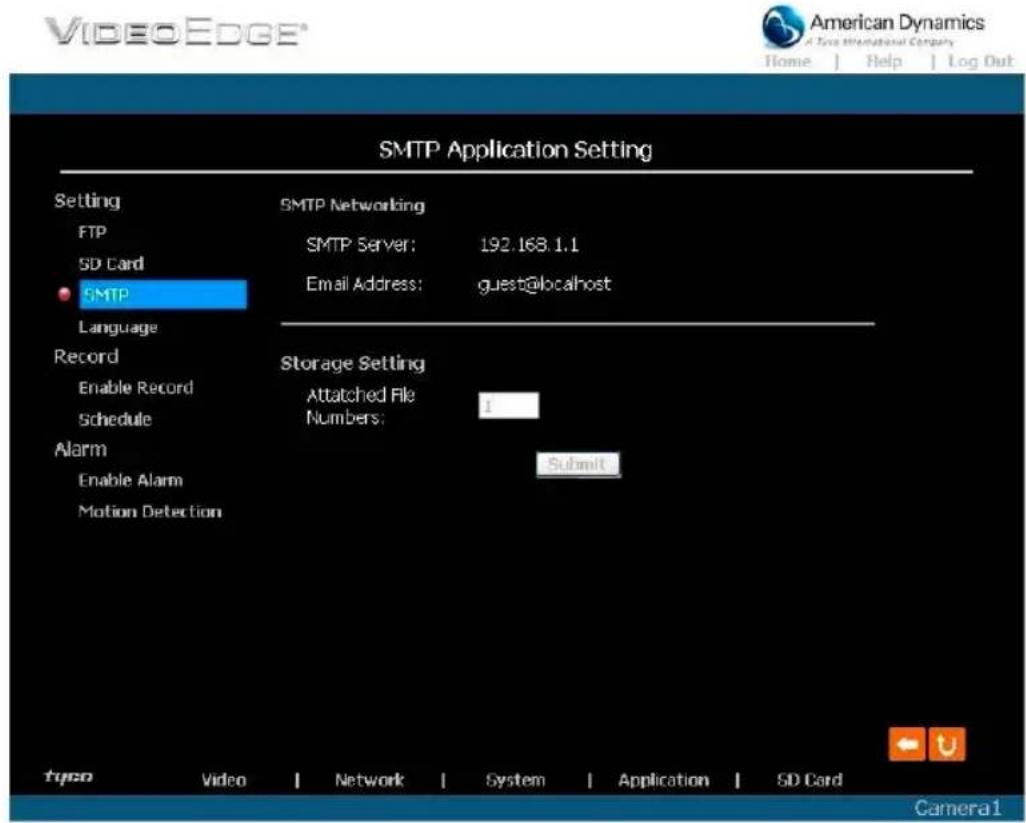

SMTP Application Setting Setting FTP SD Card SMTP Language Record Enable Record Schedule Alarm Enable Alarm Motion Detection SMTP Networking SMTP Server: 192.168.1.1 Email Address: guest@localhost Storage Setting Attached File Numbers: Submit type Video Network System Application SD Card American Dynamics Tos International Company Home Help Log Out Camera1

1. Enter the attached file number as and when necessary. The maximum number which can be used is 8.
2. Click on the Submit button to submit the new SMTP setting of the recording.
3. Click on the Home button to return to the home page.

Description of function keys:

File numbers:

Sets the quantity of images per Email.

Installation & Operation Guide

- Change the Application Setting —Language Setting.

Please follow the steps below to change the Language setting via the network as necessary.

1. Click on the Language button on the left side to enter the "Language Setting" page.

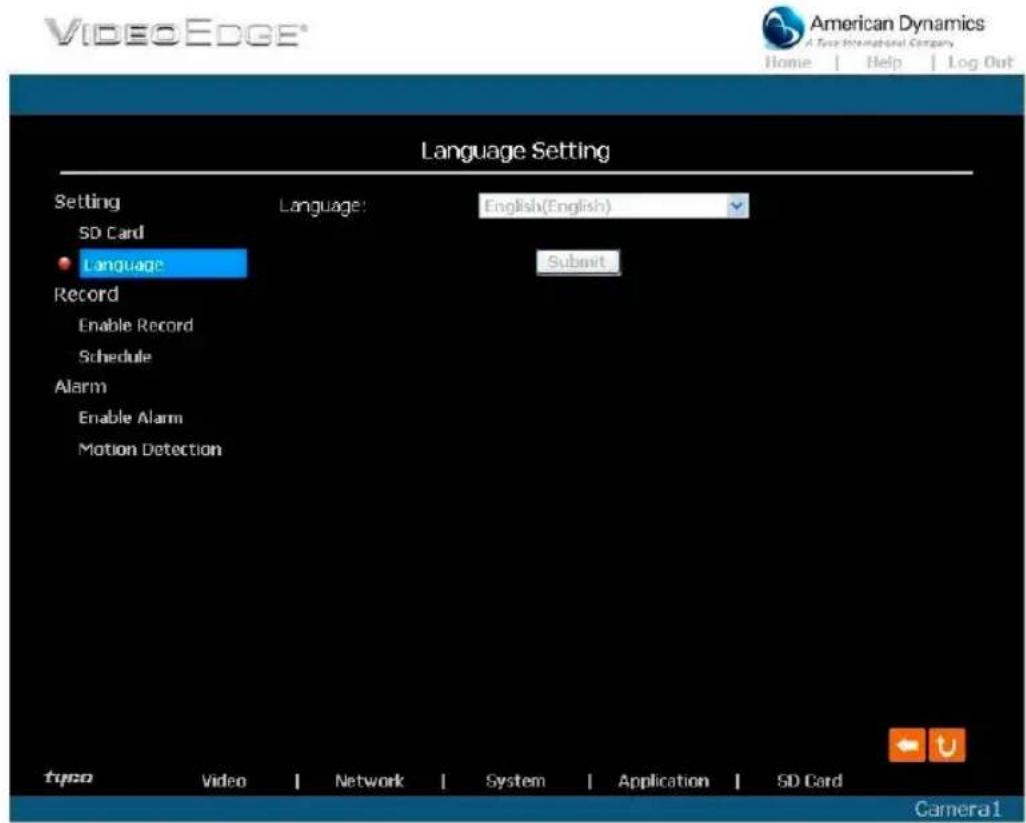

VideoEDGE® American Dynamics A Two International Company Home | Help | Log Out Language Setting Setting SD Card Language: Language: English(English) Record Enable Record Schedule Alarm Enable Alarm Motion Detection Submit type Video Network System Application SD Card Camera1

You have an option as to which language to use. The default is "English"

1. Choose your selected language and click "Submit" to set it.

● Change the Application Setting — Record Application Enable Setting.

Please follow the steps below to change the setting via the network as necessary.

1. Click on the Enable Record button on the left side of the record to enter the "Record Application Enable Setting" page.

VideoEdge® American Dynamics ViceE Edge® American Dynamics ViceE Edge® Record Application Enable Setting Setting ■ Enable Record - Upload Via FIP FIP ■ Enable Record - Save Into 50 Card SD Card SMIP Language Record ■ Enable Record Schedule Alarm Enable Alarm Motion Detection Typeo Video Network System Application SD Card Camera1 Record Application Enable Setting Setting ■ Enable Record - Save Into 50 Card SD Card Language Record ■ Enable Record Schedule Alarm Enable Alarm Motion Detection Typeo Video Network System Application SD Card Camera1

Record setting page of MJPEG mode Record setting page of MPEG4 mode

1. Click "Enable Record – UPLOAD Via FTP" to checkmark the box and activate the function (in the MJPEG mode and PAL system only).
2. Click "Enable Record – Save Into SD card" to checkmark the box and activate the function.
3. Click on the Submit button to submit the new setting of the recording.
4. Click on the Home button to return to the home page.

Description of function keys:

Enable Record – Upload Via FTP:	Activates or deactivates the recording to the FTP server.
Enable Record – Save Into SD Card:	Activates or deactivates the recording to the SD card.

Installation & Operation Guide

● Change the Application Setting — Record - Schedule.

1. Click on the Application button on the home page to enter the "Schedule" page.

VIDEOEDGE® American Dynamics A Tyc International Company Home | Help | Log Out Schedule Setting SD Card Language Record Enable Record Schedule Alarm Enable Alarm Motion Detection 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SUN MON TUE WED THU FRI SAT Submit Remove All Schedules Tyco Video Network System Application SD Card Camera1

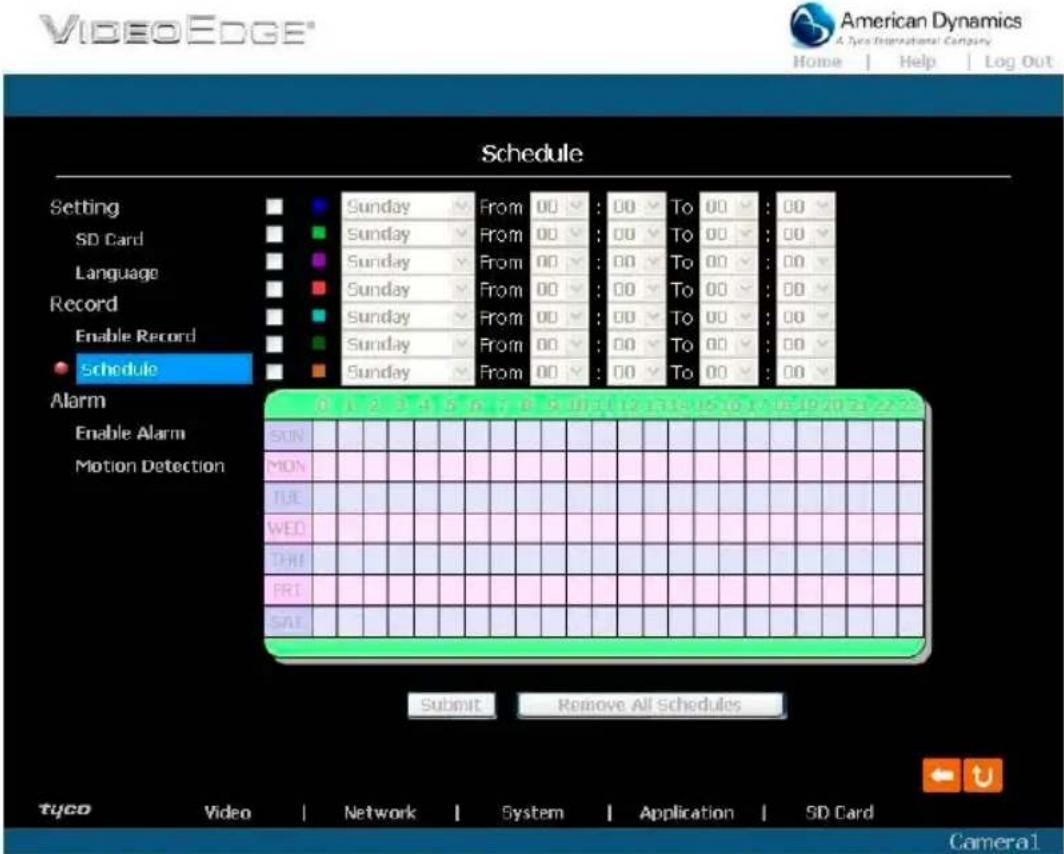

1. Check/uncheck any/all of the first seven boxes set vertically in the upper half of the "Schedule" page to enable/disable the programmed recording function, and vary the setting of the targeted item while it is enabled.

2. Click on the Submit button to submit the new schedule setting.

3. Click on the Remove All Schedules button to clear out all the data of the schedule setting.

Description of function keys:

Schedule:	Check / uncheck the first seven boxes in a vertical row on the left to enable/disable the programmed scheduled recording function as necessary. Vary any of the schedules of the recording setting as necessary (please refer to the above description).
Chart:	Schedule list.
Submit:	Click to submit the new setting to the IP camera.
Remove All Schedules:	Click to clear out all the data of the schedule setting.

Please follow the steps below to change the setting via the network if necessary.

1. Click on the Enable Alarm button on the left side of the record to enter the "Alarm Application Enable Setting" page.

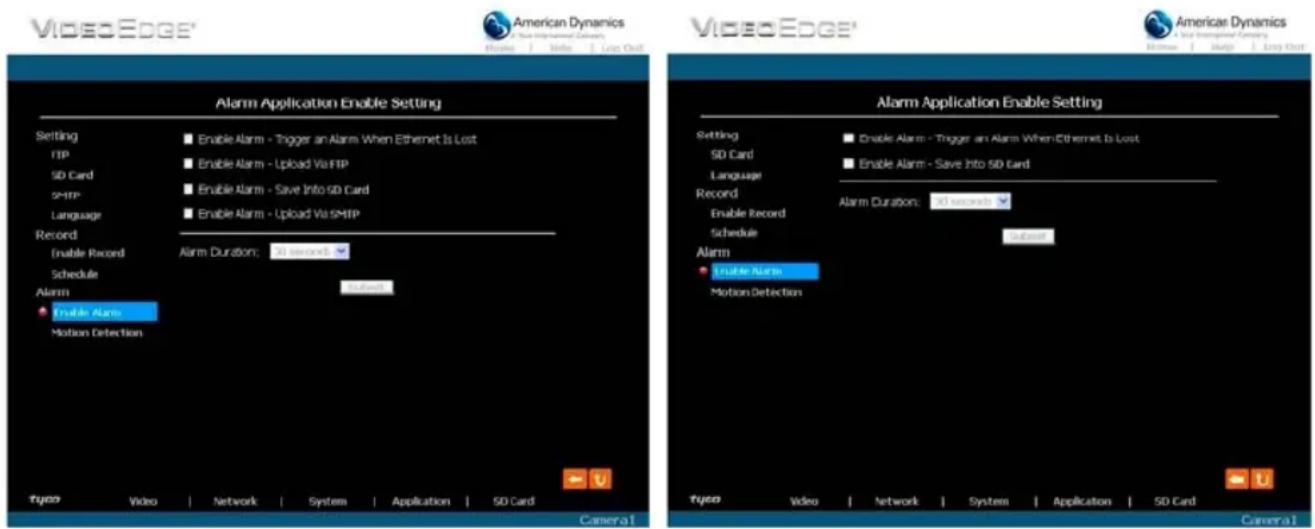

VideoEdge' American Dynamics New International Consen- Phone | None | Log Out VibooEdge' American Dynamics New International Consen- Phone | None | Log Out Alarm Application Enable Setting Setting FTP SD Card SHP Language Record Enable Record Schedule Alarm Enable Alarm Motion Detection Enable Alarm - Trigger an Alarm When Ethernet Is Lost Enable Alarm - Upload Via FTP Enable Alarm - Save Into SD Card Enable Alarm - Upload Via SMTP Alarm Duration: 3D seconds System Application | SD Card Camera1 VibooEdge' American Dynamics New International Consen- Phone | None | Log Out Alarm Application Enable Setting Setting SD Card Language Record Enable Record Schedule Alarm Enable Alarm Motion Detection Alarm Duration: 3D seconds System Application | SD Card Camera1 Typo Video Network System Application SD Card

MJPEG mode MPEG4 mode

1. Click "Enable Alarm – Trigger an Alarm When Ethernet Is Lost" to checkmark the box and activate the function.
2. Click "Enable Alarm – Upload Via FTP" to checkmark the box and activate the function (in the MJPEG mode and PAL system only).
3. Click "Enable Alarm – Save Into SD card" to checkmark the box and activate the function.
4. Click "Enable Alarm – Upload Via SMTP" to checkmark the box and activate the function (in the MJPEG mode and PAL system only).
5. Enter the "Alarm Duration" you have chosen.
6. Click on the Submit button to submit the new setting of the recording.
7. Click on the Home button to return to the home page.

Description of function keys:

Enable ALARM – Trigger an AlarmWhen Ethernet Is Lost:	Activates or deactivates the alarm triggering while the Ethernet lost.
Enable Alarm – Upload Via FTP:	Activates or deactivates the alarm recording upload to the FTP.
Enable Alarm – Save Into SD card:	Activates or deactivates the alarm recording to be saved to the SD card.
Enable Alarm – Upload Via SMTP:	Activates or deactivates the alarm recording upload to the SMTP.
Alarm Duration: Predetermines the length of the alarm.

Installation & Operation Guide

● Change the Application Setting —Motion Detection.

Please follow the steps below to enable changes in the motion detection function of the alarm through the network as necessary.

Set the motion detection:

1. Click on the Motion Detection button on the left side of the Alarm to enter the "Motion Detection" page.

American Dynamics A Type Mechanical Company Home | Help | Log Out Motion Detection Setting SD Card Language Record Enable Record Schedule Alarm Enable Alarm Motion Detection Click the right mouse button to show the popenera. Save the setting after you brush editing. Motion Detection: Enable Disable Sensitivity : Medium 704 (Customized Threshold) Submit type Video Network System Application SD Card Camera1

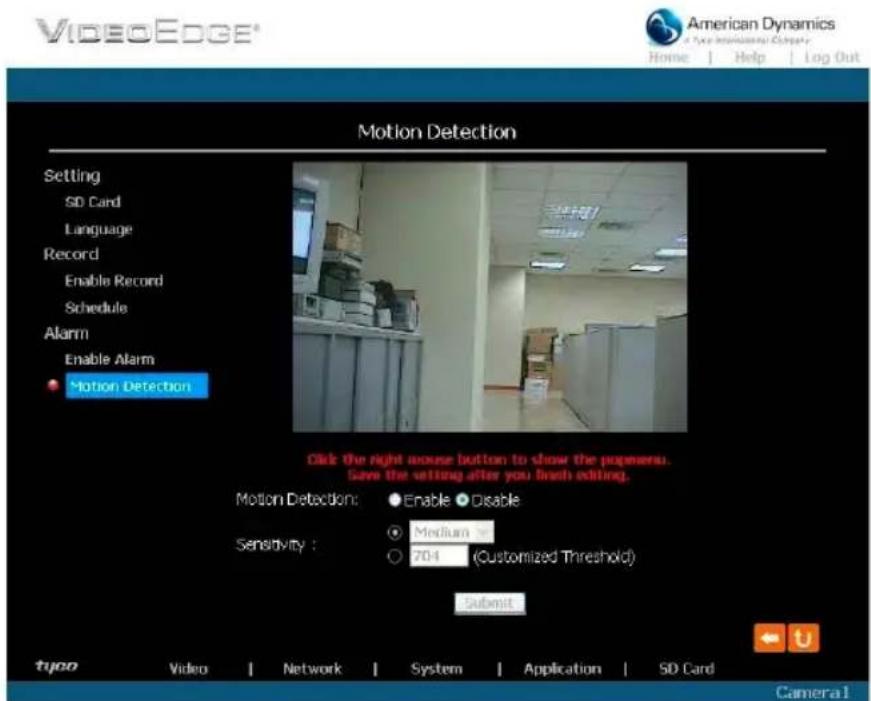

1. Click and drag the left mouse button across a targeted zone to draw a red rectangle on the image.

NOTE: You can set more than one targeted zone depending on your requirement.

1. Click the right mouse button to see the popup-menu. After setting the target zone, please click "Save setting".

2. Enables / disables the motion detection function.

3. Set up the sensitivity.

4. Click on the Submit button to submit the new setting of the recording.

5. Click on the Home button to return to the home page.

Description of function keys:

The targeted zone:	Click and drag the mouse across the targeted zone to draw a red rectangle on the image.
Detection Range:	The red rectangle's coordinates.
Save:	Click to save the motion detection range.
Motion Detection:	This option enables / disables the motion detection function.
Sensitivity Level:	You can select any one of the given options for the setup signal level or just type in the value of Customized Threshold.

5.1.6 Change the SD card Setting

Please follow the steps below to change the SD card setting through the network as necessary.

- Change the SD card Setting — FILELIST of MEMORY CARD.

Please follow the steps below to change the setting via the network as necessary.

1. Click on the "SD card" button at the bottom of the home page to enter the "Filelist of Memory Card" screen. The page comes in two modes, the JPEG and the AVI (please refer to the "SD card Application Setting Page").

Filelist of Memory Card Filename Date Time Size Start from: 2008 12 29 15 36 8 Refresh 166480.AVI 2008/12/29 15:33:46 123K delete 166480.AVI 2008/12/29 15:33:50 124K delete 166480.AVI 2008/12/29 15:33:52 125K delete 166480.AVI 2008/12/29 15:33:54 125K delete 166480.AVI 2008/12/29 15:33:56 126K delete 166480.AVI 2008/12/29 15:33:58 124K delete 166480.AVI 2008/12/29 15:34:00 124K delete 166480.AVI 2008/12/29 15:34:02 122K delete 166480.AVI 2008/12/29 15:34:04 123K delete 166480.AVI 2008/12/29 15:34:06 124K delete 166480.AVI 2008/12/29 15:34:08 124K delete 166480.AVI 2008/12/29 15:34:10 123K delete 166480.AVI 2008/12/29 15:34:12 123K delete 166480.AVI 2008/12/29 15:34:14 124K delete 166480.AVI 2008/12/29 15:34:16 124K delete Delete All Files 15 files and 3920080 KBytes free HTTP Server at camtns

Filelist of Memory Card Filename Date Time Size Start from: 2008 12 29 15 40 7 Refins 1656R072_TA0 2008/12/29 15:35:24 249 delete 1656R072_TA0 2008/12/29 15:35:34 249 delete 1656R072_TA0 2008/12/29 15:35:46 249 delete 1656R072_TA0 2008/12/29 15:35:56 249 delete 1656R072_TA0 2008/12/29 15:36:08 249 delete 1656R072_TA0 2008/12/29 15:36:18 249 delete 1656R072_TA0 2008/12/29 15:36:30 249 delete 1656R072_TA0 2008/12/29 15:36:40 249 delete 1656R072_TA0 2008/12/29 15:36:48 212 delete 1656R072_TA0 2008/12/29 15:36:58 249 delete 1656R072_TA0 2008/12/29 15:37:10 349 delete 1656R072_TA0 2008/12/29 15:37:20 249 delete 1656R072_TA0 2008/12/29 15:37:32 249 delete 1656R072_TA0 2008/12/29 15:37:34 154 delete 1656R072_TA0 2008/12/29 15:37:46 249 delete Delete All Files 15 files and 3909956 KBytes free HTTP Server at

1. Click on the desired file to display the images.

2. Each file can be deleted by clicking the "Delete" hyperlink.

CAUTION: If you wish to save the SD CARD files from a camera to your computer, enter the JPEG column in the "Filelist of Memory Card" page and enter the relevant files in the column. When you click right, the images concerned will appear. Move your cursor within the image area and right click the mouse. A table of item entries displays. Click "Save" and select the file path in which to save your files.

Installation & Operation Guide

5.1.7 The Bandwidth Calculator of the IP camera

You can use the calculator to obtain the rough bandwidth throughput for reference.

Enter “http://***.***.***.***/calculator.html” into the URL block and press the “Enter” button to enter the calculating page. (The ***.***.***.*** is the URL address of the IP camera accordingly.)

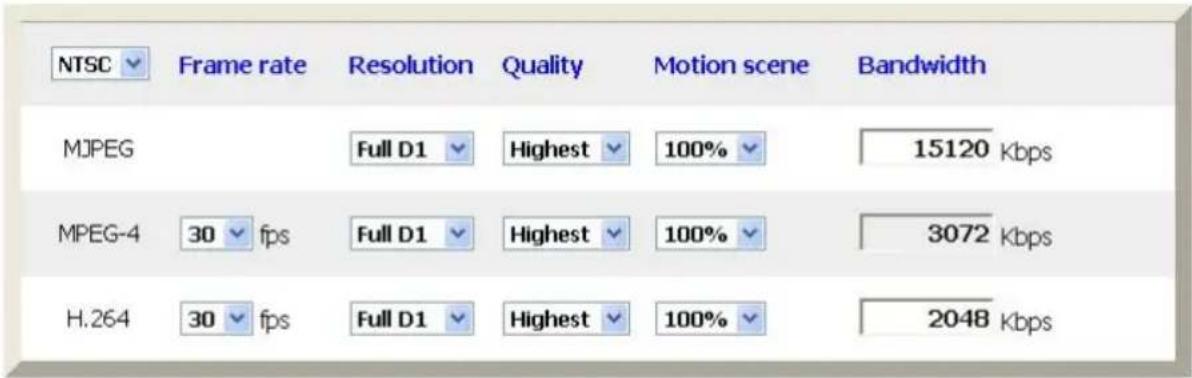

Network Camera Bandwidth Calculator

NTSC Frame rate Resolution Quality Motion scene Bandwidth MJPEG Full D1 Highest 100% 15120 Kbps MPEG-4 30 fps Full D1 Highest 100% 3072 Kbps H.264 30 fps Full D1 Highest 100% 2048 Kbps

Version 1.0.0.0
* The 'kbps' mentioned above means kilo bit per second and the unit of kilo is 1,024.
* The result shows the maximum bandwidth that the device can transmit and it is for reference only. This value is subject to be changed by network or PC performance.

Please select the video format and set the desired resolution, quality and the percentage of the motion scene and the result will show on the bandwidth column immediately.

NOTE: The selection of motion scene provides the rough percentage of motion within the scene, please make the setting in regards to the situation which you want to know

5.1.8 PPPoE & DDNS

Using the PPPoE

1. Install the XDSL software (obtained from your ISP dealer) in your PC.
2. Search for your IP camera's IP address: you can just connect the IP Camera and the Video monitor. The monitor screen will show the IP address on its right side.
3. Turn off the DHCP function (of the IP camera) if it is "ON".

NOTE: Use the IE browser to go to the Network Setting page to note the check box at the top of the page. If the box has a tick mark, click it to "OFF".

1. Installing an IP address in your PC or notebook.

Desktop → Move the mouse focus to the Network neighborhood and click the right key of the mouse → Choose the properties → Choose your local connection → Choose the properties and select the configuration → Select the TCP / IP → Choose the properties → Enter the IP address in a four-part formula, for example “192. 168. 1.101” (the first three parts must be identical to the above numbers, only the last part can be changed to your own number, which must never exceed 255) → Click on the mask and the mask input, namely “255. 255. 255. 0” (a fixed formula) → Click “OK” → Click “OK”.

1. Desktop → Choose IE browser → Enter the IP camera IP address in the URL (check step #2 above) → Enter → IP CAM images will appear.

PPPoE Settings

1. Enter the IP CAMERA home page → Choose the network → Enter "User Name: admin" and "Password: 9999" → Click "OK".
2. Choose PPPoE → PPPoE mode: Select "ON" → Enter "Account" → Enter "Password" → Submit → Unplug the power connection.
3. Plug in the IP CAMERA and it will receive an IP address from the ISP dealer (this IP address is dynamic --- every time you unplug and plug in again you'll get a new IP address).

Test: Go to the Internet.

1. Set your PC to enter the Internet.
2. Desktop → IE browser → Enter the IP CAMERA IP address (the same address as in the PPPoE settings and step 3 above) → You can see the IP CAM images.

DDNS settings

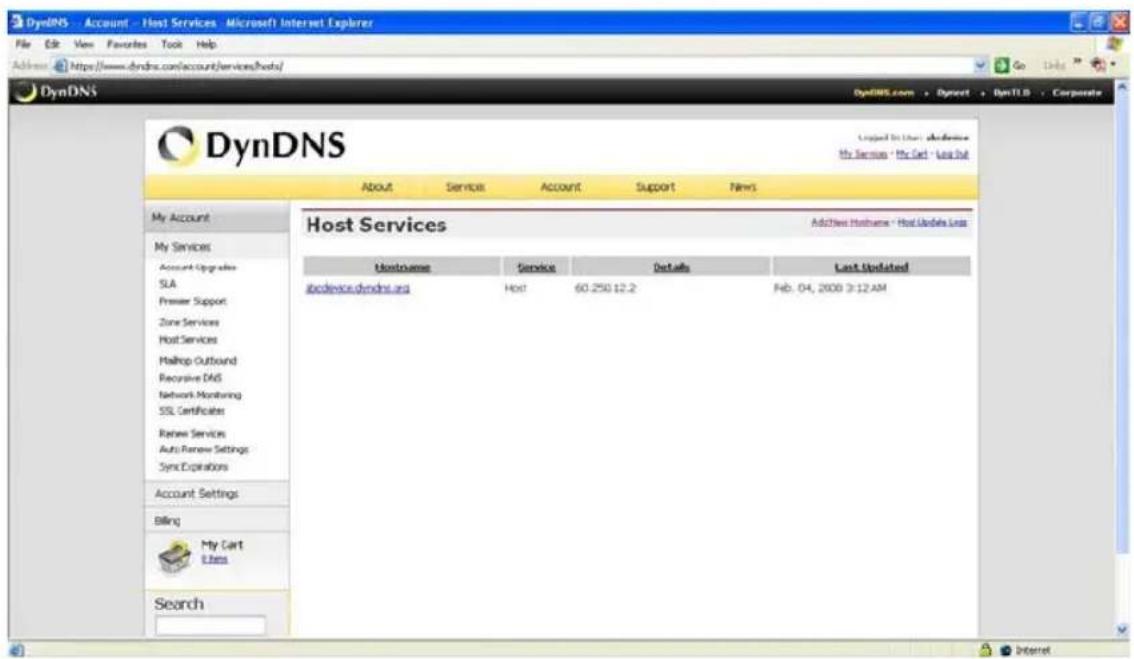

1. Check your IP CAMERA's IP address ( Scan IP software or monitor ) → open your IE browser → Use the address to connect to the IP CAM or view the images → Choose the network → Enter "User name : admin" and "Password : 9999" → Click "OK".

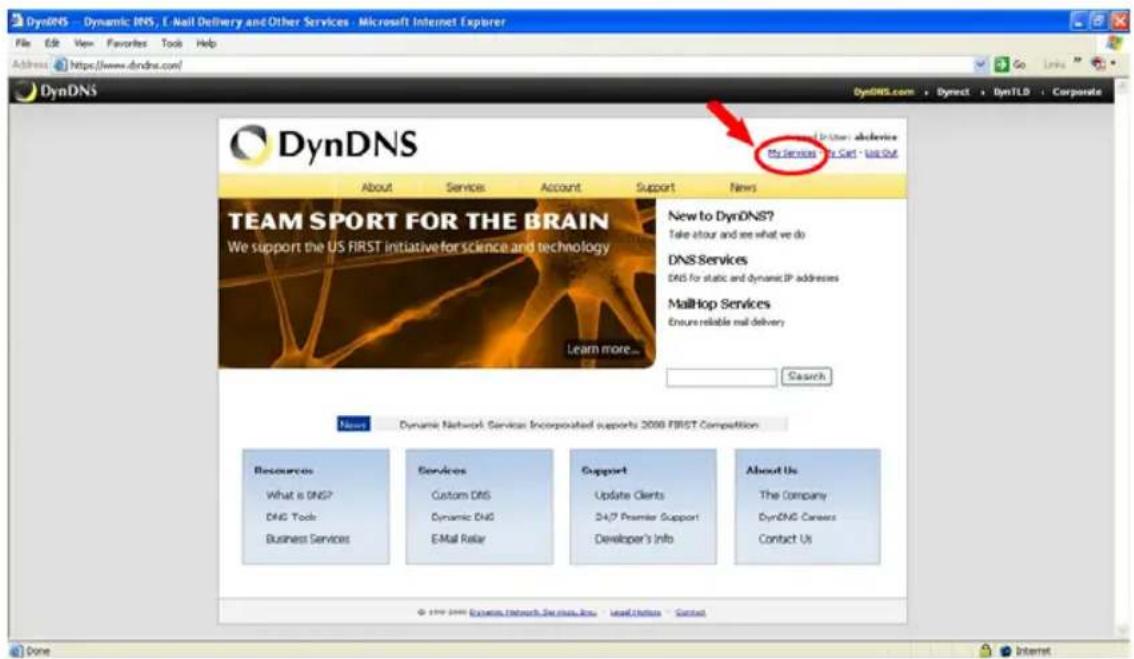

2. Choose the "DDNS" → Click "Enable DDNS" → Enter the "DDNS host name", for example "abc123.homeip.net" → Enter "DDNS Account", for example "abc123" → Enter the "DNS Password", for example "7777" → Submit → The settings are now complete → Close the IE browser.
3. Open the IE browser again → Enter the Website address you just applied for, such as "abc123.homeip.net" → You can look at your IP CAMERA images right away. The procedure is complete.

NOTE: These settings are only for your ADSL Dynamic IP configuration. If your configuration is fixed (true IP), you don't need to proceed with the PPPoE and DDNS settings. The DDNS is just for your convenience.

How can I view the live images of the IP camera via Microsoft Internet Explorer on the Desktop PCs, or the laptop computers, in a situation where there are no monitors or television?

To get the IP address of the IP camera without a monitor, use one of the following two methods to get the IP address: UPnP and IP function.
UPnP: Please refer to APPENDIX 1.
IP function: Please refer to APPENDIX 2.

Question 2:

How do I set up the motion detection area and its sensitivity?

◇Set up the motion detection

1. Click on the Application button in the home page.
2. Click on the Motion detection button on the left side of the page to enter the "Alarm - Motion Detection" page.
3. Click and drag the cursor across a targeted zone to draw a red rectangle on the image. You can also draw the other targeted zones as you wish.
4. Please Enable the motion detection function.
5. Set up the sensitivity level from: Lowest, Low, Medium and High to Highest.
6. Click on the Submit button to submit the setting.

Question 3:

How do I record on the SD card for 30 seconds when the motion has been activated and use Microsoft Internet Explorer to view the recorded files?

◇Recording the images into an SD card while the motion detection function is working

1. Click on the Application button in the home page.
2. Click on the Enable button below the ALARM item on the left side of the page to enter the "Alarm Application Enable Setting" page.

Installation & Operation Guide

1. Check on "Enable Alarm-Save into SD Card" to activate it.

2. Click on the Submit button to submit the setting.

NOTE: Please remember to insert the SD card into the built-in SD slot of the unit first.

◇Set the recording time (the AVI duration) of the SD card

1. Click on the Application button in the home page into the "SD Card Application Setting" page.

2. Choose the AVI Duration from the drop-down list.

If you want to record the file into the SD card for 30 seconds, please choose 30 seconds.

1. Click on the Submit button to submit the setting.

◇Use IE to view the recorded files

1. Click on the SD Card button in the home page to enter the page containing the "Filelist of Memory Card".

2. Click on the filename which you want to view.

3. It will ask you to enter the username and password.

4. If you didn't set the other player before, the AVI file will be played by the Windows Media Player.

Question 4:

How do I use the DynDNS to connect the IP camera by using its Sub Hostname via the intranet?

◇Set the DDNS function

1. Click on the Network button in the home page.

2. Click on the DDNS button on the left side of the page to enter the "DDNS Setting" page.

3. Check on the "Enable DDNS Function" to activate it.

4. Choose one of the DDNS Types from the drop-down list. If you didn't register for a DDNS before, please choose one of the DDNS Type then press "Apply" button to its registering homepage and register as a member.

5. Enter the DDNS Host Name, DDNS Account and DDNS Password which you created in the www.dyndns.com website.

6. Click on the Submit button to submit the setting.

NOTE: Please refer to the APPENDIX 4 for more details.

◇Set the PPPoE function

1. Click on the Network button in the home page.
2. Click on the PPPoE button on the left side of the page to enter the "PPPoE Setting" page.
3. Choose "ON" from the "PPPoE Mode" list to activate it.
4. Enter the Account and the Password which are provided from your ISP.
5. Click on the Submit button to submit the setting.

NOTE: Please refer to section 5.1.8 for more details.

◇Use the Sub Hostname to view the IP camera

1. Click on the URL block at the top of the PC screen.
2. Enter the DDNS Host Name of the IP camera into the URL block and press the "Enter" button to enter the login page.
3. Enter the user name and fill in the password.
4. Click on the "OK" button and enter the home page of the IP camera.

Question 5:

How do I set the scheduled record on from, say, 6:00 PM to 7:00 PM with the recording rate of 1F/8S and upload the recorded file to the FTP server?

Set the sch◇ eduled recording time

1. Click on the Application button in the home page.
2. Click on the Schedule button on the left side of the page to enter the "Record - Schedule" page.
3. Select one of the schedules and set the recording time period.
4. Click the schedule on to activate it.
   For example, if you want to set the schedule record on from 6:00 PM to 7:00 PM, please choose "From 18:00 To 19:00" on the drop-down list. Then click on the schedule which you just set.
5. Click on the Submit button to submit the setting.

Upload the recorded file via the FTP◇

1. Click on the Application button in the home page.
2. Click on the Enable button on the left side of the page to enter the "Record Application Enable Setting" page.
3. Click on "Enable Record - Upload via FTP".
4. Click on the Submit button to submit the setting.

Installation & Operation Guide

Set the upload rate◇

1. Click on the Application button.
2. Click on the FTP button on the left side of the page to enter the "FTP APPLICATION SETTING" page.
3. Set the last item "Upload Rate" at the bottom of the page to the rate you want.
   If you want to record at the rate of 1F/8S, please choose "1F/8S" in the drop-down list.

NOTE: The FTP function is not provided in the MPEG4 mode.

Question 6:

How do I add or modify the users and their authorities of using the IP camera?

Entering the setting page◇

1. Click on the System button in the home page.
2. Click on the Users button on the left side of the page to enter the "System - Users" page.

Add a new user◇

1. Please enter the user name, the password, the confirmed password and choose the authority.

There are three different levels of authorities, namely Admin, Operator and Viewer.

Admin: The user who accesses with the admin name and password has the full rights to change the settings of the IP camera.

Operator: The suggested choice for normal use.

Viewer: The user who accesses with just the viewer name and password has only limited rights to view.

1. Click on the Submit button to submit the new user's setting.

Modify the user◇

1. Click on the user name you want to modify on the User List.
2. Enter the password, the confirmed password and choose the authority.
3. Click on the Submit button to submit the new setting.

Delete a user◇

1. Click on the user name you want to modify on the User List.

2. Click on the Delete button.

3. SPECIFICATIONS

Model	ADCIPE3712OCN VideoEdge	IP Outdoor Mini-dome, 3.7-12mm, clear, NTSC, w/PS
	ADCIPE3712OCPE	VideoEdge IP Outdoor Mini-dome, 3.7-12mm, clear, PAL, EU Plug, w/PS
	ADCIPE3712OCPU	VideoEdge IP Outdoor Mini-dome, 3.7-12mm, clear, PAL, UK Plug, w/PS
	ADCIPE3712OSN	VideoEdge IP Outdoor Mini-dome, 3.7-12mm, smoke, NTSC, w/PS
	ADCIPE3712OSPE	VideoEdge IP Outdoor Mini-dome, 3.7-12mm, smoke, PAL, EU Plug, w/PS
	ADCIPE3712OSPU VideoEdge	IP Outdoor Mini-dome, 3.7-12mm, smoke, PAL, UK Plug, w/PS
Camera	Image device 1/3" Sony Super-HAD CCD
	Effective Pixels	NTSC:768 x 494, PAL:752 x 582
	System NTSC/ PAL
	CCD Setting	BLC, AGC, AWB, FL / Mirror / Shutter Speed 1/1000
	IR wavelength / IR Length	700~1100nm (built-in 850nm) / 25m
	Min. Illumination	0.5 Lux @F1.6, 0 Lux IR on
	Lens	3.7~12mm Vari-focal auto iris DC drive lens
Image	Compression	MJPEG / MPEG4
	Resolution	D1/ 2CIF/ CIF
	Frame-rate	30 (25) / 24 / 15, 5 fps, adjustable
	Picture size (quality)	MJPEG: 4~64KBMPEG4: 64Kbps ~ 8Mbps (Bit-rate)
	Motion detection	Motion Detection (96 zones, 5 levels)
Network	Interface	Ethernet (RJ-45 wired, 10/100 base-tx), MDIX support
	Protocols	TCP/IP, DHCP, HTTP, ICMP, UPnP, ARP, DNS, DDNS, PPPoE, *FTP, *SMTP, RTP, RTSP
	Throughput	2.0M bytes/sec
Software	Web browser	Microsoft IE 6.0 or above
	Development tools	ActiveX / HTTP-API / SDK
	Security	Multiple level / Multiple users / IP address filtering
Connectors	Video output	1.0 Vpp, 75 ohm, composite, negative, BNC x 1
	Alarm I/O/Reset	1 / 1 / 1
	SD card	Alarm and Schedule recording / update
	USB	Mini Type , 1.1 Slave for Configuration / Update
	Reset	Factory Default
Others	Power requirement	POE/802.3af class 3, DC 12V/750mA
	Power current consumption	700mA IR On, 500mA IR OFF
	Operating Temperature	0°C ~ 50°C (32°F~ 122°F)
	Dimensions	110mm(High) X 142 mm (Diagram)
	Approvals	FCC, CE, RoHS
	Accessories	User manual x 1

*Specifications are subject to change without notice.
**FTP and SMTP functions for PAL version only.

8. Functions of client PC

System requirement Windows 2000, XP or above
Browser	IE 6.x
Live Monitor Max. 16 Split , Real Time REC/ Capture/ Live Event/ Full Screen
Playback Viewer Playback, Time / live event Search / Export (JPEG / AVI)
Settings Device/ System/ Camera management/ web page
Multi-camera link Max. 16 camera

APPENDIX 1. -IP camera UPnP How To

The most troublesome issue when you setup a LANCam ^ is that you have no idea what the IP address of this device is. Now LANCam ^ supports the UPnP (Universal Plug and Play) protocol which makes it easier for you to examine it; however, Microsoft Windows XP ^ doesn't start this service by default. Therefore, the following procedures will help you to turn it on and discover your LANCam ^ step by step as shown in Figure1 below.

Figure 1 UPnP Setup Flow Chart

1. Check the IP class of your PC

In most cases Microsoft Windows XP ^ will assign an IP address, 169.254.**, automatically with a subnet mask, 255.255.0.0, if the DHCP server is absent, while the default IP address of a LANCam ^ is 192.168.1.168 with a subnet mask of 255.255.255.0. There won't be any communication due to different IP class domains, and you have to modify the relative settings or the UPnP protocol won't work; however, checking your own IP address is necessary. Here are the procedures to check and modify them.

Installation & Operation Guide

Step 1: From the Start menu, point to Settings, and then click Control Panel. See Figure 2.

Set Program Access and Defaults Programs Documents Settings Search Help and Support Run... Shut Down... Control Panel Network Connections Printers and Faxes Taskbar and Start Menu start Untitled - Pant

Figure 2

Step 2: When Control Panel appears, double-click the Network Connections icon. The Network Connections dialog box appears. See Figure 3.

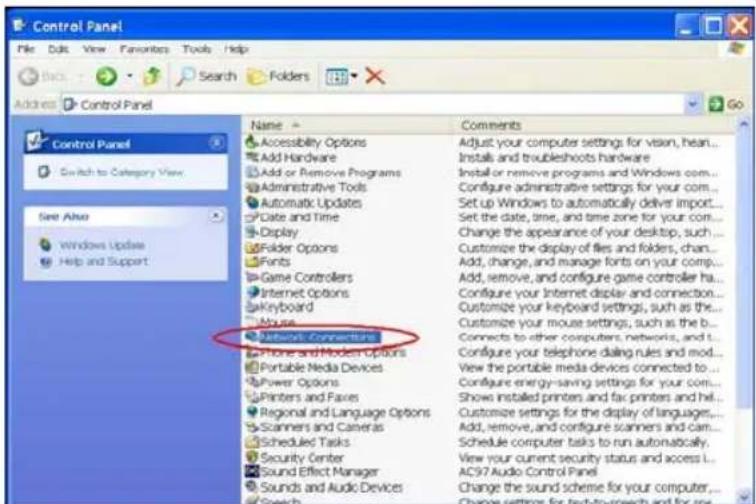

Control Panel File Edit View Favorites Tools Help Back Search Folders Address Control Panel Name Comments Accessibility Options Adjust your computer settings for vision, heart... Add Hardware Install and troubleshoots hardware Add or Remove Programs Install or remove programs and Windows com... Administrative Tools Configure administrative settings for your com... Automatic Updates Set up Windows to automatically deliver import... Date and Time Set the date, time, and time zone for your com... Display Change the appearance of your desktop, such ... Folder Options Customize the display of files and folders, chan... Fonts Add, change, and manage fonts on your comp... Game Controllers Add, remove, and configure game controller ha... Internet Options Configure your Internet display and connection... Keyboard Customize your keyboard settings, such as the ... Mouse Customize your mouse settings, such as the b... Mobile Connection Connects to other computers networks, and t... Phone and Modern Options Configure your telephone dialing rules and mod... Portable Media Devices View the portable media devices connected to ... Power Options Configure energy-saving settings for your com... Printers and Faxes Shows installed printers and fax printers and file... Regional and Language Options Customize settings for the display of languages... Scanners and Cameras Add, remove, and configure scanners and cam... Scheduled Tasks Schedule computer tasks to run automatically. Security Center View your current security status and access L... Sound Effect Manager AC97 Audio Control Panel Sounds and Audio Devices Change the sound scheme for your computer... Speech Change settings for tech-to-speech and for use

Figure 3

Step 3: Click on the Protocols tab in the Network Connections dialog box. See Figure 4.

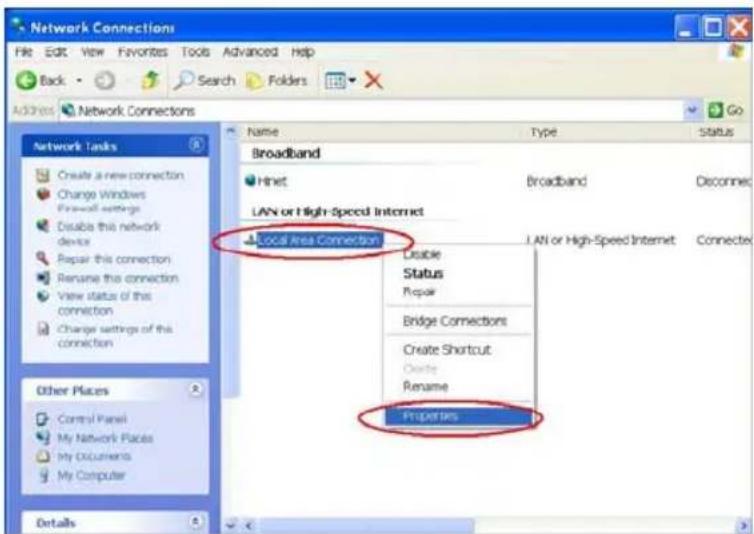

Network Connections File Edit View Favorites Tools Advanced Help Back Search Folders Address Network Connections Name Type Status Broadband Hinet Broadband Deconnect LAN or High-Speed Internet Local Area Connection LAN or High-Speed Internet Connecter Disable Status Repair Bridge Connections Create Shortcut Create Rename Properties Other Places Control Panel My Network Places My Documents My Computer Details

Figure 4

Step 4: When the Local Area Connection Properties dialog box shows up, choose Internet

Protocol (TCP/IP) and click Properties. See Figure 5.

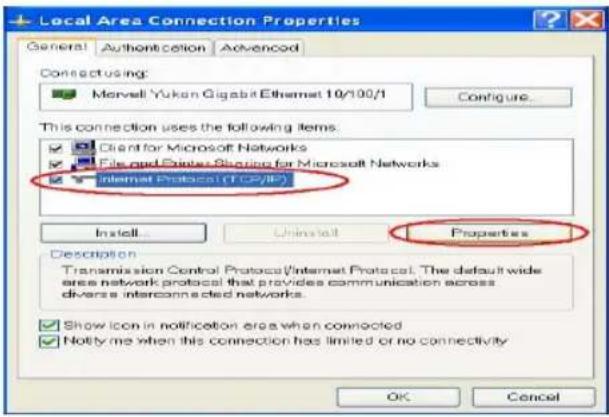

Local Area Connection Properties General Authorization Advanced Connect using: Mervell Yukon Gigabit Ethernet 10/100/1 Configure... This connection uses the following items: Client for Microsoft Networks File and Creates Shipping for Microsoft Networks Internet Protocol (TCP/IP) Install... Uninstall Properties Description Transmission Control Protocols (Internet Protocol). The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification area when connected Notify me when this connection has limited or no connectivity OK Cancel

Figure 5

Step 5: In the Internet Protocol (TCP/IP) Properties dialog box, choose Use the following IP

Address to indicate that you do not wish to use DHCP, and assign IP Address

192.168.1.200 with Subnet mask 255.255.255.0.

Click OK when you finish it. See Figure 6.

Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 168 1 200 Subnet mask: 255 255 255 0 Default gateway: Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: Alternate DNS server: Advanced OK Cancel

Figure 6

Step 6: Choose Close to finish the modification. See Figure 7.

Installation & Operation Guide

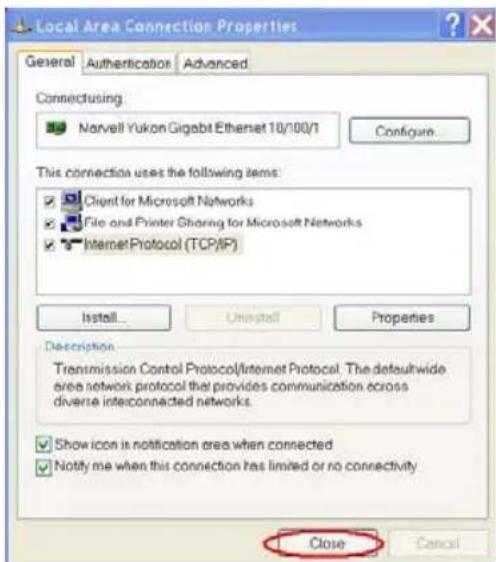

Local Area Connection Properties General Authentication Advanced Connecting Narvell Yukon Gigabit Ethernet 10/100/1 Configure... This connection uses the following items: Client for Microsoft Networks File and Printer Sharing for Microsoft Networks Internet Protocol (TCP/IP) Install_ Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The defaultwide area network protocol that provides communication across diverse interconnected networks. Show icon is notification area when connected Notify me when this connection has limited or no connectivity Close Cancel

Figure7

2. Install UPnP Packets

As described before, Microsoft Windows XP ^® doesn't start the UPnP service by default; however, we have to install some packets before we initialize it. The following steps will help you to install them.

Step1: From the Start menu, point to Set Program Access and Default, and then click it. See

Figure 8

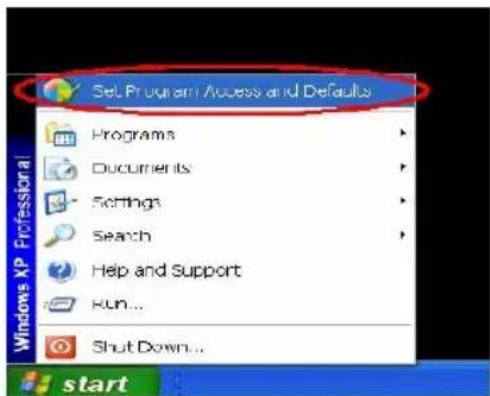

Sel Program Access and Defaults Programs Documents Settings Search Help and Support Run... Shut Down...

Figure 8

Step 2: When the Add or Remove Programs dialog box appears, click on the Add/Remove Windows Components button. See Figure 9.

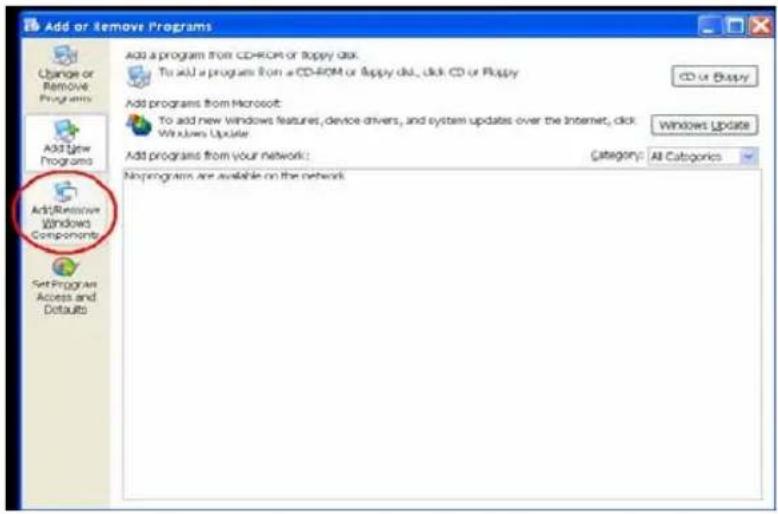

Add or Remove Programs Change or Remove Programs Add New Programs Add/Remove Windows Components Set Programs Access and Defaults Add a program from CD-ROM or floppy disk. To add a program from a CD-ROM or floppy disk, click CD or floppy CD or floppy Add programs from Microsoft: To add new Windows features, device drivers, and system updates over the Internet, click Windows Update Windows Update Add programs from your network: Category: All Categories No programs are available on the network.

Figure 9

Step 3: Check the Network Services in the Windows Component Wizard dialog box, and then click Details.... See Figure10.

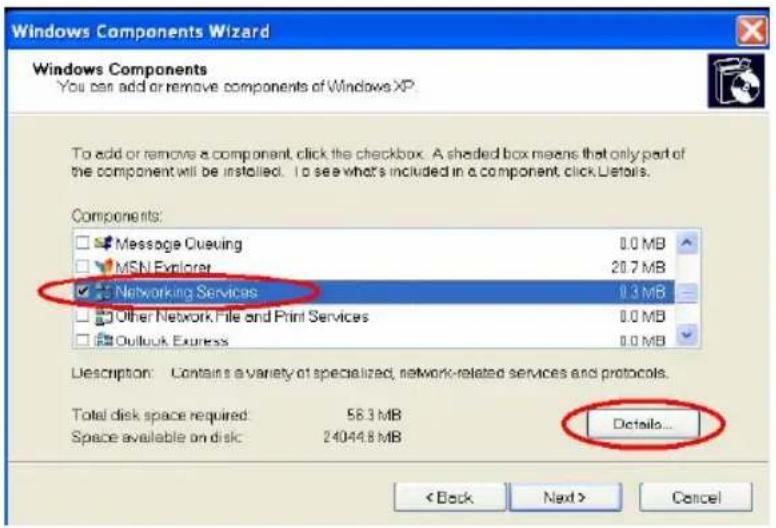

Windows Components Wizard Windows Components You can add or remove components of Windows XP. To add or remove a component, click the checkbox. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Components: Message Cueving 0.0 MB MSN Explorer 20.7 MB Networking Services 0.3 MB Other Network File and Print Services 0.0 MB Outlook Express 0.0 MB Description: Contains a variety of specialized, network-related services and protocols. Total disk space required 58.3 MB Space available on disk 24044.8 MB Details... < Back Next > Cancel

Figure 10

Step 4: Check UPnP User Interface, and choose OK. See Figure 11.

Installation & Operation Guide

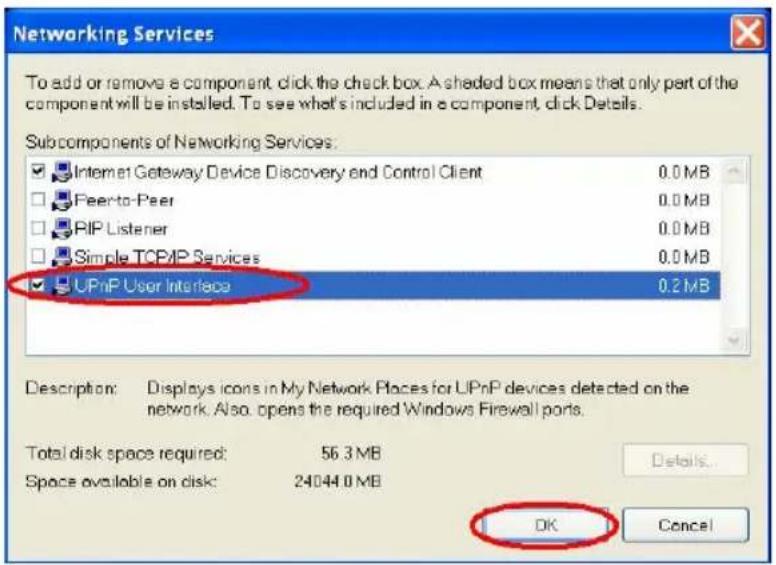

Networking Services To add or remove a component, click the check box. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Subcomponents of Networking Services: Internet Gateway Device Discovery and Control Client 0.0 MB Peer-to-Peer 0.0 MB PIP Listener 0.0 MB Simple TCP/IP Services 0.0 MB UPnP User Interface 0.2 MB Description: Displays icons in My Network Places for UPnP devices detected on the network. Also, opens the required Windows Firewall ports. Total disk space required: 56.3 MB Space available on disk: 24044.0 MB Details... OK Cancel

Figure 11

Step 5: When the original Network Component Wizard dialog box returns, click Next. See

Figure12.

Windows Components Wizard Windows Components You can add or remove components of Windows XP. To add or remove a component, click the checkbox. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Components: Message Queuing 0.0 MB MSN Explorer 20.7 MB Networking Services 0.3 MB Other Network File and Print Services 0.0 MB Outlook Express 0.0 MB Description: Contains a variety of specialized, network-related services and protocols. Total disk space required: 56.3 MB Space available on disk: 24043.2 MB Details... < Back Next > Cancel

Figure 12

Step 6: After about one minute the UPnP installation will be done, and choose Finish to close it. See Figure13.

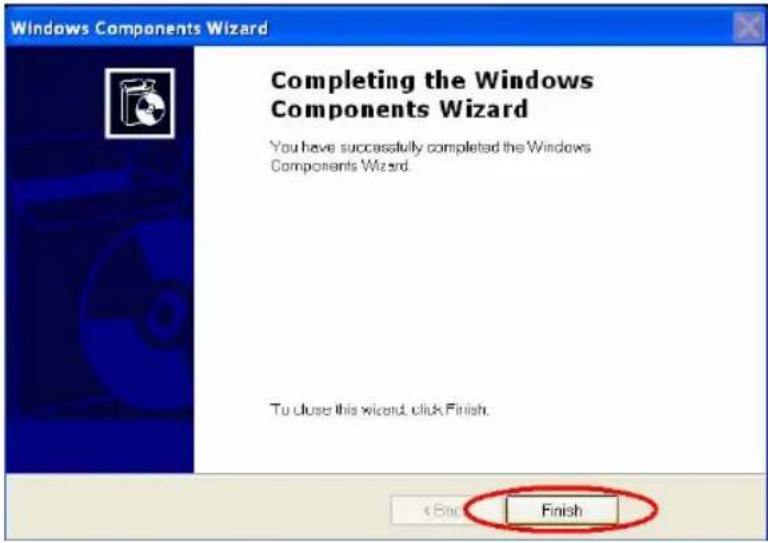

Windows Components Wizard Completing the Windows Components Wizard You have successfully completed the Windows Components Wizard. To close this wizard, click Finish. < Back Finish

Figure 13

3. Turn on Services

After installation, you must turn on the relative services to start the UPnP protocol. The following procedures will demonstrate this.

Step 1: From the Start menu, point to Settings, and then click Control Panel. See Figure14.

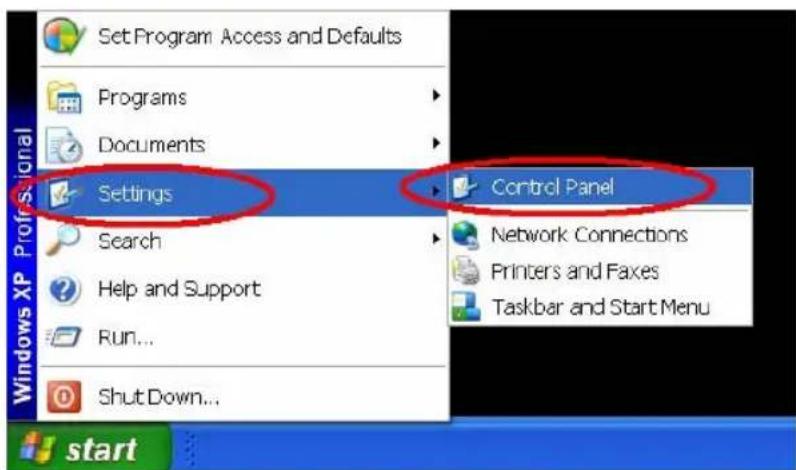

Set Program Access and Defaults Programs Documents Settings Search Help and Support Run... Shut Down... Windows XP Professional Control Panel Network Connections Printers and Faxes Taskbar and Start Menu start

Figure 14

Step 2: When Control Panel appears, double-click the Administrative Tools icon. The Administrative Tools dialog box appears. See Figure15.

Installation & Operation Guide

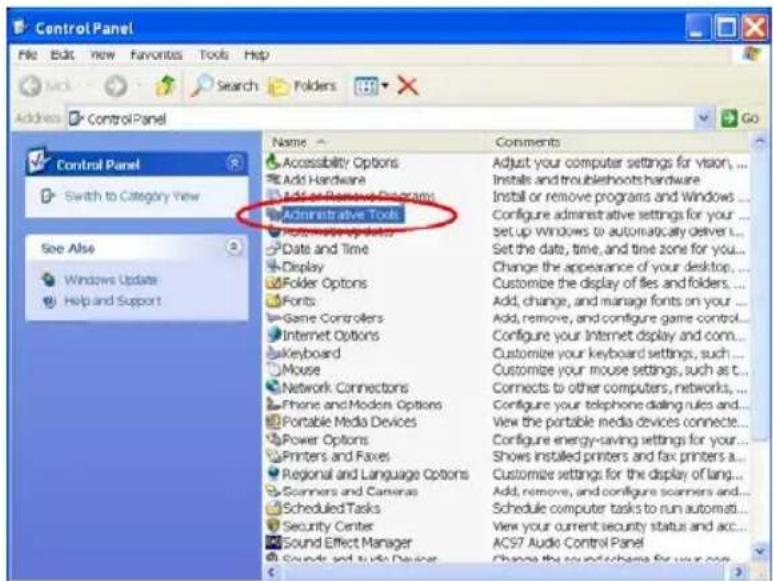

Control Panel File Edit View Favorites Tools Help Back Search Folders Address Control Panel Name Comments Accessibility Options Adjust your computer settings for vision ... Add Hardware Installs and troubleshoots hardware Add to Remove Programs Install or remove programs and Windows... Administrative Tools Configure administrative settings for your... Administrative Tools set up windows to automatically deliver ... Date and Time Set the date, time, and time zone for you... Display Change the appearance of your desktop... Folder Options Customize the display of files and folders... Fonts Add, change, and manage fonts on your... Game Controllers Add, remove, and configure game control... Internet Options Configure your Internet display and conn... Keyboard Customize your keyboard settings, such... Mouse Customize your mouse settings, such as t... Network Connections Connects to other computers, networks, Phone and Modem Options Configure your telephone dialing rules and... Portable Media Devices View the portable media devices connect... Power Options Configure energy-saving settings for your... Printers and Faxes Shows installed printers and fax printers a... Regional and Language Options Customize settings for the display of lang... Scanners and Cameras Add, remove, and configure soamers and... Scheduled Tasks Schedule computer tasks to run automat... Security Center View your current security status and acc... Sound Effect Manager AC97 Audio Control Panel Sounds and audio Devices Change the sound scheme for your com

Figure15

Step 3: Click on the Services icon in the Administrative Tools dialog box. See Figure16.

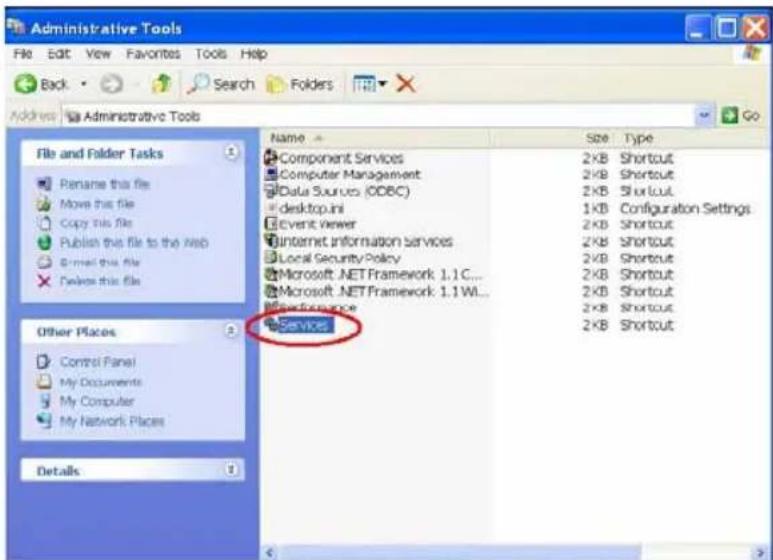

Administrative Tools File Edit View Favorites Tools Help Back Search Folders Address Administrative Tools File and Folder Tasks Rename this file Move this file Copy this file Publish this file to the web Printed this file Delete this file Name Size Type Component Services 2KB Shortcut Computer Management 2KB Shortcut Data Sources (ODBC) 2KB Shortcut desktop.ini 1KB Configuration Settings Event Viewer 2KB Shortcut Internet information services 2KB Shortcut Local Security Policy 2KB Shortcut Microsoft .NETFramework 1.1C... Microsoft .NETFramework 1.1W... Performance 2KB Shortcut Other Places Control Panel My Documents My Computer My Network Places Services 2KB Shortcut Details

Figure16

Step 4: When the Services dialog box shows up, double Click on the SSDP Discovery Service icon. See Figure17.

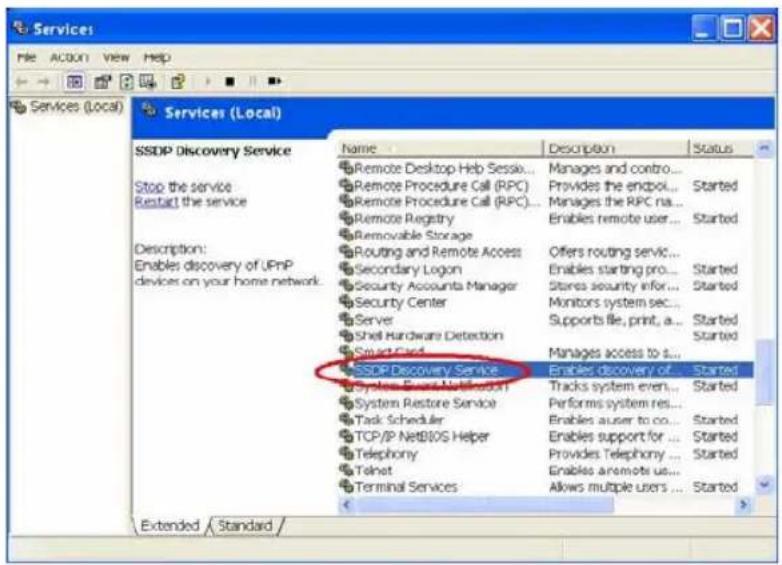

Services File Action View Help Services (Local) SSDP Discovery Service Stop the service Restart the service Description: Enables discovery of UPnP devices on your home network. Name Description Status Remote Desktop Help Sessio... Manages and contro... Remote Procedure Call (RPC) Provides the endpol... Started Remote Procedure Call (RPC)... Manages the RPC na... Remote Registry Enables remote user... Started Removable Storage Routing and Remote Access Offers routing servic... Secondary Logon Enables starting pro... Started Security Account Manager Slores security info... Started Security Center Monitors system sec... Server Supports file, print, a... Started Shell Hardware Detection Manages access to s... Smart Card SSDP Discovery Service... Enables discovery of... Started System Excel Masterion Tracks system even... Started System Restore Service Performs system res... Task Scheduler Enables auser to co... Started TCP/IP NetBIOS Helper Enables support for ... Started Telephony Provides Telephony ... Started Telnet Enables aremote us... Terminal Services Allows multiple users ... Started Extended Standard /

Figure17

Step 5: Choose Automatic in the Startup type, and click OK to start it. See Figure18.

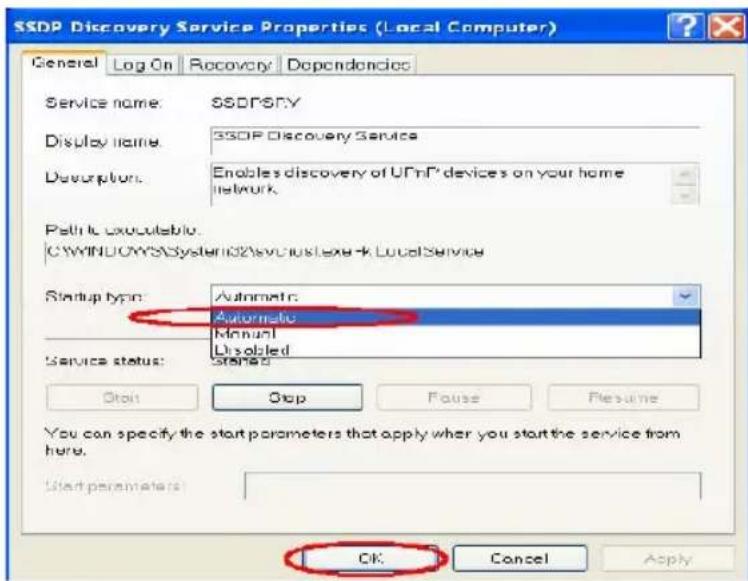

SSDP Discovery Service Properties (Local Computer) General Log On Recovery Dependencies Service name: SSOPSCY Display name: SSOP Discovery Service Description: Enables discovery of UPnP devices on your home network. Path to executable: C:\WINDOWS\System32\svciust.exe-k LocalService Startup type: Automatic Automatic Manual Disabled Service status: stored Stop Pause Resume You can specify the start parameters that apply when you start the service from here. Start parameters: OK Cancel Apply

Figure18

Step 6: When the Services dialog box appears again, double click the Universal Plug and Play Device Host icon. See Figure19.

Installation & Operation Guide

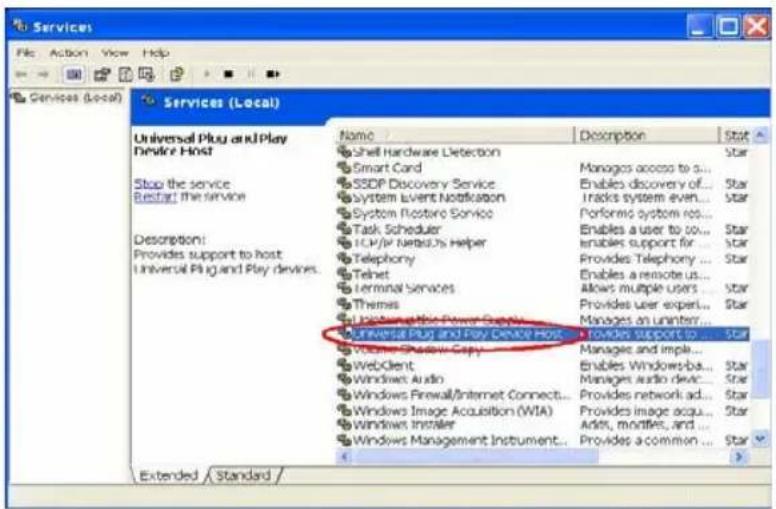

Services File Action View Help Services (Local) Services (Local) Name Description Stat Shell Hardware Detection Star Smart Card Manages access to ... SSDP Discovery Service Enables discovery of... Star System Event Notification Tracks system even... Star System Restore Service Perform system res... Task Scheduler Enables a user to co... Star HCP/W Netto/Dx Helper enables support for ... Star Telephony Provides Telephony ... Star Telnet Enables a remote us... Star Terminal Services Allows multiple users ... Star Themes Provides user expert... Star Initials at the Power Supply Manages an untern... Universal Plug and Play Device Host Provides support to ... Star Vaccine Shadow Copy Manages and implies... WebClient Enables Windows-ba... Star Windwets Audio Manages audio device... Star Windows Firewall/Internet Connect... Provides network ad... Star Windows Image Acquisition (WIA) Provides image acu... Star Windows Installer Admin, modifiers, and ... Windows Management Instrument... Provides a common ... Star Extended Standard

Figure19

Step 7: Choose Automatic in the Startup type, press the Start button, and click OK to start it. See Figure20.

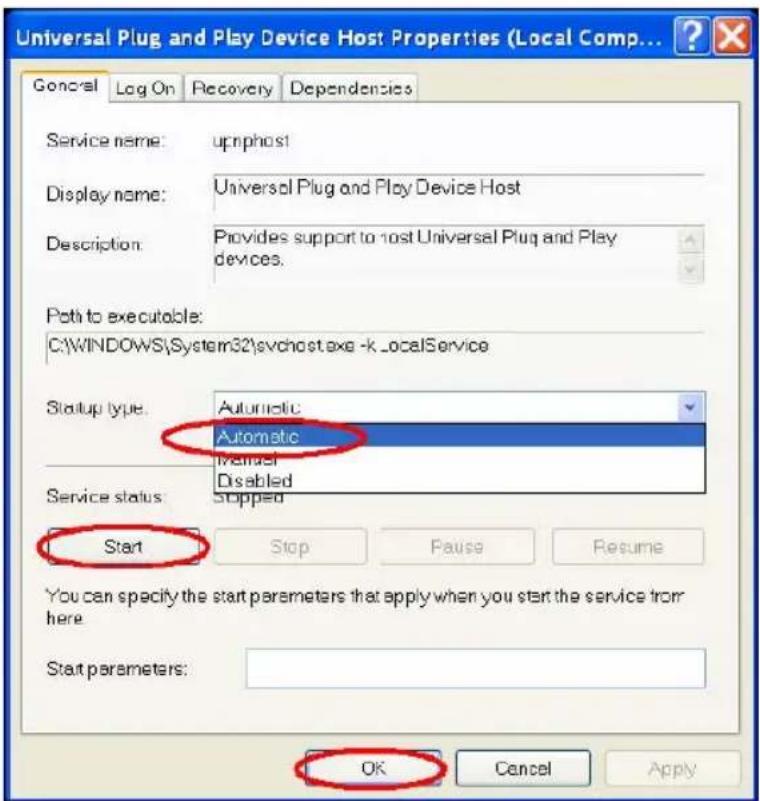

Universal Plug and Play Device Host Properties (Local Comp... General Log On Recovery Dependencies Service name:(upnphost) Display name: Universal Plug and Play Device Host Description: Provides support to host Universal Plug and Play devices. Path to executable: C:\WINDOWS\System32\svchost.exe -k _localService Startup type: Automatic Automatic Manual Disabled Service status: Stopped Start Stop Pause Resume You can specify the start parameters that apply when you start the service from here. Start parameters: OK Cancel Apply

Figure20

Step 8: Restart your system.

4. Scan LANCams ^® through My Network Place

After your installation and starting services, the UPnP protocol will take effect. You can scan all LANCams® in My Network Place like Figure21 and Figure22 below.

My Documents My Network Plates My Computer

Figure21

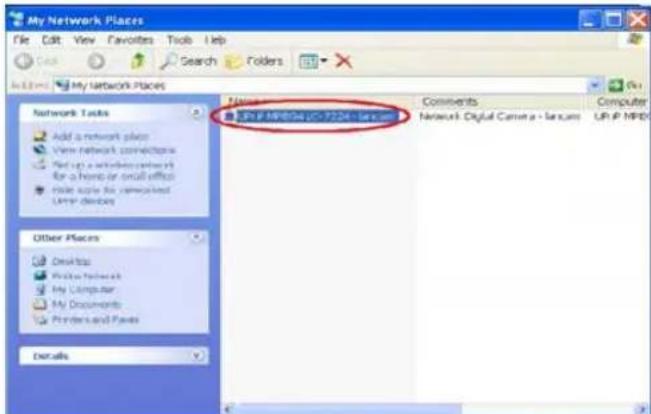

My Network Places File Edit View Favorites Tools Help Search Folders My Network Places Network Tasks Add a network place View network connections Set up a network network for a home or small office make up for connected lower devices Other Places Desktop Printer network My Computer My Documents Pinders and Pavers Details Name: UP IP MPD34 LP-7204 - Secum Comments Network Digital Camera - Secum Computer UP IP MPD

Figure22

Just double click the UPnP MPEG4 IP camera icon, and the video live stream will pop up automatically without assigning any IP address in Microsoft Internet Explorer.

Installation & Operation Guide

APPENDIX 2. –The ARP function

Setting the IP Address

The Ethernet interface on the IP camera has a default IP address (192.168.1.168) that most likely needs to be changed to make it work on your local network. You need to acquire a unique IP address (ask your network administrator). For the initial setting of the IP address the IP camera needs to be connected to the same network segment as your client, and the IP address can then be configured by using a combination of ARP and ping command.

Use any of the following ways to set the IP address within thirty seconds after booting the IP camera (re-cycle the power). Setting IP using the method below can only be done on the Ethernet interface.

ARP and ping from Windows or MS-DOS:

The user can open the PC's MS-DOS windows from the WINDOWS 98 operating system, or open the PC's Command Prompt windows from either the WINDOWS 2000 or the WINDOWS XP operating system.

1. Start a DOS prompt window
2. Type the following in 30 seconds after the booting:

arp -s <IP address> <Ethernet address>
[or arp -s <IP address> <MAC address>]
ping <IP address>

Example:
arp -s 192.168.1.100 00-0C-0C-00-00-01
ping 192.168.1.100
The IP address now is: 192.168.1.100.

ARP and ping from UNIX or GNU/Linux:

1. Start a shell
2. Type the following as super user (root):
    arp -s <IP address> <Ethernet address>
    [or arp -s <IP address> <MAC address>]
    ping <IP address>

Example:
arp -s 192.168.1.100 00-0C-0C-00-00-01
ping 192.168.1.100

The device responds to the ping in the examples above if the new address was configured. Note, this method will set the IP address permanently.

NOTE: The default account and password after the reset are admin and 9999.

Installation & Operation Guide

APPENDIX 3. –Register as a DDNS member

The DDNS (dynamic domain name system) is a function which is provided by an American company. Please refer to www.dyndns.com This chapter provides the user with the basic instructions on how to register a free DDNS service.

Registering for a DDNS

Enter the URL www.dyndns.com. In the upper right-hand corner of the main page, where there is an item, "Create Account", as shown in Figure 1.

DynDNS - Dynamic DNS, E-Mail Delivery and Other Services - Microsoft Internet Explorer File Edit View Favorites Tools Help Address http://www.dyndns.com/ DynDNS DynDNS.com Create Account User Password Create Account About Services Account Support News TEAM SPORT FOR THE BRAIN We support the US FIRST initiative for science and technology New to DynDNS? Take store and see what we do DNS Services DNS for static and dynamic IP addresses MailHop Services Ensure reliable mail delivery Learn more... Search News Dynamic Network Service Incorporated supports 2008 FIRST Competition Resources Services Support About Us What is DNS? Custom DNS Update Clients The Company DNS Tools Dynamic DNS 24.7 Premier Support DynDNS Careers Business Services E-Mail Relar Developer's Info Contact Us © Web: DNA Dynamic Network Services Inc. Localities Contact

Figure 1

Create an account

After clicking "Create Account", you will enter the Create Account page. Please complete the form at the bottom of the page to create your account. You will receive an e-mail containing instructions to activate your account. If you do not follow the directions within 48 hours, you will need to recreate your account.

Set up the DDNS

After creating the account successfully, please enter your user name and password in the upper right-hand corner of the main page to login, as shown in Figure 2.

After you login successfully, a text will appear saying "My Services", as shown in Figure 3.

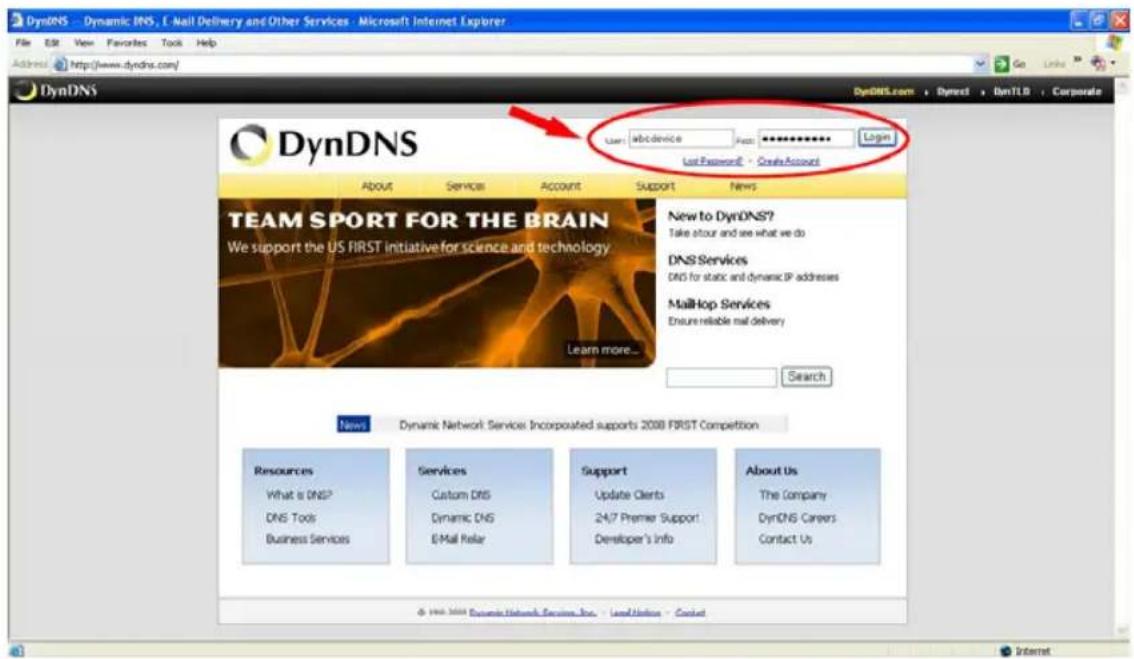

DynDNS DynDNS DynDNS.com Dynrst DynTLR Corporate User: abcdevice Fool: ********* Login Last Password? - Create Account About Services Account Support News TEAM SPORT FOR THE BRAIN We support the US FIRST initiative for science and technology Learn more... New to DynDNS? Take store and see what we do DNS Services DNS for static and dynamic IP addresses MailHop Services Ensure reliable mail delivery Search News Dynamic Network Service Incorporated supports 2008 FIRST Competition Resources Services Support About Us What is DNS? Custom DNS Update Clients The Company DNS Tools Dynamic DNS 24/7 Premier Support Business Services E-Mail Relar Developer's Info DynDNS Careers Contact Us © your latest Dynamic Network Services Web - Local Utilities - Contact

Figure 2

DynDNS - Dynamic DNS, E-Mail Delivery and Other Services - Microsoft Internet Explorer File Edit View Favorites Tools Help Address https://www.dndns.com/ DynDNS DynDNS.com - Dynext - DynTLD - Corporate New to User: all-service My Services - My Card - Use SQL About Services Account Support News TEAM SPORT FOR THE BRAIN We support the US FIRST initiative for science and technology New to DynDNS? Take shour and see what we do DNS Services DNS for static and dynamic IP addresses MailHop Services Ensure reliable mail delivery Learn more... Search Resources What is DNS? DNS Tools Business Services Services Custom DNS Dynamic DNS E-Mail Radar Support Update Clients SAJ7 Premier Support Developer's Info About Us The Company DynDNS Careers Contact Us © 2009 DynDNS Express Network Services.gov - local Thailand - Contact Done

Figure 3

Click "My Services" to enter the service page. Please click the "Add Host Service" item which is below the "My Hosts" item, as shown in Figure 4.

Click "Add Host Service", and its service items will appear. The Add Dynamic DNS Host item helps to add a new DDNS. Each member may have only one free account, and one free account can have only five DDNS.

Click Add Dynamic DNS Host to enter the DDNS setting page as shown in Figure 5.

Installation & Operation Guide

DynDNS DyndNS About Services Account Support News My Account My Services Account Settings Billing My Cart Users Search Search Account Summary for abcdevice My Services View, modify, purchase, and delete your services. My Zones Add Zone Services My Hours Add Host Services Account Updates Making Outbound Network Monitoring SSL Certificates Resource DNS Support DNS Service Level Agreement Practice Support Account Settings Update your billing information, complete a purchase, and view invoices. View Shopping Cat Active Services Order History Billing Profile and Vouchers Renew Services Auto Review Settings Sync Operations Account Settings Update your e-mail address, set preferences, and delete your account. Change E-mail Address Change Password Change Username Contact Manager Making Lists Move Services Preferences Close Account

Figure 4

DyneDNS Account - Host Service Settings : Microsoft Internet Explorer File Edit View Favorites Tools Help Address https://www.dyneDNS.com/account/services/hosts/add.html About Services Account Support News Add New Hostname Note: You currently don't have Account Upgrades in your account. You cannot use some of our Host Service features. Please consider buying Account upgrade that makes this form tab-functional and will add several other features. Learn More... Hostname: dyne DNS.org Wilkland: Yes, alias ***hostname.domain* to same settings. Service Type: Host with IP address WebHop Redirect Offline Hostname IP Address: Use via directed IP address 60-200-51.0 ITS value is 50 seconds. Edit ITS. Mail Routing: Yes, let me configure Email routing. Create Host Search My Account My Services Account Upgrades SLA Premier Support Zone Services Host Services HalHop Outboard Recessive DNS Network Monitoring DSs certificate Renew Services Auto Devices Settings Sync Expirations Account Settings Billing My Cart Users Search © 1919-2006 Genome Network Services, Inc. | local Notes | Contact Done

Figure 5

All we have to set in this page is the "Hostname" item. You can choose a Sub Hostname as s/he likes from the right-hand side of the Hostname's drop-down list.

NOTE: You don't have to set the "IP Address" in the same format as the camera's IP Address. It will renew the IP Address automatically.

After finishing the setting, please press the "Create Host" button as shown in Figure 5.

DynDNS DynDNS Logged in User: adminService My Service - My Care - Log Out About Services Account Support News Host Services Addition Hosts - Host Update List Hostware Service Details Last Updated ibcdevice.dyndns.org Host 60.250 12.2 Nov. 04, 2008 3:12 AM My Cart Users Search

Figure 6

Installation & Operation Guide

APPENDIX 4. -MPEG4 Bit Rate Lookup Table of IP camera

1. When frame rate is higher than 15 frames/second (15 is not including):

	Highest				High	Medium	Low	Lowest
FULL D1	3	2.5	2	1.5	1
VGA	2.63	2.25	1.75	1.31	0.88
2CIF	1.5	1.25	1	0.75	0.5
Half VGA	1.31			1.13	0.88	0.67	0.44
CIF		0.75	0.63	0.5		0.38	0.25
QVGA		0.66			0.56	0.44	0.38	0.22
ZOOM * 2	3	2.5	2	1.5	1
ZOOM * 3	3	2.5	2	1.5	1
ZOOM * 4	3	2.5	2	1.5	1

1. When frame rate is lower or equal to 15 frames/second:

	Highest		High	Medium	Low	Lowest
FULL D1 2.25		1.94	1.5		1.13 0.75
VGA	1.94		1.69	1.31	0.98	0.66
2CIF	1.13		0.94	0.75	0.56	0.38
Half VGA	0.98		0.84	0.66	0.49	0.33
CIF	0.56		0.47	0.44	0.28	0.19
QVGA	0.5		0.44	0.34	0.25	0.19
ZOOM * 2	2.25		1.88	1.5	1.125	0.75
ZOOM * 3	2.25		1.88	1.5	1.125	0.75
ZOOM * 4	2.25		1.88	1.5	1.125	0.75

*The unit is in Mbps/second.

APPENDIX 5. -PoE Installation Method

Warning: Please follow the steps in instruction carefully. Connecting these ers incorrectly may result in damage to network devices.

1. Provided accessories:

	IP Outdoor Mini-dome
	Ethernet (CAT5 UTP/Straight Through) Cable
	Power over Ethernet Injector(input rating: DC 48V)
	AC Adapter(input: AC 100-240V; output: DC 48V)
	Power Cord

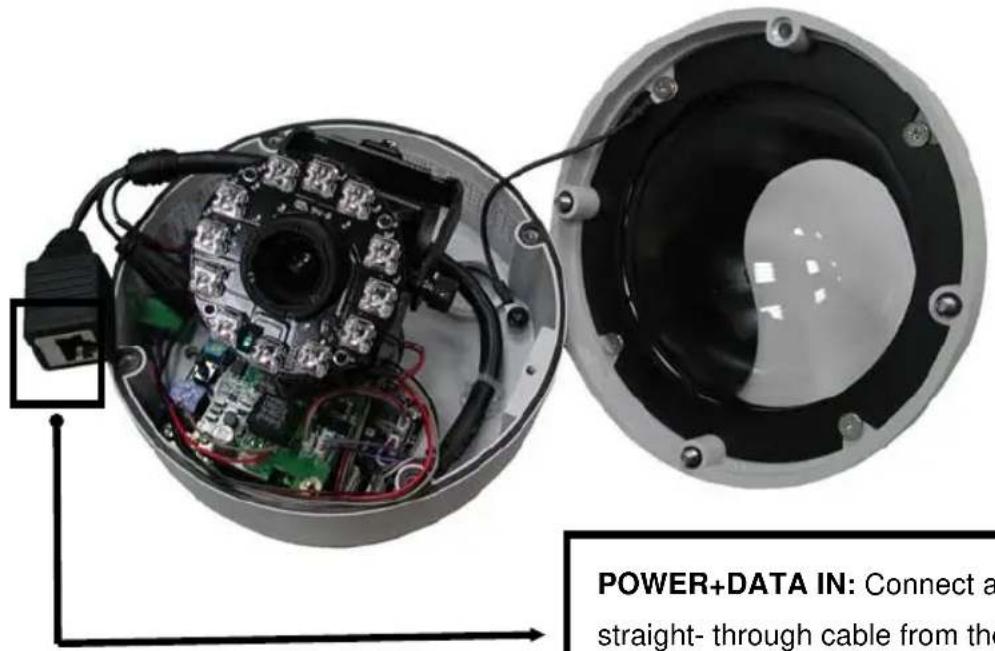

2. Outdoor Mini-dome

POWER+DATA IN: Connect a straight- through cable from the

POWER+DATA IN: Connect a CAT 5 RJ-45 straight-through cable from the POWER+DATA OUT port on the Power over Ethernet Iniector.

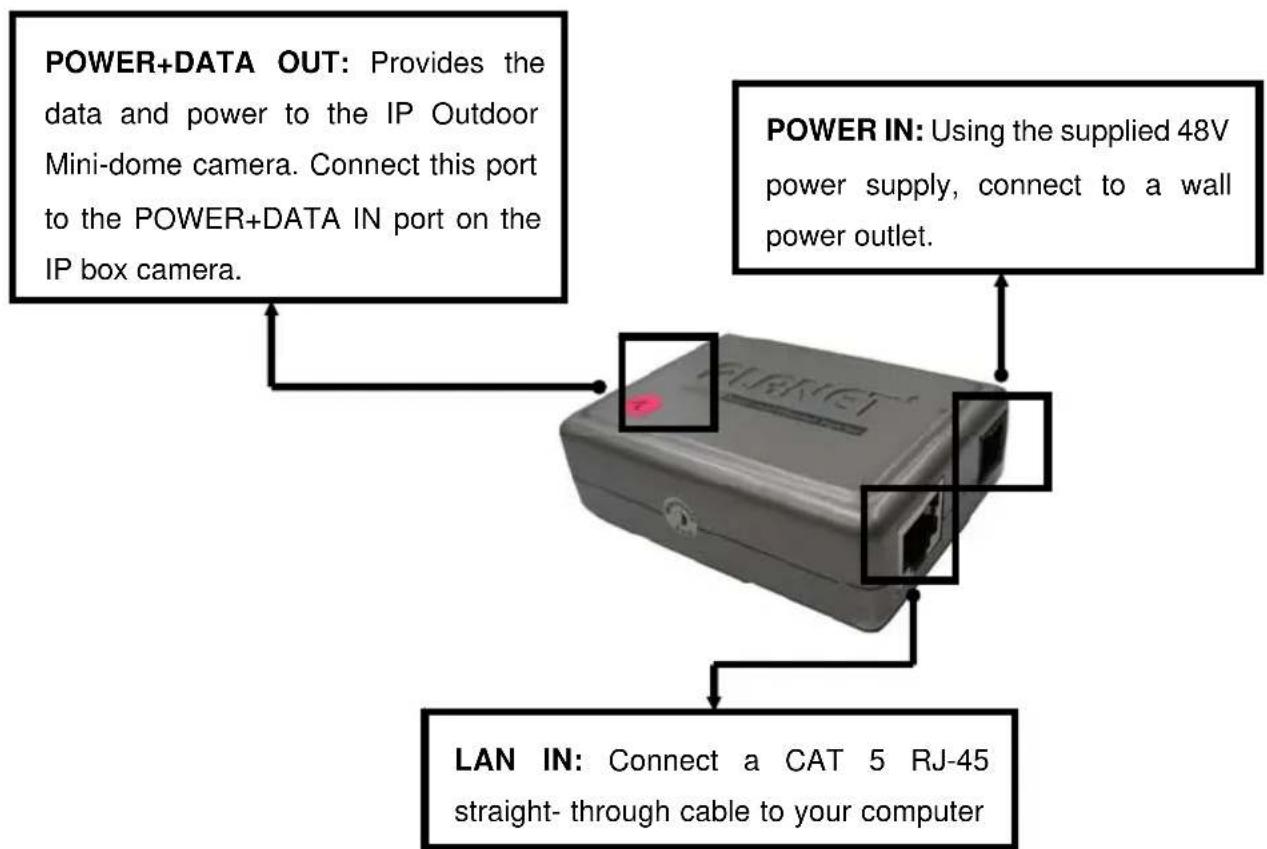

3. Power over Ethernet Injector

4. Connecting the IP Outdoor Mini-dome: please take the following steps:

Step 1:

Insert one end of a Cat 5 Ethernet RJ-45 cable into the "LIN IN" port of the Power over Ethernet Injector. Connect the other end of the cable to your network switch or PC.

Step 2:

Plug one end of the Power adapter into the "POWER IN" port of the Power over Ethernet Injector and the other end into your electrical outlet.

The installed connection looks the same as in Figure 1.

Close-up of hands connecting a USB device to a cable, no visible text or symbols

Figure 1

Step 3:

Connect another Cat 5 Ethernet RJ-45 cable from the Power over Ethernet Injector

"POWER+DATA OUT" port to the "POWER+DATA IN" port of the IP Outdoor Mini-dome camera.

The installed connection looks the same as in Figure 2 and Figure 3.

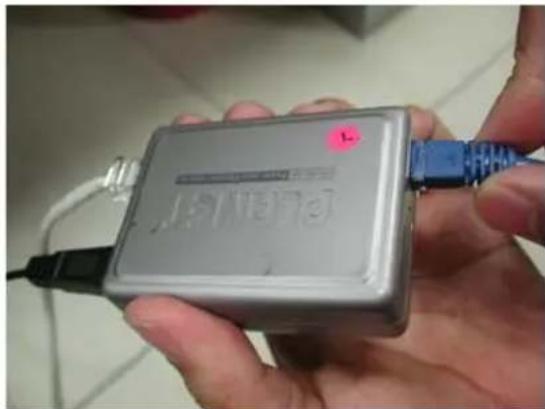

Hand holding a silver electronic device with a blue connector, showing a red label 'L' and Chinese characters.

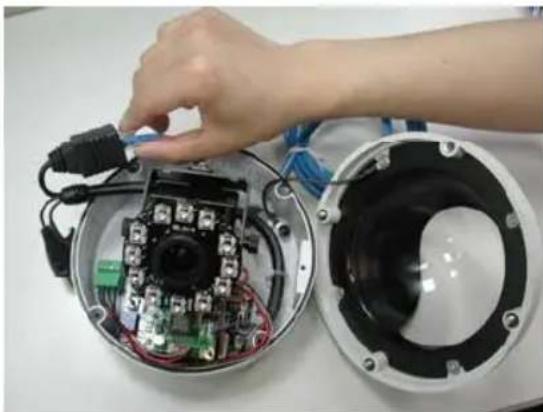

Close-up of a hand installing or adjusting an electronic circuit board inside a transparent enclosure (no visible text or symbols)

Figure 2 Figure 3

Step 4:

The "Power LED" of the IP Outdoor Mini-dome should light up.

Installation & Operation Guide

APPENDIX 6. -FAQ

1. Can the SD card be removed during recording?

A : No, it cannot be removed until the recording comes to a single point. The POWER LED flashing light signals the SD card is operating. The green light indicates the unit is activating. The red light warns the SD card cannot be removed. If the SD card is withdrawn in this mode, the card will break.

1. I've set the function of "Motion Detection" but it doesn't seem to work.

A : Check if "Motion range" and "Sensitivity" have been set before activating the function.

1. My AVI files recorded in the SD card cannot be displayed. What can I do to display the files?

A : Please visit "http://www.morgan-multimedia.com/" to download "Morgan M-JPEG codec" and install it, and then check the selection of the "IJP Core".

1. How do I turn on/off the OSD (on screen display) on/off on the IP camera?

A : Visit the homepage - tailpage.htm of the device, and select "ON" or "OFF" in the OSD column.

Example: suppose the IP address of the device is 192.168.1.168

Enter http://192.168.1.168/tailpage.htm (a registration is needed) and select "ON" or "OFF" in the OSD column.

WARNING: Please write down the IP address of the device before you turn off the OSD.

V.1.7
