USER MANUAL HZ201 Hanns.G

Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference.

FCC Class B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

The device complies with Parts 15 of the FCC Rule. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesired operations.

CANADA

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulation.

This device complies with requirement of EMC directive 2004/108/EC with regard to Electromagnetic Compatibility, and 73/23/EEC and 93/68/EEC with regard to Low Voltage directive.

Socket-outlet shall be near the equipment and shall be accessible.

Model: HZ251 & HZ281

Tc0Development Tc0'06 MEDIA DISPLAYS www.tcodevelopment.com

TcDevelopment

Congratulations!

The product you have just purchased carries the TCO'06 Media Displays label. This means that your display is designed and manufactured according to some of the strictest performance and environmental criteria in the world. The manufacturer of this display has selected it to be certified to TCO'06 Media Displays as a sign of usability, high performance and reduced impact on the natural environment.

Products certified to TCO'06 Media Displays are specifically designed for high quality reproduction of moving images. Features such as luminance, color rendition and response time are important when watching TV or working with media, graphics, web design and other applications that demand outstanding moving images. *

Other features of TCO'06 Media Displays :

Ergonomics

- Good visual ergonomics and image quality in order to reduce vision and strain problems. Criteria for luminance, contrast, resolution, reflectance, color rendition and response time.

Energy

• Energy saving mode – beneficial both for the user and the environment
  • Electrical safety

Emissions

- Low electromagnetic fields surrounding the display

Ecology

• Product is designed for recycling. Manufacturer must have a certified environmental management system such as EMAS or ISO 14 001
• Restrictions on

o Chlorinated and brominated flame retardants and polymers
o Hazardous heavy metals such as cadmium, mercury, hexavalent chromium and lead.

All TCO labelled products are verified and certified by TCO Development, an independent third party labelling organization. For over 20 years, TCO Development has been at the forefront of moving the design of IT equipment in a more user-friendly direction. Our criteria are developed in collaboration with an international group of researchers, experts, users and manufacturers. Since the program's inception, TCO labelled products have grown in popularity and are now requested by users and IT-manufacturers all over the world.

Full specifications and lists of certified products can be found on our homepage – www.tcodevelopment.com

* For a display used primarily for conventional work tasks such as word processing, we recommend a display certified to our office display series TCO'03 Displays or later version.

RECYCLING INFORMATION

We, the Hanns.G care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life.

These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels. On the contrary, other material can be classified to hazardous and poisoned substances. We strongly encourage you to contact the provided information to recycle this product.

For more information, please visit

www.hannsg.com

TABLE OF CONTENTS

SAFETY NOTICE 6

PRECAUTIONS....6

SPECIAL NOTES ON LCD MONITORS....7

ADJUSTING THE VIEWING ANGLE....11

OPERATING INSTRUCTIONS ...... 12

GENERAL INSTRUCTIONS.... 12

FRONT PANEL CONTROL 13

HOW TO ADJUST A SETTINGS.... 15

PLUG AND PLAY 18

TECHNICAL SUPPORT (FAQ) 19

Q & A FOR GENERAL PROBLEMS 19

ERROR MESSAGE & POSSIBLE SOLUTIONS 21

APPENDIX 23

SPECIFICATIONS....23

SAFETY NOTICE

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.

WARNING:

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

PRECAUTIONS

• Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
• Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.
• The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
• Unplug the unit during a lighting storm or when it will not be used for long period of time. This will protect the monitor from damage due to power surges.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• Never push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric shock. Never spill liquids on the monitor.
• Do not attempt to service the monitor by yourself; opening or removing covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel.
• The wall socket shall be installed near the equipment and shall be easily accessible.

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitor and do not indicate a problem.

• Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
• The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the time.
• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.
• If the screen suddenly flashes erratically or the backlighting fails, please contact your dealer or service center for repair. Do not attempt to repair the monitor yourself.

Lamp Disposal

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE ELECTRONIC INDUSTRIES ALLIANCE AT WWW.EIAE.ORG. FOR LAMP SPECIFIC DISPOSAL INFORMATION CHECK WWW.LAMPRECYCLE.ORG

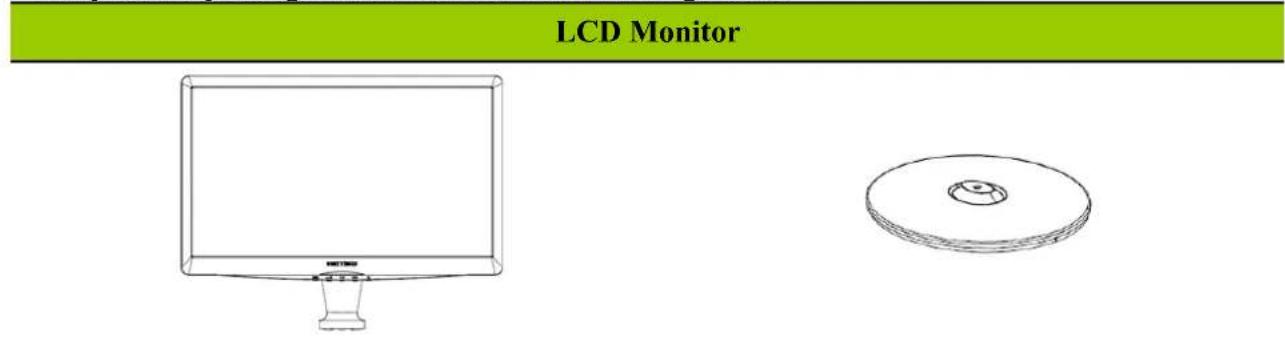

The product package should include the following items:

LCD Monitor

Cables and User manual Warranty Card Quick Start Guide User's Power Cord VGA Cable DVI Cable (O HDMI To DVI Cable (Optional) Audio Cable HDMI To HDMI Cable (Optional) Screw

INSTALLATION INSTRUCTIONS

INSTALL

Technical illustration of a device's internal components, showing a circular component being folded into a rectangular housing (no text or symbols present)

REMOVE

Technical line drawing of a mechanical device with a circular component and grid pattern (no text or symbols)

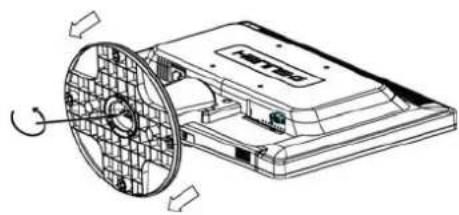

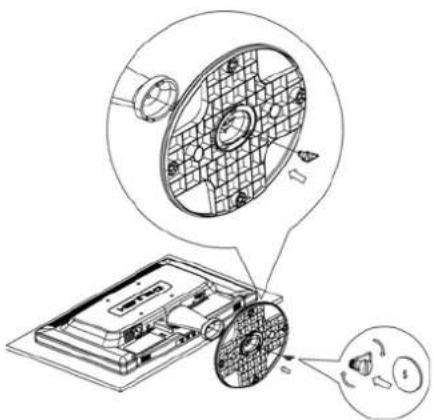

Figure.1. Installing and Removing the Base

INSTALLATION:

1. Place the monitor face down on a flat leveled surface.
2. Align the monitor with the opening in the base.
3. Turn the screw clockwise to attach the base to the monitor.

(The screw is attached on the base for model HZ194, HZ201, HZ221, HZ231, HZ251) (Find 2 screws in the accessory bag for model HZ281.)

1. Please assure the monitor is attached to the base and the screw is fully tightened.

REMOVAL:

1. Place the monitor face down on a flat leveled surface.
2. Turn the screw counterclockwise to remove the screw that holding your monitor to the base.

POWER

POWER SOURCE:

1. Make sure that the power cord is the correct type required in your area.
2. This LCD monitor has an Internal universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.)
3. Connect the AC-power cord one end to your LCD monitor's AC-input socket, the other end to wall-outlet.

MAKING CONNECTIONS

CONNECTING TO A PC

Turn off your computer before performing the procedure below.

1. Connect one end of the VGA cable to the back of the monitor and connect the other end to the computer's D-Sub port.
2. Connect one end of the DVI-D or HDMI to DVI cable (optional) to the back of the monitor and connect the other end to the computer's DVI-D port.
3. Connect one end of the HDMI cable (optional) to the back of the monitor and connect the other end to the computer's HDMI port.
4. Connect the audio cable between the monitor's audio input and the PC's audio output (green port).
5. Plug one end of the AC power cord to the LCD monitor's AC input socket, and the other end to Wall outlet.
6. Turn on your monitor and computer.

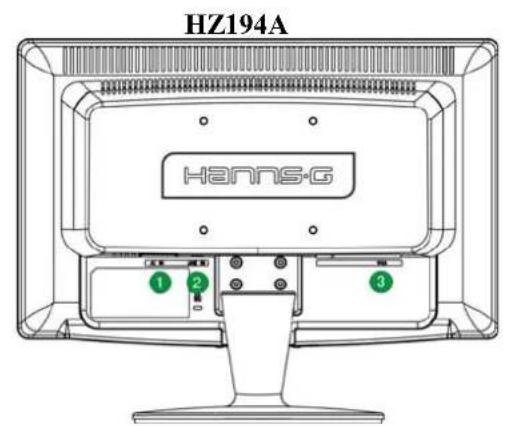

HZ194A HANNS-G ① ② ③

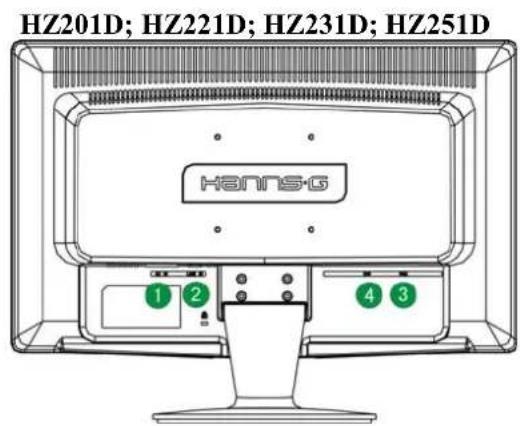

HZ201D; HZ221D; HZ231D; HZ251D HANNS G 1 2 4 3

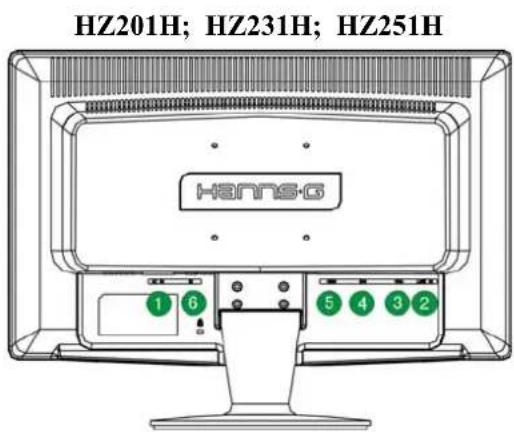

HZ201H; HZ231H; HZ251H HANSG 1 6 5 4 3 2

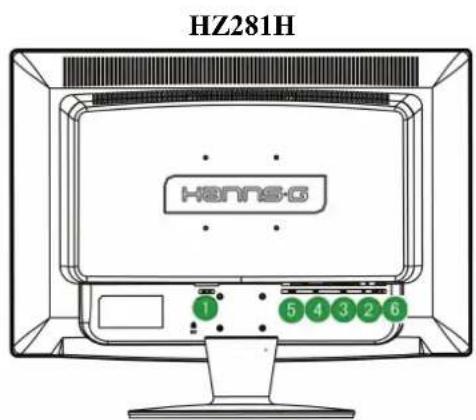

HZ281H HENNS-G 1 5 4 3 2 6

Figure.2. Connecting to a PC

1 Power AC Input 2 Audio Input
3 VGA Input 4 DVI Input
5 HDMI Input 6 Earphone

ADJUSTING THE VIEWING ANGLE

• For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.
• Hold the stand so you do not topple the monitor when you change the monitor's angle.

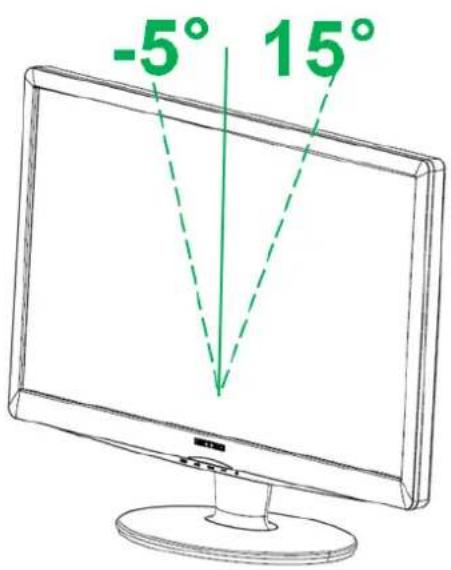

• You are able to adjust the monitor's angle from -5^ to 15^ (HZ194, HZ201, HZ231, HZ221), 0^ to 20^ (HZ251, HZ281).

HZ194, HZ201, HZ231, HZ221

HZ251, HZ281

-5° 15°

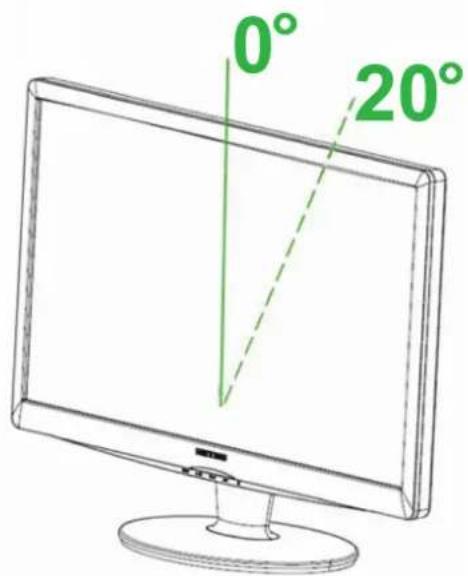

0° 20°

Figure.3. Monitor Angle

NOTES:

• Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
• Be careful not to place fingers or hands near the hinges when tilting the monitor, otherwise pinching can result.

OPERATING INSTRUCTIONS

GENERAL INSTRUCTIONS

Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences.

• The power cord should be connected.
- Connect the Signal cable from the monitor to the VGA card.
- Press the power button to turn on the monitor. The power indicator will light up.

MENU	Menu / Return
^ / ⚫️	▲ [—] Brightness adjustment button
∨ / 📷	▼ [+] Volume adjustment button
i / 📞	Auto adjustment/ Enter 《Analog Input Models》 Input source change/ Enter 《Digital Input Models》
	Power Button

Figure.4. Control Panel Buttons

FRONT PANEL CONTROL

- Power Button:

Press this button to switch ON/OFF of monitor's power.

• Power Indicator:

Green — Power On mode.

Orange — Power Saving mode.

- MENU / RETURN:

1. Turn the OSD menu on/off or return to the previous menu.
2. Exit OSD menu when in volume OSD status.

- Adjust ▲▼:

1. Adjust Brightness and volume when the OSD is off.
2. Navigate through adjustment icons when OSD is ON or adjust a function when function is activated.

1. Press 【i】 to enter Source selections. (Selections include VGA, HDMI, etc. The actual selections may very depending on the models. This function is only available in models with digital inputs)
2. The OSD menu is used as confirmation function during start-up.
3. Press and hold this button more than 3 seconds will start 「Auto Adjust」 function when using VGA input only. (The auto adjustment function is used to optimize the 「horizontal position」, 「vertical position」, 「clock」, and 「phase」.)

- Hotkeys:

1. Restore Brightness and Contrast defaults:

To reset both the Brightness and Contrast to their default values, press the 【▲】and 【▼】 keys at the same time.

2. ASPECT RATIO:

3. Change Resolution:

For similar screen display resolutions (see table below), the screen resolution can be changed by pressing the 【MENU】+【▲】button to achieve the optimal display quality.

Resolution

640x400@70Hz ↔ 720x400@70Hz

640x400@85Hz ↔ 720x400@85Hz

640x480@60Hz ↔ 720x480@60Hz

1024x768@70Hz ↔ 1280x768@70Hz

1280x768@60Hz ↔ 1360x768@60Hz

1360x768@60Hz ↔ 1366x768@60Hz

1440x900@60Hz ↔ 1600x900@60Hz

1400x1050@60Hz ↔ 1680x1050@60Hz

1400x1050@RB 60Hz ↔ 1680x1050@RB 60Hz

1400x1050@75Hz ↔ 1680x1050@75Hz

** The screen resolutions available will depend on the purchased model.

NOTES:

• Do not install the monitor in a location near heat sources such as radiators or air dusts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.
• Save the original shipping box and packing materials, as they will come in handy if you ever have to ship your monitor.
• For maximum protection, repackage your monitor as it was originally packed at the factory.
• To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.

HOW TO ADJUST A SETTINGS

BRIGHTNESS/ CONTRAST
BRIGHTNESS	Adjust the brightness value of the display according to your preference. Select「BRIGHTNESS」option to adjust the brightness value.
CONTRAST	Adjust the contrast value of the display according to your preference. Select「CONTRAST」option to adjust the contrast value.
X-CONTRAST	Optimal setting for high contrast images or videos. The dark and light areas of the image are automatically detected, and the contrast is enhanced to provide a clearer, sharper image. Also, you may select the「X-CONTRAST」option.
INPUT SETTING
INPUT SETTING	Select the「INPUT SETTING」option to change between analog (VGA) or Digital (DVI) source. Enter the option and select Analog or Digital. [Dual input mode optional]
AUTO SEARCH	From the Signal Selection menu, select the「AUTO SEARCH」option to activate or deactivate the automatic signal search function. [For DVI/ HDMI Input only]
COLOR SETTING
WARMNATURE (6500K)COOL	Adjust the color temperature value of the display according to your preference: WARM /NATURE/ COOL.
USER	Move the cursor to the User option and select it,1. To adjust the red, enter the「R」option and adjust the level.2. To adjust the green, enter the「G」option and adjust the level.3. To adjust the blue, enter the「B」option and adjust the level.
IMAGE SETTING
AUTO ADJUST	The auto adjustment function is used to optimize the「H-POSITION」,「V-POSITION」,「CLOCK」,and「PHASE」.[For VGA Input only]
ASPECT RATIO	When the aspect ratio of screen is distorted, you may make adjustments by using this function.「FULL」indicates full screen display, which does not ensure the image is shown as is or in initial scale.「FIT」indicates scaling by the proportion of original images, which may cause the screen showing black bands. [The availability of this function depends upon the selected model]
H-POSITION	Select the 「H-POSITION」option to shift the screen image to the left or right. Enter the option and adjust the level. [For VGA only]
V-POSITION	Select the 「V-POSITION」option to shift the screen image up or down. Enter the option and adjust the level. [For VGA only]
CLOCK	Select the 「CLOCK」option to reduce the vertical flicker of characters on the screen. Enter the option and adjust the level. [For VGA only]
PHASE	Select the 「PHASE」option to reduce the horizontal flicker of characters on the screen. Enter the option and adjust the level. [For VGA only]
SHARPNESS	Select the 「SHARPNESS」option to adjust the sharpness of the display. Set the value from -2 to 2.
VIDEO MODE	Choose 「VIDEO MODE」or 「PC MODE」for video transmission. While using HDMI or HDMI to DVI ports for video transmission, the video will appear cut off slightly around the edge; choose 「PC MODE」to view videos with complete image. (VIDEO MODE only functions for inputs from HDMI or DVI that supports HDCP video (YUV format))
RESPONSE TIME	Setup the display response time through the Response time function. Available settings are MINIMUM, INTERMEDIATE, and MAXIMUM. [This feature is limited to specific models only.]
OSD SETTING
LANGUAGE	Select 「LANGUAGE」option to change the language of the OSD. Enter the option and select a language. [Reference only, the OSD Language depends on the selected model]
H-POSITION	Select 「H-POSITION」option to adjust the horizontal position of the OSD. Enter the option and adjust the level.
V-POSITION	Select 「V-POSITION」option to adjust the vertical position of the OSD. Enter the option and adjust the level.
TRANSPARENCY	Select 「TRANSPARENCY」option to adjust the transparency of the OSD. Enter the option and adjust the level.
OSD TIME-OUT	Select 「OSD TIME-OUT」option to set the OSD time out from 10 to 100 seconds. Enter the option and adjust the level.
OSD COLOR	To choose the color combination of the OSD window, select 「OSD COLOR」option under 「OSD SETTING」menu, choose modes 1/2/3.
SYSTEM
AUDIO INPUT	While transferring via the HDMI port, it is recommended to set AUDIO INPUT to HDMI; if no sound is outputted, it is recommended to select AUDIO INPUT as PC, and make sure the PC audio output cable is connected to monitor's LINE IN (or AUDIO IN) port. [For HDMI Input only]
VOLUME	Select the 「VOLUME」option to change the volume level. Enter the option and adjust the level. [The availability of this function depends upon the selected model]● By high volume, risk of hearing damage exists.
MUTE	Select the 「MUTE」option to switch the function On or Off. [The availability of this function depends upon the selected model. Adjusting the volume while muted cancels Mute mode.]
DDC/CI	Select the 「DDC/CI」option to switch the function On or Off. [Dual input mode optional]
FACTORY RESET	Select the 「FACTORY RESET」option to reset to the monitor's default setting. This will erase the current settings. Enter the option and select On or Off.
INFORMATION	Display Horizontal frequency/Vertical frequency/Resolution information.

PLUG AND PLAY

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol. The host can request EDID information over the DDC2B channel.

THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO VIDEO INPUT SIGNAL. IN ORDER FOR THIS MONITOR TO OPERATE PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.

This monitor meets the Green monitor standards as set by the Video Electronics Standards Association (VESA) and/or the United States Environmental Protection Agency (EPA) and The Swedish Confederation Employees (NUTEK). This feature is designed to conserve electrical energy by reducing power consumption when there is no video-input signal present. When there is no video input signal this monitor, following a time-out period, will automatically switch to power saving mode. This reduces the monitor's internal power supply consumption. After the video input signal is restored, full power is restored and the display is automatically redrawn. The appearance is similar to a "Screen Saver" feature except the display is completely off. The display is restored by pressing a key on the keyboard, or clicking the mouse.

TECHNICAL SUPPORT (FAQ)

Q & A FOR GENERAL PROBLEMS

PROBLEM & QUESTION POSSIBLE SOLUTION
Power LED is not on	*Check if the Power Switch is in the ON position.*Power Cord should be connected.
No Plug & Play	*Check if the PC system is Plug & Play compatible.*Check if the Video Card is Plug & Play compatible.*Check if any plug pins on the VGA or DVI connector are bent.
The display is too dark or too bright.	*Adjust the Contrast and Brightness Controls.
Picture bounces or a wave pattern is present in the picture	*Move electrical devices that may cause electrical interference.
The power LED is ON (orange) but there's no video or no picture.	*Computer Power Switch should be in the ON position.*Computer Video Card should be snugly seated in its slot.*Make sure monitor's video cable is properly connected to the computer.*Inspect monitor's video cable and make sure none of the pins are bent.*Make sure computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary colors (RED, GREEN, or BLUE)	*Inspect the monitor's video cable and make sure that none of the pins are bent.
Screen image is not centered or sized properly.	* Adjust pixel frequency CLOCK and PHASE or press hot-key (i Button).
Picture has color defects(White does not look white)	*Adjust RGB color or select color temperature.
The screen resolution needs to be adjusted	*Use win 2000/ME/XP Right click anywhere on desktop and select Properties>Settings>Screen Resolution. Use the solder to adjust the resolution and click Apply.
No sound is outputted from monitor's built-in speaker	*Make sure PC audio output cable is connected to screen's LINE IN port (or AUDIO IN port).*Make sure the sound volume adjustment can be clearly identified.*Make sure the System > Silence option in the monitor menu is on.*While transferring via HDMI port but no sound is outputted, it is recommended to select AUDIO

INPUT as a PC option, and make sure PC audio output cable is connected to monitor's LINE IN port (or AUDIO IN port). [For HDMI Input only]

ERROR MESSAGE & POSSIBLE SOLUTIONS

- CABLE NOT CONNECTED :

1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector's screws.
2. Check the signal-cable's connection pins for damage.

- INPUT NOT SUPPORT :

Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table.

FACTORY PRESET TIMING TABLE:

MODE	RESOLUTION	HORIZONTAL FREQUENCY (KHz)	VERTICAL FREQUENCY (Hz)	HZ194	HZ201	HZ221	HZ231	HZ251	HZ281
1	720×400 @70Hz 31.469	70.087		▲ ▲	▲ ▲	▲ ▲
2	640×400 @70Hz 31.469	70.087		▲ ▲
3	640×480 @60Hz 31.469	59.94		▲ ▲	▲ ▲	▲ ▲
4	640×480 @70Hz 36.052	70.004		▲
5	640×480 @67Hz 35	66.667		▲ ▲	▲ ▲	▲ ▲
6	640×480 @72Hz	37.861	72.809		▲ ▲	▲ ▲	▲ ▲
7	640×480 @75Hz	37.5	75	▲ ▲	▲ ▲	▲ ▲
8	800×600 @56Hz	35.156	56.25		▲ ▲	▲ ▲	▲ ▲
9	800×600 @60Hz	37.879	60.317		▲ ▲	▲ ▲	▲ ▲
10	800×600 @72Hz	48.077	72.188		▲ ▲	▲ ▲	▲ ▲
11	800×600 @75Hz	46.875	75	▲ ▲	▲ ▲	▲ ▲
12	832×624 @75Hz	49.725	75	▲ ▲	▲ ▲	▲ ▲
13	848×480 @60Hz	37.879	60.132
14	1024×768 @60Hz	48.363	60.004	▲ ▲	▲ ▲	▲ ▲
15	1024×768 @70Hz	56.476	70.069	▲ ▲	▲ ▲	▲ ▲
16	1024×768 @75Hz	60.023	75.029	▲ ▲	▲ ▲	▲ ▲
17	1152×870 @75Hz	68.681	75.062		▲ ▲	▲ ▲	▲
18	1152×864 @75Hz	67.5	75		▲ ▲	▲ ▲	▲
19	1280×720 @60Hz	45	60	▲ ▲
20	1280×960 @60Hz	60	60			▲ ▲	▲ ▲
21	1280×960 @75Hz	74.592	74.443				▲ ▲
22	1280×768 @60Hz	47.776	59.87	▲
23	1280×768 @75Hz	60.776	75.07	▲
24	1366×768 @70Hz	47.852	59.964	▲
25	1280×1024 @60Hz	63.981	60.02			▲ ▲	▲ ▲
26	1280×1024 @75Hz	79.976	75.025			▲ ▲	▲ ▲
27	1360×768 @60Hz	63.981	60.02

28	1440×900 @60Hz 64.981 60.05			▲ ▲	▲ ▲	▲
29	1440×900 @75Hz 66.981 75.07			▲ ▲	▲ ▲	▲
30	1400×1050 @60Hz 64.744 59.948			▲
31	1600×900 @60Hz 55.54 59.978			▲				▲
32	1680×1050 @60Hz 65.29 59.954			▲	▲ ▲
33	1920×1080 @60Hz 66.587 59.934					▲ ▲	▲
34	1920×1200 @60Hz 74.038 59.95							▲

(Video mode)

** We ensure that the monitor can be lighted under interlace signal mode, but we can not guarantee the image quality.

APPENDIX

SPECIFICATIONS

HZ194

LCD Panel	Driving system TFT Color LCD
	Size 18.5" Wide
	Pixel pitch 0.3mm(H) x 0.3mm(V)
Video	H-Frequency 24KHz - 61KHz
	V-Frequency 56-75Hz
Display Colors 16.7M Colors
Max. Resolution 1366 x 768 @60Hz
Plug & Play		VESA DDC2B^TM , DPMS
Power consumption	ON Mode 28W (Typical)
	Power Saving Mode ≤1W
	OFF Mode ≤0.5 W
Audio output Rated Power 1.5W rms (Per channel)
Input Terminal		VGA
Maximum Screen Size		Hor.: 409.8 mmVer.: 230.4 mm
Power Source		100~240VAC,50±3Hz,60±3Hz
Environmental Considerations		Operating Temp: 0° to 50°CStorage Temp.: -20° to 60°COperating Humidity: 10% to 80%
Dimensions		440.4(W) x 352.5(H) x 190(D) mm17.4"(W)×13.9"(H)×7.5"(D)
Weight (NW)		3.6 kg

*** The above specification is subject to actual product specification and is subject to change without prior notice.

NOTES:

The Maximum Resolution will depends on the display card supporting. Related issue can refer to www.hannsg.com FAQ section.

SPECIFICATIONS

HZ201

LCD Panel	Driving system TFT Color LCD
	Size 20" Wide
	Pixel pitch 0.276mm(H) x 0.276mm(V)
Video	H-Frequency 24KHz - 70KHz
	V-Frequency 56 - 75Hz
Display Colors 16.7M Colors
Max. Resolution 1600 x 900 @60Hz
Plug & Play		VESA DDC2B ^TM , DPMS
Power consumption	ON Mode 35W (Typical)
	Power Saving Mode ≤1W
	OFF Mode ≤0.5 W
Audio output Rated Power 1.5W rms (Per channel)
Input Terminal		VGADVIHDMI (Optional)
Maximum Screen Size		Hor.: 442.8mmVer.: 249.1mm
Power Source		100~240VAC,50±3Hz,60±3Hz
Environmental Considerations		Operating Temp: 0° to 50°CStorage Temp.: -20° to 60°COperating Humidity: 10% to 80%
Dimensions		473.8 (W) x 367(H) x 190 (D) mm18.7"(W)×14.5"(H)×7.5"(D)
Weight (NW)		4.2 kg

*** The above specification is subject to actual product specification and is subject to change without prior notice.

NOTES:

The Maximum Resolution will depends on the display card supporting. Related issue can refer to www.hannsg.com FAQ section.

SPECIFICATIONS

HZ231

LCD Panel	Driving system TFT Color LCD
	Size 23" Wide
	Pixel pitch 0.265mm(H) x 0.265mm(V)
Video	H-Frequency 24KHz - 83KHz
	V-Frequency 56 - 75Hz
Display Colors 16.7M Colors
Max. Resolution 1920 x 1080 @60Hz
Plug & Play		VESA DDC2B ^TM , DPMS
Power consumption	ON Mode 35W (Typical)
	Power Saving Mode ≤1W
	OFF Mode ≤0.5 W
Audio output Rated Power 1.5W rms (Per channel)
Input Terminal		VGADVIHDMI (Optional)
Maximum Screen Size		Hor.: 509.76mmVer.: 286.74mm
Power Source		100~240VAC,50±3Hz,60±3Hz
Environmental Considerations		Operating Temp: 0° to 50°CStorage Temp.: -20° to 60°COperating Humidity: 10% to 80%
Dimensions		544(W) x 412(H) x 200(D) mm21.5"(W)×16.3"(H)×7.9"(D)
Weight (NW)		4.7 kg

*** The above specification is subject to actual product specification and is subject to change without prior notice.

NOTES:

The Maximum Resolution will depends on the display card supporting. Related issue can refer to www.hannsg.com FAQ section.

SPECIFICATIONS

HZ251

LCD Panel	Driving system TFT Color LCD
	Size 25" Wide
	Pixel pitch 0.283mm(H) x 0.283mm(V)
Video	H-Frequency 24KHz - 83KHz
	V-Frequency 56 - 75Hz
Display Colors 16.7M Colors
Max. Resolution 1920 x 1080 @60Hz
Plug & Play		VESA DDC2B ^TM , DPMS
Power consumption	ON Mode 48W (Typical)
	Power Saving Mode ≤1W
	OFF Mode ≤0.5 W
Audio output Rated Power 2.0W rms (Per channel)
Input Terminal		VGADVIHDMI (Optional)
Maximum Screen Size		Hor.: 543.46mmVer.: 305.69mm
Power Source		100~240VAC,50±3Hz,60±3Hz
Environmental Considerations		Operating Temp: 0° to 50°CStorage Temp.: -20° to 60°COperating Humidity: 10% to 80%
Dimensions		581.5(W) x 433.4(H) x 200(D) mm22.9"(W)×17.1"(H)×7.9"(D)
Weight (NW)		6.1 kg

*** The above specification is subject to actual product specification and is subject to change without prior notice.

NOTES:

The Maximum Resolution will depends on the display card supporting. Related issue can refer to www.hannsg.com FAQ section.

SPECIFICATIONS

HZ281

LCD Panel	Driving system TFT Color LCD
	Size 28" Wide
	Pixel pitch 0.309m(H) x 0.309mm(V)
Video	H-Frequency 24KHz - 80KHz
	V-Frequency 56 - 75Hz
Display Colors 16.7M Colors
Max. Resolution 1920 x 1200 @60Hz
Plug & Play		VESA DDC2B ^TM , DPMS
Power consumption	ON Mode 95W (Typical)
	Power Saving Mode ≤1W
	OFF Mode ≤0.5 W
Audio output Rated Power 2.0W rms (Per channel)
Input Terminal		VGADVIHDMI
Maximum Screen Size		Hor.: 593.28mmVer.: 370.8 mm
Power Source		100~240VAC,50±3Hz,60±3Hz
Environmental Considerations		Operating Temp: 0° to 50°CStorage Temp.: -20° to 60°COperating Humidity: 10% to 80%
Dimensions		652.7(W) x 523.29(H) x254(D) mm25.7"(W)×20.6"(H)×10"(D)
Weight (NW)		8.5 kg

*** The above specification is subject to actual product specification and is subject to change without prior notice.

NOTES:

The Maximum Resolution will depends on the display card supporting. Related issue can refer to www.hannsg.com FAQ section.
