USER MANUAL GV-VD3430 Geovision

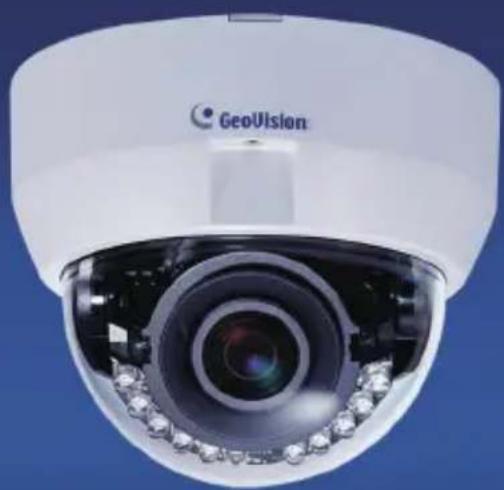

Front view of a white GeoVision surveillance camera with visible lens and sensor array (no text or symbols on body)

Close-up of a white GeoVision surveillance camera with visible lens and control buttons (no text or symbols on body)

• Fixed IP Dome
  • Target Fixed Dome

GeoVision

© 2015 GeoVision, Inc. All rights reserved.

Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of GeoVision.

Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein. Features and specifications are subject to change without notice. Note: no memory card slot or local storage function for Argentina.

GeoVision, Inc.

9F, No. 246, Sec. 1, Neihu Rd.,

Neihu District, Taipei, Taiwan

Trademarks used in this manual: GeoVision, the GeoVision logo and GV series products are trademarks of GeoVision, Inc. Windows and Windows XP are registered trademarks of Microsoft Corporation.

September 2015

Contents

Contents ......i

Options ....iii

Note for Adjusting Focus and Zoom...... iv

Chapter 1 Fixed IP Dome ....1

1.1 Packing List....3

1.1.1 Packing List for Hard-Ceiling Mount 3
1.1.2 Packing List for In-Ceiling Mount......4

1.2 Features....5
1.3 Overview ......7
1.4 Installation....9

1.4.1 Hard-Ceiling Mount....9
1.4.2 In-Ceiling Mount....13
1.4.3 Wall-Surface Mount 17

1.5 Connecting the Camera....19
1.6 I/O Terminal Block....20

1.6.1 Pin Assignment....20
1.6.2 Voltage Load Expansion (Optional)....21

1.7 Loading Factory Default....22

Chapter 2 Target Fixed Dome......23

2.1 Packing List....24

GeoVision

2.2 Features....25
2.3 Overview ......27
2.4 Installation....29
2.5 Connecting the Camera....32
2.6 Loading Factory Default....33

Options

Optional devices can expand your camera's capabilities and versatility. Contact your dealer for more information.

Device Description
Power Adapter	The power adapter is available for all Fixed IP Dome Camera. Contact your sales representative for the countries and areas supported.
GV-PA191 PoE Adapter	The GV-PA191 PoE adapter is designed to provide power and network connection to the cameras over a single Ethernet cable.
GV-POE Switch	The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
GV-Mount Accessories	The GV-Mount Accessories provide a comprehensive lineup of accessories for installation on ceiling, wall corner and pole. For details, see GV-Mount Accessories Installation Guide on the Software DVD.
GV-Relay V2	The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
Smoked Cover	The smoked cover is an IK7, tinted camera cover designed for GV-Fixed IP Dome to conceal the direction of the camera lens.

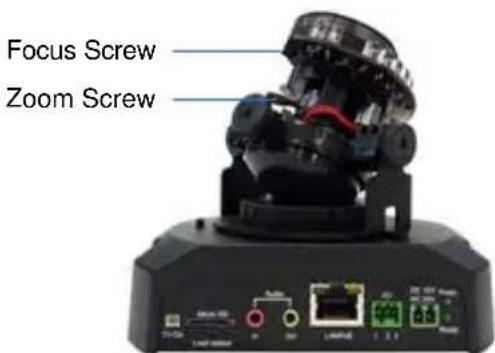

Note for Adjusting Focus and Zoom

When adjusting the Focus and Zoom Screws, do not over tighten the Focus and Zoom screws. The screws only need to be as tight as your finger can do it. It is not necessary to use any tools to get them tighter. Doing so can damage the structure of lens.

For example,

Focus Screw Zoom Screw

Fixed IP Camera

The maximum torque value for all the zoom and focus screws is 0.049 N.m

Chapter 1 Fixed IP Dome

The Fixed IP Dome is a series of indoor camera designed with 3-axis mechanism for easy and flexible installation. The Fixed IP Dome features IR LED for infrared illumination for night surveillance. The WDR Pro models can produce clear image for scenes containing contrasting intensity of lights. The motorized varifocal lens models allow the user to remotely adjust the zoom and focus through the Web interface. The super low lux models are able to display color live view in near darkness. For related models, see 1.2 Features. The models are detailed below:

Model No.		Specification	Description
GV-FD220DGV-FD320D	Varifocal Lens	Auto Iris, f:3 ~ 9mm, F/1.3, 1/3”ø 14 mm lens mount	1.3 MP Low Lux / 2MP / 3 MP, H.264,D/N, Fixed IP Dome
GV-FD1200		Auto Iris, f: 3 ~ 9mm, F/1.2, 1/2.7”ø 14 mm Mount	1.3 MP Low Lux,H.264, D/N, Fixed IP Dome
GV-FD1500GV-FD2400GV-FD2500GV-FD3400			1.3 MP Super LowLux / 2 MP WDR Pro/ 2 MP Super LowLux / 3 MP WDRPro, H.264, D/N,
GV-FD1210	Motorized varifocal Lens	Auto Iris, f: 3 ~ 9 mm, F/1.2, 1/2.7"ø 14 mm Mount	1.3 MP Low Lux, H.264, D/N, 3x Optical Zoom, Fixed IP Dome
GV-FD1510GV-FD2510			1.3 MP / 2 MP Super Low Lux, H.264, D/N, 3x Optical Zoom, Fixed IP Dome
GV-FD2410GV-FD3410			2 MP / 3 MP, H.264, D/N, WDR Pro, 3x Optical Zoom, Fixed IP Dome

Models with P-Iris (Coming)

Model No.		Specification	Description
GV-FD1500GV-FD2500GV-VD3400	Varifocal Lens	P-Iris, f: 3 ~ 9 mm,F/1.2, 1/2.7”ø 14 mm Mount	1.3 MP Super Low Lux / 2 MP Super Low Lux / 3 MPWDR Pro, H.264,D/N, Fixed IP Dome
GV-FD1510GV-FD2510GV-FD3410	Motorized varifocal Lens

1.1 Packing List

1.1.1 Packing List for Hard-Ceiling Mount

- Fixed IP Dome

- Torx Wrench

- Mounting Plate

- Short Screw Anchor x 3

Circular gray object with a rectangular cutout and small square holes, no visible text or symbols.

- Ceiling Screw x 3

- Plate Screw x 3

Three identical metallic cylindrical rods with flanged ends, arranged horizontally (no text or symbols visible)

- TV-out Wire

- Sticker

- Power Adapter

- GV-IPCAM

H.264 Software DVD

• GV-NVR Software DVD

- Warranty Card

Note: The power adapter can be excluded upon request.

1.1.2 Packing List for In-Ceiling Mount

• In-Ceiling Housing Cover

Close-up of a spherical glass display with 'SeriVision' branding, no other text or symbols visible.

- Mounting Plate

Circular mechanical component with mounting holes and a central hole (no visible text or symbols)

- Mounting Bracket x 3

Three identical metal L-shaped clamps with blue and black components, shown side by side (no text or symbols visible)

- Copper Pillar x 3

Three golden cylindrical objects arranged horizontally (no text or symbols visible)

• Copper Pillar Screw x 6

Six identical metallic screw or nut-shaped objects arranged in a 2x2 grid (no text or symbols visible)

- Bracket Screw x 3

- Thread Lock Screw

• Housing Cover Thread

- Sticker (In-Ceiling Mount)

1.2 Features

- Image sensor

Camera Model Image Sensor
GV-FD1200 / 1210 1/3” progressive scan low lux CMOS
GV-FD1500 / 1510 1/3” progressive scan super low lux CMOS
GV-FD2500 / 2510	1/2.8” progressive scan super low lux CMOS
GV-FD2400 / 2410GV-FD3400 / 3410	1/3.2” progressive scan CMOS
GV-FD220DGV-FD320D	1/2.5” progressive scan CMOS

• Dual streams from H.264 or MJPEG
- Frame rate

Camera Model Frame Rate
GV-FD1200 / 1210GV-FD1500 / 1510	30 fps at 1280 x 1024
GV-FD220DGV-FD2400 / 2410GV-FD2500 / 2510	30 fps at 1920 x 1080
GV-FD320DGV-FD3400 / 3410	20 fps at 2048 x 1536

• Day and night function (with removable IR-cut filter)
- P-Iris for auto iris adjustment (Coming, for GV-FD1500 / 1510 / 2500 / 2510 / 3400 / 3410 only)
- Wide Dynamic Range Pro (for GV-FD2400 / 2410 / 3400 / 3410 only)
- Defog
• 3-axis mechanism (pan / tilt / roll)
• Built-in IR LED

• Micro SD card slot (SD/SDHC) for local storage
• NAS recording
• Recording assigned by GV-Edge Recording Manager (Windows & Mac)
  • One sensor input and alarm output
• TV-out support
• Two-way audio
  • 3D noise reduction (for GV-FD1500 / 1510 / 2500 / 2510)
  • 2D noise reduction (except for GV-FD1500 / 1510 / 2500 / 2510)
• Motion detection
• Tampering alarm
• Visual automation
• Text overlay
• Privacy mask
• IP address filtering
  • DC 12V / AC 24V / PoE (IEEE 802.3af)
• Megapixel lens
  • Support for iPhone, iPad, Android and 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

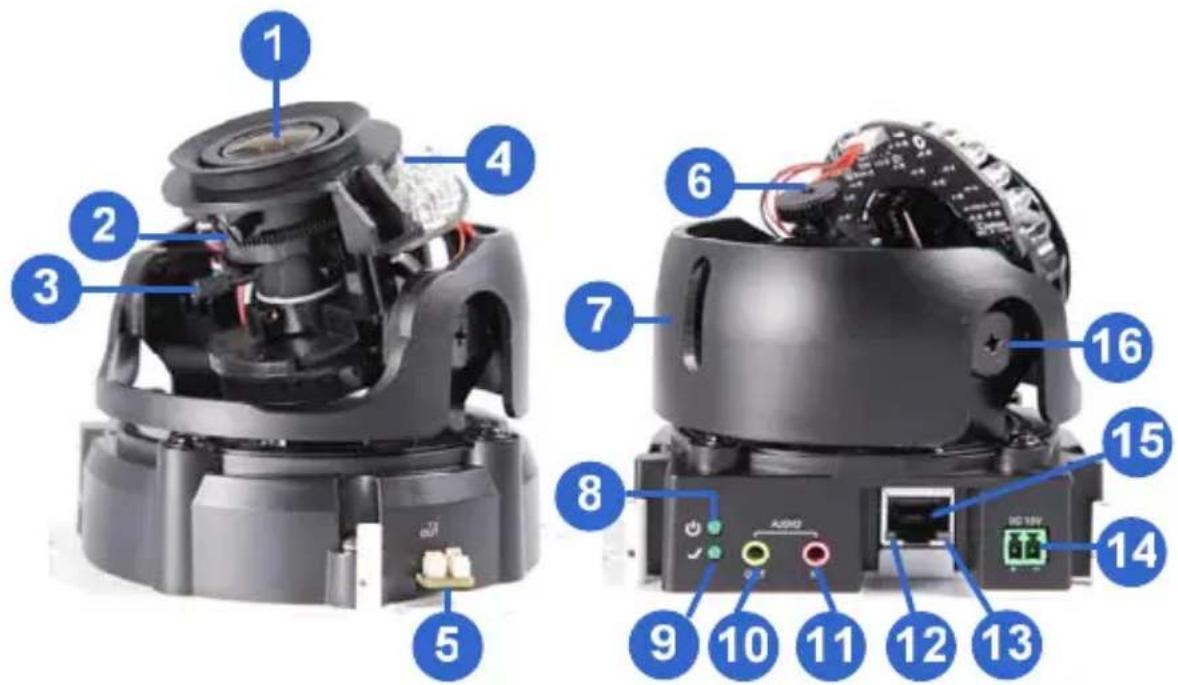

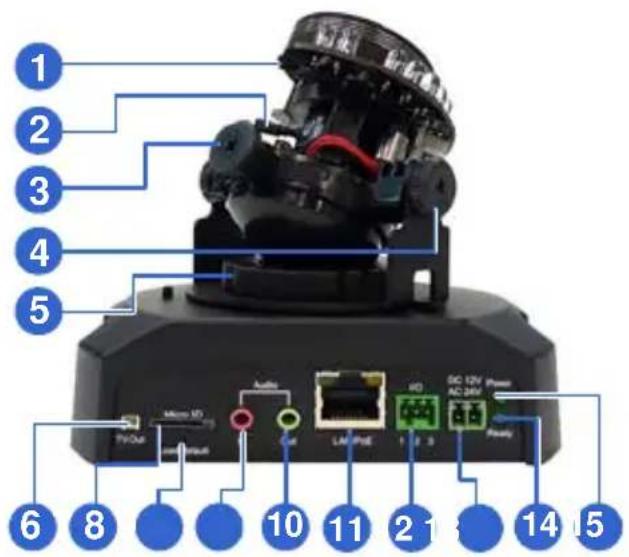

1.3 Overview

1 2 3 4 5 6 8 10 11 2 14 15 Micro ID Audio LAN/PE DC 12V (Power) AC 24V Panc

Figure 1-1

No.	Name Description
1	Focus Screw Adjusts the	focus of the camera.
2	Zoom Screw Adjusts the	zoom of the camera.
3	Rotational Screw Loosens	to adjust the camera angle.
4	Tilt Screw Loosens the	crew to tilt the camera.
5	Pan Disc Loosens to pan	the camera.
6	Video Out	Connects to a portable monitor for setting the focus and angle of Fixed IP Dome during initial installation.
7	Memory Card Slot	Inserts a micro SD card (SD/SDHC, version 2.0, Class 10) to store recording data.

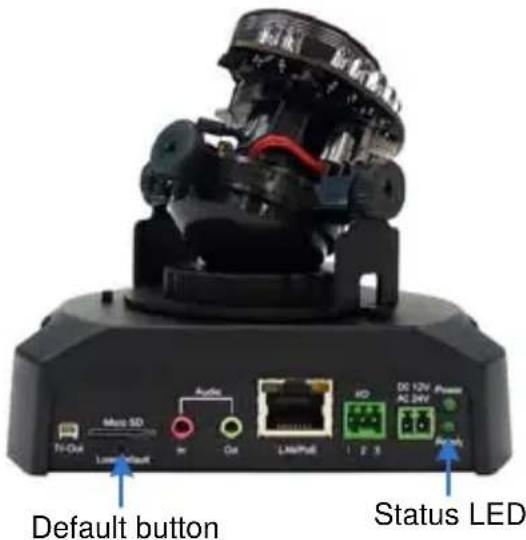

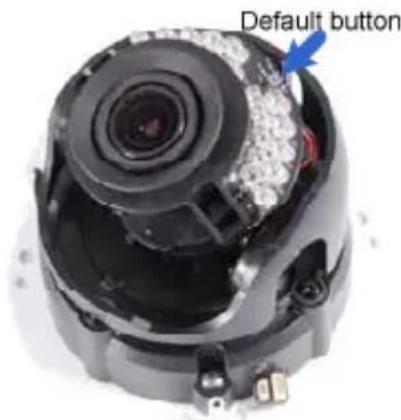

8	Default Button	Restores the camera to factory default. For details, see 1.7 Loading Factory Default.

No.	Name	Description
9	Audio In	Connects a microphone for audio input.
10	Audio Out	Connects a speaker for audio output.
11	LAN / PoE	Connects to a 10/100 Ethernet or PoE.
12	I/O	Terminal Block	Connects to I/O devices. For details, see 1.6 I/O Terminal Block.
13	DC	12V Port Connects to power.

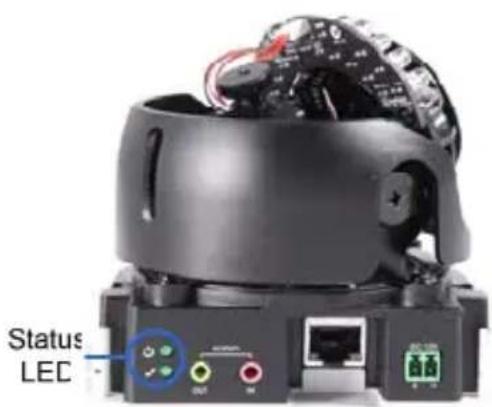

14	Status	LED	Turns on (green) when the system operates normally and turns off when system error occurs.
15	Power	LED	Turns on (green) when the power is on and turns off when there is no power supply.

1.4 Installation

The Fixed IP Dome is designed for indoors. With the standard packing, there are three ways to install the Fixed IP Dome: hard-ceiling mount, in-ceiling mount and wall-surface mount.

Note: You may also install the camera to ceilings, wall corners (concave or convex), and poles with optional mounting kits. For details, see GV-Mount Accessories Installation Guide on the Software CD.

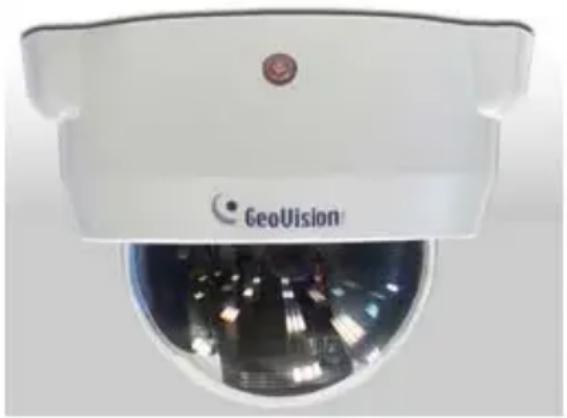

1.4.1 Hard-Ceiling Mount

Close-up of a white GeoVision surveillance camera with a circular lens showing internal security camera view (no text or symbols on the device itself)

Figure 1-2

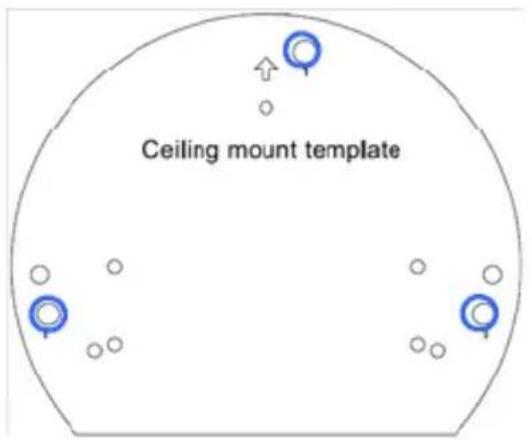

1. Paste the supplied sticker onto a desired location on the ceiling. Drill the three red dots and the ellipse mark only if you wish to run the wires into the ceiling.

2. Unpack the camera package and take out the camera body.

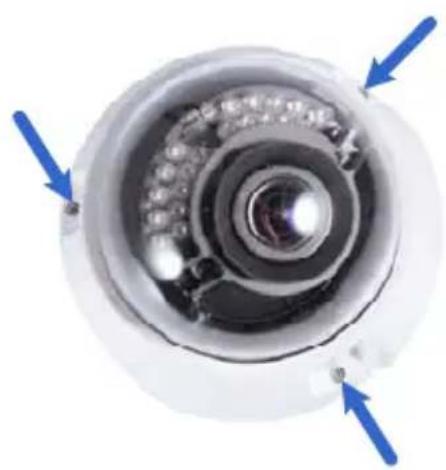

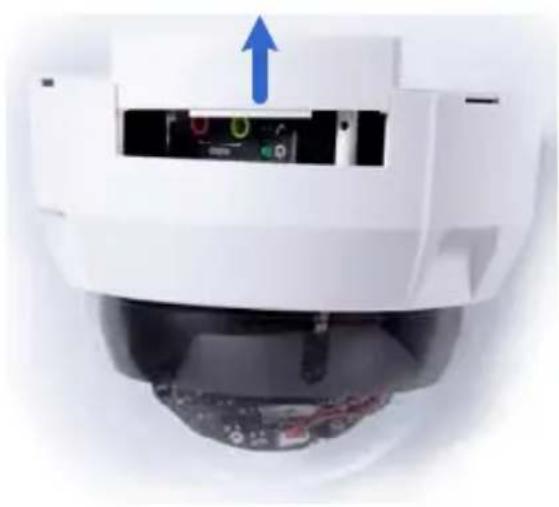

A. Use the torx wrench to loosen the housing cover at the front and the back.

White spherical security camera with a black handle and 'Registration' label (no other text or symbols visible)

Figure 1-3

B. Take out the camera body

Close-up of a white surveillance camera with a dome and black base, showing blue directional arrows (no text or symbols visible)

Figure 1-4

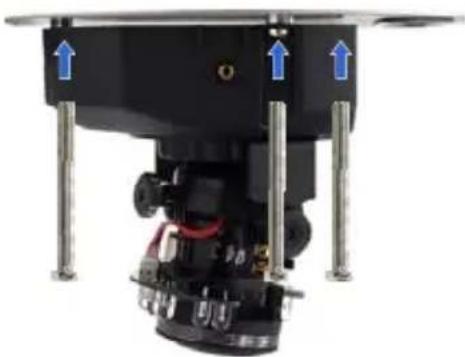

1. Secure the camera body to the mounting plate with three ceiling screws.

Close-up of a robotic arm with blue directional arrows indicating movement or force (no text or symbols visible)

Figure 1-5

1. Connect the network, power and other cables to the camera. See 1.5 Connecting the Camera.
2. Access the live view. See 2.1 Accessing the Live View, GV-IPCam H.264 Firmware Manual.
3. Based on the live view, adjust the camera to a desired angle as illustrated below.

Tip: The 3-axis mechanism offers flexible and easy ceiling / wall installation.

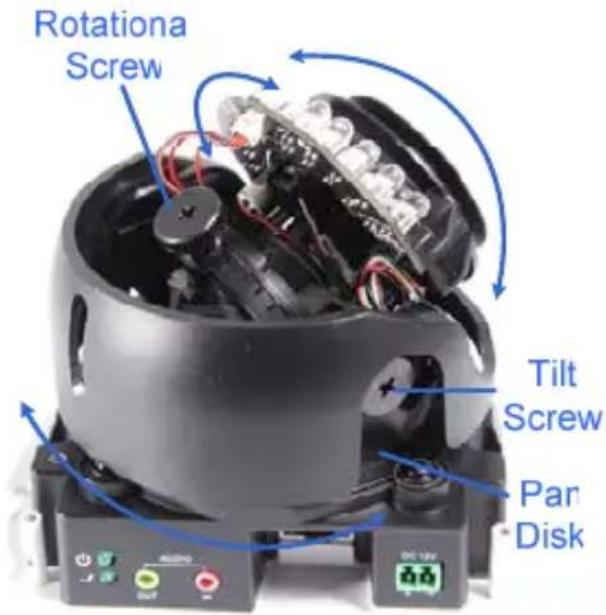

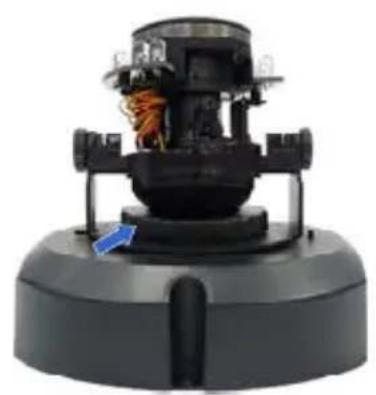

Pan Adjustment

Close-up of a mechanical device with internal components and a blue arrow indicating a specific part (no visible text or symbols)

Figure 1-6

Close-up of a mechanical device with blue directional arrows indicating rotation or movement (no visible text or symbols)

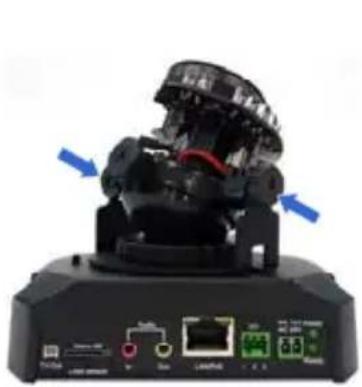

Tilt Adjustment

Close-up of a black mechanical device with red wiring and blue directional arrows indicating movement or force (no visible text or symbols)

Close-up of a black industrial machine with blue directional arrows indicating motion or rotation (no text or symbols visible)

Figure 1-7

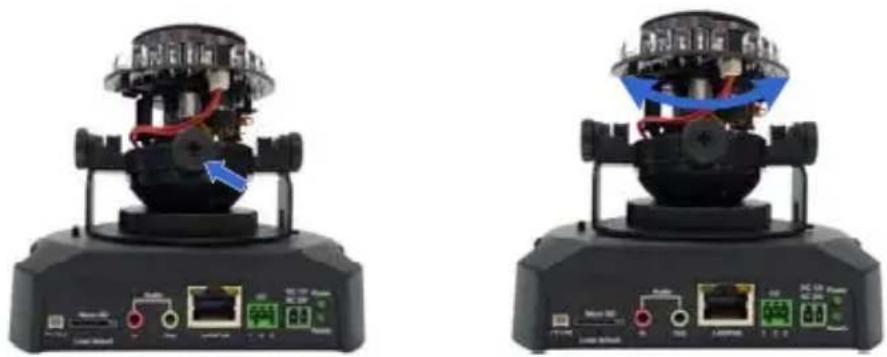

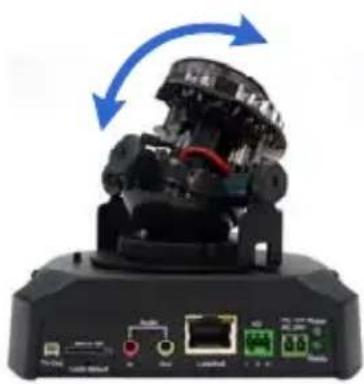

Rotational Adjustment

Figure 1-8

1. Adjust image clarity using the GV-IP Device Utility program. For details, see 2.2 Adjusting Image Clarity, GV-IPCam H.264 Firmware Manual.
2. Secure the housing cover as shown in step 2. Remove the indicated part when necessary.

Close-up of a white surveillance camera with a spherical dome and mounted sensor (no visible text or symbols)

Figure 1-9

Note: Adjust the black mask inside the housing cover to make sure the camera view is not obscured.

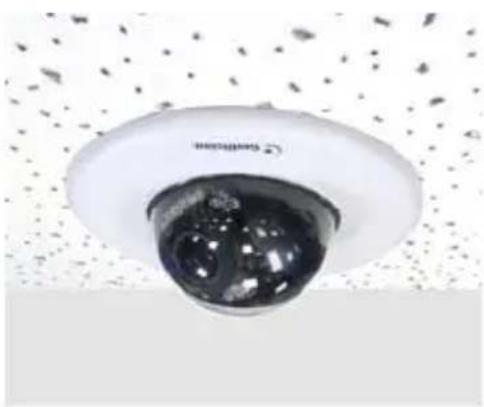

1.4.2 In-Ceiling Mount

Close-up of a white surveillance camera with black lens and circular head (no visible text or symbols)

Figure 1-10

1. Follow step 2 in the 1.4.1 Hard-Ceiling Mount to remove the housing cover and take out the camera body.
2. Paste the supplied sticker onto a desired location on the ceiling and cut a circle on the ceiling along the edge of the sticker.

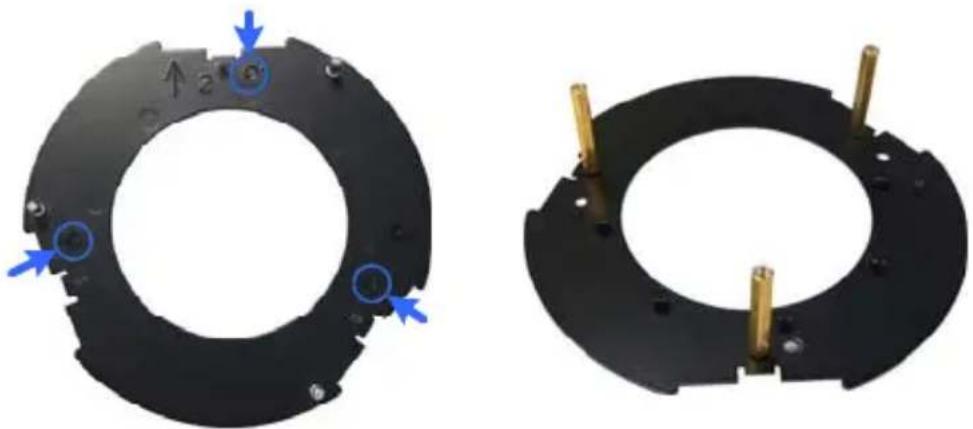

3. On the mounting plate, locate the 3 holes labeled as 1 and insert the 3 copper pillars from the back side.

Two black circular mechanical components with blue arrows and mounting holes, shown from different angles (no text or symbols)

Figure 1-11

1. From the side with the numbering, secure the copper pillars with 3 copper pillar screws.

Mechanical component with blue arrows indicating direction of motion or force, no visible text or symbols

Figure 1-12

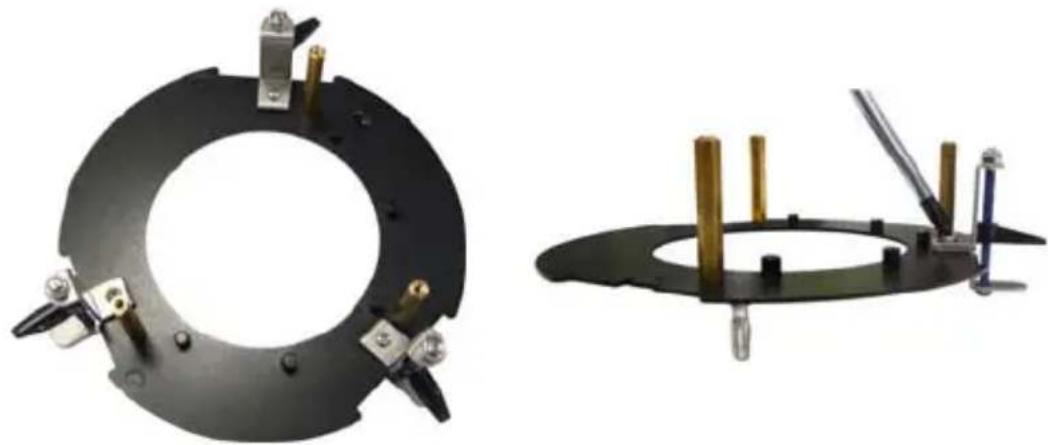

1. Place the 3 mounting brackets at the indent next to the copper pillars (labeled as 2 on the mounting plate) and secure them using the 3 bracket screws.

Two mechanical components: a circular black ring with metal fittings and a flanged black plate with cylindrical pins and a tool, both without any visible text or symbols.

Figure 1-13

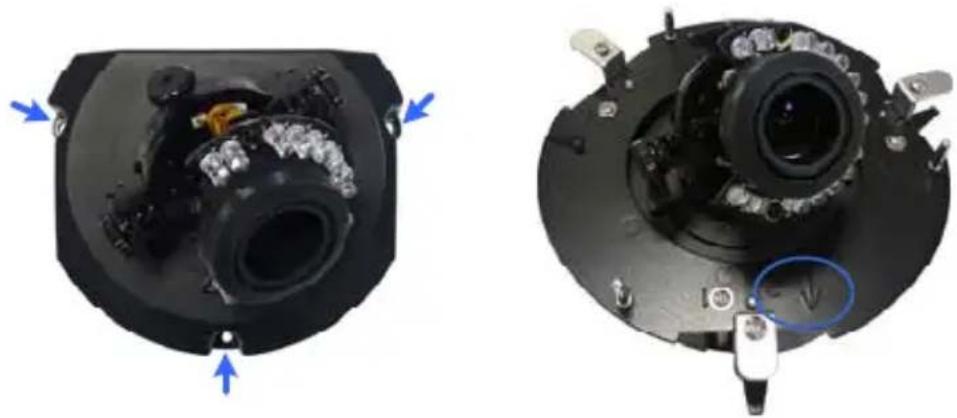

1. Place the mounting plate on the camera body with the copper pillars inserted in the locations indicated below. The arrow on the mounting plate should be pointing toward the front of the camera.

Two views of a mechanical device showing internal components and mounting features, with no visible text or symbols.

Figure 1-14

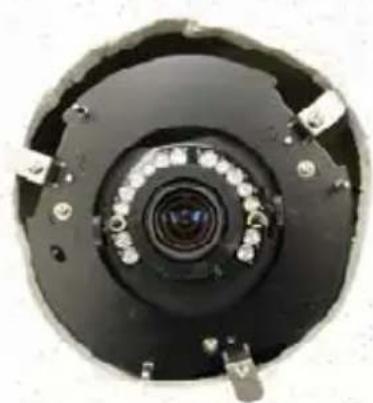

1. From the bottom of the camera, secure the copper pillars using the 3 copper pillars screws.

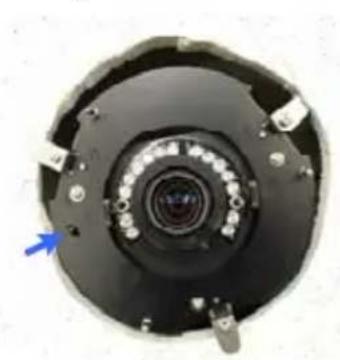

2. Place the camera into the ceiling opening.

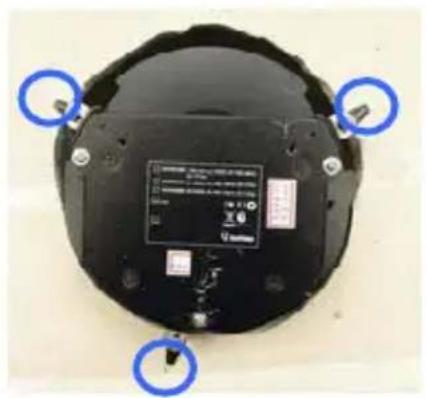

3. On the back side, make sure the black plastic clips are slightly above the ceiling board and pointing outward.

Top-down view of a black circular device with three blue circles highlighting features, no visible text or symbols.

Top-down view of a camera lens assembly with concentric rings and mounting feet (no text or symbols visible)

Back Side Front Side
Figure 1-15

1. Tighten the bracket screws from the front side of the camera.

2. Connect the network, power and other cables to the camera. See 1.5 Connecting the Camera.

3. Access the live view. See 2.1 Accessing the Live View, GV-IPCam H.264 Firmware Manual.
4. Follow steps 6 and 7 in 1.4.1 Hard-Ceiling Mount section to adjust the angle, focus and zoom of the camera.

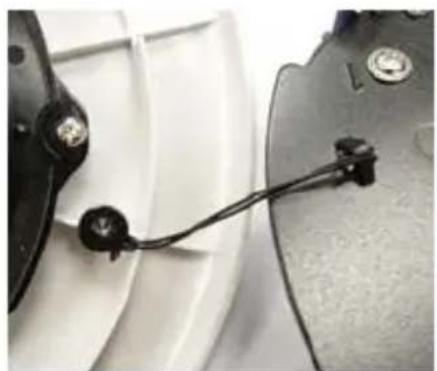

5. Use the housing cover thread and the thread lock screw to attach the housing cover to the camera body.

Close-up of a camera lens assembly with central lens and surrounding components (no visible text or symbols)

Close-up of a black cable with attached connector and two white components (no visible text or symbols)

Figure 1-16

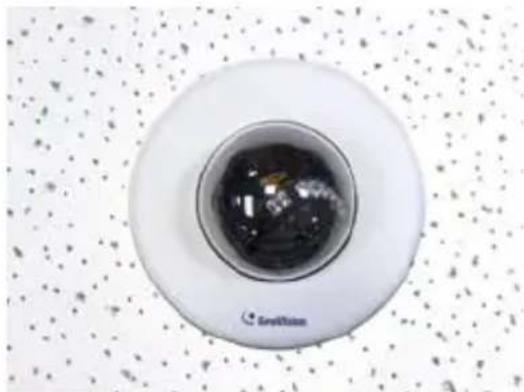

1. Place the housing cover on the camera body with the GeoVision logo pointing toward the front of the camera.

Top-down view of a white ceiling-mounted air conditioner unit with a dark spherical lens and 'Simplifier' logo, set against a speckled background (no text or symbols on the device itself)

Figure 1-17

1.4.3 Wall-Surface Mount

Close-up of a white geoblison security camera with a spherical lens, no visible text or symbols on the device itself.

Figure 1-18

1. Follow step 2 in 1.4.1 Hard-Ceiling Mount section to remove the housing cover and take out the camera body.
2. Paste the supplied sticker onto a desired location on the wall. Drill the three red dots, and the ellipse mark only if you wish to run the wires into the wall.

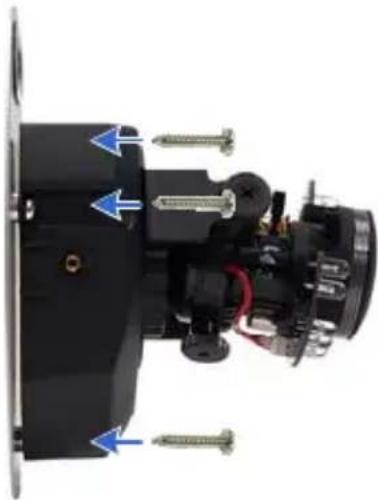

3. Insert the short screw anchors and secure the camera and the mounting plate with three plate screws.

Close-up of a mechanical device with blue arrows indicating directional components (no text or symbols visible)

Figure 1-19

1. Connect the network, power and other cables to the camera. See 1.5 Connecting the Camera.

GeoVision

1. Access the live view. See 2.1 Accessing the Live View, GV-IPCam H.264 Firmware Manual.
2. Follow steps 6 and 7 in 1.4.1 Hard-Ceiling Mount section to adjust the angle, focus and zoom of the camera.
3. Follow step 8 in 1.4.1 Hard-Ceiling Mount section to secure the housing cover.

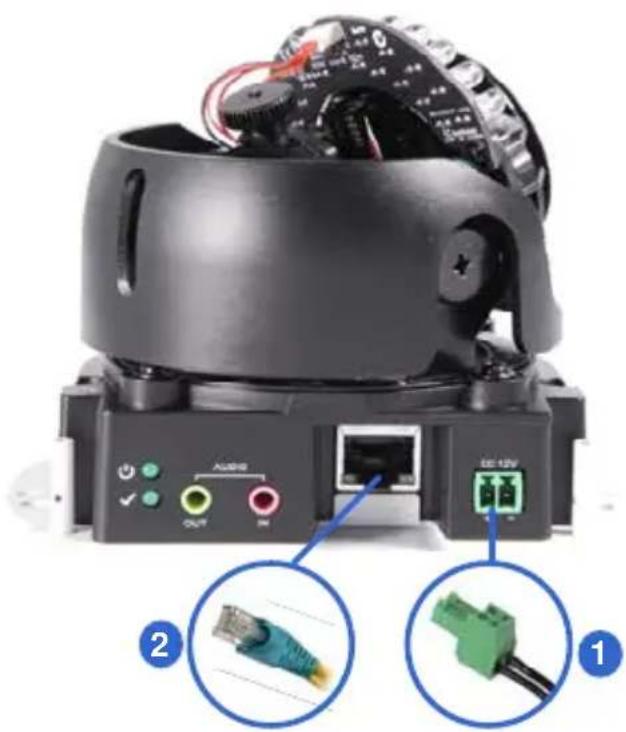

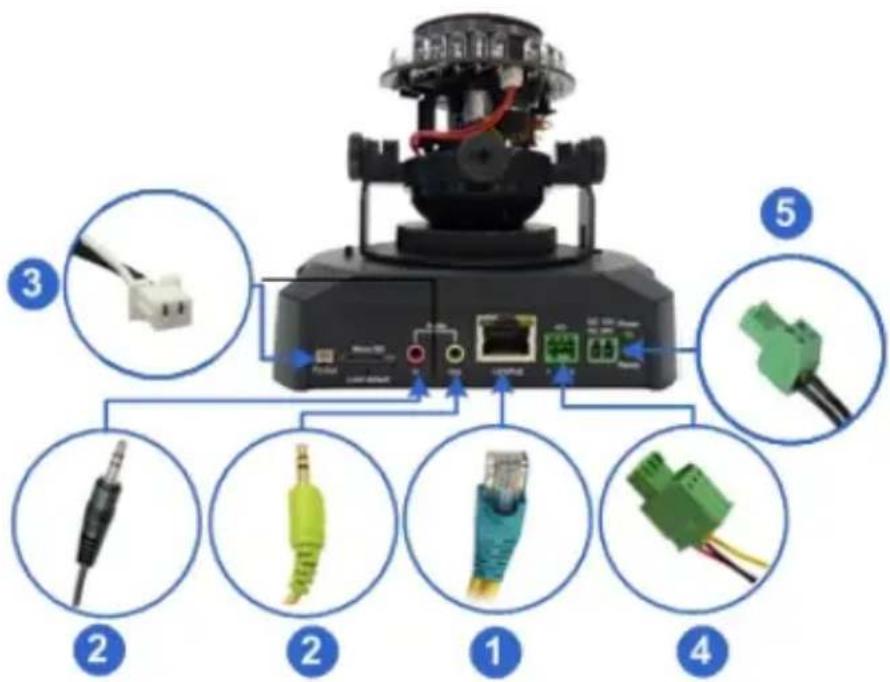

1.5 Connecting the Camera

Diagram of a device with labeled components and wiring connections, showing connections to ports, cables, and connectors.

Figure 1-20

1. Use a standard network cable to connect the camera to your network.
2. Optionally connect a speaker and an external microphone.
3. Optionally connect a monitor using a Video Out wire. Enable this function by selecting your signal format at the TV Out field on the Web interface. See 4.1.1 Video Settings, GV-IPCam H.264 Firmware Manual.
4. Optionally connect to input / output devices. For details, see 1.6 I/O Terminal Block.
5. Connect power using one of the following methods:
6. plugging the power adapter to power port.

7. using the Power over Ethernet (PoE) function and the power will be provided over the network cable.

8. The status LED of the camera will be on.

1.6 I/O Terminal Block

The terminal block, located on the back panel of the Fixed IP Dome, provides the interface to one input and one output devices. The I/O terminal block can be used for applications such as motion detection, event alerts via E-Mail and FTP, and center monitoring through Center V2 and VSM.

1.6.1 Pin Assignment

The Fixed IP Dome supports one digital input and one digital output of dry contact.

I/O 1 2 3

Figure 1-21

Pin Function
1	Digital	Output
2	GND
3	Digital	Input

1.6.2 Voltage Load Expansion (Optional)

The camera on its own can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC / 10A 125V AC / 5A 100V DC), connect the camera to a GV-Relay V2 module (optional product). Refer to the figure and table below:

Figure 1-22

GV-Relay V2 Bullet Camera
COM Pin 2 (GND)
DO1 Pin 1 (Digital Output)

1.7 Loading Factory Default

1. Keep the power and network cables (or PoE) connected to the camera.
2. Use a pin to press and hold the default button on the panel.

Default button Status LED

Figure 1-23

1. Release the default button when the status LED blinks. This shall take about 8 seconds.
2. When the status LED fades, the process of loading default settings is completed and the camera reboots automatically.

Chapter 2 Target Fixed Dome

The Target Fixed Dome (GV-EFD) is an indoor, fixed network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.

Model No.		Specifications	Description
GV-EFD2101	Varifocal Lens	Fixed Iris, f: 3 ~ 9 mm, F/1.7, 1/2.8”∅14 mm Mount	2 MP, H.264, Super Low Lux, WDR
GV-EFD3101	Varifocal Lens	Fixed Iris, f: 3 ~ 9 mm, F/1.7, 1/2.8”∅14 mm Mount	3 MP, H.264, Super Low Lux, WDR Pro

2.1 Packing List

• Target Fixed IP Dome

- Screw x 3

- TV-Out Wire

- Torx Wrench

- Screw Anchor x 3

- Installation sticker

Ceiling mount template

• GV-IPCam H.264 Software DVD

- Warranty Card

• GV-NVR Software DVD

Note: Power adapter can be purchased upon request.

2.2 Features

• 1/2.8" progressive scan super low lux CMOS
• Frame rate:

Camera Model Frame	Rate
GV-EFD2101 Up to 30	fps at 1920 x 1080
GV-EFD3101 Up to 30	fps at 2048 x 1536

• Dual streams from H.264 or MJPEG
- Intelligent IR
• Day and night function (with removable IR-cut filter)
- Megapixel lens
• P-Iris lens for auto Iris control
- Intelligent IR
• 3-axis mechanism (pan / tilt / rotate)
• DV 12V / PoE (IEEE 802.3af)
- Two-way audio
- Wide Dynamic Range (WDR) for EFD2101; Wide Dynamic Range (WDR) Pro for GV-EFD3101
- Defog
- Motion detection
- Tampering alarm
- Text overlay
- Privacy mask
- IP address filtering
- NAS Recording
- Recording assigned by GV-Edge Recording Manager (Windows & Mac)
• Support for iPhone, iPad, Android and 3GPP
• 31 languages on Web interface

• ONVIF (Profile S) conformant

Note: For optimal performance and compatibility, it is highly recommended to use a GV-NAS System.

2.3 Overview

Technical diagram of a camera module with numbered components and labeled audio ports

Figure 2-2

No.	Name Description
1	Lens Receives image inputs.
2	Focus Screw Adjusts the focus of the camera.
3	Zoom Screw Adjusts the zoom of the camera.
4	Default Button	Resets the camera to factory default. For details, see 2.6 Loading Factory Default.
5	TV-Out Provides video inputs (D1 resolution).
6	Rotational Screw	Loosens to adjust the camera angle.
7	Pan Disc Loosens to pan the camera.
8	Power Turns on (green) when power is on.
9	Status Turns on (green) when the system is ready.
10	Audio Out Connects a speaker for audio output.
11	Audio In Connects a microphone for audio input.
No.	Name	Description
12	Link	Turns on (green) when the network is connected.
13	ACT	Turns on (orange) when data are being transmitted.
14	DC	12V Port Connects to power.
15	LAN / PoE	Connects to a 10/100 Ethernet or PoE.
16	Tilt	Screw Loosens the screw to adjust tilt angle.

Note: The TV-out function can only be used during installation to adjust the focus of the camera. To use the TV out function, connect the supplied black BNC connector to a monitor and select your signal format (NTSC or PAL) at the TV Out field on the Web interface. The default signal format is NTSC. For details, see 4.1.1 Video Settings, GV-IPCam H.264 Firmware Manual. The TV-out wire must be removed before you secure the housing cover.

2.4 Installation

The Target Fixed Dome can be installed on the wall or the ceiling. Before installing the camera, make sure the installing site is shielded from rain and moisture.

1. Use the supplied torx wrench to loosen three screws on the housing cover, and take out the camera body.

Top-down view of a circular security camera with visible lens and sensor components (no text or symbols)

Figure 2-3

1. Place the installation sticker where you want to install it, and make 3 marks on the ceiling or the wall for screw anchors.

Ceiling mount template

Figure 2-4

1. Drill the marks and insert the screw anchors.
2. Connect the camera to network and power. For details, see 2.5 Connecting the Camera.
3. Secure the camera to the ceiling or the wall with the supplied screws.
4. Access the live view. For details, see 2.1 Accessing the Live View, GV-IPCam H.264 Firmware Manual.

Note: The TV-out function can only be used during installation to adjust the focus of the camera. To use the TV out function, connect the supplied black BNC connector to a monitor and select your signal format (NTSC or PAL) at the TV Out field on the Web interface. The default signal format is NTSC. For details, see 4.1.1 Video Settings, GV-IPCam H.264 Firmware Manual. The TV-out wire must be removed before you secure the housing cover.

1. Adjust image clarity using the GV-IP Device Utility program. For details, see 2.2 Adjusting Image Clarity, GV-IPCam H.264 Firmware Manual.

2. Loosen the tile screw, pan screw or rotational screw. Adjust the angles based on the live view as needed, and tighten the screws again.

Rotationa Screw Tilt Screw Par Disk

Figure 2-6

1. Place the housing cover back and tighten the three screws to secure it. Remove the indicated part when necessary.

Close-up of a white surveillance camera with a blue upward arrow indicating a component (no visible text or symbols)

Figure 2-7

2.5 Connecting the Camera

Close-up of a black industrial device with labeled ports and connectors, showing internal wiring and connections (no readable text or symbols)

Figure 2-8

1. Connect power using one of the following methods:

2. Plug the power adapter to the 12V terminal block. The power adapter is an optional device. For detail, see Options in the manual.

3. Use the Power over Ethernet (PoE) function and the power will be provided over the network cable.

The power and status LEDs shall turn on (green).

1. Use a standard network cable to connect the camera to your network.
2. You are ready to access the live view, adjust the image clarity and configure the basics. See Getting Started, Chapter 2, GV-IPCam H.264 Firmware Manual.

2.6 Loading Factory Default

1. Keep the power and network cables (or PoE) connected to the camera.
2. Press and hold the default button for about 8 seconds.

Default button

Figure 2-9

1. Release the default button when the status LED blinks.

Status LEC

Figure 2-10

When the status LED fades, the process of loading default settings is completed and the camera reboots automatically
