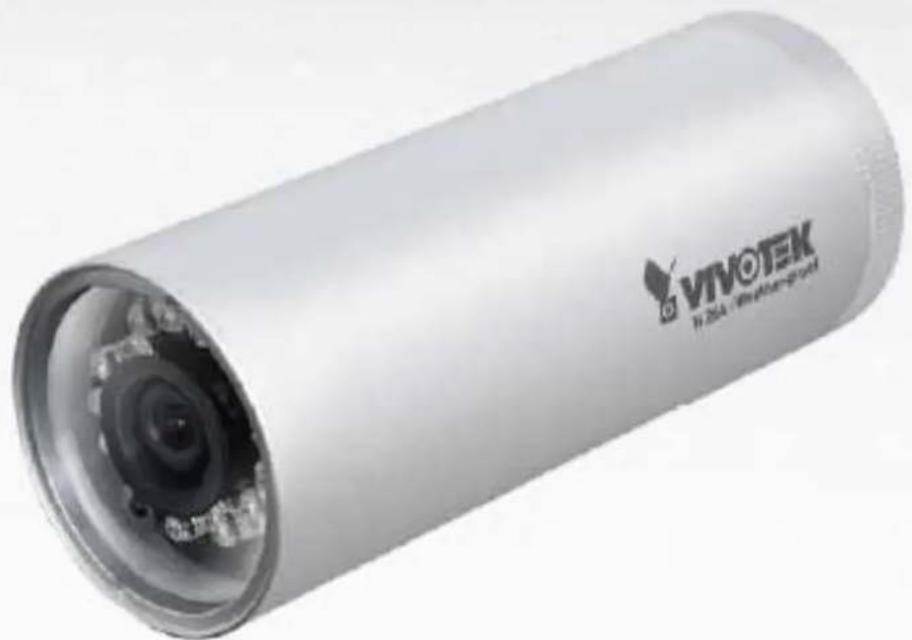

Exterior view of a cylindrical electronic device with visible internal components and branding (VIVOEK logo)

Table of Contents

Overview....3

Read Before Use....3

Package Contents....3

Physical Description....4

Installation 7

Hardware Installation....7

Network Deployment....8

Software Installation....11

Ready to Use....12

Accessing the Network Camera 13

Using Web Browsers....13

Using RTSP Players....15

Using 3GPP-compatible Mobile Devices....16

Using VIVOTEK Recording Software....17

Main Page 18

Client Settings 21

Configuration 23

System 24

Security 26

HTTPS....27

Network 32

DDNS 46

Access List 48

Video 51

Motion Detection 57

Camera Tampering Detection 60

Homepage Layout....61

Application....64

Recording....77

System Log 81

View Parameters 82

Maintenance....83

Appendix 87

URL Commands for the Network Camera....87

Technical Specifications 126

Technology License Notice....127

Electromagnetic Compatibility (EMC)....128

Overview

Read Before Use

The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but can also be part of a flexible surveillance system. It is the user's responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.

It is important to first verify that all contents received are complete according to the Package Contents listed below. Take note of the warnings in the Quick Installation Guide before the Network Camera is installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.

The Network Camera is a network device and its use should be straightforward for those who have basic networking knowledge. It is designed for various applications including video sharing, general security/ surveillance, etc. The Configuration chapter suggests ways to best utilize the Network Camera and ensure proper operations. For creative and professional developers, the URL Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server.

Package Contents

■ IP8331
■ Waterproof Connector (3 holes, for backup use)
■ Moisture Absorber
■ Camera Stand
■ Power Adapter
■ RJ45 Female/Female Coupler
■ Quick Installation Guide / Warranty Card
■ Software CD

Physical Description

Front Panel

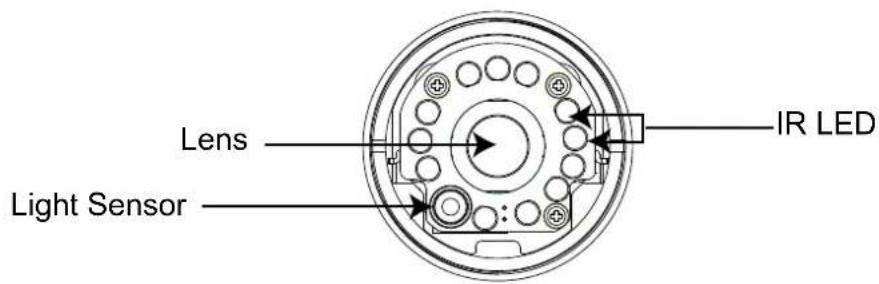

Lens IR LED Light Sensor

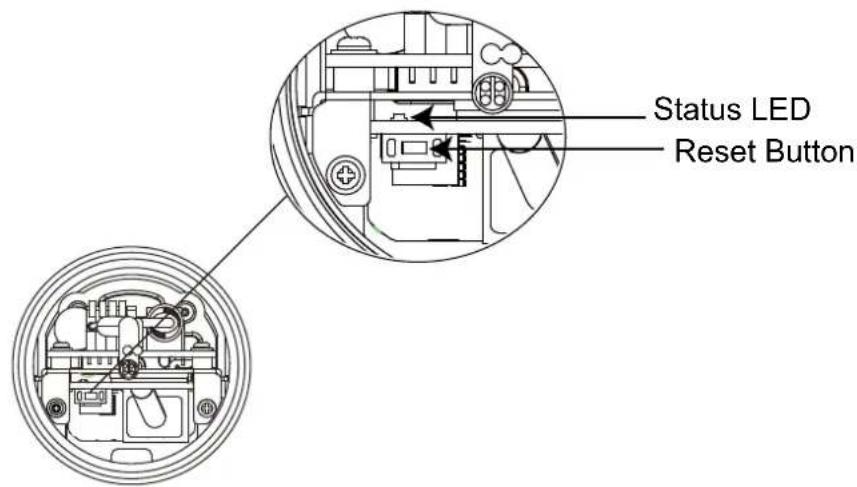

Back Panel

Status LED Reset Button

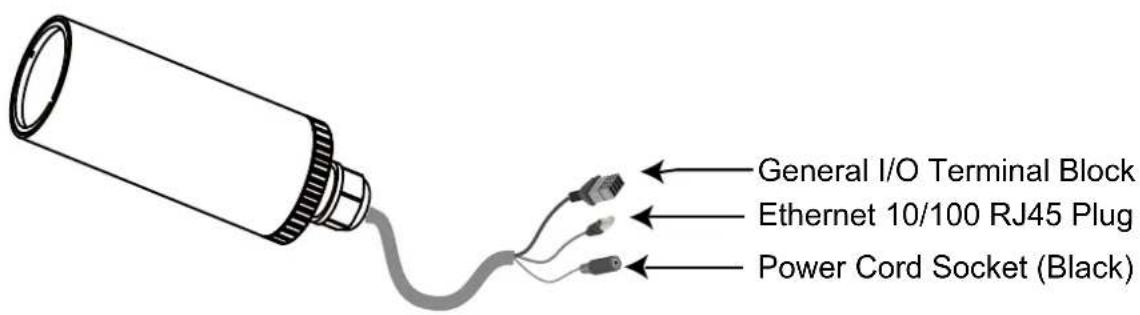

Connectors

General I/O Terminal Block Ethernet 10/100 RJ45 Plug Power Cord Socket (Black)

General I/O Terminal Block

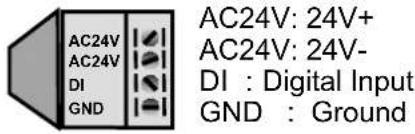

This Network Camera provides a general I/O terminal block which is used to connect external input / output devices. The pin definitions are described below.

AC24V: 24V+ AC24V: 24V- DI : Digital Input GND : Ground

Hardware Reset

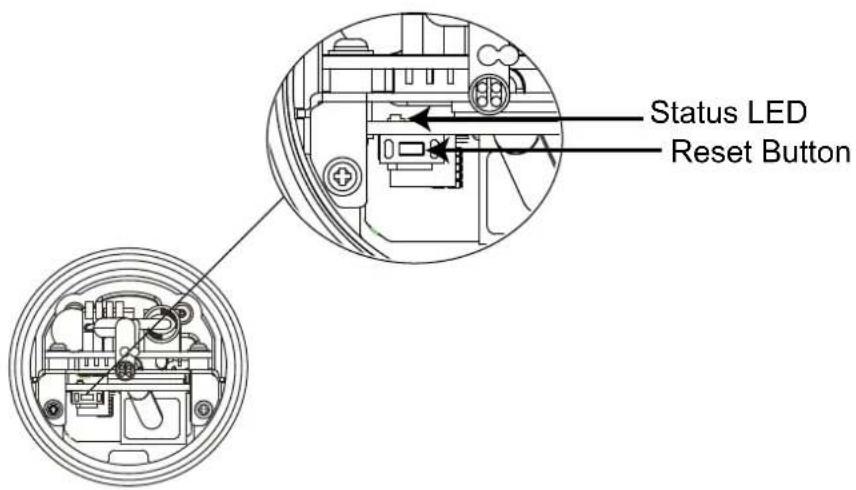

Status LED Reset Button

The reset button is used to reset the system or restore the factory default settings. Sometimes resetting the system can return the camera to normal operation. If the system problems remain after reset, restore the factory settings and install again.

Reset: Press and release the recessed reset button with a paper clip or thin object. Wait for the Network Camera to reboot.

Restore: Press and hold the recessed reset button until the status LED rapidly blinks. Note that all settings will be restored to factory default. Upon successful restore, the status LED will blink green and red during normal operation.

Installation

Hardware Installation

1. Loose the waterproof connector, then remove the rubber.
2. Loose the back cover.
3. Tear down the aluminum foil vacuum bag and take out the moisture absorber. Attach the supplied moisture absorber to the inner side of the Network Camera. (Please replace the moisture absorber with a new one if you open the back cover after installation.)
4. Make sure all cable lines are securely connected.
5. Tighten the back cover, rubber and waterproof connector.

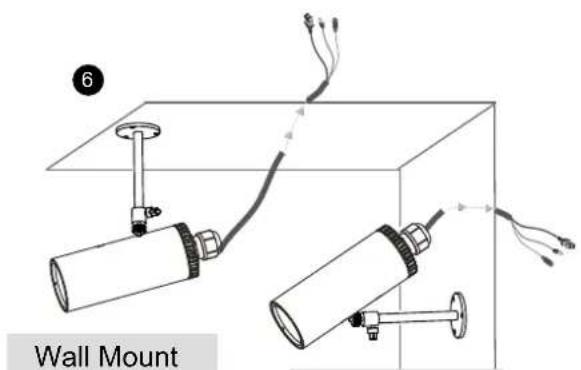

6. Secure the Network Camera to the wall/ceiling by the supplied camera stand.

Diagram of a mechanical device with labeled parts, showing a cylindrical component connected to wires and a cable.

6 Wall Mount

3 Sero 100

Wall Mount ⑤

Ceiling Mount

NOTE

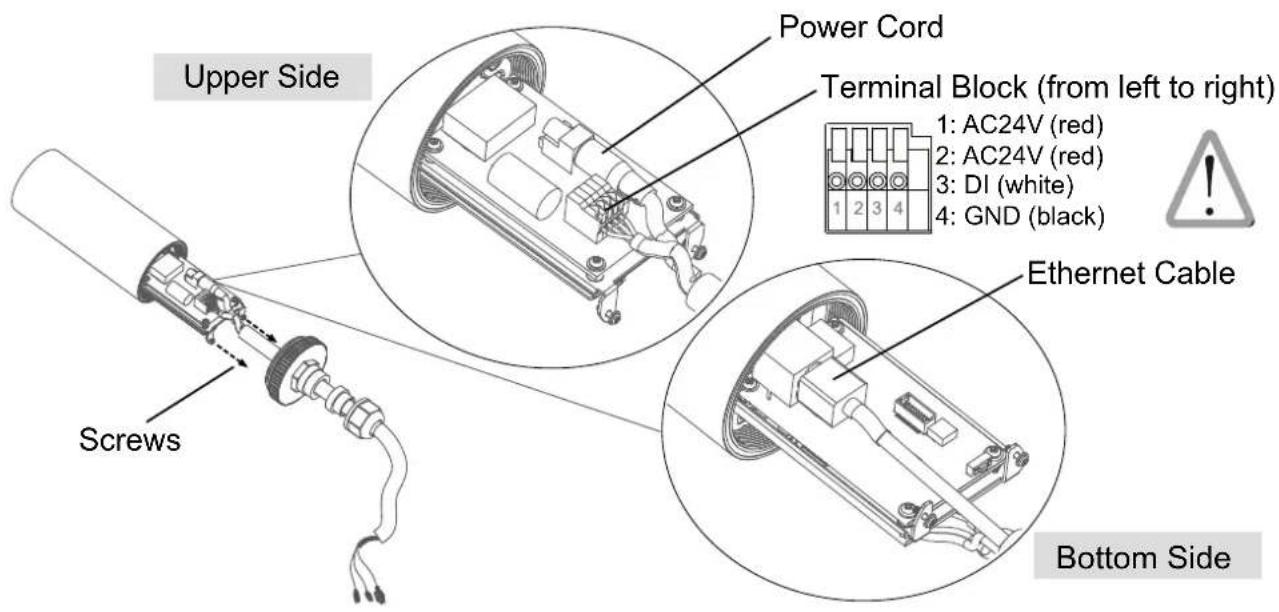

▶ If you want to use your own cable lines, please loose two supplied screws and take out the power board. Then be careful to make connections as the illustration shown below.

Upper Side Screws Power Cord Terminal Block (from left to right) 1: AC24V (red) 2: AC24V (red) 3: DI (white) 4: GND (black) Ethernet Cable Bottom Side

Network Deployment

Setting up the Network Camera over the Internet

This section explains how to configure the Network Camera to an Internet connection.

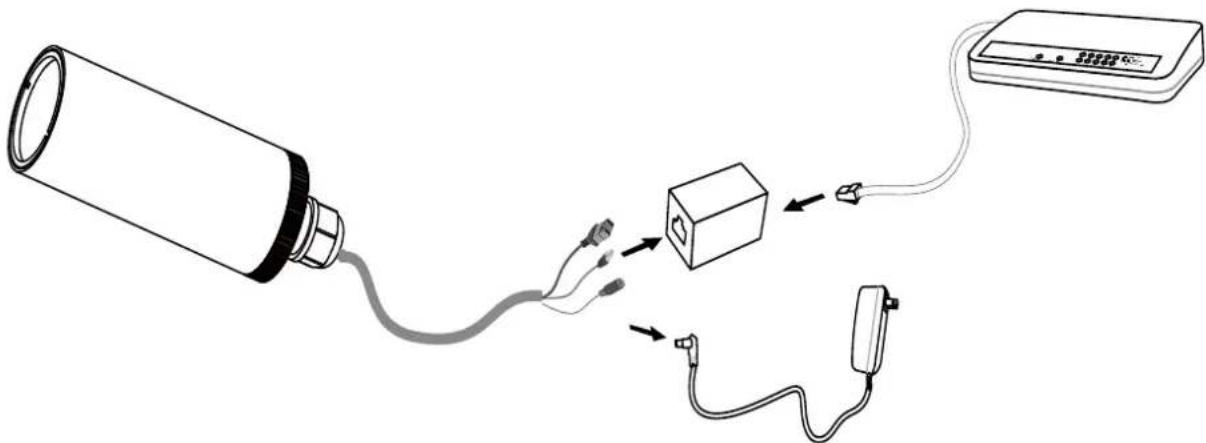

1. If you have external devices such as sensors and alarms, make connections from the general I/O terminal block.

2. Use the supplied RJ45 female/female coupler to connect the Network Camera to a switch. Use a Category 5 Cross Cable when Network Camera is directly connected to PC.

3. Connect the power cable from the Network Camera to a power outlet.

AC24V: 24V

AC24V: 24V

DI: Digital Input

GND: Ground

Diagram of a device connected to a box and two cables, showing wiring connections without any text or symbols.

There are several ways to set up the Network Camera over the Internet. The first way is to set up the Network Camera behind a router. The second way is to utilize a static IP. The third way is to use PPPoE.

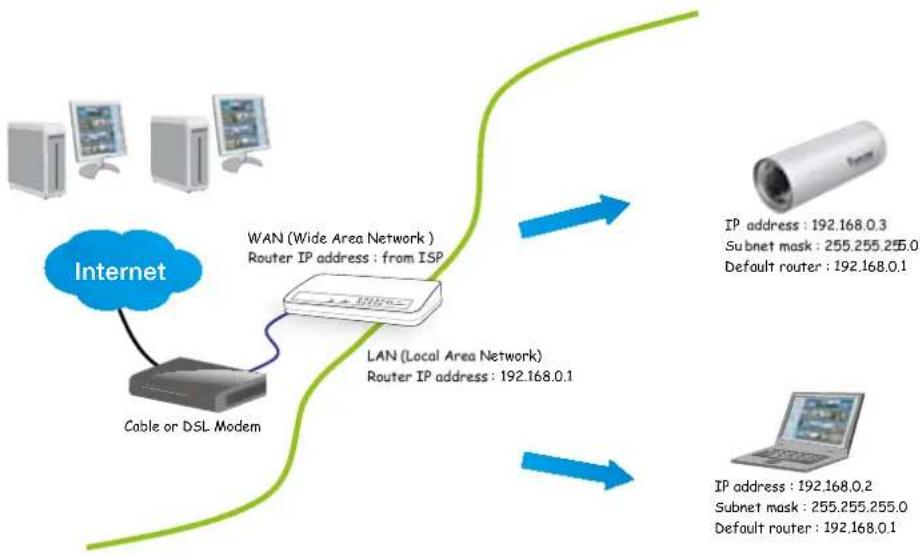

Internet connection via a router

Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below.

1. Connect your Network Camera behind a router, the Internet environment is illustrated below. Regarding how to obtain your IP address, please refer to Software Installation on page 11 for details.

1. In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192.168.0.3, please forward the following ports for the Network Camera on the router.

■ HTTP port
■ RTSP port
■ RTP port for video
■ RTCP port for video

If you have changed the port numbers on the Network page, please open the ports accordingly on your router. For information on how to forward ports on the router, please refer to your router's user's manual.

1. Find out the public IP address of your router provided by your ISP (Internet Service Provider). Use the public IP and the secondary HTTP port to access the Network Camera from the Internet. Please refer to Network Type on page 32 for details.

Internet connection with static IP

Choose this connection type if you are required to use a static IP for the Network Camera. Please refer to LAN on page 32 for details.

Internet connection via PPPoE (Point-to-Point over Ethernet)

Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to PPPoE on page 33 for details.

Set up the Network Camera through Power over Ethernet (PoE)

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable.

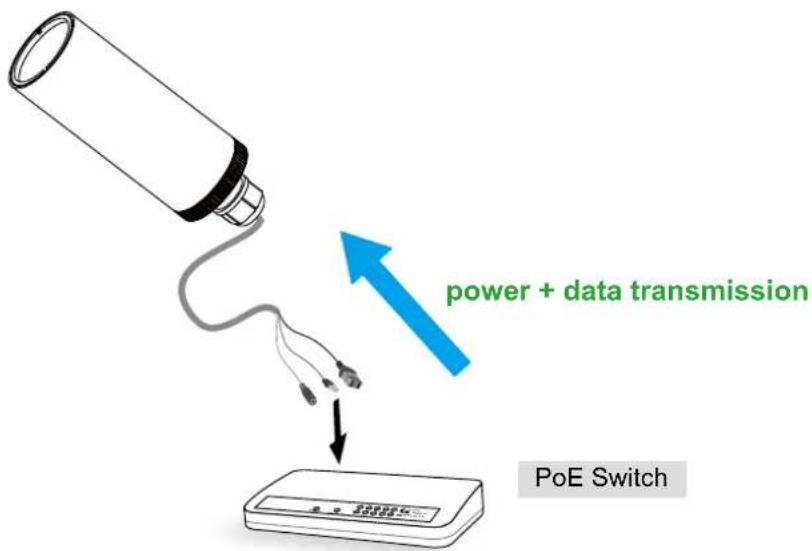

power + data transmission PoE Switch

When using a non-PoE switch

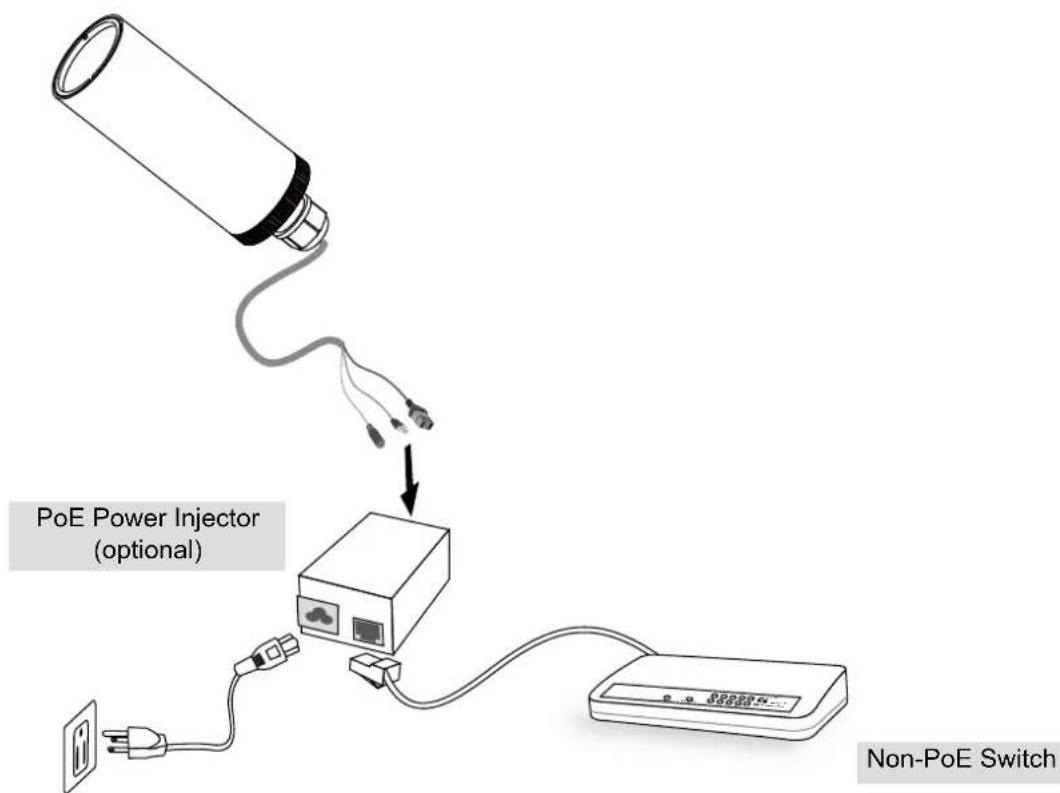

If your switch/router does not support PoE, use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch.

PoE Power Injector (optional) Non-PoE Switch

Software Installation

Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up your Network Camera on the LAN.

1. Install IW2 under the Software Utility directory from the software CD. Double click the IW2 shortcut on your desktop to launch the program.

1. The program will conduct an analysis of your network environment. After your network environment is analyzed, please click Next to continue the program.

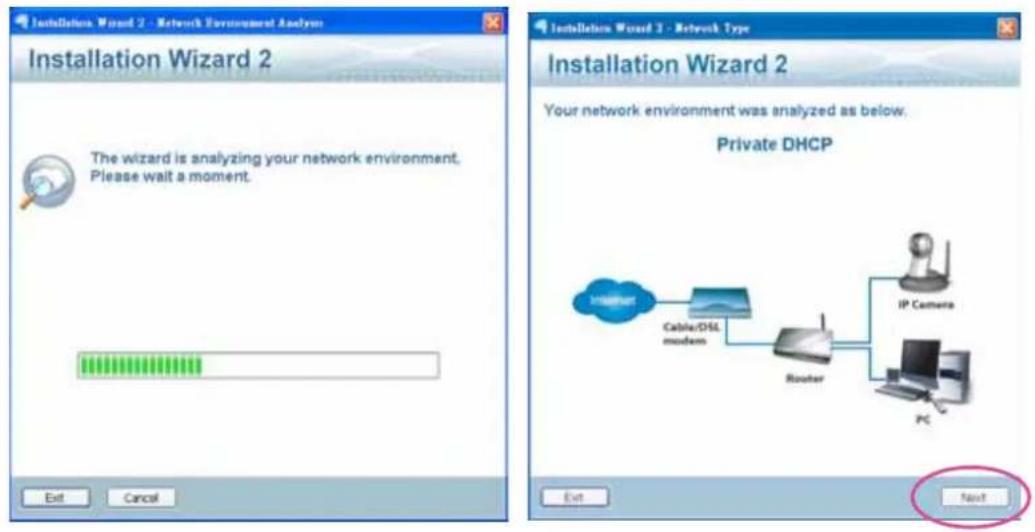

Installation Wizard 2 The wizard is analyzing your network environment. Please wait a moment. Exit Cancel Installation Wizard 2 - Network Type Your network environment was analyzed as below. Private DHCP Cable/DSL modem Router IP Camera PC Next

1. The program will search for all VIVOTEK network devices on the same LAN.
2. After searching, the main installer window will pop up. Click on the MAC and model name which matches the product label on your device to connect to the Network Camera via Internet Explorer.

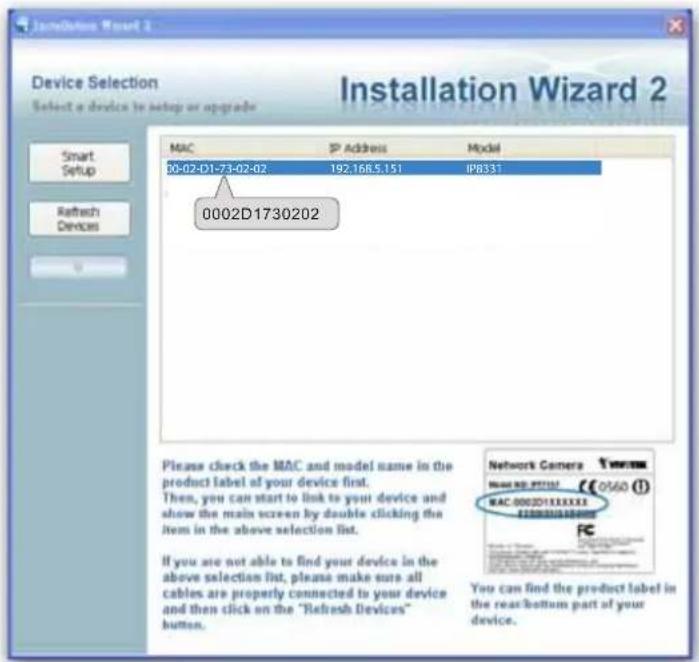

Network Camera VIVOTEK Model No: IP8331 RoHS CE NEMP MAC:0002D1730202 FC IVEI Made in Taiwan Tel: [phone]

Device Selection Select a device to setup or upgrade MAC SP Address Model 80-02-D1-73-02-02 192.168.5.151 IPB331 0002D1730202 Please check the MAC and model name in the product label of your device first. Then, you can start to link to your device and show the main screen by double clicking the item in the above selection list. If you are not able to find your device in the above selection list, please make sure all cables are properly connected to your device and then click on the "Refresh Devices" button. Network Camera MAC NO: PPT014 0560 (1) MAC 0002D1730202 You can find the product label in the rear/bottom part of your device.

Ready to Use

1. Access the Network Camera on the LAN.
2. Retrieve live video through a web browser or recording software.

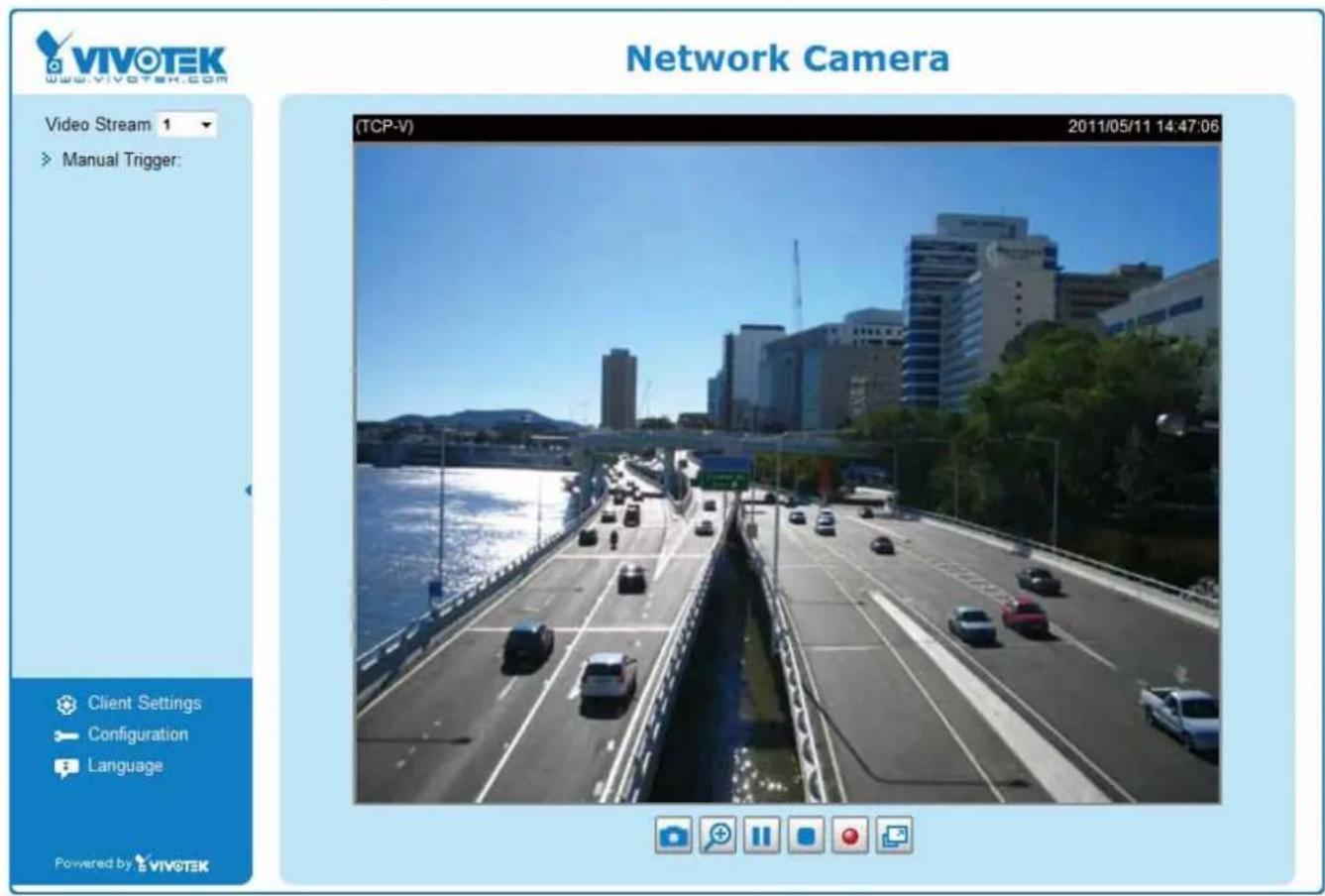

VIVOTEK www.vivOTEK.com Network Camera Video Stream 1 Manual Trigger: (CTP-V) 2011/05/11 14:47:06 Client Settings Configuration Language Powered by VIVOTEK

Accessing the Network Camera

This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software.

Using Web Browsers

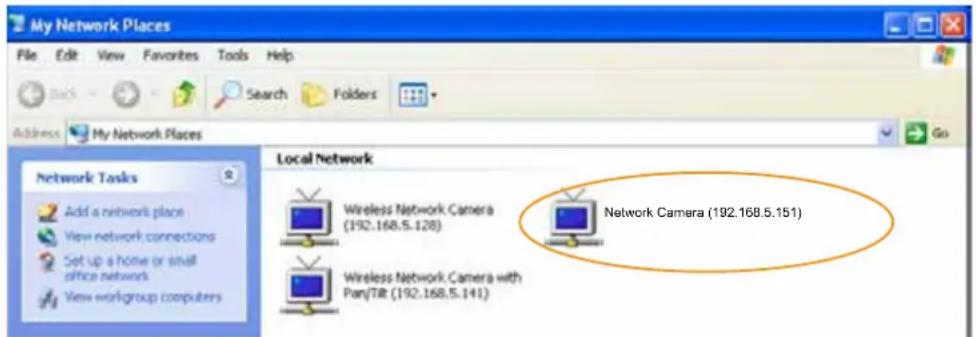

Use Installation Wizard 2 (IW2) to access to the Network Cameras on the LAN.

If your network environment is not a LAN, follow these steps to access the Network Camera:

1. Launch your web browser (ex. Microsoft® Internet Explorer, Mozilla Firefox, or Netscape).
2. Enter the IP address of the Network Camera in the address field. Press Enter.
3. The live video will be displayed in your web browser.

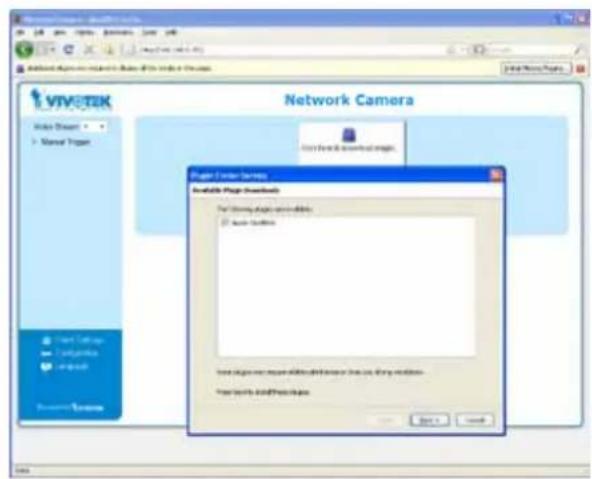

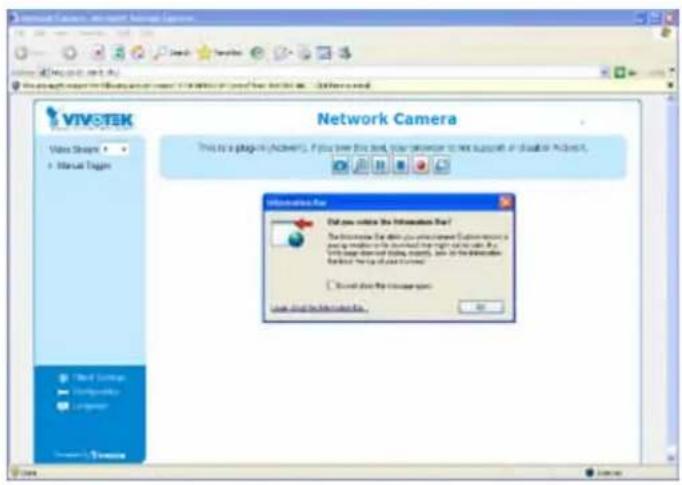

4. If it is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below. Follow the instructions to install the required plug-in on your computer.

VIVOTEK Video Steam Manual Tages Network Camera This is a plugin-in (Sweer). If you have this web, your person to use support or disatior (Sweer). Information For Did you notice the Information For? The information for this web you want to use a custom resource in using a model to be installed here with us on Web 8. The image does not use any text, so it is the information available at the Web Page (Web Page 1). You can do you use a user's name. Use and do you access Web.

VIVETEK Network Camera Add to a new installed stage. Program Server Camera Available Page (checkouts) For Existing Apple or other items Auto Tools Add to a new installed stage with any other items New items and other steps Save

NOTE

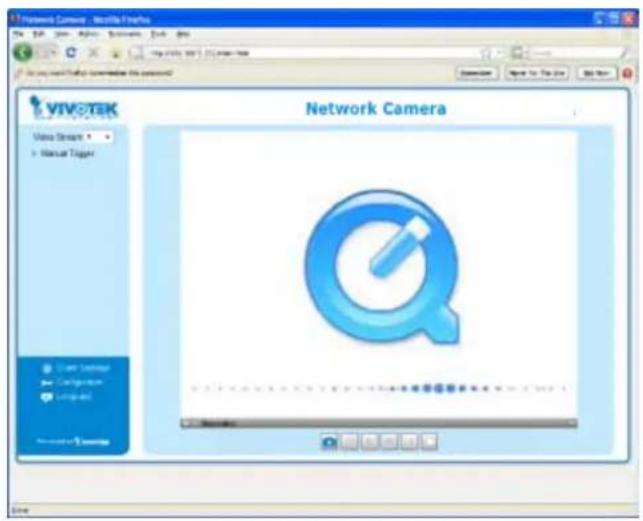

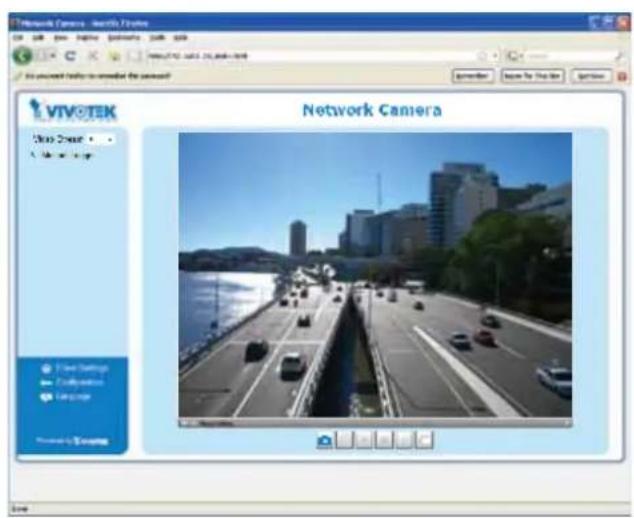

For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream the live video. If you do not have Quick Time on your computer, please download it first, then launch the web browser.

Network Camera - Microsoft FrontPage File Edit View Help Tools Tools Help VIVOTEK Video Stream Manual Toggle Search Search Tools Search Engine Search Engine Network Camera Search Engine Search Engine Search Engine

Network Camera - Netto Media VTVOTEK Internet Network Camera Internet New Settings Webpage Computer View

▶ By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera.

For more information about how to enable password protection, please refer to Security on page 26.

If you see a dialog box indicating that your security settings prohibit running ActiveX Controls, please enable the ActiveX® Controls for your browser.

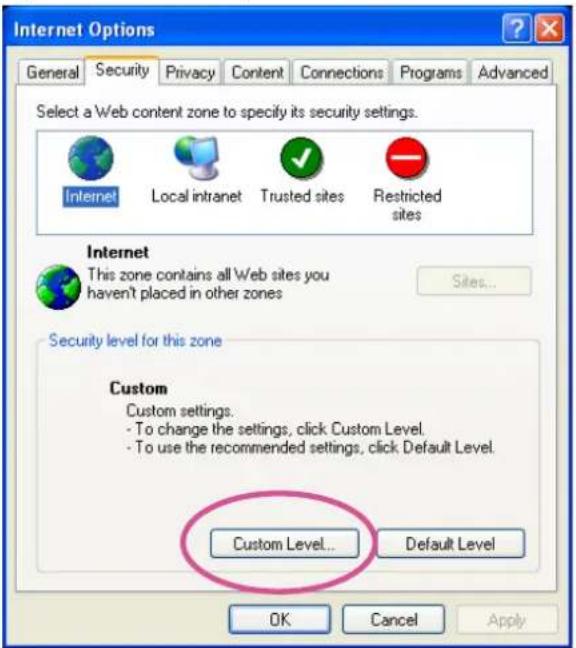

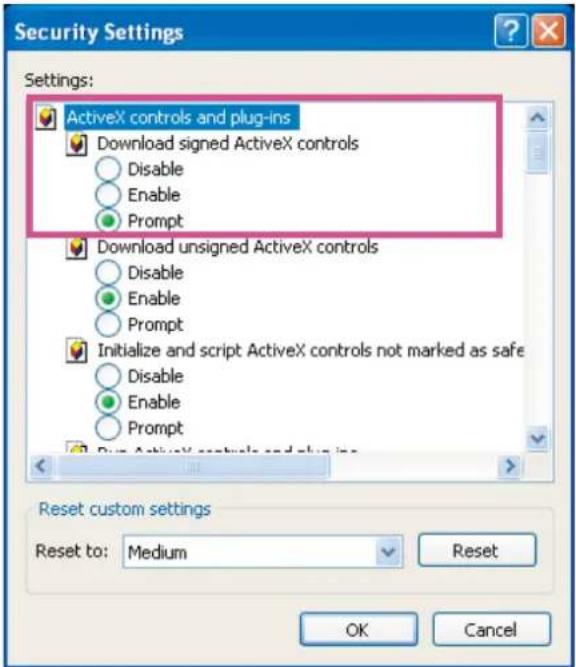

1. Choose Tools > Internet Options > Security > Custom Level.

Internet Options General Security Privacy Content Connections Programs Advanced Select a Web content zone to specify its security settings. Internet Local intranet Trusted sites Restricted sites Internet This zone contains all Web sites you haven't placed in other zones Sites... Security level for this zone Custom Custom settings. - To change the settings, click Custom Level. - To use the recommended settings, click Default Level. Custom Level... Default Level OK Cancel Apply

1. Look for Download signed ActiveX® controls; select Enable or Prompt. Click OK.

Security Settings Settings: ActiveX controls and plug-ins Download signed ActiveX controls Disable Enable Prompt Download unsigned ActiveX controls Disable Enable Prompt Initialize and script ActiveX controls not marked as safe Disable Enable Prompt Reset custom settings Reset to: Medium Reset OK Cancel

1. Refresh your web browser, then install the Active X^® control. Follow the instructions to complete installation.

Using RTSP Players

To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming.

Quick Time Player

Real Player

1. Launch the RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. The address format is rtsp://:/

As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554. For more information, please refer to RTSP Streaming on page 44.

For example:

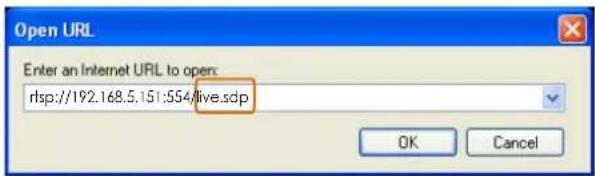

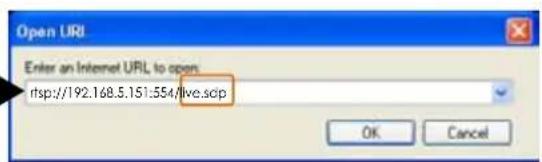

Open URL Enter an Internet URL to open: rIsp://192.168.5.151:554/live.sdp OK Cancel

1. The live video will be displayed in your player.

For more information on how to configure the RTSP access name, please refer to RTSP Streaming on page 44 for details.

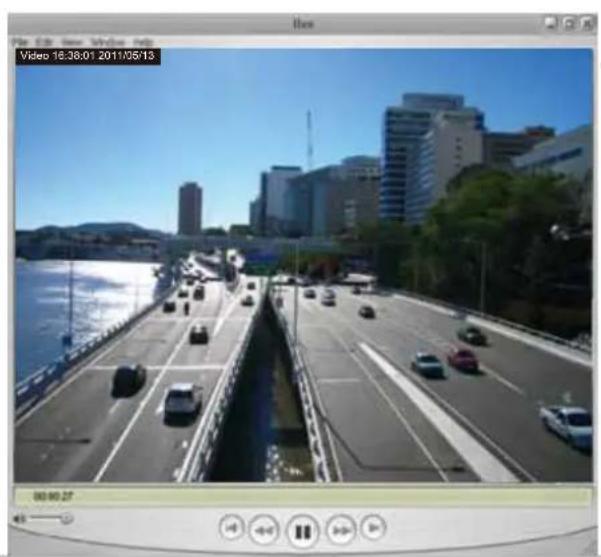

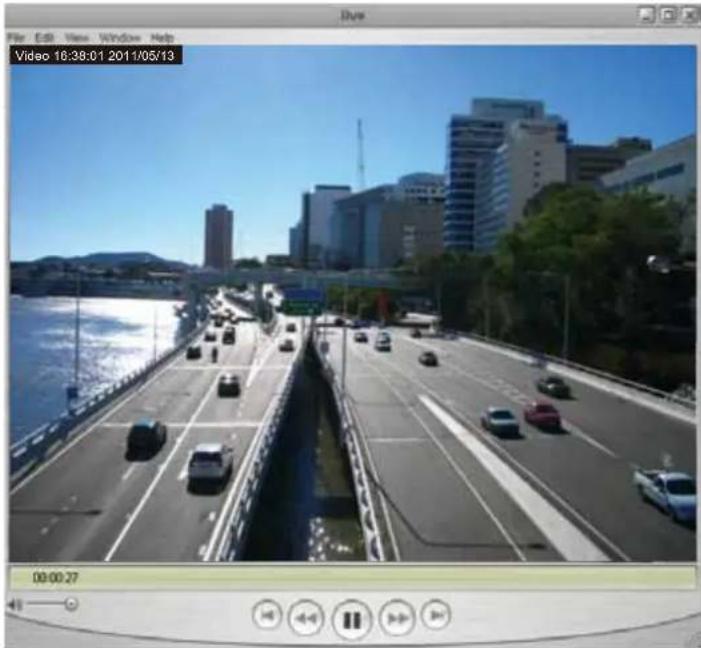

Video player interface displaying a highway scene with vehicles and city buildings in the background (no readable text or symbols on the main image)

Using 3GPP-compatible Mobile Devices

To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 8.

To utilize this feature, please check the following settings on your Network Camera:

1. Because most players on 3GPP mobile phones do not support RTSP authentication, make sure the authentication mode of RTSP streaming is set to disable.
   For more information, please refer to RTSP Streaming on page 44.

2. As the bandwidth on 3G networks is limited, you will not be able to use a large video size. Please set the video and audio streaming parameters as listed below.

For more information, please refer to Video Quality Settings on page 54.

Video Mode MPEG-4
Frame size 176 x 144
Maximum frame rate 5 fps
Intra frame period 1S
Video quality (Constant bit rate) 40kbps

1. As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554. For more information, please refer to RTSP Streaming on page 44.

2. Launch the player on the 3GPP-compatible mobile devices (ex. Real Player).

3. Type the following URL commands into the player.

The address format is rtsp://:/.

For example:

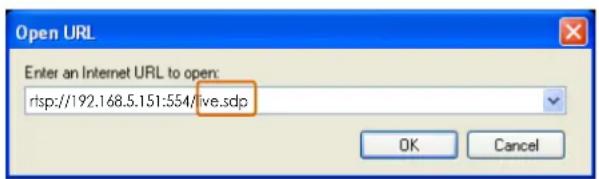

Open URL Enter an Internet URL to open: risp://192.168.5.151:554/ive.sdp OK Cancel

Using VIVOTEK Recording Software

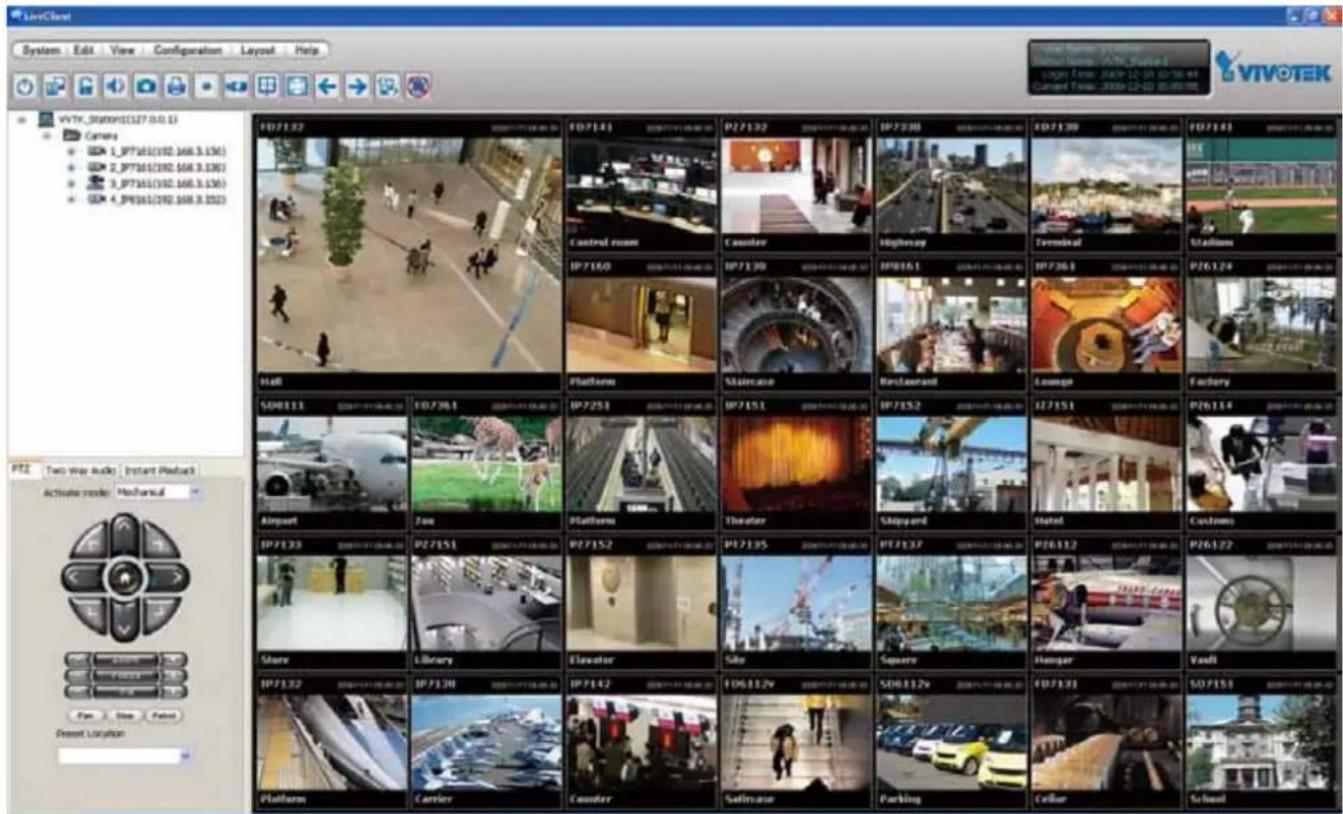

The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras. Please install the recording software; then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user's manual of the software or download it from http://www.vivotek.com.

LiveCloud System Edit View Configuration Layout Help VYTK_SM00127 0.0.13 Camera L_P7761(192.168.3.156) L_P7761(192.168.3.156) L_P7761(192.168.3.156) L_P7761(192.168.3.156) CDP_4P0161(192.168.3.152) HD/132 HD/141 P27132 IP7230 IP7130 IP7130 Femeral Stations Hill Platform Maintenance Cardboard Leupts Factory SDB111 IP7761 IP7251 IP7151 IP7352 IP7151 P26114 Airport Fox Platform Theater Shipyard Metal Customs IP7133 P27151 IP7152 IP7135 IP7137 P26112 Store Library Elevator Tube Square Hamper Vault IP7132 IP7130 IP7142 IP6812v SD6812v ID/131 SD7151 SOD7151 Carlier Carrier Cauder Sailnase Parking Celler School

Main Page

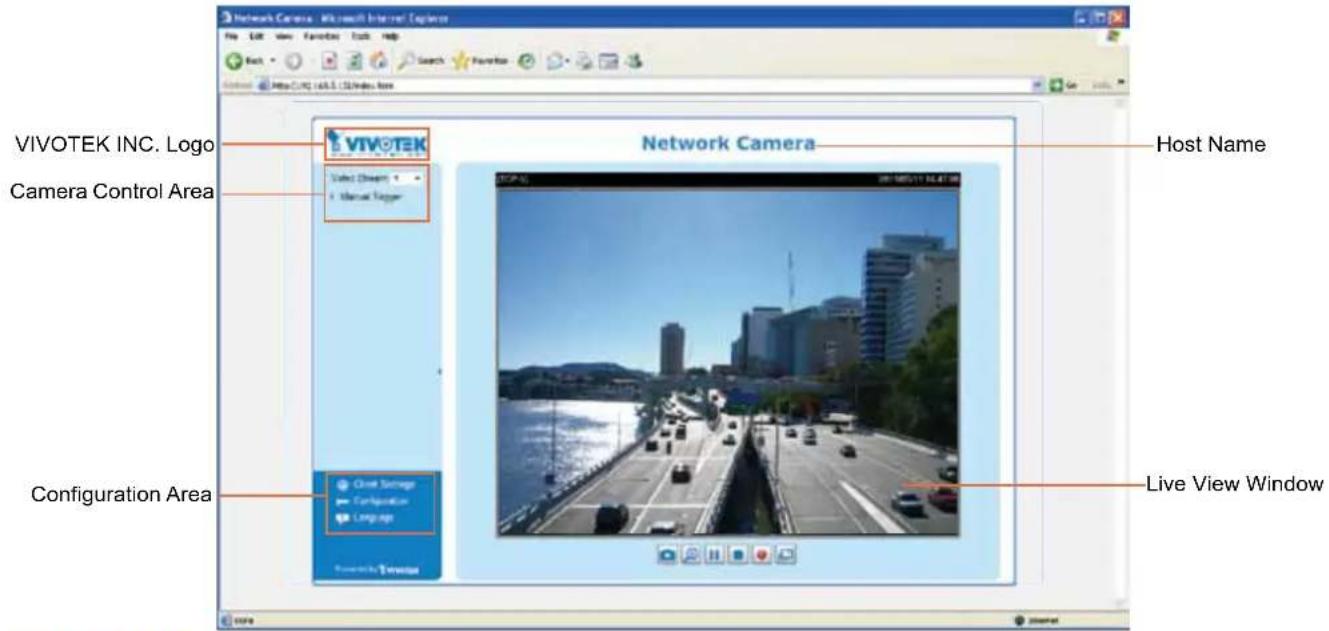

This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window.

Network Camera - Microsoft Internet Explorer File Edit View Favorites Tools Help Search Favorites Internet http://www.rvots.com/index.htm VIVOTEK INC. Logo Vivot Dream Manual Trigger Network Camera Host Name Camera Control Area Configuration Area Chat Settings Configuration Language Live View Window

VIVOTEK INC. Logo

Click this logo to visit the VIVOTEK website.

Host Name

The host name can be customized to fit your needs. For more information, please refer to System on page 24.

Camera Control Area

Video Stream: This Network Cmera supports dual streams (stream 1 \~ 2) simultaneously. You can select either one for live viewing. For more information about dual streams, please refer to page 54 for detailed information.

Manual Trigger: Click to enable/disable an event trigger manually. Please configure an event setting before enable this function. A total of 3 event settings can be configured. For more information about event setting, please refer to page 65. If you want to hide this item on the homepage, please go to Configuration > Homepage layout > Customized button to uncheck "show manual trigger button".

Configuration Area

Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 21.

Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera. For more information, please refer to Configuration on page 23.

Language: Click this button to choose a language for the user interface. Language options are available in: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文.

Live Video Window

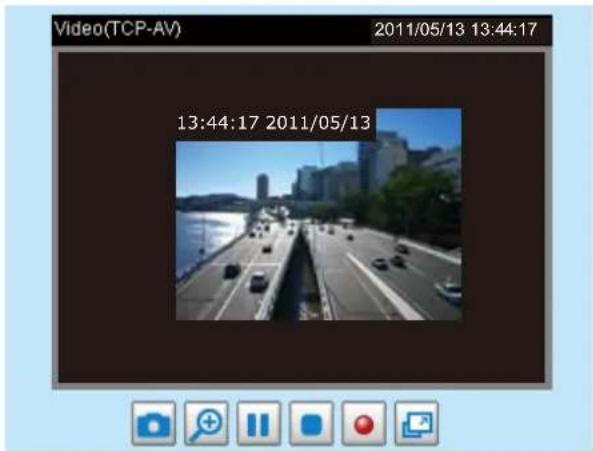

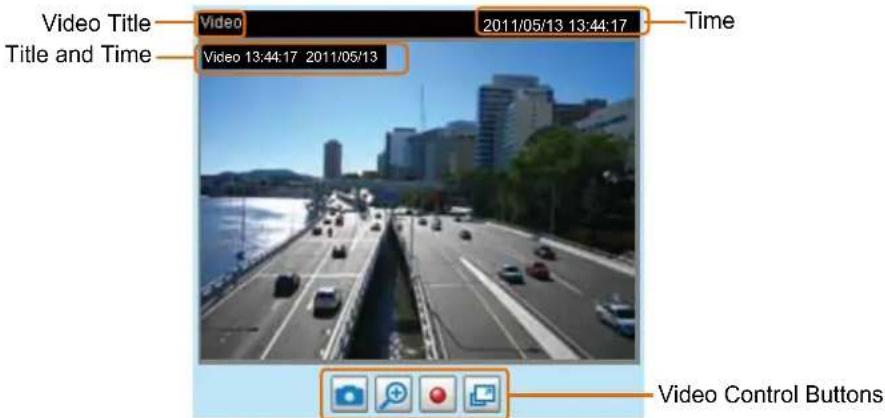

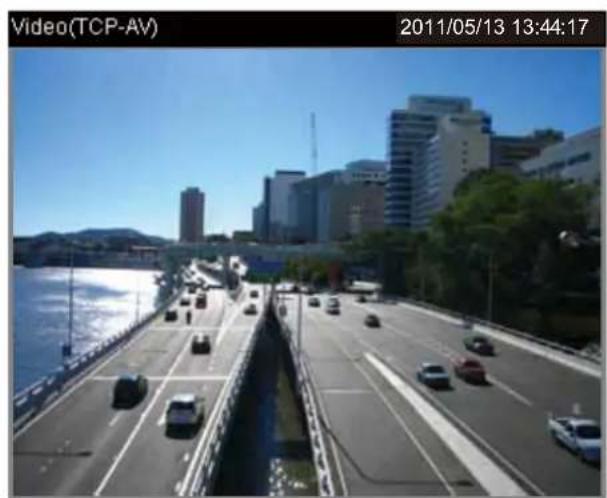

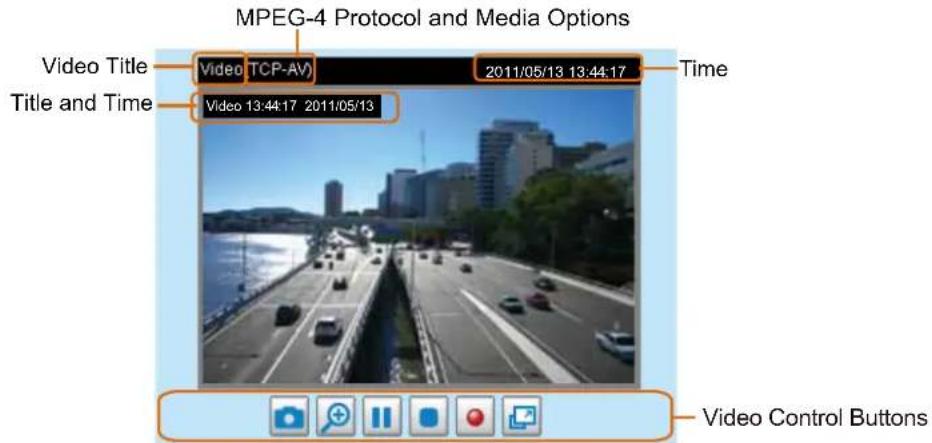

■ The following window is displayed when the video mode is set to H.264 / MPEG-4:

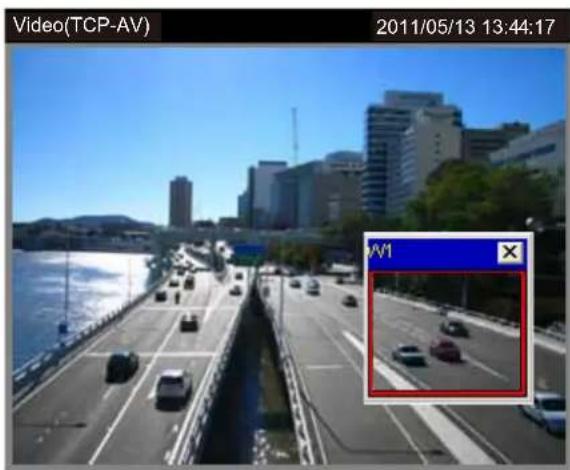

MPEG-4 Protocol and Media Options Video Title Video TCP-AV) 2011/05/13 13:44:17 Time Title and Time Video 13:44:17 2011/05/13 Video Control Buttons

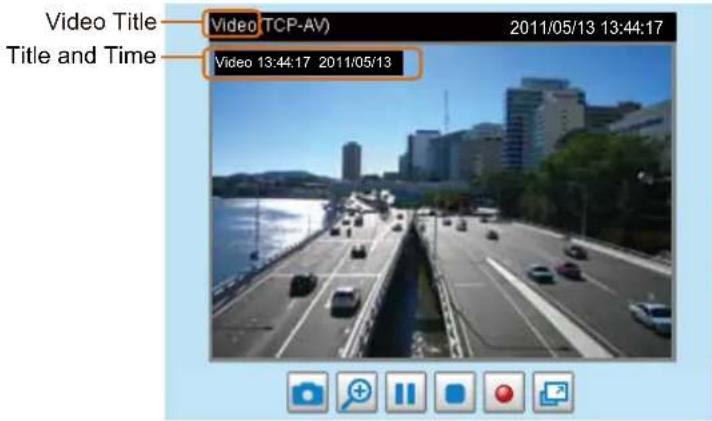

Video Title: The video title can be configured. For more information, please refer to Video Settings on page 51.

H.264 / MPEG-4 Protocol and Media Options: The transmission protocol and media options for H.264 / MPEG-4 video streaming. For further configuration, please refer to Client Settings on page 21.

Time: Display the current time. For further configuration, please refer to Video Settings on page 51.

Title and Time: The video title and time can be stamped on the streaming video. For further configuration, please refer to Video Settings on page 51.

Video Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available.

Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format.

Digital Zoom: Click and uncheck "Disable digital zoom" to enable the zoom operation. The navigation screen indicates the part of the image being magnified. To control the zoom level, drag the slider bar. To move to a different area you want to magnify, drag the navigation screen.

Disable digital zoom Zoom Factors: 100% 100% 400%

Wide bridge over water with traffic, modern high-rise buildings in background under clear blue sky (no visible text or symbols)

Pause: Pause the transmission of the streaming media. The button becomes the Resume button after clicking the Pause button.

Stop: Stop the transmission of the streaming media. Click the Resume button to continue transmission.

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer. Press the Stop MP4 Recording button to end recording. When you exit the web browser, video recording stops accordingly. To specify the storage destination and file name, please refer to MP4 Saving Options on page 22 for details.

Full Screen: Click this button to switch to full screen mode. Press the "Esc" key to switch back to normal mode.

■ The following window is displayed when the video mode is set to MJPEG:

Video Title Title and Time Video 13:44:17 2011/05/13 2011/05/13 13:44:17 Time Video Control Buttons

Video Title: The video title can be configured. For more information, please refer to Video Settings on page 51.

Time: Display the current time. For more information, please refer to Video Settings on page 51.

Title and Time: Video title and time can be stamped on the streaming video. For more information, please refer to Video Settings on page 51.

Video Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available.

Snapshot: Click this button to capture and save still images. The captured images will be displayed pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP mp) format.

Digital Zoom: Click and uncheck "Disable digital zoom" to enable the zoom operation. The navigation been indicates the part of the image being magnified. To control the zoom level, drag the slider bar. To ve to a different area you want to magnify, drag the navigation screen.

Disable digital zoom Zoom Factors: 100% 100% 400%

Wide bridge over water with traffic, modern buildings in background under clear sky (no visible text or symbols)

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.

Press the Stop MP4 Recording button to end recording. When you exit the web browser, video recording stops accordingly. To specify the storage destination and file name, please refer to MP4 Saving Options on page 22 for details.

Full Screen: Click this button to switch to full screen mode. Press the "Esc" key to switch back to small mode.

Client Settings

This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings.

H.264 / MPEG-4 Protocol Options

H.264/MPEG-4 Protocol Options

Depending on your network environment, there are four transmission modes of H.264 or MPEG-4 streaming:

UDP unicast: This protocol allows for more real-time audio and video streams. However, network packets may be lost due to network burst traffic and images may be broken. Activate UDP connection when occasions require time-sensitive responses and the video quality is less important. Note that each unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up to ten simultaneous accesses.

UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients requesting streaming media. This helps to reduce the network transmission load of the Network Camera while serving multiple clients at the same time. Note that to utilize this feature, the Network Camera must be configured to enable multicast streaming at the same time. For more information, please refer to RTSP Streaming on page 44.

TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video quality. The downside of this protocol is that its real-time effect is not as good as that of the UDP protocol.

HTTP: This protocol allows the same quality as TCP protocol without needing to open specific ports for streaming under some network environments. Users inside a firewall can utilize this protocol to allow streaming data through.

MP4 Saving Options

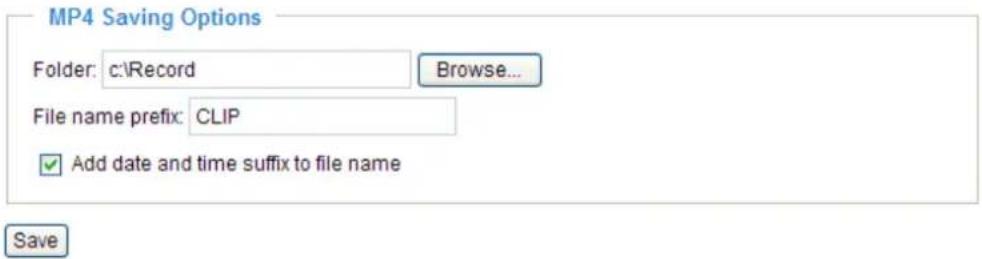

MP4 Saving Options Folder: c:\Record Browse... File name prefix: CLIP ✓ Add date and time suffix to file name Save

Users can record live video as they are watching it by clicking Start MP4 Recording on the main page. Here, you can specify the storage destination and file name.

Folder: Specify a storage destination for the recorded video files.

File name prefix: Enter the text that will be appended to the front of the video file name.

Add date and time suffix to the file name: Select this option to append the date and time to the end of the file name.

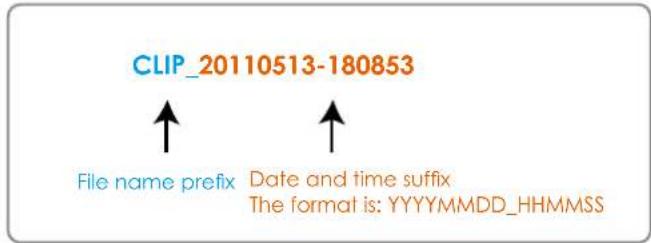

CLIP_20110513-180853 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS

Local Streaming Buffer Time

Local streaming buffer time 0 Millisecond Save

Due to the unsteady bandwidth flow, the live streaming may lag and not be very smoothly. If you enable this option, the live streaming will be stored on the camera's buffer area for a few seconds before playing on the live viewing window. This will help you see the streaming more smoothly. If you enter 3000 Millisecond, the streaming will delay 3 seconds.

Configuration

Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page.

VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with minimal effort. To simplify the setting procedure, two types of user interfaces are available: Advanced Mode for professional users and Basic Mode for entry-level users. Some advanced functions (HTTPS/ Access list/ Homepage layout/ Application/ Recording/ System log/ View parameters) are not displayed in Basic Mode.

If you want to set up advanced functions, please click [Advanced Mode] on the bottom of the configuration list to quickly switch to Advanced Mode.

In order to simplify the user interface, the detailed information will be hidden unless you click on the function item. When you click on the first sub-item, the detailed information for the first sub-item will be displayed; when you click on the second sub-item, the detailed information for the second sub-item will be displayed and that of the first sub-item will be hidden.

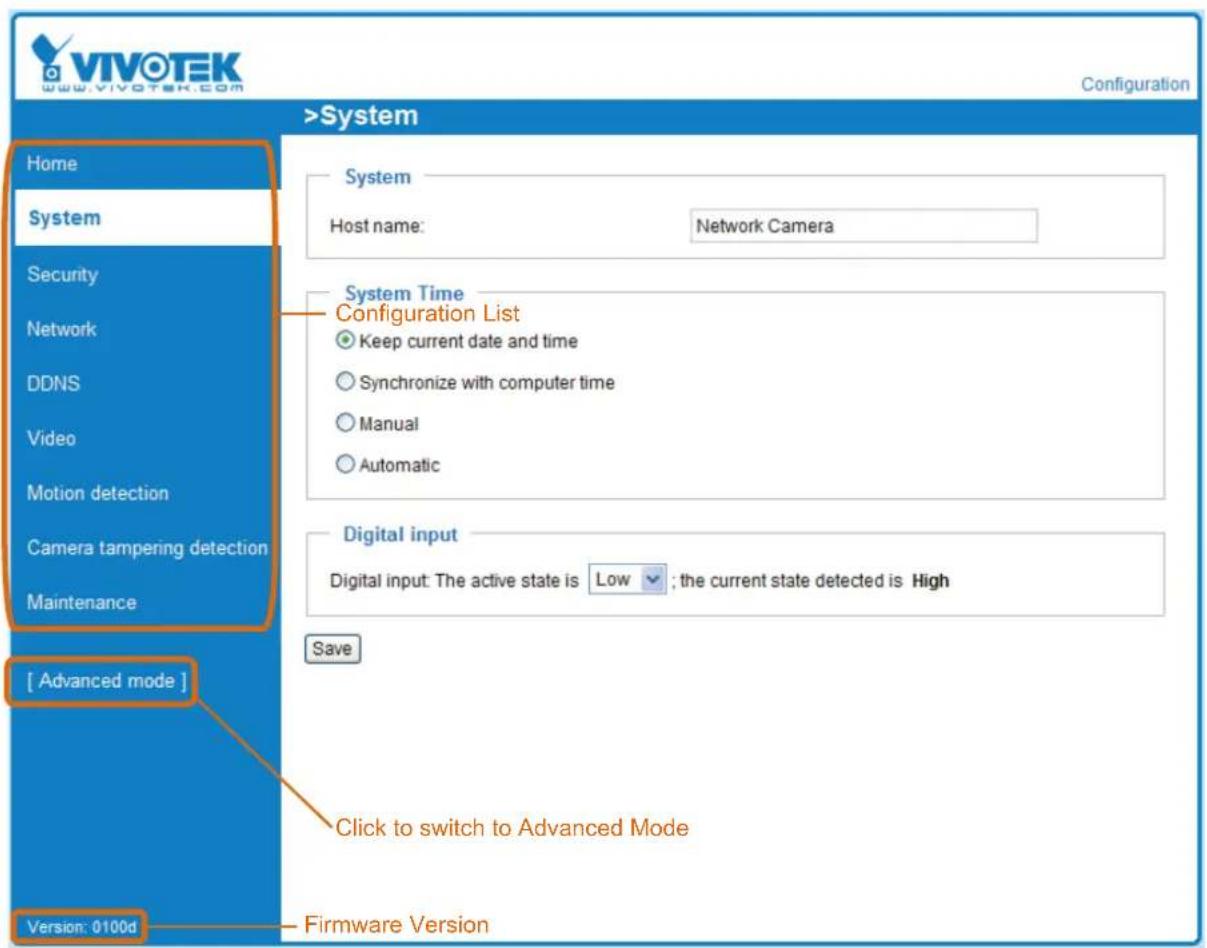

The following is the interface of the Basic Mode and the Advanced Mode:

Basic Mode

VIVOTEK www.vivotek.com Configuration >System Home System Host name: Network Camera Security Network DDNS Video Motion detection Camera tampering detection Maintenance [ Advanced mode ] Version: 0100d System Time Configuration List Keep current date and time Synchronize with computer time Manual Automatic Digital input Digital input: The active state is Low ; the current state detected is High Save Click to switch to Advanced Mode Firmware Version

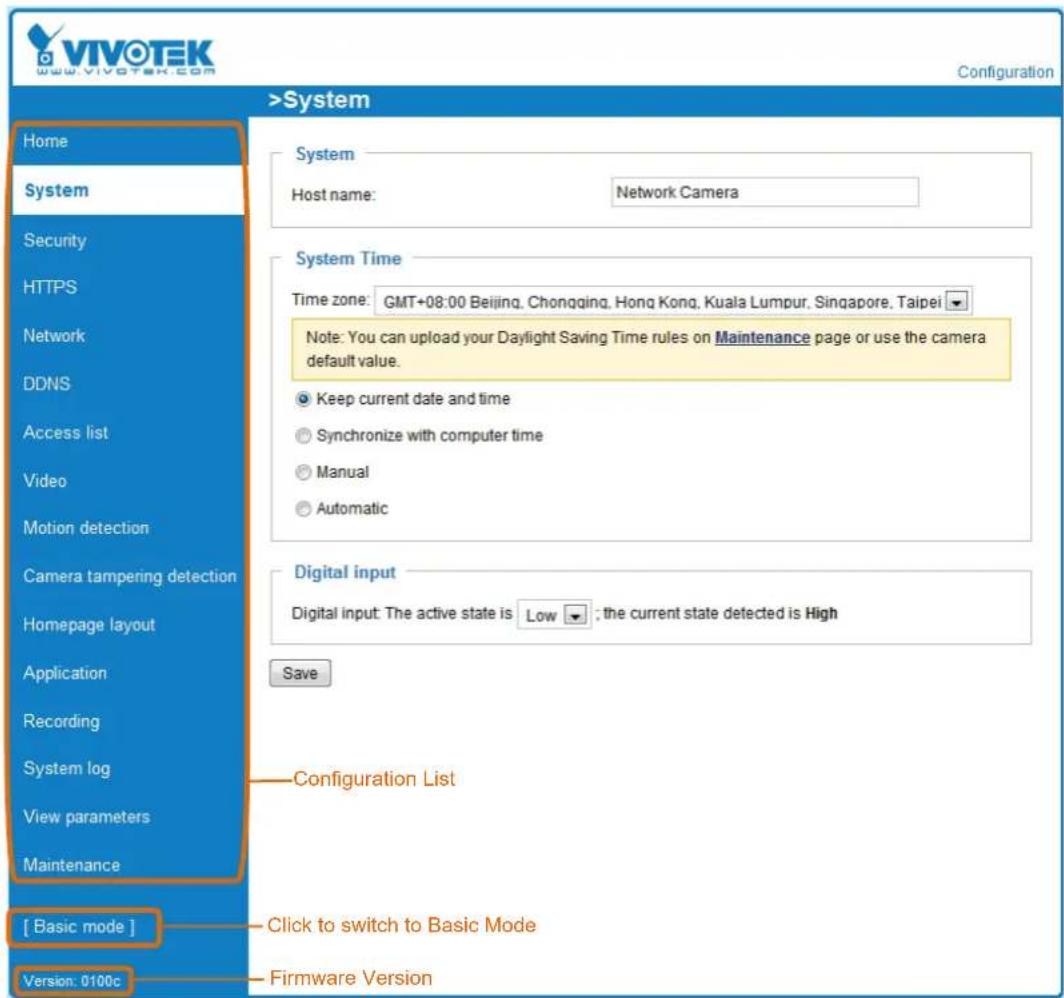

Advanced Mode

VIVOTEK www.vivotek.com Configuration >System Home System Security HTTPS Network DDNS Access list Video Motion detection Camera tampering detection Homepage layout Application Recording System log View parameters Maintenance [ Basic mode ] Version: 0100c System Host name: Network Camera System Time Time zone: GMT+08:00 Beijing, Chongqing, Hong Kong, Kuala Lumpur, Singapore, Taipei ▼ Note: You can upload your Daylight Saving Time rules on Maintenance page or use the camera default value. ● Keep current date and time ○ Synchronize with computer time ○ Manual ○ Automatic Digital input Digital input: The active state is Low ▼ ; the current state detected is High Save Configuration List Click to switch to Basic Mode Firmware Version

Each function on the configuration list will be explained in the following sections. Those functions that are displayed only in Advanced Mode are marked with Advanced Mode. If you want to set up advanced functions, please click [Advanced Mode] on the bottom of the configuration list to quickly switch over.

System

This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following three columns: System, System Time and Digital Input. When finished with the settings on this page, click Save at the bottom of the page to enable the settings.

System

System Host name: Network Camera

Host name: Enter a desired name for the Network Camera. The text will be displayed at the top of the main page.

System Time

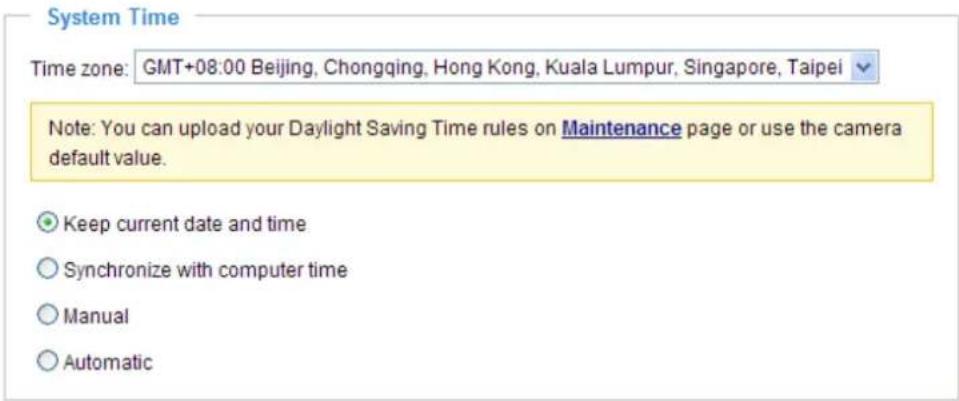

System Time Time zone: GMT+08:00 Beijing, Chongqing, Hong Kong, Kuala Lumpur, Singapore, Taipei Note: You can upload your Daylight Saving Time rules on Maintenance page or use the camera default value. Keep current date and time Synchronize with computer time Manual Automatic

Keep current date and time: Select this option to preserve the current date and time of the Network Camera. The Network Camera's internal real-time clock maintains the date and time even when the power of the system is turned off.

Synchronize with computer time: Select this option to synchronize the date and time of the Network Camera with the local computer. The read-only date and time of the PC is displayed as updated.

Manual: The administrator can enter the date and time manually. Note that the date and time format are [yyyy/mm/dd] and [hh:mm:ss].

Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by periodically querying an NTP Server.

NTP server: Assign the IP address or domain name of the time-server. Leaving the text box blank connects the Network Camera to the default time servers.

Update interval: Select to update the time using the NTP server on an hourly, daily, weekly, or monthly basis.

Time zone Advanced Mode: Select the appropriate time zone from the list. If you want to upload Daylight Savings Time rules on the Maintenance page, please refer to Upload / Export Daylight Saving Time Configuration File on page 84 for details.

Digital Input

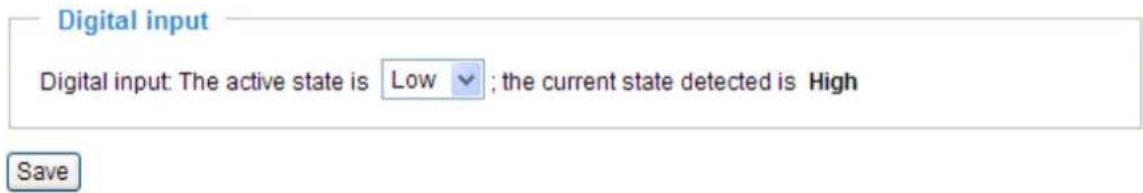

Digital input Digital input: The active state is Low ; the current state detected is High Save

Digital input: Select High or Low to define normal status for the digital input. The Network Camera will report the current status.

Security

This section explains how to enable password protection and create multiple accounts.

Root Password

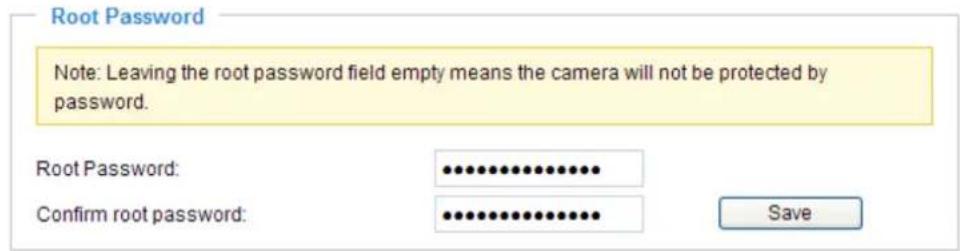

Root Password Note: Leaving the root password field empty means the camera will not be protected by password. Root Password: Confirm root password: Save

The administrator account name is "root", which is permanent and can not be deleted. If you want to add more accounts in the Manage User column, please apply the password for the "root" account first.

1. Type the password identically in both text boxes, then click Save to enable password protection.
2. A window will be prompted for authentication; type the correct user's name and password in their respective fields to access the Network Camera.

Manage Privilege Advanced Mode

Manage Privilege Allow anonymous viewing Save

Allow anonymous viewing: If you check this item, any client can access the live stream without entering a User ID and Password.

Manage User

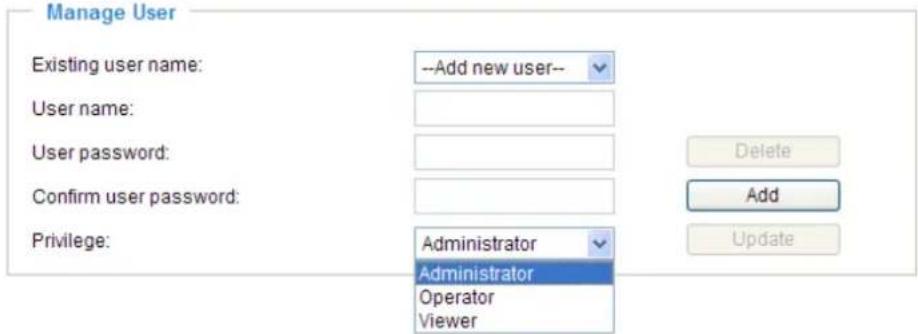

Manage User Existing user name: --Add new user-- User name: User password: Confirm user password: Privilege: Administrator Administrator Operator Viewer Delete Add Update

Administrators can add up to 20 user accounts.

1. Input the new user's name and password.
2. Select the privilege level for the new user account. Click Add to enable the setting.

Access rights are sorted by user privilege (Administrator, Operator, and Viewer). Only administrators can access the Configuration page. Though operators cannot access the Configuration page, they can use the URL Commands to get and set the value of parameters. For more information, please refer to URL Commands of the Network Camera on page 87. Viewers access only the main page for live viewing.

Here you also can change a user's access rights or delete user accounts.

1. Select an existing account to modify.
2. Make necessary changes and click Update or Delete to enable the setting.

HTTPS (Hypertext Transfer Protocol over SSL) Advanced Mode

This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level.

Enable HTTPS

Check this item to enable HTTPS communication, then select a connection option: "HTTP & HTTPS" or "HTTPS only". Note that you have to create and install a certificate first in the second column before clicking the Save button.

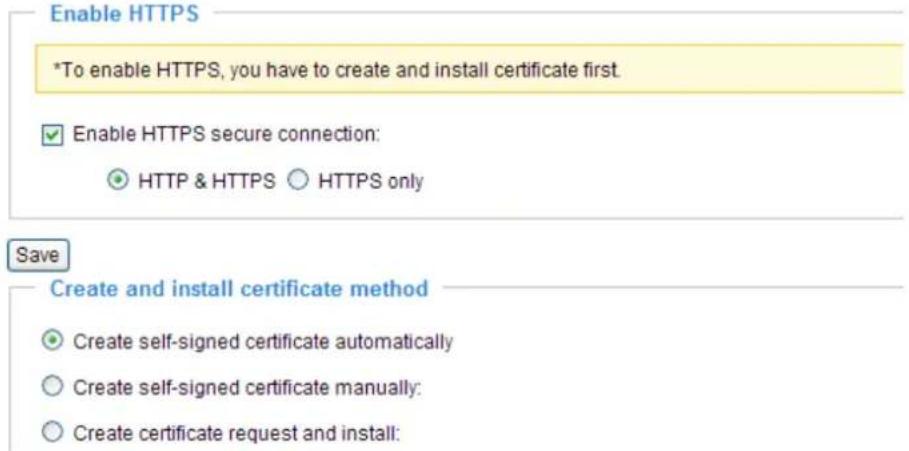

Enable HTTPS *To enable HTTPS, you have to create and install certificate first. ✓ Enable HTTPS secure connection: ○ HTTP & HTTPS ○ HTTPS only Save Create and install certificate method ○ Create self-signed certificate automatically ○ Create self-signed certificate manually: ○ Create certificate request and install:

Create and Install Certificate Method

Before using HTTPS for communication with the Network Camera, a Certificate must be created first. There are three ways to create and install a certificate:

Create self-signed certificate automatically

1. Select this option.

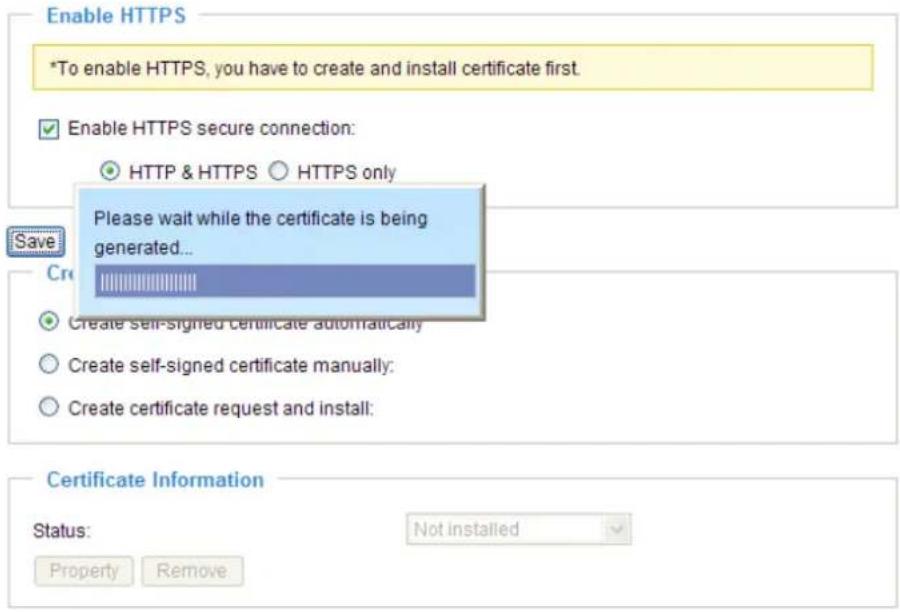

2. In the first column, check Enable HTTPS secure connection, then select a connection option: "HTTP & HTTPS" or "HTTPS only".
3. Click Save to generate a certificate.

Enable HTTPS *To enable HTTPS, you have to create and install certificate first. Enable HTTPS secure connection: HTTP & HTTPS ○ HTTPS only Please wait while the certificate is being generated... Create Create self-signed certificate automatically Create self-signed certificate manually: Create certificate request and install: Certificate Information Status: Not installed Property Remove

1. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to view detailed information about the certificate.

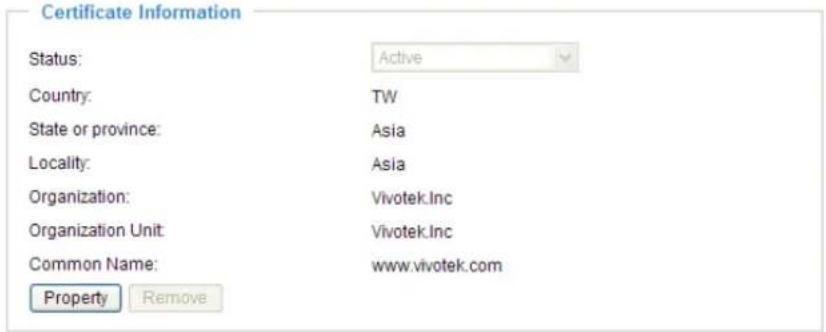

Certificate Information Status: Active Country: TW State or province: Asia Locality: Asia Organization: Vivotek.Inc Organization Unit: Vivotek.Inc Common Name: www.vivotek.com Property Remove

1. Click Home to return to the main page. Change the address from "http://" to "https://" in the address bar and press Enter on your keyboard. Some Security Alert dialogs will pop up. Click OK or Yes to enable HTTPS.

https:// Network Camera - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address https://192.168.5.151/index.html VIVOTEK www.vivotek.com Video Stream 1 Manual Trigger: Network Camera (TCP-V) 2010/01/12 16:57: Security Alert You are about to view pages over a secure connection. Any information you exchange with this site cannot be viewed by anyone else on the Web. In the future, do not show this warning OK More Info

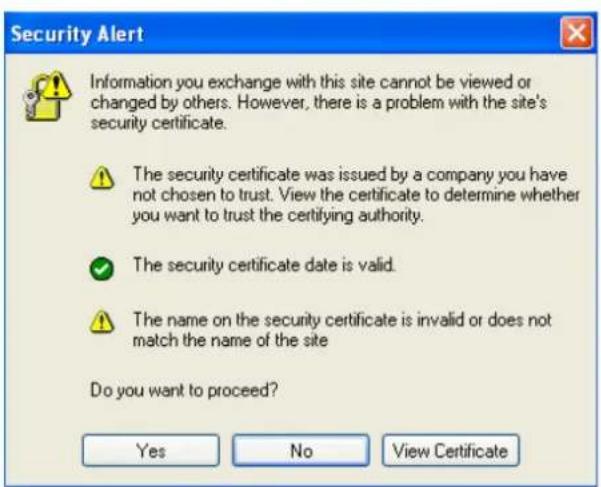

Security Alert Information you exchange with this site cannot be viewed or changed by others. However, there is a problem with the site's security certificate. The security certificate was issued by a company you have not chosen to trust. View the certificate to determine whether you want to trust the certifying authority. The security certificate date is valid. The name on the security certificate is invalid or does not match the name of the site Do you want to proceed? Yes No View Certificate

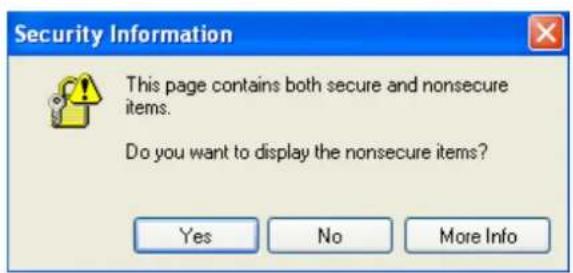

Security Information This page contains both secure and nonsecure items. Do you want to display the nonsecure items? Yes No More Info

Create self-signed certificate manually

1. Select this option.

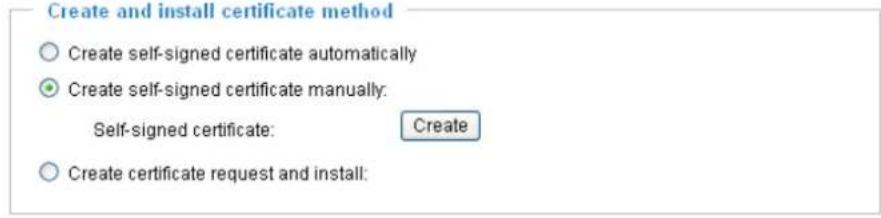

2. Click Create to open the Create Certificate page, then click Save to generate the certificate.

Create and install certificate method ○ Create self-signed certificate automatically ● Create self-signed certificate manually: Self-signed certificate: Create ○ Create certificate request and install:

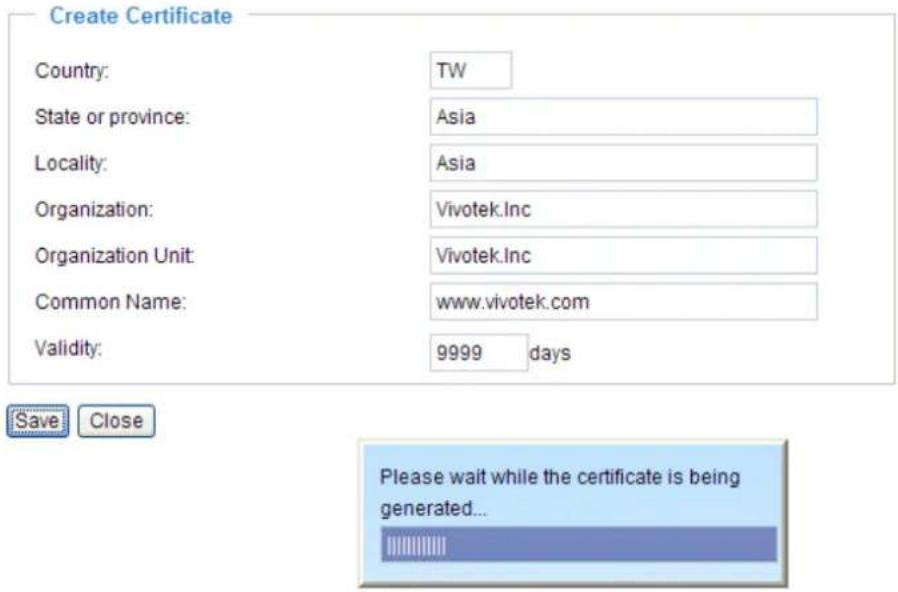

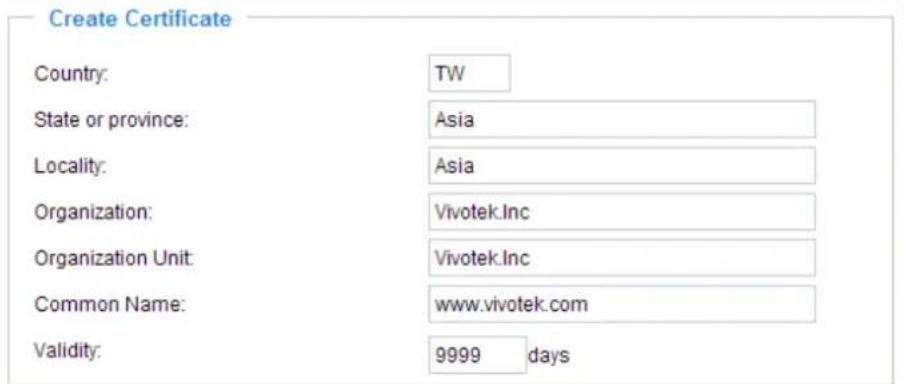

Create Certificate Country: TW State or province: Asia Locality: Asia Organization: Vivotek.Inc Organization Unit: Vivotek.Inc Common Name: www.vivotek.com Validity: 9999 days

Please wait while the certificate is being generated...

1. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate.

Certificate Information Status: Active Country: TW State or province: Asia Locality: Asia Organization: Vivotek.Inc Organization Unit: Vivotek.Inc Common Name: www.vivotek.com Property Remove

Create certificate and install : Select this option if you want to create a certificate from a certificate authority.

1. Select this option.
2. Click Create to open the Create Certificate page, then click Save to generate the certificate.

Create and install certificate method ○ Create self-signed certificate automatically ○ Create self-signed certificate manually: ● Create certificate request and install: Certificate request: Create Select certificate file: Browse... Upload

Create Certificate Country: TW State or province: Asia Locality: Asia Organization: Vivotek.Inc Organization Unit: Vivotek.Inc Common Name: www.vivotek.com Validity: 9999 days Save Close Please wait while the certificate is being generated...

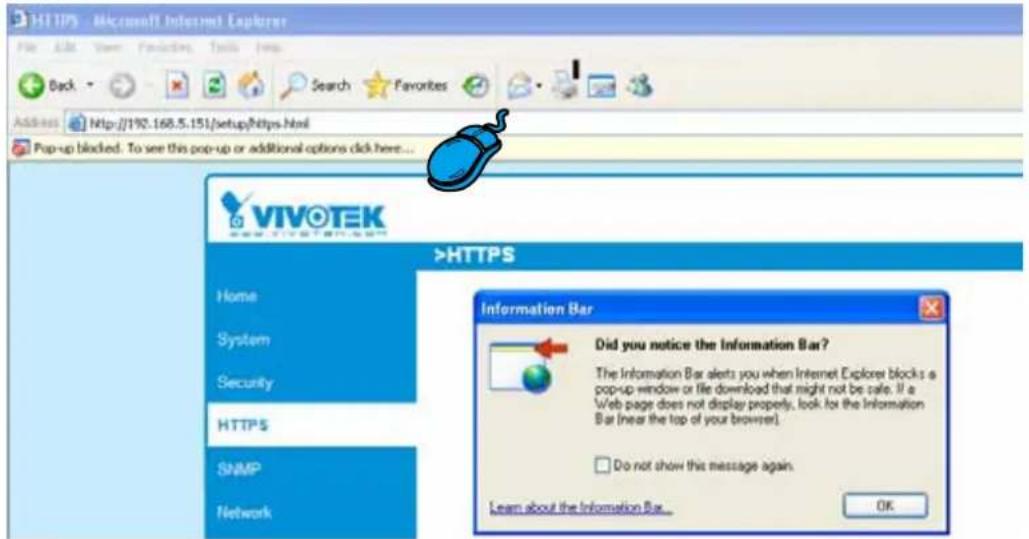

1. If you see the following Information bar, click OK and click on the Information bar at the top of the page to allow pop-ups.

HTTPS - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address http://192.168.5.151/setup/https.html Pop-up blocked. To see this pop-up or additional options click here... VIVOTEK VIVOTEK.COM >HTTPS Home System Security HTTPS SNMP Network Information Bar Did you notice the Information Bar? The Information Bar alerts you when Internet Explorer blocks a pop-up window or file download that might not be safe. If a Web page does not display properly, look for the Information Bar (near the top of your browser). Do not show this message again. Learn about the Information Bar... OK

1. The pop-up window shows an example of a certificate request.

Create Certificate Request Completed

Copy the PEM format request below and send it to a CA for identify validation. After that, you have to install it by clicking the "Upload" button on HTTPS page.

Certificate Request (PEM format)

----BEGIN CERTIFICATE REQUEST----

MIIIBuDCCASECADB5MQswCQYDVQQGEwJUVzERMA8GA1UECBMIUHJvdm1uY2UxEjAQBgNVBAcTCUNpdHkgTmFtZTEaMBgGA1UEChMRT3JnYW5pemFOaW9uIE5hbWUXejAQBgNVBAsTCVVuaXQgTmFtZTETMBEGA1UEAxMKSVAgQWRKcmVzczCBnzANBgkqhkiG9w0BAQEFAAOBjQAwgYKcGyEAuOT75EY52gsSyPFMxZ7wHdQ1obPescsXLUw9DFw6OMRheukFaXFDKM+5xK+K5oEPBPqj77yhH+zdUHS27fFSLG57bW9SoxrWuLhSvRZWmCD+/AiJX864dJ/mjHn7Wc55GFaxgMvbALcxT+hCIeDCWYnRqh/fpKNj+BxvVoNUrcCAwEAAAAMAOGCSqGS1b3DQEBBQUAA4GBAAVAzWOAtftU9dyFgTxOY01D/zOF0TkbnDOQG18e4ftJ3rRODITvIIMjg3K8zsAS8Gd3pME1ejqLYoBrtaSqdcCUqGIX50bLG1subWsXr88PngaBwjYoTpG3qlzvUPJZLAVmdL3ne5urTbABXOScCHOQGtPH+PX9dw4OJWKlC8QhV

----END CERTIFICATE REQUEST----

1. Look for a trusted certificate authority that issues digital certificates. Enroll the Network Camera. Wait for the certificate authority to issue a SSL certificate; click Browse... to search for the issued certificate, then click Upload in the second column.

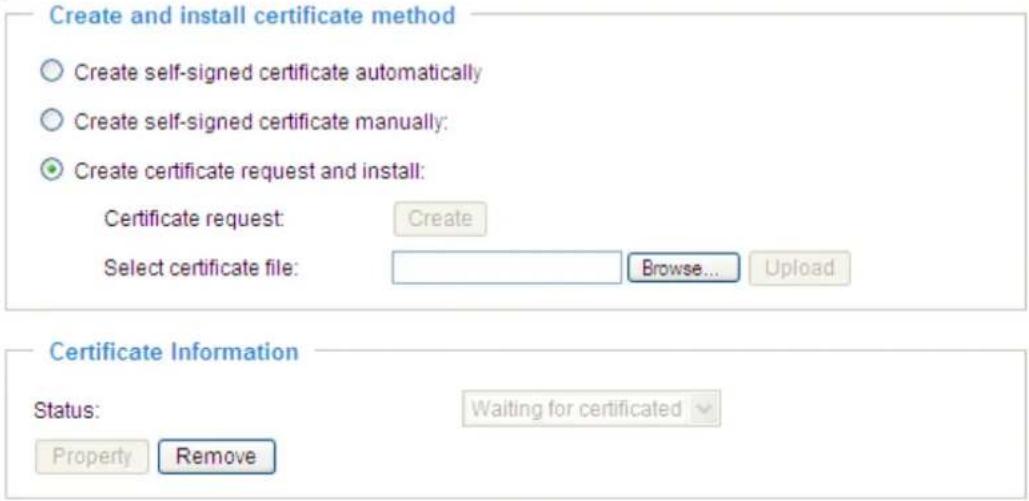

Create and install certificate method ○ Create self-signed certificate automatically ○ Create self-signed certificate manually: ● Create certificate request and install: Certificate request: Create Select certificate file: Browse... Upload Certificate Information Status: Waiting for certificated Property Remove

NOTE

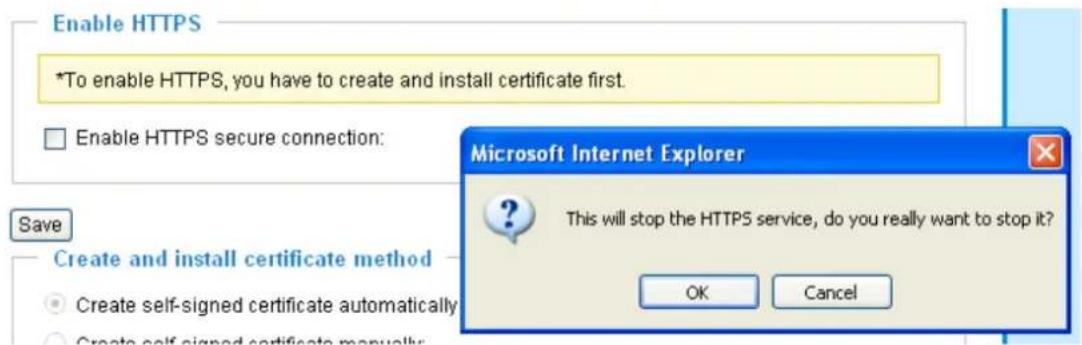

▶ How do I cancel the HTTPS settings?

1. Uncheck Enable HTTPS secure connection in the first column and click Save; a warning dialog will pop up.
2. Click OK to disable HTTPS.

Enable HTTPS *To enable HTTPS, you have to create and install certificate first. Enable HTTPS secure connection: Microsoft Internet Explorer This will stop the HTTPS service, do you really want to stop it? OK Cancel Save Create and install certificate method Create self-signed certificate automatically Create self-signed certificate manually

1. The webpage will redirect to a non-HTTPS page automatically.

▶ If you want to create and install other certificates, please remove the existing one. To remove the signed certificate, uncheck Enable HTTPS secure connection in the first column and click Save. Then click Remove to erase the certificate.

Certificate Information Status: Country: State or province: Locality: Organization: Organization Unit: Common Name: Property Remove Active Microsoft Internet Explorer Are you sure you want to delete the certificate? OK Cancel IP Address

Network

This section explains how to configure a wired network connection for the Network Camera.

Network Type

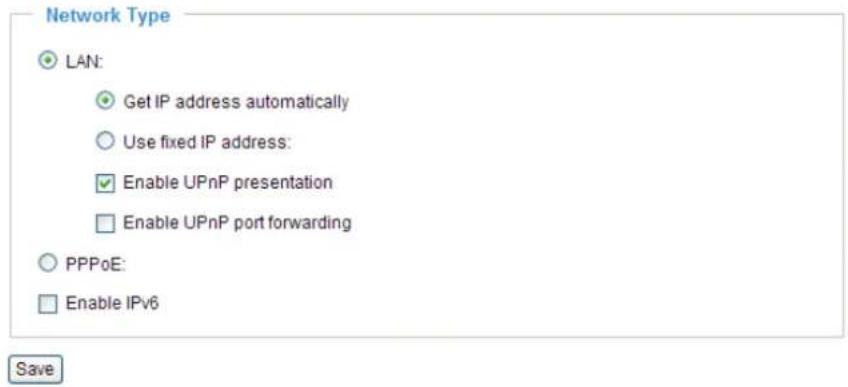

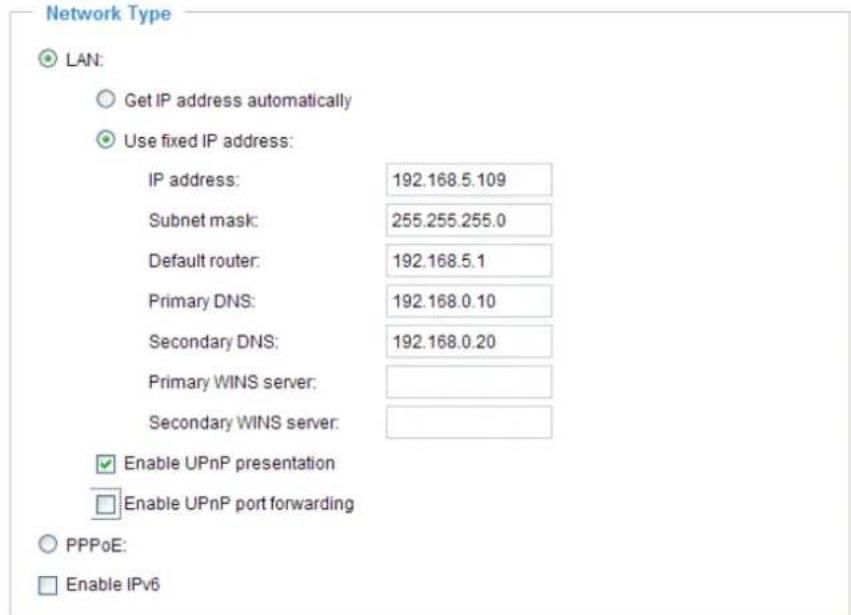

Network Type LAN: Get IP address automatically Use fixed IP address: Enable UPnP presentation Enable UPnP port forwarding PPPoE: Enable IPv6 Save

LAN

Select this option when the Network Camera is deployed on a local area network (LAN) and is intended to be accessed by local computers. The default setting for the Network Type is LAN. Remember to click Save when you complete the Network setting.

Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by the DHCP server each time the camera is connected to the LAN.

Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera.

Network Type LAN: Get IP address automatically Use fixed IP address: IP address: 192.168.5.109 Subnet mask: 255.255.255.0 Default router: 192.168.5.1 Primary DNS: 192.168.0.10 Secondary DNS: 192.168.0.20 Primary WINS server: Secondary WINS server: Enable UPnP presentation Enable UPnP port forwarding PPPoE: Enable IPv6

1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software Installation on page 12 for details.
2. Enter the Static IP, Subnet mask, Default router, and Primary DNS provided by your ISP.

Subnet mask: This is used to determine if the destination is in the same subnet. The default value is "255.255.255.0".

Default router: This is the gateway used to forward frames to destinations in a different subnet. Invalid router setting will fail the transmission to destinations in different subnet.

Primary DNS: The primary domain name server that translates hostnames into IP addresses.

Secondary DNS: Secondary domain name server that backups the Primary DNS.

Primary WINS server: The primary WINS server that maintains the database of computer name and IP address.

Secondary WINS server: The secondary WINS server that maintains the database of computer name and IP address.

Enable UPnP presentation: Select this option to enable UPnP ^TM presentation for your Network Camera so that whenever a Network Camera is presented to the LAN, shortcuts of connected Network Cameras will be listed in My Network Places. You can click the shortcut to link to the web browser. Currently, UPnP ^TM is supported by Windows XP or later. Note that to utilize this feature, please make sure the UPnP ^TM component is installed on your computer.

My Network Places File Edit View Favorites Tools Help Back Search Folders Address My Network Places Go Network Tasks Add a network place View network connections Set up a home or small office network View workgroup computers Local Network Wireless Network Camera (192.168.5.128) Network Camera (192.168.5.151) Wireless Network Camera with Pan/Tilt (192.168.5.141)

Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option to allow the Network Camera to open ports on the router automatically so that video streams can be sent out from a LAN. To utilize of this feature, make sure that your router supports UPnP ^TM and it is activated.

PPPoE (Point-to-point over Ethernet)

Select this option to configure your Network Camera to make it accessible from anywhere as long as there is an Internet connection. Note that to utilize this feature, it requires an account provided by your ISP.

Follow the steps below to acquire your Network Camera's public IP address.

1. Set up the Network Camera on the LAN.

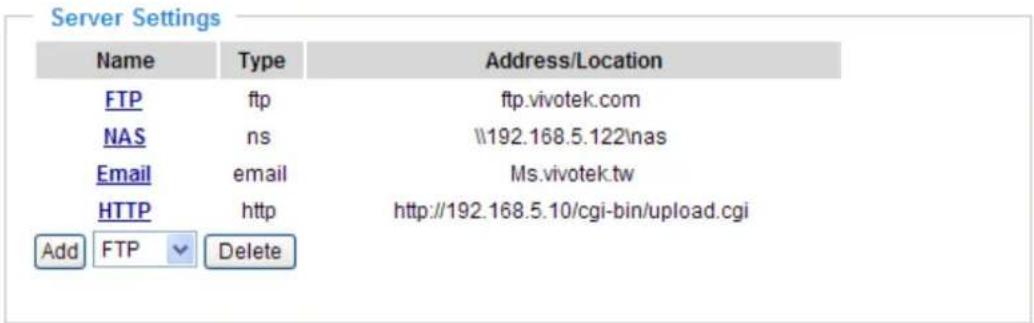

2. Go to Home > Configuration > Application > Server Settings (please refer to Server Settings on page 70) to add a new email or FTP server.
3. Go to Configuration > Application > Media Settings (please refer to Media Settings on page 73). Select System log so that you will receive the system log in .txt file format which contains the Network Camera's public IP address in your email or on the FTP server.
4. Go to Configuration > Network > Network Type. Select PPPoE and enter the user name and password provided by your ISP. Click Save to enable the setting.

Network Type ○ LAN: ● PPPoE: User name: Password: Confirm password:

1. The Network Camera will reboot.
2. Disconnect the power to the Network Camera; remove it from the LAN environment.

NOTE

▶ If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera.

If UPnP ^TM is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.

▶ Steps to enable the UPnP ^TM user interface on your computer: Note that you must log on to the computer as a system administrator to install the UPnP ^TM components.

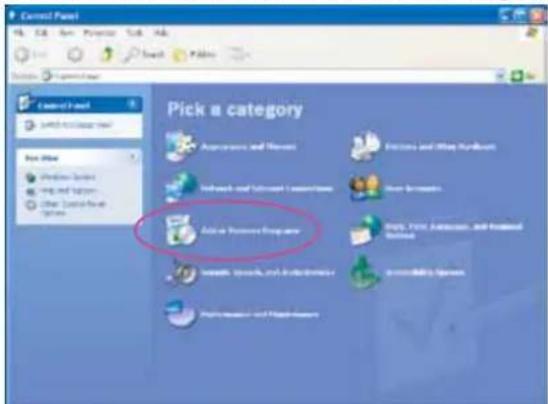

1. Go to Start, click Control Panel, then click Add or Remove Programs.

Control Panel Pick a category Add to Service Program Add to Service Program Add to Service Program Add to Service Program

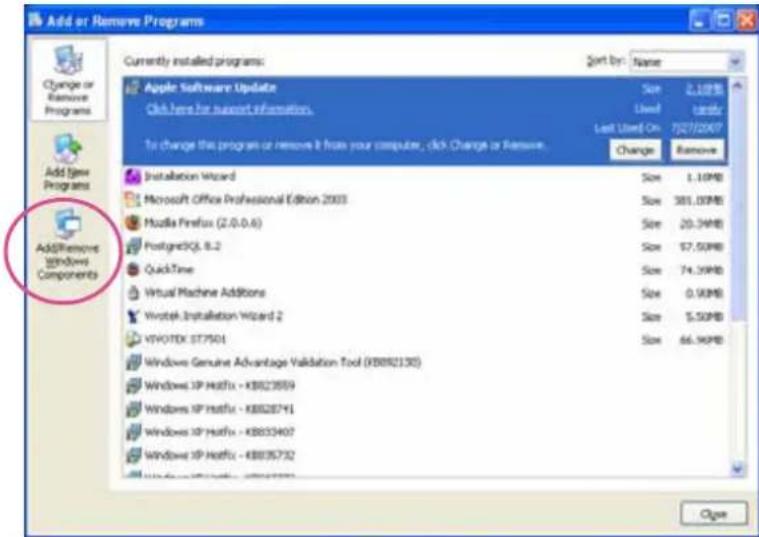

1. In the Add or Remove Programs dialog box, click Add/Remove Windows Components.

Add or Remove Programs Currently installed programs: Sort by: Name Apple Software Update Click here for support information. To change this program or remove it from your computer, click Change or Remove. Size 2.10MB Used 1.0MB Last Used On 7/27/2007 Change Remove Installation Wizard Microsoft Office Professional Edition 2003 Mozilla Firefox (2.0.0.6) PostgreSQL 8.2 QuickTime Virtual Machine Additions Vivotek Installation Wizard 2 VIVOTEK ST7501 Windows Genuine Advantage Validation Tool (KB8R2130) Windows XP Hotfix - KB823859 Windows XP Hotfix - KB828741 Windows XP Hotfix - KB833407 Windows XP Hotfix - KB835732 Close

1. In the Windows Components Wizard dialog box, select Networking Services and click Details.

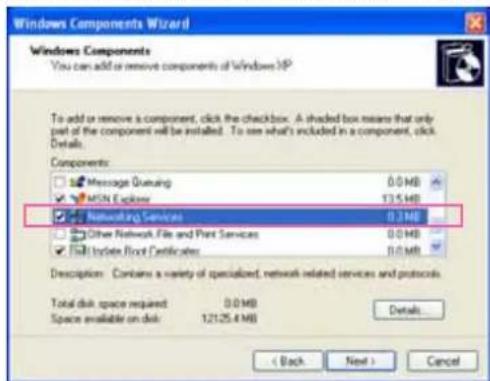

Windows Components Wizard Windows Components You can add or remove components of Windows XP To add or remove a component, click the checkbox. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Components: Message Dashing 0.0 MB MSN Explorer 13.5 MB Networking Services 0.3 MB Other Network File and Print Services 0.0 MB Find Indicate Front Certificates 0.0 MB Description Contains a variety of specialized, network-related services and protocols. Total disk space required 0.0 MB Space available on disk 12125.4 MB Details < Back Next > Cancel

1. In the Networking Services dialog box, select Universal Plug and Play and click OK.

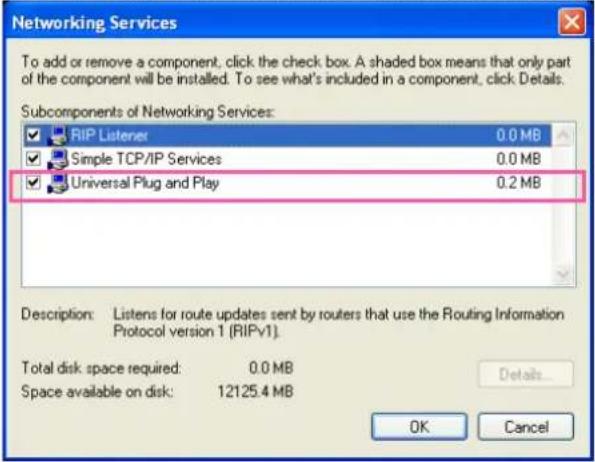

Networking Services To add or remove a component, click the check box. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Subcomponents of Networking Services: RIP Listener 0.0 MB Simple TCP/IP Services 0.0 MB Universal Plug and Play 0.2 MB Description: Listens for route updates sent by routers that use the Routing Information Protocol version 1 (RIPv1). Total disk space required: 0.0 MB Space available on disk: 12125.4 MB Details... OK Cancel

1. Click Next in the following window.

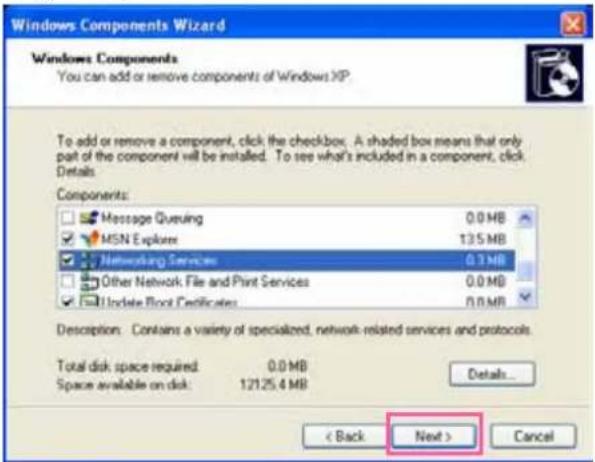

Windows Components Wizard Windows Components You can add or remove components of Windows XP To add or remove a component, click the checkbox. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Components: Message Queueing 0.0 MB MSN Explorer 135 MB Networking Services 0.3 MB Other Network File and Print Services 0.0 MB Update Float Certificates 0.0 MB Description: Contains a variety of specialized, network-related services and protocols. Total disk space required 0.0 MB Space available on disk: 12125.4 MB Details... < Back Next > Cancel

1. Click Finish. UPnP ^TM is enabled.

▶ How does UPnP ^TM work?
UPnP ^TM networking technology provides automatic IP configuration and dynamic discovery of devices added to a network. Services and capabilities offered by networked devices, such as printing and file sharing, are available among each other without the need for cumbersome network configuration. In the case of Network Cameras, you will see Network Camera shortcuts under My Network Places.
▶ Enabling UPnP port forwarding allows the Network Camera to open a secondary HTTP port on the router-not HTTP port-meaning that you have to add the secondary HTTP port number to the Network Camera's public address in order to access the Network Camera from the Internet. For example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the Network Camera's IP address.

From the Internet In LAN

http://203.67.124.123:8080 http://192.168.4.160 or

http://192.168.4.160:8080

▶ If the PPPoE settings are incorrectly configured or the Internet access is not working, restore the Network Camera to factory default; please refer to Restore on page 83 for details. After the Network Camera is reset to factory default, it will be accessible on the LAN.

Enable IPv6

Select this option and click Save to enable IPv6 settings.

Please note that this only works if your network environment and hardware equipment support IPv6. The browser should be Microsoft® Internet Explorer 6.5, Mozilla Firefox 3.0 or above.

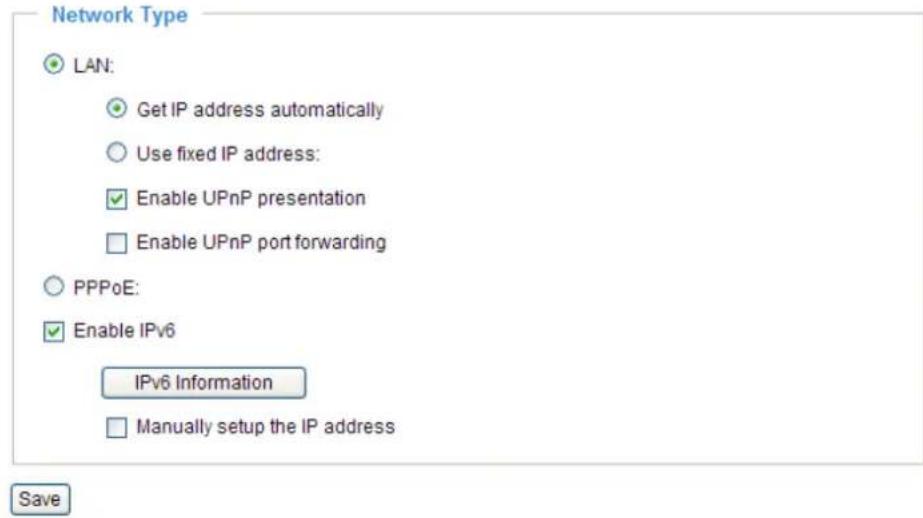

Network Type LAN: Get IP address automatically Use fixed IP address: Enable UPnP presentation Enable UPnP port forwarding PPPoE: Enable IPv6 IPv6 Information Manually setup the IP address Save

When IPv6 is enabled, by default, the network camera will listen to router advertisements and be assigned with a link-local IPv6 address accordingly.

IPv6 Information: Click this button to obtain the IPv6 information as shown below.

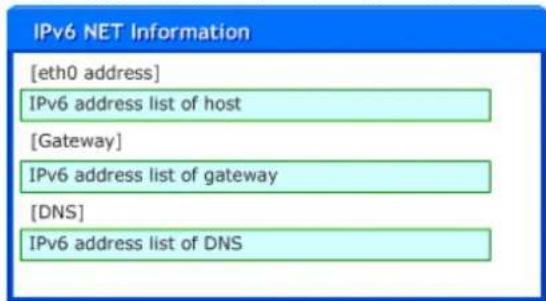

IPv6 NET Information [eth0 address] IPv6 address list of host [Gateway] IPv6 address list of gateway [DNS] IPv6 address list of DNS

If your IPv6 settings are successful, the IPv6 address list will be listed in the pop-up window. The IPv6 address will be displayed as follows:

Refers to Ethernet

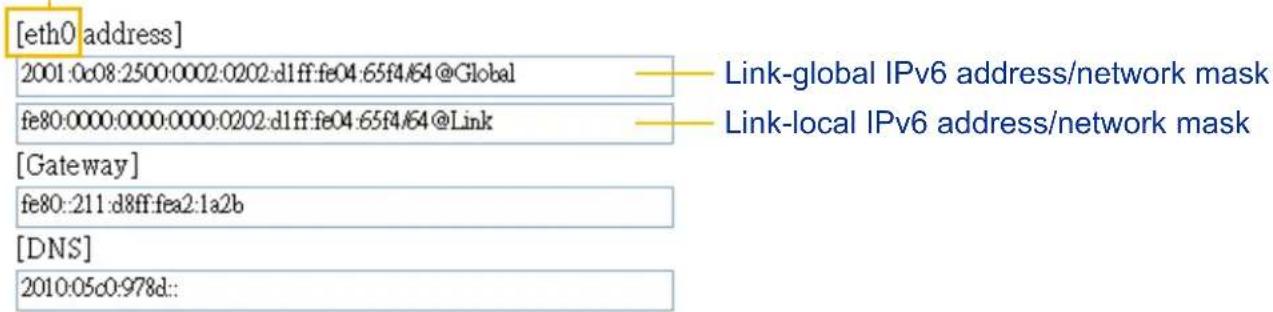

[eth0 address] 2001:0c08:2500:0002:0202:d1ff:fe04:65f4/64@Global fe80:0000:0000:0000:0202:d1ff:fe04:65f4/64@Link [Gateway] fe80:211:d8ff:fea2:1a2b [DNS] 2010:05c0:978d::

Please follow the steps below to link to an IPv6 address:

1. Open your web browser.
2. Enter the link-global or link-local IPv6 address in the address bar of your web browser.
3. The format should be:

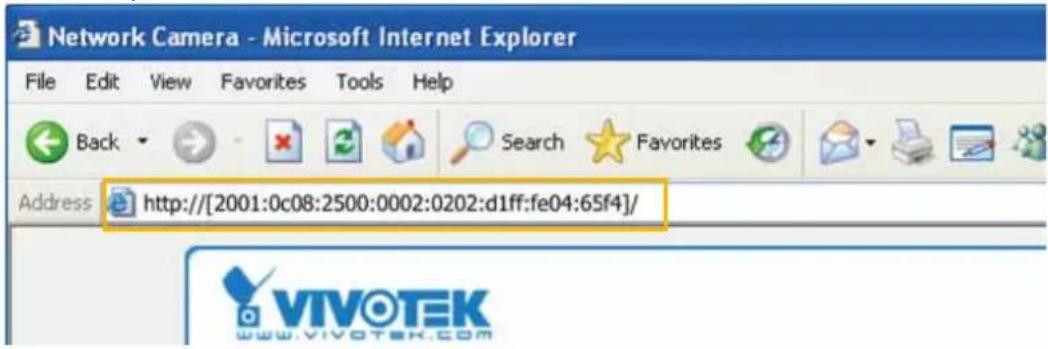

http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address

1. Press Enter on the keyboard or click Refresh button to refresh the webpage. For example:

Network Camera - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ VIVOTEK www.vivotek.com

NOTE

▶ If you have a Secondary HTTP port (the default value is 8080), you can also link to the webpage in the following address format: (Please refer to HTTP on page 42 for detailed information.)

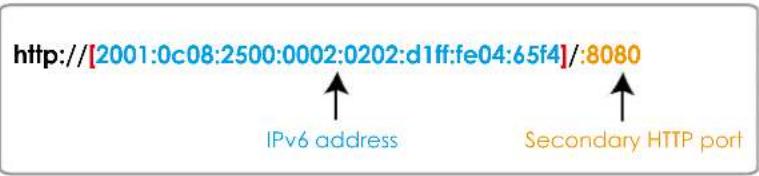

http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/:8080 IPv6 address Secondary HTTP port

▶ If you choose PPPoE as the Network Type, the [PPP0 address] will be displayed in the IPv6 information column as shown below. [eth0 address]

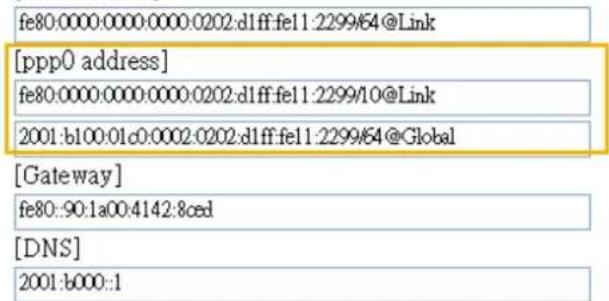

fe80:0000:0000:0000:0202:d1ff:fe11:2299/64@Link [ppp0 address] fe80:0000:0000:0000:0202:d1ff:fe11:2299/10@Link 2001:b100:01c0:0002:0202:d1ff:fe11:2299/64@Global [Gateway] fe80::90:1a00:4142:8ced [DNS] 2001:b000::1

Manually setup the IP address: Select this option to manually set up IPv6 settings if your network environment does not have DHCPv6 server and advertisements-enabled routers. If you check this item, the following blanks will be displayed for you to enter the corresponding information: ☑ Enable IPv6

Enable IPv6

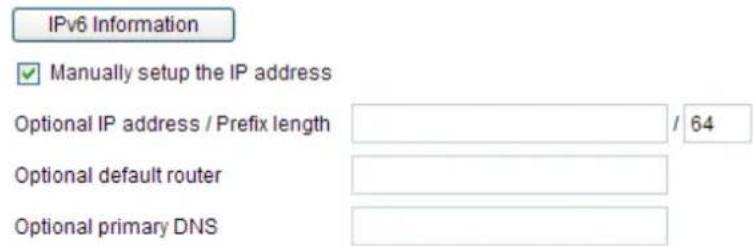

IPv6 Information ✓ Manually setup the IP address Optional IP address / Prefix length / 64 Optional default router Optional primary DNS

IEEE 802.1x Advanced Mode

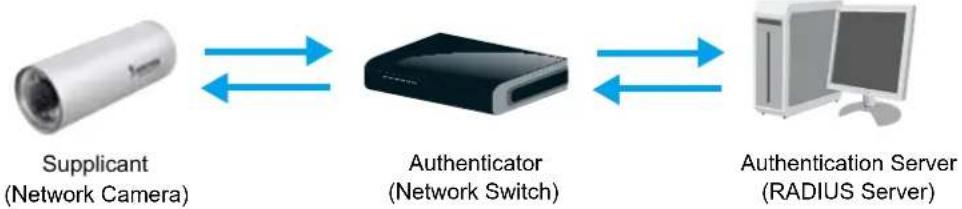

Enable this function if your network environment uses IEEE 802.1x, which is a port-based network access control. The network devices, intermediary switch/access point/hub, and RADIUS server must support and enable 802.1x settings.

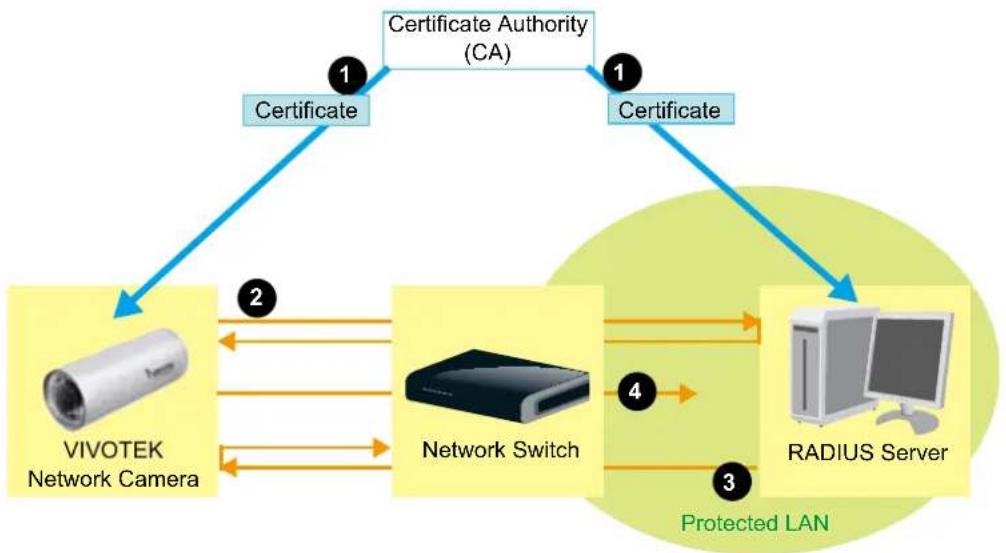

The 802.1x standard is designed to enhance the security of local area networks, which provides authentication to network devices (clients) attached to a network port (wired or wireless). If all certificates between client and server are verified, a point-to-point connection will be enabled; if authentication fails, access on that port will be prohibited. 802.1x utilizes an existing protocol, the Extensible Authentication Protocol (EAP), to facilitate communication.

■ The components of a protected network with 802.1x authentication:

1. Supplicant: A client end user (camera), which requests authentication.
2. Authenticator (an access point or a switch): A "go between" which restricts unauthorized end users from communicating with the authentication server.
3. Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user's access request.

■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-PEAP and EAP-TLS.

Please follow the steps below to enable 802.1x settings:

1. Before connecting the Network Camera to the protected network with 802.1x, please apply a digital certificate from a Certificate Authority (ie. MIS of your company) which can be validated by a RADIUS server.
2. Connect the Network Camera to a PC or notebook outside of the protected LAN. Open the configuration page of the Network Camera as shown below. Select EAP-PEAP or EAP-TLS as the EAP method. In the following blanks, enter your ID and password issued by the CA, then upload related certificate(s).

IEEE 802.1x

Enable IEEE 802.1x

EAP method:

Identity:

Password:

CA certificate:

Status: no file

EAP-PEAP Browse... Upload Remove

IEEE 802.1x

Enable 802.1x

EAP method:

Identity:

Private key passord:

CA certificate:

Status: no file

client certificate:

Status: no file

Client private key:

Status: no file

EAP-TLS

Browse... Upload

Remove

Remove

Remove

1. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically.

NOTE

▶ The authentication process for 802.1x:

1. The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server).
2. A Network Camera requests access to the protected LAN using 802.1X via a switch (the authenticator). The client offers its identity and client certificate, which is then forwarded by the switch to the RADIUS Server, which uses an algorithm to authenticate the Network Camera and returns an acceptance or rejection back to the switch.
3. The switch also forwards the RADIUS Server's certificate to the Network Camera.
4. Assuming all certificates are validated, the switch then changes the Network Camera's state to authorized and is allowed access to the protected network via a pre-configured port.

QoS (Quality of Service) Advanced Mode

Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.

The following are the main benefits of a QoS-aware network:

■ The ability to prioritize traffic and guarantee a certain level of performance to the data flow.
■ The ability to control the amount of bandwidth each application may use, and thus provide higher reliability and stability on the network.

Requirements for QoS

To utilize QoS in a network environment, the following requirements must be met:

■ All network switches and routers in the network must include support for QoS.
■ The network video devices used in the network must be QoS-enabled.

QoS models

CoS (the VLAN 802.1p model)

IEEE802.1p defines a QoS model at OSI Layer 2 (Data Link Layer), which is called CoS, Class of Service. It adds a 3-bit value to the VLAN MAC header, which indicates the frame priority level from 0 (lowest) to 7 (highest). The priority is set up on the network switches, which then use different queuing disciplines to forward the packets.

Below is the setting column for CoS. Enter the VLAN ID of your switch (0\~4095) and choose the priority for each application (0\~7).

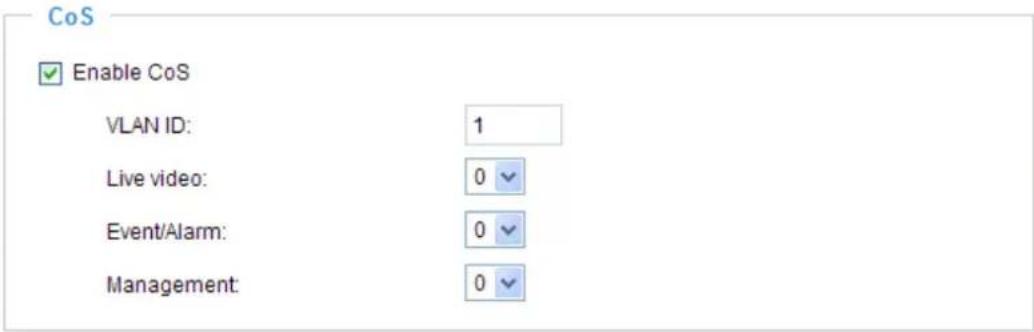

CoS Enable CoS VLAN ID: 1 Live video: 0 Event/Alarm: 0 Management: 0

If you assign Video the highest level, the switch will handle video packets first.

NOTE

The VLAN Switch (802.1p) is required. The web browsing may fail if the CoS setting is incorrect.
Class of Service technologies do not guarantee a level of service in terms of bandwidth and delivery time; they offer a "best-effort." Users can think of CoS as "coarsely-grained" traffic control and QoS as "finely-grained" traffic control.
Though CoS is simple to manage, it lacks scalability and does not offer end-to-end guarantees since it is based on L2 protocol.

QoS/DSCP (the DiffServ model)

DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs. It gives an indication of how a given packet is to be forwarded, known as the Per Hop Behavior (PHB). The PHB describes a particular service level in terms of bandwidth, queueing theory, and dropping (discarding the packet) decisions. Routers at each network node classify packets according to their DSCP value and give them a particular forwarding treatment; for example, how much bandwidth to reserve for it.

Below are the setting options of DSCP (DiffServ Codepoint). Specify the DSCP value for each application (0\~63).

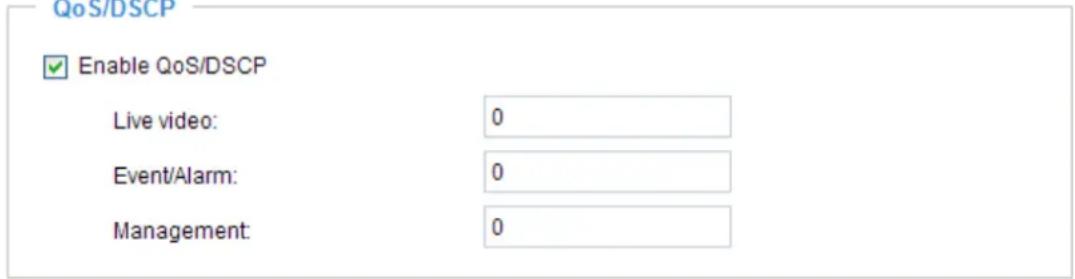

QoS/DSCP Enable QoS/DSCP Live video: 0 Event/Alarm: 0 Management: 0

HTTP Advanced Mode

To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security on page 26 for details.

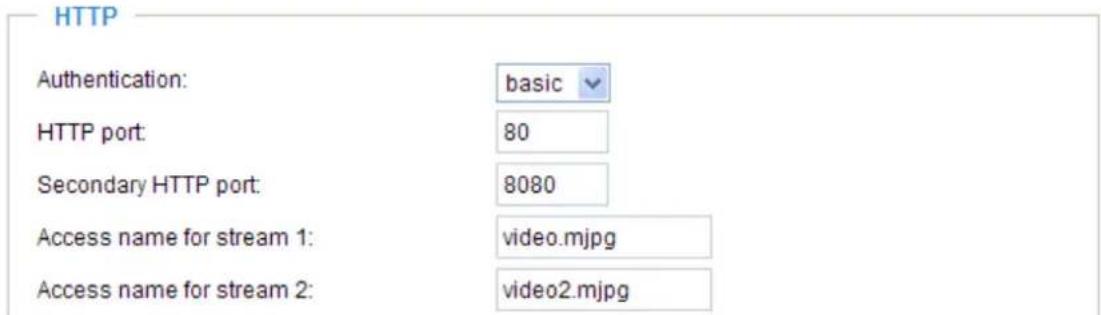

HTTP Authentication: basic HTTP port: 80 Secondary HTTP port: 8080 Access name for stream 1: video.mjpg Access name for stream 2: video2.mjpg

Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.

If basic authentication is selected, the password is sent in plain text format and there can be potential risks of being intercepted. If digest authentication is selected, user credentials are encrypted using MD5 algorithm and thus provide better protection against unauthorized accesses.

HTTP port / Secondary HTTP port: By default, the HTTP port is set to 80 and the secondary HTTP port is set to 8080. They can also be assigned to another port number between 1025 and 65535. If the ports are incorrectly assigned, the following warning messages will be displayed:

Microsoft Internet Explorer HTTP port must be 80 or from 1025 to 65535 OK

Microsoft Internet Explorer Secondary HTTP port must be from 1025 to 65535 OK

To access the Network Camera on the LAN, both the HTTP port and secondary HTTP port can be used to access the Network Camera. For example, when the HTTP port is set to 80 and the secondary HTTP port is set to 8080, refer to the list below for the Network Camera's IP address.

On the LAN

http://192.168.4.160 or http://192.168.4.160:8080

Access name for stream 1 \~ 2: This Network camera supports multiple streams simultaneously. The access name is used to differentiate the streaming source. Users can click Configuration > Video > Video Settings to set up the video quality of linked streams. For more information about how to set up the video quality, please refer to Video Quality Settings on page 54.

When using Mozilla Firefox or Netscape to access the Network Camera and the video mode is set to JPEG, users will receive video comprised of continuous JPEG images. This technology, known as “server push”, allows the Network Camera to feed live pictures to Mozilla Firefox and Netscape.

URL command -- http://:/ For example, when the Access name for stream 2 is set to video2.mjpg:

1. Launch Mozilla Firefox or Netscape.
2. Type the above URL command in the address bar. Press Enter.
3. The JPEG images will be displayed in your web browser.

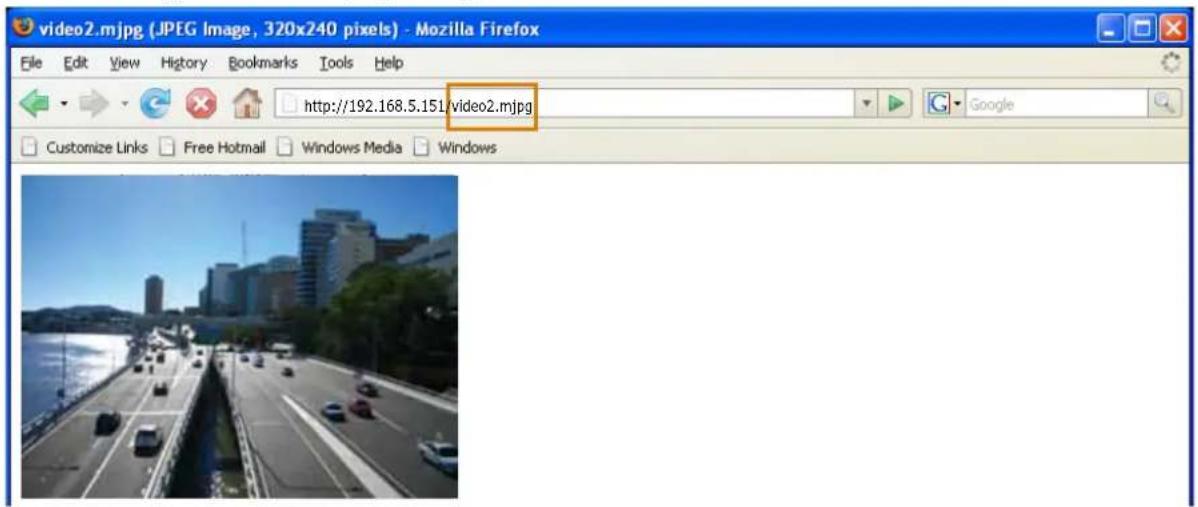

video2.mjpg (JPEG Image, 320x240 pixels) - Mozilla Firefox File Edit View History Bookmarks Tools Help http://192.168.5.151/video2.mjpg Customize Links Free Hotmail Windows Media Windows

NOTE

▶ Microsoft ^® Internet Explorer does not support server push technology; therefore, using http://:/ will fail to access the Network Camera.

HTTPS

HTTPS HTTPS port: 443

By default, the HTTPS port is set to 443. It can also be assigned to another port number between 1025 and 65535.

FTP

FTP FTP port: 21

The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535.

RTSP Streaming

To utilize RTSP streaming authentication, make sure that you have set a password for the Network Camera first; please refer to Security on page 26 for details.

RTSP Streaming

Authentication:	disable
Access name for stream 1:	live.sdp
Access name for stream 2:	live2.sdp
RTSP port:	554
RTP port for video:	5556
RTCP port for video:	5557
RTP port for audio:	5558
RTCP port for audio:	5559

Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest.

If basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted. If digest authentication is selected, user credentials are encrypted using MD5 algorithm, thus providing better protection against unauthorized access.

The availability of the RTSP streaming for the three authentication modes is listed in the following table:

	Quick Time player Real Player
Disable O O
Basic O O
Digest O X

Access name for stream 1 \~ 2: This Network Camera supports multiple streams simultaneously. The access name is used to differentiate the streaming source.

If you want to use an RTSP player to access the Network Camera, you have to set the video mode to H.264 / MPEG-4 and use the following RTSP URL command to request transmission of the streaming data.

rtsp://:/

For example, when the access name for stream 1 is set to live.sdp:

1. Launch an RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. Type the above URL command in the text box.
4. The live video will be displayed in your player as shown below.

River scene with multi-lane highways and modern buildings in the background under a clear blue sky (no visible text or symbols)

Open URI Enter an Internet URL to open rsp://192.168.5.151:554/lve.scp OK Cancel

RTSP port /RTP port for video/ RTCP port for video

■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port number is set to 554.
■ The RTP (Real-time Transport Protocol) is used to deliver video data to the clients. By default, the RTP port for video is set to 5556.
■ The RTCP (Real-time Transport Control Protocol) allows the Network Camera to transmit the data by monitoring the Internet traffic volume. By default, the RTCP port for video is set to 5557.

The ports can be changed to values between 1025 and 65535. The RTP port must be an even number and the RTCP port is the RTP port number plus one, and thus is always an odd number. When the RTP port changes, the RTCP port will change accordingly.

If the RTP ports are incorrectly assigned, the following warning message will be displayed:

Microsoft Internet Explorer Invalid port number, RTP video port must be an even number. OK

Multicast settings for stream 1 \~ 2: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for stream 1 \~ 2.

Multicast settings for stream 1:

□ Always multicast

Multicast group address:

Multicast video port:

Multicast RTCP video port:

Multicast TTL [1\~255]:

239.128.1.99

5560

5561

15

Multicast settings for stream 2:

□ Always multicast

Multicast group address:

Multicast video port:

Multicast RTCP video port:

Multicast TTL [1\~255]:

239.128.1.100

5564

5565

15

Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address. Therefore, enabling multicast can effectively save Internet bandwidth.

The ports can be changed to values between 1025 and 65535. The multicast RTP port must be an even number and the multicast RTCP port number is the multicast RTP port number plus one, and thus is always odd. When the multicast RTP port changes, the multicast RTCP port will change accordingly.

If the multicast RTP video ports are incorrectly assigned, the following warning message will be displayed:

Microsoft Internet Explorer 3D=valid port number. Multicast stream 1 video port must be an even number. OK

Multicast TTL [1\~255]: The multicast TTL (Time To Live) is the value that tells the router the range a packet can be forwarded.

DDNS

This section explains how to configure the dynamic domain name service for the Network Camera. DDNS is a service that allows your Network Camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name.

DDNS: Dynamic domain name service

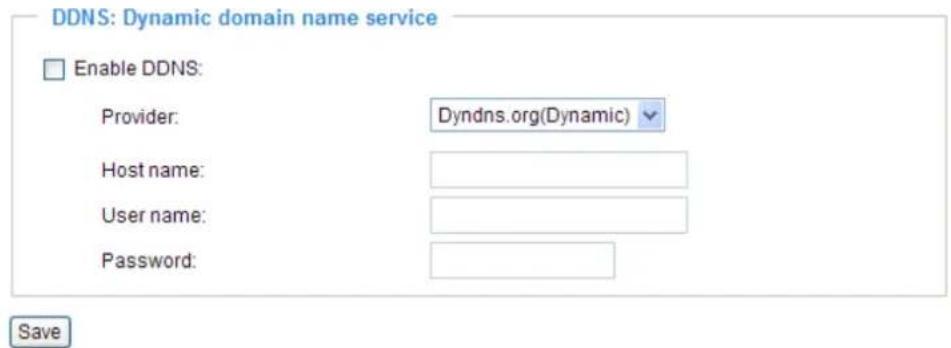

DDNS: Dynamic domain name service Enable DDNS: Provider: Dyndns.org(Dynamic) Host name: User name: Password: Save

Enable DDNS: Select this option to enable the DDNS setting.

Provider: Select a DDNS provider from the provider drop-down list.

VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK's Network Cameras from the Internet. Additionally, we offer other DDNS providers, such as Dyndns.org(Dynamic), Dyndns.org(Custom), TZO.com, DHS.org, CustomSafe100, dyn-interfree.it.

Note that before utilizing this function, please apply for a dynamic domain account first.

■ Safe100.net

1. In the DDNS column, select Safe100.net from the drop-down list. Click I accept after reviewing the terms of the Service Agreement.
2. In the Register column, fill in the Host name (xxxx.safe100.net), Email, Key, and Confirm Key, and click Register. After a host name has been successfully created, a success message will be displayed in the DDNS Registration Result column.

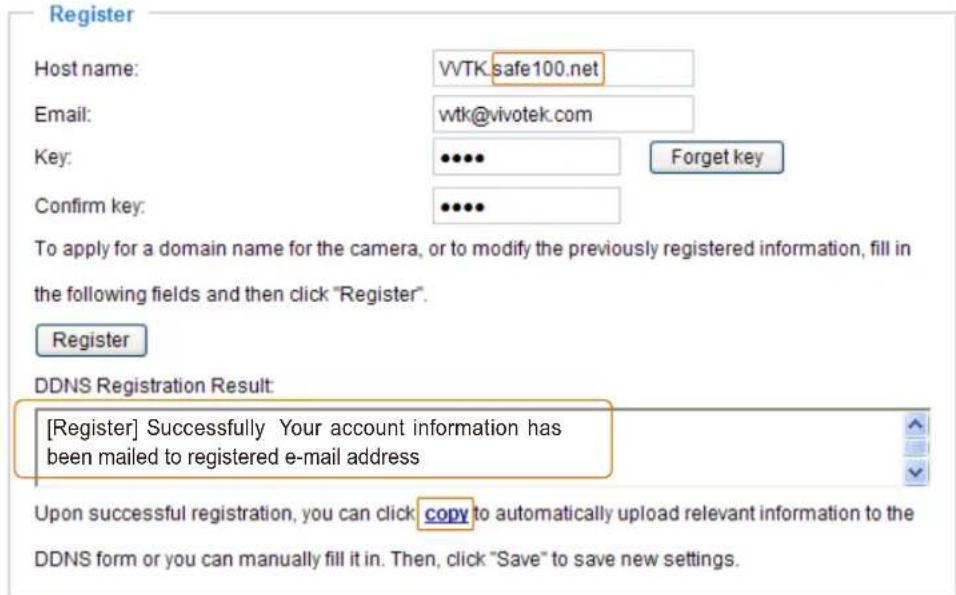

Register Host name: WTK:safe100.net Email: [e-mail] Key: ••••• Forget key Confirm key: ••••• To apply for a domain name for the camera, or to modify the previously registered information, fill in the following fields and then click "Register". Register DDNS Registration Result: [Register] Successfully Your account information has been mailed to registered e-mail address Upon successful registration, you can click copy to automatically upload relevant information to the DDNS form or you can manually fill it in. Then, click "Save" to save new settings.

1. Click Copy and all the registered information will automatically be uploaded to the corresponding fields in the DDNS column at the top of the page as seen in the picture.

DDNS: Dynamic domain name service

Enable DDNS:

Provider:

Host name:

Email:

Key:

Safe100.net VWTK.safe100.net [e-mail] [*.safe100.net]

Save

Register

Host name:

Email:

Key:

Confirm key:

WTK.safe100.net

[e-mail]

...

...

Forget key

To apply for a domain name for the camera, or to modify the previously registered information, fill in the following fields and then click "Register".

Register

DDNS Registration Result

[Register] Successfully Your account information has been mailed to registered e-mail address

Upon successful registration, you can click copy to automatically upload relevant information to the DDNS form or you can manually fill it in. Then, click "Save" to save new settings.

1. Select Enable DDNS and click Save to enable the setting.

■ CustomSafe100

VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.

1. In the DDNS column, select CustomSafe100 from the drop-down list.
2. In the Register column, fill in the Host name, Email, Key, and Confirm Key; then click Register. After a host name has been successfully created, you will see a success message in the DDNS Registration Result column.
3. Click Copy and all for the registered information will be uploaded to the corresponding fields in the DDNS column.
4. Select Enable DDNS and click Save to enable the setting.

Forget key: Click this button if you have forgotten the key to Safe100.net or CustomSafe100. Your account information will be sent to your email address.

Refer to the following links to apply for a dynamic domain account when selecting other DDNS providers:

■ Dyndns.org(Dynamic) / Dyndns.org(Custom): visit http://www.dyndns.com/
■ TZO.com: visit http://www.tzo.com/
■ DHS.org: visit http://www.dhs.org/
■ dyn-interfree.it: visit http://dyn-interfree.it/

Access List Advanced Mode

This section explains how to control access permission by verifying the client PC's IP address.

General Settings

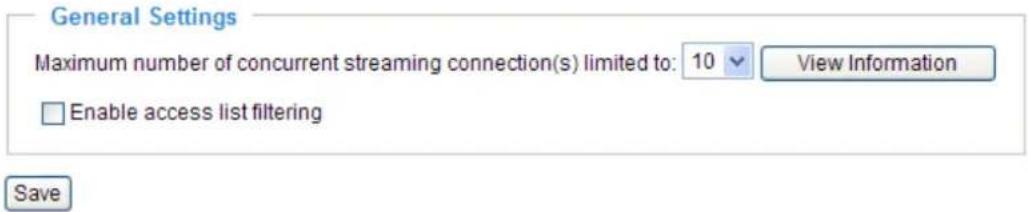

General Settings Maximum number of concurrent streaming connection(s) limited to: 10 View Information Enable access list filtering Save

Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1\~10 clients (including stream 1 \~ stream 5). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explore or Quick Time Player).

View Information: Click this button to display the connection status window showing a list of the current connections.

For example:

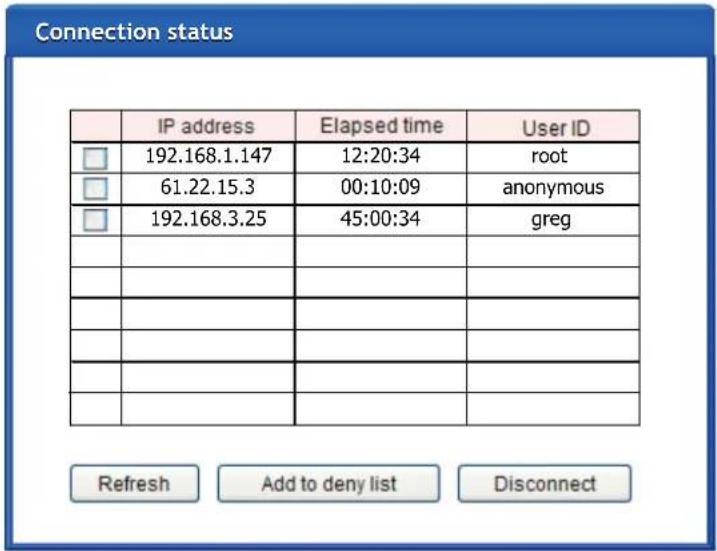

Connection status IP address Elapsed time User ID 192.168.1.147 12:20:34 root 61.22.15.3 00:10:09 anonymous 192.168.3.25 45:00:34 greg Refresh Add to deny list Disconnect

■ IP address: Current connections to the Network Camera.
■ Elapsed time: How much time the client has been at the webpage.
■ User ID: If the administrator has set a password for the webpage, the clients have to enter a user name and password to access the live video. The user name will be displayed in the User ID column. If the administrator allows clients to link to the webpage without a user name and password, the User ID column will be empty.

There are some situations which allow clients access to the live video without a user name and password:

1. The administrator does not set up a root password. For more information about how to set up a root password and manage user accounts, please refer to Security on page 26.
2. The administrator has set up a root password, but set RTSP Authentication to "disable". For more information about RTSP Authentication, please refer to RTSP Streaming on page 44.
3. The administrator has set up a root password, but allows anonymous viewing. For more information about Allow Anonymous Viewing, please refer to Security on page 26.

■ Refresh: Click this button to refresh all current connections.
■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player). If you want to enable the denied list, please check Enable access list filtering and click Save in the first column.
■ Disconnect: If you want to break off the current connections, please select them and click this button. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player).

Enable access list filtering: Check this item and click Save if you want to enable the access list filtering function.

Filter Type

Select Allow or Deny as the filter type. If you choose Allow Type, only those clients whose IP addresses are on the Access List below can access the Network Camera, and the others cannot access. On the contrary, if you choose Deny Type, those clients whose IP addresses are on the Access List below will not be allowed to access the Network Camera, and the others can access.

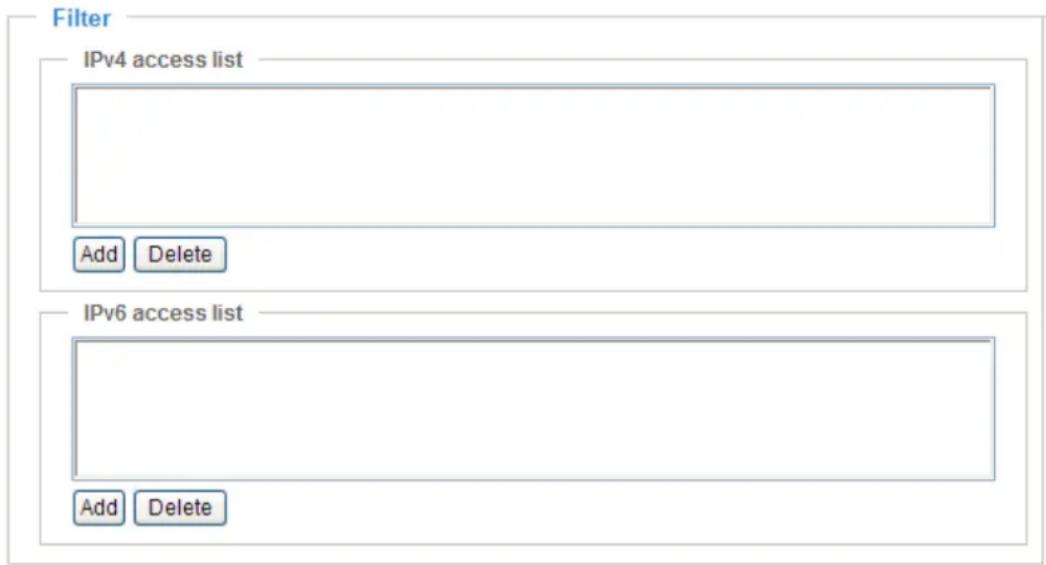

Filter

Then you can add a rule to the following Access List. Please note that the IPv6 access list column will not be displayed unless you enable IPv6 on the Network page. For more information about IPv6 Settings, please refer to page 36 for detailed information.

Filter IPv4 access list Add Delete IPv6 access list Add Delete

There are three types of rules:

Single: This rule allows the user to add an IP address to the Allowed/Denied list.

For example:

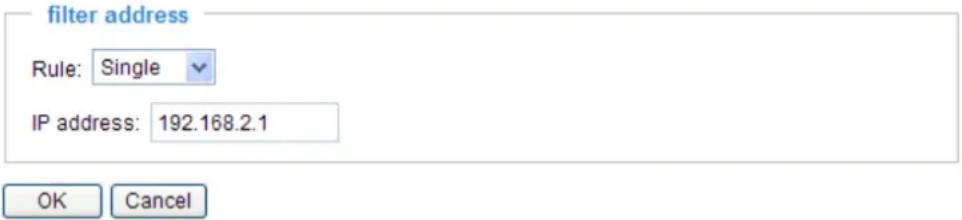

filter address Rule: Single IP address: 192.168.2.1 OK Cancel

Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List.

For example:

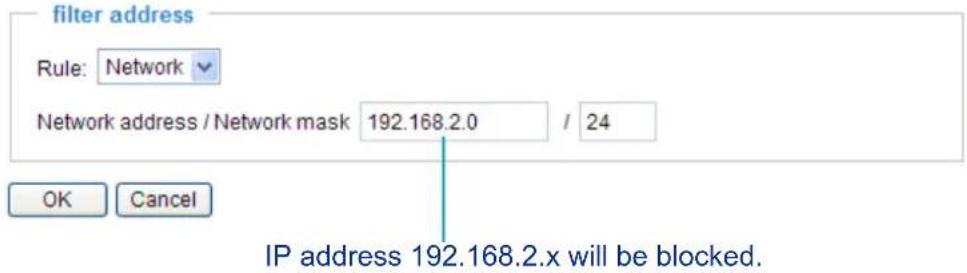

filter address Rule: Network Network address / Network mask 192.168.2.0 / 24 OK Cancel IP address 192.168.2.x will be blocked.

Range: This rule allows the user to assign a range of IP addresses to the Allow/Deny List.

Note: This rule is only applied to IPv4.

For example:

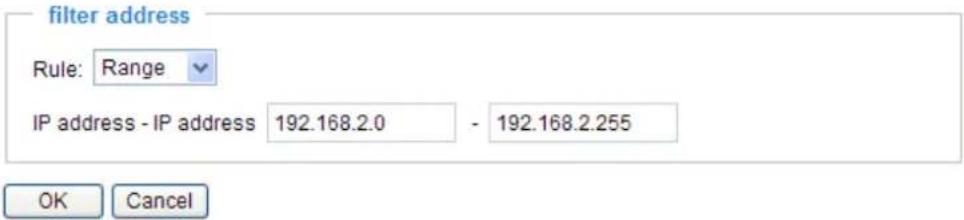

filter address Rule: Range IP address - IP address 192.168.2.0 - 192.168.2.255 OK Cancel

Administrator IP address

Always allow the IP address to access this device: You can check this item and add the Administrator's IP address in this field to make sure the Administrator can always connect to the device.

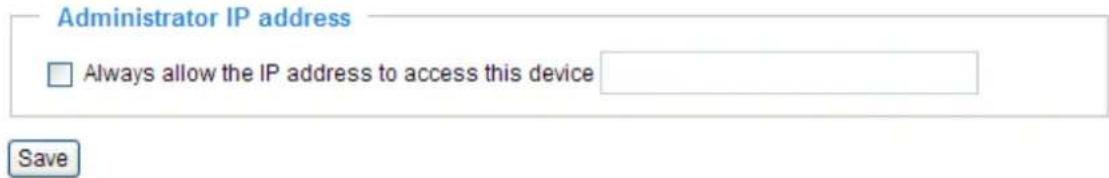

Administrator IP address □ Always allow the IP address to access this device Save

Video

This section explains how to configure the video settings of the Network Camera.

Video Settings

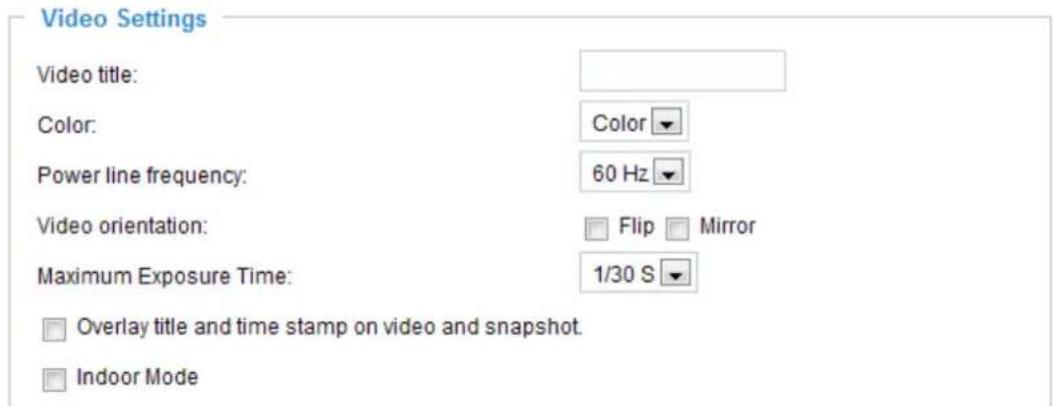

Video Settings Video title: Color: Color Power line frequency: 60 Hz Video orientation: Flip Mirror Maximum Exposure Time: 1/30 S Overlay title and time stamp on video and snapshot. Indoor Mode

Video title: Enter a name that will be displayed on the title bar of the live video.

Video Title Title and Time Video TCP-AV) 2011/05/13 13:44:17 Video 13:44:17 2011/05/13

Color: Select to display color or black/white video streams.

Power line frequency: Set the power line frequency consistent with local utility settings to eliminate image flickering associated with fluorescent lights. Note that after the power line frequency is changed, you must disconnect and reconnect the power cord of the Network Camera in order for the new setting to take effect.

Video orientation: Flip--vertically reflect the display of the live video; Mirror--horizontally reflect the display of the live video. Select both options if the Network Camera is installed upside-down (ex. on the ceiling) to correct the image orientation. Please note that the preset locations will be cleared after flip/mirror.

Maximum Exposure Time: Select a proper maximum exposure time according to the light source of the surroundings. Shorter exposure times result in less light. The exposure times are selectable for the following durations: 1/30 second, 1/15 second, and 1/5 second.

Overlay title and time stamp on video: Select this option to place the video title and time on the video streams.

Note that when the frame size is set to 176 x 144 as shown in the picture below, only the time will be stamped on the video streams.

Video(TCP-AV) 2011/05/13 13:44:17 13:44:17 2011/05/13

Indoor Mode: To prevent color rolling effect under fluorescent light, please check this item to adjust the parameter.

Image Settings Advanced Mode

Click Image Settings to open the Image Settings page. On this page, you can tune the White balance, Brightness, Saturation, Contrast, and Sharpness settings for the video.

Image Settings Privacy Mask

Video(TCP-AV) 2011/05/13 13:44:17

White Balance Auto Save

Image Adjustment Brightness: +0 Contrast: +0 Saturation: +0 Sharpness: +0 Preview Restore Save Close

White balance: Adjust the value for the best color temperature.

■ Auto

The Network Camera automatically adjusts the color temperature of the light in response to different light sources. The white balance setting defaults to Auto and works well in most situations.

- Keep current value

Follow the steps below to manually set the white balance to compensate for the ambient lighting conditions.

1. Set the White balance to Auto and click Save.
2. Place a sheet of white paper in front of the lens, then allow the Network Camera to adjust the color temperature automatically.
3. Select Keep Current Value to confirm the setting while the white balance is being measured.
4. Click Save to enable the new setting.

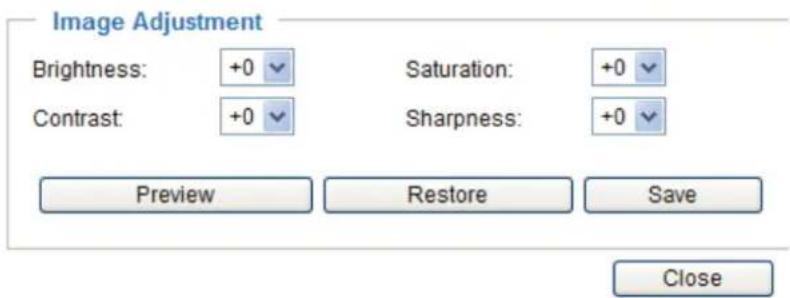

Image Adjustment

■ Brightness: Adjust the image brightness level, which ranges from -5 to +5.
■ Saturation: Adjust the image saturation level, which ranges from -5 to +5.
■ Contrast: Adjust the image contrast level, which ranges from -5 to +5.
■ Sharpness: Adjust the image sharpness level, which ranges from -3 to +3.

You can click Preview to fine-tune the image, or click Restore to recall the original settings without incorporating the changes. When completed with the settings on this page, click Save to enable the setting and click Close to exit the page.

Privacy Mask Advanced Mode

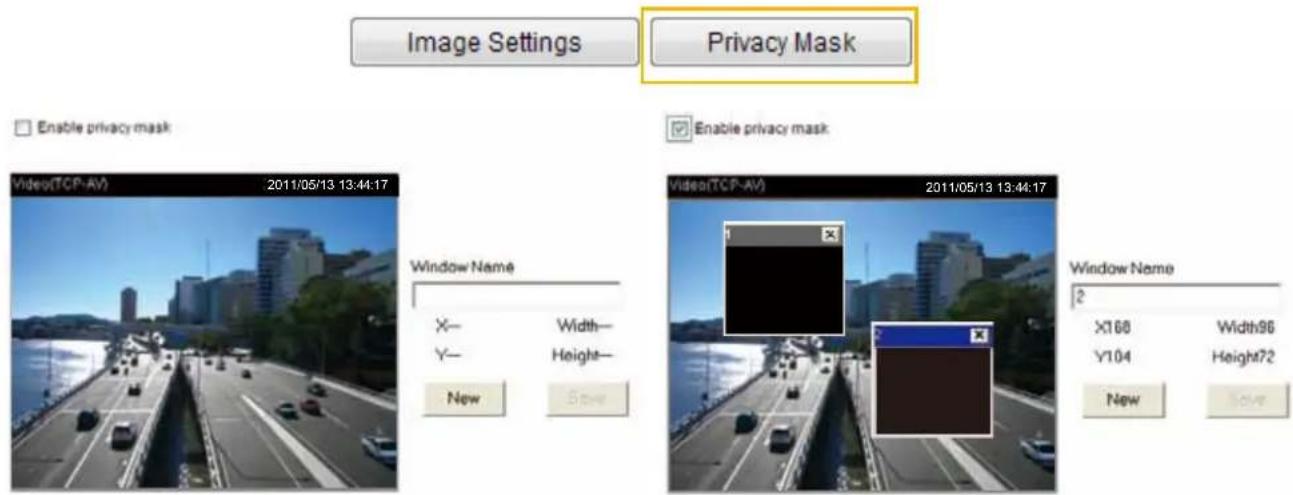

Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to address privacy concerns.

Image Settings Privacy Mask Enable privacy mask Enable privacy mask Video(TCP-AV) 2011/05/13 13:44:17 Window Name X— Width— Y— Height— New Save Video(TCP-AV) 2011/05/13 13:44:17 Window Name 2 X168 Width96 Y104 Height72 New Save

■ To set the privacy mask windows, follow the steps below:

1. Click New to add a new window.
2. Use the mouse to size and drag-drop the window, which is recommended to be at least twice the size of the object (height and width) you want to cover.
3. Enter a Window Name and click Save to enable the setting.
4. Select Enable privacy mask to enable this function.

Video Quality Settings

Advanced Mode

Click the stream item to display the detailed information. This Network Camera offers real-time H.264, MPEG-4 and MJEPG compression standards (Triple Codec) for real-time viewing.

Video quality settings for stream 1:

MPEG-4:

H.264:

Frame size:

Maximum frame rate:

Intra frame period:

Video quality:

Constant bit rate:

Fixed quality:

640x480

30 fps

1/4 S

4 Mbps

Good

JPEG:

Video quality settings for stream 2:

© MPEG-4:

H.264:

Frame size:

Maximum frame rate:

Intra frame period:

Video quality:

Constant bit rate:

Fixed quality:

176x144

30 fps

1S

2 Mbps

Good

JPEG:

If H.264 / MPEG-4 mode is selected, the video is streamed via RTSP protocol. There are four parameters for you to adjust the video performance:

H.264:

Frame size:

Maximum frame rate:

Intra frame period:

Video quality:

Constant bit rate:

Fixed quality:

JPEG:

■ Frame size

You can set up different video resolution for different viewing devices. For example, set a smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers. Note that a larger frame size takes up more bandwidth.

■ Maximum frame rate

This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother video quality.

If the power line frequency is set to 50Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, and 25fps. If the power line frequency is set to 60Hz, the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 15fps, 20fps, 25fps, and 30fps. You can also select Customize and manually enter a value. The frame rate will decrease if you select a higher resolution.

■ Intra frame period

Determine how often to plant an I frame. The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption. Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds.

■ Video quality

A complex scene generally produces a larger file size, meaning that higher bandwidth will be needed for data transmission. Therefore, if Constant bit rate is selected, the bandwidth utilization is fixed at a selected level, resulting in mutable video quality performance. The bit rates are selectable at the following rates: 20Kbps, 30Kbps, 40Kbps, 50Kbps, 64Kbps, 128Kbps, 256Kbps, 512Kbps, 768Kbps, 1Mbps, 2Mbps, 3Mbps, 4Mbps, 6Mbps, and 8Mbps. You can also select Customize and manually enter a value.

On the other hand, if Fixed quality is selected, all frames are transmitted with the same quality; bandwidth utilization is therefore unpredictable. The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed, and Excellent. You can also select Customize and manually enter a value.

If JPEG mode is selected, the Network Camera continuously sends JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage. Because the media contents are a combination of JPEG images, no audio data is transmitted to the client. There are three parameters provided in MJPEG mode to control the video performance:

Frame size:

Maximum frame rate:

Video quality:

■ Frame size

You can set up different video resolution for different viewing devices. For example, set a smaller frame size and lower bit rate for remote viewing on mobile phones and a larger video size and a higher bit rate for live viewing on web browsers. Note that a larger frame size takes up more bandwidth.

■ Maximum frame rate

This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother video quality.

■ Video quality

The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed, and Excellent. You can also select Customize and manually enter a value.

NOTE

▶ Video quality and fixed quality refers to the compression rate, so a lower value will produce higher quality.

▶ Converting high-quality video may significantly increase the CPU loading, and you may encounter streaming disconnection or video loss while capturing a complicated scene. In the event of occurrence, we suggest you customize a lower video resolution or reduce the frame rate to obtain smooth video.

Day/Night Settings

Day/Night settings:

Switch to B/W in night mode

IR LED:

Auto mode

Light sensor sensitivity:

Normal

Disable IR LED

Switch to B/W in night mode

Select this to enable the Network Camera to automatically switch to B/W during night mode.

IR LED

With built-in IR illuminators, up to 15m, this Network Camera can make use of IR light during low light conditions.

■ Auto mode

The Network Camera automatically control the IR LED by judging the level of ambient light.

■ Day mode

Select "Day mode" to turn on the IR LED.

■ Night mode

Select "Night mode" to turn off the IR LED.

■ Schedule mode

Select "Schedule mode" to control the IR LED by schedule. Enter the start and end time for day mode. Note that the time format is [hh:mm] and is expressed in 24-hour clock time. By default, the start and end time of day mode are set to 07:00 and 18:00.

Light sensor sensitivity

Select Low, Normal, or High sensitivity for the light sensor.

Disable IR LED

If you do not want to use the IR illuminators, you can select this option to turn it off.

Motion Detection

This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured.

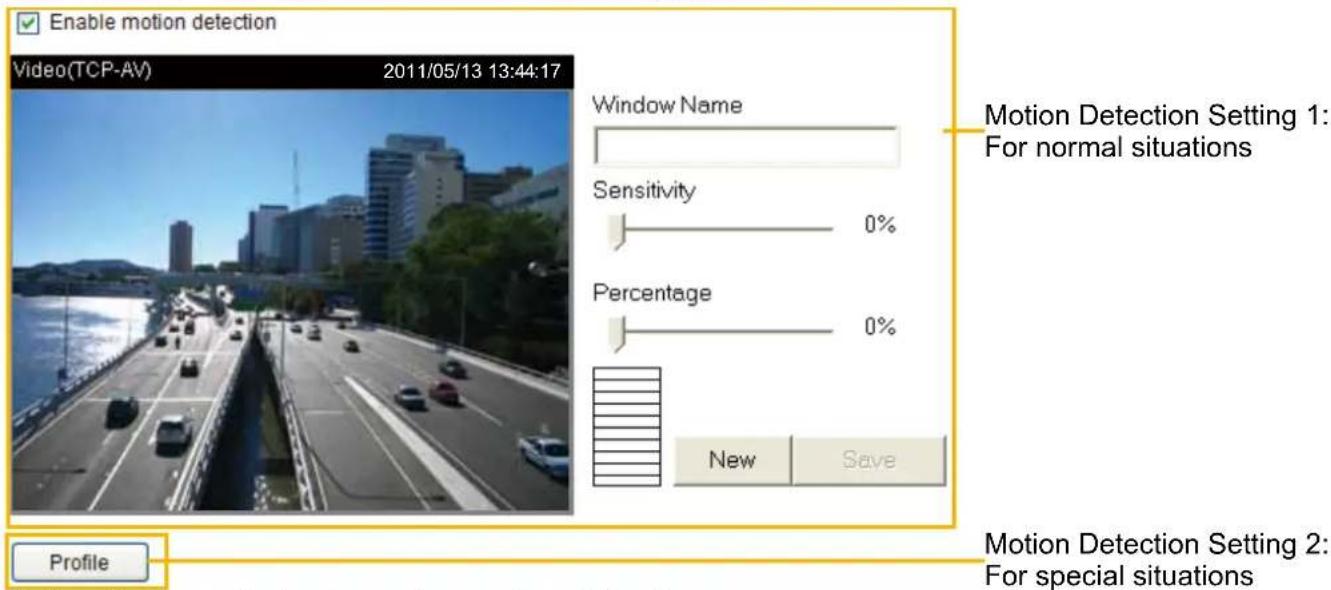

Enable motion detection Video(TCP-AV) 2011/05/13 13:44:17 Window Name Sensitivity 0% Percentage 0% New Save Profile Motion Detection Setting 1: For normal situations Motion Detection Setting 2: For special situations

Follow the steps below to enable motion detection:

1. Click New to add a new motion detection window.
2. In the Window Name text box, enter a name for the motion detection window.

■ To move and resize the window, drag and drop your mouse on the window.
■ To delete window, click X on the top right corner of the window.

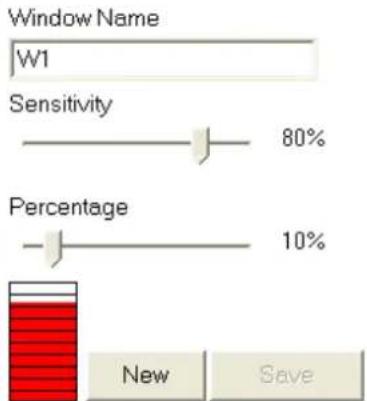

1. Define the sensitivity to moving objects and the space ratio of all alerted pixels by moving the Sensitivity and Percentage slider bar.
2. Click Save to enable the settings.
3. Select Enable motion detection to enable this function.

For example:

Enable motion detection

Video(TCP-AV) 2011/05/13 13:44:17 V1

Profile

The Percentage Indicator will rise or fall depending on the variation between sequential images. When motions are detected by the Network Camera and are judged to exceed the defined threshold, the red bar rises. Meanwhile, the motion detection window will be outlined in red. Photos or videos can be captured instantly and configured to be sent to a remote server (Email, FTP) by utilizing this feature as a trigger source. For more information on how to set an event, please refer to Application on page 64.

A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold.

If you want to configure other motion detection settings for day/night/schedule mode, please click Profile to open the Motion Detection Profile Settings page as shown below. A total of three motion detection windows can be configured on this page as well.

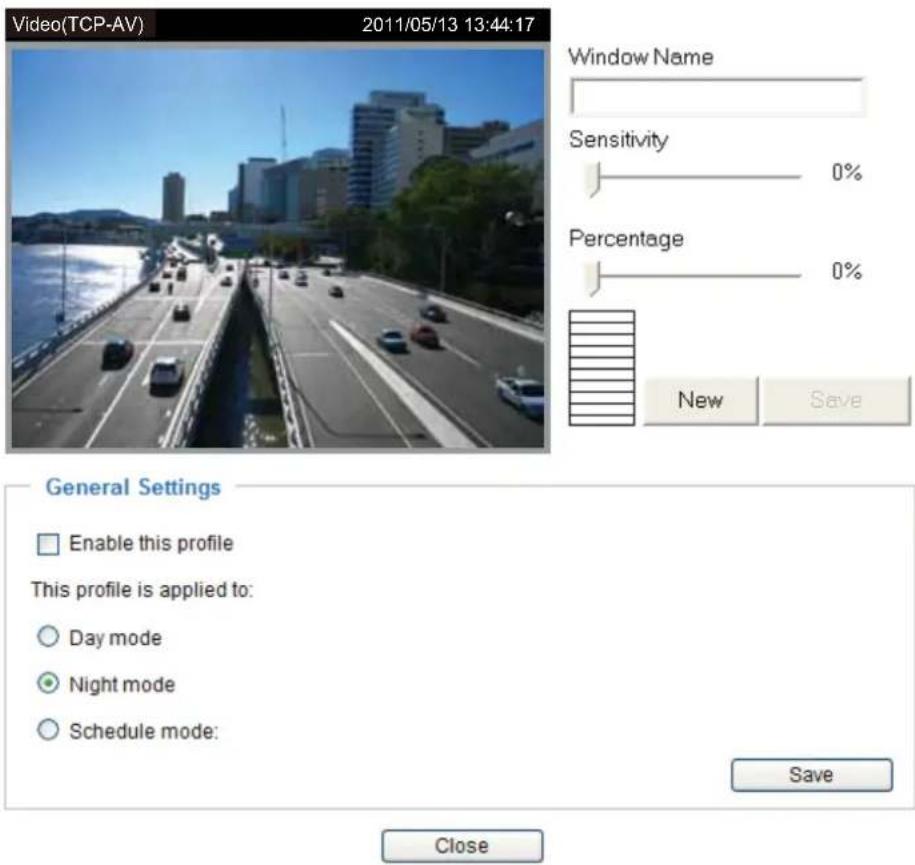

Video(TCP-AV) 2011/05/13 13:44:17 Window Name Sensitivity 0% Percentage 0% New Save General Settings Enable this profile This profile is applied to: Day mode Night mode Schedule mode: Save Close

Please follow the steps below to set up a profile:

1. Create a new motion detection window.
2. Check Enable this profile.
3. Select the applicable mode: Day mode, Night mode, or Schedule mode. Please manually enter a time range if you choose Schedule mode.
4. Click Save to enable the settings and click Close to exit the page.

This motion detection window will also be displayed on the Event Settings page. You can go to Application > Event Settings > Trigger to choose it as a trigger source. Please refer to page 66 for detailed information.

NOTE

▶ How does motion detection work?

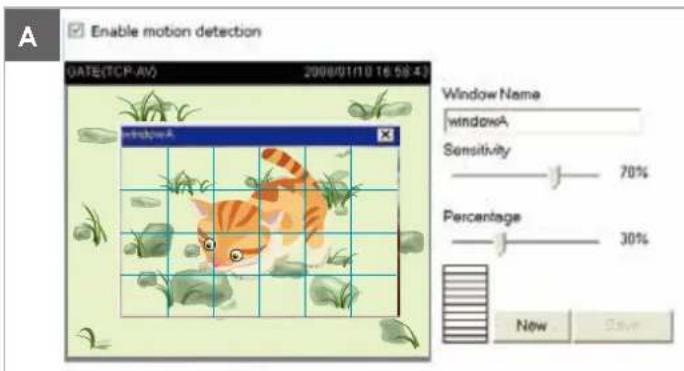

Enable motion detection DATE(TCP-AY) 2008/01/10 16:58:43 Window Name windowA Sensitivity 70% Percentage 30% New Save

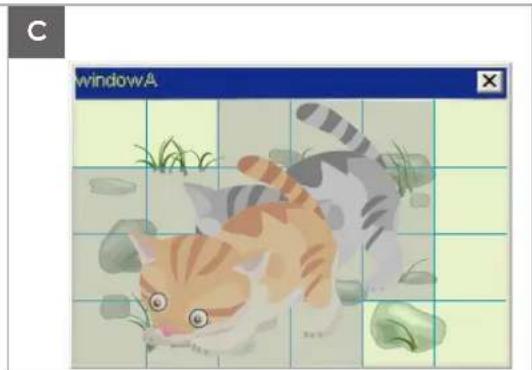

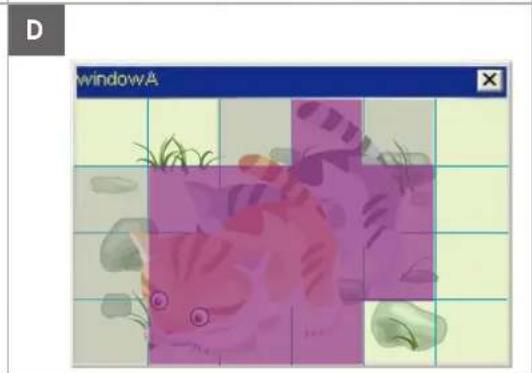

Illustration of a cat playing with grass and water, displayed within a grid interface (no text or symbols on the cat or background)

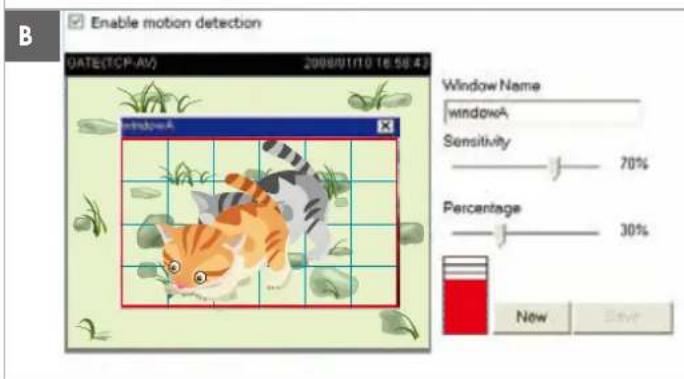

B Enable motion detection DATE(TCP-AY) 2008/01/10 16:56:43 Window Name windowA Sensitivity 70% Percentage 30% New Save

Illustration of a fish in a purple frame with green grass and rocks, displayed within a window titled 'window.A' (no text or symbols on the fish or background)

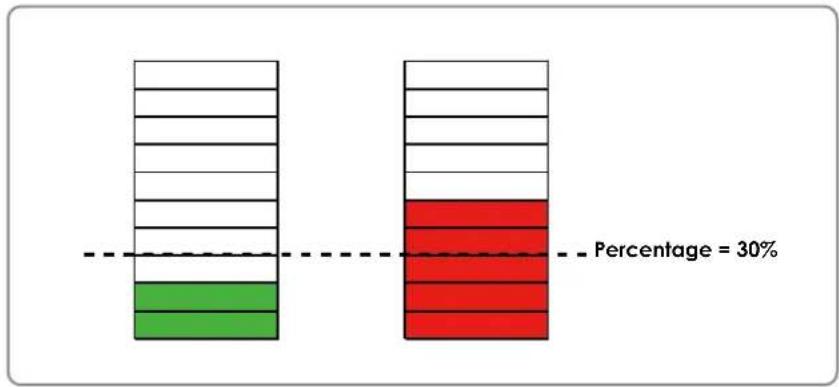

There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images. Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting. Sensitivity is a value that expresses the sensitivity to moving objects. Higher sensitivity settings are expected to detect slight movements while smaller sensitivity settings will neglect them. When the sensitivity is set to 70%, the Network Camera defines the pixels in the purple areas as “alerted pixels” (frame D).

Percentage is a value that expresses the proportion of “alerted pixels” to all pixels in the motion detection window. In this case, 50% of pixels are identified as “alerted pixels”. When the percentage is set to 30%, the motions are judged to exceed the defined threshold; therefore, the motion window will be outlined in red.

For applications that require a high level of security management, it is suggested to use higher sensitivity settings and smaller percentage values.

Camera Tampering Detection

This section explains how to set up camera tamper detection. With tamper detection, the camera is capable of detecting incidents such as redirection, blocking or defocusing, or even spray paint.

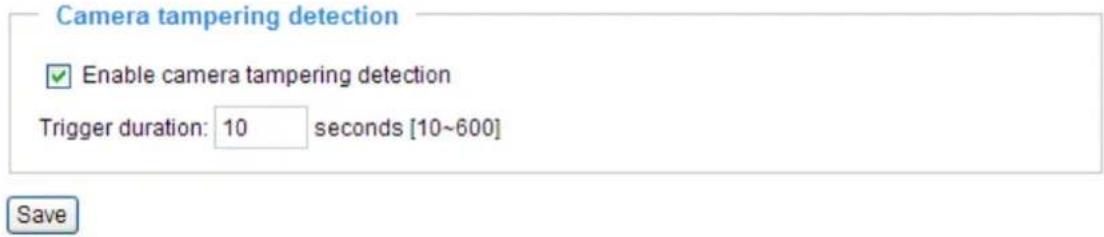

Camera tampering detection Enable camera tampering detection Trigger duration: 10 seconds [10~600] Save

Please follow the steps below to set up the camera tamper detection function:

1. Check Enable camera tampering detection.
2. Enter the tamper trigger duration. (10 sec. \~ 10 min.) The tamper alarm will be triggered only when the tampering factor (the difference between current frame and pre-saved background) exceeds the trigger threshold.
3. Set up the event source as Camera Tampering Detection on Application page > Event Settings / Server Settings (how to send alarm message) / Media Settings (send what type of alarm message). Please refer to page 66 for detailed information.

Homepage Layout Advanced Mode

This section explains how to set up your own customized homepage layout.

Preview

This column shows the settings of your homage layout. You can manually select the background and font colors in Theme Options (the third column on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings:

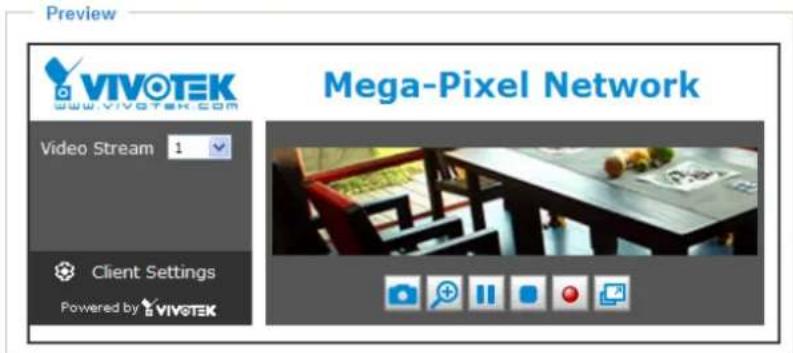

Preview VIVOTEK www.vivotek.com Video Stream 1 Network Camera Client Settings Powered by VIVOTEK

Hide Powered by VIVOTEK

■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage.

Logo

Here you can change the logo at the top of your homepage.

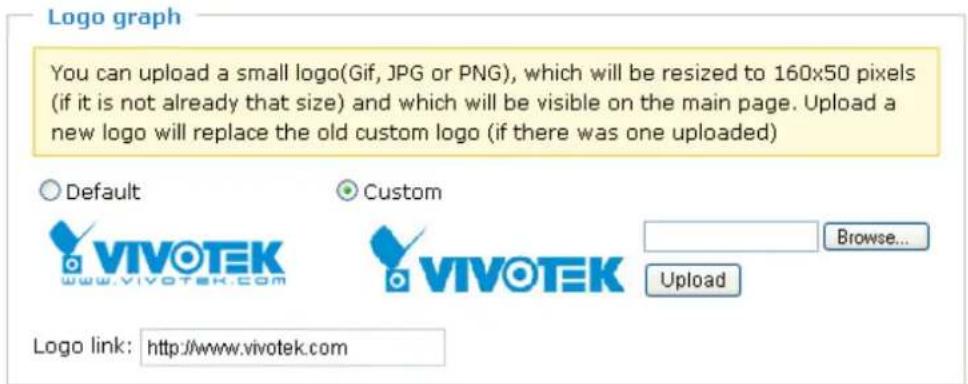

Logo graph You can upload a small logo(Gif, JPG or PNG), which will be resized to 160x50 pixels (if it is not already that size) and which will be visible on the main page. Upload a new logo will replace the old custom logo (if there was one uploaded) Default Custom VIVOTEK Browse... www.vivotek.com VIVOTEK Upload Logo link: http://www.vivotek.com

Follow the steps below to upload a new logo:

1. Click Custom and the Browse field will appear.
2. Select a logo from your files.
3. Click Upload to replace the existing logo with a new one.
4. Enter a website link if necessary.
5. Click Save to enable the settings.

Theme Options

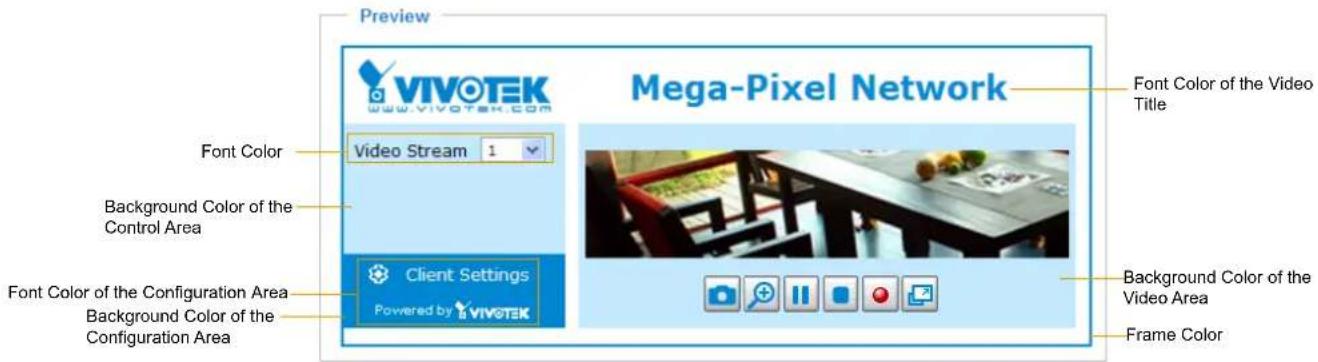

Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.

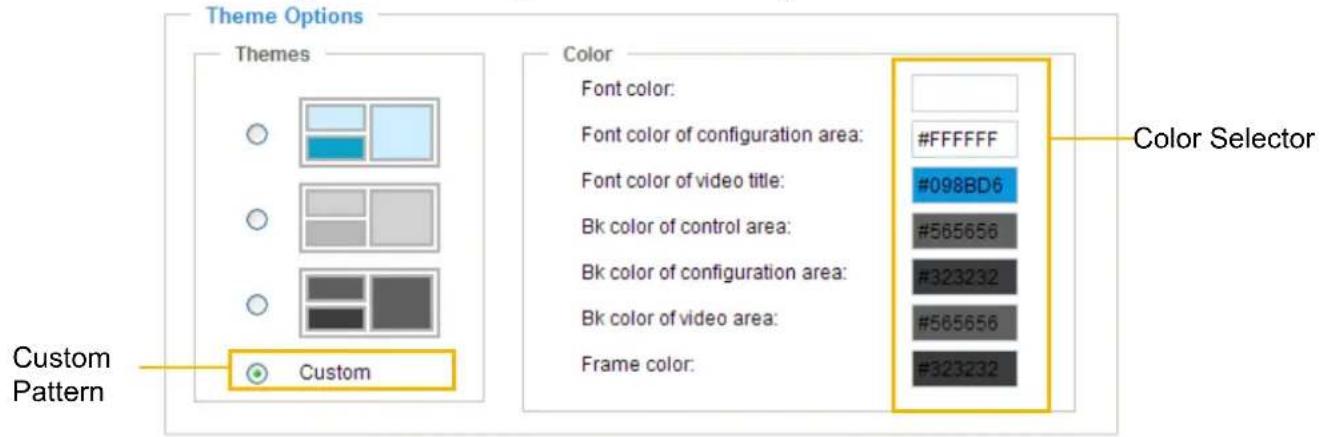

Preset Patterns Themes Custom Color: Font color: #000000 Font color of configuration area: #ffffff Font color of video title: #098bd6 Bk color of control area: #c4eaff Bk color of configuration area: #0186D1 Bk color of video area: #c4eaff Frame color: #0186D1

Save

Preview VIVOTEK www.vivotek.com Video Stream 1 Font Color Background Color of the Control Area Font Color of the Configuration Area Background Color of the Configuration Area Client Settings Powered by VIVOTEK Mega-Pixel Network Font Color of the Video Title Background Color of the Video Area Frame Color

Preview VIVOTEK www.vivotek.com Video Stream 1 Client Settings Powered by VIVOTEK Mega-Pixel Network

Preview VIVOTEK www.vivotek.com Video Stream 1 Client Settings Powered by VIVOTEK Mega-Pixel Network

■ Follow the steps below to set up the customed homepage:

1. Click Custom on the left column.
2. Click the field where you want to change the color on the right column.

Theme Options Themes Custom Pattern Color Font color: Font color of configuration area: #FFFFFF Font color of video title: #098BD6 Bk color of control area: #565656 Bk color of configuration area: #323232 Bk color of video area: #565656 Frame color: #323232 Color Selector

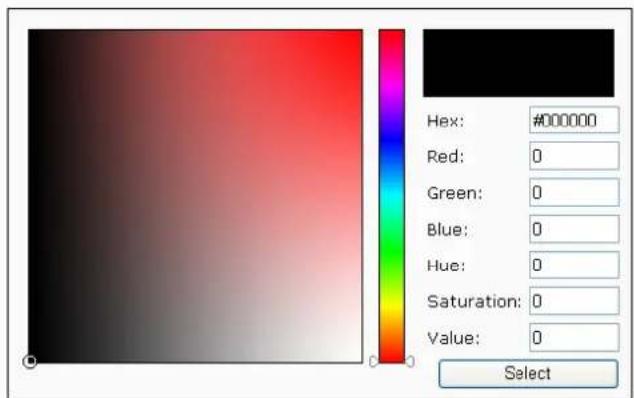

1. The palette window will pop up as shown below.

Hex: #000000 Red: 0 Green: 0 Blue: 0 Hue: 0 Saturation: 0 Value: 0 Select

Hex: #23538A Rod: 35 Green: 83 Blue: 138 Hue: 212 Saturation: 74.6 Value: 54.1 4 Select

1. Drag the slider bar and click on the left square to select a desired color.
2. The selected color will be displayed in the corresponding fields and in the Preview column.
3. Click Save to enable the settings.

Application Advanced Mode

This section explains how to configure the Network Camera to responds to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications.

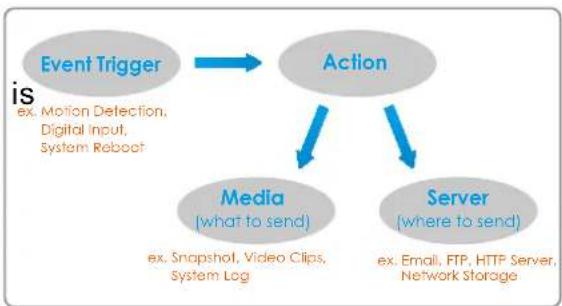

In the illustration on the right, an event can be triggered by many sources, such as motion detection or external digital input devices. When an event triggered, you can specify what type of action that will be performed. You can configure the Network Camera to send snapshots or videos to your email address or FTP site.


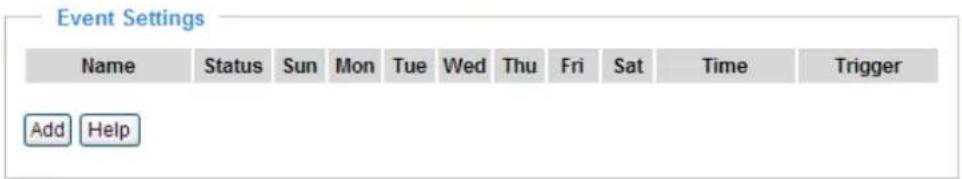

Event Settings Name Status Sun Mon Tue Wed Thu Fri Sat Time Trigger Add Help

Customized Script Name Date Time Add Delete

Customized Script

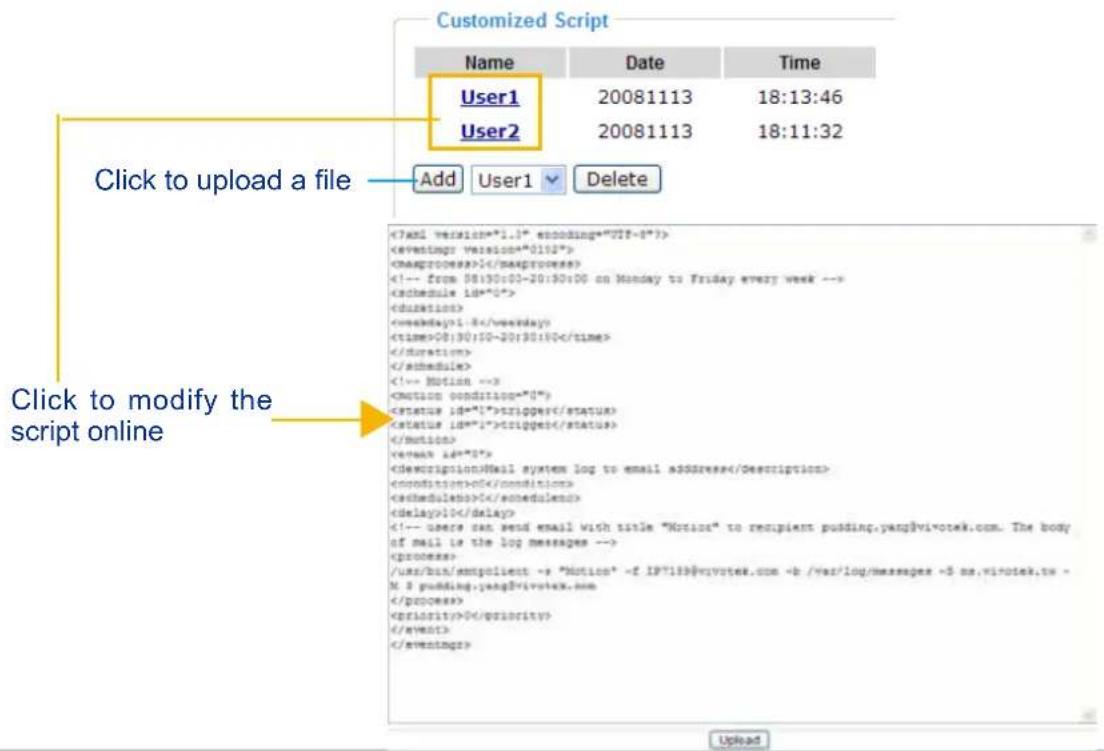

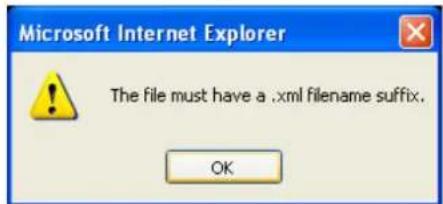

This function allows you to upload a sample script (.xml file) to the webpage, which will save your time on configuring the settings. Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will pop up. If you need more information, please ask for VIVOTEK technical support.

Customized Script Name Date Time User1 20081113 18:13:46 User2 20081113 18:11:32 Click to upload a file Add User1 Delete < < <1 < < <1-8 <08:30:00-20:30:00 < <trigger <trigger < <Wall system log to email address> <0 <0 <10 /usr/bin/empolient -> "Notice" -f IP"[e-mail] -b /var/log/Messagex -S ns.vi-votek.tw -M & publishing.yang#ivotex.com 0 Upload

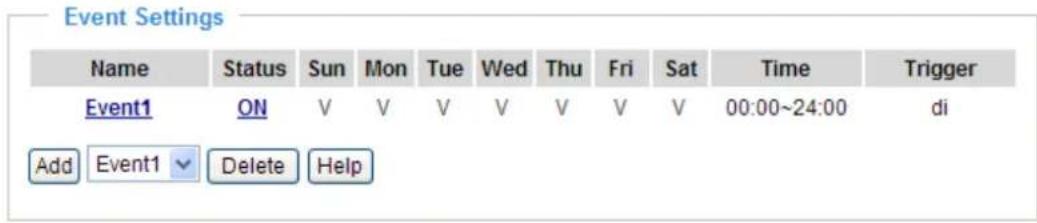

Event Settings

In the Event Settings column, click Add to open the Event Settings page. On this page, you can arrange three elements -- Trigger, Schedule, and Action to set an event. A total of 3 event settings can be configured.

Note: This can only applied to motion detection and digital input

Trigger

Video motion detection
Periodically
Digital input
System boot
Recording notify
© Camera tampering detection
Manual Trigger

Event Schedule

Time

Always
From 00:00 to 24:00 [hh:mm]

Action

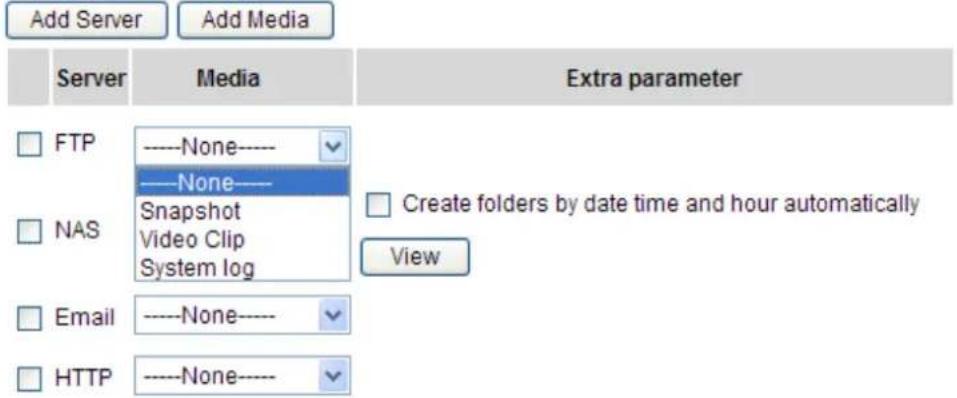

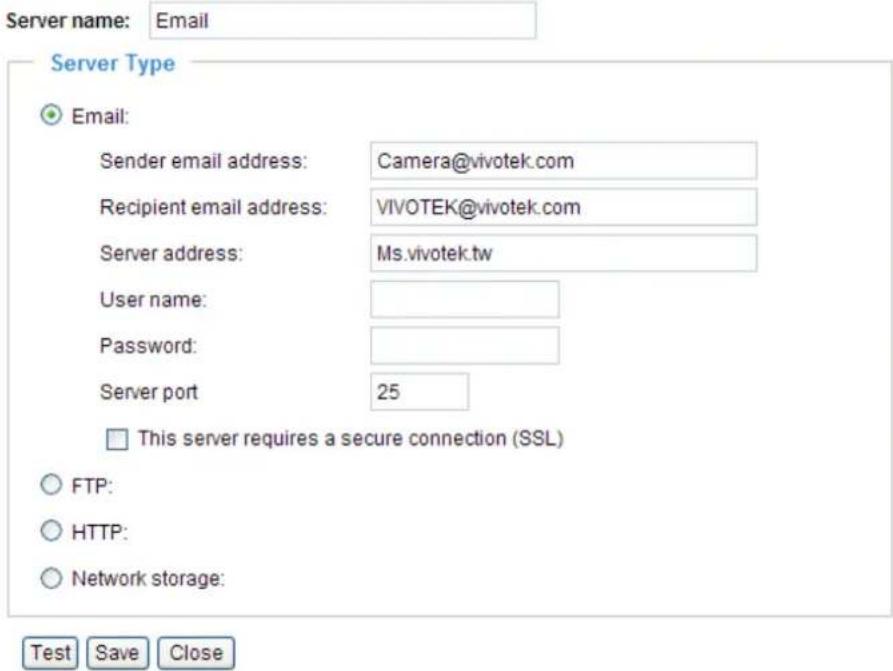

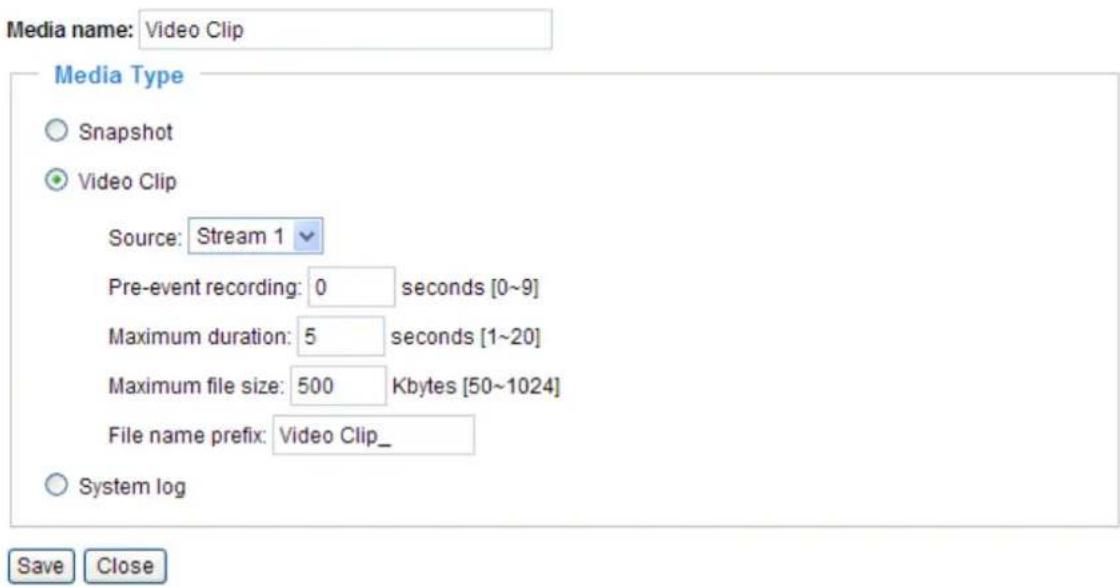

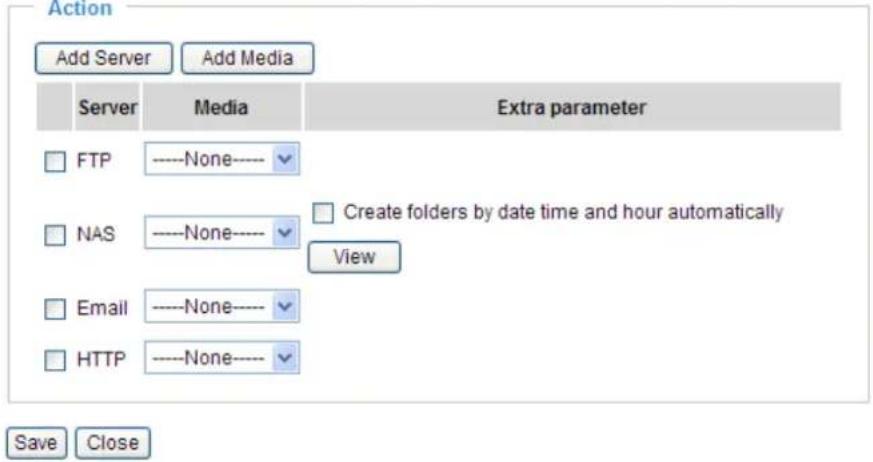

Add Server Add Media

Server Media Extra parameter

Save Close

Event name: Enter a name for the event setting.

Enable this event: Select this option to enable the event setting.

Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.

Detect next event after □ seconds: Enter the duration in seconds to pause motion detection after a motion is detected.

An event is an action initiated by a user-defined trigger source; it is the causal arrangement of the following three elements: Trigger, Event Schedule, and Action.

Trigger

This is the cause or stimulus which defines when to trigger the Network Camera. The trigger source can be configured to use the Network Camera's built-in motion detection mechanism or external digital input devices.

There are several choices of trigger sources as shown below. Select the item to display the detailed configuration options.

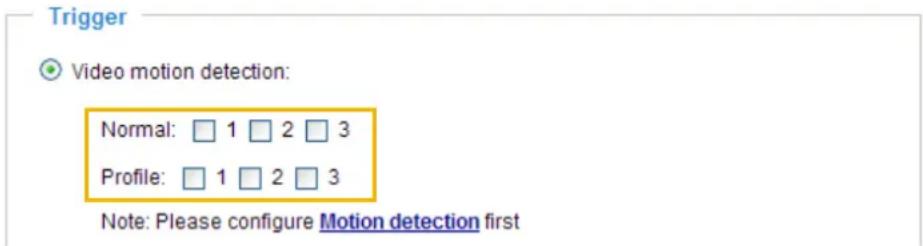

■ Video motion detection

This option makes use of the built-in motion detection mechanism as a trigger source. To enable this function, you need to configure a Motion Detection Window first. For more information, please refer to Motion Detection on page 57 for details.

Trigger Video motion detection: Normal: 1 2 3 Profile: 1 2 3 Note: Please configure Motion detection first

■ Periodically

This option allows the Network Camera to trigger periodically for every other defined minute. Up to 999 minutes are allowed.

Trigger ○ Video motion detection: ● Periodically: Trigger every other 1 minutes

■ Digital input

This option allows the Network Camera to use an external digital input device or sensor as a trigger source. Depending on your application, there are many choices of digital input devices on the market which helps to detect changes in temperature, vibration, sound, and light, etc.

■ System boot

This option triggers the Network Camera when the power to the Network Camera is disconnected.

■ Recording notify

This option allows the Network Camera to trigger when the recording disk is full or when recording starts to rewrite older data.

■ Camera tampering detection

This option allows the Network Camera to trigger when the camera detects that is is being tampered with. To enable this function, you need to configure the Tampering Detection option first. Please refer to page 60 for detailed information.

Camera tampering detection:

Note: Please configure Camera tampering detection first

■ Manual Trigger

This option allows user to enable event triggers manually by clicking the on/off button on the homepage. Please configure 1 \~ 3 events before using this function.

Manual Trigger

Event Schedule

Specify the period for the event.

Event Schedule

Sun Mon Tue Wed Thu Fri Sat Time Always From 00:00 to 24:00 [hh:mm]

■ Select the days of the week.
■ Select the recording schedule in 24-hr time format.

Action

Define the actions to be performed by the Network Camera when a trigger is activated.

Action

Add Server Add Media

Server Media

Extra parameter

Save

Close

To set an event with recorded video or snapshots, it is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated.

■ Add Server / Add Media

Click Add Server to configure Server Settings. For more information, please refer to Server Settings on page 70.

Click Add Media to configure Media Settings. For more information, please refer to Media Settings on page 73.

Here is an example of the Event Settings page:

Event name: Event1

□ Enable this event

Priority: Normal

Detect next event after 10 second(s).

Note: This can only applied to motion detection and digital input

Trigger

○ Video motion detection

Periodically

Digital input

System boot

Recording notify

○ Camera tampering detection

○ Manual Trigger

□1 □2 □3

Event Schedule

Sun Mon Tue Wed Thu Fri Sat

Time

Always

From 00:00 to 24:00 [hh:mm]

Action

Add Server Add Media

Server

Media

Extra parameter

FTP

---None---

NAS

---None---

☐ Create folders by date time and hour automatically

View

Email

---None---

HTTP

---None---

Save

Close

When completed, click Save to enable the settings and click Close to exit Event Settings page. The new event settings / server settings / media settings will appear in the event drop-down list on the Application page.

Here is an example of the Application page with an event setting:

Event Settings Name Status Sun Mon Tue Wed Thu Fri Sat Time Trigger Event1 ON V V V V V V 00:00~24:00 di Add Event1▼ Delete Help

Server Settings Name Type Address/Location FTP ftp ftp.vivotek.com NAS ns \\192.168.5.122\nas Email@email Ms.vivotek.tw HTTP http http://192.168.5.10/cgi-bin/upload.cgi Add FTP Delete

Media Settings Available memory space: 8000KB Name Type Snapshot snapshot Video Clip videoclip System log Systemlog Add Snapshot Delete

Customized Script Name Date Time Add Delete

When the Event Status is ON, once an event is triggered by motion detection, the Network Camera will automatically send snapshots via e-mail.

If you want to stop the event trigger, you can click ON to turn it to OFF status or click Delete to remove the event setting.

To remove a server setting from the list, select a server name from the drop-down list and click Delete. Note that only when the server setting is not being applied to an event setting can it be deleted.

To remove a media setting from the list, select a media name from the drop-down list and click Delete. Note that only when the media setting is not being applied to an event setting can it be deleted.

Server Settings

Click Add Server on Event Settings page to open the Server Setting page. On this page, you can specify where the notification messages are sent when a trigger is activated. A total of 5 server settings can be configured.

Server name: Enter a name for the server setting.

Server Type

There are four choices of server types available: Email, FTP, HTTP, and Network storage. Select the item to display the detailed configuration options. You can configure either one or all of them.

Email: Select to send the media files via email when a trigger is activated.

Server name: Email Server Type Email: Sender email address: [e-mail] Recipient email address: [e-mail] Server address: Ms.vivotek.tw User name: Password: Server port 25 This server requires a secure connection (SSL) FTP: HTTP: Network storage: Test Save Close

■ Sender email address: Enter the email address of the sender.
■ Recipient email address: Enter the email address of the recipient.
■ Server address: Enter the domain name or IP address of the email server.
■ User name: Enter the user name of the email account if necessary.
■ Password: Enter the password of the email account if necessary.
■ Server port: The default mail server port is set to 25. You can also manually set another port.

If your SMTP server requires a secure connection (SSL), check This server requires a secure connection (SSL).

To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result.

The email has been sent successfully.

Error in sending email.

Click Save to enable the settings, then click Close to exit the page.

FTP: Select to send the media files to an FTP server when a trigger is activated.

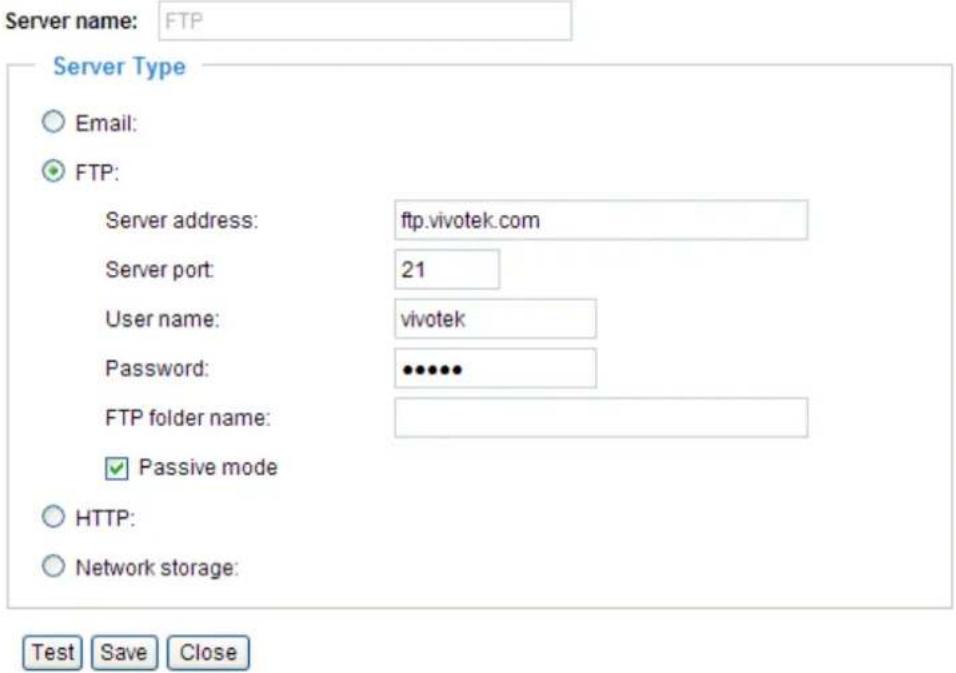

Server name: FTP Server Type ○ Email: ● FTP: Server address: ftp.vivotek.com Server port: 21 User name: vivotek Password: •••••• FTP folder name: ✓ Passive mode ○ HTTP: ○ Network storage: Test Save Close

■ Server address: Enter the domain name or IP address of the FTP server.
■ Server port

By default, the FTP server port is set to 21. It can also be assigned to another port number between 1025 and 65535.

■ User name: Enter the login name of the FTP account.
■ Password: Enter the password of the FTP account.
■ FTP folder name

Enter the folder where the media file will be placed. If the folder name does not exist, the Network Camera will create one on the FTP server.

■ Passive mode

Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall.

To verify if the FTP settings are correctly configured, click Test. The result will be shown in a pop-up window as shown below. If successful, you will also receive a test.txt file on the FTP server.

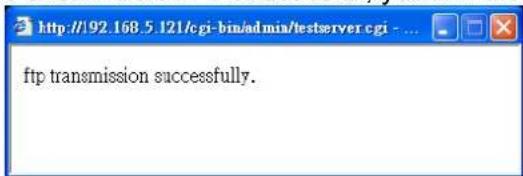

ftp transmission successfully.

ftp transmission failed.

Click Save to enable the settings, then click Close to exit the page.

HTTP: Select to send the media files to an HTTP server when a trigger is activated.

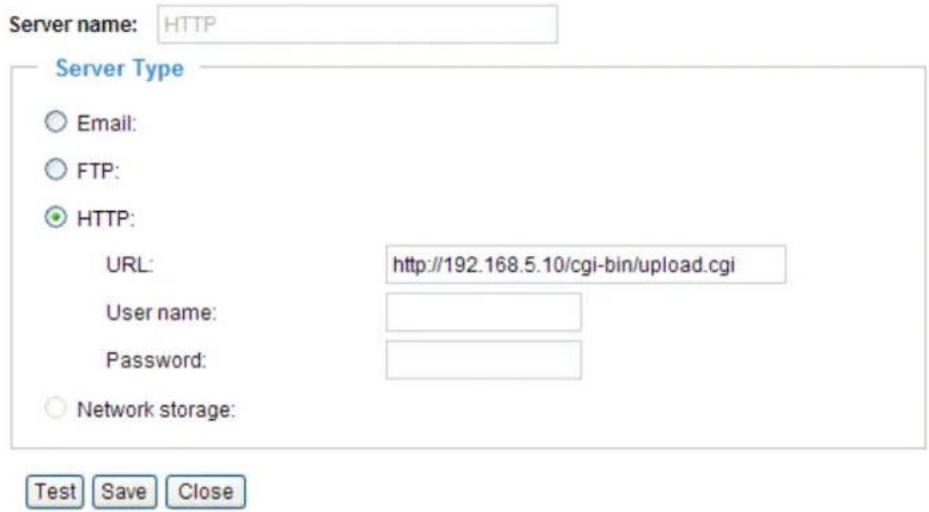

Server name: HTTP Server Type ○ Email: ○ FTP: ● HTTP: URL: http://192.168.5.10/cgi-bin/upload.cgi User name: Password: ○ Network storage: Test Save Close

■ URL: Enter the URL of the HTTP server.
■ User name: Enter the user name if necessary.
■ Password: Enter the password if necessary.

To verify if the HTTP settings are correctly configured, click Test. The result will be shown in a pop-up window as below. If successful, you will receive a test.txt file on the HTTP server.

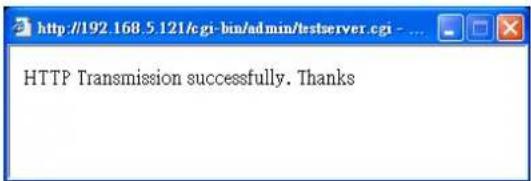

HTTP Transmission successfully. Thanks

HTTP Transmission failed.

Click Save to enable the settings, then click Close to exit the page.

Network storage: Select to send the media files to a network storage location when a trigger is activated. Please refer to Network Storage Setting on page 77 for details.

Click Save to enable the settings, then click Close to exit the page.

When completed, the new server settings will automatically be displayed on the Event Settings page. For example:

Action Add Server Add Media Server Media Extra parameter FTP ----None---- NAS ----None---- Create folders by date time and hour automatically View Email ----None---- HTTP ----None---- Save Close

Media Settings

Click Add Media on the Event Settings page to open the Media Settings page. On this page, you can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured.

Media name: Enter a name for the media setting.

Media Type

There are three choices of media types available: Snapshot, Video Clip, and System log. Select the item to display the detailed configuration options. You can configure either one or all of them.

Snapshot: Select to send snapshots when a trigger is activated.

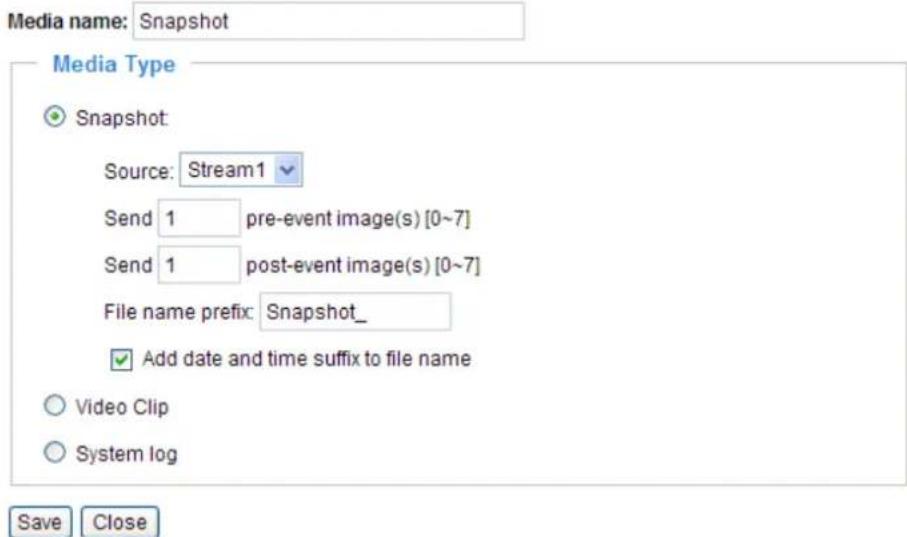

Media name: Snapshot Media Type Snapshot: Source: Stream1 Send 1 pre-event image(s) [0~7] Send 1 post-event image(s) [0~7] File name prefix: Snapshot_ ✓ Add date and time suffix to file name Video Clip System log Save Close

■ Source: Select to take snapshots from stream 1 \~ 4.
■ Send □ pre-event images

The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number to decide how many images to capture before a trigger is activated. Up to 7 images can be generated.
■ Send □ post-event images

Enter a number to decide how many images to capture after a trigger is activated. Up to 7 images can be generated.

For example, if both the Send pre-event images and Send post-event images are set to 7, a total of 15 images are generated after a trigger is activated.

1 pic. 2 pic. 3 pic. 4 pic. 5 pic. 6 pic. 7 pic. 8 pic. 9 pic. 10 pic. 11 pic. 10 pic. 12 pic. 13 pic. 14 pic. 15 pic. Trigger Activation

■ File name prefix

Enter the text that will be appended to the front of the file name.

■ Add date and time suffix to the file name

Select this option to add a date/time suffix to the file name.

For example:

Snapshot_20110513_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS

Click Save to enable the settings, then click Close to exit the page.

Video clip: Select to send video clips when a trigger is activated.

Media name: Video Clip Media Type Snapshot Video Clip Source: Stream 1 Pre-event recording: 0 seconds [0~9] Maximum duration: 5 seconds [1~20] Maximum file size: 500 Kbytes [50~1024] File name prefix: Video Clip_ System log Save Close

■ Source: Select a source of video clip.
■ Pre-event recording

The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number to decide the duration of recording before a trigger is activated. Up to 9 seconds can be set.
■ Maximum duration

Specify the maximum recording duration in seconds. Up to 10 seconds can be set.

For example, if pre-event recording is set to five seconds and the maximum duration is set to ten seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated.

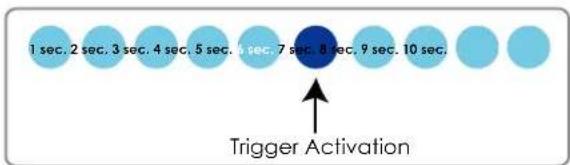

1 sec, 2 sec, 3 sec, 4 sec, 5 sec, 6 sec, 7 sec, 8 sec, 9 sec, 10 sec. Trigger Activation

■ Maximum file size
Specify the maximum file size allowed.
■ File name prefix
Enter the text that will be appended to the front of the file name.
For example:

Video_20110513_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS

Click Save to enable the settings, then click Close to exit the page.

System log: Select to send a system log when a trigger is activated.

Click Save to enable the settings, then click Close to exit the page.

When completed, click Save to enable the settings and click Close to exit this page. The new media settings will appear on the Event Settings page.

You can continue to select a server and media type for the event. Please go back to page 66 for detailed information.

Add Server Add Media Server Media Extra parameter FTP ----None---- ----None---- NAS Snapshot Video Clip System log Create folders by date time and hour automatically View Email ----None---- HTTP ----None----

■ Create folders by date, time, and hour automatically: If you check this item, the system will generate folders automatically by date.
■ View: Click this button to open a file list window. This function is only for Network Storage.

If you click View button of Network storage, a file directory window will pop up for you to view recorded data on Network storage. For detailed illustration, please refer to the next page.

The following is an example of a file destination with video clips:

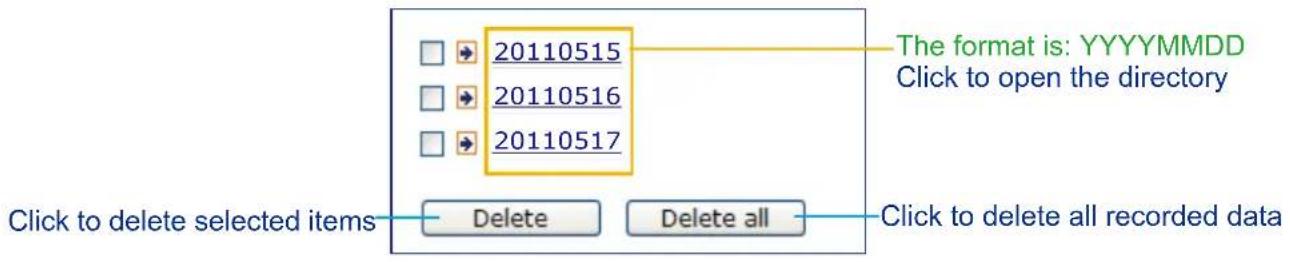

20110515 20110516 20110517 The format is: YYYYMMDD Click to open the directory Click to delete selected items Delete Delete all Click to delete all recorded data

Click 20110515 to open the directory:

The format is: HH (24r)

Click to open the file list for that hour

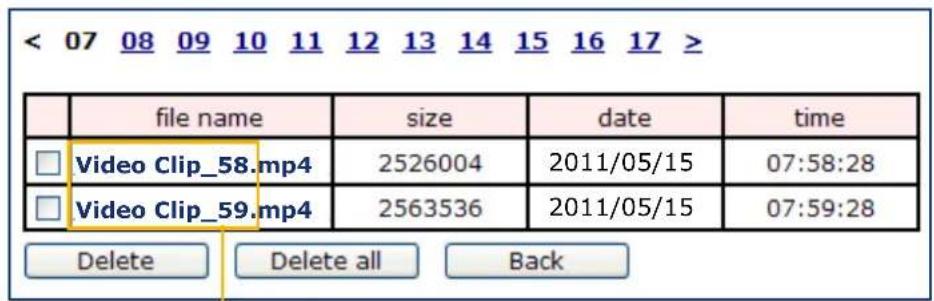

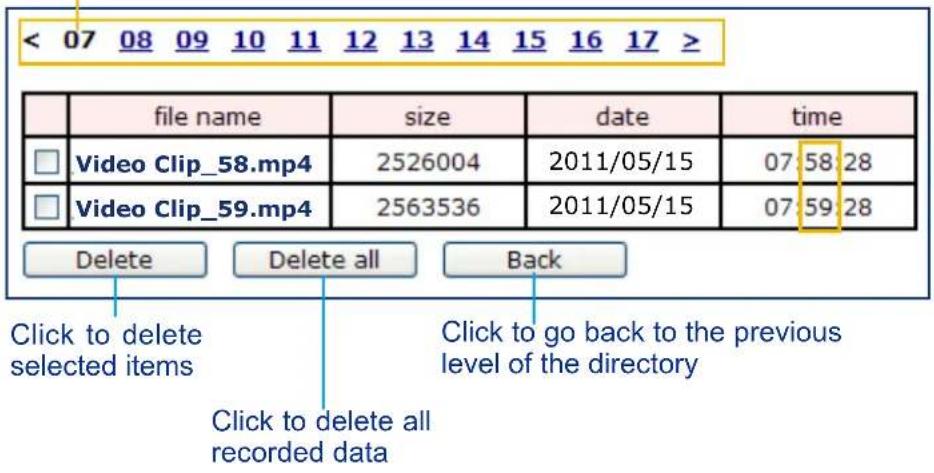

< 07 08 09 10 11 12 13 14 15 16 17 > file name size date time Video Clip_58.mp4 2526004 2011/05/15 07:58:28 Video Clip_59.mp4 2563536 2011/05/15 07:59:28 Delete Delete all Back Click to delete selected items Click to delete all recorded data Click to go back to the previous level of the directory

< 07 08 09 10 11 12 13 14 15 16 17 > file name size date time Video Clip_58.mp4 2526004 2011/05/15 07:58:28 Video Clip_59.mp4 2563536 2011/05/15 07:59:28 Delete Delete all Back

The format is: File name prefix + Minute (mm)

You can set up the file name prefix on Media Settings page.

Please refer to page 73 for detailed information.

Recording Advanced Mode

This section explains how to configure the recording settings for the Network Camera.

Recording Settings

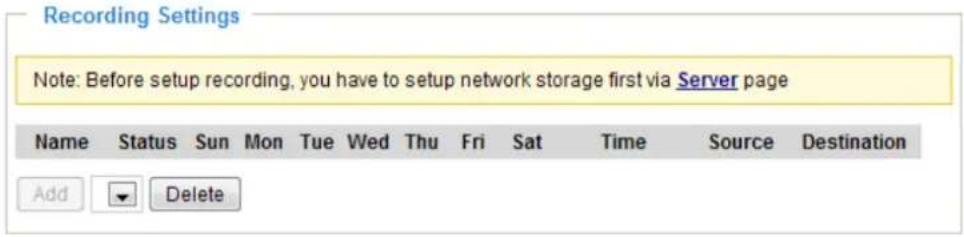

Recording Settings Note: Before setup recording, you have to setup network storage first via Server page Name Status Sun Mon Tue Wed Thu Fri Sat Time Source Destination Add Delete

NOTE

▶ Before setting up this page, please set up the Network Storage on the Server Settings page first.

Network Storage Setting

Click Server to open the Server Settings page and follow the steps below to set up:

1. Fill in the information for your server.

For example:

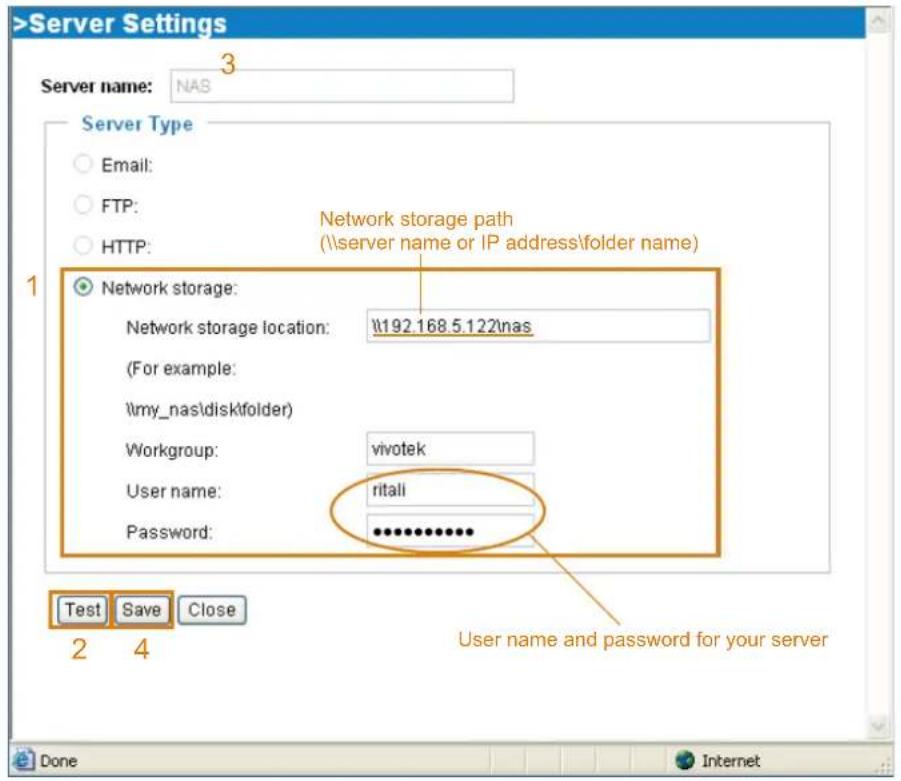

>Server Settings Server name: NAS 3 Server Type Email: FTP: HTTP: Network storage path (\server name or IP address\folder name) 1 Network storage: Network storage location: \192.168.5.122\nas (For example: \my_nas\disk\tolder) Workgroup: vivotek User name: ritali Password: ************ Test Save Close 2 4 User name and password for your server Done Internet

1. Click Test to check the setting. The result will be shown in the pop-up window.

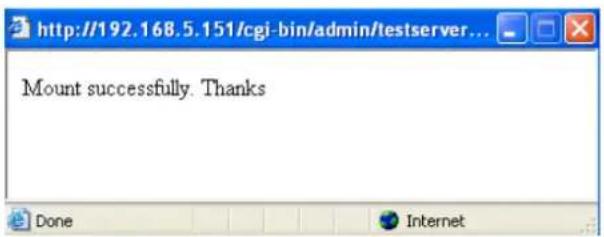

http://192.168.5.151/cgi-bin/admin/testserver... Mount successfully. Thanks Done Internet

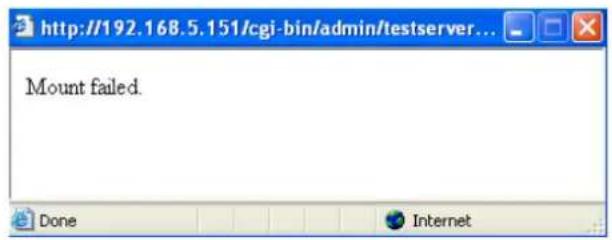

http://192.168.5.151/cgi-bin/admin/testserver... Mount failed. Done Internet

If successful, you will receive a test.txt file on the network storage server.

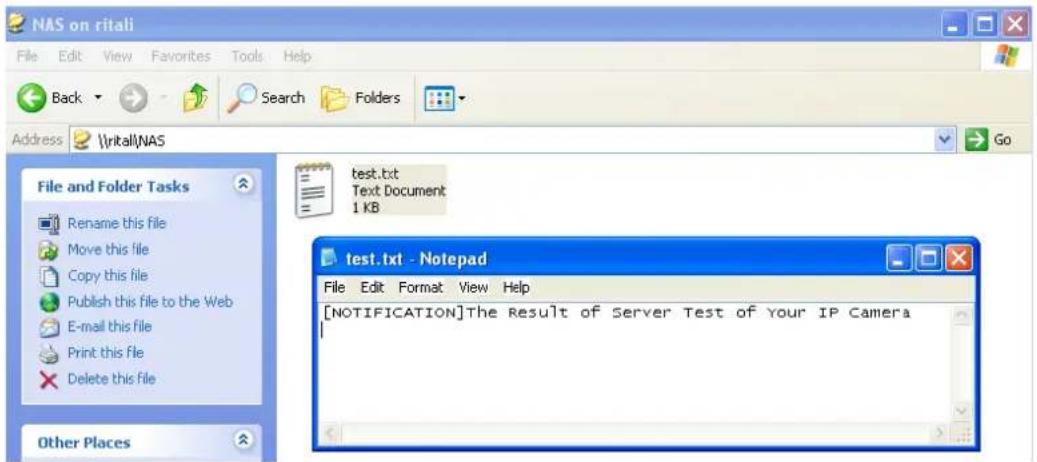

NAS on ritali File Edit View Favorites Tools Help Back Search Folders Address \ritali\NAS File and Folder Tasks Rename this file Move this file Copy this file Publish this file to the Web E-mail this file Print this file Delete this file Other Places test.txt Text Document 1 KB test.txt - Notepad File Edit Format View Help [NOTIFICATION]The Result of Server Test of your IP Camera

1. Enter a server name.
2. Click Save to complete the settings and click Close to exit the page.

Recording Settings

Click Add to open the recording setting page. In this page, you can define the recording source, recording schedule, and recording capacity. A total of 2 recording settings can be configured.

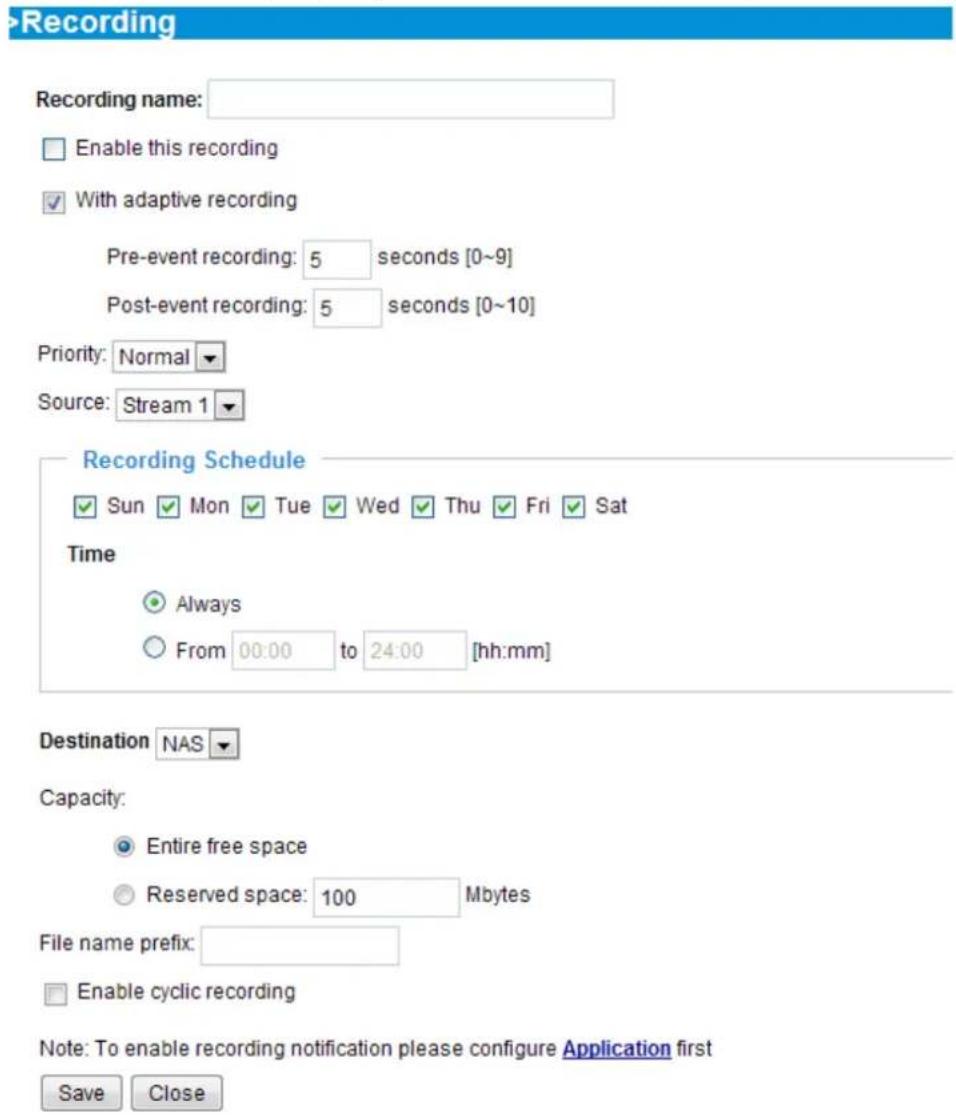

Recording Recording name: Enable this recording With adaptive recording Pre-event recording: 5 seconds [0~9] Post-event recording: 5 seconds [0~10] Priority: Normal Source: Stream 1 Recording Schedule Sun Mon Tue Wed Thu Fri Sat Time Always From 00:00 to 24:00 [hh:mm] Destination NAS Capacity: Entire free space Reserved space: 100 Mbytes File name prefix: Enable cyclic recording Note: To enable recording notification please configure Application first Save Close

Recording name: Enter a name for the recording setting.

Enable this recording: Select this option to enable video recording.

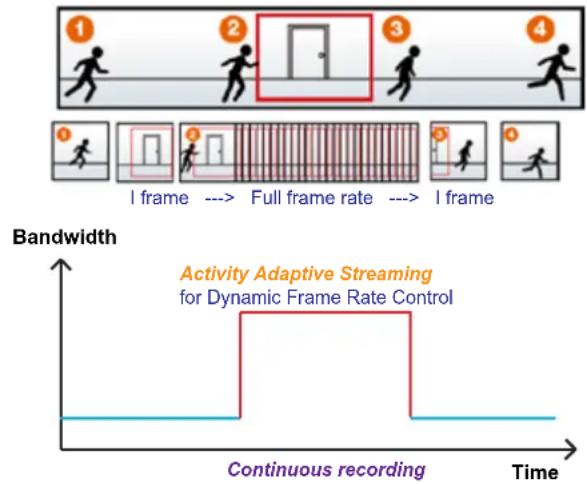

With adaptive recording:

Select this option will activate the frame rate control according to alarm trigger. The frame rate control means that when there is alarm trigger, the frame rate will raise up to the value you've set on Video quality setting page. Please refer to page 54 for more information.

If you enable adaptive recording and enable time-shift cache stream on Camera A, only when an event is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only request the I frame data during normal monitoring, thus effectively save lots of bandwidths and storage.

NOTE

▶ To enable adaptive recording, please make sure you've set up the trigger source such as Motion Detection, DI Device, or Manual Trigger.
▶ When there is no alarm trigger:
- JEPE mode: record 1 frame per second.
- H.264 mode: record I frame only.
- MPEG-4 mode: record I frame only.
▶ When the I frame period is >1s on Video settings page, it should be forced to make the I frame period to 1s when adaptive recording is activated.

The alarm trigger includes: motion detection and DI detection. Please refer to Event settings on page 65.

■ Pre-event recording and post-event recording

The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Enter a number to decide the duration of recording before and after a trigger is activated.

Priority: Select the relative importance of this recording setting (High, Normal, and Low).

Source: Select the recording source (stream 1 \~ 4).

Recording Schedule: Specify the recording duration.

■ Select the days of the week.
■ Select the recording start and end times in 24-hr time format.

Destination: You can select the network storage that was set up for the recorded video files.

Capacity: You can choose either the entire free space available or limit the reserved space. The recording size limit must be larger than the reserved amount for cyclic recording.

File name prefix: Enter the text that will be appended to the front of the file name.

Enable cyclic recording: If you check this item, when the maximum capacity is reached, the oldest file will be overwritten by the latest one. The reserved amount is reserved for cyclic recording to prevent malfunction. This value must be larger than 15 MBytes.

If you want to enable recording notification, please click Application to set up. Please refer to page 66 for detailed information.

When completed, select Enable this recording. Click Save to enable the setting and click Close to exit this page. When the system begins recording, it will send the recorded files to the Network Storage. The new recording name will appear in the drop-down list on the recording page as shown below.

To remove a recording setting from the list, select a recording name from the drop-down list and click Delete.

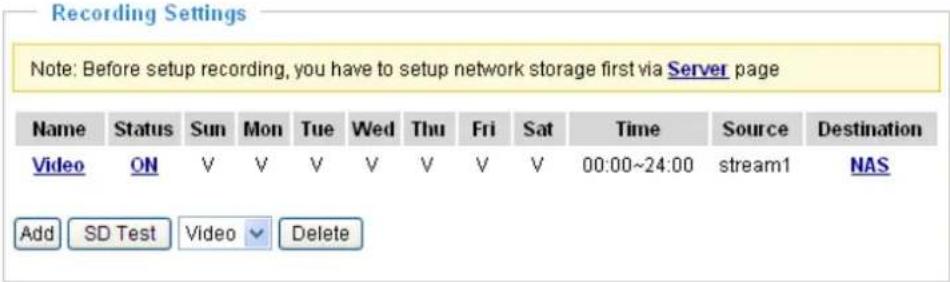

Recording Settings Note: Before setup recording, you have to setup network storage first via Server page Name Status Sun Mon Tue Wed Thu Fri Sat Time Source Destination Video ON V V V V V V V V 00:00~24:00 sream1 NAS Add SD Test Video Delete

■ Click Video (Name): Opens the Recording Settings page to modify.
■ Click ON (Status): The Status will become OFF and stop recording.
■ Click NAS (Destination): Opens the file list of recordings as shown below. For more information about folder naming rules, please refer to page 76 for details.

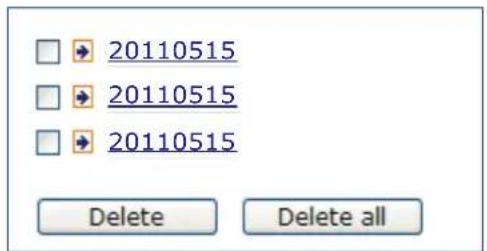

20110515 20110515 20110515 Delete Delete all

System Log Advanced Mode

This section explains how to configure the Network Camera to send the system log to the remote server as backup.

Remote Log

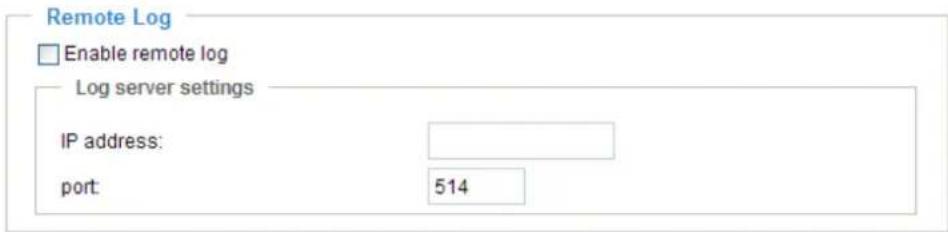

Remote Log Enable remote log Log server settings IP address: port: 514

Save

You can configure the Network Camera to send the system log file to a remote server as a log backup. Before utilizing this feature, it is suggested that the user install a log-recording tool to receive system log messages from the Network Camera. An example is Kiwi Syslog Daemon. Visit http://www.kiwisyslog.com/kiwi-syslog-daemon-overview/.

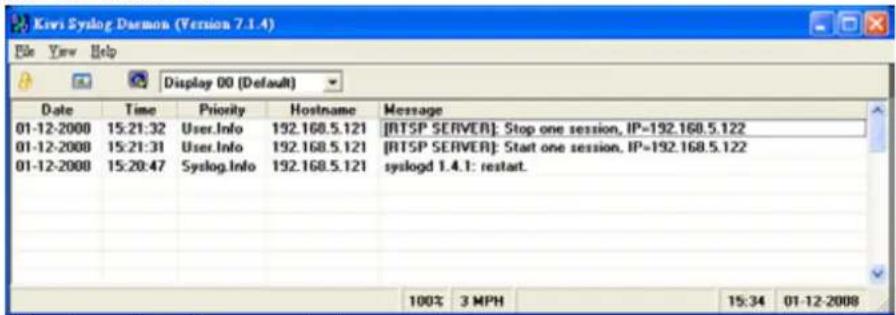

Kevi Syslog Daemon (Version 7.1.4) File View Help Display 00 (Default) Date Time Priority Hostname Message 01-12-2000 15:21:32 User.Info 192.160.5.121 [RTSP SERVER]: Stop one session, IP=192.160.5.122 01-12-2000 15:21:31 User.info 192.160.5.121 [RTSP SERVER]: Start one session, IP=192.160.5.122 01-12-2000 15:20:47 Syslog.Info 192.160.5.121 syslogd 1.4.1: restart. 100% 3 MPH 15:34 01-12-2008

Follow the steps below to set up the remote log:

1. In the IP address text box, enter the IP address of the remote server.
2. In the port text box, enter the port number of the remote server.
3. When completed, select Enable remote log and click Save to enable the setting.

Current Log

Current Log

May 16 22:49:43 udhcpc: IP 192.168.4.104 netmask 255.255.255.0

May 16 22:49:43 udhcpc: router 192.168.4.1

May 16 22:49:43 udhcpc: dns 192.168.0.10 192.168.0.20

May 16 22:49:45 [swatchdog]: Stop watching httpd.

May 16 22:49:45 [swatchdog]: Ready to watch httpd.

May 16 22:49:46 [DRM Service]: DRM service stopped.

May 16 22:49:47 [DRM Service]: Starting DRM service.

May 16 22:49:48 [UPNP DEVICE]: Process exit

May 16 22:49:49 [swatchdog]: Stop watching rtsps.

May 16 22:49:51 [swatchdog]: Ready to watch rtsps.

May 17 10:49:44 udhcpc: IP 192.168.4.104 netmask 255.255.255.0

May 17 10:49:44 udhcpc: router 192.168.4.1

May 17 10:49:44 udhcpc: dns 192.168.0.10 192.168.0.20

May 17 11:30:51 [RTSP SERVER]: XMLSParser: junk after document element at line 6^M

May 17 11:30:51 [RTSP SERVER]: src/session_mgr_function.c-750, XMLSParser_ReadAll

File /var/run/sessioninfo failed!^M

May 17 11:30:51 [RTSP SERVER]: Start one session, IP=192.168.4.122

This column displays the system log in chronological order. The system log is stored in the Network Camera's buffer area and will be overwritten when reaching a certain limit.

View Parameters Advanced Mode

The View Parameters page lists the entire system's parameters in alphabetical order. If you need technical assistance, please provide the information listed on this page.

Parameter List

system_hostname='Network Camera'
system_ledoff='0'
system_lowlight='1'
system_date='2011/05/18'
system_time='16:39:31'
system_datetime=''
system_ntp=''
system_timezone timezoneindex='320'
system_daylight_enable='0'
system_daylight_dstactualmode='1'
system_daylight_auto_begintime='NONE'
system_daylight_auto_endtime='NONE'
system_daylight_timezones=',-360,-320,-280,-240,-241,-200,-201,-1
system_privacy='0'
system_privacybuttonoff='0'
system_updateinterval='0'
system_info_modelname='IP8331'
system_info_extendedmodelname='IP8331'
system_info_serialnumber='0002D1833103'
system_info_firmwareversion='IP8331-VVTK-0100c'
system_info_language_count='9'
system_info_language_i0='English'
system_info_language_i1='Deutsch'
system_info_language_i2='Español'
system_info_language_i3='Français'
system_info_language_i4='Italiano'
system_info_language_i5='日本語'
system_info_language_i6='Português'
system_info_language_i7='简体中文'
system_info_language_i8='繁體中文'
system_info_language_i9='

Maintenance

This chapter explains how to restore the Network Camera to factory default, upgrade firmware version, etc.

Reboot

Reboot

Reboot the device

Reboot

This feature allows you to reboot the Network Camera, which takes about one minute to complete. When completed, the live video page will be displayed in your browser. The following message will be displayed during the reboot process.

The device is rebooting now. Your browser will reconnect to http://192.168.5.151:80/ If the connection fails, please manually enter the above IP address in your browser.

If the connection fails after rebooting, manually enter the IP address of the Network Camera in the address field to resume the connection.

Restore

Restore

Restore all settings to factory default except settings in

Network Type

Daylight Saving Time

□ Custom language

Restore

This feature allows you to restore the Network Camera to factory default settings.

Network Type: Select this option to retain the Network Type settings (please refer to Network Type on page 32).

Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to System on page 24)

Custom Language: Select this option to retain the Custom Language settings.

If none of the options is selected, all settings will be restored to factory default.

The following message is displayed during the restoring process.

The device is rebooting now. Your browser will reconnect to http://192.168.5.151:80/ If the connection fails, please manually enter the above IP address in your browser.

Export / Upload Files Advanced Mode

This feature allows you to Export / Upload daylight saving time rules, custom language files, and setting backup files. Export files

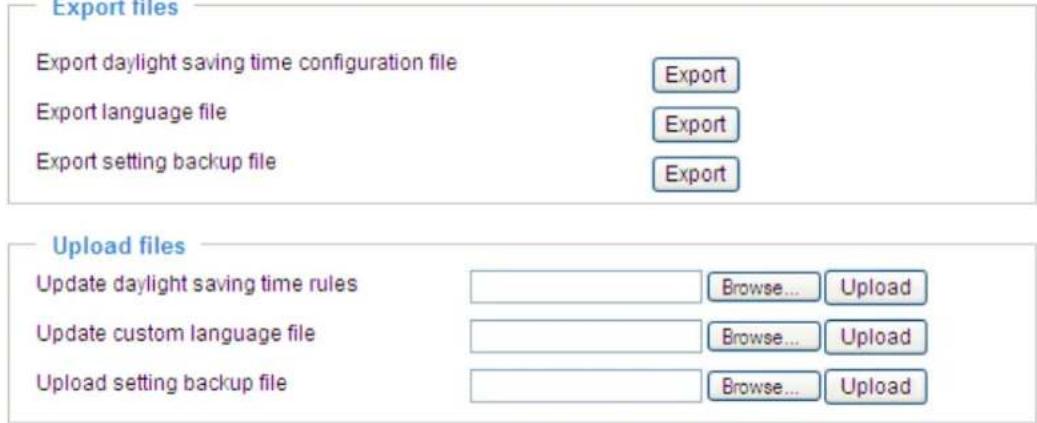

Export files Export daylight saving time configuration file Export Export language file Export Export setting backup file Export Upload files Update daylight saving time rules Browse...Upload Update custom language file Browse...Upload Upload setting backup file Browse...Upload

Export daylight saving time configuration file: Click to set the start and end time of DST.

Follow the steps below to export:

1. In the Export files column, click Export to export the daylight saving time configuration file from the Network Camera.
2. A file download dialog will pop up as shown below. Click Open to review the XML file or click Save to store the file for editing. File Download

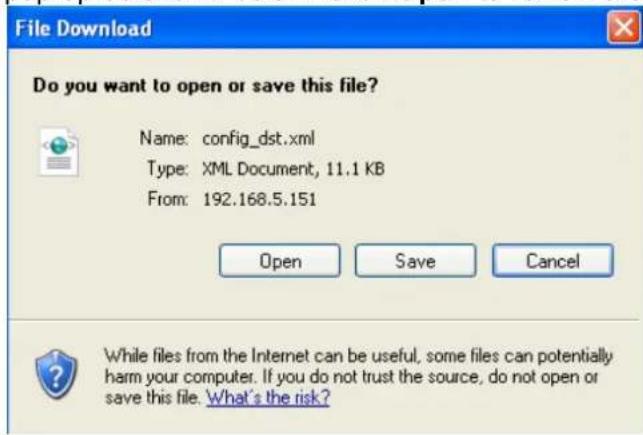

File Download Do you want to open or save this file? Name: config_dst.xml Type: XML Document, 11.1 KB From: 192.168.5.151 Open Save Cancel While files from the Internet can be useful, some files can potentially harm your computer. If you do not trust the source, do not open or save this file. What's the risk?

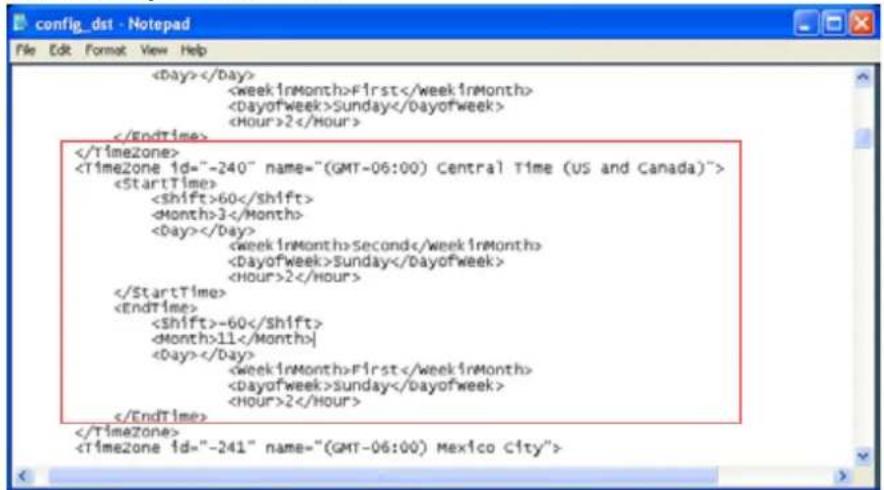

1. Open the file with Microsoft ^® Notepad and locate your time zone; set the start and end time of DST. When completed, save the file.

In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m. on the first Sunday in November.

First Sunday 2 60 3 Second Sunday 2 -60 11 First sunday 2

Upload daylight saving time rule: Click Browse... and specify the XML file to upload.

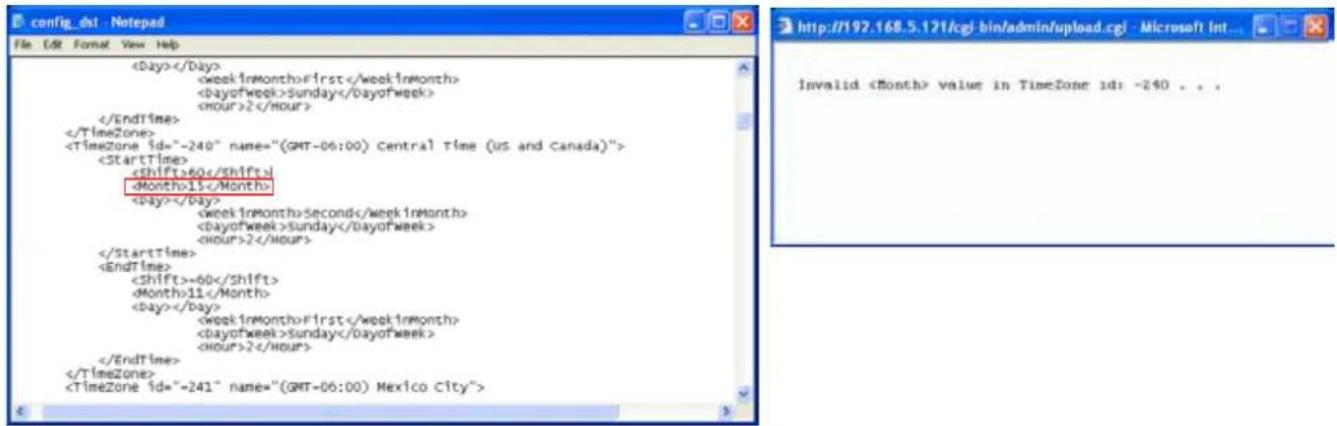

If the incorrect date and time are assigned, you will see the following warning message when uploading the file to the Network Camera.

First sunday 2 60 15 Second sunday 2 60 11 First sunday 2

The following message is displayed when attempting to upload an incorrect file format.

Microsoft Internet Explorer The file must have a .xml filename suffix. OK

Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文.

Upload custom language file: Click Browse... and specify your own custom language file to upload.

Export setting backup file: Click to export all parameters for the device and user-defined scripts.

Upload setting backup file: Click Browse... to upload a setting backup file. Please note that the model and firmware version of the device should be the same as the setting backup file. If you have set up a fixed IP or other special settings for your device, it is not suggested to upload a settings backup file.

Upgrade Firmware

Upgrade firmware Select firmware file Browse... Upgrade

This feature allows you to upgrade the firmware of your Network Camera. It takes a few minutes to complete the process.

Note: Do not power off the Network Camera during the upgrade!

Follow the steps below to upgrade the firmware:

1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format.

2. Click Browse... and specify the firmware file.

3. Click Upgrade. The Network Camera starts to upgrade and will reboot automatically when the upgrade completes.

If the upgrade is successful, you will see "Reboot system now!! This connection will close". After that, re-access the Network Camera.

The following message is displayed when the upgrade has succeeded.

Reboot system now!! This connection will close.

The following message is displayed when you have selected an incorrect firmware file.

Starting firmware upgrade...

Do not power down the server during the upgrade.

The server will restart automatically after the upgrade is completed.

This will take about 1 - 5 minutes.

Wrong PKG file format

Unpack fail

Appendix

URL Commands for the Network Camera

Overview

For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface. The HTTP-based camera interface provides the functionality to request a single image, control camera functions (PTZ, output relay etc.), and get and set internal parameter values. The image and CGI-requests are handled by the built-in Web server.

Style Convention

In URL syntax and in descriptions of CGI parameters, text within angle brackets denotes content that is to be replaced with either a value or a string. When replacing the text string, the angle brackets should also be replaced. An example of this is the description of the name for the server, denoted with in the URL syntax description below, that is replaced with the string myserver in the URL syntax example further down in the page.

URL syntax is denoted with the word "Syntax:" written in bold face followed by a box with the referenced syntax as shown below. For example, name of the server is written as and is intended to be replaced with the name of the actual server. This can either be a name, e.g., "mywebcam" or "thecam.adomain.net" or the associated IP number for the server, e.g., 192.168.0.220.

Syntax:

http:///cgi-bin/viewer/video.jpg

Description of returned data is written with "Return:" in bold face followed by the returned data in a box. All data is returned in HTTP format, i.e., each line is separated with a Carriage Return and Line Feed (CRLF) printed as \n.

Return:

HTTP/1.0 \r\n

URL syntax examples are written with "Example:" in bold face followed by a short description and a light grey box with the example.

Example: request a single snapshot image

http://mywebserver/cgi-bin/viewer/video.jpg

3. General CGI URL Syntax and Parameters

CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory. The file extension .cgi is required.

Syntax:

http://<servername>/cgi-bin/<subdir>[/<subdir>...]/<cgi>.<ext>
[?<parameter>=<value>[&<parameter>=<value>...]]

Example: Get digital input #0 status

http://mywebserver/cgi-bin/dido/getdi.cgi?di0

4. Security Level

SECURITY LEVEL	SUB-DIRECTORY DESCRIPTION	TION
0 anonymous	Unprotected.
1 [view] anonymous	us, viewer, dido, camctrl	1. Can view, listen, talk to camera.2. Can control DI/DO, PTZ of the camera.
4 [operator] anonymous	mous, viewer, dido, camctrl, operator	Operator access rights can modify most of the camera's parameters except some privileges and network options.
6 [admin] anonymous	us, viewer, dido, camctrl, operator, admin	Administrator access rights can fully control the camera's operations.
7 N/A Internal parameters. Unable to be changed by any external interfaces.

5. Get Server Parameter Values

Note: The access right depends on the URL directory.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>][&<parameter>...]

http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>]
[&<parameter>...]

http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>]
[&<parameter>...]

http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>]
[&<parameter>...]

Where the should be [_] or [.]. If you do not specify any parameters, all the parameters on the server will be returned. If you specify only , the parameters of the related group will be returned.

When querying parameter values, the current parameter values are returned.

A successful control request returns parameter pairs as follows:

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>

where <parameter pair> is
<parameter>=<value>\r\n
[<parameter pair>]

is the actual length of content.

Example: Request IP address and its response

Request:
http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n

6. Set Server Parameter Values

Note: The access right depends on the URL directory.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>...][&update=<value>][&return=<return page>]

http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>...][&update=<value>][&return=<return page>]

http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>...][&update=<value>][&return=<return page>]

http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value>
[&<parameter>=<value>...][&update=<value>][&return=<return page>]

PARAMETER VALUE DESCRIPTION
	value to assigned	Assignto the parameter.
update	Set to 1	to update all fields (no need to update parameter in each group).
return		Redirect to the pageafter the parameter is assigned.Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.(Note: The return page can be a general HTML file (.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI command or have any extra parameters. This parameter must be placed at the end of the parameter list

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: <length>\r\n
\r\n
<parameter pair>

where <parameter pair> is

= \r\n

[]

Only the parameters that you set and are readable will be returned.

Example: Set the IP address of server to 192.168.0.123:

Request:
http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\n
Context-Length: 33\r\n
\r\n
network.ipaddress=192.168.0.123\r\n

7. Available parameters on the server

Valid values:

VALID VALUES DESCRIPTION
string[] Text strings shorter than `n' characters. The characters '', <,>, & are invalid.
string[n~m] Text strings longer than `n' characters and shorter than `m' characters. The characters '', <,>, & are invalid.
password[] The same as string but displays '*' instead.
integer Any number between (-2 ^31 - 1) and ( 2^31 - 1).
positive integer Any number between 0 and (2 ^32 - 1).
~ Any number between `m' and `n'.
domain name[] A string limited to a domain name shorter than `n' characters (eg. www.ibm.com).
email address []	A string limited to an email address shorter than `n' characters (eg. [e-mail]).
ip address A string limited to an IP address (eg. 192.168.1.1).
mac address A string limited to contain a MAC address without hyphens or colons.
boolean	A boolean value of 1 or 0 represents [Yes or No], [True or False], [Enable or Disable].
	Enumeration. Only given values are valid.
,...
blank	A blank string.
everything inside <>	A description
integer primary key SQLite data type. A 32-bit signed integer. The value is assigned a unique integer by the server.
text SQLite data type.	The value is a text string, stored using the database encoding (UTF-8, UTF-16BE or UTF-16-LE).
coordinate x, y coordinate (eg. 0,0)
window size window width and height (eg. 800x600)

NOTE: The camera should not be restarted when parameters are changed.

7.1 system

Group: system

NAME VALUE SECURITY		(get/set)	DESCRIPTION
hostname string[40] 1/6 Host name of server			(Network Camera, Wireless Network Camera, Video Server, Wireless Video Server).
date	, keep, auto	6/6 Current date of system. Set to 'keep' to keep date unchanged. Set to 'auto' to use NTP to synchronize date.
time	, keep, auto	6/6 Current time of the system. Set to 'keep' to keep time unchanged. Set to 'auto' to use NTP to synchronize time.
datetime	<MMDDhhmmYY YY.ss>	6/6 Another current time format of the system.
ntp	, ,	6/6 NTP server.*Do not use "skip to invoke default server" for default value.
timezoneindex	-489 ~ 529	6/6 Indicate timezone and area.-480: GMT-12:00 Eniwetok, Kwajalein-440: GMT-11:00 Midway Island, Samoa-400: GMT-10:00 Hawaii-360: GMT-09:00 Alaska-320: GMT-08:00 Las Vegas, San_Francisco, Vancouver-280: GMT-07:00 Mountain Time, Denver-281: GMT-07:00 Arizona
			-240: GMT-06:00 Central America, Central Time,Mexico City, Saskatchewan-200: GMT-05:00 Eastern Time, New York, Toronto-201: GMT-05:00 Bogota, Lima, Quito, Indiana-180: GMT-04:30 Caracas-160: GMT-04:00 Atlantic Time, Canada, La Paz,Santiago-140: GMT-03:30 Newfoundland-120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland-80: GMT-02:00 Mid-Atlantic-40: GMT-01:00 Azores, Cape_Verde_IS.0: GMT Casablanca, Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London40: GMT 01:00 Amsterdam, Berlin, Rome, Stockholm, Vienna, Madrid, Paris41: GMT 01:00 Warsaw, Budapest, Bern80: GMT 02:00 Athens, Helsinki, Istanbul, Riga81: GMT 02:00 Cairo82: GMT 02:00 Lebanon, Minsk83: GMT 02:00 Israel120: GMT 03:00 Baghdad, Kuwait, Riyadh, Moscow, St. Petersburg, Nairobi121: GMT 03:00 Iraq140: GMT 03:30 Tehran160: GMT 04:00 Abu Dhabi, Muscat, Baku, Tbilisi,Yerevan180: GMT 04:30 Kabul200: GMT 05:00 Ekaterinburg, Islamabad, Karachi,Tashkent220: GMT 05:30 Calcutta, Chennai, Mumbai, New Delhi230: GMT 05:45 Kathmandu240: GMT 06:00 Almaty, Novosibirsk, Astana, Dhaka,Sri Jayawardenepura260: GMT 06:30 Rangoon280: GMT 07:00 Bangkok, Hanoi, Jakarta,Krasnoyarsk320: GMT 08:00 Beijing, Chongging, Hong Kong, Kuala Lumpur, Singapore, Taipei360: GMT 09:00 Osaka, Sapporo, Tokyo, Seoul, Yakutsk380: GMT 09:30 Adelaide, Darwin400: GMT 10:00 Brisbane, Canberra, Melbourne, Sydney, Guam, Vladivostok440: GMT 11:00 Magadan, Solomon Is., New Caledonia480: GMT 12:00 Auckland, Wellington, Fiji, Kamchatka, Marshall Is.520: GMT 13:00 Nuku'Alofa
daylight_enable		6/6	Enable automatic daylight saving time in time zone.
daylight_dstactualmode		6/7 Check if current time is under daylight saving time.
daylight_auto_begintime	string[19] 6/7 Display the current daylight saving start time.
daylight_auto_endtime	string[19] 6/7 Display the current daylight saving end time.
daylight_timezones	string 6/6 List time zone index which support daylight saving time.
updateinterval	0,3600,86400,604800,2592000	6/6 0 to Disable automatic time adjustment, otherwise, it indicates the seconds between NTP automatic update intervals.
restore	0,<positive integer>	7/6 Restore the system parameters to default values afterseconds.
reset	0,<positive integer>	7/6 Restart the server afterseconds ifis non-negative.
restoreexceptnet	<Any value> 7/6	Restore the system parameters to default values except (ipaddress, subnet, router, dns1, dns2, pppoe). This command can cooperate with other "restoreexceptXYZ" commands. When cooperating with others, the system parameters will be restored to the default value except for a union of the combined results.
restoreexceptdst	<Any value> 7/6	Restore the system parameters to default values except all daylight saving time settings. This command can cooperate with other
			"restoreexceptXYZ" commands. When cooperating with others, the system parameters will be restored to default values except for a union of combined results.
restoreexceptlang	7/6	Restore the	system parameters to default values except the custom language file the user has uploaded.This command can cooperate with other "restoreexceptXYZ" commands. When cooperating with others, the system parameters will be restored to the default value except for a union of the combined results.

7.1.1 system.info

Subgroup of system: info (The fields in this group are unchangeable.)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
modelname string[40] 0/7 Internal model name of the server (eg.IP7139)
serialnumber		0/7 12 characters MAC address (without hyphens).
firmwareversion string[40] 0/7 Firmware version, including model, company,and version number in the format:
language_count 0/7 Number of webpage languages available on the server.
language_i<0~(count-1)>string[16] 0/7 Available language lists.
customlanguage_maxcount	0/6 Maximum number of custom languages supported on the server.
customlanguage_count		0/6	Number of custom languages which have been uploaded to the server.
customlanguage_i<0~(maxcount-1)>	string	0/6 Custom language name.

7.2 status

Group: status

NAME VALUE SECURITY		(get/set)	DESCRIPTION
di_i<0~(ndi-1)>		1/7 0 => Inactive, normal1 => Active, triggered
daynight day, night 7/7 Current status of day, night.
onlinenum_rtsp integer 6/7	Current number of RTSP connections.
onlinenum_httppush integer	6/7 Current number of HTTP push server connections.
vi_i<0~(nvi-1)>	1/7 Virtual input		0 => Inactive1 => Active

7.3 digital input behavior define

Group: di_i<0(ndi-1)>(capability.ndi>0)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
normalstate	high,low	1/1 Indicates	open circuit or closed circuit(inactive status)

7.4 security

Group: security

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
user_i0_name	string[64]	6/7 User name of root
user_i<1~20>_name	string[64]	6/7 User name
user_i0_pass	password[64]	6/6 Root password
user_i<1~20>_pass	password[64]	7/6 User password
user_i0_privilege	viewer, operator, admin	6/7 Root privilege
user_i<1~20>_privilege	viewer, operator, admin	6/6 User privilege

7.5 network

Group: network

NAME VALUE	SECURITY	(get/set)	DESCRIPTION
preprocess		7/6 An 32-bit integer, each bit can be set separately as follows:Bit 0 => HTTP service;Bit 1=> HTTPS service;Bit 2=> FTP service;Bit 3 => Two way audio and RTSP Streaming service;To stop service before changing its port settings. It'srecommendedto set this parameter when change a service port to the port occupied by another service currently.Otherwise, the service may fail.Stopped service will auto-start after changing port settings.Ex:Change HTTP port from 80 to 5556, and change RTP port for video from 5556 to 20480.Then, set preprocess=9 to stop both service first."/cgi-bin/admin/setparam.cgi?network_preprocess=9&network_http_port=5556&network_rtp_videoport=20480"
type	lan,pppoe	6/6 Network connection type.
resetip6/6 1 => Get ipaddress, subnet, router, dns1, dns2 from DHCP server at next reboot.0 => Use preset ipaddress, subnet, rounter, dns1, and dns2.
ipaddress6/6 IP address of server.
subnet6/6 Subnet mask.
router6/6 Default gateway.
dns16/6 Primary DNS server.
dns26/6 Secondary DNS server.
wins16/6 Primary WINS server.
wins26/6 Secondary WINS server.

7.5.1 802.1x

Subgroup of network: ieee8021x

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable6/6 Enable/disable IEEE 802.1x
eapmethod eap-peap,	eap-tls 6/6 Selected	EAP method
identity_peap String[64]	6/6 PEAP identity
identity_tls String[64]	6/6 TLS identity
password String[254]	6/6 Password for TLS
privatekeypassword	String[254] 6/6 Password for PEAP
ca_exist6/6 CA installed flag
ca_time		6/7	CA installed time. Represented in EPOCH
ca_size		6/7 CA file size (in bytes)
certificate_exist6/6 Certificate installed flag (for TLS)
certificate_time		6/7	Certificate installed time. Represented in EPOCH
certificate_size		6/7	Certificate file size (in bytes)
privatekey_exist		6/6	Private key installed flag (for TLS)
privatekey_time		6/7	Private key installed time. Represented in EPOCH
privatekey_size		6/7	Private key file size (in bytes)

7.5.2 QOS

Subgroup of network: qos_cos

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable		6/6 Enable/	disable CoS (IEEE 802.1p)
vlanid	1~4095	6/6 VLAN ID
video	0~7 6/6	Video channel for CoS
audio	0~7 6/6	Audio channel for CoS
			(capability.naudio > 0)
eventalarm	0~7 6/6	Event/alarm channel for CoS
management	0~7 6/6	Management channel for CoS
eventtunnel	0~7 6/6	Event/Control channel for CoS

Subgroup of network: qos_dscp

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable	6/6 Enable/disable DSCP
video 0~63 6/6 Video channel for DSCP
audio 0~63 6/6 Audio channel for DSCP			(capability.naudio > 0)
eventalarm 0~63 6/6 Event/alarm channel for DSCP
management 0~63 6/6 Management channel for DSCP
eventtunnel 0~63 6/6 Event/Control channel for DSCP

7.5.3 IPV6

Subgroup of network: ipv6

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable		6/6 Enable IPv6.
addonipaddress		6/6 IPv6 IP address.
addonprefixlen	0~128	6/6 IPv6 prefix length.
addonrouter		6/6 IPv6 router address.
addondns		6/6 IPv6 DNS address.
allowoptional		6/6	Allow manually setup of IP address setting.

7.5.4 FTP

Subgroup of network: ftp

NAME VALUE SECURITY		(get/set)	DESCRIPTION
port	21, 1025~65535	6/6 Local ftp	server port.

7.5.5 HTTP

Subgroup of network: http

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
port	80, 1025 ~ 65535	1/6 HTTP port.
alternateport	1025~65535	6/6	Alternate HTTP port.
authmode	basic,digest	1/6	HTTP authentication mode.
s0_accessname string[32] 1/6 HTTP server push access name for stream 1.
s1_accessname string[32] 1/6 HTTP server push access name for stream 2.
anonymousviewing	1/6 Enable anonymous streaming viewing.

7.5.6 HTTPS port

Subgroup of network: https_port

NAME VALUE SECURITY	(get/set)	DESCRIPTION
port 443, 1025 ~ 65535 1/6 HTTPS port.

7.5.7 RTSP

Subgroup of network: rtsp (capability.protocol.rtsp > 0)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
port 554, 1025 ~ 65535 1/6 RTSP port.
anonymousviewing		1/6	Enable anonymous streaming viewing.
authmode	disable,basic,digest	1/6 RTSP authentication mode.
s0_accessname		1/6	RTSP access name for stream1.
s1_accessname <boolean> 1/6 RTSP access name for stream2.		1/6	RTSP access name for stream2.

7.5.7.1 RTSP multicast

Subgroup of network_rtsp_s<0\~(n-1)>: multicast, n is stream count (capability.protocol.rtp.multicast > 0)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
alwaysmulticast <boolean> 4/4		Enable always multicast.
ipaddress <ip address> 4/4		Multicast IP address.
videoport	1025 ~ 65535	4/4	Multicast video port.
ttl	1 ~ 255	4/4	Multicast time to live value.

7.5.9 RTP port

Subgroup of network: rtp

NAME VALUE SECURITY	(get/set)	DESCRIPTION
videoport 1025 ~ 65535 6/6 Video channel port for RTP.

7.5.10 PPPoE

Subgroup of network: pppoe (capability.protocol.pppoe > 0)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
user string[128] 6/6	PPPoE account user	name.
pass password[64]	6/6 PPPoE account password.

7.6 IP Filter

Group: ipfilter

NAME	VALUE SECURITY	(get/set)	DESCRIPTION
enable		6/6	Enable access list filtering.
admin_enable		6/6	Enable administrator IP address.
admin_ip	String[44]	6/6	Administrator IP address.
maxconnection	1~10	6/6	Maximum number of concurrent streaming connection(s).
type	0, 1	6/6	Ipfilter policy :0 => allow1 => deny
ipv4list_i<0~9>	Single address:Network address:Rangeaddress:	6/6	IPv4 address list.
ipv6list_i<0~9>	String[44]	6/6	IPv6 address list.

7.7 Video input

Group: videooin

NAME VALUE SECURITY		(get/set)	DESCRIPTION
cmosfreq 50, 60 4/4	CMOS frequency.
whitebalance auto, manual	4/4 "auto" indicates auto white balance.

7.7.1 Video input setting per channel

Group: videoin_c<0\~(n-1)> for n channel products, and m is stream number

NAME VALUE SECURITY		(get/set)	DESCRIPTION
scenemode 0,1 4/4 0 =>	outdoor mode		1 => indoor mode
color 0,1 4/4 0 =>monochrome			1 => color
flip		4/4 Flip the image.
mirror		4/4 Mirror the image.
text	string[16]	1/4 Enclose caption.
imprinttimestamp		4/4	Overlay time stamp on video.
maxexposure	1~30	4/4 Maximum exposure time.
s<0~(m-1)>_codetype	mpeg4, mjpeg, h264	1/4 Video codec type.
s<0~(m-1)>_resolution	VGA CMOS => 176x144, 320x240, 640x480	1/4 Video resolution in pixels.
s<0~(m-1)>_mpeg4_intra period	250, 500, 1000, 2000, 3000, 4000	4/4 Intra frame period in milliseconds.
s<0~(m-1)>_mpeg4_rate controlmode	cbr, vbr	4/4 cbr, constant bitratevbr, fix quality
s<0~(m-1)>_mpeg4_qua nt	1~5, 100	4/4 Quality of video when choosing vbr in "ratecontrolmode".100 is percentage mode.
s<0~(m-1)>_mpeg4_qper cent	1~100	4/4 Manual video quality level input.(s<0~(m-1)>_mpeg4_quant = 100)
s<0~(m-1)>_mpeg4_bitrate	1000~4000000 4/	4 Set bit rate in bps when choosing cbr in "ratecontrolmode".
s<0~(m-1)>_mpeg4_max frame	1~25,26~30 (only for NTSC or 60Hz CMOS)	1/4 Set max maximum frame rate in fps (for MPEG-4).
s<0~(m-1)>_h264_intrap eriod	250, 500, 1000,2000, 3000,4000	4/4 Intra frame period in milliseconds.
s<0~(m-1)>_h264_rate control mode	cbr, vbr 4/4 cbr,	constant bitratevbr, fix quality
s<0~(m-1)>_h264_quant	1~5, 100 4/4 Quality of video when choosing vbr in "ratecontrolmode".1 = worst quality, 5 = best quality.100 is percentage mode.
s<0~(m-1)>_h264_qpercent	1~100 4/4 Manual video quality level input.(s<0~(m-1)>_h264_quant = 100)
s<0~(m-1)>_h264_bitrate	1000~4000000	4/4 Set bit rate in bps when choosing cbr in "ratecontrolmode".
s<0~(m-1)>_h264_max frame	1~25,26~30 (only for NTSC or 60Hz CMOS)	1/4 Set max maximum frame rate in fps (for h264).
s<0~(m-1)>_h264_profile	0~2 1/4 Indicate H264 profiles	0: baseline1: main profile2: high profile
s<0~(m-1)>_mjpeg_quant	1~5, 100 4/4 Quality of JPEG video.1 = worst quality, 5 = best quality.100 is percentage mode.
s<0~(m-1)>_mjpeg_qpercent	1~100 4/4 Manual video quality level input.(s<0~(m-1)>_mjpeg_quant = 100)
s<0~(m-1)>_mjpeg_max frame	1~25,26~30 (only for NTSC or 60Hz CMOS)	1/4 Set max maximum frame rate in fps (for JPEG).

7.10 Image setting per channel

Group: image_c<0\~(n-1)> for n channel products

NAME VALUE	SECURITY	(get/set)	DESCRIPTION
brightness -5~5	4/4	Adjust brightness	of image according to mode settings.
saturation -5~5	4/4	Adjust saturation	of image according to mode settings.
contrast -5 ~	5 4/4	Adjust contrast	of image according to mode settings.
sharpness -3	~ 3 4/4	Adjust sharpness	of image according to mode settings.

7.11 Image setting for preview

Group: imagepreview_c<0\~(n-1)> for n channel products

NAME VALUE	SECURITY	(get/set)	DESCRIPTION
brightness -5~	5 4/4 Adjust	brightness of	image according to mode settings.
saturation -5~	5 4/4 Adjust	saturation of	image according to mode settings.
contrast -5 ~	5 4/4 Adjust	contrast of im	age according to mode settings.
sharpness -3~	3 4/4 Adjust	sharpness of	image according to mode settings.

7.16 Motion detection settings

Group: motion_c<0\~(n-1)> for n channel product

NAME VALUE	SECURITY	(get/set)	DESCRIPTION
enable		4/4	Enable motion detection.
win_i<0~2>_enable		4/4	Enable motion window 1~3.
win_i<0~2>_name	string[14]	4/4	Name of motion window 1~3.
win_i<0~2>_left	0 ~ 320	4/4	Left coordinate of window position.
win_i<0~2>_top	0 ~ 240	4/4	Top coordinate of window position.
win_i<0~2>_width	0 ~ 320	4/4	Width of motion detection window.
win_i<0~2>_height	0 ~ 240	4/4	Height of motion detection window.
win_i<0~2>_objsize	0 ~ 100	4/4	Percent of motion detection window.
win_i<0~2>_sensitivity	0 ~ 100	4/4	Sensitivity of motion detection window.

Group: motion_c<0\~(n-1)> profile for m profile and n channel product

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
i<0~(m-1)>_enable		4/4	Enable profile 1 ~ (m-1).
i<0~(m-1)>_policy	day,night,schedule	4/4 The mode which the profile is applied to.
i<0~(m-1)>_begintime hh:mm 4/4 Begin time of schedule mode.
i<0~(m-1)>_endtime hh:mm 4/4 End time of schedule mode.
i<0~(m-1)>_win_i<0~2>enable4/4 Enable motion window.
i<0~(m-1)>_win_i<0~2>_name string[14] 4/4 Name of motion window.
i<0~(m-1)>_win_i<0~2>_left 0 ~ 320 4/4 Left coordinate of window position.
i<0~(m-1)>_win_i<0~2>_top 0 ~ 240 4/4 Top coordinate of window position.
i<0~(m-1)>_win_i<0~2>_width 0 ~ 320 4/4 Width of motion detection window.
i<0~(m-1)>_win_i<0~2>_height	0 ~ 240	4/4	Height of motion detection window.
i<0~(m-1)>_win_i<0~2>_objsize	0 ~ 100	4/4	Percent of motion detection window.
i<0~(m-1)>_win_i<0~2>_sensitivity	0 ~ 100 4/4 Sensitivity of motion detection window.

7.17 Tempering detection settings

Group: tampering_c<0\~(n-1)> for n channel product

NAME VALUE	SECURITY	(get/set)	DESCRIPTION
enable		4/4	Enable or disable tamper detection.
threshold	0 ~ 255	4/4	Threshold of tamper detection.
duration	10 ~ 600	4/4	If tampering value exceeds the 'threshold' for more than 'duration' second(s), then tamper detection is triggered.

7.18 DDNS

Group: ddns

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable		6/6	Enable or disable the dynamic DNS.
provider	Safe100, DyndnsDynamic, DyndnsCustom, TZO, DHS, DynInterfree, CustomSafe100	6/6	Safe100 => safe100.net DyndnsDynamic => dyndns.org (dynamic) DyndnsCustom => dyndns.org (custom) TZO => tzo.com DHS => dhs.org DynInterfree =>dyn-interfree.it CustomSafe100 => Custom server using safe100 method
__hostname	string[128] 6/6 Your DDNS hostname.
__usernameemail	string[64] 6/6 Your user name or email to login to the DDNS service provider
__passwordkey	string[64] 6/6 Your password or key to login to the DDNS service provider.
__ervername	string[128] 6/6 The server name for safe100.(This field only exists if the provider is customsafe100)

7.20 UPnP presentation

Group: upnppresentation

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable6/6 Enable or		disable the UPnP	presentation service.

7.21 UPnP port forwarding

Group: upnpportforwarding

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable6/6 Enable or disable the UPnP port forwarding service.
upnpnatstatus	0~3	6/7	The status of UPnP port forwarding, used internally.0 = OK, 1 = FAIL, 2 = no IGD router, 3 = no need for port forwarding

7.22 System log

Group: syslog

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enableremotelog		6/6 Enable remote log.
serverip		6/6 Log server IP address.
serverport	514, 1025~65535	6/6 Server port used for log.

level 0~7 6/6 Levels used to distinguish the importance of the information:0: LOG_EMERG1: LOG_ALERT2: LOG_CRIT3: LOG_ERR4: LOG_WARNING5: LOG_NOTICE6: LOG_INFO7: LOG_DEBUG

7.26 Layout configuration

Group: layout (New version)

NAME VALUE SECURITY		(get/set)	DESCRIPTION
logo_default			1/6 0 => Custom logo1 => Default logo
logo_link string[40] 1/6 Hyperlink of the logo
logo_powerbyvvtk_hidden		1/6	0 => display the power by vivotek logo1 => hide the power by vivotek logo
custombutton_manualtrigger_show		1/6 Show or	hide manual trigger (VI) button in homepage0 -> Hidden1 -> Visible
theme_option 1~4 1/6 1~3: One of the default themes.			4: Custom definition.
theme_color_font string[7] 1/6 Font color
theme_color_configfont	string[7]	1/6	Font color of configuration area.
theme_color_titlefont	string[7]	1/6 Font color of video title.
theme_color_controlbackground	string[7]	1/6	Background color of control area.
theme_color_configbackground	string[7]	1/6	Background color of configuration area.
theme_color_videobackground	string[7]	1/6	Background color of video area.
theme_color_case	string[7]	1/6 Frame	color

7.27 Privacy mask

Group: privacymask_c<0\~(n-1)> for n channel product

NAME VALUE SECURITY		(get/set)	DESCRIPTION
enable4/4 Enable privacy mask.
win_i<0~4>_enable
win_i<0~4>_name string[14] 4/4 Name of the privacy mask window.
win_i<0~4>_left 0 ~	320/352 4/4 Left coordinate of window position.
win_i<0~4>_top 0 ~	240/288 4/4 Top coordinate of window position.
win_i<0~4>_width 0	~ 320/352 4/4 Width of privacy mask window.
win_i<0~4>_height	0 ~ 240/288 4/4	Height of privacy mask window.

7.28 Capability

Group: capability

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
api_httpversion		0/7	The HTTP API version.
bootuptime		0/7	Server bootup time.
nir	0,	0/7	Number of IR interfaces.
npir	0,	0/7	Number of PIRs.
ndi	0,	0/7	Number of digital inputs.
nvi	0,	0/7	Number of virtual inputs (manual trigger)
ndo	0,	0/7	Number of digital outputs.
naudioin	0,	0/7	Number of audio inputs.
naudioout	0,	0/7	Number of audio outputs.
nvideoin		0/7	Number of video inputs.
nmediastream		0/7	Number of media stream per channels.
nvideosetting		0/7	Number of video settings per channel.
naudiosetting		0/7	Number of audio settings per channel.
nuart	0,	0/7	Number of UART interfaces.
nvideoinprofile0/7 Number of video input profiles.
nmotionprofile 0,0/7 Number of motion profiles.
ptzenabled 0,0/7 An 32-bit integer, each bit can be set separately as follows:Bit 0 => Support camera control function;0(not support), 1(support)Bit 1 => Built-in or external camera;0(external), 1(built-in)Bit 2 => Support pan operation, 0(not support), 1(support)Bit 3 => Support tilt operation; 0(not support), 1(support)Bit 4 => Support zoom operation;0(not support), 1(support)Bit 5 => Support focus operation;0(not support), 1(support)Bit 6 => Support iris operation;0(not support), 1(support)Bit 7 => External or built-in PT; 0(built-in), 1(external)Bit 8 => Invalidate bit 1 ~ 7;0(bit 1 ~ 7 are valid),1(bit 1 ~ 7 are invalid)Bit 9 => Reserved bit; Invalidate lens_pan,Lens_tilt, lens_zoon, lens_focus, len_iris.0(fields are valid),1(fields are invalid)
evctrlchannel0/7 Indicate whether to support HTTP tunnel for event/control transfer.
joystick0/7 Indicate whether to support joystick control.
storage_dbenabled0/7 Media files are indexed in database.
ptzenabledclient0/7 Indicate whether to support ptz client
protocol_https0/7 Indicate whether to support SIP.
protocol_rtsp0/7 The maximum allowed simultaneous connections.
protocol_maxgenconnection0/7 The maximum general streaming connections.
protocol_maxmegac onnection		0/7 The maximum connections.	The maximum megapixel streaming connections.
protocol_rtp_multica st_scalable		0/7 Indicate whether to	support scalable multicast.
protocol_rtp_multica st_backchannel		0/7 Indicate whether to	support backchannel multicast.
protocol_rtp_tcp	0/7 Indicate whether to support RTP over TCP.
protocol_rtp_http	0/7 Indicate whether to support RTP over HTTP.
protocol_spush_mjp eg		0/7 Indicate whether to	support server push MJPEG.
protocol_snmp	0/7 Indicate whether to support SNMP.
protocol_ipv6	0/7 Indicate whether to support IPv6.
videoin_type 0,1,2	0/7 0 => Interlaced CCD		1 => Progressive CCD2 => CMOS
videoin_resolution	list of available resolution separated by commas>	0/7 Available resolutions list.
videoin_maxframera	a list of available maximum frame rate separated by commas>	0/7 Available maximum frame list.
videoin_codec mpeg4.	mjpeg, h264 0/7 Available codec list.
videout_codec		0/7 Available codec list.
audio_aec		0/7 Indicate whether to	support acoustic echo cancellation.
audio_extmic		0/7 Indicate whether to	support external microphone input.
audio_linein		0/7 Indicate whether to	support external lineinput.(It will be replaced by audio_mic and audio_extmic.)
audio_lineout0/7 Indicate whether to support line output.
audio_headphoneout0/7 Indicate whether to support headphone output.
audioin_codec aac4, gamr, g7110/7 Available codec list for audio input.
audioout_codec g7110/7 Available codec list for SIP.
camctrl_httptunnel0/7 Indicate whether to support httptunnel.
camctrl_httptunnelclient0/7 Indicate whether to support httptunnel client.
camctrl_privilege0/7 Indicate whether to support "Manage Privilege" of PTZ control in the Security page.1: support both /cgi-bin/camctrl/camctrl.cgi and /cgi-bin/viewer/camctrl.cgi0: support only /cgi-bin/viewer/camctrl.cgi
uart_httptunnel0/7 Indicate whether to support HTTP tunnel for UART transfer.
transmission_mode Tx,Rx,Both	0/7 Indicate whether to support transmission mode of the machine:TX = server, Rx = receiver box, Both = DVR.
network_wire0/7 Indicate whether to support Ethernet.
network_wireless0/7 Indicate whether to support wireless.
wireless_s802dot11b0/7 Indicate whether to support wireless802.11b+.
wireless_s802dot11g0/7 Indicate whether to support wireless802.11g.
wireless_encrypt_wep0/7 Indicate whether to support wireless WEP.
wireless_encrypt_wpa0/7 Indicate whether to support wireless WPA.
wireless_encrypt_wpa20/7 Indicate whether to support wireless WPA2.
wireless_beginchannel 1~140/7 Indicate the begin channel of wireless network
wireless_endchannel	1 ~ 14 0/7 Indicate the end channel of wireless network
derivative_brand	0/7 Indicate w	whether to support the upgrade function for the derivative brand. For example, if the value is true, the VVTK product can be upgraded to VVXX.(TCVV<->TCXX is excepted)
npreset 0,	0/7 Number of preset locations
eptz 0,	0/7 A 32-bit integer, each bit can be set separately as follows:Bit 0 => stream 1 supports ePTZ or not.Bit 1 => stream 2 supports ePTZ or not.The rest may be deduced by analogy
nanystream 0,	0/7 number of any media stream per channel
iva	0/7 Indicate whether to support Intelligent Video analysis
test_ac	0/7 Indicate whether to support test ac key.
version_onvifdaemon		0/7 Indicate	ONVIF daemon version

7.29 Customized event script

Group: event_customtaskfile_i<0\~2>

PARAMETER	VALUE	SECURITY (get/set)	DESCRIPTION
name	string[41]	6/7	Custom script identification of this entry.
date	string[17]	6/7	Date of custom script.
time	string[17]	6/7	Time of custom script.

7.30 Event setting

Group: event_i<0\~2>

PARAMETER	VALUE	SECURITY (get/set)	DESCRIPTION
name	string[40]	6/6	Identification of this entry.
enable	0, 1	6/6	Enable or disable this event.
priority 0, 1, 2 6/6 Indicate the priority of this event: "0" = low priority "1" = normal priority "2" = high priority
delay 1~999 6/6 Delay in seconds before detecting the next event.
trigger	boot,di,motion,seq,recnotify,tampering,vi	6/6 Indicate	the trigger condition:"boot" = System boot"di" = Digital input"motion" = Video motion detection"seq" = Periodic condition"recnotify" = Recording notification."tampering" = Tamper detection."vi" = Virtual input (Manual trigger)
triggerstatus String[40]	6/6 The status for event trigger
di6/6 Indicate the source id of di trigger. This field is required when trigger condition is "di". One bit represents one digital input. The LSB indicates DI 0.
mdwin6/6 Indicate the source window id of motion detection.This field is required when trigger condition is "md". One bit represents one window.The LSB indicates the 1^st window.For example, to detect the 1^st and 3^rd windows, set mdwin as 5.
mdwin06/6 Similar to mdwin. The parameter takes effect when profile 1 of motion detection is enabled.
vi6/6 Indicate the source id of vi trigger. This field is required when trigger condition is "vi". One bit represents one digital input. The LSB indicates VI 0.
inter	1~999 6/6 Interval of snapshots	shots in minutes.This field is used when trigger condition is "seq".
weekday 0~127 6/6 Indicate which weekday is scheduled.
			One bit represents one weekday.bit0 (LSB) = Saturdaybit1 = Fridaybit2 = Thursdaybit3 = Wednesdaybit4 = Tuesdaybit5 = Mondaybit6 = SundayFor example, to detect events on Friday and Sunday, set weekday as 66.
begintime hh:mm 6/6 Begin time of the weekly schedule.
endtime hh:mm 6/6 End time of the weekly schedule.(00:00 ~ 24:00 sets schedule as always on)
action_server_i<0~4>_enable	0, 1 6/6 Enable or disable this server action.
action_server_i<0~4>_media	NULL, 0~4 6/6	Index of the	attached media.
action_server_i<0~4>_datefolder	6/6	Enable this to create folders by date, time, and hour automatically.

7.31 Server setting for event action

Group: server_i<0\~4>

PARAMETER VALUE SECURITY		(get/set)	DESCRIPTION
name string[40] 6/6	Identification of this entry
type	email,ftp,http,ns	6/6 Indicate	the server type:"email" = email server"ftp" = FTP server"http" = HTTP server"ns" = network storage
http_url	string[128]	6/6 URL of the	HTTP server to upload.
http_username string[64] 6/6	Username to log in to the server.
http_passwd	string[64] 6/6	Password of the	user.
ftp_address	string[128]	6/6 FTP server address.
ftp_username	string[64] 6/6	Username to log in to the server.
ftp_passwd	string[64] 6/6	Password of the	user.
ftp_port	0~65535	6/6	Port to connect to the server.
ftp_location string[128]	6/6 Location to	upload or store the media.
ftp_passive 0, 1 6/6	Enable or disable p	passive mode.
			0 = disable passive mode1 = enable passive mode
email_address string[128]	6/6 Email server address.
email_sslmode 0, 1 6/6	Enable support SSL.
email_port 0~65535	6/6 Port to connect to the server.
email_username string	[64] 6/6 Username to log in to	the server.
email_passwd	string[64] 6/6 Password of the	user.
email_senderemail	string[128] 6/6 Email address	of the sender.
email_recipientemail	string[128] 6/6 Email address	of the recipient.
ns_location string[128]	6/6 Location to upload or store the media.
ns_username	string[64] 6/6 Username to log in to the server.
ns_passwd	string[64] 6/6 Password of the user.
ns_workgroup	string[64] 6/6 Workgroup for network storage.

7.32 Media setting for event action

Group: media_i<0\~4>

PARAMETER	VALUE	SECURITY (get/set)	DESCRIPTION
name	string[40]	6/6	Identification of this entry
type	snapshot, systemlog, videoclip, recordmsg	6/6 Media type to send to the server or store on the server.
snapshot_source		6/6	Indicate the source of media stream.0 means the first stream.1 means the second stream and etc.
snapshot_prefix	string[16]	6/6	Indicate the prefix of the filename.
snapshot_datesuffix	0, 1	6/6	Add date and time suffix to filename:1 = Add date and time suffix.0 = Do not add.
snapshot_preevent	0 ~ 7	6/6	Indicates the number of pre-event images.
snapshot_postevent	0 ~ 7	6/6	The number of post-event images.
videoclip_source		6/6	Indicate the source of media stream.0 means the first stream.1 means the second stream and etc.
videoclip_prefix	string[16]	6/6	Indicate the prefix of the filename.
videoclip_preevent 0 ~ 9	6/6 Indicates	the time for	pre-event recording in seconds.
videoclip_maxduration 1	~ 10 6/6 Maxi	num durati	on of one video clip in seconds.
videoclip_maxsize 50 ~ 1	1024 6/6 Maxi	num size of	one video clip file in Kbytes.

7.33 Recording

Group: recording_i<0\~1>

PARAMETER VALUE	SECURITY	(get/set)	DESCRIPTION
name string[40] 6/6 Identification of this entry.
enable 0, 1 6/6 Enable or disable this recording.
priority 0, 1, 2	6/6 Indicate the priority of this recording:"0" indicates low priority."1" indicates normal priority."2" indicates high priority.
source 0~3	6/6 Indicate the source of media stream.0 means the first stream.1 means the second stream and so on.
limitsize	0,1	6/6 0: Entire free space mechanism1: Limit recording size mechanism
cyclic	0,1	6/6 0: Disable cyclic recording1: Enable cyclic recording
notify	0,1	6/6 0: Disable recording notification1: Enable recording notification
notifyserver	0~31	6/6	Indicate which notification server is scheduled.One bit represents one application server (server_i0~i4).bit0 (LSB) = server_i0.bit1 = server_i1.bit2 = server_i2.bit3 = server_i3.bit4 = server_i4.For example, enable server_i0, server_i2, and server_i4 as notification servers; the notifyserver value is 21.
weekday 0~127 6/6	Indicate which weekday is scheduled.One bit represents one weekday.bit0 (LSB) = Saturdaybit1 = Fridaybit2 = Thursdaybit3 = Wednesdaybit4 = Tuesdaybit5 = Mondaybit6 = SundayFor example, to detect events on Friday and Sunday, set weekday as 66.
begintime hh:mm	6/6 Start time of the weekly schedule.
endtime hh:mm 6/6	End time of the weekly schedule.(00:00~24:00 indicates schedule always on)
prefix string[16] 6/6	Indicate the prefix of the filename.
cyclesize 16~ 6/6	The maximum size for cycle recording in Kbytes when choosing to limit recording size.
reserveamount	0~	6/6	The reserved amount in Mbytes when choosing cyclic recording mechanism.
dest 0~4 6/6 The destination to store the recorded data."0" means the index of the network storage.
cffder	string[128]	6/6 Folder name.
adaptive_enable	0,1	6/6	Indicate whether the adaptive recording is enabled
adaptive_preevent	0~9 6/6 Indicate when is the adaptive recording started before the event trigger point (seconds)
adaptive_postevent	0~10	6/6	Indicate when is the adaptive recording stopped after the event trigger point (seconds)

7.34 HTTPS

Group: https (capability.protocol.https > 0)

NAME	VALUE	SECURITY (get/set)	DESCRIPTION
enable		6/6	To enable or disable secure HTTP.
policy		6/6	If the value is 1, it will force HTTP connection redirect to HTTPS connection
method	auto, manual, install	6/6	auto => Create self-signed certificate automatically. manual => Create self-signed certificate manually. install => Create certificate request and install.
status -3 ~ 1 6/7 Specify the https status.			-3 = Certificate not installed-2 = Invalid public key-1 = Waiting for certificate0 = Not installed1 = Active
countryname string[2]	6/6 Country name in the certificate information.
stateorprovincename	string[128] 6/6	State or province name in the certificate information.
localityname string[128]	6/6 The locality name in the certificate information.
organizationname string[64]	6/6 Organization name in the certificate information.
unit string[32] 6/6 Organizational unit name in the certificate information.
commonname string[64]	6/6 Common name in the certificate information.
validdays 0 ~ 3650 6/6 Valid period for the certification.

8. Useful Functions

8.1 Query Status of the Digital Input

Note: This request requires Viewer privileges

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/dido/getdi.cgi?[di0]

If no parameter is specified, all of the digital input statuses will be returned.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <length>\r\n
\r\n
[di0=<state>]\r\n

where can be 0 or 1.

Example: Query the status of digital input 1.

Request:
http://myserver/cgi-bin/dido/getdi.cgi?di0
Response:
HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: 7\r\n
\r\n
di0=1\r\n

8.5 Capture Single Snapshot

Note: This request requires Normal User privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>]&resolution=<value>]&quality=<value>]&streamid=<value>

If the user requests a size larger than all stream settings on the server, this request will fail.

PARAMETER	VALUE	DEFAULT	DESCRIPTION
channel 0~(n-1) 0 The channel number of the video source.
resolution0 The resolution of the image.
quality 1~5 3 The quality of the image.
streamid 0~(m-1)The stream number.

The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size and quality of the image will be set according to the video settings on the server.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: image/jpeg\r\n
[Content-Length: <image size>\r\n]
<binary JPEG image data>

8.6 Account Management

Note: This request requires Administrator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>][&privilege=<value>][...][&return=<return page>]

PARAMETER	VALUE	DESCRIPTION
method	Add	Add an account to the server. When using this method, the "username" field is necessary. It will use the default value of other fields if not specified.
	Delete	Remove an account from the server. When using this method, the "username" field is necessary, and others are ignored.
	edit	Modify the account password and privilege. When using this method, the "username" field is necessary, and other fields are optional. If not specified, it will keep the original settings.
username	The name for the user to add, delete, or edit.
userpass	The password of the new user to add or that of the old user to modify. The default value is an empty string.
Privilege	The privilege of the user to add or to modify.
	viewer Viewer privilege.
	operator Operator privilege.
	admin Administrator privilege.
Return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.7 System Logs

Note: This request require Administrator privileges.

Method: GET/POST

Syntax:

http://<servername>/cgi-bin/admin/syslog.cgi

Server will return the most up-to-date system log.

Return:

HTTP/1.0 200 OK\r\n
Content-Type: text/plain\r\n
Content-Length: <syslog length>\r\n
\r\n
<system log information>\r\n

8.8 Upgrade Firmware

Note: This request requires Administrator privileges.

Method: POST

Syntax:

http://<servername>/cgi-bin/admin/upgrade.cgi

Post data:

fimage=<file name>[&return=<return page>]\r\n\r\n<multipart encoded form data>

Server will accept the file named to upgrade the firmware and return with if indicated.

8.15 IP Filtering

Note: This request requires Administrator access privileges.

Method: GET/POST

Syntax:

http://cgi-bin/admin/ipfilter.cgi?type[=]http://cgi-bin/admin/ipfilter.cgi?method=add&ip=[&index=&return=]http://cgi-bin/admin/ipfilter.cgi?method=del&index=[&return=]
PARAMETER VALUE DESCRIPTION
type NULL Get IP	IP filter type
	allow, deny Set IP filter type
method addv4 A	add IPv4 address into access list.
	addv6 Add IPv6 address into access list.
	delv4 Delete IPv4 address from access list.
	delv6 Delete IPv6 address from access list.
ip	Single address:	Network address:Range address:
index	The start position to add or to delete.
return		Redirect to the pageafter the parameter is assigned. Thecan be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.

8.17 Event/Control HTTP Tunnel Channel

Note: This request requires Administrator privileges.

Method: GET and POST

Syntax:

http://<servername>/cgi-bin/admin/ctrlevent.cgi
GET /cgi-bin/admin/ctrlevent.cgi
x-sessioncookie: string[22]
accept: application/x-vvtk-tunnelled
pragma: no-cache

cache-control: no-cache

POST /cgi-bin/admin/ ctrlevent.cgi

x-sessioncookie: string[22]

content-type: application/x-vvtk-tunnelled

pragma : no-cache

cache-control : no-cache

content-length: 32767

expires: Sun, 9 Jam 1972 00:00:00 GMT

User must use GET and POST to establish two channels for downstream and upstream. The x-sessioncookie in GET and POST should be the same to be recognized as a pair for one session. The contents of upstream should be base64 encoded to be able to pass through the proxy server.

This channel will help perform real-time event subscription and notification as well as camera control more efficiently. The event and control formats are described in another document.

See Event/control tunnel spec for detail information

8.18 Get SDP of Streams

Note: This request requires Viewer access privileges.

Method: GET/POST

Syntax:

http://<servername>/<network_rtsp_s<0~m-1>_accessname>

“m” is the stream number.

"network_accessname_<0\~(m-1)>” is the accessname for stream "1" to stream "m". Please refer to the

"subgroup of network: rtsp" for setting the accessname of SDP.

You can get the SDP by HTTP GET.

When using scalable multicast, Get SDP file which contains the multicast information via HTTP.

8.19 Open the Network Stream

Note: This request requires Viewer access privileges.

Syntax:

For HTTP push server (MJPEG):

http://<servername>/<network_http_s<0~m-1>_accessname>

For RTSP (MP4), the user needs to input the URL below into an RTSP compatible player.

rtsp://<servername>/<network_rtsp_s<0~m-1>_accessname>

“m” is the stream number.

For details on streaming protocol, please refer to the "control signaling" and "data format" documents.

8.22 Virtual input

Note: Change virtual input (manual trigger) status.

Method: GET

Syntax:

http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>]
[&return=<return page>]

PARAMETER	VALUE	DESCRIPTION
vi	state[(duration)nstate]Where "state" is 0, 1. "0" means inactive or normal state while "1" means active or triggered state.Where "nstate" is next state after duration.	Ex: vi0=1Setting virtual input 0 to trigger state
		Ex: vi0=0(200)1Setting virtual input 0 to normal state, waiting 200 milliseconds, setting it to trigger state.Note that when the virtual input is waiting for next state, it cannot accept new requests.
return		Redirect to the pageafter the request is completely assigned. Thecan be a full URL path or relative path according the current path. If you omit this parameter, it will redirect to an empty page.

Return Code Description
200 The request is successfully executed.
400 The request cannot be assigned, ex. incorrect parameters.Examples:setvi.cgi?vi0=0(10000)1(15000)0(20000)1No multiple duration.setvi.cgi?vi3=0VI index is out of range.setvi.cgi?vi=1
	No VI index is specified.
503 The resource	is unavailable, ex. Virtual input is waiting for next state.Examples:setvi.cgi?vi0=0(15000)1setvi.cgi?vi0=1Request 2 will not be accepted during the execution time(15 seconds).

Technical Specifications

Models	· IP8331 (PoE)
System	· CPU: Mozart 325 SoC· Flash: 16MB· RAM: 128MB· Embedded OS: Linux 2.6
Lens	· Board lens, dual-band, f = 4.0 mm, F1.8, Fixed· IR corrected
Angle of View	· 56° (horizontal)· 42° (vertical)· 71° (diagonal)
Shutter Time	· 1/5 sec. to 1/15,000 sec.
Image Sensor	· 1/4" CMOS sensor in VGA resolution
Minimum Illumination	· 0 Lux / F1.8 (IR LED on)
IR Illuminators	· Built-in IR illuminators, effective up to 10 meters· IR LED*12
Video	· Compression: H.264, MJPEG & MPEG-4· Streaming: Simultaneous dual streamsH.264 streaming over UDP, TCP, HTTP or HTTPSMPEG-4 streaming over UDP, TCP, HTTP or HTTPSH.264/MPEG-4 multicast streamingMJPEG streaming over HTTP or HTTPSSupports 3GPP mobile surveillance· Frame rates:H.264:Up to 30/25 fps at 640x480MPEG-4:Up to 30/25 fps at 640x480MJPEG:Up to 30/25 fps at 640x480
Image Settings	· Adjustable image size, quality and bit rate· Time stamp and text caption overlay· Flip & mirror· Configurable brightness, contrast, saturation, sharpness and white balance· AGC, AWB, AES· Automatic, manual or scheduled day/night mode· Supports privacy masks
Networking	· 10/100 Mbps Ethernet, RJ-45· Onvif support· Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS and 802.1X
Alarm and Event Management	· Triple-window video motion detection· Tamper detection· One D/I for external sensor· Event notification using HTTP, SMTP or FTP· Local recording of MP4 file
Security	· Muulti-level user access with password protection· IP address filtering· HTTPS encrypted data transmission· 802.1X port-based authentication for network protection

Users	Live viewing for up to 10 clients
Dimension	Camera: 60 mm x 150 mmCable length: 400 mmCable diameter: 12 mm; Max width: 18 mm
Weight	Net: 630 g
LED Indicator	System restore status indicator
Power	12V DC24V ACPower consumption: Max. 4 W802.3af compliant Power-over-Ethernet (Class 3)
Housing	Weather-proof IP66-rated housing
Approvals	CE, LVD, FCC, VCCI, C-Tick
Operating Environments	Temperature: -20°C ~ 50°C (-4°F ~ 122°F)Humidity: 90% RH
Viewing System Requirements	OS: Microsoft Windows 7/Vista/XP/2000Browser:Mozilla Firefox, Internet Explorer 6.x or aboveCell phone: 3GPP playerReal Player: 10.5 or aboveQuick Time: 6.5 or above
Installation, Management, and Maintenance	Installation Wizard 232-CH ST7501 recording softwareSupports firmware upgrade
Applications	SDK available for application development and system integration
Warranty	24 months

Dimension

60 mm 184 mm 150 mm

All specifications are subject to change without notice. Copyright ©2011 VIVOTEK INC. All rights reserved. P/N:

Technology License Notice

MPEG-4 AAC Technology

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM.

MPEG-4 Visual Technology

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. PLEASE REFER TO HTTP://WWW.MPEGLA.COM.

AMR-NB Standard

THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS' PATENTS MAY APPLY:

TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA CORPORATION: US PAT. 5946651; 6199035. VOICEAGE CORPORATION: AT PAT. 0516621; BE PAT. 0516621; CA PAT. 2010830; CH PAT. 0516621; DE PAT. 0516621; DK PAT. 0516621; ES PAT. 0516621; FR PAT. 0516621; GB PAT. 0516621; GR PAT. 0516621; IT PAT. 0516621; LI PAT. 0516621; LU PAT. 0516621; NL PAT. 0516621; SE PAT 0516621; US PAT 5444816; AT PAT. 819303/AT E 198805T1; AU PAT. 697256; BE PAT. 819303; BR PAT. 9604838-7; CA PAT. 2216315; CH PAT. 819303; CN PAT. ZL96193827.7; DE PAT. 819303/DE69611607T2; DK PAT. 819303; ES PAT. 819303; EP PAT. 819303; FR PAT. 819303; GB PAT. 819303; IT PAT. 819303; JP PAT. APP. 8-529817; NL PAT. 819303; SE PAT. 819303; US PAT. 5664053. THE LIST MAY BE UPDATED FROM TIME TO TIME BY LICENSORS AND A CURRENT VERSION OF WHICH IS AVAILABLE ON LICENSOR'S WEBSITE AT HTTP://WWW.VOICEAGE.COM.

Electromagnetic Compatibility (EMC)

FCC Statement

This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions.

■ This device may not cause harmful interference, and
■ This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the installation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures to correct this interference.

C-Tick Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

VCCI Warning

VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
