USER MANUAL V243PHL ACER

Copyright © 2008. Acer Incorporated. All Rights Reserved.

Acer LCD Monitor User's Guide Original Issue: 1/20081

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Acer LCD Monitor User's Guide

Model number: ____

Serial number: ____

Date of purchase: ____

Place of purchase: ____

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

Special notes on LCD monitors

The following are normal with the LCD monitor and do not indicate a problem.

• Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the power switch and then turn it on again to make sure the flicker disappears.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
  •The LCD screen has 99.99% or more effective pixels. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all the time.
• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the power switch for a few hours.

Information for your safety and comfort

Safety instructions

Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.

Cleaning your monitor

Please carefully follow these guidelines when cleaning the monitor:

•Always unplug the monitor before cleaning.
• Use a soft cloth to wipe the screen and cabinet front and sides.

Connecting/disconnecting the device

Observe the following guidelines when connecting and disconnecting power from the LCD monitor:

• Make sure the monitor is attached to its base before connecting the power cord to the AC power outlet.
• Make sure both the LCD monitor and the computer are turned off before connecting any cable or unplugging the power cord.
• If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.

Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power from the equipment, be sure to unplug the power cord from the electrical outlet.

Safe listening

To protect your hearing, follow these instructions.

• Gradually increase the volume until you can hear it clearly and comfortably and without distortion.
  •After setting the volume level, do not increase it after your ears have adjusted.
• Limit the amount of time listening to music at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

Warnings

• Do not use this product near water.
• Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.
• Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.
• Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.
  •To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.
• Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage internal devices.

Using electrical power

• This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
• If an extension cord is used with this product, make sure that the total

ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

• Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
• This product's power cord is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the power cord plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

- Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, type SPT-2, rated 7 A 125 V minimum, VDE approved or its equivalent, 4.6 meters (15 feet) maximum length.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

•the power cord or plug is damaged, cut or frayed
- liquid was spilled into the product
•the product was exposed to rain or water
•the product has been dropped or the case has been damaged
•the product exhibits a distinct change in performance, indicating a need for service
•the product does not operate normally after following the operating instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Potentially explosive environments

Switch off your device in any area with a potentially explosive atmosphere and obey all signs and instructions. Potentially explosive atmospheres include areas where you would normally be advised to turn off your vehicle engine. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Switch off the device near gas pumps at service stations. Observe restrictions on the use of radio equipment in fuel depots, storage and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas where the air contains chemicals or particles such as grain, dust or metal powders.

Additional safety information

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

IT Equipment Recycling Information

Acer is strongly committed to environmental protection and views recycling, in the form of salvaging and disposal of used equipment, as one of the company's top priorities in minimizing the burden placed on the environment.

We at Acer are very conscious of the environmental effects of our business and strive to identify and provide the best working procedures to reduce the environmental impact of our products.

For more information and help when recycling, please go to this website:

http://global.acer.com/about/sustainability32.htm

Visit www.global.acer.com for further information on the features and benefits of our other products.

Disposal instructions

Do not throw this electronic device into the trash when discarding.

To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://global.acer.com/about/sustainability.htm

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic discharge (no text or symbols)

Mercury advisory

For projectors or electronic products containing an LCD/CRT monitor or display: lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org.

LCD pixel statement

The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some pixels may occasionally misfire or appear as black or red dots. This has no effect on the recorded image and does not constitute a malfunction.

ENERGY STAR (for selected models) is a government program (public/private partnership) that gives people the power to protect the environment in a cost effective way and without sacrificing quality or product features. Products that earn the ENERGY STAR prevent greenhouse gas emissions by meeting strict energy efficiency guidelines set by the US Environmental Protection Agency (EPA) and the US Department of Energy (DOE). In the average home, 75% of all electricity used to power home electronics is consumed while the products are turned off. ENERGY STAR qualified home electronic products in the off position use up to 50% less energy than conventional equipment. More information

refers to http://www.energystar.gov and http://www.energystar.gov/powermanagement.

As an ENERGY STAR partner, Acer Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Note: The statement above is applicable only to Acer LCD monitor with an ENERGY STAR logo.

This product has been shipped enabled for power management:

• Activate display's Sleep mode within 15 minutes of user inactivity.
• Activate computer's Sleep mode within 30 minutes of user inactivity.
• Wake the computer from Sleep mode by pushing the power button.

Tips and information for comfortable use

Computer users may complain of eyestrain and headaches after prolonged use. Users are also at risk of physical injury after long hours of working in front of a computer. Long work periods, bad posture, poor work habits, stress, inadequate working conditions, personal health and other factors greatly increase the risk of physical injury.

Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis or other musculoskeletal disorders. The following symptoms may appear in the hands, wrists, arms, shoulders, neck or back:

• numbness, or a burning or tingling sensation
• aching, soreness or tenderness
  •pain, swelling or throbbing
  •stiffness or tightness
  •coldness or weakness

If you have these symptoms, or any other recurring or persistent discomfort and/or pain related to computer use, consult a physician immediately and inform your company's health and safety department.

The following section provides tips for more comfortable computer use.

Finding your comfort zone

Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest, or raising your sitting height to achieve maximum comfort. Observe the following tips:

•refrain from staying too long in one fixed posture
- avoid slouching forward and/or leaning backward
- stand up and walk around regularly to remove the strain on your leg muscles

Taking care of your vision

Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room lighting, poorly focused screens, very small typefaces and low-contrast displays could stress your eyes. The following sections provide suggestions on how to reduce eyestrain.

Eyes

•Rest your eyes frequently.
- Give your eyes regular breaks by looking away from the monitor and focusing on a distant point.
- Blink frequently to keep your eyes from drying out.

Display

• Keep your display clean.
• Keep your head at a higher level than the top edge of the display so your eyes point downward when looking at the middle of the display.
• Adjust the display brightness and/or contrast to a comfortable level for enhanced text readability and graphics clarity.

• Eliminate glare and reflections by:

• placing your display in such a way that the side faces the window or any light source

• minimizing room light by using drapes, shades or blinds
  • using a task light
• changing the display's viewing angle
  • using a glare-reduction filter
• using a display visor, such as a piece of cardboard extended from the display's top front edge

- Avoid adjusting your display to an awkward viewing angle.

- Avoid looking at bright light sources, such as open windows, for extended periods of time.

Developing good work habits

Develop the following work habits to make your computer use more relaxing and productive:

•Take short breaks regularly and often.
- Perform some stretching exercises.
- Breathe fresh air as often as possible.
•Exercise regularly and maintain a healthy body.

TCODevelopment

Tc0Development Tc0'03 DISPLAYS www.tcodevelopment.com

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Some of the features of the TCO'03 Display requirements:

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
- Noise emissions

Ecology

- The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001

• Restrictions on
• chlorinated and brominated flame retardants and polymers
• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

CE

Declaration of Conformity

We,

Acer Computer (Shanghai) Limited

3F, No. 168 Xizang medium road, Huangpu District, Shanghai, China

Contact Person: Mr. Easy Lai

Tel: [phone] Fax: [phone]

Hereby declare that:

Product: 24" LCD Monitor

Trade Name: Acer

Model Number: V243H

SKU Number: V243Hxxxx (x can be 0-9, A-Z or blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022:2006, AS/NZS CISPR22:2006, Class B
• EN55024:1998 + A1:2001 + A2:2003
• EN61000-3-2:2000 +A2:2005, Class D
• EN61000-3-3:1995 + A1:2001+A2:2005

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

•EN60950-1:2001

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment.

Easy Lai

Easy Lai / Director

Acer Computer (Shanghai) Limited

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

The following local manufacturer/importer is responsible for this declaration:

Product name:

24" LCD Monitor

Model number:

V243H

SKU number:

V243Hxxxx (x can be 0-9, A-Z or blank)

Name of responsible party: Acer America Corporation

Address of responsible party: 333 West San Carlos St.

San Jose, CA 95110

USA

Contact person: Acer Representative

Tel: [phone]

Fax: [phone]

Special notes on LCD monitors iii

Information for your safety and comfort iii

Safety instructions iii

Cleaning your monitor iii

Connecting/disconnecting the device iii

Accessibility iv

Safe listening iv

Warnings iv

Using electrical power iv

Product servicing v

Additional safety information vi

IT equipment recycling information vi

Disposal instructions vii

LCD pixel statement vii

Tips and information for comfortable use viii

Federal Communications Commission

Declaration of Conformity xi

Unpacking 1

Attaching/removing the base 2

Screen position adjustment 2

Connecting the power cord 3

Power saving 3

Display Data Channel (DDC) 3

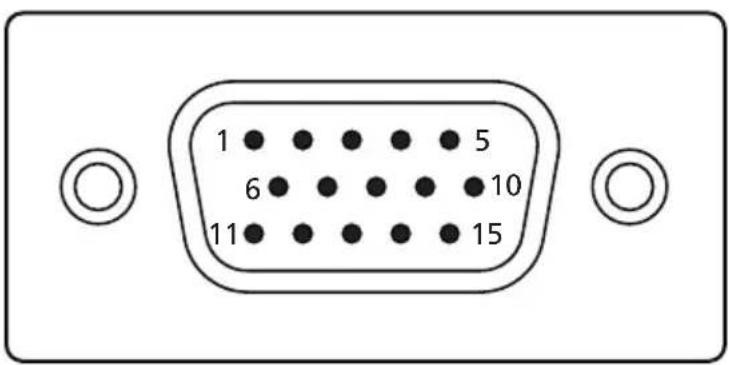

Connector pin assignment 4

Standard timing table 6

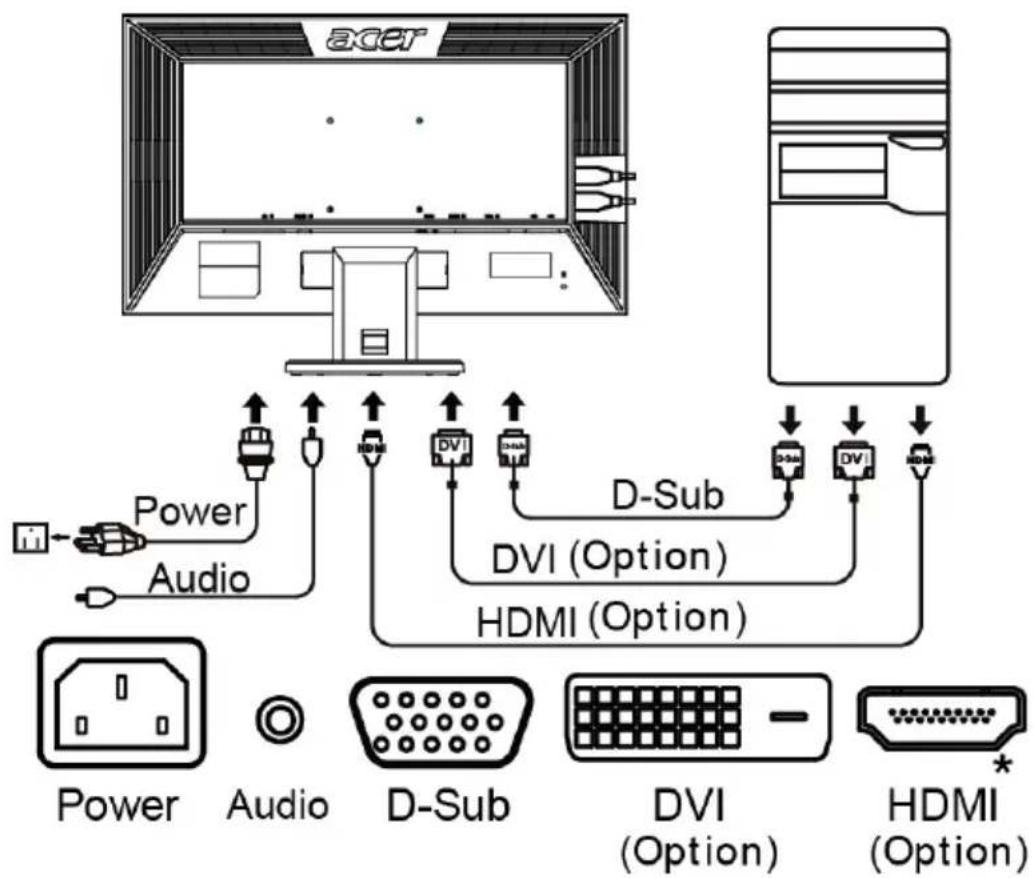

Installation 7

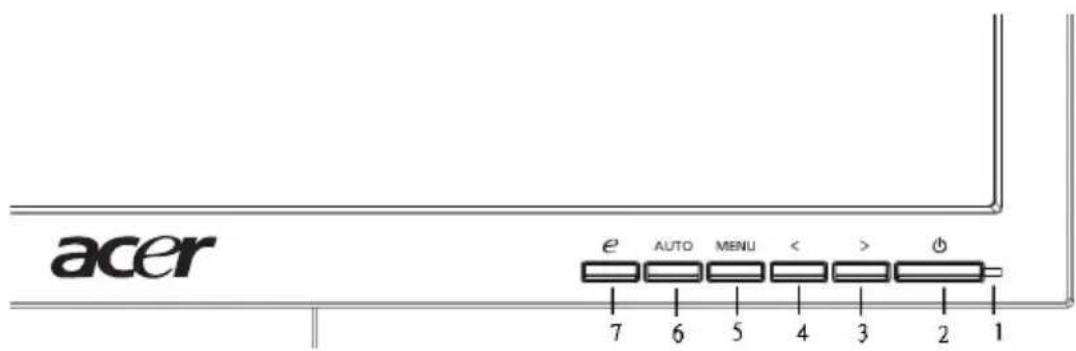

User controls 8

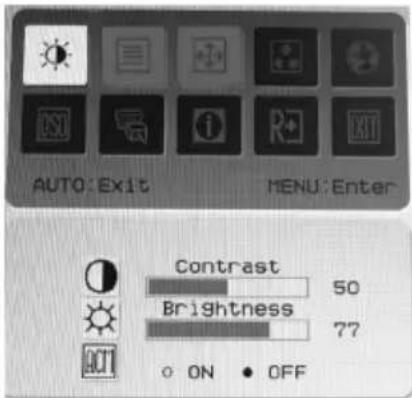

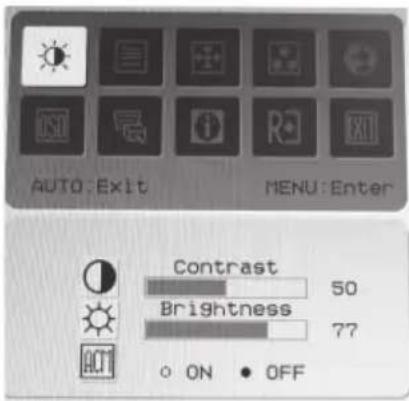

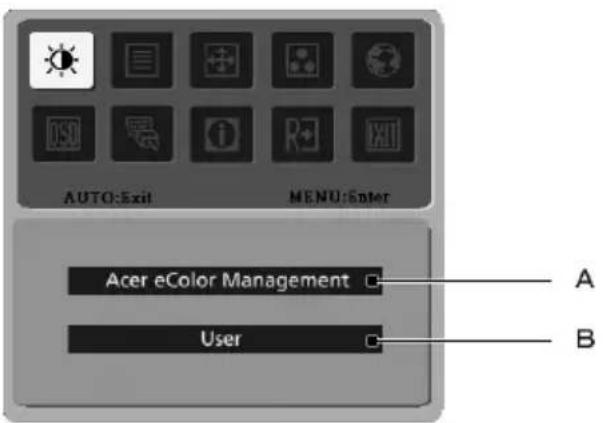

How to adjust a setting 9

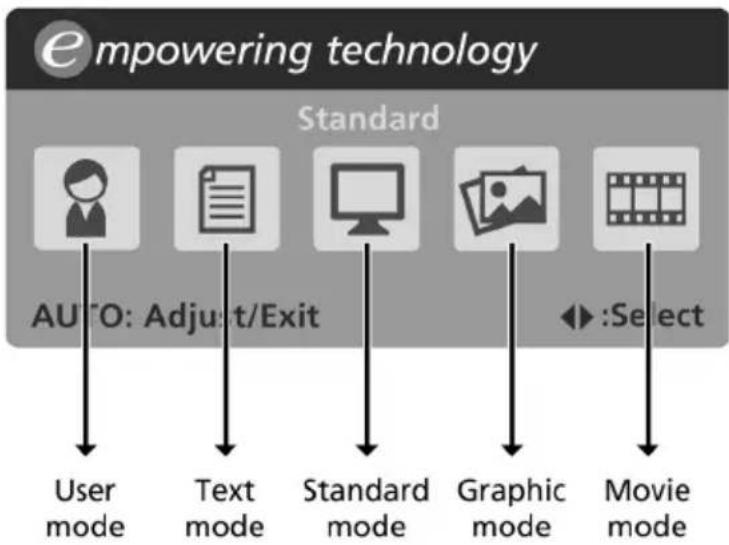

Acer eColor Management 10

User 11

Troubleshooting 13

VGA mode 13

DVI mode 14

Unpacking

Please check that the following items are present when you unpack the box, and save the packing materials in case you need to ship or transport the monitor in the future.

LCD monitor User's guide Quick start guide

Line drawing of a flat-screen computer monitor with no text or symbols on the screen or stand

D-sub cable

accr Decompany People Acer Monitor

DVI cable (only dual-input models)

Illustration of a closed folder with a small square icon on top (no text or symbols)

AC power cord

Line drawing of a two-up straight cord with two connectors (no text or symbols)

Line drawing of two connected D-subductors with a coiled cable (no text or symbols)

Line drawing of a straight cord with two terminal plugs (no text or symbols)

Audio Cable (Option)

Simple line drawing of a U-shaped tool or probe with two protruding pins (no text or symbols)

Attaching/removing the base

Attaching:

Align the release button on the bottom of the monitor with the corresponding slots on the bottom of the base.

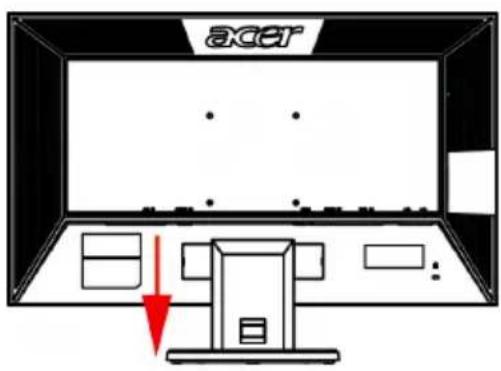

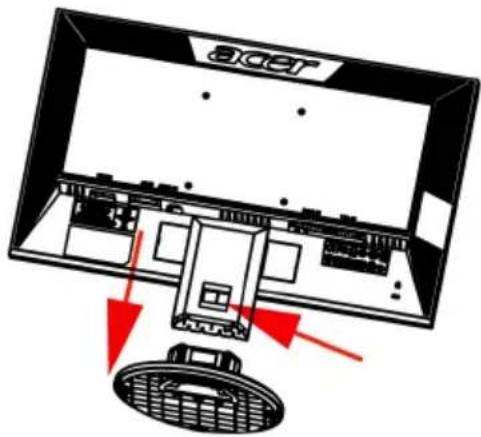

Removing:

Press the release button as indicated, then pull in the direction of the arrow to remove the base.

acer

ACER

Screen position adjustment

To optimize the viewing position, you can adjust the monitor tilt by using both of your hands to hold the edges of the monitor as shown below. The monitor can be adjusted to 15 degrees up or 5 degrees down.

15° 5°

Connecting the power cord

• Check first to make sure that the power cord you use is the correct type required for your area.
• The monitor has a universal power supply that allows operation in either 100/120 V AC or 220/240 V AC voltage area. No user-adjustment is required.
• Plug one end of the power cord to the AC inlet, and plug the other end into an AC outlet.
• For units using 120 V AC: Use a UL-listed cord set, type SVT wire and plug rated 10 A/125 V.
• For units using 220/240 V AC: Use a cord set consisting of H05VV-F cord and plug rated 10 A/250 V. The cord set should have the appropriate safety approvals for the country in which the equipment will be installed.

Power saving

The monitor will be switched to "power saving" mode by the control signal from the display controller, as indicated by the amber-colored power LED.

Mode LED light

On Blue

Power saving Amber

The power saving mode will be kept until a control signal has been detected or the keyboard or mouse is activated. The recovery time from "power saving" mode back to "on" is around 3 seconds.

Display Data Channel (DDC)

To make installation easier, so long as your system supports the DDC protocol, the monitor is able to plug-and-play. The DDC is a communication protocol through which the monitor automatically informs the host system about its capabilities; for example, supported resolutions and corresponding timing. The monitor supports the DDC2B standard.

Connector pin assignment

1 6 11 5 10 15

15-pin color display signal cable

PIN No. Description PIN No. Description

1 Red 9 +5 V

2 Green 10 Logic ground

3 Blue 11 Monitor ground

4 Monitor ground 12 DDC-serial data

5 DDC-return 13 H-sync

6 R-ground 14 V-sync

7 G-ground 15 DDC-serial clock

8 B - g r o u n d

Technical line drawing of an electronic component with no visible text or symbols

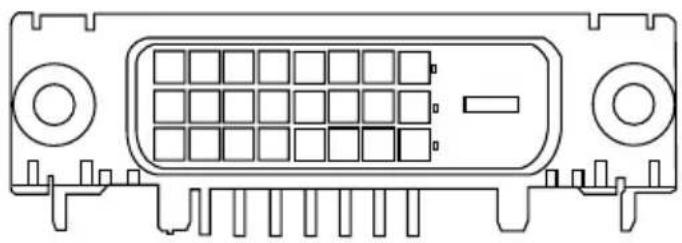

24-pin color display signal cable

PIN No. Description PIN No. Description

1 TMDS data 2- 13 NC
2 TMDS data 2+ 14 +5 V power
3 TMDS data 2/4 shield 15 GND (return for +5 V hsync.vsync)
4 NC 16 Hot-plug detection
5	N	C	1	7	T	M	D	S	d	a	t
6	D	D	C	c	l	o	c	k	1	8	T
7 DDC data 19 TMDS data 0/5 shield
8	N	C		2	0	N	C
9 TMDS data 1- 21 NC
10 TMDS data 1+ 22 TMDS clock shield
11 TMDS data 1/3 shield 23 TMDS clock+
12 NC 24 DDC TMDS clock-

a 0 - M D S

19-pin color display signal cable\*

19171513 11 9 7 5 3 1 1816141210 8 6 4 2

PIN No. Description PIN No. Description
1 TMDS Data2+	2	TMDS Data2 Shield
3 TMDS Data2-	4	TMDS Data1+
5 TMDS Data1 Shield	6	TMDS Data1-
7 TMDS Data0+	8	TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield	12 TMDS Clock-
13 CEC	14 Reserved (N.C. on device)
15 SCL	16 SDA
17 DDC/CEC Ground	18 +5V Power
19 Hot Plug Detect

* only for certain models

Standard timing table

Mode Resolution			Resolution
1	VGA	640x480	60 Hz
2		640x480	72 Hz
3		640x480	75 Hz
4	MAC	640x480	66.7 Hz
5	VESA	720x400	70 Hz
6	SVGA	800x600	56 Hz
7		800x600	60 Hz
8		800x600	72 Hz
9		800x600	75 Hz
10	MAC	832x624	74.55 Hz
11	XGA	1024x768	60 Hz
12		1024x768	70 Hz
13		1024x768	75 Hz
14	MAC	1152x870	75 Hz
15	VESA	1152x864	75 Hz
16		1280x960	60 Hz
17	SXGA	1280x1024	60 Hz
18		1280x1024	75 Hz
19	VESA	1280x720	60 Hz
20		1280x768	60 Hz
21		1280x768	75 Hz
22		1280x800	60 Hz
23	WXGA	1360x768	60 Hz
24	WXGA+	1440x900	75 Hz
25		1440x900	60 Hz
26	SXGA+	1440x1050	60 Hz
27	UXGA	1600x1200	60 Hz
28	WSXGA+	1680x1050	60 Hz
29		1680x1050	75 Hz
30	UXGA	1600x1200	60 Hz
31	VESA	1920x1080	60 Hz

Installation

To install the monitor on your host system, please follow the steps below:

Steps

1 Connect the video cable

a Make sure both the monitor and computer are switched off.

b Connect the VGA video cable to the computer.

c Connect the digital cable (only for dual-input models).

(1) Make sure both the monitor and computer are switched off.
(2) Connect one end of the 24-pin DVI cable to the back of the monitor and the other end to the computer's port.

2 Connect the power cord

Connect the power cord to the monitor, then to a properly grounded AC outlet.

3 Turn on the monitor and computer

Turn on the monitor first, then the computer. This sequence is very important.

4 If the monitor does not function properly, please refer to the troubleshooting section to diagnose the problem.

User controls

acer e AUTO MENU < > 7 6 5 4 3 2 1

Front panel controls

1 Power LED: Lights up to indicate the power is turned on.
2 Power Switch: Turn the power on or off.
3.4 <//>: Press < or > to navigate to the desired function, press Enter to select the function. Press < or > to change the settings of the current function.
5 Menu/Enter: Activate the OSD menu when the OSD is off or activate / deactivate the adjustment function when the OSD is on.
6 Auto adjust button/Exit:

a. When the OSD menu is active, this button will act as the exit key (exit OSD menu).
b. When the OSD menu is inactive, press this button for two seconds to activate the Auto Adjustment function. The Auto Adjustment function is used to set the HPos, VPos, Clock and Focus.

7 Empowering Key/Exit:

a. When the OSD menu is active, this button will act as the exit key (exit OSD menu).
b. When the OSD menu is inactive, press this button to select scenario mode.

How to adjust a setting

1 Press the Menu button to activate the OSD window.
2 Press < or > to select the desired function.
3 Press the Menu button again to select the function that you want to adjust.
4 Press < or > to change the settings of the current function.
5 To exit and save, select the exit function. If you want to adjust any other function, repeat steps 2 to 4.

AUTO:Exit MENU:Enter Acer eColor Management User A B

A. Acer eColor Management: If "Acer eColor Management" is selected, the Acer eColor Management OSD will appear.
B. User: If "User" is selected, the standard OSD will appear.

AUTO: Exit MENU: Enter Contrast 50 Brightness 77 ON OFF

I. Only analog-input mode

AUTO: Exit MENU: Enter Contrast Brightness 77 ON OFF

II. Only digital-input mode

Acer eColor Management

•Operation instructions

1 Press the e Empowering Key to open the Acer eColor Management OSD and access the scenario modes.
2 Press "<" or "> " to select the mode.
3 Press the Auto-adjust button to confirm the mode and run Auto

Adjust.

•Features and benefits

Main menu icon	Sub menu item Description
	User mode User-defined. Settings can be fine-tuned to suit any situation.
	Text mode Optimal balance of brightness and contrast to prevent eyestrain. The most comfortable way to read onscreen text.
	Standard mode Default settings. Reflects native display capability.
	Graphic mode Enhances colors and emphasizes fine detail.Pictures and photographs appear in vibrant colors with sharp detail.
	Movie mode Displays scenes in clearest detail. Presents great visuals, even in unsuitably-lit environments.

User

Main menu icon	Sub menu icon	Sub menu item Description
		Contrast Adjusts the contrast between the foreground and background of the screen image.
		Brightness Adjusts the background brightness of the screen image.
		ACM ACM (Adaptive Contrast Management)ACM On/Off switch, default Off.
		Focus Adjusts picture focus (available in analog mode only).
		Clock Adjusts the picture clock (available in analog mode only).
		H. Position Adjusts the horizontal position (available in analog mode only).
		V. Position Adjusts the vertical position (available in analog mode only).
	N/GA8C	Warm Sets the color temperature to warm white.
	N/A Cool Sets the color temperature to cool white.
		User/red Adjusts red intensity.
		User/green Adjusts green intensity.
		User/blue Adjusts blue intensity.

Main Sub menu menu Sub menu item Description icon icon

N/A English Language selection.

N/A	繁體中文
	Deutsch
	Français
	Español
	Italiano
	简体中文
	日本語
	Suomi EMEA versio
	Nederlands
	Русский

H. Position Adjusts the horizontal position of the OSD.

V. Position Adjusts the vertical position of the OSD.

OSD Timeout Adjusts the OSD timeout.

N/A	Input Source	Select input signal from D-Sub or DVI-D or HDMI
N/A	Wide Mode	Select Wide mode setting for Full screen, Aspect ratio or 1:1 mode

N/A DDC/CI Turns on/off DDC/CI support

N/A Information Shows the resolution, H/V frequency, input port and serial number for current input.

N/A Reset Clears Auto-configuration changes and sets the color temperature to warm.

N/A Exit Saves user changes and closes the OSD.

Troubleshooting

Before sending your LCD monitor for servicing, please check the troubleshooting list below to see if you can self-diagnose the problem.

VGA mode

Problem LED status Remedy
No picture visible Blue Using the OSD, adjust brightness andcontrast to maximum or reset to theirdefault settings.
Off Check the power switch.
	Check if the power cord is properlyconnected to the monitor.
Amber Check if the video signal cable isproperly connected at the back ofmonitor.
	Check if the computer system isswitched on and in power saving/standby mode.
Unstable picture Check if the specification of graphicsadapter and monitor is in compliancewhich may be causing the input signalfrequency mismatch.
Abnormal picture Image is missing,off-center, too large or toosmall on thescreen.	Using the OSD, adjust focus, clock, H-position and V-position with non-standard signals.
	Check the display setting on yoursystem. In case of a missing image,please select another resolution orvertical refresh rate.
	Wait for a few seconds after adjustingthe size of the image before changingor disconnecting the signal cable orswitching off the monitor.

DVI mode

Problem LED status Remedy

No picture visible Blue Using the OSD, adjust brightness andcontrast to maximum or reset to theirdefault settings.

Off Check the power switch.Check if the AC power cord is properlyconnected to the monitor.

Amber Check if the video signal cable isproperly connected at the back ofmonitor.Check that the computer system isswitched on and in power saving/standby mode.
