Product Type	Thin client
Brand	AOpen
Model	Digital Engine DE5100
CPU	Intel Socket G2, 2nd Gen Core i3/i5/i7 mobile (TDP 35W)
Chipset	Intel HM65
Memory	Dual Channel, 2x SO-DIMM DDR3 1066/1333 MHz, up to 8 GB
Graphics	Intel HD Graphics 3000
Expansion Slots	1x Full-size mini PCIe, 1x Half-size mini PCIe
Audio	Realtek ALC662, 5.1 channel HD Audio
LAN	Intel 82579LM Gigabit Ethernet
Front I/O	Power button, HDD/Power LED, 2x USB 2.0
Rear I/O	DC 20V jack, 1x DisplayPort, 1x DVI-I, 1x RJ45, 2x USB 3.0, 1x RS232, Speaker out, Mic in
Power Adapter	90W (20V, 4.5A) AC adapter
Input Voltage	AC 100-240V
Operating Temperature	0°C to 45°C
Dimensions (approx.)	200 x 200 x 30 mm (W x D x H)
Weight (approx.)	1.5 kg
Compliance	FCC Class B, ICES-003, CE
Package Contents	DE5100 unit, User Guide, Driver CD, 90W adapter & power cord, L-type holder with screws, DVI-to-HDMI cable, cable clamp, DVI-to-D-Sub adapter
Safety Features	Overheating protection, laser class 1, battery caution
Cleaning Instructions	Disconnect power, use moisture sheet or cloth, no liquid detergents

Frequently Asked Questions - Digital Engine DE5100 AOPEN

How do I connect the Digital Engine DE5100 to a display?

The device offers both a DisplayPort and a DVI-I port on the rear panel. Use the included DVI-to-HDMI cable or DVI-to-D-Sub adapter for various monitors. For HDMI, use the DVI-to-HDMI cable.

What type of memory does the DE5100 support?

It supports SO-DIMM DDR3 memory in dual-channel mode at 1066 or 1333 MHz, with a maximum capacity of 8 GB (2x 4GB modules).

Can I upgrade the CPU?

Yes, the CPU is socketed (Socket G2) and supports Intel 2nd generation Core i3/i5/i7 mobile processors with a TDP of 35W. Replacing it requires opening the chassis; refer to the user manual for safety precautions.

How do I clean the DE5100?

Always disconnect from power before cleaning. Use a soft, moisture-dampened cloth. Never use liquid or spray detergents to avoid electrical shock or fire.

What operating systems are compatible?

The DE5100 supports Windows 7/8/10 and various Linux distributions. Driver support is provided for Windows; for Linux, standard drivers may be available.

How do I dispose of the DE5100?

Follow WEEE directives: do not throw in municipal trash. Recycle through designated e-waste programs. Visit AOpen's website under 'Green Products' for details.

Does the DE5100 have built-in Wi-Fi?

No built-in Wi-Fi, but it has two mini PCIe slots (one full-size, one half-size) for adding a wireless card. The rear panel has an antenna hole for an external antenna.

What is the maximum power consumption?

The included adapter is rated at 90W (20V, 4.5A). Actual consumption depends on CPU and peripherals, typically below 65W.

How do I mount the DE5100?

The package includes an L-type holder and screws for VESA mounting or under-desk installation. Dimensions for the holder are in the user manual.

What should I do if the device overheats?

Ensure at least 5 cm (2 inches) of ventilation space around the device. Do not place in closed spaces. If overheating persists, reduce ambient temperature or contact support.

USER MANUAL Digital Engine DE5100 AOPEN

Personal Computer User Guide for DE5100 Series

Close-up of a black electronic device rear panel showing two USB connectors and a central button (no text or symbols visible)

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under “Green Products”

廃棄上の指示

Instruction de Disposition (French)

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically disclaims any warranties, merchantability of fitness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc. All other brand names and trademarks are owned by their respective owners.

Copyright © 2012 by AOpen Inc. All rights reserved.

Safety Instructions

1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from connector before cleaning. Don't use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning.
4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening; this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by service personnel:

a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not worked well or you can not get it work according to users manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.

1. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according to the manufacturer's instruction or your local authority.

2. Safety caution concerning laser products:

DVD-ROM/CD-RW combo drive is “Class I Laser Product” This equipment, built with DVD and/or CD disc drives using laser beam to read or write data on optical discs, is classified as “Class 1 laser product”. While the laser optical drive is reading data from or writing data to an optical disc, do not force open the disc drive door. Press the Eject button to retrieve the optical disc only after the in-use indicator goes off.

1. Ambient operation temperature: 0 \~ 45 degrees C.

Risk of overheating!

Do not install Digital Engine in a closed space.

Be sure the ventilation holes in the Digital Engine side for at least 2 inches or 5cm of space for ventilation.

To ensure that other objects do not cover the ventilation holes on Digital Engine.

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the device and receiver.
■ Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003

Index

1. Outlook ......2
2. Product Specification....4
3. Internal Connectors ....5
4. Packing List....6
5. Chassis and Holder Dimension ....7

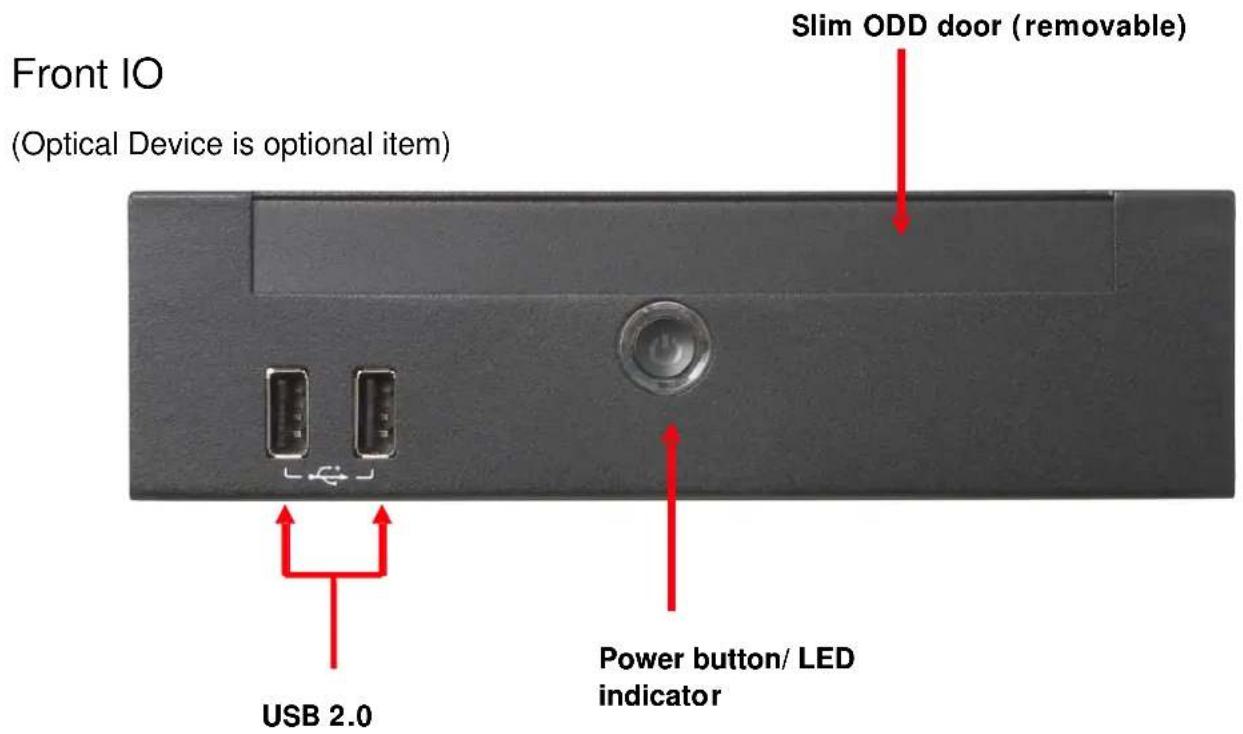

1. Outlook

2. Product Specification

CPU	Intel CPU Socket G2 / Intel 2nd generation Core i3, i5, i7 mobile processor TDP 35W
Chipset	Intel HM65 Chipset
Memory	Dual Channel Mode, SO-DIMM DDRIII x 2, 1066/1333 MHz Max memory size : 8GB
Graphics	Intel® HD Graphics 3000
Expansion Slot	Full Size mini Card x 1Half Size Mini Card x 1
Audio	Realtek ALC662 HD Audio CODEC on-Board5.1 Channel
LAN	Intel 82579LM 10/100/1000 Mbps LAN Controller
Front Panel IO	Power Button x 1, HDD/Power indicator (Blue) x 1, USB 2.0 Port x 2
Rear Panel IO	DC 20V Jack x 1, DisplayPort x 1, DVI-I Port x 1, RJ45 LAN Jack x 1, USB 3.0 Port x 2, RS232 Serial Port x 1, HD Audio ports (speaker out x 1, Mic in x 1)
Adapter	90W (20V, 4.5A) AC Power Adapter
Input Voltage	AC 100 ~ 240V

3. Internal Connectors

4. Packing List

1 x DE5100 system
1 x User Guide
1 x Driver CD
1 x 90W Adapter and Power Cord
1 x L type Holder with 4 pcs of M3 screw
4 x M3 - L4 screws
4 x M2 - L2 screws
1 x DVI to HDMI cable
1 x cable clamp
1 x DVI to D-Sub adapter

5. Chassis and Holder Dimension

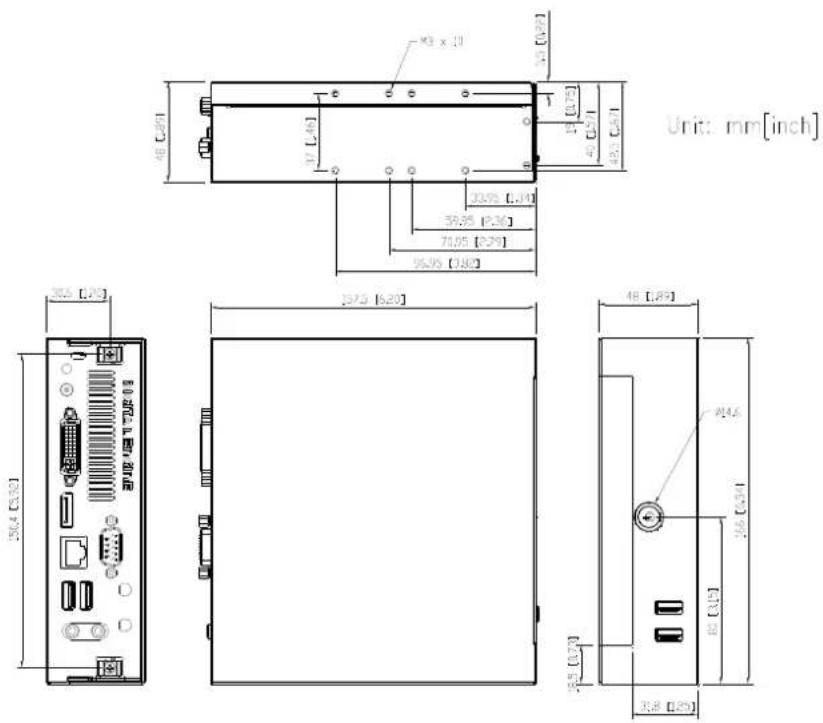

A. Dimension of DE5100 (unit: mm [inch])

B. LH02 L type Holder (Include 2 piece holder and 4 FPH M3 screws) Dimension of L type Holder. (Unit: mm)

Unit: mm[inch]

P/N : 49.DEA01.0010

S/N : 123-055-102
