USER MANUAL S271H ACER
Copyright © 2011. Acer Incorporated.
All Rights Reserved.
Acer LCD Monitor User Guide
Original Issue: 11/2011
Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.
Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number and purchase information.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.
Acer LCD Monitor User Guide
Model number: ____
Serial number: ____
Date of purchase: ____
Place of purchase: ____
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.
Information for your safety and comfort
Safety instructions
Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.
Special notes on LCD monitors
The following are normal with the LCD monitor and do not indicate a problem.
- Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the power switch and then turn it on again to make sure the flicker disappears.
- You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
- The LCD screen has 99.99% or more effective pixels. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all the time.
- Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the power switch for a few hours.
Cleaning your monitor
Please carefully follow these guidelines when cleaning the monitor:
•Always unplug the monitor before cleaning.
• Use a soft cloth to wipe the screen and cabinet front and sides.
iv
Accessibility
Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power from the equipment, be sure to unplug the power cord from the electrical outlet.
Safe listening
To protect your hearing, follow these instructions.
- Gradually increase the volume until you can hear it clearly and comfortably and without distortion.
- After setting the volume level, do not increase it after your ears have adjusted.
- Limit the amount of time listening to music at high volume.
- Avoid turning up the volume to block out noisy surroundings.
- Turn the volume down if you can't hear people speaking near you.
Warnings
- Do not use this product near water.
- Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.
- Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.
- Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.
- To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.
- Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage internal devices.
• The adapter is only used for this monitor, do not be used for other purposes.
- Your device uses one of the following power supplies: Manufacturer: Asian Power Devices Inc., Model: DA-40A19 Manufacturer: Delta Electronics Inc., Model: ADP-40PH BB
Using electrical power
- This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
- Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
• If an extension cord is used with this product, make sure that the total
ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
- Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
- This product's power cord is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the power cord plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.
Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.
Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.
- Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, type SPT-2, rated 7 A 125 V minimum, VDE approved or its equivalent, 4.6 meters (15 feet) maximum length.
Product servicing
Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service personnel when:
• the power cord or plug is damaged, cut or frayed
- liquid was spilled into the product
•the product was exposed to rain or water
• the product has been dropped or the case has been damaged
• the product exhibits a distinct change in performance, indicating a need for service
• the product does not operate normally after following the operating instructions
Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.
Potentially explosive environments
Switch off your device in any area with a potentially explosive atmosphere and obey all signs and instructions. Potentially explosive atmospheres include areas where you would normally be advised to turn off your vehicle engine. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Switch off the device near gas pumps at service stations. Observe restrictions on the use of radio equipment in fuel depots, storage and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas where the air contains chemicals or particles such as grain, dust or metal powders.
Additional safety information
Your device and its enhancements may contain small parts. Keep them out of the reach of small children.
IT Equipment Recycling Information
Acer is strongly committed to environmental protection and views recycling, in the form of salvaging and disposal of used equipment, as one of the company's top priorities in minimizing the burden placed on the environment.
We at Acer are very conscious of the environmental effects of our business and strive to identify and provide the best working procedures to reduce the environmental impact of our products.
For more information and help when recycling, please go to this website: http://www.acer-group.com/public/Sustainability/sustainability01.htm
Visit www.acer-group.com for further information on the features and benefits of our other products.
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://www.acer-group.com/public/Sustainability/sustainability01.htm
LCD pixel statement
The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some pixels may occasionally misfire or appear as black or red dots. This has no effect on the recorded image and does not constitute a malfunction.
This product has been shipped enabled for power management:
- Activate display's Sleep mode within 15 minutes of user inactivity.
- Activate computer's Sleep mode within 30 minutes of user inactivity.
- Wake the computer from Sleep mode by pushing the power button.
Tips and information for comfortable use
Computer users may complain of eyestrain and headaches after prolonged use. Users are also at risk of physical injury after long hours of working in front of a computer. Long work periods, bad posture, poor work habits, stress, inadequate working conditions, personal health and other factors greatly increase the risk of physical injury.
Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis or other musculoskeletal disorders. The following symptoms may appear in the hands, wrists, arms, shoulders, neck or back:
•numbness, or a burning or tingling sensation
- aching, soreness or tenderness
• pain, swelling or throbbing
•stiffness or tightness
•coldness or weakness
If you have these symptoms, or any other recurring or persistent discomfort and/or pain related to computer use, consult a physician immediately and inform your company's health and safety department.
The following section provides tips for more comfortable computer use.
Finding your comfort zone
Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest, or raising your sitting height to achieve maximum comfort. Observe the following tips:
•refrain from staying too long in one fixed posture
- avoid slouching forward and/or leaning backward
- stand up and walk around regularly to remove the strain on your leg muscles
Taking care of your vision
Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room lighting, poorly focused screens, very small typefaces and low-contrast displays could stress your eyes. The following sections provide suggestions on how to reduce eyestrain.
Eyes
•Rest your eyes frequently.
- Give your eyes regular breaks by looking away from the monitor and focusing on a distant point.
- Blink frequently to keep your eyes from drying out.
Display
- Keep your display clean.
- Keep your head at a higher level than the top edge of the display so your eyes point downward when looking at the middle of the display.
- Adjust the display brightness and/or contrast to a comfortable level for enhanced text readability and graphics clarity.
- Eliminate glare and reflections by:
- placing your display in such a way that the side faces the window or any light source
- minimizing room light by using drapes, shades or blinds
• using a task light
- changing the display's viewing angle
• using a glare-reduction filter
• using a display visor, such as a piece of cardboard extended from the display's top front edge
- Avoid adjusting your display to an awkward viewing angle.
- Avoid looking at bright light sources, such as open windows, for extended periods of time.
Developing good work habits
Develop the following work habits to make your computer use more relaxing and productive:
•Take short breaks regularly and often.
•Perform some stretching exercises.
• Breathe fresh air as often as possible.
•Exercise regularly and maintain a healthy body.
UNPACKING.... 1
ATTACHING / REMOVING THE BASE.... 2
SCREEN POSITION ADJUSTMENT 2
CONNECTING THE POWER CORD.... 3
SAFETY PRECAUTION.... 3
CLEANING YOUR MONITOR 3
POWER SAVING.... 4
DDC....4
CONNECTOR PIN ASSIGNMENT.... 5
STANDARD TIMING TABLE 7

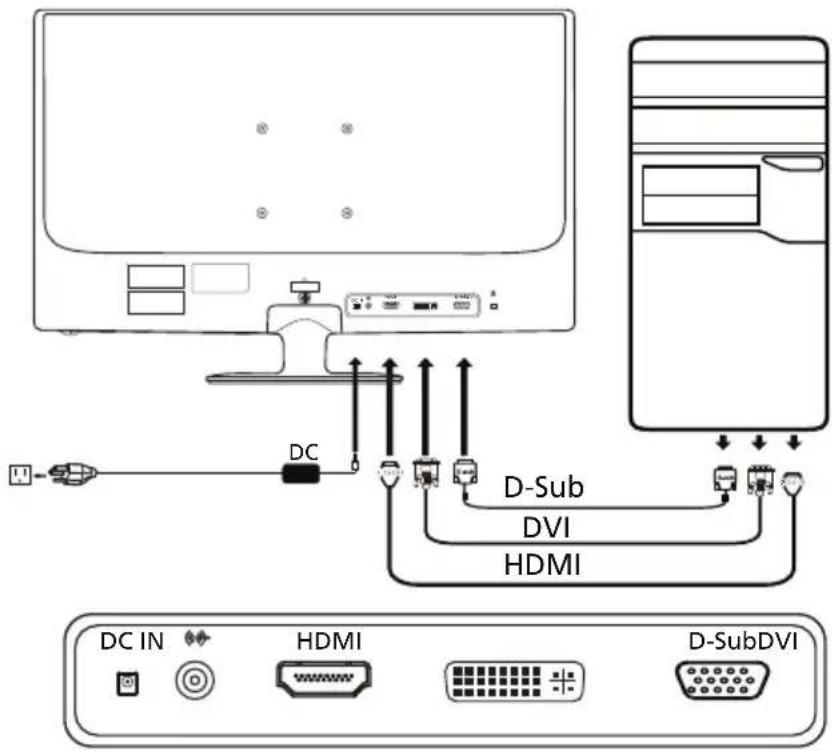

INSTALLATION....8

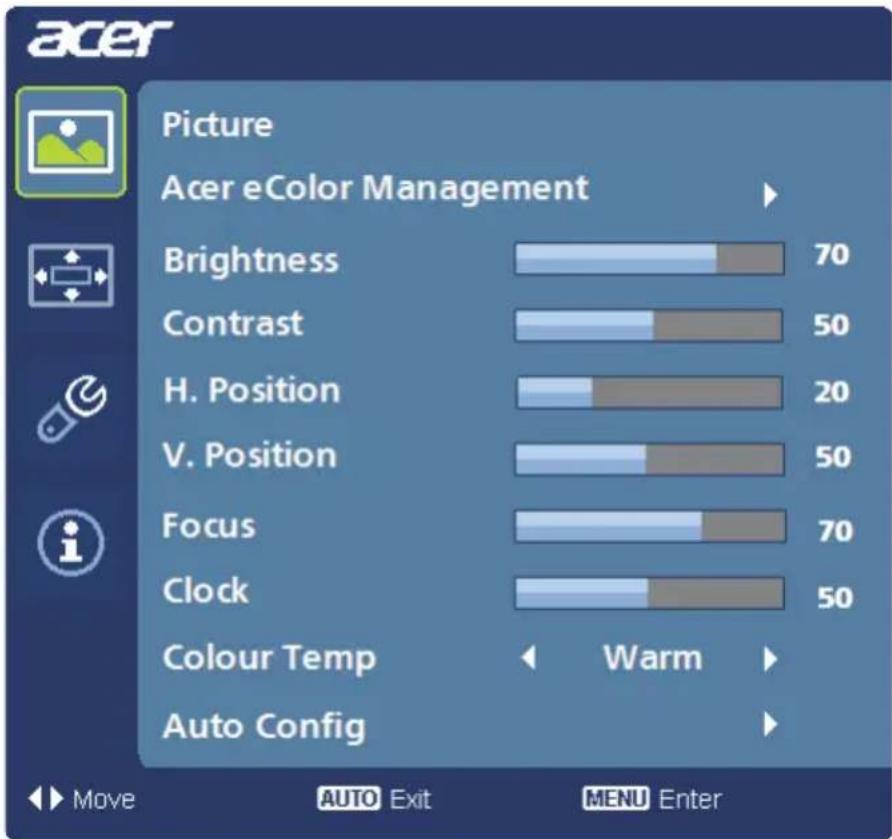

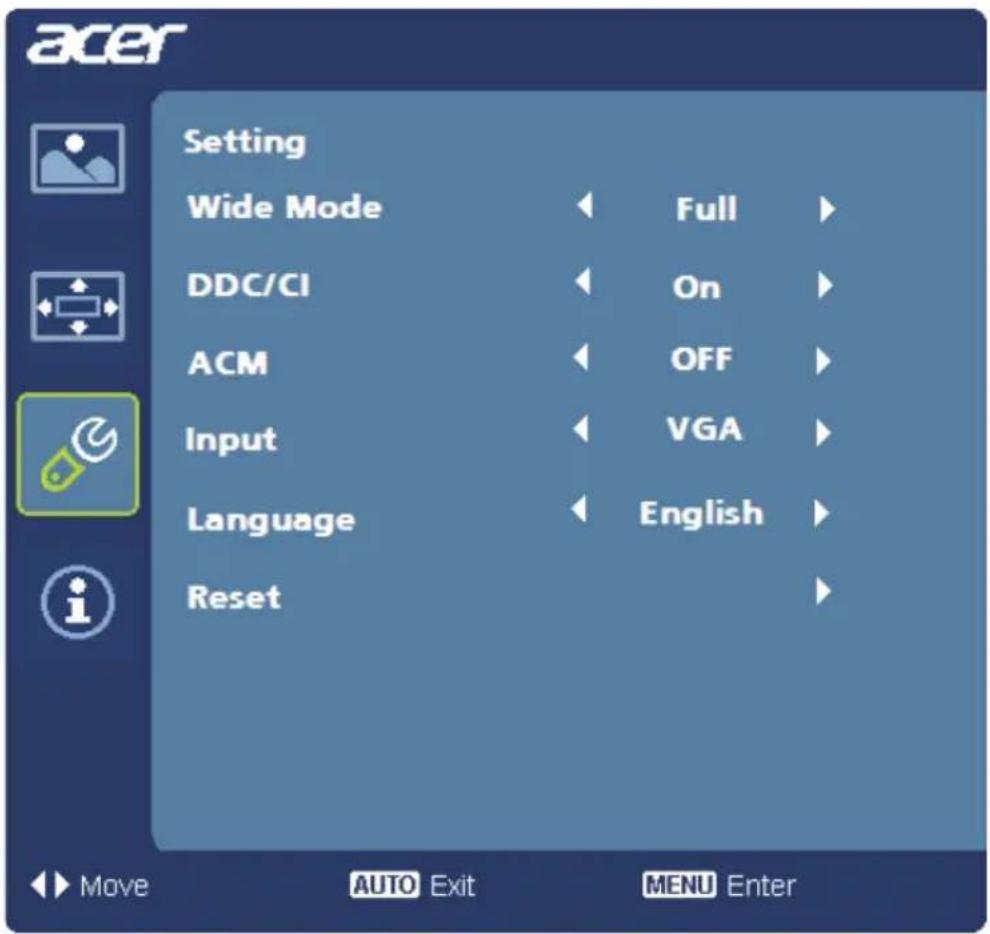

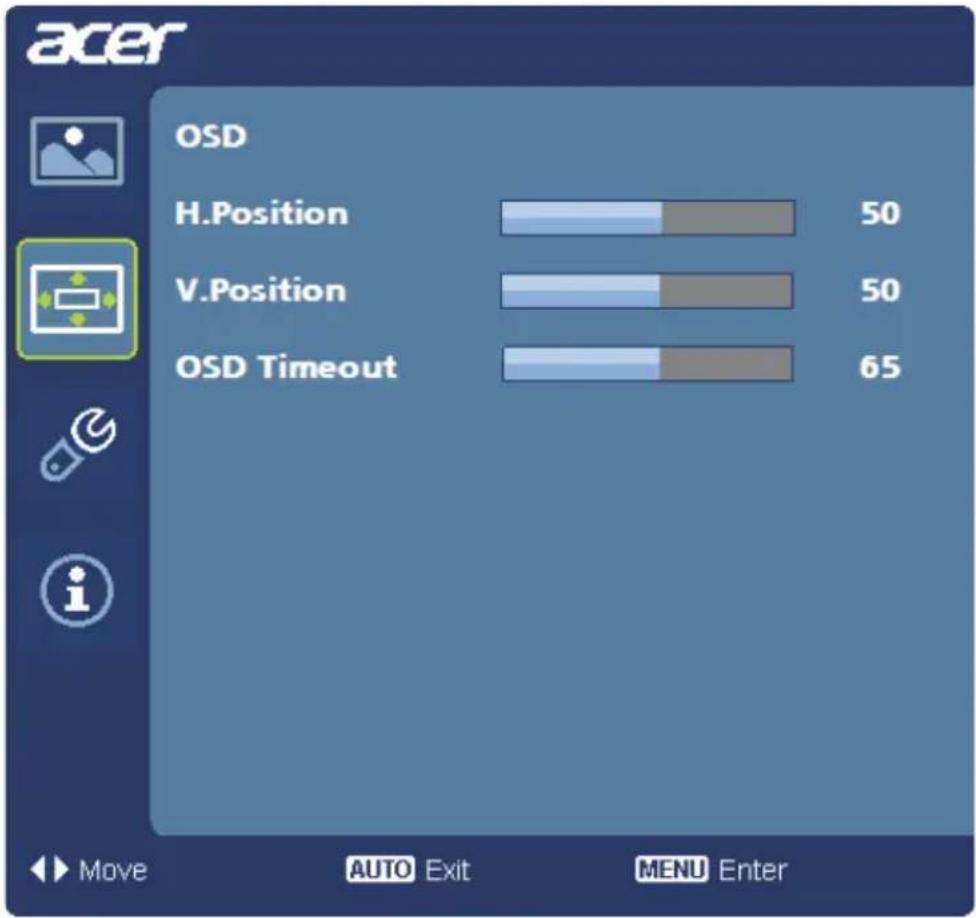

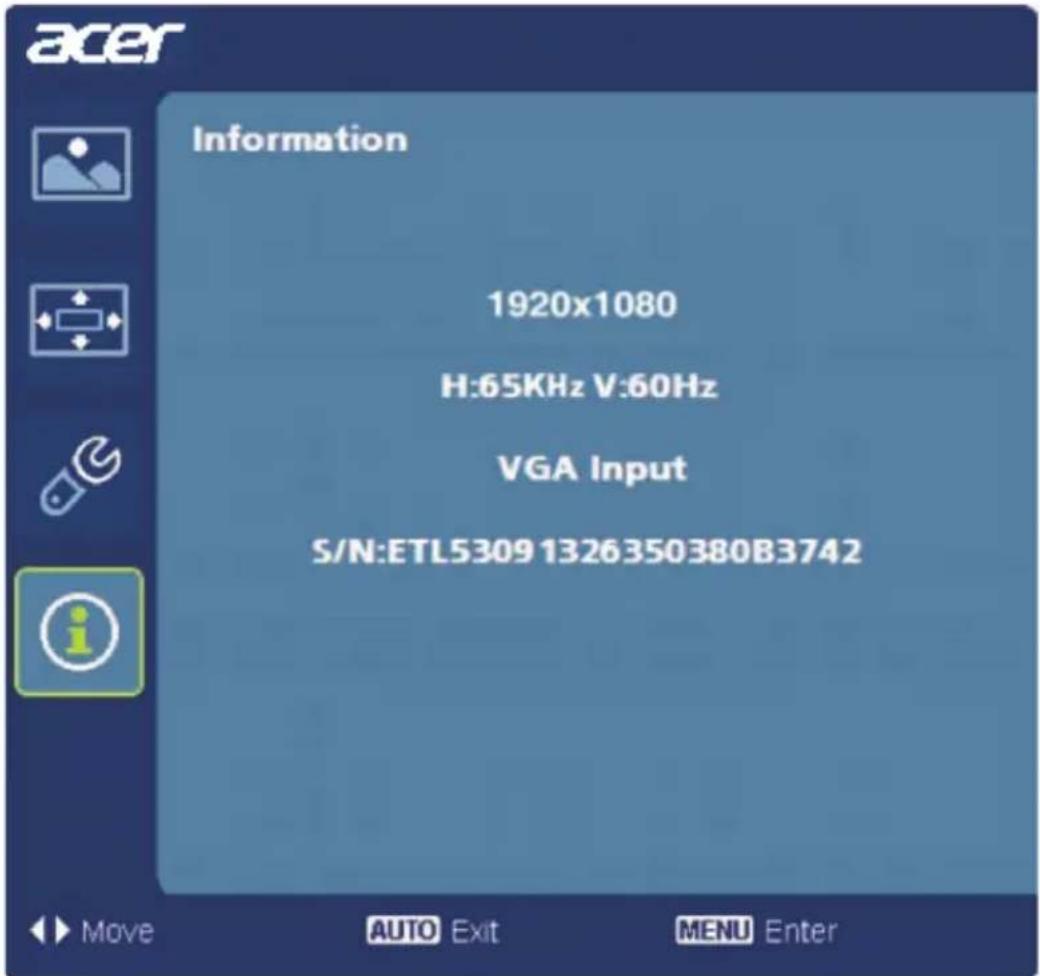

USER CONTROLS 9
TROUBLESHOOTING 15
UNPACKING
Please check the following items are present when you unpack the box, and save the packing materials in case you will need to ship or transport the monitor in future.

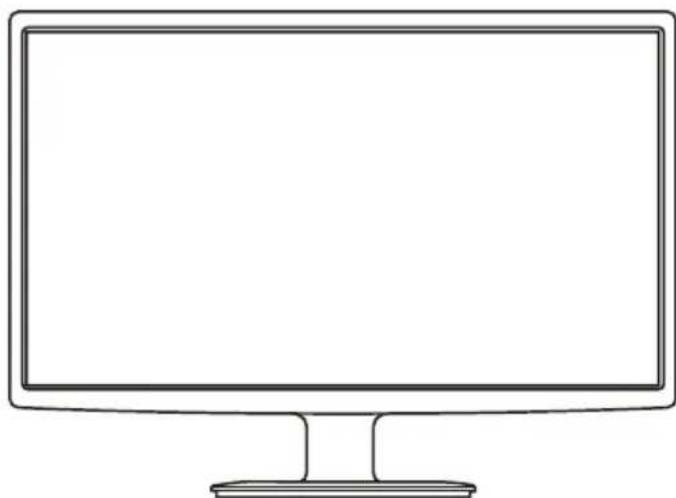

- LCD Monitor


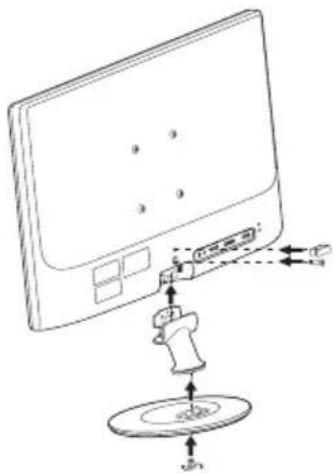

Note: Remove the monitor and monitor base from its packaging. Carefully place the monitor face-down on a stable surface -- use a cloth to avoid scratching the screen.
1.
Attach the monitor stand arm to the base.
2.
Ensure that the base is locked onto the monitor stand arm.


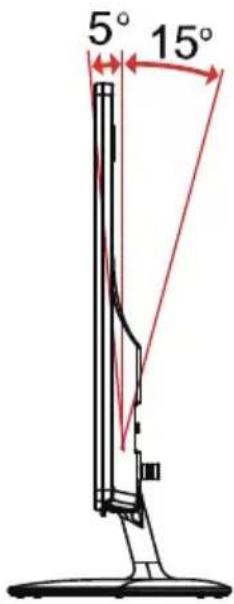

In order to optimize the best viewing position, you can adjust the tilt of the monitor by using both of your hands to hold the edges of the monitor as shown in the figure below.
The monitor can be adjusted to 15 degrees up or 5 degrees down as indicated by arrow below.
- Check first to make sure that the power cord you use is the correct type required for your area.
- This monitor has a universal power supply that allows operation in either 100/120V AC or 220/240 V AC voltage area. No user-adjustment is required.
- Plug one end of the AC power cord to the adapter, and plug the other end into an AC outlet.
- For unit using at 120 V AC: Use a UL Listed Cord Set, Type SVT wire and plug rated 10 A/125 V.
- For unit using at 220/240 V AC (outside of U.S.): Use a Cord Set consisting of H05VV-F cord and plug rated 10 A, 250 V. The cord set should have the appropriate safety approvals for the country in which the equipment will be installed.
SAFETY PRECAUTION
- Avoid placing the monitor, or any other heavy object, on the power cord to avoid damage to the cable.
- Do not expose the monitor to rain, excessive moisture, or dust.
- Do not cover the ventilation slots or openings of the monitor. Always put the monitor in a place where there is adequate ventilation.
- Avoid placing the monitor against a bright background or where sun-light or other light sources may reflect on the face of the monitor. Place the monitor just below eye level.
- Handle with care when transporting the monitor.
- Refrain from giving shock or scratch to the screen, as screen is fragile.
CLEANING YOUR MONITOR
Please carefully follow the below guidelines when cleaning the monitor.
- Always unplug the monitor before cleaning.
- Use a soft cloth to wipe the screen and cabinet front and sides.
POWER SAVING
The monitor will be driven into Power Saving" mode by the control signal from the display controller, as indicated by the amber-color power LED.
| State | LED |
| ON | Blue |
| Power Saving Mode | Amber |
Light
The power saving states will be kept until a control signal has been detected or the keyboard or mouse is activated. The recovery time from Active OFF state back to ON state is around 3 seconds.
DDC
To make your installation easier, the monitor is able to Plug and Play with your system if your system also supports DDC protocol. The DDC (Display Data Channel) is a communication protocol through which the monitor automatically informs the host system about its capabilities, for example, supported resolutions and corresponding timing. The monitor supports DDC2B standard.
CONNECTOR PIN ASSIGNMENT

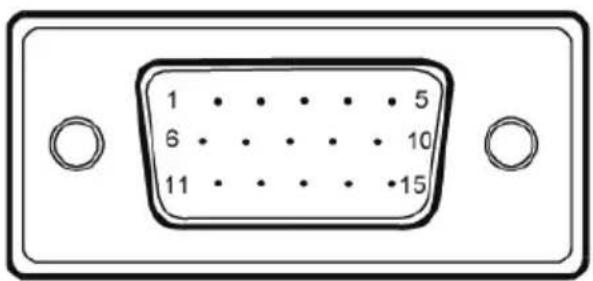

15-Pin Color Display Signal Cable
| PIN NO. | DESCRIPTION PIN NO. | DESCRIPTION | |
| 1. Red | 9. +5V | ||
| 2. Green | 10. Logic Ground | ||
| 3. Blue | 11. Monitor Ground | ||
| 4. Monitor | Ground 12. DDC- | Serial Data | |
| 5. DDC | -return 13. H-Sync | ||
| 6. | R-Ground | 14. | V-Sync |
| 7. | G-Ground | 15. | DDC-Serial Clock |
| 8. | B-Ground |
| PIN Meaning PIN Meaning | ||
| 1. TMDS Data2- 13. NC | ||
| 2. TMDS Data2+ 14. +5V Power | ||
| 3. TMDS Data 2/4 Shield 15. Logic Ground | ||
| 4. NC 16. Hot Plug Detect | ||
| 5. NC 17. TMDS Data0- | ||
| 6. DDC Clock | 18. | TMDS Data0+ |
| 7. DDC Data | 19. | TMDS Data 0/5 Shield |
| 8. NC 20. NC | ||
| 9. TMDS Data1- 21. NC | ||
| 10. TMDS Data1+ | 22. | TMDS Clock Shield |
| 11. TMDS Data 1/3 Shield | 23. | TMDS Clock+ |
| 12. NC | 24. | DDC TMDS Clock- |
19-Pin Color Display Signal Cable*
| 1. TMDS Data2+ 10. TMDS Clock+ | |||
| 2. | TMDS Data2 Shield | 11. | TMDS Clock Shield |
| 3. TMDS Data2- 12. TMDS Clock- | |||
| 4. TMDS Data1+ 13. | CEC | ||
| 5. | TMDS Data1 Shield | 14. | Reserved (N.C. on device) |
| 6. TMDS Data1- 15. | SCL | ||
| 7. TMDS Data0+ 16. | SDA | ||
| 8. | TMDS Data0 Shield | 17. | DDC/CEC Ground |
| 9. TMDS Data0- 18. +5V Power | |||
| 19. Hot | Plug Detect | ||
* only for certain models
| Mode Resolution | ||
| 1 640 x 480 60 Hz | ||
| 2 MAC 640 x 480 66.66 Hz | ||
| 3 VESA 720 x 400 70 Hz | ||
| 4 SVGA 800 x 600 56 Hz | ||
| 5 SVGA 800 x 600 60 Hz | ||
| 6 XGA 1024 x 768 60 Hz | ||
| 7 XGA 1024 x 768 70 Hz | ||
| 8 VESA 1152 x 864 75 Hz | ||
| 9 SXGA 1280 x1024 60 Hz | ||
| 10 VESA 1280 x 720 60 Hz | ||
| 11 WXGA 1280 x 800 60 Hz | ||
| 12 WXGA+ 1440 x 900 60 Hz | ||
| 13 WSXGA+ 1680 x 1050 | 60 Hz | |
| 14 UXGA | 1920 x 1080 | 60 Hz |
| 15 UXGA | 1920 x 1080 | 60 Hz |
INSTALLATION
To install the monitor to your host system, please follow the steps as given below:
Steps
- 1-1 Connect Video Cable
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the VGA video cable to the computer.
1-2 Connect Digital Cable (Only Dual-input model)
a. Make sure both the monitor and computer are powered-OFF.
b. Connect one end of the 24-pin DVI cable to the back of the monitor and connect the other end to the computer's port.
1-3 Connect HDMI Cable (Only HDMI-input model)
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the HDMI cable to the computer.
- Connect the adapter
a. Connect the AC cord to the adapter.
b. Connect one end of the adapter to the monitor and the other end to a properly grounded, AC outlet.
- Power-ON Monitor and Computer
Power-ON the monitor first, then power-ON the computer.
This sequence is very important.
- If the monitor still does not function properly, please refer to the troubleshooting section to diagnose the problem.
USER CONTROLS
Base Controls
Power Switch / Power LED:
To turn the monitor ON or OFF.
Lights up to indicate the power is turned ON.
◀ / ▶ Minus / Plus:
If the OSD is active, press the Minus or Plus buttons to toggle between the OSD options.
MENU OSD functions
Press this botton to activate the OSD menu.
AUTO Auto Adjust:
Press this button to activate the Auto Adjustment function. The Auto Adjustment function is used to set the HPos, VPos, Clock and Focus.
Empowering:
Press the Empowering Key to open the Acer eColor Management OSD and access the scenario modes.

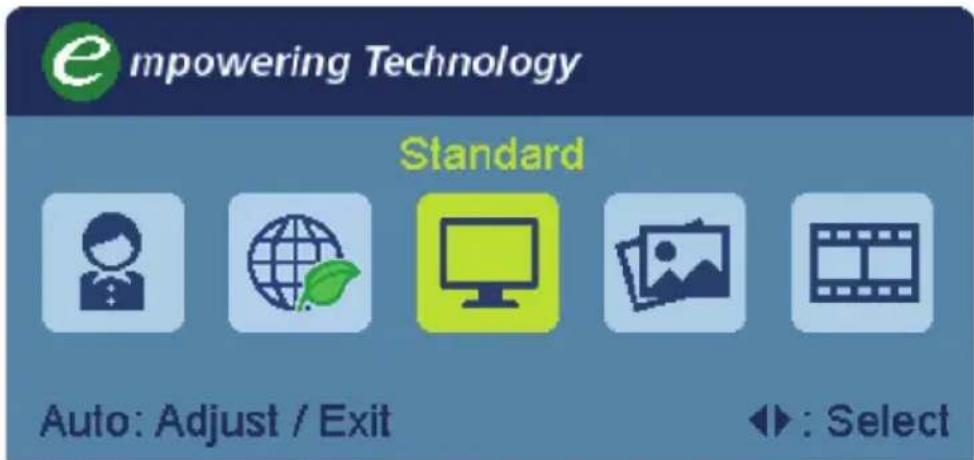

Acer eColor Management
Step 1: Press "Key to open the Acer eColor Management OSD and access the scenario modes
Step 2: Press “◀” or “▶” to select the mode
Step 3: Press "AUTO" Key to confirm the mode and run Auto Adjust.
Features and Benefits
| Main Menu icon | Sub Menu icon | Sub Menu item | Description |
 | N/A User mode | User defined. Settings can be fine-tuned to suit any situation | |
 | N/A ECO mode | Adjusts the settings to reduce power consumption. | |
 | N/A | Standard mode | Default Setting. Reflects native display capability |
 | N/A | Grahpic mode | Enhances colors and emphasize fine detail. Pictures and photographs appear in vibrant colors with sharp detail. |
 | N/A | Movie mode | Displays scenes in clearest detail. Presents great visuals, even in unsuitably-lit environments. |
Note: The following content is for general reference only. Actual product specifications may vary.
The OSD can be used for adjusting the settings of your LCD Monitor. Press the MENU key to open the OSD. You can use the OSD to adjust the picture quality, OSD position and general settings. For advanced settings, please refer to following page:
Adjusting the picture quality
bar
| Parameter | Value | | ----------------- | ----- | | Brightness | 70 | | Contrast | 50 | | H. Position | 20 | | V. Position | 50 | | Focus | 70 | | Clock | 50 | | Colour Temp | Warm | | Auto Config | |1 Press the MENU key to bring up the OSD.
2 Using the ◀/▶ keys, select 📋 Picture from the OSD. Then navigate to the picture element you wish to adjust.
3 Use the ◀/▶ keys to adjust the sliding scales.
4 The Picture menu can be used to adjust the current Brightness, Contrast, Colour Temp, Auto Config and other image-related qualities.
Adjusting the OSD position
2 Using the directional keys, select 📄 from the on screen display. Then navigate to the feature you wish to adjust.
Adjusting the setting
2 Using the ◀/▶ keys, select Setting from the OSD. Then navigate to the feature you wish to adjust.
3 The Setting menu can be used to adjust the screen Menu Language and other important settings.
Product information
2 Using the ◀/▶ keys, select 📄 Information from the OSD. Then the basic information of LCD monitor will show up for current input.
TROUBLESHOOTING
Before sending your LCD monitor for servicing, please check the trouble-shooting list below to see if you can self-diagnose the problem.
(VGA Mode)
| Problems | Current Status | Remedy |
| No Picture LED ON | N | Using OSD, adjust brightness and contrast to maximum or reset to their default settings. |
| LED OFF | Check the power switch. | |
| Check if AC power cord is properly connected to the monitor. | ||
| LED displays amber color | Check if video signal cable is properly connected at the back of monitor. | |
| Check if the power of computer system is ON. | ||
| Abnormal Picture | Unstable Picture | Check if the specification of graphics adapter and monitor is in compliance which may be causing the input signal frequency mismatch. |
| Display is missing, center shift, or too small or too large in display size | Using OSD, adjust RESOLUTION, CLOCK, CLOCK-PHASE, H-POSITION and V-POSITION with non-standard signals. | |
| Using OSD, in case of missing full-screen image, please select other resolution or other vertical refresh timing. | ||
| Wait for a few seconds after adjusting the size of the image before changing or disconnecting the signal cable or powering OFF the monitor. |
(DVI/HDMI Mode)
| Problems | Current Status | Remedy |
| No Picture LED ON | ● Using OSD, adjust brightness and contrast to maximum or reset to their default settings. | |
| LED OFF | ● Check the power switch. | |
| ● Check if AC power cord is properly connected to the monitor. | ||
| LED displays amber color | ● Check if video signal cable is properly connected at the back of monitor. | |
| ● Check if the power of computer system is ON. |
CE
Declaration of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
Contact Person: Mr. RU Jan, e-mail: ru_jan@acer.com.tw
And,
Acer Italy s.r.l
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tel: +39-02-939-921, Fax: +39-02 9399-2913
www.acer.it
Hereby declare that:
Product:
LCD
Monitor
Trade Name: Acer
Model Number: S271HL
SKU Number: S271HL xxxxxx ("x" = 0\~9, a \~ z, or A \~ Z)
Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.
EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:
-. EN55022, AS/NZS CISPR22 Class B.
-. EN55024
-. EN61000-3-2, Class D
-. EN61000-3-3
Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:
-. EN60950-1
RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment:
-. The maximum concentration values of the restricted substances by weight in homogenous material are:
| Lead | 0.1% | Polybrominated Biphenyls (PBB’s) | 0.1% |
| Mercury | 0.1% | Polybrominated Diphenyl Ethers (PBDE’s) | 0.1% |
| Hexavalent Chromium | 0.1% | Cadmium | 0.01% |
Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.
Year to begin affixing CE marking 2011.
RU Jan / Sr. Manager
Regulation, Acer Inc.
Oct. 13, 2011
Date
Federal Communications Commission Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The following local Manufacturer /Importer is responsible for this declaration:
Product: LCD Monitor
Model Number: S271HL
SKU Number: S271HL xxxxxx
$$ (" \mathbf {x}" = 0 \sim 9, \mathbf {a} \sim \mathbf {z}, \text { or } \mathbf {A} \sim \mathbf {Z}) $$
Name of Responsible Party: Acer America Corporation
Address of Responsible Party:
333 West San Carlos St.
San Jose, CA 95110
U.S.A.
Contact Person: Acer Representative
Phone No.: 254-298-4000
Fax No.: 254-298-4147
