USER MANUAL N50 ASUS

Notebook PC Hardware User's Manual

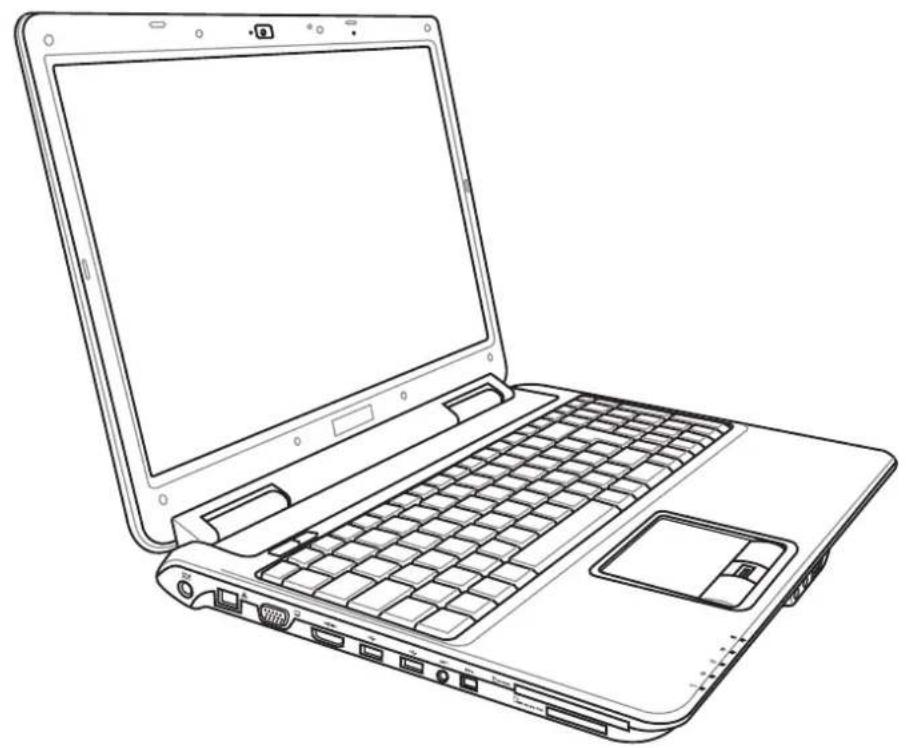

Line drawing of a laptop computer with visible keyboard, drive pad, and ventilation slots (no text or symbols)

E4017/ August 2008

Table of Contents

1. Introducing the Notebook PC

About This User's Manual 6

Notes For This Manual 6

Preparing your Notebook PC....9

2. Knowing the Parts

Top Side....12

Bottom Side....15

Left Side 17

Right Side....19

Rear Side....20

Front Side....21

3. Getting Started

Power System 24

Using AC Power 24

Using Battery Power 25

Battery Care 26

Powering ON the Notebook PC 27

The Power-On Self Test (POST) 27

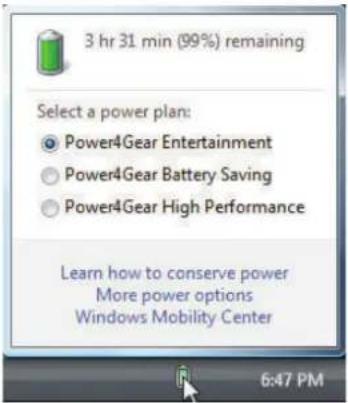

Checking Battery Power 28

Charging the Battery Pack 28

Power Options 29

Power Management Modes 30

Sleep and Hibernate 30

Thermal Power Control 30

Special Keyboard Functions 31

Colored Hot Keys 31

Microsoft Windows Keys 33

Extended Keyboard 33

Switches and Status Indicators 34

Switches....34

Switches and Status Indicators (cont.) 35

Switches....35

Table of Contents (Cont.)

Status Indicators 36

Multimedia Control Keys (on selected models) 38

4. Using the Notebook PC

Pointing Device....40

Using the Touchpad ....40

Touchpad Usage Illustrations 41

Caring for the Touchpad 42

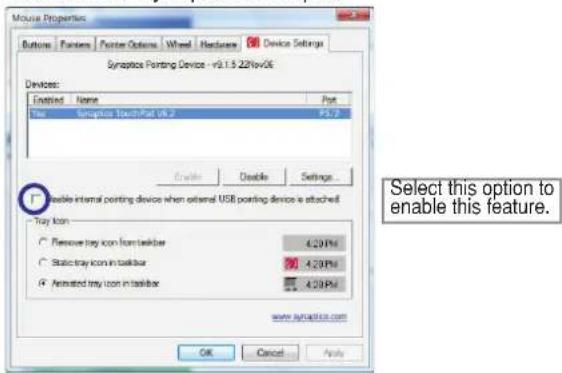

Automatic Touchpad Disabling (Synaptics) 42

Storage Devices 43

Expansion Card 43

Optical Drive 45

Flash Memory Card Reader 47

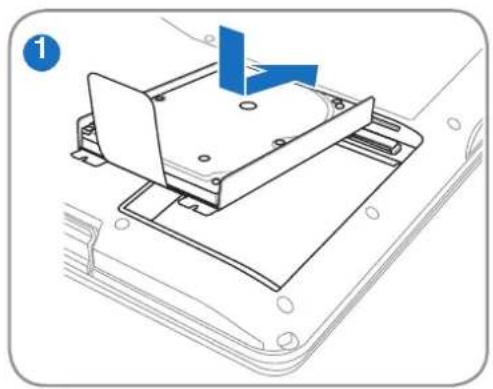

Hard Disk Drive 48

Memory (RAM)....50

Connections....51

Network Connection ....51

Wireless LAN Connection (on selected models) 52

Windows Wireless Network Connection 53

Bluetooth Wireless Connection (on selected models) 54

Antenna Connections (on selected models) 55

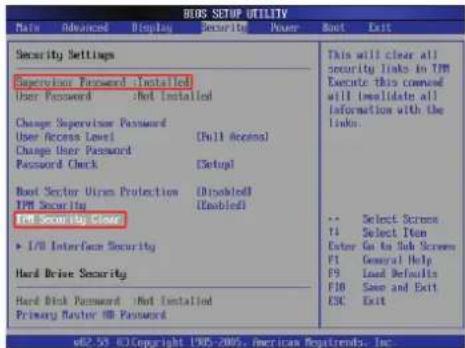

Trusted Platform Module (TPM) (on selected models) 56

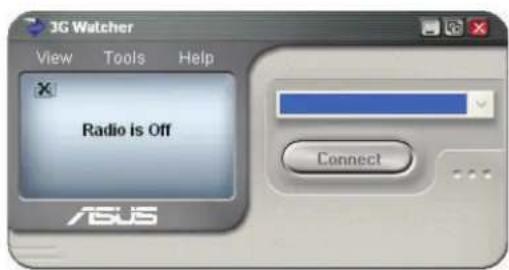

3G Watcher (on selected models and in selected territories) 59

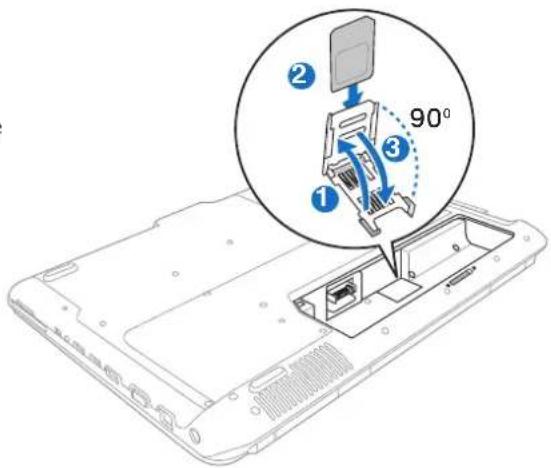

Installing a Mobile SIM card 59

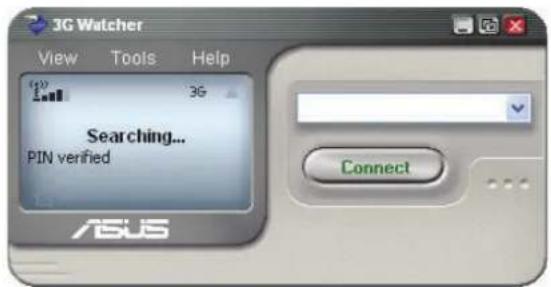

Using 3G Watcher software .... 59

Appendix

Optional Accessories A-2

Optional Connections A-3

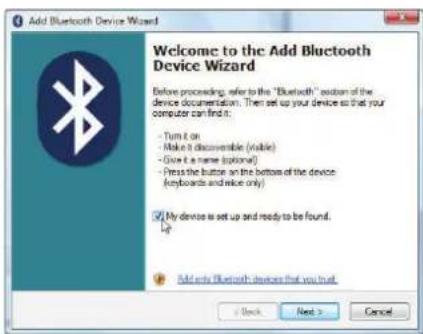

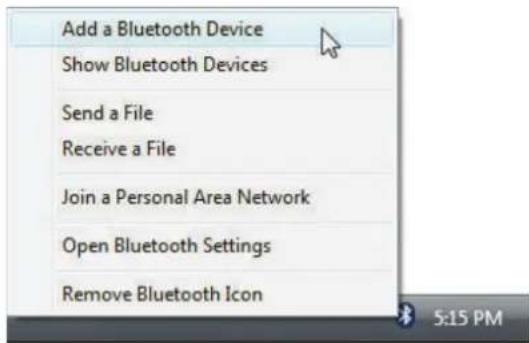

Bluetooth Mouse Setup (optional) A-4

Operating System and Software.... A-6

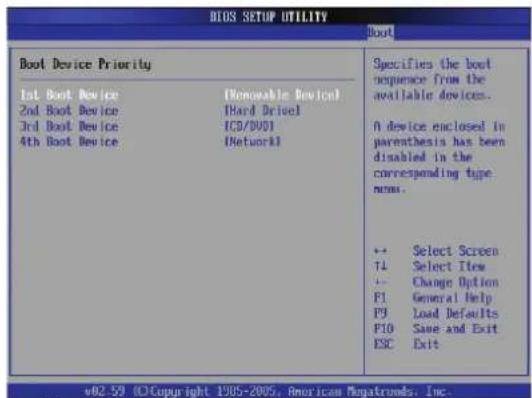

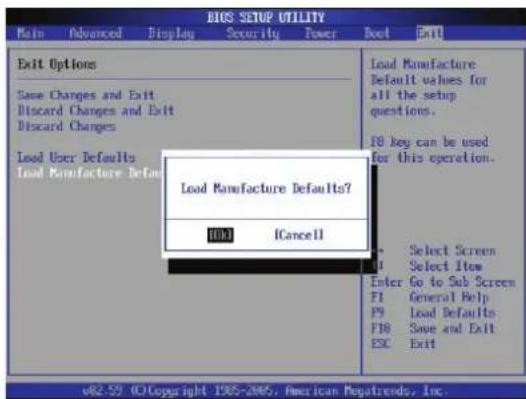

System BIOS Settings A-7

Common Problems and Solutions A-9

Windows Vista Software Recovery A-15

Glossary A-17

Declarations and Safety Statements A-21

Notebook PC Information A-34

Contents

1. Introducing the Notebook PC

About This User's Manual

Notes For This Manual

Safety Precautions

Preparing your Notebook PC

There may be differences between your Notebook PC and the drawings shown in this manual. Please accept your Notebook PC as being correct.

Photos and icons in this manual are used for artistic purposes only and do not show what is actually used in the product itself.

1 Introducing the Notebook PC

About This User's Manual

You are reading the Notebook PC User's Manual. This User's Manual provides information on the various components in the Notebook PC and how to use them. The following are major sections of this User's Manuals:

1. Introducing the Notebook PC Introduces you to the Notebook PC and this User's Manual.

2. Knowing the Parts Gives you information on the Notebook PC's components.

3. Getting Started Gives you information on getting started with the Notebook PC.

4. Using the Notebook PC Gives you information on using the Notebook PC's components.

5. Appendix Introduces you to optional accessories and gives additional information.

Notes For This Manual

A few notes and warnings in bold are used throughout this guide that you should be aware of in order to complete certain tasks safely and completely. These notes have different degrees of importance as described below:

NOTE: Tips and information for special situations.

TIP: Tips and useful information for completing tasks.

IMPORTANT! Vital information that must be followed to prevent damage to data, components, or persons.

WARNING! Important information that must be followed for safe operation.

<> Text enclosed in <> or [ ] represents a key on the keyboard; do not actually type the [ ] <> or [ ] and the enclosed letters.

Safety Precautions

The following safety precautions will increase the life of the Notebook PC. Follow all precautions and instructions. Except as described in this manual, refer all servicing to qualified personnel. Do not use damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners, benzene, or other chemicals on or near the surface.

IMPORTANT! Disconnect the AC power and remove the battery pack(s) before cleaning. Wipe the Notebook PC using a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few drops of warm water and remove any extra moisture with a dry cloth.

DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.

DO NOT place or drop objects on top and do not shove any foreign objects into the Notebook PC.

DO NOT press or touch the display panel. Do not place together with small items that may scratch or enter the Notebook PC.

DO NOT expose to strong magnetic or electrical fields.

DO NOT expose to dirty or dusty environments. DO NOT operate during a gas leak.

DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during an electrical storm.

DO NOT leave the Notebook PC on your lap or any part of the body in order to prevent discomfort or injury from heat exposure.

Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery.

SAFE TEMP: This Notebook PC should only be used in environments with ambient temperatures between 5°C (41°F) and 35°C (95°F)

INPUT RATING: Refer to the rating label on the bottom of the Notebook PC and be sure that your power adapter complies with the rating.

DO NOT carry or cover a Notebook PC that is powered ON with any materials that will reduce air circulation such as a carrying bag.

DO NOT throw the Notebook PC in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

1 Introducing the Notebook PC

Transportation Precautions

To prepare the Notebook PC for transport, you should turn it OFF and disconnect all external peripherals to prevent damage to the connectors. The hard disk drive's head retracts when the power is turned OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not transport the Notebook PC while the power is still ON. Close the display panel and check that it is latched securely in the closed position to protect the keyboard and display panel.

CAUTION! The Notebook PC's surface is easily dulled if not properly cared for. Be careful not to rub or scrape the Notebook PC surfaces.

Cover Your Notebook PC

Purchase a carrying bag to protect the Notebook PC from dirt, water, shock, and scratches.

Charge Your Batteries

If you intend to use battery power, be sure to fully charge your battery pack and any optional battery packs before going on long trips. Remember that the power adapter charges the battery pack as long as it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge the battery pack when the Notebook PC is in use.

Airplane Precautions

Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have restrictions for using electronic devices. Most airlines will allow electronic use only between and not during takeoffs and landings.

CAUTION! There are three main types of airport security devices: X-ray machines (used on items placed on conveyor belts), magnetic detectors (used on people walking through security checks), and magnetic wands (hand-held devices used on people or individual items). You can send your Notebook PC and diskettes through airport X-ray machines. However, it is recommended that you do not send your Notebook PC or diskettes through airport magnetic detectors or expose them to magnetic wands.

Models with 3G ^(1) : Produces radio wave emissions that may cause electrical interferences and must be used in places that do not prohibit such devices. Take precautions while using.

WARNING! The 3G function needs to be switched OFF in areas with potentially explosive atmospheres such as petrol (gas) stations, chemical storage depots, and blasting operations.

Preparing your Notebook PC

These are only quick instructions for using your Notebook PC. Read the later pages for detailed information on using your Notebook PC.

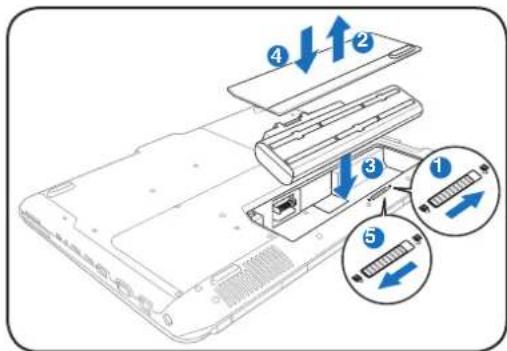

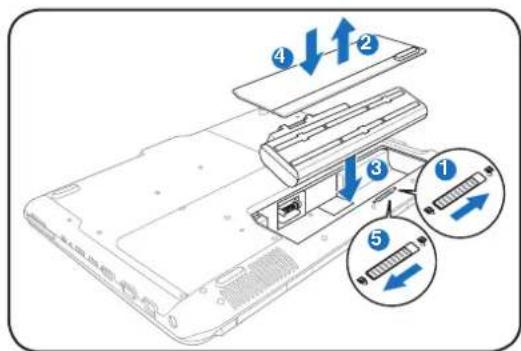

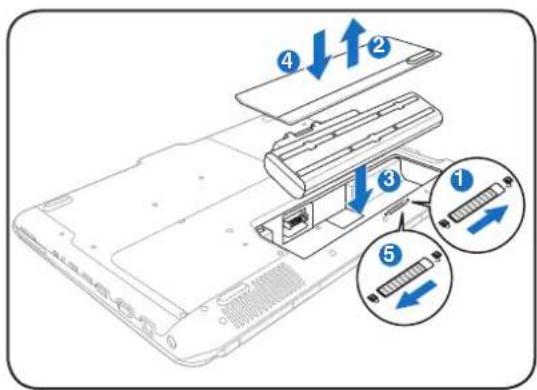

1. Install the battery pack


Diagram of a smartphone rear panel with labeled components and directional arrows indicating assembly or movement.

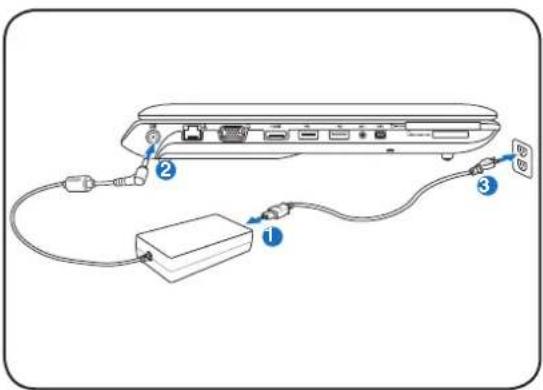

1. Connect the AC Power Adapter


Diagram of a network device showing cable routing from a device to a device via ports and cables, with labeled components ①, ②, and ③.

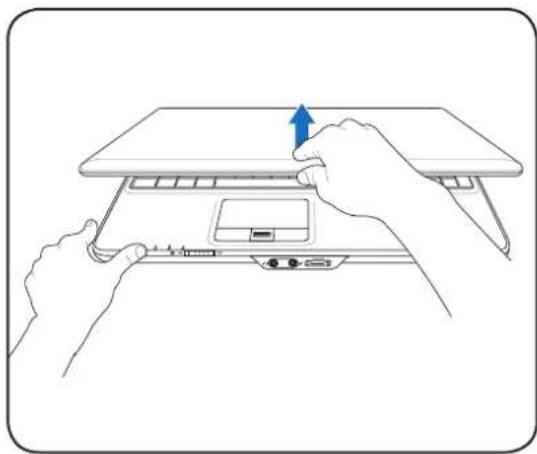

1. Open the Display Panel 4. Turn ON the Notebook PC


Line drawing of hands installing or adjusting a laptop keyboard with an upward arrow (no text or symbols)

Line drawing of a hand pressing down on a laptop keyboard with a power button icon (no text or symbols)

IMPORTANT! When opening, DO NOT force the display panel down to the table or else the hinges may break! Never lift the Notebook PC by the display panel!

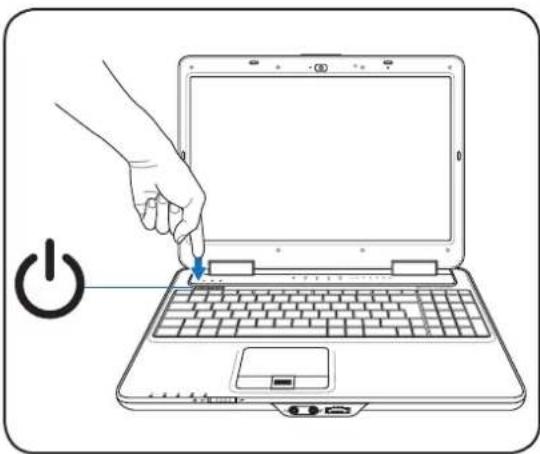

The power switch turns ON and OFF the Notebook PC or putting the Notebook PC into sleep or hibernation modes. Actual behavior of the power switch can be customized in Windows Control Panel > Power Options > System Settings.

1 Introducing the Notebook PC

2. Knowing the Parts

Basic sides of the Notebook PC

There may be differences between your Notebook PC and the drawings shown in this manual. Please accept your Notebook PC as being correct.

Photos and icons in this manual are used for artistic purposes only and do not show what is actually used in the product itself.

2 Knowing the Parts

Top Side

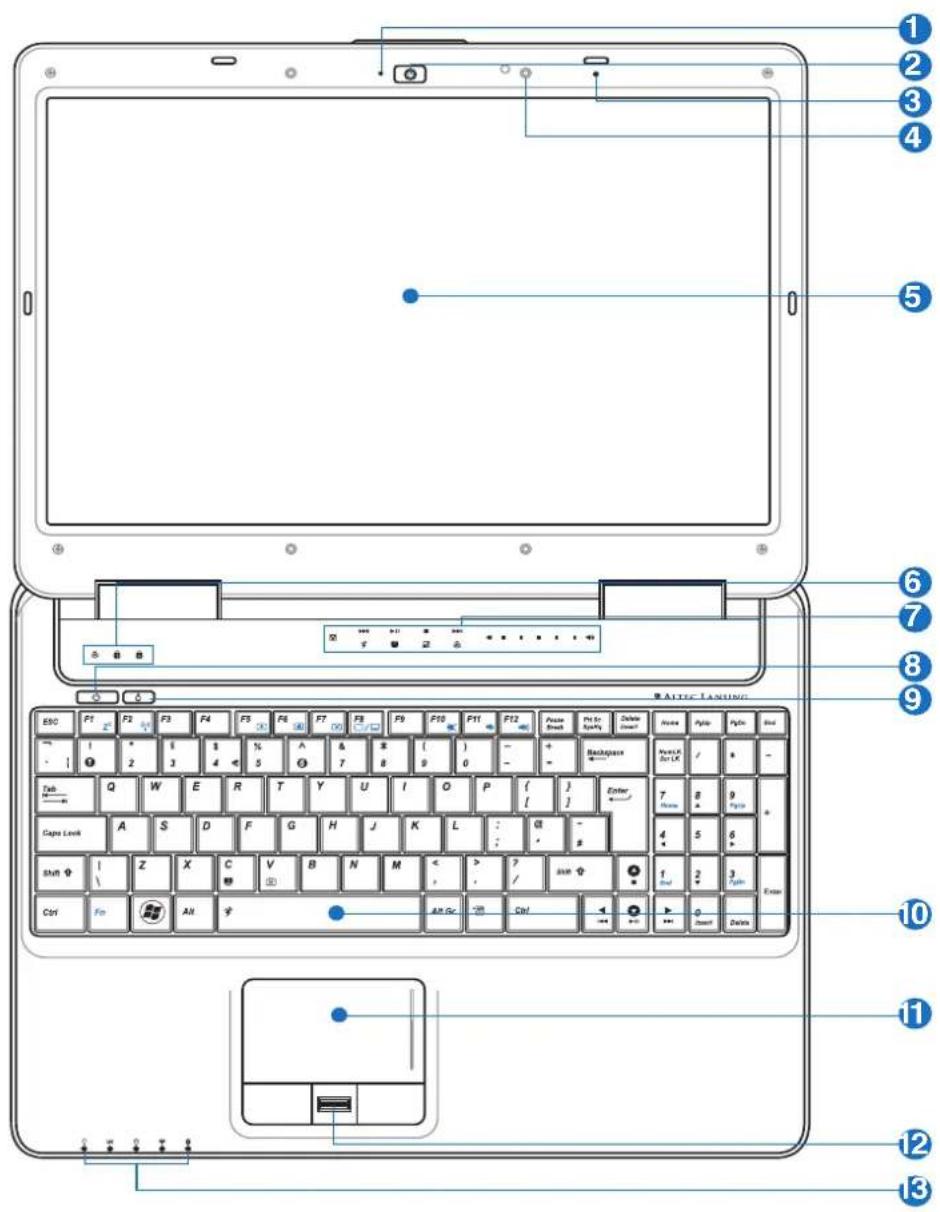

Refer to the illustration below to identify the components on this side of the Notebook PC.

The keyboard differs for each territory.

1 2 3 4 5 6 7 8 9 ESC F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 Portable Brush Pr Str SpA/SpY Delete (Next) Home Flyper Flyer Start 1 * 1 3 4 5 A & 7 8 9 0 - + Backspace 2 3 4 5 6 7 8 9 0 - - - Tab Q W E R T Y U I O P { } Enter Cape Lock A S D F G H J K L : @ - Shift | Z X C V B N M < > ? / Start Col For All ? Alt Gr Ctrl+ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - After Lacing 10 11 12 13

1 Camera Indicator

The camera indicator shows when the built-in camera is in use. The camera may be auto-activated by supported software.

2 © Camera (on selected models)

The built-in camera allows picture taking or video recording. Can be used with video conferencing and other interactive applications.

3 Microphone (Built-in)

The built-in mono microphone can be used for video conferencing, voice narrations, or simple audio recordings.

4 Light Sensor (on selected models)

The light sensor measures the amount of ambient light and changes the illumination of the LCD display accordingly.

⑤ Display Panel

The display panel functions the same as a desktop monitor. The Notebook PC uses an active matrix TFT LCD, which provides excellent viewing like that of desktop monitors. Unlike desktop monitors, the LCD panel does not produce any radiation or flickering, so it is easier on the eyes. Use a soft cloth without chemical liquids (use plain water if necessary) to clean the display panel.

6 Status Indicators (top)

Status indicators represent various hardware/software conditions. See indicator details in section 3.

7 ☐ Dual Mode Instant Keys (touch sensitive)

Dual mode instant keys provide two sets of instant keys for you to launch frequently used applications with one touch of a button. Details are described in section 3.

8 Power Switch

The power switch turns ON and OFF the Notebook PC or putting the Notebook PC into sleep or hibernation modes. Actual behavior of the power switch can be customized in Windows Control Panel "Power Options."

9 Express Gate Key

Pressing this button will launch Express Gate. Refer to the Express Gate User's Manual for details. This key does not function when in Windows environment.

2 Knowing the Parts

10 Keyboard

The keyboard provides full-sized keys with comfortable travel (depth at which the keys can be depressed) and palm rest for both hands. Two Windows function keys are provided to help ease navigation in the Windows operating system.

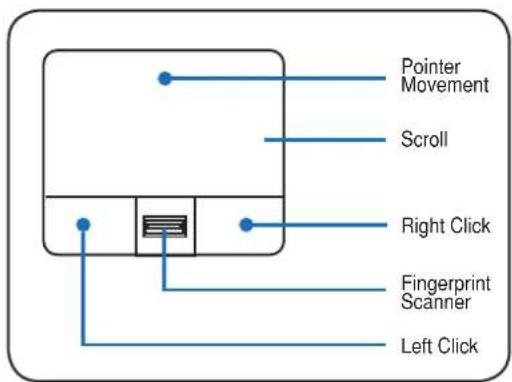

11 Touchpad and Buttons

The touchpad with its buttons is a pointing device that provides the same functions as a desk top mouse. A software-controlled scrolling function is available after setting up the included touchpad utility to allow easy Windows or web navigation.

12 Fingerprint Scanner (on selected models)

The fingerprint scanner allows use of security software using your fingerprint as your identification key.

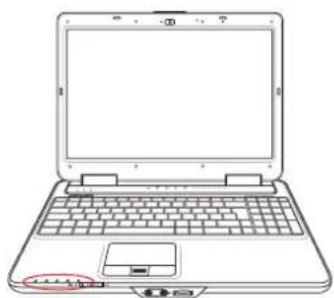

13 Status Indicators (front)

Status indicators represent various hardware/software conditions. See indicator details in section 3.

Bottom Side

Refer to the illustration below to identify the components on this side of the Notebook PC.

The bottom side may vary in appearance depending on model.

The battery pack size varies depending on model.

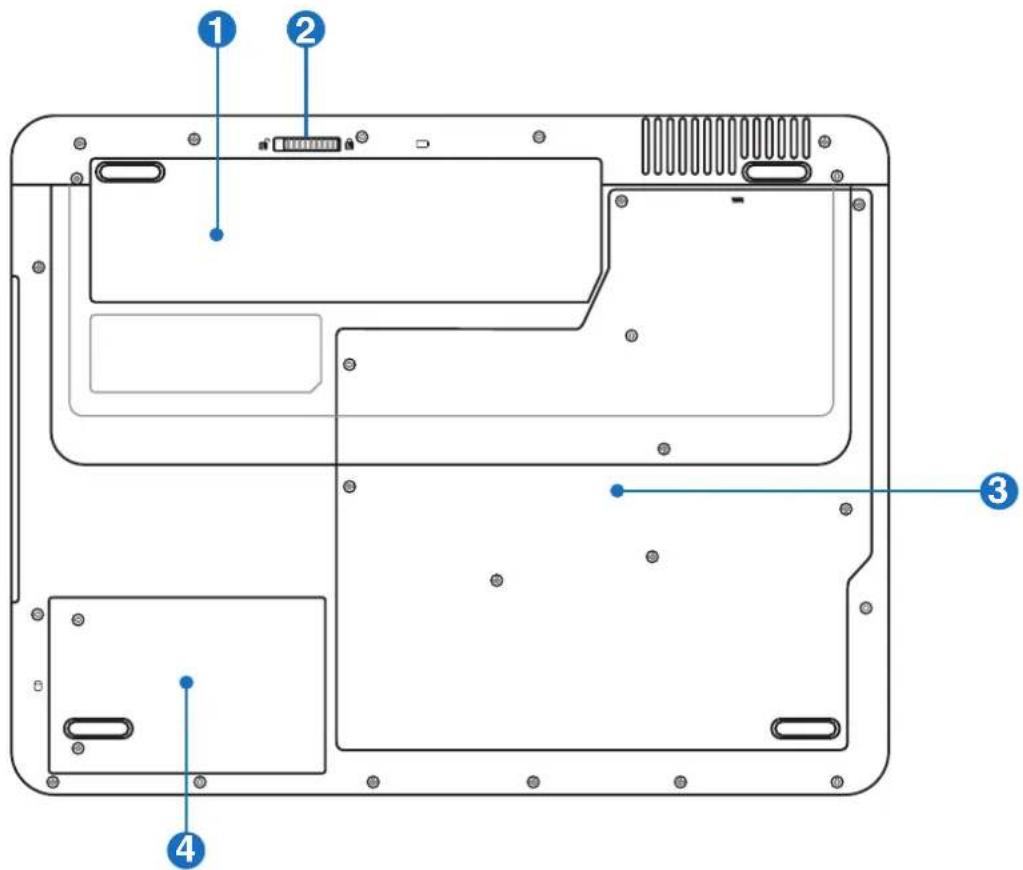

Diagram of a device rear panel with numbered annotations pointing to internal components

WARNING! The bottom of the Notebook PC can get very hot. Be careful when handling the Notebook PC while it is in operation or recently been in operation. High temperatures are normal during charging or operation. Do not use on soft surfaces such as beds or sofas which may block the vents. DO NOT PUT THE NOTEBOOK PC ON YOUR LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.

2 Knowing the Parts

1 Battery Pack

The battery pack is automatically charged when the Notebook PC is connected to an AC power source and maintains power to the Notebook PC when AC power is not connected. This allows us when moving temporarily between locations. Battery time varies by usage and by the specifications for this Notebook PC. The battery pack cannot be disassembled and must be purchased as a single unit.

② Battery Lock - Spring

The spring battery lock is used to keep the battery pack secured. When the battery pack is inserted, it will automatically lock. To remove the battery pack, this spring lock must be held in the unlocked position.

③ Memory (RAM) Compartment

The memory compartment provides expansion capabilities for additional memory. Additional memory will increase application performance by decreasing hard disk access. The BIOS are tomatically detects the amount of memory in the system and configures accordingly. There is no hardware or software (including BIOS) setup required after the memory is installed. Visit an authorized service center or retailer for information on memory upgrades for your Notebook PC. Only purchase expansion modules from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.

Central Processor Unit (CPU) Compartment

Some Notebook PC models feature a socketed-processor design to allow upgrading to fast processors in the future. Some models feature a ULV design for compactness and may not be upgraded. Visit an authorized service center or retailer for information on upgrades.

WARNING! End-user removal of the CPU or hard disk drive will void the warranty.

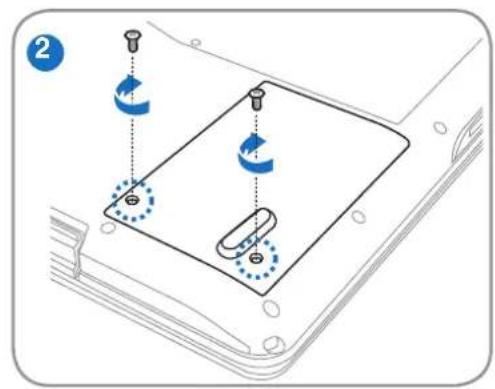

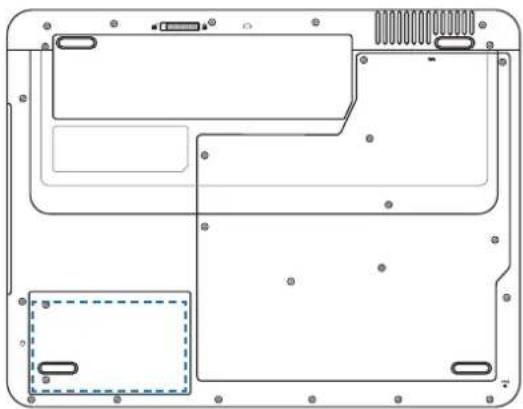

4 Hard Disk Drive Compartment

The hard disk drive is secured in a compartment. Visit an authorized service center or retailer to information on hard disk drive upgrades for your Notebook PC. Only purchase hard disk drives from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.

Left Side

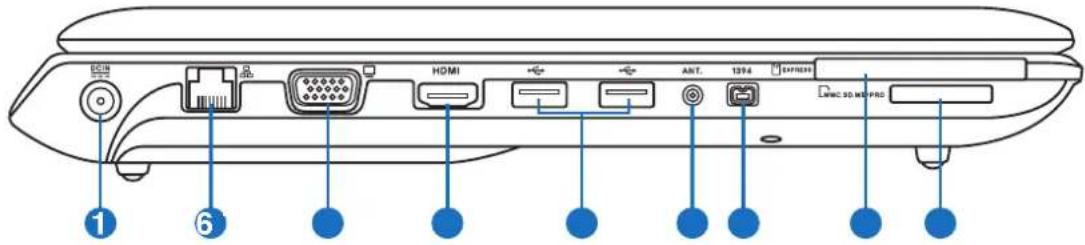

Refer to the illustration below to identify the components on this side of the Notebook PC.

DCN HDMI ANT. 1294 AWC 3D MSP PRO 1 6

1 DCIN Power (DC) Input

The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Notebook PC and charges the internal battery pack. To prevent damage to the Notebook PC and battery pack, always use the supplied power adapter. CAUTION: MAY BECOME WARM TO HOT WHEN IN USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.

② LAN Port

The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports a standard Ethernet cable for connection to a local network. The built-in connector allows convenient use without additional adapters.

③ □ Display (Monitor) Output

The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a monitor or projector to allow viewing on a larger external display.

4 HDMI HDMI Port

HDMI (High-Definition Multimedia Interface) is an uncompressed all-digital audio/video interface between any audio/video source, such as a set-top box, DVD player, and A/V receiver and an audio and/or video monitor, such as a digital television (DTV). Supports standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable. It transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements or requirements.

2 Knowing the Parts

⑤ USB Port (2.0/1.1)

The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices to run simultaneously on a single computer, with some peripherals acting as additional plug-in sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected or disconnected without restarting the computer.

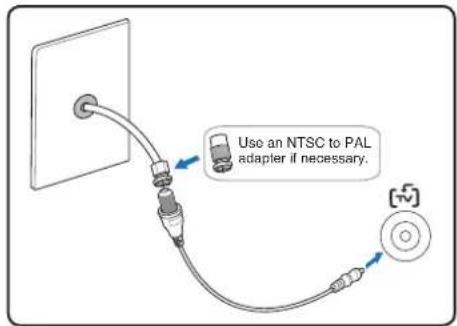

6 Antenna Input (on selected models)

The antenna input is for TV (on selected models) frequency signal and allows for use with the provided digital TV antenna or input from subscription television services. The provided antenna can receive digital TV. Cable service connection can receive digital TV, analog TV, depending on paid services. Note: Use the provided adapter for use with coaxial connectors.

7 1394 IEEE1394 Port (on selected models)

IEEE1394 is a high speed serial bus like SCS1 but has simple connections and hot-plugging capabilities like USB. The interface IEEE1394 has a bandwidth of 100-400 Mbits/sec and can handle up to 63 units on the same bus. IEEE1394 is also used in high-end digital equipment and should be marked "DV" for Digital Video port.

8 ExpressCard Slot

One 26pin Express card slot is available to support one ExpressCard/34mm or one ExpressCard/54mm expansion card. This new interface is faster by using a serial bus supporting USB 2.0 and PCI Express instead of the slower parallel bus used in the PC card slot. (Not compatible with previous PCMCIA cards.)

The dummy expansion card that comes with the Notebook PC can function as a memory card holder (on selected models), which protects the conductors of your flash memory card.

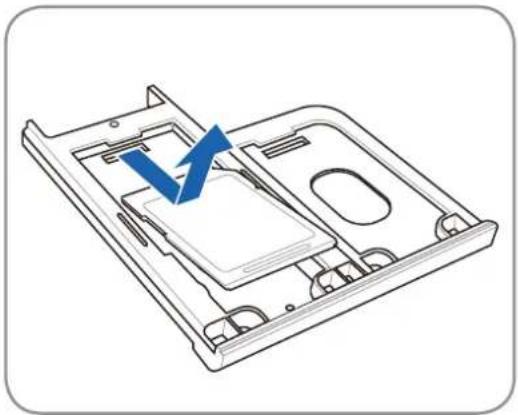

9 Flash Memory Slot

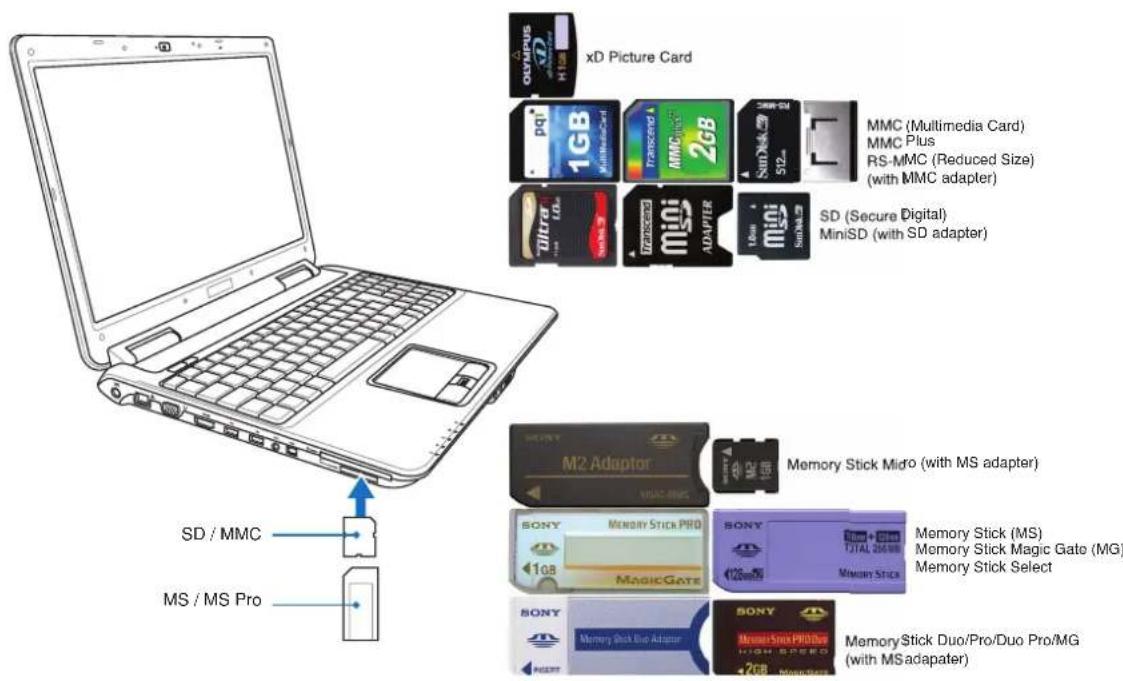

Normally an external memory card reader must be purchased separately in order to use memory cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs. This Notebook PC has a built-in high-speed memory card reader that can conveniently read from and write to many flash memory cards as mentioned later in this manual.

Right Side

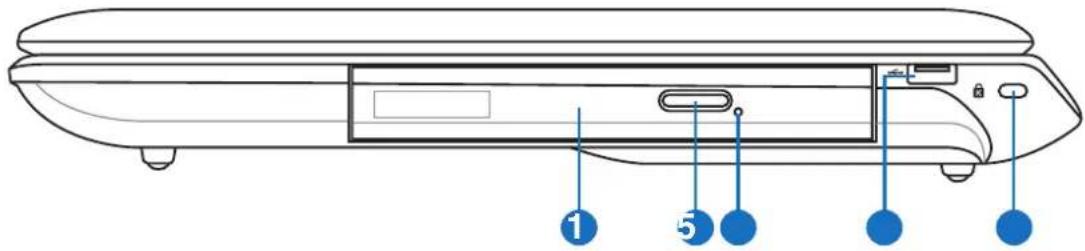

Refer to the illustration below to identify the components on this side of the Notebook PC.

Diagram of a device interior with labeled parts, showing numbered components and blue arrows indicating connections.

1

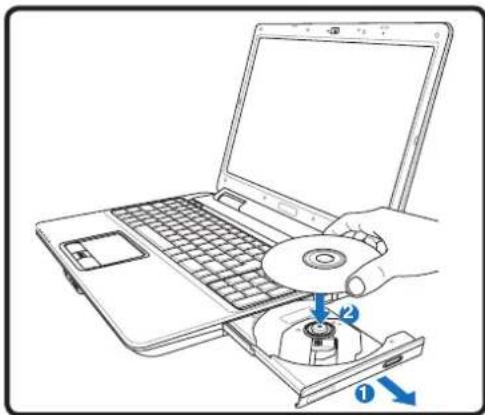

Optical Drive

The Notebook PC comes in various models with different optical drives. The Notebook PC's optical drive may support compact discs (CD) and/or digital video discs (DVD) and may have recordable (R) or re-writable (RW) capabilities. See the marketing specifications for details on each model.

2

Optical Drive Electronic Eject

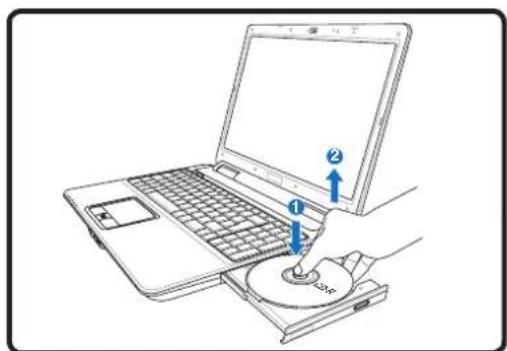

The optical drive eject has an electronic eject button for opening the tray. You can also eject the optical drive tray through any software player or by right clicking the optical drive in Windows "Computer" and selecting Eject. This eject also functions as the optical drive activity indicator which shows when data is being transferred by the optical disk drive. This indicator will light in proportion to the data size transferred.

3

Optical Drive Emergency Eject (location varies by model)

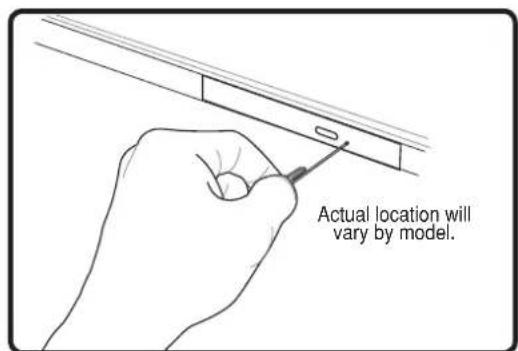

The emergency eject is used to eject the optical drive tray in case the electronic eject does not work. Do not use the emergency eject in place of the electronic eject.

4

USB Port (2.0/1.1)

The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices to run simultaneously on a single computer, with some peripherals acting as additional plug-in sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected or disconnected without restarting the computer.

5

Kensington® Lock Port

The Kensington® lock port allows the Notebook PC to be secured using Kensington compatible Notebook PC security products. These security products usually include a metal cable and lock that prevent the Notebook PC to be removed from a fixed object. Some may also include a motion detector to sound an alarm when moved.

2 Knowing the Parts

Rear Side

Refer to the illustration below to identify the components on this side of the Notebook PC.

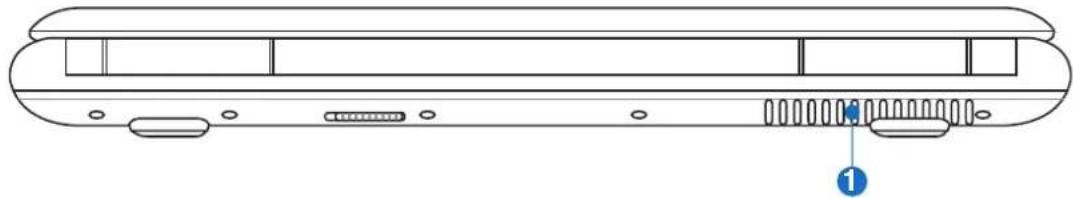

Technical line drawing of a device rear panel with labeled ports and connectors (no text or symbols beyond label)

1 Air Vents

The air vents allow cool air to enter and warm air to exit the Notebook PC.

IMPORTANT! Make sure that paper, books, clothing, cables, or other objects do not block any of the air vents or else overheating may occur.

Front Side

Refer to the illustration below to identify the components on this side of the Notebook PC.

Diagram of a device rear panel with labeled ports and connectors, showing internal components like USB port and indicator lights.

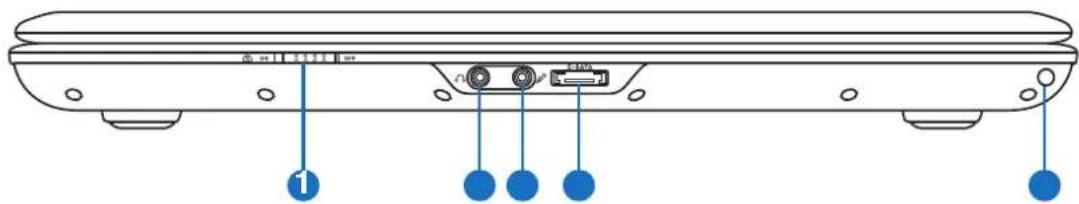

1 Wireless Switch

Enables or disables the built-in wireless LAN and Bluetooth (selected models). When enabled, the wireless status indicator will light. Windows software settings are necessary before use.

② SPDIF Output Jack

This jack provides connection to SPDIF (Sony/Philips Digital Interface) compliant devices for digital audio output. Use this feature to turn the Notebook PC into a hi-fi home entertainment system.

Headphone Output Jack

The stereo headphone jack (1/8 inch) is used to connect the Notebook PC's audio out signal to amplified speakers or headphones. Using this jack automatically disables the built-in speakers.

3 Microphone Input Jack

The mono microphone jack (1/8 inch) can be used to connect an external microphone or output signals from audio devices. Using this jack automatically disables the built-in microphone. Use this feature for video conferencing, voice narrations, or simple audio recordings.

4 E-SATAE-SATA Port (on selected models)

External SATA or eSATA allows external connection of Serial-ATA devices originally designed for use inside the computer. It is up to six times faster than existing USB 2.0, & 1394 for external storage solutions and is also hot pluggable using shielded cables and connectors up to two meters.

5 Air Ionizer (on selected models)

The built-in air ionizer functions as an air purifier. The emitted ions purify the air by attracting particles floating in the air and falling to the ground. Press the Air Ionizer instant key to activate this function.

IMPORTANT! DO NOT insert any object into the ionizer hole. Doing so will damage the air ionizer.

2 Knowing the Parts

3. Getting Started

Using AC Power

Using Battery Power

Powering ON the Notebook PC

Checking Battery Power

Powering Options

Power Management Modes

Special Keyboard Functions

Switches and Status Indicators

There may be differences between your Notebook PC and the drawings shown in this manual. Please accept your Notebook PC as being correct.

Photos and icons in this manual are used for artistic purposes only and do not show what is actually used in the product itself.

3

Getting Started

Power System

Using AC Power

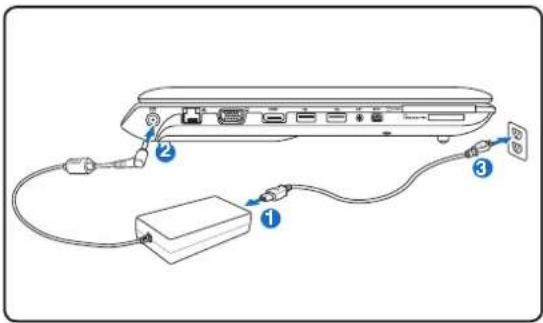

The Notebook PC power is comprised of two parts, the power adapter and the battery power system. The power adapter converts AC power from a wall outlet to the DC power required by the Notebook PC. Your Notebook PC comes with a universal AC-DC adapter. That means that you may connect the power cord to any 100V-120V as well as 220V-240V outlets without setting switches or using power converters. Different countries may require that an adapter be used to connect the provided US-standard AC power cord to a different standard. Most hotels will provide universal outlets to support different power cords as well as voltages. It is always best to ask an experienced traveler about AC outlet voltages when bringing power adapters to another country.

Diagram of a device showing cable routing with labeled components: ports, connectors, and a power outlet.

You can buy travel kits for the Notebook PC that includes power and modem adapters for almost every country.

WARNING! DO NOT connect the AC power cord to an AC outlet prior to connecting the DC plug to the Notebook PC. Doing so may damage the AC-DC adapter.

IMPORTANT! Damage may occur if you use a different adapter to power the Notebook PC or use the Notebook PC's adapter to power other electrical devices. If there is smoke, burning scent, or extreme heat coming from the AC-DC adapter, seek servicing. Seek servicing if you suspect a faulty AC-DC adapter. You may damage both your battery pack(s) and the Notebook PC with a faulty AC-DC adapter.

This Notebook PC may come with either a two or three-prong plug depending on territory. If a three-prong plug is provided, you must use a grounded AC outlet or use a properly grounded adapter to ensure safe operation of the Notebook PC.

WARNING! THE POWER ADAPTER MAY BECOME WARM TO HOT WHEN IN USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.

Unplug the power adapter or switch off the AC outlet to minimize the power consumption when the Notebook PC is not in use.

Using Battery Power

The Notebook PC is designed to work with a removable battery pack. The battery pack consists of a set of battery cells housed together. A fully charged pack will provide several hours of battery life, which can be further extended by using power management features through the BIOS setup. Additional battery packs are optional and can be purchased separately through a Notebook PC retailer.

Installing and Removing the Battery Pack

Your Notebook PC may or may not have its battery pack installed. If your Notebook PC does not have its battery pack installed, use the following procedures to install the battery pack.

IMPORTANT! Never attempt to remove the battery pack while the Notebook PC is turned ON, as this may result in the loss of working data.

To install the battery pack:

Diagram of a device with numbered parts and directional arrows indicating assembly or movement, likely illustrating a mechanical or electronic component.

To remove the battery pack:

Diagram of a device with numbered components and directional arrows indicating assembly or movement

IMPORTANT! Only use battery packs and power adapters supplied with this Notebook PC or specifically approved by the manufacturer or retailer for use with this model or else damage may occur to the Notebook PC.

Ensure that the pull tab of the battery pack is not blocked when installing the battery pack, or there might be trouble removing the battery pack.

3 Getting Started

Battery Care

The Notebook PC's battery pack, like all rechargeable batteries, has a limit on the number times it can be recharged. The battery pack's useful life will depend on your environment temperature, humidity, and how your Notebook PC is used. It is ideal that the battery be used in a temperature range between 5^ and 35^ (41°F and 95°F). You must also take into account that the Notebook PC's internal temperature is higher than the outside temperature. Any temperatures above or below this range will shorten the life of the battery. But in any case, the battery pack's usage time will eventually decrease and a new battery pack must be purchased from an authorized dealer for this Notebook PC. Because batteries also have a shelf life, it is not recommended to buy extras for storing.

WARNING! For safety reasons, DO NOT throw the battery in fire, DO NOT short circuit the contacts, and DO NOT disassemble the battery. If there is any abnormal operation or damage to the battery pack caused by impact, turn OFF the Notebook PC and contact an authorized service center.

Powering ON the Notebook PC

The Notebook PC's power-ON message appears on the screen when you turn it ON. If necessary, you may adjust the brightness by using the hot keys. If you need to run the BIOS Setup to set or modify the system configuration, press [F2] upon bootup to enter the BIOS Setup. If you press [Tab] during the splash screen, standard boot information such as the BIOS version can be seen. Press [ESC] and you will be presented with a boot menu with selections to boot from your available drives.

Before bootup, the display panel flashes when the power is turned ON. This is part of the Notebook PC's test routine and is not a problem with the display.

IMPORTANT! To protect the hard disk drive, always wait at least 5 seconds after turning OFF your Notebook PC before turning it back ON.

WARNING! DO NOT carry or cover a Notebook PC that is powered ON with any materials that will reduce air circulation such as a carrying bag.

The Power-On Self Test (POST)

When you turn ON the Notebook PC, it will first run through a series of software-controlled diagnostic tests called the Power-On Self Test (POST). The software that controls the POST is installed as a permanent part of the Notebook PC's architecture. The POST includes a record of the Notebook PC's hardware configuration, which is used to make a diagnostic check of the system. This record is created by using the BIOS Setup program. If the POST discovers a difference between the record and the existing hardware, it will display a message on the screen prompting you to correct the conflict by running BIOS Setup. In most cases the record should be correct when you receive the Notebook PC. When the test is finished, you may get a message reporting "No operating system found" if the hard disk was not preloaded with an operating system. This indicates that the hard disk is correctly detected and ready for the installation of a new operating system.

Self Monitoring and Reporting Technology

The S.M.A.R.T. (Self Monitoring and Reporting Technology) checks the hard disk drive during POST and gives a warning message if the hard disk drive requires servicing. If any critical hard disk drive warning is given during bootup, backup your data immediately and run Windows disk checking program. To run Window's disk checking program: click Start > select Computer > right-click a hard disk drive icon > choose Properties > click the Tools tab > click Check Now > click Start. You can also select "Scan ... sectors" for more effective scan and repair but the process will run slower.

Local Disk (C:) Properties Security Details Touch Hardware Options Non-checking This option will check the volume for access. © Check Flow... Debridemental This option will fragment file on the volume. © Designation Flow... Backup This option will attach us file on the volume. Backup Flow... OK Cancel Apply

IMPORTANT! If warnings are still given during bootup after running a software disk checking utility, you should take your Notebook PC in for servicing. Continued use may result in data loss.

3

Getting Started

Checking Battery Power

The battery system implements the Smart Battery standard under the Windows environment, which allows the battery to accurately report the amount of charge left in the battery. A fully-charged battery pack provides the Notebook PC a few hours of working power. But the actual figure varies depending on how you use the power saving features, your general work habits, the CPU, system memory size, and the size of the display panel.

Screen captures shown here are examples only and may not reflect what you see in your system.

You will be warned when battery power is low. If you continue to ignore the low battery warnings, the Notebook PC eventually enters suspend mode (Windows default uses STR).

3 hr 31 min (99%) remaining Select a power plan: Power4Gear Entertainment Power4Gear Battery Saving Power4Gear High Performance Learn how to conserve power More power options Windows Mobility Center 6:47 PM

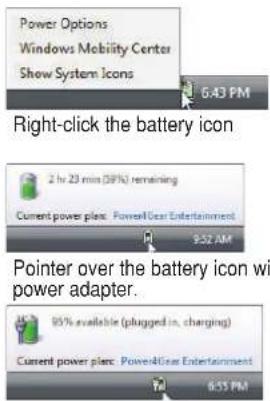

Left-click the battery icon

Power Options Windows Mobility Center Show System Icons 6:43 PM Right-click the battery icon 2 hr 23 mins (59%) remaining Current power plan: PowerGet Entertainment 9:52 AM Pointer over the battery icon with power adapter. 95% available (plugged in, charging) Current power plan: PowerGet Entertainment 6:55 PM

Pointer over the battery icon with power adapter.

WARNING! Suspend-to-RAM (STR) does not last long when the battery power is depleted. Suspend-to-Disk (STD) is not the same as power OFF. STD requires a small amount of power and will fail if no power is available due to complete battery depletion or no power supply (e.g. removing both the power adapter and battery pack).

Charging the Battery Pack

Before you use your Notebook PC on the road, you will have to charge the battery pack. The battery pack begins to charge as soon as the Notebook PC is connected to external power using the power adapter. Fully charge the battery pack before using it for the first time. A new battery pack must completely charge before the Notebook PC is disconnected from external power. It takes a few hours to fully charge the battery when the Notebook PC is turned OFF and may take twice the time when the Notebook PC is turned ON. The battery status indicator on the Notebook PC turns OFF when the battery pack is charged.

The battery starts charging when the charge remaining in the battery drops below 95%. This prevents the battery from charging frequently. Minimizing the recharge cycles helps prolong battery life.

The battery stops charging if the temperature is too high or the battery voltage is too high.

WARNING! DO NOT leave the battery pack discharged. The battery pack will discharge over time. If not using a battery pack, it must continued to be charged every three months to extend recovery capacity or else it may fail to charge in the future.

Power Options

The power switch turns ON and OFF the Notebook PC or putting the Notebook PC into sleep or hibernation modes. Actual behavior of the power switch can be customized in Windows Control Panel "Power Options."

For other options, such as "Switch User, Restart, Sleep, or Shut Down," click the arrowhead next to the lock icon.

Restarting or Rebooting

After making changes to your operating system, you may be prompted to restart the system. Some installation processes will provide a dialog box to allow restart. To restart the system manually, choose Restart.

Connect To Control Panel Default Programs Help and Support Switch User Log Off Lock Restart Sleep Hibernate Shut Down

IMPORTANT! To protect the hard drive, wait at least 5 seconds after turning OFF your Notebook PC before turning it back ON.

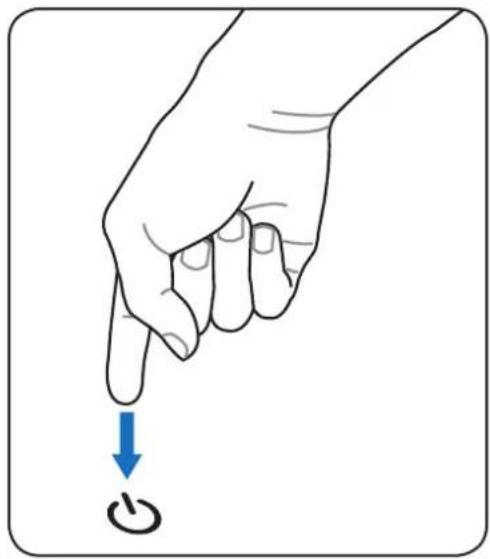

Emergency Shutdown

In case your operating system cannot properly turn OFF or restart, there is an additional way to shutdown your Notebook PC:

Hold the power button over 4 seconds.

IMPORTANT! Do not use emergency shutdown while data is being written; doing so can result in loss or destruction of your data.

Illustration of a hand pointing to a button with a blue arrow indicating downward motion (no text or symbols)

3

Getting Started

Power Options

Power Management Modes

The Notebook PC has a number of automatic or adjustable power saving features that you can use to maximize battery life and lower Total Cost of Ownership (TCO). You can control some of these features through the Power menu in the BIOS Setup. ACPI power management settings are made through the operating system. The power management features are designed to save as much electricity as possible by putting components into a low power consumption mode as often as possible but also allow full operation on demand.

Sleep and Hibernate

Power management settings can be found in the Windows > Control Panel > Power Options. In System Settings, you can define "Sleep/Hibernate" or "Shut Down" for closing the display panel or pressing the power button. "Sleep" and "Hibernate" saves power when your Notebook PC is not in use by turning OFF certain components. When you resume your work, your last status (such as a document scrolled down half way or email typed half way) will reappear as if you never left. "Shut Down" will close all applications and ask if you want to save your work if any are not saved.

Defined power buttons and turn on password protection Describe the power settings that you will provide your computer. The changed you to make the settings on the power buttons and turn on your computer. Change waiting time and wait settings Power button buttons and turn settings Or Battery Switch Choose it What Does the power buttons Do Stop What Does the drop buttons Do Stop What Does the drop buttons Do Stop Password protection on account What does you choose this button. What does you choose this button, or can use your data without setting this password provided in which the Computer is to access your account. What does you choose this button, or can use your data without setting this password and check.

Sleep is the same as Suspend-to-RAM (STR). This function stores your current data and status in RAM while many components are turned OFF. Because RAM is volatile, it requires power to keep (refresh) the data. Click the Start button and the arrowhead next to the lock icon to see this option. You can also use the keyboard shortcut [Fn F1] to activate this mode. Recover by pressing any keyboard key except [Fn]. (NOTE: The power indicator will blink in this mode.)

Connect To Control Panel Default Programs Help and Support Switch User Log Off Lock Restart Sleep Hibernate Shut Down

Hibernate is the same as Suspend-to-Disk (STD) and stores your current data and status on the hard disk drive. By doing this, RAM does not have to be periodically refreshed and power consumption is greatly reduced but not completely eliminated because certain wake-up components like LAN needs to remain powered. "Hibernate" saves more power compared to "Sleep". Click the Start button and the arrowhead next to the lock icon to see this option. Recover by pressing the power button. (NOTE: The power indicator will be OFF in this mode.)

Thermal Power Control

There are three power control methods for controlling the Notebook PC's thermal state. These power control cannot be configured by the user and should be known in case the Notebook PC should enter these states. The following temperatures represent the chassis temperature (not CPU).

• The fan turns ON for active cooling when the temperature reaches the safe upper limit.
• The CPU decreases speed for passive cooling when the temperature exceeds the safe upper limit.
• The system shut down for critical cooling when temperature exceeds the maximum safe upper limit.

Special Keyboard Functions

Colored Hot Keys

The following defines the colored hot keys on the Notebook PC's keyboard. The colored commands can only be accessed by first pressing and holding the function key while pressing a key with a colored command.

Line drawing of a laptop computer with a red tab on the screen (no text or symbols)

The Hot Key locations on the function keys may vary depending on model but the functions should remain the same. Follow the icons instead of the function keys.

"Zz" Icon (F1): Places the Notebook PC in suspend mode (either Save-to-RAM or Save-to-Disk depending on sleep button setting in power management setup).

Radio Tower (F2): Wireless Models Only: Toggles the internal wireless LAN or Bluetooth (on selected models) ON or OFF with an on-screen-display. When enabled, the corresponding wireless indicator will light. Windows software settings are necessary to use the wireless LAN or Bluetooth.

Sun Down Icon (F5): Decreases the display brightness

Sun Up Icon (F6): Increases the display brightness

LCD Icon (F7): Toggles the display panel ON and OFF. (On certain models; stretches the screen area to fill the entire display when using low resolution modes.)

LCD/Monitor Icons (F8): Toggles between the Notebook PC's LCD display and an external monitor in this series: LCD Only -> CRT Only (External Monitor) -> LCD + CRT Clone -> LCD + CRT Extend. (This function does not work in 256 Colors, select High Color in Display Property Settings.) NOTE: Must connect an external monitor "before" booting up.

Crossed Speaker Icons (F10): Toggles the speakers ON and OFF (only in Windows OS)

Speaker Down Icon (F11): Decreases the speaker volume (only in Windows OS)

Speaker Up Icon (F12): Increases the speaker volume (only in Windows OS)

3 Getting Started

Colored Hot Keys (cont.)

Scr Lk (Num LK): Toggles the "Scroll Lock" ON and OFF. Allows you to use a larger portion of the keyboard for cell navigation.

Fn+C: Toggles "Splendid Video Intelligent Technology" function ON and OFF. This allows switching between different display color enhancement modes in order to improve contrast, brightness, skin tone, and color saturation for red, green, and blue independently. You can see the current mode through the on-screen display (OSD).

Fn+V: Toggles "Life Frame" software application.

Fn+A: Toggles the Light Sensor ON or OFF.

Power4Gear eXtreme (Fn+Space Bar): This key toggles power savings between various power saving modes. The power saving modes

control many aspects of the Notebook PC to maximize performance versus battery time. Applying or removing the power adapter will automatically switch the system between AC mode and battery mode. You can see the current mode through the on-screen display (OSD).

Fn+Enter (extended keyboard): Toggles "Calculator."

Microsoft Windows Keys

There are two special Windows keys on the keyboard as described below.

The key with the Windows Logo activates the Start menu located at the bottom left of the Windows desktop.

The other key, that looks like a Windows menu with a small pointer, activates the properties menu and is equivalent to pressing the right mouse button on a Windows object.

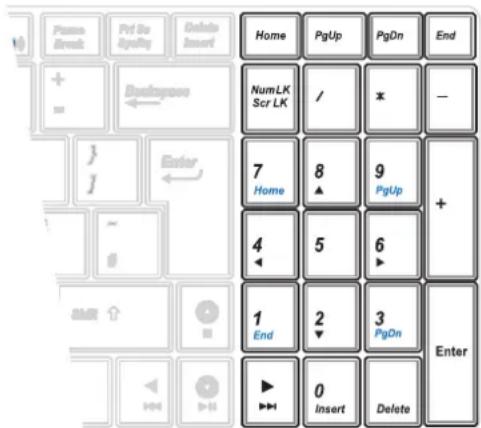

Extended Keyboard

An extended keyboard is available on selected models. The extended keyboard has a dedicated numeric keypad for easy number entry. Use [Num Lk / Scr Lk] to toggle between using the extended keypad as numbers or as pointer directions. The pointer direction keys are for navigation between fields or cells such as those in a spreadsheet or table.

Piano Break Prd Do Apology Delido Insert Home PgUp PgDn End + = SendSpace / NumLK Scr LK / * — 7 Home 8 9 PgUp + - 4 5 6 Enter 1 End 2 3 PgDn Enter ▶ 0 Insert Delete

3 Getting Started

Switches and Status Indicators Switches

User interface toolbar with playback, audio, and video control icons

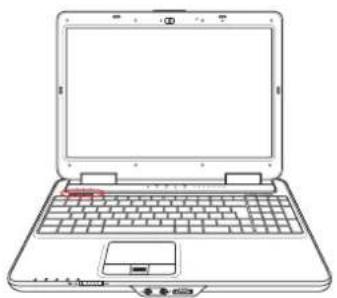

Line drawing of a laptop with a blank screen and a red button on the keyboard (no text or symbols)

Mode Switch Key

There are two sets of instant keys. Pressing this button will switch the instant key mode.

Multimedia Control Keys

The multimedia control keys allows for convenient controlling of the multimedia application. They function as the arrows keys. Refer to the end of this section for more details.

Power4Gear eXtreme Key

The Power4Gear eXtreme key toggles power savings between various power saving modes. The power saving modes control many aspects of the Notebook PC to maximize performance

versus battery time. Applying or removing the power adapter will automatically switch the system between AC mode and battery mode. The selected mode is shown on the display.

Splendid Key (on selected models)

Toggles "Splendid Video Intelligent Technology" function ON and OFF. This allows switching between different display color enhancement modes in order to improve contrast, brightness, skin tone, and color saturation for red, green, and blue independently. The selected mod

Touchpad Lock Key

Pressing this button will lock (disable) the built-in touchpad. Locking the touchpad will prevent you from accidentally moving the pointer while typing and is best used with an external mouse (pointing device). To unlock (enable) the touchpad, simply press this button again.

Air Ionizer Key

Pressing this button will start the air ionizer.

Volume Control Bar

Slide a finger on the Volume Control Bar to adjust the system volume.

Switches and Status Indicators (cont.)

Switches

Two rectangular buttons with power and flame icons, no text or symbols present

Line drawing of a laptop computer with blank screen and keyboard (no text or symbols)

Power Switch

The power switch turns ON and OFF the Notebook PC or putting the Notebook PC into sleep or hibernation modes. Actual behavior of the power switch can be customized in Windows Control Panel "Power Options."

Express Gate Key

Pressing this button will launch Express Gate. Refer to the Express Gate User's Manual for details.

This key will not function when the Notebook PC is in Windows environment.

3

Getting Started

Switches and Status Indicators (cont.)

Status Indicators Front

Row of five icons representing lightbulb, battery, plug, wireless signal, and plug (no text or labels)

Line drawing of a laptop computer with blank screen and keyboard (no text or symbols)

Power Indicator

The power indicator lights when the Notebook PC is turned ON and blinks slowly when the Notebook PC is in the Suspend-to-RAM (Sleep) mode. This indicator is OFF when the Notebook PC is turned OFF or in the Suspend-to-Disk (Hibernation) mode.

Battery Charge Indicator

The battery charge indicator shows the status of the battery's power as follows:

ON: The Notebook PC's battery is charging when AC power is connected.

OFF: The Notebook PC's battery is charged or completely drained.

Blinking: Battery power is less than 10% and the AC power is not connected.

Drive Activity Indicator

Indicates that the Notebook PC is accessing one or more storage device(s) such as the hard disk. The light flashes proportional to the access time.

Wireless Indicator

This is only applicable on models with built-in wireless LAN. When the built-in wireless LAN is enabled, this indicator will light. (Windows software settings are necessary.)

Bluetooth Indicator

This is only applicable on models with internal Bluetooth (BT). This indicator will light to show that the Notebook PC's built-in Bluetooth (BT) function is activated.

Switches and Status Indicators (cont.)

Status Indicators (cont.) Top

Three labeled icons: a padlock, a lock, and an 'A', arranged horizontally within a rounded rectangular border.

Line drawing of a laptop computer with blank screen and keyboard (no text or symbols)

Air Ionizer Key

Indicates that the air ionizer is enabled.

Number Lock Indicator

Indicates that number lock [Num Lk] is activated when lighted. Number lock allows some of the keyboard letters to act as numbers for easier numeric data input.

Capital Lock Indicator

Indicates that capital lock [Caps Lock] is activated when lighted. Capital lock allows some of the keyboard letters to type using capitalized letters (e.g. A, B, C). When the capital lock light is OFF, the typed letters will be in the lower case form (e.g. a,b,c).

3

Getting Started

- Multimedia Control Keys (on selected models)

The multimedia control keys allows for convenient controlling of the multimedia application. The following defines the meaning of each multimedia control key on the Notebook PC.

Some control key functions may defer depending on Notebook PC model.

Use the [Fn] key in combination with the arrow keys for CD control functions.

CD Play/Pause

During CD stop, begins CD play.

During CD play, pauses CD play.

CD Stop

During CD stop: Ejects the CD tray.

During CD play: Stops CD play.

CD Skip to Previous Track (Rewind) & Audio Volume Down

During CD play, this button has two functions:

Track: The first push will restart the current track. Second push will skip to the previous track.

Audio: Hold down to decrease audio volume.

CD Skip to Next Track (Fast Forward) & Audio Volume Up

During CD play, this button has two functions:

Track: Push once to skip to the next track during CD playing.

Audio: Hold down to increase audio volume.

Audio Volume Controls

Fn + Speaker Icons (F10): Toggles the audio volume ON and OFF

Fn + Down Speaker Icon (F11): Decreases the audio volume

Fn + Up Speaker Icon (F12): Increases the audio volume

4. Using the Notebook PC

Pointing Device

Storage Devices

Expansion Card

Optical drive

Flash memory card reader

Hard disk drive

Memory (RAM)

Connections

Network Connection

Wireless LAN Connection (on selected models)

Bluetooth Wireless Connection (on selected models)

Antenna Connections (on selected models)

Trusted Platform Module (TPM) (on selected models)

Fingerprint Scanner (on selected models)

3G Watcher (on selected models and in selected territories)

There may be differences between your Notebook PC and the drawings shown in this manual. Please accept your Notebook PC as being correct.

Photos and icons in this manual are used for artistic purposes only and do not show what is actually used in the product itself.

Pointing Device

The Notebook PC's integrated touchpad pointing device is fully compatible with all two/three-button and scrolling knob PS/2 mice. The touchpad is pressure sensitive and contains no moving parts; therefore, mechanical failures can be avoided. A device driver is still required for working with some application software.

IMPORTANT! DO NOT use any objects in place of your finger to operate the touchpad or else damage may occur to the touchpad's surface.

Using the Touchpad

Light pressure with the tip of your finger is all that is required to operate the touchpad. Because the touchpad is electrostatic sensitive, objects cannot be used in place of your fingers. The touchpad's primary function is to move the pointer around or select items displayed on the screen with the use of your fingertip instead of a standard desktop mouse. The following illustrations demonstrate proper use of the touchpad.

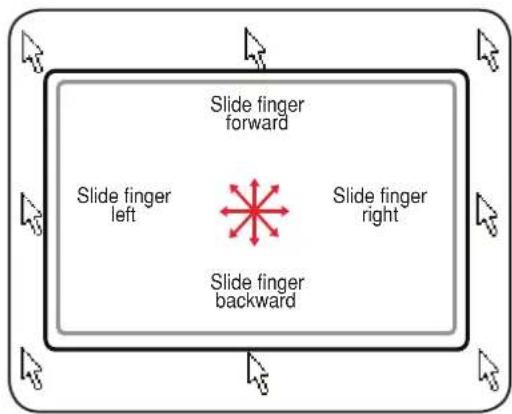

Moving The Pointer

Place your finger in the center of the touchpad and slide in a direction to move the pointer.

Pointer Movement Scroll Right Click Fingerprint Scanner Left Click

Scrolling (on selected models)

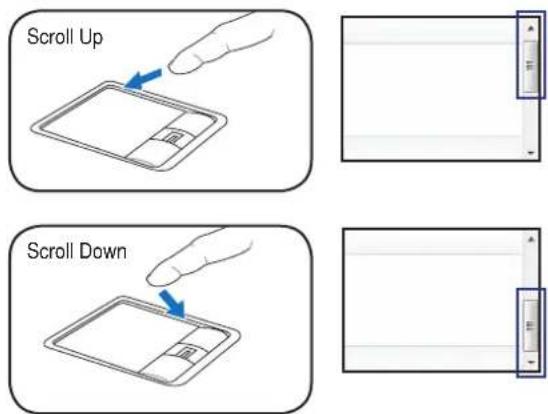

Slide your finger up or down on the right side to scroll a window up or down.

Scroll Up Scroll Down

Touchpad Usage Illustrations

Clicking/Tapping - With the pointer over an item, press the left button or use your fingertip to touch the touchpad lightly, keeping your finger on the touchpad until the item is selected. The selected item will change color. The following 2 examples produce the same results.

Clicking

Line drawing of a hand inserting a small component into a rectangular device (no text or symbols)

Press the left pointer button and release.

Tapping

Hand holding a square device with a small symbol inside, no text or labels present

Lightly but rapidly strike the touchpad.

Double-clicking/Double-tapping - This is a common skill for launching a program directly from the corresponding icon you select. Move the pointer over the icon you wish to execute, press the left button or tap the pad twice in rapid succession, and the system launches the corresponding program. If the interval between the clicks or taps is too long, the operation will not be executed. You can set the double-click speed using the Windows Control Panel "Mouse." The following 2 examples produce the same results.

Double-Clicking

Illustration of a hand inserting a small electronic component into a device (no text or symbols)

Press the left button twice and release.

Double-Tapping

Line drawing of a hand pressing down on a device with a blue zigzag line and 'S' mark, no text or symbols present

Lightly but rapidly strike the touchpad twice.

Dragging - Dragging means to pick up an item and place it anywhere on the screen you wish. You can move the pointer over the item you select, and while keeping the left button depressed, moving the pointer to the desired location, then release the button. Or, you can simply double-tap on the item and hold while dragging the item with your fingertip. The following illustrations produce the same results.

Dragging Clicking

Illustration of a hand inserting a card into a tablet device (no text or symbols visible)

Hold left button and slide finger on touchpad.

Dragging-Tapping

Line drawing of a hand pressing down on a device screen with a blue waveform symbol (no text or labels)

Lightly strike the touchpad twice, sliding finger on touchpad during second strike.

4

Using the Notebook PC

Caring for the Touchpad

The touchpad is pressure sensitive. If not properly cared for, it can be easily damaged. Take note of the following precautions.

• Make sure the touchpad does not come into contact with dirt, liquids or grease.
• Do not touch the touchpad if your fingers are dirty or wet.
• Do not rest heavy objects on the touchpad or the touchpad buttons.
• Do not scratch the touchpad with your finger nails or any hard objects.

The touchpad responds to movement not to force. There is no need to tap the surface too hard. Tapping too hard does not increase the responsiveness of the touchpad. The touchpad responds best to light pressure.

□ Automatic Touchpad Disabling (Synaptics)

Windows can automatically disable the Notebook PC's touchpad when an external USB mouse is attached. This feature is normally OFF, to turn ON this feature, select the option in Windows Control Panel > Mouse Properties > Device Settings.

Corel Panel System and Maintenance Get started with Windows Back-up when computer Security Check the update Check the computer security status Show a program through wireless Default Network and Internet Connect to the Internet View network status and needs Set up the sharing Hardware and Sound Play CDs or other media automatically Monitor Options Programs Show a program Change shading programs Mobile PC Change shading settings Import community and mobility settings User Accounts and Family Safety Set up parental contacts for you and Add an remote user accounts Appraience and Personalization Change shading background Customize this Adjust current installation Click, Language, and Region Change background of the input method Change display language Ease of Access: Set Windows import settings Systems virtual Display Additional Options

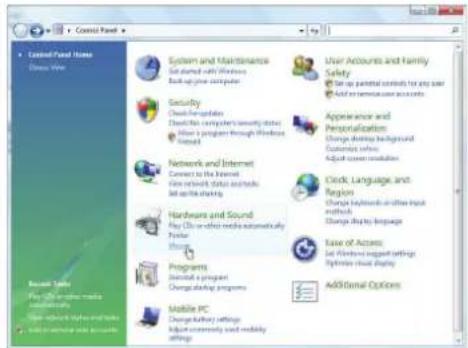

Find Mouse properties in the "Control Panel".

Models with Synaptics touchpad.

Mouse Properties Buttons Parameters Printer Options Wired Hardware Device Settings Synaptice Pointing Device - v0.1.5.229v06 Devices: Enabled Name Port Play Synaptice TouchPad UK 2 P3.7.2 Enable internal pointing device when external USB pointing device is attached Tray Icon Remove tray icon from taskbar 4.20% Static tray icon in taskbar 4.20% Animated tray icon in taskbar 4.20%Pd Select this option to enable this feature. www.mcpad.com OK Cancel Apply

Models with ALPS touchpad.

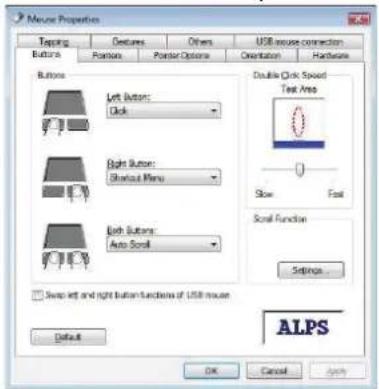

Mouse Properties Tapping Buttons Features Points Others Orientation Hardware Buttons Left Button: Click Right Button: Shrinker Maps Left Buttons: Auto Scroll Double (Click Speed) Test Area Slow Fast Scall Function Settings... Save left and right button functions of USB mouse ALPS Default OK Cancel Apply

Storage Devices

Storage devices allow the Notebook PC to read or write documents, pictures, and other files to various data storage devices. This Notebook PC has the following storage devices:

• Expansion Card
• Optical drive
• Flash memory reader
• Hard disk drive

Expansion Card

One 26pin Express card slot is available to support one ExpressCard/34mm or one ExpressCard/54mm expansion card. This new interface is faster by using a serial bus supporting USB 2.0 and PCI Express instead of the slower parallel bus used in the PC card slot. (Not compatible with previous PCMCIA cards.)

Inserting an Expansion Card

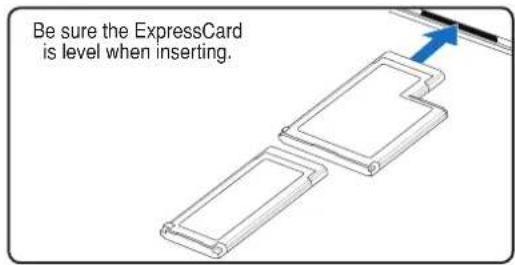

Be sure the ExpressCard is level when inserting.

Diagram of a cable connector with a blue arrow pointing to it, no text or symbols present

1. If there is an ExpressCard socket protector, remove it using the "Removing an ExpressCard" instructions below.

2. Insert the ExpressCard with the connector side first and label side up. Standard ExpressCards will be flush with the Notebook PC when fully inserted.

3. Carefully connect any cables or adapters needed by the ExpressCard. Usually connectors can only be inserted in one orientation. Look for a sticker, icon, or marking on one side of the connector representing the top side.

Removing an Expansion Card

The ExpressCard slot does not have an eject button. Press the ExpressCard inwards and release to eject the ExpressCard. Carefully pull the ejected ExpressCard out of the socket.

Illustration of a hand pressing a component with blue arrows indicating motion (no text or symbols)

4 Using the Notebook PC

Flash Memory Card Holder (on selected models)

The dummy expansion card that comes with the Notebook PC can function as a memory card holder, which protects the conductors of your flash memory card. The card holder also saves your time looking for your misplacing memory card and minimizes the risk of losing your flash memory card with important data.

The memory card holder holds maximum 2 memory cards of SD or MS types. You can store two SD cards or one SD card and one MS card.

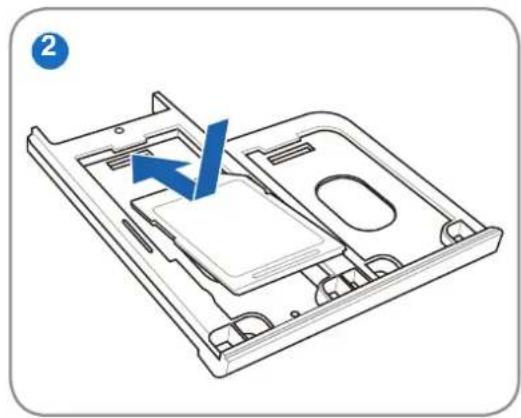

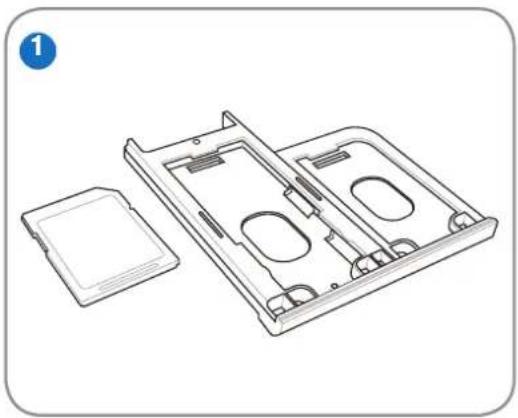

Storing the flash memory card:

Technical line drawing of a device housing with internal compartments and a separate cover (no text or symbols)

Diagram of a device casing with a blue arrow indicating a component, no text or symbols present

Removing the flash memory card:

3D technical illustration of a device casing with internal components and a blue arrow indicating a directional flow (no text or symbols)

Optical Drive Inserting an optical disc

Line drawing of a laptop with a hand inserting a cable to its side (no text or symbols)

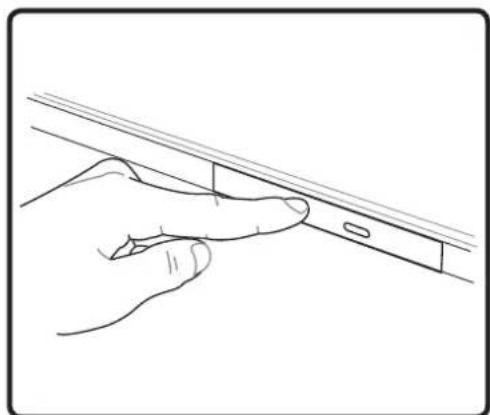

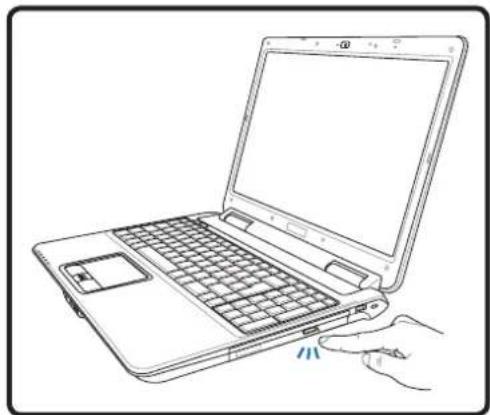

1. While the Notebook PC's power is ON, press 2. the drive's eject button and the tray will eject out partially.

Diagram showing a hand inserting a CD into a laptop, with labeled parts ① and ② indicating device placement or repair.

Gently pull on the drive's front panel and slide the tray completely out. Be careful not to touch the CD drive lens and other mechanisms. Make sure there are no obstructions that may get jammed under the drive's tray.

Line drawing of hands operating a laptop with a CD/DVD disc (no text or symbols)

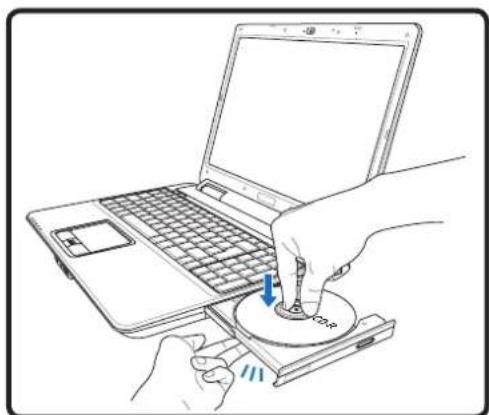

1. Hold the disc by the edge and face the disc's printed side up. Push down on both sides of the disc's center until the disc snaps onto the hub. The hub should be higher than the disc when correctly mounted.

Line drawing of a hand holding a tool near a screen (no text or symbols)

1. Slowly push the drive's tray back in. The drive will begin reading the table of contents (TOC) on the disc. When the drive stops, the disc is ready to be used.

It is normal to hear as well as feel the CD spinning with great intensity in the CD drive while data is read.

4 Using the Notebook PC

Optical Drive (Cont.)

Removing an optical disc

Diagram showing a hand inserting a CD into a laptop, with numbered arrows indicating process steps.

Eject the tray and gently pry the edge of the disc upwards at an angle to remove the disc from the hub.

Emergency eject

Actual location will vary by model.

The emergency eject is located in a hole on the optical drive and is used to eject the optical drive tray in case the electronic eject does not work. Do not use the emergency eject in place of the electronic eject. Note: Make sure not to stab the activity indicator located in the same area.

Using the Optical Drive

Optical discs and equipment must be handled with care because of the precise mechanics involved. Keep in mind the important safety instructions from your CD suppliers. Unlike desktop optical drives, the Notebook PC uses a hub to hold the CD in place regardless of the angle. When inserting a CD, it is important that the CD be pressed onto the center hub or else the optical drive tray will scratch the CD.

WARNING! If the CD disc is not properly locked onto the center hub, the CD can be damaged when the tray is closed. Always watch the CD closely while closing the tray slowly to prevent damage.

A CD drive letter should be present regardless of the presence of a CD disc in the drive. After the CD is properly inserted, data can be accessed just like with hard disk drives; except that nothing can be written to or changed on the CD. Using the proper software, a CD-RW drive or DVD+CD-RW drive can allow CD-RW discs to be used like a hard drive with writing, deleting, and editing capabilities.

Vibration is normal for all high-speed optical drives due to unbalanced CDs or CD print. To decrease vibration, use the Notebook PC on an even surface and do not place labels on the CD.

Listening to Audio CD

The optical drives can play audio CDs, but only the DVD-ROM drive can play DVD audio. Insert the audio CD and Windows automatically opens an audio player and begins playing. Depending on the DVD audio disc and installed software, it may require that you open a DVD player to listen to DVD audio. You can adjust the volume using hotkeys or Windows speaker icon in the Notification area.

Flash Memory Card Reader

Normally a memory card reader must be purchased separately in order to use memory cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs. This Notebook PC has a single built-in memory card reader that can use many flash memory cards as shown in the example below. The built-in memory card reader is not only convenient, but also faster than most other forms of memory card readers because it utilizes the internal high-bandwidth PCI bus.

IMPORTANT! Flash memory card compatibility varies depending on Notebook PC model and flash memory card specifications. Flash memory card specifications constantly change so compatibility may change without warning.

Flash Memory Card Examples

xD Picture Card MMC (Multimedia Card) MMC Plus RS-MMC (Reduced Size) (with MMC adapter) SD (Secure Digital) MiniSD (with SD adapter) SD / MMC MS / MS Pro M2 Adaptor M2 Micro Memory Stick Micro (with MS adapter) SONY Memory Stick PRO 1GB MagicGate SONY TJAL 264/80 Memory Stick Memory Stick (MS) Memory Stick Magic Gate (MG) Memory Stick Select SONY Memory Stick Blue Adapter SONY NEXT Memory Stick Duo/Pro/Duo Pro/MG (HIGH SPEED) 2GB (MSadapter)

IMPORTANT! Never remove cards while or immediately after reading, copying, formatting, or deleting data on the card or else data loss may occur.

WARNING! To prevent data loss, use "Windows Safely Remove Hardware" on the taskbar before removing the flash memory card.

4

Using the Notebook PC

Hard Disk Drive

Hard disk drives have higher capacities and operate at much faster speeds than floppy disk drives and optical drives. The Notebook PC comes with a replaceable hard disk drive. Current hard drives support S.M.A.R.T. (Self Monitoring and Reporting Technology) to detect hard disk errors or failures before they happen. When replacing or upgrading the hard drive, always visit an authorized service center or retailer for this Notebook PC.

Close-up of a hard disk drive with internal components (no visible text or symbols)

IMPORTANT! Poor handling of the Notebook PC may damage the hard disk drive. Handle the Notebook PC gently and keep it away from static electricity and strong vibrations or impact. The hard disk drive is the most delicate component and will likely be the first or only component that is damaged if the Notebook PC is dropped.

Technical line drawing of a computer chassis with mounting holes and internal components (no text or symbols)

WARNING! Disconnect all the connected peripherals, any telephone or telecommunication lines and power connector (such as external power supply, battery pack, etc.) before removing the hard disk cover.

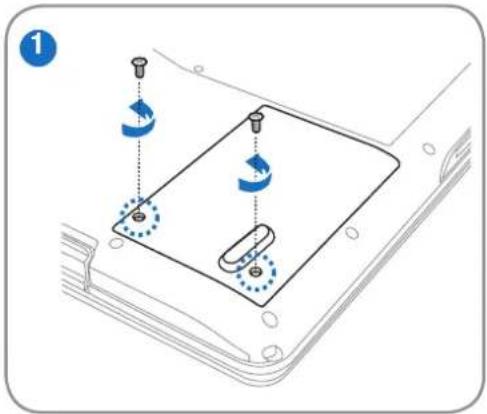

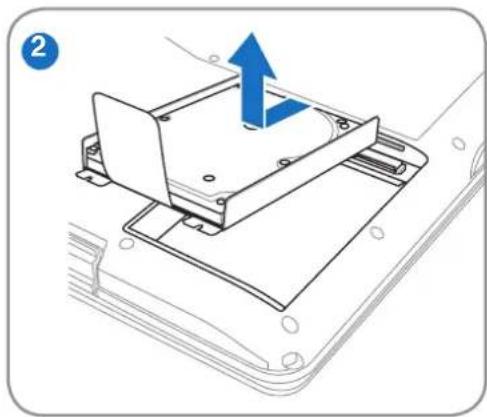

Removing the hard disk drive:

Diagram of a device's internal components with blue circular indicators and screw holes, no text or symbols present

Technical line drawing of a mechanical assembly with a blue arrow indicating upward motion (no text or symbols)

Installing the hard disk drive:

Technical line drawing of a mechanical assembly with a blue component, no visible text or symbols

Diagram of a device's internal components with two blue circular indicators and mounting holes, no text or symbols present.

4

Using the Notebook PC

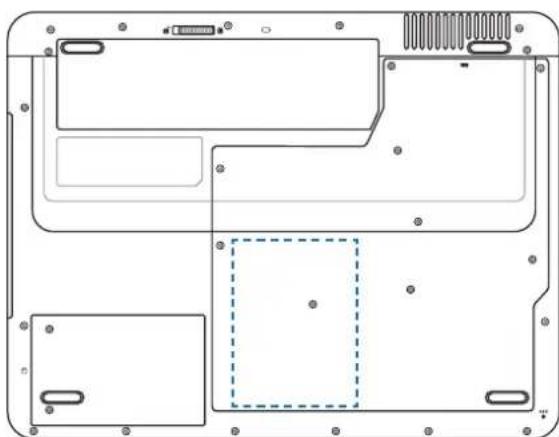

Memory (RAM)

Additional memory will increase application performance by decreasing hard disk access. Visit an authorized service center or retailer for information on memory upgrades for your Notebook PC. Only purchase expansion modules from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.

This is only an example.

The BIOS automatically detects the amount of memory in the system and configures CMOS accordingly during the POST (Power-On-Self-Test) process. There is no hardware or software (including BIOS) setup required after the memory is installed.

Technical line drawing of a computer chassis with mounting holes and internal compartments (no text or symbols)

WARNING! Disconnect all the connected peripherals, any telephone or telecommunication lines and power connector (such as external power supply, battery pack, etc.) before installing or removing a memory.

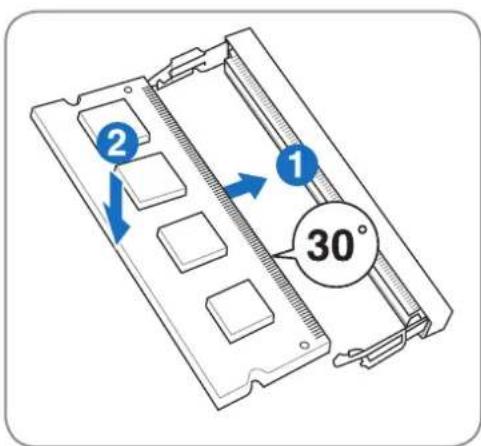

Installing a Memory Card:

2 1 30°

Removing a Memory Card:

(This is only an example.) (This is only an example.)

Connections

The built-in network cannot be installed later as an upgrade. After purchase, network can be installed as an expansion card.

Network Connection

Connect a network cable, with RJ-45 connectors on each end, to the modem/network port on the Notebook PC and the other end to a hub or switch. For 100 BASE-TX / 1000 BASE-T speeds, your network cable must be category 5 or better (not category 3) with twisted-pair wiring. If you plan on running the interface at 100/1000Mbps, it must be connected to a 100 BASE-TX / 1000 BASE-T hub (not a BASE-T4 hub). For 10Base-T, use category 3, 4, or 5 twisted-pair wiring. 10/100 Mbps Full-Duplex is supported on this Notebook PC but requires connection to a network switching hub with "duplex" enabled. The software default is to use the fastest setting so no user-intervention is required.

1000BASE-T (or Gigabit) is only supported on selected models.

Twisted-Pair Cable

The cable used to connect the Ethernet card to a host (generally a Hub or Switch) is called a straight-through Twisted Pair Ethernet (TPE). The end connectors are called RJ-45 connectors, which are not compatible with RJ-11 telephone connectors. If connecting two computers together without a hub in between, a crossover LAN cable is required (Fast-Ethernet model). (Gigabit models support autocrossover so a crossover LAN cable is optional.)

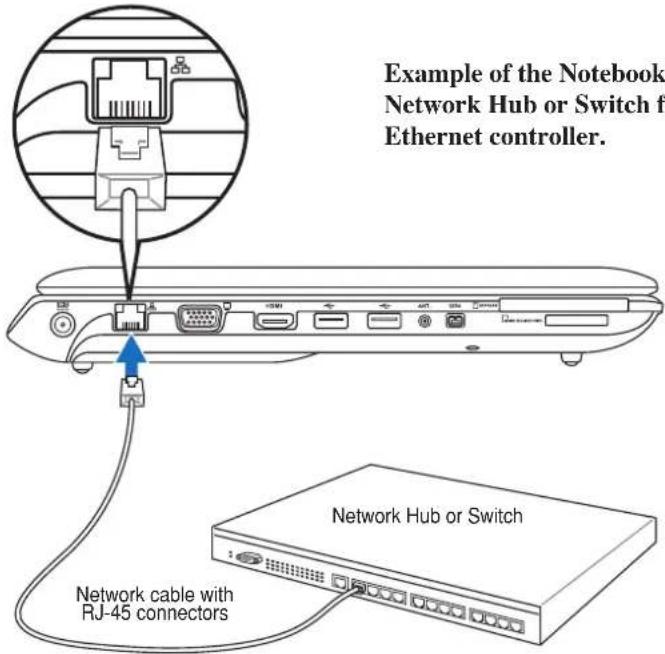

Example of the Notebook Network Hub or Switch for Ethernet controller. Network hub or Switch Network cable with RJ-45 connectors

Example of the Notebook PC connected to a Network Hub or Switch for use with the built-in Ethernet controller.

4

Using the Notebook PC

Wireless LAN Connection (on selected models)

The optional built-in wireless LAN is a compact easy-to-use wireless Ethernet adapter. Implementing the IEEE 802.11 standard for wireless LAN (WLAN), the optional built-in wireless LAN is capable of fast data transmission rates using Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) technologies on 2.4GHz/5GHz frequencies. The optional built-in wireless LAN is backward compatible with the earlier IEEE 802.11 standards allowing seamless interfacing of wireless LAN standards.

The optional built-in wireless LAN is a client adapter that supports Infrastructure and Ad-hoc modes giving you flexibility on your existing or future wireless network configurations for distances up to 40 meters between the client and the access point.

To provide efficient security to your wireless communication, the optional built-in wireless LAN comes with a 64-bit/128-bit Wired Equivalent Privacy (WEP) encryption and Wi-Fi Protected Access (WPA) features.

For security concerns, DO NOT connect to the unsecured network; otherwise, the information transmission without encryption might be visible to others.

Ad-hoc mode

The Ad-hoc mode allows the Notebook PC to connect to another wireless device. No access point (AP) is required in this wireless environment.

(All devices must install optional 802.11 wireless LAN adapters.)

Infrastructure mode

The Infrastructure mode allows the Notebook PC and other wireless devices to join a wireless network created by an Access Point (AP) (sold separately) that provides a central link for wireless clients to communicate with each other or with a wired network.

(All devices must install optional 802.11 wireless LAN adapters.)

These are examples of the Notebook PC connected to a Wireless Network.

Notebook PC
Desktop PC

PDA
Desktop PC

Notebook PC

Access Point

PDA

Windows Wireless Network Connection Connecting to a network

1. Switch ON the Wireless function if necessary for your model (see switches in Section 3).

1. Press [FN F2] repeatedly until Wireless LAN ON or WLAN & Bluetooth ON is shown.

2b. Or double click the Wireless Console icon on the taskbar and select either the Wireless LAN + Bluetooth or just the Bluetooth.

Not Connected Wireless networks are available. 5:32 PM

1. You should see the "Not Connected" network icon.

Connect to a network Turn on activity animation Turn off notification of new networks Diagnose and repair Network and Sharing Center

1. Right click on the network icon and select Connect to a network.

Select a network to connect to Show: All All Backup and OFF Unsupervised network Unsupervised Network Unsupervised network Network Security-enabled network Set up a connection to network Secure-Network and Sharing Center Cancel Cancel

1. Select "Show Wireless" if you have many networks in your area.

Connect to a network Disconnect or connect to another network Show: Wireless Network Security-enabled network Mac Security-enabled network Unsecured Network Unsecured network Home Network Signal Strength Send Security Type NCF Model Type B12.1g SDD, Web Select connection protocols Save Network and Sharing Cluster Connect Cancel Successfully connected to 1234

1. Select the wireless network you want to connect to.

Connect to a network Type the networks security key or passphrase for 1234 This person who setup the network can give you the key or passphrase. Security key or passphrase: ensored Display characters. If you have a USB flash help with network settings for access, travel in touch. Connect OK Cancel

1. When connecting, you may have to enter a password.

Connect to a network Disconnect or connect to another network Show: Windows Network Connected Mac Security-enabled network Unconnected Network Unconnected network Set up a connecting network Select Network and Sharing Network Connected Cancel

1. After connection has been established, "Gon nected" will be shown.

4

Using the Notebook PC

Bluetooth Wireless Connection (on selected models)

Notebook PCs with Bluetooth technology eliminates the need for cables for connecting Bluetooth-enabled devices. Examples of Bluetooth-enabled devices may be Notebook PCs, Desktop PCs, mobile phones, and PDAs.

If your Notebook PC did not come with built-in Bluetooth, you need to connect a USB or ExpressCard Bluetooth module in order to use Bluetooth.

Bluetooth-enabled mobile phones

You can wireless connect to your mobile phone. Depending on your mobile phone's capabilities, you can transfer phone book data, photos, sound files, etc. or use it as a modem to connect to the Internet. You may also use it for SMS messaging.

Bluetooth-enabled computers or PDAs

You can wireless connect to another computer or PDA and exchange files, share peripherals, or share Internet or network connections. You may also make use of Bluetooth-enabled wireless keyboard or mouse.

Turning ON and Launching Bluetooth Utility

This process can be used to add most Bluetooth devices. See Appendix for complete process.

1. Switch ON the Wireless function if necessary for your model (see switches in Section 3).

B. 2017年1月1日

2014年1月1日

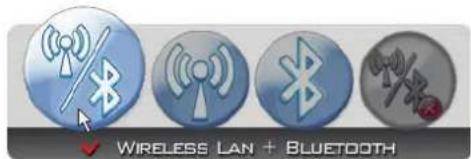

1. Press [FN F2] repeatedly until Bluetooth ON or WLAN & Bluetooth ON is shown.

WIRELESS LAN + BLUETOOTH

2b. Or double click the Wireless Console icon on the taskbar and select either the Wireless LAN + Bluetooth or just the Bluetooth.

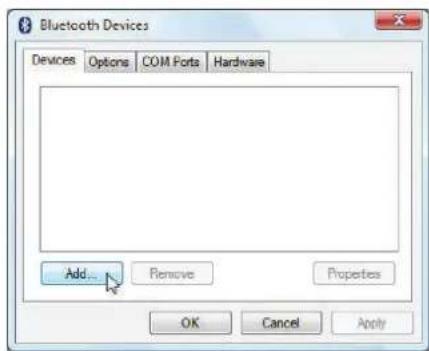

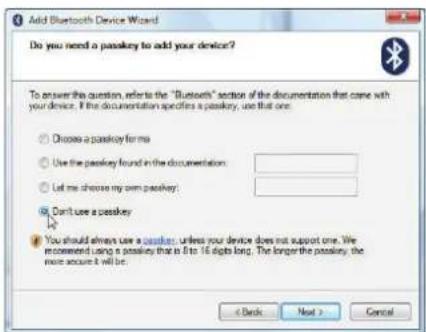

Add a Bluetooth Device Show Bluetooth Devices Send a File Receive a File Join a Personal Area Network Open Bluetooth Settings Remove Bluetooth Icon

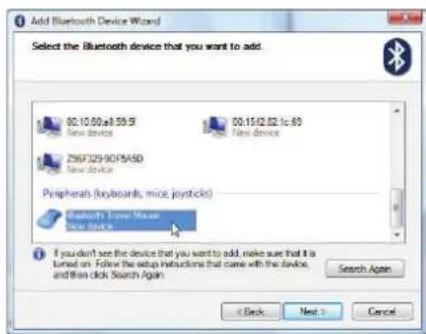

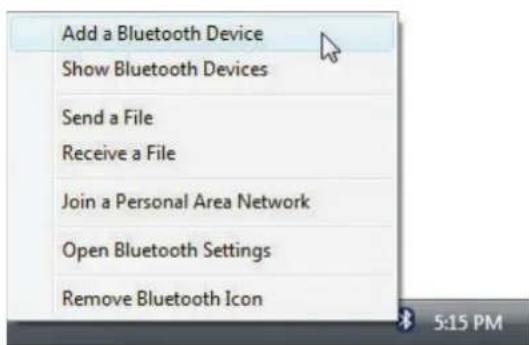

1. Select Add a Bluetooth Device on the taskbar men.

Control Panel Options Open View General Apti Windows Start Menu Application Tools ActivePlay BackUp and Desktop C:) Search Devices Color Management Data and Time Default Programs Genre Manager File Edit Mouse Tools New and New Settings Home/Work System Internet Explorer Desktop System Real-Form Propane & Paper Graphic and Software Smart Home Systems Smart Control Smart Security System Services System Server System Monitor System Server System System System Server System System

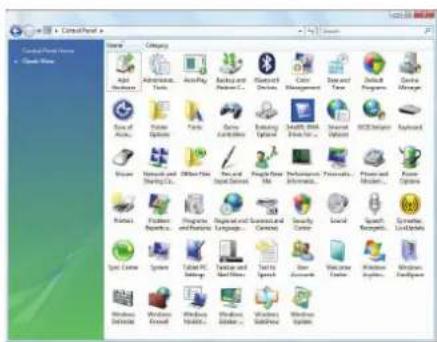

3b. Or Launch Bluetooth Devices from the Windows Control Panel.

Antenna Connections (on selected models)

This page shows multimedia connections for TV Tuner Models. TV and radio features require built-in modules only on selected models.

IMPORTANT! The Notebook PC must be used indoors when using the antenna.

Cable connection

Connect the coaxial cable from a paid television service, roof-mounted aerial antenna, or indoor "rabbit ears" to the cable adapter. Cable service connection can receive analog TV depending on paid services. The provided adapter is necessary to change the coaxial plug to fit the slim Notebook PC. Attach an NTSC to PAL adapter if necessary.

Use an NTSC to PAL adapter if necessary.

IMPORTANT! Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable – installation should include bonding the screen of the coaxial cable to the earth at the building entrance.

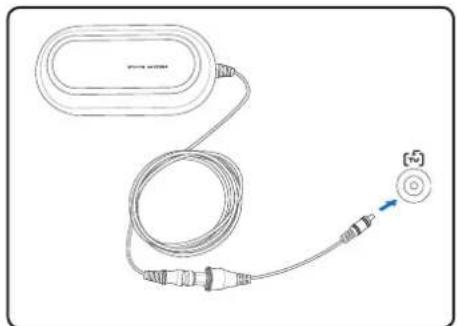

DTV antenna connection

Connect the provided digital TV antenna to the Notebook PC using the cable adapter. The digital TV antenna can only receive digital TV signals broadcasted in selected regions.

Digital television reception is available on selected models only and will vary by location depending on distance from transmission towers and obstructions.

Line drawing of a medical device with coiled cable and connector (no text or symbols)

Antenna placement

Horizontal: Can be safely placed on flat surfaces such as table tops, cabinets, and shelves.

Vertical: Magnets in base allows attachment to metallic surfaces such as partitions or cabinets.

Simple line drawing of a desk with a laptop and computer monitor, no text or symbols present

4

Using the Notebook PC

Trusted Platform Module (TPM) (on selected models)

The TPM, or Trusted Platform Module, is a security hardware device on the system board that will hold computer-generated keys for encryption. It is a hardware-based solution that an help avoid attacks by hackers looking to capture passwords and encryption keys to sensitive data. The TPM provides the ability to the PC or notebook to run applications more secure and to make transactions and communication more trustworthy.

The security features provided by the TPM are internally supported by the following cryptographic capabilities of each TPM: hashing, random number generation, asymmetric key generation, and asymmetric encryption/decryption. Each individual TPM on each individual computer system has a unique signature initialized during the silicon manufacturing process that further enhances its trust/security effectiveness. Each individual TPM must have an Owner before it is useful as a security device.

TPM Applications

TPM is useful for any customer that is interested in providing an addition layer of security to the computer system. The TPM, when bundled with an optional security software package, can provide overall system security, file protection capabilities and protect against email/privacy concerns. TPM helps provide security that can be stronger than that contained in the system BIOS, operating system, or any non-TPM application.

The TPM is disabled by default. Use BIOS setup to enable it.

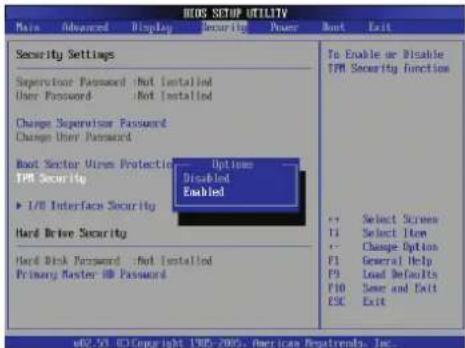

Enabling TPM Security

Enter BIOS Setup (press [F2] on system startup). On Security page, set TPM Security to [Enabled]

IMPORTANT! Use your TPM application's "Restore" or "Migration" function to backup your TPM security data.

Clearing TPM Secured Data

When Supervisor Password is installed, TPM Security Clear will appear. Use this item to clear all data secured by TPM. (You have to restart the Notebook PC after setting the password to see the security clear option.)

IMPORTANT! Use should routinely backup your TPM secured data.

HDFS SETUP UTILITIV Main Advanced Display Security Power Boot Exit Security Settings Supervisor Password: Not Installed User Password: Not Installed Change Supervisor Password Change User Password Root Sector Ums Protective Options FPM Security Disabled ▶ I/O Interface Security Enabled Hard Drive Security Hard Disk Password: Not Installed Primary Master HD Password To Enable or Disable FPM Security Function • Select Screen T1 Select Item • Change Option P1 General Help P3 Load Defaults P10 Saser and Exit ESC Exit e02.53 © Copyright 1985-2005, American Regretrends, Inc.

BOS SETUP UTILITY Main Advanced Display Security Power Boot Exit Security Settings Supervisor Password :Installed User Password :Not Installed Change Supervisor Password User Access Level (Full Access) Change User Password Password Check (Setup) Boot Sector Ums Protection (Disabled) TPD Security (Enabled) I'm Second Up Close + I/II Interface Security Hard Drive Security Hard Disk Password :Not Installed Primary Master HB Password This will clear all security links in TTM Execute this command will unvalidate all information with the links. -- Select Screen T1 Select Item Enter Go to Job Screen F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit ©2.53 ©Copyright 1985-2005, American Regatirends, Inc.

Fingerprint Registration (on selected models)

The fingerprint scanner can be used for instant and secure user authentication. These instructions will show you how to setup the fingerprint registration.

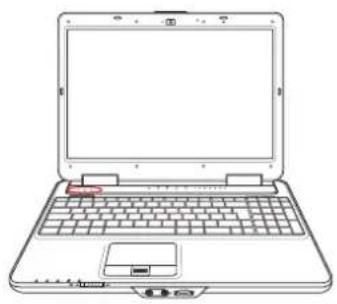

Line drawing of a laptop with a red circular button on the front panel (no text or symbols)

Hand inserting a card into a tablet device (no text or symbols visible)

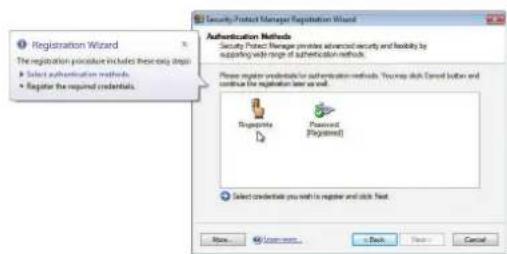

Security Protect Manager Registration Wizard Welcome to the Security Protect Manager Registration Wizard The registration procedure includes these way steps: • Select authentication methods • Register the required uncertainties. This would will guide you through the registration. To continue, click next. ✓ Advise to register understand on login OK Cancel Next >

Registration Wizard The registration procedure includes these only steps Select authentication methods Regulate the required credentials. Security Protect Manager Authentication Wizard Authentication Methods Security Protect Manager provides advanced security and visibility by supporting web range of authentication methods. Please register credentials for authentication methods. You may click Cancel button and continue for registration later as well. Registry Password (Registered) Select credentials you wish to register and click Next Now... < Back Next > Cancel

1. This wizard will automatically start when TPM is 2. Select "Fingerprints" and click Next. enabled in BIOS (see Appendix). Click Next.

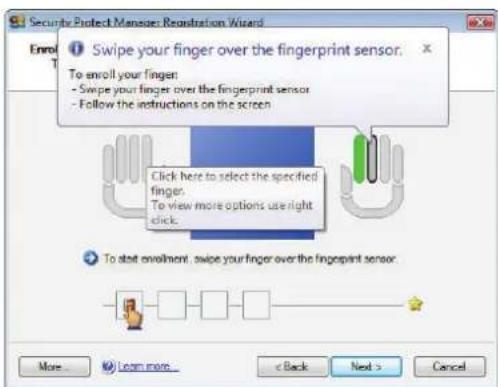

Security Protect Manager: Registration Wizard Enrol 1 Swipe your finger over the fingerprint sensor. To enroll your finger: - Swipe your finger over the fingerprint sensor - Follow the instructions on the screen Click here to select the specified finger. To view more options use right click. To start enrollment, swipe your finger over the fingerprint sensor. More Learn more < Back Next > Cancel

1. Select a finger on the illustration. Swipe the corresponding finger on the scanner slowly. You must swipe your finger multiple times for verification.

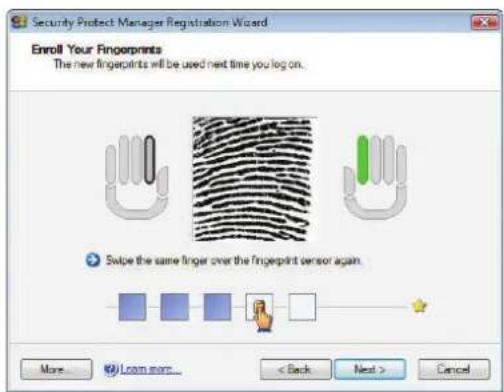

Security Protect Manager Registration Wizard Enroll Your Fingerprints The new fingerprints will be used next time you log on. Swipe the same finger over the fingerprint sensor again. More... < Back Next > Cancel

1. You must register at least two fingers to decrease the chance of problems.

Fingerprint Registration (on selected models) cont.

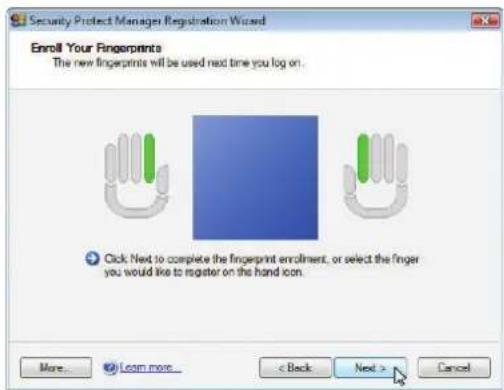

Security Protect Manager Registration Wizard Enroll Your Fingerprints The new fingerprints will be used next time you log on. Click Next to complete the fingerprint enrollment, or select the finger you would like to register on the hand icon. More... Learn more... < Back Next > Cancel

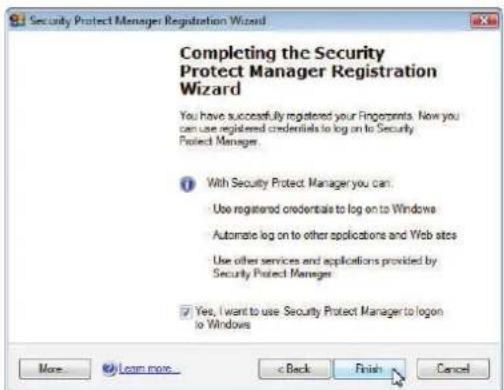

Security Protect Manager Registration Wizard Completing the Security Protect Manager Registration Wizard You have successfully registered your Fingerants. Now you can use registered credentials to log on to Security Protect Manager. With Security Protect Manager you can: Use registered credentials to log on to Windows Automate log on to other applications and Web sites Use other services and applications provided by Security Protect Manager. Yes, I want to use Security Protect Manager to login to Windows More < Back Finish Cancel

1. Select a finger on the illustration and swipe the corresponding finger on the scanner slowly. You must swipe your finger multiple times for verification. You must register at least two fingers to decrease the chance of any problems.

2. Click Finish when done.

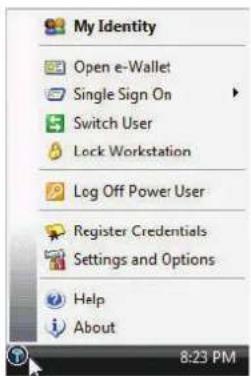

My Identity Open e-Wallet Single Sign On Switch User Lock Workstation Log Off Power User Register Credentials Settings and Options Help About 8:23 PM

1. Right-click the icon in the Notification area and select "Settings and Options".

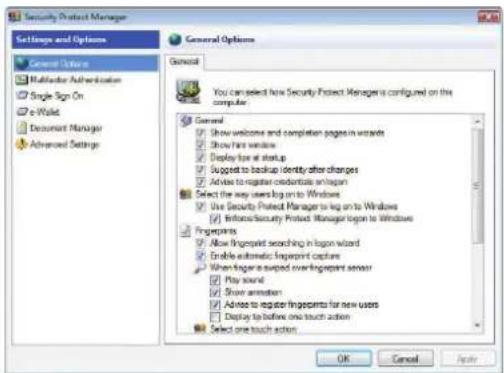

Security Protect Manager Settings and Options General Options General You can select how Security Protect Manager is configured on this computer. General Show welcome and completion pages in warrants Show first version Display for at startup Suggested to backup identity after changes Advises to register credentials on logon Select the key users log on to Windows Use Security Protect Manager to log on to Windows Improve Security Protect Manager log on to Windows Fingerents Allow fingerprint searching in logo word Enable automatic fingerprint capture When finger is swapped over fingerprint sensor Play sound Show animation Advises to register fingerprints for new uses Display to before one touch action Select one touch action OK Cancel Apply

1. Select "General Options" and "Single Sign On" and configure your preferences.

3G Watcher (on selected models and in selected territories)

The 3G ^(1) Watcher software application will allow your Notebook PC to connect to 3G wireless networks normally used by 3G mobile phones. When connected, your Notebook PC can connect to the Internet just like using a wireless network.

The function described in this section may be unavailable for some models and territories. Skip this section if this function is unavailable on your model.

Installing a Mobile SIM card

The SIM card compartment allows insertion of a mobile SIM card for 3G functions. Install a mobile SIM card before you use a 3G Watcher software.

① ② ③ 90°

Using 3G Watcher software

A shortcut to the 3G Watcher application will be placed on your desktop. Double-click it to launch the 3G Watcher software application.

3G Watcher

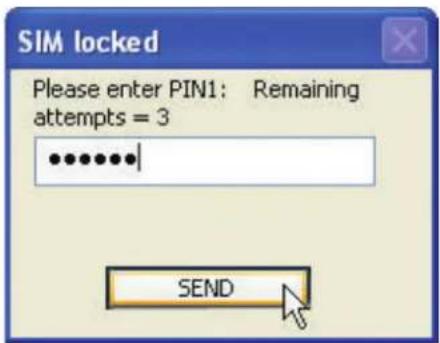

SIM locked Please enter PIN1: Remaining attempts = 3 SEND

3G Watcher View Tools Help Searching... PIN verified Connect ASUS

1. Launch the 3G Watcher application and your SIM2. Once your PIN has been verified, searching for a 3G card password (PIN1) will be asked if you have network will begin. set one.

4

Using the Notebook PC

3G Watcher (on selected models and in selected territories)

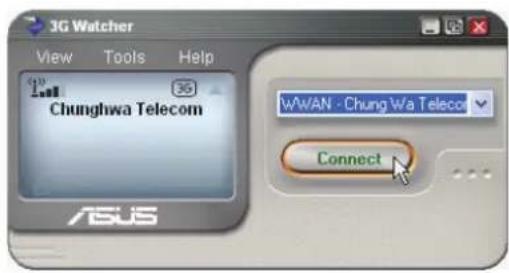

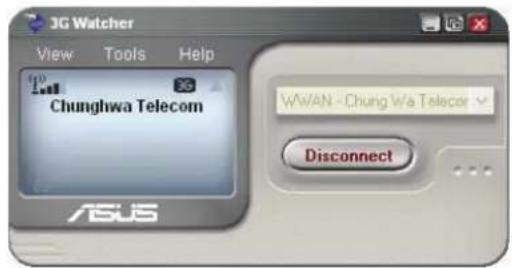

3G Watcher View Tools Help Chunghwa Telecom WWAN - Chung Wa Telecom Connect ASUS

1. Once a 3G network has been discovered, click Connect to make a wireless network connection.

3G Watcher View Tools Help Chunghwa Telecom WWAN - Chung Wa Telecom Disconnect ASUS

1. Once connected, the Connect button will show Disconnect instead.

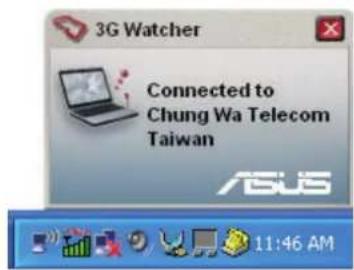

3G Watcher Connected to Chung Wa Telecom Taiwan ASUS 11:46 AM

1. Once connected, a message will appear with the6. network name.

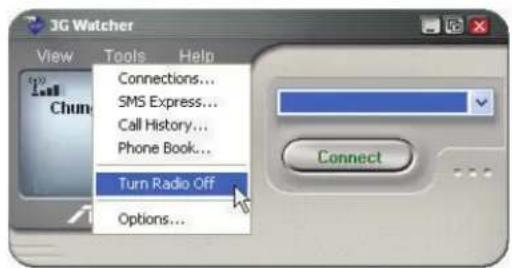

3G Watcher View Tools Help Connections... SMS Express... Call History... Phone Book... Turn Radio Off Options...

When you are in an area that prohibits wireless transmissions (such as on an airplane), you can select Turn Radio Off from the "Tools" pull down menu.

3G Watcher View Tools Help Radio is Off Connect ASUS

1. Once the radio is turned OFF, an "x" will appear over the signal strength indicator.

3G Watcher (on selected models and in selected territories)

Watcher window

Icons and indicators on the main window

The main Watcher window provides status information and allows you to initiate and monitor data connections or make and receive phone calls (if voice is supported by your 3G modem and your service provider). The main window uses these indicators:

	Device status. If an icon of the 3G modem with an “X” is displayed, Watcher is unable to detect the 3G modem. This indicates that the 3G modem is not fully inserted into the PC Card slot (in the case of non-embedded modems) or it is powered down. You may be able to resolve this problem by:• Ejecting the 3G modem and re-inserting it• Turning the WWAN switch on your PC off and on
	Signal strength and service status. The number of bars beside the antenna increases as signal strength increases, to a maximum of five bars. The ToolTip that displays when you position the mouse pointer over this indicator shows the RSSI (Received Signal Strength Indication) in dBm.An antenna with a line through it indicates no service is available (Not in Service). You are outside of the coverage area or have insufficient signal strength to maintain a GSM data connection.
GPS edge 3G HS	Coverage. The icon shows the fastest service available:gPRS icon - GPRS is the fastest service available in your current coverage area.EDGE icon - EDGE is the fastest service available in your current coverage area. (supported on EDGE 3G modems)3G icon - UMTS is the fastest service available in your current coverage area. (supported on UMTS 3G modems)HS icon - HSDPA is the fastest service available in your current coverage area. (supported on HSDPA 3G modems)When only the letters are displayed, (for example edge ), you are within the coverage area, but have not yet acquired the service.When the indicator has an outline (edge), you have acquired service and are able to establish a data connection.When the indicator is filled (edge), you have a data connection on the wireless service.

3G Watcher (on selected models and in selected territories)

	Roaming. You are connected to a network other than your local service provider's. There may be a surcharge for roaming service. (This service may not be available.)
	New SMS message. Click the icon to open the SMS Express window and read your messages. When your SIM becomes full, this icon flashes and turns red. (Supported only on selected devices.)
	Data transmission. When the modem is connected to the network, the main Watcher window shows the amount of data received and sent.

If your service provider ask you to enter a GSM command (otherwise called a code or procedure), type the command from the main window.

System Tray Icons

Anytime Watcher is running, the Watcher icon appears in the system tray, indicating the connection status:

	Watcher cannot detect the 3G modem. Ensure that the 3G modem is powered on.
	You do not have an active high-speed connection.
	You have an active high-speed connection.
	You have new (unread) SMS messages.

3G (or 3-G)

Short for third-generation technology. It is used in the context of mobile phone standards. The services associated with 3G provide the ability to transfer simultaneously both voice data (a telephone call) and non-voice data (such as downloading information, exchanging email, and instant messaging). In marketing 3G services, video telephony has often been used as the main-stream application for 3G. Selected models integrate a SIM card slot for insertion of a 3G SIM card which is required to use 3G applications.

Appendix

Optional Accessories & Connections

Operating System and Software

System BIOS Settings

Common Problems and Solutions

Windows Software Recovery

Glossary

Declarations and Safety Statements

Notebook PC Information

There may be differences between your Notebook PC and the drawings shown in this manual. Please accept your Notebook PC as being correct.

Photos and icons in this manual are used for artistic purposes only and do not show what is actually used in the product itself.

Appendix

Optional Accessories

These items, if desired, come as optional items to complement your Notebook PC.

USB Hub (Optional)

Attaching an optional USB hub will increase your USB ports and allow you to quickly connect or disconnect many USB peripherals through a single cable.

USB Flash Memory Disk

A USB flash memory disk is an optional item that can replace the 1.44MB floppy disk and provide storage up to several hundred megabytes, higher transfer speeds, and greater durability. When used in current operating systems, no drivers are necessary.

USB Floppy Disk Drive

An optional USB-interface floppy disk drive can accept a standard 1.44MB (or 720KB) 3.5-inch floppy diskette.

WARNING! To prevent system failures, use Windows "Safely Remove Hardware" on the taskbar before disconnecting the USB floppy disk drive. Eject the floppy disk before transporting the Notebook PC to prevent damage from shock.

White hard drive with black cable and green cover, no visible text or symbols

Safely remove USB Mass Storage Device - Drive(A:) Safely Remove Hardware 5:15 PM

9-Cell Lithium-ion Battery

The optional battery pack, which consists of 9 battery cells housed together, provides longer battery life. It is convenient for going on long trips or when the AC wall outlet is unavailable.

Optional Connections

These items, if desired, may be purchased from third-parties.

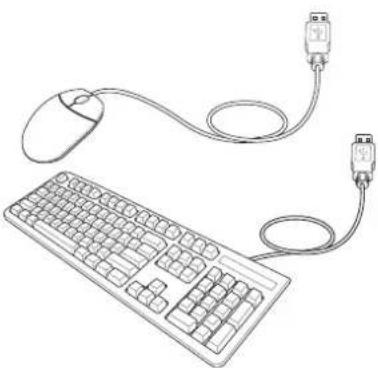

USB Keyboard and Mouse

Attaching an external USB keyboard will allow data entry to be more comfortable. Attaching an external USB mouse will allow Windows navigation to be more comfortable. Both the external USB keyboard and mouse will work simultaneously with the Notebook PC's built-in keyboard and touchpad.

Line drawing of a computer keyboard connected to a mouse via cable (no text or symbols)

Printer Connection

One or more USB printers can be simultaneously used on any USB port or USB hub.

Line drawing of a printer with paper feed and cable (no text or symbols)

Bluetooth Mouse Setup (optional)

This process can be used to add most Bluetooth devices in Windows operating system.

1. Switch ON the Wireless function if necessary for your model (see switches in Section 3).

1. Press [FN F2] repeatedly until Bluetooth ON or WLAN & Bluetooth ON is shown.

WIRELESS LAN + BLUETOOTH

2b. Or double click the Wireless Console icon on the taskbar and select either the Wireless LAN + Bluetooth or just the Bluetooth.

Add a Bluetooth Device Show Bluetooth Devices Send a File Receive a File Join a Personal Area Network Open Bluetooth Settings Remove Bluetooth Icon

1. Select Add a Bluetooth Device on the taskbar menu.

Control Panel 1 Control Panel 2 Name Category Add Properties Advanced Tools Auto Play Backup and Settings Outlook Services Color Management Size and Time Default Programs Device Manager Size of Units Folder Options Ports Server(Liquid) Routing Options Smart & Audio System Internal Options HKEY Solution Keyboard Mouse Hardware & Editing Controls Drive File Send and Print Device Options/Read Files Performance Information... Performance Tools... Power Options Desktop Features Networks... Programs and Settings... Reported and Subscribed and Language... Security Camera... Smart... Speech Resolution... Dynamic Display Syn Control Synere Table PC Settings Toolset and Software... Windows Defender Windows Forward Windows Mobile... Windows Server... Windows Update... Windows System... Windows Security...

3b. Or Launch Bluetooth Devices from the Windows Control Panel.

Bluetooth Devices Devices Options COM Ports Hardware Add... Remove Properties OK Cancel Apply

3c. If launched from the Control Panel, click Add from this screen.

无 有

1. Prepare the Bluetooth mouse.

• Install two "AA" batteries.
- Turn ON the power switch on the bottom of the mouse. The bottom sensor should glow red.
- Push the "RESET" button on the bottom of the Bluetooth mouse.

Bluetooth Mouse Setup (optional) cont.

Add Bluetooth Device Wizard Welcome to the Add Bluetooth Device Wizard Before proceeding, refer to the "Bluetooth" option of the device documentation. Then set up your device so that your computer can find it. - Turn it on - Make it discoverable (visible) - Give it a name (optional) - Press the button on the bottom of the device - keyboards and buttons only ✓ My device is set up and ready to be found. Up Add only Bluetooth devices that you trust < Back Next > Cancel

1. Click Next when the Bluetooth mouse is ready.

Add Bluetooth Device Wizard Select the Bluetooth device that you want to add. 00.10.00a8:59.5f New device 00.15/02.02 lc 60 New device 296F729-9CPS45D New device Peripherals (kborders, mice, joysticks) Search User Make New Mouse If you don't see the device that you want to add, make sure that it is turned on. Follow the setup instructions that come with the device, and then click Search Again. Search Again < Back Next > Cancel

1. A list of nearby Bluetooth devices will be shown. Select the Bluetooth mouse and click Next.

Add Bluetooth Device Wizard Do you need a passkey to add your device? To answer this question, refer to the "Bluetooth" section of the documentation that came with your device. If the documentation specifies a passkey, use that one: ○ Disposes a passkey for me ○ Use the passkey found in the documentation: ○ Let me choose my own passkey: ○ Don't use a passkey ● You should always use a passkey, unless your device does not support one. We recommend using a passkey that is 0 to 16 digits long. The longer the passkey, the more accurate it will be: < Back Next > Cancel

1. Select "Don't use a passkey" and clicNext.

Add Bluetooth Device Wizard Windows is installing your device. ✓ Connuding... ↑ Installing Bluetooth device... + Back Next > Cancel

1. Wait while the Bluetooth mouse is being added.

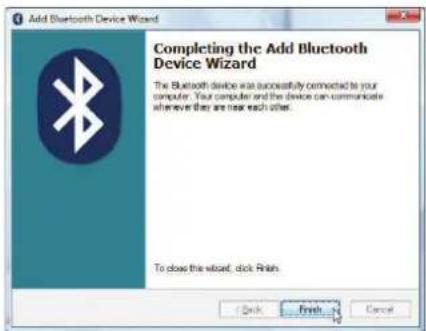

Add Bluetooth Device Wizard Completing the Add Bluetooth Device Wizard The Bluetooth device was successfully connected to your computer. Your computer and the device can communicate wherever they are near each site. To close this wizard, click Finish.

1. Click Finish when adding is complete.

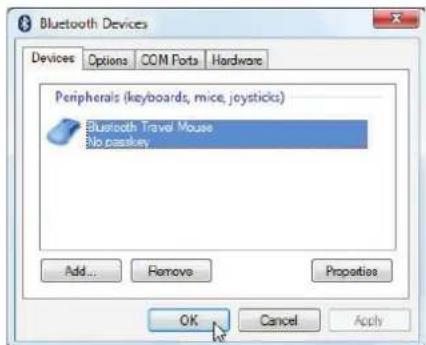

Bluetooth Devices Devices Options COM Ports Hardware Peripherals (keyboards, mice, joysticks) Bluetooth Travel Mouse No passkey Add... Remove Properties OK Cancel Apply

1. You will see your device in the window. You can also add or remove Bluetooth devices here.

"RESET" may be necessary after changing batteries. Repeat steps if necessary.

Appendix

Operating System and Software

This Notebook PC may offer (depending on territory) its customers the choice of a pre-installed Microsoft Windows operating system. The choices and languages will depend on the territory. The levels of hardware and software support may vary depending on the installed operating system. The stability and compatibility of other operating systems cannot be guaranteed.

Support Software

This Notebook PC comes with a support disc that provides BIOS, drivers and applications to enable hardware features, extend functionality, help manage your Notebook PC, or add functionality not provided by the native operating system. If updates or replacement of the support disc is necessary, contact your dealer for web sites to download individual software drivers and utilities.

The support disc contains all drivers, utilities and software for all popular operating systems including those that have been pre-installed. The support disc does not include the operating system itself. The support disc is necessary even if your Notebook PC came pre-configured in order to provide additional software not included as part of the factory pre-install.

A recovery disc is optional and includes an image of the original operating system installed on the hard drive at the factory. The recovery disc provides a comprehensive recovery solution that quickly restores the Notebook PC's operating system to its original working state provided that your hard disk drive is in good working order. Contact your retailer if you require such a solution.

Some of the Notebook PC's components and features may not work until the device drivers and utilities are installed.

System BIOS Settings

Boot Device

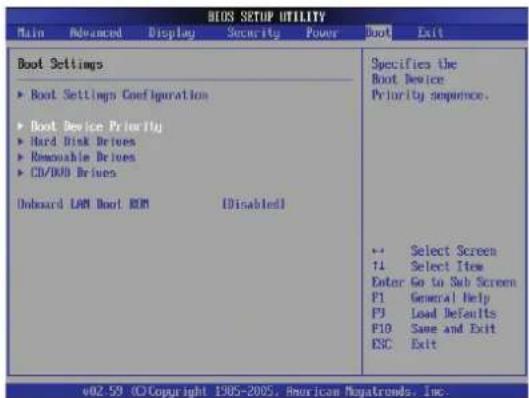

BIOS SETUP UTILITY Main Advanced Display Security Power Boot Exit Boot Settings ► Boot Settings Configuration ► Boot Device Priority ► Hard Disk Drives ► Removable Drives ► CD/DVD Drives Unboard LAM Boot ROM Disabled! Specifies the Boot Device Priority sequence. ← Select Screen ↑ Select Item Enter Go to Sub Screen F1 General Help F3 Load Defaults F10 Save and Exit ESC Exit v02.59 (C)Copyright 1905-2005, American Monatroms, Inc.

1. On the Boot screen, select Boot Device Priority.

BIOS SETUP UTILITY Boot Boot Device Priority 1st Boot Device [Renovable Device] 2nd Boot Device [Hard Drive] 3rd Boot Device [ICB/DVD] 4th Boot Device [Network] Specifies the boot sequence from the available devices. A device enclosed in parenthesis has been disabled in the corresponding type menu. ++ Select Screen T1 Select Item + Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit +02.59 (C)Copyright 1985-2005, American Mayatrunds, Inc.

1. Select each item and press [Enter] to select a device.

Security Setting

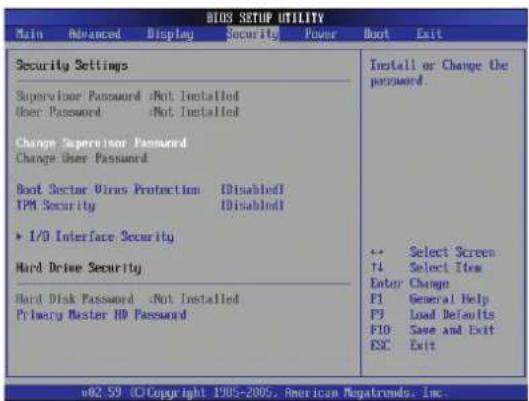

BIOS SETUP UTILITY Main Advanced Display Security Power Boot Exit Security Settings Supervisor Password Not Installed User Password Not Installed Change Supervisor Password Change User Password Boot Sector Virus Protection Disabled! IPM Security Disabled! ► I/O Interface Security Hard Drive Security Hard Disk Password Not Installed Primary Master HD Password Install or Change the password. ← Select Screen T4 Select Item Entry Change F1 General Help F3 Load Defaults F10 Save and Exit ESC Exit v02.59 ©Copyright 1905-2005, American Monatromda, Inc.

1. On the Security screen, select Change Supervisor or Change User Password.

Enter New Password ****** 2. Type in a password and press [Enter]. Confirm New Password ****** 3. Re-type the password and press [Enter]. Password installed. 011 4. Password is then set.

To clear the password:

Enter New Password 1. Leave the password field blank and press [Enter]. Password uninstalled. OK!

1. Password is then cleared.

System BIOS Settings (cont.)

Password Check

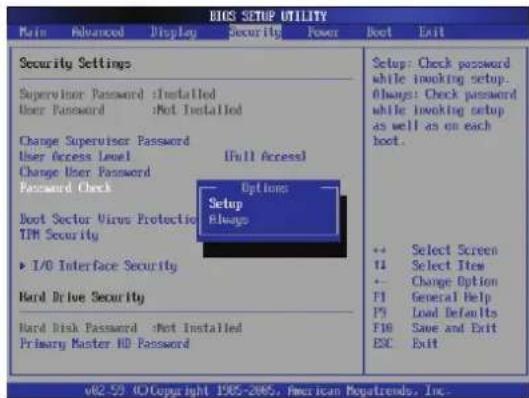

BIGS SETUP UTILITY Main Advanced Display Security Power Boot Exit Security Settings Supervisor Password :Installed User Password :Not Installed Change Supervisor Password User Access Level Full Access! Change User Password Password Check Options Setup Always Boot Sector Virus Protection TIM Security I/O Interface Security Hard Drive Security Hard Disk Password :Not Installed Primary Master HD Password Setup: Check password while looking setup. Always: Check password while looking setup as well as on each boot. ++ Select Screen 11 Select Item + Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit v62-52 30 Copyright 1985-2005, American Guatemala, Inc.

Select whether to ask for a password during bootup (Always) or only when entering the BIOS setup utility (Setup).

User Access Level

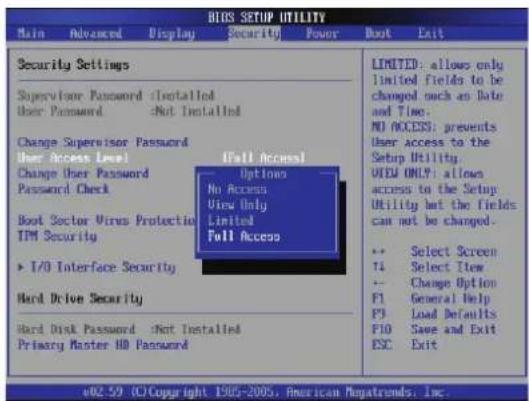

BIOS SETUP UTILITY Main Advanced Display Security Power Next Exit Security Settings Supervisor Password :Installed User Password :Not Installed Change Supervisor Password User Access Level [Full Access] Change User Password Options Password Check No Access Boot Sector Vires Protection View Only TIM Security Limited ► I/O Interface Security Limited Full Access Hard Drive Security Hard Disk Password :Not Installed Primary Master HD Password LIMITED: allows only limited fields to be changed such as Rate and Time. NO ACCESS: presents User access to the Setup Utility. UDEV ONLY: allows access to the Setup Utility but the fields can not be changed. -- Select Screen T1 Select Item -- Change Option F1 General Help F3 Load Defaults F10 Save and Exit ESC Exit v02.59 (C) Copyright 1905-2005, American Monatroms: Inc.

Select the level of access to allow the "User Password" to have in the BIOS setup utility.

Save Changes

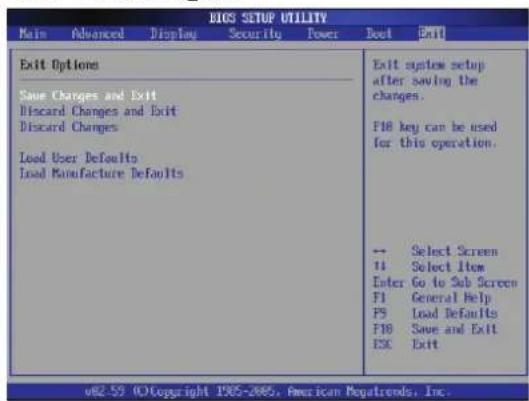

BIGS SETUP UTILITY Main Advanced Display Security Power Boot Exit Exit Options Save Changes and Exit Discard Changes and Exit Discard Changes Load User Defaults Load Manufacture Defaults Exit system setup after saving the changes. F10 key can be used for this operation. -- Select Screen T4 Select Item Enter Go to Sub Screen F1 General Help FS Load Defaults F10 Save and Exit ESC Exit v82-59 ©Copyright 1985-2005, American Repatrends, Inc.

If you want to keep your configuration settings, you must save changes before exiting the BIOS setup utility.

If you want to restore default settings, choose Load Manufacture Defaults. You must then save changes to keep the manufacture default settings.

Common Problems and Solutions

Hardware Problem - Optical Disc

The optical disc drive is not able to read or write discs.

1. Update the BIOS to the latest version and try again.
2. If updating the BIOS does not help, try better quality discs and try again.
3. If the problem still exist, contact your local service center and ask an engineer for assistance.

Unknown Reason - System Unstable

Cannot wake up from the hibernation.

1. Remove upgraded parts (RAM, HDD, WLAN, BT) if they were installed after purchase.
2. If not the case, try MS System Restore to an earlier date.
3. If problem still persists, try restoring your system using the recovery partition or DVD.
   (NOTE: You must backup all your data to another location before recovering.)
4. If the problem still exist, contact your local service center and ask an engineer for assistance.

Hardware Problem - Keyboard / Hotkey

The Hotkey (FN) is disabled.

A. Reinstall the "ATK0100" driver from the driver CD or download it from the ASUS website.

Hardware Problem - Built-in Camera

The built-in camera does not work correctly.

1. Check "Device Manager" to see if there are any problems.
2. Try reinstalling the webcam driver to solve the problem.
3. If the problem is not solved, update the BIOS to the latest version and try again.
4. If the problem still exist, contact your local service center and ask an engineer for assistance.

Hardware Problem - Battery

Battery maintenance.

1. Register the Notebook PC for a one-year-warranty using the following website:
   http://member.asus.com/login.aspx?SLanguage=en-us
2. Do NOT remove the battery pack while using the Notebook PC with the AC adaptor to prevent damage caused by the accidental power loss. The ASUS battery pack has protection circuitry to prevent over-charging so it will not damage the battery pack if it is left in the Notebook PC.
3. Store the battery pack in a dry location with temperatures between 10^ C and 30^ C if you will not be using it for a long time. It is strongly recommended that you charge the battery pack every three months.

Common Problems and Solutions (Cont.)

Hardware Problem - Power ON/OFF Error

I cannot power ON the Notebook PC.

Diagnostics:

1. Power On by Battery only? (Y = 2, N = 4)
2. Able to see BIOS (ASUS Logo)? (Y = 3, N = A)
3. Able to load the OS? (Y = B, N = A)
4. Adapter power LED ON? (Y = 5, N = C)
5. Power ON by Adapter only? (Y = 6, N = A)
6. Able to see BIOS (ASUS Logo)? (Y = 7, N = A)
7. Able to load the OS? (Y = D, N = A)

Symptom & Solutions:

A. Problem might be in the MB, HDD, or NB; visit a local service center for assistance.
B. Problem caused by the operating system, try restoring your system using the recovery partition or disc. (IMPORTANT: You must backup all your data to another location before recovering.)
C. Adapter problem; check the power cord connections, otherwise visit a local service center for replacement.
D. Battery problem; please check the battery contacts, otherwise visit a local service center for repair.

Mechanical Problem - FAN / Thermal

Why is the cooling fan always ON and the temperature high?

1. Make sure that the FAN works when the CPU temperature is high and check whether there is air flow from the main air vent.
2. If you have many applications running (see taskbar), close them to decrease system load.
3. The problem may also be caused by some viruses, use anti-virus software to detect them.
4. If none of the above help, try restoring your system using the recovery partition or DVD.
   (IMPORTANT: You must backup all your data to another location before recovering.)
   (CAUTION: Do not connect to the Internet before you have installed an anti-virus software and Internet firewall to protect yourself from viruses.)

Service - Specification, function, price

How to check whether a Notebook PC is equipped with a wireless card?

A. Enter Control Panel ->Device Manager. You will see whether the Notebook PC has a WLAN card under the “Network Adapter” item.

Common Problems and Solutions (Cont.)

Software Problem - ASUS bundled software

When I power ON the Notebook PC, there will be an “Open policy file error” message.

A. Reinstall the latest version “Power4 Gear” utility to solve your problem. It is available on the ASUS website.

Unknown Reason - Blue screen with white text

A blue screen with white text appears after system bootup.

1. Remove additional memory. If additional memory was installed after purchase, power OFF, remove the additional memory, and power ON to see if the problem is due to incompatible memory.
2. Un-install software applications. If you have installed software applications recently, they may not be compatible with your system. Try to un-install them in Windows Safe Mode.
3. Check your system for viruses.
4. Update the BIOS to the latest version with WINFLASH in Windows or AFLASH in DOS mode. These utilities and BIOS files can be downloaded from the ASUS website. (WARNING: Make sure your Notebook PC does not lose power during the BIOS flashing process.)
5. If problem still cannot be solved, use the recovery process to reinstall your entire system. (IMPORTANT: You must backup all your data to another location before recovering.) (CAUTION: Do not connect to the Internet before you have installed an anti-virus software and Internet firewall to protect yourself from viruses.) (NOTE: Make sure that you install the “Intel INF Update” and “ATKACPI” drivers first so that hardware devices can be recognized.)
6. If the problem still exist, contact your local service center and ask an engineer for assistance.

Software Problem - BIOS

Updating the BIOS.

1. Please verify the Notebook PC's exact model and download the latest BIOS file for your model from the ASUS website.
2. Use the "WINFLASH" utility to update your BIOS. The utility can be found in your Driver & Utility CD that came with your Notebook PC.
3. Extract the BIOS file to a temporary location (such as the root in C:)
4. Click Start | All Programs | ASUS Utility | WINFLASH | WINFLASH

a. Select the new BIOS image file.
b. Confirm the selected BIOS information. Check the model, version, and data.
c. Click Flash to initialize the BIOS updating procedure.
d. Click Exit when procedure completes.
e. Reboot the system. Assuming that you have successfully flashed the BIOS file, press [F2] to enter BIOS setup page when the ASUS logo appears during system boot-up.

f. After entering BIOS setup page, go to Exit page and choose Load Manufacture Defaults. Then select Save and Exit and reboot the system again.

g. The BIOS flash procedure is now complete.

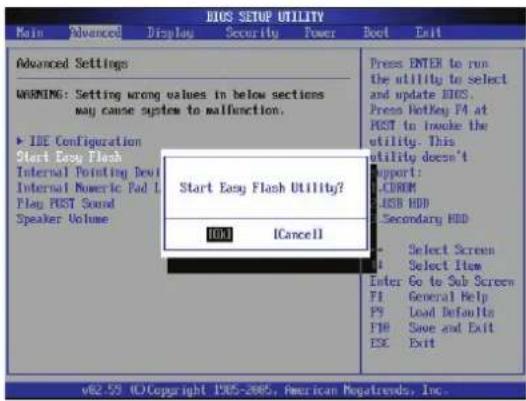

BIOS SETUP UTILITY Main Advanced Display Security Power Boot Exit Advanced Settings WARNING: Setting wrong values in below sections may cause system to malfunction. ▶ IDE Configuration Start Easy Flash Internal Pointing Devi Internal Numeric Pad L Play POST Sound Speaker Volume Start Easy Flash Utility? OK Cancel Press ENTER to run the utility to select and update BIOS. Press Hotkey FA at POST to invoke the utility. This utility doesn't Support: CCORM USB HDD Secondary HDD Select Screen Select Item Enter Go to Sub Screen F1 General Help PS Load Defaults FID Save and Exit ESC Exit v62-53 ©Copyright 1985-2005, American Negatrends, Inc.

You can also use the "Easy Flash" function on the Advanced page of the BIOS Setup Utility. Follow the instructions shown.

BIGS SETUP UTILITY Main Advanced Display Security Power Boot Exit Exit Options Load Manufacture Default values for all the setup questions. 18 key can be used for this operation. Load User Defaults Load Manufacture Defaults? OK Cancel Select Screen Select Item Enter Go to Sub Screen F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit v62-57 ©Copyright 1985-2005, American Regatrends, Inc.

You must "Load Manufacture Defaults" after updating (flashing) the BIOS.

Common Problems and Solutions (Cont.)

Norton Internet Security

Symantec's Norton Internet Security (NIS)

1. Sometimes NIS will show an alert to stop a Trojan virus from a local IP address.

This problem can be solved by making sure the virus definition file is the latest one and regularly updating the virus definition file.

1. Reinstalling fails at the "Information Wizard" after uninstalling Norton Antivirus.

Make sure NIS has been uninstalled from your computer, reboot your system, install NIS again, use "Live Update" and update the virus definition file.

1. Norton accidentally blocks desired web pages or reduces download speeds.

Change the security configuration to a lower level. NIS scans virus while downloading data so network speed will be decreased.

1. Cannot login to MSN or Yahoo messenger services.

Make sure NIS has been updated and also update the Windows system by using “Windows Update”. If the problem still exist, try:

1. Open NIS 200x by clicking on the NIS icon in your system tray.
2. Open "Norton AntiVirus" in "Options" menu.

3. Click on “Instant Messenger” uncheck “MSN/Windows Messenger” from “Which Instant messengers to protect.”

4. NIS is damaged and need reinstalling.

NIS is located in the provided disc in the "NIS200x" folder (x is the version number).

1. The "Start firewall when system is booted" option is selected but it takes about one minute to startup the firewall every time I enter Windows. Windows is not responsive during this time.

If NIS firewall reduces your system speed to an intolerable level, deselect that option.

1. Much of my system speed has been reduced by NIS.

NIS will reduce your system speed (both booting and running performance) if you are using NIS's full protection functions, NIS scans and tracks all data in the background. You can speed up your system by stopping NIS's auto scan functions in system bootup. You can then scan virus manually when your computer is not in use.

1. Cannot uninstall NIS.

Go to Control Panel | Add or Remove Programs. Look for “Norton Internet Security 200x (Symantec Corporation)”. Click Change/Remove and choose Remove All to uninstall NIS.

Common Problems and Solutions (Cont.)

1. Windows Firewall must be stopped before installing “Norton Internet Security” or “Norton Personal Firewall”. How to stop Windows Firewall:

2. Click Start and then Control Panel.

3. You will have one of two control panels. Click on the Security Center icon.
4. Click on the Windows Firewall icon beneath the status updates.

5. Click Off and then click OK.

6. Why is the “Privacy Control” icon showing ‘x’?

Turn off Privacy Control from "Status & Settings".

1. Insufficient privilege message.

Many settings, including disabling or uninstalling NIS, require you to be logged into Windows with Administrator privileges. Log Off and switch to a user account with Administrator privileges.

Windows Vista Software Recovery Using Hard Disk Partition

The Recovery Partition includes an image of the operating system, drivers, and utilities installed on your Notebook PC at the factory. The Recovery Partition provides a comprehensive recovery solution that quickly restores your Notebook PC's software to its original working state, provided that your hard disk drive is in good working order. Before using the Recovery Partition, copy your data files (such as Outlook PST files) to floppy disks or to a network drive and make note of any customized configuration settings (such as network settings).

About the Recovery Partition

The Recovery Partition is a space reserved on your hard disk drive used to restore the operating system, drivers, and utilities installed on your Notebook PC at the factory.

IMPORTANT! DO NOT delete the partition named "RE-COVERY". The Recovery Partition is created at the factory and cannot be restored by the user if deleted. Take your Notebook PC to an authorized ASUS service center if you have problems with the recovery process.

1.2.0 - 1.3.0 - 1.4.0 - 1.5.0 - 1.6.0 - 1.7.0 - 1.8.0 - 1.9.0 - 2.0.0 - 2.1.0 - 2.2.0 - 2.3.0 - 2.4.0 - 2.5.0 - 2.6.0 - 2.7.0 - 2.8.0 - 2.9.0 - 3.0.0 - 3.1.0 - 3.2.0 - 3.3.0 - 3.4.0 - 3.5.0 - 3.6.0 - 3.7.0 - 3.8.0 - 3.9.0 - 4.0.0 - 4.1.0 - 4.2.0 - 4.3.0 - 4.4.0 - 4.5.0 - 4.6.0 - 4.7.0 - 4.8.0 - 4.9.0 - 5.0.0 - 5.1.0 - 5.2.0 - 5.3.0 - 5.4.0 - 5.5.0 - 5.6.0 - 5.7.0 - 5.8.0 - 5.9.0 - 6.0.0 - 6.1.0 - 6.2.0 - 6.3.0 - 6.4.0 - 6.5.0 - 6.6.0 - 6.7.0 - 6.8.0 - 6.9.0 - 7.0.0 - 7.1.0 - 7.2.0 - 7.3.0 - 7.4.0 - 7.5.0 - 7.6.0 - 7.7.0 - 7.8.0 - 7.9.0 - 8.0.0 - 8.1.0 - 8.2.0 - 8.3.0 - 8.4.0 - 8.5.0 - 8.6.0 - 8.7.0 - 8.8.0 - 8.9.0 - 9.0.0 - 9.1.0 - 9.2.0 - 9.3.0 - 9.4.0 - 9.5.0 - 9.6.0 - 9.7.0 - 9.8.0 - 9.9.0 - 10.0.

Using the Recovery Partition:

1. Press [F9] during bootup (requires a Recovery Partition)
2. Press [Enter] to select Windows Setup [EMS Enabled]
3. Read the "ASUS Preload Wizard" screen and click Next.
4. Select a partition option and click Next. Partition options:

Recover Windows to first partition only.

This option will delete only the first partition, allowing you to keep other partitions, and create a new system partition as drive “C”.

Recover Windows to entire HD.

This option will delete all partitions from your hard disk drive and create a new system partition as drive "C".

Recover Windows to entire HD with 2 partition.

This option will delete all partitions from your hard drive and create two new partitions “C” (60%) and “D” (40%).

1. Follow the on-screen instructions to complete the recovery process.

Please visit www.asus.com for updated drivers and utilities.

Windows Vista Software Recovery (Cont.)

Using DVD (on selected models)

The Recovery DVD includes an image of the operating system, drivers, and utilities installed on your Notebook PC at the factory. The Recovery DVD provides a comprehensive recovery solution that quickly restores your Notebook PC's software to its original working state, provided that your hard disk drive is in good working order. Before using the Recovery DVD, copy your data files (such as Outlook PST files) to floppy disks or to a network drive and make note of any customized configuration settings (such as network settings).

IMPORTANT! Remove the optional secondary hard disk drive before performing system recovery on your notebook PC. According to Microsoft, you may lose important data because of setting up Windows Vista on the wrong disk drive or formatting the incorrect drive partition. Link to http://support.microsoft.com/kb/937251/en-us for more details.

Using the Recovery DVD:

1. Insert the Recovery DVD into the optical drive (Notebook PC needs to be powered ON).
2. Restart the Notebook PC and press on bootup and select the optical drive (may be labeled as "CD/DVD") using the down cursor and press to boot from the Recovery DVD.
3. Select a partition option and click Next. Partition options:

Recover Windows to first partition only.

This option will delete only the first partition, allowing you to keep other partitions, and create a new system partition as drive "C".

Recover Windows to entire HD.

This option will delete all partitions from your hard disk drive and create a new system partition as drive "C".

Recover Windows to entire HD with 2 partition.

This option will delete all partitions from your hard drive and create two new partitions “C” (60%) and “D” (40%).

1. Follow the on-screen instructions to complete the recovery process.

WARNING: Do not remove the Recovery disc (unless instructed to do so) during the recovery process or else your partitions will be unusable.

Please visit www.asus.com for updated drivers and utilities.

Glossary

ACPI (Advanced Configuration and Power Management Interface)

Modern standard for reducing power usage in computers.

APM (Advanced Power Management)

Modern standard for reducing power usage in computers.

AWG (American Wire Gauge)

This table is for general reference only and should not be used as a source of the American Wire Gauge standard as this table may not be current or complete.

Gauge Diam Area R I@3A/mm2AWG (mm) (mm2) (ohm/km) (mA)	Gauge Diam Area R I@3A/mm2AWG (mm) (mm2) (ohm/km) (mA)
33 0.18 0.026 676 75	24 0.50 0.20 87.5 588
0.19 0.028 605 85	0.55 0.24 72.3 715
32 0.20 0.031 547 93	0.60 0.28 60.7 850
30 0.25 0.049 351 147	22 0.65 0.33 51.7 1.0 A
29 0.30 0.071 243 212	0.70 0.39 44.6 1.16 A
27 0.35 0.096 178 288	0.75 0.44 38.9 1.32 A
26 0.40 0.13 137 378	20 0.80 0.50 34.1 1.51 A
25 0.45 0.16 108 477	0.85 0.57 30.2 1.70 A

BIOS (Basic Input/Output System)

BIOS is a set of routines that affect how the computer transfers data between computer components, such as memory, disks, and the display adapter. The BIOS instructions are built into the computer's read-only memory. BIOS parameters can be configured by the user through the BIOS Setup program. The BIOS can be updated using the provided utility to copy a new BIOS file into the EEPROM.

Bit (Binary Digit)

Represents the smallest unit of data used by the computer. A bit can have one of two values: 0 or 1.

Boot

Boot means to start the computer operating system by loading it into system memory. When the manual instructs you to “boot” your system (or computer), it means to turn ON your computer. “Reboot” means to restart your computer. When using Windows 95 or later, selecting “Restart” from “Start | Shut Down...” will reboot your computer.

Byte (Binary Term)

One byte is a group of eight contiguous bits. A byte is used to represent a single alphanumeric character, punctuation mark, or other symbol.

Clock Throttling

Chipset function which allows the processor's clock to be stopped and started at a known duty cycle. Clock throttling is used for power savings, thermal management, and reducing processing speed.

Glossary (Cont.)

CPU (Central Processing Unit)

The CPU, sometimes called “Processor,” actually functions as the “brain” of the computer. It interprets and executes program commands and processes data stored in memory.

Device Driver

A device driver is a special set of instructions that allows the computer's operating system to communicate with devices such as VGA, audio, Ethernet, printer, or modem.

DVD

DVD is essentially a bigger, faster CD that can hold video as well as audio and computer data. With these capacities and access rates, DVD discs can provide you with dramatically-enhanced high-color, full-motion videos, better graphics, sharper pictures, and digital audio for a theater-like experience. DVD aims to encompass home entertainment, computers, and business information with a single digital format, eventually replacing audio CD, videotape, laserdisc, CD-ROM, and video game cartridges.

ExpressCard

ExpressCard slot is 26 pins and support one ExpressCard/34mm or one ExpressCard/54mm expansion card. This new interface is faster by using a serial bus supporting USB 2.0 and PCI Express instead of the slower parallel bus used in the PC card slot. (Not compatible with previous PCMCIA cards.)

Hardware

Hardware is a general term referring to the physical components of a computer system, including peripherals such as printers, modems, and pointing devices.

IDE (Integrated Drive Electronics)

IDE devices integrate the drive control circuitry directly on the drive itself, eliminating the need for a separate adapter card (in the case for SCSI devices). UltraDMA/66 or 100 IDE devices can achieve up to 33MB/Sec transfer.

IEEE1394 (1394)

Also known as iLINK (Sony) or FireWire (Apple). 1394 is a high speed serial bus like SCSI but has simple connections and hot-plugging capabilities like USB. The popular 1394a interface has a bandwidth of 400Mbits/sec and can handle up to 63 units on the same bus. The newer 1394b interface can support twice the speed and will appear in future models when peripherals support higher speeds. 1394 is also used in high-end digital equipment and should be marked “DV” for Digital Video port.

Kensington® Locks

Kensington ^® locks (or compatible) allow the Notebook PC to be secured usually using a metal cable and lock that prevent the Notebook PC to be removed from a fixed object. Some security products may also include a motion detector to sound an alarm when moved.

Glossary (Cont.)

Laser Classifications

As lasers became more numerous and more widely used, the need to warn users of laser hazards became apparent. To meet this need, laser classifications were established. Current classification levels vary from optically safe, requiring no controls (Class 1) to very hazardous, requiring strict controls (Class 4).

CLASS 1: A Class 1 laser or laser system emits levels of optical energy that are eye-safe and consequently require no controls. An example of this class of laser system is the checkout scanning device found in most grocery stores or lasers used in optical drives.

CLASS 2 & CLASS 3A: Class 2 and Class 3A lasers emit visible, continuous-wave (CW) optical radiation levels slightly above the maximum permissible exposure (MPE) level. Although these lasers can cause eye damage, their brightness usually causes observers to look away or blink before eye damage occurs. These lasers have strict administrative controls requiring placement of signs warning personnel not to stare directly into the beam. Class 3A lasers must not be viewed with optically-aided devices.

CLASS 3B: Class 3B lasers, and Class 3A lasers with outputs of 2.5mW, are hazardous to personnel who are within the beam path and look at the beam source directly or by specular reflection. These lasers cannot produce hazardous diffuse reflections. Personnel working with these lasers should wear appropriate protective eye wear during any operation of the laser. Class 3B lasers have both administrative and physical controls to protect personnel. Physical controls include limited access work areas. Administrative controls include special warning signs posted outside the entrances to the laser work spaces and lights outside the entrances that warn personnel when the lasers are in use.

CLASS 4: Class 4 lasers are high-power lasers that will cause damage to unprotected eyes and skin through intra-beam viewing and specular or diffuse reflections. Consequently, no personnel should be in a room where a Class 4 laser is operating without proper eye protection.

PCI Bus (Peripheral Component Interconnect Local Bus)

PCI bus is a specification that defines a 32-bit data bus interface. PCI is a standard widely used by expansion card manufacturers.

POST (Power On Self Test)

When you turn on the computer, it will first run through the POST, a series of software-controlled diagnostic tests. The POST checks system memory, the motherboard circuitry, the display, the keyboard, the diskette drive, and other I/O devices.

RAM (Random Access Memory)

RAM (usually just called memory) is the place in a computer where the operating system, application programs, and data in current use are temporarily kept so that they can be quickly reached by the computer's processor instead of having to read from and write to slower storage such as the hard disk or optical disc.

Glossary (Cont.)

Suspend Mode

In Save-to-RAM (STR) and Save-to-Disk (STD), the CPU clock is stopped and most of the Notebook PC devices are put in their lowest active state. The Notebook PC enters Suspend when the system remains idle for a specified amount of time or manually using the function keys. The time-out setting of both Hard Disk and Video can be set by the BIOS Setup. The Power LED blinks when the Notebook PC is in STR mode. In STD mode, the Notebook PC will appear to be powered OFF.

System Disk

A system disk contains the core file of an operating system and is used to boot up the operating system.

TPM (Trusted Platform Module) (on selected models)

The TPM is a security hardware device on the system board that will hold computer-generated keys for encryption. It is a hardware-based solution that can help avoid attacks by hackers looking to capture passwords and encryption keys to sensitive data. The TPM provides the ability to the PC or Notebook PC to run applications more secure and to make transactions and communication more trustworthy.

Twisted-Pair Cable

The cable used to connect the Ethernet card to a host (generally a Hub or Switch) is called a straight-through Twisted Pair Ethernet (TPE). The end connectors are called RJ-45 connectors, which are not compatible with RJ-11 telephone connectors. If connecting two computers together without a hub in between, a crossover twisted-pair is required.

UltraDMA/66 or 100

UltraDMA/66 or 100 are new specifications to improve IDE transfer rates. Unlike traditional PIO mode, which only uses the rising edge of IDE command signal to transfer data, UltraDMA/66 or 100 uses both rising edge and falling edge.

USB (Universal Serial Bus)

A 4-pin serial peripheral bus that allows plug and play computer peripherals such as keyboard, mouse, joystick, scanner, printer and modem/ISDN to be automatically configured when they are attached physically without having to install drivers or reboot. With USB, the traditional complex cables from back panel of your PC can be eliminated.

Declarations and Safety Statements

DVD DVD-ROM Drive Information

The Notebook PC comes with an optional DVD-ROM drive or a CD-ROM drive. In order to view DVD titles, you must install your own DVD viewer software. Optional DVD viewer software may be purchased with this Notebook PC. The DVD-ROM drive allows the use of both CD and DVD discs.

Regional Playback Information

Playback of DVD movie titles involves decoding MPEG2 video, digital AC3 audio and decryption of CSS protected content. CSS (sometimes called copy guard) is the name given to the content protection scheme adopted by the motion picture industry to satisfy a need to protect against unlawful content duplication.

Although the design rules imposed on CSS licensors are many, one rule that is most relevant is playback restrictions on regionalized content. In order to facilitate geographically staggered movie releases, DVD video titles are released for specific geographic regions as defined in “Region Definitions” below. Copyright laws require that all DVD movies be limited to a particular region (usually coded to the region at which it is sold). While DVD movie content may be released for multiple regions, CSS design rules require that any system capable of playing CSS encrypted content must only be capable of playing one region.

The region setting may be changed up to five times using the viewer software, then it can only play DVD movies for the last region setting. Changing the region code after that will require factory resetting which is not covered by warranty. If resetting is desired, shipping and resetting costs will be at the expense of the user.

Region Definitions

Region 1

Canada, US, US Territories

Region 2

Czech, Egypt, Finland, France, Germany, Gulf States, Hungary, Iceland, Iran, Iraq, Ireland, Italy, Japan, Netherlands, Norway, Poland, Portugal, Saudi Arabia, Scotland, South Africa, Spain, Sweden, Switzerland, Syria, Turkey, UK, Greece, Former Yugoslav Republics, Slovakia

Region 3

Burma, Indonesia, South Korea, Malaysia, Philippines, Singapore, Taiwan, Thailand, Vietnam

Region 4

Australia, Caribbean (Except US Territories), Central America, New Zealand, Pacific Islands, South America

Region 5

CIS, India, Pakistan, Rest of Africa, Russia, North Korea

Region 6

China

Internal Modem Compliancy

The Notebook PC with internal modem model complies with JATE (Japan), FCC (US, Canada, Korea, Taiwan), and CTR21. The internal modem has been approved in accordance with Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone network (PSTN). However due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point. In the event of problems you should contact your equipment supplier in the first instance.

Overview

On 4th August 1998 the European Council Decision regarding the CTR 21 has been published in the Official Journal of the EC. The CTR 21 applies to all non voice terminal equipment with DTMF-dialling which is intended to be connected to the analogue PSTN (Public Switched Telephone Network).

CTR 21 (Common Technical Regulation) for the attachment requirements for connection to the analogue public switched telephone networks of terminal equipment (excluding terminal equipment supporting the voice telephony justified case service) in which network addressing, if provided, is by means of dual tone multifrequency signalling.

Network Compatibility Declaration

Statement to be made by the manufacturer to the Notified Body and the vendor: “This declaration will indicate the networks with which the equipment is designed to work and any notified networks with which the equipment may have inter-working difficulties”

Network Compatibility Declaration

Statement to be made by the manufacturer to the user: “This declaration will indicate the networks with which the equipment is designed to work and any notified networks with which the equipment may have inter-working difficulties. The manufacturer shall also associate a statement to make it clear where network compatibility is dependent on physical and software switch settings. It will also advise the user to contact the vendor if it is desired to use the equipment on another network.”

Up to now the Notified Body of CETECOM issued several pan-European approvals using CTR 21. The results are Europe's first modems which do not require regulatory approvals in each individual European country.

Non-Voice Equipment

Answering machines and loud-speaking telephones can be eligible as well as modems, fax machines, auto-dialers and alarm systems. Equipment in which the end-to-end quality of speech is controlled by regulations (e.g. handset telephones and in some countries also cordless telephones) is excluded.

Internal Modem Compliancy (Cont.)

This table shows the countries currently under the CTR21 standard.

Country Applied More Testing

Austria ^1	Yes	No
Belgium	Yes	No
Czech Republic	No	Not Applicable
Denmark ^1	Yes	Yes
Finland	Yes	No
France	Yes	No
Germany	Yes	No
Greece	Yes	No
Hungary	No	Not Applicable
Iceland	Yes	No
Ireland	Yes	No
Italy	Still Pending	Still Pending
Israel	No	No
Lichtenstein	Yes	No
Luxemburg	Yes	No
The Netherlands ^1	Yes	Yes
Norway	Yes	No
Poland	No	Not Applicable
Portugal	No	Not Applicable
Spain	No	Not Applicable
Sweden	Yes	No
Switzerland	Yes	No
United Kingdom	Yes	No

This information was copied from CETECOM and is supplied without liability. For updates to this table, you may visit http://www.cetecom.de/technologies/ctr_21.html

^1 National requirements will apply only if the equipment may use pulse dialling (manufacturers may state in the user guide that the equipment is only intended to support DTMF signalling, which would make any additional testing superfluous).

In The Netherlands additional testing is required for series connection and caller ID facilities.

FC Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

- This device may not cause harmful interference, and - This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING! The use of a shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office.)

FCC FCC Radio Frequency Interference Requirements

This device is restricted to INDOOR USE due to its operation in the 5.15 to 5.25GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25GHz to reduce the potential for harmful interference to co-channel of the Mobile Satellite Systems.

High power radars are allocated as primary user of the 5.25 to 5.35GHz and 5.65 to 5.85GHz bands. These radar stations can cause interference with and / or damage this device.

IMPORTANT! This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

F© FCC Radio Frequency (RF) Exposure Caution Statement

This equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instructions in the user's manual. This equipment is for operation within 5.15 GHz and 5.25GHz frequency ranges and is restricted to indoor environments only.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. "The manufacturer declares that this device is limited to Channels 1 through 11 in the 2.4GHz frequency by specified firmware controlled in the USA."

FCC RF Exposure Guidelines (Wireless Clients)

This device has been tested for compliance with FCC RF Exposure (SAR) limits in typical portable configurations. In order to comply with SAR limits established in the ANSI C95.1 standards, it is recommended when using a wireless LAN adapter that the integrated antenna is positioned more than [20cm] from your body or nearby persons during extended periods of operation. If the antenna is positioned less than [20cm] from the user, it is recommended that the user limit the exposure time.

R&TTE Directive (1999/5/EC)

The following items were completed and are considered relevant and sufficient for the R&TTE (Radio & Telecommunications Terminal Equipment) directive:

• Essential requirements as in [Article 3]
• Protection requirements for health and safety as in [Article 3.1a]
- Testing for electric safety according to [EN 60950]
- Protection requirements for electromagnetic compatibility in [Article 3.1b]
- Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301]
• Testing according to [489-17]
• Effective use of the radio spectrum as in [Article 3.2]
• Radio test suites according to [EN 300 328-2]

CE CE Mark Warning

This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

Wireless Operation Channel for Different Domains

N. America 2.412-2.462 GHz Ch01 through CH11

Japan 2.412-2.484 GHz Ch01 through Ch14

Europe ETSI 2.412-2.472 GHz Ch01 through Ch13

France Restricted Wireless Frequency Bands

Some areas of France have a restricted frequency band. The worst case maximum authorized power indoors are:

• 10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz)
  • 100mW for frequencies between 2446.5 MHz and 2483.5 MHz

Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5 MHz.

There are few possibilities for outdoor use: On private property or on the private property of public persons, use is subject to a preliminary authorization procedure by the Ministry of Defense, with maximum authorized power of 100mW in the 2446.5–2483.5 MHz band. Use outdoors on public property is not permitted.

In the departments listed below, for the entire 2.4 GHz band:

• Maximum authorized power indoors is 100mW
• Maximum authorized power outdoors is 10mW

Departments in which the use of the 2400–2483.5 MHz band is permitted with an EIRP of less than 100mW indoors and less than 10mW outdoors:

01 Ain Orientales 02 Aisne 03 Allier 05 Hautes Alpes
08 Ardennes 09 Ariège 11 Aude 12 Aveyron
16 Charente 24 Dordogne 25 Doubs 26 Drôme
32 Gers 36 Indre 37 Indre et Loire 41 Loir et Cher
45 Loiret 50 Manche 55 Meuse 58 Nièvre
59 Nord 60 Oise 61 Orne 63 Puy du Dôme
64 Pyrénées Atlantique 66 Pyrénées 67 Bas Rhin 68 Haut Rhin
70 Haute Saône 71 Saône et Loire 75 Paris 82 Tarn et Garonne
84 Vaucluse 88 Vosges 89 Yonne 90 Territoire de Belfort
94 Val de Marne

This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France. Please check with ART for the latest information (www.art-telecom.fr)

Your WLAN Card transmits less than 100mW, but more than 10mW.

UL Safety Notices

Required for UL 1459 covering telecommunications (telephone) equipment intended to be electrically connected to a telecommunication network that has an operating voltage to ground that does not exceed 200V peak, 300V peak-to-peak, and 105V rms, and installed or used in accordance with the National Electrical Code (NFPA 70).

When using the Notebook PC modem, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Do not use the Notebook PC near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
• Do not use the Notebook PC during an electrical storm. There may be a remote risk of electric shock from lightning.
• Do not use the Notebook PC in the vicinity of a gas leak.

Required for UL 1642 covering primary (non-rechargeable) and secondary (rechargeable) lithium batteries for use as power sources in products. These batteries contain metallic lithium, or a lithium alloy, or a lithium ion, and may consist of a single electrochemical cell or two or more cells connected in series, parallel, or both, that convert chemical energy into electrical energy by an irreversible or reversible chemical reaction.

• Do not dispose the Notebook PC battery pack in a fire, as they may explode. Check with local codes for possible special disposal instructions to reduce the risk of injury to persons due to fire or explosion.
• Do not use power adapters or batteries from other devices to reduce the risk of injury to persons due to fire or explosion. Use only UL certified power adapters or batteries supplied by the manufacturer or authorized retailers.

Power Safety Requirement

Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm^2 or H05VV-F, 2G, 0.75mm^2 .

European Union Eco-label

This Notebook PC has been awarded the EU Flower label, which means that this product has the following characteristic:

1. Decreased energy consumption during use and stand-by modes
2. Limited use of toxic heavy metals
3. Limited use of substances harmful to the environment and health
4. Reduction of the use of natural resources by encouraging recycling*
5. Extended product lifetime through easy up-grades and longer-time availability of spare parts
6. Reduced solid waste through take-back policy*

For more information on the EU Flower label, please visit the European Union Eco-label Hompage: http://europa.eu.int/ecolabel.

*ASUS' recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions to our customers to enable them to responsibly recycle our products. Please visit Green ASUS (http://green.asus.com/english/takeback.htm) for ways to take advantage of this service in your region.

Takeback and Recycling

Old computers, notebook computers, and other electronic equipment contain hazardous chemicals that can be harmful to the environment when disposed in a landfill with trash. By recycling, the metals, plastics, and components found in an old computer will be broken down and reused to make new products. And, the environment is protected from any uncontrolled release of harmful chemicals.

ASUS works with recycling vendors with the highest standards for protecting our environment, ensuring worker safety, and complying with global environmental laws. Our commitment to recycling our old equipment grows out of our work to protect the environment in many ways.

For further information about ASUS product recycling and contacts, please visit GreenASUS Takeback and Recycling page (http://green.asus.com/english/takeback.htm)

Nordic Lithium Cautions (for lithium-ion batteries)

Collection of national flags including the United States, Germany, Japan, and others in vertical columns

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. (English)

IMPORTANT: Depending on model, components used in the Notebook PC display panel may contain mercury. Recycle or dispose according to local, state, and federal laws.

Optical Drive Safety Information

Laser Safety Information

Internal or external optical drives sold with this Notebook PC contains a CLASS 1 LASER PRODUCT. Laser classifications can be found in the glossary at the end of this user's manual.

WARNING: Making adjustments or performing procedures other than those specified in the user's manual may result in hazardous laser exposure. Do not attempt to disassemble the optical drive. For your safety, have the optical drive serviced only by an authorized service provider.

Service warning label

CAUTION! INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

CDRH Regulations

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976. These regulations apply to laser products manufactured from August 1, 1976. Compliance is mandatory for products marketed in the United States.

WARNING: Use of controls or adjustments or performance of procedures other than those specified herein or in the laser product installation guide may result in hazardous radiation exposure.

Macrovision Corporation Product Notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S.A. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

CTR 21 Approval (for Notebook PC with built-in Modem)

Danish	•Udstyret er i henhold til Rådets beslutning 98/482/EF EU-godkendt til at blive opkoblet på de offentlige telefonnet som enkeltforbundet terminal. På grund af forskelle mellem de offentlige telefonnet i de forskellige lande giver godkendelsen dog ikke i sig selv uberinger garanti for, at udstyret kan fungere korrekt på samtlige nettermineringspunkter på de offentlige telefonnet.I tilfzelde af problemer bør De i første omgang henvende Dem til leverandaren af udstyret.
Dutch	•Dit apparaat is goedgekeurd volgens Beschikking 98/482/EG van de Raad voor de pan-Europese aansluiting van enkelhoudige cindapparatuur op het openbare geschakelde telefoonnerwerk (PSTN). Gezien de verschillen tussen de individuele PSTN's in de verschillende landen, biedt deze goedkeuring op zichzelf geen onvoorwaardelijke garantie voor een succesvolle werking op elk PSTN-netwerkaansluirpunt.Neem bij problemen in eerste instantie contact op met de leverancier van het apparaat.
English	'The equipment has been approved in accordance with Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.In the event of problems, you should contact your equipment supplier in the first instance.'
Finnish	'Tämä laite on hyväksytty neuvoston piätöksen 98/482/EY mukaisesti liittettväksi yksittäsenä laitteena yleiseen kytkentäiseen puhelinverkkoon (PSTN) EUa jäsenvaltionssa. Eri maiden yleisten kytkentäisten puhelinverkkojen välillä on kuitenkin croja, joten hyväksyntä ei sellaisenan takaa häiriötöntä toimintaa kaikkien yleisten kytkentäisten puhelinverkkojen liittyntäpisteissä.Ongelmien ilmetessä ottakaa viipymättä yhtcyttä laiteen toimittajan.'
French	•Cet équipement a reçu l'agrément, conformément à la décision 98/482/CE du Conseil, concernant la connexion panceuropéenne de terminal unique aux réseaux téléphoniques publics commutés (RTPC). Toutefois, comme il existe des différences d'un pays à l'autre entre les RTPC, l'agrément en soi ne constitue pas une garantie absolue de fonctionnement optimal à chaque point de terminaison du réseau RTPC.En cas de problème, vous devez contacter en premier lieu votre fournisseur.
German	„Dieses Gerät wurde gemäß der Entscheidung 98/482/EG des Rates europaweit zur Anschaltung als einzelne Endeinrichtung an das öffentliche Fernsprechnetz zugelassen. Aufgrund der zwischen den öffentlichen Fernsprechnetzen verschiedener Staaten bestehenden Unterschiede stellt diese Zulassung an sich jedoch keine unbedingte Gewähr für einen erfolgreichen Betrieb des Geräts an jedem Netzabschlußpunkt dar.Falls beim Betrieb Probleme auftreten, sollten Sie sich zunächst an ihren Fachhändler wenden.“
Greek	‘O εξιπλισμός έχει εγκρείαι γα πανευρωστική πόνῶση μερονομέου τερμετικού με το δημόσιο πηλερονικό δικτιο μεταχευτής (PSTN), σύφωνα με την απόραση 98/482/ΕΚ του Συμβολιών στόσο, επιδη υπαρχονιν διαρορές μεταζε πων επιμέρους PSTN που παρέχονται στι διαρορες χώρες η έγκριση δεν παρέχει αρ' ευατής ανεπιρύλακτη εξασοράωση επιτυχούς λειτυργίας σε κάλε σημείο απόληζης του δικτύνο PSTN.Edv ανικόψον προβλήματι, θα πρέπει κατ αρχάς να απευθύνιστα στον προμηβευτή του εξιπλισμού σας»
Italian	•La presente apparecchiatura terminale è stata approvata in conformità della decisione 98/482/CE del Consiglio per la connessione paneuropea come terminale singolo ad una rete analogica PSTN. A causa delle differenze tra le reti dei differenti paesi, l'approvazione non garantisce però di per sé il funzionamento corretto in tutti i punti di terminazione di rete PSTN.In caso di problemi contattare in primo luogo il fornitore del prodotto.
Portuguese	•Este equipamento foi aprovado para ligationo pan-europeia de um único terminal à rede telefónica pública comutada (RTPC) nos termos da Decisão 98/482/CE. No entanto, devido às diferenças existentes entre as RTPC dos diversos países, a aprovação não garante incondicionalmente, por si só, um funcionamento correcto em todos os pontos terminais da rede da RTPC.Em caso de problemas, deve entrar-se em contacto, em primeiro lugar, com o fornecedor do equipamento.
Spanish	•Este equipo ha sido homologado de conformidad con la Decisión 98/482/CE del Consejo para la conexión paneuropea de un terminal simple a la red telefónica pública commutada (RTPC). No obstante, a la vista de las diferencias que existen entre las RTPC que se ofrecen en diferentes países, la homologación no constituye por si sola una garantia incondicional de funcionamiento satisfactorio en todos los puntos de terminación de la red de una RTPC.En caso de surgir algún problema, procede ponerse en contacto en primer lugar con el proveedor del equipo.
Swedish	"Utrustningen har godkänts i enlighet med ridets beslut 98/482/EG för alleuropeisk anslutning som enskild terminal till der allmänt tillgängliga kopplade telenätet (PSTN). På grund av de skillnader som finns mellan telenätet i olika länder utgör godkännandet emellertid inte i sig självt en absolut garanti för att utrustningen kommer att fungera tillfredsställande vid varje telenätsanslutningspunkt.Om problem uppstår bör ni i första hand kontakta leverantören av utrustningen."

Appendix

Notebook PC Information

This page is provided for recording information concerning your Notebook PC for future reference or for technical support. Keep this User's Manual in a secured location if passwords are filled out.

Owner's Name: ____ Owner's Telephone: ____

Manufacturer: ____ Model: ____ Serial Number: ____

Display Size: ____ Resolution: ____ Memory Size: ____

Retailer: ____ Location: ____ Purchase Date: ____

Hard Drive Manufacturer: ____ Capacity: ____

Optical Drive Manufacturer: ____ Type: ____

BIOS Version: Date:

Accessories:

Accessories:

Software

Operating System: ____ Version: ____ Serial Number: ____

Software: ____ Version: ____ Serial Number: ____

Software: ____ Version: ____ Serial Number: ____

Security

Supervisor Name: ____ Supervisor Password: ____

User Name: ____ User Password: ____

Network

User Name: ____ Password: ____ Domain: ____

User Name: ____ Password: ____ Domain: ____

Copyright Information

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2008 ASUSTeK COMPUTER INC. All Rights Reserved.

Limitation of Liability

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

Service and Support

Visit our multi-language web site at http://support.asus.com
