USER MANUAL H223H ACER

Copyright © 2008. Acer Incorporated. All Rights Reserved.

Acer LCD Monitor User Guide Original Issue: 06/2008

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Acer LCD Monitor User Guide

Model number: ____

Serial number: ____

Date of purchase: ____

Place of purchase: ____

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

Information for your safety and comfort

Safety instructions

Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.

Special notes on LCD monitors

The following are normal with the LCD monitor and do not indicate a problem.

• Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the power switch and then turn it on again to make sure the flicker disappears.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
  •The LCD screen has 99.99% or more effective pixels. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all the time.
• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the power switch for a few hours.

Cleaning your monitor

Please carefully follow these guidelines when cleaning the monitor:

•Always unplug the monitor before cleaning.
• Use a soft cloth to wipe the screen and cabinet front and sides.

Connecting/disconnecting the device

Observe the following guidelines when connecting and disconnecting power from the LCD monitor:

• Make sure the monitor is attached to its base before connecting the power cord to the AC power outlet.
• Make sure both the LCD monitor and the computer are turned off before connecting any cable or unplugging the power cord.
• If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.

iv

Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power from the equipment, be sure to unplug the power cord from the electrical outlet.

Safe listening

To protect your hearing, follow these instructions.

• Gradually increase the volume until you can hear it clearly and comfortably and without distortion.
•After setting the volume level, do not increase it after your ears have adjusted.
- Limit the amount of time listening to music at high volume.
- Avoid turning up the volume to block out noisy surroundings.
- Turn the volume down if you can't hear people speaking near you.

Warnings

• Do not use this product near water.
• Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.
• Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.
• Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.
  •To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.
• Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage internal devices.

Using electrical power

• This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
• If an extension cord is used with this product, make sure that the total

ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

• Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
• This product's power cord is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the power cord plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

- Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, type SPT-2, rated 7 A 125 V minimum, VDE approved or its equivalent, 4.6 meters (15 feet) maximum length.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

•the power cord or plug is damaged, cut or frayed
- liquid was spilled into the product
•the product was exposed to rain or water
•the product has been dropped or the case has been damaged
•the product exhibits a distinct change in performance, indicating a need for service
•the product does not operate normally after following the operating instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Potentially explosive environments

Switch off your device in any area with a potentially explosive atmosphere and obey all signs and instructions. Potentially explosive atmospheres include areas where you would normally be advised to turn off your vehicle engine. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Switch off the device near gas pumps at service stations. Observe restrictions on the use of radio equipment in fuel depots, storage and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas where the air contains chemicals or particles such as grain, dust or metal powders.

Additional safety information

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

IT Equipment Recycling Information

Acer is strongly committed to environmental protection and views recycling, in the form of salvaging and disposal of used equipment, as one of the company's top priorities in minimizing the burden placed on the environment.

We at Acer are very conscious of the environmental effects of our business and strive to identify and provide the best working procedures to reduce the environmental impact of our products.

For more information and help when recycling, please go to this website:

http://www.acer-group.com/public/Sustainability/sustainability01.htm

http://www.acer-group.com/public/Sustainability/sustainability04.htm

Visit www.global.acer.com for further information on the features and benefits of our other products.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://global.acer.com/about/sustainability.htm

Mercury advisory

For projectors or electronic products containing an LCD/CRT monitor or display:lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at

www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org.

LCD pixel statement

The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some pixels may occasionally misfire or appear as black or red dots. This has no effect on the recorded image and does not constitute a malfunction.

This product has been shipped enabled for power management:

• Activate display's Sleep mode within 15 minutes of user inactivity.
• Activate computer's Sleep mode within 30 minutes of user inactivity.
• Wake the computer from Sleep mode by pushing the power button.

Tips and information for comfortable use

Computer users may complain of eyestrain and headaches after prolonged use. Users are also at risk of physical injury after long hours of working in front of a computer. Long work periods, bad posture, poor work habits, stress, inadequate working conditions, personal health and other factors greatly increase the risk of physical injury.

Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis or other musculoskeletal disorders. The following symptoms may appear in the hands, wrists, arms, shoulders, neck or back:

• numbness, or a burning or tingling sensation
• aching, soreness or tenderness
  •pain, swelling or throbbing
  •stiffness or tightness
  •coldness or weakness

If you have these symptoms, or any other recurring or persistent discomfort and/or pain related to computer use, consult a physician immediately and inform your company's health and safety department.

The following section provides tips for more comfortable computer use.

Finding your comfort zone

Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest, or raising your sitting height to achieve maximum comfort. Observe the following tips:

viii

• refrain from staying too long in one fixed posture
- avoid slouching forward and/or leaning backward
- stand up and walk around regularly to remove the strain on your leg muscles

Taking care of your vision

Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room lighting, poorly focused screens, very small typefaces and low-contrast displays could stress your eyes. The following sections provide suggestions on how to reduce eyestrain.

Eyes

•Rest your eyes frequently.
- Give your eyes regular breaks by looking away from the monitor and focusing on a distant point.
- Blink frequently to keep your eyes from drying out.

Display

• Keep your display clean.
• Keep your head at a higher level than the top edge of the display so your eyes point downward when looking at the middle of the display.
• Adjust the display brightness and/or contrast to a comfortable level for enhanced text readability and graphics clarity.

• Eliminate glare and reflections by:

• placing your display in such a way that the side faces the window or any light source

• minimizing room light by using drapes, shades or blinds
  • using a task light
• changing the display's viewing angle
  • using a glare-reduction filter
• using a display visor, such as a piece of cardboard extended from the display's top front edge

- Avoid adjusting your display to an awkward viewing angle.

- Avoid looking at bright light sources, such as open windows, for extended periods of time.

Developing good work habits

Develop the following work habits to make your computer use more relaxing and productive:

•Take short breaks regularly and often.
- Perform some stretching exercises.
- Breathe fresh air as often as possible.
•Exercise regularly and maintain a healthy body.

Acer Incorporated

8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih

Taipei Hsien 221, Taiwan

Tel: [phone]

Fax

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan

Contact Person: Mr. Easy Lai, E-mail: [e-mail]

And,

Acer Europe SA

Hereby declare that:

Product: LCD Monitor

Trade Name: Acer

Model Number: H223HQ

Series Model Type:

SKU Number: H223HQxxxx ("x" = 0\~9, a \~ z, or A \~ Z)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

-. EN55022, AS/NZS CISPR22 Class B.
-. EN55024
-. EN61000-3-2, Class D
-. EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

-. EN60950-1

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment:

- The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead 0.1% Polybrominated	Biphenyls (PBB's) 0.1%
Mercury 0.1% Polybrominated	Diphenyl Ethers (PBDE's) 0.1%
Hexavalent Chromium 0.1%	Cadmium 0.01%

Directive 2005/32/EC of the European Parliament and of the Council with regard to Eco-design Requirements.

Year to begin affixing CE marking 2009.

Easy Lai

Easy Lai /Manager Regulation, Acer Inc.

Oct. 21, 2009

Date

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

The following local manufacturer/importer is responsible for this declaration:

Product name: LCD Monitor

Model number: H223HQ ("x" = 0 - 9, a - z, or A - Z or blank)

SKU number: H223HQxxx

$$ \left(" x" = 0 - 9, a - z, \text { or } A - Z \text { or blank }\right) $$

Name of responsible party: Acer America Corporation

Address of responsible party: 333 West San Carlos St.

San Jose, CA 95110

USA

Contact person: Acer Representative

Tel: [phone]

Fax: [phone]

Information for your safety and comfort iii

Safety instructions iii

Special notes on LCD monitors iii

Cleaning your monitor iii

Connecting/disconnecting the device iii

Accessibility iv

Safe listening iv

Warnings iv

Using electrical power iv

Product servicing v

Additional safety information vi

IT Equipment Recycling Information vi

Disposal instructions vi

LCD pixel statement vii

Tips and information for comfortable use vii

Declaration of Conformity ix

Federal Communications Commission

Declaration of Conformity x

Unpacking 1

Attaching the base (for selected models) 2

Screen position adjustment 3

Connecting the power cord 3

Power saving 3

Connecting the docking device

(for selected models) 4

Display Data Channel (DDC) 4

Connector pin assignment 4

15-pin color display signal cable 4

24-pin color display signal cable 5

19-pin color display signal cable* 5

Standard timing table 6

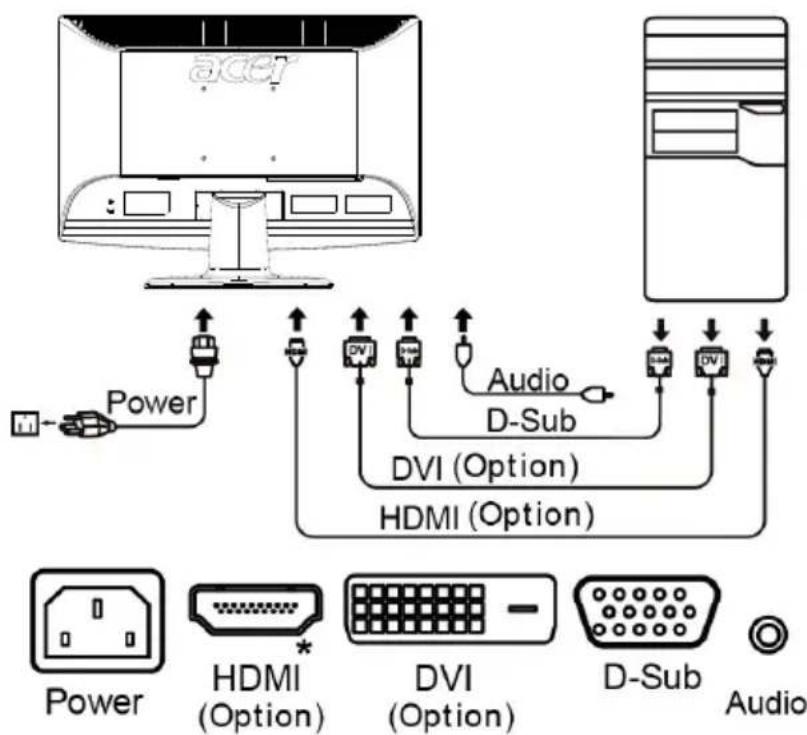

Installation 7

Users controls 8

Front panel controls 8

Acer eColor Management 9

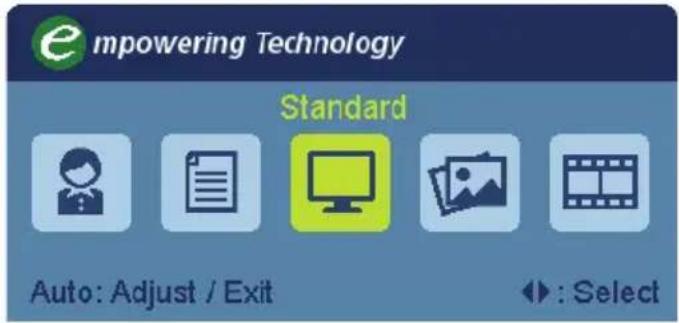

Operation instructions 9

Features and benefits 9

Adjusting the OSD settings 10

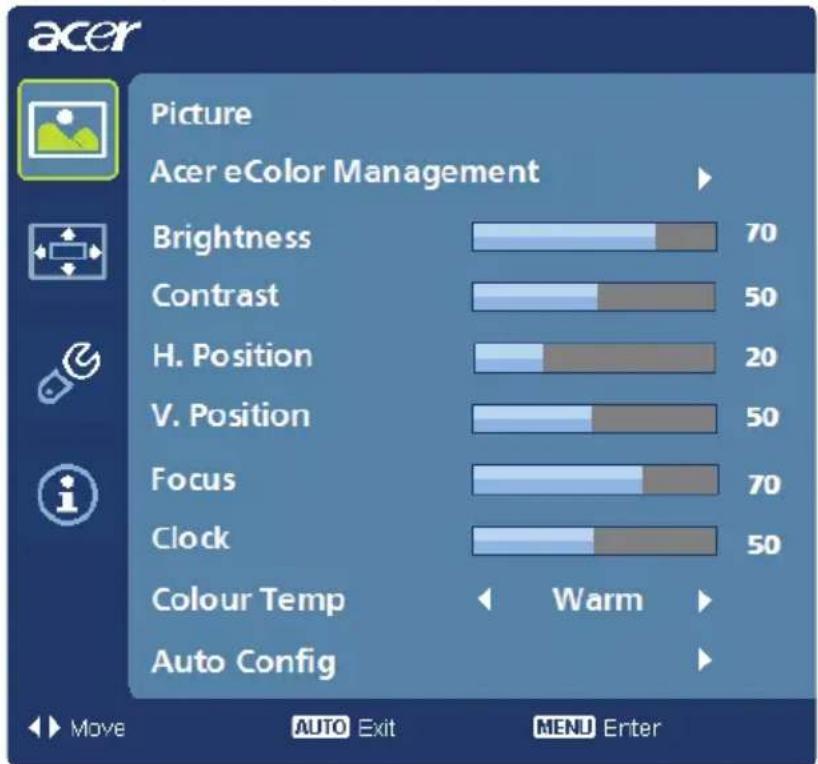

Adjusting the picture quality 10

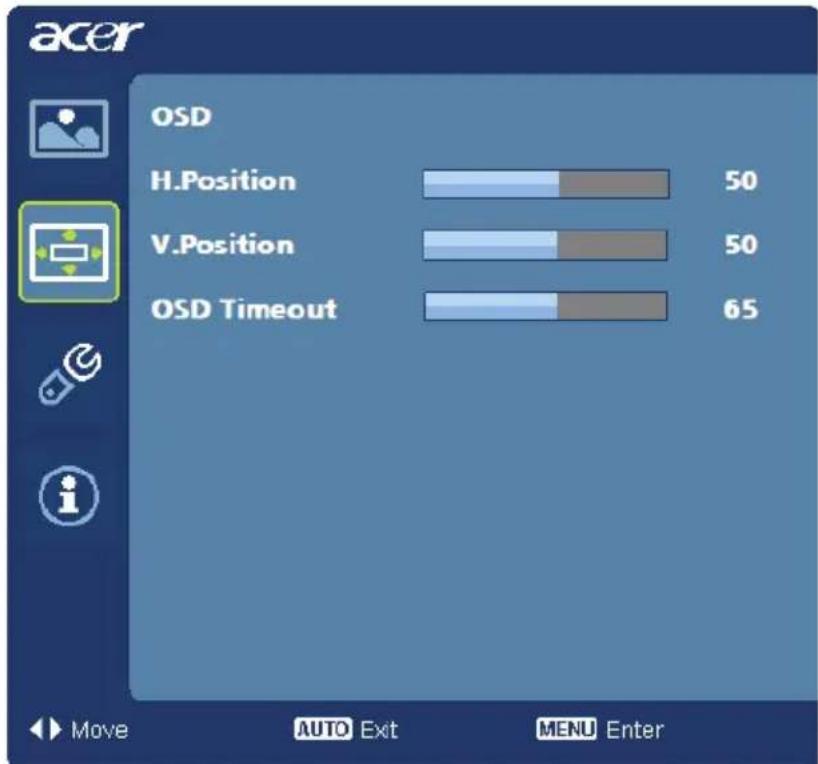

Adjusting the OSD position 11

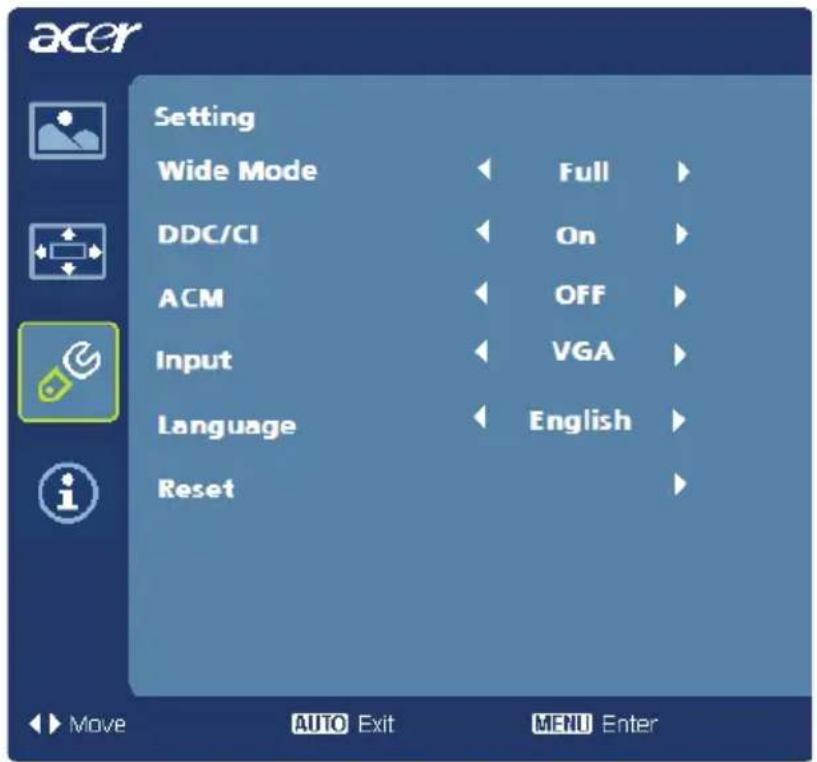

Adjusting the setting 12

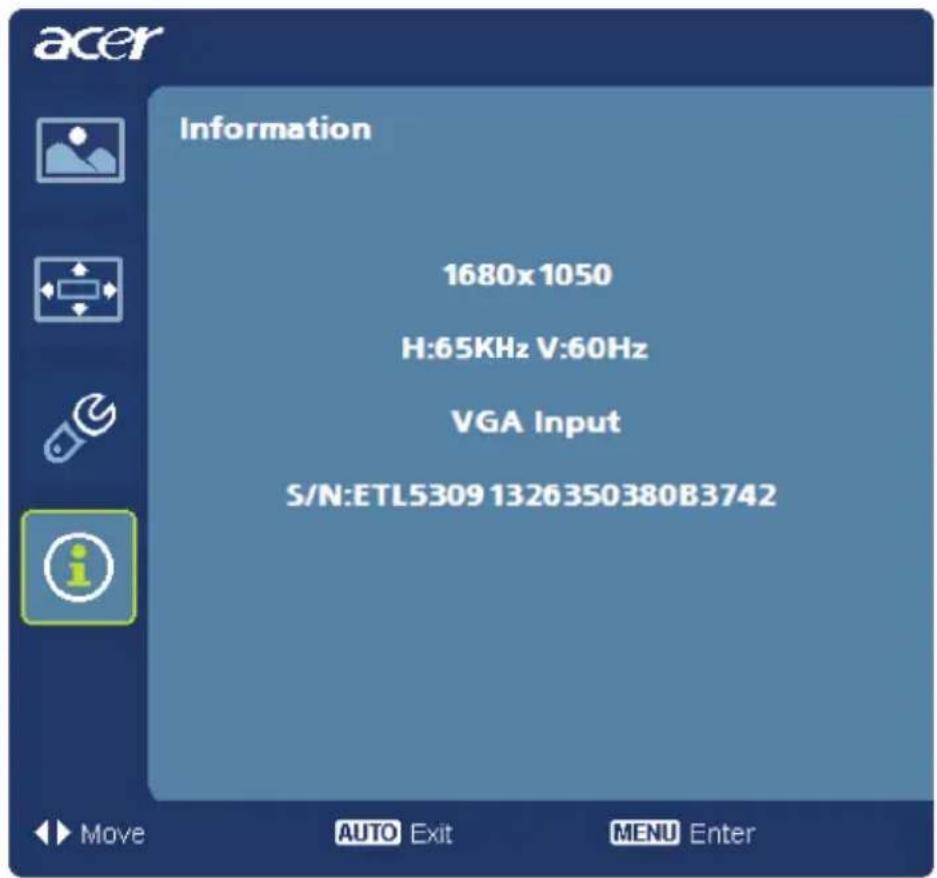

Product information 13

Troubleshooting 14

VGA mode 14

DVI/HDMI* mode 1

Unpacking

Please check that the following items are present when you unpack the box, and save the packing materials in case you need to ship or transport the monitor in the future.

LCD monitor Quick start guide

Line drawing of a flat-screen computer monitor (no text or symbols)

Acer Enerwing/Reps Acer Monitor

Illustration of a closed folder with a monitor icon and 'act' watermark (no text or symbols on the device itself)

DVI cable (only dual- D-sub cable AC power cord input models)

Line drawing of a USB cable with two connectors (no text or symbols)

Line drawing of two connected 5G or 12G network cables (no text or symbols)

Line drawing of a cord with two connectors (no text or symbols)

Audio Cable (Option)

Simple line drawing of a U-shaped tube with two metallic pins (no text or symbols)

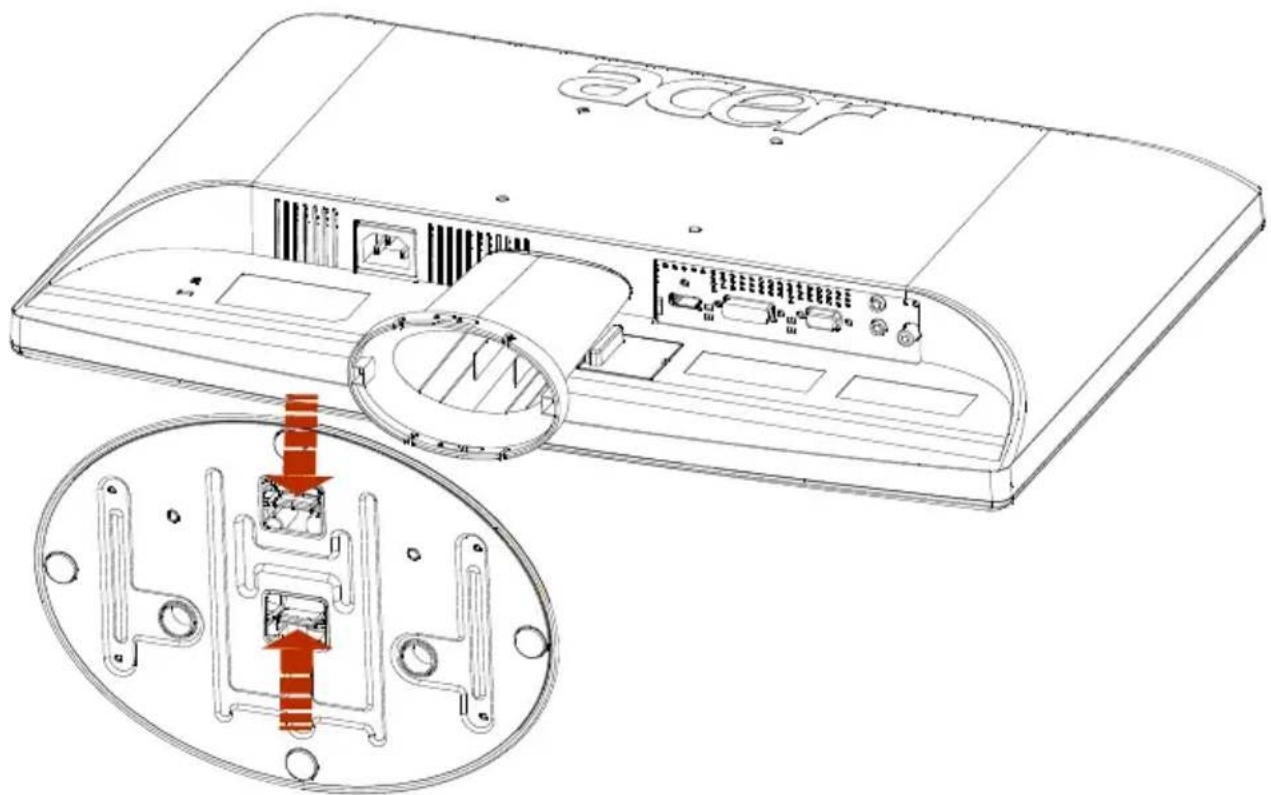

Attaching the base (for selected models)

Note: Remove the monitor and monitor base from its packaging. Carefully place the monitor face-down on a stable surface -- use a cloth to avoid scratching the screen.

acet

1 Attach the the monitor stand arm to the base.

2 Ensure that the base is locked onto the monitor stand arm.

Note: Take care when performing the installation to avoid injuring yourself.

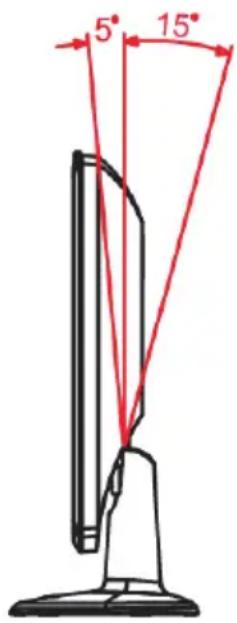

Screen position adjustment

To optimize the viewing position, you can adjust the monitor tilt, using both of your hands to hold the edges of the monitor. The monitor can be adjusted to 15 degrees up or 5 degrees down.

Connecting the power cord

• Check first to make sure that the power cord you use is the correct type required for your area.
  •The monitor has a universal power supply that allows operation in either 100/120 V AC or 220/240 V AC voltage area. No user-adjustment is required.
• Plug one end of the power cord to the AC inlet, and plug the other end into an AC outlet.
• For units using 120 V AC: Use a UL-listed cord set, type SVT wire and plug rated 10 A/125 V.
• For units using 220/240 V AC: Use a cord set consisting of H05VV-F cord and plug rated 10 A/250 V. The cord set should have the appropriate safety approvals for the country in which the equipment will be installed.

5° 15°

Power saving

The monitor will be switched to "power saving" mode by the control signal from the display controller, as indicated by the amber-colored power LED.

Mode LED light
On	White
Power saving Amber

The power saving mode will be kept until a control signal has been detected or the keyboard or mouse is activated. The recovery time from "power saving" mode back to "on" is around 3 seconds.

Display Data Channel (DDC)

To make installation easier, so long as your system supports the DDC protocol, the monitor is able to plug-and-play. The DDC is a communication protocol through which the monitor automatically informs the host system about its capabilities; for example, supported resolutions and corresponding timing. The monitor supports the DDC2B standard.

Connector pin assignment

15-pin color display signal cable

1 5 6 10 11 15

PIN No. Description PIN No. Description

1 Red 9 +5 V

2 Green 10 Logic ground

3 Blue 11 Monitor ground

4 Monitor ground 12 DDC-serial data

5 DDC-return 13 H-sync

6 R-ground 14 V-sync

7 G-ground 15 DDC-serial clock

8 B - g r o u n d

24-pin color display signal cable

Front view of a 16-pin electronic connector (no text or symbols visible)

PIN No. Description PIN No. Description

1 TMDS data 2- 13 NC
2 TMDS data 2+ 14 +5 V power
3 TMDS data 2/4 shield 15 GND (return for +5 V hsync.vsync)
4 NC 16 Hot-plug detection
5	N	C	1	7	T	M	D	S	d	a	t
6	D	D	C	c	l	o	c	k	1	8	T
7 DDC data 19 TMDS data 0/5 shield
8	N	C		2	0	N	C
9 TMDS data 1- 21 NC
10 TMDS data 1+ 22 TMDS clock shield
11 TMDS data 1/3 shield 23 TMDS clock+
12 NC 24 DDC TMDS clock-

19-pin color display signal cable\*

19171513 11 9 7 5 3 1 1816141210 8 6 4 2

PIN No. Description PIN No. Description

1 TMDS Data2+	2	TMDS Data2 Shield
3 TMDS Data2-	4	TMDS Data1+
5 TMDS Data1 Shield	6	TMDS Data1-
7 TMDS Data0+	8	TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield	12 TMDS Clock-
13 CEC	14 Reserved (N.C. on device)
15 SCL	16 SDA
17 DDC/CEC Ground	18 +5V Power
19 Hot Plug Detect

* only for certain models

Standard timing table

Mode		Resolution
1	VGA	640x480	60	Hz
2		640x480	72	Hz
3		640x480	75	Hz
4	MAC	640x480	66.66	Hz
5	VESA	720x400	70	Hz
6	SVGA	800x600	56	Hz
7		800x600	60	Hz
8		800x600	72	Hz
9		800x600	75	Hz
10	MAC	832x624	74.55	Hz
11	XGA	1024x768	60	Hz
12		1024x768	70	Hz
13		1024x768	75	Hz
14	MAC	1152x870	75	Hz
15	VESA	1152x864	75	Hz
16		1280x960	60	Hz
17	SXGA	1280x1024	60	Hz
18		1280x1024	75	Hz
19	VESA	1280x720	60	Hz
20		1280x768	60	Hz
21		1280x768	60	Hz
22	WXGA	1280x800	60	Hz
23		1360x768	60	Hz
24	WXGA+	1440x900	60	Hz
25		1440x900	75	Hz
26	SXGA+	1440x1050	60	Hz
28	WSXGA+	1680x1050	60	Hz
29		1680x1050	75	Hz
30	UXGA	1600x1200	60	Hz
31	VESA	1920x1080	60	Hz

Installation

To install the monitor on your host system, please follow the steps below:

Steps

1 Connect the video cable

a Make sure both the monitor and computer are switched off.

b Connect the VGA video cable to the computer.

c Connect the digital cable (only for dual-input models).

(1) Make sure both the monitor and computer are switched off.
(2) Connect one end of the 24-pin DVI* cable to the back of the monitor and the other end to the computer's port.
(3) Connect one end of the 19-pin HDMI* cable to the back of the monitor and the other end to the computer's port.

2 Connect the power cord

Connect the power cord to the monitor, then to a properly grounded AC outlet.

3 Turn on the monitor and computer

Turn on the monitor first, then the computer. This sequence is very important.

4 If the monitor does not function properly, please refer to the troubleshooting section to diagnose the problem

* for selected models

Users controls

Front panel controls

Icon Item Description
➊	Power button/indicator	Turns the monitor on/off. White indicates power on. Amber indicates standby/power saving mode.
</►	Minus / Plus	If the OSD is active, press the Minus or Plus buttons to toggle between the OSD options.
MENU	OSD functions	Press to view the OSD. Press again to enter a selection in the OSD. Please refer to "Adjusting the OSD settings" on page 11 for more details.
AUTO	Auto adjust button/Exit	If the OSD is active, press Auto to exit the OSD. Once the OSD is inactive, press Auto and the monitor will automatically optimize the display position, focus, and clock of your display.
e	Empowering Key	Press the Empowering Key to open the Acer eColor Management OSD and access the scenario modes. Please refer to "Acer eColor Management" on page 10 for more details.
INPUT	Input Key	Use Input key to select between three different video source that may be connected to your monitor.(a) VGA input (b) DVI-D input (c) HDMI inputAs you cycle through the inputs you will see the following messages on right top side of screen to indicate currently selected input source. It may take 1 or 2 seconds for the image to appear .VGA or DVI-D or HDMIIf either VGA or DVI-D input is selected and both VGA and DVI-D cables are not connected, a floating dialog box as shown below appears:"No Cable Connect" or "No Signal"

Acer eColor Management

Operation instructions

1 Press the e Empowering Key to open the Acer eColor Management OSD and access the scenario modes.

empowering Technology Standard Auto: Adjust / Exit : Select

2 Press " "or " "to select the mode.
3 Press the Auto-adjust button to confirm the mode and exit Acer eColor Management.

Features and benefits

Main menu icon	Sub menu item Description
	User mode User-defined. Settings can be fine-tuned to suit any situation.
	Text mode Optimal balance of brightness and contrast to prevent eyestrain. The most comfortable way to read onscreen text.
	Standard mode Default settings. Reflects native display capability.
	Graphic mode Enhances colors and emphasizes fine detail. Pictures and photographs appear in vibrant colors with sharp detail.
	Movie mode Displays scenes in clearest detail. Presents great visuals, even in unsuitably-lit environments.

Adjusting the OSD settings

Note: The following content is for general reference only. Actual product specifications may vary.

The OSD can be used for adjusting the settings of your LCD Monitor.

Press the Menu key to open the OSD. You can use the OSD to adjust the picture quality, OSD position and general settings. For advanced settings, please refer to following page:

Adjusting the picture quality

1 Press the Menu key to bring up the OSD.
2 Using the ◀/▶ keys, select 📋 Picture from the OSD. Then navigate to the picture element you wish to adjust.
3 Use th e ◀◀ keys to adjust the sliding scales.
4 The Picture menu can be used to adjust the current Brightness, Contrast, Colour Temp, Auto Config and other image-related qualities.

Adjusting the OSD position

1 Press the Menu key to bring up the OSD.
2 Using the directional keys, select OSD from the onscreen display. Then navigate to the feature you wish to adjust.

Adjusting the setting

acer Setting Wide Mode Full DDC/CI On ACM OFF Input VGA Language English Reset i Move AUTO Exit MENU Enter

1 Press the Menu key to bring up the OSD.
2 Using the ◀/▶ keys, select ⬆ Setting from the OSD. Then navigate to the feature you wish to adjust.
3 The Setting menu can be used to adjust the screen Menu Language and other important settings.

Product information

acer Information 1680x1050 H:65KHz V:60Hz VGA Input S/N:ETL5309 1326350380B3742 Move AUTO Exit MENU Enter

1 Press the Menu key to bring up the OSD.
2 Using the / keys, select i Information from the OSD. Then the basic information of LCD monitor will show up for current input.

Troubleshooting

Before sending your LCD monitor for servicing, please check the troubleshooting list below to see if you can self-diagnose the problem.

VGA mode

Problem LED status Remedy
No picture visible White Using the OSD, adjust brightness andcontrast to maximum or reset to theirdefault settings.
Off Check the power switch.
	Check if the power cord is properlyconnected to the monitor.
Amber Check if the video signal cable isproperly connected at the back ofmonitor.
	Check if the computer system isswitched on and in power saving/standby mode.
Unstable picture Check if the specification of graphicsadapter and monitor is in compliancewhich may be causing the input signalfrequency mismatch.
Abnormal picture Image is missing,off-center, too large or toosmall on thescreen.	Using the OSD, adjust focus, clock, H-position and V-position with non-standard signals.
	Check the display setting on yoursystem. In case of a missing image,please select another resolution orvertical refresh rate.
	Wait for a few seconds after adjustingthe size of the image before changingor disconnecting the signal cable orswitching off the monitor.

DVI/HDMI\* mode

Problem LED status Remedy

No picture visible White Using the OSD, adjust brightness andcontrast to maximum or reset to theirdefault settings.

Off Check the power switch.Check if the AC power cord is properlyconnected to the monitor.

Amber Check if the video signal cable isproperly connected at the back ofmonitor.Check that the computer system isswitched on and in power saving/standby mode.

* for selected models
