Product Type	Video Projector
Brand	Vivitek
Model	D330WX
Display Technology	DLP
Resolution	WXGA (1280 x 800)
Brightness	3500 Lumens
Contrast Ratio	15000:1
Lamp Life (Normal/Eco)	5000 / 6000 hours
Dimensions (W x D x H)	274.6 x 212 x 100.2 mm
Weight	2.6 kg
Power Consumption	240W (Normal), <210W (Eco)
Power Supply	AC 100-240V, 50/60Hz
Inputs	HDMI 1.4, VGA (x2), Composite Video, S-Video, Audio In
Outputs	VGA Out, Audio Out, RS-232C, USB (Service)
Keystone Correction	Vertical ±30°
Projection Lens	Manual Zoom & Focus
Speaker	Built-in 10W Mono
Noise Level (Eco)	30 dB
Cleaning	Clean the lens with a soft, dry cloth. Ventilation grilles should be vacuumed periodically.
Safety	Do not stare into the lens. Ensure proper ventilation. Replace lamp only with approved model.
Spare Parts & Repairability	Replacement lamp: VIVITEK part number 5811118500-S. Contact authorized service centers for repairs.

Frequently Asked Questions - D330WX VIVITEK

How do I replace the lamp in my Vivitek D330WX?

Turn off the projector and unplug it. Wait for the lamp to cool. Open the lamp cover on the side, unscrew the two screws, remove the old lamp, insert the new lamp (VIVITEK 5811118500-S), tighten screws, and close the cover. Reset the lamp timer via the menu.

What is the recommended cleaning procedure for the projector?

Use a soft, lint-free cloth to gently wipe the lens. For the casing, use a damp cloth with mild detergent. Vacuum the ventilation grilles regularly to prevent overheating.

Can I use the projector with a 4K signal?

The D330WX has native WXGA resolution (1280x800). It can accept 4K signals via HDMI but will downscale them to its native resolution.

How do I adjust the image keystone?

Press the 'Keystone' button on the remote or projector. Use the arrow keys to correct vertical keystone distortion (up to ±30°). For best quality, position the projector perpendicular to the screen.

What input sources are available on this projector?

It has two VGA inputs, one HDMI 1.4, composite video (RCA), S-Video, and a 3.5mm audio input. It also features a VGA output and RS-232C control.

How long does the lamp last?

In normal mode, the lamp lasts up to 5000 hours. In eco mode, it extends to 6000 hours. The lamp life may vary with usage conditions.

Why is the projector fan so loud?

The fan runs at higher speed in normal mode (noise level ~35 dB) to cool the lamp. Switching to eco mode reduces brightness and noise to about 30 dB. Ensure ventilation openings are not blocked.

Can I mount this projector on the ceiling?

Yes, the D330WX supports ceiling mounting. Use a compatible mount (e.g., VIVITEK Celling Mount). Ensure the mount is securely attached to a ceiling beam and the projector is flipped upside down in the menu settings.

How do I reset the lamp counter?

After replacing the lamp, go to the OSD menu: Settings > Lamp Settings > Lamp Reset. Press 'Enter' and confirm. This clears the lamp timer.

What is the warranty on the Vivitek D330WX?

Vivitek typically offers a 3-year limited warranty for the projector and a 90-day warranty on the lamp. Contact your dealer or Vivitek support for specific terms in your region.

USER MANUAL D330WX VIVITEK

Stylized illustration of a projector with a circular lens and screen (no text or symbols)

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright 2012

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

All other product names used in this manual are the properties of their respective owners and are acknowledged.

Important Safety Information

Important:

It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.

The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this example:

"Push the Menu button on the remote control to open the Main menu."

General Safety Information

Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in the unit. For servicing, contact qualified service personnel.
➢ Follow all warnings and cautions in this manual and on the unit case.
The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the lens when the lamp is on.
Do not place the unit on an unstable surface, cart, or stand.
- Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place heavy objects such as books or bags on the unit.

Projector Installation Notice

➢ Place the projector in a horizontal position

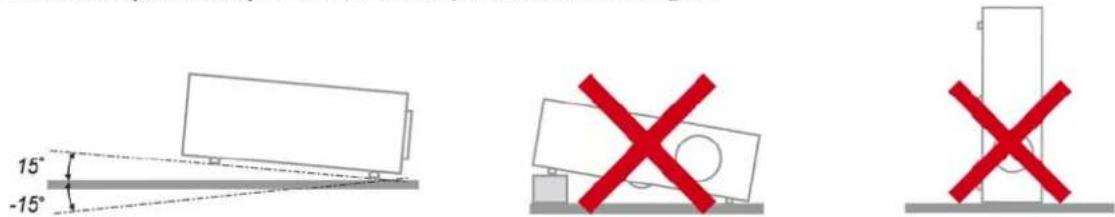

The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically, and may lead to other unpredictable damages.

- Allow at least 50 cm clearance around the exhaust vent.

Minimum 500mm

Minimum 500mm Minimum 500mm

Diagram showing a red 'X' symbol crossed out by a white rectangle, indicating cancellation or rejection.

Minimum 100mm

Minimum 500mm Minimum 300mm

➢ Ensure that the intake vents do not recycle hot air from the exhaust vent.
When operating the projector in an enclosed space, ensure that the surrounding air temperature within the enclosure does not exceed operation temperature while the projector is running, and the air intake and exhaust vents are unobstructed.
All enclosures should pass a certified thermal evaluation to ensure that the projector does not recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the acceptable operation temperature range.

Verify Installation Location

➢ Verify if the voltage is stable, grounded properly and there is no electricity leakage.
➢ Measure total power consumption which should not higher the safety capacity and avoid safety issue and short circuit.
➢ Turn on Altitude Mode when located in high altitude areas
The projector can only be installed upright or inverted.
When installation the bracket, make sure the weight limit is not exceed and firmly secured.
- Avoid installing near air conditioner duct or subwoofer.
- Avoid installing at high temperature, insufficient cooling and heavy dust locations.
Keep your product away from fluorescent lamps to avoid malfunction caused by IR interference
➢ Install the projector above 200cm to avoid damage.

Cooling notes

Air outlet

Make sure the air outlet is 50cm clear of any obstruction to ensure proper cooling.
Air outlet location should not be in front of the lens of other projector to avoid causing illusions.
Keep the outlet at least 100cm away from the inlets of other projectors

Air inlet

Make sure there is no object blocking air input within 30 cm.
- Keep the inlet away from other heat sources
- Avoided heavy dust area

Choosing a Projector

Not only brightness, bright balances, lens but stability is important too when choosing a projector.

A projector need 30 to 60 minutes warm up to adjust properly.
After lens shift, there should not be any optical distortion such as trapezoidal and barrel shape distortions.
Quick dis-assemble lens need to be firmly secured, the electric motor cannot be mistakenly shift. The screen should not be offset for long time use or during booting up and shutting down the projector.
➢ Projector six-axis colors (R,G,B,Y,C,W). Projector adjust functions require: Hue, Saturation, Gain
Vertical or 360 degree projection application. Needs to VERIFY engineering design of lamp aging to avoid conflict with client.

HDMI Cable

Edge blending signal needs to use digital transfer, the 4 pairs of TMDS transfer impedance require 100 diameter as following to maintain signal quality:

▶ Only use the supplied power cord.
Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic.
Remove the batteries from the remote control when storing or not in use for a prolonged period.

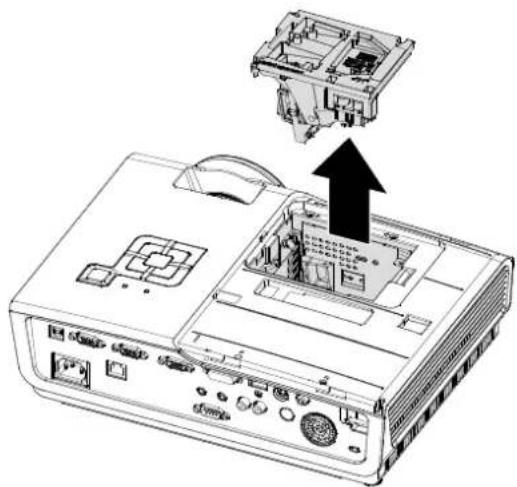

Replacing the Lamp

Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 44 for clear and safe instructions for this procedure. Before replacing the lamp:

▶ Unplug the power cord.
- Allow the lamp to cool for about one hour.

Caution:

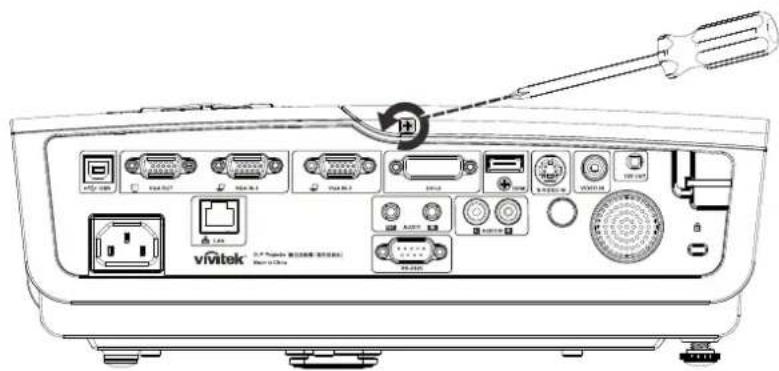

In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards to be discharged outward from the rear exhaust vent.

Do not inhale or do not touch glass dust or shards. Doing so could result in injury.

Always keep your face away from the exhaust vent so that you do not suffer from the gas and broken shards of the lamp.

Cleaning the Projector

➢ Unplug the power cord before cleaning. See Cleaning the Projector on page 48.
- Allow the lamp to cool for about one hour.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in the Regulatory Compliance section on page 58.

Important Recycle Instructions:

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific disposal information check WWW.LAMPRECYCLE.ORG.

Symbol Explanations

DISPOSAL: Do not use household or municipal waste collection services for disposal of electrical and electronic equipment. EU countries require the use of separate recycling collection services.

Main Features

• Lightweight unit, easy to pack away and transport.
• Compatible with all major video standards including NTSC, PAL, and SECAM.
• A high brightness rating allows for presentations in daylight or in lit rooms.
  • Supports resolutions up to SXGA+ at 16.7 million colors to deliver crisp, clear images.
• Flexible setup allows for front, rear projections.
• Line-of-vision projections remain square, with advanced keystone correction for angled projections.
• Input source automatically detected.

About this manual

This manual is intended for end users and describes how to install and operate the DLP projector. Wherever possible, relevant information—such as an illustration and its description—has been kept on one page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting the environment. It is suggested that you only print sections that are relevant to your needs.

Table of Contents

GETTING STARTED....1

PACKING CHECKLIST .... 1

VIEWS OF PROJECTOR PARTS....2

Front-right View 2

Top view—On-screen Display (OSD) buttons and LEDs.... 3

Rear view....4

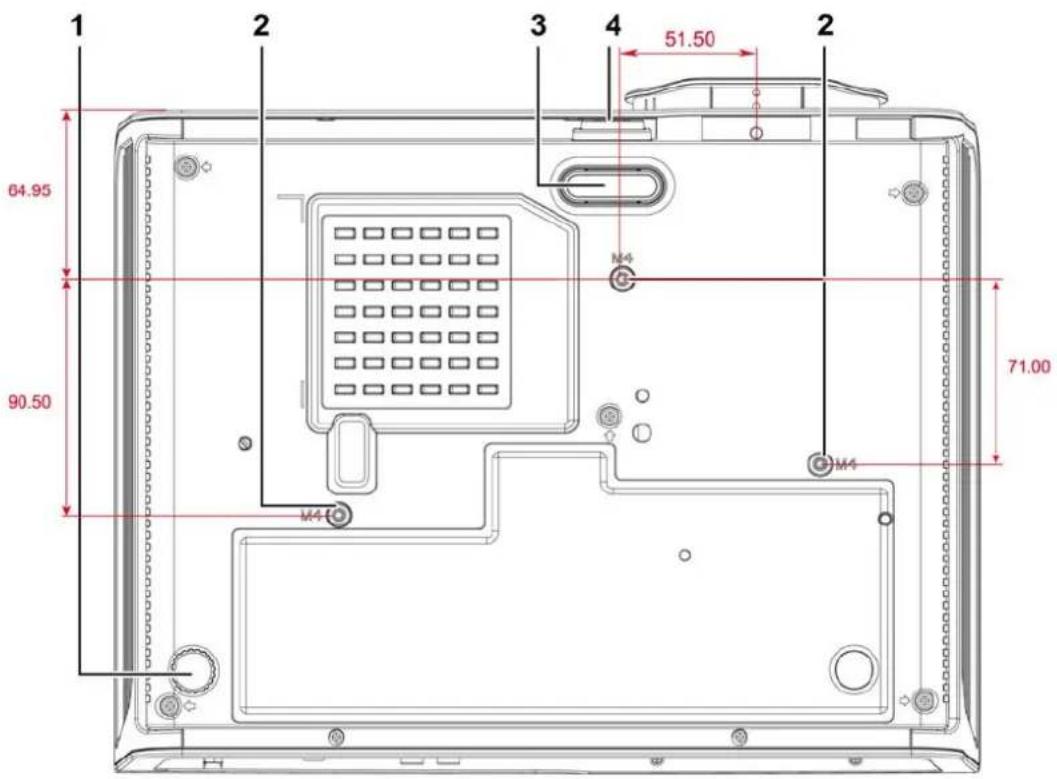

Bottom view....5

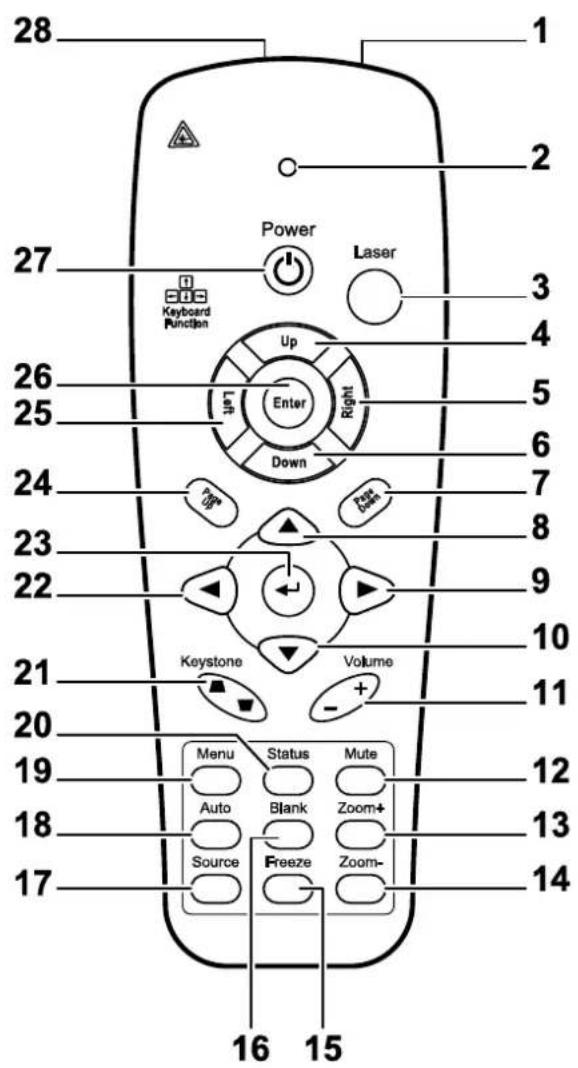

REMOTE CONTROL PARTS 6

REMOTE CONTROL OPERATING RANGE....8

PROJECTOR AND REMOTE CONTROL BUTTONS....8

SETUP AND OPERATION....9

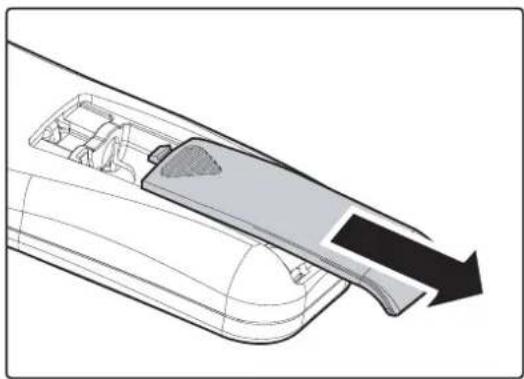

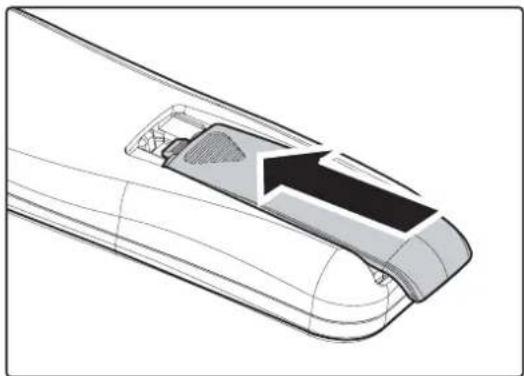

INSERTING THE REMOTE CONTROL BATTERIES 9

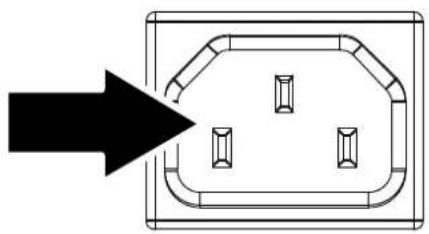

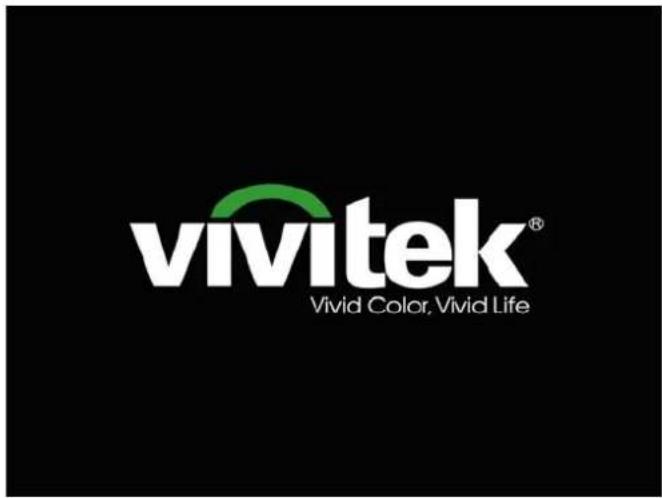

STARTING AND SHUTTING DOWN THE PROJECTOR....10

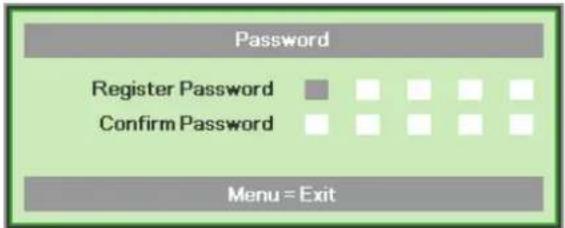

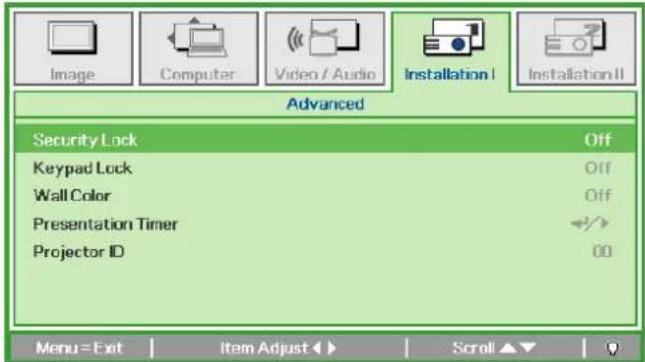

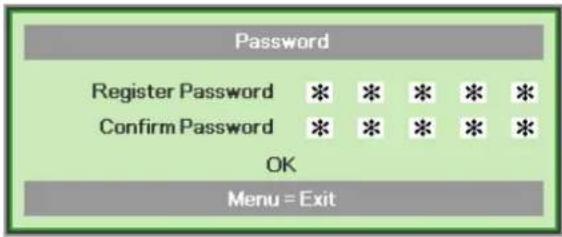

SETTING AN ACCESS PASSWORD (SECURITY LOCK) 12

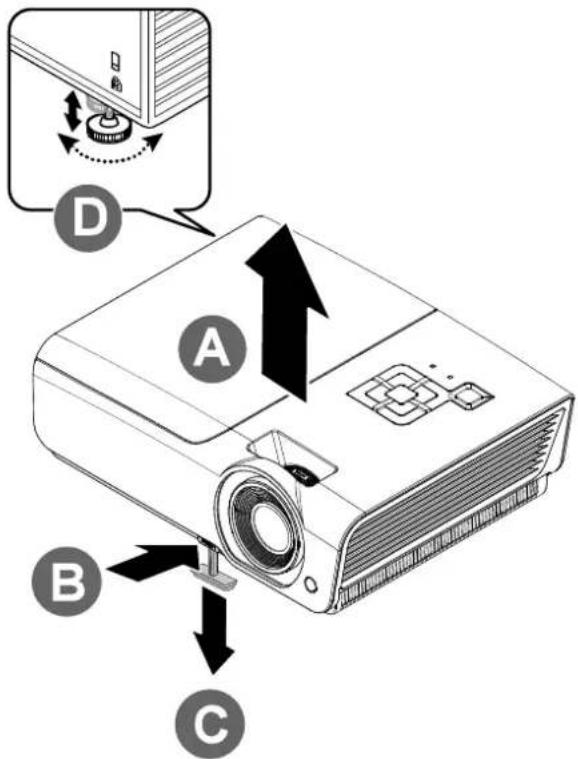

ADJUSTING THE PROJECTOR LEVEL 14

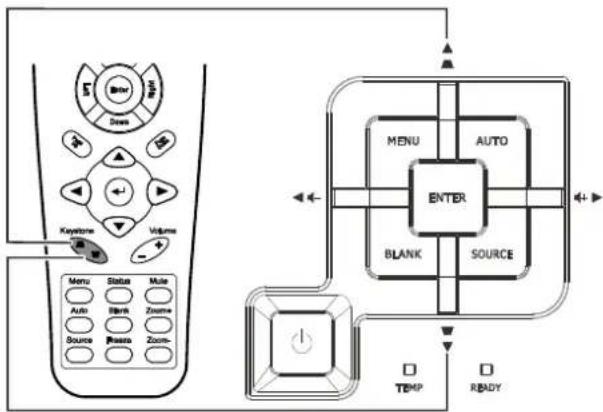

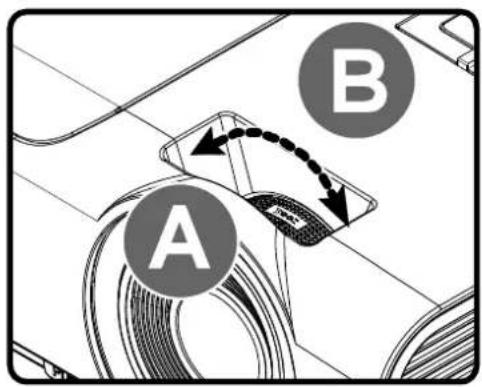

ADJUSTING THE ZOOM RING, FOCUS AND KEYSTONE....15

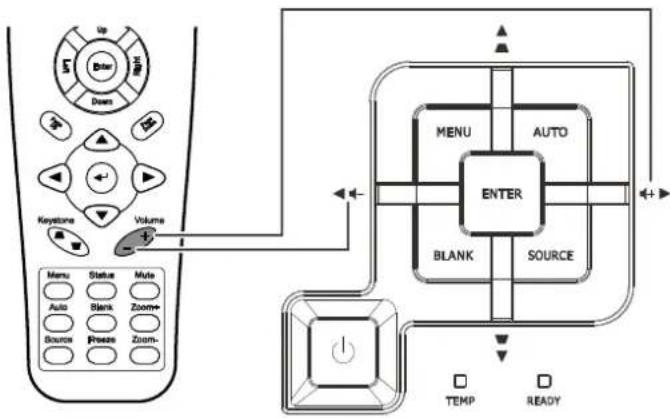

ADJUSTING THE VOLUME 16

ON-SCREEN DISPLAY (OSD) MENU SETTINGS....17

OSD MENU CONTROLS 17

Navigating the OSD 17

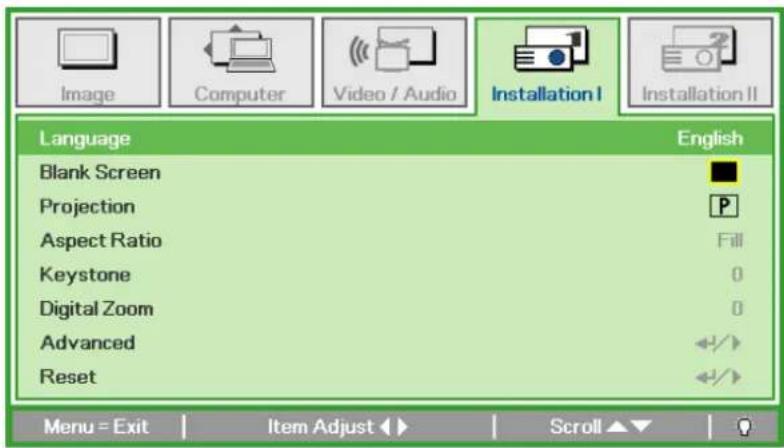

SETTING THE OSD LANGUAGE....18

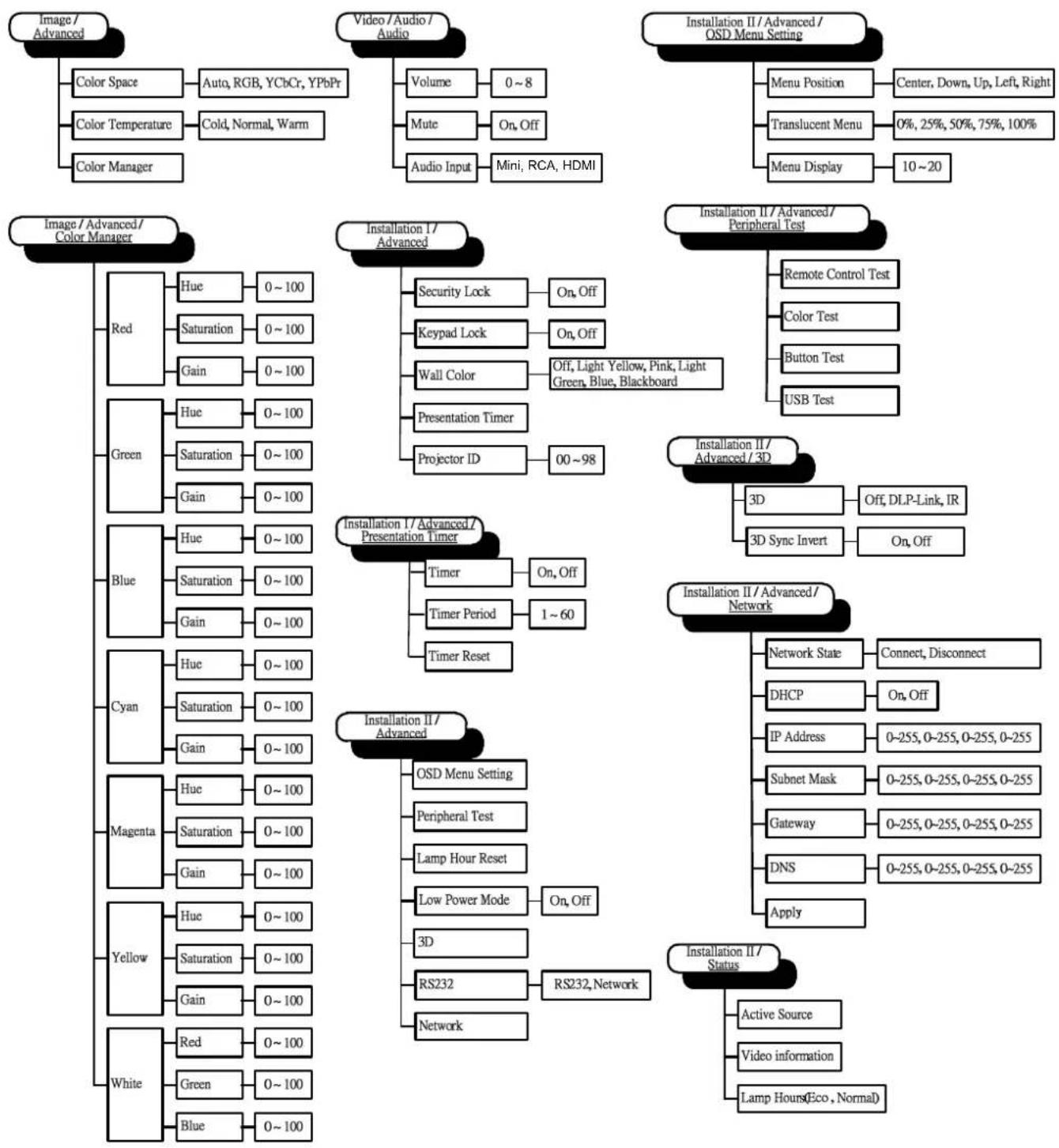

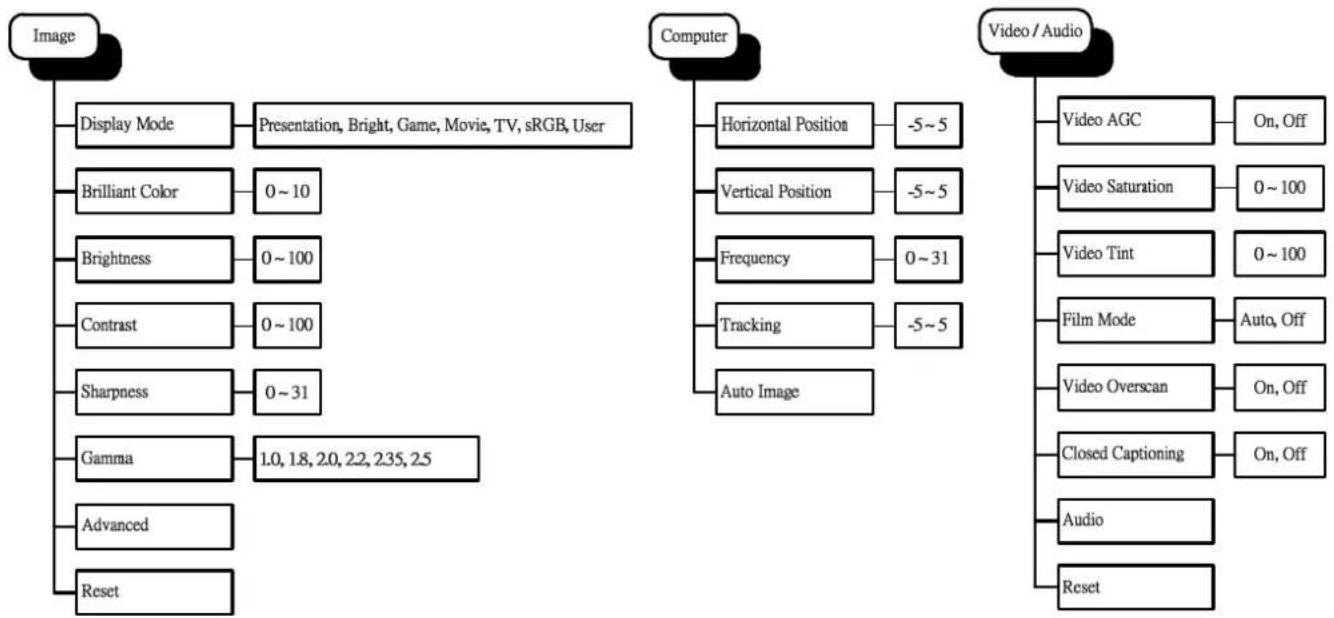

OSD MENU OVERVIEW 19

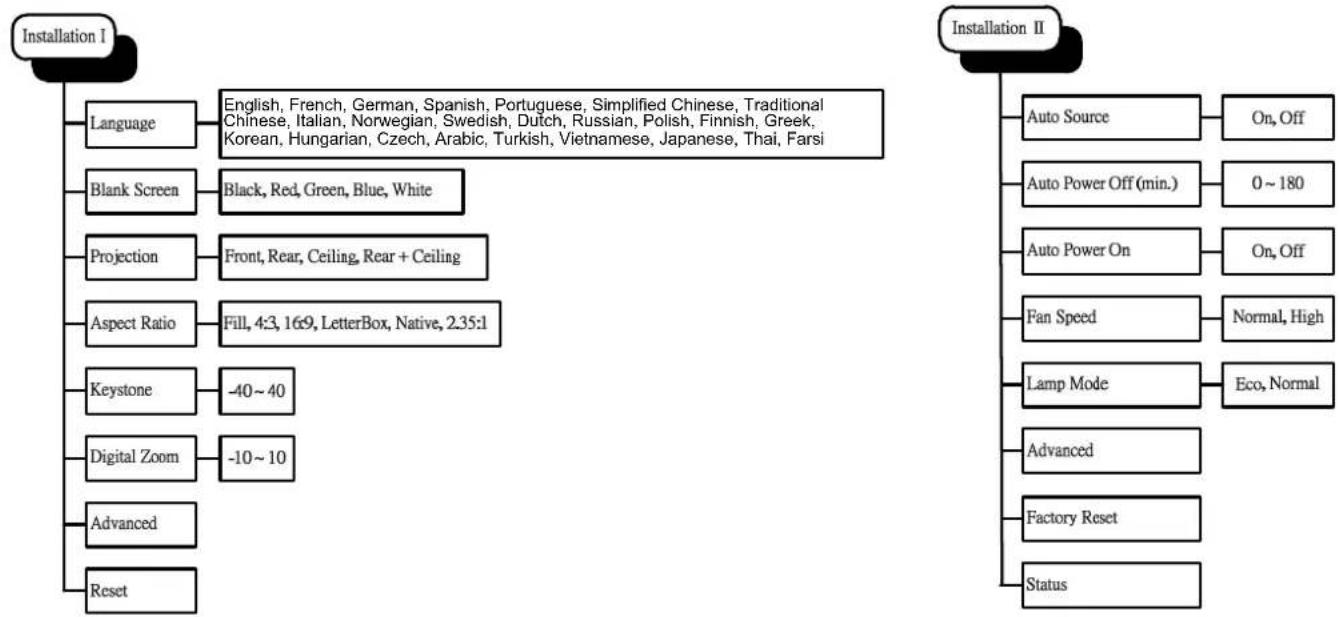

OSD SUB-MENU OVERVIEW 20

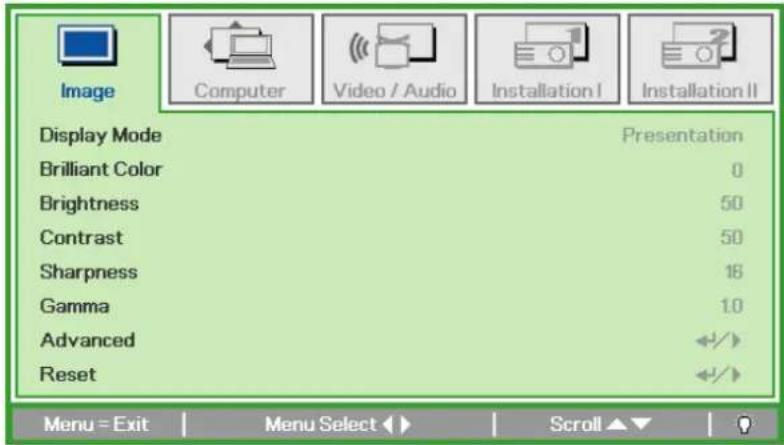

IMAGE MENU....21

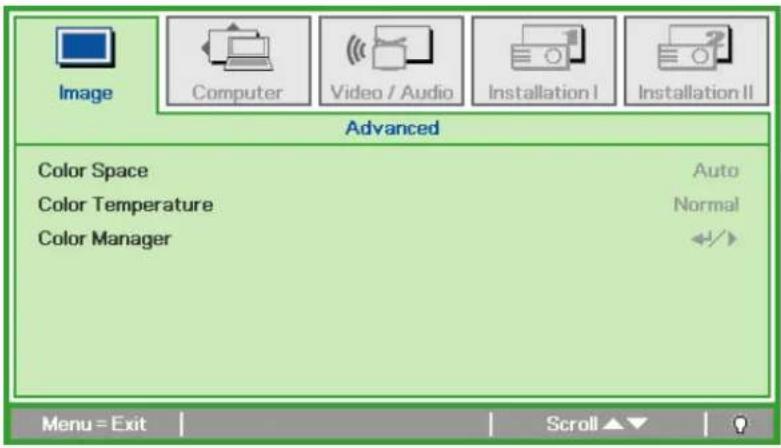

Advanced Feature 22

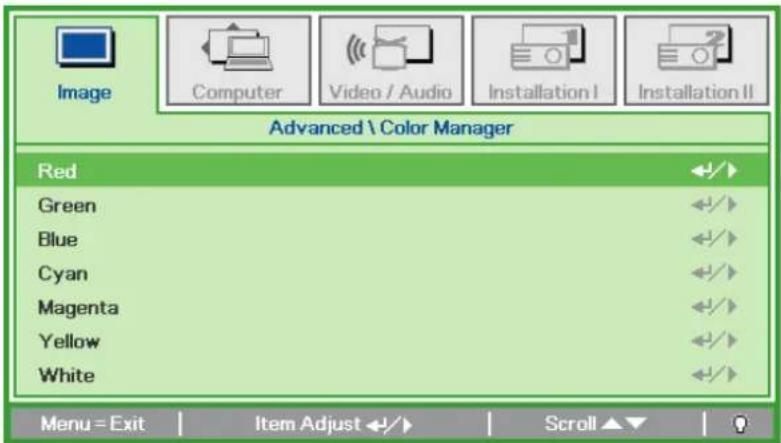

Color Manager....23

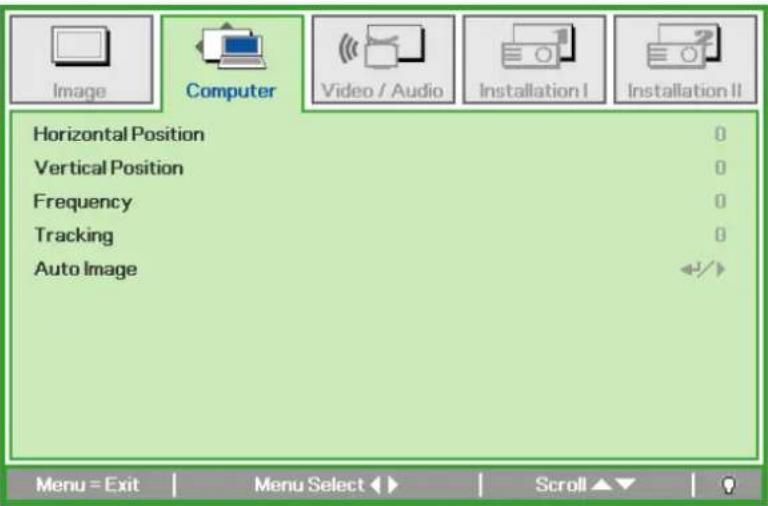

COMPUTER MENU....24

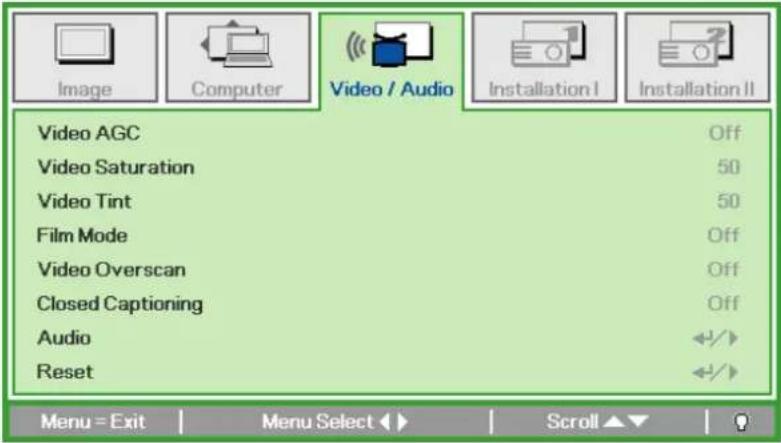

VIDEO/AUDIO MENU 25

Audio 26

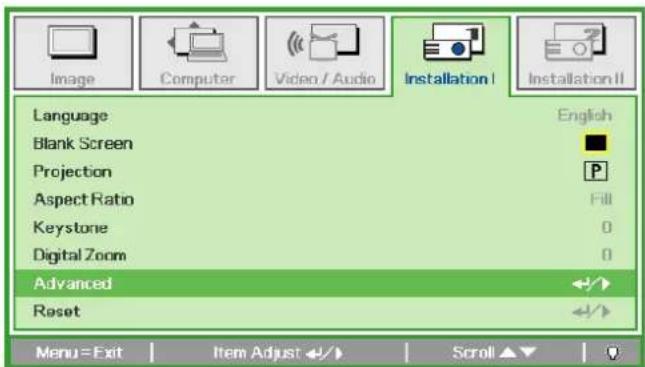

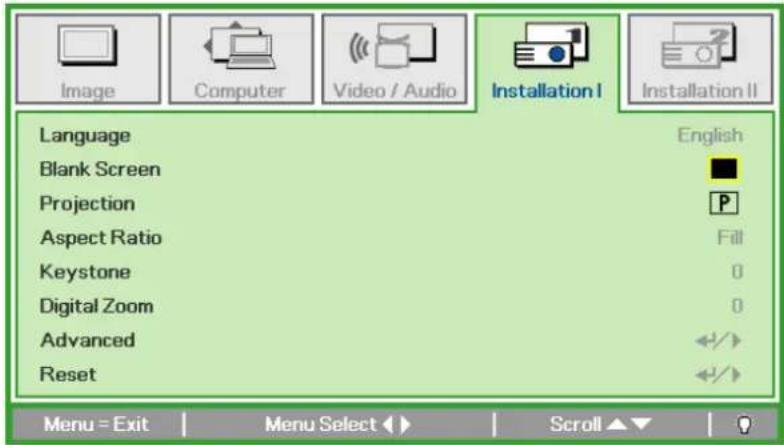

INSTALLATION I MENU 27

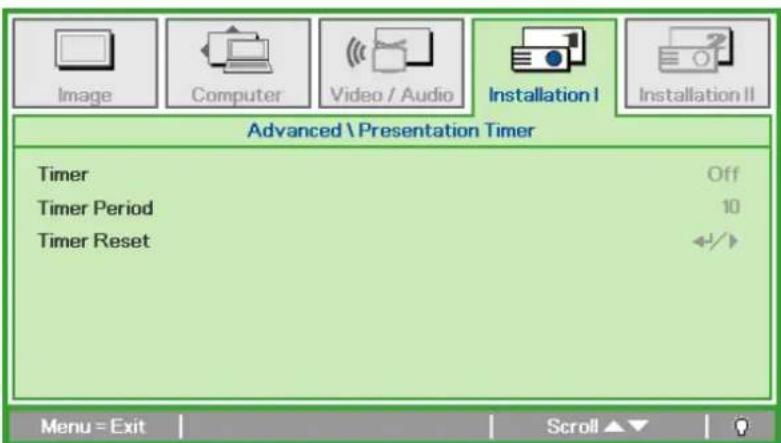

Advanced Feature....28

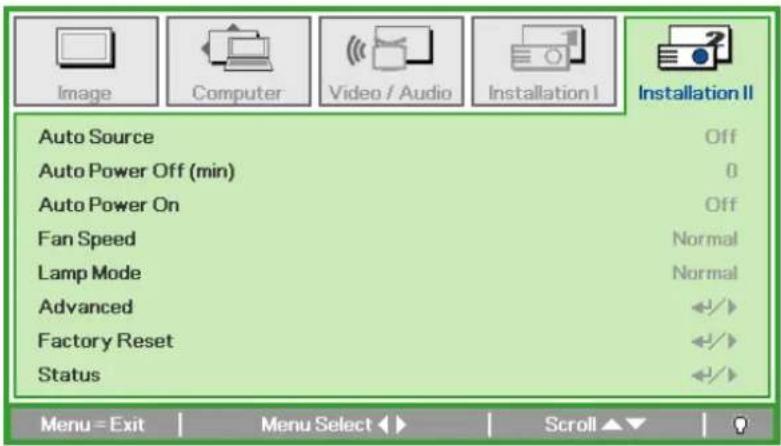

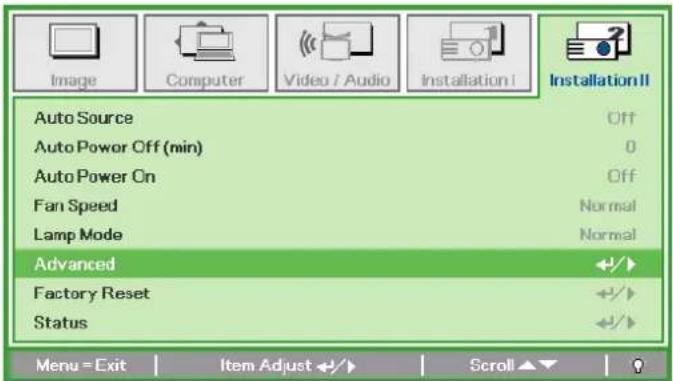

INSTALLATION II MENU....29

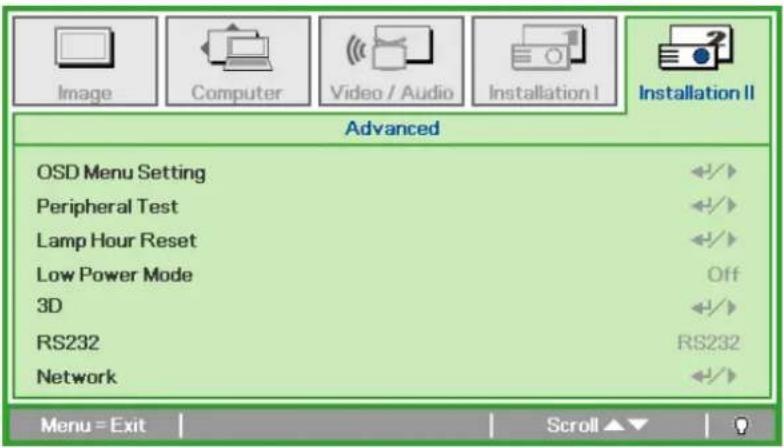

Advanced Feature....30

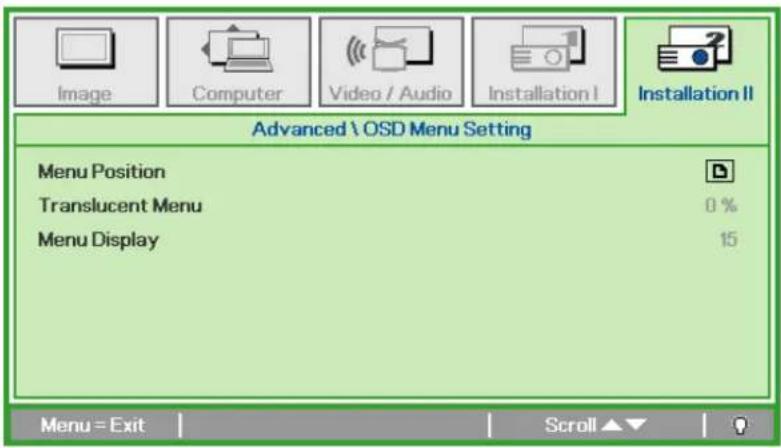

OSD Menu Setting 31

Peripheral Test 31

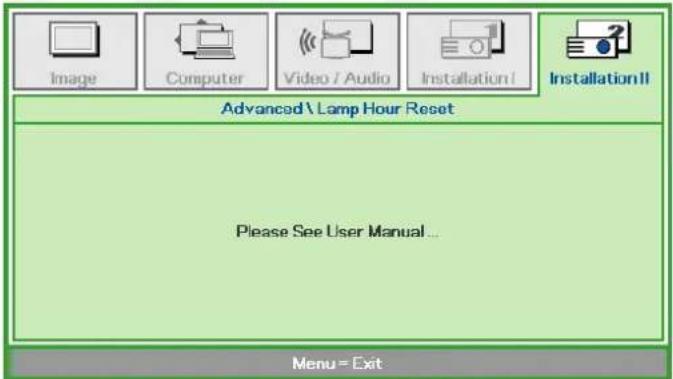

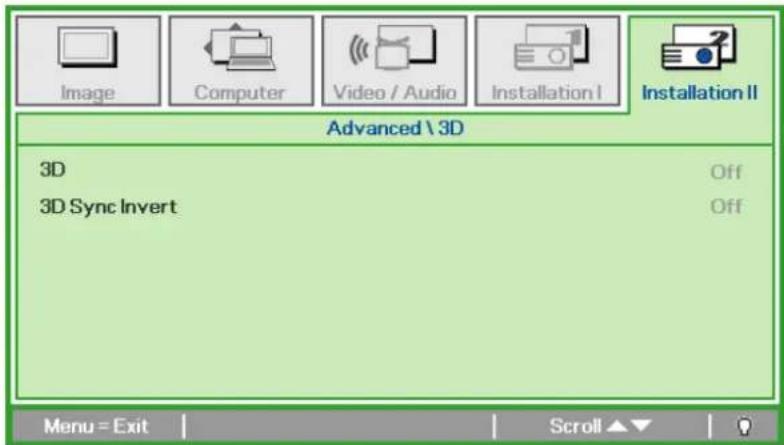

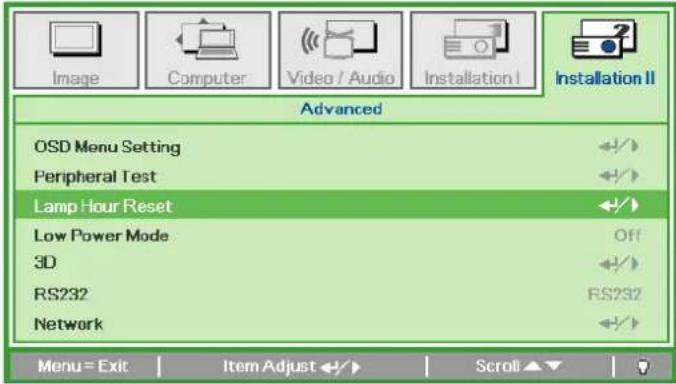

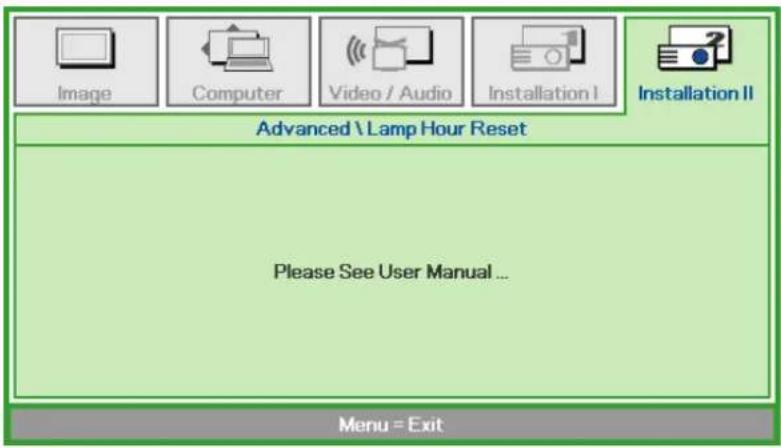

Lamp Hour Reset 32

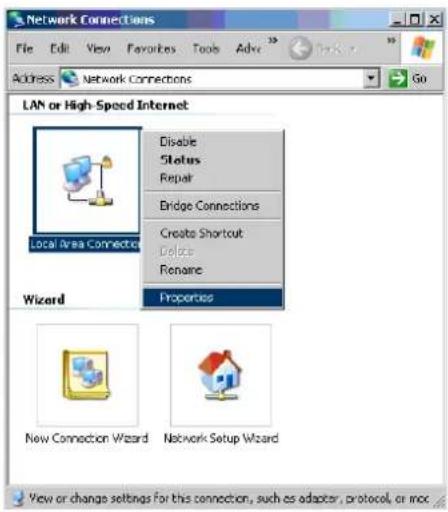

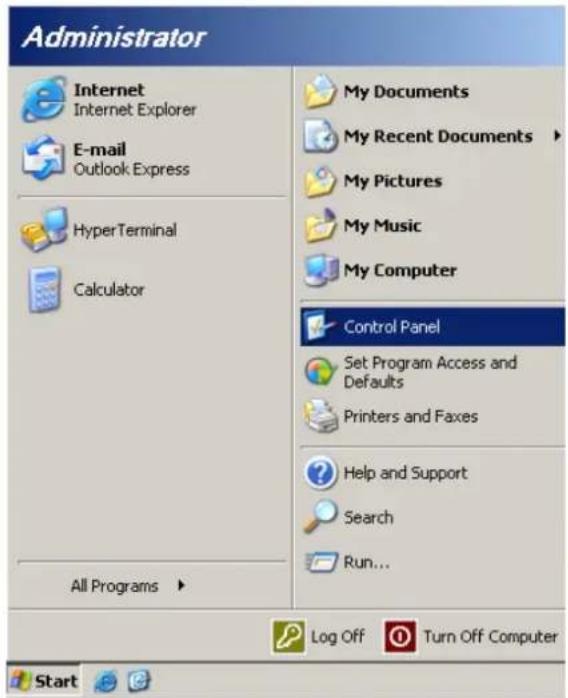

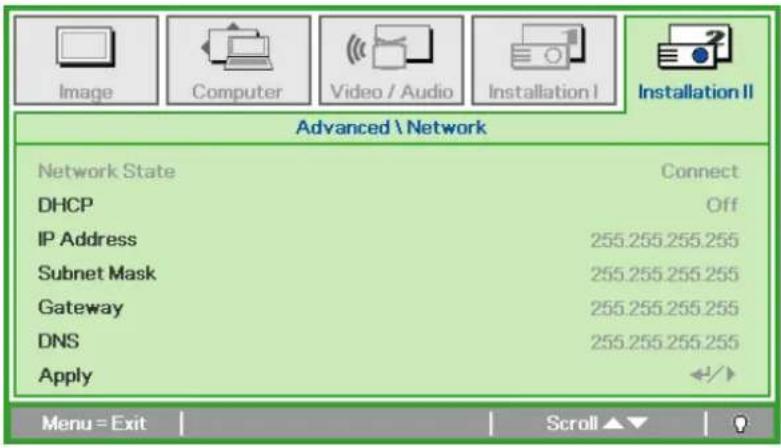

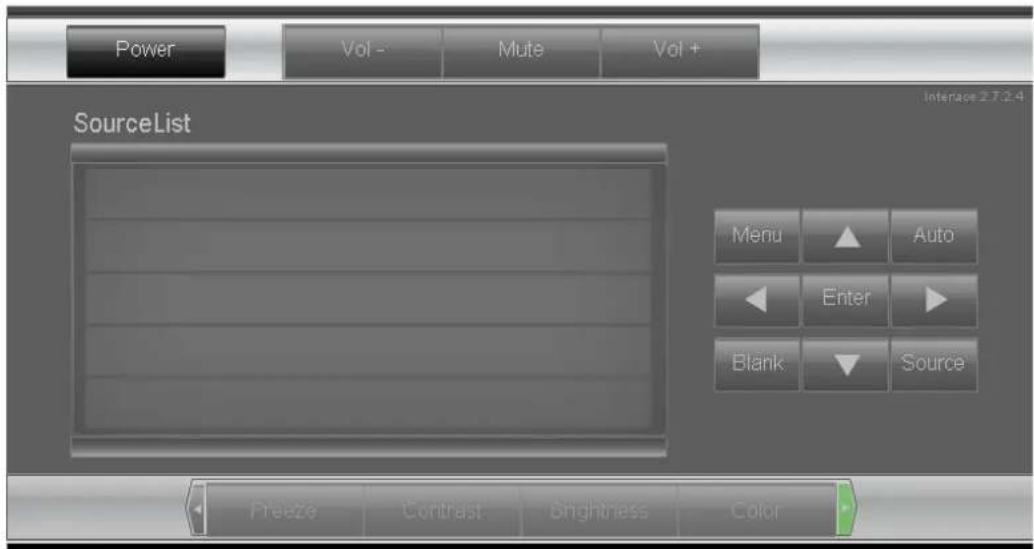

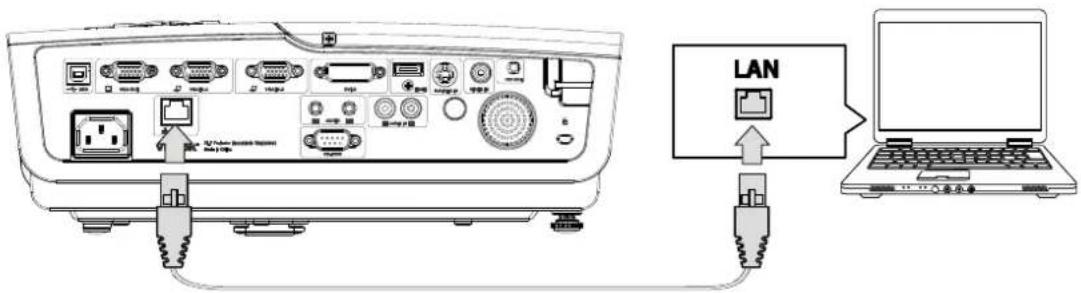

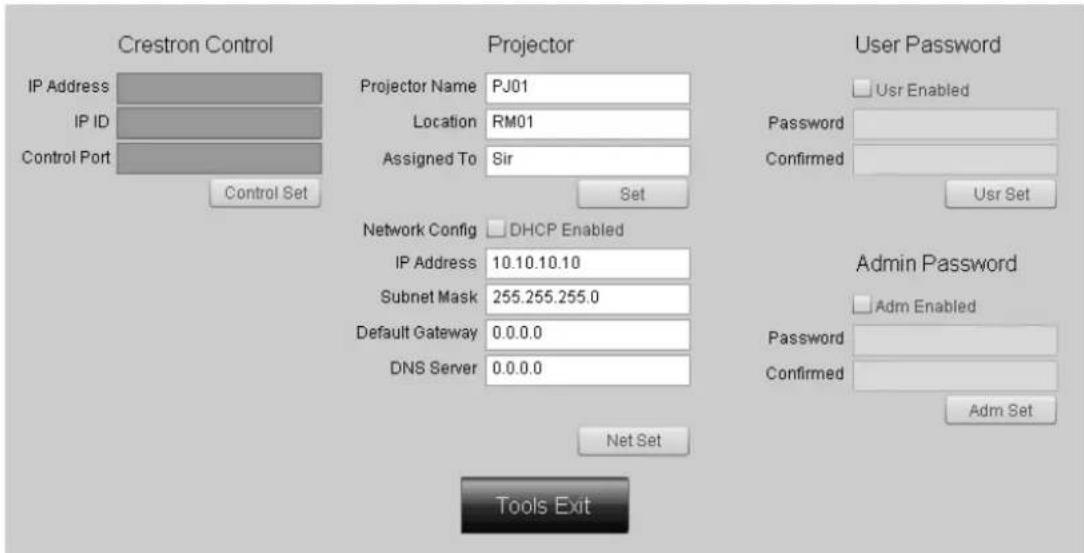

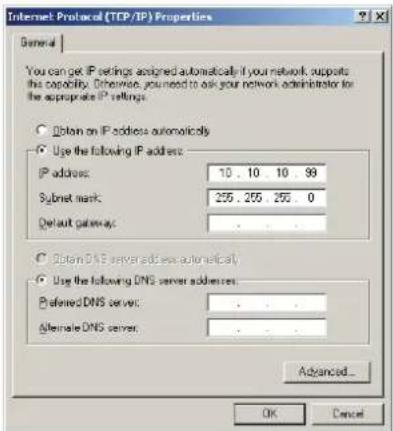

Network 34

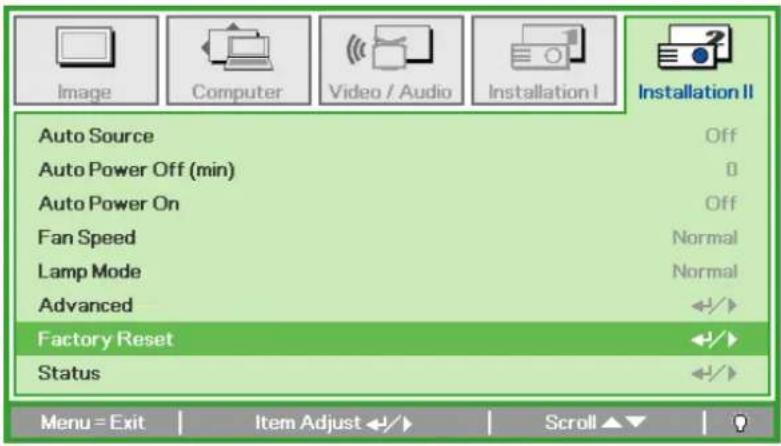

Factory Reset......43

Status....43

MAINTENANCE AND SECURITY 44

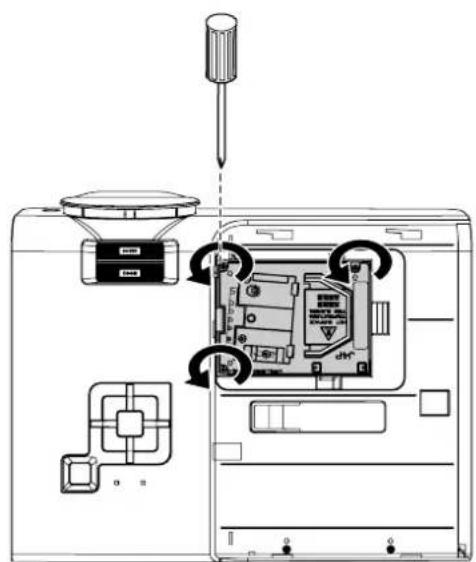

REPLACING THE PROJECTION LAMP 44

Resetting the Lamp 47

CLEANING THE PROJECTOR....48

Cleaning the Lens 48

Cleaning the Case....48

USING THE KENSINGTON ^® LOCK & USING THE SECURITY BAR....49

Using the Security Bar 49

TROUBLESHOOTING....50

COMMON PROBLEMS AND SOLUTIONS 50

TIPS FOR TROUBLESHOOTING 50

LED ERROR MESSAGES....51

IMAGE PROBLEMS....51

LAMP PROBLEMS 52

REMOTE CONTROL PROBLEMS 52

DLP Projector—User's Manual

AUDIO PROBLEMS 52

HAVING THE PROJECTOR SERVICED 52

SPECIFICATIONS....53

SPECIFICATIONS....53

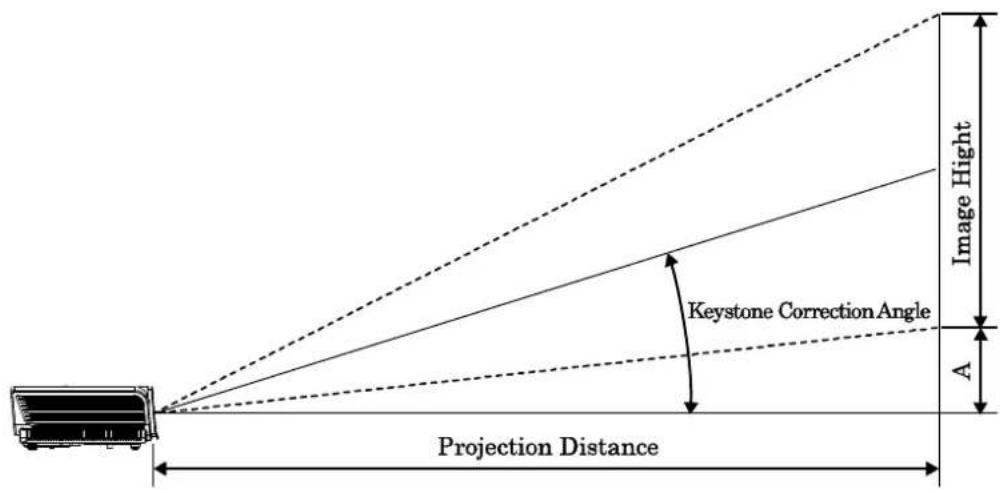

PROJECTION DISTANCE VS. PROJECTION SIZE....54

Projection Distance and Size Table....54

TIMING MODE TABLE 55

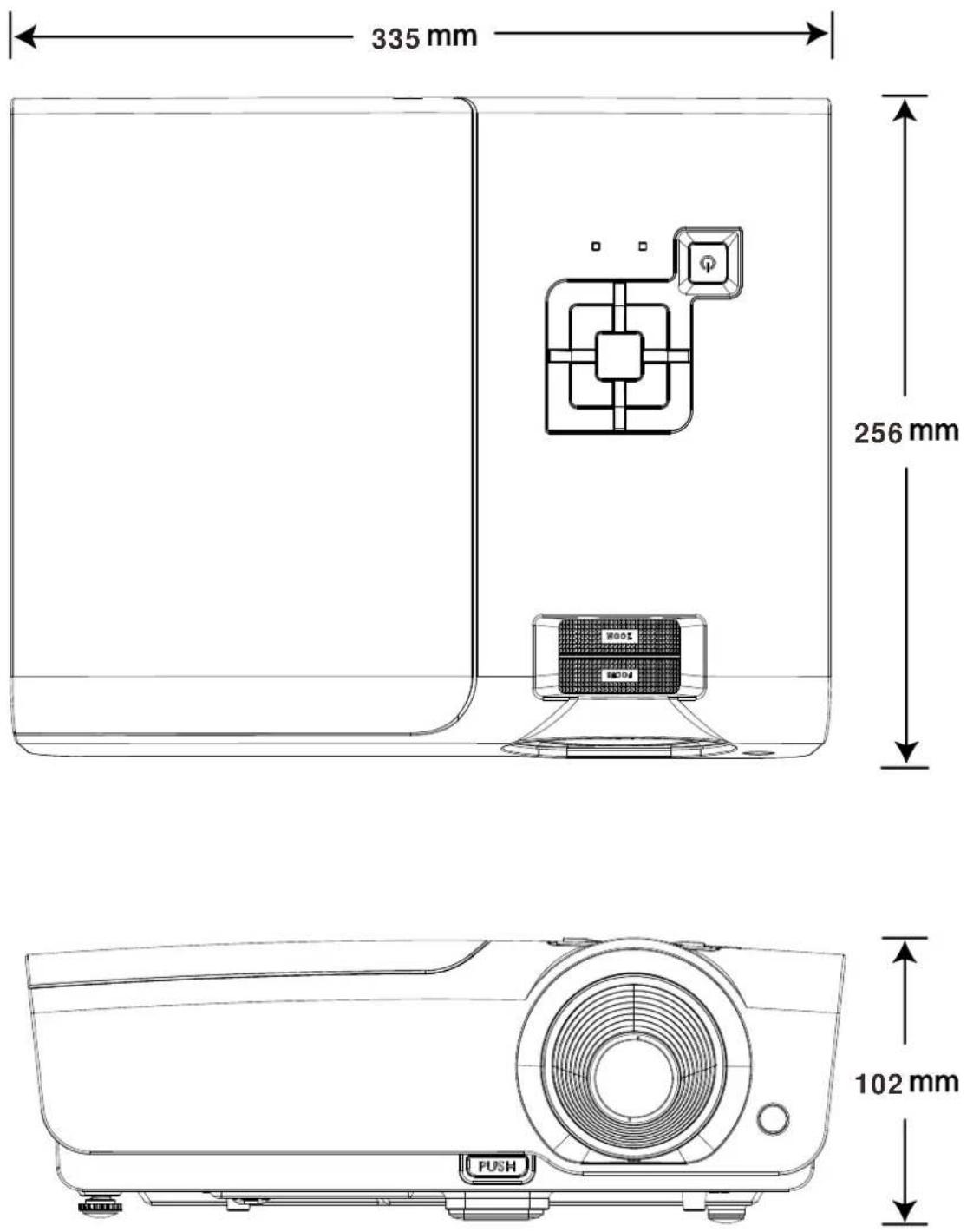

PROJECTOR DIMENSIONS 57

REGULATORY COMPLIANCE....58

FCC WARNING....58

CANADA 58

SAFETY CERTIFICATIONS....58

APPENDIX I....59

RS-232C PROTOCOL....59

Packing Checklist

Carefully unpack the projector and check that the following items are included:

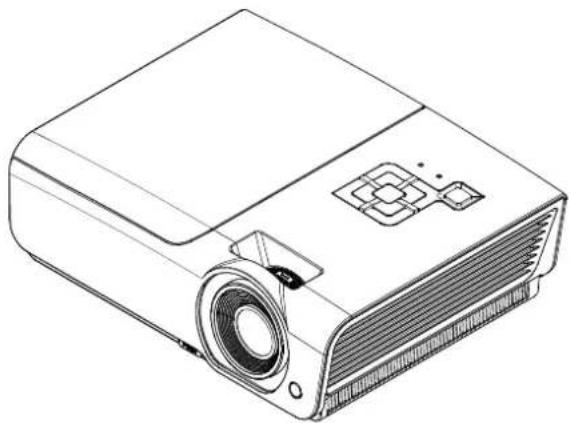

Line drawing of a projector with ventilation slots and control panel (no text or symbols)

DLP PROJECTOR

Line drawing of a remote control with two clamps (no text or symbols)

REMOTE CONTROL (WITH TWO AAA BATTERIES)

RGB CABLE

POWER CORD

RGB TO COMPONENT ADAPTER (OPTIONAL)

Line drawing of an open suitcase with handle and side slots (no text or symbols)

CARRYING CASE

CD-ROM (THIS USER'S MANUAL)

WARRANTY CARD

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommend that you keep the original packing material should you ever need to return the equipment for warranty service.

Caution:

Avoid using the projector in dusty environments.

Views of Projector Parts

Front-right View

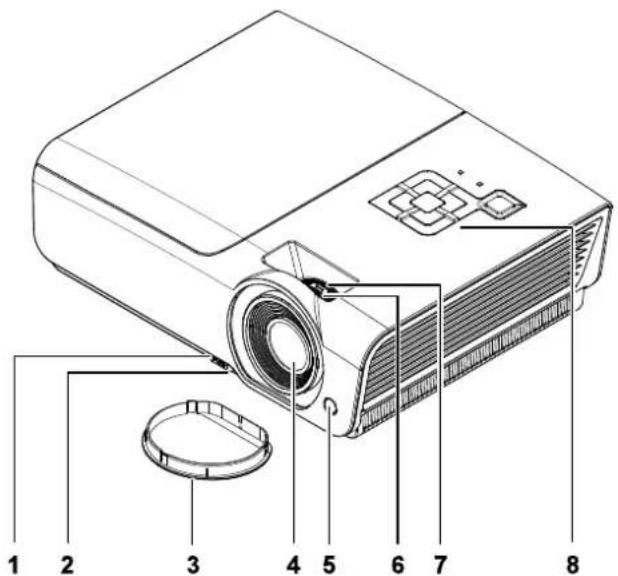

Diagram of a projector with numbered parts labeled 1 to 8, showing internal components and part structure.

ITEM	LABEL	DESCRIPTION	SEE PAGE:
1.	Height-adjuster button Push to release height adjuster		14
2.	Height adjuster Adjusts level of projector
3.	Lens cap Protect lens when not in use
4.	Lens	Projection Lens
5.	IR receiver Receive IR signal from remote control		6
6.	Focus ring Focuses the projected image		15
7.	Zoom ring Enlarges the projected image
8.	Function keys	See Top view—On-screen Display (OSD) buttons and LEDs.	3

Important:

Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the ventilation openings.

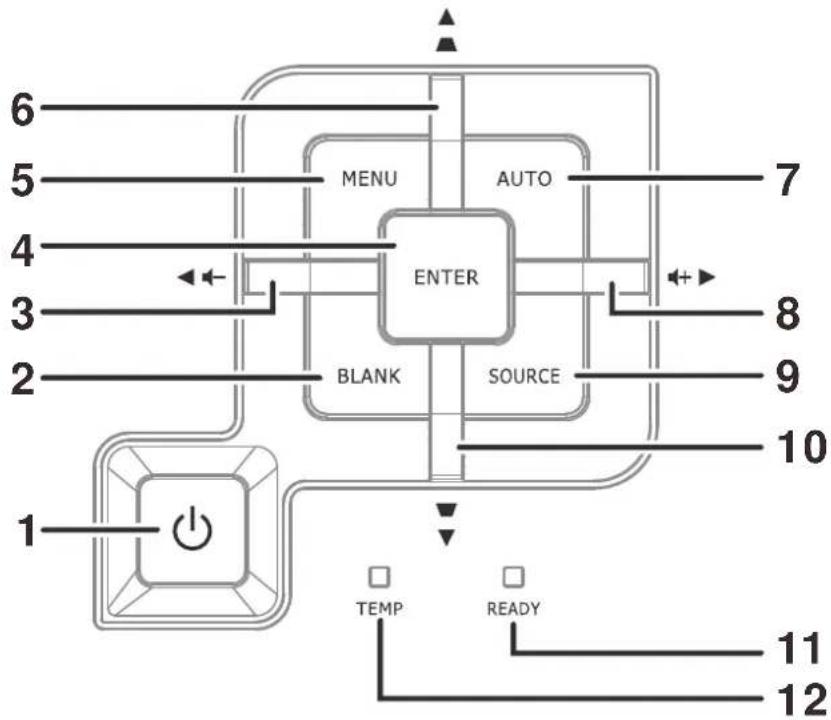

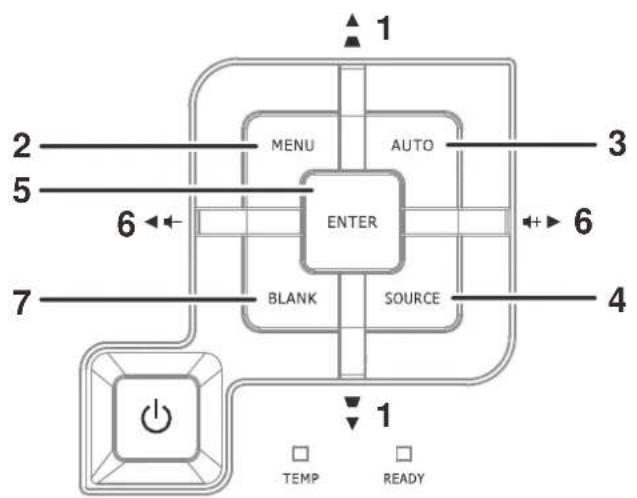

Top view—On-screen Display (OSD) buttons and LEDs

ITEM LABEL DESCRIPTION				SEEPAGE:
1.	(Power button)	Turns the projector On or Off.		10
2.	BLANK Displays a blank screen and mutes audio
3.	(Left cursor) / Volume	Navigates and changes settings in the OSD Quick Menu – For Volume		17
4.	Enter Enter or confirm highlighted OSD menu item
5.	MENU Opens and exits	OSD menus
6.	(Up cursor) / Keystone+	Navigates and changes settings in the OSD Quick Menu – For Keystone
7.	AUTO Optimizes image size, position, and resolution
8.	(Right cursor) / Volume	Navigates and changes settings in the OSD Quick Menu – For Volume		17
9.	SOURCE Enter the Source menu
10.	(Down cursor) / Keystone-	Navigates and changes settings in the OSD Quick Menu – For Keystone		17
11.	READY LED	Red Lamp is ready to be powered-on.
		Flashing	Lamp not ready (Warm-up/shutting down/cooling) (see LED Error Messages on page 51)
12.	TEMP LED Red Error code

Rear view

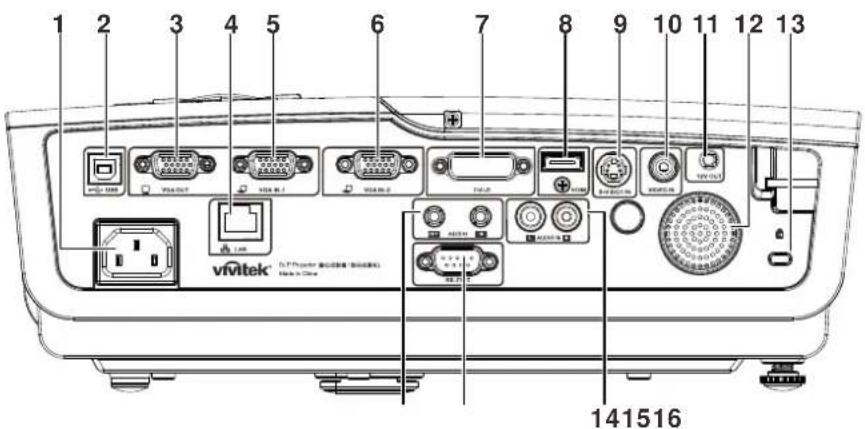

1 2 3 4 5 6 7 8 9 10 11 12 13 vVitek® VVProcter (微控制器 - 高级键盘) Vivitek® High-Value 141516

ITEM	LABEL	DESCRIPTION	SEE PAGE:
1.	AC IN Connect the POWER cable		10
2.	(USB)	Connect the USB cable from a computer
3.	VGA OUT	Connect the RGB cable to a display (Loop Thru only for VGA IN-1)
4.	LAN Connect a LAN cable from Ethernet
5.	VGA IN - 1 Connect the RGB cable from a computer or component device
6.	VGA IN - 2 Connect the RGB cable from a computer or component device
7.	DVI-D Connect the DVI cable from a computer
8.	HDMI Connect the HDMI cable from a HDMI device
9.	S-VIDEO IN Connect the S-Video cable from a video device
10.	VIDEO IN Connect the composite cable from a video device
11.	DC 12V TRIGGER Connect a 12V screen trigger (200ma max)
12.	Speaker Outputs audio sound

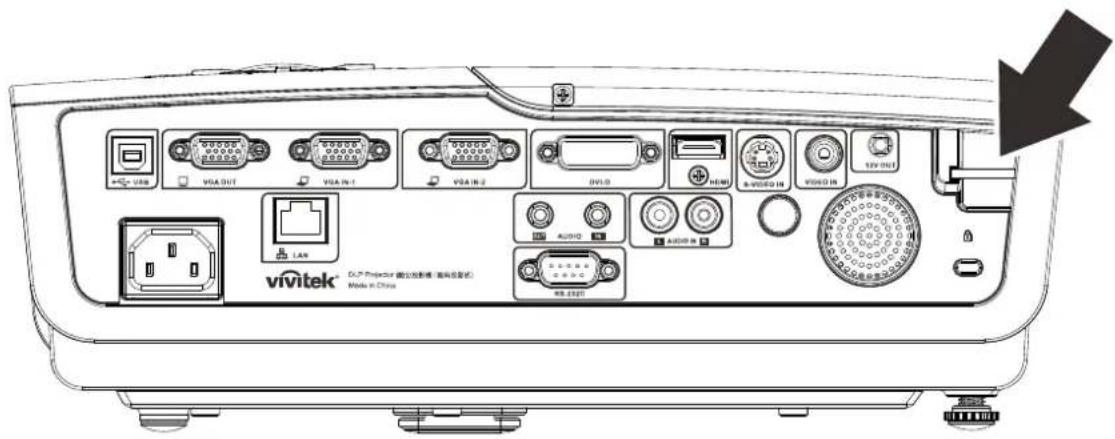

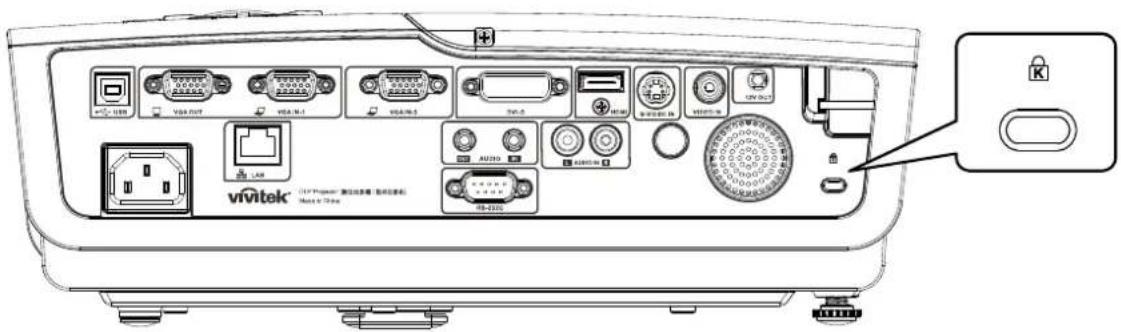

13.	Kensington Lock	Secure to permanent object with a Kensington® Lock system	49
14.	AUDIO IN (L and R) Connect the audio cable from audio device
15.	RS-232	Connect RS-232 serial port cable for remote control
16.	AUDIO IN AUDIO OUT	Connect an AUDIO cable from audio device Connect an AUDIO cable for audio loop through

Note:

If your video equipment has various input sources, it is recommended to connect in priority of HDMI/DVI, component (thru VGA), S-Video, Composite for better picture quality.

Warning:

As a safety precaution, disconnect all power to the projector and connecting devices before making connections.

Bottom view

1 2 3 4 51.50 2 64.95 90.50 M4 M4 71.00

ITEM	LABEL	DESCRIPTION	SEE PAGE:
1.	Tilt adjustor Rotate adjuster lever to adjust angle position.		14
2.	Ceiling support holes	Contact your dealer for information on mounting the projector on a ceiling
3.	Height adjustor	Adjuster drops down when adjuster button is pushed.	14
4.	Height adjustor button Push to release adjustor.

Note:

When installing, ensure that you use only UL Listed ceiling mounts.

For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw depth of 6 mm (0.23 inch).

The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount load capacity must exceed the weight of the installed equipment, and as an additional precaution be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a period of 60 seconds.

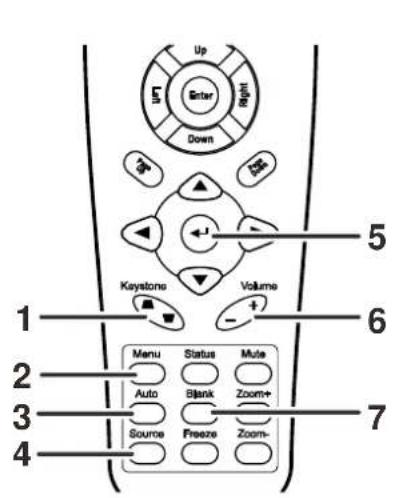

Remote Control Parts

28 1 2 27 Power Laser 3 Keyboard Puncten Up Left Enter Right Down 6 26 5 25 7 24 8 9 23 10 22 Keystone Volume + - 11 21 16 15 20 19 12 18 13 17 14

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on the remote control. This user's manual describes the functions based on the remote control.

ITEM	LABEL	DESCRIPTION	SEE PAGE:
1.	IR transmitter Transmits signals to projector
2.	Status LED Lights when the remote control is used
3.	Laser Press to operate the on-screen pointer
4.	Up Up arrow when connected through USB to a PC
5.	Right Right arrow when connected through USB to a PC
6.	Down Down arrow when connected through USB to a PC
7.	Page Down Page down when connected through USB to a PC
8.	Up cursor	Navigates and changes settings in the OSD	17
9.	Right cursor
10.	Down cursor
11.	Volume +/- Adjusts volume		16
12.	Mute Mutes the built-in speaker
13.	Zoom+ Zoom in		15
14.	Zoom-	Zoom out
15.	Freeze Freeze/unfreezes the on-screen picture
16.	Blank Makes the screen blank
17.	Source Detects the input device
18.	Auto	Auto adjustment for phase, tracking, size, position
19.	Menu Opens the OSD		17
20.	Status	Opens the OSD Status menu (the menu only opens when an input device is detected)	43
21.	Keystone top/bottom	Corrects image-trapezoid (wider top/bottom) effect	15
22.	Left cursor	Navigates and changes settings in the OSD	17
23.	Enter	Changes settings in the OSD
24.	Page Up	Page up when connected through USB to a PC
25.	Left	Left arrow when connected through USB to a PC
26.	Enter	Enter key when connected through USB to a PC
27.	Power	Turns the projector on or off	10
28.	Laser Use as on-screen pointer. DO NOT POINT IN EYES.

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and 15 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All operations can be carried out with the remote control; however, the buttons on the projector are limited in use.

SETUP AND OPERATION

Inserting the Remote Control Batteries

1. Remove the battery compartment cover by sliding the cover in the direction of the arrow.

Technical diagram of a mechanical component with internal structure and directional arrow (no text or symbols)

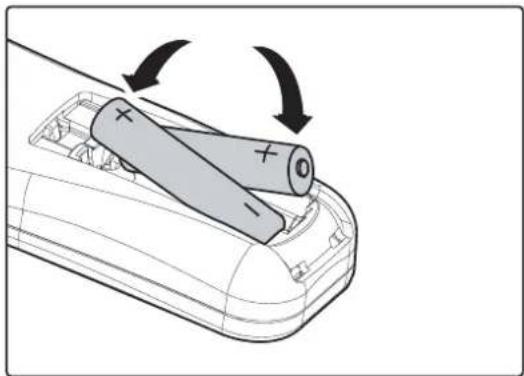

1. Insert the battery with the positive side facing up.

Diagram of a remote control casing with two batteries and arrows indicating rotation (no text or symbols)

1. Replace the cover.

Technical line drawing of a mechanical component with an arrow indicating a specific section (no text or symbols present)

Caution:

1. Only use AAA batteries (Alkaline batteries are recommended).
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.

Starting and Shutting down the Projector

1. Connect the power cord to the projector. Connect the other end to a wall outlet.
   The ⏻ POWER and READY LEDs on the projector light.

2. Turn on the connected devices.

3. Ensure the READY LED displays a solid red and not a flashing red. Then press the ⏻ POWER button to turn on the projector.

The projector splash screen displays and connected devices are detected.

See Setting an Access Password (Security Lock) on page 12 if security lock is enabled.

1. If more than one input device is connected, press the SOURCE button and use ▲▼ to scroll among devices.

(Component is supported through the RGB to COMPONENT ADAPTER.)

Pure electrical outlet diagram without any text, numbers, or symbols

vivitek® Vivid Color, Vivid Life

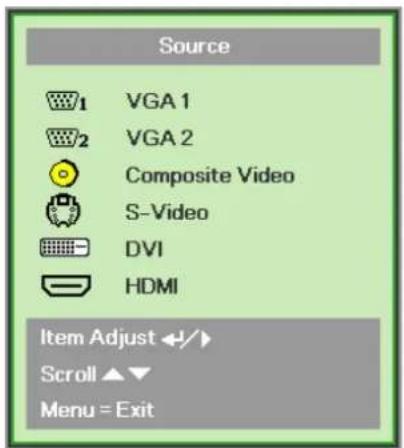

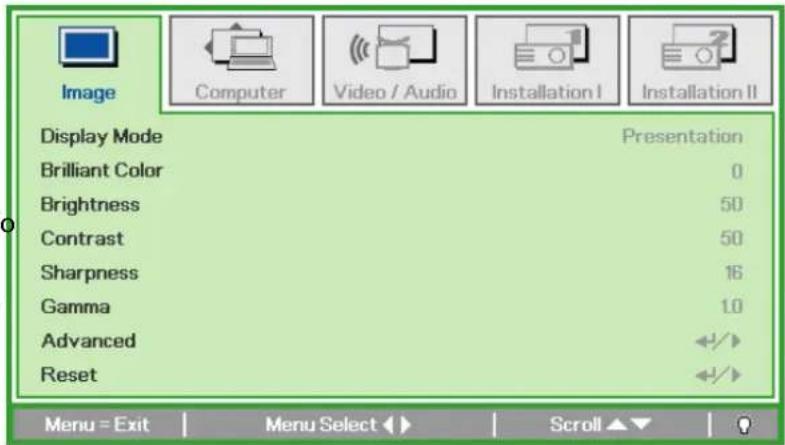

Source 1 VGA 1 2 VGA 2 Composite Video S-Video DVI HDMI Item Adjust ↩ ↗ Scroll ▲▼ Menu = Exit

• VGA 1/VGA 2: Analog RGB
Component: DVD input YCbCr / YPbPr, or HDTV input YPbPr via HD15 connector
• Composite Video: Traditional composite video
- S-Video: S-Video
• DVI: DVI
• HDMI: HDMI, DVI

1. When the "Power Off? /Press Power again" message appears, press the POWER button. The projector turns off.

Power Off? Press Power again

Caution:

1. Be sure to remove the lens cap before starting projector.
2. Do not unplug the power cord until the POWER LED stops flashing-indicating the projector has cooled down.

Setting an Access Password (Security Lock)

You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector. When enabled, the password must be entered after you power on the projector. (See Navigating the OSD on page 17 and Setting the OSD Language on page 18 for help on using OSD menus.)

Important:

Keep the password in a safe place. Without the password, you will not be able to use the projector. If you lose the password, contact your reseller for information on clearing the password.

1. Press the MENU button to open the OSD menu.
2. Press the cursor ◀▶ button to move to the Installation I menu, press the cursor ▲▼ button to select Advanced.

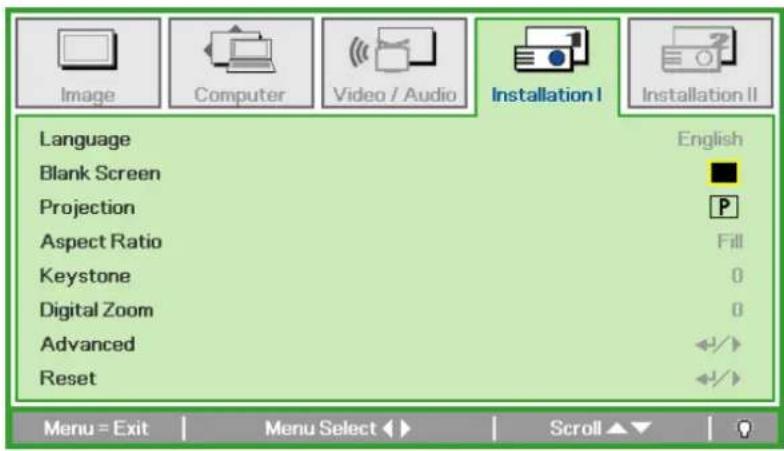

Image Computer Video / Audio Installation I Installation II Display Mode Brilliant Color Brightness Contrast Sharpness Gamma Advanced Reset Presentation 0 50 50 16 1.0 ←/→ ←/→ Menu=Exit Menu Select ▶ Scroll ▲▼

Language Blank Screen Projection Aspect Ratio Keystone Digital Zoom Advanced Reset English P Fill 0 0 Menu=Exit | Item Adjust ↕ ↗ | Scroll ▲▼ | 0

1. Press the cursor ▲▼ button to select Security Lock.

2. Press the cursor ◀▶ button to enable or disable security lock function.

A password dialog box automatically appears.

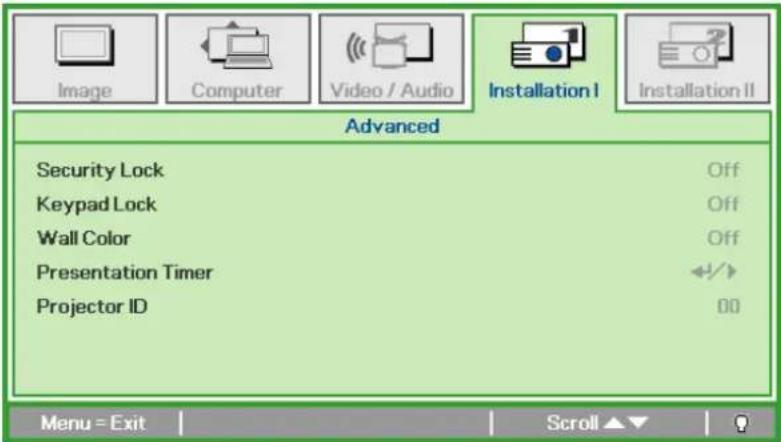

Image Computer Video / Audio Installation I Installation II Advanced Security Lock Off Keypad Lock Off Wall Color Off Presentation Timer 00 Projector ID Menu = Exit Item Adjust ▶ Scroll ▲

5. You can use the cursor buttons

either on keypad or IR remote control for password entry. You can use any combination including the same arrow five times, but not less than five.

Press the cursor buttons in any order to set the password. Push the MENU button to exit the dialog box.

Password Register Password Confirm Password Menu = Exit

Password Register Password * * * * * Confirm Password * * * * * OK Menu = Exit

6. The password confirm menu appears when user presses the power-on key in case the Security Lock is enabled. Enter the password in the order you set it at step 5. In case you forget the password, please contact the service center.

Service center will validate the owner and help reset the password.

Password Menu = Cancel

Adjusting the Projector Level

Take note of the following when setting up the projector:

• The projector table or stand should be level and sturdy.
• Position the projector so that it is perpendicular to the screen.
• Ensure the cables are in a safe location. You could trip over them.

A B C D

1. To raise the level of the projector, lift the projector [A] and press the height-adjuster button [B].
   The height adjuster drops down [C].
2. To lower the level of the projector, press the height-adjuster button and push down on the top of the projector.
3. To adjust the angle of the picture, turn the tilt-adjuster [D] right or left until the desired angle has been achieved.

Adjusting the Zoom ring, Focus and Keystone

1. Use the Image-zoom control (on the projector only) to resize the projected image and screen size B.
2. Use the Image-focus control (on the projector only) to sharpen the projected image Ⓐ.
3. Use the KEYSTONE buttons (on the projector or the remote control) to correct image-trapezoid (wider top or bottom) effect.

A B

Remote control and OSD panel

1. The keystone control appears on the display.

Keystone 0

Adjusting the Volume

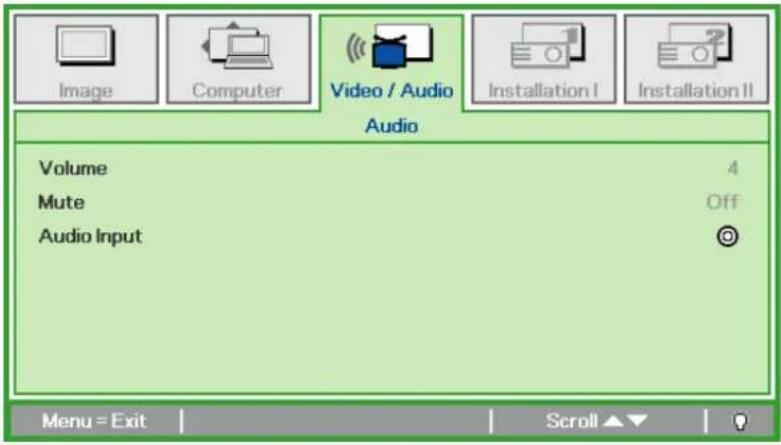

1. Press the Volume +/- buttons on the remote control. The volume control appears on the display.

1. Press the Left or Right Cursor buttons on the keypad to adjust Volume +/-

Volume 4

1. Press the MUTE button to turn off the volume (This feature is available only on the remote).

ON-SCREEN DISPLAY (OSD) MENU SETTINGS

OSD Menu Controls

The projector has an OSD that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control cursor buttons or the buttons on the top of the projector to navigate and make changes to the OSD. The following illustration shows the corresponding buttons on the projector.

Up Enter Right Down 5 Keystone Volume 1 6 2 3 7 4 Menu Status Mute Auto Blank Zoom+ Source Freeze Zoom-

1. To enter the OSD, press the MENU button.
2. There are five menus. Press the cursor ◀▶ button to move through the menus.
3. Press the cursor ▲▼ button to move up and down in a menu.
4. Press ◀▶ to change values for settings.
5. Press MENU to close the OSD or leave a submenu.

Image Computer Video / Audio Installation I Installation II Display Mode Brilliant Color Brightness Contrast Sharpness Gamma Advanced Reset Presentation 0 50 50 16 1.0 Menu = Exit Menu Select ▶ Scroll ▼

Note:

Depending on the video source, not all items in the OSD are available. For example, the Horizontal/Vertical Position items in the Computer menu can only be modified when connected to a PC. Items that are not available cannot be accessed and are grayed out.

Setting the OSD Language

Set the OSD language to your preference before continuing.

1. Press the MENU button. Press the cursor ◀▶ button to navigate to Installation I.

Language Blank Screen Projection Aspect Ratio Keystone Digital Zoom Advanced Reset English Fill 0 0 ←/→ ←/→ Menu = Exit Menu Select ↕ ↗ Scroll ▲▼

1. Press the cursor ▲▼ button until Language is highlighted.

Language Blank Screen Projection Aspect Ratio Keystone Digital Zoom Advanced Reset English Fill 0 0 Menu = Exit Item Adjust ▶ Scroll ▼

1. Press the cursor ◀▶ button until the language you want is highlighted.
2. Press the MENU button twice to close the OSD.

OSD Menu Overview

Use the following illustration to quickly find a setting or determine the range for a setting.

    J["Computer"] --> K["Horizontal Position"]
    J --> L["Vertical Position"]
    J --> M["Frequency"]
    J --> N["Tracking"]
    J --> O["Auto Image"]

    P["Video / Audio"] --> Q["Video AGC"]
    P --> R["Video Saturation"]
    P --> S["Video Tint"]
    P --> T["Film Mode"]
    P --> U["Video Overscan"]
    P --> V["Closed Captioning"]
    P --> W["Audio"]
    P --> X["Reset"]

    B --> Y["Presentation, Bright, Game, Movie, TV, sRGB, User"]
    C --> Z["0 ~ 10"]
    D --> AA["0 ~ 100"]
    E --> AB["0 ~ 100"]
    F --> AC["0 ~ 31"]
    G --> AD["1.0, 1.8, 2.0, 2.2, 2.35, 2.5"]
    H --> AE["Reset"]

    K --> AF["-5 ~ 5"]
    L --> AG["-5 ~ 5"]
    M --> AH["0 ~ 31"]
    N --> AI["-5 ~ 5"]

    Q --> AJ["On, Off"]
    R --> AK["0 ~ 100"]
    S --> AL["0 ~ 100"]
    T --> AM["Auto, Off"]
    U --> AN["On, Off"]
    V --> AO["On, Off"]
    W --> AP["Reset"]

    J["Installation II"] --> K["Auto Source"]
    J --> L["Auto Power Off (min.)"]
    J --> M["Auto Power On"]
    J --> N["Fan Speed"]
    J --> O["Lamp Mode"]
    J --> P["Advanced"]
    J --> Q["Factory Reset"]
    J --> R["Status"]

    B --> S["English, French, German, Spanish, Portuguese, Simplified Chinese, Traditional Chinese, Italian, Norwegian, Swedish, Dutch, Russian, Polish, Finnish, Greek, Korean, Hungarian, Czech, Arabic, Turkish, Vietnamese, Japanese, Thai, Farsi"]
    C --> T["Black, Red, Green, Blue, White"]
    D --> U["Front, Rear, Ceiling, Rear + Ceiling"]
    E --> V["Fill, 4:3, 16:9, LetterBox, Native, 2.35:1"]
    F --> W["-40 ~ 40"]
    G --> X["-10 ~ 10"]

OSD Sub-Menu Overview

    V["Image / Advanced / Color Manager"] --> W["Red"]
    V --> X["Green"]
    V --> Y["Blue"]
    V --> Z["Cyan"]
    V --> AA["Magenta"]
    V --> AB["Yellow"]
    V --> AC["White"]

    AD["Installation I / Advanced"] --> AE["Security Lock"]
    AE --> AF["On, Off"]
    AE --> AG["Keypad Lock"]
    AG --> AH["On, Off"]
    AG --> AI["Wall Color"]
    AI --> AJ["Off, Light Yellow, Pink, Light Green, Blue, Blackboard"]
    AI --> AK["Presentation Timer"]
    AK --> AL["Projector ID"]
    AL --> AM["00 ~ 98"]

    AN["Installation II / Advanced / Peripheral Test"] --> AO["Remote Control Test"]
    AO --> AP["Color Test"]
    AO --> AQ["Button Test"]
    AO --> AR["USB Test"]

    AS["Installation I / Advanced / Presentation Timer"] --> AT["Timer"]
    AT --> AU["On, Off"]
    AT --> AV["Timer Period"]
    AV --> AW["1 ~ 60"]
    AT --> AX["Timer Reset"]

    AY["Installation II / Advanced / Network"] --> AZ["Network State"]
    AZ --> BA["Connect, Disconnect"]
    AZ --> BB["DHCP"]
    BB --> BC["On, Off"]
    AZ --> BD["IP Address"]
    BD --> BE["0-255, 0-255, 0-255, 0-255"]
    BE --> BF["Subnet Mask"]
    BF --> BG["0-255, 0-255, 0-255, 0-255"]
    BF --> BH["Gateway"]
    BH --> BI["0-255, 0-255, 0-255, 0-255"]
    BH --> BJ["DNS"]
    BJ --> BK["0-255, 0-255, 0-255, 0-255"]
    BJ --> BL["Apply"]

    AM --> BM["Installation II / Advanced"]
    BM --> BN["OSD Menu Setting"]
    BM --> BO["Peripheral Test"]
    BM --> BP["Lamp Hour Reset"]
    BM --> BQ["Low Power Mode"]
    BQ --> BR["On, Off"]

    CA["Installation II / Advanced"] --> CB["RS232"]
    CB --> CC["RS232, Network"]

    AD --> DE["Installation II / Status"]
    DE --> DEA["Active Source"]
    DE --> DEB["Video information"]
    DE --> DEC["Lamp Hours(Eco, Normal)"]

Image Menu

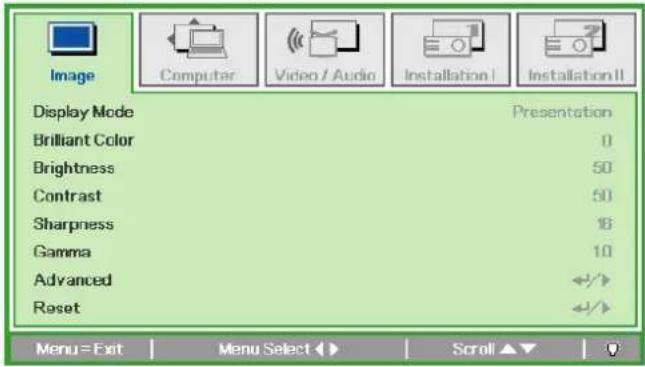

Press the MENU button to open the OSD menu. Press the cursor ◀▶ button to move to the Image Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◀▶ to change values for settings.

Image Computer Video / Audio Installation I Installation II Display Mode Presentation Brilliant Color 0 Brightness 50 Contrast 50 Sharpness 16 Gamma 1.0 Advanced ←/→ Reset ←/→ Menu = Exit Menu Select ▶ Scroll ▲▼

ITEM DESCRIPTION
Display Mode	Press the cursor ◀▶ button to set the Display Mode.
Brilliant Color	Press the cursor ◀▶ button to adjust the Brilliant Color value.
Brightness	Press the cursor ◀▶ button to adjust the display brightness.
Contrast	Press the cursor ◀▶ button to adjust the display contrast.
Sharpness	Press the cursor ◀▶ button to adjust the display sharpness level.
Gamma	Press the cursor ◀▶ button to adjust the gamma correction of the display.
Advanced	Press ← (Enter) / ▶ to enter the Advanced menu. See Advanced Feature on page 22.
Reset	Press ← (Enter) / ▶ to reset all settings to default values.

Advanced Feature

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Image menu. Press ▼▲ to move to the Advanced menu and then press Enter or ▶. Press ▼▲ to move up and down in the Advanced menu.

Image Computer Video / Audio Installation I Installation II Advanced Color Space Auto Color Temperature Normal Color Manager Menu = Exit Scroll ▲▼

ITEM DESCRIPTION
Color Space	Press the cursor ◀► button to adjust the color space.(Range: Auto – RGB – YPbPr – YCbCr)
Color Temperature	Press the cursor ◀► button to adjust the color temperature.(Range: Cold – Normal – Warm)
Color Manager	Press ← (Enter) / ► to enter the color manager menu. (Range: Red-Green-Blue-Cyan-Magenta-Yellow-White). See page 23 for more information on Color Manager.

Color Manager

Press ← (Enter) / ▶ to enter the Color Manager sub menu.

Image Computer Video / Audio Installation I Installation II Advanced \ Color Manager Red Green Blue Cyan Magenta Yellow White Menu = Exit Item Adjust ↕ ↗ Scroll ▲▼

ITEM DESCRIPTION
Red	Select to enter the Red Color Manager.Press the ◀▶ buttons to adjust the Hue, Saturation, and Gain.
Green	Select to enter the Green Color Manager.Press the ◀▶ buttons to adjust the Hue, Saturation, and Gain.
Blue	Select to enter the Blue Color Manager.Press the ◀▶ buttons to adjust the Hue, Saturation, and Gain.
Cyan	Select to enter the Cyan Color Manager.Press the ◀▶ buttons to adjust the Hue, Saturation, and Gain.
Magenta	Select to enter the Magenta Color Manager.Press the ◀▶ buttons to adjust the Hue, Saturation, and Gain.
Yellow	Select to enter the Yellow Color Manager.Press the ◀▶ buttons to adjust the Hue, Saturation, and Gain.
White	Select to enter the White Color Manager.Press the ◀▶ buttons to adjust the Red, Green, and Blue.

Computer Menu

Press the MENU button to open the OSD menu. Press the cursor ◀▶ button to move to the Computer menu. Press the cursor ▲▼ button to move up and down in the computer menu. Press ◀▶ to change values for settings.

Image Computer Video / Audio Installation I Installation II Horizontal Position 0 Vertical Position 0 Frequency 0 Tracking 0 Auto Image Menu = Exit Menu Select ▶▶ Scroll ▼▼

ITEM DESCRIPTION
Horizontal Position	Press the cursor ◀▶ button to adjust the display position to left or right.
Vertical Position	Press the cursor ◀▶ button to adjust the display position to up or down.
Frequency	Press the cursor ◀▶ button to adjust the A/D sampling clock.
Tracking	Press the cursor ◀▶ button to adjust the A/D sampling dot.
Auto Image	Press ← (Enter) / ▶ to automatically adjustment for phase, tracking, size and position.

Video/Audio Menu

Press the MENU button to open the OSD menu. Press the cursor ◀▶ button to move to the Video/Audio menu. Press the cursor ▲▼ button to move up and down in the Video/Audio menu. Press ◀▶ to change values for settings.

Image Computer Video / Audio Installation I Installation II Video AGC Off Video Saturation 50 Video Tint 50 Film Mode Off Video Overscan Off Closed Captioning Off Audio ◀/▶ Reset ◀/▶ Menu = Exit Menu Select ▶ Scroll ▼

ITEM DESCRIPTION
Video AGC	Press the ◀▶ buttons to enable or disable the Automatic Gain Control for video source.
Video Saturation	Press the ◀▶ buttons to adjust the video saturation.
Video Tint	Press the ◀▶ buttons to adjust the video tint/hue.
Film Mode	Press the ◀▶ buttons to select a different film mode.
Video Overscan	Press the ◀▶ buttons to enable or disable video over scan.
Closed Captioning	Press the ◀▶ buttons to enable or disable Closed Captioning
Audio	Press ←(Enter) / ▶ to enter the Audio menu. See Audio on page 26.
Reset	Press ←(Enter) / ▶ to reset all settings to default values.

Note:

Video jagging may occur when playing interlace video. To overcome this issue, open the Video / Audio menu and adjust the Film Mode feature.

Audio

Press ← (Enter) / ▶ to enter the Audio sub menu.

Image Computer Video / Audio Installation I Installation II Audio Volume 4 Mute Off Audio Input Menu = Exit Scroll ▲▼

ITEM DESCRIPTION
Volume	Press the ◀▶ buttons to adjust the audio volume.(Range: 0 ~ 8)
Mute	Press the ◀▶ buttons to turn on or off the speaker.
Audio Input	Press the cursor ◀▶ button to select audio input.(Range: Mini / RCA / HDMI)

Installation I Menu

Press the MENU button to open the OSD menu. Press the cursor ◀▶ button to move to the Installation I menu. Press the cursor ▲▼ button to move up and down in the Installation I menu. Press ◀▶ to change values for settings.

Language Blank Screen Projection Aspect Ratio Keystone Digital Zoom Advanced Reset English Fill 0 0 ←/→ ←/→ Menu = Exit Menu Select Scroll▲▼

ITEM DESCRIPTION
Language	Press the cursor ◀▶ button to select a different localization Menu.
Blank Screen	Press the cursor ◀▶ button to select different color to blank the screen.
Projection	Press the cursor ◀▶ button to choose from four projection methods:
Aspect Ratio	Press the cursor ◀▶ button to adjust the video aspect ratio.
Keystone	Press the cursor ◀▶ button to adjust the display keystone.
Digital Zoom	Press the cursor ◀▶ button to adjust the Digital Zoom menu.
Advanced	Press ← (Enter) / ▶ to enter the Advanced menu. See Advanced Feature on page 30.
Reset	Press ← (Enter) / ▶ to reset all settings to default values (except Language and Security Lock).

Advanced Feature

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Installation I menu. Press ▲▼ to move to the Advanced menu and then press Enter or ▶. Press ▲▼ to move up and down in the Advanced menu. Press ◀▶ to change values for setting.

Image Computer Video / Audio Installation I Installation II Advanced Security Lock Off Keypad Lock Off Wall Color Off Presentation Timer ←/→ Projector ID 00 Menu = Exit Scroll ▲▼

ITEM DESCRIPTION
Security Lock	Press the cursor ◀▶ button to enable or disable security lock function.
Keypad Lock	Press the cursor ◀▶ button to enable or disable keys can be work on keypad.
Wall Color	Press the cursor ◀▶ button to select different wall color setting.
Presentation Timer	Press ←(Enter) / ▶ to enter the Presentation menu. See Advanced Feature on page 28.
Projector ID	Press the cursor ◀▶ button to adjust a two digit projector ID from 0 through 98.

Presentation Timer

The Presentation Timer function can indicate the presentation time on the screen to help you achieve better time management when giving presentations.

Press ← (Enter) / ▶ to enter the Presentation Timer sub menu.

Advanced \ Presentation Timer Timer Off Timer Period 10 Timer Reset Menu = Exit Scroll

ITEM DESCRIPTION
Timer	Press the cursor ◀▶ button to enable or disable presentation timer function.
Timer Period	Press the cursor ◀▶ button to adjust the display timer period.
Timer Reset	Press ← (Enter) / ▶ to reset presentation timer counter.

Installation II Menu

Press the MENU button to open the OSD menu. Press the cursor ◀▶ button to move to the Installation II menu. Press the cursor ▲▼ button to move up and down in the Installation II menu.

Image Computer Video / Audio Installation I Installation II Auto Source Off Auto Power Off (min) 0 Auto Power On Off Fan Speed Normal Lamp Mode Normal Advanced Factory Reset Status Menu = Exit Menu Select ▶ Scroll ▼

ITEM DESCRIPTION
Auto Source	Press the cursor ◀► button to enable or disable automatic source detection.
Auto Power Off (min.)	Press the cursor ◀► button to enable or disable automatic shutdown of lamp when no signal.
Auto Power On	Press the cursor ◀► button to enable or disable automatic power On when AC power is supplied.
Fan Speed	Press the cursor ◀► button to toggle between Normal and High fan speeds.Note: We recommend selecting high speed in high temperatures, high humidity, or high altitude (above 1500m/4921ft) areas.
Lamp Mode	Press the cursor ◀► button to select the lamp mode for higher brightness or lower brightness to save lamp life.
Advanced	Press ← (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 30.
Factory Reset Press	(Enter)/► to reset all items to factory preset values.
Status	Press ← (Enter) / ► to enter the Status menu. See page 43 for more information on Status.

Advanced Feature

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Installation II menu. Press ▲▼ to move to the Advanced menu and then press Enter or ▶. Press ▲▼ to move up and down in the Advanced menu. Press ◀▶ to change values for setting.

Advanced OSD Menu Setting Peripheral Test Lamp Hour Reset Low Power Mode 3D RS232 Network Off RS232 Menu = Exit Scroll ▲▼

ITEM DESCRIPTION
OSD Menu Setting	Press ← (Enter) / ▶ to enter the OSD setting menu. See page 31 for more information on OSD Menu Setting.
Peripheral Test	Press ← (Enter) / ▶ to enter the Peripheral Test menu. See page 31 for more information on Peripheral Test.
Lamp Hour Reset	After replacing the lamp, this item should be reset. See page 32 for more information on Lamp Hour Reset.
Low Power Mode	Press ◀ to turn Low Power Mode on or off.
3D	Press ← (Enter) / ▶ to enter the 3D menu. See page 33 for more information on 3D setting..
RS232	Press ◀ to select RS232 (remote) or Network (LAN) mode depending on projector connection method.
Network	Press ← (Enter) / ▶ to enter the Network menu. See page 34 for more information on Network settings.

OSD Menu Setting

Advanced \ OSD Menu Setting Menu Position Translucent Menu 0 % Menu Display 15 Menu = Exit Scroll ▲▼

ITEM DESCRIPTION
Menu Position	Press ◀► button to select different OSD location.
Translucent Menu	Press ◀► button to select OSD background translucent level.
Menu Display	Press ◀► button to select OSD timeout delay.

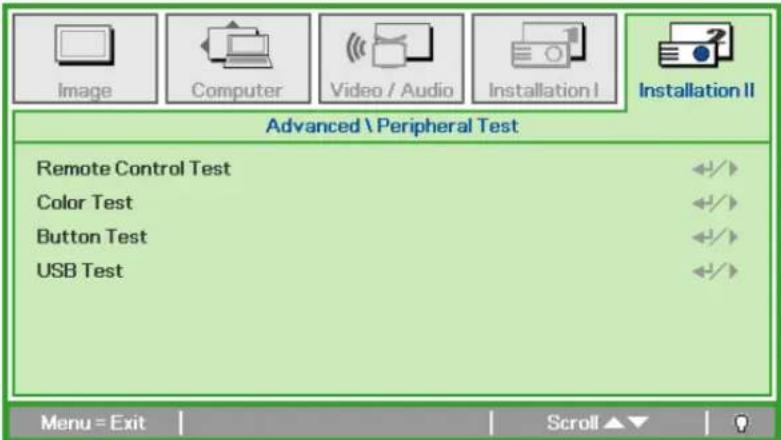

Peripheral Test

Image Computer Video / Audio Installation I Installation II Advanced \ Peripheral Test Remote Control Test Color Test Button Test USB Test Menu = Exit Scroll ▲▼

ITEM DESCRIPTION
Remote Control Test	Press ← (Enter) / ▶ to test the IR remote controller for diagnostic.
Color Test	Press ← (Enter) / ▶ to select different colors on screen.
Button Test	Press ← (Enter) / ▶ to test the button on keypad.
USB Test	Press ← (Enter) / ▶ to test the USB connection with connected PC.

Lamp Hour Reset

Image Computer Video / Audio Installation I Installation II Advanced \ Lamp Hour Reset Please See User Manual ... Menu = Exit

Please refer to Resetting the Lamp on page 47 to reset the lamp hour counter.

3D

Image Computer Video / Audio Installation I Installation II Advanced \ 3D 3D Off 3D Sync Invert Off Menu = Exit Scroll ▲▼

ITEM DESCRIPTION
3D	Press the cursor ◀▶ button to select different 3D mode.
3D Sync Invert	Press the cursor ◀▶ button to enable or disable 3D Sync Invert.

Note:

1. The 3D OSD menu item is gray if there is no appropriate 3D source. This is the default setting.
2. When the projector is connected to an appropriate 3D source, the 3D OSD menu item is enabled for selection.
3. Use 3D glasses to view a 3D image.
4. You need 3D content from a 3D DVD or 3D media file.
5. You need to enable the 3D source (some 3D DVD content may have a 3D on-off selection feature).
6. You need DLP link 3D or IR 3D shutter glasses. With IR 3D shutter glasses, you need to install a driver on your PC and connect a USB emitter.
7. The 3D mode of the OSD needs to match the type of glasses (DLP link or IR 3D).
8. Power on the glasses. Glasses normally have a power on -off switch. Each type of glasses has their own configuration instructions. Please follow the configuration instructions that come with your glasses to finish the setup process.

Note:

Since different types of glass (DLP link or IR shutter glass) have their own setting instructions, Please follow the guide to finish the setup process.

Network

Advanced \ Network Network State DHCP IP Address Subnet Mask Gateway DNS Apply Connect Off 255.255.255.255 255.255.255.255 255.255.255.255 255.255.255.255 255.255.255.255 Apply Menu = Exit Scroll ▲▼

ITEM DESCRIPTION
Network State Displays the network connection status.
DHCP	Press ◀▶ to turn DHCP On or Off.Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway, and DNS fields.
IP Address Enter a valid IP address if DHCP is turned off.
Subnet Mask Enter a valid Subnet Mask if DHCP is turned off.
Gateway Enter a valid Gateway address if DHCP is turned off.
DNS Enter a valid DNS name if DHCP is turned off.
Apply	Press ← (Enter) / ▶ to confirm settings.

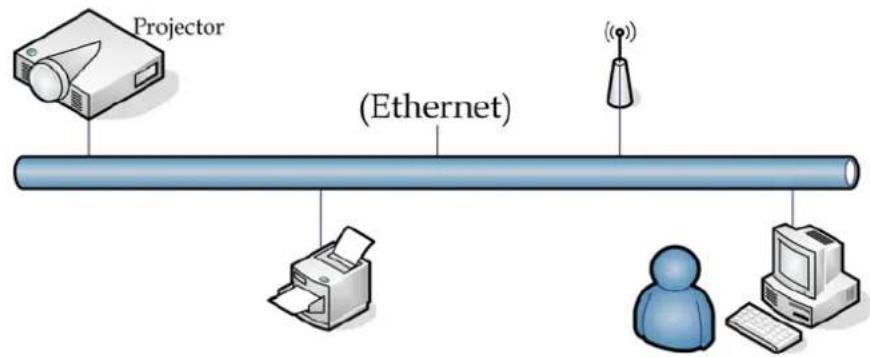

For simplicity and ease of operation, the projector provides diverse networking and remote management features.

The LAN/RJ45 function of the projector through a network, such as remotely manage: Power On/Off, Brightness and Contrast settings. Also, projector status information, such as: Video-Source, Sound-Mute, etc.

1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).

Diagram showing connection between an electronic device and a laptop via LAN, with labeled ports and connectors.

1. On the PC (Laptop), select Start → Control Panel → Network Connections.

Administrator Internet Internet Explorer E-mail Outlook Express HyperTerminal Calculator All Programs ▶ My Documents My Recent Documents ▶ My Pictures My Music My Computer Control Panel Set Program Access and Defaults Printers and Faxes Help and Support Search Run... Log Off Turn Off Computer Start

1. Right-click on Local Area Connection, and select Properties.

Network Connections File Edit View Favorites Tools Adv Address Network Connections Go LAN or High-Speed Internet Local Area Connection Disable Status Repair Bridge Connections Create Shortcut Delete Rename Properties Wizard New Connection Wizard Network Setup Wizard View or change settings for this connection, such as adapter, protocol, or mo

1. In the Properties window, select the General tab, and select Internet Protocol (TCP/IP).
2. Click Properties.

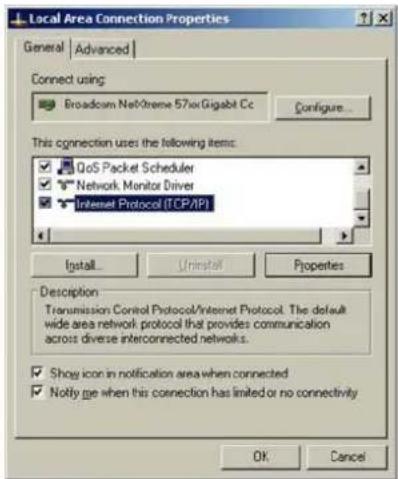

Local Area Connection Properties General | Advanced | Connect using: Broadcom NetXtreme 57xxGigabit Cc Configure... This connection uses the following items: QoS Packet Scheduler Network Monitor Driver Internet Protocol (TCP/IP) Install... Uninstall... Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification area when connected Notify me when this connection has limited or no connectivity OK Cancel

1. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK.

Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. ○ Obtain on IP address automatically ● Use the following IP address: IP address: 10 . 10 10 99 Subset mark: 255 . 255 255 0 Default gateway: . ○ Obtain DNS server address automatically ● Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Advanced... OK Cancel

1. Press the Menu button on the projector.
2. Select Advanced Setup → Network Settings → Control By → RJ45 option
3. After getting into Network Status, input the following:

▶ DHCP: Off
▶ IP Address: 10.10.10.10
▶ Subnet Mask: 255.255.255.0
▶ Gateway: 0.0.0.0
▶ DNS Server: 0.0.0.0

1. Press ← (Enter) / ▶ to confirm settings.

Open a web browser

(for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).

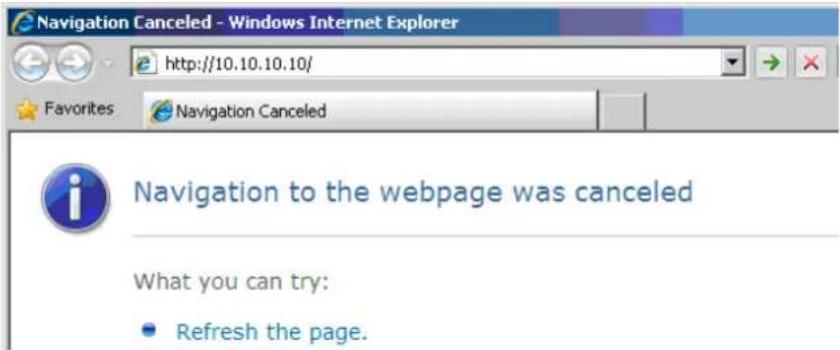

Navigation Canceled - Windows Internet Explorer http://10.10.10.10/ Favorites Navigation Canceled Navigation to the webpage was canceled What you can try: • Refresh the page.

1. In the Address bar, input the IP address: 10.10.10.10.
2. Press ← (Enter) / ▶.

The projector is setup for remote management. The LAN/RJ45 function displays as follows.

Power Vol - Mute Vol + SourceList Interface 2.7.2.4 Menu Auto Enter Blank Source Freeze Contrast Brightness Color

Expansion Options

Crestron Control IP Address IP ID Control Port Control Set Projector Projector Name PJ01 Location RM01 Assigned To Sir Set User Password Usr Enabled Password Confirmed Usr Set Network Config DHCP Enabled IP Address 10.10.10.10 Subnet Mask 255.255.255.0 Default Gateway 0.0.0.0 DNS Server 0.0.0.0 Net Set Admin Password Adm Enabled Password Confirmed Adm Set Tools Exit

CATEGORY	ITEM	INPUT-LENGTH
Crestron Control	IP Address 15
	IP ID 3
	Port	5
Projector	Projector Name 10
	Location	10
	Assigned To 10
Network Configuration	DHCP (Enabled) (N/A)
	IP Address 15
	Subnet Mask 15
	Default Gateway 15
	DNS Server 15
User Password	Enabled	(N/A)
	New Password 10
	Confirm	10
Admin Password	Enabled	(N/A)
	New Password 10
	Confirm	10

For more information, please visit http://www.crestron.com.

RS232 by Telnet Function

Besides projector connected to RS232 interface with "Hyper-Terminal" communication by dedicated RS232 command control, there is alternative RS232 command control way, so called "RS232 by TELNET" for LAN/RJ45 interface.

Quick Start-Guide for "RS232 by TELNET"

Check and get the IP-Address on OSD of the projector.

Make sure that laptop/PC can access the web-page of the projector.

Make sure that "Windows Firewall" setting to be disabled in case of "TELNET" function filtering out by laptop/PC.

Administrator Internet Internet Explorer E-mail Microsoft Office Outlook Windows Media Player OpenOffice.org Writer Set Program Access and Defaults MSN Explorer Outlook Express Windows Messenger All Programs ▶ My Documents My Recent Documents ▶ My Pictures My Music My Computer Control Panel Set Program Access and Defaults Printers and Faxes Help and Support Search Run... Log Off ○ Turn Off Computer Start

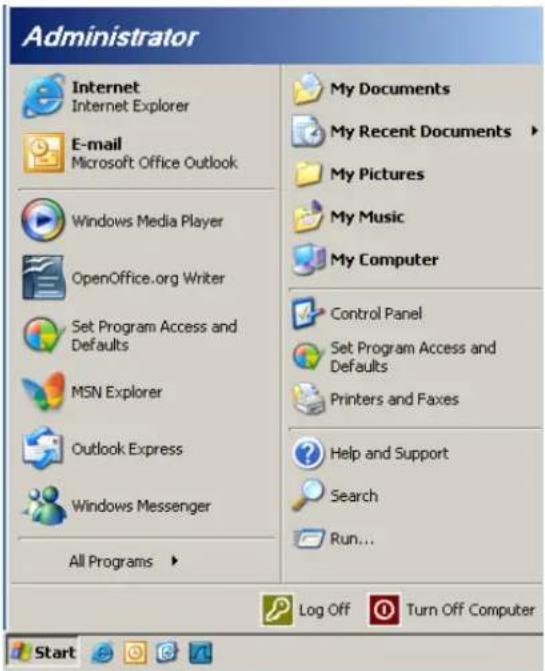

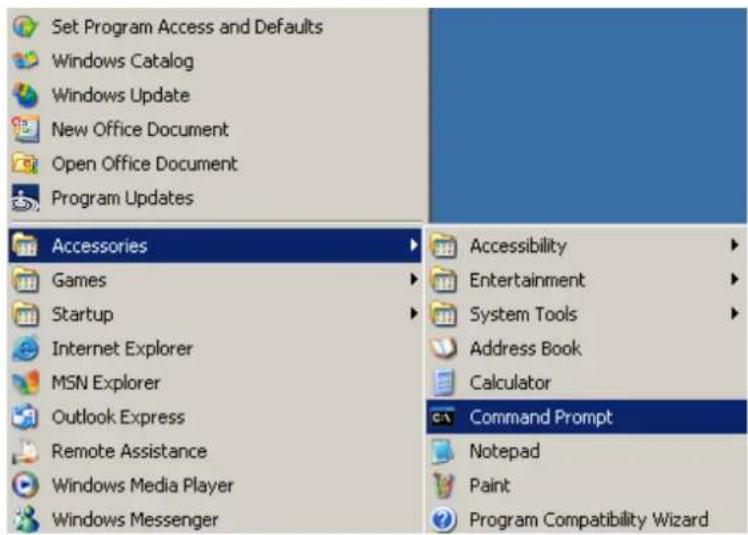

Start => All Programs => Accessories => Command Prompt

Set Program Access and Defaults Windows Catalog Windows Update New Office Document Open Office Document Program Updates Accessories Games Startup Internet Explorer MSN Explorer Outlook Express Remote Assistance Windows Media Player Windows Messenger Accessibility Entertainment System Tools Address Book Calculator Command Prompt Notepad Paint Program Compatibility Wizard

Input the command format like the below:

telnet ttt.xxx.yyy.zzz 23 ("Enter" key pressed)

(ttt.xxx.yyy.zzz: IP-Address of the projector)

If Telnet-Connection ready, and user can have RS232 command input, then "Enter" key pressed, the RS232 command will be workable.

How to have TELNET enabled in Windows VISTA / 7

By default installation for Windows VISTA, "TELNET" function is not included. But end-user can have it by way of "Turn Windows features On or Off" to be enabled.

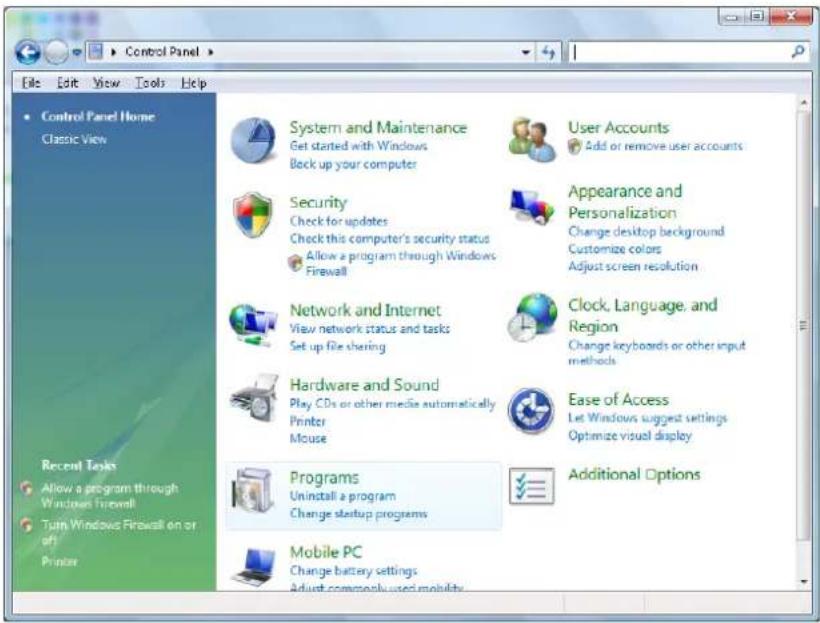

Open "Control Panel" in Windows VISTA

Control Panel Home Classic View System and Maintenance Get started with Windows Beck up your computer User Accounts Add or remove user accounts Security Check for updates Check this computer's security status Allow a program through Windows Firewall Appearance and Personalization Change desktop background Customize colors Adjust screen resolution Network and Internet View network status and tasks Set up file sharing Clock, Language, and Region Change keyboards or other input methods Hardware and Sound Play CDs or other media automatically Printer Mouse Ease of Access Let Windows suggest settings Optimize visual display Programs Uninstall a program Change startup programs Additional Options Mobile PC Change battery settings Adjust commonly used mobility

Open "Programs"

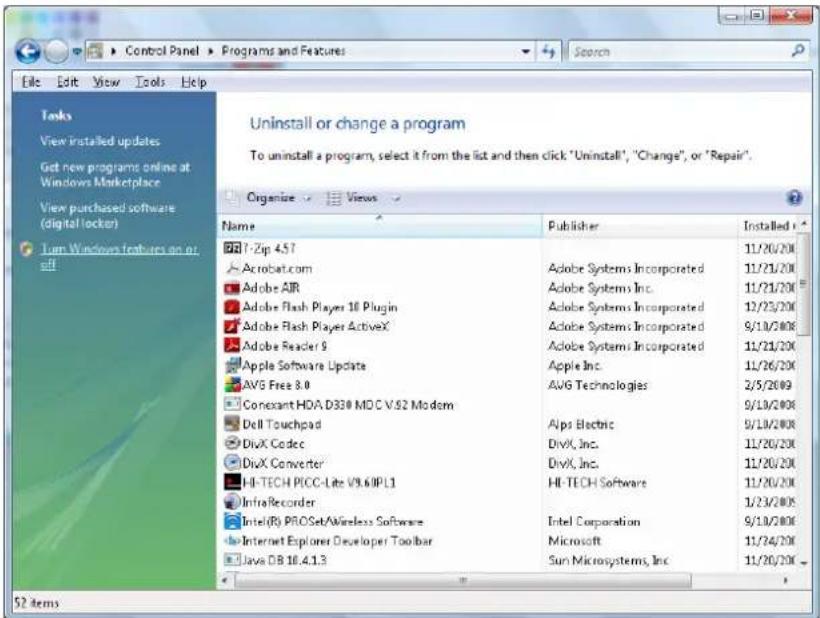

Control Panel > Programs and Features File Edit View Tools Help Tasks View installed updates Get new programs online at Windows Marketplace View purchased software (digital locker) Turn Windows features on or off Uninstall or change a program To uninstall a program, select it from the list and then click "Uninstall", "Change", or "Repair". Organize Views Name Publisher Installed T-Zip 4.57 11/20/200 Acrobat.com Adobe Systems Incorporated 11/21/200 Adobe AIR Adobe Systems Inc. 11/21/200 Adobe Flash Player 16 Plugin Adobe Systems Incorporated 12/23/200 Adobe Flash Player ActiveX Adobe Systems Incorporated 9/18/2006 Adobe Reader 9 Adobe Systems Incorporated 11/21/200 Apple Software Update Apple Inc. 11/26/200 AVG Free 8.0 AVG Technologies 2/5/2009 Concast HDA D330 MDC V.52 Modem 9/13/2008 Dell Touchpad Alps Electric 9/18/2008 DivX Codec DivX, Inc. 11/20/200 DivX Converter DivX, Inc. 11/20/200 HI-TECH PICC-Lite V3.6IPL1 HI-TECH Software 11/20/200 InfraRecorder 1/23/2005 Intel(R) PROSet/Wireless Software Intel Corporation 9/18/2000 Internet Explorer Developer Toolbar Microsoft 11/24/200 Java DB 16.4.1.3 Sun Microsystems, Inc 11/20/200 52 items

Select "Turn Windows features on or off" to open

Turn Windows features on or off To turn a feature on, select its check box. To turn a feature off, clear its check box. A filled box means that only part of the feature is turned on. RIP Listener Simple TCPIP services (i.e. echo, daytime etc) SNMP feature Tablet PC Optional Components Telnet Client Telnet Server TFTP Client Windows DFS Replication Service Windows Fax and Scan Windows Meeting Space Windows Process Activation Service OK Cancel

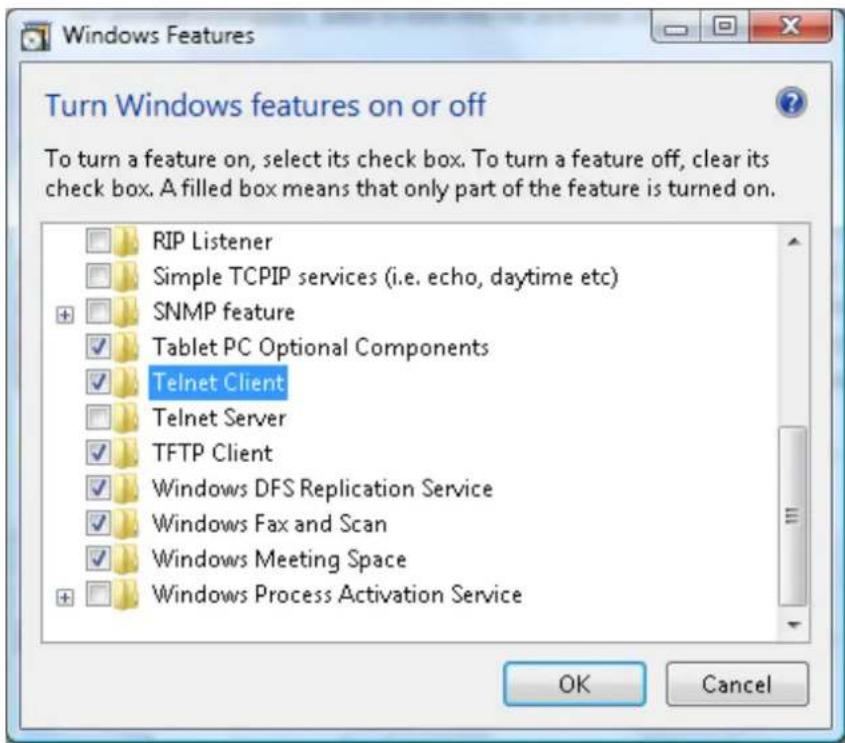

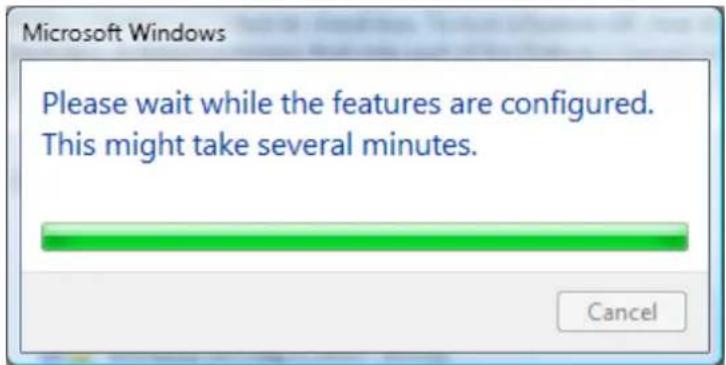

Have "Telnet Client" option checked, then press "OK" button.

Microsoft Windows Please wait while the features are configured. This might take several minutes.

Specsheet for "RS232 by TELNET":

1. Telnet: TCP
2. Telnet port: 8000
3. Telnet utility: Windows "TELNET.exe" (console mode)
4. Disconnection for RS232-by-Telnet control normally: Close Windows Telnet utility directly after TELNET connection ready
5. Limitation 1 for Telnet-Control: there is only one connection for Telnet-Control in one projector

Limitation 2 for Telnet-Control: there is less than 50 bytes for successive network payload for Telnet-Control application.

Limitation 3 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for Telnet-Control.

Limitation 4 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).

(*, In Windows XP built-in "TELNET.exe" utility, "Enter" key pressed will have "Carriage-Return" and "New-Line" code.)

1. The IP-Address setting/modification on OSD would be 'tempo-DISABLED', while RS232-by-Telnet connected running.

2. There is either/or option concerned for the RS232-by-Telnet, Crestron RoomView-Connected functions.

3. The Crestron RoomView-Connected is enabled by default. Once the RS232-by-Telnet enabled, the Crestron RoomView-Connected and IP-Address changing(re-configuration) function would be disabled silently.

4. Once the RS232-by-Telnet disconnected normally, the Crestron RoomView-Connected would be re-start in 5 seconds for control of manual re-connection in LAN.

5. Before the RS232-by-Telnet connection running, kindly please have the IP Address field to be "0.0.0.0" setting of "Crestron Control" in the Crestron web-FLASH UI to ease the bulky massive Crestron-Type packets.

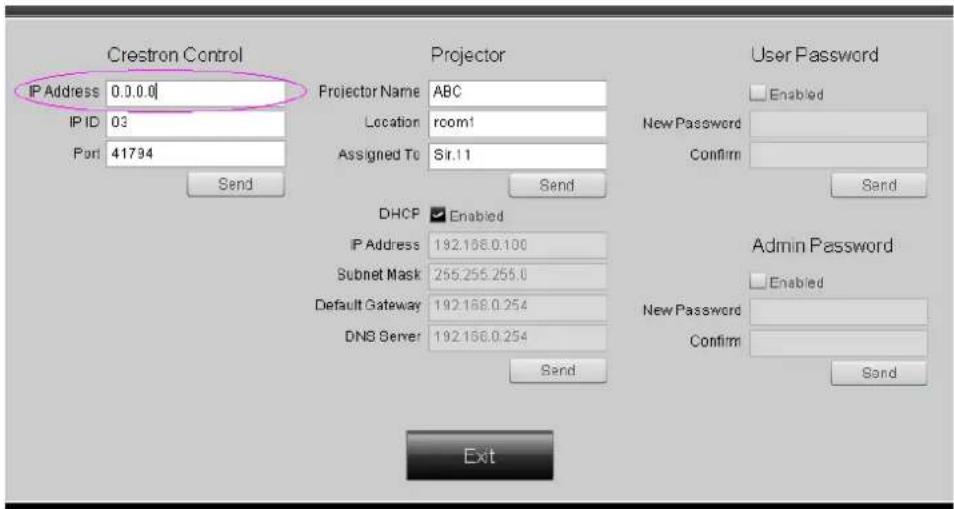

Crestron Control IP Address 0.0.0.0 IP ID 03 Port 41794 Send Projector Projector Name ABC Location room1 Assigned To Sir.11 DHCP Enabled IP Address 192.168.0.100 Subnet Mask 255.255.255.0 Default Gateway 192.168.0.254 DNS Server 192.168.0.254 Send User Password Enabled New Password Confirm Send Admin Password Enabled New Password Confirm Send Exit

CRESTRON
Expansion Options

Factory Reset

Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the Factory Reset sub menu and press ← (Enter) / ▶ to reset all the menu items to the factory default values (expect Language and Security Lock).

Image Computer Video / Audio Installation I Installation II Auto Source Off Auto Power Off (min) 0 Auto Power On Off Fan Speed Normal Lamp Mode Normal Advanced Factory Reset +/+ Status +/+ Menu = Exit Item Adjust +/-/ Scroll ▲▼

Status

Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the Installation II sub menu and press ← (Enter) / ▶ to enter the Status sub menu.

Image Computer Video / Audio Installation I Installation II Status Active Source Analog RGB Video Information 1024 x 768 @ 60 Hz Lamp Hours (Eco , Normal) 0 0 Menu = Exit

ITEM DESCRIPTION
Active Source Display the activated source.
Video Information	Displays resolution/video information for RGB source and color standard for Video source.
Lamp Hours Lamp hour used information is displayed. Eco and Normal counters are separated.

MAINTENANCE AND SECURITY

Replacing the Projection Lamp

The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer.

Important:

a. The projection lamp used in this product contains a small amount of mercury.
b. Do not dispose this product with general household waste.
c. Disposal of this product must be carried out in accordance with the regulations of your local authority.

Warning:

Be sure to turn off and unplug the projector at least 30 minutes before replacing the lamp. Failure to do so could result in a severe burn.

Caution:

In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards to be discharged outward from the rear exhaust vent.

Do not inhale or do not touch glass dust or shards. Doing so could result in injury.

Always keep your face away from the exhaust vent so that you do not suffer from the gas and broken shards of the lamp.

When removing the lamp from a ceiling-mounted projector, make sure that no one is under the projector. Glass fragments could fall if the lamp has been burned out.

IF A LAMP EXPLODES

If a lamp explodes, the gas and broken shards may scatter inside the projector and they may come out of the exhaust vent. The gas contains toxic mercury.

Open windows and doors for ventilation.

If you inhale the gas or the shards of the broken lamp enter your eyes or mouth, consult the doctor immediately.

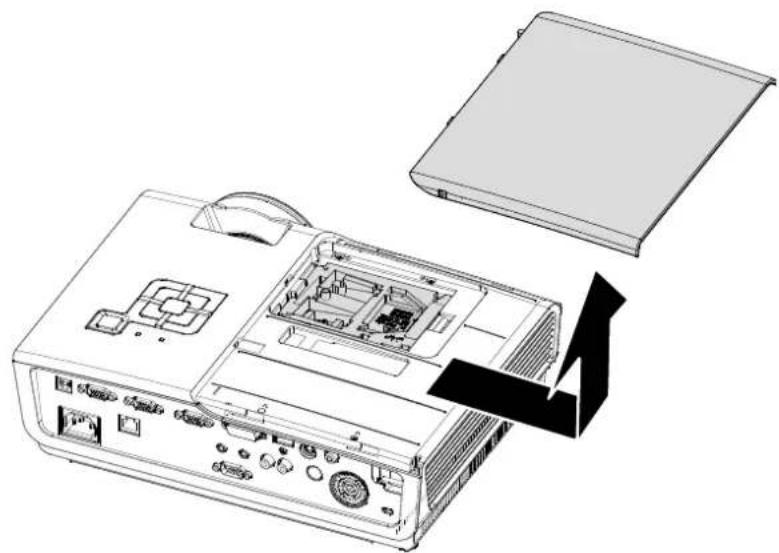

1. Remove the single screw on the lamp compartment cover.

Technical diagram of an electronic device rear panel with labeled ports, connectors, and a screwdriver inserted into the case.

1. Remove the lamp compartment cover.

Diagram of an open projector case with internal components and a separate cover (no text or symbols)

1. Remove the three screws from the lamp module.

2. Lift the module handle up.

3. Pull firmly on the module handle to remove the lamp module.

Technical diagram showing a device's internal components with labeled parts and directional arrows indicating assembly or operation.

Diagram of an electronic projector with internal components and a black arrow indicating the process (no text or symbols present)

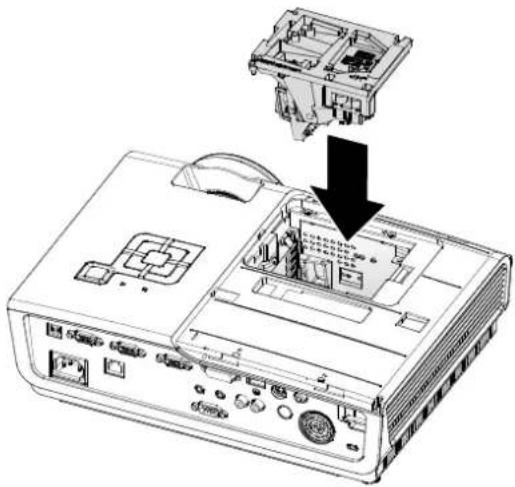

1. Reverse steps 1 to 5 to install the new lamp module. While installing, align the lamp module with the connector and ensure it is level to avoid damage.

Note: The lamp module must sit securely in place and the lamp connector must be connected properly before tightening the screws.

Diagram of an electronic device showing a component being inserted into a module, with no visible text or symbols.

Resetting the Lamp

After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:

1. Press the MENU button to open the OSD menu.
2. Press the cursor ◀▶ button to move to the Installation II menu. Press the cursor button to move down to Advanced.

3. Press the cursor ▼▲ button to move down to Lamp Hour Reset.

4. Press the cursor ▶ or Enter button.
   A message screen appears.

5. Press ▼▲◀▶ buttons to reset the lamp hour.
6. Press the MENU button to get back to Installation II.

Image Computer Video / Audio Installation I Installation II Auto Source Off Auto Power Off (min) 0 Auto Power On Off Fan Speed Normal Lamp Mode Normal Advanced Factory Reset Status Menu = Exit Item Adjust < img src=""> Scroll < img src="">

Advanced OSD Menu Setting Peripheral Test Lamp Hour Reset Low Power Mode 3D RS232 Network Off RS232 Menu = Exit Item Adjust < /> Scroll ▲▼

Image Computer Video / Audio Installation / Installation II Advanced\ Lamp Hour Reset Please See User Manual ... Menu = Exit

Cleaning the Projector

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.

Warning:

1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so could result in a severe burn.
2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings on the projector.
3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated room for several hours before using.
4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.

Cleaning the Lens

You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the projector lens.

1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)
2. Lightly wipe the lens in a circular motion.

Caution:

1. Do not use abrasive cleaners or solvents.

2. To prevent discoloration or fading, avoid getting cleaner on the projector case.

Cleaning the Case

Refer to the following to clean the projector case.

1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe the case.
3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

Using the Kensington ^® Lock & Using the Security Bar

If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable.

Vivitek VSP 007 VISA M-1 VISA M-2 VAC AUDIO AUDIO M VSP 007 VISA M-1 VISA M-2 VSP 007 VISA M-1 VISA M-2 VSP 007 VISA M-1 VISA M-2 VSP 007 VISA M-1 VISA M-2 VSP 007 VISA M-1 VISA M-2 VSP 007 VISA M-1 VISA M-2 VSP 3000 VISA M-1 VISA M-2 VSP 3000 VISA M-1 VISA M-2 VSP 3000 VISA M-1 VISA M-2 VSP 3000 VISA M-1 VISA M-2 VSP 3000 VISA M-1 VISA M-2 VSP 3001 VISA M-1 VISA M-2 VSP 3001 VISA M-1 VISA M-2 VSP 3001 VISA M-1 VISA M-2 VSP 3001 VISA M-1 VISA M-2 VSP 3001 VISA M-1 VISA M-2 VSP 3002 VISA M-1 VISA M-2 VSP 3002 VISA M-1 VISA M-2 VSP 3002 VISA M-1 VISA M-2 VSP 3002 VISA M-1 VISA M-2 VSP 3002 VISA M-1 VISA M-2 VSP 3003 VISA M-1 VISA M-2 VSP 3003 VISA M-1 VISA M-2 VSP 3003 VISA M-1 VISA M-2 VSP 3003 VISA M-1 VISA M-2 VSP 3003 VISA M-1 VISA M-2 VSP 3004 VISA M-1 VISA M-2 VSP 3004 VISA M-1 VISA M-2 VSP 3004 VISA M-1 VISA M-2 VSP 3004 VISA M-1 VISA M-2 VSP 3004 VISA M-1 VISA M-2 VSP 3005 VISA M-1 VISA M-2 VSP 3005 VISA M-1 VISA M-2 VSP 3005 VISA M-1 VISA M-2 VSP 3005 VISA M-1 VISA M-2 VSP 3005 VISA M-1 VISA M-2 VSP 3006

Note:

Contact your vendor for details on purchasing a suitable Kensington security cable.

The security lock corresponds to Kensington's MicroSaver Security System. If you have any comment, contact: Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. Tel: [phone], http://www.Kensington.com.

Using the Security Bar

In addition to the password protection function and the Kensington lock, the Security Bar helps protect the projector from unauthorized removal. See the following picture.

VIVITEK VIVA OUT VIVA IN-1 VIVA IN-2 I/O I/O H/M0 & VIDEO IN VIDEO IN I/O I/O LAW D:\Project\虚拟化数据\虚拟化数据\Media in China

TROUBLESHOOTING

Common problems and solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.

• Use some other electrical device to confirm that the electrical outlet is working.
• Ensure the projector is turned on.
• Ensure all connections are securely attached.
• Ensure the attached device is turned on.
• Ensure a connected PC is not in suspending mode.
• Ensure a connected notebook computer is configured for an external display. (This is usually done by pressing a Fn-key combination on the notebook).

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the problem more quickly.

Try to pin point the problem and thus avoid replacing non-defective parts.

For example, if you replace batteries and the problem remains, put the original batteries back and go to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel.

LED Error Messages

ERROR CODE MESSAGES	POWER LED BLINK	READY LED BLINK	TEMP LED BLINK
Over temperature OFF OFF ON
G794 fail 4 4 OFF
T1 fail 4 5 OFF
Lamp error 5 OFF OFF
Fan1 error (Burner Fan) 6 1 OFF
Fan2 error (Lamp Fan) 6 2 OFF
Fan3 error (Power Fan) 6 3 OFF
Fan4 error (DMD Fan) 6 4 OFF
Lamp door open 7 OFF OFF
DMD error 8 OFF OFF
Color wheel error	9 OFF OFF
Ballast error	10 OFF OFF
Ballast communication error	10	1 OFF

In the event of an error, please disconnect the AC power cord and wait for one (1) minute before re-starting the projector. If the POWER or RESDY LEDs are still blinking or the TEMP LED is lit, contact your service center.

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.
2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.
2. Press the Auto button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.
4. Check that the projector lens is clean.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control or projector to correct the problem.

Problem: The image is reversed

Check the Projection setting on the Installation I menu of the OSD.

Problem: The image is streaked

1. Set the Frequency and Tracking settings on the Computer menu of the OSD to the default settings.
2. To ensure the problem is not caused by a connected PC's video card, connect to another computer.

Problem: The image is flat with no contrast

Adjust the Contrast setting on the Image menu of the OSD.

Problem: The color of the projected image does not match the source image.

Adjust the Color Temperature and Gamma settings on the Image menu of the OSD.

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is green.
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Re-plug power cord. When the READY LED is on, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.
2. Ensure the path between remote and sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the battery polarity.
5. Replace the batteries.
6. Turn off other Infrared-enabled devices in the vicinity.
7. Have the remote control serviced.

Audio Problems

Problem: There is no sound

1. Adjust the volume on the remote control.
2. Adjust the volume of the audio source.
3. Check the audio cable connection.
4. Test the source audio output with other speakers.
5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.
2. Test the source audio output with other speakers.
3. Have the projector serviced.

Having the Projector Serviced

If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the original carton. Include a description of the problem and a checklist of the steps you took when trying to fix the problem: The information may be useful to service personnel. For servicing, return the projector to the place you purchased it.

SPECIFICATIONS

Specifications

Model	D965
Display type	TI DMD 0.7" XGA
Native Resolution	XGA 1024x768
Weight	3.75 kg (8.27 lbs)
Projection distance	1 meters ~ 10 meters
Projection screen	23.4"~300"
Projection lens	Manual Focus/Manual Zoom
Zoom ratio	1.15
Vertical keystone	+/- 15 degrees, 40 steps
Projection methods	Front, Rear, Desktop/Ceiling (Rear, Front)
Data compatibility	VGA, SVGA, XGA, SXGA, UXGA, Mac
SDTV/EDTV/ HDTV	480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Video compatibility	NTSC/NTSC 4.43, PAL (B/G/H/I/M/N/60), SECAM
H-Sync	15, 31 – 90 kHz
V-Sync	50 – 85 Hz
Safety certification	FCC-B, UL, cUL, CB, CE, CCC, KC, PCT, PSB, ICES-003 (Canada),C-tick,SASO, CECP, TW ECO Label
Operation tempera-	5° ~ 35°C
Dimensions	335 mm (W) x 102 mm (H) x 256 mm (D)
AC Input	AC Universal 100 ~ 240, Typical @ 110VAC (100~240)/+-10%
Power consumption	380W
Stand By	<1 watt
Lamp	300W
Audio speaker	3W mono speaker
Input Terminals	VGA x 2
	S-Video x 1
	Composite Video x 1
	HDMI x 1
	DVI x 1
	RCA stereo x 1
	Mini-jack stereo x 1
Output Terminals	VGA x 1 (Loop Thru only for VGA IN-1)
	Mini-jack stereo x 1
Control Terminals	RS-232C
	RJ45
	USB (type B) ; 12V trigger
Security	Kensington lock

Projection Distance vs. Projection Size

Projection Distance Keystone Correction Angle Image Hight A

Projection Distance and Size Table

TELE					WIDE
Distance (m) 1.28 3.41 4.27	8.53	1.46	2.93	3.66	10.97
Diagonal (inches) 30 80 100	200 40 80	100 300
Keystone (degree) 12.55 12.55	12.55	12.55	14.56	14.56	14.56	14.56
Image Height (mm)	457.2	1219.2	1524	3048	609.6	1219.2	1524	4572
Image Width (mm)	609.6	1625.6	2032	4064	812.8	1625.6	2032	6096
A (mm)	56.4	150.5	188.1	376.3	75.3	150.5	188.1	564.4

Timing Mode Table

The projector can display several resolutions. The following table outlines the resolutions that can be displayed by the projector.

SIGNAL RESOLUTION		H-SYNC (KHz)	V-SYNC (Hz)	COMPOSITE / S-VIDEO	COMPONENT	RGB (ANALOG)	DVI/ HDMI (DIGITAL)
NTSC	—	15.734		60.0	—	O
PAL/SECAM	—	15.625	50.0	O	—	—
VESA	720 x 400 37.9 85.0 —	—	O O
	640 x 480 31.5 60.0 —	—	O O
	640 x 480 37.9 72.8 —	—	O O
	640 x 480 37.5 75.0 —	—	O O
	640 x 480 43.3 85.0 —	—	O O
	800 x 600 35.2 56.3 —	—	O O
	800 x 600 37.9 60.3 —	—	O O
	800 x 600 46.9 75.0 —	—	O O
	800 x 600 48.1 72.2 —	—	O O
	800 x 600 53.7 85.1 —	—	O O
	1024 x 768 48.4 60.0 —	—	O O
	1024 x 768 56.5 70.1 —	—	O O
	1024 x 768 60.0 75.0 —	—	O O
	1024 x 768 68.7 85.0 —	—	O O
	1280 x 800 49.7 59.8 —	—	O O
	1280 x 800 62.8 74.9 —	—	O O
	1280 x 800 71.6 84.8 —	—	O O
	1280 x 1024 64.0 60.0 —	—	O O
	1280 x 1024 80.0 75.0 —	—	O O
	1280 x 1024 91.1 85.0 —	—	O O
	1400 x 1050 65.3 60.0 —	—	O O
	1440 x 900 55.9 60.0 —	—	O O
	1600 x1200 75.0	60		— — O O
Apple Macintosh	640 x 480 35.0 66.7 —	—	O O
	832 x 624 49.7 74.5 —	—	O O
	1024 x 768 60.2 74.9 —	—	O O
	1152 x 870 68.7 75.1 —	—	O O
SDTV	480i	15.734	60.0	—	O	—	O
	576i	15.625	50.0	—	O	—	O
EDTV	576p	31.3	50.0	—	O	—	O
	480p	31.5	60.0	—	O	—	O

DLP Projector—User's Manual

SIGNAL RESOLUTION		H-SYNC (KHz)	V-SYNC (Hz)	COMPOSITE / S-VIDEO	COMPONENT	RGB (ANALOG)	DVI/ HDMI (DIGITAL)
HDTV	720p	37.5	50.0	—		O	—
	720p	45.0	60.0	—		O	—
	1080i	33.8	60.0		—	O
	1080i	28.1	50.0		—	O
	1080p	67.5	60.0		—	O
	1080p	56.3	50.0		—	O

O: Frequency supported
—: Frequency not supported

Projector Dimensions

REGULATORY COMPLIANCE

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense.

Changes or modifications not expressly approved by the parties responsible for compliance could void the user's authority to operate the equipment.

Canada

This class B digital apparatus complies with Canadian ICES-003.

Safety Certifications

FCC-B, UL, cUL, CB, CE, CCC, KC, PCT, PSB, ICES-003 (Canada), C-tick, SASO, CECP and TW ECO Label

APPENDIX I

RS-232C Protocol

RS232 Setting

Baud rate: 9600
Parity check:	None
Data bit: 8
Stop bit: 1
Flow Control	None

Minimum delay for next command: 1ms

Control Command Structure

	Header code	Command code	Data code	End code
HEX		Command	Data	0Dh
ASCII ‘V’	Command Data			CR

Operation Command

Note:XX=00-98, projector's ID, XX=99 is for all projectorsReturn Result P=Pass / F=Failn: 0:Disable/1: Enable/Value(0~9999)

Command Group 00
ASCII	HEX	Function	Description	Return Result
VXXS0001	56h Xh Xh 53h 30h 30h 30h 31h 0Dh	Power On		P/F
VXXS0002	56h Xh Xh 53h 30h 30h 30h 32h 0Dh	Power Off		P/F
VXXS0003	56h Xh Xh 53h 30h 30h 30h 33h 0Dh	Resync		P/F
VXXG0004	56h Xh Xh 47h 30h 30h 30h 34h 0Dh	Get Lamp Hours		Pn/F
VXXS0006	56h Xh Xh 53h 30h 30h 30h 36h 0Dh	System Reset		P/F
VXXG0007	56h Xh Xh 47h 30h 30h 30h 37h 0Dh	Get System Status	0:Reset1:Standby2:Operation3:Cooling	Pn/F
VXXG0008	56h Xh Xh 47h 30h 30h 30h 38h 0Dh	Get F/W Version		Pn/F

Command Group 01
ASCII	HEX	Function	Description	Return Value
VXXG0101	56h Xh Xh 47h 30h 31h 30h 31h 0Dh	Get Brightness	n=0~100	Pn/F
VXXS0101n	56h Xh Xh 53h 30h 31h 30h 31h nh 0Dh	Set Brightness	n=0~100	P/F
VXXG0102	56h Xh Xh 47h 30h 31h 30h 32h 0Dh	Get Contrast	n=0~100	Pn/F
VXXS0102n	56h Xh Xh 53h 30h 31h 30h 32h nh 0Dh	Set Contrast	n=0~100	P/F
VXXG0103	56h Xh Xh 47h 30h 31h 30h 33h 0Dh	Get Color	n=0~100	Pn/F
VXXS0103n	56h Xh Xh 53h 30h 31h 30h 33h nh 0Dh Set Color n=0~100 P/F
VXXG0104	56h Xh Xh 47h 30h 31h 30h 34h 0Dh	Get Tint	n=0~100	Pn/F
VXXS0104n	56h Xh Xh 53h 30h 31h 30h 34h nh 0Dh Set Tint n=0~100 P/F
VXXG0105	56h Xh Xh 47h 30h 31h 30h 35h 0Dh	Get Sharpness	0~31	Pn/F
VXXS0105n	56h Xh Xh 53h 30h 31h 30h 35h nh 0Dh	Set Sharpness	0~31	P/F
VXXG0106	56h Xh Xh 47h 30h 31h 30h 36h 0Dh	Get Color Temperature	0: Cold1: Normal2: Warm	Pn/F
VXXS0106n	56h Xh Xh 53h 30h 31h 30h 36h nh 0Dh	Set Color Temperature	0: Cold1: Normal2: Warm	P/F
VXXG0107	56h Xh Xh 47h 30h 31h 30h 37h 0Dh Get Gamma	0: 1.01: 1.82: 2.03: 2.24: 2.355: 2.5	Pn/F
VXXS0107n	56h Xh Xh 53h 30h 31h 30h 37h nh 0Dh Set Gamma	0: 1.01: 1.82: 2.03: 2.24: 2.355: 2.5	P/F

Command Group 02
ASCII	HEX	Function	Description	Return Value
VXXS0201	56h Xh Xh 53h 30h 32h 30h 31h 0Dh	Select RGB		P/F
VXXS0202	56h Xh Xh 53h 30h 32h 30h 32h 0Dh	Select RGB2		P/F
VXXS0203	56h Xh Xh 53h 30h 32h 30h 33h 0Dh	Select DVI		P/F
VXXS0204	56h Xh Xh 53h 30h 32h 30h 34h 0Dh	Select Video		P/F
VXXS0205	56h Xh Xh 53h 30h 32h 30h 35h 0Dh	Select S-Video		P/F
VXXS0206	56h Xh Xh 53h 30h 32h 30h 36h 0Dh	Select HDMI		P/F
VXXG0220	56h Xh Xh 47h 30h 32h 30h 0Dh	Get Current Source	Return1:RGB2:RGB23:DVI4:Video5:S-Video6:HDMI	Pn/F
Command Group 03
ASCII	HEX	Function	Description	Return Value
VXXG0301 56h Xh Xh 47h 30h 33h 30h 31h 0Dh Get Scaling		0: Fill1: 4:32: 16:93 :Letter Box4 :Native5: 2.35:1	Pn/F
VXXS0301n 56h Xh Xh 53h 30h 33h 30h 31h nh 0Dh Set Scaling		0: Fill1: 4:32: 16:93 :Letter Box4 :Native5: 2.35:1	P/F
VXXG0302	56h Xh Xh 47h 30h 33h 30h 32h 0Dh	Blank		Pn/F
VXXS0302n	56h Xh Xh 53h 30h 33h 30h 32h nh 0Dh	Blank		P/F
VXXG0304	56h Xh Xh 47h 30h 33h 30h 34h 0Dh	Freeze On		Pn/F
VXXS0304n	56h Xh Xh 53h 30h 33h 30h 34h nh 0Dh	Freeze On		P/F
VXXG0305 56h Xh Xh 47h 30h 33h 30h 35h 0Dh Volume n=0~8 Pn/F
VXXS0305n 56h Xh Xh 53h 30h 33h 30h 35h nh 0Dh Volume n=0~8 P/F
VXXG0308 56h Xh Xh 47h 30h 33h 30h 38h 0Dh Projection Mode		0:Front1:Rear2: Ceiling3: Rear+Ceiling	Pn/F
VXXS0308n	56h Xh Xh 53h 30h 33h 30h 38h nh 0Dh	Projection Mode	0:Front1:Rear2: Ceiling3: Rear+Ceiling	P/F
VXXG0309 56h Xh Xh 47h 30h 33h 30h 39h 0Dh		Set vertical key-stone value	n=-40~+40	Pn/F
VXXS0309n	56h Xh Xh 53h 30h 33h 30h 39h nh 0Dh	Set vertical key-stone value	n=-40~+40	P/F
VXXG0311 56h Xh Xh 47h 30h 33h 31h 31h 0Dh Adjust the zoom n=-10~+10 Pn/F
VXXS0311n 56h Xh Xh 53h 30h 33h 31h 31h nh 0Dh Adjust the zoom n=-10~+10 P/F
Command Group 04 (Remote Control)
ASCII	HEX	Function	Description	Return Value
VXXS0401	56h Xh Xh 53h 30h 34h 30h 31h 0Dh	UP arrow		P/F
VXXS0402	56h Xh Xh 53h 30h 34h 30h 32h 0Dh	DOWN arrow		P/F
VXXS0403	56h Xh Xh 53h 30h 34h 30h 33h 0Dh	LEFT arrow		P/F
VXXS0404	56h Xh Xh 53h 30h 34h 30h 34h 0Dh	RIGHT arrow		P/F
VXXS0405	56h Xh Xh 53h 30h 34h 30h 35h 0Dh	POWER		P/F
VXXS0406	56h Xh Xh 53h 30h 34h 30h 36h 0Dh	EXIT		P/F
VXXS0407	56h Xh Xh 53h 30h 34h 30h 37h 0Dh	INPUT		P/F
VXXS0408	56h Xh Xh 53h 30h 34h 30h 38h 0Dh	AUTO		P/F
VXXS0409	56h Xh Xh 53h 30h 34h 30h 39h 0Dh	KEYSTONE+		P/F
VXXS0410	56h Xh Xh 53h 30h 34h 31h 30h 0Dh	KEYSTONE-		P/F
VXXS0411	56h Xh Xh 53h 30h 34h 31h 31h 0Dh	MENU		P/F
VXXS0412	56h Xh Xh 53h 30h 34h 31h 32h 0Dh	STATUS		P/F
VXXS0413	56h Xh Xh 53h 30h 34h 31h 33h 0Dh	MUTE		P/F
VXXS0414	56h Xh Xh 53h 30h 34h 31h 34h 0Dh	ZOOM+		P/F
VXXS0415	56h Xh Xh 53h 30h 34h 31h 35h 0Dh	ZOOM-		P/F
VXXS0416	56h Xh Xh 53h 30h 34h 31h 36h 0Dh	BLANK		P/F
VXXS0417	56h Xh Xh 53h 30h 34h 31h 37h 0Dh	FREEZE		P/F
VXXS0418	56h Xh Xh 53h 30h 34h 31h 38h 0Dh	VOLUME+		P/F
VXXS0419	56h Xh Xh 53h 30h 34h 31h 39h 0Dh	VOLUME-		P/F
VXXS0420	56h Xh Xh 53h 30h 34h 32h 30h 0Dh	Enter		P/F
