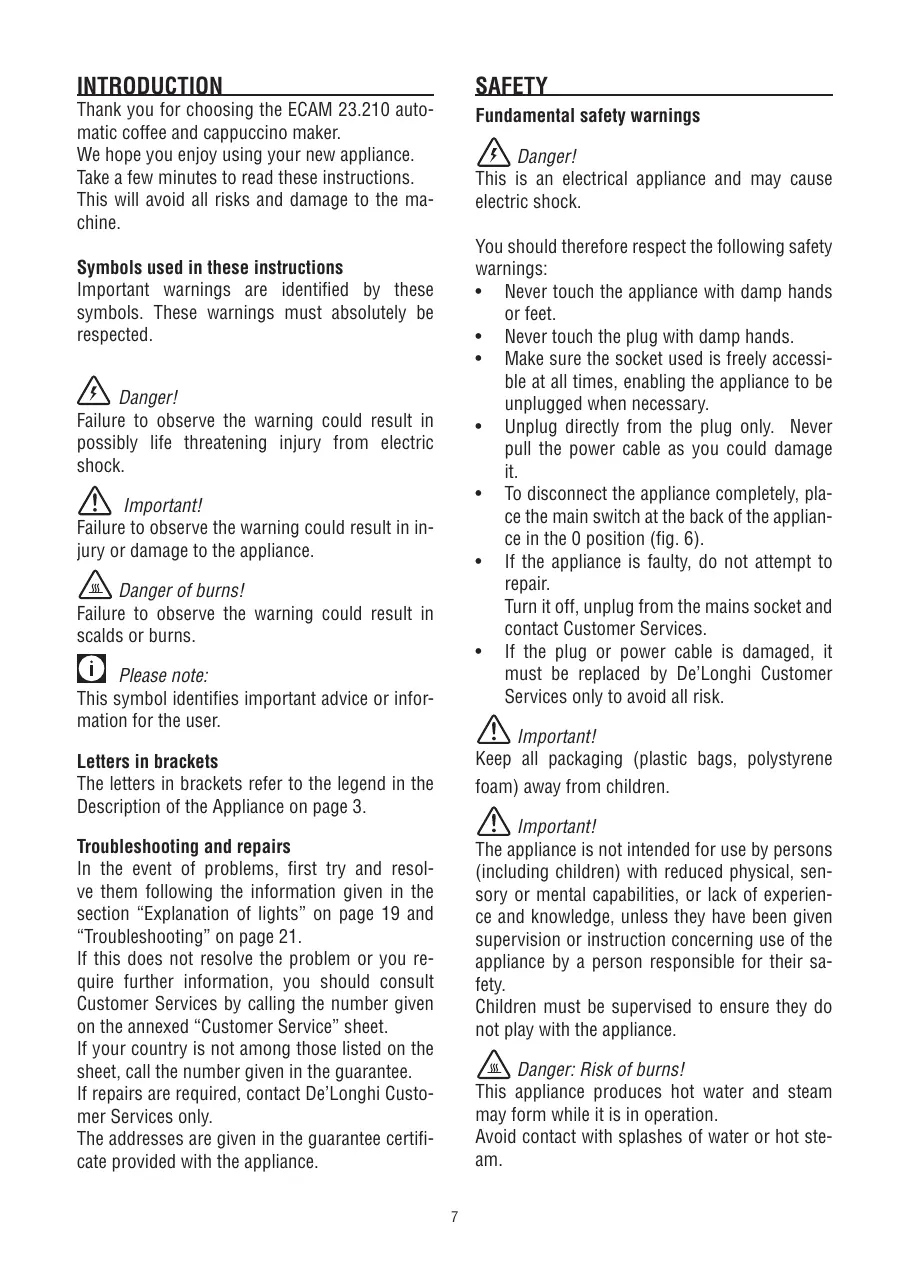

INTRODUCTION SAFETY Thank you for choosing the ECAM 23.210 auto- matic coffee and cappuccino maker. We hope you enjoy using your new appliance. Take a few minutes to read these instructions. This will avoid all risks and damage to the ma- chine. Symbols used in these instructions Important warnings are identified by these symbols. These warnings must absolutely be respected. VAN Danger! Failure to observe the warning could result in possibly life threatening injury from electric shock. A Important! Failure to observe the warning could result in in- jury or damage to the appliance. JAN Danger of burns! Failure to observe the warning could result in Scalds or burns. Q Please note: This symbol identifies important advice or infor- mation for the user. Letters in brackets The letters in brackets refer to the legend in the Description of the Appliance on page 3. Troubleshooting and repairs In the event of problems, first try and resol- ve them following the information given in the section “Explanation of lights” on page 19 and “Troubleshooting” on page 21. If this does not resolve the problem or you re- quire further information, you should consult Customer Services by calling the number given on the annexed “Customer Service” sheet. If your country is not among those listed on the Sheet, call the number given in the guarantee. If repairs are required, contact De’Longhi Custo- mer Services only. The addresses are given in the guarantee certifi- cate provided with the appliance. Fundamental safety warnings VAN Danger! This is an electrical appliance and may cause electric shock. You should therefore respect the following safety warnings: + Never touch the appliance with damp hands or feet. + Never touch the plug with damp hands. + Make sure the socket used is freely accessi- ble at all times, enabling the appliance to be unplugged when necessary. + Unplug directly from the plug only. Never pull the power cable as you could damage it. + To disconnect the appliance completely, pla- ce the main switch at the back of the applian- ce in the O position (fig. 6). + lfthe appliance is faulty, do not attempt to repair. Turn it off, unplug from the mains socket and contact Customer Services. + lfthe plug or power cable is damaged, it must be replaced by De’Longhi Customer Services only to avoid all risk. VAN Important! Keep all packaging (plastic bags, polystyrene foam) away from children. A Important! The appliance is not intended for use by persons {including children) with reduced physical, sen- sory or mental capabilities, or lack of experien- ce and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their sa- fety. Children must be supervised to ensure they do not play with the appliance. VAN Danger: Risk of burns! This appliance produces hot water and steam may form while it is in operation. Avoid contact with splashes of water or hot ste- am.

DESIGNATED USE This appliance is designed and made to prepare coffee and heat drinks. All other use is considered improper. This appliance is not suitable for commercial use. The manufacturer is not liable for damage deri- ving from improper use of the appliance. This is an household appliance only. Itis not intended to be used in: + staff kitchen areas in shops, offices and other working environments; + farm houses; + by clients in hotels, motels and other resi- dential type environments: + bed and breakfast type environments. INSTRUCTIONS Read these instructions carefully before using the appliance. -_ Failure to follow these instructions may re- sult in burns or damage to the appliance. The manufacturer is not liable for damage deriving from failure to respect these in- structions. ©) Please note: Keep these instructions. If the appliance is pas- sed to other persons, they must also be provided with these instructions. DESCRIPTION Description of the appliance [page 3-[A) Control panel ns Grinding adjustment knob A3. Cup shelf A4. Beans container lid A5. Pre-ground coffee funnel lid A6. Pre-ground coffee funnel A7. Beans container A8. Main switch A9. Water tank A10. Infuser door A1. Infuser A12. Coffee spout (adjustable height) A13. Coffee grounds container A14. Condensate tray A15. Cup tray A16. Drip tray water level indicator A17. Drip tray A18. Cappuccino maker A19. Steam/hot water knob Description of the control panel (page 2- [B |) A number of buttons on the panel have à double function. This is indicated in brackets in the de- Scription. Bi. Lignis B2. : button: turns the appliance on and off. B3. P button to access the menu B4. no) button: to perform a rinse cycle. ‘hen in the settings MENU, it acts as the “ESC” button to exit from the selected fun- ction and go back to the main menu). . Selection knob: turn to select the required quantity of coffee. (When in the settings MENU, turn to select the required function). (| @ aroma selection button: to select the coffee taste B7. ©7 button: to make 1 cup of coffee \vith the settings displayed B8. Z, button: to make 2 cups of coffee with thé ettings displayed B9. button: to deliver steam to make hot drinks with milk. (When you access the MENU: “OK” button to confirm the selection made)

Description of the accessories (page 2 - C1. Measure C2. Cleaning brush C3. Descaler bottle C4. Water softener filter (certain models only) Description of lights Light flashing: the machine is heating up î or a rinse cycle is underway. The appliance is delivering two cups of coffee. “Energy Saving” mode is active.

E Light on steadily: the “steam” function has been selected;

Light flashing: you must turn the steam knob. An alarm is displayed on the control UN panel (see the section: “Explanation of lights”). Light flashing: the water softener filter must be replaced. Light on steadily: the grounds container Ex is missing and must be inserted in the “7 appliance; Light flashing: the grounds container is full and must be emptied. Light on steadily: the water tank is mis- > Sing: Light flashing: there is not enough water in the tank. Light flashing: the appliance must be de- scaled (see the section “Descaling”). Indicates the button to press to exit the programming menu or selected fun- tion. Indicates the button to press to confirm the function selected in the program- >> ming menu. ele <ESC PRELIMINARY CHECKS Checking the appliance After removing the packaging, make sure the product is complete and undamaged and that all accessories are present. Do not use the appliance if it is visibly damaged. Contact De’Longhi Customer Services. Installing the appliance AN Important! When installing the appliance, respect the fol- lowing safety warnings: + The appliance gives off heat. After positioning the appliance on the worktop, leave a space of at least 3 cm between the surfaces of the appliance and the side and rear walls and at least 15 cm above the coffee maker. + Water penetrating the coffee maker could cause damage. Do not place the appliance near taps or sin- ks. + The appliance could be damaged if the water it contains freezes. Do not install the appliance in a room where the temperature could drop below freezing point. + Arrange the power cable in such a way that it cannot be damaged by sharp edges or con- tact with hot surfaces (e.g. electric hot pla- tes). Connecting the appliance À Important! Check that the mains power supply voltage cor- responds to the value indicated on the rating pla- te on the bottom of the appliance. Connect the appliance to an efficiently earthed and correctly installed socket with a minimum current rating of 10A only. If the power socket does not match the plug on the appliance, have the socket replaced with a suitable type by a qualified professional. Using the appliance for the first time ©) Please note! + Coffee has been used to factory test the ap- pliance and it is therefore completely normal

for there to be traces of coffee in the mill. The machine is, however, guaranteed to be new. + You should customise water hardness as soon as possible following the instructions in the section “Setting water hardness” on page 17. Follow the instructions:

1. Remove the water tank, fill to the MAX line

with fresh water (fig. 1A) then put back in the appliance (fig. 1B).

2. Place a container with a minimum capacity

of 100 ml under the cappuccino maker (fig. 2).

3. Plug the appliance into the mains socket and

place the main switch on the back of the ap- pliance in the 1 position (fig. 3).

4. The di, light flashes on the control panel

5. Turn the steam knob to the “1” position (fig.

5) and press the button to confirm (fig.

6). The appliance delivers water from the cappuccino maker then goes off.

6. Turn the steam knob to the “0” position.

The coffee maker is now ready for normal use. © Please note! When using the appliance for the first time, you need to make 4-5 cups of coffee or 4-5 cappuccinos before the appliance starts to give satisfactory results. +__ To enjoy your coffee even more and improve the performance of your appliance, we re- commend installing a water softener filter as described in the section “WATER SOFTENER FILTER”. If your model is not provided with a filter, you can request one from De’Longhi Customer Services.

IURNING THE APPLIANCE ON

[©] Please note! Before turning the appliance on, make sure the main switch on the back of the appliance is in the 1 position (fig. 3). Each time the appliance is turned on, it performs an automatic preheat and rinse cycle which can- not be interrupted. The appliance is ready for use only after comple- tion of this cycle. VAN Danger of burns! During rinsing, a little hot water comes out of the coffee spouts and is collected in the drip tray underneath. Avoid contact with splashes of water. + To turn the appliance on, press the l button (fig. 7). The light flashes while the appliance is heating up and performing an automatic rinse cycle. By circulating hot water, the appliance heats both the boiler and the internal circuits. The appliance is at temperature when the light goes off and the lights corresponding to the selected coffee taste and quantity come on.

TURNING THE APPLIANCE OFF

Each time the appliance is turned off, it performs an automatic rinse cycle which cannot be inter- rupted. À Danger of burns! During rinsing, a little hot water flows from the coffee spouts. Avoid contact with splashes of water. To turn the appliance off, press the (L) button (fig. 7). The appliance performs a rinse cycle, then goes off. Q Please note! Ifthe appliance is not used for an extended period, place the main switch in the O position (fig. 3). À Important! To avoid damaging the appliance, never place the main switch (fig. 3) in the O position while the appliance is on. MENU SETTINGS When you access the programming menu by pressing the P button, the following menu settings are available: Descale, Auto-off, Set temperature, Energy Saving, Wa- ter hardness, Install filter, Replace filter, Default values, Statistics. Descale For instructions on descaling, see page 16.

Auto-off ©) Please note The appliance is set to turn off automatically if not used for 2 hours. The time can be changed so that the appliance switches off after 15 or 30 minutes, or after 1, 2 or 3 hours.

1. Press the P button to enter the menu;

2. Turn the selection knob (fig. 8) until the A\

3. Press the button to select the function;

4. Turn the selection knob until the lights corre-

sponding to the number of hours before the appliance goes off automatically come on: 15 minutes WZ 30 minutes W7 © 1 hour W © 2 hours W © D 3 hours W7 © 7 ww

5. Press the button to confirm;

6. Press the button to exit the menu.

Auto-off is programmed. Setting the temperature To modify the temperature (low, medium, high) of the water used to make the coffee, proceed as follows:

1. Press the P button to enter the menu;

2. Turn the selection knob until the il light

4. Turnthe selection knob until the lights corre-

sponding to the required temperature come on: LOW W7 MEDIUM W7 © HIGH 2 C7 7

5. Press the button to confirm;

6. Press the button to exit the menu.

Energy Saving Use this function to enable or disable energy saving mode. This mode is active by default, re- ducing energy consumption while the machine is on in compliance with current European regu- lations.

1. Press the P button to enter the menu;

2. Turn the selection knob until the light E co-

When the function is active, the E light remains on. ©) Please note! A few seconds may elapse between energy sa- ving mode and delivery of the first coffee as the appliance must heat up again. Setting water hardness For instructions on setting water hardness, see page 17. Install filter For instructions on how to install the filter, see the section “Installing the filter” on page 11. Replacing the filter For instructions on how to replace the filter, see the section “Water softener filter” on page 17. Default values (reset) This resets all menu settings and programmed quantities back to the default values.

1. Press the P button to enter the menu;

2. Turn the selection knob until the & À

3. Press the button. The OK light flashes;

5. Press the button to confirm and exit.

Statistics function This displays statistics relating to the machine. To display, proceed as follows:

1. Press the P button to enter the menu;

2. Turn the selection knob until the &

corresponding light flashes, the following information is displayed: - & how many coffees have been made; ow many times the machine has been descaled; = &Sthe total number of litres of water deli- vered; light

- © how many times the water softener filter has been replaced.

5. The quantities are indicated by the flashing

beans as follows: TENS OF

THOUSANDSTHOUSANDS HUNDREDS TENS UNITS

0 V0 0 0 Example: you want to know how many cof- fees have been made. Enter the menu and selectthe SE, light. Count the flashes of the beans - 137 coffees have been made.

6. Press the ) button twice to exit the menu.

Selecting the coffee taste The appliance is set by default to make coffee with a standard taste. You can also choose one of these tastes:

Selecting the quantity of coffee in the cup The appliance is set by default to make a stan- dard quantity of coffee. To select the quantity of coffee, turn the selection knob (fig. 8) until the light corresponding to the required quantity of coffee comes on: 20-180mI 40m 60ml SOm 120ml

wW VU S MY COFFEE Customising the “my coffee” quantity The appliance is set by default to automatically deliver 30 ml of “my coffee”. To modify the quantity, proceed as follows:

1. Place a cup under the coffee spouts (fig.

3. Press the 1 cup button ©Z (fig. 11) until the

&Z_ light starts flashing and the appliance Starts delivering coffee, then release the but- ton.

4. As soon as the coffee in the cup reaches the

required level, press the 1 cup button © (fig. 11) again. The quantity of coffee in the cup has now been programmed. Adjusting the coffee mill The coffee mill is preset in the factory to make coffee correctly and should not require adjusting initially. However, if after making the first few coffees you find that the coffee is too thin and not creamy enough or that delivery is too slow (a drop at a time), this can be corrected by adju- Sting the grinding adjustment knob (fig. 12). Q Please note! The grinding adjustment knob must only be tur- ned when the coffee mill is in operation. If the coffee is delivered too slowly or not at all, turn one click clockwise towards “7”. For fuller bodied creamier coffee, turn one click anti- clockwise towards “1” (do not turn more than one click at a time otherwise the cof- fee could be delivered a drop at a time). These adjustments will only be evident after at least 2 cups of coffee have been delivered. If this adjustment does not obtain the desired result, turn the knob another click.

Tips for a hotter coffee For a hotter coffee, before delivery you are re- commended to: + rinse the appliance through by pressing the & button. Hot water flows out of the coffee Spouts and heats the internal circuit of the machine so that the coffee delivered will be hotter. + warm the cups with hot water (using the hot water function); + select the “high” coffee temperature in the menu. Making coffee using coffee beans AN Important! Do not use caramelised or candied coffee beans as they could stick to the coffee mill and make it unusable.

1. Fillthe container with coffee beans (fig. 13).

2. Place under the coffee spouts:

- 1 cup if you want one coffee (fig. 10); - 2 cups if you want 2 coffees.

3. Lower the spouts as near as possible to the

cup. This makes a creamier coffee (fig. 14).

4. Press the button corresponding to the num-

ber of coffees required (1 cup &Z or2 cups SZ, , figs. 11 and 15).

5. Prepardtiôn begins and the lights correspon-

ding to the taste and quantity of coffee selec- ted are displayed. Once the coffee has been made, the appliance prepares for use again. o Please note: While the coffee maker is making coffee, de- livery can be interrupted at any moment by pressing one of the two coffee buttons (7

+ Atthé end of delivery, to increase the quan- tity of coffee in the cup, just press (within 3 seconds) one of the coffee buttons (CZ or

©) Please note: For hotter coffee, see the section “Tips for a hot- ter coffee”. À Important! Ifthe coffee is delivered a drop at a time, too thin and not creamy enough or too cold, read the tips in the “Troubleshooting” section on page 21. + Lights may be displayed on the control pa- nel during use. Their meaning is given in the section “Explanation of the lights” on page

Making coffee using pre-ground coffee AN Important! + Never add pre-ground coffee when the ma- chine is off or it could spread through the inside of the machine and dirty it. This could damage the appliance. + Never use more than 1 level measure or it could dirty the inside of the coffee maker or block the funnel. ©) Please note: If you use pre-ground coffee, you can only make one cup of coffee at a time.

1. Press the OGouton repeatedly (fig. 9)

until the &— symbol appears.

2. Put one level measure of pre-ground coffee

into the funnel (fig. 16).

3. Place a cup under the coffee spouts.

4. Press the 1 cup coffee button ©Z (fig. 11).

5. Preparation begins.

MAKING CAPUCCINO VAN Important! Danger of burns During preparation, steam is given off. Take care to avoid scalds.

1. When making cappuccino, prepare the cof-

2. Fill a container with about 100 grams of milk

for each cappuccino to be made. In choosing the size of the container, bear in mind that the milk doubles or triples in volume. ©) Please note! For a richer denser froth, use skimmed or partially skimmed milk at refrigerator tempe- rature (about 5°C).

To avoid milk with poor froth or large bub- bles, always clean the cappuccino maker as described in the section “Cleaning the cap- puccino maker after use”. Press the button. The light flashes. After a few Seconds, the light flashes telling you to turn the steam knob. Immerse the cappuccino maker in the milk container (fig. 17). Take care not to immer- se the raised line on the cappuccino maker {shown by the arrow in fig. 18).

5. Turn the steam knob to the | position (fig.

4). Steam is delivered from the cappuccino maker, giving the milk a creamy frothy appe- arance and making it more voluminous.

6. To obtain a creamier froth, rotate the contai-

ner with slow upward movements. You should not deliver steam for more than 3 minutes at a time.

7. To obtain a creamier froth, rotate the contai-

ner with slow upward movements. You should not deliver steam for more than 3 minutes at a time.

VAN Important! Danger of burns Stop steam delivery before removing the container with the frothed milk to avoid burns caused by splashes of boiling milk.

8. Addthe milk froth to the coffee prepared pre-

viously. The cappuccino is ready. Sweeten to taste and, if desired, sprinkle the froth with a little cocoa powder. Cleaning the cappuccino maker after use. Clean the cappuccino maker each time you use it to avoid the build-up of milk residues or blocka- ges. VAN Important! Danger of burns When cleaning the cappuccino maker, a little hot water comes out. Avoid contact with splashes of water.

1. Discharge a little water for a few seconds by

rotating the steam knob to the | position. Then turn the steam knob to the 0 position to stop the flow of hot water.

2. Wait a few minute for the cappuccino maker

to cool down. Turn the cappuccino maker outwards and remove it by pulling it down- wards (fig. 19). Remove the nozzle downwards (fig. 20). Make sure the two holes shown by the arrow in fig. 21 are not blocked. If necessary, clean with a pin.

5. Wash all parts of the cappuccino maker tho-

roughly with a sponge and warm water.

6. Replace the nozzle and put the cappuccino

maker back on the nozzle (fig. 22), turning it and pushing it upwards until it is attached. HEATING WATER VAN Important! Danger of burns. Never leave the machine unsupervised while de- livering hot water. Stop delivery of hot water as described below when the cup is full. The cappuccino maker becomes hot while water is being delivered and must be held by the han- dle only. The hot water spout becomes hot while water is being delivered and must be handled by the handle only.

1. Place a container under the cappuccino ma-

ker as close as possible to avoid splashes.

2. Turnthe steam knob to the | position. Delive-

3. Stop by turning the steam knob to the 0 po-

©) Please note! If “Energy Saving” mode is active, you may have to wait a few seconds before the hot water is de- livered. CLEANING Cleaning the coffee maker The following parts of the machine must be cle- aned regularly: - coffee grounds container (A13), - rip tray (A17) and condensate tray (A14), - water tank (A9), - coffee spouts (A12), -__pre-ground coffee funnel (A6), - inside of the machine, accessible after ope- ning the infuser door (A10), - _infuser (A11). VAN Important! + Do not use solvents, abrasive detergents or

alcohol to clean the coffee maker. With De’Longhi superautomatic coffee ma- kers, you need not use chemical products to clean the machine. The descaler recommended by De’Longhi is made from natural and completely biodegra- dable substances. + None ofthe components can be washed in a dishwasher. + Do not use metal objects to remove encru- stations or coffee deposits as they could scratch metal or plastic surfaces. Cleaning the coffee grounds container Whenthe {z=zJ light flashes, the coffee grounds container must be emptied and cleaned. Unless you clean the grounds container, the light will continue to flash and the appliance cannot be used to make coffee. To clean (with the machine on): + Remove the drip tray (fig. 23), empty and clean. + Empty the grounds container and clean tho- roughly to remove all residues left on the bottom. + Checkthe condensate tray (red) and empty if necessary. AN Important! When removing the drip tray, the grounds con- tainer must be emptied, even if it contains few grounds. If this is not done, when you make the next cof- fees, the grounds container may fill up more than expected and clog the machine. Cleaning the drip tray and condensate tray AN Important! Ifthe drip tray is not emptied regularly, the water could overflow from the edge and seep inside or around the coffee maker. This could damage the machine, the surface it rests on or the surrounding area. The drip tray is fitted with a level indicator (red) showing the level of water it contains (fig. 24). Before the indicator protrudes from the cup tray, the drip tray must be emptied and cleaned. To remove the drip tray:

1. Remove the drip tray and the grounds con-

2. Empty the drip tray and grounds container

4. Replace the drip tray and grounds container.

Cleaning the inside of the coffee maker VAN Danger of electric shock! Before cleaning internal parts, the machine must be turned off (see “Turning off”) and unplugged from the mains power supply. Never immerse the coffee maker in water.

1. Check regularly (about once a week) that the

inside of the appliance (accessible after re- moving the drip tray) is not dirty. Ifnecessary, remove coffee deposits with the brush and a sponge.

2. Remove the residues with a vacuum cleaner

(fig. 25). Cleaning the water tank

1. Clean the water tank (A9) regularly (about

once a month and whenever you replace the water softener filter (if provided) with a damp cloth and a little mild washing up liquid.

2. Remove the filter (if present) and rinse with

with fresh water and replace the tank. Cleaning the coffee spouts

1. Clean the coffee spouts with a sponge or

2. Check the holes in the coffee spout are not

blocked. If necessary, remove coffee deposits with a toothpick (fig. 26B). Cleaning the pre-ground coffee funnel Check regularly (about once a month ) that the pre-ground coffee funnel is not blocked. If necessary, remove coffee deposits with the brush supplied. Cleaning the infuser The infuser (A11) must be cleaned at least once a month.

VAN Important! The infuser may not be extracted when the ma- chine is on.

1. Make sure the machine is correctly turned

off (see “Turning the appliance off” on page 10). Remove the \vater tank.

4. Press the two red release buttons inwards

and at the same time pull the infuser ou- twards (fig. 28). AN Important!

RINSE WITH WATER ONLY

NO WASHING UP LIQUID - NO DISH WA- SHER Clean the infuser without using washing up liquid as it could be damaged.

5. Soak the infuser in water for about 5 minu-

left in the infuser housing, visible through the infuser door.

7. After cleaning, replace the infuser by sliding

it onto the internal support, then push the PUSH symbol fully in until it clicks into pla- ce.

©) Please note! If the infuser is difficult to insert, before inser- tion, adapt it to the right size by pressing the two levers shown in the figure. Big lever

7. Once inserted, make sure the two red but-

tons have snapped out.

8. Close the infuser door.

9. Replace the water tank.

ex | CON DESCALE Descale the appliance when the control panel flashes. VAN Important! Descaler contains acids which may irritate the skin and eyes. It is vital to respect the manufacturer's safety warnings given on the descaler pack and the warnings relating to the procedure to follow in the event of contact with the skin and eyes. light on the ©) Please note! Use De’Longhi descaler only. Under no circumstances should you use sulpha- mic or acetic based descalers. Their use invalida- tes the guarantee. Failure to descale the appliance as described also invalidates the guarantee.

3. Turn the selection knob until the

4. Select by pressing the button. The OK

light flashes. Press the button again to confirm.

5. Completely empty the water tank (A9) and

remove the water softener filter (if present).

6. Pourthe descaler into the tank up to the level

A (corresponding to a 100 ml pack) marked on the back of the tank (fig. 29A), then add water (11) up to level B (fig. 29B).

7. Place an empty container with a minimum

capacity of 1.5 litres under the cappuccino maker (A19) (fig. 3). VAN Important! Danger of burns Hot water containing acid flows from the cap- puccino maker. Avoid contact with splashes of water.

tion of the Solution. The di, light flashes telling you to turn the steam knob. . Turn the steam knob to the | position The descaling programme starts and the descaler liquid comes out of the cappuccino maker. The descale programme automatically per- forms a series of rinses and pauses to remo- ve limescale deposits from inside the machi- ne. After about 30 minutes, the water tank is empty. The OK and EH] lights come on and the £S light flashes.

11. Empty the container used to collect the de-

caler solution and replace it under the cap- puccino maker.

12. Remove the water tank, empty, rinse under

running water, fill with clean water and repla- ce. The £S light goes off.

13. Hot water comes out of the cappuccino ma-

14. When the water tank is completely empty,

is displayed. urn the knob to the O position, insert the filter (if present), fill the water tank and the appliance is ready for use.

SETTING WATER HARDNESS

The light is displayed after a period of time established according to the water hardness set. The machine is factory set for a hardness value of 4. The machine can also be programmed ac- cording to the hardness of the mains water in the various regions so that the machine needs to be descaled less often.

Measuring water hardness

1. Remove the “TOTAL HARDNESS TEST” indi-

cator paper attached to this manual from its pack.

2. Immerse the paper completely in a glass of

water for one second.

3. Remove the paper from the water and shake

lightly. After about a minute, 1,2, 3, or 4 red squares form, depending on the hardness of the wa- ter. Each square corresponds to one level. Lael1 D [ DIE Leul2 D [NET Levels 0777 TINNM Lael4 D NN Set water hardness

1. Press the P button to enter the menu.

2. Turn the selector knob until the & light is

3. Confirm the selection by pressing the dy

4. Turn the selection knob and set the level

shown by the indicator paper (see previous paragraph). LEVEL 1 W7 LEVEL 2 W © LEVEL3 W © 7 LEVEL 4 O7 © 7

5. Press the button to confirm the setting.

6. Press the button to exit the menu.

The machine is now reprogrammed with the new water hardness setting.

WATER SOFTENER FILTER

Certain models are fitted with a water softener filter. If this is not the case with your model, you are recommended to purchase one from De’Lon- ghi Customer Services. To use the filter correctly, follow the instructions below. Installing the filter

1. Remove the filter from the packaging.

2. Turn the date indicator disk (see fig. 30) until

the next 2 months of use are displayed. © Please note: The filter lasts about two months if the appliance is used normally. If the coffee maker is left unu- sed with the filter installed, it will last a maximum of three weeks.

3. Remove the tank from the appliance and fill

4. Insert the filter in the water tank and immer-

se it completely, sloping it to enable the air

bubbles to escape (fig. 31).

5. Insert the filter in the filter housing (fig. 32A)

and press as far as it will go.

6. Close the tank with the lid (fig. 32B), then

replace the tank in the machine. When you install the filter, you must notify the appliance of its presence.

7. Press the P button to enter the menu;

8. Turn the selection knob until the -& and

. Press the button to confirm the selec- tion. . Place a container (min. capacity: 100 ml) un- der the cappuccino maker. . Turn the steam knob and press the db but- ton. . Atthe end of delivery, the di, light flashes. Close the knob and the appliance returns au- tomatically to the “ready for coffee” state. The new filter is active and you can now use the coffee maker. Replacing the filter When the # light flashes, after two months (see date indicator) ) or when the appliance has not been used for 3 weeks, you should replace the filter:

1. Remove the exhausted filter;

2. Remove the new filter from the packaging.

3. Turnthe date indicator disk (see fig. 30) until

the next 2 months of use are displayed (the filter lasts about two months):

5. Insert the filter in the water tank and immer-

se it completely, sloping it to enable the air bubbles to escape (fig. 31);

6. Place the filter in the filter housing (fig. 32A)

and press as far as it will go. Close the tank with the lid (fig. 32B), then replace the tank in the machine;

9. Turn the selection knob until the +

A\lights come on. and

10. Press the button. The OK light flashes.

11. Press the button to confirm the selec-

13. Atthe end of delivery, the di, light flashes.

Close the knob and the appliance returns au- tomatically to the “ready for coffee” state. The new filter is now active and you can use the coffee maker. Removing the filter If you want to continue using the appliance wi- thout a filter, you must remove it and notify the appliance of its removal as follows:

1. Extract the tank and exhausted filter;

2. Press the P button to enter the menu;

3. Turn the selection knob (fig. 8) until the

and 5 lights come on;

4. Pressthe button. The OK light flashes:;

button to confirm use of the

appliance without the filter;

6. Pressthe 9) button to exit the menu.

TECHNICAL SPECIFICATION Voltage: 220-240 V- 50/60 Hz max. 10A Absorbed power: 1450W Pressure: 15 bars Water tank capacity: 1.8 L'max. Size LxHxD: 238x340x430 mm Cable length: 115m Weight: 9.1 kg Coffee beans container capacity: 150 g max. C € The appliance complies with the following EC directives: + Stand-by Directive no. 1275/2008: + Low Voltage Directive 2006/95/EC and sub- sequent amendments; + EMC Directive 2004/108/EC and subsequent amendments + Materials and accessories coming into con- tact with food conform to EEC regulation 1935/2004. DISPOSAL Important information for correct dispo- sal of the product in accordance with EC Directive 2002/96/EC. At the end of its working life, the pro- duct must not be disposed of as urban waste. It must be taken to a special local autho-

rity differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recove- red to obtain significant savings in energy and resources.As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

EXPLANATION OF LIGHTS

LIGHT POSSIBLE CAUSE REMEDY

Insufficient water in the tank. Fill the tank with water and insert it correctiy, pushing it as far as it will go until it clicks into place. The tank is not correct in place. | Insert the tank correctiy and press as far as it will go. is full The grounds container (A13) Empty the grounds container and drip tray, clean and replace. Important: when removing the drip tray, the grounds container MUST be emptied, even if it contains few grounds. I this is not done, when you make the next coffees, the grounds container may fill up more than expected and clog the machine. After cleaning, the grounds Remove the drip ray and insert the grounds container has not been replaced. | container. not at all, The grinding is too fine and the | Repeat coffee delivery and turn the grinding coffee is delivered too slowiy or | adjustment knob (fig. 10) one click clockwise towards 7” while the coffee mil is in operation. H after making at least 2 coffees delivery is still too slow, repeat the correction procedure, turning the grinding adjustment knob another click until delivery is correct (see the section: Adjusting the coffee mil on page 29). I the problem persists, turn the steam knob to the | position and deliver water from the cappuccino maker.

LIGHT POSSIBLE CAUSE REMEDY

The “pre-ground coffee” function | Place pre-ground coffee in the funnel or has been selected without placing | deselect the “pre-ground” function. = any pre-ground coffee in the funnel. The machine must be descaled. | The descaling procedure described in the section “Descaling” needs to be performed as soon as possible. Too much coffee has been used. | Select a milder taste or reduce the quantity of pre-ground coffee then make the coffee again. ‘The coffee beans have run out. Fill the beans container The pre-ground coffee funnel is clogged. Empty the funnel with the help of a brush as described in the section “Cleaning the pre- ground coffee tunnel” The infuser has not been replaced after cleaning. Insert the infuser as described in the section “Cleaning the infuser. The inside of the appliance is very dirty. Clean the inside of the appliance thoroughly, as described in the section ‘Cleaning and maintenance”. Ifthe message is stil displayed after cleaning, contact a customer services. ‘The fier is exhausted Replace the filter (see the section ‘Replacing the water softener filter

IROUBLESHOOTING Below is a list of some of the possible malfunctions. Ifthe problem cannot be resolved as described, contact Customer Services. PROBLEM POSSIBLE CAUSE REMEDY The coffee is not hot The cups were not preheated Warm the cups by rinsing them with hot water (Please note you can use the hot water function) The infuser has cooled down because 2/3 minutes have elapsed since the last coffee was made Before making the coffee, warm the infuser by pressing the 2) button: Low coffee temperature is set. In the menu, set a high coffee temperature The coffee is thin or not creamy enough. The coffee is ground too coarsely. Turn the grinding adjustment knob one click anticlockwise towards “1” while the coffee mil is in operation (fig. 10). Continue one click at a time until coffee delivery is satistactory. The effect is only visible after delivering two coffees (see “Adjusting coffee mil”, page 12) The coffee is unsuitable. Use pre-ground coffee for espresso coffee makers The coffee is delivered too slowly or a drop at a time. The coffee is ground too finely. Turn the grinding adjustment knob one click clocknise towards “7” while the coffee mill is in operation (fig. 10) Continue one click at a time until coffee delivery is satistactory The effect is only visible after delivering 2 coffees (see the section: “Adjusting the coffee mil on page 12) Coffee does not come out of one of the spouts. The spouts are blocked. Clean the spouts with a toothpick The frothed milk has large bubbles The milk is not cold enough or is not semi- skimmed You should ideally use skimmed or semi- skimmed mik at refrigerator temperature about 5°C). I the resul is still disappointing, try another brand of milk. The milk is not frothed Cappuccino maker dirty. Clean as described in the section “Cleaning the cappuccino maker after use” on page 31 Steam delivery stops A safety device stops steam delivery after 3 minutes. Wait, then activate the steam function again. The appliance does not come on. Itis not plugged into the mains socket. Itis not plugged into the mains socket. Plug into the mains socket. Place the main switch in the | position (fig. 1).
