LED LCD MONITOR MODELS

E1960S E1960T

E2060S E2060T

E2260S E2260T E2260V

E2360S E2360T E2360V

This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.

On Safety

Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

The appliance coupler is used as the disconnect device.

Please make sure the device is installed near the wall outlet to which it is connected and that the outlet is easily accessible.

Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off.

Do not Open the Display:

• There are no user serviceable components inside.
• There are Dangerous High Voltages inside, even when the power is OFF.
• Contact your dealer if the display is not operating properly.

To Avoid Personal Injury :

• Do not place the display on a sloping shelf unless properly secured.
• Use only a stand recommended by the manufacturer.
• Do not drop an object on or apply impact to the product. Do not throw any toys or objects on the product screen.
  It can cause injury to human, problem to product and damage the display.

To Prevent Fire or Hazards:

• Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house.
• Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages.
• Do not add accessories that have not been designed for this display.
• When the display is to be left unattended for an extended period of time, unplug it from the wall outlet.
• In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very dangerous. It can cause electric shock.

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage.

Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER:

■ Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
- Place the display in a built-in enclosure unless proper ventilation is provided.
■ Cover the openings with cloth or other material.
- Place the display near or over a radiator or heat source.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause some afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance.

If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel.

Leaving a fixed image on the screen for a long time may cause damage to the screen and cause image burn-in. Make sure to use a screen saver on the product. Burn-in and related problems are not covered by the warranty on this product.

Do not shock or scratch the front and sides of the screen with metallic objects. Otherwise, it may cause damage to the screen.

Make sure the panel faces forward and hold it with both hands to move. If you drop the product, the damaged product can cause electric shock or fire. Contact an authorized the service center for repair.

Avoid high temperatures and humidity.

On Cleaning

■ Unplug the display before cleaning the face of the display screen.
■ Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock.

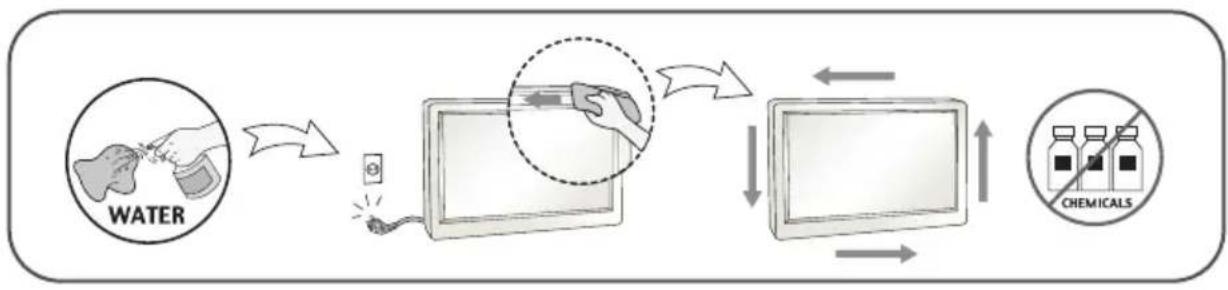

- When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not use chemicals such as benzene, paint thinners or alcohol)
- Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame; wipe in one direction only. Too much moisture may cause staining.

On Repacking

- Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material.

On Disposal (Only, Hg lamp used LCD Monitor)

■ The fluorescent lamp used in this product contains a small amount of mercury.
- Do not dispose of this product with general household waste.
■ Disposal of this product must be carried out in accordance to the regulations of your local authority.

!!! Thank for selecting LGE products !!!

Please make sure the following items are included with your monitor. If any items are missing, contact your dealer.

Owner's Manual/Cards

Pure electrical circuit lines without any symbols

15-pin D-Sub Signal Cable

(To set it up, this signal cable may be attached to this product before shipping out.)

Power Cord

(Depending on the country)

AC-DC adapter

Diagram of a cable with two connectors and connectors, no text or symbols present

DVI-D Signal Cable

(This feature is not available in all countries.)

NOTE

■ This accessories may look different from those shown here.
- User must use shielded signal interface cables (D-sub 15 pin cable, DVI-D cable) with ferrite cores to maintain standard compliance for the product.

Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Connecting the stand

1. Place the monitor face down on the cushion or soft cloth.

Isometric illustration of a mechanical component with a central handle and base (no text or symbols)

1. Assemble the Stand Base into the Stand Body in the correct direction as shown in the picture.

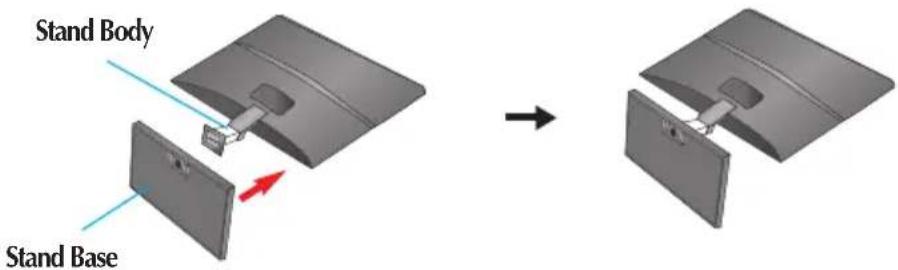

Stand Body Stand Base

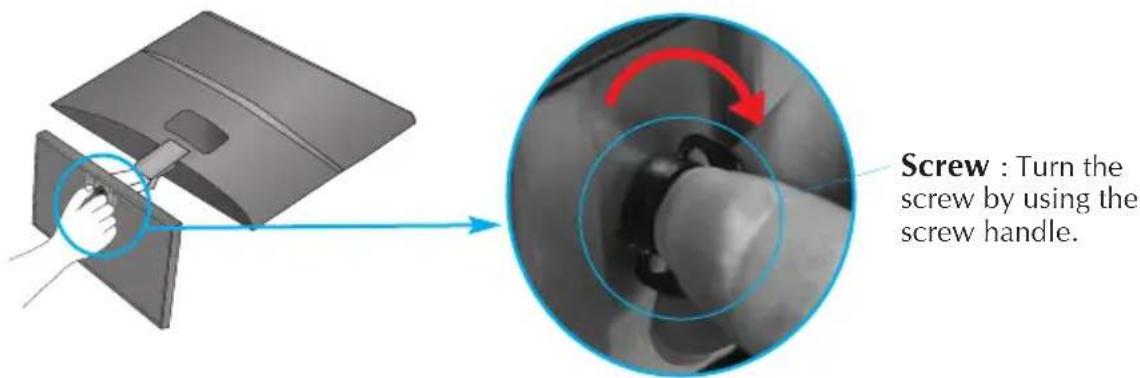

1. Attach the monitor to the Stand Base by turning the screw to the right.

Screw : Turn the screw by using the screw handle.

1. Once assembled take the monitor up carefully and face the front side.

Computer monitor with blank screen and stand (no text or symbols visible)

■ Turn the screw to the left to separate the stand body from the stand base.

Close-up of a hand holding a black object with a red curved arrow indicating rotation (no text or symbols)

IMPORTANT

This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture.
- Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot.

Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Positioning your display

Adjust the position of the panel in various ways for maximum comfort.

■ Tilt Range : -5^ to 15^

Illustration of a hand holding a vertical object with a 5° angle indicator (no text or symbols on the object itself)

Diagram of a computer monitor with a 15° angle indicator (no text or symbols on the device itself)

Illustration of a hand holding a thin rod with a red circle indicating no force or weight on the rod (no text or symbols present)

IMPORTANT

• It is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt angle of the monitor should not exceed 5 degrees.
  ■ When adjusting the angle of the screen, do not put your finger(s) in between the head of the monitor and the stand body. You can hurt your finger(s).

Connecting with the PC

1. Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

2. Connect signal input cable ① and power cord ② in order, then tighten the screw of the signal cable.

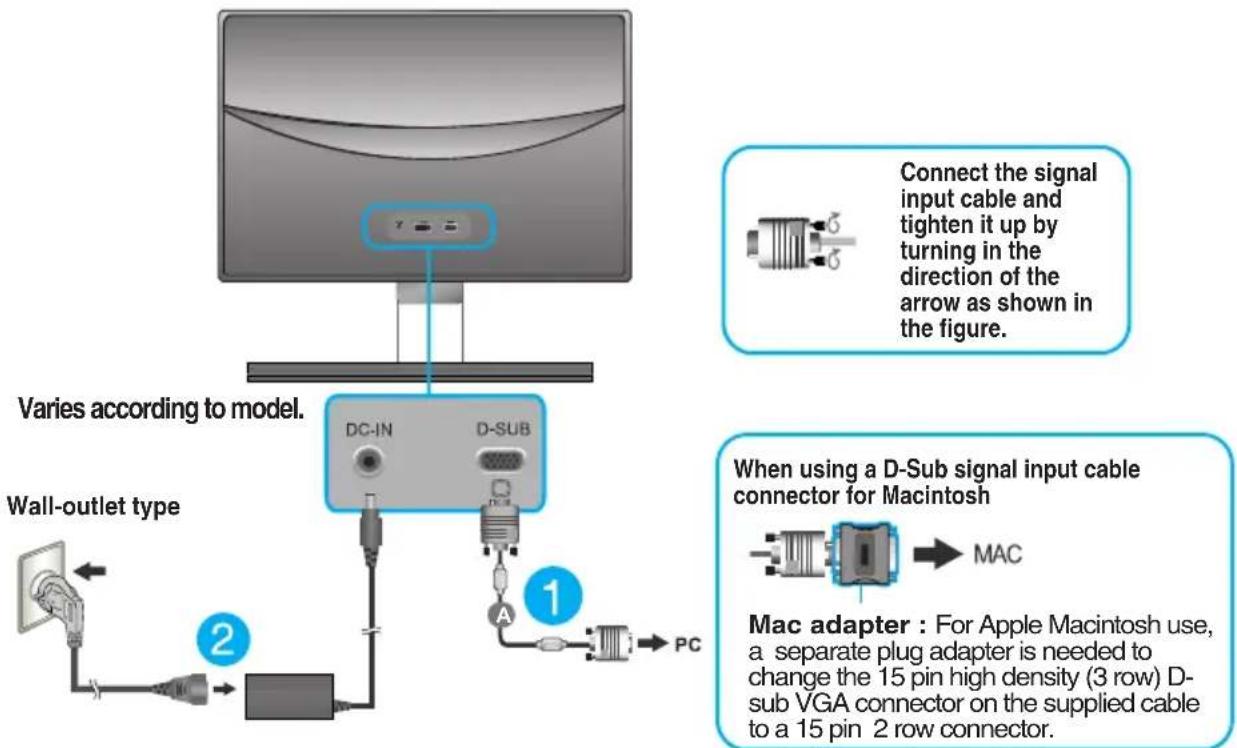

A Connect D-sub(Analog signal) Cable

NOTE

■ This is a simplified representation of the rear view.
■ This rear view represents a general model; your display may differ from the view as shown.

Varies according to model. Wall-outlet type DC-IN D-SUB 1 PC Connect the signal input cable and tighten it up by turning in the direction of the arrow as shown in the figure. When using a D-Sub signal input cable connector for Macintosh MAC Mac adapter : For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D- sub VGA connector on the supplied cable to a 15 pin 2 row connector.

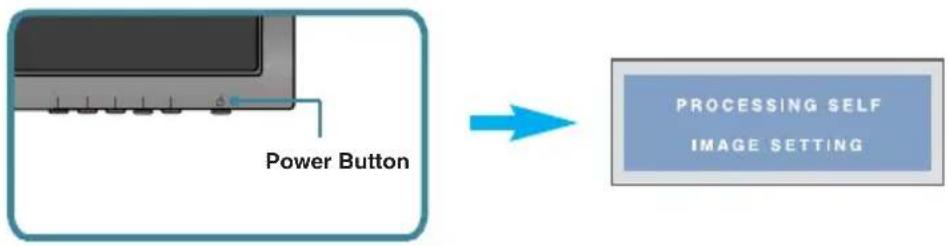

1. Press the power button on the front panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed automatically.

NOTE

‘Self Image Setting Function’? This function provides the user with optimal display settings. When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.
'AUTO' Function? When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO function button to improve resolution.

Connecting with the PC

1. Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.
2. Connect signal input cable ① and power cord ② in order, then tighten the screw of the signal cable.

A Connect DVI-D(Digital signal) Cable

B Connect D-sub(Analog signal) Cable

NOTE

■ This is a simplified representation of the rear view.
■ This rear view represents a general model; your display may differ from the view as shown.

Connect the signal input cable and tighten it up by turning in the direction of the arrow as shown in the figure. When using a D-Sub signal input cable connector for Macintosh Mac adapter : For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D- sub VGA connector on the supplied cable to a 15 pin 2 row connector. Varies according to model. Wall-outlet type DC-IN DVI-D D-SUB A B 1 PC PC DVI-D (This feature is not available in all countries.)

1. Press the power button on the front panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed automatically. (Only Analog Mode)

Power Button PROCESSING SELF IMAGE SETTING

NOTE

‘Self Image Setting Function’? This function provides the user with optimal display settings. When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.
'AUTO' Function? When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO function button to improve resolution.

Connecting with the PC

1. Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.
2. Connect signal input cable ① and power cord ② in order, then tighten the screw of the signal cable.

A Connect DVI-D(Digital signal) Cable
B Connect D-sub(Analog signal) Cable

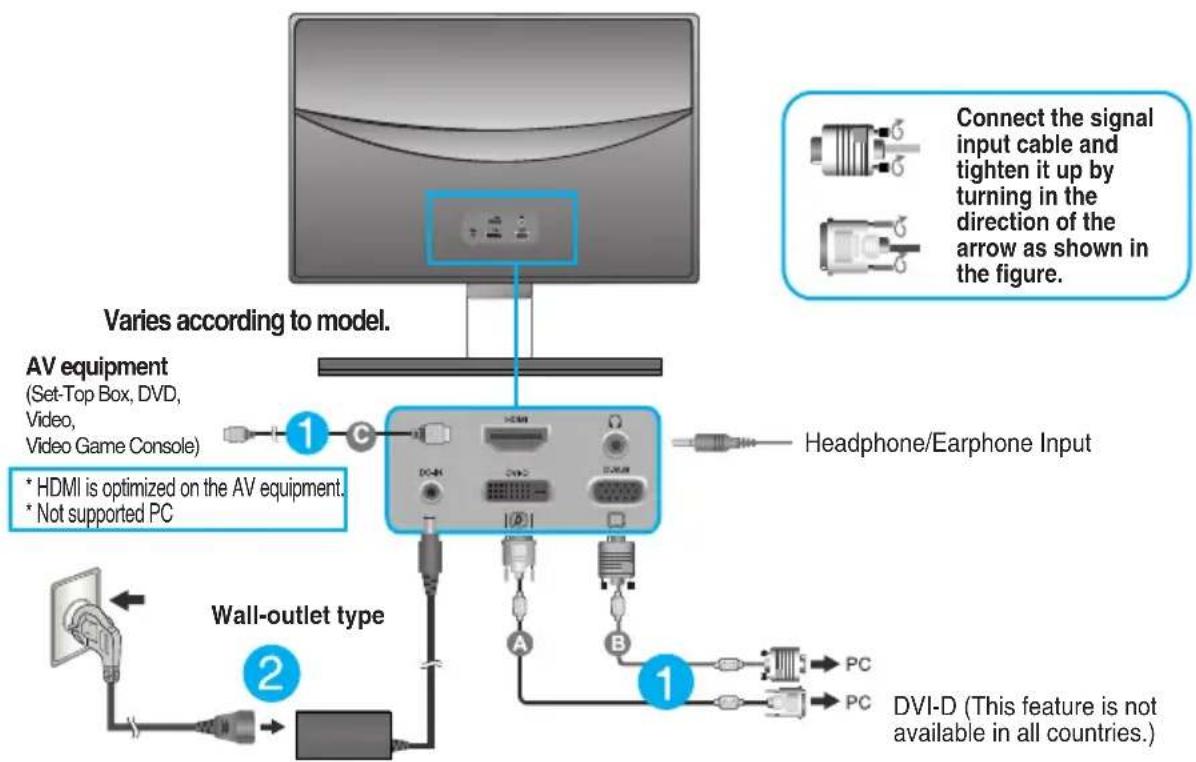

© Connect HDMI Cable

NOTE

■ This is a simplified representation of the rear view.
■ This rear view represents a general model; your display may differ from the view as shown.

    subgraph AV Equipment
        G["1: HDMI is optimized on the AV equipment. * Not supported PC"]
    end

    subgraph Headphone/Earphone Input
        H["1: PC"]
        I["2: PC"]
    end

    style AV Equipment fill:#f9f,stroke:#333
    style Headphone/Earphone Input fill:#ccf,stroke:#333

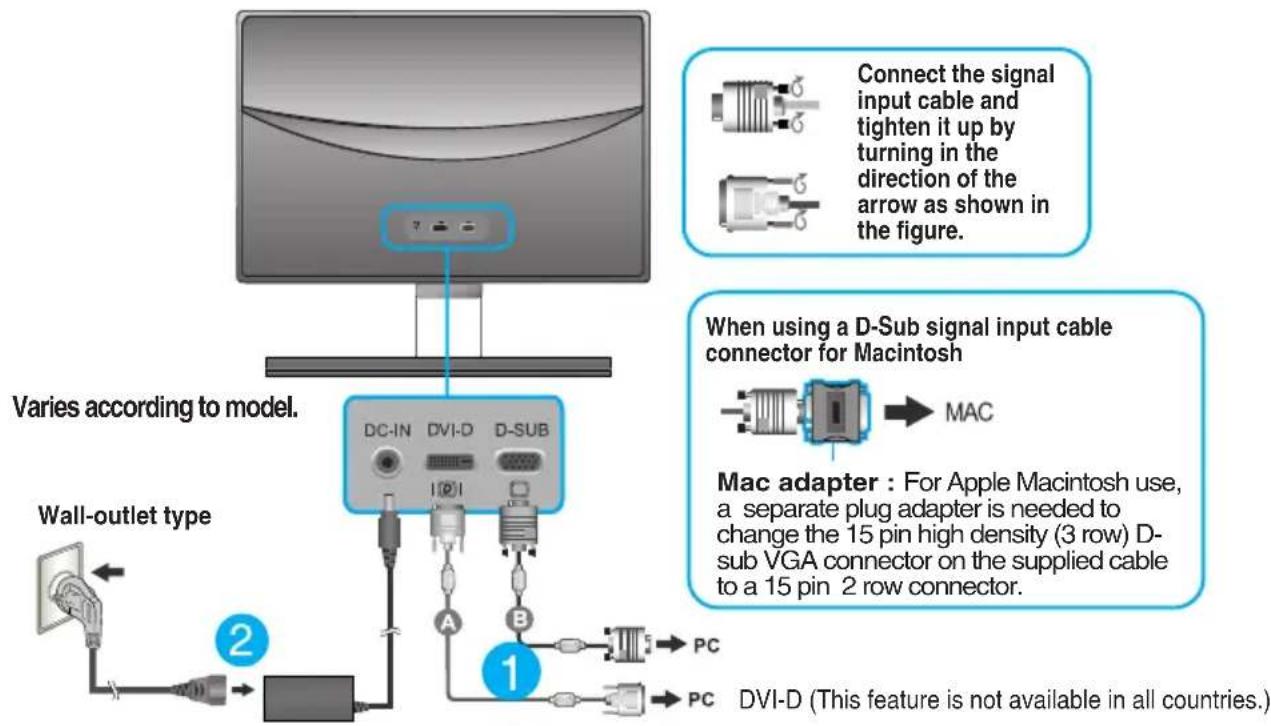

When using a D-Sub signal input cable connector for Macintosh

Mac adapter : For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-sub VGA connector on the supplied cable to a 15 pin 2 row connector.

1. Press the power button on the front panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed automatically. (Only Analog Mode)

NOTE

‘ Self Image Setting Function’? This function provides the user with optimal display settings. When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.

'AUTO' Function? When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO function button to improve resolution.

Front Panel Controls

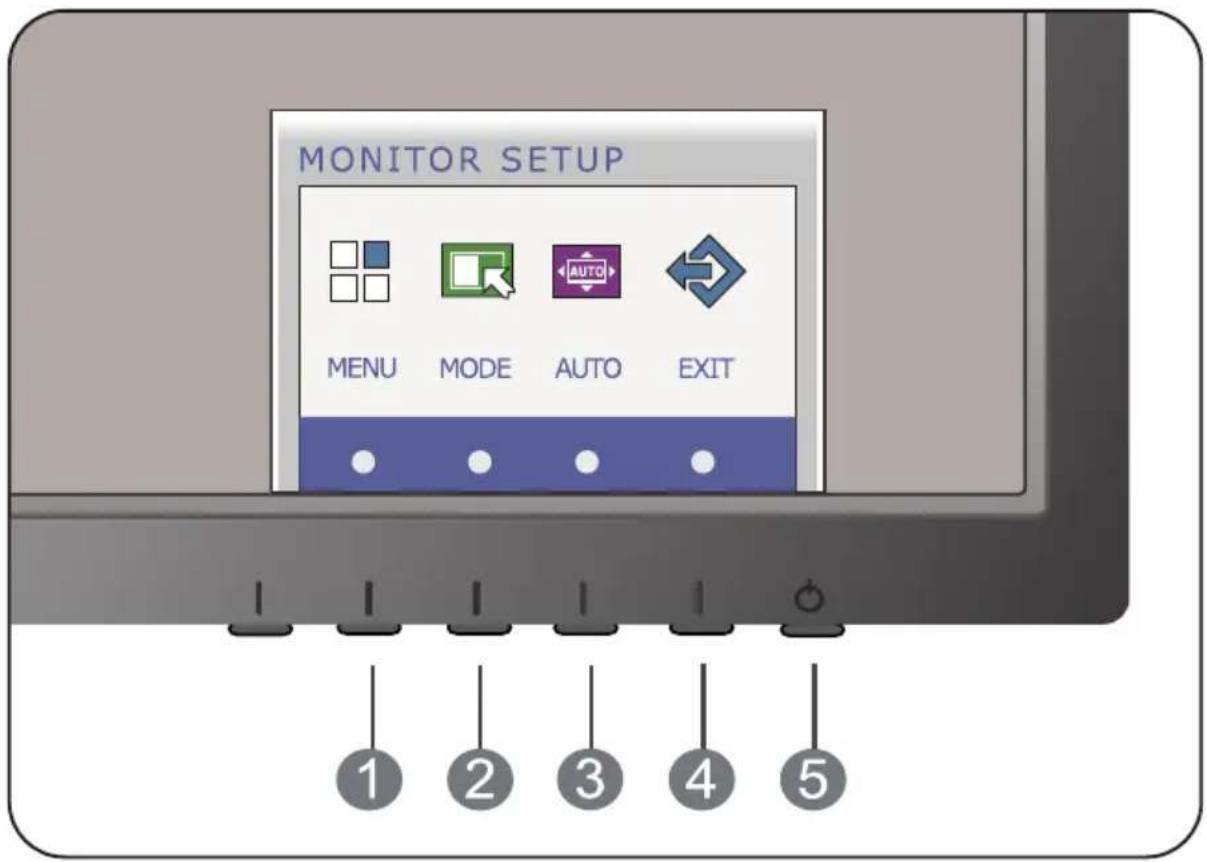

MONITOR SETUP MENU MODE AUTO EXIT 1 2 3 4 5

MENU Button

Use this button to enter or exit from the On Screen Display.

OSD LOCKED/UNLOCKED

This function allows you to lock the current control settings, so that they cannot be inadvertently changed.

Press and hold the MENU button for several seconds.

The message "OSD LOCKED" should appear.

You can unlock the OSD controls at any time by pushing the MENU button for several seconds. The message

"OSD UNLOCKED" should appear.

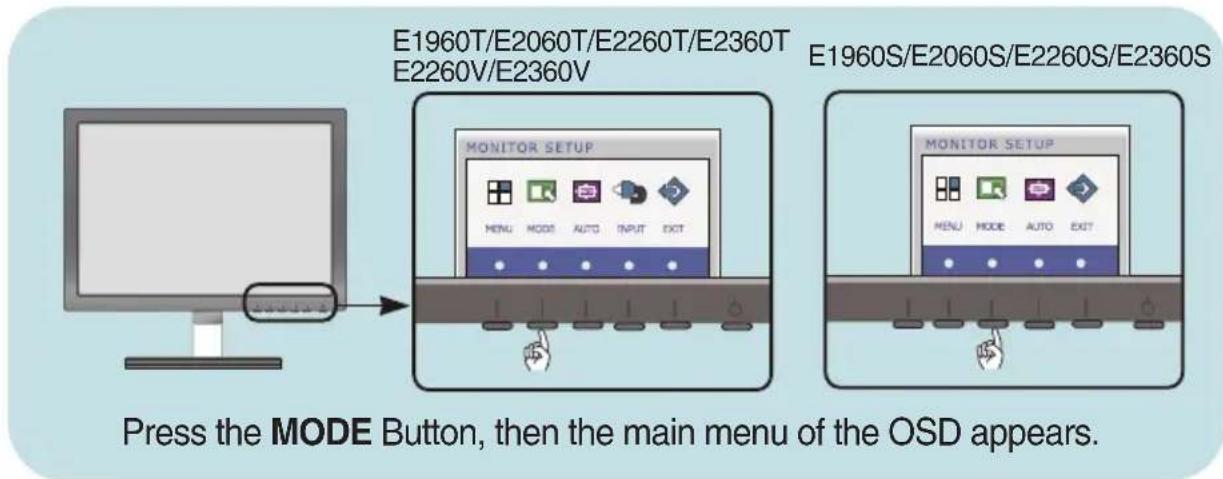

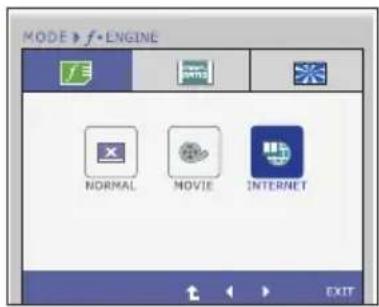

MODE Button

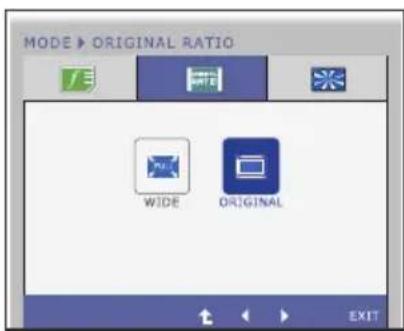

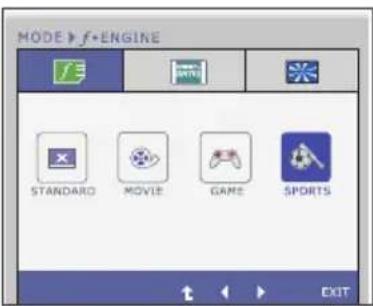

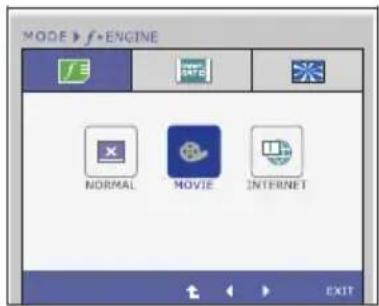

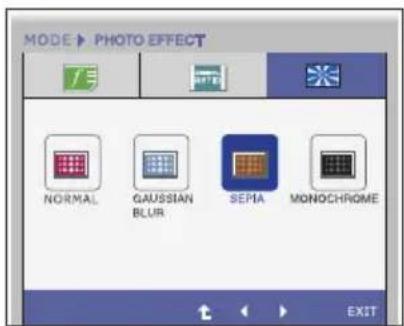

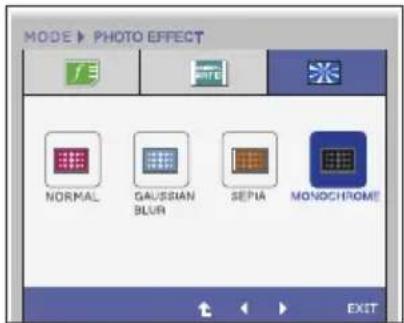

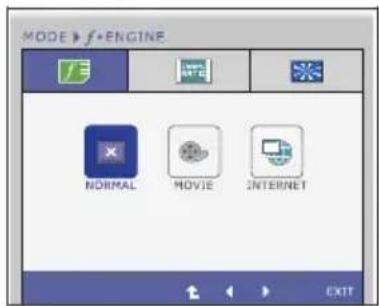

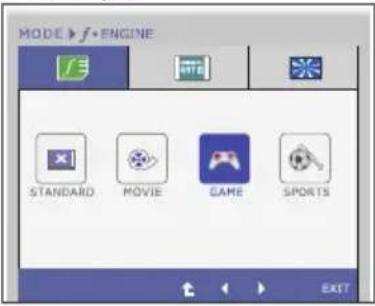

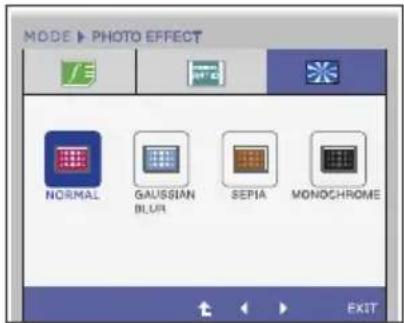

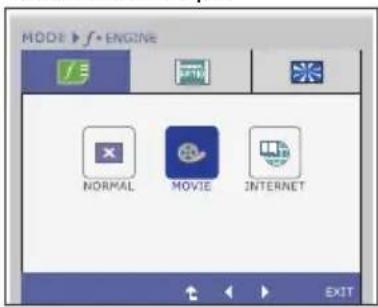

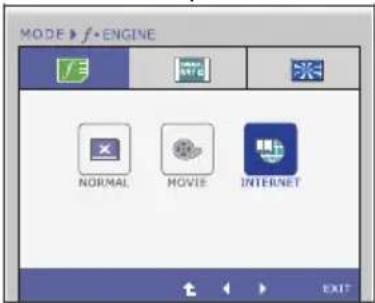

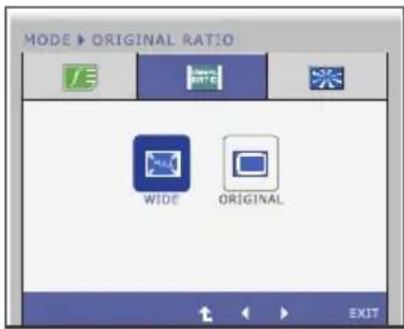

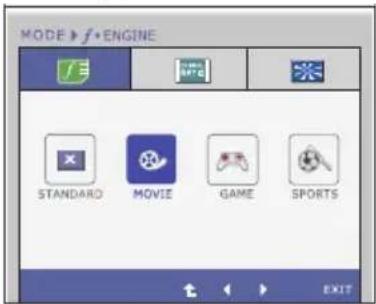

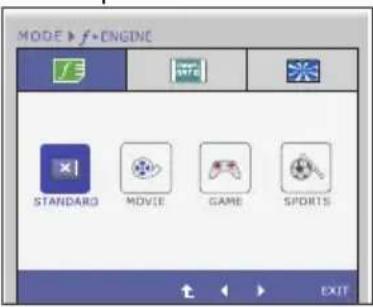

Use this button to enter F-ENGINE, ORIGINAL RATIO, PHOTO EFFECT menus.

For more information, refer to page 26 to 31.

AUTO Button

AUTO IMAGE ADJUSTMENT

When adjusting your display settings, always press the AUTO button before entering the On Screen Display(OSD). (Only Analog Mode)

PROCESSING AUTO IMAGE ADJUSTMENT

This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode).

The best display mode is

E1960S : 1360 x 768

E2060S : 1600 x 900

E2260S/E2360S : 1920 x 1080

EXIT Button

Exit the OSD(On Screen Display).

Power Button & Power Indicator

Use this button to turn the display on or off.

The power indicator stays light blue if the display is running properly (On Mode). If the display is in Sleep Mode (Energy Saving), the power indicator is red.

Front Panel Controls

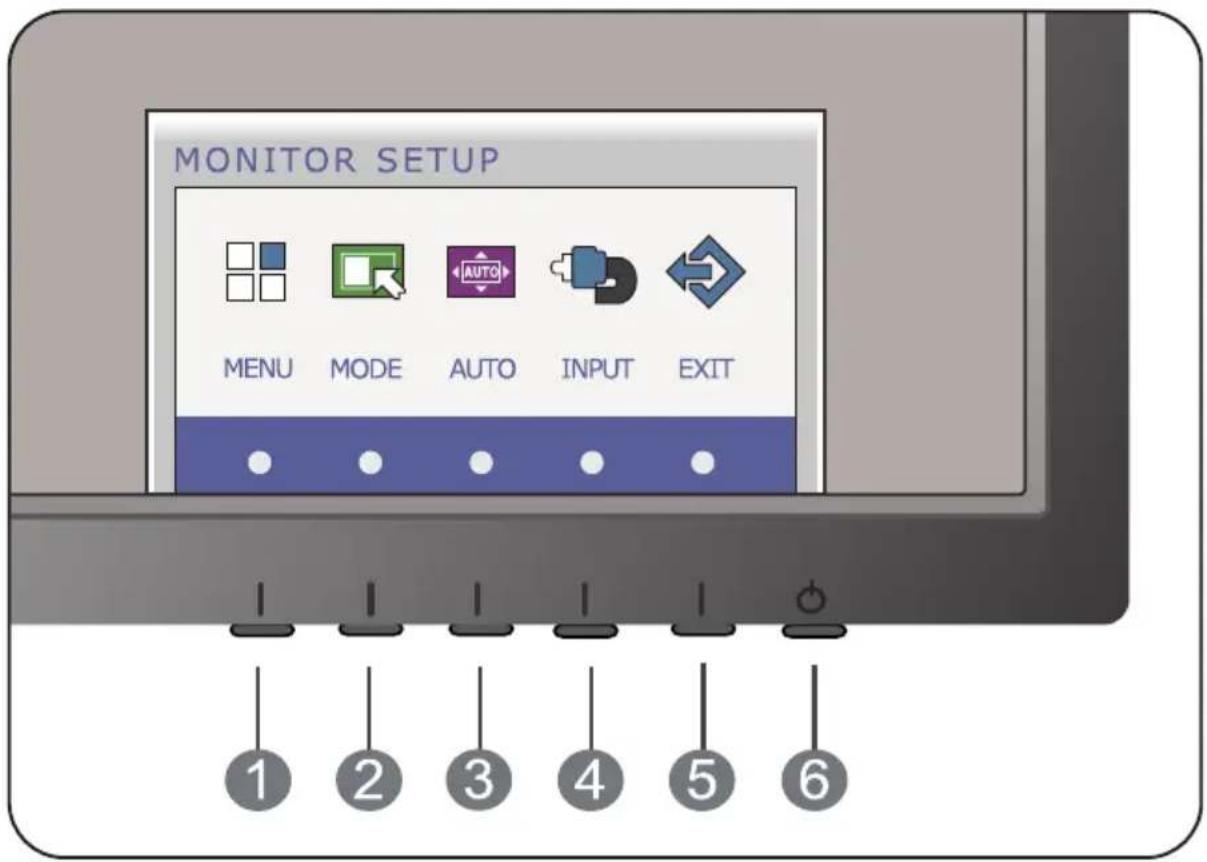

MONITOR SETUP MENU MODE AUTO INPUT EXIT 1 2 3 4 5 6

MENU Button

Use this button to enter or exit from the On Screen Display.

OSD LOCKED/UNLOCKED

This function allows you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button for several seconds. The message "OSD LOCKED" should appear.

You can unlock the OSD controls at any time by pushing the MENU button for several seconds. The message "OSD UNLOCKED" should appear.

MODE Button

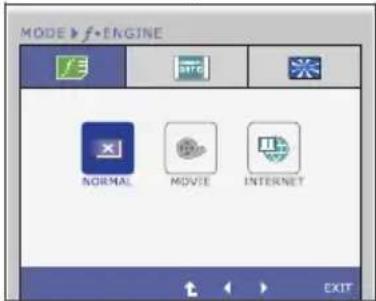

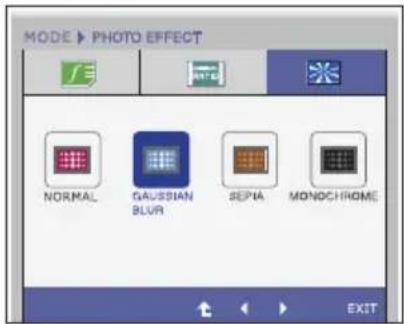

Use this button to enter F-ENGINE, ORIGINAL RATIO, PHOTO EFFECT menus.

For more information, refer to page 26 to 31.

AUTO Button

AUTO IMAGE ADJUSTMENT

When adjusting your display settings, always press the AUTO button before entering the On Screen Display(OSD). (Only Analog Mode)

PROCESSING AUTO IMAGE ADJUSTMENT

This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode).

The best display mode is

E1960T : 1360 x 768

E2060T : 1600 x 900

E2260T/E2360T : 1920 x 1080

E2260V/E2360V : 1920 x 1080

INPUT Button (SOURCE Hot key)

When two input signals at least are connected, you can select the input signal (D-SUB/DVI/HDMI) you want. When only one signal is connected, it is automatically detected. The default setting is D-Sub.

EXIT Button

Exit the OSD(On Screen Display).

Power Button & Power Indicator

Use this button to turn the display on or off.

The power indicator stays light blue if the display is running properly (On Mode). If the display is in Sleep Mode (Energy Saving), the power indicator is red.

Screen Adjustment

Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system.

A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.

To make adjustments in the On Screen Display, follow these steps:


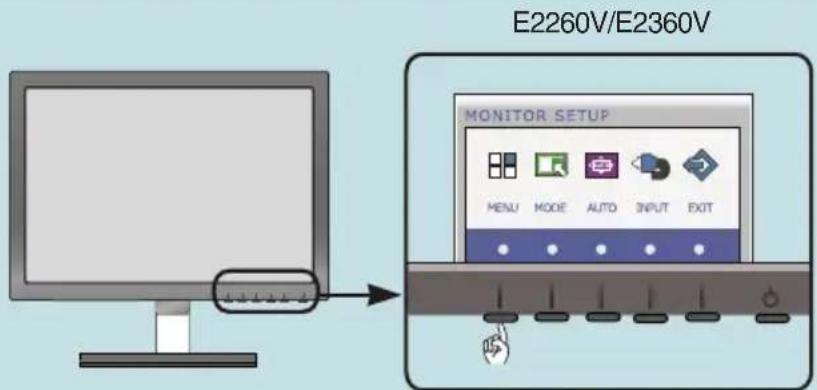

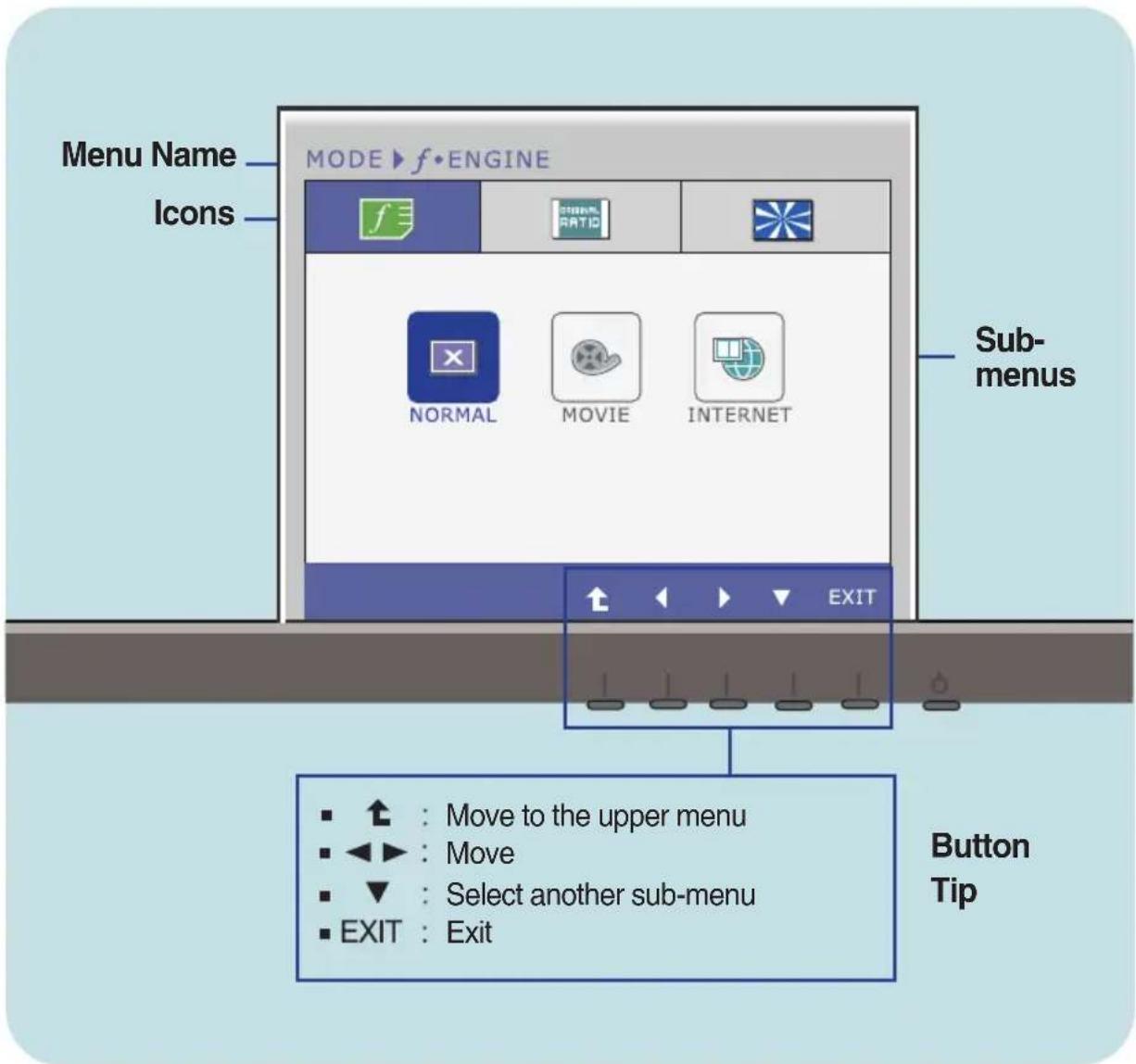

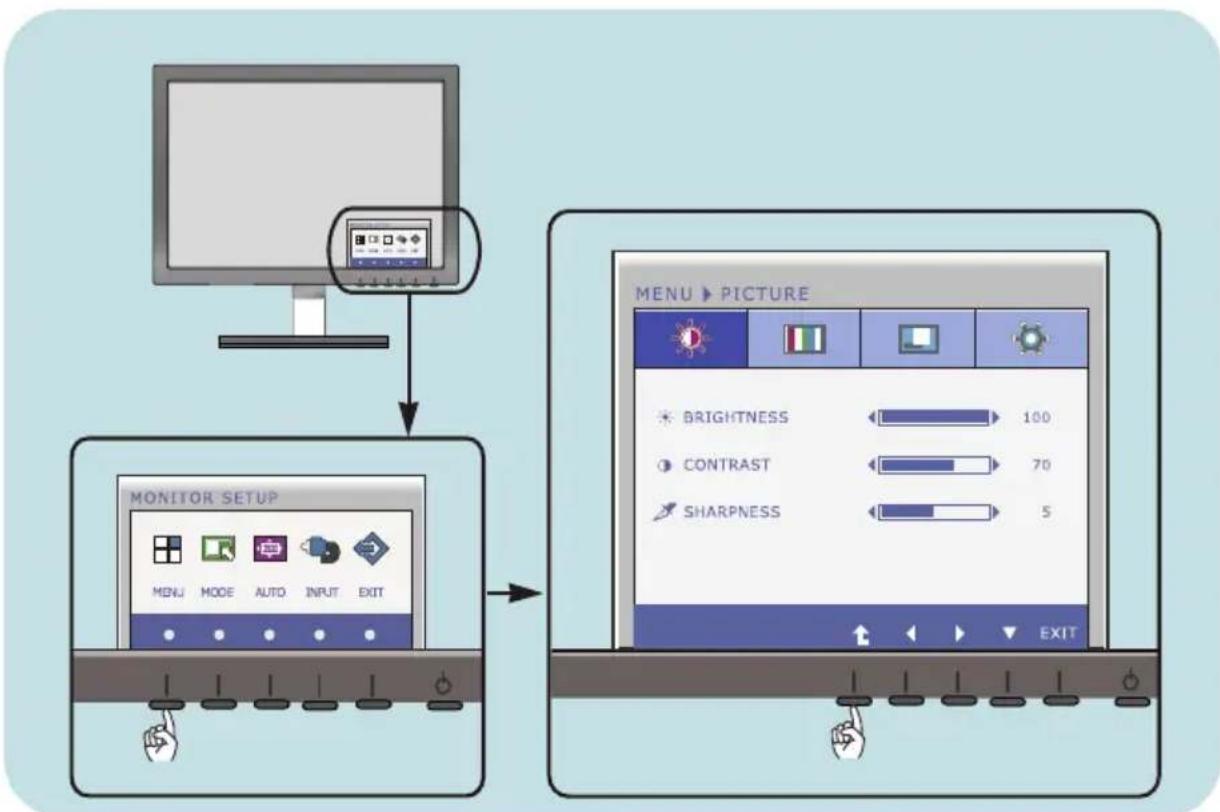

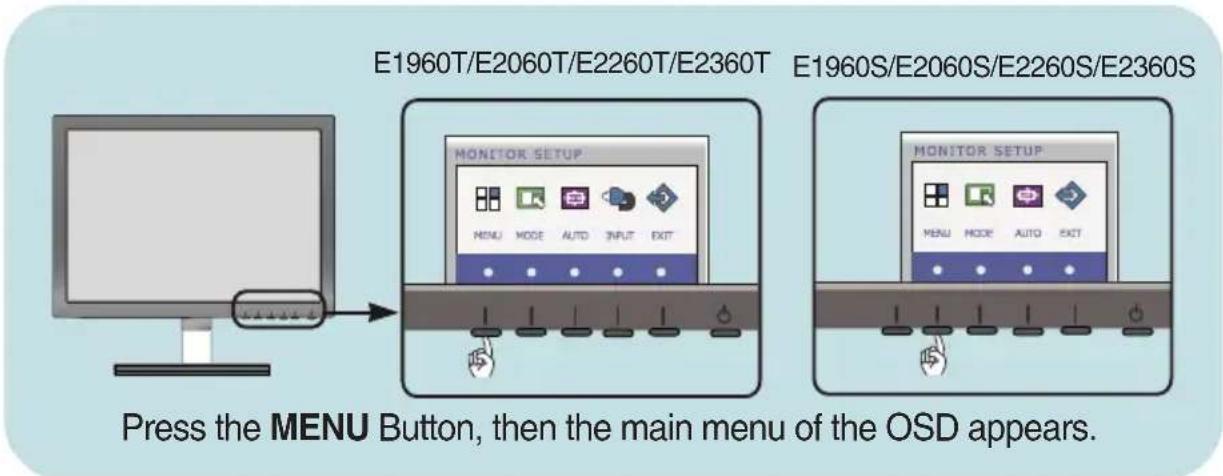

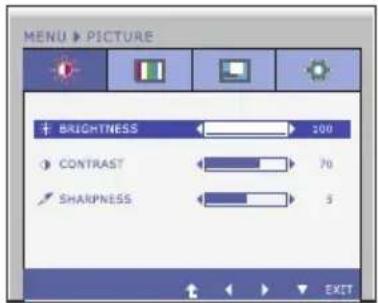

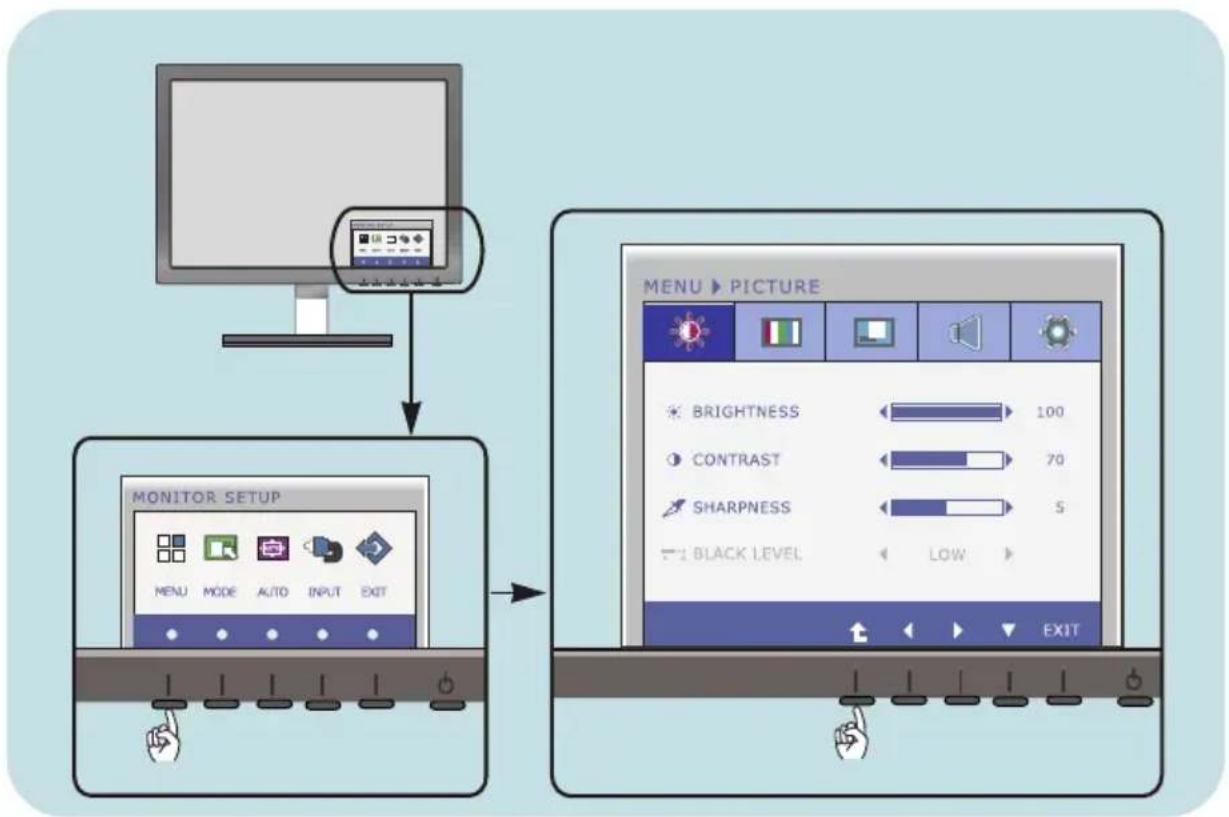

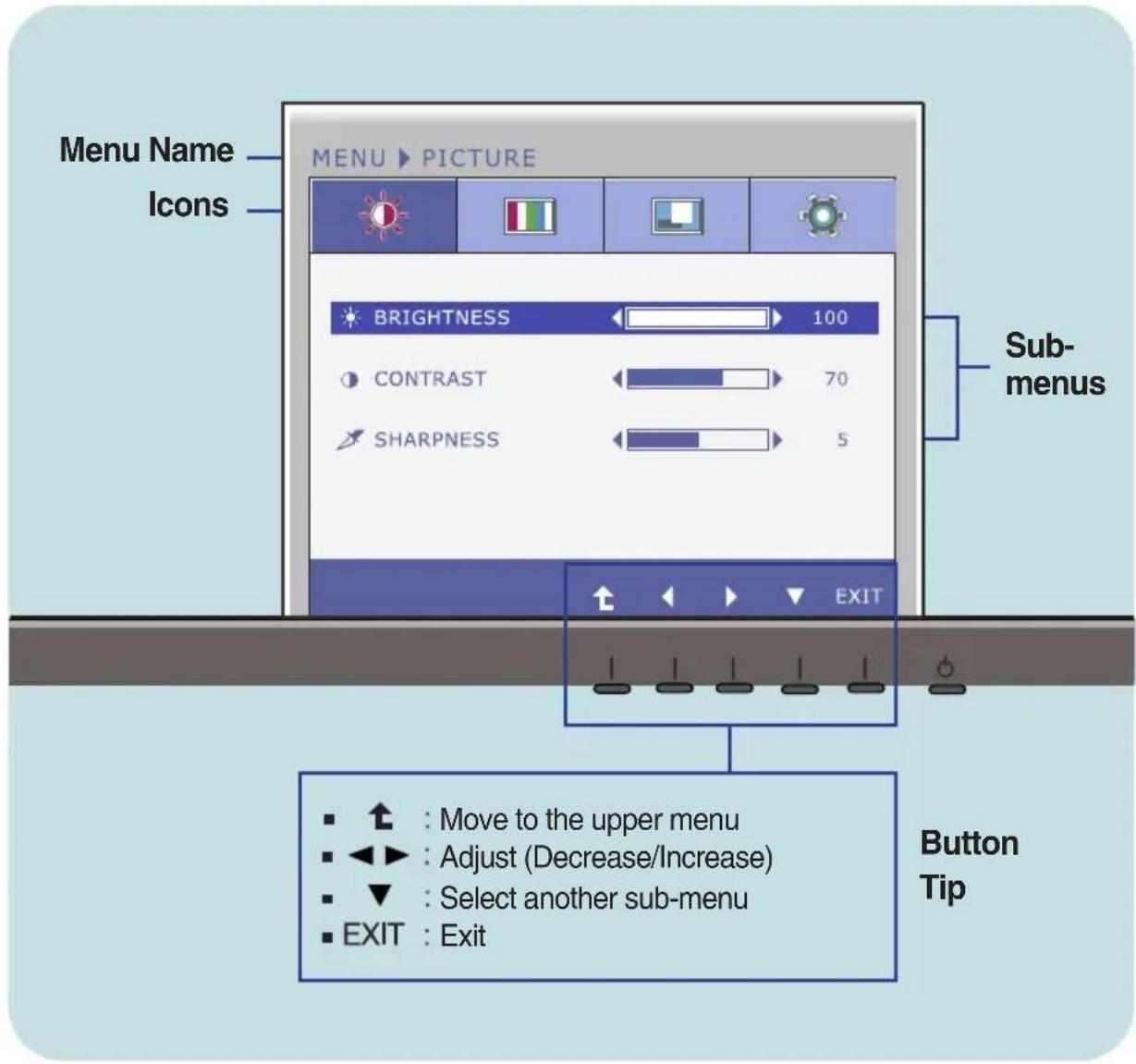

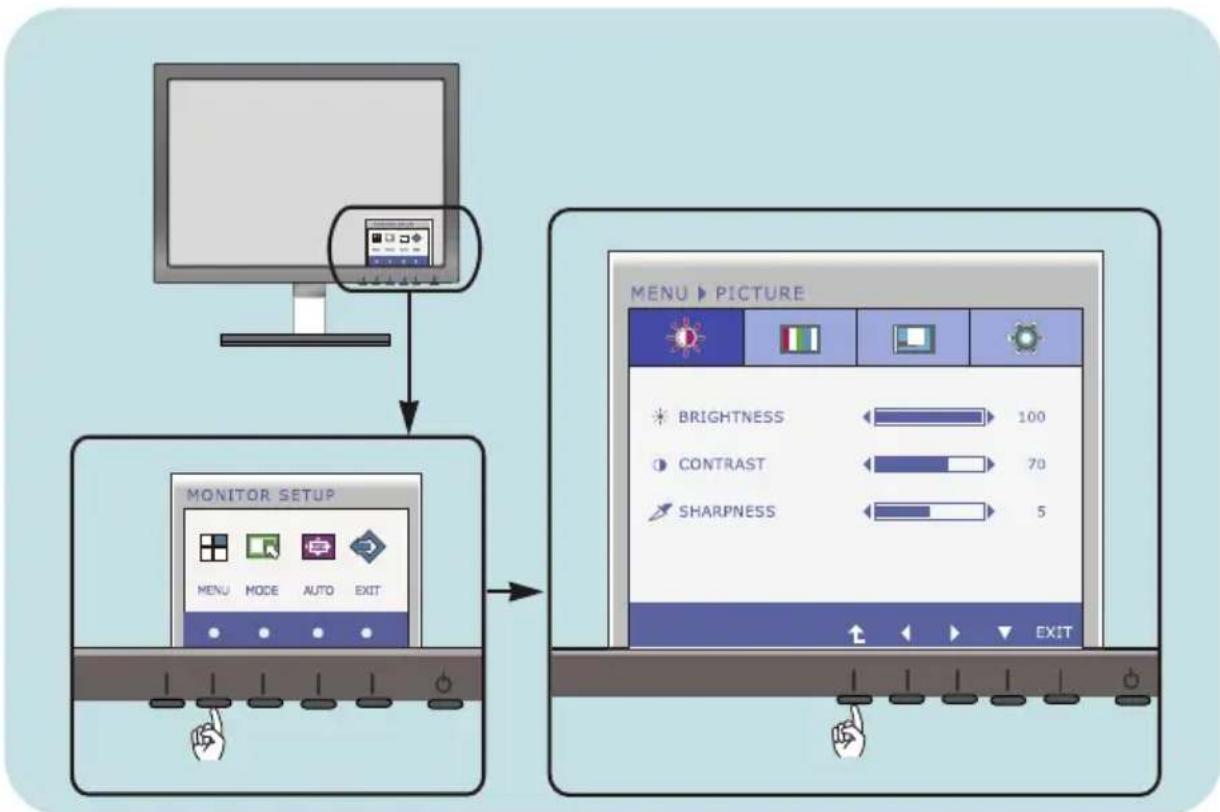

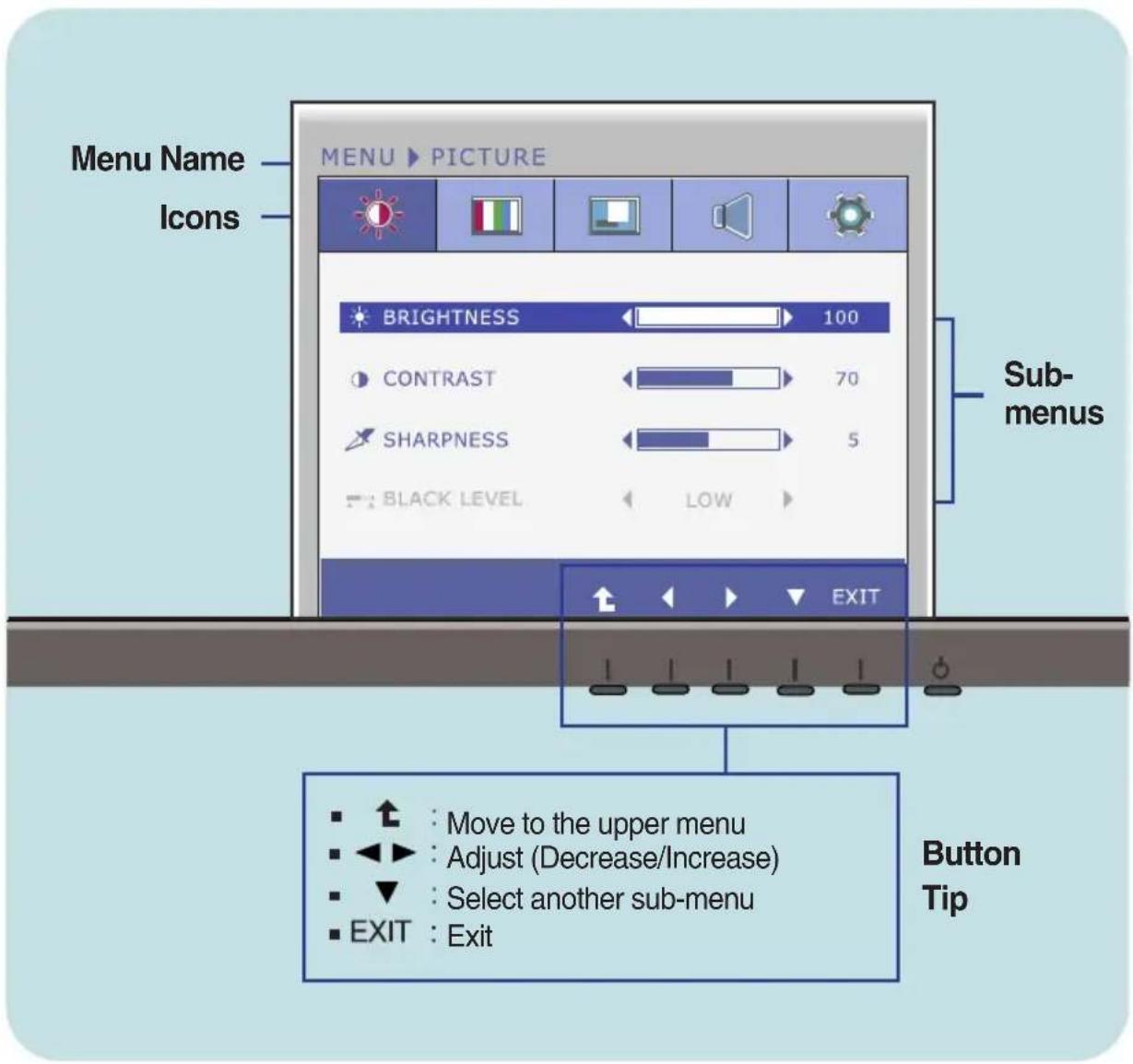

1 Press the discretionary button, then the main menu of the OSD appears.

To access a control, use the corresponding buttons.

Use the ◀/▶ buttons to adjust the image to the desired level.

Use the ▼ button to select other sub-menu items.

4 Press the EXIT Button to exit from the OSD.

Screen Adjustment

Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system.

A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.

To make adjustments in the On Screen Display, follow these steps:

1 Press the discretionary button, then the main menu of the OSD appears.
2 To access a control, use the corresponding buttons.
3 Use the ◀/▶ buttons to adjust the image to the desired level. Use the ▼ button to select other sub-menu items.
4 Press the EXIT Button to exit from the OSD.

Screen Adjustment

Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system.

A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.

To make adjustments in the On Screen Display, follow these steps:

1 Press the discretionary button, then the main menu of the OSD appears.
2 To access a control, use the corresponding buttons.
3 Use the ◀/▶ buttons to adjust the image to the desired level. Use the ▼ button to select other sub-menu items.
4 Press the EXIT Button to exit from the OSD.

On Screen Display(OSD) Selection and Adjustment

The following table indicates all the On Screen Display control, adjustment, and setting menus.

D-SUB : D-SUB(Analog signal) input

DVI-D : DVI-D(Digital signal) input

HDMI : HDMI signal

Main menu Sub-menu			Supported input	Description
PICTURE	BRIGHTNESSCONTRASTSHARPNESS		D-SUBDVI-DHDMI	To adjust the brightness, contrast and sharpness of the screen
	BLACK LEVEL		HDMI
COLOR	COLOR TEMP		D-SUBDVI-DHDMI	To customize the color of the screen
	(PRESET)sRGB6500K7500K8500K9300K	(USER)REDGREENBLUE
	GAMMA
DISPLAY	HORIZONTALVERTICAL		D-SUB	To adjust the position of the screen
	CLOCKPHASE		D-SUB	To improve the clarity and stability of the screen
	OVERSCAN		HDMI
VOLUME	VOLUME		HDMI	To adjust the headphone/earphone volume
OTHERS	LANGUAGEPOWER INDICATOR		D-SUBDVI-DHDMI	To customize the screen status for a user's operating environment
	WHITE BALANCE		D-SUB
	FACTORY RESET		D-SUBDVI-DHDMI
MODE	F-ENGINE	NORMALMOVIEINTERNET	DSUBDVI-D	To select or customize desired image settings
		STANDARDMOVIEGAMESPORTS	HDMI
	ORIGINALRATIO	WIDEORIGINAL	DSUBDVI-DHDMI	To adjust the image size
	PHOTOEFFECT	NORMALGAUSSIAN BLURSEPIAMONOCHROME	DSUBDVI-DHDMI	To adjust the screen color mode

NOTE

■ The order of icons may differ depending on the model (18 to 31).

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu.

E1960T/E2060T/E2260T/E2360T E1960S/E2060S/E2260S/E2360S MONITOR SETUP MENU MODE AUTO INPUT EXIT Press the MENU Button, then the main menu of the OSD appears.

Menu Name Icons MENU ► PICTURE BRIGHTNESS 100 CONTRAST 70 SHARPNESS 5 EXIT Button Tip ■ ↑ : Move to the upper menu ■ ◀► : Adjust (Decrease/Increase) ■ ▼ : Select another sub-menu ■ EXIT : Exit

NOTE

- OSD (On Screen Display) menu languages on the monitor may differ from the manual.

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu.

E2260V/E2360V MONITOR SETUP MENU MODE AUTO INPUT EXIT

Press the MENU Button, then the main menu of the OSD appears.

Menu Name Icons MENU ▶ PICTURE BRIGHTNESS 100 CONTRAST 70 SHARPNESS 5 BLACK LEVEL LOW EXIT Button Tip ■ ↑ : Move to the upper menu ■ ◀► : Adjust (Decrease/Increase) ■ ▼ : Select another sub-menu ■ EXIT : Exit

NOTE

- OSD (On Screen Display) menu languages on the monitor may differ from the manual.

Main menu Sub menu Description


E1960S/E2060S/E2260S/E2360S

E1960T/E2060T/E2260T/E2360T

MENU PICTURE BRIGHTNESS 100 CONTRAST 70 SHARPNESS 3 EXIT

E2260V/E2360V

D-SUB/DVI-D input

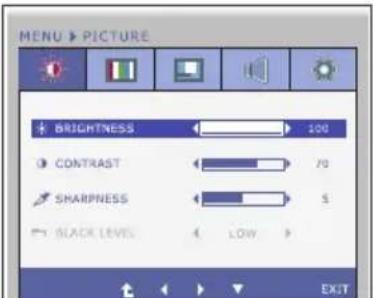

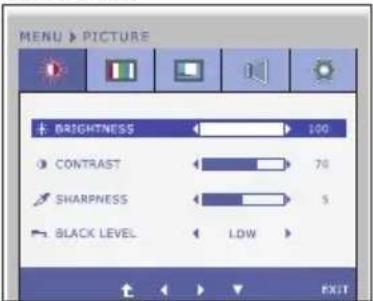

MENU PICTURE BRIGHTNESS 100 CONTRAST 70 SHARPNESS 5 BLACK LEVEL LOW EXIT

HDMI input

MENU > PICTURE + BRIGHTNESS 100 • CONTRAST 70 • SHARPNESS 5 • BLACK LEVEL LOW EXIT

• ↑ : Move to the upper menu
  : Decrease
• ▶ : Increase
  ■ ▼ : Select another sub-menu
• EXIT : Exit

BRIGHTNESS To adjust the brightness of the screen.

CONTRAST To adjust the contrast of the screen.

SHARPNESS To adjust the clearness of the screen.

BLACK LEVEL You can set the offset level. If you select 'HIGH', the screen will be bright and if you select 'LOW', the screen will be dark. (only for HDMI input)

\* Offset?

As the criteria for video signal, it is the darkest screen the monitor can show.

Main menu Sub menu Description

COLOR

E1960S/E2060S/E2260S/E2360S

E1960T/E2060T/E2260T/E2360T

PRESET Mode

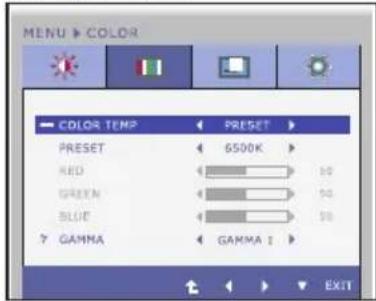

MENU > COLOR COLOR TEMP PRESET PRESET 6500K RED 100 GREEN 100 BLUE 100 ? GAMMA GAMA 1 EXIT

USER Mode

MENU > COLOR COLOR TEMP PRESET PRESET 6500K RED 50 GREEN 50 BLUE 50 Y GAMMA GAMMA 1 EXIT

E2260V/E2360V

PRESET Mode

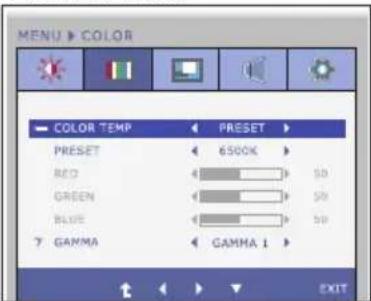

MENU ▶ COLOR COLOR TEMP PRESET PRESET 6500K RED 50 GREEN 50 BLUE 50 GAMMA GAMMA 1 EXIT

USER Mode

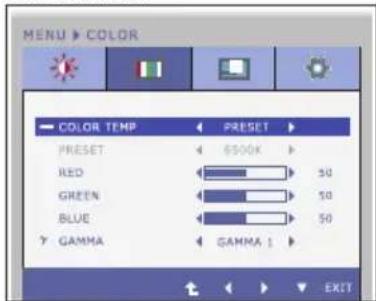

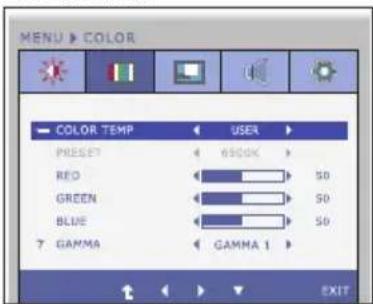

MENU > COLOR COLOR TEMP USER Preset 6500K RED 50 GREEN 50 BLUE 50 7 GAMMA GAMMA 1 EXIT

COLOR TEMP

Select either PRESET or USER to adjust the screen color.

PRESET

Select the screen color.

• sRGB: Set the screen color to fit the sRGB standard color specification.
• 6500K to 7500K: Slightly reddish white.
  • 8500K to 9300K: Slightly bluish white.

USER

RED

Set your own red color levels.

GREEN

Set your own green color levels.

BLUE

Set your own blue color levels.

GAMMA

Set your own gamma value. : 0 / 1 / 2 On the monitor, high gamma values display whitish images and low gamma values display blackish images.

• ↑ : Move to the upper menu
• : Decrease
  ■ ▶ : Increase
  ■ ▼ : Select another sub-menu
• EXIT : Exit

Main menu Sub menu Description

DISPLAY

E1960S/E2060S/E2260S/E2360S

E1960T/E2060T/E2260T/E2360T

D-SUB input

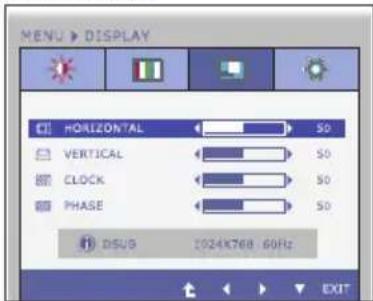

MENU > DISPLAY HORIZONTAL 50 VERTICAL 50 CLOCK 50 PHASE 50 DSUB 1024K768 60Hz EXIT

E2260V/E2360V

D-SUB input

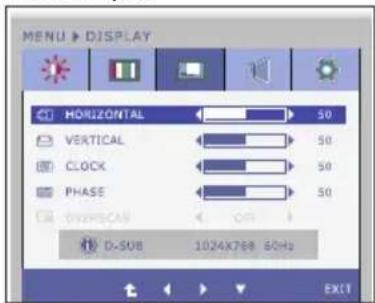

MENU > DISPLAY HORIZONTAL 50 VERTICAL 50 CLOCK 50 PHASE 50 D-SUB 1024X788 60Hz EXIT

HDMI input

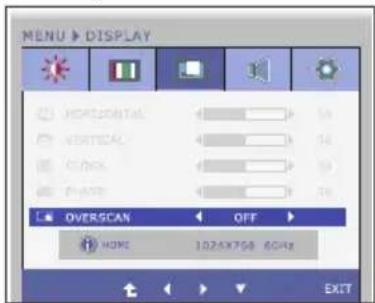

MENU > DISPLAY HORIZONTAL 50 VERTICAL 50 GREEN 50 FRAVE 50 OVERSCAN OFF HOME 1024X768 60Hz EXIT

• ↑ : Move to the upper menu
  : Decrease
  ■ ▶ : Increase
• ▼ : Select another sub-menu
• EXIT : Exit

HORIZONTAL

To move image left and right.

VERTICAL

To move image up and down.

CLOCK

To minimize any vertical bars or stripes visible on the screen background. The horizontal screen size will also change.

PHASE

To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

OVERSCAN

Removes noise that may occur at the edges of an image when HDMI is connected to an external device. When ON is selected, the image size is reduced to prevent noise. When OFF is selected, the original image size is maintained regardless of noise. (Only for HDMI input)

Main menu Sub menu Description

VOLUME

E2260V/E2360V

HDMI input

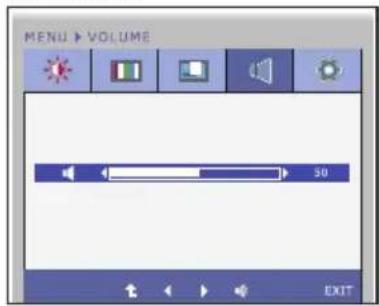

MENU VOLUME 50 EXIT

VOLUME To adjust the volume of headphone/

Earphone.

(Only for HDMI input)

• ↑ : Move to the upper menu
  : Decrease
• ▶ : Increase
  : Mute
• EXIT : Exit

Main menu Sub menu Description

OTHERS

E1960S/E2060S/E2260S/E2360S

E1960T/E2060T/E2260T/E2360T

D-SUB input

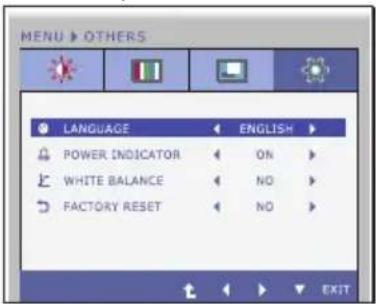

MENU > OTHERS LANGUAGE ENGLISH POWER INDICATOR ON WHITE BALANCE NO FACTORY RESET NO EXIT

DVI-D input

MENU > OTHERS LANGUAGE ENGLISH POWER INDICATOR ON WHITE BALANCE NO FACTORY RESET NO EXIT

E2260V/E2360V

D-SUB input

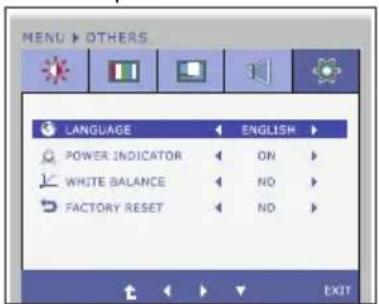

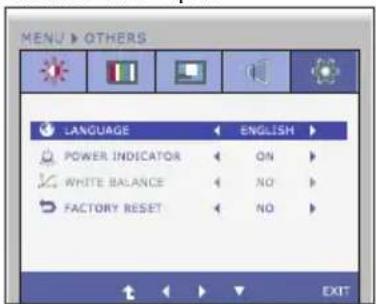

MENU > OTHERS LANGUAGE ENGLISH POWER INDICATOR ON WHITE BALANCE NO FACTORY RESET NO EXIT

HDMI/DVI-D input

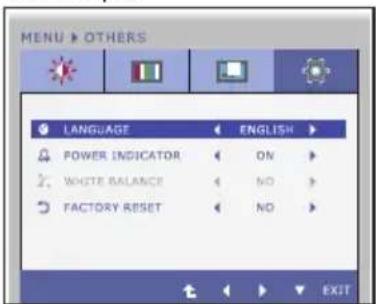

MENU > OTHERS LANGUAGE ENGLISH POWER INDICATOR ON WHITE BALANCE NO FACTORY RESET NO EXIT

LANGUAGE

To choose the language in which the control names are displayed.

POWER INDICATOR

Use this function to set the power indicator on the front side of the monitor to ON or OFF.

If you set OFF, it will go off.

If you set ON at any time, the power indicator will automatically be turned on.

WHITE BALANCE

If the output of the video card is different the required specifications, the color level may deteriorate due to video signal distortion. Using this function, the signal level is adjusted to fit into the standard output level of the video card in order to provide the optimal image.

Activate this function when white and black colors are present in the screen.

FACTORY RESET

Restore all factory default settings except "LANGUAGE."

Press the ◀,▶ buttons to reset immediately.

• ↑ : Move to the upper menu
  : Decrease
• ▶ : Increase
  ■ ▼ : Select another sub-menu
• EXIT : Exit

NOTE

- If this does not improve the screen image, restore the factory default settings. If necessary, execute the WHITE BALANCE function again. This function will be enabled only when the input signal is an analog signal.

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu.

E1960T/E2060T/E2260T/E2360T E2260V/E2360V E1960S/E2060S/E2260S/E2360S MONITOR SETUP MENU MODE AUTO INPUT EXIT Press the MODE Button, then the main menu of the OSD appears.

Menu Name Icons MODE ► f·ENGINE f Normal MOVIE INTERNET Sub- menus EXIT Button Tip ■ ↑ : Move to the upper menu ■ ◀► : Move ■ ▼ : Select another sub-menu ■ EXIT : Exit

NOTE

■ OSD (On Screen Display) menu languages on the monitor may differ from the manual.

Main menu Sub menu Description

E1960S/E2060S/E2260S/E2360S

E1960T/E2060T/E2260T/E2360T

f·ENGINE

MODE > f•ENGINE NORMAL MOVIE INTERNET EXIT

NORMAL

Select this when you want to use the product in the most general using environment.

MODE > f=ENGINE NORMAL MOVIE INTERNET EXIT

MOVIE

Select this when you are watching a video or movie.

MODE > f•ENGINE NORMAL MOVIE INTERNET EXIT

INTERNET

Select this when you are working on the document (Word etc.)

• ↑ : Move to the upper menu
  ■ ◀, ▶ : Move
• EXIT : Exit

Main menu Sub menu Description

E2260V/E2360V

f·ENGINE

D-SUB/DVI-D input

MODE > f-ENGINE NORMAL MOVIE INTERNET EXIT

NORMAL

Select this when you want to use the product in the most general using environment.

HDMI input

MODE ► f-ENGINE STANDARD MOVIE GAME SPORTS EXIT

STANDARD

Select this when you want to use the original standard video.

* In the General (Standard) mode, the f·ENGINE is turned off.

D-SUB/DVI-D input

MODE > f-ENGINE NORMAL MOVIE INTERNET EXIT

MOVIE

Select this when you are watching a video or movie.

HDMI input

MODE > f·ENGINE STANDARD MOVIE GAME SPORTS EXIT

• ↑ : Move to the upper menu
  ■ ◀, ▶ : Move
• EXIT : Exit

On Screen Display(OSD) Selection and Adjustment

Main menu Sub menu Description

D-SUB/DVI-D input

MODE > f·ENGINE NORMAL MOVIE INTERNET EXIT

INTERNET

Select this when you are working on the document (Word etc.)

HDMI input

MODE > f • ENGINE STANDARD MOVIE GAME SPORTS EXIT

GAME

Select this when you are playing a game.

HDMI input

MODE > f-ENGINE STANDARD MOVIE GAME SPORTS EXIT

SPORTS

Select this when you watching general sports.

• ↑ : Move to the upper menu
  ■ ◀, ▶ : Move
• EXIT : Exit

Main menu Sub menu Description

ORIGINAL RATIO

MODE ▶ ORIGINAL RATIO WIDE ORIGINAL EXIT

WIDE

Switch to full screen mode according to input image signal.

MODE > ORIGINAL RATIO WIDE ORIGINAL EXIT

ORIGINAL

Change the input image signal ratio to original.

* This function works only if input resolution is lower than monitor ratio (16:9).

• ↑ : Move to the upper menu
  ■ ◀, ▶ : Move
• EXIT : Exit

Main menu Sub menu Description

PHOTO EFFECT

MODE ► PHOTO EFFECT NORMAL GAUSSIAN BLUR SEPIA MONOCHROME EXIT

NORMAL The PhotoEffect function is disabled.

MODE ► PHOTO EFFECT NORMAL GAUSSIAN BLUR SEPIA MONOCHROME EXIT

GAUSSIAN This menu changes the screen to be more BLUR colorful and smoother.

MODE ► PHOTO EFFECT NORMAL GAUSSIAN BLUR SEPIA MONOCHROME EXIT

SEPIA This menu changes the screen to be Sepia tone (brown color).

MODE ► PHOTO EFFECT NORMAL GAUSSIAN BLUR SEPIA MONOCHROME EXIT

MONOCH This menu changed the screen to be -ROME Gray tone(black-and-white Picture).

• ↑ : Move to the upper menu
  ■ ◀, ▶ : Move
• EXIT : Exit

Check the following before calling for service.

No image appears
●Is the power cord of the display connected?	●Check and see if the power cord is connected properly to the power outlet.
●Is the power indicator light on?	●Press the Power button.
●Is the power indicator blinking?	●If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen.●Try to turn on the PC.
●Do you see an "OUT OF RANGE" message on the screen?	●This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
●Do you see a "CHECK SIGNAL CABLE" message on the screen?	●This message appears when the signal cable between your PC and your display is not connected. Check the signal cable and try again.

Do you see a "OSD LOCKED" message on the screen?
● Do you see “OSD LOCKED” when you push MENU button?	● You can secure the current control settings, so that they cannot be inadvertently changed. You can unlock the OSD controls at any time by pushing theMENUbutton for several seconds: the message“OSD UNLOCKED” will appear.
Display image is incorrect
●Display Position is incorrect.	●Press the AUTO button to automatically adjust your display image to the ideal setting.If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display.
●On the screen background, vertical bars or stripes are visible.	●Press the AUTO button to automatically adjust your display image to the ideal setting.If the results are unsatisfactory, decrease the vertical bars or stripes using the CLOCK icon in the on screen display.
●Any horizontal noise appearing in any image or characters are not clearly portrayed.	●Press the AUTO button to automatically adjust your display image to the ideal setting.If the results are unsatisfactory, decrease the horizontal bars using the PHASE icon in the on screen display.●Check Control Panel --> Display --> Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).

IMPORTANT

• Check Control Panel --> Display --> Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.
• If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
• The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.

Display image is incorrect
●The screen color is mono or abnormal.	●Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.●Make sure the video card is properly inserted in the slot.●Set the color setting higher than 24 bits (true color) at Control Panel - Settings.
●The screen blinks.	●Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
● Have you installed the display driver?	● Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lg.com.● Make sure to check if the video card supports Plug&Play function.

The Audio function is not working
● Picture OK & No sound.	· Check whether volume is "0".· Check sound muted.· HDMI cable installed properly.· Head phone cable installed properly.· Check sound format. Not supply to compressed sound format.
Display	47.0 cm (18.5 inch) Flat Panel Active matrix-TFT LCDAnti-Glare coatingVisible diagonal size : 47.0 cm0.300 mm x 0.300 mm (Pixel pitch)
Sync Input	Horizontal Freq. 30 kHz to 83 kHz (Automatic)Vertical Freq. 56 Hz to 75 Hz (Automatic)Input Form Separate Sync.
Video Input	Signal Input 15 pin D-Sub ConnectorInput Form RGB Analog (0.7 Vp-p/ 75 ohm)
Resolution	Max VESA 1360 x 768 @60 HzRecommend VESA 1360 x 768 @60 Hz
Plug&Play	DDC 2AB
Power Consumption	On Mode : 17 W(Typ.)Sleep Mode ≤0.5 WOff Mode ≤0.5 W
Dimensions & Weight	With StandWidth 44.20 cm (17.40 inch)Height 35.53 cm (13.99 inch)Depth 16.20 cm (6.38 inch)	Without StandWidth 44.20 cm (17.40 inch)Height 35.10 cm (13.82 inch)Depth 3.10 cm (1.22 inch)
	Weight(excl. packing) 1.8 kg (3.97 lb)
Range	Tilt : -5° to 15°
Power Input	12 V --- 2.0 A
AC-DC Adapter	Type ADS-24NP-12-1 12024G, manufactured by HONOR Electronic
Environmental Conditions	Operating ConditionsTemperature 10 °C to 35 °CHumidity 10 % to 80 % non-CondensingStorage ConditionsTemperature -20 °C to 60 °CHumidity 5 % to 90 % non-Condensing
Stand Base	Attached ( ), Detached ( O )
Power cord	Wall-outlet type
NOTEInformation in this document is subject to change without notice.
Sync Input	Horizontal Freq. 30 kHz to 83 kHz (Automatic)Vertical Freq. 56 Hz to 75 Hz (Automatic)Input Form Separate Sync.Digital
Video Input	Signal Input 15 pin D-Sub ConnectorDVI-D Connector (Digital)Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution	Max VESA 1360 x 768 @60 HzRecommend VESA 1360 x 768 @60 Hz
Plug&Play	DDC 2B(Digital),DDC2AB(Analog)
Power Consumption	On Mode : 17 W(Typ.)Sleep Mode ≤0.5 WOff Mode ≤0.5 W
Dimensions & Weight	With StandWidth 44.20 cm (17.40 inch)Height 35.53 cm (13.99 inch)Depth 16.20 cm (6.38 inch)	Without StandWidth 44.20 cm (17.40 inch)Height 35.10 cm (13.82 inch)Depth 3.10 cm (1.22 inch)
	Weight(excl. packing) 1.8 kg (3.97 lb)
Range	Tilt : -5° to 15°
Power Input	12 V --- 2.0 A
AC-DC Adapter	Type ADS-24NP-12-1 12024G, manufactured by HONOR Electronic
Environmental Conditions	Operating ConditionsTemperature 10 °C to 35 °CHumidity 10 % to 80 % non-CondensingStorage ConditionsTemperature -20 °C to 60 °CHumidity 5 % to 90 % non-Condensing
Stand Base	Attached ( ), Detached ( O )
Power cord	Wall-outlet type
NOTE■ Information in this document is subject to change without notice.
Display	50.8 cm (20.0 inch) Flat Panel Active matrix-TFT LCDAnti-Glare coatingVisible diagonal size : 50.8 cm0.2766 mm x 0.2766 mm (Pixel pitch)
Sync Input	Horizontal Freq. 30 kHz to 83 kHz (Automatic)Vertical Freq. 56 Hz to 75 Hz (Automatic)Input Form Separate Sync.
Video Input	Signal Input 15 pin D-Sub ConnectorInput Form RGB Analog (0.7 Vp-p/ 75 ohm)
Resolution	Max VESA 1600 x 900 @ 60 HzRecommend VESA 1600 x 900 @ 60 Hz
Plug&Play	DDC 2AB
Power Consumption	On Mode : 21 W(Typ.)Sleep Mode ≤0.5 WOff Mode ≤0.5 W
Dimensions & Weight	With StandWidth 47.40 cm (18.66 inch)Height 37.30 cm (14.69 inch)Depth 16.20 cm (6.38 inch)	Without StandWidth 47.40 cm (18.66 inch)Height 36.88 cm (14.52 inch)Depth 3.10 cm (1.22 inch)
	Weight(excl. packing) 2.0 kg (4.41 lb)
Range	Tilt : -5° to 15°
Power Input	12 V --- 2.0 A
AC-DC Adapter	Type ADS-24NP-12-1 12024G, manufactured by HONOR Electronic
Environmental Conditions	Operating ConditionsTemperature 10 °C to 35 °CHumidity 10 % to 80 % non-CondensingStorage ConditionsTemperature -20 °C to 60 °CHumidity 5 % to 90 % non-Condensing
Stand Base	Attached ( ), Detached ( O )
Power cord	Wall-outlet type
NOTE■ Information in this document is subject to change without notice.
Sync Input	Horizontal Freq. 30 kHz to 83 kHz (Automatic)Vertical Freq. 56 Hz to 75 Hz (Automatic)Input Form Separate Sync.Digital
Video Input	Signal Input 15 pin D-Sub ConnectorDVI-D Connector (Digital)Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution	Max VESA 1600 x 900 @ 60 HzRecommend VESA 1600 x 900 @ 60 Hz
Plug&Play	DDC 2B(Digital),DDC2AB(Analog)
Power Consumption	On Mode : 21 W(Typ.)Sleep Mode ≤0.5 WOff Mode ≤0.5 W
Dimensions & Weight	With StandWidth 47.40 cm (18.66 inch)Height 37.30 cm (14.69 inch)Depth 16.20 cm (6.38 inch)	Without StandWidth 47.40 cm (18.66 inch)Height 36.88 cm (14.52 inch)Depth 3.10 cm (1.22 inch)
	Weight(excl. packing) 2.0 kg (4.41 lb)
Range	Tilt : -5° to 15°
Power Input	12 V --- 2.0 A
AC-DC Adapter	Type ADS-24NP-12-1 12024G, manufactured by HONOR Electronic
Environmental Conditions	Operating ConditionsTemperature 10 °C to 35 °CHumidity 10 % to 80 % non-CondensingStorage ConditionsTemperature -20 °C to 60 °CHumidity 5 % to 90 % non-Condensing
Stand Base	Attached ( ), Detached ( O )
Power cord	Wall-outlet type
NOTE■ Information in this document is subject to change without notice.
Display	54.6 cm (21.5 inch) Flat Panel Active matrix-TFT LCDAnti-Glare coatingVisible diagonal size : 54.6 cm0.248 mm x 0.248 mm (Pixel pitch)
Sync Input	Horizontal Freq. 30 kHz to 83 kHz (Automatic)Vertical Freq. 56 Hz to 75 Hz (Automatic)Input Form Separate Sync.
Video Input	Signal Input 15 pin D-Sub ConnectorInput Form RGB Analog (0.7 Vp-p/ 75 ohm)
Resolution	Max VESA 1920 x 1080 @60 HzRecommend VESA 1920 x 1080 @60 Hz
Plug&Play	DDC 2AB
Power Consumption	On Mode : 26 W(Typ.)Sleep Mode ≤0.5 WOff Mode ≤0.5 W
Dimensions & Weight	With StandWidth 50.88 cm (20.03 inch)Height 39.24 cm (15.45 inch)Depth 17.20 cm (6.77 inch)	Without StandWidth 50.88 cm (20.03 inch)Height 38.74 cm (15.25 inch)Depth 3.10 cm (1.22 inch)
	Weight(excl. packing) 2.3 kg (5.07 lb)
Range	Tilt : -5° to 15°
Power Input	12 V--- 3.0 A
AC-DC Adapter	Type FSP036-DGAA1, manufactured by FSP Electronic or type LCAP07F, manufactured by Lienchange Electronics
Environmental Conditions	Operating ConditionsTemperature 10 °C to 35 °CHumidity 10 % to 80 % non-CondensingStorage ConditionsTemperature -20 °C to 60 °CHumidity 5 % to 90 % non-Condensing
Stand Base	Attached ( ), Detached ( O )
Power cord	Wall-outlet type
NOTE■ Information in this document is subject to change without notice.
Sync Input	Horizontal Freq. 30 kHz to 83 kHz (Automatic)Vertical Freq. 56 Hz to 75 Hz (Automatic)Input Form Separate Sync.Digital
Video Input	Signal Input 15 pin D-Sub ConnectorDVI-D Connector (Digital)Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution	Max VESA 1920 x 1080 @60 HzRecommend VESA 1920 x 1080 @60 Hz
Plug&Play	DDC 2B(Digital),DDC2AB(Analog)
Power Consumption	On Mode : 26 W(Typ.)Sleep Mode ≤0.5 WOff Mode ≤0.5 W
Dimensions & Weight	With StandWidth 50.88 cm (20.03 inch)Height 39.24 cm (15.45 inch)Depth 17.20 cm (6.77 inch)	Without StandWidth 50.88 cm (20.03 inch)Height 38.74 cm (15.25 inch)Depth 3.10 cm (1.22 inch)
	Weight(excl. packing) 2.3 kg (5.07 lb)
Range	Tilt : -5° to 15°
Power Input	12 V --- 3.0 A
AC-DC Adapter	Type FSP036-DGAA1, manufactured by FSP Electronic or type LCAP07F, manufactured by Lienchange Electronics
Environmental Conditions	Operating ConditionsTemperature 10 °C to 35 °CHumidity 10 % to 80 % non-CondensingStorage ConditionsTemperature -20 °C to 60 °CHumidity 5 % to 90 % non-Condensing
Stand Base	Attached ( ), Detached ( O )
Power cord	Wall-outlet type
NOTE■ Information in this document is subject to change without notice.
Sync Input	Horizontal Freq. Analog,Digital: 30 kHz to 83 kHz (Automatic)HDMI : 30 kHz to 83 kHz (Automatic)Vertical Freq.Analog,Digital : 56 Hz to 75 Hz (Automatic)HDMI : 56 Hz to 61 Hz (Automatic)Input FormSeparate Sync., Digital
Video Input	Signal Input15 pin D-Sub ConnectorDVI-D connector (Digital)19 pin HDMI ConnectorInput FormAnalog (0.7 Vp-p/ 75 ohm), Digital, HDMI
Resolution	Max VESA 1920 x 1080 @60 HzRecommend VESA 1920 x 1080 @60 Hz
Plug&Play	DDC 2B (Analog, Digital, HDMI)
Power Consumption	On Mode : 26 W (Typ.)Sleep Mode ≤0.5 WOff Mode ≤0.5 W
Dimensions & Weight	With StandWidth 50.88 cm (20.03 inch)Height 39.24 cm (15.45 inch)Depth 17.20 cm (6.77 inch)	Without StandWidth 50.88 cm (20.03 inch)Height 38.74 cm (15.25 inch)Depth 3.10 cm (1.22 inch)
	Weight(excl. packing) 2.3 kg (5.07 lb)
Range	Tilt : -5° to 15°
Power Input	12 V = 3.0 A
AC-DC Adapter	Type FSP036-DGAA1, manufactured by FSP Electronic or type LCAP07F, manufactured by Lienchange Electronics
Environmental Conditions	Operating ConditionsTemperature 10 °C to 35 °CHumidity 10 % to 80 % non-CondensingStorage ConditionsTemperature -20 °C to 60 °CHumidity 5 % to 90 % non-Condensing
Stand Base	Attached ( ), Detached ( O )
Power cord	Wall-outlet type
NOTE■ Information in this document is subject to change without notice.
Display	58.4 cm (23.0 inch) Flat Panel Active matrix-TFT LCDAnti-Glare coatingVisible diagonal size : 58.4 cm0.265 mm x 0.265 mm (Pixel pitch)
Sync Input	Horizontal Freq. 30 kHz to 83 kHz (Automatic)Vertical Freq. 56 Hz to 75 Hz (Automatic)Input Form Separate Sync.
Video Input	Signal Input 15 pin D-Sub ConnectorInput Form RGB Analog (0.7 Vp-p/ 75 ohm)
Resolution	Max VESA 1920 x 1080 @60 HzRecommend VESA 1920 x 1080 @60 Hz
Plug&Play	DDC 2AB
Power Consumption	On Mode : 30 W (Typ.)Sleep Mode ≤0.5 WOff Mode ≤0.5 W
Dimensions & Weight	With StandWidth 54.23 cm (21.35 inch)Height 41.20 cm (16.22 inch)Depth 17.20 cm (6.77 inch)	Without StandWidth 54.23 cm (21.35 inch)Height 40.83 cm (16.07 inch)Depth 3.10 cm (1.22 inch)
	Weight(excl. packing) 2.6 kg (5.73 lb)
Range	Tilt : -5° to 15°
Power Input	12 V== 3.0 A
AC-DC Adapter	Type FSP036-DGAA1, manufactured by FSP Electronic or type LCAP07F, manufactured by Lienchange Electronics
Environmental Conditions	Operating ConditionsTemperature 10 °C to 35 °CHumidity 10 % to 80 % non-CondensingStorage ConditionsTemperature -20 °C to 60 °CHumidity 5 % to 90 % non-Condensing
Stand Base	Attached ( ), Detached ( O )
Power cord	Wall-outlet type
NOTE■ Information in this document is subject to change without notice.
Sync Input	Horizontal Freq. 30 kHz to 83 kHz (Automatic)Vertical Freq. 56 Hz to 75 Hz (Automatic)Input Form Separate Sync.Digital
Video Input	Signal Input 15 pin D-Sub ConnectorDVI-D Connector (Digital)Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution	Max VESA 1920 x 1080 @60 HzRecommend VESA 1920 x 1080 @60 Hz
Plug&Play	DDC 2B(Digital),DDC2AB(Analog)
Power Consumption	On Mode : 30 W (Typ.)Sleep Mode ≤0.5 WOff Mode ≤0.5 W
Dimensions & Weight	With StandWidth 54.23 cm (21.35 inch)Height 41.20 cm (16.22 inch)Depth 17.20 cm (6.77 inch)	Without StandWidth 54.23 cm (21.35 inch)Height 40.83 cm (16.07 inch)Depth 3.10 cm (1.22 inch)
	Weight(excl. packing) 2.6 kg (5.73 lb)
Range	Tilt : -5° to 15°
Power Input	12 V = 3.0 A
AC-DC Adapter	Type FSP036-DGAA1, manufactured by FSP Electronic or type LCAP07F, manufactured by Lienchange Electronics
Environmental Conditions	Operating ConditionsTemperature 10 °C to 35 °CHumidity 10 % to 80 % non-CondensingStorage ConditionsTemperature -20 °C to 60 °CHumidity 5 % to 90 % non-Condensing
Stand Base	Attached ( ), Detached ( O )
Power cord	Wall-outlet type
NOTE■ Information in this document is subject to change without notice.
Sync Input	Horizontal Freq. Analog,Digital: 30 kHz to 83 kHz (Automatic)HDMI : 30 kHz to 83 kHz (Automatic)Vertical Freq.Analog,Digital : 56 Hz to 75 Hz (Automatic)HDMI : 56 Hz to 61 Hz (Automatic)Input Form Separate Sync., Digital
Video Input	Signal Input 15 pin D-Sub ConnectorDVI - D connector (Digital)19 pin HDMI ConnectorInput Form Analog (0.7 Vp-p/ 75 ohm), Digital, HDMI
Resolution	Max VESA 1920 x 1080 @60 HzRecommend VESA 1920 x 1080 @60 Hz
Plug&Play	DDC 2B (Analog, Digital, HDMI)
Power Consumption	On Mode : 30 W (Typ.)Sleep Mode ≤0.5 WOff Mode ≤0.5 W
Dimensions & Weight	With StandWidth 54.23 cm (21.35 inch)Height 41.20 cm (16.22 inch)Depth 17.20 cm (6.77 inch)	Without StandWidth 54.23 cm (21.35 inch)Height 40.83 cm (16.07 inch)Depth 3.10 cm (1.22 inch)
	Weight(excl. packing) 2.6 kg (5.73 lb)
Range	Tilt : -5° to 15°
Power Input	12 V = 3.0 A
AC-DC Adapter	Type FSP036-DGAA1, manufactured by FSP Electronic or type LCAP07F, manufactured by Lienchange Electronics
Environmental Conditions	Operating ConditionsTemperature 10 °C to 35 °CHumidity 10 % to 80 % non-CondensingStorage ConditionsTemperature -20 °C to 60 °CHumidity 5 % to 90 % non-Condensing
Stand Base	Attached ( ), Detached ( O )
Power cord	Wall-outlet type
NOTE■ Information in this document is subject to change without notice.

Preset Modes (Resolution) - D-sub(Analog) / DVI-D(Digital) INPUT

E1960S/E1960T

Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)

1	720 x 400	31.468	70
2	640 x 480	31.469	60
3	640 x 480	37.500	75
4	800 x 600	37.879	60
5	800 x 600	46.875	75
6	832 x 624	49.725	75
7	1024 x 768	48.363	60
8	1024 x 768	60.123	75
*9	1360 x 768	47.712	60

*Recommend Mode

E2060S/E2060T

Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)

1	720 x 400	31.468	70
2	640 x 480	31.469	60
3	640 x 480	37.500	75
4	800 x 600	37.879	60
5	800 x 600	46.875	75
6	1024 x 768	48.363	60
7	1024 x 768	60.123	75
8	1152 x 864	67.500	75
*9	1600 x 900	60.000	60

*Recommend Mode

E2260S/E2360S/E2260T/E2360T/E2260V/E2360V

Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)

1	720 x 400	31.468	70
2	640 x 480	31.469	60
3	640 x 480	37.500	75
4	800 x 600	37.879	60
5	800 x 600	46.875	75
6	1024 x 768	48.363	60
7	1024 x 768	60.123	75
8	1152 x 864	67.500	75
9	1280 x 1024	63.981	60
10	1280 x 1024	79.976	75
11	1680 x 1050	65.290	60
*12	1920 x 1080	67.500	60

*Recommend Mode

HDMI Video Input

E2260V/E2360V

Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1	480p	31.50	60
2	576p	31.25	50
3	720p	37.50	50
4	720p	45.00	60
5	1080i	28.12	50
6	1080i	33.75	60
7	1080p	56.25	50
8	1080p	67.50	60

Indicator

MODE	LED Color
On Mode	Light Blue
Sleep Mode	Red
Off Mode	Off

LG Life's Good

Make sure to read the Important Precautions before using the product.

Keep the Owner's Manual (CD) in an accessible place for furture reference.

The model and serial number of the SET is located on the back and one side of the SET. Record it below should you ever need service.

MODEL

SERIAL

ENERGY STAR is a set of power-saving guidelines issued by the U.S. Environmental Protection Agency(EPA).

As an ENERGY STAR Partner LGE U. S. A., Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
