L1942PE - Monitor LG - Free user manual and instructions

Product Type	Monitor
Brand	LG
Model	L1942PE
Screen Size	19 inches (48.2 cm)
Display Technology	Active Matrix TFT LCD with Anti-Glare coating
Pixel Pitch	0.294 mm
Recommended Resolution	1280 x 1024 @ 60 Hz
Maximum Resolution	1280 x 1024 @ 75 Hz (Analog) / 1280 x 1024 @ 60 Hz (Digital)
Sync Input Frequencies	Horizontal: 30-83 kHz (Analog), 30-71 kHz (Digital); Vertical: 56-75 Hz
Video Input Connectors	15-pin D-Sub (Analog), DVI-D (Digital)
Power Consumption (On Mode)	22 W (Typical)
Power Consumption (Sleep/Off)	≤ 0.5 W
Power Input	AC 100-240V ~ 50/60 Hz 0.8A
Dimensions with Stand (W x H x D)	40.63 x 42.27 x 24.16 cm (16.00 x 16.64 x 9.51 inches)
Dimensions without Stand (W x H x D)	40.63 x 34.45 x 5.84 cm (16.00 x 13.56 x 2.30 inches)
Weight (Net)	4.47 kg (9.93 lbs)
Tilt Range	-6° to +17°
Swivel Range	356°
Height Adjustment Range	Up to 110 mm (4.33 inches)
Pivot Function	Rotate 90° clockwise (Landscape/Portrait)
VESA Mount Compatible	Yes (screw: 4mm x 0.7 x 10mm)
Plug & Play	DDC 2B (Digital), DDC 2AB (Analog)
On Screen Display (OSD)	Yes (Picture, Color, Tracking, Setup, f-ENGINE)
Power Indicator	Blue (On), Flicker (Sleep), Off (Off)

Frequently Asked Questions - L1942PE LG

How do I lock the OSD settings on my LG L1942PE monitor?

What does the 'AUTO/SET' button do?

Why is my monitor showing 'OUT OF RANGE'?

How do I clean the LCD screen?

Can I rotate the screen to portrait mode?

What is the recommended resolution for this monitor?

How do I switch between analog (D-Sub) and digital (DVI) input?

Why does the power indicator flicker?

Does the monitor have built-in speakers?

How do I perform a factory reset?

USER MANUAL L1942PE LG

Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference.

See the label attached on the product and give the information to your dealer when you ask for service.

This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.

On Safety

Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation.

Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

Do not Open the Display.

■ There are no user serviceable components inside.
■ There are Dangerous High Voltages inside, even when the power is OFF.
- Contact your dealer if the display is not operating properly.

To Avoid Personal Injury :

• Do not place the display on a sloping shelf unless properly secured.
  ■ Use only a stand recommended by the manufacturer.
• Do not drop an object on or apply impact to the product. Do not throw any toys or objects on the product screen.
  It can cause injury to human, problem to product and damage the display.

To Prevent Fire or Hazards:

■ Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house.
- Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages.
- Do not add accessories that have not been designed for this display.
- When the display is to be left unattended for an extended period of time, unplug it from the wall outlet.
- In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very dangerous. It can cause electric shock.

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage.

Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER:

■ Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
- Place the display in a built-in enclosure unless proper ventilation is provided.
■ Cover the openings with cloth or other material.
■ Place the display near or over a radiator or heat source.
■ Main power breaker is the power cord and this breaking device must be located at a location where it is easy to operate.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause some afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance.

If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel.

Leaving a fixed image on the screen for a long time may cause damage to the screen and cause image burn-in. Make sure to use a screen saver on the monitor. This phenomenon occurs to products by other manufacturers as well, and this occurrence is not subject to warranty.

On Cleaning

■ Unplug the display before cleaning the face of the display screen.
■ Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock.

On Repacking

- Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material.

On Disposal

■ The fluorescent lamp used in this product contains a small amount of mercury.
■ Do not dispose of this product with general household waste.
■ Disposal of this product must be carried out in accordance to the regulations of your local authority.

■ Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Connecting the stand

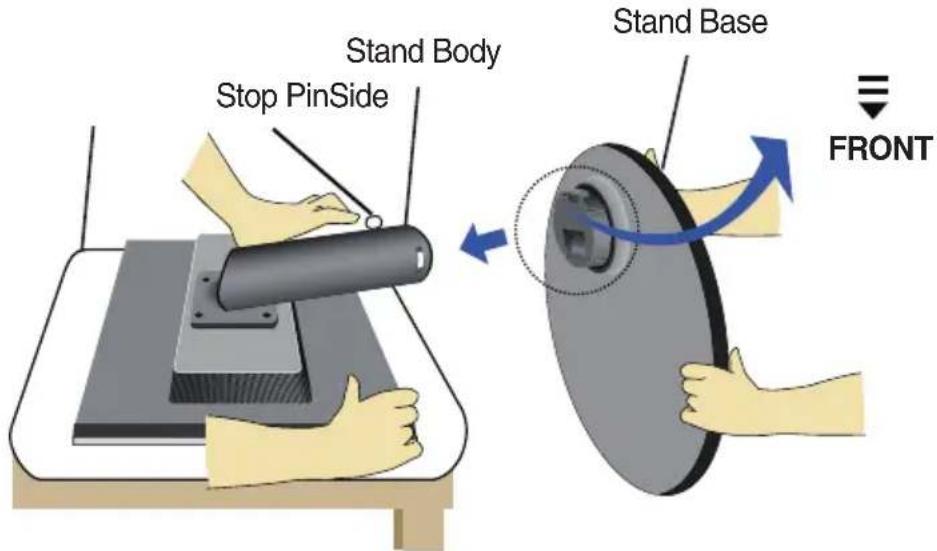

1. Place the monitor with its front facing downward on a cushion or soft cloth.
2. Assemble the Stand Base into the Stand Body.

Be sure don't pull out the Stop Pin and make the Stand Base direction as shown.

Stand Body Stop PinSide Stand Base FRONT

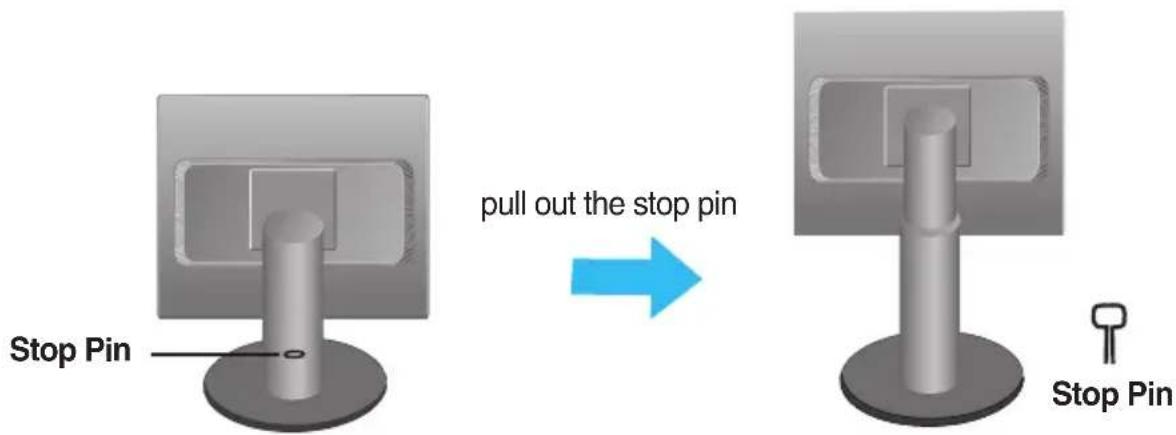

1. Make the monitor stand, then pull out the Stop Pin.

Warning: The tape and locking pin may only be removed from those monitors equipped with a standing base when the base is pulled up. Otherwise, you may be injured by the protruding sections of the stand.

Stop Pin pull out the stop pin Stop Pin

Important

This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture.
- Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot.

■ Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Positioning your display

1. Adjust the position of the panel in various ways for maximum comfort.

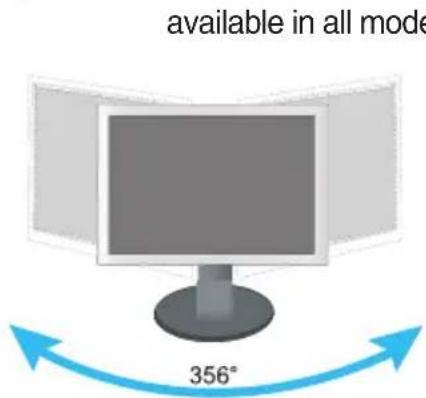

■ Tilt Range: -6°\~17° Swivel: 356° (This feature is not

-6°

Diagram of a mechanical device with a 17° angle indicator and directional arrow (no text or symbols)

available in all mode 356°

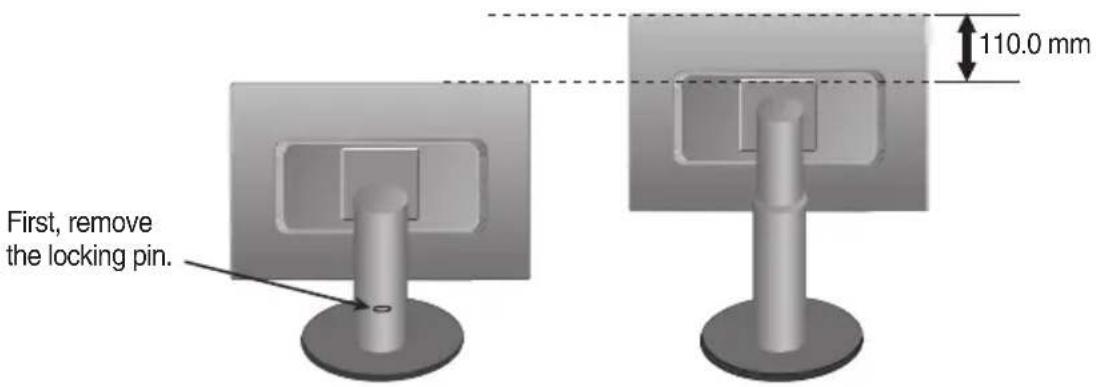

■ Height Range: maximum 4.33 inch (110.0 mm)

First, remove the locking pin. 110.0 mm

Ergonomic

It is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt angle of the monitor should not exceed 5 degrees.

Using the Pivot function

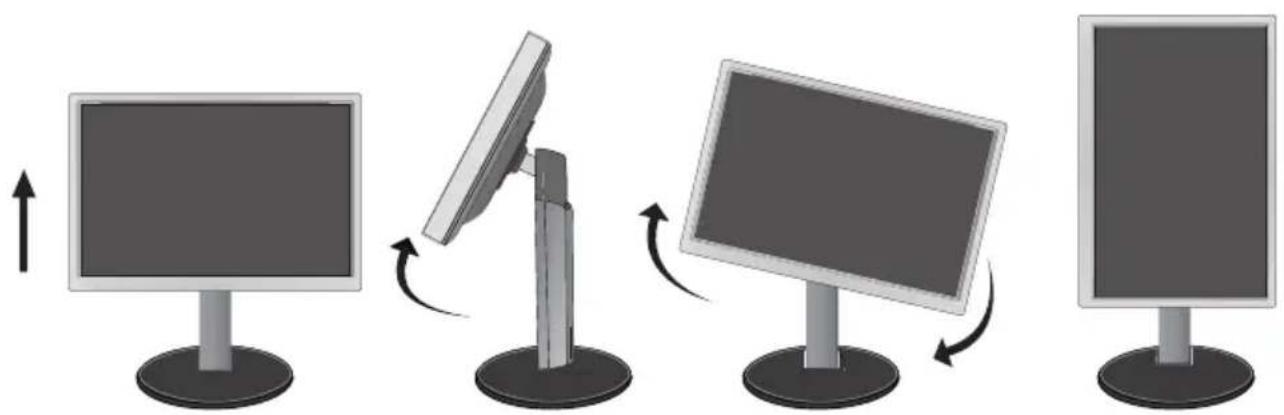

1. Lift the monitor to its highest height to utilize the Pivot function.
2. Landscape & Portrait: You can rotate the panel 90° clockwise.

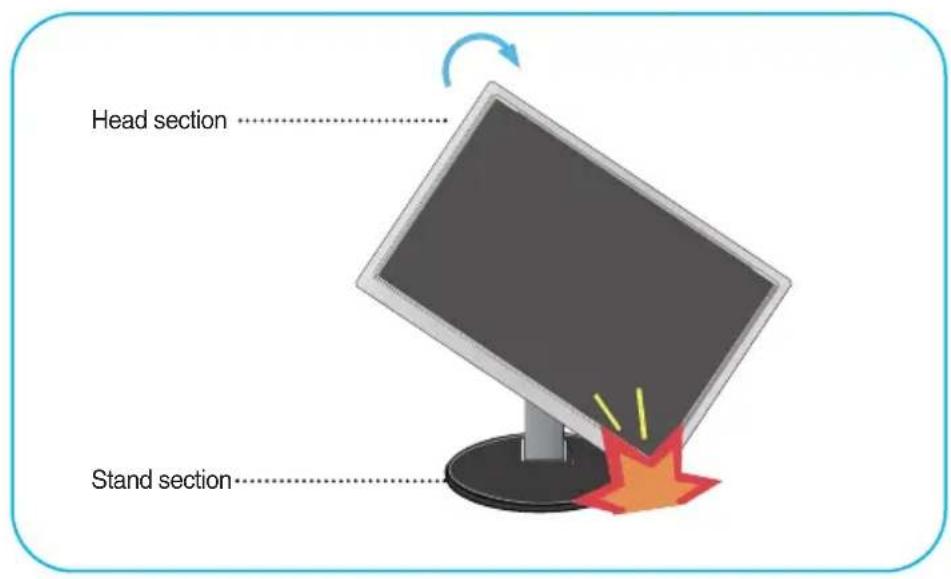

Please be cautious and avoid contact between the monitor head and the Stand Base when rotating the screen to access the Pivot function. If the monitor head touches the Stand Base, then the Stand Base could crack.

Head section Stand section

1. For detailed information, please refer to the Pivot Software CD provided.

Four-panel diagram showing a computer monitor with an upward arrow, its left turn, its side, its right turn, and its back (no text or symbols)

■ Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Positioning your display

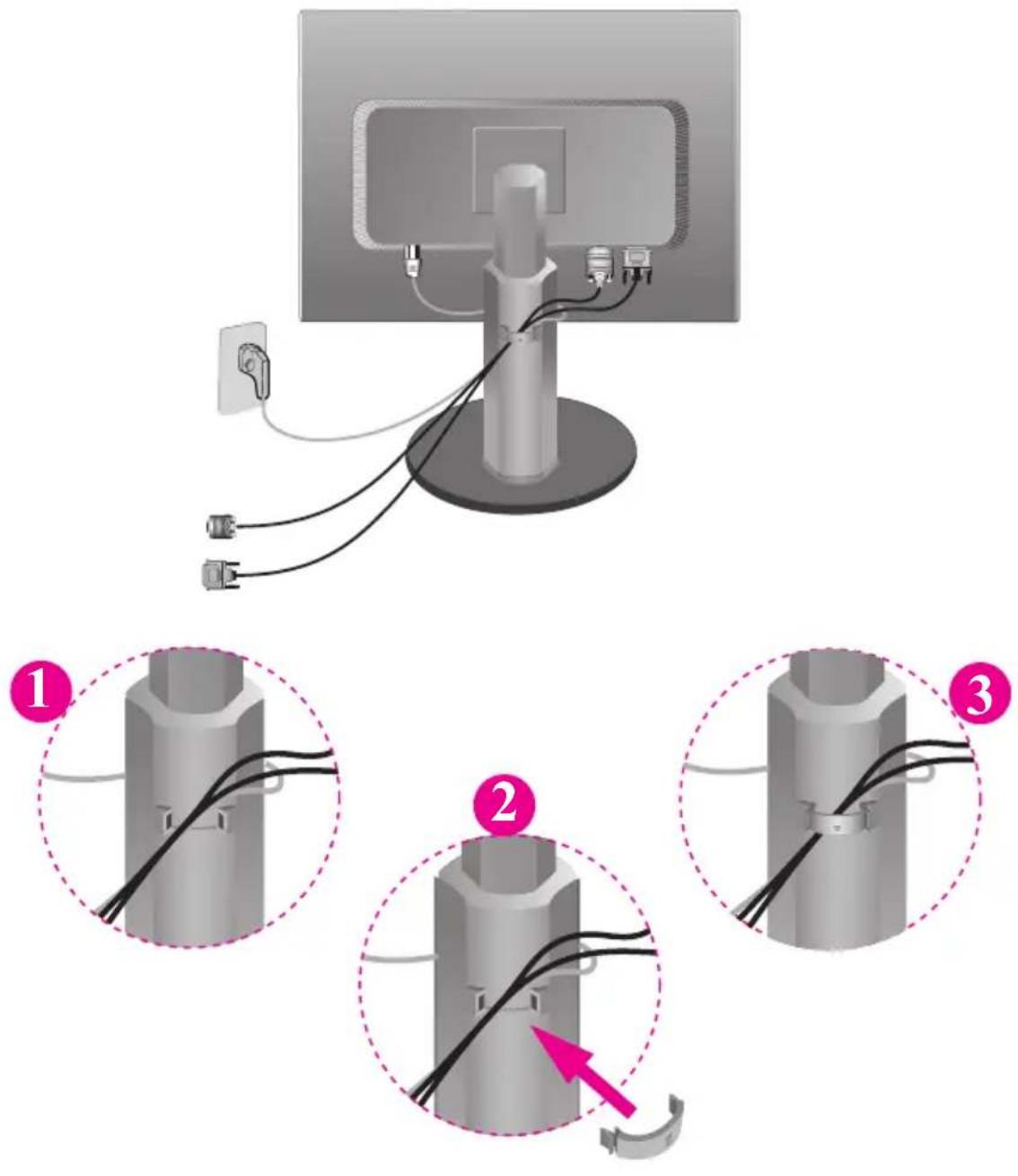

Using the cable holder

If you want to use the cable holder to let your cables together, please put them through right as shown. For if you don't do like that, you cannot use Pivot function smoothly.

Using the Computer

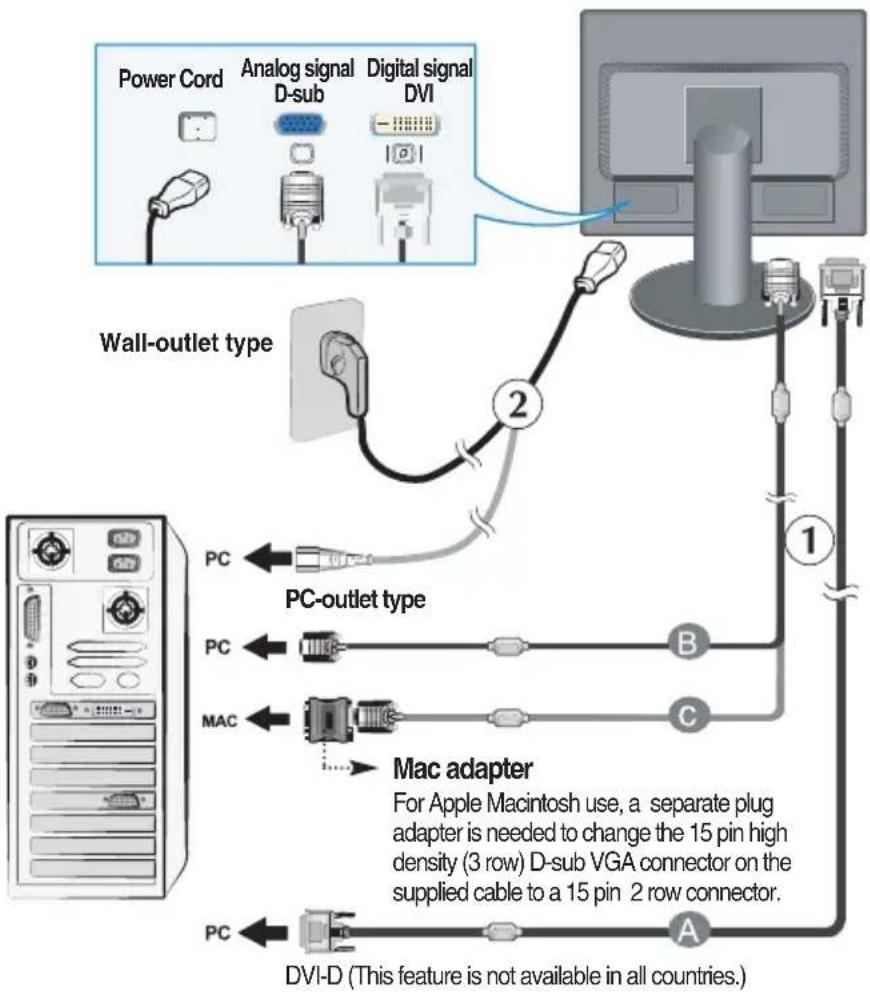

1. Make sure to turn off the computer and product. Connect the cable as below sketch map form to ① ②

A Connect DVI Cable
B Connect Dsub Cable (PC)
C Connect Dsub Cable (Mac)

NOTE

■ This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.
■ User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite cores to maintain standard compliance for the product.

1. Press ⏻ button on the front switch panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed automatically. (Only Analog Mode)

NOTE

‘Self Image Setting Function’? This function provides the user with optimal display settings. When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.
'AUTO/SET' Function? When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO/SET function button to improve resolution.

Front Panel Controls

MENU AUTO/SET f-ENGINE SOURCE ① ③ ④ ⑤ ②

Control	Function
1 MENU Button	Use this button to enter or exit from the On Screen Display.
	OSD LOCKED/UNLOCKEDThis function allows you to lock the current control settings, so that these settings are not inadvertently changed. To lock the OSD settings, press and hold theMENU buttonfor several seconds. The message "OSD LOCKED" appears.
	You can unlock the OSD settings at any time by pushing theMENU buttonfor several seconds. The message "OSD UNLOCKED" appears.

Control		Function
2	▼▲ Buttons	Use these buttons to select or adjust functions in the On Screen Display.
	▼f·ENGINE	For more information, refer to page A16.
	▲ SOURCE	Use this button to make D-Sub or DVI connector active. This feature is used when two computers are connected to the display. The default setting is D-Sub.
3	AUTO/SET Button	Use this button to select an icon in the On Screen Display.
		AUTO IMAGE ADJUSTMENTWhen adjusting your display settings, always press the AUTO/SET button prior to entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode).The best display mode is: 17 inch: 1280x102419 inch: 1280x1024
	PROCESSING AUTOIMAGE ADJUSTMENT
4	Power Button	Use this button to turn the display on or off.
5	Power Indicator	This Indicator lights up as blue when the display is operating normally(On Mode). If the display is in Sleep Mode (Energy Saving), this indicator changes to flicker.

Screen Adjustment

Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.

NOTE

- Allow the display to stabilize for at least 30 minutes before making image adjustments.

To make adjustments in the On Screen Display, follow these steps:

MENU → ▼ ▲ → AUTO/SET → ▼ ▲ → MENU

1 Press the MENU Button, then the main menu of the OSD appears.
2 To access a control, use the ▼ or ▲ Buttons. When the icon you want becomes highlighted, press the AUTO/SET Button.
3 Use the ▼/▲ Buttons to adjust the image to the desired level. Use the AUTO/SET Button to select other sub-menu items.
4 Push the MENU Button once to return to the main menu to select another function. Push the MENU Button twice to exit from the OSD.

The following table indicates all the On Screen Display control, adjustment, and setting menus.

Main menu	Sub-menu		A	D	Reference
PICTURE	BRIGHTNESS		●	●	To adjust the brightness, contrast and gamma of the screen
	CONTRAST		●	●
	GAMMA		●	●
COLOR	PRESET	sRGB	●	●	To customize the color of the screen
		6500K	●	●
		9300K	●	●
	RED		●	●
	GREEN		●	●
	BLUE		●	●
TRACKING	HORIZONTAL		●		To adjust the position of the screen
	VERTICAL		●
	CLOCK		●		To improve the clarity and stability of the screen
	PHASE		●
	SHARPNESS		●	●
SETUP	LANGUAGE		●	●	To customize the screen status for a user's operating environment
	OSD POSITION	HORIZONTAL	●	●
		VERTICAL	●	●
	WHITE BALANCE		●
	POWER INDICATOR		●	●
	FACTORY RESET		●	●

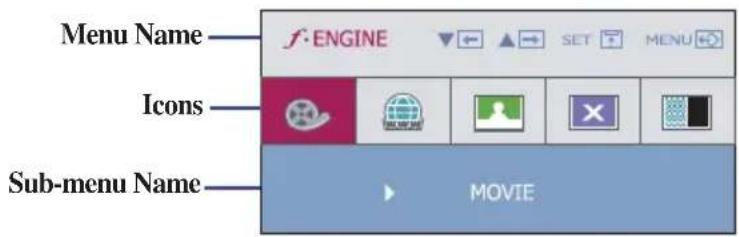

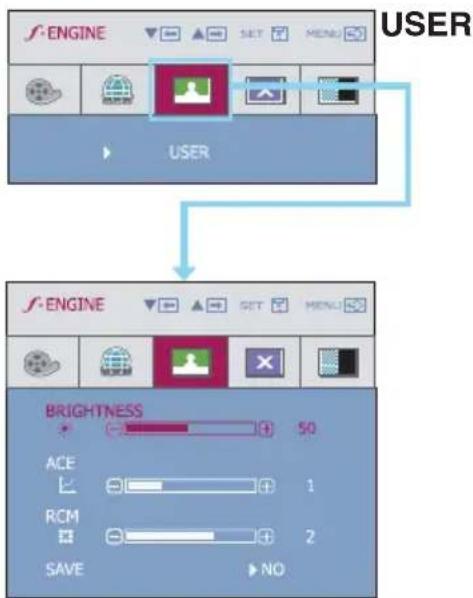

FLATRON F-ENGINE	MOVIE		●	●	To select or customize desired image settings
	INTERNET		●	●
	USER		●	●
	NORMAL		●	●
	DEMO		●	●
●: AdjustableA: Analog InputD: Digital Input

NOTE

■ The order of icons may differ depending on the model (A11\~A16).

You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu.

Press the MENU Button, then the main menu of the OSD appears.

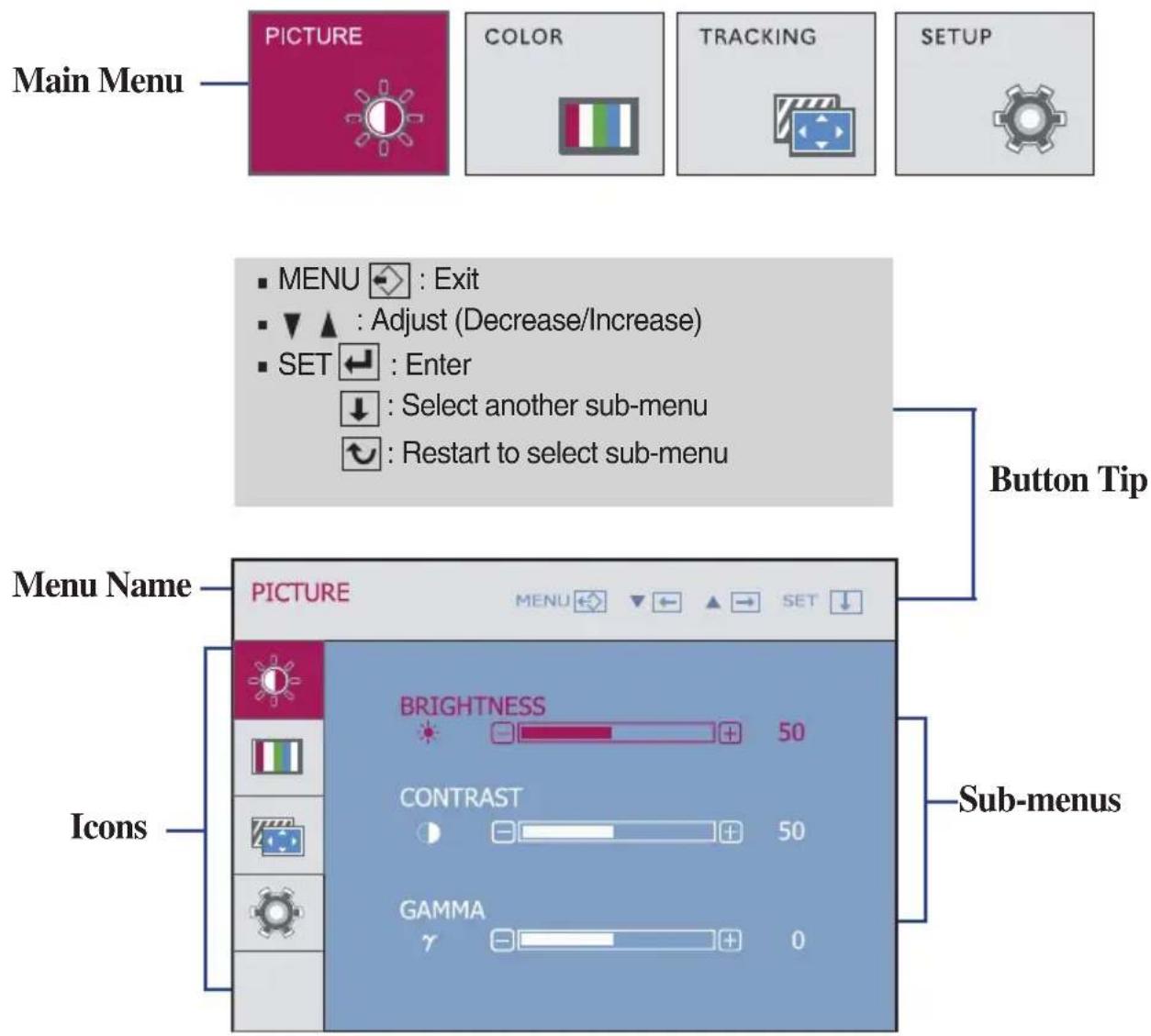

Main Menu PICTURE COLOR TRACKING SETUP ■ MENU : Exit ▼ ▲ : Adjust (Decrease/Increase) SET ← : Enter ↓ : Select another sub-menu ✓ : Restart to select sub-menu Button Tip Menu Name PICTURE MENU SET ■ Icons BRIGHTNESS 50 CONTRAST 50 GAMMA γ 0 Sub-menus

NOTE

- OSD (On Screen Display) menu languages on the monitor may differ from the manual.

Main menu Sub menu Description

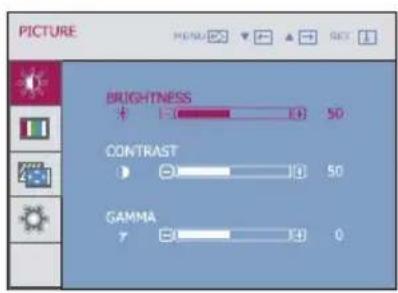

PICTURE BRIGHTNESS + 10 50 CONTRAST + 10 50 GAMMA + 10 0

BRIGHTNESS

CONTRAST

GAMMA

■ MENU : Exit
- ▼ : Decrease
■ ▲ : Increase
■ SET : Select another sub-menu

To adjust the brightness of the screen.

To adjust the contrast of the screen.

Set your own gamma value. : -50/0/50 On the monitor, high gamma values display whitish images and low gamma values display blackish images.

COLOR

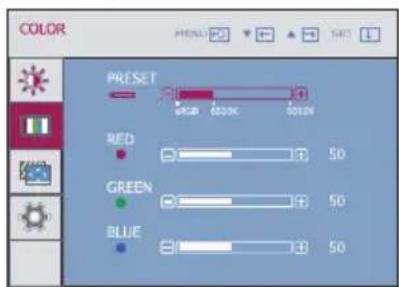

COLOR PRESET RGB 000K 50% RED 50% GREEN 50% BLUE 50%

PRESET

■ MENU : Exit
- ▼ : Decrease
■ ▲ : Increase
■ SET : Select another sub-menu

• sRGB: Set the screen color to fit the SRGB standard color specification.
  • 6500K: Slightly reddish white.
  • 9300K: Slightly bluish white.

Set your own red color levels.

Set your own green color levels.

Set your own blue color levels.

Main menu Sub menu Description

TRACKING

TRACKING HORIZONTAL 30 50 VERTICAL 30 50

HORIZONTAL

To move image left and right.

VERTICAL

To move image up and down.

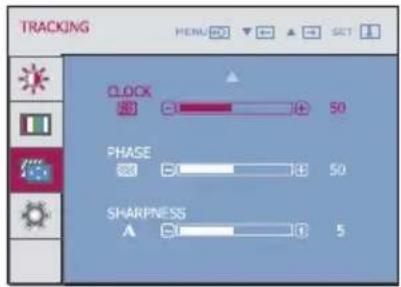

TRACKING MENU SET CLOCK 50 50 PHASE 50 50 SHARPNESS A 5

CLOCK

To minimize any vertical bars or stripes visible on the screen background. The horizontal screen size will also change.

PHASE

To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

■ MENU : Exit
- ▼ : Decrease
- ▲ : Increase
■ SET : Select another sub-menu

SHARPNESS

To adjust the clearness of the screen.

Main menu Sub menu Description

SETUP

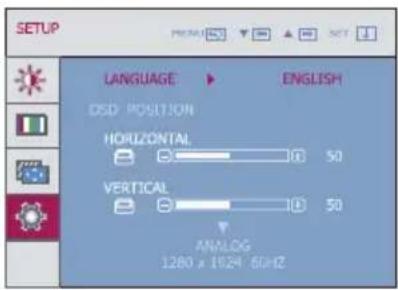

SETUP LANGUAGE ENGLISH DSD POSITION HORIZONTAL 50 VERTICAL 50 ANALOG 1280 x 1024.5GHz

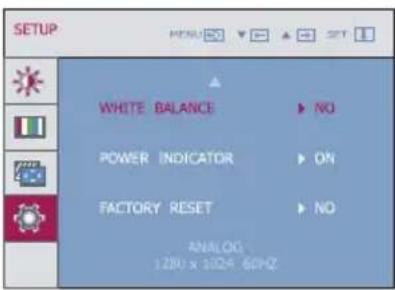

SETUP MENU SET WHITE BALANCE ▶ NO POWER INDICATOR ▶ ON FACTORY RESET ▶ NO ANALOG 1280 x 1024* 60HZ

LANGUAGE

To choose the language in which the control names are displayed.

OSD POSITION

To adjust position of the OSD window on the screen.

WHITE BALANCE

If the output of the video card is different the required specifications, the color level may deteriorate due to video signal distortion. Using this function, the signal level is adjusted to fit into the standard output level of the video card in order to provide the optimal image. Activate this function when white and black colors are present in the screen.

■ MENU : Exit
■ : Adjust ■ : Adjust
■ SET : Select another sub-menu

POWER INDICATOR

Use this function to set the power indicator on the front side of the monitor to ON or OFF.

If you set OFF, it will go off. If you set ON at any time, the power indicator will automatically be turned on.

FACTORY RESET

Restore all factory default settings except "LANGUAGE." Press the ▼, ▲ buttons to reset immediately.

If this does not improve the screen image, restore the factory default settings. If necessary, perform the white balance function again. This function will be enabled only when the input signal is an analog signal.

On Screen Display(OSD) Selection and Adjustment

The OSD screen will appear when you touch the f·ENGINE button on the left bottom of the monitor.

Menu Name f·ENGINE Set MENU Icons Sub-menu Name MOVIE

Main menu Sub menu Description

F-ENGINE MOVIE

MOVIE This feature lets you easily select the best desired INTERNET image condition optimized to the environment (ambient illumination, image types etc).

MOVIE: For animation images in videos or movies

INTERNET: For text images (Word processing etc.)

User

You can manually adjust brightness, ACE or RCM. You can save or restore the adjusted value even when using a different environment.

… (Brightness): Adjusts screen brightness. …ACE(Adaptive Clarity Enhancer): Selects the clarity mode.

RCM(Real Color Management): Selects the color mode. 0 Not applied 1 Green enhance 2 Flesh tone 3 Color Enhance

Select the SAVE sub-menu using the AUTO/SET button and save the YES value using the ▼, ▲ buttons.

F-ENGINE SET MENU NORMAL

NORMAL This is under normal operating conditions.

DEMO This is just for advertising to customer in the shops. It's setting is same with Movie mode and screen is divided by half.

Check the following before calling for service.

No image appears
●Is the power cord of the display connected?	●Check and see if the power cord is connected properly to the power outlet.
●Is the power indicator light on?	●Press the Power button.
●Is the power on and the power indicator blue or green?	●Adjust the brightness and the contrast.
●Is the power indicator flicking?	●If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen.●Try to turn on the PC.
●Do you see an "OUT OF RANGE" message on the screen?	●This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
●Do you see a "CHECK SIGNAL CABLE" message on the screen?	●This message appears when the signal cable between your PC and your display is not connected. Check the signal cable and try again.

Do you see a "OSD LOCKED" message on the screen?
● Do you see “OSD LOCKED” when you push MENU button?	• You can secure the current control settings, so that they cannot be inadvertently changed. You can unlock the OSD controls at any time by pushing the MENU button for several seconds: the message “OSD UNLOCKED” will appear.
Display image is incorrect
●Display Position is incorrect.	●Press the AUTO/SET button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display.
●On the screen background, vertical bars or stripes are visible.	●Press the AUTO/SET button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, decrease the vertical bars or stripes using the CLOCK icon in the on screen display.
●Any horizontal noise appearing in any image or characters are not clearly portrayed.	●Press the AUTO/SET button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, decrease the horizontal bars using the PHASE icon in the on screen display.●Check Control Panel --> Display --> Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).

Important

• Check Control Panel --> Display --> Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.
• The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.

Display image is incorrect
●The screen color is mono or abnormal.	●Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.●Make sure the video card is properly inserted in the slot.●Set the color setting higher than 24 bits (true color) at Control Panel - Settings.
●The screen blinks.	●Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
● Have you installed the display driver?	● Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lge.com.● Make sure to check if the video card supports Plug&Play function.
Display	17 inches (43.2 cm) Flat Panel Active matrix-TFT LCDAnti-Glare coatingVisible diagonal size: 43.2 cm0.264 mm pixel pitch
Sync Input	Horizontal Freq.Analog : 30 - 83 kHz (Automatic)Digital : 30 - 71 kHz (Automatic)Vertical Freq. 56 - 75 Hz (Automatic)
	Input Form Separate TTL, Positive/NegativeSOG (Sync On Green)Digital
Video Input	Signal Input 15 pin D-Sub ConnectorDVI - D connector (Digital)
	Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution	Max Analog : VESA 1280 x 1024 @75 HzDigital : VESA 1280 x 1024 @60 Hz
	Recommend VESA 1280 x 1024 @60 Hz
Plug&Play	DDC 2B (Digital), DDC 2AB (Analog)
Power Consumption	On Mode : 20 W(Typ.)Sleep Mode ≤0.5 WOff Mode ≤0.5 W
Dimensions &Weight	With Stand Without Stand
	Width 36.96 cm / 14.55 inches 36.96 cm / 14.55 inchesHeight 40.83 cm / 16.07 inches 31.51 cm / 12.41 inches51.83 cm / 20.41 inchesDepth 24.16 cm / 9.51 inches 5.60 cm / 2.20 inches
	Net 4.07 kg (9.04 lbs)
Tilt Range	Tilt -6°~17°
Power Input	AC 100-240V~ 50/60Hz 0.8A
Environmental Conditions	Operating ConditionsTemperature 10°C to 35 °CHumidity 10 % to 80 % non-Condensing
	Storage ConditionsTemperature -20°C to 60 °CHumidity 5 % to 90 % non-Condensing
Stand Base	Attached( ), Detached ( O )
Signal cable	Attached( ), Detached ( O )
Power cord	Wall-outlet type or PC-outlet type

NOTE
■ Information in this document is subject to change without notice.

Display	19 inches (48.2 cm) Flat Panel Active matrix-TFT LCDAnti-Glare coatingVisible diagonal size: 48.2 cm0.294 mm pixel pitch
Sync Input	Horizontal Freq.Analog : 30 - 83 kHz (Automatic)Digital : 30 - 71 kHz (Automatic)Vertical Freq. 56 - 75 Hz (Automatic)
	Input Form Separate TTL, Positive/NegativeSOG (Sync On Green)Digital
Video Input	Signal Input 15 pin D-Sub ConnectorDVI - D connector (Digital)
	Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution	Max Analog : VESA 1280 x 1024 @75 HzDigital : VESA 1280 x 1024 @60 Hz
	Recommend VESA 1280 x 1024 @60 Hz
Plug&Play	DDC 2B (Digital), DDC 2AB (Analog)
Power Consumption	On Mode : 22 W(Typ.)Sleep Mode ≤0.5 WOff Mode ≤0.5 W
Dimensions &Weight	With Stand Without Stand
	Width 40.63 cm / 16.00 inches 40.63 cm / 16.00 inchesHeight 42.27 cm / 16.64 inches 34.45 cm / 13.56 inches53.27 cm / 20.97 inchesDepth 24.16 cm / 9.51 inches	5.84 cm / 2.30 inches
	Net 4.47 kg (9.93 lbs)
Tilt Range	Tilt -6°~17°
Power Input	AC 100-240V~ 50/60Hz 0.8A
Environmental Conditions	Operating ConditionsTemperature 10°C to 35 °CHumidity 10 % to 80 % non-Condensing
	Storage ConditionsTemperature -20°C to 60 °CHumidity 5 % to 90 % non-Condensing
Stand Base	Attached( ), Detached ( O )
Signal cable	Attached( ), Detached ( O )
Power cord	Wall-outlet type or PC-outlet type

NOTE

■ Information in this document is subject to change without notice.

Preset Modes (Resolution)

Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1	640 x 350	31.469	70
2	720 x 400	31.468	70
3	640 x 480	31.469	60
4	640 x 480	37.500	75
5	800 x 600	37.879	60
6	800 x 600	46.875	75
7	832 x 624	49.725	75
8	1024 x 768	48.363	60
9	1024 x 768	60.123	75
10	1152 x 870	68.681	75
11	1152 x 900	61.805	65
*12	1280 x 1024	63.981	60
**13	1280 x 1024	79.976	75

* Recommend Mode
** Only Analog Mode

Indicator

MODE	LED Color
On Mode	Blue
Sleep Mode	Flicker
Off Mode	Off

This monitor satisfies the specifications of the Wall mount plate or the interchange device.

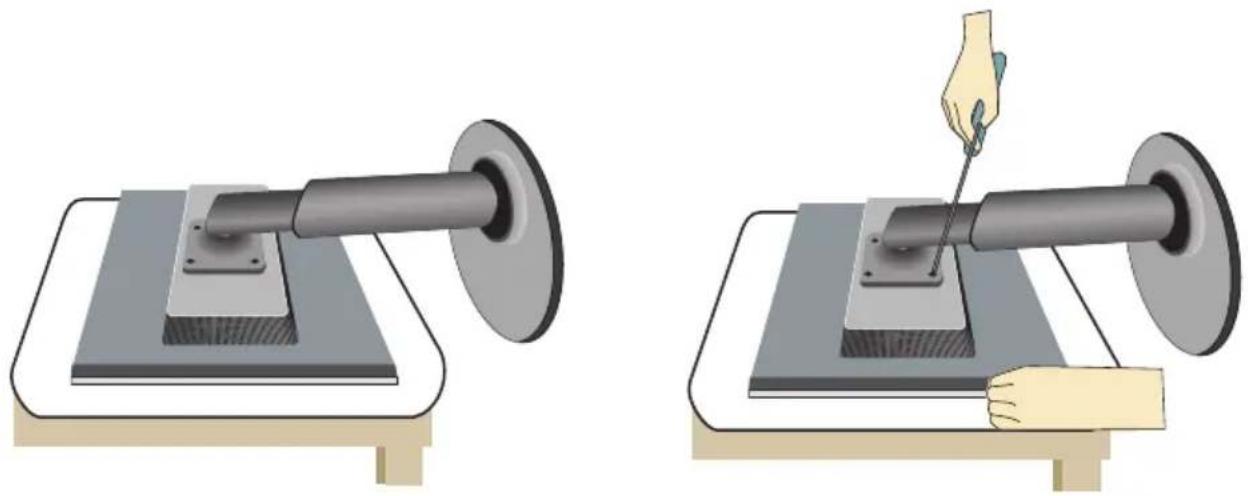

1. Place the monitor with its front facing downward on a soft cloth.
2. Separate the stand after firstly separating 4 screws by using a driver as figure.

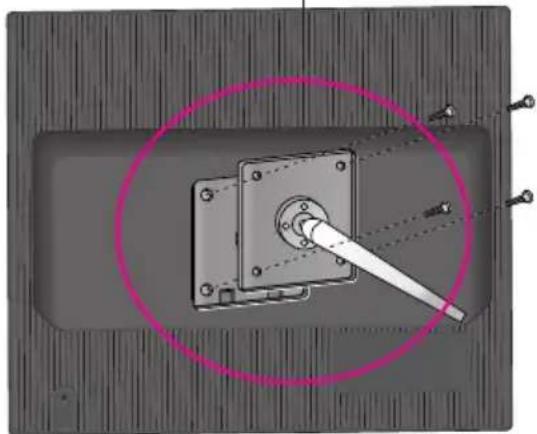

3. Install the Wall mount plate.

Wall mount plate (Separate purchase)

This is stand-type or will mount type and is connectable with Wall mount plate.

Please refer to the installation guide for more details, which is provided when Wall mount plate is purchased.

• Be sure to use screws and a wall mount that meet VESA standards.
• Using screws longer than those recommended might damage the product.
• Using screws that do not meet VESA standards might either damage the product or result in it coming away from the wall. We will not be held responsible for any damage resulting from failure to follow these instructions.

Mechanical assembly diagram showing a bracket with a central shaft and mounting holes, enclosed in a pink circle (no text or symbols)

Mounting crew:

Interface pad thickness: 2.6mm

Screw : ⬤ 4mm x pitch 0.7mm x length 10mm

y Slot locking most stores

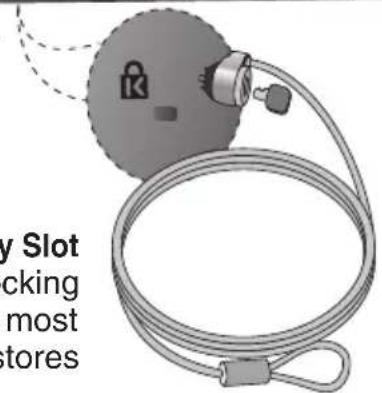

Kensington Security Slot

Connected to a locking cable that can be purchased separately at most computer stores

Digitally yours

LG
