USER MANUAL ECD900F EverFocus

ECD900F eZ.HD Series

1080p Full High Definition

True Day/Night Indoor Dome Camera

User's Manual

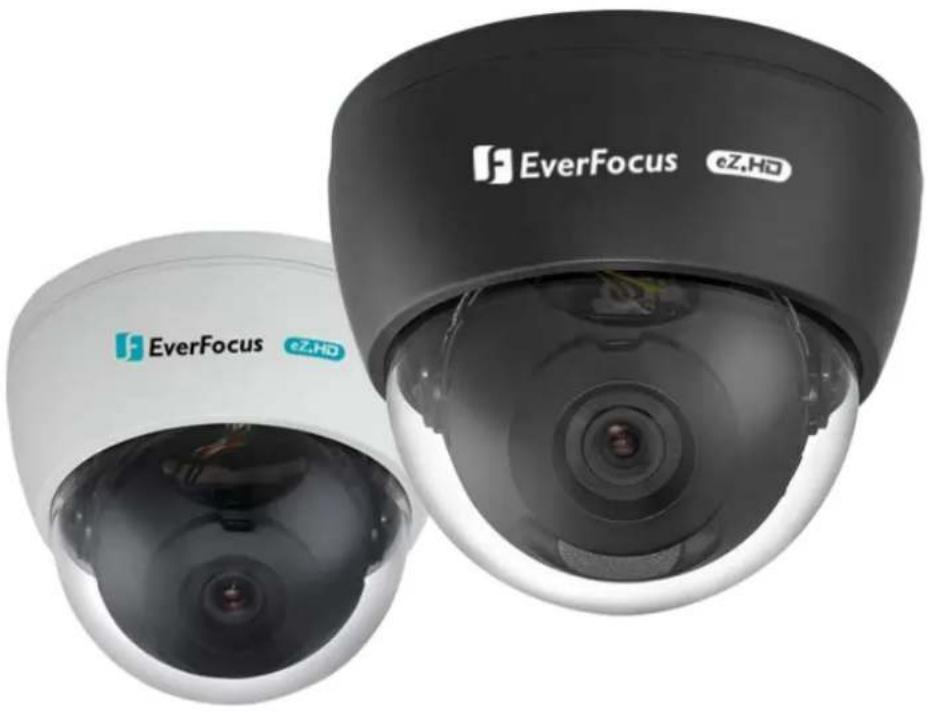

Two EverFocus eZ.HD security cameras shown from different angles (no text or symbols on the devices themselves)

EverFocus

Copyright © EverFocus Electronics Corp.

Release Date: February 2016

Precautions

1. Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation.
2. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein. Improper disassembly or introduction of corrosive materials may result in equipment failure or other damage.
3. Try to avoid facing the camera toward the sun. In some circumstances, direct sunlight may cause permanent damage to the sensor and/or internal circuits, as well as creating unbalanced illumination beyond the capability of the camera to compensate.
4. Keep the power cable away from water and other liquids and never touch the power cord with wet hands. Touching a wet power cord with your hands or touching the power cord with wet hands may result in electric shock.
5. Never install the camera in areas exposed to oil, gas or solvents. Oil, gas or solvents may result in equipment failure, electric shock or, in extreme cases, fire.
6. Cleaning. For cameras with interchangeable lenses, do not touch the surface of the sensor directly with the hands. Use lens tissue or a cotton tipped applicator and ethanol to clean the sensor and the camera lens. Use a damp soft cloth to remove any dirt from the camera body. Please do not use complex solvents, corrosive or abrasive agents for cleaning of any part of the camera.
7. Do not operate the camera beyond the specified temperature, humidity or power source ratings. This camera is suitable for indoor operation only. Use the camera at temperatures within -10°C\~50°C (14°F\~122°F) and humidity between 20%\~80%; this device is not rated as submersible. The input power source is 12VDC ONLY. Be sure to connect the proper + / - polarity and voltage, as incorrect polarity or too high a voltage will likely cause the camera to fail, and such damage is not covered by the warranty.
8. Mounting. Use care in selecting a solid mounting surface which will support the weight of the camera plus any wind, snow, ice or other loading, and securely attach the camera to the mounting surface using screws and anchors which will properly support the camera. If necessary (e.g. when mounting to drop ceilings) use a safety wire to provide additional support for the camera.

Safety Notice

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ATTENTION! This is a class A product which may cause radio interference in a domestic environment; in this case, the user may be urged to take adequate measures.

This Product is RoHS compliant.

WEEE+

Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please, dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic product.

Please, help us to conserve the environment we live in!

Contents

1. Introduction......5

1.1 Packing List ....5
1.2 Features....5

1. Cable Description....6
2. Installation 7
   3.1 Installation and Adjustment ....7
3. Configuration in the OSD Menu....9
4. Specifications....13

1. Introduction

The EverFocus eZ.HD Series ECD900F provides incredible performance in bright light or low light, and the resolution listed in the specs from the actual camera you install. To take full advantage of the amazing resolution available from this advanced imaging technology, the EverFocus eZ.HD Series ECD900F uses a 3.6mm/6mm lens together with 1/2.9" SONY 2.24M pixels CMOS to deliver 1080p high resolution. This camera truly provides optimized images without compromising 1080p high resolution. The Digital Wide Dynamic Range function provides clear color images in the most challenging of bright or unbalanced lighting conditions. The true day/night function guarantees ZERO ghosting in low light environment. The ECD900F is equipped with a 3 Axis rotation mechanical design that delivers wall or ceiling mounting flexibility. This is the camera that you have been waiting for to create analog CCTV systems that produce astounding image clarity in a wide range of indoor applications at the widest range of light levels. The ECD900F supports both NTSC and PAL scanning systems, which can be switched via OSD.

1.1 Packing List

• Dome Camera x 1
• User Manual x 1
• Plastic Anchor x 3

• Warning Paper x 1

• Screw x 3

• Template Plate x 1
  • DC Power Pigtail Cable x 1

1.2 Features

• 1080p full HD with high flexibility and performance for astounding image
  • 1/2.9" SONY 2.24M pixels CMOS sensor, delivering amazing high sensitivity
• Astounding image quality from the 3.6mm/6mm lens
  • D-WDR to improve the visibility under high contrast scene
• 3D- Noise Reduction ensures less blurry moving subjects, vivid and high SN ratio images even under low light environments
• Supports 1080p, 720p & 960H analog signal output, which can be easily switched using OSD Joystick
• The flexible angle viewing with its 3 Axis rotation design allows wall or ceiling mounting
• eZ.Controller function: Control camera OSD settings and PTZ operation directly from DVR end

2. Cable Description

Black: Negative (-) Red: Positive (+)

No.	Name Descriptions
1	Power Cable	Connect to a 12VDC.
2	Video Output	1080p, 720p and 960H output, using a 75 Ohm BNC-type coaxial cable.
3	DC Power Pigtail Cable	Optional power pigtail cable. The red wire is positive (+); while the black wire is negative (-).

3. Installation

3.1 Installation and Adjustment

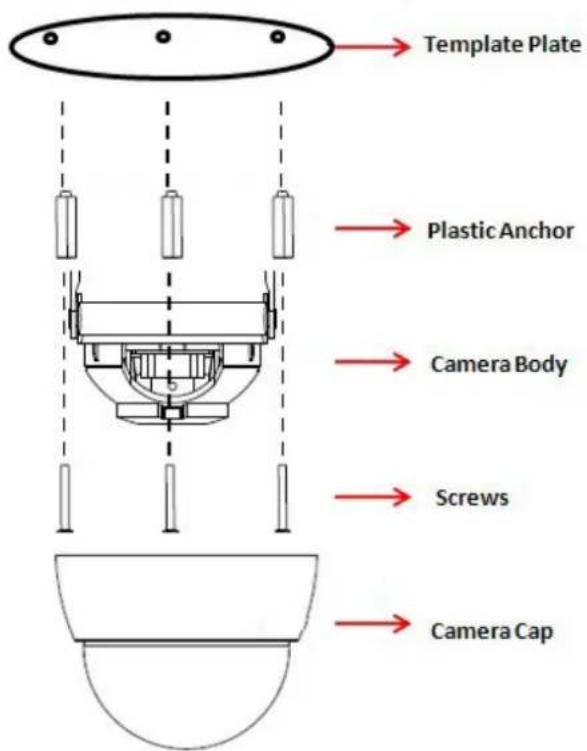

Template Plate Plastic Anchor Camera Body Screws Camera Cap

1. Stick the Template Plate on the position where you want to attach the camera.
2. Drill three holes on the template for screwing the camera with the supplied screws and anchors. If you wish to run the wires through the wall / ceiling, drill an additional hole in the middle of Template Plate.
3. Insert the supplied Plastic Anchors into the holes.

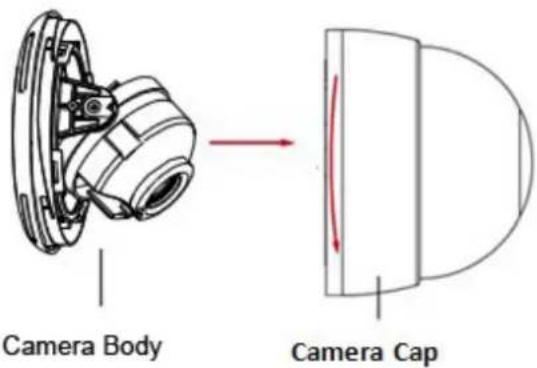

4. Remove the Camera Cap from the Camera Body.

Camera Body Camera Cap

1. Attach the camera body to the correct position and then screw the camera body to the wall / ceiling using the supplied three Screws.

2. Connect the camera to the 12VDC power source and an AHD DVR.

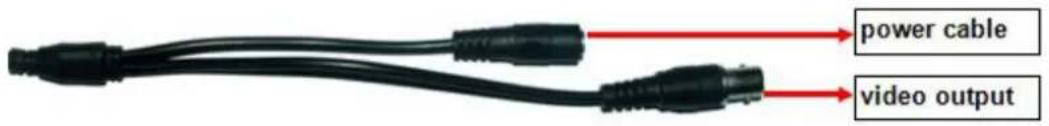

power cable video output

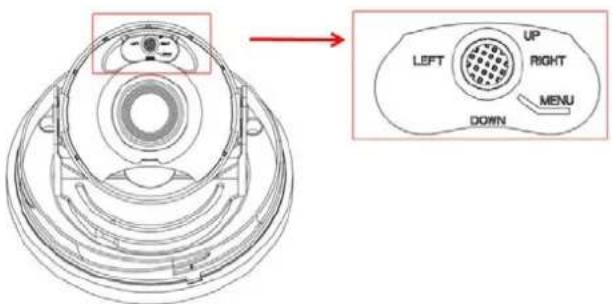

1. Configure the OSD Menu, using the function button.

Technical diagram showing a device with labeled directional buttons (UP, RIGHT, MENU) and a circular component with a central hub.

Note: The function button is using to control direction, and also to switch video format and video output. Please follow the detailed instruction as below to switch the camera to:

Switch between 1080p and 720p (Default, 1080p): Press Upward for 5 Seconds
Switch from HD (1080p / 720p) to 960H: Press Left for 5 Seconds
Switch from 960H to HD (1080p / 720p): Press Right for 5 Seconds
Switch between NTSC and PAL: Press Downward for 5 Seconds

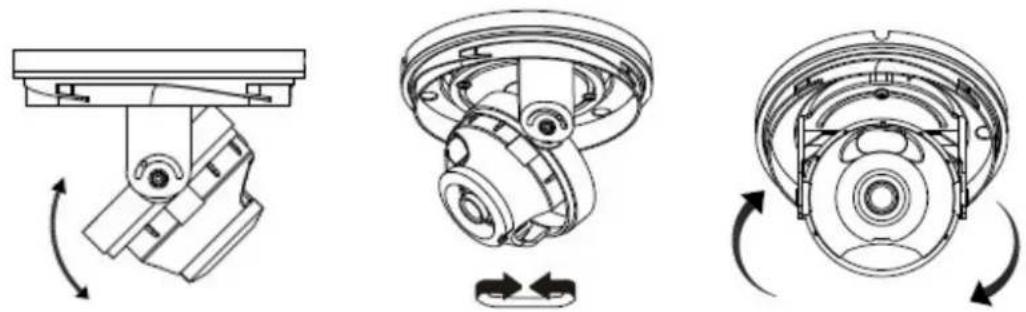

1. Adjust the camera angles, simply tilt, pan or rotate the camera.

Three technical line drawings of mechanical components with rotational arrows indicating motion (no text or symbols)

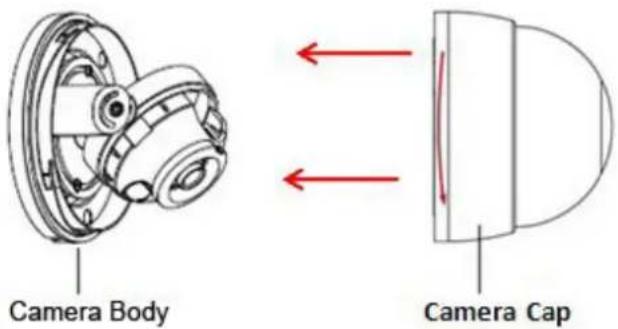

Twist the Camera Cap back to the Camera Body.

Camera Body Camera Cap

4. Configuration in the OSD Menu

You can use the function buttons on the rear panel of the camera body to configure camera settings in the OSD menu:

No.	Main	Sub Menu	Sub Menu / Function
1 Lens Manual
2 Exposure	Exposure	Shutter	NTSC: 1/30, 1/60, FLK, 1/240, 1/480, 1/1000, 1/2000, 1/5000, 1/101/50000, X2, X4, X6, X8, X10, X15, X20, X25, X30, Auto
			PAL: 1/25, 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000, 1/101/50000, X2, X4, X6, X8, X10, X15, X20, X25, X30, Auto
		AGC 0-15
		Sens-up	Off
			Auto Sens-up		X2, X4, X6, X8, X10, X15, X20, X25,X30
		Brightness	1-100(40)
		D-WDR	Off
			On Level 0-8
			Auto
		Defog	Off
			Auto	Pos/Size	Position, Size, ↑, ↓, →, ←
				Gradation	0-2
				Default
3 Backlight	Backlight	Off
		BLC	Level	Middle, High, Low
			Area	Position, Size, ↑, ↓, →, ←
			Default
		HSBLC	Select	Area1, Area2, Area3, Area4
			Display	Off
				On	Position, Size, ↑, ↓, →, ←
			Black Mask	On/Off
			Level	0-100
			Model	All Day
				Night	AGC Level	0-255
			Default
4	White Balance	ATW
		AWC→SET
		Indoor
		Outdoor
		Manual	Blue 1-500
			Red 0-100
		AWB
5	Day & Night	Ext	D→N(Delay)	0-60
			N→D(Delay)	0-60
		Auto	D→N(AGC)	1-255
			D→N(Delay)	0-60
			N→D(AGC)	1-255
			N→D(Delay)	0-60
		Color
		B/W	Burst Off/On
			IR Smart	Off
				On	Level 0-15
					Area	Position, Size, ↑, ↓, →, ←
			IR PWM 0-100
6 NR		2DNR Middle	le/Low/Off/High
		3DNR Middle	le/Low/Off/High
7 Special		Cam Title	Off
			On	0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ→←↑↓()^-_-■/=&:~,.
		D-effect	Freeze Off/On
			Mirror	Off, Mirror, V-flip, Rotate
			Neg. Image Off	/On
		Motion	Off
			On	Select Area1,	Area2,	Area3,
				Display	On	Position, Size, ↑, ↓, →, ←
					Off
				Sensitivity 0-100
				Color	Green, Blue, White, Red
				Trans	1.00,0.75,0.50,0.25
				Alarm	View Type	Off, Block, Outline, All
					OSD View	On/Off
					Alarm Out	On/Off
					Time 1-15
				Default
		Privacy	Off
			On	Select Area1,	Area2,Area3,Area4
				Display	Off
					Color	Position, Size, ↑, ↓, →, ←
					Mosaic	Position, Size, ↑, ↓, →, ←
					Inv	Position, Size, ↑, ↓, →, ←
				Color	White, Black, Red, Blue, CYAN, Yellow, Green
				Trans	1.00,0.75,0.50, 0.25
				Default
		Language	ENG/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR
		Defect	Live DPC	Off
				On	AGC level 0-2	55
					Level 0-100
			White DPC	Off
				On	Pos/Size	Position, Size, ↑, ↓, →, ←
					Start	Close the iris then press
					DPC View Off	/On
					Level 0-60
					AGC 0-14
					Sens-up	x2, x4, x6, x8,x10, x15, x20, x25, x30
			Black DPC	Off
				On	Pos/Siz	Position, Size, ↑, ↓, →, ←
					Start Press Enter	enter
					DPC View Off	/On
					Level 0-255
		RS485	CAM ID 0-255
			ID Display	Off/On
			Baud Rate	2400,4800,9600,19200,38400

8 Adjust	Sharpness	Off
		Auto	Level 0-10
			Start AGC 0-255
			End AGC 0-255
	Monitor	CRT	Black Level 0-60
			Blue Gain 0-100
			Red Gain 0-255
		LCD	Gamma	User,0.45,0.50,0.55,0.60,0.65,0.70,0.75,0.80,0.85,0.90,0.95,1.00
			Blue Gain 0-100
			Red Gain 0-100
	LSC Off/On
	Video. Out	PAL/NTSC
9 Exit Save& END /Reset/Not Saved

5. Specifications

P/N ECD900F
Pickup Device	1/2.9" SONY 2.24M pixels CMOS
Video Format	NTSC and PAL( can be switched via OSD)
Effective Pixels	1920 (H)*1080 (V)
Scanning System	Progressive Scan
Sensitivity	0.01 Lux/F1.4
S/N Ratio	Over 48 dB (AGC OFF)
Electronic Shutter	AUTO, Manual (X30~1/ 50000), FLK
Video Output	BNC 1.0Vp-p 75Ω
Gamma Correction 0.45
Lens Type	3.6mm/6mm fixed lens
BLC OFF/BLC/HS BLC Selectable
AGC 0~15 Levels
White Balance	ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL/AWB
Sync Mode	Internal
Day/Night	Ext, Auto, Color, B/W
OSD Languages	12-Language
DNR	2DNR/3DNR, Off
DEFOG	Off/Auto
D-WDR	On/Off/Auto
Sens-up	Off/Auto(x2~x30)
Mirror	Off, Mirror, V-flip, Rotate
Motion Detection	On/Off for 4 selectable zones
Privacy Mask	On/Off for 4 selectable zones
Environmental	Indoor
Power Source	12VDC
Power Source	1.2w max.
Operating Temperature	-10°C~50°C / 14°F~122°F
Humidity	20%~80%
Dimensions	108 x 90mm / 4.25" x 3.54"
Weight	200g/0.44lbs
Certifications	CE/FCC/ RoHs

Specifications and designs are subject to change for improving the functionality of this product without notice.
