Color LaserJet 5550hdn - Printer HP - Free user manual and instructions

Product Type	Color Laser Printer
Model	HP Color LaserJet 5550hdn
Print Speed	Up to 28 ppm (A4), 27 ppm (letter)
Print Resolution	HP ImageREt 3600
Memory	288 MB SDRAM (256 MB DDR + 32 MB on formatter + DIMM slot)
Hard Drive	Included (standard)
Duplex Printing	Automatic two-sided printing
Input Capacity	Tray 1: 100 sheets; Trays 2-5: 500 sheets each (total 2100 sheets)
Output Capacity	250-sheet face-down bin
Media Sizes Supported	Min 76 x 127 mm; Max 306 x 470 mm (Tray 1), 297 x 432 mm (Trays 2-5)
Media Weights Supported	60 to 200 g/m²
Connectivity	Parallel, USB 1.1, Jetlink, 3 EIO slots (HP Jetdirect 620N included)
Network Ready	Yes (HP Jetdirect 620N)
Power Consumption	Printing 632 W, Ready 93 W, Sleep 28 W, Off 0.3 W
Operating Environment	Temperature 15-27°C, Humidity 10-70%
Acoustic Noise	Printing 66 dB(A), Ready 49 dB(A)
Supported Printer Languages	PCL 6, PCL 5c, PostScript 3 emulation, Direct PDF, XHTML
Supplies	Print cartridges (C, M, Y, K), fuser, transfer kit
Warranty	HP limited warranty (see manual for details)

Frequently Asked Questions - Color LaserJet 5550hdn HP

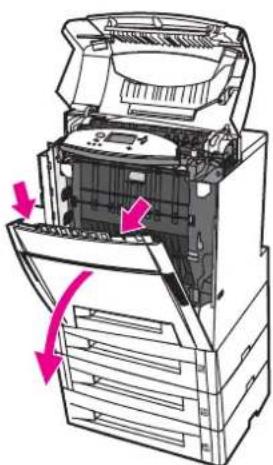

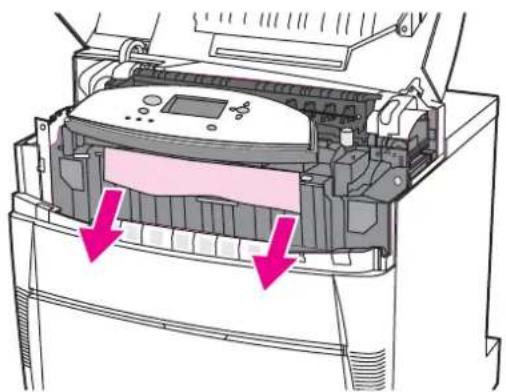

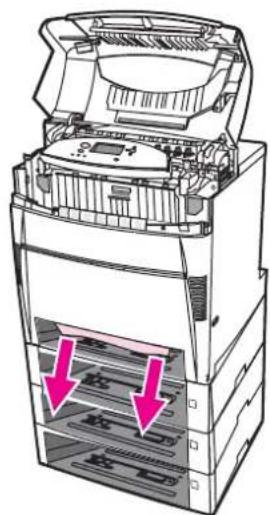

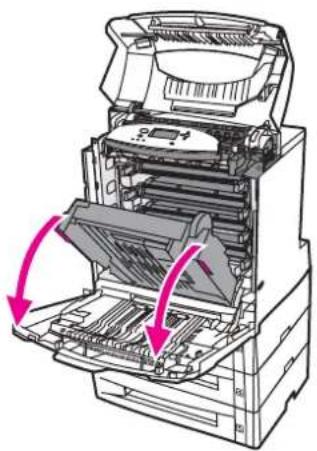

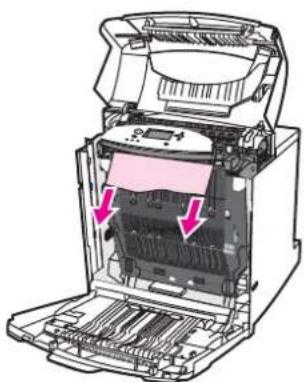

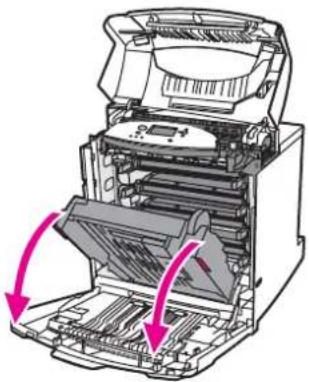

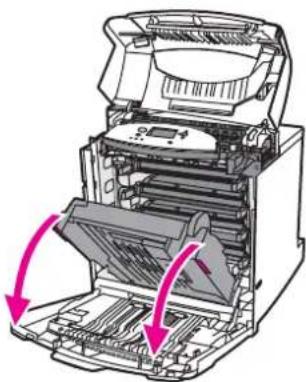

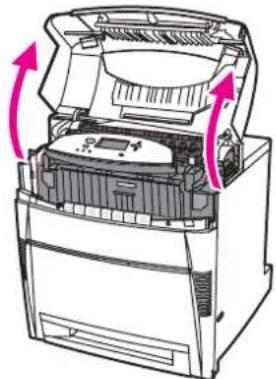

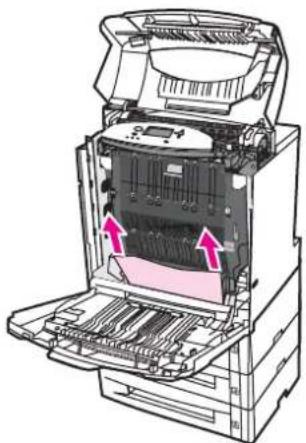

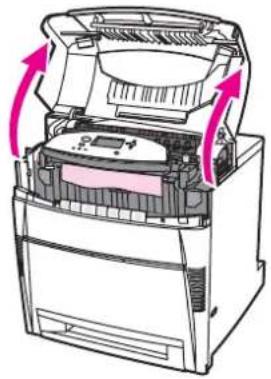

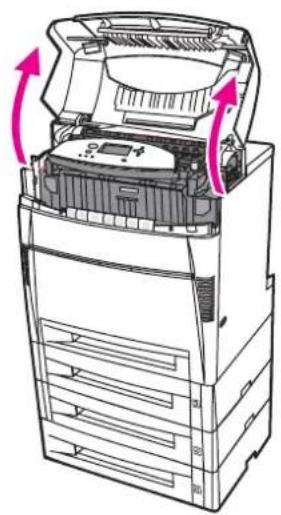

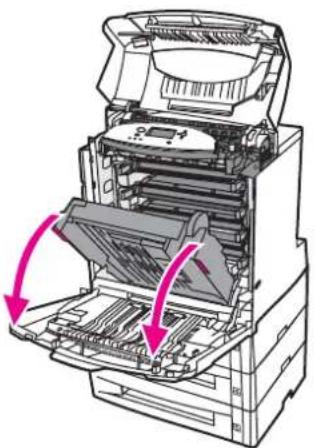

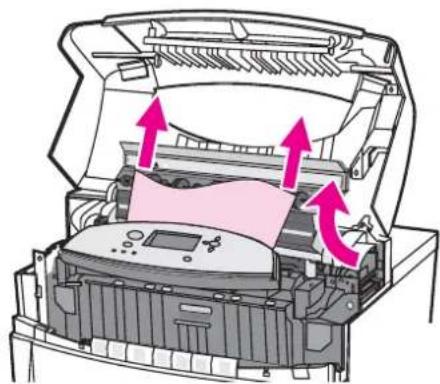

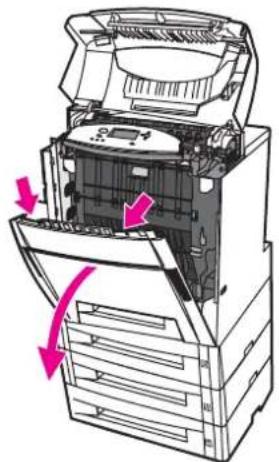

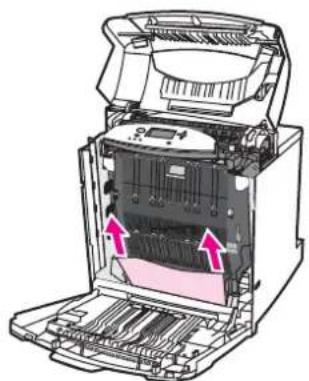

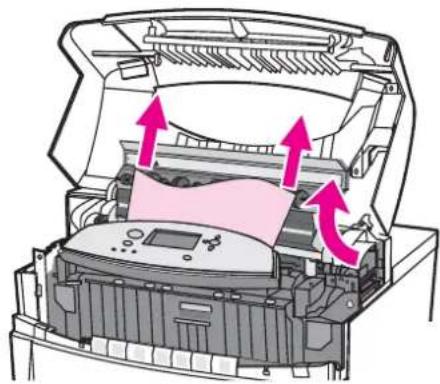

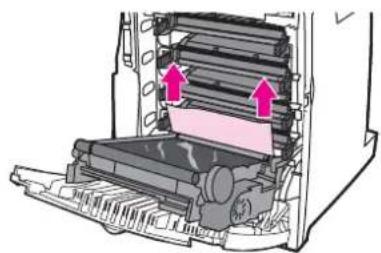

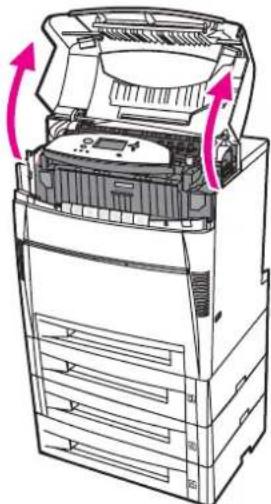

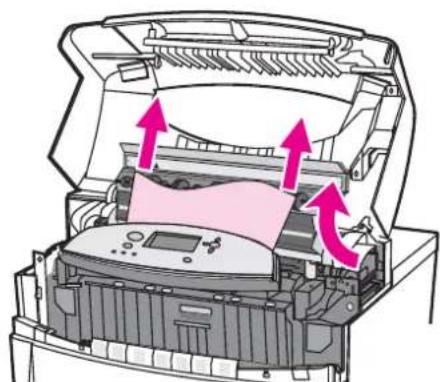

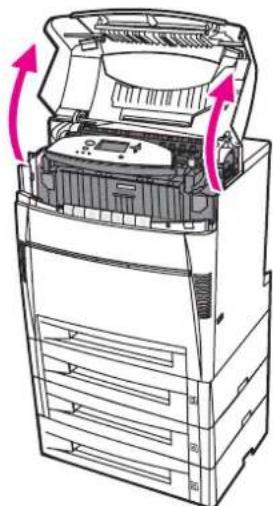

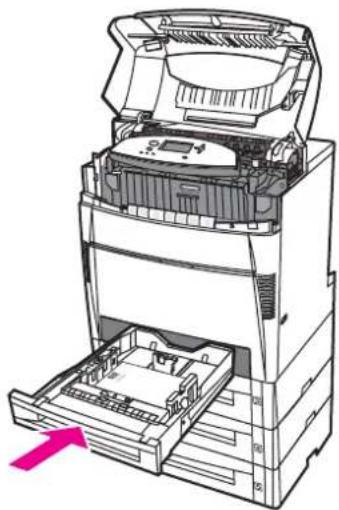

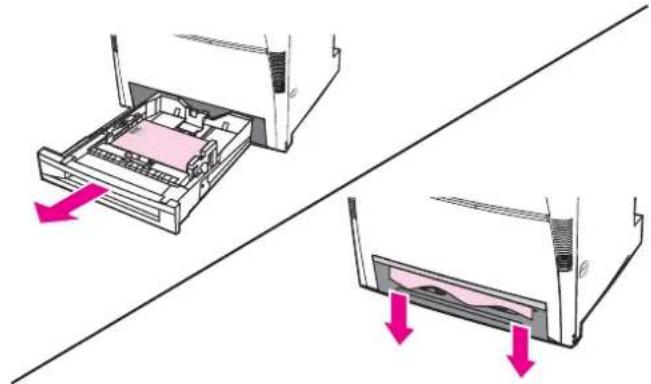

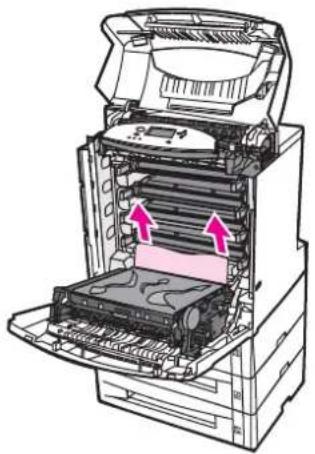

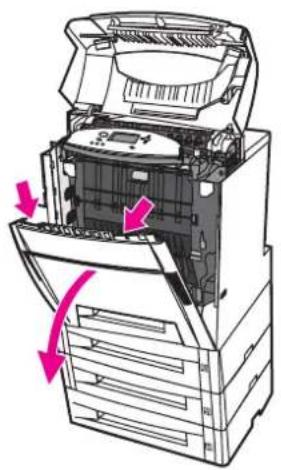

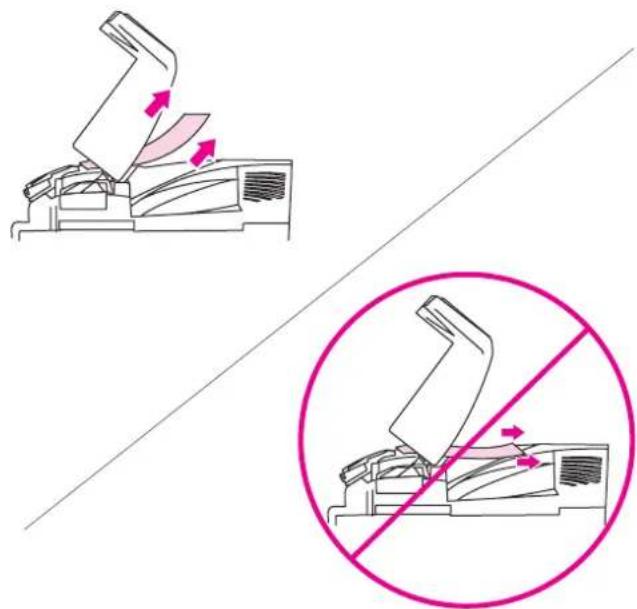

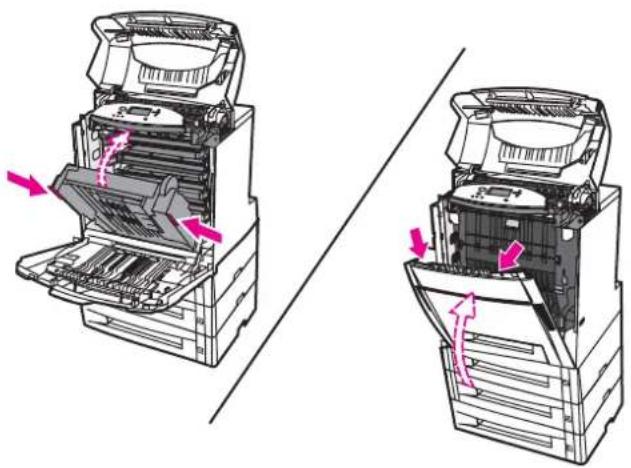

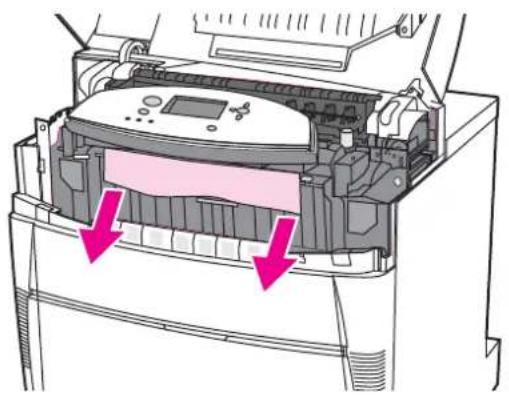

How do I clear a paper jam?

Locate the jam using the control panel display. Open the top cover and remove any jammed paper gently. Check Tray 1, duplex path, and output bin. Refer to the Paper jams section in the manual for detailed instructions.

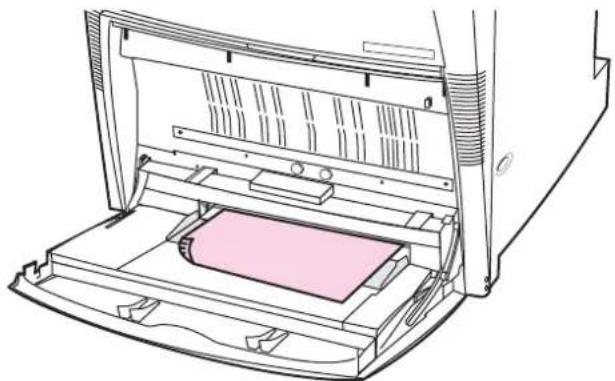

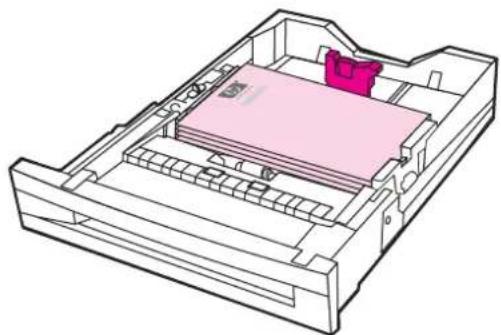

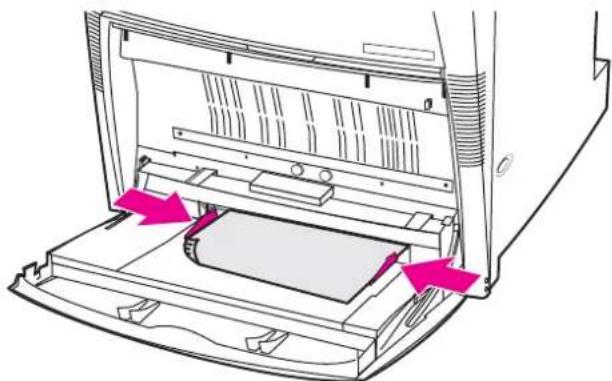

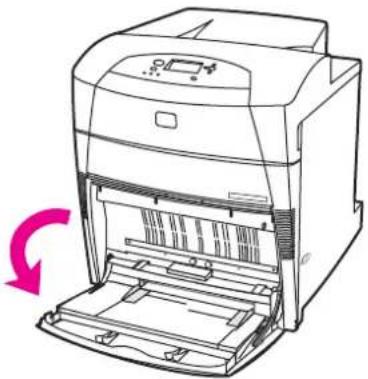

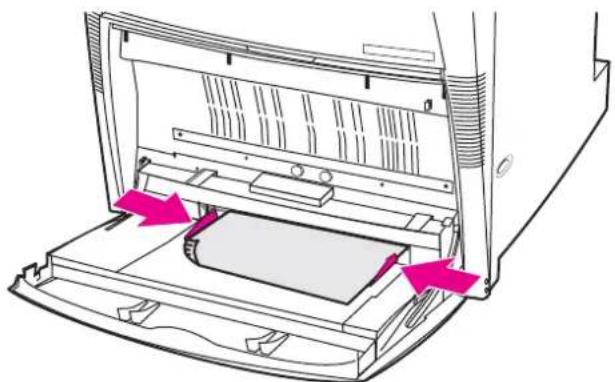

How to load paper in Tray 1?

Open Tray 1 and adjust the paper guides to the media size. Load paper with the printable side up. For envelopes, load up to 20. Configure the paper size and type via the control panel menu Paper Handling > TRAY 1 SIZE/TYPE.

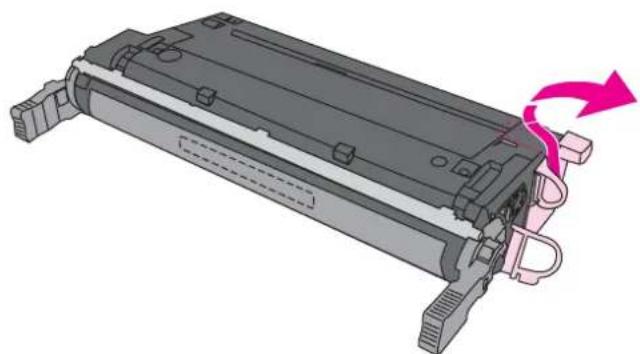

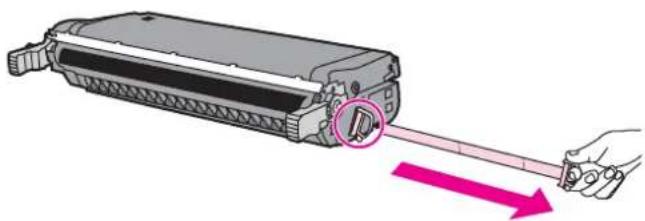

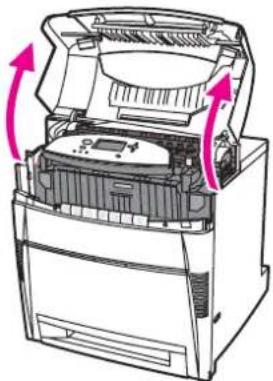

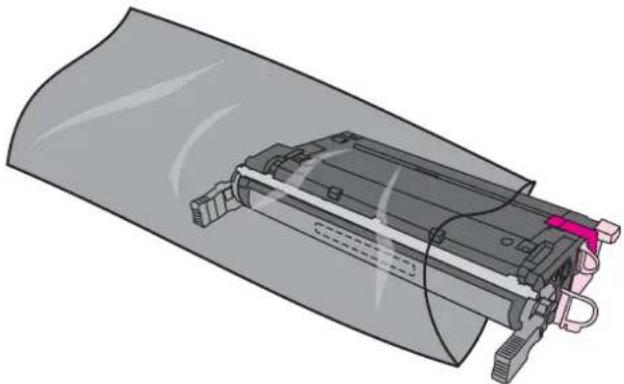

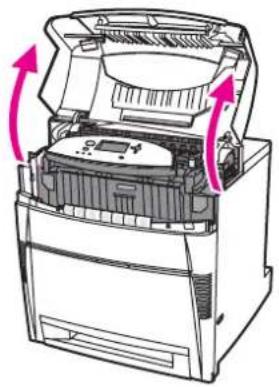

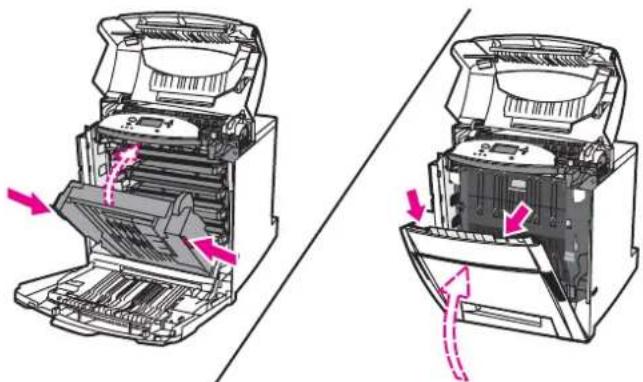

How to replace toner cartridges?

Open the top cover. Remove the old cartridge by pulling the handle. Unpack the new HP cartridge, shake it gently, and insert it until it clicks. Close the cover. The printer will automatically calibrate.

How to perform duplex printing?

In the printer driver, select Print on Both Sides or Duplex. For Mac, choose the option in the print dialog. The printer supports automatic two-sided printing for paper sizes Letter, A4, Legal, etc. (see manual).

How to install printer drivers?

Insert the CD-ROM and run the setup. For direct connection, install software before connecting the USB/parallel cable. For network, ensure the printer is on the network and use the CD-ROM or download drivers from http://www.hp.com/support/clj5550.

How to configure network settings?

Print a configuration page to find the IP address. Access the embedded Web server by entering the IP in a browser. Use the Networking tab to configure TCP/IP, IPX/SPX, etc. Alternatively, use HP Web Jetadmin.

How to access the embedded Web server?

Ensure the printer is connected to the network. Open a Web browser and enter the printer's IP address. The IP can be found on the configuration page or control panel (Show Address). Use the embedded Web server to check status, change settings, and order supplies.

How to calibrate the printer?

Use the control panel: go to Configure Device > Print Quality > Quick Calibrate Now or Full Calibrate Now. Calibration ensures consistent color quality. Regular calibration is recommended when changing cartridges or if colors appear off.

How to check supplies status?

On the control panel, press MENU, select Information > Print Supplies Status Page or Supplies Status. Alternatively, use the embedded Web server or HP Toolbox to view toner levels, page counts, and estimated remaining life.

How to set PowerSave mode?

Go to Configure Device > System Setup > PowerSave Time. Select a time interval (default 30 minutes). The printer enters low-power mode after inactivity, reducing energy consumption. To wake, press any button or send a print job.

USER MANUAL Color LaserJet 5550hdn HP

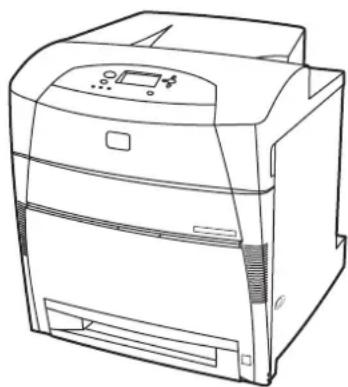

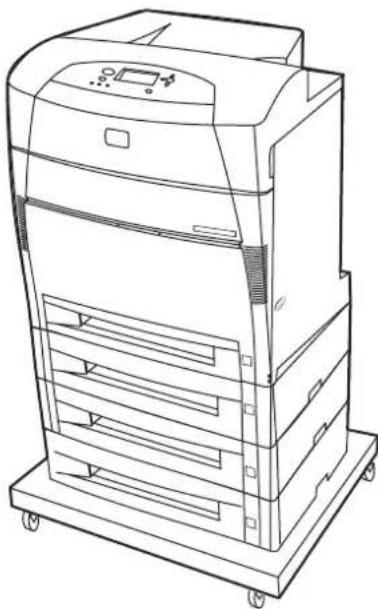

Line drawing of a blue industrial machine with control panel and buttons (no text or symbols)

hp color LaserJet 5550, 5550n, 5550dn, 5550dtn, 5550hdn

HP logo icon with stylized 'hp' lettering (no additional text or symbols)

invent

use

Close-up of a textured, grid-patterned surface with square openings (no text or symbols visible)

relax. we have the solutions for your business needs

HP Global Solutions Catalog

www.hp.com/go/gsc

Does your business require:

• additional paper handling solutions?
- printing securely to and from your printer(s)?
- printing e-forms or other web-based documents?
•any kind of printing or digital imaging solution?

There are hundreds of solutions available for HP printing and digital imaging products. Ranging from paper trays and security firmware, to printer management software.

Visit the HP Global Solutions Catalog (GSC) and search for solutions from Hewlett-Packard and other companies, designed to meet your specific business requirements.

The GSC is the easiest and fastest way to locate Printing and Digital Imaging solutions.

invent

HP 1. Exported Suggest Search for solution by enhanced a solution, a company, improved features or descriptions. 2. Exported Keyword Search Search additional solutions 3. Category? Search? Database's trend search by offering our solutions, or get more specific ways by adopting tus in other alternatives 4. Unobservable Search Use the responsible search to ensure through solutions. You will use all solutions associated with any flow in each of the four categories. Direct sales.

HP Color LaserJet 5550, 5550n, 5550dn, 5550dtn, 5550hdn

User Guide

Copyright and License

© 2004 Copyright Hewlett-Packard Development Company, L.P.

Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Part number: Q3713-90913

Edition 1, 9/2004

Trademark Credits

Adobe® and Adobe Postscript® 3™ are trademarks of Adobe Systems Incorporated.

Bluetooth® is a trademark owned by its proprietor and used by Hewlett-Packard Company under license.

Energy Star® and the Energy Star logo® are U.S. registered marks of the United States Environmental Protection Agency.

Microsoft® is a U.S. registered trademark of the Microsoft Corporation.

PANTONE®* PANTONE®* Colors generated may not match PANTONE®*-identified standards. Consult current PANTONE®* Publications for accurate color. PANTONE® and other PANTONE®, Inc. trademarks are the property of PANTONE®, Inc. © PANTONE®, Inc., 2000.

UNIX® is a registered trademark of The Open Group.

Windows®, MS Windows®, and Windows NT® are U.S. registered trademarks of Microsoft Corporation.

hp customer care

Online services

For 24-hour access to information using a modem or Internet connection:

World Wide Web URL: for the HP Color LaserJet 5550 series printers, updated HP printer software, product and support information, and printer drivers in several languages can be obtained from http://www.hp.com/support/clj5550. (Sites are in English.)

HP Instant Support Professional Edition (ISPE) is a suite of web-based troubleshooting tools for desktop computing and printing products. ISPE helps you quickly identify, diagnose, and resolve computing and printing problems. The ISPE tools may be accessed from http://instantsupport.hp.com.

Telephone support

HP provides free telephone support during the warranty period. When you call, you will be connected to a responsive team waiting to help you. For the telephone number for your country/region, see the flyer that shipped in the box with the product, or visit http://www.hp.com/support/callcenters. Before calling HP, have the following information ready: product name and serial number, date of purchase, and description of the problem.

You can also find support on the Internet at http://www.hp.com. Click the support & drivers block.

Software utilities, drivers, and electronic information

Visit: http://www.hp.com/go/clj5550_software for the HP Color LaserJet 5550 series printer. The Web page for the drivers might be in English, but you can download the drivers themselves in several languages.

Call: See the flyer that shipped in the box with the printer.

HP direct ordering for accessories or supplies

In the United States, supplies can be ordered from http://www.hp.com/sbso/product/supplies. In Canada, supplies can be ordered from http://www.hp.ca/catalog/supplies. In Europe, supplies can be ordered from http://www.hp.com/supplies. In Asia-Pacific, supplies can be ordered from http://www.hp.com/paper/.

Accessories can be ordered from http://www.hp.com/go/accessories.

Call: 1-800-538-8787 (U.S.) or 1-800-387-3154 (Canada).

HP service information

To locate HP-Authorized Dealers, call 1-800-243-9816 (U.S.) or 1-800-387-3867 (Canada). For service for your product, call the customer support number for your country/region. See the flyer that shipped in the box with the printer.

HP service agreements

Call: 1-800-835-4747 (U.S.) or 1-800-268-1221 (Canada).

Extended Service: 1-800-446-0522

HP toolbox

To check the printer status and settings and to view troubleshooting information and online documentation, use HP Toolbox. You can view the HP Toolbox when the printer is directly connected to your computer or when it is connected to a network. You must have performed a complete software installation to use the HP Toolbox. See Using the HP Toolbox.

HP support and information for Macintosh computers

Visit: http://www.hp.com/go/macosx for Macintosh OS X support information and HP subscription service for driver updates.

Visit: http://www.hp.com/go/mac-connect for products designed specifically for the Macintosh user.

Table of contents

1 Printer basics

Quick access to printer information ....2

World Wide Web links 2

User guide links 2

Where to look for more information ....2

Printer configurations 5

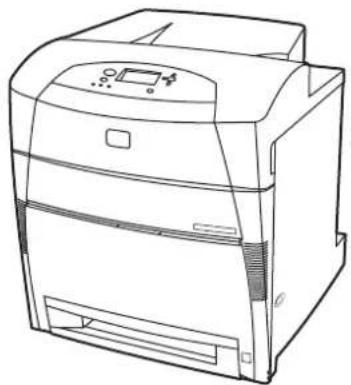

HP Color LaserJet 5550 ....5

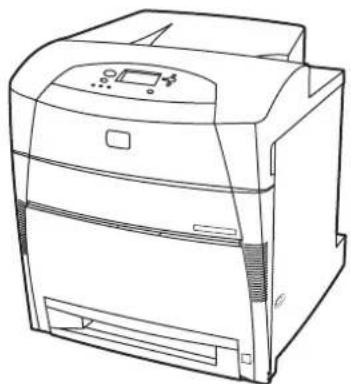

HP Color LaserJet 5550n ....5

HP Color LaserJet 5550dn 6

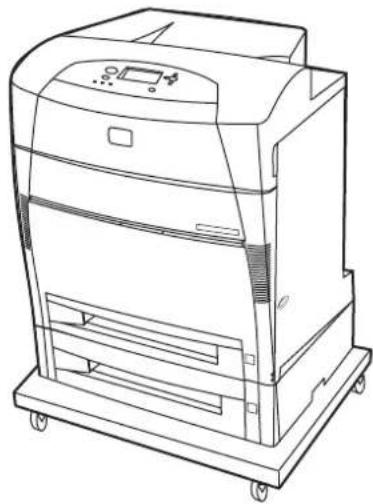

HP Color LaserJet 5550dtn 7

HP Color LaserJet 5550hdn ....8

Printer features ....10

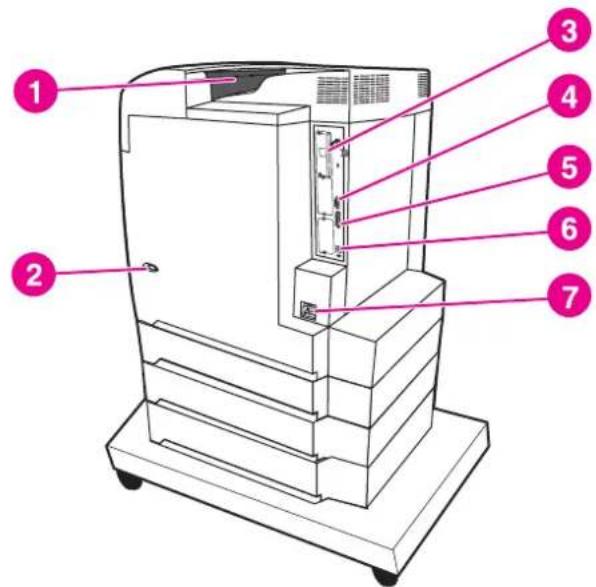

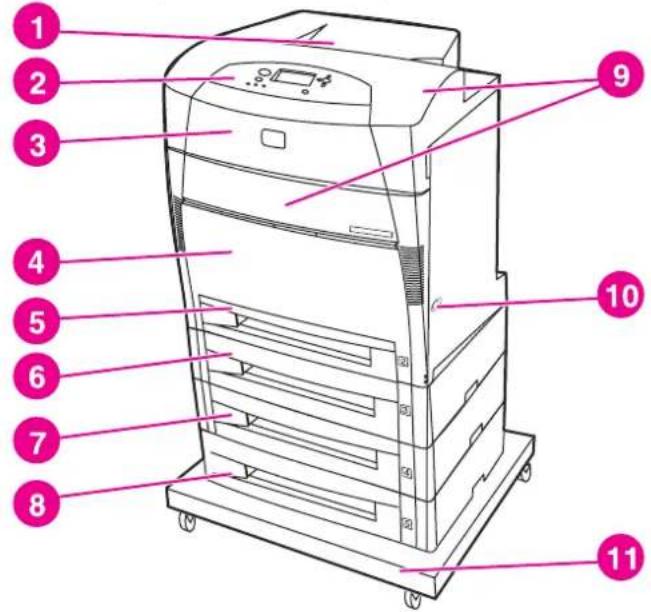

Walk around 12

Printer software 13

Software features ....13

Printer drivers ....14

Software for Macintosh computers ....17

Installing the printing system software ....18

Uninstalling the software ....23

Software for networks 23

Utilities 24

Print media specifications ....27

Supported paper weights and sizes 27

2 Control panel

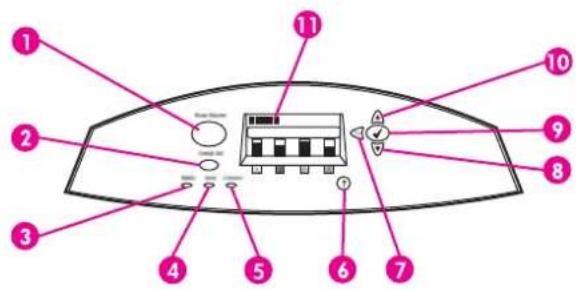

Control panel overview 32

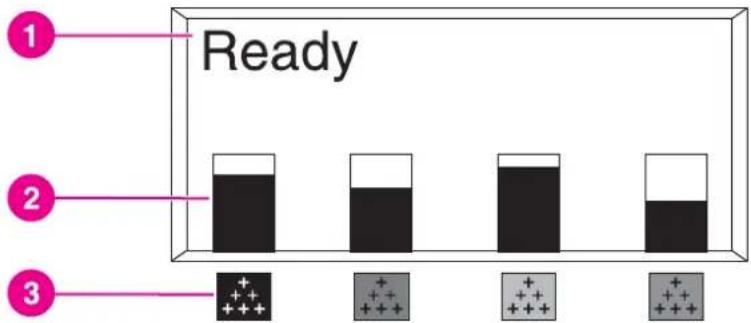

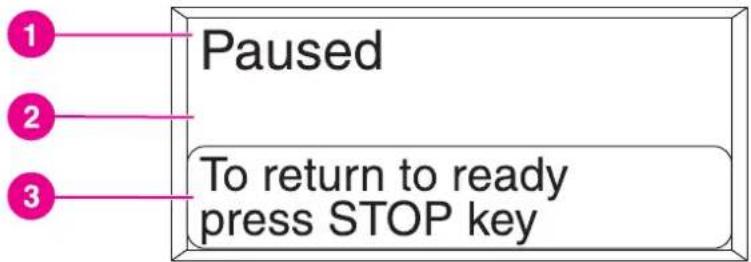

Display 32

Accessing the control panel from a computer ....33

Control panel buttons 34

Interpreting control panel indicator lights ....35

Control panel menus ....36

Getting started basics ....36

Menu hierarchy ....37

To access the menus ....37

Retrieve job menu (for printers with a hard drive) 37

Information menu ....37

Paper handling menu ....38

Configure device menu ....38

Diagnostics menu 39

Retrieve job menu (for printers with a hard drive) 41

Information menu 42

Paper handling menu 43

Configure device menu 44

Printing menu 44

Print quality menu ....45

System setup menu 46

I/O menu 48

Resets menu 49

Diagnostics menu 50

Changing printer control panel configuration settings 52

Job storage limit ....52

Job held timeout 52

Show address 53

Color/black mix 53

Tray behavior options: Use Requested Tray and manually feed ....54

PowerSave Time 55

Personality 56

Clearable warnings 57

Auto continue ....57

Supplies low 58

Color supply out 58

Jam recovery 59

Language 59

Using the printer control panel in shared environments 60

3 I/O Configuration

Network configuration 62

Configuring Novell NetWare frame type parameters 62

Configuring TCP/IP parameters 63

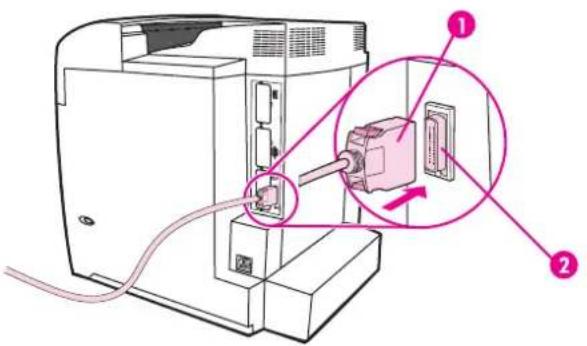

Parallel configuration 69

USB configuration 70

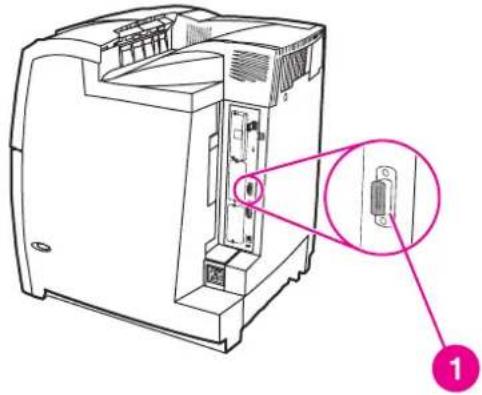

Jetlink connection configuration 71

Enhanced I/O (EIO) configuration 72

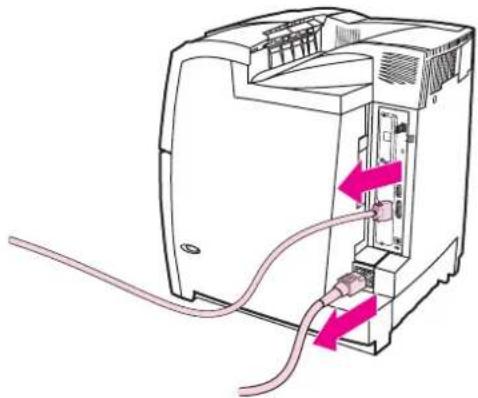

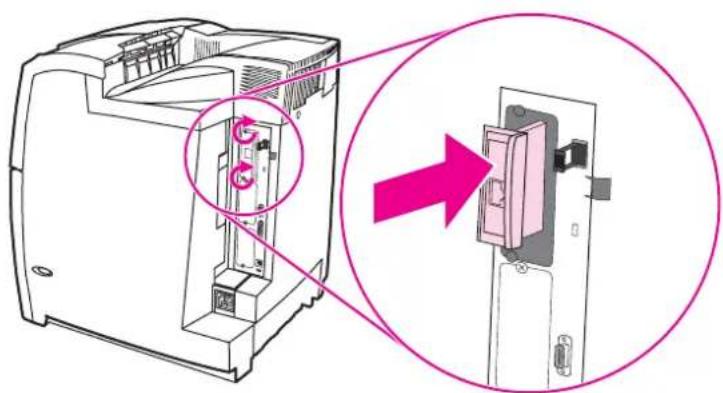

HP Jetdirect print servers 72

Available enhanced I/O interfaces 72

NetWare networks 72

Windows and Windows NT networks 73

AppleTalk networks 73

UNIX/Linux networks 73

Wireless printing 74

IEEE 802.11b standard 74

Bluetooth 74

4 Printing tasks

Controlling print jobs 76

Source 76

Type and Size 76

Print setting priorities 76

Selecting print media 78

Media to avoid 78

Media that may damage the printer 78

Configuring input trays 80

Configuring trays when the printer gives a prompt 80

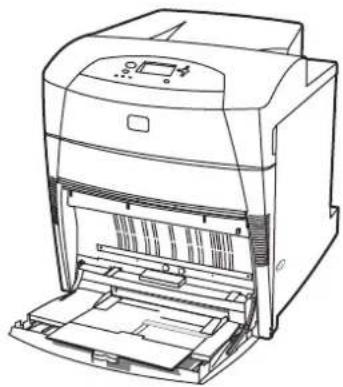

Loading Tray 1 for one-time use 80

Loading Tray 1 when the same paper is used for multiple print jobs ....82

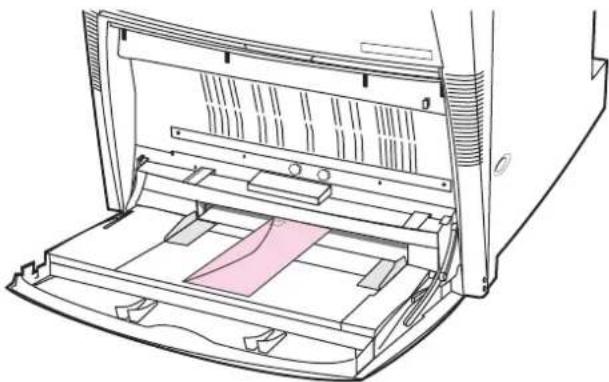

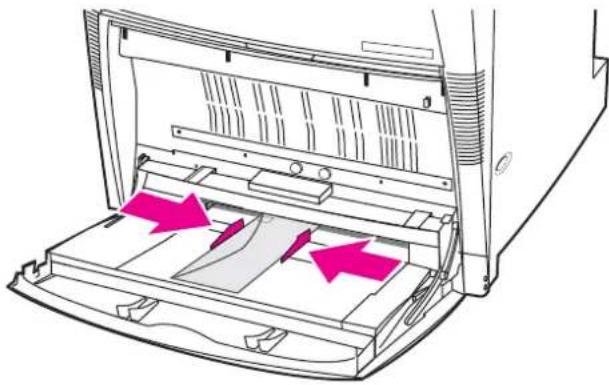

Printing envelopes from Tray 1 ....84

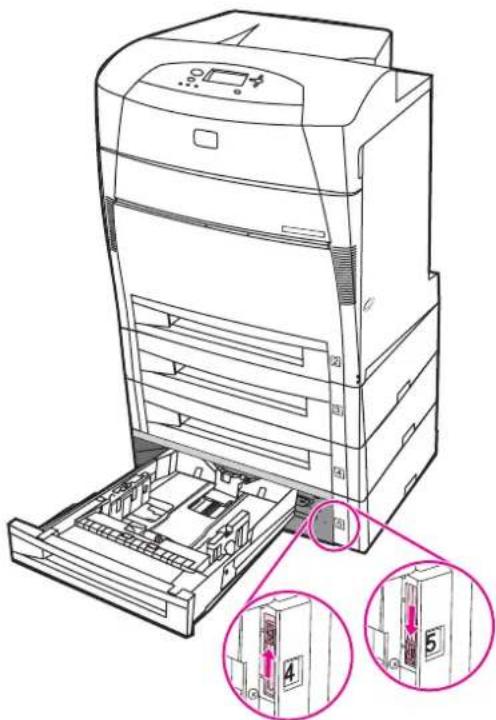

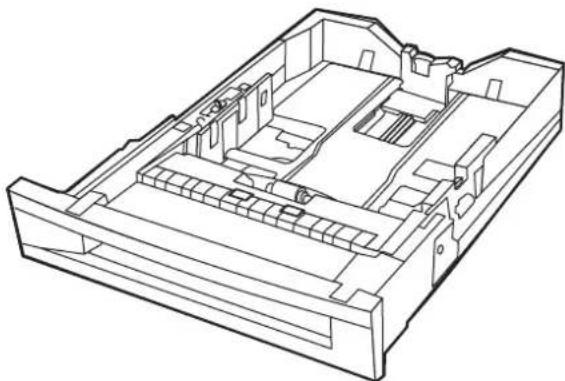

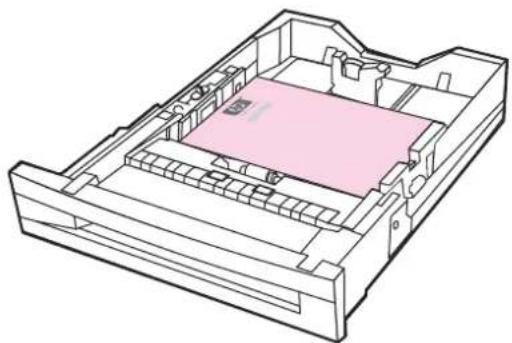

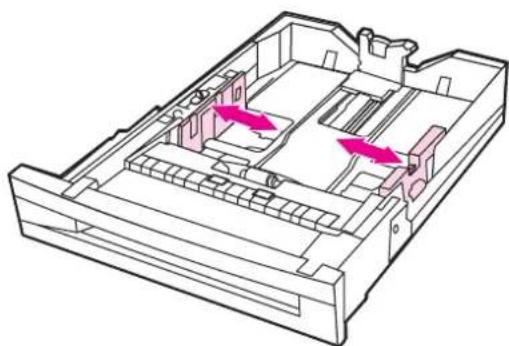

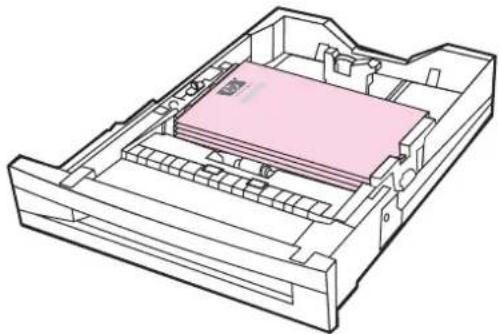

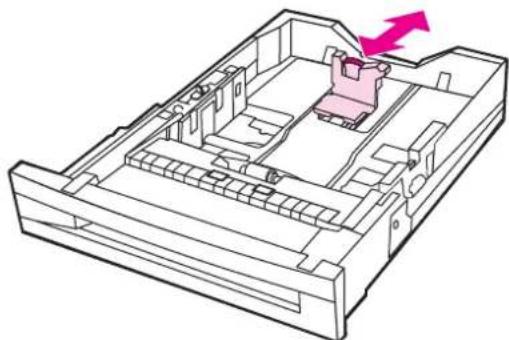

Loading detectable media into Trays 2, 3, 4, and 5 85

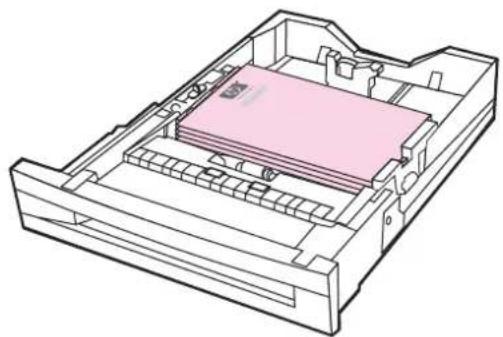

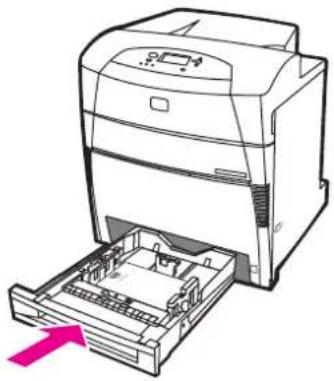

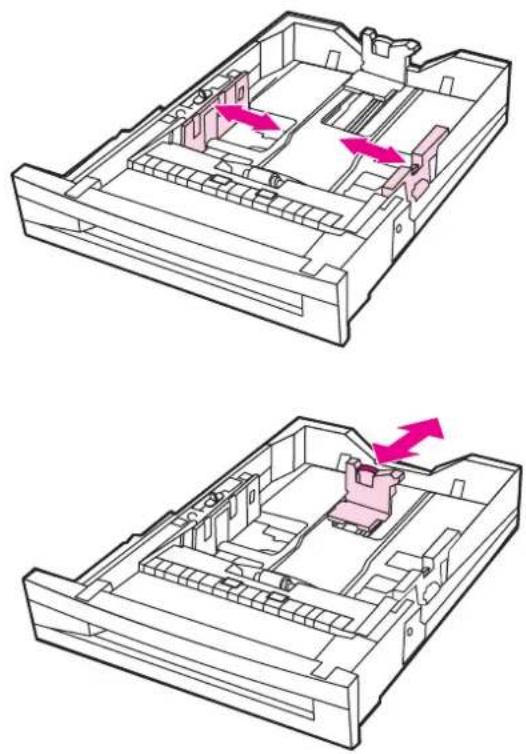

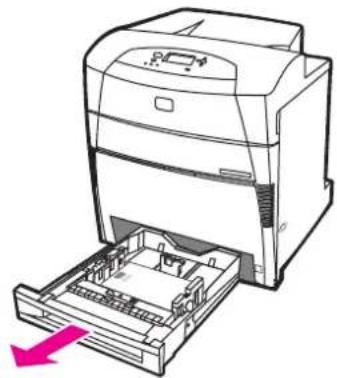

Loading undetectable/standard size media into Trays 2, 3, 4, and 5 ....88

Loading custom media into Trays 2, 3, 4, and 5 90

Configuring trays using the Paper Handling menu 93

Printing on special media 95

Transparencies 95

Glossy paper 95

Colored paper 96

Printing images 96

Envelopes 96

Labels 97

Heavy paper 97

HP LaserJet Tough paper 98

Preprinted forms and letterhead 98

Recycled paper 98

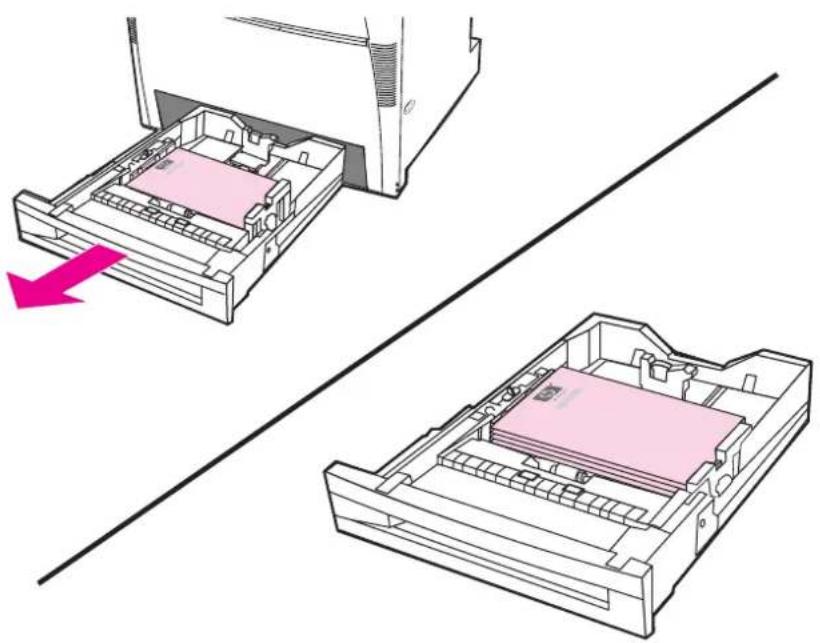

Two-sided (duplex) printing 99

Control panel settings for automatic two-sided printing 100

Duplexing blank pages 101

Options for binding two-sided printing jobs 101

Manual two-sided (duplex) printing 101

Printing booklets 102

Adjusting the registration 102

Special printing situations 104

Printing a different first page 104

Printing a blank back cover 104

Printing on custom-size media 104

Stopping a print request 105

Job storage features 105

Storing a print job 106

Quick copying a job 106

Proofing and holding a job 107

Private jobs 108

Mopier mode 109

Managing memory 110

5 Managing the printer

Printer information pages 112

Menu map 112

Configuration page 112

Supplies status page 113

Usage page 113

Demo 114

Print CMYK samples 114

Print RGB samples 114

File directory 114

PCL or PS font list 115

Event log 115

Using the embedded Web server 116

To access the embedded Web server using a network connection 116

Information tab 117

Settings tab 117

Networking tab 118

Other links 118

Using the HP Toolbox 119

Supported operating systems 119

Supported browsers 119

To view HP Toolbox 119

HP Toolbox sections 120

Other links 120

Status tab 120

Troubleshooting tab 120

Alerts tab 121

Documentation tab 121

Device Settings button 121

HP Toolbox links 121

6 Color

Using color 124

Paper selection 124

HP ImageREt 3600 ....124

Best image printing 124

Color options 124

sRGB 125

Printing in four-colors (CMYK) 125

Managing printer color options 126

Print in Grayscale 126

Automatic or manual color adjustment 126

Matching colors ....128

PANTONE®* color matching 128

Sample book color matching 128

Printing color samples 129

Color emulation of the HP Color LaserJet 4550 129

7 Maintenance

Managing the print cartridge ....132

HP print cartridges 132

Non-HP print cartridges 132

Print cartridge authentication ....132

HP fraud hotline 132

Print cartridge storage 133

Print cartridge life expectancy 133

Approximate replacement intervals for supplies 133

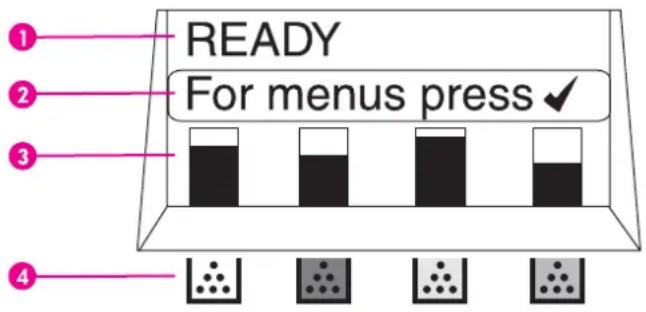

Checking the print cartridge life 134

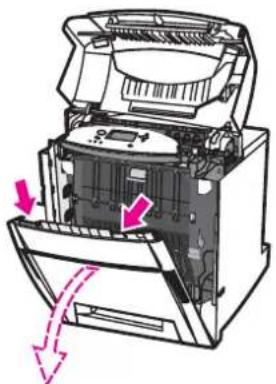

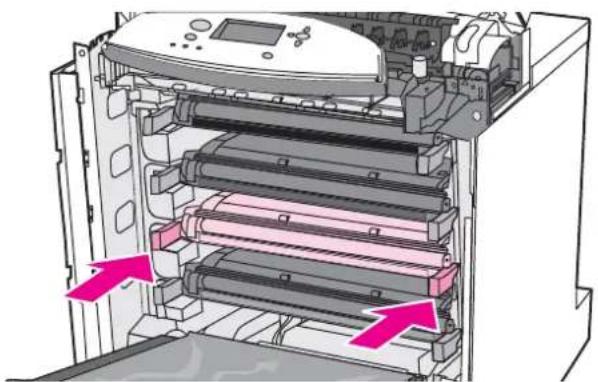

Changing print cartridges ....135

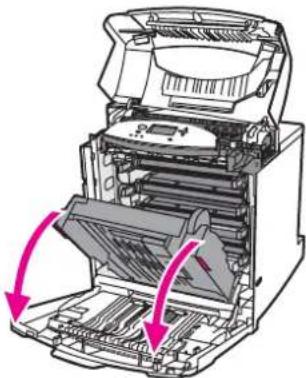

To change the print cartridge 135

Replacing supplies 139

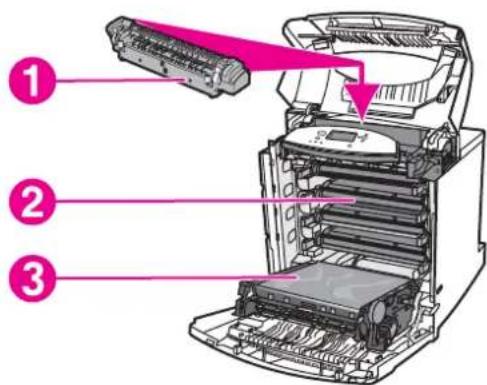

Locating supplies 139

Supply replacement guidelines 139

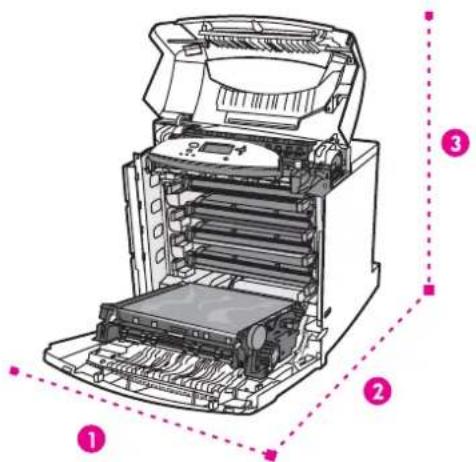

Making room around the printer for replacing supplies 140

Configuring e-mail alerts for supplies status 141

Periodic cleaning 142

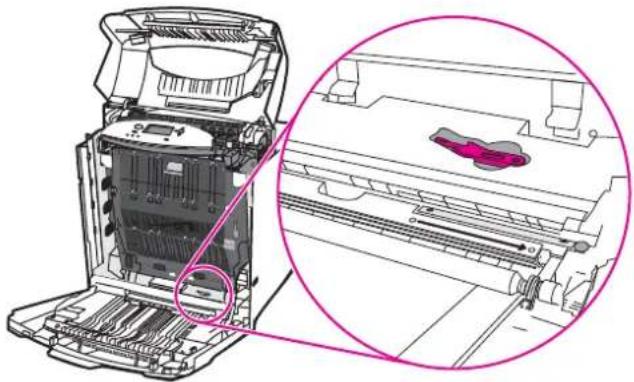

When to clean the OHT sensor ....142

To clean the OHT sensor 142

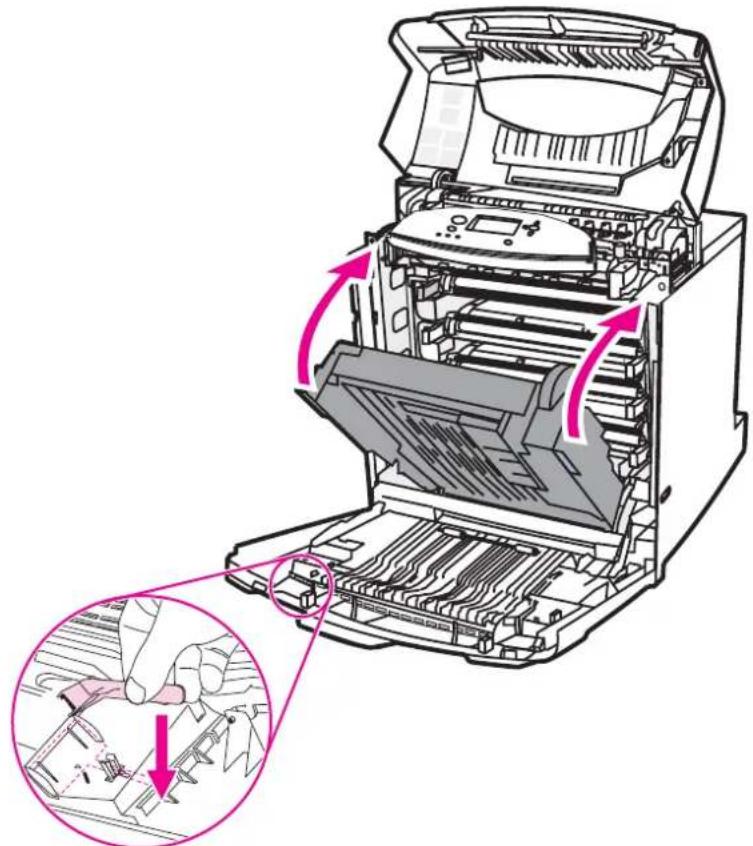

When to clean the static discharge comb ....145

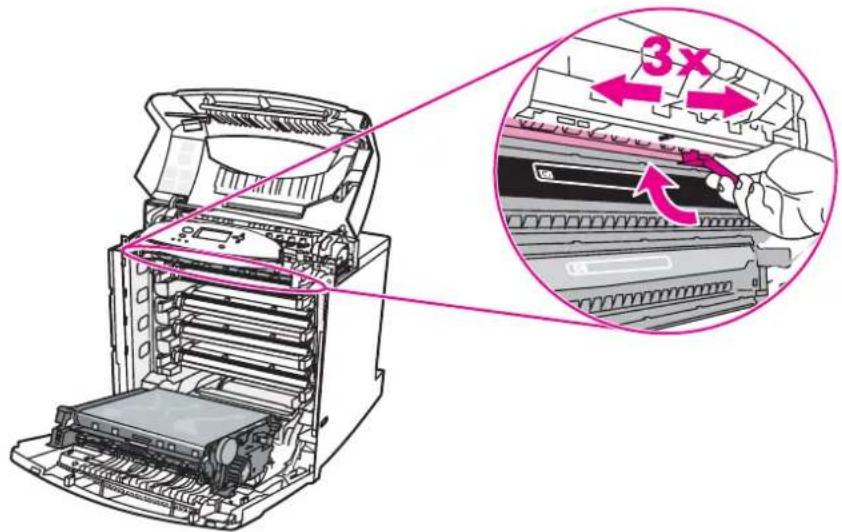

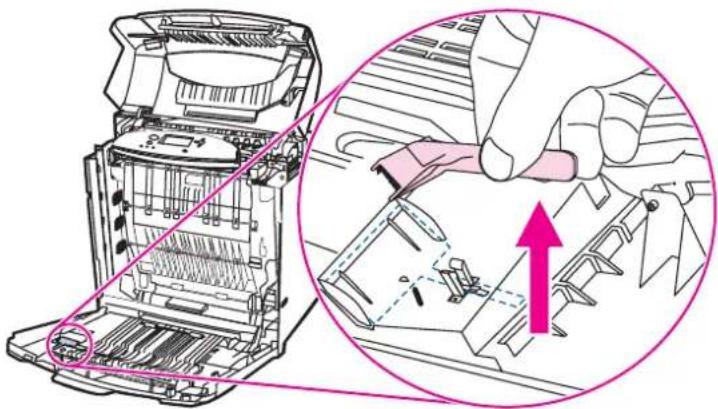

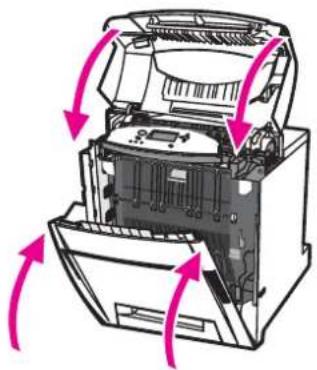

To clean the static discharge comb ....146

8 Problemsolving

Basic troubleshooting checklist ....151

Factors affecting printer performance ....151

Troubleshooting information pages 152

Paper path test page 152

Registration page 152

Event log 153

Control panel message types 154

Status messages 154

Warning messages 154

Error messages 154

Critical error messages 154

Control panel messages 155

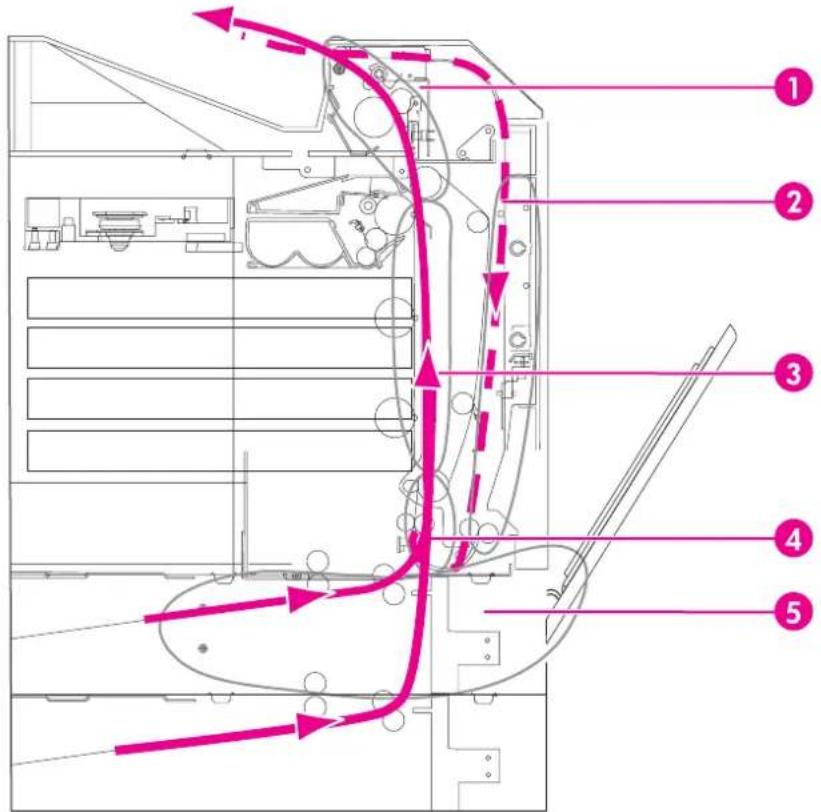

Paper jams 181

Paper jam recovery ....181

Common causes of paper jams 183

Clearing paper jams 185

Jam in Tray 1, 2, 3, 4, or 5 185

Jam in Tray 3, 4, or 5 189

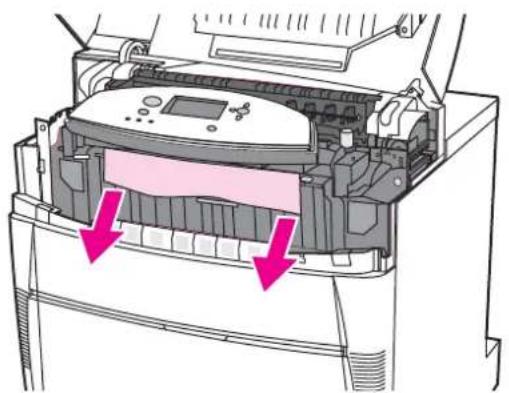

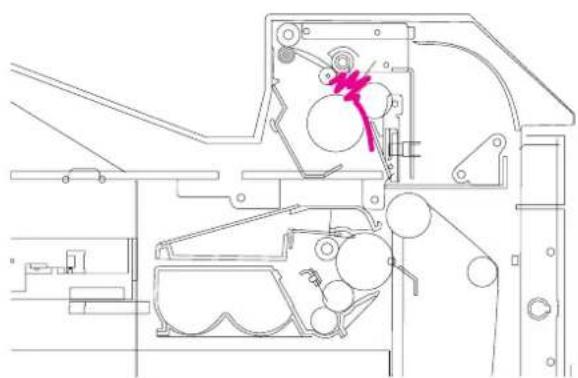

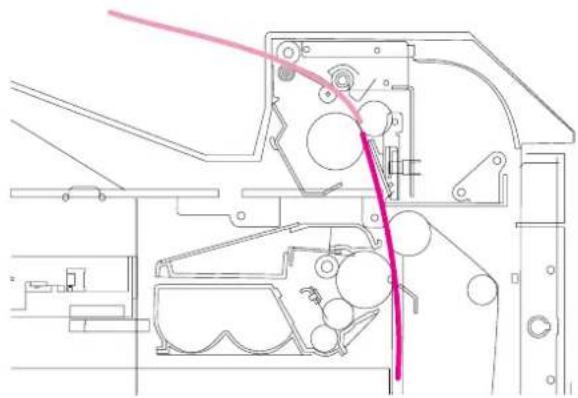

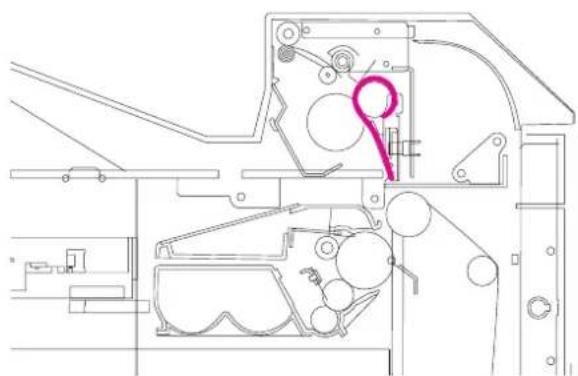

Jams in the top cover 195

Jam in paper input path or paper path 200

Multiple jams in paper path 202

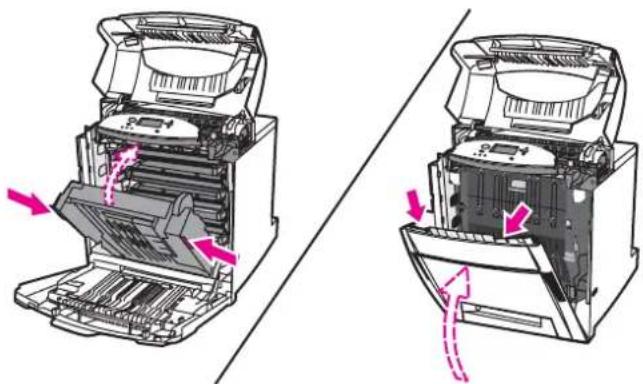

Jam in duplex path 207

Multiple jams in duplex path 209

Media-handling problems 215

Printer feeds multiple sheets 215

Printer feeds incorrect page size 215

Printer pulls from incorrect tray 216

Media does not feed automatically 216

Unable to select paper sizes for Tray 2, 3, 4, or 5 using the printer control panel. .....217

Media does not feed from Tray 2, 3, 4, or 5 ....217

Transparencies or glossy paper will not feed 218

Transparencies are not printed correctly and the control panel displays an error message indicating a problem with the media in the tray. 218

Envelopes jam or will not feed in the printer 219

Output is curled or wrinkled 219

Printer will not duplex or duplexes incorrectly 219

Printer response problems ....221

No display message 221

Printer is on, but nothing prints ....221

Printer is on, but is not receiving data 222

Unable to select the printer from the computer 222

Printer control panel problems 224

Control panel settings work incorrectly 224

Unable to select Tray 3, 4, or 5 ......224

Color printing problems 225

Printing black instead of color 225

Incorrect shade 225

Missing color 225

Inconsistent colors after installing a print cartridge 226

Printed colors do not match screen colors 226

Incorrect printer output 227

Incorrect fonts are printed 227

Unable to print all characters in a symbol set 227

Drifting text between printouts 227

Erratic, missing characters or interrupted printout 227

Partial printout 228

Guidelines for printing with different fonts 228

Software application problems 229

Unable to change system selections through software 229

Unable to select a font from the software 229

Unable to select colors from the software 229

Printer driver does not recognize Tray 3, 4, or 5 in the duplex printing accessory .....229

Print quality troubleshooting ....230

Print quality problems associated with paper 230

Overhead transparency defects 230

Print quality problems associated with the environment 231

Print quality problems associated with jams 231

Print quality problems associated with maintenance 231

Print quality troubleshooting pages ......231

Calibrating the printer 232

Print quality defect chart 232

Appendix A Working with memory and print server cards

Printer memory and fonts 239

Printing a configuration page 239

Installing memory and fonts 241

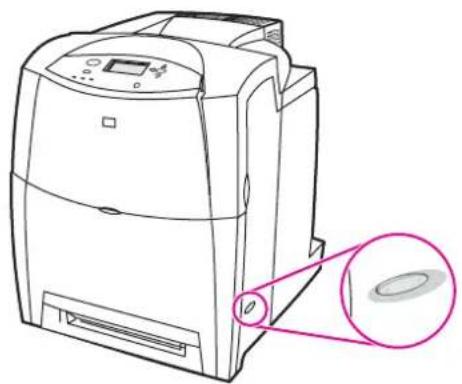

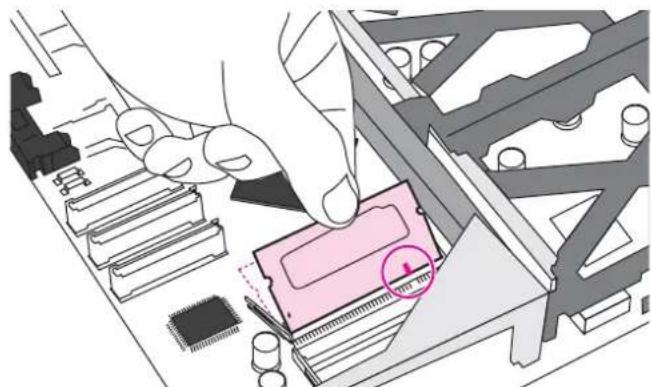

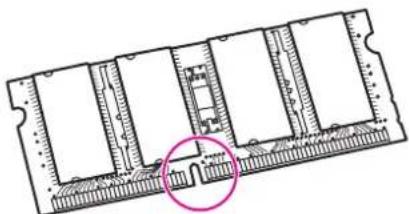

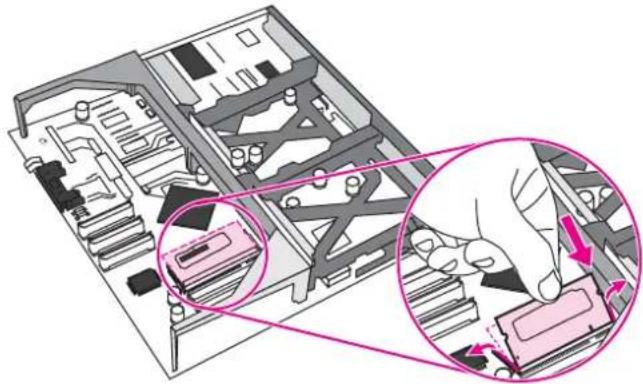

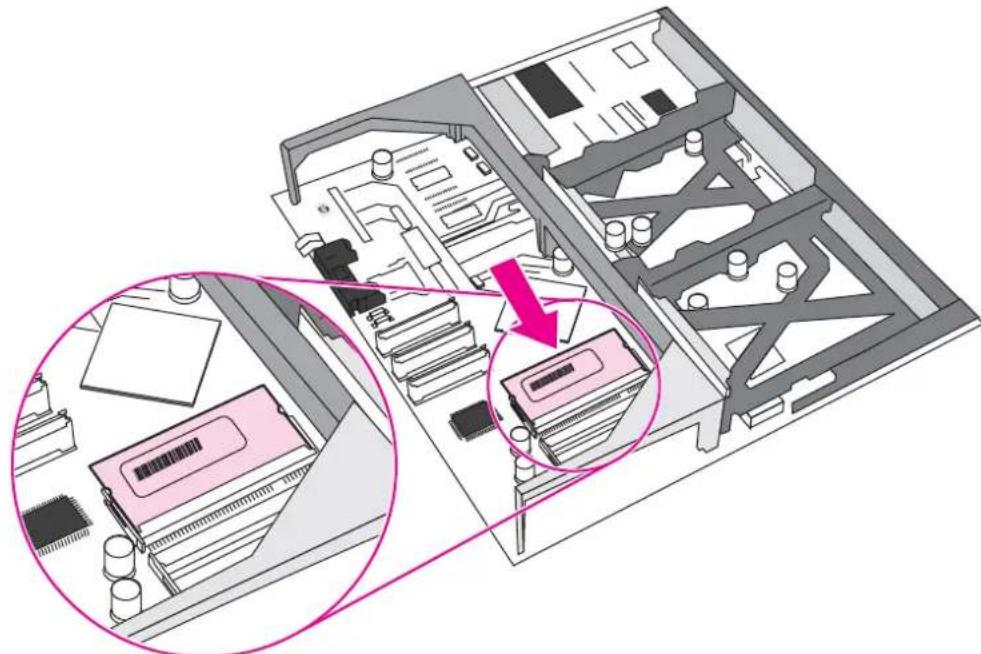

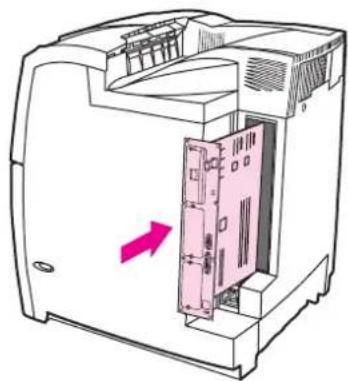

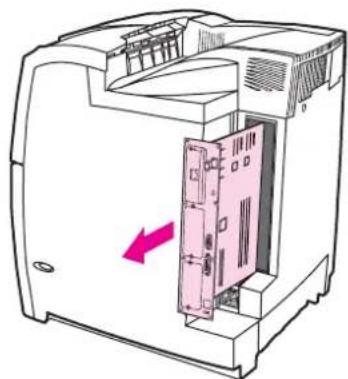

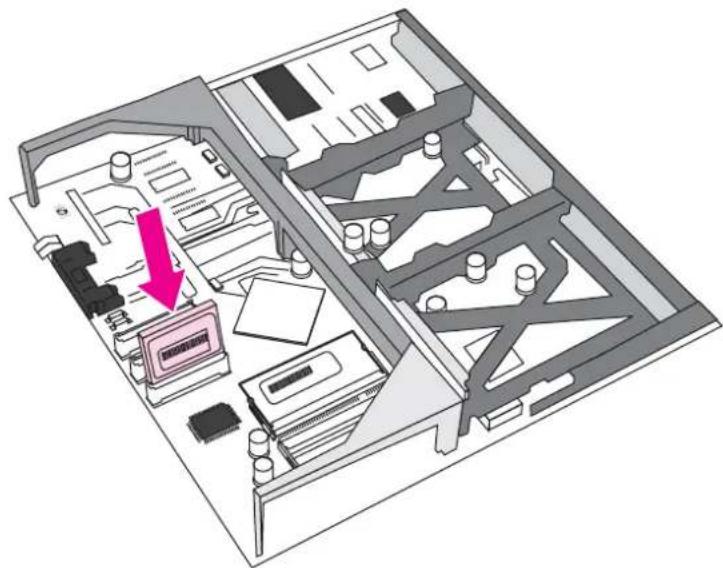

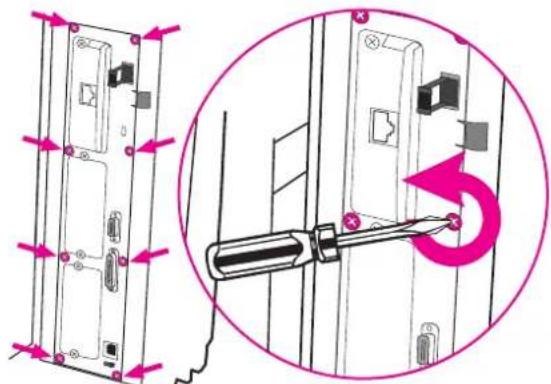

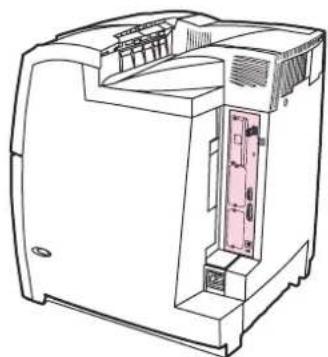

To install DDR memory DIMMs ....241

To install a flash memory card 244

Enabling memory 247

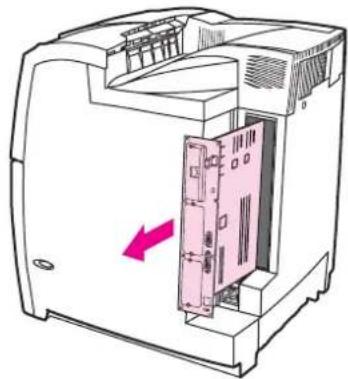

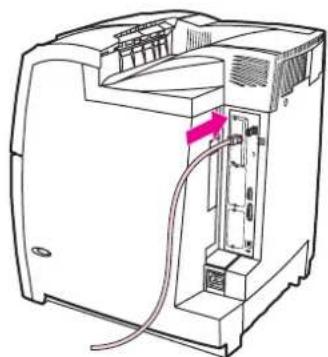

Installing an HP Jetdirect print server card 248

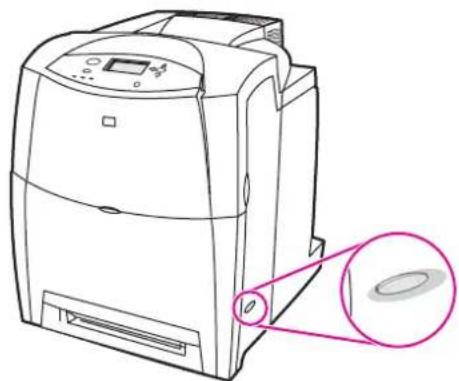

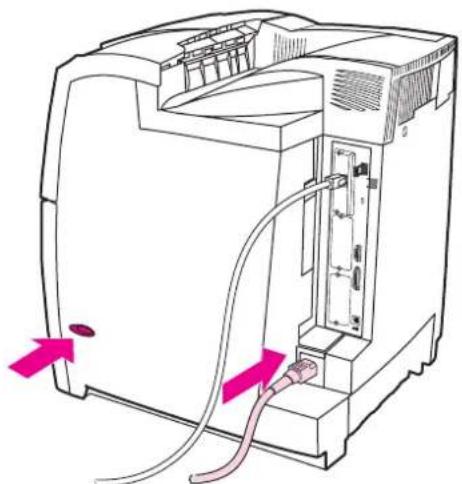

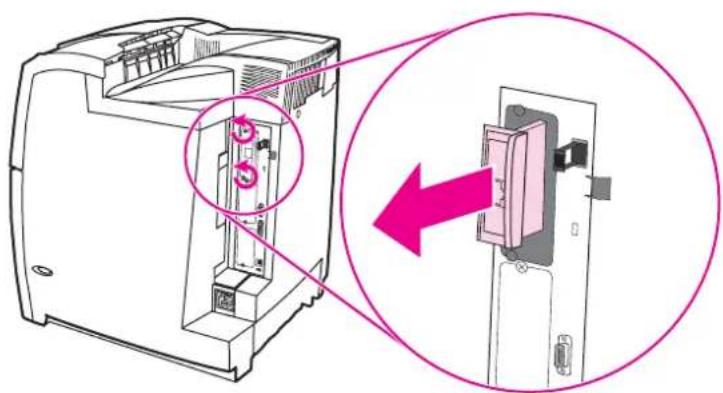

To install an HP Jetdirect print server card 248

Appendix B Supplies and accessories

Spare parts and supplies availability 251

Ordering directly through the embedded Web server (for printers with network connections) 251

Ordering directly through the printer software (for printers directly connected to a computer) 252

To order printing supplies directly through the computer software 252

Appendix C Service and Support

Hewlett-Packard limited warranty statement 255

Limited warranty for print cartridges and image drums 257

HP's Premium Protection Warranty. Color LaserJet Image Fuser Kit and Image Transfer Kit Limited Warranty Statement 258

HP maintenance agreements 259

On-site service agreements 259

Appendix D Printer specifications

Electrical specifications 262

Acoustic emissions ^1,2 263

Environmental specifications ....264

Appendix E Regulatory information

FCC regulations 265

Environmental product stewardship program 266

Protecting the environment 266

Ozone production 266

Energy consumption 266

Paper use 266

Plastics 266

HP LaserJet Printing Supplies 266

HP Printing Supplies Returns and Recycling Program Information 267

Recycled paper 267

Material restrictions 267

Material Safety Data Sheet (MSDS) 267

For more information 267

Declaration of Conformity 268

Safety statements 269

Laser safety 269

Canadian DOC regulations 269

EMI statement (Korea) 269

VCCI statement (Japan) 269

Laser Statement for Finland 270

Glossary

Index

1

Printer basics

This chapter contains information on setting up your printer and becoming familiar with the printer features. The following topics are covered:

• Quick access to printer information
  Printer configurations
  Printer features
  Walk around
  Printer software
  • Print media specifications

Quick access to printer information

World Wide Web links

Printer drivers, updated HP printer software, product information, and support may be obtained from the following URL:

• http://www.hp.com/support/clj5550
  Printer drivers may be obtained from the following sites:
  • In China: ftp://www.hp.com.cn/support/clj5550
  • In Japan: ftp://www.jpn.hp.com/support/clj5550
  • In Korea: http://www.hp.co.kr/support/clj5550
  • In Taiwan: http://www.hp.com.tw/support/clj5550
  • or the local driver website: http://www.dds.com.tw

To order supplies:

• United States: http://www.hp.com/go/ljsupplies
• Worldwide: http://www.hp.com/ghp/buyonline.html

To order accessories:

- http://www.hp.com/go/accessories

User guide links

Walk around
- Replacing supplies

Where to look for more information

Several references are available for use with this printer. See http://www.hp.com/support/clj5550.

Setting up the printer

Getting Started Guide—Step-by-step instructions for installing and setting up the printer. This guide is located on the CD that shipped with the printer.

Scanned image showing a 3D printer icon with Chinese text and a 'start' button, alongside two gray rectangular panels.

HP Jetdirect Print Server Administrator's Guide—Instructions to configure and troubleshoot the HP Jetdirect print server. This guide is located on the CD that shipped with the printer.

Illustration of a vintage desktop computer with monitor, keyboard, and mouse (no text or symbols visible)

Accessory and Consumable Installation Guides—Step-by-step instructions, supplied with the printer's optional accessories and consumables, for installing the printer's accessories and consumables.

Scanned document page with Chinese text and a central logo, likely an official or corporate form.

Using the printer

User Guide—Detailed information on using and troubleshooting the printer. Available on the CD-ROM that came with the printer.

Illustration of a vintage computer setup with a CD, mouse, and monitor displaying text content

Online Help—Information on printer options that are available from within printer drivers. To view a Help file, access the online Help through the printer driver.

Diagram of a desktop computer setup with labeled screen, keyboard, and mouse, showing text and interface elements.

HTML (Online) User Guide—Detailed information on using and troubleshooting the printer. Available at http://www.hp.com/support/clj5550. Once connected, select Manuals.

Illustration of a vintage desktop computer with visible screen interface and keyboard, mouse, and text labels

Printer configurations

Thank you for purchasing the HP Color LaserJet 5550 series printer. This printer is available in the configurations described below.

HP Color LaserJet 5550

Line drawing of a printer or scanner device (no text or symbols visible)

The HP Color LaserJet 5550 printer is a four-color laser printer that prints up to 28 A4 pages per minute (ppm) and up to 27 letter size ppm. Following is a list of printer features. For more detailed information about each feature, see Printer features.

• Tray 1 is a multipurpose tray that holds up to 100 sheets of various print media or 20 envelopes.
• Tray 2 is a 500-sheet paper feeder that supports Letter, Letter-Rotated, A4, A4-Rotated, executive, A5 (JIS), B4 (JIS), B5 (JIS), 11 x 17, A3, 16K, 8K, Executive (JIS), 8.5 x 13, and Legal sizes. This tray can also handle custom media.
• Capability to connect using parallel, network, and Jetlink ports. The printer contains three enhanced input/output (EIO) slots, a Jetlink port, a universal serial bus (USB 1.1) connection, and a standard bidirectional parallel cable interface (IEEE-1284-C compliant).
• 160 megabytes (MB) of synchronous dynamic random access memory (SDRAM). 128MB DDR, plus 32 MB of additional memory on the formatter board and an additional open dual inline memory module (DIMM) slot.

HP Color LaserJet 5550n

Line drawing of a printer with front panel and control panel (no text or symbols)

The HP Color LaserJet 5550n printer is a four-color laser printer that prints up to 28 A4 pages per minute (ppm) and up to 27 letter size ppm. Following is a list of printer features. For more detailed information about each feature, see Printer features.

• Tray 1 is a multipurpose tray that holds up to 100 sheets of various print media or 20 envelopes.
• Tray 2 is a 500-sheet paper feeder that supports Letter, Letter-Rotated, A4, A4-Rotated, executive, A5 (JIS), B4 (JIS), B5 (JIS), 11 x 17, A3 16K, 8K, Executive (JIS), 8.5 x 13, and Legal sizes. This tray can also handle custom media.
• Capability to connect using parallel, network, and Jetlink ports. The printer contains three enhanced input/output (EIO) slots, a Jetlink port, a universal serial bus (USB 1.1) connection, and a standard bidirectional parallel cable interface (IEEE-1284-C compliant). The printer also contains an HP Jetdirect 620N print server EIO network card.
• 160 megabytes (MB) of synchronous dynamic random access memory (SDRAM). 128MB DDR, plus 32 MB of additional memory on the formatter board and an additional open dual inline memory module (DIMM) slot.

HP Color LaserJet 5550dn

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

The HP Color LaserJet 5550dn is a four-color laser printer that prints up to 28 A4 pages per minute (ppm) and up to 27 letter size ppm. Following is a list of printer features. For more detailed information about each feature, see Printer features.

• Tray 1 is a multipurpose tray that holds up to 100 sheets of various print media or 20 envelopes.
• Tray 2 is a 500-sheet paper feeder that supports Letter, Letter-Rotated, A4, A4-Rotated, executive, A5 (JIS), B4 (JIS), B5 (JIS), 11 x 17, A3, 16K, 8K, Executive (JIS), 8.5 x 13, and Legal sizes. This tray can also handle custom media.
  • Automatic two-sided (duplex) printing.
• Capability to connect using parallel, network, and Jetlink ports. The printer contains three enhanced input/output (EIO) slots, a Jetlink port, a universal serial bus (USB 1.1) connection, and a standard bidirectional parallel cable interface (IEEE-1284-C compliant). The printer also contains an HP Jetdirect 620N print server EIO network card.
• 160 megabytes (MB) of synchronous dynamic random access memory (SDRAM). 128MB DDR, plus 32 MB of additional memory on the formatter board and an additional open dual inline memory module (DIMM) slot.

HP Color LaserJet 5550dtn

Line drawing of a portable industrial machine with control panel and wheels (no text or symbols)

The HP Color LaserJet 5550dtn is a four-color laser printer that prints up to 28 A4 pages per minute (ppm) and up to 27 letter size ppm. Following is a list of printer features. For more detailed information about each feature, see Printer features.

• Tray 1 is a multipurpose tray that holds up to 100 sheets of various print media or 20 envelopes.
• Tray 2 is a 500-sheet paper feeder that supports Letter, Letter-Rotated, A4, A4-Rotated, executive, A5 (JIS), B4 (JIS), B5 (JIS), 11 x 17, A3, 16K, 8K, Executive (JIS), 8.5 x 13, and Legal sizes. Tray 3 can hold 500 sheets of Letter, Letter-Rotated, A4, A4-Rotated, executive, A5 (JIS), B4 (JIS), B5 (JIS), 11 x 17, A3, 16K, 8K, Executive (JIS), 8.5 x 13, and Legal sizes. Both trays can handle custom media.
  • Automatic two-sided (duplex) printing.
• Capability to connect using parallel, network, and Jetlink ports. The printer contains three enhanced input/output (EIO) slots, a Jetlink port, a universal serial bus (USB 1.1) connection, and a standard bidirectional parallel cable interface (IEEE-1284-C compliant). The printer also contains an HP Jetdirect 620N print server EIO network card.
• 288 MB of SDRAM: 256 MB DDR, plus 32 MB of additional memory on the formatter board and an additional DIMM slot. This printer has two 200-pin small outline dual inline memory module (SODIMM) slots that accept 128 or 256 MB RAM each. An optional hard-drive is available.
• Printer stand.

HP Color LaserJet 5550hdn

Line drawing of a multi-tiered electronic device with control panel and wheels (no text or symbols)

The HP Color LaserJet 5550hdn is a four-color laser printer that prints up to 28 A4 pages per minute (ppm) and up to 27 letter size ppm. Following is a list of printer features. For more detailed information about each feature, see Printer features

• Tray 1 is a multipurpose tray that holds up to 100 sheets of various print media or 20 envelopes.
• Tray 2 is a 500-sheet paper feeder that supports Letter, Letter-Rotated, A4, A4-Rotated, executive, A5 (JIS), B4 (JIS), B5(JIS), 11 x 17, A3, 16K, 8K, Executive (JIS), 8.5 x 13, and Legal sizes. This tray can handle custom media.
  Trays 3, 4, and 5 can hold 500 sheets of Letter, Letter-Rotated, A4, A4-Rotated, executive, A5 (JIS), B4 (JIS), B5 (JIS), 11 x 17, A3, 16K, 8K, Executive (JIS), 8.5 x 13, and Legal sizes. These trays can also handle custom media.
• Printer stand.
  • Automatic two-sided (duplex) printing.
• Capability to connect using parallel, network, and Jetlink ports. The printer contains three enhanced input/output (EIO) slots, a Jetlink port, a universal serial bus (USB 1.1) connection, and a standard bidirectional parallel cable interface (IEEE-1284-C compliant). The printer also contains an HP Jetdirect 620N print server EIO network card.
  288 MB of SDRAM: 256 MB DDR, plus 32 MB of additional memory on the formatter board and an additional DIMM slot. This printer has two 200-pin small outline dual inline memory module (SODIMM) slots that accept 128 or 256 MB RAM each. Additionally, this printer contains a hard-drive.

Note

If you add Tray 5 to the printer after you purchase the printer, the tray position indicator might display the wrong number. To change the number, slide the position indicator switch to the number 5.

Technical diagram of a printer with labeled parts and zoomed-in insets showing internal structure details

Printer features

This printer combines the quality and reliability of Hewlett-Packard printing with the features listed below. For more information on printer features, see the Hewlett-Packard website at http://www.hp.com/support/clj5550.

Features

Performance •	Up to 28 pages per minute (ppm) for A4 size paper and up to 27 ppm for letter size paper.Also prints on transparencies and glossy paper. For more information see Supported paper weights and sizes.
Memory	HP Color LaserJet 5550, HP Color LaserJet 5550n, and HP Color LaserJet 5550dn models contain 128 MB SDRAM, 32 MB of additional memory on the formatter board, and an additional open DIMM slot.Memory specification: All HP Color LaserJet 5550 series printers use 200-pin SODIMM that support 128 or 256 MB of RAM.HP Color LaserJet 5550dtn and HP Color LaserJet 5550hdn models contain 288 MB of SDRAM: 256 MB DDR, plus 32 MB of additional memory on the formatter board and an additional DIMM slot. These printer models contain two 200-pin SODIMM slots that accept 128 or 256 MB RAM each.Optional hard drive can be added via an EIO slot (included with the HP Color LaserJet 5550hdn printer).
User interface •	Graphic display on control panel.Enhanced Help with animated graphics.Embedded Web server to access support and order supplies (network-connected printers).HP Toolbox software to provide printer status and alerts, configure printer settings, view documentation and troubleshooting information, and print internal printer information pages.
Supported printer personalities	HP PCL 6.HP PCL 5c.PostScript 3 emulation.Automatic language switching.Direct PDF support.XHTML support.
Storage features •	Job storage. For more information, see Job storage limit.Personal identification number (PIN) printing (for printers with hard drives).Fonts and forms.
Fonts •	80 internal fonts available for both PCL and PostScript emulation.80 printer-matching screen fonts in TrueTypeTM format available with the software solution.Supports forms and fonts on the hard drive using HP Web Jetadmin.
Paper handling •	Prints on paper from 76 x 127 mm (3 x 5 inches) up to 306 x 470 mm (12.3 x 18.5 inches).• Prints on paper with weights from 60 g/m2 to 200 g/m2 (16 to 53 lb bond).• Prints on a wide range of media types including glossy, labels, overhead transparencies, and envelopes.• Multiple gloss levels.• A 500-sheet paper feeder (Tray 2) that supports paper sizes from 148 x 210 mm (5.8 x 8.3 inches) up to 297 x 432 mm (11.6 x 17 inches).• Optional 500-sheet paper feeder that supports paper sizes from 148 x 210 mm (5.8 x 8.3 inches) up to 297 x 432 mm (11.6 x 17 inches); standard on HP Color LaserJet 5550dtn (Trays 3) and HP Color LaserJet 5550hdn (Trays 3, 4, and 5) printers. For more information see Supported paper weights and sizes.• Automatic two-sided printing on HP Color LaserJet 5550dn, HP Color LaserJet 5550dtn, and HP Color LaserJet 5550hdn printers.• 250-sheet face-down output bin.
Accessories •	Printer hard drive, which provides storage for fonts and macros as well as job storage; standard on HP Color LaserJet 5550hdn.• Small outline dual inline memory modules (SODIMM).• Printer stand (recommended for additional optional trays).• Optional Trays 3, 4, and 5, that support paper sizes from 148 x 210 mm (5.8 x 8.3 inches) up to 297 x 432 mm (11.6 x 17 inches); standard on HP Color LaserJet 5550dtn (Tray 3) and HP Color LaserJet 5550hdn (Trays 3, 4, and 5) printers.
Connectivity	• Optional enhanced input/output (EIO) network card; standard on HP Color LaserJet 5550n, HP Color LaserJet 5550dn, HP Color LaserJet 5550dtn, and HP Color LaserJet 5550hdn printers.• USB 1.1 connection.• HP Web Jetadmin software.• Standard bidirectional parallel cable interface (IEEE -1284-C compliant).• The printer supports an Jetlink connection for paper handling input devices.• Both USB and parallel connections are supported, but cannot be used at the same time.
Supplies •	Supplies status page contains information on toner level, page count, and estimated pages remaining.• No-shake cartridge design.• Printer checks for authentic HP print cartridges at cartridge installation.• Internet-enabled supply-ordering capabilities (using embedded Web server or printer Status and Alerts).

Walk around

The following illustrations identify the locations and names of key components of this printer.

Diagram of a multi-tiered electronic device with numbered parts labeled for identification.

Front view

1 output bin
2 printer control panel
3 top cover
4 Tray 1 (open to use)
5 Tray 2 (500 sheets of standard paper)
6 Tray 3 (optional; 500 sheets of standard paper)
7 Tray 4 (optional; 500 sheets of standard paper)
8 Tray 5 (optional; 500 sheets of standard paper)
9 access to print cartridges, transfer unit, and fuser
10 on/off switch
11 stand

Labeled diagram of a portable electronic device with numbered components for identification

Back/side view

1 output bin
2 on/off switch
3 EIO connection
4 Jetlink connection
5 parallel port
6 USB connection

12 Chapter 1 ENWW7 power connection

Printer software

Included with the printer is a CD-ROM containing the printing system software. The software components and printer drivers on this CD-ROM help you use the printer to its fullest potential. See the Getting Started Guide for installation instructions.

Note

For the latest information about the printing system software components, refer to the readme file on the Web at http://www.hp.com/support/clj5550. For information about installing the printer software, view the Install Notes on the CD-ROM included with the printer.

This section summarizes the software included on the CD-ROM. The printing system includes software for end users and network administrators operating in the following operating environments:

• Microsoft Windows 98, Me
• Microsoft Windows NT 4.0, 2000, XP, and Server 2003
• Apple Mac OS version 8.6 through 9.2.x, and Apple Mac OS version 10.1 and later

Note

For a list of the network environments supported by the network administrator software components, see Network configuration.

Note

For a list of printer drivers, updated HP printer software, and product support information, go to http://www.hp.com/support/clj5550.

Software features

Automatic configuration, Update Now, and Preconfiguration features are available with the HP Color LaserJet 5550 series printer.

Driver Autoconfiguration

The HP LaserJet PCL 6 and PCL 5c drivers for Windows and the PS drivers for Windows 2000 and Windows XP feature automatic discovery and driver configuration for printer accessories at the time of installation. Some accessories that the Driver Autoconfiguration supports are the duplexing unit, optional paper trays, and dual inline memory modules (DIMMs).

Update Now

If you have modified the configuration of the HP Color LaserJet 5550 printer since installation, the driver can be automatically updated with the new configuration in environments that support bidirectional communication. Click the Update Now button to automatically reflect the new configuration in the driver.

Note

The Update Now feature is not supported in environments where shared Windows NT 4.0, Windows 2000, Windows Server 2003, or Windows XP clients are connected to Windows NT 4.0, Windows 2000, or Windows XP hosts.

HP Driver Preconfiguration

HP Driver Preconfiguration is a software architecture and set of tools that allows HP software to be customized and distributed in managed corporate printing environments. Using HP Driver Preconfiguration, information technology (IT) administrators can preconfigure the printing and device defaults for HP printer drivers before installing the drivers in the network environment. For more information, see the HP Driver Preconfiguration Support Guide, which is available at http://www.hp.com/support/clj5550.

Printer drivers

Printer drivers allow you to gain access to the printer features and allow the computer to communicate with the printer (using a printer language). Check the install notes, readme, and late-breaking readme files on the printer CD-ROM for additional software and languages.

The following printer drivers are included with the printer. The most recent drivers are available at http://www.hp.com/support/clj5550. Depending on the configuration of Windows-based computers, the installation program for the printer software automatically checks the computer for Internet access to obtain the latest drivers.

Operating system ^1	PCL 6 PCL 5c PS			PPD ^2
Windows 98, Me	√	√	√	√
Windows NT 4.0	√	√	√	√
Windows 2000	√	√	√	√
Windows XP	√	√	√	√
Windows Server 2003	√	√	√	√
Macintosh OS	√	√	√

^1 Not all printer features are available from all drivers or operating systems. See the context-sensitive help in your driver for available features.

^2 PostScript Printer Description files.

Note

If your system did not automatically check the Internet for the latest drivers during software installation, download them from http://www.hp.com/support/clj5550. Once connected, select Downloads and Drivers to find the driver you wish to download.

You can obtain Model Scripts for UNIX® and Linux by downloading them from the Internet or by requesting them from an HP-authorized service or support provider. See the support flyer that came in the printer box.

Note

If the printer driver you want is not on the printer CD-ROM or is not listed here, check the install notes, readme, and late-breaking readme files to see if the printer driver is supported. If it is not supported, contact the manufacturer or distributor of the program you are using and request a driver for the printer.

Additional drivers

The following drivers are not included on the CD-ROM, but are available from the Internet or from HP Customer Care.

• PCL 5c printer drivers for Windows 98, Me, NT 4.0, 2000, XP, and Server 2003.
• OS/2 PCL 5c/6 printer driver.
- OS/2 PS printer driver.
- UNIX model scripts.
- Linux drivers.
• HP OpenVMS drivers.

Note

The OS/2 drivers are available from IBM and are packaged with OS/2. They are not available for Traditional Chinese, Simplified Chinese, Korean, or Japanese.

Select the right printer driver for your needs

Select a printer driver based on the way that you use the printer. Certain printer features are available only in the PCL 6 drivers. See the printer driver Help for available features.

• Use the PCL 6 driver to take full advantage of printer features. For general office printing, the PCL 6 driver is recommended to provide optimum performance and print quality.
• Use the PCL 5c driver if backward compatibility with previous PCL printer drivers or older printers is necessary.
• Use the PS driver if you are printing primarily from PostScript-specific programs such as Adobe and Corel, for compatibility with PostScript Level 3 needs, or for PS font DIMM support.

Note

The printer automatically switches between PS and PCL printer languages.

Printer driver Help

Each printer driver has Help screens that can be activated by using either the Help button, the F1 button on the computer keyboard, or a question-mark symbol in the upper right corner in the printer driver (depending on the Windows operating system used). These Help screens give detailed information about the specific driver. Printer driver Help is separate from your program Help.

Accessing the printer drivers

Use one of the following methods to access the printer drivers from your computer:

Operating System To ch	change settings for all immediate print jobs (until the application is closed)	To change print job default settings(For example, turn on Print on Both Sides by default.)	To change configuration settings(For example, add a physical option such as a tray or enable/ disable a driver feature such as Allow Manual Duplexing.)
Windows 98, NT 4.0, and ME	From the File menu in the application, click Print. Select the printer, and then click Properties. (The steps may vary; this procedure is most common.)	Click Start, click Settings, and then click Printers. Right- click the printer icon, and choose Properties (Windows 98 and ME) or Document Defaults(NT 4.0).	Click Start, click Settings, and then click Printers. Right- click the printer icon, and choose Properties. Select the Configure tab.
Windows 2000 and XP	From the File menu in the application, click Print. Select the printer, and then click Properties or Preferences. (The steps may vary; this procedure is most common.)	Click Start, click Settings, and then click Printers or Printers and Faxes. Right-click the printer icon, and choose Printing Preferences.	Click Start, click Settings, and then click Printers or Printers and Faxes. Right-click the printer icon, and choose Properties. Select the Device Settings tab.
Macintosh OS 9.1	On the File menu, click Print. Change the settings that you want on the various pop-up menus.	On the File menu, click Print. As you change settings on the pop-up menu, click Save Settings.	Click the desktop printer icon. From the Printing menu, click Change Setup.
Macintosh OS X 10.1	On the File menu, click Print. Change settings that you want on the various pop-up menus.	On the File menu, click Print. Change settings that you want on the various pop-up menus, and then on the main pop-up menu, click Save Custom Setting. These settings are saved as the Custom option. To use the new settings, you must select the Custom option every time you open a program and print.	Delete the printer and reinstall. The driver will be auto-configured with the new options when it is reinstalled. (AppleTalk connections only)NoteConfiguration settings may not be available in Classic mode.
Operating System To change settings for all immediate print jobs (until the application is closed)		To change print job default settings(For example, turn on Print on Both Sides by default.)	To change configuration settings(For example, add a physical option such as a tray or enable/ disable a driver feature such as Allow Manual Duplexing.)
Macintosh OS X.2	On the File menu, click Print. Change settings that you want on the various pop-up menus.	On the File menu, click Print. Change settings that you want on the various pop-up menus, and then on the Presets pop-up menu, click Save as and enter a name for the preset. These settings are saved in the Presets menu. To use the new settings, you must select the saved preset option every time you open a program and print.	Open Print Center. (Select the hard drive, click Applications, click Utilities, then double-click Print Center.) Click on the print queue. On the Printers menu, click Show Info. Select the Installable Options menu.NoteConfiguration settings may not be available in Classic mode.
Macintosh OS X.3	On the File menu, click Print. Change settings that you want on the various pop-up menus.	On the File menu, click Print. Change settings that you want on the various pop-up menus, and then on the Presets pop-up menu, click Save as and enter a name for the preset. These settings are saved in the Presets menu. To use the new settings, you must select the saved preset option every time you open a program and print.	Open Printer Setup Utility. (Select the hard drive, click Applications, click Utilities, then double-click Printer Setup Utility.) Click on the print queue. On the Printers menu, click Show Info. Select the Installable Options menu.

Software for Macintosh computers

The HP installer provides PostScript Printer Description (PPD) files, Printer Dialog Extensions (PDEs), and the HP LaserJet Utility for use with Macintosh computers.

The embedded Web server can be used by Macintosh computers if the printer is connected to a network.

PPDs

PPDs, in combination with the Apple PostScript drivers, allow you to gain access to the printer features and allow the computer to communicate with the printer. An installation program for the PPDs, PDEs, and other software is provided on the CD-ROM. Use the appropriate PS driver that comes with the operating system.

HP LaserJet Utility

Use the HP LaserJet Utility to control features that are not available in the driver. The illustrated screens make selecting printer features easier than ever. Use the HP LaserJet Utility to do the following:

• name the printer, assign it to a zone on the network, and download files and fonts.
- configure and set the printer for Internet protocol (IP) printing.

Note

The HP LaserJet Utility is not currently supported for OS X, but the utility is supported for the Classic environment.

Installing the printing system software

The following sections contain instructions for installing the printing system software.

The printer comes with printing system software and printer drivers on a CD-ROM. The printing system software on the CD-ROM must be installed to take full advantage of the printer features.

If you do not have access to a CD-ROM drive, you can download the printing system software from the Internet at http://www.hp.com/support/clj5550.

Note

Sample model scripts for UNIX® (HP-UX®, Sun Solaris) and Linux networks are available for download at http://www.hp.com/support.

You can download the latest software free of charge at http://www.hp.com/support/clj5550.

Installing Windows printing system software for direct connections

This section explains how to install the printing system software for Microsoft Windows 98, Windows Me, Windows NT 4.0, Windows 2000, Windows Server 2003, and Windows XP.

When installing the printing software in a direct-connect environment, always install the software before connecting the parallel or USB cable. If the parallel or USB cable was connected before the software installation, see Installing the software after the parallel or USB cable has been connected.

Either a parallel or USB cable can be used for the direct connection. However, you cannot connect parallel and USB cables at the same time. Use an IEEE 1284-compatible cable or a standard 2-meter USB cable.

Note

NT 4.0 does not support USB cable connections.

To install the printing system software

1. Close all software programs that are open or running.
2. Insert the printer CD-ROM into the CD-ROM drive. If the welcome screen does not open, start it by using the following procedure:
   • On the Start menu, click Run.
3. Type the following: X:/setup (where X is the letter of the CD-ROM drive).

4. Click OK.

5. When prompted, click Install Printer and follow the instructions on the computer screen.

6. Click Finish when the installation has completed.

7. You might need to restart the computer.

8. Print a Test Page or a page from any software program to make sure that the software is correctly installed.

If installation fails, reinstall the software. If this fails, check the installation notes and readme files on the printer CD-ROM or the flyer that came in the printer box, or go to http://www.hp.com/support/clj5550 for help or more information.

Installing Windows printing system software for networks

The software on the printer CD-ROM supports network installation with a Microsoft network. For network installation on other operating systems, go to http://www.hp.com/support/clj5550, or see the Network Installation Guide included with the printer.

The HP Jetdirect print server that is included with the HP LaserJet 5550n, HP LaserJet 5550dn printer, or HP LaserJet 5550dtn printer has a 10/100 Base-TX network port. If you need an HP Jetdirect print server with another type of network port, see Supplies and accessories or go to http://www.hp.com/support/clj5550.

The installer does not support printer installation or printer object creation on Novell servers. It supports only direct-mode network installations between Windows computers and a printer. To install your printer and create objects on a Novell server, use an HP utility (such as HP Web Jetadmin or HP Install Network Printer Wizard) or a Novell utility (such as NWadmin).

To install the printing system software

1. If you are installing the software on Windows NT 4.0, Windows 2000, Windows Server 2003, or Windows XP, make sure that you have administrator privileges.
2. Make sure that the HP Jetdirect print server is configured correctly for the network by printing a configuration page (see Printer information pages). On the second page, locate the printer IP address. You might need this address to complete network installation. If the printer is using DHCP IP configuration, use the name on the second page. Otherwise, if the printer is shut down for an extended period of time, DHCP does not guarantee that the same IP address will be issued.
3. Close all software programs that are open or running.
4. Insert the printer CD-ROM into the CD-ROM drive. If the welcome screen does not open, start it by using the following procedure:

• On the Start menu, click Run.
- Type the following: X:/setup (where X is the letter of the CD-ROM drive).
- Click OK.

1. When prompted, click Install Printer and follow the instructions on the computer screen.

2. Click Finish when installation has completed.

3. You might need to restart the computer.

4. Print a Test Page or a page from any software program to make sure that the software is correctly installed.

If installation fails, reinstall the software. If this fails, check the installation notes and readme files on the printer CD-ROM or the flyer that came in the printer box, or go to http://www.hp.com/support/clj5550 for help or more information.

To set up a Windows computer to use the network printer using Windows-sharing

If the printer is directly connected to a computer using a parallel cable, you can share the printer on the network so that other network users can print to it. You can also share a USB directly connected printer.

See your Windows documentation to enable Windows-sharing. After the printer is shared, install the printer software on all computers that share the printer.

Installing Macintosh printing system software for networks

This section describes how to install Macintosh printing system software. The printing system software supports Apple Mac OS version 8.6 through 9.2.x, Apple Mac OS version 10.1, and later.

The printing system software includes the following components:

• PostScript® Printer Description (PPD) files

The PPDs, in combination with the Apple PostScript printer drivers, provide access to printer features. An installation program for the PPDs and other software is provided on the CD-ROM that came with the printer. Use the Apple LaserWriter 8 printer driver that comes with the computer.

HP LaserJet Utility

The HP LaserJet Utility provides access to features that are not available in the printer driver. Use the illustrated screens to select printer features and complete the following tasks with the printer:

• Name the printer.
• Assign the printer to a zone on the network.
• Assign an IP to the printer.
• Download files and fonts.
• Configure and set the printer for IP or AppleTalk printing.

The HP LaserJet Utility is not currently supported for OS X, but the utility is supported for the Classic environment.

To install printer drivers from Mac OS 8.6 to 9.2

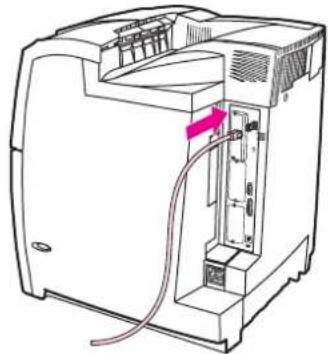

1. Connect the network cable between the HP Jetdirect print server and a network port.
2. Insert the CD-ROM into the CD-ROM drive. The CD-ROM menu runs automatically. If the CD-ROM menu does not run automatically, double-click the CD-ROM icon on the desktop, and then double-click the Installer icon. This icon is located in the Installer/ folder of the Starter CD-ROM (where is your language preference). (For example, the Installer/English folder contains the Installer icon for the English printer software.)
3. Follow the instructions on the computer screen.
4. Open the Apple Desktop Printer Utility located in the {Startup Disk}: Applications: Utilities folder.
5. Double-click Printer (AppleTalk).
6. Next to AppleTalk Printer Selection, click Change.

Note

1. Select the printer, click Auto Setup, and then click Create.
2. On the Printing menu, click Set Default Printer.

The icon on the desktop will appear to be generic. All the print panels will appear in the print dialog in an application.

To install printer drivers from Mac OS 10.1 and later

1. Connect the network cable between the HP Jetdirect print server and a network port.
2. Insert the CD-ROM into the CD-ROM drive. The CD-ROM menu runs automatically. If the CD-ROM menu does not run automatically, double-click the CD-ROM icon on the desktop, and then double-click the Installer icon. This icon is located in the Installer/ folder of the Starter CD-ROM (where is your language preference). (For example, the Installer/English folder contains the Installer icon for the English printer software.)
3. Double-click the HP LaserJet Installers folder.
4. Follow the instructions on the computer screen.
5. Double-click the Installer icon for the desired language.
6. On your computer hard drive, double-click Applications, Utilities, and then Print Center.
7. Click Add Printer.
8. Select the AppleTalk connection type on OS X 10.1 and the Rendezvous connection type on OS X 10.2.
9. Select the printer name.
10. Click Add Printer.
11. Close the Print Center by clicking the close button in the upper-left corner.

Note

Macintosh computers cannot be connected directly to the printer using a parallel port.

Installing Macintosh printing system software for direct connections (USB)

Note

Macintosh computers do not support parallel port connections.

This section explains how to install the printing system software for Mac OS 8.6, Mac OS 9.x, and Mac OS X and later.

The Apple LaserWriter driver must be installed to use the PPD files. Use the Apple LaserWriter 8 driver that came with your Macintosh computer.

To install the printing system software

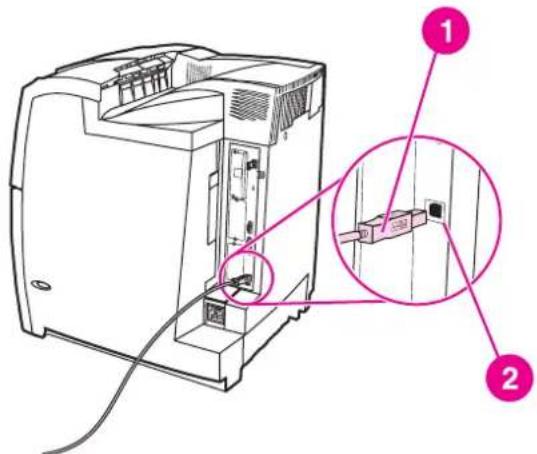

1. Connect a USB cable between the USB port on the printer and the USB port on the computer. Use a standard 2-meter USB cable.
2. Close all software programs that are open or running.
3. Insert the printer CD-ROM into the CD-ROM drive and run the installer.

The CD-ROM menu runs automatically. If the CD-ROM menu does not run automatically, double-click the CD-ROM icon on the desktop, and then double-click the Installer icon. This icon is located in the Installer/ folder of the Starter CD-ROM (where is your language preference).

1. Follow the instructions on the computer screen.
2. Restart the computer.
3. For Mac OS 8.6:

• From HD/Applications/Utilities, open the Apple Desktop Printer Utility.
• Double-click Printer (USB).
• Next to USB Printer Selection, click Change.
- Select the printer, click Auto Setup, and then click Create.
- Click on the Desktop Printer Icon that was just created.
- On the Printing menu, click Set Default Printer.

For Mac OS 9.x

• From HD/Applications/Utilities, open the Apple Desktop Printer Utility.
• Double-click Printer (USB), and then click OK.
• Next to USB Printer Selection, click Change.
- Select the printer, and then click OK.
- Next to Postscript® Printer Description (PPD) File, click Auto Setup and then select Create.
- Save the printer setup.
- Click on the Desktop Printer Icon that was just created.
- On the Printing menu, click Set Default Printer.

For Mac OS X

Note

If OS X and 9x (Classic) are installed on the same computer, the installer will show both the Classic and the OS X installation options.

• From HD/Applications/Utilities/Print Center, start the Print Center.
• If the printer appears in the Printer list, delete the printer.
- Click Add.
• From the drop-down menu on the top, select USB.
• From the printer Model List, select HP.
• Under Model Name, select HP Color Laserjet 5550, and then click Add.

1. Print a Test Page or a page from any software program to make sure that the software is correctly installed.

If installation fails, reinstall the software. If this fails, see the installation notes or readme files on the printer CD-ROM or the flyer that came in the printer box, or go to http://www.hp.com/support/clj5550 for help or more information.

Note

The icon on the desktop will appear to be generic. All the print panels will appear in the print dialog in an application.

Installing the software after the parallel or USB cable has been connected

If you have already connected a parallel or USB cable to a Windows computer, the New Hardware Found Wizard appears when you turn on the computer.

To allow the Wizard to search the CD and automatically install the printer software

1. In the New Hardware Found dialog box, click Search CD-ROM drive.

2. Click Next.

3. Follow the instructions on the computer screen.

4. Print a Test Page or a page from any software program to make sure that the software is correctly installed.

If installation fails, reinstall the software. If this fails, check the installation notes and readme files on the printer CD-ROM or the flyer that came in the printer box, or go to http://www.hp.com/support/clj5550 for help or more information.

Uninstalling the software

This section explains how to uninstall the printing system software.

To remove software from Windows operating systems

Use the Uninstaller in the HP LaserJet 5550/Tools program group to select and remove any or all of the Windows HP printing system components.

1. Click Start and then click Programs.
2. Click HP LaserJet 5550 and then click Tools.
3. Click Uninstaller.
4. Click Next.
5. Select the HP printing system components you want to uninstall.
6. Click OK.
7. Follow the instructions on the computer screen to complete the uninstallation.

To remove software from Macintosh operating systems

Drag the HP LaserJet folder and PPDs to the trash can.

Software for networks

For a summary of available HP network installation and configuration software solutions, see the HP Jetdirect Print Server Administrator's Guide. You can find this guide on the CD-ROM included with the printer.

HP Web Jetadmin

HP Web Jetadmin allows you to manage HP Jetdirect connected printers within your intranet using a browser. HP Web Jetadmin is a browser-based management tool, and should be installed only on a single network administration server. It can be installed and run on Red Hat Linux; Suse Linux; Windows NT 4.0 Server and Workstation; Windows 2000 Professional, Server, and Advanced Server; and Windows XP with Service Pack 1.

To download a current version of HP Web Jetadmin and for the latest list of supported host systems, visit HP Customer Care Online at http://www.hp.com/go/webjetadmin.

When installed on a host server, HP Web Jetadmin can be accessed by any client through a supported web browser (such as Microsoft Internet Explorer 5.5 and 6.0 or Netscape Navigator 7.0).

HP Web Jetadmin has the following features:

• Task-oriented user interface provides configurable views, saving network managers significant time.
• Customizable user profiles let network administrators include only the function viewed or used.
• Instant e-mail notification of hardware failure, low supplies, and other printer problems now route to different people.
• Remote installation and management from anywhere using only a standard Web browser.
• Advanced autodiscovery locates peripherals on the network, without manually entering each printer into a database.
  • Simple integration into enterprise management packages.
• Quickly find peripherals based on parameters such as IP address, color capability, and model name.
• Easily organize peripherals into logical groups, with virtual office maps for easy navigation.
• Manages and configures multiple printers at once.

For the latest information about HP Web Jetadmin go to http://www.hp.com/go/webjetadmin.

UNIX

The HP Jetdirect Printer Installer for UNIX is a simple printer installation utility for HP-UX and Solaris networks. It is available for download from HP Customer Care Online at http://www.hp.com/support/net_printing.

Utilities

The HP Color LaserJet 5550 series printer is equipped with several utilities, which make it easy to monitor and manage the printer on a network.

Embedded Web server

This printer is equipped with an embedded Web server, which allows access to information about printer and network activities. A Web server provides an environment in which web programs may run, much in the same way that an operating system, such as Windows, provides an environment for programs to run on your computer. The output from these programs can then be displayed by a Web browser, such as Microsoft Internet Explorer or Netscape Navigator.

When a Web server is "embedded", that means it resides on a hardware device (such as a printer) or in firmware, rather than as software that is loaded on a network server.

The advantage of an embedded Web server is that it provides an interface to the printer that anyone can access with a network-connected computer or a standard Web browser. There is no special software to install or configure. For more information about the HP embedded Web server, see the Embedded Web Server User Guide. You can find this guide on the CD-ROM included with the printer.

Features

The HP embedded Web server allows you to view printer and network card status and manage printing functions from your computer. With the HP embedded Web server, you can do the following:

• view printer status information
• determine the remaining life on all supplies and order new ones
• view and change tray configurations
• view and change the printer control panel menu configuration
• view and print internal pages
• receive notification of printer and supplies events
• add or customize links to other Web sites
- select the language in which to display the embedded Web server pages
• view and change network configuration

For a complete explanation of the features and functionality of the embedded Web server, see Using the embedded Web server.

hp toolbox

The HP Toolbox is a Windows-only software application that can be used for the following tasks:

• check the printer status
  • view troubleshooting information
  • view online documentation
  • print internal printer pages
  • receive pop-up status messages
• access the embedded Web server

You can view the HP Toolbox when the printer is directly connected to your computer or when it is connected to a network. You must have performed a complete software installation before using the HP Toolbox.

Other components and utilities

Several software applications are available for Windows and Macintosh OS users, as well as for network administrators. These programs are summarized below.

Windows Macintosh OS		Network administrator
Software installer — automates the printing system installationOnline Web registrationHP toolbox	PostScript Printer Description files (PPDs) — for use with the Apple PostScript drivers that comes with the Mac OSHP LaserJet Utility (available from the Internet) — a printer management utility for Mac OS usersHP toolbox (for Mac OS X v10.2 and later)	HP Web Jetadmin — a browser-based system management tool. See http://www.hp.com/go/webjetadmin for the latest HP Web Jetadmin softwareHP Jetdirect Printer Installer for UNIX — available for download from http://www.hp.com/support/net_printing

Print media specifications

For optimum results, use conventional 75 g/m^2 to 90 g/m^2 (20 to 24 lb) photocopy paper. Verify that the paper is of good quality and is free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, curls, or bent edges.

• To order supplies in the U.S., go to http://www.hp.com/go/ljsupplies.
• To order supplies worldwide, go to http://www.hp.com/ghp/buyonline.html.
• To order accessories, go to http://www.hp.com/go/accessories.
- For additional information about supported media weights and sizes, go to http://www.hp.com/support/ljpaperguide.

Supported paper weights and sizes

Letter and A4 sizes can be loaded with the long-edge or short-edge leading into the printer. Long-edge first is the preferred orientation. Long-edge feed gives greater throughput, and lower consumable usage. Short-edge feed is called the rotated orientation, and is identified in the trays as LTR-R and A4-R. Short-edge feed can be useful when printing on media with special features, such as perforations or windows.

Tray 1 paper sizes and types

Tray 1 Dimensions Weight or thickness Capacity
Minimum size (unless otherwise noted)	76 by 127 mm(3 by 5 in)
Maximum size (unless otherwise noted) ^1	306 by 470 mm(12.05 by 18.5 in)
Nondetectable standard sizes: Letter, Letter-Rotated, A4, A4-Rotated, Legal, Executive, A5, A3, RA3, 11 x 17, B4(JIS), B5(JIS), Double post card(JIS), 16K, 8K, Executive (JIS), 12 x 18, 8.5 x 13, A6, JIS-B6, Statement, #10 envelope, DLEnvelope, C5Envelope, B5Envelope, MonarchEnvelope. (Tray 1 has no automatically detectable standard sizes.)
Plain paper		75 to 89 g/m ^2 (20 to 23 lb bond)	100 sheets(75 g/m ^2 ; 20 lb bond)
Light paper		60 to 74 g/m ^2 (16 to 19 lb bond)	100 sheets
Intermediate paper		90 to 104 g/m2(24 to 27 lb bond)	Maximum stack height: 10 mm (0.4 in)
Heavy paper		105 to 119 g/m2(28 to 31 lb bond)	Maximum stack height: 10 mm (0.4 in)
Extra heavy paper		120 to 164 g/m2(32 to 43 lb bond)	Maximum stack height: 10 mm (0.4 in)
Cardstock		163 to 200 g/m2(44 to 53 lb bond)	Maximum stack height: 10 mm (0.4 in)
Glossy paper		75 to 105 g/m2(20 to 28 lb bond)	Maximum stack height: 10 mm (0.4 in)
Heavy Glossy		106 to 120 g/m2(29 to 32 lb bond)	Maximum stack height: 10 mm (0.4 in)
High Gloss Images		120 to 120 g/m2(32 to 32 lb bond)	Maximum stack height: 10 mm (0.4 in)
Transparency 0.12 to 0.13 mm thick		(4.7 to 5.5 mils thick)	Maximum stack height: 10 mm (0.4 in)
Tough Paper 0.10 to 0.13 mm thick		(4 to 5 mils thick)	Maximum stack height: 10 mm (0.4 in)
Envelopes		75 to 105 g/m2(20 to 28 lb bond)	20 envelopes
Labels Maximum stack			height: 10 mm (0.4 in)

^1 Paper up to 312 mm wide can be fed through the paper path, but most drivers only support 306 mm maximum width.

The following table lists the standard sizes of paper that the printer can automatically detect when loaded in Tray 2 and optional Trays 3, 4, and 5. For more information about loading standard, non-detectable size paper, see Configuring input trays.

Tray 2 and optional Trays 3, 4, and 5 paper sizes and types

Tray 2 and optional Trays 3, 4, and 5	Dimensions Weight or thickness Capacity
Automatically detectable standard sizes: Letter, Letter-Rotated, A4, A4-Rotated, A3, 11x17, Legal, B4 (JIS), B5 (JIS), A5, Executive
Nondetectable standard sizes: 16K, 8K, Executive (JIS), 8.5 x 13
Minimum Size (unless otherwise noted)	76 by 127 mm(3 by 5 in)

Tray 2 and optional Trays 3, 4, and 5 paper sizes and types (continued)

Tray 2 and optional Trays 3, 4, and 5	Dimensions Weight or thickness Capacity
Maximum size (unless otherwise noted)	297 by 431 mm(11.69 by 17 in)
Plain paper		75 to 89 g/m2(20 to 23 lb bond)	500 sheets(75 g/m2; 20 g/m)
Light paper		60 to 74 g/m2(16 to 19 lb bond)	500 sheets
Intermediate paper		90 to 104 g/m2(24 to 27 lb bond)	Maximum stack height: 50 mm (2.0 in)
Heavy paper		105 to 119 g/m2(28 to 31 lb bond)	Maximum stack height: 50 mm (2.0 in)
Extra heavy paper1		120 to 163 g/m2(32 to 43 lb bond)	Maximum stack height: 50 mm (2.0 in)
Glossy paper		75 to 105 g/m2(20 to 28 lb bond)	200 sheets
High Gloss Images		120 to 120 g/m2(32 to 32 lb bond)	Maximum stack height: 10 mm (0.4 in)
Labels Maximum stack			height: 50 mm (2 in)
Transparency 0.12 to 0.13 mm thick		(4.7 to 5.5 mils thick)	100 sheets
Tough paper 0.10 to 0.13 mm thick		(4 to 5 mils thick)	100 sheets

^1 The use of Extra heavy paper from Trays 2, 3, 4, and 5 is allowed, but the performance cannot be guaranteed due to the wide variation in these papers.

Automatic two-sided printing (duplexing) ^1

Automatic two-sided printing	Dimensions Weight or thickness Capacity
Standard size paper, Letter, Letter-Rotated, A4, A4-Rotated, Legal, Executive, A3, 11x17, B4 (JIS), B5 (JIS)		60 to 120 g/m ^2 (16 to 32 lb bond)

^1 The printer automatically prints on paper weights up to 163 g/m^2 . However, automatic two-sided printing on weights above the maximum value noted in this table can produce unexpected results.

Manual two-sided (duplex) printing. Any of the supported paper sizes listed for printing from Tray 1 can be manually duplexed. See Two-sided (duplex) printing for more information.

2

Control panel

This chapter contains information on the printer control panel, which provides control of printer functions and communicates information about the printer and print jobs. The following topics are covered:

Control panel overview
Control panel buttons
• Interpreting control panel indicator lights
Control panel menus
- Menu hierarchy
- Retrieve job menu (for printers with a hard drive)
Information menu
Paper handling menu
Configure device menu
- Diagnostics menu
- Changing printer control panel configuration settings
• Using the printer control panel in shared environments

Control panel overview

The control panel provides control of printer functions and communicates information about the printer and print jobs. Its display provides graphic information about printer and supplies status, making it easy to identify and correct problems.

Diagram of a device rear panel with numbered labels pointing to ports and indicators

Control panel buttons and lights

1 M ENU button
2 S TOP button
3 R EADY light
4 D ATA light
5 A TTENTION light
6 H_ELP (?) button
7 BACK/EXIT (Button
8 D OWN ARROW (button
9 S ELECT (√) button
10 U P ARROW (▲ button
11 Display

The printer communicates via the display and the lights on the lower left side of the control panel. The Ready, Data, and Attention lights provide at-a-glance information about the state of the printer and alert you to printing problems. The display shows more complete status information as well as menus, help information, animations, and error messages.

Display

The printer display gives you complete, timely information about the printer and print jobs. Graphics illustrate levels of supplies, the locations of paper jams, and job status. Menus give access to printer functions and detailed information.

The top-level screen on the display has three areas: message, prompt, and supplies gauge.

Printer display

1 Message area
2 Message area
3 Prompt area

Ready 1 2 3

Printer display

1 Message area
2 Supplies gauge
3 Print cartridge colors are indicated from left to right: black, magenta, yellow, and cyan

The message and prompt areas of the display alert you to the state of the printer and tell you how to respond.

The supplies gauge shows the consumption levels of print cartridges (black, magenta, yellow, cyan). A ? appears instead of the consumption level when the level is not known. This can occur in the following circumstances:

• missing cartridges
  • incorrectly placed cartridges
  • cartridges with an error
  • some non-HP cartridges

The supplies gauge appears whenever the printer shows the Ready state with no warnings. It will also appear when the printer shows a warning or error message concerning a print cartridge or multiple supplies.

Accessing the control panel from a computer

You can also access the printer control panel from a computer by using the setting page of the embedded Web server.

The computer shows the same information that the control panel shows. From your computer, you can also perform control panel functions such as checking supplies status, viewing messages, or changing tray configuration. For more information, see Using the embedded Web server.

Control panel buttons

Use the buttons on the control panel to perform printer functions and to navigate and respond to menus and messages in the display.

Button name Function
√ SELECT	Makes selections and resumes printing after recovery errors.
▲ UP ARROW▼ DOWN ARROW	Navigates menus and text, and increases or decreases the values of numerical items in the display.
↔ BACK/EXIT ARROW	Navigates backward in nested menus, or quits menus or help.
MENU	Accesses and exits the menus.
STOP	Pauses the current job and provides options to resume printing or to cancel the current job.
? HELP	Provides animated graphics and detailed information on printer messages or menus.

Interpreting control panel indicator lights

Control Control Control Control Control 1 2 3

Control panel indicator lights

1 R EADY
2 D ATA
3 A TTENTION

Indicator On Off Flashing
READY(green)	Printer is online (able to accept and process data).	Printer is offline or is turned off.	Printer is attempting to stop printing and go offline.
DATA(green)	Processed data is present in the printer, but more data is needed to complete the job.	Printer is not processing or receiving data.	Printer is processing and receiving data.
ATTENTION(amber)	A critical error has occurred. Printer requires attention.	No conditions exist that require attention.	An error has occurred. Printer requires attention.

Control panel menus

You can perform most routine printing tasks from the computer through the printer driver or software application. This is the most convenient way to control the printer, and will override the printer control panel settings. See the help files associated with the software, or for more information on accessing the printer driver, see Printer software.

You can also control the printer by changing settings in the printer control panel. Use the control panel to access printer features not supported by the printer driver or software application. Use the control panel to configure trays for paper size and type.

Getting started basics

• Enter the menus and activate any selection by pressing the (√) button.
• Use the Up or Down arrows to navigate through the menus. In addition to menu navigation, the Up and Down arrows (▲▼can increase and decrease numerical value selections. Hold down the Up or Down arrows to scroll faster.
• The Back button (→) allows you to move back in menu selections as well as select numerical values when configuring the printer.
• Exit all menus by pressing M_ENU .
• If no key is pressed for 30 seconds, the printer will return to the Ready state.
• A lock symbol next to a menu item means a PIN number is needed to use that item. Typically, this number is obtained from your network administrator.

Menu hierarchy

The following tables list the menu hierarchies of each menu.

To access the menus

1. Press M ENU once to access MENUS.
2. Press ▲ or ▼ to navigate the listings.
3. Press √ to select the appropriate option.
4. Press to return to the previous level.
5. Press M ENU to exit the menus.

MENUS RETRIEVE JOB

INFORMATIONPAPER HANDLINGCONFIGURE DEVICEDIAGNOSTICSSERVICE

Retrieve job menu (for printers with a hard drive)

See Retrieve job menu (for printers with a hard drive) for more information.

RETRIEVE JOB A list of stored jobs appears

NO STORED JOBS

Information menu

See Information menu for more information.

INFORMATION PRINT MENU MAP

PRINT CONFIGURATIONPRINT SUPPLIES STATUS PAGESUPPLIES STATUSPRINT USAGE PAGEPRINT DEMOPRINT RGB SAMPLESPRINT CMYK SAMPLESPRINT FILE DIRECTORYPRINT PCL FONT LISTPRINT PS FONT LIST

Paper handling menu

See Paper handling menu for more information.

PAPER HANDLING TRAY 1 SIZE

TRAY 1 TYPETRAYSIZEN = 2, 3, 4, or 5TRAYTYPEN = 2, 3, 4, or 5

Configure device menu

See Configure device menu and Changing printer control panel configuration settings for more information.

CONFIGURE DEVICE PRINTING COPIES
	DEFAULT PAPER SIZEDEFAULT CUSTOM PAPERSIZE DUPLEX DUPLEX BINDING OVERRIDE A4/LETTER MANUAL FEED COURIER FONT WIDE A4 PRINT PS ERRORS PCL

	PRINT QUALITY ADJUST COLOR	SET REGISTRATIONPRINT MODESOPTIMIZEQUICK CALIBRATE NOWFULL CALIBRATE NOWCOLOR RET
	SYSTEM SETUP JOB STORAGE LIMIT	(for printers with a hard drive)JOB HELD TIMEOUT(for printers with a hard drive)SHOW ADDRESSCOLOR/BLACK MIXTRAY BEHAVIORPOWERSAVE TIMEPERSONALITYCLEARABLE WARNINGSAUTO CONTINUESUPPLIES LOWCOLOR SUPPLY OUTJAM RECOVERYRAM DISKLANGUAGE
	I/O I/O TIMEOUT	PARALLEL INPUTEIO X(Where X=1, 2, or 3.)
	RESETS RESTORE FACTORY	SETTINGSPOWERSAVERESET SUPPLIES

Diagnostics menu

See Diagnostics menu for more information.

DIAGNOSTICS PRINT EVENT LOG

SHOW EVENT LOGPQ TROUBLESHOOTINGDISABLE CARTRIDGE CHECKPAPER PATH SENSORSPAPER PATH TESTMANUAL SENSOR TESTCOMPONENT TESTPRINT/STOP TEST

Retrieve job menu (for printers with a hard drive)

The retrieve job menu allows you to view listings of all stored jobs.

Menu item Description
A list of stored jobs appears. Scroll through the list to find a specific stored job.
NO STORED JOBS If there are no stored jobs, this messageappears in place of the list.

Information menu

Use the information menu to access and print specific printer information.

Menu item Description
PRINT MENU MAP	Prints the control panel menu map, which shows the layout and current settings of the control panel menu items. See Printer information pages.
PRINT CONFIGURATION Prints the printer configuration page.
PRINT SUPPLIES STATUS PAGE Prints the estimated remaining life for the supplies; reports statistics on total number of pages and jobs processed, print cartridge manufacture date, serial number, page counts, and maintenance information.
SUPPLIES STATUS	Displays the supplies status in a scrollable list.
PRINT USAGE PAGE	Prints a count of all media sizes that have passed through the printer; lists whether they were simplex, duplex, monochrome, or color; and reports the page count.
PRINT DEMO Prints a demonstration page.
PRINT RGB SAMPLES Prints color samples for different RGB values.The samples act as a guide for color matching on the HP Color LaserJet 5550.
PRINT CMYK SAMPLES Prints color samples for different CMYK values.The samples act as a guide for color matching on the HP Color LaserJet 5550.
PRINT FILE DIRECTORY	Prints the name and directory of files stored in the printer on an optional hard drive.
PRINT PCL FONT LIST Prints the available PCL fonts.
PRINT PS FONT LIST Prints the available PS (emulated PostScript) fonts.

Paper handling menu

The paper handling menu allows you to configure input trays by size and type. It is important to correctly configure the trays with this menu before you print for the first time.

Note

If you have used previous HP Color LaserJet printers, you might be accustomed to configuring Tray 1 to first mode or cassette mode. To mimic the settings for first mode, configure Tray 1 for size = ANY SIZE and type = ANY TYPE. To mimic the settings for cassette mode, set either the size or type for Tray 1 to a setting other than ANY.

Menu item	Value Description
TRAY 1 SIZE	A list of available sizes appears.	Allows you to configure the media size for Tray 1. The default is ANY SIZE. See Supported paper weights and sizes for a complete list of available sizes.
TRAY 1 TYPE	A list of available types appears.	Allows you to configure the media type for Tray 1. The default is ANY TYPE. See Supported paper weights and sizes for a complete list of available types.
TRAYSIZEN = 2, 3, 4, or 5	A list of available sizes appears.	Allows you to configure the media size for Trays 2, 3, 4, and 5. The default setting is the size detected by the guides in the tray. To use a custom size, move the switch in the tray to custom. See Supported paper weights and sizes for a complete list of available sizes.
TRAYTYPEN = 2, 3, 4, or 5	A list of available types appears.	Allows you to configure the media type for Trays 2, 3, 4, and 5. The default is PLAIN. See Supported paper weights and sizes for a complete list of available types.

Configure device menu

The configure device menu allows you to change or reset the default print settings, adjust the print quality, and change the system configuration and I/O options.

Printing menu

These settings affect only jobs without identified properties. Most jobs identify all of the properties and override the values set from this menu. This menu can also be used to set default paper size and type.

Menu item Values Description
COPIES 1 - 32000 Allows you to	set the default	number of copies.
DEFAULT PAPER SIZE	A list of available sizes appears.	Allows you to set the default paper size.
DEFAULT CUSTOM PAPER SIZE	UNIT OF MEASUREX DIMENSIONY DIMENSION	Allows you to set the default size for any job without dimensions.
DUPLEX OFF	ON	Allows you to enable or disable the duplex function on models with duplexing capability.
DUPLEX BINDING LONG EDGE	SHORT EDGE	This item appears only if the printer has a duplex unit and if DUPLEX is set to ON. It allows you to choose the edge of the paper to use for binding duplex jobs.
OVERRIDE A4/LETTER NO	YES	Allows you to set the printer to print an A4 job on letter-size paper when no A4 paper is loaded, a letter-size job when no A4-size paper is loaded, an A3 job on 11 x 17-size paper when no A3 paper is loaded, and a 11 x 17-size job on A3 paper when no 11 x 17-size paper is loaded.
MANUAL FEED ON	OFF	Allows you to manually feed paper.
COURIER FONT REGULAR	DARK	Allows you to select a version of the Courier font.
WIDE A4 NO	YES	Allows you to change the printable area of A4 paper so that eighty 10-pitch characters may be printed on a single line.
PRINT PS ERRORS OFF	ON	Allows you to select to print PS error pages.
PRINT PDF ERRORS OFF	ON	Allows you to select to print PDF error pages. The default is OFF.
PCL FORM LENGTH	ORIENTATIONFONT SOURCEFONT NUMBERFONT PITCHFONT POINT SIZESYMBOL SETAPPEND CR TO LFSUPPRESS BLANK PAGES	Submenu that allows access to PCL menu items.

Print quality menu

This menu allows you to adjust all aspects of print quality, including calibration, registration, and color half tone settings.

Menu item Values Description
ADJUST COLOR HIGHLIGHTS	MIDTONESSHADOWSRESTORE FACTORY SETTINGS	Allows you to modify the half tone settings for each color.The default for each color is 0.
SET REGISTRATION PRINT TEST	ST PAGESOURCE*TRAY 1TRAY 2TRAY 3TRAY 4	Allows simplex and duplex image alignment. The default for theSOURCEis TRAY 2.The default for the sub-itemsTRAYTYPE, TRAY 1TYPE, TRAY 2 TYPE, TRAY 3TYPE, and TRAY 4 TYPE is 0.
PRINT MODESA list of available	modesappears.	Allows you to associate each media type with a specific print mode.
OPTIMIZE BACKGROUND	TRANSFERTRANSPARENCYFUSER WARM UPMEDIA TYPERESTORE OPTIMIZE	Please leave the default settings, unless instructed by the Call Center.
QUICK CALIBRATE NOW Performs partial printer		calibrations.For more information, see Calibrating the printer.
FULL CALIBRATE NOW Performs all printer calibrations.		For more information, see Calibrating the printer.
COLOR RET OFF	ON	The COLOR RET menu item allows the user to either turn on or turn off a color printer's REt (Resolution Enhancement Technology) setting. The default is ON.

System setup menu

The system setup menu allows you to make changes to general printer configuration default settings such as PowerSave Time, printer personality (language), and jam recovery. See Changing printer control panel configuration settings for more information.

Menu item Values Description
JOB STORAGE LIMIT 1-100 Sets the limit for the maximum		number of jobs stored on the hard drive at the printer.SeeJob storage limitfor more information.
JOB HELD TIMEOUT OFF	1 HOUR4 HOURS1 DAY1 WEEK	Sets the period of time that the system keeps files in job storage before deleting them from the queue (for printers with a hard drive).SeeJob held timeoutfor more information.
SHOW ADDRESS AUTO	OFF	This item determines whether the printer's IP address is shown on the display with the Ready message. If more than one EIO card is installed, the IP address of the card in the first slot is shown. The default is OFF.
COLOR/BLACK MIX AUTO	MOSTLY COLOR PAGESMOSTLY BLACK PAGES	AUTO will reset the printer to the factory default setting.MOSTLY COLOR PAGES will exhibit the NEVER SWITCH behavior to maximize performance.MOSTLY BLACK PAGES will exhibit the LOOK AHEAD FIRST behavior to improve cost per page as possible while minimizing impact to performance.
TRAY BEHAVIOR USE REQUESTED TRAYMANUAL FEED PROMPTPS DEFER MEDIA		Submenu that allows access to tray behavior options. (This setting allows you to configure the trays to behave like trays in some previous HP printers.)See Tray behavior options: Use Requested Tray and manually feed for more information.PS DEFER MEDIA affects how paper is handled when printing from an Adobe PS print driver. ENABLED uses HP paper handling. DISABLED uses the Adobe PS paper handling. The default is ENABLED.
POWERSAVE TIME 1 MINUTE	15 MINUTES30 MINUTES60 MINUTES90 MINUTES2 HOURS4 HOURS	Reduces power consumption when the printer has been inactive for an extended period.See Changing printer control panel configuration settings.
PERSONALITY AUTO	PCLPDFMIMEPS	Sets the default personality to automatic switching, PCL, or PostScript emulation.See Personality for more information.
CLEARABLE WARNINGS JOB	ON	Sets whether a warning is cleared on the control panel or when another job is sent.SeeClearable warningsfor more information.
AUTO CONTINUE OFF	ON	Determines printer behavior when the system generates an Auto Continuable error.SeeAuto continuefor more information.
SUPPLIES LOW STOP	CONTINUE	Sets low supplies reporting options.SeeSupplies lowfor more information.
COLOR SUPPLY OUT autoContinueBlackSTOP		Sets the COLOR SUPPLY OUT printer behavior. When a color supply is empty and the printer is set toautoContinueBlack, the printer will continue printing using black toner only.
JAM RECOVERY OFF	ONAUTO	Sets whether the printer will attempt to reprint pages after a jam.SeeJam recoveryfor more information.
RAM DISK AUTO	OFF	Allows you to specify how the RAM disk is configured. When set toAUTO, the printer determines the optimal RAM disk size based on the amount of available memory. The default isAUTO. This message displays in models that have a hard drive installed.
LANGUAGE A listing of available languages appears.		Sets the default control panel language.SeeLanguagefor more information.

I/O menu

This menu allows you to configure the printer's I/O options.

See Network configuration.

Menu item Values Description
I/O TIMEOUT 5 - 300 Allows you	to select the I/O	timeout in seconds.
PARALLEL INPUT HIGH SPEED	ADVANCED FUNCTIONS	Submenu that allows access to parallel input options. Use these options to select the speed at which the parallel port communicates with the host and to enable or disable the bidirectional parallel communication.The default forHIGH SPEEDis YES. The default for ADVANCED FUNCTIONS is ON.
EIO X(Where X=1, 2, or 3)	Possible values are:TCP/IPIPX/SPXAPPLETALKDLC/LLCLINK SPEED	Allows you to configure EIO devices installed in slot 1, 2, or 3.

Resets menu

The resets menu allows you to reset factory settings, disable and enable PowerSave, and update the printer after new supplies are installed.

Menu item Values Description
RESTORE FACTORY SETTINGS		Allows you to clear the page buffer, remove all perishable personality data, reset the printing environment, and return all default settings to factory defaults. However, this menu does not restore HP Jetdirect network settings to factory default values.
POWERSAVE OFF	ON	Allows you to enable and disable PowerSave. Default is ON
RESET SUPPLIES NEW TRANS	FER KITNEW FUSER KIT	Allows you to inform the printer that a new transfer kit or new fuser kit has been installed.

Diagnostics menu

The diagnostics menu allows you to run tests that can help you identify and solve problems with the printer.

Menu item Description
PRINT EVENT LOG This item will print an event log	that will display the last 50 entries in the printer event log, starting with the most recent.
SHOW EVENT LOG This item displays the last 50	events on the control panel display, starting with the most recent.
PQ TROUBLESHOOTING This item will print a series of	print quality assessment pages that will help troubleshoot any print quality problems.
DISABLE CARTRIDGE CHECK This item allows you to remove	a print cartridge to help determine which cartridge is the source of the problem.
PAPER PATH TEST This item is useful for testing	the paper handling features of the printer, such as the configuration of the trays.
PAPER PATH SENSORS This item performs a test on	each of the printer's sensors to determine if they are working correctly and displays the status of each sensor.
MANUAL SENSOR TEST This item performs a test to	determine whether the paper path sensors are operating correctly.
COMPONENT TEST This item will activate individual	parts independently to isolate noise, leaking, and other hardware issues.
PRINT/STOP TEST This item isolates print quality	faults more accurately by stopping the printer in mid-print cycle. Stopping the printer in mid-print cycle allows you to see where the image begins to degrade. Stopping the printer in mid-print cycle will cause a jam that may need to be manually removed. A service representative should perform this test.

Changing printer control panel configuration settings

By using the printer control panel, you can make changes to general printer configuration default settings such as tray size and type, PowerSave Time, printer personality (language), and jam recovery.

The printer control panel can also be accessed from a computer by using the setting page of the embedded Web server. The computer shows the same information that the control panel shows. For more information, see Using the embedded Web server.

CAUTION

Configuration settings seldom need to be changed. Hewlett-Packard recommends that only the system administrator change configuration settings.

Job storage limit

This option sets the limit for the maximum number of jobs stored on the hard drive at the printer. The maximum number allowed is 100, and the default value is 32.

Note

This option is only available if a hard drive is installed.

To set the job storage limit

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight SYSTEM SETUP.
5. Press √ to select SYSTEM SETUP.
6. Press √ to select JOB STORAGE LIMIT.
7. Press ▲ or ▼ to change the value.
8. Press √ to set the value.
9. Press M ENU.

Job held timeout

This option sets the period of time that the system keeps files in job storage before deleting them from the queue. The default setting for this option is OFF; the other available settings are 1 HOUR, 4 HOURS, 1 DAY, and 1 WEEK.

Note

This option is only available if a hard drive is installed.

To set the job held timeout

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight SYSTEM SETUP.

5. Press √ to select SYSTEM SETUP.

6. Press to highlight JOB HELD TIMEOUT.

7. Press √ to select JOB HELD TIMEOUT.
8. Press ▲ or ▼ to select the appropriate time period.
9. Press √ to set the time period.
10. Press MENU.

Show address

This item determines whether the printer's IP address is shown on the display with the Ready message. If more than one EIO card is installed, the IP address of the card installed in the first slot appears.

To show the IP address

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight SYSTEM SETUP.
5. Press √ to select SYSTEM SETUP.
6. Press ▼ to highlight SHOW ADDRESS.
7. Press √ to select SHOW ADDRESS.
8. Press ▲ or ▼ to select the desired option.
9. Press √ to select the option.
10. Press MENU.

Color/black mix

This item allows you to configure printer settings to optimize printer and cartridge performance for the printing environment. If the printer is primarily used for black printing (over two-thirds of the pages are black only), change the printer settings to MOSTLY BLACK PAGES. If the printer is primarily used for color printing, change the printer settings to MOSTLY COLOR PAGES. If the printer is used for a mix of black-only and color print jobs, it is recommended that you use the printer default of AUTO. To determine the percentage of color pages, print a configuration page. See Printer information pages to learn how to print a configuration page. The configuration page shows the total number of pages printed and the number of color pages printed. To determine the percentage of color pages printed, divide the color page count by the total page count.

To set the color/black mix

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight SYSTEM SETUP.

5. Press √ to select SYSTEM SETUP.

6. Press ▼ to highlight COLOR/BLACK MIX.

7. Press √ to select COLOR/BLACK MIX.
8. Press ▲ or ▼ to select the desired option.
9. Press √ to select the option.
10. Press MENU.

Tray behavior options: Use Requested Tray and manually feed

Tray behavior allows three user-defined options:

• USE REQUESTED TRAY—Selecting EXCLUSIVELY ensures that the printer will not automatically select another tray when you indicate that a specific tray should be used. Selecting FIRST allows the printer to pull from a second tray if the specified tray is empty. EXCLUSIVELY is the default setting.
• MANUAL FEED—If you select ALWAYS (the default value), the system always displays a prompt before pulling from the multipurpose tray. If you select UNLESS LOADED, the system will display the prompt only if the multipurpose tray is empty.
• PS DEFER MEDIA—This setting affects how non-HP PostScript drivers will behave with the device. There is no need to change this setting if using the drivers supplied by HP. If set to ENABLED, non-HP PostScript drivers will use the HP tray selection method as the HP drivers do. If set to DISABLED, some non-HP PostScript drivers will use the PostScript tray selection method instead of the HP method.

To set Use Requested Tray

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight SYSTEM SETUP.
5. Press √ to select SYSTEM SETUP.
6. Press ▼ to highlight TRAY BEHAVIOR.
7. Press √ to select TRAY BEHAVIOR.
8. Press √ to select USE REQUESTED TRAY.
9. Press ▲ or ▼ to select EXCLUSIVELY or FIRST.
10. Press √ to set the behavior.
11. Press MENU.

To set manually feed prompt

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight SYSTEM SETUP.
5. Press √ to select SYSTEM SETUP.

6. Press ▼ to highlight TRAY BEHAVIOR.

7. Press to select TRAY BEHAVIOR.

8. Press ▼ to highlight MANUAL FEED PROMPT.
9. Press √ to select MANUAL FEED PROMPT.
10. Press ▲ or ▼ to select ALWAYS or UNLESS LOADED.
11. Press √ to set the behavior.
12. Press MENU.

To set the printer default for PS Defer Media

1. Press M_ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight SYSTEM SETUP.
5. Press √ to select SYSTEM SETUP.
6. Press ▼ to highlight TRAY BEHAVIOR.
7. Press √ to select TRAY BEHAVIOR.
8. Press √ to select PS DEFER MEDIA.
9. Press or select ENABLED or DISABLED.
10. Press √ to set the behavior.
11. Press MENU.

PowerSave Time

The adjustable PowerSave Time feature reduces power consumption when the printer has been inactive for an extended period. You can set the length of time before the printer goes into PowerSave mode to 1 MINUTE, 15 MINUTES, 30 MINUTES, or to 60 MINUTES, 90 MINUTES, 2 HOURS, or 4 HOURS. The default setting is 30 MINUTES.

Note

The printer display dims when the printer is in PowerSave mode. PowerSave mode does not affect printer warm-up time unless the printer was in PowerSave mode for more than 8 hours.

To set PowerSave Time

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight SYSTEM SETUP.
5. Press √ to select SYSTEM SETUP.
6. Press ▼ to highlight POWERSAVE TIME.
7. Press √ to select POWERSAVE TIME.
8. Press ▲ or ▼ to select the appropriate time period.
9. Press √ to set the time period.
10. Press MENU.

To disable/enable PowerSave

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight RESETS.
5. Press √ to select RESETS.
6. Press ▼ to highlight POWERSAVE.
7. Press √ to select POWERSAVE.
8. Press ▲ or ▼ to select ON or OFF.
9. Press √ to set the selection.
10. Press MENU.

Personality

This printer features automatic personality (printer language) switching.

• AUTO configures the printer to automatically detect the type of print job and configure its personality to accommodate that job.
  • PCL configures the printer to use Printer Control Language.
  • PDF configures the printer to print PDF files.
• MIME configures the printer for use with hand-held devices such as cellular phones and personal digital assistants (PDAs).
  • PS configures the printer to use PostScript emulation.

To set the personality

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight SYSTEM SETUP.
5. Press √ to select SYSTEM SETUP.
6. Press ▼ to highlight PERSONALITY.
7. Press √ to select PERSONALITY.
8. Press ▲ or ▼ to select the appropriate personality (AUTO, PS, PCL, or PDF).
9. Press √ to set the personality.
10. Press M ENU.

Clearable warnings

You can determine the display time of control panel clearable warnings with this option by selecting ON or JOB. The default value is JOB.

• ON displays clearable warnings until you press √.
• JOB displays clearable warnings until the end of the job in which it was generated.

To set the clearable warnings

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press √ to highlight SYSTEM SETUP.
5. Press √ to select SYSTEM SETUP.
6. Press ▼ to highlight CLEARABLE WARNINGS.
7. Press √ to select CLEARABLE WARNINGS.
8. Press ▲ or ▼ to select the appropriate setting.
9. Press √ to set the selection.
10. Press MENU.

Auto continue

You can determine printer behavior when the system generates an Auto Continuable error. ON is the default setting.

• ON displays an error message for ten seconds before automatically continuing to print.
• OFF pauses printing any time the printer displays an error message and until you press √.

To set the auto continue

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight SYSTEM SETUP.
5. Press √ to select SYSTEM SETUP.
6. Press ▼ to highlight AUTO CONTINUE.
7. Press √ to select AUTO CONTINUE.
8. Press ▲ or ▼ to select the appropriate setting.
9. Press √ to set the selection.
10. Press MENU.

Supplies low

The printer allows two options for reporting that supplies are low; CONTINUE is the default value.

• CONTINUE allows the printer to continue printing while displaying a warning until the supply is replaced.
• STOP causes the printer to pause printing until you replace the used supply or press √, which allows the printer to print while continuing to display the warning.

To set supplies low reporting

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight SYSTEM SETUP.
5. Press √ to select SYSTEM SETUP.
6. Press ▼ to highlight SUPPLIES LOW.
7. Press √ to select SUPPLIES LOW.
8. Press ▲ or ▼ to select the appropriate setting.
9. Press √ to set the selection.
10. Press MENU.

Color supply out

There are two options for this menu item.

• autoContinueBlack allows the printer to continue printing using black toner only when a color supply is empty. A warning message displays on the control panel when the printer is in this mode. Printing in this mode is allowed only for a specific number of pages. After that, the printer will pause printing until you replace the empty color supply.
• STOP causes the printer to stop printing until the empty color supply is replaced.

To set color supply out response

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight SYSTEM SETUP.
5. Press √ to select SYSTEM SETUP.
6. Press ▼ to highlight COLOR SUPPLY OUT.
7. Press √ to select COLOR SUPPLY OUT.
8. Press ▲ or ▼ to select the appropriate setting.
9. Press √ to set the selection.
10. Press MENU.

Jam recovery

This option allows you to configure the printer response to paper jams, including how it handles the pages involved. AUTO is the default value.

• AUTO—The printer automatically turns jam recovery on when sufficient memory is available.
• ON—The printer reprints any page involved in a paper jam. Additional memory is allocated to store the last few pages printed, and this might cause overall printer performance to suffer.
• OFF—The printer will not reprint any page that was involved in a paper jam. Since no memory is used to store the most recent pages, performance might be optimal.

To set jam recovery response

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight SYSTEM SETUP.
5. Press √ to select SYSTEM SETUP.
6. Press ▼ to highlight JAM RECOVERY.
7. Press √ to select JAM RECOVERY.
8. Press ▲ or ▼ to select the appropriate setting.
9. Press √ to set the selection.
10. Press MENU.

Language

If the control panel displays LANGUAGE in English, follow the procedure provided below. Otherwise, turn the printer off and then back on. When XXXMB appears, press and hold √. When all three control panel lights are lit, release √ and follow the procedure provided below to set the language.

To select language

1. When Select A Language appears in English, press √, and wait until the control panel displays LANGUAGE in English.
2. Press ▼ until the preferred language displays.
3. Press √ to save the preferred language.

Using the printer control panel in shared environments

Because your printer is shared with other users, adhere to the following guidelines to ensure successful printer operation:

• Consult your system administrator before making changes to control panel settings. Changing control panel settings could affect other print jobs.
• Coordinate with other users before changing the default printer font or downloading soft fonts. Coordinating these operations conserves memory and avoids unexpected printer output.
• Be aware that switching printer personalities, such as Emulated PostScript or PCL, affects the printed output of other users.

Note

Your network operating system may automatically protect each user's print job from the effects of other print jobs. Consult your system administrator for more information.

3

I/O Configuration

This chapter describes how to configure certain network parameters on the printer. The following topics are covered:

Network configuration
Parallel configuration
USB configuration
Jetlink connection configuration
• Enhanced I/O (EIO) configuration
- Wireless printing

Network configuration

You might need to configure certain network parameters on the printer. You can configure these parameters from the printer control panel, the embedded Web server, or for most networks, from the HP Web Jetadmin software (or the HP LaserJet Utility for Macintosh).

Note

For more information about using the embedded Web server, see Using the embedded Web server. For more information about using the HP Toolbox, see Using the HP Toolbox.

For a complete list of supported networks and for instructions on configuring network parameters from software, see the HP Jetdirect Print Server Administrator's Guide. The guide comes with printers in which an HP Jetdirect print server is installed.

This section contains the following instructions for configuring network parameters from the printer control panel:

• configuring TCP/IP parameters
• disabling unused network protocols
- configuring Novell NetWare frame type parameters

Configuring Novell NetWare frame type parameters

The HP Jetdirect print server automatically selects a NetWare frame type. Select a frame type manually only when the print server selects an incorrect frame type. To identify the frame type chosen by the HP Jetdirect print server, print a configuration page from the printer control panel. See Printer information pages.

To configure the Novell NetWare parameters from the printer control panel

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight I/O.
5. Press √ to select I/O.
6. Press ▼ to highlight EIO X (where X = 1, 2, or 3).
7. Press √ to select EIO X.
8. Press ▼ to highlight IPX/SPX.
9. Press √ to select IPX/SPX.
10. Press ▼ to highlight FRAME TYPE.
11. Press ▼ to highlight the desired frame type.
12. Press √ to select the frame type.
13. Press the MENU button to return to the Ready state.

Configuring TCP/IP parameters

You can use the printer control panel to configure the following TCP/IP parameters:

• usage of the BOOTP file for configuration parameters (the default is to use the BOOTP file)
  • IP address (4 bytes)
• subnet mask (4 bytes)
  • default gateway (4 bytes)
  • idle TCP/IP connection timeout (in seconds)

To automatically configure TCP/IP parameters from the printer control panel

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight I/O.
5. Press √ to select I/O.
6. Press ▼ to highlight EIO X (where X = 1, 2, or 3).
7. Press √ to select EIO X.
8. Press ▼ to highlight TCP/IP.
9. Press √ to select TCP/IP.
10. Press √ to select CONFIG METHOD.
11. Press ▼ to highlight AUTO IP.
12. Press √ to select AUTO IP.
13. Press the MENU button to return to the Ready state.

To manually configure TCP/IP parameters from the printer control panel

Use manual configuration to set an IP address, subnet mask, and local and default gateway.

Setting an IP address

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight I/O.
5. Press √ to select I/O.
6. Press √ to select EIO X.
7. Press ▼ to highlight TCP/IP.
8. Press √ to select TCP/IP.

9. Press ▼ to highlight MANUAL SETTINGS.

10. Press √ to select MANUAL SETTINGS.

11. Press ▼ to highlight MANUAL.
12. Press ▼ to highlight IP ADDRESS.
13. Press √ to select IP ADDRESS.

Note

The first of three sets of numbers is highlighted. If there is not a number highlighted, a highlighted empty underscore appears.

1. Press ▲ or ▼ to increase or decrease the number for configuring the IP address.
2. Press √ to move to the next set of numbers.
3. Repeat steps 15 and 16 until the correct IP address is entered.
4. Press the MENU button to return to the Ready state.

Setting the subnet mask

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight I/O.
5. Press √ to select I/O.
6. Press ▼ to highlight EIO X (where X = 1, 2, or 3).
7. Press √ to select EIO X.
8. Press ▼ to highlight TCP/IP.
9. Press √ to select TCP/IP.
10. Press ▼ to highlight MANUAL SETTINGS.
11. Press √ to select MANUAL SETTINGS.
12. Press ▼ to highlight SUBNET MASK.
13. Press √ to select SUBNET MASK.

Note

The first of three sets of numbers is highlighted.

1. Press ▲ or ▼ to increase or decrease the number for configuring the subnet mask.
2. Press √ to move to the next set of numbers.
3. Repeat steps 14 and 15 until the correct subnet mask is entered.
4. Press the MENU button to return to the Ready state.

Setting the syslog server

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight I/O.

5. Press √ to select I/O.

6. Press ▼ to highlight EIO X (where X = 1, 2, or 3).

7. Press √ to select EIO X.
8. Press √ to highlight TCP/IP.
9. Press ▼ to highlight MANUAL SETTINGS.
10. Press √ to select MANUAL SETTINGS.
11. Press ▼ to highlight SYSLOG SERVER.
12. Press √ to select SYSLOG SERVER.

Note

The first of four sets of numbers are the default settings. Each set of numbers represents one byte of information and has a range from 0 to 255.

1. Press the ▲ or ▼arrow to increase or decrease the number for the first byte of the default gateway.
2. Press √ to move to the next set of numbers. (Press → to move to the previous set of numbers.)
3. Repeat steps 13 and 14 until the correct subnet mask is entered.
4. Press √ to save the syslog server.
5. Press the MENU button to return to the Ready state.

Setting the local and default gateway

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight I/O.
5. Press √ to select I/O.
6. Press ▼ to highlight EIO X (where X = 1, 2, or 3).
7. Press √ to select EIO X.
8. Press ▼ to highlight TCP/IP.
9. Press √ to select TCP/IP.
10. Press ▼ to highlight MANUAL SETTINGS.
11. Press √ to select MANUAL SETTINGS.
12. Press ▼ to highlight LOCAL GATEWAY or DEFAULT GATEWAY.
13. Press √ to select LOCAL GATEWAY or DEFAULT GATEWAY.

Note

The first of three sets of numbers are the default settings. If there is not a number highlighted, a highlighted empty underscore appears.

1. Press ▲ or ▼ to increase or decrease the number for configuring LOCAL or DEFAULT GATEWAY.
2. Press √ to move to the next set of numbers.
3. Repeat steps 15 and 16 until the correct subnet mask is entered.
4. Press the MENU button to return to the Ready state.

Disabling network protocols (optional)

By factory default, all supported network protocols are enabled. Disabling unused protocols has the following benefits:

• decreases printer-generated network traffic
• prevents unauthorized users from printing to the printer
• provides only pertinent information on the configuration page
- allows the printer control panel to display protocol-specific error and warning messages

Note

TCP/IP configuration cannot be disabled on the HP Color LaserJet 5550 series printer.

To disable IPX/SPX

Note

Do not disable this protocol if Windows 95/98, Windows NT, ME, 2000, and XP users will be printing to the printer.

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight I/O.
5. Press √ to select I/O.
6. Press ▼ to highlight EIO X (where X = 1, 2, or 3).
7. Press √ to select EIO X.
8. Press ▼ to highlight IPX/SPX.
9. Press √ to select IPX/SPX.
10. Press ▼ to highlight ENABLE.
11. Press √ to select ENABLE
12. Press ▼ to highlight ON or OFF.
13. Press √ to select ON or OFF.
14. Press the MENU button to return to the Ready state.

To disable DLC/LLC

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight I/O.
5. Press √ to select I/O.
6. Press ▼ to highlight EIO X (where X = 1, 2, or 3).
7. Press √ to select EIO X.
8. Press ▼ to highlight DLC/LLC.

9. Press √ to select DLC/LLC.

10. Press to highlight ENABLE.

11. Press √ to select ENABLE.
12. Press ▼ to highlight ON or OFF.
13. Press √ to select ON or OFF.
14. Press the M_ENU button to return to the Ready state.

Setting the idle timeout

1. Press to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight I/O.
5. Press √ to select I/O.
6. Press ▼ to highlight EIO X (where X = 1, 2, or 3).
7. Press √ to select EIO X.
8. Press √ to highlight TCP/IP.
9. Press ▼ to highlight MANUAL SETTINGS.
10. Press √ to select MANUAL SETTINGS.
11. Press ▼ to highlight IDLE TIMEOUT.
12. Press √ to select IDLE TIMEOUT.
13. Press the ▲ or ▼ arrow to to increase or decrease the number of seconds for the idle timeout.
14. Press √ to save the idle timeout.
15. Press the MENU button to return to the Ready state.

Setting the link speed

By factory default, the link speed is set to AUTO. Use the following procedure to set a specific speed:

1. Press √ to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight I/O.
5. Press √ to select I/O.
6. Press ▼ to highlight EIO X (where X = 1, 2, or 3).
7. Press √ to select EIO X.
8. Press √ to highlight LINK SPEED.

9. Press ▼ to select LINK SPEED.

10. Press ▼ to highlight the desired link speed.

11. Press √ to select the desired link speed.
12. Press the MENU button to return to the Ready state.

Parallel configuration

The HP Color LaserJet 5550 series printer supports network and parallel connections at the same time. A parallel connection is made by connecting the printer to the computer using a bidirectional parallel cable (IEEE-1284 compliant) with a c-connector plugged into the printer's parallel port. The cable can be a maximum of 10 meters (33 feet) long.

When used to describe a parallel interface, the term bidirectional indicates that the printer is able to both receive data from the computer and send data to the computer through the parallel port.

Diagram of a printer internal structure with labeled parts, showing connection to a device and magnified view.

Parallel port connection

1 c-connector
2 parallel port

Note

To use the enhanced capabilities of the bidirectional parallel interface such as bidirectional communication between the computer and printer, faster transfer of data, and automatic configuration of printer drivers, ensure that the most recent printer driver is installed. For more information, see Printer drivers.

Note

Factory settings support automatic switching between the parallel port and one or more network connections on the printer. If you are experiencing problems, see Network configuration.

USB configuration

This printer supports a USB 1.1 connection. The port is located on the back of the printer, as shown in the figure below. You must use an A-to-B type USB cable.

Note

USB support is not available for computers running Windows 95 or Windows NT 4.0.

Technical diagram of an electronic device with labeled components and magnified detail view

USB connection

1 USB connector

2 USB port

Jetlink connection configuration

This printer supports a Jetlink connection for paper handling input devices. The port is located on the back of the printer, as shown in the figure below.

Technical diagram of a computer case with labeled component '1' and magnified detail view

Jetlink connection

1 Jetlink connection port

Enhanced I/O (EIO) configuration

This printer comes equipped with three enhanced input/output (EIO) slots. The three EIO slots hold compatible external devices such as the HP Jetdirect print server network cards, HP EIO hard drive, or other devices. Plugging EIO network cards into the slots increases the number of network interfaces available to the printer.

EIO network cards can maximize printer performance when you are printing from a network. In addition they provide the ability to place the printer anywhere on a network. This eliminates the need to attach the printer directly to a server or a workstation and enables you to place the printer closer to the network users.

If the printer is configured through an EIO network card, configure that card through the control panel Configure device menu.

HP Jetdirect print servers

HP Jetdirect print servers (network cards) can be installed in one of the printer's EIO slots. These cards support multiple network protocols and operating systems. HP Jetdirect print servers facilitate network management by allowing you to connect a printer directly to your network at any location. HP Jetdirect print servers also support the Simple Network Management Protocol (SNMP), which provides network managers with remote printer management and troubleshooting through HP Web Jetadmin software.

Note

Installation of these cards and network configuration should be performed by a network administrator. Configure the card either through the control panel, the printer installation software, or with HP Web Jetadmin software.

Note

Refer to the HP Jetdirect print server documentation for information on which external devices or EIO network cards are supported.

Available enhanced I/O interfaces

HP Jetdirect print servers (network cards) provide software solutions for:

• Novell NetWare Network
• Microsoft Windows and Windows NT networks
• Apple Mac OS (AppleTalk)
• UNIX (HP-UX and Solaris)
• Linux (Red Hat and SuSE)
- Internet printing

For a summary of available network software solutions, refer to the HP Jetdirect Print Server Administrator's Guide, or visit HP Customer Care online at http://www.hp.com/support/net_printing.

NetWare networks

When using Novell NetWare products with an HP Jetdirect print server, Queue Server mode provides improved printing performance over Remote Printer mode. The HP Jetdirect print server supports Novell Directory Services (NDS) as well as bindery modes. For more information, see the HP Jetdirect Print Server Administrator's Guide.

For Windows 95, 98, Me, NT 4.0, 2000, and XP systems, use the printer installation utility for printer setup on a NetWare network.

Windows and Windows NT networks

For Windows 98, Me, NT 4.0, 2000, and XP systems, use your printer installation utility for printer setup on a Microsoft Windows network. The utility supports printer setup for either peer-to-peer or client-server network operation.

AppleTalk networks

Use the HP LaserJet Utility to set up the printer on an EtherTalk or LocalTalk network. For more information, refer to the HP Jetdirect Print Server Administrator's Guide included with printers equipped with the HP Jetdirect print server.

UNIX/Linux networks

Use the HP Jetdirect printer installer for UNIX utility to set up the printer on HP-UX or Sun Solaris networks.

For setup and management on UNIX or Linux networks, use HP Web Jetadmin.

To obtain HP software for UNIX/Linux networks, visit HP Customer Care online at http://www.hp.com/support/net_printing. For other installation options supported by the HP Jetdirect print server, see the HP Jetdirect Print Server Administrator's Guide included with printers equipped with the HP Jetdirect print server.

Wireless printing

Wireless networks offer a safe, secure, and cost-effective alternative to traditional wired network connections. See Supplies and accessories for a list of available wireless print servers.

IEEE 802.11b standard

With the wireless HP Jetdirect 802.11b external print server, HP peripherals can be placed anywhere in the office or home and connected to a wireless network running Microsoft, Apple, Netware, UNIX, or Linux network operating systems. This wireless technology provides a high-quality printing solution without the physical constraints of wiring. Peripherals can be conveniently placed anywhere in an office or home and can be easily moved without changing network cables.

Installation is easy with the HP Install Network Printer Wizard.

HP Jetdirect 802.11b print servers are available for adapting wireless printing to USB and parallel connections.

Bluetooth

Bluetooth wireless technology is a low-power, short-range radio technology that can be used to wirelessly connect computers, printers, personal digital assistants (PDAs), cell phones, and other devices.

Unlike infrared technology, Bluetooth's reliance on radio signals means that devices do not have to be in the same room, office, or cubicle with an unobstructed line of sight in order to communicate. This wireless technology increases portability and efficiency within business network applications.

The HP Color LaserJet 5550 series printer uses a Bluetooth adapter (hp bt1300) to incorporate Bluetooth wireless technology. The adapter is available for either USB or parallel connections. The adapter has a 10-meter, line-of-site operation range in the 2.5 GHz ISM band and can achieve data transfer rates up to 723 Kbps. The device supports the following Bluetooth profiles:

• Hardcopy Cable Replacement Profile (HCRP)
- Serial Port Profile (SPP)
• Object Push Profile (OPP)
• Basic Imaging Profile (BIP)
• Basic Printing Profile (BPP) with XHTML-Print

4

Printing tasks

This chapter describes how to perform basic printing tasks. The following topics are covered:

• Controlling print jobs
- Selecting print media
- Configuring input trays
- Printing on special media
- Two-sided (duplex) printing
• Special printing situations
Job storage features
Managing memory

Controlling print jobs

Three settings affect the printer driver's ability to specify how paper should be pulled in the printer. The Source, Type, and Size settings appear in the Page Setup, Print, or Print Properties dialog boxes in most software programs. If you do not change these settings, the printer automatically selects a tray using the default printer settings.

Source

Printing by Source means you choose a specific tray from which you want the printer to pull paper. The printer tries to print from this tray, no matter what type or size is loaded in it. If you choose a tray that is configured for a type or size that does not match your print job, the printer does not print automatically. Instead, it waits for you to load the tray you chose with the type or size of print paper for your print job. If you load the tray correctly, the printer begins printing. If you press √, the display allows you to choose from other loaded trays.

Note

If you have difficulties printing by Source and want the printer to autoswitch from the specified tray, see Tray behavior options: Use Requested Tray and manually feed.

Type and Size

Printing by Type or Size means you want the printer to pull paper or print paper from the first tray that is loaded with the type or size that you choose. Selecting paper by Type rather than Source is similar to locking out trays and helps protect special paper from accidental use. (However, selecting the Any setting does not enable this tray lockout function.) For example, if a tray is configured for letterhead, and you specify the driver to print on plain paper, the printer will not pull the letterhead from that tray. Instead, it will pull paper from a tray that has plain paper loaded and is configured for plain paper on the printer control panel. Selecting paper by Type and Size results in significantly better print quality for heavy paper, glossy paper, and transparencies. Using the wrong setting can result in unsatisfactory print quality. Always print by Type for special print media such as labels or grayscale transparencies. Always print by Size for envelopes.

• If you want to print by Type or Size and the trays have not been configured for that type or size, in the printer driver, select the Type or Size from the Page Setup dialog box, the Print dialog box, or the Print Properties dialog box. The printer will prompt you to load that type and size.
• If you often print on a certain type or size of paper, the printer administrator (for a network printer) or you (for a local printer) can configure a tray for that type or size (see Using the embedded Web server or Configuring input trays for type and size). Then, when you choose that type or size as you print a job, the printer pulls from the tray configured for that type or size.

Print setting priorities

Changes made to print settings are prioritized (or take precedence) depending on where the changes are made:

Note

The names of commands and dialog boxes may vary depending on your program.

• Page Setup dialog box. This dialog box opens when you click Page Setup or a similar command on the File menu of the program you are working in. Settings changed here override settings changed anywhere else.
• Print dialog box. This dialog box opens when you click Print, Print Setup, or a similar command on the File menu of the program you are working in. Settings changed in the Print dialog box have a lower priority and do not override changes made in the Page Setup dialog box.
• Printer Properties dialog box (printer driver). The printer driver opens when you click Properties in the Print dialog box. Settings changed in the Printer Properties dialog box do not override settings available anywhere else.
• Printer menu settings. Lowest priority and often used if software drivers do not have that option.
• Default printer settings. The default printer driver settings determine settings used in all print jobs, unless settings are changed in the Page Setup, Print, or Printer Properties dialog boxes, as described above. There are several ways to change the default printer settings depending on the operating system: 1) click Start, Settings, Printers, and then right-click the printer icon and click Properties; 2) click Start, Control Panel, and then select the Printers folder; right-click the printer icon and click Properties.

CAUTION

To avoid affecting print jobs of other users, make printer setup changes through the software application or the printer driver whenever possible. Printer setup changes made through the control panel become default settings for subsequent jobs. Changes made through an application or the printer driver affect only that specific job.

Selecting print media

You can use many types of paper and other print media with this printer. This section provides guidelines and specifications for selecting and using different print media.

Before purchasing any paper or specialized forms in quantity, verify that your paper supplier obtains and understands the print media requirements specified in the HP LaserJet Printer Family Print Media Guide.

See Supplies and accessories for HP LaserJet Printer Family Print Media Guide ordering information. To download a copy of the HP LaserJet Printer Family Print Media Guide go to http://www.hp.com/support/clj5550 and select Manuals.

It is possible that paper could meet all of the guidelines in this chapter and still not print satisfactorily. This may be due to abnormal characteristics of the printing environment or to other variables over which Hewlett-Packard has no control (for example, extremes in temperature and humidity).

Hewlett-Packard recommends testing any paper before buying it in large quantities.

CAUTION

Using paper that does not conform to the specifications listed here or in the print media guide can cause problems that require service. This service is not covered by the Hewlett-Packard warranty or service agreements.

Media to avoid

The HP Color LaserJet 5550 series printer can handle many types of paper. Use of paper outside the printer's specifications will cause a loss of print quality and increase the chance of paper jams occurring.

• Do not use paper that is too rough.
• Do not use paper with cutouts or perforations other than standard 3-hole punched paper.
  • Do not use multipart forms.
• Do not use paper that has already been printed on or that has been fed through a photocopier.
• Do not use paper with a watermark if you are printing solid patterns.

Media that may damage the printer

In rare circumstances paper can damage the printer. The following paper must be avoided to prevent possible damage:

• Do not use paper with staples attached.
• Do not use transparencies designed for Inkjet printers or other low temperature printers. Use only transparencies that are specified for use with HP Color LaserJet printers.
• Do not use photo paper intended for Inkjet printers.

• Do not use paper that is embossed or coated and is not designed for the temperatures of the HP Color LaserJet 5550 image fuser. Select paper that can tolerate temperatures of 190^ (374°F) for 0.1 second. HP produces a selection of paper that is designed for the HP Color LaserJet 5550 series printer.

• Do not use letterhead paper with low temperature dyes or thermography. Preprinted forms or letterhead must use inks that can tolerate temperatures of 190°C (374°F) for 0.1 second.

• Do not use any media that produces hazardous emissions, or that melts, offsets, or discolors when exposed to 190^ (374°F) for 0.1 second.

To order HP Color LaserJet printing supplies, go to http://www.hp.com/go/ljsupplies in the U.S. or to http://www.hp.com/ghp/buyonline.html worldwide.

Configuring input trays

The HP Color LaserJet 5550 series printer allows you to configure input trays by type and size. You can load different paper in the printer input trays and then request paper by type or size.

Note

If you have used previous HP Color LaserJet printers, you might be accustomed to configuring Tray 1 to first mode or cassette mode. To mimic the settings for first mode, configure Tray 1 for Size = ANY and Type = ANY. The printer will pull paper from Tray 1 first when the print job does not specify another tray. This setting is recommended if you use different types or sizes of paper. To mimic the settings from cassette mode, set either the size or type for Tray 1 to a setting other than ANY. This setting is recommended if you are using the same size and type of paper in Tray 1.

Note

If you use two-sided printing (duplex), be sure that the paper loaded meets the specifications for duplex printing. (See Supported paper weights and sizes.)

The instructions below are to configure the trays at the printer control panel. You can also configure the trays from your computer by accessing the embedded Web server. See Using the embedded Web server.

Note

Letter and A4 sizes can be loaded with the long-edge or short-edge leading into the printer. Long-edge first is the preferred orientation. Long-edge feed gives greater throughput, and lower consumable usage. Short-edge feed is called the rotated orientation, and is identified in the trays as LTR-R and A4-R. Short-edge feed can be useful when printing on media with special features, such as perforations or windows.

Configuring trays when the printer gives a prompt

In the following situations, the printer automatically prompts you to configure the tray for type and size:

• when you load paper into the tray, on tray close you will see Tray X . To change the type or size, press √.
• when you specify a particular tray or media type for a print job through the printer driver or a software application and the tray is not configured to match the print job's settings. You will see LOAD TRAY X .

The control panel displays this message: LOAD TRAY X , to change size or type, press √. The instructions below explain how to configure the tray after the prompt appears.

Note

The prompt does not appear if you are printing from Tray 1 and if Tray 1 is configured for ANY SIZE and ANY TYPE.

Loading Tray 1 for one-time use

Follow this procedure if the tray is usually left empty and is used for a variety of sizes or types of paper.

CAUTION

To avoid jams, never add or remove a tray during printing.

1. Open the tray.

Line drawing of a printer with paper feed and paper tray (no text or symbols)

1. Remove any paper that is in the tray.

2. Move the side guides all the way out.

3. Load paper in the tray with the side to be printed on facing down, and the top of the paper on the left. Make sure that the stack height of the paper does not exceed the maximum stack height mark in the tray.

Technical line drawing of a printer holder with paper roll and ventilation slots (no text or symbols)

Note

If you are duplexing, see Two-sided (duplex) printing for load instructions.

1. Move the side guides to the correct position so that they will lightly touch the paper stack but will not bend the paper.

Diagram of a computer monitor with an open lid and two magenta arrows indicating ports or components (no text or symbols present)

1. Look at the display within a few seconds of loading the paper (reinsert the paper if the time has already elapsed). If the printer does not display the Tray X message, the tray is ready for use.

2. If the printer displays Tray X , press √ to change the size and type configuration.

3. The size menu appears.
4. Press ▲ to highlight ANY SIZE.
5. Press √ to select ANY SIZE.
6. The type menu appears.
7. Press ▲ to highlight ANY TYPE.
8. Press √ to select ANY TYPE.
9. The printer displays Tray X ANY SIZE ANY TYPE. Press → to accept the size/type settings and exit the message. The tray is ready for use.

Loading Tray 1 when the same paper is used for multiple print jobs

Follow this procedure if Tray 1 continues to be loaded with the same type of paper and the paper is not removed from the tray between jobs. This procedure may also increase the printer performance when printing from Tray 1.

CAUTION

To avoid jams, never add or remove a tray during printing.

1. Before loading the paper, from the Control panel, press the MENU key to enter the MENUS.
2. Press ▼ or ▲ to highlight PAPER HANDLING.
3. Press √ to display PAPER HANDLING menu.
4. Press ▼ or ▲ to highlight TRAY 1 SIZE.
5. Press √ to display the TRAY 1 SIZE values.
6. Press ▼ or ▲ to highlight the correct size.
7. Press √ to select the size.

Note

If selecting CUSTOM, also select the unit of measure, the X and the Y dimensions.

1. Press ▼ or ▲ to highlight TRAY 1 TYPE.

2. Press √ to display the TRAY 1 TYPE values.

3. Press ▼ or ▲ to highlight the correct type.

4. Press √ to select the type.

5. Press MENU to exit MENUS.

6. Open the tray.

Line drawing of a printer with paper feed and paper tray (no text or symbols)

1. Move the side guides out.

2. Load paper in the tray with the side to be printed on facing down, and the top of the paper on the left. Make sure that the stack height of the paper does not exceed the maximum stack height mark in the tray.

Line drawing of a printer's front panel showing internal structure and paper patch (no text or symbols)

Note

If you are duplexing, see Two-sided (duplex) printing for load instructions.

1. Adjust the side guides so that they will lightly touch the paper stack but will not bend the paper.

Diagram of a computer monitor with an open lid and two magenta arrows indicating directional movement (no text or symbols present)

1. The printer displays the tray configuration. It should match the size and type set in steps 1-12 above. Press ➕ to accept the settings and exit the message. The tray is ready for use.

Printing envelopes from Tray 1

CAUTION

Envelopes with clasps, snaps, windows, coated linings, exposed self-stick adhesives, or other synthetic materials can severely damage the printer. To avoid jams and possible printer damage, never try to print on both sides of an envelope. Before you load envelopes, make sure they are flat, undamaged, and not stuck together. Do not use envelopes with pressure-sensitive adhesive. To avoid jams, do not remove or insert envelopes during printing.

Many types of envelopes can be printed from Tray 1. Up to 20 envelopes can be stacked in the tray. Printing performance depends on the construction of the envelope.

In the software, set margins at least 15 mm (0.6 inches) from the edge of the envelope.

To load envelopes into Tray 1

CAUTION

To avoid paper jams, do not remove or insert envelopes during printing.

1. Open Tray 1.

Line drawing of a printer with a pink arrow indicating rotation (no text or symbols present)

1. Load up to 20 envelopes in the center of Tray 1 with the side to be printed on facing down, top on the left, and the short edge toward the printer. Slide the envelopes into the printer as far as they will go without forcing them.

Line drawing of a printer drawer with a pink cover, showing internal structure without any text or symbols.

1. Adjust the guides to touch the envelope stack without bending the envelopes. Make sure the envelopes fit under the tabs on the guides.

Diagram of a computer drawer with two pink arrows indicating directional flow or movement (no text or symbols present)

Printing envelopes

1. In the printer control panel, set the paper size for Tray 1 to match the size envelope you are printing.
2. Specify Tray 1 or select the paper source by size in the printer driver.
3. If your software does not automatically format an envelope, specify Landscape for page orientation in your software application or printer driver. Use the guidelines in the table that follows to set margins for return and destination addresses on Commercial #10 or DL envelopes.

For envelopes of other sizes, adjust the margin settings appropriately.

1. Select Print from the software application or printer driver.

Address type	Left margin	Top margin
Return	15 mm (0.6 inches)	15 mm (0.6 inches)
Destination	102 mm (4.0 inches)	51 mm (2.0 inches)

Loading detectable media into Trays 2, 3, 4, and 5

Follow this procedure to load detectable standard-size paper in the tray. The detectable sizes are marked in the tray and include Letter, Letter-Rotated, A4, A4-Rotated, A3, 11 x 17 Legal, B4 (JIS), B5 (JIS), A5, and Executive.

To avoid jams, never add or remove a tray during printing.

The paper path for Tray 3 passes through Tray 2. If Tray 2 is partially pulled out or removed, paper from Tray 3 cannot feed into the printer. This causes the printer to stop and generate a message that Tray 2 must be installed. Similarly, Trays 2, 3, and 4 must be closed for paper from Tray 5 to feed into the printer.

Do not print cardstock, envelopes, or unsupported sizes of media from Tray 2, 3, 4, or 5. Print on these types of media only from Tray 1. Do not overfill the input tray or open it while it is in use. Doing so can cause paper jams.

1. Open the tray.

Technical line drawing of a mechanical housing or enclosure with internal compartments and mounting brackets (no text or symbols)

1. Adjust the rear paper guide by squeezing the guide adjustment latch and sliding the guide to the length of the media being used.

3D technical diagram of a mechanical assembly with a pink arrow indicating direction (no text or symbols present)

1. Adjust the paper width guide by squeezing the guide adjustment latch and sliding the guide to the width of the media being used.

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

1. Load media face-up, making sure that the stack height of the paper does not exceed the maximum stack height mark in the tray.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

1. Verify that the tray switch is set to STANDARD.

2. Close the tray.

Line drawing of a printer with an open drawer and a paper holder, no text or symbols present

1. The printer displays the tray size and type configuration. (If the tray configuration is no longer displayed, open and close the tray again.)
2. If the size and type are correct, press to accept the settings.
3. To change the size or type, press √ when the tray configuration is displayed. The TRAY X SIZE= * menu appears.
4. Press ▼ or ▲ to highlight the correct size.
5. Press √ to select the size. A Setting saved message appears followed by the tray type menu.

Depending on the size selected, the printer might prompt you to move the CUSTOM/ STANDARD switch in the tray to another position or to move the length/width guides. Follow the instructions in the prompt, close the tray, and follow these steps from the beginning.

1. To change the type, press ▼ or ▲ to highlight the correct paper type.
2. Press √ to select the paper type. A Setting saved message appears, and then the current type and size settings are displayed again.
3. If size and type are now correct, press ↩ to accept the size and type settings, and then exit the message. The tray is ready to use.

[Non-Text]
[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

input trays 87
input trays 87

Loading undetectable/standard size media into Trays 2, 3, 4, and 5

Follow this procedure to load undetectable standard-size paper in the tray. The undetectable standard sizes include 16K, 8K, Executive (JIS), 8.5x13.

To avoid jams, never add or remove a tray during printing.

The paper path for Tray 3 passes through Tray 2. If Tray 2 is partially pulled out or removed, paper from Tray 3 cannot feed into the printer. This causes the printer to stop and generate a message that Tray 2 must be installed. Similarly, Trays 2, 3, and 4 must be closed for paper from Tray 5 to feed into the printer.

Do not print cardstock, envelopes, or unsupported sizes of media from Tray 2, 3, 4, or 5. Print on these types of media only from Tray 1. Do not overfill the input tray or open it while it is in use. Doing so can cause paper jams.

1. Open the tray.

Line drawing of a printer with an open drawer and a pink arrow indicating compression (no text or symbols)

CAUTION

CAUTION

CAUTION

1. Slide the paper width and length guides all the way out.

Two technical line drawings of a mechanical device interior, showing internal components and directional arrows (no text or symbols)

1. Load media face-up, making sure that the stack height of the paper does not exceed the maximum stack height mark in the tray.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

1. Slide the paper width and length guides in, making sure that they gently touch the paper.

2. Verify that the tray switch is set to CUSTOM.

3. Close the tray.

Line drawing of a printer with an open drawer and a pink arrow indicating the paper's direction (no text or symbols present)

1. The printer displays the tray size and type configuration
2. If the size and type are correct, press ↩ to accept the settings, and exit the message.
3. To change the size or type, press √ when the tray configuration is displayed (If the tray configuration is no longer displayed, open and close the tray again). The TRAY X SIZE= * menu appears.
4. Press ▼ or ▲ to highlight the correct size.
5. Press √ to select the size. A Setting saved message appears followed by the tray type menu.

Note

Depending on the size selected, the printer might prompt you to move the CUSTOM/ STANDARD switch in Tray to another position or to move the length/width guides. Follow the instructions in the prompt, close the tray, and follow these steps from the beginning.

1. To change the type, press ▼ or ▲ to highlight the correct paper type.
2. Press √ to select the paper type. A Setting saved message appears, and then the current type and size settings are displayed again.
3. If size and type are now correct, press ↩ to accept the size and type settings, and exit the message. The tray is ready to use.

Loading custom media into Trays 2, 3, 4, and 5

Follow this procedure to load custom size paper in the tray.

CAUTION

To avoid jams, never add or remove a tray during printing.

CAUTION

The paper path for Tray 3 passes through Tray 2. If Tray 2 is partially pulled out or removed, paper from Tray 3 cannot feed into the printer. This causes the printer to stop and generate a message that Tray 2 must be installed. Similarly, Trays 2, 3, and 4 must be closed for paper from Tray 5 to feed into the printer.

CAUTION

Do not print cardstock, envelopes, or unsupported sizes of media from Tray 2, 3, 4, or 5. Print on these types of media only from Tray 1. Do not overfill the input tray or open it while it is in use. Doing so can cause paper jams.

1. Open the tray.

Illustration of a printer with an open drawer and a paper feed insert, showing internal components (no text or symbols)

1. Slide the paper width and length guides all the way out.

Technical line drawing of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

1. Load media face-up, making sure that the stack height of the paper does not exceed the maximum stack height mark in the tray.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

1. Slide the paper width and length guides in, making sure that they gently touch the paper.

2. Note the orientation of the paper and which dimension is the X dimension and which is the Y dimension. X and Y dimensions are marked in the tray, for your convenience.

Technical diagram of a mechanical device with labeled components and dimensional annotations (X, Y)

1 CUSTOM/STANDARD switch

2 Page width (X dimension)

3 Page length (Y dimension)

1. Verify that the tray switch is set to CUSTOM.

2. Close the tray.

Line drawing of a printer with an open drawer and a pink arrow indicating the paper's direction (no text or symbols present)

1. The printer displays the tray configuration. Look at the display.

Note

1. If the size and type are correct, press ↩ to accept the settings and exit the message. If the settings are not correct, continue with this procedure.

If the size is listed as CUSTOM, it means the tray size is set to ANY CUSTOM meaning that it will match any custom job even if the dimensions are different. The size can be changed to CUSTOM with exact dimensions if desired. When set to CUSTOM, the dimensions will show instead of the word CUSTOM on the tray configuration message.

1. To change the size or type, press √ when the tray configuration is displayed. (If the tray configuration is no longer displayed, open and close the tray again). The TRAY X SIZE= * menu appears.
2. Press √ to select CUSTOM. The UNIT OF MEASURE menu appears.

Note

Depending on the size selected, the printer might prompt you to move the CUSTOM/ STANDARD switch in the tray to another position or to move the length/width guides. Follow the instructions in the prompt, close the tray, and follow these steps from the beginning.

1. Press ▼ or ▲arrows to highlight the correct unit (either millimeters or inches).
2. Press √ to select the X value. The X DIMENSION menu appears.
3. Press ▼ or ▲ to change the X dimension value until it is correct.
4. Press √ to select the value. The Y DIMENSION menu appears.
5. Press ▼ or ▲ to change the Y dimension value until it is correct.
6. Press √ to select the value. A Setting saved message appears, and then the Tray X TYPE menu appears.
7. To change the type, press ▼ or ▲ to highlight the correct paper type.
8. Press √ to select the paper type. A Setting saved message appears, and then the current type and size settings are displayed again.
9. If size and type are now correct, press to accept the settings and exit the message. The tray is ready for use.

Configuring trays using the Paper Handling menu

You can also configure the trays for type and size without a prompt from the printer. Use the paper handling menu to configure the trays as follows.

Configuring the paper size

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight PAPER HANDLING.
3. Press √ to select PAPER HANDLING.
4. Press ▼ to highlight TRAY SIZE. (N represents the number of the tray you are configuring.)
5. Press √ to select TRAY SIZE.

6. Press ▼ or ▲ to highlight the correct size.

7. Press to select the correct size.

Note

Depending on the tray you are configuring and the size selected, the printer might prompt you to adjust the tray guides or to move the CUSTOM/STANDARD switch in the tray to the other position. Follow the instructions in the prompt, and then close the tray.

Configuring the paper type

1. Press M ENU to enter the MENUS.

2. Press ▼ to highlight PAPER HANDLING.

3. Press √ to select PAPER HANDLING.

4. Press ▼ to highlight TRAY TYPE. (N represents the number of the tray you are configuring.)

5. Press √ to select TRAY TYPE.

6. Press ▼ or ▲ to highlight the correct paper type.

7. Press √ to select the correct paper type.

A Setting saved message appears, and then the current type and size settings are displayed.

Printing on special media

Use these guidelines when printing on special types of media.

Note

Special media such as envelopes or cardstock should be printed from Tray 1.

To print on any special media, use the following procedure:

1. Load the media in the paper tray.
2. When the printer prompts you for the paper type, select the correct media type for the paper loaded in the tray. For example, select HIGH GLOSS IMAGES when loading HP High Gloss Laser Paper
3. In the software application or the printer driver, set the media type to match the media type that is loaded in the paper tray.

Note

For the best print quality, always verify that the media type selected on the printer control panel and the media type selected in the application or printer driver match the type of media loaded in the tray.

Transparencies

When printing on transparencies, use the following guidelines:

• Handle transparencies using the edges. Oils from your fingers deposited on the transparency can cause print quality problems.
• Use only overhead transparencies recommended for use in this printer. Hewlett-Packard recommends using HP Color LaserJet Transparencies with this printer. HP products are designed to work together for optimum printing results.
• In either the software application or the driver, select Transparency as the media type, or print from a tray that is configured for transparencies. Use the control panel to set the media type.
  For more information about how to access the printer drivers, see Accessing the printer drivers.

CAUTION

Transparencies not designed for LaserJet printing will melt in the printer, causing damage to the printer.

Glossy paper

• In either the software application or the driver, select Glossy, Heavy Glossy, or High Gloss as the media type, or print from a tray that is configured for glossy paper.
  Select Glossy for media weights up to 105 g/m^2 (28 lb bond). Select Heavy glossy for media weights of 105 g/m^2 (28 lb bond) and heavier.
• Use the control panel to set the media type to GLOSSY or HEAVY GLOSSY for the input tray being used.

Note

Hewlett-Packard recommends using HP Color LaserJet Soft Gloss paper with this printer. HP products are designed to work together for optimum printing results. If HP Color LaserJet Soft Gloss paper is not used with this printer, print quality may be compromised.

Colored paper

• Colored paper should be of the same high quality as white xerographic paper.
• Pigments used must be able to withstand the printer fusing temperature of 190°C (374°F) for 0.1 second without deterioration.
• Do not use paper with a colored coating that was added after the paper was produced.
• The printer creates colors by printing patterns of dots, overlaying and varying their spacing to produce various colors. Varying the shade or color of the paper will affect the shades of the printed colors.

Printing images

To obtain the best print quality when printing images, such as photographs or posters, use High Gloss Laser Paper (Q2420A) with the HP High Gloss (Images) media type setting.

• In either the software application or the printer driver, select HP High Gloss (images) as the media type, or print from a tray that is configured for glossy paper.
• You can also configure the printer using settings on the printer control panel. See Configuring input trays for more information.
• Use the control panel to set the media type to HIGH GLOSS IMAGES for the tray being used.

Envelopes

Note

Envelopes can be printed only from Tray 1. Set the tray's media size to the specific envelope size. See Printing envelopes from Tray 1.

Adhering to the following guidelines will help ensure proper printing on envelopes and help prevent printer jams:

• Do not load more than 20 envelopes into Tray 1.
  • The weight rating of envelopes should not exceed 105 g/m^2 (28 lb bond).
  • Envelopes should be flat.
• Do not use envelopes with windows or clasps.
• Envelopes must not be wrinkled, nicked, or otherwise damaged.
• Envelopes with peel-off adhesive strips must use adhesives that can withstand the heat and pressures of the printer's fusing process.
• Envelopes should be loaded face-down with the top of the envelope to the left, and the short edge feeding into the printer first.

Note

In high humidity environments, envelopes should be printed with the flap on the leading edge to reduce sealing of the flap during printing. For long edge printing, envelopes should be loaded long edge first, face-down. See Printing envelopes from Tray 1 to change the envelope orientation.

Labels

Note

For printing labels, set the tray's media type to LABELS in the printer control panel. See Configuring input trays. When printing labels, use the following guidelines:

• Verify that the labels' adhesive material can tolerate temperatures of 190^ (374°F) for 0.1 second.
• Verify that there is no exposed adhesive material between the labels. Exposed areas can cause labels to peel off during printing, which can cause printer jams. Exposed adhesive can also cause damage to printer components.
  • Do not re-feed a sheet of labels.
• Verify that labels lie flat.
• Do not use labels that are wrinkled, bubbled, or otherwise damaged.

Heavy paper

The following heavy paper types can be used with the HP Color LaserJet 5550 series printer.

Paper type Paper weight
Heavy	105-119 g/m228-31 lb
Extra heavy	120-163 g/m232-43 lb
Cardstock	164-200 g/m244-53 lb

When printing on heavy paper types, use the following guidelines:

• Use Tray 1 for paper that is heavier than 163g / m^2 to 200g / m^2 (43 lb bond up to 53 lb bond).
• For optimum results when printing on heavy paper, use the printer control panel to set the media type for the tray to match the paper type.
• In either the software application or the driver, select Heavy, Extra Heavy, or Cardstock as the media type, or print from a tray that is configured for heavy paper.
• Because this setting affects all print jobs, it is important to return the printer back to its original settings once the job has printed. See Configuring input trays.

CAUTION

In general do not use paper that is heavier than the media specification recommended for this printer. Doing so can cause misfeeds, paper jams, reduced print quality, and excessive mechanical wear.

HP LaserJet Tough paper

Tough paper is a robust plastic film that will not tear and withstands the weather. When printing on HP LaserJet Tough paper, use the following guidelines:

• Handle HP LaserJet Tough paper using the edges. Oils from your fingers deposited on HP LaserJet Tough paper can cause print quality problems.
• Use only Hewlett-Packard LaserJet Tough paper with this printer. HP Products are designed to work together for optimum printing results.
• In either the software application or the driver, select Tough Paper as the media type, or print from a tray that is configured for HP LaserJet Tough paper.

Preprinted forms and letterhead

Observe the following guidelines for best results with preprinted forms and letterhead:

• Forms and letterhead must be printed with heat-resistant inks that will not melt, vaporize, or release hazardous emissions when subjected to the printer's fusing temperature of approximately 190°C (374°F) for 0.1 second.
• Inks must be non-flammable and should not adversely affect any printer rollers.
• Forms and letterhead should be sealed in a moisture-proof wrapping to prevent changes during storage.
• Before loading preprinted paper such as forms and letterhead, verify that the ink on the paper is dry. During the fusing process, wet ink can come off of preprinted paper.
• When duplex printing, load pre-printed forms and letterhead into Trays 2, 3, 4, and 5 face-down with the top edge of the page to the left. To load pre-printed forms and letterhead into Tray 1, load them face-up with the top edge of the page to the left.
• When simplex printing, load pre-printed forms and letterhead into Trays 2, 3, 4, and 5 face-up with the top edge of the page to the left. To load pre-printed forms and letterhead into Tray 1, load them face-down with the top edge of the page to the left.

Recycled paper

This printer supports the use of recycled paper. Recycled paper must meet the same specifications as standard paper. See the HP LaserJet Printer Family Print Media Guide. Hewlett-Packard recommends that recycled paper contain no more than 5% ground wood.

Two-sided (duplex) printing

Some printer models are capable of automatic duplex printing (printing on both sides of a page). To find out which models support automatic two-sided printing, see Printer configurations. All printer models support manual two-sided printing.

Note

You must specify two-sided printing options in your software application or in the printer driver in order to print on both sides of the page. If this option is not visible in the software application or printer driver, use the following information to make duplex printing options available.

To use two-sided printing:

• Verify that the printer driver is configured to show the two-sided printing options: automatic and/or manual. For instructions, see the online Help for the printer driver or for more information about how to access the printer drivers, see Accessing the printer drivers.
• Once the two-sided printing option is shown, select the appropriate two-sided printing options in the printer driver software. Two-sided printing options include page and binding orientation. For more information about options for binding two-sided printing jobs, see Options for binding two-sided printing jobs.
  • Automatic two-sided printing is not supported for certain media types, including transparencies, envelopes, cardstock, tough paper and labels.
• Automatic two-sided printing only supports 11 x 17, A3, letter, letter_R, legal, A4, A4-R, B5, B4, and executive paper sizes.
• Manual two-sided printing can support all sizes and more types of media. (Transparencies, envelopes, and labels are not supported.)

• If both automatic and manual two-sided printing are enabled in the software driver, the printer will automatically print on two sides if the size and type are supported by the duplexer. Otherwise, it will manually duplex.

• For best results, avoid two-sided printing with rough-textured, heavy-weight media.

• When duplexing preprinted media such as letterhead or forms, load the paper the opposite of that when duplexing simplex. Place the media face down in Trays 2, 3, 4, or 5. Place special media face up in Tray 1. (This process is different than the process for one-sided printing.)

Diagram showing two views of a printer's internal structure with a pink arrow indicating a process (no text or symbols present)

Control panel settings for automatic two-sided printing

Many software applications allow you to change two-sided printing settings. If your software application or printer driver does not allow you to adjust two-sided printing settings, you can adjust these settings through the control panel. The factory default setting is OFF.

CAUTION

Do not use two-sided printing when printing on labels. Serious damage to the printer may result.

Note

To enable or disable two-sided printing from the printer control panel

Changing settings for two-sided printing through the printer control panel affects all print jobs. Whenever possible, change settings for two-sided printing through your software application or printer driver.

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press √ to select Printing....
5. Press ▼ to highlight DUPLEX.

6. Press √ to select DUPLEX.

7. Press ▲ or ▼ to select ON to enable two-sided printing or OFF to disable two-sided printing.

8. Press √ to set the value.
9. Press ▼ to highlight DUPLEX BINDING.
10. Press √ to select DUPLEX BINDING.
11. Press M_{ENU}.
12. Select two-sided printing from your software application or printer driver, if possible.

Note

To select two-sided printing from the printer driver, the driver must first be properly configured. (For instructions, see the online Help for the printer driver.)

Duplexing blank pages

If selecting source or type in the software driver, the printer will not print blank second sides of duplexed pages, resulting in faster performance. However, if the paper type is set to ANY TYPE, LETTERHEAD, PREPRINTED, or PREPUNCHED, the blank second sides print to prevent text from printing on the wrong side of the page.

Options for binding two-sided printing jobs

Before printing a two-sided document, in the printer driver choose the edge on which you will bind your finished document. Long-edge or book binding is the conventional layout used in book binding. Short-edge or tablet binding is the typical calendar binding.

Note

The default binding setting is to bind on the long edge when the page is set up for portrait orientation. To change to short edge binding, click the Flip Pages Up check box.

Manual two-sided (duplex) printing

Printing on both sides can be performed manually (manual duplex printing). This is useful for paper sizes or weights that are not supported for automatic duplexing (for example, cardstock or custom size paper). It can also be performed on printer models that do not support automatic two-sided printing.

Note

Damaged or previously used paper can cause paper jams and should not be used.

Note

Manual two-sided printing is not supported for Windows 98 and NT 4.0 systems that use the PS driver.

To manually print on two sides (duplex)

1. Ensure that the printer driver is configured to allow manual duplexing. In the printer driver, select Allow Manual Duplex. See Accessing the printer drivers.
2. From the application, open the printer driver.
3. Select the appropriate size and type.
4. On the Finishing tab, click Print on Both Sides or Print on Both Sides (Manually).
5. The default binding option is to bind on the long edge of the paper in portrait layout. To change the setting, click the Finishing tab, and select the Flip pages up checkbox.
6. Click OK. The Print on Both Sides instructions will appear. Follow the instructions to finish printing your document.

If total sheets exceed the Tray 1 capacity for manual duplex jobs, feed the top 100 sheets and press √. When prompted, feed the next 100 sheets and press √ Repeat as necessary until all the sheets from the output stack have been loaded into Tray 1.

For more information about how to access the printer drivers, see Accessing the printer drivers.

Printing booklets

Some versions of the printer driver let you control the printing of booklets when duplexing. You can select binding on the left or right side on letter, legal, or A4 paper size. Windows 2000 and XP supports booklet printing for all paper sizes.

See the printer driver online Help for more information about the printing booklets feature.

Adjusting the registration

Adjusting the registration ensures that all jobs are centered on the page. This is a two-part process: 1) estimating the centering adjustments and 2) setting the shift values.

Use the following procedure to estimate the centering adjustments.

1. Using a ruler, measure, in millimeters, the left and right margins on the front side of the printed test page. Compare the two measurements.
2. Estimate the adjustment necessary to center the page. Each unit of adjustment shifts the image approximately 0.25 mm. This is the X1 shift value.
3. Using a ruler, measure, in millimeters, the left and right margins on the back side of the printed test page. Compare the two measurements.
4. Estimate the adjustment necessary to center the page. Each unit of adjustment shifts the image approximately 0.25 mm. This is the X2 shift value.
5. Using a ruler, measure, in millimeters, the top and bottom margins on the printed test page. Compare the two measurements.
6. Estimate the adjustment necessary to center the page. Each unit of adjustment shifts the image approximately 0.25 mm. This is the Y shift value.

Use the following procedure to set the shift values.

1. Press M ENU to enter the MENUS.
2. Press ▲ or ▼ to highlight CONFIGURE DEVICE and press ▼ to select.
3. Press ▲ or ▼ to highlight PRINT QUALITY and press ▼ to select.
4. Press ▲ or ▼ to highlight SET REGISTRATION and press ▼ to select.
5. Press ▲ or ▼ to highlight the tray you are adjusting. (ADJUST TRAY , ADJUST TRAY 1, ADJUST TRAY 2, ADJUST TRAY 3, or ADJUST TRAY 4), and press ▼ to select.
6. Press ▲ or ▼ to highlight ADUST TRAY X and press ▼ to select.
7. Press ▲ or ▼ to highlight X1 SHIFT and press ▼ to select.
8. Press ▲ or ▼ to highlight the value for X1 from Step 2 and press ▼ to select.
9. Press ▲ or ▼ to highlight X2 SHIFT and press ▼ to select.
10. Press ▲ or ▼ to highlight the value for X2 in Step 4 and press ▼ to select.

11. Press ▲ or ▼ to highlight Y SHIFT and press √ to select.

12. Press ▲ or ▼ to highlight the value for Y from Step 6 and press √ to select. These procedures may be repeated for each of the trays installed in the printer.

Special printing situations

Use these guidelines when printing on special types of paper.

Printing a different first page

Use the following procedure to print the first page of a document on a different paper type than the rest of the document, for example, to print the first page of a document on letterhead paper and the rest on plain paper.

1. From your application or printer driver, specify a tray for the first page and another tray for the remaining pages.
   For more information about how to access the printer drivers, see Accessing the printer drivers.
2. Load the special paper into the tray that you specified in step 1.
3. Load the paper for the remaining pages of the document into another tray.

You can also print on different paper by using the printer control panel or printer driver to set the types of paper that are loaded in the trays and then selecting the first and remaining pages by paper type.

Printing a blank back cover

Use the following procedure to print a blank back cover. You can also select an alternate paper source or print on a different media type than the rest of the document.

1. On the printer driver's Paper tab, select Use different paper, then from the drop-down list, select Back Cover, check Add a blank back cover, and then click OK.
2. For more information about how to access the printer drivers, see Accessing the printer drivers.

You can also select an alternate paper source or print a blank back cover on a different media type than the rest of the document. If desired, select a different source and type from the drop-down lists.

Printing on custom-size media

The printer supports single-sided printing and manual duplexing on custom-size paper. Tray 1 supports paper sizes from 76 x 127 mm (3 x 5 inches) to 312 x 470 mm (12.3 x 18.5 inches). Tray 2 and optional Trays 3, 4 and 5 support media sizes from 148 x 210 mm (7.16 x 8.27 inches) to 297 x 432 mm (8.5 x 14 inches).

When printing on custom-size paper, if Tray 1 is configured in the printer control panel as TRAY 1 TYPE=ANY and TRAY 1 SIZE=ANY, the printer will print on whatever paper is loaded in the tray. When printing on custom size paper from Trays 2, 3, 4, and 5, adjust the switch on the tray to the Custom position, and from the control panel, set the paper size to CUSTOM or ANY CUSTOM.

Some software applications and printer drivers allow you to specify custom paper-size dimensions. Be sure to set the correct paper size in both the page setup and print dialog boxes. If your software does not allow this, specify the custom paper-size dimensions in the Paper handling menu of the printer control panel. See Paper handling menu for more information.

Note

The printer feeder supports up to 312 mm wide, but the printer driver is limited to 304 mm.

For more information about how to access the printer drivers, see Accessing the printer drivers.

If your software application requires you to calculate margins for custom-size paper, see the online Help for that application.

Stopping a print request

You can stop a print request either from the printer control panel or from your software application. To stop a print request from a computer on a network, see the online Help for the specific network software.

Note

It may take some time for all printing to clear after you have canceled a print job.

To stop the current print job from the printer control panel

1. Press S TOP on the printer control panel to pause the job that is currently printing. The control panel menu provides the option to resume printing or to cancel the current job.
2. Press M ENU to exit the menu and resume printing, or highlight CANCEL JOB, and press √ to cancel the job.

Pressing STOP does not affect subsequent print jobs that are stored in the printer buffer.

To stop the current print job from your software application

A dialog box may appear briefly on the user display, giving you the option to cancel the print job.

If several requests have been sent to the printer through your software, they might be waiting in a print queue (for example, in Windows Print Manager). See the software documentation for specific instructions on canceling a print request from the computer.

If a print job is waiting in a print queue (computer memory) or print spooler (Windows 98, 2000, XP, or Me), delete the print job there.

For Windows 98, 2000, XP, or Me, click Start, Settings, and then Printers. Double-click the HP Color LaserJet 5550 series printer icon to open the print spooler. Select the print job you want to cancel, and then press Delete.

Job storage features

The HP Color LaserJet 5550 series printer lets you store a job in the printer's memory for printing at a later time. The job storage features use memory from both the hard drive and random access memory (RAM). These job storage features are described below.

To support job storage features for complex jobs, or if you often print complex graphics, print PostScript (PS) documents, or use many downloaded fonts, HP recommends that you install additional memory. Added memory also gives you more flexibility in supporting job-storage features, such as quick copying.

Note

To use the Private Job and Proof and Hold features, you must have a minimum of 192 MB of memory: 160 MB DDR plus 32 MB of additional memory on the formatter board. To use the quick copy and stored jobs features you must install an optional hard drive in the printer (HP Color LaserJet 5550, 5550n, 5550dn, 5550dtn models) and properly configure the drivers.

CAUTION

Make sure to uniquely identify jobs in the printer driver before printing. Using default names may override previous jobs with the same default name or cause the job to be deleted. For more information about how to access the printer drivers, see Accessing the printer drivers.

Storing a print job

You can download a print job to the printer without printing it. You can then print the job at any time through the printer control panel. For example, you may want to download a personnel form, calendar, time sheet, or accounting form that other users can access and print.

To store a print job permanently, select the Stored Job option in the driver when printing the job.

1. Press M ENU to enter MENUS.
2. RETRIEVE JOB is highlighted.
3. Press √ to select RETRIEVE JOB.
4. Press ▼ to highlight your USER NAME.
5. Press √ to select your USER NAME.
6. Press ▼ to highlight a JOB NAME.
7. Press √ to select the JOB NAME.

PRINT is highlighted.

1. Press √ to select PRINT.
2. Press ▲ or ▼ to select the first digit of the PIN.
3. Press √ to select the digit. The number changes to an asterisk.
4. Repeat steps 9 and 10 for the remaining three digits of the PIN.
5. Press √ when finished entering PIN.
6. Press ▲ or ▼ to select the number of copies needed.
7. Press √ to print the job.

Quick copying a job

Quick Copy stores a copy of a printed job on the hard drive, and allows you to print additional copies of a print job using the control panel. The number of quick-copy print jobs that can be stored in the printer is set from the printer control panel.

This feature can be turned on or off from the driver.

1. Press M ENU to enter MENUS.
2. RETRIEVE JOB is highlighted.
3. Press √ to select RETRIEVE JOB.

4. Press ▼ to highlight your USER NAME.

5. Press to select your USER NAME.

6. Press ▼ to highlight a JOB NAME.
7. Press √ to select the JOB NAME.

PRINT is highlighted.

1. Press √ to select PRINT.
2. Press ▲ or ▼ to select the number of copies.
3. Press √ to print the job.

Proofing and holding a job

The proof and hold feature provides a quick and easy way to print and proof one copy of a job and then print additional copies. This option stores the print job on the printer hard drive or in printer RAM memory, and prints only the first copy of the job, allowing you to check the first copy. If the document prints correctly, you can print the remaining copies of the print job from the printer control panel. The number of proof-and-hold print jobs that can be stored in the printer is set from the printer control panel.

To permanently store the job and prevent the printer from deleting it, select the Stored Job option in the driver.

Printing stored jobs

1. Press M ENU to enter MENUS.

RETRIEVE JOB is highlighted.

1. Press √ to select RETRIEVE JOB.
2. Press ▼ to highlight your USER NAME.
3. Press √ to select your USER NAME.
4. Press ▼ to highlight a JOB NAME.
5. Press √ to select the JOB NAME.

PRINT is highlighted.

1. Press √ to select PRINT.
2. Press ▲ or ▼ to select the number of copies.
3. Press √ to print the job.

Deleting stored jobs

When you send a stored job, the printer overwrites any previous jobs with the same user and job name. If there is not a job already stored under the same user and job name, and the printer needs additional space, the printer may delete other stored jobs starting with the oldest. The default number of jobs that can be stored is 32. You can change the number of jobs that can be stored from the control panel. For more information about setting the job storage limit, see System setup menu.

If the printer is turned off, all stored jobs are deleted. A job can also be deleted from the control panel, from the embedded Web server, or from HP Web Jetadmin. To delete a job from the control panel, use the following procedure:

1. Press M ENU to enter MENUS.

2. RETRIEVE JOB is highlighted.

3. Press √ to select RETRIEVE JOB.
4. Press ▼ to highlight your USER NAME.
5. Press √ to select your USER NAME.
6. Press ▼ to highlight a JOB NAME.
7. Press √ to select the JOB NAME.
8. Press ▼ to highlight DELETE.
9. Press √ to select DELETE.
10. Press √ to delete the job.

Private jobs

This option allows you to send a print job directly to the printer memory. Selection of Private Job activates the PIN field. The print job can be printed only after you type a PIN in the printer control panel. After the job is printed, the printer removes the job from the printer memory. This feature is useful when you are printing sensitive or confidential documents that you do not want to leave in an output bin after printing. Private Job stores the print job on the hard drive or in printer RAM memory. After it is released for printing, the private job is immediately deleted from the printer. If more copies are needed, you have to reprint the job from the program. If you send a second private job to the printer with the same user name and job name as an existing private job (and you have not released the original job for printing), the job will overwrite the existing job, regardless of the PIN. Private jobs are deleted if power to the printer is turned off.

Note

A lock symbol next to a job name indicates that the job is private.

Specify that a job is private from the driver. Select the Private Job option and type a 4-digit PIN. To avoid overwriting jobs with the same name, also specify a username and job name.

Printing a private job

1. Press M ENU to enter MENUS.

RETRIEVE JOB is highlighted.

1. Press √ to select RETRIEVE JOB.

2. Press ▼ to highlight your USER NAME.

3. Press √ to select your USER NAME.

4. Press ▼ to highlight a JOB NAME.

5. Press √ to select the JOB NAME.

PRINT is highlighted.

1. Press √ to select PRINT.

2. Press ▲ or ▼ to select the first digit of the PIN.

3. Press √ to select the digit. The number changes to an asterisk.

4. Repeat steps 8 and 9 for the remaining three digits of the PIN.

5. Press √ when finished entering PIN.

6. Press ▲ or ▼ to select the number of copies.

7. Press to print the job.

Deleting a private job

A private job can be deleted from the printer control panel. You can delete a job without printing it, or IT WILL BE AUTOMATICALLY DELETED after it is printed.

1. Press M ENU to enter MENUS.

RETRIEVE JOB is highlighted.

1. Press √ to select RETRIEVE JOB.
2. Press ▼ to highlight your USER NAME.
3. Press √ to select your USER NAME.
4. Press ▼ to highlight a JOB NAME.
5. Press √ to select the JOB NAME.
6. Press ▼ to highlight DELETE.
7. Press √ to select DELETE.
8. Press ▲ or ▼ to select the first digit of the PIN.
9. Press √ to select the digit. The number changes to an asterisk.
10. Repeat steps 9 and 10 for the remaining three digits of the PIN.
11. Press √ when finished entering PIN.
12. Press √ to delete the job.

Mopier mode

When Mopier Mode is enabled in the driver, the printer produces multiple, collated copies from a single print job. Multiple-original printing (mopying) increases printer performance and reduces network traffic by sending the job to the printer once, then storing it in the printer's RAM. The remainder of the copies are printed at the printer's fastest speed. All documents can be created, controlled, managed, and finished from the desktop, which eliminates the extra step of using a photocopier.

The HP Color LaserJet 5550 series printers support the mopying feature, provided they have enough total memory (at least 192 MB of total memory: 160 MB DDR plus 32 MB on the formatter board), and the mopying feature is enabled by default if the Mopier Mode setting is Enabled in the Device Settings tab.

Managing memory

This printer supports up to 544 MB of memory: 512 MB DDR plus 32 MB of additional memory on the formatter board. You can add additional memory by installing dual data-rate (DDR) memory. To allow for memory expansion, the printer has two DDR slots, which accept 128 or 256 MB of RAM each. For information about installing memory, see Working with memory and print server cards.

Note

Memory specification: HP Color LaserJet 5550 series printers use 200-pin small outline dual inline memory modules (SODIMM) that support 128 or 256 MB of RAM.

The printer features Memory Enhancement Technology (MEt), which automatically compresses page data to provide the most efficient use of the printer's RAM.

The printer uses DDR SODIMM. Extended data output (EDO) DIMMs are not supported.

Note

If memory problems occur when you are printing complex graphics, you can make more memory available by removing downloaded fonts, style sheets, and macros from printer memory. Reducing the complexity of a print job from within an application can help avoid memory problems.

5

Managing the printer

This chapter describes how to manage the printer. The following topics are covered:

Printer information pages
• Using the embedded Web server
Using the HP Toolbox

Printer information pages

From the printer control panel, you can print pages that give details about the printer and its current configuration. The procedures for printing the following information pages are described here:

• menu map
• configuration page
  • supplies status page
• usage page
  • demo page
  • print RGB and CMYK samples
• file directory (available only on printers with hard drives)
• PCL or PS font list
  • event log

Menu map

To see the current settings for the menus and items available in the control panel, print a control panel menu map.

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight INFORMATION.
3. Press √ to select INFORMATION.
4. If PRINT MENU MAP is not highlighted, press ▲ or ▼ until it is highlighted.
5. Press √ to select PRINT MENU MAP.

The message Printing... MENU MAP appears on the display until the printer finishes printing the menu map. The printer returns to the Ready state after printing the menu map.

You might want to store the menu map near the printer for reference. The content of the menu map varies, depending on the options currently installed in the printer. (Many of these values can be overridden from the printer driver or software application.)

For a complete list of control panel menus and possible values, see Menu hierarchy.

Configuration page

Use the configuration page to view current printer settings, to help troubleshoot printer problems, or to verify installation of optional accessories, such as memory (DIMMs), paper trays, and printer languages.

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight INFORMATION.
3. Press √ to select INFORMATION.
4. Press ▼ to highlight PRINT CONFIGURATION.
5. Press √ to select PRINT CONFIGURATION.

The message PRINTING STOPPED appears on the display until the printer finishes printing the configuration page. The printer returns to the Ready state after printing the configuration page.

If the printer is configured with EIO cards (for example, an HP Jetdirect print server) or an optional hard drive, an additional configuration page will print that provides information about those devices.

Supplies status page

The supplies status page illustrates the remaining life for the following printer supplies:

• print cartridges (all colors)
- transfer unit
- fuser

To print the supplies status page:

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight INFORMATION.
3. Press √ to select INFORMATION.
4. Press ▼ to highlight PRINT SUPPLIES STATUS PAGE.
5. Press √ to select PRINT SUPPLIES STATUS PAGE.

The message Printing... SUPPLIES STATUS appears on the display until the printer finishes printing the supplies status page. The printer returns to the Ready state after printing the supplies status page.

If you are using non-HP supplies, the supplies status page will not show the remaining life for those supplies. For more information, see Non-HP print cartridges.

Usage page

The usage page lists a page count for each size of paper that has passed through the printer. This page count includes the number of pages that were printed on one side, the number that were printed on two sides (duplexed), and totals of the two printing methods for each paper size. It also lists the average percentage of page coverage for each color.

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight INFORMATION.
3. Press √ to select INFORMATION.
4. Press ▼ to highlight PRINT USAGE PAGE.
5. Press √ to select PRINT USAGE PAGE.

The message Printing... USAGE PAGE appears on the display until the printer finishes printing the usage page. The printer returns to the Ready state after printing the usage page.

Demo

A demo page is a color photograph that demonstrates print quality.

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight INFORMATION.
3. Press √ to select INFORMATION.
4. Press ▼ to highlight PRINT DEMO.
5. Press √ to select PRINT DEMO.

The message Printing... DEMO PAGE appears on the display until the printer finishes printing the demo page. The printer returns to the Ready state after printing the demo page.

Print CMYK samples

Use the PRINT CMYK SAMPLES page to print CMYK color samples to match the color values in your application.

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight INFORMATION.
3. Press √ to select INFORMATION.
4. Press ▼ to highlight PRINT CMYK SAMPLES.
5. Press √ to select PRINT CMYK SAMPLES.

The message Printing... CMYK Samples appears on the display until the printer finishes printing the demo page. The printer returns to the Ready state after printing the demo page.

Print RGB samples

Use the PRINT RGB SAMPLES page to print RGB color samples to match the color values in your application.

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight INFORMATION.
3. Press √ to select INFORMATION.
4. Press ▼ to highlight PRINT RGB SAMPLES.
5. Press √ to select PRINT RGB SAMPLES.

The message Printing... RGB Samples appears on the display until the printer finishes printing the demo page. The printer returns to the Ready state after printing the demo page.

File directory

The file directory page contains information for all installed mass storage devices. This option does not appear if no mass storage devices are installed.

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight INFORMATION.

3. Press √ to select INFORMATION.

4. Press ▼ to highlight PRINT FILE DIRECTORY.

5. Press √ to select PRINT FILE DIRECTORY.

The message Printing... FILE DIRECTORY appears on the display until the printer finishes printing the file directory page. The printer returns to the Ready state after printing the file directory page.

PCL or PS font list

Use the font lists to see which fonts are currently installed in the printer. (The font lists also show which fonts are resident on an optional hard disk accessory or flash DIMM.)

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight INFORMATION.
3. Press √ to select INFORMATION.
4. Press ▼ to highlight PRINT PCL FONT LIST or PRINT PS FONT LIST.
5. Press √ to select PRINT PCL FONT LIST or PRINT PS FONT LIST.

The message Printing... FONT LIST appears on the display until the printer finishes printing the font list page. The printer returns to the Ready state after printing the font list page.

Event log

The event log lists the printer events, including printer jams, service errors, and other printer conditions.

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight DIAGNOSTICS.
3. Press √ to select DIAGNOSTICS.
4. Press ▼ to highlight PRINT EVENT LOG.
5. Press √ to select PRINT EVENT LOG.

The message Printing... EVENT LOG appears on the display until the printer finishes printing the event log. The printer returns to the Ready state after printing the event log.

Using the embedded Web server

When the printer is directly connected to a computer, the embedded Web server is supported for Windows 98 and later. In order to use the embedded Web server with a direct connection, you must choose the Custom installation option when you install the printer driver. Select the option to load Printer Status and Alerts. The proxy server is installed as part of the Printer Status and Alerts software.

When the printer is connected to the network, the embedded Web server is automatically available. You may access the embedded Web server from Windows 95 and later.

The embedded Web server allows you to view printer and network status and to manage printing functions from your computer instead of from the printer control panel. Below are examples of what you can do using the embedded Web server:

• view printer control status information
• set the type of paper loaded in each tray
• determine the remaining life on all supplies and order new ones
• view and change tray configurations
• view and change the printer control panel menu configuration
• view and print internal pages
• receive notification of printer and supplies events
• view and change network configuration

To use the embedded Web server, you must have Microsoft Internet Explorer 4 and later or Netscape Navigator 4 and later. The embedded Web server works when the printer is connected to an IP-based network. The embedded Web server does not support IPX-based printer connections. You do not have to have Internet access to open and use the embedded Web server. For more information about the HP embedded Web server, see the HP Embedded Web Server User's Guide. You can find this guide on the CD-ROM included with this printer.

To access the embedded Web server using a network connection

In a supported Web browser on your computer, type the IP address for the printer. (To find the IP address, print a configuration page. For more information about printing a configuration page, see Printer information pages.)

Note

Once you open the URL, you can bookmark it so that you can return to it quickly in the future.

1. The embedded Web server has three tabs that contain settings and information about the printer: the Information tab, the Settings tab, and the Network tab. Click the tab that you want to view.

2. See the following sections for more information about each tab.

Information tab

The Information pages group consists of the following pages.

• Device Status. This page displays the printer status and shows the life remaining of HP supplies, with 0 percent representing that a supply is empty. The page also shows the type and size of print paper set for each tray. To change the default settings, click Change Settings.
• Configuration page. This page shows the information found on the printer Configuration page.
• Supplies Status. This page shows the life remaining of HP supplies, with 0 percent representing that a supply is empty. This page also provides supplies part numbers. To order new supplies, click Order Supplies in the Other Links area on the left side of the window. To visit any website, you must have Internet access.
  • Event log. This page shows a list of all printer events and errors.
• Usage page. This page shows a summary of the number of pages the printer has printed, grouped by size and type.
• Device Information. This page also shows the printer network name, address, and model information. To change these entries, click Device Information on the Settings tab.
• Control Panel. Displays messages from the printers control panel, for example Ready or POWERSAVE.

Settings tab

This tab allows you to configure the printer from your computer. The Settings tab can be password protected. If this printer is networked, always consult with the printer administrator before changing settings on this tab.

The Settings tab contains the following pages.

• Configure Device. Configure all printer settings from this page. This page contains the traditional menus found on printers using a control panel display. These menus include Information, Paper Handling, Configure Device, and Diagnostics.
• Alerts. Network only. Set up to receive e-mail alerts for various printer and supplies events.
• E-mail. Network only. Used in conjunction with the Alerts page to set up incoming and outgoing e-mail, as well as to set e-mail alerts.
• Security. Set a password that must be entered to gain access to the Settings and Networking tabs. Enable and disable certain features of the EWS.
• Other Links. Add or customize a link to another website. This link is displayed in the Other Links area on all embedded Web server pages. These permanent links always appear in the Other Links area: HP Instant Support™, Order Supplies, and Product Support.
  • Device Information. Name the printer and assign an asset number to it. Enter the name and e-mail address for the primary contact who will receive information about the printer.
• Language. Determine the language in which to display the embedded Web server information.
  • Time Services. Allows time synchronization with a network time server.

Networking tab

This tab allows the network administrator to control network-related settings for the printer when it is connected to an IP-based network. This tab will not appear if the printer is directly connected to a computer, or if the printer is connected to a network using anything other than an HP Jetdirect print server card.

Other links

This section contains links that connect you to the Internet. You must have Internet access in order to use any of these links. If you use a dial-up connection and did not connect when you first opened the embedded Web server, you must connect before you can visit these websites. Connecting might require that you close the embedded Web server and reopen it.

HP Instant Support™. Connects you to the HP website to help you find solutions. This service analyzes your printer error log and configuration information to provide diagnostic and support information specific to your printer.
- Order Supplies. Click this link to connect to the HP website and order genuine HP supplies, such as print cartridges and paper.
- Product Support. Connects to the support site for the HP Color LaserJet 5550 series printer. Then, you can search for help regarding general topics.

Using the HP Toolbox

The hp Toolbox is a Web application that you can use for the following tasks:

• Check the printer status.
• Configure the printer settings (access device Web page settings).
  • View troubleshooting information.
  • View online documentation.
  • Print internal printer information pages.
• Receive pop-up status messages.

You can view the HP Toolbox when the printer is directly connected to your computer. If the printer is connected to a network, use Custom Installer. The HP Toolbox software is automatically installed as part of the typical software installation.

Note

You do not have to have Internet access to open and use the HP Toolbox. However, if you click a link in the Other Links area, you must have Internet access to go to the site associated with the link. See Other links for more information.

Supported operating systems

HP Toolbox is supported for the following operating systems:

• Windows 98, 2000, Me, Server 2003, and XP
• Macintosh OS 10.2 or later

Supported browsers

To use the HP Toolbox, you must have one of the following browsers:

• Microsoft Internet Explorer 5.5 or later (Internet Explorer 5.2 or later for Macintosh)
• Netscape Navigator 7.0 or later (Netscape Navigator 7.0 or later for Macintosh)
- Opera Software ASA Opera™ 6.05 and 7.0 for Windows
• Safari 1.0 software for Macintosh

All pages can be printed from the browser.

To view HP Toolbox

On the Start menu, select Programs, select HP Color LaserJet 5550, and then select HP LaserJet toolbox.

Note

You can also view the HP Toolbox by clicking the system tray icon or the desktop icon.

The HP Toolbox opens in a Web browser.

Note

Once you open the URL, you can bookmark it so that you can return to it quickly in the future.

HP Toolbox sections

The HP Toolbox software contains the following sections:

• Status tab
• Troubleshooting tab
• Alerts tab
• Documentation tab
  • Device Settings button

Other links

Each page in the HP Toolbox contains links to the HP website for the following information:

• Product registration
- Product support
- Ordering supplies
HP Instant Support™

You must have Internet access to use any of these links. If you use a dial-up connection and did not connect when you first opened the HP Toolbox, you must connect before you can visit these websites.

Status tab

The Status tab has links to the following main pages:

• Device Status. View printer status information. This page will indicate printer conditions such as a paper jam or an empty tray. Use the virtual control panel buttons on this page to change printer settings. After you correct a problem with the printer, click the Refresh button to update the device status.
• Supplies Status. View detailed supplies status such as the percent of toner remaining in the print cartridges and the number of pages printed with the current print cartridges. This page also has links to order supplies and to find recycling information.
• Print Info Pages. Print the configuration page and various other information pages that are available for the printer, such as the Supplies Status page, the Demo page, and Menu Map.

Troubleshooting tab

The Troubleshooting tab provides links to various printer troubleshooting information, such as how to clear a paper jam, how to resolve print quality problems, how to resolve other internal problems with the printer, and how to print some printer pages.

Alerts tab

The Alerts tab allows you to configure the printer to automatically notify you of printer alerts. The Alerts tab has links to the following main pages:

• Set up status alerts
  • Administrative settings

Set up status alerts page

On the Set up status alerts page, you can choose to turn alerts on or off, specify when the printer should send an alert, and choose from two different types of alerts:

• a pop-up message
- a task bar icon

Click Apply to activate the settings.

Administrative settings page

On the Administrative settings page, you can set the frequency of how often the HP Toolbox checks for printer alerts. Three settings are available:

• Less often: every 15000 milliseconds
• Normal: every 8000 milliseconds
• More often: every 4000 milliseconds

If you want to reduce network I/O traffic, reduce the frequency that the printer checks for alerts.

Documentation tab

The Documentation tab contains links to these information sources:

• User Guide. Contains the information about the printer usage, warranty, specifications, and support that you are currently reading. The user guide is available in both HTML and PDF format.
  • Install Notes. Contains installation information about the printer.

Device Settings button

Clicking the Device Settings button connects you to the printer's embedded Web server. See Using the embedded Web server for more information.

HP Toolbox links

The HP Toolbox links at the left of the screen provide links to the following options:

• Select a device. Select from all HP Toolbox-enabled devices.
• View current alerts. View the current alerts for all set up printers. (You must be printing to view current alerts.)
  • Text only page. View HP Toolbox as a site map linking to text-only pages.

6

Color

This chapter describes how the HP Color LaserJet 5550 series printer provides great color printing. This chapter also describes ways to produce the best possible color prints. The following topics are covered:

Using color
• Managing printer color options
- Matching colors

Using color

The HP Color LaserJet 5550 series printer offers great color printing as soon as you set up the printer. It provides a combination of automatic color features to generate excellent color results for the general office user, plus sophisticated tools for the professional who is experienced with color use.

The HP Color LaserJet 5550 series printer provides carefully designed and tested color tables to provide smooth, accurate color rendition of all printable colors.

Paper selection

For the best color and image quality it is important to select the appropriate paper type from the software printer menu or from the front panel. See Selecting print media.

HP ImageREt 3600

HP ImageREt 3600 print technology is a system of innovative technologies developed exclusively by HP to deliver superior print quality. The HP ImageREt system sets itself apart from the industry by integrating technology advancements and optimizing each element of the print system. Several categories of HP ImageREt have been developed for a variety of user needs.

The system's foundation is comprised of key color laser technologies, including image enhancements, smart supplies, and high-resolution imaging. As the level or category of ImageREt increases, these core technologies are refined for more advanced system usage, and additional technologies are integrated. The HP ImageREt 3600 is a complete HP proprietary printing solution developed and implemented for the HP Color LaserJet 5550 series printer. HP now offers superior image enhancements for general office documents and marketing collateral. HP Image REt 3600 does well in different environmental conditions and with a variety of media. The image mode of this print system is optimized for printing on HP High Gloss Laser Paper.

Best image printing

For the best image quality from the HP Color LaserJet 5550 series printer, use HP High Gloss Laser Paper in the special imaging mode. To select the image mode, set the media type to HP High Gloss (Images). See Printing on special media for more information.

Color options

Color options enable optimal color output automatically for diverse types of documents.

Color options use object tagging, which allows optimal color and halftone settings to be used for different objects (text, graphics, and photos) on a page. The printer driver determines which objects are used on a page and uses halftone and color settings that provide the best print quality for each object. Object tagging, combined with optimized default settings, produces great color out of the box.

In the Windows environment, the Automatic and Manual color options are on the Color tab in the printer driver.

For more information about accessing the printer drivers, see Accessing the printer drivers.

sRGB

Standard red-green-blue (sRGB) is a world-wide color standard originally developed by HP and Microsoft as a common color language for monitors, input devices (scanners, digital cameras), and output devices (printers, plotters). It is the default color space used for HP products, Microsoft operating systems, the World Wide Web, and most office software sold today. sRGB is representative of the typical Windows PC monitor today and the convergence standard for high-definition television.

Note

Factors such as the type of monitor you use and the room lighting can affect the appearance of colors on your screen. For more information, see Matching colors.

The latest versions of Adobe PhotoShop, CorelDRAW™, Microsoft Office, and many other applications use sRGB to communicate color. Most importantly, as the default color space in Microsoft operating systems, sRGB has gained broad adoption as a means to exchange color information between applications and devices using a common definition that assures typical users will experience greatly improved color matching. sRGB improves your ability to match colors between the printer, the PC monitor and other input devices (scanner, digital camera) automatically, without the need to become a color expert.

Printing in four-colors (CMYK)

Cyan, magenta, yellow, and black (CMYK) are the inks used by a printing press. The process is often called four-color printing. CMYK data files are typically used by and originate from graphic arts (printing and publishing) environments. The printer will accept CMYK colors through the PS printer driver. The printer color-rendering of CMYK is designed to provide rich, saturated colors for text and graphics.

CMYK ink set emulation (PostScript only)

The printer's color rendering of CMYK can be made to emulate several standard Offset Press ink sets.

• Default. This selection is good for general purpose rendering of CMYK data. It is designed to render photographs well, while at the same time providing rich saturated colors for text and graphics.
• Specification for Web Offset Publications (SWOP). Common ink standards in the United States and other locations.
  • Euroscale. Common ink standard in Europe and other locations.
  • Dainippon Ink and Chemical (DIC). Common ink standard in Japan and other locations.
• Device. Emulation is turned off. To render photographs properly with this selection, images require color management in the application or operating system.

Managing printer color options

Setting color options to Automatic will typically produce the best possible print quality for color documents. However, there may be cases when you want to print a color document in grayscale (black and white) or wish to change one of the printer's color options.

• Using Windows, print in grayscale or change the color options using settings found on the Color tab in the printer driver.
• Using a Macintosh computer, print in grayscale or change the color options using the Color Matching pop-up menu in the Print dialog box.

For more information about accessing the printer drivers, see Accessing the printer drivers.

Print in Grayscale

Selecting the Print in Grayscale option from the printer driver prints a document in black and white. This option is useful for printing color documents that will be photocopied or faxed.

Automatic or manual color adjustment

The Automatic color adjustment option optimizes the neutral gray color treatment, halftones, and edge enhancements used for each element in a document. For more information, see your printer driver online Help.

Note

Automatic is the default setting and is recommended for printing all color documents.

The Manual color adjustment option allows you to adjust the neutral gray color treatment, halftones, and edge enhancements for text, graphics and photographs. To access the Manual color options, from the Color tab, select Manual, then Settings.

Manual color options

Manual color adjustment allows you to adjust the Color (or Color Map) and Halftoning options individually for text, graphics, and photographs.

Note

Some applications convert text or graphics to raster images. In these cases, the Photographs settings will also control text and graphics.

Halftone options. Halftone options affect the resolution and clarity of your color output. You can select halftone settings for text, graphics, and photographs independently. The two halftone options are Smooth and Detail.

• The Smooth option provides better results for large, solid-filled print areas. It also enhances photographs by smoothing out fine color gradations. Choose this option when uniform and smooth area fills are top priority.
• The Detail option is useful for text and graphics that require sharp distinctions among lines or colors, or images that contain a pattern or a high level of detail. Choose this option when sharp edges and details are top priority.

Neutral Grays. The Neutral Grays setting determines the method used for creating gray colors used in text, graphics, and photographs.

Two values are available for the Neutral Grays setting:

• Black Only generates neutral colors (grays and black) using only black toner. This guarantees neutrals colors without a color cast.
• 4-Color generates neutral colors (grays and black) by combining all four toner colors. This method produces smoother gradients and transitions to non-neutral colors, and it produces the darkest black.

Edge Control. The Edge Control setting determines how edges are rendered. Edge control has three components: adaptive halftoning REt, and trapping. Adaptive halftoning increases edge sharpness. Trapping reduces the effect of color plane misregistration by overlapping the edges of adjacent objects slightly. The color REt option increases the apparent resolution by placing each dot for the smoothest edges.

Four levels of edge control are available:

• Maximum is the most aggressive trapping setting. Adaptive halftoning is on for this setting.
- Normal is the default trapping setting. Trapping is at a medium level and adaptive halftoning and color REt is on.
• Light sets trapping at a minimal level, and adaptive halftoning and color REt is on.
- Off turns off trapping, adaptive halftoning, and color REt.

RGB Color. Two values are available for the RGB Color setting:

• Default instructs the printer to interpret RGB color as sRGB. sRGB is the accepted standard of Microsoft and the World Wide Web Organization (www).
• Vivid instructs the printer to increase the color saturation in the midtones so that colored objects appear more colorful. Printed blues and greens will likely appear darker than on your monitor. This option is good for business graphics or for producing colors similar to the HP Color LaserJet 4550.
• Device instructs the printer to print RGB data in raw device mode. To render photographs properly with this selection, you must manage image color in the application or operating system.

Note

HP Color LaserJet 4550 series Color Emulation can be accessed though the Print Task Quick Sets in the printer driver.

Matching colors

The process of matching printer output color to your computer screen is quite complex because printers and computer monitors use different methods of producing color. Monitors display colors by light pixels using an RGB (red, green, blue) color process, but printers print colors using a CMYK (cyan, magenta, yellow, and black) process.

Several factors can influence your ability to match printed colors to those on your monitor. These factors include:

• print media
  • printer colorants (inks or toners for example)
• printing process (inkjet, press, or laser technology for example)
  • overhead lighting
  • personal differences in perception of color
• software applications
• printer drivers
  • computer operating system
  • monitors
  • video cards and drivers
  • operating environment (humidity for example)

Keep the above factors in mind when colors on your screen do not perfectly match your printed colors.

For most users, the best method for matching colors on your screen to your printer is to print sRGB colors.

PANTONE®\* color matching

PANTONE®* has multiple color matching systems. PANTONE®* Matching System is very popular and uses solid inks to generate a wide range of color hues and tints. See http://www.hp.com/support/clj5550_software for details on how to use PANTONE®* Matching System with this printer.

Sample book color matching

The process for matching printer output to preprinted sample books and standard color references is complex. In general, you can obtain a reasonably good match to a sample book if the inks used to create the sample book are cyan, magenta, yellow, and black. These are usually referred to as process color sample books.

Some sample books are created from spot colors. Spot colors are specially created colorants. Many of these spot colors are outside of the gamut of the printer. Most spot color sample books have companion process sample books that provide CMYK approximations to the spot color.

Most process sample books will have a note on what process standards were used to print the sample book. In most cases they will be SWOP, EURO, or DIC. To get optimal color matching to the process sample book, select the corresponding ink emulation from the printer menu. If you cannot identify the process standard, use SWOP ink emulation.

Printing color samples

To use the Color samples, select the Color sample that is the closest match to the desired color. Use the sample's color value in your application to describe the object you wish to match. Colors may vary depending on paper type and the software application used. For more details on how to use the Color Samples, go to http://www.hp.com/support/clj5550.

Use the following procedure to print color samples at the printer using the control panel:

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight INFORMATION.
3. Press √ to select INFORMATION.
4. Press ▼ to highlight PRINT CMYK SAMPLES or PRINT RGB SAMPLES.
5. Press √ to select PRINT CMYK SAMPLES or PRINT RGB SAMPLES.

These samples are only accurate if you have not changed the defaults.

Color emulation of the HP Color LaserJet 4550

The PCL, PS, and HP Color LaserJet 5550 series printer drivers include a Print Task Quick Set called "HP Color LaserJet 4550 Color Emulation." This Print Task Quick Set allows you to easily set the printer to emulate the colors of the HP Color LaserJet 4550 printer. In general, the emulation color rendering has more contrast and is darker in appearance. This emulation works well with documents that contain graphics.

7

Maintenance

This chapter describes ways to maintain your printer. The following topics are covered:

• Managing the print cartridge
- Changing print cartridges
- Replacing supplies
- Configuring e-mail alerts for supplies status
Periodic cleaning
- When to clean the static discharge comb
• To clean the static discharge comb

Managing the print cartridge

Be sure to use genuine HP print cartridges for the best printing results. This section provides information on proper use and storage of HP print cartridges. It also provides information about using non-HP print cartridges.

HP print cartridges

When you use a genuine new HP print cartridge (part number C9730A, C9731A, C9732A, C9733A), you can obtain the following supplies information:

• percentage of supplies remaining
• estimated number of pages remaining
• number of pages printed

Non-HP print cartridges

Hewlett-Packard Company cannot recommend use of non-HP print cartridges, either new or remanufactured. Because they are not genuine HP products, HP cannot influence their design or control their quality. Service or repair required as a result of using a non-HP print cartridge will not be covered under the printer warranty.

If you use a non-HP print cartridge, certain features, such as remaining toner volume data, may not be available.

If the non-HP print cartridge was sold to you as a genuine HP product, see HP fraud hotline.

Print cartridge authentication

The HP Color LaserJet 5550 series printer automatically authenticates the print cartridges when the cartridges are inserted into the printer. During authentication, the printer will let you know if a cartridge is or is not a genuine HP print cartridge.

If the printer control panel message states that this is not a genuine HP print cartridge and you believe you purchased an HP print cartridge, call the HP fraud hotline.

To override a non-HP print cartridge error message, press the √ button.

HP fraud hotline

Call the HP fraud hotline [phone], toll-free in North America) when you install an HP print cartridge and the printer message says the cartridge is non-HP. HP will help determine if the product is genuine and take steps to resolve the problem.

Your print cartridge might not be a genuine HP print cartridge if you notice the following:

• You are experiencing a high number of problems with the print cartridge.
• The cartridge does not look like it usually does (for example, the orange pull tab is missing, or the packaging differs from HP packaging).

Print cartridge storage

Do not remove the print cartridge from its package until you are ready to use it.

To prevent damage to the print cartridge, do not expose it to light for more than a few minutes.

Print cartridge life expectancy

The life of the print cartridge depends on usage patterns and the amount of toner that print jobs require. Usage conditions and print patterns may cause actual results to vary.

At any time, you can verify the life expectancy by checking the toner level, as described below.

Approximate replacement intervals for supplies

The following table lists the estimated replacement intervals for supplies and the control panel messages that prompt when to replace each item. Usage conditions and print patterns may cause results to vary.

Item Printer message Page count Approximate time			period1
Color cartridges REPLACE	CE BLACKCARTRIDGEREPLACE	13,000 pages2	3.25 months
		12,000 pages2	3 months
Image Transfer kit REPLACE	ACE TRANSFER KIT	120,000 pages 40 months
Image Fuser kit	REPLACE FUSER KIT	150,000 pages	50 months

^1 Approximate life is based on 4,000 pages per month.
^2 Approximate average A4-/letter-size page count based on approximately 5 percent coverage of individual colors.
To order supplies online, go to http://www.hp.com/supplies/clj5550.
You can use the HP Toolbox or the embedded Web server to order supplies. For more information, see hp toolbox and Using the embedded Web server.

Checking the print cartridge life

You can check the print cartridge life using the printer control panel, the embedded Web server, printer software, or HP Web Jetadmin software. Check the supplies gauge on the printer control panel for approximate supply levels.

READY For menus press ✓ ① ② ③ ④

Printer display

1 Message area
2 Prompt area
3 Supplies gauge
4 Print cartridge colors from left to right: black, magenta, yellow, and cyan

For precise levels, follow the instructions below to print a supplies status page.

Using the printer control panel

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight INFORMATION.
3. Press √ to select INFORMATION.
4. Press ▼ to highlight PRINT SUPPLIES STATUS PAGE.
5. Press √ to print the supplies status page.

Using the embedded Web server (for network connected printers)

1. In your browser, enter the IP address for the printer home page. This takes you to the printer status page. See Using the embedded Web server.
2. On the left side of the screen click Supplies Status. This takes you to the supplies status page, which provides print cartridge information.

Using printer software

To use this feature, the HP Toolbox software must be installed on your computer. This software is automatically installed as part of the typical software installation. In addition, you must have access to the World Wide Web.

1. On the Start menu, select Programs, and then click HP toolbox.
   The HP Toolbox opens in a Web browser.
2. On the left side of the window, click the Status tab, and then click Supplies Status.

Note

If you want to order supplies, click Order Supplies. This opens a browser that produces a URL from which to purchase supplies. Select the supplies you wish to order and follow the directions accordingly.

Using HP Web Jetadmin

In HP Web Jetadmin, select the printer device. The device status page shows print cartridge information.

Changing print cartridges

When a print cartridge approaches the end of useful life, the control panel displays a message recommending that you order a replacement. The printer can continue to print using the current print cartridge until the control panel displays a message instructing you to replace the cartridge.

The printer uses four colors and has a different print cartridge for each color: black (K), magenta (M), yellow (Y), and cyan (C).

Replace a print cartridge when the printer control panel displays a REPLACE CARTRIDGE message. The control panel display also indicates the color that should be replaced (unless a genuine HP cartridge is not currently installed).

CAUTION

If toner gets on clothing, wipe it off with a dry cloth and wash the clothes in cold water. Hot water sets toner into fabric.

Note

For information about recycling used print cartridges, see HP Printing Supplies Returns and Recycling Program Information, or visit the HP LaserJet Supplies website at http://www.hp.com/recycle.

To change the print cartridge

1. Lift the top cover of the printer.

Diagram of a printer with open lid and internal compartments, showing two pink arrows indicating rotation or movement (no text or symbols present)

1. Grasp the front cover and pull down.

Diagram of a printer internal structure showing internal components and arrows indicating flow or movement (no text or symbols present)

1. Grasp the green handles on the transfer unit and pull down.

Diagram of a printer with internal structure and arrows indicating process flow (no text or symbols)

CAUTION

Do not place any item on the transfer unit while it is open. If the transfer unit is damaged, severe print quality problems may result.

1. Remove the used print cartridge from the printer.

Interior view of a printer's internal structure showing paper rolls and ventilation slots (no text or symbols visible)

1. Remove the new print cartridge from the bag. Place the used print cartridge in the bag for recycling.

Diagram of a mechanical device with attached components, showing internal structure and no visible text or symbols

1. Grasp both sides of the cartridge and distribute the toner by gently rocking the cartridge from side to side.

Illustration of a pink electric vehicle chassis with directional arrows indicating rotation (no text or symbols)

1. Remove the orange mylar strip and the orange shipping lock from the new print cartridge. Discard the lock.

3D rendering of a mechanical device with a pink arrow indicating rotation or movement (no text or symbols)

1. Remove the inside sealing tape by breaking the orange tab on the end of the new print cartridge and pulling the tape completely out. Discard the tape.

Illustration of a handheld device with a pink arrow indicating direction, showing internal components and a hand holding a pen (no text or symbols present)

1. Align the print cartridge with the tracks inside the printer and insert the cartridge until it is completely seated and clicks into place.

Interior view of a computer room showing internal components with pink arrows indicating movement or flow (no text or symbols present)

Note

If a cartridge is in the wrong slot, the control panel will display the message INCORRECT CARTRIDGE or INCORRECT SUPPLIES.

1. Close the front cover and then close the top cover. After a short while, the control panel should display Ready.
2. Installation is complete. Place the used print cartridge in the box in which the new cartridge arrived. See the enclosed recycling guide for recycling instructions.
3. If you are using a non-HP print cartridge, check the control panel for further instructions.
   For additional help, go to http://www.hp.com/support/clj5550.

Replacing supplies

When you use genuine HP supplies, the printer automatically notifies you when supplies are nearly depleted. The notification to order supplies allows ample time to order new supplies before they need to be replaced.

Locating supplies

Supplies are identified by labeling and blue plastic handles.

The following figure illustrates the location of each supply item.

Diagram of a printer internal structure with numbered parts, highlighting the component as part 1.

Supply item locations

1 fuser
2 print cartridges
3 transfer unit

Supply replacement guidelines

To facilitate the replacement of supplies, keep the following guidelines in mind when setting up the printer.

• Sufficient space is required above and in the front of the printer for removing supplies.
  • The printer should be located on a flat, sturdy surface.

For instructions on installing supplies, see the installation guides provided with each supply item or see more information at http://www.hp.com/support/clj5550. When you connect, select Solve a Problem.

CAUTION

Hewlett-Packard recommends the use of HP products in this printer. Use of non-HP products may cause problems requiring service that is not covered by the Hewlett-Packard warranty or service agreements.

Making room around the printer for replacing supplies

The following illustration shows the clearance necessary in front of, above, and to the side of the printer for replacing supplies.

Diagram of an HP printer internal structure with numbered annotations indicating components and parts.

Supplies replacement clearance diagram

1 628 mm (25 inches)
2 1550 mm (61 inches)
3 940 mm (37 inches)

Configuring e-mail alerts for supplies status

You can use HP Web Jetadmin or the embedded Web server to configure the system to alert you of problems with the printer. The alerts take the form of e-mail messages to the e-mail account(s) that you specify.

You can configure the following:

• the printer(s) you want to monitor
- what alerts are to be received (for example, alerts for paper jams, paper out, supplies status, and cover open)
• the e-mail account to which the alerts should be forwarded

Software Information location
HP Web Jetadmin See the HP Web Jetadmin Help	system for details on alerts and how to set them up.
Embedded Web server	See Using the embedded Web server for general information about the embedded Web server.See the embedded Web server Help system for details on alerts and how to set them up.

You can also receive alerts through the HP Toolbox software. These alerts display as either a pop-up window or an animated taskbar icon. The HP Toolbox software does not send alerts in the form of an e-mail message. You can configure the HP Toolbox software to deliver only the alerts you want to receive, and you can also specify how often the software checks the printer's status. See Using the HP Toolbox for more information.

Periodic cleaning

To ensure the printer continues to function properly throughout its life, periodic cleaning is necessary.

One area of the printer that must be cleaned periodically is the overhead transparency (OHT) and two-sided printing (duplex) sensor. The OHT sensor detects and ensures that the printer uses the correct print mode. The sensor also corrects for paper skew on the second side of the page during two-sided (duplex) printing.

The static discharge comb at the top of the printer also needs periodic cleaning. A brush to clean the static discharge comb is stored inside the front cover.

When to clean the OHT sensor

The printer control panel reports paper is being used instead of the desired transparency.
• The images on the front and back of the printed page do not align.

To clean the OHT sensor

Note

If these instructions do not remedy the OHT and two-sided printing (duplex) problems, contact HP support at http://www.hp.com/support.

1. Lift the top cover of the printer.

Diagram of an open printer with internal components and directional arrows indicating motion (no text or symbols)

1. Grasp the front cover and pull down.

Diagram of a printer internal structure showing internal components and directional arrows (no text or symbols)

1. Grasp the green handles on the transfer unit and pull down.

Diagram of an open printer with internal components and two pink arrows indicating parts of the lid (no text or symbols present)

1. Remove the cyan print cartridge from the printer.

CAUTION

Do not place the cyan print cartridge on the transfer unit while it is open. If the transfer unit is damaged, severe print quality problems may result.

1. Remove the OHT sensor cleaning brush from the base of the printer.

Diagram of an open printer internal structure with a magnified inset showing internal components (no text or symbols visible)

1. Insert the brush into the base notch and brush from right to left four or five times.

Illustration of a hand using a tool to press or install electronic components, with no visible text or symbols.

CAUTION

Do not brush back and forth over the sensor. This will smear dust over the sensor and cause printer errors.

1. Replace the OHT sensor cleaning brush into the base of the printer.

2. Align the cyan print cartridge with the tracks inside the printer and insert the cartridge until it is completely seated.

3. Close the front cover, and then close the top cover.

Diagram of a printer with arrows indicating process flow (no text or symbols present)

When to clean the static discharge comb

Clean the static discharge comb when you replace the black print cartridge, when you replace the image transfer kit, or when print quality defects occur.

Note

If you are replacing the black print cartridge, clean the static discharge comb first and then replace the black print cartridge. (Toner might fall onto the black print cartridge during cleaning.) Be careful not to get toner on your clothes

If you are replacing the image transfer kit, clean the static discharge comb with the new cleaning brush included with the replacement image transfer kit.

To clean the static discharge comb

1. Lift the top cover of the printer.

Diagram of an open printer with internal components and directional arrows indicating motion (no text or symbols)

1. Grasp the front cover and pull down.

Diagram of a printer internal structure showing internal components and directional arrows (no text or symbols)

1. Remove the cleaning brush from inside the front cover.

Diagram showing a hand inserting a component into a device, with an inset magnified view highlighting the process (no text or symbols present)

1. Grasp the green handles on the ETB and pull down.

Diagram of a printer's internal structure showing paper feeding into a paper holder with arrows indicating process flow (no text or symbols present)

1. Rub the cleaning brush back and forth three times over the static discharge comb at the top of the printer to remove excess toner. Shake the brush over a waste receptacle to dispose of the excess toner.

Technical diagram of a printer internal structure with magnified view highlighting a 3x speed adjustment mechanism

1. Close the ETB and store the cleaning brush inside the front cover. If you are replacing the ETB, a new cleaning brush is included.

Diagram of a printer internal structure showing internal components and a magnified view of the printer's internal structure (no text or symbols present)

1. Close the front cover and then the top cover.

Diagram of a printer internal structure with pink arrows indicating rotation or movement (no text or symbols present)

Problemsolving

This chapter describes what to do if problems arise with your printer. The following topics are covered:

Basic troubleshooting checklist
- Troubleshooting information pages
• Control panel message types
Control panel messages
Paper jams
• Common causes of paper jams
- Clearing paper jams
Media-handling problems
• Printer feeds multiple sheets
• Printer feeds incorrect page size
• Printer pulls from incorrect tray
• Media does not feed automatically
- Unable to select paper sizes for Tray 2, 3, 4, or 5 using the printer control panel.
● Media does not feed from Tray 2, 3, 4, or 5
• Transparencies or glossy paper will not feed
- Transparencies are not printed correctly and the control panel displays an error message indicating a problem with the media in the tray.
Envelopes jam or will not feed in the printer
• Output is curled or wrinkled
Printer will not duplex or duplexes incorrectly
• Printer response problems
No display message
Printer is on, but nothing prints
• Printer is on, but is not receiving data
- Unable to select the printer from the computer
• Printer control panel problems
• Control panel settings work incorrectly
- Unable to select Tray 3, 4, or 5
• Color printing problems
- Printing black instead of color

Incorrect shade
Missing color
- Inconsistent colors after installing a print cartridge
- Printed colors do not match screen colors
- Incorrect printer output
Incorrect fonts are printed
● Unable to print all characters in a symbol set
- Drifting text between printouts
- Erratic, missing characters or interrupted printout
- Partial printout
- Software application problems
- Unable to change system selections through software
- Unable to select a font from the software
- Unable to select colors from the software
- Printer driver does not recognize Tray 3, 4, or 5 in the duplex printing accessory
• Print quality troubleshooting

Basic troubleshooting checklist

If you are experiencing problems with the printer, this checklist may help identify the cause of the problem.

• Is the printer connected to power?
Is the printer on?
• Is the printer in the Ready state?
• Are all necessary cables connected?
- Are any messages displayed on the control panel?
• Was a genuine HP supply installed?

- Were recently replaced print cartridges installed correctly? Was the pull tab on the cartridge removed?

- Were recently installed supply items (image fuser kit, image transfer kit) installed correctly?

If you cannot find solutions to printer problems in this guide, see http://www.hp.com/support/clj5550.

For additional information on installation and setup of the printer, see the start guide for this printer.

Factors affecting printer performance

Several factors affect the time it takes to print a job. Among these is maximum printer speed, measured in pages per minute (ppm). Other factors that affect printing speed include the use of special paper (such as transparencies, heavy paper, and custom-size paper), printer processing time, and download time. Other factors include:

• the complexity and size of graphics
• the printer I/O configuration (network versus parallel)
• the speed of the computer you are using
• the amount of printer memory installed
• the network operating system and configuration (if applicable)
• printer personality (PCL or PostScript 3 emulation)

Note

Adding additional printer memory might resolve memory problems, improve how the printer handles complex graphics, and improve download times, but it will not increase maximum printer speed (ppm rating).

Troubleshooting information pages

From the printer control panel, you can print pages that can help diagnose printer problems. The procedures for printing the following information pages are described here:

• paper path test page
- registration page
• event log

Paper path test page

The paper path test page is useful for testing the paper handling features of the printer. You can define the paper path you want to test by selecting the source, destination, and other options available on the printer.

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight DIAGNOSTICS.
3. Press √ to select DIAGNOSTICS.
4. Press ▼ to highlight PAPER PATH TEST.
5. Press √ to select PAPER PATH TEST.

The message Performing... PAPER PATH TEST appears on the display until the printer finishes the paper path test. The printer returns to the Ready state after printing the paper path test page.

Registration page

The registration page prints a horizontal arrow and a vertical arrow that shows how far from center an image can be printed on the page. You can set registration values for a tray so that an image on the back and front of a page is centered. Setting the registration also allows the image to be centered on the page. Image placement varies slightly for each tray. Perform the registration procedure for each tray.

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight PRINT QUALITY.
5. Press √ to select PRINT QUALITY.
6. Press ▼ to highlight SET REGISTRATION.
7. Press √ to select SET REGISTRATION.

Note

You can select a tray by specifying a SOURCE. The default SOURCE is Tray 2. To set the registration for Tray 2, go to step 12. Otherwise, proceed to the next step.

1. Press ▼ to highlight SOURCE.
2. Press √ to select SOURCE.

3. Press ▼ or ▲ to highlight a tray.

4. Press to select the tray.
   After selecting the tray, the printer control panel returns to the SET REGISTRATION menu.

5. Press ▼ to highlight PRINT TEST PAGE.
6. Press √ to select PRINT TEST PAGE.
7. Follow the instructions on the printed page.

Event log

The event log lists the printer events, including printer jams, service errors, and other printer conditions.

1. Press M_ENU to enter the MENUS.
2. Press ▼ to highlight DIAGNOSTICS.
3. Press √ to select DIAGNOSTICS.
4. Press ▼ to highlight PRINT EVENT LOG.
5. Press √ to select PRINT EVENT LOG.

The message Printing... EVENT LOG appears on the display until the printer finishes printing the event log. The printer returns to the Ready state after printing the event log.

Control panel message types

Control panel messages are divided into three types, depending on their severity.

• Status messages
• Warning messages
• Error messages

Within the error message category, some messages are ranked as Critical error messages. This section explains the differences between the control panel message types.

Status messages

Status messages reflect the current state of the printer. They inform you of normal printer operation and require no interaction to clear them. They change as the state of the printer changes. Whenever the printer is ready, not busy, and has no pending warning messages, the status message Ready is displayed if the printer is online.

Warning messages

Warning messages inform you of data and print errors. These messages typically alternate with the Ready or Status messages and remain displayed until the √ button is pressed. If CLEARABLE WARNINGS is set to JOB in the printer's configuration menu, these messages are cleared by the next print job.

Error messages

Error messages communicate that some action must be performed, such as adding paper or clearing a paper jam.

Some error messages are auto-continuable. If AUTO CONTINUE=ON is displayed, the printer will continue normal operation after displaying an auto-continuable error message for 10 seconds.

Note

Any button pressed during the 10-second display of an auto-continuable error message will override the auto-continue feature and the function of the button pressed will take precedence. For example, pressing the MENU button will cancel the job.

Critical error messages

Critical error messages inform you of a device failure. Some of these messages can be cleared by turning the printer off and then on. These messages are not affected by the AUTO CONTINUE setting. If a critical error persists, service is required.

The following table lists and describes control panel messages, in numerical and alphabetical order.

Control panel messages

Control panel messages

Control panel message Description	Recommended action
10.X.X SUPPLY MEMORY ERRORalternates with For help press ?The supplies gauge will display the consumption levels of print cartridges.	The printer cannot read or write to at least one print cartridge memory tag or at least one memory tag is missing.The following control panel messages correspond to the color of the print cartridge:10.00.00 = black print cartridge10.00.01 = cyan print cartridge10.00.02 = magenta print cartridge10.00.03 = yellow print cartridge	1. Turn the printer off and then back on.2. Press ? for more information.3. If the error persists, contact HP support at http://www.hp.com/support/clj5550.
13.XX.YY JAM IN DUPLEX PATHFor help press ?	There is a jam in the duplex path. 1.	Press ? for detailed information about clearing the jam.2. Press ▲ and ▼to step through the instructions.3. If the message persists after clearing all pages, contact HP Support at http://www.hp.com/support/clj5550.
13.XX.YY JAM IN PAPER PATHFor help press ?	There is a jam in the media path. 1.	Press ? for detailed information about clearing the jam.2. Press ▲ and ▼to step through the instructions.3. If the message persists after clearing all pages, contact HP Support at http://www.hp.com/support/clj5550.
13.XX.YY JAM IN TOP COVER AREAFor help press ?	There is a jam in the top cover area. 1.	Press ? for detailed information about clearing the jam.2. Press ▲ and ▼to step through the instructions.3. If the message persists after clearing all pages, contact HP Support at http://www.hp.com/support/clj5550.
13.XX.YY JAM IN TRAY 1Clear jam then press▼alternates with 13.XX.YY JAM IN TRAY 1For help press ?	A page is jammed in the multi-purpose tray.	1. Press ? for detailed information about clearing the jam.2. Press ▲ and ▼ to step through the instructions.3. If the message persists after clearing all pages, contact HP Support at http://www.hp.com/support/clj5550.
13.XX.YY JAM IN TRAY XFor help press ?	A page is jammed in Tray 2, 3, 4, or 5, or in multiple trays.	1. Press ? for detailed information about clearing the jam.2. Press ▲ and ▼ to step through the instructions.3. If the message persists after clearing all pages, contact HP Support at http://www.hp.com/support/clj5550.
13.XX.YY MULTIPLE JAMS IN DUPLEX PATHFor help press ?	There is a jam in the duplex path. 1.	Press ? for detailed information about clearing the jam.2. Press ▲ and ▼ to step through the instructions.3. If the message persists after clearing all pages, contact HP Support at http://www.hp.com/support/clj5550.
13.XX.YY MULTIPLE JAMS IN PAPER PATHFor help press ?	There are multiple jams in the paper path.	1. Press ? for detailed information about clearing the jam.2. Press ▲ and ▼ to step through the instructions.3. If the message persists after clearing all pages, contact HP Support at http://www.hp.com/support/clj5550.
20 INSUFFICIENT MEMORYFor help press ?alternates with 20 INSUFFICIENT MEMORYTo continue press √	The printer has received more data from the computer than fits in available memory.	1. Press to continue printing.NoteA loss of data will occur.2. Reduce the complexity of the print job to avoid this error in the future.3. Adding memory to the printer may allow printing of more complex pages.
22 EIO XBUFFER OVERFLOWTo continue press √	The printer's EIO card in slot X has overflowed its I/O buffer during a busy state.	1. Press to continue printing.NoteA loss of data will occur.2. If the message persists, contact HP Support at http://www.hp.com/support/clj5550.
22 PARALLEL I/O BUFFER OVERFLOWFor help press ?alternates with22 PARALLEL I/O BUFFER OVERFLOWTo continue press √	The printer's parallel buffer has overflowed during a busy state.	1. Press to resume printing.NoteA loss of data will occur.2. If the message persists, disconnect the parallel cable at both ends and reconnect.3. If the message still persists, contact HP Support at http://www.hp.com/support/clj5550.
22 SERIAL I/O BUFFER OVERFLOWTo continue press √	The printer's serial buffer has overflowed during a busy state.	1. Press to continue printing.NoteA loss of data will occur.2. If the message persists, contact HP Support at http://www.hp.com/support/clj5550.
22 USB I/O BUFFER OVERFLOWTo continue press √	The printer's USB buffer has overflowed during a busy state.	1. Press to continue printing.NoteLoss of data will occur.2. If the message persists, contact HP Support at http://www.hp.com/support/clj5550.
40 BAD SERIAL TRANSMISSIONTo continue press √	A serial data error (parity, framing, or line overrun) has occurred while the printer was receiving data.	1. Press to continue printing.NoteA loss of data will occur.2. If the message persists, contact HP Support at http://www.hp.com/support/clj5550.
40 EIO X BAD TRANSMISSIONTo continue press √	A connection with the card in EIO slot X has been abnormally broken.	1. Press to continue printing.NoteA loss of data will occur.2. If the message persists, contact HP Support at http://www.hp.com/support/clj5550.
41.3 UNEXPECTEDSIZE IN TRAY XFor help press ?	Media is loaded that is longer or shorter in the feed direction than the size configured for the tray.	1. If the incorrect size was selected, cancel the job or press ? to access help.2. Press ▲ and ▼to step through the instructions.
41.3 UNEXPECTEDSIZE IN TRAY XFor help press ?alternates withLOAD TRAY XTo use another tray press √	Media is loaded that is longer or shorter in the feed direction than the size configured for the tray.	1. If the incorrect size was selected, cancel the job or press ? to access help.OR2. Press √ to select another tray.3. Press ▲ and ▼to step through the instructions.
41.5 UNEXPECTEDTYPE IN TRAY XFor help press ?	The printer senses a different media type in the media path than configured in the tray.	1. If the incorrect size was selected, cancel the job or press ? to access help.2. Press ▲ and ▼to step through the instructions.
41.5 UNEXPECTEDTYPE IN TRAY XFor help press ?alternates withLOAD TRAY XTo use another tray press √	The printer senses a different media type in the media path than configured in the tray.	1. If the incorrect size was selected, cancel the job or press ? to access help.OR2. Press √ to select another tray.3. Press ▲ and ▼to step through the instructions.
41.XPRINTER ERRORFor help press ?alternates with41.XPRINTER ERRORTo continue press √	A printer error has occurred. 1.	Press √ to continue or press ?for more information.2. If the message persists, turn the printer off and then back on.3. If the message still persists, contact HP Support at http://www.hp.com/support/clj5550.
49.XXXXPRINTER ERRORTo continue turn off then on	A critical firmware error has occurred.	1. Turn the printer off and then back on.2. If the message persists, contact HP Support at http://www.hp.com/support/clj5550.
50.X FUSER ERRORFor help press ?	A fuser error has occurred.The following are specific fuser errors:50.1 - A low fuser temperature error has occurred in the main thermistor.50.2 - A fuser warm-up service error has occurred.50.3 - A high fuser temperature error has occurred in the main thermistor.50.4 - A faulty fuser error has occurred.50.8 - A low fuser temperature error has occurred in the sub-thermistor.50.9 - A high fuser temperature error has occurred in the sub-thermistor.These errors may be due to an inadequate power supply, inadequate line voltage, or a problem with the fuser.	1. Turn the printer off and then back on.2. If the message persists, contact HP Support at http://www.hp.com/support/clj5550.
51.2YPRINTER ERRORFor help press ?alternates with51.2YPRINTER ERRORTo continueturn off then on	Either a beam detects an error, or a laser error has occurred.The values of Y are:Y Description0 - Black1 - Cyan2 - Magenta3 - Yellow	1. Turn the printer off and then back on.2. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.
53.XX.X CHECK RAMDIMM SLOT X	An error occurred on some memory of the printer.Values of X, Y, and ZZ are:X Device Location1 Slot 12 Slot 2Y Bank Number1 Bank number 12 Bank number 23 Bank number 34 Bank number 4ZZ Error Number01 Unsupported memory02 Unrecognized memory03 Under minimum memory limit04 Exceeded maximum memory limit05 Failed RAM test	If prompted to do so, press √to continue. The printer should come to the Ready state, but will not make full use of all memory installed.Otherwise:1. Turn the printer off.2. Verify that all DDR SDRAM meets specifications and is correctly seated.3. Turn the printer on.4. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.
54.01PRINTER ERRORTo continueturn off then on	Printing cannot continue. The humidity environmental sensor is abnormal.	1. Turn the printer off and then back on.2. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.
54.XXPRINTER ERRORTo continueturn off then on	Printing cannot continue. There is a toner remaining sensor malfunction.Values of X are:15 - Yellow16 - Magenta17 - Cyan18 - Black	1. Turn the printer off and then back on.2. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.
55 DC CONTROLLERERRORFor help press ?alternates with55.0X.YYPRINTER ERRORTo continueturn off then on	A printer command error has occurred.	1. Turn the printer off and then back on.2. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.
56.XXPRINTER ERRORTo continueturn off then on	A printer error has occurred.	1. Turn the printer off and then back on.2. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.
57.0XPRINTER ERRORTo continueturn off then on	A printer fan error has occurred.	1. Turn the printer off and then back on.2. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.
58.0XPRINTER ERRORFor help press ?alternates with58.0XPRINTER ERRORTo continueturn off then on	A memory tag error was detected.	1. Turn the printer off and then back on.2. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.
59.XYPRINTER ERRORFor help press ?alternates with59.XYPRINTER ERRORTo continueturn off then on	A printer motor error has occurred.	1. Turn the printer off and then back on.2. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.Note: This message might also appear if the transfer unit is missing or incorrectly installed. Ensure that the transfer unit is correctly installed.
62 NO SYSTEMTo continueturn off then on	No system was found. 1. Turn the printer off and then back on.2. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.
68.X PERMANENTSTORAGE FULLFor help press ?alternates with68.X PERMANENTSTORAGE FULLTo continue press √	A non-volatile storage device is full. Pressing the √ button should clear the message. Printing can continue, but there may be unexpected behavior.X Description0 for onboard NVRAM1 for removable disk (flash or hard)	1. Press √continue.2. For 68.0 errors, turn the printer off and then back on.3. If a 68.0 error persists, contact HP Support.4. For 68.1 errors, use the HP Web Jetadmin software to delete files from the disk drive.5. For 68.1 errors that persist, contact HP Support.
68.X PERMANENTSTORAGE WRITE FAILTo continue press √	A non-volatile storage device is full. Pressing the √ button should clear the message. Printing can continue, but there may be unexpected behavior.X Description0 for onboard NVRAM1 for removable disk (flash or hard)	1. Press √continue.2. If the message persists, turn the printer off and then back on.3. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.
68.X STORAGE ERROR SETTINGS CHANGEDFor help press ?alternates with68.X STORAGE ERROR SETTINGS CHANGEDTo continue press √	One or more printer settings saved in the non-volatile storage device is invalid and has been reset to its factory default. Pressing the √ button should clear the message. Printing can continue, but there may be unexpected behavior.	1. Press √continue.2. If the message persists, turn the printer off and then back on.3. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.
79.XXXXPRINTER ERRORTo continueturn off then on	A critical hardware error has occurred.	1. Turn the printer off and then back on.2. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.
8X.YYYYEIO ERROR	The EIO accessory card in slot X has encountered a critical error.X Description1: error in slot 12: error in slot 2	1. Turn the printer off and then back on.2. If the problem persists, contact HP Support at http://www.hp.com/support/clj5550.
Access DeniedMENUS LOCKED	An attempt has been made to modify a menu item while the control panel security mechanism is enabled by the printer administrator. The message will disappear shortly, and the printer will return to Ready or BUSY state.	Contact the printer administrator to change settings.
BAD OPTIONAL TRAYCONNECTION	The 500-sheet input tray is not making proper connection with the printer.	1. Verify that the printer is on a level surface.2. Turn the printer off.3. Reseat the printer on the 500-sheet input tray.4. If the printer is on the optional printer stand, make sure that the support straps are attached to the rear of the stand and printer.5. Turn the printer on after reseating the 500-sheet input tray.
Calibrating...	The printer is calibrating.	No action necessary.
Canceling... The printer is in the process of cancelinga job. The message will continue to be displayed while the job is stopped, the paper path flushed, and any remaining incoming data on the active data channel is received and discarded.		No action necessary.
CARD SLOT XNOT FUNCTIONAL	The flash card in slot X is not working correctly.	1. Turn the printer off.2. Remove the card from the slot indicated and replace with a new card.
Checking paper path The engine is turning its rollers to check for possible paper jams.		No action necessary.
Checking printer	The engine is doing an internal test.	No action necessary.
CHOSEN PERSONALITYNOT AVAILABLETo continue press▼alternates withCHOSEN PERSONALITYNOT AVAILABLEFor help press ?	PJL encountered a request for a personality that did not exist in the printer. The job is aborted and no pages will be printed.	1. Press ? for detailed information.2. Press ▲ and ▼ to step through the instructions.3. Reprint using the correct driver for the device.
Clearing event log This message is displayed while the event log is cleared. The printer will exit the MENUS once the event log has been cleared.		No action necessary.
Clearing paper path The printer jammed or detected misplaced paper when turned on. The printer is attempting to eject jammed pages automatically.		No action necessary.
CLOSE FRONT COVERSFor help press ?	The covers need to be closed. Close front covers.
DATA RECEIVEDTo print last page press√alternates withReadyTo print last page press√	The printer received data and is waiting for a form feed. When the printer receives another file, the message should disappear.	Press √to continue printing.
Deleting... The printer is currently deleting the stored job.		No action necessary.
DISK DEVICEFAILURETo clear press√alternates withReady	A device failure has occurred on the specified drive. Printing may continue for jobs that do not require access to the disk drive.	1. To clear the message, press the √key.2. If the message persists, remove and re-install the EIO disk drive.3. Turn the printer back on.4. If the message still persists, replace the EIO disk drive.
DISK FILEOPERATION FAILEDTo clear press√alternates withReady	The printer received a PJL file system command that attempted to perform an illogical operation (for example, to download a file to a non-existent directory). Printing may continue.	1. To clear the message, press the √key.2. If the message persists, turn the printer off and then back on.3. If the message reappears, there may be a problem with the software application.
DISK FILESYSTEM IS FULLTo clear press√alternates withReady	The printer received a PJL file system command that attempted to store something on the file system but was unsuccessful because the file system is full.	1. Use the HP Web Jetadmin software to delete files from the EIO disk drive, or delete the stored job from the printer control panel.2. To clear the message, press the √key.3. If the message persists, turn the printer off and then back on.
DISK ISWRITE PROTECTEDTo clear press√alternates withReady	The file system device is protected and no new files can be written to it.	1. To enable writing to the disk, turn off write protection, using HP Web Jetadmin.2. To clear the message, press the √key.3. If the message persists, turn the printer off and then back on.
EIO DISK XNOT FUNCTIONALFor help press ?	The EIO disk in slot X is not working correctly.	1. Turn the printer off.2. Remove the EIO disk from the slot indicated and replace with a new EIO disk drive.
EIO X diskinitializing	The EIO disk device in slot X is initializing.	No action necessary.
EIO X diskspinning up	The EIO disk device in slot X is spinning up its platter.	No action necessary.
Event Log Empty SHOW EVENT LOG	G was selected from the control panel, and the event log is empty.	No action necessary.
FLASH DEVICEFAILURETo clear press√alternates withReady	A device failure has occurred on the specified drive. Printing may continue for jobs that do not require the Flash DIMM.	1. To clear the message, press the √key.2. If the message persists, remove and re-install the EIO disk drive.3. Turn the printer back on.4. If the message still persists, replace the Flash DIMM.
FLASH FILEOPERATION FAILEDTo clear press√alternates withReady	The printer received a PJL file system command that attempted to perform an illogical operation (for example, to download a file to a non-existent directory).	1. To clear the message, press the √key.2. If the message persists, turn the printer off and then back on.3. If the message reappears, there may be a problem with the software application.
FLASH FILESYSTEM IS FULLTo clear press√alternates withReady	The printer received a PJL file system command that attempted to store something on the file system but was unsuccessful because the file system is full.	1. Use HP Web Jetadmin software to delete files from the Flash Memory and try again.2. To clear the message, press the √key.3. If the message persists, turn the printer off and then back on.
FLASH ISWRITE PROTECTEDTo clear press√alternates withReady	The file system device is protected and no new files can be written to it.	1. To enable writing to the Flash Memory, turn off write protection, using HP Web Jetadmin.2. To clear the message, press the √key.3. If the message persists, turn the printer off and then back on.
Genuine HP supplies installed A new HP cartridge has been installed.The printer returns to the Ready state after approximately 10 seconds.		No action necessary.
If no paper in tray:MANUALLY FEED<TYPE><SIZE>For help press ?alternates withMANUALLY FEED<TYPE><SIZE>To use another tray press √	A job was sent that specified MANUAL FEED and Tray 1 is empty.	Load Tray 1 with the specified media.ORTo use media from another tray, press √and select the tray from the list.
Incorrect The wrong PIN was entered.	After three incorrect PIN entries, the printer will return to Ready.	Re-enter PIN correctly.
INCORRECTCARTRIDGEalternates withFor help press ?The supplies gauge will display the consumption levels of print cartridges.	A cartridge is installed in the wrong slot and the cover is closed.	1. Open the top cover and image transfer unit.CAUTIONThe image transfer unit can be easily damaged.2. Remove the incorrect print cartridge.3. Install the correct print cartridge.4. Close the front cover.
INCORRECT SUPPLIESFor status press √The supplies gauge will display the consumption levels of print cartridges.	At least one supply item is incorrectly positioned in the printer and another supply item is missing, incorrectly placed, out, or low.	1. Press to access the SUPPLIES STATUS menu.2. Press ▲ and ▼ to highlight the specific supply that has a problem.3. Press ? to view help for the supply.4. Press ▲ and ▼ to step through the instructions.
Initializingpermanent storage	Displayed when the printer is turned on to show that permanent storage is being initialized.	No action necessary.
Initializing... This message is displayed when the printer is turned on, as soon as the individual tasks begin initialization.		No action necessary.
INSERT OR CLOSETRAY XFor help press ?	Tray XX must be inserted or closed before the current job can be printed.	Close the tray indicated.
INSTALLCARTRIDGEalternates withFor help press ?The supplies gauge will display the consumption levels of print cartridges.	The cartridge is either not installed or not correctly installed in the printer.	1. Open the top cover and image transfer unit.CAUTIONThe image transfer unit can be easily damaged.2. Insert the print cartridge and make sure that it is fully seated.3. Close the front cover.4. If the error persists, contact HP support at http://www.hp.com/support/clj5550.
INSTALL SUPPLIESFor status press √The supplies gauge will display the consumption levels of print cartridges.	At least one supply item is missing or is not correctly seated in the printer and another supply item is missing, incorrectly placed, out, or low. Insert the supply item or make sure the installed supply item is fully seated.	1. Press to access the SUPPLIES STATUS menu.2. Press ▲ and ▼ to highlight the specific supply that has a problem.3. Press ? to view help for the supply.4. Press ▲ and ▼ to step through the instructions.
INSUFFICIENT MEMORY TO LOAD FONTS/DATAFor help press ?alternates withTo continue press √	The device does not have enough memory to load the data, such as fonts or macros from the location specified.can be one of the following:INTERNAL = ROM directly on the formatter boardCARD SLOT X = font card in slot XDIMMSEIO X DISK = removable hard disk installed in EIO slot X	1. To use the device without the data, press √.2. To solve the problem, add more memory to the device. DDR SDRAM Memory: 128MB, (Q2630A) or 256MB (Q2631A).
LOAD TRAY 1:For help press ?alternates withLOAD TRAY 1:To continue press √	Tray 1 is loaded and configured for a type and size other than the one specified in the job.	1. If the correct paper is loaded, press √.2. Otherwise, remove the incorrect paper and load Tray 1 with the specified paper.3. Confirm that the media guides are in the correct position.4. Verify that the tray switch is in the correct position.5. To use another tray, remove paper from Tray 1 and then press √.
LOAD TRAY X<SIZE>For help press ?alternates withLOAD TRAY X<SIZE>To use another tray press √	Tray XX is either empty or configured for a type and size other than specified in the job.	1. Load the paper tray with the specified media.2. Confirm that the media guides are in the correct position.3. Verify that the tray switch is in the correct position.4. To use another tray, press √.
LOAD TRAY X<SIZE>Move tray switch to CUSTOMalternates withLOAD TRAY X<SIZE>To use another tray press √	Tray XX is either empty or configured for a type and size other than specified in the job. The size specified in the job requires that the tray switch be in the CUSTOM position.	1. Load the paper tray with the specified media.2. Confirm that the media guides are in the correct position.3. Verify that the tray switch is in the CUSTOM position.4. To use another tray, press √.
LOAD TRAY XX:<SIZE>For help press ?	Tray XX is either empty or configured for a type and size other than specified in the job. No other tray is available.	1. Load the paper tray with the specified media.2. Confirm that the media guides are in the correct position.3. Verify that the tray switch is in the correct position.
LOAD TRAY XX:<SIZE>Move tray switch to CUSTOMalternates withLOAD TRAY XX:<SIZE>For help press ?	Tray XX is either empty or configured for a type and size other than specified in the job. The size specified in the job requires that the tray switch be in the CUSTOM position.No other tray is available.	1. Load the paper tray with the specified media.2. Confirm that the media guides are in the correct position.3. Verify that the tray switch is in the CUSTOM position.
LOAD TRAY XX:<SIZE>Recommend move switch to STANDARDalternates withLOAD TRAY XX:<SIZE>For help press ?	Tray XX is either empty or configured for a type and size other than specified in the job. The size specified in the job is a detectable size.No other tray is available.	1. Load the paper tray with the specified media.2. Confirm that the media guides are in the correct position.3. Verify that the tray switch is in the STANDARD position so the printer will automatically detect the size.
LOAD TRAY XX:Recommend move switch to STANDARDalternates withLOAD TRAY XX:To use another tray press √	Tray XX is either empty or configured for a type and size other than specified in the job. The size specified in the job is a detectable size.	1. Load the paper tray with the specified media.2. Confirm that the media guides are in the correct position.3. Verify that the tray switch is in the STANDARD position so the printer will automatically detect the size.
Loadingprogram XXDo not power off	Programs and fonts can be stored on the printer's file system and are loaded into RAM when the printer is turned on. The number XX specifies a sequence number indicating the current program being loaded.	No action necessary. Do not turn the printer off.
MANUALLY FEEDFor help press ?	A job was sent specifying MANUAL FEED and Tray 1 is empty.No other tray is available.	Load Tray 1 with the specified media.
MANUALLY FEEDFor help press ?alternates withMANUALLY FEEDTo continue press √	A job was sent that specified MANUAL FEED. Tray 1 is already loaded.	Load Tray 1 with the specified media.ORIf the corrected paper is loaded in Tray 1, press √ to print.To use media from another tray, clear the media from Tray 1, and then press √.
MANUALLY FEED OUTPUT STACK	The even-numbered pages of a manual two-sided document have been printed and the printer is waiting for the output stack to be inserted for the odd-numbered pages to be printed.	Follow the instructions on the Print on Both Sides instruction dialog box at the computer.ORPress ? for help at the printer.
Moving solenoidTo exit pressthe STOP key	The printer is executing a Component Test and the component selected is a solenoid.	No action necessary.
NO STORED JOBS No jobs stored on	the EIO disk. This message is displayed when the user enters the RETRIEVE JOB menu and there are no jobs to retrieve.	No action necessary.
NON HP SUPPLYDETECTEDThe supplies gauge will display the consumption levels of print cartridges.	A new cartridge has been installed that is not made by HP. This message is displayed until an HP cartridge is installed or the √ button is pressed.	If you believe you purchased an HP cartridge, please call the HP fraud hotline at (1-877-219-3183, toll-free in North America).CAUTIONAny printer repair required as a result of using non-HP cartridges is not covered under HP warranty.To continue printing, press √
NON HP SUPPLYIN USEalternates withReadyThe supplies gauge will display the consumption levels of print cartridges, but the level of any refilled cartridge will not be shown.	The printer has detected that a non-HP print cartridge is currently installed.	If you believe you purchased an HP cartridge, please call the HP fraud hotline.CAUTIONAny printer repair required as a result of using non-HP cartridges is not covered under HP warranty.
ORDERCARTRIDGEThe supplies gauge will display the consumption levels of print cartridges.alternates withReadyThe supplies gauge will display the consumption levels of print cartridges.	The identified print cartridge is nearing the end of its useful life. The printer is ready and will continue for the estimated number of pages indicated. Estimated pages remaining is based upon the historical page coverage of this printer.Printing will continue until a supply needs to be replaced.	1. Press ? to view help for the message.2. Obtain the part number for the print cartridge indicated.3. Order a print cartridgeNoteSupplies ordering information is also available from the embedded Web server. SeeUsing the embedded Web serverfor more information.
ORDER FUSER KITLESS THAN X PAGESFor help press?alternates withReady	The fuser is near end of life. The printer is ready and will continue for the estimated number of pages indicated.Printing will continue until a supply needs to be replaced.	1. Press ? to view help for the message.2. Obtain the part number for the fuser kit.3. Order the fuser kit.NoteSupplies ordering information is also available from the embedded Web server. SeeUsing the embedded Web serverfor more information.
ORDER SUPPLIESalternates with ReadyFor help press ?The supplies gauge will display the consumption levels of print cartridges.	More than one supply item is low.Printing will continue until a supply needs to be replaced.	1. Press MENU to access the MENUS.2. Press ▲ or ▼ to highlight INFORMATION, and then press √.3. Press ▲ or ▼ to highlight SUPPLIES STATUS, and then press √.4. Press ▲ or ▼ to highlight a supply that needs to be ordered.5. Press ? to access help for the supply.6. Obtain a part number from help.7. Order the supply.8. Repeat the previous steps as necessary for each supply that needs to be ordered.9. Supplies ordering information is also available from the embedded Web server. See Using the embedded Web server for more information.
ORDER TRANSFER KITLESS THAN X PAGESFor help press ?alternates with Ready	The transfer unit is near end of life.Printing can continue until transfer unit life ends.	1. Press ? to view help for the message.2. Obtain the transfer kit part number from help.3. Order the transfer kit.NoteSupplies ordering information is also available from the embedded Web server. See Using the embedded Web server for more information.
Output Bin FullRemove all paper from bin	The output bin is full and must be emptied for printing to continue.	Remove media from the output bin.
PausedTo return to Readypress the STOP key	The printer is paused, and there are no error messages pending at the display.The I/O continues receiving data until memory is full.	Press the STOP key.
Performing upgrade	A firmware upgrade is in process. Do not turn the printer off until the printer returns to Ready.
Performing...PAPER PATH TEST	The printer is performing a Paper Path Test.	No action necessary.
Performing...PRINT/STOP TEST	The printer is performing a Print/Stop Test.	No action necessary.
Please wait The printer is in the process of clearing data.		No action necessary.
Powersave on The printer is in the power save mode.Any button press, an error condition, or the receipt of printable data may clear this message.		No action necessary.
PRINT CONFIGURATION	The printer is generating the configuration page. The printer will return to the online Ready state when the page is completed.	No action necessary.
PRINTING STOPPED To continue press √	This message is displayed when a Print/Stop Test is run and time expires.	Press √to continue printing.
Printing... CMYK Samples	This message displays while the printer CMYK samples page is being generated.	No action necessary.
Printing... DEMO PAGE	The printer is generating the demo page. The printer will return to the online Ready state when the page is completed.	No action necessary.
Printing... EVENT LOG	The printer is generating the event log page. The printer will return to the online Ready state when the page is completed.	No action necessary.
Printing... FILE DIRECTORY	The printer is generating the mass storage directory page. The printer will return to the Ready state when the page is completed.	No action necessary.
Printing... FONT LIST	The printer is generating either the PCL or PS personality typeface list. The printer will return to the Ready state when the page is completed.	No action necessary.
Printing... MENU MAP	The printer is generating the printer menu map. The printer will return to the Ready state when the page is completed.	No action necessary.
Printing... PQ troubleshooting	The printer is generating the print quality troubleshooting pages. The printer will return to the Ready state when the pages are printed.	Follow the instructions on the printed pages.
Printing... REGISTRATION PAGE	The printer is generating the registration page. The printer will return to the SET REGISTRATION menu when the page is completed.	Follow the instructions on the printed pages.
Printing... RGB Samples	This message displays while the printer RGB samples page is being generated.	No action necessary.
Printing... SUPPLIES STATUS	The printer is generating the supplies status page. The printer will return to the online Ready state when the page is completed.	No action necessary.
Printing...USAGE PAGE	The printer is generating the usage page. The printer will return to the online Ready state when the page is completed.	No action necessary.
Processing duplexjobDo not grab paperuntil job completes	Paper temporarily comes into the output bin while printing a duplex job. Do not attempt to remove the pages until the job is complete.	Do not grab paper as it temporarily comes into the output bin. The message will disappear when the job is finished.
Processing... The printer is currently processing a jobbut is not yet picking pages. When paper motion begins, this message will be replaced by a message that indicates which tray the job is being printed from.		No action necessary.
Processing...copyof	The printer is currently processing or printing collated copies. The message indicates that copy X of Y total copies is currently being processed.	No action necessary.
Processing...from tray xx	The printer is actively processing a job from the designated tray.	No action necessary.
RAM DISK DEVICEFAILURETo clear press√alternates withReady	A device failure has occurred on the specified drive.	1. To clear the message, press the √key.2. If the message persists, turn the printer off and then back on.3. If the message still persists, contact HP Support.
RAM DISK FILEOPERATION FAILEDTo clear press√alternates withReady	The printer received a PJL file system command that attempted to perform an illogical operation (for example, to download a file to a non-existent directory).Printing may continue.	1. To clear the message, press the √key.2. If the message persists, turn the printer off and then back on.3. If the message reappears, there may be a problem with the software application.
RAM DISK FILESYSTEM IS FULLTo clear press√alternates withReady	The printer received a PJL file system command that attempted to store something on the file system but was unsuccessful because the file system is full.	1. To clear the message, press the √key.2. If the message persists, turn the printer off and then back on.NoteThis will also delete any files saved in RAM.
RAM DISK ISWRITE PROTECTEDTo clear press√alternates withReady	The file system device is protected and no new files can be written to it.	1. To enable writing to the RAM disk, turn off write protection, using HP Web Jetadmin software.2. To clear the message, press the √key.3. If the message persists, turn the printer off and then back on.
ReadyThe supplies gauge will display the consumption levels of print cartridges.	The printer is online and ready for data.No status or device attendance messages are pending at the display.	No action necessary.
ReadyDiagnostics modeTo exit press the STOP key	The printer is in a special diagnostics mode.	Press the STOP key to exit the special diagnostics mode.ORNo action is necessary.
Receiving upgrade	A firmware upgrade is in progress. Do not turn the printer off until the printer returns to Ready.
REMOVE ALLPRINT CARTRIDGESTo exit press the STOP key	The printer is executing a Component Test and the component selected is Belt Only.	Remove all print cartridges.
REMOVE AT LEAST ONECARTRIDGETo exit press the STOP key	The printer is executing a Disable Cartridge Check or Component Test where the component selected is Cartridge Motor.	Remove one print cartridge.
REPLACECARTRIDGEThe supplies gauge will display the consumption levels of print cartridges.alternates withFor help press ?The supplies gauge will display the consumption levels of print cartridges.	The identified print cartridge has reached the end of life and the COLOR SUPPLY OUT setting in SYSTEM SETUP is set to STOP. Printing will not continue until the cartridge is replaced.	1. Open the top cover and image transfer unit.CAUTIONThe image transfer unit can be easily damaged.2. Remove the identified print cartridge.3. Install a new print cartridge.4. Close the top and front covers.5. Supplies ordering information is also available from the embedded Web server. See Using the embedded Web server for more information.
REPLACECARTRIDGEThe supplies gauge will display the consumption levels of print cartridges.alternates withTo continue press✓The supplies gauge will display the consumption levels of print cartridges.	The identified print cartridge is nearing the end of its useful life and the SUPPLIES LOW setting in SYSTEM SETUP is set to STOP.	1. Order the identified print cartridge.2. To continue printing, press✓.3. To replace the cartridge, perform the following steps:Open the top cover and image transfer unit.CAUTIONThe image transfer unit can be easily damaged.Remove the identified print cartridge.Install a new print cartridge.Close the top and front covers.Supplies ordering information is also available from the embedded Web server. SeeUsing the embedded Web serverfor more information.
REPLACE FUSER KITFor help press?	The fuser kit has reached the end of its life. Printing will not continue until the fuser has been replaced.	1. Open the top cover.2. Loosen the blue thumb screws.3. Remove the old fuser unit.4. Install a new fuser unit and secure with thumb screws.5. Close the top cover.6. Supplies ordering information is also available from the embedded Web server. SeeUsing the embedded Web serverfor more information.
REPLACE FUSER KITFor help press?alternates withREPLACE FUSER KITTo continue press✓	The fuser is nearing the end of its useful life and the SUPPLIES LOW setting in SYSTEM SETUP is set to STOP.	1. Order the fuser kit.2. To continue printing, press✓.3. To replace the fuser kit, perform the following steps:Open the top cover.Loosen the blue thumb screws.Remove the old fuser unit.Install a new fuser unit and secure with thumb screws.Close the top cover.Supplies ordering information is also available from the embedded Web server. SeeUsing the embedded Web serverfor more information.
REPLACE SUPPLIESFor status press √The supplies gauge will display the consumption levels of print cartridges.	Multiple supplies are at the end of their useful life. If the supplies affected are cartridges only, printing has stopped because the COLOR SUPPLY OUT setting in SYSTEM SETUP is set to STOP. If the fuser or transfer kit is affected, then printing always stops.	1. Press to access the SUPPLIES STATUS menu.2. Press ▲ and ▼ to highlight the specific supply that has a problem.3. Press ? to view help for the supply.4. Press ▲ and ▼ to step through the instructions.5. Supplies ordering information is also available from the embedded Web server. See Using the embedded Web server for more information.
REPLACE SUPPLIESTo continue press √The supplies gauge will display the consumption levels of print cartridges.	Multiple supplies are at the end of their useful life and the SUPPLIES LOW setting in SYSTEM SETUP is set to STOP.	1. Press to access the SUPPLIES STATUS menu.2. Press ▲ and ▼ to highlight the specific supply that has a problem.3. Press ? to view help for the supply.4. Press ▲ and ▼ to step through the instructions.5. Supplies ordering information is also available from the embedded Web server. See Using the embedded Web server for more information.
REPLACE SUPPLIESTusing black onlyThe supplies gauge will display the consumption levels of print cartridges.alternates withReadyFor help press ?The supplies gauge will display the consumption levels of print cartridges.	At least one color cartridge is at the end of its useful life and the COLOR SUPPLY OUT setting in SYSTEM SETUP is set to autoContinueBlack. Printing will continue using black toner only.	Press to identify which supplies should be replaced. Replace identified supplies to continue printing in color.
REPLACE TRANSFER KITFor help press ?	The transfer unit is at end of life. Printing will not continue until the transfer kit has been replaced.	1. Open the top and front cover.2. Remove the old unit by pressing the blue buttons on either side of the unit.3. Slide the old unit out of the printer.4. Install a new transfer unit.5. Close the front and top covers.6. Supplies ordering information is also available from the embedded Web server. See Using the embedded Web server for more information.
REPLACE TRANSFER KITFor help press ?alternates withREPLACE TRANSFER KITTo continue press √	The transfer unit is nearing the end of its useful life and theSUPPLIES LOWsetting in SYSTEM SETUPis set to STOP.	1. Order the transfer kit.2. To continue printing, press √.3. To replace the transfer kit, perform the following steps:Open the top and front cover.Remove the old unit by pressing the blue buttons on either side of the unit.Slide the old unit out of the printer.Install a new transfer unit.Close the front and top covers.Supplies ordering information is also available from the embedded Web server. SeeUsing the embedded Web serverfor more information.
Request acceptedplease wait	The printer has accepted a request to print an internal page, but the current job must finish printing before the internal page will print.	No action necessary.
Resend upgrade	The firmware upgrade was not completed successfully.	Attempt upgrade again.
Resetting Kit Count YES is selected	in the Reset Supplies menu, to reset the counts for any of the supplies that cannot be detected as new.	No action necessary.
RESTORE FACTORY SETTINGS	The printer is restoring factory settings. No action necessary.
Restoring...	The printer is restoring settings.	No action necessary.
Rotating<motorTo exit pressthe STOP key	A component test is in progress; the component selected is the<color>Cartridge motor.	Press STOPwhen ready to stop this test.
Rotating motorTo exit pressthe STOP key	The printer is executing a Component Test and the component selected is a motor.	Press STOPwhen ready to stop this test.
Setting saved	A menu selection has been saved.	No action necessary.
SIZE MISMATCH INTRAY XFor help press ?alternates withReady	The tray is loaded with media longer or shorter in the feed direction than the size configured for the tray.	1. Adjust the side and rear media guides against the paper.2. If the media used is letter, A4, executive, JIS B5, A5, or legal, the tray switch should be set to STANDARD. Set the tray switch to CUSTOM for all other media sizes. The tray switch must be set before the size can be selected from the control panel.3. If necessary, press √ after the tray is closed to reset the paper size or type.
Tray XSize specified by useralternates withTray XTo change size or typePress √	The printer is reporting the current configuration of tray X. The tray switch is in the CUSTOM position.	1. If the configuration of the size and type is correct, press ➔ to clear the message.2. To change media size or type, press √.Use ▲ and ▼ to highlight the size or type, and then press √ to select.3. If action is required to change the size, a message with instructions will appear after the selection is attempted.4. SeeConfiguring input traysfor more details.
TRAY X EMPTYalternates withReady	The specified tray is empty and the current job does not currently need this tray to print.	Refill the tray at a convenient time.
TRAY X OPENFor help press ?alternates withReady	The specified tray is open or not closed completely.	Close the tray.
TRAY X SIZE= *Setting saved	The size selected from the menu has been saved.	No action is necessary.
TRAY X SIZE= *Setting savedalternates withTRAY XX SIZE=Recommend move switch to STANDARD	A detectable media size was selected from the menu and the tray switch is set to CUSTOM.Although not required, the size selected can be automatically sensed if the tray switch is moved to STANDARD.	1. Adjust the side and rear media guides against the paper.2. If the media used is letter, A4, executive, JIS B5, A5, or legal, the tray switch should be set to STANDARD. Set the tray switch to CUSTOM for all other media sizes. The tray switch must be set before the size can be selected from the control panel.3. Reset the paper size in the paper handling menu or tray size pop-up menu.
TRAY X SIZE= *Settings not savedalternates withTRAY XX SIZE=To change move tray switch to CUSTOM	A non-detectable media size was selected from the menu and the tray switch is set to STANDARD.In order to change the tray size to the size selected, the tray switch must first be in the CUSTOM position.	1. Adjust the side and rear media guides against the paper.2. If the media used is letter, A4, executive, JIS B5, A5, or legal, the tray switch should be set to STANDARD. Set the tray switch to CUSTOM for all other media sizes. The tray switch must be set before the size can be selected from the control panel.3. Reset the paper size in the paper handling menu or the tray size pop-up menu.
TRAY X SIZE= *Settings not savedalternates withTRAY XX SIZE=To change size move guides in tray	A detectable media size was selected from the menu, but the tray guide sensors detect a different size.The size selected from the menu does not match the size detected by the tray. Size detection occurs when the tray switch is set to the STANDARD position. The tray switch is already in the correct position for the size selected.	1. Adjust the side and rear media guides against the paper.2. If the media used is letter, A4, executive, JIS B5, A5, or legal, the tray switch should be set to STANDARD. Set the tray switch to CUSTOM for all other media sizes. The tray switch must be set before the size can be selected from the control panel.3. If necessary, reset the paper size again.
TRAY X SIZE= *Verify tray switchset to CUSTOMalternates withTRAY X SIZE= *Then close tray	A non-detectable media size was selected from the menu and the tray is open.The selected size requires that the tray switch be set to CUSTOM, otherwise when the tray is closed, the tray size will change.	1. Adjust the side and rear media guides against the paper.2. If the media used is letter, A4, executive, JIS B5, A5, or legal, the tray switch should be set to STANDARD. Set the tray switch to CUSTOM for all other media sizes. The tray switch must be set before the size can be selected from the control panel.3. Close the tray.
TRAY XX SIZE=Recommend move switch to STANDARDalternates withTRAY XX SIZE=Then close tray	A detectable media size was selected from the menu and the tray is open.Although not required, the size selected can be automatically sensed if the tray switch is moved to STANDARD.	1. Adjust the side and rear media guides against the paper.2. If the media used is letter, A4, executive, JIS B5, A5, or legal, the tray switch should be set to STANDARD. Set the tray switch to CUSTOM for all other media sizes. The tray switch must be set before the size can be selected from the control panel.
TYPE MISMATCH IN TRAY XFor help press ?alternates withReady	The media type loaded in the tray does not match the media type configured for the tray.	1. Adjust the side and rear guides against the paper.2. If size is a detectable size, set the tray switch to STANDARD, otherwise set the tray switch to CUSTOM.3. If necessary, press √ after the tray is closed to change the paper size or type.
Unable To Mopy Jobalternates withProcessing...	A Mopy job cannot be moped because of a memory, disk, or configuration problem. Only one copy will be produced.	Install additional memory in the printer or install a disk drive in the printer.
Unable To Store Jobalternates withProcessing...	A job cannot be stored because of a memory, disk, or configuration problem.	Install additional memory in the printer, or install a disk drive into the printer. If a disk drive is installed, delete previously stored print jobs.
USE TRAY XSize detected by trayalternates withTray XTo change size or type press √	The printer is reporting the current configuration of tray X. The tray switch is in the STANDARD position.	1. If the configuration of the size and type is correct, press ➕ to clear the message.2. To change media size or type, press √.Use ▲ and ▼ to highlight the size or type, and then press √ to select.3. If action is required to change the size, a message with instructions will appear after the selection is attempted.
USE TRAY XTo change press ▲/▼To use press √	The printer is offering a selection of alternate media to use for the print job.	1. View tray configurations (type and size) using ▲ and ∼2. Press √ to select a tray to use.
Wait for printer to reinitialize	RAM disk settings have been changed before the printer automatically restarts, or external device modes have changed or the printer is coming out of the diagnostics mode and will automatically restart.	No action necessary.
Warming up The printer is coming out	of PowerSave mode. Printing will continue as soon as warmup is completed.	No action necessary.

Paper jams

Use this illustration to troubleshoot paper jams in the printer. For instructions on clearing paper jams, see Clearing paper jams.

Technical diagram of a machine with numbered components and flow arrows indicating motion or movement paths.

Paper jam locations (shown without optional Tray 4 or optional Tray 5)

1 top cover area
2 duplex path
3 paper path
4 input path
5 trays

Paper jam recovery

This printer automatically provides paper jam recovery, a feature that allows you to set whether the printer should attempt to automatically reprint jammed pages. The options are:

• AUTO Printer will attempt to reprint jammed pages.
• OFF Printer will not attempt to reprint jammed pages.

Note

During the recovery process, the printer may reprint several good pages that were printed before the paper jam occurred. Be sure to remove any duplicated pages.

To disable paper jam recovery

1. Press M ENU to enter the MENUS.

2. Press ▼ to highlight CONFIGURE DEVICE.

3. Press to select CONFIGURE DEVICE.

4. Press ▼ to highlight SYSTEM SETUP.
5. Press √ to select SYSTEM SETUP.
6. Press ▼ to highlight JAM RECOVERY.
7. Press √ to select JAM RECOVERY.
8. Press ▼ to highlight OFF.
9. Press √ to select OFF.
10. Press the MENU button to return to the Ready state.

To improve print speed and increase memory resources, you may want to disable paper jam recovery. If paper jam recovery is disabled, the pages involved in a jam will not be reprinted.

Common causes of paper jams

The following table lists common causes of paper jams and suggested solutions for resolving them.

Cause Solution
Print media does not meet HP-recommended media specifications.	Use only media that meets HP specifications. See Supported paper weights and sizes.
A supply item is installed incorrectly, causing repeated jams.	Verify that all print cartridges, the transfer unit, and the fuser are correctly installed.
You are reloading paper that has already passed through a printer or copier.	Do not use media that has been previously printed on or copied.
An input tray is loaded incorrectly. Remove any excess media from the input tray. Press media down in the input tray so it fits below the tabs, and within the media width guides. See Configuring input trays.
Print media is skewed. Input tray guides are not adjusted correctly. Adjust input tray guides so they hold media firmly in place without bending it. If media heavier than 120 g/m² (32 lb) is loaded into Tray 2, 3, 4, or 5, the media might skew.
Print media is binding or sticking together.	Remove media, flex it, rotate it 180 degrees, or flip it over. Reload media into the input tray. Do not fan media.
Print media is removed before it settles into the output bin.	Reset the printer. Wait until the page completely settles in the output bin before removing it.
When duplexing, the print media is removed before the second side of the document is printed.	Reset the printer and print the document again. Wait until the page completely settles in the output bin before removing it.
Print media is in poor condition. Replace the print media.
Print media is not picked up by the internal rollers from Tray 2, 3, 4, or 5.	Remove the top sheet of media. If the media is heavier than 120 g/m² (32 lb), it may not be picked from the tray.
Print media has rough or jagged edges. Replace the media.
Print media is perforated or embossed. This media does not separate easily. You might need to feed single sheets from Tray 1.
Printer supply items have reached the end of their useful life.	Check the printer control panel for messages prompting you to replace supplies, or print a supplies status page to verify the remaining life of the supplies. See Replacing supplies for more information.
Media was not stored correctly. Replace the print media. Media should be stored in the original packaging in a controlled environment.NoteIf the printer continues to jam, contact HP Customer Support or your authorized HP service provider. For more information, see http://www.hp.com/support/clj5550.

Clearing paper jams

Each section below corresponds with a jam message that might appear on the control panel. Use these procedures to clear the jam.

Jam in Tray 1, 2, 3, 4, or 5

1. Using the side handles, open the top cover.

Diagram of an open printer with internal components and directional arrows indicating motion (no text or symbols)

1. Grasp the front cover and pull down.

Diagram of an open printer with arrows indicating process flow (no text or symbols present)

1. Grasp the green handles on the transfer unit and pull down.

Diagram of a printer's internal structure showing paper feeding into a paper holder with arrows indicating process flow (no text or symbols present)

CAUTION

Do not place anything on the transfer unit while it is open. If the transfer unit is damaged, print quality problems may result.

1. Grasp the paper by both corners and pull up.

Diagram of an open printer with internal components and arrows indicating flow or movement (no text or symbols present)

1. Inspect the paper path to ensure that it is clear.

Note

If the paper tears, make sure that all paper fragments are removed from the paper path before resuming printing.

1. Close the transfer unit and front cover.

Two views of a printer's internal structure showing internal components and airflow direction (no text or symbols)

Note

It is a good idea to inspect the input trays when clearing jams. However, opening and closing input trays has no effect on clearing jam messages.

1. Pull out Tray 2 and place it on a flat surface. Remove any partially fed paper.

Diagram showing two views of a device with pink arrows indicating direction of movement or force (no text or symbols present)

1. Inspect the paper path above to ensure that it is clear. To remove any partially fed paper, grasp the paper by both corners and pull down.

Diagram of a printer interior showing internal components and two pink arrows indicating parts of the lid (no text or symbols present)

Note

If the paper tears, make sure that all paper fragments are removed from the paper path before resuming printing.

1. Check to make sure the paper is located correctly and flush with the paper guides.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Insert the tray into the printer. Make sure all trays are completely closed.

Diagram of a printer internal structure showing paper feed, paper tray, and paper holder (no text or labels)

1. Close the top cover.

Diagram of a computer tower with highlighted internal components and red arrows indicating motion (no text or symbols)

Jam in Tray 3, 4, or 5

1. Using the side handles, open the top cover.

Diagram of an open file organizer with arrows indicating process flow (no text or symbols present)

1. Grasp the front cover and pull down.

Diagram of an open printer with arrows indicating process flow (no text or symbols present)

1. Grasp the green handles on the transfer unit and pull down.

Diagram of a printer's internal structure showing paper feeding into a paper holder with arrows indicating process flow (no text or symbols present)

CAUTION

Do not place anything on the transfer unit while it is open. If the transfer unit is damaged, print quality problems may result.

1. Grasp the paper by both corners and pull up.

Diagram of an open printer with internal components and arrows indicating flow or movement (no text or symbols present)

1. Inspect the paper path to ensure that it is clear.

Note

If the paper tears, make sure that all paper fragments are removed from the paper path before resuming printing.

1. Close the transfer unit and front cover.

Two views of a printer internal structure showing internal components and airflow direction (no text or symbols)

1. Pull out Trays 3, 4, and 5 (if applicable) and place them on a flat surface.

Diagram of a printer's internal structure showing paper feeding into a stack of folders with pink arrows indicating flow direction (no text or symbols present)

1. Remove any partially fed paper.

Diagram of an open printer with internal components and two pink arrows indicating parts of the lid (no text or symbols present)

1. Inspect the above paper path to ensure that it is clear.

If the paper tears, make sure that all paper fragments are removed from the paper path before resuming printing.

1. Check Trays 3, 4, and 5 to make sure the paper is located correctly and flush with the paper guides.

Technical line drawing of a mechanical assembly with layered components and a highlighted pink component (no text or symbols)

1. Insert the trays into the printer.

2. Pull out Tray 2 and place it on a flat surface.

Diagram of a printer internal structure showing internal components and a highlighted paper plane (no text or symbols present)

1. Remove any partially fed paper.

Diagram of an open printer with internal components and two pink arrows indicating parts of the interior (no text or symbols present)

1. Inspect the above paper path to ensure that it is clear.

Note

If the paper tears, make sure that all paper fragments are removed from the paper path before resuming printing.

1. Check the slot at the front of Tray 2, and make sure the paper is loaded correctly and flush with the paper guides.

Technical line drawing of a mechanical assembly with layered components and a highlighted component (no text or symbols)

1. Insert Tray 2 into the printer. Make sure all trays are completely closed.

Diagram of a printer with internal components and pink arrows indicating movement or flow (no text or symbols present)

1. Close the top cover.

Diagram of a computer tower with highlighted internal components and arrows indicating assembly or process (no text or symbols present)

Jams in the top cover

Jams in the top cover occur in the areas indicated below. Use the procedures in this section to clear jams in these areas.

Technical line drawing of a mechanical assembly with no visible text or symbols

Jammed paper

Technical line drawing of a mechanical assembly with no visible text or symbols

Crumpled paper in the fuser

Technical line drawing of a mechanical assembly with no visible text or symbols

Paper wrapped around the fuser

Jam in the top cover

WARNING!

Do not touch the fuser. It is hot and could cause burns! The fuser's operating temperature is 190^ C ( 374^ F). Wait ten minutes to allow the fuser to cool before touching the fuser.

1. Using the side handles, open the top cover.

Diagram of an open printer with internal components and directional arrows indicating motion (no text or symbols)

1. Firmly pull forward on the two green levers to disengage the fuser rollers.

Diagram of a printer internal structure with highlighted components (no text or symbols)

WARNING!

Do not touch the fuser. It is hot and could cause burns! The fuser's operating temperature is 190^ (374°F). Wait ten minutes to allow the fuser to cool before touching the fuser.

1. Grasp the paper by both corners to remove it, if possible.

CAUTION

Be sure to pull the media straight up.

Technical diagram showing mechanical assembly with directional arrows and a circular prohibition symbol (no text or labels)

1. Open the fuser cover and pull up to remove any paper that is crumpled in the fuser.

Diagram of a printer with open lid and internal structure, showing two pink arrows indicating flow or movement (no text or symbols present)

WARNING!

Do not reach into the fuser until it has cooled.

Note

If the paper tears, make sure that all paper fragments are removed from the paper path before resuming printing.

1. Grasp the front cover and pull down.

Diagram of a printer internal structure showing internal components and directional arrows (no text or symbols)

1. Grasp the green handles on the transfer unit and pull down.

Diagram of a printer with internal structure and two arrows indicating process flow (no text or symbols present)

CAUTION

Do not place anything on the transfer unit while it is open. If the transfer unit is damaged, print quality problems may result.

1. If the paper is wrapped around the fuser roller or stuck in the rollers, grasp the paper by both corners and pull down.

Diagram of a printer internal structure showing internal components and arrows indicating parts of the printer (no text or symbols present)

Note

If the paper is wrapped around the roller, it is important to pull down on the paper to remove it. Pulling up on the paper can damage the fuser rollers and cause print quality problems.

WARNING!

Do not reach into the fuser until it has cooled.

Note

If the paper tears, make sure that all paper fragments are removed from the paper path before resuming printing.

1. Firmly push the two green levers on either side of the fuser to re-engage the fuser rollers.

Diagram of a printer internal structure showing internal components and a magnified view of the printer's internal structure (no text or symbols present)

1. Close the transfer unit and front cover.

Two views of a printer's internal structure showing internal components and movement arrows (no text or symbols)

1. Close the top cover.

Diagram of a printer with open lid and internal components, showing two pink arrows indicating process flow (no text or symbols present)

Jam in paper input path or paper path

1. Using the side handles, open the top cover.

Diagram of a printer with open lid and internal compartments, showing directional arrows (no text or symbols)

1. Grasp the front cover and pull down.

Diagram of an open printer with internal components and arrows indicating process flow (no text or symbols)

1. Grasp the green handles on the transfer unit and pull down.

Diagram of a printer internal structure showing paper feed and paper roll, with no visible text or symbols

CAUTION

Do not place anything on the transfer unit while it is open. If the transfer unit is damaged, print quality problems may result.

1. Grasp the paper by both corners and pull up.

Diagram of a printer or printer mechanism with no visible text or symbols

1. Inspect the paper path to ensure that it is clear.

Note

If the paper tears, make sure that all paper fragments are removed from the paper path before resuming printing.

1. Close the transfer unit and front cover.

Two views of a printer's internal structure showing internal components and directional arrows (no text or symbols)

1. Pull out Tray 2 (and Trays 3, 4, and 5, if the printer contains these trays). Place each tray on a flat surface. Remove any partially fed paper from these trays.

Line drawing of a printer with an open drawer and a pink arrow indicating compression (no text or symbols)

1. Inspect the paper path above and below to ensure that it is clear.

Note

If the paper tears, make sure that all paper fragments are removed from the paper path before resuming printing.

1. Check Tray 2, 3, 4, and 5 to make sure the paper is located correctly in each tray and flush with the paper guides. Insert the trays into the printer. Make sure all trays are completely closed.

Technical line drawing of a mechanical assembly with a pink component inside a tray (no text or symbols)

1. Close the top cover.

Diagram of a printer with open lid and internal circuit board, showing two red arrows indicating process flow (no text or symbols present)

Multiple jams in paper path

1. Using the side handles, open the top cover.

Diagram of a printer's internal structure showing paper feeding into a rack, with arrows indicating rotation (no text or symbols present)

1. Grasp the front cover and pull down.

Diagram of an open printer with arrows indicating process flow (no text or symbols present)

1. Grasp the green handles on the transfer unit and pull down.

Diagram of an open printer with internal components and arrows indicating process flow (no text or symbols)

CAUTION

Do not place anything on the transfer unit while it is open. If the transfer unit is damaged, print quality problems may result.

1. Inspect the transfer unit to ensure that it is clear.

2. Grasp the media by both corners to remove it, if possible.

Diagram of an open printer with internal components and arrows indicating motion (no text or symbols)

Note

If the media tears, make sure that all media fragments are removed from the paper path before resuming printing.

1. Firmly pull forward on the two green levers to disengage the fuser rollers.

Diagram of a printer internal structure with highlighted paperclip (no text or symbols)

WARNING!

Do not touch the fuser. It is hot and could cause burns! The fuser operating temperature is 190 ^ ( 374 ^ ). Wait ten minutes to allow the fuser to cool before touching it.

1. Open the fuser cover.

Diagram of a printer with open lid and paper feed, showing internal components and directional arrows (no text or symbols)

WARNING!

Note

1. Inspect the fuser and remove any paper that is crumpled in the fuser.

Do not reach into the fuser until it has cooled.

If the paper tears, make sure that all paper fragments are removed from the paper path before resuming printing.

1. Close the fuser cover.

2. Firmly push the two green levers on either side of the fuser to re-engage the fuser rollers.

Diagram of a printer internal structure with highlighted components (no text or symbols)

1. Close the transfer unit and the front cover.

Two technical line drawings of a printer's internal structure, showing external and internal components with pink arrows indicating motion (no text or symbols present)

1. Pull out Trays 2, 3, 4, and 5 and place each tray on a flat surface. Remove any partially fed paper from these trays.

Diagram of a printer's internal structure showing paper feeding into a stack of folders with pink arrows indicating flow or movement (no text or symbols present)

1. Inspect the paper path above and below each tray to ensure that it is clear.

2. Close the top cover.

Diagram of a printer's internal structure showing paper feeding into a tower, with arrows indicating rotation (no text or symbols present)

Jam in duplex path

1. Using the side handles, open the top cover.

Diagram of a printer with internal components and directional arrows indicating motion (no text or symbols)

1. Grasp the paper by both corners and pull down.

Diagram of a printer internal structure with two pink arrows indicating parts of the lid (no text or symbols present)

Note

If the paper tears, make sure that all paper fragments are removed from the paper path before resuming printing.

1. Grasp the front cover and pull down.

Diagram of a printer internal structure showing internal components and directional arrows (no text or symbols)

1. Grasp the paper by both corners and pull up.

Diagram of an open printer internal structure showing internal components and ventilation ducts (no text or symbols)

1. If the paper cannot be accessed from this location, grasp the green handles on the transfer unit and pull down.

Diagram of a printer's internal structure showing paper feed, paper tray, and paper holder (no text or labels)

1. Grasp the paper by both corners and pull up.

Diagram of a printer's internal structure showing rollers and journal (no text or symbols)

1. Close the transfer unit and front cover.

Two views of a printer's internal structure showing internal components and movement arrows (no text or symbols)

1. Close the top cover.

Diagram of a printer with open lid and internal compartments, showing two arrows indicating process flow (no text or symbols present)

Multiple jams in duplex path

1. Using the side handles, open the top cover.

Diagram of a printer's internal structure showing paper feed, paper tray, and paper holder (no text or labels)

1. Grasp the front cover and pull down.

Diagram of an open printer with arrows indicating internal components (no text or symbols)

1. Grasp the paper by both corners and pull down.

Diagram of a printer internal structure with two pink arrows indicating parts of the lid (no text or symbols present)

Note

If the paper tears, make sure that all paper fragments are removed from the paper path before resuming printing.

1. Firmly pull forward on the two green levers to disengage the fuser rollers.

Diagram of a printer internal structure with highlighted paperclip (no text or symbols)

WARNING!

Do not touch the fuser. It is hot and could cause burns! The fuser's operating temperature is 190^ C ( 374^ F). Wait 10 minutes to allow the fuser to cool before touching it.

1. Open the fuser cover.

Diagram of a printer with open lid and paper feed, showing internal components and directional arrows (no text or symbols)

1. Inspect the fuser and remove any paper that is crumpled in the fuser.

WARNING!

Do not reach into the fuser until it has cooled.

Note

If the media tears, make sure that all media fragments are removed from the paper path before resuming printing.

1. Close the fuser cover.

2. Firmly push the two green levers on either side of the fuser to re-engage the fuser rollers.

Diagram of a printer internal structure with highlighted paperclip (no text or symbols)

1. Grasp the front cover and pull down.

Diagram of an open printer with arrows indicating process flow (no text or symbols present)

1. Grasp the green handles on the transfer unit and pull down.

Diagram of an open printer with internal structure and two arrows indicating process flow (no text or symbols present)

CAUTION

Do not place anything on the transfer unit while it is open. If the transfer unit is damaged, print quality problems may result.

Note

1. Inspect the transfer unit to ensure that it is clear.

If the media tears, make sure that all media fragments are removed from the paper path before resuming printing.

1. Grasp the media by both corners to remove it, if possible.

Diagram of a printer internal structure showing internal components and arrows indicating flow or movement (no text or symbols present)

1. Close the transfer unit.

Diagram of a printer with internal structure and arrows indicating process flow (no text or symbols)

1. If you could not reach the paper with the transfer unit open in Step 12, grasp the paper by both corners and pull up.

Diagram of an open printer with internal structure and highlighted paper area (no text or symbols)

1. Pull out Trays 2, 3, 4, and 5 and place each tray on a flat surface. Remove any partially fed paper from these trays.

Diagram of a printer's internal structure showing paper feeding into a stack of folders with pink arrows indicating flow or movement (no text or symbols present)

1. Inspect the paper path above and below each tray to ensure that it is clear.

2. Remove any partially fed paper.

Diagram of an open printer with internal structure and two pink arrows indicating parts of the lid (no text or symbols present)

1. Inspect the above paper path to ensure that it is clear.

Note

If the paper tears, make sure that all paper fragments are removed from the paper path before resuming printing.

1. Check the slot at the front of each tray, and make sure the paper is loaded correctly and flush with the paper guides.

Technical line drawing of a mechanical assembly with layered components and a highlighted component (no text or symbols)

1. Insert all trays into the printer. Make sure all trays are completely closed.

Diagram of a printer with internal structure and pink arrows indicating flow or movement (no text or symbols present)

1. Close the top cover.

Diagram of a printer's internal structure showing top and front views with arrows indicating process flow (no text or labels present)

Media-handling problems

Use only media that meets the specifications outlined in the HP LaserJet Printer Family Print Media Guide. For ordering information, see Supplies and accessories.

For paper specifications for this printer, see Supported paper weights and sizes.

Printer feeds multiple sheets

Cause Solution
The input tray is overfilled. Remove excess media from the input tray.
The paper exceeds the maximum stack height indicator mark in the input tray (Trays 2, 3, 4, and 5).	Open the input tray and verify that the paper stack is below the maximum stack height indicator mark.
Print media is sticking together. Remove media, flex it, rotate it 180 degrees or flip it over, and then reload it into the tray.NoteDo not fan media. Fanning can cause static electricity, which can cause media to stick together.
Media does not meet the specifications for this printer.	Use only media that meets HP media specifications for this printer. SeeSupported paper weights and sizes.
Glossy paper is being used in a high humidity environment.	Use another type of paper.

Printer feeds incorrect page size

Cause Solution
The correct size media is not loaded in the input tray.	Load the correct size media in the input tray.
The correct size media is not selected in the software application or printer driver.	Confirm that the settings in the application and printer driver are appropriate, since the application settings override the printer driver and control panel settings, and the printer driver settings override the control panel settings. For more information about how to access the printer drivers, see Accessing the printer drivers.
The correct size media for Tray 1 is not selected in the printer control panel.	From the control panel, select the correct size media for Tray 1.
The media size is not configured correctly for the input tray.	Print a configuration page or use the control panel to determine the media size for which the tray is configured.
The guides in the tray are not against the paper.	Verify that the rear and width media guides are touching the paper.
The CUSTOM/STANDARD switch in the tray is not in the correct position.	Verify that the switch is in the correct position for the media size.

Printer pulls from incorrect tray

Cause Solution
You are using a driver for a different printer. For more information about how to access the printer drivers, see Accessing the printer drivers.	Use a driver for this printer.
The specified tray is empty. Load media in the specified tray.
Tray behavior for the requested tray is set to FIRST in the system setup submenu of the configure device menu.	Change the setting to EXCLUSIVELY.
The media size is not configured correctly for the input tray.	Print a configuration page or use the control panel to determine the media size for which the tray is configured.
The guides in the tray are not against the paper.	Verify that the guides are touching the paper.
The CUSTOM/STANDARD switch in the tray is not in the correct position.	Verify that the switch is in the correct position for the media size.
The USE REQUESTED TRAY setting in the printer control panel is set to EXCLUSIVELY, and the requested tray is empty. The printer will not use another tray.	Load paper in the requested tray.orChange the setting from EXCLUSIVELY to FIRST in the Configuration menu. This will allow the printer to use the paper in other trays if no paper is loaded in the specified tray.

Media does not feed automatically

Cause Solution
Manual feed is selected in the software application.	Load Tray 1 with media, or, if the media is loaded, press √.
The correct size media is not loaded. Load the correct size media.
The input tray is empty. Load media into the input tray.
Media from a previous jam has not been completely removed.	Open the printer and remove any media in the paper path. Closely inspect the fuser area for jams. See Paper jams.
The media size is not configured correctly for the input tray.	Print a configuration page or use the control panel to determine the media size for which the tray is configured.
The guides in the tray are not against the paper.	Verify that the guides are touching the paper.
The CUSTOM/STANDARD switch in the tray is not in the correct position.	Verify that the switch is in the correct position for the media size.
Manual feed prompt is set to ALWAYS. The printer will always prompt for manual feed, even if paper is in the tray.	Open the tray, reload the paper, and then close the tray.Otherwise, change the manual feed prompt setting to UNLESS LOADED. Using this setting, the printer will prompt for manual feed unless paper is already in the tray.
The USE REQUESTED TRAY setting in the printer control panel is set to EXCLUSIVELY, and the requested tray is empty. The printer will not use another tray.	Load paper in the requested tray.orChange the setting from EXCLUSIVELY to FIRST in the Configuration menu. This will allow the printer to use the paper in other trays if no paper is loaded in the specified tray.

Unable to select paper sizes for Tray 2, 3, 4, or 5 using the printer control panel.

Cause Solution
The printer automatically detects some paper sizes when the tray switch is set to Standard and the paper width and length guides are in a standard paper size position.	Set the tray switch to Custom, or adjust the paper width and length guides to fit snugly against the paper stack. For more information, see Configuring input trays.

Media does not feed from Tray 2, 3, 4, or 5

Cause Solution
Manual feed is selected in the software application.	Load Tray 1 with media, or, if the media is loaded, press √.
The correct size media is not loaded. Load the correct size media.
The input tray is empty. Load media in the input tray.
The correct media type for the input tray is not selected in the printer control panel.	From the printer control panel, select the correct media type for the input tray.
Media from a previous jam has not been completely removed.	Open the printer and remove any media in the paper path. Closely inspect the fuser area for jams. See Paper jams.
Tray 3, 4, or 5 does not appear as an input tray option.	Tray 3, 4, and 5 only display as an option if they are installed. Verify that Tray 3, 4, and 5 are correctly installed. Verify that the printer driver has been configured to recognize Tray 3, 4, and 5. For more information about how to access the printer drivers, see Accessing the printer drivers.
Tray 3, 4, or 5 is incorrectly installed. Print a configuration page to confirm that Tray 3, 4, or 5 is installed. If not, verify that the optional installed 500-sheet feeder assembly or 2 x 500-sheet feeder assembly is correctly attached to the printer.
The media size is not configured correctly for the input tray.	Print a configuration page or use the control panel to determine the media size for which the tray is configured.
The guides in the tray are not against the paper.	Verify that the guides are touching the paper.
The CUSTOM/STANDARD switch in the tray is not in the correct position.	Verify that the switch is in the correct position for the media size.
The USE REQUESTED TRAY setting in the printer control panel is set to EXCLUSIVELY, and the requested tray is empty. The printer will not use another tray.	Load paper in the requested tray.orChange the setting from EXCLUSIVELY to FIRST in the Configuration menu. This will allow the printer to use the paper in other trays if no paper is loaded in the specified tray.

Transparencies or glossy paper will not feed

Cause Solution
The correct media type is not specified in the software or printer driver.	Verify that the correct media type is selected in the software or printer driver.
The input tray is overfilled. Remove excess media	from the input tray. Do not load more than 200 sheets of glossy paper or glossy film, or more than 100 transparencies in Tray 2, 3, 4, or 5. Do not exceed the maximum stack height for Tray 1.
Media in another input tray is the same size as the transparencies, and the printer is defaulting to the other tray.	Make sure that the input tray containing the transparencies or glossy paper is selected in the software application or printer driver. Use the printer control panel to configure the tray to the media type loaded. For more information about how to access the printer drivers, see Accessing the printer drivers.
The tray containing the transparencies or glossy paper is not configured correctly for type.	Make sure that the input tray containing the transparencies or glossy paper is selected in the software application or printer driver. Use the printer control panel to configure the tray to the media type loaded. See Configuring input trays. For more information about how to access the printer drivers, see Accessing the printer drivers.
Transparencies or glossy paper may not meet supported media specifications.	Use only media that meets the HP media specifications for this printer. See Supported paper weights and sizes.

Transparencies are not printed correctly and the control panel displays an error message indicating a problem with the media in the tray.

Cause Solution
The OHT sensor is dirty, causing a 41.5 UNEXPECTED TYPE IN TRAY error.	Clean the OHT sensor. SeePeriodic cleaning.

Envelopes jam or will not feed in the printer

Cause Solution
Envelopes are loaded in an unsupported tray. Only Tray 1 can feed envelopes.	Load envelopes into Tray 1.
Envelopes are curled or damaged. Try using different envelopes. Store envelopes in a controlled environment. Try rotating the envelope orientation to load long-edge first, and set the tray switch to Custom. See Configuring input trays.
Envelopes are sealing because the moisture content is too high.	Try using different envelopes. Store envelopes in a controlled environment.
Envelope orientation is incorrect. Verify that the envelope is loaded correctly. See Configuring input trays.
This printer does not support the envelopes being used.	See Supported paper weights and sizes or the HP LaserJet Printer Family Print Media Guide.
Tray 1 is configured for a size other than envelopes.	Configure Tray 1 size for envelopes.

Output is curled or wrinkled

Cause Solution
Media does not meet the specifications for this printer.	Use only media that meets the HP media specifications for this printer. See Supported paper weights and sizes.
Media is damaged or in poor condition. Remove media from the input tray and load media that is in good condition.
Printer is operating in an excessively humid environment.	Verify that the printing environment is within humidity specifications. See Printer specifications.
You are printing large, solid-filled areas. Large, sol d-filled areas can cause excessive curl. Try using a different pattern.
Media used was not stored correctly and may have absorbed moisture.	Remove media and replace it with media from a fresh, unopened package.
Media has poorly cut edges. Remove media, flex it rotate it 180 degrees or turn it over, and then reload it into the input tray. Do not fan media. If the problem persists, replace the media.
The specific media type was not configured for the tray or selected in the software.	Configure the software for the media (see the software documentation). Configure the tray for the media, see Configuring input trays.

Printer will not duplex or duplexes incorrectly

Cause Solution
You are trying to duplex on unsupported media. Verify that the media is supported for duplex printing. See Supported paper weights and sizes.
The printer driver is not set up for duplex printing.	Set up the printer driver to enable duplex printing.
The first page is printing on the back of preprinted forms or letterhead.	Load preprinted forms and letterhead in Tray 1 with the letterhead or printed side up and the bottom of the page feeding into the printer. For Tray 2, 3, 4, or 5, load these media printed side down with the top of the page toward the back of the printer.
Printer model does not support two-sided printing.	The HP Color Laser Jet 5550 and HP Color Laser Jet 5550N do not support automatic two-sided printing.

Printer response problems

No display message

Cause Solution
The printer's on/off button is in the standby position.	Verify that the printer is on. Fans may run while the printer is in standby mode (off).
The printer's memory DIMMs are defective or installed incorrectly.	Verify that the printer's memory DIMMs are correctly installed and are not defective.
The power cord is not firmly plugged into both the printer and the power receptacle.	Turn off the printer and then disconnect and reconnect the power cord. Turn the printer back on.
The line voltage is incorrect for the printer power configuration.	Connect the printer to a proper voltage source, as specified on the Power Rating Label on the back of the printer.
The power cord is damaged or excessively worn.	Replace the power cord.
The power source receptacle is not working correctly.	Connect the printer to a different power receptacle.

Printer is on, but nothing prints

Cause Solution
The printer's Ready indicator light is not lit.	Press Stop to return the printer to the Ready state.
The top cover is not closed properly. Close the top	cover firmly.
The Data indicator light is flashing.	The printer is probably still receiving data. Wait for the Data indicator to stop flashing.
REPLACECARTRIDGE appears on the printer display.	Replace the print cartridge specified on the printer display.
A printer message other than Ready appears on the printer control panel.	See Control panel messages.
The parallel port may have a DOS timeout error.	Add a MODE command to the AUTOEXEC.BAT file. See the DOS manual for additional information.
The PS (PostScript Emulation) personality is not selected.	Select PS or AUTO for the printer language. For more information, see Changing printer control panel configuration settings.
The correct driver is not selected in the software application or printer driver.	Select the driver for PostScript Emulation for this printer in the software application or printer driver. For more information about how to access the printer drivers, see Accessing the printer drivers.
The printer is not properly configured.	See Changing printer control panel configuration settings.
The computer port is not configured or is not working properly.	Run another peripheral connected to this port to verify that the port is working properly.
The printer has not been correctly named for the network or for a Macintosh computer.	Use the appropriate utility to name the printer on the network. For Macintosh OS 9.x computers, select the printer from within the Chooser. For Macintosh OS X 10.1 and later, open the Print Center Application, select the connection type, and then select the printer.

Printer is on, but is not receiving data

Cause Solution
The printer's Ready indicator light is not lit.	Press STOP to return the printer to the Ready state.
The top cover is not closed properly. Close the top	cover firmly.
A printer message other than Ready appears on the printer control panel.	See Control panel messages.
The interface cable is not correct for this configuration.	Select the correct interface cable for your configuration. See Parallel configuration, or Enhanced I/O (EIO) configuration.
The interface cable is not securely connected to both the printer and the computer.	Disconnect and reconnect the interface cable.
The printer is not configured correctly.	See Changing printer control panel configuration settings for configuration information.
The interface configurations on the printer's configuration page do not match the configurations on the host computer.	Configure the printer to match the computer configuration.
The computer is not working properly. Try using an	application that you know works properly to check the computer, or, in DOS, type Dir>Prn at the DOS prompt.
The computer port that the printer is connected to is not configured or is not working properly.	Run another peripheral connected to this port to verify that the port is working properly.
The printer has not been correctly named for the network or Macintosh computer.	Use the appropriate utility to name the printer on the network. For Macintosh OS 9.x computers, select the printer from within the Chooser. For Macintosh OS X 10.1 and later, open the Print Center Application, select the connection type, and select the printer.

Unable to select the printer from the computer

Cause Solution
If you are using a switch box, the printer may not be selected for the computer.	Select the correct printer through the switch box.
The printer's Ready indicator light is not lit.	Press STOP to return the printer to the Ready state.
A printer message other than Ready appears on the printer control panel.	See Control panel messages.
The correct printer driver is not installed in the computer.	Install the correct printer driver. For more information about how to access the printer drivers, see Accessing the printer drivers.
The correct printer and port are not selected on the computer.	Select the correct printer and port.
The network is not configured properly for this printer.	Use the network software to verify the printer's network configuration, or consult with the network administrator.
The power source receptacle is not working correctly.	Connect the printer to a different power receptacle.

Printer control panel problems

Control panel settings work incorrectly

Cause Solution
The printer control panel display is blank or is not lit, even when the fan is running.	Fans may run while the printer is in standby mode (off). Press the printer's on/off button to turn the printer on.
Printer settings in the printing software application or printer driver differ from the printer control panel settings.	Confirm that the settings in the application and printer driver are appropriate, since the application settings override the printer driver and control panel settings, and the printer driver settings override the control panel settings. For more information about how to access the printer drivers, see Accessing the printer drivers.
Control panel settings were not correctly saved after they were changed.	Reselect the control panel settings and then press √. An asterisk (*) should appear to the right of the setting.
The Data indicator light is lit, and there are no pages printing.	Buffered data exists in the printer. Press √to print the buffered data using current control panel settings and activate the new control panel settings.
If the printer is on a network, another user may have changed printer control panel settings.	Consult the network administrator to coordinate changes to printer control panel settings.

Unable to select Tray 3, 4, or 5

Cause Solution
Tray 3, 4, or 5 do not appear as an input tray option on the configuration page or on the control panel.	The tray only displays as an option if it is installed. Verify that Tray 3, 4, or 5 is correctly installed.
Tray 3, 4, or 5 do not appear as an option in the printer driver.	Verify that the printer driver configuration recognizes Tray 3, 4, or 5. For more information about how to access the printer drivers, see Accessing the printer drivers.

Color printing problems

Printing black instead of color

Cause Solution
Color mode is not selected in the software application or printer driver.	Select color mode instead of grayscale or monochrome mode in the software application or printer driver, see Printer information pages to learn how to print a configuration page.
The correct printer driver is not selected in your software application.	Select the correct printer driver.
No color appears on the configuration page. Consult your service representative.

Incorrect shade

Cause Solution
The sealing tape has not been removed from the print cartridge.	Remove the sealing tape from the print cartridge for the color that is missing. SeeChanging print cartridges.
The media does not meet the specifications for this printer.	See the HP LaserJet Printer Family Print Media Guide.Go to http://www.hp.com/support/clj5550 for HP LaserJet Family Paper Specification Guide ordering information. When you connect, selectManuals. Or go to http://www.hp.com/support/ljpaperguide to download the guide in PDF format.
You are operating the printer in excessively humid conditions.	Verify that the printer's environment is within humidity specifications.NoteFor more information about color quality problems, seePrint quality troubleshooting.
The OHT sensor might be dirty.	Clean the OHT sensor. SeePeriodic cleaning.

Missing color

Cause Solution
Defective HP print cartridge. Replace the cartridge.
A non-HP cartridge might be installed. Ensure that	you are using a genuine HP print cartridge.

Inconsistent colors after installing a print cartridge

Cause Solution
The sealing tape has not been removed from the print cartridge.	Remove the sealing tape from the print cartridge for the color that is missing. SeeChanging print cartridges.
Another print cartridge may be low. Check the supplies gauge on the control panel or print a supplies status page. SeePrinter information pages.
Print cartridges may be improperly installed. Verify that each print cartridge is installed properly.
A non-HP cartridge might be installed. Ensure that you are using a genuine HP print cartridge.

Printed colors do not match screen colors

Cause Solution
Extremely light screen colors are not being printed.	The software application may interpret extremely light colors as white. If so, avoid using extremely light colors.
Extremely dark screen colors are being printed in black.	The software application may interpret extremely dark colors as black. If so, avoid using extremely dark colors.
The colors on the computer screen differ from the printer output.	On the printer driver'sColor Controltab, select Screen Match.NoteSeveral factors can influence your ability to match printed colors to those on your screen. These factors include print media, overhead lighting, software applications, operating system palettes, monitors, and video cards and drivers.

Incorrect printer output

Incorrect fonts are printed

Cause Solution
The font has not been correctly selected in the software application.	Re-select the font in the software application.
The font is not available to the printer. Download the font to the printer or use another font. (In Windows, the driver does this automatically.)
The correct printer driver is not selected. Select the correct printer driver. For more information about how to access the printer drivers, see Accessing the printer drivers.

Unable to print all characters in a symbol set

Cause Solution
The correct font is not selected. Select the correct font.
The correct symbol set is not selected. Select the correct symbol set.
The selected character or symbol is not supported by the software application.	Use a font that supports the selected character or symbol.

Drifting text between printouts

Cause Solution
Your software application is not resetting the printer to the top of the page.	See the documentation for the software or the PCL/PJL Technical Reference Package for specific information.

Erratic, missing characters or interrupted printout

Cause Solution
The interface cable is of poor quality. Try using a different, higher-quality, IEEE-compliant cable. Parallel cables can be no longer than 10 meters (30 feet).
The interface cable is loose. Disconnect and reconnect the interface cable.
The interface cable is damaged or bad. Try using a different interface cable.
The power cable is loose. Disconnect and reconnect the power cable.
You are attempting to print a PCL job with the printer configured for PostScript Emulation.	From the printer control panel, select the correct printer personality, and then resend the print job.
You are attempting to print a PostScript job with the printer configured for PCL.	From the printer control panel, select the correct printer personality, and then resend the print job.

Partial printout

Cause Solution
A memory error message appears on the printer control panel.	1. Free up printer memory by deleting unneeded downloaded fonts, style sheets, and macros from printer memory; or2. Add more memory to the printer.
The file you are printing contains errors.	Check the software application verify that the file does not contain errors. To do so:1. Print another file that you know is error-free from within the same application; or2. Print the file from another application.

Guidelines for printing with different fonts

• The 80 internal fonts are available in PostScript Emulation (PS) and PCL mode.
  • To conserve printer memory, download only those fonts that are needed.
• If you require several downloaded fonts, consider installing additional printer memory.

Some software applications automatically download fonts at the beginning of each print job. It might be possible to configure those applications to download only soft fonts that are not already resident in the printer.

Software application problems

Unable to change system selections through software

Cause Solution
System software changes are locked out by the printer control panel.	Consult with your network administrator.
The software application does not support system changes.	See the software application documentation.
The correct printer driver is not loaded. Load the correct printer driver. For more information about how to access the printer drivers, see Accessing the printer drivers.
The correct application driver is not loaded. Load the correct application driver.

Unable to select a font from the software

Cause Solution
The font is not available to the software application.	See the software application documentation.

Unable to select colors from the software

Cause Solution
The software application does not support color. See the documentation for the software application.
Color mode is not selected in the software application or printer driver.	Select color mode instead of grayscale or monochrome mode.
The correct printer driver is not loaded. Load the correct printer driver.

Printer driver does not recognize Tray 3, 4, or 5 in the duplex printing accessory

Cause Solution
The printer driver has not been configured to recognize Tray 3, 4, or 5, or the duplex printing accessory.	See the printer driver's online Help for instructions on how to configure the driver to recognize printer accessories. For more information about how to access the printer drivers, see Accessing the printer drivers.
The accessory may not be installed. Verify that the	accessory is properly installed.

Print quality troubleshooting

If you are experiencing problems with print quality, the following lists may help identify the cause of the problem.

Print quality problems associated with paper

Some print quality problems arise from use of inappropriate paper.

• Use paper that meets HP paper specifications. See Supported paper weights and sizes.
• The surface of the paper is too smooth. Use paper that meets HP paper specifications. See Supported paper weights and sizes.
• The driver setting is incorrect. To change the paper type setting, see Type and Size.
• The paper you are using is too heavy for the paper type setting you selected, and the toner is not fusing to the paper.
• The moisture content of the paper is uneven, too high, or too low. Use paper from a different source or from an unopened ream of paper.
• Some areas of the paper reject toner. Use paper from a different source or from an unopened ream of paper.
• The letterhead you are using is printed on rough paper. Use a smoother, xerographic paper. If this solves your problem, consult with the printer of your letterhead to verify that the paper used meets the specifications for this printer. See Supported paper weights and sizes.
• The paper is excessively rough. Use a smoother, xerographic paper.
• The transparencies you are using are not designed for proper toner adhesion. Use only transparencies designed for HP Color LaserJet printers.

Overhead transparency defects

Overhead transparencies may display any of the image quality problems that any other type of paper will cause, as well as defects specific to printing on transparencies. In addition, because transparencies are pliable while in the print path, they are subject to being marked by the paper-handling components.

Note

Allow transparencies to cool for at least 30 seconds before handling them.

• In the printer driver Paper tab, select Transparency as the paper type. Also, make sure that the tray is correctly configured for transparencies.
• Check that the transparencies meet the specifications for this printer. See Supported paper weights and sizes. For more information, consult the HP LaserJet Printer Family Print Media Guide. See http://www.hp.com/support/clj5550 for HP LaserJet Printer Family Print Media Guide ordering information. For downloadable manuals, go to http://www.hp.com/support/clj5550. When you connect, select Manuals.
• The transparencies you are using are not designed for proper toner adhesion. Use only transparencies designed for HP Color LaserJet printers.

• If the color is off and the printer control panel displays the 41.5 UNEXPECTED TYPE IN TRAY X LOAD TRAY X error, the OHT sensor might be dirty. See Periodic cleaning for OHT cleaning instructions.

• Handle transparencies by the edges. Skin oil on the surface of transparencies can cause spots and smudges.

• Small, random dark areas on the trailing edge of solid fill pages may be caused by transparencies sticking together in the output bin. Try printing the job in smaller batches.
• The selected colors are undesirable when printed. Select different colors in the software application or printer driver.
• If you are using a reflective overhead projector, use a standard overhead projector instead.

Print quality problems associated with the environment

Print quality problems can occur if the printer is operating in an environment outside of the printer specifications (see Printer specifications).

Print quality problems associated with jams

Make sure that all paper is cleared from the paper path. See Paper jam recovery.

• If the printer recently jammed, print two to three pages to clean the printer.
• If the paper does not pass through the fuser, which causes image defects to appear on subsequent documents, print two to three pages to clean the printer. However, if the problem persists see the next section.

Print quality problems associated with maintenance

Some print quality problems might occur when the printer needs cleaning. See Periodic cleaning for more information.

Print quality troubleshooting pages

The print quality troubleshooting pages provide information on aspects of the printer that affect print quality.

1. Press M ENU to enter the MENUS.
2. Press ▼ to highlight DIAGNOSTICS.
3. Press √ to select DIAGNOSTICS.
4. Press ▼ to highlight PQ TROUBLESHOOTING.
5. Press √ to select PQ TROUBLESHOOTING.

The message Printing... PQ troubleshooting appears on the display until the printer finishes printing the print quality troubleshooting information. The printer returns to the Ready state after printing the print quality troubleshooting information.

The print quality troubleshooting information includes one page for each color (cyan, magenta, yellow, and black), printer statistics related to print quality, instructions on interpreting the information, and procedures to solve print quality problems.

If following the procedures recommended by the print quality troubleshooting pages do not improve print quality, go to http://www.hp.com/support/clj5550.

Calibrating the printer

The HP Color LaserJet 5550 printer automatically calibrates and cleans at various times to maintain the highest level of print quality. The user may also request the printer to calibrate via the printer's control panel, using QUICK CALIBRATE NOW or FULL CALIBRATE NOW located in the CALIBRATION and PRINT QUALITY menu. QUICK CALIBRATE NOW is used for color tone calibration and takes about 90 seconds. If color density or tone seems wrong, Quick Calibration can be run. Full Calibration includes the Quick Calibrate routines and adds Drum Phase Calibration and Color Plane Registration (CPR). This takes about 3 minutes and 30 seconds. If color layers (cyan, magenta, yellow, black) on the printed page seem to be shifted from one another, Full Calibration should be run.

The HP Color LaserJet 5550 printer incorporates a new feature to skip calibration when appropriate, making the printer available more quickly. For example, when the power switch is turned off, then on again quickly, calibration is not needed and will be skipped. This saves approximately one minute in time to be ready.

The printer may pause printing while it is calibrating or cleaning. When possible, the printer will wait for the job to complete before calibrating or cleaning.

1. Press MENU to enter the MENUS.
2. Press ▼ to highlight CONFIGURE DEVICE.
3. Press √ to select CONFIGURE DEVICE.
4. Press ▼ to highlight PRINT QUALITY.
5. Press √ to select PRINT QUALITY.
6. Press ▼ to highlight QUICK CALIBRATE NOW.
7. Press √ to select QUICK CALIBRATE NOW.

OR

To perform a full calibration, use FULL CALIBRATE NOW instead of QUICK CALIBRATE NOW in steps 6 and 7.

Print quality defect chart

Use the examples in the print quality defect chart to determine which print-quality problem you are experiencing, and then see the corresponding pages to find information that can help you troubleshoot the problem. For the latest information and problem-solving procedures, go to http://www.hp.com/support/clj5550.

The print-quality defect chart assumes the use of letter- or A4-size media that has moved through the printer long-edge first.

An image with no defects

Illustration of a pink house with a tree and sun in the background (no text or symbols)

	Horizontal lines or streaksMake sure that the operation and location requirements of the printer are met.Print the Print Quality Troubleshooting Pages (seePrint quality troubleshooting) and follow the diagnostic procedure listed on the first page to help isolate the defect to a particular component.		Misaligned colorsRequest a FULL CALIBRATE NOW using the printer control panel (seePrint quality troubleshooting).Verify that the media does not exceed the maximum weight supported (seePrint media specifications).
	Vertical linesPrint the Print Quality Troubleshooting Pages (seePrint quality troubleshooting) and follow the diagnostic procedure listed on the first page to help isolate the defect to a particular component.		Repetitive defectsMake sure that the operation and location requirements of the printer are met.Print the Print Quality Troubleshooting Pages (seePrint quality troubleshooting) and follow the diagnostic procedure listed on the first page to help isolate the defect to a particular component.
	Color fade in all colorsMake sure that the operation and location requirements of the printer are met.Calibrate the printer.		Color fade in one colorMake sure that the operation and location requirements of the printer are met.Calibrate the printer.Print the Print Quality Troubleshooting Pages (seePrint quality troubleshooting) and follow the diagnostic procedure listed on the first page to help isolate the defect to a particular component.

Illustration of a pink house with a tree and sun in the sky (no text or symbols)

Fingerprints and media dents

• Make sure to use supported media.
• Make sure that the media you are using does not have any wrinkles or dents from handling, and that the media is not contaminated with visible fingerprints or other foreign substances.
- Print the Print Quality Troubleshooting Pages (see Print quality troubleshooting) and follow the diagnostic procedure listed on the first page to help isolate the defect to a particular component.

Illustration of a hand drawing a tree on a path under a large yellow sun (no text or symbols)

Loose toner

• Make sure that the operation and location requirements of the printer are met.
• Make sure to use supported media.
• Make sure that the media type and size for the tray are set correctly in the control panel for the media that you are using.
- Make sure that the media is loaded correctly, the size guides are touching the edges of the stack of media, and the custom-media switch is set appropriately.

Make sure that the media you are using does not have any wrinkles or dents from handling, and that the media is not contaminated with visible fingerprints or other foreign substances.

Illustration of a pink house with a tree and sun in the background (no text or symbols)

Smeared toner

• Make sure to use supported media.
- A paper fragment was left in the printer when clearing a jam. Remove any paper fragments (see Paper jams.)

Illustration of a pink house with a tree and sun in the background (no text or symbols)

White areas (dropouts) on page

• Make sure that the operation and location requirements of the printer are met.
• Make sure to use supported media.
• Make sure that the media you are using does not have any wrinkles or dents from handling, and that the media is not contaminated with visible fingerprints or other foreign substances.
• Make sure that the media type and size for the tray are set correctly in the control panel for the media that you are using.
• Calibrate the printer.
- Print the Print Quality Troubleshooting Pages (see Print quality troubleshooting) and follow the diagnostic procedure listed on the first page to help isolate the defect to a particular component.

Illustration of a pink house with a tree and sun in the background (no text or symbols)

Media damage (wrinkles, curl, creases, tears)

• Make sure that the operation and location requirements of the printer are met.

• Make sure to use supported media.

• Make sure that the media is loaded correctly.

• Make sure that the media type and size for the tray are set correctly in the control panel for the media that you are using.

• Make sure that the media you are using does not have any wrinkles or dents from handling, and that the media is not contaminated with visible fingerprints or other foreign substances.

• Make sure that the following supplies are seated correctly:

• fuser
• transfer belt

• Inspect the jam areas and remove any undetected jammed or torn media.

Illustration of a pink house with a tree and sun in the sky (no text or symbols)

Specks or stray toner

• Make sure that the operation and location requirements of the printer are met.
• Make sure to use supported media.
• Make sure that the media type and size for the tray are set correctly in the control panel for the media that you are using.
- Calibrate the printer.
- Print the Print Quality Troubleshooting Pages (see Print quality troubleshooting) and follow the diagnostic procedure listed on the first page to help isolate the defect to a particular component.

Illustration of a pink house with a brown roof, green trees, and a large yellow sun in the sky (no text or symbols)

Skewed, stretched, or off-center page

• Make sure that the operation and location requirements of the printer are met.

• Make sure to use supported media.

• Make sure that the media is loaded correctly.

- For problems with page skew, turn over the stack of media and rotate the stack 180 degrees.

• Make sure that the following supplies are seated correctly:

fuser

- transfer belt

- Inspect the jam areas and remove any undetected jammed or torn media.

A

Working with memory and print server cards

Printer memory and fonts

	The printer has two 200-pin DDR SDRAM slots. One slot is available for adding memory to the printer. DDR SDRAM memory is available in 128 and 256 MB modules.
Note	Memory specification: HP Color LaserJet 5550 series printers use 200-pin small outline dual inline memory modules (SODIMM) that support 128 or 256 MB of RAM.The printer also has three flash memory card slots for printer firmware, fonts, and other solutions.The first flash memory card is reserved for printer firmware.
Note	Use the first flash memory card slot for firmware only. The slot is marked "Firmware Slot"The two additional flash memory card slots enable the user to add fonts and third-party solutions, such as signatures and personalities. The slots are marked "Slot 2" and "Slot 3." For more information about types of solutions available, go to http://www.hp.com/go/gsc.
Note	Flash memory cards adhere to Compact Flash specifications and size.
CAUTION	Do not insert a flash memory card that is designed for use with a digital camera into the printer. The printer does not support photo printing directly from a flash memory card. If you install a camera-type flash memory card, the control panel displays a message asking if you want to reformat the flash memory card. If you choose to reformat the card, all data on the card will be lost.You may want to add more memory to the printer if you often print complex graphics or PS documents, or use many downloaded fonts. Additional memory also allows the printer to print multiple, collated copies at the maximum speed.
Note	Single in-line memory modules (SIMMs) / dual in-line memory modules (DIMMs) used on previous HP LaserJet printers are not compatible with the printer.
Note	To order DDR SDRAM, seeSupplies and accessories.

Printing a configuration page

1. Press M ENU to enter the MENUS.

2. Press to highlight INFORMATION.

3. Press √ to select INFORMATION.
4. Press ▼ to highlight PRINT CONFIGURATION.
5. Press √ to print the configuration page.

Installing memory and fonts

You can install more memory for the printer, and you can also install a font card to allow the printer to print characters for languages such as Chinese or the Cyrillic alphabet.

CAUTION

Static electricity can damage DIMMs. When handling DIMMs, either wear an antistatic wrist strap, or frequently touch the surface of the DIMM antistatic package and then touch bare metal on the printer.

To install DDR memory DIMMs

1. Turn the printer off.

Line drawing of a printer with a magnified inset showing a circular detail (no text or symbols)

1. Disconnect all power and interface cables.

Diagram of a computer printer internal structure with two pink arrows indicating cable connections (no text or symbols present)

1. Locate the formatter board in the rear of the printer.

Technical line drawing of a mechanical device with internal components (no text or symbols)

1. Using a #2 Phillips screwdriver, remove the eight screws holding the board in place, and set them aside.

Technical diagram showing screwdriver installation on a device panel with directional arrows and a magnified view highlighting the component.

1. Slide out the formatter board and set it on a clean, flat, grounded surface.

Diagram of a computer case with an internal panel and directional arrow indicating movement (no text or symbols)

1. To replace a DDR DIMM that is currently installed, spread the latches apart on each side of the DIMM slot, lift the DDR DIMM up at an angle, and pull it out.

Diagram of a computer motherboard showing internal components and a hand inserting a card into the case (no text or symbols present)

1. Remove the new DIMM from the antistatic package. Locate the alignment notch on the bottom edge of the DIMM.

Diagram of a memory module with labeled pins and a highlighted section (no text or symbols present)

1. Holding the DIMM by the edges, align the notch on the DIMM with the bar in the DIMM slot at an angle and firmly press the DIMM into the slot until it is fully seated. When installed correctly, the metal contacts are not visible.

Illustration of hands installing a microchip on a circuit board (no text or symbols visible)

1. Push down on the DIMM until both latches engage the DIMM.

Isometric view of a computer motherboard with highlighted components and a magnified inset showing internal circuitry (no text or symbols)

Note

If you have difficulty inserting the DIMM, make sure the notch on the bottom of the DIMM is aligned with the bar in the slot. If the DIMM still does not go in, make sure you are using the correct type of DIMM.

1. Align the formatter board in the tracks at the top and bottom of the slot, and then slide the board back into the printer. Replace and tighten the eight screws removed in step 4.

Diagram of a computer case with an internal panel and directional arrow (no text or symbols)

1. Reconnect the power cable and interface cables, and turn the printer on.

Line drawing of a computer case with a cable and ventilation duct (no text or symbols)

1. If you installed a memory DIMM, go to Enabling memory.

To install a flash memory card

CAUTION

Do not insert a flash memory card that is designed for use with a digital camera into the printer. The printer does not support photo printing directly from a flash memory card. If you install a camera-type flash memory card, the control panel displays a message asking if you want to reformat the flash memory card. If you choose to reformat the card, all data on the card will be lost.

1. Turn the printer off.

Line drawing of a printer with a magnified inset showing a circular component (no text or symbols)

1. Disconnect all power and interface cables.

Diagram of a computer setup with two cables and a central device, no text or symbols present

1. Locate the formatter board in the rear of the printer.

Technical line drawing of a mechanical device with internal components (no text or symbols)

1. Using a #2 Phillips screwdriver, remove the eight screws holding the board in place, and set them aside.

Technical diagram showing screwdriver installation on a door panel with directional arrows and a magnified view highlighting the component.

1. Slide out the formatter board and set it on a clean, flat, grounded surface.

Diagram of a computer printer internal structure showing internal components and a highlighted part with a pink arrow (no text or symbols)

1. Align the groove on the side of the flash memory card with the notches in the connector and push it in the slot until it is fully seated.

Isometric view of a computer motherboard with CPU socket and monitor, showing internal components and a pink arrow indicating a specific area (no text or symbols present)

CAUTION

Do not insert the flash memory card at an angle.

Note

The first flash memory slot marked "Firmware Slot" is reserved for firmware only. Slots 2 and 3 should be used for all other solutions.

1. Align the formatter board in the tracks at the top and bottom of the slot, and then slide the board back into the printer. Replace and tighten the eight screws removed in step 4.

Diagram of a computer tower with an open door and directional arrow indicating movement (no text or symbols present)

1. Reconnect the power cable and interface cables, and turn the printer on.

Technical line drawing of a computer case with ventilation duct and cable (no text or symbols)

Enabling memory

If you installed a memory DIMM, set the printer driver to recognize the newly added memory.

To enable memory for Windows 98, ME, and NT

1. On the Start menu, point to Settings, and click Printers.
2. Right-click the printer and select Properties.
3. On the Configure tab, click More.

4. Click OK.

5. In the Total Memory field, type or select the total amount of memory that is now installed.

To enable memory for Windows 2000 and XP

1. On the Start menu, point to Settings, and click Printers or Printers and Faxes.
2. Right-click the printer and select Properties.
3. On the Device Settings tab, click Printer Memory (in the Installable Options section).
4. Select the total amount of memory that is now installed.
5. Click OK.

Installing an HP Jetdirect print server card

You can install an HP Jetdirect print server card in the base model printer, which comes with an open EIO slot.

To install an HP Jetdirect print server card

1. Turn the printer off.

Line drawing of a printer with a magnified inset showing a circular component (no text or symbols)

1. Disconnect all power and interface cables.

Diagram of a printer internal structure with two pink arrows indicating cable or connection points (no text or symbols present)

1. Locate an empty EIO slot. Loosen and remove the two retaining screws holding the cover for the EIO slot onto the printer, and then remove the cover. You will not need these screws and cover again.

Diagram showing a computer tower internal structure with highlighted component and magnified view highlighting the internal portion.

1. Firmly insert the HP Jetdirect print server card into the EIO slot. Insert and tighten the retaining screws that came with the print server card.

Diagram showing a computer tower with labeled internal components and an arrow indicating assembly or insertion.

1. Connect the network cable.

Technical line drawing of a computer internal unit with cable and ventilation (no text or symbols)

1. Reconnect the power cable, and turn the printer on.

Diagram of a computer monitor with cable and connectors, showing internal components and connection arrows (no text or symbols)

1. Print a configuration page (see Configuration page). In addition to a printer configuration page and a Supplies Status page, an HP Jetdirect configuration page that contains network configuration and status information should also print.

If it does not print, uninstall and reinstall the print server card to ensure that it is completely seated in the slot.

8. Perform one of these steps:

• Choose the correct port. See the computer or operating system documentation for instructions.
  • Reinstall the software, choosing the network installation this time.

B

Supplies and accessories

To order supplies in the US, contact http://www.hp.com/go/ljsupplies. To order supplies worldwide, see http://www.hp.com/ghp/buyonline.html. To order accessories, see http://www.hp.com/go/accessories.

Spare parts and supplies availability

Spare parts and supplies for this product will be available for at least five years after production has stopped.

Ordering directly through the embedded Web server (for printers with network connections)

Use the following steps to order printing supplies directly through the embedded Web server (see Using the embedded Web server).

1. In the Web browser on the computer, type the IP address for the printer. The printer status window appears. Or, go to the URL provided in the alert email.
2. Click Other Links.
3. Click Order Supplies. The browser opens to a page in which you can choose to send information about the printer to HP. You also have the option to order supplies without sending the printer's information to HP.
4. Select the part numbers you want to order and follow the instructions on the screen.

Ordering directly through the printer software (for printers directly connected to a computer)

The printer software gives you the ability to order supplies directly from the computer. Three conditions are necessary to use this feature:

• The "Printer Status and Alerts" software must be installed on your computer (use the custom installation option to install this software).
• The printer must be directly connected to your computer through a parallel cable. For more information, see Parallel configuration.
  • You must have access to the World Wide Web.

To order printing supplies directly through the computer software

1. At the bottom right of the screen (in the system tray), select the Printer icon. This opens the status window.
2. On the left side of the status window, select the appropriate Printer icon.
3. If available at the top of the status window, select Supplies. Otherwise, you can also scroll down to Supplies Status.
4. Click Order Supplies. The browser opens to the supplies purchasing page.
5. Select the supplies you wish to order.

Supplies, accessories, and part numbers

Part Part number Type/size
Memory J6073A Printer hard disk
	Q2630A Synchronous 128 MB DIMM (SDRAM)
	Q2631A Synchronous 256 MB DIMM (SDRAM)
Accessories J7934A EIO Jetdirect
	C9669B Printer stand
	C7130B Optional 500-sheet paper feeder (Trays 3, 4, and 5)
Printer supplies C9730A Black print cartridge
	C9731A Cyan print cartridge
	C9732A Yellow print cartridge
	C9733A Magenta print cartridge
	C9734B Image transfer kit
	Q3984A Image fuser kit (110 volt)
	Q3985A Image fuser kit (220 volt)
Cables C2946A IEEE-1284 compliant parallel		cable, 3 m (approximately 10 feet) long, with 25-pin male/micro 36-pin male ("C" size) connector
Paper C2934A HP Color LaserJet		Transparencies (letter)50 sheets
	C2936A HP Color LaserJet	Transparencies (A4)50 sheets
	92296T HP LaserJet Monochrome	transparencies (letter)
	92296U HP LaserJet Monochrome	transparencies (A4)
	C4179A HP LaserJet Soft Gloss paper (letter)200 sheets
	C4179B HP LaserJet Soft Gloss paper (A4)200 sheets
	Q1298A HP LaserJet Tough paper (letter)
	Q1298B HP LaserJet Tough paper (A4)
	HPU1132 HP Premium Choice LaserJet paper (letter)
	CHP410 HP Premium Choice LaserJet paper (A4)
	HPJ1124 HP LaserJet paper (letter)
	CHP310 HP LaserJet paper (A4)
Reference materials 5963-7863 HP LaserJet Printer Family		Print Media Guide
	5021-0337 PCL/PJL Technical Reference PackageFor downloadable versions, go to http://www.hp.com/support/clj5550. When connected, select Manuals.

Hewlett-Packard limited warranty statement

HP PRODUCT

HP Color LaserJet 5550, HP Color LaserJet 5550n,

HP Color LaserJet 5550dn, HP Color LaserJet

5550dtn, and HP Color LaserJet 5550hdn printer

DURATION OF LIMITED WARRANTY

One-year limited warranty

HP warrants to you, the end-user customer, that HP hardware and accessories will be free from defects in materials and workmanship after the date of purchase, for the period specified above. If HP receives notice of such defects during the warranty period, HP will, at its option, either repair or replace products which prove to be defective. Replacement products may be either new or equivalent in performance to new.

HP warrants to you that HP software will not fail to execute its programming instructions after the date of purchase, for the period specified above, due to defects in material and workmanship when properly installed and used. If HP receives notice of such defects during the warranty period, HP will replace software which does not execute its programming instructions due to such defects.

HP does not warrant that the operation of HP products will be uninterrupted or error free. If HP is unable, within a reasonable time, to repair or replace any product to a condition as warranted, you will be entitled to a refund of the purchase price upon prompt return of the product.

HP products may contain remanufactured parts equivalent to new in performance or may have been subject to incidental use.

Warranty does not apply to defects resulting from (a) improper or inadequate maintenance or calibration, (b) software, interfacing, parts or supplies not supplied by HP, (c) unauthorized modification or misuse, (d) operation outside of the published environmental specifications for the product, or (e) improper site preparation or maintenance.

HP's limited warranty is valid in any country/region or locality where HP has a support presence for this product and where HP has marketed this product. The level of warranty service you receive may vary according to local standards. HP will not alter form, fit or function of the product to make it operate in a country/region for which it was never intended to function for legal or regulatory reasons. TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTIES ARE EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HP SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE. Some countries/regions, states or provinces do not allow limitations on the duration of an implied warranty, so the above limitation or exclusion might not apply to you. This warranty gives you specific legal rights and you might also have other rights that vary from country/region to country/region, state to state, or province to province.

TO THE EXTENT ALLOWED BY LOCAL LAW, THE REMEDIES IN THIS WARRANTY STATEMENT ARE YOUR SOLE AND EXCLUSIVE REMEDIES. EXCEPT AS INDICATED ABOVE, IN NO EVENT WILL HP OR ITS SUPPLIERS BE LIABLE FOR LOSS OF DATA OR FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some countries/regions, states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

Limited warranty for print cartridges and image drums

This HP product is warranted to be free from defects in materials and workmanship.

This warranty does not apply to products that (a) have been refilled, refurbished, remanufactured or tampered with in any way, (b) experience problems resulting from misuse, improper storage, or operation outside of the published environmental specifications for the printer product or (c) exhibit wear from ordinary use.

To obtain warranty service, please return the product to place of purchase (with a written description of the problem and print samples) or contact HP customer support. At HP's option, HP will either replace products that prove to be defective or refund your purchase price.

TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTY IS EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HP SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT ALLOWED BY LOCAL LAW, IN NO EVENT WILL HP OR ITS SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.

THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

HP's Premium Protection Warranty. Color LaserJet Image Fuser Kit and Image Transfer Kit Limited Warranty Statement

This HP product is warranted to be free from defects in materials and workmanship until the printer provides a low-life indicator on the control panel.

This warranty does not apply to products that (a) have been refurbished, remanufactured or tampered with in any way, (b) experience problems resulting from misuse, improper storage, or operation outside of the published environmental specifications for the printer product or (c) exhibit wear from ordinary use.

To obtain warranty service, please return the product to place of purchase (with a written description of the problem) or contact HP customer support. At HP's option, HP will either replace products that prove to be defective or refund your purchase price.

TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTY IS EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HP SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT ALLOWED BY LOCAL LAW, IN NO EVENT WILL HP OR ITS SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.

THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

HP maintenance agreements

HP has several types of maintenance agreements that meet a wide range of support needs. Maintenance agreements are not part of the standard warranty. Support services may vary by area. Check with your local HP dealer to determine the services available to you.

On-site service agreements

To provide you with the level of support best suited to your needs, HP has on-site service agreements with three response times:

Priority on-site service

This agreement provides 4-hour service response to your site for calls made during normal HP business hours.

Next-day on-site service

This agreement provides support by the next working day following a service request. Extended coverage hours and extended travel beyond HP designated service zones are available on most on-site agreements (for additional charges).

Weekly (volume) on-site service

This agreement provides scheduled weekly on-site visits for organizations with many HP products. This agreement is designated for sites using 25 or more workstation products, including printers, plotters, computers, and disk drives.

Printer specifications

Physical dimensions

Product Height Depth	Depth Width Weight
HP Color LaserJet 5550	640 mm(25.2 in)	704 mm(27.7 in)	577 mm(22.7 in)	60 kg(132 lbs)
HP Color LaserJet 5550n and HP Color LaserJet 5550dn, with optional Tray 3 and stand	833 mm(32.8 in)	718 mm(28.25 in)	630 mm(24.8 in)	111 kg(246 lbs)
HP Color LaserJet 5550dtn with optional Trays 2 and 3 and stand	965 mm(38 in)	718 mm(28.25 in)	630 mm(24.8 in)	126 kg(279 lbs)
HP Color LaserJet 5550hdn with optional Trays 3, 4, and 5 and stand	1097 mm(43.2 in)	718 mm(28.25 in)	630 mm(24.8 in)	141 kg(312 lbs)

Electrical specifications

WARNING!

Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This may damage the printer and void the product warranty.

	110-Volt Models 230-Volt Models
Power Requirements 110-12	7V (+/- 10%)50/60 Hz (+/- 2 Hz)	220-240V (+/- 10%)50/60 Hz (+/- 2 Hz)
Rated short term current 7.0	Amps 3.0 Amps

	Power Consumption (average, in watts) ^1
Product Model	Printing (28 PPM) ^2	Ready ^4	PowerSave(Sleep 2) ^3	Off
HP ColorLaserJet 5550	611 W 93 W 23 W	0.3 W
HP ColorLaserJet 5550n	614 W 93 W 24 W	0.3 W
HP ColorLaserJet 5550dn	630 W 93 W 24 W	0.3 W
HP ColorLaserJet 5550dtn	630 W 93 W 24 W	0.3 W
HP ColorLaserJet 5550hdn	632 W 93 W 28 W	0.3 W

^1 Values current as of February 2, 2004. Values subject to change, see http://www.hp.com/support/clj5550 for current information.
^2 Power reported is the highest value measured for color and monochrome printing using all standard voltages.
^3 Default time from Ready Mode to Sleep 2 = 30 minutes.
^4 Heat dissipation in Ready Mode = 318 BTU/Hour.

Operating environment specifications

Environment Allowed
Temperature 15 to 27°C (59 to 81°F)
Humidity 10 to 70% RH

Note

These values are subject to change. See http://www.hp.com/support/clj5550 for current information.

Acoustic emissions ^1, 2

Sound Power Level Declared Per ISO 9296
Printing (28 PPM)	L_WAd =6.6 Bels (A) [66 dB (A)]
Ready	L_WAd =4.9 Bels (A) [49 dB (A)]
Sound Pressure Level - Bystander Position Declared Per ISO 9296
Printing (28 PPM)	L_pAm =49dB (A)
Ready	L_pAm =33 dB (A)

^1 Values current as of January 25, 2004. Values subject to change, see http://www.hp.com/support/clj5550 for current information.
^2 Configuration tested: Base unit printing A4 monochrome from standard tray.

Environmental specifications

Specification Allowed
Temperature 15 to 27°C (59 to 81°F)
Humidity 10 to 70 percent RH

E

Regulatory information

FCC regulations

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If this equipment is not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• reorient or relocate the receiving antenna.
• increase separation between equipment and receiver.
- connect equipment to an outlet on a circuit different from that to which the receiver is located.
- consult your dealer or an experienced radio/TV technician.

Note

Any changes or modifications to the printer that are not expressly approved by HP could void the user's authority to operate this equipment.

Use of a shielded interface cable is required to comply with the Class B limits of Part 15 of FCC rules.

Environmental product stewardship program

Protecting the environment

Hewlett-Packard Company is committed to providing quality products in an environmentally sound manner. This product has been designed with several attributes to minimize impacts on the environment.

Ozone production

This product generates no appreciable ozone gas ( O_3 ).

Energy consumption

Energy usage drops significantly while in PowerSave mode, which saves natural resources and saves money without affecting the high performance of this printer. This product qualifies for ENERGY STAR®, which is a voluntary program to encourage the development of energy-efficient office products.

ENERGY STAR is a U.S. registered service mark of the U.S. Environmental Protection Agency. As an ENERGY STAR® partner, Hewlett-Packard Company has determined that this product meets ENERGY STAR® Guidelines (version 3.0) for energy efficiency. For more information, see http://www.energystar.gov/.

Paper use

This product's optional automatic duplex feature (two-sided printing) can reduce paper usage and the resulting demands on natural resources.

Plastics

Plastic parts over 25 grams have markings according to international standards that enhance the ability to identify plastics for recycling purposes at the end of the product's life.

HP LaserJet Printing Supplies

In many countries/regions, this product's printing cartridges can be returned to HP through the HP Printing Supplies Returns and Recycling Program. An easy to use and free takeback program is available in over 48 countries/regions. Multi-lingual program information and instructions are included in every new HP LaserJet print cartridge and supplies package.

HP Printing Supplies Returns and Recycling Program Information

Since 1990, the HP Printing Supplies Returns and Recycling Program has collected more than 47 million used LaserJet printer cartridges that otherwise might have been discarded in the world's landfills. The HP LaserJet printer cartridges and supplies are collected and bulk-shipped to our resource and recovery partners, who disassemble the cartridges. After a thorough quality inspection, selected parts are reclaimed for use in new cartridges. Remaining materials are separated and converted into raw materials for use by other industries to make a variety of useful products.

• U.S. returns—For a more environmentally responsible return of used cartridges and supplies, HP encourages the use of bulk returns. Simply bundle two or more cartridges together and use the single, pre-paid, and pre-addressed UPS label that is supplied in the package. For more information in the U.S., call 1-800-340-2445 or visit the HP LaserJet Supplies website at http://www.hp.com/recycle.
• Non-U.S. recycling returns—Non-U.S. customers should call the local HP Sales and Service Office or visit the http://www.hp.com/recycle website for further information regarding availability of the HP Supplies Returns and Recycling Program.

Recycled paper

This product is capable of using recycled papers when the paper meets the guidelines outlined in the HP LaserJet Printer Family Print Media Guide. This product is suitable for the use of recycled paper according to EN12281:2002.

Material restrictions

This product does not contain batteries.

This product does not contain added mercury.

For recycling information, go to http://www.hp.com/recycle, contact your local authorities, or go to the Electronics Industries Alliance website http://www.eiae.org.

Material Safety Data Sheet (MSDS)

Material Safety Data Sheets (MSDS) can be obtained by contacting http://www.hp.com/go/msds.

For more information

On HP environmental programs, including:

• Product environmental profile sheet for this and many related HP products
- HP's commitment to the environment
HP's environmental management system
HP's end-of-life product return and recycling program
• Material Safety Data Sheets

See http://www.hp.com/go/environment or http://www.hp.com/hpinfo/community/environment.

Declaration of Conformity

Declaration of Conformity

according to ISO/IEC Guide 22 and EN 45014

Manufacturer's Name: Hewlett-Packard Company

Manufacturer's Address: 11311 Chinden Boulevard

Boise, Idaho 83714-1021, USA

declares that the product

Product Name: HP Color LaserJet 5550/5550n/5550dn/5550dtn/5550hdn

Regulatory Model Number: ^4)

BOISB-0310-00

Including

Q3956A -- Optional 500-Sheet Input Tray

Q9669A -- Optional Printer Stand

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950:1999 / EN60950: 2000

IEC 60825-1:1993 +A1:1997 +A2:2001 / EN 60825-1:1994 +A11:1996 +A2:2001

(Class 1 Laser/LED Product)

GB4943-2001

EMC: CISPR 22:1997 / EN 55022:1998 Class B ^1)3)

EN 61000-3-2:1995 / A14

EN 61000-3-3:1995 / A1

EN 55024:1998

FCC Title 47 CFR, Part 15 Class B ^2) , ICES-003, Issue 3

AS / NZS 3548:1995 + A1 + A2, GB9254-1998, GB17625.1-1998, CNS13438

Supplementary Information:

The product herewith complies with the requirements of the EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC, and carries the CE-Marking accordingly

1) The product was tested in a typical configuration with Hewlett-Packard Personal Computer Systems Compliance testing of product to standard with exception of Clause 9.5, which is not yet in effect.
2) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
3) The product includes LAN (Local Area Network) options. When the interface cable is attached to LAN connectors, the product meets the requirements of EN55022 and CNS13438 Class A in which case the following applies: "Warning – This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures".
4) For regulatory purposes, this product is assigned a Regulatory model number. This number should not be confused with the product name or the product number(s).

Boise, Idaho 83713, USA

5 December 2003

For regulatory topics only:

Australia Contact	Product Regulations Manager, Hewlett-Packard Australia, Ltd. 31-41 Joseph Street Blackburn, Victoria 3130, Australia
European Contact	Your Local Hewlett-Packard Sales and Service Office or Hewlett-Packard GmbH, Department HQ-TRE / Standards Europe Herrenberger Straße 140 Böblingen, D-71034, Germany ([phone])
USA Contact	Product Relations Manager, Hewlett-Packard Company PO Box 15, Mail Stop 160 Boise, ID 83707-0015, USA (208-396-6000)

Safety statements

Laser safety

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration has implemented regulations for laser products manufactured since August 1, 1976. Compliance is mandatory for products marketed in the United States. The printer is certified as a "Class 1" laser product under the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of 1968. Since radiation emitted inside the printer is completely confined within protective housings and external covers, the laser beam cannot escape during any phase of normal user operation.

WARNING!

Using controls, making adjustments, or performing procedures other than those specified in this user guide may result in exposure to hazardous radiation.

Canadian DOC regulations

Complies with Canadian EMC Class B requirements.

EMI statement (Korea)

사용자 안내문 (B 급 기기)

VCCI statement (Japan)

Laser Statement for Finland

Luokan 1 laserlaite

Klass 1 Laser Apparat

bidirectional communication

	Two-way data transmission.
bin
	A receptacle for holding printed pages.
BOOTP
	Abbreviation for “Bootstrap Protocol,” an Internet protocol that allows a computer to find its own IP address.
chooser
	A Macintosh accessory that allows you to select a device.
control panel
	The area on the printer that contains buttons and a display screen. Use the control panel to set printer settings and to get information about the printer status.
default
	The normal or standard setting for hardware or software.
DHCP
	Abbreviation for “dynamic host configuration protocol.” DHCP enables individual computers or peripherals connected to a network to find their own configuration information, including the IP address.
DIMM
	Abbreviation for “dual in-line memory module.” A small circuit board that holds memory chips.
duplex
	A feature that allows printing on both sides of a sheet of paper.
EIO
	Abbreviation for “Enhanced Input/Output.” A hardware interface used for adding an internal print server, network adaptor, hard disk, and other plug-in functionality for HP printers.
Emulated PostScript
	Software that emulates Adobe PostScript, a programming language that describes the appearance of the printed page.
EPS
	Abbreviation for “Encapsulated PostScript”: a type of graphics file.
FIR
	Abbreviation for “Fast InfraRed.” InfraRed wireless printing.

firmware

Programming instructions that are stored in a read-only memory unit inside the printer.

font

A complete set of letters, numerals, and symbols in a typeface.

fuser

The assembly that uses heat to fuse the toner onto the paper or other media.

grayscale

Various shades of gray.

halftone pattern

A halftone pattern uses differing sizes of ink dots to produce a continuous-tone image such as a photograph.

HP Jetdirect

HP product for network printing.

HP Web Jetadmin

HP trademarked Web-based printer control software that lets you use a computer to manage any peripheral connected to an HP Jetdirect print server.

I/O

Abbreviation for "input/output" and refers to computer port settings.

IP address

The unique number assigned to a computer device connected to a network.

IPX/SPX

Abbreviation for “internetwork packet exchange/sequenced packet exchange.”

macro

A single keystroke or command that results in a series of actions or instructions.

media

The paper, labels, transparencies, or other material on which the printer prints the image.

memory tag

A memory partition with a specific address.

monochrome

Black and white. Devoid of color.

mopy

The HP term for "multiple original prints" capability.

network administrator

A person who manages a network.

network

A system of computers interconnected by telephone wires or other means in order to share information.

page buffer

Temporary printer memory used to hold page data while the printer creates an image of the page.

parallel cable

A type of computer cable often used to connect printers directly to a computer rather than to a network.

parallel port

A connection point for a device connected with a parallel cable.

PCL

Abbreviation for "Printer Control Language."

peripheral

An auxiliary device, such as a printer, modem, or storage system, that works in conjunction with a computer.

personality

Distinctive features or characteristics of a printer or printer language.

pixel

Abbreviation for “picture element,” which is the smallest unit of area in an image displayed on a screen.

PJL

Abbreviation for "Printer Job Language."

PostScript

A trademarked page description language.

PPD

Abbreviation for "PostScript Printer Description."

printer driver

Software program that allows a computer to access printer features.

RAM

Abbreviation for “random access memory,” a type of computer memory used to store data that may change.

RARP

Abbreviation for “Reverse Address Resolution Protocol,” a protocol that enables a computer or peripheral to determine its own IP address.

raster image

An image composed of dots.

render

The process of outputting text or graphics.

RJ-45

A type of connector used for data transmission over standard telephone wire.

ROM

Abbreviation for “read-only memory,” a type of computer memory used to store data that should not be changed.

supplies

Materials used by the printer that are used up and must be replaced. Supply items for the HP Color LaserJet 5550 printer are the four print cartridges, the transfer unit, and the fuser.

TCP/IP

An internet protocol (developed by the U.S. Department of Defense) that has become the global standard for communications.

toner

The fine black or colored powder that forms the image on the printed media.

transfer unit

The black plastic belt that transports the paper inside the printer and transfers the toner from the print cartridges onto the paper.

tray

A receptacle for holding blank paper.

xerographic paper

General term for paper intended for photocopy or laser printer use.

Index

Symbols/Numerics

2-sided printing

binding options 101

blank pages 101

control panel settings 100

A

accessories

ordering 251

auto continue 57

auxiliary connection configuration 71

B

booklet printing 102

C

clearable warnings

setting display time 57

color

adjusting 126

halftone options 126

HP ImageREt 3600 124

managing 126

matching 128

print in grayscale 126

printed vs. monitor 128

sRGB 125

using 124

color options

configuring 53

color supply out

reporting 58

components

locating 12

configuration page

printing 112

configuring

e-mail alerts 141

control panel

blank display 221

buttons 32, 34

configuring 52

display 32

lights 32, 35

menus 36, 37

messages 155

overview 31

printer personalities 56

problems 224

using in shared environments 60

controlling print jobs 76

D

Declaration of Conformity 268

diagnostics menu 50

DIMMs (dual inline memory modules) installing 241

double-sided printing 99

driver autoconfiguration 13

duplex printing 99

E

e-mail alerts

configuring 141

EIO (Enhanced Input Output) configuring 72

embedded Web server

checking toner level 134

description 24

ordering supplies 251

using 116

using to configure alerts 141

envelopes

jams 219

loading in Tray 1 84

errors

auto continue 57

F

FCC regulations 265

file directory page

printing 114

flash memory card

installing 244

font list

printing 115

G

grayscale printing 126

H

HP fraud hotline 132

HP Jetdirect print servers installing 248

HP toolbox using 119

hp toolbox 25

HP Web Jetadmin checking toner level 135 using to configure e-mail alerts 141

|

I/O menu 48

images printing 96 information menu 42 input trays configuring 43, 54, 80

IP address displaying 53

J

jam recovery setting 59

jams common causes 183 configuring e-mail alerts 141 envelopes 219 locations 181 recovery 181

Japanese VCCI statement 269

job held timeout 52

job storage limit 52

K

Korean EMI statement 269

L

language changing 59

lights 35

M

maintenance agreements 259

media colored paper 96 envelopes 96 glossy paper 95 heavy paper 97 HP LaserJet Tough paper 98 labels 97 letterhead 98 preprinted forms 98 recycled paper 98 selecting 78 transparencies 95

memory adding 110, 239 enabling 247

menu map description 42 printing 112

menus diagnostics 50 I/O 48 information 42 paper handling 43 print quality 45 printing 44 resets 49 retrieve job 41 system setup 46

N

networks administrative tools 26 AppleTalk 73 configuring 62 disabling DLC/LLC 66 disabling IPX/SPX 66 disabling protocols 66 I/O interfaces 72 idle timeout 67 IP address 63 link speed 67 local and default gateway 65 Novell NetWare 72 Novell NetWare frame type 62 software 23 subnet mask 64 syslog server 64 TCP/IP parameters 63 UNIX/Linux 73 Windows 73

P

paper handling menu 43

paper path test page printing 152

parallel configuration 69

personality setting 56

PIN (personal identification number) private jobs 108

PowerSave changing settings 55 disabling 56 time 55

preconfiguration 13

print cartridge authentication 132 checking the toner level 134 genuine HP 132

life expectancy 133

managing 132

non-HP 132

replacing 135

storing 133

print quality menu 45

print server card

installing 248

printer

connectivity 11

driver 14

printer information pages

troubleshooting 152

printer personalities 56

printing

booklets 102

printing menu 44

private jobs

deleting 109

printing 108

product stewardship 266

R

RAM (random access memory) 10

recycling

print cartridge 266

registration page

printing 152

regulations

FCC 265

resets menu 49

retrieve job menu 41

S

safety statements

laser safety 269

laser safety for Finland 270

service

agreements 259

software

applications 25

installing 18, 23

macintosh 17

networks 23

utilities 24

special situations

blank back cover 104

custom-sized paper 104

different first page 104

specifications

acoustic 263

electrical 262

humidity 264

temperature 264

stopping a print request 105

storing jobs

deleting 107

printing 107

private jobs 108

proof and hold jobs 107

quick copy jobs 106

storing 106

subnet mask 64

supplies

ordering 251

replacement intervals 133

supplies low

configuring e-mail alerts 141

reporting 58

supplies out

configuring alerts 141

supplies status page

description 42

printing 113

system setup menu 46

T

troubleshooting

checklist 151

color printing problems 225

control panel problems 224

duplexing 219

incorrect printer output 227

jams 181

media handling problems 215

overhead transparencies 230

print quality 230

printer response 221

software applications 229

transparencies 218

two-sided printing 99

U

Update Now 13

usage page

description 42

printing 113

USB configuration 70

W

warranty

print cartridge 257

product 255

transfer unit 258

wireless printing

802.11b standard 74

Bluetooth 74

hp®

invent

© 2004 Hewlett-Packard Development Company, L.P.
