Product Type	Color Rugged Dome Camera
Image Sensor	1/3" SONY Super HAD CCD
Horizontal Resolution	560 TVL
Minimum Illumination	0.5 Lux / F=1.2
Lens	Vari-focal, Auto Iris, f=2.9~10mm, F=1.2
Video Output	BNC 1.0Vp-p, 75 ohm (2 outputs)
S/N Ratio	Over 48dB (AGC off)
Electronic Shutter	1/50(1/60) ~ 1/100,000 sec
Sync Mode	Internal / Line-Lock (AC only)
Weatherproof Rating	IP66
Vandal Resistance	Yes, withstands 10 lb sledgehammer blow
Heater	Built-in, activates below 10°C / 50°F
View Angle Adjustment	360° horizontal, 140° vertical, 60° 3rd axis
Power Source	12VDC / 24VAC
Power Consumption	24VAC: 6VA (heater off), 20.5VA (heater on); 12VDC: 3.5W (heater off), 11W (heater on)
Dimensions (WxHxD)	130 mm x 98.8 mm x 130 mm (5.1" x 3.9" x 5.1")
Weight	1.7 kg (3.7 lbs)
Operating Temperature	-40°C to 50°C (-40°F to 122°F)
Operating Humidity	20% to 80%
Certifications	FCC, CE
Alarm Output	Built-in micro switch (NO, COM)
Package Contents	Camera, screws, expanding screws, wrench, conduit, power & video cable, desiccant pack, manual
Optional Accessories	Wall Mount Bracket (BA-EHD)

Frequently Asked Questions - EHD350 EverFocus

How do I connect the camera to power and video?

Connect the power supply cable (12VDC or 24VAC) and video output to the terminal board as shown in Figure 7. Ensure the polarity matches (Power In + and -). The video output is BNC 1.0Vp-p, 75 ohm.

What are the DIP switches on the camera used for?

The DIP switches control AGC (Auto Gain Control), BLC (Back Light Compensation), FL (Flickerless), and LL (Line-Lock sync). Default settings: AGC ON, BLC OFF, FL OFF, LL OFF. Refer to the manual for adjustments.

How do I adjust the camera view angle?

The camera can be rotated 360° horizontally, 140° vertically, and 60° on the 3rd axis. Loosen the lens fixing screws, adjust the desired angle, then retighten. Use the vari-focal lens to zoom and focus.

What is the purpose of the desiccant pack?

The desiccant pack absorbs humidity inside the camera to prevent lens fogging. After adjusting settings, place the pack on the horizontal rod, bend the rod to secure it, then install the outer cover.

Can the camera be used outdoors?

Yes, it is weatherproof IP66 rated and can operate from -40°C to 50°C. It also has a built-in heater that activates below 10°C to prevent condensation.

How do I enable Line-Lock sync?

Set the LL DIP switch to ON. Note that Line-Lock only works with AC power source (24VAC). When using DC power, keep LL OFF for internal sync.

What should I do if the image is too bright or too dark?

Adjust the IRIS LEVEL VR on the termination board. Turn counterclockwise (L) for darker image, clockwise (H) for brighter. Also adjust IRIS ALC: counterclockwise for average metering, clockwise for peak metering.

How do I clean the camera lens?

Use lens tissue or a cotton swab with ethanol to gently clean the sensor and lens. Do not touch the sensor directly by hand. Use a soft cloth for the camera body.

What accessories are included in the box?

The package includes the camera unit, 4 screws, 4 expanding screws, a wrench, a conduit, a power & video cable, a desiccant pack, and the manual. An optional wall mount bracket (BA-EHD) is sold separately.

Is the camera compatible with both NTSC and PAL systems?

Yes, the camera supports both video formats. Check the specification for exact picture elements: NTSC 768x494, PAL 752x582. The default format may be preset; consult the manual for switching.

USER MANUAL EHD350 EverFocus

Exterior view of a white hexagonal surveillance camera (no visible text or symbols on body)

EVERFOCUS

1/3" 560 TVL High Resolution

Color Rugged Dome Camera

Operation Instructions

Model No. EHD350

Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer, audio speakers since the magnetic fields generate from above devices will distort the video images.

1. Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

1. Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

1. Keep the power cord away from water and liquid.

Touching the wet power cord may result in electric shock.

1. Never install the camera in areas exposed to water, oil or gas.

Water, oil or gas may result in failure, electric shock or fire.

1. Cleaning

Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from

the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the camera lens.

7. Do not operate the camera beyond the specified temperature, humidity or power source ratings.

Use the camera at temperatures within -40^ 50^ (-40F \~122F) and humidity between 20%\~80%. The input power source is 12VDC/24VAC.

PREFACE

The most technically advanced EHD series are the newest vandal-resistant Color Rugged Dome Camera from EverFocus Electronics. The Color Rugged Dome Camera can withstand a blow from a 10-pound sledgehammer and has a built-in heater that allows for operation in low temperatures. It is perfect for all high-profile crime-prone applications such as building entrances, retail stores, and shopping malls. EHD series are unquestionably one of the world's toughest cameras and is your best choice for vandal resistance.

FEATURES

• 1/3" SONY Super HAD CCD with light sensitivity of 0.5 lux/F=1.2
  ● Revolutionary integrated 10-bit Digital Signal Processor (DSP) delivers excellent picture quality and sharp color images
• Designed with polycarbonate shell to withstand the impact of a 10 lb sledgehammer
  ● Rugged dome is designed with 3-axis for angle-view flexibility
  ● Heater triggers when temperature falls below 10C /50 F
  ● Built-in micro switch for alarm trigger
  ● Aluminum base with smoke color shell
  ● Weatherproof IP66 rated

PACKAGE CONTENTS

Standard Accessories

• Camera Unit x 1
• Accessory Pack includes:
• Screws x 4
• Expanding Screws x 4

• Wrench x 1

• Conduit x 1
  ● Power & Video Cable x 1

• Desiccant Pack x 1

• Manual x 1

Optional Accessory

● Wall Mount Bracket (BA-EHD)

SPECIFICATIONS

Pickup Device 1/3" SONY Super HAD CCD
Video Format NTSC or PAL
Scanning System	NTSC: 525 TV lines, 60 fields/secPAL: 625 TV lines, 50 fields/sec
Picture Elements 768 x 494(NTSC) ; 752 x 582(PAL)
Horizontal Resolution 560TVL
Sensitivity	0.5Lux/F=1.2
S/N Ratio Over 48dB(AGC off)
Electronic Shutter 1/50(1/60)~1/100,000
Lens Type	Vari-focal lens, Auto Irisf=2.9~10mm, F=1.2f=3.8~9.5mmf=9~22mm, F=1.6*Lens models and availability vary in different regions
Back Light Comp.	ON/OFF Switch
Auto Gain Control ON/OFF	Switch
Flickerless	ON/OFF Switch
Auto White Balance	Yes
Gamma Correction 0.45
Video Output	2 video outputsBNC 1.0Vp-p, 75ohmAdditional testing video output 1.0Vp-p, 75ohm
Sync. Mode Line Lock/Internal Sync
Heater Yes, built-in
Weatherproof	IP66
Vandal Resistant Yes
Power Source 12VDC/24VAC
Power Consumption	24VAC: 6VA max. (heater OFF)24VAC: 20.5VA max. (heater ON)12VDC: 3.5W max. (heater OFF)12VDC: 11W max. (heater ON)
Dimensions	130mm(W) x 98.8mm(H) x 130mm(D);5.1"(W) x 3.9"(H) x 5.1"(D)
Weight 1.7kg; 3.7lbs
Operating Temperature -40°C~50°C; -40°F~122°F (20%~80% Humidity)
Certifications	FCC/CE

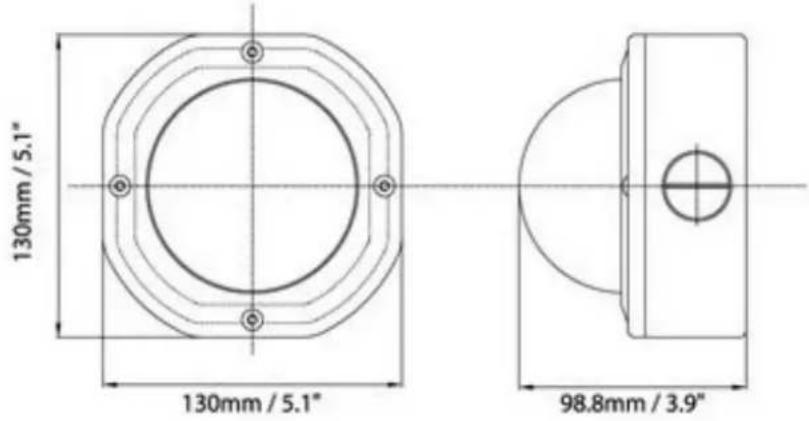

DIMENSIONS

130mm / 5.1" 130mm / 5.1" 98.8mm / 3.9"

INSTALLATION

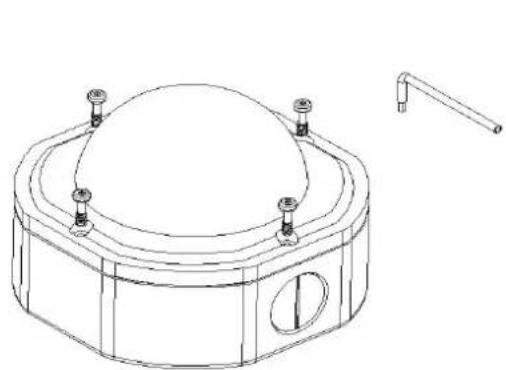

1. Loosen the 4 fix screws on the housing cover by using the attached wrench (Figure 1). Carefully uncap the housing cover as the direction shown below (Figure 2), please pay attention not to damage the lens. To remove the housing cover, push the hinges to the bottom of the bracket, the hinges can be easily removed from the bracket.

Technical line drawing of a mechanical component with a dome-shaped top and mounting bracket (no text or symbols)

Figure 1

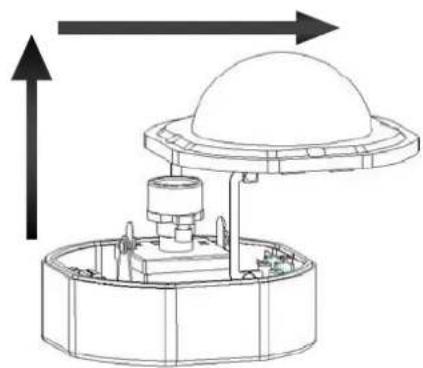

Technical line drawing of a mechanical assembly with a dome-shaped component and internal components (no text or symbols)

Figure 2

1. Remove the camera.

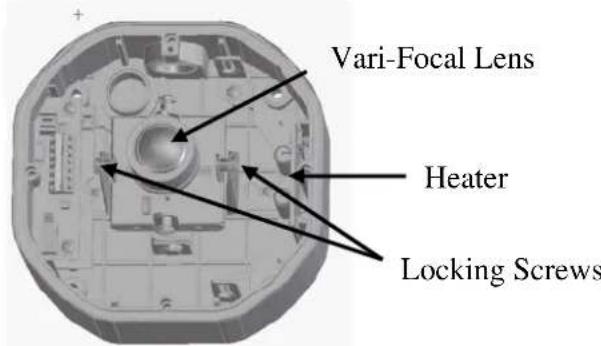

Vari-Focal Lens Heater Locking Screws

Figure 3

To remove the camera, first unplug the wire connection on the back of the camera. Then loosen the 2 locking screws on the camera base, push the camera base to the right (toward heater direction, as shown in Figure 3), remove the camera from the mounting base. Reinstall the camera and the cable while the base mounting is completed.

1. Mounting the base.

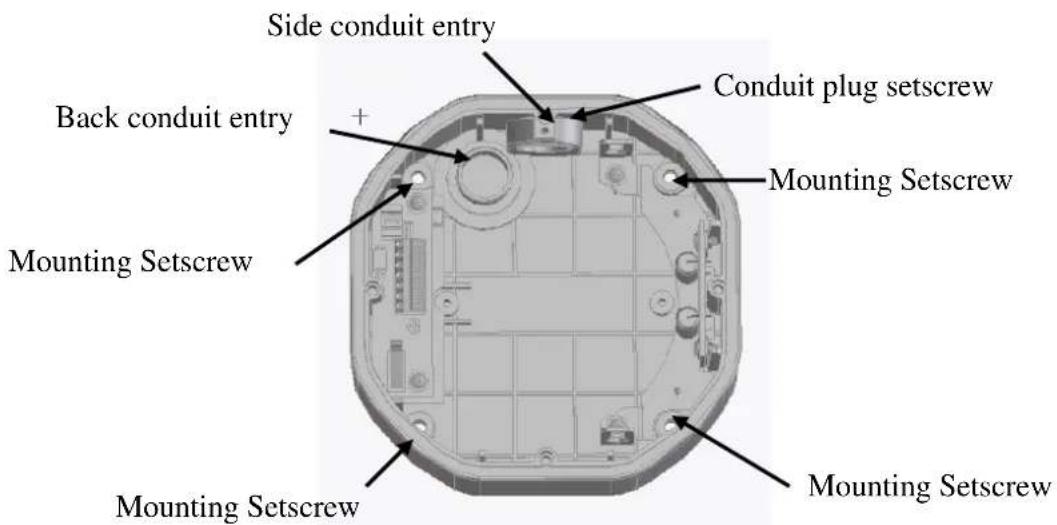

Side conduit entry Back conduit entry + Mounting Setscrew Conduit plug setscrew Mounting Setscrew Mounting Setscrew

Figure 4

Attach the base to the wall or ceiling, fix the base by the 4 setscrews attached in the accessory pack. The dome is weighted 1.7kg, please make sure if the mounting is strengthened enough to support it, if not, please reinforce the mounting according to the environment.

Note: The diameter of the screw hole is 4.7mm.

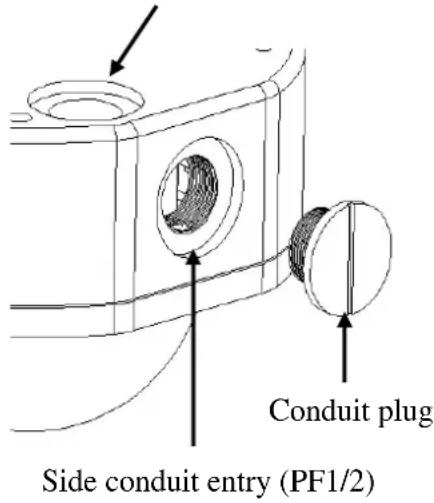

Back conduit entry (PF1/2)

Side conduit entry (PF1/2) Conduit plug

The camera comes with a conduit plug pre-installed in the PF 1/2 conduit entry on the side. The screw can be removed and installed in the back conduit entry. Loosen the conduit plug setscrew (as shown in Figure 5) before removing the conduit plug.

Figure 5

Caution: To prevent moisture leaking into the housing, apply an appropriate gasket or sealant around the conduit connection.

4. Re-assemble Camera

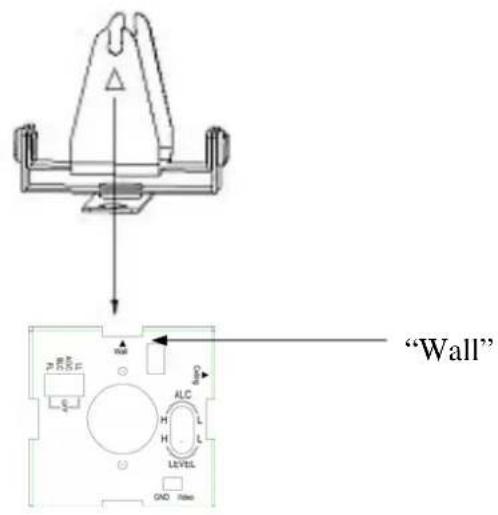

1. When mounting COLOR RUGGED DOME CAMERA on the wall, please aim the “Wall” in line with the triangle “▲” marked on the lead frame. (Factory default)

Figure 6-1

"Wall"

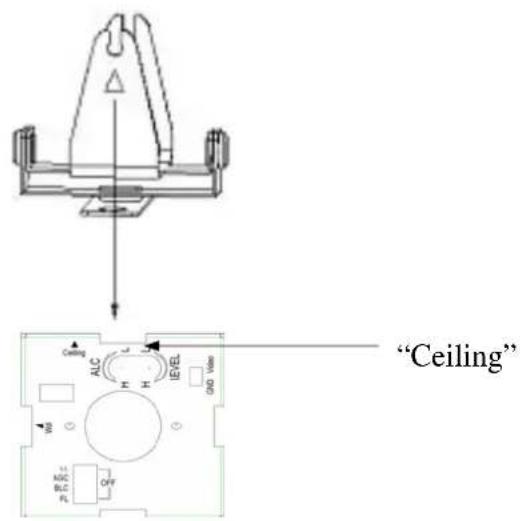

1. When mounting COLOR RUGGED DOME CAMERA on the ceiling, please aim the “Ceiling” in line with the triangle “▲” marked on the lead frame.

Figure 6-2

"Ceiling"

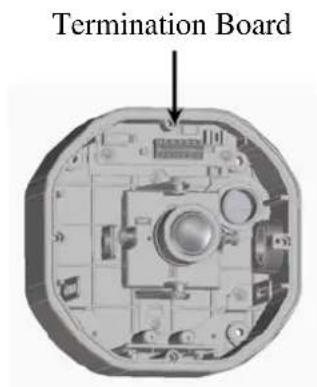

5. Wire Connection

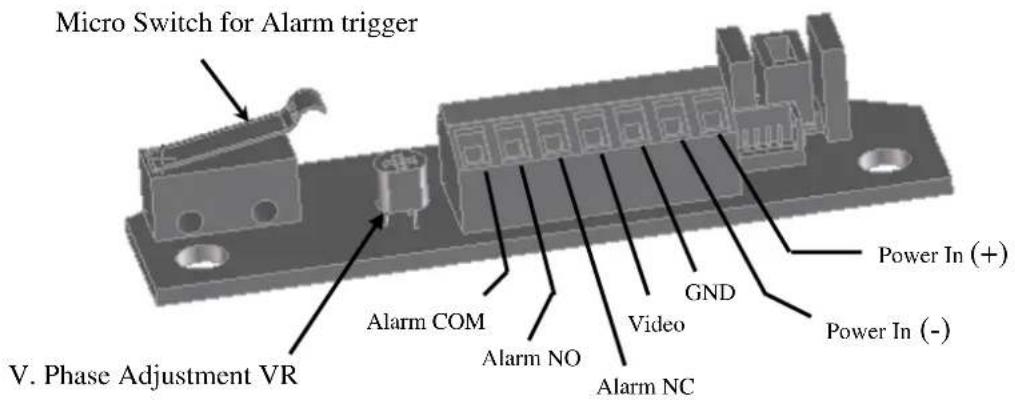

Termination Board

Micro Switch for Alarm trigger V. Phase Adjustment VR Alarm COM Alarm NO Video GND Power In (+) Power In (-)

Figure 7

Connect the power supply cable (AC24V/DC12V), video output and alarm output to the proper connectors shown as Figure 7.

The V. Phase adjustment screw is located on the termination board. The vertical phase may require adjustment to synchronize the vertical phase of the camera with other camera in the system when it is to be used in the line-lock sync mode. Make the adjustment when the vertical phase of the camera does not match with other cameras.

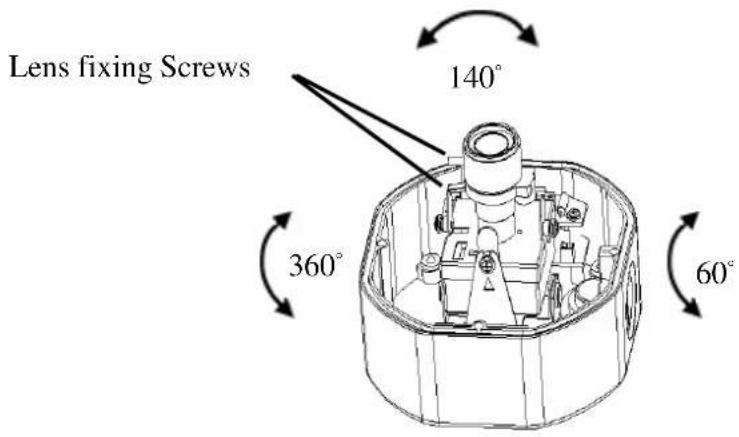

6. View Angle Adjustment

The camera can be rotated 360^ horizontally, 140^ vertically and 60^ 3' rd axis view angles (as shown in Figure 8). Adjust the proper camera view angle as needed. If a vari-focal lens is used, you may adjust the focus and zoom of the lens to bring the object in focus. Be sure to loosen the locking screws on the lens before you make adjustment.

Lens fixing Screws 140° 360° 60°

Figure 8

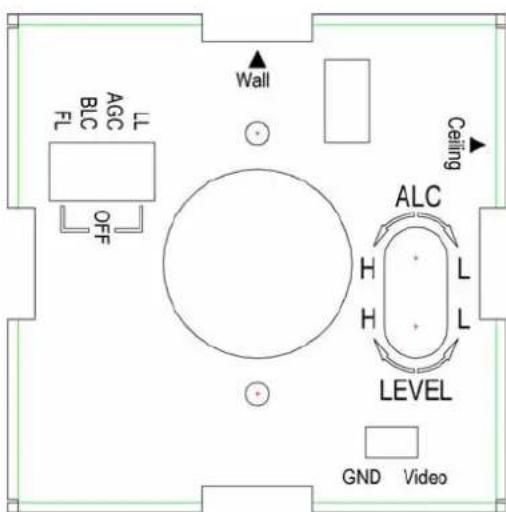

DIP SWITCH FUNCTION

AGC BLC FL OFF Wall Ceiling ALC H L H L LEVEL GND Video

Vari-Focal Lens

LL (Line-Lock) OFF/ON

To select the sync mode between Internal Sync.(LL off) and Line-Lock (LL on).

Set the line-lock off, the camera will synchronize to the internal time base. Set the line-lock ON, the camera's vertical synchronization can be driven by the AC signal in the power lines.

Note: Line-Lock sync mode operation is possible only when used with an AC power source; it is not possible with a DC power source.

The default setting is OFF.

AGC (Automatic Gain Control) OFF/ON

AGC ON: The sensitivity increases automatically when light is low.

AGC OFF: A-low-noise picture is obtained under a low light condition.

The default setting is ON.

BLC (Back Light Compensation) ON/OFF

When BLC is turned on, the AGC, ES and IRIS operating points are determined by averaging over the center area instead of entire field-of-view, so that a dimly-lit foreground object at center area can be clearly distinguished from brightly-lit backgrounds.

BLC should not be used unless it is needed to compensate for back-lit.

The default setting is OFF.

FL (Flickerless Function) ON/OFF

When picture flicker fiercely, turn FL on, then the camera will stabilize the speed of electronic shutter at 1/100(NTSC) or 1/120(PAL) automatically, and reduce the flicker immediately.

The default setting is OFF

IRIS Level Adjustment

Brightness Level can be adjusted from the IRIS level VR.

■ Turn counterclockwise to L to get darker picture.
■ Turn clockwise to H to get brighter picture.

IRIS ALC Adjustment

To select light metering method

■ Turn the IRIS ALC Adjustment VR counterclockwise for Average Metering.
■ Turn the IRIS ALC Adjustment VR clockwise for Peak Metering.

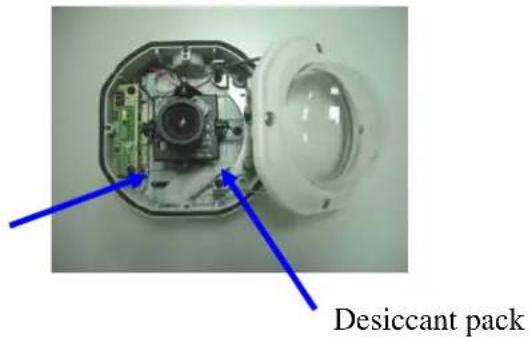

SIMPLE INSTRUCTIONS FOR THE DESICCANT PACK

Due to the camera lens blurred from the humidity inside the camera.

The desiccant pack absorbs the humidity; please refer to the easy instruction as follows:

1. Adjust all settings first and place the desiccant pack on the horizontal rod, then bend the horizontal rod and fix it.
2. Install the outer cover and tighten the screws.

Installation steps for the EHD series:

Step 1

Horizontal rod

Desiccant pack

Step 2

Interior view of a device showing internal components and a blue circle highlighting a specific area (no text or symbols visible)

Bend the horizontal rod and fix the desiccant pack

Step 3

Close-up of a white circular mechanical component with central hub and mounting holes (no visible text or symbols)

Install the outer cover and tighten the screws

EverFocus Electronics Corp.

Head Office:

12F, No.79 Sec. 1 Shin-Tai Wu Road,

Hsi-Chih, Taipei, Taiwan

TEL: [phone]

FAX: [phone]

www.everfocus.com.tw

USA L.A. Office:

1801 Highland Ave. Unit A

Duarte, CA 91010, U.S.A.

TEL: [phone]

FAX: [phone]

www.everfocus.com

USA N.Y. Office:

415 Oser Avenue Unit S

Hauppauge, NY 11788

TEL: [phone]

FAX: [phone]

www.everfocus.com

Europe Office:

D-46446 Emmerich, Germany

TEL: [phone]

www.everfocus.de

China Office:

Room 609, Technology Trade Building,

Shangdi Information Industry Base, Haidian

District, Beijing, China 10085

TEL: [phone]/38/39

FAX: [phone]

www.everfocus.com.cn

Japan Office:

1809 WBG MARIBU East 18F,

2-6 Nakase.Mihama-ku.

Chiba city 261-7118, Japan

TEL: [phone]

FAX: [phone]

www.everfocus.com

Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please, dispose of this equipment at your local community waste collection/recycling centre.

In the European Union there are separate collection systems for used electrical and electronic product.

Please, help us to conserve the environment we live in!
