1 Major Safety Precautions

1-1 Before You Start

Icons used in this manual

ICON NAME MEANING
	Caution Indicates	cases where the function may not work or the setting may be canceled.
	Note Indicates a hint or tip to operate a function.

Using this Manual

• Make yourself fully aware of the safety precautions before using this product.
- If a problem occurs, refer to the 'Troubleshooting' section.

Copyright Notice

The contents of this manual are subject to change without prior notice for performance improvement.

Copyright © 2011 Samsung Electronics Co., Ltd. All Rights Reserved.

The copyright of this manual is reserved by Samsung Electronics, Co., Ltd.

The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written permission of Samsung Electronics, Co., Ltd.

The SAMSUNG logo and SyncMaster are the registered trademarks of Samsung Electronics, Co., Ltd.

Microsoft, Windows and Windows NT are the registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are the registered trademarks of the Video Electronics Standard Association.

The ENERGY STAR ^® logo is the registered trademark of the U.S. Environmental Protection Agency.

All other trademarks mentioned herein belong to their respective companies.

External Surface and Screen Maintenance

Clean the product with a soft dry cloth.

• Do not clean the product with an inflammable substance such as benzene or thinner or with a wet cloth. This may result in a problem with the product.
• Do not scratch the screen with your fingernails or a sharp object.

This may result in scratches or damage to the product.

- Do not clean the product directly by spraying water onto the product.

If water enters the product, it may result in fire, electric shock or a problem with the product.

- A white stain may be generated on the surface of the high-glossy model due to the inherent characteristics of the material, if a supersonic humidifier is used.

The appearance and the color may differ depending on the model.

Line drawing of a hand cleaning a computer monitor (no text or symbols)

Securing the Installation Space

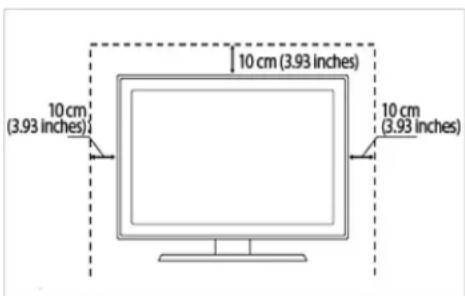

- Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature. Install the product so the required distances shown in the figure are kept.

The appearance may differ depending on the product.

When installing the product with a stand

10 cm (3.93 inches) 10 cm (3.93 inches) 10 cm (3.93 inches)

About persistent images

• Displaying a still image for a long time may create a persistent image or stain on the screen. If you do not use the product for a long time, set the power-saving mode or screen saver.
• Due to technological constraints of the panel manufacturer, the images generated by this product may appear either brighter or darker than normal for approximately 1 ppm (parts per million) pixels.

The number of sub-pixels by panel type: The number of Sub-Pixels = Max. Horizontal Resolution x Max. Vertical Resolution x 3

Example) If the maximum resolution is 1920 × 1080 , the number of sub-pixels is 1920 × 1080 × 3 = 6,220,800 .

Cleaning the Monitor

- The panel and exterior of the cutting-edge monitor scratch easily and require careful attention. Clean the monitor according to the following steps.

1. Power off the monitor and PC.
2. Disconnect the power cable from the monitor.

To avoid electric shock, be sure you disconnect the cable by gripping the plug and do not touch the cable with wet hands.

1. Wipe the monitor using a soft, slightly damp cloth that has been squeezed.

- Do not use a cleaning agent that contains alcohol or solvents, or that is surface active. Otherwise, the exterior may discolor or crack or the panel coating may come off.

- Do not spray water or cleaning agent directly onto the monitor. Otherwise, the liquid may sink into the monitor and cause a fire, electric shock, or failure.

1. Clean the exterior of the monitor using a soft cloth dampened with a small amount of water.

1. Connect the power cable to the monitor after you have finished cleaning.
2. Power on the monitor and PC.

Precautions for Storage

• Using an ultrasonic humidifier may cause white stains on a highly glossy product.

Be sure you contact the nearest service center (paid service) for cleaning the inside of the monitor.

Icons used for safety precautions

ICON NAME MEANING
	Warning	Failing to follow the precautions marked with this sign, may result in a serious injury or even a fatality.
[GGTS]	Caution	Failing to follow the precautions marked with this sign, may result in a personal injury or property damage.

Meaning of Signs

Do not perform. Must be followed.

Do not disassemble.

The power plug must be unplugged from the wall outlet.

Do not touch. Must be grounded to prevent electric shock.

Power Related

The product image used in the following pictures for your reference may look different from the actual product.

Warning

Avoid using a damaged power cord or plug or a loose power outlet.

- Otherwise, it may result in electric shock or fire.

Avoid connecting multiple electric appliances to a single wall outlet.

- Otherwise, it may result in fire due to overheating of the wall outlet.

Avoid plugging in or unplugging the power supply with wet hands.

- Otherwise, it may result in electric shock.

Plug the power plug in firmly.

- Otherwise, it may result in fire.

Make sure to connect the power cord to a grounded wall outlet (for insulation class 1 equipment only).

- Otherwise, it may result in electric shock or injury.

Avoid bending or twisting the power cord excessively and avoid placing heavy objects on the cord.

- Otherwise, it may result in electric shock or fire due to a damaged power cord.

Keep the power cord and the product away from a heater.

- Otherwise, it may result in electric shock or fire.

If the pins of the power plug or the wall outlet are covered in dust, clean it using a dry cloth.

- Otherwise, it may result in fire.

Caution

Avoid unplugging the power plug while the product is operating.

- Otherwise, it may damage the product due to electric shock.

Make sure to use only the power cord supplied by our company. In addition, do not use the power cord of another electric appliance.

- Otherwise, it may result in electric shock or fire.

When unplugging the power plug from the wall outlet, make sure to hold it by the plug and not by the cord.

- Otherwise, it may result in electric shock or fire.

Connect the power plug to a wall outlet that can be easily reached.

- When a problem occurs with the product, you must unplug the power plug to cut the power off completely. You cannot cut the power off completely using only the power button on the product.

Installation Related

Warning

Avoid placing burning candles, mosquito-repellent or cigarettes on the product and installing the product near a heater.

- Otherwise, it may result in fire.

Ask an installation engineer or relevant company to install the product onto the wall.

- Otherwise, it may result in injury.

• Make sure to use the specified wall mount.

Keep a distance of at least 10 cm from the wall when installing the product for ventilation.

- Otherwise, it may result in fire due to internal over-heating.

Avoid installing the product in a badly-ventilated location such as inside a bookshelf or closet.

- Otherwise, it may result in fire due to internal over-heating.

Avoid installing the product in a location that is unstable or exposed to excessive vibrations such as on an unstable or slanted shelf.

• The product may fall and this may result in damage to the product or injury.

- If you use the product in a location exposed to excessive vibrations, it may result in a problem with the product or fire.

Keep the plastic bags used to pack the product away from children.

- If children place the plastic bags over their heads, they may suffocate.

Avoid installing the product in a location exposed to direct sunlight and installing the product near a heat source such as a fire or heater.

• This may shorten the product life cycle or cause fire.

Avoid installing the product in a location exposed to dust, moisture (sauna), oil, smoke or water (rain drops) and installing it within a vehicle.

• This may result in electric shock or fire.

Avoid installing the product at an easily reachable height where children may reach it.

- If a child touches the product, the product may fall and this may result in injury.

- Since the front part is heavier, install the product on a flat and stable surface.

Caution

Do not let the product drop while moving it.

• This may result in a problem with the product or injury.

Do not place the product face down on the floor.

• This may damage the panel of the product.

When installing the product on a console or shelf, make sure that the front of the product does not protrude out of the console or shelf.

• Otherwise, this may cause the product to fall off and result in a malfunction or injury.

When putting the product down, handle it gently.

• Otherwise, it may result in a problem with the product or injury.

If the product is installed in a location where the operating conditions vary considerably, a serious quality problem may occur due to the surrounding environment. In this case, install the product only after consulting one of our service engineers about the matter.

- Places exposed to microscopic dust, chemicals, too high or low temperature, high humidity, such as airports or stations where the product is continuously used for a long time and so on.

Usage Related

Warning

Since a high voltage runs through the product, never disassemble, repair or modify the product yourself.

- Otherwise, it may result in fire or electric shock.

- If the product needs to be fixed, contact a service center.

When cleaning the product, do not spray water directly over the product parts.

• Make sure that water does not enter the product.

- Otherwise, it may result in fire, electric shock or a problem with the product.

If the product generates a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact a service center.

- Otherwise, it may result in electric shock or fire.

Avoid letting children to hang or climb onto the product.

- Otherwise, it may result in the product falling and this may result in injury or death.

If you drop the product or the case is damaged, turn the power off and unplug the power cord. Contact a service center.

- Otherwise, it may result in fire or electric shock.

Avoid placing objects such as toys and cookies on top of the product.

- If a child hangs over the product to grab an object, the object or the product may fall and this may result in injury or even death.

When thunder or lighting occurs, unplug the power cord and under no circumstance touch the antenna cable as this is dangerous.

- Otherwise, it may result in electric shock or fire.

Avoid dropping an object over the product or cause impact to the product.

- Otherwise, it may result in electric shock or fire.

Avoid moving the product by pulling the power cord or antenna cable.

- Otherwise, it may result in electric shock, fire or a problem with the product due to damage to the cable.

When a gas leak occurs, do not touch the product or the power plug and ventilate immediately.

• A spark may result in an explosion or fire.
- During a thunder or lighting storm, do not touch the power cord or antenna cable.

Avoid lifting up or move the product by holding only the power cord or signal cable.

- Otherwise, it may result in electric shock, fire or a problem with the product due to damage to the cable.

Avoid using or placing inflammable spray or objects near the product.

• This may result in an explosion or fire.

Take care not to block the vent by a table cloth or curtain.

- Otherwise, it may result in fire due to internal overheating.

Avoid inserting metal objects such as a chopsticks, coins or hairpins, or inflammable objects into the product (the vents, ports, etc).

• If water or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center.
  • Otherwise, it may result in a problem with the product, electric shock or fire.

Avoid placing a liquid container such as a vase, flowerpot, beverage, cosmetics or drugs, or a metal object over the product.

- If water or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center.

- Otherwise, it may result in a problem with the product, electric shock or fire.

Caution

Displaying a still image for a long time may create a persistent image or stain on the screen.

- If you do not use the product for a long time, use the power-saving mode or set the screensaver to the moving picture mode.

When not using the product for a long time such as leaving your home, unplug the power cord from the wall outlet.

- Otherwise, it may cause dust accumulation and result in fire caused by overheating or short circuit or result in an electric shock.

Set the appropriate resolution and frequency for the product.

- Otherwise, it may result in eye strain.

Avoid turning the product upside down or move the product holding only the stand.

• This may cause the product to fall resulting in damage to the product or injury.

Do not place the adapter on top of another adapter.

- Otherwise, it may result in fire.

Keep power adaptor away from any other heat source.

- Otherwise, it may result in fire.

Remove the vinyl cover of the adapter before using the adaptor.

- Otherwise, it may result in fire.

Always keep power adaptor in well-ventilated area.

Be careful that adaptor should not be in contact with water and therefore not be wet.

• This may cause a malfunction, electric shock or fire. Do not use adaptor by the waterside or outside particularly when it rains or snows. Be careful that adaptor should not be wet while cleaning floor with water.

Watching the product from too close a distance continuously may damage your eyesight.

Avoid using a humidifier or cooker near the product.

- Otherwise, it may result in electric shock or fire.

It is important to give your eyes some rest (5 minutes every hour) when viewing the product screen for long periods of time.

Since the display panel is hot after using it for a long time, do not touch the product.

• This will alleviate any eye strain.

Keep small accessories away from the children.

Take care when adjusting the angle of the product or the height of the stand.

- If your hand or finger is caught, you may be injured.

- If the product is tilted excessively, the product may fall and this may result in injury.

Avoid placing a heavy object over the product.

• Otherwise, it may result in a problem with the product or injury.

Maintaining the Correct Posture when Using this Product

50cm

Maintain the correct posture when using this product.

• Straighten your back.
• Keep a distance of 45\~50 cm from your eyes to the screen. Look down at the screen and face the screen forwards.
• Adjust the angle of the product so that light is not reflected onto the screen.
• Keep your elbow at a right angle and keep your arm level with the back of your hand.
• Keep your elbow at a right angle.
• Place your heels flat on the ground while keeping your knees at an angle of 90 degrees or higher and maintain the position of your arm so that your arm is below your heart.

2 Installing the Product

2-1 Package Contents

• Unpack the product and check if all of the following contents have been included.
• Store the packaging box in case you need to move the Product at a later stage.

Front view of a Samsung TV monitor with a black stand and display screen (no visible text or symbols on the screen)

Monitor

Contents
Installation Manual	Product Warranty(Not available in all locations)	User Manual Stand
Stand Connector DC-Adapter Power Cord

OPTION

HDMI Cable HDMI to DVI Cable D-Sub Cable DVI Cable

The cables provided may vary depending on the product you purchase.

Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.

Mechanical component with a lever and base, no visible text or symbols

Insert the Stand Connector into the Stand in the direction shown by the figure.

Simple 3D-rendered object resembling a knob or handle, no text or symbols visible

Check if the Stand Connector is firmly connected.

3

Turn the connecting screw at the bottom of the stand fully so that it is completely fixed.

Black rectangular object with a small protrusion, placed on a white surface (no text or symbols visible)

Place a soft cloth over the table to protect the product and place the product onto the cloth so that the front of the product is facing downwards.

Hand holding a pen-like object over a closed black document or folder, with page number 5 in the corner (no text or symbols on the object itself)

Hold the main body of the product with your hand as shown by the figure.

Push the assembled stand into the main body in the direction of the arrow as shown in the figure.

ONOSIVE

- Caution

Avoid lifting the product holding only the stand.

Disassembly is in the reverse order of the assembly.

The connecting part may differ depending on the product model.

1. Connect the product to a PC depending on the video output supported by the PC.

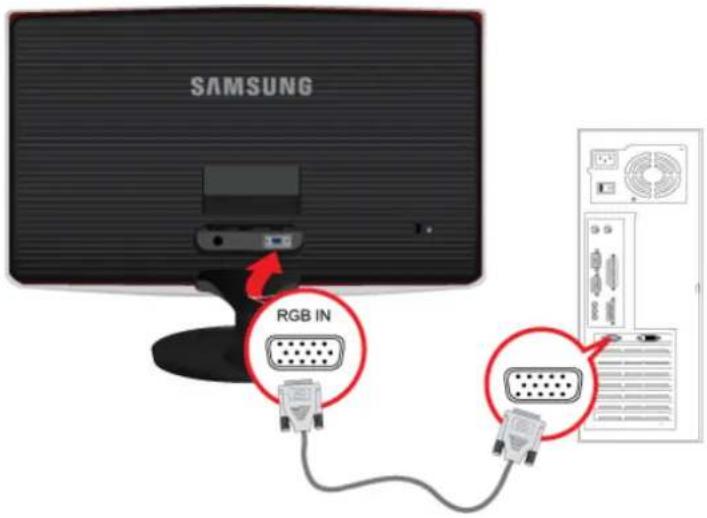

- When the graphics card provides D-Sub () output

- Connect the [RGB IN] port of the product to the [D-Sub] port of the PC with the D-Sub cable.

SAMSUNG RGB IN

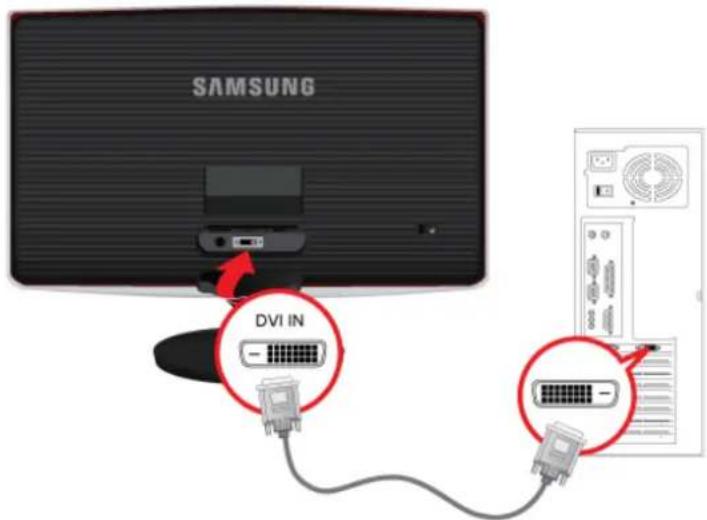

- When the graphics card provides DVI () output

- Connect the [DVI IN] port of the product to the [DVI] port of the PC with the DVI cable.

SAMSUNG DVI IN - -

The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only.

- Connect the [HDMI IN] port of the product to the [DVI] port on your PC using the HDMI to DVI cable.

SAMSUNG HDMI IN

The [HDMI IN] terminal is supplied for the HDMI-dedicated models only.

1. Connect the power adapter to [DC] on the rear of the product. Connect the power cord to the adapter and wall socket. (The input voltage is switched automatically.)

SAMSUNG

When the product is connected to a PC, you can turn the product on and use it.

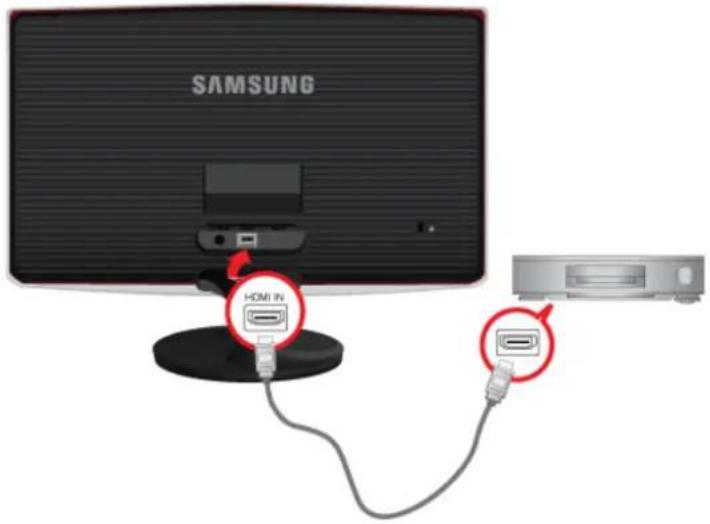

Connect the HDMI output port of your digital output device to the [HDMI IN] port of the product using the HDMI cable.

SAMSUNG HDMI IN DVD

The [HDMI IN] terminal is supplied for the HDMI-dedicated models only.

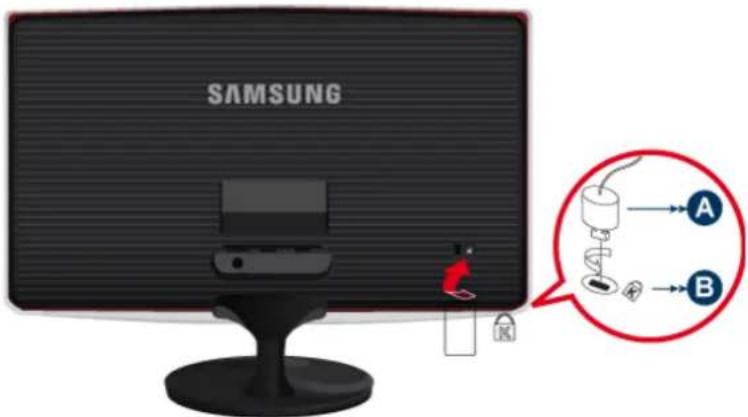

2-5 Kensington Lock

A Kensington Lock is an anti-theft device that enables users to lock the product so that they can safely use it in public locations. Since the shape and usage of the locking device may differ depending on the model and the manufacturer, for more information, refer to the User Manual supplied with the locking device for more information.

You must purchase the Kensington Lock separately.

To lock the product, follow these steps:

1. Wrap the Kensington lock cable around a large, stationary object such as a desk or chair.
2. Slide the end of the cable with the lock attached through the looped end of the Kensington lock cable.
3. Insert the locking device into the Kensington slot on the Monitor( B ).
4. Lock the lock( )

• These are general instructions. For exact instructions, see the User Manual supplied with the locking device.

• You can purchase the locking device from an electronics store, an online shop, or our service center.

3-1 Setting the Optimal Resolution

If you turn the power on after purchasing the product, a message regarding the optimal resolution setting appears on the screen. Select a language and the optimal resolution.

The optimal resolution for this monitor is as follows: Follow the above setting to set the resolution. English

▲/▼ : You can select a language with these buttons.

MENU : If you press this button, the message disappears.

• The message appears up to 3 times if the resolution has not been set to the optimal resolution.

• To set the resolution to the optimal resolution

• When the PC is turned off, connect the product and the PC and turn the power on.

• Right-click over the Desktop and select 'Properties' from the pop-up menu.
• In the 'Settings' tab, set the resolution to the optimal resolution.

This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size.

Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. It is recommended setting the resolution to the optimal resolution of the product.

If the signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on.

Therefore, configure it as follows referring to the User Manual of the graphics card.

S19B370N

DISPLAY MODE	HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL CLOCK (MHZ)	SYNC POLARITY (H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1366 x 768 47.712 59.790 85.500 +/+

Horizontal Frequency

The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz.

Vertical Frequency

A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz.

This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size.

Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. It is recommended setting the resolution to the optimal resolution of the product.

If the signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on.

Therefore, configure it as follows referring to the User Manual of the graphics card.

S19B370B

DISPLAY MODE	HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL CLOCK (MHZ)	SYNC POLARITY (H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1366 x 768 47.712 59.790 85.500 +/+

Horizontal Frequency

The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz.

Vertical Frequency

A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz.

This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size.

Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. It is recommended setting the resolution to the optimal resolution of the product.

If the signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on.

Therefore, configure it as follows referring to the User Manual of the graphics card.

S20B370N

DISPLAY MODE	HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL CLOCK (MHZ)	SYNC POLARITY (H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000	+/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1440 x 900 55.935 59.887 106.500	-/+
VESA, 1440 x 900 70.635 74.984 136.750	-/+
VESA, 1600 x 900 60.000 60.000 108.000	+/+

Horizontal Frequency

The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz.

Vertical Frequency

A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz.

This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size.

Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. It is recommended setting the resolution to the optimal resolution of the product.

If the signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on.

Therefore, configure it as follows referring to the User Manual of the graphics card.

S20B370B

DISPLAY MODE	HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL CLOCK (MHZ)	SYNC POLARITY (H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000	+/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1440 x 900 55.935 59.887 106.500	-/+
VESA, 1440 x 900 70.635 74.984 136.750	-/+
VESA, 1600 x 900 60.000 60.000 108.000	+/+

Horizontal Frequency

The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz.

Vertical Frequency

A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz.

This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size.

Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. It is recommended setting the resolution to the optimal resolution of the product.

If the signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on.

Therefore, configure it as follows referring to the User Manual of the graphics card.

S22B370B

DISPLAY MODE	HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL CLOCK (MHZ)	SYNC POLARITY (H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000	+/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024	63.981	60.020	108.000	+/+
VESA, 1280 x 1024	79.976	75.025	135.000	+/+
VESA, 1440 x 900 55.935 59.887 106.500	-/+
VESA, 1600 x 900 60.000 60.000 108.000	+/+
VESA, 1680 x 1050	65.290	59.954	146.250	-/+
VESA, 1920 x 1080	67.500	60.000	148.500	+/+

Horizontal Frequency

The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz.

Vertical Frequency

A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz.

This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size.

Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. It is recommended setting the resolution to the optimal resolution of the product.

If the signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on.

Therefore, configure it as follows referring to the User Manual of the graphics card.

S22B370H

DISPLAY MODE	HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL CLOCK (MHZ)	SYNC POLARITY (H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000	+/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024	63.981	60.020	108.000	+/+
VESA, 1280 x 1024	79.976	75.025	135.000	+/+
VESA, 1440 x 900 55.935 59.887 106.500	-/+
VESA, 1600 x 900 60.000 60.000 108.000	+/+
VESA, 1680 x 1050	65.290	59.954	146.250	-/+
VESA, 1920 x 1080	67.500	60.000	148.500	+/+

Horizontal Frequency

The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz.

Vertical Frequency

A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz.

This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size.

Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. It is recommended setting the resolution to the optimal resolution of the product.

If the signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on.

Therefore, configure it as follows referring to the User Manual of the graphics card.

S23B370B

DISPLAY MODE	HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL CLOCK (MHZ)	SYNC POLARITY (H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000	+/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024	63.981	60.020	108.000	+/+
VESA, 1280 x 1024	79.976	75.025	135.000	+/+
VESA, 1440 x 900 55.935 59.887 106.500	-/+
VESA, 1600 x 900 60.000 60.000 108.000	+/+
VESA, 1680 x 1050	65.290	59.954	146.250	-/+
VESA, 1920 x 1080	67.500	60.000	148.500	+/+

Horizontal Frequency

The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz.

Vertical Frequency

A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz.

This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size.

Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. It is recommended setting the resolution to the optimal resolution of the product.

If the signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on.

Therefore, configure it as follows referring to the User Manual of the graphics card.

S23B370H

DISPLAY MODE	HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL CLOCK (MHZ)	SYNC POLARITY (H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000	+/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024	63.981	60.020	108.000	+/+
VESA, 1280 x 1024	79.976	75.025	135.000	+/+
VESA, 1440 x 900 55.935 59.887 106.500	-/+
VESA, 1600 x 900 60.000 60.000 108.000	+/+
VESA, 1680 x 1050	65.290	59.954	146.250	-/+
VESA, 1920 x 1080	67.500	60.000	148.500	+/+

Horizontal Frequency

The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz.

Vertical Frequency

A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz.

This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size.

Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. It is recommended setting the resolution to the optimal resolution of the product.

If the signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on.

Therefore, configure it as follows referring to the User Manual of the graphics card.

S24B370H

DISPLAY MODE	HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL CLOCK (MHZ)	SYNC POLARITY (H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000	+/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024	63.981	60.020	108.000	+/+
VESA, 1280 x 1024	79.976	75.025	135.000	+/+
VESA, 1440 x 900 55.935 59.887 106.500	-/+
VESA, 1600 x 900 60.000 60.000 108.000	+/+
VESA, 1680 x 1050	65.290	59.954	146.250	-/+
VESA, 1920 x 1080	67.500	60.000	148.500	+/+

Horizontal Frequency

The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz.

Vertical Frequency

A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz.

This product delivers the best picture quality when viewed under the optimal resolution setting. The optimal resolution is dependent on the screen size.

Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. It is recommended setting the resolution to the optimal resolution of the product.

If the signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on.

Therefore, configure it as follows referring to the User Manual of the graphics card.

S27B370H

DISPLAY MODE	HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL CLOCK (MHZ)	SYNC POLARITY (H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000	+/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024	63.981	60.020	108.000	+/+
VESA, 1280 x 1024	79.976	75.025	135.000	+/+
VESA, 1440 x 900 55.935 59.887 106.500	-/+
VESA, 1600 x 900 60.000 60.000 108.000	+/+
VESA, 1680 x 1050	65.290	59.954	146.250	-/+
VESA, 1920 x 1080	67.500	60.000	148.500	+/+

Horizontal Frequency

The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz.

Vertical Frequency

A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This frequency is called the vertical frequency. The vertical frequency is represented in Hz.

If you install the device driver, you can set up the appropriate resolution and frequency for the product. The device driver is included on the CD-ROM supplied with the product. If the supplied drive file is corrupted, please visit a service center or Samsung Electronics website(http://www.samsung.com/), and download the driver.

1. Insert the driver installation CD-ROM into the CD-ROM drive.
2. Click on "Windows Driver".
3. Complete the remaining installation steps according to the instructions displayed on the screen.
4. Select the model of your product from the model list.

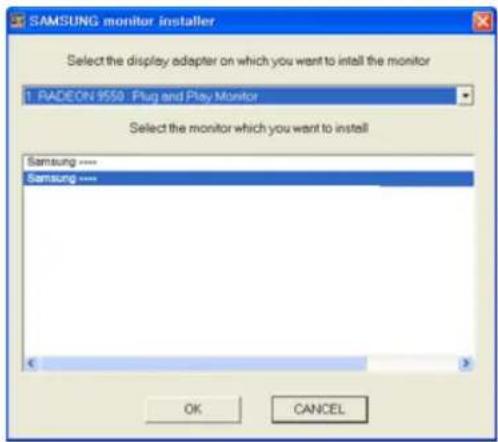

SAMSUNG monitor installer Select the display adapter on which you want to install the monitor 1. PADEON 9550 Plug and Play Monitor Select the monitor which you want to install Samsung ---- Samsung ---- OK CANCEL

1. Check if the appropriate resolution and screen refresh rate are displayed in the Control Panel settings. For more information, refer to the document about the Windows operating system.

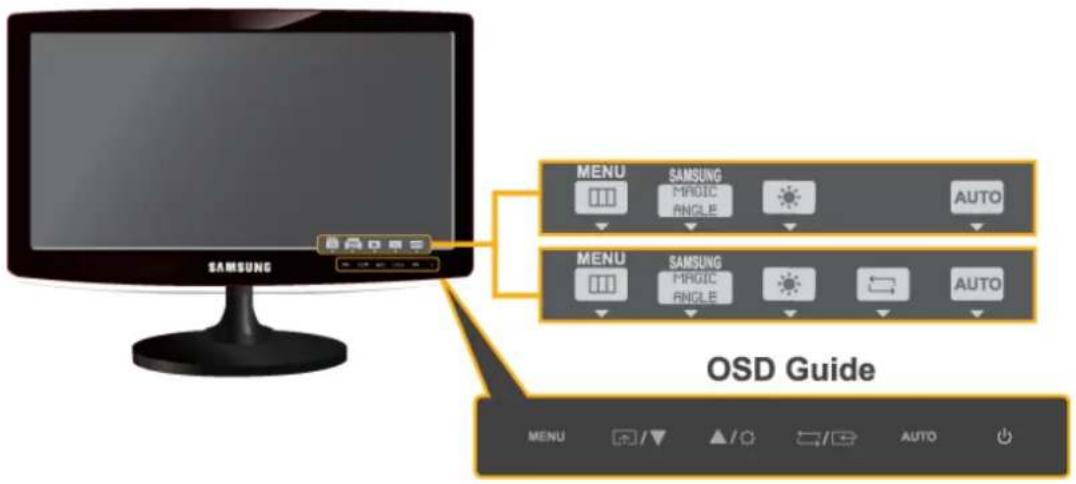

Product Operating Buttons

SAMSUNG MENU SAMSUNG MAGIC ANGLE AUTO MENU SAMSUNG MAGIC ANGLE AUTO OSD Guide MENU AUTO

- Press one of the buttons on the monitor. OSD Guide will appear on the screen.

• If you press a button on the front of the monitor, an OSD Guide will display showing the function of the button before the menu for the pressed button appears.
  • To go to the menu, press the button on the front of the monitor again.
• OSD Guide may vary according to functions and models. Please refer to actual product.

ICON DESCRIPTION
MENU	Press this button to view the On Screen Display (OSD).This button is also used to exit the OSD or to return to a higher-level OSD menu* OSD Adjustment LockThis function locks the OSD in order to maintain the current settings or to prevent the settings from being changed by another personOn: If you press and hold the MENU button down for 10 seconds, the OSD Adjustment Lock function is activated.Off: If you press and hold the MENU button down for 10 seconds again, the OSD Adjustment Lock function is disabled.Even if the OSD Adjustment Lock function is activated, users can adjust the brightness and contrast and can set up the adjustment function assigned to the [ ]
	Users can set theto one of the following functions. If the user presses the Customized Key [ ] after setting it, the configured function will be performed• < A SAMSUNG MAGIC < Bright> SAMSUNG MAGIC Saving> -You can set the function of the Customized Key by selectingin the OSD.
▲/▼	Use these buttons to navigate the menu or to adjust a value in the OSD.
	Use this button to control the brightness of the screen.
☐☐	Use this button to select a function.If you press the [☐☐] button when there is no OSD, the input signal (Analog/DVI or Analog/HDMI) is switched. When the input signal is switched by pressing [☐☐] button or the product is turned on, a message displaying the selected input signal appears at the top left of the screen.This function is not available for products with an Analog interface only.
AUTO	Press [AUTO] button to adjust the screen settings automaticallyThis function is only available in Analog mode.If the resolution settings are changed in the Display Properties, the AUTO adjustment function is performed.
∅	Press this button to turn the product on or offThe buttons on the right of the product are touch-type buttons.Touch the buttons lightly with your finger.Power LEDThis LED is turned on when the product works normally.For more information on the power-saving function, refer to the power saving function in More Information. When not using the product for a long time, unplugging the power cord is recommended to minimize power consumption.

The Screen Adjustment Menu (OSD: On Screen Display) Structure

Top Menus Sub	Menus
[0472] PICTURE	Brightness Contrast	Sharpness		SAMSUNG MAGIC Angle	SAMSUNG MAGIC
	Coarse Fine Response Time HDMI Black Level
COLOR	SAMSUNG MAGIC Color	Red Green Blue Color Tone
	Gamma

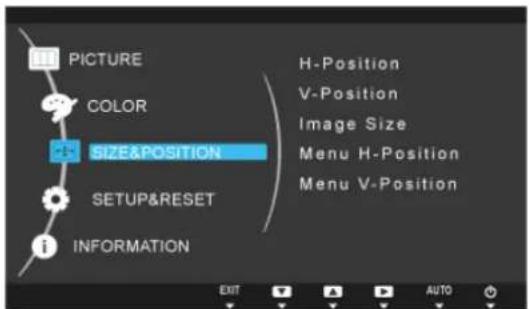

[YZW] SIZE & POSITION	H-Position	V-Position	Image Size	Menu H-Position	Menu V-Position

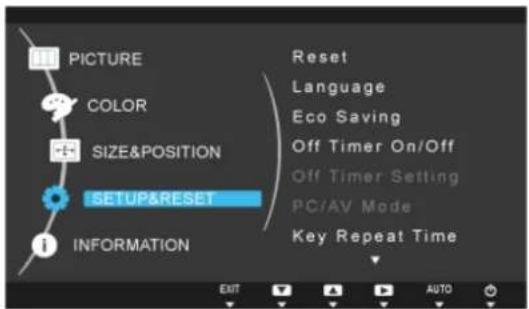

SETUP&RESET	Reset	Language	Eco Saving	Off Timer On/Off	Off Timer Setting
	PC/AV Mode	Key Repeat Time	Customized Key	Auto Source	Display Time
	Menu Transparency

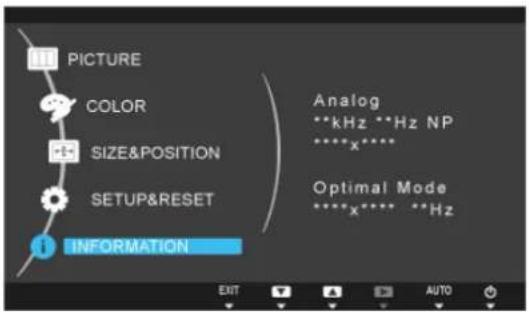

[ST7K] INFORMATION

Monitor functions may vary according to models. Please refer to actual product.

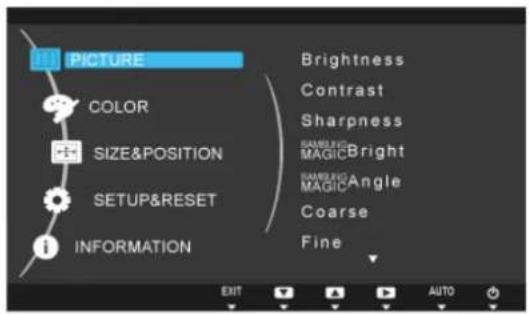

PICTURE COLOR SIZE&POSITION SETUP&RESET INFORMATION Brightness Contrast Sharpness MAGICBright MAGICAngle Coarse Fine EXIT AUTO

Menu	Description
Brightness	Controls the screen brightness.This menu is unavailable whenis set tomode.This menu is unavailable whenis set.
Contrast	Controls the contrast of the pictures displayed on the screenThis menu is unavailable whenis set toormode.This menu is unavailable whenis set tomode ormode.
Menu Description
Sharpness	Controls the clarity of details of pictures displayed on the screenThis menu is unavailable whenormode.This menu is unavailable whenmode or
SAMSUNG bright MAGIC	Provides preset picture settings optimized for various user environments such as editing a document, surfing the Internet, playing games, or movies and so on.If the preset picture modes are not sufficient, users can configure theanddirectly using this mode.This mode provides the picture setting appropriate for editing a document and surfing the Internet (text + picture).This mode provides the picture setting appropriate for playing games that include lots of graphics and that require a fast screen refresh rate.This mode provides brightness and sharpness settings similar to those of a TV for the best entertainment environment (movie, DVD, etc.).Controls the picture contrast automatically so that bright and dark pictures are balanced overall. When the external input is connected through HDMI andis setto,has four automatic picture settings(,,and) that are preset at the factory. You can activate either Dynamic, Standard, Movie or Custom. You can select Custom which automatically recalls your personalized picture settings.Select this mode to view a sharper image than in Standard mode.Select this mode when the surroundings are bright. This also provides a sharp image.Select this mode when the surroundings are dark. This will save power and reduce eye fatigue.Select this mode when you want to adjust the image according to your preferences.This menu is unavailable whenoris set.
Menu Description
SAMSUNG MAGIC Angle	This feature allows you to see optimal screen quality according to your viewing position.When viewing the screen at an angle from below, above or the side of the monitor, by setting the appropriate mode for each position you can obtain a similar picture quality as viewing the screen directly from the front.Set towhen viewing directly in front of the screen.- Select when viewing from the front position.- Select when viewing from a slightly lower position.- Select when viewing from the lower position.-Select when viewing from the upper position.- Select when viewing from the left or right position.- Select when two or more persons view among 1, 4, 5 position at the same time.-Whenis selected, settings foris applied by default.Users can set suitable picture quality as needed.This menu is unavailable when < Samsung's set toormode.This menu is unavailable when < Samsung's set.
Coarse	Removes vertical noise lines (line pattern) from the screen.The location of the screen may be changed after the adjustment. In this case, move the screen so that the screen is displayed at the center of the display panel using themenu.This function is only available in Analog mode.
FineMenu Description	Removes horizontal noise lines (line pattern) from the screen.If you cannot remove the noise completely with thefunction, adjust theand then use thefunction again.This function is only available in Analog mode.
Response Time	Accelerates the response time of the panel faster than the original response time so that moving pictures appear sharper and more natural.•<Normal>•<Faster>•<Fastest>It is recommended setting theorwhen not viewing a movie.Monitor functions may vary according to models. Please refer to actual product.User can choose the optimal mode from/,according to the different input video signal.
HDMI Black Level	When watching with a DVD or set-top box connecting to the product via HDMI, image quality deterioration (black level, lower-quality contrast, lighter color tone, etc.) may occur depending on the connected external device.•<Normal>•This function is active only when the external device is connected via.Thefunction may not be compatible with all external devices.

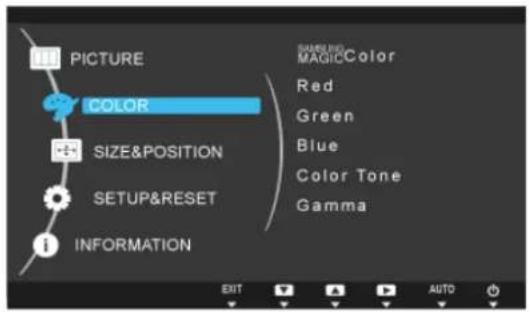

COLOR

PICTURE COLOR SIZE&POSITION SETUP&RESET INFORMATION SAMSUNG MAGICColor Red Green Blue Color Tone Gamma EXIT AUTO

Menu Description
SAMSUNG MAGIC Color	Expresses natural colors more clearly without changing the picture quality using proprietary digital picture quality improvement technology developed by Samsung Electronics.- Turns the < SAMSUNG MAGIC function off.- You can compare the pictures processed by < SAMSUNG MAGIC with the original pictures.- Provides a clearer picture including areas corresponding to skin color.- Improves the chroma of pictures except for areas corresponding to skin color.This menu is unavailable when < SAMSUNG MAGIC is set.
Red	You can adjust the red color value of pictures according to your preference.This menu is unavailable when < SAMSUNG MAGIC Color> is set tomode ormode.
Green	You can adjust the green color value of pictures according to your preference.This menu is unavailable when < SAMSUNG MAGIC Color> is set tomode ormode.
Blue	You can adjust the blue color value of pictures according to your preference.This menu is unavailable when < SAMSUNG MAGIC Color> is set tomode ormode.
Color Tone	You can set the color temperature according to your preference.- Sets the color temperature of the screen to very cool.- Sets the color temperature of the screen to cool.- Sets the color temperature of the screen to the standard color temperature.- Sets the color temperature of the screen to warm.- Sets the color temperature of the screen to very warm.- Select this menu to set the color temperature manually.If you do not like the preset color temperatures, you can manually adjust the value of RGB.When the external input is connected through HDMI andis set to,has four color temperature settings (,,and).This menu is unavailable when < SAMSUNG MAGIC set tomode ormode.- This menu is unavailable when < SAMSUNG MAGIC is set.
Gamma	Using this menu, you can change the intensity of the colors of medium brightness.- -This menu is unavailable when < SAMSUNG MAGIC is set.

(This is unavailable when is set to and mode.)

PICTURE COLOR SIZE&POSITION SETUP&RESET INFORMATION H-Position V-Position Image Size Menu H-Position Menu V-Position EXIT AUTO

Menu Description
H-Position	Moves the position of the display area on the screen horizontally.This function is only available in Analog mode.When a 720P or 1080P signal is input in AV mode,selectto adjust horizontal position in 0-6 levels.
V-Position	Moves the position of the display area on the screen vertically.This function is only available in Analog mode.When a 720P or 1080P signal is input in AV mode,selectto adjust vertical position in 0-6 levels.
Image Size	Supplied for the wide models only such as 16:9 or 16:10.PC signals-The picture is displayed at the aspect ratio of the input signal.- The picture is displayed in full screen regardless of the aspect ratio of the input signal.A signal not in the standard mode table is not supported.If the resolution is set to the optimal resolution, the aspect ratio does not change whether theis set toor.AV signals<4 : 3>- Displays pictures at the 4:3 aspect ratio.<16 : 9>- Displays pictures at the 16:9 aspect ratio.- If a 720P or 1080P signal is input in HDMI/DVI input mode, the picture is displayed as is without truncation.This can only be set when the external input is connected through HDMI/DVI andis set to.
Menu H-Position You	can adjust the horizontal position of the OSD.
Menu V-Position You	can adjust the vertical position of the OSD.

PICTURE COLOR SIZE&POSITION SETUP&RESET INFORMATION Reset Language Eco Saving Off Timer On/Off Off Timer Setting PC/AV Mode Key Repeat Time EXIT AUTO

Menu Description
Reset	Use this function to restore the visual quality and color settings to the factory defaults.• < Yes > - < No>
Language	Select a language for the OSD.Deutsch, English, Español, Français, Italiano, Magyar, Polski, Português, Русский, Svenska, Türkçe, 日本語, 한국어, 汉语The selected language is only applied to the product OSD. This setting does not affect the other functions of the PC.
Eco Saving	This function provides user a low power mode which is realized by lowering the current of the display panel.<75%>When <75%> is selected, the power consumption is about 75% of default setting.<50%>When <50%> is selected, the power consumption is about 50% of default setting.Whenis selected, the function is turned Off.This menu is unavailable when <SAMSUNG MAGIC> is set tomode.
Off Timer On/Off	You can turn the Off Timer on or off.-
Off Timer Setting	Turns the power off automatically when the configured time is reached.Whenofis selected, This function is available only.
PC/AV Mode	Set to PC when connected to a PC.Set to AV when connected to an AV device.This function does not support Analog mode.Supplied for the wide models only such as 16:9 or 16:10.If the monitor (when set to DVI or HDMI) is in power saving mode or is displaying the message, press the MENU button to display the On Screen Display (OSD). You can selector.
Menu Description
Key Repeat Time	Controls the repeat delay of a button.You can set to, <1 sec> or <2 sec>. Ifis selected, the button only responds once.
Customized Key	You can set the function of the Customized Key to one of the following.- - -
Auto Source	- The monitor automatically selects an input signal.- Users have to manually select an input signal.Not applicable to analog (D-SUB)-or-digital (DVI)-dedicated models.
Display Time	The OSD automatically disappears if no action is taken by the user.You can determine the time to wait before the OSD is hidden.- <5 sec> - <10 sec> - <20 sec> - <200 sec>
Menu Transparency	You can select the transparency of the OSD.-

INFORMATION

PICTURE COLOR SIZE&POSITION SETUP&RESET INFORMATION Analog **kHz **Hz NP ****x**** Optimal Mode ****x**** **Hz EXIT AUTO

Menu Description
INFORMATION	Shows the frequency and resolution set on the PC.For models with an Analog interface only,is not shown in the.

4-1 Natural Color

What is Natural Color?

This software works only for Samsung products and enables adjusting the displayed colors on the product and matches the colors on the product with the colors of the printed pictures. For more information, refer to the online help of the software (F1).

The Natural Color is provided online. You can download it from the website below and install;

http://www.samsung.com/us/consumer/learningresources/monitor/naturalcolorexpert/pop_download.html

What is MagicTune?

MagicTune™

MagicTune is a software program that helps with monitor adjustments by providing comprehensive descriptions of monitor functions and easy-to-understand guidelines.

Users can adjust the product with the mouse and the keyboard without using the operating buttons of the product.

Installing the Software

1. Insert the installation CD into the CD-ROM drive.

2. Select the MagicTune setup program.

If the pop-up screen for the software installation does not appear on the main screen, find and double-click the MagicTune setup file on the CD-ROM.

1. Select the installation language and click [Next].

2. Complete the remaining software installation steps according to the instructions displayed on the screen.

- The software may not work properly if you do not restart the computer after the installation. - The MagicTune icon may not appear depending on the computer system and the product specifications. - If the shortcut icon does not appear, press the F5 key.

Restrictions and Problems with the Installation (MagicTune™)

The installation of MagicTune™ may be affected by the graphics card, motherboard and the networking environment.

System Requirements

os

- Windows 2000

•Windows XP Home Edition

•Windows XP Professional

- Windows Vista 32Bit

- Windows 7 32Bit

For MagicTune™, Windows 2000 or later is recommended.

Hardware

•At least 32MB of memory

- At least 60MB of free space on the hard disk drive

For more information, refer to the website.

Removing the Software

You can only remove MagicTune™ through [Add or Remove Programs] in Windows.

To remove MagicTune ^TM , complete the following steps.

1. Click [Start] select [Settings], and select [Control Panel] from the menu. For Windows XP, click [Start], and select [Control Panel] from the menu.

2. Double-click the [Add or Remove Programs] icon in the Control Panel.

3. In the [Add/Remove] window, find and select MagicTune™ so that it is highlighted.

4. Click [Change or Remove Programs] to remove the software.
5. Select [Yes] to start removing MagicTune™.
6. Wait until a message box appears informing you that the software has been removed completely.

For technical support, the FAQ (frequently asked questions) or information about the software upgrade for MagicTune™, please visit our website.

What is MultiScreen?

MultiScreen

MultiScreen enables users to use the monitor by partitioning multiple sections.

Installing the Software

1. Insert the installation CD into the CD-ROM drive.
2. Select the MultiScreen setup program.

If the pop-up screen for the software installation does not appear on the main screen, find and double-click the MultiScreen setup file on the CD-ROM.

1. When the Installation Wizard appears, click [Next].
2. Complete the remaining software installation steps according to the instructions displayed on the screen.

- The software may not work properly if you do not restart the computer after the installation.

•The MultiScreen icon may not appear depending on the computer system and the product specifications.
- If the shortcut icon does not appear, press the F5 key.

Restrictions and Problems with the Installation (MultiScreen)

The MultiScreen installation may be affected by the graphics card, motherboard and the networking environment.

Operating System

OS

•Windows 2000
•Windows XP Home Edition
•Windows XP Professional
•Windows Vista 32Bit
- Windows 7 32Bit

For MultiScreen, the operating systems Windows 2000 or later is recommended.

Hardware

• At least 32MB of memory
• At least 60MB of free space on the hard disk drive

Removing the Software

Click [Start], select [Settings]/[Control Panel], and then double-click [Add or Remove Programs].

Select MultiScreen from the program list and click the [Add/Delete] button.

5-1 Monitor Self-Diagnosis

- You can check if the product is working properly using the Self-Diagnosis function.

- If a blank screen is displayed and the Power LED blinks even if the product and the PC are properly connected, perform the self-diagnosis function according to the procedures below.

1. Turn the product and the PC off.
2. Separate the signal cable from the product.
3. Turn the product on.
4. If the product is working properly, the message appears.

In this case, if a blank screen is displayed again, make sure that there is no problem with the PC and the connection. The product is working properly.

Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest Samsung Electronics Service Center.

A blank screen appears / I cannot turn the product on
Is the power cord connected properly? Check the connection status of the power cord.
Is themessage displayed on the screen?	(Connected using the D-sub cable)Check the cable connecting the PC and the product.(Connected using the DVI cable)If the message appears on the screen even if the cable is properly connected, recheck the input signal by pressing the [ ] button of the product.
Is themessage displayed on the screen?	This occurs when the signal from the graphics card exceeds the maximum resolution or the maximum frequency of the product.In this case, set up the appropriate resolution and the frequency for the product.
Is a blank screen displayed and does the power LED blink at a 1 second interval?	1. This occurs when the power saving function is running.If you click the mouse or press any key, the screen will be turned on.2. If thecondition persists for more than five minutes, the power saving function will be activated.
Did you connect with a DVI cable?	If you connect the DVI cable when the PC has booted up or if you reconnect the DVI cable after disconnecting the cable while using a PC, the screen may not be displayed because some graphics cards do not output the video signal.In this case, reboot the PC while the DVI cable is connected.
Blank spaces are found at the top and bottom of the screen when an [HDMI] or [HDMI-DVI] cable is connected to the monitor and PC.	Blank spaces on the screen are not caused by the monitor.The cause of the problem is the PC or graphics card, and can be fixed by adjusting the screen size in the HDMI or DVI option of the graphics card settings menu.If the graphics card settings menu has no option to adjust the screen size, update the graphics card driver to the latest version.(Please contact the graphics card or computer manufacturer for details on how to adjust the screen settings.)

THE IMAGE IS TOO LIGHT OR TOO DARK.

Adjust the and .

(Refer to the , )

The display brightness can differ according to the mode set for <MAGIC.

If is set to , the display brightness can differ according to the input signal.

The on screen adjustment menu (OSD) does not appear.

Did you cancel the screen adjustment?

Check if the OSD Adjustment Lock function is set to Off.

The color is weird / The picture is displayed in black and white
Is the entire screen displayed in the same color as if viewing the screen through a cellophane paper?	Check the cable connection to the computer.Reinsert the graphics card into the computer completely.
Is the graphics card configured correctly?	Set up the graphics card referring to the user manual.
The display area suddenly moves to an edge or to the center.
Did you change the graphics card or the driver?	Please press the [AUTO] button to run the auto adjustment function.
Did you change the resolution and frequency appropriate to the product?	Set the resolution and the frequency to the appropriate values in the graphics cardrefer to the (Standard Signal Mode Table)
Is the graphics card configured correctly?	Set up the graphics card referring to the user manual.
The pictures are out-of-focus.
Did you change the resolution and the frequency appropriate to the product?	Set the resolution and the frequency to the appropriate values in the graphics cardrefer to the (Standard Signal Mode Table)
The color is displayed in 16 bit (16 colors). The color has been changed after changing the graphics card.
Did you install the device driver for the product?	Windows XP : Set the color again by selecting Control Panel → Appearance and Themes → Display → Settings.Windows ME/2000 : Set the color again by selecting Control Panel → Display → Settings.Windows Vista : Change the color settings by selecting Control Panel → Appearance and Personalization → Personalization → Display settings.Windows 7 : Change the color settings by selecting Control Panel → Appearance and Personalization → Display → Adjust resolution → Advanced settings → Monitor.(For more information, refer to the Windows user manual for the computer.)
Is the graphics card configured correctly?	Configure the color again in accordance with the new graphics card driver.
When I connect the monitor, the 'Unknown monitor, Plug&Play (VESA DDC) monitor found' message is displayed.
Did you install the device driver for the product?	Install the device driver referring to the descriptions about the driver installation.
Check if all the Plug&Play (VESA DDC) functions are supported referring to the User Manual of the graphics card.	Install the device driver referring to the descriptions about the driver installation.
When I look at the exterior edges of the product, small alien substances appear on it.
Since this product is designed so that the color has a soft appearance by coating it with a transparent material over the black edges, such things may be seen. This is not a defect of the product.
A "beep, beep" sound is heard when booting the computer.
If the beep sound is generated 3 or more times when booting up the computer, please request service for the computer.
FAQ! PLEASE TRY THE FOLLOWING!
How can I change the frequency (refresh rate) of the video signal?	You have to change the frequency of the graphics card.Windows XP: Change the frequency by selecting Control Panel → Appearance and Themes → Display → Settings → Advanced → Monitor, and then change the refresh rate under Monitor Settings.Windows ME/2000: Change the frequency by selecting Control Panel → Display → Settings → Advanced → Monitor, and then change the refresh rate under Monitor Settings.Windows Vista: Change the frequency by selecting Control Panel → Appearance and Personalization → Personalization → Display settings → Advanced settings → Monitor, and then change the refresh rate under Monitor Settings.Windows 7: Change the frequency by selecting Control Panel → Appearance and Personalization → Display → Adjust resolution → Advanced settings → Monitor, and then change the refresh rate under Monitor Settings.(For more information, refer to the User Manual of the computer or the graphics card.)
How can I change the resolution?	Windows XP: Change the resolution by selecting Control Panel → Appearance and Themes → Display → Settings.Windows ME/2000: Change the resolution by selecting Control Panel → Display → Settings.Windows Vista: Change the resolution by selecting Control Panel → Appearance and Personalization → Personalization → Display settings.Windows 7: Change the resolution by selecting Control Panel → Appearance and Personalization → Display → Adjust resolution.(For more information, refer to the User Manual of the computer or the graphics card.)
How can I use the power saving function?	Windows XP: Configure it by selecting Control Panel → Appearance and Themes → Display → Screen Saver Setting or configure it in the BIOS Setup of the computer.Windows ME/2000: Configure it by selecting Control Panel → Display → Screen Saver Setting or Configure it in the BIOS Setup of the computer.Windows Vista: Change settings by selecting Control Panel → Appearance and Personalization → Personalization → Screen Saver. You can also use the BIOS SETUP menu on the PC.Windows 7: Change settings by selecting Control Panel → Appearance and Personalization → Personalization → Screen Saver. You can also use the BIOS SETUP menu on the PC.(For more information, refer to the Windows user manual for the computer.)

6-1 Specifications

MODEL NAME S19B370N
Panel	Size 18.5 inches (47 cm)
	Display area 409.8 mm (H) x 230.4 mm (V)
	Pixel Pitch 0.300 mm (H) x 0.300 mm (V)
Synchronization	Horizontal 30 ~ 81 kHz
	Vertical 56 ~ 75 Hz
Display Color 16.7M
Resolution	Optimum resolution 1366 x 768 @ 60 Hz
	Maximum resolution 1366 x 768 @ 60 Hz
Input Signal, Terminated		RGB Analog0.7 Vp-p ± 5%separate H/V sync, Composite, SOGTTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Maximum Pixel Clock 89MHz (Analog)
Power Supply		This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product.
Signal Cable 15pin-to-15pin D-sub cable, Detachable
Dimensions (WxHxD) / Weight		454.7 x 287.8 x 57.5 mm (17.9 x 11.3 x 2.3 inches) (Without Stand)454.7 x 366.1 x 177.0 mm (17.9 x 14.4 x 7.0 inches) (With Stand) / 2.45 kg (5.4 lbs)
Environmental considerations	Operating	Operating Temperature: 50°F ~ 104°F (10°C ~ 40°C)Humidity: 10 % ~ 80 %, non-condensing
	Storage	Storage Temperature: -4°F ~ 113°F (-20°C ~ 45°C)Humidity: 5 % ~ 95 %, non-condensing
Tilt -1.0°(±2.0°) ~20.0°(±2.0°)

Design and specifications are subject to change without prior notice.
Class B (Information Communication equipment for residential use)

This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

(USA ONLY)

Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799

6-2 Power Saving Function

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.

STATE NORMAL OPERATION POWER SAVING MODE POWER OFF
Power Indicator On Blinking Off
Power Consumption 20 watts Typical 0.3 watts Typical 0.3 watts

If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.

MODEL NAME S19B370B
Panel	Size 18.5 inches (47 cm)
	Display area 409.8 mm (H) x 230.4 mm (V)
	Pixel Pitch 0.300 mm (H) x 0.300 mm (V)
Synchronization	Horizontal 30 ~ 81 kHz
	Vertical 56 ~ 75 Hz
Display Color 16.7M
Resolution	Optimum resolution 1366 x 768 @ 60 Hz
	Maximum resolution 1366 x 768 @ 60 Hz
Input Signal, Terminated		RGB Analog, DVI(Digital Visual Interface) Compliant Digital RGB0.7 Vp-p ± 5%separate H/V sync, Composite, SOGTTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Maximum Pixel Clock 89MHz (Analog/Digital)
Power Supply		This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product.
Signal Cable		15pin-to-15pin D-sub cable, DetachableDVI-D to DVI-D connector, Detachable
Dimensions (WxHxD) / Weight		454.7 x 287.8 x 57.5 mm (17.9 x 11.3 x 2.3 inches) (Without Stand)454.7 x 366.1 x 177.0 mm (17.9 x 14.4 x 7.0 inches) (With Stand) / 2.45 kg (5.4 lbs)
Environmental considerations	Operating	Operating Temperature: 50°F ~ 104°F (10°C ~ 40°C)Humidity: 10 % ~ 80 %, non-condensing
	Storage	Storage Temperature: -4°F ~ 113°F (-20°C ~ 45°C)Humidity: 5 % ~ 95 %, non-condensing
Tilt -1.0°(±2.0°) ~20.0°(±2.0°)

Design and specifications are subject to change without prior notice.
Class B (Information Communication equipment for residential use)

This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

(USA ONLY)

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website,

www.samsung.com/recyclingdirect, or call (877) 278 - 0799

6-4 Power Saving Function

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.

STATE NORMAL OPERATION POWER SAVING MODE POWER OFF
Power Indicator On Blinking Off
Power Consumption 20 watts Typical 0.3 watts Typical 0.3 watts

If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.

MODEL NAME S20B370N
Panel	Size 20 inches (50 cm)
	Display area 442.8 mm (H) x 249.08 mm (V)
	Pixel Pitch 0.27625 mm (H) x 0.27625 mm (V)
Synchronization	Horizontal 30 ~ 81 kHz
	Vertical 56 ~ 75 Hz
Display Color 16.7M
Resolution	Optimum resolution 1600 x 900 @ 60 Hz
	Maximum resolution 1600 x 900 @ 60 Hz
Input Signal, Terminated		RGB Analog0.7 Vp-p ± 5%separate H/V sync, Composite, SOGTTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Maximum Pixel Clock 150MHz (Analog)
Power Supply		This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product.
Signal Cable 15pin-to-15pin D-sub cable, Detachable
Dimensions (WxHxD) / Weight		487.8 x 306.5 x 58.3 mm (19.2 x 12.1 x 2.3 inches) (Without Stand)487.8 x 381.4 x 177.0 mm (19.2 x 15.0 x 7.0 inches) (With Stand) / 2.3 kg (5.1 lbs)
Environmental considerations	Operating	Operating Temperature: 50°F ~ 104°F (10°C ~ 40°C)Humidity: 10 % ~ 80 %, non-condensing
	Storage	Storage Temperature: -4°F ~ 113°F (-20°C ~ 45°C)Humidity: 5 % ~ 95 %, non-condensing
Tilt -1.0°(±2.0°) ~20.0°(±2.0°)

Design and specifications are subject to change without prior notice.
Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

(USA ONLY)

Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website, www.samsung.com/recyclingdirect, or call (877) 278 - 0799

6-6 Power Saving Function

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.

STATE NORMAL OPERATION POWER SAVING MODE POWER OFF
Power Indicator On Blinking Off
Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts

If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.

MODEL NAME S20B370B
Panel	Size 20 inches (50 cm)
	Display area 442.8 mm (H) x 249.08 mm (V)
	Pixel Pitch 0.27625 mm (H) x 0.27625 mm (V)
Synchronization	Horizontal 30 ~ 81 kHz
	Vertical 56 ~ 75 Hz
Display Color 16.7M
Resolution	Optimum resolution 1600 x 900 @ 60 Hz
	Maximum resolution 1600 x 900 @ 60 Hz
Input Signal, Terminated		RGB Analog, DVI(Digital Visual Interface) Compliant Digital RGB0.7 Vp-p ± 5%separate H/V sync, Composite, SOGTTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Maximum Pixel Clock 150MHz (Analog/Digital)
Power Supply		This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product.
Signal Cable		15pin-to-15pin D-sub cable, DetachableDVI-D to DVI-D connector, Detachable
Dimensions (WxHxD) / Weight		487.8 x 306.5 x 58.3 mm (19.2 x 12.1 x 2.3 inches) (Without Stand)487.8 x 381.4 x 177.0 mm (19.2 x 15.0 x 7.0 inches) (With Stand) / 2.3 kg (5.1 lbs)
Environmental considerations	Operating	Operating Temperature: 50°F ~ 104°F (10°C ~ 40°C)Humidity: 10 % ~ 80 %, non-condensing
	Storage	Storage Temperature: -4°F ~ 113°F (-20°C ~ 45°C)Humidity: 5 % ~ 95 %, non-condensing
Tilt -1.0°(±2.0°) ~20.0°(±2.0°)

Design and specifications are subject to change without prior notice.
Class B (Information Communication equipment for residential use)

This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

(USA ONLY)

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website,

www.samsung.com/recyclingdirect, or call (877) 278 - 0799

6-8 Power Saving Function

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.

STATE NORMAL OPERATION POWER SAVING MODE POWER OFF
Power Indicator On Blinking Off
Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts

If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.

MODEL NAME S22B370B
Panel	Size 21.5 inches (54 cm)
	Display area 476.64 mm (H) x 268.11 mm (V)
	Pixel Pitch 0.24825 mm (H) x 0.24825 mm (V)
Synchronization	Horizontal 30 ~ 81 kHz
	Vertical 56 ~ 75 Hz
Display Color 16.7M
Resolution	Optimum resolution 1920 x 1080 @ 60 Hz
	Maximum resolution 1920 x 1080 @ 60 Hz
Input Signal, Terminated		RGB Analog, DVI(Digital Visual Interface) Compliant Digital RGB0.7 Vp-p ± 5%separate H/V sync, Composite, SOGTTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Maximum Pixel Clock 164MHz (Analog/Digital)
Power Supply		This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product.
Signal Cable		15pin-to-15pin D-sub cable, DetachableDVI-D to DVI-D connector, Detachable
Dimensions (WxHxD) / Weight		523.9 x 327.7 x 59.0 mm (20.6 x 12.9 x 2.3 inches) (Without Stand)523.9 x 420.5 x 197.0 mm (20.6 x 16.6 x 7.8 inches) (With Stand) / 3.3 kg (7.3 lbs)
Environmental considerations	Operating	Operating Temperature: 50°F ~ 104°F (10°C ~ 40°C)Humidity: 10 % ~ 80 %, non-condensing
	Storage	Storage Temperature: -4°F ~ 113°F (-20°C ~ 45°C)Humidity: 5 % ~ 95 %, non-condensing
Tilt -1.0°(±2.0°) ~20.0°(±2.0°)

Design and specifications are subject to change without prior notice.
Class B (Information Communication equipment for residential use)

This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

(USA ONLY)

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website,

www.samsung.com/recyclingdirect, or call (877) 278 - 0799

6-10 Power Saving Function

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.

STATE NORMAL OPERATION POWER SAVING MODE POWER OFF
Power Indicator On Blinking Off
Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts

If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.

MODEL NAME S22B370H
Panel	Size 21.5 inches (54 cm)
	Display area 476.64 mm (H) x 268.11 mm (V)
	Pixel Pitch 0.24825 mm (H) x 0.24825 mm (V)
Synchronization	Horizontal 30 ~ 81 kHz
	Vertical 56 ~ 75 Hz
Display Color 16.7M
Resolution	Optimum resolution 1920 x 1080 @ 60 Hz
	Maximum resolution 1920 x 1080 @ 60 Hz
Input Signal, Terminated		RGB Analog, HDMI(High Definition Multimedia Interface)0.7 Vp-p ± 5%separate H/V sync, Composite, SOGTTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Maximum Pixel Clock 164MHz (Analog,HDMI)
Power Supply		This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product.
Signal Cable		15pin-to-15pin D-sub cable, DetachableHDMI to DVI Cable, DetachableHDMI Cable, Detachable
Dimensions (WxHxD) / Weight		523.9 x 327.7 x 59.0 mm (20.6 x 12.9 x 2.3 inches) (Without Stand)523.9 x 420.5 x 197.0 mm (20.6 x 16.6 x 7.8 inches) (With Stand) / 3.3 kg (7.3 lbs)
Environmental considerations	Operating	Operating Temperature: 50°F ~ 104°F (10°C ~ 40°C)Humidity: 10 % ~ 80 %, non-condensing
	Storage	Storage Temperature: -4°F ~ 113°F (-20°C ~ 45°C)Humidity: 5 % ~ 95 %, non-condensing
Tilt -1.0°(±2.0°) ~20.0°(±2.0°)

Design and specifications are subject to change without prior notice.
Class B (Information Communication equipment for residential use)

This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

(USA ONLY)

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website,

www.samsung.com/recyclingdirect, or call (877) 278 - 0799

6-12 Power Saving Function

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.

STATE NORMAL OPERATION POWER SAVING MODE POWER OFF
Power Indicator On Blinking Off
Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts

If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.

MODEL NAME S23B370B
Panel	Size 23 inches (58 cm)
	Display area 509.76 mm (H) x 286.74 mm (V)
	Pixel Pitch 0.2655 mm (H) x 0.2655 mm (V)
Synchronization	Horizontal 30 ~ 81 kHz
	Vertical 56 ~ 75 Hz
Display Color 16.7M
Resolution	Optimum resolution 1920 x 1080 @ 60 Hz
	Maximum resolution 1920 x 1080 @ 60 Hz
Input Signal, Terminated		RGB Analog, DVI(Digital Visual Interface) Compliant Digital RGB0.7 Vp-p ± 5%separate H/V sync, Composite, SOGTTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Maximum Pixel Clock 164MHz (Analog/Digital)
Power Supply		This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product.
Signal Cable		15pin-to-15pin D-sub cable, DetachableDVI-D to DVI-D connector, Detachable
Dimensions (WxHxD) / Weight		555.7 x 346.6 x 59.2 mm (21.9 x 13.6 x 2.3 inches) (Without Stand)555.7 x 421.4 x 197.0 mm (21.9 x 16.6 x 7.8 inches) (With Stand) / 3.0 kg (6.6 lbs)
Environmental considerations	Operating	Operating Temperature: 50°F ~ 104°F (10°C ~ 40°C)Humidity: 10 % ~ 80 %, non-condensing
	Storage	Storage Temperature: -4°F ~ 113°F (-20°C ~ 45°C)Humidity: 5 % ~ 95 %, non-condensing
Tilt -1.0°(±2.0°) ~20.0°(±2.0°)

Design and specifications are subject to change without prior notice.
Class B (Information Communication equipment for residential use)

This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

(USA ONLY)

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website,

www.samsung.com/recyclingdirect, or call (877) 278 - 0799

6-14 Power Saving Function

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.

STATE NORMAL OPERATION POWER SAVING MODE POWER OFF
Power Indicator On Blinking Off
Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts

If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.

MODEL NAME S23B370H
Panel	Size 23 inches (58 cm)
	Display area 509.76 mm (H) x 286.74 mm (V)
	Pixel Pitch 0.2655 mm (H) x 0.2655 mm (V)
Synchronization	Horizontal 30 ~ 81 kHz
	Vertical 56 ~ 75 Hz
Display Color 16.7M
Resolution	Optimum resolution 1920 x 1080 @ 60 Hz
	Maximum resolution 1920 x 1080 @ 60 Hz
Input Signal, Terminated		RGB Analog, HDMI(High Definition Multimedia Interface)0.7 Vp-p ± 5%separate H/V sync, Composite, SOGTTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Maximum Pixel Clock 164MHz (Analog,HDMI)
Power Supply		This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product.
Signal Cable		15pin-to-15pin D-sub cable, DetachableHDMI to DVI Cable, DetachableHDMI Cable, Detachable
Dimensions (WxHxD) / Weight		555.7 x 346.6 x 59.2 mm (21.9 x 13.6 x 2.3 inches) (Without Stand)555.7 x 421.4 x 197.0 mm (21.9 x 16.6 x 7.8 inches) (With Stand) / 3.0 kg (6.6 lbs)
Environmental considerations	Operating	Operating Temperature: 50°F ~ 104°F (10°C ~ 40°C)Humidity: 10 % ~ 80 %, non-condensing
	Storage	Storage Temperature: -4°F ~ 113°F (-20°C ~ 45°C)Humidity: 5 % ~ 95 %, non-condensing
Tilt -1.0°(±2.0°) ~20.0°(±2.0°)

Design and specifications are subject to change without prior notice.
Class B (Information Communication equipment for residential use)

This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

(USA ONLY)

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website,

www.samsung.com/recyclingdirect, or call (877) 278 - 0799

6-16 Power Saving Function

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.

STATE NORMAL OPERATION POWER SAVING MODE POWER OFF
Power Indicator On Blinking Off
Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts

If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.

MODEL NAME S24B370H
Panel	Size 24 inches (61 cm)
	Display area 531.36 mm (H) x 298.89 mm (V)
	Pixel Pitch 0.27675 mm (H) x 0.27675 mm (V)
Synchronization	Horizontal 30 ~ 81 kHz
	Vertical 56 ~ 75 Hz
Display Color 16.7M
Resolution	Optimum resolution 1920 x 1080 @ 60 Hz
	Maximum resolution 1920 x 1080 @ 60 Hz
Input Signal, Terminated		RGB Analog, HDMI0.7 Vp-p ± 5%separate H/V sync, Composite, SOGTTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Maximum Pixel Clock 164MHz (Analog,HDMI)
Power Supply		This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product.
Signal Cable		15pin-to-15pin D-sub cable, DetachableHDMI to DVI-D connector, Detachable
Dimensions (WxHxD) / Weight		578.6 x 359.1 x 59.2 mm (22.8 x 14.1 x 2.3 inches) (Without Stand)578.6 x 433.8 x 197.0 mm (22.8 x 17.1 x 7.8 inches) (With Stand) / 3.6 kg (7.9 lbs)
Environmental considerations	Operating	Operating Temperature: 50°F ~ 104°F (10°C ~ 40°C)Humidity: 10 % ~ 80 %, non-condensing
	Storage	Storage Temperature: -4°F ~ 113°F (-20°C ~ 45°C)Humidity: 5 % ~ 95 %, non-condensing
Tilt -1.0°(±2.0°) ~20.0°(±2.0°)

Design and specifications are subject to change without prior notice.
Class B (Information Communication equipment for residential use)

This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

(USA ONLY)

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website,

www.samsung.com/recyclingdirect, or call (877) 278 - 0799

6-18 Power Saving Function

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.

STATE NORMAL OPERATION POWER SAVING MODE POWER OFF
Power Indicator On Blinking Off
Power Consumption 30 watts Typical 0.3 watts Typical 0.3 watts

If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.

MODEL NAME S27B370H
Panel	Size 27 inches (68 cm)
	Display area 597.89 mm (H) x 336.31 mm (V)
	Pixel Pitch 0.3114 mm (H) x 0.3114 mm (V)
Synchronization	Horizontal 30 ~ 81 kHz
	Vertical 56 ~ 75 Hz
Display Color 16.7M
Resolution	Optimum resolution 1920 x 1080 @ 60 Hz
	Maximum resolution 1920 x 1080 @ 60 Hz
Input Signal, Terminated		RGB Analog, HDMI0.7 Vp-p ± 5%separate H/V sync, Composite, SOGTTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Maximum Pixel Clock 164MHz (Analog,HDMI)
Power Supply		This product supports 100-240 V.Since the standard voltage may differ from country to country, please check the label on the back of the product.
Signal Cable		15pin-to-15pin D-sub cable, DetachableHDMI to DVI-D connector, Detachable
Dimensions (WxHxD) / Weight		654.0 x 405.6 x 60.3 mm (25.7 x 16.0 x 2.4 inches) (Without Stand)654.0 x 482.7 x 234.1 mm (25.7 x 19.0 x 9.2 inches) (With Stand) / 4.65 kg (10.3 lbs)
Environmental considerations	Operating	Operating Temperature: 50°F ~ 104°F (10°C ~ 40°C)Humidity: 10 % ~ 80 %, non-condensing
	Storage	Storage Temperature: -4°F ~ 113°F (-20°C ~ 45°C)Humidity: 5 % ~ 95 %, non-condensing
Tilt -1.0°(±2.0°) ~20.0°(±2.0°)

Design and specifications are subject to change without prior notice.
Class B (Information Communication equipment for residential use)

This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

(USA ONLY)

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website,

www.samsung.com/recyclingdirect, or call (877) 278 - 0799

6-20 Power Saving Function

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature.

STATE NORMAL OPERATION POWER SAVING MODE POWER OFF
Power Indicator On Blinking Off
Power Consumption 40 watts Typical 0.5 watts Typical 0.5 watts

If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

NORTH AMERICA
U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com
CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com/ca		http://www.samsung.com/ca_fr (French)
MEXICO 01-800-SAMSUNG (726-7864) http://www.samsung.com

LATIN AMERICA
ARGENTINA 0800-333-3733 http://www.samsung.com
BRAZIL 0800-124-421	4004-0000	http://www.samsung.com
BOLIVIA 800-10-7260 http://www.samsung.com
CHILE 800-SAMSUNG(726-7864)	From mobile [phone]	http://www.samsung.com
COLOMBIA 01-8000112112 http://www.samsung.com
COSTA RICA	0-800-507-7267	http://www.samsung.com
DOMINICA	1-800-751-2676	http://www.samsung.com
ECUADOR	1-800-10-7267	http://www.samsung.com
EL SALVADOR	800-6225	http://www.samsung.com
GUATEMALA	1-800-299-0013	http://www.samsung.com
HONDURAS	800-27919267	http://www.samsung.com
JAMAICA	1-800-234-7267	http://www.samsung.com
NICARAGUA 00-1800-5077267	http://www.samsung.com
PANAMA	800-7267	http://www.samsung.com
PERU	0-800-777-08	http://www.samsung.com
PUERTO RICO	1-800-682-3180	http://www.samsung.com
TRINIDAD & TOBAGO	1-800-SAMSUNG(726-7864)	http://www.samsung.com
VENEZUELA 0-800-100-5303	http://www.samsung.com

EUROPE
ALBANIA	42 27 5755	http://www.samsung.com
AUSTRIA	0810 - SAMSUNG(7267864, € 0.07/min)	http://www.samsung.com
BELGIUM	02-201-24-18	http://www.samsung.com/be (Dutch)http://www.samsung.com/be_fr(French)
BOSNIA	05 133 1999 http://www.samsung.com
BULGARIA	07001 33 11 http://www.samsung.com
CROATIA	062 SAMSUNG (062 726 7864)	http://www.samsung.com
CZECH 800 - SAMSUNG (800-726786) http://www.samsung.com
		Samsung Electronics Czech and Slovak, s.r.o., Oasis Florenc,Sokolovská 394/17, 180 00, Praha 8
DENMARK 70 70 19 70 http://www.samsung.com
FINLAND 030 - 6227 515 http://www.samsung.com
FRANCE 01 48 63 00 00 http://www.samsung.com
GERMANY 01805 - SAMSUNG	(726-7864 € 0,14/Min)	http://www.samsung.com
CYPRUS From landline : 8009 4000 http://www.samsung.com
GREECE From landline : 80111-SAMSUNG	(7267864)From landline & mobile : [phone]	http://www.samsung.com
HUNGARY 06-80-SAMSUNG(726-7864) http://www.samsung.com
ITALIA 800-SAMSUNG(726-7864)	http://www.samsung.com
KOSOVO	[phone]	http://www.samsung.com
LUXEMBURG	261 03 710 http://www.samsung.com
MACEDONIA	023 207 777	http://www.samsung.com
MONTENEGRO	020 405 888	http://www.samsung.com
NETHERLANDS	0900-SAMSUNG (0900-7267864)(€ 0,10/Min)	http://www.samsung.com
NORWAY	815-56 480	http://www.samsung.com
POLAND 0 801-1SAMSUNG(172-678)	[phone]	http://www.samsung.com
PORTUGAL	808 20-SAMSUNG (808 20 7267)	http://www.samsung.com
RUMANIA	From landline : 08010-SAMSUNG(7267864)From landline & mobile : [phone]	http://www.samsung.com
SERBIA	0700 Samsung (0700 726 7864)	http://www.samsung.com
SLOVAKIA	0800 - SAMSUNG(0800-726 786)	http://www.samsung.com
SPAIN	902 - 1 - SAMSUNG (902 172 678)	http://www.samsung.com
SWEDEN	0771 726 7864 (SAMSUNG)	http://www.samsung.com
SWITZERLAND	0848 - SAMSUNG(7267864, CHF 0.08/min)	http://www.samsung.com/chhttp://www.samsung.com/ch_fr/(French)
U.K	0330 SAMSUNG (7267864)	http://www.samsung.com
EIRE	0818 717100	http://www.samsung.com
LITHUANIA	8-800-77777	http://www.samsung.com
LATVIA 8000-7267 http://www.samsung.com
ESTONIA	800-7267	http://www.samsung.com
Turkey 444 77 11	http://www.samsung.com
CIS
RUSSIA 8-800-555-55-55 http://www.samsung.com
GEORGIA 8-800-555-555 http://www.samsung.com
ARMENIA 0-800-05-555 http://www.samsung.com
AZERBAIJAN 088-55-55-555 http://www.samsung.com
KAZAKHSTAN 8-10-800-500-55-500(GSM: 7799) http://www.samsung.com
UZBEKISTAN 8-10-800-500-55-500 http://www.samsung.com
KYRGYZSTAN 00-800-500-55-500 http://www.samsung.com
TADJIKISTAN 8-10-800-500-55-500 http://www.samsung.com
MONGOLIA http://www.samsung.com
UKRAINE	0-800-502-000 http://www.samsung.com/uahttp://www.samsung.com/ua_ru
BELARUS 810-800-500-55-500	http://www.samsung.com
MOLDOVA	00-800-500-55-500 http://www.samsung.com

ASIA PACIFIC
AUSTRALIA	1300 362 603	http://www.samsung.com
NEW ZEALAND	0800 SAMSUNG (0800 726 786)	http://www.samsung.com
CHINA	400-810-5858	http://www.samsung.com
HONG KONG	(852) 3698 4698	http://www.samsung.com/hkhttp://www.samsung.com/hk_en/
INDIA	1800 1100 113030 82821800 3000 82821800 266 8282	http://www.samsung.com
INDONESIA	0800-112-8888021-5699-7777	http://www.samsung.com
JAPAN	0120-327-527	http://www.samsung.com
MALAYSIA	1800-88-9999	http://www.samsung.com
PHILIPPINES 1-800-10-SAMSUNG(726-7864) for PLDT1-800-3-SAMSUNG(726-7864)for Digi-tel1-800-8-SAMSUNG(726-7864) for Globe02-5805777	http://www.samsung.com
SINGAPORE	1800-SAMSUNG(726-7864)	http://www.samsung.com
THAILAND	1800-29-323202-689-3232	http://www.samsung.com
TAIWAN	0800-329-9990266-026-066	http://www.samsung.com
VIETNAM	1 800 588 889	http://www.samsung.com
MIDDLE EAST
IRAN 021-8255 http://www.samsung.com
OMAN 800-SAMSUNG(726-7864) http://www.samsung.com
KUWAIT 183-2255 http://www.samsung.com
BAHRAIN 8000-4726 http://www.samsung.com
EGYPT 08000-726786 http://www.samsung.com
JORDAN 800-22273 http://www.samsung.com
MOROCCO 080 100 2255 http://www.samsung.com
SAUDI ARABIA 9200-21230 http://www.samsung.com
U.A.E 800-SAMSUNG (726-7864)	http://www.samsung.com

AFRICA
CAMEROON	7095- 0077 http://www.samsung.com
COTE D' IVOIRE	8000 0077	http://www.samsung.com
GHANA	0800-100770302-200077	http://www.samsung.com
KENYA 0800 724 000 http://www.samsung.com
NIGERIA 0800-726-7864	http://www.samsung.com
SENEGAL	800-00-0077	http://www.samsung.com
SOUTH AFRICA	0860-SAMSUNG(726-7864)	http://www.samsung.com
TANZANIA	0685 88 99 00	http://www.samsung.com
UGANDA	0800 300 300 http://www.samsung.com

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
