button/▲▼◀▶ buttons

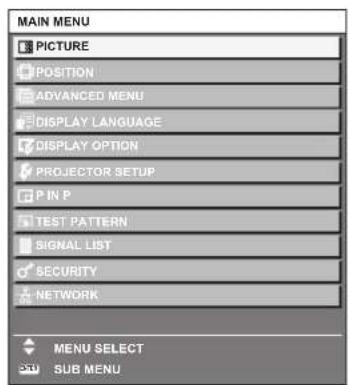

Used to navigate through the menu screen.
Also used to enter a password in the [SECURITY] menu or enter characters.
3

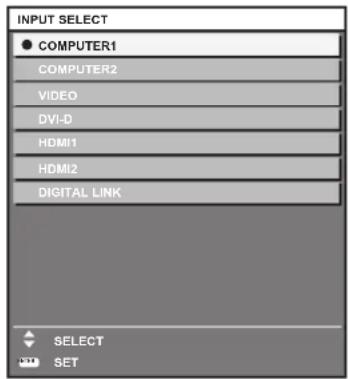

Switches the input signal to project. (→ page 50)
4 button
Adjusts the focus and shift (position) of the lens.

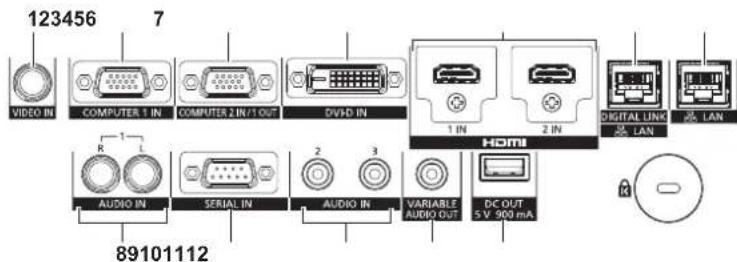

■Connecting terminals
7
VIDEO IN
COMPUTER 1 IN
COMPUTER 2 IN/1 OUT
DVHD IN
1 IN
2 IN
DIGITAL LINK
LAN
AUDIO IN
SERIAL IN
AUDIO IN
VARIABLE AUDIO OUT
DC OUT
5 V 900 mA
89101112
1 terminal
This is a terminal to input video signal.
2 terminal
This is a terminal to input the RGB signal, YC_BC_R/YP_BP_R signal, or Y/C signal.
3 terminal
This is a terminal to input the RGB signal or YC_BC_R/YP_BP_R signal.
Also, the RGB signal or YC_BC_R/YP_BP_R signal input to the terminal can be output to an external device. Video signal is output when the input is switched to COMPUTER1.
4 terminal
This is a terminal to input the DVI-D signal.
5 terminal/ terminal
This is a terminal to input the HDMI signal.
6 terminal
This is a terminal to connect a device that transmits video signal or audio signal via the LAN terminal. Also, this is the LAN terminal to connect to the network.
7 terminal
This is the LAN terminal to connect to the network.
8 terminal
This is a terminal to input audio signal. There are right input and left input .
9 terminal

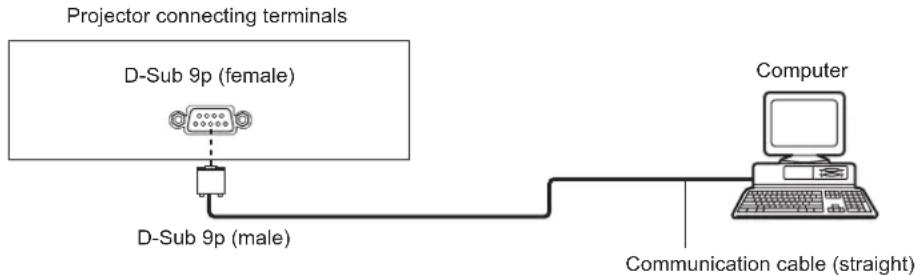

This is the RS-232C compatible terminal to externally control the projector by connecting a computer.
10 terminal/ terminal
This is a terminal to input audio.
11 terminal
This is a terminal to output the audio signal input to the projector.
12 terminal
This is the USB terminal dedicated for power supply. (DC5 V, maximum 900 mA)
This can be used when a power is needed to be supplied to a wireless display adaptor, etc.
Attention
- When a LAN cable is directly connected to the projector, the network connection must be made indoors.
Preparing the remote control

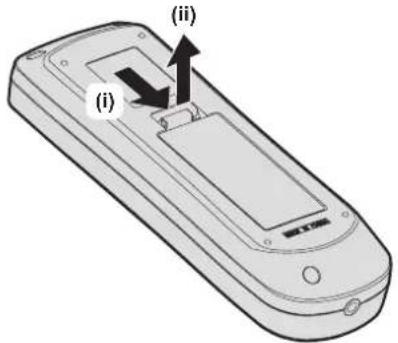

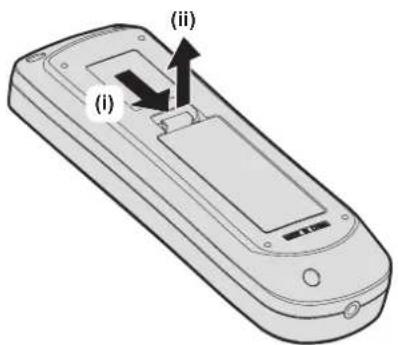

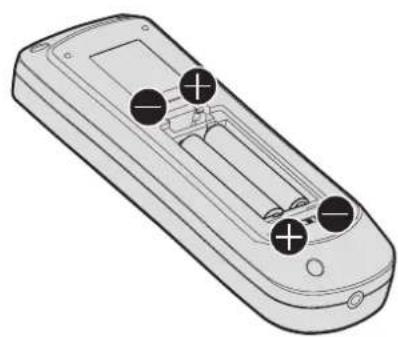

Inserting and removing the batteries
(ii)


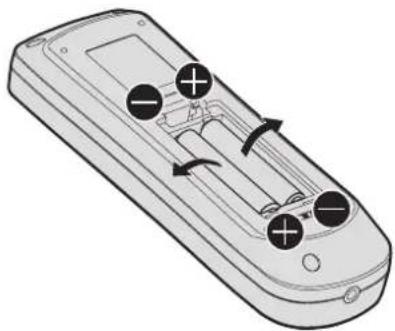

Line drawing of a remote control device with two black circular buttons on the left side (no text or symbols)
Fig. 1 Fig. 2
1) Open the cover. (Fig. 1)
- When removing the batteries, perform the steps in reverse order.
When using the multiple projectors
When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector individually using single remote control, if a unique ID number is assigned to each projector.
When using the projectors by setting the ID numbers, set the ID number of the projector body after initial settings have been completed. Then, set the ID number of the remote control. For initial settings, refer to "When the initial setting screen is displayed" (→ page 42).
The factory default ID number of the projector (projector body and remote control) is set to [ALL], so you can use it as it is. Set the ID numbers of the projector body and remote control as necessary.
For details on setting the ID number of the remote control, refer to "Setting ID number of the remote control" (→ page 58).
Note
- Set the ID number of the projector body from the [PROJECTOR SETUP] menu → [PROJECTOR ID].
Chapter 2 Getting Started
This chapter describes things you need to do before using the projector such as the setup and connections.
Setting up

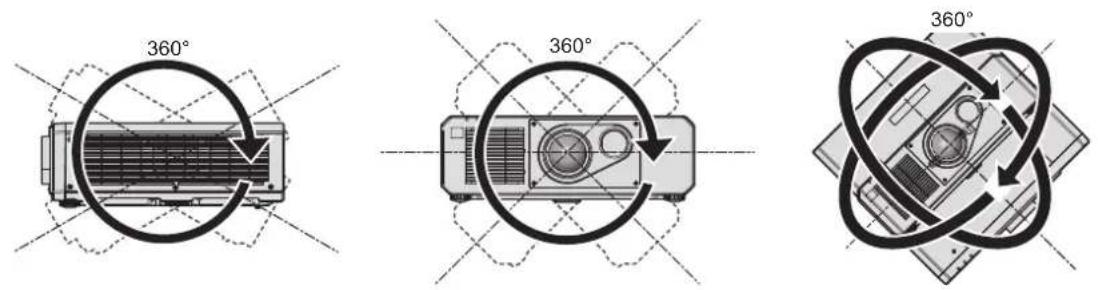

Installation mode

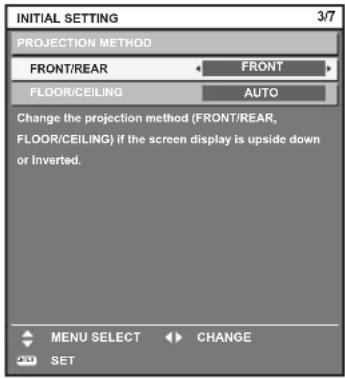

The installation modes of the projector are as follows. Set [FRONT/REAR]/[FLOOR/CEILING] in the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (→ page 100) depending on the installation mode.
Setting on a desk/floor and projecting forward Setting on a desk/floor and projecting from rear(Using the translucent screen) Menu item Setting value Menu item Setting value [FRONT/REAR] [FRONT] [FRONT/REAR] [REAR] [FLOOR/CEILING] [AUTO] or [FLOOR] [FLOOR/CEILING] [AUTO] or [FLOOR]
Mounting on the ceiling and projecting forward Mounting on the ceiling and projecting from rear(Using the translucent screen) Menu item Setting value Menu item Setting value [FRONT/REAR] [FRONT] [FRONT/REAR] [REAR] [FLOOR/CEILING] [AUTO] or [CEILING] [FLOOR/CEILING] [AUTO] or [CEILING]
Portrait setting and projecting forward Portrait setting and projecting from rear(Using the translucent screen) Menu item Setting value Menu item Setting value [FRONT/REAR] [FRONT] [FRONT/REAR] [REAR] [FLOOR/CEILING] Set in accordance with the image to project. [FLOOR/CEILING] Set in accordance with the image to project.
Note
In the portrait setting, the on-screen menu is displayed sideways.
The projector has a built-in angle sensor. The attitude of the projector is automatically detected by setting [FLOOR/CEILING] to [AUTO] in the [PROJECTOR SETUP] menu → [PROJECTION METHOD].
■Angle sensor

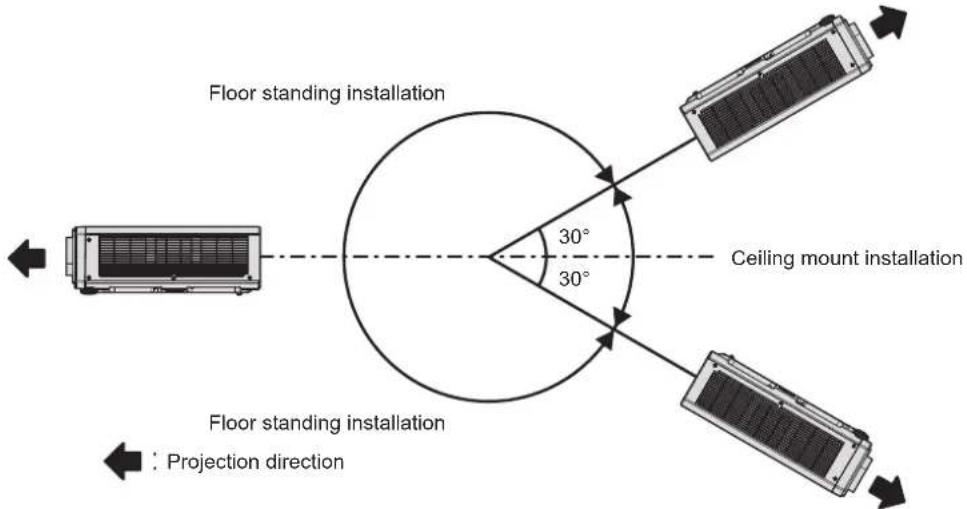

The range of the installation attitude that is detected by the angle sensor built-in the projector is as follows.
30°
30°
Ceiling mount installation
Floor standing installation
: Projection direction

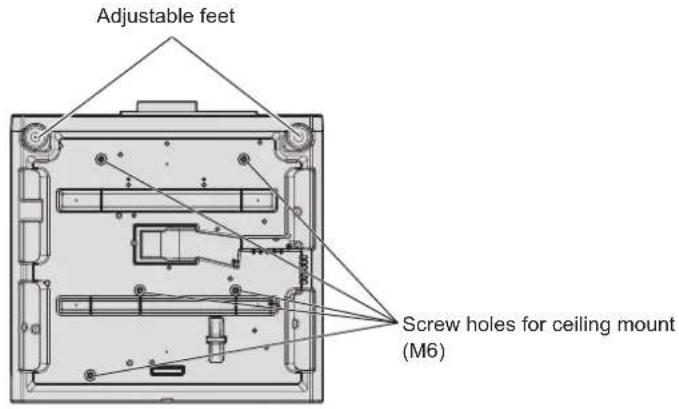

Parts for installation (optional)
The projector can be installed on the ceiling by combining the optional Ceiling Mount Bracket (Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings)) and Ceiling Mount Bracket (Model No.: ET-PKD130B (Projector Mount Bracket)).
Be sure to use the Ceiling Mount Bracket specified for this projector.
Refer to the Installation Instructions of the Ceiling Mount Bracket when installing and setting up the projector.
Attention
- To ensure projector performance and security, installation of the Ceiling Mount Bracket must be carried out by your dealer or a qualified technician.

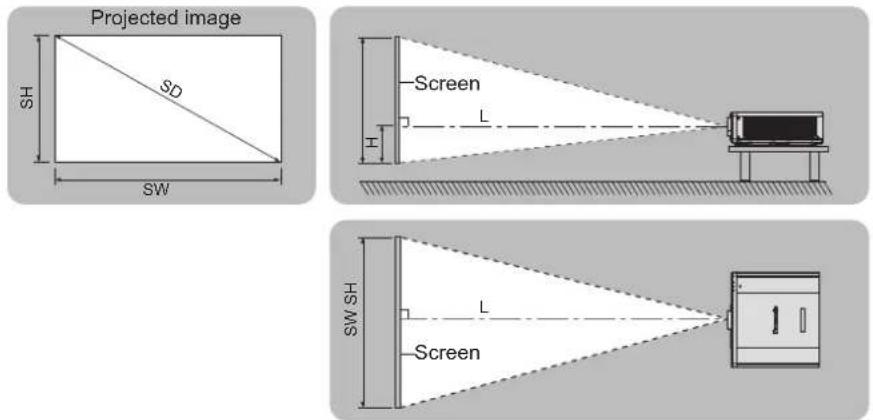

Projected image and throw distance
Install the projector referring to the projected image size and projection distance. Image size and image position can be adjusted in accordance with the screen size and screen position.
- Following illustration is prepared on the assumption that the projected image size and position have been aligned to fit full in the screen.
SH
SD
SW
Screen
L
H
SW SH
L
Screen
(Unit: m)
L Projection distance SH Projected image height SW Projected image width H Distance from the lens center to the bottom edge of the projected image SD Projected image size
Attention
- Before setting up, read "Precautions for use" (→ page 17).
- Do not use the projector and the high-powered laser equipment in the same room. The DLP chips can be damaged if a laser beam hits the projection lens surface.

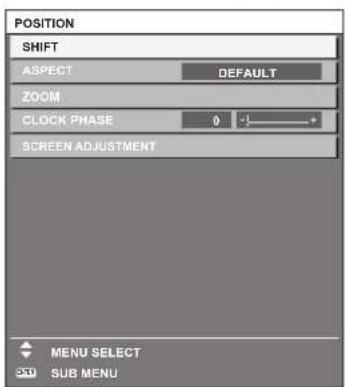

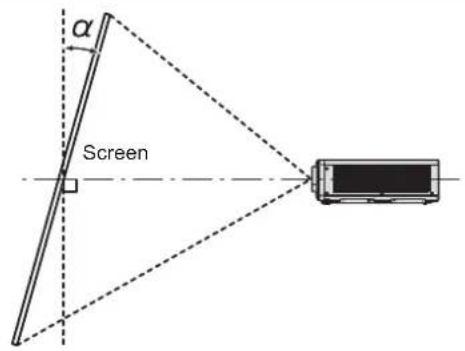

[SCREEN ADJUSTMENT] projection range

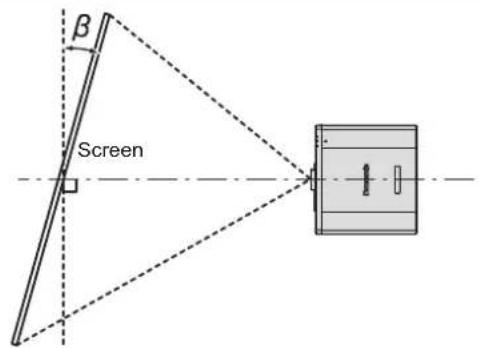

[VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above)
Screen
Screen

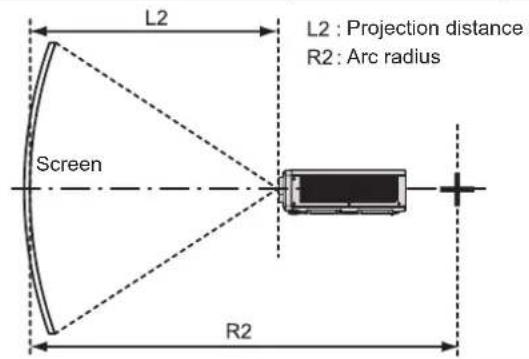

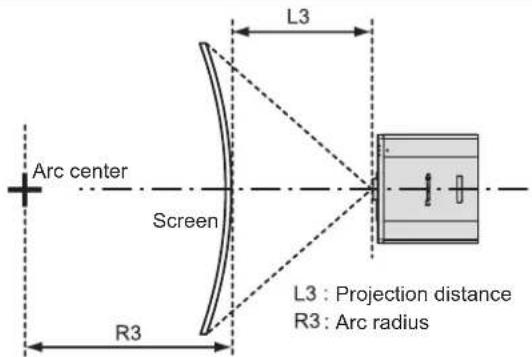

Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above)


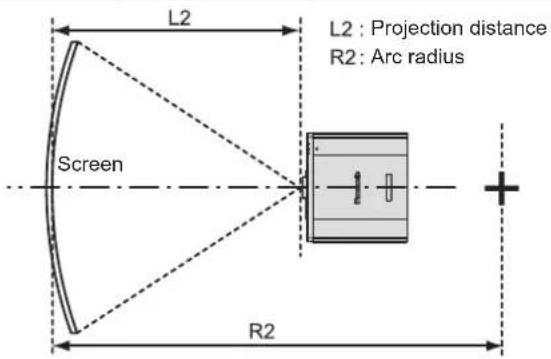

L2
L2 : Projection distance
R2 : Arc radius
Screen
R2
L2 : Projection distance
R2: Arc radius
Screen
R2


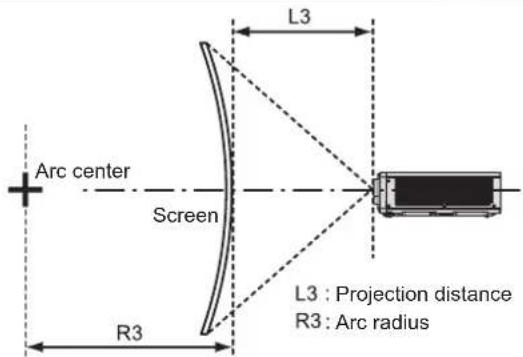

L3
Arc center
Screen
R3
L3 : Projection distance
R3 : Arc radius
Arc center
Screen
R3
L3 : Projection distance
R3 : Arc radius
Only [KEYSTONE] used [KEYSTONE] and [CURVED CORRECTION] used together Only [CURVED CORRECTION] used Vertical keystone correction angle α (°) Horizontal keystone correction angle β (°) Vertical keystone correction angle α (°) Horizontal keystone correction angle β (°) Min. value of R2/L2 Min. value of R3/L3 Min. value of R2/L2 Min. value of R3/L3 ±25 ±20 ±8 ±8 1.7 4.3 1.0 2.6
Note
When [SCREEN ADJUSTMENT] is used, the focus of the entire screen may be lost as correction increases.
Make the curved screen a circular arc shape with one part of a perfect circle removed.
Projection distance
A ±5 % error in listed projection distances may occur.
When [SCREEN ADJUSTMENT] is used, distance is corrected to become smaller than the specified image size.
(Unit: m)
Projected image size Aspect ratio 16:10 Aspect ratio Ratio 16:9 Aspect ratio 4:3 Diagonal (SD) Projection distance (L) Height position (H) Projection distance (L) Height position (H) Projection distance (L) Height position (H) 1.02 (40") 0.65 0.26 - 0.28 0.67 0.24 - 0.26 0.75 0.29 - 0.32 1.27 (50") 0.83 0.32 - 0.35 0.85 0.30 - 0.33 0.94 0.36 - 0.40 1.52 (60") 1.00 0.39 - 0.42 1.03 0.36 - 0.39 1.14 0.44 - 0.48 1.78 (70") 1.18 0.45 - 0.49 1.21 0.42 - 0.46 1.34 0.51 - 0.56 2.03 (80") 1.35 0.51 - 0.56 1.39 0.48 - 0.52 1.54 0.58 - 0.64 2.29 (90") 1.53 0.58 - 0.63 1.57 0.54 - 0.59 1.74 0.66 - 0.72 2.54 (100") 1.70 0.64 - 0.70 1.75 0.60 - 0.65 1.93 0.73 - 0.80 3.05 (120") 2.05 0.77 - 0.84 2.11 0.71 - 0.78 2.33 0.87 - 0.95 3.81 (150") 2.58 0.97 - 1.05 2.65 0.89 - 0.98 2.93 1.09 - 1.19 5.08 (200") 3.45 1.29 - 1.41 3.55 1.19 - 1.30 3.92 1.46 - 1.59 6.35 (250") 4.33 1.61 - 1.76 4.45 1.49 - 1.63 4.91 1.82 - 1.99 7.62 (300") 5.20 1.93 - 2.11 5.35 1.79 - 1.95 5.90 2.19 - 2.39
To use a projected image size not listed in this manual, check the projected image size SD (m) and use the respective formula to calculate the value.
The unit of all the formulae is m. (Values obtained by the following calculation formulae contain a slight error.)
When calculating the value using image size designation (value in inches), multiply the value in inches by 0.0254 and substitute it into SD in the formula.
Aspect ratio 16:10 Aspect ratio 16:9 Aspect ratio 4:3 Projected image size Height (SH) = SD x 0.530 = SD x 0.490 = SD x 0.6 Projected image size Width (SW) = SD x 0.848 = SD x 0.872 = SD x 0.8 Projection distance (L) = 0.6892 x SD - 0.0474 = 0.7084 x SD - 0.0474 = 0.7802 x SD - 0.0474
Adjusting adjustable feet
Install the projector on a flat surface so that the front of the projector is parallel to the screen surface and the projection screen is rectangular.
If the screen is tilted downward, extend the front adjustable feet so that the projected image becomes rectangular. The adjustable feet can also be used to adjust the projector to be level when it is tilted in the horizontal direction.

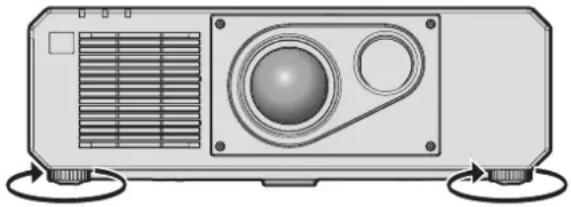

Adjustable feet can be extended by turning them as shown in the figure. Turning them in the opposite direction will return them to the original position.
Maximum adjustable range
Adjustable feet: 35 mm (1-3/8") each
Attention

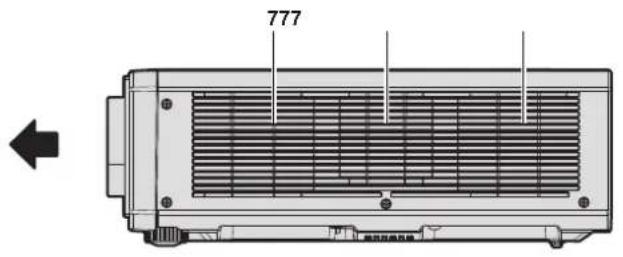

- Be careful not to block the intake/exhaust ports with your hands or any objects when adjusting the adjustable feet while the light source is on. (→ page 26)
Connecting
Before connecting
Before connecting, carefully read the operating instructions for the external device to be connected.
Turn off the power of all devices before connecting cables.
When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
Do not use unnecessarily long cables to connect a device to the projector or to the projector body. The longer the cable, the more susceptible to noise it becomes. Since using a cable while it is wound makes it act like an antenna, it is more susceptible to noise.
When connecting cables, connect GND first, then insert the connecting terminal of the connecting device in a straight manner.
- Acquire any connection cable necessary to connect the external device to the system that is neither supplied with the device nor available as an option.
- If video signals from video equipment contain too much jitter, the images on the screen may wobble. In this case, a time base corrector (TBC) must be connected.
- If synchronization signals output from computers or video equipment are disrupted due to changes in the video output setting or other reasons, colors of projected images may be temporarily disrupted.
- The projector accepts video signals, Y/C signals, Y_BC_R/YP_BP_R signals, analog RGB signals (synchronization signals are TTL level), and digital signals.
- Some computer models or graphics cards are not compatible with the projector.
- Use a cable compensator when you connect devices to the projector using long cables. Otherwise the projector may not project the image properly.
- For details of the types of video signals that can be used with the projector, refer to "List of compatible signals" ( page 175).
terminal/ terminal pin assignments and signal names
Outside view Pin No. Signal name Pin No. Signal name (1) R/P _R/C (9) +5 V (2) G/Y/Y (10) GND (3) B/P _B (11) GND (4) — (12) DDC data (5) GND (13) HD/SYNC (6) GND (14) VD (7) GND (15) DDC clock (8) GND
terminal/ terminal pin assignments and signal names
Outside view Pin No. Signal name Pin No. Signal name Even-numbered pins of (2) to (18) (1) T.M.D.S data 2+ (11) T.M.D.S clock shield (2) T.M.D.S data 2 shield (12) T.M.D.S clock- (3) T.M.D.S data 2- (13) CEC (4) T.M.D.S data 1+ (14) — (5) T.M.D.S data 1 shield (15) SCL (6) T.M.D.S data 1- (16) SDA (7) T.M.D.S data 0+ (17) DDC/CECGND (8) T.M.D.S data 0 shield (18) +5 V (9) T.M.D.S data 0- (19) Hot plug detection (10) T.M.D.S clock+
terminal pin assignments and signal names Outside view Pin No. Signal name Pin No. Signal name (1) T.M.D.S data 2 - (13) — (2) T.M.D.S data 2+ (14) +5 V (3) T.M.D.S data 2/4 shield (15) GND (4) — (16) Hot plug detection (5) — (17) T.M.D.S data 0 - (6) DDC clock (18) T.M.D.S data 0+ (7) DDC data (19) T.M.D.S data 0/5 shield (8) — (20) — (9) T.M.D.S data 1 - (21) — (10) T.M.D.S data 1+ (22) T.M.D.S clock shield (11) T.M.D.S data 1/3 shield (23) T.M.D.S clock+ (12) — (24) T.M.D.S clock -

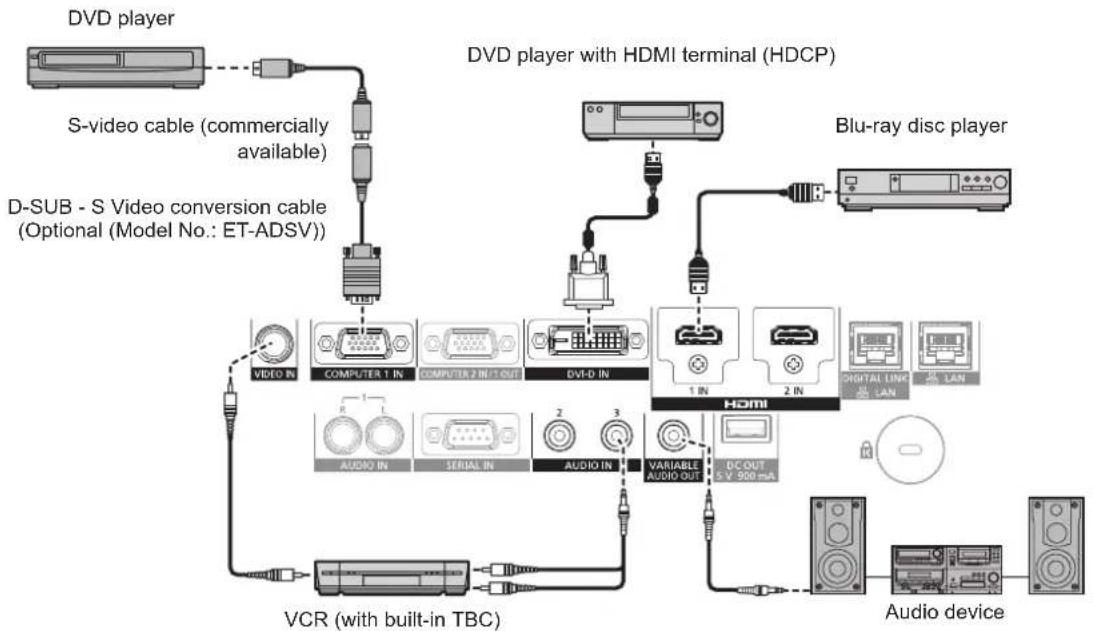

Connecting example: AV equipment
Attention
- Be sure to use one of the following when connecting a VCR.
- Use a VCR with built-in time base corrector (TBC).
- Use a time base corrector (TBC) between the projector and the VCR.
- The image may be disrupted when nonstandard burst signal is connected. In such a case, connect the time base corrector (TBC) between the projector and the external devices.
Note
Switching of the setting in the [DISPLAY OPTION] menu → [DVI-D IN] → [EDID SELECT] may be required depending on the connected external device when DVI-D is input.
The terminal can be connected with the HDMI and DVI-D compatible devices. However, some external devices may not be able to project images properly, such as the image not displaying.
For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. If a cable that does not conform to the HDMI standards is used, images may be interrupted or may not be projected.
The / terminals can be connected to an external device with the DVI-D terminal by using an HDMI/DVI conversion cable. However, this may not function properly for some external devices, and image may not be projected.
The projector does not support VIERA Link (HDMI).
When Y/C signal is input to the terminal using the optional D-SUB - S Video conversion cable (Model No.: ET-ADSV), it is necessary to switch the setting with the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] → [INPUT SETTING].
When RGB signal or YC_B C_R / YP_B P_R signal input to the terminal is output from the terminal, it is necessary to switch the setting with the [DISPLAY OPTION] menu [COMPUTER IN/OUT] [COMPUTER2 SELECT].

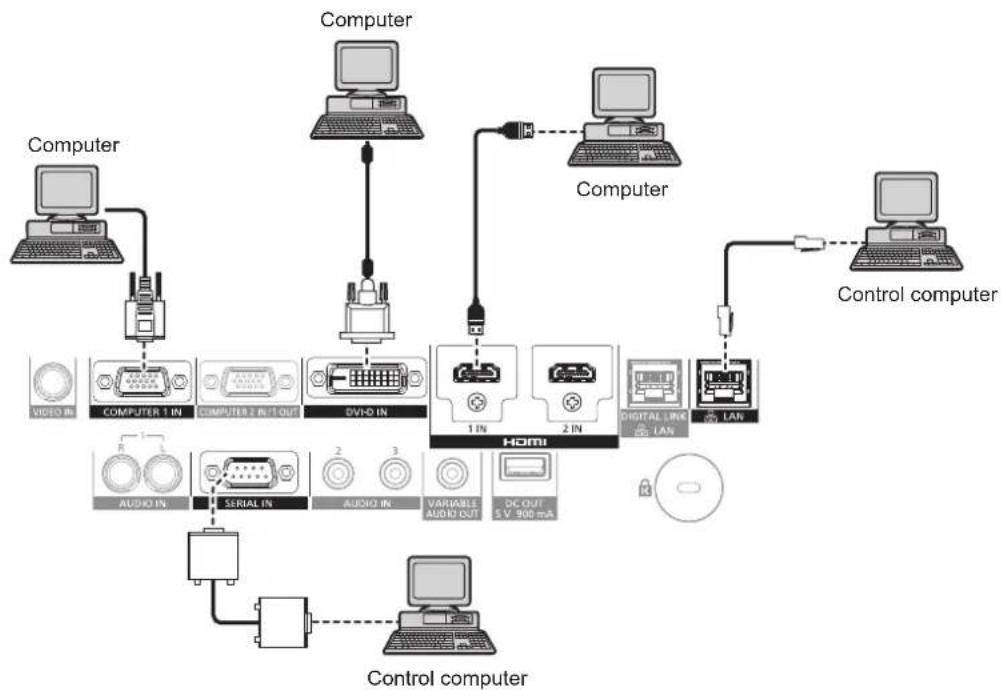

Connecting example: Computers
Attention
- When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially available shielded cables.
Note
Switching of the setting in the [DISPLAY OPTION] menu → [DVI-D IN] → [EDID SELECT] may be required depending on the connected external device when DVI-D is input.
For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. If a cable that does not conform to the HDMI standards is used, images may be interrupted or may not be projected.
The / terminals can be connected to an external device with the DVI-D terminal by using an HDMI/DVI conversion cable. However, this may not function properly for some external devices, and image may not be projected. terminal supports single links only.
If you operate the projector using the computer with the resume feature (last memory), you may have to reset the resume feature to operate the projector.
When RGB signal or YCC R /YP B P _R signal input to the terminal is output from the terminal, it is necessary to switch the setting with the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] → [COMPUTER2 SELECT].

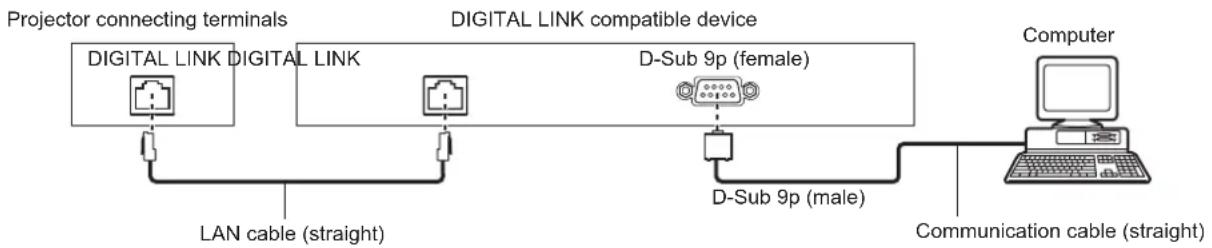

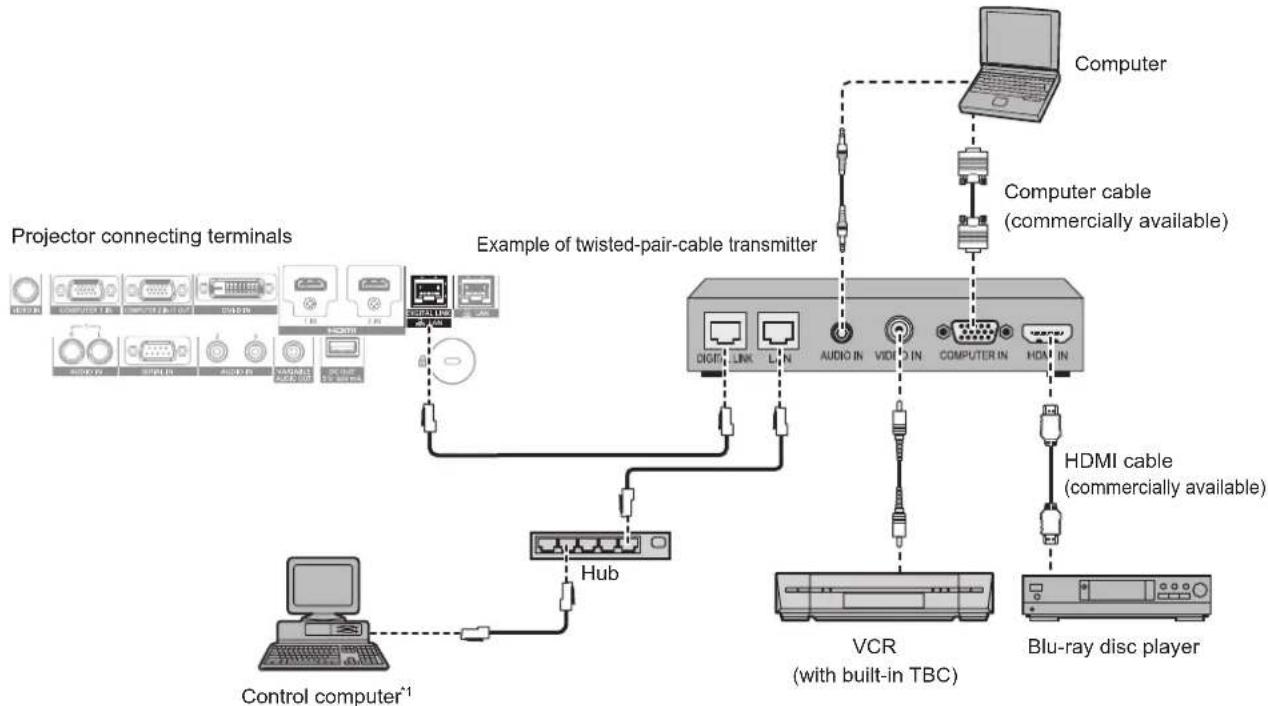

Connecting example using DIGITAL LINK
Twisted-pair-cable transmitter based on the communication standard HDBaseT™ such as the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) uses the twisted pair cable to transmit input images, audio, Ethernet, and serial control signal, and the projector can input such digital signal to the terminal.
*1 Control target is the projector or the twisted-pair-cable transmitter. The control itself may not be possible depending on the twisted-pair-cable transmitter. Check the operating instructions of the device to be connected.
Attention
•Always use one of the following when connecting a VCR.
-Use a VCR with built-in time base corrector (TBC).
-Use a time base corrector (TBC) between the projector and the VCR.
The image may be disrupted when nonstandard burst signal is connected. In such a case, connect the time base corrector (TBC) between the projector and the external devices.
Ask a qualified technician or your dealer to install the cable wiring between the twisted-pair-cable transmitter and the projector. Image may be disrupted if cable transmission characteristics cannot be obtained due to inadequate installation.
For the LAN cable between the twisted-pair-cable transmitter and the projector, use a cable that meets the following criteria:
-Conforming to CAT5e or higher standards
-Shielded type (including connectors)
When laying cables between the twisted-pair-cable transmitter and the projector, confirm that cable characteristics are compatible with CAT5e or higher using tools such as a cable tester or cable analyzer.
Do not use a hub between the twisted-pair-cable transmitter and the projector.
When connecting to the projector using a twisted-pair-cable transmitter (receiver) of other manufacturers, do not place another twisted-pair-cable transmitter between the twisted-pair-cable transmitter of other manufacturers and the projector. This may cause image to be disrupted.
Do not pull cables forcefully. Also, do not bend or fold cables unnecessarily.
To reduce the effects of noise as much as possible, stretch out the cables between the twisted-pair-cable transmitter and the projector without any loops.
Lay the cables between the twisted-pair-cable transmitter and the projector away from other cables, particularly power cables.
When laying multiple cables, run them side by side along the shortest distance possible without bundling them together.
After laying the cables, go to the [NETWORK] menu → [DIGITAL LINK STATUS] and confirm that the value of [SIGNAL QUALITY] is displayed in green which indicates normal quality. (→ page 131)
Note
For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. If a cable that does not conform to the HDMI standards is used, images may be interrupted or may not be projected.
The maximum transmission distance between the twisted-pair-cable transmitter and the projector is 100 m (328'1"). It is possible to transmit up to 150 m (492'2") if the twisted-pair-cable transmitter supports the long-reach communication method. If this distance is exceeded, image may be disrupted or a malfunction may occur in LAN communication. Please note that Panasonic does not support the use of the projector outside the maximum transmission distance. When connecting with the long reach, video signal or distance that can be transmitted may be restricted, depending on the specification of the twisted-pair-cable transmitter.
- For twisted-pair-cable transmitters of other manufacturers of which the operation has been verified with the projector, visit the Panasonic website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Chapter 3 Basic Operations
This chapter describes basic operations to start with.
Switching on/off the projector
Connecting the power cord
Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily.
Confirm that the switch is on the side before connecting the power cord.
Use the power cord matching with the power supply voltage and the shape of the outlet.
For details of power cord handling, refer to "Read this first!" (→ page 5).
How to attach the power cord
1) Check the shapes of the terminal on the side of the projector and the power cord connector, and insert the connector completely in the correct direction (until you hear the side tabs click in place).
How to remove the power cord
1) Confirm that the switch on the side of the projector is on the side, and remove the power plug from the outlet. terminal of the projector while pressing the side tabs.

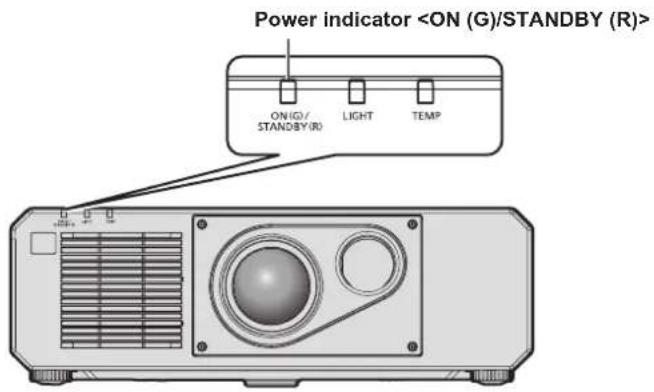

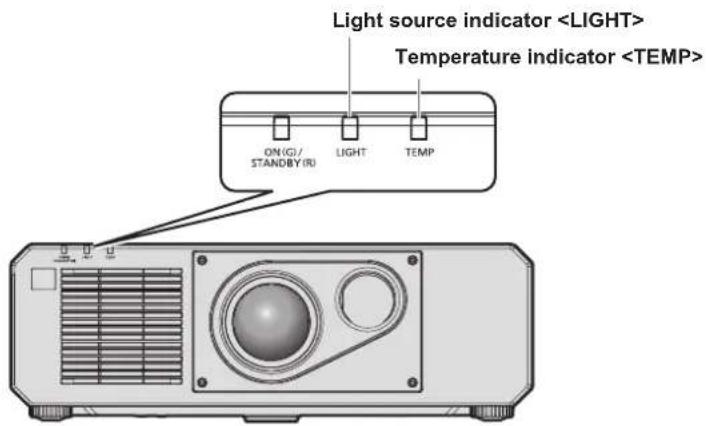

Power indicator
Indicate the status of the power. Check the status of the power indicator before operating the projector.
ON (G)
/ STANDBY (R)
LIGHT
TEMP
Indicator status Projector status
Off The main power is switched off.
Chapter 3 Basic Operations — Switching on/off the projector
Indicator status Projector status Red Lit The power is switched off. (standby mode)Projection will start when the power <∅/|> button is pressed.The setting of the projector is as follows.- The [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP] is set to [OFF]- The [PROJECTOR SETUP] menu → [AUDIO SETTING] → [IN STANDBY MODE] is set to [OFF]The projector may not operate when the light source indicatoror the temperature indicatoris blinking. (⇨ page 157) Blinking The power is switched off. (standby mode)Projection will start when the power <∅/|> button is pressed.The projector is set to one of the following. Power consumption is high.- The [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP] is set to [ON]- The [PROJECTOR SETUP] menu → [AUDIO SETTING] → [IN STANDBY MODE] is set to [ON]The indicator will change to a red light when the specified time has elapsed after the projector enters the standby mode if the projector is set as following.The specified time is a time set in the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP] → [VALID PERIOD].- The [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP] is set to [ON]- The [PROJECTOR SETUP] menu → [AUDIO SETTING] → [IN STANDBY MODE] is set to [OFF]The projector may not operate when the light source indicatoror the temperature indicatoris blinking. (⇨ page 157) Green Lit Projecting. Orange Lit The projector is preparing to switch off the projector.The power is switched off after a while. (Changes to the standby mode.)
Note
While the power indicator lights in orange, the fan is running to cool the projector.
For approximately five seconds after the projector is turned off, the indicator does not light up even if the power is turned on. Turn on the power again after the power indicator lights/blinks in red.
The projector consumes power even in standby mode (power indicator lights/blinks in red). Refer to "Power consumption" ( page 178) for the power consumption.
The power indicator will blink if the projector receives a remote control signal.
The power indicator will blink slowly in green while the shutter function is in use (shutter: closed), or while the function of the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [AUTO POWER SAVE] → [NO SIGNAL LIGHTS-OUT] is operating and the light source is turned off.

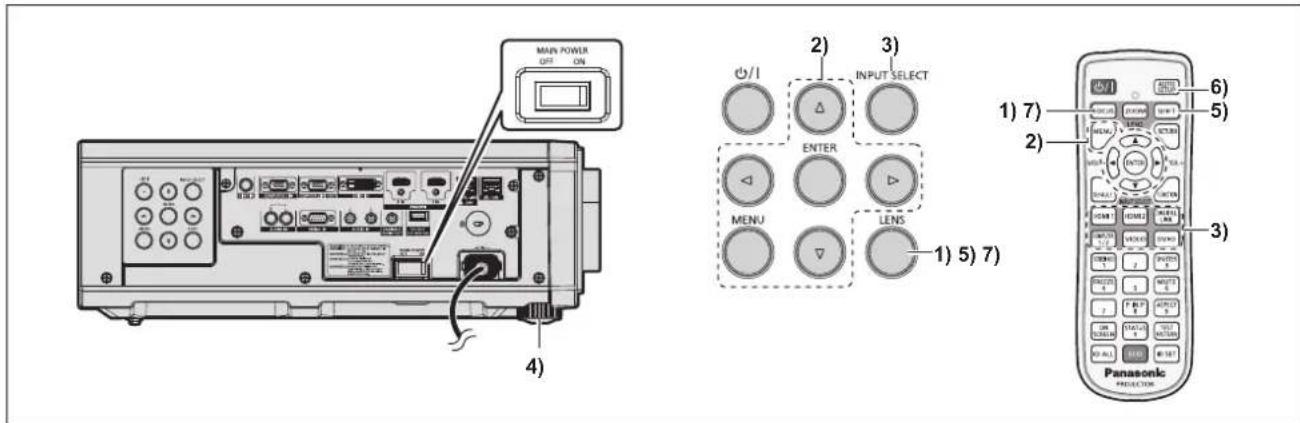

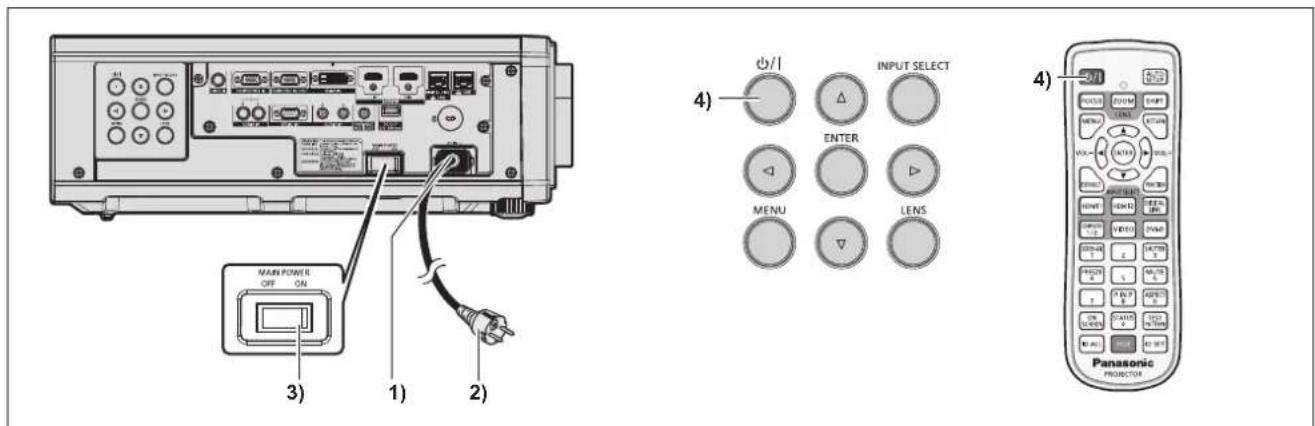

Switching on the projector
OFF ON
3)
1)
2)
4)
Φ/1
Δ
INPUT SELECT
ENTER
MENU
LENS
4)
Panasonic
PROFESSION
1) Connect the power cord to the projector. side of the switch to turn on the power.
- The power indicator lights/blinks in red, and the projector enters the standby mode.
- The power indicator lights in green and the image is soon projected on the screen.
Note
A warm-up period of up to approximately five minutes may be necessary until an image is displayed when the projector is switched on at around 0 °C (32 °F). lights in red during the warm-up period. When the warm-up is completed, the temperature indicator turns off and the projection starts. Refer to "When an indicator lights up" (→ page 157) for the indicator status display.
If the operating environment temperature is low and warm-up takes more than five minutes, the projector will judge that a problem has occurred and the power will automatically be set to standby mode. In such case, increase the operating environment temperature to 0 °C (32 °F) or higher, turn off the main power, and then turn on the power again.
When the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE] is set to [ECO], it takes longer for the projection to start after the power is turned on, compared to when set to [NORMAL].
When the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP] is set to [ON], and the power is turned on before the specified time elapses after the projector enters the standby mode, an image will be projected approximately one second after the power is turned on.
When the power is turned on or an input signal is switched, you may here a high-frequency driving sound. This is not a malfunction.
If the power was turned off at the previous use by pressing the side of the switch or by using the breaker directly while projecting, the power indicator lights up in green and an image is projected after a while when the power is turned on by pressing the side of the switch or by turning the breaker on with the power plug connected to the outlet. This applies only when the [PROJECTOR SETUP] menu → [INITIAL STARTUP] is set to [LAST MEMORY].
When the initial setting screen is displayed
When the projector is switched on for the first time after purchase, as well as when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the focus adjustment screen is displayed after projection starts, and then the [INITIAL SETTING] screen is displayed. Set them according to the circumstances.
In other occasions, you can change the settings by menu operations.
If you press the
button while the [INITIAL SETTING] screen is displayed, you can go back to the previous screen.
Same operation is available by pressing the button on the remote control.
Focus adjustment
Adjust the focus to display the menu screen clearly.
Adjustment of the shift may also be necessary.
For details, refer to "Adjusting the focus and the shift" (→ page 51).
1) Press ▲▼◀▶ to adjust the focus.

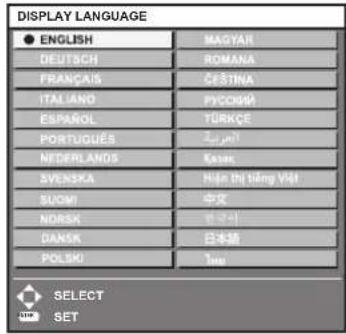

Initial setting (display language)
Select the language to show on the screen.
After completed the initial setting, you can change the display language from the [DISPLAY LANGUAGE] menu.

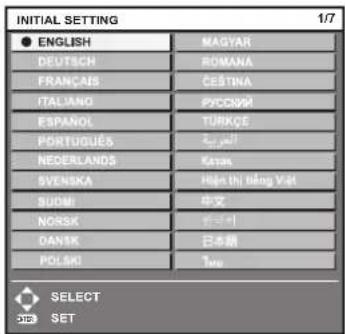

1) Press ▲▼◀▶ to select the display language.
1/7
● ENGLISH
DEUTSCH
FRANÇAIS
ITALANG
ESPAÑOL
PORTUGUJÉS
NEGERLANDS
SVENSKA
SUCMI
NORSK
DANSK
POLSKI
MAGYAR
ROMANA
ČEŠTINA
PÝCCKIVM
TÜRKČE
ŠRÍ JPYI
KASIN
Håten tří Néng Vat
中文
日本語
Tau
SELECT
SET
42 - ENGLISH
Initial setting (operation setting)
Set the items regarding the operating method depending on the duration of use and the usage of the projector. After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP] menu. If you change the settings while using the projector, the duration until the luminance of light source decreases by half may shorten or the luminance may decrease.
This initial setting (operation setting) is prepared to complete the settings at once during the installation when the operation of the projector is predetermined. When the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, do not change the setting in the initial setting (operation setting) and press the button and proceed to next initial setting (installation setting). Request to the person responsible for this projector (such as a person in charge of equipment or operation) when it is necessary to change the setting.


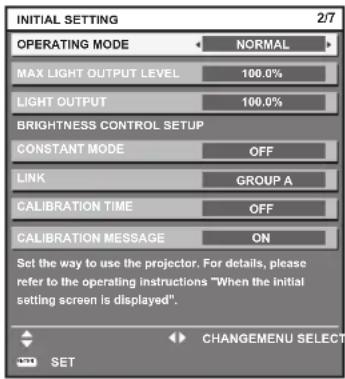

INITIAL SETTING
2/7
OPERATING MODE NORMAL
MAX LIGHT OUTPUT LEVEL 100.0%
LIGHT OUTPUT 100.0%
BRIGHTNESS CONTROL SETUP
CONSTANT MODE OFF
LINK GROUP A
CALIBRATION TIME OFF
CALIBRATION MESSAGE ON
Set the way to use the projector. For details, please refer to the operating instructions "When the initial setting screen is displayed".
SET
CHANGEMENU SELECT
Note
The preceding initial setting screen is displayed when the projector is switched on for the first time after purchase. If the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the settings before execution are displayed in [OPERATING MODE] and [MAX LIGHT OUTPUT LEVEL].
For the relationship between the luminance and the runtime, refer to “Interrelation of luminance and runtime” ( page 45).
For details on each setting item, refer to the [PROJECTOR SETUP] menu →[OPERATION SETTING].
1) Press ▲▼ to select [OPERATING MODE].
2) Press ◀▶ to switch the item.
The items will switch each time you press the button.
Set [OPERATING MODE] to [NORMAL], [USER1], [USER2], or [USER3] when using the projector at an altitude of 2700 m (8858') or higher above sea level.
[NORMAL] Set this item when high luminance is required. The estimated runtime is approximately 20 000 hours. [ECO] The luminance will decrease compared to [NORMAL], but set this item to increase the expected life of the light source. The estimated runtime is approximately 24 000 hours. [SILENT] The luminance will decrease compared to [NORMAL], but set this item to prioritize the operation with less noise. The estimated runtime is approximately 20 000 hours. [LONG LIFE1] The luminance will decrease compared to [ECO], but set this item to increase the expected life of the light source. The estimated runtime is approximately 43 000 hours. [LONG LIFE2] The luminance will decrease compared to [LONG LIFE1], but set this item to increase the expected life of the light source. The estimated runtime is approximately 61 000 hours. [LONG LIFE3] The luminance will decrease compared to [LONG LIFE2], but set this item to increase the expected life of the light source. The estimated runtime is approximately 87 000 hours. [USER1] [MAX LIGHT OUTPUT LEVEL] and [LIGHT OUTPUT] can be set individually.[USER2] [USER3]
- Proceed to Step 5) when [NORMAL], [ECO], [SILENT], [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3] is selected.
3) Press ▲▼ to select [MAX LIGHT OUTPUT LEVEL].
Operation Adjustment Range of adjustment Press ▶. Increases the maximum level of brightness correction. 5.0 % - 100.0 % Press ◀. Decreases the maximum level of brightness correction.
5) Press ▲▼ to select [LIGHT OUTPUT].
Operation Adjustment Range of adjustment Brightness Runtime (estimate) Press ▶. The screen becomes brighter. The runtime becomes shorter. 5.0% - 100.0% Press ◀. The screen becomes darker. The runtime becomes longer.
7) Press ▲▼ to select [CONSTANT MODE].
- The items will switch each time you press the button.
[OFF] Does not perform the brightness control (correction by the brightness sensor). [AUTO] Performs the brightness control (correction by the brightness sensor).When the brightness of light source or white balance changes, the brightness of the screen is automatically corrected. [PC] Synchronizes nine or more projectors using a computer and the dedicated software “Multi Monitoring & Control Software”*1.
*1 "Multi Monitoring & Control Software" is included in the supplied CD-ROM.
9) Press ▲▼ to select [LINK].
10) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Performs correction by the brightness sensor on one projector without synchronizing with the other projectors.The duration that the constant brightness is kept will become longer by setting the value of [LIGHT OUTPUT] smaller. [GROUP A][GROUP B][GROUP C][GROUP D] Performs correction by the brightness sensor in multiple projectors in synchronization.Up to four groups (A to D) can be set within the same subnet by using the network function.Up to eight projectors can be registered and synchronized in one group.
11) Press ▲▼ to select [CALIBRATION TIME].
- The projector will go into the adjustment mode (the time is blinking).
- Press ◀▶ to select "hour" or "minute".
[CALIBRATION TIME] is set when the cursor is moved from [CALIBRATION TIME] using ▲▼.
Brightness and color are measured at the specified time. The dynamic contrast function does not operate during measurement.
When the time is not to be specified, press the button while [CALIBRATION TIME] is selected (the time is not blinking) using ▲▼.
13) Press ▲▼ to select [CALIBRATION MESSAGE].
14) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[ON] Displays the message while executing the calibration. [OFF] Does not display the message while executing the calibration.
15) Press the button to proceed to the initial setting.
Interrelation of luminance and runtime
The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP]. Interrelation of luminance and runtime is as follows. Make the initial setting (operation setting) depending on your desired duration of use and brightness of the projected image.
Values of the luminance and runtime are rough estimations.
•To set the projector based on the duration of use
Duration of use (hour) When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC] [MAX LIGHT OUTPUT LEVEL] (%) [LIGHT OUTPUT] (%) Luminance (lm) [MAX LIGHT OUTPUT LEVEL] (%) [LIGHT OUTPUT] (%) Luminance (lm) 20 000 100.0 100.0 5 000 100.0 50 0.2 500 24 000 100.0 68.0 3 400 100.0 40 0 2 000 27 000 100.0 28.0 1 400 100.0 34 0 1 700 31 000 — — 100.0 26.0 1 300 35 000 — — 100.0 20.0 1 000 40 000 — — 100.0 14.0 700
•To set the projector based on luminance
Luminance (lm) When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC] [MAX LIGHT OUTPUT LEVEL] (%) [LIGHT OUTPUT] (%) Runtime (hour) [MAX LIGHT OUTPUT LEVEL] (%) [LIGHT OUTPUT] (%) Runtime (hour) 5 000 100.0 1 00.0 20 000 — — — 4 500 100.0 9 0.0 21 500 100.0 90 0 4 400 4 000 100.0 8 0.0 22 800 100.0 80 0 7 800 3 500 100.0 7 0.0 23 900 100.0 70 0 11 600 3 000 100.0 6 0.0 25 000 100.0 60 0 15 700 2 500 100.0 5 0.0 25 800 100.0 50 0 20 000 2 000 100.0 4 0.0 26 400 100.0 40 0 24 000 1 500 100.0 3 0.0 26 900 100.0 30 0 29 000
Note
Under influences of characteristics of each light source, conditions of use, installation environment, etc., the runtime may be shorter than the estimation.
The duration of use is referred to as the runtime when you use the projector successively. The duration of use is an estimated duration and is not the warranty period.
If the runtime exceeds 20 000 hours, replacement of the components inside the projector may be required. Consult your dealer for details.
Initial setting (installation setting)
Set [FRONT/REAR] and [FLOOR/CEILING] in [PROJECTION METHOD] depending on the installation mode. Refer to "Installation mode" ( page 30) for details.
After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [PROJECTION METHOD].
1) Press ◀▶ to switch the setting.
3/7
PROJECTION METHOD
FRONT/REAR
FRONT
FLOOR/CEILING
AUTO
Change the projection method (FRONT/REAR,
FLOOR/CEILING) if the screen display is upside down
or Inverted.
MENU SELECT
CHANGE
SET
Initial setting (standby mode)
Set the operation mode during standby. The factory default setting is [NORMAL], which allows you to use the network function during standby. To keep power consumption low during standby, set this item to [ECO]. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE].
1) Press ◀▶ to switch the setting.
4/7

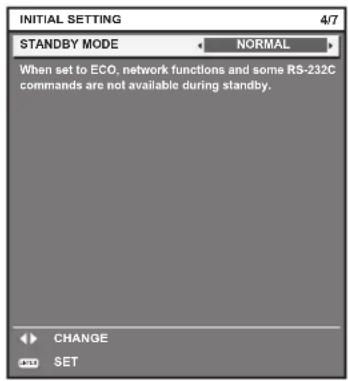

STANDBY MODE
NORMAL
When set to ECO, network functions and some RS-232C
commands are not available during standby.
CHANGE
SET
Note
- The preceding initial setting screen is displayed when the projector is switched on for the first time after purchase. When the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the [STANDBY MODE] setting before executing is displayed.

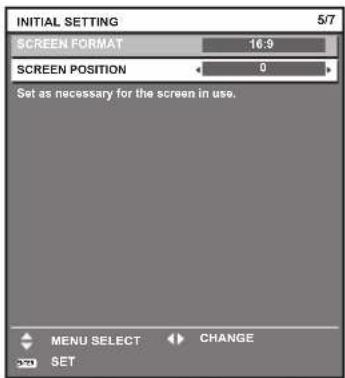

Initial setting (screen setting)
Set the screen format (aspect ratio) and display position of the image.
After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING].
1) Press ◀▶ to switch the setting.
- Proceed to Step 4) when [16:10] is selected.
5/7
SCREEN FORMAT
16:10
SCREEN POSITION
Set as necessary for the screen in use.
CHANGE
SET
2) Press ▲▼ to select [SCREEN POSITION].
5/7
SCREEN FORMAT 16.9
SCREEN POSITION 0
Set as necessary for the screen in use.
MENU SELECT CHANGE
SET
3) Press ◀▶ to adjust. button to proceed to the initial setting.

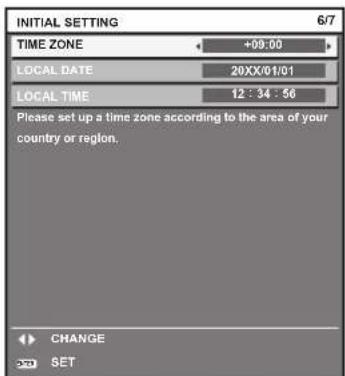

Initial setting (time zone)
Set [TIME ZONE] in accordance with the country or region where you use the projector.
After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE AND TIME]. The current settings are displayed in [LOCAL DATE] and [LOCAL TIME].
1) Press ◀▶ to switch the setting.
6/7
TIME ZONE
+99:00
LOCAL DATE
20XX/01/01
LOCAL TIME
12 : 34 : 56
Please set up a time zone according to the area of your country or region.
CHANGE
SET
2) Press the button to proceed to the initial setting.
Note
- In the factory default setting, the time zone of the projector is set to +09:00 (Japan and Korea Standard Time). Change the setting of the [PROJECTOR SETUP] menu → [DATE AND TIME] → [TIME ZONE] to the time zone of the region where you use the projector.

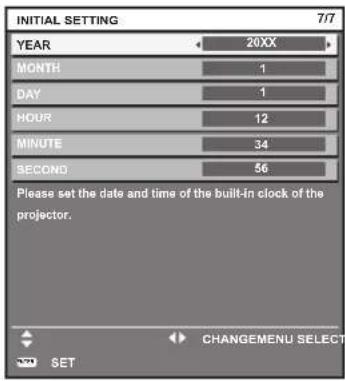

Initial setting (date and time)
Set the local date and time. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE AND TIME].
To set the date and time automatically, refer to "Setting the date and time automatically" (→ page 118).
1) Press ▲▼ to select an item.
7/7
YEAR
20XX
MONTH
1
DAY
1
HOUR
12
MINUTE
34
SECOND
56
Please set the date and time of the built-in clock of the projector.
CHANGE MENU SELECT
SET
2) Press ◀▶ to switch the setting. button.
- Confirm the setting value and complete the initial setting.
Making adjustments and selections
It is recommended that images be projected continuously for at least 30 minutes before the focus is adjusted.
OFF ON
2)
3)
INPUT SELECT
0/1
ENTER
MENU
LENS
1) 5) 7)
6)
5)
3)
Panasonic
PRODUCTION
1) Press the button to roughly adjust the focus of the projected image. (→ page 51)
- Refer to "Navigating through the menu" (→ page 61) for the operation of the menu screen.
3) Select the input by pressing the input selection button on the remote control or the control panel.
- The buttons that can be used on the remote control or the control panel are as follows.
Remote control:
button, button, button, button, button,
button
Control panel:
- For details of operation for input selection, refer to "Selecting the input signal" (→ page 50).
4) Adjust the front, back and sideway tilt of the projector with the adjustable feet. (→ page 33)
48 - ENGLISH
5) Press the button to adjust the position of the projected image. (→ page 51) button. button again to adjust the focus.
Note
- When the projector is switched on for the first time after purchase, as well as when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the [INITIAL SETTING] screen is displayed after projection starts. Refer to "When the initial setting screen is displayed" (→ page 42) for details.

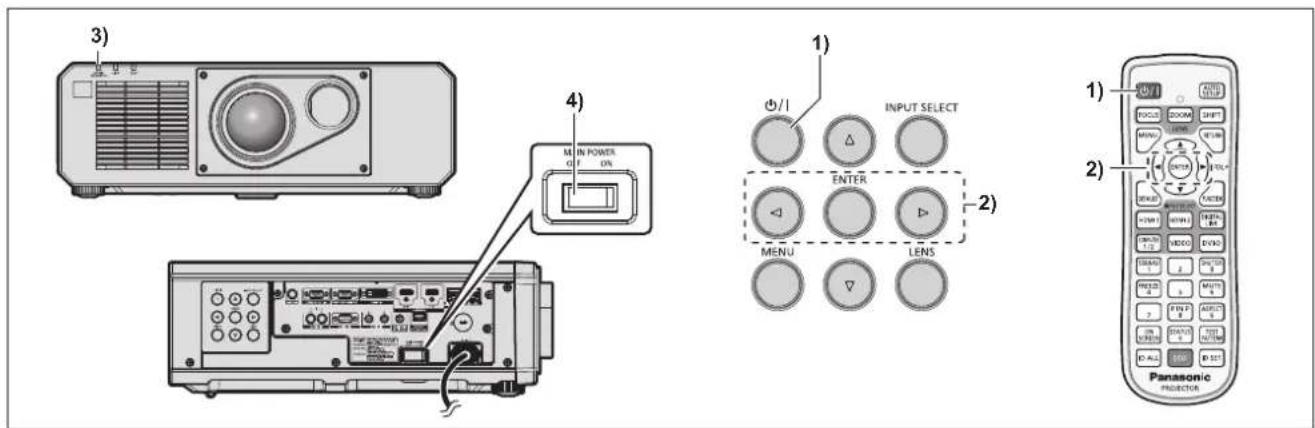

Switching off the projector
4)
MIN IN POWER
ON
INPUT SELECT
1)
ENTER
2)
MENU
LENS
1)
PANASONIC
PROFECTION
1) Press the power <|>|> button. button. on the projector body lights in orange. (The fan keeps running.) of the projector body lights/ blinks in red. side of the switch to turn off the power.
Note
For approximately five seconds after the projector is turned off, the indicator does not light up even if the power is turned on.
Even when the power </| > button is pressed and the projector is switched off, the projector consumes power if the main power of the projector is on.
While projecting, the power can be turned off by pressing the side of the switch, or by directly using the breaker under conditions where the switch of the projector cannot be switched off/on easily such as while installing on the ceiling. However, the settings or adjustments performed right before the power is turned off may not be reflected.
Projecting
Check the external device connection ( page 34) and the power cord connection ( page 40), and turn on the power ( page 41) to start projection. Select the image to project, and adjust appearance of the projected image.
HDMI 1 HDMI 2 DIGITAL
LINK
COMPUTER
1/2 VIDEO DVI-D
ENTER
MENU
LENS
Remote control Control panel
The input for projection can be switched by directly specifying it with the input selection button on the remote control. , , , , , ).
Switches the input to HDMI1.The image of the signal input to theterminal is projected. Switches the input to HDMI2.The image of the signal input to theterminal is projected. Switches the input to DIGITAL LINK.The image of the signal input to theterminal is projected. Switches the input to COMPUTER1 or COMPUTER2.Switches to the other input when one input has already been selected. The image of the signal input to theterminal or theterminal is projected. Switches the input to VIDEO.The image of the signal input to theterminal is projected. Switches the input to DVI-D.The image of the signal input to theterminal is projected.
Attention
Images may not be projected properly depending on the external device, or the Blu-ray disc or DVD disc, to be played back. Set the [PICTURE] menu → [SYSTEM SELECTOR].
Confirm the aspect ratio of the projection screen and the image, and switch to an optimum aspect ratio from the [POSITION] menu → [ASPECT].
Note
When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the terminal, the input on the DIGITAL LINK output supported device changes each time the button is pressed. The input can also be changed using the RS-232C control command.
Set the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] → [INPUT SETTING] in accordance with the signal input to the terminal.
Set the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] → [COMPUTER2 SELECT] to [COMPUTER2 IN] when a signal is to be input to the terminal.
The input for projection can be selected by displaying the input selection screen using the
- The input selection screen is displayed.
● COMPUTER1
COMPUTER2
VIDEO
DVI-D
HDMI1
HDMI2
DIGITAL LINK
SELECT
SET
Note
Adjusting the image
Adjust the projection angle, focus, and shift if the projected image or the position is not correct while the position of the projector and the screen is correctly set up.
1) Adjust the projection angle.
Install the projector on a flat surface so that the front of the projector is parallel to the screen surface, making the projected image rectangular.
If the projector is tilted downward than the screen, extend the adjustable feet so that the projected image becomes rectangular.
Refer to "Adjusting adjustable feet" (→ page 33) for details.
2) Adjust the focus and the lens position.
- For details, refer to "Adjusting the focus and the shift" (→ page 51).
Note
Perform the [POSITION] menu [SCREEN ADJUSTMENT] when the projected image is distorted.
The projector is not equipped with the zoom adjustment function. Adjust the size of the projected image with the position of the projector and the screen (projection distance).
Adjusting the focus and the shift
Using the control panel
- The scree will switch between the adjustment screens of [FOCUS] and [SHIFT] every time the button is pressed.
2) Select each adjustment item and press ▲▼◀▶ to adjust.
Using the remote control
1) Press the lens buttons (, ) on the remote control.
button: Adjusts focus. button: Adjusts shift.
2) Select each adjustment item and press ▲▼◀▶ to adjust.
CAUTION
Do not insert the hand into the opening around the lens while performing the lens shift operation. Your hand may be caught in between, resulting in injury.
Note
The adjustment can be performed faster by holding down ▲▼◀▶ for approximately three seconds or longer while adjusting the focus.
The adjustment can be performed faster by holding down ▲▼◀▶ for approximately six seconds or longer while adjusting the shift.
It is recommended that images be projected continuously for at least 30 minutes before the focus is adjusted. Only [FOCUS] is displayed in yellow so that the displayed menu item can be recognized by color, even when the displayed characters are unreadable due to incorrect focus. (Factory default)
The displayed color of [FOCUS] differs depending on the setting of the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD DESIGN].
The projector will not operate by pressing the button.
When the projector is switched off during the shift adjustment, lens calibration needs to be performed the next time the projector is switched on. (→ page 115)
When the main power is switched off during the shift adjustment, the lens calibration error screen is displayed during the next shift adjustment. Execute the [PROJECTOR SETUP] menu → [LENS CALIBRATION].
When the lens calibration error is displayed even though [LENS CALIBRATION] was executed, ask your dealer to repair the unit.
Moving the lens position to the home position
To move the lens position to the home position, perform the following procedure.
1) Press the button on the remote control while the shift adjustment screen is displayed.
•The [HOME POSITION] screen is displayed.
HOME POSITION
5m EXECUTE
50 CANCEL
2) Press the button.
- [PROGRESS] is displayed in the [HOME POSITION] screen, and the lens position returns to the home position.
Note
Complete the operation within approximately 5 seconds after the [HOME POSITION] screen is displayed. The [HOME POSITION] screen will disappear after time limit.
The home position of the lens is used when the projector is being stored, and it is not the optical center of the screen.
You can also display the [HOME POSITION] screen by pressing the button on the control panel or the button on the remote control for at least three seconds.

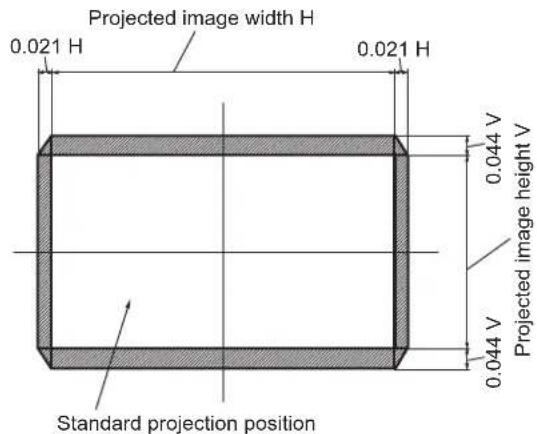

Adjustment range by the lens position shift (optical axis shift)
Perform the lens position shift within the adjustment range.
Part of the peripheral image may not be visible or the focus may change when the lens position is shifted outside the adjustment range, but this is not a malfunction.
This projector is equipped with the optical axis shift function, and projection position can be adjusted within the range indicated in the following figure based on the position of the projected screen in the home position (standard projection position).
0.021 H
0.021 H
0.044 V
Projected image height V
0.044 V
Standard projection position

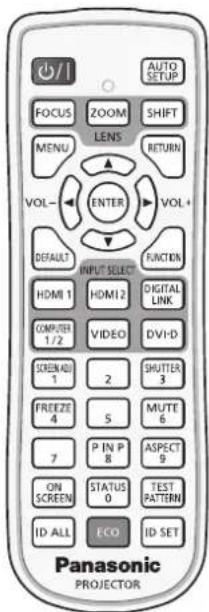

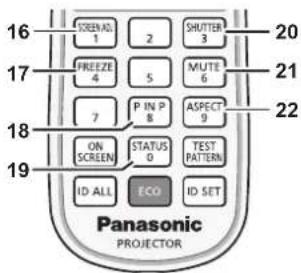

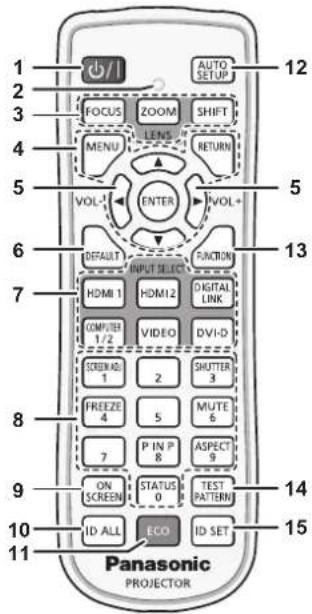

Operating with the remote control
SETUP
FOCUS
ZOOM
SHIFT
LENS
RETURN
MENU
▲
VOL-
ENTER
VOL+
DEFAULT
INPUT SELECT
FUNCTION
HDMI 1
HDMI 2
DIGITAL
LINK
COMPUTER
1/2
VIDEO
DVI-D
SCREENJ
1
2
SHUTTER
3
FREEZE
4
5
MUTE
6
7
P IN P
8
ASPECT
9
ON
SCREEN
STATUS
0
TEST
PATTERN
ID ALL
ECO
ID SET
Panasonic
PROJECTOR
Using the shutter function
If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image and audio temporarily.
SHUTTER 3
1) Press the button.
•The image and audio disappear.
2) Press the button again.
•The image and audio reappear.
Note
The power indicator will blink slowly in green while the shutter function is in use (shutter: closed).
The fade-in/fade-out time of the image can be set by the [DISPLAY OPTION] menu → [SHUTTER SETTING].
To output audio while the shutter function is in use (shutter: closed), set the [PROJECTOR SETUP] menu → [AUDIO SETTING] (→ page 115) → [IN SHUTTER] to [ON].
The projector does not have a built-in speaker. Audio is output from the external audio system connected to the terminal.
The light source may be lit dimly due to warm up when the shutter function is used in the operating environment temperature of around 0 °C (32 °F).
Using the mute function
Audio can be temporarily turned off.
MUTE 6
1) Press the button. button again.
Adjusting the volume
Adjust the volume of audio output.
1) Press the button/ button on the remote control.
<VOL+> Increases the volume.
<VOL-> Decreases the volume.
Note
- This operation can be also performed using ◀▶ on the control panel.
Using the freeze function
The projected image can be paused and audio can be turned off regardless of the playback of the external device.
1) Press the button.
•The image freezes and audio is muted.
2) Press the button again.
- Freezing of the image is canceled and audio is turned on.
Note
- [FREEZE] is displayed on the screen when video is paused.
- When freezing of the moving image is canceled, the image may disappear or be disrupted temporarily.
Using the on-screen display function
Turn off the on-screen display function (no display) when you do not wish the viewers to see the on-screen display, such as the menu or the input terminal name.
1) Press the button.
- Turns off (hides) the on-screen display.
2) Press the button again.
- Cancels the hide condition of the on-screen display.
Note
- The hide condition of the on-screen display can also be canceled by pressing the
button on the control panel for at least three seconds while the on-screen display is off (hidden).
Using the automatic setup function
The image position when the DVI-D/HDMI signal is input, or the resolution, clock phase, and image position when the analog RGB signal is input can be adjusted automatically. (Analog RGB signal is a signal structured with dots just like the computer signal.)
It is recommended to input an image with bright white borders at the edges and high-contrast black and white characters when the automatic adjustment is being performed.
Avoid using images that include halftones or gradation, such as photographs and computer graphics.
•[COMPLETE] is displayed when it has completed without any problem.
Note
The clock phase may shift even if it has completed without any incident. In such a case, adjust the [POSITION] menu → [CLOCK PHASE] (→ page 74).
If an image with blurred edges or a dark image is input, [INCOMPLETE] may appear or adjustment may not be performed properly even when [COMPLETE] appears. In such a case, adjust the following settings.
[ADVANCED MENU] menu → [INPUT RESOLUTION] (→ page 78)
[POSITION] menu → [CLOCK PHASE] (→ page 74)
[POSITION] menu → [SHIFT] (→ page 72)
Adjust special signals according to the [DISPLAY OPTION] menu → [AUTO SETUP] (→ page 85).
Image may be disrupted for a few seconds during automatic adjustment, but this is not a malfunction.
Adjustment is required for each input signal. button during the automatic adjustment operation.
Even if a signal possible to perform the automatic setup is being input, it may not be able to adjust correctly if the automatic setup function is used while the moving image is being input. [INCOMPLETE] may be displayed, or the adjustment may not be completed correctly even if [COMPLETE] is displayed.
Using the screen adjustment function
The [SCREEN ADJUSTMENT] menu can be displayed.
Correct the distortion of the image that occurs when the projector is installed tilted or when the screen is tilted or curved.
- The [SCREEN ADJUSTMENT] screen is displayed.
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Disables the screen adjustment function. [KEYSTONE] Adjusts any trapezoidal distortion in the projected image. [CORNER CORRECTION] Adjusts any distortion in the four corners of the projected image. [CURVED CORRECTION] Adjusts any curved distortion in the projected image. [PC-1]*1 Performs screen adjustment using a computer.[PC-2] *1 [PC-3]*1
*1 Advanced skills are necessary to use a computer to control screen adjustment. Consult your dealer. Up to three screen adjustments performed using the computer can be saved.
The items will also switch by pressing the button.
Proceed to Step 3) when anything other than [OFF] is selected.
- The [KEYSTONE] screen, the [CORNER CORRECTION] screen, or the [CURVED CORRECTION] screen is displayed.
Note
To adjust [KEYSTONE] or [CURVED CORRECTION], press ▲▼ to select the item to adjust, and press ◀▶ to adjust the item.
To adjust [CORNER CORRECTION], press ▲▼ to select the item to adjust. Individual adjustment screen is displayed by pressing the button. Adjust the item using ▲▼◀▶.
Only one of the [KEYSTONE], [CORNER CORRECTION], or [CURVED CORRECTION] setting is enabled.
Refer to the [POSITION] menu → [SCREEN ADJUSTMENT] (→ page 74) for details.
Switching the image aspect ratio
Switch the image aspect ratio according to the input.
- The setting will change each time you press the button.
Note
- Refer to the [POSITION] menu → [ASPECT] (→ page 72) for details.
Using the P IN P function
Locate a separate, small sub screen in the main screen to project two images simultaneously.
button.
- The setting will change each time you press the button.
Note
- Refer to "[P IN P] menu" (→ page 121) for details.
By assigning the following functions to the button, it can be used as a simplified shortcut button. [SUB MEMORY], [SYSTEM SELECTOR], [DAYLIGHT VIEW], [WAVEFORM MONITOR]
Note
- Assignment of the function is performed from the [PROJECTOR SETUP] menu → [FUNCTION BUTTON] (→ page 115).
Displaying internal test pattern
The projector has eight types of internal test patterns to check the condition of the projector body. To display test patterns, perform the following steps.
1) Press the button.
Note
Test patterns can also be displayed using the menu operation. Refer to “[TEST PATTERN] menu” (→ page 123) for details.
Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input signal before performing various adjustments.

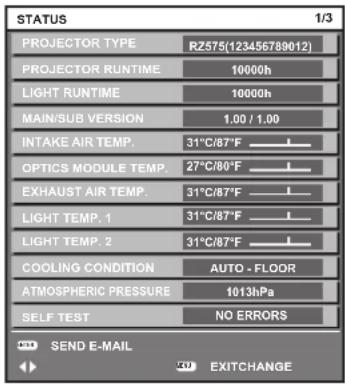

Using the status function
Display the status of the projector.
- The [STATUS] screen is displayed.
1/3
PROJECTOR TYPE RZ575(123456789012)
PROJECTOR RUNTIME 10000h
LIGHT RUNTIME 10000h
MAIN/SUB VERSION 1.00 / 1.00
INTAKE AIR TEMP. 31°C/87°F
OPTICS MODULE TEMP. 27°C/80°F
EXHAUST AIR TEMP. 31°C/87°F
LIGHT TEMP. 1 31°C/87°F
LIGHT TEMP. 2 31°C/87°F
COOLING CONDITION AUTO - FLOOR
ATMOSPHERIC PRESSURE 1013hPa
SELF TEST NO ERRORS
SEND E-MAIL
EXITCHANGE
Note
- The projector status can also be displayed using the menu operation. Refer to the [PROJECTOR SETUP] menu → [STATUS] (→ page 117) for details.
Using the ECO management function
Display the setting screen relating to ECO management.
ECO
Note
- Refer to the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] (→ page 101) for details.
Setting ID number of the remote control
When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector individually using a single remote control, if a unique ID number is assigned to each projector.
After setting the ID number of the projector, set same ID number on the remote control.
The factory default ID number of the projector is set to [ALL]. When using a single projector, press the button on the remote control. Also, you can control a projector by pressing the button on the remote control even if you do not know the projector ID.
ID ALL
ID SET
1) Press the button on the remote control.
- If you press the button, you can control the projectors regardless of the ID number setting of the projector body.
Attention
- Since the ID number of the remote control can be set without the projector body, do not press the button on the remote control carelessly. If the button is pressed and no number (<0> - <9>) buttons are pressed within five seconds, the ID number returns to its original value before the button was pressed.
- The ID number set on the remote control will be stored unless it is set again. However, it will be erased if the remote control is left with dead batteries. Set the same ID number again when the batteries are replaced.
Note
When the ID number of the remote control is set to [0], you can control the projector regardless of the ID number setting of the projector body, as same as when [ALL] is set.
Set the ID number of the projector body from the [PROJECTOR SETUP] menu → [PROJECTOR ID].
Chapter 4 Settings
This chapter describes the settings and adjustments you can make using the on-screen menu.
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.
Operating procedure
1) Press the
button on the remote control or control panel.
•The [MAIN MENU] screen is displayed.
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
DISPLAY OPTION
PROJECTOR SETUP
P IN P
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
MENU SELECT
SUB MENU
2) Press ▲▼ to select an item from the main menu.
•The selected item is highlighted in yellow.
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
DISPLAY OPTION
PROJECTOR SETUP
P IN P
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
MENU SELECT
SUB MENU
3) Press the button.
- The sub-menu items of the selected main menu are displayed.
SHIFT
ASPECT DEFAULT
ZOOM
CLOCK PHASE 0 -1
SCREEN ADJUSTMENT
MENU SELECT
SUB MENU
4) Press ▲▼ to select a sub-menu, and press ◀▶ or the button to change or adjust settings.
- Some items will switch in order as follows each time you press ◀▶.
- For some items, press ◀▶ to display an individual adjustment screen with a bar scale as shown below.
Note
Pressing the button while the menu screen is displayed returns to the previous menu. button on the remote control.
Some items or functions may not be adjusted or used for certain signals to be input to the projector. When the items cannot be adjusted or used, the items in the menu screen are shown in black characters, and they cannot be adjusted or set. button while the corresponding menu is selected.
Some items can be adjusted even if signals are not input.
Individual adjustment screen is cleared automatically if no operation is performed for approximately five seconds.
For menu items, refer to "Main menu" (→ page 62) and "Sub-menu" (→ page 63).
The cursor color depends on the setting in the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD DESIGN]. The selected item is displayed with the yellow cursor by the factory default.
In the portrait setting, the on-screen menu is displayed sideways.
Resetting adjustment values to the factory default
If the button on the remote control is pressed, the values adjusted in the menu items are restored to the factory default settings.
1) Press the button on the remote control.
Note
You cannot reset all the settings to the factory default at a time.
To reset all the settings adjusted in the sub-menu item to the factory default one at a time, execute the [PROJECTOR SETUP] menu → [INITIALIZE].
Some items cannot be reset to the factory default settings even when the button on the remote control is pressed. Adjust those items individually.
The triangular mark under the bar scale in the individual adjustment screen indicates the factory default setting. The position of the triangular mark varies according to the selected input signals.
Current adjustment value
Main menu
The following items are in the main menu.
When a main menu item is selected, the screen changes to a sub-menu selection screen.
Main menu item Page [PICTURE] 66 [POSITION] 72 [ADVANCED MENU] 77
62 - ENGLISH
Main menu item Page [DISPLAY LANGUAGE] 82 [DISPLAY OPTION] 83 [PROJECTOR SETUP] 100 [P IN P] 121 [TEST PATTERN] 123 [SIGNAL LIST] 124 [SECURITY] 127 [NETWORK] 131
The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu.
[PICTURE]
Sub-menu item Factory default Page [PICTURE MODE] [GRAPHIC] *1 66 [CONTRAST] [0] 66 [BRIGHTNESS] [0] 66 [COLOR] [0]*2 67 [TINT] [0] 67 [COLOR TEMPERATURE] [DEFAULT]*2 67 [WHITE GAIN] [+10] 68 [GAMMA] [DEFAULT] 69 [DAYLIGHT VIEW] [AUTO]*2 69 [SHARPNESS] [+6]*2 69 [NOISE REDUCTION] [OFF]*2 70 [DYNAMIC CONTRAST] [OFF]*2 70 [SYSTEM SELECTOR] [AUTO]*1 70
*1 Depends on the signal input.
[POSITION]
Sub-menu item Factory default Page [SHIFT] — 72 [ASPECT] [DEFAULT]^*1 72 [ZOOM] — 73 [CLOCK PHASE] [0]^*1 74 [SCREEN ADJUSTMENT] [OFF] 74
*1 Depends on the signal input.
Sub-menu item Factory default Page [ DIGITAL CINEMA REALITY] [AUTO] ^1 77 [BLANKING] — 77 [INPUT RESOLUTION] — 78
Chapter 4 Settings — Menu navigation
Sub-menu item Factory default Page [CLAMP POSITION] [24] *1 78 [EDGE BLENDING] [OFF] 78 [FRAME RESPONSE] [NORMAL] 80 [RASTER POSITION] — 81
*1 Depends on the signal input.
Note
- The factory default setting varies depending on the selected input terminal.
[DISPLAY LANGUAGE]
Details ( page 82)
[DISPLAY OPTION]
Sub-menu item Factory default Page [COLOR MATCHING] [OFF] 83 [COLOR CORRECTION] [OFF] 84 [SCREEN SETTING] — 84 [AUTO SIGNAL] [OFF] 85 [AUTO SETUP] — 85 [BACKUP INPUT SETTING] — 86 [COMPUTER IN/OUT] — 87 [DVI-D IN] — 89 [HDMI IN] — 90 [DIGITAL LINK IN] — 91 [ON-SCREEN DISPLAY] — 93 [CLOSED CAPTION SETTING] — 95 [BACK COLOR] [BLUE] 95 [STARTUP LOGO] [DEFAULT LOGO] 96 [UNIFORMITY] — 96 [SHUTTER SETTING] — 97 [FREEZE] — 98 [WAVEFORM MONITOR] [OFF] 98 [CUT OFF] — 99
[PROJECTOR SETUP]
Sub-menu item Factory default Page [PROJECTOR ID] [ALL] 100 [PROJECTION METHOD] — 100 [ECO MANAGEMENT] — 101 [OPERATION SETTING] — 103 [LIGHT OUTPUT] [100.0%] 107 [BRIGHTNESS CONTROL] — 107 [SCHEDULE] [OFF] 111 [INITIAL STARTUP] [LAST MEMORY] 113 [STARTUP INPUT SELECT] [LAST USED] 114 [RS-232C] — 114 [FUNCTION BUTTON] — 115 [LENS CALIBRATION] — 115 [AUDIO SETTING] — 115 [STATUS] — 117 [DATE AND TIME] — 118 [SAVE ALL USER DATA] — 119
Chapter 4 Settings — Menu navigation
Sub-menu item Factory default Page [LOAD ALL USER DATA] — 119 [INITIALIZE] — 119 [SERVICE PASSWORD] — 120
[P IN P]
Details ( page 121)
[TEST PATTERN]
Details ( page 123)
[SIGNAL LIST]
Details ( page 124)
[SECURITY]
Sub-menu item Factory default Page [SECURITY PASSWORD] [OFF] 127 [SECURITY PASSWORD CHANGE] — 127 [DISPLAY SETTING] [OFF] 127 [TEXT CHANGE] — 128 [CONTROL DEVICE SETUP] — 128 [CONTROL DEVICE PASSWORD CHANGE] — 129
[NETWORK]
Sub-menu item Factory default Page [ DIGITAL LINK MODE] [AUTO] 131 [ DIGITAL LINK STATUS] — 131 [ NETWORK SETUP] — 132 [ NETWORK CONTROL] — 132 [ NETWORK STATUS] — 133 [ DIGITAL LINK MENU] — 133 [Art-Net SETUP] [OFF] 133 [Art-Net CHANNEL SETTING] [2] 134 [Art-Net STATUS] — 134
Note
- Some items may not be adjusted or used for certain signal formats to be input to the projector.
When the items cannot be adjusted or used, the items in the menu screen are shown in black characters, and they cannot be adjusted or set.
- The factory default setting varies depending on the selected input terminal.
On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu. Refer to "Navigating through the menu" ( page 61) for the operation of the menu screen.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
1) Press ▲▼ to select [PICTURE MODE].
2) Press ◀▶ or the button.
- The [PICTURE MODE] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[STANDARD] The image becomes suitable for moving images in general. [CINEMA] The image becomes suitable for movie contents. [NATURAL] The image becomes sRGB compliant. [REC709] The image becomes Rec.709 compliant when the setting other than [PICTURE MODE] is set to the factory default. [DICOM SIM.] The image becomes similar to that of DICOM Part 14 Grayscale Standard. [DYNAMIC] The light output is maximized for use in bright areas. [GRAPHIC] The image becomes suitable for input from the personal computer.
Note
The factory default picture mode is [GRAPHIC] for still image input signals and [STANDARD] for movie-based input signals.
Rec.709 is an abbreviation of "ITU-R Recommendation BT.709" and is a color standard of high-vision broadcasting.
DICOM is an abbreviation of "Digital Imaging and COmmunication in Medicine" and is a standard for medical imaging devices. Although the DICOM name is used, the projector is not a medical device, and display images should not be used for medical purposes such as diagnosis.
[CONTRAST]
You can adjust the contrast of the colors.
1) Press ▲▼ to select [CONTRAST]. button.
- The [CONTRAST] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
Operation Adjustment Range of adjustment Press ▶. The screen becomes brighter. -31 - +31 Press ◀. The screen becomes darker.
Attention
- Adjust the [PICTURE] menu → [BRIGHTNESS] first when you need to adjust the black level.
[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1) Press ▲▼ to select [BRIGHTNESS]. button.
- The [BRIGHTNESS] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
Operation Adjustment Range of adjustment Press ▶. Increases the brightness of the dark (black) parts of the screen. -31 - +31 Press ◀. Reduces the brightness of the dark (black) parts of the screen.
[COLOR]
You can adjust the color saturation of the projected image.
1) Press ▲▼ to select [COLOR]. button.
- The [COLOR] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
Operation Adjustment Range of adjustment Press ▶. Deepens colors. -31 - +31 Press ◀. Weakens colors.
[TINT]
You can adjust the skin tone in the projected image.
1) Press ▲▼ to select [TINT]. button.
- The [TINT] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
Operation Adjustment Range of adjustment Press ▶. Adjusts skin tone toward greenish color. -31 - +31 Press ◀. Adjusts skin tone toward reddish purple.
[COLOR TEMPERATURE]
You can switch the color temperature if the white areas of the projected image are bluish or reddish.
Adjusting with color temperature
1) Press ▲▼ to select [COLOR TEMPERATURE]. button.
- The [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT] Factory default setting. [USER] Adjusts white balance as desired. Refer to “Adjusting desired white balance” (→ page 67) for details. [LOW]/[HIGH] Select an item so that images become natural.
Note
[DEFAULT] cannot be selected when the [PICTURE] menu [PICTURE MODE] is set to [DICOM SIM.].
The item is fixed to [USER] when the [DISPLAY OPTION] menu [COLOR MATCHING] is set to anything other than [OFF].
Adjusting desired white balance
1) Press ▲▼ to select [COLOR TEMPERATURE]. button.
- The [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press ◀▶ to select [USER]. button.
- The [COLOR TEMPERATURE] screen is displayed.
5) Press ▲▼ to select [WHITE BALANCE]. button.
•The [WHITE BALANCE] screen is displayed.
7) Press ▲▼ to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW]. button.
- The [WHITE BALANCE HIGH] screen or the [WHITE BALANCE LOW] screen is displayed.
9) Press ▲▼ to select [RED], [GREEN], or [BLUE].
10) Press ◀▶ to adjust the level.
Item Operation Adjustment Range of adjustment [RED] Press ▶. Deepens red. [WHITE BALANCE HIGH]: 0 - +255 (factory default is +255)[WHITE BALANCE LOW]: -127 - +127 (factory default is 0) Press ◀. Weakens red. [GREEN] Press ▶. Deepens green. Press ◀. Weakens green. [BLUE] Press ▶. Deepens blue. Press ◀. Weakens blue.
Note
- Adjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment does not look suitable, you can press the button on the remote control to return the setting for the selected item only to the factory default setting.
Changing the [USER] name
1) Press ▲▼ to select [COLOR TEMPERATURE]. button.
- The [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press ◀▶ to select [USER]. button.
- The [COLOR TEMPERATURE] screen is displayed.
5) Press ▲▼ to select [COLOR TEMPERATURE NAME CHANGE]. button.
- The [COLOR TEMPERATURE NAME CHANGE] screen is displayed.
7) Press ▲▼◀▶ to select the text, and press the button to enter the text. button.
- The name set to color temperature is changed.
Note
- When a name is changed, display of [USER] is also changed.
[WHITE GAIN]
Adjust the brightness of the white part of the image.
1) Press ▲▼ to select [WHITE GAIN]. button.
- The [WHITE GAIN] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
Operation Adjustment Range of adjustment Press ▶. Brightness of the white part gets stronger. 0 - +10 Press ◀. The image becomes more natural.
[GAMMA]
You can switch gamma mode.
1) Press ▲▼ to select [GAMMA]. button.
- The [GAMMA] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT] Factory default setting. [1.8] Set so that images become as you like.[2.0] [2.2]
Note
- In the following conditions, the [DEFAULT] setting is disabled even when it is selected, and the same gamma mode as when [2.2] is set is applied.
When the [ADVANCED MENU] menu → [EDGE BLENDING] is set to anything other than [OFF]
When the levels of [WHITE], [RED], [GREEN], and [BLUE] are adjusted from the [DISPLAY OPTION] menu → [UNIFORMITY]
When the [DISPLAY OPTION] menu → [UNIFORMITY] → [PC CORRECTION] is set to [ON]
[DAYLIGHT VIEW]
You can correct the image to the optimal vividness even if it is projected under a bright light.
1) Press ▲▼ to select [DAYLIGHT VIEW]. button.
- The [DAYLIGHT VIEW] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[AUTO] Detects the brightness of the installed environment by the luminance sensor, and automatically corrects the vividness of the image. [OFF] No correction. [1] Corrects the image to weaken vividness. [2] Corrects the image to medium vividness. [3] Corrects the image to high vividness.
Note
[AUTO] cannot be selected when the [ADVANCED MENU] menu → [EDGE BLENDING] is set to [ON] or [USER].
[AUTO] cannot be selected when the [PROJECTOR SETUP] menu → [FRONT/REAR] of [PROJECTION METHOD] is set to [REAR].
The luminance may not be detected correctly when an object is placed on top of the projector, blocking the luminance sensor. In such a case, this function may not operate properly even if it is set to [AUTO].
The factory default setting is [OFF] when the [PICTURE] menu → [PICTURE MODE] is set to [NATURAL], [REC709], or [DICOM SIM.]. In this case, [AUTO] cannot be selected.
[SHARPNESS]
You can adjust the sharpness of the projected image.
1) Press ▲▼ to select [SHARPNESS]. button.
- The [SHARPNESS] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
Operation Adjustment Range of adjustment Press ▶. Contours become sharper. 0 - +15 Press ◀. Contours become softer.
Note
- If you press ▶ while the adjustment value is [+15], the value will become [0]. If you press ◀ while the adjustment value is [0], the value will become [+15].
[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occurring in the image signal.
1) Press ▲▼ to select [NOISE REDUCTION]. button.
- The [NOISE REDUCTION] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] No correction. [1] Slightly corrects the noise. [2] Moderately corrects the noise. [3] Strongly corrects the noise.
Attention
- When this is set for an input signal with less noise, the image may look different from the original image. In such a case, set it to [OFF].
[DYNAMIC CONTRAST]
Light adjustment of the light source is performed automatically according to the image to make the contrast optimum for the image.
1) Press ▲▼ to select [DYNAMIC CONTRAST]. button.
- The [DYNAMIC CONTRAST] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Disables the dynamic contrast function. [ON] Executes the light adjustment of the light source.
Note
- The brightness control function and the dynamic contrast function will operate simultaneously, but the dynamic contrast function will not operate while measuring the brightness and the color.
[SYSTEM SELECTOR]
The projector will automatically detect the input signal, but you can set the system method manually when an unstable signal is input. Set the system method matching the input signal.
1) Press ▲▼ to select [SYSTEM SELECTOR]. button.
- Available system formats vary depending on the input signal.
Terminal System format Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL-M], [PAL-N], [SECAM], or [PAL60].Select [AUTO] normally. ([AUTO] will automatically determine from [NTSC], [NTSC4.43], [PAL],[PAL-M], [PAL-N], [SECAM], or [PAL60].)Switch the setting to the appropriate TV signal format.
Terminal System format 480/60i, 576/50i, or 576/50p signal Select [RGB] or [YC_B C_R] . 640 x 480/60 or 480/60p signal Select [640x480/60], [480/60p YC_B C_R], or [480/60p RGB]. Other moving image signals Select [RGB] or [YP \_B P_R] . 480/60i, 576/50i, 480/60p, or 576/50p signal Select [RGB] or [YC_B C_R] . Other moving image signals Select [RGB] or [YP \_B P_R] . 480/60i, 576/50i, 480/60p, or 576/50p signal Select [AUTO], [RGB], or [YC_B C_R] . Other moving image signals Select [AUTO], [RGB], or [YP \_B P_R] .
*1 When the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] → [INPUT SETTING] is set to [Y/C]
Note
- For details of the types of video signals that can be used with the projector, refer to "List of compatible signals" (→ page 175).
- This may not function properly for some connected external devices.
sRGB-compliant video
sRGB is an international standard (IEC61966-2-1) for color reproduction defined by IEC (International Electrotechnical Commission).
Set according to the following steps to reproduce more faithful, sRGB compliant colors.
1) Set [COLOR MATCHING] to [OFF]. button on the remote control to set the factory default setting.
Note
- sRGB is available for RGB signal input only.
On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” ( page 61) for the operation of the menu screen.
Note
- When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the terminal, adjust the shift, aspect, and clock phase from the menu of DIGITAL LINK output supported device at first.
[SHIFT]
Move the image position vertically or horizontally if the image projected on the screen is still out of position even when the positions of the projector and screen are correct.
1) Press ▲▼ to select [SHIFT]. button.
•The [SHIFT] screen is displayed.
3) Press ▲▼◀▶ to adjust the position.
Orientation Operation Adjustment Vertical (up and down) adjustment Press ▲. The image position moves up. Press ▼. The image position moves down. Horizontal (right and left) adjustment Press ▶. The image position moves to the right. Press ◀. The image position moves to the left.
Note
- For the portrait setting, image position is moved horizontally when "Vertical (up and down) adjustment" is made. Image position is moved vertically when "Horizontal (right and left) adjustment" is made.
[ASPECT]
You can switch the aspect ratio of the image.
The aspect ratio is switched within the screen range selected in the [DISPLAY OPTION] menu → [SCREEN SETTING] → [SCREEN FORMAT]. Set [SCREEN FORMAT] first. (→ page 84)
1) Press ▲▼ to select [ASPECT]. button.
- The [ASPECT] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT] Displays images without changing the aspect ratio of the input signals. [VID AUTO]*1 Identifies the video ID (VID) embedded in the video signal, and automatically switches the image size between 4:3 and 16:9. This is enabled when NTSC signal is input.
72 - ENGLISH
[AUTO] ^2 Identifies the video ID (VID) embedded in the video signal, and automatically switches the image size between 4:3 and 16:9. This is enabled when 480/60i or 480/60p signal is input. [THROUGH] Displays images without changing the resolution of the input signals. [16:9] Displays images with the aspect ratio converted to 16:9 when standard signals are input ^3 . When wide-screen signals are input ^4 , the images are displayed without changing the aspect ratio. [4:3] Displays images without changing the aspect ratio when standard signals are input ^3 . When wide-screen signals are input ^4 , the images are reduced to be displayed without changing input aspect ratio so that the images will fit in the 4:3 screen. [H FIT] Displays images using the entire width of the screen range selected in [SCREEN FORMAT]. When signals have the aspect ratio vertically longer than the screen aspect ratio selected in [SCREEN FORMAT], the images are displayed with the top and bottom parts cut off. [V FIT] Displays images using the entire height of the screen range selected in [SCREEN FORMAT]. When signals have the aspect ratio horizontally longer than the aspect ratio of the screen selected in [SCREEN FORMAT], the images are displayed with the right and left parts cut off. [HV FIT] Displays images in the entire screen range selected in [SCREEN FORMAT]. When the aspect ratio of the input signals differs from that of the screen range, the images are displayed with the aspect ratio converted to that of the screen selected in [SCREEN FORMAT].
*1 During video signals and Y/C signal (NTSC) input only
*2 During RGB signal (480/60i, 480/60p) input only
*3 Standard signals are input signals with an aspect ratio of 4:3 or 5:4.
*4 Wide-screen signals are input signals with an aspect ratio of 16:10, 16:9, 15:9 or 15:10.
Note
Some size modes are not available for certain types of input signals. [DEFAULT] cannot be selected for video signal, Y/C signal (NTSC), or analog RGB signal (480/60i, 480/60p).
If an aspect ratio which is different from the aspect ratio for the input signals is selected, the images will appear differently from the originals. Be careful of this when selecting the aspect ratio.
If using the projector in places such as cafes or hotels to display programs for a commercial purpose or for public presentation, note that adjusting the aspect ratio or using the zoom function to change the screen images may be an infringement of the rights of the original copyright owner for that program under copyright protection laws. Take care when using a function of the projector such as the aspect ratio adjustment and zoom function.
If conventional (normal) 4:3 images which are not wide-screen images are displayed on a wide screen, the edges of the images may not be visible or they may become distorted. Such images should be viewed as with an aspect ratio of 4:3 in the original format intended by the creator of the images.
[ZOOM]
You can adjust the image size.
The adjustments in [ZOOM] will differ depending on the setting of the [POSITION] menu → [ASPECT].
When [ASPECT] is set to other than [DEFAULT] and [THROUGH]
1) Press ▲▼ to select [ZOOM]. button.
•The [ZOOM] screen is displayed.
3) Press ▲▼ to select [INTERLOCKED].
[OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio. [ON] Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally at the same magnification.
5) Press ▲▼ to select [VERTICAL] or [HORIZONTAL].
- If [ON] is selected, select [BOTH].
6) Press ◀▶ to adjust.
Note
- When the [POSITION] menu → [ASPECT] is set to [THROUGH], [ZOOM] cannot be adjusted.
When [ASPECT] is set to [DEFAULT]
1) Press ▲▼ to select [ZOOM].
2) Press the button.
•The [ZOOM] screen is displayed.
3) Press ▲▼ to select [MODE].
4) Press ◀▶ to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT]. [FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT].
5) Press ▲▼ to select [INTERLOCKED].
6) Press ◀▶ to switch the item.
[OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio. [ON] Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally at the same magnification.
7) Press ▲▼ to select [VERTICAL] or [HORIZONTAL].
- If [ON] is selected, select [BOTH].
8) Press ◀▶ to adjust.
Note
- When the [POSITION] menu [ASPECT] is set to anything other than [DEFAULT], [MODE] is not displayed.
[CLOCK PHASE]
You can adjust the image to achieve an optimal image when there is a flickering image or smeared outlines.
1) Press ▲▼ to select [CLOCK PHASE].
2) Press ◀▶ or the button.
- The [CLOCK PHASE] individual adjustment screen is displayed.
3) Press ◀▶ to adjust.
- Adjustment value will change between [0] and [+31]. Adjust the image so that the amount of interference is at a minimum.
Note
Adjustment may not be possible depending on the signal.
There may be no optimal value if the output from the input computer is unstable.
There may be no optimal value when the total dot number is shifted. terminal or the terminal.
The adjustment value will change to [0] when ▶ is pressed while it was at [+31]. Also, the adjustment value will change to [+31] when ◀ is pressed while it was at [0].
[SCREEN ADJUSTMENT]
You can correct various types of distortion in a projected image.
Unique image processing technology enables projection of a square image on a special screen shape.
1) Press ▲▼ to select [SCREEN ADJUSTMENT].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Does not perform [SCREEN ADJUSTMENT]. [KEYSTONE] Adjusts any trapezoidal distortion in the projected image. [CORNER CORRECTION] Adjusts any distortion in the four corners of the projected image. [CURVED CORRECTION] Adjusts any curved distortion in the projected image.
[PC-1]*1 Performs screen adjustment using a computer.[PC-2] *1 [PC-3]*1
*1 Advanced skills are necessary to use a computer to control screen adjustment. Consult your dealer. Up to three screen adjustments performed using the computer can be saved.
Setting [KEYSTONE] or [CURVED CORRECTION]
1) Press ▲▼ to select [SCREEN ADJUSTMENT]. button.
- The [KEYSTONE] or [CURVED CORRECTION] screen is displayed.
4) Press ▲▼ to select the item to adjust.
[KEYSTONE] [LENS THROW RATIO]The throw ratio of this projector is displayed. [VERTICAL KEYSTONE] [HORIZONTAL KEYSTONE] [VERTICAL BALANCE] [HORIZONTAL BALANCE] Adjust the setting according to the lens shift range in the vertical direction. Adjust the setting according to the lens shift range in the horizontal direction.
[CURVED CORRECTION] [LENS THROW RATIO]The throw ratio of this projector is displayed. [VERTICAL KEYSTONE] [HORIZONTAL KEYSTONE] [VERTICAL ARC] [HORIZONTAL ARC] [VERTICAL BALANCE] [HORIZONTAL BALANCE] [MAINTAIN ASPECT RATIO]Select [ON] to correct while keeping the aspect ratio.
Setting [CORNER CORRECTION]
1) Press ▲▼ to select [SCREEN ADJUSTMENT]. button.
• The [CORNER CORRECTION] screen is displayed.
4) Press ▲▼ to select the item to adjust, and press the button.
[CORNER CORRECTION] [UPPER LEFT] [UPPER RIGHT] [LOWER LEFT] [LOWER RIGHT] [LINEARITY]Horizontal direction Vertical direction
Note
The picture quality will degrade more when the correction for [SCREEN ADJUSTMENT] increases, making it harder to focus. Install the projector so that the correction will be as small as possible.
Image size will also change when [SCREEN ADJUSTMENT] is used to perform various adjustments.
If [SCREEN ADJUSTMENT] and the adjustment in the [ADVANCED MENU] menu → [EDGE BLENDING] are used together, the edge blending may not be adjusted correctly depending on the environment.
The image may disappear for a moment or may be disrupted while performing adjustment, but this is not a malfunction.
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" (→ page 61) for the operation of the menu screen.
[DIGITAL CINEMA REALITY]
The picture quality is enhanced by raising the vertical resolution higher by performing the cinema processing when 576/50i signal for PAL (or SECAM), 480/60i signal for NTSC, or 1080/50i or 1080/60i signal is input.
1) Press ▲▼ to select [DIGITAL CINEMA REALITY].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[AUTO] Automatically detects the signal and performs the cinema processing. (Factory default setting) [OFF] Does not perform cinema processing. [30p FIXED] When 480/60i or 1080/60i signal is input Performs forced cinema processing (2:2 pulldown). [25p FIXED] When 576/50i or 1080/50i signal is input
Note
In [DIGITAL CINEMA REALITY], the picture quality will degrade when a signal other than the 2:2 pulldown is set as [25p FIXED] or [30p FIXED]. (Vertical resolution will degrade.)
When the [ADVANCED MENU] menu [FRAME RESPONSE] is set to [FAST], [DIGITAL CINEMA REALITY] cannot be set.
[BLANKING]
You can adjust the blanking width if there are noises at the edge of the screen or the image is slightly running out from the screen while an image from the VCR or other devices are projected.
1) Press ▲▼ to select [BLANKING]. button.
- The [BLANKING] adjustment screen is displayed.
3) Press ▲▼ to select [UPPER], [LOWER], [LEFT], or [RIGHT].
Blanking correction Item Operation Adjustment Range of adjustment Top of the screen [UPPER] Press ◀. The blanking zone moves upward. Top and bottom 0 - 599 Press ▶. The blanking zone moves downward. Bottom of the screen [LOWER] Press ▶. The blanking zone moves upward. Press ◀. The blanking zone moves downward. Blanking correction Item Operation Adjustment Range of adjustment Left side of the screen [LEFT] Press ▶. The blanking zone moves to the right. Left and right 0 - 959 Press ◀. The blanking zone moves to the left. Right side of the screen [RIGHT] Press ◀. The blanking zone moves to the right. Press ▶. The blanking zone moves to the left.
You can adjust the image to achieve an optimal image when there is a flickering image or smeared outlines.
1) Press ▲▼ to select [INPUT RESOLUTION]. button.
- The [INPUT RESOLUTION] screen is displayed.
3) Press ▲▼ to select [TOTAL DOTS], [DISPLAY DOTS], [TOTAL LINES], or [DISPLAY LINES], and press ◀▶ to adjust each item.
- Values corresponding to the signal being input are displayed automatically for each item. Increase or decrease the displayed values and adjust to the optimal point while viewing the screen if there are vertical stripes or sections are missing from the screen.
Note
Previously mentioned vertical banding will not occur with all white signal input.
Image may be disrupted during automatic adjustment, but this is not a malfunction.
[INPUT RESOLUTION] can be adjusted only when an RGB signal is input to the terminal or the terminal.
Adjustment may not be possible depending on the signal.
[CLAMP POSITION]
You can adjust the optimal point when the black part of the image is blunt or it has turned green.
1) Press ▲▼ to select [CLAMP POSITION].
Status Rough guide for optimal value Range of adjustment The black part is blunt. The point where bluntness of the black part improves the most is the optimal value. 1 - 255 The black part is green. The point where the green part becomes black, and the bluntness has improved is the optimal value.
Note
[CLAMP POSITION] can be adjusted only when a signal is input to the terminal or the terminal.
Adjustment may not be possible depending on the signal.
[EDGE BLENDING]
The edge blending function allows multiple images to be seamlessly overlapped by using the inclination of the brightness at the overlapped area.
1) Press ▲▼ to select [EDGE BLENDING].
- The items will switch each time you press the button.
[OFF] Sets the edge blending function to off.
[ON] Use the setting value preset in the projector for the inclination of the edge blending area. [USER] Use the user-setting value for the inclination of the edge blending area. (Configuration/registration requires separate software. Consult your dealer.)
- Proceed to Step 3) when anything other than [OFF] is selected.
3) Press the button.
•The [EDGE BLENDING] screen is displayed.
4) Press ▲▼ to specify the location to be corrected.
When joining at top: Set [UPPER] to [ON]
When joining at bottom: Set [LOWER] to [ON]
When joining at left: Set [LEFT] to [ON]
When joining at right: Set [RIGHT] to [ON]
5) Press ◀▶ to switch to [ON].
- A marker for image position adjustment is displayed. The position where the red and green lines overlap for the projectors to be joined will be the optimal point. Make sure to set the correction width for the projectors to be joined with the same value. Optimal joining is not possible with projectors that have different correction widths.
The optimal point is the point at which these lines overlap.
Red line
10) Press ▲▼ to select [BRIGHTNESS ADJUST]. button.
The [BRIGHTNESS ADJUST] screen is displayed.
By setting [AUTO TESTPATTERN] to [ON] on the [EDGE BLENDING] screen, the black test pattern is displayed when you enter the [BRIGHTNESS ADJUST] screen.
12) Press ▲▼ to select [NON-OVERLAPPED BLACK LEVEL]. button.
The [NON-OVERLAPPED BLACK LEVEL] screen is displayed.
[RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].
14) Press ▲▼ to select an item, and press ◀▶ to adjust the setting.
- Once the adjustment is completed, press the
button to return to the [BRIGHTNESS ADJUST] screen.
15) Press ▲▼ to select [UPPER], [LOWER], [LEFT], or [RIGHT] in [BLACK BORDER WIDTH].
18) Press ◀▶ to adjust the tilt of the border between [NON-OVERLAPPED BLACK LEVEL] and [BLACK BORDER LEVEL]. button.
The [BLACK BORDER LEVEL] screen is displayed.
[RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].
21) Press ▲▼ to select an item, and press ◀▶ to adjust the setting.
- Once the adjustment is completed, press the
button to return to the [BRIGHTNESS ADJUST] screen.
22) Press ▲▼ to select [UPPER], [LOWER], [LEFT], or [RIGHT] for [OVERLAPPED BLACK LEVEL]. button.
The [OVERLAPPED BLACK LEVEL] screen is displayed.
[RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].
24) Press ▲▼ to select an item, and press ◀▶ to adjust the setting.

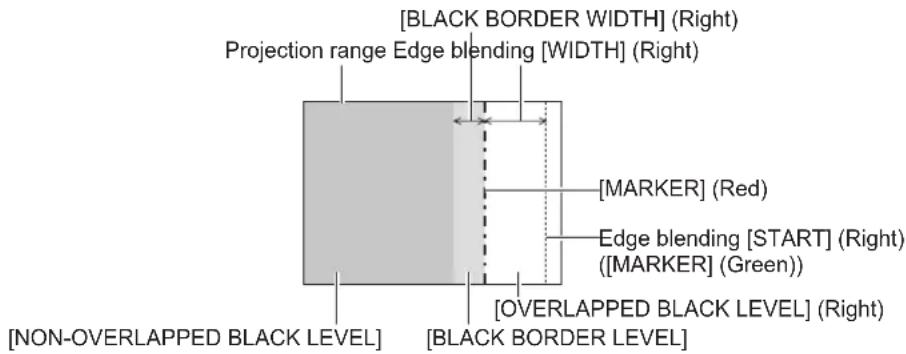

Projection range Edge blending [WIDTH] (Right)
[MARKER] (Red)
Edge blending [START] (Right)
([MARKER] (Green))
[OVERLAPPED BLACK LEVEL] (Right)
[NON-OVERLAPPED BLACK LEVEL]
[BLACK BORDER LEVEL]
Note
[BRIGHTNESS ADJUST] is a function that makes the increased brightness in black level of the overlapping image area difficult to notice when [EDGE BLENDING] is used to structure a multi-display screen. The optimal point of correction is set by adjusting [NON-OVERLAPPED BLACK LEVEL] so the black level of the overlapping image area will be the same level as the non-overlapping area. If the border area of the part where the image is overlapping and the non-overlapping part gets brighter after adjusting [NON-OVERLAPPED BLACK LEVEL], adjust the width of the top, bottom, left, or right. Adjust [BLACK BORDER LEVEL] when the width adjustment makes only the border area darker.
The joining part may look discontinuous depending on the position you are looking from when a screen with high gain or rear screen is used.
When structuring a multi-display screen using both horizontal and vertical edge blending, adjust [OVERLAPPED BLACK LEVEL] first before making adjustments in Step 12). Adjustment method is same as the procedure of [NON-OVERLAPPED BLACK LEVEL].
If only horizontal or vertical edge blending is used, set all items in [OVERLAPPED BLACK LEVEL] to 0.
The [AUTO TESTPATTERN] setting will change in conjunction with the setting in the [DISPLAY OPTION] menu → [COLOR MATCHING] → [AUTO TESTPATTERN].
The tilt adjustment of the border between [NON-OVERLAPPED BLACK LEVEL] and [BLACK BORDER LEVEL] is a function to perform edge blending together with the adjustment in [SCREEN ADJUSTMENT] (→ page 74). If the area of [NON-OVERLAPPED BLACK LEVEL] is tilted by correcting the keystone distortion with the [POSITION] menu → [SCREEN ADJUSTMENT] → [KEYSTONE], perform Steps 17) and 18) to adjust the tilt and adjust the edge blending according to the shape of [NON-OVERLAPPED BLACK LEVEL].
If [EDGE BLENDING] is set to anything other than [OFF], the setting of the [PICTURE] menu → [GAMMA] → [DEFAULT] is disabled, and the same gamma mode as when [2.2] is set is applied.
[FRAME RESPONSE]
Set image frame delay.
1) Press ▲▼ to select [FRAME RESPONSE].
- The items will switch each time you press the button.
[NORMAL] Standard setting.
[FAST] Simplifies the image processing to reduce image frame delay.
Note
- When [FAST] is set, the picture quality deteriorates. The [ADVANCED MENU] menu → [DIGITAL CINEMA REALITY] cannot be set.
- [FRAME RESPONSE] cannot be set while in the P IN P mode.
[RASTER POSITION]
This will allow the position of the image to move within the display area arbitrarily when the input image is not using the whole display area.
1) Press ▲▼ to select [RASTER POSITION]. button.
•The [RASTER POSITION] screen is displayed.
3) Press ▲▼◀▶ to adjust the position.
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu. Refer to "Navigating through the menu" ( page 61) for the operation of the menu screen.
Changing the display language
You can select the language of the on-screen display.
1) Press ▲▼◀▶ to select the display language and press the button.
● ENGLISH
DEUTSCH
FRANÇAIS
ITALANG
ESPAROL
PORTUGUES
NETTERLANDS
SVLENSKA
SUCMI
NORSK
DANSK
POLSKI
MAGYAR
ROMANA
ČESTINA
PYRCHIN
TÜRKÇE
ŠUŠNI
KASIK
Hide the taking Visit
中文
日本語
1990
SELECT
SET
Various menus, settings, adjustment screens, control button names, etc., are displayed in the selected language.
The language can be switched to English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Norwegian, Danish, Polish, Hungarian, Romanian, Czech, Russian, Turkish, Arabic, Kazakh, Vietnamese, Chinese, Korean, Japanese, and Thai.
Note
- The on-screen display language is set to English in the factory default setting as well as when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed.
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" (→ page 61) for the operation of the menu screen.
[COLOR MATCHING]
Correct the color difference between projectors when using multiple projectors simultaneously.
Adjusting the color matching as desired
1) Press ▲▼ to select [COLOR MATCHING].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Color matching adjustment is not carried out. [3COLORS] Adjusts the three colors [RED], [GREEN], or [BLUE]. [7COLORS] Adjusts the seven colors [RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE]. [MEASURED] Refer to “Adjusting the color matching using a colorimeter” (→ page 83) for details about this mode.
3) Select [3COLORS] or [7COLORS], and press the button.
- The [3COLORS] or [7COLORS] screen is displayed.
4) Press ▲▼ to select [RED], [GREEN], [BLUE], or [WHITE] ([RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE] when [7COLORS] is selected).
5) Press the button.
The [3COLORS:RED], [3COLORS:GREEN], [3COLORS:BLUE], or [3COLORS:WHITE] screen is displayed.
By setting [AUTO TESTPATTERN] to [ON], the test pattern for the selected color is displayed.
6) Press ▲▼ to select [RED], [GREEN], or [BLUE].
- Only [GAIN] can be adjusted when [WHITE] is selected for [3COLORS].
7) Press ◀▶ to adjust.
- The adjustment value will change between 0 and 2048.
*1 The lower limit varies depending on the color to be adjusted.
Note
•Operation when correcting the adjustment color
When the correction color same as the adjustment color is changed: The luminance of the adjustment color changes.
When correction color red is changed: Red is added to or subtracted from the adjustment color.
When correction color green is changed: Green is added to or subtracted from the adjustment color.
When correction color blue is changed: Blue is added to or subtracted from the adjustment color.
Since advanced skills are necessary for the adjustment, this adjustment should be carried out by a person who is familiar with the projector or by a service person.
Pressing the button on the remote control will restore the factory default settings for all items.
When the item is set to anything other than [OFF], the [DISPLAY OPTION] menu → [COLOR CORRECTION] is fixed to [OFF], and the [PICTURE] menu → [COLOR TEMPERATURE] is fixed to [USER].
Adjusting the color matching using a colorimeter
Use a colorimeter that can measure chromaticity coordinates and luminance to change the colors [RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE] to desired colors.
1) Press ▲▼ to select [COLOR MATCHING].
3) Press the button.
•The [MEASURED MODE] screen is displayed.
4) Press ▲▼ to select [MEASURED DATA].
5) Press the button.
- The [MEASURED DATA] screen is displayed.
6) Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter.
7) Press ▲▼ to select a color, and press ◀▶ to adjust the setting.
- Set [AUTO TESTPATTERN] to [ON] to display a test pattern of selected colors.
8) Once all the input is completed, press the
button.
- The [MEASURED MODE] screen is displayed.
9) Press ▲▼ to select [TARGET DATA].
10) Press the button.
- The [TARGET DATA] screen is displayed.
11) Press ▲▼ to select a color and press ◀▶ to input coordinates for desired colors.
- By setting [AUTO TESTPATTERN] to [ON], the test pattern for the selected color is displayed.
12) Once all the input is completed, press the
button.
Note
Colors are not displayed properly when target data is a color outside the region of this projector.
Set the [AUTO TESTPATTERN] to [ON] to automatically display a test pattern for use in adjusting the selected adjustment colors.
The [AUTO TESTPATTERN] setting will change in conjunction with the setting in the [ADVANCED MENU] menu → [EDGE BLENDING] → [ON]/[USER] → [AUTO TESTPATTERN].
When using a colorimeter or similar instrument to take measurement, measure the colors displayed in [AUTO TESTPATTERN].
A difference in the color coordinates of target data and measurement value obtained from an instrument may occur for certain instrument and measurement environment used.
[COLOR CORRECTION]
Colors can be adjusted and registered for each input signal format.
1) Press ▲▼ to select [COLOR CORRECTION].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Standard setting. [USER] For each of the four signal formats of VIDEO, Y/C, RGB, and YC_BC_R/YP_BP_R , six colors of red, green, blue, cyan, magenta, and yellow can be adjusted and registered. Press thebutton and set the details. Adjustment is possible within the range of -31 to +31.
[SCREEN SETTING]
Set the screen size.
Correct to the optimum image position for the set screen when the aspect ratio of a projected image is changed. Set as necessary for the screen in use.
1) Press ▲▼ to select [SCREEN SETTING].
2) Press the button.
•The [SCREEN SETTING] screen is displayed.
3) Press ◀▶ to switch the [SCREEN FORMAT] item.
- The items will switch each time you press the button.
[SCREEN FORMAT] Range when [SCREEN POSITION] is selected [16:10] Cannot be adjusted. [4:3] Adjusts the horizontal position between -160 and 160. [16:9] Adjusts the vertical position between -60 and 60.
4) Press ▲▼ to select [SCREEN POSITION].
- [SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMAT] is set to [16:10].
5) Press ◀▶ to adjust [SCREEN POSITION].
[AUTO SIGNAL]
Set whether to execute automatic setup of signals automatically.
The screen display position or signal level can be adjusted automatically without pressing the button on the remote control on each occasion if you input unregistered signals frequently at meetings, etc.
1) Press ▲▼ to select [AUTO SIGNAL].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Sets the auto signal function to off. [ON] Executes automatic setup automatically when images are changed to unregistered signals during projection.
[AUTO SETUP]
Set this when adjusting a special signal or horizontally long (such as 16:9) signal.
Setting with [MODE]
1) Press ▲▼ to select [AUTO SETUP]. button.
•The [AUTO SETUP] screen is displayed.
3) Press ▲▼ to select [MODE].
- The items will switch each time you press the button.
[DEFAULT] Standard setting. [WIDE] Select this item when an image aspect ratio is a wide-screen signal, which does not meet the [DEFAULT] setting. [USER] Select this when receiving a signal with a special horizontal resolution (number of display dots).
Proceed to Step 7) when [DEFAULT] or [WIDE] is selected.
Proceed to Step 5) when [USER] is selected.
5) Press ▲▼ to select [DISPLAY DOTS], and press ◀▶ to match [DISPLAY DOTS] to the horizontal resolution of the signal source. button.
- Automatic adjustment is executed. [PROGRESS] is displayed while in automatic adjustment. When completed, the screen returns to the [AUTO SETUP] screen.
Note
- Automatic setup of signal can be executed when analog RGB signal consisting of dots such as computer signal, or DVI-D/HDMI signal is being input.
Adjusting position automatically
1) Press ▲▼ to select [AUTO SETUP]. button.
•The [AUTO SETUP] screen is displayed.
3) Press ▲▼ to select [POSITION ADJUST].
4) Press ◀▶ to switch the item.
[ON] Adjust the screen position and size when automatic setup is executed.
[OFF] Does not perform automatic adjustment.
Adjusting signal level automatically
1) Press ▲▼ to select [AUTO SETUP]. button.
•The [AUTO SETUP] screen is displayed.
3) Press ▲▼ to select [SIGNAL LEVEL ADJUST].
[OFF] Does not perform automatic adjustment. [ON] Adjusts black level (the [PICTURE] menu → [BRIGHTNESS]) and white level (the [PICTURE] menu → [CONTRAST]) when automatic setup is executed.
Note
- [SIGNAL LEVEL ADJUST] may not function properly unless a still image containing clear blacks and whites is input.
Set the backup function that switches the signal to the backup input signal as seamless as possible when the video input signal is disrupted.
1) Press ▲▼ to select [BACKUP INPUT SETTING]. button.
- The [BACKUP INPUT SETTING] screen is displayed.
3) Press ▲▼ to select [BACKUP INPUT MODE].
- The items will switch each time you press the button.
[OFF] Disables the backup function. [1] Enables the backup function between the DVI-D input and the HDMI2 input.The input is switched as seamless as possible when the same signal is input to the primary and secondary inputs.Primary input is fixed to theterminal, and the secondary input is fixed to theterminal. [2] Enables the backup function between the HDMI1 input and the HDMI2 input.The input is switched as seamless as possible when the same signal is input to the primary and secondary inputs.Primary input is fixed to theterminal, and the secondary input is fixed to theterminal.
5) Press ▲▼ to select [AUTOMATIC SWITCHING].
- [AUTOMATIC SWITCHING] cannot be selected when [BACKUP INPUT MODE] is set to [OFF].
6) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[ENABLE] Switches to the secondary input (primary input) automatically when the input signal for the primary input (secondary input) is disrupted. [DISABLE] Disables the automatic input switching function.
Note
- Backup function is enabled when [BACKUP INPUT MODE] is set to [1], and the same signal is input to the and terminals.
Alternatively, the backup function is enabled when [BACKUP INPUT MODE] is set to [2], and same signal is input to the and terminals.
- To switch to the backup input signal using the backup function, make sure that the following three conditions are satisfied to be ready to use the function.
-Set [BACKUP INPUT MODE] to anything other than [OFF].
-Input the same signal to the primary and secondary inputs.
-Display the image for the primary input or secondary input.
If the input is switched to other than the primary or secondary input while the backup function is ready for use, the state of readiness to use the backup function is canceled. To switch to the backup input signal using the backup function again, switch to the primary input.
[BACKUP INPUT STATUS] is displayed in the input guide ( page 93) and [STATUS] screen ( pages 58, 117) when [BACKUP INPUT MODE] is set to anything other than [OFF].
When switching to the backup input signal is possible using the backup function, [ACTIVE] is displayed in [BACKUP INPUT STATUS]. When it is not possible, [INACTIVE] is displayed instead.
The secondary input will be the backup input when [BACKUP INPUT STATUS] is displaying [ACTIVE] while the image from the primary input is displayed.
The primary input will be the backup input when [BACKUP INPUT STATUS] is displaying [ACTIVE] while the image from the secondary input is displayed.
If [BACKUP INPUT MODE] is set to [1], the input is switched seamlessly when the inputs of DVI-D and HDMI1 are switched while switching to the backup input signal is possible.
If [BACKUP INPUT MODE] is set to [2], the input is switched seamlessly when the inputs of HDMI1 and HDMI2 are switched while switching to the backup input signal is possible.
When [AUTOMATIC SWITCHING] is set to [ENABLE], and [BACKUP INPUT STATUS] is set to [ACTIVE], the signal is automatically switched to the backup input if the input signal is disrupted.
At the same time the video is switched to the secondary input, audio will switch to the audio set in the [PROJECTOR SETUP] menu → [AUDIO SETTING] → [AUDIO IN SELECT].
When [AUTOMATIC SWITCHING] is set to [ENABLE] and the signal is automatically switched to the backup input due to disruption of the input signal, [BACKUP INPUT STATUS] changes to [INACTIVE]. In this case, switching to the backup input signal is not possible until the original input signal is restored. If the signal is automatically switched to the backup input, switching to the backup input signal becomes possible when the original input signal is restored. In this case, the current input is retained.
[BACKUP INPUT SETTING] cannot be set during P IN P. The backup operation is not performed either.
[COMPUTER IN/OUT]
Set the terminal and the terminal.
1) Press ▲▼ to select [COMPUTER IN/OUT]. button.
•The [COMPUTER IN/OUT] screen is displayed.
3) Press ▲▼ to select [INPUT SETTING].
- The items will switch each time you press the button.
[RGB/YP _B P _R ] Select this item when RGB signal or YC _B C _R /YP _B P _R signal is input to theterminal. [Y/C] Select this item when a luminance signal and color signal are input to theterminal.
Note
- Use the optional D-SUB - S Video conversion cable (Model No.: ET-ADSV) when the Y/C signal is input to the terminal. For connection method, refer to "Connecting example: AV equipment" ( page 35).
1) Press ▲▼ to select [COMPUTER IN/OUT]. button.
- The [COMPUTER IN/OUT] screen is displayed.
3) Press ▲▼ to select [SYNC SLICE LEVEL] of [COMPUTER1] or [COMPUTER2].
[LOW] Set the slice level to [LOW].
[HIGH] Set the slice level to [HIGH].
Note
- [SYNC SLICE LEVEL] of [COMPUTER2] cannot be set when [COMPUTER2 SELECT] is set to [COMPUTER1 OUT].
Setting [EDID MODE] in [COMPUTER IN/OUT] (COMPUTER1 input/COMPUTER2 input)
1) Press ▲▼ to select [COMPUTER IN/OUT]. button.
- The [COMPUTER IN/OUT] screen is displayed.
3) Press ▲▼ to select [EDID MODE] of [COMPUTER1] or [COMPUTER2]. button.
•The [EDID MODE] screen is displayed.
5) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT] Standard setting.
[SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting.
[USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID.
- Proceed to Step 10) when [DEFAULT] or [SCREEN FIT] is selected.
6) Press the button.
•The [RESOLUTION] screen is displayed.
7) Press ▲▼◀▶ to select [RESOLUTION].
- Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
8) Press the button.
- The [VERTICAL SCAN FREQUENCY] screen is displayed.
9) Press ◀▶ to select [VERTICAL SCAN FREQUENCY].
Select [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is selected for [RESOLUTION].
Select [60Hz], [50Hz], or [48Hz] when [1920x1080i] is selected for [RESOLUTION].
Select [60Hz] or [50Hz] when anything other than following is selected for [RESOLUTION]. -[1920x1080p], [1920x1080i]
10) Press the button.
•The confirmation screen is displayed.
11) Press ◀▶ to select [OK], and press the button.
Note
Settings in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] are displayed in the [COMPUTER IN/OUT] screen.
Setting of the resolution and the vertical scanning frequency may be necessary on the computer or video device in use.
The computer, video device, or projector in use may require the power to be turned off and on again after setting.
The output with the set resolution or vertical scanning frequency may not be possible depending on the computer or video device in use.
[EDID MODE] in [COMPUTER2] cannot be set when [COMPUTER2 SELECT] is set to [COMPUTER1 OUT].
Setting [COMPUTER2 SELECT] in [COMPUTER IN/OUT] (COMPUTER2 input/COMPUTER1 output)
1) Press ▲▼ to select [COMPUTER IN/OUT]. button.
•The [COMPUTER IN/OUT] screen is displayed.
3) Press ▲▼ to select [COMPUTER2 SELECT].
- The items will switch each time you press the button.
[COMPUTER2 IN] Select this item when using theterminal as the COMPUTER2 input. [COMPUTER1 OUT] Select this item when the analog RGB signal or YC_BC_R/YP_BP_R signal input to theterminal is output from theterminal.
Note
- [COMPUTER2 SELECT] cannot be set when the COMPUTER2 input is selected.
[DVI-D IN]
Set this item in accordance with the video signal input to the terminal.
Setting [SIGNAL LEVEL] in [DVI-D IN]
1) Press ▲▼ to select [DVI-D IN]. button.
•The [DVI-D IN] screen is displayed.
3) Press ▲▼ to select [SIGNAL LEVEL].
- The items will switch each time you press the button.
[AUTO] Automatically sets the signal level. [0-255:PC] Select this item when the signal output from the DVI-D terminal of the external device (such as a computer) is input to theterminal. [16-235] Select this item when the signal output from the HDMI terminal of the external device (such as a Blu-ray disc player) is input to theterminal using a conversion cable, etc.
Note
- The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device.
Setting [EDID SELECT] in [DVI-D IN]
1) Press ▲▼ to select [DVI-D IN]. button.
•The [DVI-D IN] screen is displayed.
3) Press ▲▼ to select [EDID SELECT].
- The items will switch each time you press the button.
[EDID3] Determines the moving image or still image signal automatically. [EDID1] Select this item mainly when an external device that will output the moving image signal (such as a Blu-ray disc player) is connected to theterminal. [EDID2:PC] Select this item mainly when an external device that will output the still image signal (such as a computer) is connected to theterminal.
Note
- The data for plug and play will change when the setting is changed. Refer to "List of compatible signals" ( page 175) for details on a resolution that supports plug and play.
Setting [EDID MODE] in [DVI-D IN]
1) Press ▲▼ to select [DVI-D IN]. button.
•The [DVI-D IN] screen is displayed.
3) Press ▲▼ to select [EDID MODE].
•The [DVI-D] screen is displayed.
5) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT] Standard setting. [SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting. [USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID.
- Proceed to Step 10) when [DEFAULT] or [SCREEN FIT] is selected.
•The [RESOLUTION] screen is displayed.
7) Press ▲▼◀▶ to select [RESOLUTION].
- Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
- The [VERTICAL SCAN FREQUENCY] screen is displayed.
9) Press ◀▶ to select [VERTICAL SCAN FREQUENCY].
Select [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is selected for [RESOLUTION].
Select [60Hz], [50Hz], or [48Hz] when [1920x1080i] is selected for [RESOLUTION].
Select [60Hz] or [50Hz] when anything other than following is selected for [RESOLUTION]. -[1920x1080p], [1920x1080i]
•The confirmation screen is displayed.
Note
Settings in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] are displayed in the [DVI-D IN] screen.
Setting of the resolution and the vertical scanning frequency may be necessary on the computer or video device in use.
The computer, video device, or projector in use may require the power to be turned off and on again after setting.
The output with the set resolution or vertical scanning frequency may not be possible depending on the computer or video device in use.
[HDMI IN]
Set this item in accordance with the video signal input to the terminal or the terminal.
Setting [SIGNAL LEVEL] in [HDMI IN]
1) Press ▲▼ to select [HDMI IN]. button.
•The [HDMI IN] screen is displayed.
3) Press ▲▼ to select [SIGNAL LEVEL] of [HDMI1] or [HDMI2].
- The items will switch each time you press the button.
[AUTO] Automatically sets the signal level. [64-940] Select this item when the signal output from the HDMI terminal of the external device (such as a Blu-ray disc player) is input to theterminal or theterminal. [0-1023] Select this item when the signal output from the DVI-D terminal of the external device (such as a computer) is input to theterminal or theterminal using a conversion cable, etc.Select this item also when the signal output from the HDMI terminal of a computer, etc., is input to theterminal or theterminal.
Note
The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device.
The HDMI signal level is displayed for 30 bits of input.
Setting [EDID MODE] in [HDMI IN]
1) Press ▲▼ to select [HDMI IN]. button.
•The [HDMI IN] screen is displayed.
3) Press ▲▼ to select [EDID MODE] of [HDMI1] or [HDMI2]. button.
- The [HDMI1] screen or the [HDMI2] screen is displayed.
5) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT] Standard setting.
[SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting.
[USER] Set the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID.
- Proceed to Step 10) when [DEFAULT] or [SCREEN FIT] is selected.
6) Press the button.
•The [RESOLUTION] screen is displayed.
7) Press ▲▼◀▶ to select [RESOLUTION].
- Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
8) Press the button.
- The [VERTICAL SCAN FREQUENCY] screen is displayed.
9) Press ◀▶ to select [VERTICAL SCAN FREQUENCY].
Select [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is selected for [RESOLUTION].
Select [60Hz], [50Hz], or [48Hz] when [1920x1080i] is selected for [RESOLUTION].
Select [60Hz] or [50Hz] when anything other than following is selected for [RESOLUTION]. -[1920x1080p], [1920x1080i]
10) Press the button.
•The confirmation screen is displayed.
11) Press ◀▶ to select [OK], and press the button.
Note
Settings in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] are displayed in the [HDMI IN] screen.
Setting of the resolution and the vertical scanning frequency may be necessary on the computer or video device in use.
The computer, video device, or projector in use may require the power to be turned off and on again after setting.
The output with the set resolution or vertical scanning frequency may not be possible depending on the computer or video device in use.
[DIGITAL LINK IN]
Set this item in accordance with the video signal input to the terminal.
Setting [SIGNAL LEVEL] in [DIGITAL LINK IN]
1) Press ▲▼ to select [DIGITAL LINK IN]. button.
4) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[AUTO] Automatically sets the signal level. [64-940] Select this item when the signal output from the HDMI terminal of an external device (Blu-ray disc player, etc.) is input to theterminal via a twisted-pair-cable transmitter. [0-1023] Select this item when the signal output from the DVI-D terminal or HDMI terminal of an external device (such as a computer) is input to theterminal via a twisted-pair-cable transmitter.
Note
- The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device.
- The signal level is displayed for 30 bits of input.
Setting [EDID MODE] in [DIGITAL LINK IN]
1) Press ▲▼ to select [DIGITAL LINK IN]. button.
- The [DIGITAL LINK IN] screen is displayed.
3) Press ▲▼ to select [EDID MODE]. button.
- The [DIGITAL LINK] screen is displayed.
5) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT] Standard setting. [SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting. [USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID.
- Proceed to Step 10) when [DEFAULT] or [SCREEN FIT] is selected.
6) Press the button.
•The [RESOLUTION] screen is displayed.
7) Press ▲▼◀▶ to select [RESOLUTION].
- Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
8) Press the button.
- The [VERTICAL SCAN FREQUENCY] screen is displayed.
9) Press ◀▶ to switch [VERTICAL SCAN FREQUENCY].
Select [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is selected for [RESOLUTION].
Select [60Hz], [50Hz], or [48Hz] when [1920x1080i] is selected for [RESOLUTION].
Select [60Hz] or [50Hz] when anything other than following is selected for [RESOLUTION]. -[1920x1080p], [1920x1080i]
10) Press the button.
•The confirmation screen is displayed.
11) Press ◀▶ to select [OK], and press the button.
Note
Settings in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] are displayed in the [DIGITAL LINK IN] screen.
Setting of the resolution and the vertical scanning frequency may be necessary on the computer or video device in use.
The computer, video device, or projector in use may require the power to be turned off and on again after setting.
The output with the set resolution or vertical scanning frequency may not be possible depending on the computer or video device in use.
[ON-SCREEN DISPLAY]
Set the on-screen display.
Setting [OSD POSITION]
Set the position of the menu screen (OSD).
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [OSD POSITION].
- The items will switch each time you press the button.
[2] Sets to the center left of the screen. [3] Sets to the bottom left of the screen. [4] Sets to the top center of the screen. [5] Sets to the center of the screen. [6] Sets to the bottom center of the screen. [7] Sets to the upper right of the screen. [8] Sets to the center right of the screen. [9] Sets to the bottom right of the screen. [1] Sets to the upper left of the screen.
Setting [OSD ROTATION]
Set the orientation of the menu screen (OSD).
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [OSD ROTATION].
- The items will switch each time you press the button.
[OFF] Does not rotate the screen. [CLOCKWISE] Rotates the screen by 90° clockwise. [COUNTERCLOCKWISE] Rotates the screen by 90° counterclockwise.
Setting [OSD DESIGN]
Set the color of the menu screen (OSD).
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [OSD DESIGN].
- The items will switch each time you press the button.
[1] Sets to yellow. [2] Sets to blue. [3] Sets to white. [4] Sets to green. [5] Sets to peach.
[6] Sets to brown.
Setting [OSD MEMORY]
Set hold for the position of the menu screen (OSD) cursor.
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [OSD MEMORY].
- The items will switch each time you press the button.
[ON] Holds the cursor position.
[OFF] Does not hold the cursor position.
Note
- Even if [ON] is set, the cursor position is not maintained when the power is turned off.
Set whether to display the input guide in the position set in [OSD POSITION].
The input guide is the screen to display the information such as currently selected input terminal name, signal name, memory number, and the input terminal and signal structuring [P IN P].
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [INPUT GUIDE].
- The items will switch each time you press the button.
[ON] Displays the input guide.
[OFF] Hides the input guide.
Setting [WARNING MESSAGE]
Set the display/hide of the warning message.
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [WARNING MESSAGE].
- The items will switch each time you press the button.
[ON] Displays the warning message.
[OFF] Hides the warning message.
Note
- If [OFF] is set, the warning message will not be displayed on the projected image even when warning condition such as [TEMPERATURE WARNING] is detected while using the projector. Also, the following countdown message is not displayed: the message until the power is turned off after the no signal lights-out function is executed; the message until the light source is turned off after the no signal lights-out function is executed
Set closed captions.
Selecting the closed caption display
1) Press ▲▼ to select [CLOSED CAPTION SETTING]. button.
- The [CLOSED CAPTION SETTING] screen is displayed.
3) Press ▲▼ to select [CLOSED CAPTION].
- The items will switch each time you press the button.
[OFF] Hides closed captions. [ON] Displays closed captions.
•Proceed to Step 5) when [ON] is selected.
5) When the confirmation screen is displayed, press ◀▶ to select [OK], and press the button.
Setting the closed caption mode
1) Press ▲▼ to select [CLOSED CAPTION SETTING]. button.
- The [CLOSED CAPTION SETTING] screen is displayed.
3) Press ▲▼ to select [MODE].
•[MODE] cannot be selected when [CLOSED CAPTION] is set to [OFF].
4) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[CC1] Displays CC1 data. [CC2] Displays CC2 data. [CC3] Displays CC3 data. [CC4] Displays CC4 data.
Note
Closed caption is a function that displays text information of video signals mainly used in North America. Captions may not be displayed depending on the connected devices or contents being played back.
[CLOSED CAPTION SETTING] can be selected only when NTSC or 480/60i YC B C R signal is input.
If [CLOSED CAPTION] is set to [ON], brightness of images may change depending on the external devices compatible with closed caption function to be connected or contents to be used.
If a closed caption signal of the selected mode is input, the security message set in the [SECURITY] menu → [DISPLAY SETTING] is not displayed.
Closed captions are not displayed when the menu screen is displayed.
[BACK COLOR]
Set the display of the projected screen when there is no signal input.
1) Press ▲▼ to select [BACK COLOR].
- The items will switch each time you press the button.
[BLUE] Displays the entire projection area in blue. [BLACK] Displays the entire projection area in black. [DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user.
Note
- To create/register the [USER LOGO] image, use "Logo Transfer Software" included in the supplied CD-ROM.
[STARTUP LOGO]
Set the logo display when the power is turned on.
1) Press ▲▼ to select [STARTUP LOGO].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. [NONE] Disables the startup logo display.
Note
When [USER LOGO] is selected, the display of the startup logo will be kept for approximately 15 seconds.
To create/register the [USER LOGO] image, use "Logo Transfer Software" included in the supplied CD-ROM.
If the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP] is set to [ON], the startup logo is not displayed when projection starts before the specified time elapses after the projector enters the standby mode.
Correct the brightness and color unevenness of the entire screen.
Setting each color
1) Press ▲▼ to select [UNIFORMITY]. button.
Item Operation Adjustment Range of adjustment [VERTICAL] Press ▶. The lower-side color becomes pale, or the upper-side color becomes dark. -127 - +127 Press ◀. The upper-side color becomes pale, or the lower-side color becomes dark. [HORIZONTAL] Press ▶. The left-side color becomes pale, or the right-side color becomes dark. Press ◀. The right-side color becomes pale, or the left-side color becomes dark.
Setting [PC CORRECTION]
Set the [PC CORRECTION] function to correct the brightness and the color unevenness of the entire screen using a computer.
To use the [PC CORRECTION] function, an optional software application is required. Consult your dealer.
1) Press ▲▼ to select [UNIFORMITY]. button.
3) Press ▲▼ to select [PC CORRECTION].
4) Press ◀▶ to switch the item.
[OFF] Does not perform correction using a computer. [ON]*1 Performs correction for the brightness and color unevenness of the entire screen using a computer.
*1 Advanced skills are necessary to use computer control correction. Consult your dealer.
Note
The setting value for [UNIFORMITY] will not return to factory default even if the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed.
In the following conditions, the setting of the [PICTURE] menu → [GAMMA] → [DEFAULT] is disabled and the same gamma mode as when [2.2] is set is applied.
If you need to switch the gamma mode to [1.8] or [2.0], first set the [PICTURE] menu [GAMMA].
[SHUTTER SETTING]
Set the operation of the shutter function.
Setting [FADE-IN] or [FADE-OUT]
1) Press ▲▼ to select [SHUTTER SETTING]. button.
Item Adjustment [FADE-IN][FADE-OUT] [OFF] Does not set fade-in or fade-out. [0.5s] - [10.0s] Sets the fade-in or fade-out time.Select an item from [0.5s] - [4.0s], [5.0s], [7.0s], or [10.0s]. [0.5s] - [4.0s] can be selected in increments of 0.5.
Note
If the button on the remote control is pressed during fade-in or fade-out, the fade operation is canceled.
Fade-in/fade-out is not performed on the audio. Audio is output or paused linked to the operation of the shutter function.
Setting [STARTUP]
Automatically enable/disable the shutter function (shutter: closed/open) when the power is turned on.
1) Press ▲▼ to select [SHUTTER SETTING].
2) Press the button.
•The [SHUTTER SETTING] screen is displayed.
3) Press ▲▼ to select [STARTUP].
4) Press ◀▶ to switch the item.
[OPEN] The projector goes into projection mode with the shutter function disabled (shutter: opened) when the power is turned on. [CLOSE] The projector goes into projection mode with the shutter function enabled (shutter: closed) when the power is turned on.
Using the shutter function
Image and audio are turned off when the projector is not used for a specific time.
1) Press ▲▼ to select [SHUTTER SETTING]. button.
- Press the
button to cancel the function.
Note
The power indicator will blink slowly in green while the shutter function is in use (shutter: closed).
To output audio while the shutter function is in use (shutter: closed), set the [PROJECTOR SETUP] menu → [AUDIO SETTING] → [IN SHUTTER] to [ON].
[FREEZE]
The projected image is paused and audio is turned off regardless of the playback of the external device.
1) Press ▲▼ to select [FREEZE]. button.
- Press the
button to release.
Note
- [FREEZE] is displayed on the screen when video is paused.
Use the input signals from a connected external device to display in a waveform. Check whether video output (luminance) signal level is within the recommended range for the projector and adjust.
1) Press ▲▼ to select [WAVEFORM MONITOR].
[OFF] Does not display the waveform monitor.
[ON] Displays the waveform monitor.
3) Press the
button two times to clear. button to switch the Select line to either luminance, red, green, or blue.
- Line selection items switch each time the is pressed only when the waveform monitor is displayed.
"Select line (luminance)" Displayed in white waveform.
"Select line (red)" Displayed in red waveform.
"Select line (green)" Displayed in green waveform.
"Select line (blue)" Displayed in blue waveform.
Note
Setting is also available from the [PROJECTOR SETUP] menu [FUNCTION BUTTON].
The waveform monitor cannot be displayed while in the P IN P mode.
The waveform monitor turns off when the P IN P function is used while the waveform is being monitored.
The waveform monitor is not displayed when on-screen display is hidden (off).
Setting is also available from the [PROJECTOR SETUP] menu [FUNCTION BUTTON].
The waveform monitor cannot be displayed while in the P IN P mode.
The waveform monitor turns off when the P IN P function is used while the waveform is being monitored.
The waveform monitor is not displayed when on-screen display is hidden (off).

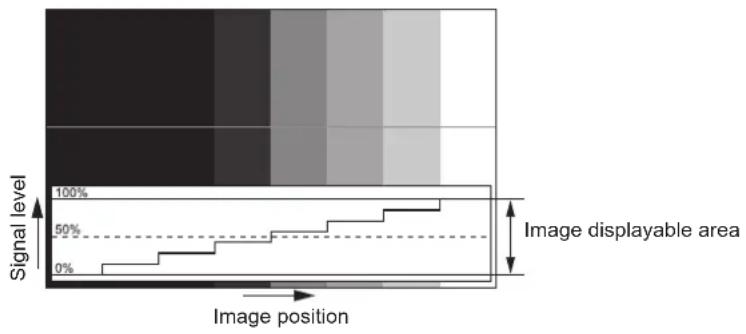

Project the luminance adjustment signal of a commercial test disk (0 % (0 IRE or 7.5 IRE) – 100 % (100 IRE)) and adjust.
bar_stacked
| Image position | Signal level |
| -------------- | ------------ |
| 0% | 0% |
| 50% | 50% |
| 100% | 100% |
1) Select "Select line (luminance)" on the waveform monitor.
- Adjust the black level 0 % of the video signal to the 0 % position of the waveform monitor using the [PICTURE] menu → [BRIGHTNESS].
3) Adjust white level.
Adjusting red, green, and blue
1) Set [COLOR TEMPERATURE] to [USER]. (→ page 67)
3) Adjust dark red areas.
Use [RED] in [WHITE BALANCE LOW] to adjust the black level 0 % of the video signal to the 0 % position of the waveform monitor.
Use [RED] in [WHITE BALANCE HIGH] to adjust the white level 100 % of the video signal to the 100 % position of the waveform monitor.
Note
- Confirm that the [SIGNAL LEVEL] setting of the input signal is correct before adjusting the black level.
Check the [SIGNAL LEVEL] setting from the [DISPLAY OPTION] menu → [DVI-D IN]/[HDMI IN]/[DIGITAL LINK IN] → [SIGNAL LEVEL].
[CUT OFF]
Each red, green, and blue color component can be removed.
1) Press ▲▼ to select [CUT OFF]. button.
•The [CUT OFF] screen is displayed.
3) Press ▲▼ to select [RED], [GREEN], or [BLUE].
[OFF] Disables cutoff.
[ON] Enables cutoff.
Note
- When input is switched or a signal is switched, the cutoff setting returns to its original setting (off).
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" (→ page 61) for the operation of the menu screen.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control.
1) Press ▲▼ to select [PROJECTOR ID].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[ALL] Select this item when controlling projectors without specifying an ID number.
[1] - [64] Select this item when specifying an ID number to control individual projector.
Note
To specify an ID number for individual control, the ID number of a remote control must match the ID number of the projector.
When the ID number is set to [ALL], the projector will operate regardless of the ID number specified during remote control or computer control.
Refer to "Setting ID number of the remote control" (→ page 58) for how to set the ID number on the remote control.
[PROJECTION METHOD]
Set the projection method in accordance with the installation status of the projector.
Change the [FRONT/REAR] setting when the screen display is inverted.
Change the [FLOOR/CEILING] setting when the screen display is upside down.
Setting [FRONT/REAR]
1) Press ▲▼ to select [FRONT/REAR] of [PROJECTION METHOD].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[FRONT] Select this item when installing the projector in front of the screen.
[REAR] Select this item when installing behind the screen (using translucent screen).
Setting [FLOOR/CEILING]
1) Press ▲▼ to select [FLOOR/CEILING] of [PROJECTION METHOD].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[AUTO] Automatically detects the attitude of the projector by the built-in angle sensor. Set [AUTO] normally. [FLOOR] Select this item when installing the projector on a desk, etc. [CEILING] Select this item when installing the projector using the Ceiling Mount Bracket (optional). Projected image is inverted upside down.
Note
- Refer to "Angle sensor" (→ page 31) for details on the range of the installation attitude that can be detected by the built-in angle sensor.
[ECO MANAGEMENT]
Set the ECO management function to reduce the power consumption depending on the usage condition.
Setting [AUTO POWER SAVE]
Enable/disable the [AMBIENT LIGHT DETECTION] and [NO SIGNAL LIGHTS-OUT] functions.
1) Press ▲▼ to select [ECO MANAGEMENT]. button.
•The [ECO MANAGEMENT] screen is displayed.
3) Press ▲▼ to select [AUTO POWER SAVE].
- The items will switch each time you press the button.
[OFF] Disables the auto power save setting. [ON] Enables the auto power save setting.
5) Press ▲▼ to select [AMBIENT LIGHT DETECTION] or [NO SIGNAL LIGHTS-OUT].
[AMBIENT LIGHT DETECTION] Adjusts the power of the light source in accordance with the brightness of the installed location. [NO SIGNAL LIGHTS-OUT] Automatically turns off the light source of the projector when there is no input signal for specific period.
6) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[AMBIENT LIGHT DETECTION] [OFF] Disables the ambient light detection function. [ON] Enables the ambient light detection function. [NO SIGNAL LIGHTS-OUT] [DISABLE] Disables the no signal lights-out function. [10SEC.] - [5MIN.] Turns off the light source when there is no input signal for the preset period.Select [10SEC.], [20SEC.], [30SEC.], [1MIN.], [2MIN.], [3MIN.], or [5MIN.].
Note
[AMBIENT LIGHT DETECTION] and [NO SIGNAL LIGHTS-OUT] cannot be set when [AUTO POWER SAVE] is set to [OFF].
The power indicator will blink slowly in green while the no signal lights-out function is operating and the light source is turned off.
When [NO SIGNAL LIGHTS-OUT] is set to anything other than [DISABLE], the conditions to turn on the light source again from the condition that the light source was turned off by this function are as follows.
-When the signal has been input
When on-screen display such as menu screen (OSD) or input guide, a test pattern, or a warning message is displayed
When the power <@/ | > button is pressed
When the operation to disable the shutter function (shutter: open) is performed, such as pressing the button
When the operating environment temperature is around 0^ (32°F) and the light source is forced to turn on due to warm-up
- The luminance may not be detected correctly when an object is placed on top of the projector, blocking the luminance sensor. In such a case, it may not operate properly even if [AMBIENT LIGHT DETECTION] is set to [ON].
Setting [NO SIGNAL SHUT-OFF]
This is a function to automatically set the power of the projector to standby mode when there is no input signal for specific period. The time before switching to standby can be set.
1) Press ▲▼ to select [ECO MANAGEMENT]. button.
•The [ECO MANAGEMENT] screen is displayed.
3) Press ▲▼ to select [NO SIGNAL SHUT-OFF].
- The items will switch each time you press the button.
[DISABLE] Disables the no signal shut-off function.
[10MIN.] - [90MIN.] Sets the time in increments of 10 minutes.
Setting [STANDBY MODE]
Set the power consumption during standby and whether to enable the [QUICK STARTUP] function.
1) Press ▲▼ to select [ECO MANAGEMENT]. button.
•The [ECO MANAGEMENT] screen is displayed.
3) Press ▲▼ to select [STANDBY MODE].
- The items will switch each time you press the button.
[NORMAL] Select this item when using the network function during standby.
[ECO] Select this item to reduce power consumption during standby.
- Proceed to Step 5) when [NORMAL] is selected.
5) Press ▲▼ to select [QUICK STARTUP].
- The items will switch each time you press the button.
[OFF] Disables the QUICK STARTUP] function. [ON] Enables the [QUICK STARTUP] function until the specified time set in [VALID PERIOD] elapses after the projector enters the standby mode. The time until the projection starts after the power is turned on will be reduced during the period when the [QUICK STARTUP] function is valid.
•Proceed to Step 7) when [ON] is selected.
7) Press the button.
- The [QUICK STARTUP] screen is displayed.
8) Press ◀▶ to switch [VALID PERIOD].
- The items will switch each time you press the button.
[30MIN.] Sets the time until the [QUICK STARTUP] function is disabled after the projector enters the standby mode. Select a desired valid period. [60MIN.] [90MIN.]
Note
When [STANDBY MODE] is set to [NORMAL], the network function can be used during standby.
When [STANDBY MODE] is set to [ECO], the network function and the audio output function cannot be used during standby. Also, some RS-232C commands cannot be used.
When [STANDBY MODE] is set to [ECO], it takes longer for the projection to start after the power is turned on, compared to when set to [NORMAL].
[STANDBY MODE] is fixed to [NORMAL] when the [PROJECTOR SETUP] menu → [SCHEDULE] is set to [ON].
[QUICK STARTUP] cannot be set when [STANDBY MODE] is set to [ECO].
When [QUICK STARTUP] is set to [ON], the power consumption during standby becomes high during the period when the [QUICK STARTUP] function is valid.
If [QUICK STARTUP] is set to [ON], the [QUICK STARTUP] function is disabled when the time set in [VALID PERIOD] elapses after the projector enters the standby mode. The startup time and power consumption will be the same as when [QUICK STARTUP] is set to [OFF].
When [QUICK STARTUP] is set to [ON], the power indicator blinks in red while in the standby mode during the period when the [QUICK STARTUP] function is valid. When [IN STANDBY MODE] in [AUDIO SETTING] is set to [OFF], the power indicator will change to a red light when the specified time set in [VALID PERIOD] elapses after the projector enters the standby mode.
When [QUICK STARTUP] is set to [ON], the period when the [QUICK STARTUP] function is valid will be added as the projector runtime.
[OPERATION SETTING]
Set the operation method of the projector.
The settings are reflected when “Initial setting (operation setting)” (→ page 43) in the [INITIAL SETTING] screen is already set.
If you change the settings while using the projector, the duration until the luminance of light source decreases by half may shorten or the luminance may decrease.
Setting [OPERATING MODE]
1) Press ▲▼ to select [OPERATION SETTING]. button.
- The [OPERATION SETTING] screen is displayed.
3) Press ▲▼ to select [OPERATING MODE].
- The items will switch each time you press the button.
[NORMAL] Set this item when high luminance is required. The estimated runtime is approximately 20 000 hours. [ECO] The luminance will decrease compared to [NORMAL], but set this item to increase the expected life of the light source. The estimated runtime is approximately 24 000 hours. [SILENT] The luminance will decrease compared to [NORMAL], but set this item to prioritize the operation with less noise. The estimated runtime is approximately 20 000 hours. [LONG LIFE1] The luminance will decrease compared to [ECO], but set this item to increase the expected life of the light source. The estimated runtime is approximately 43 000 hours. [LONG LIFE2] The luminance will decrease compared to [LONG LIFE1], but set this item to increase the expected life of the light source. The estimated runtime is approximately 61 000 hours. [LONG LIFE3] The luminance will decrease compared to [LONG LIFE2], but set this item to increase the expected life of the light source. The estimated runtime is approximately 87 000 hours. [USER1] [MAX LIGHT OUTPUT LEVEL] and [LIGHT OUTPUT] can be set individually.[USER2] [USER3]
5) Press ▲▼ to select [APPLY]. button. button.
Note
The [OPERATING MODE] setting does not return to the factory default setting even if the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed.
If the runtime exceeds 20 000 hours, replacement of the components inside the projector may be required. Consult your dealer for details.
Setting [MAX LIGHT OUTPUT LEVEL]
Adjust the maximum level to correct screen brightness according to the changes in brightness of the light source.
1) Press ▲▼ to select [OPERATION SETTING]. button.
- The [OPERATION SETTING] screen is displayed.
3) Press ▲▼ to select [MAX LIGHT OUTPUT LEVEL].
Operation Adjustment Range of adjustment Press ▶. Increases the maximum level of brightness correction. 5.0 % - 100.0 % Press ◀. Decreases the maximum level of brightness correction.
5) Press ▲▼ to select [APPLY].
Note
[MAX LIGHT OUTPUT LEVEL] cannot be adjusted when [OPERATING MODE] is set to [NORMAL], [ECO], [SILENT], [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3].
The brightness is corrected using this setting when the [PROJECTOR SETUP] menu → [BRIGHTNESS CONTROL] → [BRIGHTNESS CONTROL SETUP] → [CONSTANT MODE] is set to [AUTO] or [PC].
The [MAX LIGHT OUTPUT LEVEL] setting does not return to the factory default setting even if the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed.
Setting [LIGHT OUTPUT]
Adjust the brightness of light source.
The [LIGHT OUTPUT] setting is synchronized with the [PROJECTOR SETUP] menu → [LIGHT OUTPUT]. The most recent setting is reflected in both items.
1) Press ▲▼ to select [OPERATION SETTING]. button.
- The [OPERATION SETTING] screen is displayed.
3) Press ▲▼ to select [LIGHT OUTPUT].
Operation Adjustment Range of adjustment Brightness Runtime (estimate) Press ▶. The screen becomes brighter. The runtime becomes shorter. 5.0 % - 100 % Press ◀. The screen becomes darker. The runtime becomes longer.
5) Press ▲▼ to select [APPLY]. button. button.
Note
[LIGHT OUTPUT] can be adjusted individually for each setting item of [OPERATING MODE].
In such a case when configuring multiple screens with multiple projectors, uniformity of brightness between multiple screens can be obtained by adjusting [LIGHT OUTPUT].
Interrelation of luminance and runtime
The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP]. Interrelation of luminance and runtime is as follows. Make the settings depending on your desired duration of use and brightness of the projected image.
Values of the luminance and runtime are rough estimations.
•To set the projector based on the duration of use
Duration of use (hour) When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC] [MAX LIGHT OUTPUT LEVEL] (%) [LIGHT OUTPUT] (%) Luminance (lm) [MAX LIGHT OUTPUT LEVEL] (%) [LIGHT OUTPUT] (%) Luminance (lm) 20 000 100.0 100.0 5 000 100.0 50.0 2 500 24 000 100.0 68.0 3 400 100.0 40.0 2 000 27 000 100.0 28.0 1 400 100.0 34.0 1 700 31 000 — — — 100.0 26.0 1 300 35 000 — — — 100.0 20.0 1 000 40 000 — — — 100.0 14.0 700
•To set the projector based on luminance
Luminance (lm) When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC] [MAX LIGHT OUTPUT LEVEL] (%) [LIGHT OUTPUT] (%) Runtime (hour) [MAX LIGHT OUTPUT LEVEL] (%) [LIGHT OUTPUT] (%) Runtime (hour) 5 000 100.0 100.0 20 000 — — — 4 500 100.0 90.0 21 500 100.0 90 0 4 400 4 000 100.0 80.0 22 800 100.0 80 0 7 800 3 500 100.0 70.0 23 900 100.0 70 0 11 600 3 000 100.0 60.0 25 000 100.0 60 0 15 700 2 500 100.0 50.0 25 800 100.0 50 0 20 000 2 000 100.0 40.0 26 400 100.0 40 0 24 000 1 500 100.0 30.0 26 900 100.0 30 0 29 000
Note
- Under influences of characteristics of each light source, conditions of use, installation environment, etc., the runtime may be shorter than the estimation.
- The duration of use is referred to as the runtime when you use the projector successively. The duration of use is an estimated duration and is not the warranty period.
- If the runtime exceeds 20 000 hours, replacement of the components inside the projector may be required. Consult your dealer for details.
Setting [BRIGHTNESS CONTROL SETUP]
Set the operation of the brightness control function.
The [BRIGHTNESS CONTROL SETUP] setting is synchronized with the [PROJECTOR SETUP] menu → [BRIGHTNESS CONTROL] → [BRIGHTNESS CONTROL SETUP]. The most recent setting is reflected in both items.
1) Press ▲▼ to select [OPERATION SETTING]. button.
- The [OPERATION SETTING] screen is displayed.
3) Press ▲▼ to select [CONSTANT MODE].
- The items will switch each time you press the button.
[OFF] Does not correct the brightness of the screen by the brightness sensor. [AUTO] Corrects the brightness of the screen by the brightness sensor.When the brightness of light source or white balance changes, the brightness of the screen is automatically corrected. [PC] Synchronizes nine or more projectors using a computer and the dedicated software “Multi Monitoring & Control Software”*1.
*1 "Multi Monitoring & Control Software" is included in the supplied CD-ROM.
•Proceed to Step 7) when [PC] is selected.
5) Press ▲▼ to select [LINK].
- The items will switch each time you press the button.
[OFF] Performs correction by the brightness sensor on one projector without synchronizing with the other projectors.The duration that the constant brightness is kept will become longer by setting the value of [LIGHT OUTPUT] smaller. [GROUP A][GROUP B][GROUP C][GROUP D] Performs correction by the brightness sensor in multiple projectors in synchronization.Up to four groups (A to D) can be set within the same subnet by using the network function.Up to eight projectors can be registered and synchronized in one group.
7) Press ▲▼ to select [CALIBRATION TIME].
- The projector will go into the adjustment mode (the time is blinking).
Selecting “hour” allows setting of only the hour in increments of one hour, and selecting “minute” allows setting of only the minute in increments of one minute between 00 and 59.
When the time is not specified, select [OFF] between 23 and 00 of the hour, or between 59 and 00 of the minute.
•[CALIBRATION TIME] is set.
- Brightness and color are measured at the specified time. The dynamic contrast function does not operate during measurement.
11) Press ▲▼ to select [CALIBRATION MESSAGE].
12) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[ON] Displays the message while executing the calibration.
[OFF] Does not display the message while executing the calibration.
13) Press ▲▼ to select [APPLY].
When [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to anything other than [OFF], the brightness and white balance of light source at the time when the button is pressed is recorded as the standard brightness and white balance.
The group name is displayed in the screen of the projectors set as the same group when the button is pressed while [LINK] is set to an item from [GROUP A] to [GROUP D].
Note
When [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO] or [PC], keep the shutter function disabled (shutter: open) for at least two minutes, since the brightness sensor calibration is performed after the [BRIGHTNESS CONTROL SETUP] setting has been completed.
If the shutter function is enabled (shutter: closed) within approximately 10 minutes after the light source has turned on while [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO] or [PC], brightness and color cannot be measured. Therefore, brightness may be corrected approximately two minutes after the shutter function is disabled (shutter: open).
Since the brightness and the color of the light source do not stabilize for approximately eight minutes after turning on the light source when the projector operates with [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] set to [AUTO] or [PC], the brightness and the color of the light source will be automatically measured approximately eight minutes after the light source is turned on. A correction is made based on this measurement result so that the brightness and the color will be the same as the standard brightness and color when adjusted with the brightness control.
When the projector operates with [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] set to [AUTO] or [PC], the items of [OPERATING MODE] and [LIGHT OUTPUT] cannot be changed.
When the projector operates with [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] set to [AUTO], and [LINK] set to [OFF], the brightness will be corrected until it reaches the value set in [MAX LIGHT OUTPUT LEVEL].
The variation in brightness may increase due to dust accumulating on the lens, screen, or inside the projector, depending on the installation environment of the projector.
When the variation in brightness has increased due to aging of the light source, or when you replaced the light source, readjust the brightness control.
When the projector is used continuously for more than 24 hours, set the [CALIBRATION TIME] in [BRIGHTNESS CONTROL SETUP]. If it is not set, correction will not be performed automatically.
The brightness control function and the dynamic contrast function will operate simultaneously, but the dynamic contrast function will not operate while measuring the brightness and the color.
The [CALIBRATION TIME] setting will be reflected when you enter the time.
The [CALIBRATION MESSAGE] setting will be reflected when items are switched using ◀▶.
[LIGHT OUTPUT]
Adjust the brightness of light source.
The setting is reflected when it is already set with "Initial setting (operation setting)" (→ page 43) in the [INITIAL SETTING] screen or with the [PROJECTOR SETUP] menu → [OPERATION SETTING]. The [LIGHT OUTPUT] setting is synchronized with the [PROJECTOR SETUP] menu → [OPERATION SETTING] → [LIGHT OUTPUT]. The most recent setting is reflected in both items.
1) Press ▲▼ to select [LIGHT OUTPUT].
2) Press ◀▶ to adjust.
Operation Adjustment Range of adjustment Brightness Runtime (estimate) Press ▶. The screen becomes brighter. The runtime becomes shorter. 5.0 % - 100.0 % Press ◀. The screen becomes darker. The runtime becomes longer.
Note
[LIGHT OUTPUT] can be adjusted individually for each setting item of [OPERATING MODE].
In such a case when configuring multiple screens with multiple projectors, uniformity of brightness between multiple screens can be obtained by adjusting [LIGHT OUTPUT].
[BRIGHTNESS CONTROL]
The projector is equipped with a brightness sensor to measure brightness and color of the light source, and corrects brightness and white balance of the projected image according to the changes in brightness and color of the light source.
By using this function, in such a condition that multiple screens are configured using multiple projectors, you can reduce changes in overall brightness and white balance of the multiple screens due to aging of the light source and suppress variation in brightness and white balance to preserve uniformity.
The setting is reflected when it is already set with "Initial setting (operation setting)" (→ page 43) in the [INITIAL SETTING] screen or with the [PROJECTOR SETUP] menu → [OPERATION SETTING]. The [BRIGHTNESS CONTROL SETUP] setting is synchronized with the [PROJECTOR SETUP] menu → [OPERATION SETTING] → [BRIGHTNESS CONTROL SETUP]. The most recent setting is reflected in both items.
Setting [BRIGHTNESS CONTROL SETUP]
Set the operation of the brightness control function.
1) Press ▲▼ to select [BRIGHTNESS CONTROL]. button.
3) Press ▲▼ to select [BRIGHTNESS CONTROL SETUP].
4) Press the button.
5) Press ▲▼ to select [CONSTANT MODE].
6) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Does not correct the brightness of the screen by the brightness sensor. [AUTO] Corrects the brightness of the screen by the brightness sensor.When the brightness of light source or white balance changes, the brightness of the projected image is automatically corrected. [PC] Synchronizes nine or more projectors using a computer and the dedicated software “Multi Monitoring & Control Software”*1.
*1 "Multi Monitoring & Control Software" is included in the supplied CD-ROM.
7) Press ▲▼ to select [LINK].
8) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Performs corrections by the brightness sensor on a single projector without synchronizing with the other projectors.The duration that the constant brightness is kept will become longer by setting the value of [LIGHT OUTPUT] smaller. [GROUP A][GROUP B][GROUP C][GROUP D] Performs correction by the brightness sensor in multiple projectors in synchronization.Up to four groups (A to D) can be set within the same subnet by using the network function.You can register and synchronize up to eight projectors in one group.
9) Press ▲▼ to select [CALIBRATION TIME].
- The projector is in the adjustment mode (the time is blinking).
Selecting “hour” allows setting of only the hour in increments of one hour, and selecting “minute” allows setting of only the minute in increments of one minute between 00 and 59.
When the time is not specified, select [OFF] between 23 and 00 of the hour, or between 59 and 00 of the minute.
•[CALIBRATION TIME] is set.
- Brightness and color are measured at the specified time. The dynamic contrast function does not operate during measurement.
13) Press ▲▼ to select [CALIBRATION MESSAGE].
14) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[ON] Displays messages during calibration.
[OFF] Does not display messages during calibration.
15) Press ▲▼ to select [APPLY].
If the button is pressed with [CONSTANT MODE] set to anything other than [OFF], the brightness and white balance of light source at the time when the button is pressed is recorded as the standard brightness and white balance.
If the button is pressed when [LINK] is set from [GROUP A] to [GROUP D], the group name is displayed on the screens of projectors that have been set in the same group.
Note
When [CONSTANT MODE] is set to [AUTO] or [PC], keep the shutter function disabled (shutter: open) for at least two minutes, since the brightness sensor calibration is performed after the [BRIGHTNESS CONTROL SETUP] setting has been completed.
If the shutter function is enabled (shutter: closed) within approximately 10 minutes after the light source has been turned on while the projector operates with [CONSTANT MODE] set to [AUTO] or [PC], brightness and color cannot be measured. Therefore, brightness may be corrected approximately two minutes after the shutter function is disabled (shutter: open).
If the projector is operating with [CONSTANT MODE] set to [AUTO] or [PC], the brightness and color of the light source do not stabilize for approximately eight minutes after the light source is turned on. Therefore, the brightness and color of the light source will be automatically measured after approximately eight minutes have elapsed after the light source is turned on. A correction is made based on this measurement result so that the brightness and color for the image will be the same as the standard brightness and color when adjusted with the brightness control.
When the projector operates with [CONSTANT MODE] set to [AUTO], and [LINK] set to [OFF], the brightness will be corrected until it reaches the value set in [MAX LIGHT OUTPUT LEVEL].
The variation in brightness may increase due to dust accumulating on the lens, screen, or inside the projector, depending on the installation environment of the projector.
When the variation in brightness has increased due to aging of the light source, or when you replaced the light source, readjust the brightness control.
When the projector is used continuously for more than 24 hours, set [CALIBRATION TIME]. If it is not set, correction will not be performed automatically.
The brightness control function and the dynamic contrast function will operate simultaneously, but the dynamic contrast function will not operate while measuring the brightness and the color.
The [CALIBRATION TIME] setting will be reflected when you enter the time.
The [CALIBRATION MESSAGE] setting will be reflected at the time when the item is switched using ◀.
Displaying [BRIGHTNESS CONTROL STATUS]
Display the brightness control status.
1) Press ▲▼ to select [BRIGHTNESS CONTROL]. button.
- The [BRIGHTNESS CONTROL] screen is displayed.
3) Press ▲▼ to select [BRIGHTNESS CONTROL STATUS]. button.
- The [BRIGHTNESS CONTROL STATUS] screen is displayed.
[BRIGHTNESS CONTROL STATUS] screen display example

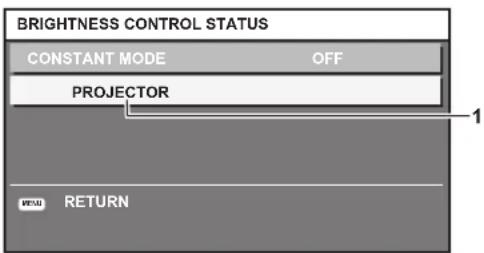

When [CONSTANT MODE] is set to [OFF]
The screen shows the status that the brightness control is disabled.
CONSTANT MODE OFF
PROJECTOR
RETURN

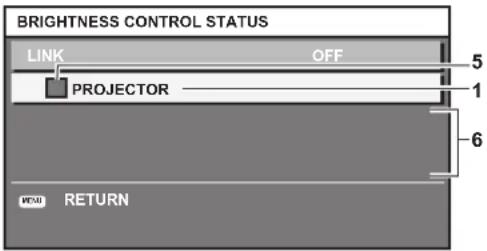

When [CONSTANT MODE] is set to [AUTO], and [LINK] is set to [OFF]
The screen shows the status of the brightness control in one projector.
LINK OFF
PROJECTOR
5
1
6
RETURN
When [CONSTANT MODE] is set to [AUTO], and [LINK] is set to [GROUP A] through [GROUP D]
The screen shows the status of the brightness control of synchronized projectors (up to eight units), including the projector being controlled through the on-screen menu.
LINK GROUP A
1
2
3
PROJECTOR 192. 168. 30. 2
1: PROJECTOR2 192. 168. 30. 3
2: PROJECTOR3 192. 168. 30. 4
3:
4:
5:
6:
7:
UPDATE
MENU SELECT
5
7
8

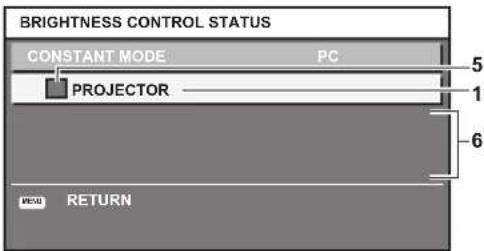

When [CONSTANT MODE] is set to [PC]
CONSTANT MODE PC
PROJECTOR
RETURN
5
1
6
1 Display the name of the projector.
5 Display the status by color.
Green: There is an allowance for brightness correction.
6 Display error detailed messages.
7 Display error messages.
When the message [Failed to apply BRIGHTNESS CONTROL to some projectors.] appears, it means that synchronization with the projector displayed in red has failed.
Press ▲▼ to select the projector displayed in red, and press the button to display the error details.
8 Update to the latest status information.
■Error details
Error message Measures to take [Exceed maximum number of projectors.] Limit the number of projectors in one group to eight.To synchronize nine or more projectors, use a PC and the dedicated software "Multi Monitoring & Control Software" ^1 . [Please check the COMMAND CONTROL setting.] Set [NETWORK CONTROL] → [COMMAND CONTROL] to [ON] for the projector in error.Set [NETWORK CONTROL] → [COMMAND PORT] of all projectors to be linked to the same value. [Please check the USER NAME and PASSWORD in the COMMAND CONTROL setting.] Assign the same [User name] and [Password] strings that have web control administrator rights to all projectors to be linked. [Cannot apply BRIGHTNESS CONTROL. Please check projector status.] The projector is in standby. Switch on the power. [Brightness Sensor Error] There is a problem with the brightness sensor. If problems persist even after switching on the power, consult your dealer.
*1 "Multi Monitoring & Control Software" is included in the supplied CD-ROM.
Note
If the synchronized projectors are not displayed in the list, check the following:
Are there devices with the same IP address on the network?
Are LAN cables connected correctly? (→ page 136)
Are the subnets of the projectors the same?
Are the same [LINK] settings applied to a group?
Refer to [NETWORK SETUP] (→ page 132) or “[Network config] page” (→ page 146) on how to change the projector name.
Brightness control adjustment procedure example
The steps exemplify an adjustment to link the brightness of eight projectors connected in a network.
1) Connect all projectors to the hub using LAN cables. (→ page 136) button.
5) Set [SUBNET MASK] and [IP ADDRESS] in each projector.
- To be able to communicate over the network, set the same value in [SUBNET MASK] for all projectors and set a different value in [IP ADDRESS] for each projector.
6) Wait for at least eight minutes after projection has started until the light source brightness becomes steady.
7) Set all items in the [PICTURE] menu of all projectors to the same values.
8) Adjust [COLOR MATCHING] to match colors.
9) Display the internal test pattern "All white" in all projectors.
10) Set [LIGHT OUTPUT] of all projectors to 100 % or the maximum value that can be set.
- Depending on the [OPERATING MODE] settings, [LIGHT OUTPUT] may not be able to be set to 100 %.
11) Set [LIGHT OUTPUT] of the projector with the least brightness to 90 % or 10 % lower than the maximum value that can be set.
12) Adjust [LIGHT OUTPUT] of each projector.
- Adjust [LIGHT OUTPUT] of all the other projectors so that the brightness will be the same as the projector with the least brightness.
13) Set [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] to [AUTO], and [LINK] to [GROUP A] in all projectors.
14) Select [APPLY] of [BRIGHTNESS CONTROL SETUP] and press the button in all projectors.
• Brightness control starts.
Note
Brightness is automatically corrected whenever the light source lights up by switching on/off the projector, etc.
When the variation in brightness has increased due to aging of the light source, or when you replaced the light source, readjust the brightness control.
[SCHEDULE]
Set the command execution schedule for each day of the week.
Enabling/disabling the schedule function
1) Press ▲▼ to select [SCHEDULE].
[OFF] Disables the schedule function.
[ON] Enables the schedule function. Refer to “How to assign a program” (⇨ page 112) or “How to set a program” (⇨ page 112) for how to set the schedule.
Note
- The [STANDBY MODE] setting will be forced to [NORMAL] when the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE] is set to [ECO], and [SCHEDULE] is set to [ON]. Changing the setting to [ECO] is not available. The [STANDBY MODE] setting will not change back even when [SCHEDULE] is set to [OFF] in this condition.
How to assign a program
1) Press ▲▼ to select [SCHEDULE]. button.
•The [SCHEDULE] screen is displayed.
3) Select and assign a program to each day of week.
Press ▲▼ to select the day of week, and press ◀▶ to select a program number.
You can set the program from No.1 to No.7. “-- -” indicates that the program number has not been set.
How to set a program
Set up to 16 commands to each program.
1) Press ▲▼ to select [SCHEDULE]. button.
•The [SCHEDULE] screen is displayed.
3) Press ▲▼ to select [PROGRAM EDIT]. button. button.
- You can change the page using ◀.
6) Press ▲▼◀▶ to select [TIME], and press the button. button.
9) Press the button.
- The [COMMAND] detailed screen is displayed.
10) Press ▲▼ to select a [COMMAND].
For [COMMAND] which requires detailed settings, the items of the detailed settings will switch each time you press ◀.
When [INPUT] is selected, press the button, and then press ▲▼◀▶ to select the input to be set.
[COMMAND] Detailed settings of [COMMAND] Description [POWER ON] — Switches on the projector. [STANDBY] — Enters standby. [QUICK STARTUP] [ON] Enables the function of the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP]. [OFF] Disables the function of the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP]. [SHUTTER] [OPEN] Disables the shutter function (shutter: open). [CLOSE] Enables the shutter function (shutter: closed). [INPUT] [COMPUTER1] Switches the input to COMPUTER1. [COMPUTER2]*1 Switches the input to COMPUTER2. [VIDEO] Switches the input to VIDEO. [DVI-D] Switches the input to DVI-D. [HDMI1] Switches the input to HDMI1. [HDMI2] Switches the input to HDMI2. [DIGITAL LINK] Switches the input to DIGITAL LINK. [INPUT1] - [INPUT10]*2 Switches the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable transmitter to the specified input. [OPERATING MODE] [NORMAL] Prioritizes luminance. [ECO] Controls the power to increase the life of the light source although the luminance is lower than that of [NORMAL]. [SILENT] Prioritizes the operation with less noise although the luminance is lower than that of [NORMAL]. [LONG LIFE1] Controls the power to increase the life of the light source although the luminance is lower than that of [ECO]. [LONG LIFE2] Controls the power to increase the life of the light source although the luminance is even lower than that of [LONG LIFE1]. [LONG LIFE3] Controls the power to increase the life of the light source to the maximum although the luminance is even lower than that of [LONG LIFE2]. [USER1] Controls the power with the setting set in [USER1]. [USER2] Controls the power with the setting set in [USER2]. [USER3] Controls the power with the setting set in [USER3]. [P IN P] [OFF] P IN P function is not used. [USER1] Places the sub screen with the setting set in [USER1]. [USER2] Places the sub screen with the setting set in [USER2]. [USER3] Places the sub screen with the setting set in [USER3]. [IN STANDBY MODE(AUDIO)] [OFF] Stops the audio output during standby. [ON] Outputs the audio during standby. [VOLUME] [0] - [63] Sets the volume.
*1 The [COMPUTER2] command is disabled when the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] → [COMPUTER2 SELECT] is set to [COMPUTER1 OUT].
The command is fixed and is displayed at the left of the selected command.
After the command is fixed, press the button to close the detailed setting screen.
Note
To delete a command that has been already set, press the button on the remote control while the screen in Step 5) is displayed, or select [DELETE] at the screen in Step 6) and press the button.
If multiple commands have been set for the same time, they are executed in chronological order starting from the smallest command number.
The operating time will be the local time. (→ page 118)
If an operation is executed with the remote control or control panel of the projector or with a control command before the command set in [SCHEDULE] is executed, the command set with the schedule function may not be executed.
[INITIAL STARTUP]
Set the startup method when the switch is set to .
1) Press ▲▼ to select [INITIAL STARTUP].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[LAST MEMORY] Starts up the projector in the condition before theswitch is set to. [STANDBY] Starts up the projector in standby. [ON] Starts projecting immediately.
Set the input when the projector is switched on to start projection.
1) Press ▲▼ to select [STARTUP INPUT SELECT]. button.
- The [STARTUP INPUT SELECT] screen is displayed.
3) Press ▲▼◀▶ to select the input, and press the button.
[LAST USED] Keeps the input selected last. [COMPUTER1] Sets the input to COMPUTER1. [COMPUTER2] Sets the input to COMPUTER2. [VIDEO] Sets the input to VIDEO. [DVI-D] Sets the input to DVI-D. [HDMI1] Sets the input to HDMI1. [HDMI2] Sets the input to HDMI2. [DIGITAL LINK] Sets the input to DIGITAL LINK. [INPUT1] - [INPUT10]*1 Sets the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable transmitter to the specified input.
*1 When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the projector, its input name is automatically reflected from [INPUT1] to [INPUT10]. When an item that does not reflect the input name is selected, it will be disabled.

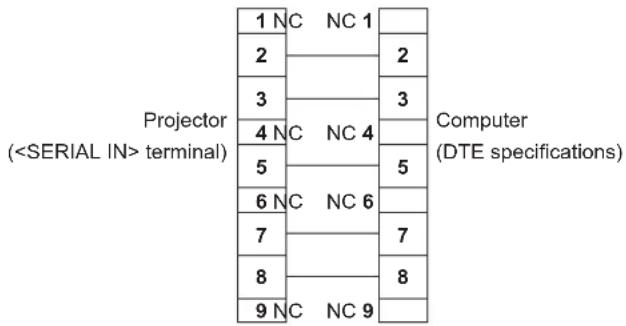

[RS-232C]
Set the communication condition of the terminal. For details on the connection method for RS-232C communication, refer to " terminal" (→ page 171).
1) Press ▲▼ to select [RS-232C]. button.
•The [RS-232C] screen is displayed.
3) Press ▲▼ to select [INPUT SELECT].
[PROJECTOR] Performs the RS-232C communication with theterminal of the projector. [DIGITAL LINK] Performs the RS-232C communication via the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) and theterminal.
5) Press ▲▼ to select [BAUDRATE].
- The items will switch each time you press the button.
[9600] Select the proper speed.[19200] [38400]
7) Press ▲▼ to select [PARITY].
- The items will switch each time you press the button.
[NONE] Select the parity condition.[EVEN] [ODD]
Note
- When [INPUT SELECT] is set to [DIGITAL LINK], communication using that serial terminal is available only when the corresponding device (such as the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G)) is connected to the terminal.
114 - ENGLISH
When transferring logos via the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G), setting for "NO SIGNAL SLEEP" of the DIGITAL LINK output supported device should be set to "OFF" to avoid interruption of communication.
The input communication speed is fixed to 9 600 bps when [INPUT SELECT] is set to [DIGITAL LINK].
Set the function of the button on the remote control.
1) Press ▲▼ to select [FUNCTION BUTTON]. button.
- The [FUNCTION BUTTON] screen is displayed.
3) Press ▲▼ to select a function.
[DISABLE] Disables thebutton. [SUB MEMORY] Displays the sub memory list. (⇨ page 126) [SYSTEM SELECTOR] Switches the [SYSTEM SELECTOR] setting. (⇨ page 70) [DAYLIGHT VIEW] Switches the [DAYLIGHT VIEW] setting. (⇨ page 69) [WAVEFORM MONITOR] Displays the waveform of the input signal. (⇨ page 98)
4) Press the button.
[LENS CALIBRATION]
Perform the automatic setting of the lens shift limit value and the home position of the projector.
1) Press ▲▼ to select [LENS CALIBRATION]. button.
•The confirmation screen is displayed.
3) Press ◀▶ to select [OK], and press the button.
•To cancel, select [CANCEL].
The lens moves up, down, left, and right to automatically set the lens shift limit value and the home position.
The lens stops to complete the calibration.
Note
[PROGRESS] is displayed in the menu during lens calibration. The operation cannot be canceled during calibration.
When lens calibration executes correctly, [COMPLETE] is displayed and [INCOMPLETE] is displayed when it does not execute correctly.
Pressing the button on the remote control for at least three seconds will also display the confirmation screen for lens calibration execution.
[AUDIO SETTING]
Set audio functions in detail.
Adjusting the volume
1) Press ▲▼ to select [AUDIO SETTING]. button.
•The [AUDIO SETTING] screen is displayed.
3) Press ▲▼ to select [VOLUME].
Operation Adjustment Range of adjustment Press ▶. Increases the volume. 0 - 63 Press ◀. Decreases the volume.
Adjusting the left to right audio balance
1) Press ▲▼ to select [AUDIO SETTING].
2) Press the button.
Operation Adjustment Range of adjustment Press ▶. Increases the volume on the right. L16 - R16 Press ◀. Increases the volume on the left.
Setting audio output in the standby mode
1) Press ▲▼ to select [AUDIO SETTING]. button.
•The [AUDIO SETTING] screen is displayed.
3) Press ▲▼ to select [IN STANDBY MODE].
- The items will switch each time you press the button.
[OFF] Audio is not output during standby. [ON] Audio is output during standby.
Note
- Audio is not output in the standby mode when the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE] is set to [ECO].
Setting audio output while using the shutter function
1) Press ▲▼ to select [AUDIO SETTING]. button.
•The [AUDIO SETTING] screen is displayed.
3) Press ▲▼ to select [IN SHUTTER].
- The items will switch each time you press the button.
[OFF] Audio is not output while using the shutter function (shutter: closed). [ON] Audio is output while using the shutter function (shutter: closed).
Setting mute mode
1) Press ▲▼ to select [AUDIO SETTING]. button.
•The [AUDIO SETTING] screen is displayed.
3) Press ▲▼ to select [MUTE].
- The items will switch each time you press the button.
[OFF] Audio is output. [ON] Audio is not output.
1) Press ▲▼ to select [AUDIO SETTING]. button.
•The [AUDIO SETTING] screen is displayed.
3) Press ▲▼ to select item to set in [AUDIO IN SELECT].
- The items will switch each time you press the button.
[AUDIO IN 1] Audio connected to theterminal is output during projection of image from the set input terminal. [AUDIO IN 2] Audio connected to theterminal is output during projection of image from the set input terminal. [AUDIO IN 3] Audio connected to theterminal is output during projection of image from the set input terminal. [HDMI1 AUDIO IN]*1 Audio input to HDMI1 is output. [HDMI2 AUDIO IN]*2 Audio input to HDMI2 is output. [DIGITAL LINK AUDIO IN]*3 Audio input to DIGITAL LINK is output.
*1 Only when the input signal is HDMI1
[STATUS]
Display the status of the projector.
1) Press ▲▼ to select [STATUS]. button.
- The [STATUS] screen is displayed.
3) Press ◀▶ to switch the pages.
- The page will change each time you press the button.
[PROJECTOR TYPE] Displays the projector type and serial number of the projector. [PROJECTOR RUNTIME] Displays the runtime of the projector. [LIGHT RUNTIME] Displays the runtime of the light source. [MAIN/SUB VERSION] Displays the main and sub versions of the firmware of the projector. [INTAKE AIR TEMP.] ^1 Displays the status of the intake air temperature of the projector. [OPTICS MODULE TEMP.] ^1 Displays the status of the internal temperature of the projector. [EXHAUST AIR TEMP.] ^1 Displays the status of the exhaust air temperature of the projector. [LIGHT TEMP. 1] ^1 Displays the temperature status for the front block of the light source (on the lens side). [LIGHT TEMP. 2] ^1 Displays the temperature status for the rear block of the light source (on the air exhaust port side). [COOLING CONDITION] Displays the set cooling conditions. [ATMOSPHERIC PRESSURE] Displays the atmospheric pressure. [SELF TEST] Displays the status of the projector. [INPUT] Displays the input terminal currently selected. [SIGNAL NAME] Displays the input signal name. [MEMORY NO.] Displays the memory number of the input signal. [BACKUP INPUT STATUS] Displays whether switching to the backup input signal is possible or not when [BACKUP INPUT MODE] is set to anything other than [OFF]. (→ page 86) [NUMBER OF REGISTERED SIGNAL] Displays the number of registered signals. [ON COUNT] [POWER ON TIMES] Displays the number of times the power is turned on.
[SIGNAL INFORMATION] [INPUT] Displays the input terminal used for the projected image. [SIGNAL FORMAT] Displays the format of the input signal. [SIGNAL FREQUENCY] Displays the frequency of the input signal. [SYNC.STATE] Displays the sync polarity of the input signal. [V.SYNC WIDTH] Displays the vertical sync signal pulse width of the input signal. [SCAN TYPE] Displays the scan type of the input signal. [TOTAL DOTS] Displays the total dot count of the input signal. [DISPLAY DOTS] Displays the number of input signal display dots. [TOTAL LINES] Displays the total line count of the input signal. [DISPLAY LINES] Displays the number of input signal display lines. [SAMPLING] Displays the sampling information of the input signal. [SIGNAL LEVEL] Displays the signal level of the input signal.
*1 The temperature status is indicated with text color (green/yellow/red) and bar scale. Use the projector within the range that the indication is green.
Note
E-mail containing the status can be sent to the E-mail address (up to two addresses) set in “[E-mail set up] page” ( page 148) by pressing the button while the [STATUS] screen is displayed.
There may be items that are displayed and items that are not displayed in [SIGNAL INFORMATION] depending on the setting or the input signal.
If any abnormality has occurred on the projector, press the button while the [STATUS] screen is displayed to display the detail screen of the error information.
For details on the contents displayed in [SELF TEST], refer to “[SELF TEST] indications” (→ page 161).
[DATE AND TIME]
Set the time zone, date, and time of the built-in clock of the projector.
Setting the time zone
1) Press ▲▼ to select [DATE AND TIME]. button.
Setting the date and time manually
1) Press ▲▼ to select [DATE AND TIME]. button. button.
5) Press ▲▼ to select an item, and press ◀▶ to set the local date and time.
6) Press ▲▼ to select [APPLY], and press the button.
Setting the date and time automatically
1) Press ▲▼ to select [DATE AND TIME]. button.
4) Press the button.
•The [ADJUST CLOCK] screen is displayed.
5) Press ▲▼ to select [NTP SYNCHRONIZATION], and press ◀▶ to change the setting to [ON].
6) Press ▲▼ to select [APPLY], and press the button.
- The setting of the date and time will be completed.
Note
To set the date and time automatically, the projector must be connected to the network.
If synchronization with the NTP server fails just after [NTP SYNCHRONIZATION] is set to [ON], [NTP SYNCHRONIZATION] will return to [OFF]. If [NTP SYNCHRONIZATION] is set to [ON] while the NTP server is not set, [NTP SYNCHRONIZATION] will return to [OFF].
Access the projector via a web browser to set the NTP server. Refer to "[Adjust clock] page" (→ page 147) for details.
The [TIME ZONE] setting is reset to the factory default when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed. However, the date and time based on the local date and time setting (Coordinated Universal Time, UTC, Universal Time, Coordinated) will be maintained without being initialized.
[SAVE ALL USER DATA]
Save the various setting values as a backup in the built-in memory of the projector.
1) Press ▲▼ to select [SAVE ALL USER DATA]. button.
- The [SECURITY PASSWORD] screen is displayed.
3) Enter a security password and press the button. button.
•[PROGRESS] is displayed while saving data.
Note
Data set from the computer application is not included in [ALL USER DATA].
The data saved by executing [SAVE ALL USER DATA] is not deleted even if the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed.
[LOAD ALL USER DATA]
Load the various setting values saved as a backup in the built-in memory of the projector.
1) Press ▲▼ to select [LOAD ALL USER DATA]. button.
- The [SECURITY PASSWORD] screen is displayed.
3) Enter a security password and press the button. button.
Note
The projector enters the standby mode to reflect the setting values when [LOAD ALL USER DATA] is executed.
Data registered from a computer is not included in [ALL USER DATA].
[INITIALIZE]
Return various setting values to their factory default settings.
1) Press ▲▼ to select [INITIALIZE]. button. button.
[ALL USER DATA] Returns all setting values including [REGISTERED SIGNAL], [NETWORK/E-MAIL], and [LOGO IMAGE] to the factory default settings.The projector enters the standby mode to reflect the setting values. [REGISTERED SIGNAL] Deletes all the setting values saved for each input signal.To delete only a part of a registered signal, perform the procedure described in “Deleting the registered signal” (⇨ page 124). [NETWORK/E-MAIL] Returns the setting of the [NETWORK] menu → [NETWORK SETUP] and the setting of “[E-mail set up] page” (⇨ page 148) in the web control screen to the factory default settings. [LOGO IMAGE] Deletes the image registered in [USER LOGO].
5) Press the button. button.
Note
- The following settings are not initialized even if [ALL USER DATA] is executed.
-The [DISPLAY OPTION] menu → [UNIFORMITY]
The [PROJECTOR SETUP] menu → [OPERATION SETTING] → [OPERATING MODE]
The [PROJECTOR SETUP] menu → [OPERATION SETTING] → [MAX LIGHT OUTPUT LEVEL]
The [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE]
[SERVICE PASSWORD]
This function is used by a service person.
On the menu screen, select [P IN P] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” ( page 61) for the operation of the menu screen.
Using P IN P function
Locate a separate, small sub screen in the main screen to project two images simultaneously.
1) Press ▲▼ to select [P IN P MODE]. button.
- The [P IN P MODE] screen is displayed.
3) Press ▲▼ to select a function.
[OFF] P IN P function is not used. [USER1] The P IN P function is used with the setting set in “Setting P IN P function” (→ page 121). [USER2] [USER3]
4) Press the button.
Setting P IN P function
P IN P function settings can be saved to [USER1], [USER2], and [USER3].
1) Press ▲▼ to select [P IN P MODE]. button.
- The [P IN P MODE] screen is displayed.
3) Press ▲▼ to select the desired mode from [USER1], [USER2], and [USER3], and press the button. button. button.
[SIZE] Sets the window display size between 10 % and 100 %. [POSITION] Sets the window display position within the screen. [CLOCK PHASE] Sets the value between 0 and +31 when the sub window receives a signal from theterminal or theterminal and flickering image or smeared outline appears.
7) If [SIZE] is selected in Step 6), press the button. button. button. button.
- The items will switch each time you press the button.
[MAIN WINDOW] Sets the frame lock for the input signal set in the main window. [SUB WINDOW] Sets the frame lock for the input signal set in the sub window.
15) Press ▲▼ to select [TYPE].
[MAIN WINDOW] The main window has display priority.
[SUB WINDOW] The sub window has display priority.
Note
The P IN P function may not be available for some signals being input or terminals being selected. Refer to “Two-window display combination list” ( page 174) for details.
The main window setting values are applied as image adjustment values such as the [PICTURE] menu → [PICTURE MODE]/[GAMMA]/[COLOR TEMPERATURE].
While in the normal screen (where no menu is displayed), the sizes and positions of the main window and the sub window can be switched using ▲▼ while P IN P is operating.
[P IN P] cannot be set when the [ADVANCED MENU] menu → [FRAME RESPONSE] is set to [FAST].
On the menu screen, select [TEST PATTERN] from the main menu.
Refer to "Navigating through the menu" (→ page 61) for the operation of the menu screen.
[TEST PATTERN]
Display the test pattern built-in to the projector.
Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input signal before performing various adjustments.
1) Press ◀▶ to switch the [TEST PATTERN] item.
- The items will switch each time you press the button.
Menu screen + All white Displays a test pattern with the menu screen. Select a desired test pattern. Menu screen + All black Menu screen + Window Menu screen + Window (inversion) Menu screen + Color bar (vertical) Menu screen + Color bar (horizontal) Menu screen + 16:9/4:3 aspect frame Menu screen + Focus Menu screen + Input screen Displays the menu screen and input signal. Internal test patterns are not displayed.
Note
- Press the button on the remote control while the test pattern is displayed to hide the menu screen.
Changing color or a focus test pattern
The color can be changed when the "Menu screen + Focus" test pattern is displayed.
1) Press ◀▶ to select the "Menu screen + Focus" test pattern. button.
- The [TEST PATTERN COLOR] screen is displayed.
3) Press ▲▼ to select a color, and press the button.
- The color of the focus test pattern will be changed to the selected color.
Note
The [TEST PATTERN COLOR] setting returns to [WHITE] when the projector is switched off.
Colors of the test patterns other than focus test patterns cannot be changed.
On the menu screen, select [SIGNAL LIST] from the main menu.
Refer to “Navigating through the menu” ( page 61) for the operation of the menu screen.
■Registered signal details
↑
Sub memory number
When the address number (A1, A2, ... L7, L8) signal is registered
- A name can be set for each sub memory (→ page 126).
Registering new signals
After a new signal is input and the
button on the remote control or the control panel is pressed, the registration is completed and the [MAIN MENU] screen is displayed.
Note
Up to 96 signals, including sub memories, can be registered to the projector.
There are 12 pages (eight memories of A through L, with eight memories possible on each page) for memory numbers, and the signal is registered to the lowest number that is available. If there is no available memory number it will be overwritten from the oldest signal.
The name to be registered is automatically determined by the input signal.
If a menu is being displayed, the new signals will be registered at the instant they are input.
Renaming the registered signal
Registered signals can be renamed.
1) Press ▲▼◀▶ to select the signal of which name is to be changed. button.
The [REGISTERED SIGNAL STATUS] screen is displayed.
The memory number, input terminal, input signal name, frequency, synch polarity, etc., are displayed.
Press the button to return to the [SIGNAL LIST] screen.
3) Press the button. button.
- The [SIGNAL NAME CHANGE] screen is displayed.
6) Press ▲▼◀▶ to select the text, and press the button to enter the text. button.
- The registration is completed and the [REGISTERED SIGNAL SETUP] screen returns.
- When pressing ▲▼◀▶ to select [CANCEL] and pressing the button, the changed signal name will not be registered and an automatically registered signal name will be used.
Deleting the registered signal
Registered signals can be deleted.
1) Press ▲▼◀▶ to select the signal to delete. button on the remote control.
The [REGISTERED SIGNAL DELETE] screen is displayed.
To cancel the deletion, press the button to return to the [REGISTERED SIGNAL LIST] screen.
3) Press the button.
•The selected signal will be deleted.
Note
- A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen.
Protecting the registered signal
1) Press ▲▼◀▶ to select the signal to protect. button.
- The [REGISTERED SIGNAL STATUS] screen is displayed.
3) Press the button.
- The [REGISTERED SIGNAL SETUP] screen is displayed.
4) Press ▲▼ to select [LOCK].
- The items will switch each time you press the button.
[OFF] The signal is not protected.
[ON] The signal is protected.
- A lock icon is displayed at the right of the [SIGNAL LIST] screen when [LOCK] is set to [ON].
Note
When [LOCK] is set to [ON], signal deletion, image adjustment, and automatic setup are not available. To perform these operations, set [LOCK] to [OFF].
A signal can be registered to the sub memory even if it is protected.
Even a protected signal will be deleted if [INITIALIZE] is executed.
Expanding signal lock-in range
1) Press ▲▼◀▶ to select the signal to set. button.
- The [REGISTERED SIGNAL STATUS] screen is displayed.
3) Press the button.
4) Press ▲▼ to select [LOCK-IN RANGE].
5) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[NARROW] Select this item usually.
[WIDE] Widens the lock-in range.
- An expansion icon is displayed at the right of the [SIGNAL LIST] screen when [LOCK-IN RANGE] is set to [WIDE].
Note
Switch the range where the signal to be input is determined to be the same signal as the already registered signal.
To prioritize the determination that a signal is the same as the already registered signal, set this function to [WIDE].
Use in cases such as when the synchronizing frequency of a signal to be input has changed slightly, or multiple signal lists are registered.
This function can be used only when a signal is input from the terminal, the terminal, the terminal, the terminal, the terminal, or the terminal.
When [WIDE] is set, the image may be distorted because a signal is recognized as the same even if its synchronizing frequency varies slightly.
When a signal to be input corresponds to multiple signals set in [WIDE], a registered signal with a high memory number receives priority. Example: a signal to be input that corresponds to memory numbers A2, A4 and B1 will be determined to be B1.
When a registration signal is deleted, the settings are also deleted.
- In an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the setting is set to [WIDE].
Sub memory
The projector has a sub memory function that can register the multiple image adjustment data, even if it is recognized as the same signal by the frequency or format of the synchronization signal source.
Use this function when you need to switch the aspect or adjust the picture quality such as the white balance while using the same signal source. The sub memory includes all the data that can be adjusted for each signal, such as the image aspect ratio and data adjusted in the [PICTURE] menu (items such as [CONTRAST] and [BRIGHTNESS]).
Registering to the sub memory
1) While in the normal screen (where no menu is displayed), press ▲▼.
The sub memory registration screen is displayed if the sub memory is not registered. Proceed to Step 3).
A list of sub memories registered to the signal currently input is displayed.
The button on the remote control can be used instead of ▲▼ when [SUB MEMORY] is selected from the [PROJECTOR SETUP] menu → [FUNCTION BUTTON].
2) Press ▲▼◀▶ to select the sub memory number to register in [SUB MEMORY LIST].
3) Press the button.
- The [SIGNAL NAME CHANGE] screen is displayed.
4) Press ▲▼◀▶ to select [OK], and press the button.
- To rename the registered signal, follow the procedure in Steps 6) and 7) in "Renaming the registered signal" (→ page 124).
Switching to the sub memory
1) While in the normal screen (where no menu is displayed), press ▲▼.
- A list of sub memories registered to the signal currently input is displayed.
2) Press ▲▼◀▶ to select the signal to switch in [SUB MEMORY LIST].
3) Press the button.
- This switches to the signal selected in Step 2).
Deleting the sub memory
1) While in the normal screen (where no menu is displayed), press ▲▼.
- The [SUB MEMORY LIST] screen is displayed.
2) Press ▲▼◀▶ to select the sub memory to be deleted, and press the button on the remote control.
- The [REGISTERED SIGNAL DELETE] screen is displayed.
- To cancel the deletion, press the
button to return to the [SUB MEMORY LIST] screen.
3) Press the button.
- The selected sub memory will be deleted.
On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (→ page 61) for the operation of the menu screen.
- When the projector is used for the first time
Initial password: Press ▲▶▼◀▲▶▼◀ in order, and press the button.
Attention
When you select the [SECURITY] menu and press the button, entering a password is prompted. Enter the preset password and then continue operations of the [SECURITY] menu.
When the password has been changed previously, enter the changed password, and press the button.
Note
The entered password is displayed with * marks on the screen.
An error message is displayed on the screen when the entered password is incorrect. Re-enter the correct password.
[SECURITY PASSWORD]
Display the [SECURITY PASSWORD] screen when the power is turned on with the switch set to the side. When the entered password is incorrect, the operation will be restricted to the power <∅/|> button.
1) Press ▲▼ to select [SECURITY PASSWORD].
- The items will switch each time you press the button.
[OFF] Disables the security password entry.
[ON] Enables the security password entry.
Note
This item is set to [OFF] in the factory default setting or when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed. Set it to [ON] as necessary.
Change the password periodically that is hard to guess.
The security password is enabled after setting the item to [ON] and setting the switch to .
[SECURITY PASSWORD CHANGE]
Change the security password.
1) Press ▲▼ to select [SECURITY PASSWORD CHANGE]. button.
- The [SECURITY PASSWORD CHANGE] screen is displayed.
3) Press ▲▼◀▶ and the number (<0> - <9>) buttons to set the password.
- Up to eight button operations can be set.
4) Press the button. button.
Note
The entered password is displayed with * marks on the screen.
When numerical values are used for the security password, the security password is required to be initialized if the remote control is lost. Consult your dealer for the method of initialization.
[DISPLAY SETTING]
Overlap the security message (text or image) over the projecting image.
1) Press ▲▼ to select [DISPLAY SETTING].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Hides the security message. [TEXT] Displays the text set in the [SECURITY] menu → [TEXT CHANGE]. [USER LOGO] Displays the image registered by the user.
Note
- To create/register the [USER LOGO] image, use "Logo Transfer Software" included in the supplied CD-ROM.
[TEXT CHANGE]
Edit the text to be displayed when [TEXT] is selected in [DISPLAY SETTING].
1) Press ▲▼ to select [TEXT CHANGE]. button.
•The [TEXT CHANGE] screen is displayed.
3) Press ▲▼◀▶ to select the text, and press the button to enter the text. button.
- The text is changed.
[CONTROL DEVICE SETUP]
Enable/disable the button operations on the control panel and the remote control.
1) Press ▲▼ to select [CONTROL DEVICE SETUP]. button.
- The [CONTROL DEVICE SETUP] screen is displayed.
3) Press ▲▼ to select [CONTROL PANEL] or [REMOTE CONTROL].
[CONTROL PANEL] Sets the limitation on the control from the control panel. [REMOTE CONTROL] Sets the limitation on the control from the remote control.
4) Press the button.
- You can set the operation restriction from the control panel or the remote control.
[ENABLE] Enables all button operations. [DISABLE] Disables all button operations. [USER] Operation of all buttons can be enabled/disabled separately.Refer to “Enabling/disabling any button” (⇨ page 128) for details.
7) Press ▲▼ to select [APPLY], and press the button. button.
1) Press ▲▼ to select [CONTROL DEVICE SETUP]. button.
- The [CONTROL DEVICE SETUP] screen is displayed.
3) Press ▲▼ to select [CONTROL PANEL] or [REMOTE CONTROL].
- The [CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed.
5) Press ▲▼ to select [CONTROL PANEL] or [REMOTE CONTROL].
6) Press ◀▶ to switch [USER].
- When [INPUT SELECT BUTTON] is selected in [REMOTE CONTROL], press the button, and then press ▲▼ to select the button to set.
Buttons that can be set [CONTROL PANEL] [REMOTE CONTROL] [POWER BUTTON] Powerbutton [INPUT SELECT BUTTON]buttonbuttonbutton,button,button,buttonbutton buttonbuttonbutton,button,buttonbuttonbutton button,button button,button button,buttonbutton [MENU BUTTON]button [LENS BUTTON]button Lens buttons (,) [AUTO SETUP BUTTON] —button [ON SCREEN BUTTON] —button [OTHER BUTTON]▲▼▶,buttonButtons not listed above button buttons not listed above
8) Press ◀▶ to switch the item.
[ENABLE] Enables button operations.
[DISABLE] Disables button operations.
- Following items can be selected only when [COMPUTER1/2 BUTTON] is selected in [INPUT SELECT BUTTON].
[TOGGLE] Switches between [COMPUTER1] and [COMPUTER2] when the button is operated.
[COMPUTER1] Fixes to [COMPUTER1].
[COMPUTER2] Fixes to [COMPUTER2].
[DISABLE] Disables button operations.
- When [INPUT SELECT BUTTON] is selected in Step 7), pressing the
button returns to the [CONTROL PANEL] screen or the [REMOTE CONTROL] screen once the item is switched.
•The confirmation screen is displayed.
Note
When a button operation is performed on the device set to [DISABLE], the [CONTROL DEVICE PASSWORD] screen is displayed. Enter the control device password.
The [CONTROL DEVICE PASSWORD] screen will disappear when there is no operation for approx. 10 seconds.
If the operations of both [CONTROL PANEL] and [REMOTE CONTROL] are set to [DISABLE], the projector cannot be turned off (cannot enter standby).
When the setting has completed, the menu screen will disappear. To operate continuously, press the button to display the main menu.
Even when you set button operations on the remote control disabled, operations of the and buttons on the remote control are kept enabled.
[CONTROL DEVICE PASSWORD CHANGE]
The control device password can be changed.
1) Press ▲▼ to select [CONTROL DEVICE PASSWORD CHANGE]. button.
- The [CONTROL DEVICE PASSWORD CHANGE] screen is displayed.
3) Press ▲▼◀▶ to select the text, and press the button to enter the text.
4) Press ▲▼◀▶ to select [OK], and press the button.
•To cancel, select [CANCEL].
Attention
The initial password is "AAAA" as the factory default or when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed.
Change the password periodically that is hard to guess.
On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (→ page 61) for the operation of the menu screen.
[DIGITAL LINK MODE]
Switch the communication method of the terminal of the projector.
1) Press ▲▼ to select [DIGITAL LINK MODE].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[AUTO] Switches the communication method automatically to DIGITAL LINK, long reach, or Ethernet. [DIGITAL LINK] Fixes the communication method to DIGITAL LINK. [LONG REACH] Fixes the communication method to long reach. [ETHERNET] Fixes the communication method to Ethernet.
Possible communication modes
√: Communication possible
Setting Communication possible Video transfer (100 m (328'1")) Video transfer (150 m (492'2")) Ethernet RS-232C [AUTO] For DIGITAL LINK √ — √ √ For long reach — √√√ For Ethernet — — √*1 — [DIGITAL LINK] √ — √ √ [LONG REACH] — √√√ [ETHERNET] — — √*1 —
*1 Communication via a twisted-pair-cable transmitter is not available. Connect the projector to the network directly.
Note
- The maximum transmission distance when connected with the long-reach communication method is 150 m (492'2"). In this case, the signal that the projector can receive is only up to 1080/60p (1 920 x 1 080 dots, dot clock frequency 148.5 MHz).
- If the communication method of the twist-pair-cable transmitter is set to long reach, the projector will connect with long-reach communication method when the item is set to [AUTO]. To connect with the optional DIGITAL LINK Switcher (Model No.: ET-YFB200G) with the long-reach communication method, set the item to [LONG REACH].
- Even when the item is set to [LONG REACH], connection will not be made correctly if the twist-pair-cable transmitter is not supporting the long-reach communication method.
[DIGITAL LINK STATUS]
Display the DIGITAL LINK connection environment.
1) Press ▲▼ to select [DIGITAL LINK STATUS]. button.
- The [DIGITAL LINK STATUS] screen is displayed.
[LINK STATUS] One of [NO LINK], [DIGITAL LINK], [LONG REACH], or [ETHERNET] is displayed. [HDCP STATUS] One of [NO SIGNAL], [OFF], or [ON] is displayed. [SIGNAL QUALITY] [SIGNAL QUALITY] is a numerical value of the amount of error, and the display color changes to green, yellow, or red depending on that value.Check the signal quality level while receiving a signal from the twisted-pair-cable transmitter.[MAX]/[MIN]: Maximum/minimum value of the amount of errorGreen (-12 dB or lower) → normal signal quality level.Yellow (-11 to -8 dB) → caution level that noise may appear on the screen.Red (-7 dB or higher) → abnormal level with interrupted synchronization and receiving not possible.
[NETWORK SETUP]
Perform the initial setting of the network before using the network function.
1) Press ▲▼ to select [NETWORK SETUP]. button.
•The [NETWORK SETUP] screen is displayed.
3) Press ▲▼ to select an item, and change the settings according to the operation instructions of the menu.
[PROJECTOR NAME] Allows to change the projector name. Enter the host name if it is required to use a DHCP server. [DHCP] [ON] If a DHCP server exists in the network where the projector is to be connected, obtains the IP address automatically. [OFF] If a DHCP server does not exist in the network where the projector is to be connected, set [IP ADDRESS], [SUBNET MASK], and [DEFAULT GATEWAY]. [IP ADDRESS] Enter the IP address when a DHCP server is not used. [SUBNET MASK] Enter the subnet mask when a DHCP server is not used. [DEFAULT GATEWAY] Enter the default gateway address when a DHCP server is not used.
4) Press ▲▼ to select [STORE], and press the button. button.
Note
- When using a DHCP server, confirm that the DHCP server is running.
Consult your network administrator regarding the IP address, subnet mask, and default gateway.
The network setting is common for the terminal and the terminal.
[NETWORK SETUP] cannot be selected when the [NETWORK] menu → [Art-Net SETUP] is set to [ON(2.X.X.X)] or [ON(10.X.X.X)].
[NETWORK CONTROL]
Set up the control method of the network.
1) Press ▲▼ to select [NETWORK CONTROL]. button.
•The [NETWORK CONTROL] screen is displayed.
3) Press ▲▼ to select an item, and press ◀▶ to change the setting.
[WEB CONTROL] Set to [ON] to control with the web browser. [PJLink CONTROL] Set to [ON] to control with the PJLink protocol. [COMMAND CONTROL] Set to [ON] to control with the control command format (⇨ page 173) for theterminal.Refer to “Control commands via LAN” (⇨ page 169). [COMMAND PORT] Set the port number used for command control. [Crestron Connected(TM)] Set to [ON] to control with Crestron Connected TM of Crestron Electronics, Inc. [AMX D.D.] Set to [ON] to control with the controller of AMX Corporation.Setting this function to [ON] enables detection through “AMX Device Discovery”. For details, visit the website of AMX Corporation.URL http://www.amx.com/ [EXTRON XTP] Set to [ON] when connecting the “XTP transmitter” of Extron Electronics to theterminal.Set to [OFF] when connecting the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G).For details of the “XTP transmitter”, visit the website of Extron Electronics.URL http://www.extron.com/
4) Press ▲▼ to select [STORE], and press the button. button.
[NETWORK STATUS]
Display the status of the projector network.
1) Press ▲▼ to select [NETWORK STATUS].
2) Press the button.
- The [NETWORK STATUS] screen is displayed.
[DHCP] Displays the status of use of the DHCP server. [IP ADDRESS] Displays the [IP ADDRESS]. [SUBNET MASK] Displays the [SUBNET MASK]. [DEFAULT GATEWAY] Displays the [DEFAULT GATEWAY]. [DNS1] Displays the address of the preferred DNS server. [DNS2] Displays the address of the alternate DNS server. [MAC ADDRESS] Displays the [MAC ADDRESS].
Note
- The network setting is common for the terminal and the terminal.
When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the terminal, the main menu of the connected DIGITAL LINK output supported device is displayed. Refer to the Operating Instructions of the DIGITAL LINK output supported device for details.
Note
- [DIGITAL LINK MENU] cannot be selected when the [NETWORK] menu → [NETWORK CONTROL] → [EXTRON XTP] is set to [ON].
[Art-Net SETUP]
Make settings to use the Art-Net function.
1) Press ▲▼ to select [Art-Net SETUP].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Disables the Art-Net function. [ON(2.X.X.X)] Enables the Art-Net function and sets the IP address to 2.X.X.X. [ON(10.X.X.X)] Enables the Art-Net function and sets the IP address to 10.X.X.X. [ON(MANUAL)] Enables the Art-Net function and uses the IP address set in [NETWORK SETUP].
- Proceed to Step 3) when anything other than [OFF] is selected.
3) Press the button.
•The [Art-Net SETUP] screen is displayed.
4) Press ▲▼ to select an item, and press ◀▶ to switch the setting.
[NET] Enter [NET] to be used when the projector processes Art-Net. [SUB NET] Enter [SUB NET] to be used when the projector processes Art-Net. [UNIVERSE] Enter [UNIVERSE] to be used when the projector processes Art-Net. [START ADDRESS] Enter [START ADDRESS] to be used when the projector processes Art-Net.
5) Press ▲▼ to select [STORE], and press the button.
6) When the confirmation screen is displayed, press ◀▶ to select [OK], and press the button.
Note
If [ON(2.X.X.X)] or [ON(10.X.X.X)] is selected, IP address is calculated and set automatically.
The network setting is common for the terminal and the terminal.
[Art-Net CHANNEL SETTING]
Set the assignment of the channel.
For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net function” ( page 165).
1) Press ▲▼ to select [Art-Net CHANNEL SETTING].
2) Press ◀▶ to switch the item.
[2] Uses the channel assignment in standard setting. [USER] Changes the channel assignment. [1] Uses the channel assignment with DZ21K series compatible.DZ21K series: DZ21K series, DS20K series, DW17K series, DZ16K series
When [2] or [1] is selected, the function assigned to the channel is displayed by pressing the button.
When [USER] is selected, proceed to Step 3).
3) Press the button.
- The [Art-Net CHANNEL SETTING] screen is displayed.
4) Press ▲▼ to select the channel to set, and press◀▶ to switch the item.
[LIGHT OUTPUT] Adjusts the amount of light. [INPUT SELECT] Switches the input. [LENS POSITION] Moves the lens position. [LENS H SHIFT] Adjusts the lens shift in the horizontal direction. [LENS V SHIFT] Adjusts the lens shift in the vertical direction. [LENS FOCUS] Adjusts the focus. [POWER] Controls the power status. [SHUTTER] Controls the shutter function. [FADE-IN] Sets the fade-in time. [FADE-OUT] Sets the fade-out time. [SCREEN ADJUSTMENT] Performs screen correction. [FREEZE] Freezes the projected image, and turns off the audio. [COLOR] Adjusts the color saturation. [TINT] Adjusts the tint. [RASTER PATTERN] Displays the raster pattern. [VOLUME] Adjusts the volume. [ENABLE / DISABLE] Enables/disables the control of the projector with the Art-Net function. [NONE] No definition
The setting can be also made by pressing ▲▼ to select the channel, pressing the button to display the item list, pressing ▲▼◀▶ to select the item, and pressing the button.
Same item cannot be set for multiple channels, except for [NONE].
[Art-Net STATUS]
Display the content of control assigned to each channel and the received data of that channel.
1) Press ▲▼ to select [Art-Net STATUS]. button.
- The [Art-Net STATUS] screen is displayed.
Chapter 5 Operations
This chapter describes how to use each function.
Network connection
The projector is equipped with the network function, and following is possible by connecting to a computer.
- Web control
Setting, adjustment, and displaying status of the projector are possible by accessing the projector from a computer.
Refer to "Web control function" ( page 139) for details.
•Multi Monitoring & Control Software
"Multi Monitoring & Control Software", which is a software application to monitor and control multiple display devices (projector or flat panel display) connected via LAN, can be used.
Refer to the Operating Instructions of the “Multi Monitoring & Control Software” in the supplied CD-ROM for details.
•Early Warning Software
"Early Warning Software", which is a software application to monitor the status of the display devices (projector or flat panel display) or the peripheral device within the intranet, and to notify the problem or to detect the sign of possible problem of the device, can be used.
Visit the Panasonic website (http://panasonic.net/avc/projector/pass/) for details.
•PJLink
Operation or status query of the projector can be performed from a computer using the PJLink protocol.
Refer to "PJLink protocol" ( page 164) for details.
•Art-Net
Setting of the projector can be operated by the DMX controller or application software using the Art-Net protocol. Refer to "Using Art-Net function" ( page 165) for details.
- Command control
Operation or status query of the projector can be performed from a computer using the control command. Refer to "Control commands via LAN" (→ page 169) for details.
Connecting to the network
The projector can be connected to the network using the terminal or the terminal. The Ethernet signal from a twisted-pair-cable transmitter can be received in the terminal together with the video, audio, and serial control signal via a LAN cable.
Use either of the terminal or the terminal when a twisted-pair-cable transmitter is not used.
To connect a twisted-pair-cable transmitter that is not supporting send/receive of the Ethernet signal, use the terminal.
To send/receive the Ethernet signal via a twisted-pair-cable transmitter, use the terminal.

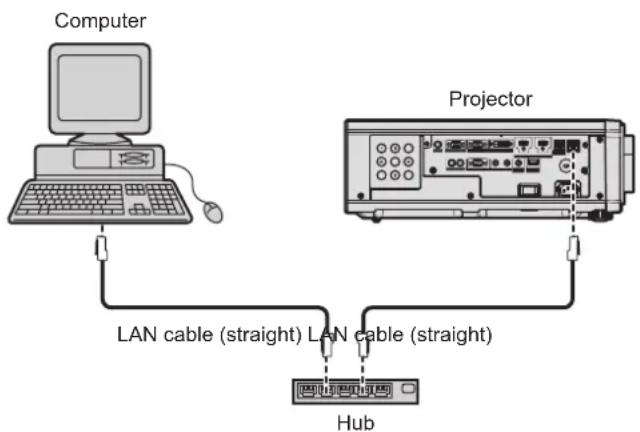

Example of a normal network connection
Attention
- When a LAN cable is directly connected to the projector, the network connection must be made indoors.
Note
- A LAN cable is required to use the network function.
Connect a LAN cable to send/receive the Ethernet signal to the terminal or the terminal of the projector.
Use a straight or crossover LAN cable that is compatible with CAT5 or higher. Either the straight or the crossover cable, or both cables can be used depending on the system configuration. Consult your network administrator. The projector will determine the type of the cable (straight or crossover) automatically.
Use a LAN cable of 100 m (328'1") or shorter.

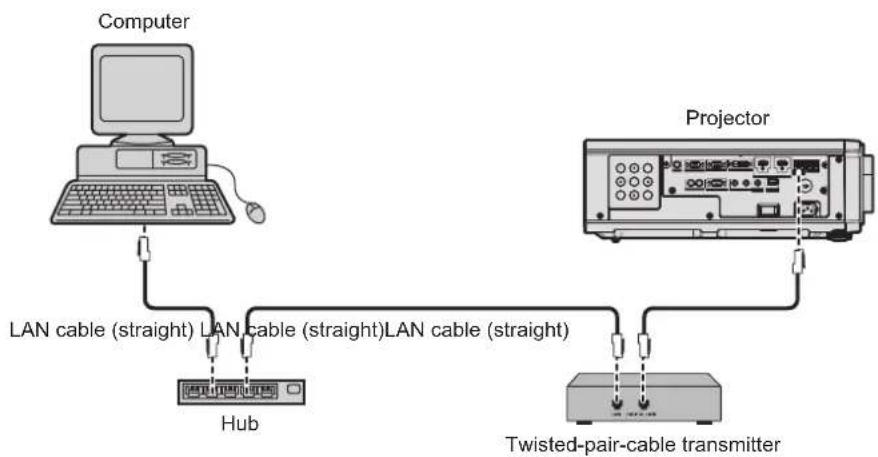

Example of network connections via a twisted-pair-cable transmitter
Attention
- When a LAN cable is directly connected to the projector, the network connection must be made indoors.
Note
- For the LAN cable between the twisted-pair-cable transmitter and the projector, use a cable that meets the following criteria:
-Conforming to CAT5e or higher standards
The maximum transmission distance between the twisted-pair-cable transmitter and the projector is 100 m (328'1"). It is possible to transmit up to 150 m (492'2") if the twisted-pair-cable transmitter supports the long-reach communication method. However, the signal that the projector can receive is only up to 1080/60p (1 920 x 1 080 dots, dot clock frequency 148.5 MHz) for the long-reach communication method. If this distance is exceeded, image may be disrupted or a malfunction may occur in LAN communication.
When laying cables between the twisted-pair-cable transmitter and the projector, confirm that cable characteristics are compatible with CAT5e or higher using tools such as a cable tester or cable analyzer.
When a relay connector is used, include it in the measurement.
Do not use a hub between the twisted-pair-cable transmitter and the projector.
Do not pull cables forcefully. Also, do not bend or fold cables unnecessarily.
To reduce the effects of noise as much as possible, stretch out the cables between the twisted-pair-cable transmitter and the projector without any loops.
Lay the cables between the twisted-pair-cable transmitter and the projector away from other cables, particularly power cables.
When laying multiple cables, run them side by side along the shortest distance possible without bundling them together.
After laying the cables, go to the [NETWORK] menu → [DIGITAL LINK STATUS] and confirm that the value of [SIGNAL QUALITY] is displayed in green which indicates normal quality.
For twisted-pair-cable transmitters of other manufacturers of which the operation has been verified with the projector, visit the Panasonic website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Setting the projector
1) Connect the projector to a computer using a LAN cable.
button to open the [NETWORK] menu, select [NETWORK SETUP], and press the button.
4) Perform the [NETWORK SETUP] setting.
- Refer to [NETWORK SETUP] (→ page 132) for details.
Note
• To connect to an existing network, perform after consulting your network administrator.
■Factory default setting
- Following setting has been made as a factory default.
[DHCP] OFF [IP ADDRESS] 192.168.0.8 [SUBNET MASK] 255.255.255.0 [DEFAULT GATEWAY] 192.168.0.1 [DNS1]/[DNS2] None
Operating the computer
1) Turn on the power of the computer.
- Operation from the computer is possible by configuring the network setting of the computer as follows if the projector is in the factory default setting.
[IP ADDRESS] 192.168.0.10 [SUBNET MASK] 255.255.255.0 [DEFAULT GATEWAY] 192.168.0.1
Web control function
Following operation is possible from a computer using the web control function.
Setting and adjustment of the projector
Sending E-mail messages when there is a problem with the projector
The projector supports "Crestron Connected™", and the following application software of Crestron Electronics, Inc. can be used.
•RoomView Express
Note
Communication with an E-mail server is required to use the E-mail function. Confirm that the E-mail can be used beforehand.
"Crestron Connected™" is a system of Crestron Electronics, Inc. that collectively manages and controls devices on multiple systems connected to a network using a computer.
For details of the "Crestron Connected™", visit the website of Crestron Electronics, Inc. (English only.) URL http://www.crestron.com
Computer that can be used for setting
To use the web control function, a web browser is required. Confirm that the web browser can be used in advance.
OS Compatible browser Windows Internet Explorer 11.0, Microsoft Edge Mac OS Safari 6.0/7.0/8.0/9.0
Accessing from the web browser
1) Start up the web browser on the computer.
3) Enter the user name and the password.
- The factory default setting of the user name is user1 (user rights)/admin1 (administrator rights) and the password is panasonic (lower case).

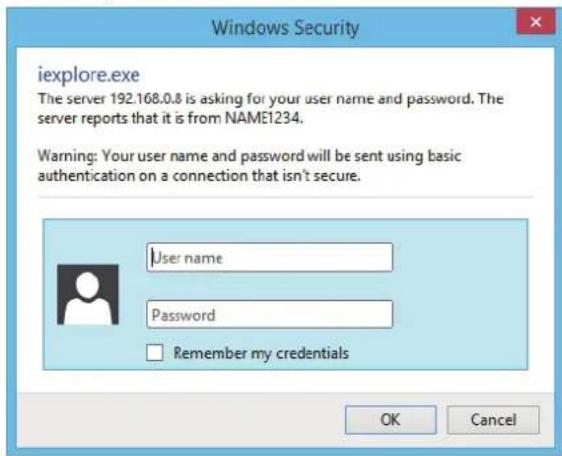

The server 192.168.0.8 is asking for your user name and password. The server reports that it is from NAME1234.
Warning: Your user name and password will be sent using basic authentication on a connection that isn't secure.
User name
Password
Remember my credentials
OK Cancel
4) Click OK.
•The [Projector status] page is displayed.
Projector status
Service status
Auto mode log
Mail mode log
Projector TYPE
RIGHT
SERIAL NUMBER
CLAVE WIDTH
MAIN VERSION
1.01
POWER
ON STAFFET
OLD
ON DOT
BRUTTER
CLOCK OPN
VOLUME
IN
OPERATING MODE
NORMAL
LIGHT OUTPUT
SMALL
INPUT
COMPUTERS
- - 4bit - 8bit
INTAKE AIR TEMPERATURE
SPC: SPY
OPTICS MOBILE TEMPERATURE
SPC: SPY
EXHAUST AIR TEMPERATURE
SPC: SPY
LIGHT TEMPERATURE1
SPC: SPY
LIGHT TEMPERATURE2
SPC: SPY
LIGHT
ON OPT RUNTIME
30 P
PROJECTOR RUNTIME
12 H
SELF TEST
No errors
Status
Projector control
Installed and up
Change password
Creation Connected (in)
Adjustment
Note
If you use a web browser to control the projector, set the [NETWORK] menu → [NETWORK CONTROL] → [WEB CONTROL] to [ON].
Do not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple computers.
Change the password first. (→ page 152)
Access will be locked for few minutes when an incorrect password is entered three times consecutively.
Some items on the projector setting page use the Javascript function of the web browser. Correct control may not be possible when the web browser is set not to use this function.
If the screen for the web control is not displayed, consult your network administrator.
While updating the screen for the web control, the screen may appear white for a moment, but it is not a malfunction.
Rights for each account
The administrator rights allow use of all functions. There is a limitation in the rights that can be used with the user rights. Select the rights depending on the purpose.
The function that has √ in the administrator rights/user rights column indicates that it can be operated with that rights.
Item Function Administrator rights User rights Page [Projector status] [Projector status] ✓ ✓ 141 Error information page ✓ ✓ 142 [Network status] ✓ ✓ 143 [Access error log] ✓ -144 [Mail error log] ✓ -144 [Projector control] [Basic control] ✓ ✓ 145 [Detail control] ✓ -145 [Detailed set up] [Network config] ✓ -146 [Adjust clock] ✓ -147 [Ping test] ✓ -147 [E-mail set up] ✓ -148 [Authentication set up] ✓ -149 [ECO management set up] ✓ -149 [Change password] User name of [Administrator] ✓ -152 User name of [User] ✓ -153 Password of [Administrator] ✓ -152 Password of [User] ✓ ✓ 153, 153 [Crestron Connected(TM)] Operation page ✓ -154 [Tools] ✓ -154 [Info] ✓ -155 [Help] ✓ -155

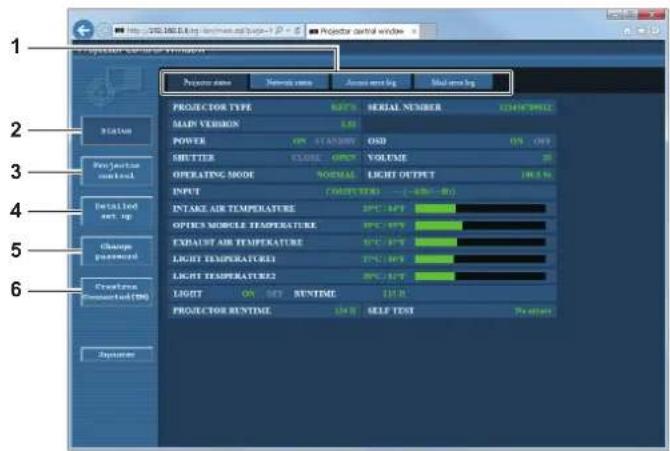

Descriptions of items
Projector name Network name Access port log Mid port log
PROJECTOR TYPE SATC SERIAL NUMBER LIGHT/TYPE
MAIN VERSION LS
POWER ON STATION OSD ON ON
SHUTTER CLOSE OPY VOLUME 28
OPERATING MODE NORMAL LIGHT OUTPUT 100.5%
INPUT (VOUTPER) (-40% - 80°)
INTAKE AIR TEMPERATURE 8PC 1.PT
OPICS MOBILE TEMPERATURE 8PC 1.PT
EXHAUST AIR TEMPERATURE 8PC 1.PT
LIGHT TEMPERATURE1 8PC 1.PT
LIGHT TEMPERATURE2 8PC 1.PT
LIGHT ON OUT RUNTIME 12 P
PROJECTOR RUNTIME 12 P Self Test Pre elipts
Status
1 Page tab
Switches pages by clicking this item.
2 [Status]
The status of the projector is displayed by clicking this item.
3 [Projector control]
The [Projector control] page is displayed by clicking this item.
4 [Detailed set up]
The [Detailed set up] page is displayed by clicking this item.
5 [Change password]
The [Change password] page is displayed by clicking this item.
6 [Crestron Connected(TM)]
The operation page of Crestron Connected ^™ is displayed by clicking this item.

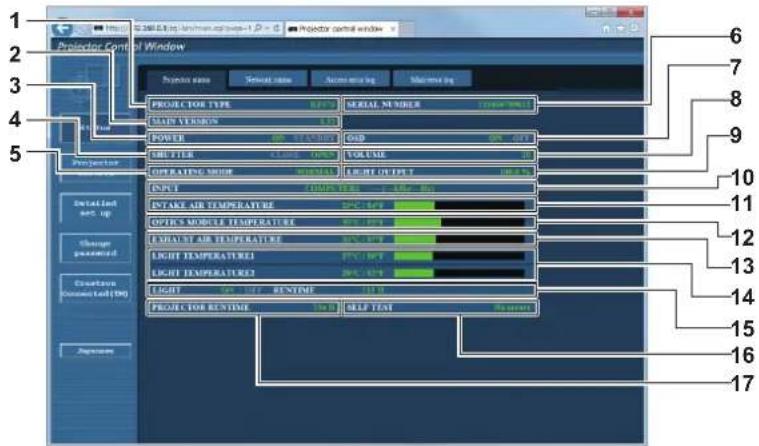

[Projector status] page
Click [Status] → [Projector status].
Display the status of the projector for the following items.
Projector type
Serial number
Access key log
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control rooms
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector control Room
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRoom
Projector controlRenterline 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
1 [PROJECTOR TYPE]
Displays the type of the projector.
2 [MAIN VERSION]
Displays the firmware version of the projector.
3 [POWER]
Displays the status of the power.
4 [SHUTTER]
Displays the status of the shutter function ([CLOSE]: Enabled (closed), [OPEN]: Disabled (open)).
5 [OPERATING MODE]
Displays the setting status of [OPERATING MODE].
6 [SERIAL NUMBER]
Displays the serial number of the projector.
7 [OSD]
Displays the status of the on-screen display.
8 [VOLUME]
Display the volume status.
9 [LIGHT OUTPUT]
Displays the setting status of [LIGHT OUTPUT].
10 [INPUT]
Displays the status of the selected input.
11 [INTAKE AIR TEMPERATURE]
Displays the status of the intake air temperature of the projector.
12 [OPTICS MODULE TEMPERATURE]
Displays the status of the internal temperature of the projector.
13 [EXHAUST AIR TEMPERATURE]
Displays the status of the exhaust air temperature of the projector.
14 [LIGHT TEMPERATURE1], [LIGHT TEMPERATURE2]
Displays the temperature status of the light source.
15 [LIGHT]
Displays the lighting status and runtime of the light source.
16 [SELF TEST]
Displays the self-diagnosis information.
17 [PROJECTOR RUNTIME]
Displays the runtime of the projector.

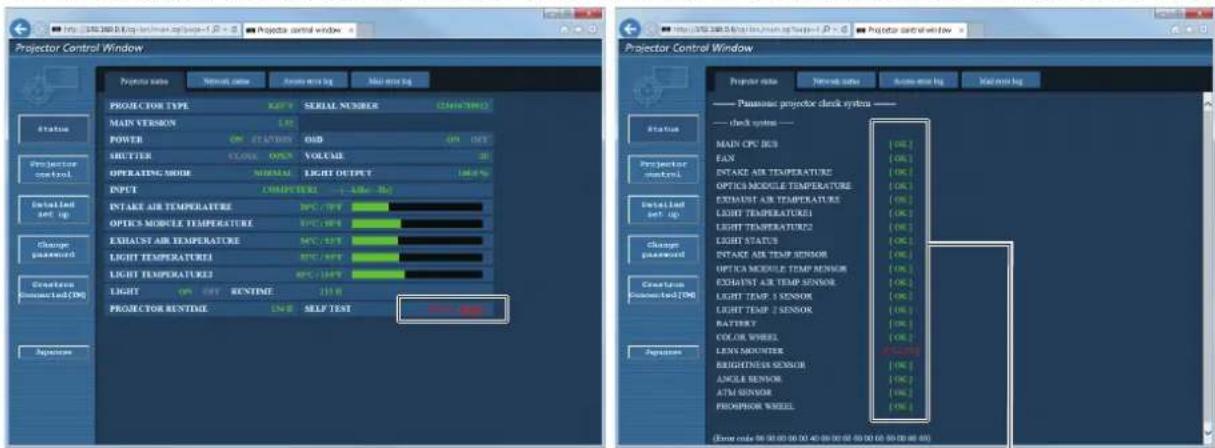

Error information page
When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status] screen, click it to display the content of the error/warning.
- The projector may go into the standby status to protect the projector depending on the contents of the error.
Projector name Network name Access more log Max more log
PROJECTOR TYPE SERIAL NUMBER (240x700x)
MAIN VERSION 1.32
POWER ON OUT/ON/OUD ON/OCT
SHUTTER CLOUD ON/OFF VOLUME
OPERATING MODE NORMAL EIGHT OUTPUT 100%
INPUT COMPUTER + -LOG-TG
INTAKE AIR TEMPERATURE 2PC/-/TFT
OPTICS MODULE TEMPERATURE
EXHAUST AIR TEMPERATURE 5PC/-/TFT
LIGHT TEMPERATURE1 8PC/-/TFT
LIGHT TEMPERATURE2 9PC/-/TFT
LIGHT ON/OFF RETIME 21.5%
PROJECTOR RENTIME LINE SELF TEST
Projector control
Projector control
Detailed set up
Change password
Creation connected(DN)
Status
Projector control
Change password
Creation connected(DN)
Projector control window
Projector control window
Panasonic projector clock system
-- check system --
MAIN CPU BIOS [OK]
EAN [OK]
INTAKE AIR TEMPERATURE [OK]
OPTICS MODULE TEMPERATURE [OK]
EXHAUST AIR TEMPERATURE [OK]
LIGHT TEMPERATURE1 [OK]
LIGHT TEMPERATURE2 [OK]
LIGHT STATUS [OK]
INTAKE AIR TEMP SENSOR [OK]
OPTICS MODULE TEMP SENSOR [OK]
EXHAUST AIR TEMP SENSOR [OK]
LIGHT TEMP 1 SENSOR [OK]
LIGHT TEMP 2 SENSOR [OK]
BATTERY [OK]
COLOR WHEEL [OK]
LENV MOUNTER [OK]
BRIGHTNESS SENSOR [OK]
ANGLE SENSOR [OK]
ATM SENSOR [OK]
PROSPOR WHEEL [OK]
Time node: 00:00:00 00:00:00 40:00:00 00:00:00 00:00:00 00:00:00
1
1 Self-diagnosis result display
Displays the item check results.
[OK]:
Indicates that operation is normal.
[FAILED]:
Indicates that there is a problem.
[WARNING]:
Indicates that there is a warning.
■[FAILED] items
Item Description [MAIN CPU BUS] There is a problem with the micro computer circuitry. Consult your dealer. [FAN] There is a problem with the fan or the fan drive circuit. Consult your dealer. [INTAKE AIR TEMPERATURE] The intake air temperature is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. [OPTICS MODULE TEMPERATURE] The temperature around the optics module inside the projector is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. [EXHAUST AIR TEMPERATURE] The exhaust air temperature is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. Or the air exhaust port may be blocked. [LIGHT TEMPERATURE1] The temperature of the light source is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. [LIGHT TEMPERATURE2] [LIGHT STATUS] The light source has failed to turn on. Consult your dealer. [INTAKE AIR TEMP.SENSOR] There is a problem with the sensor used to detect intake air temperature. Consult your dealer. [OPTICS MODULE TEMP.SENSOR] There is a problem with the sensor used to detect temperature inside the projector. Consult your dealer. [EXHAUST AIR TEMP.SENSOR] There is a problem with the sensor used to detect exhaust air temperature. Consult your dealer. [LIGHT TEMP.1 SENSOR] There is a problem with the temperature detection sensor of light source. Consult your dealer. [LIGHT TEMP.2 SENSOR] [COLOR WHEEL] There is a problem with the color wheel or the color wheel drive circuit. Consult your dealer. [LENS MOUNTER] There is a problem with the lens mounter. Consult your dealer. [BRIGHTNESS SENSOR] There is a problem with the luminance sensor. If problems persist even after switching on the power, consult your dealer. [ANGLE SENSOR] There is a problem with the angle sensor. Consult your dealer. [ATM SENSOR] There is a problem with the air pressure sensor. Consult your dealer. [PHOSPHOR WHEEL] There is a problem with the phosphor wheel or phosphor wheel drive circuit. Consult your dealer.
■[WARNING] items
Item Description [LOW-TEMPERATURE] The temperature around the optics module inside the projector is low. Image cannot be projected until the optics module becomes warm. [INTAKE AIR TEMPERATURE] The intake temperature is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. [OPTICS MODULE TEMPERATURE] The temperature around the optics module inside the projector is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. [EXHAUST AIR TEMPERATURE] The exhaust air temperature is high. The air exhaust port may be blocked. [LIGHT TEMPERATURE1] The temperature of the light source is high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. [LIGHT TEMPERATURE2] [BATTERY] Battery replacement is required. Consult your dealer.

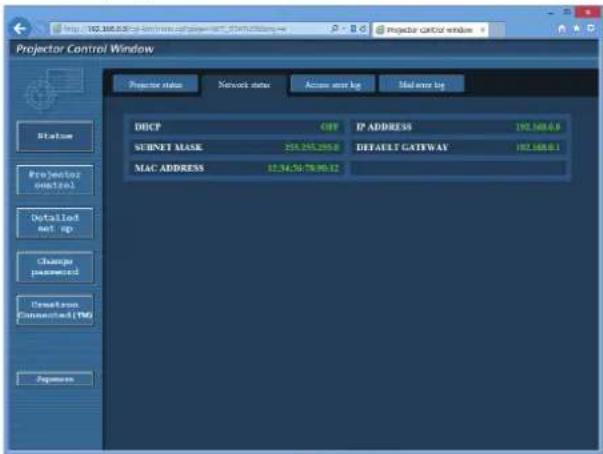

[Network status] page
Click [Status] → [Network status].
The current network setting status is displayed.
Projector status
Network status
Access error log
Mail error log
DUCP
OFF
IP ADDRESS
192.568.0.0
SUBNET MASK
334.265.295.0
DEFAULT GATEWAY
192.568.0.1
MAC ADDRESS
12.34.56.78.96.12
Projector
Subnet mask
Detailed
net up
Change
passworded
Connection
Connected (TM)
Parameters

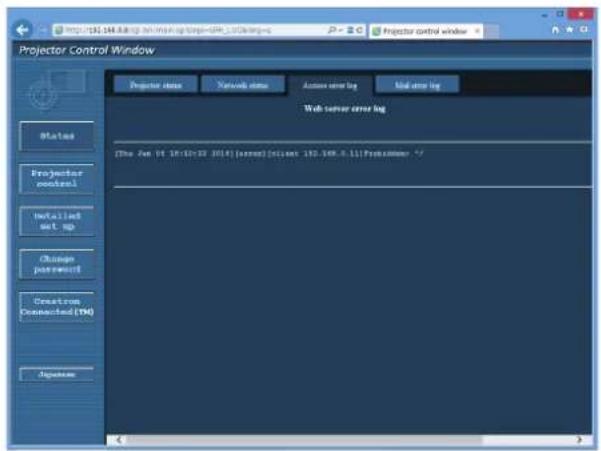

[Access error log] page
Click [Status] → [Access error log].
The error log on the web server is displayed such as access to the pages that do not exist or access with unauthorized user names or passwords.
Projector status
Network status
Active error log
Mid error log
Web server error log
The Jun 01 19:56:22 2014 (serer) (clasen 192.168.5.11/Precammer)
Status
Projector
control
Installed
set up
Change
password
Creatrom
Connected (TM)
Application

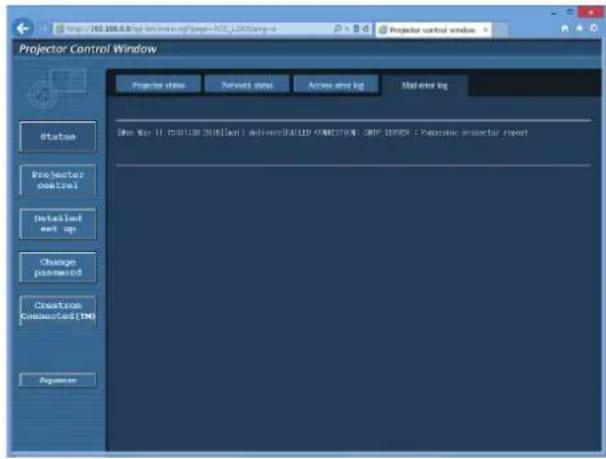

[Mail error log] page
Click [Status] → [Mail error log].
E-mail error log is displayed if periodic E-mail sending has failed.
Projector status
Send list
Access and log
User error log
Status
Projector
solution
Detailed
set up
Change
passwords
Creation
Connected (TM)
Aggregation
Dim Mar 11: 10.0128 [NIB][set] delivered[FAELIP OAMOS]PN, GMP DVER - Parasonic projector report
Aggregation
Note
[Access error log] and [Mail error log] display the recent few thousand accesses/requests. All information may not be displayed when many accesses/requests are made at once.
Logs in [Access error log] and [Mail error log] are deleted from the oldest when exceeding a certain amount.
Check [Access error log] and [Mail error log] periodically.

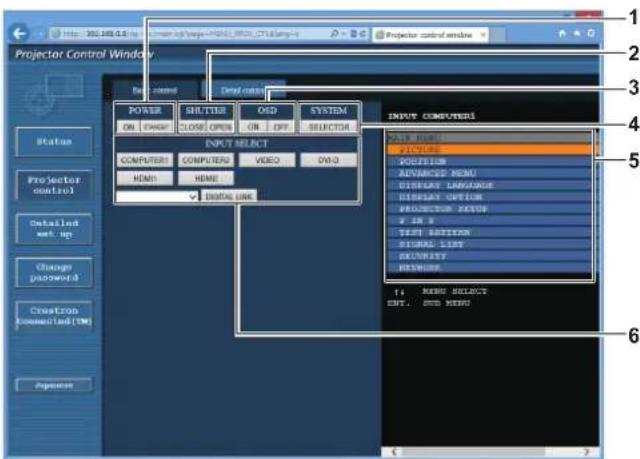

[Basic control] page
Click [Projector control] → [Basic control].
Projector control window
Power
SHUTTER
OCD
SYSTEM
ON
SHOP
CLOSE
OPEN
ON
OFF
SELECTOR
INPUT SELECT
COMPUTER1
COMPUTER2
VIDEO
DVD
HDMI
HDMI
DIGITAL LINE
BASE MENU
POSITION
ADJAMETER MENU
DISPLAY LANGUAGE
DISPLAY OPTION
PRODUCTION SETUP
F: IN S
TEST SETTION
RIMINAL SIDE
EXPRESSION
RINFORMATION
TI: MENU SELECT
ENT, AND MENU
1 [POWER]
Turns on/off the power.
2 [SHUTTER]
Switches whether to use the shutter function (enabled (shutter: closed)/disabled (shutter: open)).
3 [OSD]
Switches on (display)/off (hide) the on-screen display function.
4 [SYSTEM]
Switches the system method.
5 On-screen display of the projector
Displays the same items as shown on the on-screen display of the projector. You can check or change the settings of the menus. It is displayed even if the on-screen display function is set to off (hide).
Switches the input signal.

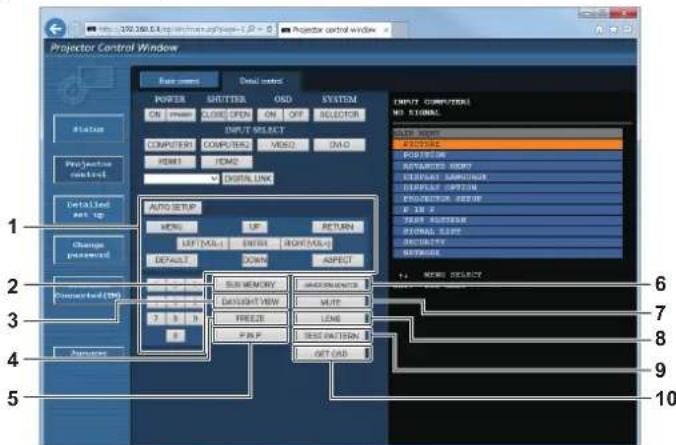

[Detail control] page
Click [Projector control] → [Detail control].
Base offset
Data notes
POWER
SUTTER
GND
SYSTEM
ON
CLOSE
OPEN
ON
OFF
SELECTOR
INPUT SELECT
COMPUTER
COMPUTER
MEO
ON
PDM1
PDM2
DIGITALUM
AUTO SETUP
MENU
UP
RETURN
LEFT (M)
RIGHT (M)
RIGHT (M)
DEFAULT
DOWN
ASPECT
SUB MEMORY
INDEFINEMENTS
DAYLIGHT VIEW
MUTR
FREEZ
LENE
PWP
TEST PATTERN
OUT GAD
BASE WEIGHT
FROSET
PRODUCTION
REPARATION
EFFECTIVE SMOUXION
DISPLAY OPTION
PRODUCTION RETURN
R. 35 F.
TIME SWITCH
NORMAL SLICE
SECURITY
RETURN
T.1000 SELECT
Connected (OK)
6
7
8
9
10
1 Control of the projector
The projector is controlled by clicking the buttons in the same way as the buttons on the remote control. After control, the on-screen display of the projector at the right of the control page is updated.
2 [SUB MEMORY]
Switches the sub memory.
3 [DAYLIGHT VIEW]
Switches the day light view setting.
4 [FREEZE]
Temporarily pauses the image.
5 [P IN P]
Switches the P IN P setting.
Displays the waveform of the input signal.
7 [MUTE]
Switches whether to use the mute function.
8 [LENS]
Adjusts the projection lens.
9 [TEST PATTERN]
Displays the test pattern.
10 [GET OSD]
Updates the on-screen display of the projector at the right of the control page.

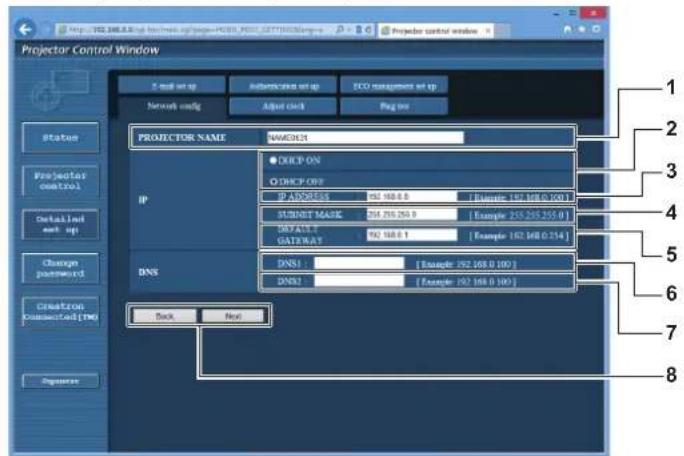

[Network config] page
Click [Detailed set up] → [Network config].
- Click [Network config] to display the [CAUTION!] screen.
Click the [Next] button to display the current settings.
Click the [Change] button to display the setting change screen.
E-mail set up
Authentication set up
ECO management set up
Network config
Add clock
Play time
PROYECTOR NAME
NAMDER
IP
● DHCP ON
○ DHCP ORF
IP ADDRESS: 92.168.0.0 [Example: 197.168.0.100.1]
SUBNET MASK: 354.290.250.0 [Example: 255.295.255.0]
DATALET: 992.168.0.1 [Example: 192.168.0.254.]
DNS:
DNS1 : [Example: 192.168.0.100.1]
DNS2 : [Example: 192.168.0.100.1]
Back Next
Status
Projector
com/2003
Detailed
and up
Change
password
Creation
modified code (ms)
Figure
1
2
3
4
5
6
7
8
1 [PROJECTOR NAME]
Enter the name of the projector. Enter the host name if it is required when using a DHCP server etc.
2 [DHCP ON], [DHCP OFF]
To enable the DHCP client function, set to [DHCP ON].
3 [IP ADDRESS]
Enter the IP address when not using a DHCP server.
4 [SUBNET MASK]
Enter the subnet mask when not using a DHCP server.
5 [DEFAULT GATEWAY]
Enter the default gateway address when not using a DHCP server.
6 [DNS1]
Enter the DNS1 server address.
Permissible characters for the entry of DNS1 server address (primary):
Numbers (0 - 9), period (.)
(Example: 192.168.0.253)
7 [DNS2]
Enter the DNS2 server address.
Available characters for the entry of DNS2 server address (secondary):
Numbers (0 - 9), period (.)
(Example: 192.168.0.254)
8 [Back], [Next]
Click the [Back] button to return to the original screen. Click the [Next] button to display the setting confirmation screen. Click the [Submit] button to update the setting.
Note
When you use the "Forward" and "Back" functions of your browser, a warning message "Page has Expired" may appear. In that case, click [Network config] again since the following operation will not be guaranteed.
The connection may be disconnected when the LAN setting is changed while connected with LAN.

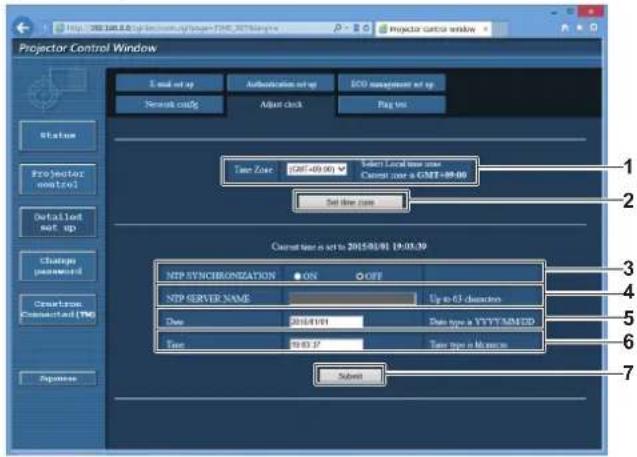

[Adjust clock] page
Click [Detailed set up] → [Adjust clock].
3 set up
Authentication set up
ECO management set up
Network config
Adjust click
Play us
Status
Projector
control
Details list
Set time zone
Select local time zone
Current zone as GMT-09:00
Set time zone
Current zone is set to 2015/01/01 19:00:30
NTP Synchronization ON OFF
NTP SERVER NAME
Up to 61 destination
Date: 2015/1/01
Date type: YYYYMMDD
Time: 19:03:37
Time type is Monom
Submit
1 [Time Zone]
Select the time zone.
2 [Set time zone]
Updates the time zone setting.
3 [NTP SYNCHRONIZATION]
Set [ON] when adjusting the date and time automatically.
4 [NTP SERVER NAME]
Enter the IP address or server name of the NTP server when you set to adjust the date and time manually.
(To enter the server name, the DNS server needs to be set up.)
5 [Date]
Enter the date to be changed.
6 [Time]
Enter the time to be changed.
7 [Submit]
Updates the date and time settings.
Note
- The replacement of the battery inside the projector is required when the time goes out of alignment right after correcting the time. Consult your dealer.

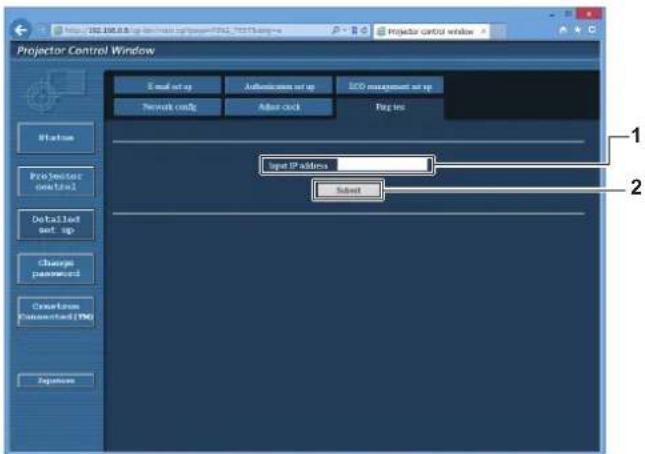

[Ping test] page
Check whether the network is connected to the E-mail server, POP server, DNS server, etc.
Click [Detailed set up] → [Ping test].
Email set up
Authentication set up
ISO management set up
Network config
Adder click
Parg init
Input IP address
Subset
Projector Control Window
Detailed set-up
Change password
Consenture Connection (PNG)
Zapiereau
1 [Input IP address]
Enter the IP address of the server to be tested.
2 [Submit]
Executes the connection test.

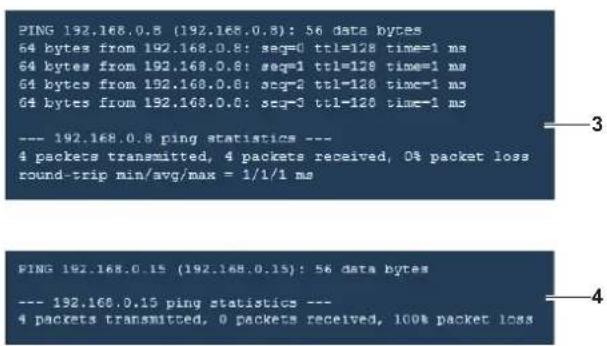

64 bytes from 192.168.0.8: seq=0 ttl=128 time=1 ms
64 bytes from 192.168.0.8: seq=1 ttl=128 time=1 ms
64 bytes from 192.168.0.8: seq=2 ttl=128 time=1 ms
64 bytes from 192.168.0.8: seq=3 ttl=128 time=1 ms
--- 192.168.0.8 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 1/1/1 ms
PING 192.168.0.15 (192.168.0.15): 56 data bytes
--- 192.168.0.15 ping statistics ---
4 packets transmitted, 0 packets received, 100% packet loss
3 Example of display when the connection has succeeded
4 Example of display when the connection has failed
[E-mail set up] page
E-mail can be sent to preset E-mail addresses (up to two addresses) periodically or when an error or problem has occurred.
Click [Detailed set up] → [E-mail set up].

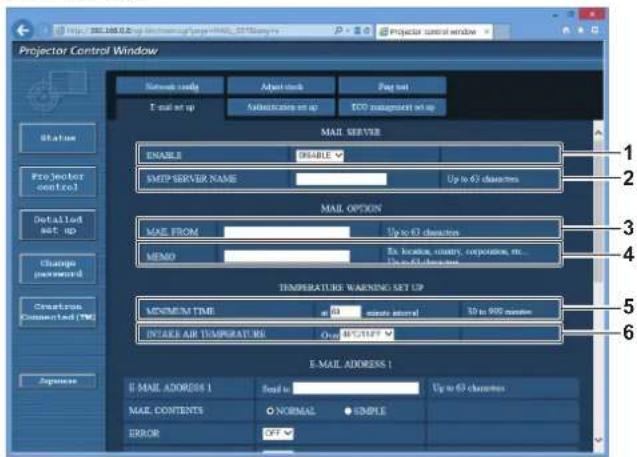

E-mail: 10.0.0.0 (on monitoring page version, 57/82/2016)
Projector control window
Software ready
About clock
Prog net
E-mail set up
Authentication set up
ECO assistant set up
Status
Projector control
Detailed SET HD
Change personnel
Creates Connected (TM)
Appendix
MAIL SERVER
ENABLES
ENABLE
SMTP SERVER NAME
Up to 63 characters
MAIL OPTION
MAE FROM
Up to 63 characters
MEMO
Ex location, country, corporation, etc.
Ex and 63 characters
TEMPERATURE WARNING SET UP
MINIMUM TIME
Up to 900 seconds
INTAKE AIR TEMPERATURE
Only COPY?
E-MAIL ADDRESS 1
If MAIL ADDRESS 1
Send to:
Up to 63 characters
MAIL CONTENTS
NORMAL
SAMPLE
ERROR
OFF
1
2
3
4
5
6
1 [ENABLE]
Select [ENABLE] to use the E-mail function.
2 [SMTP SERVER NAME]
Enter the IP address or the server name of the E-mail server (SMTP). To enter the server name, the DNS server needs to be set up.
3 [MAIL FROM]
Enter the E-mail address of the projector. (Up to 63 characters in single byte)
4 [MEMO]
Enter information such as the location of the projector that notifies the sender of the E-mail. (Up to 63 characters in single byte)
Network ready
Adjust click
Plug too
E-mail set up
Authentication set up
DCO management set up
B-MAIL ADDRESS 1
E-MAIL ADDRESS 2
Send to
Up to 61 characters
MAIL CONTENTS
NORMAL
SIMPLE
ERROR
OFF
INTAKE AIR TEMPERATURE
OFF
PARSODIC REPORT
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
00:00 ■ 11:00 ■ 02:00 ■ 13:00
04:00 ■ 15:00 ■ 06:00 ■ 17:00
08:00 ■ 20:00 ■ 10:00 ■ 11:00
12:00 ■ 13:00 ■ 14:00 ■ 15:00
18:00 ■ 17:00 ■ 18:00 ■ 19:00
20:00 ■ 21:00 ■ 22:00 ■ 31:00
B-MAIL ADDRESS 2
Send to
Up to 61 characters
MAIL CONTENTS
NORMAL
SIMPLE
ERROR
OFF
INTAKE AIR TEMPERATURE
OFF
Response

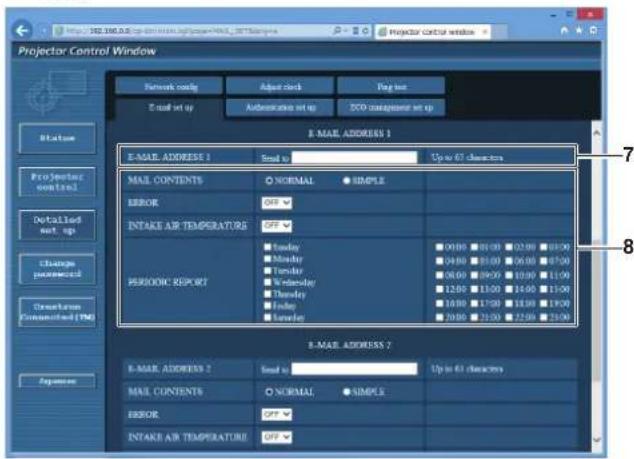

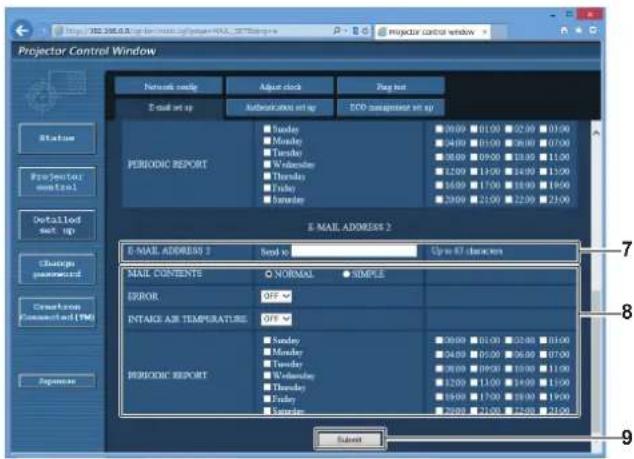

7 [E-MAIL ADDRESS 1], [E-MAIL ADDRESS 2]
Enter the E-mail address to be sent. Leave [E-MAIL ADDRESS 2] blank when two E-mail addresses are not to be used.
5 [MINIMUM TIME]
Change the minimum interval for the temperature warning E-mail. The default value is 60 minutes. In this case, another E-mail will not be sent for 60 minutes after sending the temperature warning E-mail even if it reaches the warning temperature.
6 [INTAKE AIR TEMPERATURE]
Change the temperature setting for the temperature warning mail. A temperature warning E-mail is sent when the temperature exceeds this value.
Network ready
Adjust clock
Play bus
E-mail set up
Authorised text set up
ECO assignment set up
PERIODIC REPORT
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
9:09:09 11:00 12:00 13:00
04:09 11:00 12:00 13:00
08:09 11:00 12:00 13:00
12:00 11:00 12:00 13:00
16:09 11:00 12:00 13:00
20:09 11:00 12:00 13:00
E-MAIL ADDRESS 2
Send to
Open BY characters
MAIL CONTENTS
NORMAL
SAMPLE
ERROR
OFF
INTAKE AIR TEMPERATURE
OFF
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
9:09:09 11:00 12:00 13:00
04:09 11:00 12:00 13:00
08:09 11:00 12:00 13:00
12:00 11:0C 14:00 15:0C
16:09 17:0C 18:0C 19:0C
20:09 21:0C 22:0C 23:0C
PERIODIC REPORT
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
9:09:09 11:00 12:00 13:00
04:09 11:0C 12:0C 13:0C
08:09 11:0C 12:0C 13:0C
12:0C 13:0C 14:0C 15:0C
16:09 17:0C 18:0C 19:0C
20:09 21:0C 22:0C 23:0C
Submit
8 Settings of the conditions to send E-mail
Select the conditions to send E-mail.
[MAIL CONTENTS]:
Select either [NORMAL] or [SIMPLE].
[ERROR]:
Send an E-mail when an error occurred in the self-diagnosis.
[INTAKE AIR TEMPERATURE]:
Send an E-mail when the intake air temperature has reached the value set at the above field.
[PERIODIC REPORT]:
Place a check mark on this to send an E-mail periodically.
It will be sent on the days and time with the check mark.
9 [Submit]
Update the settings.

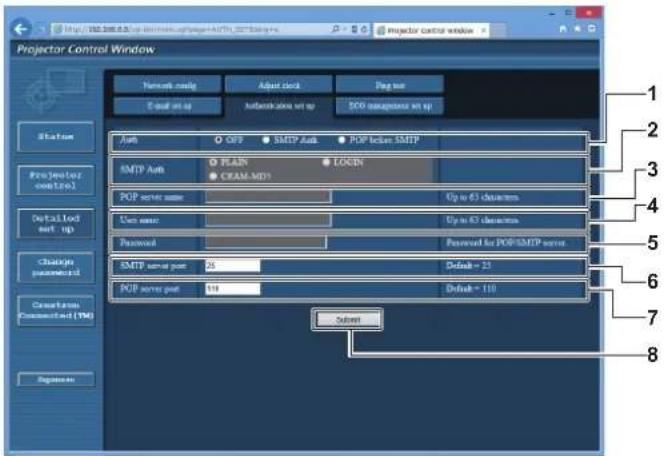

[Authentication set up] page
Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up].
Network config
Adjust clock
Plug bus
E-mail on at
User sessions on up
SOD operations on up
Avail
OFF
SMTP Auth
POP locked SMTP
SMTP Auth
PLAIN
LOCIN
CREAM-MDP
POP server port
Up to 63 characters
User port
Up to 63 characters
Password
Password for POP SMTP server
SMTP server port: 25
Default = 25
POP server port: 110
Default = 110
Subset
Projector Control Window
1
2
3
4
5
6
7
8
1 [Auth]
Select the authentication method specified by your Internet service provider.
2 [SMTP Auth]
Set when the SMTP authentication is selected.
3 [POP server name]
Enter the POP server name.
Allowed characters:
Alphanumerics (A - Z, a - z, 0 - 9)
Minus sign (-) and period (.)
4 [User name]
Enter the user name for the POP server or the SMTP server.
5 [Password]
Enter the password for the POP server or the SMTP server.
6 [SMTP server port]
Enter the port number of the SMTP server.
(Normally 25)
7 [POP server port]
Enter the port number of the POP server.
(Normally 110)
8 [Submit]
Update the settings.
[ECO management set up] page
Settings related to the ECO management function of the projector can be made. Click [Detailed set up] → [ECO management set up].

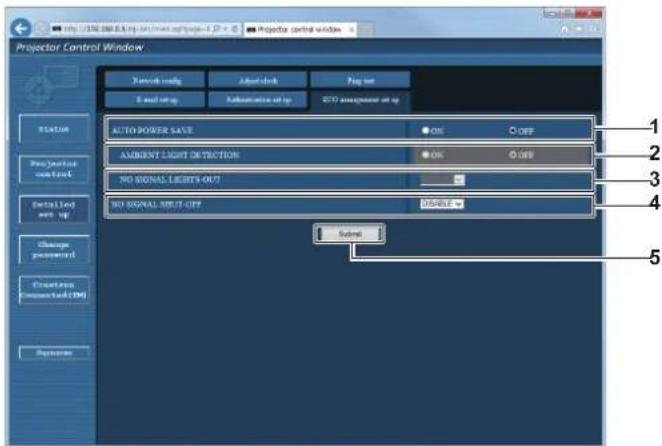

Network setup
Adjust key
Project
E-mail setup
Administration setup
ECO assignment setup
AUTO POWER SAVE
● ON
○ OFF
AMBIENT LIGHT DETECTION
● ON
○ OFF
NO SIGNAL LIGHTS-OUT
●
NO SIGNAL SHIFT-OFF
● DISABLE
Change
precisional
Creation
Presented (1M)
System
STATUS
1
2
3
4
5
1 [AUTO POWER SAVE]
Set [ON] when setting [AMBIENT LIGHT DETECTION] and [NO SIGNAL LIGHT-OUT].
2 [AMBIENT LIGHT DETECTION]
Enables ([ON])/disables ([OFF]) the ambient light detection function.
3 [NO SIGNAL LIGHT-OUT]
Select the duration until the light source is turned off when the no signal light-out function is used.
4 [NO SIGNAL SHUT-OFF]
Select the duration until the standby mode is entered when the no signal shut-off function is used.
5 [Submit]
Updates the setting.
Note
- For details of each setting item, refer to the [PROJECTOR SETUP] menu of the projector → [ECO MANAGEMENT].
Contents of E-mail sent
Example of the E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been established.
=== Panasonic projector report (CO NFI G URE) ===
Project or Type : RZ 575
Serial No : 123456789012
---- E-mail setup data ----
TEMPERATURE WARNING SETUP
MI NIMUM TIME at [ 60] minutos int erval
INT AKE AIR T EMPERAT URE O ver [ 31 degC / 87 degF ]
ERRO R [ ON ]
INTAKE AIR TEMPERATURE [ ON ]
PERI O DIC REPO RT
Sunday [ ON ] Monday [ ON ] Tuesday [ ON ] Wednesday [ ON ]
Thursday [ ON ] Friday [ ON ] Saturday [ ON ]
00:00 [ ON ] 01:00 [ ON ] 02:00 [ ON ] 03:00 [ ON ]
04:00 [ ON ] 05:00 [ ON ] 06:00 [ ON ] 07:00 [ ON ]
08:00 [ ON ] 09:00 [ ON ] 10:00 [ ON ] 11:00 [ ON ]
12:00 [ ON ] 13:00 [ ON ] 14:00 [ ON ] 15:00 [ ON ]
16:00 [ ON ] 17:00 [ ON ] 18:00 [ ON ] 19:00 [ ON ]
20:00 [ ON ] 21:00 [ ON ] 22:00 [ ON ] 23:00 [ ON ]
---- check system ----
MAI N CPU BUS [ OK ]
FAN [ OK ]
INTAKE AIR TEMPERATURE [ OK ]
OPTICS MODULE TEMPERATURE [ OK ]
EXHAUST AIR TEMPERATURE [ OK ]
LIGHT TEMPERATURE1 [ OK ]
LIGHT TEMPERATURE2 [ OK ]
LIGHT STATUS [ OK ]
INTAKE AIR TEMP.SENSOR [ OK ]
OPTICS MODULE TEMP.SENSOR [ OK ]
EXHAUST AIR TEMP.SENSOR [ OK ]
LIGHT TEMP. 1 SENSOR [ OK ]
LIGHT TEMP. 2 SENSOR [ OK ]
BATTERY [ OK ]
COLO R WHEEL [ OK ]
LENS MO UNTER [ OK ]
BRIGHTNESS SENSOR [ OK ]
ANGLE SENSOR [ OK ]
ATM SENSOR [ OK ]
PHOSPHOR WHEEL [ OK ]
(Error code 00 00 00 00 00 00 00 00 00 00 00 00 00 00)
Int ake air t emperat ure : 26 degC / 78 degF
O pt ics module t emperat ure : 35 degC / 95 degF
Exhaust air t emperat ure : 30 degC / 86 degF
Light temperature1 : 44 degC / 111 degF
Light temperature2 : 33 degC / 91 degF
PRO JECTO R RUNTIME 16 H
PO WER O N 72 times
LIG HT RUNTIME 16 H
LIG HT ON 78 times
---- Current status ----
MAIN VERSION 1.00
SUB VERSION 1.00
LIGHT STATUS LIGHT=ON
INPUT COMPUT ER1
SIGNAL NAME 1024x768
SIG NAL FREQ UENCY 48.22kHz / 59.85Hz
---- Wired Network configuration ----
DHCP Client OF F
IP address 192.168.0.8
MAC address 12:34:56:78:90:12
Mon Jan 01 12:34:56 20XX
---- Memo ----
Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== Panasonic projector report (ERRO R) ===
Project or Type : RZ 575
Serial No : 123456789012
---- check system ----
MAI N CPU BUS [ OK ]
FAN [ OK ]
INTAKE AIR TEMPERATURE [ OK ]
OPTICS MODULE TEMPERATURE [ OK ]
EXHAUST AIR TEMPERATURE [ OK ]
LIGHT TEMPERATURE1 [ OK ]
LIGHT TEMPERATURE2 [ OK ]
LIGHT STATUS [ OK ]
INTAKE AIR TEMP.SENSOR [ OK ]
OPTICS MODULE TEMP.SENSOR [ OK ]
EXHAUST AIR TEMP.SENSOR [ OK ]
LIGHT TEMP. 1 SENSOR [ OK ]
LIGHT TEMP. 2 SENSOR [ OK ]
BATTERY [ OK ]
COLO R WHEEL [ OK ]
LENS MO UNTER [ OK ]
BRIGHTNESS SENSOR [ FAILED ]
ANGLE SENSOR [ OK ]
ATM SENSOR [ OK ]
PHOSPHOR WHEEL [ OK ]
(Error code 00 00 00 00 00 00 00 00 00 00 00 00 80 00 00 00)
Int ake air t emperat ure : 28 degC / 82 degF
O pt lcs module t emperat ure : 35 degC / 95 degF
Exhaust air t emperat ure : 29 degC / 84 degF
Light temperature1 : 44 degC / 111 degF
Light temperature2 : 28 degC / 82 degF
PRO JECTO R RUNTIME 16 H
PO WER O N 72 times
LIG HT RUNTIME 16 H
LIG HT ON 78 times
---- Current status ----
MAIN VERSION 1.00
SUB VERSION 1.00
LIGHT STATUS LIGHT=ON
INPUT COMPUT ER1
SIGNAL NAME 1024x768
SIG NAL FREQ UENCY 48.22kHz / 59.85Hz
---- Wired Network configuration ----
DHCP Client OF F
IP address 192.168.0.8
MAC address 12:34:56:78:90:12
Mon Jan 01 12:34:56 20XX
---- Memo ----

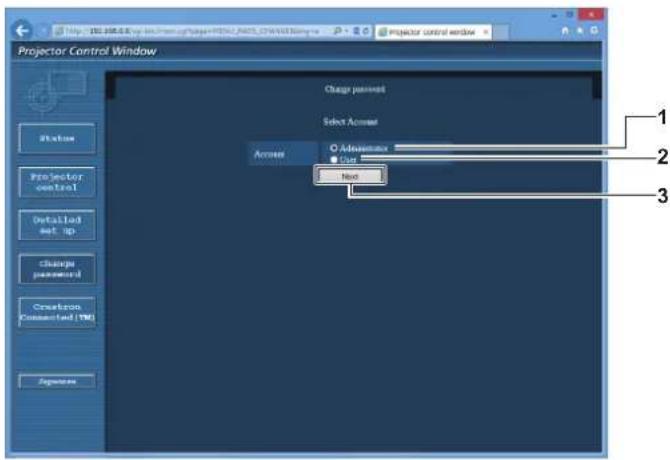

[Change password] page
Click [Change password].
Charge packet
Select Account
Access
O Address
User
Next
1
2
3
1 [Administrator]
Used to change the setting of the [Administrator].
3 [Next]
Used to change the setting of the password.
2 [User]
Used to change the setting of the [User].
[Administrator] account

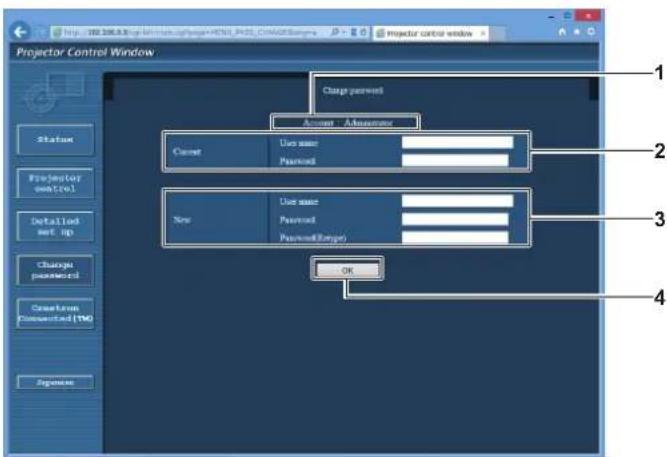

Charge percent
Account Adjustment
Current Use secr
Password
New Use secr
Password
Password Charger
OK
Status
Projector
control
Detailed
set-up
Change
posted
Cnustroom
Discounted (TM)
Appendix
1 [Account]
Displays the account to change.
2 [Current]
[User name]:
Enter the user name before the change.
[Password]:
Enter the current password.
3 [New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single byte)
[Password(Retype)]:
Enter the desired new password again.
4 [OK]
Determines the change of password.

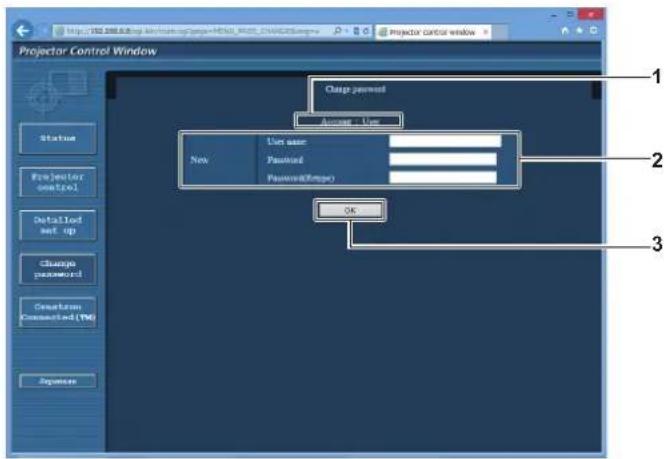

[User] account
Status
Projector
control
Detailed
set up
Change
password
Create
Connected (TM)
Appendix
Close password
Access Type
New
User user:
Password:
Password(Kmper)
OK
1
2
3
1 [Account]
Displays the account to change.
3 [OK]
Determines the change of password.
2 [New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single byte)
[Password(Retype)]:
Enter the desired new password again.

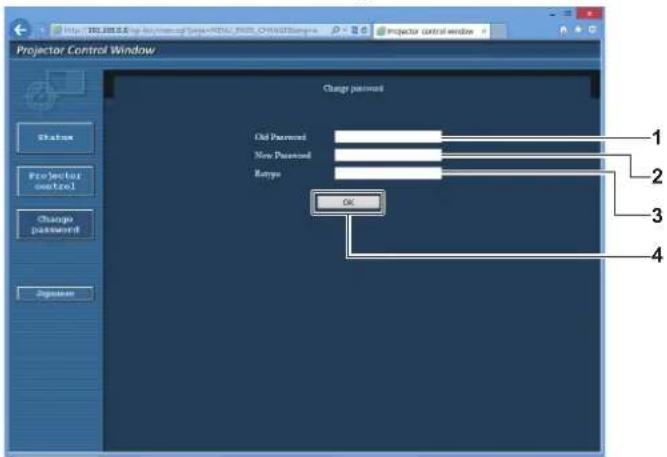

[Change password] (For user rights)
Only the change of password is enabled under the user rights.
Change password
Old Password
New Password
Kenya
OK
Status
Projector control
Change password
Ziggstream
1
2
3
4
1 [Old Password]
Enter the current password.
3 [Retype]
Enter the desired new password again.
2 [New Password]
Enter the desired new password. (Up to 16 characters in single byte)
4 [OK]
Determines the change of password.
Note
- To change the account of the administrator, you must enter the [User name] and [Password] in [Current].
[Crestron Connected(TM)] page
The projector can be monitored/controlled with Crestron Connected ^TM .
It is necessary to access with the administrator rights to start the operation screen of Crestron Connected™ from the web control screen. (The [Crestron Connected(TM)] button is not displayed in the web control screen with the user rights.)
The operation page of Crestron ConnectedTM is displayed by clicking [Crestron Connected(TM)].
It is not displayed if Adobe Flash Player is not installed on your computer, or the browser you use does not support Flash. In such a case, click [Back] in the operation page to go back to the previous page.

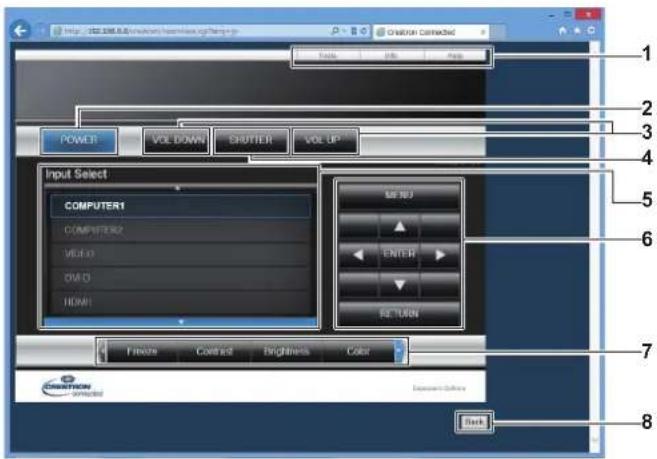

Operation page
2
3
4
5
6
7
8
POWER
VOL DOWN
SHUTTER
VOL UP
Input Select
COMPUTER1
COMPUTER2
VOL 0
OM 0
HDMI
NEW
ENTER
RETURN
Freeze
Contract
Brightness
Color
Back
1 [Tools], [Info], [Help]
Tabs for selecting the setting, information, or help page of the projector.
2 [POWER]
Turns on/off the power.
3 [VOL DOWN], [VOL UP]
Adjusts the volume.
4 [SHUTTER]
Switches whether to use the shutter function (enabled (shutter: closed)/disabled (shutter: open)).
5 [Input Select]
Controls input selection.
Not available when the power of the projector is turned off.
6 Menu screen control buttons
Navigates the menu screen.
7 Freeze/image quality adjustment
Controls items related to freeze/image quality.
8 [Back]
Returns to the previous page.
[Tools] page
Click [Tools] in the operation page.
2
3
4
5
Create Connected
Control System
If Address:
BPE 0
FWE 41194
Send
User Password
New Password
Customs
Send
Admin Password
New Password
Customs
Send
E-mail
E-mail
Back
1 [Control System]
Set the information required for communicating with the controller to be connected with the projector.
2 [User Password]
Set the user rights password for the operation page of Crestron Connected™.
3 [Admin Password]
Set the administrator rights password for the operation page of Crestron Connected™.
4 Network status
Displays the settings of wired LAN.
[DHCP]
Displays the current setting.
[Ip Address]
Displays the current setting.
[Subnet Mask]
Displays the current setting.
[Default Gateway]
Displays the current setting.
[DNS Server]
Displays the current setting.
5 [Exit]
Returns to the operation page.

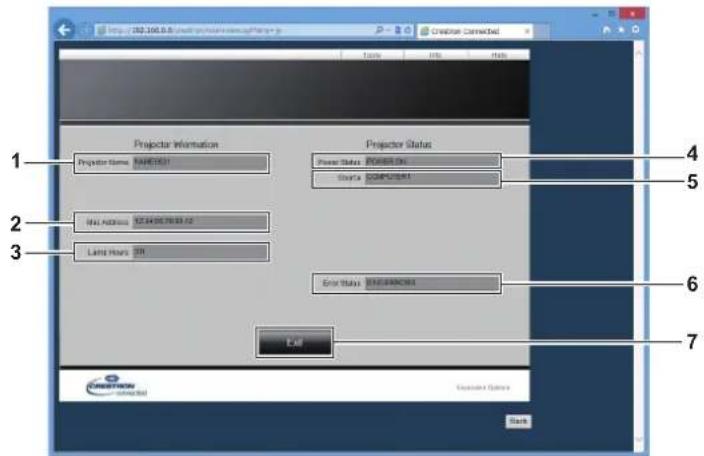

[Info] page
Click [Info] in the operation page.
Projector Name NAME:1
Site Address: 52.24.06.78.93.42
Land Hours: 28
Projector Status
Power Status POWER:0%
Case's COMPUTER1
Error Status: 100%000000
Fall
Projector Status
Back
1 [Projector Name]
Displays the projector name.
2 [Mac Address]
Displays the MAC address.
3 [Lamp Hours]
Displays the runtime of the light source.
4 [Power Status]
Displays the status of the power.
5 [Source]
Displays the selected input.
6 [Error Status]
Displays the error status.
7 [Exit]
Returns to the operation page.

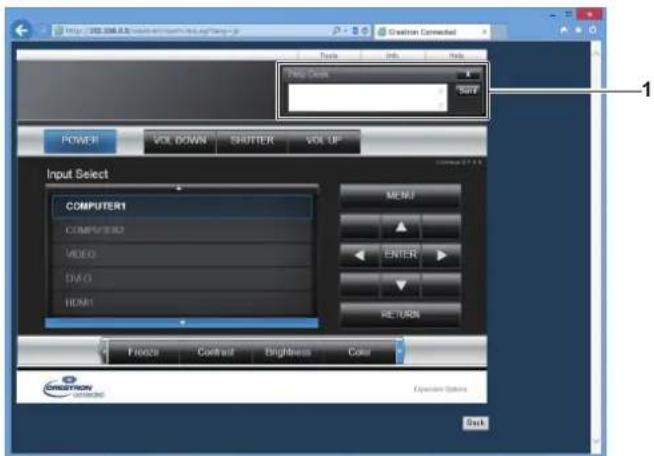

[Help] page
Click [Help] in the operation page.
The [Help Desk] window is displayed.
COMPUTER1
COMPUTER2
VIDEO
D:O
HDMI
MENU
ENTER
RETURON
Balance Contrast Brightness Color
STATION CONTROL
Expansion Options
Back
1 [Help Desk]
A message can be sent/received with the administrator using the Crestron Connected™.
Chapter 6 Maintenance
This chapter describes inspection methods when there are problems, and maintenance methods.
Light source/temperature indicators
When an indicator lights up
If a problem occurs inside the projector, the light source indicator or the temperature indicator will inform you by lighting or blinking. Check the status of the indicators and take following measures.
Attention
- When switching off the projector to deal with problems, make sure to follow the procedure in "Switching off the projector" (→ page 49).
Temperature indicator
Light source indicator
Indicator status Lighting in red Blinking in red(3 times) Status Some of the elements of the light source are defective and the light output has decreased. Cause — Solution • Turn theswitch to(→ page 49), and turn on the power again.
Note
If the light source indicator continues to light or blink even after the measure is taken, set the switch to , and ask your dealer for repair.
The light source indicator lights in green while the projector is in projection mode if there is no notification by lighting or blinking in red.
Temperature indicator
Indicator status Lighting in red Blinking in red(2 times) Blinking in red(3 times) Status Warm-up status Internal temperature is high (warning). Internal temperature is high (standby status). The cooling fan has stopped. Cause Did you turn on the power when the temperature was low (around 0 °C (32 °F))? Is the air intake/exhaust port blocked?Is the room temperature high? — Solution Wait at least five minutes in the current status.Use the projector in an appropriate operating environment temperature^*1 . Remove any objects that are blocking the air intake/ exhaust port.Use the projector in an appropriate operating environment temperature^*1 .Do not use the projector at an altitude of 4 200 m (13 780') or higher above sea level ^*2 . Turn theswitch to(→ page 49), and consult your dealer.
*1 The operating environment temperature of the projector differs depending on the altitude or the setting of the [PROJECTOR SETUP] menu → [OPERATION SETTING] → [OPERATING MODE]. For details, refer to "Operating environment temperature" (▶ page 178).
*2 When the [PROJECTOR SETUP] menu → [OPERATION SETTING] → [OPERATING MODE] is set to [ECO], [SILENT], [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3], the projector cannot be used at an altitude of 2 700 m (8 858') or higher above sea level.
Note
- If the temperature indicator is still lit or blinking after taking the measures, ask your dealer for repair.
Maintenance
Before maintaining the projector
Make sure to turn off the power before performing the maintenance of the projector. (→ pages 40, 49)
When switching off the projector, make sure to follow the procedures in “Switching off the projector” ( page 49).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
If the dirt is persistent, soak the cloth with water and wring it thoroughly before wiping. Dry off the projector with a dry cloth.
Do not use benzene, thinner, or rubbing alcohol, other solvents, or household cleaners. Doing so may deteriorate the outer case.
When using chemically treated dust cloths, follow the instructions written on its packaging.
Lens front surface
Wipe off dirt and dust from the front surface of the lens with a soft clean cloth.
- Do not use a cloth that is fluffy, dusty, or soaked with oil/water.
- Since the lens is fragile, do not use excessive force when wiping the lens.
Attention
- The lens is made of glass. Impacts or excessive force when wiping may scratch its surface. Handle with care.
Note
- Dust may accumulate around the air intake/exhaust port depending on the environment and operating condition when used in an environment with excessive dust. This may adversely affect the ventilation, cooling, and heat dissipation inside the projector, thus causing reduced brightness.
Troubleshooting
Review the following points. For details, see the corresponding pages.
Problems Points to be checked Page Power does not turn on. ●Is the power plug firmly inserted into the outlet? —● Is theswitch set to?●Is the wall outlet supplying electricity? —●Have the circuit breakers tripped? —●Is the light source indicatorblinking?●Is the temperature indicatorlit or blinking? 49157157 No image appears. ●Are connections to external devices correctly performed?●Is the input selection setting correct? 50●Is the [BRIGHTNESS] adjustment setting at a minimum?●Is the external device that is connected to the projector working properly?●Is the shutter function in use? 54, 97●If the power indicatoris blinking in red, consult your dealer. 3466—— Image is fuzzy. ●Is the lens focus set correctly?●Is the projection distance appropriate?●Is the lens dirty?●Is the projector installed perpendicular to the screen? 513120— Color is pale or grayish. ●Are [COLOR] and [TINT] adjusted correctly?●Is the external device connected to the projector adjusted correctly?●Is the computer cable damaged? 6734— Audio is not output. ●Is the external device connected correctly to the audio input terminal?●Is the mute function used?●Is [AUDIO IN SELECT] in [AUDIO SETTING] correctly set? 2754, 116117 Remote control does not respond. ●Are the batteries depleted?●Is the polarity of the batteries set correctly?●Are there any obstructions between the remote control and the remote control signal receiver of the projector?●Is the remote control being used beyond its effective operation range?●Are other forms of light, such as fluorescent light, affecting the projection?●Is the [REMOTE CONTROL] setting in [CONTROL DEVICE SETUP] set to [DISABLE]?●Is the ID number setting operation correct? —2824242412858 Menu screen does not appear. ●Is the on-screen display function turned off (hidden)? 55 Buttons on the control panel do not operate. ●Is the [CONTROL PANEL] setting in [CONTROL DEVICE SETUP] set to [DISABLE]? 128 Image does not display correctly. ●Is [SYSTEM SELECTOR] set properly?●Is [COMPUTER IN/OUT] set correctly?●Is there a problem with the video tape or other image sources?●Is a signal which is not compatible with the projector being input? 7087—175 Part of image is missing. ●Is the lens position within the adjustment range?●Is [SHIFT] adjusted correctly?●Is [ASPECT] set properly?●Is [BLANKING] adjusted correctly? 53727277 Image from a computer does not appear. ●Is the cable too long? (For D-Sub cables, the cable length should be 10 m (32'10") or shorter.)●Is the external video output on the laptop computer set correctly? (Ex.: The external output settings may be switched by pressing the "Fn" + "F3" keys or the "Fn" + "F10" keys simultaneously. This will differ depending on the model of the computer. Refer to the user manual provided with your computer.) — Image output from DVI-D of the computer does not appear. ●Is [EDID SELECT] in [DVI-D IN] set to [EDID3] or [EDID2:PC]?●It may improve by updating the graphic accelerator driver of the computer to the latest version.●It may improve by performing the [EDID SELECT] setting in [DVI-D IN], and then rebooting the computer. 89—89
Chapter 6 Maintenance — Troubleshooting
Problems Points to be checked Page Video from HDMI compatible device does not appear or it appears jumbled. •Is the HDMI cable connected securely? 34Turn the power of the projector and the external device off and on.Is a signal which is not compatible with the projector being input? —175 Lens shift cannot be adjusted. •Perform [LENS CALIBRATION]. 115 Cannot control the projector with Art-Net. Are the connections between the twisted-pair-cable transmitter and an external device, and between the twisted-pair-cable transmitter and projector correctly done?Is [Art-Net SETUP] set to other than [OFF]?Are [NET], [SUB NET], [UNIVERSE], and [START ADDRESS] set correctly? —133133 The DIGITAL LINK input image is not displayed. Is the cable compatible to the condition of the projector used?Are the connections between the twisted-pair-cable transmitter and an external device, and between the twisted-pair-cable transmitter and projector correctly done?Is [DIGITAL LINK MODE] set to [AUTO] or [DIGITAL LINK]? Is it set to [ETHERNET]?Is a signal which is not compatible with a twisted-pair-cable transmitter being input? 37—131—
Attention
- If problems persist even after checking the preceding points, consult your dealer.
[SELF TEST] indications
[SELF TEST] can be checked in the [PROJECTOR SETUP] menu → [STATUS] → [SELF TEST].
The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and its details. Confirm “Action number”, and follow the measure in “Measure for error and warning” ( page 162).
The input supply voltage is displayed only with the numeric value.
Error/warning display Details Action number U11 Intake temperature warning 1 U12 Optical module temperature warning 1 U13 Exhaust air temperature warning 1 U14 Low temperature warning 2 U16 Temperature warning for the front block of the light source (on the lens side) 1 U18 Temperature warning for the rear block of the light source (on the air exhaust port side) 1 U21 Intake temperature error 1 U22 Optical module temperature error 1 U23 Exhaust air temperature error 1 U24 Low temperature error 2 U25 Temperature error for the front block of the light source (on the lens side) 1 U27 Temperature error for the rear block of the light source (on the air exhaust port side) 1 H01 Battery replacement for the internal clock 3 H11 Intake air temperature sensor error 4 H12 Optical module temperature sensor error 4 H13 Exhaust air temperature sensor error 4 H14 Temperature sensor error for the front block of the light source (on the lens side) 4 H16 Temperature sensor error for the rear block of the light source (on the air exhaust port side) 4 F15 Luminance sensor warning 4 F16 Angle sensor error 4 F18 Air pressure sensor error 4 F50 Heat pipe fan 1 warning 4 F51 Heat pipe fan 2 warning 4 F52 DMD fan warning 4 F53 Circuit intake fan warning 4 F54 Exhaust fan 1 warning 4 F55 Exhaust fan 2 warning 4 F56 Center fan warning 4 F61 Light source driver communication error 4 F85 Color wheel error (FM) 4 F86 Color wheel error (FPGA) 4 F90 FPGA configuration error 4 F96 Lens mounter error 4 F99 Internal error 4 FE1 Heat pipe fan 1 error 4 FE2 Heat pipe fan 2 error 4 FE3 DMD fan error 4 FE4 Circuit intake fan error 4 FE5 Exhaust fan 1 error 4 FE6 Exhaust fan 2 error 4 FE7 Center fan error 4 FH0 PW ERROR (FM/SUB) 4 FL1 Light source unit error 5 FL5 Light source bank 1 warning 4 FL6 Light source bank 2 warning 4 FL7 Light source bank 3 warning 4 FL8 Light source bank 4 warning 4
Note
- The self-diagnosis display and the details of the malfunction may be different.
- For errors and warnings that are not described in the table, consult your dealer.
■Measure for error and warning
Action number Measure 1 The operating environment temperature is too high. Use the projector in an appropriate operating environment temperature^*1 . 2 The operating environment temperature is too low. Use the projector in an appropriate operating environment temperature^*1 . 3 Battery replacement is required. Consult your dealer. 4 If the display does not clear after switching the main power off and on, consult your dealer. 5 The light source has failed to turn on. If the light source does not light up after turning the power off and on, consult your dealer.
*1 The operating environment temperature of the projector differs depending on the altitude or the setting of the [PROJECTOR SETUP] menu → [OPERATION SETTING] → [OPERATING MODE]. For details, refer to “Operating environment temperature” (→ page 178).
Chapter 7 Appendix
This chapter describes specifications and after-sales service for the projector.
PJLink protocol
The network function of this projector supports the PJLink class 1, and the PJLink protocol can be used to perform projector setting and projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used to control the projector.
- x characters in tables are non-specific characters.
Command Control details Parameter/response string Remark POWR Power supply control 0 Standby1 Power on POWR? Power supply status query 0 Standby1 Power on2 Preparing for switching off3 Warm-up the projector INPT Input selection 11 COMPUTER112 COMPUTER221 VIDEO32 HDMI133 DIGITAL LINK36 HDMI2 INPT? Input selection query 31 DVI-D AVMT Shutter control/audio output control 10 Shutter function disabled11 Shutter function enabled20 Shutter function disabled2130 Shutter function disabled31 (shutter: open), mute function disabled(shutter: closed), mute function disabled(shutter: open), mute function disabledShutter function disabled (shutter: open), mute function enabled (muted)(shutter: open), mute function disabledShutter function enabled (shutter: closed), mute function enabled (muted) AVMT? Shutter status query/audio output status query ERST? Error status query xxxxxx 1st byte Indicates fan errors, and returns 0 or 2. ● 0 = No error is detected● 1 = Warning● 2 = Error 2nd byte Indicates light source errors, and returns 0 or 2. 3rd byte Indicates temperature errors, and returns 0 - 2. 4th byte Return s 0. 5th byte Return s 0. 6th byte Indicates other errors, and returns 0 - 2. LAMP? Light source status query xxxxxx 1st number (1 - 5 digits): Light source runtime2nd number: 0 = Light source off, 1 = Light source on INST? Input selection list query 11 12 21 31 32 33 36 — NAME? Projector name query xxxxx Returns the name set in the [NETWORK] menu → [NETWORK SETUP] → [PROJECTOR NAME]. INF1? Manufacturer name query Panasonic Returns manufacturer name. INF2? Model name query RZ575 Returns model name. INF0? Other information queries xxxxx Returns the main version of the firmware. CLSS? Class information query 1 Returns class for PJLink.
PJLink security authentication
The password used for PJLink is the same as that of the password set for web control.
When using the projector without security authentication, do not set a password for web control.
- For specifications related to PJLink, visit the website of Japan Business Machine and Information System Industries Association.
URL http://pjlink.jbmia.or.jp/english/
Using Art-Net function
Since the network function of the projector supports the Art-Net function, you can control the projector settings with the DMX controller and application software using the Art-Net protocol.
Channel definition
The following table lists the channel definitions used for controlling the projector with the Art-Net function.
Channel settings can be switched using the [NETWORK] menu → [Art-Net CHANNEL SETTING] (→ page 134).
The control details assigned to each channel are listed in the following table.
- Channel assignment for [USER] is in factory default setting. Assignment can be changed.
Channel Control details [2] [USER] [1] CHANNEL1 LIGHT OUTPUT Lenght LIGHT OUTPUT SHUTTER CHANNEL2 INPUT SELECT INPUT SELECT INPUT SELECT CHANNEL3 LENS POSITION POSITION LENS POSITION LENS FUNCTION SELECT CHANNEL4 LENS H SHIFT LENS H SHIFT LENS CONTROL CHANNEL5 LENS V SHIFT LENS V SHIFT POWER CHANNEL6 LENS FOCUS LENS FOCUS LIGHT OUTPUT CHANNEL7 NONE NONE ENABLE / DISABLE CHANNEL8 POWER POWER FADE-IN CHANNEL9 SCREEN ADJUSTMENT SCREEN ADJUSTMENT FADE-OUT CHANNEL10 NONE NONE NONE CHANNEL11 ENABLE / DISABLE ENABLE / DISABLE SCREEN ADJUSTMENT CHANNEL12 NONE NONE NONE
Control details
LIGHT OUTPUT
This can be set in 256 steps between 100 % and 0 %.
Performance Parameter Default value 100 % 0 0 ... ... 0 % 255
Performance Parameter Default value No operation 0-7 0 COMPUTER1 8-15 COMPUTER2 16-23 VIDEO 24-31 DVI-D 32-39 HDMI1 40-47 DIGITAL LINK 48-55 No operation 56-127 Execute P IN P, USER1 128-135 Execute P IN P, USER2 136-143 Execute P IN P, USER3 144-151 No operation 152-255
■ INPUT SELECT (when [Art-Net CHANNEL SETTING] is set to [2] or [USER])
Performance Parameter Default value No operation 0-7 0 COMPUTER1 8-15 COMPUTER2 16-23 DVI-D 24-31 HDMI1 32-39 DIGITAL LINK 40-47 No operation 48-63 VIDEO 64-71 HDMI2 72-79 No operation 80-119 P IN P OFF 120-127 Execute P IN P, USER1 128-135 Execute P IN P, USER2 136-143 Execute P IN P, USER3 144-151 No operation 152-255
■LENS POSITION
Performance Parameter Default value No operation 0-31 0Move to the home No operation 64-255
position 32-
■LENS H SHIFT, LENS V SHIFT, LENS FOCUS
Performance Parameter Default value Lens adjustment (-) High speed 0-31 128 (-) Low speed 32-63 (-) Fine adjustment 64-95 Operation stop 96-159 Lens adjustment (+) Fine adjustment 160-191 (+) Low speed 192-223 (+) High speed 224-255
■LENS FUNCTION SELECT (when [Art-Net CHANNEL SETTING] is set to [1])
Operate together with LENS CONTROL.
Performance Parameter Default value No operation 0-15 0 LENS H SHIFT 16-31 LENS V SHIFT 32-47 LENS FOCUS 48-63 No operation 64-79 Move to the home position 80-95 No operation 96-255
■LENS CONTROL (when [Art-Net CHANNEL SETTING] is set to [1])
Operate together with LENS FUNCTION SELECT.
Performance Parameter Default value Lens adjustment (-) High speed 0-31 100 (-) Low speed 32-63 (-) Fine adjustment 64-95 Operation stop 96-127 Lens adjustment (+) Fine adjustment 128-159 (+) Low speed 160-191 (+) High speed 192-223 Execute command action 224-255
POWER
Performance Parameter Default value Standby 0-63 128No operation 64-191 Power on 192-255
■SHUTTER
Performance Parameter Default value SHUTTER: Open, mute clear 0-63 128No operation 64-191 SHUTTER: Closed, mute 192-255
■FADE-IN, FADE-OUT (when [Art-Net CHANNEL SETTING] is set to [1])
Operate together with SHUTTER.
Performance Parameter Default value OFF 0-15 255 0.5s 16-31 1.0s 32-47 1.5s 48-63 2.0s 64-79 2.5s 80-95 3.0s 96-111 3.5s 112-127 4.0s 128-143 5.0s 144-159 7.0s 160-175 10.0s 176-191 No operation 192-255
■SCREEN ADJUSTMENT
Performance Parameter Default value OFF 0-15 255 KEYSTONE 16-31 CURVED CORRECTION 32-47 PC-1 48-63 PC-2 64-79 PC-3 80-95 CORNER CORRECTION 96-111 No operation 112-255
FREEZE
Performance Parameter Default value No operation 0-31 128 OFF 32-95 No operation 96-159 ON 160-223 No operation 224-255
■COLOR, TINT
Performance Parameter Default value No operation 0-31 0 Factory default setting 32-63 -31 64 ... ... 0 128-129 ... ... +31 191 No operation 192-255
■RASTER PATTERN
Performance Parameter Default value No operation 0-15 0 OFF 16-31 WHITE 32-47 YELLOW 48-63 CYAN 64-79 GREEN 80-95 MAGENTA 96-111 RED 112-127 BLUE 128-143 BLACK 144-159 USER LOGO 160-175 No operation 176-255
AUDIO VOLUME
Performance Parameter Default value No operation 0-31 0 Factory default setting 32-63 0 64-65 ... ... 63 190-191 No operation 192-255
■ ENABLE / DISABLE
Operation for all channels is not accepted when set to "Disable".
Performance Parameter Default value Disable 0-127 0 Enable 128-255
Note
If the projector is operated using the remote control or the control panel, or by the control command while controlling the projector using the Art-Net function, the setting of the DMX controller or computer application may be different from the projector status. To reflect the controls of all channels to the projector, set "ENABLE / DISABLE" of channel 11 to "Disable" and then back to "Enable".
To create/register the USER LOGO image, use "Logo Transfer Software" included in the supplied CD-ROM.
Control commands via LAN
When web control administrator rights password is set (Protect mode)
Connecting
1) Obtain the IP address and port number (Initial set value = 1024) of the projector and request a connection to the projector.
- You can obtain both the IP address and the port number from the menu screen of the projector.
IP address Obtain from the [NETWORK] menu → [NETWORK STATUS]. Port number Obtain from the [NETWORK] menu → [NETWORK CONTROL] → [COMMAND PORT].
2) Check the response from the projector.
Data section Blank Mode Blank Random number section Termination symbol Command example “NTCONTROL” (ASCII string) ‘’ 0x20 ‘1’ 0x31 ‘’ 0x20 “zzzzzzzz” (ASCII code hex number) (CR) 0x0d Data length 9 bytes 1 byte 1 byte 1 byte 8 bytes 1 byte
- Mode: 1 = Protect mode
- Example: Response during protect mode (random number section is undefined value) "NTCONTROL 1 23181e1e" (CR)
3) Generate a 32-byte hash value from the following data using MD5 algorithm.
- "xxxxxx:yyyyMMddy:zzzzzzzzz"
xxxxxx Administrator rights user name for the web control (default user name is “admin1”) yyyy Password of above administrator rights user (default password is “panasonic”) zzzzzzzzz 8-byte random number obtained in Step 2)
Command transmission method
Transmit using the following command formats.
■ Transmitted data
Header Data section Termination symbol Command example Hash value“Connecting” (→ page 169) ‘0’0x30 ‘0’0x30 Control command(ASCII string) (CR)0x0d Data length 32 bytes 1 byte 1 byte Undefined length 1 byte
- Example: Transmission of power supply status acquisition command (hash value is calculated from default user name, password, and acquired random number)
"dbdd2dabd3d4d68c5dd970ec0c29fa6400QPW" (CR)
■ Received data
Header Data section Termination symbol Command example '0'0x30 '0'0x30 Control command (ASCII string) (CR)0x0d Data length 1 byte 1 byte Undefined length 1 byte
- Example: The projector is powered on "00001" (CR)
■Error response
String Details Termination symbol Message “ERR1” Undefined control command (CR)0x0d “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes — 1 byte
When web control administrator rights password is not set (Non-protect mode)
Connecting
1) Obtain the IP address and port number (Initial set value = 1024) of the projector and request a connection to the projector.
- You can obtain both the IP address and the port number from the menu screen of the projector.
IP address Obtain from the [NETWORK] menu → [NETWORK STATUS]. Port number Obtain from the [NETWORK] menu → [NETWORK CONTROL] → [COMMAND PORT].
2) Check the response from the projector.
Data section Blank Mode Termination symbol Command example “NTCONTROL” (ASCII string) ‘’ 0x20 ‘0’ 0x30 (CR) 0x0d Data length 9 bytes 1 byte 1 byte 1 byte
- Mode: 0 = Non-protect mode
- Example: Response during non-protect mode
"NTCONTROL 0" (CR)
Command transmission method
Transmit using the following command formats.
■Transmitted data
Header Data section Termination symbol Command example ‘0’0x30 ‘0’0x30 Control command (ASCII string) (CR)0x0d Data length 1 byte 1 byte Undefined length 1 byte
- Example: Transmission of power supply status acquisition command "00QPW" (CR)
■Received data
Header Data section Termination symbol Command example ‘0’0x30 ‘0’0x30 Control command(ASCII string) (CR)0x0d Data length 1 byte 1 byte Undefined length 1 byte
- Example: The power of the projector is in standby status "00000" (CR)
■Error response
String Details Termination symbol Message “ERR1” Undefined control command (CR)0x0d “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes — 1 byte
terminal The terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled from a computer.
Connection
When connecting directly
When connecting using DIGITAL LINK compatible device
Note
The destination of [RS-232C] (→ page 114) must be set according to the connection method.
When connecting using a DIGITAL LINK compatible device, set the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY
Pin assignments and signal names
D-Sub 9-pin (female) Outside view Pin No. Signal name Details (1) — NC (2) TXD Transmitted data (3) RXD Received data (4) — NC (5) GND Earth (6) — NC (7) CTS Connected internally (8) RTS (9) — NC
Communication conditions (Factory default)
Signal level RS-232C-compliant Sync. method Asynchronous Baud rate 9 600 bps Parity None Character length 8 bits Stop bit 1 bit X parameter None S parameter None

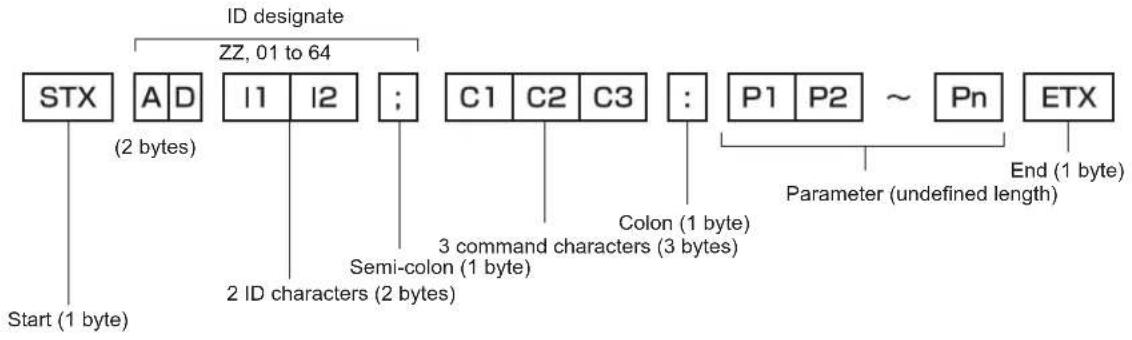

Transmission from the computer starts with STX, then the ID, command, parameter, and ETX are sent in this order. Add parameters according to the details of control.
ZZ, 01 to 64
STX A D I1 I2 ; C1 C2 C3 : P1 P2 ~ Pn ETX
(2 bytes) (2 bytes)
Semi-colon (1 byte) 3 command characters (3 bytes)
2 ID characters (2 bytes)
Start (1 byte)
End (1 byte)
Parameter (undefined length)

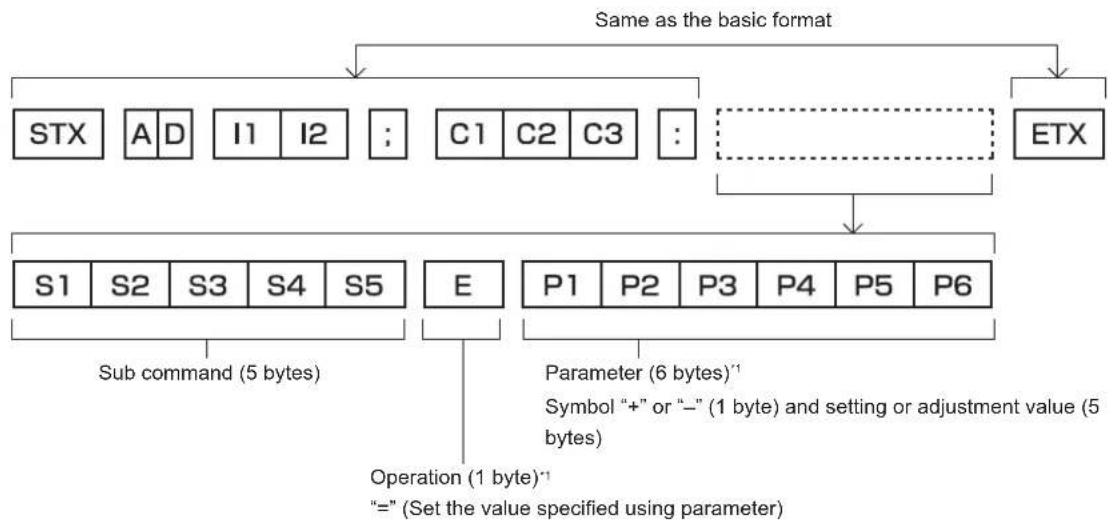

*1 When transmitting a command which does not need a parameter, an operation (E) and parameter are not necessary.
Attention
If a command is sent after the light source starts lighting, there may be a delay in response or the command may not be executed. Try sending or receiving any command after 60 seconds.
When transmitting multiple commands, be sure to wait until 0.5 seconds has elapsed after receiving the response from the projector before sending the next command. When transmitting a command which does not need a parameter, a colon (:) is not necessary.
Note
If a command cannot be executed, the "ER401" response is sent from the projector to the computer.
If an invalid parameter is sent, the "ER402" response is sent from the projector to the computer.
ID transmission in RS-232C supports ZZ (ALL) and 01 to 64.
If a command is sent with an ID designated, a response will be sent to the computer only in the following cases.
Cable specification
When connected to a computer
( terminal)
1 NC NC 1
2
3
4 NC NC 4
5
6 NC NC 6
7
8
9 NC NC 9
Computer
(DTE specifications)
Control command
The following table lists the commands that can be used to control the projector using a computer.
■Projector control command
Command Details Parameter/response string Remark (parameter) PON Power on — To check if the power is on, use the “Power query” command. POF Power standby QPW Power query 000001 STANDBYPower on IIS Switching the input signal VID VIDEORG1 COMPUTER1RG2 COMPUTER2DVI DVI-DHD1 HDMI1HD2 HDMI2DL1 DIGITAL LINK OSH Shutter control 0 OPEN QSH Shutter status query 1 CLOSE VSE Aspect ratio switch 01256910 DEFAULT/VID AUTO/AUTO4:316:9THROUGHHV FITH FITV FIT QSE Aspect ratio settings query OPP P IN P execution 0123 OFFUSER1USER2USER3 QPP P IN P setting query OCS Sub memory switch 01 - 96 Sub memory number QSB Sub memory status query
■Projector control command (with sub command)
Command Sub command Details Remark VXX RYCI1 COMPUTER1 input setting +00000 = RGB/YP _BP_R_0 +00001 = Y/C
■ Lens control command
Command Sub command Details Remark VXX LNS12 Lens H shift +00000 = Fine adjustment 1+, +00001 = Fine adjustment 1-, +00100 = Fine adjustment 2+, +00101 = Fine adjustment 2-, +00200 = Coarse adjustment+, +00201 = Coarse adjustment- VXX LNS13 Lens V shift VXX LNS14 Lens focus
Two-window display combination list
√: P IN P (picture in picture) combination is possible
Sub window Main window COMPUTER1 COMPUTER2 DVI-D VIDEO HDMI1 HDMI2 DIGITAL LINK COMPUTER1 input Still image signal — √ — ^*1 — √ √ Moving image signal Y/C signal COMPUTER2 input Still image signal √ — — — Moving image signal DVI-D input Still image signal — √ — √ — √ √ Moving image signal VIDEO input Video signal ^*1 √ √ — HDMI1 input Still image signal — √ — √ — √ √ Moving image signal HDMI2 input Still image signal √ — — — Moving image signal DIGITAL LINK input Still image signal √ — — — Moving image signal
*1 Only when the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] (COMPUTER1 input) → [INPUT SETTING] is set to [RGB / YPBP R]
Control device password
To initialize your password, consult your distributor.
List of compatible signals
The following table specifies the video signals compatible with the projector.
- Symbols that indicate formats are as follows.
-V: VIDEO, Y/C R /YP B P _R (analog)
- Input corresponding to each item in the plug and play column is as follows.
-COMPUTER: COMPUTER1/COMPUTER2 input
Signal name (SIGNAL FORMAT) Resolution (Dots) Scanning freq. Dot clock freq. (MHz) Format Plug and play*1 Horizontal (kHz) Vertical (Hz) COMPUTER DVI-D HDMI/ DL EDID1 EDID2 EDID3 NTSC/NTSC4.43/PAL-M/PAL60 720 x 480i 15.7 59.9 — V — — — — — PAL/PAL-N/SECAM 720 x 576i 15.6 50.0 — V — — — — — 480/60i 720 x 480i 15.7 59.9 13.5 R/Y — — — — — — 576/50i 720 x 576i 15.6 50.0 13.5 R/Y — — — — — — 480/60i 720(1 440) x 480i2 15.7 5 9.9 27.0 D/H — — — — — 576/50i 720(1 440) x 576i2 15.6 5 0.0 27.0 D/H — — — — — 480/60p 720 x 480 31.5 59.9 27.0 R/Y/D/H — √ — √ √ 576/50p 720 x 576 31.3 50.0 27.0 R/Y/D/H — √ — √ √ 720/60p 1 280 x 720 45.0 60.0 74.3 R/Y/D/H — √ — √ √ 720/50p 1 280 x 720 37.5 50.0 74.3 R/Y/D/H — √ — √ √ 1080/60i 1 920 x 1 080i 33.8 60.0 74.3 R/Y/D/H — √ — √ √ 1080/50i 1 920 x 1 080i 28.1 50.0 74.3 R/Y/D/H — √ — √ √ 1080/24p 1 920 x 1 080 27.0 24.0 74.3 R/Y/D/H — √ — √ √ 1080/24sF 1 920 x 1 080i 27.0 48.0 74.3 R/Y/D/H — — — — — 1080/25p 1 920 x 1 080 28.1 25.0 74.3 R/Y/D/H — √ — √ — 1080/30p 1 920 x 1 080 33.8 30.0 74.3 R/Y/D/H — — — — — 1080/60p 1 920 x 1 080 67.5 60.0 148.5 R/Y/D/H — √ — √ √ 1080/50p 1 920 x 1 080 56.3 50.0 148.5 R/Y/D/H — √ — √ √ 640 x 400/70 640 x 400 31.5 70.1 25.2 R/D/H — — — — — 640 x 400/85 640 x 400 37.9 85.1 31.5 R/D/H — — — — — 640 x 480/60 640 x 480 31.5 59.9 25.2 R/D/H √ √ √ √ √ 640 x 480/67 640 x 480 35.0 66.7 30.2 R/D/H — — — — — 640 x 480/73 640 x 480 37.9 72.8 31.5 R/D/H √ — √ √ √ 640 x 480/75 640 x 480 37.5 75.0 31.5 R/D/H √ — √ √ √ 640 x 480/85 640 x 480 43.3 85.0 36.0 R/D/H — — — — — 800 x 600/56 800 x 600 35.2 56.3 36.0 R/D/H √ — √ √ √ 800 x 600/60 800 x 600 37.9 60.3 40.0 R/D/H √ — √ √ √ 800 x 600/72 800 x 600 48.1 72.2 50.0 R/D/H √ — √ √ √ 800 x 600/75 800 x 600 46.9 75.0 49.5 R/D/H √ — √ √ √ 800 x 600/85 800 x 600 53.7 85.1 56.3 R/D/H — — — — — 832 x 624/75 832 x 624 49.7 74.6 57.3 R/D/H √ — √ √ √ 1024 x 768/50 1 024 x 768 39.6 50.0 51.9 R/D/H — — — — — 1024 x 768/60 1 024 x 768 48.4 60.0 65.0 R/D/H √ — √ √ √ 1024 x 768/70 1 024 x 768 56.5 70.1 75.0 R/D/H √ — √ √ √ 1024 x 768/75 1 024 x 768 60.0 75.0 78.8 R/D/H √ — √ √ √ 1024 x 768/82 1 024 x 768 65.5 81.6 86.0 R/D/H — — — — — 1024 x 768/85 1 024 x 768 68.7 85.0 94.5 R/D/H — — — — — 1024 x 768/100 1 024 x 768 81.4 100.0 113.3 R/D/H — — — — — 1024 x 768/120 1 024 x 768 98.7 120.0 139.1 R/D/H √ — √ √ √
Chapter 7 Appendix — Technical information
Signal name(SIGNAL FORMAT) Resolution(Dots) Scanning freq. Dot clockfreq.(MHz) Format Plug and play ^1 Horizontal(kHz) Vertical(Hz) COMPUTER DVI-D HDMI/DL EDID1 EDID2 EDID3 1152 x 864/60 1 152 x 864 53.7 60.0 81.6 R/D/H — — — — — 1152 x 864/70 1 152 x 864 64.0 70.0 94.2 R/D/H — — — — — 1152 x 864/75 1 152 x 864 67.5 75.0 108.0 R/D/H — — — — 1152 x 864/85 1 152 x 864 77.1 85.0 119.7 R/D/H — — — — 1152 x 870/75 1 152 x 870 68.7 75.1 100.0 R/D/H √ — √√√ 1280 x 720/50 1 280 x 720 37.1 49.8 60.5 R/D/H — — — — — 1280 x 720/60 1 280 x 720 44.8 59.9 74.5 R/D/H — — — — — 1280 x 720/100 1 280 x 720 76.3 100.0 131.8 R/D/H — — — — — 1280 x 720/120 1 280 x 720 92.6 120.0 161.6 R/D/H — — — — — 1280 x 768/50 1 280 x 768 39.6 49.9 65.3 R/D/H — — — — — 1280 x 768/60 1 280 x 768 47.8 59.9 79.5 R/D/H — — — — — 1 280 x 768 ^3 47.4 60.0 68.3 R/D/H — — — — 1280 x 768/75 1 280 x 768 60.3 74.9 102.3 R/D/H — — — — 1280 x 768/85 1 280 x 768 68.6 84.8 117.5 R/D/H — — — — 1280 x 800/50 1 280 x 800 41.3 50.0 68.0 R/D/H — — — — — 1280 x 800/60 1 280 x 800 49.7 59.8 83.5 R/D/H — — — — — 1 280 x 800 ^3 49.3 59.9 71.0 R/D/H — — — — 1280 x 800/75 1 280 x 800 62.8 74.9 106.5 R/D/H — — — — 1280 x 800/85 1 280 x 800 71.6 84.9 122.5 R/D/H — — — — 1280 x 960/60 1 280 x 960 60.0 60.0 108.0 R/D/H — — — — 1280 x 1024/50 1 280 x 1 024 52.4 50.0 88.0 R/D/H — — — — — 1280 x 1024/60 1 280 x 1 024 64.0 60.0 108.0 R/D/H — — — — — 1280 x 1024/66 1 280 x 1 024 72.3 66.3 125.0 R/D/H — — — — — 1280 x 1024/72 1 280 x 1 024 78.2 72.0 135.1 R/D/H — — — — — 1280 x 1024/75 1 280 x 1 024 80.0 75.0 135.0 R/D/H √ — √√√ 1280 x 1024/85 1 280 x 1 024 91.1 85.0 157.5 R/D/H — — — — — 1366 x 768/50 1 366 x 768 39.6 49.9 69.0 R/D/H — — — — — 1366 x 768/60 1 366 x 768 47.7 59.8 85.5 R/D/H — — — — — 1400 x 1050/50 1 400 x 1 050 54.1 50.0 99.9 R/D/H — — — — — 1400 x 1050/60 1 400 x 1 050 64.0 60.0 108.0 R/D/H — — — — 1 400 x 1 050 65.3 60.0 121.8 R/D/H — — — — 1 400 x 1 050 65.2 60.0 122.6 R/D/H √ — √√√ 1400 x 1050/72 1 400 x 1 050 78.8 72.0 149.3 R/D/H — — — — — 1400 x 1050/75 1 400 x 1 050 82.2 75.0 155.9 R/D/H — — — — — 1440 x 900/50 1 440 x 900 46.3 49.9 86.8 R/D/H — — — — 1440 x 900/60 1 440 x 900 55.9 59.9 106.5 R/D/H — — — — 1600 x 900/50 1 600 x 900 46.4 49.9 96.5 R/D/H — — — — — 1600 x 900/60 1 600 x 900 55.9 60.0 119.0 R/D/H √ — √√√ 1600 x 1200/50 1 600 x 1 200 61.8 49.9 131.5 R/D/H — — — — — 1600 x 1200/60 1 600 x 1 200 75.0 60.0 162.0 R/D/H √ — √√√ 1680 x 1050/50 1 680 x 1 050 54.1 50.0 119.5 R/D/H — — — — — 1680 x 1050/60 1 680 x 1 050 65.3 60.0 146.3 R/D/H — — — — — 1920 x 1080/50 1 920 x 1 080 55.6 49.9 141.5 R/D/H — — — — — 1920 x 1080/60 1 920 x 1 080 ^3 66.6 59.9 138.5 R/D/H — — — — 1 920 x 1 080 ^4 67.2 60.0 173.0 R — — — — 1920 x 1200/50 1 920 x 1 200 61.8 49.9 158.3 R/D/H — — — — — 1920 x 1200/60 1 920 x 1 200 ^4 74.6 59.9 193.3 R — — — — 1920 x 1200/60RB 1 920 x 1 200 ^3 74.0 60.0 154.0 R/D/H √ — √√√
*1 Signal with √ in the plug and play column is a signal described in the EDID (extended display identification data) of the projector. The signal that does not have √ in the plug and play column can also be input if it is described in the format column. The resolution may not be selected in the computer even if the projector is compatible for the signal that does not have √ in the plug and play column.
Note
- A signal with a different resolution is converted to the number of display dots. The number of display dots is as follows.
- 1920 × 1200
The "i" at the end of the resolution indicates an interlaced signal.
When interlaced signals are connected, flickering may occur on the projected image.
DIGITAL LINK input compatible signal is the same as HDMI input compatible signal.
Specifications
The specifications of the projector are as follows.
Power supply PT-RZ575 100 V - 240 V ~ (100 V - 240 V alternating current), 50 Hz/60 Hz PT-RZ575T 110 V ~ (110 V alternating current), 60 Hz Power consumption PT-RZ575 500 W (5.9 A - 2.3 A) PT-RZ575T 500 W (5.2 A) Power consumption (during standby) When [STANDBY MODE] is set to [ECO]: approx. 0.5 W When [STANDBY MODE] is set to [NORMAL]: approx. 10 W When [IN STANDBY MODE] in [AUDIO SETTING] is set to [ON], and the [QUICK STARTUP] function is disabled: approx. 22 W When the [QUICK STARTUP] function is enabled: approx. 50 W DLP chip Size 17 mm (0.67") (aspect ratio 16:10) Display system DLP chip x 1, DLP projection system Number of pixels 2 304 000 pixels (1 920 x 1 200 dots) Lens Fixed: 0.8:1 Electric focus: F = 1.75, f = 11.9 mm Light source Laser Light output 5 000 lm-1, 5 200 lm (center)-2(Both values are measured when [OPERATING MODE] is set to [NORMAL].) Contrast ratio*1 20 000:1 (when [DYNAMIC CONTRAST] is set to [ON]) Color system 7 standards (NTSC/NTSC4.43/PAL/PAL-N/PAL-M/SECAM/PAL60) Projected image size 1.02 m (40") to 7.62 m (300") Image aspect ratio 16:10 Projection method [FRONT/REAR]/[FLOOR/CEILING] Power cord length 3.0 m (118-1/8") Outer case Molded plastic Dimensions Width 498 mm (19-5/8") Height 168 mm (6-5/8") (with the feet at shortest position) Depth 481 mm (18-15/16") (including lens) Weight Approx. 16.6 kg (36.5 lbs.)*3 Noise level*1 33 dB Operating environment Operating environment temperature 0 °C (32 °F) to 45 °C (113 °F)*4 Operating environment humidity 10 % to 80 % (no condensation) Remote control Power supply DC 3 V (AAA/R03/LR03 battery x 2) Operating range Within approx. 30 m (98'5") (when operated directly in front of signal receiver) Weight 102 g (3.6 ozs.) (including batteries) Dimensions Width: 48 mm (1-29/32"), Height: 145 mm (5-23/32"), Depth: 27 mm (1-1/16")
*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118:2012 international standards.
Note
- The model numbers of accessories and optional accessories are subject to change without prior notice.
■Connecting terminal
1 set, high-density D-Sub 15 p (female)RGB signal 0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω)SYNC/HD TTL high impedance, automatic positive/negative polarity compatibleVD TTL high impedance, automatic positive/negative polarity compatible YP_B P_R signal Y: 1.0 V [p-p] including synchronization signal, P_B P_R : 0.7 V [p-p] 75 ΩY/C signal Y: 1.0 V [p-p], C: 0.286 V [p-p] 75 Ω 1 set, high-density D-Sub 15 p (female)RGB signal 0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω)SYNC/HD TTL high impedance, automatic positive/negative polarity compatibleVD TTL high impedance, automatic positive/negative polarity compatible YP_B P_R signal Y: 1.0 V [p-p] including synchronization signals, P_B P_R : 0.7 V [p-p] 75 Ω 24 p, single link, DVI 1.0 compliant, HDCP compatible Total 2 sets, HDMI 19 p, HDCP compatible, Deep Color compatibleAudio signal Linear PCM (sampling frequency: 48 kHz/44.1 kHz/32 kHz) 1 set, pin jack, 1.0 V [p-p] 75 Ω 1 set, pin jack x 2 (L-R), 0.5 V [rms], input impedance 22 kΩ or more Total 2 sets, M3 stereo mini jack, 0.5 V [rms], input impedance 22 kΩ or more 1 set, M3 stereo mini jack (monitor output, stereo compatible), 0 V [rms] to 1.80 V [rms] (variable), output impedance 2.2 kΩ or less 1 set, RS-232C compliant, for computer control 1 set, RJ-45, for network and DIGITAL LINK connections (HDBaseTM compliant), PJLink compatible, 100Base-TX, Art-Net compatible, HDCP compatible, Deep Color compatible 1 set, RJ-45, for network connection, PJLink compatible, 10Base-T/100Base-TX, Art-Net compatible USB connector (type A) x 1, for power supply only (DC 5 V, maximum 900 mA)
■Compatible signal
For details of the types of video signals that can be used with the projector, refer to "List of compatible signals" (→ page 175).
Video input, Y/C input Horizontal: 15.73 kHz, Vertical: 59.94 Hz; Horizontal: 15.63 kHz, Vertical: 50 Hz RGB input •Resolution: 640 x 400 to 1 920 x 1 200•Dot clock frequency: 162 MHz or less•PIAS (Panasonic Intelligent Auto Scanning) system YC_B C_R / YP_B P_R input •Resolution: 480i/576i to 1 920 x 1 080•Dot clock frequency: 148.5 MHz or less•The HD/SYNC and VD terminals do not support 3 value SYNC. DVI-D input •Moving image signal resolution: 480i1/576i+ to 1 920 x 1 080Still image signal resolution: 640 x 400 to 1 920 x 1 200 (non-interlace)•Dot clock frequency: 25 MHz to 162 MHz HDMI input •Moving image signal resolution: 480i1/576i+ to 1 920 x 1 080Still image signal resolution: 640 x 400 to 1 920 x 1 200 (non-interlace)•Dot clock frequency: 25 MHz to 162 MHz
*1 Pixel-Repetition signal (dot clock frequency 27.0 MHz) only
Note
- DIGITAL LINK input compatible signal is the same as HDMI input compatible signal.

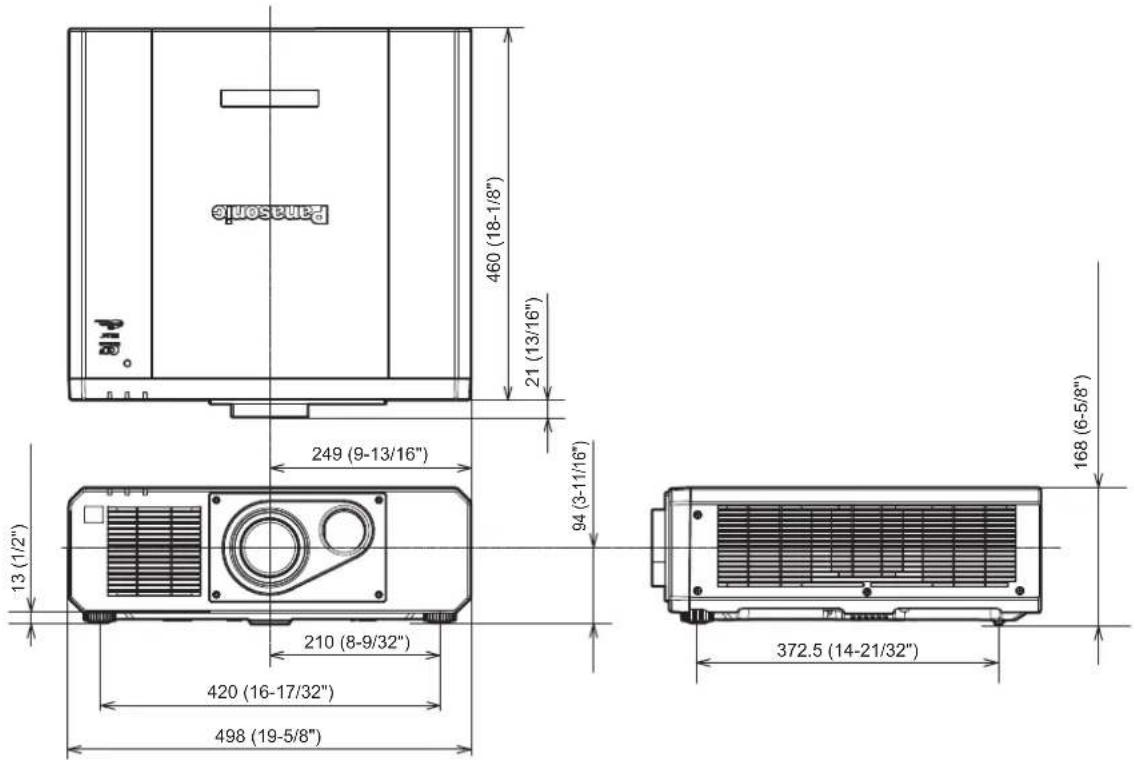

Dimensions
Unit: mm
460 (18-1/8")
21 (13/16")
249 (9-13/16")
94 (3-11/16")
13 (1/2")
210 (8-9/32")
420 (16-17/32")
498 (19-5/8")
372.5 (14-21/32")
168 (6-5/8")
* Actual dimensions may differ depending on the product.
Precautions for attaching the Ceiling Mount Bracket
When installing the projector to a ceiling, be sure to use the specified optional Ceiling Mount Bracket (Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings), ET-PKD130B (Projector Mount Bracket)). The Ceiling Mount Bracket (Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings)) is used in combination with the Ceiling Mount Bracket (Model No.: ET-PKD130B (Projector Mount Bracket)).
Attach the drop-prevention set that comes with the Ceiling Mount Bracket to the projector. If you need the drop-prevention set (Service Model No.: TTRA0214) is necessary, consult your dealer.
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling.
Panasonic takes no responsibility for any damage to the projector resulting from use of the Ceiling Mount Bracket not manufactured by Panasonic or the inappropriate choice of location for installing the Ceiling Mount Bracket, even if the warranty period of the projector has not expired.
Unused products must be removed promptly by a qualified technician.
Use a torque screwdriver or Allen torque wrench to tighten bolts to their specified tightening torques. Do not use electric screwdrivers or impact screwdrivers.
Read the Installation Instructions of the Ceiling Mount Bracket for details.
The model numbers of accessories and optional accessories are subject to change without prior notice.

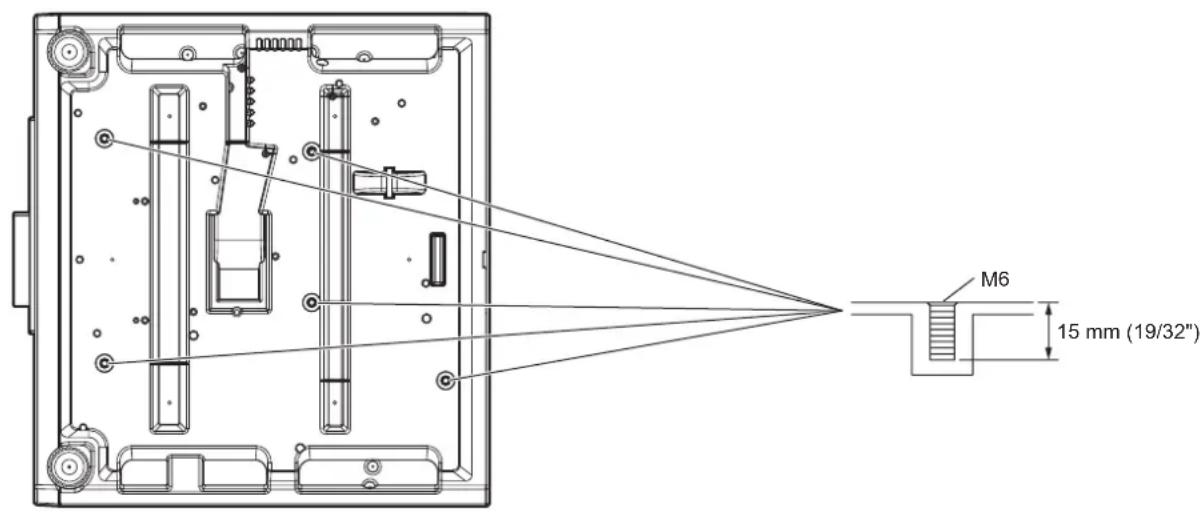

Bottom view
15 mm (19/32")
Index
A
Accessories ......
terminal 27,40 button button
B
[BACK COLOR]
C
Cautions on use button
D
[DATE AND TIME] button button button
E
Early Warning Software
button
Remote control 24,58
[ECO MANAGEMENT] 101
[EDGE BLENDING] 78
button
Projector body 27
Remote control 24,61
Expanding signal lock-in range 125
F
button
Remote control 24,51
[FRAME RESPONSE] 80
[FREEZE] 98
button 22
Remote control 24,55
Freeze function 55
Function button 57
button
Remote control 24,57
[FUNCTION BUTTON] 115
G
[GAMMA]
H
button button
|
button button
Installation mode 30
L
button
M
Main menu
button
Projector body 27,61
Remote control 24,61
Menu item 63
button
Remote control 24,54
118
N
Navigating through the menu \_\_\_\_
[NETWORK] 65,131
Network connection 136
[NETWORK CONTROL] 132
[NETWORK SETUP] 132
[NETWORK STATUS] 133
[NOISE REDUCTION] 70
0
button
Remote control 24,55
[ON-SCREEN DISPLAY] 93
On-screen menu 61
[OPERATION SETTING] 103
Optional accessories 23
P
[PICTURE]
[PICTURE MODE] 66
[P IN P] 65,121
button
Remote control 24,57
P IN P function 20 121
[POSITION] 63,72
Power button
Projector body 27
Remote control 24
Power cord 40
Power indicator 40
Precautions for attaching the Ceiling Mount
Bracket 182
Precautions for use 17
Projecting 50
[PROJECTION METHOD] 100
Projector body 26
[PROJECTOR ID] 100
[PROJECTOR SETUP] 64,100
Protecting the registered signal 125
R
[RASTER POSITION]
Read this first!
Registering new signals 124
Remote control
Remote control operations
Renaming the registered signal 124
Resetting to the factory default
button
Remote control 24
[RS-232C] 114,171
S
[SAVE ALL USER DATA] 119
[SCHEDULE] 111
button
Remote control
[SCREEN ADJUSTMENT] 74
[SCREEN SETTING] 84
Security
[SECURITY] 65,127
[SECURITY PASSWORD] 127
[SECURITY PASSWORD CHANGE] 127
Selecting the input signal 50
Self-test indication 161
terminal 171
[SERVICE PASSWORD] 120
Setting ID number of the remote control 58
Setting up
[SHARPNESS] 69
[SHIFT] 72
button
Remote control
button
Remote control
[SHUTTER SETTING] 97
[SIGNAL LIST] 65,124
Specifications 178
sRGB-compliant video 71
[STARTUP INPUT SELECT]2 114
[STARTUP LOGO] 96
[STATUS]....117
button
Remote control
Sub memory 126
Switching off the projector 49
Switching on the projector 41
[SYSTEM SELECTOR] 70
T
Temperature indicator 157
[TEST PATTERN] 65,123
button
Remote control
[TEXT CHANGE] 128
[TINT] 67
Troubleshooting 159
Two-window 174
U
[UNIFORMITY] 96
v
button
Remote control
Volume adjustment 55
/ button
Remote control 63,66
W
[WAVEFORM MONITOR] 98
Web control 139
[WHITE GAIN] 68
Z
[ZOOM] 73
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
Note for the battery symbol (bottom symbol)
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.
These symbols are only valid in the European Union.
If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.
AEEE Yönetmeliğine Uygundur.
Eski Ekipman ve Bataryaların İşlenmesi.
Sadece geri dönüşüm sistemleri olan Avrupa Birliği ve ülkeleri için geçerlidir.
Ürünler, ambalaj ve/veya ekli belgeler üzerindeki bu semboller kullanılmış elektrik ve elektronik ürünlerin ve pillerin genel ev atığı ile karıştırılmaması gerektiğini ifade eder.
Eski ürünlerin ve pillerin toplanması ve geri kazanılması için bu atıkları lütfen yasayla belirlenmiş olan uygun toplama merkezlerine teslim ediniz.
Bu atıkların doğru işlenmesiyle, değerli kaynakların korunmasına ve insan sağlığı ve çevreye olası negatif etkilerinin engellenmesine yardımcı olabilirsiniz.
Atıkların toplanması ve geri dönüşümü için detaylı bilgi için lütfen bağlı olduğunu yerel yönetimlerle iletişime geçiniz.
Atıkların atılmasıyla ilgili yanlış uygulamalar yasayla belirlenmiş olan cezalara sebebiyet verebilir.
Panasonic Corporation
Web Site : http://panasonic.net/avc/projector/
© Panasonic Corporation 2016
Panasonic System Communications Company of North America
5th Floor, Two Riverfront Plaza, Newark, NJ 07102-5490
TEL: (877) 803 - 8492
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
TEL: (905) 624 - 5010
