USER MANUAL F 2671 Vi MIELE

Operating and Installation Instructions Freezer

Black-and-white photo of two round, textured food items on a white plate with a spoon (no text or symbols visible)

To prevent accidents and machine damage, read these instructions before installation or use.

IMPORTANT SAFETY INSTRUCTIONS 5

Caring for the environment 14

Installation information.... 15

Installation location 15

Climate class 16

Installation notes 16

Load-bearing capacity of the niche floor 16

Door hinging.... 16

Adjoining cabinetry/units.... 16

Ventilation.... 17

Specifications for the plumbed water connection.... 17

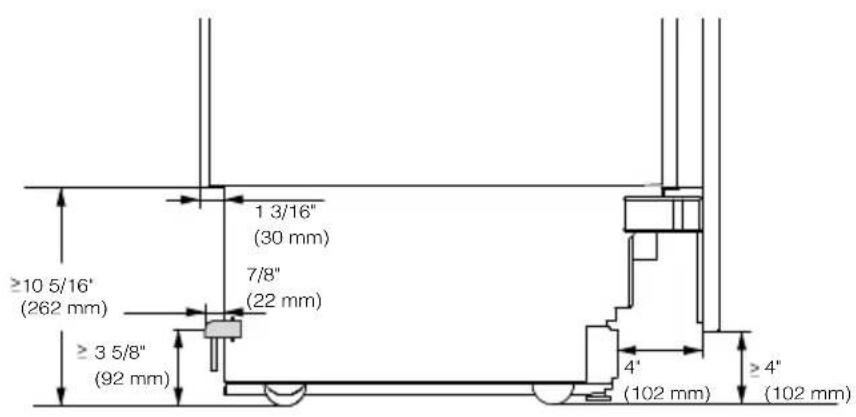

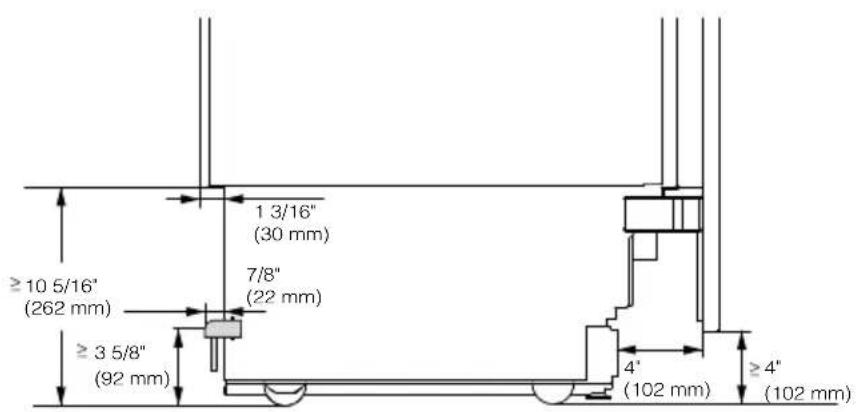

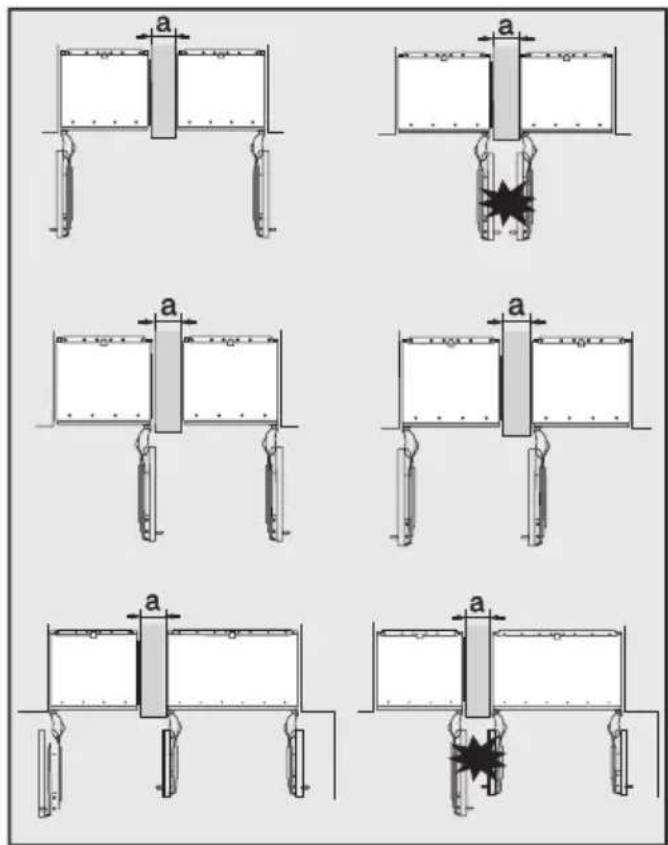

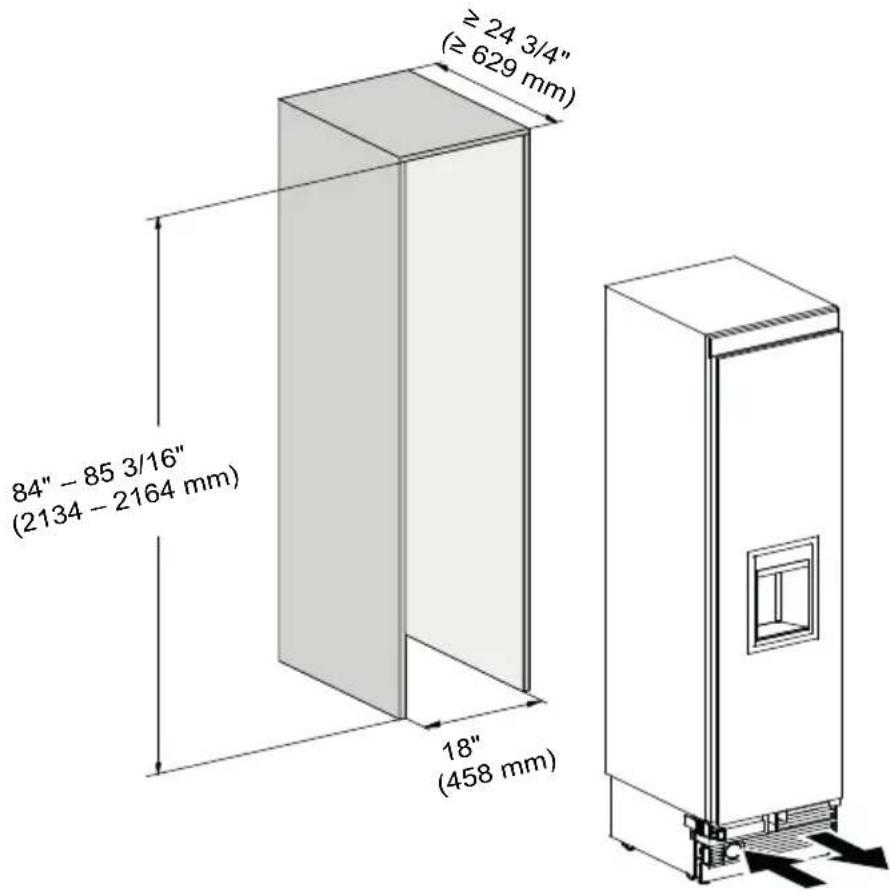

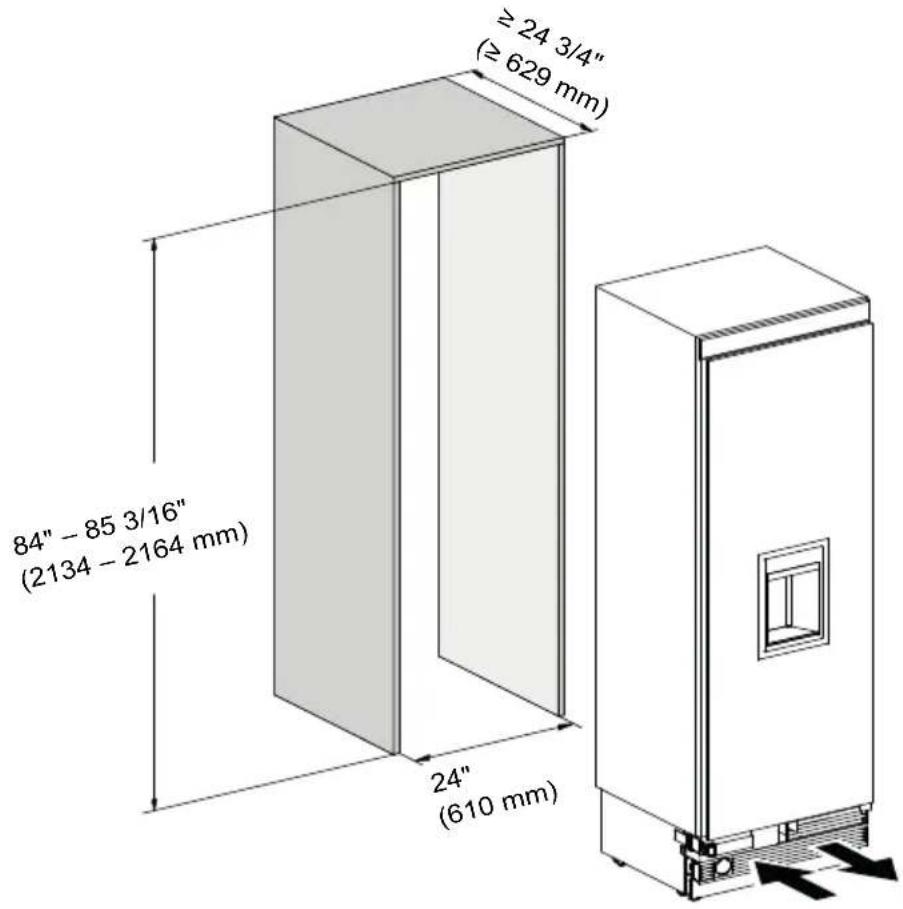

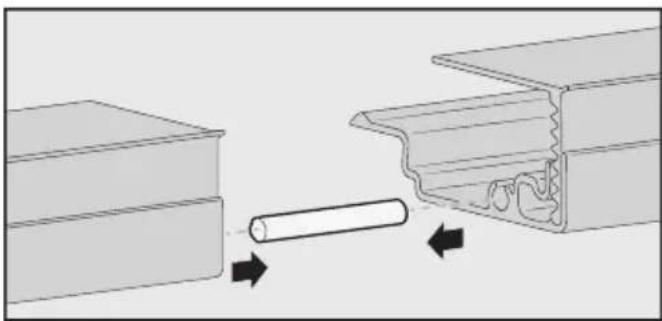

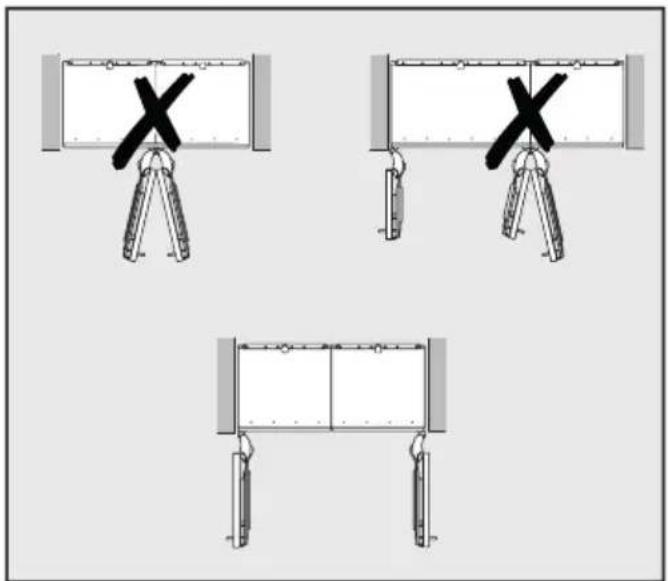

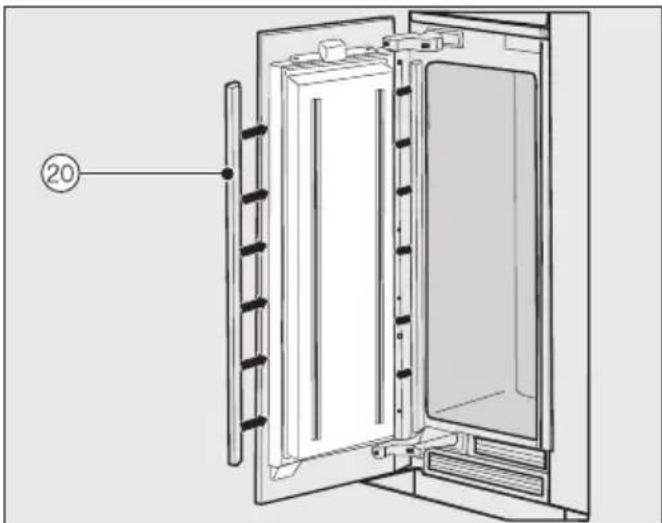

Side-by-side.... 18

Installation dimensions.... 19

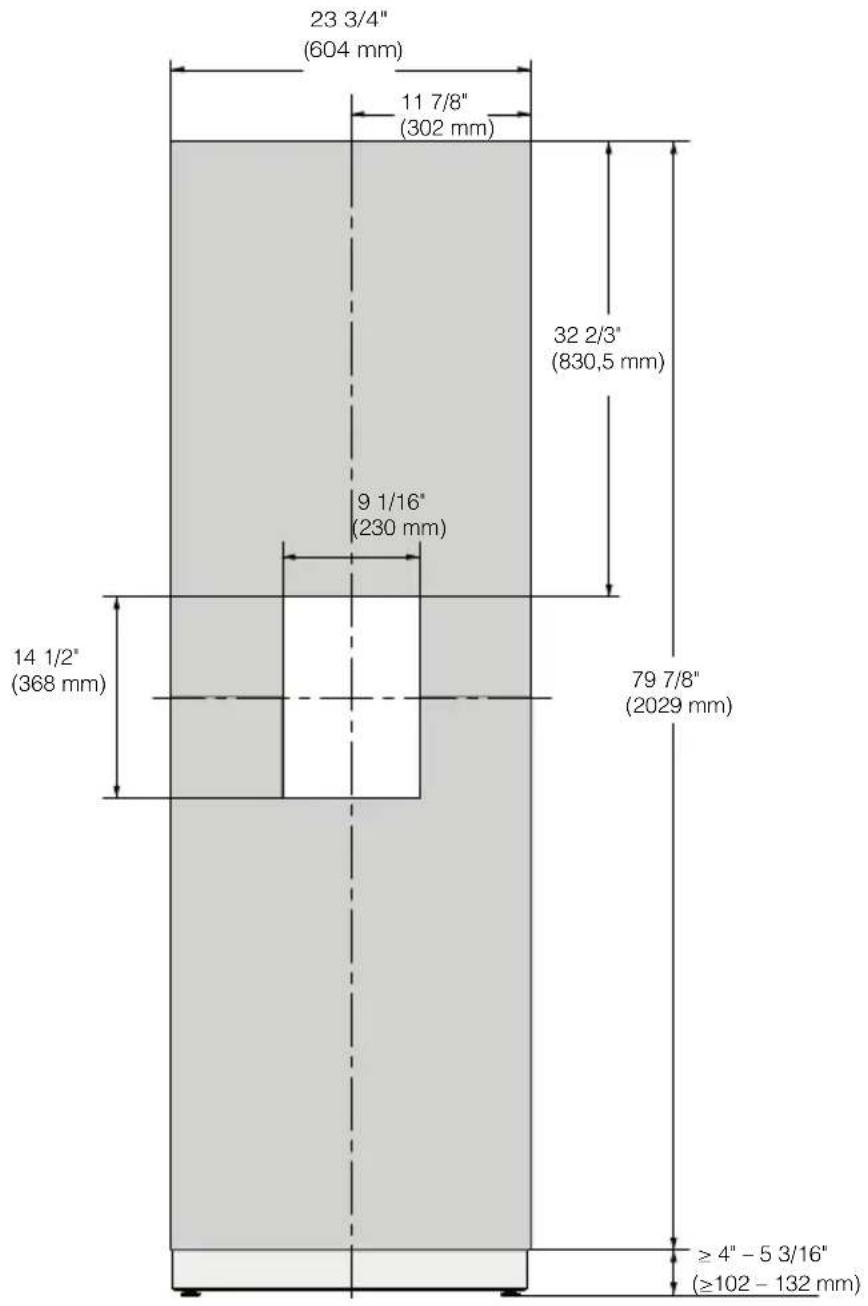

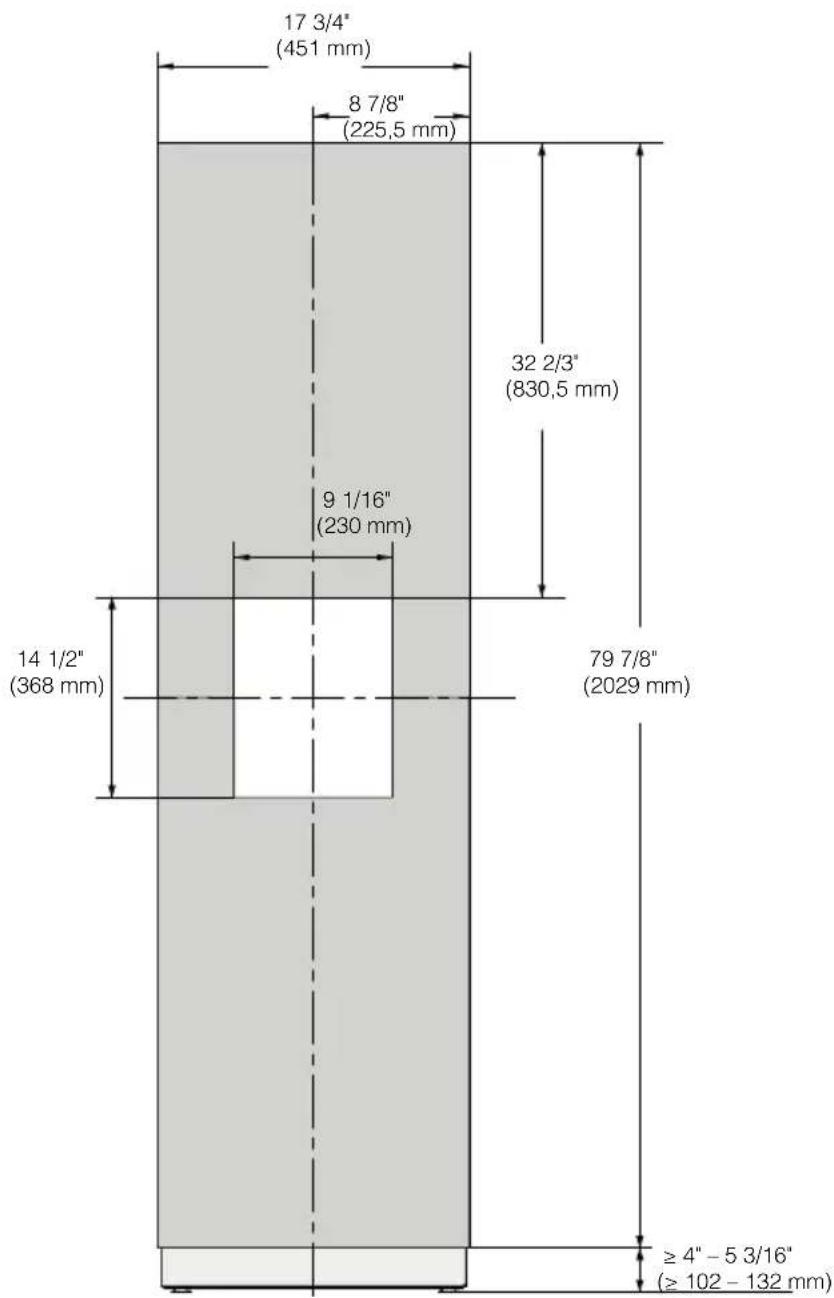

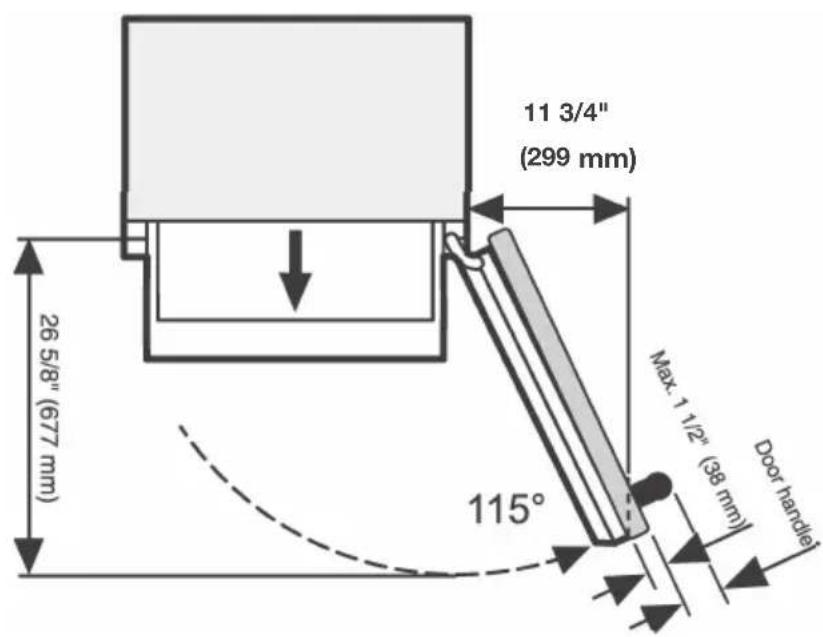

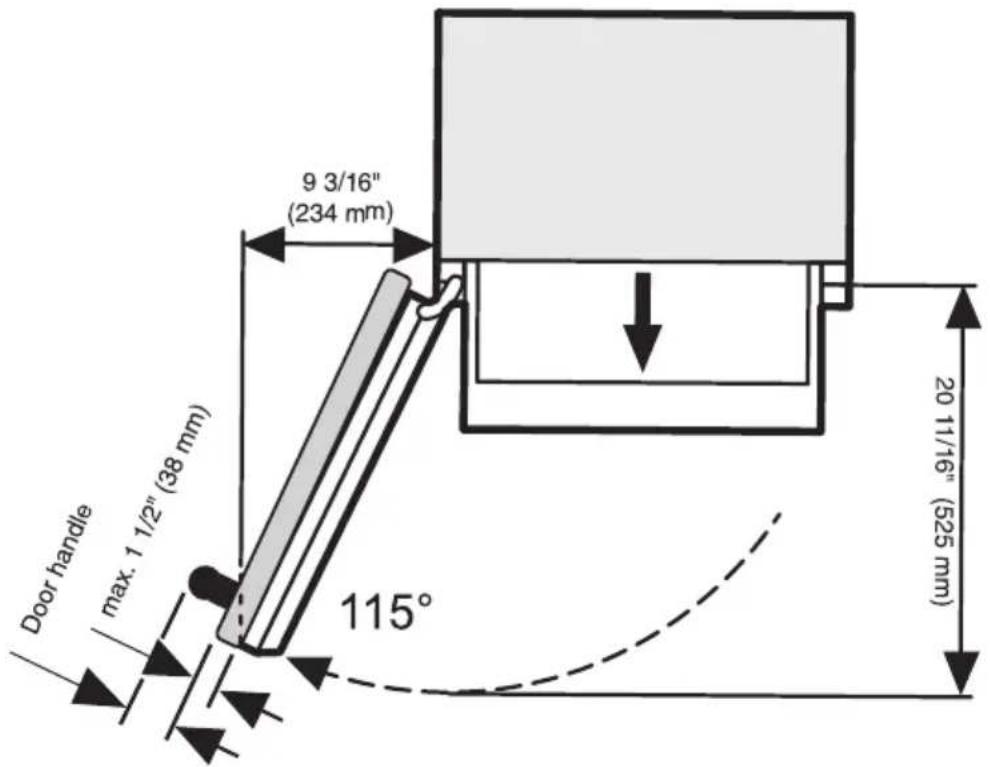

Dimensions when the door is opened (opening angle 115°).... 22

Dimensions of the cabinet front.... 24

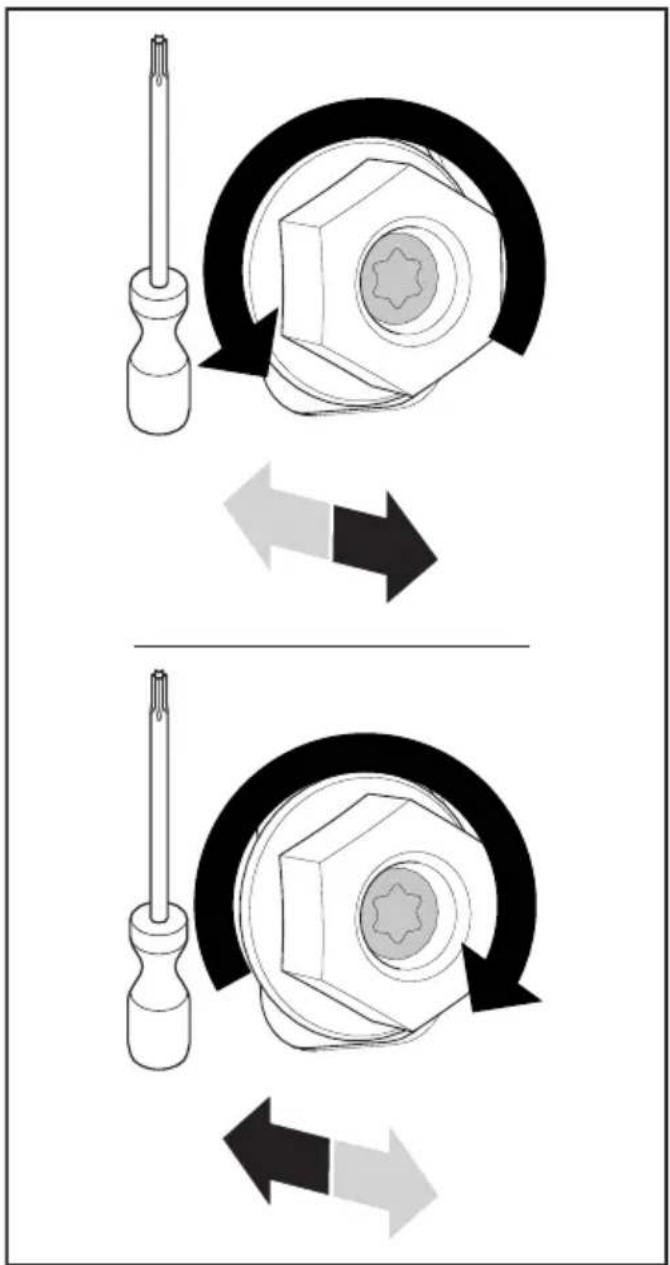

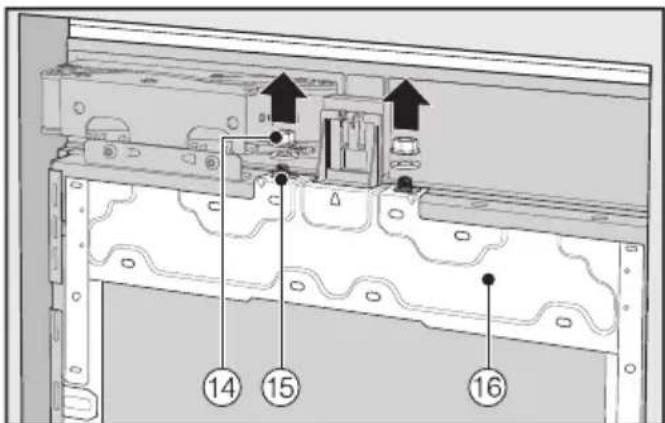

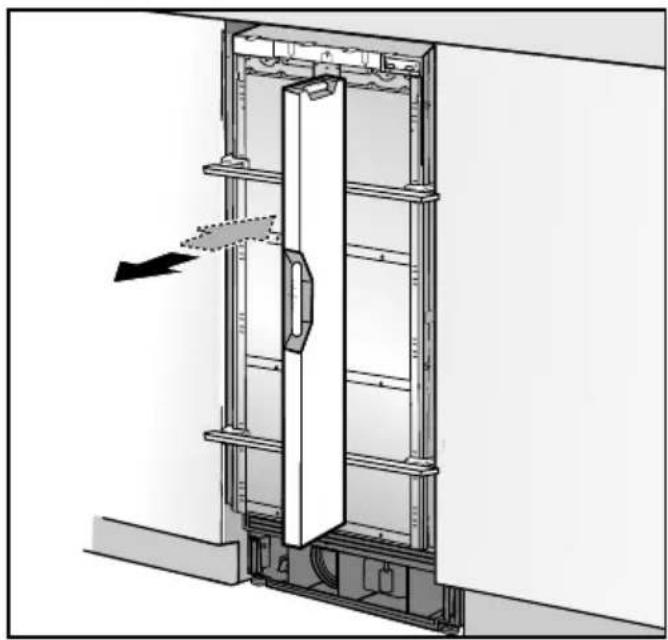

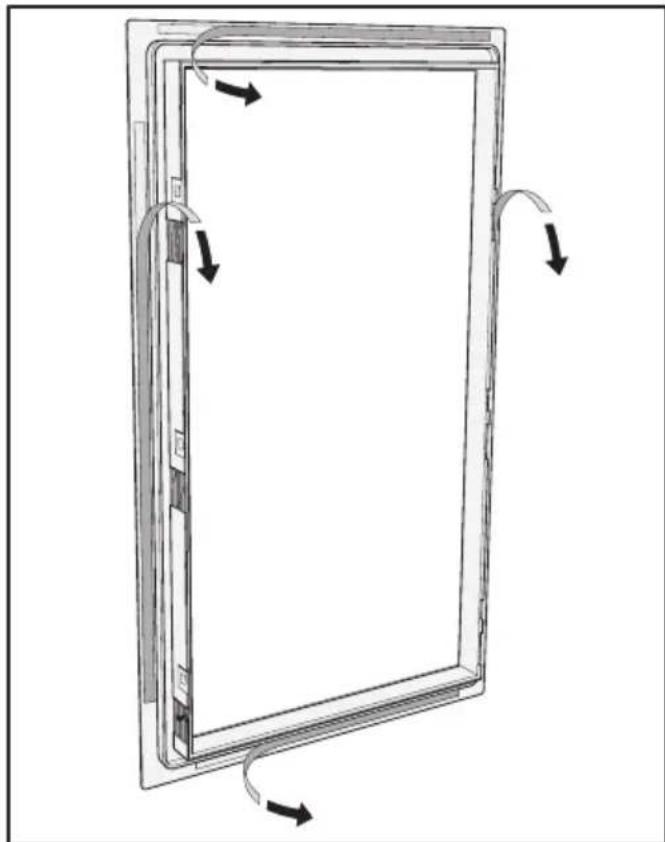

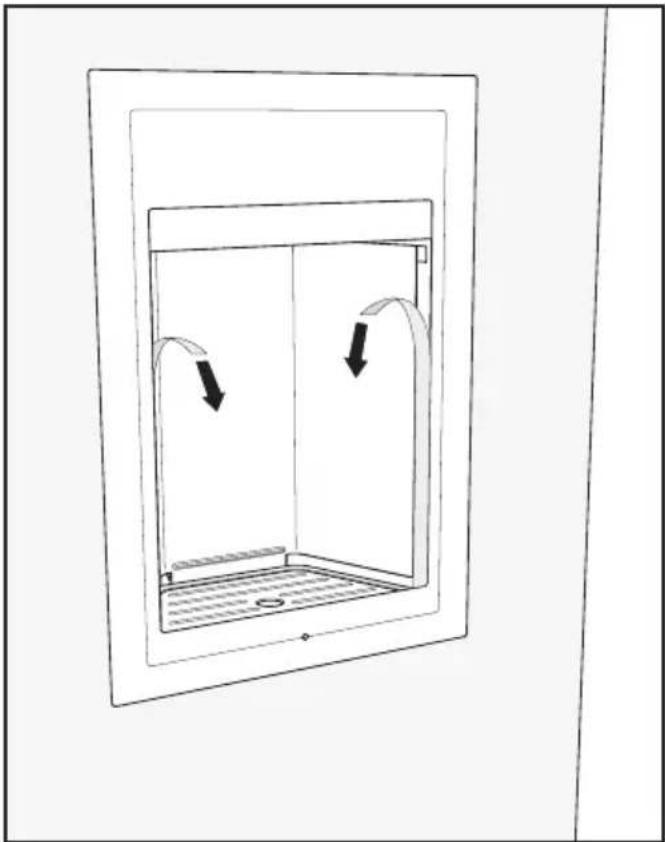

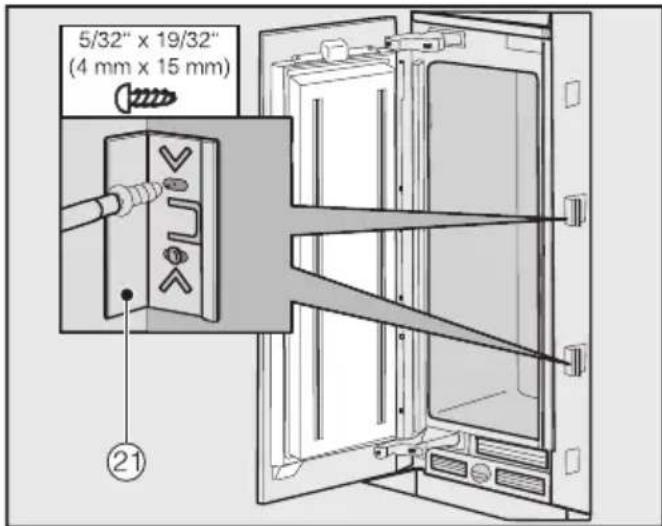

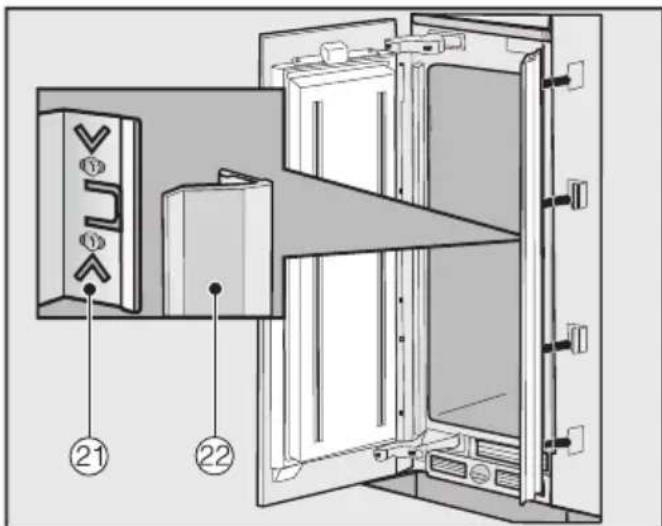

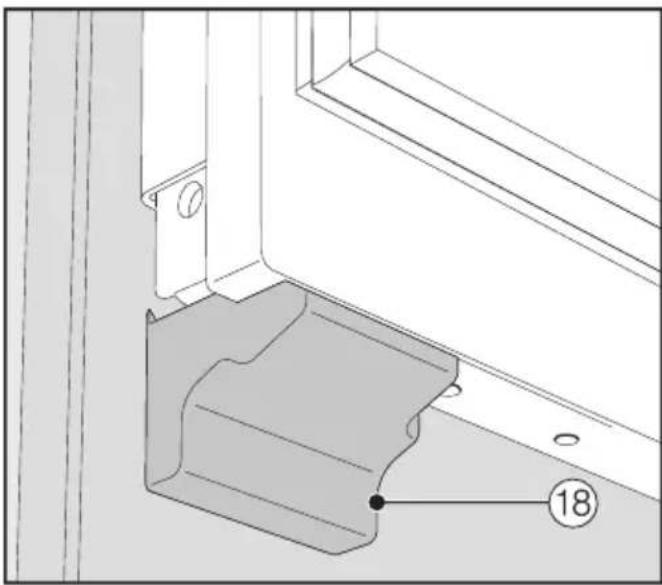

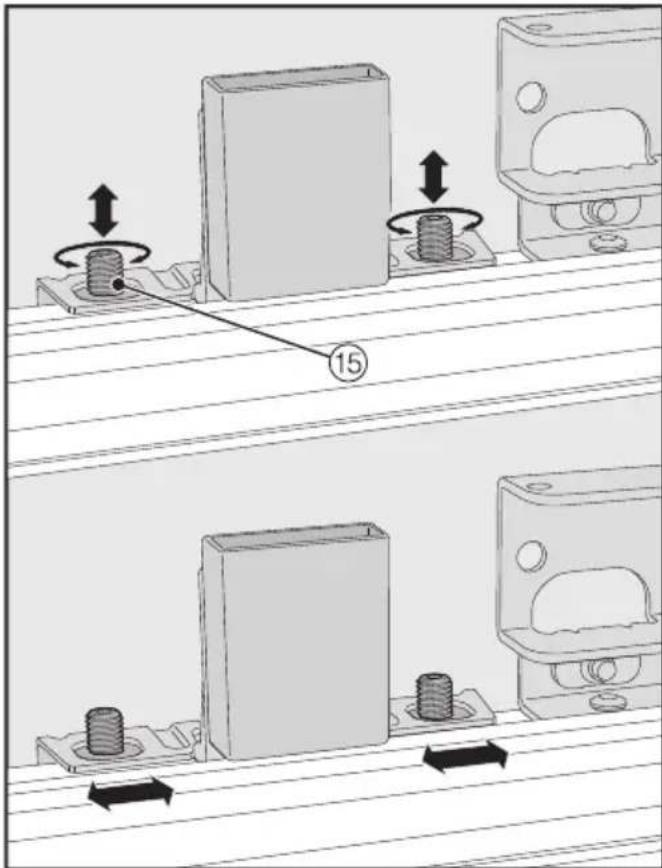

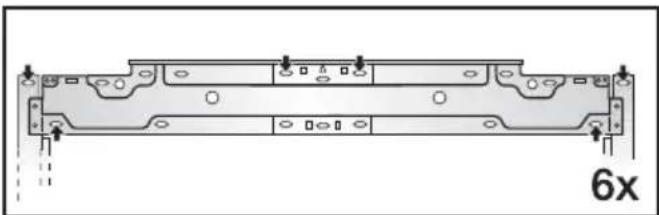

Building in the appliance 26

Before starting.... 26

Tools required 26

Weight of cabinet front 27

Aligning the installation niche.... 27

Checking the installation space 28

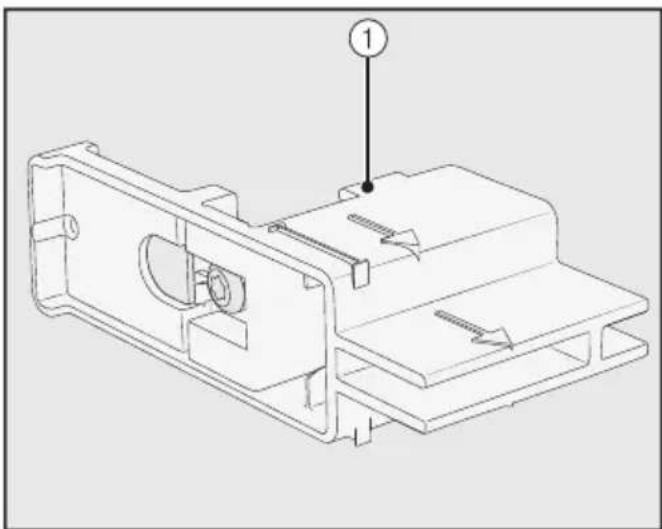

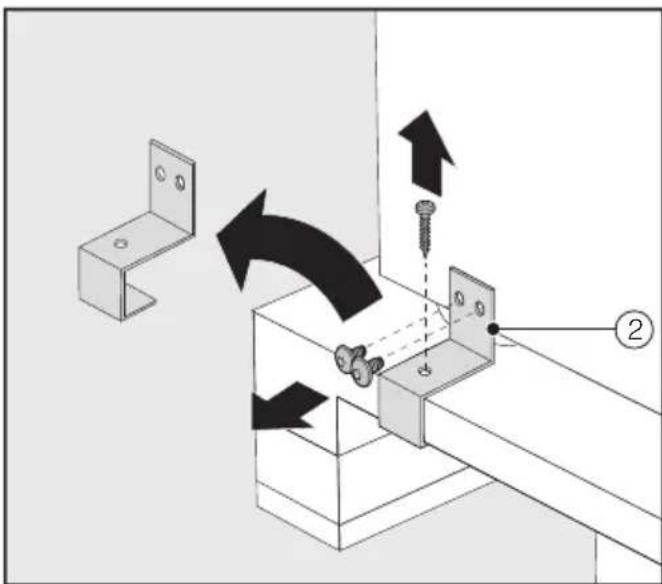

Before installation.... 28

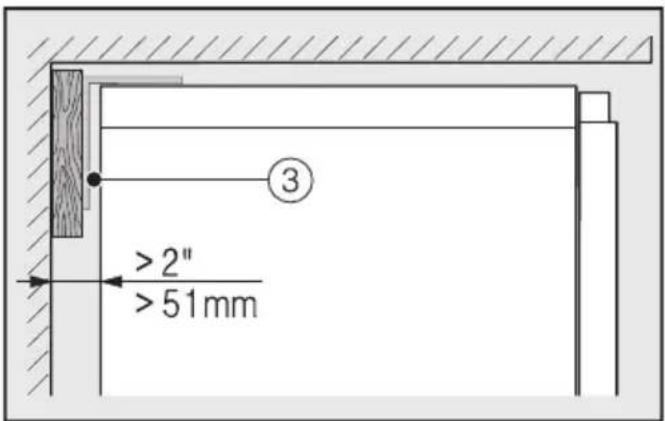

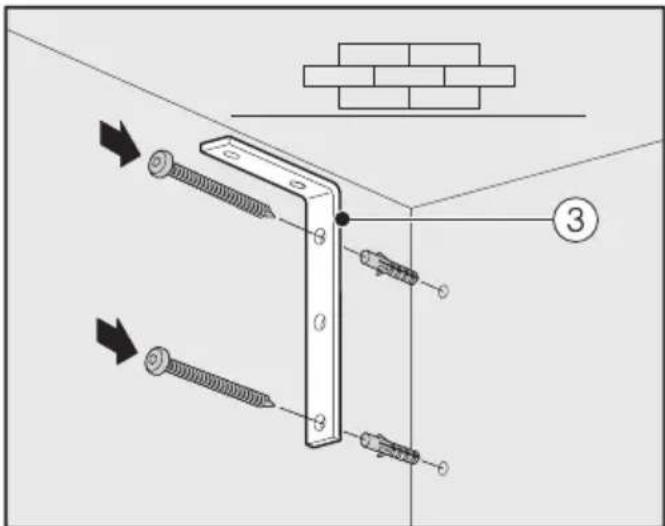

Preparing the installation niche 29

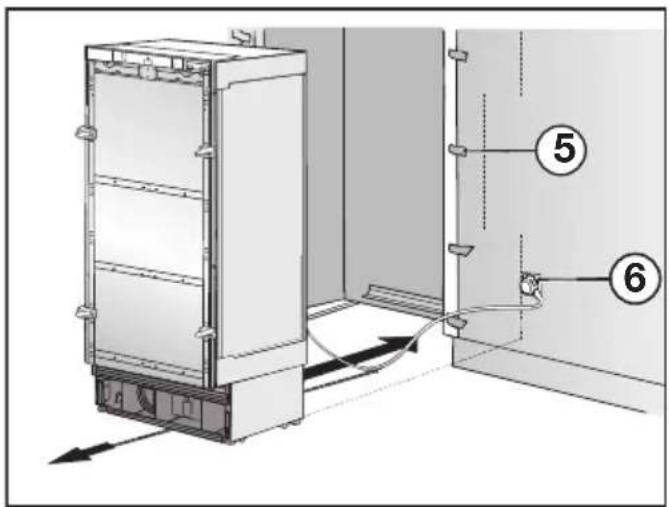

Pushing the appliance into the niche 32

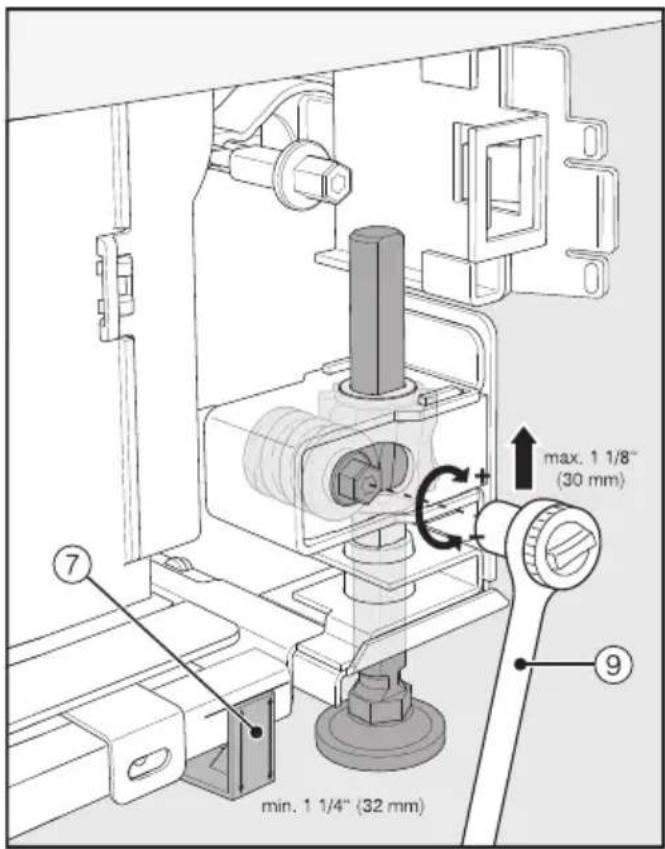

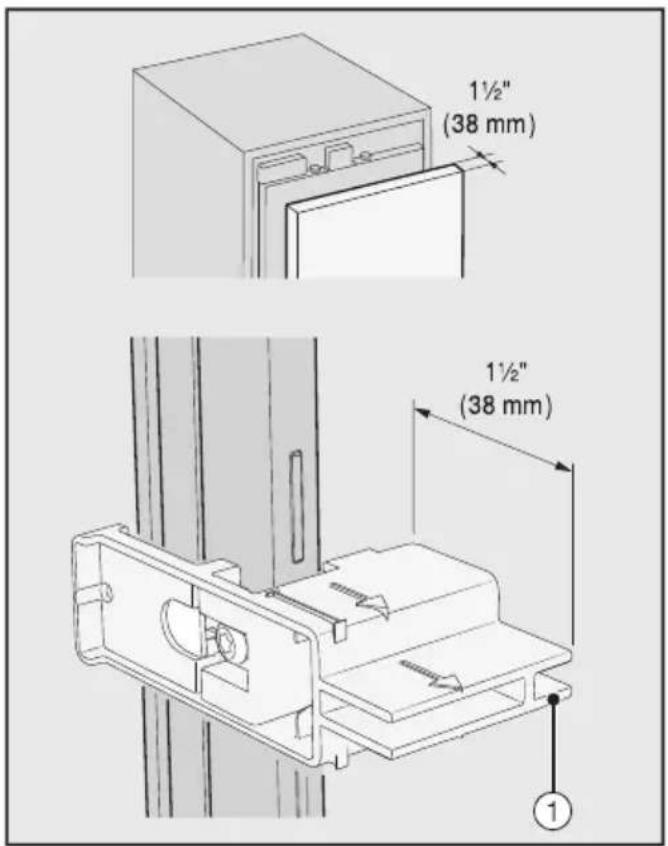

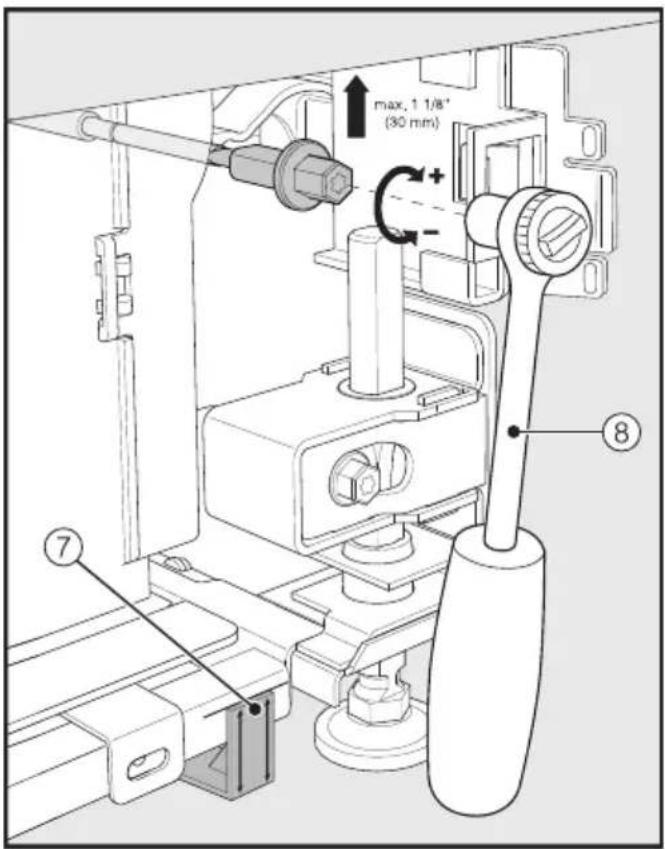

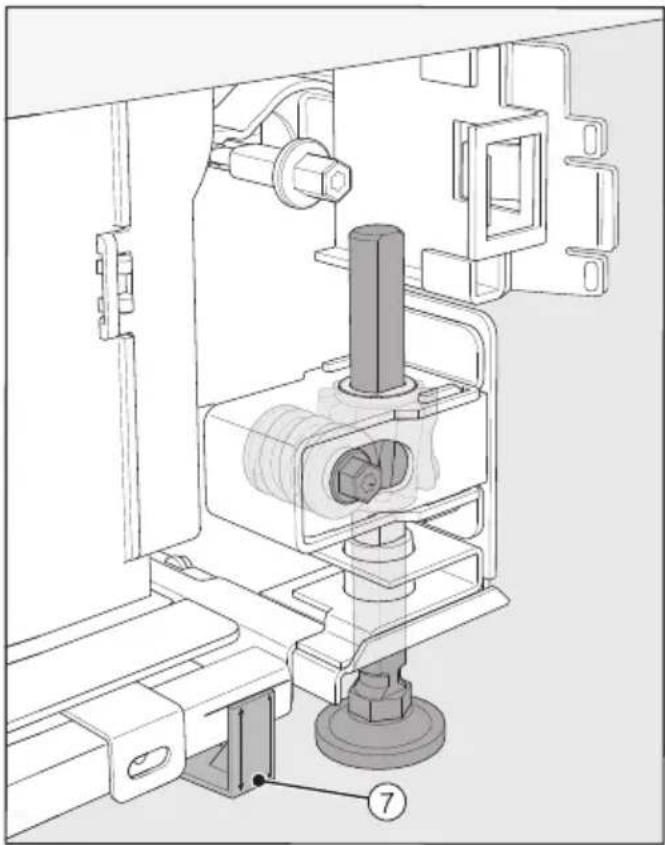

Aligning the appliance 33

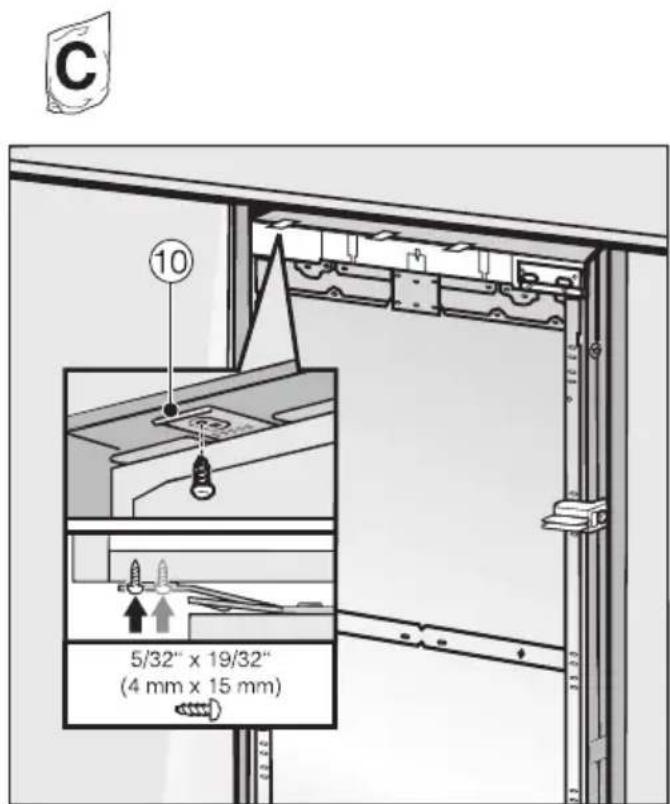

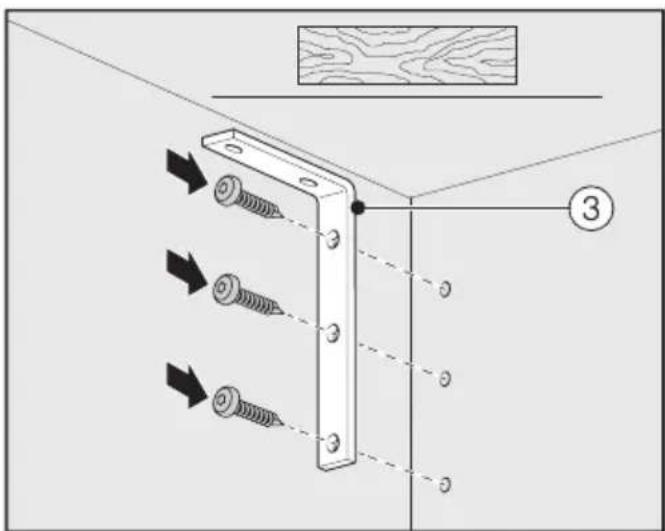

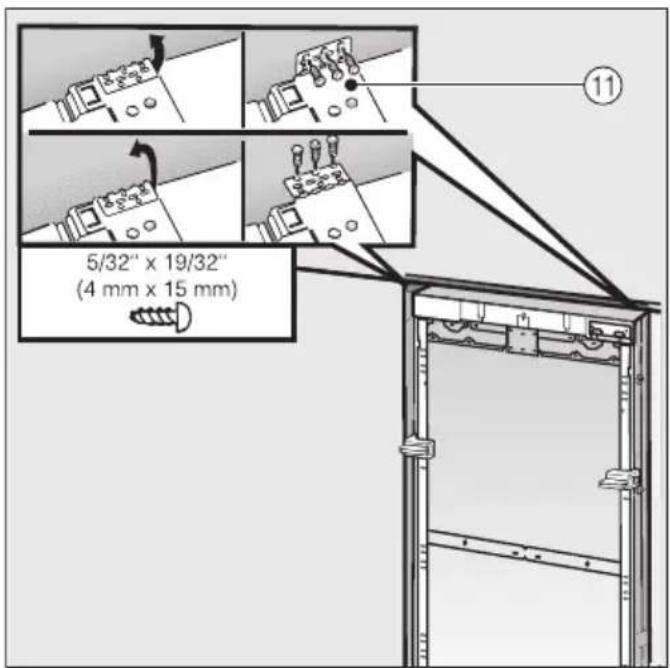

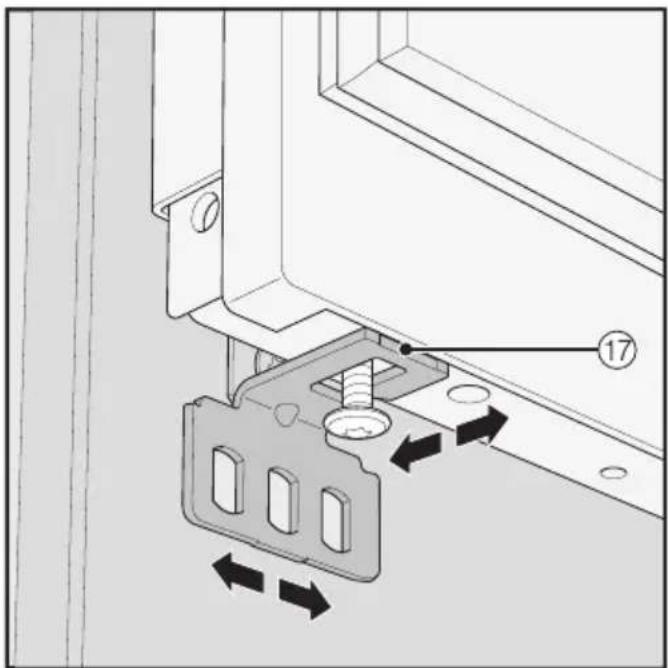

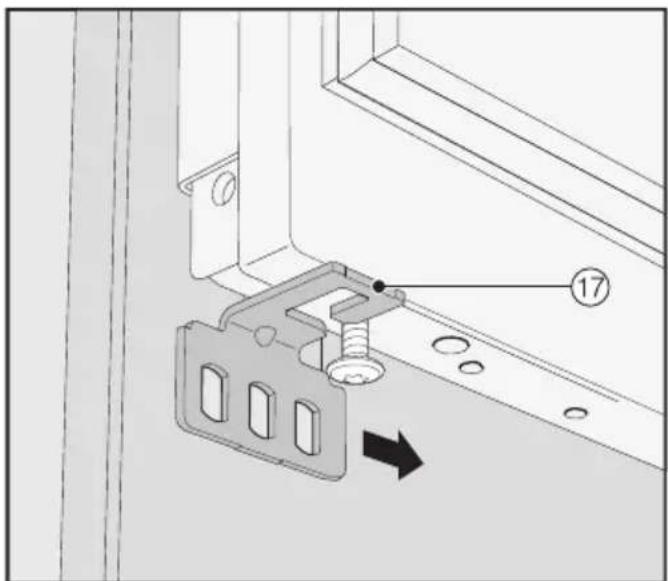

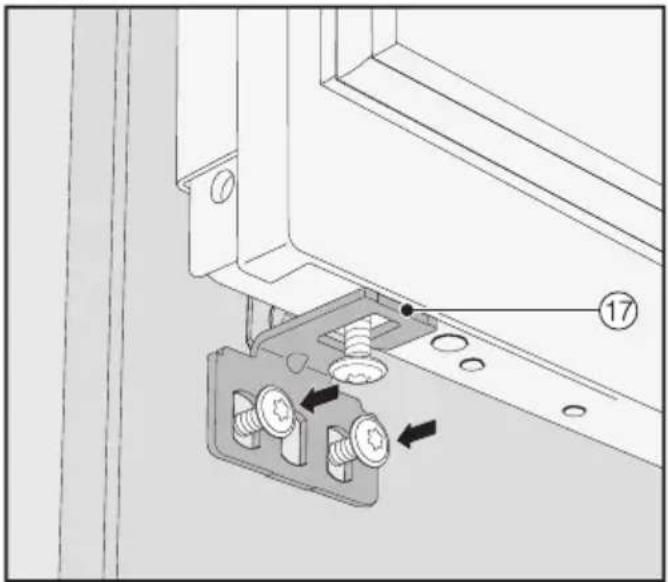

Securing the appliance in the niche 36

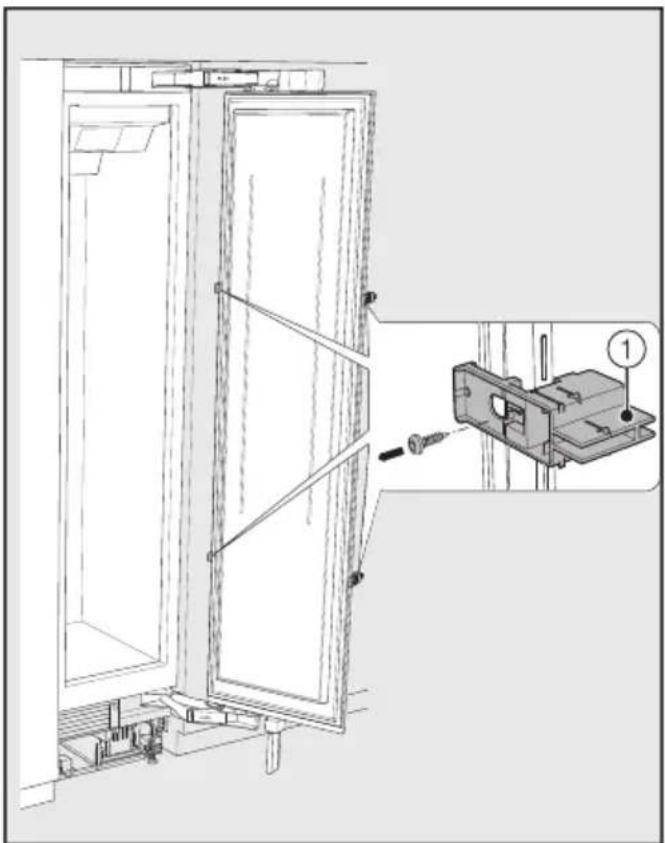

Preparing the cabinet fronts.... 37

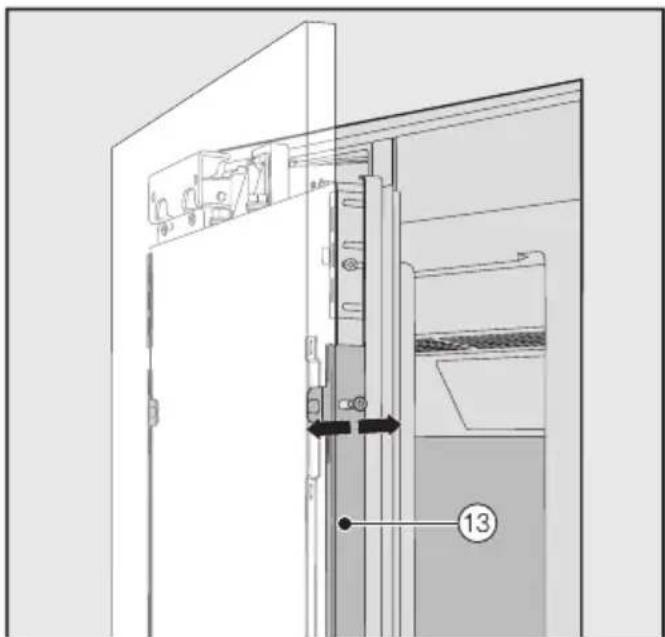

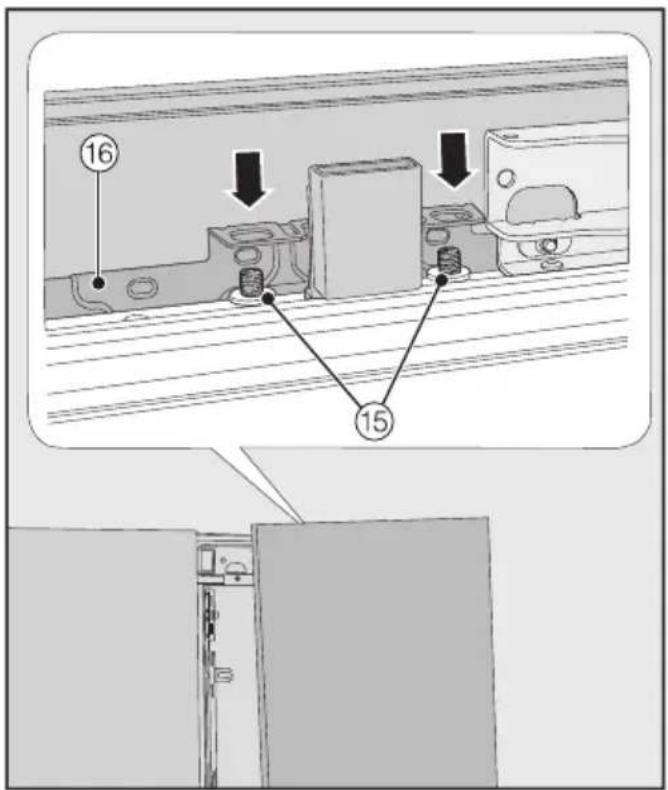

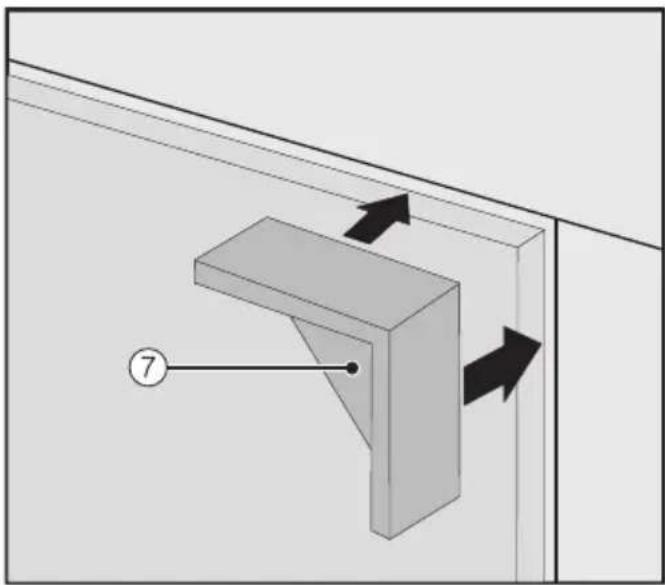

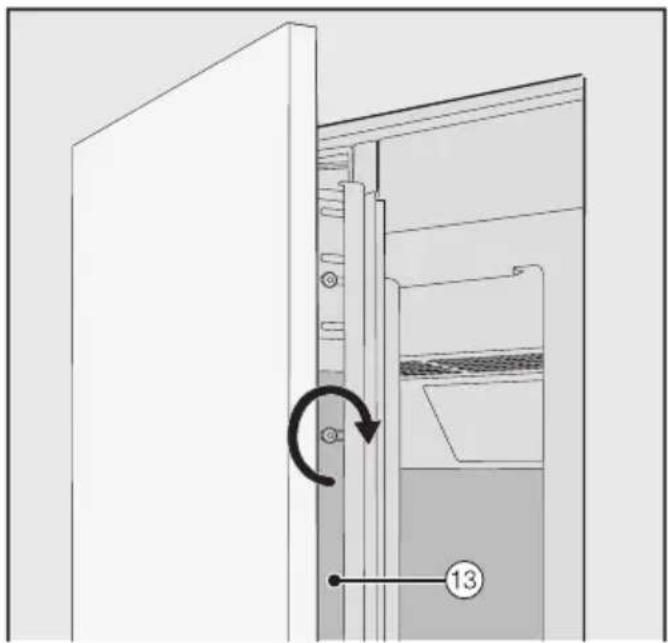

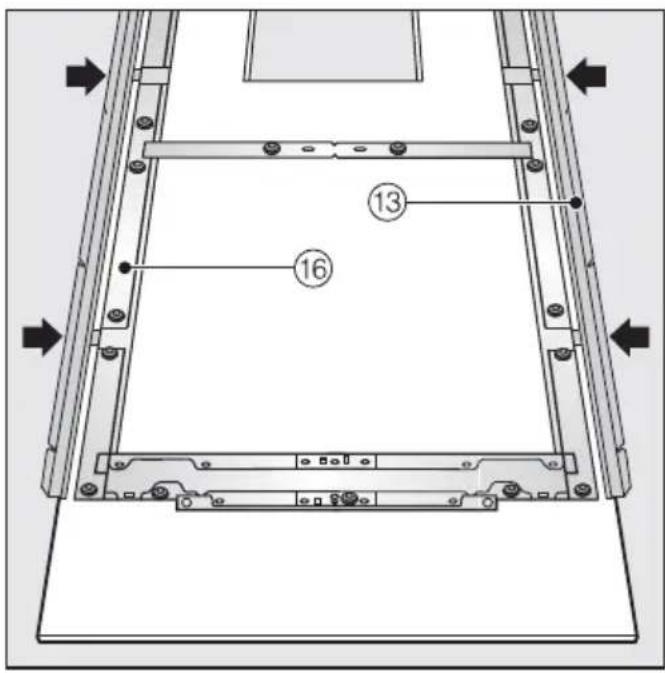

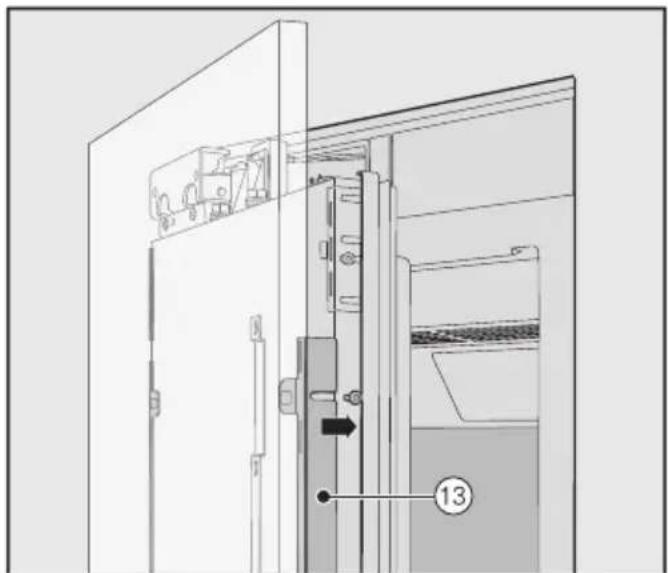

Securing and aligning the cabinet front 40

Securing the covers 44

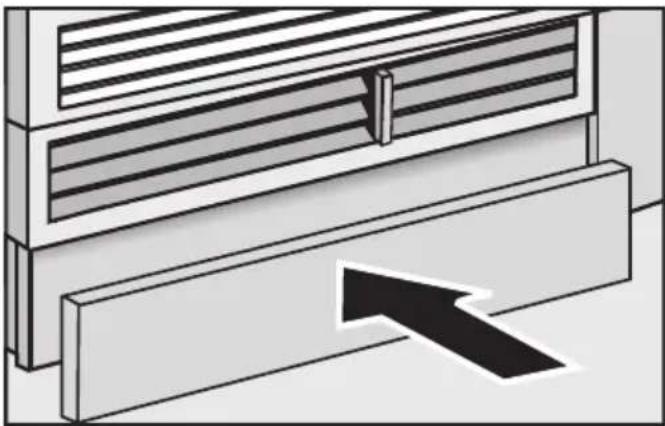

Securing the toe-kick board and cover.... 47

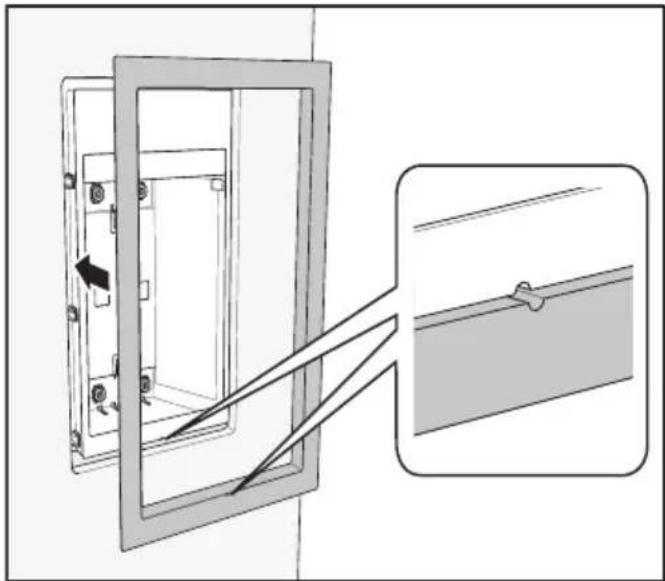

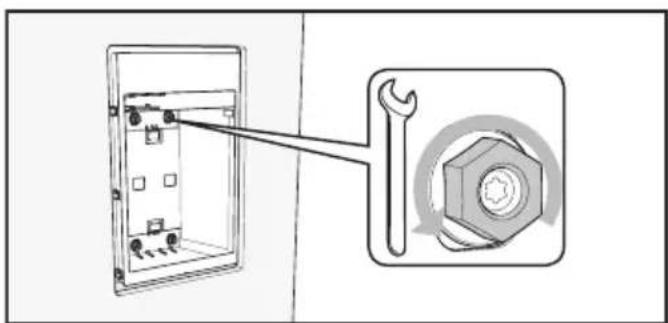

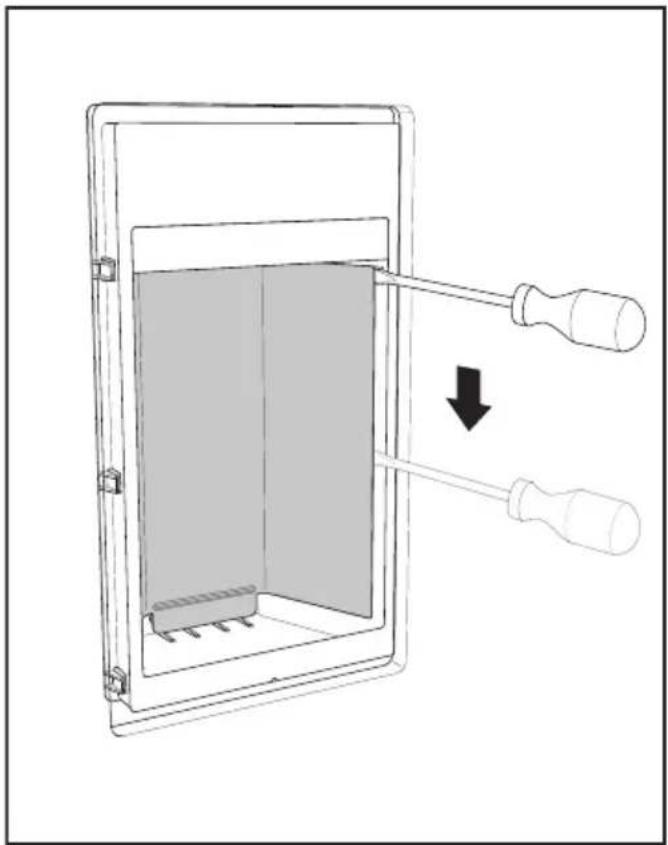

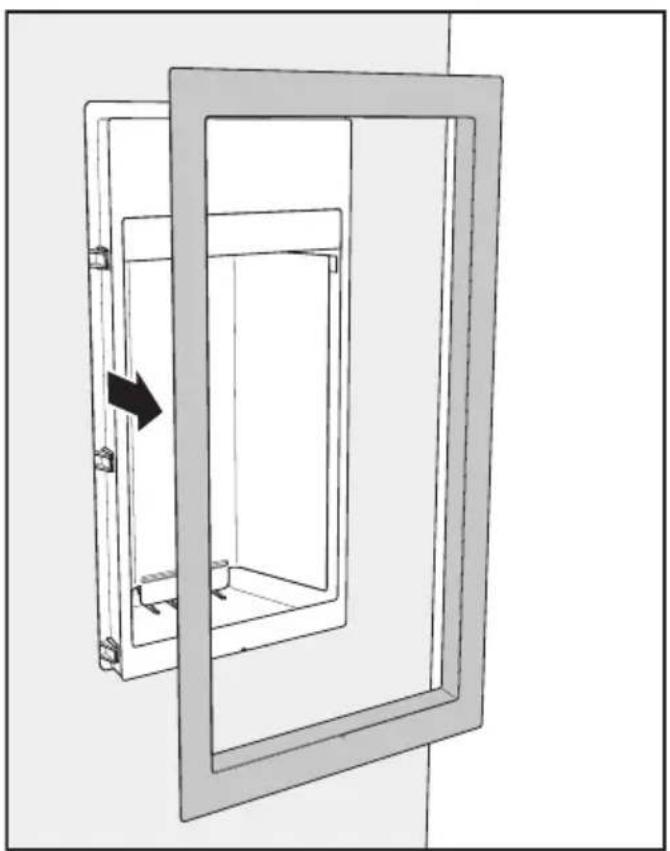

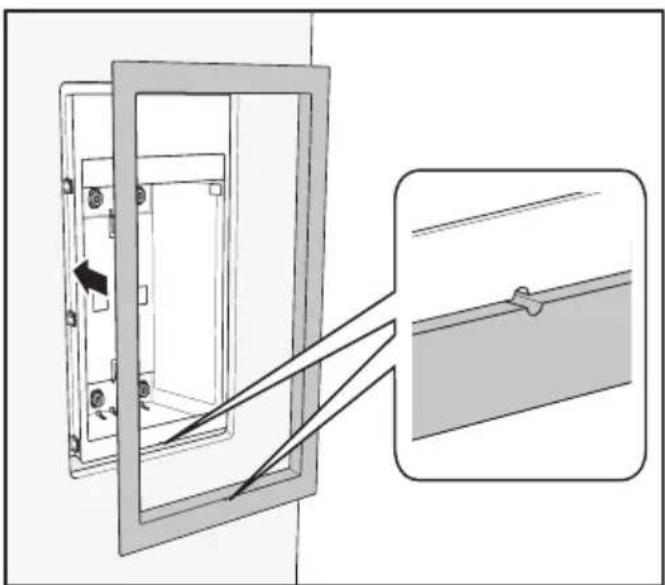

Aligning the Ice/Water dispenser frame 47

Electrical connection 52

Water connection 54

Information on the fresh water connection 54

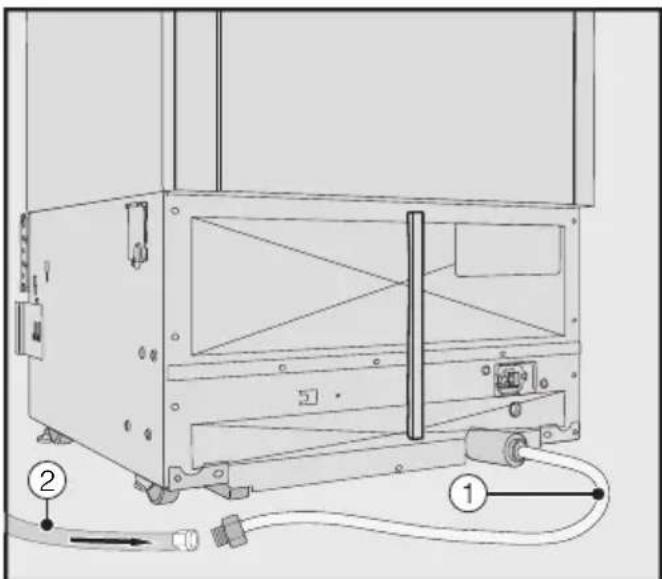

Installing the water hose to the appliance.... 55

How to save energy.... 56

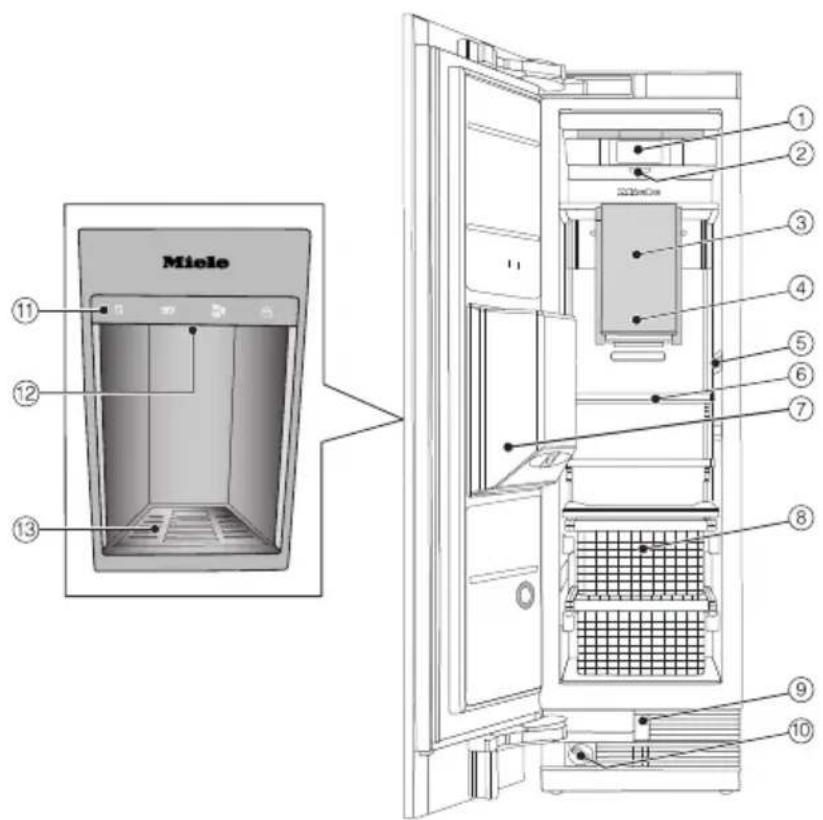

Guide to the appliance.... 58

Main screen.... 59

Settings mode ⚙ 61

Symbols in settings mode ⚙ 62

Accessories 63

Accessories supplied 63

Optional accessories.... 63

Before first use 64

Before first use 64

Using the appliance.... 64

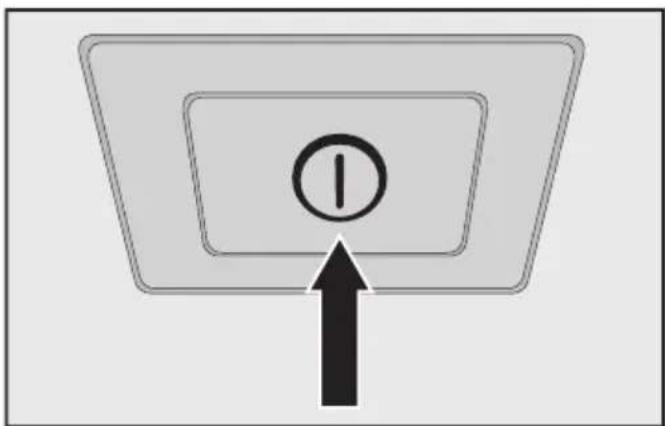

Starting up for the first time 65

Switching on and off 66

Turning off for longer periods of time 67

Selecting additional settings.... 68

Switching Keypad Lock on or off 📄/☐.... 68

Switching Eco Mode Ⓞ on or off.... 68

Performing a Self Test ☑ 69

Switching on Door Assistant 70

Switching off Door Assistant 72

Setting up Miele@home Ⓜ 72

Switching off Demo Mode 76

Resetting the settings to their default settings 📂.... 77

Selecting settings for lighting the Ice/Water dispenser 78

Switching Sabbath Mode Ⅱ On/Off.... 79

Switching on, switching off or resetting Water Filter Display ⚙ 80

The correct temperature.... 82

Setting the temperature.... 82

Temperature range 82

Using SuperFrost 84

Temperature and door alarm.... 85

Door alarm 85

Adjusting the interior fittings.... 86

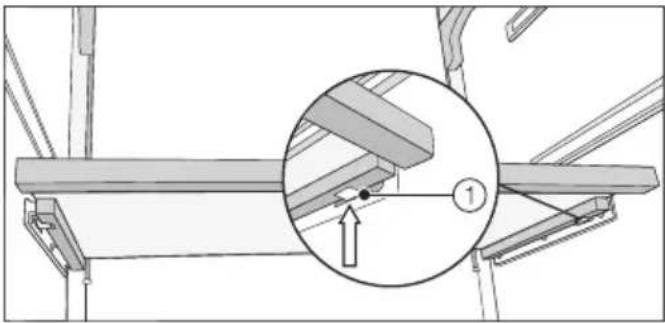

Removing the shelf above the Ice Maker.... 86

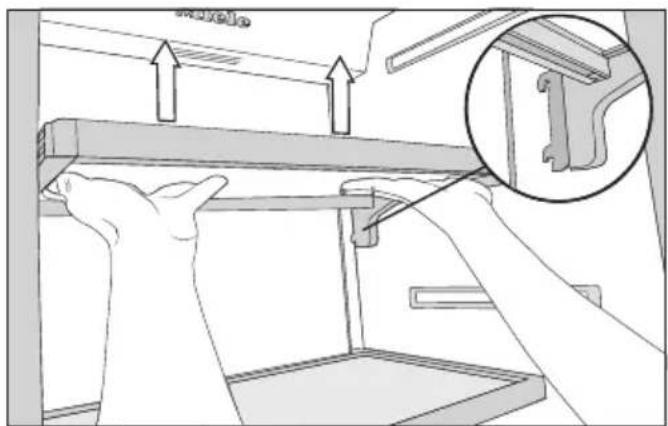

Moving the adjustable shelves 86

Removing the freezer baskets.... 87

Contents

Freezing and storing food.... 88

Maximum freezing capacity 88

What happens when you freeze fresh food? 88

Storing frozen food.... 88

Home freezing 89

Placing food in the Freezer Zone 90

Operating the Ice/Water dispenser.... 92

Switching on the Ice/Water dispenser 93

Dispensing chilled water 94

Dispensing ice cubes and crushed ice 94

Switching the Ice/Water dispenser off 95

System lock 95

Automatic defrosting 96

Cleaning and care 97

Cleaning agents.... 97

Before cleaning the appliance.... 98

Interior and accessories 99

Cleaning and emptying the ice-cube container 99

Cleaning the drip tray 100

Cleaning the door seal 100

Cleaning the ventilation grilles.... 100

After cleaning 100

Frequently Asked Questions 101

Causes of noises 112

Water filter.... 113

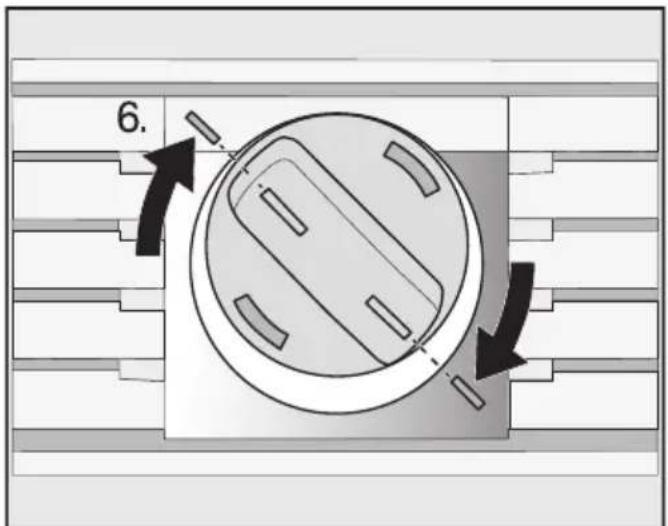

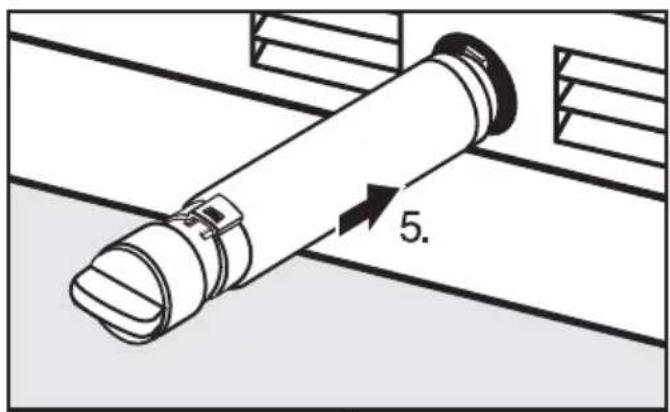

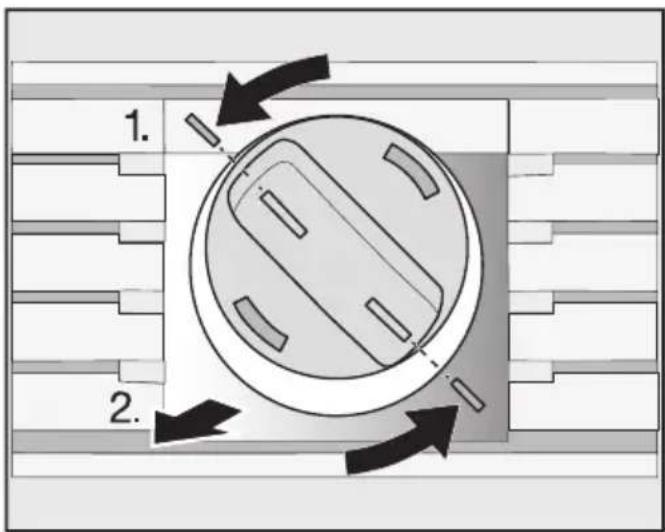

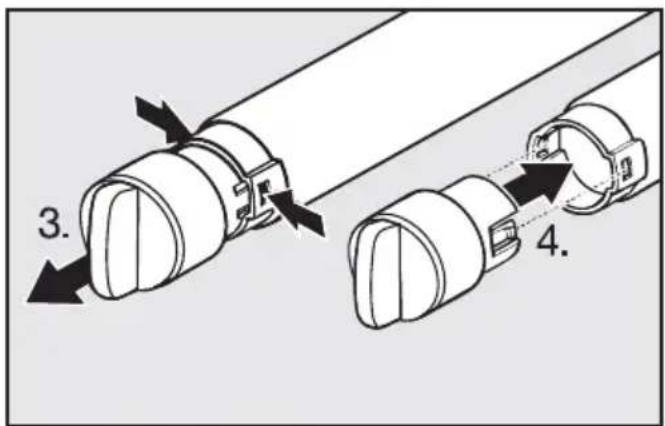

Changing the water filter 114

Using an external water filter.... 115

Lead-free certificate 117

Technical Service.... 118

Contact in case of fault 118

Warranty 118

Declaration of conformity.... 119

Copyright and licenses 120

IMPORTANT SAFETY INSTRUCTIONS

This appliance complies with all statutory safety requirements. Please note that inappropriate use can lead to personal injury and damage to property.

To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before using it for the first time. They contain important notes on installation, safety, use and maintenance.

Miele cannot be held liable for non-compliance with these instructions.

Keep these instructions in a safe place and ensure that new users are familiar with the contents. Pass them on to any future owner.

⚠️ Danger of injury!

This appliance is very heavy and can tip forwards when the door is open.

Keep the appliance door shut until the appliance has been built in and secured in its housing in accordance with the operating and installation instructions.

Appropriate use

This appliance is intended for use in domestic households and similar residential environments such as
- staff kitchen areas in shops, offices and other working environments
– farm houses and by clients in hotels, motels and other residential type environments
- bed and breakfast type environments
– catering and similar non-retail applications.
This appliance is not intended for use outdoors, in damp environments or in places exposed to rain.

IMPORTANT SAFETY INSTRUCTIONS

This appliance is intended exclusively for domestic use to store deep-frozen food, freeze fresh food, and make ice.

Any other usage is at the owner's risk and could be dangerous.

This appliance is not suitable for storing and keeping cool medicines, blood plasma, laboratory preparations or other such materials or products. Incorrect use of the appliance for such purposes can cause deterioration of the items stored. The appliance is not suitable for use in areas where there is a risk of explosion.

Miele cannot be held liable for damage resulting from improper or incorrect use of the appliance.

▶ Persons (including children) which lack physical, sensory or mental abilities or experience with the machine should not use it without supervision or instruction by a responsible person.

Safety with children

▶ To reduce the risk of injury, do not allow children to play in, on or near the appliance.

The door hinges can cause injury. Keep children well away at all times.

▶ Ensure that any packing material is disposed of safely and kept out of the reach of children. DANGER of suffocation!

Technical safety

The refrigerant system is tested for leaks. This appliance complies with statutory safety requirements.

To avoid the risk of damage to the appliance, make sure that the connection data (fuse rating, frequency and voltage) on the data plate corresponds to the household supply.

Check that this is the case before connecting the appliance. Consult a qualified electrician if in any doubt.

IMPORTANT SAFETY INSTRUCTIONS

The electrical safety of the appliance can only be guaranteed when correctly grounded. It is essential that this standard safety requirement is met. If in any doubt please have the electrical installation tested by a qualified electrician.

▶ Reliable and safe operation of this appliance can only be assured if it has been connected to the electricity supply.

The outlet must not be concealed behind the appliance and must be easily accessible so that the appliance can be quickly disconnected from the electrical supply in case of an emergency.

If the power cord is damaged, it must be replaced by a Miele authorized technician in order to protect the user from harm.

The electrical outlet must be properly grounded.

Do not connect the appliance to the electrical supply with a power bar or extension cord. These are a fire hazard and do not guarantee the required safety of the appliance.

If moisture gets into electrical components or into the power cord, it could cause a short circuit. Therefore, do not operate the machine in areas where there may be moisture or splashing water (e.g., garages, laundry rooms).

This appliance must not be installed and operated in mobile installations (e.g. on a ship).

Do not use a damaged appliance. It could be dangerous. Check the appliance for visible signs of damage.

For safety reasons, this appliance may only be used after it has been built in.

The machine must be disconnected from the power supply during installation, maintenance, and repair work, and installation work on the fresh water connection. The machine is only completely isolated from the power supply when:

– the fuses have been switched off, or

IMPORTANT SAFETY INSTRUCTIONS

– the circuit breaker has been removed completely, or
- the power cord has been unplugged. Pull on the plug and not on the power cord when disconnecting it from the power supply.

▶ Unauthorized installation, maintenance, and repairs, or a faulty fresh water connection can cause considerable danger for the user. Installation, maintenance, and repairs, installation work on the fresh water connection, and all repairs on the ice/water outlet must only ever be carried out by a Miele authorized technician.
▶ Any manufacturer's warranty will be void if the appliance is not repaired by a Miele approved service technician.
▶ Defective components should only be replaced by Miele original parts. Only with these parts can the manufacturer guarantee the safety of the appliance.
▶ Miele cannot be held liable for damage caused by a faulty connection to the fresh water supply.
The ice cube maker must only be connected to a cold water line.
▶ DANGER of injury! Never tamper with the movable components on the ice cube maker or the element on the ice cube maker.

Correct use

The appliance is designed for use within a certain climate range (ambient temperatures), and should not be used outside this range. The climate range for your appliance is stated on the data plate inside the appliance. Installing it in a room with too low an ambient temperature, e.g. a garage, will lead to the appliance switching off for longer periods so that it cannot maintain the required temperature.

▶ WARNING! DANGER of overheating! Do not cover or block the air vents. This can impair the efficiency of the appliance, increase the power consumption and cause damage to the appliance.

IMPORTANT SAFETY INSTRUCTIONS

If storing food which contains a lot of fat or oil in the appliance, make sure that it does not come into contact with plastic components as this could cause stress cracks or break the plastic.

Do not store explosive materials in the appliance or any products containing propellants (e.g. spray cans). Electrical components could cause flammable vapors to ignite.

DANGER of fire and explosion.

Do not operate any electrical equipment (e.g. an electric ice cream maker) inside the appliance.

DANGER of sparking and explosion.

Do not store cans or bottles containing carbonated drinks or liquids which could freeze in the freezer. The cans or bottles could explode.

DANGER of injury and damage to the appliance.

When cooling drinks quickly in the freezer, make sure bottles are not left in for more than one hour; otherwise they could burst, causing injury or damage.

▶ Never handle frozen food or the metal parts of the appliance with wet hands. Your hands may freeze to the frozen food or to the metal. DANGER of frost burn!

Do not take ice cubes out with your bare hands and never place ice cubes or popsicles in your mouth straight from the freezer section. The very low temperature of the frozen ice or popsicles can cause frost burn to the lips and tongue. DANGER of injury.

Do not refreeze partially or fully defrosted food. Consume defrosted food as soon as possible, as it will lose its nutritional value and spoil if left for too long. Defrosted food may only be refrozen after it has been cooked.

IMPORTANT SAFETY INSTRUCTIONS

When eating stored food, there is a danger of food poisoning. Storage times will depend on several factors, including the freshness and quality of the food, as well as the temperature at which it is stored. Observe the manufacturer's “use-by” dates and storage instructions.

▶ Use only genuine original Miele parts. If parts or accessories from other manufacturers are used, the warranty may become invalid.

Cleaning and maintenance

Do not use any oil or grease on the door seals. They can cause the seals to deteriorate over time.
▶ Never use a steam cleaner to clean the appliance. The steam can reach the electrical components and cause a short circuit.
▶ Sharp edged or pointed objects will damage the evaporator, causing irreversible damage to the appliance. Do not use sharp edged or pointed objects to

- remove frost or ice,

- separate frozen foods or remove ice trays.

▶ Never place electric heaters or candles in the appliance to defrost it. These can damage the plastic parts.
Do not use defrosting sprays or de-icers, as they could contain substances which could damage the plastic parts or which might cause the build-up of gases and pose a danger to health.

IMPORTANT SAFETY INSTRUCTIONS

Transport

To avoid damage to the appliance, always transport it upright and in its packaging.
▶ DANGER of injury and damage. The appliance is very heavy and must be transported by two people.

Disposal of your old appliance

▶ Children could become trapped in the machine and could suffo-cate.

- Remove the machine doors.

- Remove the drawers.

- Leave the adjustable shelves in the machine so children cannot climb inside.

▶ DANGER of electric shock!

- Cut the plug off the power cord.

- Cut the power cord off the old appliance.

▶ Dispose of them separately from the appliance.

▶ Ensure that the appliance is not stored in the vicinity of gasoline or inflammable gases and liquids during and after disposal.

▶ Make sure that the coolant pipework is not damaged during disposal to avoid uncontrolled leakage of oil and coolant (see data plate for coolant type).

▶ Splashes of coolant can cause damage to the eyes. Be careful not to damage any part of the pipework while awaiting disposal, e.g. by

- puncturing the coolant channels in the evaporator,

- kinking any pipework,

- scratching the surface coating.

Disposal of packaging material

The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.

Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children. Return the packaging to your dealer.

Disposal of your old appliance

Electrical and electronic appliances contain valuable materials. They also contain certain substances, compounds and components which were essential for the proper functioning and safe use of the equipment. Handling these materials improperly by disposing of them in your household waste can be harmful to your health and the environment. Therefore, please do not dispose of your old appliance with regular household waste and follow local regulations on proper disposal.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Consult with local authorities, dealers or Miele in order to dispose of and recycle electrical and electronic appliances. Miele assumes no responsibility for deleting any personal data left on the appliance being disposed.

Take care not to damage the pipework at the back of your appliance before or during transportation to an authorized, environmentally friendly collection depot.

This way, coolant in the pipework and oil in the compressor will be contained, and will not leak into the environment.

Please ensure that your old appliance does not pose a danger to children while being stored prior to disposal. See “IMPORTANT SAFETY INSTRUCTIONS” for more information.

Risk of injury and damage.

This appliance must be built in, otherwise it could tip over.

Keep the appliance door(s) shut until the appliance has been built in and secured in its housing in accordance with the operating and installation instructions.

⚠️ Fire hazard and risk of damage. The appliance must not be installed underneath a cooktop.

Installation location

This appliance should be installed in a dry, well-ventilated room.

When deciding where to install your appliance, please bear in mind that the energy consumption will increase if installed near to a heater, a cooker, or other appliance that gives off heat. Direct sunlight should also be avoided. The higher the room temperature, the longer the compressor has to run and the higher the energy consumption is.

When installing the appliance, please note:

• The electrical outlet must be easily accessible in an emergency and not concealed behind the appliance.
• The plug and power cord must not touch the back of the appliance as they could be damaged by vibrations from the appliance.
• Do not plug other appliances into electrical outlets behind this appliance.

If installation near a heat source is unavoidable, observe the following minimum distances between the appliance and the heat source:

• At least 1 1/4" (3 cm) to electric or gas stoves
• At least 11 3/4" (30 cm) to oil or coal-based stoves

If it is not possible to observe these minimum distances, an insulation plate must be installed between the appliance and the heat source.

Climate class

The appliance is designed for use within a certain climate range (ambient temperatures) and should not be used outside this range. The climate range of the appliance is stated on the data plate inside the appliance.

Climate class	Room temperature
SN 50°	F to 90°F / 10°C to 32°C
N 60°	F to 90°F / 16°C to 32°C
ST 60°	F to 100°F / 16°C to 38°C
T 60°	F to 109°F / 16°C to 43°C

Operating in a room which is too cold will cause the compressor to turn off for too long, causing the internal temperature in the appliance to rise, resulting in damage.

Risk of damage.

In environments with high humidity, condensation may appear on the external surfaces of the appliance.

This condensate can cause corrosion on external appliance panels.

To prevent this, it is advisable to install the appliance in a dry and/or air-conditioned room with sufficient ventilation.

After installation, make sure that the appliance door closes properly, that the specified ventilation gaps are adhered to, and that the appliance is installed in accordance with these installation instructions.

Installation notes

Load-bearing capacity of the niche floor

The floor of the space where the appliance is to be installed must be flat and level.

It must be made from strong, rigid material.

The appliance is extremely heavy when fully loaded, and the floor it stands on must be able to bear its weight. If necessary, seek the advice of an architect or structural engineer.

When fully loaded, the weight of the appliance is about:

F 2461 Vi, F 2471 Vi 633 lbs (287 kg)

F 2661 Vi, F 2671 Vi 765 lbs (347 kg)

Door hinging

The appliance is supplied with a fixed hinge. The door hinge cannot be changed.

Adjoining cabinetry/units

The appliance is screwed to the adjoining cabinetry/units to the side and above. For this reason, it is essential that all cabinets/units are fixed to the ground and/or wall.

Ventilation

WARNING! Risk of fire!

Operation of the appliance is limited. Keep the required ventilation gaps free from obstruction.

Noncompliance with the specified dimensions for the ventilation grille will cause the compressor to turn on more often and run for longer periods.

This causes increased energy consumption and an increased compressor operating temperature, which can result in damage to the compressor.

Do not block the ventilation gaps. They must also be cleaned on a regular basis to remove dust.

Specifications for the plumbed water connection

• The machine may only be connected to the plumbed water connection by qualified technicians.
• Connection to the household water supply must comply with the applicable regulations in the country in which the machine is being installed. All units and systems used to supply water to the machine must also comply with the applicable regulations in the respective country.
• The water quality must comply with the requirements for drinking water in the country in which the machine is being operated.
• The water pressure must be between 29 and 116 psi (2 and 8 bar).
• The appliance is only suitable for connection to a cold water line.
• The appliance may only be connected directly to a fresh water supply to ensure that water is circulated in the cold water line.
• A shut-off valve must be provided between the water line and the water supply of the building to ensure that the water supply can be cut off if necessary.
• Make sure that the shut-off valve is still accessible after the appliance has been installed.

Side-by-side

This appliance can be installed side-by-side with another refrigeration appliance. The following overview will show you which side-by-side options you have with your appliance:

A side-by-side merging kit is required for this. This is available from your Miele dealer or Miele Technical Service.

Instructions for installing appliances side-by-side can be found in the side-by-side merging kit instruction manual.

... with partition wall

Technical diagram showing six different mechanical or structural assembly configurations with dimension 'a' labels and a central starburst symbol.

The wall a between the side-by-side appliances must be at least 5/8" (16 mm) thick.

The appliances are secured individually in their niche using the supplied installation material.

If the partition wall a is narrower than 6 5/16" (160 mm), you will need the side panel heater from the side-by-side installation kit to prevent condensation from forming and any resulting damage.

If the partition wall a is thicker than 6 5/16" (160 mm), you do not need the side-by-side installation kit, nor the side panel heater.

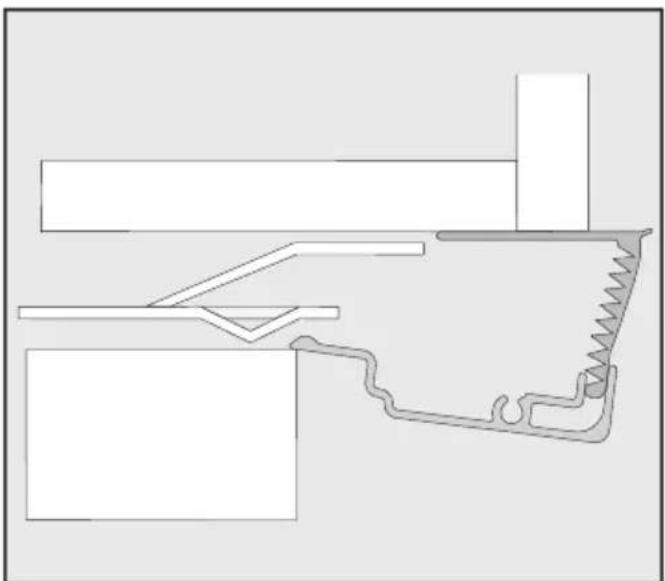

... without partition wall

Three diagrams showing a device with a black X mark and a spring scale, no text or symbols present.

If the appliances are to be installed next to each other without a partition wall between them, they will need to be joined together with the side-by-side installation kit. In addition, you must install the side panel heater to prevent condensation from forming and any resulting damage.

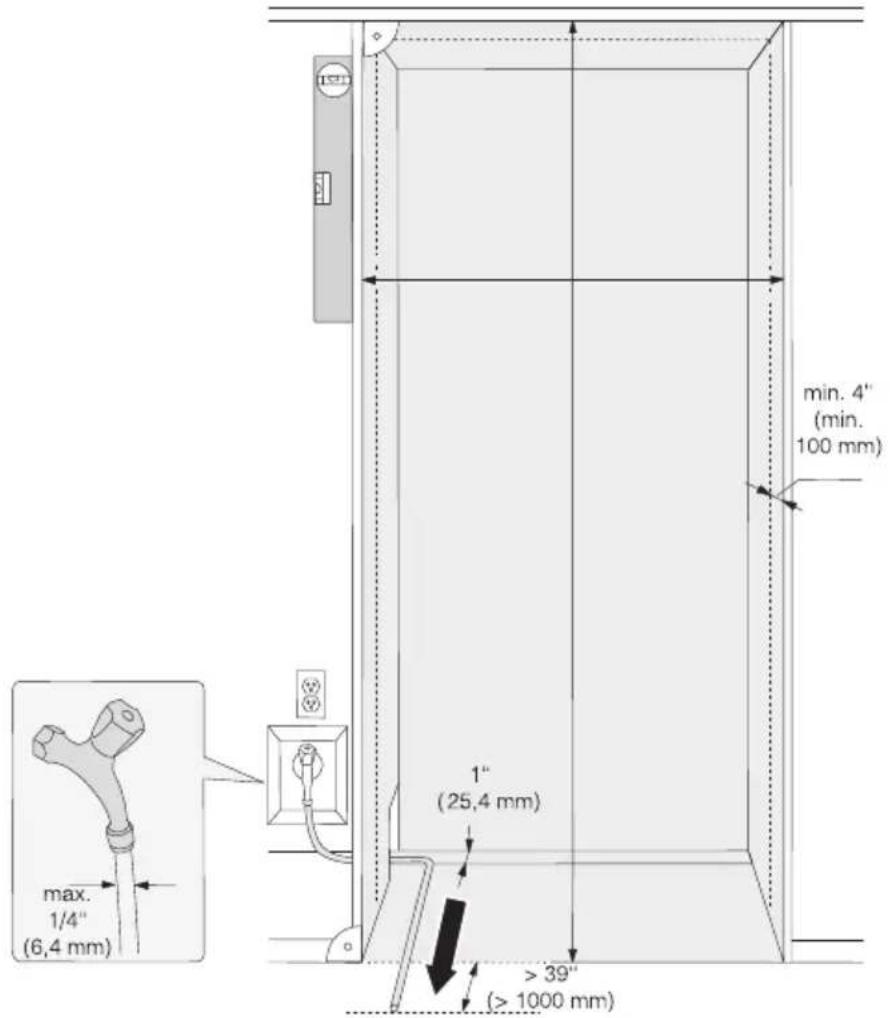

max. 1/4" (6,4 mm) 1" (25,4 mm) > 39" (> 1000 mm) min. 4" (min. 100 mm)

• The electrical connection must not be positioned higher than 9" above the floor.
• The 1/4" plumbed-water connection (not supplied) should not be positioned higher than 2" above the floor.

The electrical outlet must not be concealed behind the appliance and must be easily accessible in an emergency!

F 2461 Vi, F 2471 Vi

≥ 24 3/4" (≥ 629 mm) 84" - 85 3/16" (2134 - 2164 mm) 18" (458 mm)

≥10 5/16" (262 mm) ≥ 3 5/8" (92 mm) 1 3/16" (30 mm) 7/8" (22 mm) 4' (102 mm) ≥ 4" (102 mm)

Side view

F 2661 Vi, F 2671 Vi

≥ 24 3/4" (≥ 629 mm) 84" - 85 3/16" (2134 - 2164 mm) 24" (610 mm)

1 3/16" (30 mm) ≥10 5/16" (262 mm) 7/8" (22 mm) ≥3 5/8" (92 mm) 4' (102 mm) ≥4" (102 mm)

Side view

Dimensions when the door is opened (opening angle 115°)

F 2461 Vi, F 2471 Vi

Door handle max. 1 1/2" (38 mm) 9 3/16" (234 mm) 115° 20 11/16" (525 mm)

* The measurement for the door and the door handle varies depending on the design of the kitchen.

The opening angle must not be limited to 90^ because otherwise the freezer baskets cannot be removed.

F 2661 Vi, F 2671 Vi

11 3/4" (299 mm) 26 5/8" (677 mm) 115° Max. 1 1/2" (38 mm) Door handle

* The measurement for the door and the door handle varies depending on the design of the kitchen.

The opening angle must not be limited to 90^ because otherwise the freezer baskets cannot be removed.

F 2461 Vi, F 2471 Vi

17 3/4" (451 mm) 8 7/8" (225,5 mm) 32 2/3" (830,5 mm) 9 1/16" (230 mm) 14 1/2" (368 mm) 79 7/8" (2029 mm) ≥ 4" - 5 3/16" (≥ 102 - 132 mm)

F 2661 Vi, F 2671 Vi

23 3/4" (604 mm) 11 7/8" (302 mm) 32 2/3" (830,5 mm) 9 1/16" (230 mm) 14 1/2" (368 mm) 79 7/8" (2029 mm) ≥ 4" - 5 3/16" (≥102 - 132 mm)

Before starting...

It is essential to read these installation instructions carefully before starting to install the appliance.

The appliance should be installed by a suitably qualified tradesman in accordance with these installation instructions. Safe operation of the appliance is only assured if it has been installed and connected in accordance with the installation instructions.

Risk of damage and injury!

This appliance is very heavy and can tip forwards when the door is open. Keep the appliance door shut until the appliance has been built in and secured in its housing in accordance with the operating and installation instructions.

The appliance is both large and heavy. Installation must be carried out by two people.

The appliance must be installed in accordance with local regulations. If local regulations are not available, the following regulations must be observed:

– in the USA: the National Electric Code, ANSI/NFPA 70 - latest edition/State and Municipal codes and/or local codes.
– in Canada: the Canadian Electric code C22.1 - latest edition/Provincial and Municipal codes and/or local codes.

Tools required

• Cordless drill
• TX 20 screwdriver
• Hammer drill
• Drill bits in various sizes, depending on materials
• Hammer
• Open-ended wrench
• Ratchet wrench, attachment: socket, 5/16" (8 mm)
• Adhesive tape
• Utility knife
• Pipe wrench
• Level
• Tape measure
• Pencil

Other

• Step ladder
• Hand truck

Weight of cabinet front

Before installing the cabinet front, ensure that the weight of the door does not exceed the maximum permitted:

	Max. weight of cabinet front
F 2461 Vi, F 2471 Vi	159 lb (72 kg)
F 2661 Vi, F 2671 Vi	152 lb (69 kg)

⚠️ Risk of damage due to weight of cabinet front.

Cabinet fronts that exceed the per- mitted weight can damage the hinges, and this can affect various factors, such as operation of the ap- pliance.

Always observe the permissible weight of the cabinet fronts.

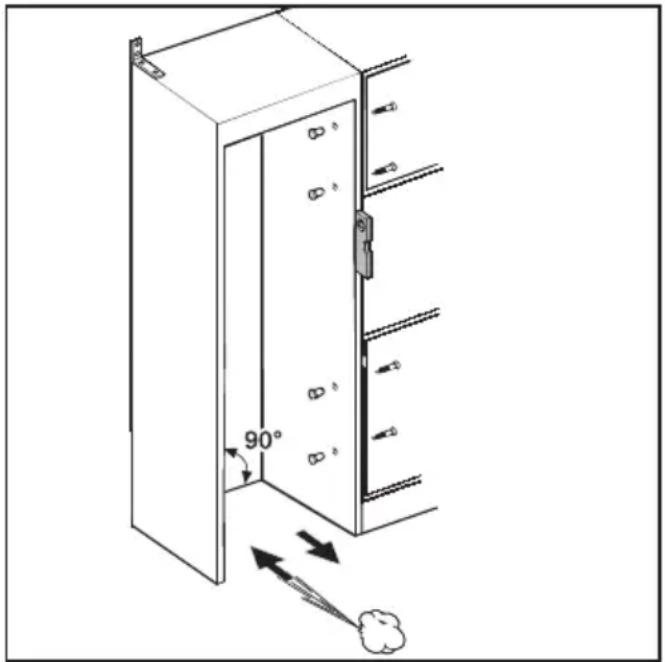

Aligning the installation niche

90°

The installation niche must be carefully aligned using a level before installing the appliance. The niche corners must be at 90^ angles to each other, otherwise the cabinet door will not sit straight on all four corners.

• The side panels of the installation niche must be even.
• The surrounding walls of the installation niche must be at least 5/8" (16 mm) thick.
• The surrounding walls must be securely fixed to the floor or wall.
• The shortened side walls must be at least 4" (100 mm) thick.
• The baseboard must be at least 1/2" (13 mm) thick (preferably 3/4" (19 mm)).

Checking the installation space

■ Check the installation dimensions.
■ Check the position of the electrical and plumbing connections.
■ Check that all adjacent cabinets / units are securely fixed to the wall.
■ Check the adjacent cabinets / units for possible collisions when opening doors (door opening angle).

Before installation

Heavy weight!

This appliance is very heavy and can tip forwards when the door is open.

• Prepare the plumbed water connection for the appliance (see “Plumbed water connection”).
  ■ Before installation, remove any accessories from the back of the appliance.
• Check the appliance for damage during transportation.

Do not install a damaged appliance.

■ Check that all parts at the back of the appliance are unhindered.
■ To protect the floor when installing the appliance, secure an off-cut of flooring or similar material to the floor in front of the installation area.

Technical line drawing of a mechanical component with internal parts and a numbered annotation (1), no readable text or symbols present.

■ Do not remove the installation aids ① from the appliance door. These will be required later when the appliance is installed in the niche.

Risk of tipping over!

Make sure the appliance is no longer secured to the pallet as soon as you unscrew the brackets that fix the appliance to the pallet.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

■ Unscrew the brackets ②.

■ With the help of several people as required, carefully lift the appliance from the pallet, starting with the back of the appliance.

As soon as you have set the appliance upright, you can move it using the rollers on the bottom.

Preparing the installation niche

Keep the appliance door closed the appliance is secured inside che!

Risk of tipping over!

The installation niche must be secured to the wall behind it with several screws. Only this can ensure that the appliance will not tip over after being installed!

Always use the provided anti-tip brackets to secure the niche.

Due to the sheer size and weight of the appliance, it needs to be ensured that it cannot tip forwards once it is built into the niche.

Using the installation equipment

Parts required for installation of the appliance are supplied with the appliance. The plastic bags supplied are marked with letters for easy identification.

■ When performing the individual assembly steps, observe the letters specified and use the matching plastic bag with the required installation equipment.

Building in the appliance

Securing the installation niche

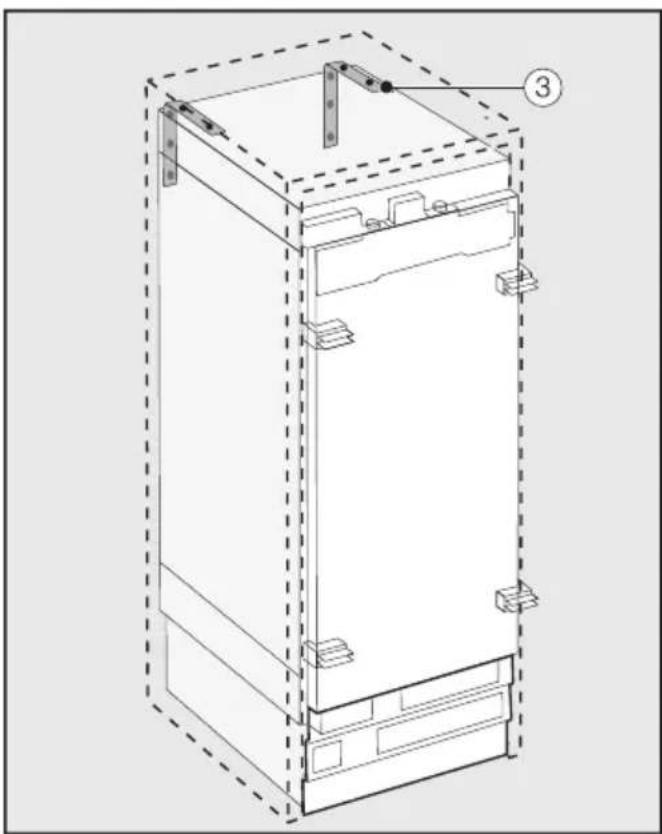

The provided anti-tip brackets ③ ensure the installation niche is securely fixed to the wall.

Technical line drawing of a refrigerator with labeled components and structural details (no text or symbols)

■ Use 2 anti-tip brackets ③ for each individual appliance or 4 anti-tip brackets for each (side-by-side) combination of 2 appliances.
■ Position the anti-tip brackets ③ on the left and right of the niche.

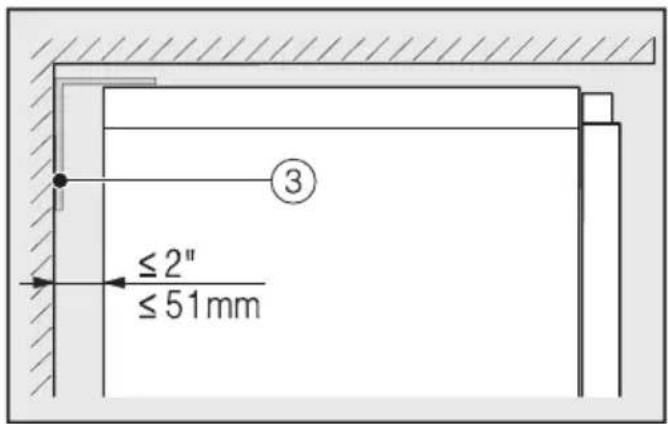

≤2" ≤51mm ③

>2" >51mm

■ Make sure that the gap between the appliance's rear wall and the installation niche does not exceed 2" (51 mm).
■ Place a wooden wedge behind the anti-tip brackets ③ if necessary.
■ While holding the anti-tip brackets in place, mark the necessary drill holes on the rear wall of the installation niche.

Retaining screws for different uses and types of material are supplied in the accompanying pack:

Technical diagram showing assembly of a bracket with screws and bolts, labeled with numbered components and directional arrows.

Securing to a concrete wall

Technical diagram showing a 3D corner bracket with four screws and directional arrows indicating assembly or installation.

Securing to a wooden wall

Technical diagram showing screw installation with directional arrows and labeled components

Securing with a wooden wedge

- Secure the installation niche to the wall using the anti-tip brackets ③.

■ Now prepare the plumbed water connection for the appliance (see "Plumbed water connection").

Pushing the appliance into the niche

Push the appliance into the niche, taking care not to damage the power cord and plumbed water connections.

If you are installing several appliances side by side, now secure the appliances to one another (see the instructions for the side-by-side installation kit).

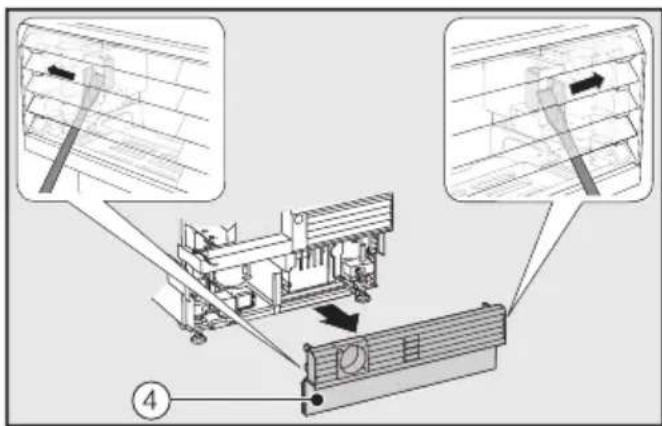

■ Remove the toe-kick board ④ from the appliance toe-kick as follows:

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

- Carefully guide a flat-head screw-driver through the grate in the toe-kick board ④ on both sides and use it to push the internal plastic latches outwards to release the toe-kick board.

Technical diagram of a refrigerator with numbered components and airflow direction arrows

■ Affix edge protection ⑤ to the adjacent cabinet fronts.

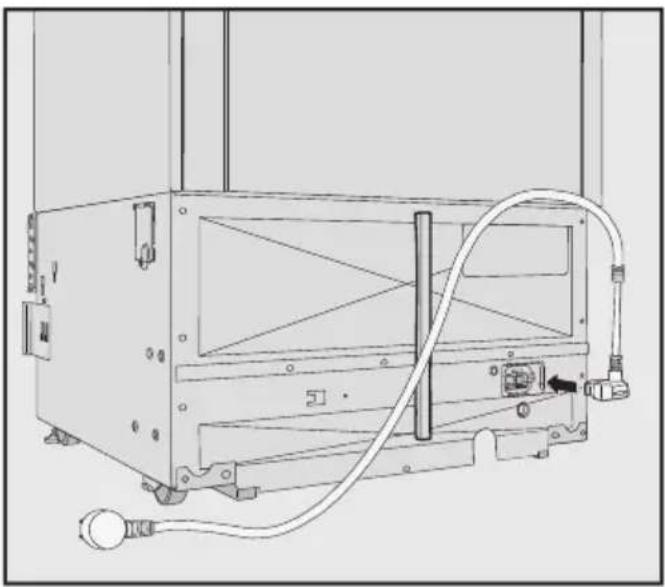

- Insert the plug connector at the back of the appliance (see “Electrical connection”).
■ Insert the plug ⑥ into the electrical outlet.

The electrical outlet should be close to the appliance and easily accessible!

Otherwise, it must be possible to switch the appliance on and off using an external all-pole switch with a sufficient contact gap!

Risk of short circuit and over- loading!

When installing appliances side by side, each appliance must have its own dedicated electrical outlet.

Tip: Secure the power cord to prevent it becoming caught: Tie a piece of string to the middle of the power cord and as the appliance is being pushed into the niche, pull the cord forward underneath the appliance.

■ Carefully push the appliance into the niche.

If the appliance cannot be pushed into the niche (because the floor is uneven, for example), unscrew the rear feet slightly (see “Aligning the appliance”) and slide the appliance into the niche.
■ Remove the edge protection ⑤ from the adjacent cabinet fronts.

Aligning the appliance

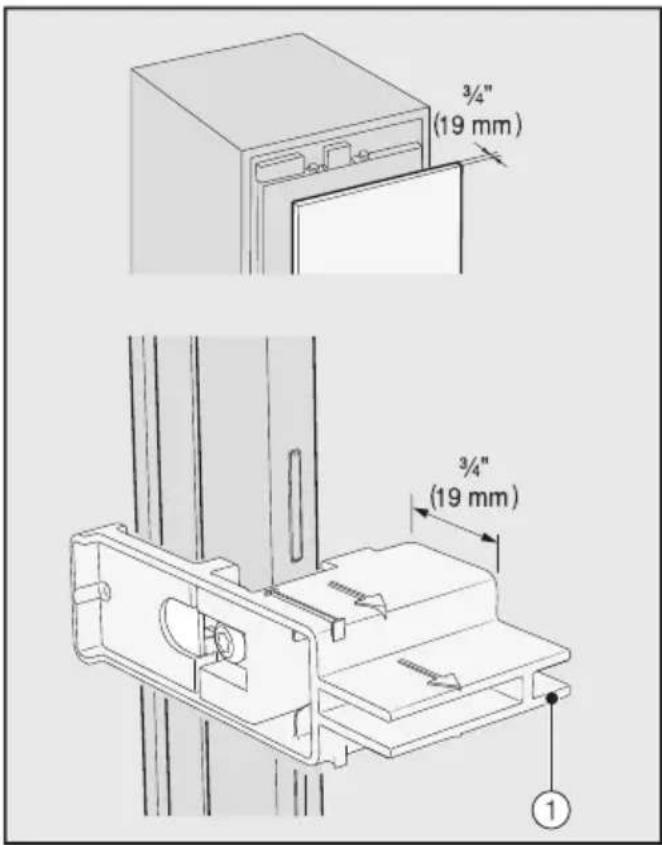

■ Align the appliance with neighboring cabinet fronts as described below.

3/4" (19 mm) 3/4" (19 mm) ①

Cabinet-front thickness of 3/4" (19 mm)

1½" (38 mm) 1½" (38 mm) ①

Cabinet-front thickness of 1 1/2" (38 mm)

The installation aids ① on the appliance door are suitable for a cabinet-front thickness of 3/4" (19 mm) or 1 1/2" (38 mm).

Building in the appliance

The adjustable feet at the front and back of the appliance can all be adjusted from the front:

Risk of damage!

Do not under any circumstances use a cordless screwdriver to adjust the front and rear feet.

Technical line drawing of a mechanical assembly with no visible text or symbols

■ Position the supplied spacers ⑦ on both sides on the markings next to the adjustable feet at the front of the appliance.

max, 1 1/8" (30 mm) ⑦ ⑧

■ Adjust the front feet ⑧ with a ratchet (attachment: 5/16" (8 mm) socket) or a TX 20 screwdriver.

max. 1 1/8" (30 mm) min. 1 1/4" (32 mm) 7 9

■ Adjust the rear feet ⑨ with a ratchet (attachment: 5/16" (8 mm) socket) or a TX 20 screwdriver.

Tip: Proceed carefully when adjusting the feet, alternating between the left and right feet.

Technical diagram of a vertical mechanical assembly with internal components and directional arrow (no text or symbols)

Place a spirit level across the installation aids ① on the appliance door to check the appliance's alignment.

■ Unscrew the feet ⑧ and ⑨ on both sides at least until the marking on the toe-kick is aligned with the required 1 1/4" (32 mm) on the spacer ⑦. The standard dimension of 1 1/4" (32 mm) relates to a niche height of 84" (2,134 mm).

It is important to align the feet to a height of at least 1 1/4" (32 mm) so that the appliance's ventilation works properly via the toe-kick.

Risk of damage!

Unscrew the feet only until the marking on the toe-kick is aligned to a maximum of 2 7/16" (62 mm) (max. niche height of 84" (2,164 mm)). Otherwise the rear foot adjustment will be damaged.

■ Check the alignment of the appliance again using installation aids ① and the spirit level.

Building in the appliance

Securing the appliance in the niche

C 10 5/32" x 19/32" (4 mm x 15 mm)

■ Screw the lugs for the fixing plate ⑩ into the cabinets/units above the appliance.

If it is not possible to secure the appliance at the top, it can be attached to the niche with the side fixing plates:

5/32" x 19/32" (4 mm x 15 mm)

■ Open out the side fixing lugs ⑪.
- Secure the side fixing lugs ⑪ with the screws provided.

■ Open the appliance door.

5/32" x 19/32" (4 mm x 15 mm) ⑫

■ Screw the fixing plate lugs ^12 at the top and bottom to the cabinets/units adjacent to the appliance.

In a side-by-side combination, only the external panels of the two appliances can be secured to the cabinet wall.

■ Connect the appliance to the household water supply (see “Plumbed water connection”).

Preparing the cabinet fronts

■ Open the appliance door as far as it will go.

Technical line drawing of a refrigerator interior with a close-up of the door panel and internal components (no text or symbols)

■ Unscrew the installation aids ① from the appliance door.

Diagram of a door with internal components and a numbered label (13), showing no readable text or symbols.

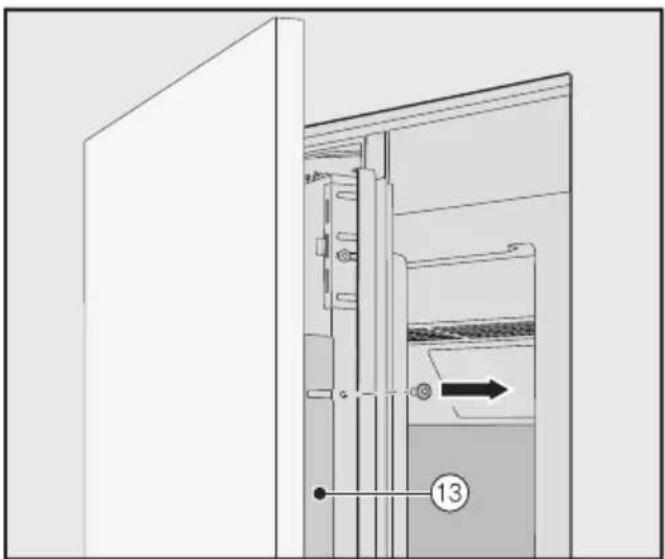

- Unscrew the angle trims ⑬ from the appliance door and place the trims and screws to one side – they will be required later.

Building in the appliance

■ Close the appliance door.

Technical diagram showing a mechanical assembly with labeled components and an X-marked feature (no readable text or symbols)

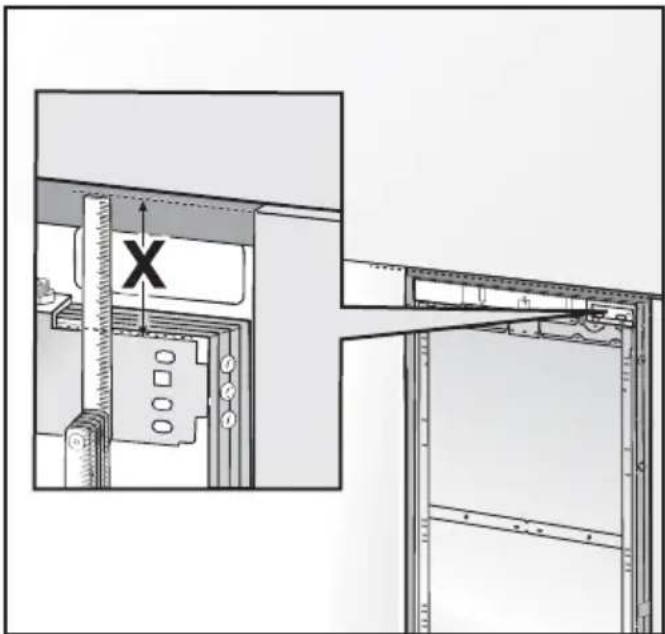

■ Measure the gap X between the adjusting bar and the upper edge of the adjacent cabinet front.

Technical diagram of a device rear panel with numbered components and directional arrows indicating assembly or movement.

■ Remove the nuts and washers ^14 from the threaded bolts ^15 and store them in a safe place – they will be required later.

The mounting frame ^16 can now be removed from the appliance door.

Y 16 X X

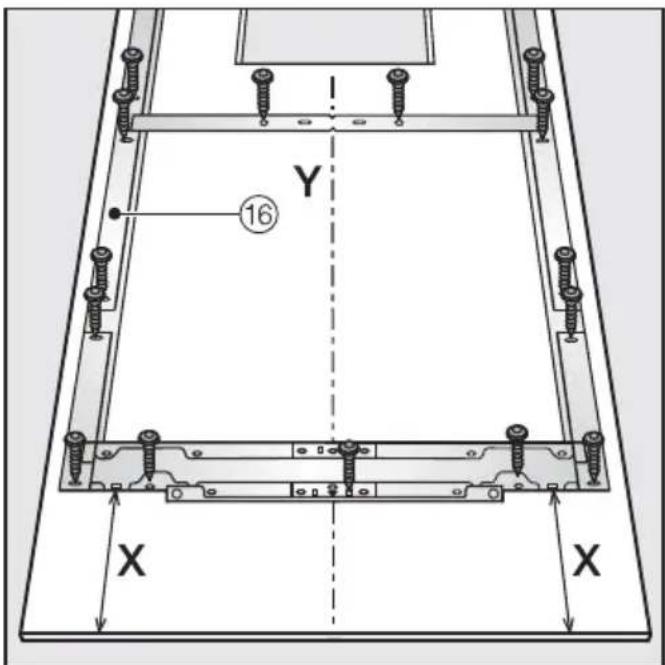

■ Place the cabinet front on a firm surface, with the external side facing downwards (place on a blanket or similar to avoid it becoming scratched).
■ Mark the distance X -1/8" (3 mm) on the inner side of the cabinet front.
■ Similarly, locate and mark the midpoint Y on the cabinet front.
■ Pre-drill the holes.

■ Screw the mounting frame ^16 to the cabinet front: Use at least one screw for each retaining point on the mounting frame ^16 .

Technical line drawing of a mechanical component with mounting holes and a 6x multiplier label (no text or symbols beyond basic technical lines)

- Secure the mounting frame ⑯ to the top of the cabinet front, using at least 6 screws depending on the size.

The mounting frame has several different types of holes to take account of a variety of cabinet fronts.

When securing the frame, always screw into the strongest part of the cabinet door. To do this, select screws which are slightly shorter than the thickness of the cabinet front.

Diagram of a refrigerator with cooling unit and airflow arrows (no text or symbols)

■ Remove the drip-tray cover and the drip tray from the Ice/Water dispenser.

Diagram of a door frame with an arrow indicating left-side movement, showing internal components and mounting holes (no text or symbols)

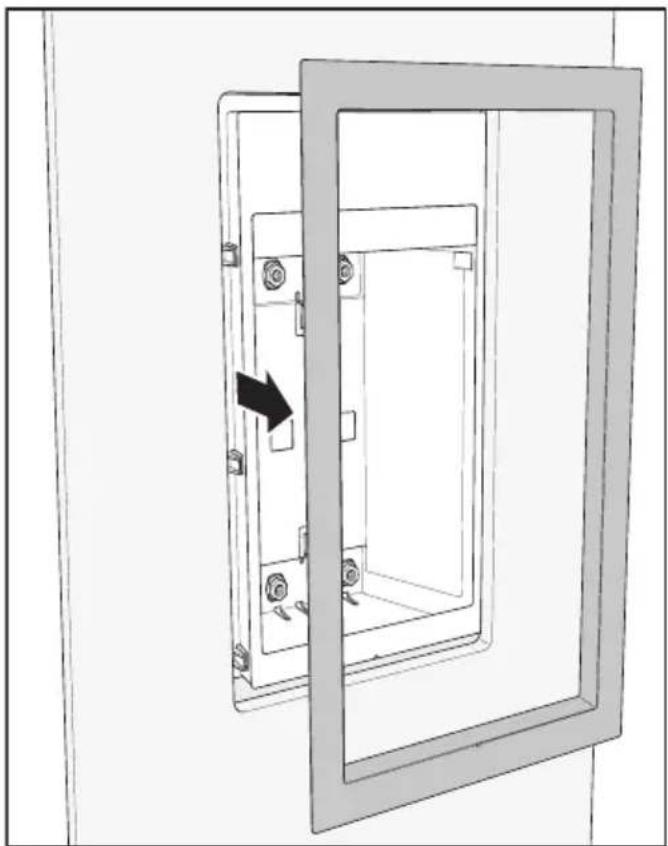

■ Remove the frame from the Ice/Water dispenser.

■ Screw the appliance handle to the cabinet front from the inside if necessary (not for handle-free kitchens).

Securing and aligning the cabi- net front

13 16

■ Now insert the angle trims ⑬ as far as they will go into the provided spaces in the fixing frame ⑯.

Diagram showing a device panel with labeled components and directional arrows, including numbered callouts 15 and 16.

■ Open the appliance door and hang the cabinet front on its frame ^16 onto the threaded bolts ^15 .

Technical line drawing of a door mechanism with labeled component (13), showing internal components and assembly (no text or symbols beyond labels)

■ Press the angle trims ⑬ into the white plastic frame on both sides and screw them securely into place. Spare screws are provided in the plastic bag marked with the letter E.

3D diagram of a structural bracket with directional arrows indicating movement or force, no text or symbols present

■ Place the spacers ⑦ on top of the cabinet front on both sides.
■ Close the appliance door and check the distance between the door and adjacent cabinet doors.

Technical diagram of a door mechanism with labeled component 13 and directional arrows indicating movement or assembly.

■ Align the depth of the appliance door via the gaps in the angle trims ^13 . Then screw the angle trims ^13 into position.

Diagram of a door with an arrow indicating clockwise motion, showing internal structure and numbered label (13), no text or symbols present.

■ Now tighten the screws in the angle trims ⑬.

Building in the appliance

Technical diagram showing mechanical assembly steps with numbered component '15' and directional arrows indicating motion

■ Align the height and sides of the appliance door using the threaded bolts ⑮.
■ Close the appliance door and check the distance between the door and adjacent cabinet doors.

14

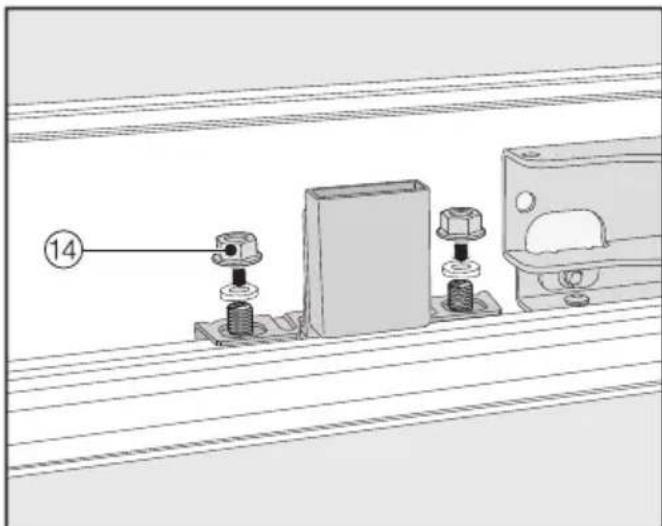

■ Place the washers and nuts ⑭ back in position and tighten the nuts ⑭. The appliance door is now fixed.

■ Remove the spacers ⑦ from the cabinet front.

Mounting the fixing bracket

The fixing bracket is used to secure the cabinet front to the bottom of the appliance door.

Do not mount the fixing bracket until the appliance (or side-by-side combination, if applicable) has been installed and the cabinet front has been aligned.

■ Open the appliance door as far as it will go.

Technical diagram showing a mechanical assembly with labeled component 17 and directional arrow indicating motion or force.

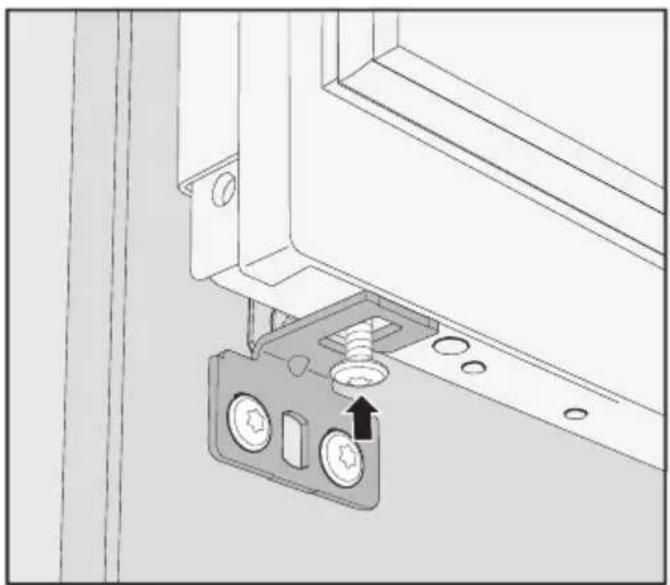

■ Slide the fixing bracket ⑰ sideways onto the screw at the bottom of the appliance door.

Technical diagram showing a mechanical assembly with labeled component 17 and directional arrows indicating movement or force.

Technical diagram showing mechanical assembly with numbered component and directional arrows indicating movement or force

■ Screw the fixing bracket ⑰ securely to the cabinet front.

Mechanical assembly diagram showing a bracket with mounting holes and a highlighted component (no text or symbols)

■ Tighten the screw at the bottom of the appliance door.

Technical diagram showing mechanical assembly with numbered components and directional arrow indicating movement or assembly.

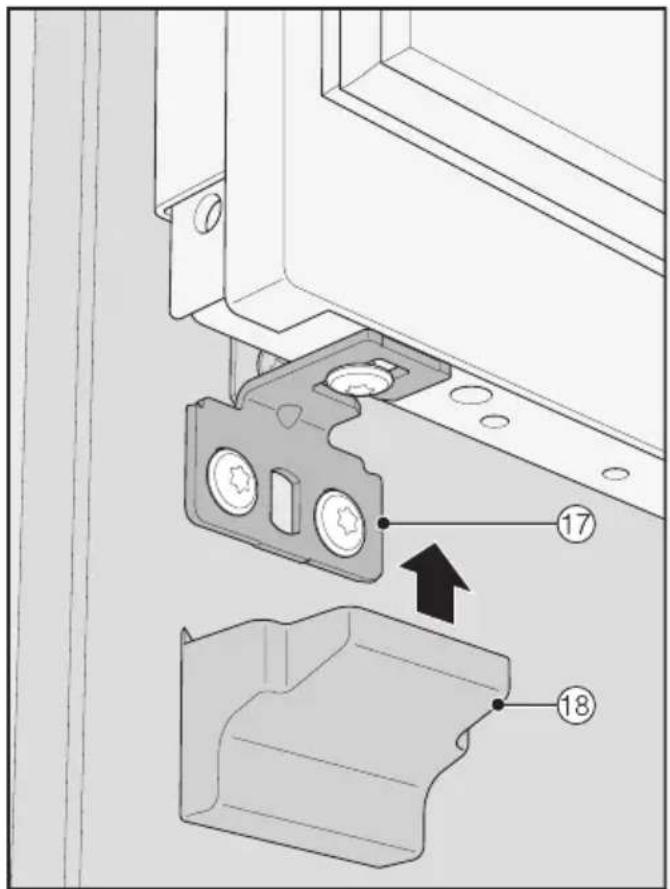

■ Install the cover ^18 to the fixing bracket ^17 .

Building in the appliance

Technical line drawing of a metal bracket with mounting holes and a numbered detail (18), no text or symbols present.

• Click the cover ⑱ onto the fixing bracket.

Securing the covers

19

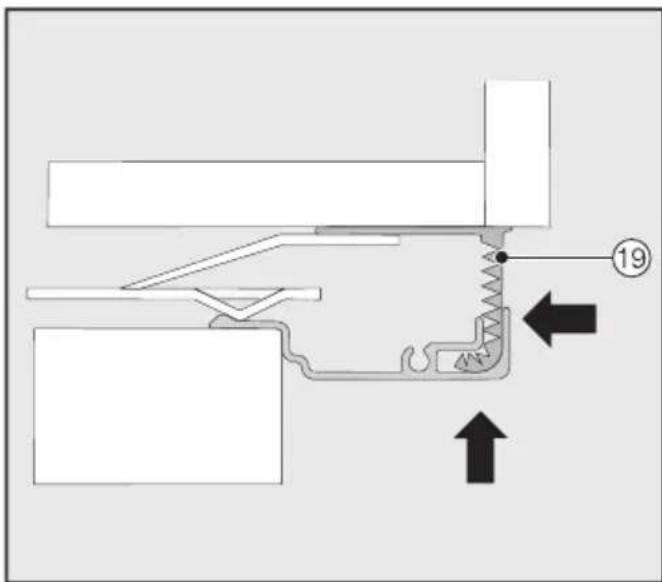

■ The top cover ^19 must be assembled as follows before it can be installed:

Diagram showing a mechanical component with a spring and a downward arrow indicating motion (no text or symbols)

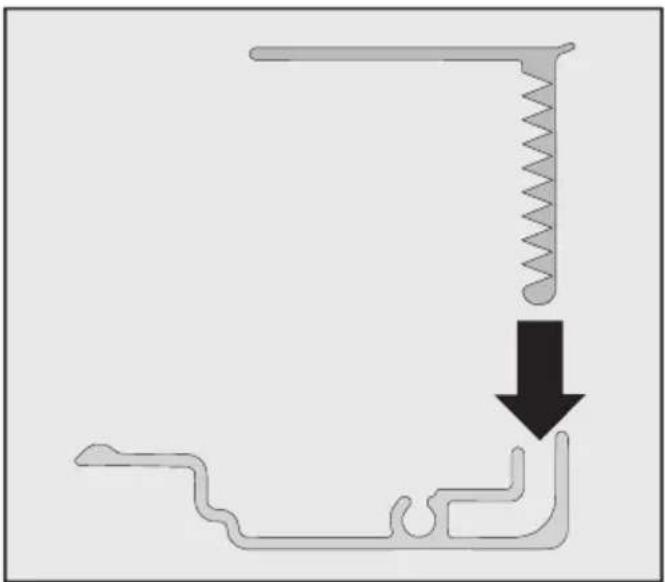

■ Insert the two parts of the cover into one another.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Cover viewed from the side

Technical diagram showing mechanical assembly with labeled components and directional arrows

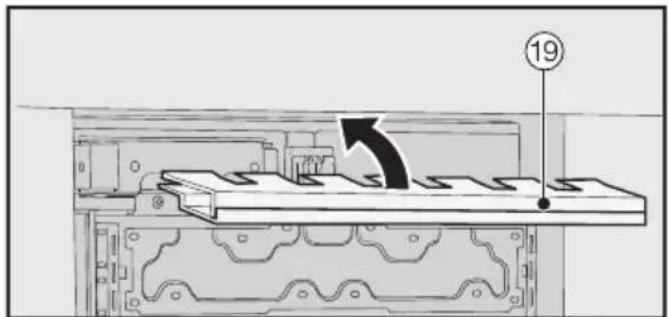

■ Place the assembled cover ^19 into the gap above the appliance so it clicks into place. While doing so, slide both parts of the cover together as required.

Mounting the cover in a side-by-side combination

Diagram showing a pipe passing through a structural component with arrows indicating direction (no text or symbols)

■ Insert the joining peg (from the side-by-side kit) halfway into the channel in the cover for the left-hand appliance.

■ Place the second cover onto the pin and press the two covers together.

■ Click the two covers together into the niche above the appliance.

Technical line drawing of an open refrigerator with labeled door and panel (no text or symbols beyond label)

■ Fit the two plastic covers ^20 on both sides of the appliance door by clicking them into the gap between the appliance door and the cabinet door, starting at the bottom and working up to the top.

Building in the appliance

5/32" x 19/32" (4 mm x 15 mm) ②1

- Secure both sides of the appliance using at least 3 clips ② for the covers.

Technical diagram of an open refrigerator with labeled parts and numbered annotations

■ Now attach the covers ② onto the retaining clips ② on both sides. In the case of side-by-side installation, the covers are only required on the outer side.

Technical diagram showing a mechanical assembly with labeled components and directional arrow indicating process flow

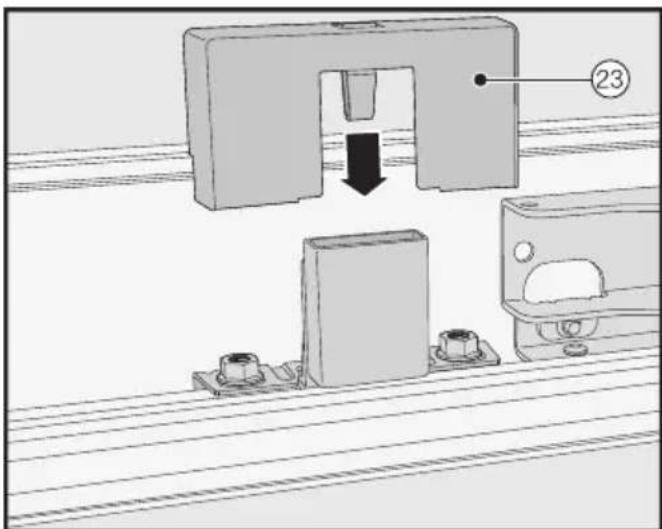

■ Fit the cover ②3 to the light contact switch.

Securing the toe-kick board and cover

Technical line drawing of a mechanical assembly with a numbered component (4) and an arrow indicating direction, no text or symbols present.

- Click the toe-kick board ④ onto the bottom of the appliance toe-kick.

Diagram of a window or vent structure with a black arrow indicating direction (no text or symbols present)

Do not cover the vents in the appliance toe-kick. This will damage the appliance!

If necessary, cut the toe-kick cover to the required length and height (cut along the lower edge of the toe-kick facing where it touches the floor).
■ Attach the toe-kick cover to the bottom of the appliance.

Aligning the Ice/Water dispenser frame

If necessary, the depth of the Ice/Water dispenser can be aligned to line up with the cabinet front.

Unplug the appliance or switch off the breaker.

Diagram of a mechanical switch or lever mechanism with a screwdriver, showing internal components and a downward arrow indicating motion (no text or symbols present)

■ Insert a screwdriver from the side to remove the rear cover from the Ice/Water dispenser.

Technical diagram showing a mechanical assembly with a wrench inserted into a housing, and a close-up of a bolted nut being threaded.

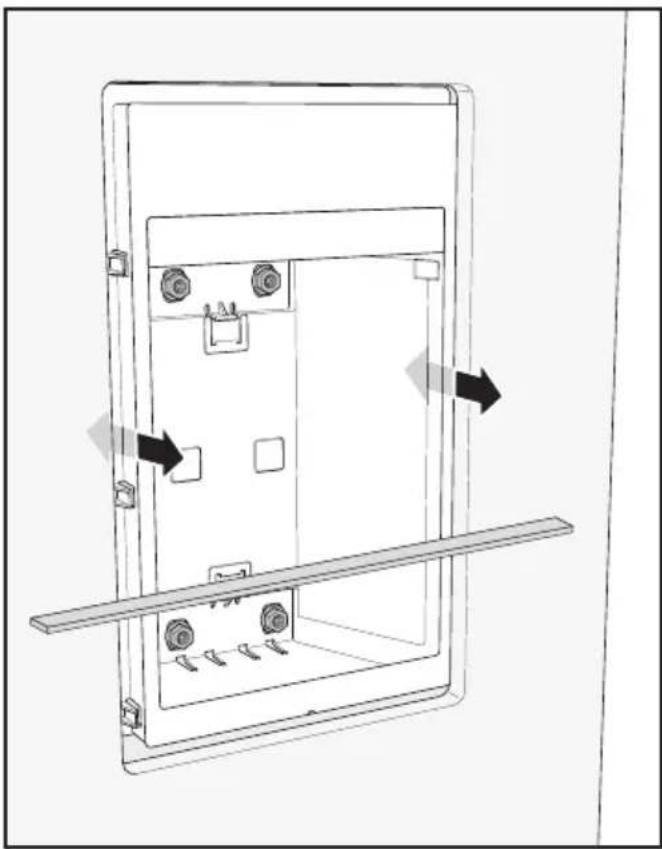

■ Use a wrench to loosen the three nuts on the Ice/Water dispenser slightly (turn the nuts counterclockwise).

Building in the appliance

Technical line drawing of an open electrical enclosure with mounting holes and a horizontal bar, showing directional arrows indicating movement (no text or symbols)

Diagram illustrating screwdriver tool and mechanical component assembly with directional arrows indicating rotation or cycle.

■ Then use the 4 screws to line up the depth of the Ice/Water dispenser on both sides.

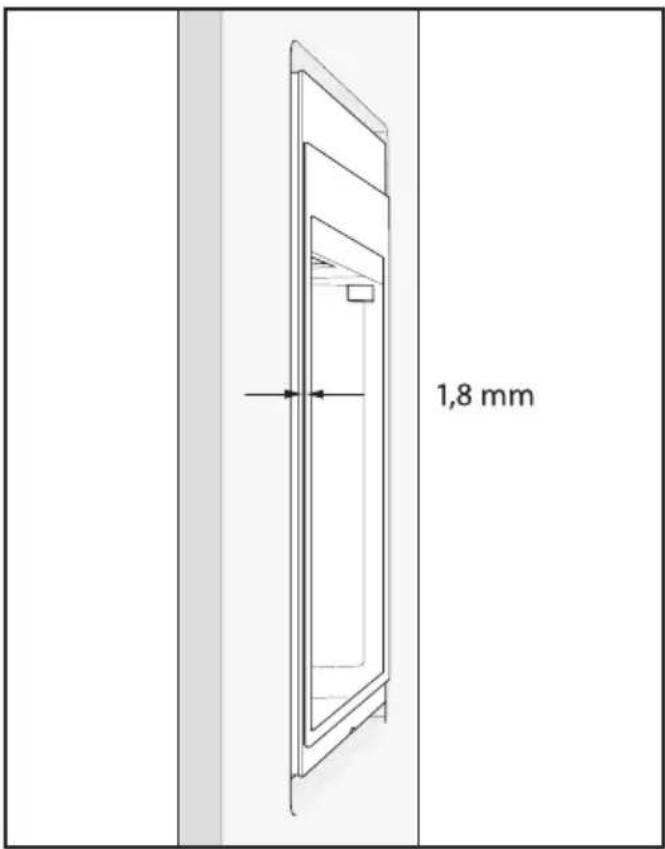

1,8 mm

The protrusion from the inner to the outer frame should be 1/16" (1.8 mm).

Diagram of a room interior with labeled dimensions X and directional arrows indicating movement or movement.

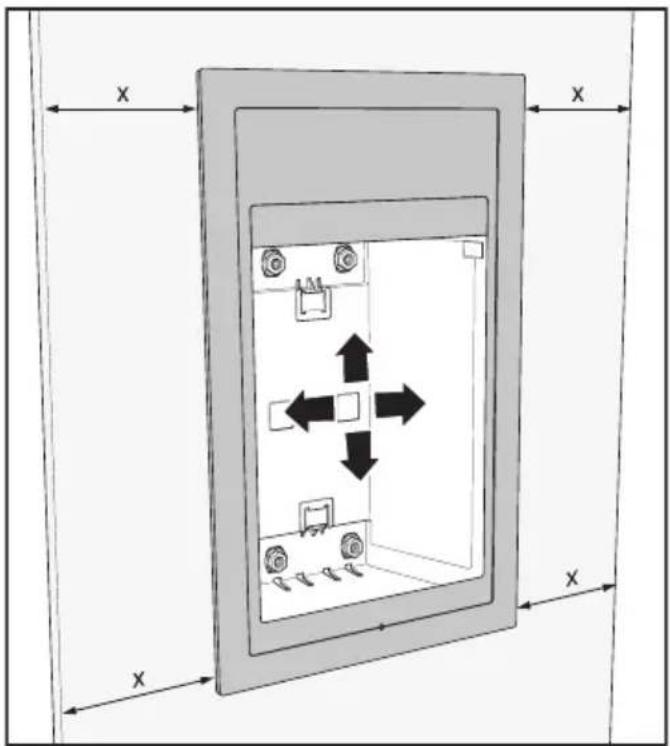

■ Now align the frame centrally.
■ Finally, use a wrench to tighten the nuts by turning them clockwise.

Technical diagram showing a door frame with mounting holes and a close-up of a wall detail (no text or symbols)

■ Align the frame perfectly with the Ice/Water dispenser.

Technical line drawing of a door frame with an arrow indicating direction (no text or symbols)

■ Remove the frame again.

Building in the appliance

Diagram of a rectangular frame with directional arrows indicating movement or force, no text or symbols present

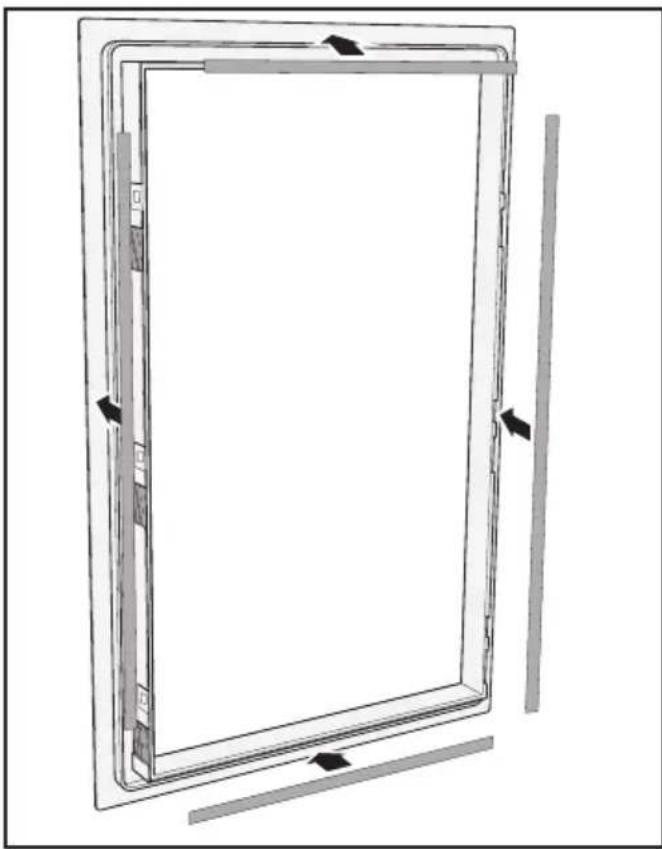

■ Attach the adhesive strips provided to the 4 sides of the frame.

Diagram of a rectangular device with curved arrows indicating rotation or movement, no text or symbols present

■ Remove the film from each of the adhesive strips.

Technical diagram showing a door frame with mounting holes and a close-up of a bracket detail (no text or symbols)

■ Align the frame again perfectly with the Ice/Water dispenser.

Diagram of a mechanical device with a rotating arrow indicating rotation, enclosed in a rectangular frame (no text or symbols)

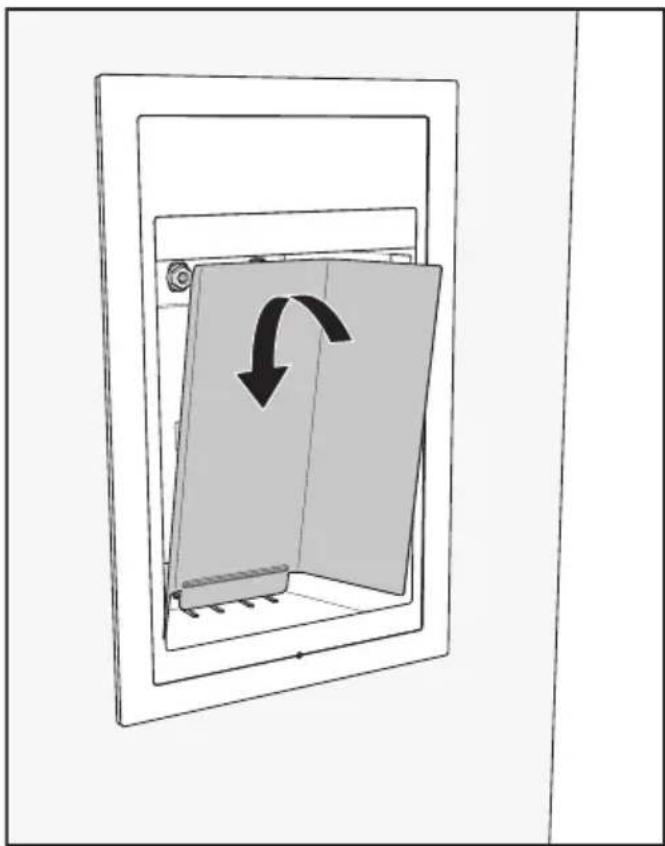

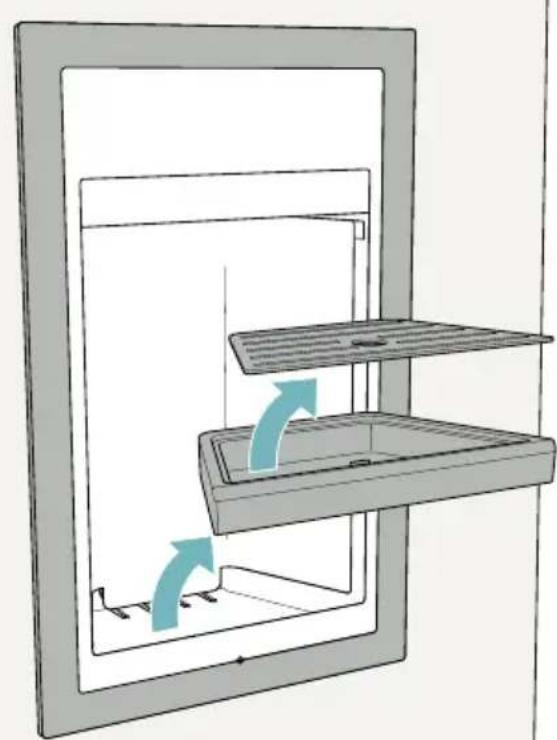

■ Refit the rear cover to the Ice/Water dispenser, slotting it into place from above.

■ Replace the drip tray and the drip-tray cover.

Simple line drawing of a double door with two arrows indicating clockwise motion (no text or symbols)

■ Then remove the film from the sides of the Ice/Water dispenser.

Risk of electric shock!

The appliance must only be switched on when it has been installed in accordance with the installation instructions.

Ground the appliance.

The appliance must not be grounded via a gas pipe.

If in doubt, have a suitably qualified and experienced electrician check that the installation complies with relevant regulations.

Do not install a fuse into neutral current or grounding electrical circuit.

Do not use extension cords or un-grounded (two prong) adapters.

Do not use a frayed or damaged power cord.

Risk of electric shock!

For protection against electric shock, this appliance is equipped with a pole-free plug which is protected against reverse polarity. The electrical outlet must be properly grounded.

Do not remove the round grounding connector pin from the plug.

Use only a grounded plug adapter.

Wait for 1 hour after installation before plugging the appliance into the power supply. This allows coolant and refrigerator oil to settle in accordance with regulations.

Ensure that the voltage of the power supply corresponds with the connection voltage of the appliance. A power supply of 110–120 V, 60 Hz and 10–16 Amp, which is protected by a power switch or a fuse, is required to operate the appliance.

The manufacturer recommends operating the appliance on a dedicated circuit to avoid overloading the electrical circuit.

All relevant legal electrical, fire, and building regulations must be observed when installing the electrical outlet and/or the appliance.

In certain countries, appliances are required to be connected to the electrical supply via a wall-mounted ON/OFF switch.

To avoid the risk of fire, electric shock, or other injuries, the appliance must be installed and connected by a suitably qualified electrician in accordance with all relevant local and national regulations and standards, including fire prevention.

The socket must not be concealed behind the appliance and must be easily accessible so that the appliance can be quickly disconnected from the electrical supply in case of an emergency.

If the outlet is no longer accessible after installation, an additional means of disconnection must be provided for all poles. Suitable means of disconnection include switches with an all-pole disconnect device with a contact opening of at least 1/8" (3 mm). These can be circuit breakers, fuses, and relays.

The plug and power cord must not come into contact with the back of the appliance as vibrations can cause damage to these components. This could result in a short circuit.

Do not plug other appliances into electrical outlet behind this appliance.

Do not connect the appliance to a stand-alone inverter such as those used with an autonomous energy source e.g., solar power.

When the appliance is turned on, power surges could result in a safety switch-off. This can damage the electronics. The appliance must not be used with so-called energy saving devices either. These reduce the amount of energy supplied to the appliance, causing it to overheat.

If the power cord needs to be replaced, this must be performed by a qualified technician.

Connecting the appliance

Technical line drawing of a mechanical device with hoses and connectors (no text or symbols)

■ Insert the plug into the back of the appliance.

Make sure that the plug has clicked into position correctly.

■ Insert the plug into the electrical outlet and switch on.

The appliance is now connected to the electricity supply:

Follow the steps described in "Switching the appliance on and off", section "Switching on the appliance".

Information on the fresh water connection

The machine may only be connected to the fresh water supply by qualified technicians.

Disconnect the machine from the power supply before connecting it to the fresh water supply.

Turn off the water supply before connecting the water supply line for the ice cube maker.

The water quality must comply with the requirements for drinking water in the country in which the machine is being operated.

WARNING! Connect to potable water supply only.

Connection to the household water supply must comply with the applicable regulations in the country in which the machine is being installed. All units and systems used to supply water to the machine must also comply with the applicable regulations in the respective country.

The appliance is only suitable for connection to a cold water line, which

- is directly connected to the water supply in order to ensure that water is circulated in the cold water line.

Avoid connection to a water supply in which the water might stagnate. This can affect the taste of water and ice cubes.

– withstands the operating pressure.

- fulfills the hygiene regulations.

The water pressure must be between 29 and 116 psi (2 and 8 bar).

A shut-off valve must be provided between the water line and the water supply of the building to ensure that the water supply can be cut off if necessary.

Make sure that the shut-off valve is still accessible after the appliance has been installed.

Risk of damage!

If the water intake is blocked while the Ice Maker is still in use, the water intake pipe can freeze up.

Turn the Ice Maker off if the water intake is interrupted (e.g., while on vacation).

Unduly high water pressure in the system can result in damage to the appliance.

Install a pressure reducing valve if the water pressure in the system exceeds 116 psi (8 bar).

Do not install the system if the water pressure exceeds 120 psi (8.3 bar).

Contact your plumbing specialist if you are unsure of your water pressure.

Installing the water hose to the appliance

Before establishing the plumbed-water connection, ensure that the appliance is disconnected from the power supply.

When installing the water hose, make sure that it is neither kinked nor damaged.

By this time, the installation niche should already have been prepared so that the appliance needs only to be pushed into it.

■ Position the appliance slightly in front of the installation niche so that the shut-off valve can still be accessed.

Technical diagram of an electronic device with labeled components and wiring connections

The water connection of the appliance ① is ready for connection at the rear of the appliance.

■ Install the water hose ② onto the water connection ① at the rear of the appliance. Ensure that the connections are tight and leak-proof.

7/16" 7/16" ②

■ Connect the water hose ② to the shut-off valve.
■ Ensure that it is properly screwed into position.
■ Slowly open the shut-off valve in the water supply line and check the whole water system for leaks.
■ The appliance can now be installed in the niche (see “Installation”).
■ The appliance can now be connected to the power supply (see “Electrical connection”).

How to save energy

	Normal energy consumption	Increased energy consumption
Installation / Maintenance	In a well-ventilated room. In an enclosed, poorly ventilated room.
	Protected from direct sunlight.	In direct sunlight.
	Away from heat sources (radiator, range/oven).	Near a heat source (radiator, oven).
	Where the ideal room temperature is approx. 68°F (20°C).	Where the ambient room temperature is above 77°F (25°C).
	Air vents uncovered and dusted regularly.	Where the ventilation openings are blocked and full of dust.
Temperature setting	0°F (-18°C) in the freezer The lower the temperature set for the freezer, the higher the energy consumption.
Use Drawers and shelves arranged as they were when the appliance was delivered.
	Only open the door when necessary and for as short a time as possible. Store food in an organized way.	Frequent opening of the door for long periods will cause a loss of coldness. The appliance will try to cool down and the compressor will run for longer periods.
	When shopping, use a cooler bag and place the food in the appliance as soon as possible.Allow hot food and drinks to cool down before placing them in the appliance.	Hot food or food at room temperature raises the temperature inside the appliance. The appliance will try to cool down and the compressor will run for longer periods.
	Store food well packaged. The evaporation or condensation of liquids in the Freezer Zone will cause a loss of coldness.
	Do not overfill the appliance in order to allow the air to circulate.	Poor air circulation will cause a loss of coldness.

Miele ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

① Display
② On/Off switch
③ Ice maker
④ Ice-cube container
⑤ Interior lighting
⑥ Shelves
⑦ Ice/Water dispenser (“Ice/Water dispenser”) in the door
⑧ Freezer baskets
⑨ Automatic door opening
⑩ Water filter
⑪ Control panel for Ice/Water dispenser
⑫ Ice/Water-dispenser spout
⑬ Drip-tray cover with drip tray

Main screen

0°F ① ② ③ ④ ⑤

① SuperFrost display (only visible when the SuperFrost function has been switched on)
② Temperature display (target temperature)
③ Sensor control 🔊 for setting the temperature
④ Display for Miele@home connection status (only visible when Miele@home has been set up)
⑤ Sensor control ⚙️ for adjusting various settings in settings mode

Control panel for Ice/Water dispenser

① Sensor control for chilled water
② Sensor control for ice cubes

③ Sensor control for crushed ice
④ Switch system lock on/off (see “Ice/Water dispenser” – “System lock”)

Settings mode ⚙️

The following icons can be selected in settings mode:

Symbol Function

Language Set
☀️ Display Brightness Adjust (darker to brighter)
	Color Scheme Set (dark or bright)
☐/☐	Buzzer Tones	Adjust the volume or switch off the Buzzer Tones completely (e.g., for the door alarm)
☐/☐	Keypad Tone Adjust the volume or switch off the Keypad Tone completely
°F/° C Temperature Unit Set (°Fahrenheit or ° Celsius)
☐/☐	Keypad Lock Switch on or off(see “Selecting additional settings”)
☐	Eco Mode Switch on or off(see “Selecting additional settings”)
☑	Self Test	The system restarts and is checked for faults or malfunctions(see “Selecting additional settings”)
☐	Door Assistant	Switch on (Push2Open or Pull2Open) or switch off (see “Selecting additional settings”)
☐	Miele@home	Set up, deactivate, or query WLAN connection status(see “Selecting additional settings”)
☐*	Demo Mode	Switch off*(only visible when Demo Mode, is switched on see “Selecting additional settings”)
☐	Factory Default	Reset to default settings(see “Selecting additional settings”)
☐	Dispenser lighting	Select the lighting settings for the Ice/Water dispenser(see “Selecting further settings”)
☐	Ice Maker	Switch the Ice/Water dispenser on or off(see “Operating the Ice/Water dispenser”)

Sabbath Mode Switch on or off (see "Selecting additional settings")

Water Filter Display Switch on or off or reset (see "Selecting additional settings")

Symbols in settings mode ⚙️

</> Scroll in settings mode or select a setting -/+ Change a setting (e.g., display brightness)

OK Confirm a setting ← Exit the menu level

Accessories supplied

Appliance plug

Water filter

(Bypass/Active charcoal filter)

The water filter filters supply water for making ice cubes.

The appliance is supplied with a water filter (Active charcoal filter) that filters supply water for making ice cubes.

Optional accessories

A range of useful Miele accessories and care products are available for your appliance.

Water filter

(Bypass/Active charcoal filter)

The water filter filters supply water for making ice cubes.

The appliance is supplied with a water filter (Active charcoal filter) that filters supply water for making ice cubes.

Stainless steel front panel

Stainless steel front panels give your appliance a high-quality appearance.

In addition, you can order toe-kick covers in a stainless steel look.

Side-by-side installation kit

For installing two or more appliances next to each other.

Accessories are available to order via the Miele Webstore, from Miele directly (see back cover for contact details) or from your Miele dealer.

Before first use

Allow the appliance to stand for approx. 1 hour prior to connecting it to the power supply.

This will help prevent any malfunctions.

Packaging material

■ Remove all packaging material from the inside of the appliance.

Leftover tape residue.

Always remove all packaging material, including adhesive tape, before switching on the appliance.

Cleaning

Please refer to the relevant instructions in "Cleaning and care".

■ Clean the inside of the appliance and the accessories.

Using the appliance

The touch display can be scratched by pointed or sharp objects, e.g., pens.

Only touch the display with your fingers.

If your fingers are cold, the touch display may not react.

0 °F

The symbols underneath the temperature display can be selected directly by touch; the symbols and text in or above the temperature display can only be displayed.

... in settings mode ⚙️

■ Touch the symbol ⚙ to open settings mode.
■ Use the arrow buttons < and > to select the function whose settings you wish to adjust.
■ Confirm your selection with OK.
■ Adjust the settings using either the arrow buttons < and > or sensors + and -.
■ Confirm your selection with OK.

The setting with the colored background is always the selected setting; it can be confirmed directly with OK.

■ Select ↩ if you wish to switch to the previous menu level or terminate the process.

Every touch of the display is confirmed with an audible keypad tone. You can switch off this keypad tone in settings mode ⚙️.

Starting up for the first time

■ Open the appliance door.

Diagram showing a numbered circle with an upward arrow, likely indicating a step or direction in a process.

■ Turn the appliance on by pressing the On/Off switch.

The appliance will start to cool and the interior lighting will come on when the appliance door is opened.

Miele will then appear in the appliance display.

■ When you turn the appliance on for the first time, you will be asked to make following settings:

- Set the Language

(if you accidentally select the wrong Language, return to settings mode ⚙️ and use the symbol ⚠️ to change the language),

- Set Temperature Unit: °C (degrees Celsius) or °F (degrees Fahrenheit),

- Set up Miele@home:

■ Select Continue if you wish to set up Miele@home now (to do this, following the instructions under “Selecting additional settings”, section “Set up Miele@home”).
■ Select Skip if you would prefer to set up Miele@home later.
■ Use the < and > arrow buttons to select the correct setting and touch OK to confirm your selection.
■ Select ↩ if you want to return to the previous menu level.

Set-up Successfully Completed appears in the display.

■ Confirm the first use with OK.

Your appliance has been successfully set up and is ready for use.

The main screen appears on the display.

You cannot terminate the initial start-up process. The only way to terminate the process is to switch off the appliance, though the process will continue when the appliance is switched back on.

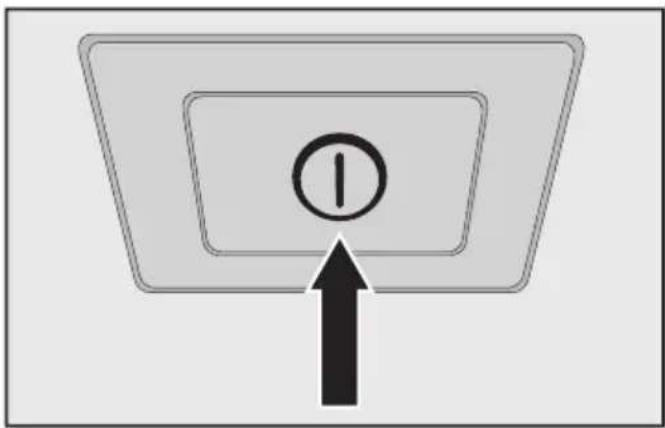

Switching on the appliance

■ Open the appliance door.

Diagram showing a numbered circle with an upward arrow, likely indicating a step or direction in a process.

■ Turn the appliance on by pressing the On/Off switch.

0 °F

The appliance will start to cool and the interior lighting will come on when the appliance door is opened.

Miele will then appear on the main screen in the appliance display.

The message Freezer temperature too high. Max. temperature °F will appear in the display when the appliance is switched on for the first time and the selected freezer temperature has been reached.

An alarm tone sounds.

■ Confirm the message with OK.

The message disappears from the display and the alarm tone stops.

However, the message may reappear on the display after a brief delay.

As soon as the selected freezer temperature has been reached, the message will disappear completely from the display and the alarm tone will stop.

To enable the temperature to get sufficiently cold inside the appliance, allow the appliance to run for a few hours before placing food in it. Do not place food in the Freezer Zone until it has reached the required coldness (at least 0^ F/-18°C).

Switching off the appliance

■ Turn the appliance off by pressing the On/Off switch.

The cooling and interior lighting are switched off.

Please note: The appliance is not disconnected from the power supply when the on/off switch is in the "off" position.

Turning off for longer periods of time

If the appliance is not going to be used for a longer period of time:

■ turn the appliance off,
■ unplug the appliance or disconnect the fuse,
■ close the shut-off valve in the water supply line (approx. 3 hours before switching off the appliance to avoid the build-up of bacteria caused by stagnant water),
■ empty the ice cube tray,
■ clean the appliance,
■ replace the water filter and
■ leave the door ajar to air the appliance and avoid odors building up inside the appliance.

If, during a long absence, the appliance is switched off but not cleaned and the door is left shut, there is a danger of bacteria building up inside the appliance.

In settings mode ⚙, certain settings can be adjusted and functions selected, allowing you to adjust the machine to suit your requirements.

The following section only describe the functions in settings mode ⚙ that require further explanation.

The door alarm and other warnings are automatically disabled when the appliance is in settings mode ⚙️.

Switching Keypad Lock on or off 🔊/☐

Switch on Keypad Lock if you wish to protect your appliance from unwanted temperature changes or other unintentional adjustments in settings mode ⚙️.

In settings mode ⚙, use the < and > arrow buttons to select Keypad Lock and touch OK to confirm your selection.
■ Use the arrow buttons < and > to switch the keypad lock On or Off and confirm your selection with OK.
■ The keypad lock will not be activated until you close the appliance door.

Nothing will appear in the display to indicate that the keypad lock is switched on.

The message Press OK for 6 seconds to unlock will appear in the display if you select a sensor control while the keypad lock 🔒 is switched on.

■ Follow the instructions on the display.

The display is unlocked briefly so you can adjust the settings as required. Closing the appliance door will reactivate the keypad lock.

Switching Eco Mode ⚙ on or off

Eco Mode is useful when going on vacation, for example, if you do not wish to switch off the appliance completely or do not need a high degree of cooling. Energy consumption in Eco Mode is lower than in normal operation.

The freezer section is regulated to a temperature of 3^ F ( -16^ C).

If the SuperFrost function ✿ is switched on, these will be automatically switched off when Eco Mode is selected.

■ In settings mode ⚙, use the < and > arrow buttons to select Eco Mode and select OK to confirm your selection.
■ Use the < and > arrow buttons to switch Eco Mode On, or Off and confirm your selection with OK.

The change in temperature to 3^ F (-16°C) on the display is the only indication that Eco Mode is switched on.

Tip: You can also switch off the Eco Mode function by directly adjusting the temperature ⚠ (see “Setting the temperature” in “The correct temperature”).

⚠️ Health risk caused by decomposing food.

The usability and quality of food may deteriorate if the temperature remains above 0^ F ( -18^ C) for an extended period.

Only ever switch on the Eco Mode function for a limited period.

When switching to Eco Mode, check that the food in the Freezer Zone is already properly frozen.

Do not freeze any new food while the Eco Mode function is switched on.

Performing a Self Test √

Perform a Self Test if you are concerned that your appliance is not working properly and want to check if it is suffering from any problems.

■ In settings mode ⚙, use the < and > arrow buttons to select Self Test and select OK to confirm your selection.
■ Touch the sensor control ⇔ if you wish to terminate the process.

The Self Test starts and the appliance is checked for any faults or malfunctions.

• The message System Restarting appears in the display if the Self Test does not discover any faults or malfunctions.
• If the Self Test does discover any faults or malfunctions, they are indicated as error messages in the display.

An alarm also sounds.

If you find the alarm disruptive, you can switch it off in advance by touching the sensor control ☐.
■ Make a note of the error message(s) displayed.
■ Contact Technical Service and inform them of the error message(s) on the display.
■ Confirm the message with OK.

System Restarting appears in the display.

The appliance briefly switches off and then back on automatically.

Self test completed appears in the display.

■ Confirm the message with OK.

The main screen appears on the display again.

Switching on Door Assistant

You can choose between the two Door Assistants Push2Open and Pull2Open. The default Door Assistant is Push2Open.

The Push2Open Door Assistant is suitable for cabinet fronts without handles. The door will then open automatically when you gently press against it.

The Pull2Open Door Assistant is suitable for cabinet fronts with handles. The appliance door can be opened easily with little force.

When the Door Assistant is switched on, repeatedly closing the appliance door early can lead to damage or malfunctions.

Refrain from holding onto or closing the appliance door while automatic door opening is still extended. If you have indeed closed the appliance door, leave it closed for 5 minutes. Automatic door opening resets itself.

Switching on Push2Open

In settings mode ⚙, use the < and > arrow buttons to select Door Assistant and select OK to confirm your selection.
■ Use the < and > arrow buttons to select Mode and touch OK to confirm your selection.
■ Use the < and > arrow buttons to select Push2Open and touch OK to confirm your selection.
■ Touch the sensor control to return to the previous menu level.

- Adjusting the intensity

You can also adjust the intensity of the Push2Open function. The lower the intensity, the less force required when pushing against the door.

■ In settings mode ⚙, use the < and > arrow buttons to select Door Assistant and select OK to confirm your selection.
■ In settings mode ⚙, use the < and > arrow buttons to select Intensity and select OK to confirm your selection.
■ Use the < and > arrow buttons to select the desired intensity (Low, Medium, High) and touch OK to confirm your selection.

- Adjusting the duration of the Auto-Close function

You can also adjust the duration for how long the appliance door will remain open until it closes automatically.

In settings mode ⚙, use the < and > arrow buttons to select Door Assistant and select OK to confirm your selection.
In settings mode ⚙, use the < and > arrow buttons to select AutoClose and select OK to confirm your selection.
■ Use the + and — sensor controls to select the duration (5 to 30 seconds) and touch OK to confirm your selection.

To protect against inadvertent opening: if you do not pull the appliance open, it will close again by itself after a duration defined by you (see “Set AutoClose duration”).

Pull2Open

In settings mode ⚙, use the < and > arrow buttons to select Door Assistant and select OK to confirm your selection.
■ Use the < and > arrow buttons to select Mode and touch OK to confirm your selection.
■ Use the < and > arrow buttons to select Pull2Open and touch OK to confirm your selection.
■ Touch the sensor control to return to the previous menu level.

- Adjusting the intensity

You can also adjust the intensity of the Pull2Open function. The lower the intensity, the less force is required when pulling the door.

In settings mode ⚙, use the < and > arrow buttons to select Door Assistant and select OK to confirm your selection.
■ In settings mode ⚙, use the < and > arrow buttons to select Intensity and select OK to confirm your selection.
■ Use the < and > arrow buttons to select the desired intensity (Low, Medium, High) and touch OK to confirm your selection.

Switching off Door Assistant

In settings mode ⚙, use the < and > arrow buttons to select Door Assistant and select OK to confirm your selection.
■ Use the < and > arrow buttons to select Mode and touch OK to confirm your selection.
■ Use the < and > arrow buttons to select Off and touch OK to confirm your selection.
■ Touch the sensor control to return to the previous menu level.

Setting up Miele@home

Your appliance is equipped with an integrated WiFi module.

Connectivity is deactivated at the factory.

To use this feature, you will need:

• a WiFi network
• the Miele@mobile app
• a Miele user account. The user account can be created via the Miele@mobile app.

The Miele@mobile app will guide you as you connect your appliance to your home WiFi network.

Once your appliance is connected to your WiFi network you can use the app to carry the following activities, for example:

• Make certain settings on your appli- ance
• Display information on the operating state of your appliance
• Set up a Miele@home network with additional WiFi-capable Miele appliances

Connecting your appliance to your WiFi network will increase energy consumption, even when the appliance is switched off.

Make sure that the signal of your WiFi network is sufficiently strong in the place where you want to set up your appliance.

Miele@mobile app

The Miele@mobile app is available to download free of charge from the Apple App Store® or from the Google Play™ Store.

Download on the App Store

QR code image containing encoded data, no visible human-readable text

ANDROID APP ON Google Play

Please observe and follow the safety information and warnings in these operating instructions including when you are operating your appliance with the Miele@mobile app.

Connecting your appliance via the Miele@mobile app

You will also require the following to log in:

– the password to your WLAN network
- the password to your appliance

Your appliance's password is its serial number, which can be found on the data plate.

You will find the data plate inside your appliance.

Miele Miele, Inc. 9 Independence Way, Princeton, NJ 08540, USA Miele Limited,161 Four Valley Drive, VAUGHAN, ON L4K 4V8, CDN Miele SA de CV, Arquimedes 43, Col. Polanco Chapultepec, 11560, Cd. de México, México www.miele.com / www.miele.ca / www.miele.com.mx E-Nr.: MB30LI0305 / 01 PD: 9803 05 78000001 Z-Nr.: 100001 Type KI KBM30USM KF 2811 VI 228030200298000013 BOTTOM FREEZER / CONGELATEUR EN BAS /REFRIGERADOR-CONGELADOR Refrigeration load/Refrigération charge /Carga de refrigeración 4,00 A Defrost heater load / Dégivrer chauffage charge / Deshielo 3,50 A / 350 W Ice maker load / Distributeur de glaçons charge / Carga fabrica de hielo 0,40 A Max inlet water pressure / la pressor maximale de l'eau à l'entrée / Presión máxima de entrada de agua 0,8 Mpa / 8 bar / 116 psi Min inlet water pressure / la pressor minimale de l'eau à l'entrée / Presión mínima de entrada de agua 0,2 Mpa / 2 bar / 29 psi Refrigerant / Refrigerant /Refrigerante 134A Freezer / Congelador 3,17 oz (90 g ) Fridge / Refrigerador 6,17 oz (175 g ) 110-120 V~ / 60 Hz Mat.Nr.: 10745780 10,00 A Made in Turkey FABRIGE EN TURQUIE Hecho en Turquia Para uso doméstico únicamente PROTOTYPE TESTING APPLIANCE PC

If your serial number is "78000001" for example, your password will be "78000001".

In settings mode ⚙, use the < and > arrow buttons to select Miele@home and select OK to confirm your selection.

Set up will appear in the display.

■ Confirm your selection with OK.
■ Use the < and > arrow buttons to select via the App and touch OK to confirm your selection.
■ Open the Miele@mobile app and follow the instructions in the app.

■ As soon as your appliance has been integrated into your WLAN network, the message Connection successful appears in your appliance's display.
■ Confirm the process with OK again. If the WLAN connection is active, ⓤ will appear in the display.

Connecting your appliance via WPS

Your router must be equipped with the WPS function for this connection option.

In settings mode ⚙, use the < and > arrow buttons to select Miele@home and select OK to confirm your selection.

Set up will appear in the display.

■ Confirm your selection with OK.
■ Use the < and > arrow buttons to select via WPS and touch OK to confirm your selection.
■ Now follow the instructions in the display.
■ Confirm the process with OK.

To be able to use the Miele@home functions, you also have to register your appliance in the app.

■ As soon as your appliance has been integrated into your home network via WPS, the message Connection successful appears in the display.
■ Confirm the process with OK again.

If the WLAN connection is active, ⚙ will appear in the display.

Deactivating Miele@home

■ In settings mode ⚙, use the < and > arrow buttons to select Miele@home and touch OK to confirm your selection.
■ Use the < and > arrow buttons to select Deactivate and touch OK to confirm your selection.

Deactivation successful appears in the display.

■ Confirm the message with OK.

Your appliance is now disconnected from your WLAN network.

The ⚙ symbol will go out in the display.

Activating Miele@home

If you have already activated Miele@home and then disconnected the connection, you can still reactivate the connection.

In settings mode ⚙, use the < and > arrow buttons to select Miele@home and touch OK to confirm your selection.
■ Use the < and > arrow buttons to select Activate and touch OK to confirm your selection.

Activation successful appears in the display.

■ Confirm the message with OK.

If the WLAN connection is active, ⚙ will appear in the display.

Checking the WLAN connection status

In settings mode ⚙, use the < and > arrow buttons to select Miele@home and select OK to confirm your selection.
■ Use the < and > arrow buttons to select Connection status and touch OK to confirm your selection.

Information about the WLAN connection status will then appear in the display:

• 📋 connected: there is a strong connection,
• ✉ connected: there is an average connection,
• connected: there is a weak connection,
• ✉: disconnected.

Setting up Miele@home again

If you have changed your WiFi network, you can set up Miele@home again for your appliance.

In settings mode ⚙, use the < and > arrow buttons to select Miele@home and select OK to confirm your selection.
■ Use the < and > arrow buttons to select Set up again and touch OK to confirm your selection.

Reset configuration? appears on the display.

■ Use the < and > arrow buttons to select Yes or No and touch OK to confirm your selection.

Switching off Demo Mode

Demo mode allows the appliance to be presented in the showroom without the cooling system being switched on. Do not activate this setting for domestic use.

If Demo mode has been switched on as a default setting, I will show in the display.

In settings mode ⚙, use the < and > arrow buttons to select Demo Mode and select OK to confirm your selection.

Press OK for 4 seconds to deactivate appears in the display.

■ Follow the instructions on the display and touch and hold the sensor control OK for 4 seconds.

The countdown Demo Mode will deactivate in seconds. will appear in the display.

Demo Mode deactivated. The appliance will cool down. appears in the display.

■ Confirm the message with OK.

The main screen appears in the display again.

Resetting the settings to their default settings

You can reset the appliance's settings to their default settings.

In settings mode ⚙, use the < and > arrow buttons to select Factory Default and select OK to confirm your selection.
■ Use the < and > arrow buttons to select Reset and touch OK to confirm your selection.

After a brief delay, Settings Reset appears in the display.

■ Confirm the message with OK.

The initial start-up process restarts (see "Starting up for the first time").

The appliance's settings will be reset to the following values:

Function Default settings

Language English
	Display	Average value(4 of 7 segments)
	Brightness
	Color	Dark
	Scheme
	/ Buzzer	Average value(4 of 7 segments)
	Tones
	Keypad	Average value(4 of 7 segments)
	Tone
°F / °C	Tempera-ture Unit	°Fahrenheit
	/ Keypad	Switched off
	Lock
	Eco Mode	Switched off
	Door As-sistant	Push2open
	Miele@home	Switched off
	Dispenser lighting	Automatic
	Ice Maker	Switched on
	Sabbath Mode	Switched off
	Water Filter Display	Switched on
	Tempera-ture	0°F (-18°C)

Selecting settings for lighting the Ice/Water dispenser

In settings mode ⚙, you can select settings for lighting the Ice/Water dispenser.

You can set whether the dispenser lighting switches on automatically or manually, when it switches off again, or whether it is always switched off.

Lighting for Ice/Water dispenser switches on automatically

The lighting is automatically switched on when a glass is placed under the Ice/Water dispenser.

■ In settings mode ⚙, use the < and > arrow buttons to select Dispenser lighting and select OK to confirm your se-

ing and lection.

■ Use the < and > arrow buttons to select Mode and touch OK to confirm your selection.
■ Use the < and > arrow buttons to select Automatic and touch OK to confirm your selection.
■ Touch the sensor control to return to the main screen.

Lighting for Ice/Water dispenser switches on manually

The lighting is switched on by pressing a button on the control panel of the Ice/Water dispenser.

In settings mode ⚙, use the < and > arrow buttons to select Dispenser lighting and select OK to confirm your selection.
■ Use the < and > arrow buttons to select Mode and touch OK to confirm your selection.
■ Use the < and > arrow buttons to select Manual and touch OK to confirm your selection.
■ Touch the sensor control to return to the main screen.

Lighting for Ice/Water dispenser switches off after a certain time

The Ice/Water-dispenser lighting switches off after a set time (0–30 seconds).

In settings mode ⚙, use the < and > arrow buttons to select Dispenser lighting and select OK to confirm your selection.
■ Use the < and > arrow buttons to select AutoOff and touch OK to confirm your selection.
■ Set the time you want with the + and - sensor controls. Keeping your finger on the sensor control changes the time continuously.
■ Confirm your selection with OK.
■ Touch the sensor control to return to the main screen.

Switching off the Ice/Water-dispenser lighting

The Ice/Water-dispenser lighting is switched off completely.

■ In settings mode ⚙, use the < and > arrow buttons to select Dispenser lighting and select OK to confirm your selection.
■ Use the < and > arrow buttons to select Mode and touch OK to confirm your selection.
■ Use the < and > arrow buttons to select Off and touch OK to confirm your selection.
■ Touch the sensor control to return to the main screen.

Switching Sabbath Mode 🌐 On/Off

The appliance offers a Sabbath Mode for the purposes of religious observance.

If Sabbath Mode is switched on, iii appears in the display.

When Sabbath Mode is switched on, you cannot make any settings on your appliance.

Ensure that the appliance door is properly closed, as visual and audible alarms are switched off in Sabbath mode.

In settings mode ⚙, use the < and > arrow buttons to select Sabbath Mode and select OK to confirm your selection.
■ Use the < and > arrow buttons to select On or Off and touch OK to confirm your selection.

When Sabbath Mode is switched on, jj appears in the display and the display brightness is reduced (the display does not change when the appliance door is closed).

When Sabbath Mode jj is switched on, the following functions are switched off:

- Door Assistant (for cabinet fronts without handles, the appliance door will have to be pulled from the bottom or side)

• Lighting
  – All audible and visual signals,
• Temperature display

– SuperFrost function (if previously switched on)
- Ice Maker (if previously switched on)
- The Ice/Water dispenser (if previously switched on)

You can still select:

- The sensor control for Settings Mode ⚙ so that Sabbath mode can be switched off.

The Sabbath Mode function will switch off automatically after approx. 125 hours.

Danger of food poisoning!

Any power failure during Sabbath Mode will not be shown on the display. After a power failure, the appliance will restart in Sabbath Mode. When power is restored, no notification of the power failure will appear on the display.

If there is a power failure during Sabbath mode, check the quality of the food.

Switching on, switching off or resetting Water Filter Display

Depending on the quantity of ice cubes produced, the Water Filter Display ⚙ will remind you approximately every 6 months that the water filter has to be replaced (see “Water filter”, section “Changing the water filter”).

New water filters (Bypass and Active charcoal filters) are available from Miele, from your dealer, or via the internet.

Switching on Water Filter Display

■ In settings mode ⚙, use the < and > arrow buttons to select Water Filter Display and select OK to confirm your selection.
■ Use the < and > arrow buttons to select On and touch OK to confirm your selection.

The Water Filter Display has been switched on.

Switching off Water Filter Display

If you have replaced the OdorFree charcoal filter with a Bypass filter, you can switch off the Water Filter Display.

Danger to health!

Do not switch off the Water Filter Display if you have installed an Odor-Free charcoal filter in the appliance. This is installed in the appliance prior to delivery.

Only switch off the Water Filter Display if an external water filter has been fitted to your household water supply in place of the OdorFree charcoal filter. In this case, you should also use a mesh filter in place of the OdorFree charcoal filter (see “Optional accessories”).

■ In settings mode ⚙, use the < and > arrow buttons to select Water Filter Display and select OK to confirm your selection.
■ Use the < and > arrow buttons to select Off and touch OK to confirm your selection.

The Water Filter Display has been switched off.

Resetting Water Filter Display

After replacing the water filter (see “Water filter”, section “Changing the water filter”), you will have to reset the Water Filter Display.

■ In settings mode ⚙, use the < and > arrow buttons to select Water Filter Display and select OK to confirm your selection.
■ Use the < and > arrow buttons to select Reset and touch OK to confirm your selection.

The message Replace the water filter disappears from the display.

The reminder function for the next water filter change is activated.

It is very important to set the correct temperature for storing food in the appliance. Bacteria will cause food which is not stored at the correct temperature to deteriorate rapidly. Temperature influences the growth rate of these bacteria. Reducing the temperature reduces their growth rate.

To freeze fresh food and to store frozen food for a long time, a temperature of 0^ F ( -18^ C) is required. At this temperature the growth of bacteria is generally halted. As soon as the temperature rises above 14^ F ( -10^ C), the bacteria become active in the food again so it cannot be kept as long. For this reason, partially defrosted or defrosted food must not be re-frozen. Food may be re-frozen once it has been cooked, as the high temperatures achieved when cooking destroy most bacteria.

The temperature in the appliance will rise:

– the more often the door is opened and the longer it is kept open,
– the more food that is stored in it,
– the warmer the food is which is being put into it,
- and the higher the ambient temperature surrounding it. The appliance is designed for use within specific ambient temperatures (climate range). Do not use in ambient temperatures for which it is not designed.

Setting the temperature

■ Touch the ⏻ symbol for setting the temperature.

The previously set temperature will appear.

• Set the temperature you want with the + and - sensor controls. Keeping your finger on the sensor control changes the temperature continuously.
  ■ Confirm the temperature setting with OK or wait approx. 8 seconds after the last touch of the sensor. This temperature will be automatically adopted.

Tip: The newly set temperature can also be confirmed and adopted by closing the appliance door.

The temperature display always shows the required temperature.

If you have adjusted the temperature, wait for approximately 6 hours if the appliance is not very full and for approximately 24 hours if the appliance is full before checking the temperature display. It will take this long for an accurate reading to be given.

■ If, after this time, the temperature is still too high or too low, adjust it again.

Temperature range

The temperature can be adjusted from 7^ F ( -14^ C) to -11^ F ( -24^ C).

The ambient temperature in the room and the installation location can affect the time it takes for the appliance to reach the lowest temperature.

If the ambient temperature is too high, the appliance may not reach the lowest temperature.

SuperFrost function

For best results, turn on the SuperFrost function before putting fresh food into the freezer.

Fresh food will be frozen quickly, so that the nutritional value, vitamin content, appearance, and taste are maintained.

Exceptions:

• Placing food in the freezer that is already frozen.
• When freezing up to 4.4 lb (2 kg) kg fresh food daily.

Turning on SuperFrost

SuperFrost should be turned on 4–6 hours before placing food in the freezer. When freezing the maximum amount of food, the SuperFrost function should be switched on 24 hours beforehand.

■ Touch the 🔊 symbol for setting the temperature.
■ Then touch the ⚙ symbol for turning on the SuperFrost function.

The ⚙ symbol is highlighted in color and the newly set temperature value of -22^ (-30°C) appears in the display.

■ Confirm the setting with OK or wait approx. 8 seconds after the last press of the button. The setting will be automatically adopted.

The ⚙ symbol is now illuminated in the display.

The appliance will now run at maximum power.

Turning off SuperFrost

■ Touch the ⏻ symbol for setting the temperature.

The ⚙ symbol is highlighted in color and the temperature value of -22^ (-30°C) is shown in the display.

■ Touch the ⚙ symbol for turning off the SuperFrost function.

The ⚙ symbol is no longer highlighted in color and the previous temperature setting appears again in the display.

■ Confirm the setting with OK or wait approx. 8 seconds after the last press of the button. The setting will be automatically adopted.

The ⚙ symbol disappears from the temperature display.

The appliance will then continue running at normal power.

If you do not turn off the SuperFrost function, it will turn itself off automatically after approx. 54 hours. The quantity of fresh food placed in the freezer will determine the duration before the SuperFrost function turns off. The appliance will then run at normal power again.

Tip: To save energy, you can manually switch off the SuperFrost function once the freezer reaches a constant temperature of 0^ F ( -18^ C) or colder. Monitor the temperature in the freezer.

The appliance has been fitted with a warning system which ensures that the temperature in the freezer cannot rise unnoticed and to avoid energy being wasted if the door is left open.

Temperature alarm

The Freezer temperature too high. Max. temperature °C message appears in the display if the temperature in the Freezer Zone becomes too warm. An alarm will also sound.

The temperature display will show the highest temperature that was reached during the time the temperature rose.

The audio and visual signals are triggered, for example:

• When the appliance is switched on and the temperature in the appliance differs greatly from the set temperature
• If a lot of warm room air enters the freezer when food is being loaded, rearranged, or taken out
• When freezing large amounts of food at once
• When freezing fresh food which is still warm
  – After an extended power failure

The alarm will be silenced and the fault message in the display will go out as soon as the reason for the alarm has been resolved.

If the temperature remains above 0^ F ( -18^ C) for a long time, check that the frozen food has not started to defrost. If it has, use the food as soon as possible or cook it before freezing it again.

Turning the temperature alarm off early

If the alarm disturbs you, it can be turned off early.

■ Touch the OK sensor button in the display.

The alarm stops and the message disappears from the display.

Door alarm

An alarm will sound if the appliance door has been left open for longer than approx. 2 minutes.

The message Close the door also appears in the display.

As soon as the door is closed, the alarm will stop and the message in the display will go out.

Turning the door alarm off early

If the alarm disturbs you, it can be turned off early.

■ Touch the OK sensor control in the display.

The alarm stops and the message disappears from the display.

After a certain time the alarm will sound again and the message will reappear in the display until the appliance door is closed.

Removing the shelf above the Ice Maker

The shelf above the Ice Maker can be removed:

Technical diagram of a mechanical assembly with a magnified inset showing a numbered component (1), no text or symbols present.

■ Use both hands to grip the front of the shelf from below and press it on both sides until you feel resistance ①.

Risk of damage when pulling out and inserting the shelf.

When pulling out and inserting the shelf, make sure that the side walls are not damaged.

■ Carefully pull the shelf out to the front.

■ To insert it, slide the shelf slowly onto the guide on both sides and then slide it all the way in.

Moving the adjustable shelves

If necessary, the adjustable shelves can be removed or their height can be adjusted:

Technical diagram showing hands installing a mechanical component with an inset close-up highlighting a detail of the component.

■ Hold the shelf on both sides and raise it slightly so that it can be lifted with the catches over the guide at the back.

■ Pull the shelf forwards.

■ Remove the shelf or place it in the required position, with the catches engaged at the back.

■ Make sure that the shelf is straight.

Removing the freezer baskets

The freezer baskets can also be removed if necessary (e.g., for cleaning).

■ Open the appliance door as wide as possible.

The opening angle of the appliance door must not be limited to 90^ because otherwise the freezer baskets cannot be removed.

■ Pull the freezer basket out as far as it will go.

Technical diagram of a multi-level building structure with labeled components and directional arrows indicating assembly or installation.

■ Raise the snap fastening ② on both sides, unclip and carefully lift the basket out.
■ To replace it, pull the telescopic rails ③ out as far as they will go.
■ Place the freezer basket back in again.
■ Slide the basket all the way back in again until it engages in the snap fastening.

Always observe USDA food safety guidelines.

Risk of fire from electrical appli-

Operating electrical devices in the appliance can cause sparks to form. Do not operate any electrical devices inside the appliance.

Maximum freezing capacity

To ensure that fresh food placed in the freezer freezes through to the core as quickly as possible, the maximum freezing capacity must not be exceeded. The maximum freezing capacity for freezing within a 24-hour period is given on the data plate: “Freezing capacity ....lbs/24 hrs.”

What happens when you freeze fresh food?

Fresh food should be frozen as quickly as possible so that the nutritional value of the food, its vitamin content, appearance and flavor are maintained.

Food which takes a long time to freeze will lose more water from its cells, which then shrink. During the defrosting process, only some of this water is re-absorbed by the cells. What this means in practice is that the food loses more moisture. You can see this in the large amount of water that collects around the food when it defrosts.

If food is frozen quickly, the cells have less time to lose moisture, so they shrink less. As there is not so much moisture loss, it is easier for the food to reabsorb it during the defrosting process, and very little water collects around the defrosted food.

Storing frozen food

Never re-freeze partially or fully defrosted food. Defrosted food may only be re-frozen after it has been cooked.

When buying frozen food to store in your freezer, make sure to check:

– that the packaging is not damaged,

– the expiration date and

– the temperature at which the frozen food is being stored in the store.

The length of time food can be kept is reduced if it has been stored at a temperature warmer than 0^ F ( -18^ C).

■ Buy frozen food at the very end of your shopping trip.

■ Store it in the freezer compartment as soon as possible.

Home freezing

Only freeze food that is fresh and in good condition.

Tips for home freezing

• The following types of food are suitable for home freezing:
  fresh meat, poultry, game, fish, vegetables, herbs, fresh fruit, dairy products, baked goods, leftovers, egg yolks, egg whites, and a range of pre-cooked meals.
• The following types of food are not suitable for freezing:
  lettuce, radishes, sour cream, mayonnaise, whole eggs in their shells, onions, whole raw apples and pears.
• To retain color, taste, aroma, and vitamin C, vegetables should be blanched before they are frozen. To do so, place them portion by portion into boiling water for 2–3 minutes. Then, remove and plunge the vegetables into ice-cold water to cool quickly. Leave the vegetables to drain.
• Lean meat freezes better than fatty meat and can be stored for considerably longer.
• Separate chops, steaks, cutlets, etc. with a sheet of plastic freezer film. to prevent them from freezing together in a block.
• Do not season raw food or blanched vegetables with herbs or salt before freezing. Cooked food should only be lightly seasoned. The flavor of some herbs intensifies when frozen.

- Placing hot food or drink in the freezer causes food that is already frozen to partially thaw and increases energy consumption. Allow hot food and drink to cool down before placing it in the freezer.

Packaging food for freezing

■ Freeze food in portions.

- Suitable packaging

- Plastic films

- Freezer bags

- Aluminum foil

- Freezer containers

- Unsuitable packaging

- Packing paper

- Parchment paper

- Cellophane

- Garbage bags

- Plastic shopping bags

■ Remove as much air as possible from the packaging before sealing.

■ Close the packaging tightly with

- rubber bands,

- bag clips,

- string or bag ties, or

- freezer tape.

Tip: Freezer bags and poly tubing may also be sealed using home heat sealing kits.

■ Label the packaging with the contents and the date of freezing.

Before placing food in the freezer

- When freezing more than 4.4 lb (2 kg) of fresh food, switch on the Super-Frost function some time before placing the food in the freezer (see “SuperFrost”).

This helps food which is already stored in the freezer to stay frozen.

Placing food in the Freezer Zone

Food to be frozen can be placed anywhere in the Freezer Zone, preferably in the lowest freezer basket.

Place large quantities of food in the large freezer basket.

■ Place the frozen goods flat in the bottom of the basket so that it freezes through to the core as quickly as possible.
■ Ensure that the packaging and containers are dry to prevent them from freezing together or to the walls.
■ Please follow the guidelines in the table below regarding recommended weights for the baskets:

	Upper freezer basket	Lower freezer basket
F 24x1 Vi/SF 2	6.5 lb(12 kg)	26.5 lb(12 kg)
F 26x1 Vi/SF 4	44 lb(20 kg)	44 lb(20 kg)

Unfrozen food should not touch frozen food, as this will cause the frozen food to begin to thaw.

Storage time for frozen food

The storage life of food is very variable, even at a constant temperature of 0^ F ( -18^ C). Decomposition processes also take place in frozen food, albeit at a very reduced speed. Fat can become rancid from contact with oxygen in the air, for example. This is why lean meat can be stored approx. twice as long as fatty meat.

The storage times quoted are guide values for the storage life of different food groups in the Freezer Zone.

Food group Storage	time(Months)
Ice cream 2 to 6
Bread, baked goods 2 to 6
Cheese 2 to 4
Fish, oily 1 to 2
Fish, lean 1 to 5
Sausage, ham 1 to 3
Game, pork 1 to 12
Poultry, beef 2 to 10
Vegetables, fruit 6 to 18
Herbs 6 to 10

Where the storage time given on the packaging differs, follow the advice on the packaging.

Defrosting frozen goods

Never re-freeze partially or fully defrosted food. Defrosted food may only be re-frozen after it has been cooked.

Frozen food can be defrosted in different ways:

• In a microwave
• In an oven using “Convection” or the “Defrost” setting
• At room temperature
• In the Fridge Zone (the cold given off by the frozen food helps to keep the other food cold)
• In a steam oven

Flat pieces of partially thawed meat or fish can be placed directly into a hot skillet.

Meat and poultry (e.g., hamburgers, chicken, fish) should not come into contact with other foods while defrosting. Catch the defrosting liquid and dispose of it carefully.

Fruit can be thawed at room temperature, either in the packaging or in a covered bowl.

Most vegetables can be cooked while still frozen. Just put straight into boiling water or hot grease. The cooking time is slightly less than that of fresh vegetables due to changes in the cell structure.

Cooling drinks quickly

When chilling drinks in the freezer, make sure that bottles are not left in for more than one hour. Otherwise they could burst.

Operating the Ice/Water dispenser

The Ice/Water dispenser requires a plumbed-water connection in order for it to operate (see “Plumbed-water connection”).

If you do not dispense chilled water or ice from the Ice/Water dispenser for a longer period of time, the water/ice may be stale. Regularly dispense water/ice in order to achieve the best water quality.

⚠️ Risk of injury from glass splinters!

Use a sturdy container for collecting water and ice cubes.

⚠️ Risk of injury due to incorrect handling.

Do not hold your hands under the ice/water dispenser.

⚠️ Risk of injury due to incorrect handling.

Never reach into the spout opening of the Ice Maker.

⚠️ Health risk due to contaminated water.

The first 5 glasses of chilled water as well as the first 30–40 ice cubes made after the Ice/Water dispenser is started up must not be consumed, as the water will have been used for the initial rinse through the water supply line.

This applies to the initial commissioning as well as when using the appliance again after it has been turned off for a long while.

Do not place bottles or similar items in the ice-cube container. The Ice Maker could become blocked and, as a result, be damaged.

If the Ice/Water dispenser is not used again within 2 minutes or if the appliance door is opened, the Ice/Water dispenser will switch to standby mode automatically and the lighting will go out.

After it has been activated again, it can take a few seconds before chilled water and ice is dispensed again.

Switching on the Ice/Water dispenser

■ Make sure that the ice-cube tray is correctly located underneath the Ice Maker.

Ice cubes can only be made when the ice-cube tray is completely closed.

■ In settings mode ⚙, use the < and > arrow buttons to select Ice Maker and select OK to confirm your selection.
■ Use the < and > arrow buttons to select On and touch OK to confirm your selection.
■ Close the appliance door.

The Ice/Water dispenser is now ready for operation.

All sensor controls in the Ice/Water-dispenser control panel should now be highlighted in white.

If this is not the case, the system lock has been activated (the 🔒 sensor control will be highlighted in yellow, see "System lock").

Once the Freezer Zone has cooled down to its set temperature, the Ice Maker will fill with water.

As soon as the water is frozen, the ice cubes drop out of the Ice Maker into the ice-cube tray.

Ice-cube production is halted automatically as soon as the ice-cube tray is full.

After initial commissioning, it might take up to 24 hours until the first ice cubes can be dispensed.

If the 🔒 sensor control is flashing, the drip tray needs to be emptied (see "Cleaning and care"). Dispensing is stopped automatically.

After the appliance door has opened and closed, it can take several seconds until the Ice/Water dispenser is ready for operation and the sensor controls can be selected again.

Dispensing chilled water

After the initial commissioning, there may be air in the water circuit. Dispense water until there are no more air bubbles.

If you dispense chilled water again after a longer period of time, it may be stale. In this case, pour out the first 15 glasses of water.

■ Place a sturdy container under the Ice/Water dispenser.

White hand pointing at a small rectangular object on a dark background (no text or symbols)

■ Press and hold the chilled water sensor control.

Chilled water will be dispensed from the spout as long as the sensor control is pressed.

After approx. 30 seconds, dispensing is ended automatically. Wait 5 seconds and press the sensor control again if you wish to dispense more water.

If you want the water to be colder, dispense ice cubes into the container beforehand.

If a large amount of water is dispensed, the water can become warmer.

Dispensing ice cubes and crushed ice

After initial commissioning, it might take up to 24 hours until the first ice cubes are produced.

■ Place a sturdy container under the Ice/Water dispenser.

Silhouette of a hand reaching toward three geometric shapes (cuboid, triangle, and leaf) on a dark background (no text or symbols)

■ Press and hold the sensor control for ice cubes or crushed ice.

Ice will be dispensed from the spout as long as the sensor control is pressed. After approx. 30 seconds, dispensing is ended automatically. Wait 5 seconds and press the sensor control again if you wish to dispense more ice.

■ Take your finger off the sensor control when the container is almost full. Otherwise it will overfill or the ice will block the spout.

The Ice Maker can make up to approx. 1.3 kg of ice cubes in 24 hours.

The amount of ice cubes made by the machine depends on the temperature in the Freezer Zone. The lower the temperature, the more ice cubes are produced within a given time.

Empty and clean the ice-cube tray at regular intervals, or at least if you have not produced any ice for more than a week (see “Cleaning and care”).

This will ensure that you always have fresh ice and the ice cubes will not form a clump.

Switching the Ice/Water dispenser off

■ Close the shut-off valve in the water supply line (approx. 3 hours before switching off the appliance to avoid the build-up of mould caused by stagnant water).
■ In settings mode ⚙, use the < and > arrow buttons to select Ice Maker and select OK to confirm your selection.
■ Use the < and > arrow buttons to select Off and touch OK to confirm your selection.

The Ice/Water dispenser is now switched off; the sensor controls in the control panel are no longer highlighted in white.

System lock

You can use the system lock to protect the Ice/Water dispenser from unauthorized use, such as by children.

White hand pointing at a padlock icon on a dark background (no text or symbols)

■ Touch the 🔒 sensor control until it is highlighted in white and a short tone sounds.

The remaining sensor controls of the Ice/Water dispenser are now locked and cannot be selected.

■ To lift the system lock, touch the 🔒 sensor control for approx. 3 seconds until it is no longer highlighted in white and a short tone sounds.

WARNING! DANGER of injury

and damage!

Do not use any mechanical or other types of aids which are not recommended by the manufacturer to accelerate the defrosting process.

The appliance is equipped with a "NoFrost" system. The freezer defrosts automatically.

The moisture generated in the appli- ance collects on the condenser and is automatically defrosted and evaporates periodically.

This automatic defrosting system enables the Freezer Zone to remain permanently ice-free. However, the food stored in the freezer will not defrost.

WARNING! DANGER of electric

Unplug the appliance or trip the circuit breaker.

WARNING! Fire hazard!

Do not damage the coolant pipework.

Do not let water get into the electronic unit or the lighting.

Do not use a steam cleaner. Steam from a steam cleaning appliance could reach the electrical components and cause a short circuit.

The data plate located inside the appliance must not be removed. It contains information which is required in the event of a service call.

Cleaning agents

To avoid damaging the surfaces of your appliance, do not use

• cleaning products containing soda, ammonia, acid, or chloride,
  – lime scale removers,
• abrasive cleaning products, such as scouring powder, scouring liquid, or pumice stones,
  – cleaners containing solvents,
• stainless steel cleaners,
• dishwasher detergent,
• oven sprays,
• glass cleaning agents,
  – hard, abrasive sponges and brushes, such as pot scrubbers,
• eraser sponges,
• sharp metal scrapers.

Cleaning and conditioning agents used inside the appliance must be food safe.

Use warm water and liquid dish soap.

The following pages contain important information on cleaning.

The drip tray cover, spout, back, and frame of the ice/water dispenser are finished with a high-quality surface coating. This is resistant to soiling and is very easy to clean.

Do not treat the drip tray cover, spout, back, and frame of the ice/water dispenser with

– Stainless steel cleaning agent:

This will damage the finish.

- Miele conditioning agents for stainless steel:

This will cause noticeable smearing.

Do not clean the drip tray cover and spout of the ice/water dispenser in the dishwasher, as it will damage the finish.

Do not attach any magnets. The surface is easily scratched.

Do not use sticky notes, transparent adhesive tape, masking tape, or other types of adhesive on the finished surface. These damage the finish, causing it to lose its dirt-repellent protective coating.

Before cleaning the appliance

■ Turn the appliance off completely by pressing the On/Off switch.

■ Unplug the appliance or switch off the fuse.

■ Take any food out of the appliance and store it in a cool place.

■ Take out all other removable parts for cleaning (see “Adjusting the interior fittings”).

Interior and accessories

Clean the appliance regularly, or at least once a month.

Clean up any spills, stains, or food immediately. Do not allow them to dry and stick to the appliance.

■ Clean the appliance with a solution of lukewarm water and liquid dish soap. Rinse all parts by hand. Do not wash in a dishwasher.
■ After cleaning, wipe with clean water and dry with a soft cloth.
■ Leave the door open to air the appliance sufficiently for a short while and to prevent odor buildup.

Aluminum frames

The frames to the shelves inside the appliance and the door shelves are partially made from aluminum.

Aluminum is a dynamic material. The reflection and appearance of aluminum changes in different lights and environments and depending on the angle you observe it from. It is also susceptible to scratching.

The aluminum frames may become discolored or damaged if soiling is left on for too long. Remove any soiling immediately.

Cleaning and emptying the ice-cube container

Clean the ice-cube container regularly. This ensures that fresh ice cubes are always produced.

Empty the ice-cube container on a regular basis. This prevents ice cubes from freezing together.

Danger of injury!

The ice-cube container is very heavy when filled. Pull it out using both hands.

■ Open the appliance door.

Illustration of a hand inserting a card into a door, with a black arrow indicating the card's direction (no text or symbols present)

■ Lift the ice-cube container with both hands and pull it forwards to remove it from the appliance.
■ Empty it and rinse it with warm water.
■ Dry the container thoroughly so that new ice cubes will not freeze onto the surfaces.

■ To reinsert the ice-cube container, push it into the appliance until it clicks into position.
■ If you cannot push the container back in all the way, turn the screw conveyor inside a little.

Cleaning the drip tray

The drip tray catches excess water.

To avoid a build-up of odor, the drip tray should be cleaned every day.

■ Remove the drip-tray cover.
■ Remove the drip tray and clean it.
■ Dry the drip tray with a cloth.
- Replace the drip tray and the drip-tray cover.

Cleaning the door seal

Do not use any grease or oil on the door seal as these will cause the seal to deteriorate and become porous over time.

■ The door seal should be cleaned regularly with clean water and then wiped thoroughly dry with a soft cloth.

Cleaning the ventilation grilles

A build-up of dust will increase the energy consumption of the appliance.

■ The air vents should be cleaned on a regular basis with a brush or vacuum cleaner (you could use a Miele vacuum cleaner dusting brush, for example).

After cleaning

■ Replace all shelves and accessories in the appliance.
■ Reconnect to the power supply and switch the appliance back on.
■ Switch on the SuperFrost ⚙️ function for a while so that the Freezer Zone can cool down quickly.
■ Once the freezer has reached the required temperature, place the food back in the freezer baskets.
■ Switch off the SuperFrost ⚙ function as soon as the temperature in the Freezer Zone is a constant 0°F (-18°C) or colder.

With the help of the following guide minor faults in the performance of the machine, some of which may result from incorrect operation, can be remedied without contacting the Service Department.

This guide may help you to find the reason for the fault, and how to correct it.

To prevent cold from escaping, open the appliance doors as little as possible until the fault has been corrected.

Problem Possible cause	and solution
If you are concerned that your appliance is not working properly, you can perform a Self Test. Your appliance will be checked for any faults or malfunctions.	Any errors identified during the Self Test are shown on the display.■ Perform a Self Test (see “Additional settings”, section “Performing a Self Test ☑”).■ Contact Technical Service and inform them of the error message(s) on the display.
The appliance is not getting cold and the interior lighting does not come on when the appliance door is opened.	The appliance has not been turned on.■ Turn the appliance on. The temperature appears in the display.
	The plug is not properly plugged into the electrical outlet.■ Insert the plug into the outlet.
	The fuse has tripped. There could be a fault with the appliance, the household electrical wiring, or another appliance.■ Contact a technician or the Technical Service department.
The compressor is turning on more frequently and for longer periods of time; the temperature in the appliance is too low.	The ventilation gaps in the cabinetry have been covered or become too dusty.■ Do not block the ventilation gaps.■ Clean the ventilation gaps on a regular basis to remove any dust.
	The door has been opened too frequently, or a large amount of fresh food has been placed inside and/or frozen at the same time.■ Only open the door when necessary and for as short a time as possible.After a while, the temperature will return to normal by itself.
	The appliance door is not properly closed.A thick layer of ice may have already formed in the freezer.■ Close the appliance door.After a while, the temperature will return to normal by itself.If a thick layer of ice has already formed, this will affect cooling and increase energy consumption.■ Defrost the appliance and clean it.
	The ambient temperature is too high. The higher the ambient temperature, the longer the compressor has to run.■ See the “Installation location” section in the “Installation information”.
	The appliance was not properly installed in the niche.■ See the “Installation information” and “Building in the appliance” sections.
The compressor is turning on more frequently and for longer periods of time; the temperature in the appliance is too low.	The temperature setting is too low.■ Correct the temperature setting.
	A large amount of food was put in for freezing at once.■ See the information in the section on “Freezing and storing food”.
	The SuperFrost function is still turned on.■ To save energy, you can switch the SuperFrost function off early yourself.
The compressor comes on less and less often and for shorter periods of time. The temperature in the appliance rises.	This is not a fault. The temperature setting is too high.■ Correct the temperature setting.■ Check the temperature again after 24 hours.
	The food begins to thaw.The room temperature is too low for this appliance.If the room temperature is too low, the compressor will run less frequently. This may cause the freezer to become too warm.■ See the “Installation location” section in the “Installation information”.■ Increase the room temperature.
The door to the Freezer Zone will not open because it has been opened and closed too many times in succession.	This is not a fault. The suction caused by opening and closing the door is preventing the door from opening. Wait approx. 1 minute and then try again. It should now open without force.
The compressor runs continuously.	Not a fault. To save energy, the compressor runs at a lower speed when less cooling is required. This increases the compressor run time.
The temperature display shows 0°F (-18°C), although a higher temperature is set.	This is not a fault. When the ice maker is turned on and the ambient room temperature is also low (< + 0°F (-18°C)) the temperature is automatically adjusted to -0°F (-18°C). This guarantees that the ice maker functions efficiently.

Frequently Asked Questions

Problem Possible cause	and solution
Food has frozen together or to the wall.	The food packaging was not dry when loaded in the freezer.■ Use a blunt instrument (such as a spoon handle) to carefully pry them apart.
An alarm sounds. The appliance door has been open for longer than 3 minutes.■ Close the appliance door.
No alarm sounds despite the appliance door being open.	You have switched off the audible signal.■ Switch the audible signal back on using Settings mode ⚙️.
The appliance door cannot be opened.	The Pull2Open Door Assistant is switched on but the appliance has a handle-free cabinet front.■ For handle-free cabinet fronts, switch on the Push2Open Door Assistant (see “Switching on the Door Assistant” in “Selecting additional settings”).
The appliance door cannot be opened when Sabbath Mode is switched on.	The Push2Open Door Assistant is switched on at the same time as Sabbath Mode.■ When Sabbath Mode is switched on, the Door Assistant is deactivated.■ Pull the appliance door open from below or from the side.

Messages in the display

Message Possible cause	and solution
The warning sounds and the message Freezer temperature too high. Max. temperature °F appears in the display.	The temperature in the appliance has risen significantly.This could be due to, for example:- the appliance door being opened too often, or being left open,- a large amount of food being frozen at once,- an extended power failure■ If you find the alarm disruptive, you can switch it off in advance by touching the sensor control OK.The alarm will stop.■ Rectify the cause of the alarm.The alarm stops and the error message disappears from the display.The temperature display will show the highest temperature that was reached during the time the temperature in the Freezer Zone rose.■ Depending on the temperature displayed, you should check whether food in the freezer has started to thaw or has defrosted. If it has, cook it before freezing it again.■ In the event of a power failure, check whether there are any ice cubes in the ice cube tray and dispose of these. Otherwise, the ice cubes will freeze together and can damage the ice cube container when they expand.
The warning sounds and the message Close the door appears in the display.	The appliance door is open.■ Close the appliance door.■ If you wish to turn the alarm off early, touch the sensor control OK in the display.The alarm will stop.
The temperature display is dark and i is shown in the display.	Sabbath Mode is turned on: The interior lighting is turned off and the appliance is cooling down.■ You can switch off Sabbath Mode at any time (see “Selecting additional settings”, section “Switching Sabbath Mode on and off”).

Frequently Asked Questions

Message Possible cause	and solution
“F Please contact Miele Technical Service.” appears in the display and an alarm sounds.	There is a fault.■ Make a note of the fault message if necessary.■ Contact Technical Service.■ To turn the alarm off, touch the symbol.The error message does not disappear from the display until the error has been rectified.
	The voltage level is too high/low.■ Observe the connection data under “Electrical connections”.■ Contact Technical Service if necessary.■ To turn the alarm off, touch the symbol.The error message does not disappear from the display until the error has been rectified.
■ is shown in the display. The machine does not get cold, but the machine controls are working.	Demo Mode is switched on. Demo mode allows the appliance to be presented in the showroom without the cooling system being turned on. Do not activate this setting for domestic use.■ Switch off Demo mode (see “Selecting additional settings”, section “Switching off Demo Mode”).

Problems with the ice/water dispenser

Problem Possible cause	and solution
The Ice/Water dispenser cannot be switched on.	The appliance is not connected to the power supply.■ Check that the appliance is connected to the electricity supply.
	The system lock of the Ice/Water dispenser is active (the 🔒 sensor control is highlighted in yellow).■ Switch off the system lock (see “System lock” in “Ice/Water dispenser”).
The ice/water dispenser is not immediately ready for operation after having been switched on.	This is not a fault. After the appliance door has opened and closed, it can take several seconds until the ice/water dispenser is ready for operation.
No ice cubes are dispensed.	The Ice/Water-dispenser spout is blocked by frozen ice.■ Empty the ice-cube tray at the latest if you have not produced any ice for a week (see “Emptying and cleaning the ice-cube container” in “Cleaning and care”).
	After initial commissioning, it might take up to 24 hours until the first ice cubes are produced.
The chilled water from the Ice/Water dispenser does not taste good.	If you dispense chilled water again after a longer period of time, it may be stale.■ In this case, pour out the first 15 glasses of water.

Problems with the ice cube maker

Problem Possible cause	and solution
The ice maker is not producing any ice cubes or no cold water is being dispensed.	The appliance or the ice/water dispenser has not been turned on.■ Make sure that the appliance is turned on.■ Make sure that the ice/water dispenser has been switched on.
	The plumbed water connection was not installed.■ Make sure that the plumbed water connection was installed correctly.
	The water intake is not open or has not been vented.■ Open the water intake.■ Check that the water supply has been vented.
	The ice cube container is not correctly positioned.■ Check that the ice cube container is located correctly.
	The temperature in the freezer is too high.■ Set the temperature in the freezer lower (see “The correct temperature”).
	The appliance door has been opened too frequently, causing the compressor to turn on more often and the ice-cube maker has iced up.■ Only open the door when necessary and for as short a time as possible.
	The water pressure is too low.■ The water pressure must be between 29 and 116 psi (2 and 8 bar).■ Check if an incorrect valve has been installed, making the pressure too low.
	After first use, it might take about 24 hours until the first ice cubes are produced.
The Ice Maker is producing only small ice cubes.	Several household appliances connected to the plumbed water connection are in operation, which has reduced the amount of water being taken in.■ Avoid using the dishwasher, washing machine, etc. at the same time.
	The water filter is clogged.■ Check whether the water filter needs to be changed (see “Water filter”).
	The water pressure is too low.■ Check that the water pressure is between 29 and 116 psi (2 and 8 bar).■ Check if an incorrect valve has been installed.
The ice maker is producing only a few or deformed ice cubes or only a little cold water is being dispensed.	The water filter is clogged.■ Check whether the water filter needs to be changed (see “Water filter”).
	The water pressure is too low.■ The water pressure must be between 29 and 116 psi (2 and 8 bar).
	The temperature in the freezer is too high.■ Select a lower temperature.
The ice cubes have an unpleasant odor or flavor.	The ice cube container is in constant use and needs to be cleaned regularly.■ Check if the ice cube container is dirty and clean it if necessary.
	The ice maker is seldom used. If you do not use it very often, ice cubes that are stored for a long period can absorb the taste and smell of other items.■ Empty the ice cube container if you are not going to use it for a long time.
	There are unsealed packages in the freezer. Ice can absorb the taste and smell of unsealed food.■ Store only sealed food in the freezer.
	The water filter is dirty.■ Check whether the water filter needs to be changed (see “Water filter”).

Frequently Asked Questions

Problem Possible cause	and solution
Water is flowing out of the appliance.	The water intake is faulty.■ Close the water shut-off valve immediately!■ Check the water line for damage.■ Contact Miele Technical Service.■ Check whether the water pressure is too high
	Too high water pressure can cause leakages.■ Check that the water pressure is between 29 and 116 psi (2 and 8 bar).■ Check if an incorrect valve has been installed.

The interior lighting is not working.

Problem Possible cause	and solution
The interior lighting is not working.	The appliance has not been turned on.■ Turn the appliance on.
	Sabbath Modeis switched on: The temperature display is dark and is shown in the display.■ You can switch off Sabbath Mode at any time via Settings mode ⚙️.
	There is a fault.⚠️ Risk of electric shock!There are live electrical components under the lighting cover.The LED lighting may only be repaired or replaced by Technical Service.
	⚠️ Risk of injury from LED lighting! The light intensity corresponds to laser beam class 1/1M.The lighting covers must not be removed or damaged, or be removed due to damage. This could cause injury to your eyes.Do not look into the LED lighting (laser beam class 1/1M) with optical instruments (e.g., a magnifying glass).
	■ Contact Technical Service.
Normal noises	Cause
Brrrrr... A humming noise is made by the motor (compressor). This noise can get louder for brief periods when the motor switches on.
Blub, blub... A gurgling noise can be heard when the coolant circulates through the pipes.
Click... Clicking sounds occur whenever the thermostat switches the motor on or off.
Sssrrrrr... You can sometimes just hear the sound of the fan inside the appliance.
Crack... A cracking sound can be heard when materials expand inside the appliance.
Please bear in mind that a certain amount of noise is unavoidable (from the compressor and the coolant circulating through the system).

Noises Cause	and solution
Rattling, clinking	The appliance is uneven. Realign the appliance using a level, by raising or lowering the adjustable feet underneath the appliance or placing something underneath it.
	The appliance is touching another machine or piece of furniture. Move it away.
	Drawers, baskets or shelves are jiggling or are stuck. Check all removable parts and refit them correctly if required.
	Bottles or containers are touching each other. Separate them a little.

The appliance is supplied with a water filter (OdorFree charcoal filter) that filters supply water for making ice cubes.

The OdorFree charcoal filter improves the taste and smell of the ice cubes by removing chlorine and other substances from supply water.

To ensure the quality of the ice cubes remains high, it is essential to change the water filter regularly.

Please note:

• After inserting a new water filter, dispose of all ice cubes produced in the next 24 hours following the change.
• If you have not used the appliance or the ice maker much in the last few weeks, or if the ice cubes smell unpleasant, install a new water filter.
• If an external water filter is fitted to your household water supply, use a Bypassfilter in place of an OdorFree charcoal filter.

In this case, you can switch off the Water Filter Display (see “Selecting additional settings”, section “Switching off the Water Filter Display”).

New water filters (Bypass filters and OdorFree charcoal filters) are available from Miele Technical Service, from your dealer, or via the internet.

The reminder to change the water filter is issued approx. every 6 months, depending on the quantity of ice cubes produced.

A reminder to change the water filter appears in the display: Replace the water filter.

An audible signal also sounds.

■ Confirm the message with OK.
■ Change the water filter.

The first time the water filter ☑ needs to be changed, the display will remind you automatically; the reminder does not need to be switched on separately.

The reminder to change the water filter keeps appearing until you change the water filter and reset the Water Filter Display (see “Switching on, switching off”, or resetting the Water Filter Display” in “Selecting additional settings”).

Changing the water filter

Air in the system can cause water to gush out and the filter to spring out when it is removed. Take great care when changing the water filter.

1. 2.

■ Turn the cap of the water filter counter-clockwise as far as the marker 1.).
■ Pull the used water filter out of the filter opening 2.).
■ Remove the safety cap from the new water filter.

3. 4.

■ Remove the cap from the old water filter 3.) and place it onto the new water filter 4.).
■ Drain the water from the old water filter.

Tip: The old water filter can be disposed of with household trash.

5.

■ Slide the new water filter as far as it will go into the filter opening 5.), making sure the cap is horizontal.

6.

■ Turn the cap of the water filter clockwise as far as the marker 6.).

Risk of damage caused by water gushing out.

If the water filter is not fitted correctly, there is a risk of water leaking out of the appliance.

When fitting the water filter, be sure to turn it as far as the marker.

Once you have changed the water filter, the Water Filter Display ⚙ remains lit up.

■ Now reset the Water Filter Display using Settings mode ⚙ in the display (see “Selecting additional settings”, section “Resetting Water Filter Display”).

When it is time to change the water filter again, the reminder for the Water Filter Display ⚙ will appear in the display.

After inserting a new water filter, dispose of all ice cubes produced in the next 24 hours following the change.

Performance Data Sheet

Model: Miele 07134220

Use Replacement Cartridge 07134220

The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53.

System tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for the reduction of the claims specified on the Performance Data Sheet.

Capacity 739.68 Gallons (2800 Liters)

Contaminant Reduction Determined by NSF testing.

Substance Reduction	Average Influent	NSF specified Challenge Concentration	Avg % Reduction	Average Product Water Concentration	Max Permissible Product Water Concentration	NSF Reduction Requirements	NSF Test Report
Chlorine Taste and Odor 2.1	mg/L 2.0 mg/L ± 10	97.6% 0.05 mg/L N/A ≥ 50% J-00121313
Nominal Particulate Class I, ≥0.5 to < 1.0 μm	9,100,000 pts/mL	At least 10,000 particles/mL	98.8% 11	1,817 pts/ml N/A ≥85% J-00099871
Cyst* 170,000 cysts/L		Minimum 50,000 cysts/L	99.99% 0	001 cyst/L N/A	≥99.95%	J-00109715

* Based on the use of Cryptosporidium parvum oocysts

Service Flow	0.75 gpm (2.83 lpm)
Water Supply	Potable Water
Water Pressure	30 -120 psi (207 – 827 kPa)
Water Temperature	33°F - 100°F (0.6°C - 38°C)

It is essential that the manufacturer's recommended installation, maintenance and fi Iter replacement requirements be carried out for the product to perform as advertised. See Installation Manual for Warranty information.

Note: While the testing was performed under standard laboratory conditions, actual performance may vary.

Replacement Cartridge: 07622430

For estimated costs of replacement elements please contact your local dealer, go to www.miele-shop.com or call Tel. [phone] (€ 0,09/Min.).

WARNING

Read entire manual. Failure to follow all guides and rules could cause personal injury or property damage.

• Check with your local public works department for plumbing codes. You must follow their guidelines as you install the water fi ltration system.
• Your water filtration system will withstand up to 120 pounds per square inch (psi) water pressure. If your water supply pressure is higher than 80 psi, install a pressure reducing valve before installing the water filtration system.

To reduce the risk associated with the ingestion of contaminants:

- DO NOT use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain if iterable cysts.

NOTICE

To reduce the risk associated with water leakage or flooding:

• Read and follow Use Instructions before installation and use of this system.
• Change the disposable filter cartridge every six months or sooner if you observe a noticeable reduction in water flow rate.
• Failure to replace the disposable fi liter cartridge at recommended intervals may lead to reduced fi liter performance and failure of the filter, causing property damage from water leakage or flooding.
• For questions or concerns, please contact Customer Service at Tel. [phone] (€0,09/Min.).

3M is a trademark of 3M Company used under license.

NSF is a trademark of NSF International.

© 2017 3M Company. All rights reserved.

34-8721-1445-8

Manufactured by:

3M Purifi cation Inc.

3130 Lexington Avenue South,

Eagan, MN 55121

Lead-free certificate

TESTED AND CERTIFIED Water Quality® UNDER INDUSTRY STANDARDS® C USA

This product is tested and certified by WQA against NSF/ANSI 372 for “lead free” compliance.

Miele & Cie. KG

Carl-Miele-Strasse 29

D-33332 Gütersloh

Contact in case of fault

In the event of a fault which you cannot remedy yourself, please contact your Miele dealer or Miele Technical Service.

Contact information for Miele Technical Service can be found at the end of this document.

Please quote the model and serial number of your appliance when contacting Miele. Both pieces of information can be found on the data plate.

You will find the data plate inside your appliance.

Warranty

For more information about warranty conditions, please contact Miele Technical Service.

Miele hereby declares that this freezer complies with Directive 2014/53/EU.

Frequency band 2,412 GHz – 2,462 GHz

Maximum trans- < 100 mW mitting power

Miele uses their own and third party software which is not subject to any so-called open source license for the operation and control of the device/appliance. This software/these software components are protected by copyright. The copyright powers of Miele and third parties have to be respected.

Furthermore, this device/appliance contains software components which are distributed under open source license conditions. Please refer to the document “Open Source Information and Licenses” for the Open Source components contained therein, together with the corresponding copyright notices, copies of the licensing conditions valid at the time, and any further information. The liability and warranty provisions of the open source licensing conditions as stated therein apply only in relation to the respective rights holders.

In particular, the device/appliance contains software components licensed by the copyright holders under the GNU General Public License, Version 2, or the GNU Lesser General Public License, Version 2.1. For a period of at least 3 years from the date of purchase or delivery of the device/appliance respectively, Miele offers to provide you or third parties with a machine-readable copy of the source code of the Open Source components contained in the device/appliance and licensed under the terms of the GNU General Public License, Version 2, or the GNU Lesser General Public License, Version 2.1, on a data carrier (CD-ROM, DVD or USB stick). Please contact us via e-mail ([e-mail]) or the below postal address and state the product name, the serial number and the date of purchase to obtain this source code.

Miele & Cie. KG

Open Source

GTZ/TIM

Please note the limited warranty in favor of the rights holders under the terms of the GNU General Public License, Version 2, and the GNU Lesser General Public License, Version 2.1:

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY of FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License and GNU Lesser General Public License for more details.

Please have the model and serial number of your appliance available when contacting Technical Service.

U.S.A.

Miele, Inc.

National Headquarters

9 Independence Way

Princeton, NJ 08540

Phone: [phone]

Fax: [phone]

www.mieleusa.com

Technical Service & Support

Phone: [phone]

Fax: [phone]

[e-mail]

International Headquarters

Miele & Cie. KG

Headquarters and Miele Centre

161 Four Valley Drive

Vaughan, ON L4K 4V8

www.miele.ca

Customer Care Centre

Phone: [phone]

905-532-2272

[e-mail]

Miele

F 2461 Vi, F 2471 Vi, F 2661 Vi, F 2671 Vi

en-US, CA
