Product Type	Leaf blower (KombiSystem attachment)
Engine Displacement	31.4 cm³ (1.92 cu in)
Engine Power	1.05 kW (1.40 HP) at 7,000 rpm
Idle Speed	2,800 rpm
Cut-off Speed	10,500 rpm
Fuel Mixture	50:1 (unleaded gasoline with STIHL two-stroke oil)
Fuel Tank Capacity	0.53 L (17.9 fl oz)
Weight (without blower attachment)	4.5 kg (9.9 lbs)
Ignition System	Electronic magneto ignition
Spark Plug	Bosch USR 7AC (resistor type), gap 0.5 mm
Carburetor Type	All-position diaphragm carburetor
Air Filter	Dry filter element, clean or replace as needed
Muffler	With spark arresting screen, clean periodically
Handle Type	Loop handle with barrier bar for safety
Vibration Control	Anti-vibration (AV) system
Operating Position	Hand-held, one-person operation
Start Method	Recoil starter with purge pump and choke
Maintenance Interval	Air filter: weekly; Spark plug: every 100 hours
Warranty	Federal and California emission control warranty (2 years)
Included Tools	BG-KM blower attachment (sold separately)

Frequently Asked Questions - KM 110 STIHL

What fuel mixture does the Stihl KM 110 use?

The Stihl KM 110 uses a 50:1 mixture of unleaded gasoline (89 octane or higher) and STIHL two-stroke engine oil, such as STIHL HP Ultra. Do not use BIA or TCW rated oils.

How do I start the Stihl KM 110?

To start: 1) Press the fuel pump bulb at least five times. 2) Set the choke knob to cold start (if engine is cold). 3) Move the slide control to START while holding throttle trigger lockout and throttle trigger. 4) Release throttle trigger, slide control, and lockout in order (sets starting throttle). 5) Place machine on ground, pull starter rope briskly until engine fires, then turn choke knob to run position and blip throttle trigger.

What is the idle speed adjustment for the Stihl KM 110?

The correct idle speed is 2,800 rpm. If the engine stops when idling, turn the idle speed screw (LA) clockwise until it runs smoothly. If the cutting attachment moves, turn the screw counterclockwise until it stops, then another 1/2 to 3/4 turn.

How often should I clean the air filter?

Clean the air filter weekly or more often in dusty conditions. If there is a noticeable loss of power, check the filter. Replace the filter element if it is damaged or heavily soiled. Do not wash the filter; tap it out or blow with compressed air.

What spark plug does the Stihl KM 110 use?

The Stihl KM 110 R uses a Bosch USR 7AC resistor spark plug with an electrode gap of 0.5 mm (0.02 in). Replace the spark plug every 100 operating hours or if electrodes are badly eroded.

Can I use the Stihl KM 110 with other attachments?

Yes, the KM 110 is part of the STIHL KombiSystem and can be used with approved KombiTools such as brushcutters, hedge trimmers, pole pruners, and blowers (BG-KM). Only use attachments approved by STIHL for this engine model.

How do I store the Stihl KM 110 for long periods?

For storage over 3 months: drain and clean the fuel tank, run the engine until the carburetor is dry, clean the machine thoroughly, remove and inspect the working tool. Store in a dry, locked location out of reach of children.

What is the weight of the Stihl KM 110 engine?

The engine (without attachment) weighs 4.5 kg (9.9 lbs). The total weight with the BG-KM blower attachment will be slightly heavier.

How do I adjust the carburetor on the Stihl KM 110?

The carburetor has a standard factory setting. For version B carburetors, minor adjustments can be made via high-speed (H) and low-speed (L) screws. Typical standard setting is 3/4 turn open for both. Adjust idle speed (LA) first. For fine tuning, turn H screw 1/4 turn per 1000m altitude change.

What safety equipment is recommended when using the Stihl KM 110?

Always wear hearing protection, eye protection, gloves (except when using BG-KM blower), and sturdy footwear. Avoid loose clothing and secure long hair. Use the barrier bar and loop handle for proper control.

USER MANUAL KM 110 STIHL

StiHL precision tool with metal clamp and handle (no visible text or symbols)

Warning!

Read and follow all safety precautions in Instruction Manual – improper use can cause serious or fatal injury.

Advertencia!

Guide to Using this Manual 2

Safety Precautions and Working

Techniques 3

Approved KombiTools 11

Mounting the Loop Handle 12

Adjusting the Throttle Cable 13

4-MIX Engine 13

Fuel 13

Fueling 14

Starting / Stopping the Engine 16

Operating Instructions 18

Cleaning the Air Filter 18

Engine Management 19

Adjusting the Carburetor 19

Spark Arresting Screen in Muffler 21

Spark Plug 22

Replacing the Starter Rope and Rewind Spring 23

Storing the Machine 25

Maintenance and Care 26

Main Parts 28

Specifications 29

Special Accessories 30

Maintenance and Repairs 31

STIHL Incorporated Federal

Emission Control Warranty

Statement 31

STIHL Incorporated California

Exhaust and Evaporative

Emissions Control Warranty

Statement 33

STIHL®

KM 110 R, KM 130 R

35

Allow only persons who fully understand the manuals of the KombiEngine and the KombiTool to operate this power tool combination.

To receive maximum performance and satisfaction from your STIHL power tool, it is important that you read, understand and follow the safety precautions and the operating and maintenance instructions in chapter "Safety Precautions and Working Techniques" before using your power tool. For further information you can go to www.stihlusa.com.

Contact your STIHL dealer or the STIHL distributor for your area if you do not understand any of the instructions in the two manuals.

Warning!

Because this KombiEngine is the engine for a high-speed power tool, some special safety precautions must be observed to reduce the risk of personal injury. Careless or improper use may cause serious or even fatal injury.

KombiSystem

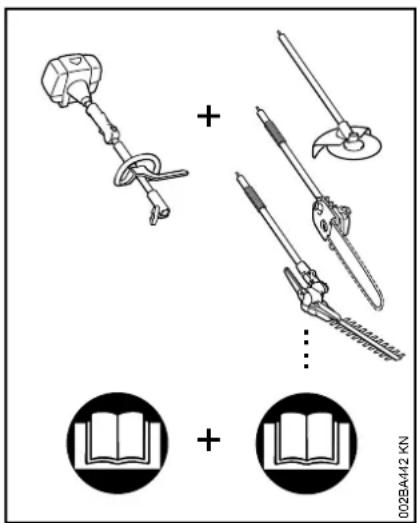

In the STIHL KombiSystem a number of different KombiEngines and KombiTools can be combined to produce a power tool. In this instruction manual the functional unit formed by the KombiEngine and KombiTools is referred to as the power tool.

Therefore, the separate instruction manuals for the KombiEngine and KombiTool should be used together for the power tool.

Always read and and make sure you understand both instruction manuals before using your power tool for the first time and keep them in a safe place for future reference.

Guide to Using this Manual

Pictograms

The meanings of the pictograms attached to or embossed on the machine are explained in this manual.

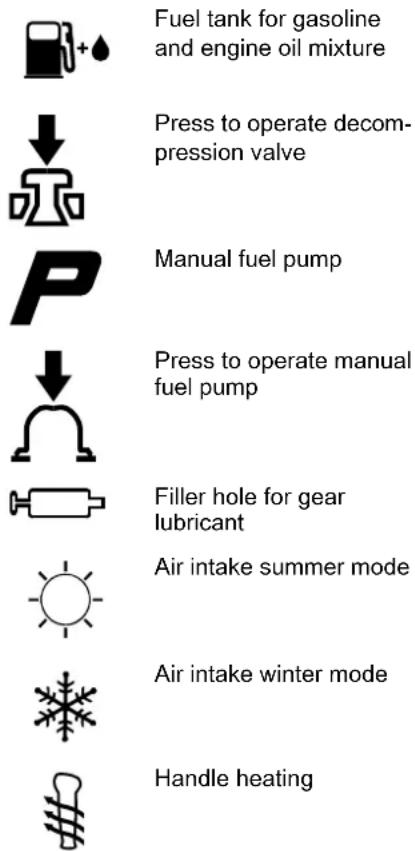

Depending on the model concerned, the following pictograms may be on your machine.

Fuel tank for gasoline and engine oil mixture

Press to operate decom- pression valve

Manual fuel pump

Press to operate manual fuel pump

Filler hole for gear lubricant

Air intake summer mode

Air intake winter mode

Handle heating

Symbols in Text

Many operating and safety instructions are supported by illustrations.

The individual steps or procedures described in the manual may be marked in different ways:

● A bullet marks a step or procedure.

A description of a step or procedure that refers directly to an illustration may contain item numbers that appear in the illustration. Example:

- Loosen the screw (1).

- Lever (2) ...

In addition to the operating instructions, this manual may contain paragraphs that require your special attention. Such paragraphs are marked with the symbols and signal words described below:

DANGER

Indicates an imminent risk of severe or fatal injury.

WARNING

Indicates a hazardous situation which, if not avoided, could result in severe or fatal injury.

Indicates a risk of property damage, including damage to the machine or its individual components.

Engineering Improvements

STIHL's philosophy is to continually improve all of its products. As a result, engineering changes and improvements are made from time to time. Therefore, some changes, modifications and improvements may not be covered in this manual. If the operating characteristics or the appearance of your machine differs from those described in this manual, please contact your STIHL dealer for assistance.

Safety Precautions and Working Techniques

Because this KombiEngine is the engine for a high-speed power tool, special safety precautions must be observed to reduce the risk of personal injury.

It is important that you read, fully understand and observe the following safety precautions and warnings. Read the instruction manuals and the safety precautions of your KombiEngine and KombiTool periodically. Careless or improper use may cause serious or fatal injury.

Have your STIHL dealer show you how to operate your power tool. Observe all applicable local safety regulations, standards and ordinances.

Warning!

Do not lend or rent your power tool without the instruction manuals. Be sure that anyone using it understands the information contained in these manuals.

Use your power tool only for the applications described in the instruction manual of the KombiTool you are using.

Warning!

Do not use it for other purposes, since misuse may result in personal injury or property damage, including damage to the machine.

Warning!

Minors should never be allowed to use this power tool. Bystanders, especially children, and animals should not be allowed in the area where it is in use.

Warning!

To reduce the risk of injury to bystanders and damage to property, never let your power tool run unattended. When it is not in use (e.g. during a work break), shut it off and make sure that unauthorized persons do not use it.

Most of these safety precautions and warnings apply to the use of all STIHL power tools. Different models may have different parts and controls. See the appropriate section of your KombiEngine and KombiTool instruction manuals for a description of the controls and the function of the parts of your model.

Do not clean your machine with a pressure washer. The solid jet of water may damage parts of the machine.

Safe use of a KombiEngine involves

1. the operator
2. the power tool
3. the use of the power tool

English

THE OPERATOR

Physical Condition

You must be in good physical condition and mental health and not under the influence of any substance (drugs, alcohol, etc.) which might impair vision, dexterity or judgment. Do not operate this machine when you are fatigued.

Warning!

Be alert – if you get tired, take a break. Tiredness may result in loss of control. Working with any power tool can be strenuous. If you have any condition that might be aggravated by strenuous work, check with your doctor before operating this machine.

Warning!

Prolonged use of a power tool (or other machines) exposing the operator to vibrations may produce whitefinger disease (Raynaud's phenomenon) or carpal tunnel syndrome.

These conditions reduce the hand's ability to feel and regulate temperature, produce numbness and burning sensations and may cause nerve and circulation damage and tissue necrosis.

All factors which contribute to whitefinger disease are not known, but cold weather, smoking and diseases or physical conditions that affect blood vessels and blood transport, as well as high vibration levels and long periods of exposure to vibration are mentioned as factors in the development of whitefinger disease. In order to reduce the risk of whitefinger disease and carpal tunnel syndrome, please note the following:

-Most STIHL power tools are available with an anti-vibration ("AV") system designed to reduce the transmission of vibrations created by the machine to the operator's hands. An AV system is recommended for those persons using power tools on a regular or sustained basis.

-Wear gloves – not while using KombiTool BG-KM – and keep your hands warm.

-Keep the AV system well maintained. A power tool with loose components or with damaged or worn AV elements will tend to have higher vibration levels.

–Maintain a firm grip at all times, but do not squeeze the handles with constant, excessive pressure. Take frequent breaks.

All the above-mentioned precautions do not guarantee that you will not sustain whitefinger disease or carpal tunnel syndrome. Therefore, continual and regular users should closely monitor the condition of their hands and fingers. If any of the above symptoms appear, seek medical advice immediately.

Warning!

The ignition system of the STIHL unit produces an electromagnetic field of a very low intensity. This field may interfere with some pacemakers. To reduce the risk of serious or fatal injury, persons with a pacemaker should consult their physician and the pacemaker manufacturer before operating this tool.

Proper Clothing

Warning!

To reduce the risk of injury, the operator should wear proper protective apparel.

Warning!

Power tool noise may damage your hearing. Wear sound barriers (ear plugs or ear mufflers) to protect your hearing. Continual and regular

users should have their hearing checked regularly.

Be particularly alert and cautious when wearing hearing protection because your ability to hear warnings (shouts, alarms, etc.) is restricted.

Avoid loose-fitting jackets, scarfs, neckties, jewelry, flared or cuffed pants, unconfined long hair or anything that could become caught on branches, brush or the moving parts of the unit. Secure hair so it is above shoulder level.

For further instructions on proper clothing see the safety precautions in the instruction manual of the KombiTool you are using.

THE POWER TOOL

For illustrations and definitions of the power tool parts see the chapter on "Main Parts."

Warning!

Never modify this power tool in any way. Only attachments supplied by STIHL or expressly approved by STIHL for use with the specific STIHL KombiEngine model are authorized. Although certain unauthorized attachments are useable with STIHL power tools, their use may, in fact, be extremely dangerous.

If this tool is subjected to unusually high loads for which it was not designed (e.g. heavy impact or a fall), always check that it is in good condition before continuing work. Check in particular that the fuel system is tight (no leaks) and that the controls and safety devices are working properly. Do not continue operating this machine if it is damaged. In case of doubt, have it checked by your STIHL servicing dealer.

Transporting the Power Tool

Warning!

Always switch off the engine and make sure the working tool has stopped before putting a power tool down. When transporting your power tool in a vehicle, properly secure it to prevent turnover, fuel spillage and damage to the power tool.

Fuel

Your STIHL power tool uses an oil-gasoline mixture for fuel (see the chapter on "Fuel" of your instruction manual).

Warning!

Gasoline is an extremely flammable fuel. If spilled and ignited by a spark or other ignition source, it can cause fire and serious burn injury or

property damage. Use extreme caution when handling gasoline or fuel mix. Do not smoke or bring any fire or flame near the fuel or the power tool. Note that combustible fuel vapor may escape from the fuel system.

Fueling Instructions

Warning!

To reduce the risk of serious injury from burns, never attempt to refuel the unit until it has been completely removed from the operator.

Warning!

Fuel your power tool in well-ventilated areas, outdoors. Always shut off the engine and allow it to cool before refueling. Gasoline vapor pressure may build up inside the fuel tank depending on the fuel used, the weather conditions and the tank venting system.

In order to reduce the risk of burns and other personal injury from escaping gas vapor and fumes, remove the fuel filler cap on your power tool carefully so as to allow any pressure build-up in the tank to release slowly. Never remove the fuel filler cap while the engine is running.

Select bare ground for fueling and move at least 10 feet (3 m) from the fueling spot before starting the engine. Wipe off any spilled fuel before starting your machine.

Warning!

Check for fuel leakage while refueling and during operation. If fuel leakage is found, do not start or run the engine until the leak is fixed and

any spilled fuel has been wiped away. Take care not to get fuel on your clothing. If this happens, change your clothing immediately.

English

Different models may be equipped with different fuel caps.

Toolless cap with grip

Warning!

In order to reduce the risk of fuel spillage and fire from an improperly tightened fuel cap, correctly position and tighten the fuel cap in the fuel tank opening.

Technical illustration of a mechanical component with an inset close-up showing internal detail (no text or symbols)

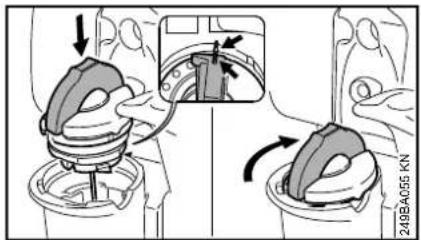

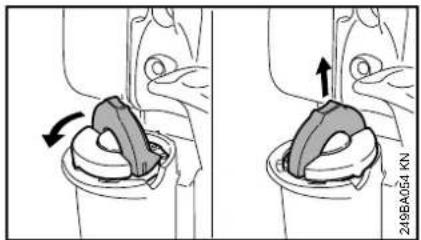

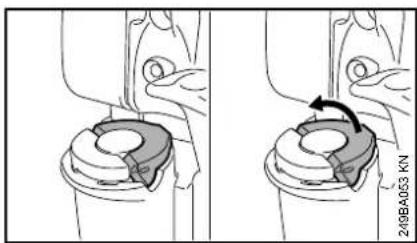

To do this with this STIHL cap, raise the grip on the top of the cap until it is upright at a 90° angle. Insert the cap in the fuel tank opening with the raised positioning marks on the grip of the cap and on the fuel tank opening lining up. Using the grip, press the cap down firmly while turning it clockwise as far as it will go (approx. 1/4 turn).

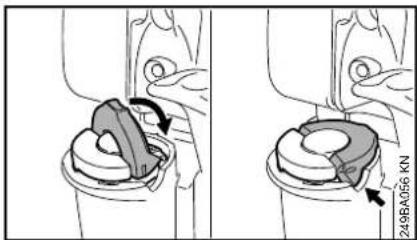

Fold the grip flush with the top of the cap. Grip the cap and check for tightness. If the grip does not lie completely flush with the cap and the detent on the grip does not fit in the corresponding recess in the filler opening, or if the cap is loose in the filler opening, the cap is not properly seated and tightened and you must repeat the above steps.

Misaligned, damaged or broken cap

- If the cap does not drop fully into the opening when the positioning marks line up and/or if the cap does not tighten properly when twisted, the base of the cap may be prematurely rotated (in relation to the top) to the closed position. Such misalignment can result from handling, cleaning or an improper attempt at tightening.

Technical diagram of two identical mechanical components with no visible text or symbols

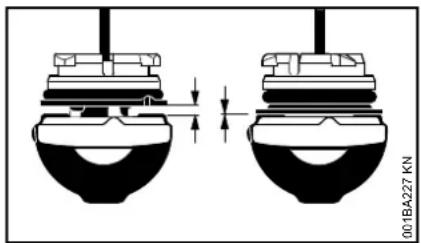

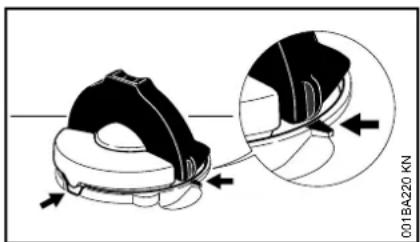

Left: Base of cap in closed position (with open space)
Right: Base of cap correctly positioned for installation

Mechanical component diagram showing a rotating shaft and housing assembly (no text or symbols)

• To return the cap to the open position for installation, turn the cap (with the grip up) until it drops fully into the tank opening. Next, twist the cap counterclockwise as far as it will go (approx. 1/4 turn) – this will twist the base of the cap into the correct position. Then, twist the cap clockwise, closing it normally.
• If your cap still does not tighten properly, it may be damaged or broken; immediately stop use of the unit and take it to your authorized STIHL dealer for repair.

Screw Cap

Warning!

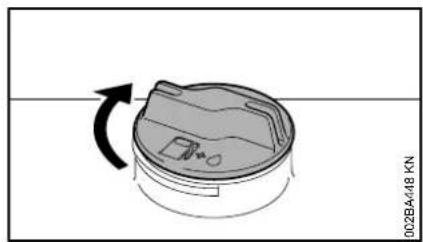

Unit vibrations can cause an improperly tightened fuel filler cap to loosen or come off and spill quantities of fuel. In order to reduce the risk of fuel

spillage and fire, tighten the fuel filler cap by hand as securely as possible.

See also the "Fueling" chapter in your Instruction Manual for additional information.

Before Starting

Warning!

Always check your power tool for proper condition and operation before starting, particularly the throttle trigger, throttle trigger lockout, stop switch, cutting attachment, deflector and harness. The throttle trigger must move freely and always spring back to the idle position. Never attempt to modify the controls or safety devices.

Warning!

Never operate your power tool if it is damaged, improperly adjusted or maintained, or not completely or securely assembled.

Warning!

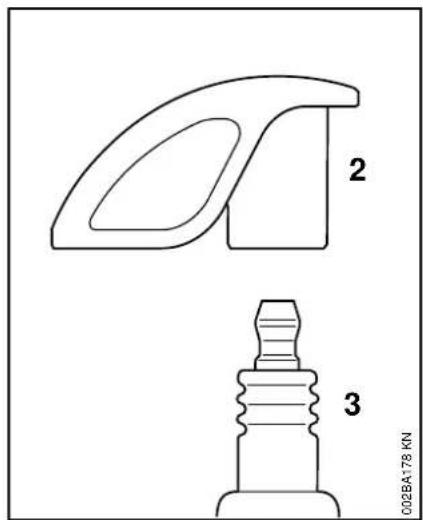

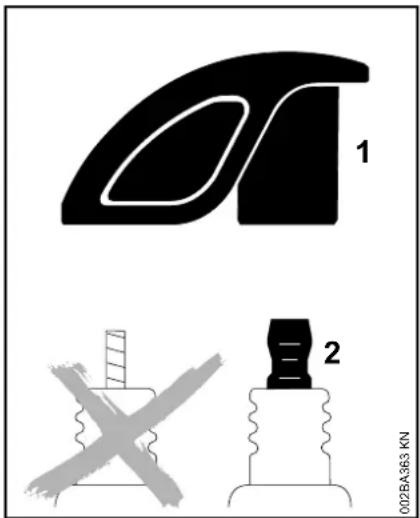

Check that the spark plug boot is securely mounted on the spark plug – a loose boot may cause arcing that could ignite combustible fumes and cause a fire.

Keep the handles clean and dry at all times; it is particularly important to keep them free of moisture, pitch, oil, fuel mix, grease or resin in order for you to maintain a firm grip and properly control your power tool.

Starting

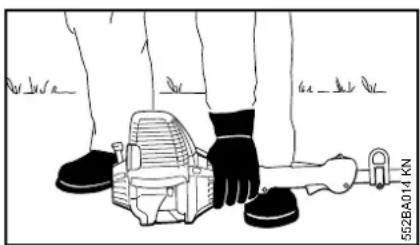

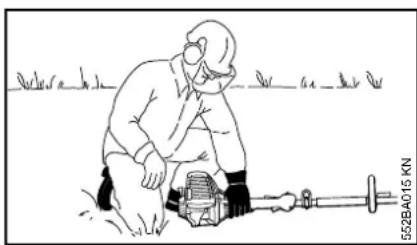

Start the engine at least 10 feet (3 m) from the fueling spot, outdoors only.

For specific starting instructions, see the appropriate section of your KombiEngine and KombiTool manuals. Place the power tool on firm ground or

other solid surface in an open area. Maintain good balance and secure footing.

Warning!

To reduce the risk of injury from loss of control, be absolutely sure that the working tool is clear of you and all other obstructions and objects, including the ground, because when the engine starts at starting-throttle, engine speed will be fast enough for the clutch to engage and move the working tool.

Once the engine has started, immediately blip the throttle trigger, which should release the starting throttle and allow the engine to slow down to idle.

Warning!

Your power tool is a one-person machine. Do not allow other persons in the general work area, even when starting.

Warning!

To reduce the risk of injury from loss of control, do not attempt to "drop start" your power tool.

Warning!

When you pull the starter grip, do not wrap the starter rope around your hand. Do not let the grip snap back, but guide the starter rope to rewind it properly. Failure to follow this procedure may result in injury to your hand or fingers and may damage the starter mechanism.

See also the safety precautions on Starting in the instruction manual of the KombiTool.

Important Adjustments

Warning!

To reduce the risk of personal injury from loss of control or contact with the running working tool, do not use a power tool with incorrect idle adjustment. At correct idle speed, the working tool should not move. For directions on how to adjust idle speed, see the appropriate section of your instruction manual.

If you cannot set the correct idle speed, have your STIHL dealer check your power tool and make proper adjustments and repairs.

During Operation

Holding and Controlling the Power Tool

Line drawing of a person holding a sword, wearing black gloves and wristband (no text or symbols)

Always hold the unit firmly with both hands on the handles while you are working. Wrap your fingers and thumbs around the handles.

Your right hand should grip the rear handle. This also applies to left-handers.

English

Warning!

To reduce the risk of injury from loss of control, never work on a ladder or on any other insecure support.

Working Conditions

Operate and start your power tool only outdoors in a well ventilated area. Operate it under good visibility and daylight conditions only. Work carefully.

Warning!

As soon as the engine is running, this product generates toxic exhaust fumes containing chemicals, such as unburned hydrocarbons (including benzene) and carbon monoxide, that are known to cause respiratory problems, cancer, birth defects, or other reproductive harm. Some of the gases (e.g. carbon monoxide) may be colorless and odorless. To reduce the risk of serious or fatal injury/illness from inhaling toxic fumes, never run the machine indoors or in poorly ventilated locations.

Warning!

Inhalation of certain dusts, especially organic dusts such as mold or pollen, can cause susceptible persons to have an allergic or asthmatic reaction. Substantial or repeated inhalation of dust and other airborne contaminants, in particular those with a smaller particle size, may cause respiratory or other illnesses. Control dust at the source where possible. Use good work practices, such as operating the unit so that the wind or operating process directs any dust raised by the power tool away from the operator. Follow the recommendations of EPA/OSHA/NIOSH and occupational and trade associations with respect to dust ("particulate matter"). When the inhalation of dust cannot be substantially controlled, i.e., kept at or near the ambient (background) level, the operator and any bystanders should wear a respirator approved by NIOSH/MSHA for the type of dust encountered.

Operating Instructions

Warning!

Do not operate your power tool using the starting throttle lock, as you do not have control of the engine speed.

In the event of an emergency, switch off the engine immediately – move the slide control / stop switch to 0 or STOP.

Warning!

Never modify your muffler. Any modification could cause an increase in heat radiation, sparks or sound level, thereby increasing the risk of fire, burn injury or hearing loss. You may also permanently damage the engine. Have your muffler serviced and repaired by your STIHL servicing dealer only.

Warning!

The muffler and other parts of the engine (e.g. fins of the cylinder, spark plug) become hot during operation and remain hot for a while after stopping the engine. To reduce risk of burns, do not touch the muffler and other parts while they are hot. Keep the area around the muffler clean. Remove excess lubricant and all debris such as pine needles, branches or leaves. Let the engine cool down sitting on concrete, metal, bare ground or solid wood away from any combustible substances.

Warning!

An improperly mounted or damaged cylinder housing or a damaged/deformed muffler shell may interfere with the cooling process of the muffler. To reduce the risk of fire or burn injury, do not continue work with a damaged or improperly mounted cylinder housing or a damaged/deformed muffler shell.

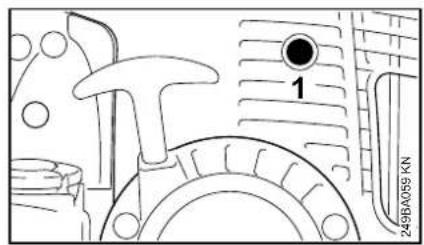

Your muffler is furnished with a spark arresting screen designed to reduce the risk of fire from the emission of hot particles. Never operate your unit with a missing or damaged spark arresting screen. If your gas/oil mix ratio is correct

(i.e., not too rich), this screen will normally stay clean as a result of the heat from the muffler and need no service or maintenance. If you experience loss of performance and you suspect a clogged screen, have your muffler maintained by a STIHL servicing dealer. Some state or federal laws or regulations may require a properly maintained spark arrestor for certain uses. See the "Maintenance, Repair and Storing" section of these Safety Precautions. Remember that the risk of a brush or forest fire is greater in hot or dry conditions.

Warning!

Some STIHL power tools are equipped with a catalytic converter, which is designed to reduce the exhaust emissions of the engine by a chemical

process in the muffler. Due to this process, the muffler does not cool down as rapidly as conventional mufflers when the engine returns to idle or is shut off. To reduce the risk of fire and burn injuries when using a catalytic converter, always set your power tool down in the upright position and never locate it where the muffler is near dry brush, grass, wood chips or other combustible materials while it is still hot.

MAINTENANCE, REPAIR AND STORING

Maintenance, replacement, or repair of the emission control devices and systems may be performed by any nonroad engine repair establishment or individual. However, if you make a warranty claim for a component which has not been serviced or maintained properly or if nonapproved replacement parts were used, STIHL may deny coverage.

Warning!

Use only identical STIHL replacement parts for maintenance and repair. Use of non-STIHL parts may cause serious or fatal injury.

Strictly follow the maintenance and repair instructions in the appropriate section of your KombiEngine and KombiTool instruction manuals. Please refer to the maintenance charts respectively the maintenance notes in these manuals.

Warning!

Always stop the engine and make sure that the working tool is stopped before doing any maintenance or repair work or cleaning the power tool. Do not attempt any maintenance or repair work not described in your KombiEngine and KombiTool instruction manuals. Have such work performed by your STIHL servicing dealer only.

Warning!

Use the specified spark plug and make sure it and the ignition lead are always clean and in good condition. Always press spark plug boot snugly onto spark plug terminal of the proper size. (Note: If terminal has detachable SAE adapter nut, it must be attached.) A loose connection between spark plug boot and the ignition wire connector in the boot may create arcing that could ignite combustible fumes and cause a fire.

Warning!

Never test the ignition system with the ignition wire boot removed from the spark plug or with a removed spark plug, since uncontained sparking may cause a fire.

Warning!

Do not operate your power tool if the muffler is damaged, missing or modified. An improperly maintained muffler will increase the risk of fire and hearing loss. Your muffler is equipped with a spark-arresting screen to reduce the risk of fire; never operate your power tool if the screen is missing, damaged or clogged. Remember that the risk of a brush or forest fire is greater in hot or dry weather.

In California, it is a violation of § 4442 or § 4443 or the Public Resources Code to use or operate gasoline-powered tools on forest-covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a complying spark arrester that is maintained in effective working order.

English

The owner/operator of this product is responsible for properly maintaining the spark arrester. Other states or governmental entities/agencies, such as the U.S. Forest Service, may have similar requirements. Contact your local fire agency or forest service for the laws or regulations relating to fire protection requirements.

Store the power tool in a dry and high or locked location out of reach of children.

Before storing for longer than a few days, always empty the fuel tank. See chapter "Storing the machine" in this manual.

Approved KombiTools

FS-KM

135°

HL-KM

BG-KM

Line drawing of a cylindrical mechanical component with internal grooves and a protruding rod (no text or symbols)

BF-KM

HT-KM

KB-KM

KW-KM

The following STIHL KombiTools may be mounted on the KombiEngine:

KombiTool Purpose

FS-KM Brushcutter with

mowing head

FS-KM Brushcutter with

grass cutting blade

FSB-KM Brushcutter with

mowing head

HL-KM 135° Hedge trimmer,

adjustable

HL-KM 0° Hedge trimmer

FH-KM 135° Power scythe

BG-KM Blower

HT-KM Pole pruner

BF-KM Pick tines

FCB-KM Power edger

FCS-KM Power edger

KB-KM Bristle brush

KW-KM PowerSweep

The barrier bar supplied with the machine must be mounted to the loop handle – see also "Mounting the Loop Handle".

FCB-KM

KB-KM

470BA018 KN

English

Mounting the Loop Handle

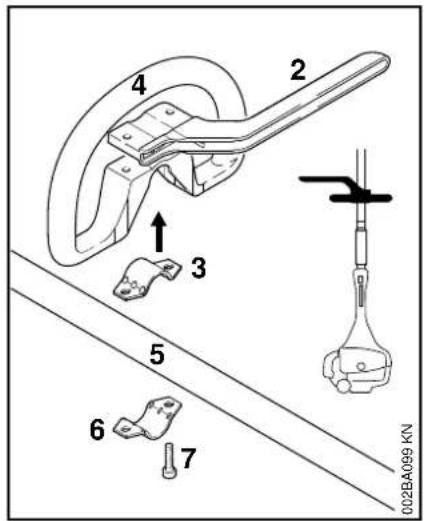

A barrier bar is supplied with the machine. Attach the barrier bar to the loop handle.

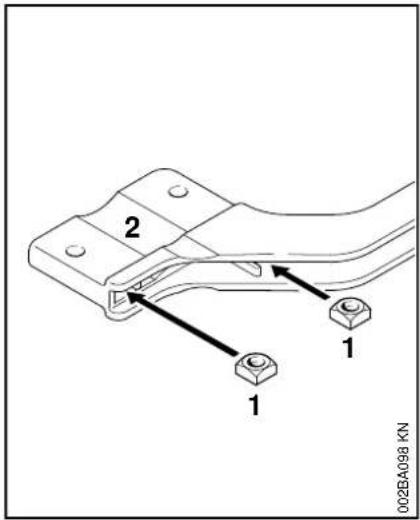

• Insert square nuts (1) in the barrier bar (2) – the holes must line up

• Insert the clamp (3) in the loop handle (4) and position them together on the shaft (5)
• Position clamp (6)
• Position barrier bar (2) – note position!
  ● Line up the holes
• Insert bolts (7) in the holes – and screw them into the barrier bar as far as possible

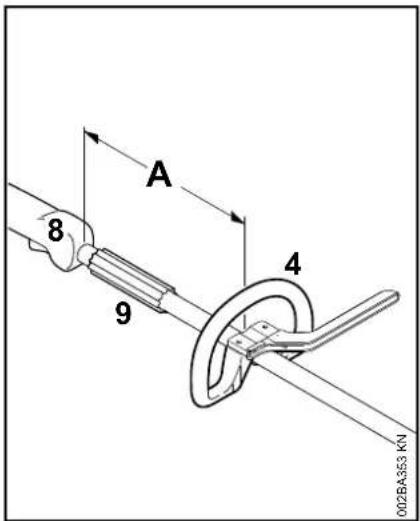

● Fit the loop handle (4) at a distance of (A) approx. 20 cm (8 in) forward of the control handle (8)

- Orient the loop handle

- Tighten the bolts – lock the nuts if necessary

The sleeve (9) is present depending on the country and must be located between the loop handle and control handle.

Always leave the barrier bar attached.

Adjusting the Throttle Cable

A properly adjusted throttle cable is the precondition for correct operation in the full throttle, starting throttle and idle positions.

- Adjust the throttle cable only when the unit is completely and properly assembled.

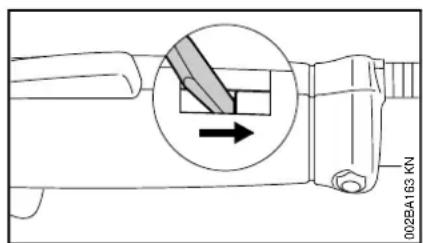

- Use a suitable tool to push the slide to the end of the slot (see illustration).

- Press down the throttle trigger lockout (1) and squeeze the throttle trigger (2) (full throttle) – this sets the throttle cable correctly.

4-MIX Engine Fuel

The STIHL 4-MIX engine features mixture lubrication and must be run on a fuel mixture of gasoline and engine oil.

It operates otherwise on the 4-stroke principle.

This engine is certified to operate on unleaded gasoline and the STIHL two-stroke engine oil at a mix ratio of 50:1.

Your engine requires a mixture of high-quality gasoline and two-stroke air cooled engine oil.

Use mid-grade unleaded gasoline with a minimum octane rating of 89 (R+M/2) and no more than 10% ethanol content.

Fuel with a lower octane rating may increase engine temperatures. This, in turn, increases the risk of piston seizure and damage to the engine.

The chemical composition of the fuel is also important. Some fuel additives not only detrimentally affect elastomers (carburetor diaphragms, oil seals, fuel lines, etc.), but magnesium castings and catalytic converters as well. This could cause running problems or even damage the engine. For this reason STIHL recommends that you use only high-quality unleaded gasoline!

Gasoline with an ethanol content of more than 10% can cause running problems and major damage in engines with a manually adjustable carburetor and should not be used in such engines.

The ethanol content in gasoline affects engine running speed – it may be necessary to readjust the carburetor if you use fuels with various ethanol contents.

English

Warning!

To reduce the risk of personal injury from loss of control and / or contact with the running cutting tool, do not use your unit with incorrect idle adjustment. At correct idle speed, the cutting tool should not move.

If your power tool shows an incorrect idle adjustment, have your STIHL dealer check your power tool and make proper adjustments and repairs.

The idle speed and maximum speed of the engine change if you switch from a fuel with a certain ethanol content to another fuel with a much higher or lower ethanol content.

This problem can be avoided by always using fuel with the same ethanol content.

Use STIHL HP Ultra oil or ask your dealer for an equivalent high quality oil to ensure the maximum performance of the product for the full lifetime.

To meet the requirements of EPA 40CFR90/1054 we recommend to use STIHL HP Ultra oil.

Do not use BIA or TCW rated (two-stroke water cooled) mix oils or other mix oils that state they are for use in both water cooled and air cooled engines (e.g., outboard motors, snowmobiles, chain saws, mopeds, etc.).

Take care when handling gasoline. Avoid direct contact with the skin and avoid inhaling fuel vapor. When filling at the pump, first remove the container from your vehicle and place the container on the ground before filling. To reduce the risk of sparks from static

discharge and resulting fire and/or explosion, do not fill fuel containers that are sitting in or on a vehicle or trailer.

The container should be kept tightly closed in order to limit the amount of moisture that gets into the mixture.

The machine's fuel tank should be cleaned as necessary.

Fuel mix ages

Only mix sufficient fuel for a few days work, not to exceed 3 months of storage. Store in approved fuel-containers only. When mixing, pour oil into the container first, and then add gasoline. Close the container and shake it vigorously by hand to ensure proper mixing of the oil with the fuel.

Gasoline Oil (STIHL 50:1 or equivalent high-quality oils)

US gal. US fl.oz.

1 2.6

2 1/2 6.4

5 12.8

Dispose of empty mixing-oil containers only at authorized disposal locations.

Fueling

Preparations

Technical line drawing of a mechanical assembly with no visible text or symbols

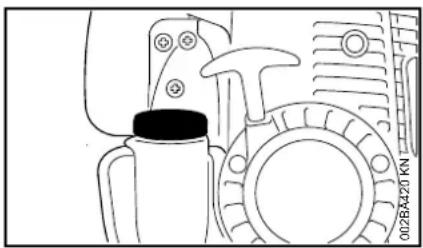

● Before fueling, clean the filler cap and the area around it to ensure that no dirt falls into the tank.

Always thoroughly shake the mixture in the canister before fueling your machine.

- Position the machine so that the filler cap is facing up.

In order to reduce the risk of fire and personal injury from escaping gas vapor and fumes, remove the fuel filler cap carefully so as to allow any pressure build-up in the tank to release slowly.

One of two different filler caps is installed as standard at the factory.

English

Technical drawing of a mechanical component with circular and rectangular features (no text or symbols)

Toolless filler cap (with folding grip)

Mechanical diagram showing a gear shift mechanism in two views (no text or symbols)

● Turn the cap counterclockwise (approx. 1/4 turn).
- Remove the filler cap.

Refueling

Cross-sectional diagram of a circular device with internal components and a water droplet symbol (no text or labels)

Threaded filler cap

Take care not to spill fuel while fueling, and do not overfill the tank. STIHL recommends use of the STIHL filling system (special accessory).

Closing the toolless filler cap

Opening the toolless filler cap

Mechanical assembly diagram showing two views of a mechanical component with a rotation arrow (no text or symbols)

● Swing the grip into an upright position.

• Position the cap with the grip in an upright position; the raised positioning marks must line up.
• Turn cap clockwise as far as it will go (approx. 1/4 turn).

- Fold the grip down so that it is flush with the surface.

If the grip is not flush with the surface and the lug on the clip does not engage entirely in the recess (arrow), the cap is not properly closed and the steps described above must be repeated. See also the "Toolless cap with grip" section in the Safety Precautions.

Opening the threaded filler cap

Diagram of a circular device with a rotating arrow indicating rotation, no text or symbols present

● Turn the cap counterclockwise until it can be removed from the tank opening.
- Remove the filler cap.

Refueling

Take care not to spill fuel while fueling and do not overfill the tank. STIHL recommends use of the STIHL filling system (special accessory).

English

Closing the threaded filler cap

Diagram of a circular device with a rotating arrow indicating rotation, no text or symbols present

• Position cap.
  ● Turn the cap clockwise as far as it will go and tighten it as securely as possible by hand.

Starting / Stopping the Engine

Controls

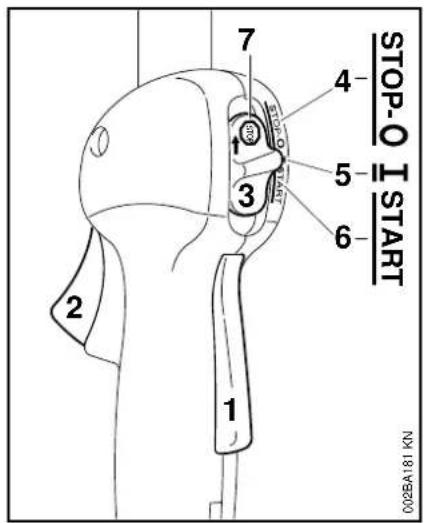

1 Throttle trigger lockout
2 Throttle trigger
3 Slide control

Positions of slide control

4 S T O P -0 - engine off - the ignition is switched off
5 I – normal run position – the engine is running or can start
6 S T A R T – the ignition is switched on – the engine can start

Symbol on slide control

7 ☉ – stop symbol and arrow. To stop the engine, push the slide control in the direction of the arrow on the stop symbol (♀) to STOP-0.

Starting

• Press down the trigger lockout lever and squeeze the throttle trigger.
  ● and hold them in that position.
• Move the slide control to START and hold it there.
• Now release the throttle trigger, slide control and trigger lockout in that order. This is the starting throttle position.

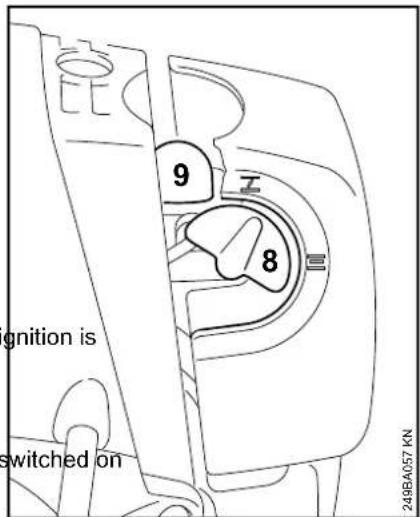

• Set the choke knob (8)

if the engine is cold

→ for warm start – also use this position if the engine has been running but is still cold.

- Press the fuel pump bulb (9) at least five times – even if the bulb is filled with fuel.

Starting

Illustration of a person using a power tool on their foot, with no visible text or symbols

Line drawing of a person operating a power tool in a field (no text or symbols)

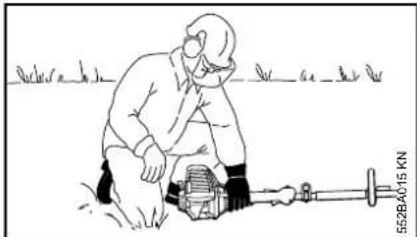

• Place the power tool on the ground so that it rests on the machine support: Check that the working tool is not touching the ground or any other obstacles – see also "Starting / Stopping the Engine" in the KombiTool instruction manual.
  ● Make sure you have a safe and secure footing.

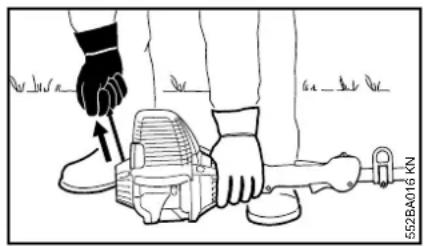

• Hold the unit with your left hand and press it down firmly – your thumb should be under the fan housing.

Do not stand or kneel on the drive tube.

● Hold the starter grip with your right hand.
- Pull the starter grip slowly until you feel it engage and then give it a brisk strong pull.

Do not pull out the starter rope all the way – it might otherwise break.

• Do not let the starter grip snap back. Guide it slowly back into the housing so that the starter rope can rewind properly.
• Crank the engine until it begins to fire. After no more than five attempts, turn the choke knob to .
• Continue cranking.

As soon as the engine runs

- Blip the throttle trigger. The slide control moves to the normal run position I – and the engine settles down to idle speed.

Make sure the carburetor is correctly adjusted. The working tool must not rotate when the engine is idling.

Your machine is now ready for operation.

Stopping the engine

- Push the slide control in the direction of the arrow on the stop symbol (♀) to STOP-0.

At very low outside temperatures:

As soon as the engine runs:

• Blip the throttle trigger to disengage the starting throttle position. The slide control moves to the normal run position (I) – and the engine settles down to idle speed.
• Open the throttle slightly.
  ● Warm up the engine for a short period.

If the engine does not start

Choke knob

If you did not turn the choke knob to quickly enough after the engine began to fire, the combustion chamber is flooded.

• Turn the choke knob to ⊞.
• Set the slide control, lockout lever and throttle trigger to the starting throttle position.
• Start the engine by pulling the starter rope briskly – 10 to 20 pulls may be necessary.

English

If the engine still does not start

• Move the slide control to STOP-0.
• Remove the spark plug – see "Spark Plug".
  ● Dry the spark plug.
• Crank the engine several times with the starter to clear the combustion chamber.
• Refit the spark plug – see "Spark Plug".
• Move the slide control to START.
• Set the choke knob to - even if the engine is cold.
• Now start the engine.

Throttle cable adjustment

- Check adjustment of throttle cable – see chapter on "Adjusting the Throttle Cable".

Fuel tank run until completely dry

• After refueling, press the fuel pump bulb at least five times – even if the bulb is filled with fuel.
• Set the choke knob according to engine temperature.
• Start the engine.

Operating Instructions Cleaning the Air Filter

During break-in period

A factory-new machine should not be run at high revs (full throttle off load) for the first three tank fillings. This avoids unnecessary high loads during the break-in period. As all moving parts have to bed in during the break-in period, the frictional resistances in the engine are greater during this period. The engine develops its maximum power after about 5 to 15 tank fillings.

During Operation

After a long period of full throttle operation, allow the engine to run for a short while at idle speed so that engine heat can be dissipated by the flow of cooling air. This protects engine-mounted components (ignition, carburetor) from thermal overload.

After Finishing Work

Storing for a short period: Wait for the engine to cool down. Empty the fuel tank and keep the machine in a dry place, well away from sources of ignition, until you need it again. For longer out-of-service periods – see "Storing the Machine".

If there is a noticeable loss of engine power

• Turn the choke knob to 7

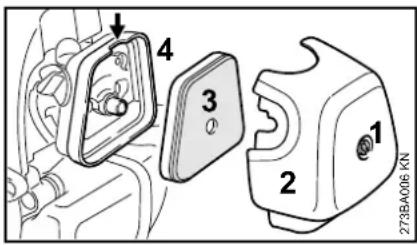

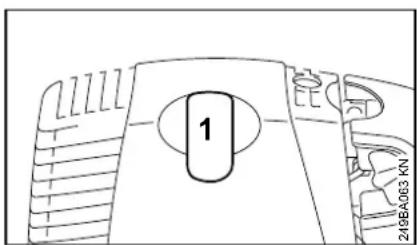

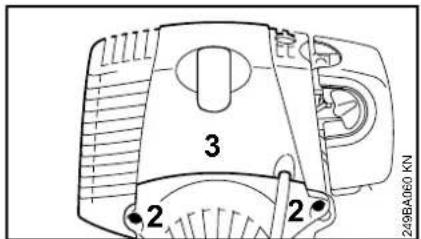

  ● Take out the screw (1) and remove the filter cover (2).
  ● Clean away loose dirt from around the filter.

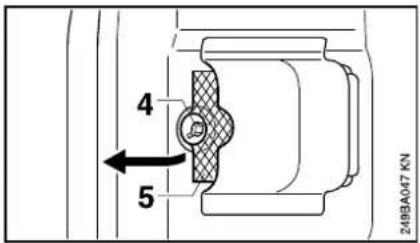

  ● Grip the filter element (3) at the cutout (arrow) in the filter housing (4) and remove it.
  ● Fit a new filter element. As a temporary measure you can knock it out on the palm of your hand or blow it out with compressed air. Do not wash.
• Replace damaged parts.

Installing the filter

● Install the filter element in the filter housing and fit the cover.
- Insert the screw and tighten it down firmly.

Engine Management Adjusting the Carburetor

Exhaust emissions are controlled by the design of the fundamental engine parameters and components (e.g. carburation, ignition, timing and valve or port timing) without the addition of any major hardware.

The carburetor comes from the factory with a standard setting.

This setting provides an optimum fuel-air mixture under most operating conditions.

These power tools are equipped with different carburetors:

Version A

-High speed screw and low speed screw with special head - without slotted head.

On these machine versions it is no longer necessary to adjust the carburetor.

These machines have been set at the factory to provide an optimum fuel-air mixture in all locations and operating conditions.

Adjusting Idle Speed

Engine stops while idling

● Warm up the engine for about 3 minutes.

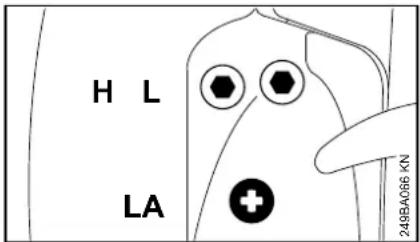

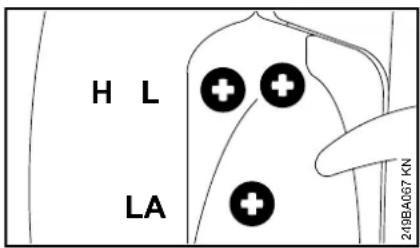

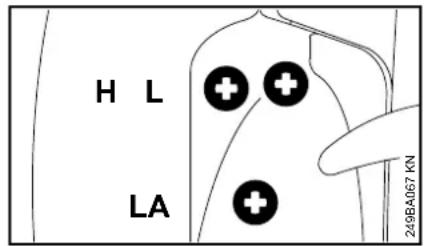

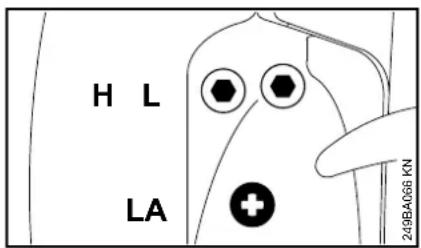

- Turn the idle speed screw (LA) slowly clockwise until the engine runs smoothly – the cutting attachment must not move.

Cutting attachment runs when engine is idling

● Turn the idle speed screw (LA) counterclockwise until the cutting attachment stops running and then turn the screw about another 1/2 to 3/4 turn in the same direction.

If the working tool or cutting attachment continues to run when the engine is idling, have your machine checked and repaired by your servicing dealer.

English

Version B

-High speed screw and low speed screw with slotted head.
With this carburetor it is only possible to adjust the high speed and low speed screws within fine limits.

Standard Setting

• Stopping the Engine
  ● Mount the KombiTool complete with working tool or cutting attachment.
• Check the air filter and clean or replace as necessary.

- Check that the throttle cable is properly adjusted – readjust if necessary – see chapter on "Adjusting the Throttle Cable".

- Check the spark arresting screen (not in all versions) and clean or replace as necessary.

- Carefully turn both adjusting screws counterclockwise as far as stop:

-The high speed screw (H) is 3/4 turn open.

-The low speed screw (L) is 3/4 turn open.

• Start and warm up the engine.
• Adjust idle speed with the idle speed screw (LA) so that the cutting attachment does not move.

Adjusting Idle Speed

It is usually necessary to change the setting of the idle speed screw (LA) after every correction to the low speed screw (L).

● Warm up the engine for about 3 minutes.

Engine stops while idling

- Turn the idle speed screw (LA) slowly clockwise until the engine runs smoothly – the cutting attachment must not move.

Cutting attachment runs when engine is idling

● Turn the idle speed screw (LA) counterclockwise until the cutting attachment stops running and then turn the screw about another 1/2 to 3/4 turn in the same direction.

If the working tool or cutting attachment continues to run when the engine is idling, have your machine checked and repaired by your servicing dealer.

Erratic idling behavior, engine stops even though setting of LA-screw has been corrected, poor acceleration

Idle setting is too lean:

● Turn the low speed screw (L) counterclockwise, no further than stop, until the engine runs and accelerates smoothly.

Erratic idling behavior

Idle setting is too rich

● Turn the low speed screw (L) clockwise, no further than stop, until the engine runs and accelerates smoothly.

Version B: Fine Tuning

A slight correction of the setting of the high speed screw (H) may be necessary if engine power is not satisfactory when operating at high altitude, sea level or after changing the working tool.

Rule of thumb:

Turn the high speed screw (H) about one quarter turn for every 1000m (3300 ft) change in altitude.

Conditions for adjustment

• Carry out the standard setting without disturbing the high speed screw (H).
  ● Warm up the engine for about 3 minutes.
• Open the throttle wide.

At high altitude

● Turn the high speed screw (H) clockwise (leaner), no further than stop, until there is no further noticeable increase in engine speed.

At sea level

● Turn the high speed screw (H) counterclockwise (richer), no further than stop, until there is no noticeable increase in engine speed.

It is possible that maximum engine speed may be reached with the standard setting.

Spark Arresting Screen in Muffler

In some countries the muffler is equipped with a spark arresting screen.

• If the engine is down on power, check the spark arresting screen in the muffler.
  ● Wait for the muffler to cool down.
• Move the slide control to STOP-0.

Technical line drawing of a mechanical component with no visible text or symbols

● Take out the screw (1).

● Take out the screws (2) and remove the shroud (3).

● Take out the screw (4).
- Lift the spark arresting screen (5) and pull it out.
● Clean the spark arresting screen. If the screen is damaged or heavily carbonized, fit a new one.
● Refit the spark arresting screen.
- Insert the screw and tighten it down firmly.
- Fit the shroud.

English

Spark Plug

If engine is down on power, difficult to start or runs poorly at idling speed, first check the spark plug.

Fit a new spark plug after approx. 100 operating hours or earlier if the electrodes are badly eroded.

Wrong fuel mix (too much engine oil in the gasoline), a dirty air filter and unfavorable running conditions (mostly at part throttle etc.) affect the condition of the spark plug. These factors cause deposits to form on the insulator nose which may result in trouble in operation.

Removing the spark plug

- Move the slide control to STOP-0.

● Pull off the spark plug boot (1).
● Unscrew the spark plug.

Checking the Spark Plug

• Clean dirty spark plug.
• Check electrode gap (A) and readjust if necessary – see "Specifications".
• Use only resistor type spark plugs of the approved range.

Rectify problems which have caused fouling of spark plug:

-Too much oil in fuel mix.
-Dirty air filter.
-Unfavorable running conditions, e.g. operating at part load.

Warning!

To reduce the risk of fire and burn injury, use only spark plugs authorized by STIHL. Always press spark plug boot (1) snugly onto spark plug terminal (2) of the proper size. (Note: If terminal has detachable SAE adapter nut, it must be attached.) A loose connection between spark plug boot and ignition wire connector in the boot may create arcing that could ignite combustible fumes and cause a fire.

Installing the spark plug

Technical line drawings of two mechanical components labeled 2 and 3, showing different shapes (no text or symbols beyond labels)

• Screw the spark plug (3) into the cylinder and fit the boot (2) (press it down firmly).

Replacing the Starter Rope and Rewind Spring

Replacing the Starter Rope

• Push the slide control in direction of arrow ⏻ – to STOP-0.
  ● Take out the screws (1).
• Remove the starter cover (2) from the housing.

English

• Ease the spring clip (3) off the starter post.

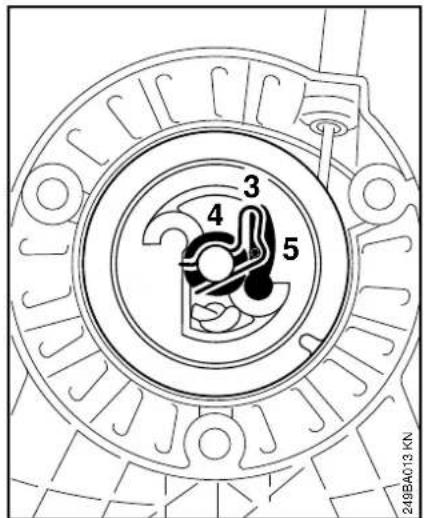

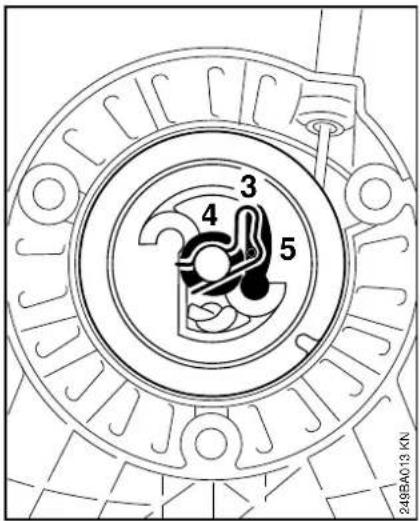

• Remove the rope rotor with washer (4) and pawl (5).
• Remove the remaining rope from the rotor and starter grip.

English

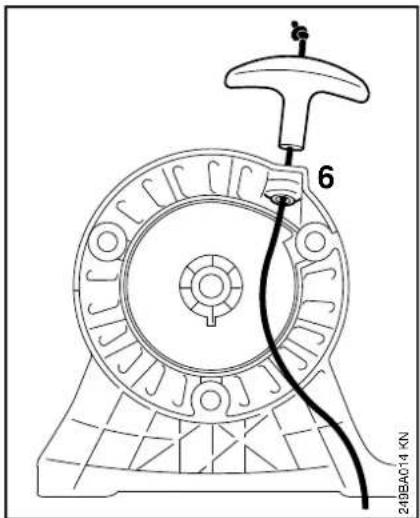

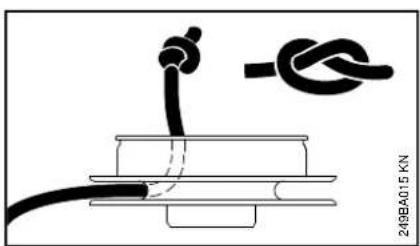

● Tie a simple overhand knot in the new rope and then thread it through the top of the grip and the rope bushing (6).

• Thread the rope through the rotor and secure it with a simple overhand knot.
  ● Coat the rope rotor bearing bore with non-resinous oil.
• Slip the rotor over the starter post – turn it back and forth to engage the anchor loop of the rewind spring.

● Refit the pawl (5) in the rotor.
● Fit the washer (4) on the starter post.
- Use a screwdriver or suitable pliers to fit the spring clip (3) on the starter post and over the pawl's peg – the spring clip must point counterclockwise – as shown in the illustration.
- Go to "Tensioning the Rewind Spring".

Replacing a broken rewind spring

- Remove the rope rotor as described in chapter on "Replacing the starter rope".

The bits of spring may still be under tension and could fly apart when you take them out of the housing. To reduce the risk of injury, wear face protection and work gloves.

- Remove the spring housing and pieces of spring.

● Lubricate the new spring with a few drops of non-resinous oil.

Technical diagram of a mechanical component with circular and radial features, no visible text or symbols

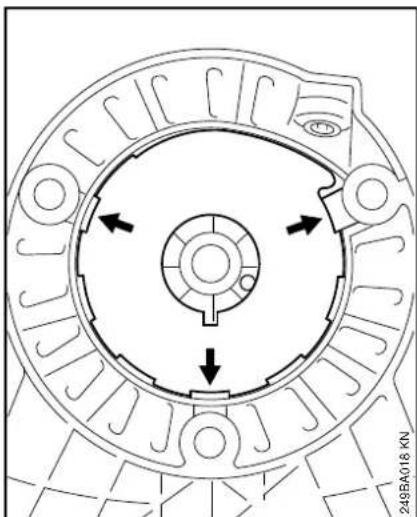

• Position the new spring housing, bottom plate facing up, against the cutouts (arrows).
• Push the spring housing into the starter cover.
• Reinstall the rope rotor – then go to "Tensioning the Rewind Spring".
• If the spring pops out of the spring housing and uncoils: Refit it counterclockwise, starting outside and working inwards.

Tensioning the rewind spring

Technical diagram of a mechanical component with internal gear and a curved arrow indicating motion (no text or symbols)

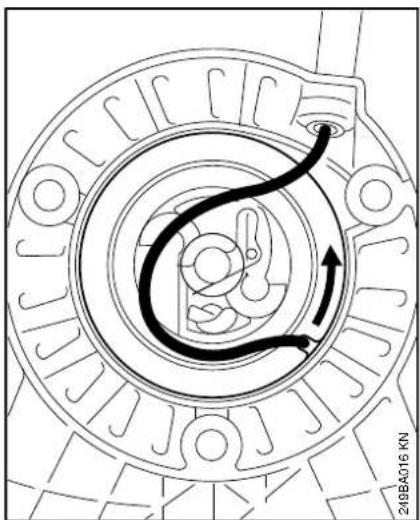

● Make a loop in the unwound starter rope and use it to turn the rope rotor six full revolutions in the direction of the arrow.
● Hold the rotor steady. Pull out and straighten the twisted rope.
- Let go of the rotor.
- Release the rope slowly so that it winds onto the rotor. The starter grip must locate firmly in the rope bushing. If the grip droops to one side: Add one more turn on the rope rotor to increase spring tension.
- When the starter rope is fully extended it must still be possible to rotate the rotor another half turn. If this is not the case, the spring is overtensioned and could break. Take one turn of the rope off the rotor.

● Fit the starter cover on the housing.
● Tighten down the screws firmly.
● Fit the starter cover on the housing.
● Tighten down the screws firmly.

Storing the Machine

For periods of 3 months or longer

● Drain and clean the fuel tank in a well ventilated area.
● Dispose of fuel properly in accordance with local environmental requirements.
- Run the engine until the carburetor is dry – this helps prevent the carburetor diaphragms sticking together.
- Thoroughly clean the machine – pay special attention to the cylinder fins and air filter.
- Remove, clean and inspect the working tool.
● Store the machine in a dry, high or locked location, out of the reach of children and other unauthorized persons.

Maintenance and Care

The following intervals apply to normal operating conditions only. If your daily working time is longer or operating conditions are difficult (very dusty work area, etc.), shorten the specified intervals accordingly.		before starting work	after finishing work or daily	after each refueling stop	weekly	monthly	every 12 months	if problem	if damaged	if required
Complete machine	Visual inspection (condition, leaks) X		X
	Clean X
Control handle Check operation X	X
Air filter	Clean X X
	Replace X
Pickup body in fuel tank	Have checked by dealer ^1)							X
	Have replaced by dealer ^1)						X		X	X
Fuel tank Clean X X
Carburetor	Check idle adjustment – the working tool must not move	X		X
	Adjusting Idle Speed X
Spark plug	Readjust electrode gap X
	Replace after every 100 operating hours
Cooling inlets	Visual inspection X
	Clean X
Valve clearance ^1)	Check and, if necessary, have adjusted by dealer after first 139 hours of operation									X
Combustion chamber ^1) ^2)	Decoke after first 139 hours of operation, then every 150 hours of operation									X
Spark arresting screen in muffler	Check X		X
	Clean or replace								X	X

English

The following intervals apply to normal operating conditions only. If your daily working time is longer or operating conditions are difficult (very dusty work area, etc.), shorten the specified intervals accordingly.		before starting work	after finishing work or daily	after each refueling stop	weekly	monthly	every 12 months	if problem	if damaged	if required
All accessible screws and nuts (not adjusting screws)	Retighten X
Antivibration elements	Check X			X						X
	Have replaced by dealer ^1)								X
Safety labels Replace X

1) STIHL recommends a STIHL servicing dealer.
2) CARB licensed engines only

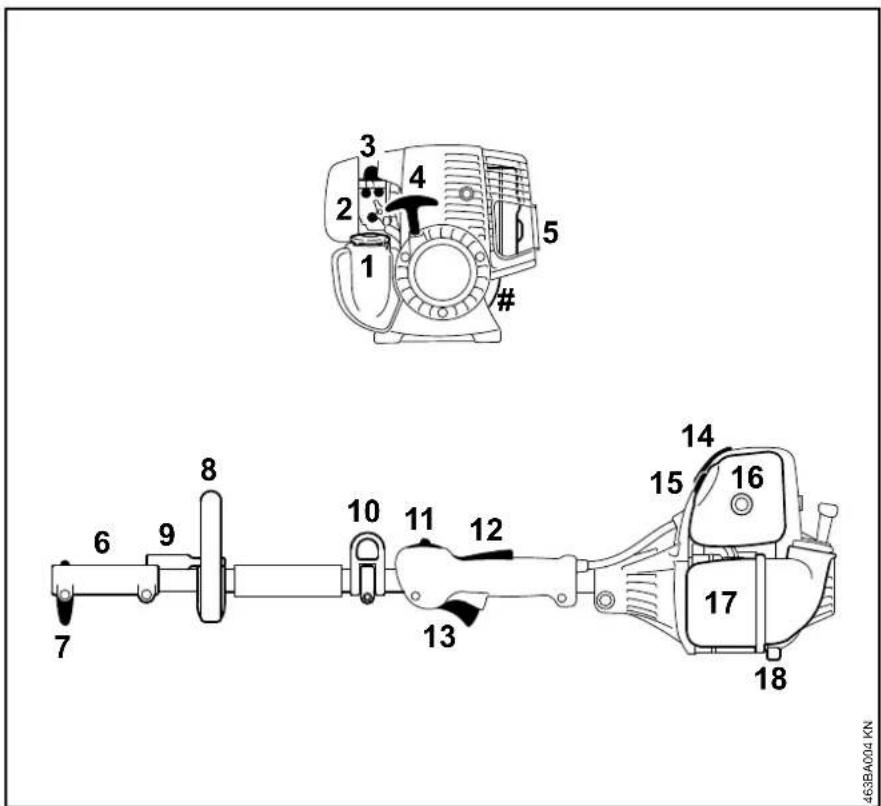

Main Parts

1 Fuel Filler Cap
2 Carburetor Adjusting Screws
3 Fuel Pump
4 Starter Grip
5 Muffler with Spark Arresting Screen
6 Coupling Sleeve
7 Wing Screw
8 Loop Handle
9 Barrier Bar
10 Carrying Ring
11 Slide Control
12 Throttle Trigger Lockout
13 Throttle Trigger
14 Spark Plug Boot
15 Choke Knob
16 Air Filter Cover
17 Fuel Tank
18 Machine Support

Serial Number

Definitions

1 Fuel Filler Cap

For closing the fuel tank.

2 Carburetor Adjusting Screws

For tuning the carburetor.

3 Fuel Pump

Provides additional fuel feed for a cold start.

4 Starter Grip

The grip of the pull starter, for starting the engine.

5 Muffler with Spark Arresting Screen

Muffler reduces exhaust noises and diverts exhaust gases away from operator.

Spark arresting screen is designed to reduce the risk of fire.

6 Coupling Sleeve

Connects drive tube to lower part of drive tube (stub shaft).

7 Wing Screw

Secures lower part of the drive tube (stub shaft).

8 Loop Handle

For easy control of machine during cutting work.

9 Barrier Bar

Helps keep user's feet and legs clear of the cutting attachment.

10 Carrying Ring

Connects the unit to the harness.

11 Slide Control

For starting throttle, run and stop. Keeps the choke partially open during starting and switches off the ignition to stop the engine.

12 Throttle Trigger Lockout

Must be depressed before the throttle trigger can be activated.

13 Throttle Trigger

Controls the speed of the engine.

14 Spark Plug Boot

Connects the spark plug with the ignition lead.

15 Choke Knob

Eases engine starting by enriching mixture.

16 Air Filter Cover

Covers and protects the air filter element.

17 Fuel Tank

For fuel and oil mixture.

18 Machine Support

For resting machine on the ground.

Specifications

EPA / CEPA

The Emission Compliance Period referred to on the Emissions Compliance Label indicates the number of operating hours for which the engine has been shown to meet Federal emission requirements.

Category

A = 300 hours

B = 125 hours

C = 50 hours

CARB

The Emission Compliance Period used on the CARB-Air Index Label indicates the terms:

Extended = 300 hours

Intermediate = 125 hours

Moderate = 50 hours

Engine

Single cylinder four-stroke engine with mixture lubrication

English

KM 110 R

Displacement: 1.92 cu. in. (31.4 cm ^3 )

Bore: 1.57 in. (40 mm)

Stroke: 0.98 in. (25 mm)

Engine power to 1.40 HP

ISO 8893: (1.05 kW) at 7,000 rpm

Idle speed: 2,800 rpm

Cut-off speed (rated): 10,500 rpm

KM 130 R

Displacement: 2.22 cu. in. (36.3 cm ^4 )

Bore: 1.69 in (43 mm)

Stroke: 0.98 in. (25 mm)

Engine power to 1.90 hp (1.4 kW)

ISO 8893: at 8,500 rpm

Idle speed: 2,800 rpm

Cut-off speed (rated): 10,500 rpm

Ignition System

Electronic magneto ignition

KM 110 R

Spark plug (resistor

type): Bosch USR 7AC

Electrode gap: 0.02 in. (0.5 mm)

KM 130 R

Spark plug (resistor

type): NKG CMR 6H

Electrode gap: 0.02 in. (0.5 mm)

Fuel System

All position diaphragm carburetor with integral fuel pump

Fuel tank capacity: 17.9 fl.oz (0.53 L)

Weight

dry, without KombiTool

KM 110 R: 9.9 lbs (4.5 kg)

KM 130 R: 10.1 lbs (4.6 kg)

Special Accessories

Contact your STIHL dealer for information regarding special accessories that may be available for your product.

Maintenance and Repairs STIHL

Incorporated Federal Emission Control Warranty Statement

Users of this unit should carry out only the maintenance operations described in this manual. Other repair work may be performed only by authorized STIHL service shops.

Warranty claims following repairs can be accepted only if the repair has been performed by an authorized STIHL servicing dealer using original STIHL replacement parts.

Original STIHL parts can be identified by the STIHL part number, the STIHL ^ logo and, in some cases, by the STIHL parts symbol G_0 . The symbol may appear alone on small parts.

Not for California

Your Warranty Rights and Obligations

The U.S. Environmental Protection Agency (EPA) and STIHL Incorporated are pleased to explain the Emission Control System Warranty on your equipment type engine. In the U.S. new 1997 and later model year small off-road equipment engines must be designed, built and equipped, at the time of sale, to meet the U.S. EPA regulations for small non road engines. The equipment engine must be free from defects in materials and workmanship which cause it to fail to conform with U.S. EPA standards for the first two years of engine use from the date of sale to the ultimate purchaser.

STIHL Incorporated must warrant the emission control system on your small off-road engine for the period of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road equipment engine.

Your emission control system includes parts such as the carburetor and the ignition system. Also included may be hoses, and connectors and other emission-related assemblies.

Where a warrantable condition exists, STIHL Incorporated will repair your small off-road equipment engine at no cost to you, including diagnosis (if the diagnostic work is performed at an authorized dealer), parts, and labor.

Manufacturer's Warranty Coverage

In the U.S., 1997 and later model year small off-road equipment engines are warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced by STIHL Incorporated free of charge.

Owner's Warranty Responsibilities

As the small off-road equipment engine owner, you are responsible for the performance of the required maintenance listed in your instruction manual. STIHL Incorporated recommends that you retain all receipts covering maintenance on your small off-road equipment engine, but STIHL Incorporated cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

Any replacement part or service that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of the engine manufacturer.

As the small off-road equipment engine owner, you should be aware, however, that STIHL Incorporated may deny you warranty coverage if your small off-road equipment engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.

You are responsible for presenting your small off-road equipment engine to a STIHL service center as soon as a problem exists. The warranty repairs will be completed in a reasonable amount of time, not to exceed 30 days.

English

If you have any questions regarding your warranty rights and responsibilities, please contact a STIHL customer service representative at 1-800-467-8445 or you can write to

STIHL Inc., 536 Viking Drive, P.O. Box 2015, Virginia Beach, VA 23450-2015

www.stihlusa.com

Coverage by STIHL Incorporated

STIHL Incorporated warrants to the ultimate purchaser and each subsequent purchaser that your small off-road equipment engine will be designed, built and equipped, at the time of sale, to meet all applicable regulations. STIHL Incorporated also warrants to the initial purchaser and each subsequent purchaser that your engine is free from defects in materials and workmanship which cause the engine to fail to conform with applicable regulations for a period of two years.

Warranty Period

The warranty period will begin on the date the utility equipment engine is purchased by the initial purchaser and you have signed and sent back the warranty card to STIHL.

If any emission-related part on your engine is defective, the part will be replaced by STIHL Incorporated at no cost to the owner. Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the effect of "repair or replace as necessary" will be warranted for the warranty period. Any warranted part which is scheduled for replacement as required maintenance will be warranted for the period of time up to the first scheduled replacement point for that part.

Diagnosis

You, as the owner, shall not be charged for diagnostic labor which leads to the determination that a warranted part is defective. However, if you claim warranty for a component and the machine is tested as non-defective, STIHL Incorporated will charge you for the cost of the emission test. Mechanical diagnostic work will be performed at an authorized STIHL servicing dealer. Emission test may be performed either at STIHL Incorporated or at any independent test laboratory.

Warranty Work

STIHL Incorporated shall remedy warranty defects at any authorized STIHL servicing dealer or warranty station. Any such work shall be free of charge to the owner if it is determined that a warranted part is defective.

Any manufacturer-approved or equivalent replacement part may be used for any warranty maintenance or repairs on emission-related parts and must be provided without charge to the owner. STIHL Incorporated is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

The following list specifically defines the emission-related warranted parts:

-Air Filter

-Carburetor

-Fuel Pump

-Choke (Cold Start Enrichment System)

-Control Linkages

-Intake Manifold

-Magneto or Electronic Ignition System (Ignition Module)

-Spark Plug

-Catalytic Converter (if applicable)

-Fuel Tank

-Fuel Cap

-Fuel Line

-Fuel Line Fittings

-Clamps

-Fasteners

Where to make a Claim for Warranty Service

Bring the product to any authorized STIHL servicing dealer and present the signed warranty card.

Maintenance Requirements

The maintenance instructions in this manual are based on the application of the recommended 2-stroke fuel-oil mixture (see also instruction "Fuel"). Deviations from this recommendation regarding quality and mixing ratio of fuel and oil may require shorter maintenance intervals.

Limitations

This Emission Control Systems Warranty shall not cover any of the following:

● repair or replacement required because of misuse, neglect or lack of required maintenance,
● repairs improperly performed or replacements not conforming to STIHL Incorporated specifications that adversely affect performance and/or durability, and alterations or modifications not recommended or approved in writing by STIHL Incorporated,

and

● replacement of parts and other services and adjustments necessary for required maintenance at and after the first scheduled replacement point.

STIHL Incorporated California Exhaust and Evaporative Emissions Control Warranty Statement

For California only

Your Warranty Rights and Obligations

The California Air Resources Board (CARB) and STIHL Incorporated are pleased to explain the Emission Control System Warranty on your 2007 and later small off-road equipment engine.

In California, new equipment that uses small off-road engines must be designed, built, and equipped to meet the State's stringent anti-smog standards. STIHL Incorporated must warrant the emissions control system on your small off-road engine for the period listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine.

Your emissions control system may include parts such as:

Air Filter, Carburetor, Fuel Pump, Choke (Cold Start Enrichment System), Control Linkages, Intake Manifold, Magneto or Electronic Ignition System (Ignition Module), Spark Plug, Catalytic Converter (if applicable), Fuel Tank, Fuel Cap, Fuel Line, Fuel Line Fittings, Clamps, Fasteners.

Where a warrantable condition exists, STIHL Incorporated will repair your small off-road equipment engine at no cost to you including diagnosis, parts and labor.

Manufacturer's Warranty Responsibilities

This emissions control system is warranted for two years in California. If any emissions-related part on your equipment is defective, the part will be repaired or replaced by STIHL Incorporated free of charge.

Owner's Warranty Responsibilities

As the small off-road equipment engine owner, you are responsible for performance of the required maintenance listed in your instruction manual. STIHL Incorporated recommends that you retain all receipts covering maintenance on your small off-road equipment engine, but STIHL Incorporated cannot deny warranty solely for the lack of receipts or your failure to ensure the performance of all scheduled maintenance.

As the small off-road equipment engine owner, you should however be aware that STIHL Incorporated may deny you warranty coverage if your small off-road equipment engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.

You are responsible for presenting your small off-road equipment engine to a STIHL servicing dealer as soon as the problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, please contact a STIHL customer service representative at 1-800-467-8445 or you can write to

English

STIHL Inc., 536 Viking Drive, P.O. Box 2015, Virginia Beach, VA 23450-2015.

Coverage by STIHL Incorporated

STIHL Incorporated warrants to the ultimate purchaser and each subsequent purchaser that your small off-road equipment engine is designed, built and equipped, at the time of sale, to meet all applicable emission regulations.

STIHL Incorporated also warrants to the initial purchaser and each subsequent purchaser that your engine is free from defects in materials and workmanship which cause the engine to fail to conform to applicable emission regulations for a period of two years.

Defects Warranty Period

The warranty periods will begin on the date the utility equipment engine is purchased by the initial purchaser. If any emission-related part on your engine is defective, the part will be replaced by STIHL Incorporated at no cost to the owner.

Add-on or modified parts that are not exempted by CARB may not be used. The use of any non exempted add-on or modified parts will be grounds for disallowing a warranty claim. STIHL Incorporated will not be liable to warrant failures of warranted parts caused by the use of a non exempted add-on or modified part.

The warranty on emissions-related parts will be interpreted as follows:

1. Any warranted part that is not scheduled for replacement as required maintenance in the written instructions required in the Emission Warranty Parts List (see below) must be warranted for the warranty period defined in Subsection COVERAGE BY STIHL INCORPORATED, see above. If any such part fails during the period of warranty coverage, it must be repaired or replaced by the manufacturer according to Subsection (4) below. Any such part repaired or replaced under the warranty must be warranted for the remaining warranty period.

2. Any warranted part that is scheduled only for regular inspection in the written instructions required by the Emission Warranty Parts List (see below) must be warranted for the warranty period defined in Subsection COVERAGE BY STIHL INCORPORATED, see above. A statement in such written instructions to the effect of "repair or replace as necessary" will not reduce the period of warranty coverage. Any such part repaired or replaced under warranty must be warranted for the remaining warranty period.

3. Any warranted part that is scheduled for replacement as required maintenance in the written instructions required by the Emission Warranty Parts List (see below) must be warranted for the period of time prior to the first scheduled replacement point for

that part. If the part fails prior to the first scheduled replacement, the part must be repaired or replaced by the engine manufacturer according to Subsection (4) below. Any such part repaired or replaced under warranty must be warranted for the remainder of the period prior to the first scheduled replacement point for the part.

1. Repair or replacement of any warranted part under the warranty must be performed at a warranty station at no charge to the owner.
2. Notwithstanding the provisions of Subsection (4) above, warranty services or repairs will be provided at all manufacturer distribution centers that are authorized to service the subject engines.
3. The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such diagnostic work is performed at a warranty station.

Warranty Work

STIHL Incorporated shall remedy warranty defects at any authorized STIHL servicing dealer or warranty station. Any such work shall be free of charge to the owner if it is determined that a warranted part is defective. Any manufacturer approved or equivalent replacement part may be used for any warranty maintenance or repairs on emission-related parts and must be provided without charge to the owner. STIHL Incorporated is liable for

damages to other engine components caused by the failure of a warranted part still under warranty.

Emission Warranty Parts List

Air Filter, Carburetor, Fuel Pump, Choke (Cold Start Enrichment System), Control Linkages, Intake Manifold, Magneto or Electronic Ignition System (Ignition Module), Spark Plug, Catalytic Converter (if applicable), Fuel Tank, Fuel Cap, Fuel Line, Fuel Line Fittings, Clamps, Fasteners

Where to make a Claim for Warranty Service

Bring the STIHL product to any authorized STIHL servicing dealer and present the signed STIHL product registration card, or the print-out of the electronic product registration.

Limitations

The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if STIHL Incorporated demonstrates that the STIHL product has been abused, neglected, or improperly maintained, and that such abuse, neglect, or improper maintenance was the direct cause of the need for repair or replacement of the part. That notwithstanding, any adjustment of a component that has a factory installed, and properly operating, adjustment limiting device is still eligible for warranty coverage.

Trademarks

STIHL Registered Trademarks

STIHL®

STIHL®

G

The color combination orange-grey (U.S. Registrations #2,821,860; #3,010,057, #3,010,058, #3,400,477; and #3,400,476)

MASTERWRENCH STIHL

SERVICE®

4-MIX®

AUTOCUT®

EASYSTART®

FARM BOSS®

iCademy®

MAGNUM®

MasterWrench Service®

MotoMix®

OILOMATIC®

STIHL Cutquik®

STIHL DUROMATIC®

STIHL Quickstop®

STIHL ROLLOMATIC®

STIHL WOOD BOSS®

TIMBERSPORTS®

WOOD BOSS®

YARD BOSS®

Some of STIHL's Common Law Trademarks

BioPlus ^TM

Easy2Start ™

EasySpool ^TM

ElastoStart ™

Ematic ^TM

FixCut ^TM

HT Plus ^TM

IntelliCarb ™

Master Control Lever ^TM

Micro ^TM

Pro Mark ^TM

Quad Power ^TM

Quiet Line ^TM

STIHL Arctic ™

This listing of trademarks is subject to change.

Any unauthorized use of these

trademarks without the express written consent of

Waiblingen is strictly prohibited.

Contenido

Sistema KombiSystem 38

Technical illustration of a mechanical component with an inset showing a close-up view of the part (no text or symbols present)

Mechanical component diagram showing a rotating knob with a curved arrow indicating rotation (no text or symbols)

Line drawing of a person holding a wrist brace and wrist strap, no text or symbols present

Line drawing of a cylindrical mechanical component with internal grooves and a protruding rod (no text or symbols)

FCB-KM

KB-KM
FCS-KM

KW-KM

470BA018 KN

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a circular device with internal components and a water drop symbol, no readable text or labels present

Mechanical diagram showing two views of a mechanical component with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing two views of a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with rotational arrow indicating motion (no text or symbols)

Illustration of a person wearing a saw and boots, holding a mechanical device with a weight (no text or symbols)

Illustration of a person using a power tool in a field (no text or symbols)

Illustration of a person using a push-button press device with a spring scale (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawings of two mechanical components, one with a curved handle and labeled part 2, the other with a threaded base and labeled part 3 (no text or symbols on the parts themselves)

Technical diagram of a mechanical component with directional arrows indicating flow or movement (no text or symbols)

Technical diagram of a mechanical component with concentric rings and a curved arrow indicating motion (no text or symbols)

Intermediate = 125 horas

Moderate = 50 horas

Motor

MasterWrench Service®

MotoMix®

OILOMATIC®

STIHL Cutquik®

STIHL DUROMATIC®

STIHL Quickstop®

STIHL ROLLOMATIC®

STIHL WOOD BOSS®

TIMBERSPORTS®

WOOD BOSS®

YARD BOSS®

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

0458-464-8621-E

0458-464-8621-E
