USER MANUAL EeeBox B206 ASUS

Eee Box PC User Manual

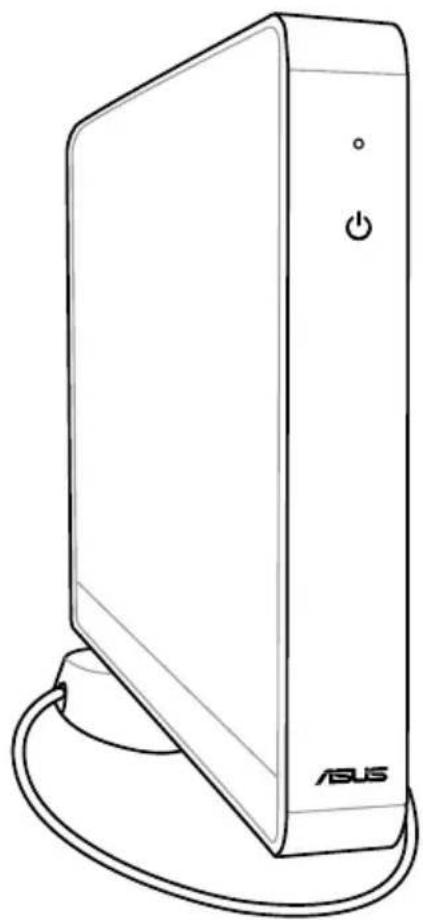

Line drawing of a ASUS server tower with power button and cable (no text or symbols on device body)

Eee Box PC B2 Series/EB Series

E5398

Second Edition V2

February 2010

Copyright © 2010 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER, INC. ("ASUS").

Products and corporate names mentioned in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used for identification purposes only. All trademarks are the property of their respective owners.

Every effort has been made to ensure that the contents of this manual are correct and up to date. However, the manufacturer makes no guarantee regarding the accuracy of its contents, and reserves the right to make changes without prior notice.

Contents

Contents ....3

Notices 4

Safety information ....6

Notes for this manual 9

Welcome 10

Package contents ....10

Knowing your Eee Box PC ....11

Front view ....11

Rear view ....13

Positioning your Eee Box PC ....15

Installing the stand ....15

Installing your Eee Box PC to a monitor 16

Setting up your Eee Box PC ....17

Connecting to a display 17

Connecting to USB devices 17

Connecting to a network device 18

Turning on the system 19

Using your Eee Box PC ....20

Configuring wireless connection 20

Configuring wired connection 21

Using a static IP ....21

Using a dynamic IP (PPPoE connection) ......22

ASUS Easy Update 25

Recovering your system 26

Using the recovery DVD 26

Using the hidden partition 27

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

REACH

Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http://green.asus.com/english/REACH.htm.

Safety information

Your Eee Box PC is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

• Read and follow all instructions in the documentation before you operate your system.
• Do not use this product near water or a heated source such as a radiator.
• Set up the system on a stable surface with the provided stand. Never use the system alone without the stand.
• Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.
• Use this product in environments with ambient temperatures between 0^ and 35^ .
• If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.

Care during use

• Do not walk on the power cord or allow anything to rest on it.
• Do not spill water or any other liquids on your system.
• When the system is turned off, a small amount of electrical current still flows. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.
• If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.

• The power cord or plug is damaged.

• Liquid has been spilled into the system.

• The system does not function properly even if you follow the operating instructions.
• The system was dropped or the cabinet is damaged.
• The system performance changes.

Lithium-Ion Battery Warning

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

LASER PRODUCT WARNING

CLASS 1 LASER PRODUCT

NO DISASSEMBLY The warranty does not apply to the products that have been disassembled by users

DO NOT throw the Eee Box PC in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercury-containing button cell battery) should not be placed in municipal waste. Check local technical support services for product recycling.

DO NOT throw the battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. Check local technical support services for battery replacement.

European Union Eco-label

This Eee Box PC has been awarded the EU Flower label, which means that this product has the following characteristics:

1. Decreased energy consumption during use and stand-by modes.
2. Limited use of toxic heavy metals.
3. Limited use of substances harmful to the environment and health.
4. Reduction of the use of natural resources by encouraging recycling.
5. Extended product lifetime through the availability of spare parts.
6. Reduced solid waste through takeback policy.

For more information on the EU Flower label, please visit the European Union Eco-label website at http://europa.eu.int/ecolabel.

Takeback and Recycling

Old computers, notebook computers, and other electronic equipment contain hazardous chemicals that are harmful to the environment when disposed in a landfill with trash. By recycling the metals, plastics, and components found in an old computer will be broken down and reused to make new products. And, the environment is protected from any uncontrolled release of harmful chemicals.

ASUS works with recycling vendors with the highest standards for protecting our environment, ensuring worker safety, and complying with global environmental laws. Our commitment to recycling our old equipment grows out of our work to protect the environment in many ways.

For further information about ASUS product recycling and contacts, please visit GreenASUS Takeback and Recycling page (http://green.asus.com/english/takeback.htm)

Notes for this manual

To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

WARNING: Vital information that you MUST follow to prevent injury to yourself.

IMPORTANT: Instructions that you MUST follow to complete a task.

TIP: Tips and useful information that help you complete a task.

NOTE: Additional information for special situations.

Welcome

Congratulations on your purchase of the Eee Box PC. The following illustration displays the package contents of your new Eee Box PC. If any of the below items is damaged or missing, contact your retailer.

Package contents

Eee Box PC Stand		VESA mount and Screw pack (optional)
Wireless antenna AC adapter Power cord
Mini jack to S/PDIF adapter DVI-VGA adapter (optional) Recovery/Support DVD(s)
Warranty card User manual

If the device or its components fail or malfunction during normal and proper use within the warranty period, bring the warranty card to the ASUS Service Center for replacement of the defective components.

Knowing your Eee Box PC

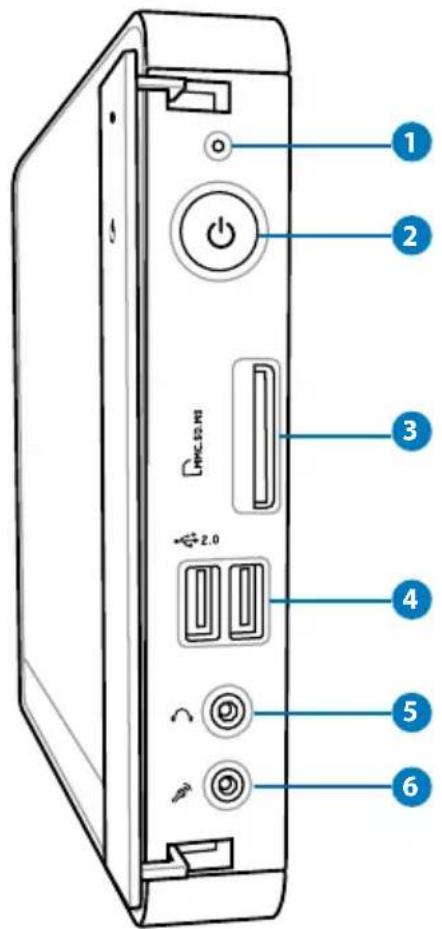

Front view

Refer to the diagram below to identify the components on this side of the system.

1 2 3 4 5 6 HPC-22 H3 2.0

1 Hard disk LED

The hard disk LED blinks when data is being written into or read from the hard disk drive.

2 Power switch

The power switch allows powering ON and OFF the system.

3 Memory card slot

The built-in memory card reader reads MMC/SD/SDHC/MS/MS Pro cards used in devices like digital cameras, MP3 players, mobile phones, and PDAs.

4 2.0 USB port

The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs.

5 Headphone/Audio Out jack

The stereo headphone jack (3.5mm) is used to connect the system's audio out signal to amplified speakers or headphones.

6 Microphone jack

The microphone jack is designed to connect the microphone used for video conferencing, voice narrations, or simple audio recordings.

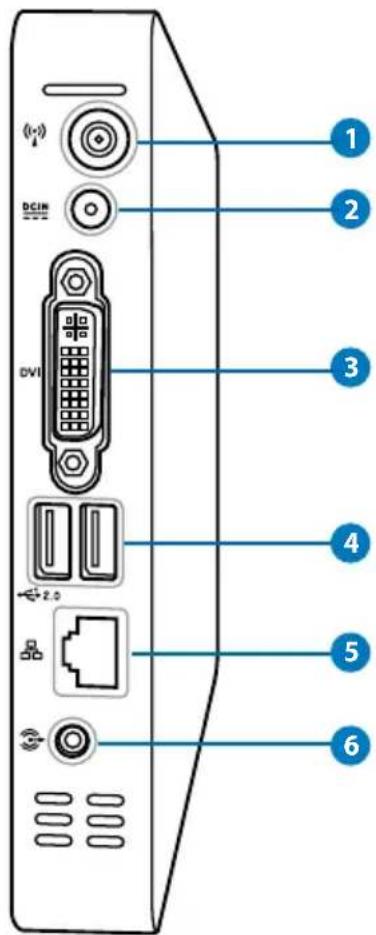

Rear view

Refer to the diagram below to identify the components on this side of the system.

1 2 3 4 5 6

1 Wireless antenna jack

The jack is used to connect the supplied wireless antenna to enhance wireless signal reception.

2 DCIN Power input (DC 12V / DC 19V)

The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter.

The power adapter may become warm to hot when in use. Do not cover the adapter and keep it away from your body.

3 DVI DVI port

The Digital Visual Interface (DVI) port supports a high quality VGA-compatible device such as a monitor or projector to allow viewing on a larger external display.

4 2.0 USB port

The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs.

5 LAN port

The eight-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network.

6 Audio Out (S/PDIF Out) jack

Plug an 3.5mm mini-jack audio cable into this jack for analog or digital audio transfer.

For S/PDIF Out function, use the supplied mini jack to S/PDIF adapter to connect to your amplifier.

Positioning your Eee Box PC

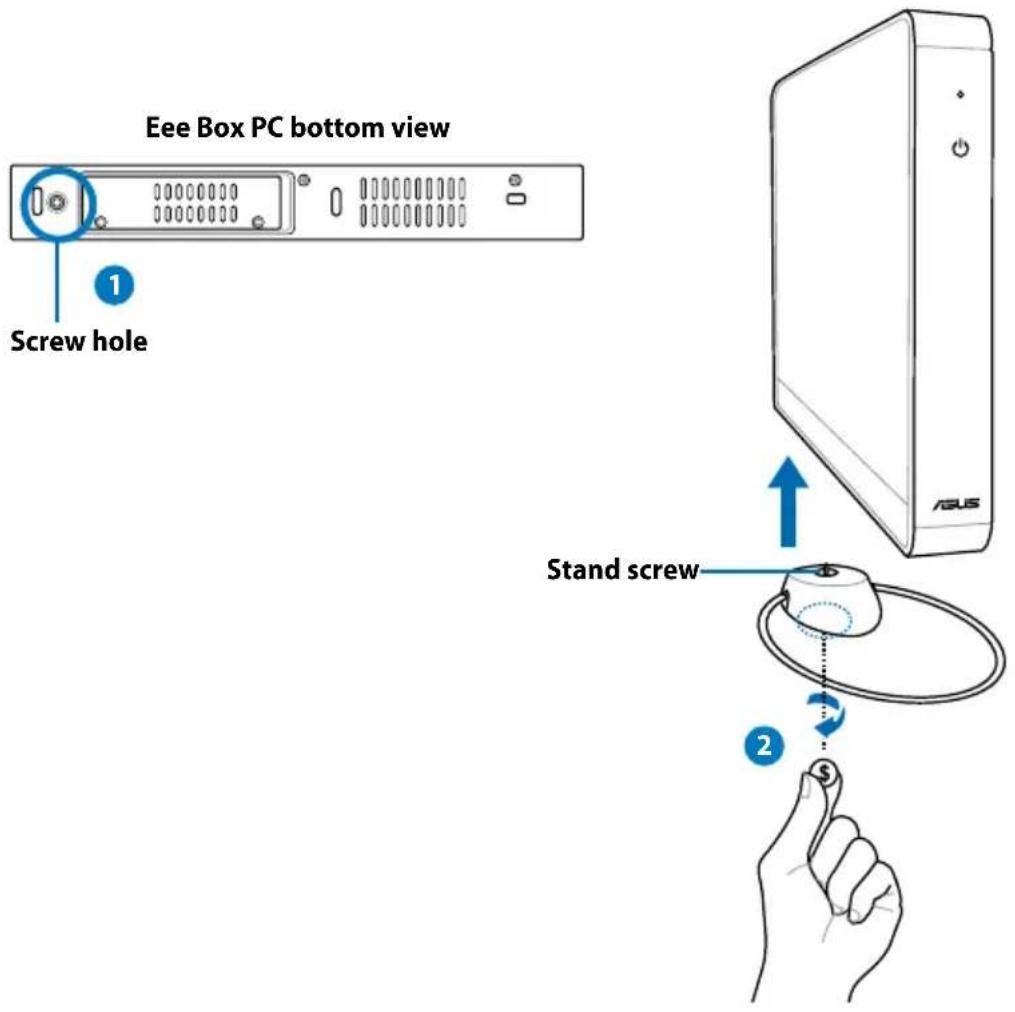

Installing the stand

Erect your Eee Box PC with the supplied stand. To do so:

1. Locate the screw hole on the bottom of the Eee Box PC.
2. Align the stand screw to the PC screw hole, and then secure the stand to the PC with a coin.

Eee Box PC bottom view 1 Screw hole Stand screw 2

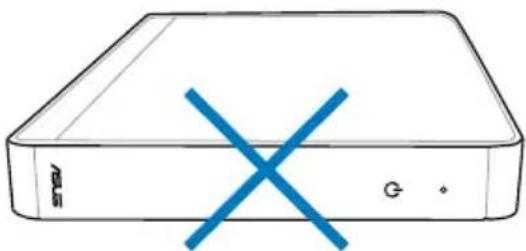

Do not place your Eee Box PC on the desktop without the stand.

Line drawing of a beige electronic device with a blue 'X' symbol on its side, labeled 'ABS' on the front panel (no additional text or symbols)

Installing your Eee Box PC to a monitor

You can also install your Eee Box PC to the back of a monitor. To do so:

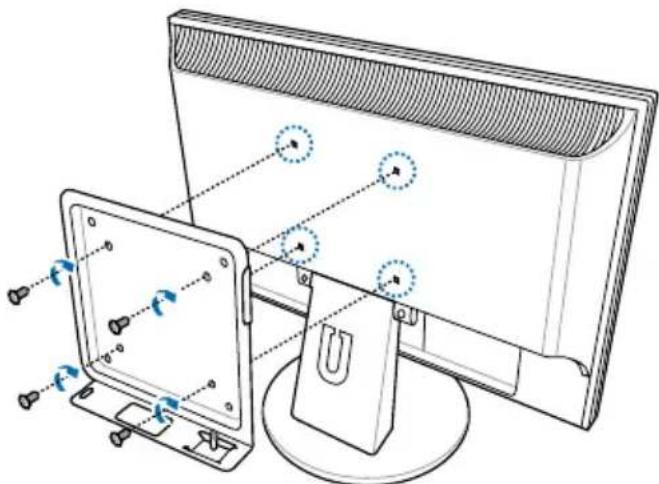

1. Secure the VESA mount (optional accessory) to your monitor with four screws (HNM/M4 x 8).

To fasten the VESA mount, your monitor must comply with VESA75 or VESA100 standard.

Technical line drawing of a computer monitor with attached stand and display panel (no text or symbols)

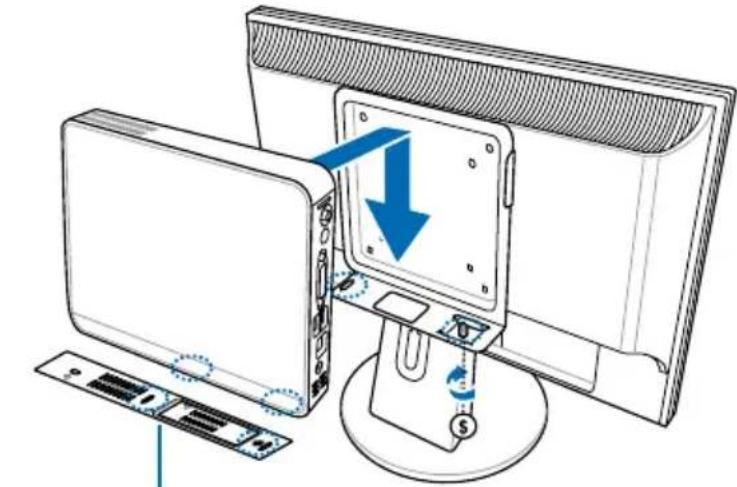

1. Place your Eee Box PC on the VESA mount noting the correct alignment, and then secure the PC to the VESA mount with a coin.

Diagram of a computer monitor with a blue download arrow pointing to the screen, showing internal components and a keyboard (no text or symbols present)

Eee Box PC bottom view

Setting up your Eee Box PC

You need to connect peripherals before using your Eee Box PC.

Connecting to a display

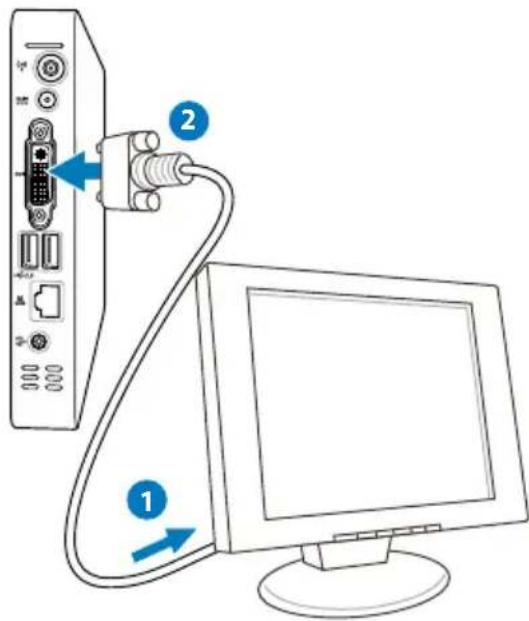

Connect one end of a DVI cable to the display (1) and the other end to the DVI port on the system rear panel (2).

Diagram showing connection between a computer monitor and a server rack, with labeled components and directional arrows indicating cable or data flow.

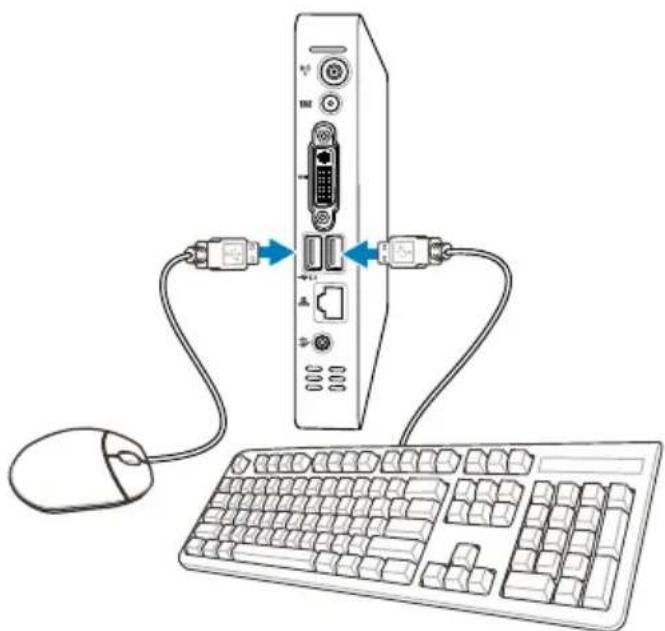

Connecting to USB devices

Connect USB devices like keyboards, mouse devices, and printers to the USB ports on the system rear panel.

Line drawing of a computer setup with a keyboard, mouse, and connected ports (no text or symbols)

Connecting to a network device

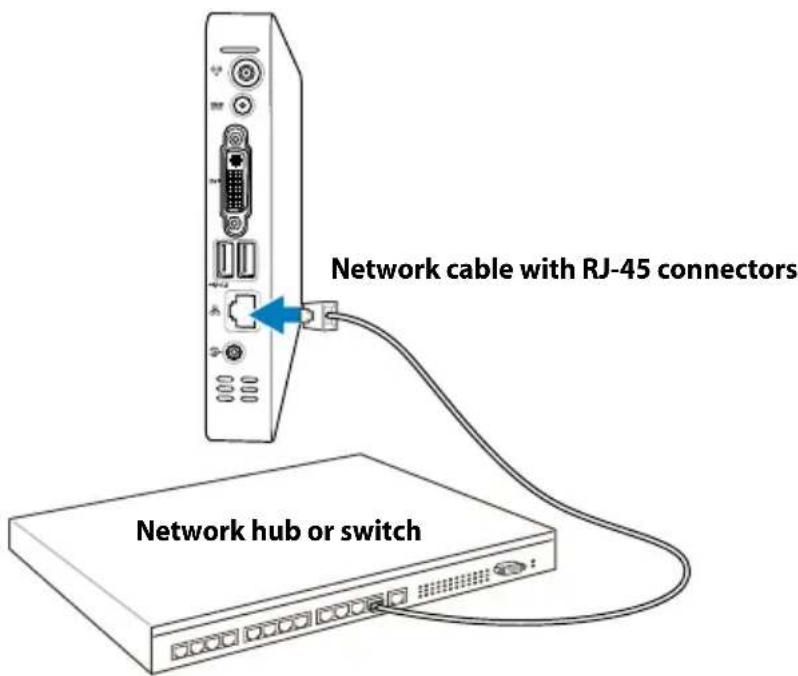

Connect one end of a network cable to the LAN port on the system rear panel and the other end to a hub or switch.

Network cable with RJ-45 connectors Network hub or switch

Turning on the system

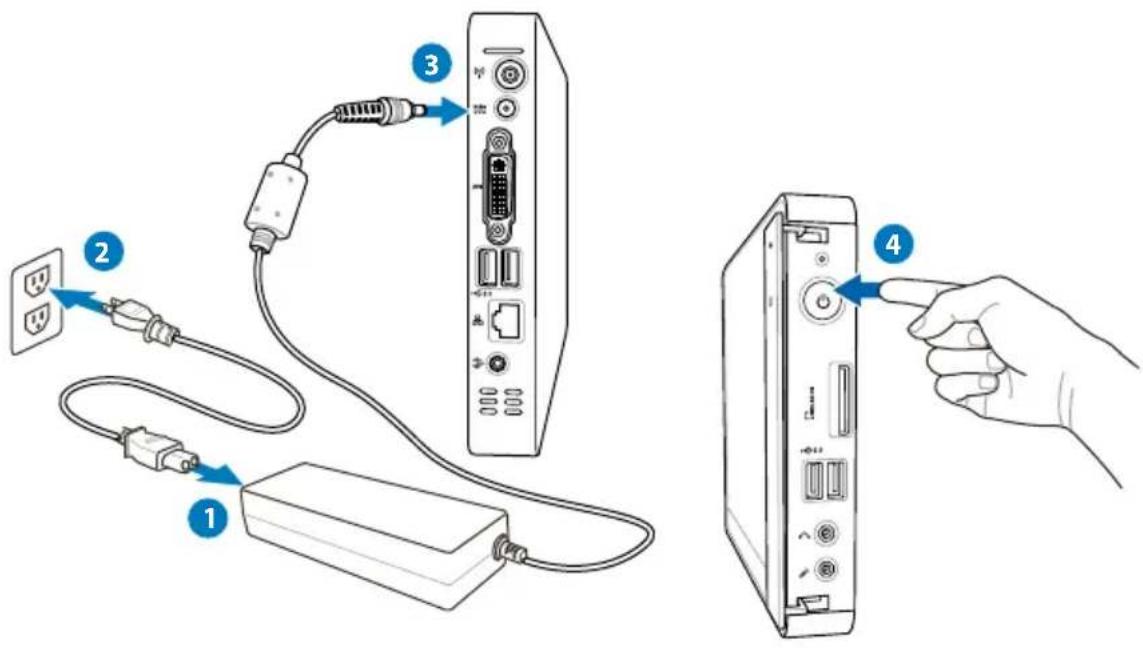

Connect the supplied AC adapter to the DC IN jack on the system rear panel, and then press the power switch on the front panel to turn on the system.

Diagram showing cable connection to a device via network, with numbered instructions for each component and hand gesture pointing to the right panel.

• When your Eee Box PC is not in use, unplug the power adapter or switch off the AC outlet to save on power consumption.
• Adjust the power management settings in the Window® Control Panel. This is to ensure that your Eee Box PC is set to a low power consumption mode and is fully operational at the same time.

To enter the BIOS setup, press repeatedly during bootup.

Using your Eee Box PC

Configuring wireless connection

To connect to a wireless network, follow the instructions below:

Connect the supplied wireless antenna to your Eee Box PC to enhance wireless signal reception.

For security concerns, DO NOT connect to an unsecured network. Otherwise, the transmitted information without encryption might be visible to others.

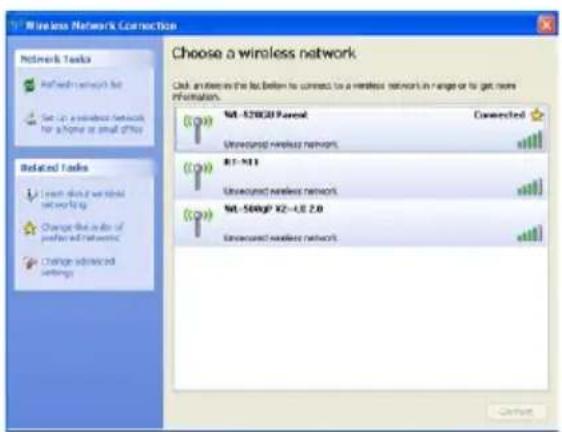

1. Double-click the crossed wireless network icon on the notification area.
2. Select the wireless network you want to connect to from the list and click Connect.

Enter the network security key if necessary.

Wireless Network Connection Choose a wireless network Click another in the list before to connect to a wireless network as range or to get more information. NT-520W31 Power Advanced wireless network The network is configured by open access. Information sent over this network, how be visible to them. If you want to connect to the network, click Connect. RT-NT1 Unsecured wireless network. NT-568gP K2-L0 Z8 Unsecured wireless network. China Unsecured wireless network. Connect

1. After connection was established, you will see Connected.

Wireless Network Connection Network Tasks Refined network list Get up an wireless network for a home or small office Related Tasks Look down wireless network list Change the order of preferred networks Change advanced Settings Choose a wireless network Click an extra-in the list, better to connect to a wireless network in range or to get more information. MT- 52800 Parent Connected Unconnected wireless network MT- MT3 Unconnected wireless network MT- 560GP X2-4.0 2.0 Unconnected wireless network Cancel

Configuring wired connection

To establish a wired network, follow the instructions below:

Using a static IP

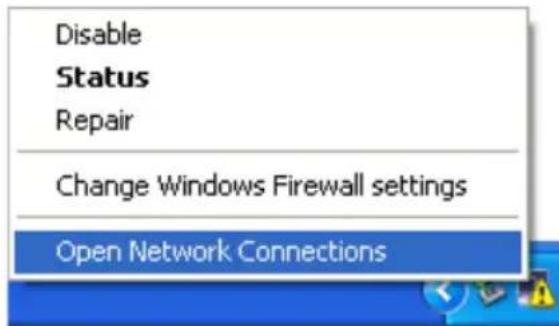

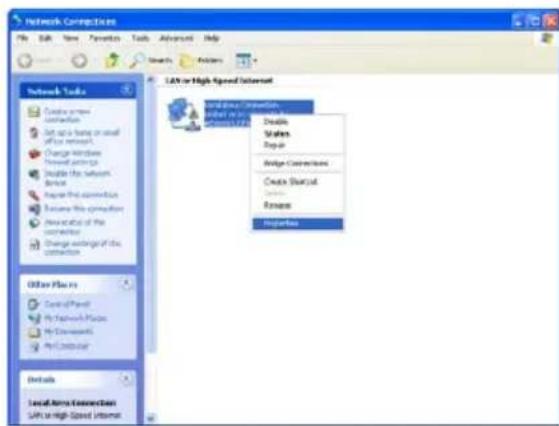

1. Right-click the network icon on the notification area and select Open Network Connections.

Disable Status Repair Change Windows Firewall settings Open Network Connections

1. Right-click Local Area Connection and select Properties.

Network Connections File Edit View Options Tools Advanced Help Security Add to Network Tools Create new connections Set up a long or small office network. Change Windows forward connections Replace the network Repair the connection Remove the connection New installed of the connection Change existing of the connection Other Plans Control Panel My Network Places My Documents My Database Details Local Area Connections Left in High Speed Internet LAN or High Speed Ethernet Only Open Connection Only Open Internet Disable Stolen Repair Bridge Connections Create Startout Remove Properties

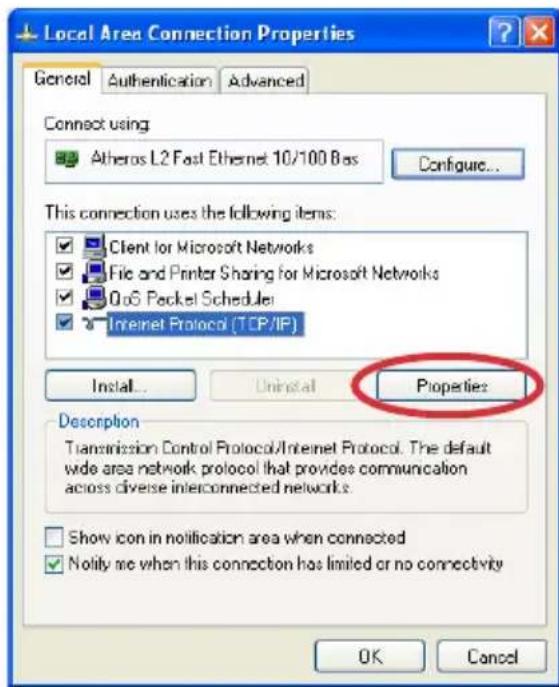

1. Hightlight Internet Protocol (TCP/IP) and click Properties.

Local Area Connection Properties General Authentication Advanced Connect using Atheros L2 Fast Ethernet 10/100 B as Configure... This connection uses the following items: Client for Microsoft Networks File and Printer Sharing for Microsoft Networks Go6 Packet Schedule Internet Protocol (TCP/IP) Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification area when connected Notify me when this connection has limited or no connectivity OK Cancel

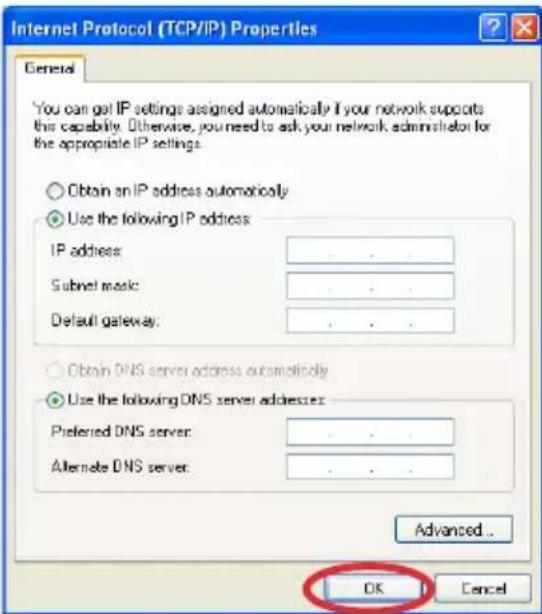

1. Select Use the following IP address.
2. Enter your IP address, Subnet mask and Default gateway.
3. If needed, enter the Preferred DNS server address.
4. After entering all of the related values, click OK to finish the configuration.

Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: .... Subnet mask: .... Default gateway: .... Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: .... Alternate DNS server: .... Advanced... OK Cancel

Using a dynamic IP (PPPoE connection)

1. Repeat Step 1–3 in the previous section.

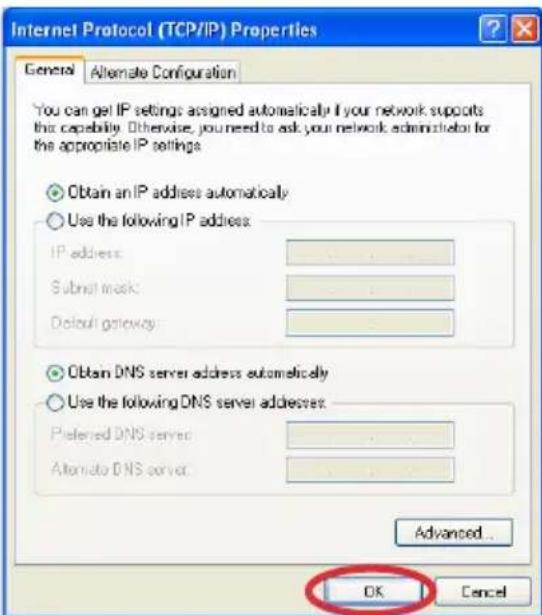

   2 Select Obtain an IP address automatically and click OK.

Internet Protocol (TCP/IP) Properties General Alternate Configuration You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings Obtain an IP address automatically Use the following IP address: IP address: ...... Submit mask: ...... Default gateway: ...... Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: ...... Alternate DNS server: ...... Advanced... OK Cancel

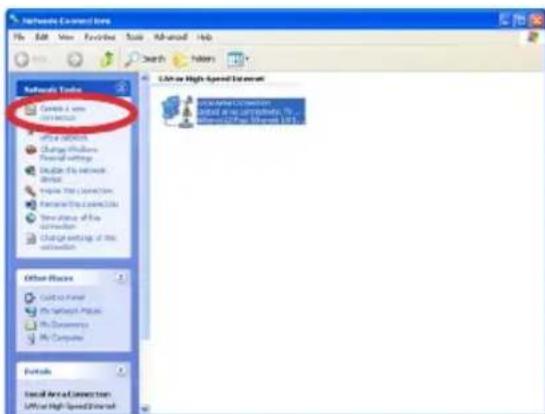

1. Click Create a new connection to start the New Connection Wizard.

Network Connection File Edit View Favorites Table Advanced Help Search Options Network Traffic Connect a link Connection Other locations Change Wireless Forward settings Create the network Drive Improve the connection Remove the connection list Save location of the connection Change setting of the connection LAN or High Speed Ethernet LAN or High Speed Ethernet LAN or High Speed Ethernet Other Locations Contact home My network links My Computer Details Local Area & Connection LAN or High Speed Ethernet

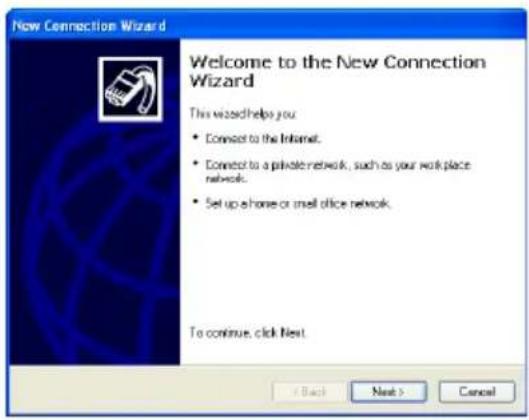

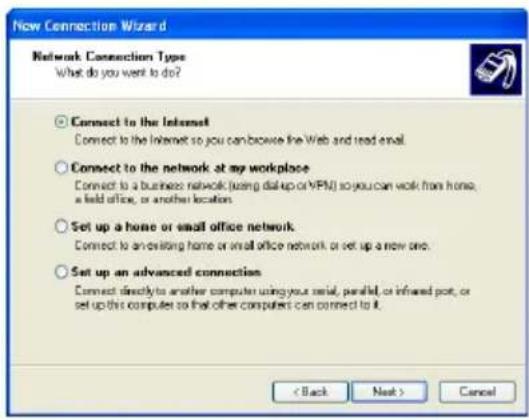

4. Click Next. 5. Select Connect to the

Internet and click Next.

New Connection Wizard Welcome to the New Connection Wizard This wizard helps you • Connect to the Internet. • Connect to a private network, such as your work place network. • Set up a phone or email office network. To continue, click Next ( Back Next > Cancel

New Connection Wizard Network Connection Type What do you want to do? Connect to the Internet Connect to the Internet so you can browse the Web and read email. Connect to the network at my workplace Connect to a business network (using dial-up or VPN) so you can work from home, a field office, or another location. Set up a home or small office network Connect to an existing home or small office network or set up a new one. Set up an advanced connection Connect directly to another computer using your serial, parallel, or infrared post, or set up this computer so that other computers can connect to it. < Back Next > Cancel

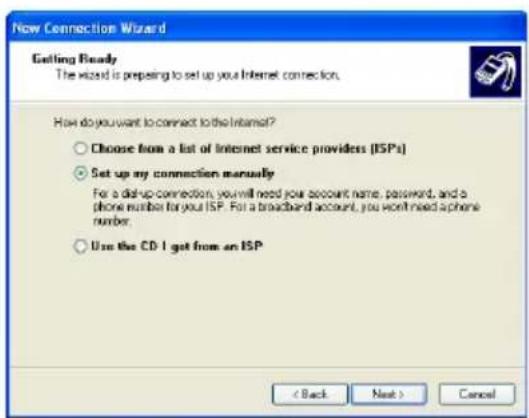

6. Select Set up my connection manually.

New Connection Wizard Getting Ready The wizard is preparing to set up your Internet connection. How do you want to connect to the Internet? Choose from a list of Internet service providers (ISP's) Set up my connection manually For a dish-up connection, you will need your account name, password, and a phone number for your ISP. For a broadband account, you won't need a phone number. Use the CD-1 got from an ISP < Back Next > Cancel

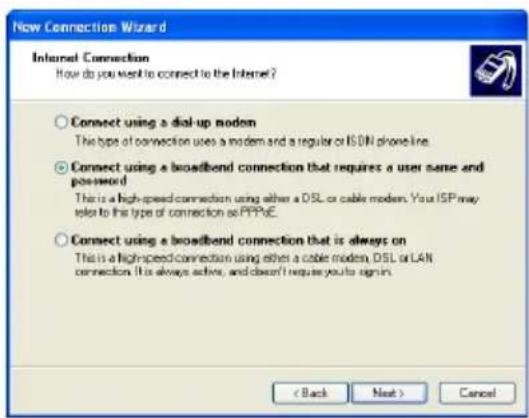

7. Select your connection type and click Next.

Now Connection Wizard Internet Connection How do you want to connect to the Internet? Connect using a dial-up modem This type of connection uses a modem and a regular or JSON phone line. Connect using a broadband connection that requires a user name and password This is a high-speed connection using either a DSL or cable modem. Your ISP may refer to this type of connection as PPPoE. Connect using a broadband connection that is always on This is a high-speed connection using either a cable modem, DSL or LAN connection. It is always active, and doesn't require you to sign-in. < Back Next > Cancel

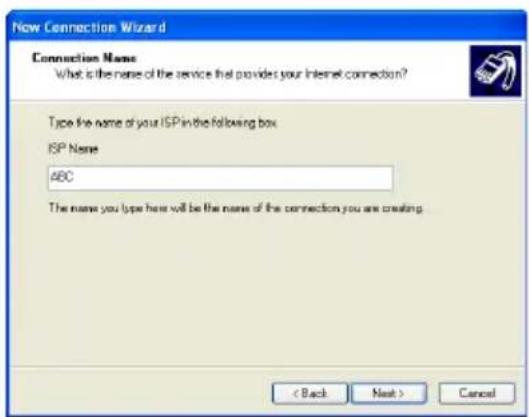

8. Enter your ISP Name and click Next.

New Connection Wizard Connection Name What is the name of the service that provides your Internet connection? Type the name of your ISP in the following box ISP Name ABC The name you type here will be the name of the connection you are creating < Back Next > Cancel

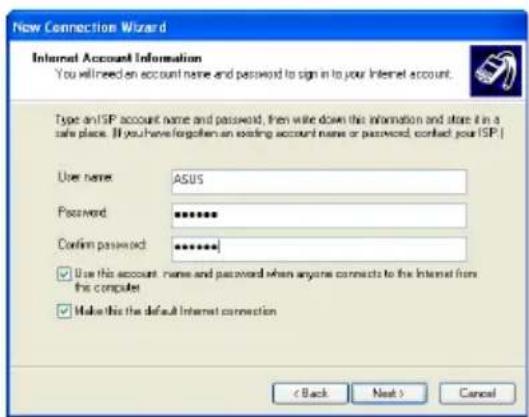

9. Enter your User name and Password. Click Next.

New Connection Wizard Internet Account Information You will need an account name and password to sign in to your Internet account. Type an ISP account name and password, then write down this information and store it in a safe place. If you have forgotten an existing account name or password, contact your ISP. User name: ASUS Password: ****** Confirm password: ****** ✓ Use this account name and password when anyone connects to the Internet from the computer ✓ Make this the default Internet connection < Back Next > Cancel

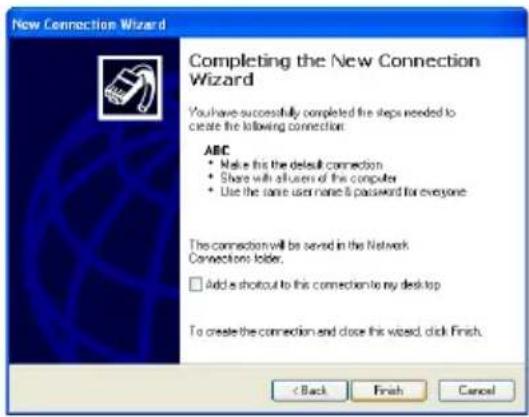

1. Click Finish to finish the configuration.

New Connection Wizard Completing the New Connection Wizard You have successfully completed the steps needed to create the following connection: ABC • Make this the default connection • Share with all users of this computer • Use the same user name & password for everyone The connection will be saved in the Network Convections folder. □ Add a shotout to this connection to my desktop To create the connection and close this wizard, click Finish.

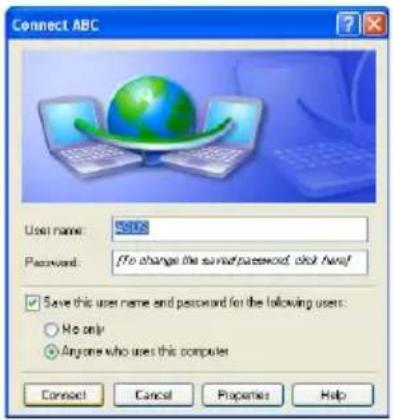

1. Enter your user name and password. Click Connect to connect to the Internet.

Connect ABC User name: SIDS Password: [To change the sum/ud passwords, click None] ✓ Save this user name and password for the following users: ○ No only ● Anyone who uses this computer Connect Cancel Properties Help

Contact your Internet Service Provider (ISP) if you have problems connecting to the network.

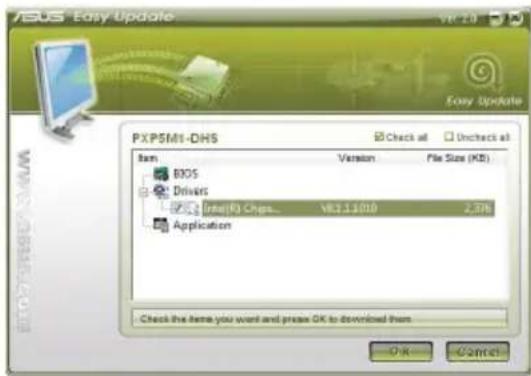

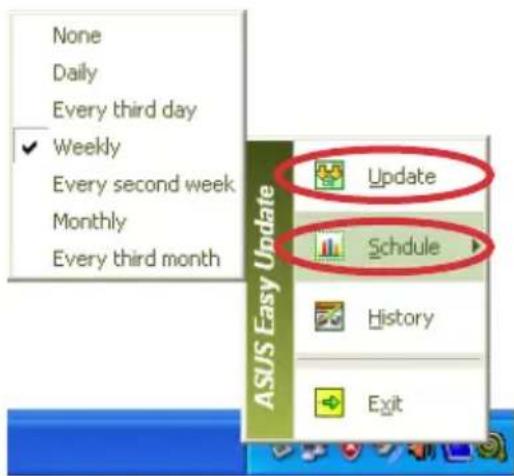

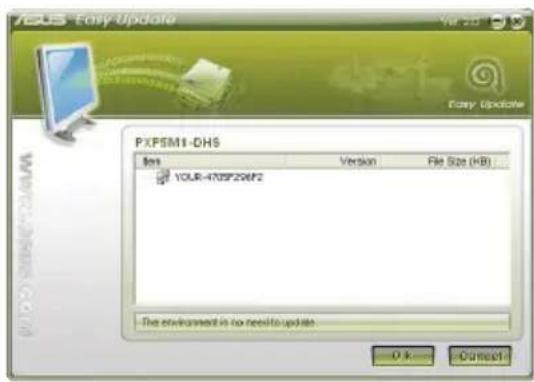

ASUS Easy Update

ASUS Easy Update is a software tool that automatically detects and downloads the latest BIOS, drivers, and applications for your Eee Box PC.

1. From the Windows® notification area, right-click the ASUS Easy Update icon.
2. Select Schedule to set how often you want to update your system.
3. Select Update to activate the update.

Blue background with seven icons including a green folder, computer, shield, cross, mouse, speaker, and spiral (no text or symbols)

None Daily Every third day ✓ Weekly Every second week Monthly Every third month Update Schedule History Exit

1. Click OK to display the items you can download.
2. Check the item(s) you want to download, and then click OK.

XPSM1-DHS Version File Size (KB) YOUR-4705F206F2 The environment is no need to update OK... Cancel

ASUS Easy Update PXP5M1-DHS OK Check at Uncheck at Item Version File Size (KB) BOS Drivers IP3.0 IP6:03 Chgs... VR$1,1800 2.3% Application - Check this item you want and preax OK to download then OK Cancel

Using the recovery DVD

The recovery DVD includes an image of the operating system installed on your system at the factory. The recovery DVD provides a comprehensive recovery solution that quickly restores your system to its original working state, provided that your hard disk drive is in good working order. Before using the recovery DVD, copy your data files (such as Outlook PST files) to a USB device or to a network drive and make note of any customized configuration settings (such as network settings).

You must connect an external USB DVD-ROM to your computer before inserting the recovery DVD and support CD.

1. Turn on your computer and press to enter the Please select boot device menu.
2. Insert the recovery DVD into the optical drive and select the optical drive ("DVDROM: XXX") as the boot device. Press and then press any key to continue.
3. The ASUS Recovery DVD window appears. Select where to install a new system (min. 20GB space is required). Options are:

Recover system to a partition

This option will delete only the partition you select from below, allowing you to keep other partitions. Select a partition and click NEXT.

Recover system to entire HD

This option will delete all partitions from your hard disk drive and restore factory settings. Select and click Yes.

1. Follow the on-screen instructions to complete the recovery process.

You will lose all your data during the system recovery. Make sure that you make a backup of it before recovering the system.

1. After the system recovery is completed, restart the computer.
2. Set up your language, time zone, keyboard, computer name, and user name to enter the Windows® OS.

This recovery DVD is for Eee Box PC only. DO NOT use it on other computers. Visit the ASUS website www.asus.com for any updates.

Using the hidden partition

The recovery partition includes an image of the operating system, drivers, and utilities installed on your system at the factory. The recovery partition provides a comprehensive recovery solution that quickly restores your system's software to its original working state, provided that your hard disk drive is in good working order. Before using the recovery partition, copy your data files (such as Outlook PST files) to floppy disks or to a network drive and make note of any customized configuration settings (such as network settings).

DO NOT delete the partition named "RECOVERY." The recovery partition is created at the factory and cannot be restored by the user if deleted. Take your system to an authorized ASUS service center if you have problems with the recovery process.

1. Press during bootup (requires a recovery partition).
2. The ASUS Recovery System window appears. Select Recover system to a partition.
3. Select a partition with min. 20GB space and click Next.
4. Follow the on-screen instructions to complete the recovery process.
5. Restart the computer after the system recovery is completed.
6. Set up your language, time zone, keyboard, computer name, and user name to enter the Windows® OS.

ASUS contact information

ASUSTeK COMPUTER INC.

Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259

Telephone [phone]

Fax [phone]

E-mail [e-mail]

Online support support.asus.com

ASUS COMPUTER INTERNATIONAL (America)

Address 800 Corporate Way, Fremont, CA 94539, USA

Telephone [phone]

Fax [phone]

Web site usa.asus.com

Technical Support

Telephone [phone]

Support fax [phone]

Online support support.asus.com

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkort Str. 21-23, D-40880 Ratingen, Germany

Fax [phone]

Web site www.asus.de

Online support support.asus.com
